1. Fun Teaching MongoDB
New Tricks
Robert J. Moore
President
Allanbank Consulting, Inc.
Robert.J.Moore@allanbank.com

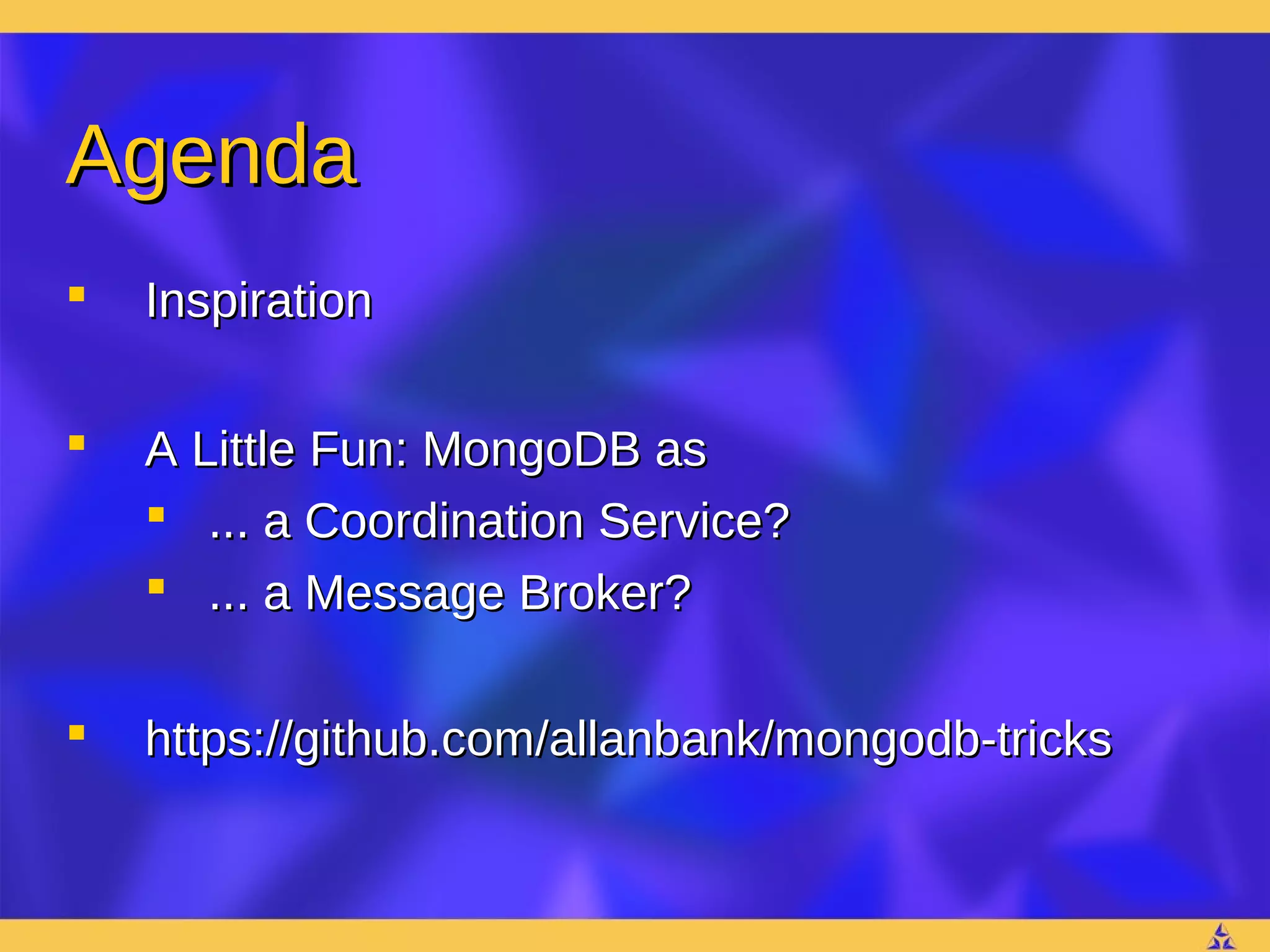

2. Agenda
 Inspiration
 A Little Fun: MongoDB as
 ... a Coordination Service?
 ... a Message Broker?
 https://github.com/allanbank/mongodb-tricks

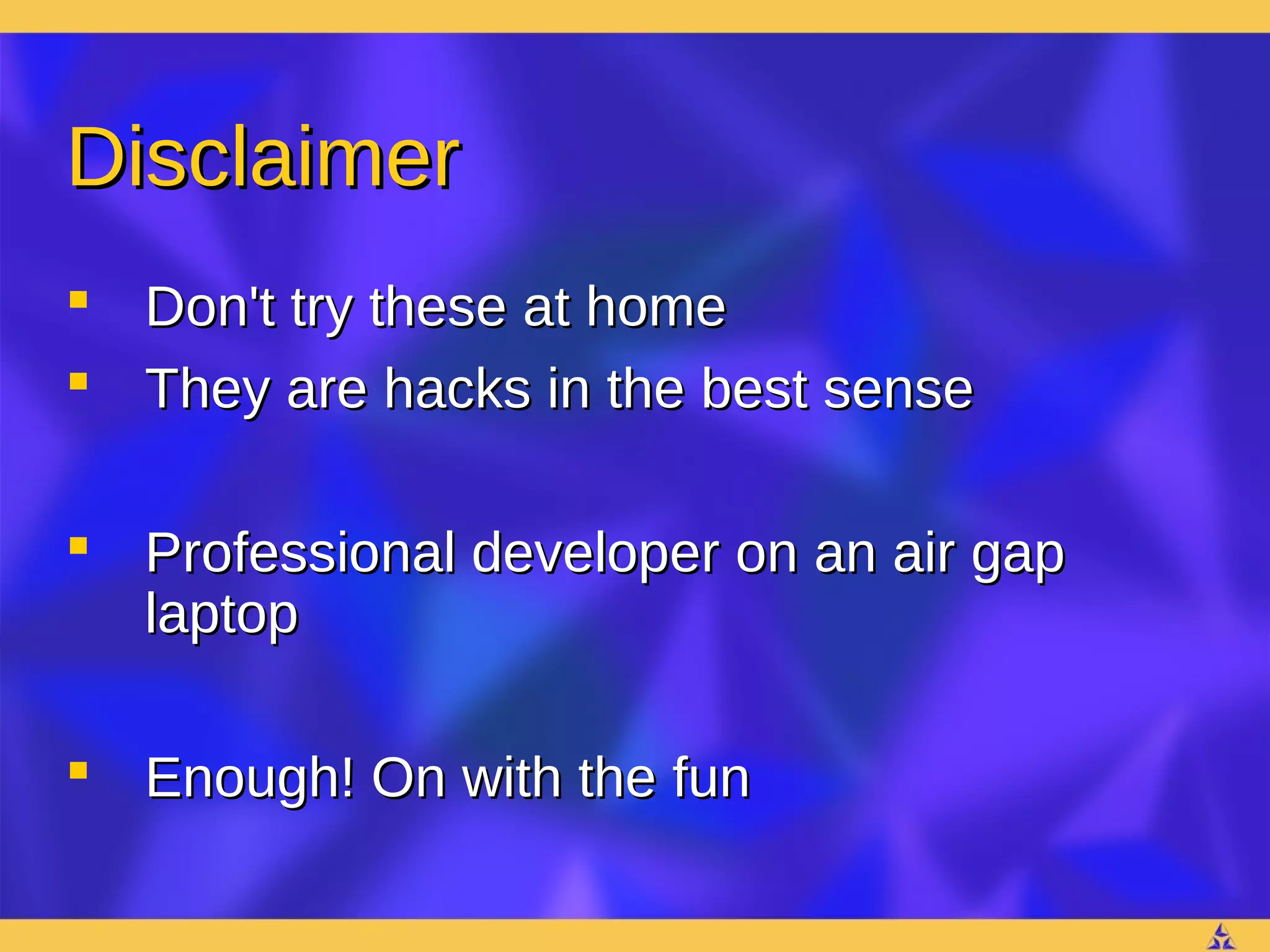

3. Disclaimer
 Don't try these at home
 They are hacks in the best sense
 Professional developer on an air gap
laptop
 Enough! On with the fun

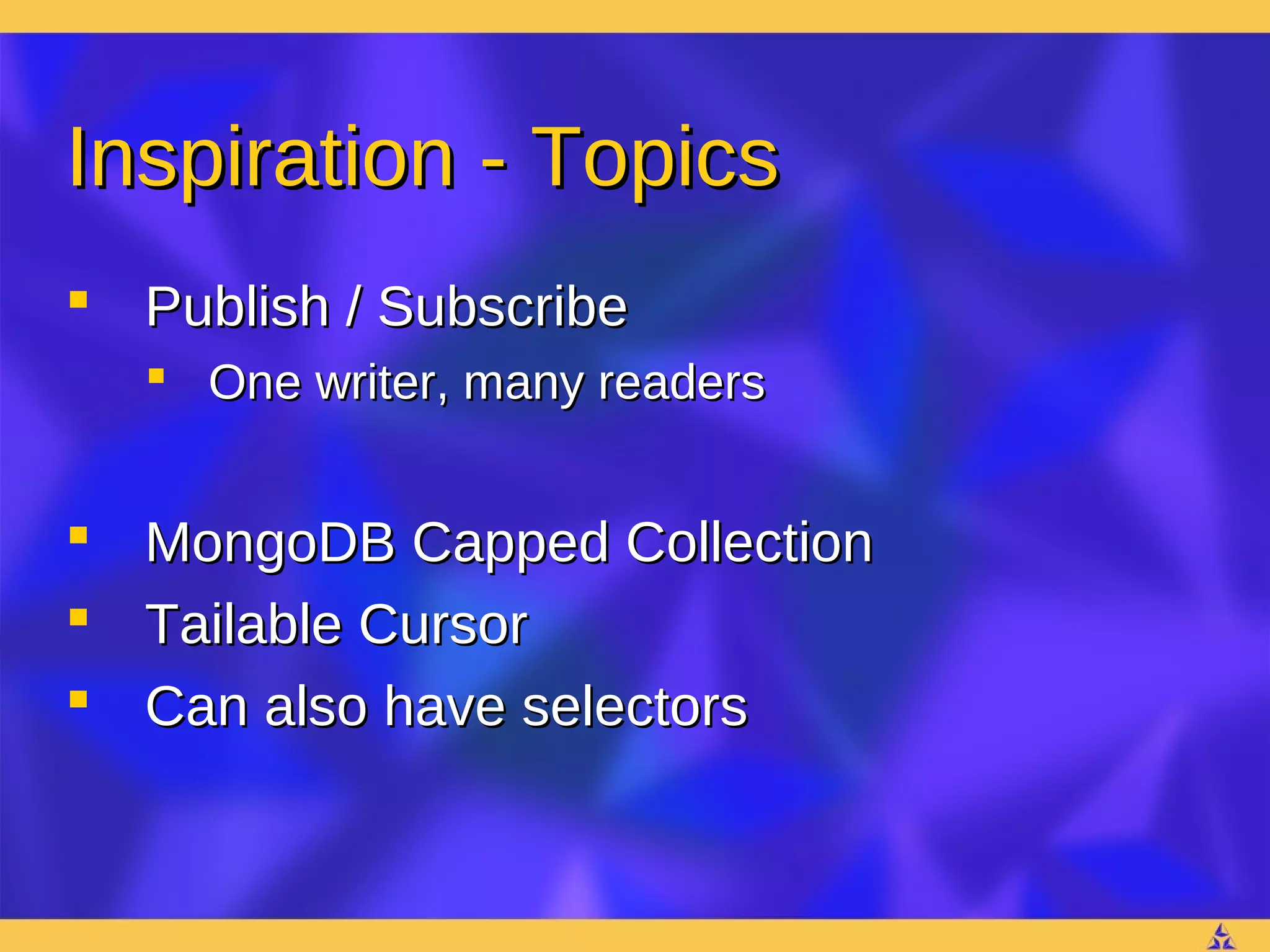

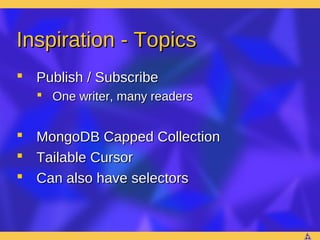

4. Inspiration - Topics
 Publish / Subscribe
 One writer, many readers
 MongoDB Capped Collection
 Tailable Cursor
 Can also have selectors

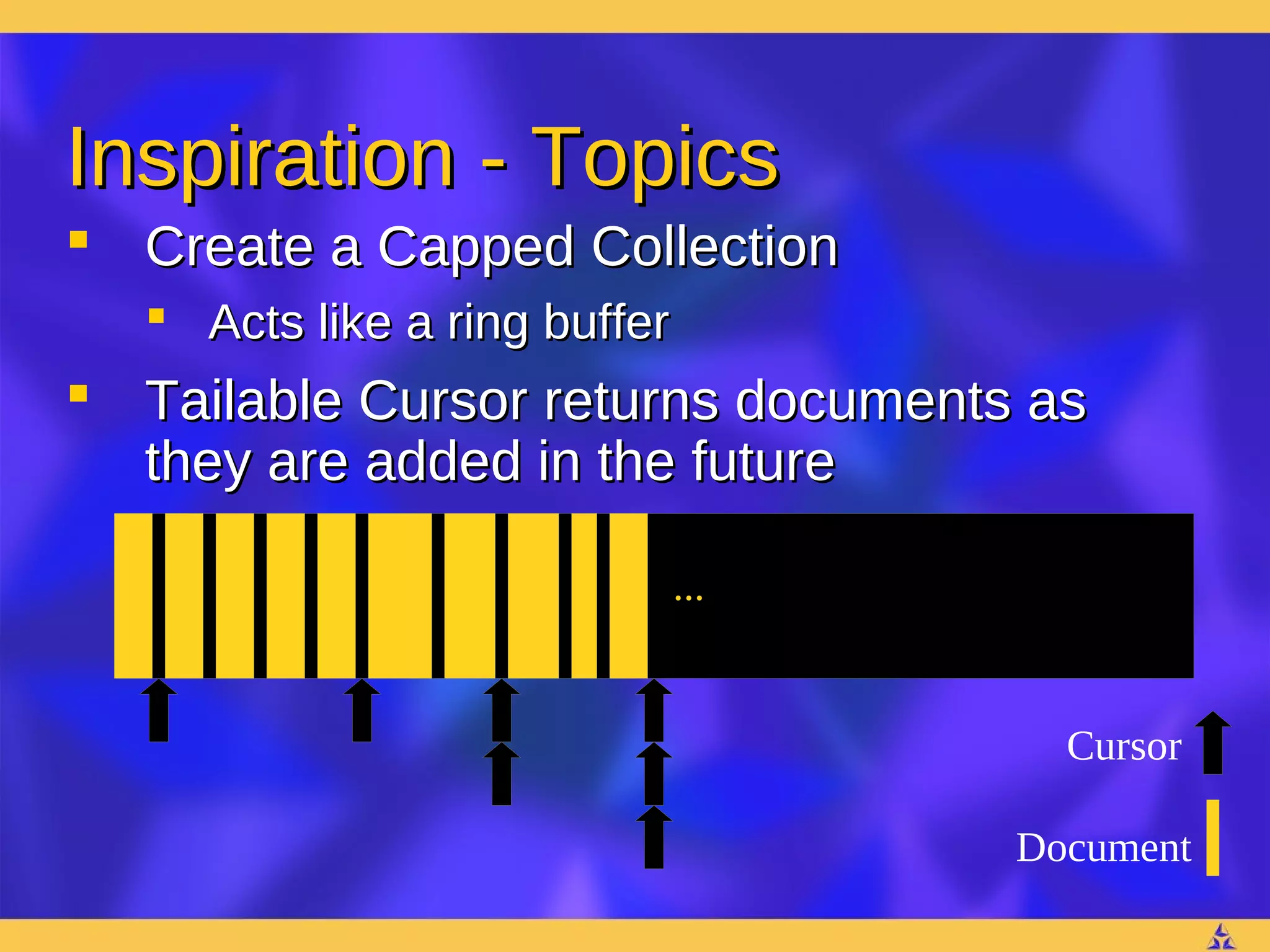

5. Inspiration - Topics
 Create a Capped Collection
 Acts like a ring buffer
 Tailable Cursor returns documents as
they are added in the future
...
Cursor
Document

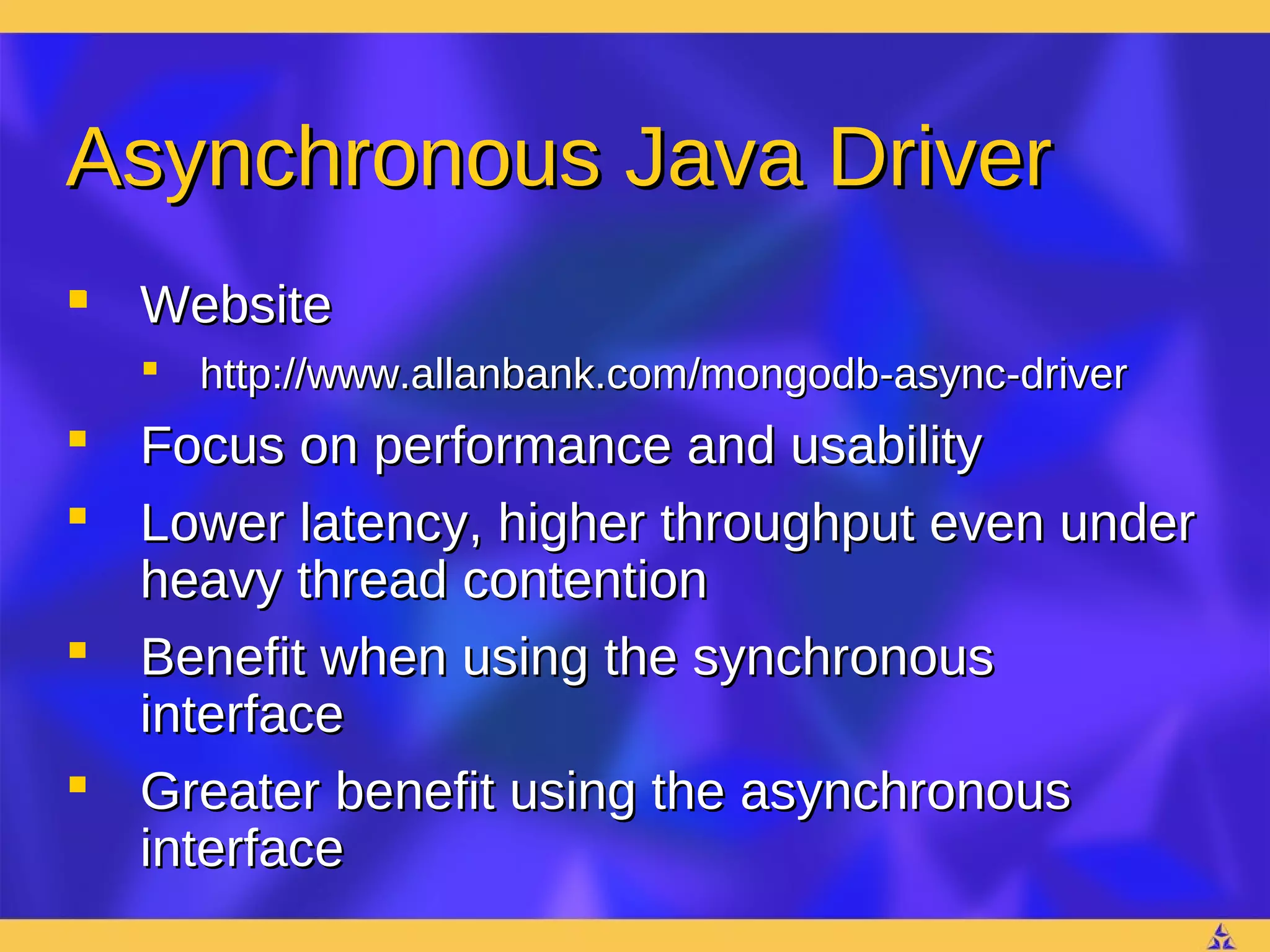

6. Asynchronous Java Driver
 Website
 http://www.allanbank.com/mongodb-async-driver
 Focus on performance and usability
 Lower latency, higher throughput even under
heavy thread contention
 Benefit when using the synchronous
interface
 Greater benefit using the asynchronous
interface

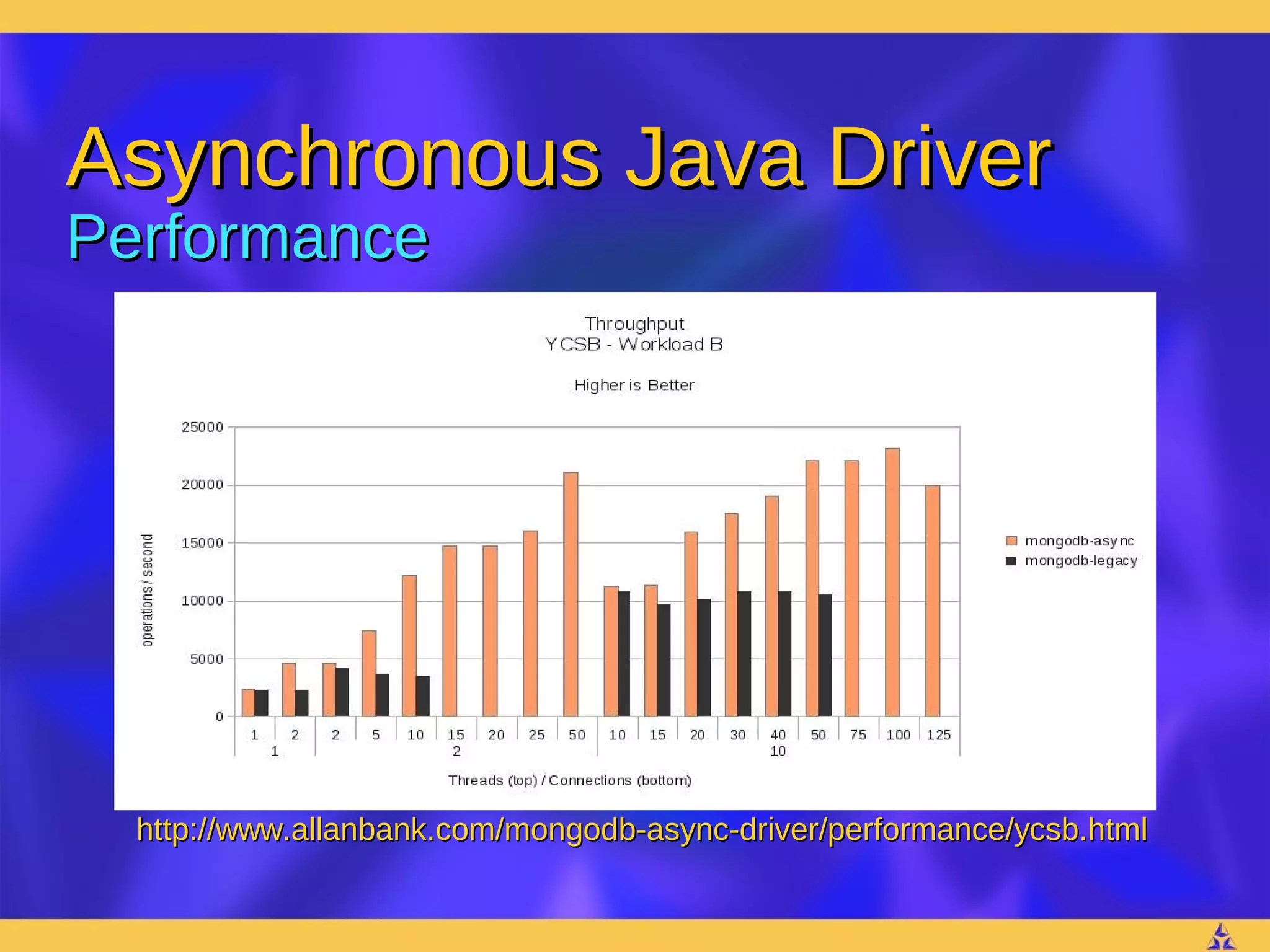

7. Asynchronous Java Driver
Performance
http://www.allanbank.com/mongodb-async-driver/performance/ycsb.html

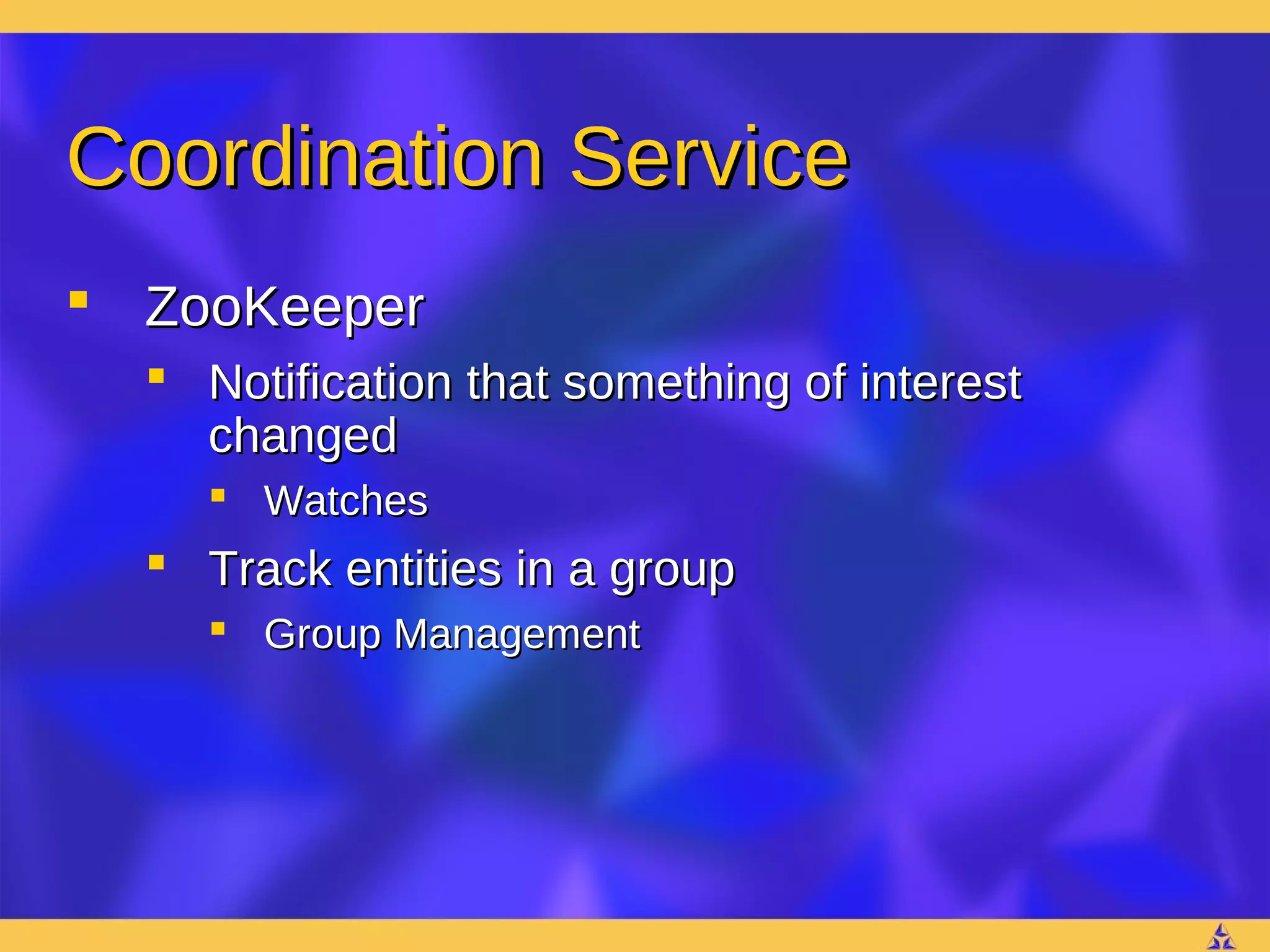

8. Coordination Service
 ZooKeeper
 Notification that something of interest
changed
 Watches
 Track entities in a group
 Group Management

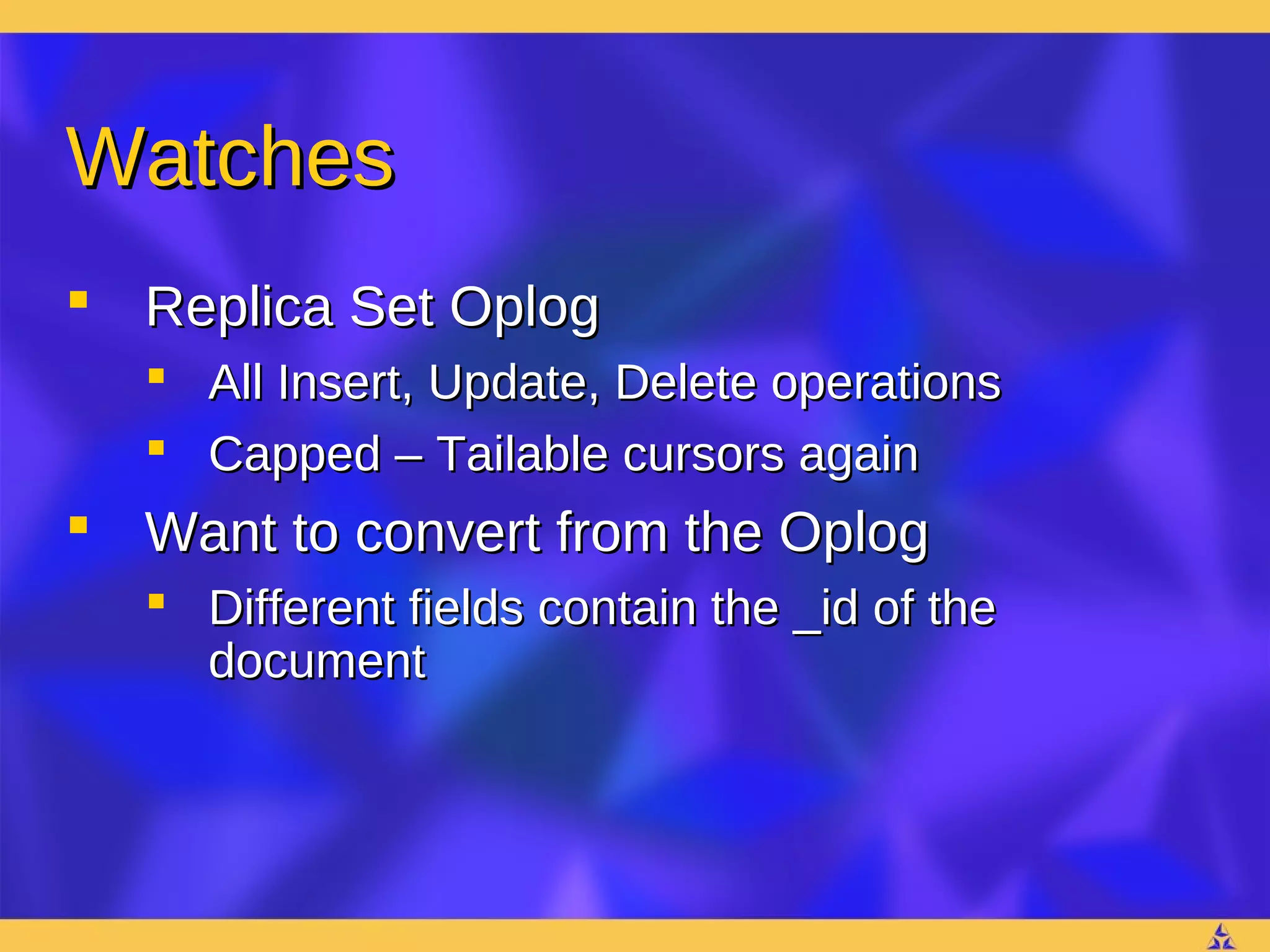

9. Watches
 Replica Set Oplog
 All Insert, Update, Delete operations
 Capped – Tailable cursors again
 Want to convert from the Oplog
 Different fields contain the _id of the
document

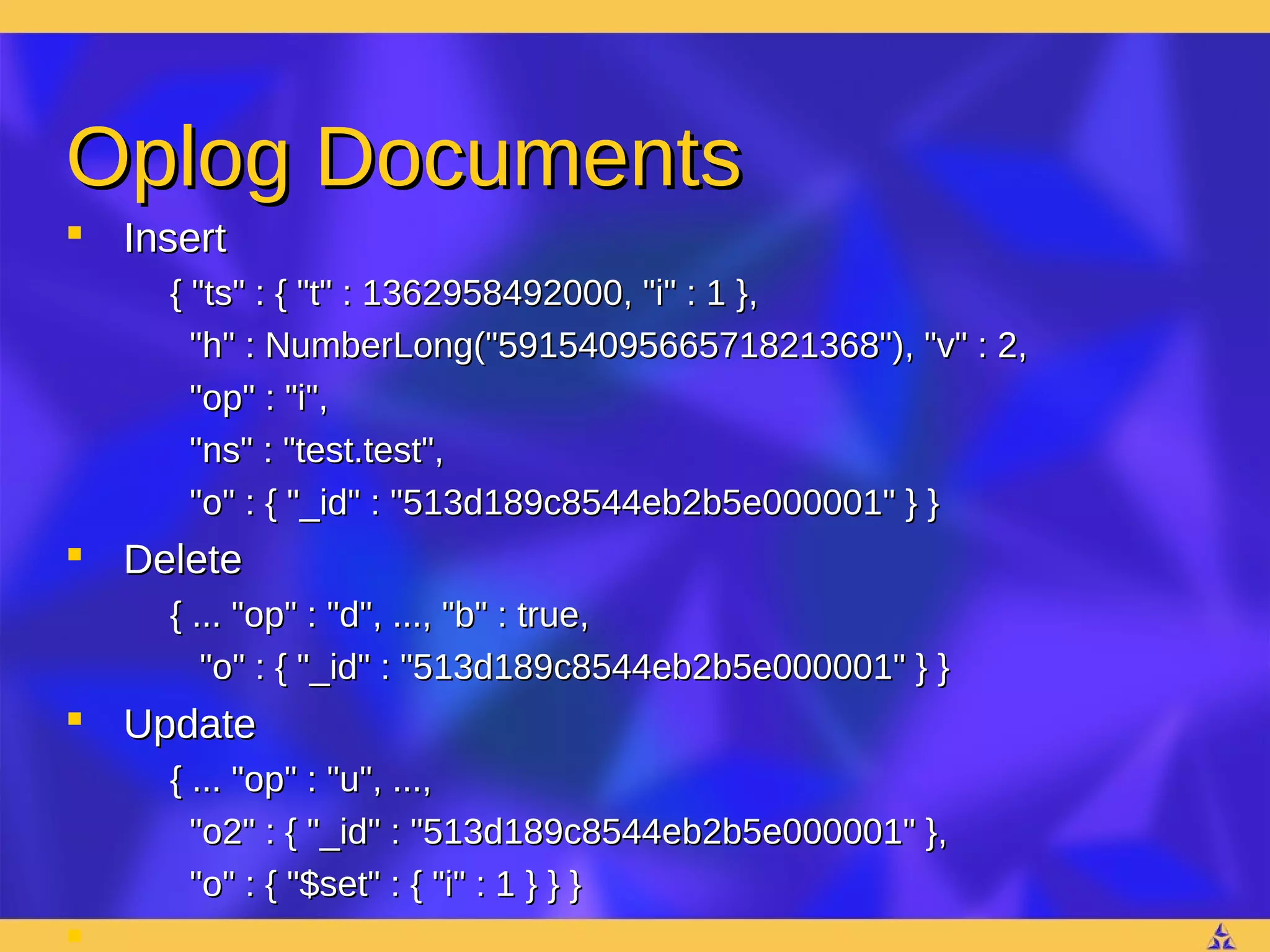

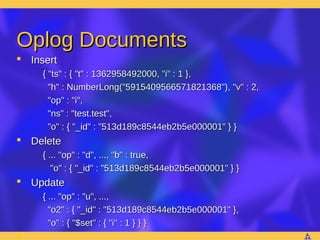

10. Oplog Documents
 Insert
{ "ts" : { "t" : 1362958492000, "i" : 1 },
"h" : NumberLong("5915409566571821368"), "v" : 2,
"op" : "i",
"ns" : "test.test",
"o" : { "_id" : "513d189c8544eb2b5e000001" } }
 Delete
{ ... "op" : "d", ..., "b" : true,
"o" : { "_id" : "513d189c8544eb2b5e000001" } }
 Update
{ ... "op" : "u", ...,
"o2" : { "_id" : "513d189c8544eb2b5e000001" },
"o" : { "$set" : { "i" : 1 } } }


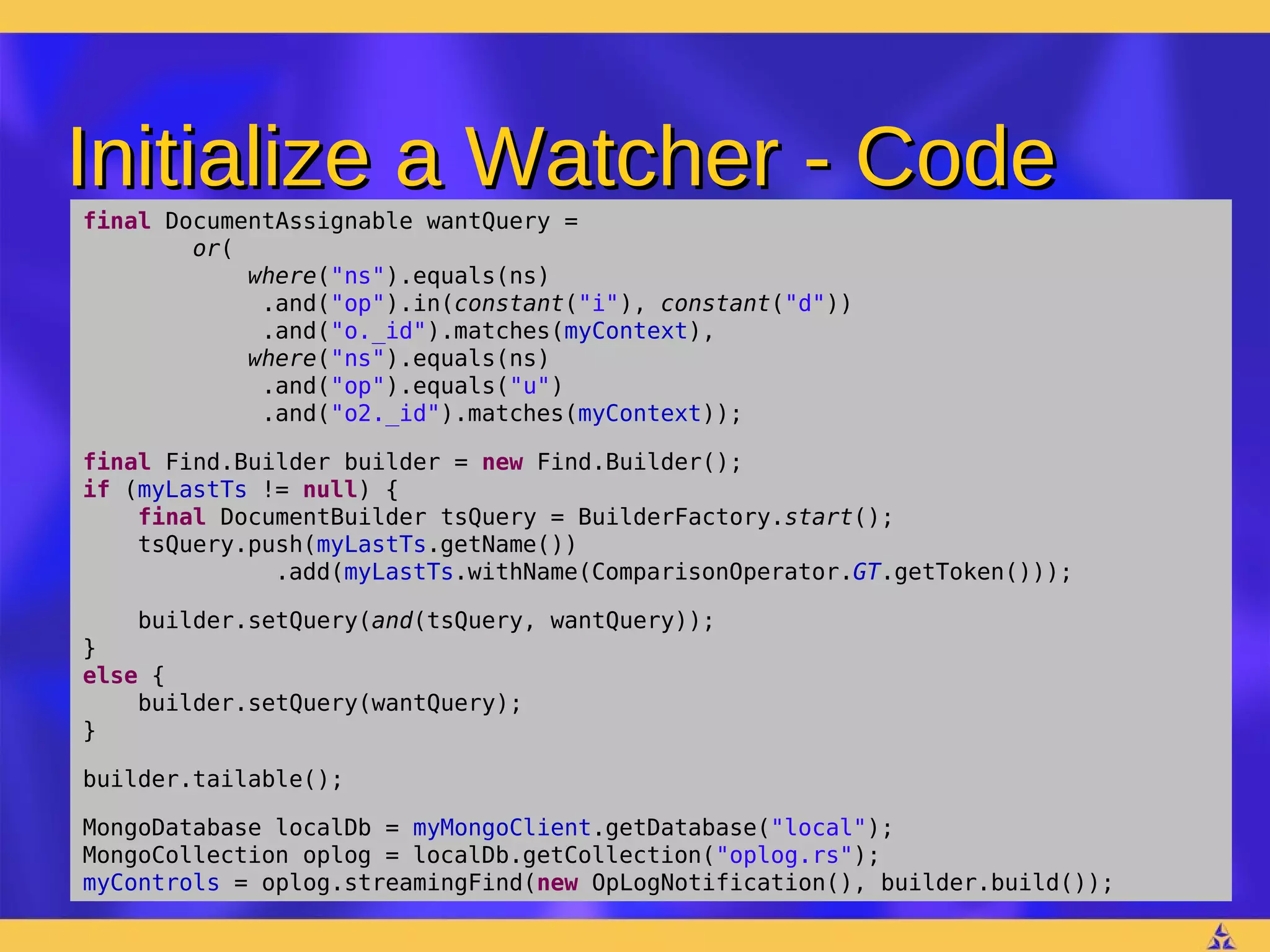

11. Initialize a Watcher - Code
final DocumentAssignable wantQuery =
or(
where("ns").equals(ns)
.and("op").in(constant("i"), constant("d"))
.and("o._id").matches(myContext),
where("ns").equals(ns)
.and("op").equals("u")
.and("o2._id").matches(myContext));
final Find.Builder builder = new Find.Builder();
if (myLastTs != null) {
final DocumentBuilder tsQuery = BuilderFactory.start();
tsQuery.push(myLastTs.getName())
.add(myLastTs.withName(ComparisonOperator.GT.getToken()));
builder.setQuery(and(tsQuery, wantQuery));
}
else {
builder.setQuery(wantQuery);
}
builder.tailable();
MongoDatabase localDb = myMongoClient.getDatabase("local");
MongoCollection oplog = localDb.getCollection("oplog.rs");
myControls = oplog.streamingFind(new OpLogNotification(), builder.build());

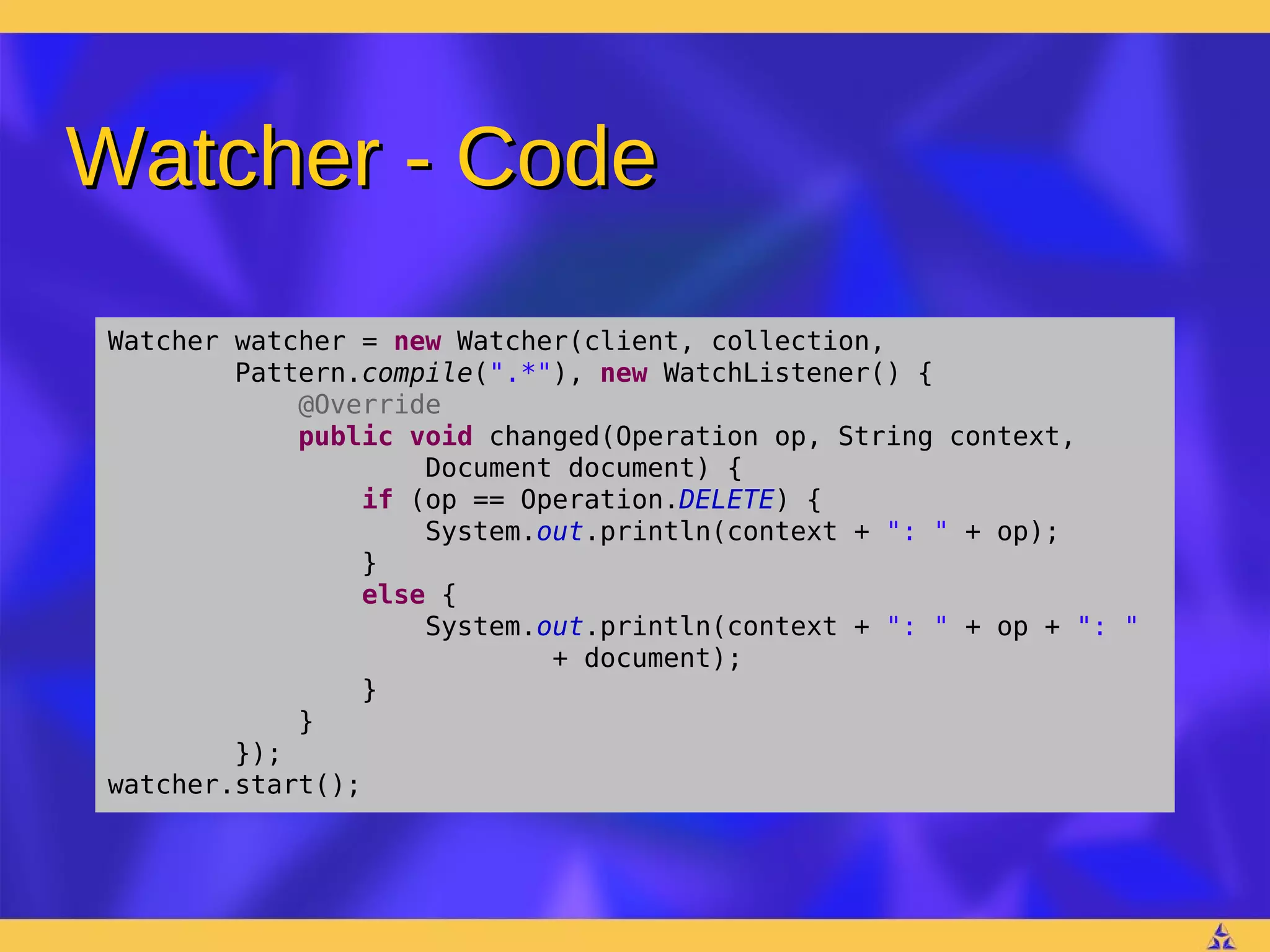

12. Watcher - Code
Watcher watcher = new Watcher(client, collection,
Pattern.compile(".*"), new WatchListener() {
@Override
public void changed(Operation op, String context,
Document document) {
if (op == Operation.DELETE) {
System.out.println(context + ": " + op);
}
else {
System.out.println(context + ": " + op + ": "
+ document);
}
}
});
watcher.start();

13. Watcher Demo

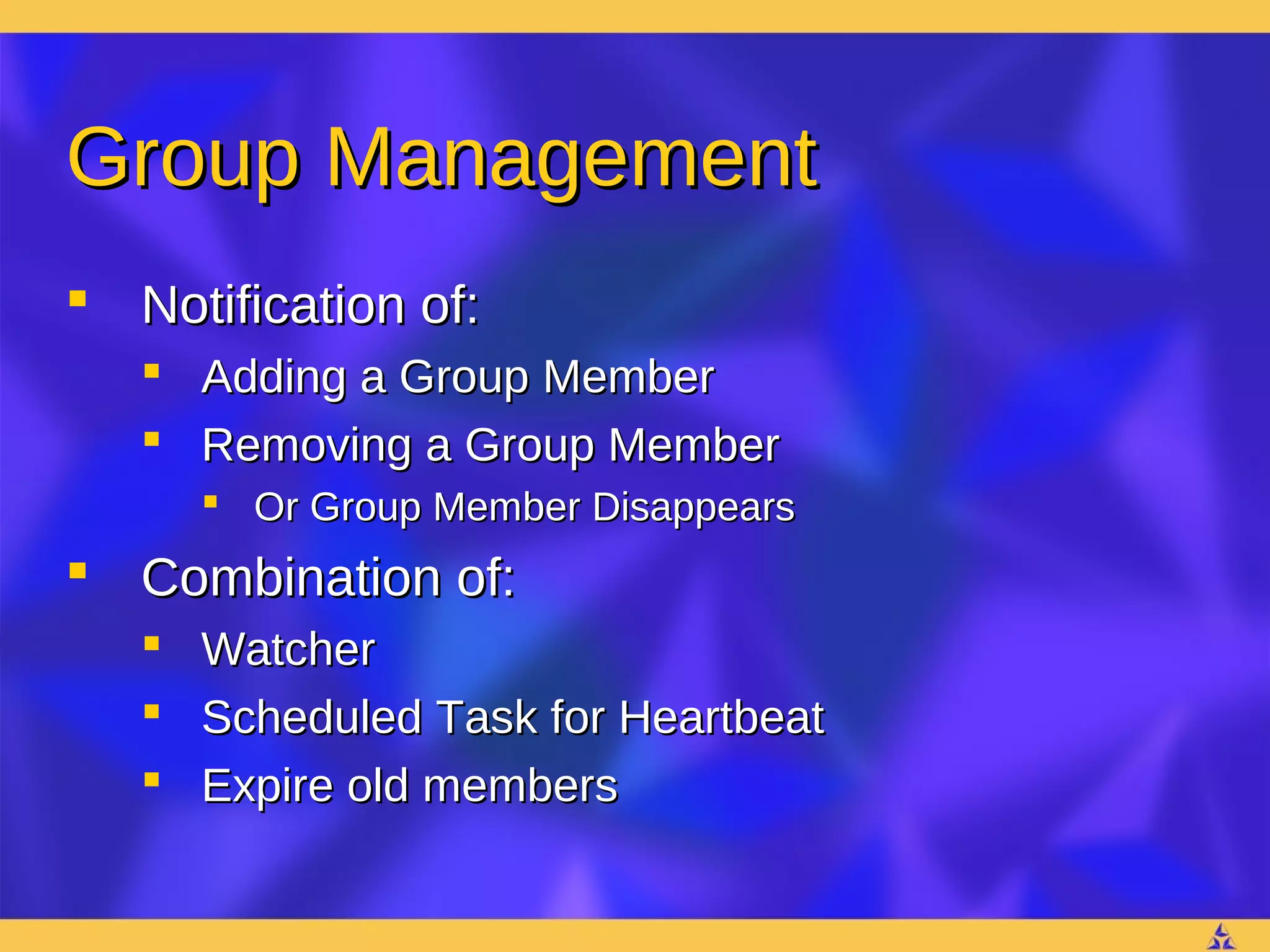

14. Group Management
 Notification of:
 Adding a Group Member
 Removing a Group Member
 Or Group Member Disappears
 Combination of:
 Watcher
 Scheduled Task for Heartbeat
 Expire old members

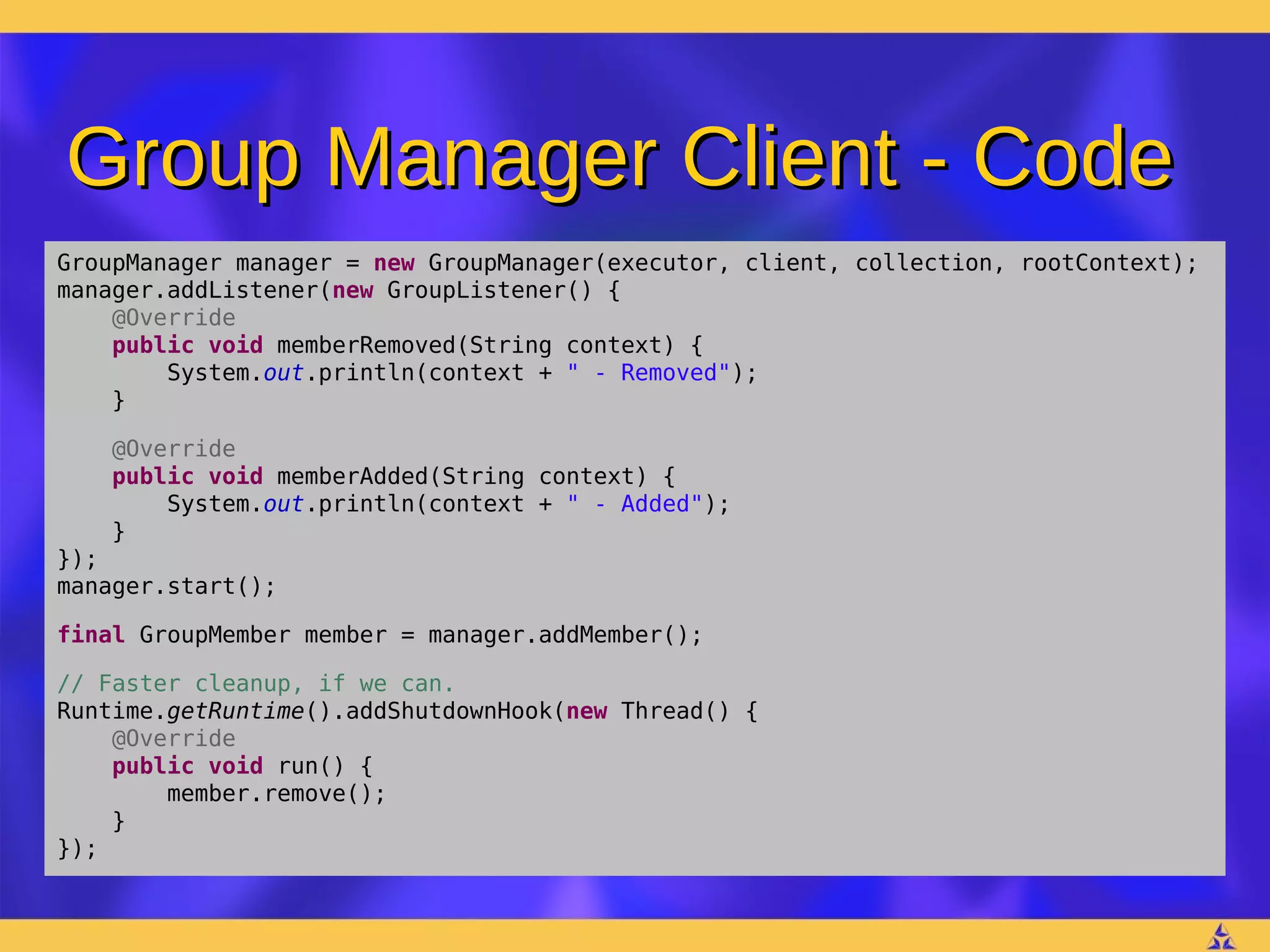

15. Group Manager Client - Code
GroupManager manager = new GroupManager(executor, client, collection, rootContext);
manager.addListener(new GroupListener() {
@Override
public void memberRemoved(String context) {
System.out.println(context + " - Removed");
}
@Override
public void memberAdded(String context) {
System.out.println(context + " - Added");
}
});
manager.start();
final GroupMember member = manager.addMember();
// Faster cleanup, if we can.
Runtime.getRuntime().addShutdownHook(new Thread() {
@Override
public void run() {
member.remove();
}
});

16. Group Demo

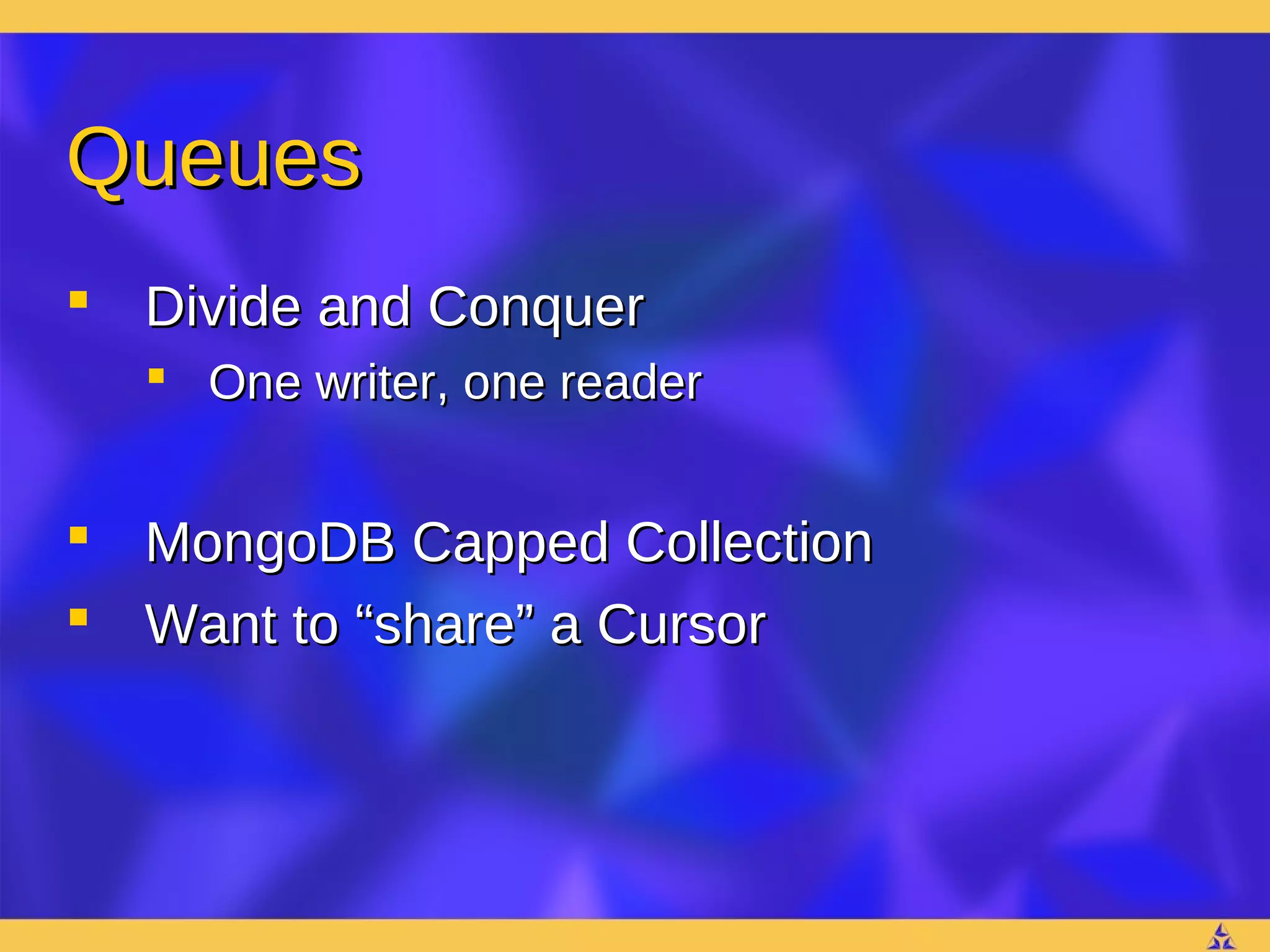

17. Queues
 Divide and Conquer
 One writer, one reader
 MongoDB Capped Collection
 Want to “share” a Cursor

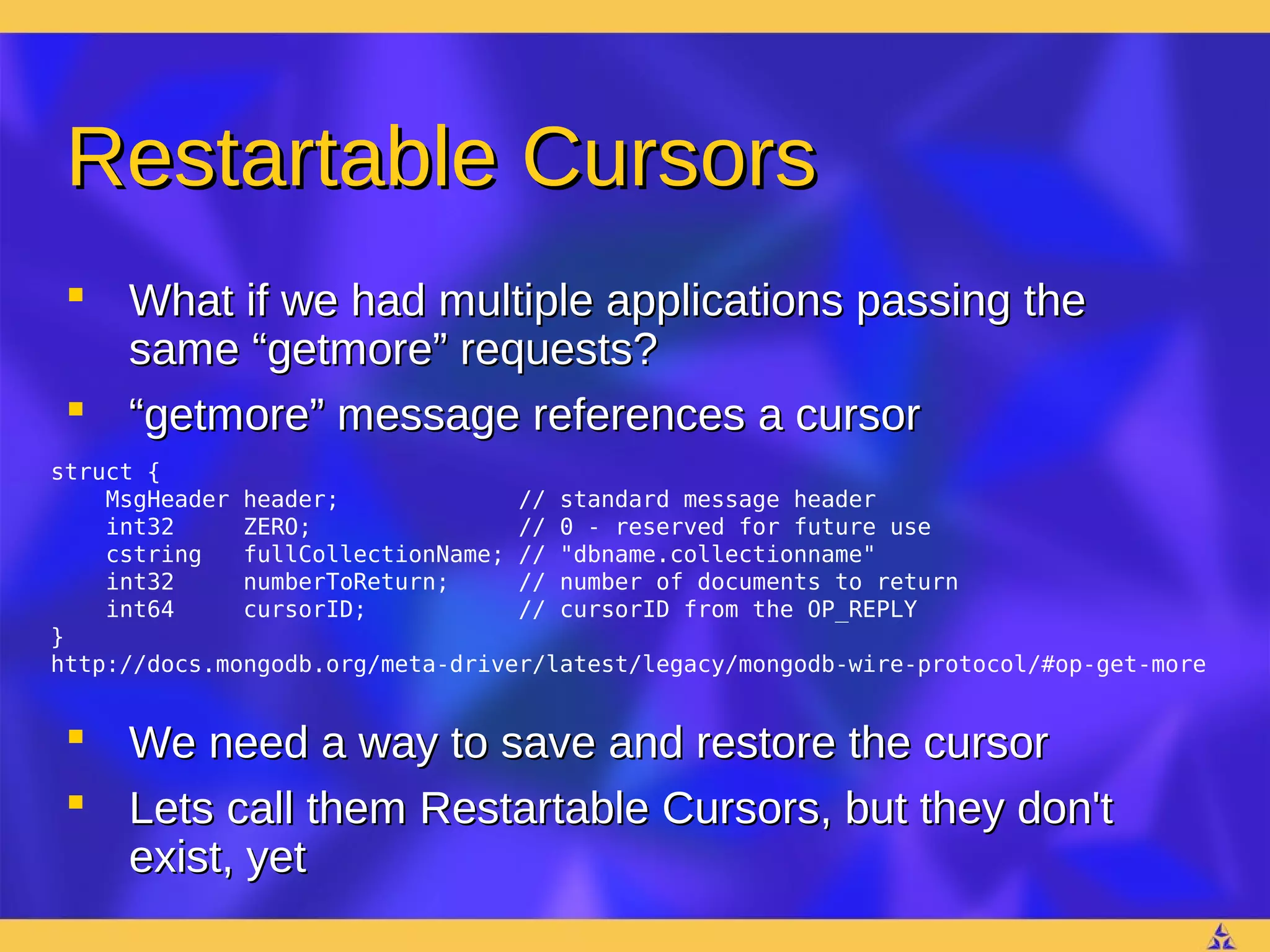

18. Restartable Cursors
 What if we had multiple applications passing the
same “getmore” requests?
 “getmore” message references a cursor
struct {
MsgHeader header; // standard message header
int32 ZERO; // 0 - reserved for future use
cstring fullCollectionName; // "dbname.collectionname"
int32 numberToReturn; // number of documents to return
int64 cursorID; // cursorID from the OP_REPLY
}
http://docs.mongodb.org/meta-driver/latest/legacy/mongodb-wire-protocol/#op-get-more
 We need a way to save and restore the cursor
 Lets call them Restartable Cursors, but they don't
exist, yet

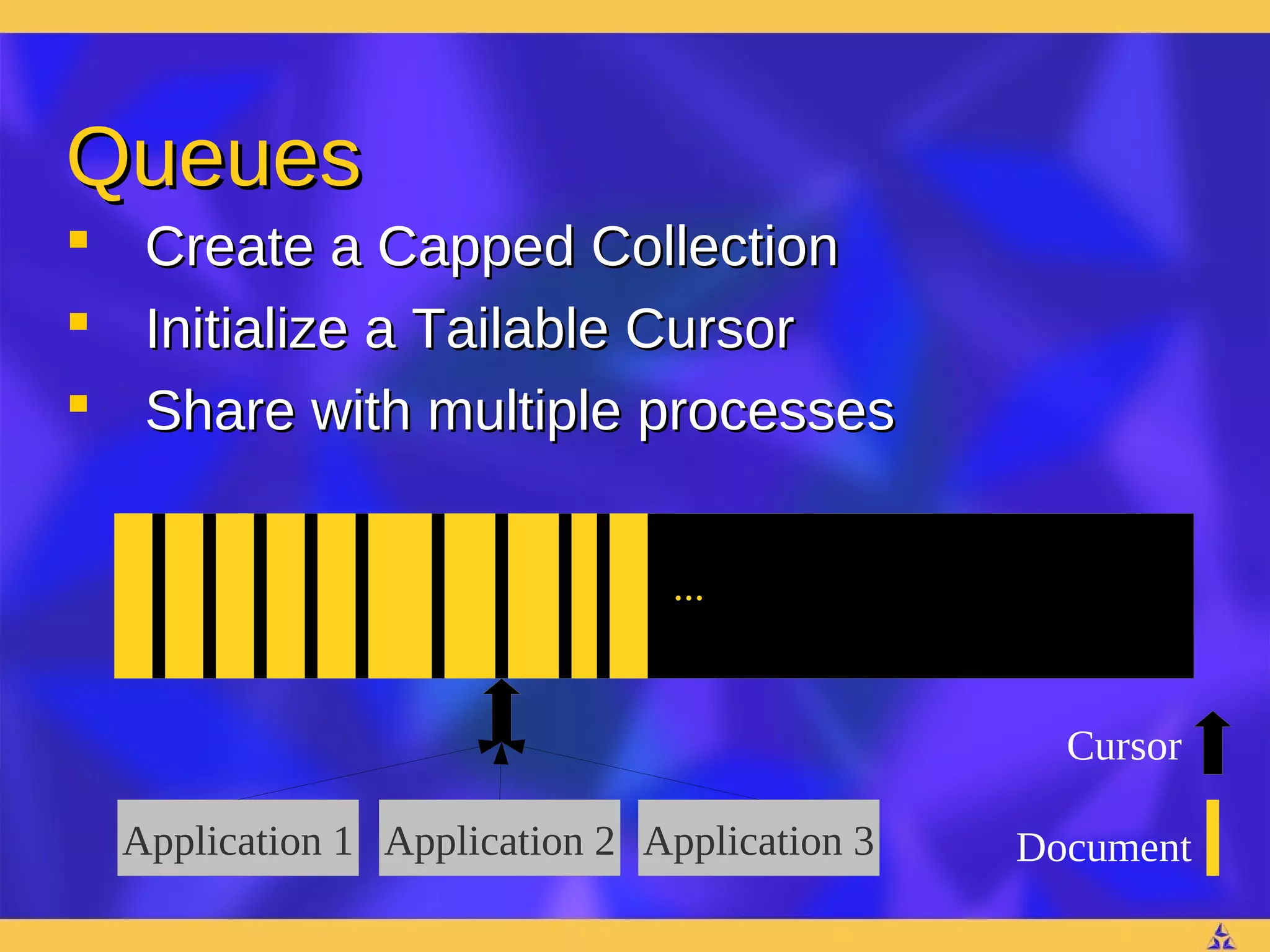

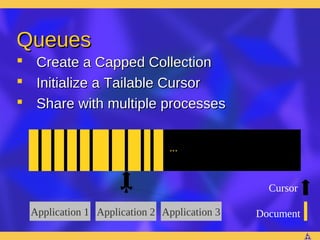

19. Queues
 Create a Capped Collection
 Initialize a Tailable Cursor
 Share with multiple processes
...
Cursor
Application 1 Application 2 Application 3 Document

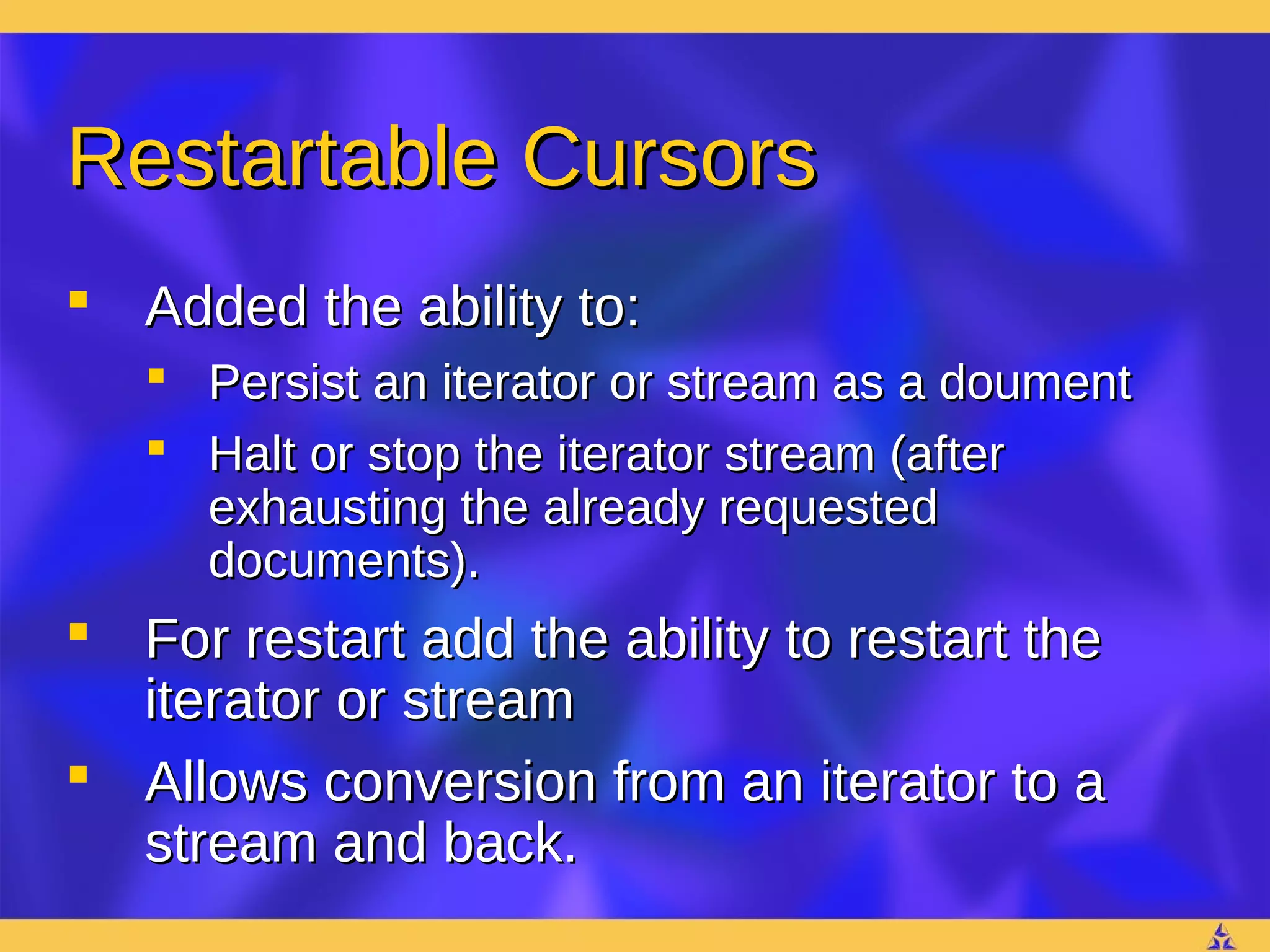

20. Restartable Cursors
 Added the ability to:
 Persist an iterator or stream as a doument
 Halt or stop the iterator stream (after
exhausting the already requested
documents).
 For restart add the ability to restart the
iterator or stream
 Allows conversion from an iterator to a
stream and back.

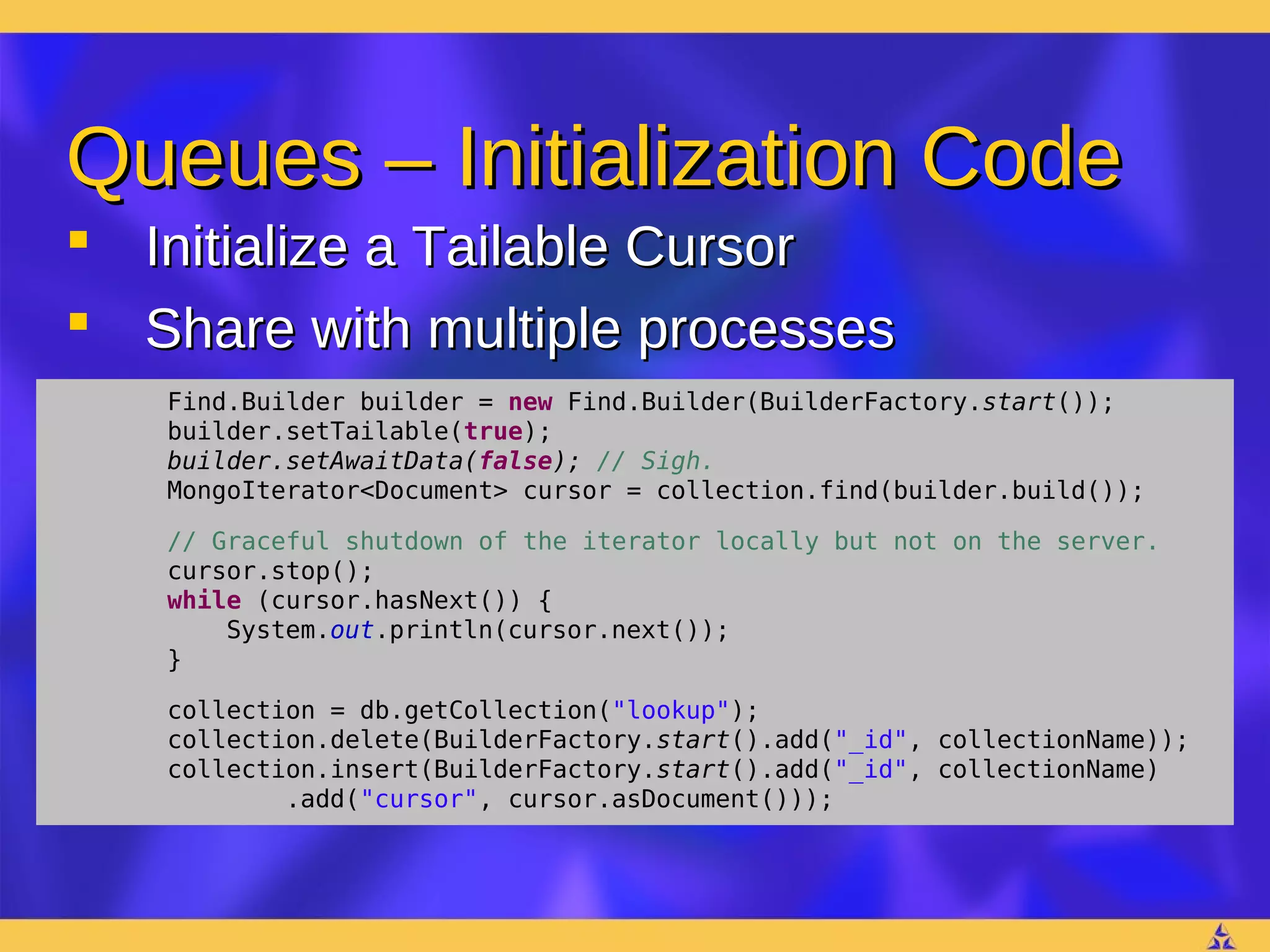

21. Queues – Initialization Code
 Initialize a Tailable Cursor
 Share with multiple processes
Find.Builder builder = new Find.Builder(BuilderFactory.start());
builder.setTailable(true);
builder.setAwaitData(false); // Sigh.
MongoIterator<Document> cursor = collection.find(builder.build());
// Graceful shutdown of the iterator locally but not on the server.
cursor.stop();
while (cursor.hasNext()) {
System.out.println(cursor.next());
}
collection = db.getCollection("lookup");
collection.delete(BuilderFactory.start().add("_id", collectionName));
collection.insert(BuilderFactory.start().add("_id", collectionName)
.add("cursor", cursor.asDocument()));

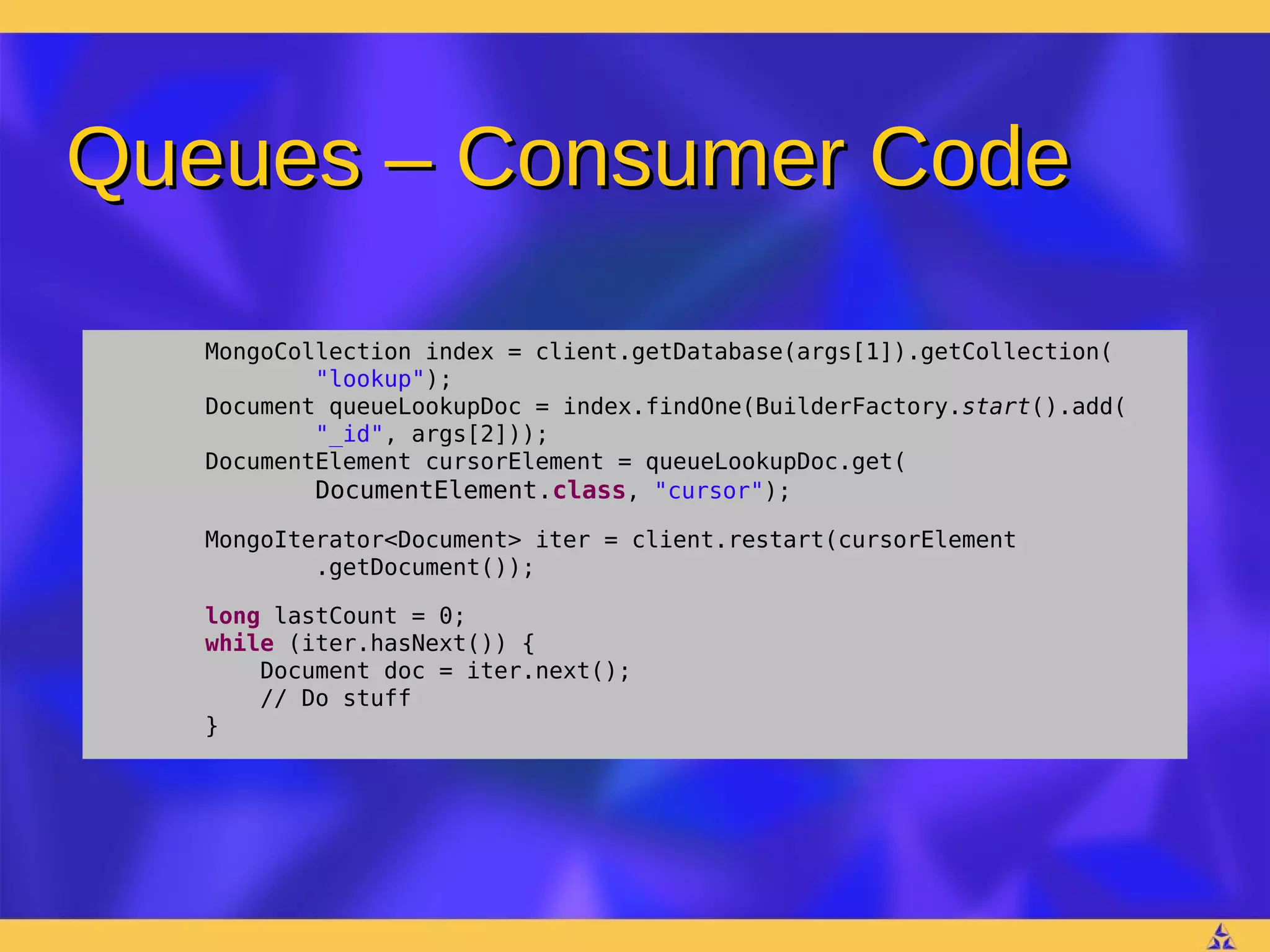

22. Queues – Consumer Code
MongoCollection index = client.getDatabase(args[1]).getCollection(
"lookup");
Document queueLookupDoc = index.findOne(BuilderFactory.start().add(
"_id", args[2]));
DocumentElement cursorElement = queueLookupDoc.get(
DocumentElement.class, "cursor");
MongoIterator<Document> iter = client.restart(cursorElement
.getDocument());
long lastCount = 0;
while (iter.hasNext()) {
Document doc = iter.next();
// Do stuff
}

23. Queues Demo

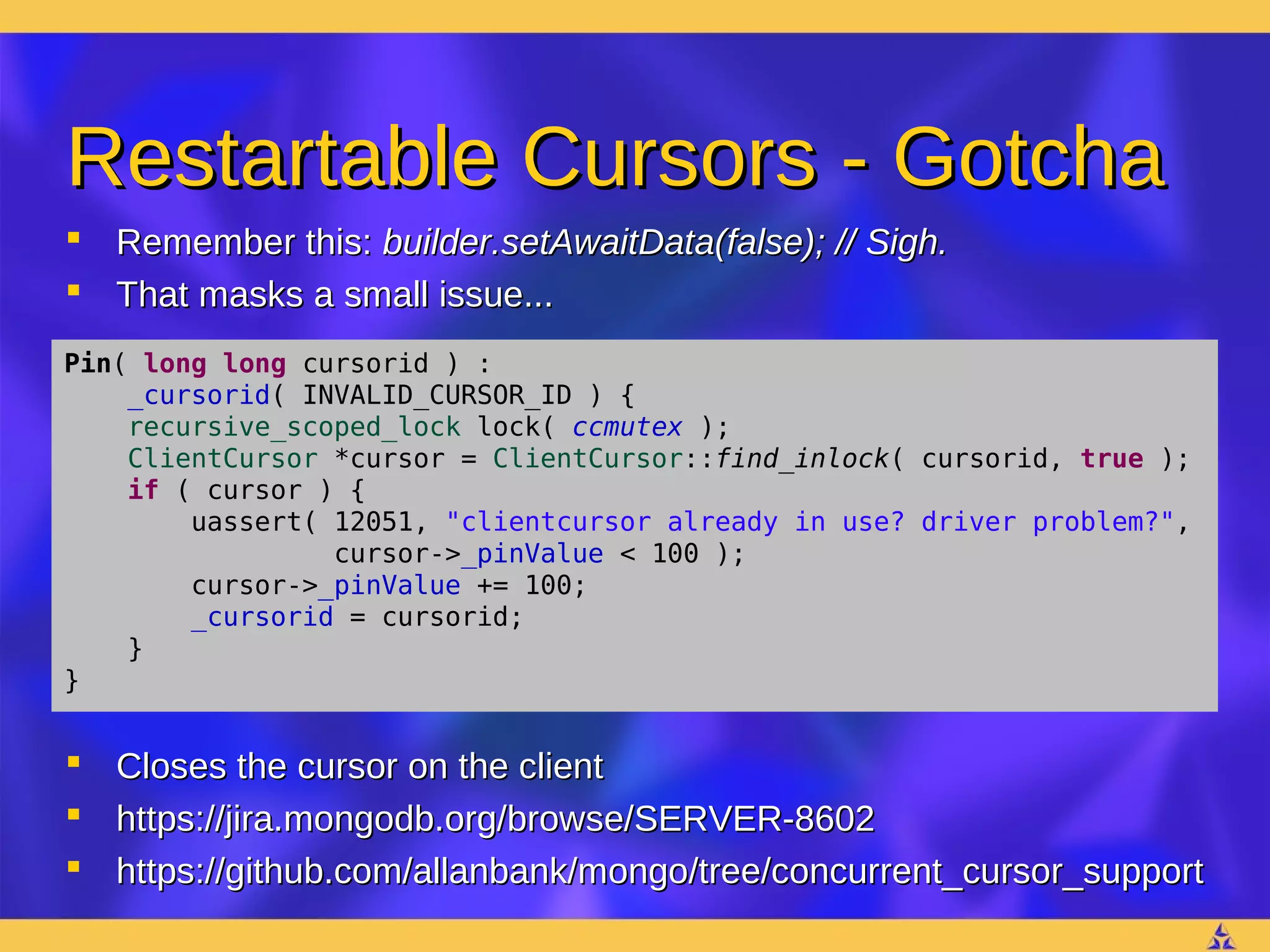

24. Restartable Cursors - Gotcha
 Remember this: builder.setAwaitData(false); // Sigh.
 That masks a small issue...
Pin( long long cursorid ) :
_cursorid( INVALID_CURSOR_ID ) {
recursive_scoped_lock lock( ccmutex );
ClientCursor *cursor = ClientCursor::find_inlock( cursorid, true );
if ( cursor ) {
uassert( 12051, "clientcursor already in use? driver problem?",
cursor->_pinValue < 100 );
cursor->_pinValue += 100;
_cursorid = cursorid;
}
}
 Closes the cursor on the client
 https://jira.mongodb.org/browse/SERVER-8602
 https://github.com/allanbank/mongo/tree/concurrent_cursor_support

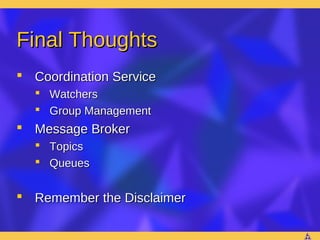

25. Final Thoughts
 Coordination Service
 Watchers
 Group Management
 Message Broker
 Topics
 Queues
 Remember the Disclaimer

26. Questions?
 Contact Information:
Robert.J.Moore@allanbank.com
