1. Hands on Web
Performance Workshop
Andy Davies
@andydavies
Tobias Baldauf
@tbaldauf
#VelocityConf London 2013

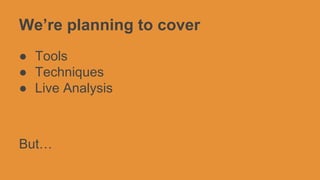

2. We’re planning to cover
● Tools
● Techniques
● Live Analysis
But…

3. …this session is about
YOU
so feel free to jump in with questions

4. What sites should we test?
http://man.gl/londonworkshop

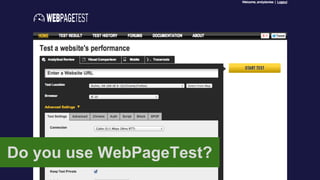

5. Do you use WebPageTest?

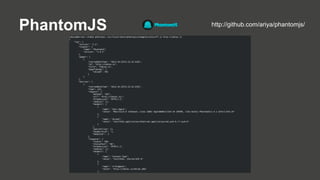

6. PhantomJS
http://github.com/ariya/phantomjs/

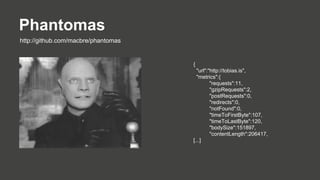

7. Phantomas
http://github.com/macbre/phantomas
{
"url":"http://tobias.is",
"metrics":{
"requests":11,
"gzipRequests":2,
"postRequests":0,
"redirects":0,
"notFound":0,
"timeToFirstByte":107,
"timeToLastByte":120,
"bodySize":151897,
"contentLength":206417,
[...]

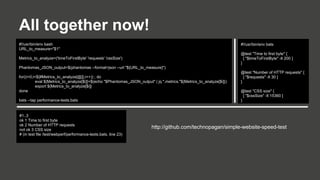

8. All together now!
#!/usr/bin/env bash
URL_to_measure="$1"
#!/usr/bin/env bats
@test "Time to first byte" {
[ "$timeToFirstByte" -lt 200 ]
}
Metrics_to_analyze=('timeToFirstByte' 'requests' 'cssSize')
Phantomas_JSON_output=$(phantomas --format=json --url "${URL_to_measure}")
for((i=0;i<${#Metrics_to_analyze[@]};i++)) ; do
eval ${Metrics_to_analyze[$i]}=$(echo "$Phantomas_JSON_output" | jq ".metrics."${Metrics_to_analyze[$i]})
export ${Metrics_to_analyze[$i]}
done
bats --tap performance-tests.bats
#1..3
ok 1 Time to first byte
ok 2 Number of HTTP requests
not ok 3 CSS size
# (in test file /test/webperf/performance-tests.bats, line 23)
@test "Number of HTTP requests" {
[ "$requests" -lt 30 ]
}
@test "CSS size" {
[ "$cssSize" -lt 15360 ]
}
http://github.com/technopagan/simple-website-speed-test

9. WebPagetest API
http://github.com/marcelduran/webpagetest-api

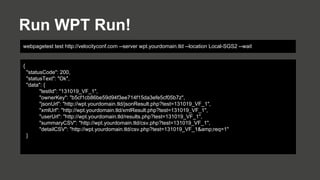

10. Run WPT Run!
webpagetest test http://velocityconf.com --server wpt.yourdomain.tld --location Local-SGS2 --wait
{
"statusCode": 200,
"statusText": "Ok",
"data": {
"testId": "131019_VF_1",
"ownerKey": "b5cf1cb86be59d94f3ee714f15da3efe5cf05b7z",
"jsonUrl": "http://wpt.yourdomain.tld/jsonResult.php?test=131019_VF_1",
"xmlUrl": "http://wpt.yourdomain.tld/xmlResult.php?test=131019_VF_1",
"userUrl": "http://wpt.yourdomain.tld/results.php?test=131019_VF_1",
"summaryCSV": "http://wpt.yourdomain.tld/csv.php?test=131019_VF_1",
"detailCSV": "http://wpt.yourdomain.tld/csv.php?test=131019_VF_1&amp;req=1"
}

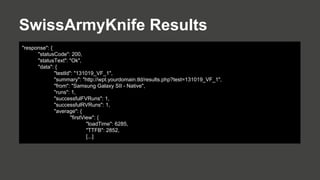

11. SwissArmyKnife Results
"response": {
"statusCode": 200,
"statusText": "Ok",
"data": {
"testId": "131019_VF_1",
"summary": "http://wpt.yourdomain.tld/results.php?test=131019_VF_1",
"from": "Samsung Galaxy SII - Native",
"runs": 1,
"successfulFVRuns": 1,
"successfulRVRuns": 1,
"average": {
"firstView": {
"loadTime": 6285,
"TTFB": 2852,
[...]

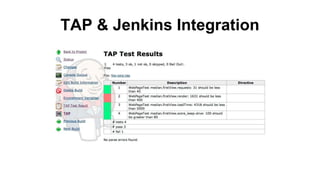

12. TAP & Jenkins Integration

13. What if we want
to test more
than one page?

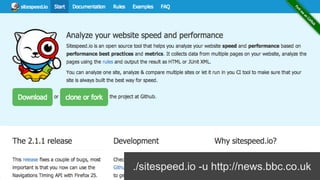

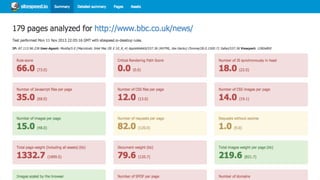

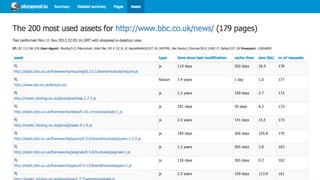

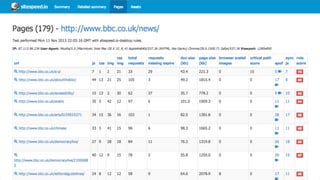

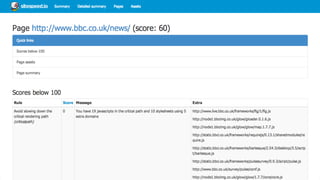

14. ./sitespeed.io -u http://news.bbc.co.uk

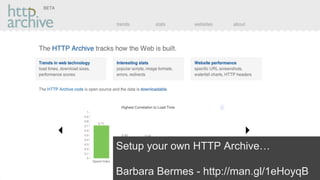

20. Setup your own HTTP Archive…
Barbara Bermes - http://man.gl/1eHoyqB

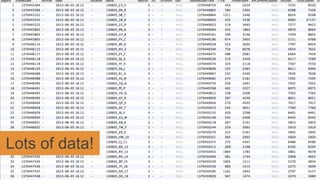

21. Lots of data!

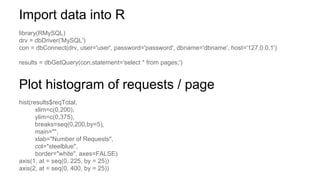

22. Import data into R
library(RMySQL)
drv = dbDriver('MySQL')
con = dbConnect(drv, user='user', password='password', dbname='dbname', host='127.0.0.1')
results = dbGetQuery(con,statement='select * from pages;')

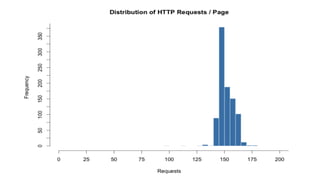

Plot histogram of requests / page
hist(results$reqTotal,
xlim=c(0,200),
ylim=c(0,375),
breaks=seq(0,200,by=5),
main="",
xlab="Number of Requests",
col="steelblue",
border="white", axes=FALSE)
axis(1, at = seq(0, 225, by = 25))
axis(2, at = seq(0, 400, by = 25))

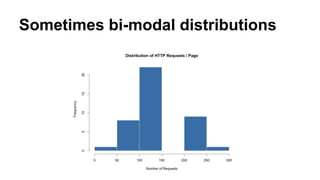

24. Sometimes bi-modal distributions

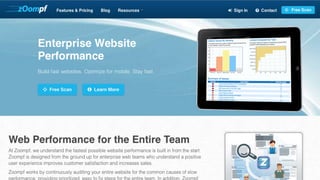

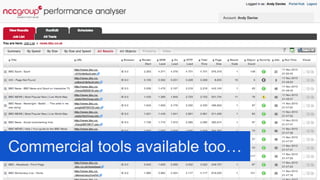

28. Commercial tools available too…

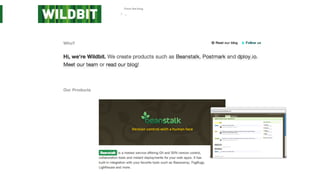

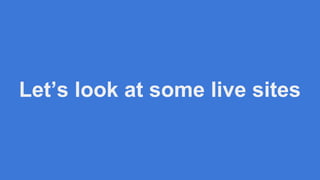

30. Let’s look at some live sites

31. Performance isn’t just about load time
http://www.flickr.com/photos/jaxport/8554780980

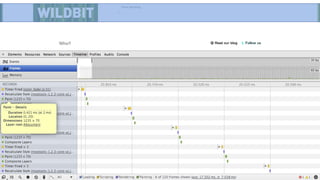

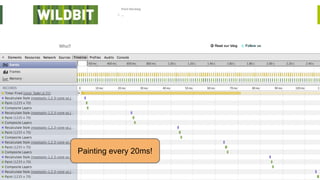

33. Painting every 20ms!

36. Logo is actually made of four
images that fade from one to
another.
CPU load varies between 7 - 20%
Has detrimental impact on mobile
battery life

37. A Tale of CSS Checkbox Hacks
<input type="checkbox" id="toggle" />
<label for="toggle" class="toggle" onclick></label>
<ul class="menu">
<li><a href="#">Sictransit</a></li>
<li><a href="#">Gloriamundi</a></li>
</ul>
#toggle:checked ~ .menu {
display: block;
}
http://css-tricks.com/the-checkbox-hack/
http://thenittygritty.co/toggle-navigation-with-purecss
body {
-webkit-animation: bugfix infinite 1s; /* here be dragons */
}
@-webkit-keyframes bugfix {
from {
white-space: default;
}
to {
white-space: normal;
}
}
http://bugs.webkit.org/show_bug.cgi?id=45168

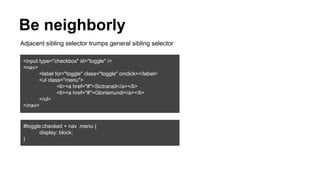

39. Be neighborly
Adjacent sibling selector trumps general sibling selector
<input type="checkbox" id="toggle" />
<nav>
<label for="toggle" class="toggle" onclick></label>
<ul class="menu">
<li><a href="#">Sictransit</a></li>
<li><a href="#">Gloriamundi</a></li>
</ul>
</nav>
#toggle:checked + nav .menu {
display: block;
}

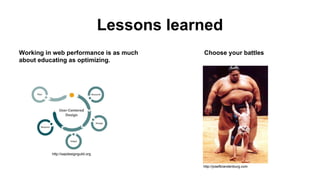

40. Lessons learned
Working in web performance is as much
about educating as optimizing.
Choose your battles
http://sapdesignguild.org
http://josefbrandenburg.com

41. Thank You (we’re around all week)
Andy:
@andydavies
hello@andydavies.me
Tobias:
@tbaldauf
kontakt@tobias-baldauf.de
Office Hours: 12:30 Thursday
