Speed Matters…
So why is your site so slow?
@AndyDavies
ReDevelop 2015, August 2015
https://www.flickr.com/photos/dullhunk/3930915541
But I’m frustrated…
http://www.flickr.com/photos/sybrenstuvel/2468506922
The Web is Too Slow
http://www.flickr.com/photos/the_justified_sinner/3507390621
(it’s just) Too many sites are too slow
http://www.flickr.com/photos/the_justified_sinner/3507390621
and it’s getting worse!
Only 12% of the top 100 (US) retail sites rendered
feature content in less than 3 seconds. !
!
Year-on-year the median page has slowed down
by 23%
Tammy Everts - Radware State of the Union Fall 2014
“We’re not being deliberate about performance”!
Tim Kadlec
https://www.flickr.com/photos/lukew/7382528728
But only if we build it that way…
http://3.bp.blogspot.com/-0RqujOyE1ro/Up9HF7bPxbI/AAAAAAAAAbM/Ijudm6uq-dg/s1600/This+is+for+Everyone.jpg

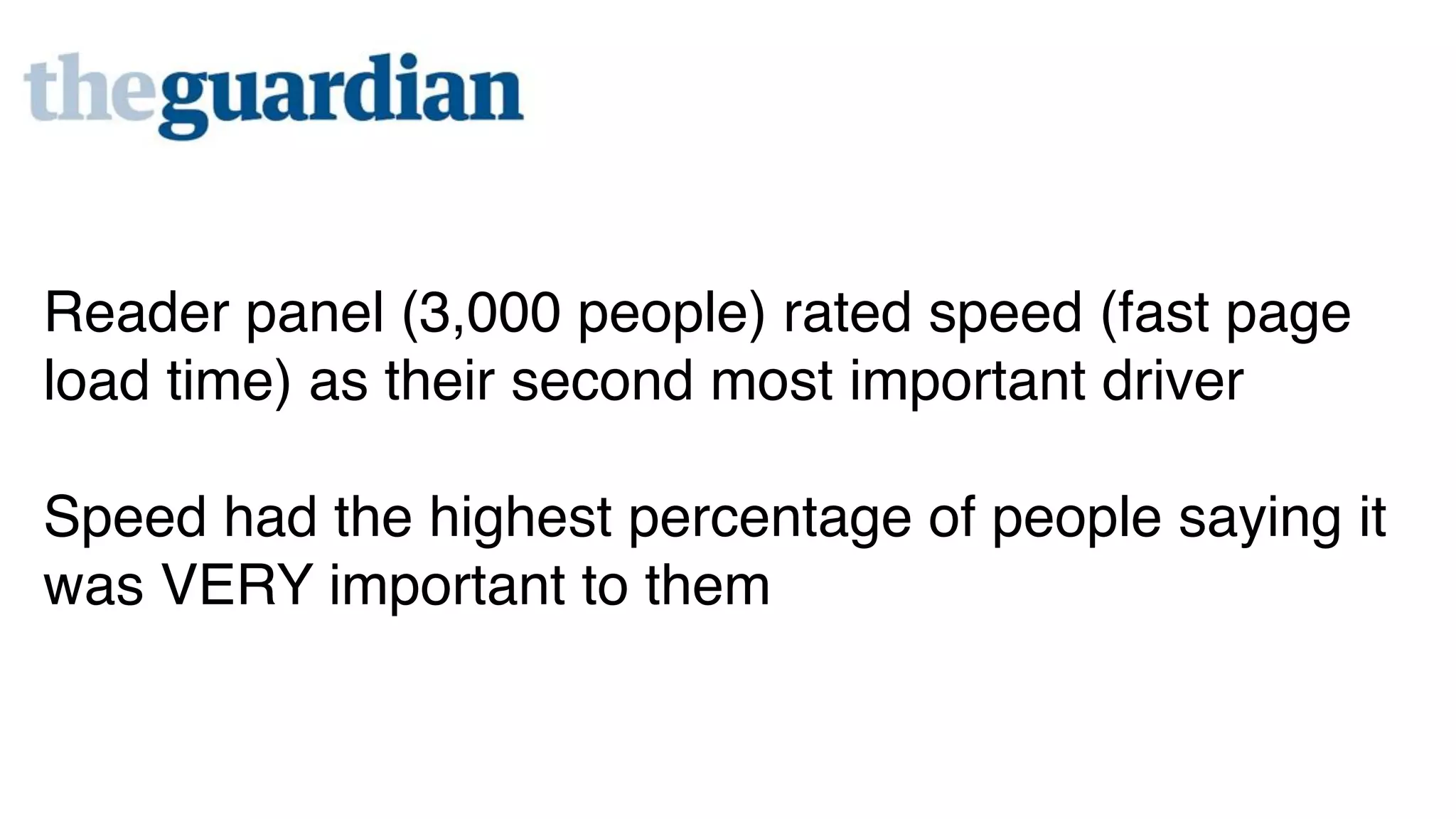

Reader panel (3,000 people) rated speed (fast page
load time) as their second most important driver!
!
Speed had the highest percentage of people saying it
was VERY important to them

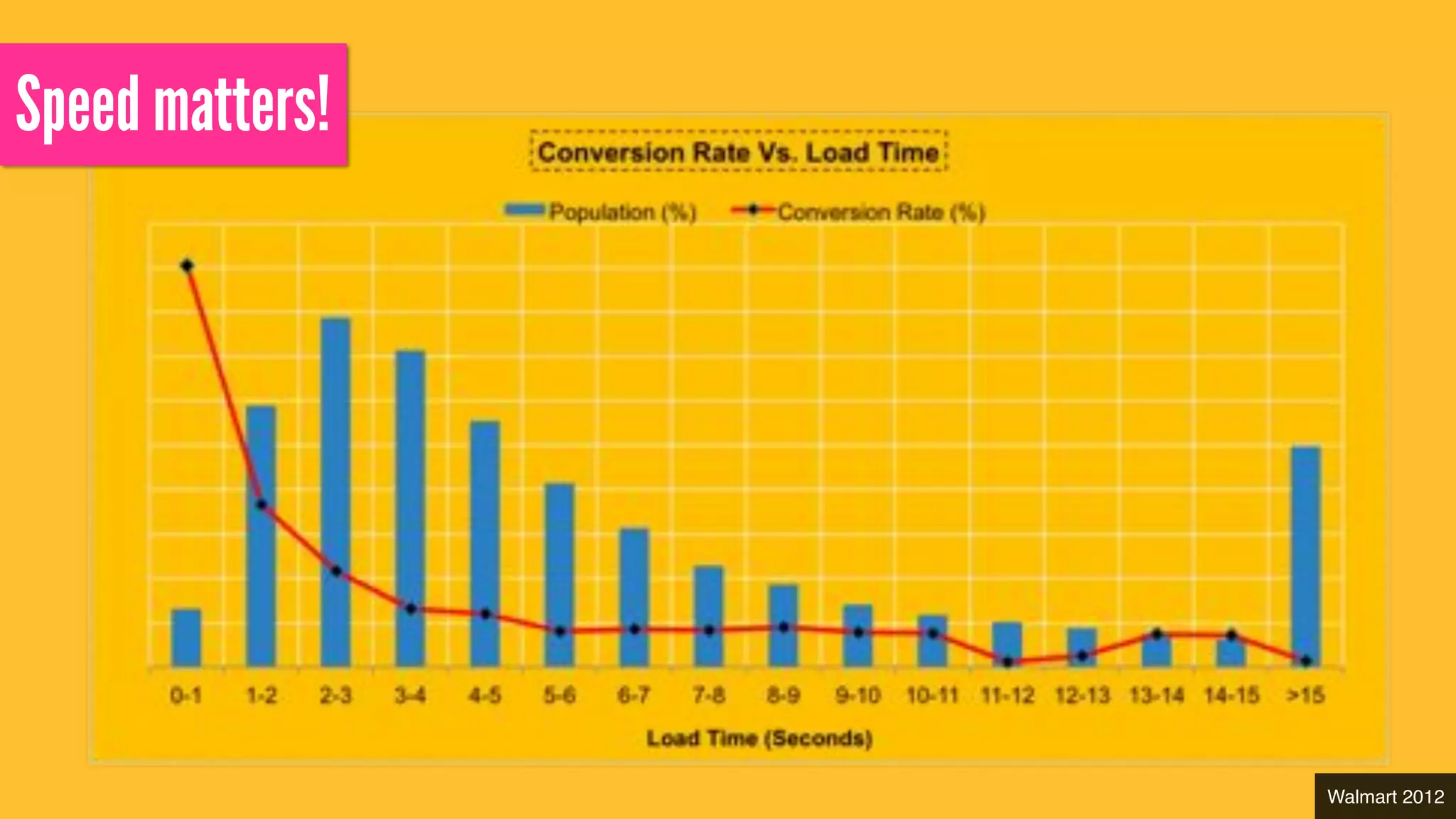

Speed matters!
Walmart 2012
http://www.slideshare.net/cliffcrocker/velocity-ny-how-to-measure-revenue-in-milliseconds

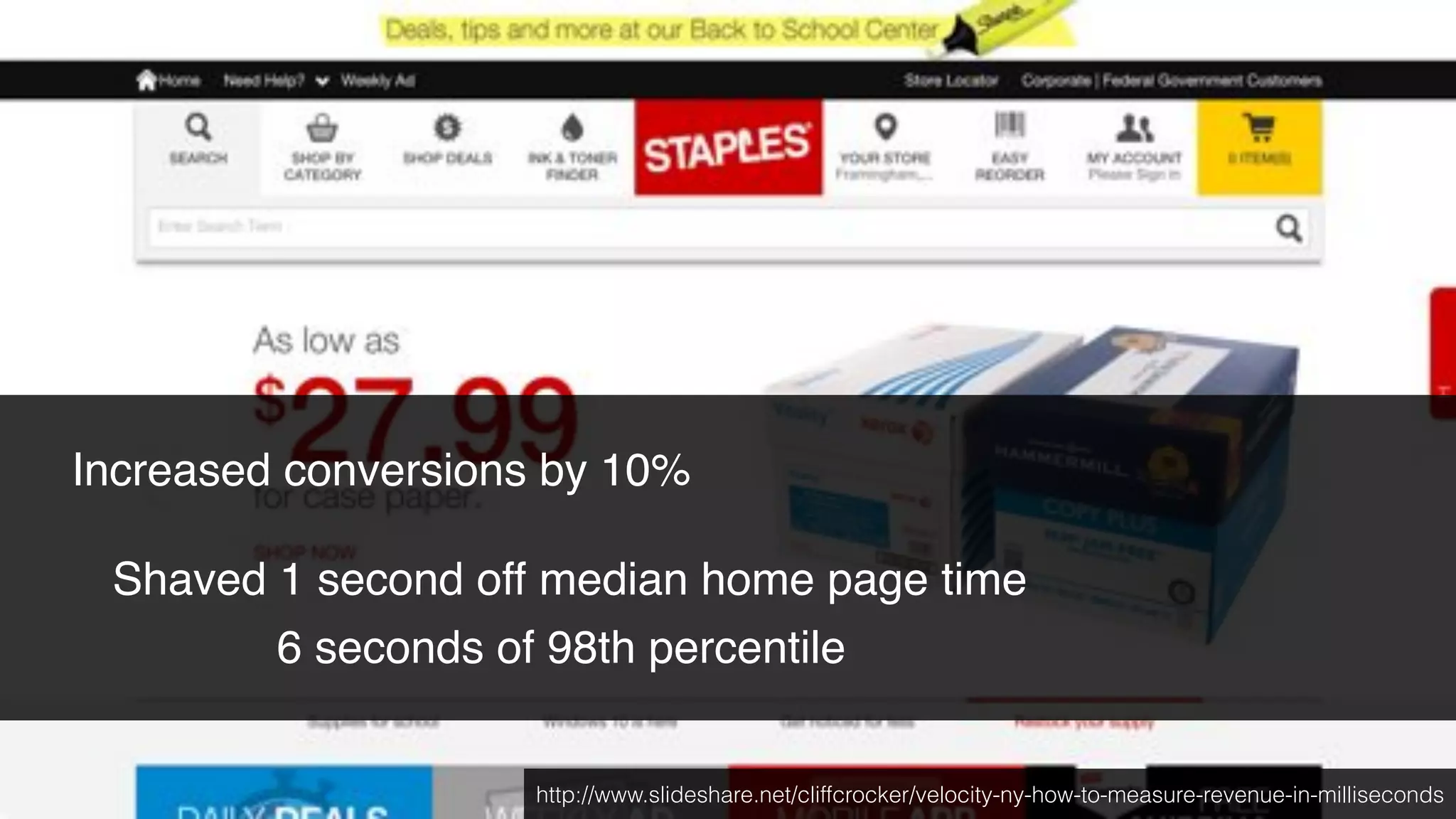

Increased conversions by 10%!
!
Shaved 1 second off median home page time!
6 seconds of 98th percentile

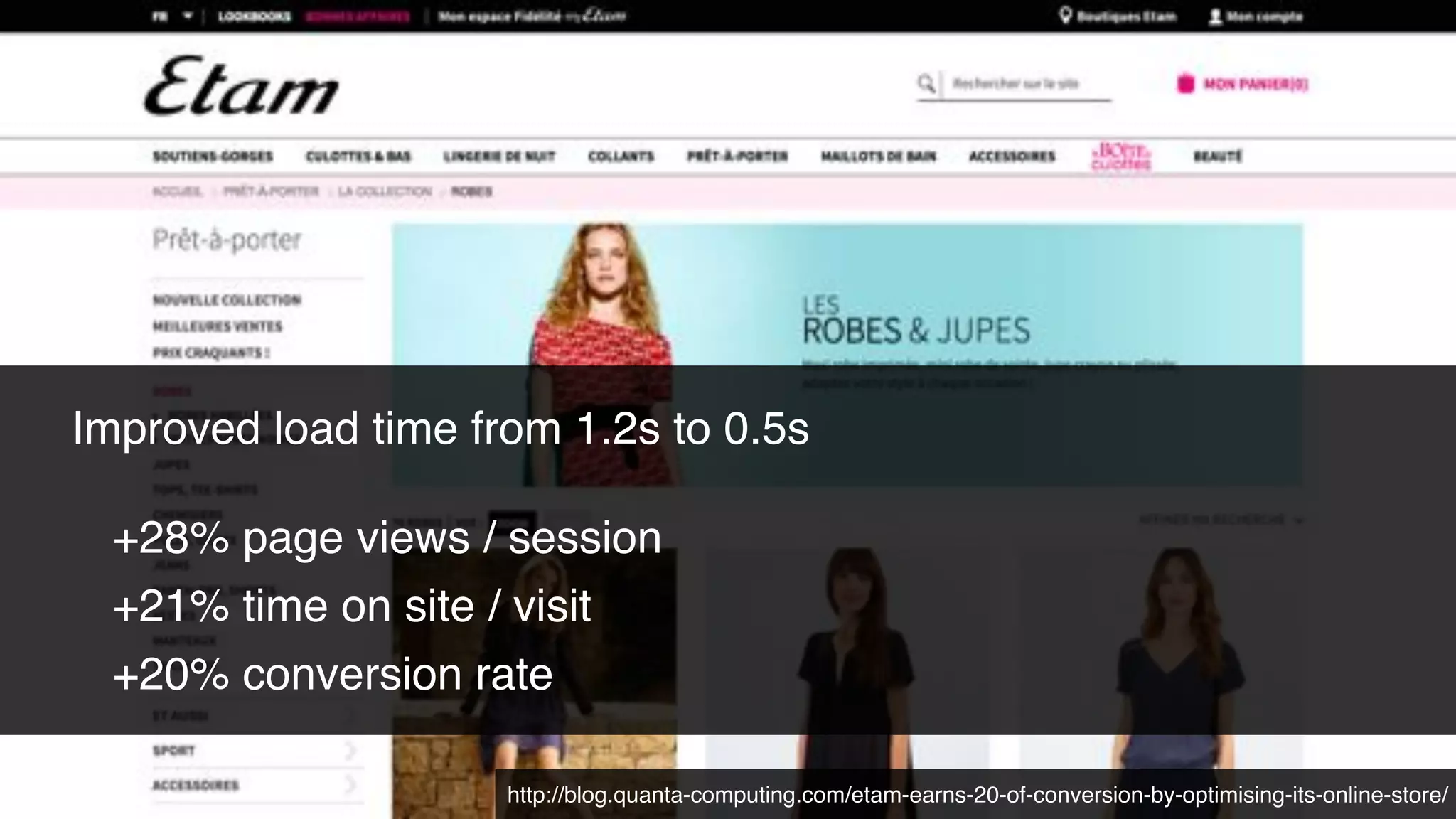

Improved load time from 1.2s to 0.5s!
!
+28% page views / session!
+21% time on site / visit!
+20% conversion rate
http://blog.quanta-computing.com/etam-earns-20-of-conversion-by-optimising-its-online-store/

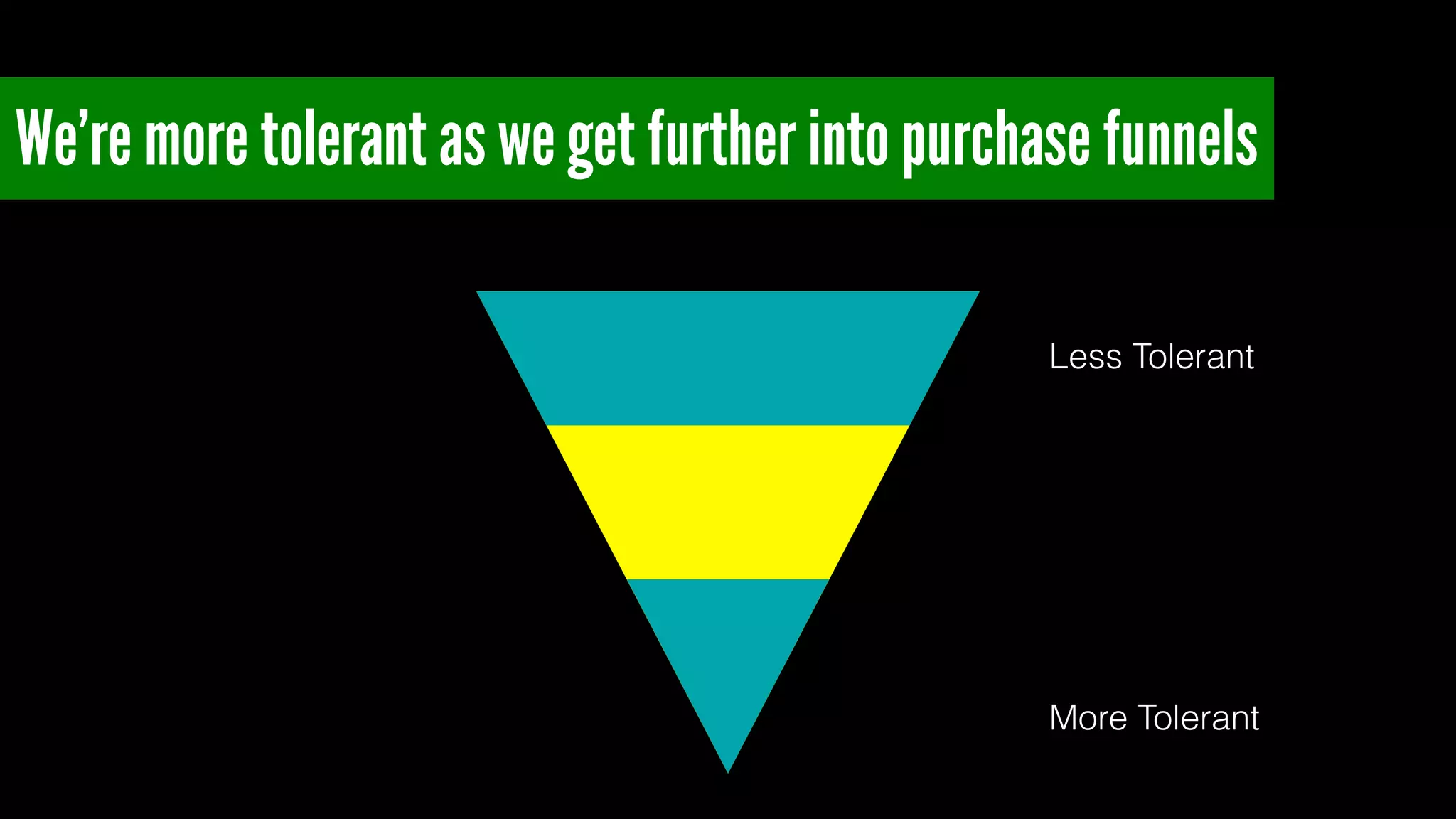

We’re more tolerant as we get further into purchase funnels
Less Tolerant
More Tolerant

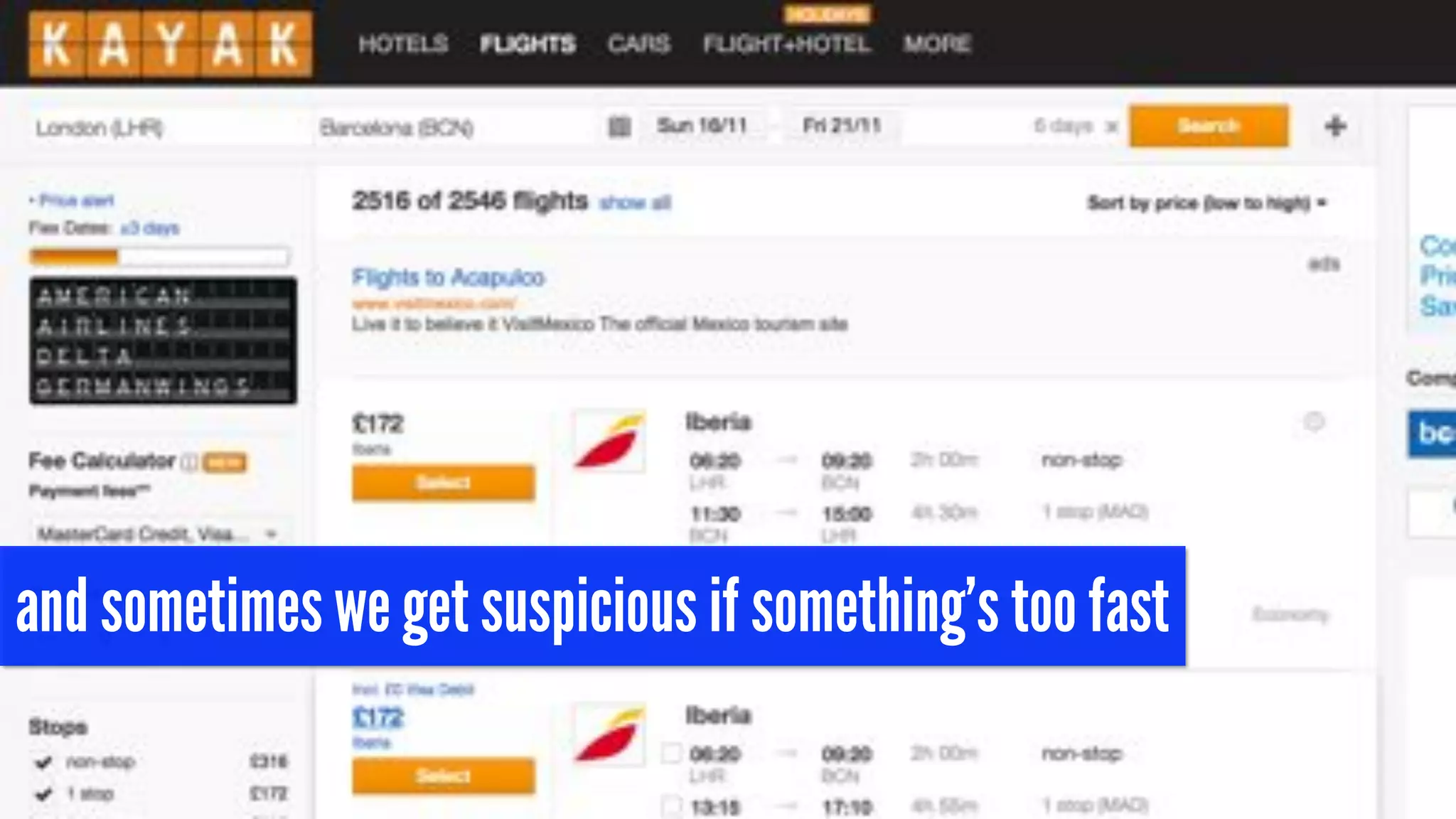

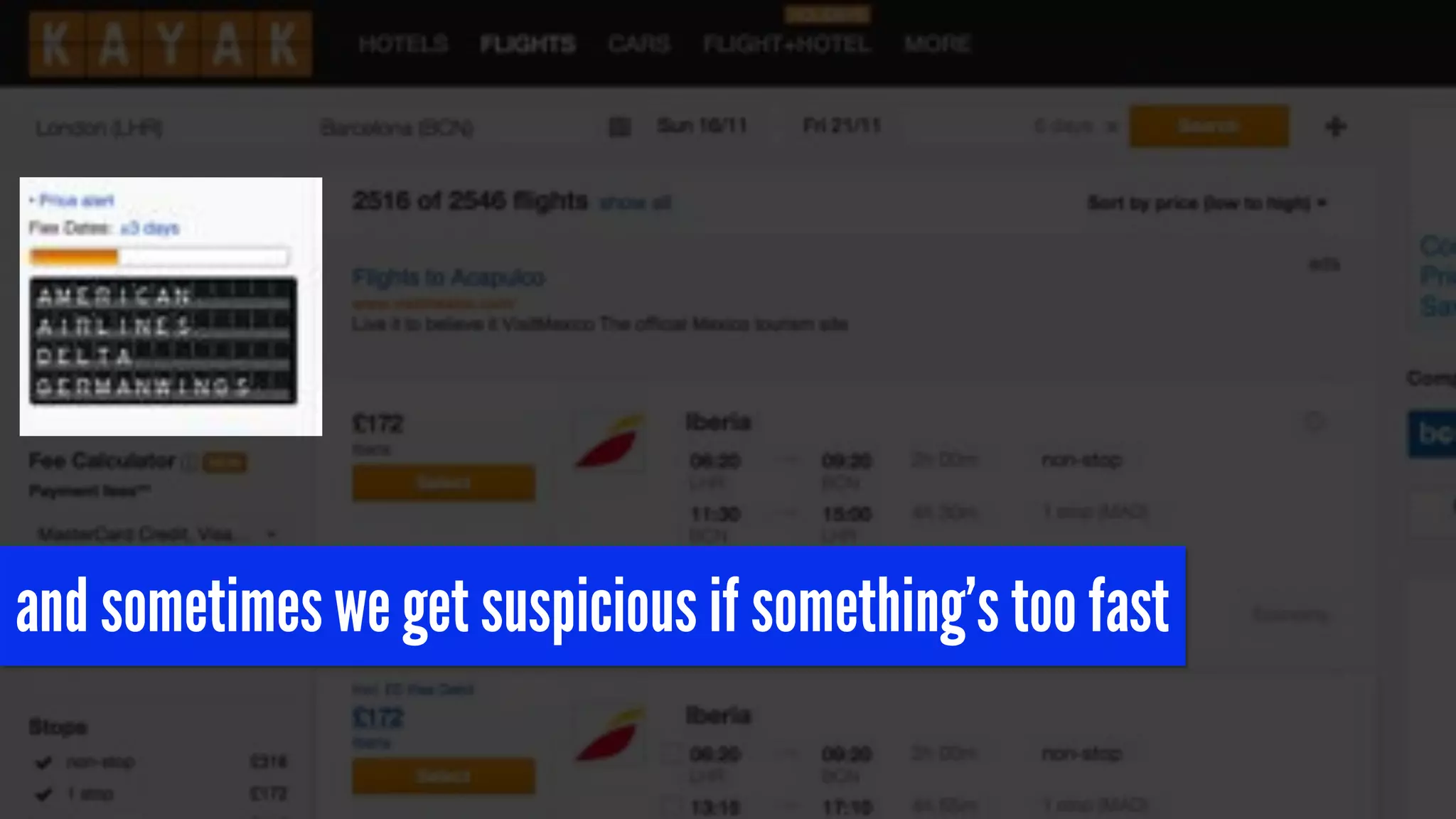

and sometimes we get suspicious if something’s too fast
and sometimes we get suspicious if something’s too fast
Design is all about finding solutions within constraints,!
if there were no constraints, it’s not design — it’s art.!
Matias Duarte
“
”
http://www.flickr.com/photos/communityfriend/2342578485
Embrace those constraints… set a performance budget

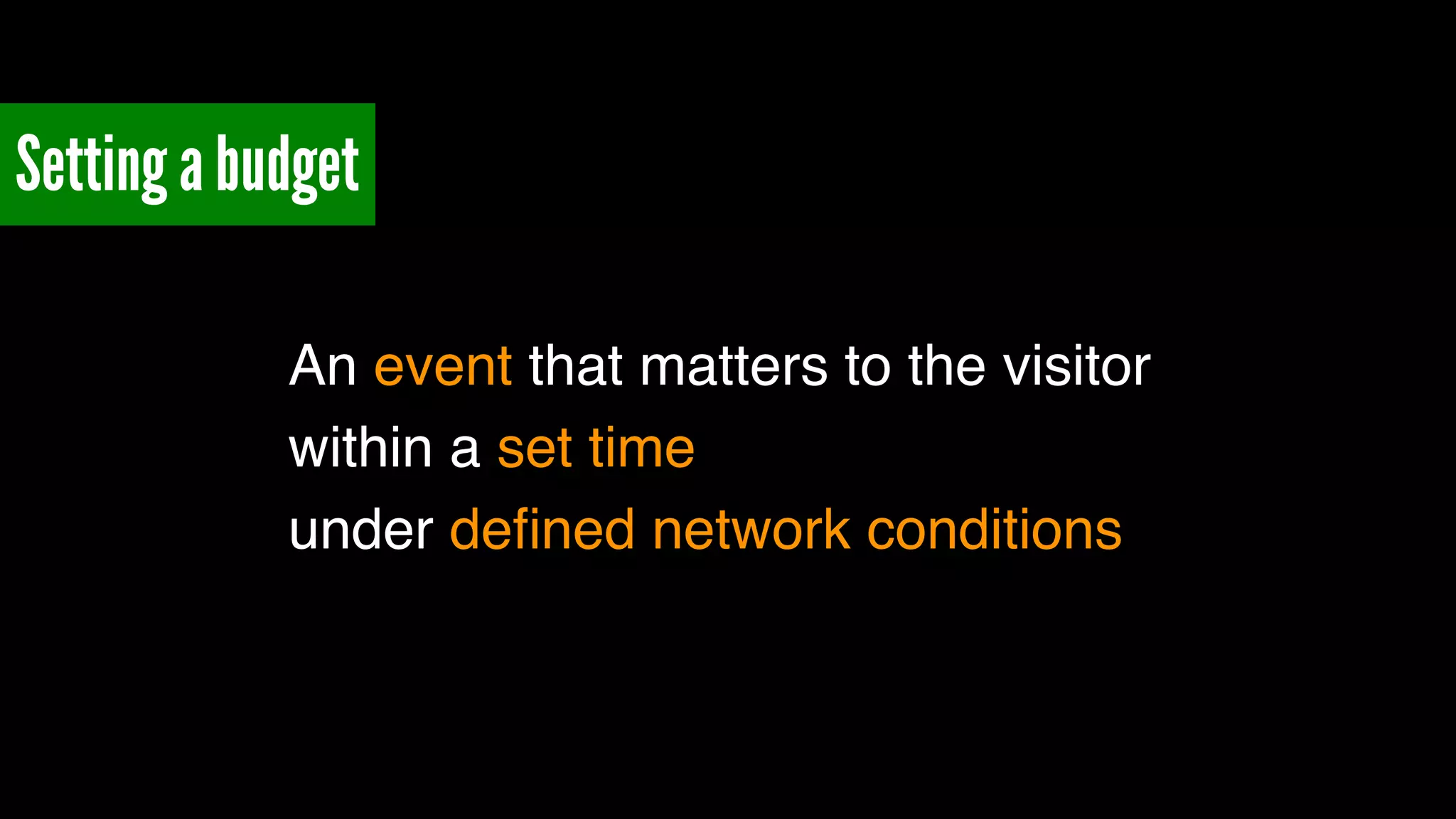

Setting a budget
An event that matters to the visitor!
within a set time!
under defined network conditions

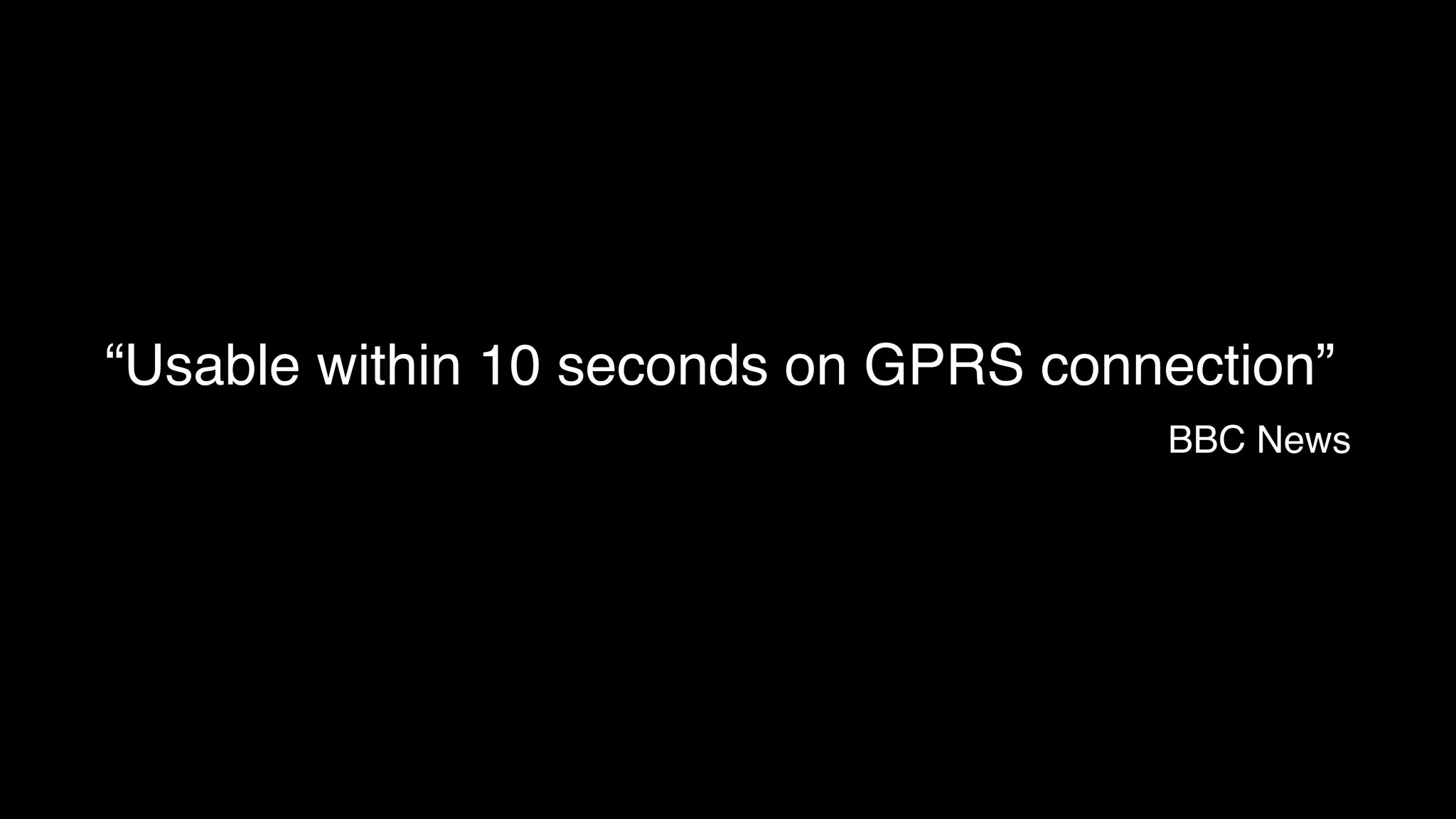

“Usable within 10 seconds on GPRS connection”!
BBC News
“SpeedIndex under 1000”!
Paul Irish
Could use page size or number of objects but…

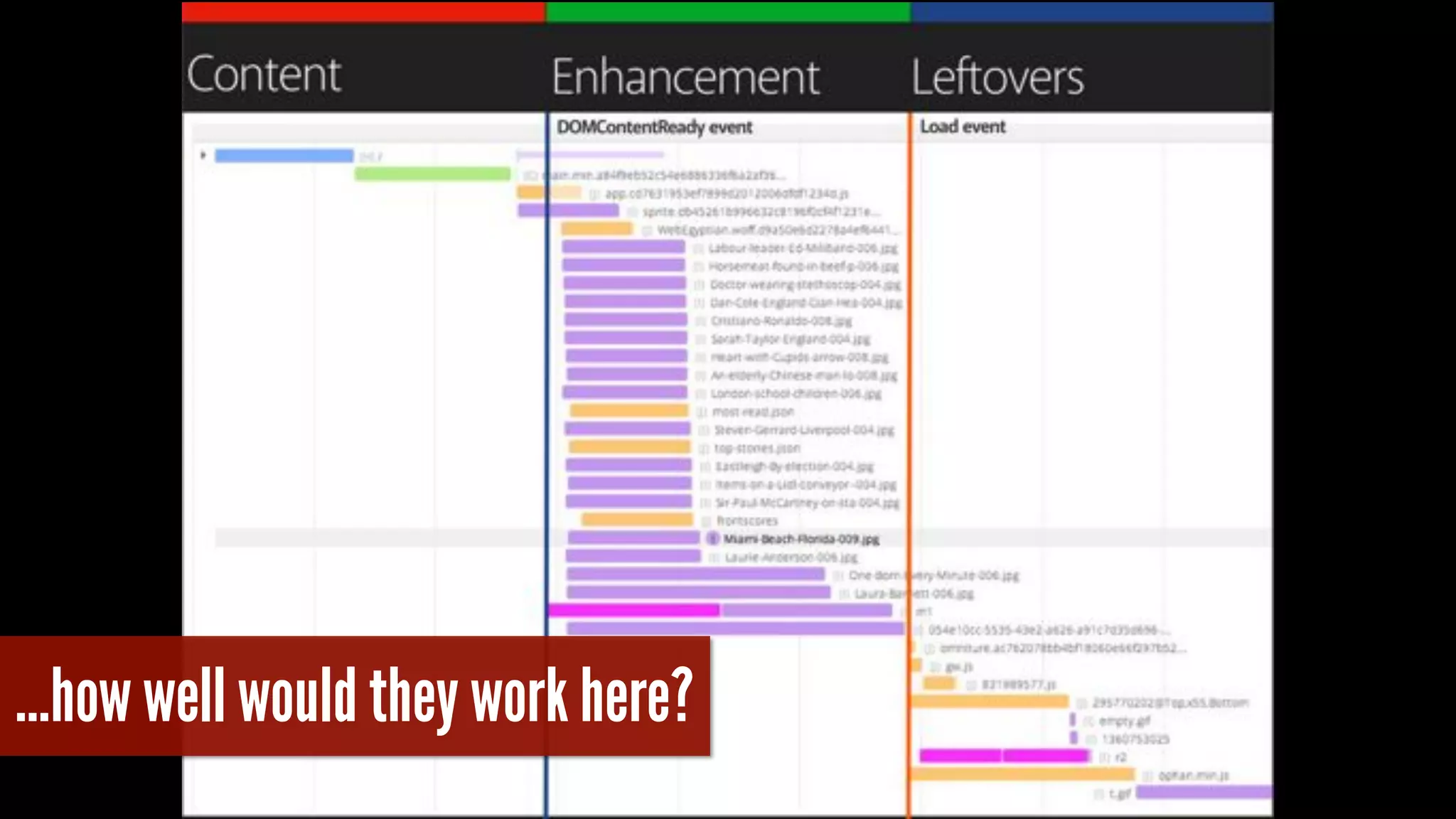

…how well would they work here?
We know how to make fast sites, there are plenty of recipes out there
How well do we understand our medium?
https://www.flickr.com/photos/37873897@N06/6924775578
Do we understand our fundamental building blocks?
https://www.flickr.com/photos/ogimogi/2253657555

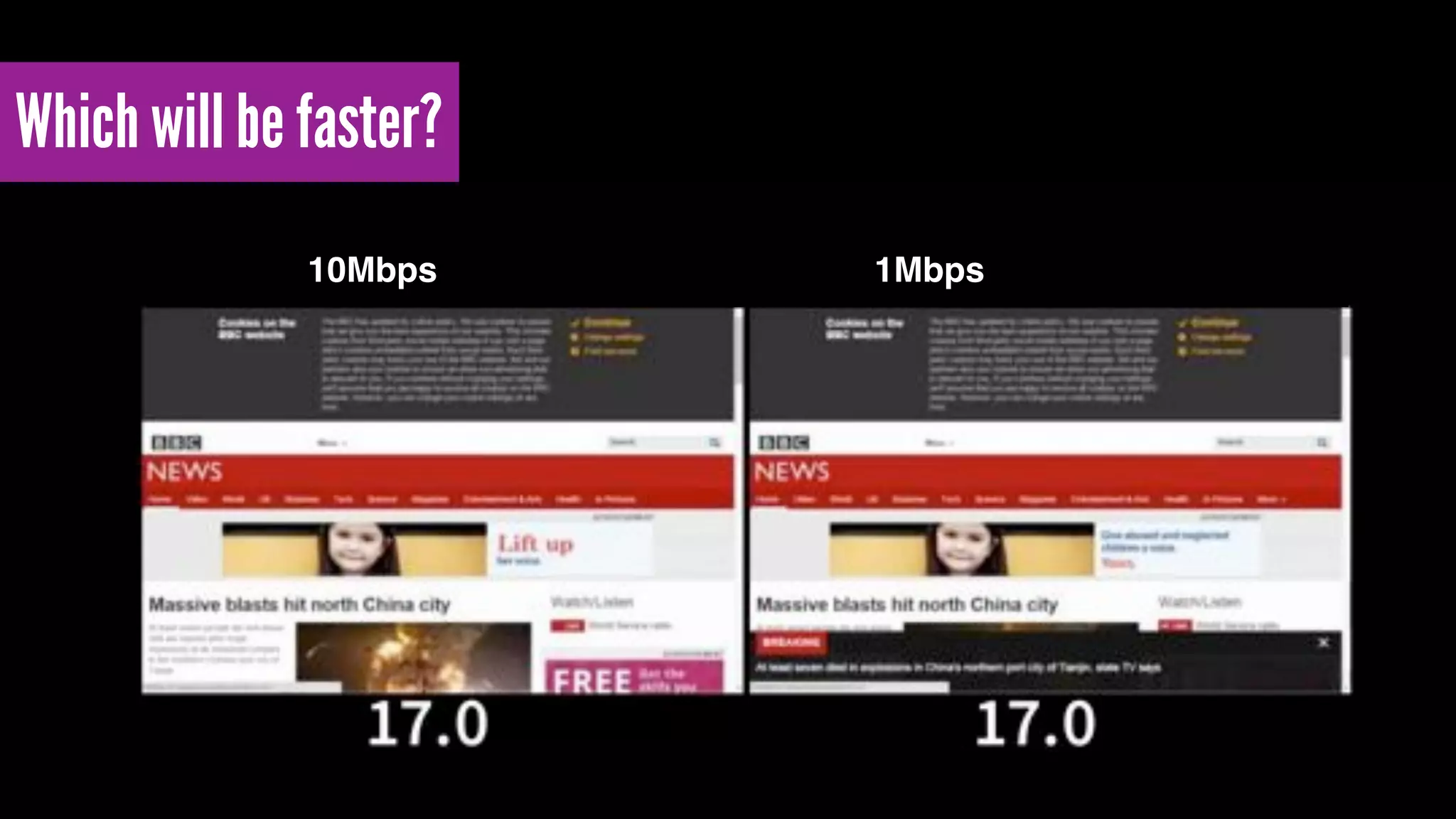

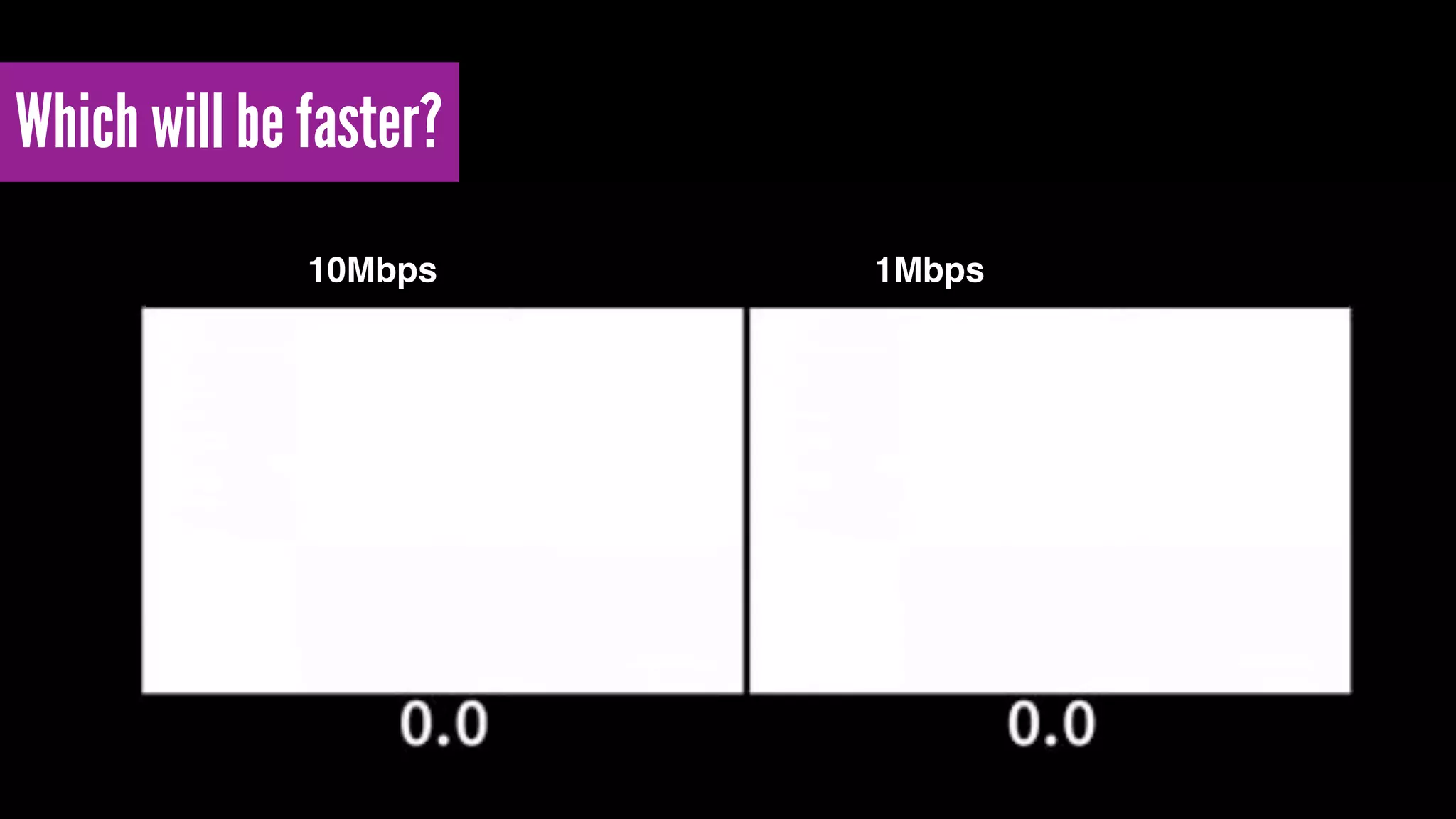

Which will be faster?
10Mbps 1Mbps
Which will be faster?
10Mbps 1Mbps
Which will be faster?
10Mbps 1Mbps
Which will be faster?
10Mbps 1Mbps

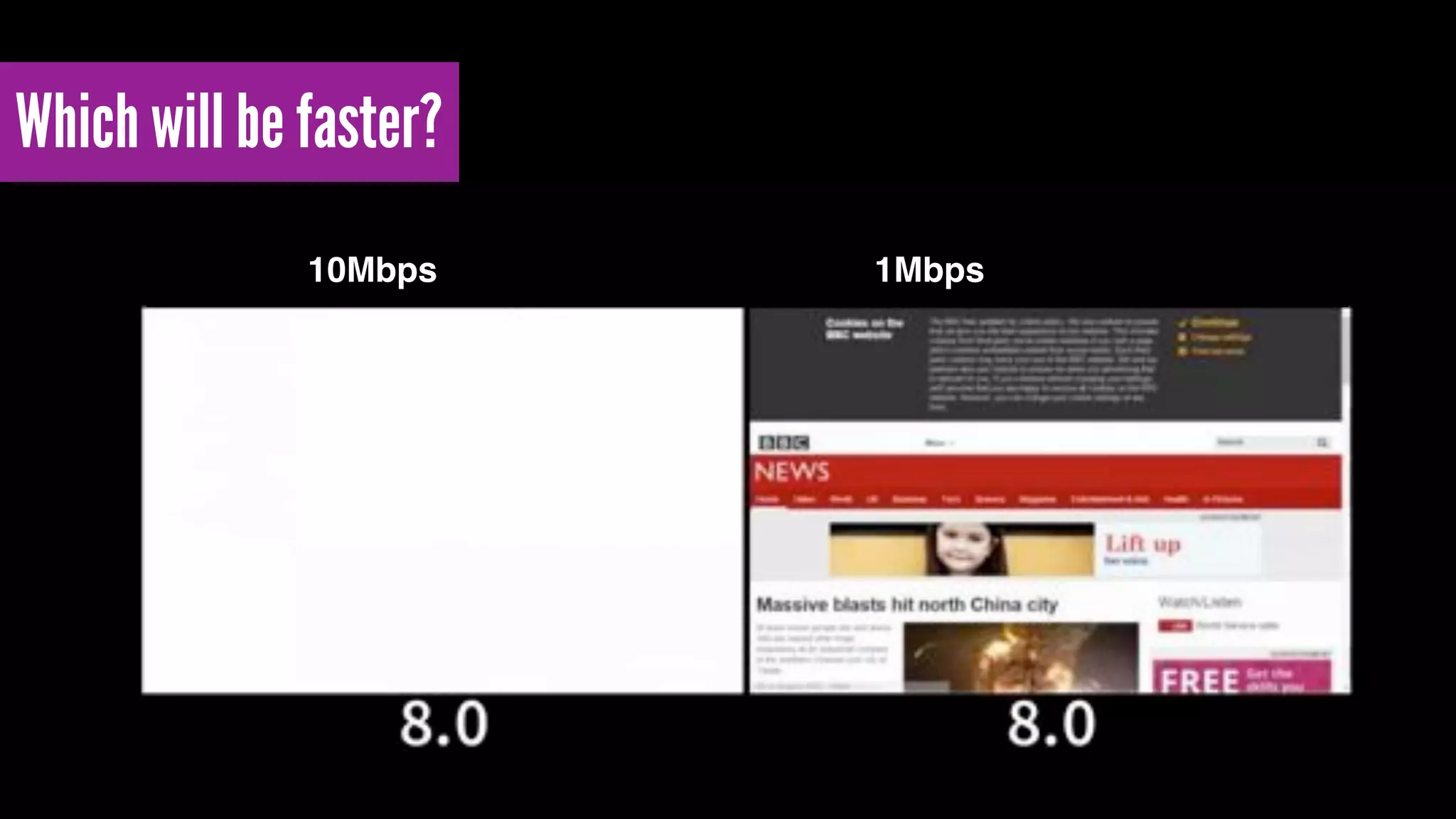

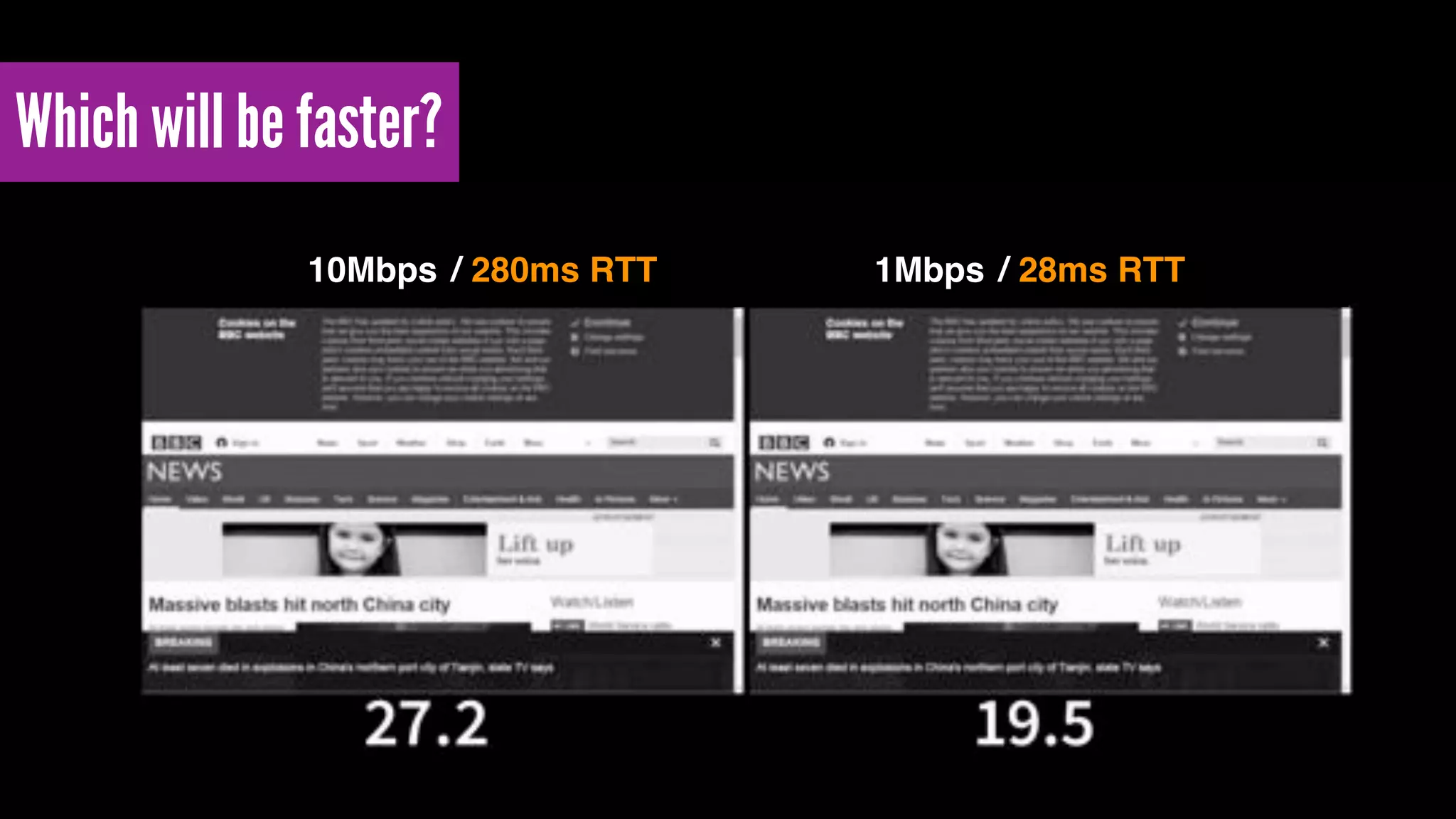

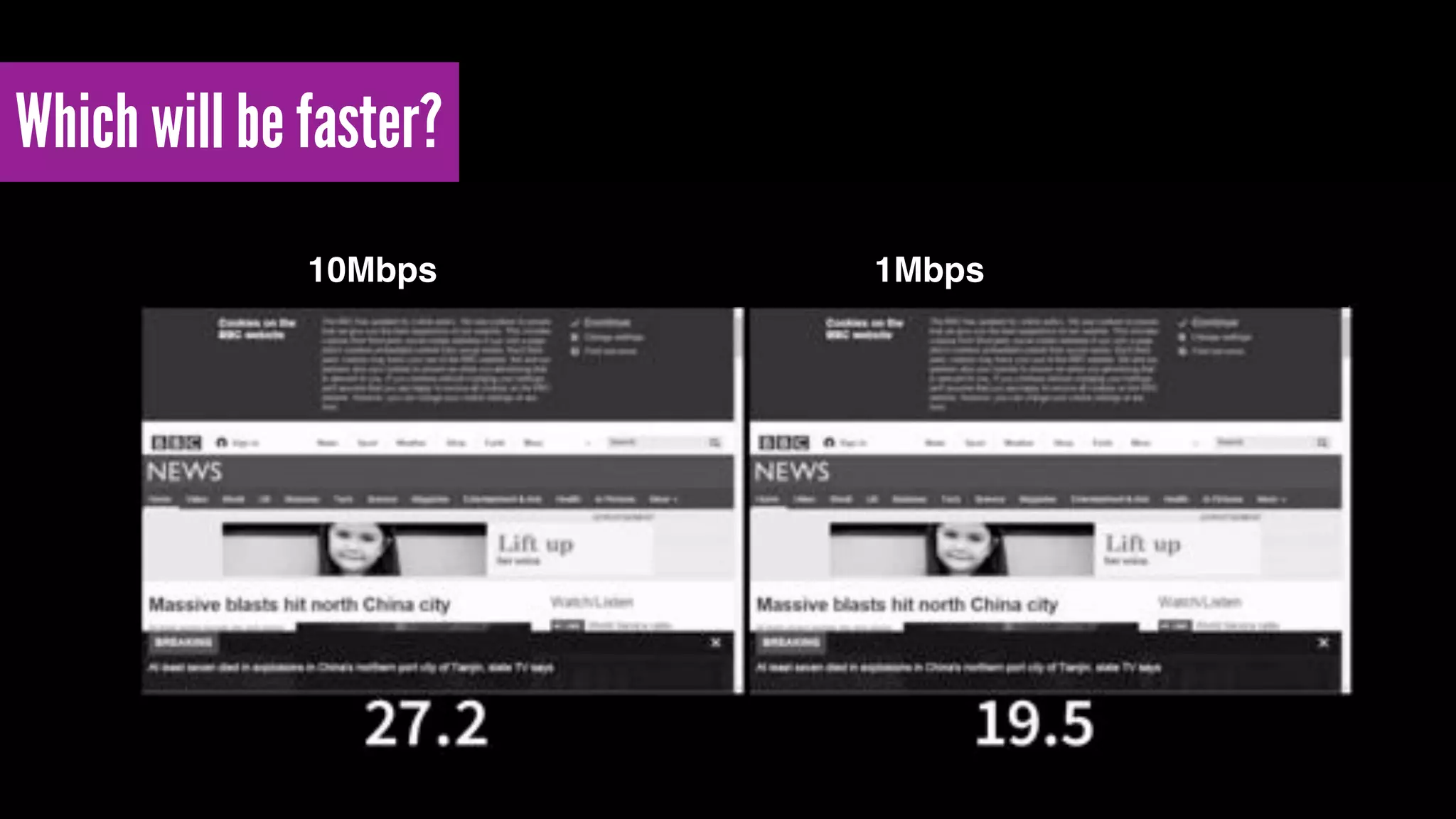

Which will be faster?
10Mbps 1Mbps/ 280ms RTT / 28ms RTT
We often think of the network as a pipe
https://www.flickr.com/photos/63567936@N00/4181042889
that’s sometimes really bad
https://www.flickr.com/photos/chesh2000/4487000196
but the reality is closer to
http://1m0esx2939yhjwld8419obqhyb.wpengine.netdna-cdn.com/wp-content/uploads/2014/06/DSC_0492.jpg

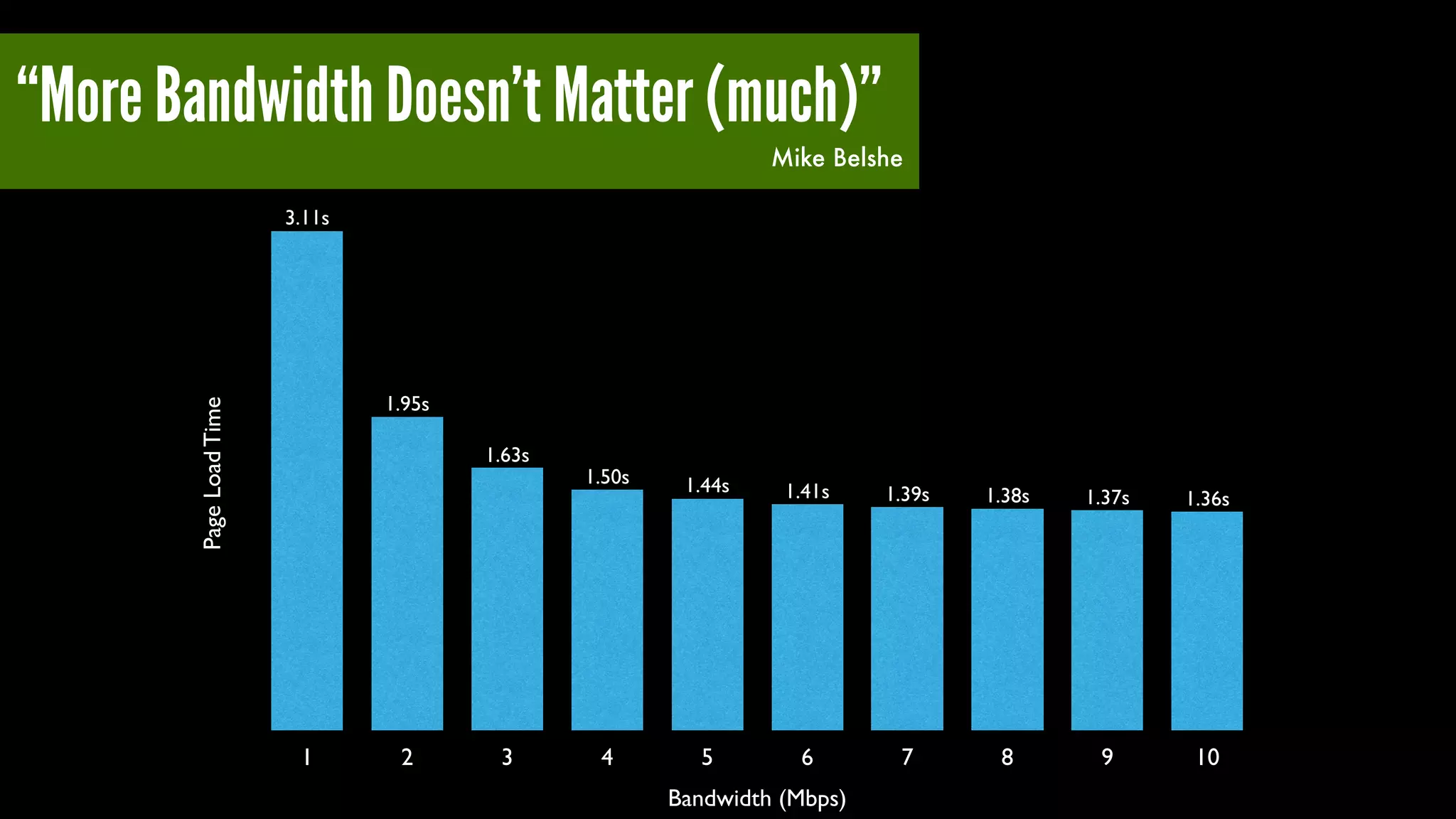

“More Bandwidth Doesn’t Matter (much)”!
Mike Belshe
PageLoadTime
Bandwidth (Mbps)
1 2 3 4 5 6 7 8 9 10
1.36s1.37s1.38s1.39s1.41s1.44s1.50s
1.63s
1.95s
3.11s

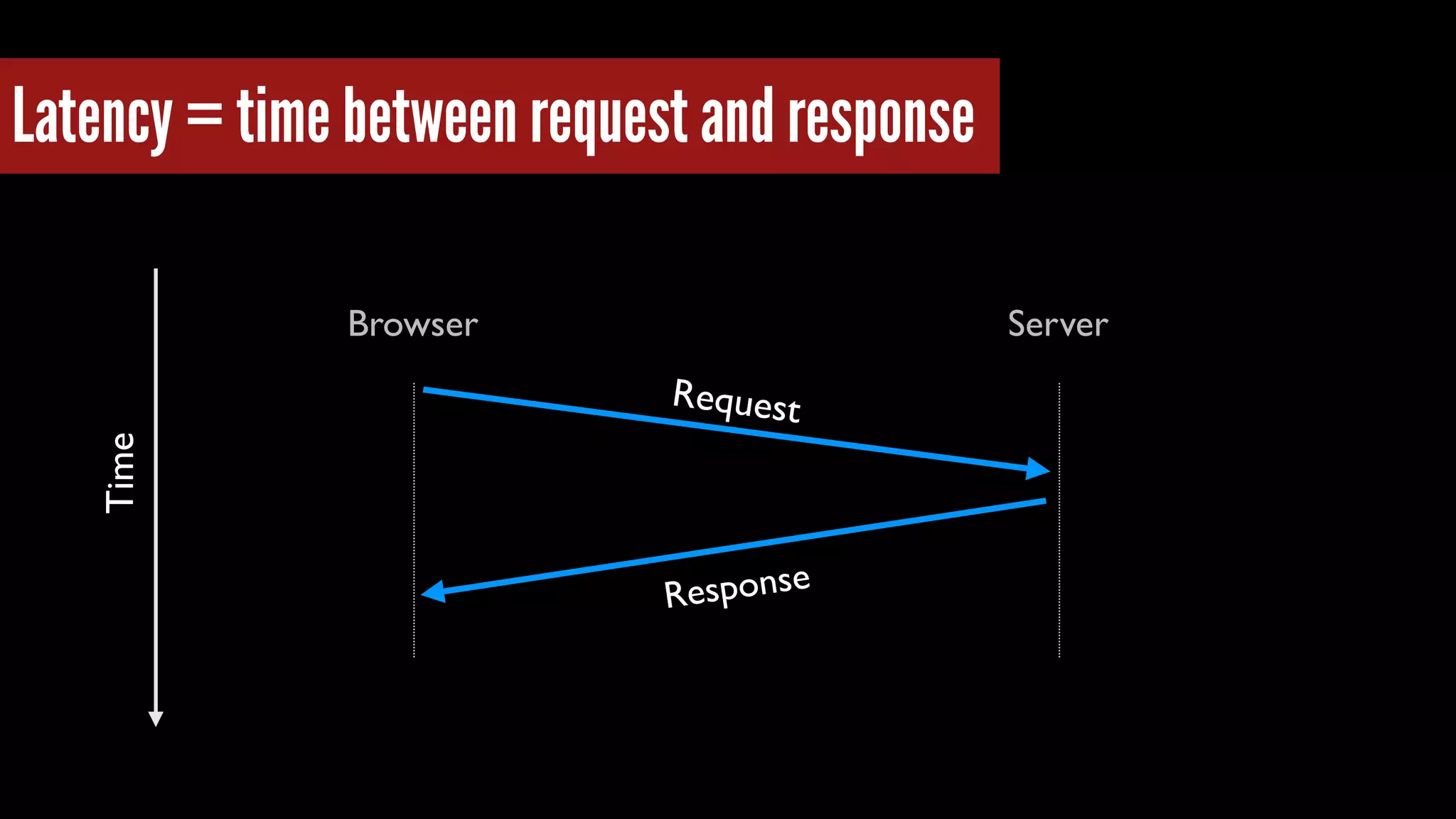

Latency = time between request and response
Browser Server
Request
Response
Time

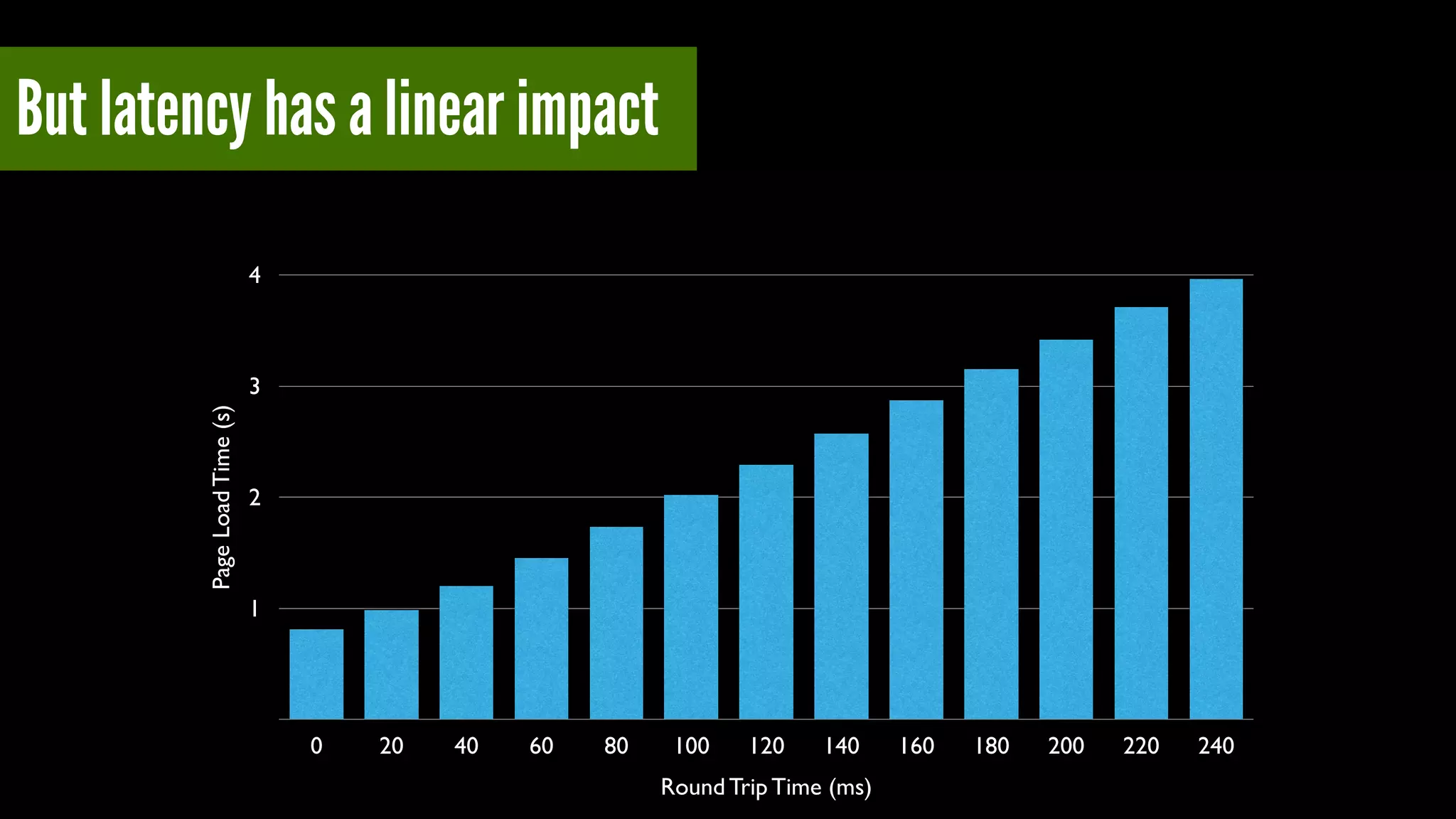

But latency has a linear impact
PageLoadTime(s)
1
2
3
4
Round Trip Time (ms)
0 20 40 60 80 100 120 140 160 180 200 220 240

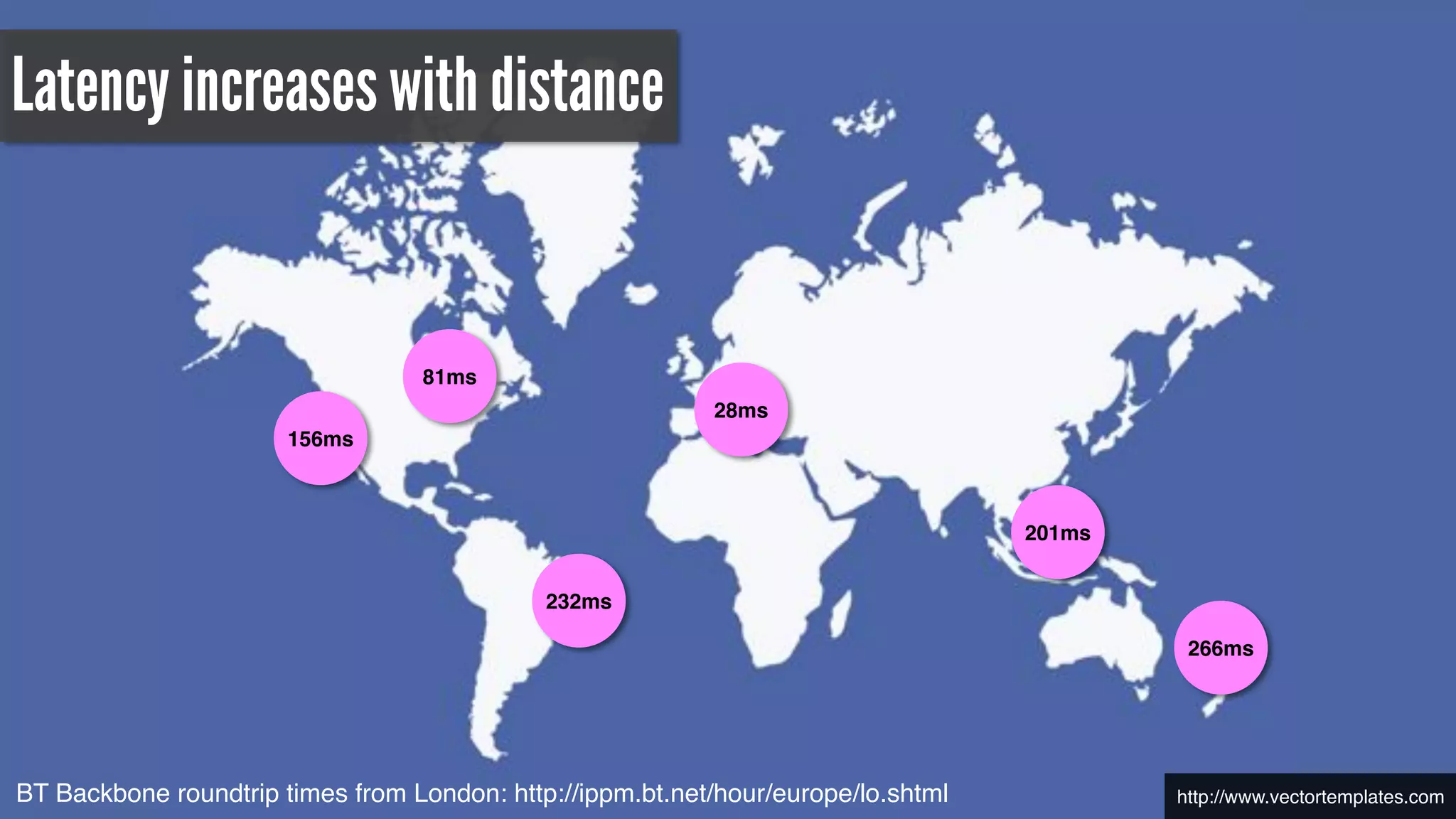

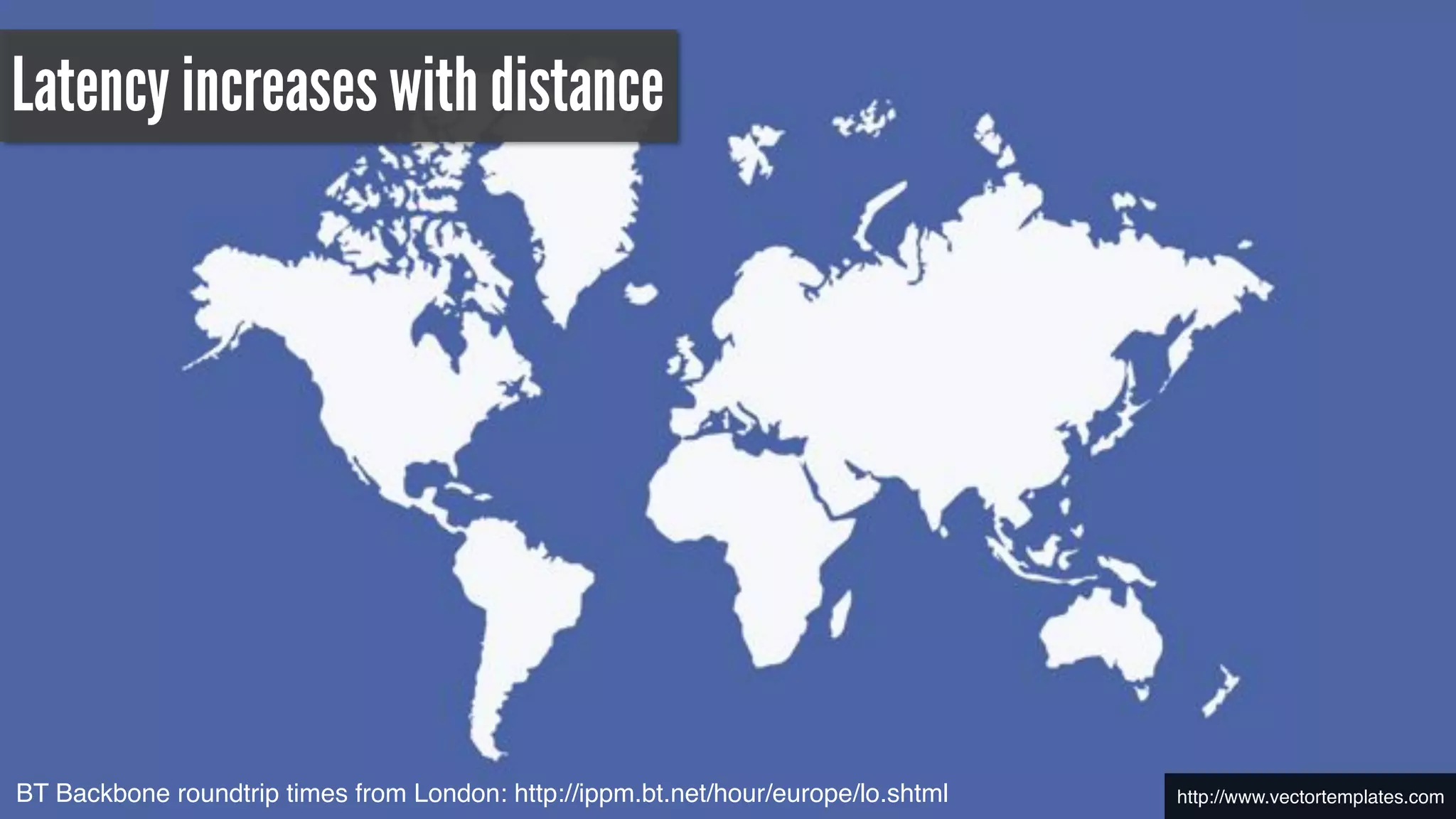

http://www.vectortemplates.comBT Backbone roundtrip times from London: http://ippm.bt.net/hour/europe/lo.shtml
Latency increases with distance
http://www.vectortemplates.comBT Backbone roundtrip times from London: http://ippm.bt.net/hour/europe/lo.shtml
Latency increases with distance
81ms
201ms
156ms
266ms
232ms
28ms
http://www.vectortemplates.com

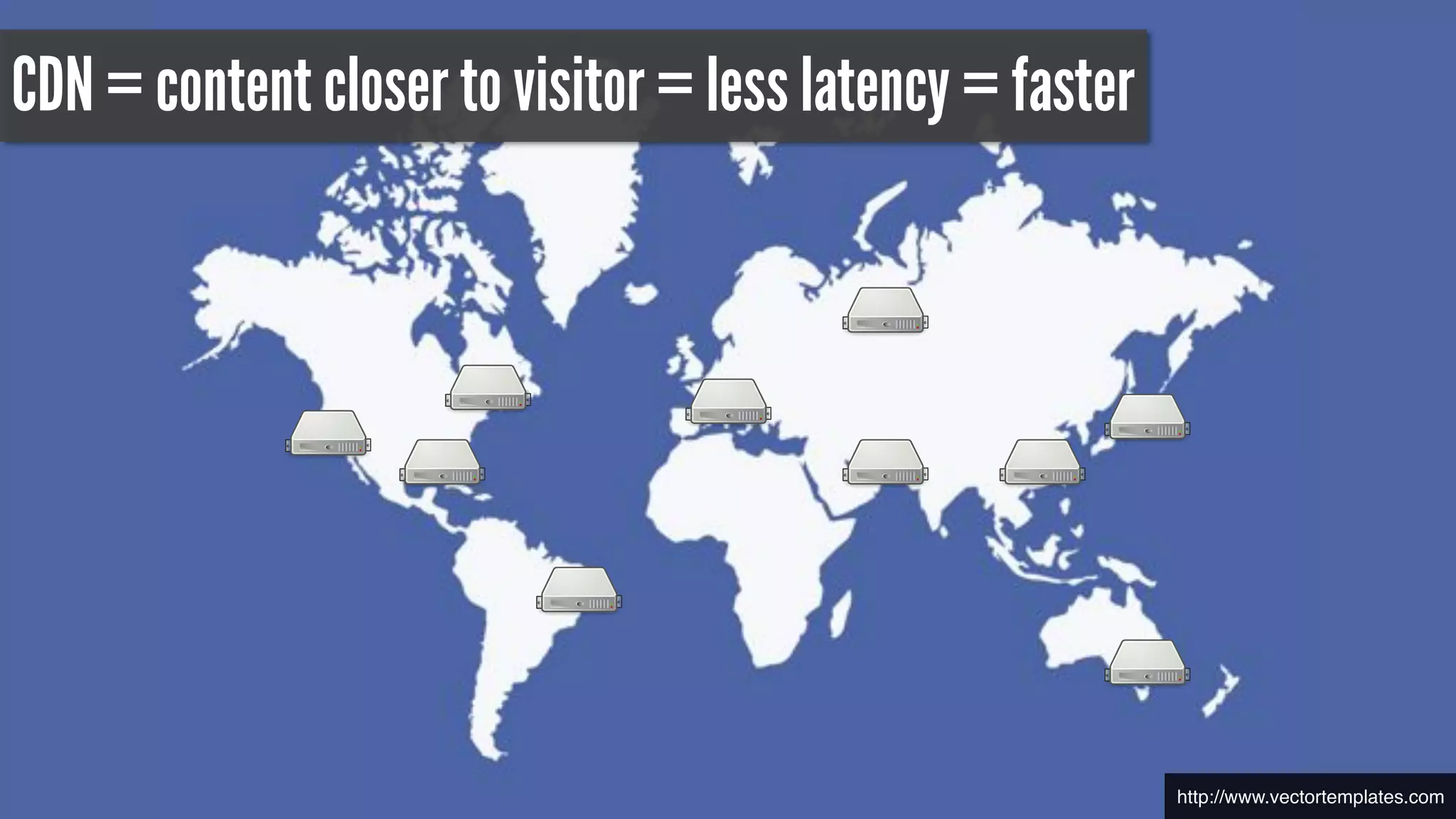

CDN = content closer to visitor = less latency = faster

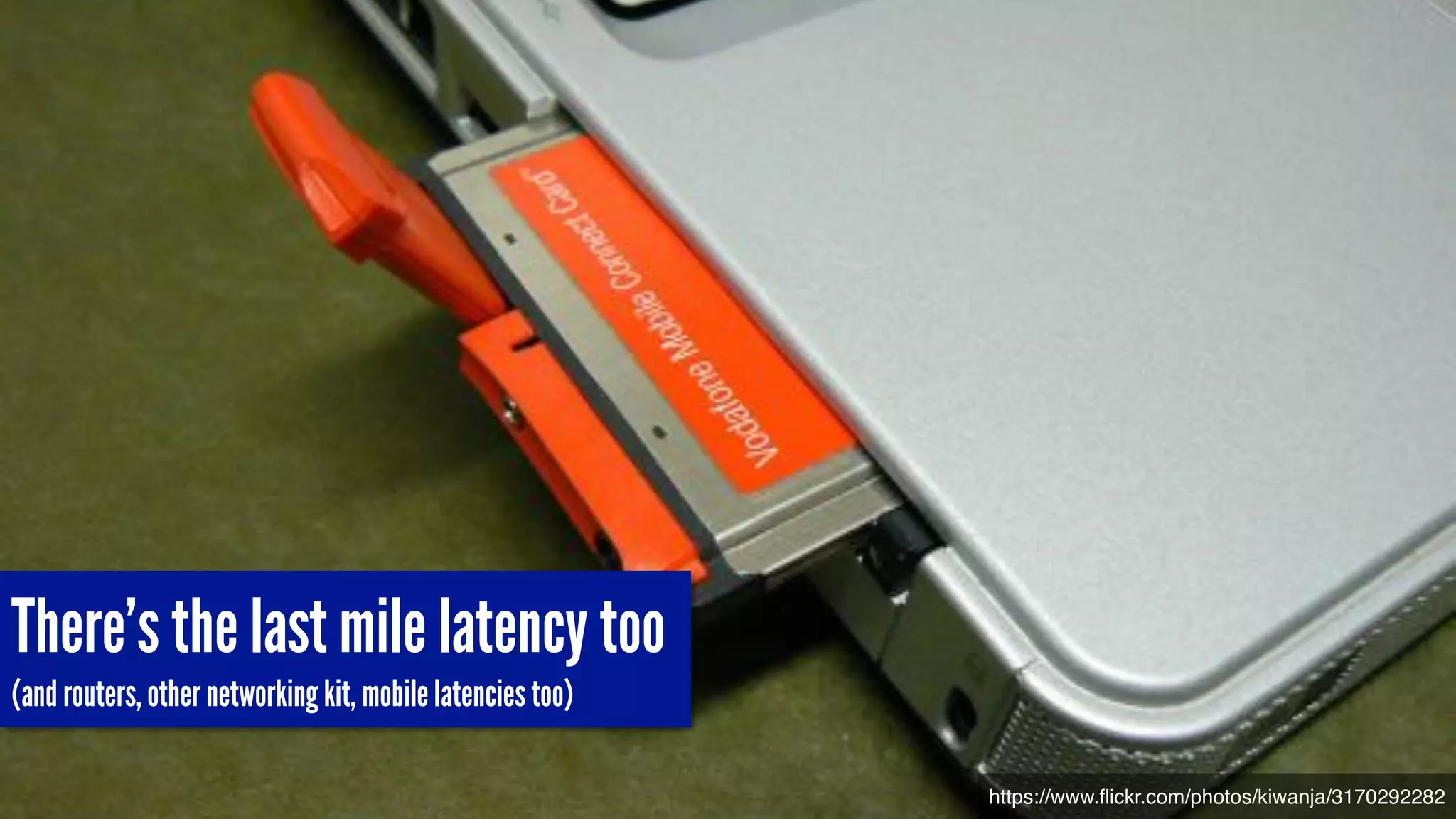

There’s the last mile latency too
(and routers, other networking kit, mobile latencies too)
https://www.flickr.com/photos/kiwanja/3170292282

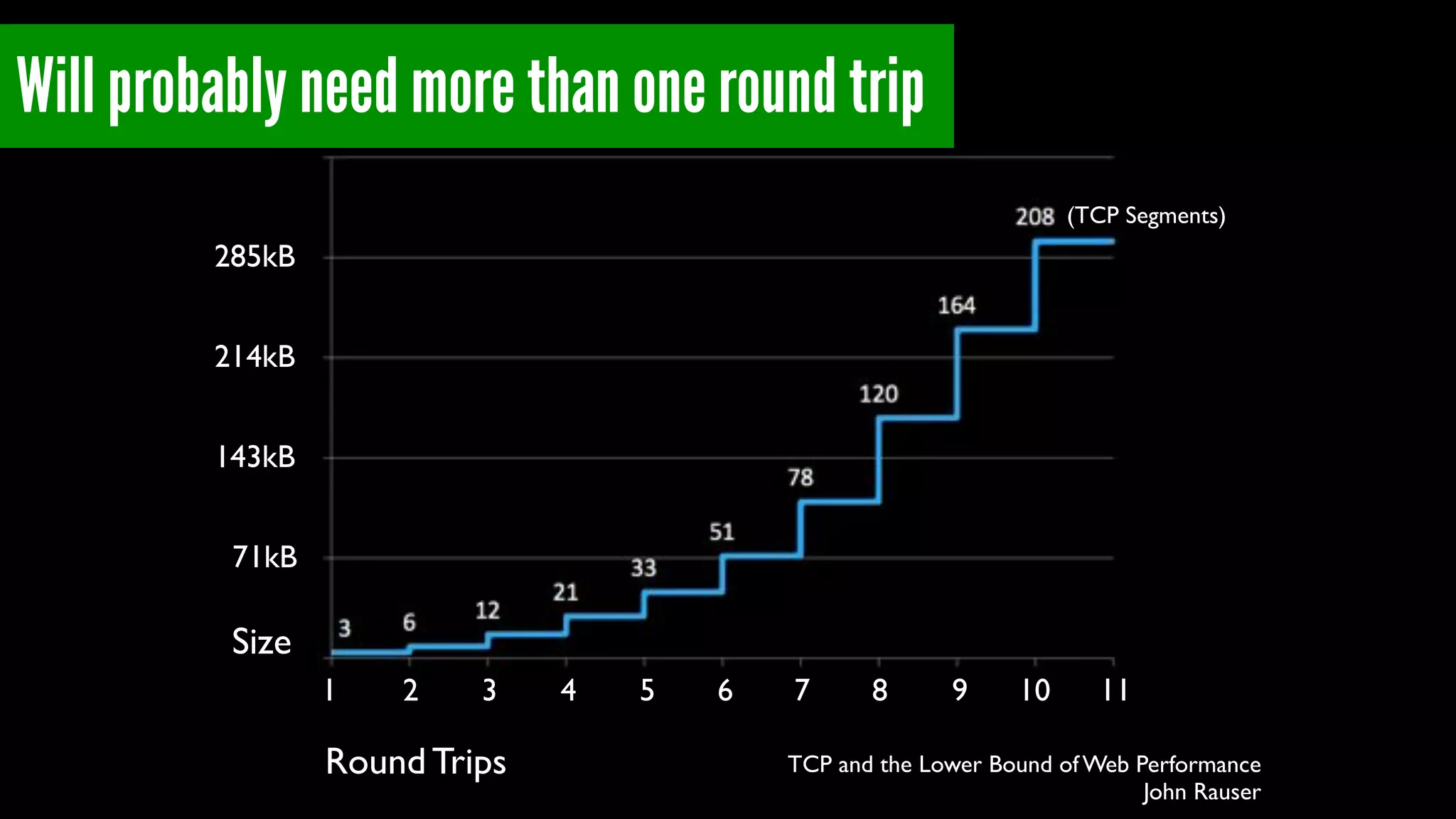

TCP and the Lower Bound of Web Performance!
John Rauser
Will probably need more than one round trip
71kB
143kB
214kB
285kB
1 2 3 4 5 6 7 8 9 10 11
(TCP Segments)
Round Trips
Size

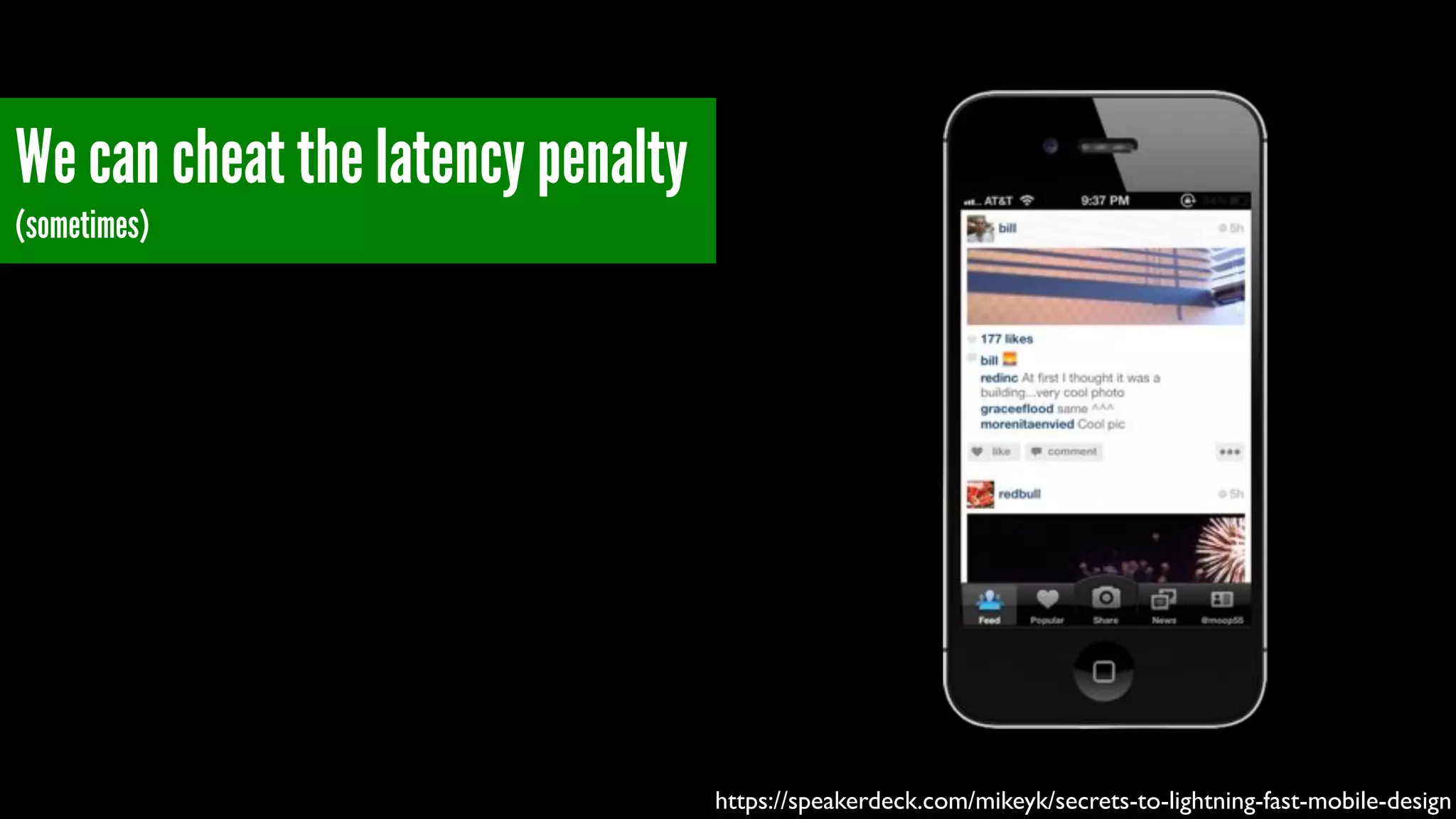

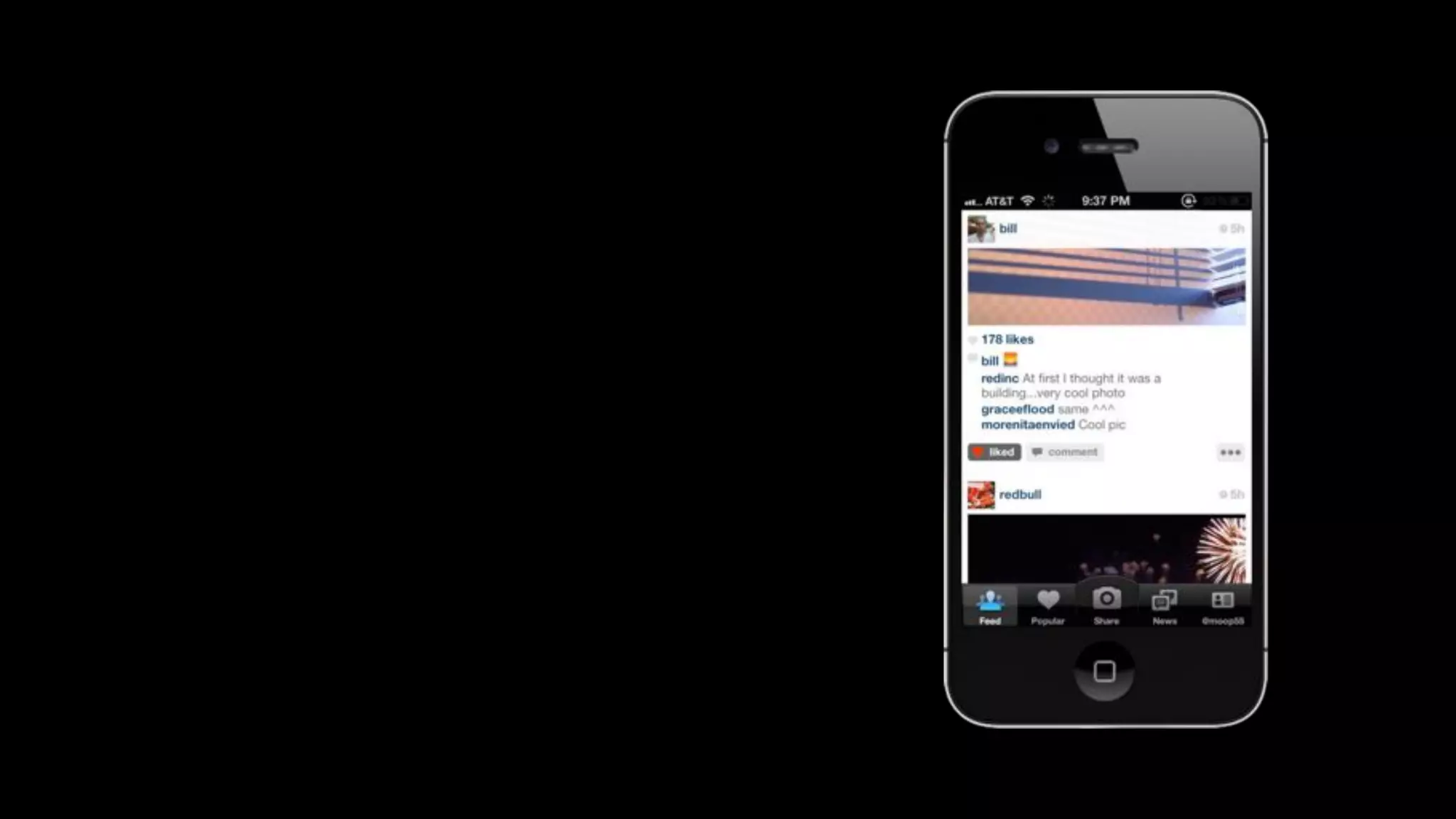

We can cheat the latency penalty
(sometimes)
https://speakerdeck.com/mikeyk/secrets-to-lightning-fast-mobile-design

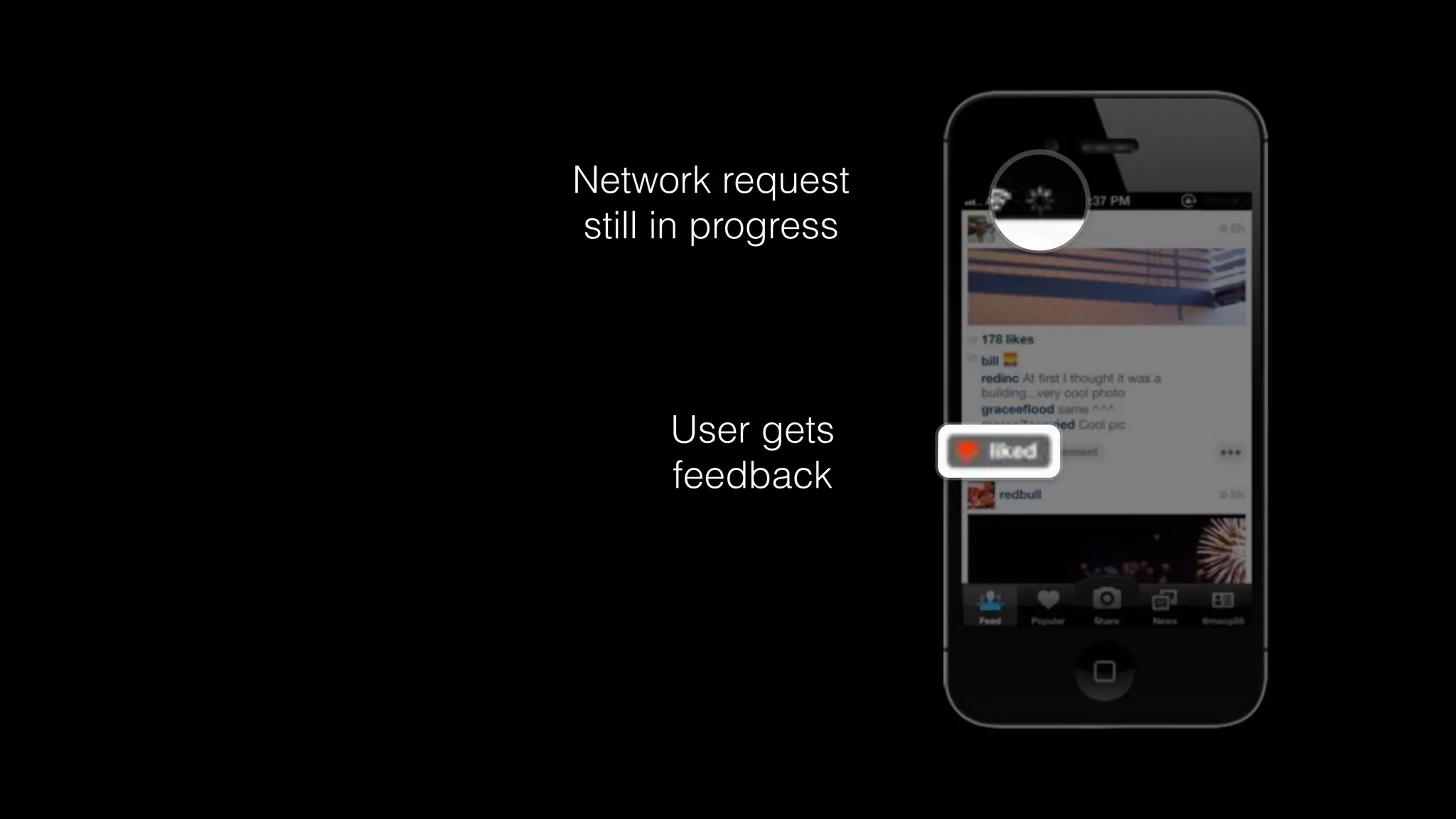

User gets
feedback
User gets
feedback
Network request
still in progress
???

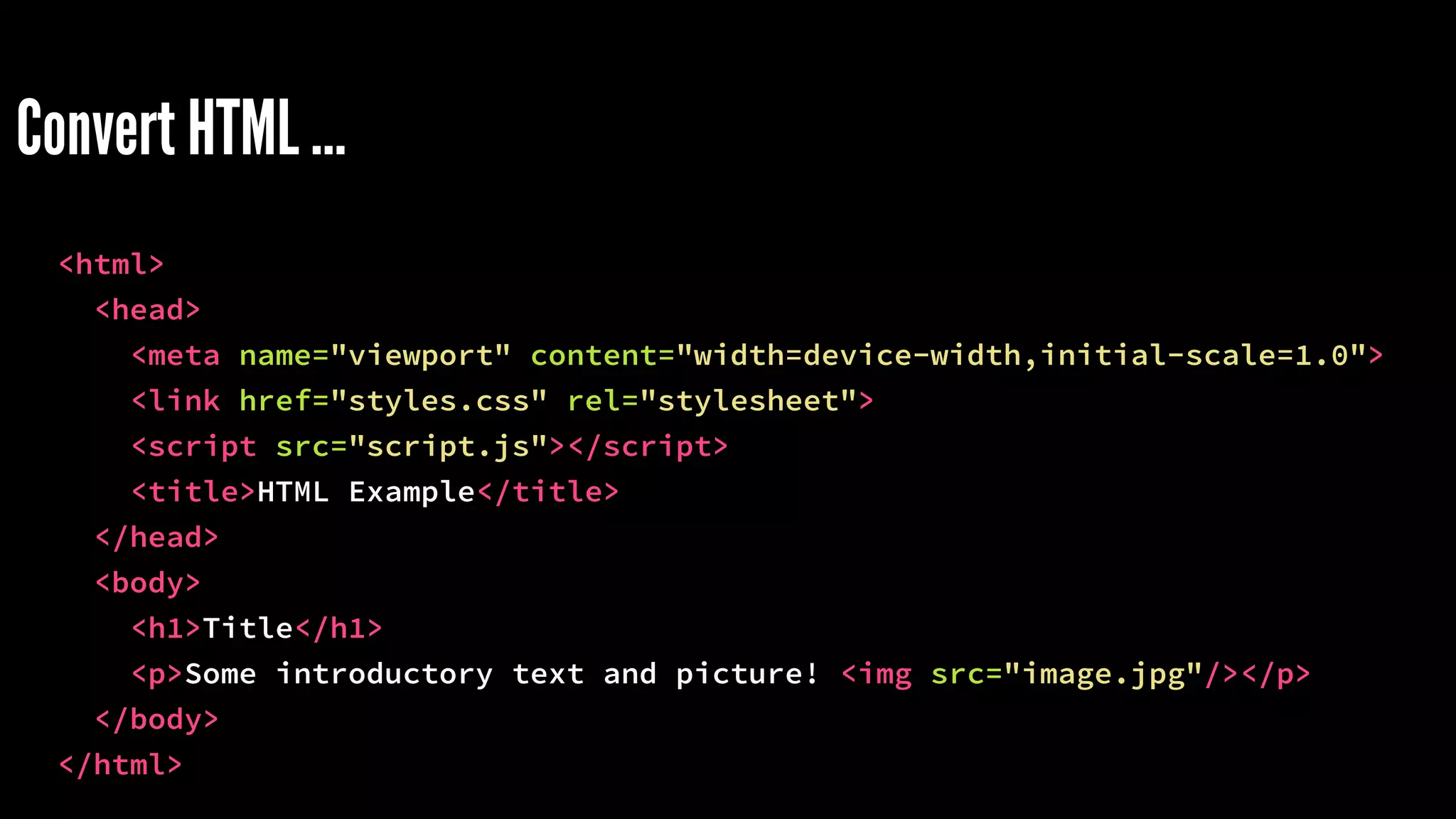

Convert HTML …
<html>
<head>
<meta name="viewport" content="width=device-width,initial-scale=1.0">
<link href="styles.css" rel="stylesheet">
<script src="script.js"></script>
<title>HTML Example</title>
</head>
<body>
<h1>Title</h1>
<p>Some introductory text and picture! <img src="image.jpg"/></p>
</body>
</html>

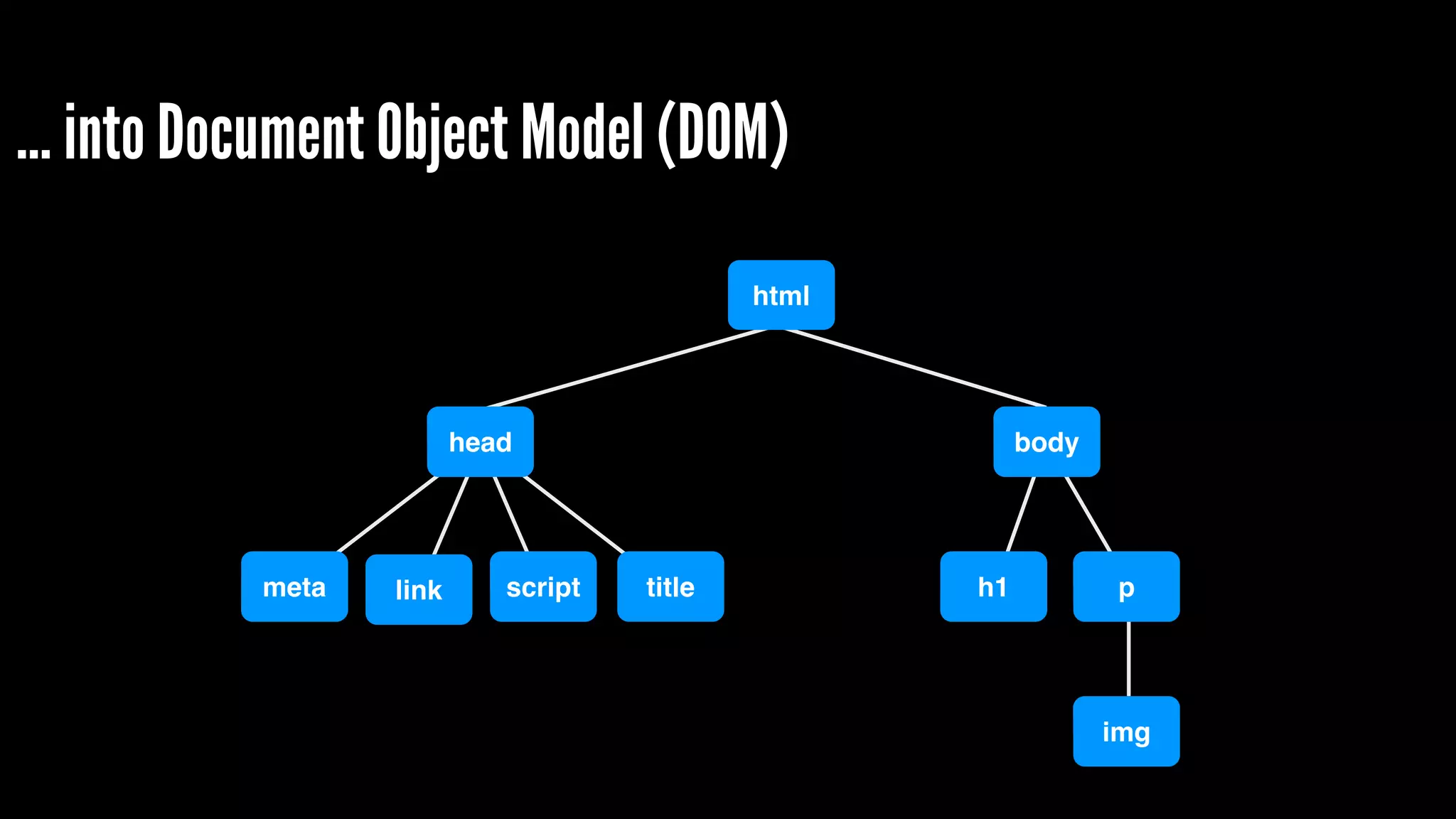

… into Document Object Model (DOM)
html
head body
meta link script title h1 p

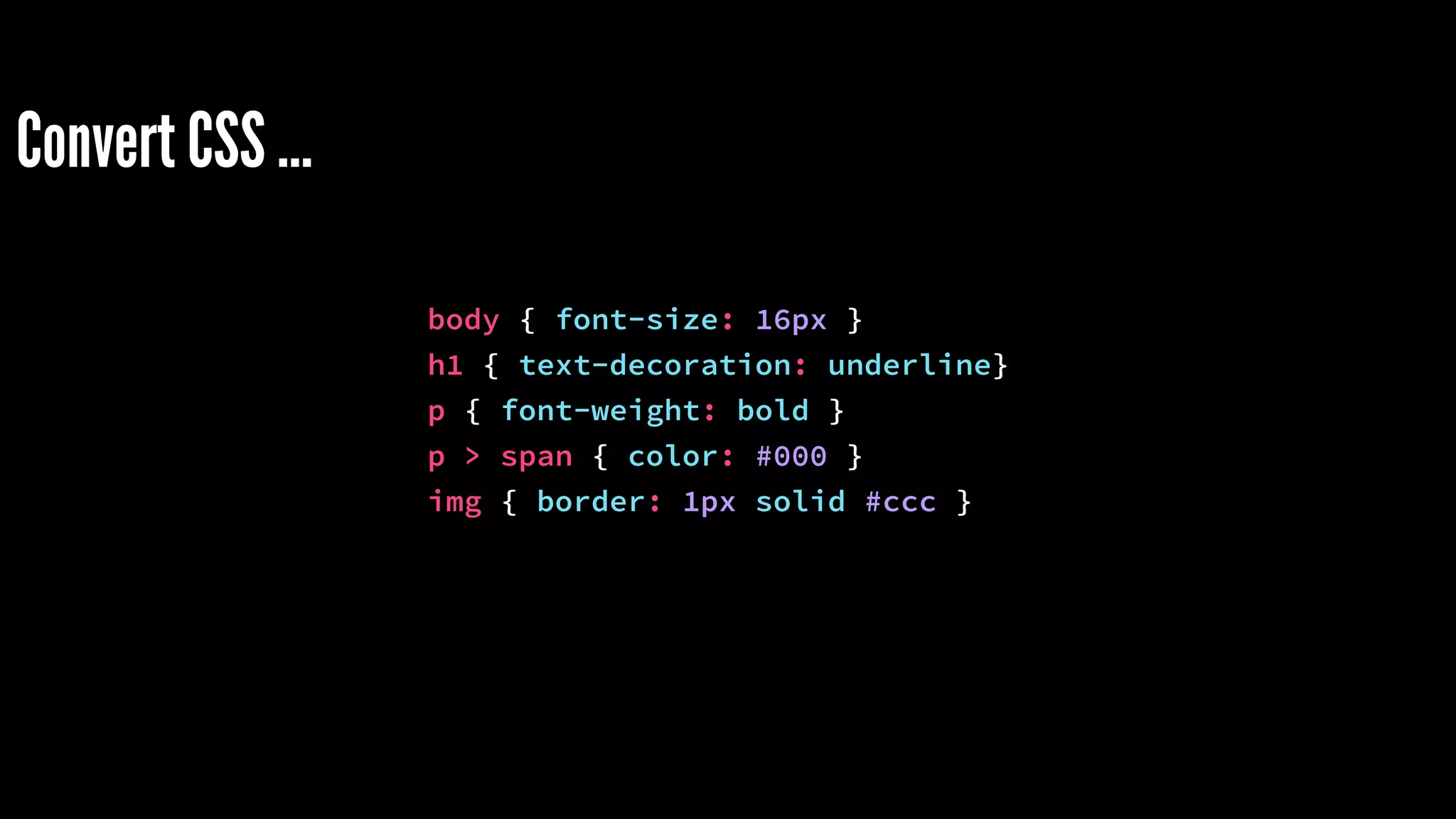

Convert CSS …
body { font-size: 16px }
h1 { text-decoration: underline}
p { font-weight: bold }
p > span { color: #000 }
img { border: 1px solid #ccc }

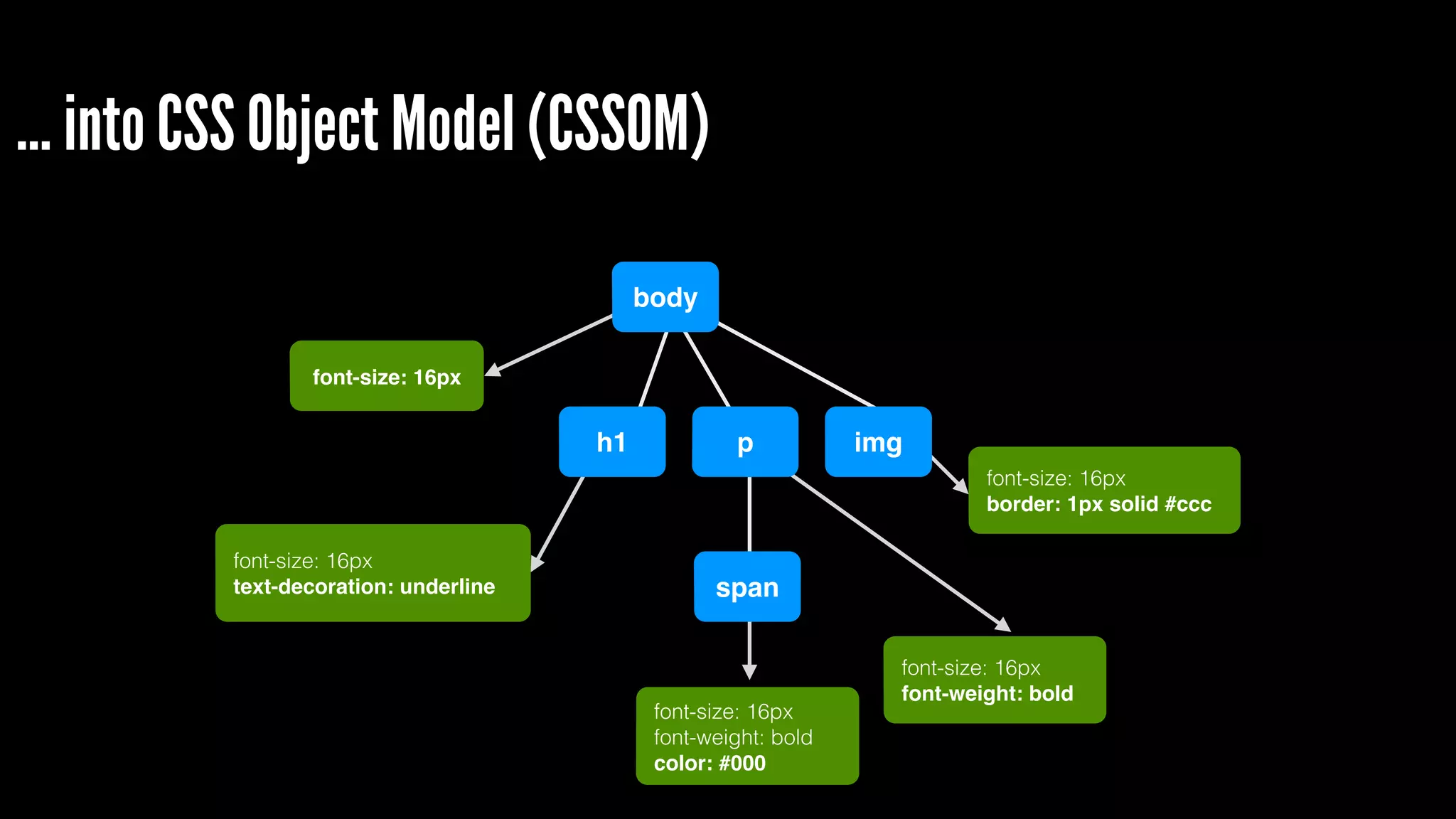

… into CSS Object Model (CSSOM)
body
h1 p
span
font-size: 16px
font-size: 16px
text-decoration: underline
font-size: 16px
font-weight: bold
font-size: 16px
font-weight: bold
color: #000
font-size: 16px
border: 1px solid #ccc

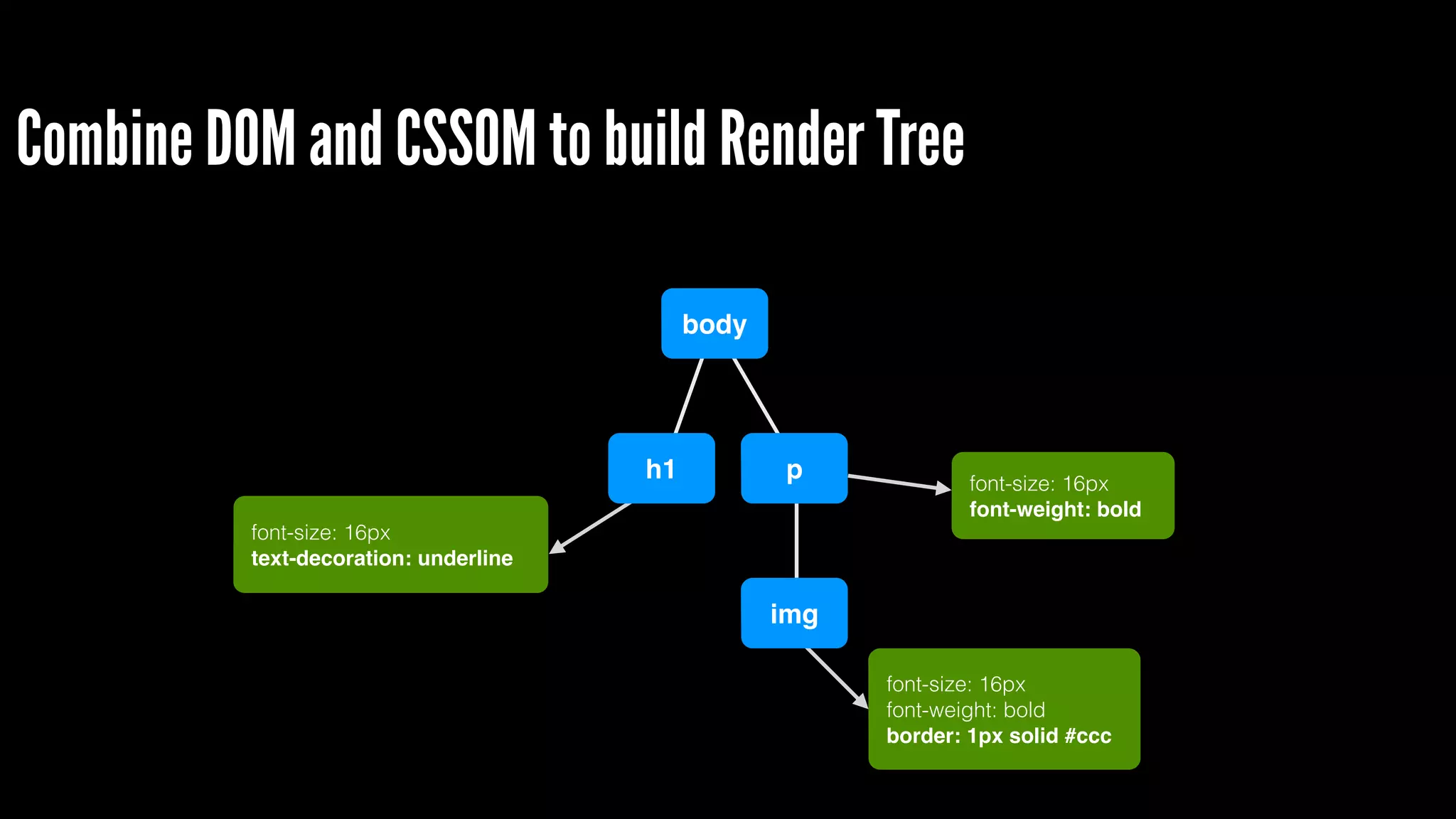

Combine DOM and CSSOM to build Render Tree
body
h1 p
font-size: 16px
text-decoration: underline
font-size: 16px
font-weight: bold
border: 1px solid #ccc
font-size: 16px
font-weight: bold

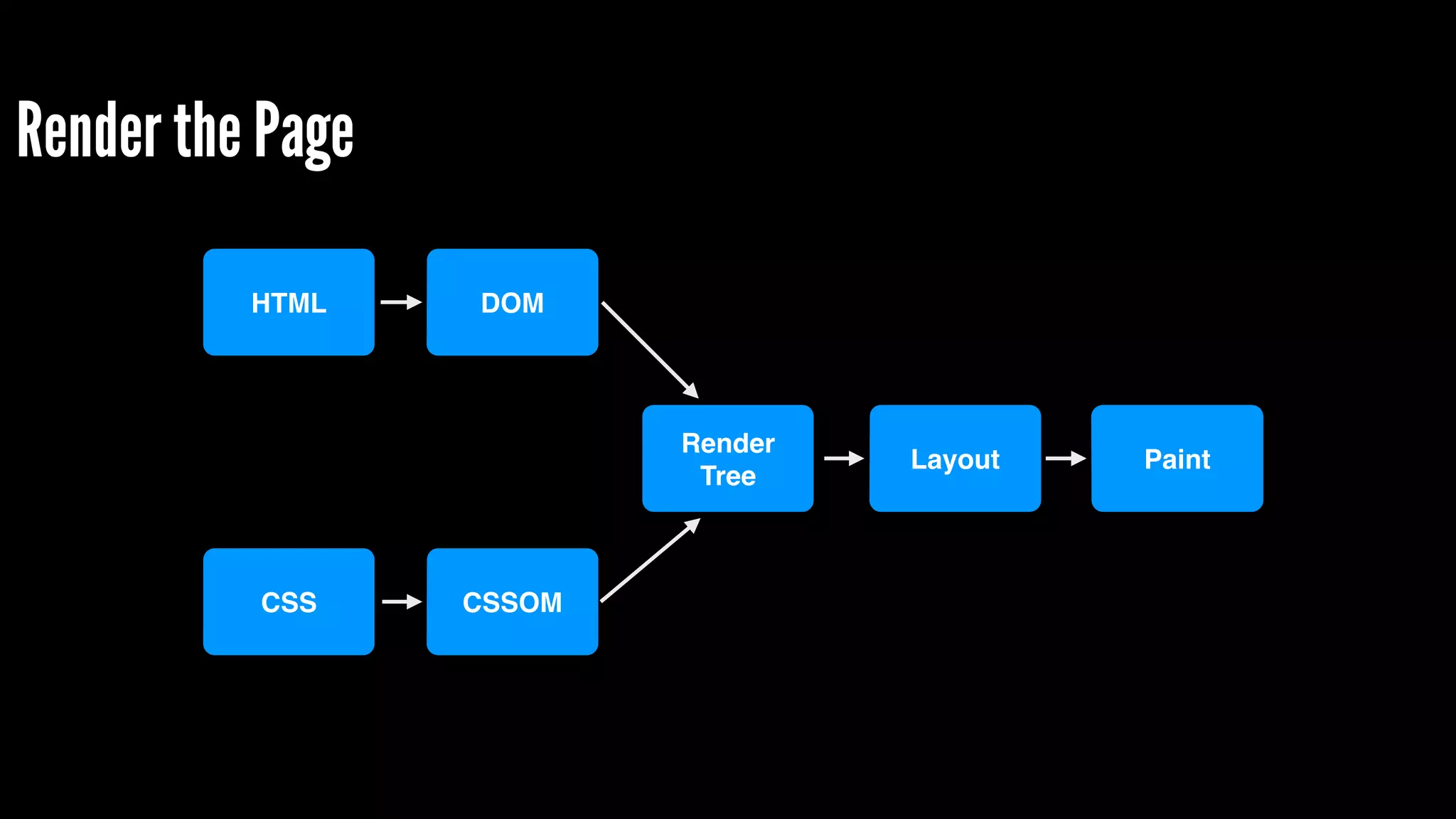

Render the Page
HTML
CSS
DOM
CSSOM
Render!
Tree
Layout Paint

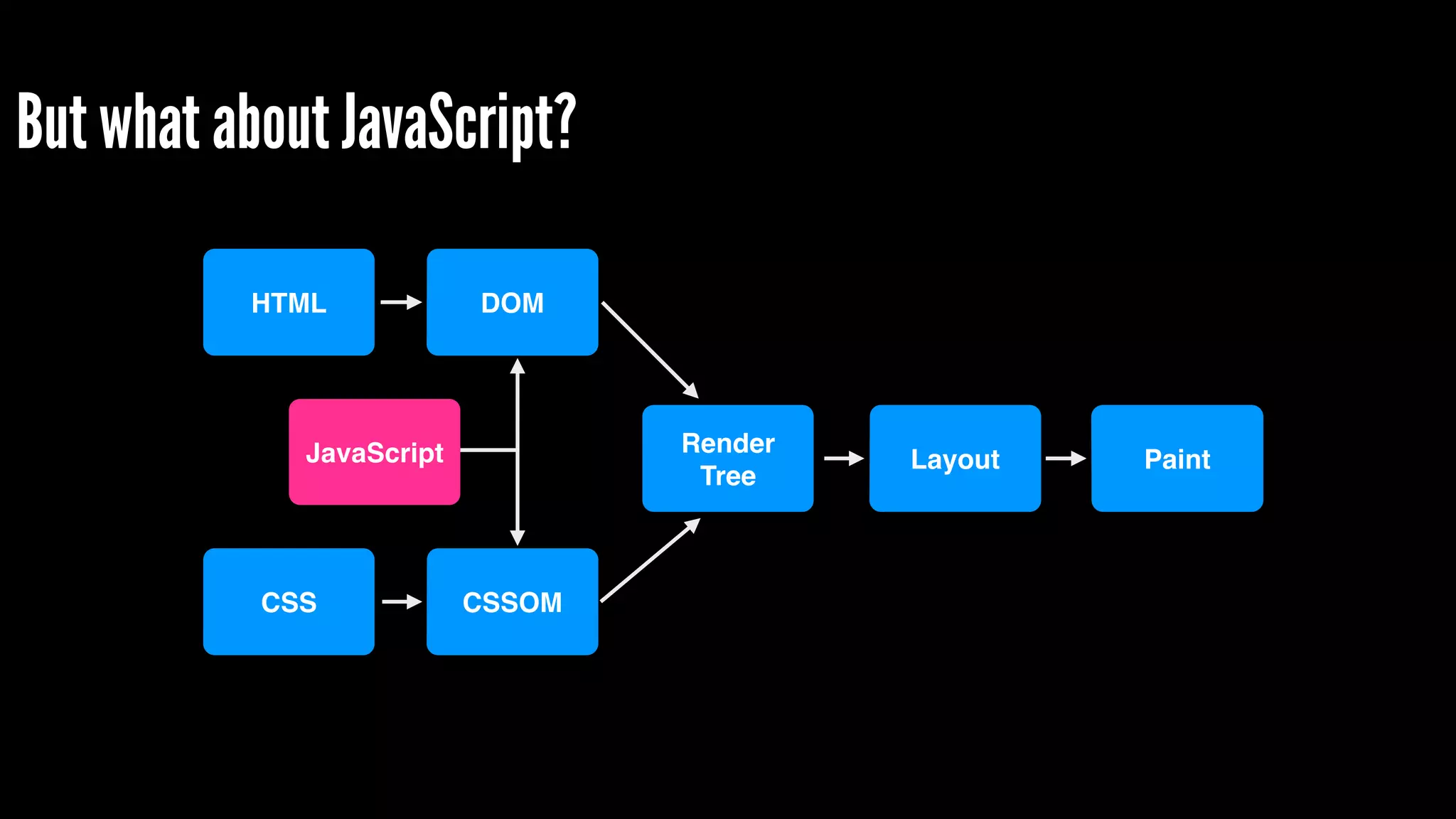

But what about JavaScript?
HTML
CSS
DOM
CSSOM
Render!
Tree
Layout PaintJavaScript

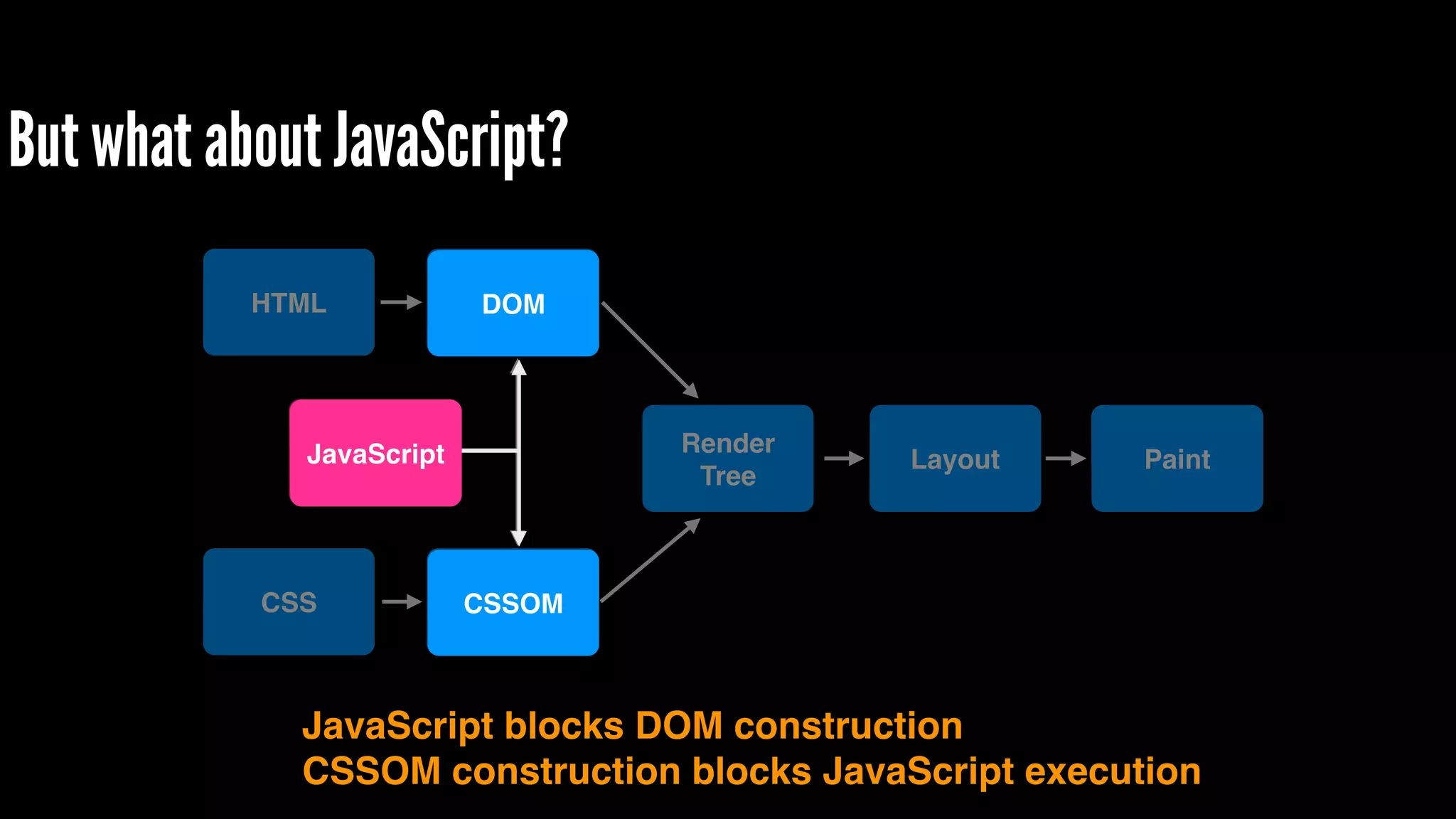

But what about JavaScript?
HTML
CSS
DOM
CSSOM
Render!
Tree
Layout PaintJavaScript
DOM
CSSOM
JavaScript
JavaScript blocks DOM construction!
CSSOM construction blocks JavaScript execution

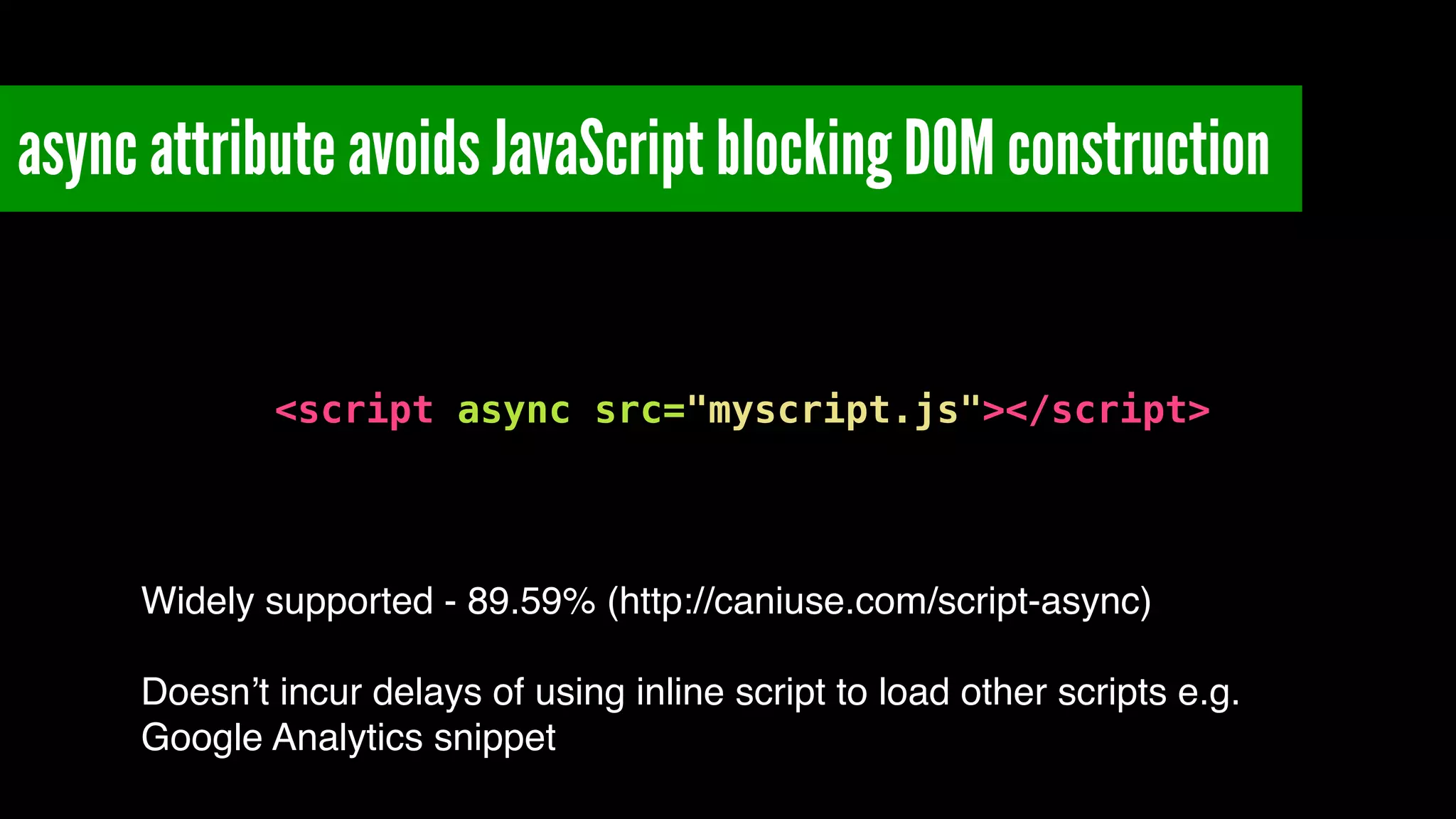

async attribute avoids JavaScript blocking DOM construction
!
<script async src="myscript.js"></script>
Widely supported - 89.59% (http://caniuse.com/script-async)!
!
Doesn’t incur delays of using inline script to load other scripts e.g.
Google Analytics snippet

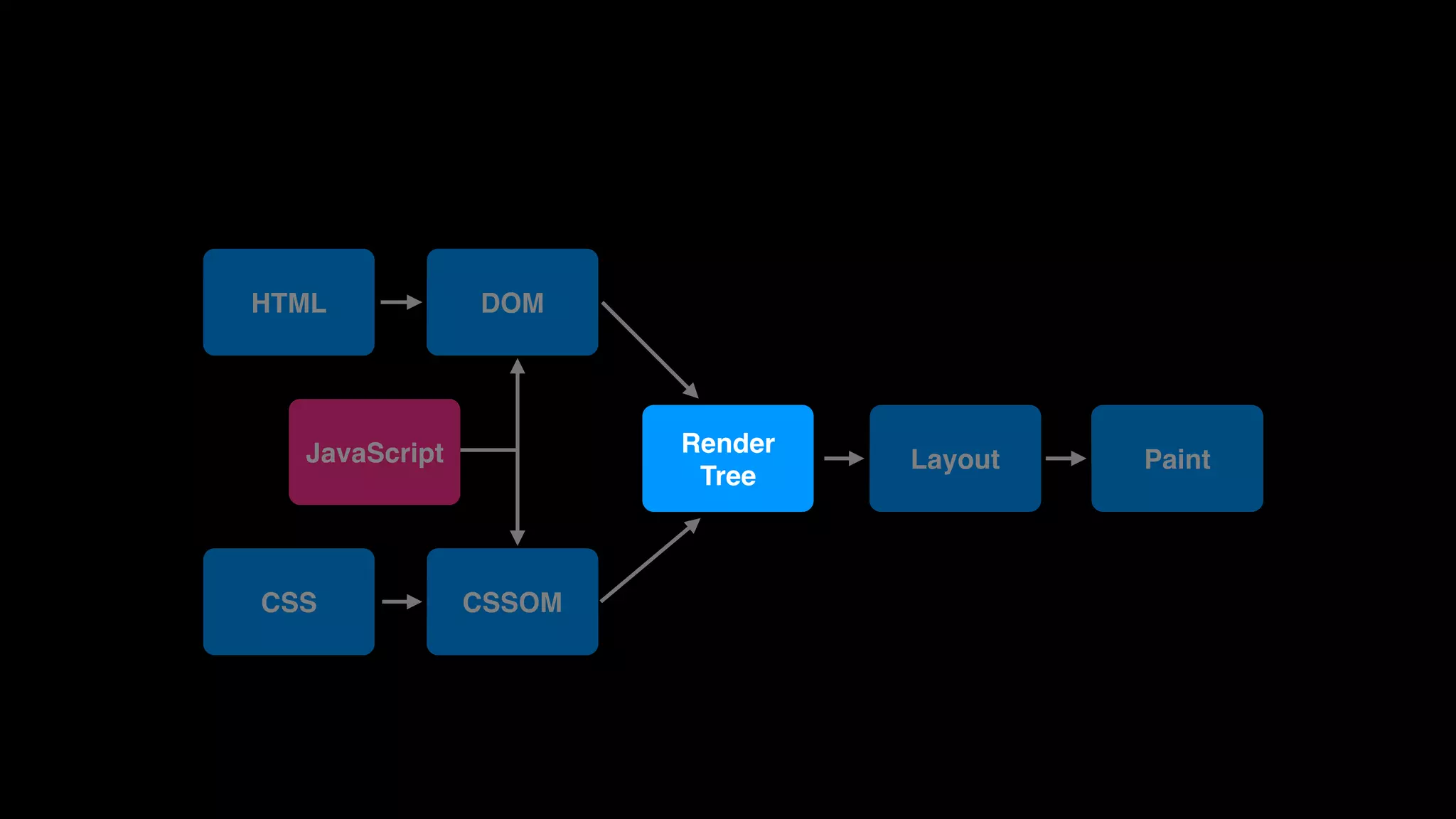

HTML
CSS
DOM
CSSOM
Render!
Tree
Layout PaintJavaScript Render!
Tree
HTML
CSS
DOM
CSSOM
Render!
Tree
Layout PaintJavaScript Render!
Tree

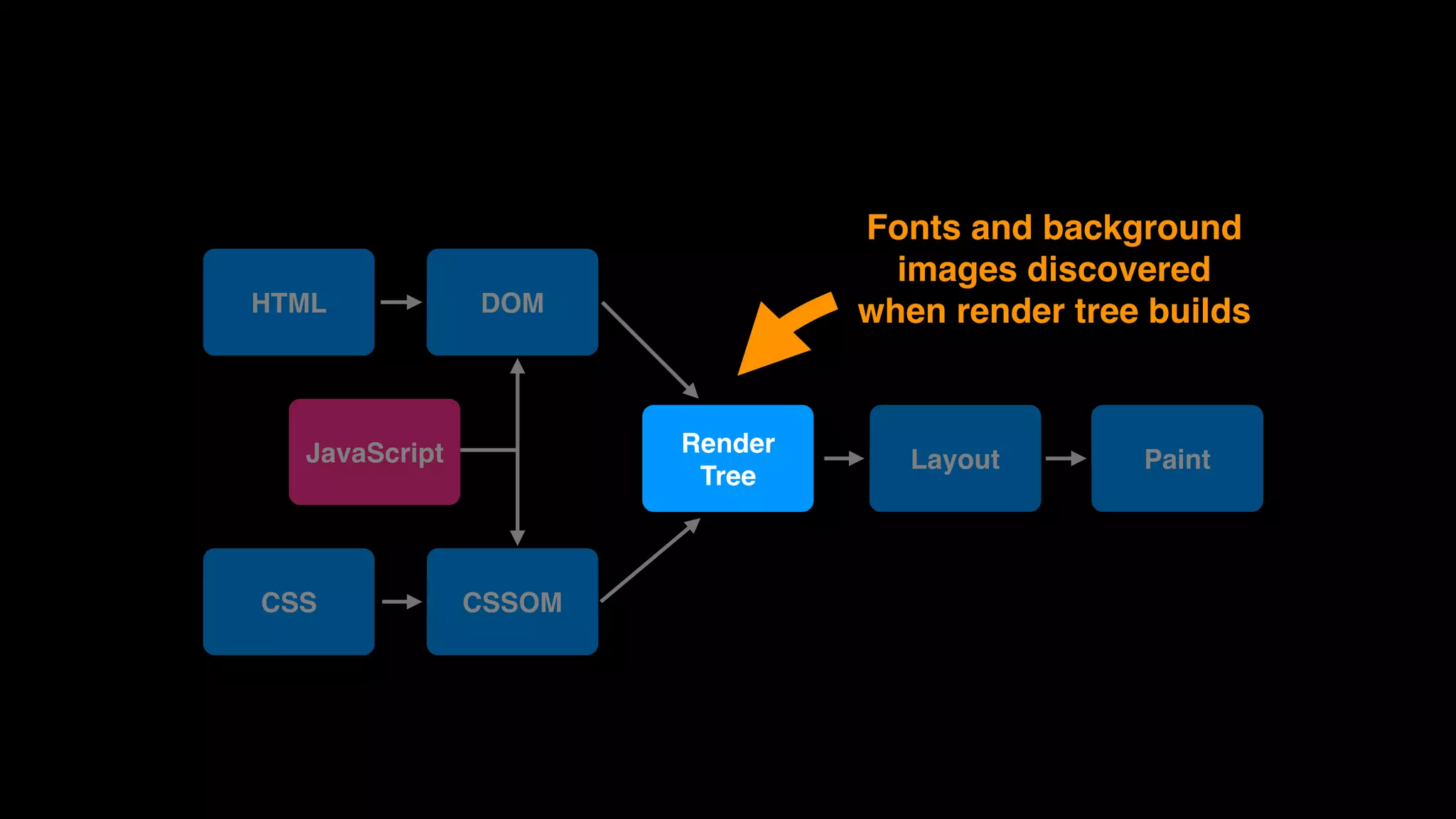

Fonts and background
images discovered
when render tree builds

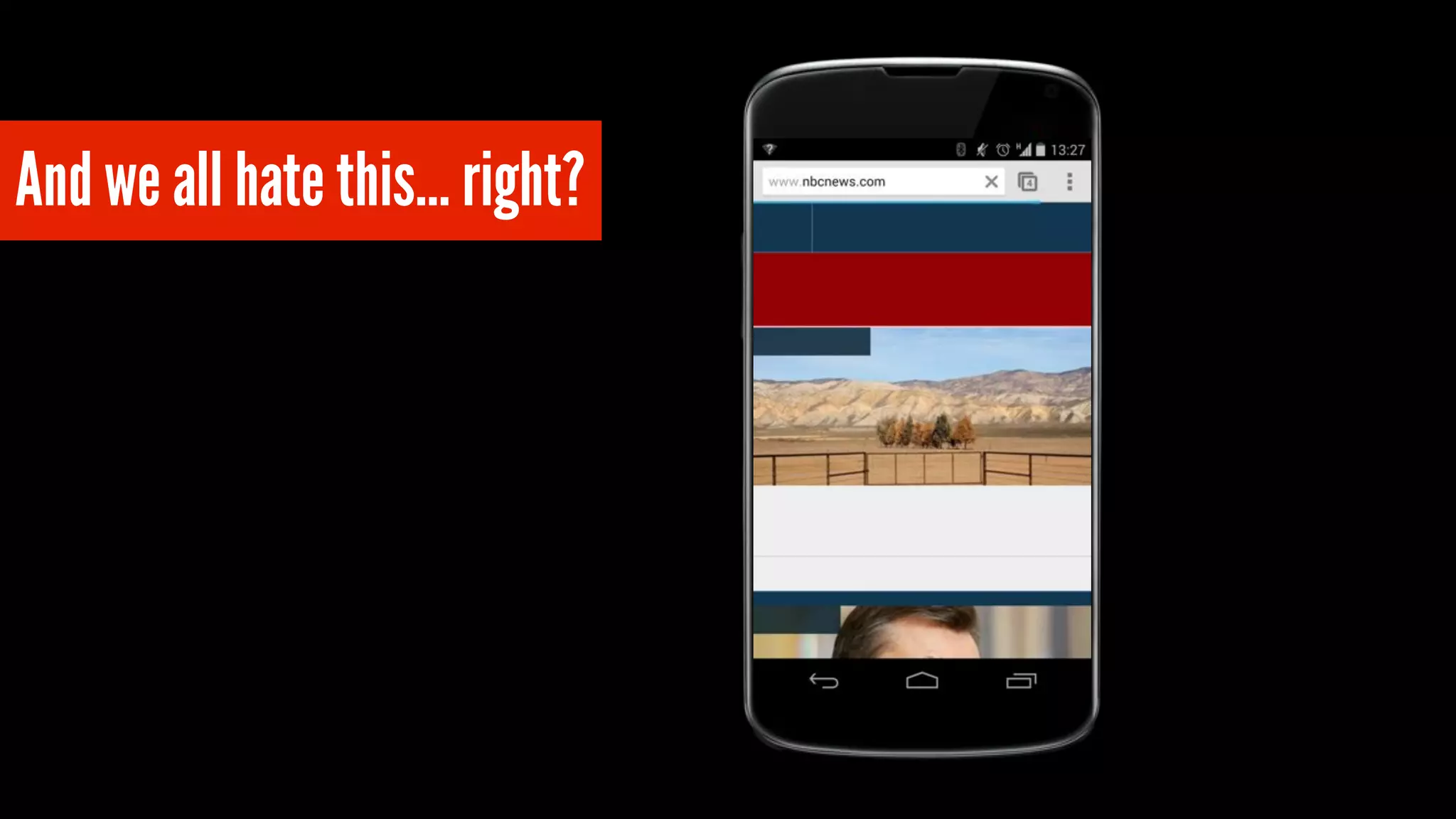

And we all hate this… right?
Use font foundries that prioritise your visitor’s experience
http://www.flickr.com/photos/splorp/4951916342
! " # $ % & ' ( ) * + , - . / 0 1 2 3 4 5 6 7 8 9 : ; < = > ? @ A B C D E F G H I J K L M N O P Q
R S T U V W X Y Z [  ] ^ _ ` a b c d e f g h i j k l m n o p q r s t u v w x y z { | } ~ ¡ ¢ £ ¤ ¥ ¦
§ ¨ © ª « ¬ ® ¯ ° ± ² ³ ´ µ ¶ · ¸ ¹ º » ¼ ½ ¾ ¿ À Á Â Ã Ä Å Æ Ç È É Ê Ë Ì Í Î Ï Ð Ñ Ò Ó Ô Õ Ö
× Ø Ù Ú Û Ü Ý Þ ß à á â ã ä å æ ç è é ê ë ì í î ï ð ñ ò ó ô õ ö ÷ ø ù ú û ü ý þ ÿ Ā ā Ă ă Ą ą Ć
ć Ĉ ĉ Ċ ċ Č č Ď ď Đ đ Ē ē Ĕ ĕ Ė ė Ę ę Ě ě Ĝ ĝ Ğ ğ Ġ ġ Ģ ģ Ĥ ĥ Ħ ħ Ĩ ĩ Ī ī Ĭ ĭ Į į İ ı IJ ij Ĵ ĵ Ķ ķ
ĸ Ĺ ĺ Ļ ļ Ľ ľ Ŀ ŀ Ł ł Ń ń Ņ ņ Ň ň ʼn Ŋ ŋ Ō ō Ŏ ŏ Ő ő Œ œ Ŕ ŕ Ŗ ŗ Ř ř Ś ś Ŝ ŝ Ş ş Š š Ţ ţ Ť ť Ŧ ŧ
Ũ ũ Ū ū Ŭ ŭ Ů ů Ű ű Ų ų Ŵ ŵ Ŷ ŷ Ÿ Ź ź Ż ż Ž ž ſ ƒ Ơ ơ Ư ư ǰ Ǻ ǻ Ǽ ǽ Ǿ ǿ Ș ș Ț ț ȷ ʼ ˆ ˇ ˉ ˘ ˙
˚ ˛ ˜ ˝ ˳ ̀ ́ ̃ ̉ ̏ ̣΄ ΅ Ά · Έ Ή Ί Ό Ύ Ώ ΐ Α Β Γ Δ Ε Ζ Η Θ Ι Κ Λ Μ Ν Ξ Ο Π Ρ Σ Τ Υ Φ Χ Ψ Ω Ϊ Ϋ ά έ
ή ί ΰ α β γ δ ε ζ η θ ι κ λ μ ν ξ ο π ρ ς σ τ υ φ χ ψ ω ϊ ϋ ό ύ ώ ϑ ϒ ϖ Ѐ Ё Ђ Ѓ Є Ѕ І Ї Ј Љ
Њ Ћ Ќ Ѝ Ў Џ А Б В Г Д Е Ж З И Й К Л М Н О П Р С Т У Ф Х Ц Ч Ш Щ Ъ Ы Ь Э Ю Я а б
в г д е ж з и й к л м н о п р с т у ф х ц ч ш щ ъ ы ь э ю я ѐ ё ђ ѓ є ѕ і ї ј љ њ ћ ќ ѝ ў џ Ѡ ѡ
Ѣ ѣ Ѥ ѥ Ѧ ѧ Ѩ ѩ Ѫ ѫ Ѭ ѭ Ѯ ѯ Ѱ ѱ Ѳ ѳ Ѵ ѵ Ѷ ѷ Ѹ ѹ Ѻ ѻ Ѽ ѽ Ѿ ѿ Ҁ ҁ ҂ ҃ ҄ ҅ ҆ ҈ ҉ Ҋ ҋ Ҍ ҍ
Ҏ ҏ Ґ ґ Ғ ғ Ҕ ҕ Җ җ Ҙ ҙ Қ қ Ҝ ҝ Ҟ ҟ Ҡ ҡ Ң ң Ҥ ҥ Ҧ ҧ Ҩ ҩ Ҫ ҫ Ҭ ҭ Ү ү Ұ ұ Ҳ ҳ Ҵ ҵ Ҷ ҷ Ҹ
ҹ Һ һ Ҽ ҽ Ҿ ҿ Ӏ Ӂ ӂ Ӄ ӄ Ӆ ӆ Ӈ ӈ Ӊ ӊ Ӌ ӌ Ӎ ӎ ӏ Ӑ ӑ Ӓ ӓ Ӕ ӕ Ӗ ӗ Ә ә Ӛ ӛ Ӝ ӝ Ӟ ӟ Ӡ ӡ Ӣ ӣ
Ӥ ӥ Ӧ ӧ Ө ө Ӫ ӫ Ӭ ӭ Ӯ ӯ Ӱ ӱ Ӳ ӳ Ӵ ӵ Ӷ ӷ Ӹ ӹ Ӻ ӻ Ӽ ӽ Ӿ ӿ Ԁ ԁ Ԃ ԃ Ԅ ԅ Ԇ ԇ Ԉ ԉ Ԋ ԋ Ԍ ԍ Ԏ
ԏ Ԑ ԑ Ԓ ԓ Ḁ ḁ Ḿ ḿ Ẁ ẁ Ẃ ẃ Ẅ ẅ Ạ ạ Ả ả Ấ ấ Ầ ầ Ẩ ẩ Ẫ ẫ Ậ ậ Ắ ắ Ằ ằ Ẳ ẳ Ẵ ẵ Ặ ặ Ẹ ẹ Ẻ ẻ
Ẽ ẽ Ế ế Ề ề Ể ể Ễ ễ Ệ ệ Ỉ ỉ Ị ị Ọ ọ Ỏ ỏ Ố ố Ồ ồ Ổ ổ Ỗ ỗ Ộ ộ Ớ ớ Ờ ờ Ở ở Ỡ ỡ Ợ ợ Ụ ụ Ủ ủ
Ứ ứ Ừ ừ Ử ử Ữ ữ Ự ự Ỳ ỳ Ỵ ỵ Ỷ ỷ Ỹ ỹ Ὅ – — ― ‗ ‘ ’ ‚ ‛ “ ” „ † ‡ • … ‰ ′ ″ ‹ › ‼ ⁄ ⁰ ⁴ ⁵ ⁶ ⁷ ⁸ ⁹ ⁿ ₣
₤ ₧ ₫ € ℅ № ℠ ™ Ω ⅛ ⅜ ⅝ ⅞ ∂ ∆ ∏ ∑ − √ ∞ ∫ ≈ ≠ ≤ ≥ ◊ ff fi fl ffi ffl 

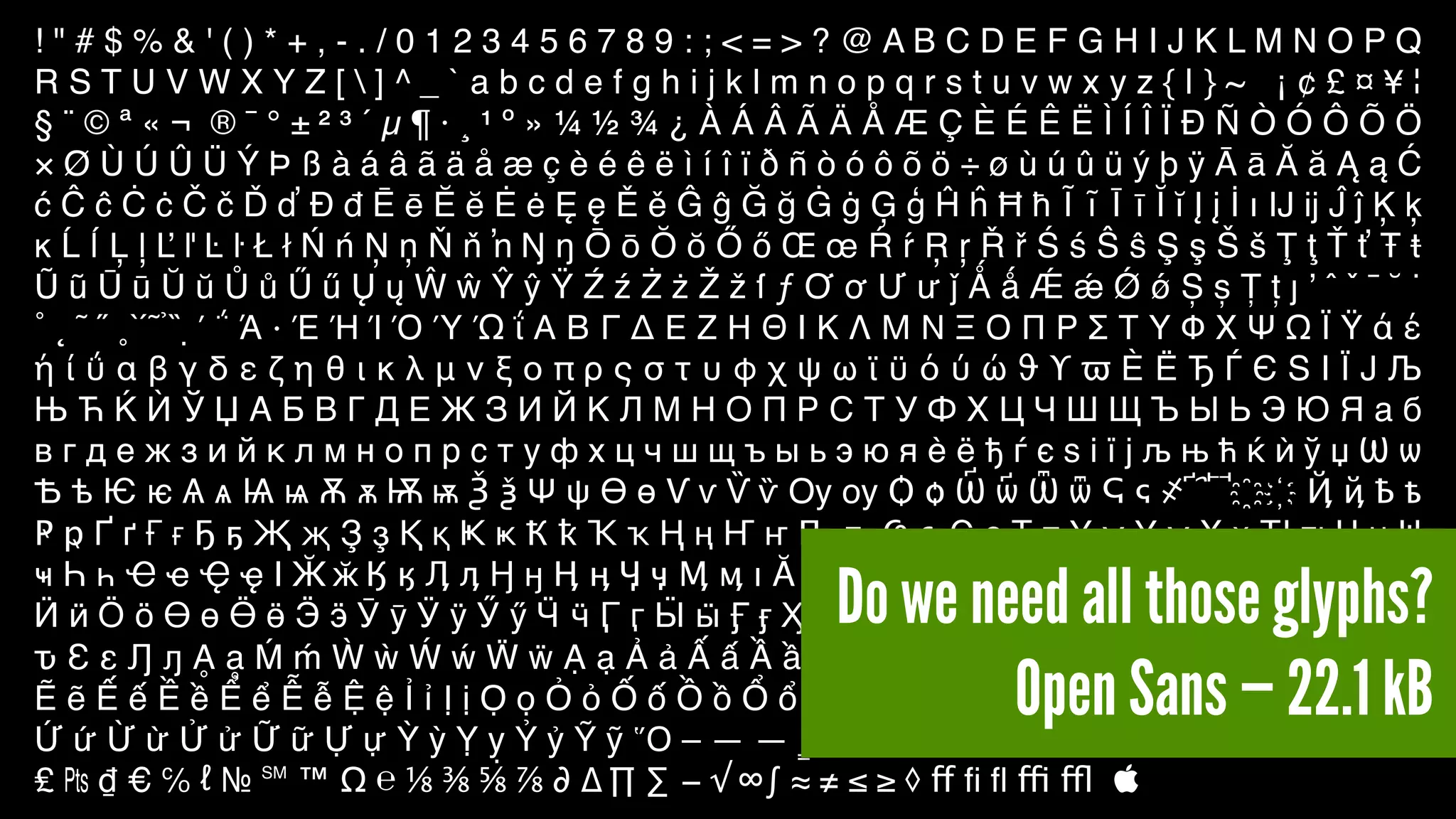

Do we need all those glyphs?
Open Sans — 22.1 kB
! " # $ % & ' ( ) * + , - . / 0 1 2 3 4 5 6 7 8 9 : ; < = > ? @ A B C D E F G H I J K L M N O P Q
R S T U V W X Y Z [  ] ^ _ ` a b c d e f g h i j k l m n o p q r s t u v w x y z { | } ~ ¡ ¢ £ ¤ ¥ ¦
§ ¨ © ª « ¬ ® ¯ ° ± ² ³ ´ µ ¶ · ¸ ¹ º » ¼ ½ ¾ ¿ À Á Â Ã Ä Å Æ Ç È É Ê Ë Ì Í Î Ï Ð Ñ Ò Ó Ô Õ Ö
× Ø Ù Ú Û Ü Ý Þ ß à á â ã ä å æ ç è é ê ë ì í î ï ð ñ ò ó ô õ ö ÷ ø ù ú û ü ý þ ÿ Ā ā Ă ă Ą ą Ć
ć Ĉ ĉ Ċ ċ Č č Ď ď Đ đ Ē ē Ĕ ĕ Ė ė Ę ę Ě ě Ĝ ĝ Ğ ğ Ġ ġ Ģ ģ Ĥ ĥ Ħ ħ Ĩ ĩ Ī ī Ĭ ĭ Į į İ ı IJ ij Ĵ ĵ Ķ ķ
ĸ Ĺ ĺ Ļ ļ Ľ ľ Ŀ ŀ Ł ł Ń ń Ņ ņ Ň ň ʼn Ŋ ŋ Ō ō Ŏ ŏ Ő ő Œ œ Ŕ ŕ Ŗ ŗ Ř ř Ś ś Ŝ ŝ Ş ş Š š Ţ ţ Ť ť Ŧ ŧ
Ũ ũ Ū ū Ŭ ŭ Ů ů Ű ű Ų ų Ŵ ŵ Ŷ ŷ Ÿ Ź ź Ż ż Ž ž ſ ƒ Ơ ơ Ư ư ǰ Ǻ ǻ Ǽ ǽ Ǿ ǿ Ș ș Ț ț ȷ ʼ ˆ ˇ ˉ ˘ ˙
˚ ˛ ˜ ˝ ˳ ̀ ́ ̃ ̉ ̏ ̣΄ ΅ Ά · Έ Ή Ί Ό Ύ Ώ ΐ Α Β Γ Δ Ε Ζ Η Θ Ι Κ Λ Μ Ν Ξ Ο Π Ρ Σ Τ Υ Φ Χ Ψ Ω Ϊ Ϋ ά έ
ή ί ΰ α β γ δ ε ζ η θ ι κ λ μ ν ξ ο π ρ ς σ τ υ φ χ ψ ω ϊ ϋ ό ύ ώ ϑ ϒ ϖ Ѐ Ё Ђ Ѓ Є Ѕ І Ї Ј Љ
Њ Ћ Ќ Ѝ Ў Џ А Б В Г Д Е Ж З И Й К Л М Н О П Р С Т У Ф Х Ц Ч Ш Щ Ъ Ы Ь Э Ю Я а б
в г д е ж з и й к л м н о п р с т у ф х ц ч ш щ ъ ы ь э ю я ѐ ё ђ ѓ є ѕ і ї ј љ њ ћ ќ ѝ ў џ Ѡ ѡ
Ѣ ѣ Ѥ ѥ Ѧ ѧ Ѩ ѩ Ѫ ѫ Ѭ ѭ Ѯ ѯ Ѱ ѱ Ѳ ѳ Ѵ ѵ Ѷ ѷ Ѹ ѹ Ѻ ѻ Ѽ ѽ Ѿ ѿ Ҁ ҁ ҂ ҃ ҄ ҅ ҆ ҈ ҉ Ҋ ҋ Ҍ ҍ
Ҏ ҏ Ґ ґ Ғ ғ Ҕ ҕ Җ җ Ҙ ҙ Қ қ Ҝ ҝ Ҟ ҟ Ҡ ҡ Ң ң Ҥ ҥ Ҧ ҧ Ҩ ҩ Ҫ ҫ Ҭ ҭ Ү ү Ұ ұ Ҳ ҳ Ҵ ҵ Ҷ ҷ Ҹ
ҹ Һ һ Ҽ ҽ Ҿ ҿ Ӏ Ӂ ӂ Ӄ ӄ Ӆ ӆ Ӈ ӈ Ӊ ӊ Ӌ ӌ Ӎ ӎ ӏ Ӑ ӑ Ӓ ӓ Ӕ ӕ Ӗ ӗ Ә ә Ӛ ӛ Ӝ ӝ Ӟ ӟ Ӡ ӡ Ӣ ӣ
Ӥ ӥ Ӧ ӧ Ө ө Ӫ ӫ Ӭ ӭ Ӯ ӯ Ӱ ӱ Ӳ ӳ Ӵ ӵ Ӷ ӷ Ӹ ӹ Ӻ ӻ Ӽ ӽ Ӿ ӿ Ԁ ԁ Ԃ ԃ Ԅ ԅ Ԇ ԇ Ԉ ԉ Ԋ ԋ Ԍ ԍ Ԏ
ԏ Ԑ ԑ Ԓ ԓ Ḁ ḁ Ḿ ḿ Ẁ ẁ Ẃ ẃ Ẅ ẅ Ạ ạ Ả ả Ấ ấ Ầ ầ Ẩ ẩ Ẫ ẫ Ậ ậ Ắ ắ Ằ ằ Ẳ ẳ Ẵ ẵ Ặ ặ Ẹ ẹ Ẻ ẻ
Ẽ ẽ Ế ế Ề ề Ể ể Ễ ễ Ệ ệ Ỉ ỉ Ị ị Ọ ọ Ỏ ỏ Ố ố Ồ ồ Ổ ổ Ỗ ỗ Ộ ộ Ớ ớ Ờ ờ Ở ở Ỡ ỡ Ợ ợ Ụ ụ Ủ ủ
Ứ ứ Ừ ừ Ử ử Ữ ữ Ự ự Ỳ ỳ Ỵ ỵ Ỷ ỷ Ỹ ỹ Ὅ – — ― ‗ ‘ ’ ‚ ‛ “ ” „ † ‡ • … ‰ ′ ″ ‹ › ‼ ⁄ ⁰ ⁴ ⁵ ⁶ ⁷ ⁸ ⁹ ⁿ ₣
₤ ₧ ₫ € ℅ № ℠ ™ Ω ⅛ ⅜ ⅝ ⅞ ∂ ∆ ∏ ∑ − √ ∞ ∫ ≈ ≠ ≤ ≥ ◊ ff fi fl ffi ffl 
Just Latin glyphs… 14.9 kB — 33% saving

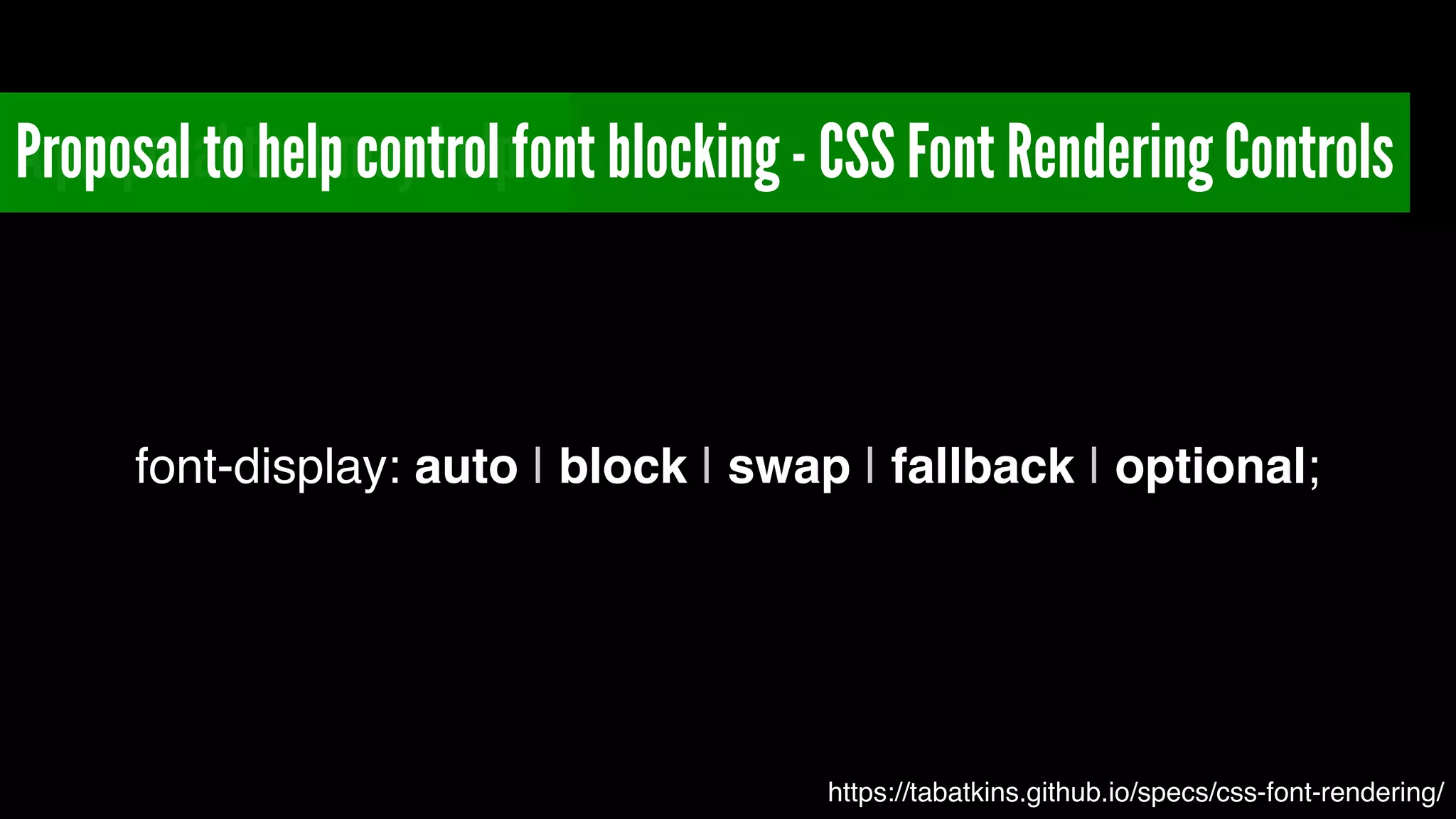

A proposal that may help…
font-display: auto | block | swap | fallback | optional;
https://tabatkins.github.io/specs/css-font-rendering/
Proposal to help control font blocking - CSS Font Rendering Controls

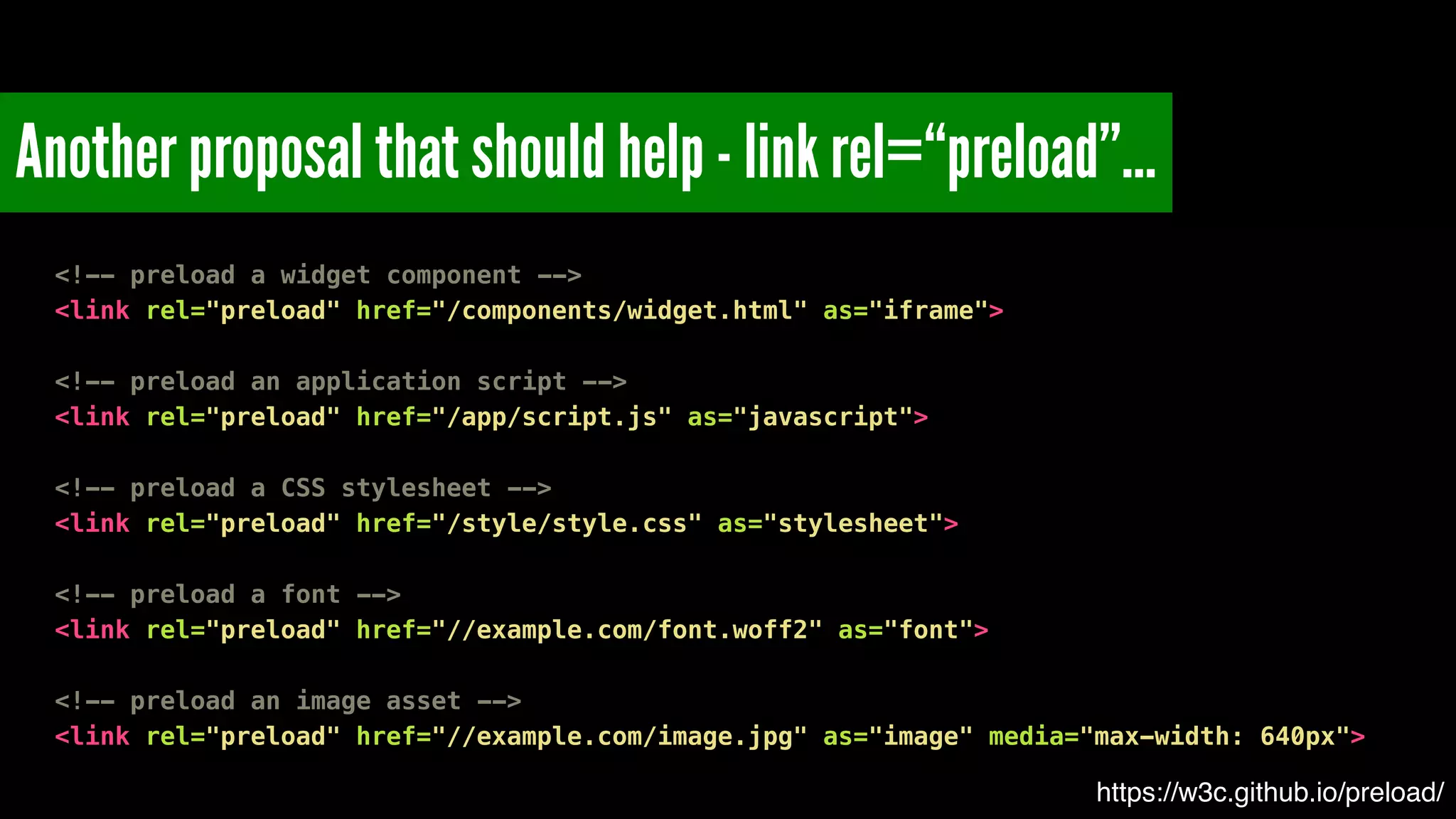

Another proposal that should help - link rel=“preload”…
https://w3c.github.io/preload/
<!-- preload a widget component -->
<link rel="preload" href="/components/widget.html" as="iframe">
!
<!-- preload an application script -->
<link rel="preload" href="/app/script.js" as="javascript">
!
<!-- preload a CSS stylesheet -->
<link rel="preload" href="/style/style.css" as="stylesheet">
!
<!-- preload a font -->
<link rel="preload" href="//example.com/font.woff2" as="font">
!
<!-- preload an image asset -->
<link rel="preload" href="//example.com/image.jpg" as="image" media="max-width: 640px">

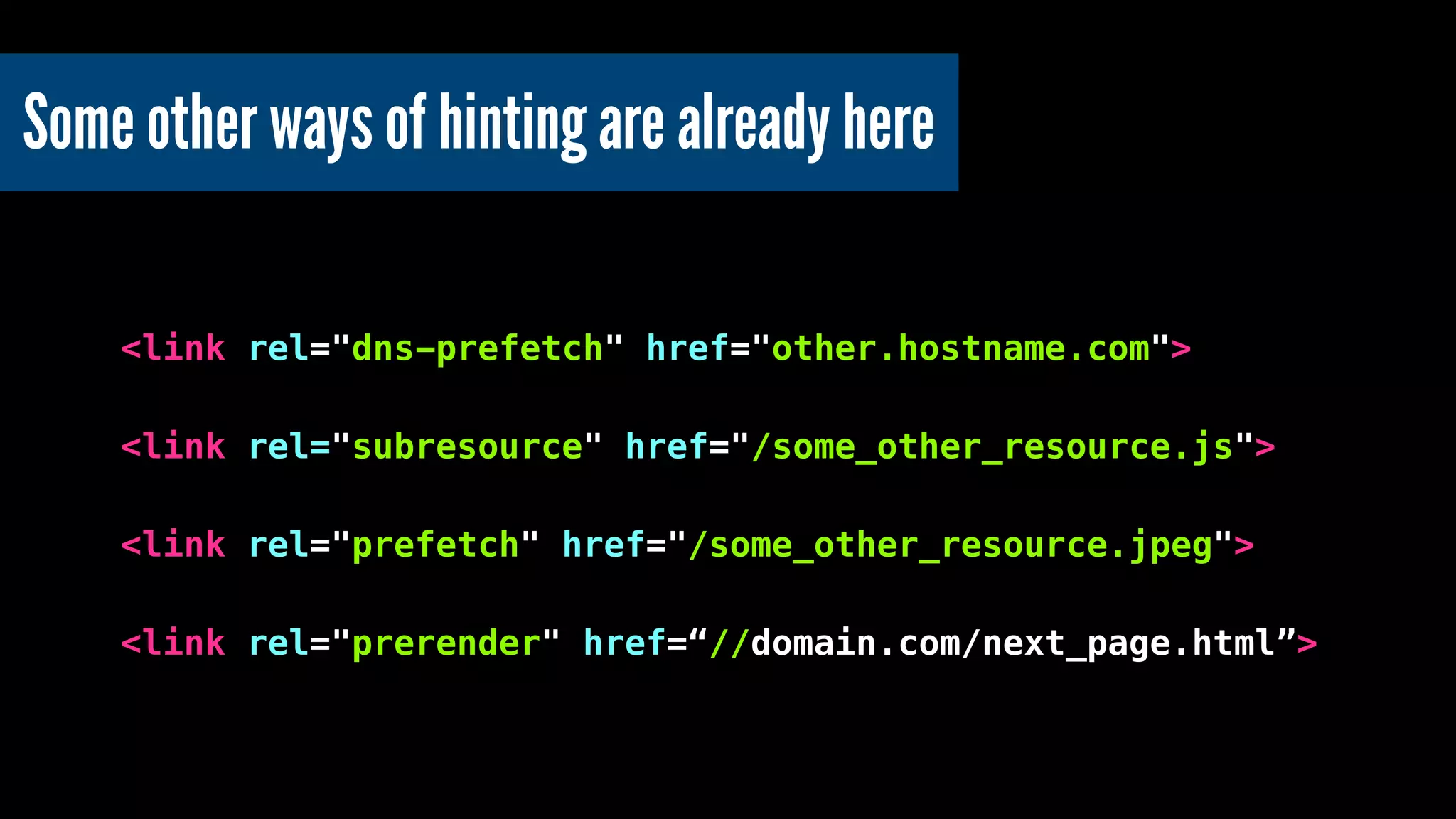

Some other ways of hinting are already here
<link rel="dns-prefetch" href="other.hostname.com">
!
<link rel="subresource" href="/some_other_resource.js">
!
<link rel="prefetch" href="/some_other_resource.jpeg">
!
<link rel="prerender" href=“//domain.com/next_page.html”>
https://www.flickr.com/photos/christian_bachellier/582457911
And HTTP/2 server push is here now too

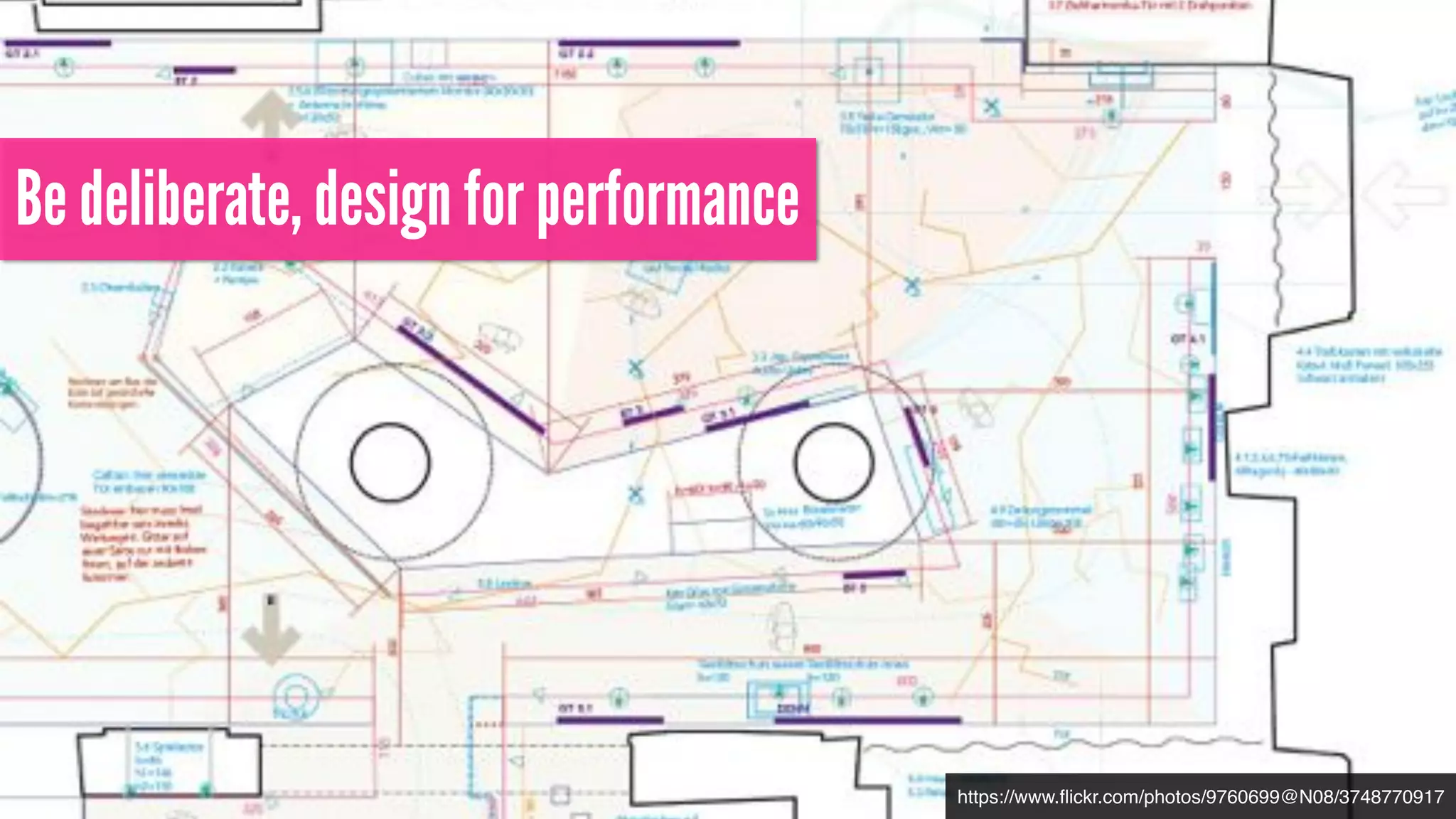

Be deliberate, design for performance
https://www.flickr.com/photos/9760699@N08/3748770917
Measure frequently - during build and in live
http://www.flickr.com/photos/chandramarsono/4324373384
Remember the constraints of our medium
https://www.flickr.com/photos/33649815@N03/3367739514
https://www.flickr.com/photos/basheertome/4762529213
http://www.flickr.com/photos/nzbuu/4093456029
ThankYou!
@andydavies
andy.davies@nccgroup.com
http://slideshare.net/andydavies

Speed matters, So why is your site so slow?

  • 1.
    https://www.flickr.com/photos/sharynmorrow/643126727 Speed Matters… So whyis your site so slow? @AndyDavies ReDevelop 2015, August 2015
  • 2.
  • 3.
  • 4.
    The Web isToo Slow http://www.flickr.com/photos/the_justified_sinner/3507390621
  • 6.
    (it’s just) Toomany sites are too slow http://www.flickr.com/photos/the_justified_sinner/3507390621
  • 7.
    and it’s gettingworse! Only 12% of the top 100 (US) retail sites rendered feature content in less than 3 seconds. ! ! Year-on-year the median page has slowed down by 23% Tammy Everts - Radware State of the Union Fall 2014
  • 8.
    “We’re not beingdeliberate about performance”! Tim Kadlec https://www.flickr.com/photos/lukew/7382528728
  • 9.
    But only ifwe build it that way… http://3.bp.blogspot.com/-0RqujOyE1ro/Up9HF7bPxbI/AAAAAAAAAbM/Ijudm6uq-dg/s1600/This+is+for+Everyone.jpg
  • 10.
    Reader panel (3,000people) rated speed (fast page load time) as their second most important driver! ! Speed had the highest percentage of people saying it was VERY important to them
  • 11.
  • 12.
    http://www.slideshare.net/cliffcrocker/velocity-ny-how-to-measure-revenue-in-milliseconds Increased conversions by10%! ! Shaved 1 second off median home page time! 6 seconds of 98th percentile
  • 13.
    Improved load timefrom 1.2s to 0.5s! ! +28% page views / session! +21% time on site / visit! +20% conversion rate http://blog.quanta-computing.com/etam-earns-20-of-conversion-by-optimising-its-online-store/
  • 14.
    We’re more tolerantas we get further into purchase funnels Less Tolerant More Tolerant
  • 15.
    and sometimes weget suspicious if something’s too fast
  • 16.
    and sometimes weget suspicious if something’s too fast
  • 17.
    Design is allabout finding solutions within constraints,! if there were no constraints, it’s not design — it’s art.! Matias Duarte “ ”
  • 18.
  • 19.
    Setting a budget Anevent that matters to the visitor! within a set time! under defined network conditions
  • 20.
    “Usable within 10seconds on GPRS connection”! BBC News
  • 21.
  • 22.
    Could use pagesize or number of objects but…
  • 23.
    …how well wouldthey work here?
  • 24.
    We know howto make fast sites, there are plenty of recipes out there
  • 25.
    How well dowe understand our medium? https://www.flickr.com/photos/37873897@N06/6924775578
  • 26.
    Do we understandour fundamental building blocks? https://www.flickr.com/photos/ogimogi/2253657555
  • 27.
    Which will befaster? 10Mbps 1Mbps
  • 28.
    Which will befaster? 10Mbps 1Mbps
  • 29.
    Which will befaster? 10Mbps 1Mbps
  • 30.
    Which will befaster? 10Mbps 1Mbps
  • 31.
    Which will befaster? 10Mbps 1Mbps/ 280ms RTT / 28ms RTT
  • 32.
    We often thinkof the network as a pipe https://www.flickr.com/photos/63567936@N00/4181042889
  • 33.
    that’s sometimes reallybad https://www.flickr.com/photos/chesh2000/4487000196
  • 34.
    but the realityis closer to http://1m0esx2939yhjwld8419obqhyb.wpengine.netdna-cdn.com/wp-content/uploads/2014/06/DSC_0492.jpg
  • 35.
    “More Bandwidth Doesn’tMatter (much)”! Mike Belshe PageLoadTime Bandwidth (Mbps) 1 2 3 4 5 6 7 8 9 10 1.36s1.37s1.38s1.39s1.41s1.44s1.50s 1.63s 1.95s 3.11s
  • 36.
    Latency = timebetween request and response Browser Server Request Response Time
  • 37.
    But latency hasa linear impact PageLoadTime(s) 1 2 3 4 Round Trip Time (ms) 0 20 40 60 80 100 120 140 160 180 200 220 240
  • 38.
    http://www.vectortemplates.comBT Backbone roundtriptimes from London: http://ippm.bt.net/hour/europe/lo.shtml Latency increases with distance
  • 39.
    http://www.vectortemplates.comBT Backbone roundtriptimes from London: http://ippm.bt.net/hour/europe/lo.shtml Latency increases with distance 81ms 201ms 156ms 266ms 232ms 28ms
  • 40.
    http://www.vectortemplates.com CDN = contentcloser to visitor = less latency = faster
  • 41.
    There’s the lastmile latency too (and routers, other networking kit, mobile latencies too) https://www.flickr.com/photos/kiwanja/3170292282
  • 42.
    TCP and theLower Bound of Web Performance! John Rauser Will probably need more than one round trip 71kB 143kB 214kB 285kB 1 2 3 4 5 6 7 8 9 10 11 (TCP Segments) Round Trips Size
  • 43.
    We can cheatthe latency penalty (sometimes) https://speakerdeck.com/mikeyk/secrets-to-lightning-fast-mobile-design
  • 45.
  • 46.

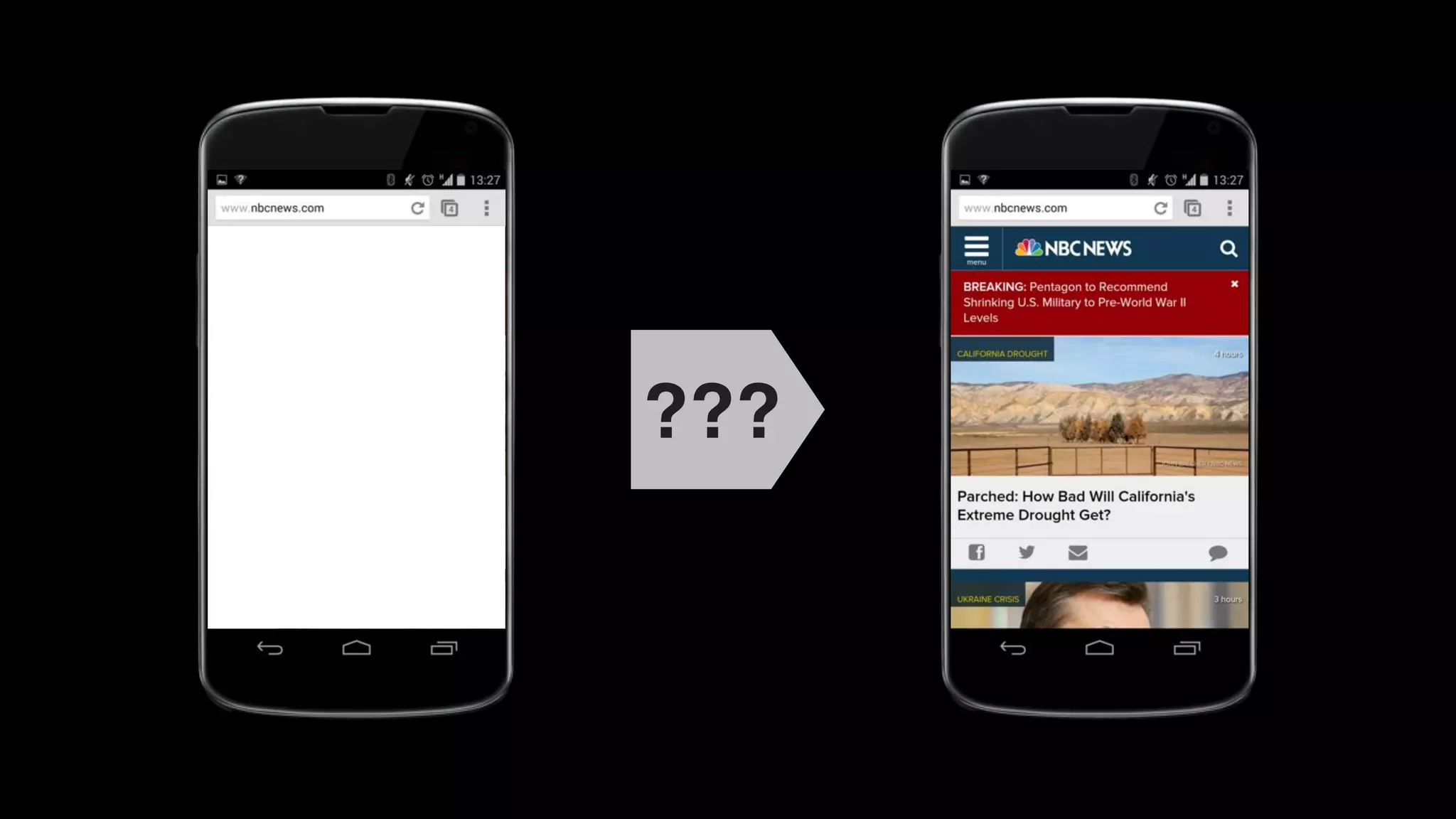

  • 47.
  • 48.
    Convert HTML … <html> <head> <metaname="viewport" content="width=device-width,initial-scale=1.0"> <link href="styles.css" rel="stylesheet"> <script src="script.js"></script> <title>HTML Example</title> </head> <body> <h1>Title</h1> <p>Some introductory text and picture! <img src="image.jpg"/></p> </body> </html>
  • 49.
    … into DocumentObject Model (DOM) html head body meta link script title h1 p img
  • 50.
    Convert CSS … body{ font-size: 16px } h1 { text-decoration: underline} p { font-weight: bold } p > span { color: #000 } img { border: 1px solid #ccc }
  • 51.
    … into CSSObject Model (CSSOM) body h1 p span font-size: 16px font-size: 16px text-decoration: underline font-size: 16px font-weight: bold font-size: 16px font-weight: bold color: #000 img font-size: 16px border: 1px solid #ccc
  • 52.
    Combine DOM andCSSOM to build Render Tree body h1 p img font-size: 16px text-decoration: underline font-size: 16px font-weight: bold border: 1px solid #ccc font-size: 16px font-weight: bold
  • 53.
  • 54.
    But what aboutJavaScript? HTML CSS DOM CSSOM Render! Tree Layout PaintJavaScript
  • 55.
    But what aboutJavaScript? HTML CSS DOM CSSOM Render! Tree Layout PaintJavaScript DOM CSSOM JavaScript JavaScript blocks DOM construction! CSSOM construction blocks JavaScript execution
  • 56.
    async attribute avoidsJavaScript blocking DOM construction ! <script async src="myscript.js"></script> Widely supported - 89.59% (http://caniuse.com/script-async)! ! Doesn’t incur delays of using inline script to load other scripts e.g. Google Analytics snippet
  • 57.
  • 58.
    HTML CSS DOM CSSOM Render! Tree Layout PaintJavaScript Render! Tree Fontsand background images discovered when render tree builds
  • 59.
    And we allhate this… right?
  • 60.
    Use font foundriesthat prioritise your visitor’s experience http://www.flickr.com/photos/splorp/4951916342
  • 61.
    ! " #$ % & ' ( ) * + , - . / 0 1 2 3 4 5 6 7 8 9 : ; < = > ? @ A B C D E F G H I J K L M N O P Q R S T U V W X Y Z [ ] ^ _ ` a b c d e f g h i j k l m n o p q r s t u v w x y z { | } ~ ¡ ¢ £ ¤ ¥ ¦ § ¨ © ª « ¬ ® ¯ ° ± ² ³ ´ µ ¶ · ¸ ¹ º » ¼ ½ ¾ ¿ À Á Â Ã Ä Å Æ Ç È É Ê Ë Ì Í Î Ï Ð Ñ Ò Ó Ô Õ Ö × Ø Ù Ú Û Ü Ý Þ ß à á â ã ä å æ ç è é ê ë ì í î ï ð ñ ò ó ô õ ö ÷ ø ù ú û ü ý þ ÿ Ā ā Ă ă Ą ą Ć ć Ĉ ĉ Ċ ċ Č č Ď ď Đ đ Ē ē Ĕ ĕ Ė ė Ę ę Ě ě Ĝ ĝ Ğ ğ Ġ ġ Ģ ģ Ĥ ĥ Ħ ħ Ĩ ĩ Ī ī Ĭ ĭ Į į İ ı IJ ij Ĵ ĵ Ķ ķ ĸ Ĺ ĺ Ļ ļ Ľ ľ Ŀ ŀ Ł ł Ń ń Ņ ņ Ň ň ʼn Ŋ ŋ Ō ō Ŏ ŏ Ő ő Œ œ Ŕ ŕ Ŗ ŗ Ř ř Ś ś Ŝ ŝ Ş ş Š š Ţ ţ Ť ť Ŧ ŧ Ũ ũ Ū ū Ŭ ŭ Ů ů Ű ű Ų ų Ŵ ŵ Ŷ ŷ Ÿ Ź ź Ż ż Ž ž ſ ƒ Ơ ơ Ư ư ǰ Ǻ ǻ Ǽ ǽ Ǿ ǿ Ș ș Ț ț ȷ ʼ ˆ ˇ ˉ ˘ ˙ ˚ ˛ ˜ ˝ ˳ ̀ ́ ̃ ̉ ̏ ̣΄ ΅ Ά · Έ Ή Ί Ό Ύ Ώ ΐ Α Β Γ Δ Ε Ζ Η Θ Ι Κ Λ Μ Ν Ξ Ο Π Ρ Σ Τ Υ Φ Χ Ψ Ω Ϊ Ϋ ά έ ή ί ΰ α β γ δ ε ζ η θ ι κ λ μ ν ξ ο π ρ ς σ τ υ φ χ ψ ω ϊ ϋ ό ύ ώ ϑ ϒ ϖ Ѐ Ё Ђ Ѓ Є Ѕ І Ї Ј Љ Њ Ћ Ќ Ѝ Ў Џ А Б В Г Д Е Ж З И Й К Л М Н О П Р С Т У Ф Х Ц Ч Ш Щ Ъ Ы Ь Э Ю Я а б в г д е ж з и й к л м н о п р с т у ф х ц ч ш щ ъ ы ь э ю я ѐ ё ђ ѓ є ѕ і ї ј љ њ ћ ќ ѝ ў џ Ѡ ѡ Ѣ ѣ Ѥ ѥ Ѧ ѧ Ѩ ѩ Ѫ ѫ Ѭ ѭ Ѯ ѯ Ѱ ѱ Ѳ ѳ Ѵ ѵ Ѷ ѷ Ѹ ѹ Ѻ ѻ Ѽ ѽ Ѿ ѿ Ҁ ҁ ҂ ҃ ҄ ҅ ҆ ҈ ҉ Ҋ ҋ Ҍ ҍ Ҏ ҏ Ґ ґ Ғ ғ Ҕ ҕ Җ җ Ҙ ҙ Қ қ Ҝ ҝ Ҟ ҟ Ҡ ҡ Ң ң Ҥ ҥ Ҧ ҧ Ҩ ҩ Ҫ ҫ Ҭ ҭ Ү ү Ұ ұ Ҳ ҳ Ҵ ҵ Ҷ ҷ Ҹ ҹ Һ һ Ҽ ҽ Ҿ ҿ Ӏ Ӂ ӂ Ӄ ӄ Ӆ ӆ Ӈ ӈ Ӊ ӊ Ӌ ӌ Ӎ ӎ ӏ Ӑ ӑ Ӓ ӓ Ӕ ӕ Ӗ ӗ Ә ә Ӛ ӛ Ӝ ӝ Ӟ ӟ Ӡ ӡ Ӣ ӣ Ӥ ӥ Ӧ ӧ Ө ө Ӫ ӫ Ӭ ӭ Ӯ ӯ Ӱ ӱ Ӳ ӳ Ӵ ӵ Ӷ ӷ Ӹ ӹ Ӻ ӻ Ӽ ӽ Ӿ ӿ Ԁ ԁ Ԃ ԃ Ԅ ԅ Ԇ ԇ Ԉ ԉ Ԋ ԋ Ԍ ԍ Ԏ ԏ Ԑ ԑ Ԓ ԓ Ḁ ḁ Ḿ ḿ Ẁ ẁ Ẃ ẃ Ẅ ẅ Ạ ạ Ả ả Ấ ấ Ầ ầ Ẩ ẩ Ẫ ẫ Ậ ậ Ắ ắ Ằ ằ Ẳ ẳ Ẵ ẵ Ặ ặ Ẹ ẹ Ẻ ẻ Ẽ ẽ Ế ế Ề ề Ể ể Ễ ễ Ệ ệ Ỉ ỉ Ị ị Ọ ọ Ỏ ỏ Ố ố Ồ ồ Ổ ổ Ỗ ỗ Ộ ộ Ớ ớ Ờ ờ Ở ở Ỡ ỡ Ợ ợ Ụ ụ Ủ ủ Ứ ứ Ừ ừ Ử ử Ữ ữ Ự ự Ỳ ỳ Ỵ ỵ Ỷ ỷ Ỹ ỹ Ὅ – — ― ‗ ‘ ’ ‚ ‛ “ ” „ † ‡ • … ‰ ′ ″ ‹ › ‼ ⁄ ⁰ ⁴ ⁵ ⁶ ⁷ ⁸ ⁹ ⁿ ₣ ₤ ₧ ₫ € ℅ № ℠ ™ Ω ⅛ ⅜ ⅝ ⅞ ∂ ∆ ∏ ∑ − √ ∞ ∫ ≈ ≠ ≤ ≥ ◊ ff fi fl ffi ffl  Do we need all those glyphs? Open Sans — 22.1 kB
  • 62.
    ! " #$ % & ' ( ) * + , - . / 0 1 2 3 4 5 6 7 8 9 : ; < = > ? @ A B C D E F G H I J K L M N O P Q R S T U V W X Y Z [ ] ^ _ ` a b c d e f g h i j k l m n o p q r s t u v w x y z { | } ~ ¡ ¢ £ ¤ ¥ ¦ § ¨ © ª « ¬ ® ¯ ° ± ² ³ ´ µ ¶ · ¸ ¹ º » ¼ ½ ¾ ¿ À Á Â Ã Ä Å Æ Ç È É Ê Ë Ì Í Î Ï Ð Ñ Ò Ó Ô Õ Ö × Ø Ù Ú Û Ü Ý Þ ß à á â ã ä å æ ç è é ê ë ì í î ï ð ñ ò ó ô õ ö ÷ ø ù ú û ü ý þ ÿ Ā ā Ă ă Ą ą Ć ć Ĉ ĉ Ċ ċ Č č Ď ď Đ đ Ē ē Ĕ ĕ Ė ė Ę ę Ě ě Ĝ ĝ Ğ ğ Ġ ġ Ģ ģ Ĥ ĥ Ħ ħ Ĩ ĩ Ī ī Ĭ ĭ Į į İ ı IJ ij Ĵ ĵ Ķ ķ ĸ Ĺ ĺ Ļ ļ Ľ ľ Ŀ ŀ Ł ł Ń ń Ņ ņ Ň ň ʼn Ŋ ŋ Ō ō Ŏ ŏ Ő ő Œ œ Ŕ ŕ Ŗ ŗ Ř ř Ś ś Ŝ ŝ Ş ş Š š Ţ ţ Ť ť Ŧ ŧ Ũ ũ Ū ū Ŭ ŭ Ů ů Ű ű Ų ų Ŵ ŵ Ŷ ŷ Ÿ Ź ź Ż ż Ž ž ſ ƒ Ơ ơ Ư ư ǰ Ǻ ǻ Ǽ ǽ Ǿ ǿ Ș ș Ț ț ȷ ʼ ˆ ˇ ˉ ˘ ˙ ˚ ˛ ˜ ˝ ˳ ̀ ́ ̃ ̉ ̏ ̣΄ ΅ Ά · Έ Ή Ί Ό Ύ Ώ ΐ Α Β Γ Δ Ε Ζ Η Θ Ι Κ Λ Μ Ν Ξ Ο Π Ρ Σ Τ Υ Φ Χ Ψ Ω Ϊ Ϋ ά έ ή ί ΰ α β γ δ ε ζ η θ ι κ λ μ ν ξ ο π ρ ς σ τ υ φ χ ψ ω ϊ ϋ ό ύ ώ ϑ ϒ ϖ Ѐ Ё Ђ Ѓ Є Ѕ І Ї Ј Љ Њ Ћ Ќ Ѝ Ў Џ А Б В Г Д Е Ж З И Й К Л М Н О П Р С Т У Ф Х Ц Ч Ш Щ Ъ Ы Ь Э Ю Я а б в г д е ж з и й к л м н о п р с т у ф х ц ч ш щ ъ ы ь э ю я ѐ ё ђ ѓ є ѕ і ї ј љ њ ћ ќ ѝ ў џ Ѡ ѡ Ѣ ѣ Ѥ ѥ Ѧ ѧ Ѩ ѩ Ѫ ѫ Ѭ ѭ Ѯ ѯ Ѱ ѱ Ѳ ѳ Ѵ ѵ Ѷ ѷ Ѹ ѹ Ѻ ѻ Ѽ ѽ Ѿ ѿ Ҁ ҁ ҂ ҃ ҄ ҅ ҆ ҈ ҉ Ҋ ҋ Ҍ ҍ Ҏ ҏ Ґ ґ Ғ ғ Ҕ ҕ Җ җ Ҙ ҙ Қ қ Ҝ ҝ Ҟ ҟ Ҡ ҡ Ң ң Ҥ ҥ Ҧ ҧ Ҩ ҩ Ҫ ҫ Ҭ ҭ Ү ү Ұ ұ Ҳ ҳ Ҵ ҵ Ҷ ҷ Ҹ ҹ Һ һ Ҽ ҽ Ҿ ҿ Ӏ Ӂ ӂ Ӄ ӄ Ӆ ӆ Ӈ ӈ Ӊ ӊ Ӌ ӌ Ӎ ӎ ӏ Ӑ ӑ Ӓ ӓ Ӕ ӕ Ӗ ӗ Ә ә Ӛ ӛ Ӝ ӝ Ӟ ӟ Ӡ ӡ Ӣ ӣ Ӥ ӥ Ӧ ӧ Ө ө Ӫ ӫ Ӭ ӭ Ӯ ӯ Ӱ ӱ Ӳ ӳ Ӵ ӵ Ӷ ӷ Ӹ ӹ Ӻ ӻ Ӽ ӽ Ӿ ӿ Ԁ ԁ Ԃ ԃ Ԅ ԅ Ԇ ԇ Ԉ ԉ Ԋ ԋ Ԍ ԍ Ԏ ԏ Ԑ ԑ Ԓ ԓ Ḁ ḁ Ḿ ḿ Ẁ ẁ Ẃ ẃ Ẅ ẅ Ạ ạ Ả ả Ấ ấ Ầ ầ Ẩ ẩ Ẫ ẫ Ậ ậ Ắ ắ Ằ ằ Ẳ ẳ Ẵ ẵ Ặ ặ Ẹ ẹ Ẻ ẻ Ẽ ẽ Ế ế Ề ề Ể ể Ễ ễ Ệ ệ Ỉ ỉ Ị ị Ọ ọ Ỏ ỏ Ố ố Ồ ồ Ổ ổ Ỗ ỗ Ộ ộ Ớ ớ Ờ ờ Ở ở Ỡ ỡ Ợ ợ Ụ ụ Ủ ủ Ứ ứ Ừ ừ Ử ử Ữ ữ Ự ự Ỳ ỳ Ỵ ỵ Ỷ ỷ Ỹ ỹ Ὅ – — ― ‗ ‘ ’ ‚ ‛ “ ” „ † ‡ • … ‰ ′ ″ ‹ › ‼ ⁄ ⁰ ⁴ ⁵ ⁶ ⁷ ⁸ ⁹ ⁿ ₣ ₤ ₧ ₫ € ℅ № ℠ ™ Ω ⅛ ⅜ ⅝ ⅞ ∂ ∆ ∏ ∑ − √ ∞ ∫ ≈ ≠ ≤ ≥ ◊ ff fi fl ffi ffl  Just Latin glyphs… 14.9 kB — 33% saving
  • 63.
    A proposal thatmay help… font-display: auto | block | swap | fallback | optional; https://tabatkins.github.io/specs/css-font-rendering/ Proposal to help control font blocking - CSS Font Rendering Controls
  • 64.
    Another proposal thatshould help - link rel=“preload”… https://w3c.github.io/preload/ <!-- preload a widget component --> <link rel="preload" href="/components/widget.html" as="iframe"> ! <!-- preload an application script --> <link rel="preload" href="/app/script.js" as="javascript"> ! <!-- preload a CSS stylesheet --> <link rel="preload" href="/style/style.css" as="stylesheet"> ! <!-- preload a font --> <link rel="preload" href="//example.com/font.woff2" as="font"> ! <!-- preload an image asset --> <link rel="preload" href="//example.com/image.jpg" as="image" media="max-width: 640px">
  • 65.
    Some other waysof hinting are already here <link rel="dns-prefetch" href="other.hostname.com"> ! <link rel="subresource" href="/some_other_resource.js"> ! <link rel="prefetch" href="/some_other_resource.jpeg"> ! <link rel="prerender" href=“//domain.com/next_page.html”>
  • 66.
  • 67.
    Be deliberate, designfor performance https://www.flickr.com/photos/9760699@N08/3748770917
  • 68.
    Measure frequently -during build and in live http://www.flickr.com/photos/chandramarsono/4324373384
  • 69.
    Remember the constraintsof our medium https://www.flickr.com/photos/33649815@N03/3367739514
  • 70.
  • 71.
