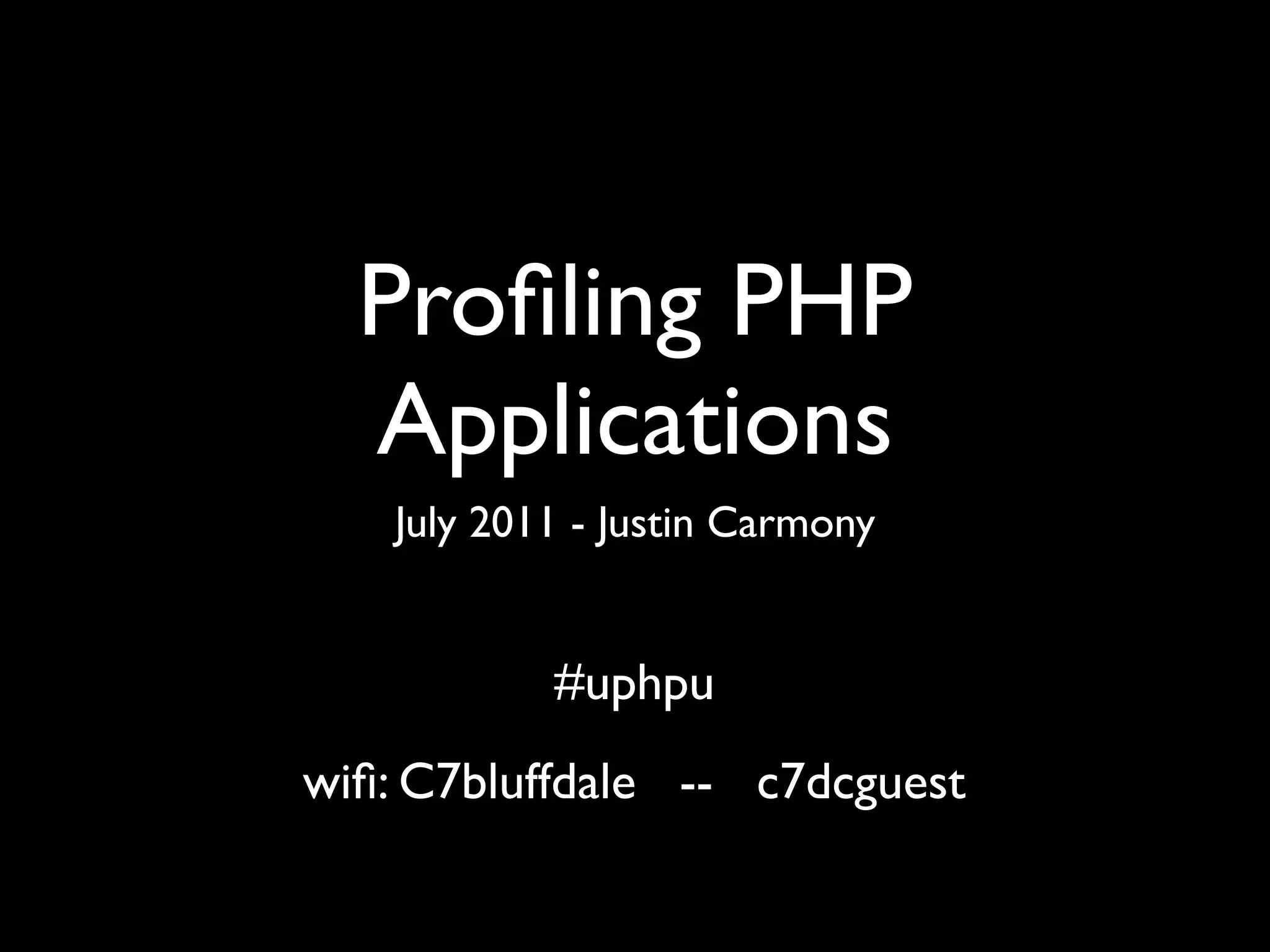

Profiling PHP
  Applications
    July 2011 - Justin Carmony


            #uphpu
wifi: C7bluffdale -- c7dcguest
About Me

• CTO of Dating DNA
• CIO of CEVO LLC
• Make Websites & iPhone Apps
• Worked on Websites for Dell, nVidia,
  DirectTV, and other big clients.

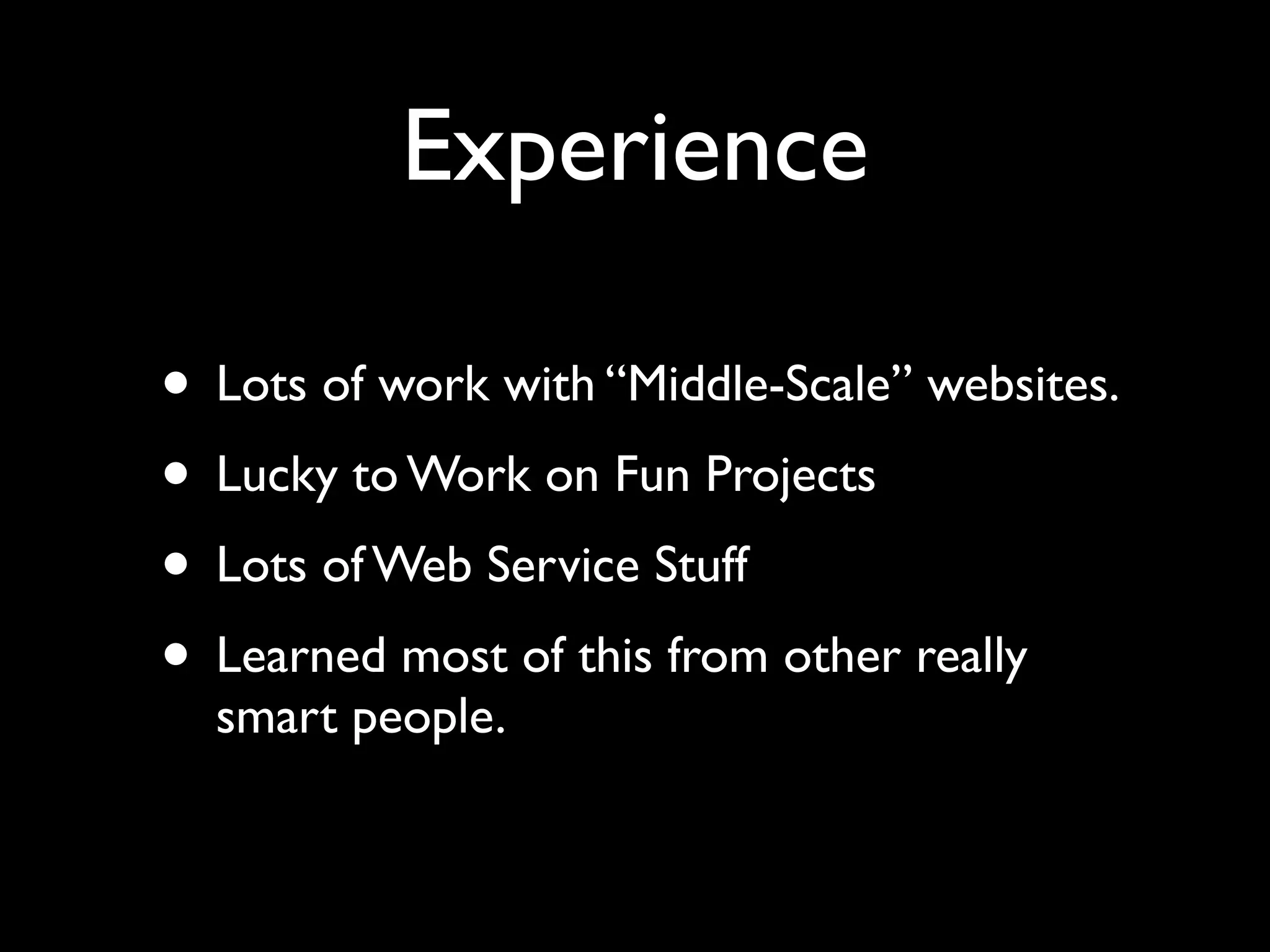

Experience

• Lots of work with “Middle-Scale” websites.
• Lucky to Work on Fun Projects
• Lots of Web Service Stuff
• Learned most of this from other really
  smart people.

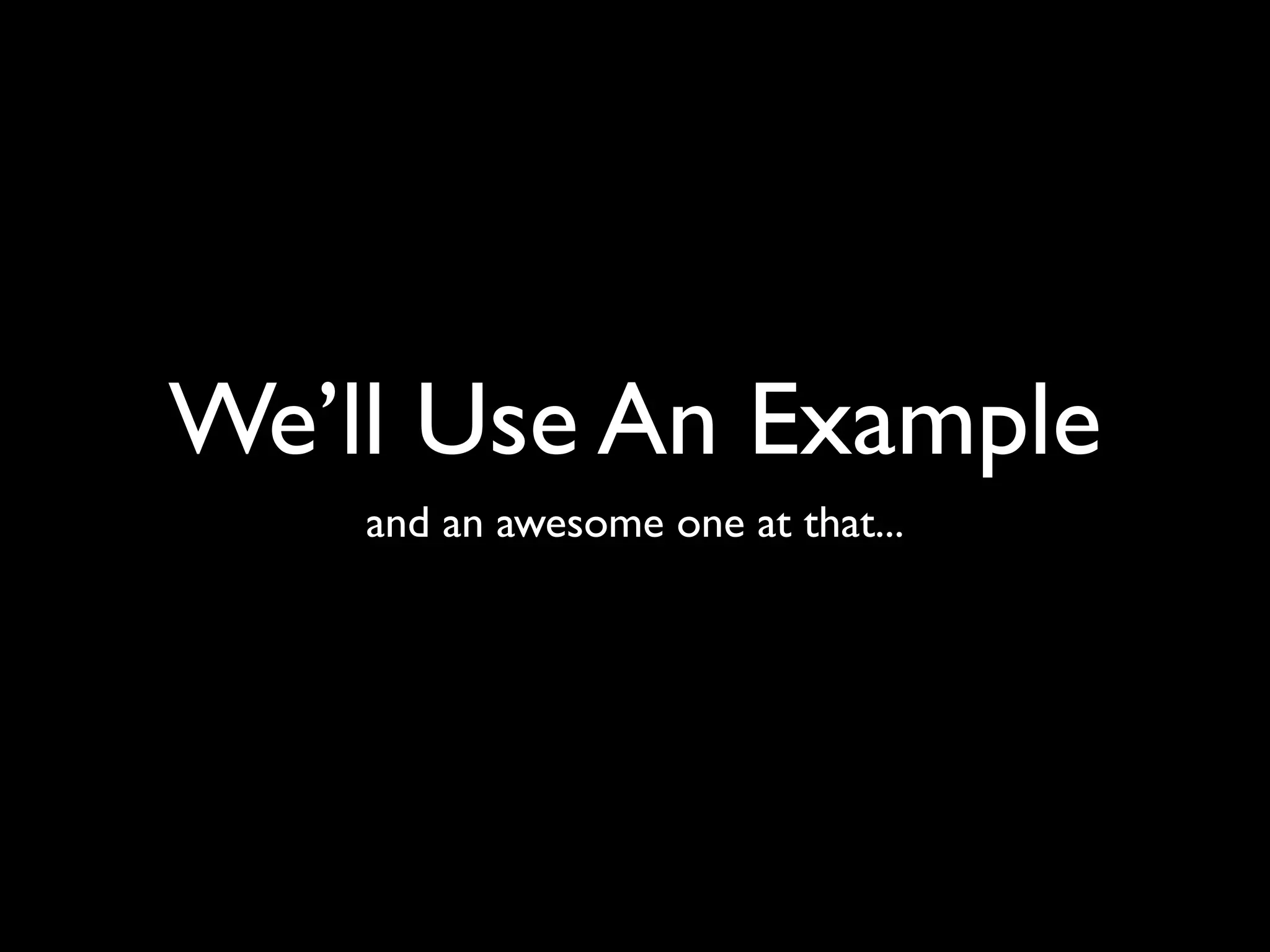

We’ll Use An Example
    and an awesome one at that...

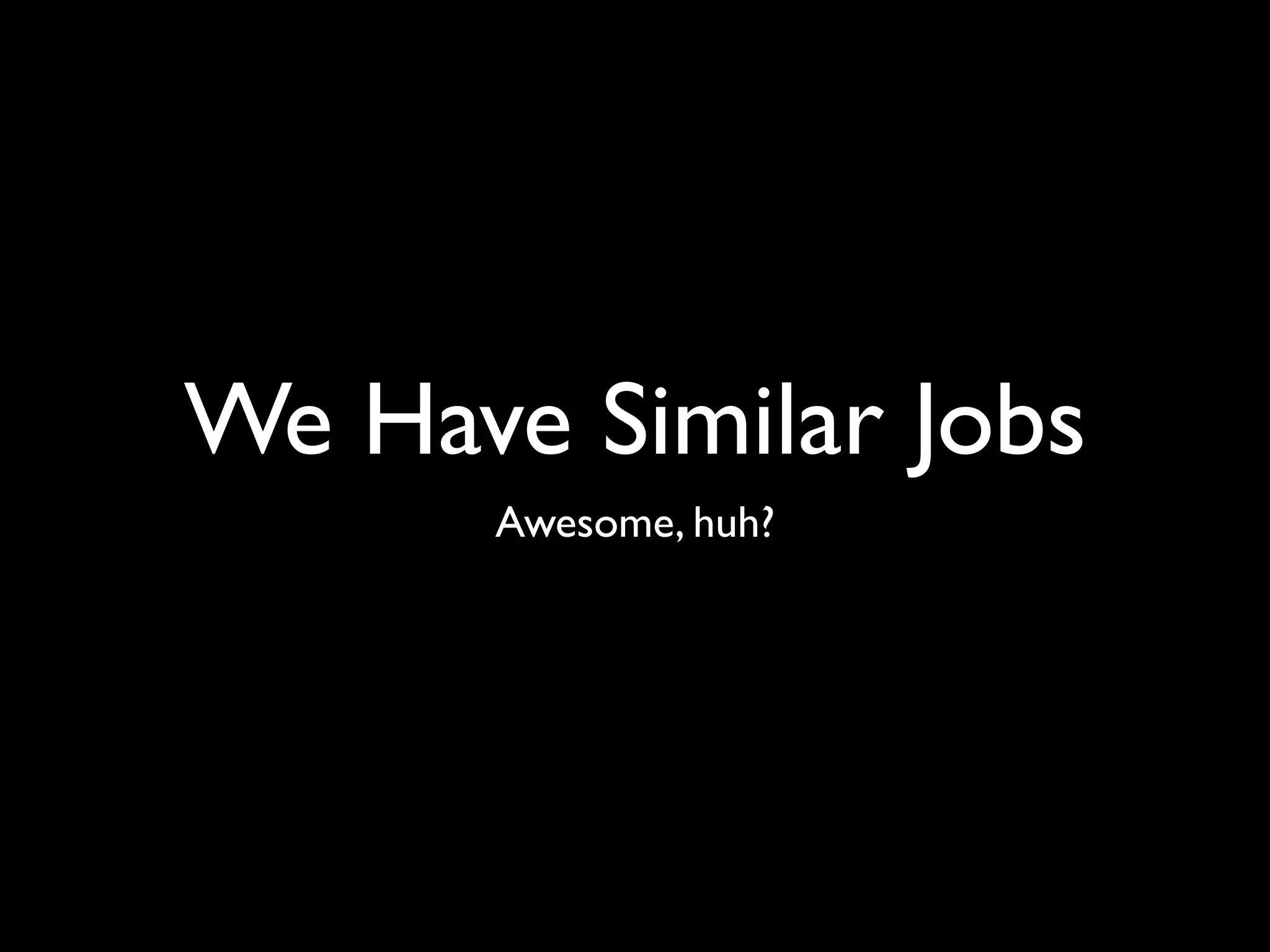

We Have Similar Jobs
      Awesome, huh?
MythBusters
•   They get a Myth

•   Break it down to its
    different parts

•   They Conduct a Bunch
    of Tests

•   They Draw Conclusions

•   and have a Fun Time
Developers
•   We get Myths
    (Hey, this is slow)

•   We Break it down to
    the different pieces

•   We Conduct a Bunch of
    Tests.

•   We Draw Conclusions
    (and normally make
    changes)

•   and Have a Fun Time...

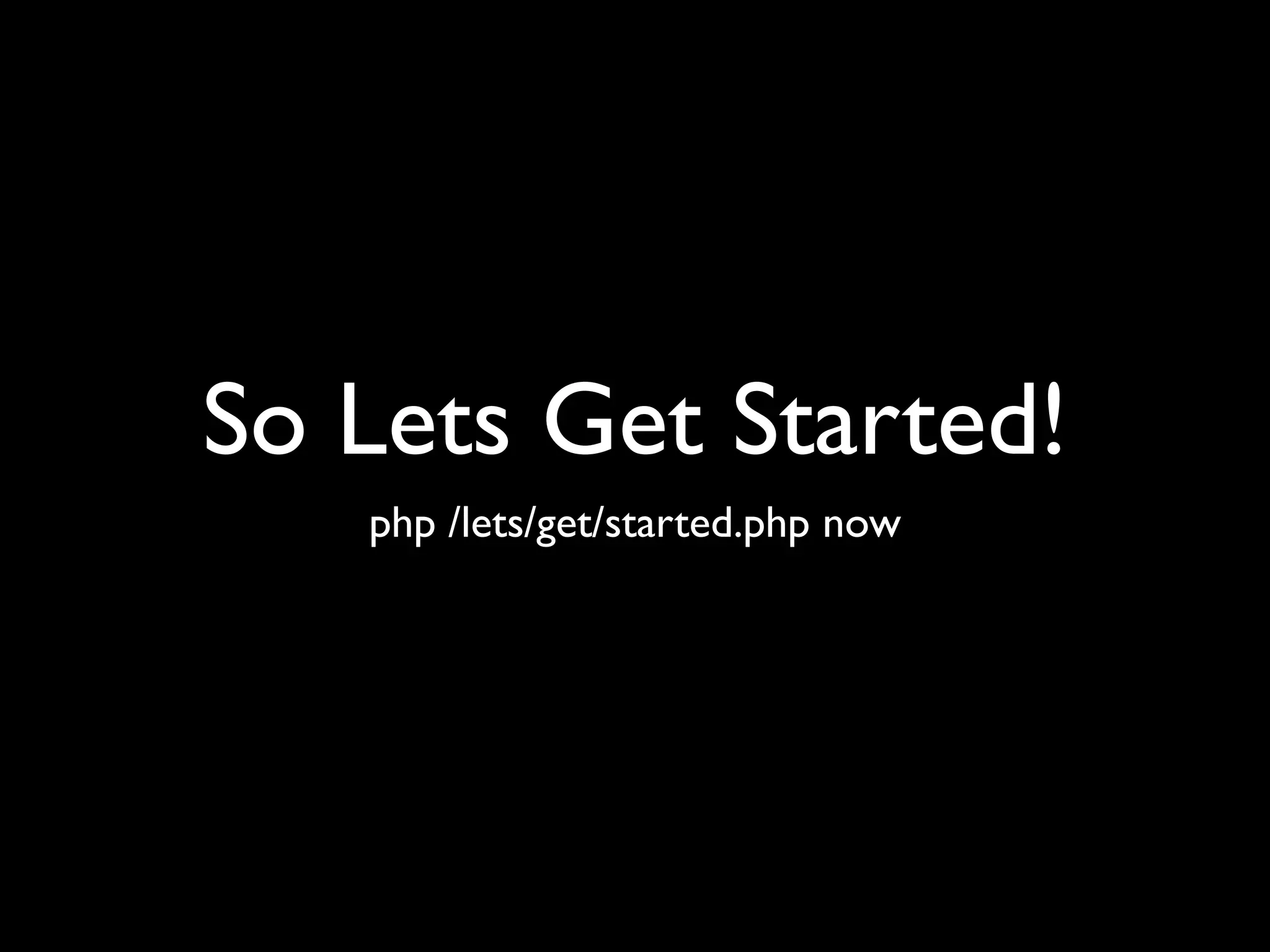

So Lets Get Started!
   php /lets/get/started.php now
First Off, Some
  PHP Myths
 and there are a lot of them!

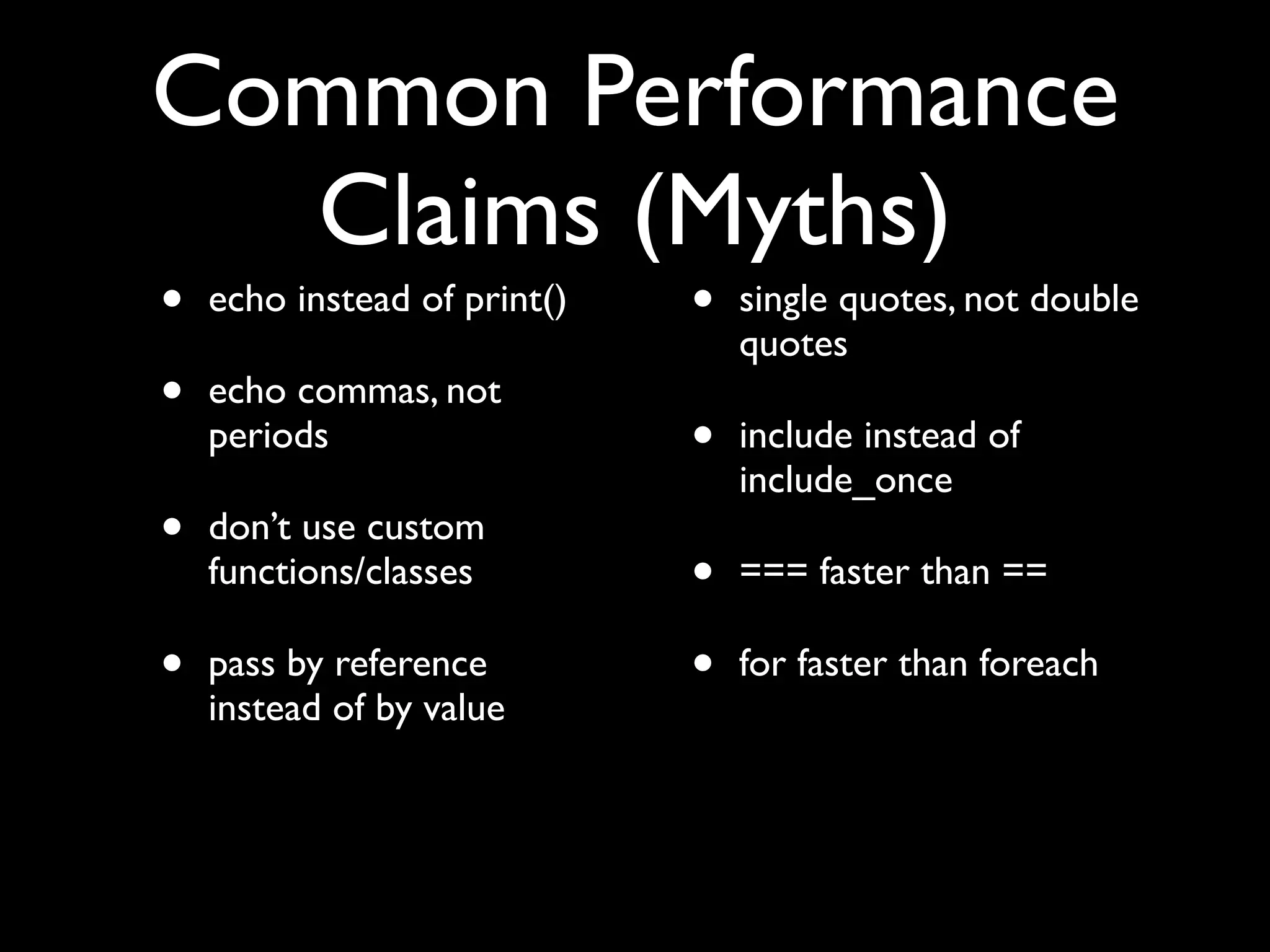

Common Performance
  Claims (Myths)
•   echo instead of print()   •   single quotes, not double
                                  quotes
•   echo commas, not
    periods                   •   include instead of
                                  include_once
•   don’t use custom
    functions/classes         •   === faster than ==

•   pass by reference         •   for faster than foreach
    instead of by value

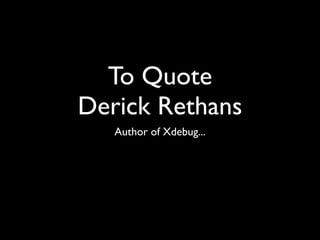

To Quote
Derick Rethans
   Author of Xdebug...

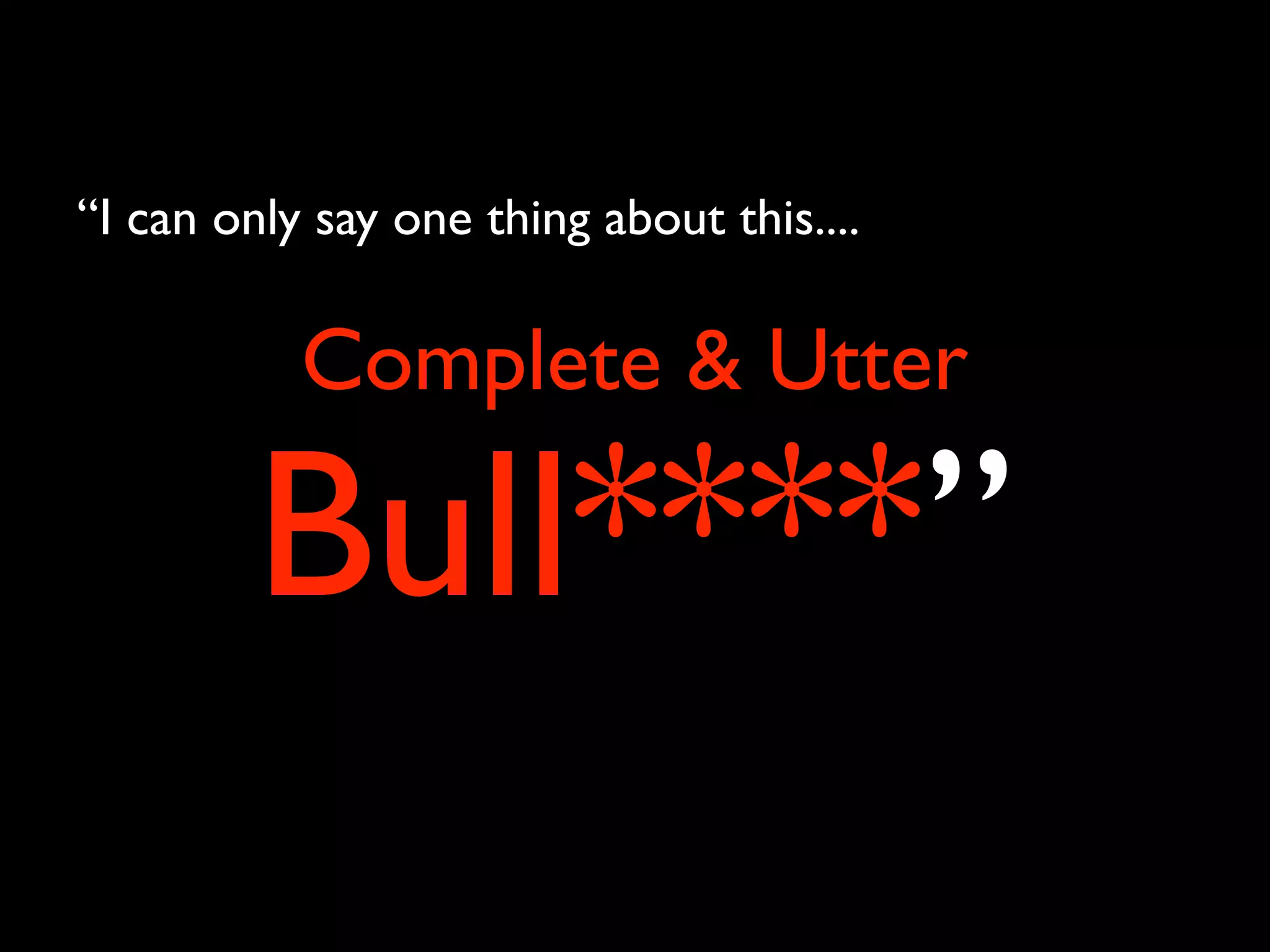

“I can only say one thing about this....

           Complete & Utter

         Bull****”
or in MythBusters Terminology....

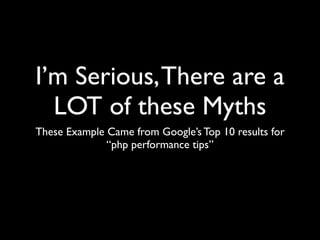

I’m Serious, There are a
  LOT of these Myths
These Example Came from Google’s Top 10 results for
              “php performance tips”

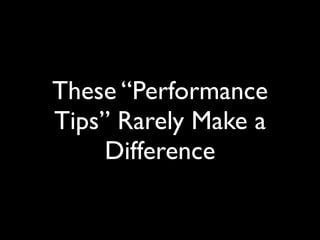

These “Performance
Tips” Rarely Make a
     Difference
Thats Like Debating the Windshield Wipers’s
      Effect on this Car’s Performance
Intuition Based
 Optimizations
  i.e. how to not effectively
     improve performance




      Phrase Coined by Dave Smith
   http://thesmithfam.org/blog/2011/02/

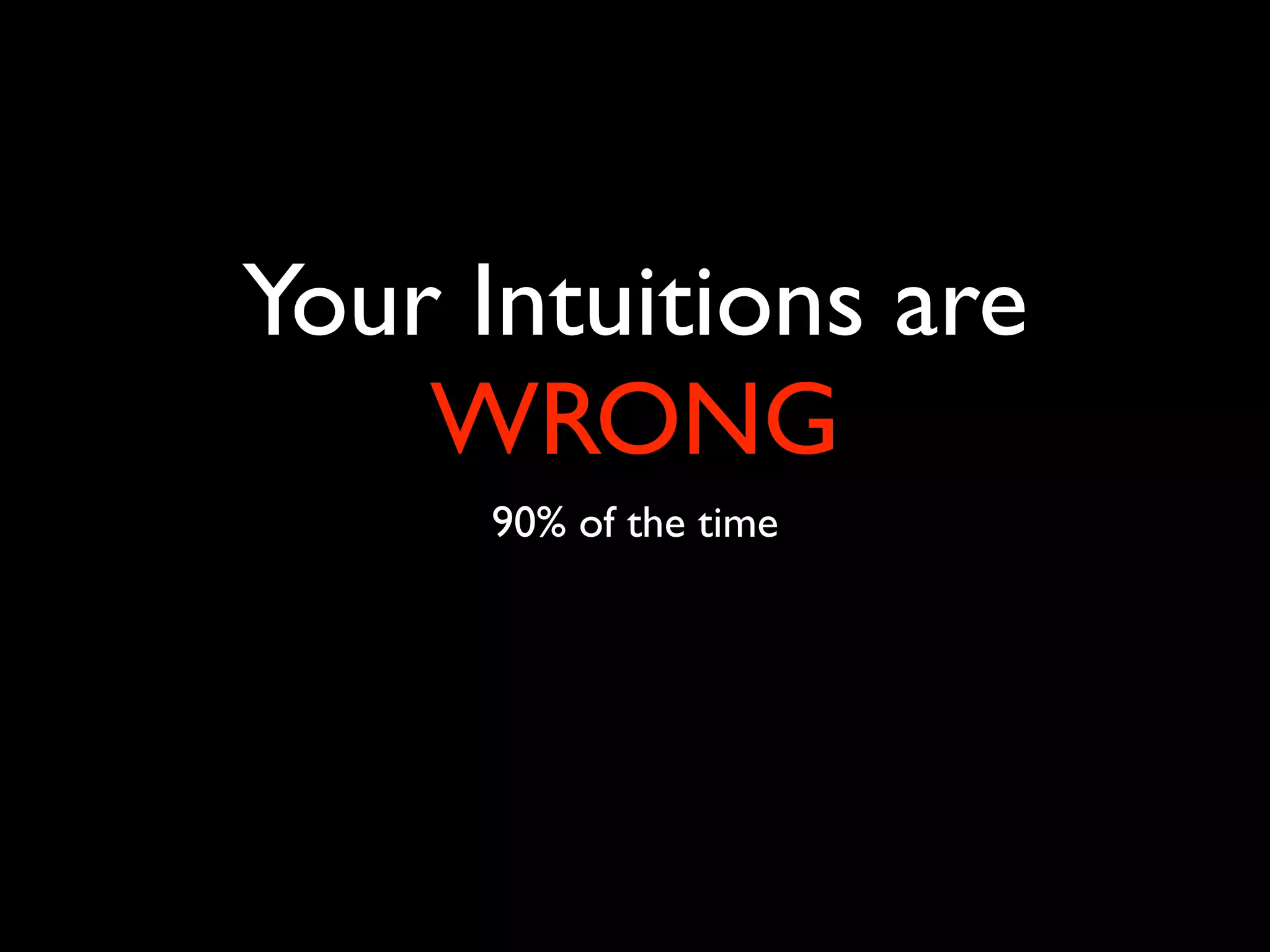

Your Intuitions are
    WRONG
      90% of the time

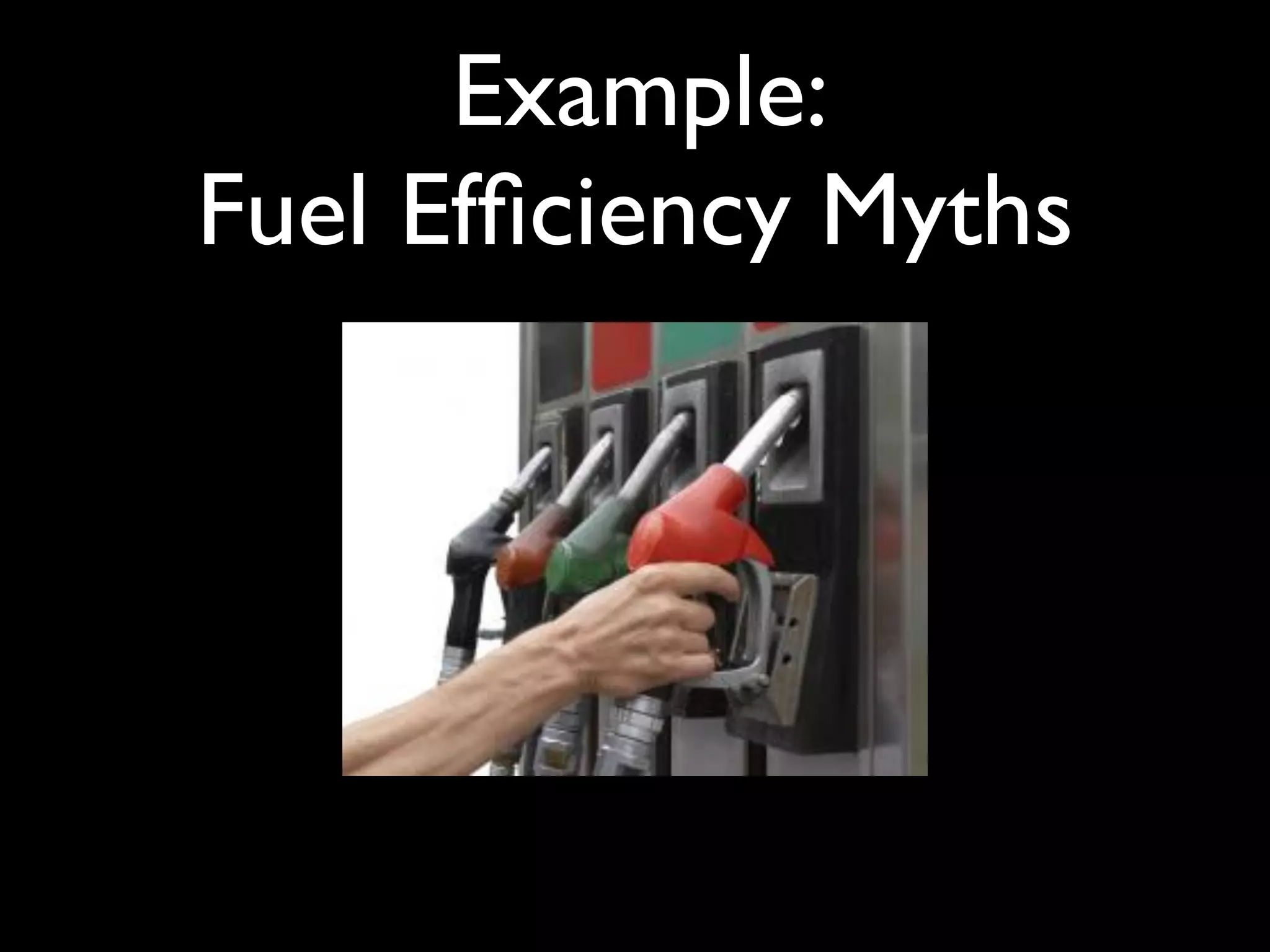

Example:
Fuel Efficiency Myths

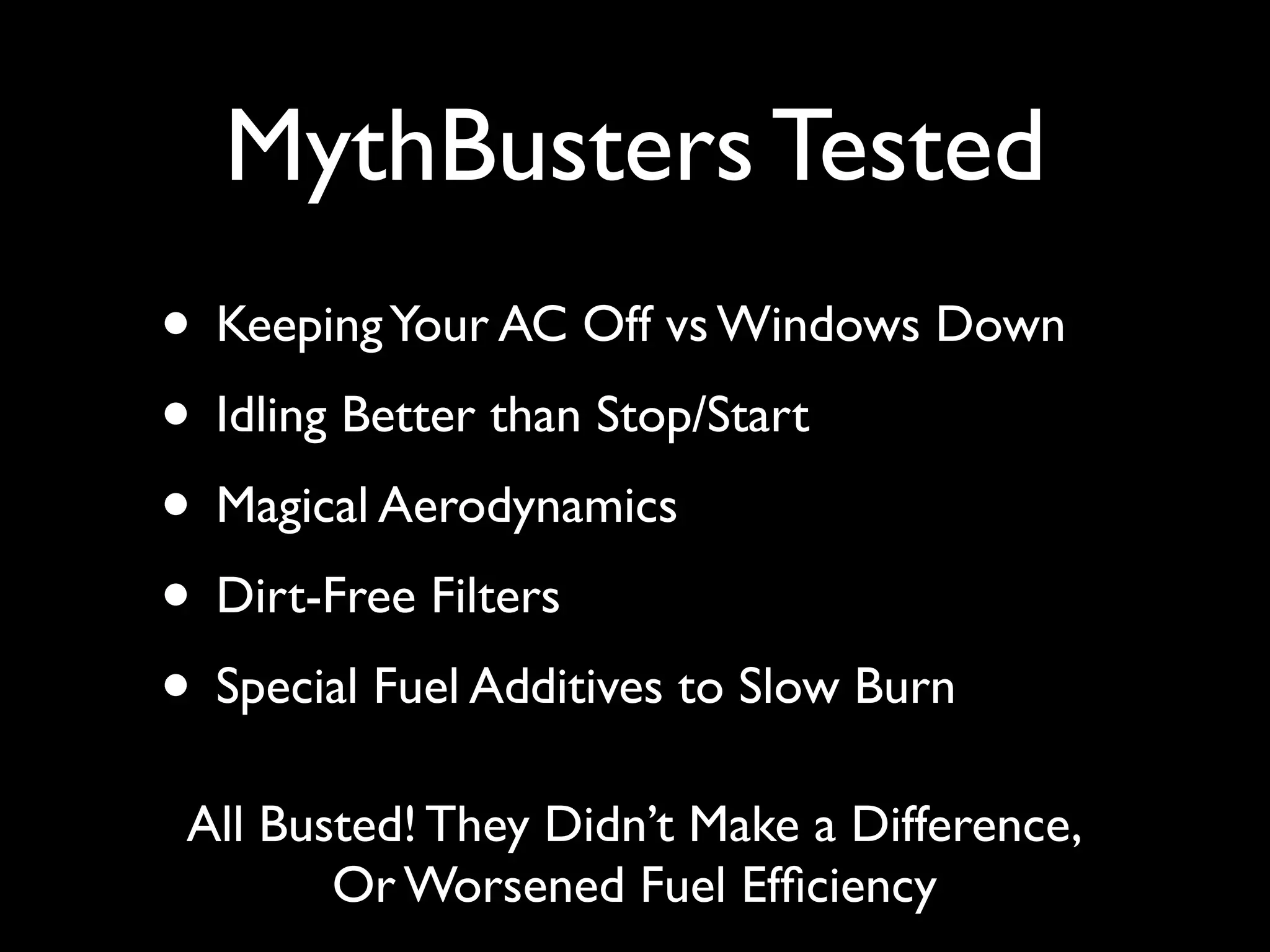

MythBusters Tested
• Keeping Your AC Off vs Windows Down
• Idling Better than Stop/Start
• Magical Aerodynamics
• Dirt-Free Filters
• Special Fuel Additives to Slow Burn
 All Busted! They Didn’t Make a Difference,
        Or Worsened Fuel Efficiency
How About
   Driving Angry?




 After Testing, Tory & Grant Used
33% More Fule While Driving Angry
Effective Profiling
   is based on
 Actual Results
There are Two Types
of Profiling “Modes”
Normal Profiling




   Lets Try this Configuration Change
and Measure the Performance Difference
Emergency Profiling




Aaaaaaaaaaaaah the Website is Down!!!!
    Why is it so slow??? Fix it!!!!!!

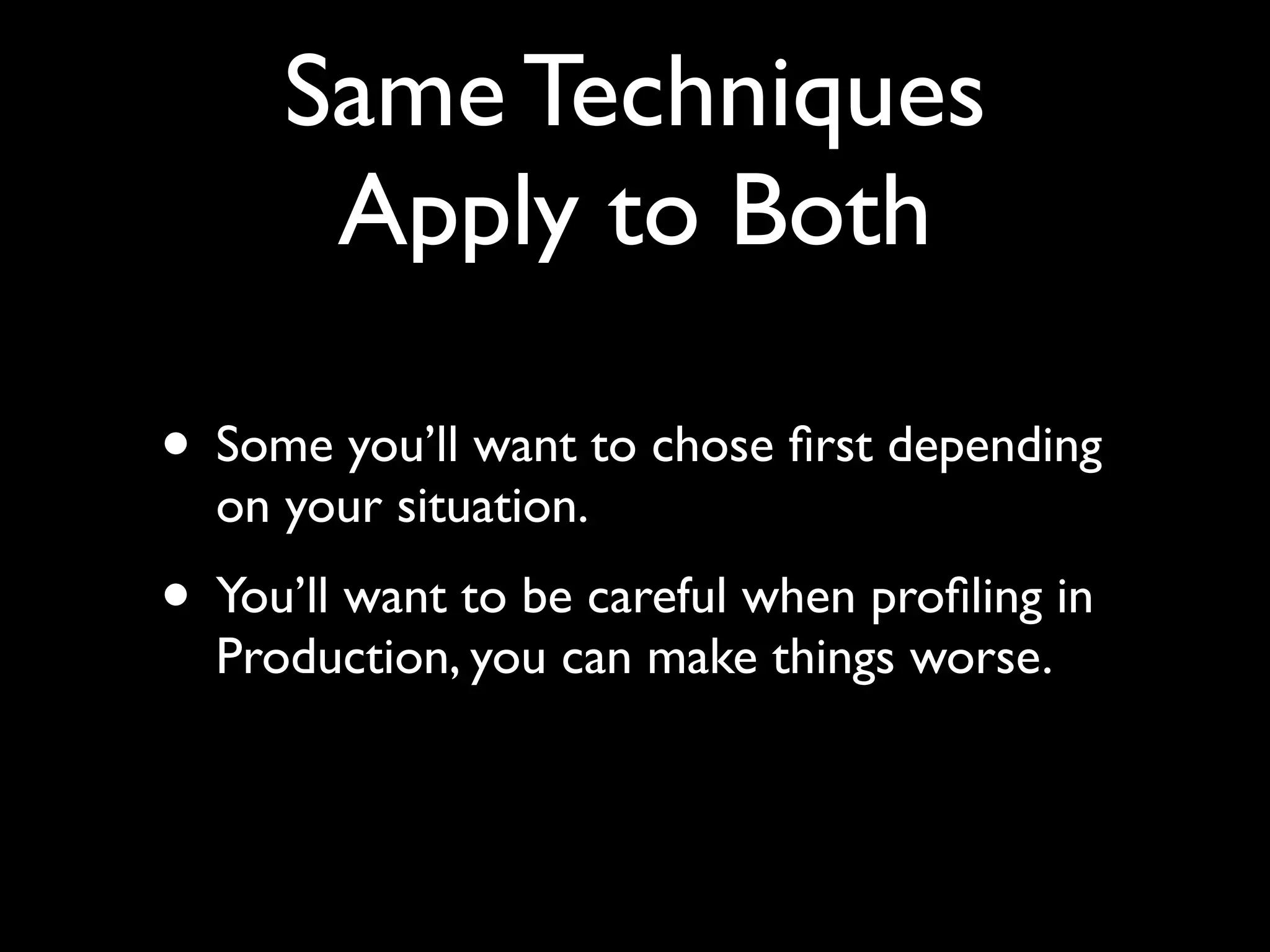

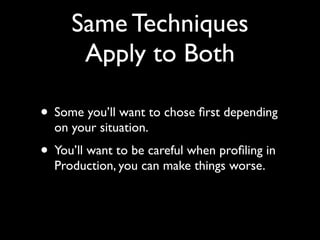

Same Techniques
      Apply to Both

• Some you’ll want to chose first depending
  on your situation.
• You’ll want to be careful when profiling in
  Production, you can make things worse.

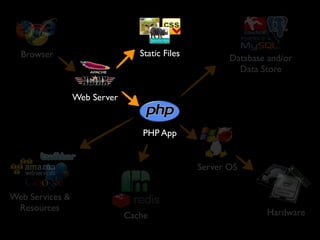

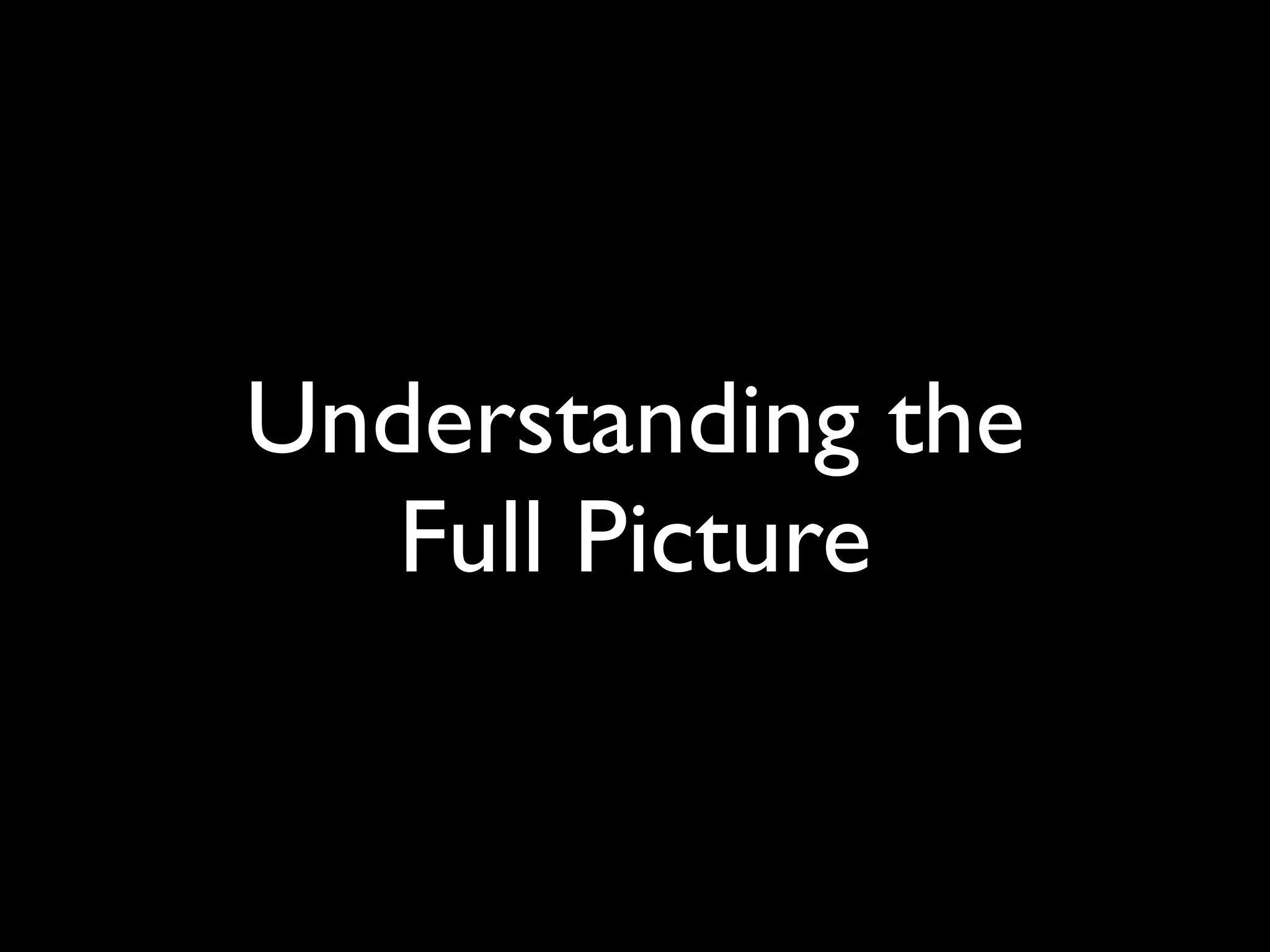

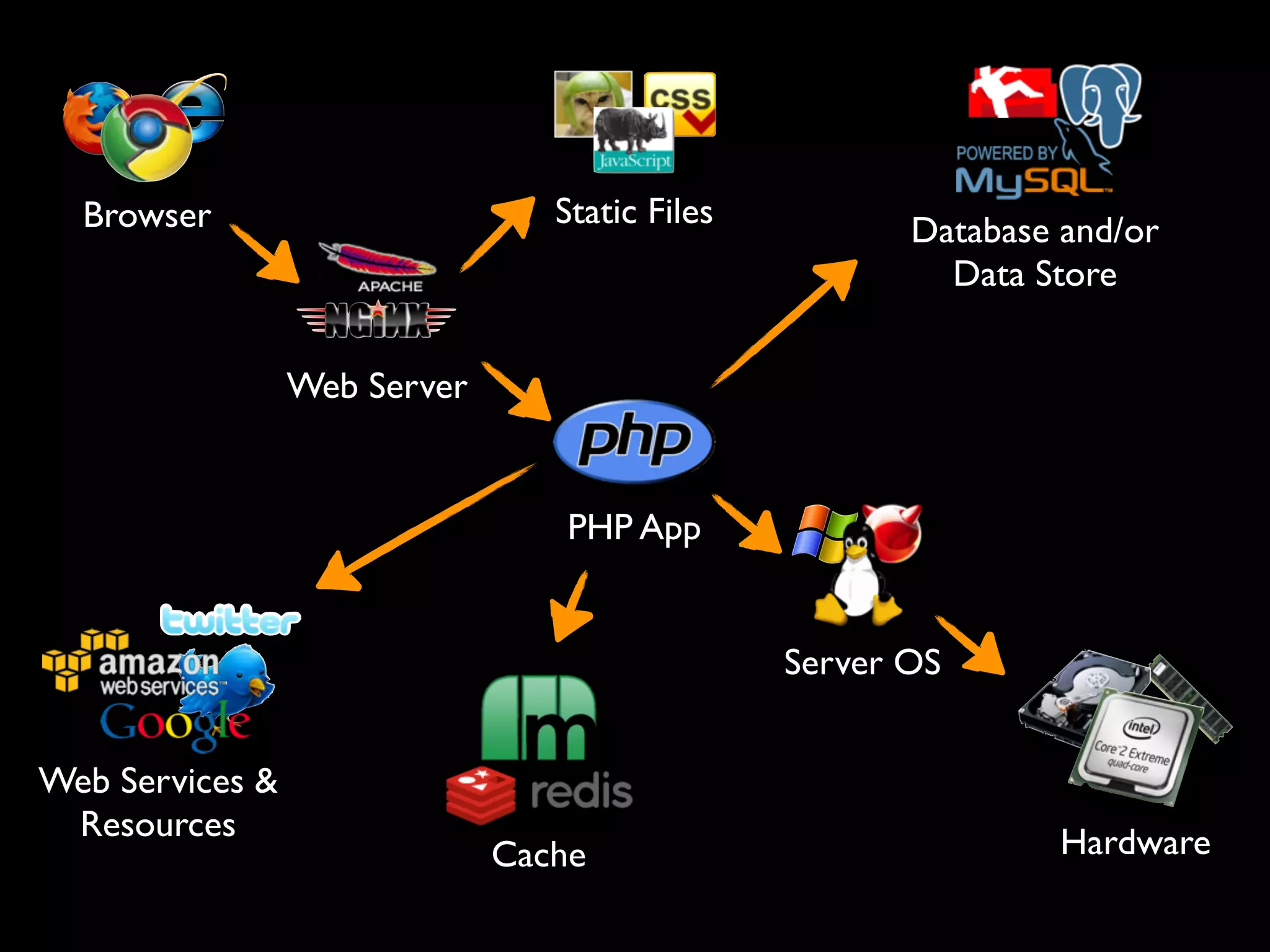

Understanding the
   Full Picture
Browser                        Static Files
                                                       Database and/or
                                                         Data Store


                 Web Server


                                  PHP App


                                                Server OS


Web Services &
 Resources                                                      Hardware
                              Cache
Don’t Panic!
Goal: Find Slow Parts
  aka Bottlenecks

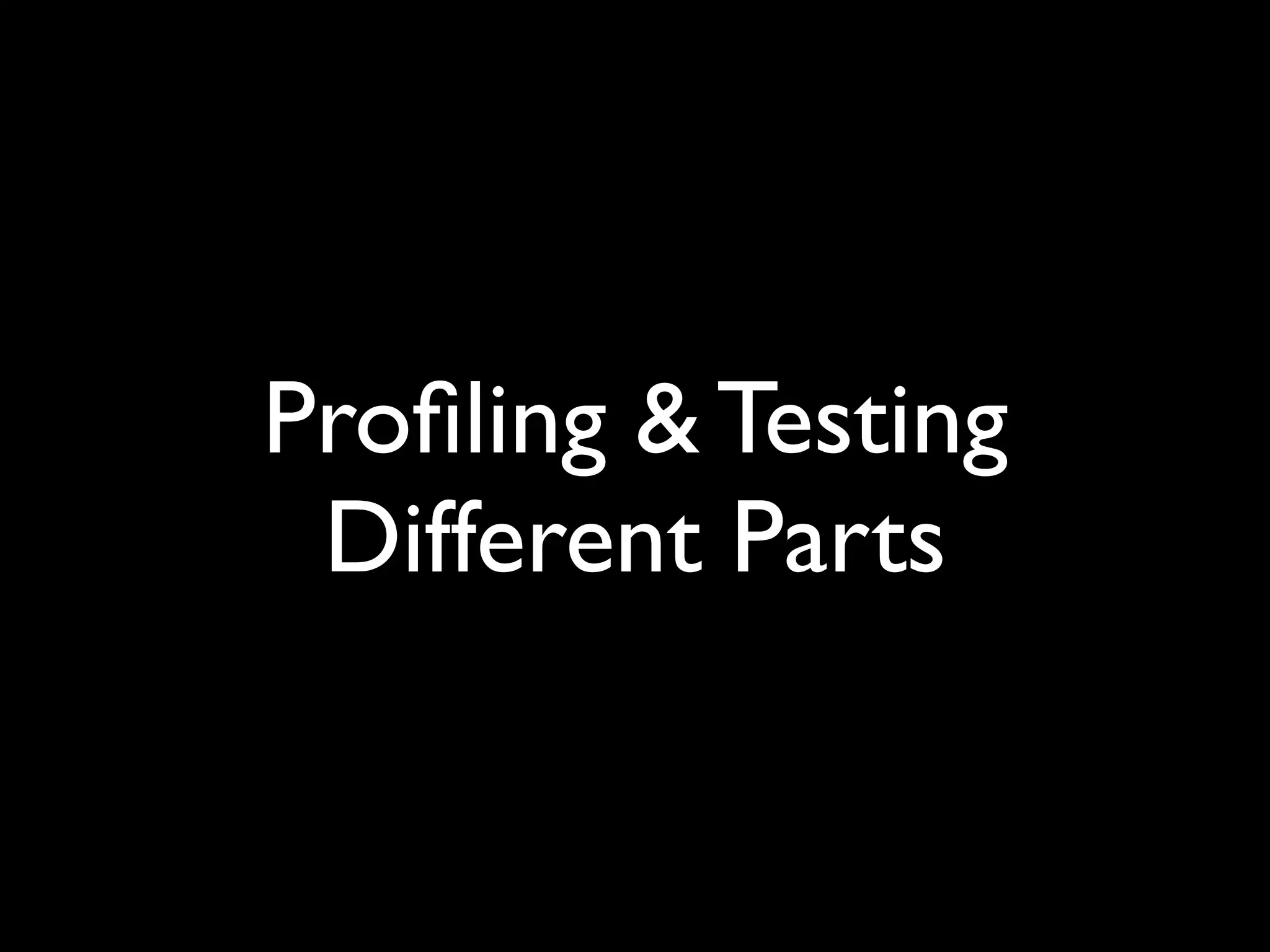

Profiling & Testing
 Different Parts

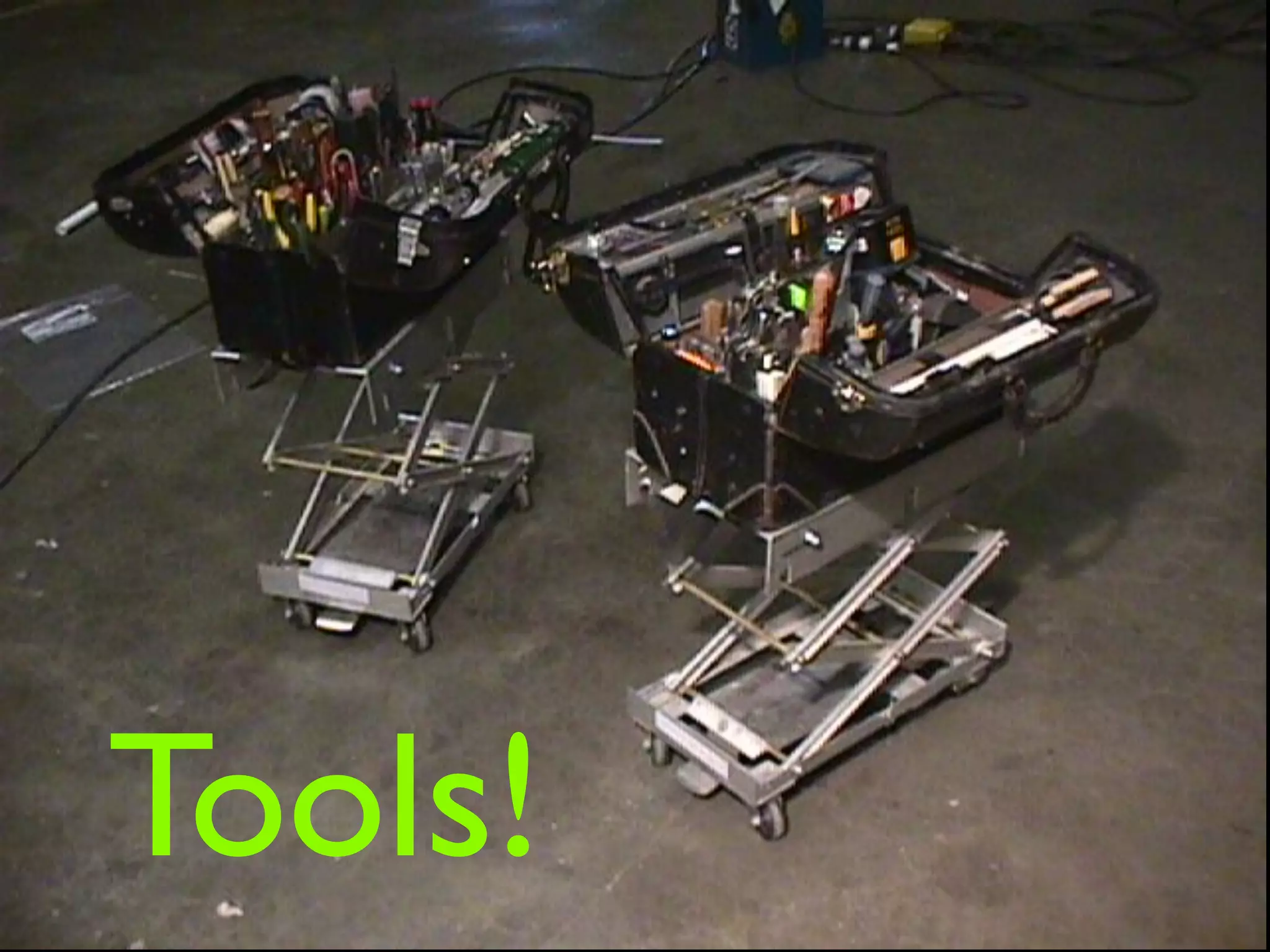

Tools!
Browser                        Static Files
                                                       Database and/or
                                                         Data Store


                 Web Server


                                  PHP App


                                                Server OS


Web Services &
 Resources                                                      Hardware
                              Cache

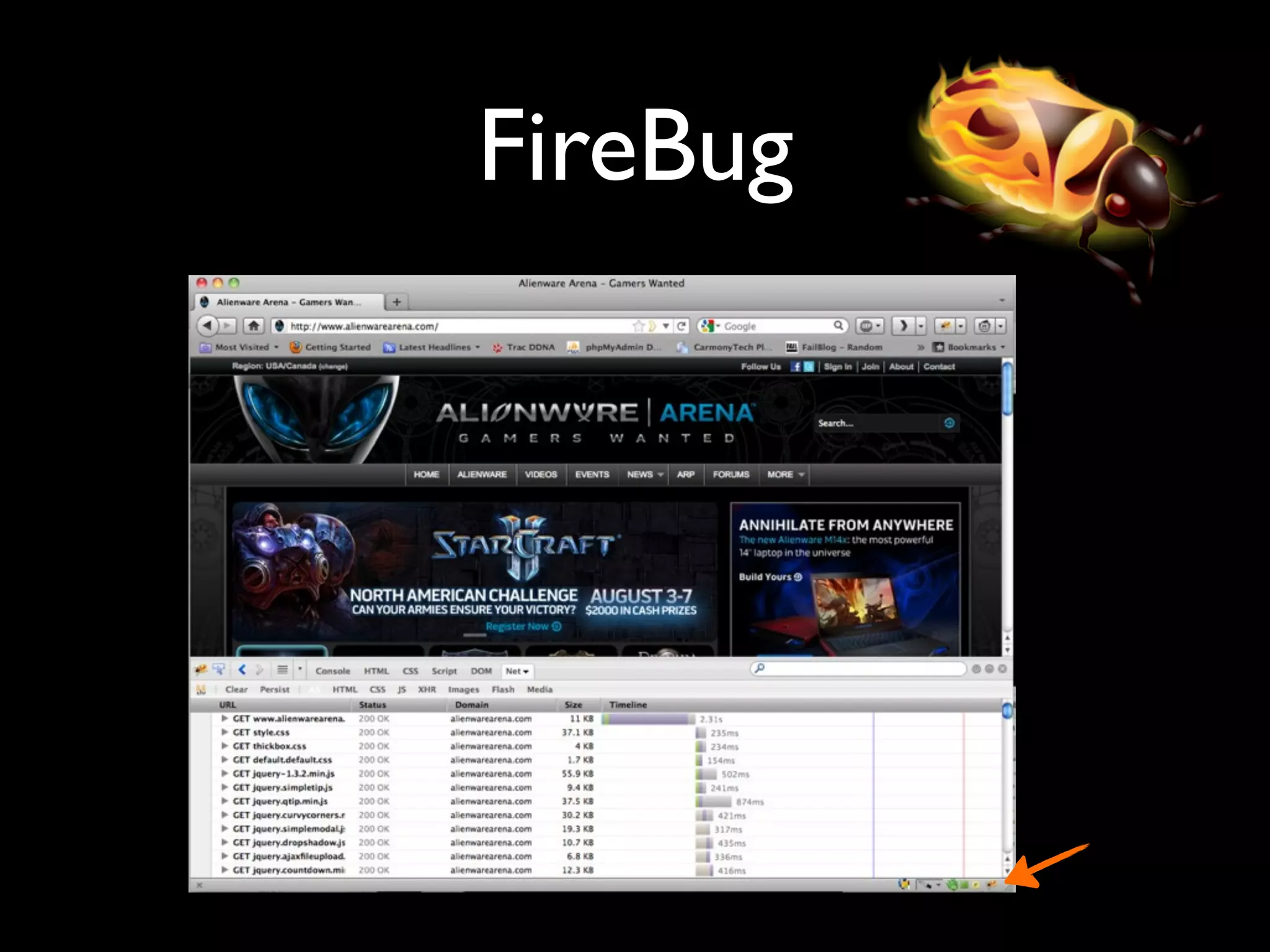

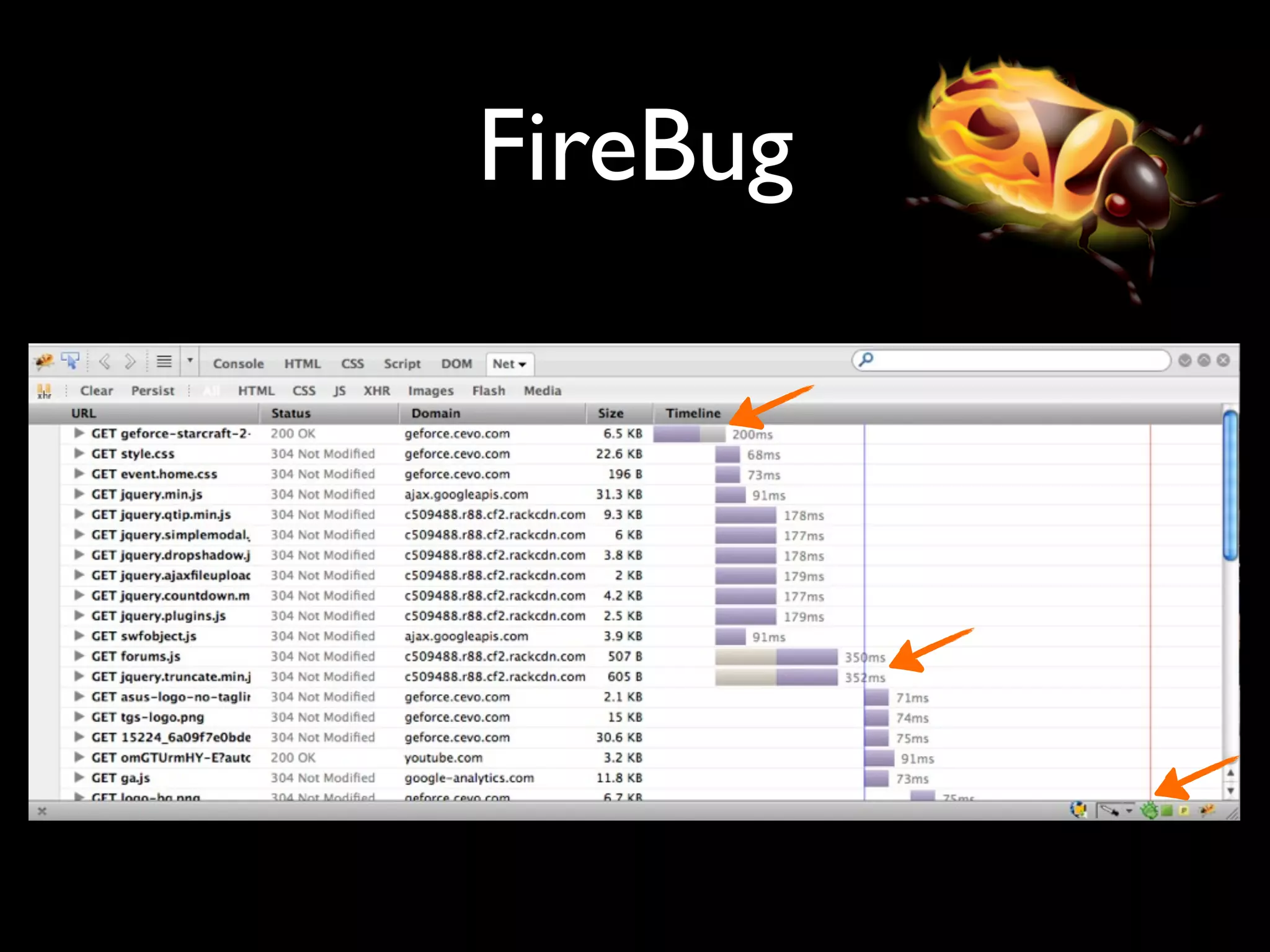

FireBug
FireBug

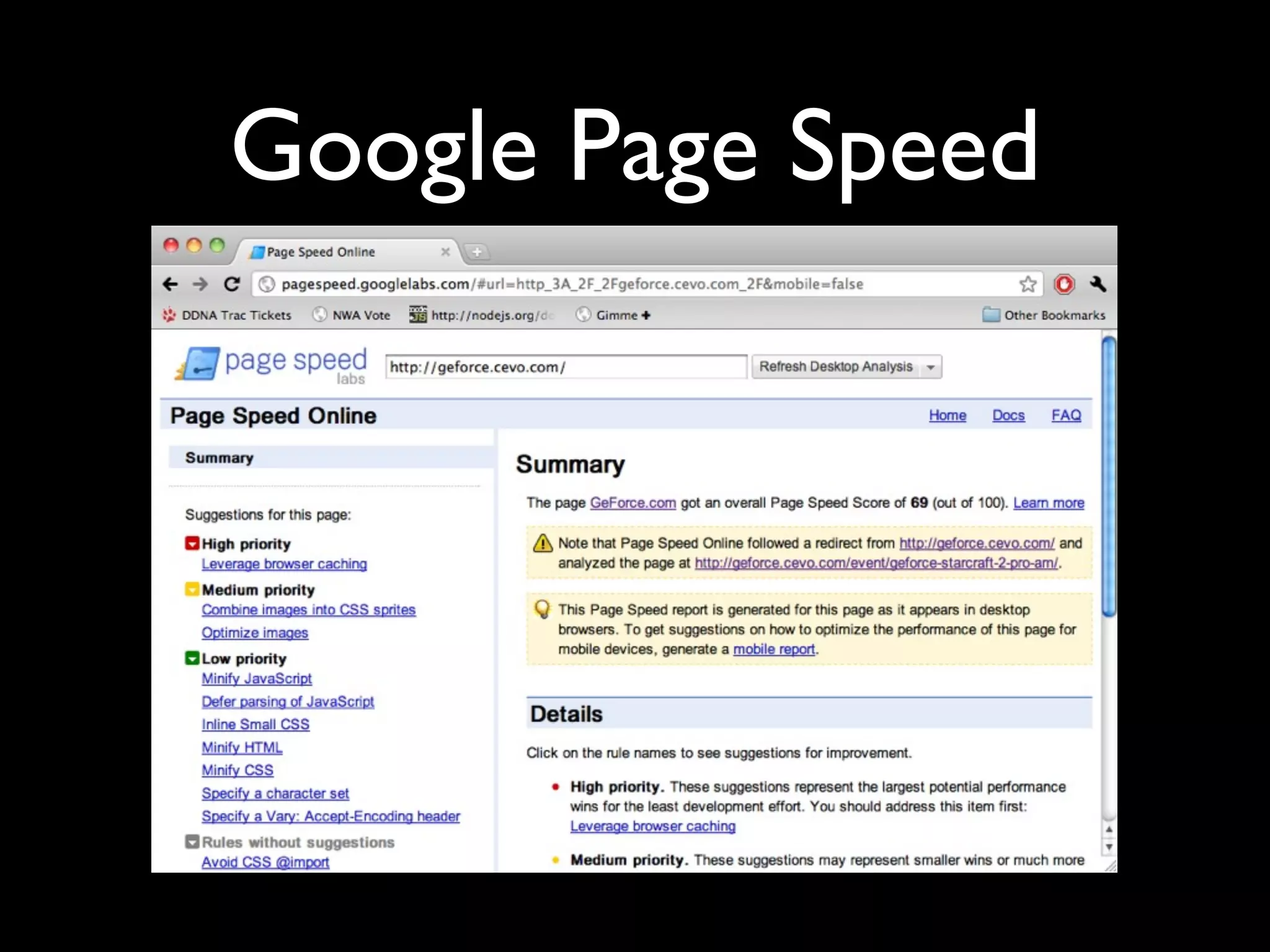

Google Page Speed

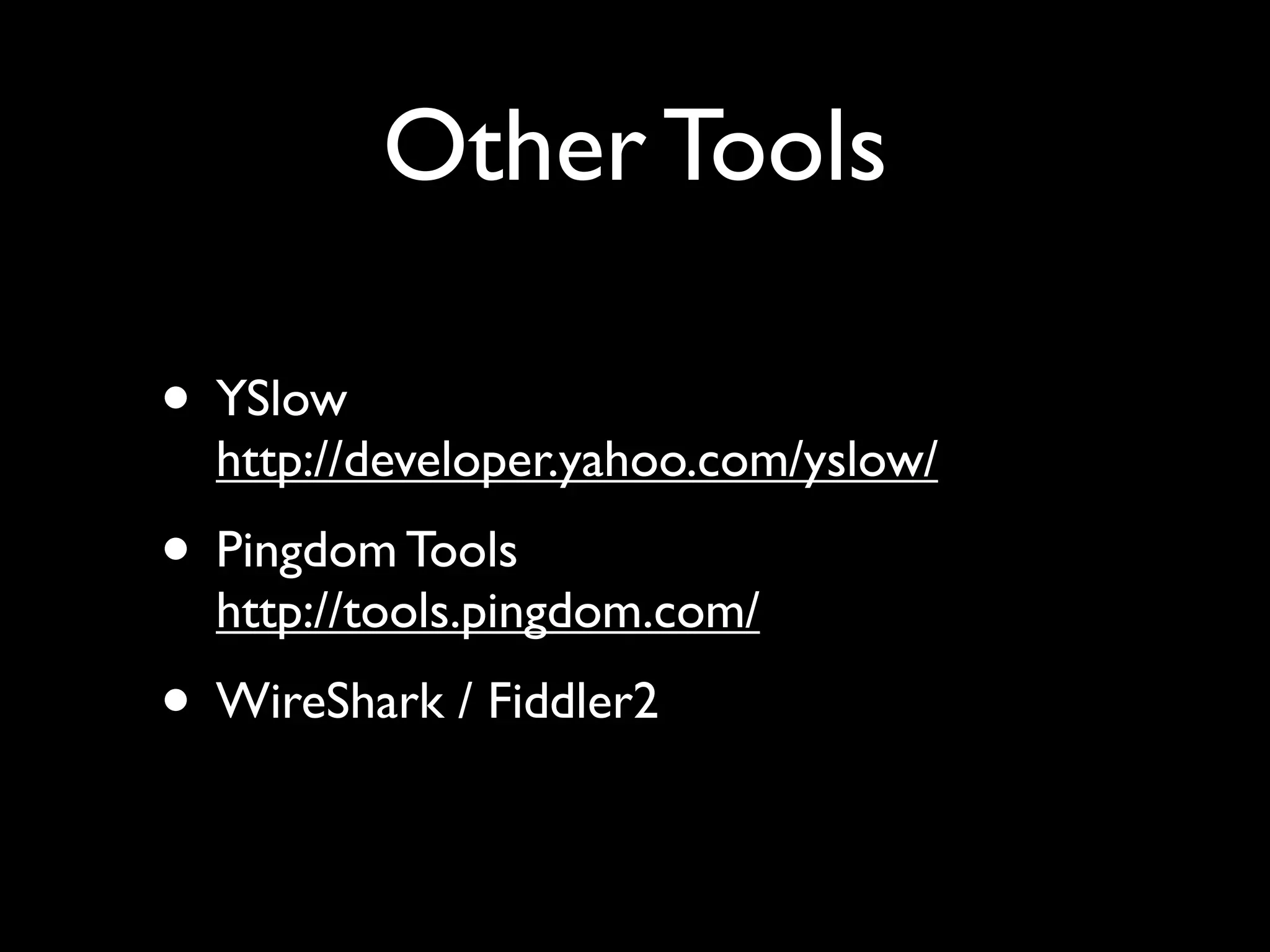

Other Tools

• YSlow
  http://developer.yahoo.com/yslow/
• Pingdom Tools
  http://tools.pingdom.com/
• WireShark / Fiddler2

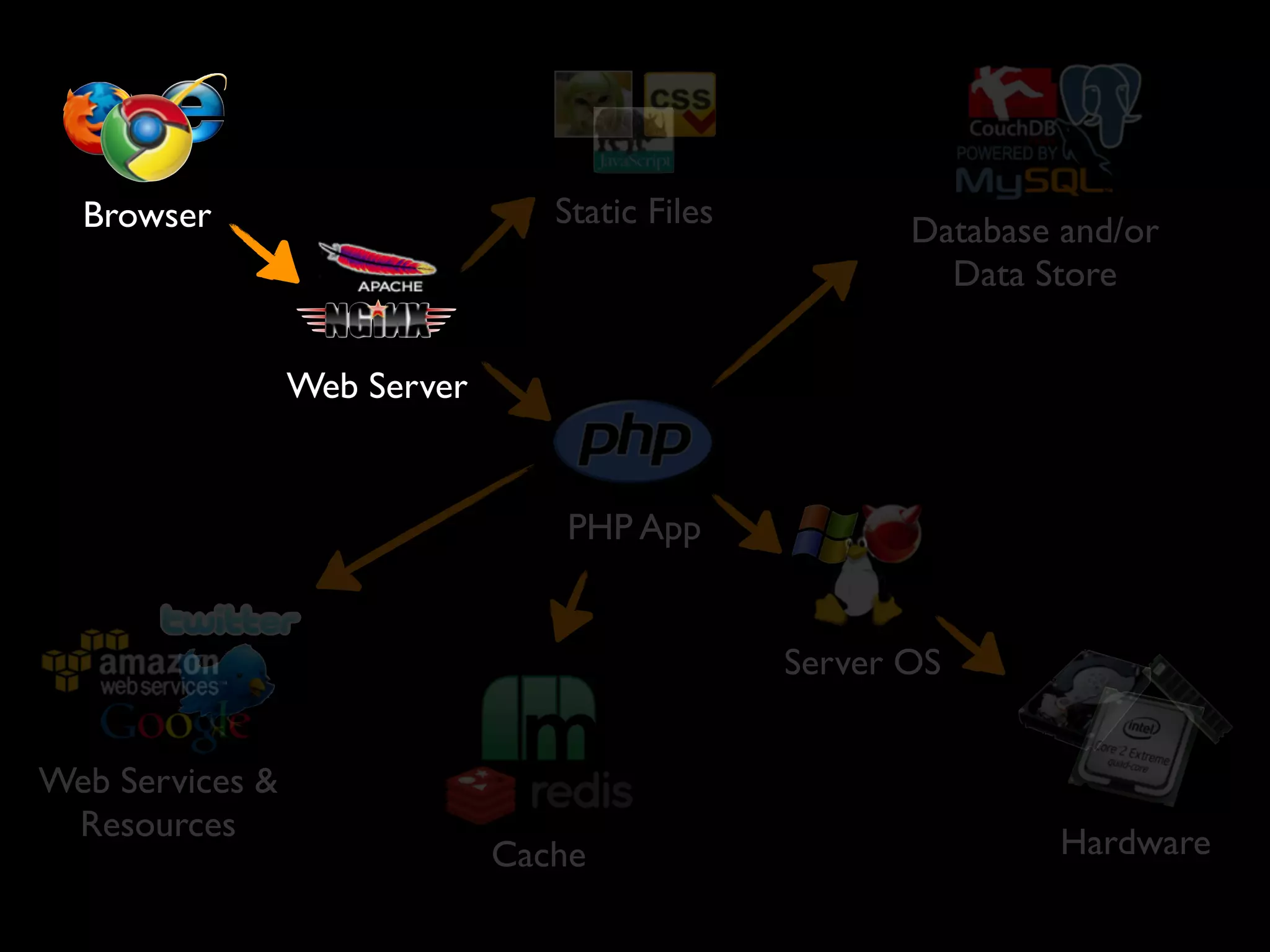

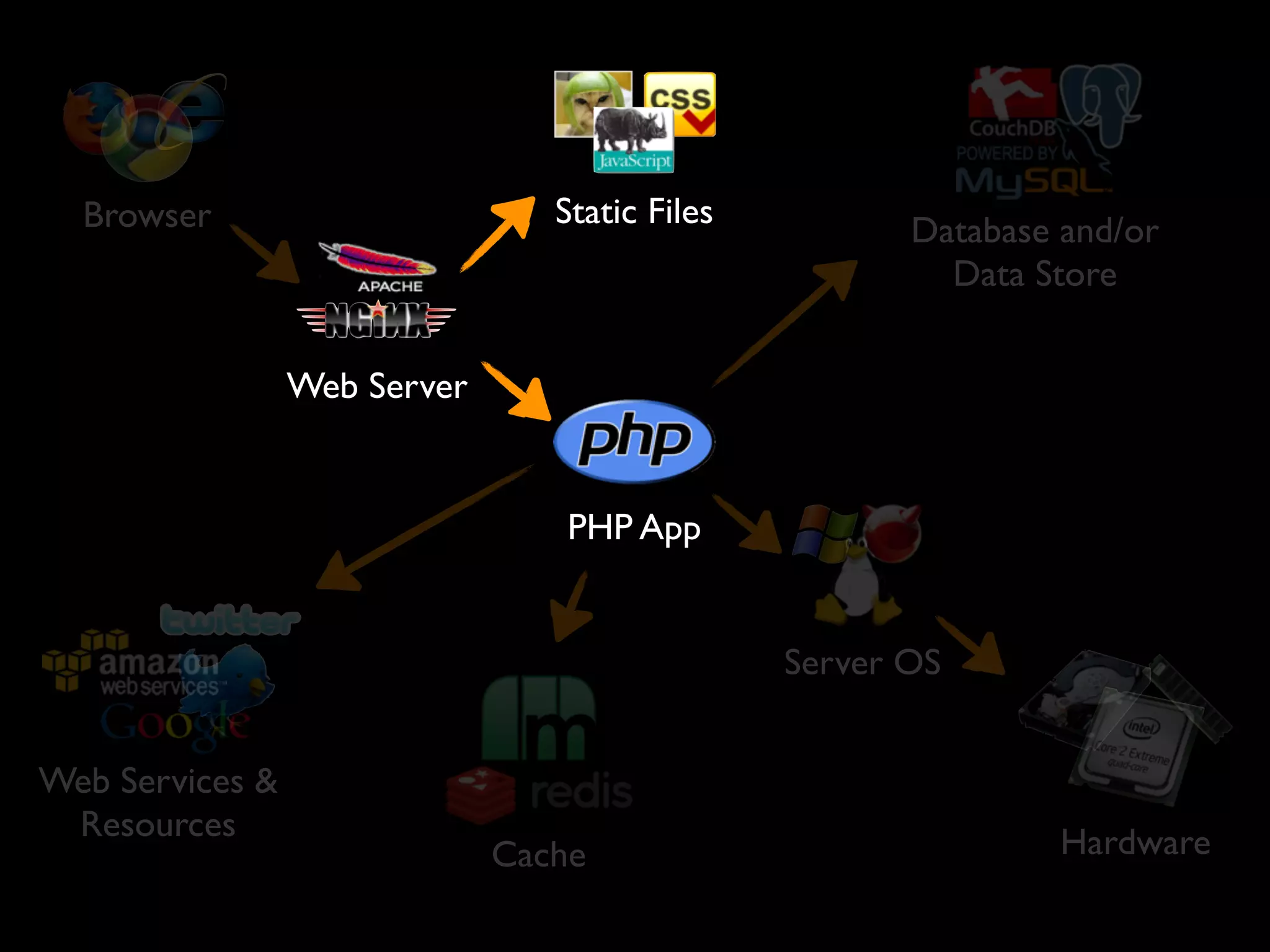

Browser                        Static Files
                                                       Database and/or
                                                         Data Store


                 Web Server


                                  PHP App


                                                Server OS


Web Services &
 Resources                                                      Hardware
                              Cache

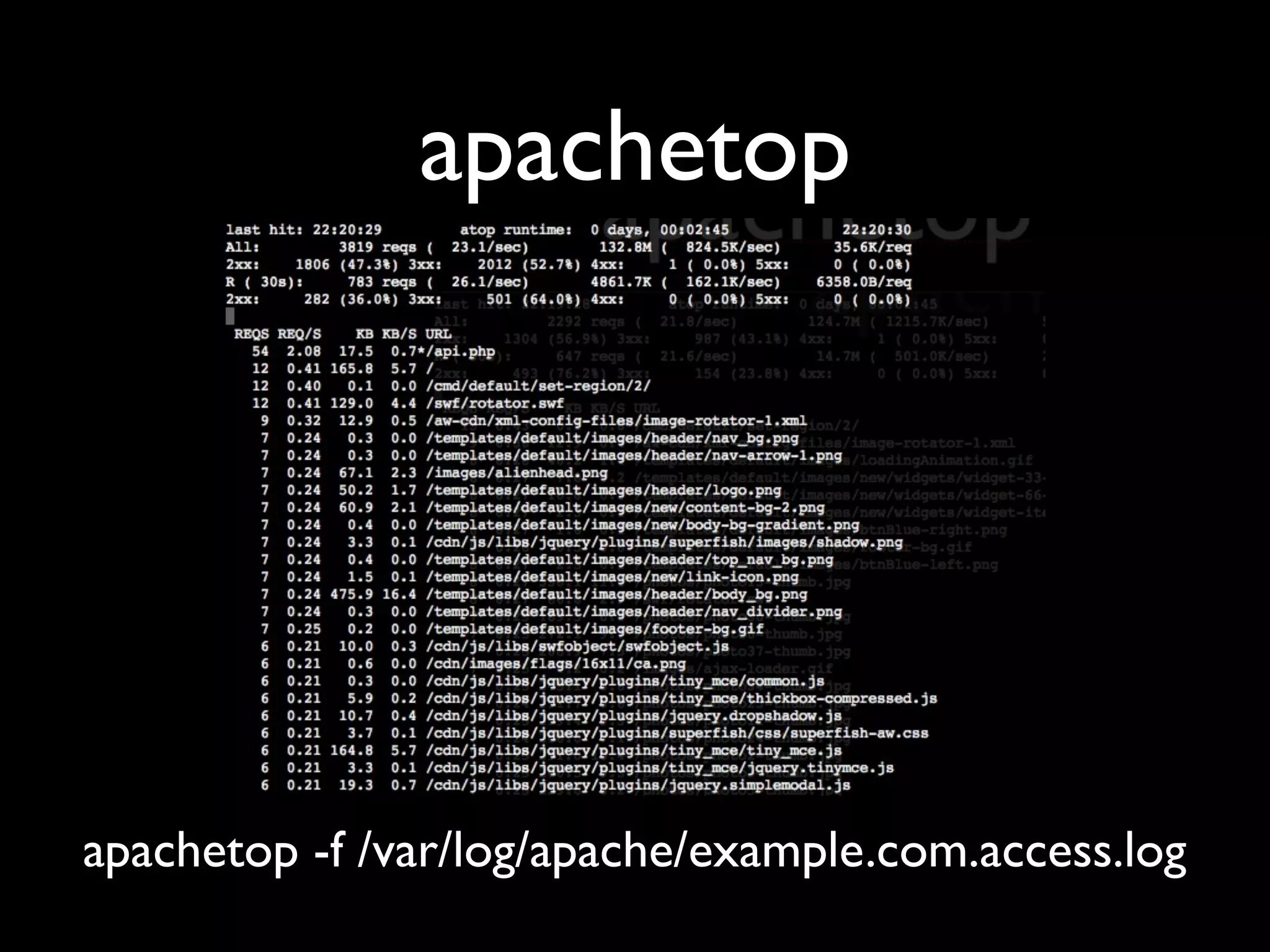

apachetop




apachetop -f /var/log/apache/example.com.access.log

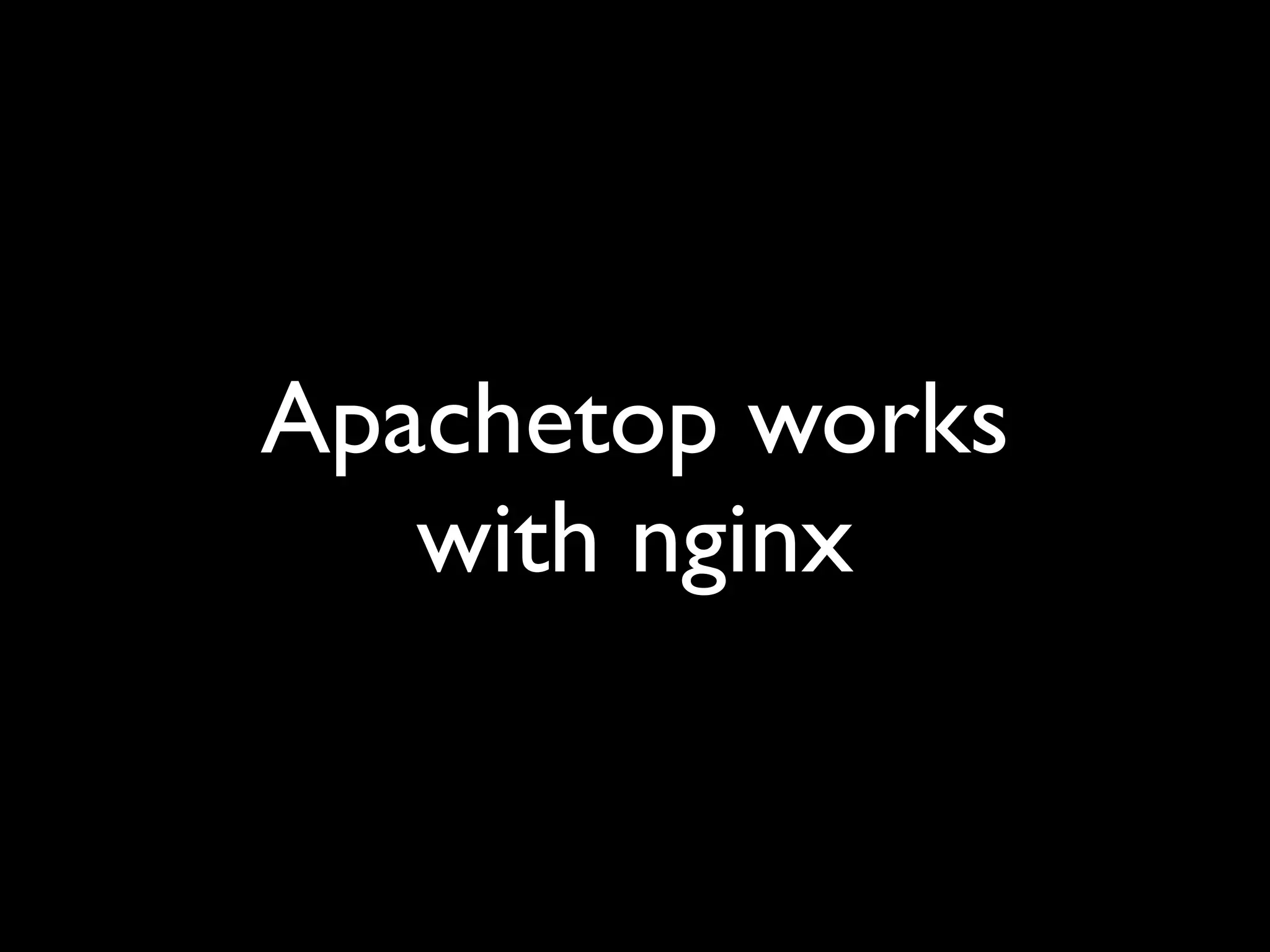

Apachetop works
   with nginx

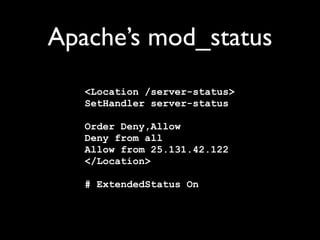

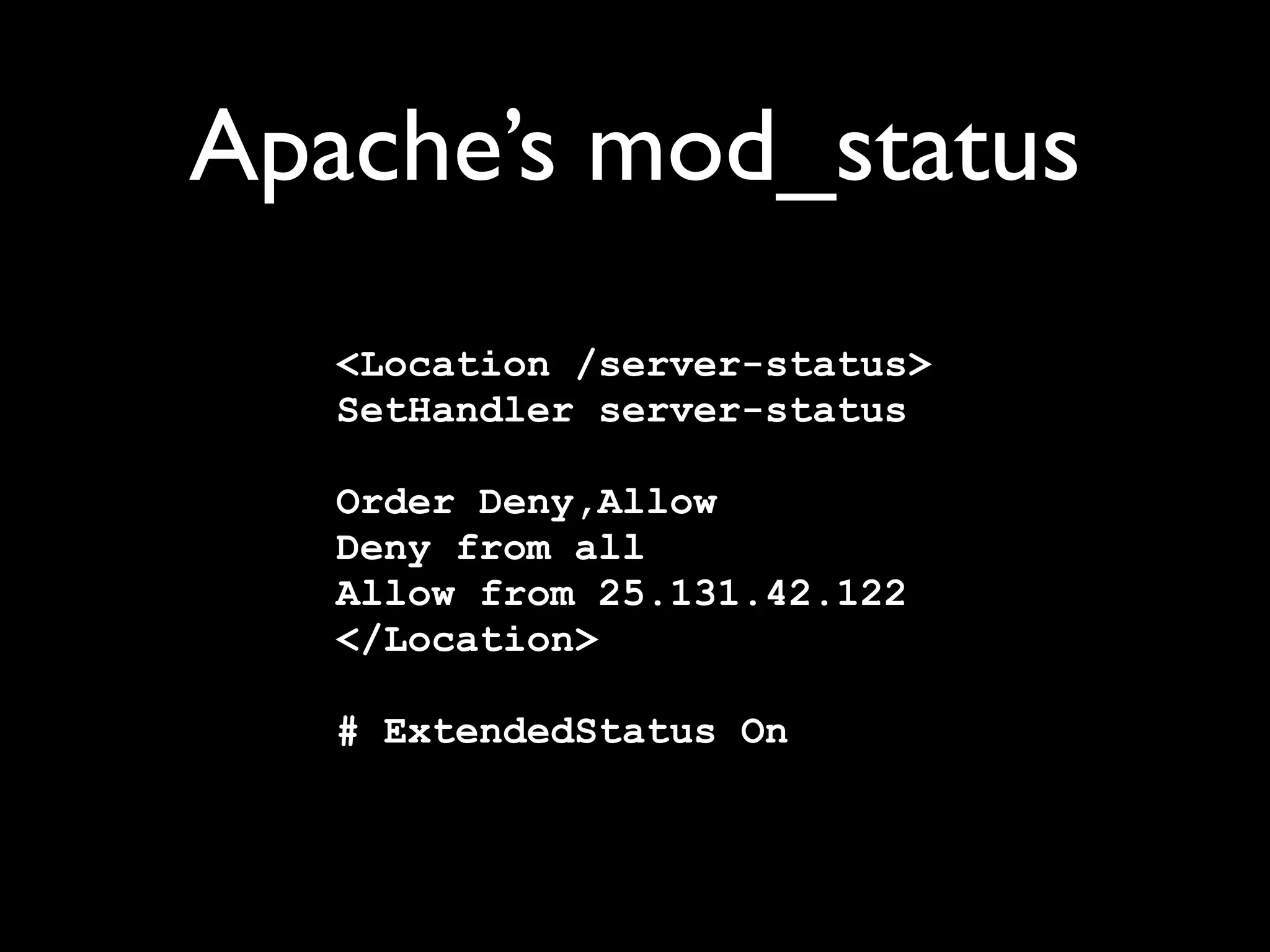

Apache’s mod_status
   <Location /server-status>
   SetHandler server-status

   Order Deny,Allow
   Deny from all
   Allow from 25.131.42.122
   </Location>

   # ExtendedStatus On

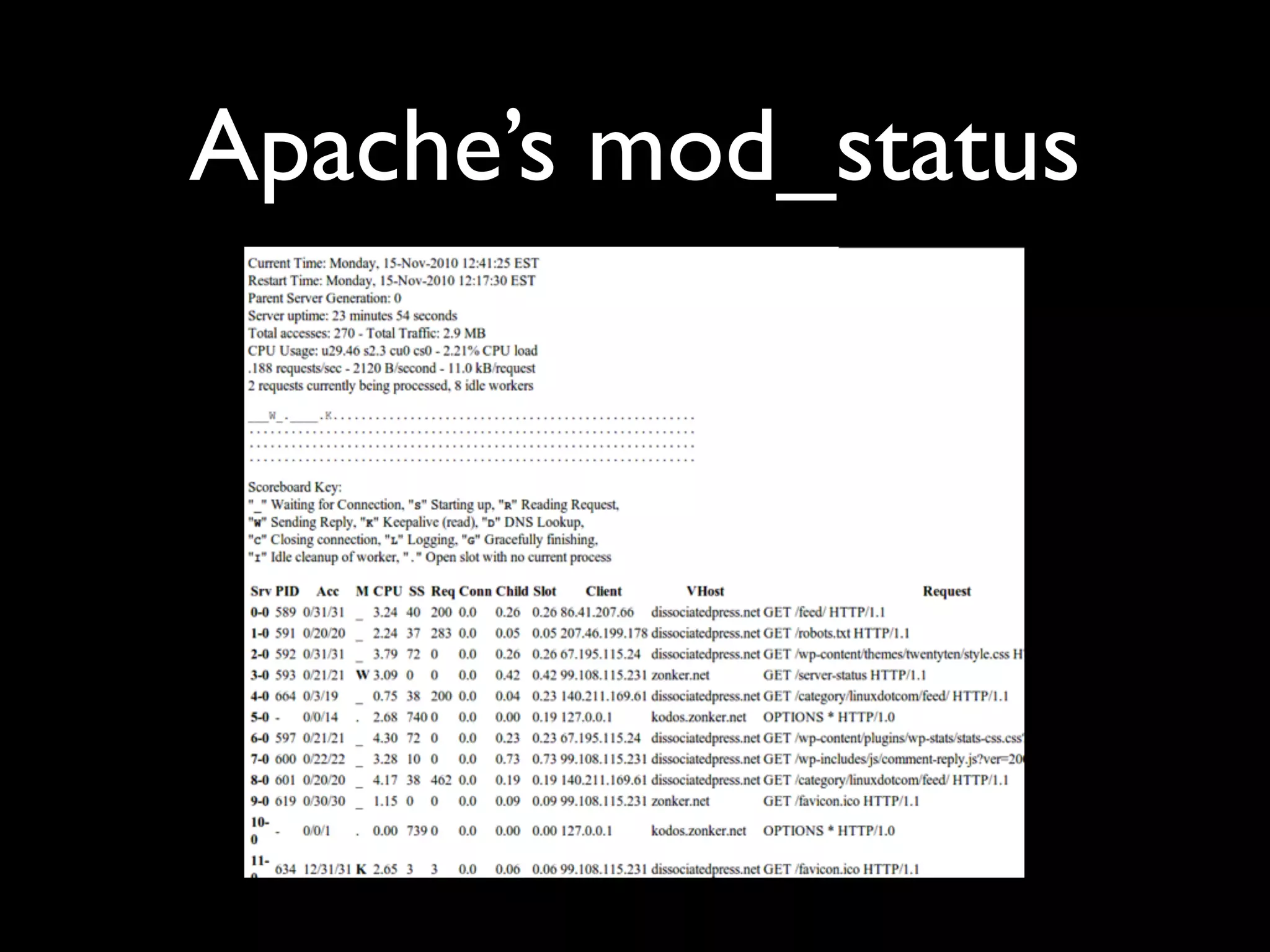

Apache’s mod_status
siege

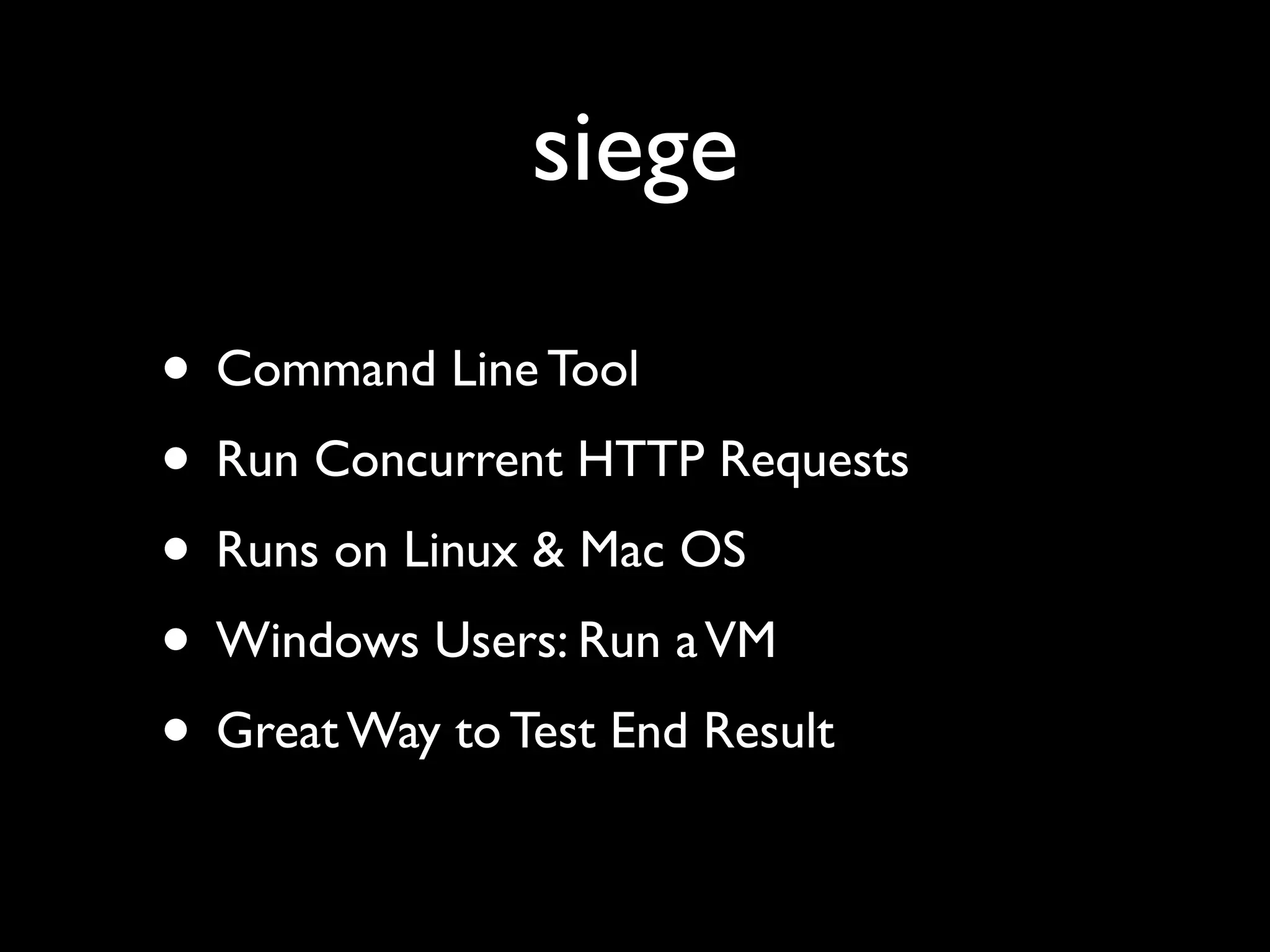

siege

• Command Line Tool
• Run Concurrent HTTP Requests
• Runs on Linux & Mac OS
• Windows Users: Run a VM
• Great Way to Test End Result

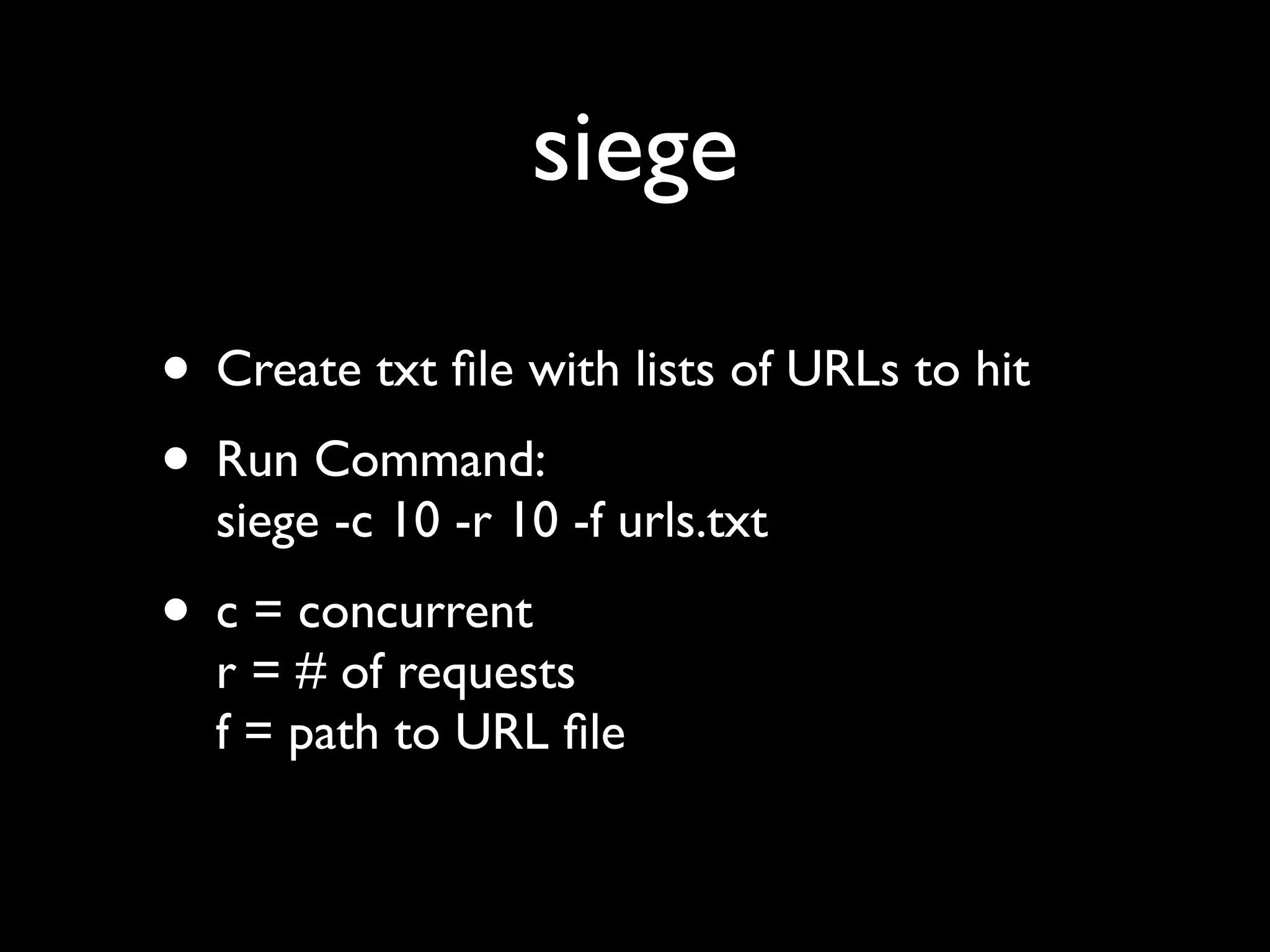

siege

• Create txt file with lists of URLs to hit
• Run Command:
  siege -c 10 -r 10 -f urls.txt
• c = concurrent
  r = # of requests
  f = path to URL file

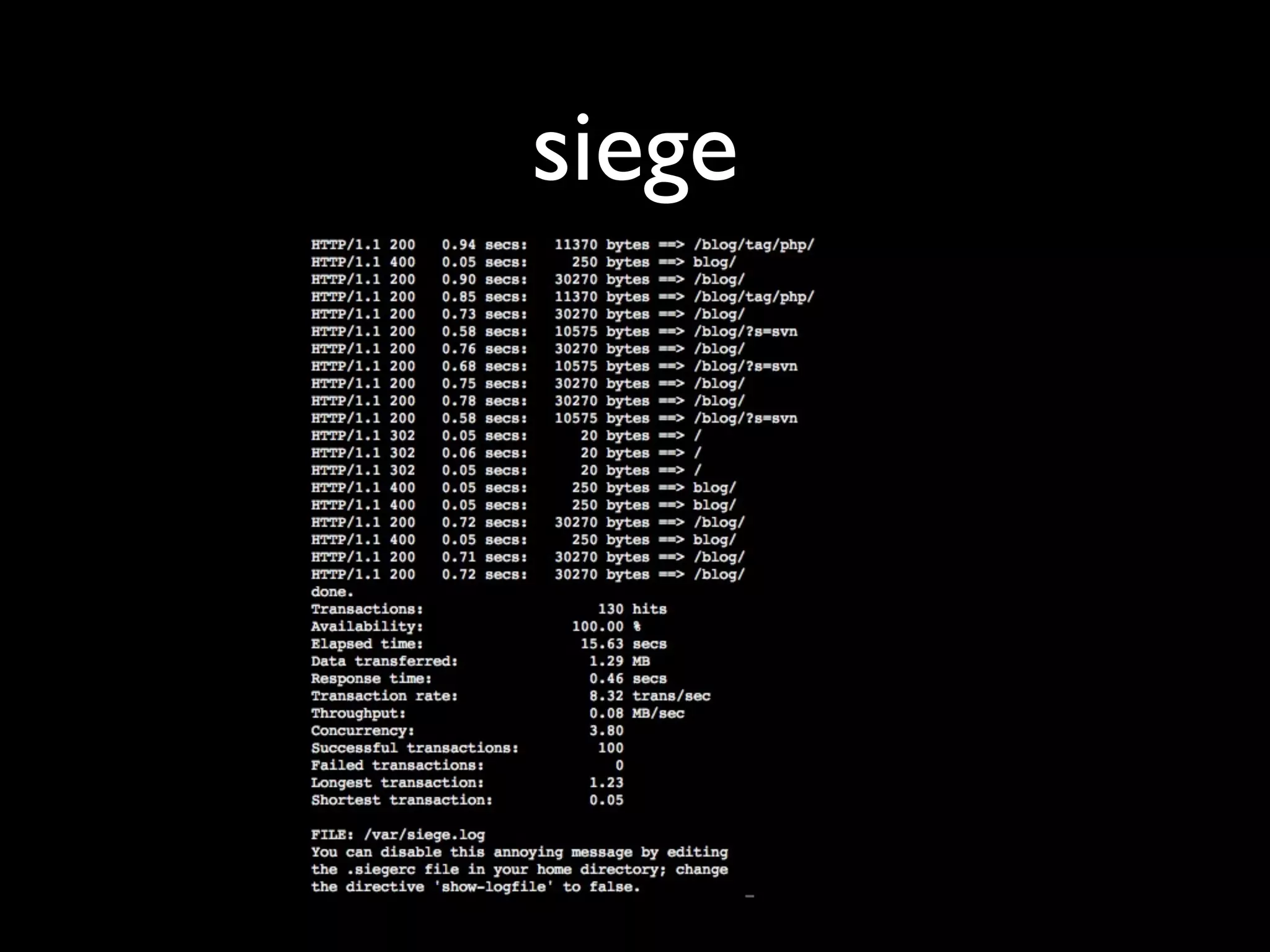

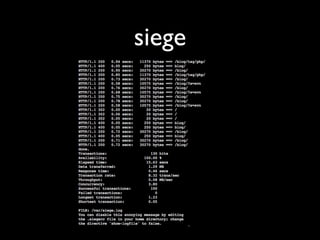

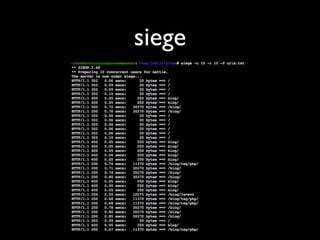

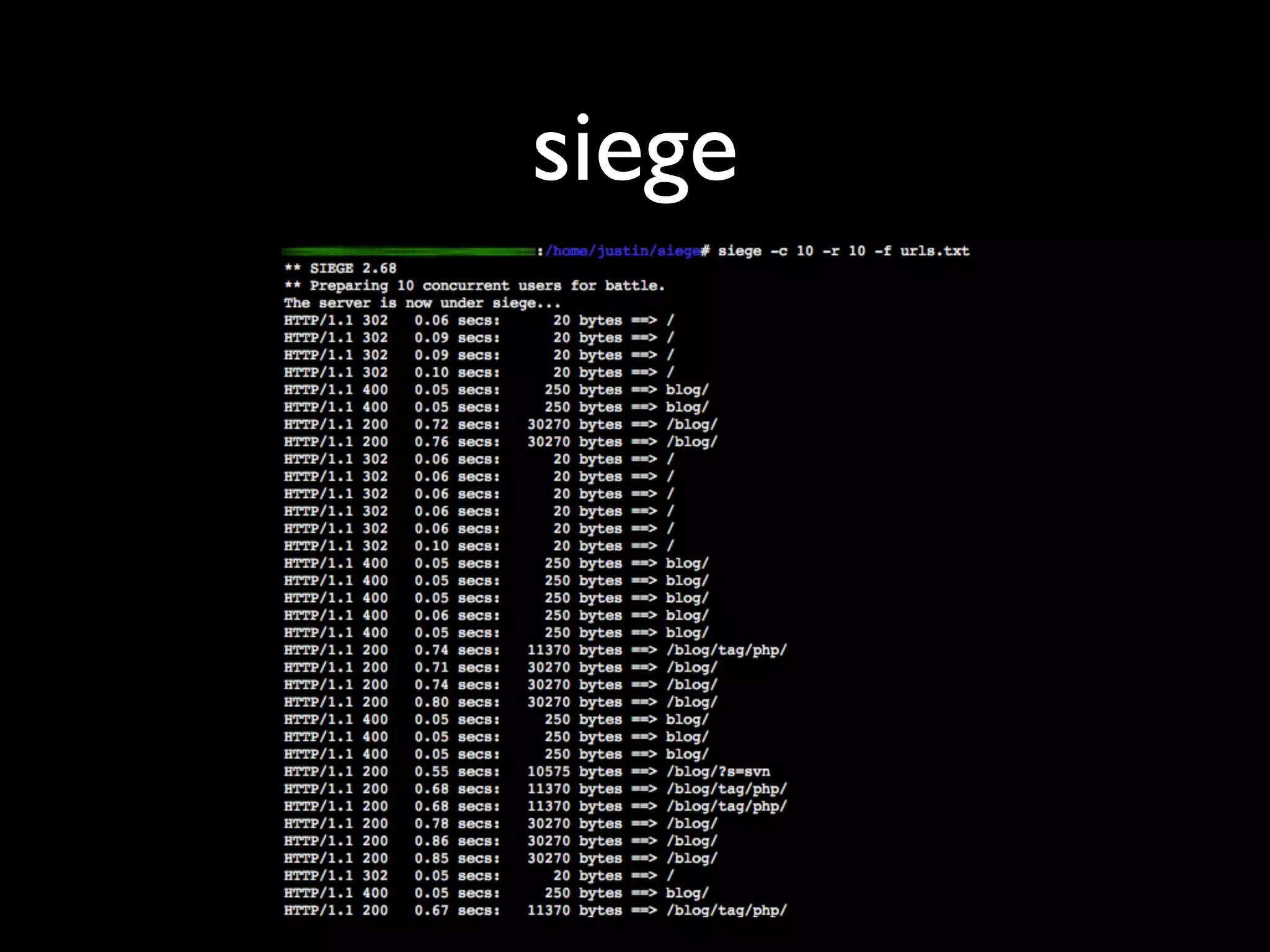

siege
siege

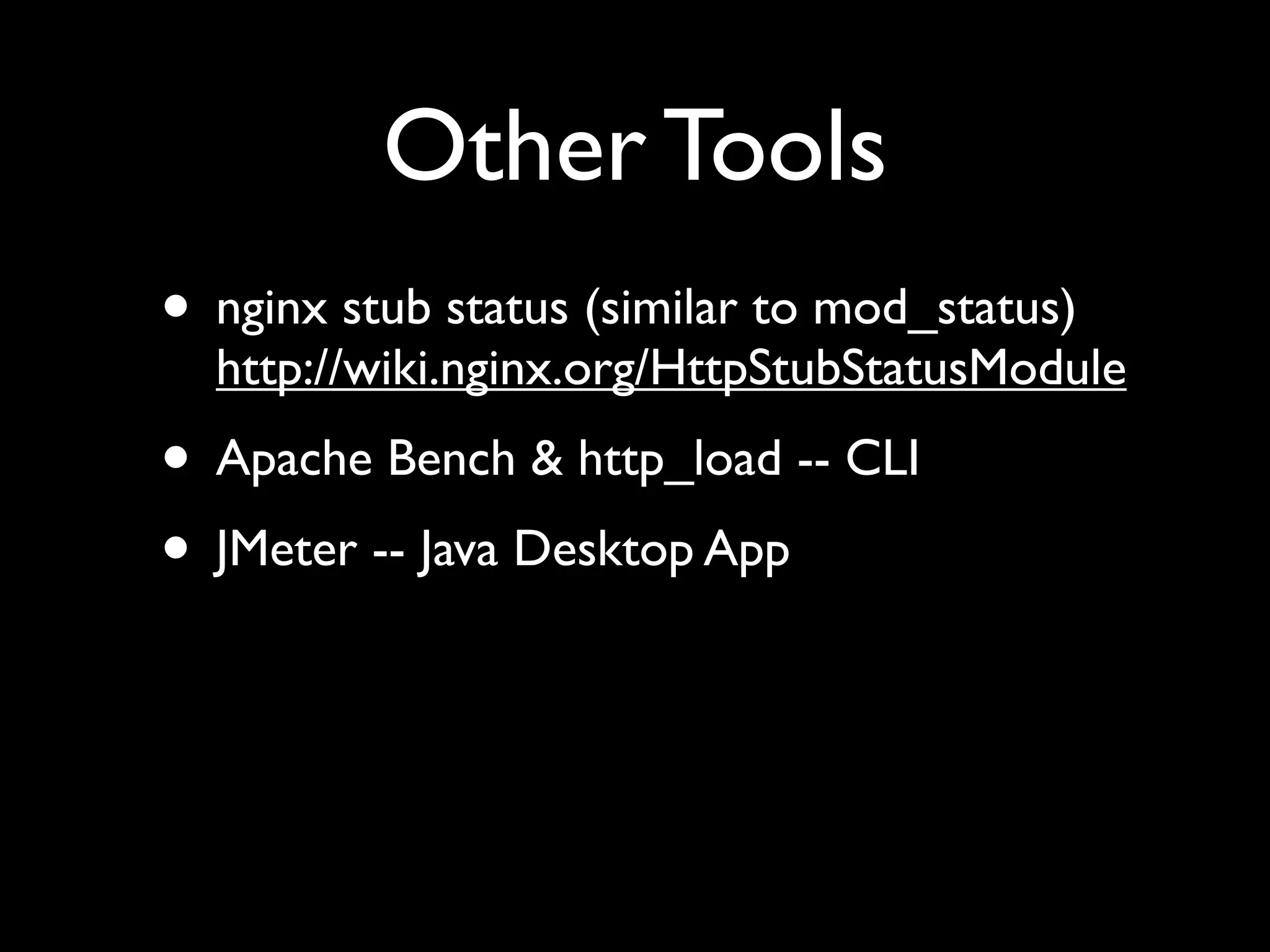

Other Tools
• nginx stub status (similar to mod_status)
  http://wiki.nginx.org/HttpStubStatusModule
• Apache Bench & http_load -- CLI
• JMeter -- Java Desktop App
Browser                        Static Files
                                                       Database and/or
                                                         Data Store


                 Web Server


                                  PHP App


                                                Server OS


Web Services &
 Resources                                                      Hardware
                              Cache

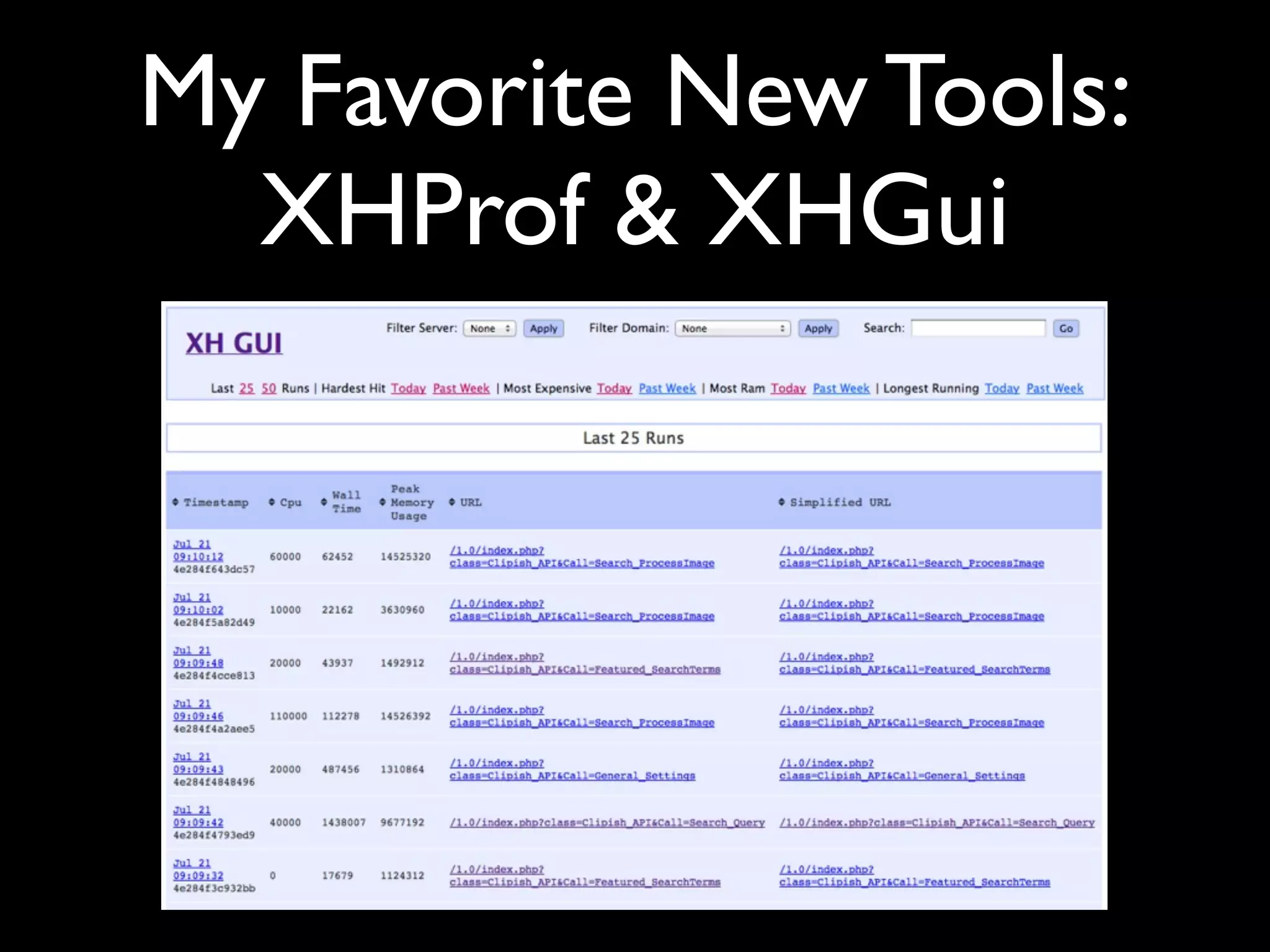

My Favorite New Tools:
  XHProf & XHGui

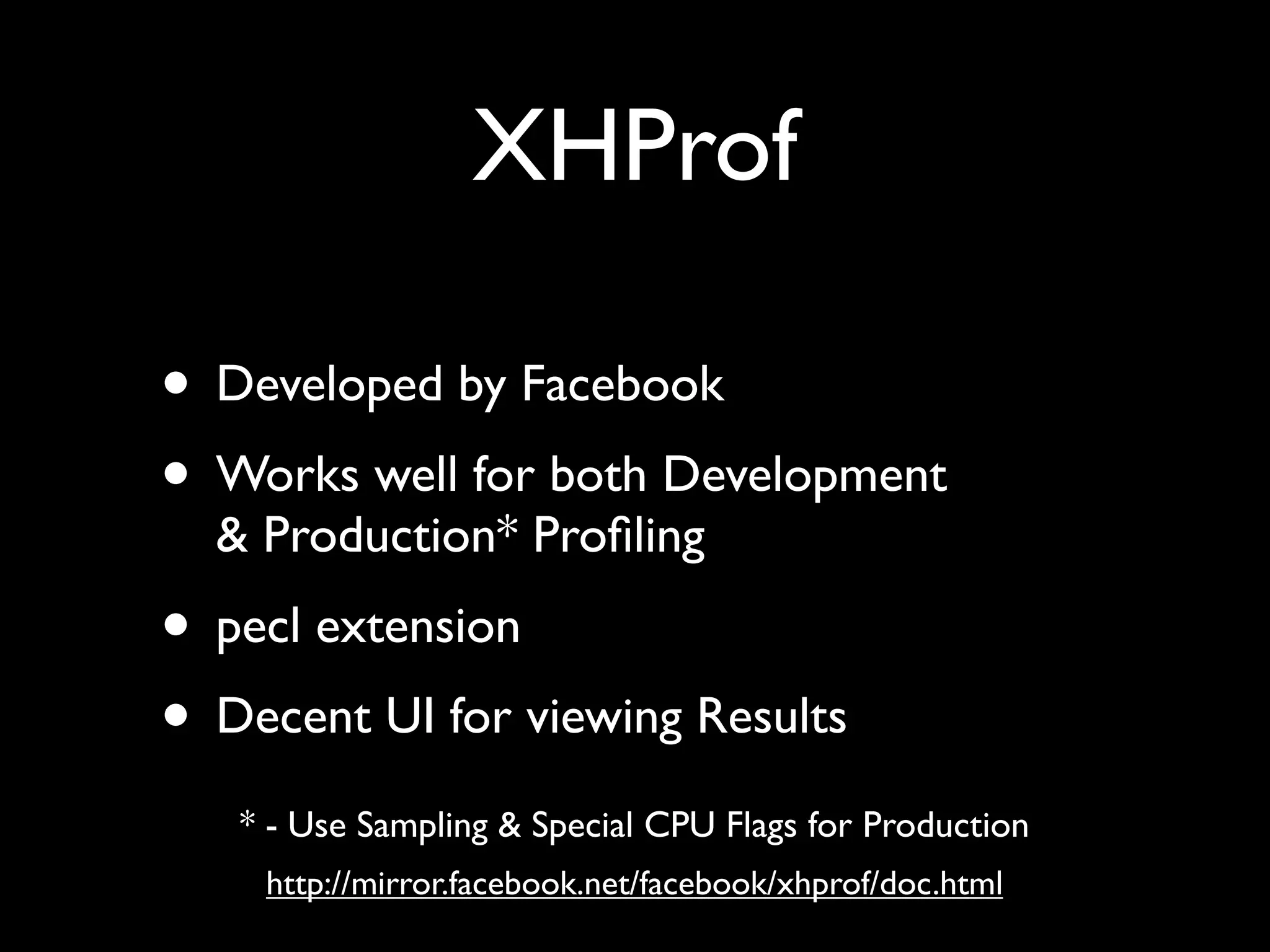

XHProf

• Developed by Facebook
• Works well for both Development
  & Production* Profiling
• pecl extension
• Decent UI for viewing Results
   * - Use Sampling & Special CPU Flags for Production
    http://mirror.facebook.net/facebook/xhprof/doc.html

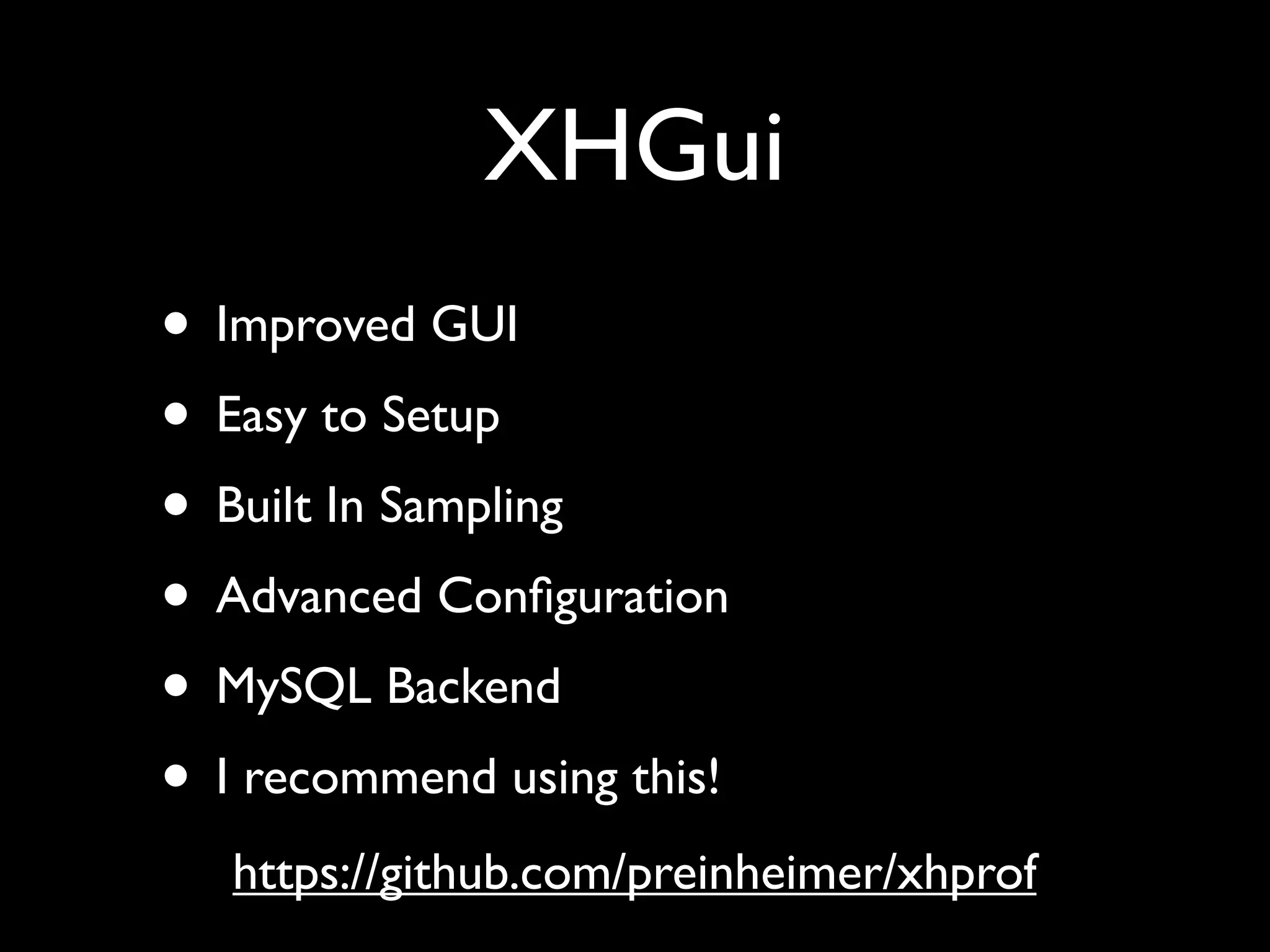

XHGui
• Improved GUI
• Easy to Setup
• Built In Sampling
• Advanced Configuration
• MySQL Backend
• I recommend using this!
   https://github.com/preinheimer/xhprof
More Fun to Show
     Demo Time

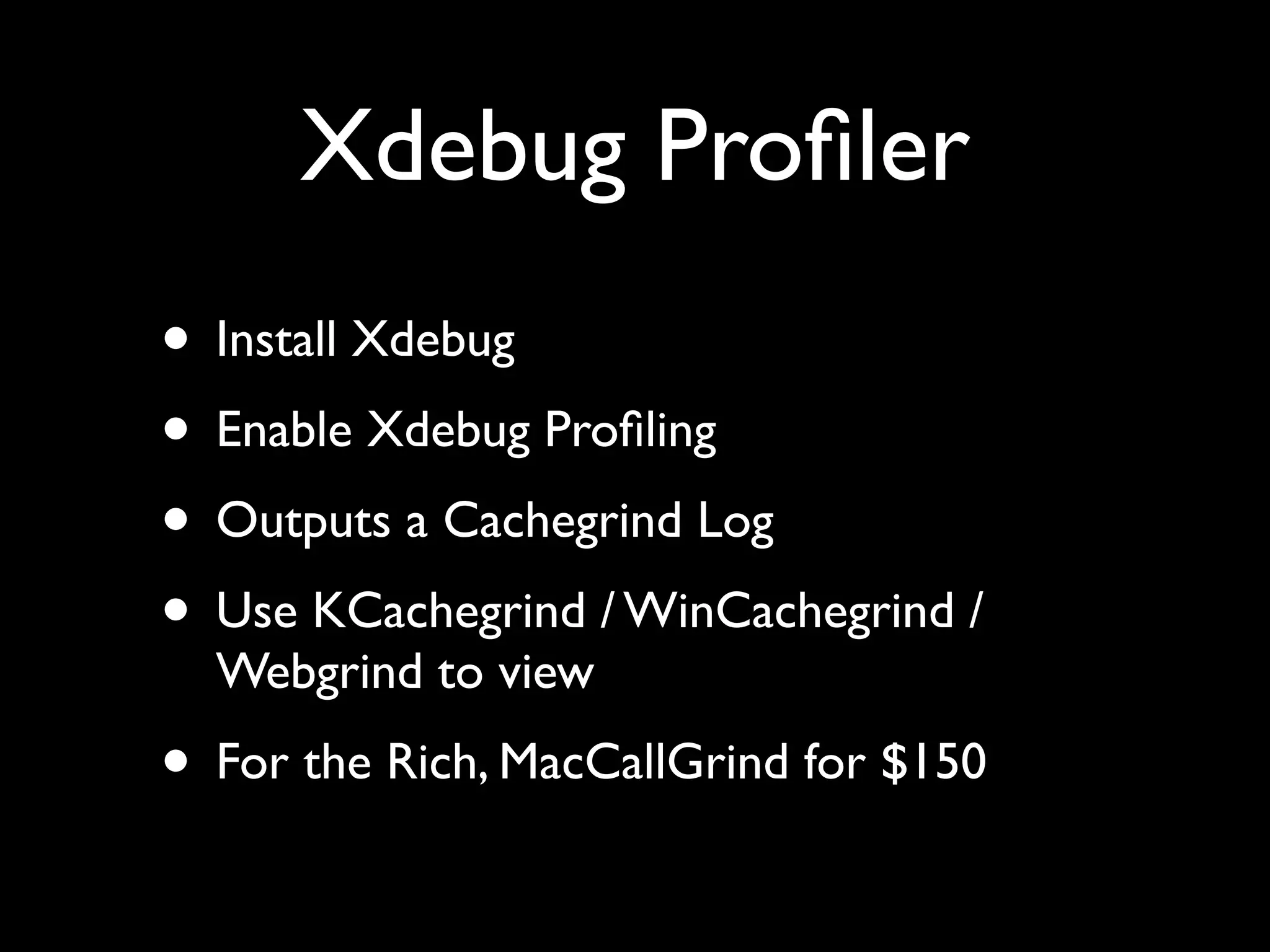

Xdebug Profiler
• Install Xdebug
• Enable Xdebug Profiling
• Outputs a Cachegrind Log
• Use KCachegrind / WinCachegrind /
  Webgrind to view
• For the Rich, MacCallGrind for $150

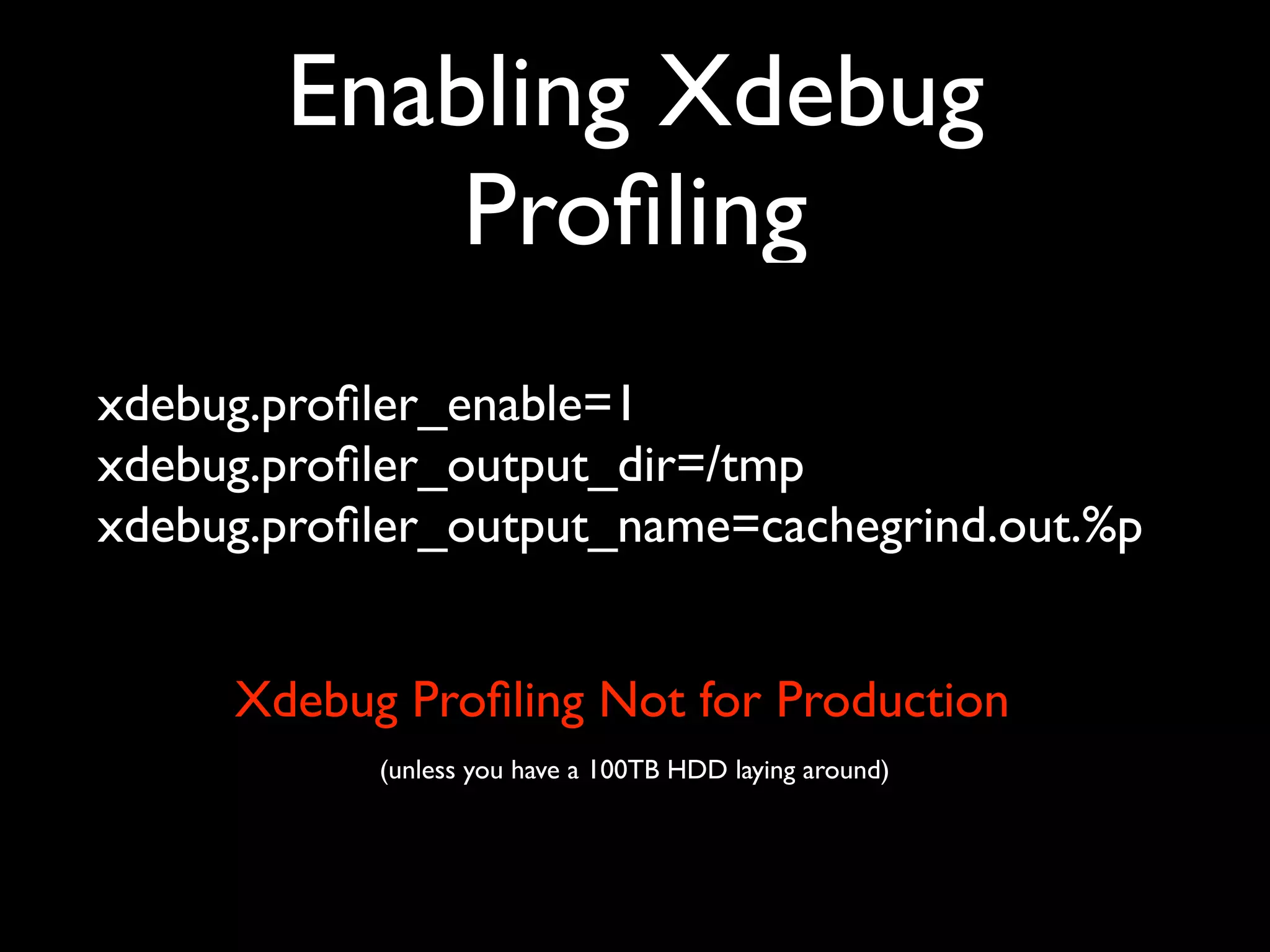

Enabling Xdebug
           Profiling
xdebug.profiler_enable=1
xdebug.profiler_output_dir=/tmp
xdebug.profiler_output_name=cachegrind.out.%p


     Xdebug Profiling Not for Production
           (unless you have a 100TB HDD laying around)

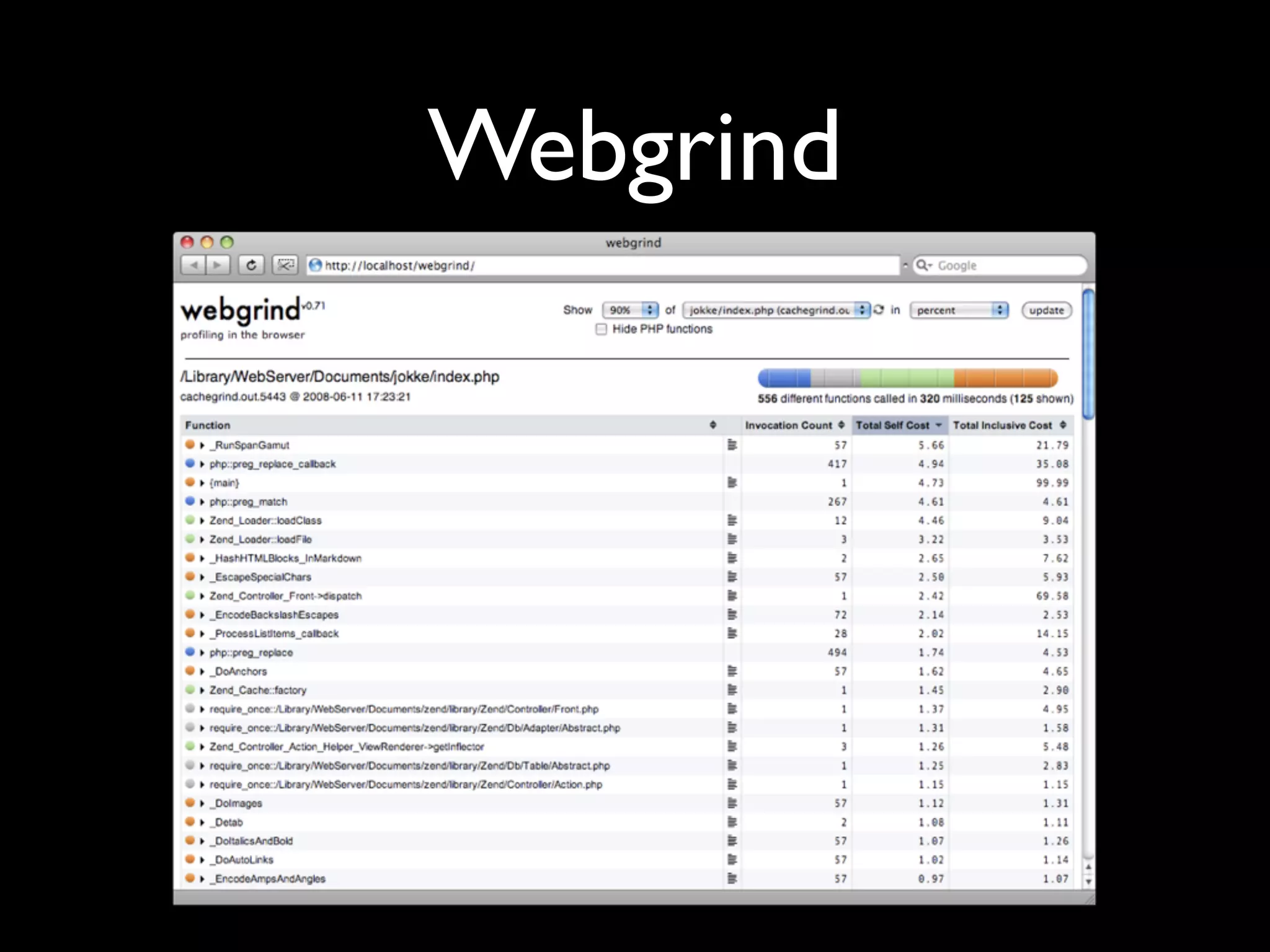

Webgrind

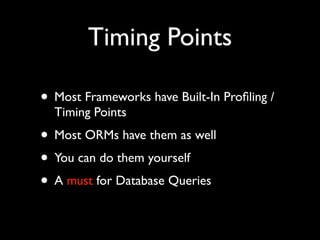

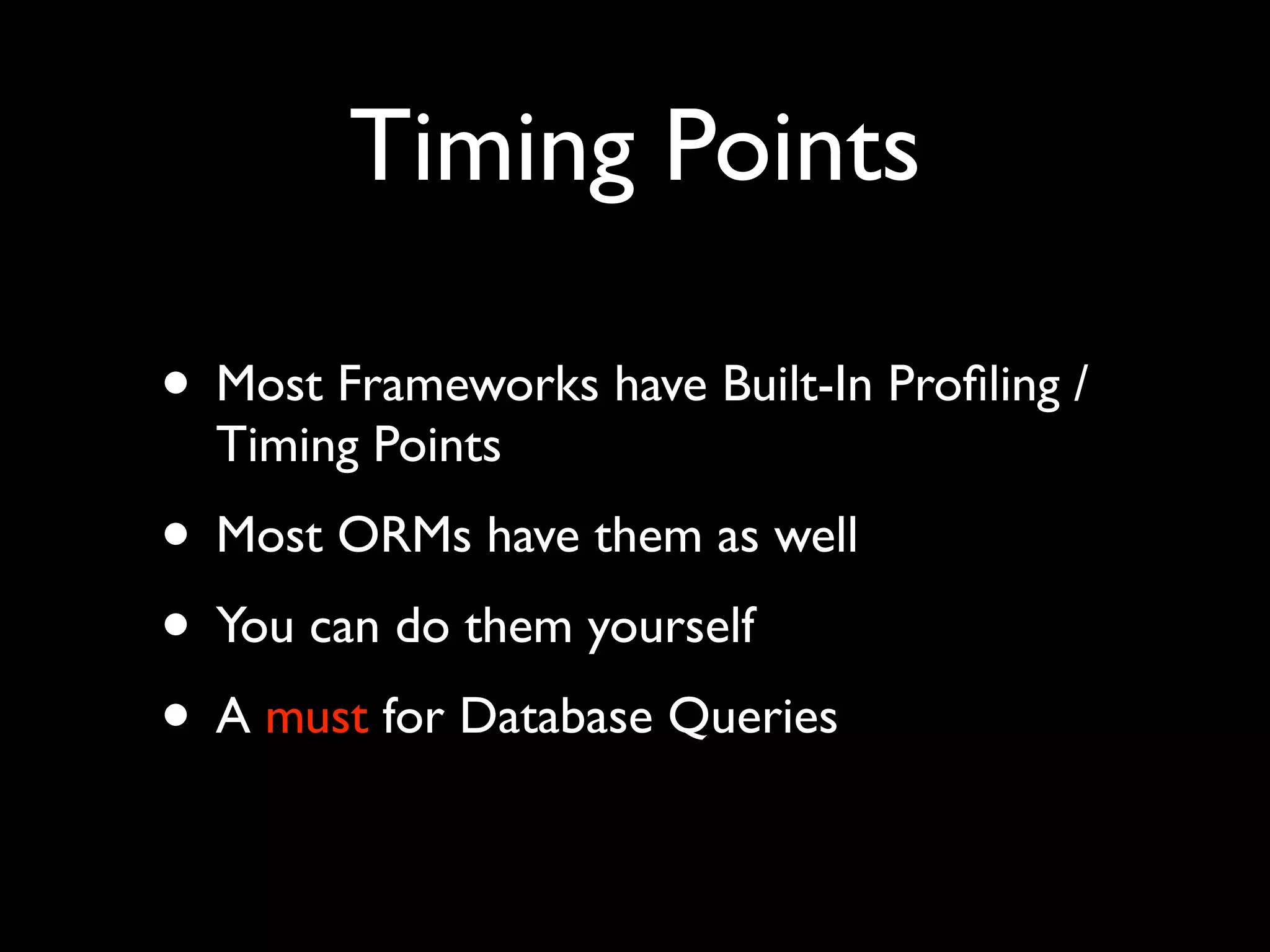

Timing Points

• Most Frameworks have Built-In Profiling /
  Timing Points
• Most ORMs have them as well
• You can do them yourself
• A must for Database Queries

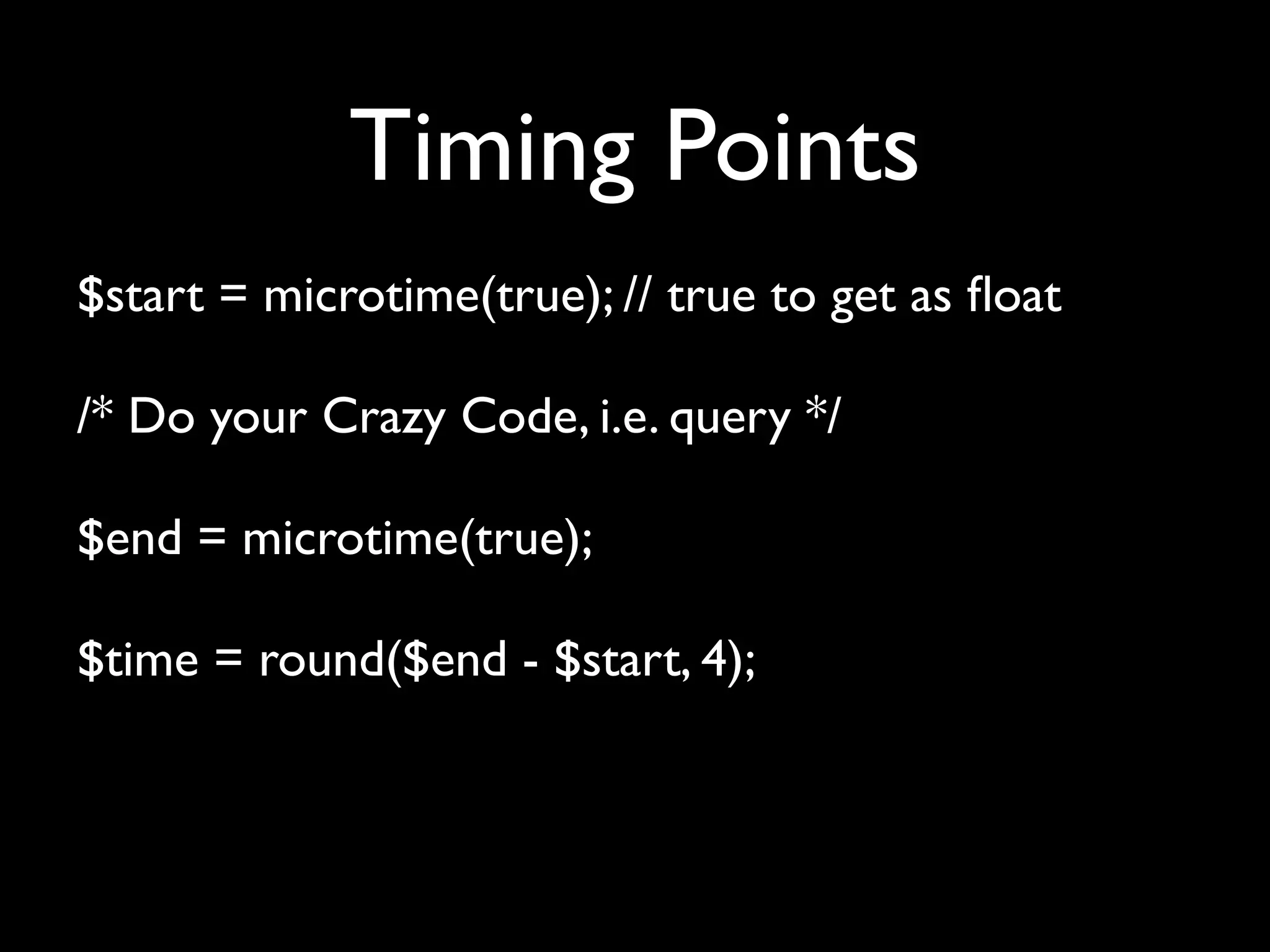

Timing Points
$start = microtime(true); // true to get as float

/* Do your Crazy Code, i.e. query */

$end = microtime(true);

$time = round($end - $start, 4);

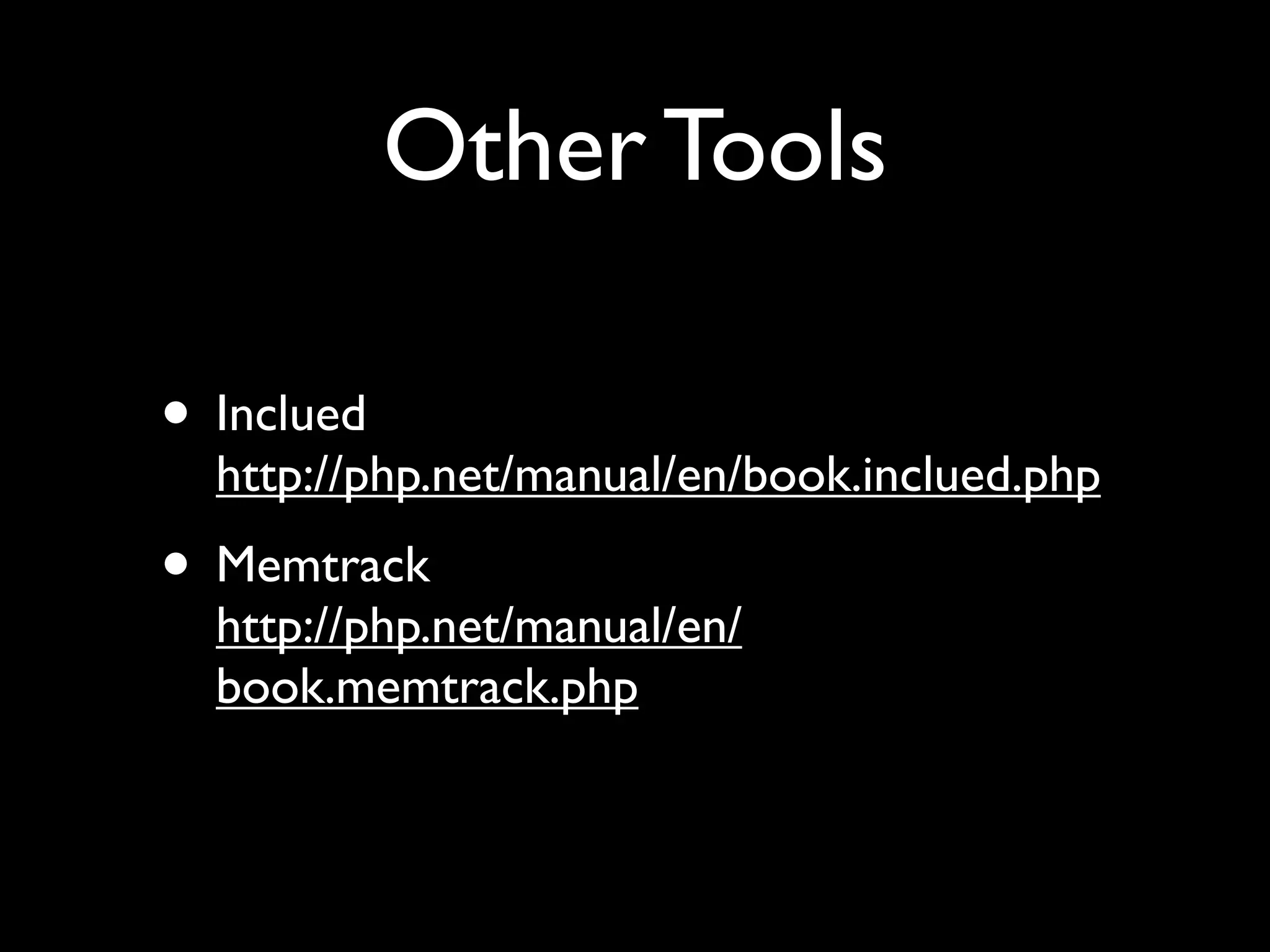

Other Tools

• Inclued
  http://php.net/manual/en/book.inclued.php
• Memtrack
  http://php.net/manual/en/
  book.memtrack.php

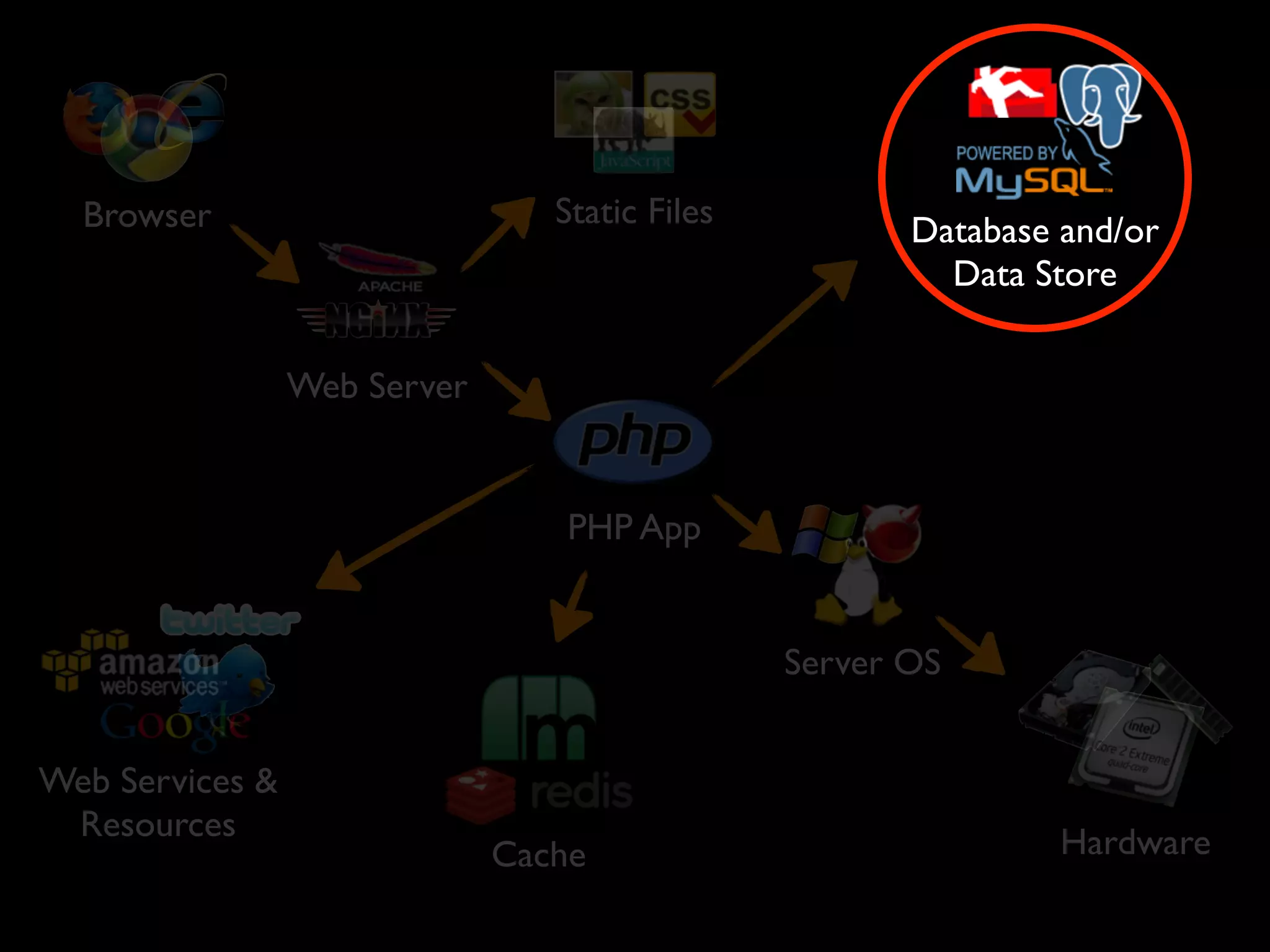

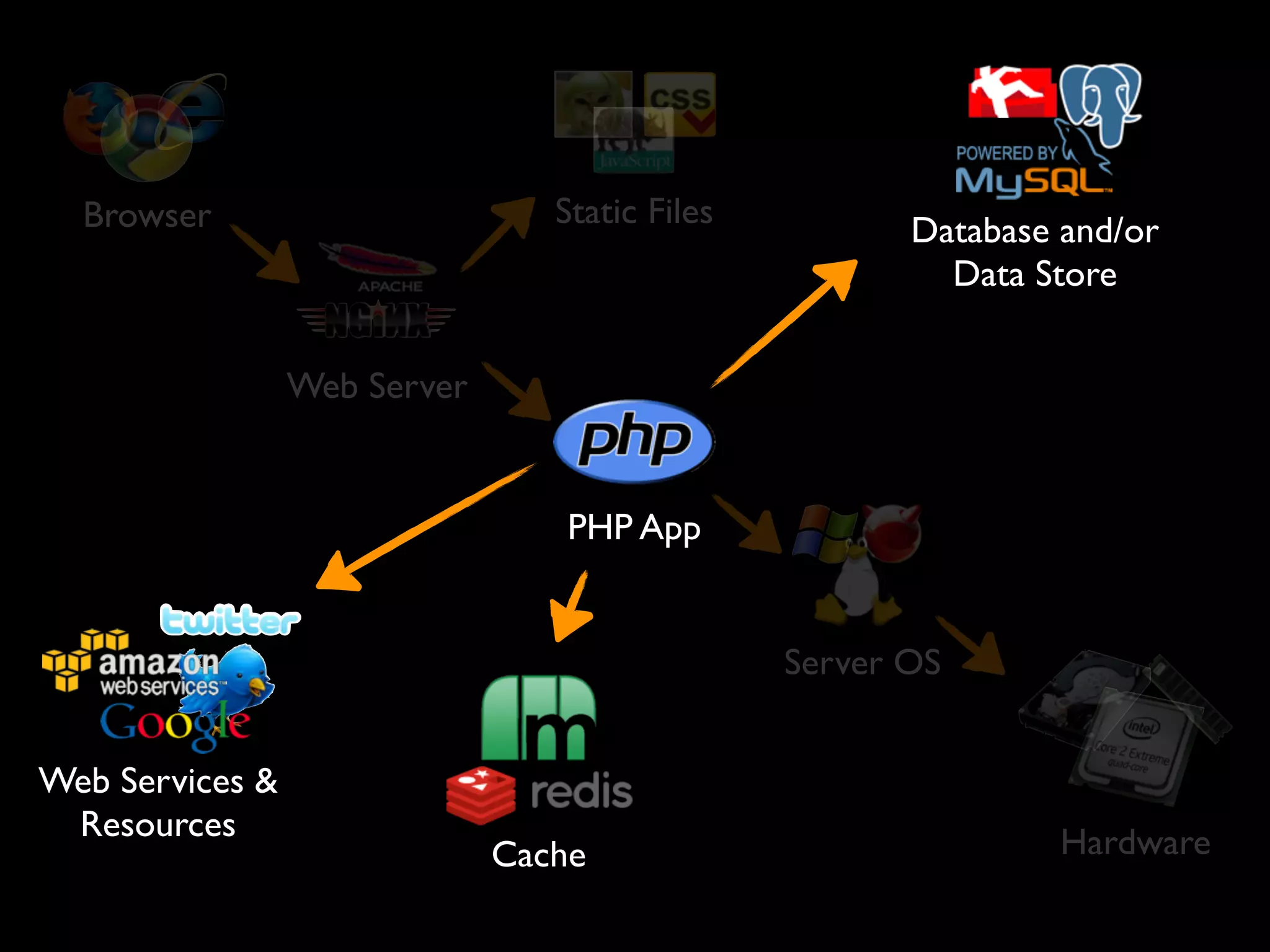

Browser                        Static Files
                                                       Database and/or
                                                         Data Store


                 Web Server


                                  PHP App


                                                Server OS


Web Services &
 Resources                                                      Hardware
                              Cache
Databases
• Typically, First Thing to Slow Down
• Things to that will Kill the DB:
   • Missing Indexes
   • Nested Queries
   • Large Joins
   • Locked Queries

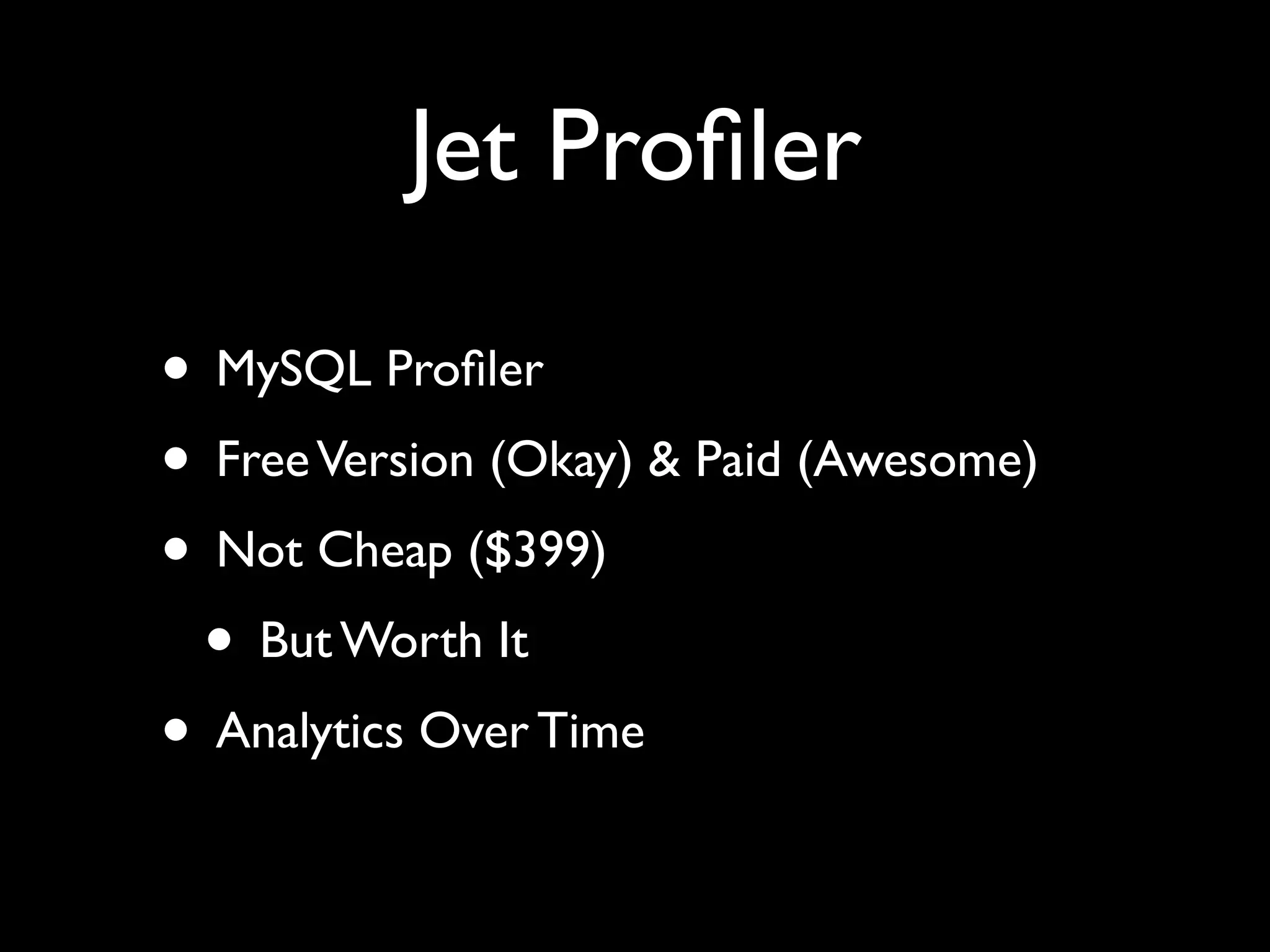

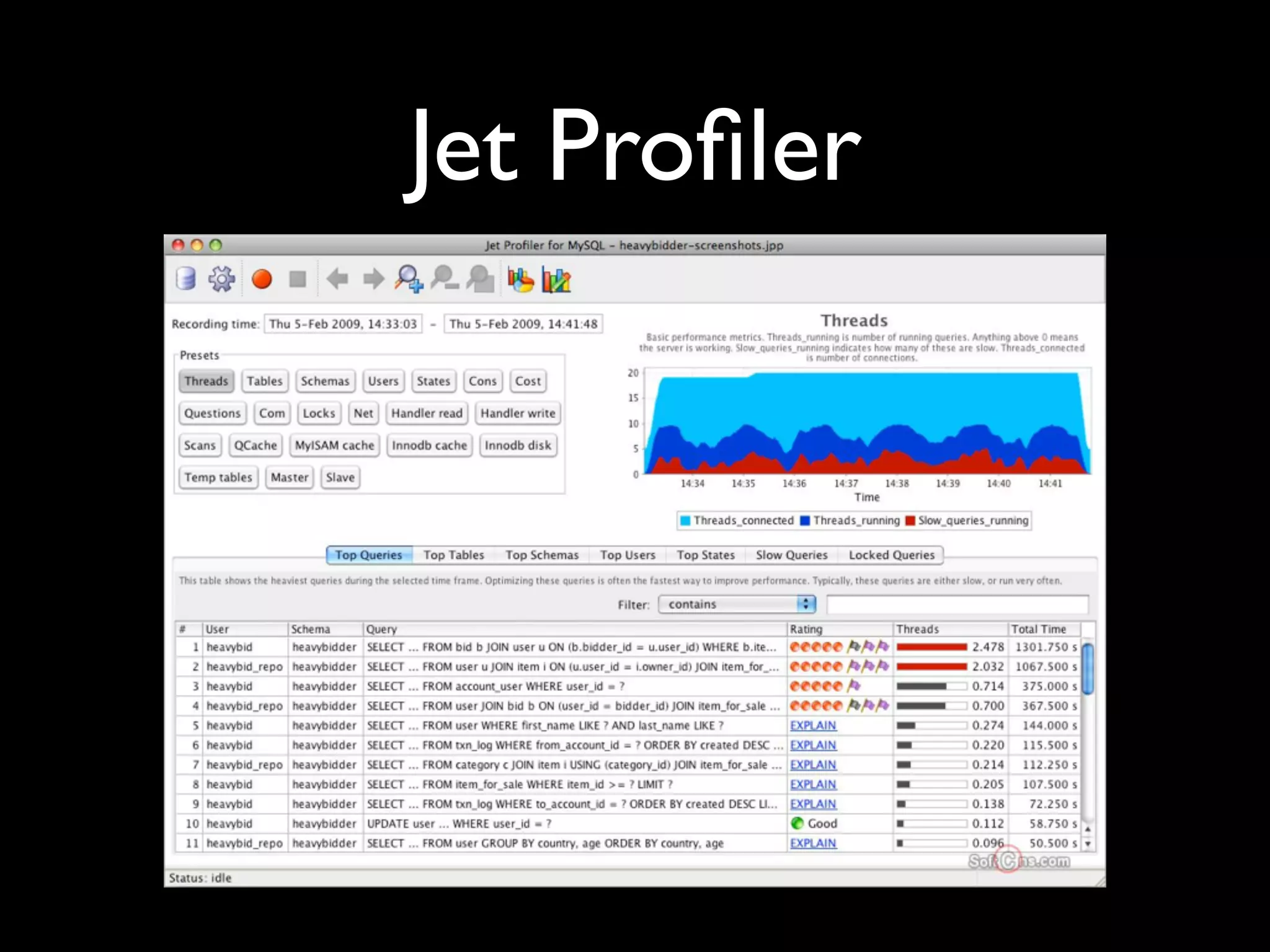

Jet Profiler

• MySQL Profiler
• Free Version (Okay) & Paid (Awesome)
• Not Cheap ($399)
 • But Worth It
• Analytics Over Time
Jet Profiler

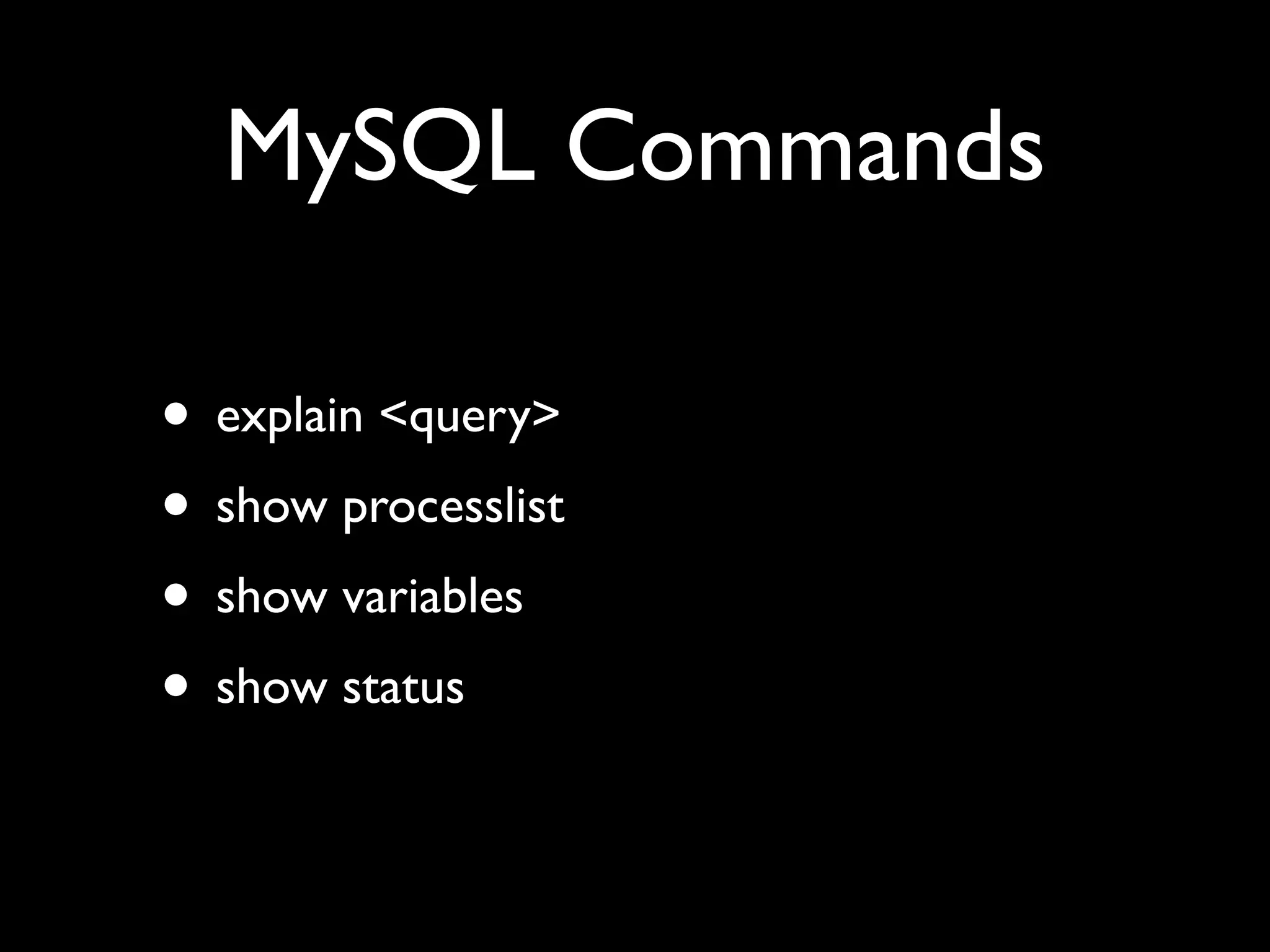

MySQL Commands

• explain <query>
• show processlist
• show variables
• show status

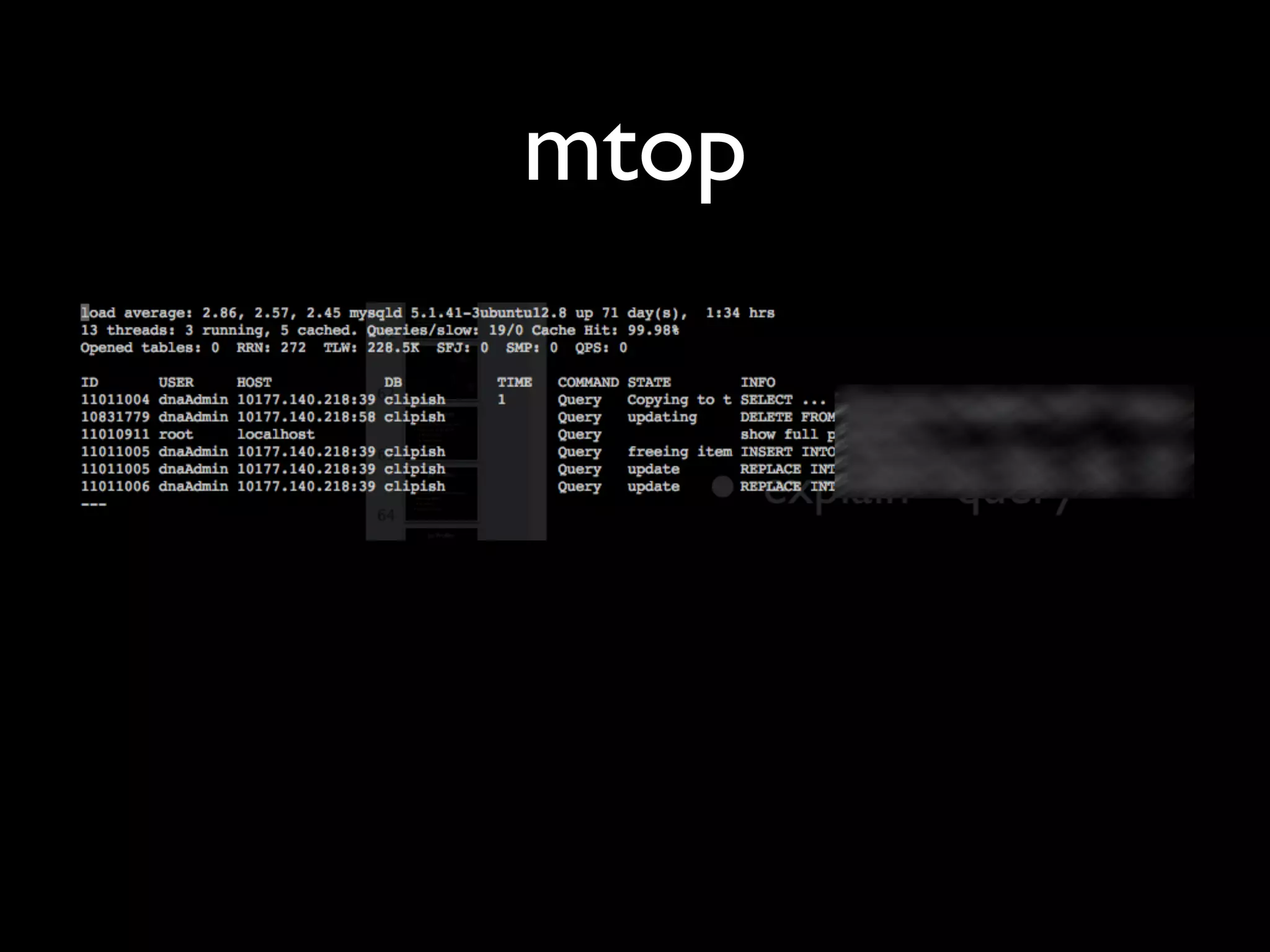

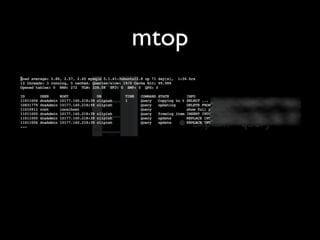

mtop

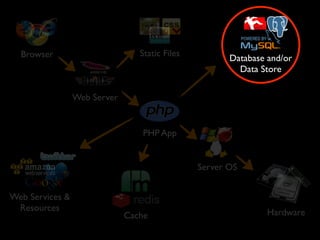

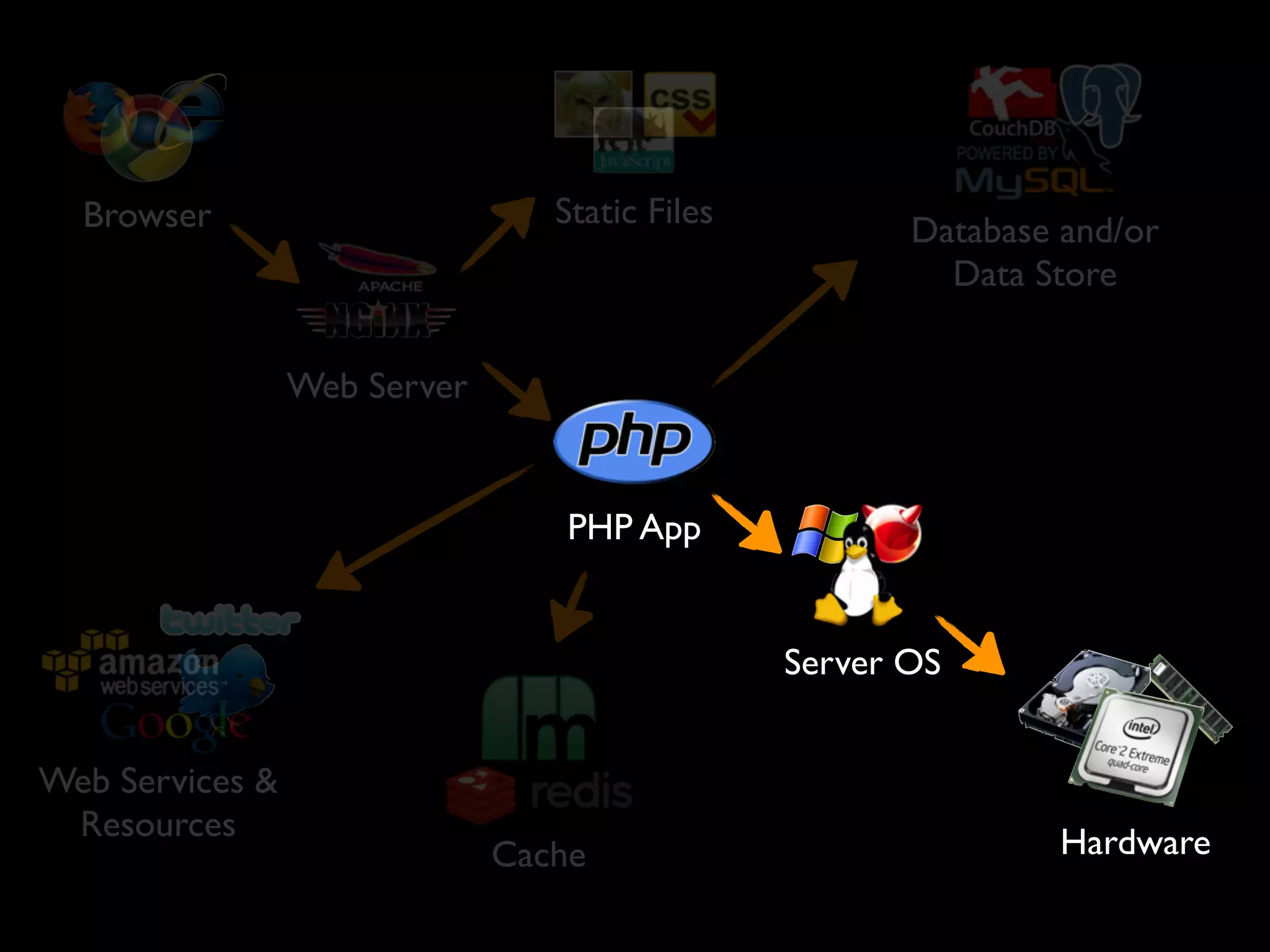

Browser                        Static Files
                                                       Database and/or
                                                         Data Store


                 Web Server


                                  PHP App


                                                Server OS


Web Services &
 Resources                                                      Hardware
                              Cache

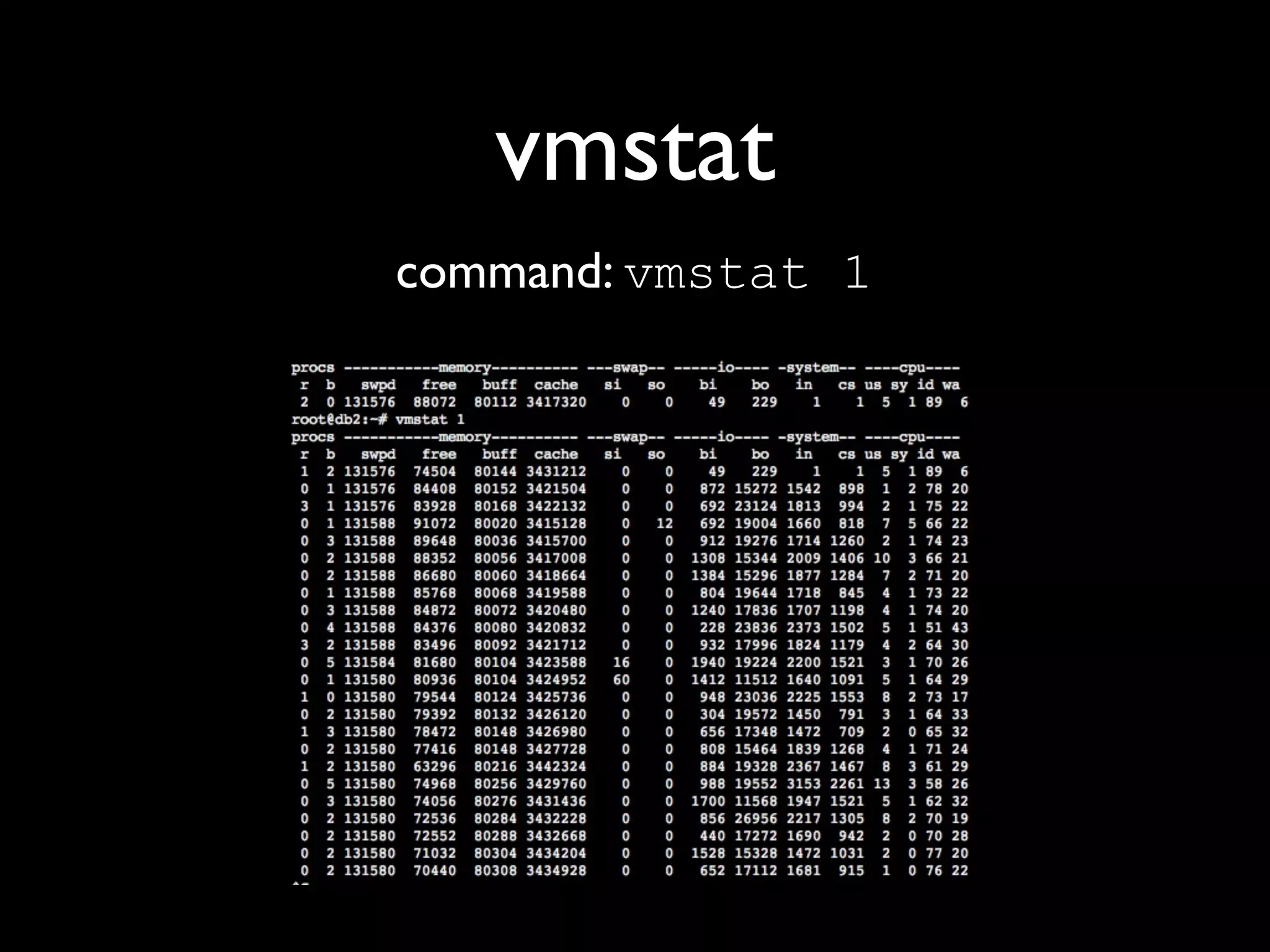

vmstat
command: vmstat 1

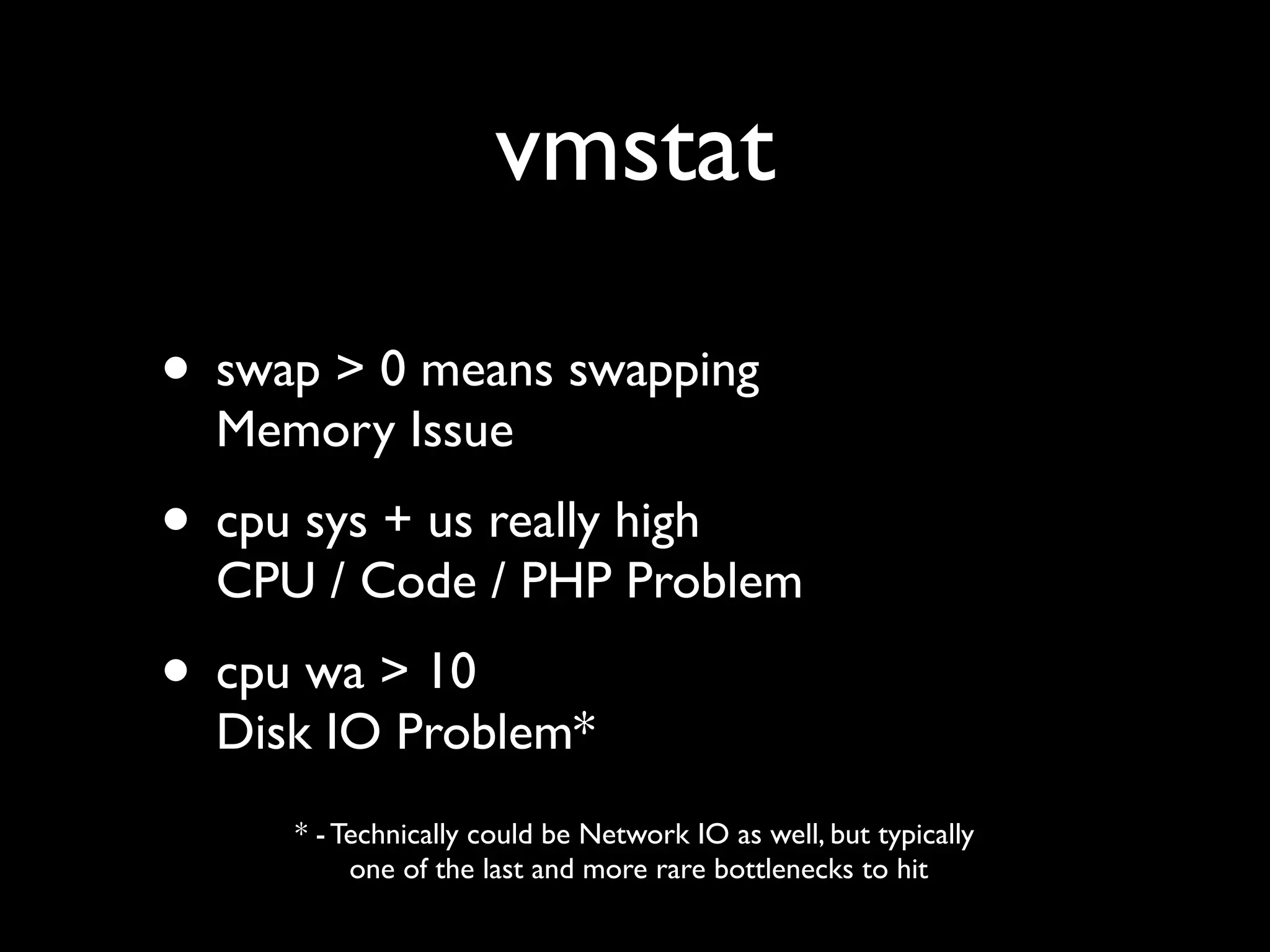

vmstat

• swap > 0 means swapping
  Memory Issue
• cpu sys + us really high
  CPU / Code / PHP Problem
• cpu wa > 10
  Disk IO Problem*
      * - Technically could be Network IO as well, but typically
           one of the last and more rare bottlenecks to hit

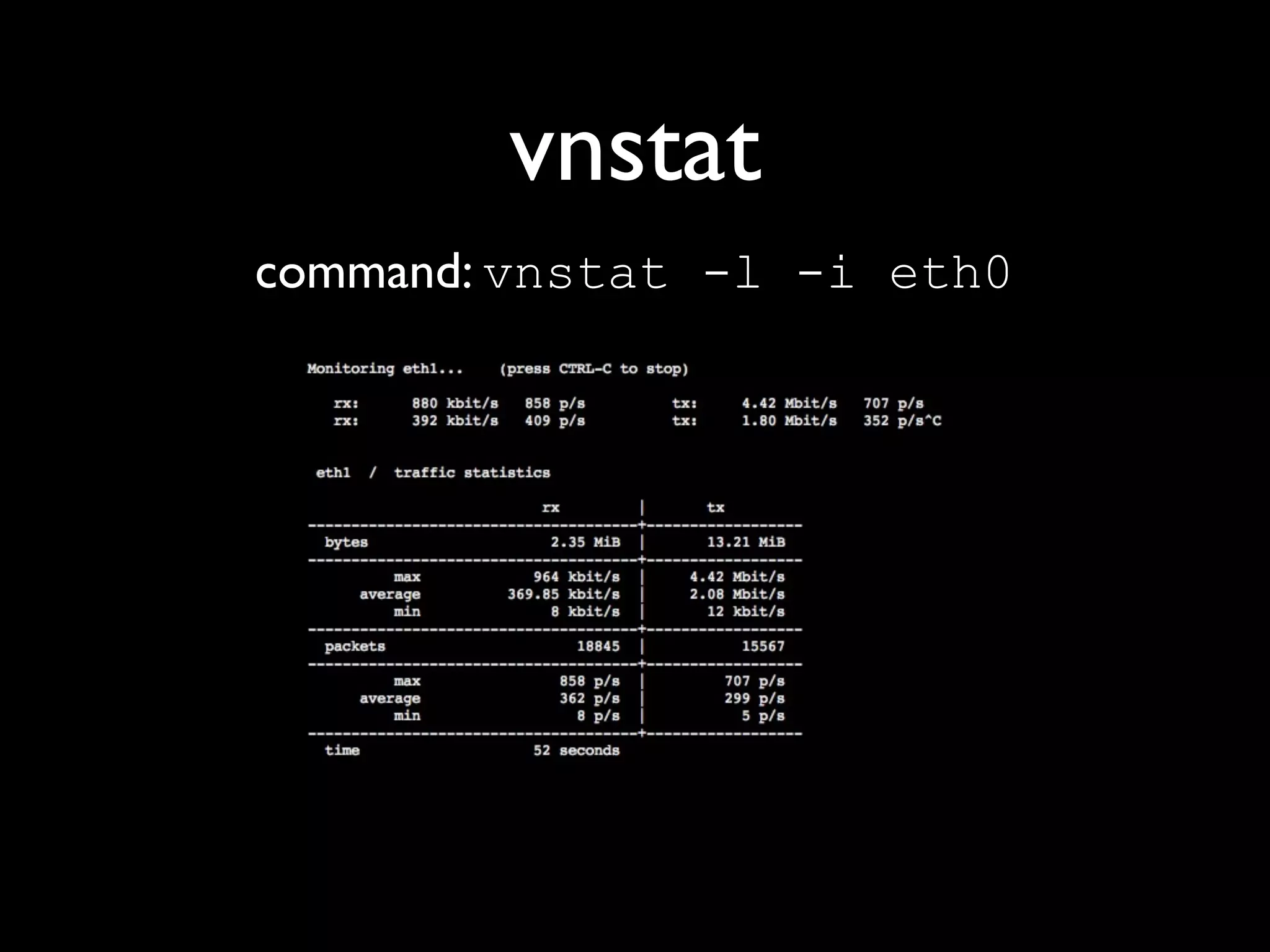

vnstat
command: vnstat -l -i eth0

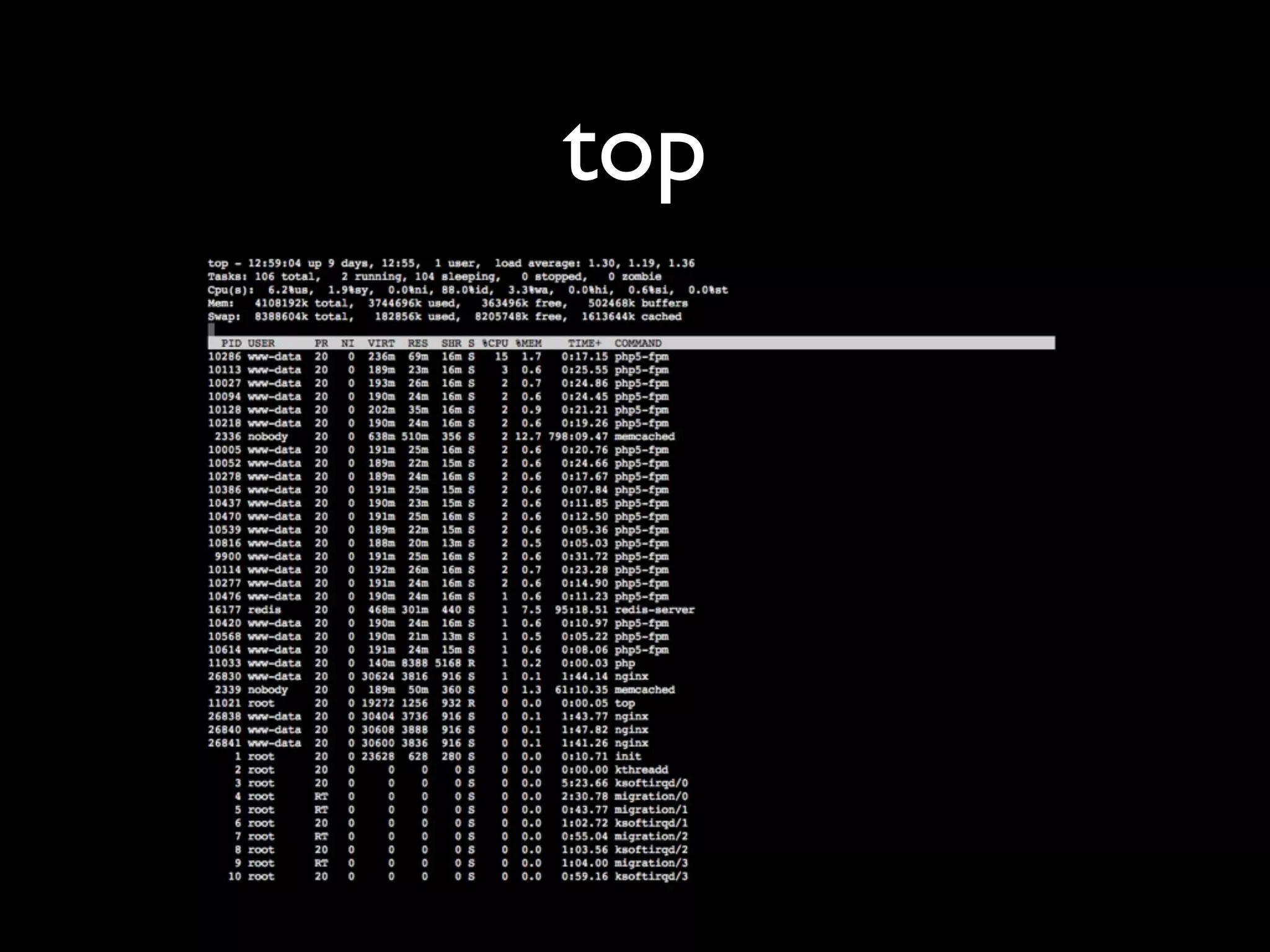

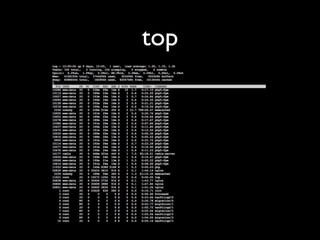

top

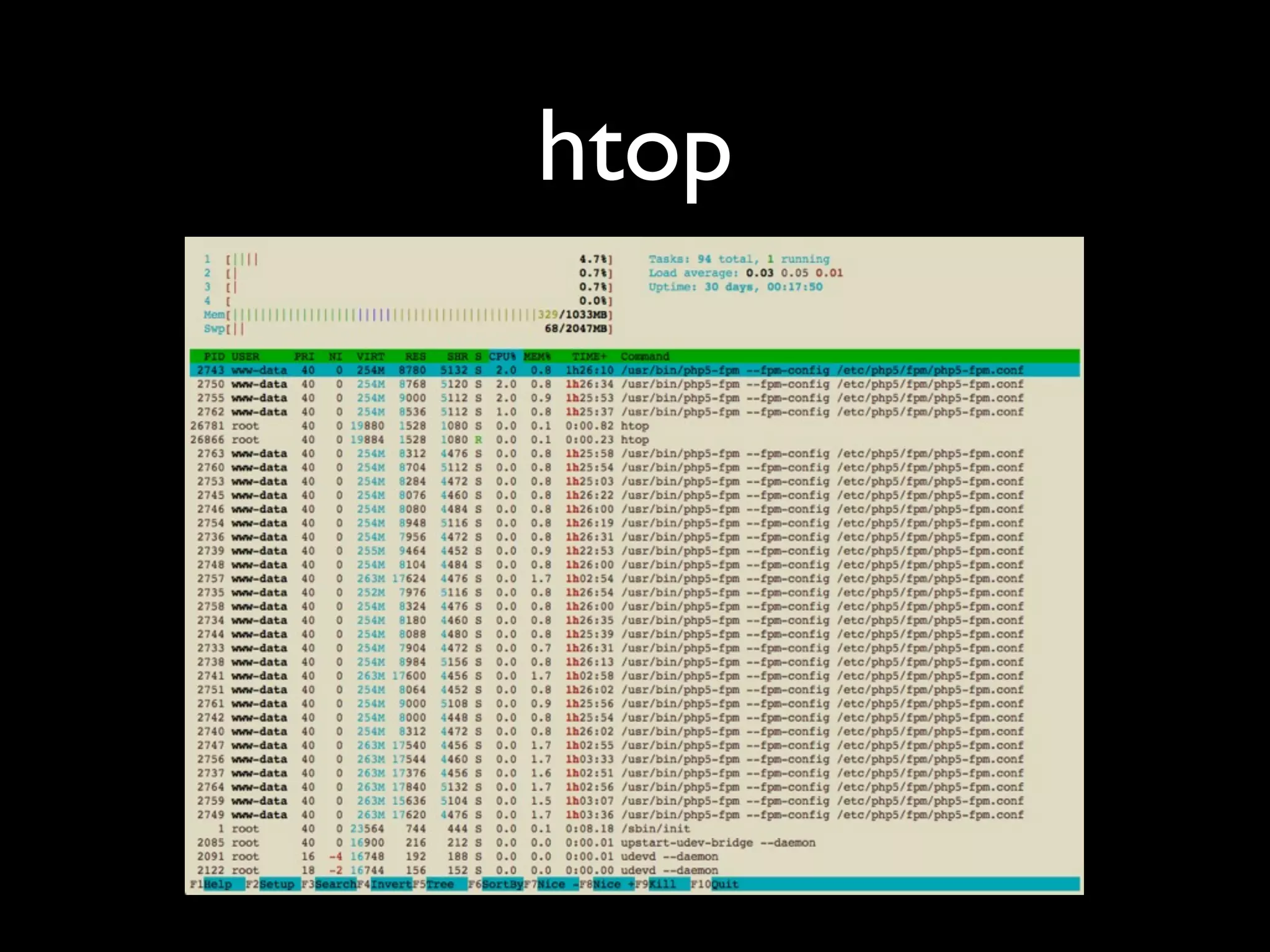

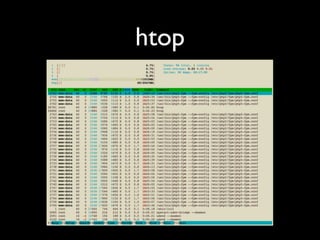

htop

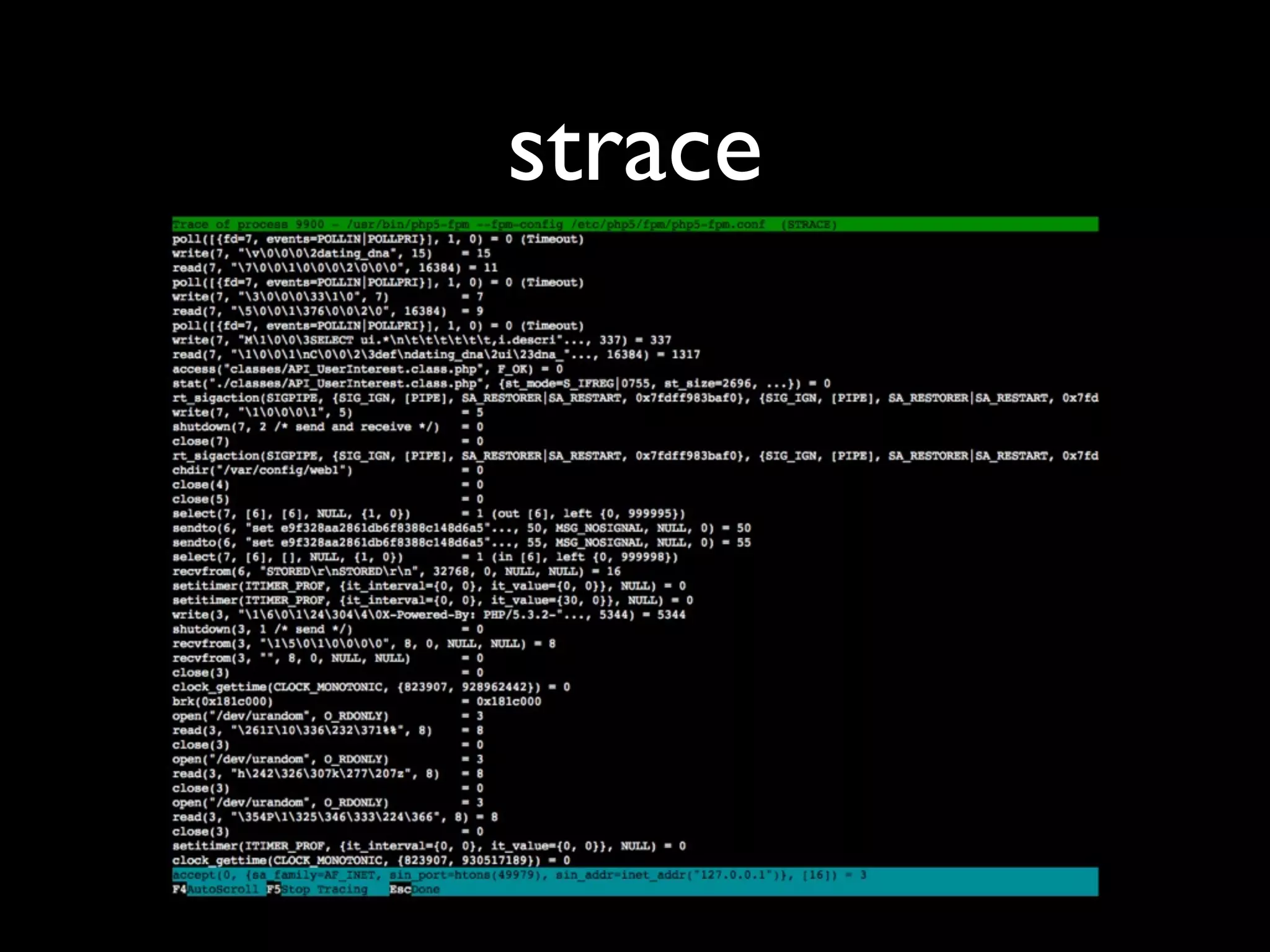

strace

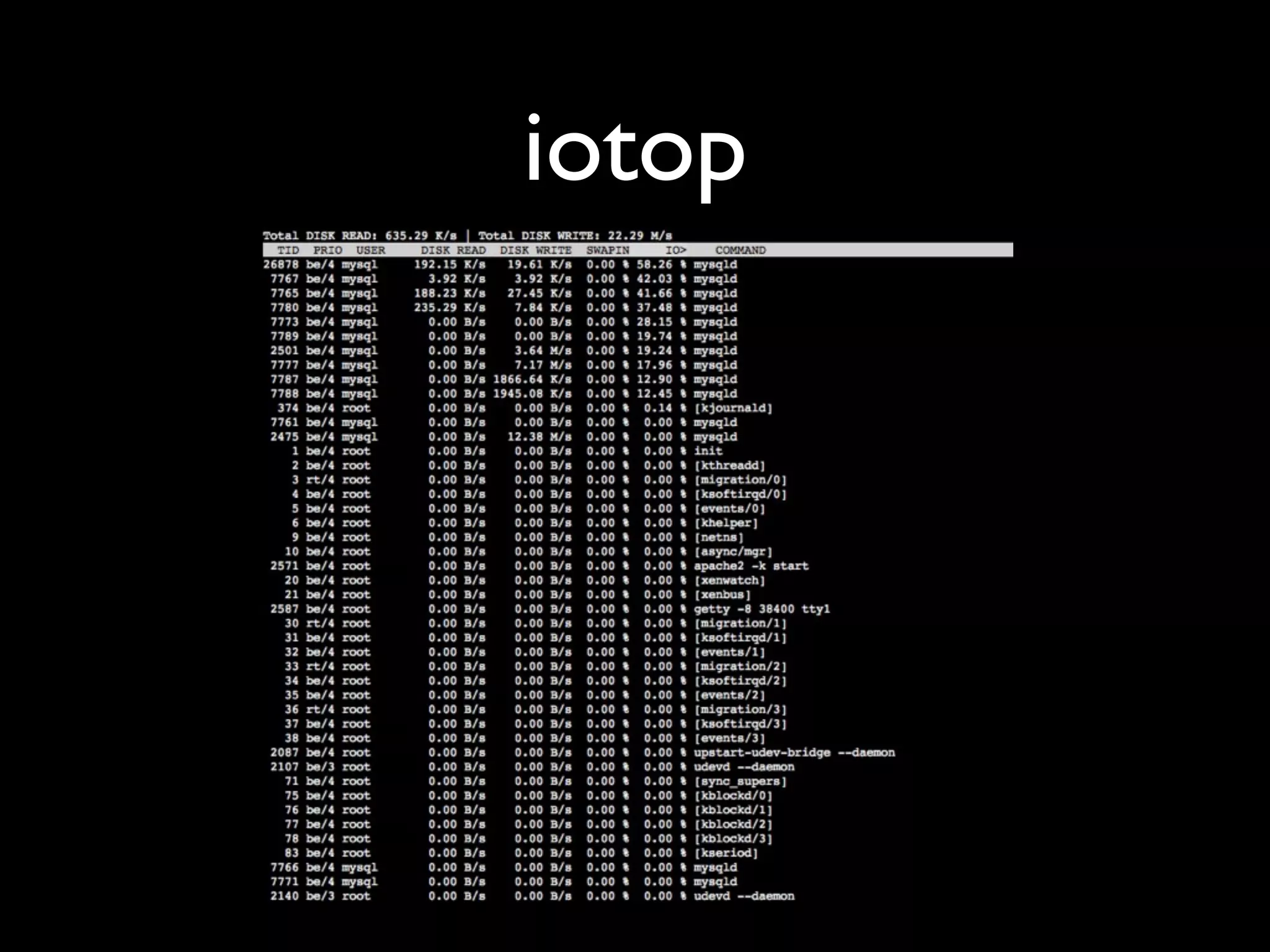

iotop

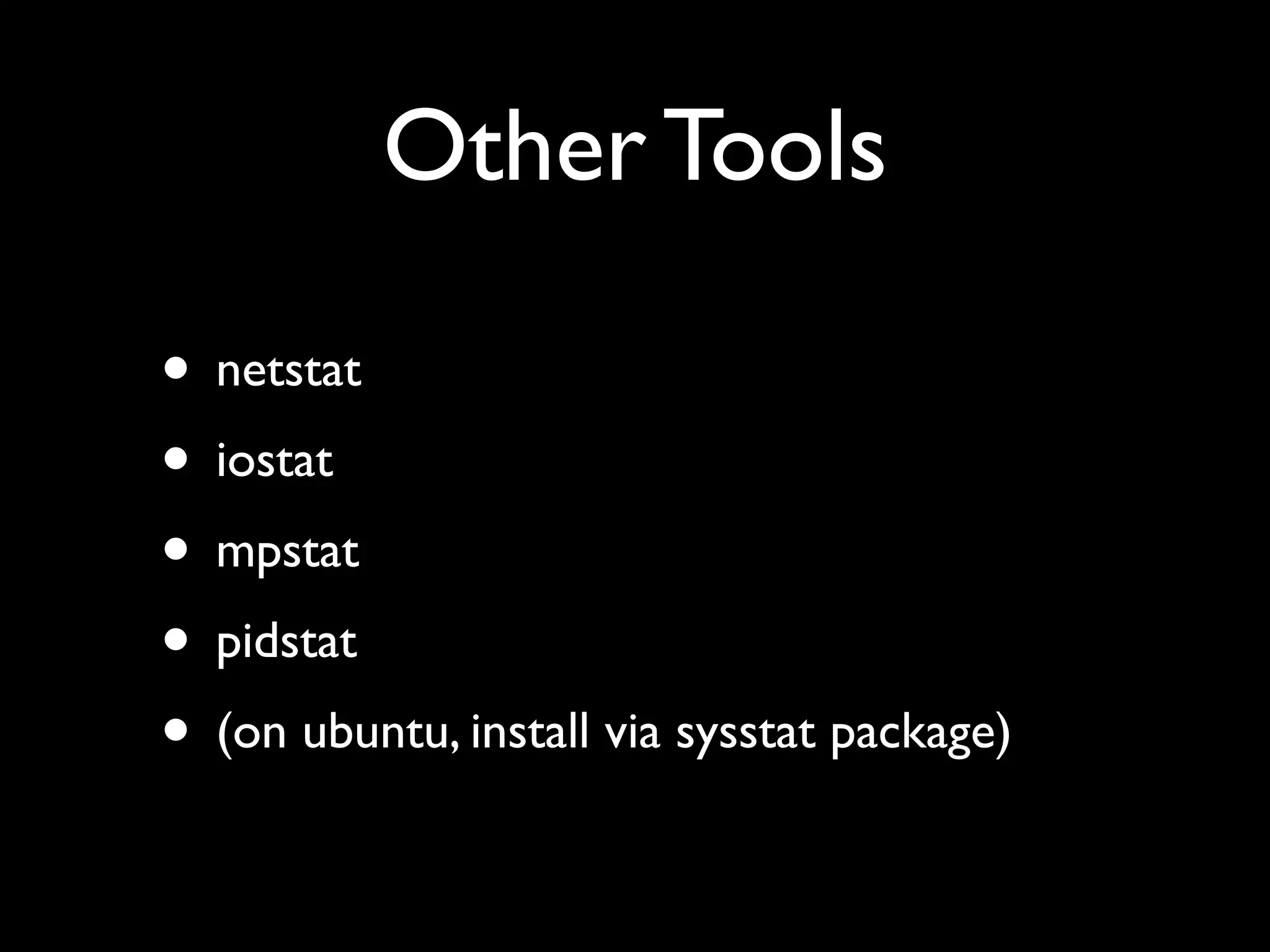

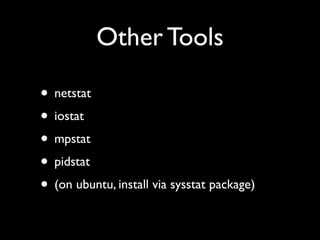

Other Tools

• netstat
• iostat
• mpstat
• pidstat
• (on ubuntu, install via sysstat package)

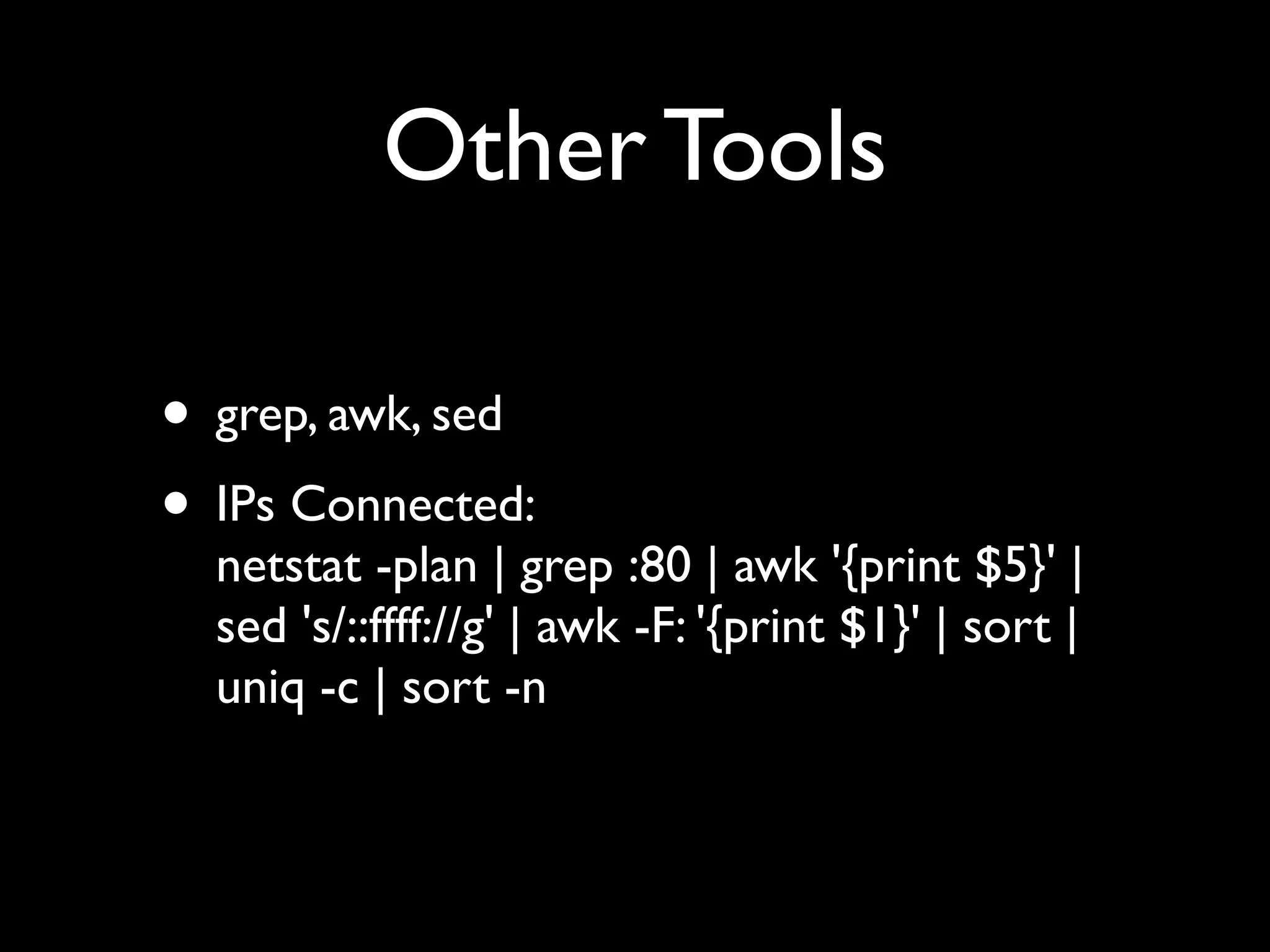

Other Tools

• grep, awk, sed
• IPs Connected:
  netstat -plan | grep :80 | awk '{print $5}' |
  sed 's/::ffff://g' | awk -F: '{print $1}' | sort |
  uniq -c | sort -n

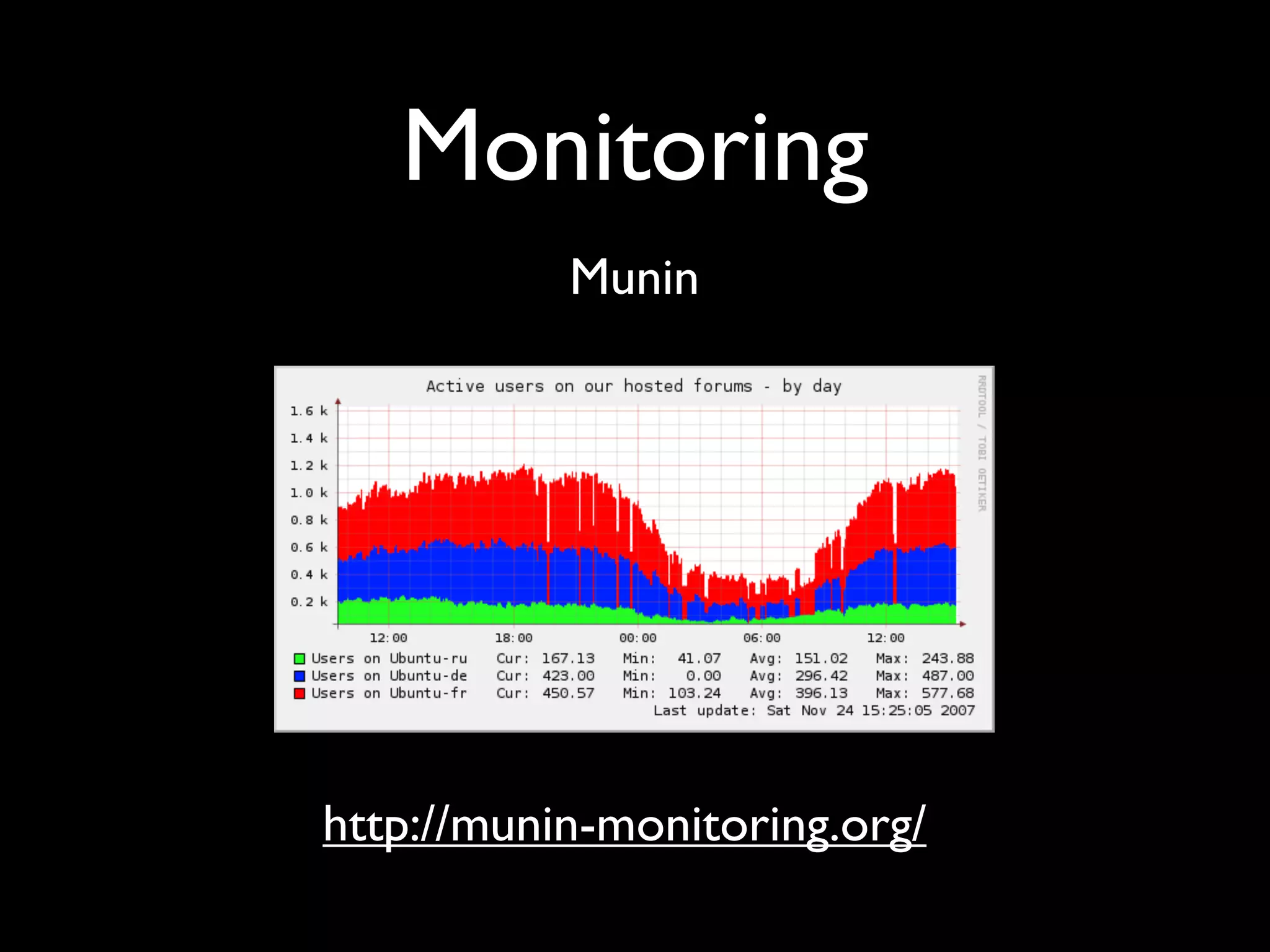

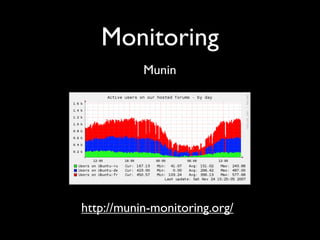

Monitoring
           Munin




http://munin-monitoring.org/

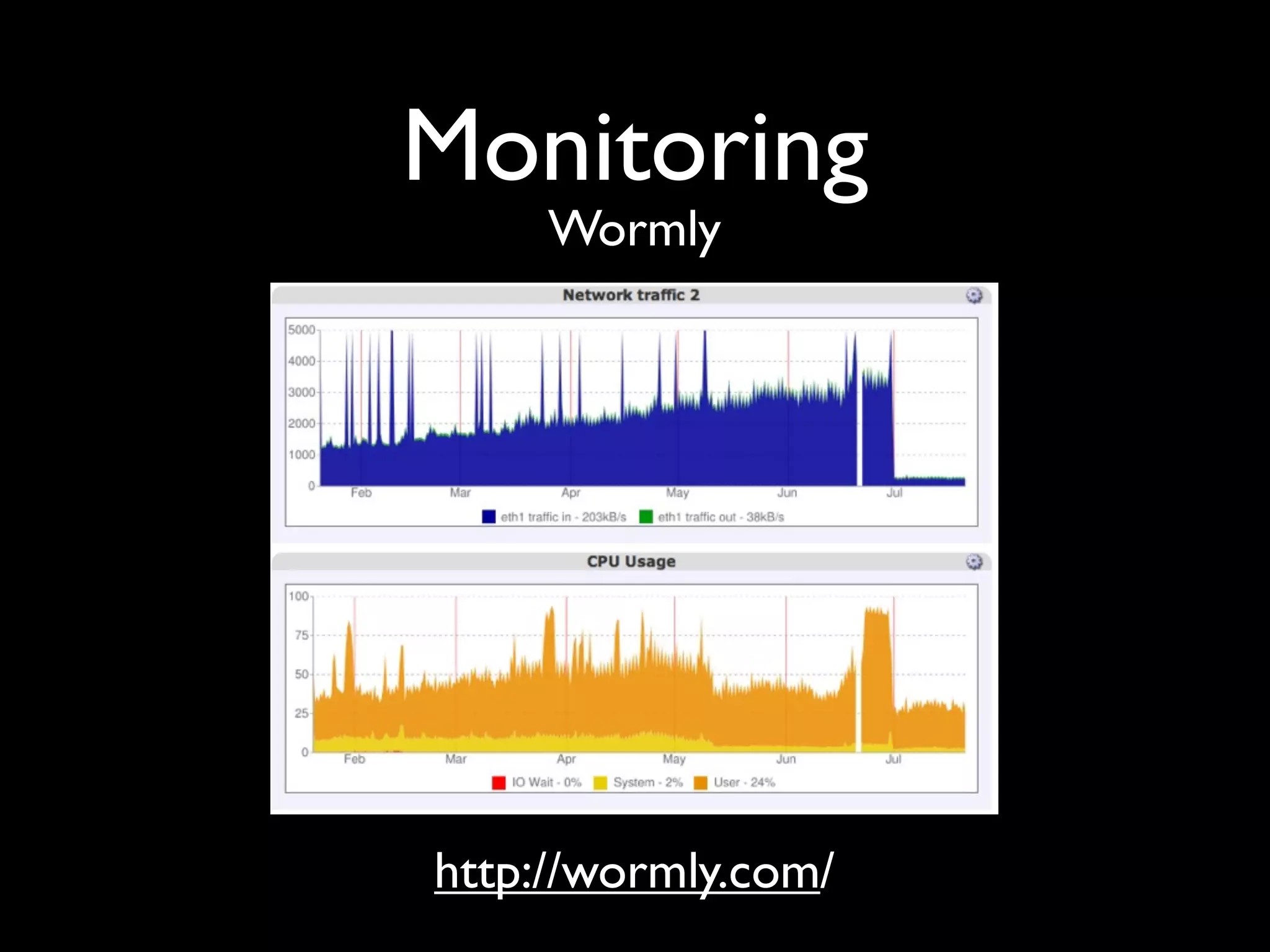

Monitoring
     Wormly




http://wormly.com/

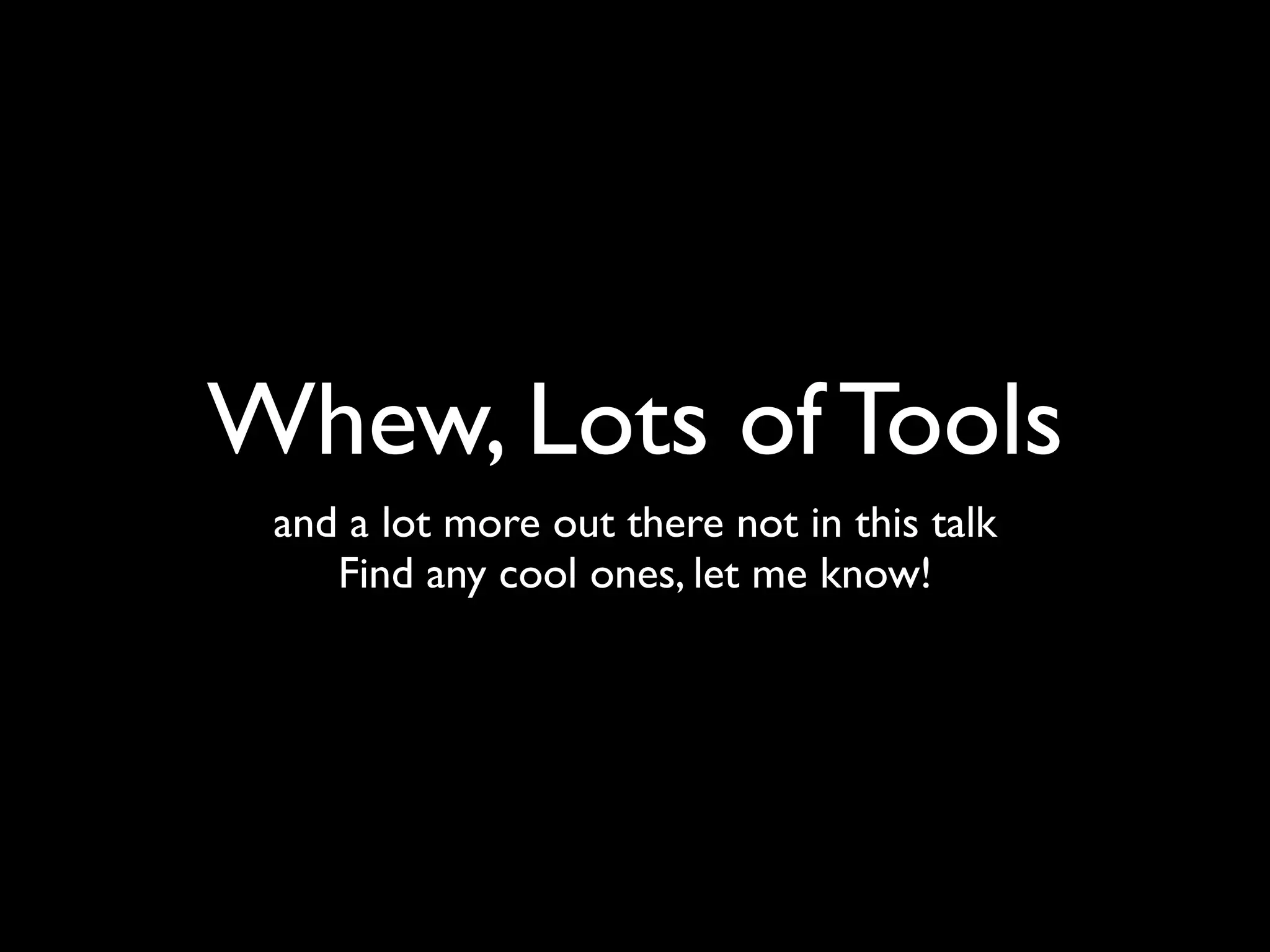

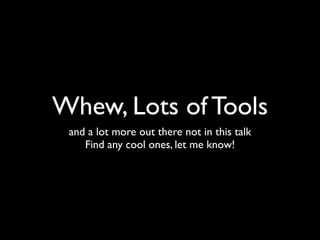

Whew, Lots of Tools
 and a lot more out there not in this talk
    Find any cool ones, let me know!

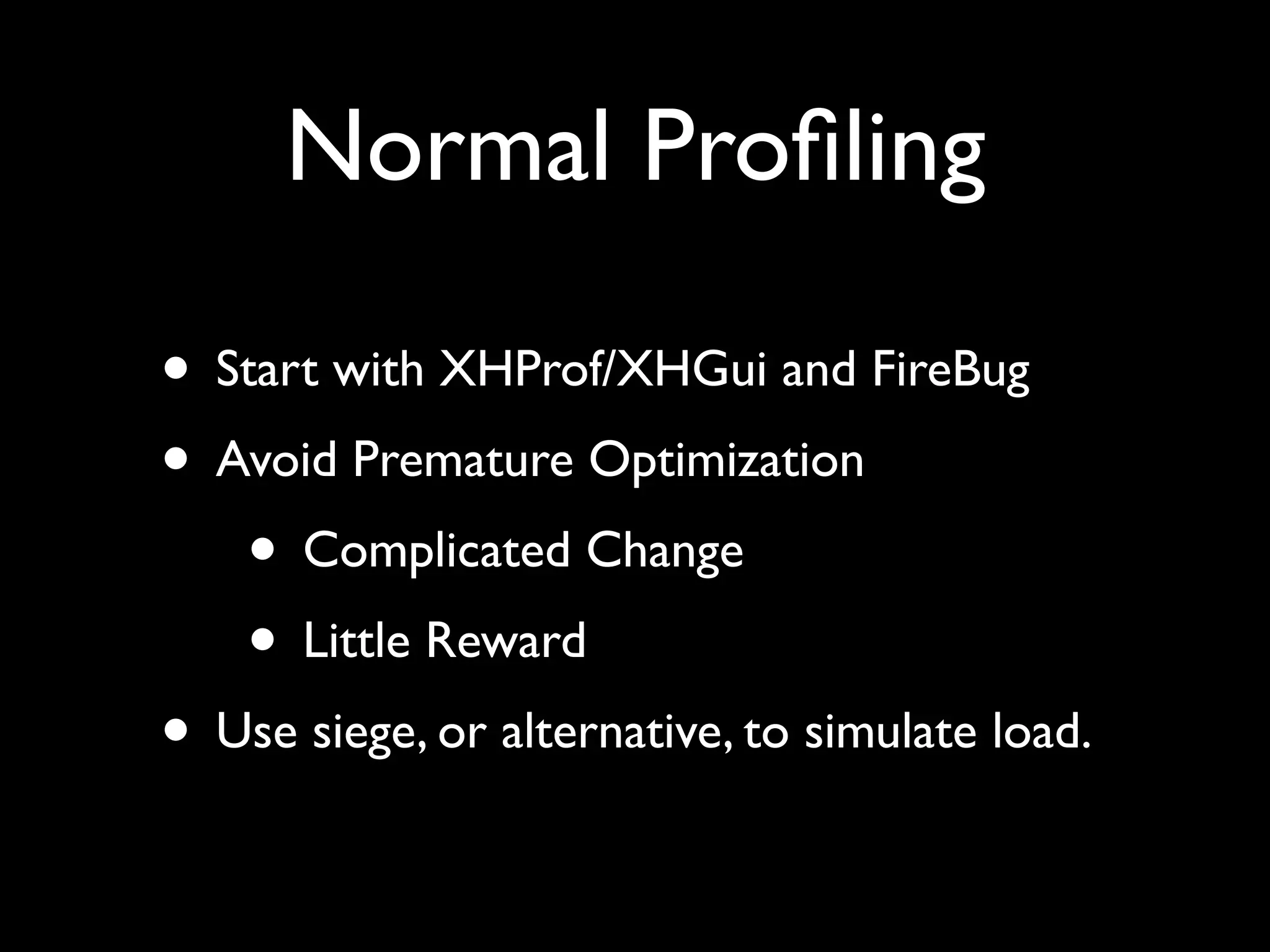

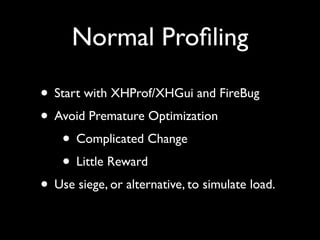

Normal Profiling

• Start with XHProf/XHGui and FireBug
• Avoid Premature Optimization
   • Complicated Change
   • Little Reward
• Use siege, or alternative, to simulate load.

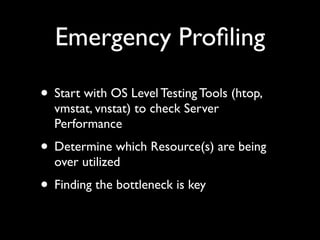

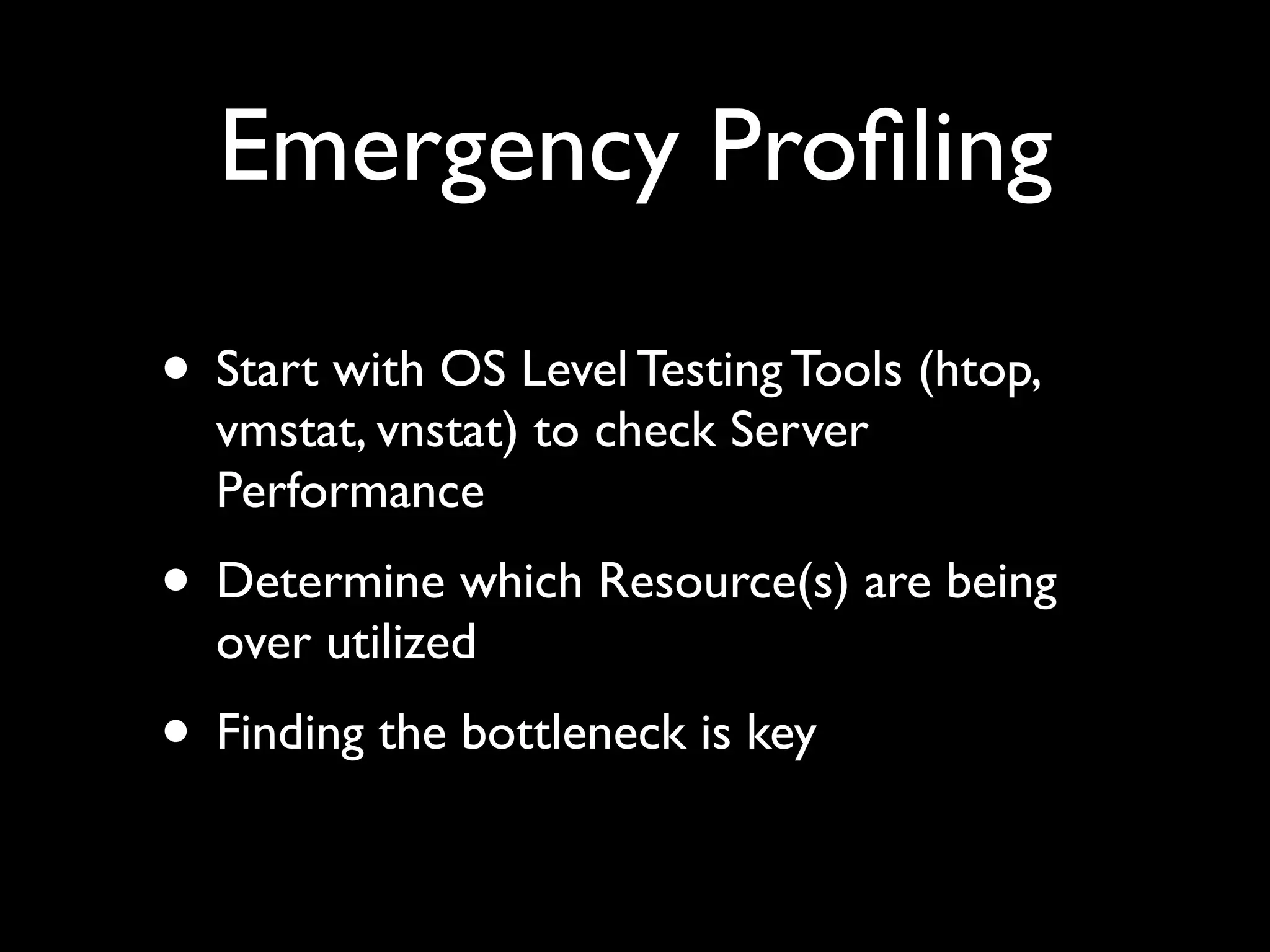

Emergency Profiling

• Start with OS Level Testing Tools (htop,
  vmstat, vnstat) to check Server
  Performance
• Determine which Resource(s) are being
  over utilized
• Finding the bottleneck is key

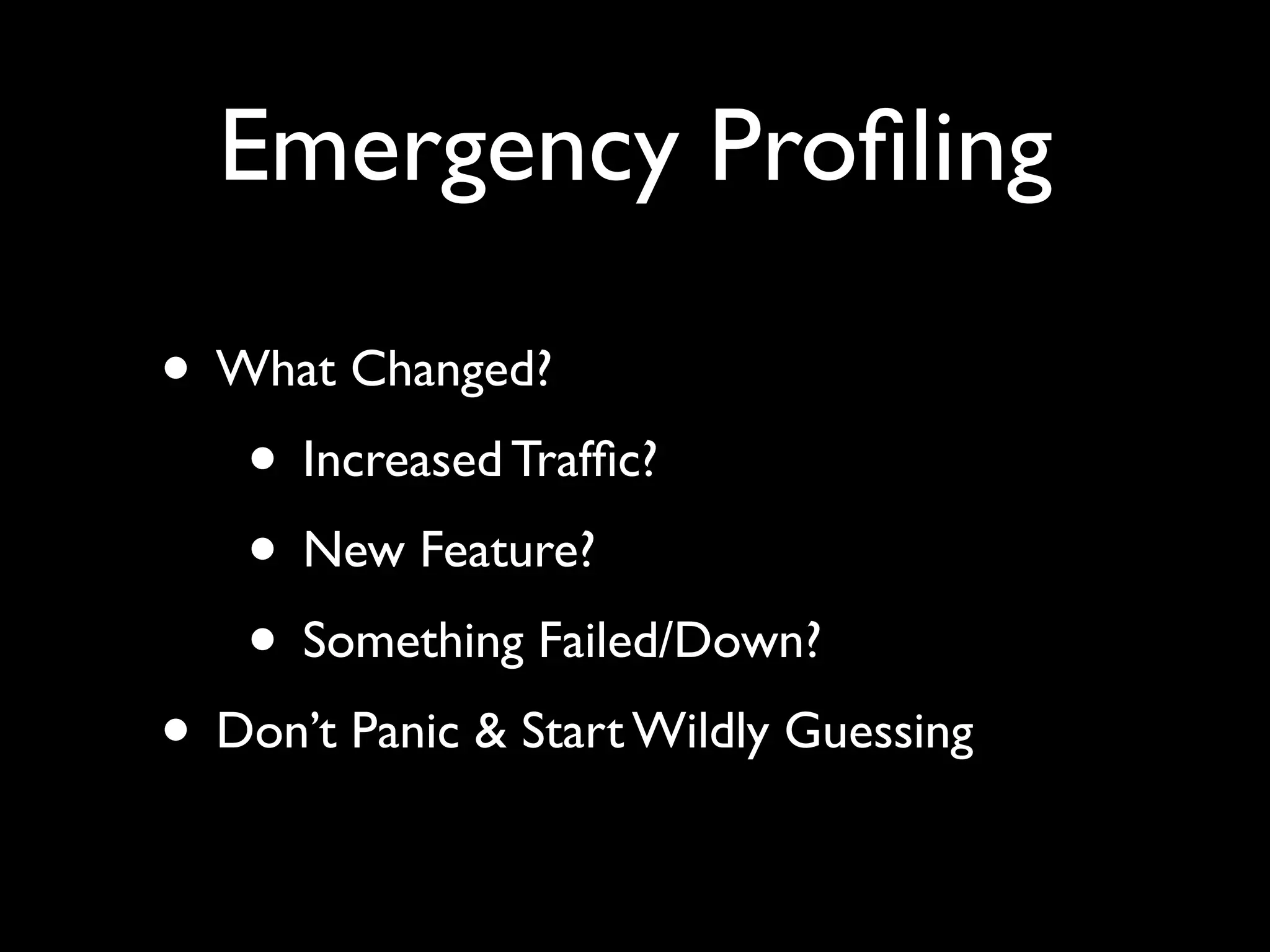

Emergency Profiling

• What Changed?
   • Increased Traffic?
   • New Feature?
   • Something Failed/Down?
• Don’t Panic & Start Wildly Guessing

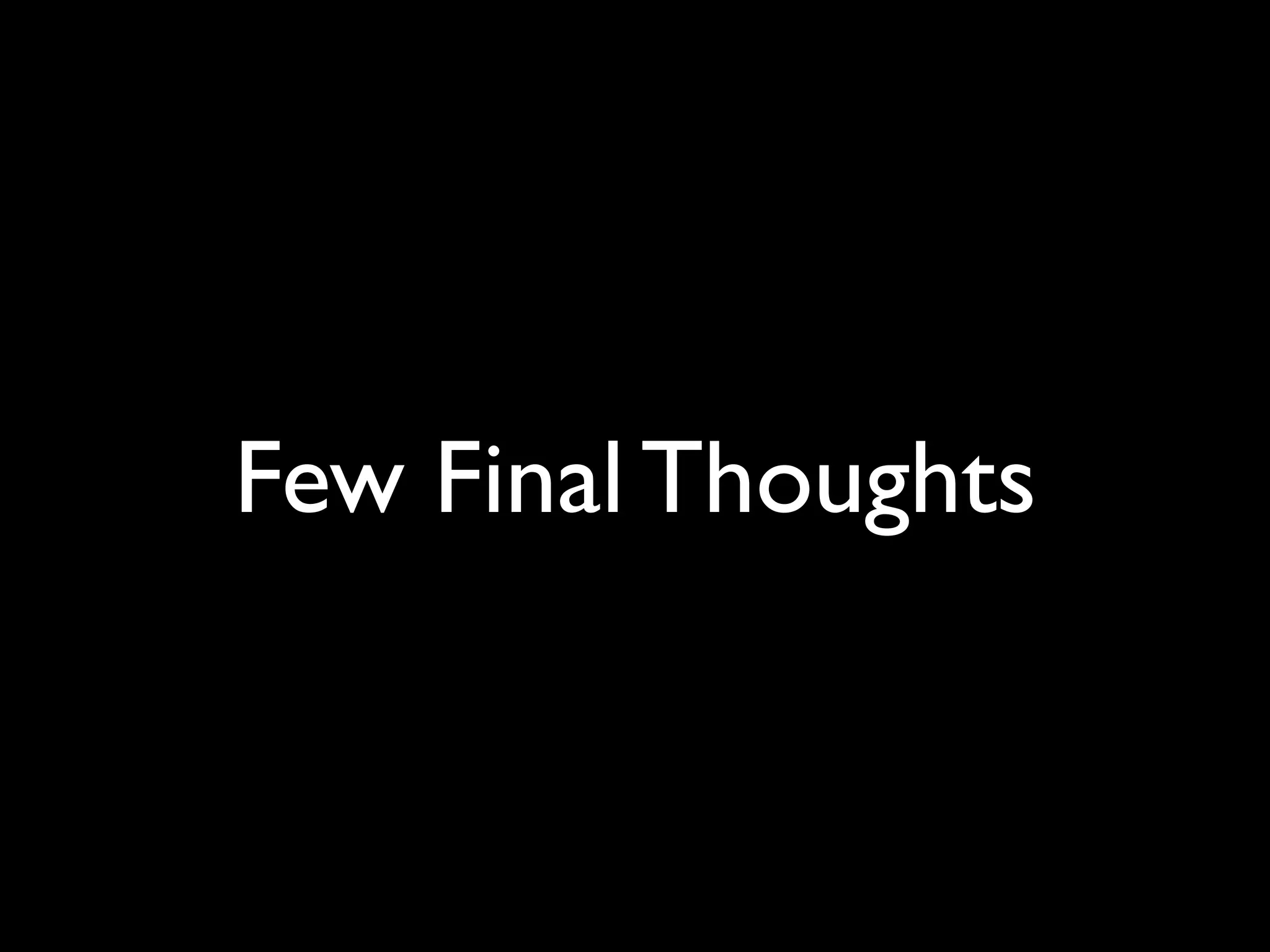

Few Final Thoughts
The Better You
 Understand
   The Problem
The Better You Can
     Fix It

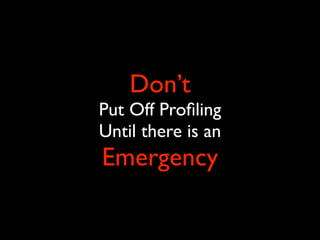

Don’t
Put Off Profiling
Until there is an
Emergency

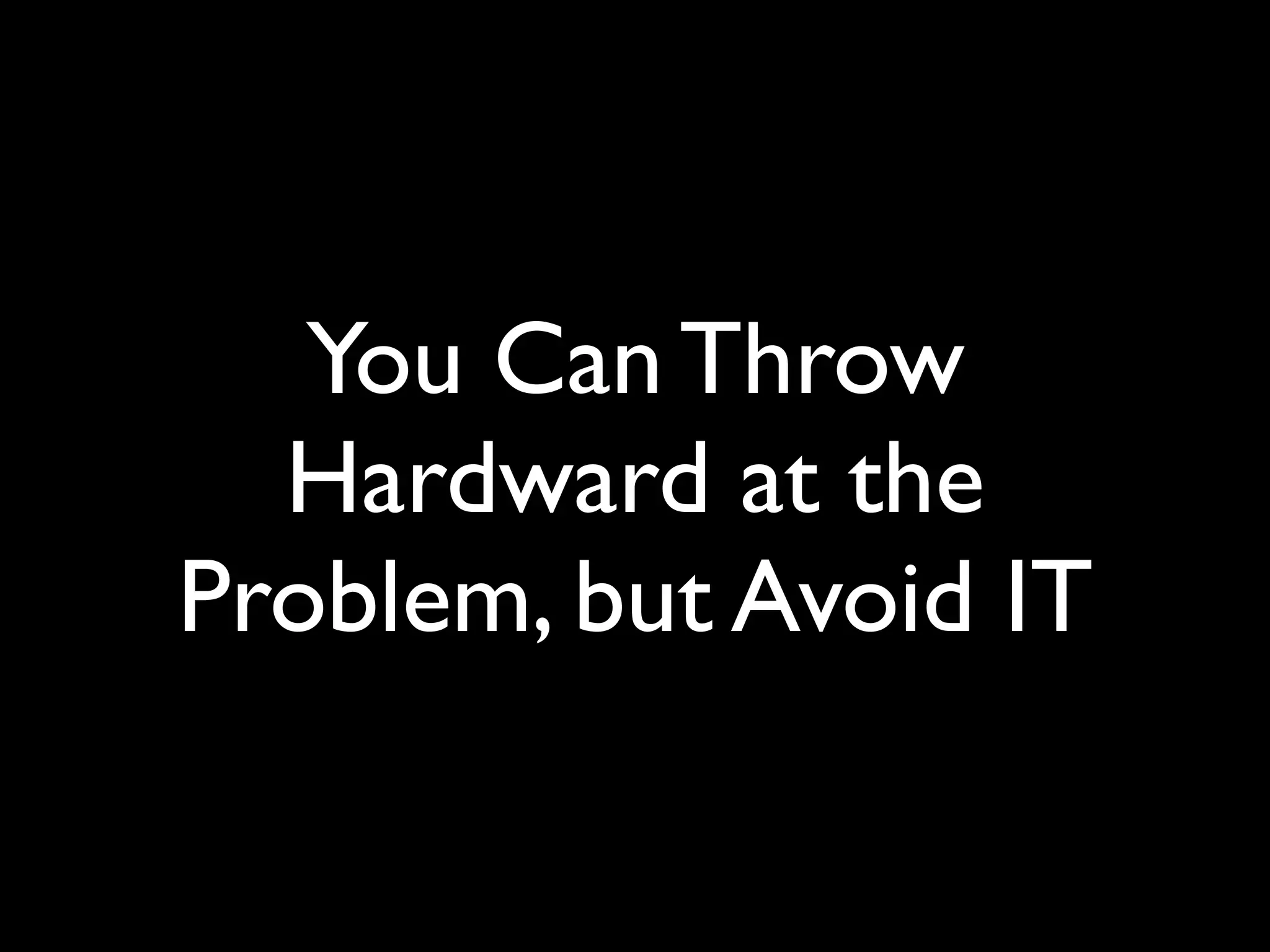

You Can Throw
  Hardward at the
Problem, but Avoid IT

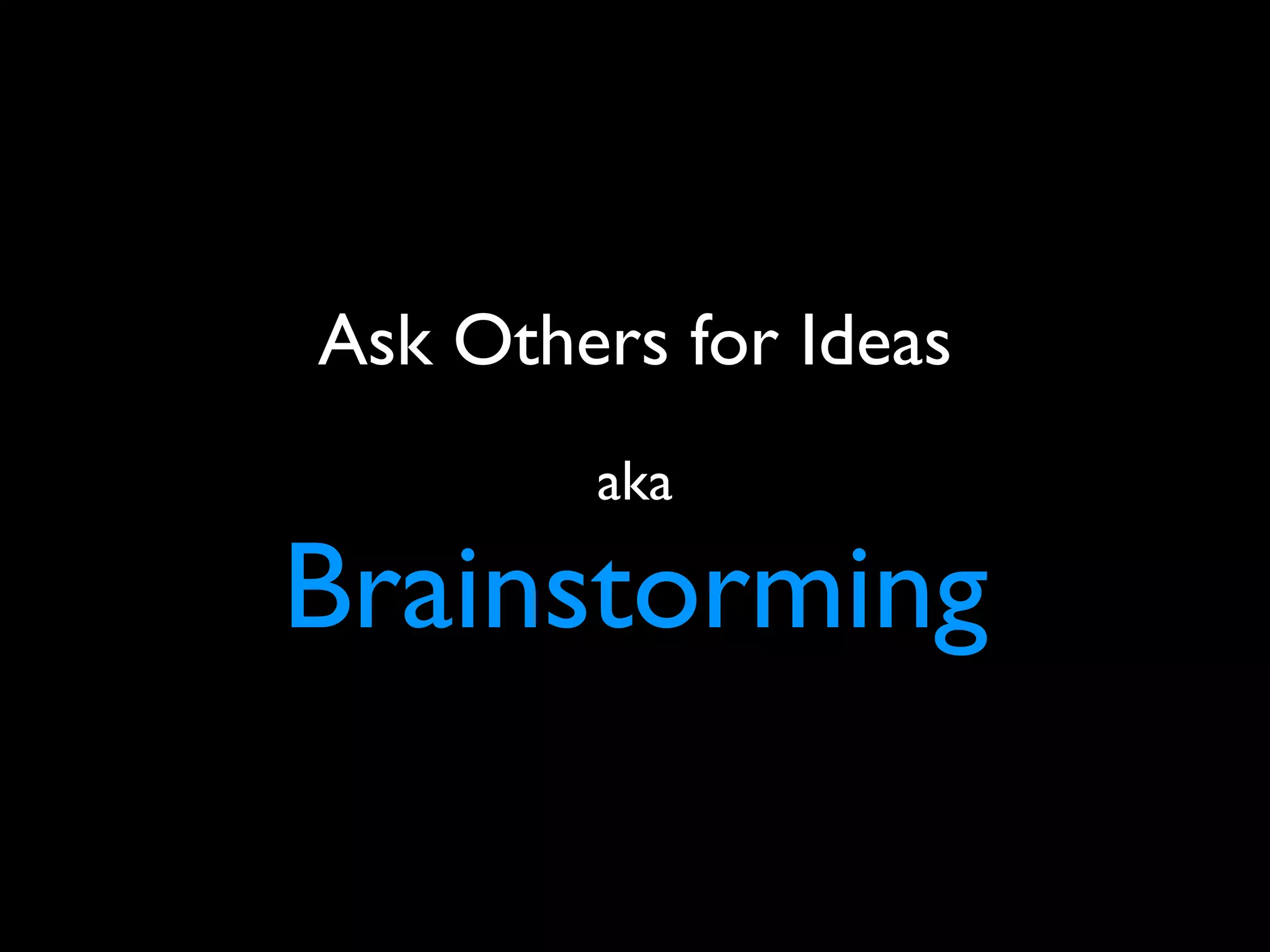

Ask Others for Ideas
        aka

Brainstorming
Good Luck!
Questions?

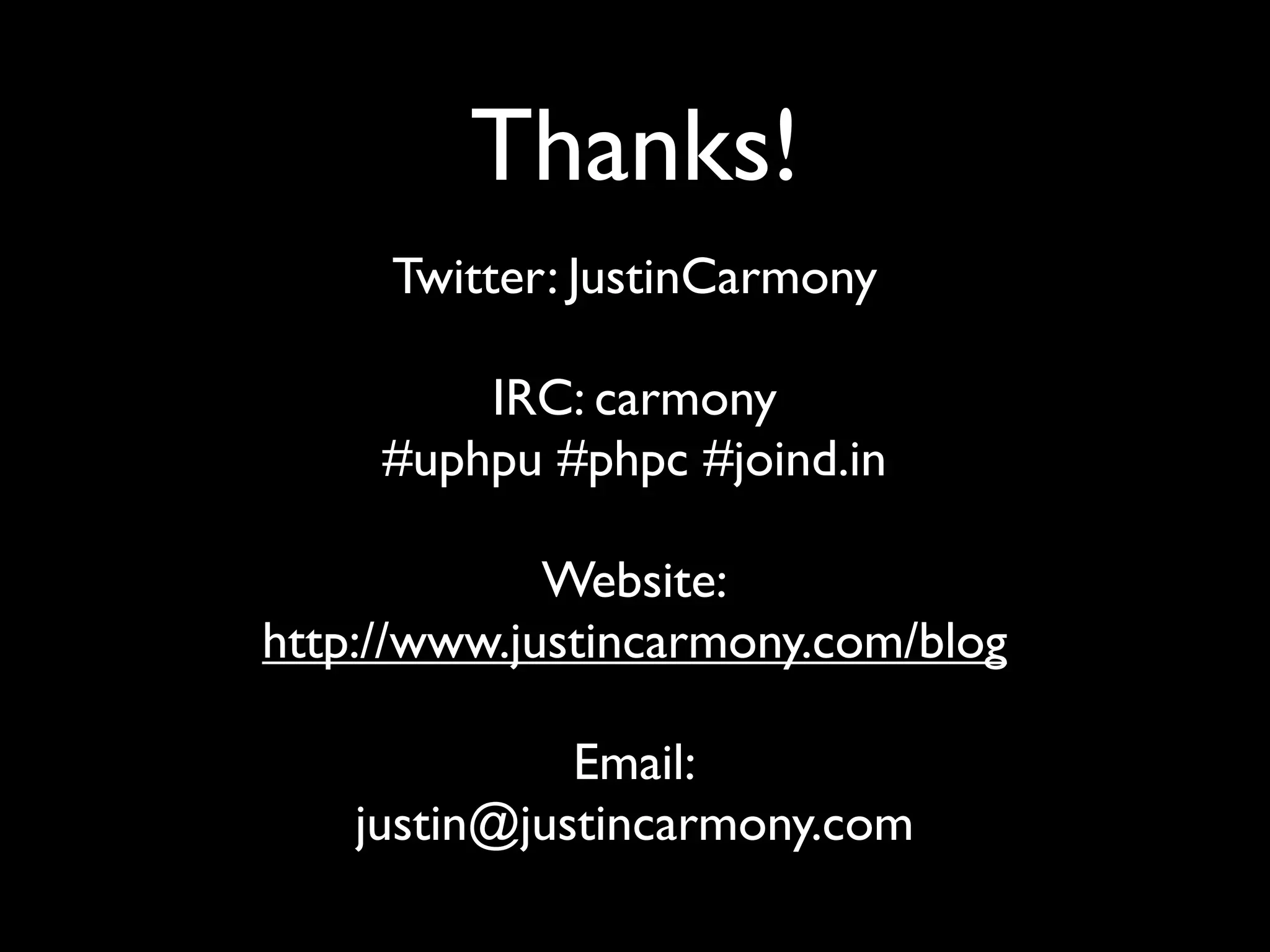

Thanks!
     Twitter: JustinCarmony

         IRC: carmony
     #uphpu #phpc #joind.in

             Website:
http://www.justincarmony.com/blog

              Email:
    justin@justincarmony.com

More Related Content

What's hot

When Devs Do Ops
When Devs Do OpsWhen Devs Do Ops
When Devs Do OpsWooga

Scaling Rails with Memcached
Scaling Rails with MemcachedScaling Rails with Memcached
Scaling Rails with Memcachedguest2259ea

Day 7 - Make it Fast
Day 7 - Make it FastDay 7 - Make it Fast
Day 7 - Make it FastBarry Jones

Mongodb and Totsy - E-commerce Case Study
Mongodb and Totsy - E-commerce Case StudyMongodb and Totsy - E-commerce Case Study
Mongodb and Totsy - E-commerce Case StudyMitch Pirtle

Maximize your Cache for No Cash
Maximize your Cache for No CashMaximize your Cache for No Cash
Maximize your Cache for No CashYorick Phoenix

CouchDB for Web Applications - Erlang Factory London 2009
CouchDB for Web Applications - Erlang Factory London 2009CouchDB for Web Applications - Erlang Factory London 2009
CouchDB for Web Applications - Erlang Factory London 2009Jason Davies

Speed up your Symfony2 application and build awesome features with Redis
Speed up your Symfony2 application and build awesome features with RedisSpeed up your Symfony2 application and build awesome features with Redis
Speed up your Symfony2 application and build awesome features with RedisRicard Clau

A web app in pure Clojure
A web app in pure ClojureA web app in pure Clojure
A web app in pure ClojureDane Schneider

Transforming WordPress Search and Query Performance with Elasticsearch
Transforming WordPress Search and Query Performance with Elasticsearch Transforming WordPress Search and Query Performance with Elasticsearch
Transforming WordPress Search and Query Performance with Elasticsearch Taylor Lovett

Developing cacheable PHP applications - PHPLimburgBE 2018
Developing cacheable PHP applications - PHPLimburgBE 2018Developing cacheable PHP applications - PHPLimburgBE 2018
Developing cacheable PHP applications - PHPLimburgBE 2018Thijs Feryn

Page Performance
Page PerformancePage Performance
Page Performanceatorreno

Real-time searching of big data with Solr and Hadoop
Real-time searching of big data with Solr and HadoopReal-time searching of big data with Solr and Hadoop
Real-time searching of big data with Solr and HadoopRogue Wave Software

Gofer 200707
Gofer 200707Gofer 200707
Gofer 200707oscon2007

Top 10 lessons learned from deploying hadoop in a private cloud
Top 10 lessons learned from deploying hadoop in a private cloudTop 10 lessons learned from deploying hadoop in a private cloud
Top 10 lessons learned from deploying hadoop in a private cloudRogue Wave Software

CSS and image optimization
CSS and image optimizationCSS and image optimization
CSS and image optimizationStoyan Stefanov

Get Django, Get Hired - An opinionated guide to getting the best job, for the...
Get Django, Get Hired - An opinionated guide to getting the best job, for the...Get Django, Get Hired - An opinionated guide to getting the best job, for the...
Get Django, Get Hired - An opinionated guide to getting the best job, for the...Marcel Chastain

NotaCon 2011 - Networking for Pentesters
NotaCon 2011 - Networking for PentestersNotaCon 2011 - Networking for Pentesters
NotaCon 2011 - Networking for PentestersRob Fuller

Getting started with Django 1.8
Getting started with Django 1.8Getting started with Django 1.8
Getting started with Django 1.8rajkumar2011

Resource registries plone conf 2014
Resource registries plone conf 2014Resource registries plone conf 2014
Resource registries plone conf 2014Ramon Navarro


What's hot (20)

When Devs Do Ops
When Devs Do OpsWhen Devs Do Ops
When Devs Do Ops

Scaling Rails with Memcached
Scaling Rails with MemcachedScaling Rails with Memcached
Scaling Rails with Memcached

Day 7 - Make it Fast
Day 7 - Make it FastDay 7 - Make it Fast
Day 7 - Make it Fast

Mongodb and Totsy - E-commerce Case Study
Mongodb and Totsy - E-commerce Case StudyMongodb and Totsy - E-commerce Case Study
Mongodb and Totsy - E-commerce Case Study

Maximize your Cache for No Cash
Maximize your Cache for No CashMaximize your Cache for No Cash
Maximize your Cache for No Cash

CouchDB for Web Applications - Erlang Factory London 2009
CouchDB for Web Applications - Erlang Factory London 2009CouchDB for Web Applications - Erlang Factory London 2009
CouchDB for Web Applications - Erlang Factory London 2009

Speed up your Symfony2 application and build awesome features with Redis
Speed up your Symfony2 application and build awesome features with RedisSpeed up your Symfony2 application and build awesome features with Redis
Speed up your Symfony2 application and build awesome features with Redis

A web app in pure Clojure
A web app in pure ClojureA web app in pure Clojure
A web app in pure Clojure

Intro to HTML 5 / CSS 3
Intro to HTML 5 / CSS 3Intro to HTML 5 / CSS 3
Intro to HTML 5 / CSS 3

Transforming WordPress Search and Query Performance with Elasticsearch
Transforming WordPress Search and Query Performance with Elasticsearch Transforming WordPress Search and Query Performance with Elasticsearch
Transforming WordPress Search and Query Performance with Elasticsearch

Developing cacheable PHP applications - PHPLimburgBE 2018
Developing cacheable PHP applications - PHPLimburgBE 2018Developing cacheable PHP applications - PHPLimburgBE 2018
Developing cacheable PHP applications - PHPLimburgBE 2018

Page Performance
Page PerformancePage Performance
Page Performance

Real-time searching of big data with Solr and Hadoop
Real-time searching of big data with Solr and HadoopReal-time searching of big data with Solr and Hadoop
Real-time searching of big data with Solr and Hadoop

Gofer 200707
Gofer 200707Gofer 200707
Gofer 200707

Top 10 lessons learned from deploying hadoop in a private cloud
Top 10 lessons learned from deploying hadoop in a private cloudTop 10 lessons learned from deploying hadoop in a private cloud
Top 10 lessons learned from deploying hadoop in a private cloud

CSS and image optimization
CSS and image optimizationCSS and image optimization
CSS and image optimization

Get Django, Get Hired - An opinionated guide to getting the best job, for the...
Get Django, Get Hired - An opinionated guide to getting the best job, for the...Get Django, Get Hired - An opinionated guide to getting the best job, for the...
Get Django, Get Hired - An opinionated guide to getting the best job, for the...

NotaCon 2011 - Networking for Pentesters
NotaCon 2011 - Networking for PentestersNotaCon 2011 - Networking for Pentesters
NotaCon 2011 - Networking for Pentesters

Getting started with Django 1.8
Getting started with Django 1.8Getting started with Django 1.8
Getting started with Django 1.8

Resource registries plone conf 2014
Resource registries plone conf 2014Resource registries plone conf 2014
Resource registries plone conf 2014


Similar to Profiling php applications

Site Performance - From Pinto to Ferrari
Site Performance - From Pinto to FerrariSite Performance - From Pinto to Ferrari
Site Performance - From Pinto to FerrariJoseph Scott

PHP Performance: Principles and tools
PHP Performance: Principles and toolsPHP Performance: Principles and tools
PHP Performance: Principles and tools10n Software, LLC

WE18_Performance_Up.ppt
WE18_Performance_Up.pptWE18_Performance_Up.ppt
WE18_Performance_Up.pptwebhostingguy

Integrating PHP With System-i using Web Services
Integrating PHP With System-i using Web ServicesIntegrating PHP With System-i using Web Services
Integrating PHP With System-i using Web ServicesIvo Jansch

ExpressionEngine - Simple Steps to Performance and Security (EECI 2014)
ExpressionEngine - Simple Steps to Performance and Security (EECI 2014)ExpressionEngine - Simple Steps to Performance and Security (EECI 2014)
ExpressionEngine - Simple Steps to Performance and Security (EECI 2014)Nexcess.net LLC

SAP & Open Souce - Give & Take
SAP & Open Souce - Give & TakeSAP & Open Souce - Give & Take
SAP & Open Souce - Give & TakeJan Penninkhof

SPSNYC SharePoint Worst Practices
SPSNYC SharePoint Worst PracticesSPSNYC SharePoint Worst Practices
SPSNYC SharePoint Worst PracticesScott Hoag

Northeast PHP - High Performance PHP
Northeast PHP - High Performance PHPNortheast PHP - High Performance PHP
Northeast PHP - High Performance PHPJonathan Klein

TXLF: Chef- Software Defined Infrastructure Today & Tomorrow
TXLF: Chef- Software Defined Infrastructure Today & TomorrowTXLF: Chef- Software Defined Infrastructure Today & Tomorrow
TXLF: Chef- Software Defined Infrastructure Today & TomorrowMatt Ray

Trend Micro Big Data Platform and Apache Bigtop
Trend Micro Big Data Platform and Apache BigtopTrend Micro Big Data Platform and Apache Bigtop
Trend Micro Big Data Platform and Apache BigtopEvans Ye

WordPress Speed & Performance from Pagely's CTO
WordPress Speed & Performance from Pagely's CTOWordPress Speed & Performance from Pagely's CTO
WordPress Speed & Performance from Pagely's CTOLizzie Kardon

Server Monitoring (Scaling while bootstrapped)
Server Monitoring  (Scaling while bootstrapped)Server Monitoring  (Scaling while bootstrapped)
Server Monitoring (Scaling while bootstrapped)Ajibola Aiyedogbon

Optimizing the performance of WordPress
Optimizing the performance of WordPressOptimizing the performance of WordPress
Optimizing the performance of WordPressJosh Highland Giese

Web technologies lesson 1
Web technologies   lesson 1Web technologies   lesson 1
Web technologies lesson 1nhepner

HAProxy tech talk
HAProxy tech talkHAProxy tech talk
HAProxy tech talkicebourg

scale_perf_best_practices
scale_perf_best_practicesscale_perf_best_practices
scale_perf_best_practiceswebuploader

Evolving Archetecture
Evolving ArchetectureEvolving Archetecture
Evolving Archetectureleo lapworth

hbaseconasia2017: Building online HBase cluster of Zhihu based on Kubernetes
hbaseconasia2017: Building online HBase cluster of Zhihu based on Kuberneteshbaseconasia2017: Building online HBase cluster of Zhihu based on Kubernetes
hbaseconasia2017: Building online HBase cluster of Zhihu based on KubernetesHBaseCon


Similar to Profiling php applications (20)

Site Performance - From Pinto to Ferrari
Site Performance - From Pinto to FerrariSite Performance - From Pinto to Ferrari
Site Performance - From Pinto to Ferrari

PHP Performance: Principles and tools
PHP Performance: Principles and toolsPHP Performance: Principles and tools
PHP Performance: Principles and tools

WE18_Performance_Up.ppt
WE18_Performance_Up.pptWE18_Performance_Up.ppt
WE18_Performance_Up.ppt

Integrating PHP With System-i using Web Services
Integrating PHP With System-i using Web ServicesIntegrating PHP With System-i using Web Services
Integrating PHP With System-i using Web Services

ExpressionEngine - Simple Steps to Performance and Security (EECI 2014)
ExpressionEngine - Simple Steps to Performance and Security (EECI 2014)ExpressionEngine - Simple Steps to Performance and Security (EECI 2014)
ExpressionEngine - Simple Steps to Performance and Security (EECI 2014)

Webtechnologies
Webtechnologies Webtechnologies
Webtechnologies

SAP & Open Souce - Give & Take
SAP & Open Souce - Give & TakeSAP & Open Souce - Give & Take
SAP & Open Souce - Give & Take

SPSNYC SharePoint Worst Practices
SPSNYC SharePoint Worst PracticesSPSNYC SharePoint Worst Practices
SPSNYC SharePoint Worst Practices

Northeast PHP - High Performance PHP
Northeast PHP - High Performance PHPNortheast PHP - High Performance PHP
Northeast PHP - High Performance PHP

TXLF: Chef- Software Defined Infrastructure Today & Tomorrow
TXLF: Chef- Software Defined Infrastructure Today & TomorrowTXLF: Chef- Software Defined Infrastructure Today & Tomorrow
TXLF: Chef- Software Defined Infrastructure Today & Tomorrow

Trend Micro Big Data Platform and Apache Bigtop
Trend Micro Big Data Platform and Apache BigtopTrend Micro Big Data Platform and Apache Bigtop
Trend Micro Big Data Platform and Apache Bigtop

WordPress Speed & Performance from Pagely's CTO
WordPress Speed & Performance from Pagely's CTOWordPress Speed & Performance from Pagely's CTO
WordPress Speed & Performance from Pagely's CTO

Server Monitoring (Scaling while bootstrapped)
Server Monitoring  (Scaling while bootstrapped)Server Monitoring  (Scaling while bootstrapped)
Server Monitoring (Scaling while bootstrapped)

Optimizing the performance of WordPress
Optimizing the performance of WordPressOptimizing the performance of WordPress
Optimizing the performance of WordPress

Web server
Web serverWeb server
Web server

Web technologies lesson 1
Web technologies   lesson 1Web technologies   lesson 1
Web technologies lesson 1

HAProxy tech talk
HAProxy tech talkHAProxy tech talk
HAProxy tech talk

scale_perf_best_practices
scale_perf_best_practicesscale_perf_best_practices
scale_perf_best_practices

Evolving Archetecture
Evolving ArchetectureEvolving Archetecture
Evolving Archetecture

hbaseconasia2017: Building online HBase cluster of Zhihu based on Kubernetes
hbaseconasia2017: Building online HBase cluster of Zhihu based on Kuberneteshbaseconasia2017: Building online HBase cluster of Zhihu based on Kubernetes
hbaseconasia2017: Building online HBase cluster of Zhihu based on Kubernetes


Recently uploaded

Oauth 2.0 Introduction and Flows with MuleSoft
Oauth 2.0 Introduction and Flows with MuleSoftOauth 2.0 Introduction and Flows with MuleSoft
Oauth 2.0 Introduction and Flows with MuleSoftshyamraj55

Google I/O Extended 2024 Warsaw
Google I/O Extended 2024 WarsawGoogle I/O Extended 2024 Warsaw
Google I/O Extended 2024 WarsawGDSC PJATK

Working together SRE & Platform Engineering
Working together SRE & Platform EngineeringWorking together SRE & Platform Engineering
Working together SRE & Platform EngineeringMarcus Vechiato

The Metaverse: Are We There Yet?
The  Metaverse:    Are   We  There  Yet?The  Metaverse:    Are   We  There  Yet?
The Metaverse: Are We There Yet?Mark Billinghurst

Introduction to FDO and How It works Applications _ Richard at FIDO Alliance.pdf
Introduction to FDO and How It works Applications _ Richard at FIDO Alliance.pdfIntroduction to FDO and How It works Applications _ Richard at FIDO Alliance.pdf
Introduction to FDO and How It works Applications _ Richard at FIDO Alliance.pdfFIDO Alliance

Microsoft CSP Briefing Pre-Engagement - Questionnaire
Microsoft CSP Briefing Pre-Engagement - QuestionnaireMicrosoft CSP Briefing Pre-Engagement - Questionnaire
Microsoft CSP Briefing Pre-Engagement - QuestionnaireExakis Nelite

The Value of Certifying Products for FDO _ Paul at FIDO Alliance.pdf
The Value of Certifying Products for FDO _ Paul at FIDO Alliance.pdfThe Value of Certifying Products for FDO _ Paul at FIDO Alliance.pdf
The Value of Certifying Products for FDO _ Paul at FIDO Alliance.pdfFIDO Alliance

Event-Driven Architecture Masterclass: Engineering a Robust, High-performance...
Event-Driven Architecture Masterclass: Engineering a Robust, High-performance...Event-Driven Architecture Masterclass: Engineering a Robust, High-performance...
Event-Driven Architecture Masterclass: Engineering a Robust, High-performance...ScyllaDB

Choosing the Right FDO Deployment Model for Your Application _ Geoffrey at In...
Choosing the Right FDO Deployment Model for Your Application _ Geoffrey at In...Choosing the Right FDO Deployment Model for Your Application _ Geoffrey at In...
Choosing the Right FDO Deployment Model for Your Application _ Geoffrey at In...FIDO Alliance

Long journey of Ruby Standard library at RubyKaigi 2024
Long journey of Ruby Standard library at RubyKaigi 2024Long journey of Ruby Standard library at RubyKaigi 2024
Long journey of Ruby Standard library at RubyKaigi 2024Hiroshi SHIBATA

Simplified FDO Manufacturing Flow with TPMs _ Liam at Infineon.pdf
Simplified FDO Manufacturing Flow with TPMs _ Liam at Infineon.pdfSimplified FDO Manufacturing Flow with TPMs _ Liam at Infineon.pdf
Simplified FDO Manufacturing Flow with TPMs _ Liam at Infineon.pdfFIDO Alliance

Event-Driven Architecture Masterclass: Integrating Distributed Data Stores Ac...
Event-Driven Architecture Masterclass: Integrating Distributed Data Stores Ac...Event-Driven Architecture Masterclass: Integrating Distributed Data Stores Ac...
Event-Driven Architecture Masterclass: Integrating Distributed Data Stores Ac...ScyllaDB

WebRTC and SIP not just audio and video @ OpenSIPS 2024
WebRTC and SIP not just audio and video @ OpenSIPS 2024WebRTC and SIP not just audio and video @ OpenSIPS 2024
WebRTC and SIP not just audio and video @ OpenSIPS 2024Lorenzo Miniero

Hyatt driving innovation and exceptional customer experiences with FIDO passw...
Hyatt driving innovation and exceptional customer experiences with FIDO passw...Hyatt driving innovation and exceptional customer experiences with FIDO passw...
Hyatt driving innovation and exceptional customer experiences with FIDO passw...FIDO Alliance

Easier, Faster, and More Powerful – Alles Neu macht der Mai -Wir durchleuchte...
Easier, Faster, and More Powerful – Alles Neu macht der Mai -Wir durchleuchte...Easier, Faster, and More Powerful – Alles Neu macht der Mai -Wir durchleuchte...
Easier, Faster, and More Powerful – Alles Neu macht der Mai -Wir durchleuchte...panagenda

Intro in Product Management - Коротко про професію продакт менеджера
Intro in Product Management - Коротко про професію продакт менеджераIntro in Product Management - Коротко про професію продакт менеджера
Intro in Product Management - Коротко про професію продакт менеджераMark Opanasiuk

Where to Learn More About FDO _ Richard at FIDO Alliance.pdf
Where to Learn More About FDO _ Richard at FIDO Alliance.pdfWhere to Learn More About FDO _ Richard at FIDO Alliance.pdf
Where to Learn More About FDO _ Richard at FIDO Alliance.pdfFIDO Alliance

State of the Smart Building Startup Landscape 2024!
State of the Smart Building Startup Landscape 2024!State of the Smart Building Startup Landscape 2024!
State of the Smart Building Startup Landscape 2024!Memoori

FDO for Camera, Sensor and Networking Device – Commercial Solutions from VinC...
FDO for Camera, Sensor and Networking Device – Commercial Solutions from VinC...FDO for Camera, Sensor and Networking Device – Commercial Solutions from VinC...
FDO for Camera, Sensor and Networking Device – Commercial Solutions from VinC...FIDO Alliance

2024 May Patch Tuesday
2024 May Patch Tuesday2024 May Patch Tuesday
2024 May Patch TuesdayIvanti


Recently uploaded (20)

Oauth 2.0 Introduction and Flows with MuleSoft
Oauth 2.0 Introduction and Flows with MuleSoftOauth 2.0 Introduction and Flows with MuleSoft
Oauth 2.0 Introduction and Flows with MuleSoft

Google I/O Extended 2024 Warsaw
Google I/O Extended 2024 WarsawGoogle I/O Extended 2024 Warsaw
Google I/O Extended 2024 Warsaw

Working together SRE & Platform Engineering
Working together SRE & Platform EngineeringWorking together SRE & Platform Engineering
Working together SRE & Platform Engineering

The Metaverse: Are We There Yet?
The  Metaverse:    Are   We  There  Yet?The  Metaverse:    Are   We  There  Yet?
The Metaverse: Are We There Yet?

Introduction to FDO and How It works Applications _ Richard at FIDO Alliance.pdf
Introduction to FDO and How It works Applications _ Richard at FIDO Alliance.pdfIntroduction to FDO and How It works Applications _ Richard at FIDO Alliance.pdf
Introduction to FDO and How It works Applications _ Richard at FIDO Alliance.pdf

Microsoft CSP Briefing Pre-Engagement - Questionnaire
Microsoft CSP Briefing Pre-Engagement - QuestionnaireMicrosoft CSP Briefing Pre-Engagement - Questionnaire
Microsoft CSP Briefing Pre-Engagement - Questionnaire

The Value of Certifying Products for FDO _ Paul at FIDO Alliance.pdf
The Value of Certifying Products for FDO _ Paul at FIDO Alliance.pdfThe Value of Certifying Products for FDO _ Paul at FIDO Alliance.pdf
The Value of Certifying Products for FDO _ Paul at FIDO Alliance.pdf

Event-Driven Architecture Masterclass: Engineering a Robust, High-performance...
Event-Driven Architecture Masterclass: Engineering a Robust, High-performance...Event-Driven Architecture Masterclass: Engineering a Robust, High-performance...
Event-Driven Architecture Masterclass: Engineering a Robust, High-performance...

Choosing the Right FDO Deployment Model for Your Application _ Geoffrey at In...
Choosing the Right FDO Deployment Model for Your Application _ Geoffrey at In...Choosing the Right FDO Deployment Model for Your Application _ Geoffrey at In...
Choosing the Right FDO Deployment Model for Your Application _ Geoffrey at In...

Long journey of Ruby Standard library at RubyKaigi 2024
Long journey of Ruby Standard library at RubyKaigi 2024Long journey of Ruby Standard library at RubyKaigi 2024
Long journey of Ruby Standard library at RubyKaigi 2024

Simplified FDO Manufacturing Flow with TPMs _ Liam at Infineon.pdf
Simplified FDO Manufacturing Flow with TPMs _ Liam at Infineon.pdfSimplified FDO Manufacturing Flow with TPMs _ Liam at Infineon.pdf
Simplified FDO Manufacturing Flow with TPMs _ Liam at Infineon.pdf

Event-Driven Architecture Masterclass: Integrating Distributed Data Stores Ac...
Event-Driven Architecture Masterclass: Integrating Distributed Data Stores Ac...Event-Driven Architecture Masterclass: Integrating Distributed Data Stores Ac...
Event-Driven Architecture Masterclass: Integrating Distributed Data Stores Ac...

WebRTC and SIP not just audio and video @ OpenSIPS 2024
WebRTC and SIP not just audio and video @ OpenSIPS 2024WebRTC and SIP not just audio and video @ OpenSIPS 2024
WebRTC and SIP not just audio and video @ OpenSIPS 2024

Hyatt driving innovation and exceptional customer experiences with FIDO passw...
Hyatt driving innovation and exceptional customer experiences with FIDO passw...Hyatt driving innovation and exceptional customer experiences with FIDO passw...
Hyatt driving innovation and exceptional customer experiences with FIDO passw...

Easier, Faster, and More Powerful – Alles Neu macht der Mai -Wir durchleuchte...
Easier, Faster, and More Powerful – Alles Neu macht der Mai -Wir durchleuchte...Easier, Faster, and More Powerful – Alles Neu macht der Mai -Wir durchleuchte...
Easier, Faster, and More Powerful – Alles Neu macht der Mai -Wir durchleuchte...

Intro in Product Management - Коротко про професію продакт менеджера
Intro in Product Management - Коротко про професію продакт менеджераIntro in Product Management - Коротко про професію продакт менеджера
Intro in Product Management - Коротко про професію продакт менеджера

Where to Learn More About FDO _ Richard at FIDO Alliance.pdf
Where to Learn More About FDO _ Richard at FIDO Alliance.pdfWhere to Learn More About FDO _ Richard at FIDO Alliance.pdf
Where to Learn More About FDO _ Richard at FIDO Alliance.pdf

State of the Smart Building Startup Landscape 2024!
State of the Smart Building Startup Landscape 2024!State of the Smart Building Startup Landscape 2024!
State of the Smart Building Startup Landscape 2024!

FDO for Camera, Sensor and Networking Device – Commercial Solutions from VinC...
FDO for Camera, Sensor and Networking Device – Commercial Solutions from VinC...FDO for Camera, Sensor and Networking Device – Commercial Solutions from VinC...
FDO for Camera, Sensor and Networking Device – Commercial Solutions from VinC...

2024 May Patch Tuesday
2024 May Patch Tuesday2024 May Patch Tuesday
2024 May Patch Tuesday


Profiling php applications

  • 1. Profiling PHP Applications July 2011 - Justin Carmony #uphpu wifi: C7bluffdale -- c7dcguest
  • 2. About Me • CTO of Dating DNA • CIO of CEVO LLC • Make Websites & iPhone Apps • Worked on Websites for Dell, nVidia, DirectTV, and other big clients.
  • 3. Experience • Lots of work with “Middle-Scale” websites. • Lucky to Work on Fun Projects • Lots of Web Service Stuff • Learned most of this from other really smart people.
  • 4. We’ll Use An Example and an awesome one at that...
  • 5.
  • 6. We Have Similar Jobs Awesome, huh?
  • 7. MythBusters • They get a Myth • Break it down to its different parts • They Conduct a Bunch of Tests • They Draw Conclusions • and have a Fun Time
  • 8.
  • 9. Developers • We get Myths (Hey, this is slow) • We Break it down to the different pieces • We Conduct a Bunch of Tests. • We Draw Conclusions (and normally make changes) • and Have a Fun Time...
  • 10.
  • 11. So Lets Get Started! php /lets/get/started.php now
  • 12. First Off, Some PHP Myths and there are a lot of them!
  • 13. Common Performance Claims (Myths) • echo instead of print() • single quotes, not double quotes • echo commas, not periods • include instead of include_once • don’t use custom functions/classes • === faster than == • pass by reference • for faster than foreach instead of by value
  • 14. To Quote Derick Rethans Author of Xdebug...
  • 15. “I can only say one thing about this.... Complete & Utter Bull****”
  • 16. or in MythBusters Terminology....
  • 17. I’m Serious, There are a LOT of these Myths These Example Came from Google’s Top 10 results for “php performance tips”
  • 19. Thats Like Debating the Windshield Wipers’s Effect on this Car’s Performance
  • 20. Intuition Based Optimizations i.e. how to not effectively improve performance Phrase Coined by Dave Smith http://thesmithfam.org/blog/2011/02/
  • 21. Your Intuitions are WRONG 90% of the time
  • 23. MythBusters Tested • Keeping Your AC Off vs Windows Down • Idling Better than Stop/Start • Magical Aerodynamics • Dirt-Free Filters • Special Fuel Additives to Slow Burn All Busted! They Didn’t Make a Difference, Or Worsened Fuel Efficiency
  • 24. How About Driving Angry? After Testing, Tory & Grant Used 33% More Fule While Driving Angry
  • 25. Effective Profiling is based on Actual Results
  • 26. There are Two Types of Profiling “Modes”
  • 27. Normal Profiling Lets Try this Configuration Change and Measure the Performance Difference
  • 28. Emergency Profiling Aaaaaaaaaaaaah the Website is Down!!!! Why is it so slow??? Fix it!!!!!!
  • 29. Same Techniques Apply to Both • Some you’ll want to chose first depending on your situation. • You’ll want to be careful when profiling in Production, you can make things worse.
  • 30. Understanding the Full Picture
  • 31. Browser Static Files Database and/or Data Store Web Server PHP App Server OS Web Services & Resources Hardware Cache
  • 33. Goal: Find Slow Parts aka Bottlenecks
  • 34. Profiling & Testing Different Parts
  • 36. Browser Static Files Database and/or Data Store Web Server PHP App Server OS Web Services & Resources Hardware Cache
  • 40. Other Tools • YSlow http://developer.yahoo.com/yslow/ • Pingdom Tools http://tools.pingdom.com/ • WireShark / Fiddler2
  • 41. Browser Static Files Database and/or Data Store Web Server PHP App Server OS Web Services & Resources Hardware Cache
  • 43. Apachetop works with nginx
  • 44. Apache’s mod_status <Location /server-status> SetHandler server-status Order Deny,Allow Deny from all Allow from 25.131.42.122 </Location> # ExtendedStatus On
  • 46. siege
  • 47. siege • Command Line Tool • Run Concurrent HTTP Requests • Runs on Linux & Mac OS • Windows Users: Run a VM • Great Way to Test End Result
  • 48. siege • Create txt file with lists of URLs to hit • Run Command: siege -c 10 -r 10 -f urls.txt • c = concurrent r = # of requests f = path to URL file
  • 49. siege
  • 50. siege
  • 51. Other Tools • nginx stub status (similar to mod_status) http://wiki.nginx.org/HttpStubStatusModule • Apache Bench & http_load -- CLI • JMeter -- Java Desktop App
  • 52. Browser Static Files Database and/or Data Store Web Server PHP App Server OS Web Services & Resources Hardware Cache
  • 53. My Favorite New Tools: XHProf & XHGui
  • 54. XHProf • Developed by Facebook • Works well for both Development & Production* Profiling • pecl extension • Decent UI for viewing Results * - Use Sampling & Special CPU Flags for Production http://mirror.facebook.net/facebook/xhprof/doc.html
  • 55. XHGui • Improved GUI • Easy to Setup • Built In Sampling • Advanced Configuration • MySQL Backend • I recommend using this! https://github.com/preinheimer/xhprof
  • 56. More Fun to Show Demo Time
  • 57. Xdebug Profiler • Install Xdebug • Enable Xdebug Profiling • Outputs a Cachegrind Log • Use KCachegrind / WinCachegrind / Webgrind to view • For the Rich, MacCallGrind for $150
  • 58. Enabling Xdebug Profiling xdebug.profiler_enable=1 xdebug.profiler_output_dir=/tmp xdebug.profiler_output_name=cachegrind.out.%p Xdebug Profiling Not for Production (unless you have a 100TB HDD laying around)
  • 60. Timing Points • Most Frameworks have Built-In Profiling / Timing Points • Most ORMs have them as well • You can do them yourself • A must for Database Queries
  • 61. Timing Points $start = microtime(true); // true to get as float /* Do your Crazy Code, i.e. query */ $end = microtime(true); $time = round($end - $start, 4);
  • 62. Other Tools • Inclued http://php.net/manual/en/book.inclued.php • Memtrack http://php.net/manual/en/ book.memtrack.php
  • 63. Browser Static Files Database and/or Data Store Web Server PHP App Server OS Web Services & Resources Hardware Cache
  • 64. Databases • Typically, First Thing to Slow Down • Things to that will Kill the DB: • Missing Indexes • Nested Queries • Large Joins • Locked Queries
  • 65. Jet Profiler • MySQL Profiler • Free Version (Okay) & Paid (Awesome) • Not Cheap ($399) • But Worth It • Analytics Over Time
  • 67. MySQL Commands • explain <query> • show processlist • show variables • show status
  • 68. mtop
  • 69. Browser Static Files Database and/or Data Store Web Server PHP App Server OS Web Services & Resources Hardware Cache
  • 71. vmstat • swap > 0 means swapping Memory Issue • cpu sys + us really high CPU / Code / PHP Problem • cpu wa > 10 Disk IO Problem* * - Technically could be Network IO as well, but typically one of the last and more rare bottlenecks to hit
  • 73. top
  • 74. htop
  • 76. iotop
  • 77. Other Tools • netstat • iostat • mpstat • pidstat • (on ubuntu, install via sysstat package)
  • 78. Other Tools • grep, awk, sed • IPs Connected: netstat -plan | grep :80 | awk '{print $5}' | sed 's/::ffff://g' | awk -F: '{print $1}' | sort | uniq -c | sort -n
  • 79. Monitoring Munin http://munin-monitoring.org/
  • 80. Monitoring Wormly http://wormly.com/
  • 81. Whew, Lots of Tools and a lot more out there not in this talk Find any cool ones, let me know!
  • 82. Normal Profiling • Start with XHProf/XHGui and FireBug • Avoid Premature Optimization • Complicated Change • Little Reward • Use siege, or alternative, to simulate load.
  • 83. Emergency Profiling • Start with OS Level Testing Tools (htop, vmstat, vnstat) to check Server Performance • Determine which Resource(s) are being over utilized • Finding the bottleneck is key
  • 84. Emergency Profiling • What Changed? • Increased Traffic? • New Feature? • Something Failed/Down? • Don’t Panic & Start Wildly Guessing
  • 86. The Better You Understand The Problem The Better You Can Fix It
  • 87. Don’t Put Off Profiling Until there is an Emergency
  • 88. You Can Throw Hardward at the Problem, but Avoid IT
  • 89. Ask Others for Ideas aka Brainstorming
  • 92. Thanks! Twitter: JustinCarmony IRC: carmony #uphpu #phpc #joind.in Website: http://www.justincarmony.com/blog Email: justin@justincarmony.com

Editor's Notes

  1. \n
  2. \n
  3. \n
  4. \n
  5. \n
  6. \n
  7. \n
  8. \n
  9. \n
  10. \n
  11. \n
  12. \n
  13. \n
  14. \n
  15. \n
  16. \n
  17. \n
  18. \n
  19. \n
  20. \n
  21. \n
  22. \n
  23. \n
  24. \n
  25. \n
  26. \n
  27. \n
  28. \n
  29. \n
  30. \n
  31. \n
  32. \n
  33. \n
  34. \n
  35. \n
  36. \n
  37. \n
  38. \n
  39. \n
  40. \n
  41. \n
  42. \n
  43. \n
  44. \n
  45. \n
  46. \n
  47. \n
  48. \n
  49. \n
  50. \n
  51. \n
  52. \n
  53. \n
  54. \n
  55. \n
  56. \n
  57. \n
  58. \n
  59. \n
  60. \n
  61. \n
  62. \n
  63. \n
  64. \n
  65. \n
  66. \n
  67. \n
  68. \n
  69. \n
  70. \n
  71. \n
  72. \n
  73. \n
  74. \n
  75. \n
  76. \n
  77. \n
  78. \n
  79. \n
  80. \n
  81. \n
  82. \n
  83. \n
  84. \n
  85. \n
  86. \n
  87. \n
  88. \n
  89. \n
  90. \n
  91. \n
  92. \n
