This presentation discusses VMware Integrated OpenStack (Beta), which provides an OpenStack deployment optimized to run on VMware infrastructure. The presentation covers what VMware Integrated OpenStack is, its production-grade architecture when deployed, how to install it, how it orchestrates OpenStack services, and how it can be managed. A demo of VMware Integrated OpenStack's capabilities is also included.

1. VMware OpenStack
End-to-End Demo
SDDC2198
Scott Lowe, VMware, Inc
Michael West, VMware, Inc

2. CONFIDENTIAL 2
Disclaimer
• This presentation may contain product features that are currently under development.
• This overview of new technology represents no commitment from VMware to deliver these
features in any generally available product.
• Features are subject to change, and must not be included in contracts, purchase orders, or
sales agreements of any kind.
• Technical feasibility and market demand will affect final delivery.
• Pricing and packaging for any new technologies or features discussed or presented have not
been determined.

3. CONFIDENTIAL 3

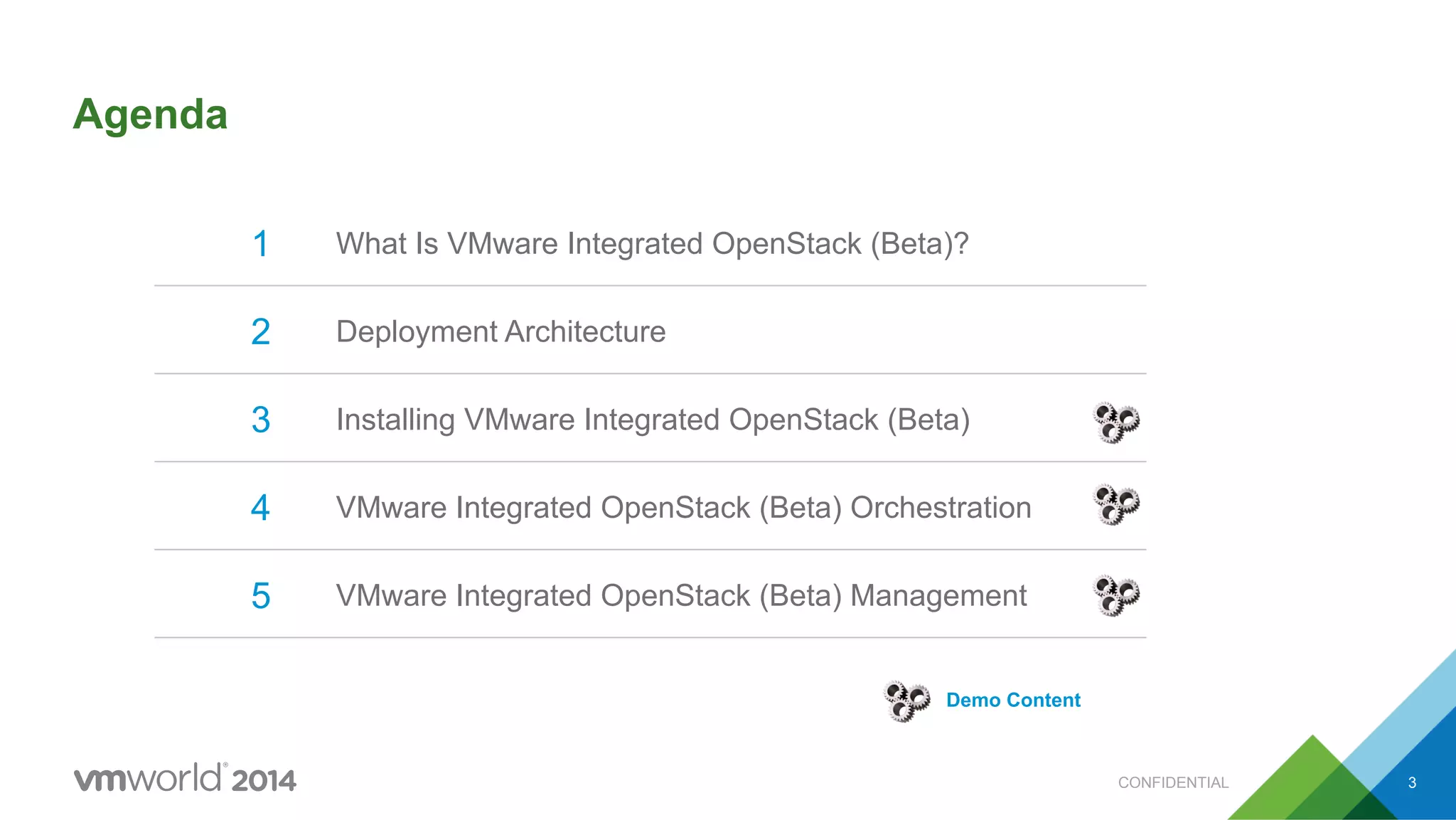

Agenda
1 What Is VMware Integrated OpenStack (Beta)?
2 Deployment Architecture
3 Installing VMware Integrated OpenStack (Beta)
4 VMware Integrated OpenStack (Beta) Orchestration
5 VMware Integrated OpenStack (Beta) Management
Demo Content

4. CONFIDENTIAL 4

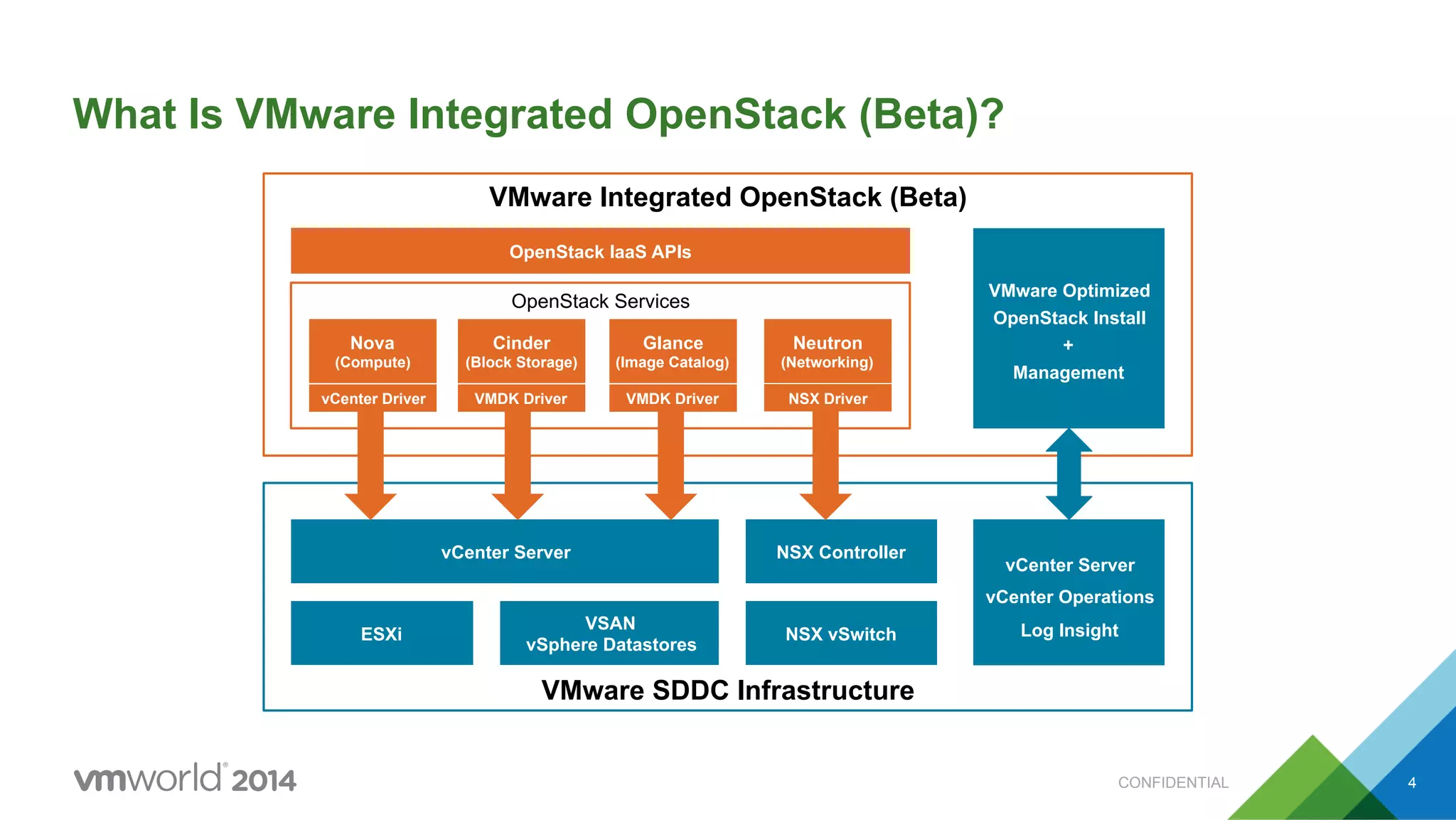

What Is VMware Integrated OpenStack (Beta)?
VMware SDDC Infrastructure
vCenter Server NSX Controller
ESXi
VSAN
vSphere Datastores
NSX vSwitch
vCenter Server
vCenter Operations
Log Insight
Nova
(Compute)
vCenter Driver
Cinder
(Block Storage)
VMDK Driver
Glance
(Image Catalog)
VMDK Driver
Neutron
(Networking)
NSX Driver
OpenStack Services
OpenStack IaaS APIs
VMware Optimized
OpenStack Install
+
Management
VMware Integrated OpenStack (Beta)

5. CONFIDENTIAL 5

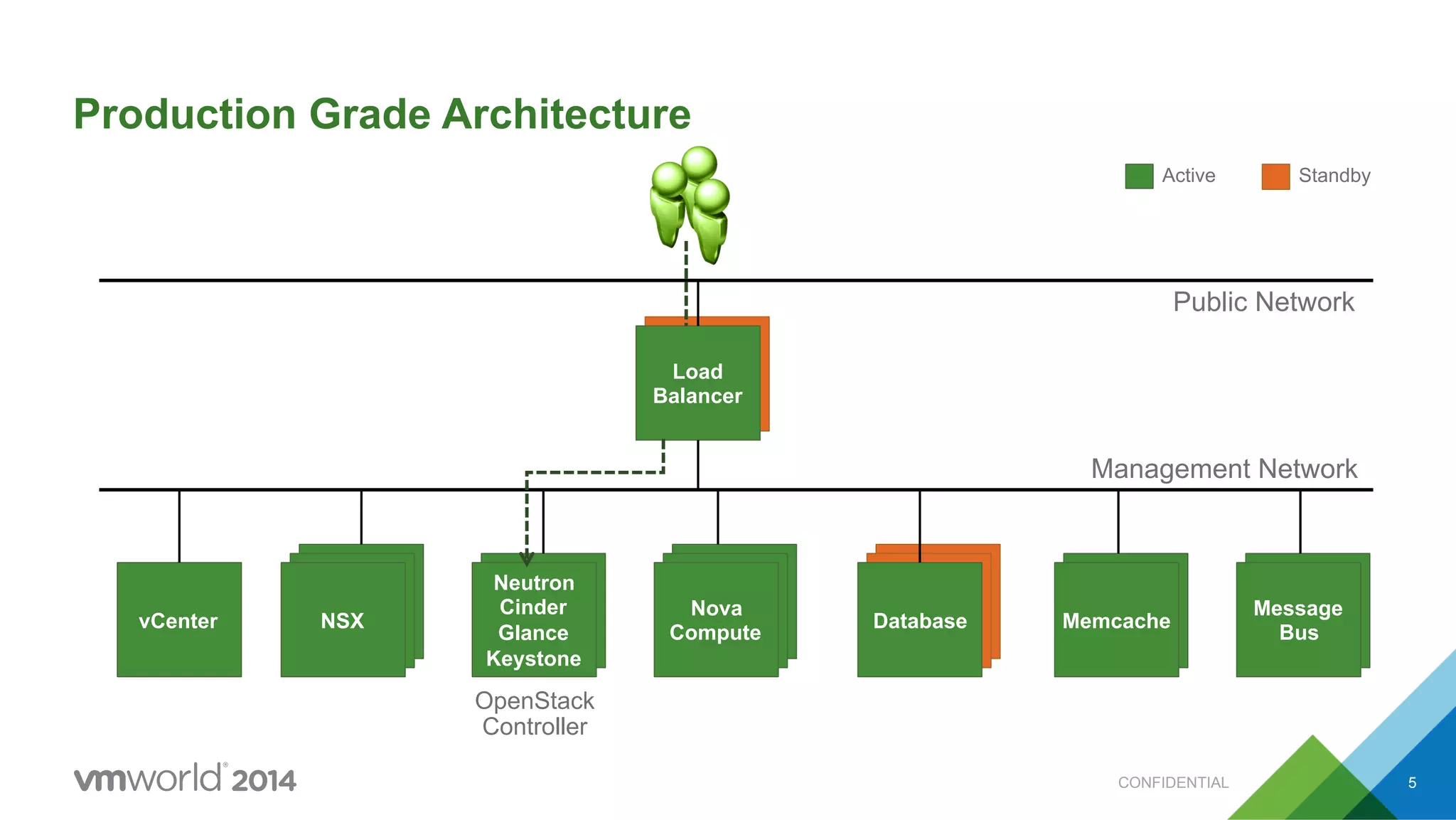

Production Grade Architecture
vCenter NSX
Neutron
Cinder
Glance
Keystone
OpenStack
Controller
Nova
Compute
Database Memcache
Message
Bus
Load
Balancer
Management Network
Public Network
Active Standby

6. CONFIDENTIAL 6

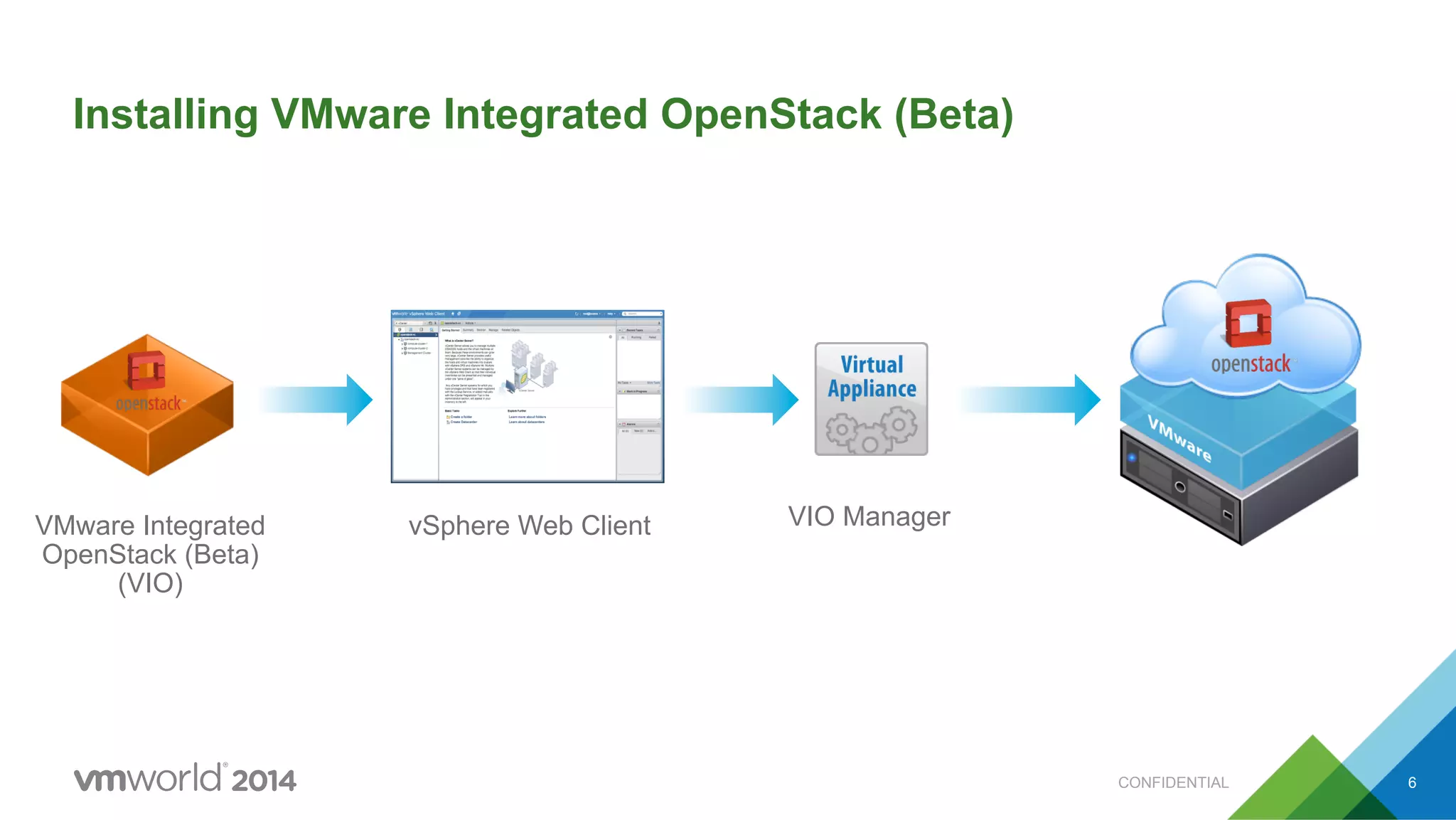

Installing VMware Integrated OpenStack (Beta)
VMware Integrated
OpenStack (Beta)
(VIO)
vSphere Web Client VIO Manager

7. CONFIDENTIAL 7

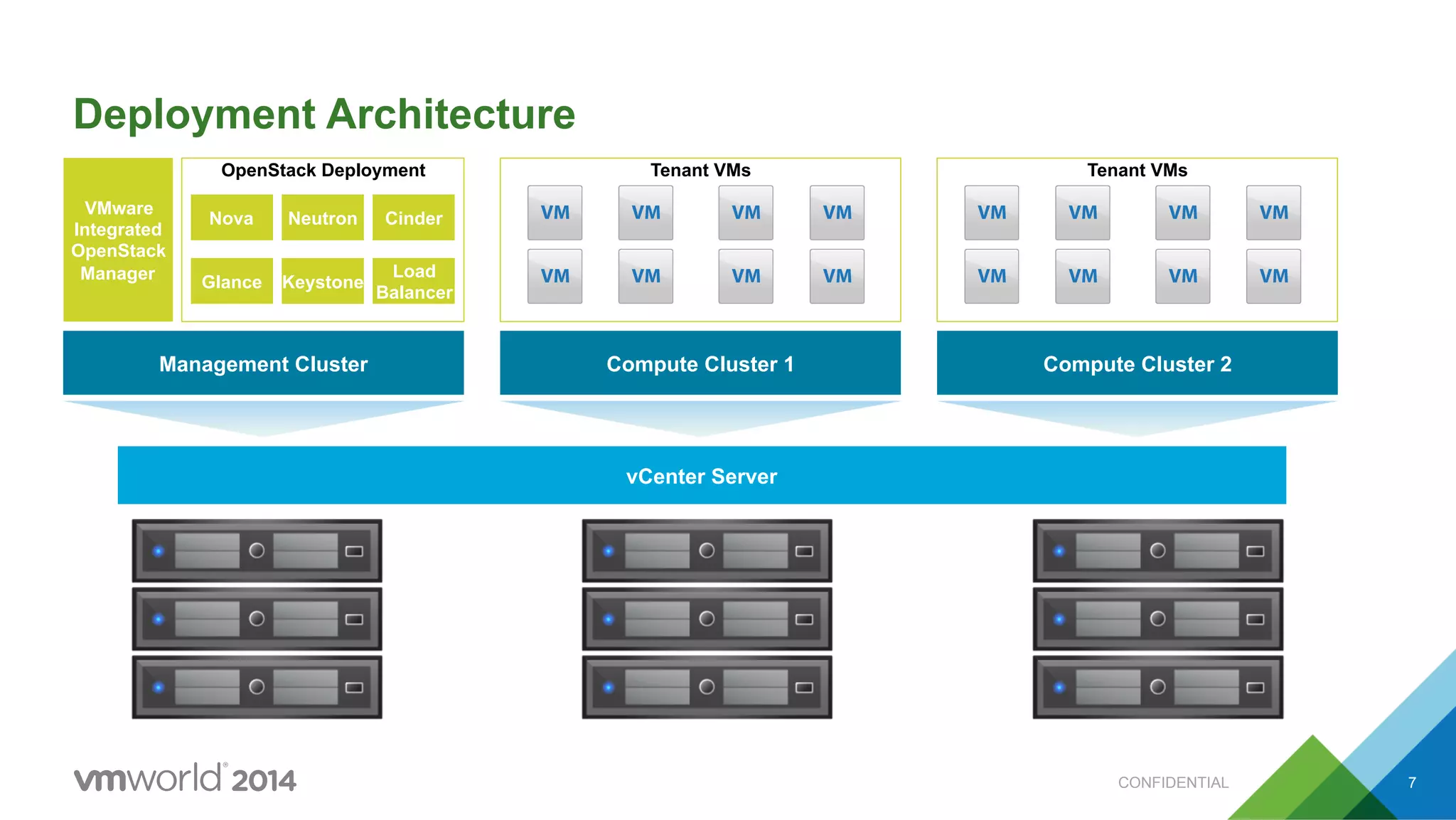

Deployment Architecture
vCenter Server
Management Cluster Compute Cluster 1 Compute Cluster 2
VMware
Integrated
OpenStack
Manager
OpenStack Deployment
Nova Neutron Cinder
Glance Keystone
Load
Balancer
Tenant VMs Tenant VMs

8. CONFIDENTIAL 8

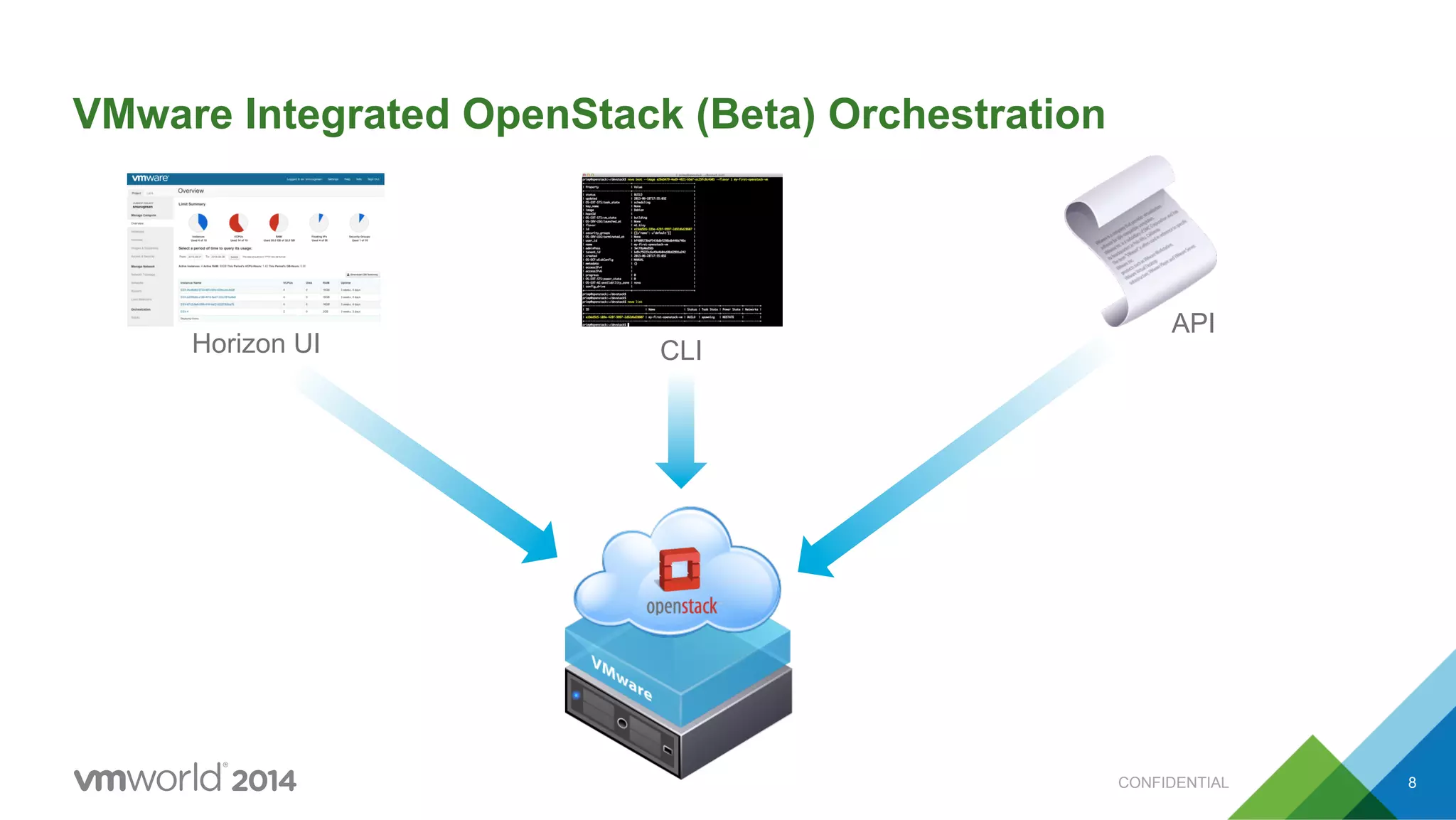

VMware Integrated OpenStack (Beta) Orchestration
API
CLIHorizon UI

9. CONFIDENTIAL 9

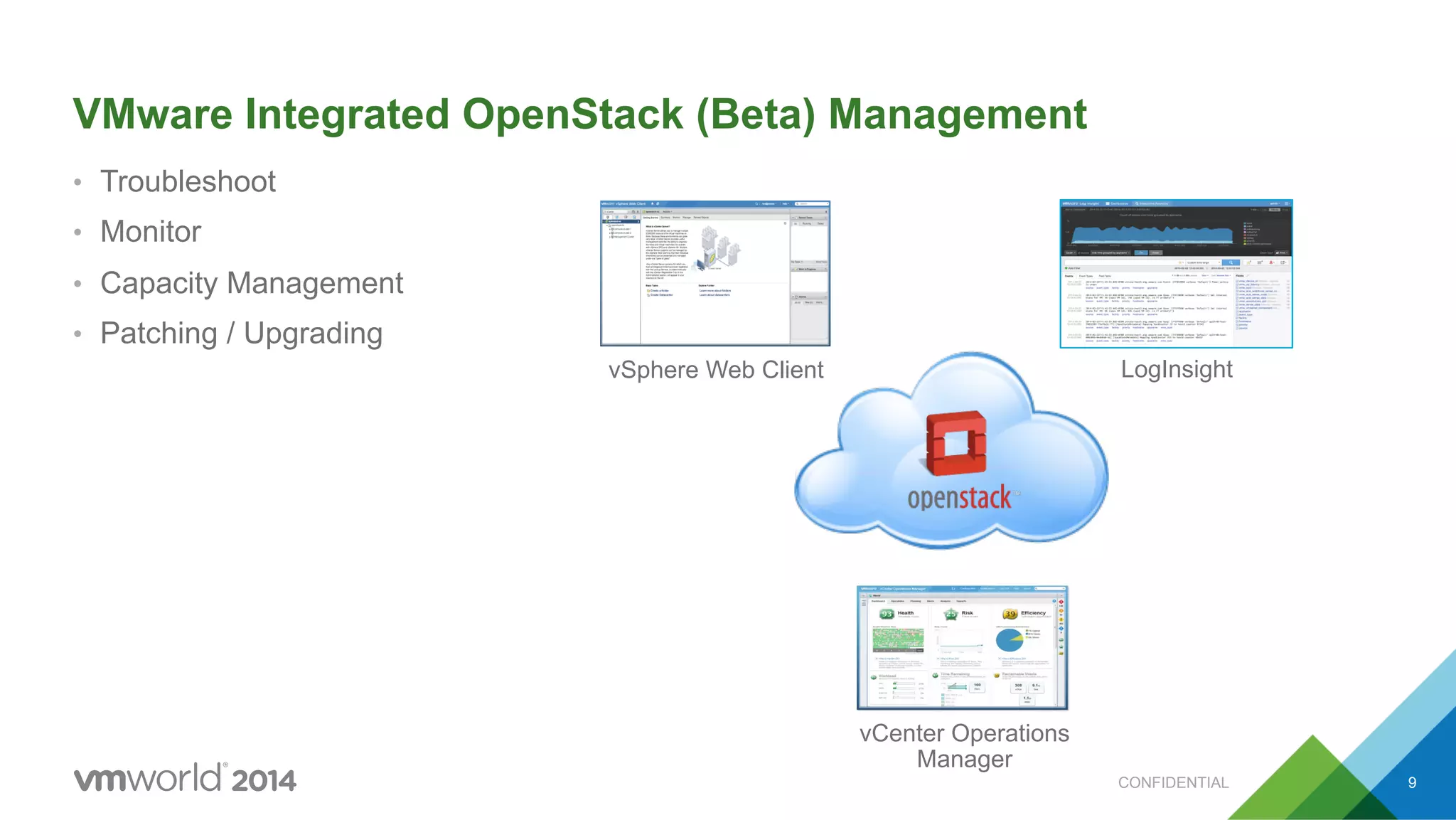

VMware Integrated OpenStack (Beta) Management
• Troubleshoot
• Monitor
• Capacity Management
• Patching / Upgrading
vSphere Web Client LogInsight
vCenter Operations
Manager
