VMware vRealize Network Insight 3.5 provides intelligent operations for software-defined networking and security across virtual, physical and multi-cloud environments. New capabilities in this version include enhanced visibility of NSX deployments through dashboards for NSX edge health and PCI compliance assessment, as well as support for troubleshooting connectivity across VMware NSX, Check Point, Brocade, and HP environments. The release also extends micro-segmentation planning and visibility to Amazon Web Services configurations.

1. © 2015 VMware Inc. All rights reserved.
vRealize Network Insight 3.5
What’s New

2. VMware Delivers:
Intelligent Operations for Software-Defined Datacenter
2
1 vRealize Suite components
2 Included with vRealize Suite and ships with NSX
vRealize Operations1
Compute Storage
Hybrid Cloud
Network
& Security
vRealize
Network
Insight
vRealize Log Insight2
Physical/ Virtual/ Cloud Environment
Application
vRealize Business for Cloud1
vRealize Network Insight Delivers Intelligent Operations for Software-Defined Networking and Security across
virtual, physical and multi-cloud environments

3. Customer Momentum
F500/G2000 Customers in Retail, Pharma, Airline, Security, Government, Financial, Healthcare, Education
PANW Ignite Conference 2016 Panel
Session:
CA-DWR, USAA & Columbia Sports
Case Study - NSX, PANW & vRNI
Case Study: CA Dept. of Water Rolls Out
Secure Cloud Using vRNI
3
“Arkin (vRNI) real-time flow analytics makes it extremely easy to implement micro-
segmentation security. The visibility and troubleshooting capabilities that Arkin (vRNI)
provides to our networking and operations teams enables us to more quickly and
confidently scale our NSX deployment.”
Brian Lancaster, Executive Director of Information Management
“I cannot say enough good things about #vRNI if you want visibility into your #NSX
overlay/firewall and physical network. @vmwarensx”
Daniel Hertzberg, Enterprise Engineer
“I love the visibility into configuration/env changes that
vRNI provides me. So glad to finally get this product
into production.”
Justin Bias, Cloud Technologies Specialist
“Most community colleges are challenged to provide stronger information security on a limited
budget and with a small IT team. The combination of VMware NSX and vRealize Network
Insight works very well for us. It makes our environment more secure, and it’s saving us time
every week. I look forward to the new NSX Edge Health Dashboard and third-party device
integrations in vRealize Network Insight 3.5 to help drastically reduce the amount of effort and
time required to plan, deploy and scale SDDC networking and security infrastructure.”
Brandon Lovelace, Santa Barbara City College

4. 4
vRealize Network Insight 3.5
Intelligent Operations for Network and Security Across Virtual, Physical and Multiple Clouds
VMware vRealize Network Insight delivers intelligent operations for software-defined networking and security. It helps
customers build an optimized, highly-available and secure network infrastructure across multi-cloud environments. It
accelerates micro-segmentation planning and deployment, enables visibility across virtual and physical networks and
provides operational views to manage and scale VMware NSX deployments.
Micro segmentation Planning,
Deployment and Compliance
• Plan and measure security impact
with micro segmentation
• Accelerate micro-segmentation
deployment with firewall rules
recommendations.
• Continuously monitor and audit
compliance postures over time.
360 Network Visibility and Troubleshooting
• Quickly troubleshoot connectivity issues
between VMs through powerful path
visualization
• Unify troubleshooting experience across the
virtual and physical infrastructure
• Rapidly identify issues through efficient event
and alert management
Manage and Scale NSX Deployments
• Scale across multiple NSX Managers
with powerful visualizations for
topology and health
• Avoid configuration issues through an
in-product best practices checklist
• Pinpoint and triage issues for quick
resolution with intuitive UI and search
Secure Public Cloud Infrastructure
• Extend micro-segmentation planning to
AWS security groups
• Analyze traffic flows in AWS and get visibility
into AWS Virtual Private Cloud (VPC)
• Troubleshoot firewall issues between VMs in
AWS

5. vRealize Network Insight 3.5 – New Capabilities
Intelligent Operations for SDDC Network and Security Across Virtual, Physical and Hybrid Clouds
CONFIDENTIAL
Manage & Scale NSX Deployments
• See flows blocked by the NSX firewall with NSX IPFIX Integration
• NSX Edge Health Dashboard provides enhanced visibility with a Layer 3 topology view
• Assess PCI compliance for the NSX-V environment with a new PCI Compliance Dashboard
Troubleshoot across the virtual & physical infrastructure
• Comprehensive visibility with added support for new third party
devices:
• Checkpoint firewall
• Brocade MLX
• HP OneView
• VM to VM path now supports ECMP
Enterprise-grade SDDC Networking and Security Platform
• Keep all data intact by migrating data sources between proxies for fast recovery
• Enforce platform resource usage limits to contain footprint
• Supports multiple license types

6. PCI Compliance Dashboard
• Helps assess the PCI
compliance for the NSX-V
environment
• Provides analysis of data for
specific PCI sections
• New search keyword PCI
compliance of introduced
• Available only in vRNI
enterprise license or NIaaS
CONFIDENTIAL 6
Open from
Security Menu
Also choose scope
using search
Choose the
assessment scope
PCI sections
used for analysis

7. NSX Edge Dashboard
• Updated dashboard covering Edge technologies
• Better visibility with new layer 3 topology view
• New widgets added showing information such as
key properties of including NAT rules, Networks,
Default gateway and downstream routers
• New information added on Edge device and
router dashboards as well
CONFIDENTIAL 7
New widget
organization
New Topology and
properties widgets
New Topology and
properties widgets

8. Support for NSX IPFIX
• Rule ID and Action ingested
– Enabled within NSX Manager data source
configuration
– Requires Security Admin and Enterprise
Admin roles
• Deduplication of flow information between VDS
and NSX IPFIX
• Deny action depicted by dropped flows
visualization
• NSX IPFIX records are generated via NSX DFW
and send from each ESXi host
• Protected - associated rule found OR associated
rule is not any-any-allow
• Unprotected - flows where an associated rule is
found AND that rule is any-any-allow
CONFIDENTIAL 8
View dropped,
protected, and
unprotected flows
Select a wedge and
view flow actions

9. ECMP Support in VM-VM Path
• New layout for Path dashboard
• ECMP Edges in VM to VM path are
supported
• Ability to visualize all potential paths taken in
case of ECMP routing
CONFIDENTIAL 9

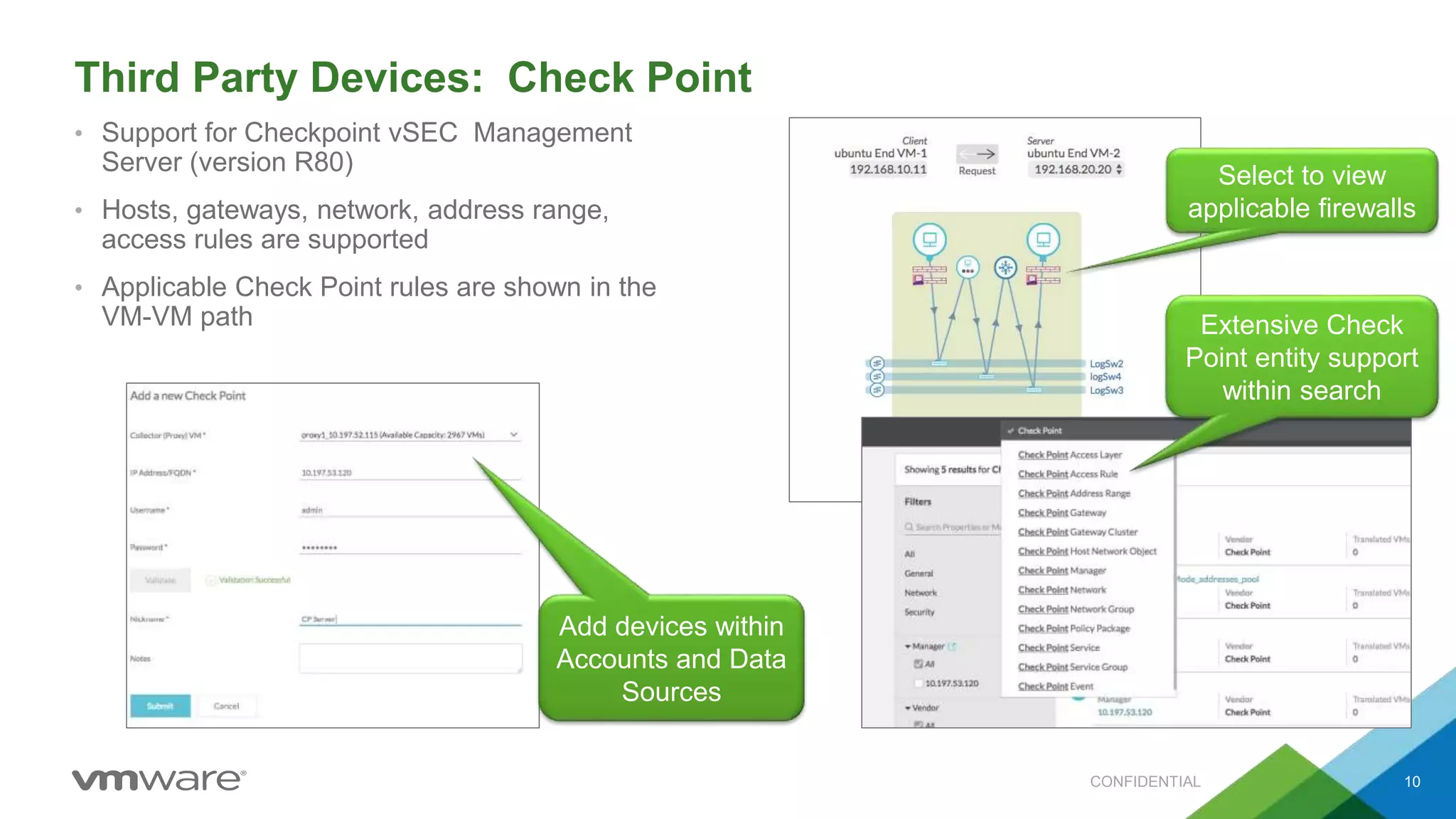

10. Third Party Devices: Check Point
• Support for Checkpoint vSEC Management
Server (version R80)
• Hosts, gateways, network, address range,
access rules are supported
• Applicable Check Point rules are shown in the
VM-VM path
CONFIDENTIAL 10
Add devices within
Accounts and Data
Sources
Select to view
applicable firewalls
Extensive Check
Point entity support
within search

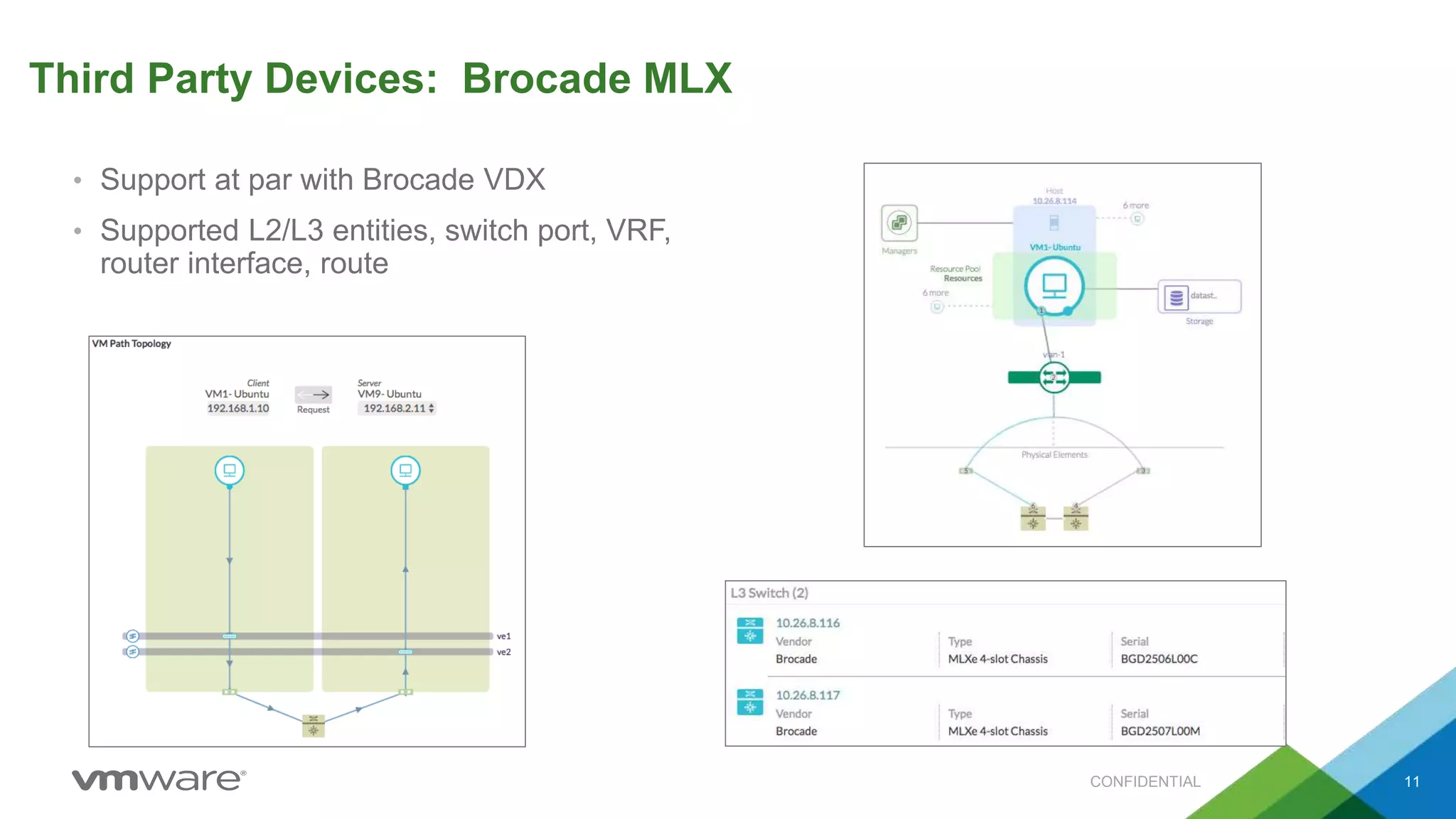

11. Third Party Devices: Brocade MLX
• Support at par with Brocade VDX
• Supported L2/L3 entities, switch port, VRF,
router interface, route
CONFIDENTIAL 11

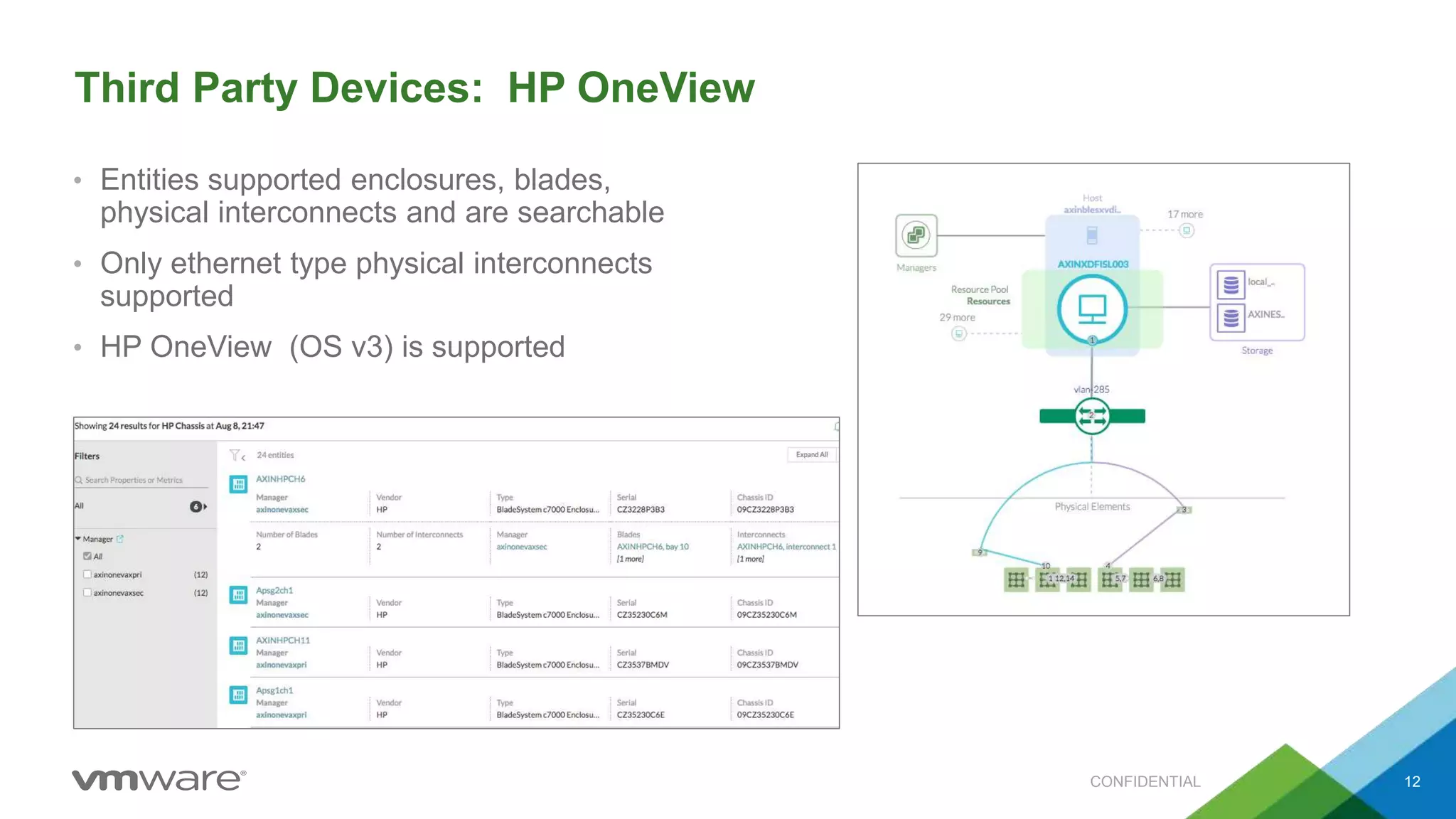

12. Third Party Devices: HP OneView
• Entities supported enclosures, blades,
physical interconnects and are searchable
• Only ethernet type physical interconnects
supported
• HP OneView (OS v3) is supported
CONFIDENTIAL 12

13. vRealize Network Insight 3.5 Editions
Capability vRNI ADV vRNI Enterprise
Previous Single Edition New Edition
Flow Analysis (VDS IPFIX, V-to-V, V-to-P)
NSX Firewall M-Seg Planning & Operations (NSX IPFIX)
NSX Day 2 Ops (Topology view, best practice checklist, NSX Edge Health
dashboard)
VM Paths w/ Physical Switches & Routers
3rd Party Firewall Visibility
AWS VPC, Security Groups, Tags in M-Seg Planning
Visibility and troubleshooting with AWS VPC, EC2, tags, Security Groups
PCI Compliance Dashboard
Configurable and extended retention period for data
