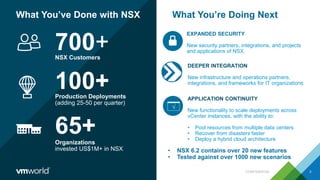

3. What You’ve Done with NSX
CONFIDENTIAL 3
NSX Customers
700+
Production Deployments
(adding 25-50 per quarter)
100+
Organizations
invested US$1M+ in NSX
65+
What You’re Doing Next
EXPANDED SECURITY
New security partners, integrations, and projects
and applications of NSX.
DEEPER INTEGRATION
New infrastructure and operations partners,
integrations, and frameworks for IT organizations
√
APPLICATION CONTINUITY
New functionality to scale deployments across
vCenter instances, with the ability to:
• Pool resources from multiple data centers
• Recover from disasters faster
• Deploy a hybrid cloud architecture
• NSX 6.2 contains over 20 new features
• Tested against over 1000 new scenarios

4. Objectives
Provide the future direction of NSX
and Network Virtualization
Deepen your understanding of the NSX
architecture
Address some misconceptions
about capabilities of NSX

5. Agenda
1 Network Virtualization: The Story So Far
2 Physical Networks & Bare-metal Workloads
3 Distributed Services
4 Beyond the Data Center – WAN and Multi-DC
5 Summary and Q&A
5CONFIDENTIAL

6. Major NSX Use-cases
6
Intra-Datacenter Micro-Segmentation
DMZ Anywhere
Secure User Environments
Security
IT Automating IT
Developer Clouds
Multi-tenant Infrastructure
Automation
Disaster Recovery
Metro Pooling
Hybrid Cloud Networking
Application Continuity
CONFIDENTIAL

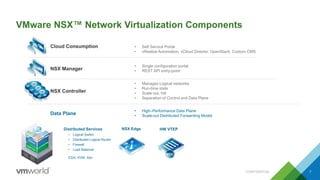

7. VMware NSX™ Network Virtualization Components
Cloud Consumption
NSX Manager
NSX Controller
Data Plane
• Self Service Portal
• vRealize Automation, vCloud Director, OpenStack, Custom CMS
• High–Performance Data Plane
• Scale-out Distributed Forwarding Model
• Single configuration portal
• REST API entry-point
• Manages Logical networks
• Run-time state
• Scale out, HA
• Separation of Control and Data Plane
ESXi, KVM, Xen
Distributed Services
• Logical Switch
• Distributed Logical Router
• Firewall
• Load Balancer
HW VTEPNSX Edge
7CONFIDENTIAL

8. Agenda
8
1 Network Virtualization: The Story So Far
2 Physical Networks & Bare-metal Workloads
3 Distributed Services
4 Beyond the Data Center – WAN and Multi-DC
5 Summary and Q&A
CONFIDENTIAL

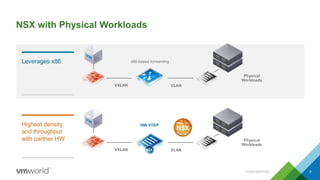

9. NSX with Physical Workloads
VXLAN VLAN
x86-based forwarding
Physical
Workloads
VXLAN VLAN
Physical
Workloads
Leverages x86
Highest density
and throughput
with partner HW
HW VTEP
9CONFIDENTIAL

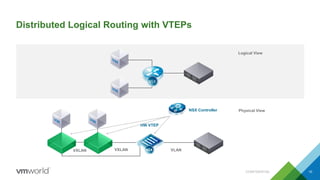

10. VXLAN
Distributed Logical Routing with VTEPs
VXLAN VLAN
Physical View
Logical View
HW VTEP
10
NSX Controller
CONFIDENTIAL

11. Distributed Logical Routing with VTEPs
Logical Routing
VXLAN VLAN
Physical View
VXLAN
HW VTEP
ARP REPLYARPDATA
11CONFIDENTIAL

12. Logical Segmentation around Application Boundaries
12
App
DB
DMZ
CONFIDENTIAL

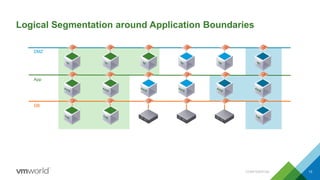

13. Logical Segmentation around Application Boundaries
13
App
DB
DMZ
CONFIDENTIAL

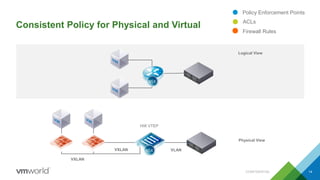

14. Consistent Policy for Physical and Virtual
VXLAN VLAN
HW VTEP
Physical View
VXLAN
Logical View
Policy Enforcement Points
Firewall Rules
ACLs
14CONFIDENTIAL

15. Adding ACL Configuration to VTEP Schema
% git log
commit 770c7df89c2771ba90d3aaa06a9a433a230472c9
Author: Bruce Davie bdavie@vmware.com
Date: Fri Aug 14 14:14:26 2015 -0700
vtep: add ACLs to VTEP schema
Two new tables are added to the VTEP schema, for ACL entries and
ACLs (which are groups of entries). The physical port table is modified
to allow ACLs to be associated with ports, and the logical router table
is modified to allow ACLs to be attached to logical router ports.
Signed-off-by: Bruce Davie <bdavie@vmware.com>
15

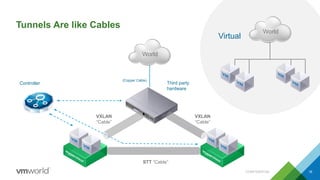

16. Tunnels Are like Cables
Third party
hardware
Controller
(Copper Cable)
Virtual
STT “Cable”
VXLAN
“Cable”
VXLAN
“Cable”
World
World
16CONFIDENTIAL

17. Tunnels Are like Cables
Third party
hardware
Controller
Geneve
GeneveGeneve
(Copper Cable)
Virtual
World
World
17CONFIDENTIAL

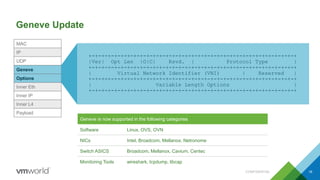

18. Geneve Update
MAC
IP
UDP
Geneve
Options
Inner Eth
Inner IP
Inner L4
Payload
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|Ver| Opt Len |O|C| Rsvd. | Protocol Type |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
| Virtual Network Identifier (VNI) | Reserved |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
| Variable Length Options |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
Geneve is now supported in the following categories
Software Linux, OVS, OVN
NICs Intel, Broadcom, Mellanox, Netronome
Switch ASICS Broadcom, Mellanox, Cavium, Centec
Monitoring Tools wireshark, tcpdump, libcap
18CONFIDENTIAL

19. Is It True that You Don’t
Get Real Visibility with
Network Virtualization?

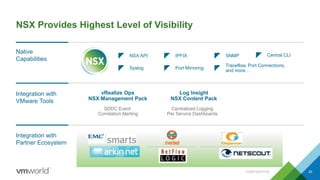

20. NSX Provides Highest Level of Visibility
20
vRealize Ops
NSX Management Pack
Log Insight
NSX Content Pack
SDDC Event
Correlation Alerting
Centralized Logging
Per Service Dashboards
Native
Capabilities
Integration with
VMware Tools
Integration with
Partner Ecosystem
NSX API
Syslog
IPFIX
Port Mirroring
SNMP
Traceflow, Port Connections,
and more…
Central CLI
CONFIDENTIAL

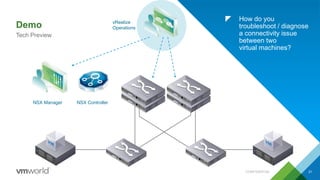

21. Demo
CONFIDENTIAL 21
Tech Preview
How do you
troubleshoot / diagnose
a connectivity issue
between two
virtual machines?
vRealize
Operations
NSX Manager NSX Controller

23. Agenda
23
1 Network Virtualization: The Story So Far
2 Physical Networks & Bare-metal Workloads
3 Distributed Services
4 Beyond the Data Center – WAN and Multi-DC
5 Summary and Q&A
CONFIDENTIAL

24. Why Distributed Services?
24
Scale out of
Network Services
Apply Services at
the vNIC
Unprecedented
Visibility
CONFIDENTIAL

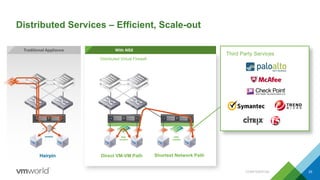

25. Distributed Services – Efficient, Scale-out
vswitch
Hairpin
Traditional Appliance
Direct VM-VM Path
Distributed Virtual Firewall
NSX
vswitch
With NSX
Third Party Services
NSX
vswitch
Shortest Network Path
25
About Citrix
Citrix (NASDAQ:CTXS) is the cloud company th
accessing apps and data on any of the latest d
build clouds, leveraging virtualization and netwo
market-leading cloud solutions for mobility, des
organizations of all sizes achieve the speed and
than 260,000 organizations and by over 100 m
citrix.com0813/PDF
CONFIDENTIAL

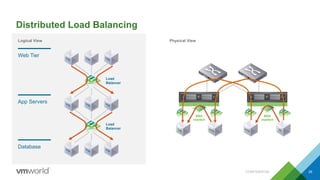

26. NSX
vswitch
Distributed Load Balancing
26
Web Tier
App Servers
Database
Load
Balancer
Load
Balancer
Physical ViewLogical View
NSX
vswitch
CONFIDENTIAL

27. 27
Distributed Services Performance (FW + Routing)
10
11
12
13
14
15
16
17
18
19
64 512 1500 32k 64k
SendthroughputinGbps
TCP Message Size
100 Rules 500 Rules
1000 Rules 5000 Rules
Line rate for message size > 512
Intel Xeon CPU E5-2680 v2 @ 2.80GHz 2 socket, 10 cores per socket (Ivy Bridge)
Logical Switch
Logical Switch
CONFIDENTIAL

28. What Is the Role of DPDK in
High-performance x86 Forwarding?

29. Agenda
29
1 Network Virtualization: The Story So Far
2 Physical Networks & Bare-metal Workloads
3 Distributed Services
4 Beyond the Data Center – WAN and Multi-DC
5 Summary and Q&A
CONFIDENTIAL

30. Beyond the DC
30
Today Tomorrow Future
Multi data center deployment Disaster Recovery Federation and MPLS SD-WAN
CONFIDENTIAL

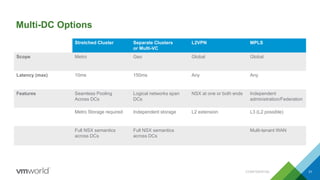

31. Multi-DC Options
Stretched Cluster Separate Clusters
or Multi-VC
L2VPN MPLS
Scope Metro Geo Global Global
Latency (max) 10ms 150ms Any Any
Features Seamless Pooling
Across DCs
Logical networks span
DCs
NSX at one or both ends Independent
administration/Federation
Metro Storage required Independent storage L2 extension L3 (L2 possible)
Full NSX semantics
across DCs
Full NSX semantics
across DCs
Multi-tenant WAN
31CONFIDENTIAL

32. Site A
Tenant A
Tenant B
Tenant C
NSX API
MP-BGP & MPLS for Multi-site Deployments
NSX API MP-BGP
Site B
eBGP Peering
MP-BGP Control Plane
IP/MPLS
MPLSoGRE
NSX Edge
(ASBR)
NSX Edge
(ASBR)
Tenant A
Tenant B
Tenant C
32CONFIDENTIAL

33. Summary
33
Differentiation
NSX is mainstream
Innovation and growth
CONFIDENTIAL

34. Go learn more!
Wednesday Keynote
• Hands on Labs!
• Spotlight Sessions: NET6639-S The Next Horizon for Cloud Networking and Security
• SEC6640-S SDDC: Security for the new battlefield
• NET4941 VMware NSX - Deep Dive
• NET5212 NSX Performance
• NET5213 Operational Best Practices for VMware NSX
• NET5252 NSX Management Pack for vRealize Operations Manager
• NET4995 Integrating Physical Workloads and Infrastructure with a NSX Virtual Network
• NET5560 Bridging Virtual and Physical in NSX with OVSDB Standard-Based Hardware
VTEP Integration
• NET5989 - Multi-vCenter Solutions with VMware NSX
• NET4855 - Want Your Apps to Roam Freely? - NSX Solutions for Multi-Site Data Centers
34CONFIDENTIAL

35. NSX Ecosystem
CONFIDENTIAL 35
Service Insertion
“Leverage full automation and
service insertion for NSX”
NSX aware
“Leverage NSX API and
metadata to bring a
solution”
Co-existence
“Let’s meet in the network”
Works with any switching fabric
Works with routing ecosystem
using
traditional protocols
Existing Physical firewall provide
security sitting in front of NSX Edge
at layer 3
Existing Physical/virtual ADC
services can connect to NSX at
layer 2 or layer 3

36. Network Virtualization Next Steps with VMware NSX
CONFIDENTIAL 36
virtualizeyournetwork.com
The online resource for the people, teams and
organizations that are adopting network virtualization
communities.vmware.com
Connect and engage with network virtualization
experts and fellow VMware NSX users
vmware.com/go/NVtraining
Build knowledge and expertise for the next step in
your career
labs.hol.vmware.com
Test drive the capabilities of VMware NSX
