This document proposes using Linux containers (LXC) with real-time scheduling to run virtual network functions (VNFs) as real-time services in private clouds. It addresses the "noisy neighbor" problem of unstable performance due to resource sharing. The approach uses hierarchical CPU bandwidth control (H-CBS) scheduling to provide guaranteed CPU reservations for LXC containers running VNFs. Preliminary results show this approach controls tail latency while preserving energy efficiency from consolidation compared to existing solutions. Future work includes integrating this scheduling into OpenStack and Tacker for NFV management.

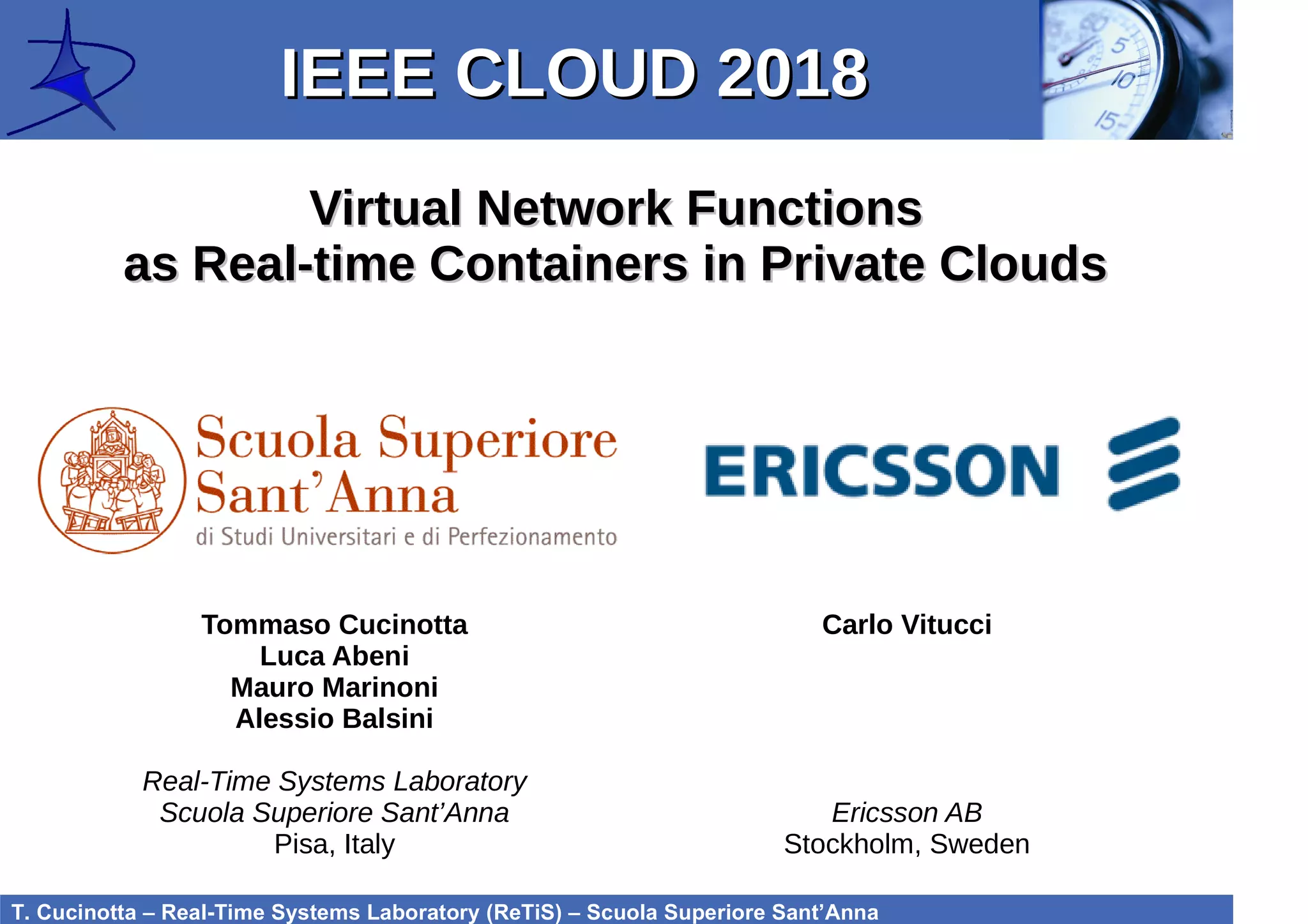

1. T. Cucinotta – Real-Time Systems Laboratory (ReTiS) – Scuola Superiore Sant’Anna
Virtual Network FunctionsVirtual Network Functions
as Real-time Containers in Private Cloudsas Real-time Containers in Private Clouds
IEEE CLOUD 2018IEEE CLOUD 2018
Tommaso Cucinotta
Luca Abeni
Mauro Marinoni
Alessio Balsini
Real-Time Systems Laboratory
Scuola Superiore Sant’Anna
Pisa, Italy
Carlo Vitucci
Ericsson AB
Stockholm, Sweden

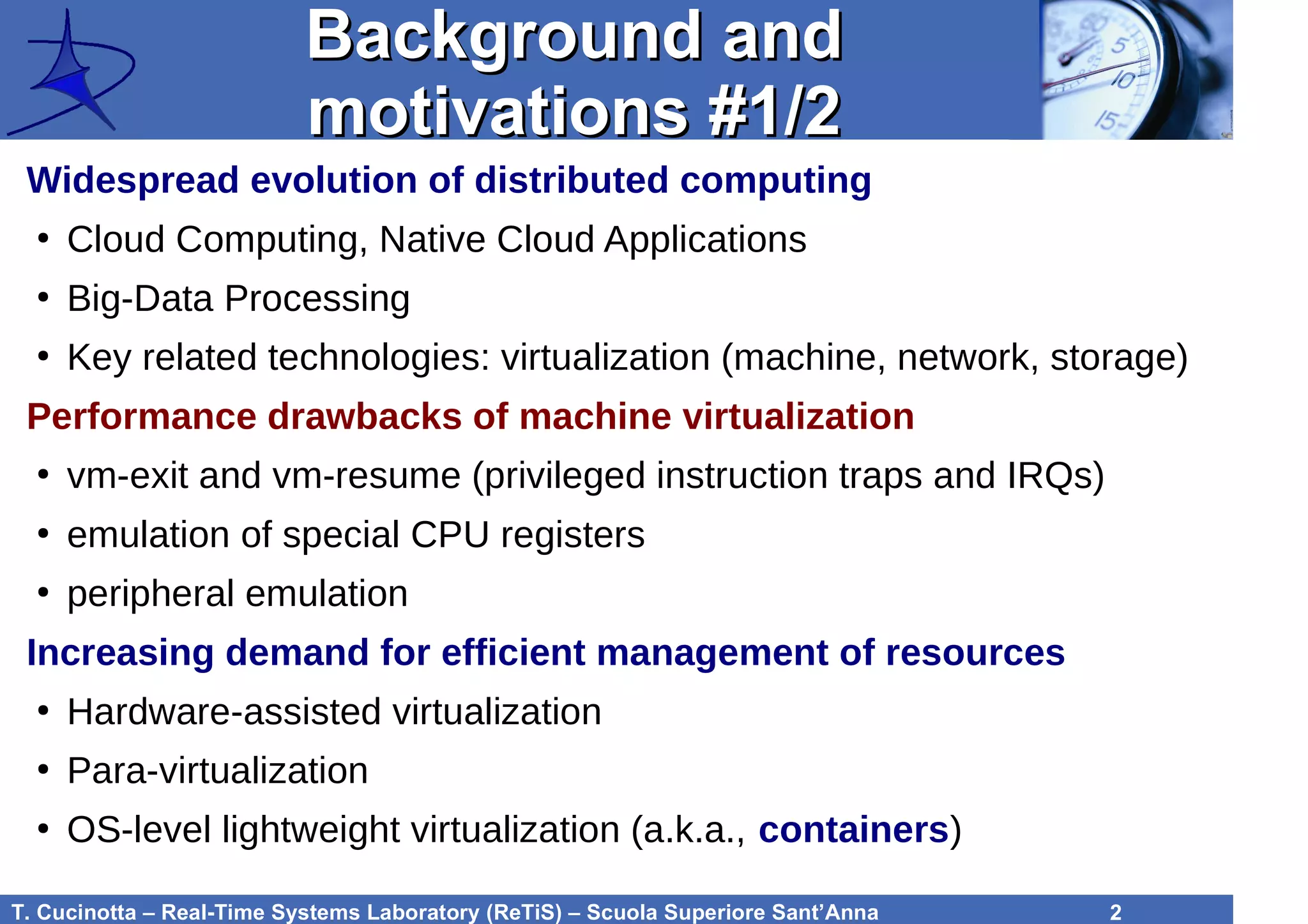

2. T. Cucinotta – Real-Time Systems Laboratory (ReTiS) – Scuola Superiore Sant’Anna 2
Background andBackground and
motivations #1/2motivations #1/2
Widespread evolution of distributed computing
●
Cloud Computing, Native Cloud Applications
●
Big-Data Processing
●
Key related technologies: virtualization (machine, network, storage)
Performance drawbacks of machine virtualization
●
vm-exit and vm-resume (privileged instruction traps and IRQs)
●
emulation of special CPU registers
●
peripheral emulation
Increasing demand for efficient management of resources
●
Hardware-assisted virtualization
●
Para-virtualization
●
OS-level lightweight virtualization (a.k.a., containers)

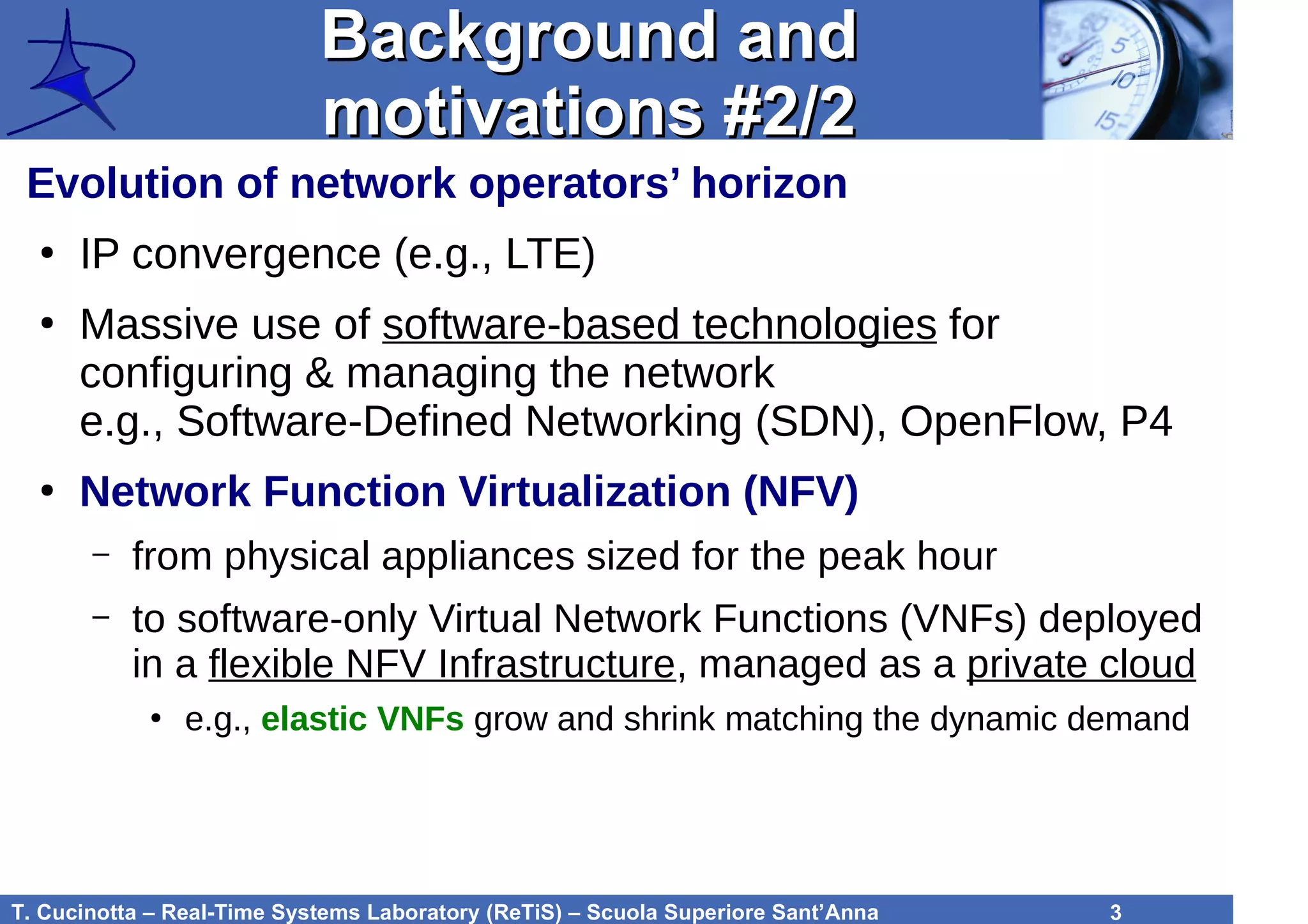

3. T. Cucinotta – Real-Time Systems Laboratory (ReTiS) – Scuola Superiore Sant’Anna 3
Background andBackground and
motivations #2/2motivations #2/2
Evolution of network operators’ horizon
●
IP convergence (e.g., LTE)
●
Massive use of software-based technologies for
configuring & managing the network
e.g., Software-Defined Networking (SDN), OpenFlow, P4
●
Network Function Virtualization (NFV)
– from physical appliances sized for the peak hour
– to software-only Virtual Network Functions (VNFs) deployed
in a flexible NFV Infrastructure, managed as a private cloud
●
e.g., elastic VNFs grow and shrink matching the dynamic demand

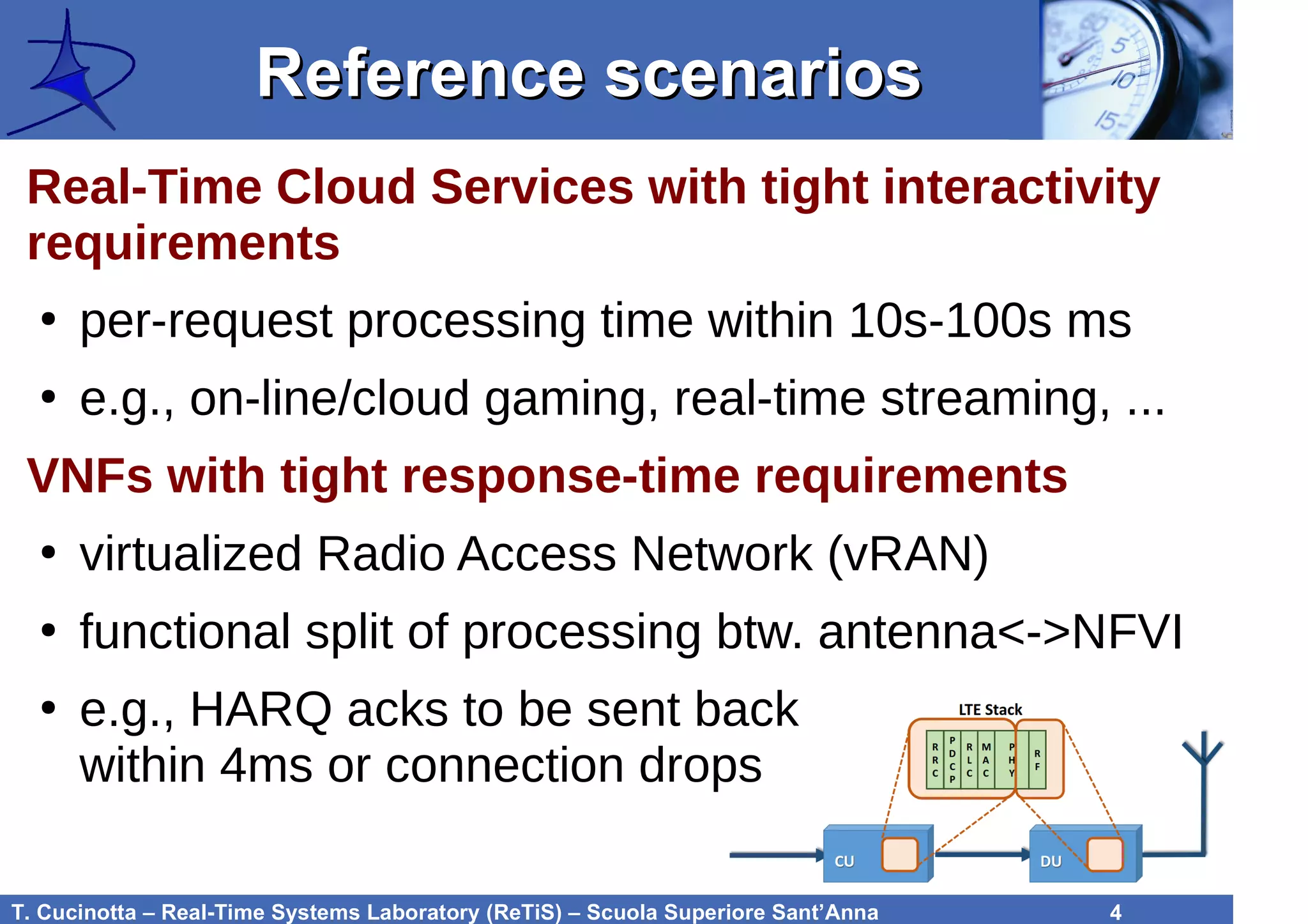

4. T. Cucinotta – Real-Time Systems Laboratory (ReTiS) – Scuola Superiore Sant’Anna 4
Reference scenariosReference scenarios
Real-Time Cloud Services with tight interactivity
requirements
●
per-request processing time within 10s-100s ms
●
e.g., on-line/cloud gaming, real-time streaming, ...
VNFs with tight response-time requirements
●
virtualized Radio Access Network (vRAN)
●
functional split of processing btw. antenna<->NFVI
●
e.g., HARQ acks to be sent back
within 4ms or connection drops

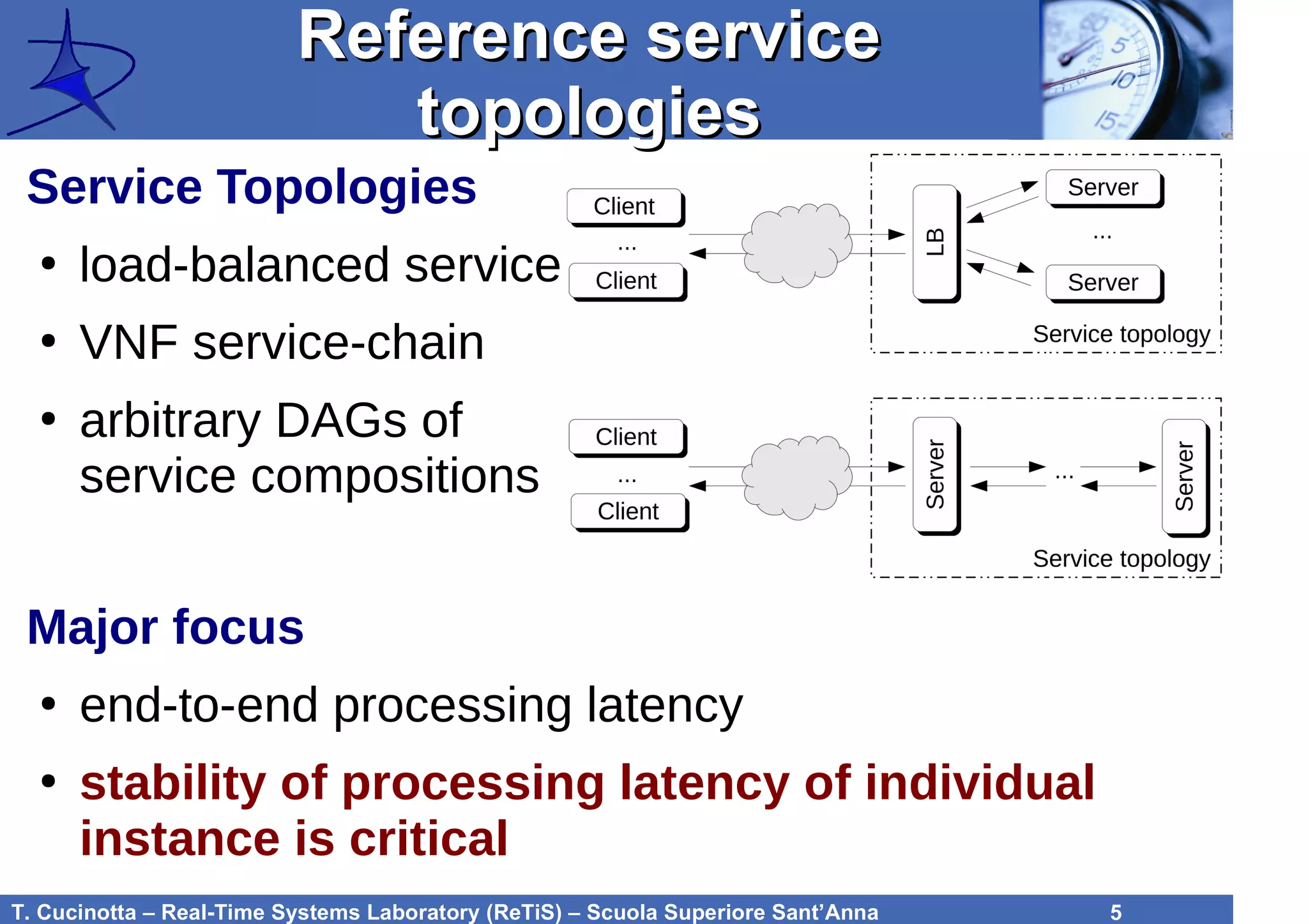

5. T. Cucinotta – Real-Time Systems Laboratory (ReTiS) – Scuola Superiore Sant’Anna 5
Reference serviceReference service
topologiestopologies
Service Topologies
●
load-balanced service
●
VNF service-chain
●
arbitrary DAGs of
service compositions
Major focus
●
end-to-end processing latency
●
stability of processing latency of individual
instance is critical

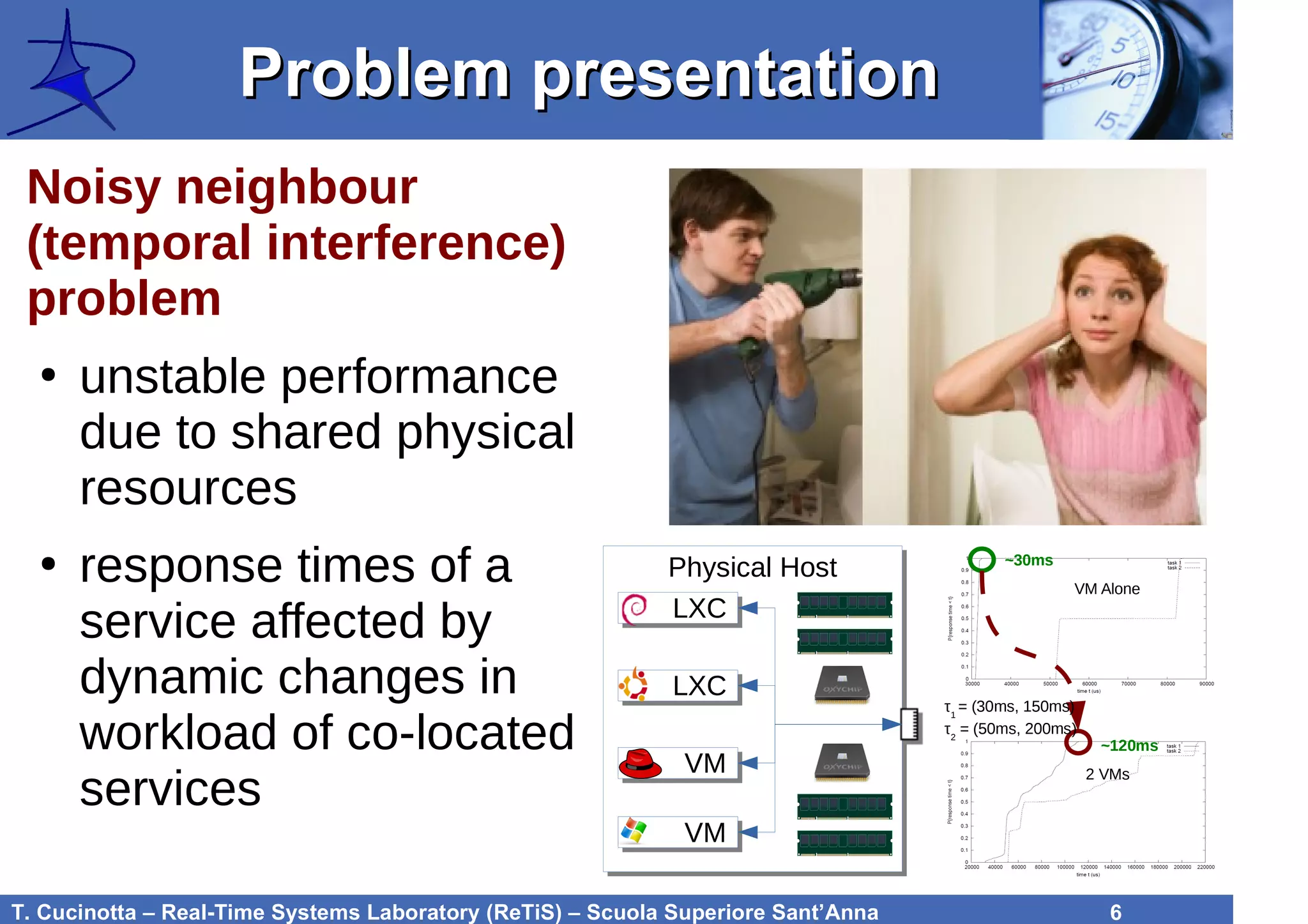

6. T. Cucinotta – Real-Time Systems Laboratory (ReTiS) – Scuola Superiore Sant’Anna 6
Problem presentationProblem presentation
Noisy neighbour
(temporal interference)
problem
●
unstable performance
due to shared physical
resources
●
response times of a
service affected by
dynamic changes in
workload of co-located
services
Physical HostPhysical Host
LXCLXC
VMVM
LXCLXC
VMVM
VM Alone
2 VMs
~30ms
~120ms
τ1
= (30ms, 150ms)
τ2
= (50ms, 200ms)

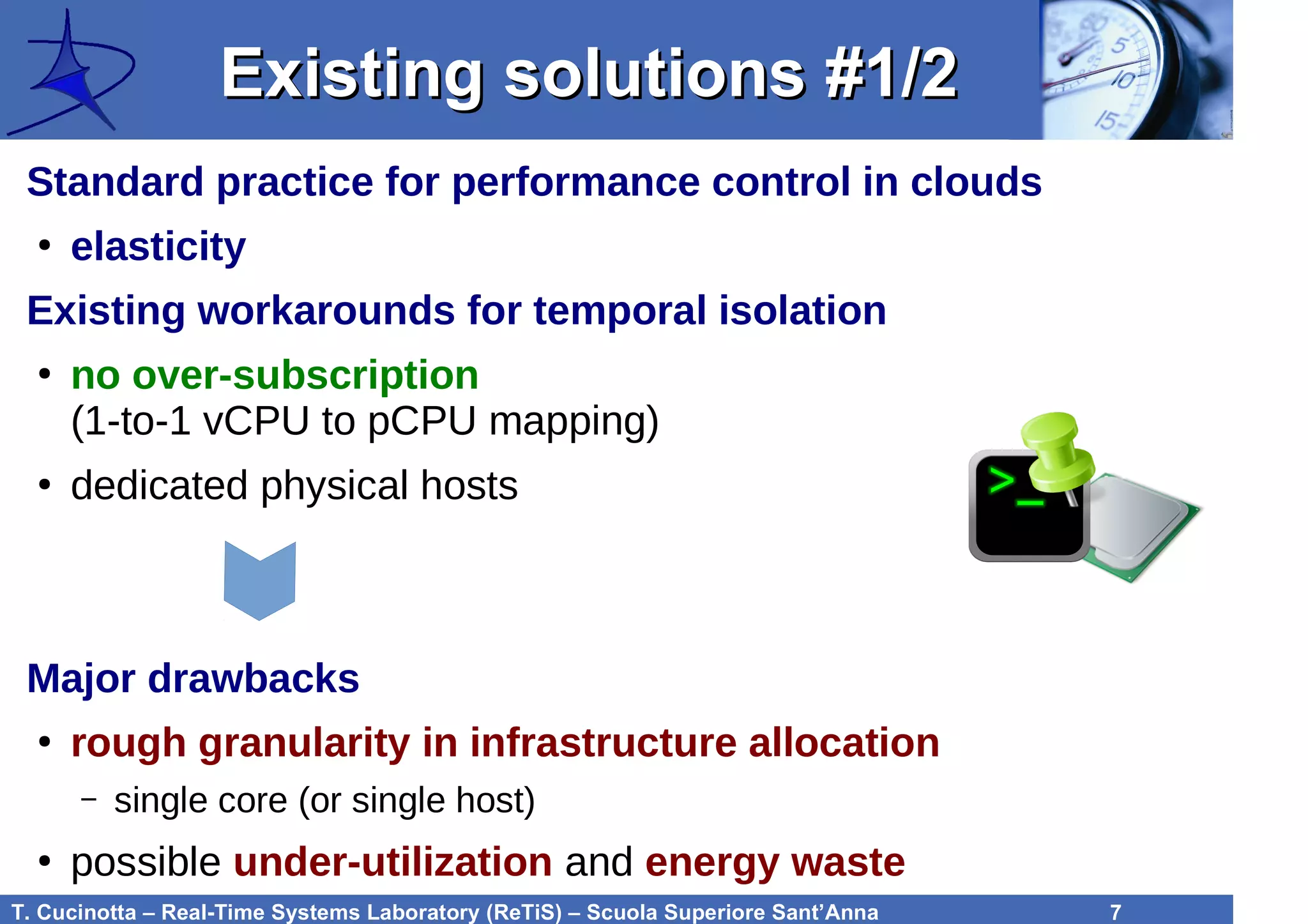

7. T. Cucinotta – Real-Time Systems Laboratory (ReTiS) – Scuola Superiore Sant’Anna 7
Existing solutions #1/2Existing solutions #1/2
Standard practice for performance control in clouds
●
elasticity
Existing workarounds for temporal isolation
●
no over-subscription
(1-to-1 vCPU to pCPU mapping)
●
dedicated physical hosts
Major drawbacks
●
rough granularity in infrastructure allocation
– single core (or single host)
●
possible under-utilization and energy waste

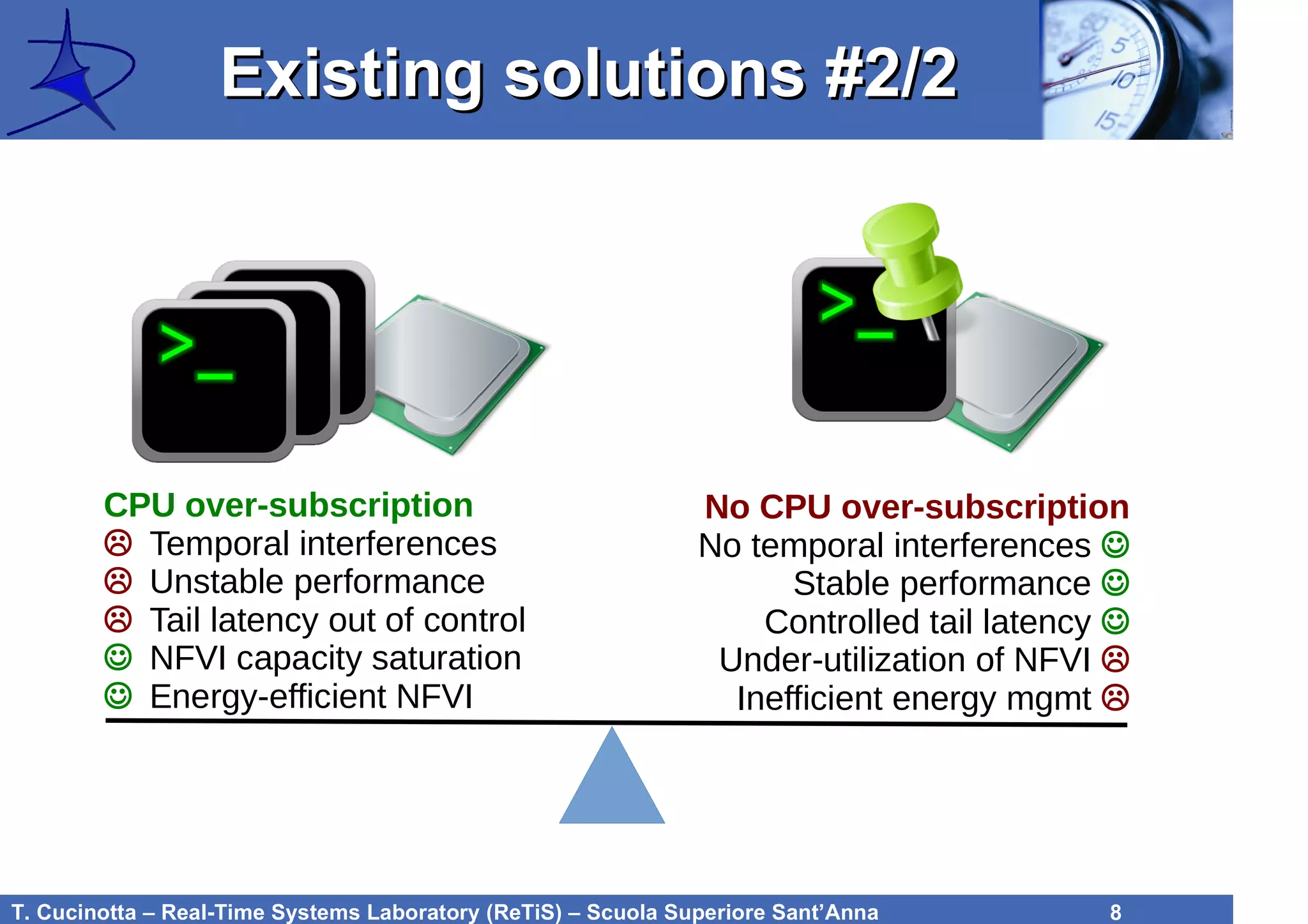

8. T. Cucinotta – Real-Time Systems Laboratory (ReTiS) – Scuola Superiore Sant’Anna 8
Existing solutions #2/2Existing solutions #2/2
CPU over-subscription
 Temporal interferences
 Unstable performance
 Tail latency out of control
☺ NFVI capacity saturation
☺ Energy-efficient NFVI
No CPU over-subscription
No temporal interferences ☺
Stable performance ☺
Controlled tail latency ☺
Under-utilization of NFVI 
Inefficient energy mgmt 

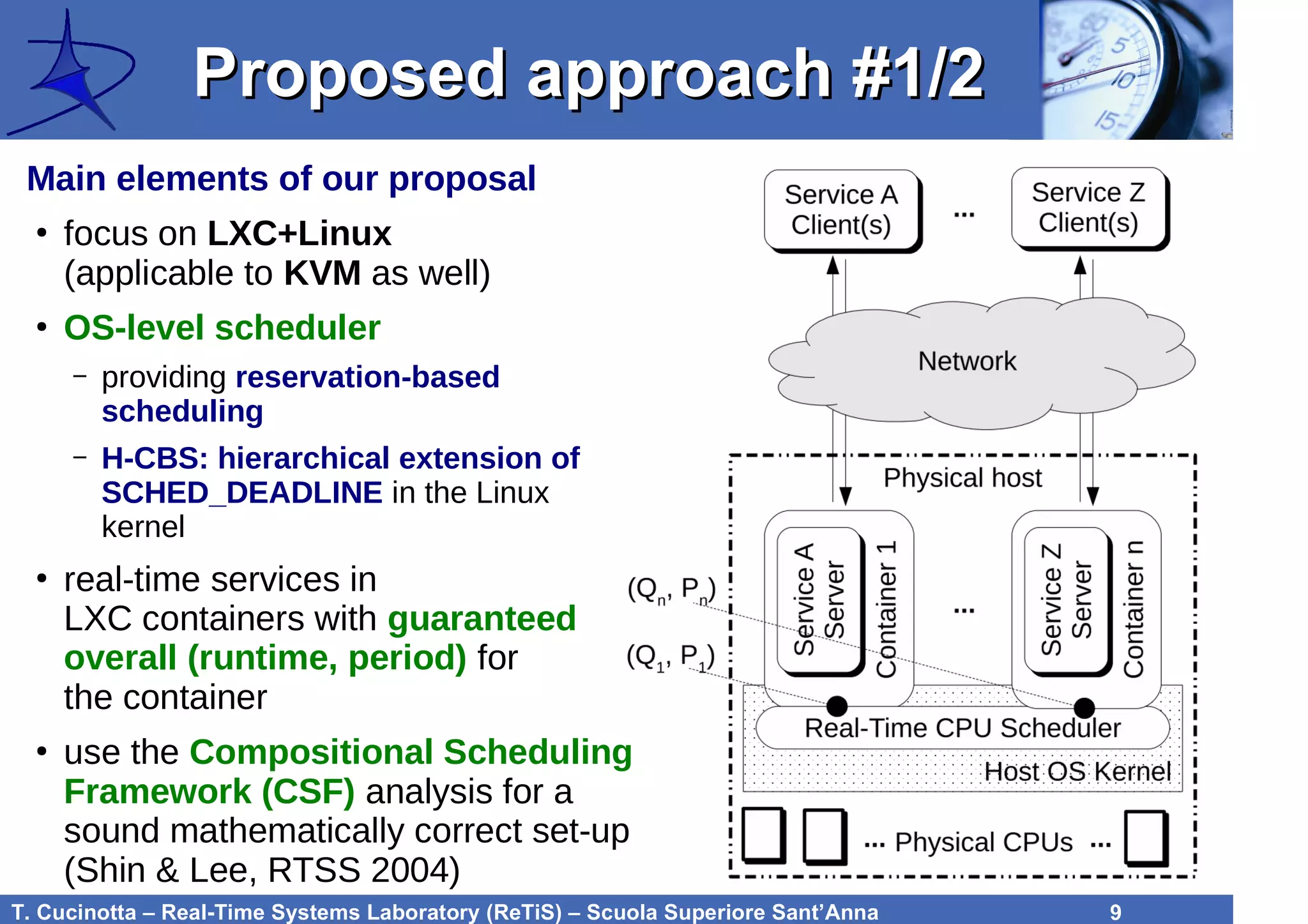

9. T. Cucinotta – Real-Time Systems Laboratory (ReTiS) – Scuola Superiore Sant’Anna 9
Proposed approach #1/2Proposed approach #1/2
Main elements of our proposal
●
focus on LXC+Linux
(applicable to KVM as well)
●
OS-level scheduler
– providing reservation-based
scheduling
– H-CBS: hierarchical extension of
SCHED_DEADLINE in the Linux
kernel
●
real-time services in
LXC containers with guaranteed
overall (runtime, period) for
the container
●
use the Compositional Scheduling
Framework (CSF) analysis for a
sound mathematically correct set-up
(Shin & Lee, RTSS 2004)

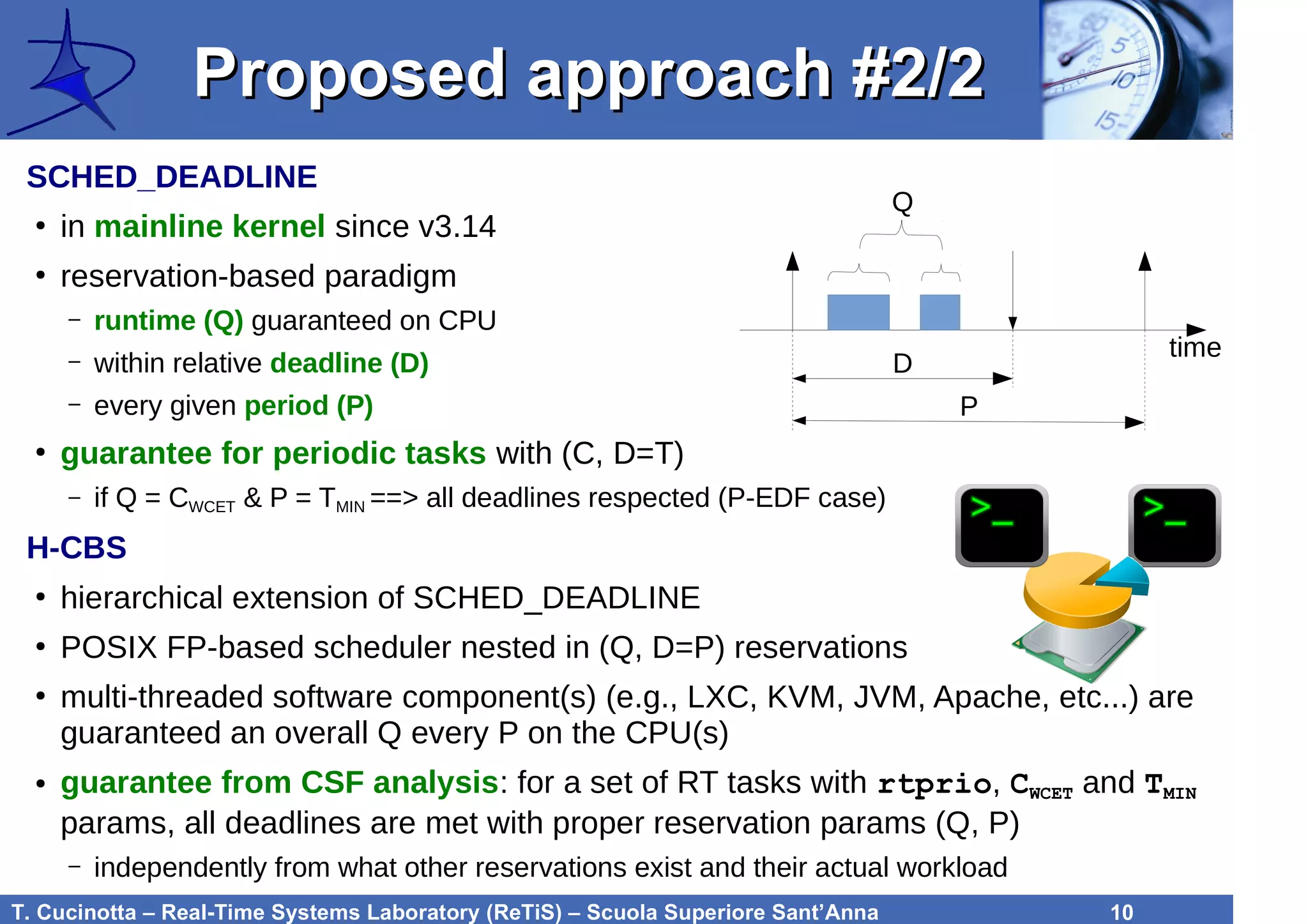

10. T. Cucinotta – Real-Time Systems Laboratory (ReTiS) – Scuola Superiore Sant’Anna 10
Proposed approach #2/2Proposed approach #2/2
SCHED_DEADLINE
●
in mainline kernel since v3.14
●
reservation-based paradigm
– runtime (Q) guaranteed on CPU
– within relative deadline (D)
– every given period (P)
●
guarantee for periodic tasks with (C, D=T)
– if Q = CWCET & P = TMIN ==> all deadlines respected (P-EDF case)
H-CBS
●
hierarchical extension of SCHED_DEADLINE
●
POSIX FP-based scheduler nested in (Q, D=P) reservations
●
multi-threaded software component(s) (e.g., LXC, KVM, JVM, Apache, etc...) are
guaranteed an overall Q every P on the CPU(s)
● guarantee from CSF analysis: for a set of RT tasks with rtprio, CWCET and TMIN
params, all deadlines are met with proper reservation params (Q, P)
– independently from what other reservations exist and their actual workload
D
P
Q
time

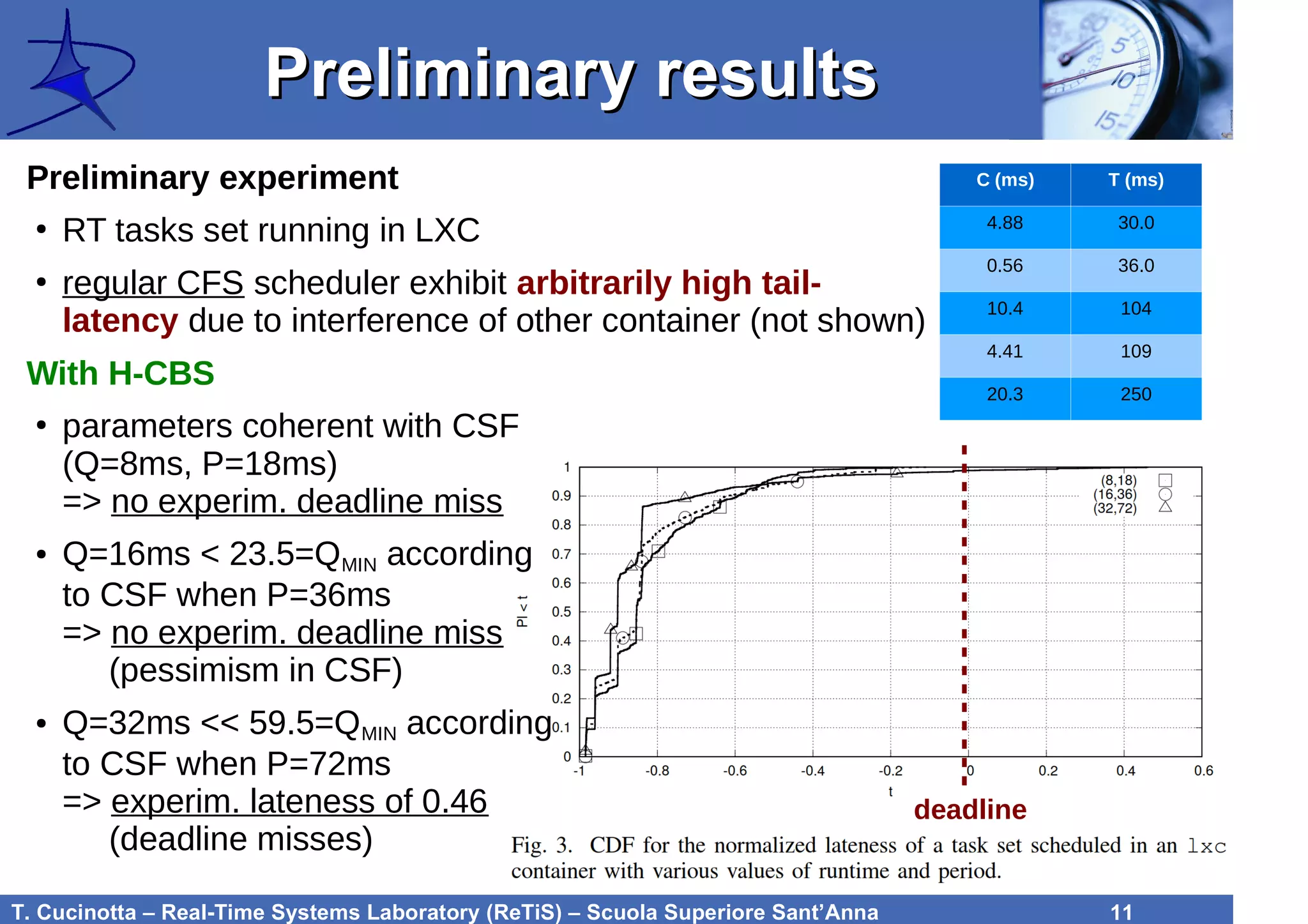

11. T. Cucinotta – Real-Time Systems Laboratory (ReTiS) – Scuola Superiore Sant’Anna 11
Preliminary resultsPreliminary results
Preliminary experiment
●
RT tasks set running in LXC
●
regular CFS scheduler exhibit arbitrarily high tail-
latency due to interference of other container (not shown)
With H-CBS
●
parameters coherent with CSF
(Q=8ms, P=18ms)
=> no experim. deadline miss
● Q=16ms < 23.5=QMIN according
to CSF when P=36ms
=> no experim. deadline miss
(pessimism in CSF)
● Q=32ms << 59.5=QMIN according
to CSF when P=72ms
=> experim. lateness of 0.46
(deadline misses)
C (ms) T (ms)
4.88 30.0
0.56 36.0
10.4 104
4.41 109
20.3 250
deadline

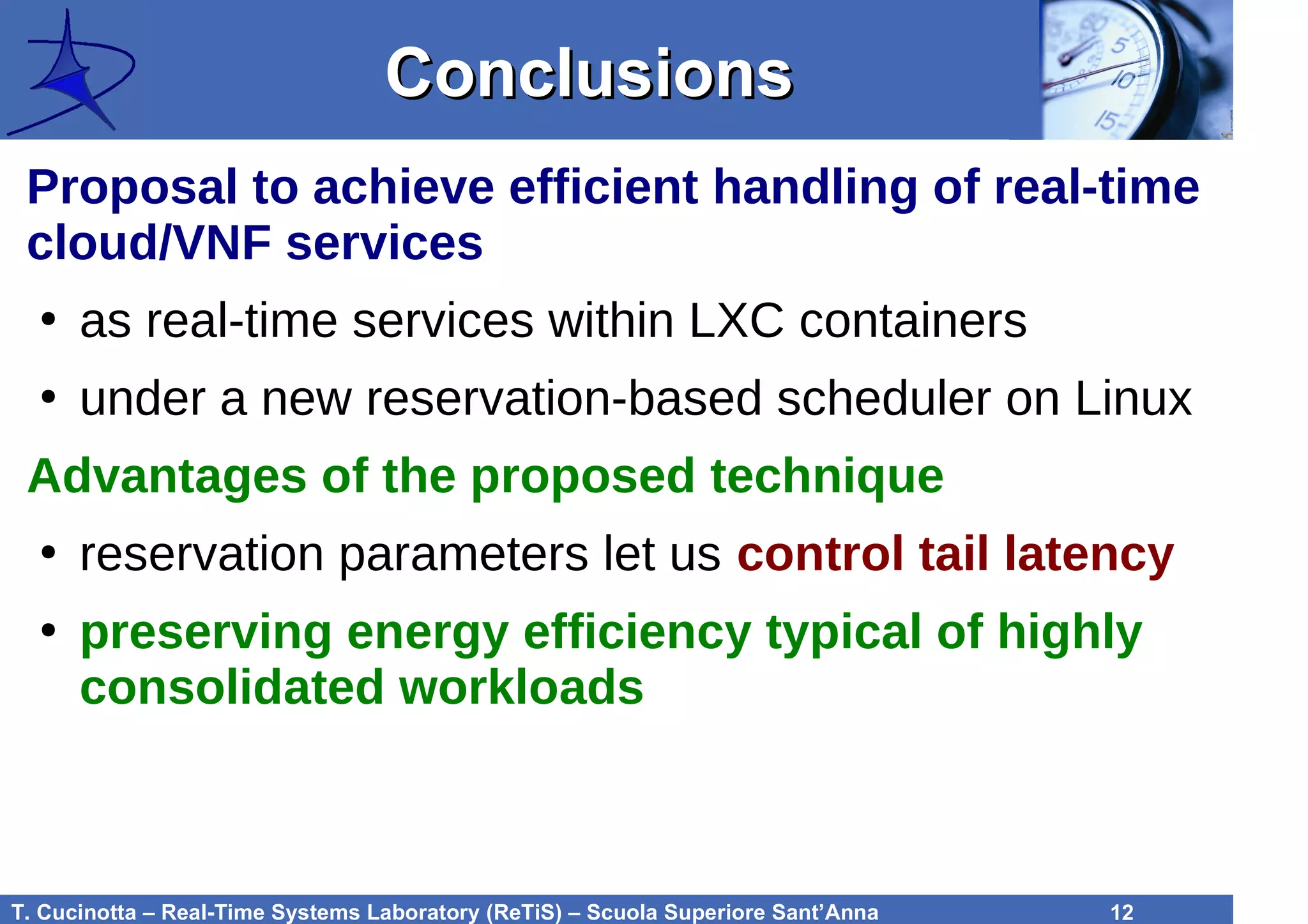

12. T. Cucinotta – Real-Time Systems Laboratory (ReTiS) – Scuola Superiore Sant’Anna 12
ConclusionsConclusions
Proposal to achieve efficient handling of real-time
cloud/VNF services
●
as real-time services within LXC containers
●
under a new reservation-based scheduler on Linux
Advantages of the proposed technique
●
reservation parameters let us control tail latency
●
preserving energy efficiency typical of highly
consolidated workloads

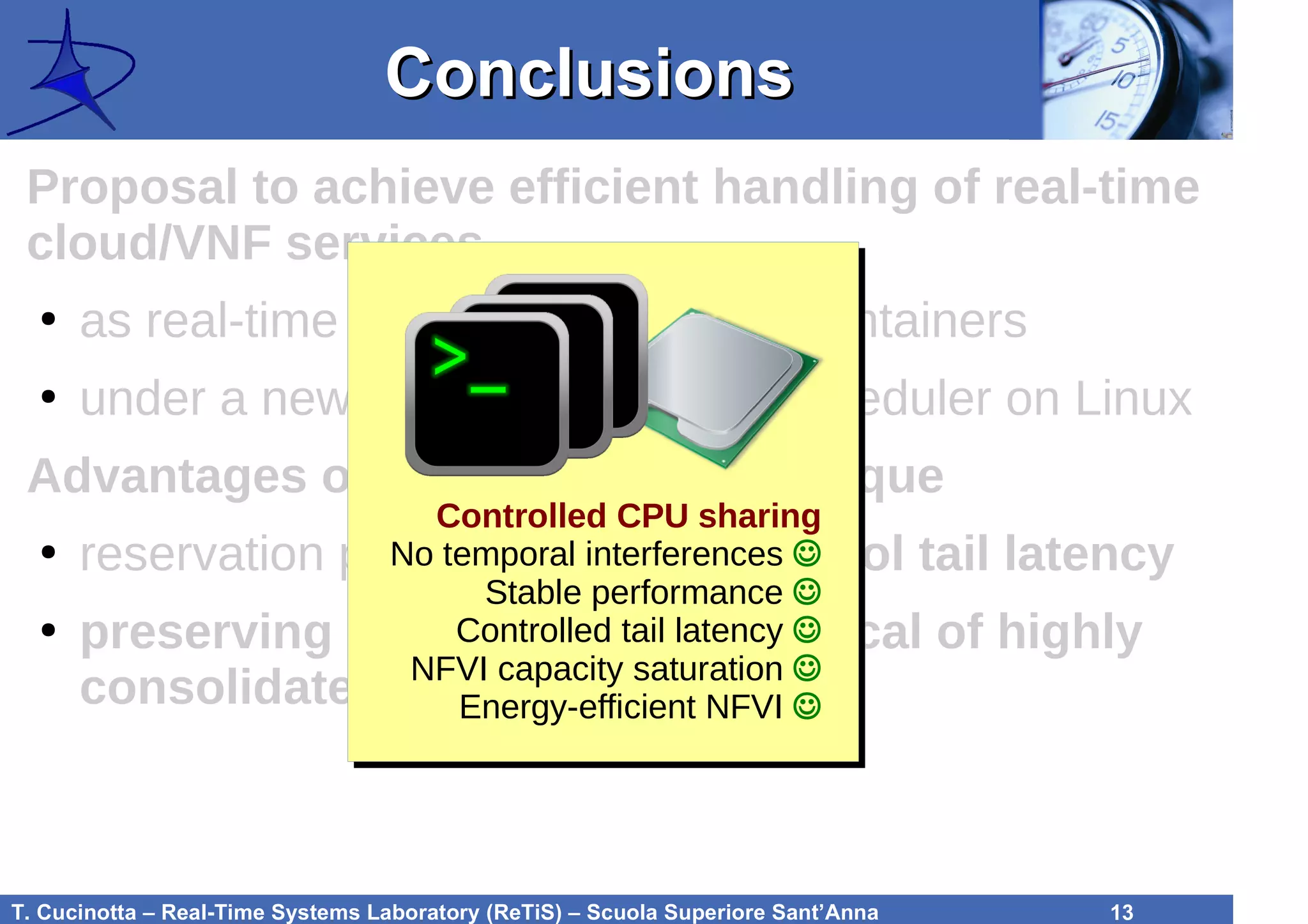

13. T. Cucinotta – Real-Time Systems Laboratory (ReTiS) – Scuola Superiore Sant’Anna 13
ConclusionsConclusions
Proposal to achieve efficient handling of real-time
cloud/VNF services
●
as real-time services within LXC containers
●
under a new reservation-based scheduler on Linux
Advantages of the proposed technique
●
reservation parameters let us control tail latency
●
preserving energy efficiency typical of highly
consolidated workloads
Controlled CPU sharing
No temporal interferences ☺
Stable performance ☺
Controlled tail latency ☺
NFVI capacity saturation ☺
Energy-efficient NFVI ☺

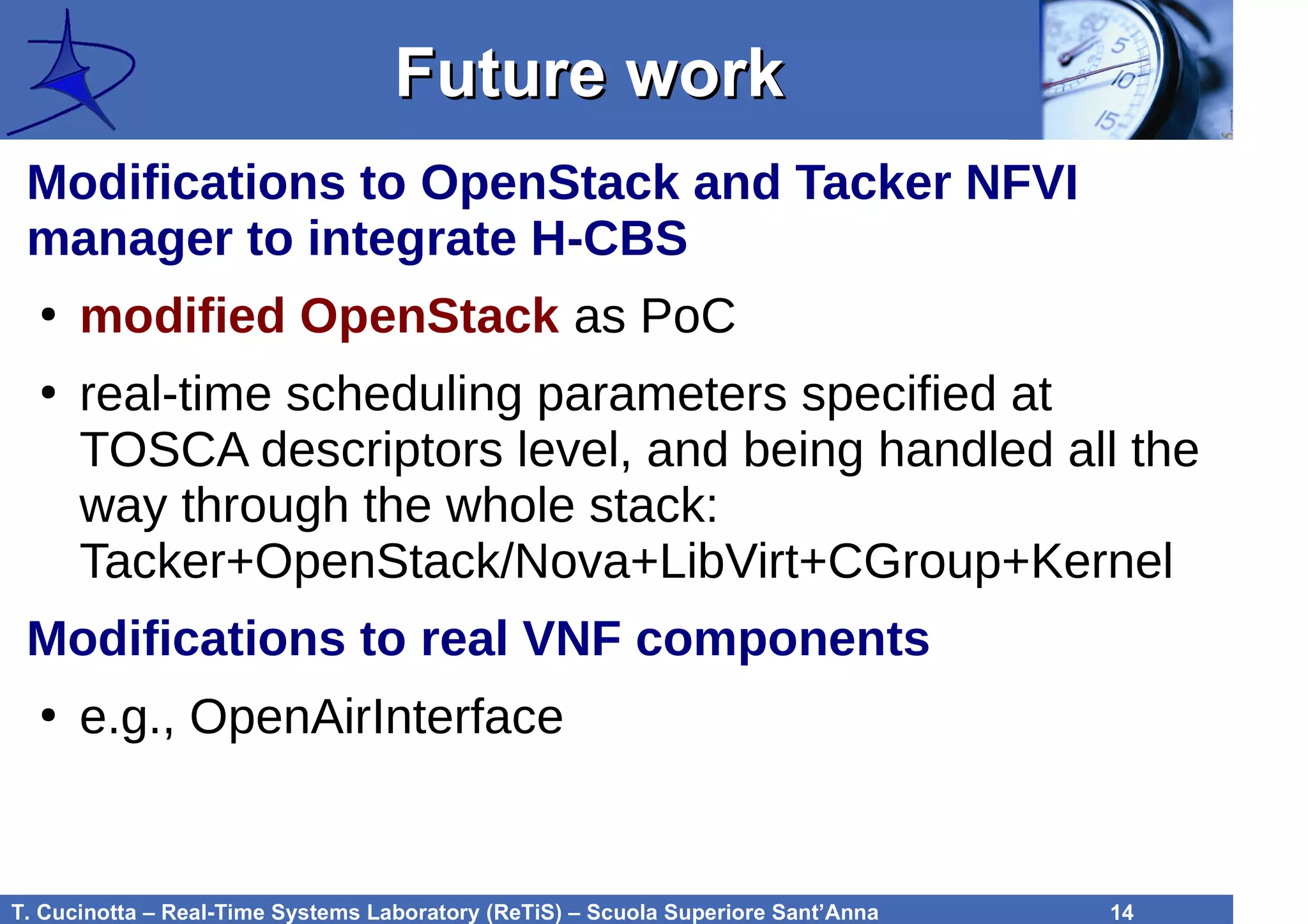

14. T. Cucinotta – Real-Time Systems Laboratory (ReTiS) – Scuola Superiore Sant’Anna 14
Future workFuture work
Modifications to OpenStack and Tacker NFVI
manager to integrate H-CBS
●
modified OpenStack as PoC
●
real-time scheduling parameters specified at
TOSCA descriptors level, and being handled all the
way through the whole stack:
Tacker+OpenStack/Nova+LibVirt+CGroup+Kernel
Modifications to real VNF components
●
e.g., OpenAirInterface

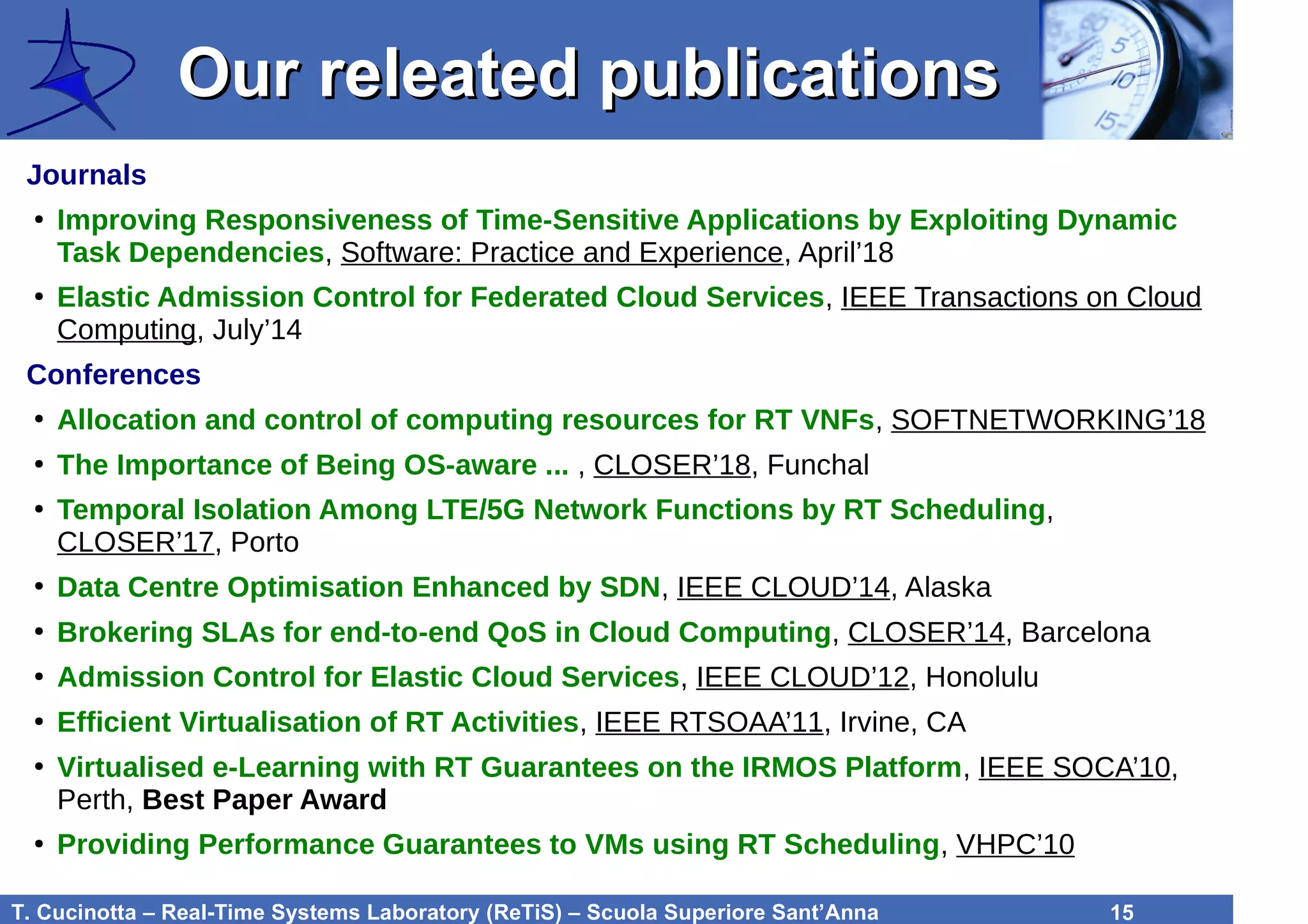

15. T. Cucinotta – Real-Time Systems Laboratory (ReTiS) – Scuola Superiore Sant’Anna 15
Our releated publicationsOur releated publications
Journals
●
Improving Responsiveness of Time-Sensitive Applications by Exploiting Dynamic
Task Dependencies, Software: Practice and Experience, April’18
●
Elastic Admission Control for Federated Cloud Services, IEEE Transactions on Cloud
Computing, July’14
Conferences
●
Allocation and control of computing resources for RT VNFs, SOFTNETWORKING’18
●
The Importance of Being OS-aware ... , CLOSER’18, Funchal
●
Temporal Isolation Among LTE/5G Network Functions by RT Scheduling,
CLOSER’17, Porto
●
Data Centre Optimisation Enhanced by SDN, IEEE CLOUD’14, Alaska
●
Brokering SLAs for end-to-end QoS in Cloud Computing, CLOSER’14, Barcelona
●
Admission Control for Elastic Cloud Services, IEEE CLOUD’12, Honolulu
●
Efficient Virtualisation of RT Activities, IEEE RTSOAA’11, Irvine, CA
●
Virtualised e-Learning with RT Guarantees on the IRMOS Platform, IEEE SOCA’10,
Perth, Best Paper Award
●
Providing Performance Guarantees to VMs using RT Scheduling, VHPC’10

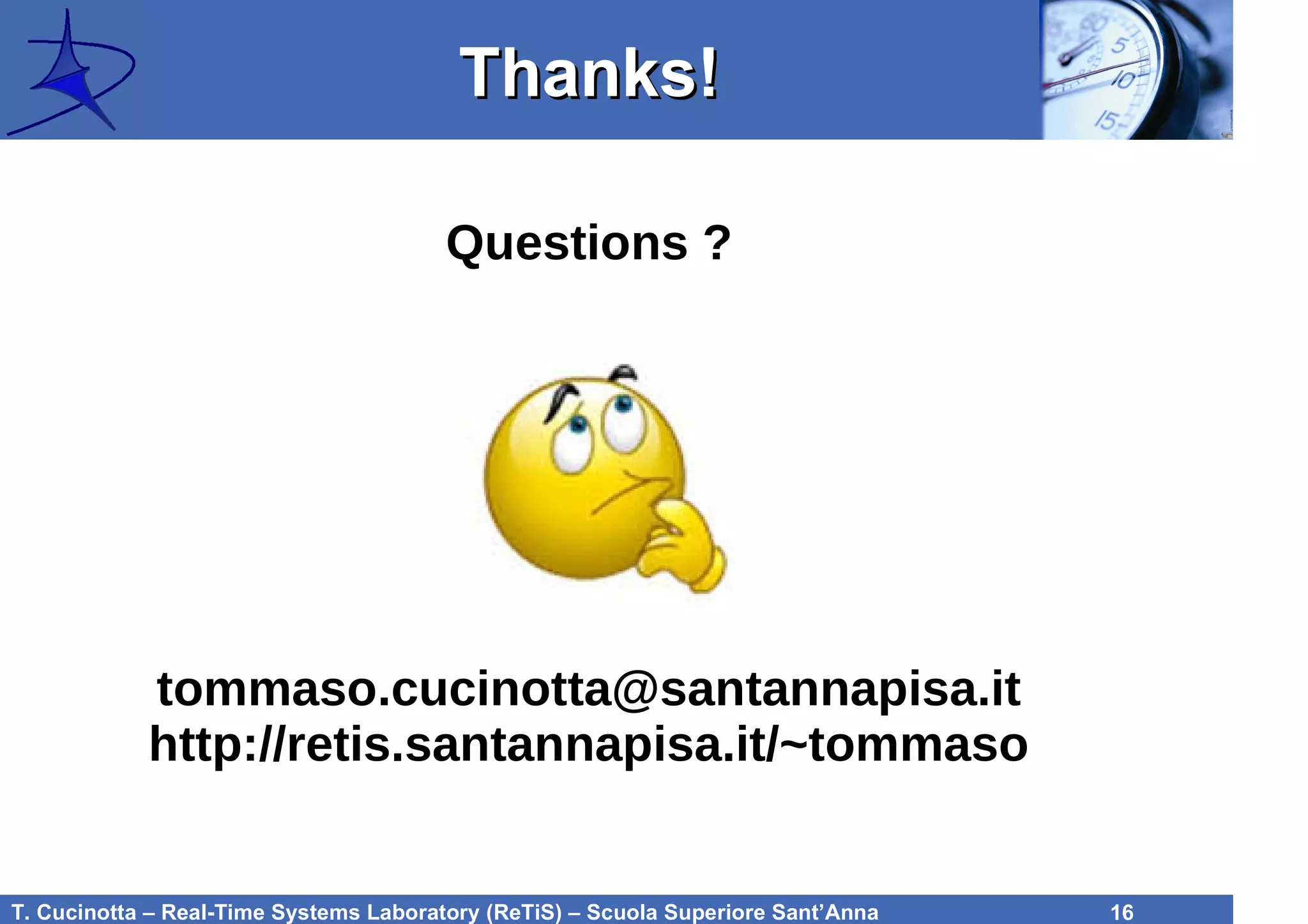

16. T. Cucinotta – Real-Time Systems Laboratory (ReTiS) – Scuola Superiore Sant’Anna 16
Questions ?
tommaso.cucinotta@santannapisa.it
http://retis.santannapisa.it/~tommaso
Thanks!Thanks!
