The document outlines various testing strategies for production streaming applications, focusing on both stateless and stateful operators. It highlights the importance of unit testing, end-to-end testing, manual pipeline tests, and integration tests, providing steps and pros and cons for each method. It emphasizes that every production application should undergo integration testing to ensure performance and reliability.

1. Testing production
streaming applications
Gyula Fora & Matyas Orhidi

2. © 2019 Cloudera, Inc. All rights reserved. 2

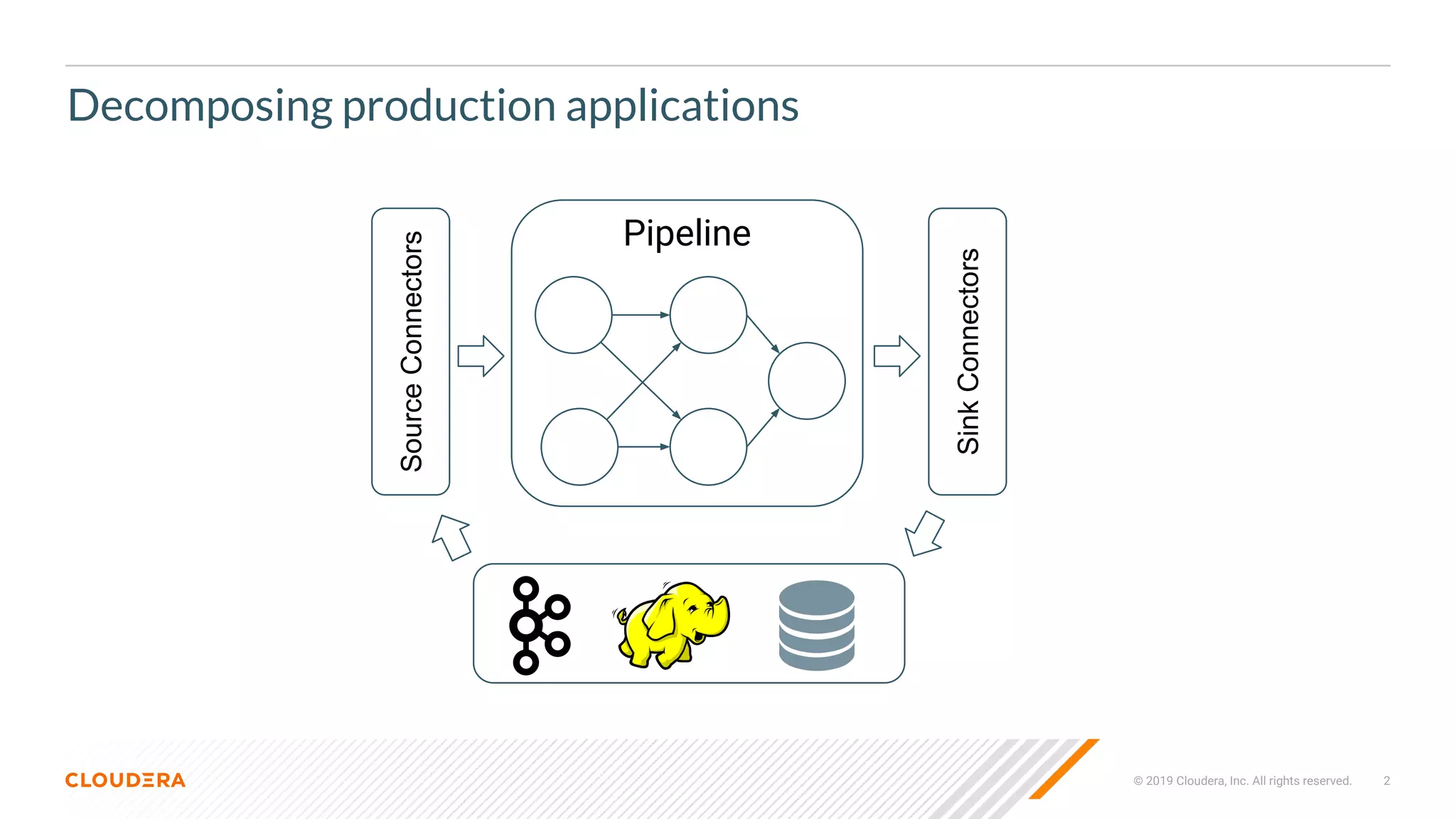

Decomposing production applications
Pipeline
SourceConnectors
SinkConnectors

3. Operator unit testing

4. © 2019 Cloudera, Inc. All rights reserved. 4

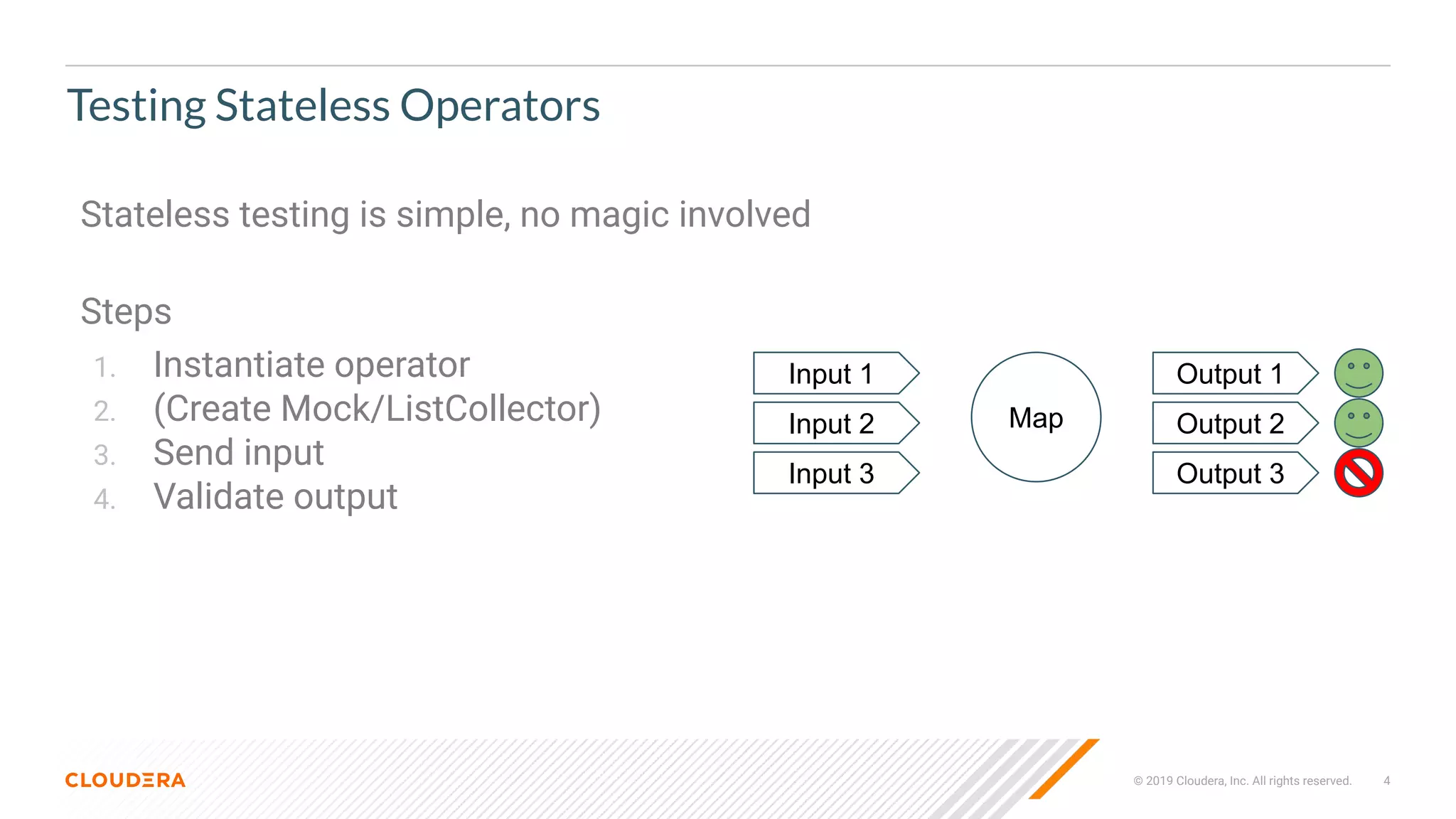

Testing Stateless Operators
Stateless testing is simple, no magic involved
Steps
1. Instantiate operator
2. (Create Mock/ListCollector)
3. Send input
4. Validate output
Map
Input 1
Input 2
Input 3
Output 1
Output 2
Output 3

5. © 2019 Cloudera, Inc. All rights reserved. 5

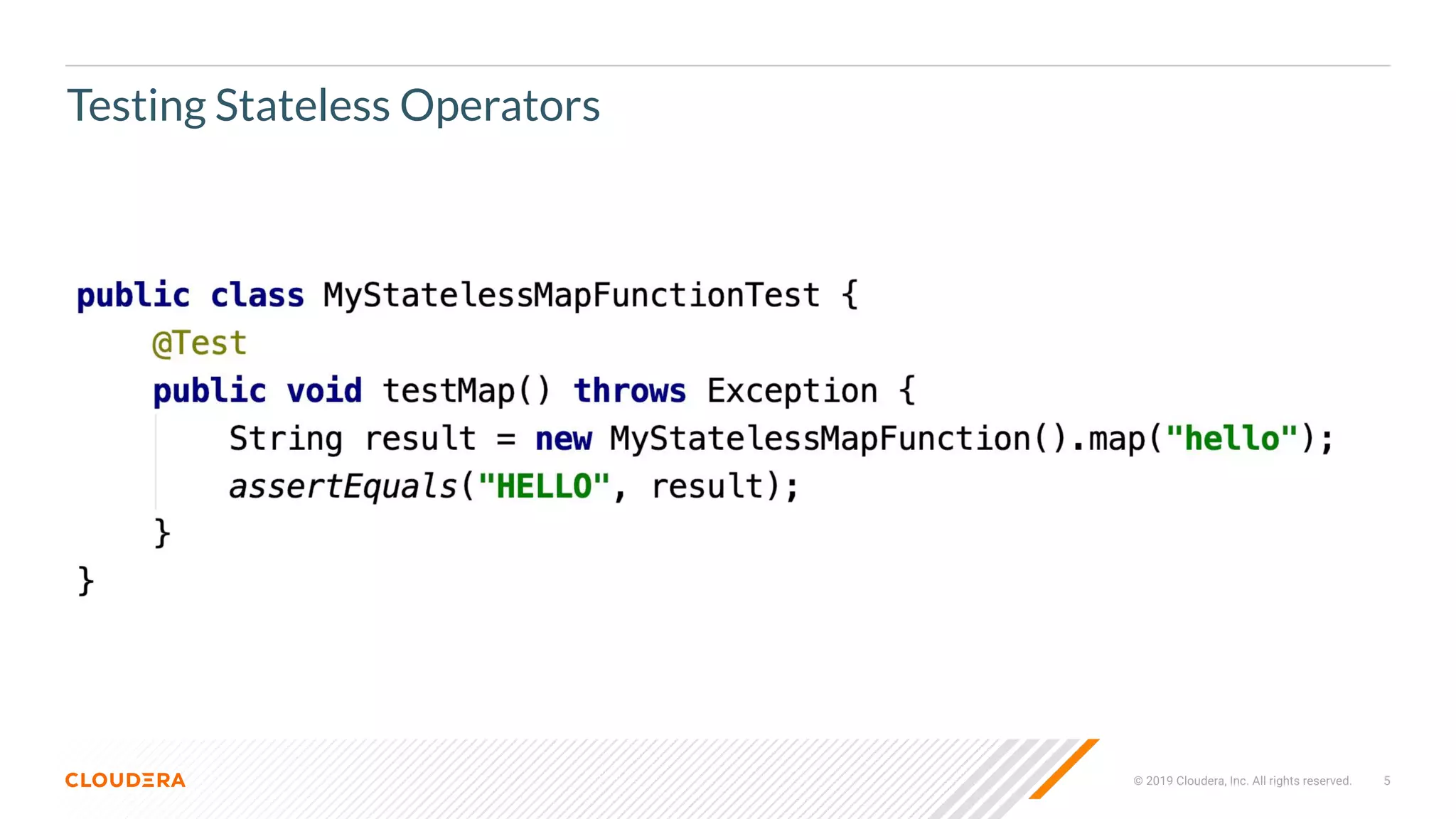

Testing Stateless Operators

6. © 2019 Cloudera, Inc. All rights reserved. 6

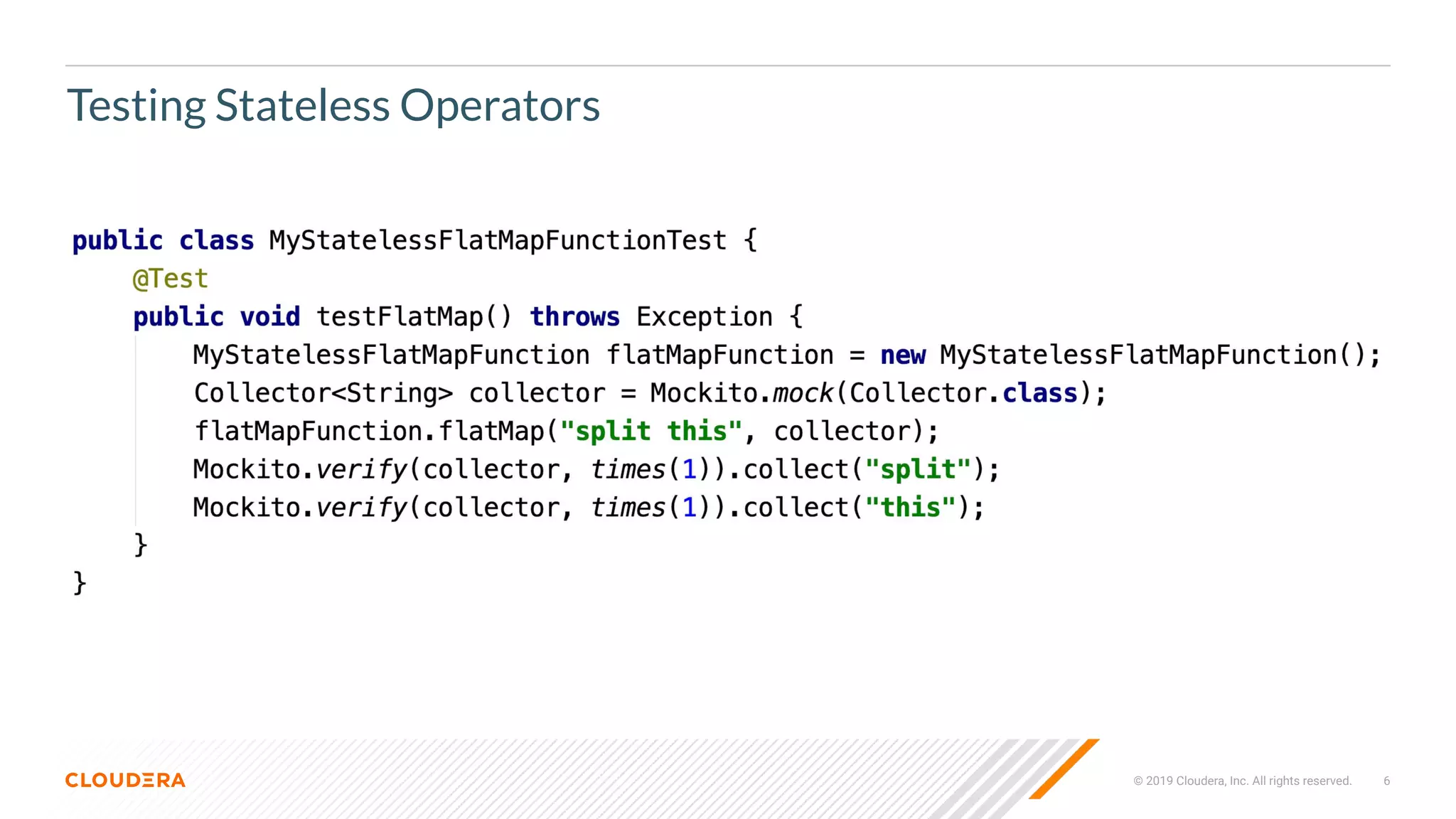

Testing Stateless Operators

7. © 2019 Cloudera, Inc. All rights reserved. 7

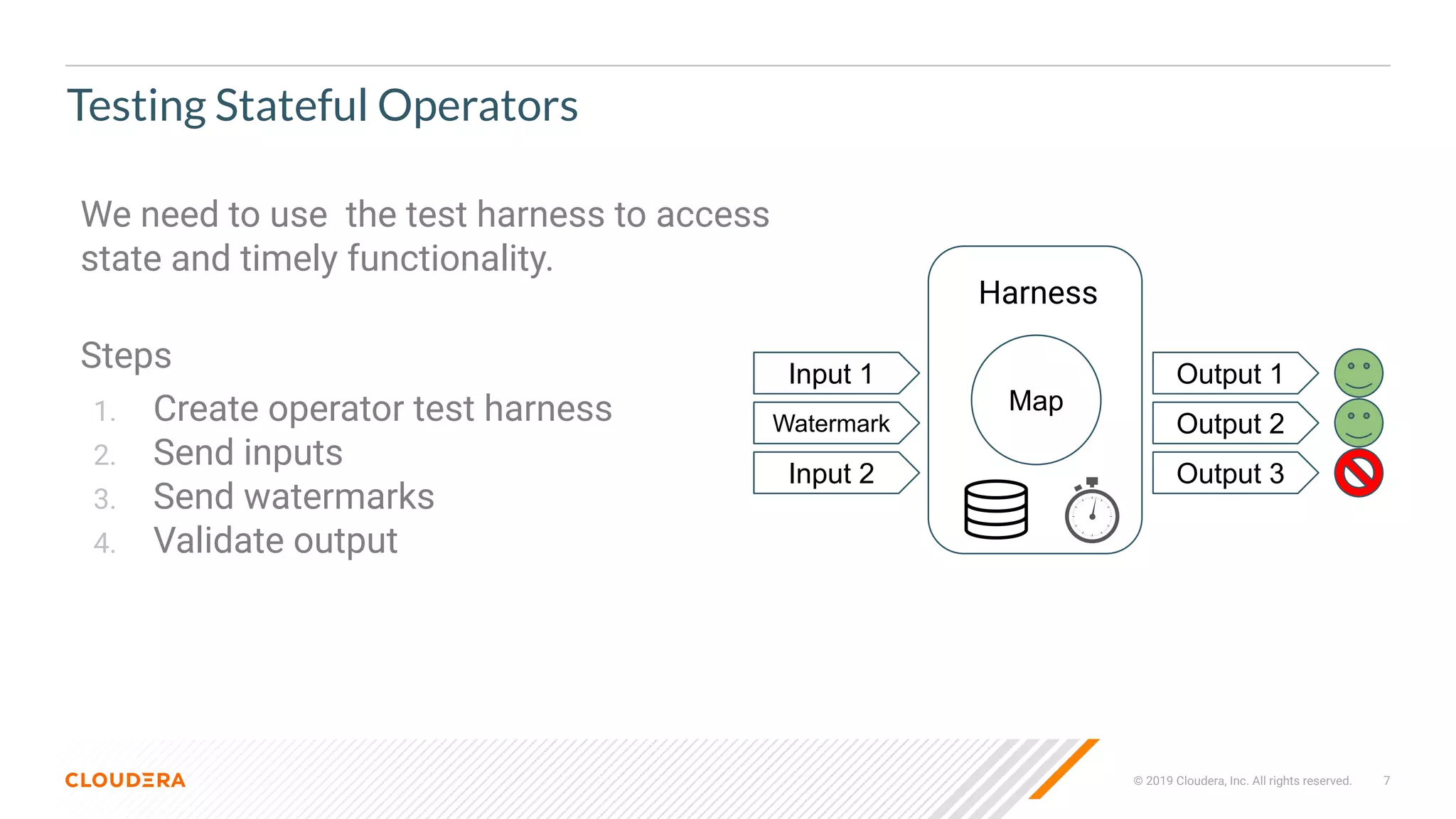

Testing Stateful Operators
Map
Input 1
Watermark
Input 2
Output 1
Output 2
Output 3
Harness
We need to use the test harness to access
state and timely functionality.
Steps
1. Create operator test harness
2. Send inputs
3. Send watermarks
4. Validate output

8. © 2019 Cloudera, Inc. All rights reserved. 8
Testing Stateful Operators

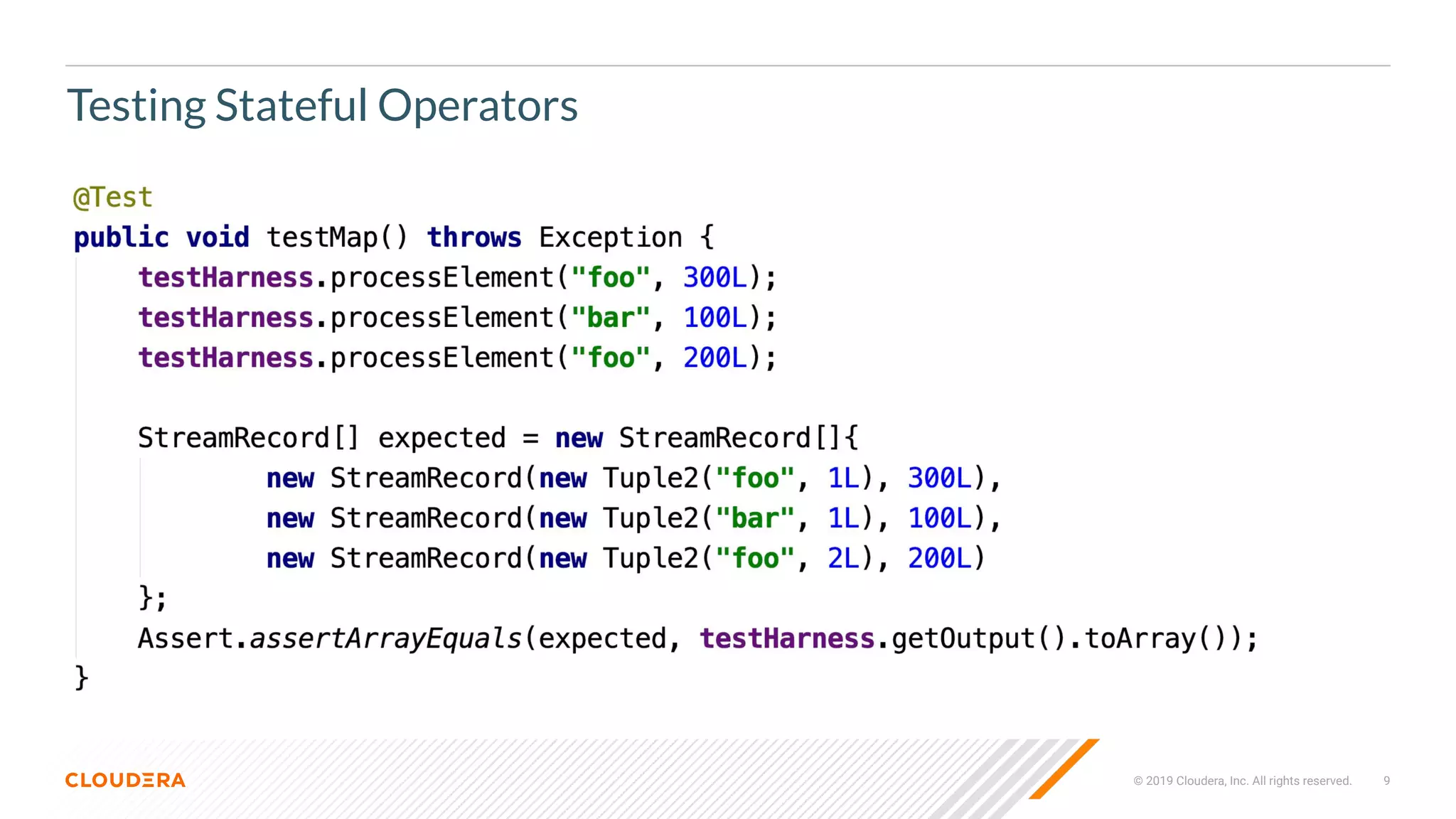

9. © 2019 Cloudera, Inc. All rights reserved. 9
Testing Stateful Operators

10. Pipeline / flow testing

11. © 2019 Cloudera, Inc. All rights reserved. 11

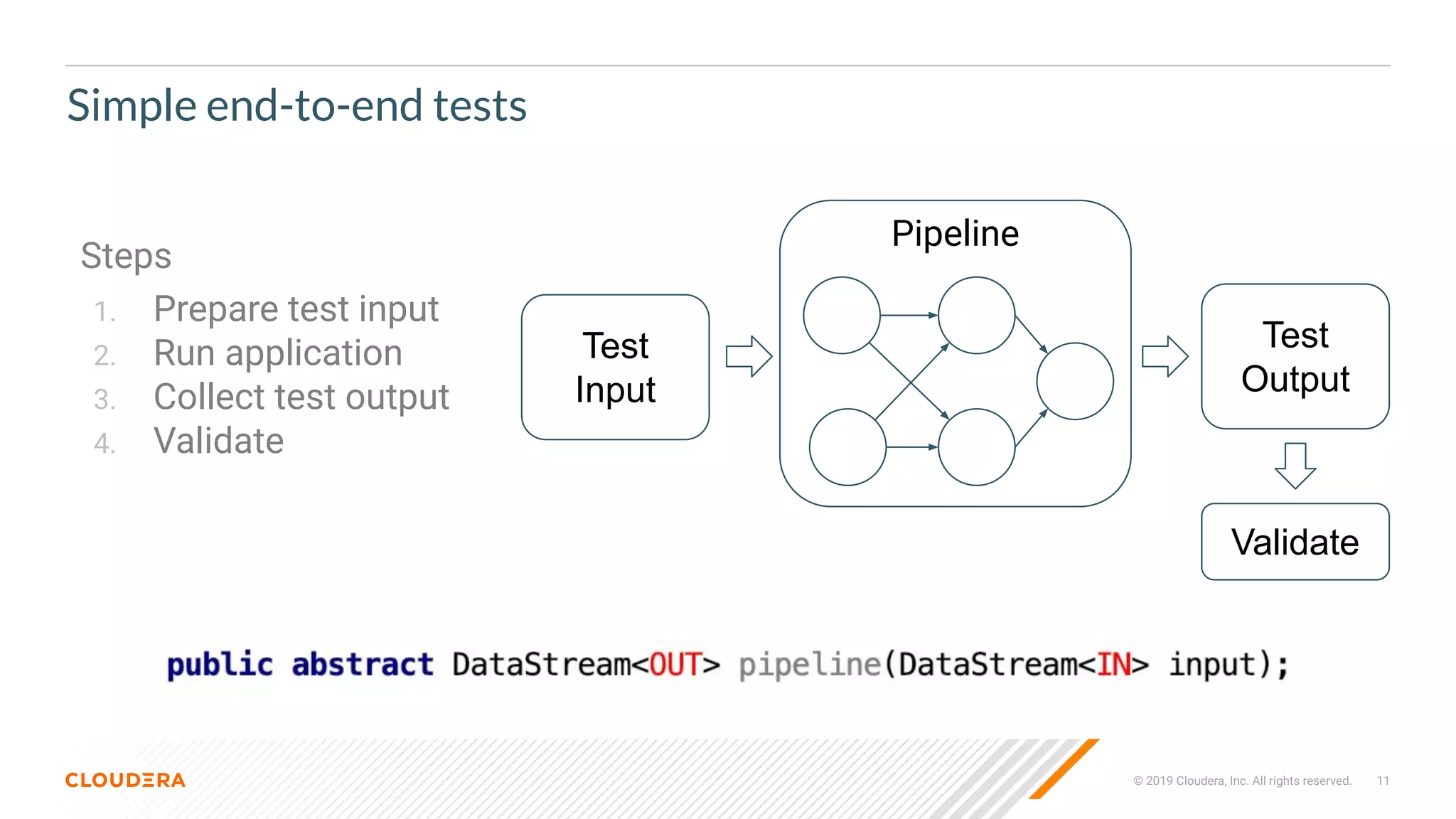

Simple end-to-end tests
Steps
1. Prepare test input
2. Run application
3. Collect test output
4. Validate
Pipeline
Test
Input
Test
Output
Validate

12. © 2019 Cloudera, Inc. All rights reserved. 12
Simple end-to-end tests

13. © 2019 Cloudera, Inc. All rights reserved. 13

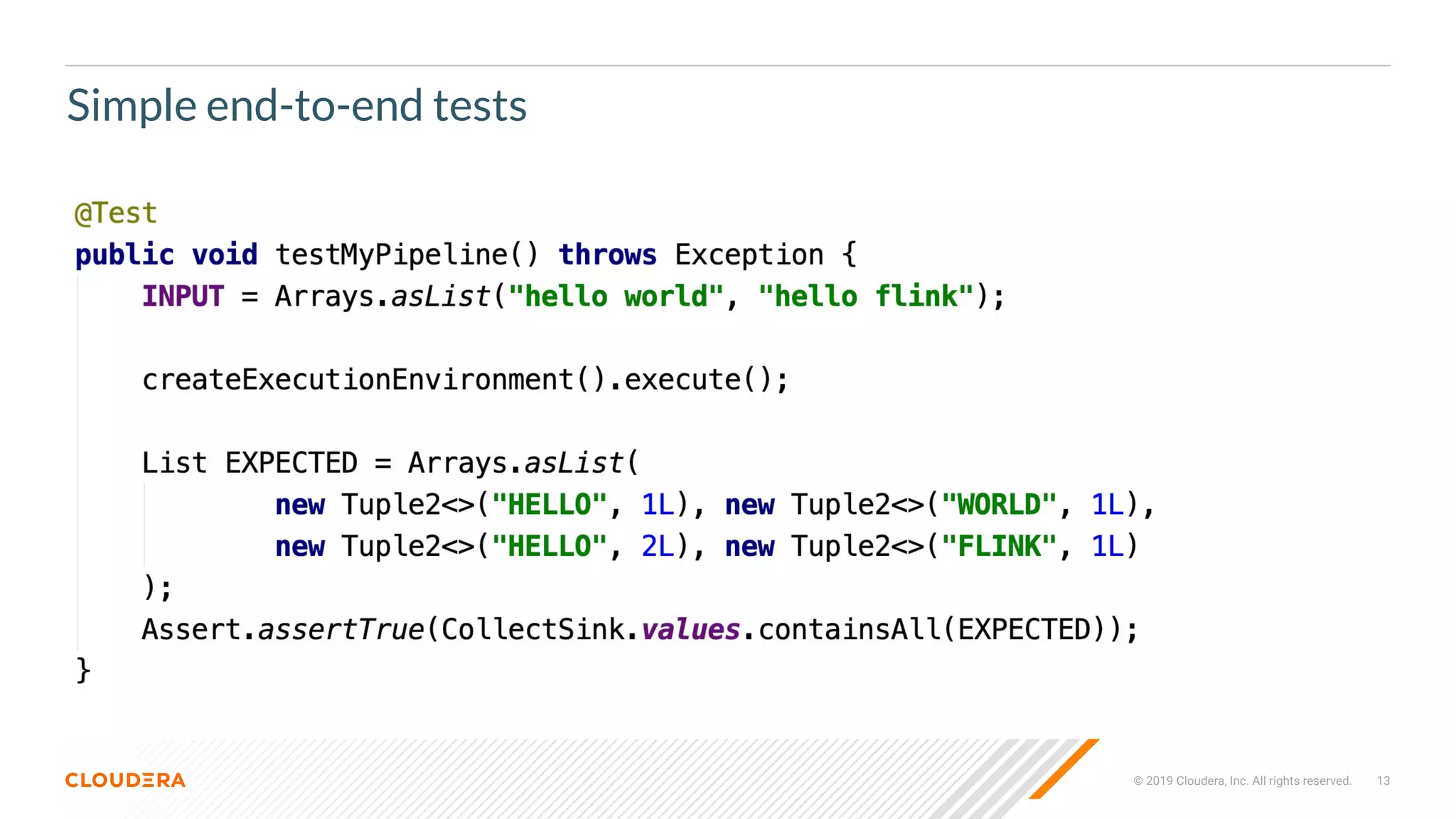

Simple end-to-end tests

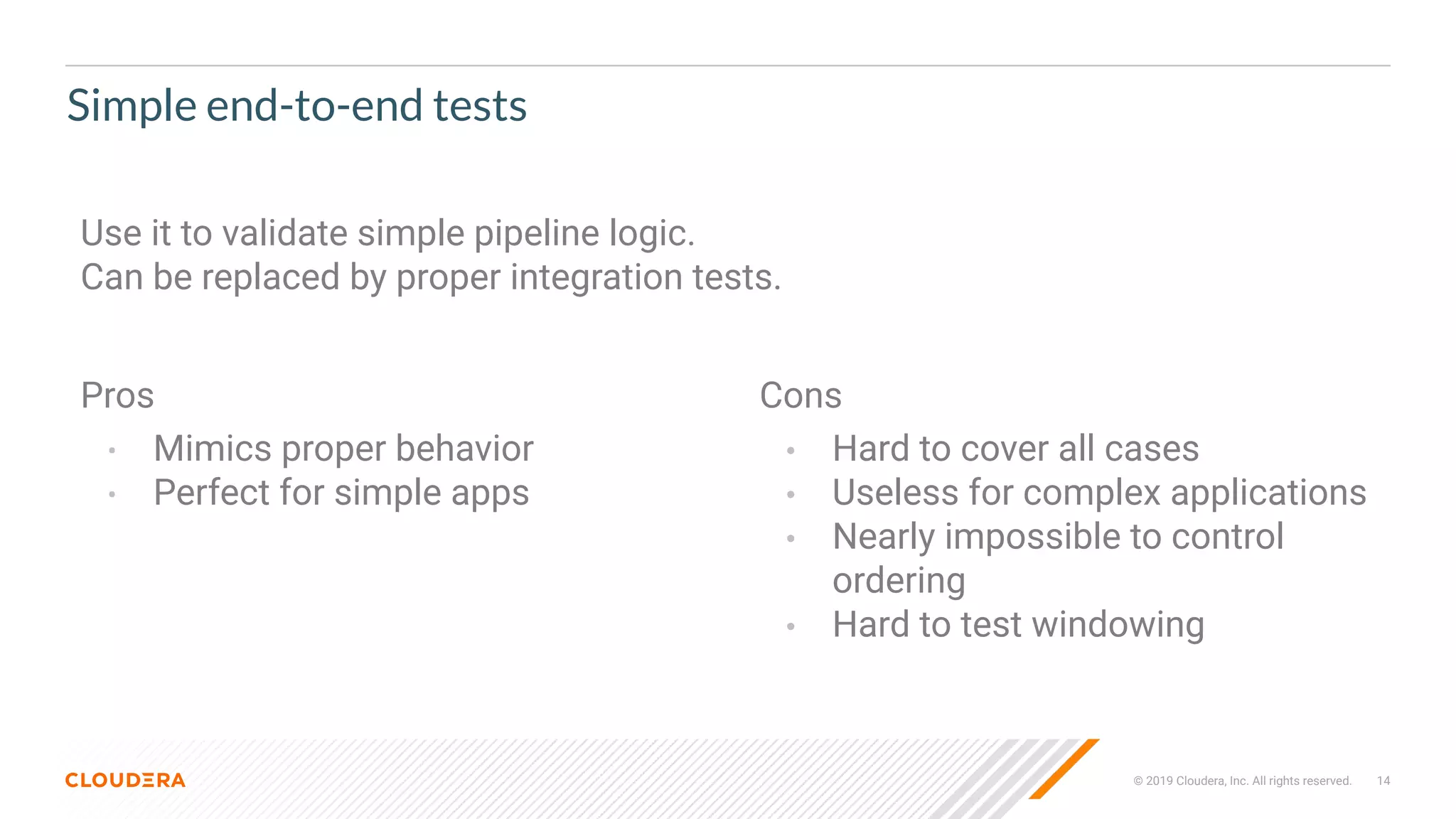

14. © 2019 Cloudera, Inc. All rights reserved. 14
Simple end-to-end tests
Pros
• Mimics proper behavior
• Perfect for simple apps
Cons
• Hard to cover all cases
• Useless for complex applications
• Nearly impossible to control
ordering
• Hard to test windowing
Use it to validate simple pipeline logic.
Can be replaced by proper integration tests.

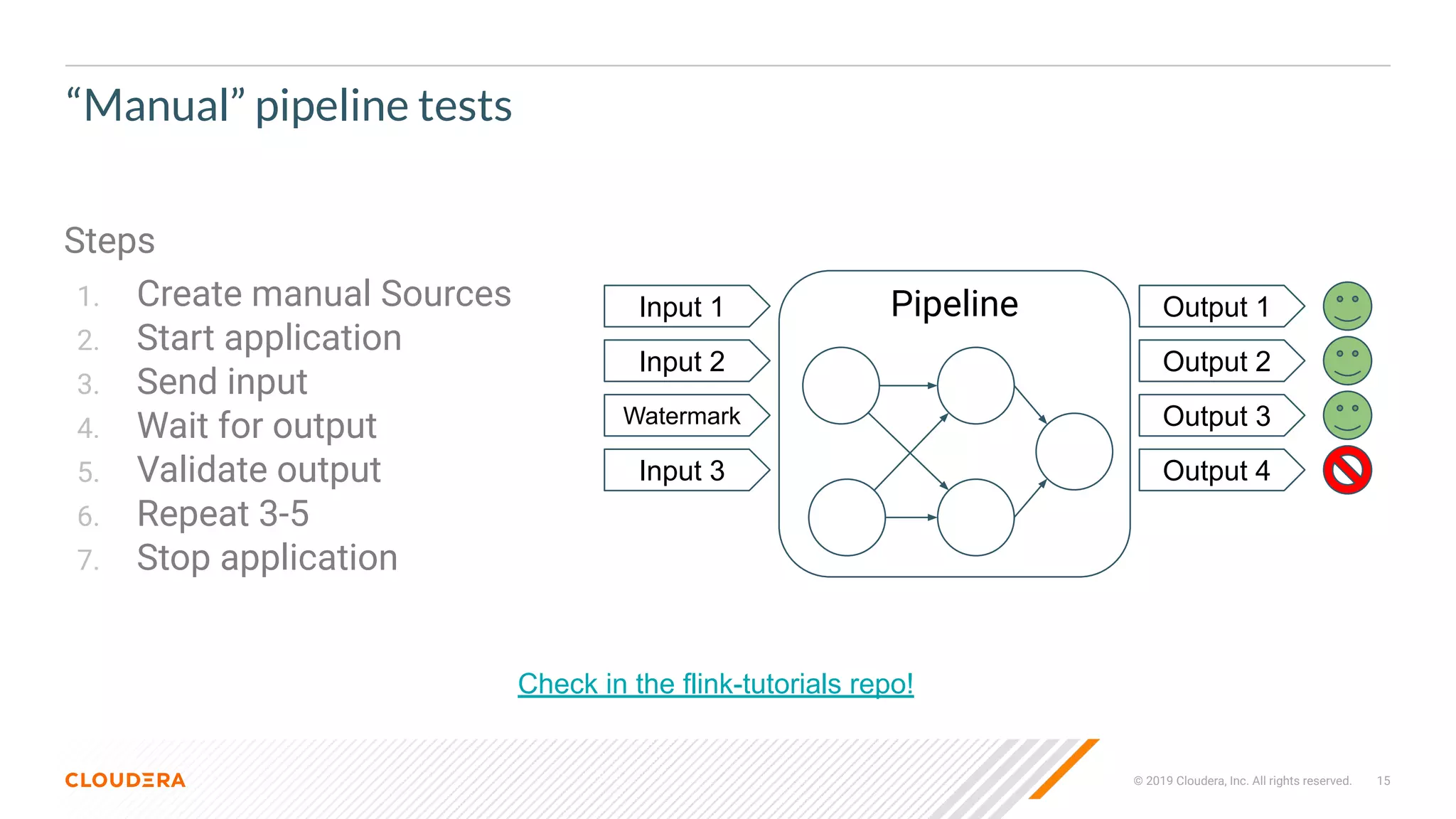

15. © 2019 Cloudera, Inc. All rights reserved. 15
“Manual” pipeline tests
Steps
1. Create manual Sources
2. Start application
3. Send input
4. Wait for output
5. Validate output
6. Repeat 3-5
7. Stop application
PipelineInput 1 Output 1
Input 2 Output 2
Watermark Output 3
Input 3 Output 4
Check in the flink-tutorials repo!

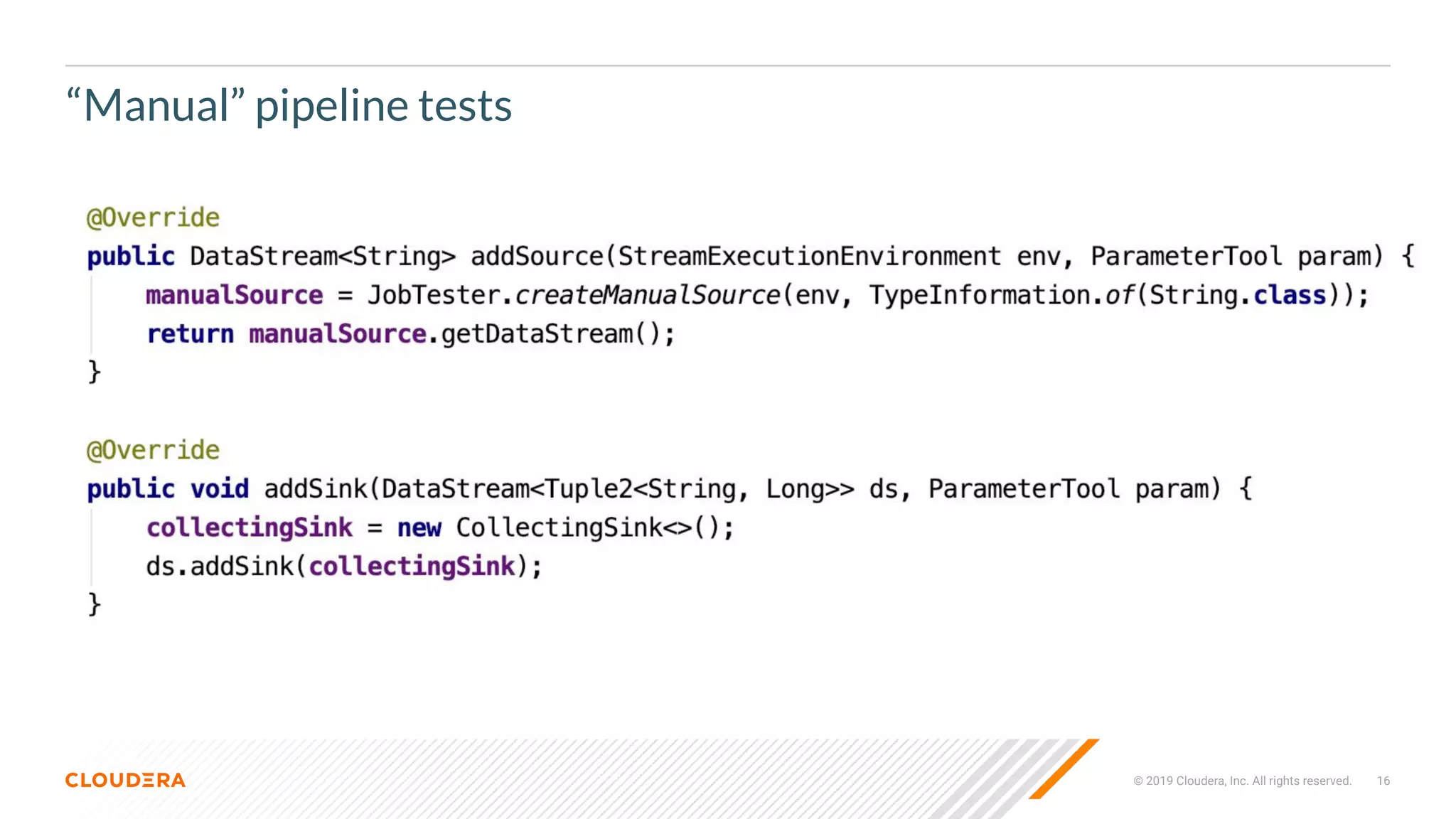

16. © 2019 Cloudera, Inc. All rights reserved. 16
“Manual” pipeline tests

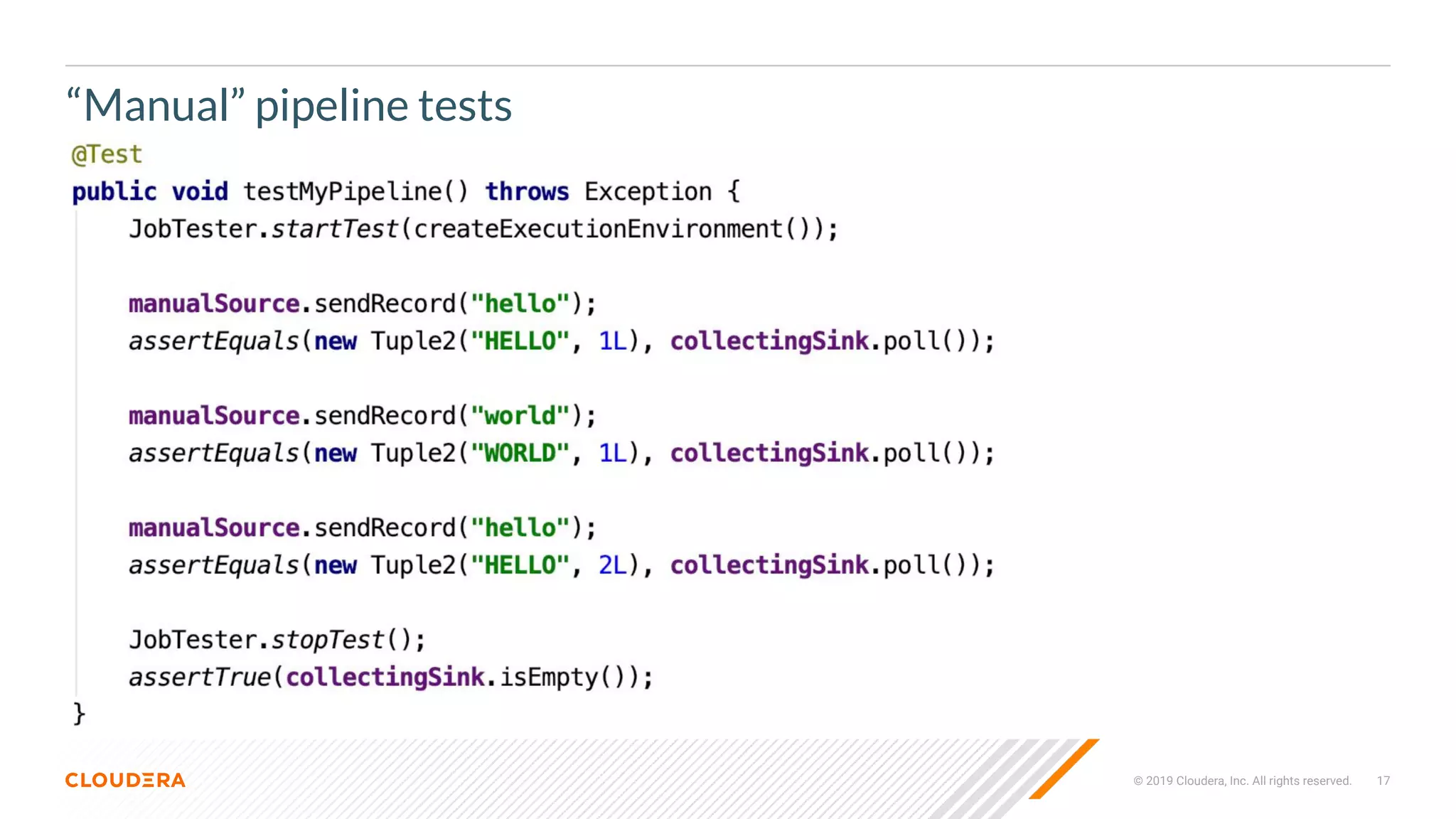

17. © 2019 Cloudera, Inc. All rights reserved. 17
“Manual” pipeline tests

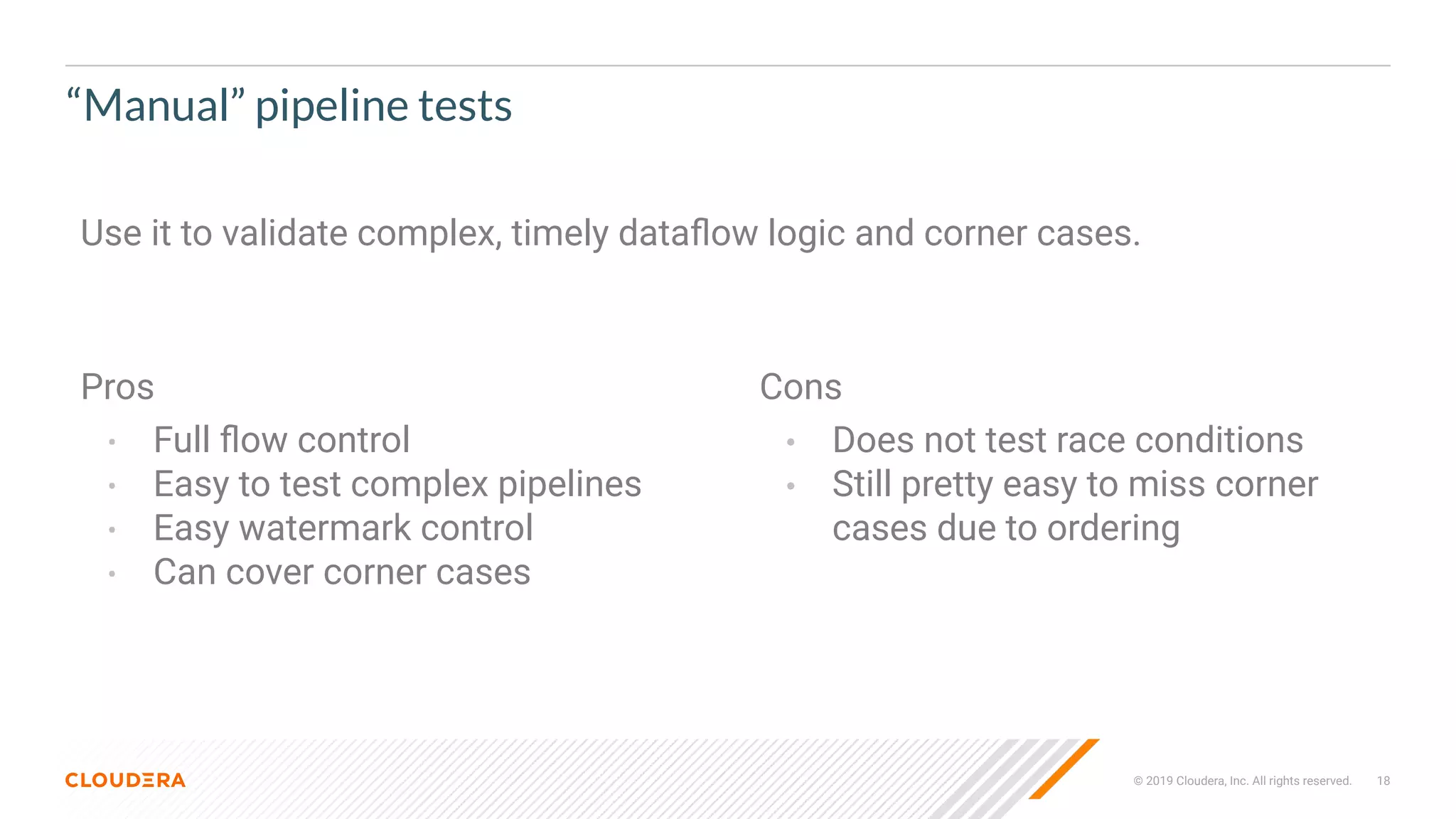

18. © 2019 Cloudera, Inc. All rights reserved. 18
“Manual” pipeline tests
Pros
• Full flow control
• Easy to test complex pipelines
• Easy watermark control
• Can cover corner cases
Cons
• Does not test race conditions
• Still pretty easy to miss corner
cases due to ordering
Use it to validate complex, timely dataflow logic and corner cases.

19. Integration testing

20. © 2019 Cloudera, Inc. All rights reserved. 20

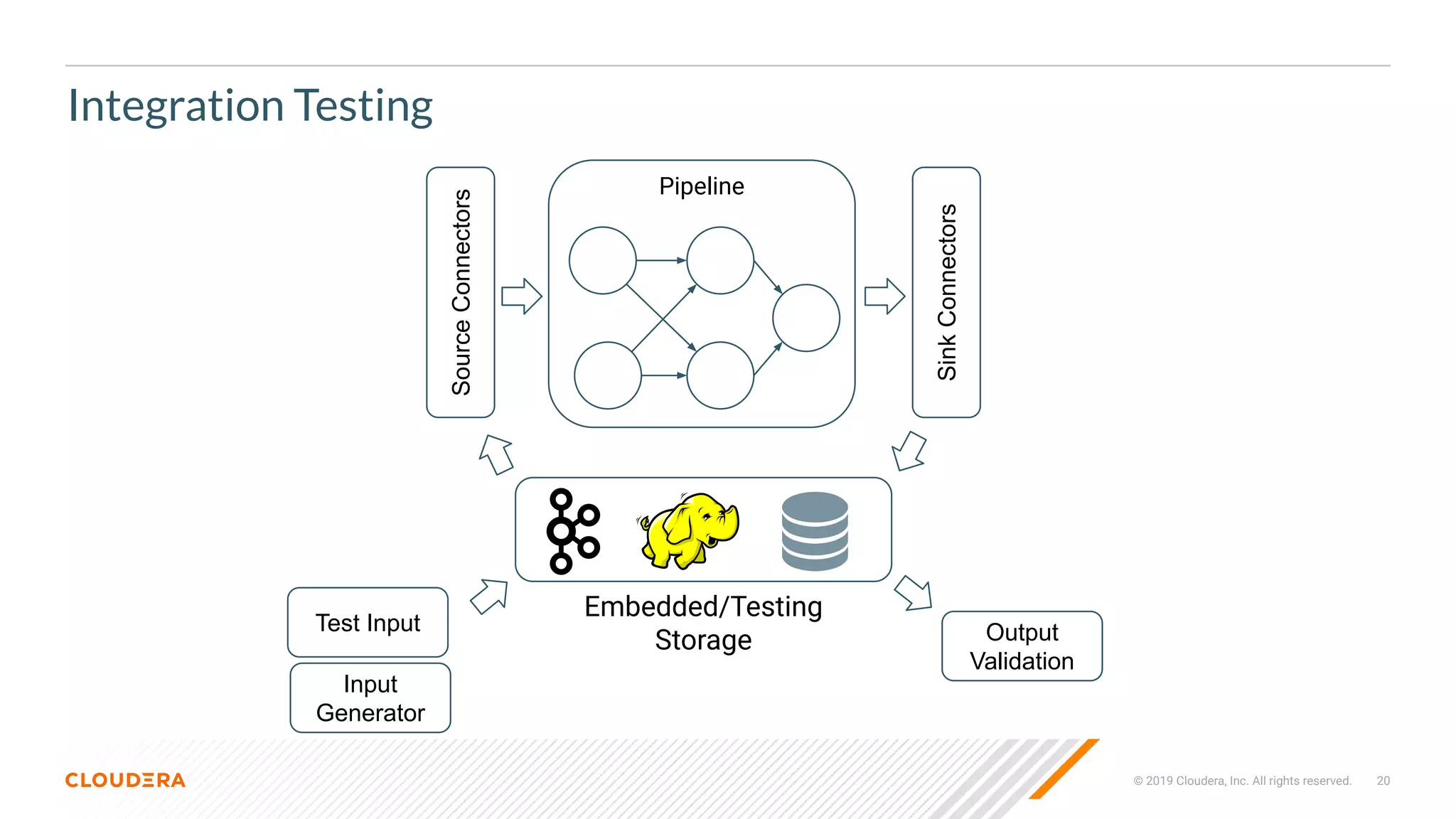

Integration Testing
Pipeline
SourceConnectors
SinkConnectors
Embedded/Testing
Storage
Test Input
Input
Generator
Output
Validation

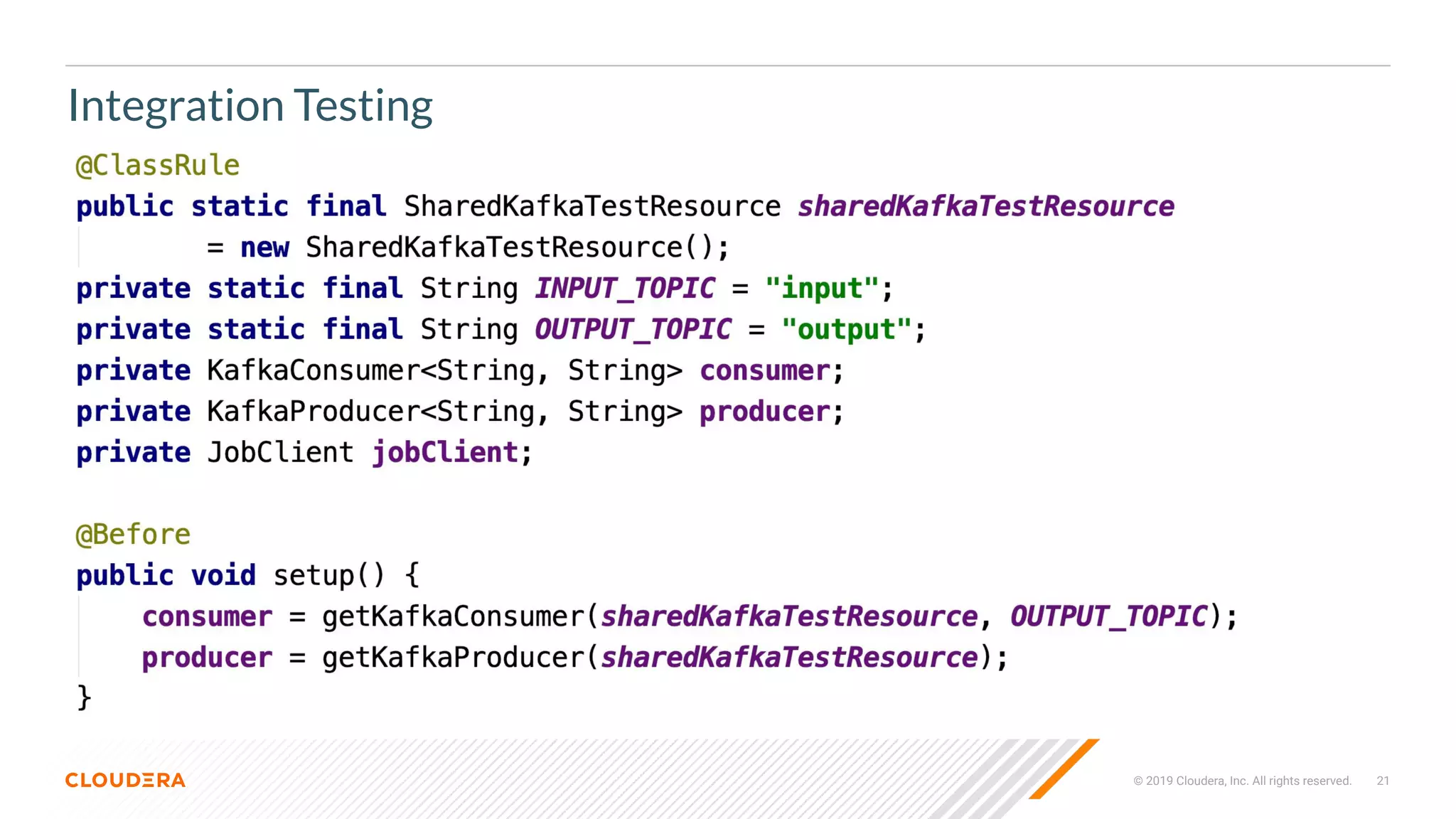

21. © 2019 Cloudera, Inc. All rights reserved. 21
Integration Testing

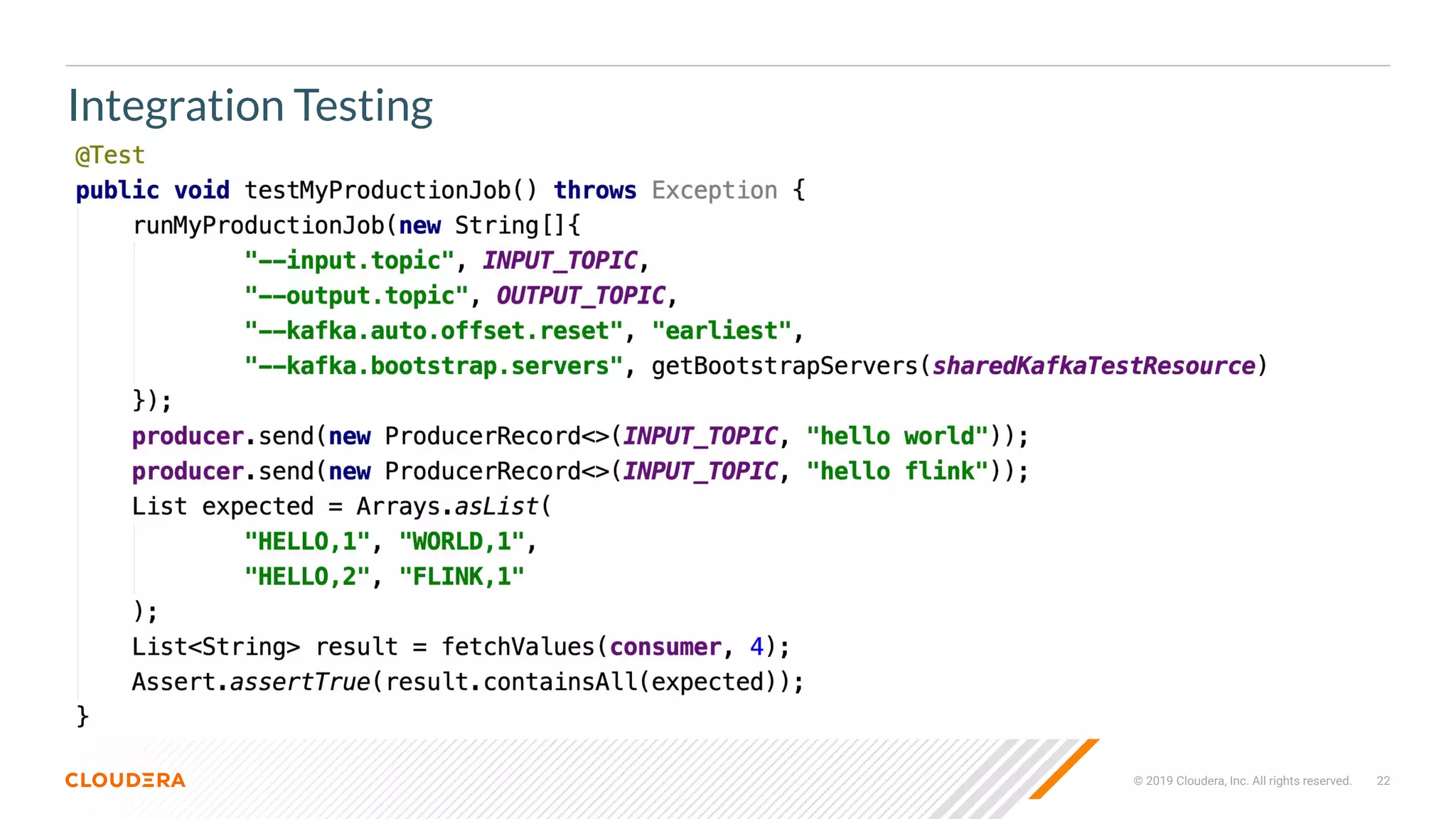

22. © 2019 Cloudera, Inc. All rights reserved. 22
Integration Testing

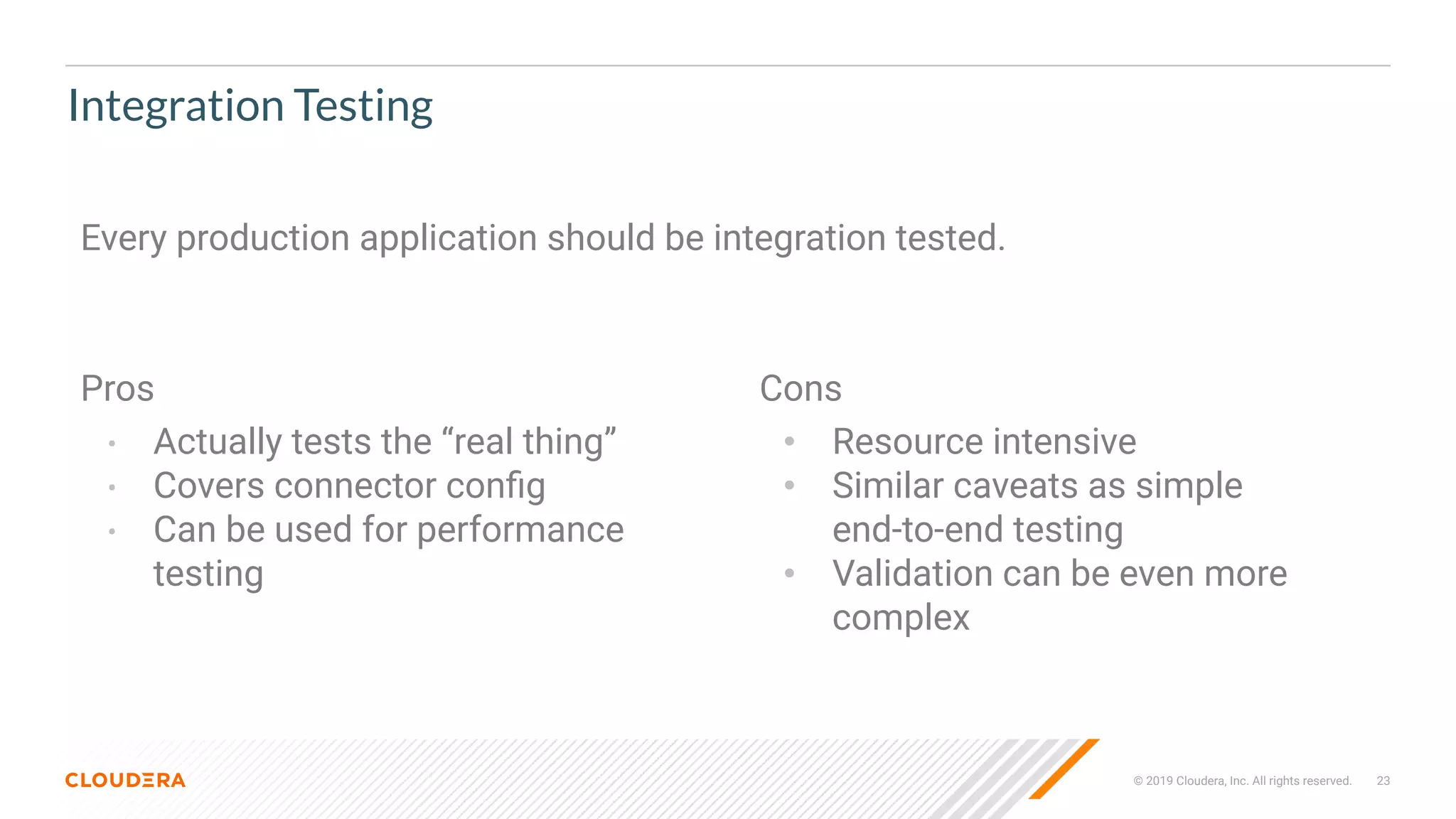

23. © 2019 Cloudera, Inc. All rights reserved. 23
Integration Testing
Pros
• Actually tests the “real thing”
• Covers connector config
• Can be used for performance
testing
Cons
• Resource intensive
• Similar caveats as simple
end-to-end testing
• Validation can be even more
complex
Every production application should be integration tested.

24. Wrapping up

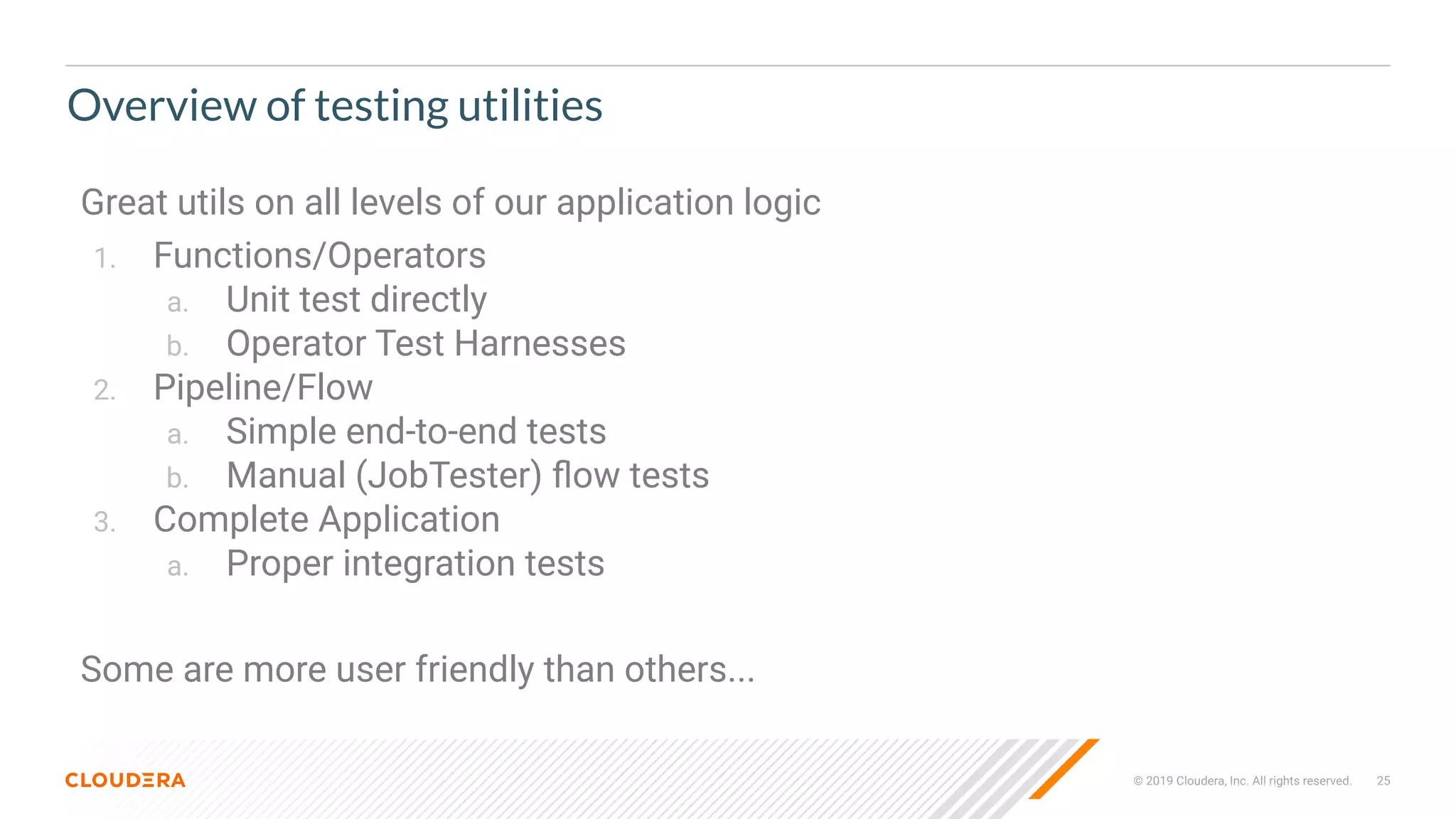

25. © 2019 Cloudera, Inc. All rights reserved. 25
Overview of testing utilities
Great utils on all levels of our application logic
1. Functions/Operators
a. Unit test directly
b. Operator Test Harnesses
2. Pipeline/Flow
a. Simple end-to-end tests
b. Manual (JobTester) flow tests
3. Complete Application
a. Proper integration tests
Some are more user friendly than others...

26. © 2019 Cloudera, Inc. All rights reserved. 26
Thank you!

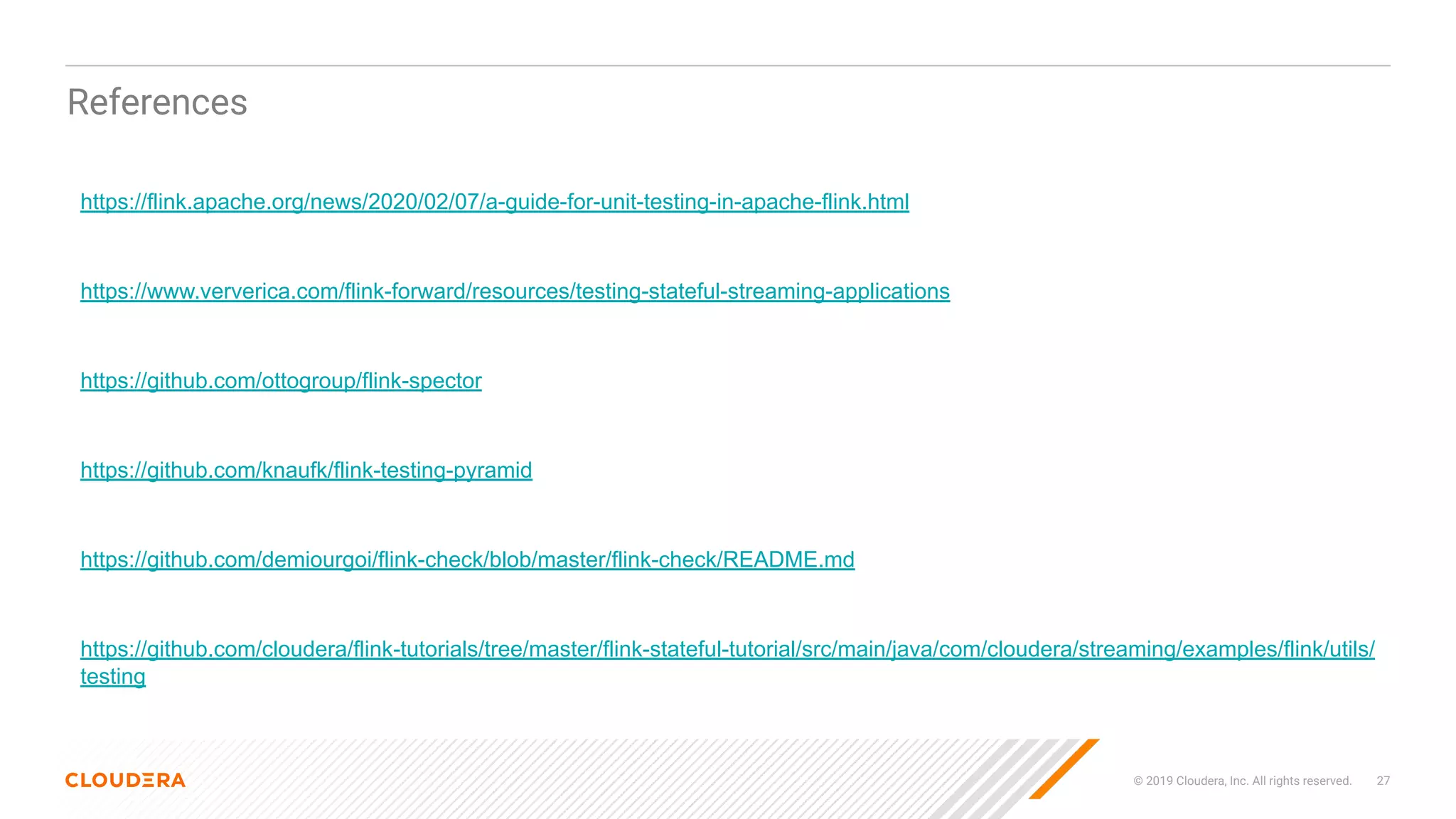

27. © 2019 Cloudera, Inc. All rights reserved. 27
References
https://flink.apache.org/news/2020/02/07/a-guide-for-unit-testing-in-apache-flink.html
https://www.ververica.com/flink-forward/resources/testing-stateful-streaming-applications
https://github.com/ottogroup/flink-spector
https://github.com/knaufk/flink-testing-pyramid
https://github.com/demiourgoi/flink-check/blob/master/flink-check/README.md
https://github.com/cloudera/flink-tutorials/tree/master/flink-stateful-tutorial/src/main/java/com/cloudera/streaming/examples/flink/utils/
testing
