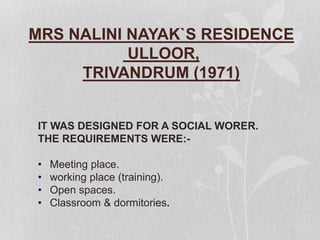

2. MRS NALINI NAYAK`S RESIDENCE
ULLOOR,
TRIVANDRUM (1971)
IT WAS DESIGNED FOR A SOCIAL WORER.
THE REQUIREMENTS WERE:-
• Meeting place.
• working place (training).
• Open spaces.
• Classroom & dormitories.
3. DESIGNED BY
• (March 2, 1917 – April 1,
2007) British-born Indian
architect
• He came to India in 1945 in
part as a missionary and
since then lived and worked
in India for over 50 years
Fig1:Laurie Baker
Ref: http://www.hindu.com/mag/
2007/04/15/stories/
2007041500060300.htm
4. • External Views: Generous sprawling ground
floor with three floor staking of pentagon

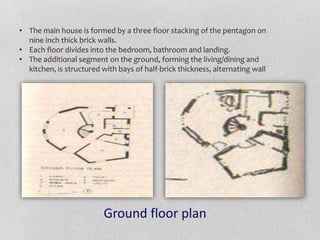

5. • The main house is formed by a three floor stacking of the pentagon on
nine inch thick brick walls.
• Each floor divides into the bedroom, bathroom and landing.
• The additional segment on the ground, forming the living/dining and
kitchen, is structured with bays of half-brick thickness, alternating wall
Ground floor plan

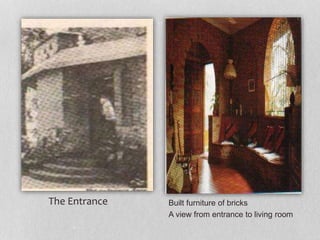

6. Built furniture of bricks
A view from entrance to living room
The Entrance
8. Common door for entry
and bathroom
• First floor
bedroom entrance

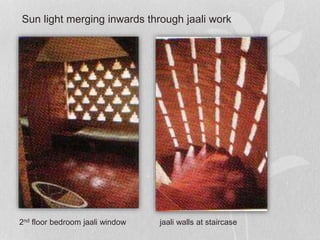

9. Sun light merging inwards through jaali work
2nd floor bedroom jaali window jaali walls at staircase

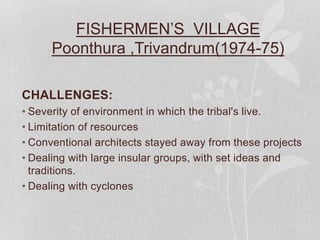

10. FISHERMEN’S VILLAGE
Poonthura ,Trivandrum(1974-75)
CHALLENGES:
• Severity of environment in which the tribal's live.
• Limitation of resources
• Conventional architects stayed away from these projects
• Dealing with large insular groups, with set ideas and
traditions.
• Dealing with cyclones

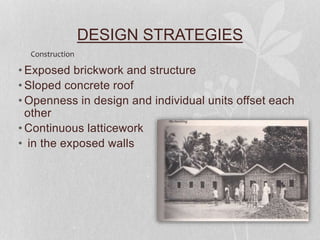

11. DESIGN STRATEGIES
• Exposed brickwork and structure
• Sloped concrete roof
• Openness in design and individual units offset each
other
• Continuous latticework
• in the exposed walls
Construction

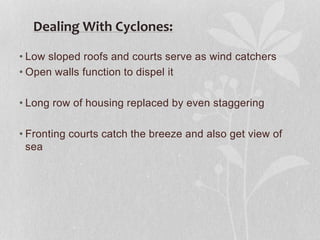

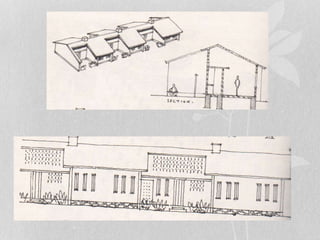

12. • Low sloped roofs and courts serve as wind catchers
• Open walls function to dispel it
• Long row of housing replaced by even staggering
• Fronting courts catch the breeze and also get view of
sea
Dealing With Cyclones:

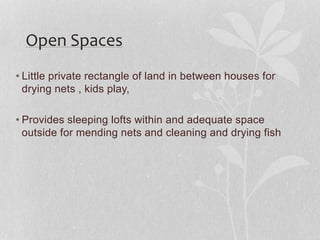

13. • Little private rectangle of land in between houses for
drying nets , kids play,
• Provides sleeping lofts within and adequate space
outside for mending nets and cleaning and drying fish
Open Spaces
