Veritas Storage Foundation enhances storage management by providing automated and non-disruptive reclamation of thin provisioned storage while supporting diverse storage environments. The solution integrates with Hyper-V for improved management and allows for intelligent migration and replication across distances, ensuring rapid application recovery with minimal downtime. Additionally, Veritas's innovative thin reclamation API optimizes storage utilization, significantly reducing waste across various platforms.

1. Veritas Storage Foundation
Veritas Cluster File System
Enabling Customers to Capitalize on New Storage
Technology While Optimizing Management—Across
Heterogeneous Storage

2. Veritas Storage Foundation
Announcement Summary
Completing the Thin • Automated and non-disruptive storage reclamation of thin
provisioned storage with Veritas Storage Foundation and the
Provisioning industry leading arrays
Ecosystem • Data intelligent migrations and/or replication over any distance
Solid State Drive • Unprecedented visibility of Storage Foundation enables policy
based placement of appropriate information on the right tier of
Visibility storage
Advanced Storage
• Full integration of Veritas Storage Foundation with Hyper-V
Integration with including Thin provisioning support
Hyper-V
Storage Aware
• Failover applications and databases in seconds with Veritas
Application Cluster File System and Veritas Cluster Server
Clustering
2

3. Symantec Storage and Availability
Management
Storage High Availability
Centralized
Virtualization HA/DR Integrated
Database Management Solutions
&
Management
Disaster Recovery
•Veritas Storage Foundation
Oracle RAC • Veritas Cluster File
•Veritas Storage Foundation •Veritas Storage Foundation System
• Veritas Storage Foundation
•Veritas Storage Foundation Sybase CE • Veritas Volume Manager
for Windows •Veritas Storage Foundation Replicator
DB2 •Veritas Operations Services
• Veritas Cluster Server
Heterogeneous Database
High Operations
Storage Storage
Availability Management
Management Management

4. SmartMove and the
Veritas Thin
Reclamation API

5. Thin Provisioned Storage
Challenges Innovations
• Improving storage capacity • Thick to thin migration using
utilization Veritas Storage Foundation
• Thin aware file systems and SmartMove
volume managers • Getting & staying thin –Veritas
Thin Reclamation API
5

6. Challenge of Migrating to Thin Storage
• Migrating online typically involves FULL ‘block level’ copy to Thin Devices
– Doesn’t understand what information is written resulting in wasted storage
– If volume 1 is 100 GB with 30 GB used by the file system, 100 GB will be allocated to
thin volume 2
• This applies to ALL block level copy methods (Host, Network, Appliance, Array)
Host
File system
Volume
Source (legacy) Target (thin)
70% Wasted Storage 70% Wasted Storage
6

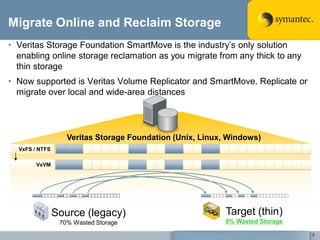

7. Migrate Online and Reclaim Storage
• Veritas Storage Foundation SmartMove is the industry’s only solution
enabling online storage reclamation as you migrate from any thick to any
thin storage
• Now supported is Veritas Volume Replicator and SmartMove. Replicate or
migrate over local and wide-area distances
Veritas Storage Foundation (Unix, Linux, Windows)
VxFS / NTFS
VxVM
Source (legacy) Target (thin)
70% Wasted Storage 0% Wasted Storage
7

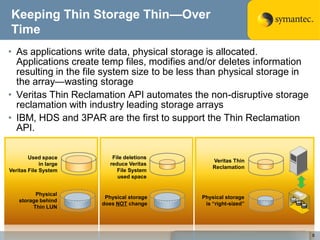

8. Keeping Thin Storage Thin—Over
Time
• As applications write data, physical storage is allocated.
Applications create temp files, modifies and/or deletes information
resulting in the file system size to be less than physical storage in
the array—wasting storage
• Veritas Thin Reclamation API automates the non-disruptive storage
reclamation with industry leading storage arrays
• IBM, HDS and 3PAR are the first to support the Thin Reclamation
API.
Used space File deletions
Veritas Thin
in large reduce Veritas
Reclamation
Veritas File System File System
used space
Physical
Physical storage Physical storage
storage behind
does NOT change is ―right-sized‖
Thin LUN
8

9. Dynamic Storage Tiering;
Solid State Drive
Optimization

10. Storage Foundation Solid State Drive
Visibility
Database or Application
• Dynamic Storage Tiering enables
file system to span multiple VxFS
storage tiers and/or vendors
– Automated, policy driven based on VxVM
size, age, type and/or usage
– Non-disruptive file movement
– 4x-12x faster performance with tier 0
Host JBOD Array Host JBOD Array
– File movement is transparent to users,
applications, databases, data
protection, and scripts SSD Cold file
HDD Hot file
10

11. Veritas Storage
Foundation for
Windows and Hyper-V

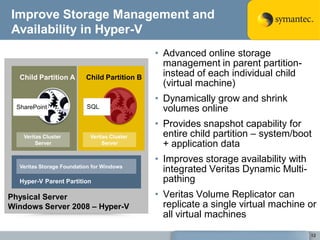

12. Improve Storage Management and
Availability in Hyper-V
• Advanced online storage
management in parent partition-
Child Partition A Child Partition B instead of each individual child
(virtual machine)
• Dynamically grow and shrink
SharePoint SQL volumes online
• Provides snapshot capability for
Veritas Cluster Veritas Cluster entire child partition – system/boot
Server Server + application data
• Improves storage availability with
Veritas Storage Foundation for Windows
integrated Veritas Dynamic Multi-
Hyper-V Parent Partition pathing
Physical Server • Veritas Volume Replicator can
Windows Server 2008 – Hyper-V replicate a single virtual machine or
all virtual machines
12

13. Veritas Cluster File
System

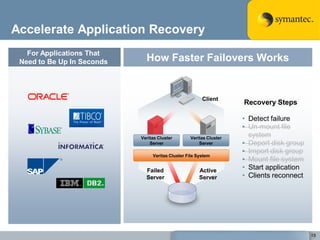

14. Accelerate Application Recovery
For Applications That
Need to Be Up In Seconds How Faster Failovers Works
Client Recovery Steps
• Detect failure
• Un-mount file
Veritas Cluster Veritas Cluster
system
Server Server • Deport disk group
Veritas Storage Veritas Storage • Import disk group
Foundation Foundation • Mount file system
• Start application
Active
Failed Passive
Active
Server Server • Clients reconnect
14

15. Accelerate Application Recovery
For Applications That
Need to Be Up In Seconds How Faster Failovers Works
Client
Recovery Steps
• Detect failure
• Un-mount file
Veritas Cluster Veritas Cluster
system
Server Server • Deport disk group
Veritas Storage Veritas Storage • Import disk group
Veritas Cluster File System
Foundation Foundation • Mount file system
Failed Active • Start application
Server Server • Clients reconnect
15

16. Choose the Right Solution for Your
Needs
Single Instance Single Instance with Oracle RAC with
Failover Cluster File System Storage Foundation
VCS VCS VCS VCS Veritas Storage Foundation for
Veritas Cluster File System HA
SF SF SF SF Oracle RAC
RTO 10s of Min RTO Sub-minute RTO Seconds
Cost $$ Cost $$ Cost $$$$
Complexity Low Complexity Low Complexity High
# of Nodes 32 # of Nodes 32 # of Nodes 16
16

17. Veritas Storage Foundation
Announcement Summary
Completing the Thin • Automated and non-disruptive storage reclamation of thin
provisioned storage with Veritas Storage Foundation and the
Provisioning industry leading arrays
Ecosystem • Data intelligent migrations and/or replication over any distance
Solid State Drive • Unprecedented visibility of Storage Foundation enables policy
based placement of appropriate information on the right tier of
Visibility storage
Advanced Storage
• Full integration of Veritas Storage Foundation with Hyper-V
Integration with including Thin provisioning support
Hyper-V
Storage Aware
• Failover applications and databases in seconds with Veritas
Application Cluster File System and Veritas Cluster Server
Clustering
17

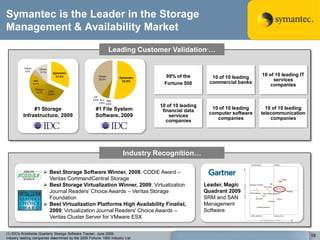

18. Symantec is the Leader in the Storage
Management & Availability Market
Leading Customer Validation … (1)
Hitachi Others
4.4% 12.1% Symantec
99% of the 10 of 10 leading IT
31.4% Others
Symantec 10 of 10 leading
IBM
39.3%
52.9% services
Fortune 500 commercial banks
13.1%
companies
NetApp
14.8% EMC
24.2%
HP
0.6% Sun IBM
0.6% 6.6%
10 of 10 leading
#1 Storage #1 File System
2
10 of 10 leading 10 of 10 leading
financial data
Infrastructure, 2009 Software, 2009 computer software telecommunication
services
companies companies
companies
Industry Recognition…
 Best Storage Software Winner, 2008; CODiE Award –
Veritas CommandCentral Storage
 Best Storage Virtualization Winner, 2009; Virtualization Leader, Magic
Journal Readers' Choice Awards – Veritas Storage Quadrant 2009
Foundation SRM and SAN
 Best Virtualization Platforms High Availability Finalist, Management
2009; Virtualization Journal Readers' Choice Awards – Software
Veritas Cluster Server for VMware ESX
(1) IDC's Worldwide Quarterly Storage Software Tracker, June 2009;
Industry leading companies determined by the 2009 Fortune 1000 Industry List
18

19. Thank You!
19
