VMware Education / Training:
Stephen DeBarros
VCI, VCAP4-DCA, VCP, CCNA, MCSE, MCT, RHCE,CNE, SERVER+
Senior Technical Instructor, IBM Education
sdebar@ca.ibm.com
Virtualization 101:
IBM Canada

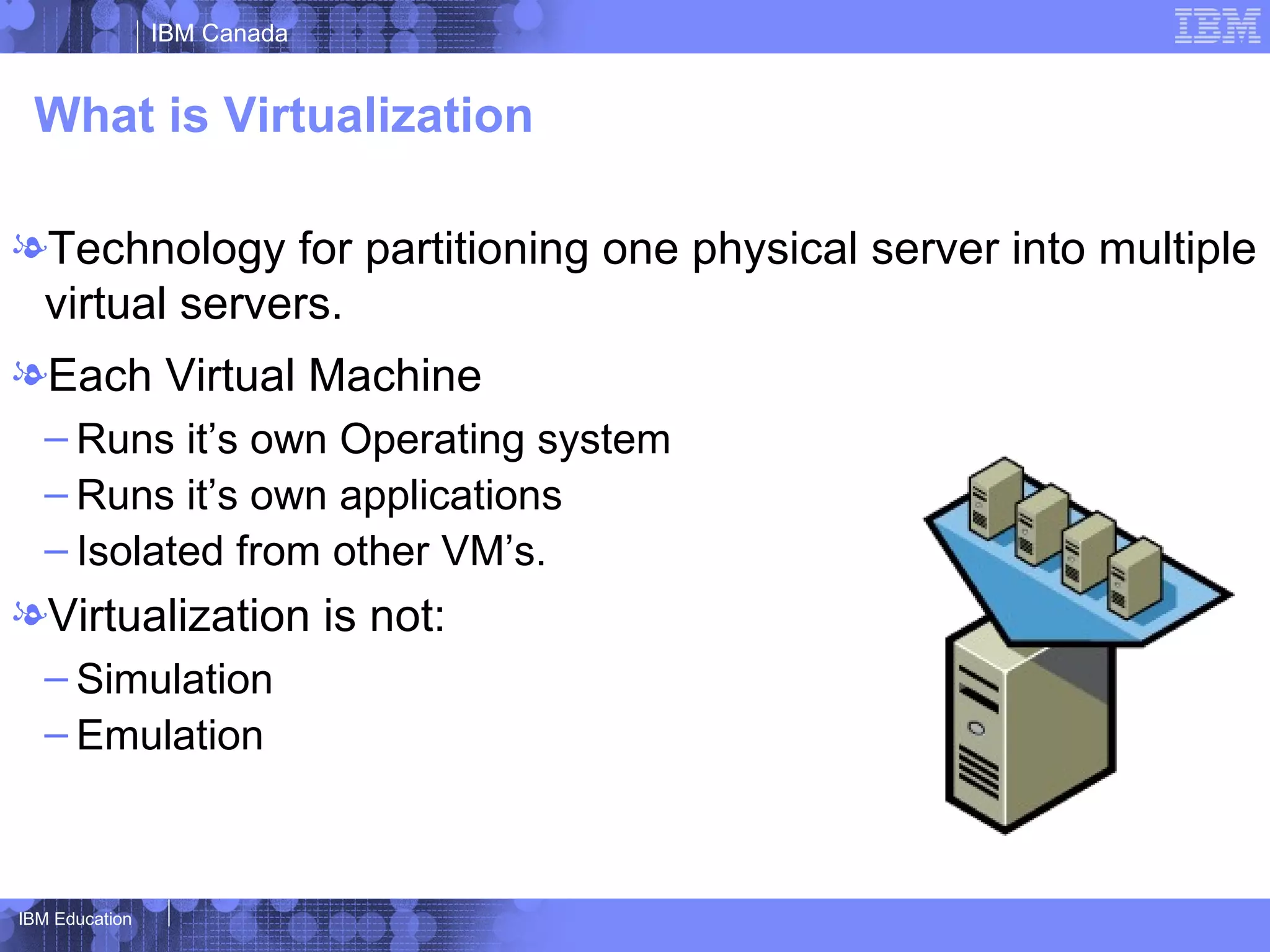

 What is Virtualization

lTechnology for partitioning one physical server into multiple
 virtual servers.
lEach Virtual Machine
   – Runs it’s own Operating system
   – Runs it’s own applications
   – Isolated from other VM’s.
lVirtualization is not:
   – Simulation
   – Emulation



IBM Education
IBM Canada

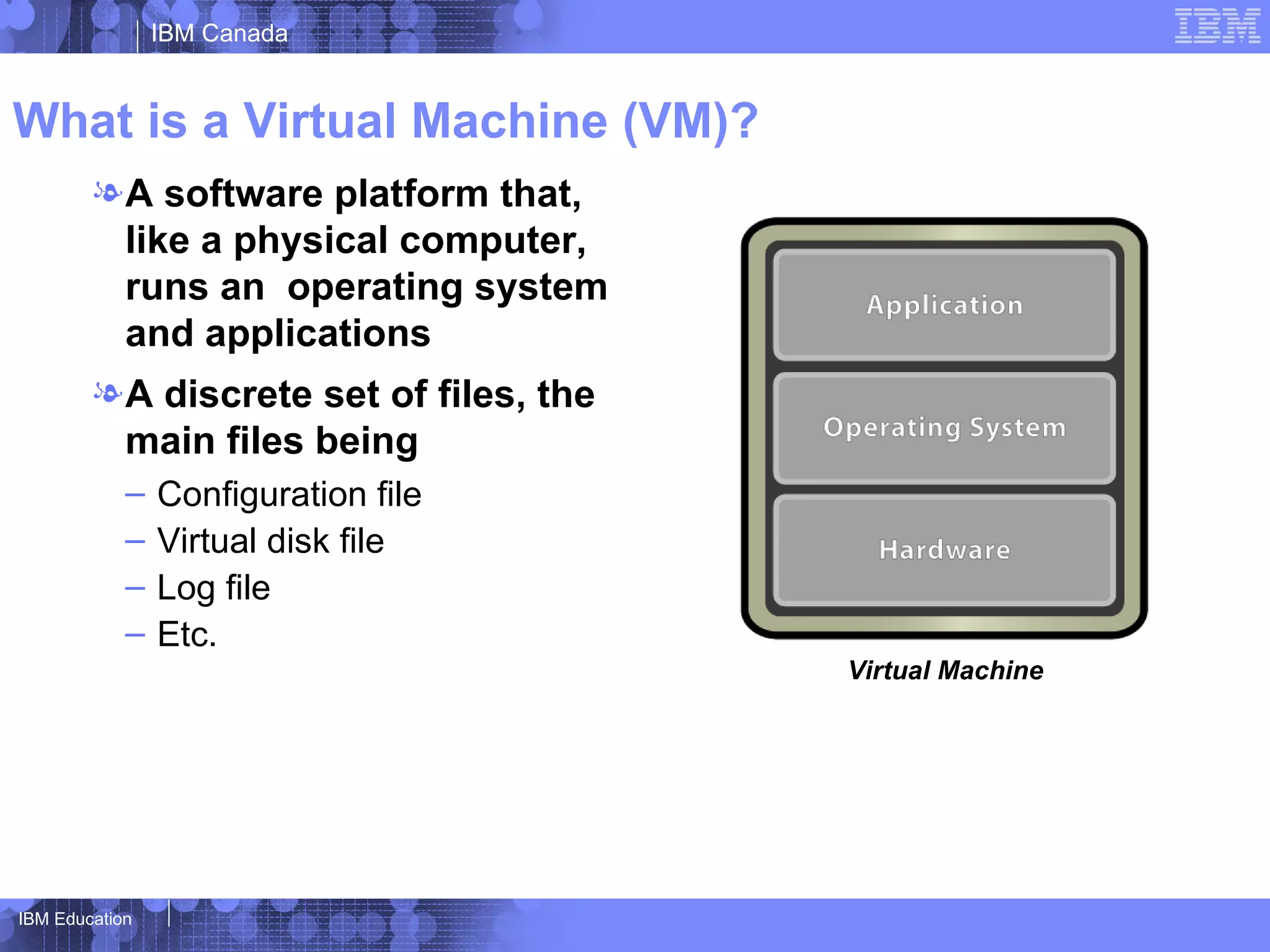

What is a Virtual Machine (VM)?
        l A software platform that,
          like a physical computer,
          runs an operating system
          and applications
        l A discrete set of files, the
          main files being
            –   Configuration file
            –   Virtual disk file
            –   Log file
            –   Etc.
                                         Virtual Machine




IBM Education
IBM Canada

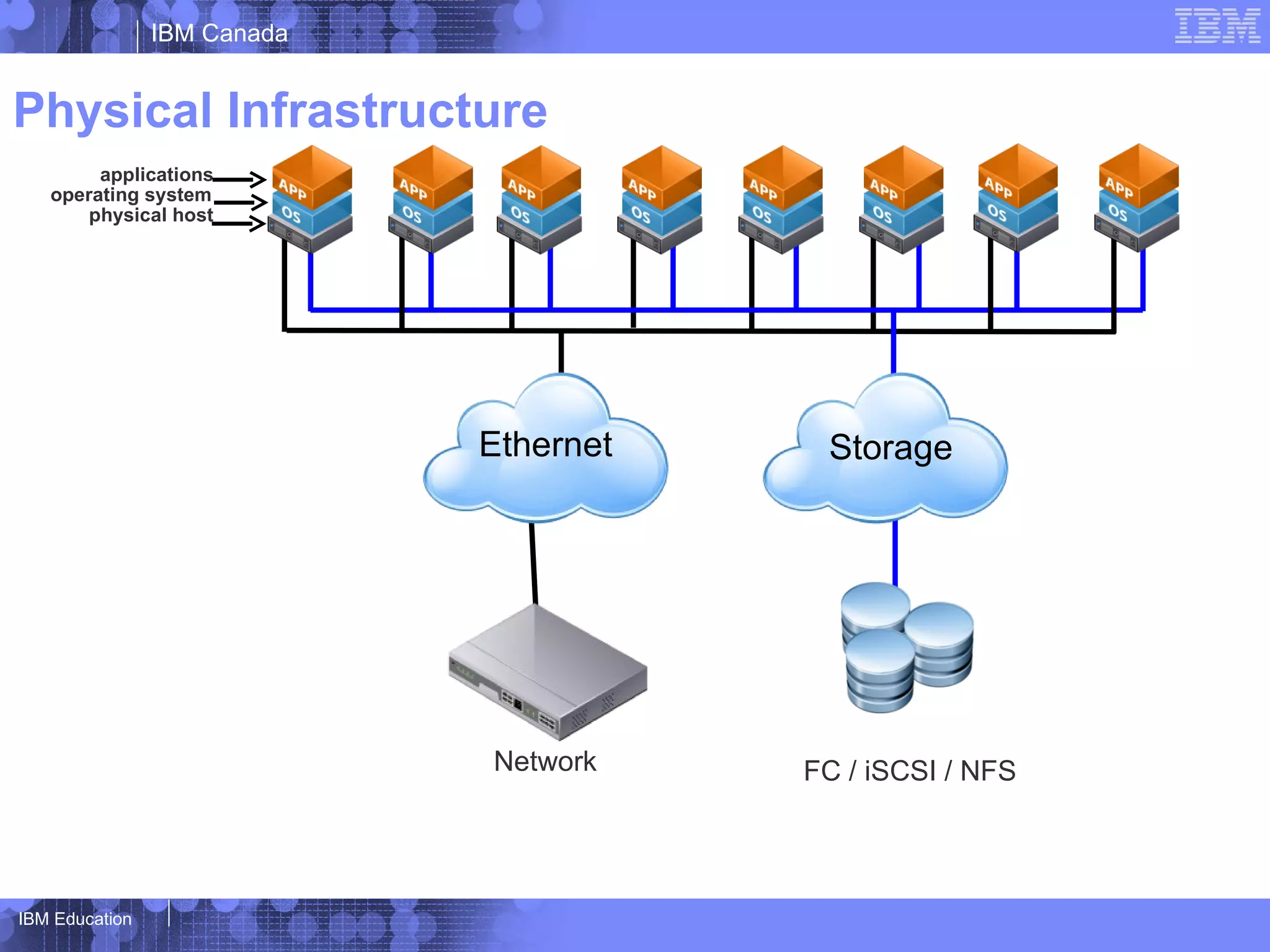

Physical Infrastructure
        applications
   operating system
       physical host




                             Ethernet    Storage




                             Network    FC / iSCSI / NFS




IBM Education
IBM Canada

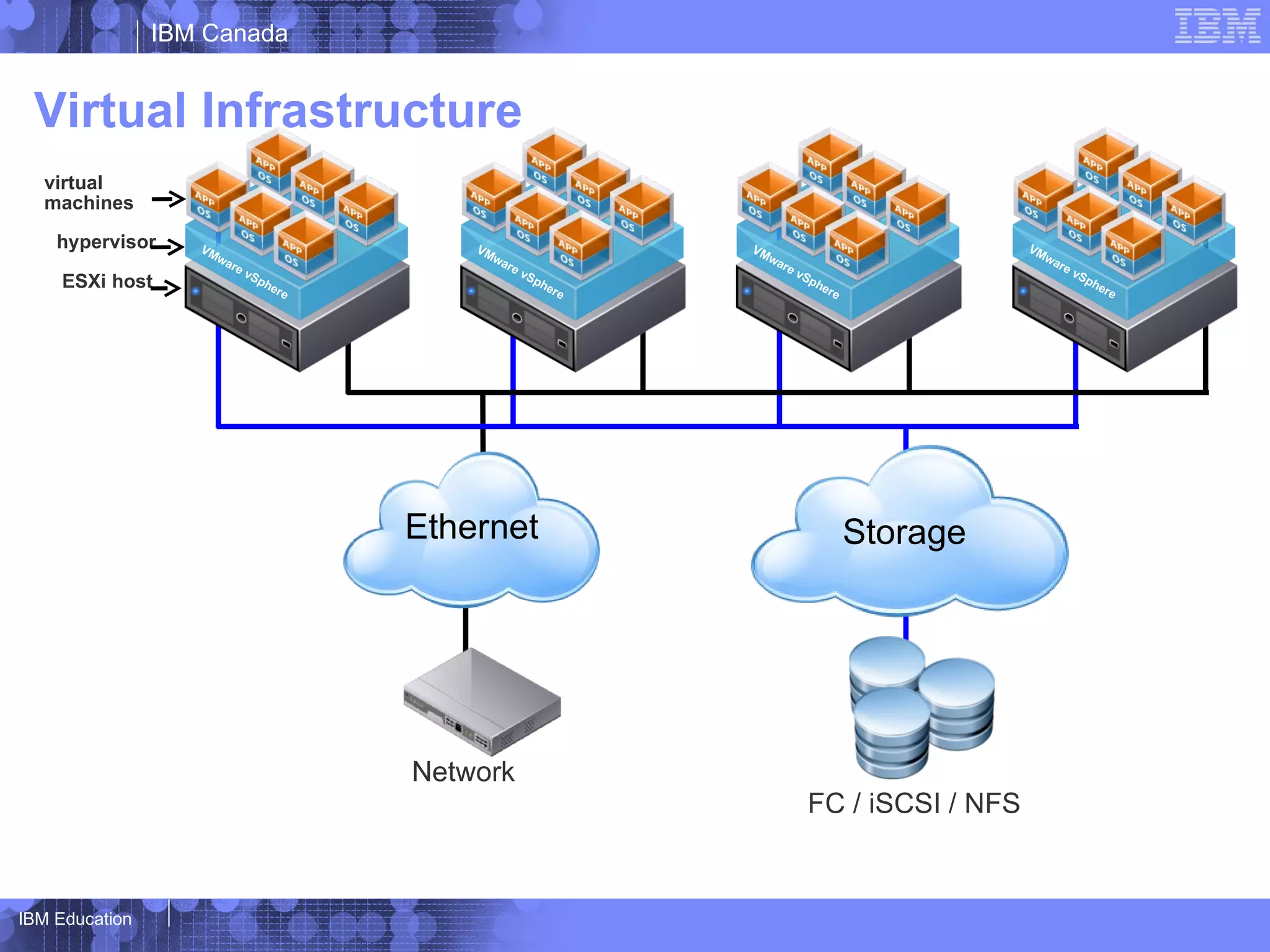

 Virtual Infrastructure
  virtual
  machines

    hypervisor     VM                       VM                  VM                            VM
                     wa                       wa                  wa                            wa
                        re                      re                  re                            re
                             vS                      vS                  vS                            vS
     ESXi host                  ph
                                  ere
                                                        ph
                                                          ere
                                                                           ph
                                                                             er e
                                                                                                          ph
                                                                                                            ere




                                        Ethernet                                    Storage




                                        Network
                                                                           FC / iSCSI / NFS


IBM Education
IBM Canada

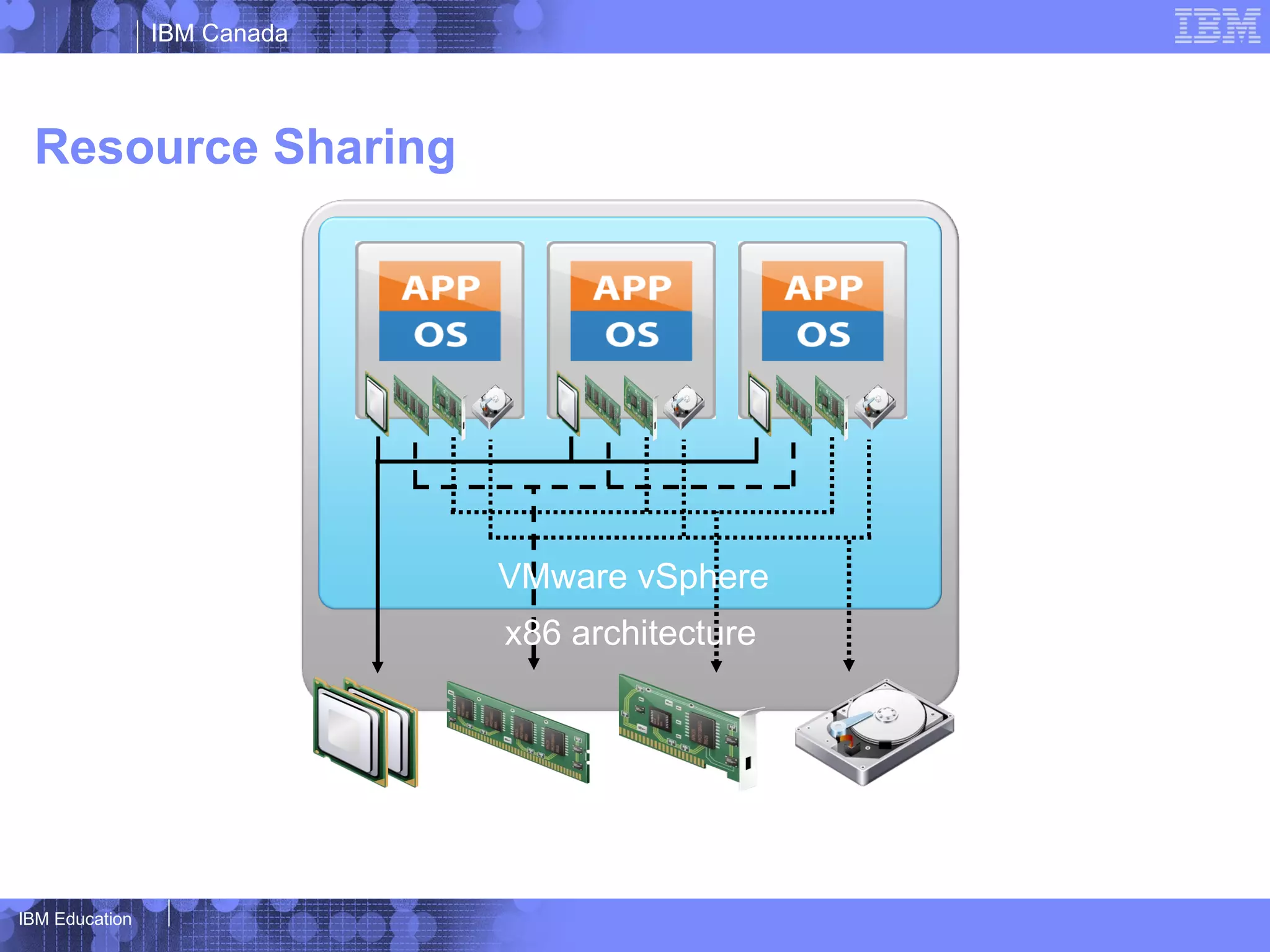

 Resource Sharing




                             VMware vSphere
                             x86 architecture




IBM Education
IBM Canada

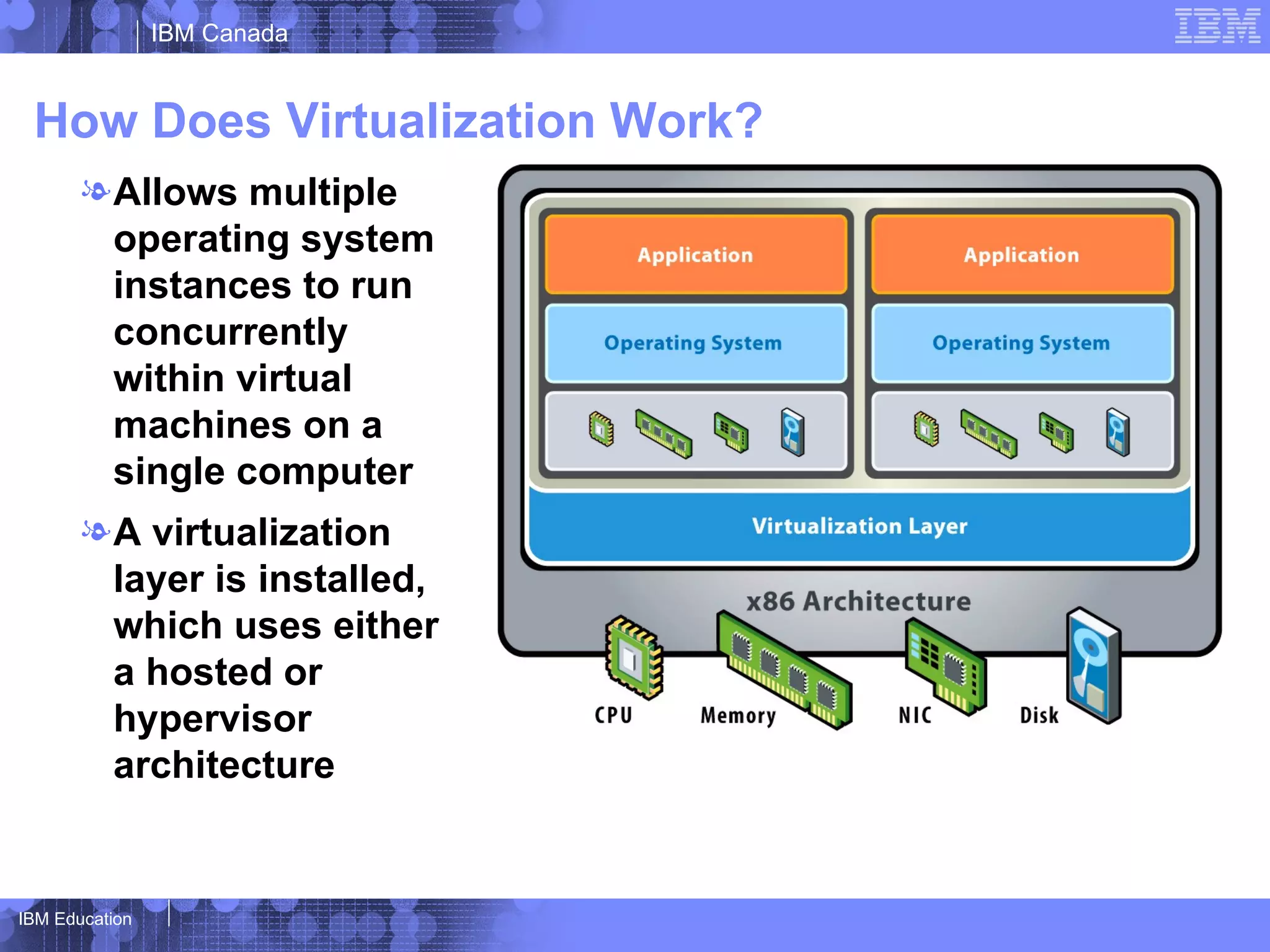

 How Does Virtualization Work?
       l Allows multiple
         operating system
         instances to run
         concurrently
         within virtual
         machines on a
         single computer
       l A virtualization
         layer is installed,
         which uses either
         a hosted or
         hypervisor
         architecture


IBM Education
IBM Canada

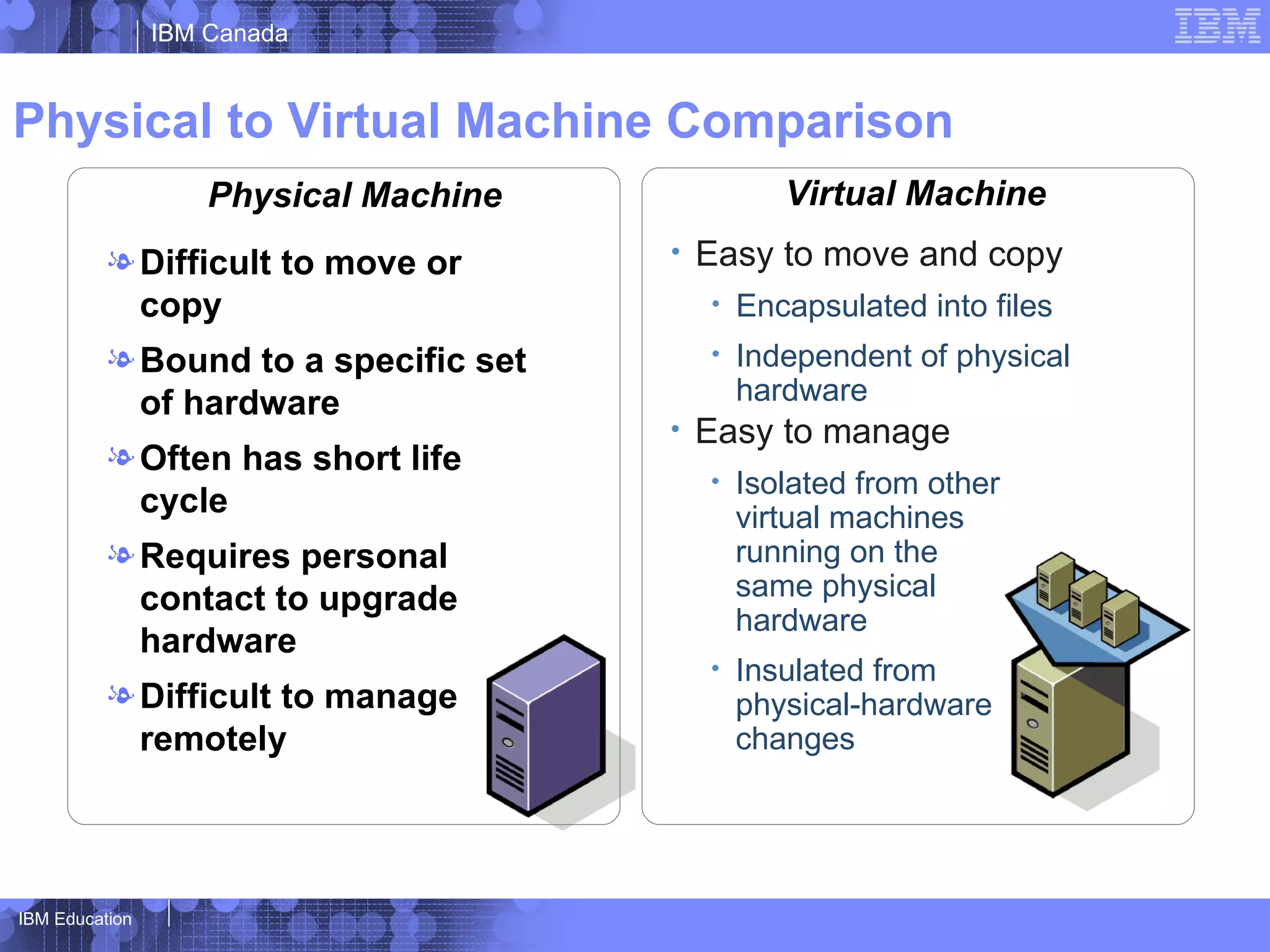

Physical to Virtual Machine Comparison
                    Physical Machine              Virtual Machine
          l Difficult to move or       •   Easy to move and copy
            copy                           •   Encapsulated into files
          l Bound to a specific set        •   Independent of physical
            of hardware                        hardware
                                       •   Easy to manage
          l Often has short life
                                           •   Isolated from other
            cycle                              virtual machines
          l Requires personal                  running on the
            contact to upgrade                 same physical
                                               hardware
            hardware
                                           •   Insulated from
          l Difficult to manage                physical-hardware
            remotely                           changes




IBM Education
IBM Canada

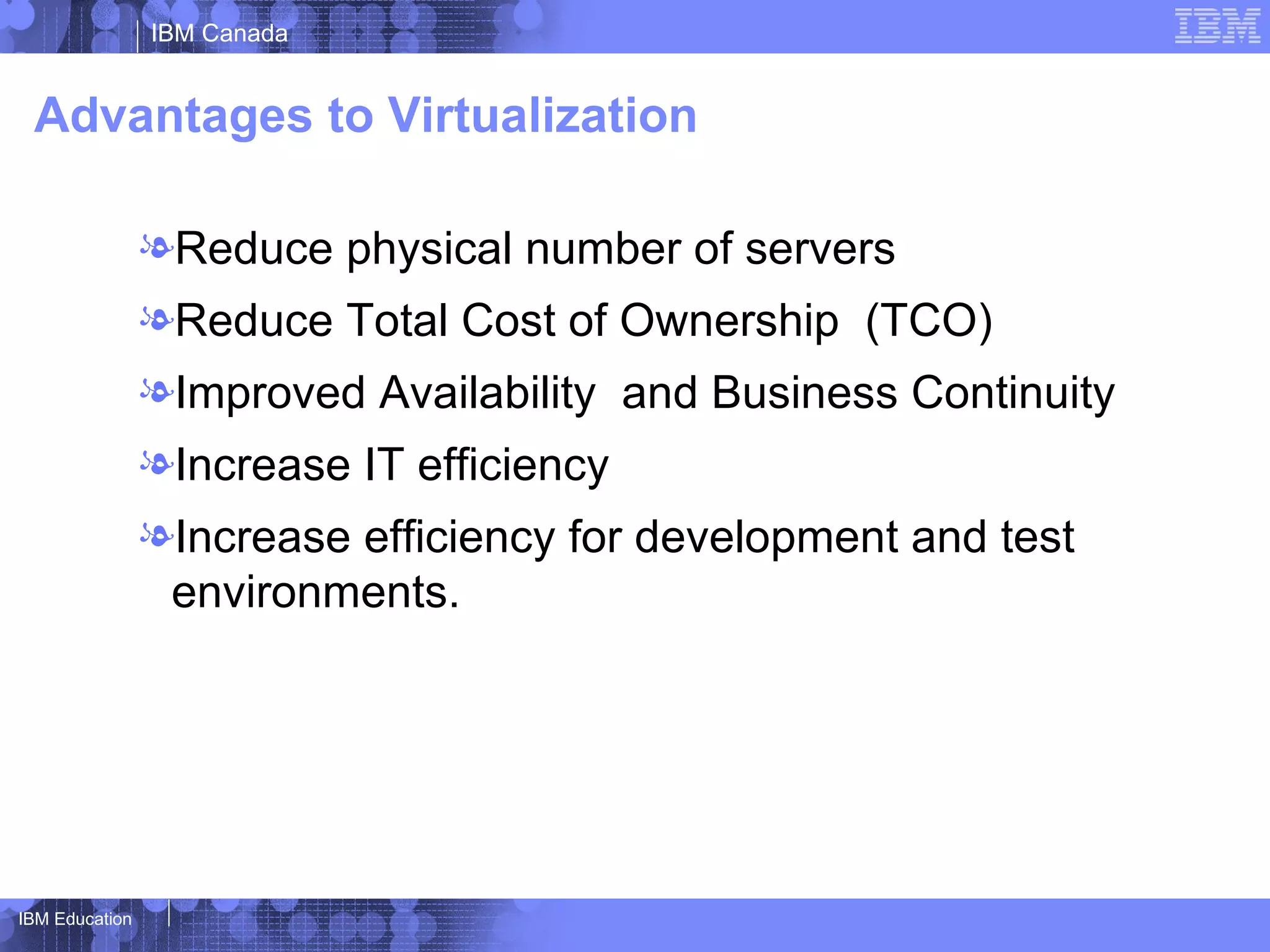

 Advantages to Virtualization

                lReduce physical number of servers
                lReduce Total Cost of Ownership (TCO)
                lImproved Availability and Business Continuity
                lIncrease IT efficiency
                lIncrease efficiency for development and test
                 environments.




IBM Education
IBM Canada

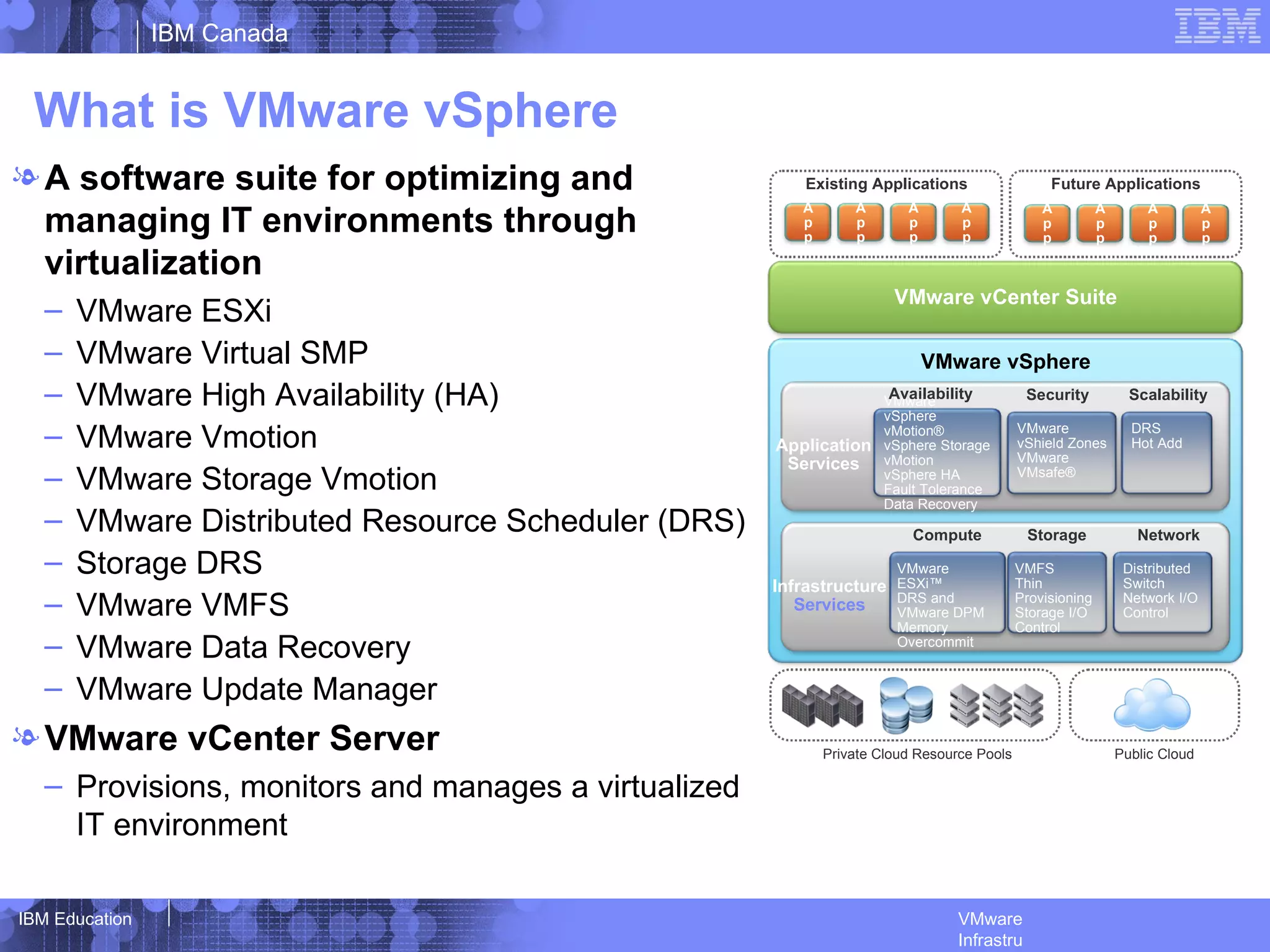

 What is VMware vSphere
l A software suite for optimizing and                    Existing Applications                   Future Applications
                                                         A       A       A       A
  managing IT environments through
                                                                                                A          A        A         A
                                                         p       p       p       p              p          p        p         p
                                                         p       p       p       p              p          p        p         p

  virtualization
                                                                       VMware vCenter Suite
   –   VMware ESXi
   –   VMware Virtual SMP                                                    VMware vSphere
   –   VMware High Availability (HA)                                   Availability
                                                                      VMware                 Security            Scalability
                                                                      vSphere
   –   VMware Vmotion                                 Application
                                                                      vMotion®
                                                                      vSphere Storage
                                                                                            VMware
                                                                                            vShield Zones
                                                                                                                 DRS
                                                                                                                 Hot Add
                                                       Services       vMotion               VMware
   –   VMware Storage Vmotion                                         vSphere HA
                                                                      Fault Tolerance
                                                                                            VMsafe®

                                                                      Data Recovery
   –   VMware Distributed Resource Scheduler (DRS)                        Compute            Storage              Network

   –   Storage DRS                                                     VMware               VMFS                Distributed
                                                      Infrastructure ESXi™                  Thin                Switch
   –   VMware VMFS                                       Services    DRS and
                                                                     VMware DPM
                                                                                            Provisioning
                                                                                            Storage I/O
                                                                                                                Network I/O
                                                                                                                Control
                                                                       Memory               Control
   –   VMware Data Recovery                                            Overcommit


   –   VMware Update Manager
l VMware vCenter Server                                      Private Cloud Resource Pools                      Public Cloud

   – Provisions, monitors and manages a virtualized
     IT environment

IBM Education                                                                    VMware
                                                                                 Infrastru
IBM Canada

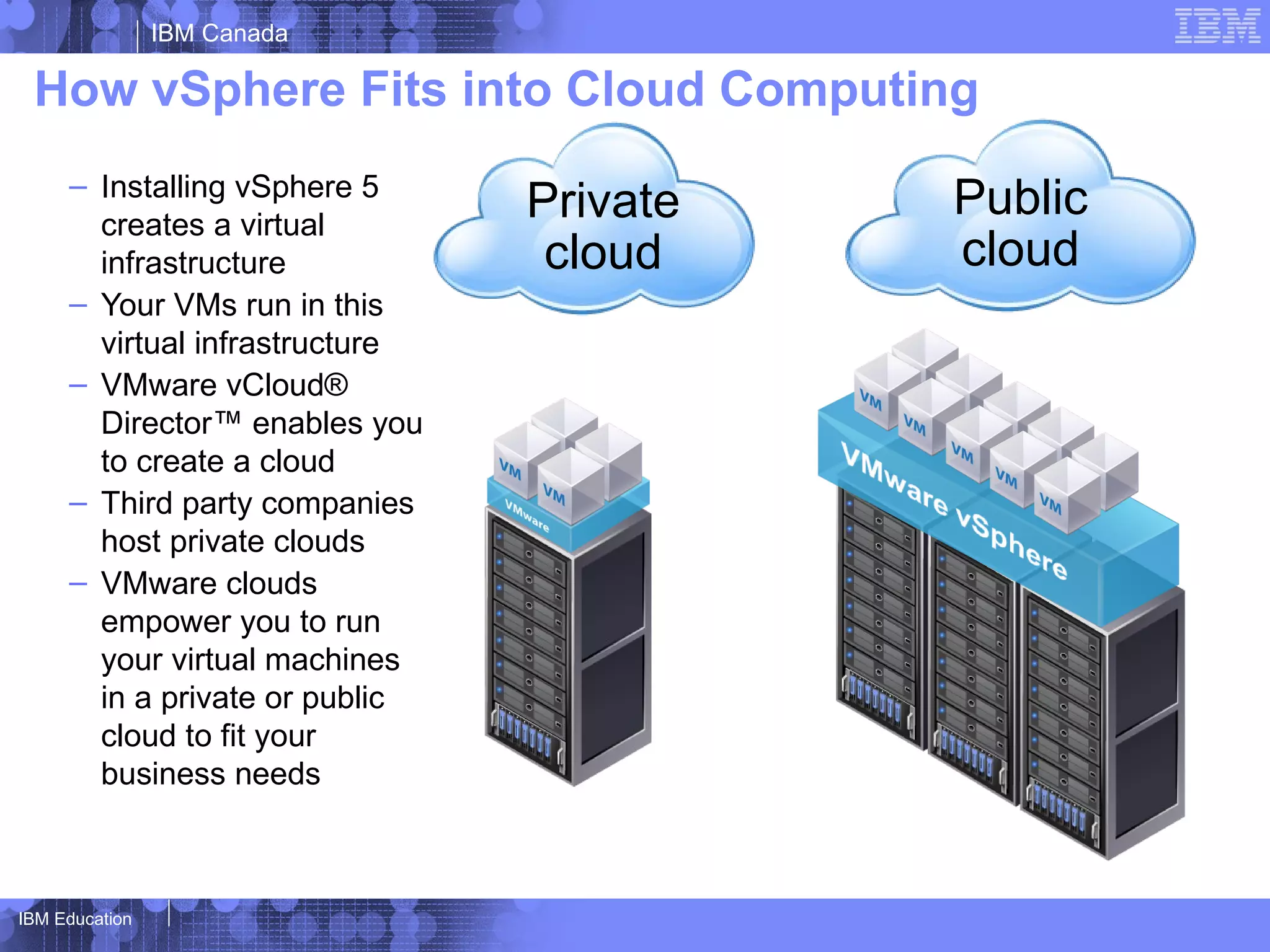

 How vSphere Fits into Cloud Computing
     – Installing vSphere 5
       creates a virtual
                                Private   Public
       infrastructure            cloud    cloud
     – Your VMs run in this
       virtual infrastructure
     – VMware vCloud®
       Director™ enables you
       to create a cloud
     – Third party companies
       host private clouds
     – VMware clouds
       empower you to run
       your virtual machines
       in a private or public
       cloud to fit your
       business needs



IBM Education
Virtual Desktop Infrastructure
(VDI)
IBM Canada

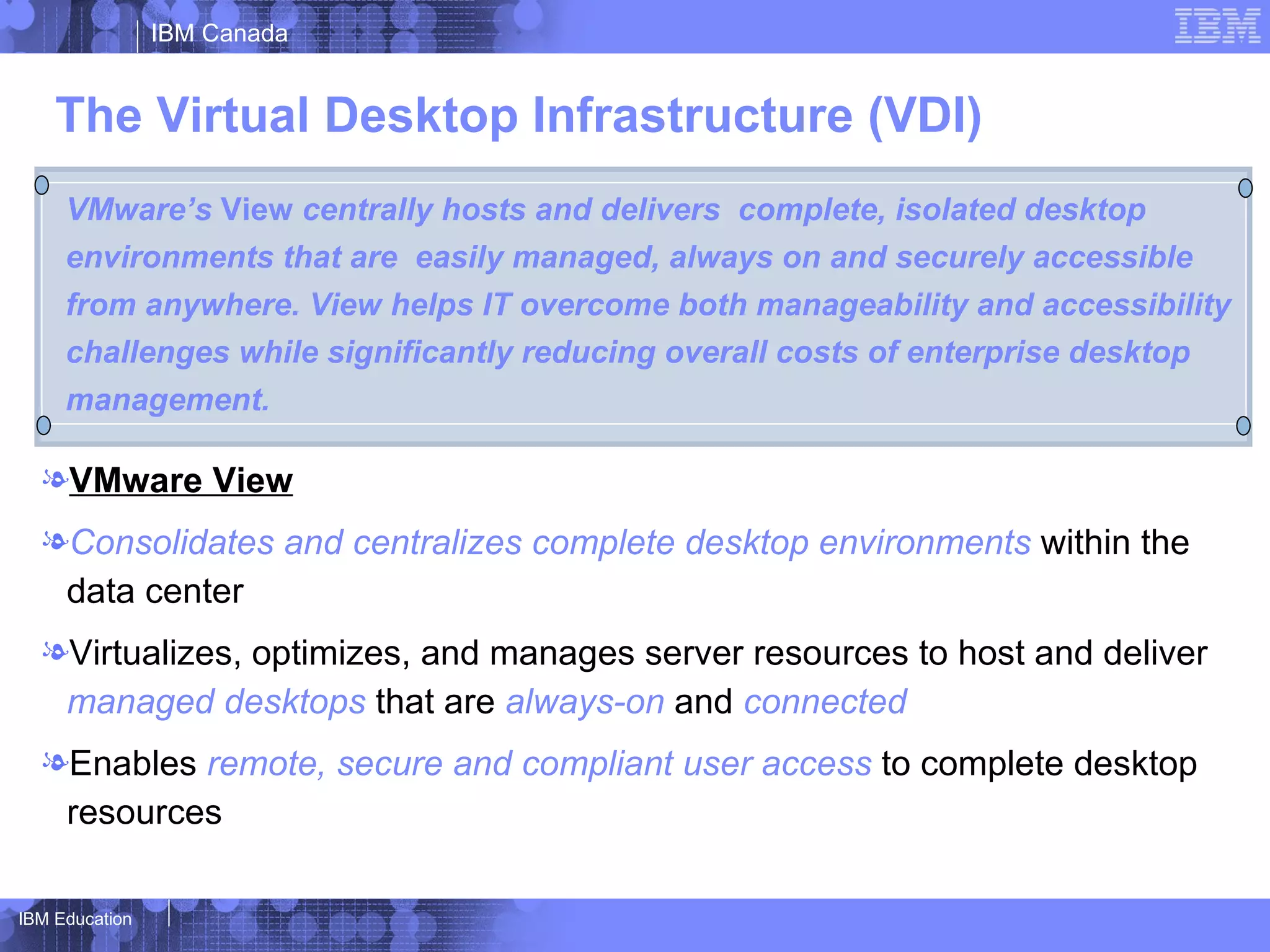

    The Virtual Desktop Infrastructure (VDI)
     VMware’s View centrally hosts and delivers complete, isolated desktop
     environments that are easily managed, always on and securely accessible
     from anywhere. View helps IT overcome both manageability and accessibility
     challenges while significantly reducing overall costs of enterprise desktop
     management.

  lVMware View
  lConsolidates and centralizes complete desktop environments within the
   data center
  lVirtualizes, optimizes, and manages server resources to host and deliver
   managed desktops that are always-on and connected
  lEnables remote, secure and compliant user access to complete desktop
   resources

IBM Education
IBM Canada

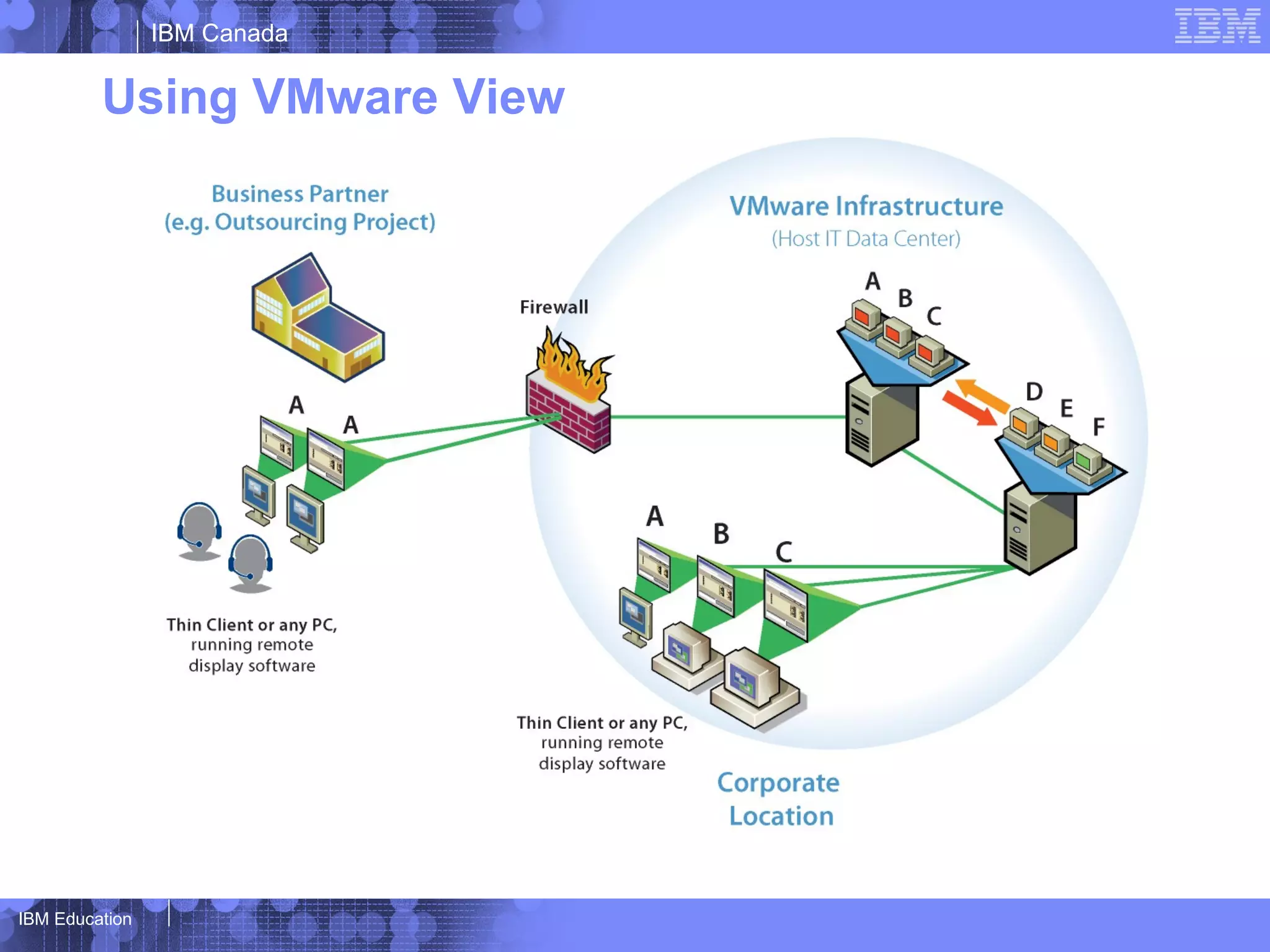

         Using VMware View




IBM Education
IBM Canada

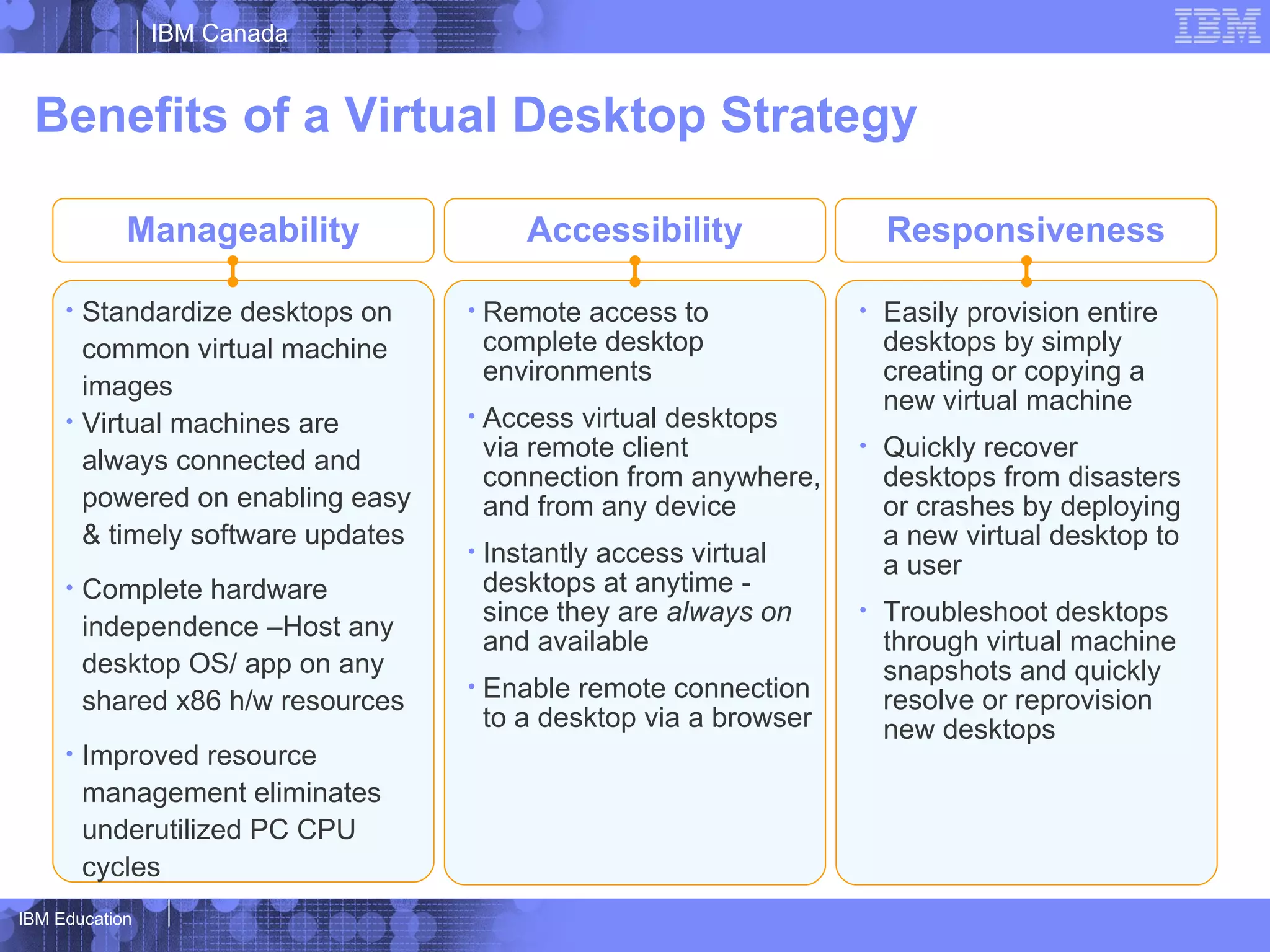

 Benefits of a Virtual Desktop Strategy

            Manageability                  Accessibility                 Responsiveness

     • Standardize desktops on      •   Remote access to             •   Easily provision entire
       common virtual machine           complete desktop                 desktops by simply
                                        environments                     creating or copying a
       images
                                                                         new virtual machine
     • Virtual machines are         •   Access virtual desktops
       always connected and             via remote client            •   Quickly recover
                                        connection from anywhere,        desktops from disasters
       powered on enabling easy         and from any device              or crashes by deploying
       & timely software updates                                         a new virtual desktop to
                                    •   Instantly access virtual         a user
     •   Complete hardware              desktops at anytime -
                                        since they are always on     •   Troubleshoot desktops
         independence –Host any
                                        and available                    through virtual machine
         desktop OS/ app on any                                          snapshots and quickly
         shared x86 h/w resources
                                    •   Enable remote connection         resolve or reprovision
                                        to a desktop via a browser       new desktops
     •   Improved resource
         management eliminates
         underutilized PC CPU
         cycles
IBM Education
IBM Canada

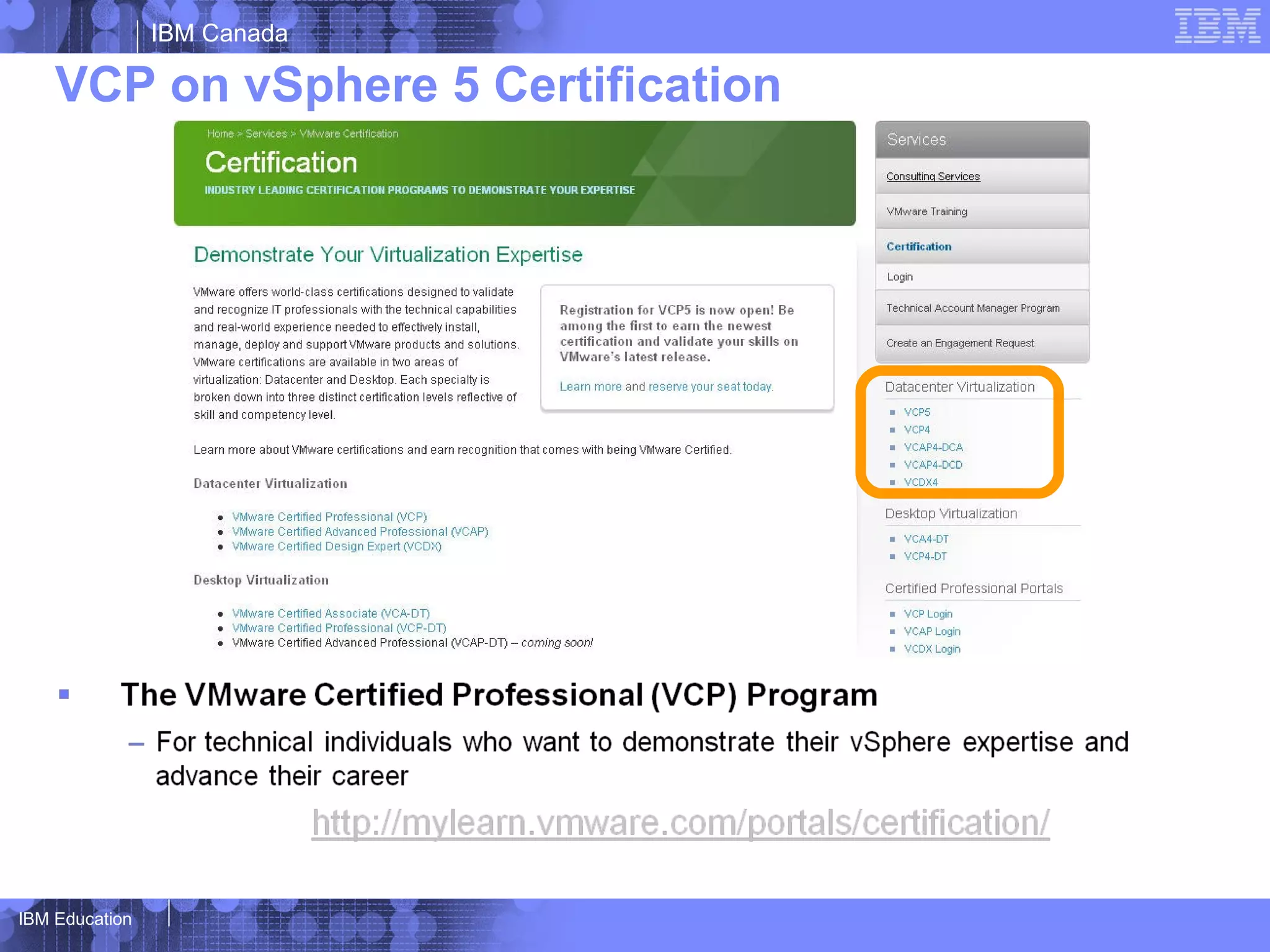

    VCP on vSphere 5 Certification




IBM Education
IBM Canada

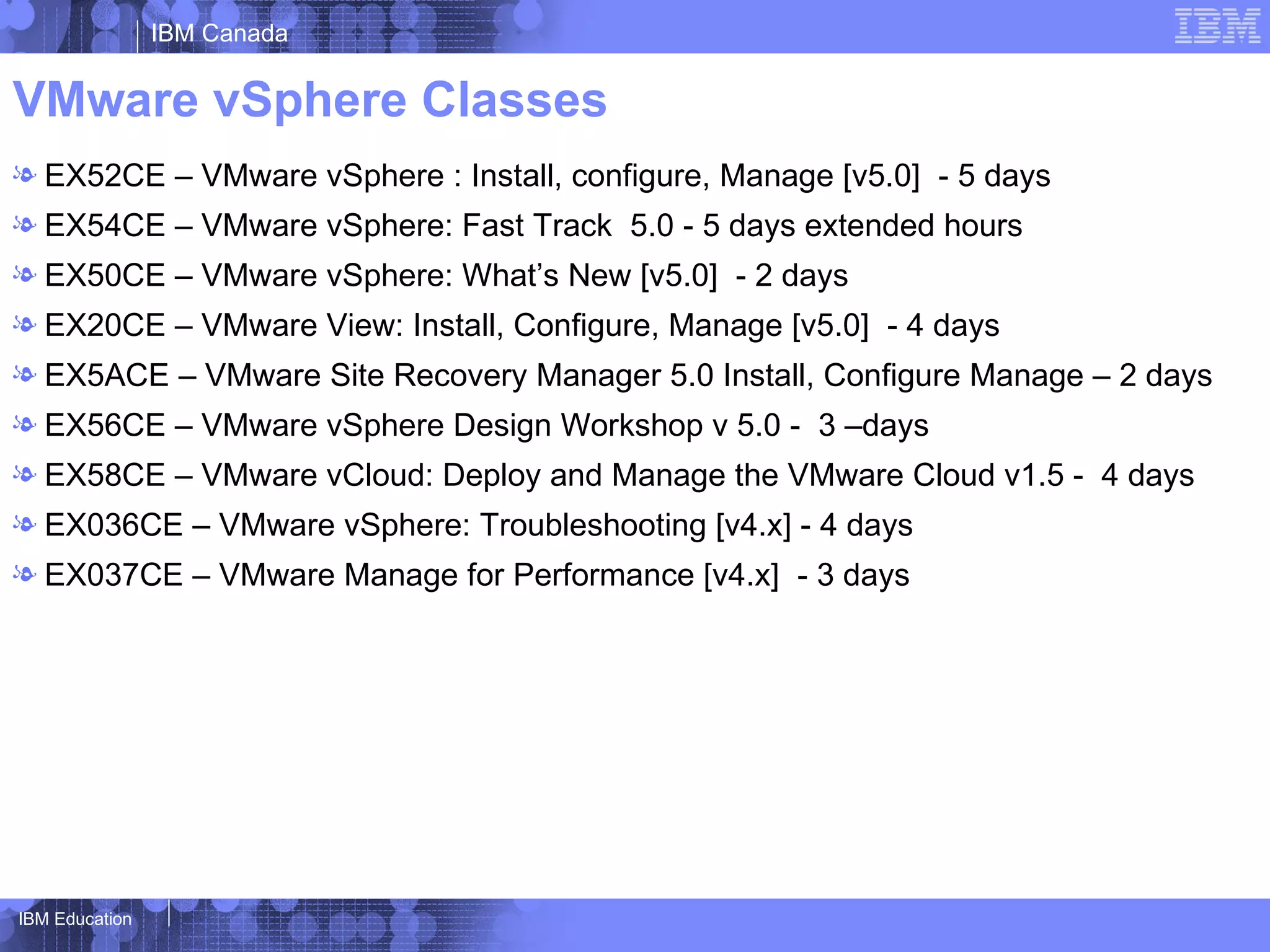

VMware vSphere Classes
l EX52CE – VMware vSphere : Install, configure, Manage [v5.0] - 5 days
l EX54CE – VMware vSphere: Fast Track 5.0 - 5 days extended hours
l EX50CE – VMware vSphere: What’s New [v5.0] - 2 days
l EX20CE – VMware View: Install, Configure, Manage [v5.0] - 4 days
l EX5ACE – VMware Site Recovery Manager 5.0 Install, Configure Manage – 2 days
l EX56CE – VMware vSphere Design Workshop v 5.0 - 3 –days
l EX58CE – VMware vCloud: Deploy and Manage the VMware Cloud v1.5 - 4 days
l EX036CE – VMware vSphere: Troubleshooting [v4.x] - 4 days
l EX037CE – VMware Manage for Performance [v4.x] - 3 days




IBM Education
IBM Canada

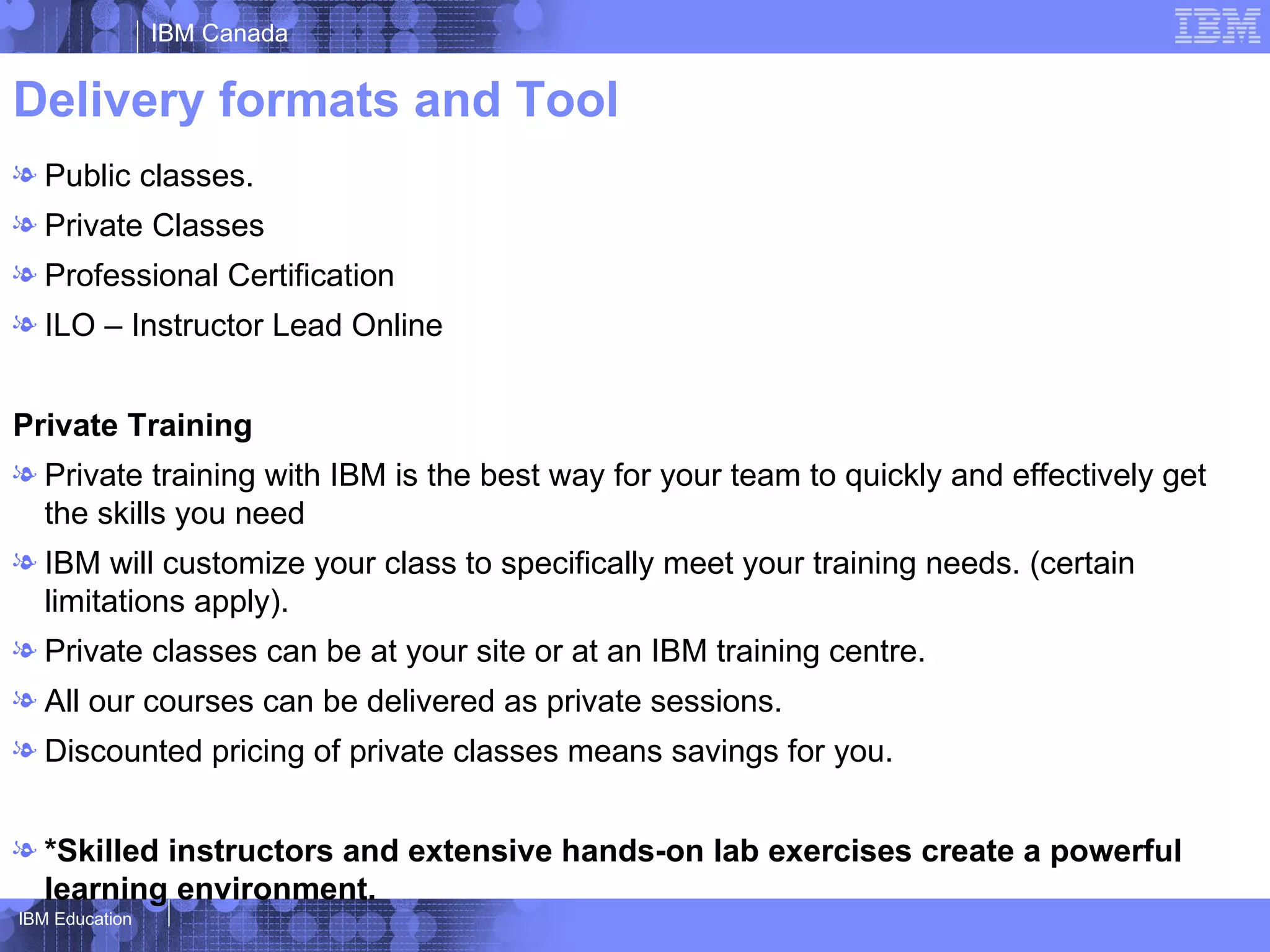

Delivery formats and Tool
l Public classes.
l Private Classes
l Professional Certification
l ILO – Instructor Lead Online


Private Training
l Private training with IBM is the best way for your team to quickly and effectively get
  the skills you need
l IBM will customize your class to specifically meet your training needs. (certain
  limitations apply).
l Private classes can be at your site or at an IBM training centre.
l All our courses can be delivered as private sessions.
l Discounted pricing of private classes means savings for you.


l *Skilled instructors and extensive hands-on lab exercises create a powerful
  learning environment.
IBM Education
IBM Canada

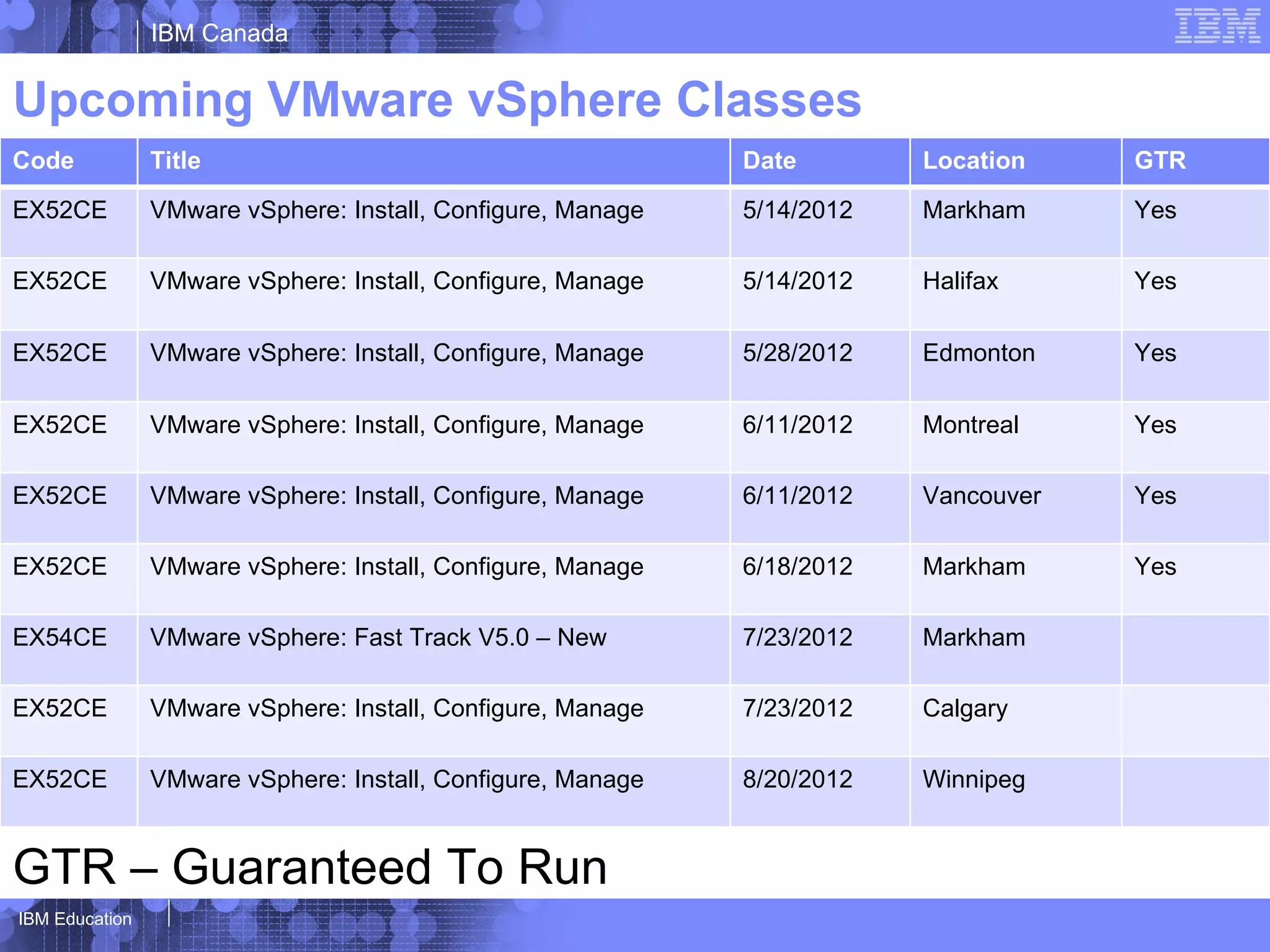

Upcoming VMware vSphere Classes
Code            Title                                        Date        Location    GTR

EX52CE          VMware vSphere: Install, Configure, Manage   5/14/2012   Markham     Yes

EX52CE          VMware vSphere: Install, Configure, Manage   5/14/2012   Halifax     Yes

EX52CE          VMware vSphere: Install, Configure, Manage   5/28/2012   Edmonton    Yes

EX52CE          VMware vSphere: Install, Configure, Manage   6/11/2012   Montreal    Yes

EX52CE          VMware vSphere: Install, Configure, Manage   6/11/2012   Vancouver   Yes

EX52CE          VMware vSphere: Install, Configure, Manage   6/18/2012   Markham     Yes

EX54CE          VMware vSphere: Fast Track V5.0 – New        7/23/2012   Markham

EX52CE          VMware vSphere: Install, Configure, Manage   7/23/2012   Calgary

EX52CE          VMware vSphere: Install, Configure, Manage   8/20/2012   Winnipeg


GTR – Guaranteed To Run
IBM Education
IBM Canada

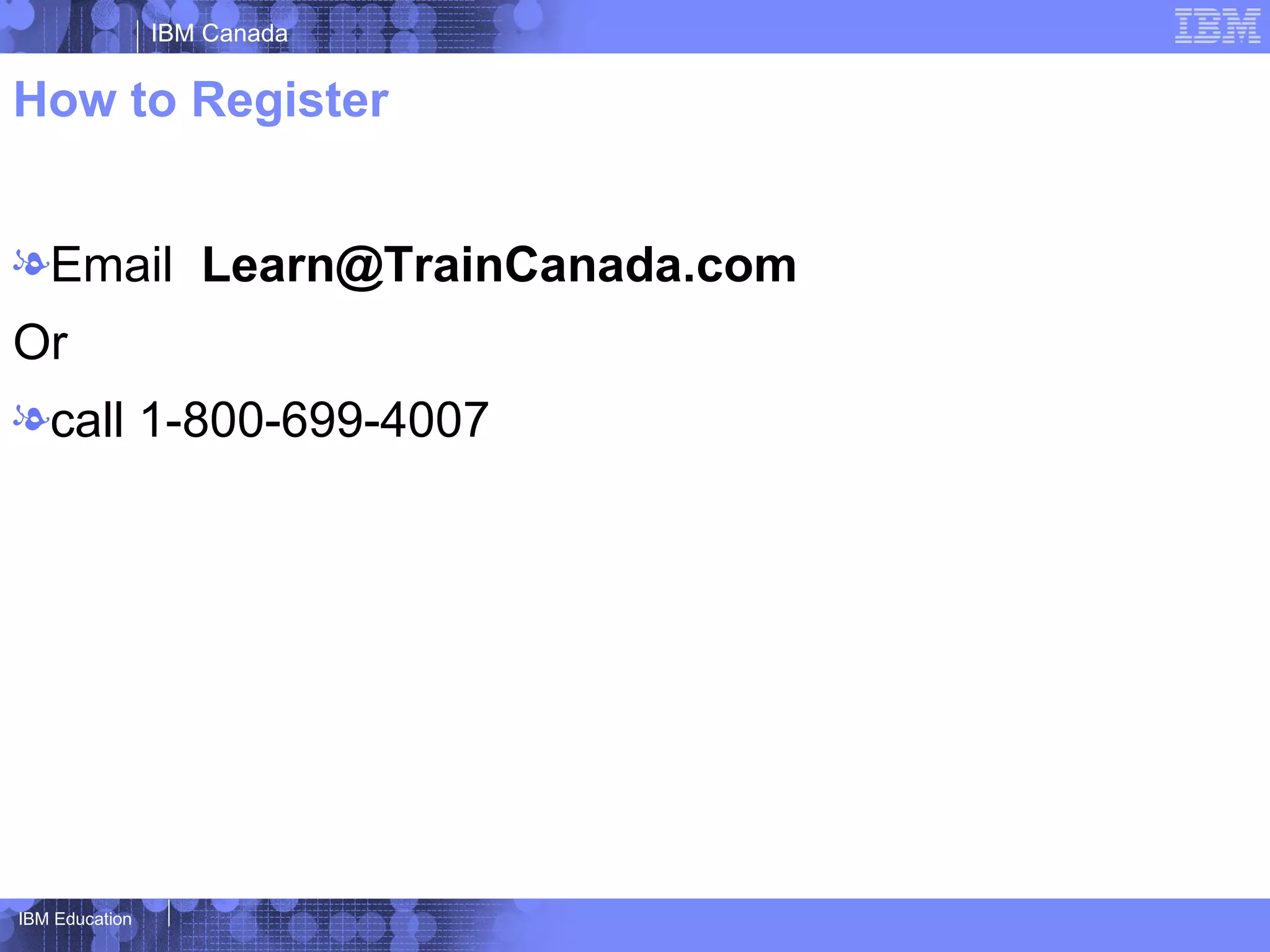

How to Register


lEmail Learn@TrainCanada.com
Or
lcall 1-800-699-4007
