1. CONTRAIL
SDN AND NFV
Bay Area Network Virtualization
Sree Sarva, Aniket Daptari
CONTRAIL CLOUD SOLUTIONS GROUP

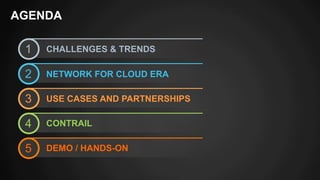

2. AGENDA
1 CHALLENGES & TRENDS
2
NETWORK FOR CLOUD ERA
3 USE CASES AND PARTNERSHIPS
4 CONTRAIL
5 DEMO / HANDS-ON

3. 1. CHALLENGES
AND TRENDS

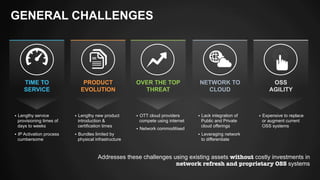

4. GENERAL CHALLENGES
TIME TO
PRODUCT
OVER THE TOP
SERVICE EVOLUTION
THREAT
CLOUD NETWORK TO
OSS
AGILITY
Addresses these challenges using existing assets without costly investments in
network refresh and proprietary OSS systems
§ Lengthy service
provisioning times of
days to weeks
§ IP Activation process
cumbersome
§ Lengthy new product
introduction &
certification times
§ Bundles limited by
physical infrastructure
§ OTT cloud providers
compete using internet
§ Network commoditised
§ Lack integration of
Public and Private
cloud offerings
§ Leveraging network
to differentiate
§ Expensive to replace
or augment current
OSS systems

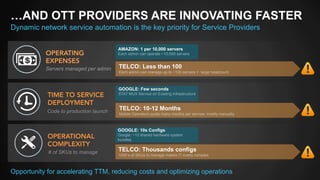

5. …AND OTT PROVIDERS ARE INNOVATING FASTER
Dynamic network service automation is the key priority for Service Providers
OPERATING
EXPENSES
Servers managed per admin
TIME TO SERVICE
DEPLOYMENT
Code to production launch
OPERATIONAL
COMPLEXITY
# of SKUs to manage
AMAZON: 1 per 10,000 servers
Each admin can operate ~10,000 servers
TELCO: Less than 100
Each admin can manage up to ~100 servers = large headcount
GOOGLE: Few seconds
STAT MUX Service on Existing Infrastructure
TELCO: 10-12 Months
Mobile Operators quote many months per service; mostly manually
GOOGLE: 10s Configs
Google: ~10 shared hardware system
bundles
TELCO: Thousands configs
1000’s of SKUs to manage makes IT overly complex
Opportunity for accelerating TTM, reducing costs and optimizing operations

6. 2. NETWORK FOR
CLOUD ERA

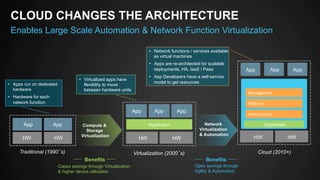

7. CLOUD CHANGES THE ARCHITECTURE
Enables Large Scale Automation & Network Function Virtualization
App App Network
HW HW
Virtualization
& Automation
Compute &
Storage
Virtualization
Traditional (1990’s)
App App App
Management
Platform
Infrastructure
Hypervisor
HW HW
• Network functions / services available
as virtual machines
• Apps are re-architected for scalable
deployments, HA, IaaS / Paas
• App Developers have a self-service
model to get resources
Cloud (2010+)
• Apps run on dedicated
hardware
• Hardware for each
network function
App App App
Hypervisor
HW HW
Virtualization (2000’s)
• Virtualized apps have
flexibility to move
between hardware units
Benefits
Capex savings through Virtualization
& higher device utilization
Benefits
Opex savings through
Agility & Automation

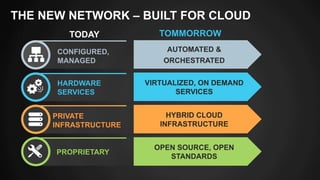

8. THE NEW NETWORK – BUILT FOR CLOUD
TODAY
CONFIGURED,
MANAGED
HARDWARE
SERVICES
PRIVATE
INFRASTRUCTURE
PROPRIETARY
TOMMORROW
AUTOMATED &
ORCHESTRATED
VIRTUALIZED, ON DEMAND
SERVICES
HYBRID CLOUD
INFRASTRUCTURE
OPEN SOURCE, OPEN
STANDARDS

9. 3. USE CASES &
PARTNERSHIPS

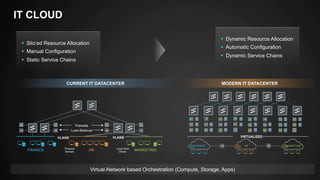

10. IT CLOUD
§ Silo’ed Resource Allocation
§ Manual Configuration
§ Static Service Chains
§ Dynamic Resource Allocation
§ Automatic Configuration
§ Dynamic Service Chains
CURRENT IT DATACENTER
Firewalls
Load-Balancer
VLANS VLANS
FINANCE HR MARKETING
MODERN IT DATACENTER
VIRTUALIZED
FINANCE HR MARKETING
Virtual-Network based Orchestration (Compute, Storage, Apps)
Physical
Servers
Local Hard
Drives

11. CLOUD CPE SERVICE
Firewall
IPvC4a-vc6h ing
LoaPdo Bli&cay laV Cnidcoeinnotg ro l
WAN Optimization
UnifiRedo uTthinrge at
Traffic Detection/
ManagDeHmCePn RoCutGinNg AT
t
DDOS
DPI
Router Services
DHCP
Full featured CPE
Customer Value
CPE Delivered
in Virtualized Services
SP Delivered
Service Provider
IP Edge
IP VPN Service
Routing FW & UTM DHCP
Modem / ONT
Point Pulse Voice
Switch
Voice
Wireless Management
Controller
Access Point
IPS/ IDS
SECURITY
Pulse
Tethered CPE
Modem / ONT Switch Access
§ Decrease cost of physical CPE
§ Increase agility of introducing new services
§ Decrease cost of servicing customers
Services limited by capability of physical CPE hardware
Expensive to roll out new services
Costly customer support

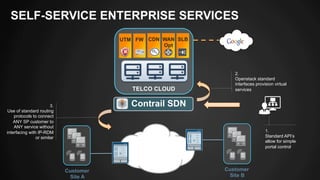

12. SELF-SERVICE ENTERPRISE SERVICES
NEXTIP VPN
Customer
Site A
UTM FW CDN WAN SLB
Opt
Customer
Site B
TELCO CLOUD
Contrail SDN
2.
Openstack standard
interfaces provision virtual
services
1.
Standard API’s
allow for simple
portal control
3.
Use of standard routing
protocols to connect
ANY SP customer to
ANY service without
interfacing with IP-RDM
or similar

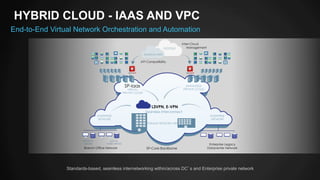

13. HYBRID CLOUD - IAAS AND VPC
End-to-End Virtual Network Orchestration and Automation
Standards-based, seamless internetworking within/across DC’s and Enterprise private network

14. 4. CONTRAIL

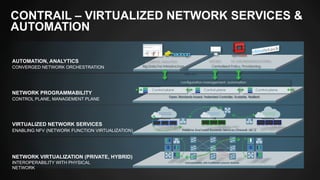

15. CONTRAIL – VIRTUALIZED NETWORK SERVICES &
AUTOMATION
AUTOMATION, ANALYTICS
CONVERGED NETWORK ORCHESTRATION
NETWORK PROGRAMMABILITY
CONTROL PLANE, MANAGEMENT PLANE
VIRTUALIZED NETWORK SERVICES
ENABLING NFV (NETWORK FUNCTION VIRTUALIZATION)
NETWORK VIRTUALIZATION (PRIVATE, HYBRID)
INTEROPERABILITY WITH PHYSICAL
NETWORK

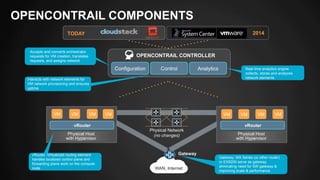

16. OPENCONTRAIL COMPONENTS
TODAY 2014
OPENCONTRAIL CONTROLLER
Physical Network
(no changes)
Analytics
Configuration Control
VM VM VM VM
vRouter
Physical Host
with Hypervisor
VM VM VM VM
vRouter
Physical Host
with Hypervisor
Gateway
WAN, Internet
Accepts and converts orchestrator
requests for VM creation, translates
requests, and assigns network
Real-time analytics engine
collects, stores and analyzes
Interacts with network elements for network elements
VM network provisioning and ensures
uptime
vRouter: Virtualized routing element
handles localized control plane and
forwarding plane work on the compute
node
Gateway: MX Series (or other router)
or EX9200 serve as gateway
eliminating need for SW gateway &
improving scale & performance

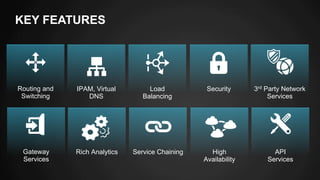

17. KEY FEATURES
IPAM, Virtual
DNS
Load Security
Balancing
3rd Party Network
Services
Service Chaining API
Rich Analytics High
Availability
Services
Routing and
Switching
Gateway
Services

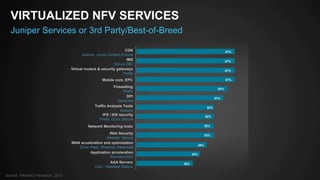

18. 67%
67%
67%
67%
62%
57%
52%
52%
52%
52%
48%
43%
38%
CDN
Akamai, Junos Content Encore
IMS
Sonus SBC
Virtual routers & security gateways
Firefly
Mobile core, EPC
Firewalling
Firefly
DPI
Sandvine
Traffic Analysis Tools
Guavus
IPS / IDS security
Firefly, DDos Secure
Network Monitoring tools
Web Security
WebApp Secure
WAN acceleration and optimization
Silver-Peak, Riverbed Steelhead
Application acceleration
Riverbed ADC
AAA Servers
UAC / Steelbelt Radius
57%
52%
VIRTUALIZED NFV SERVICES
Juniper Services or 3rd Party/Best-of-Breed
Source: Infonetics Research, 2013

19. SUMMARY: CONTRAIL IS A LEADING SDN SOLUTION
PROGRAMMABILITY
§ Agile deployment of network services for faster time to revenue
§ 3rd party services can run unmodified on the platform, eliminating the
need for custom development
§ NB REST APIs allows easy integration with existing OSS/BSS
§ Network complexity abstracted out using rich and programmatic
interface, allowing for policy-based automation
ACCELERATED TTM
LOWER TCO
§ Higher utilization of existing infrastructure & cost effective X86 HW
§ Centralizes management reducing operational cost & complexity
§ Uses standard protocols obviating need for specialized knowledge
NETWORK INSIGHTS
§ Collects & analyzes huge amounts of network state information
§ Offers APIs for 3rd party analytics & visualization software to integrate
with the system
OPENNESS &
INTEROPERABILITY
§ Contrail is open-sourced and integrates with Openstack, Cloudstack,
KVM, Xen, and other open-sourced products / components
§ Interoperable with other multi-vendor infrastructure and services

20. ORCHESTRATION PARTNERS
Cloudstack, CCP
OCS Openstack Mirantis Openstack,
Fuel
Redhat Openstack
(RHOS)
UnitedStack
Openstack
SmartCloud
Orchestrator
2014

21. DEMO & HANDS-ON

22. DEMO / HANDS-ON
• Creation of Virtual Networks
• Attachment of Virtual Machines
• Access Policy between Virtual Networks
• Floating IP / Distributed NAT using vRouter
• Service Insertion - NAT Gateway
• Debug & Analytics Information

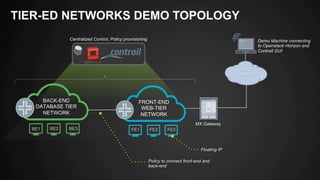

23. TIER-ED NETWORKS DEMO TOPOLOGY
BACK-END
DATABASE TIER
NETWORK
FRONT-END
WEB-TIER
NETWORK
BE1 BE2 BE3 FE1 FE2 FE3
MX Gateway
Policy to connect front-end and
back-end
Centralized Control, Policy provisioning
Internet
Demo Machine connecting
to Openstack Horizon and
Contrail GUI
Floating IP

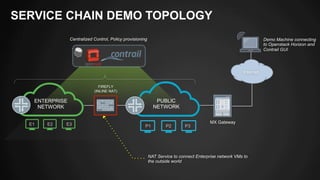

24. SERVICE CHAIN DEMO TOPOLOGY
ENTERPRISE
NETWORK
Centralized Control, Policy provisioning Demo Machine connecting
PUBLIC
NETWORK
FIREFLY
(INLINE NAT)
E1 E2 E3 P1 P2 P3
MX Gateway
Internet
NAT Service to connect Enterprise network VMs to
the outside world
to Openstack Horizon and
Contrail GUI

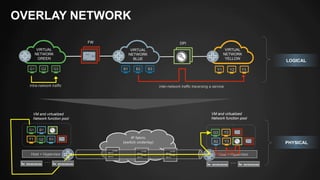

25. OVERLAY NETWORK
VIRTUAL
NETWORK
GREEN
FW DPI
VIRTUAL
NETWORK
BLUE
VIRTUAL
NETWORK
YELLOW
B1 B2 B3 Y1 Y2 Y3
Intra-network traffic Inter-network traffic traversing a service
IP fabric
VM and virtualized
Network function pool
G3
VM and virtualized
Network function pool
Y1 Y3
B3 B2
(switch underlay)
G1 G2 G3
B1
G1
G2
Y2
Host + Hypervisor Host + Hypervisor
… …
LOGICAL
PHYSICAL

26. DEVSTACK +
OPENCONTRAIL

27. DEVSTACK + OPENCONTRAIL
§ WHAT?
§ Run OpenStack and OpenContrail on your laptop or in a VM
§ WHY?
§ Use to build & test OpenStack and OpenContrail code
§ Just play with OpenStack/OpenContrail features
§ HOW?
§ Ubuntu server/VM with 4GB RAM, access to github

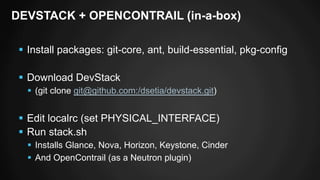

28. DEVSTACK + OPENCONTRAIL (in-a-box)
§ Install packages: git-core, ant, build-essential, pkg-config
§ Download DevStack
§ (git clone git@github.com:/dsetia/devstack.git)
§ Edit localrc (set PHYSICAL_INTERFACE)
§ Run stack.sh
§ Installs Glance, Nova, Horizon, Keystone, Cinder
§ And OpenContrail (as a Neutron plugin)

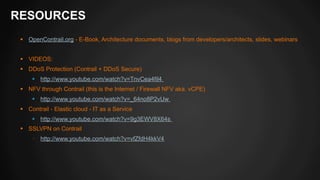

29. RESOURCES
§ OpenContrail.org - E-Book, Architecture documents, blogs from developers/architects, slides, webinars
§ VIDEOS:
§ DDoS Protection (Contrail + DDoS Secure)
§ http://www.youtube.com/watch?v=TnvCea4fil4
§ NFV through Contrail (this is the Internet / Firewall NFV aka. vCPE)
§ http://www.youtube.com/watch?v=_64no8P2vUw
§ Contrail - Elastic cloud - IT as a Service
§ http://www.youtube.com/watch?v=9g3EWV8X64s
§ SSLVPN on Contrail
§ http://www.youtube.com/watch?v=vfZfdH4kkV4

30. THANK YOU!
