Using BacNET for Building Automation and Control Applications
The webinar presented by Paulo Balbino on July 15th, 2014, covers the BACnet protocol, a standardized data communication protocol utilized in building automation and control networks. Key topics included BACnet's object-based model, services for device management, and the capabilities of the Indusoft BACnet driver. Attendees were also shown a live demo and informed about future enhancements and support options.
More Related Content
Similar to Using BacNET for Building Automation and Control Applications
![Coded Agents – with UiPath SDK + LangGraph [Virtual Hands-on Workshop]](https://cdn.slidesharecdn.com/ss_thumbnails/codedagentsdeck-251215155422-5497c599-thumbnail.jpg?width=640&height=640&fit=bounds)
Using BacNET for Building Automation and Control Applications
- 1. BacNet - Webinar Presentedby Paulo Balbino July 15th, 2014
- 2.

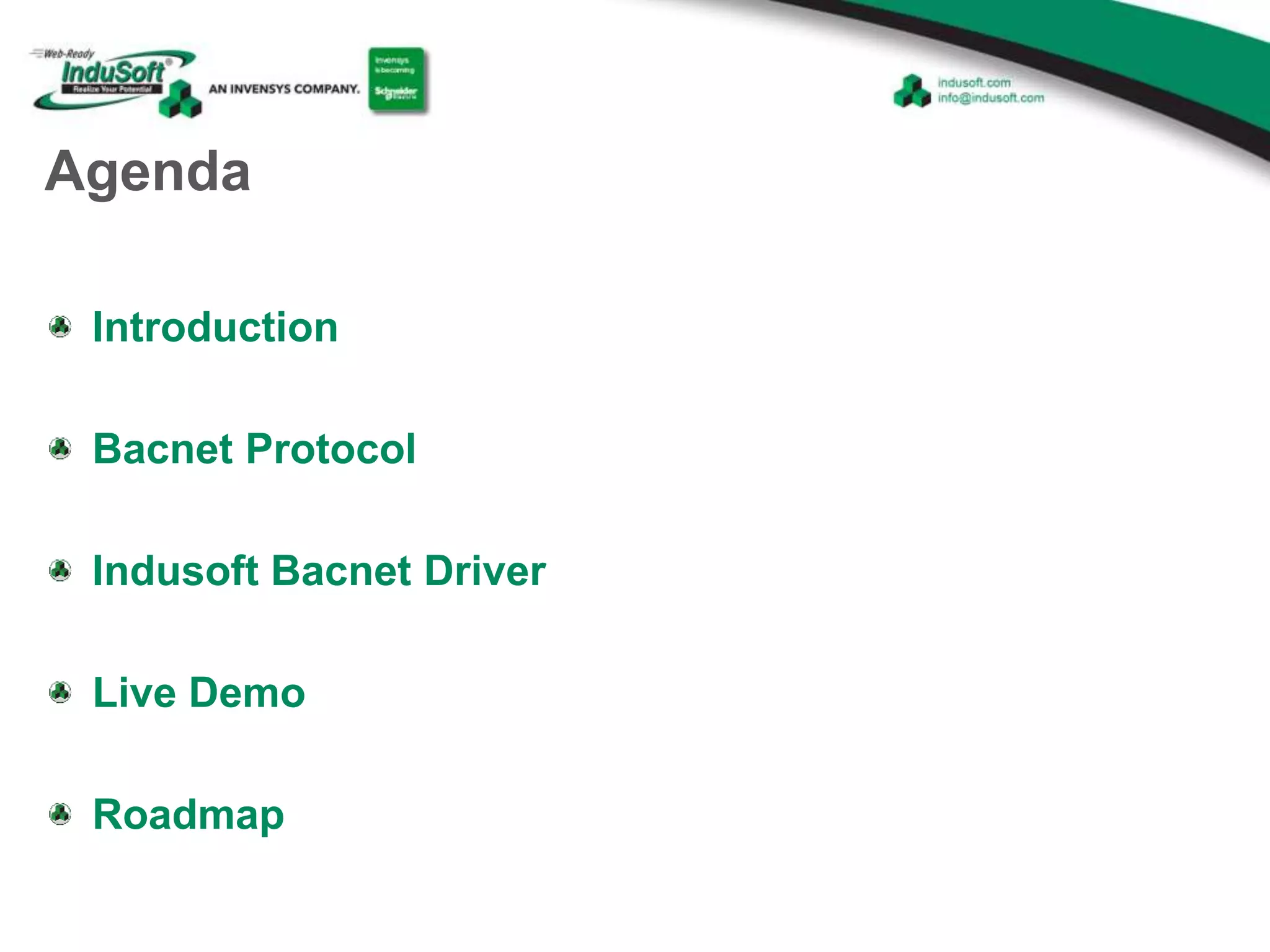

- 3. Agenda Introduction Bacnet Protocol Indusoft BacnetDriver Live Demo Roadmap
- 4.

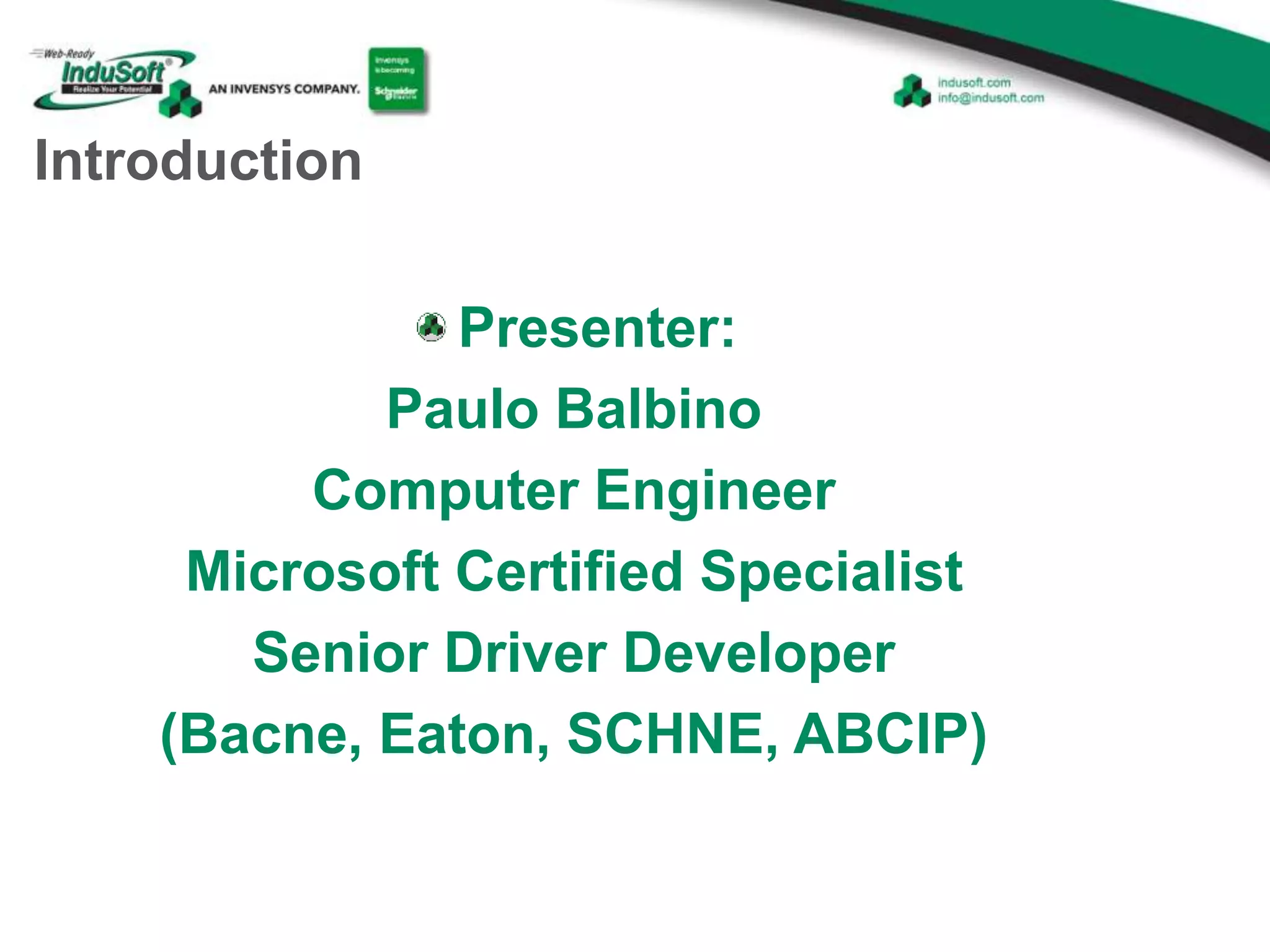

- 5. Introduction Presenter: Paulo Balbino Computer Engineer MicrosoftCertified Specialist Senior Driver Developer (Bacne, Eaton, SCHNE, ABCIP)
- 6.

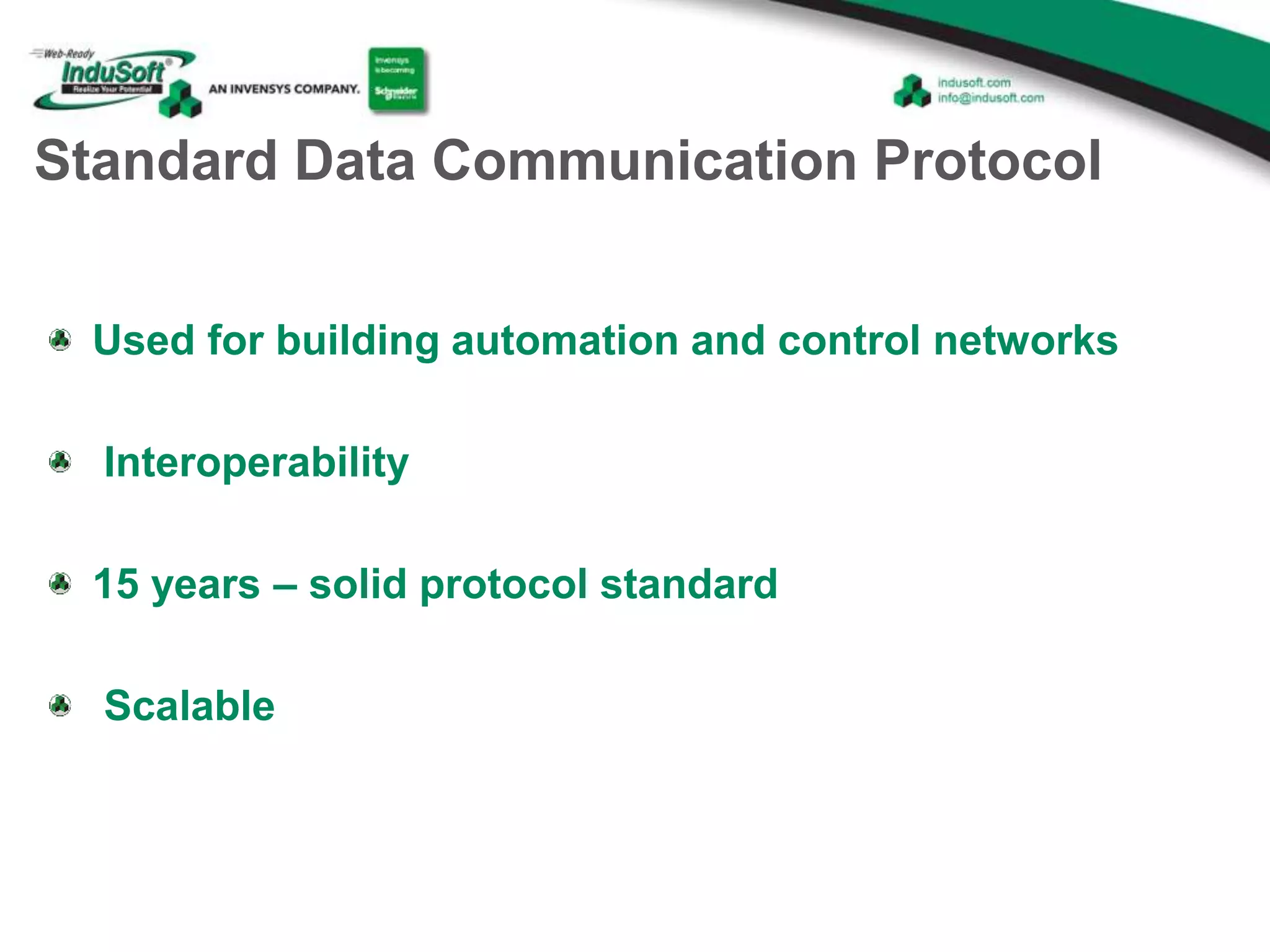

- 8. Standard Data CommunicationProtocol Used for building automation and control networks Interoperability 15 years – solid protocol standard Scalable

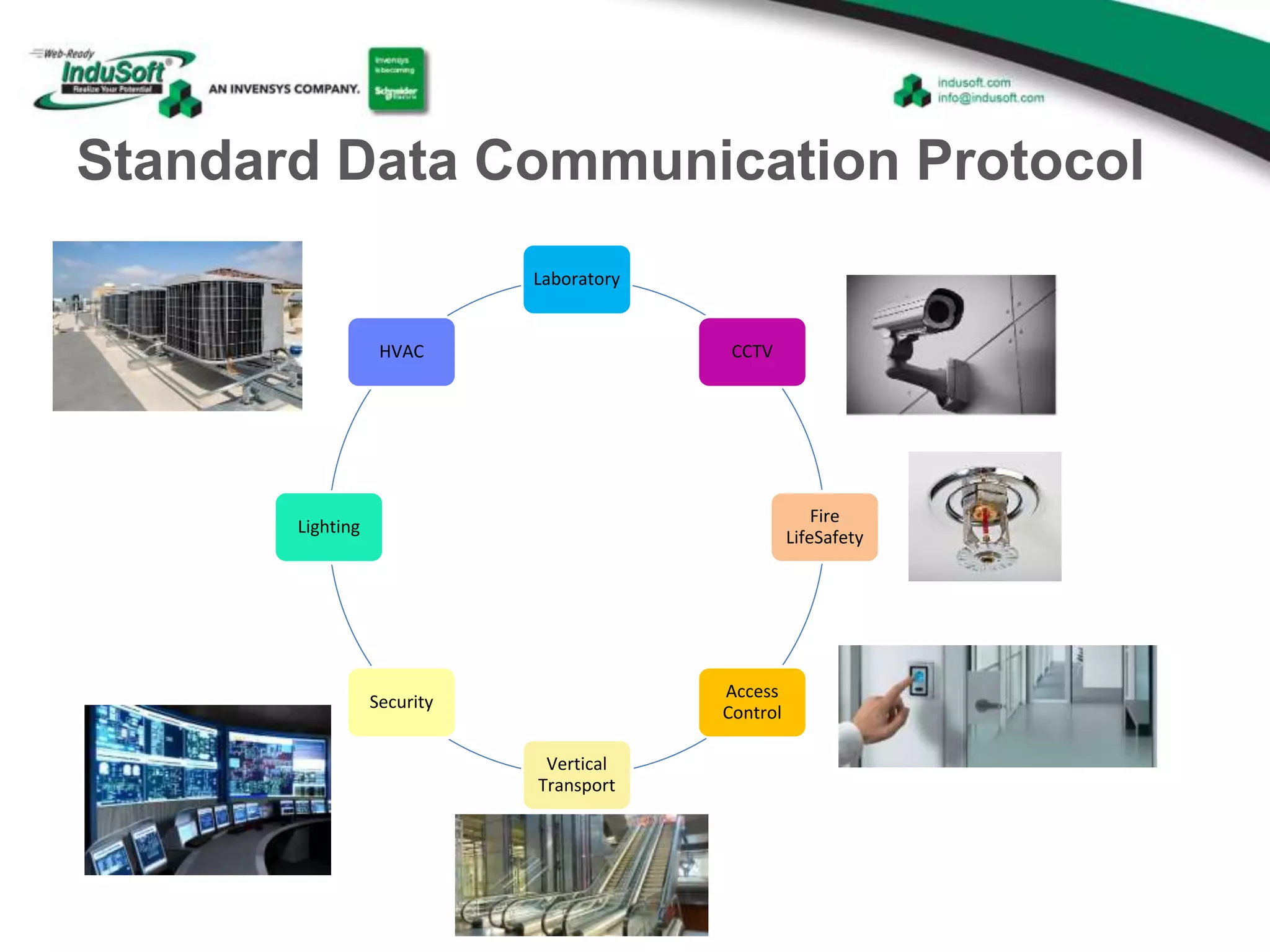

- 9. Standard Data CommunicationProtocol Laboratory CCTV Fire LifeSafety Access Control Vertical Transport Security Lighting HVAC

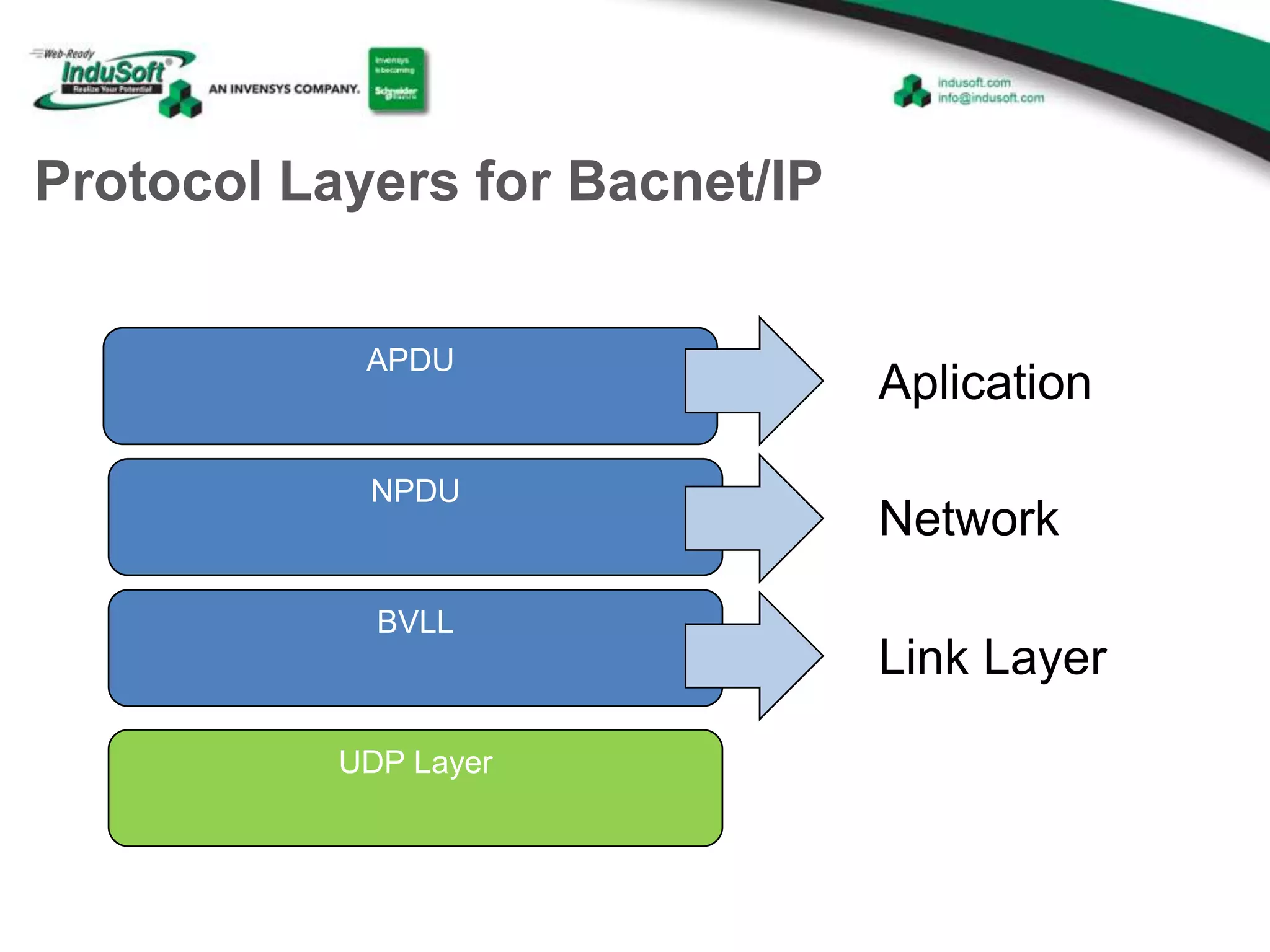

- 10. Protocol Layers forBacnet/IP APDU NPDU BVLL UDP Layer Aplication Network Link Layer

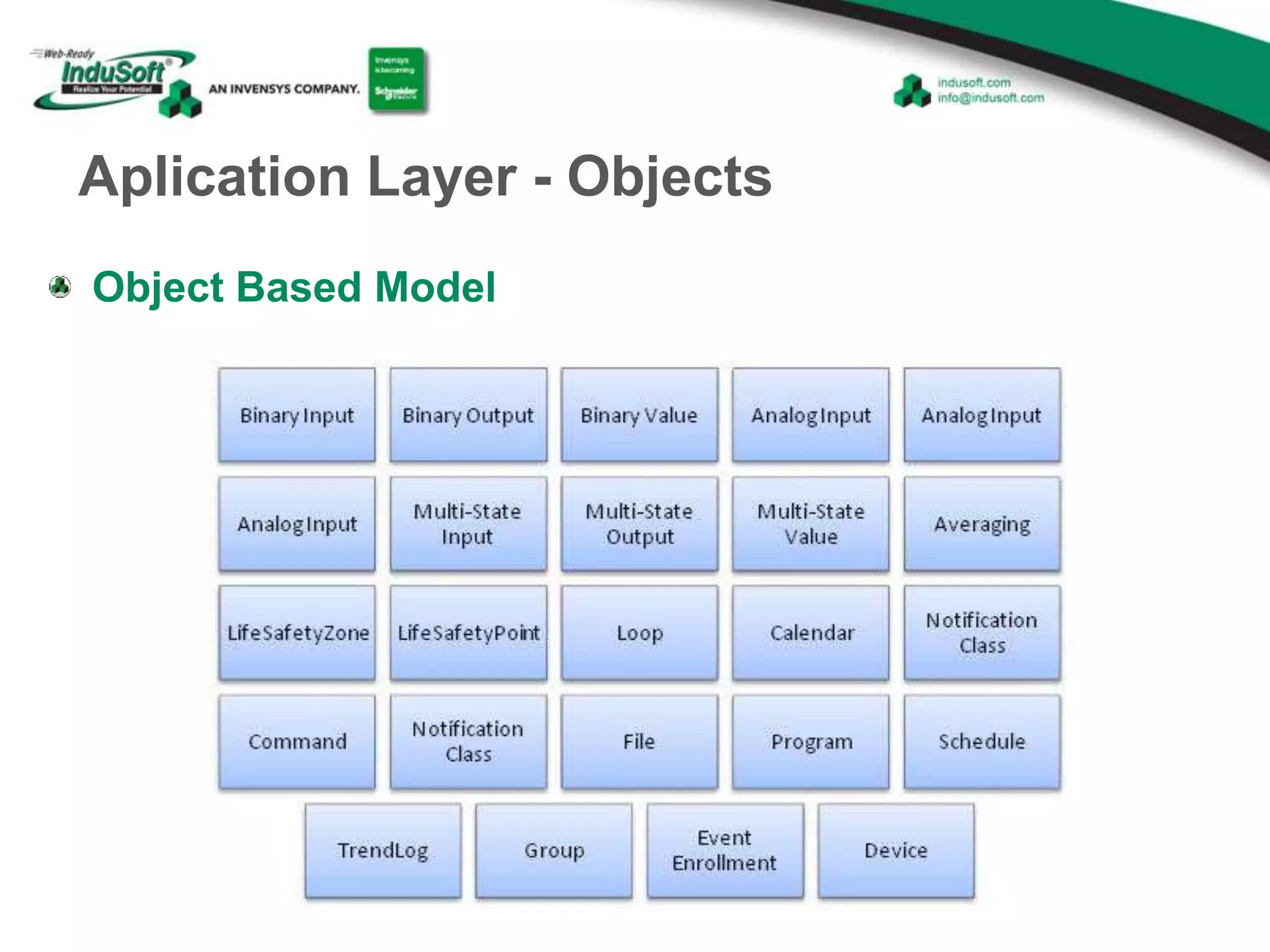

- 11. Aplication Layer -Objects Object Based Model

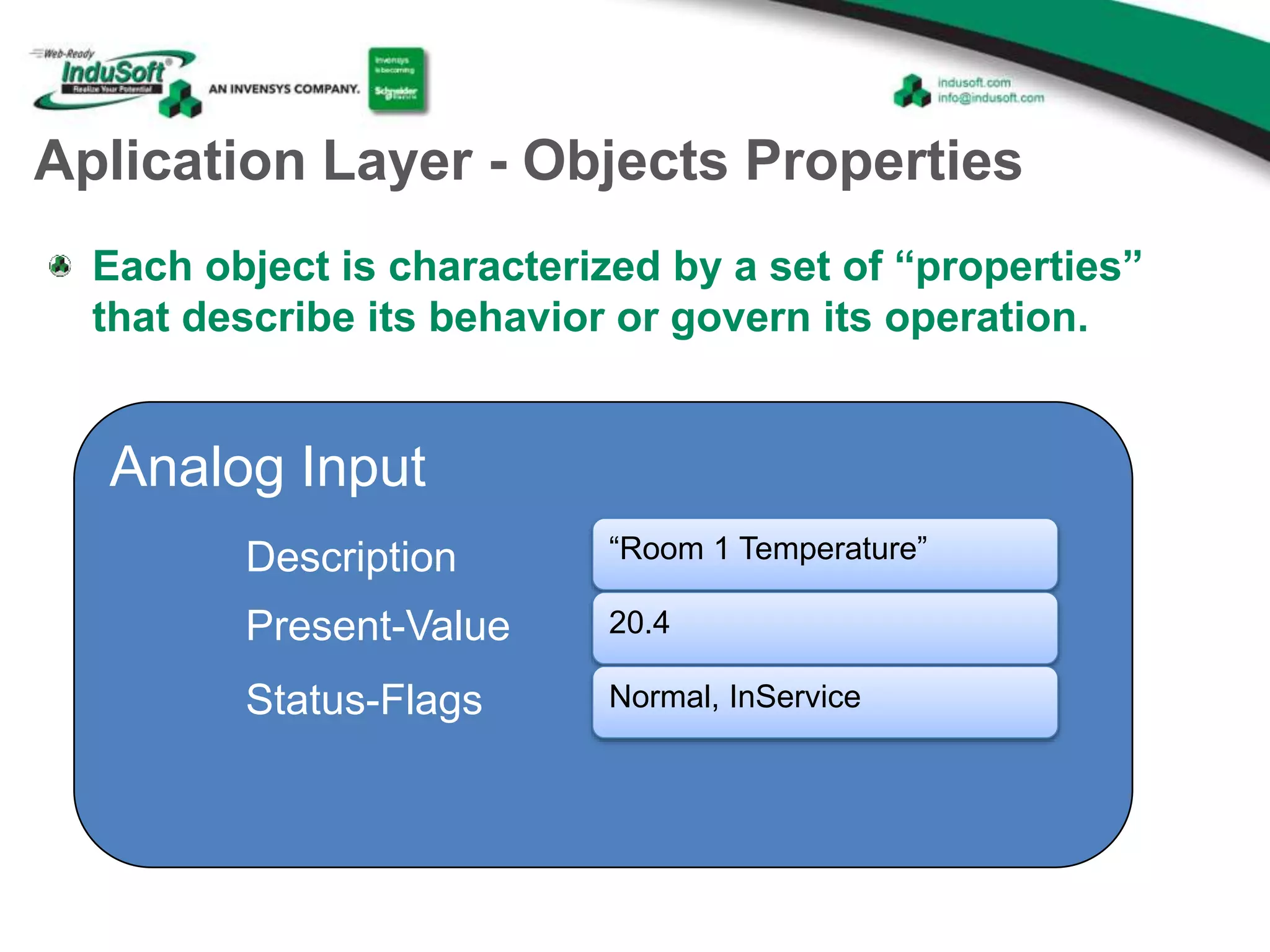

- 12. Aplication Layer -Objects Properties Analog Input “Room 1 Temperature” 20.4 Normal, InService Description Present-Value Status-Flags Each object is characterized by a set of “properties” that describe its behavior or govern its operation.

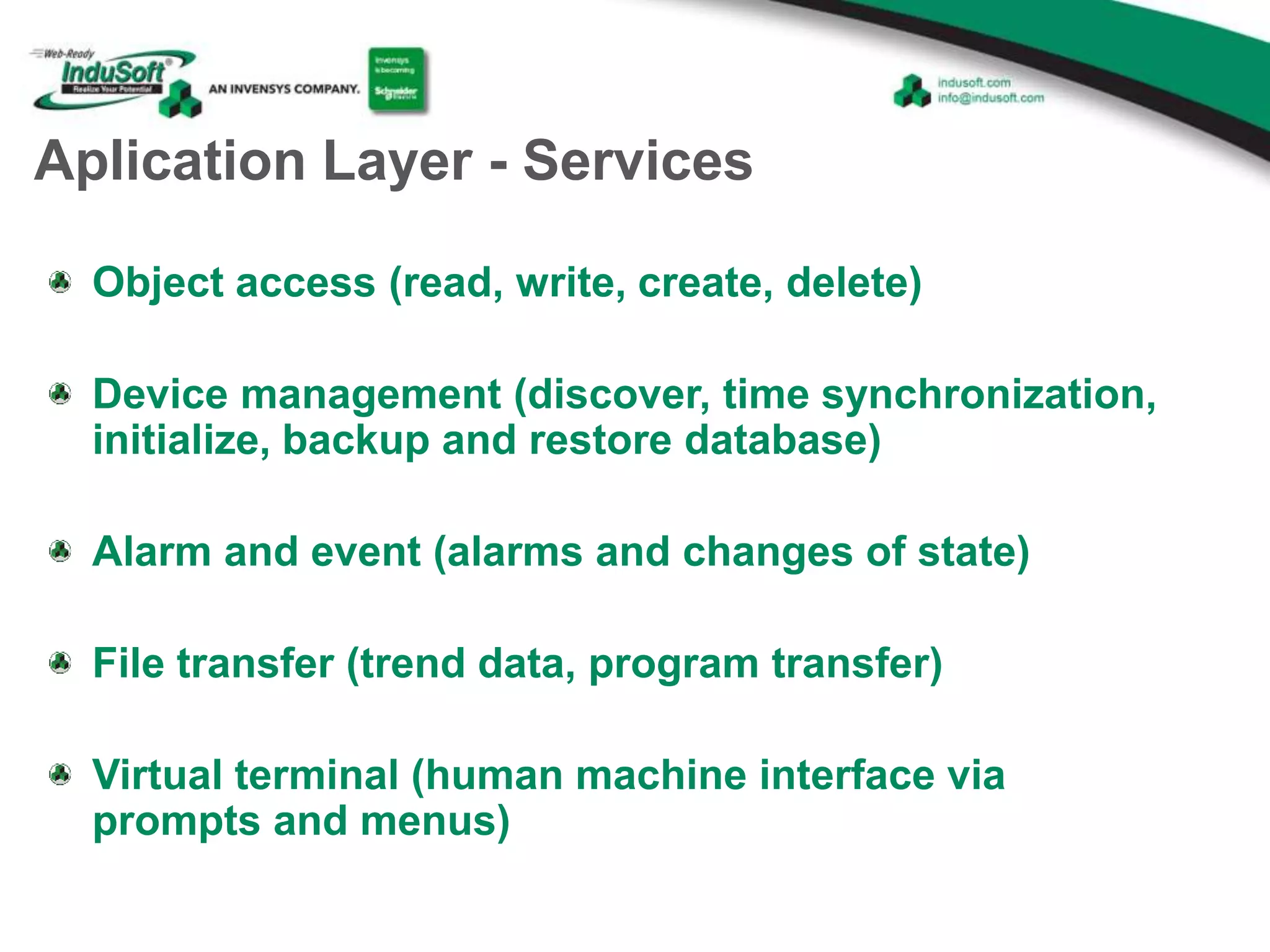

- 13. Aplication Layer -Services Object access (read, write, create, delete) Device management (discover, time synchronization, initialize, backup and restore database) Alarm and event (alarms and changes of state) File transfer (trend data, program transfer) Virtual terminal (human machine interface via prompts and menus)

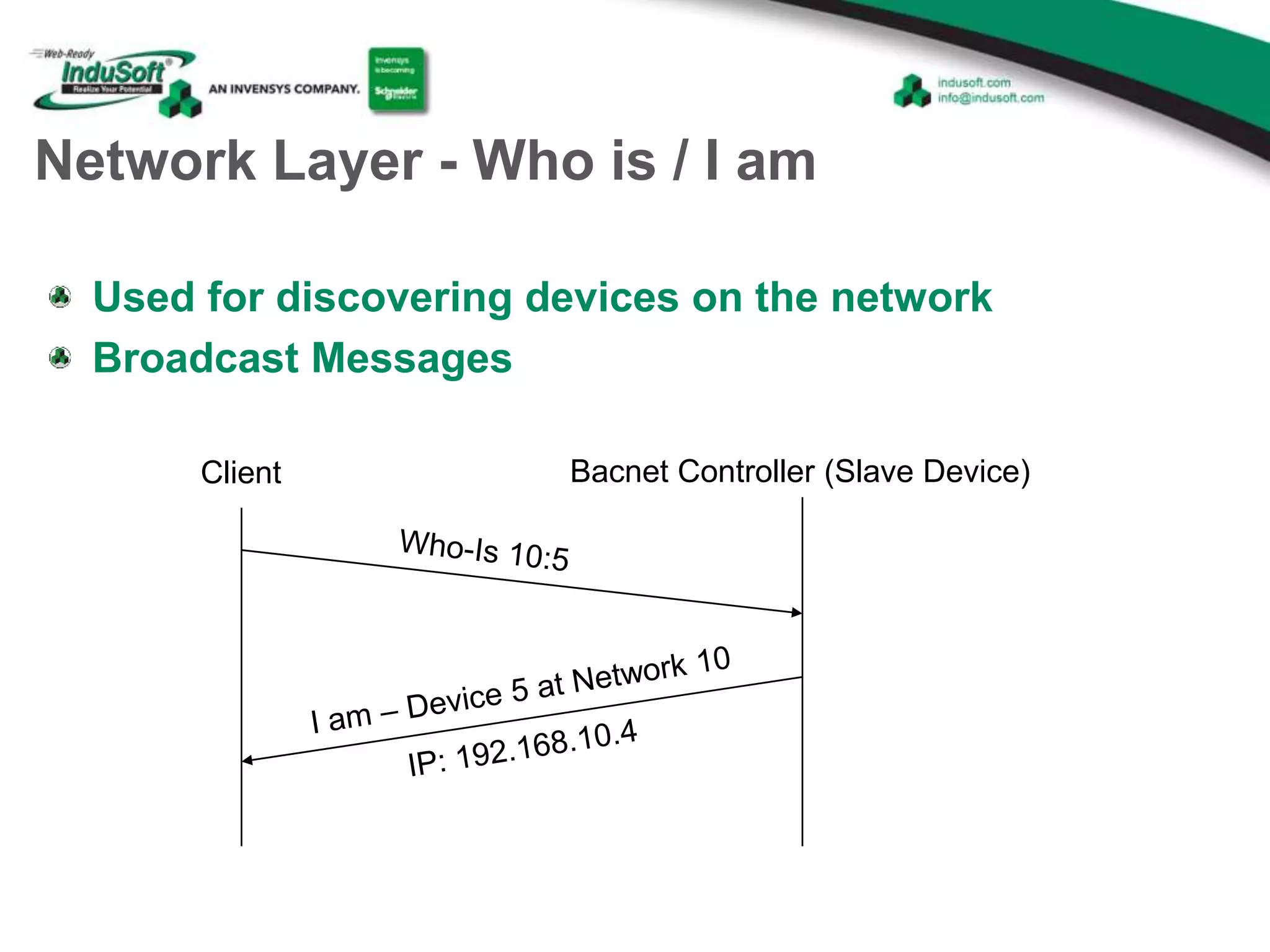

- 14. Network Layer -Who is / I am Client Bacnet Controller (Slave Device) Used for discovering devices on the network Broadcast Messages

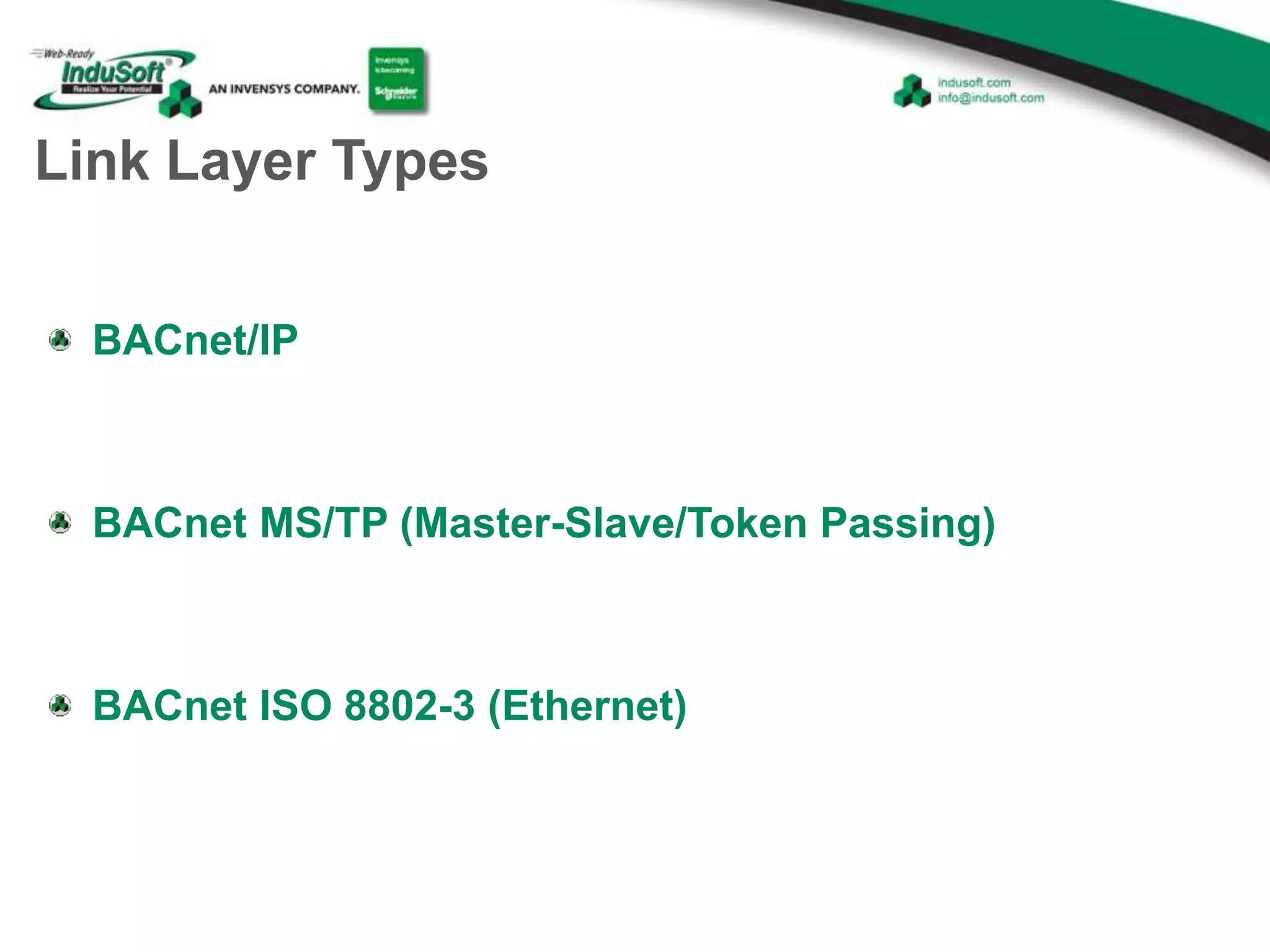

- 15. Link Layer Types BACnet/IP BACnetMS/TP (Master-Slave/Token Passing) BACnet ISO 8802-3 (Ethernet)
- 16.

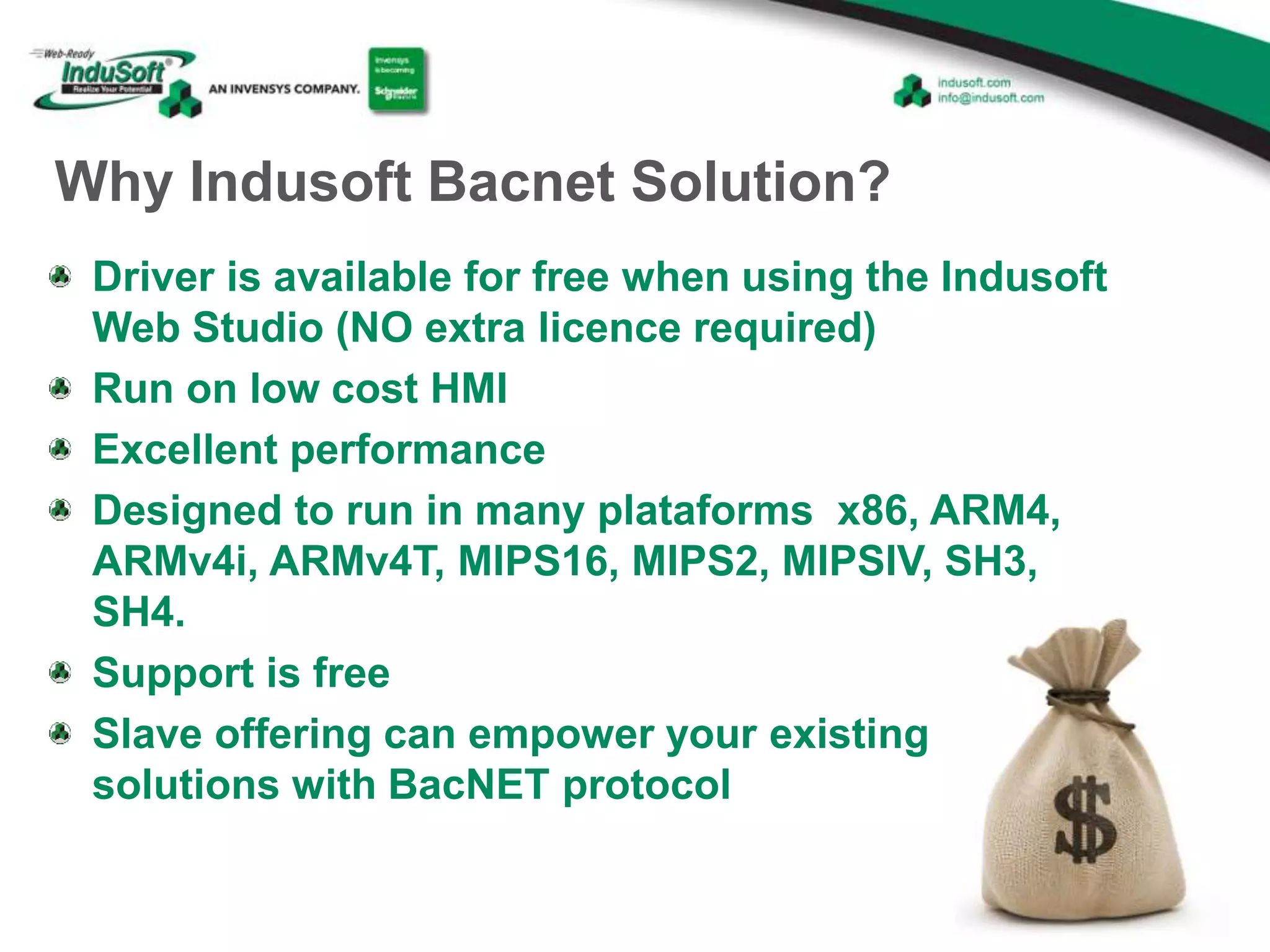

- 17. Why Indusoft BacnetSolution? Driver is available for free when using the Indusoft Web Studio (NO extra licence required) Run on low cost HMI Excellent performance Designed to run in many plataforms x86, ARM4, ARMv4i, ARMv4T, MIPS16, MIPS2, MIPSIV, SH3, SH4. Support is free Slave offering can empower your existing solutions with BacNET protocol

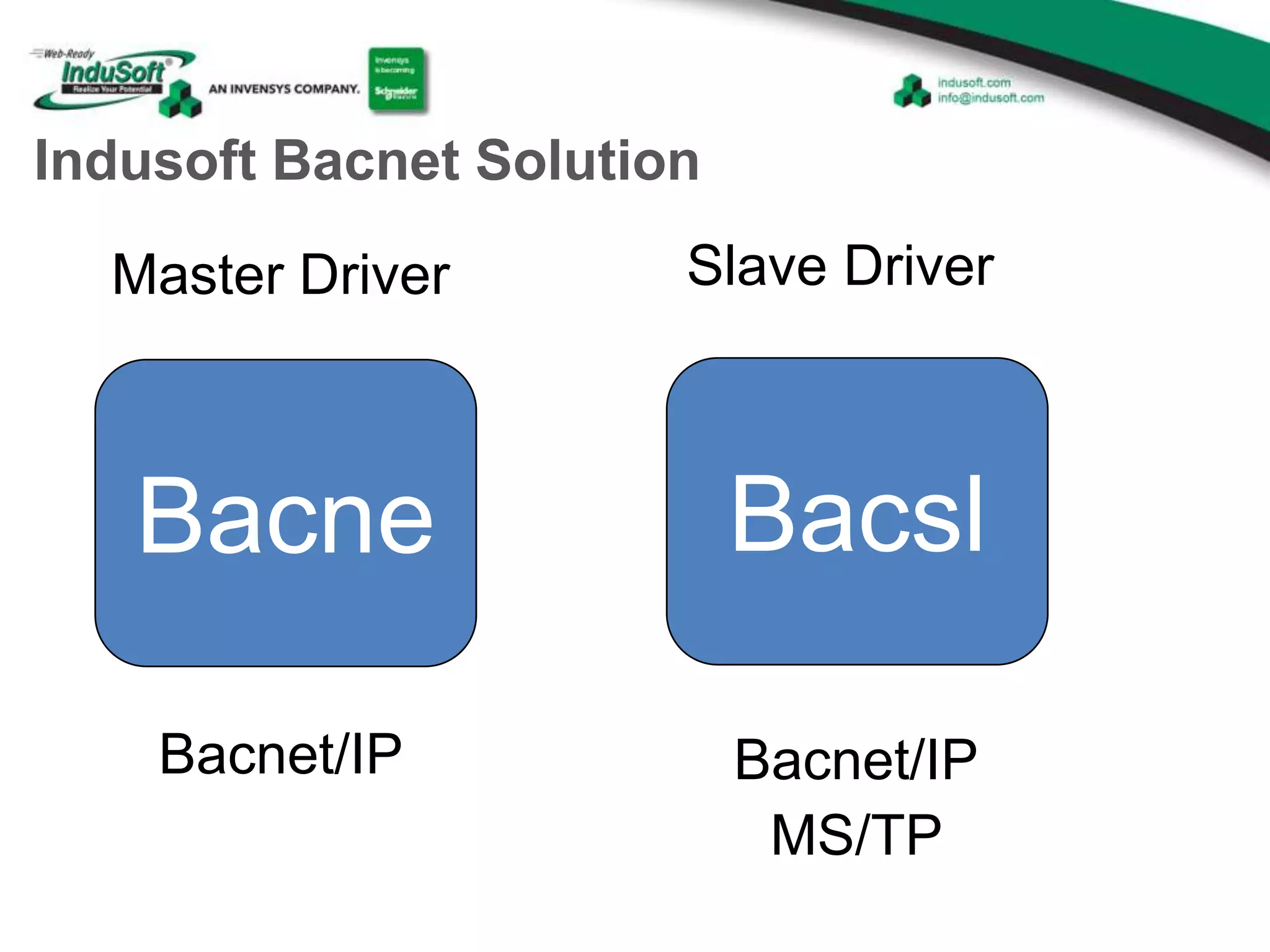

- 18. Indusoft Bacnet Solution BacneBacsl Master Driver Slave Driver Bacnet/IP Bacnet/IP MS/TP

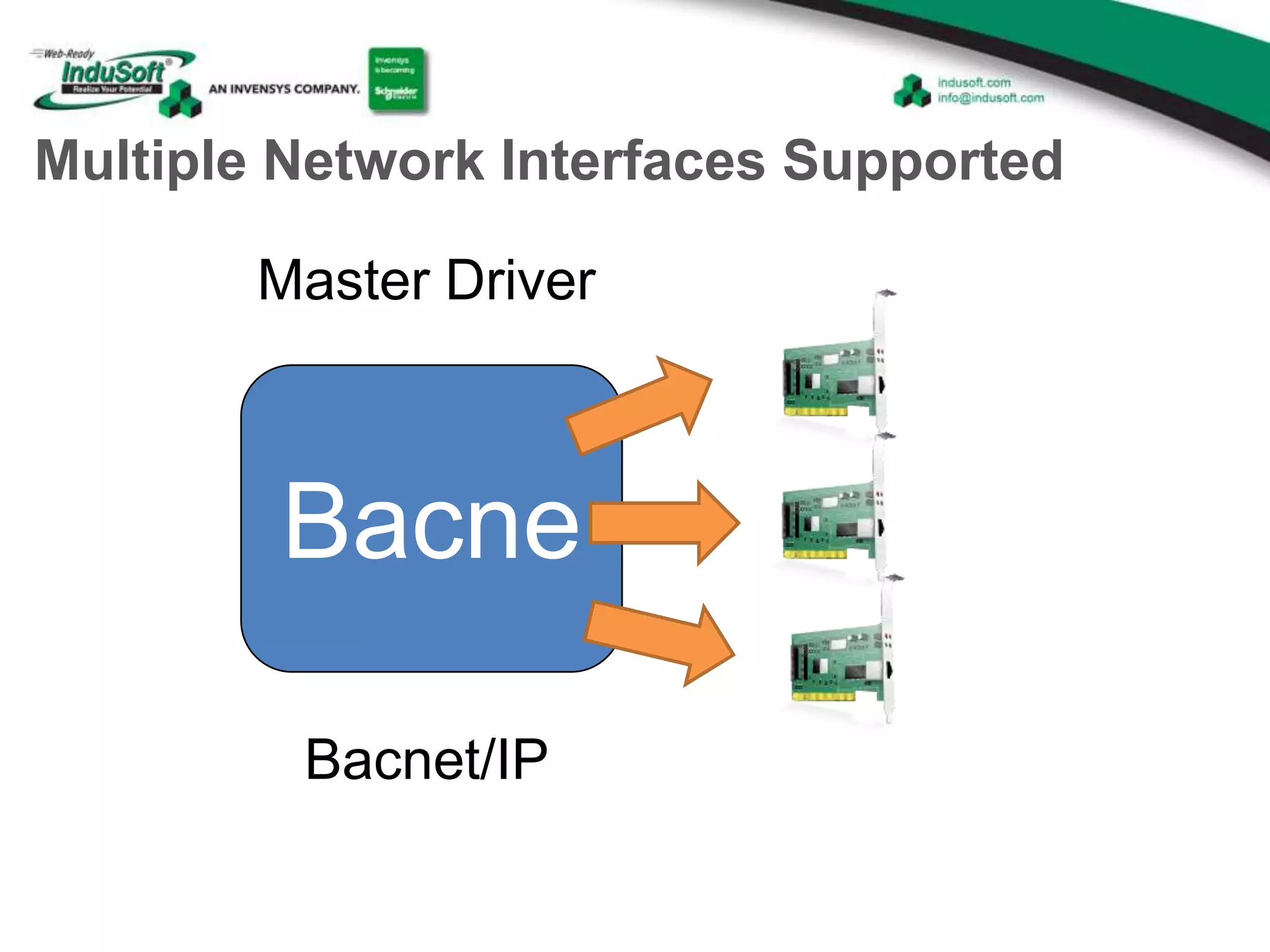

- 19. Multiple Network InterfacesSupported Bacne Master Driver Bacnet/IP

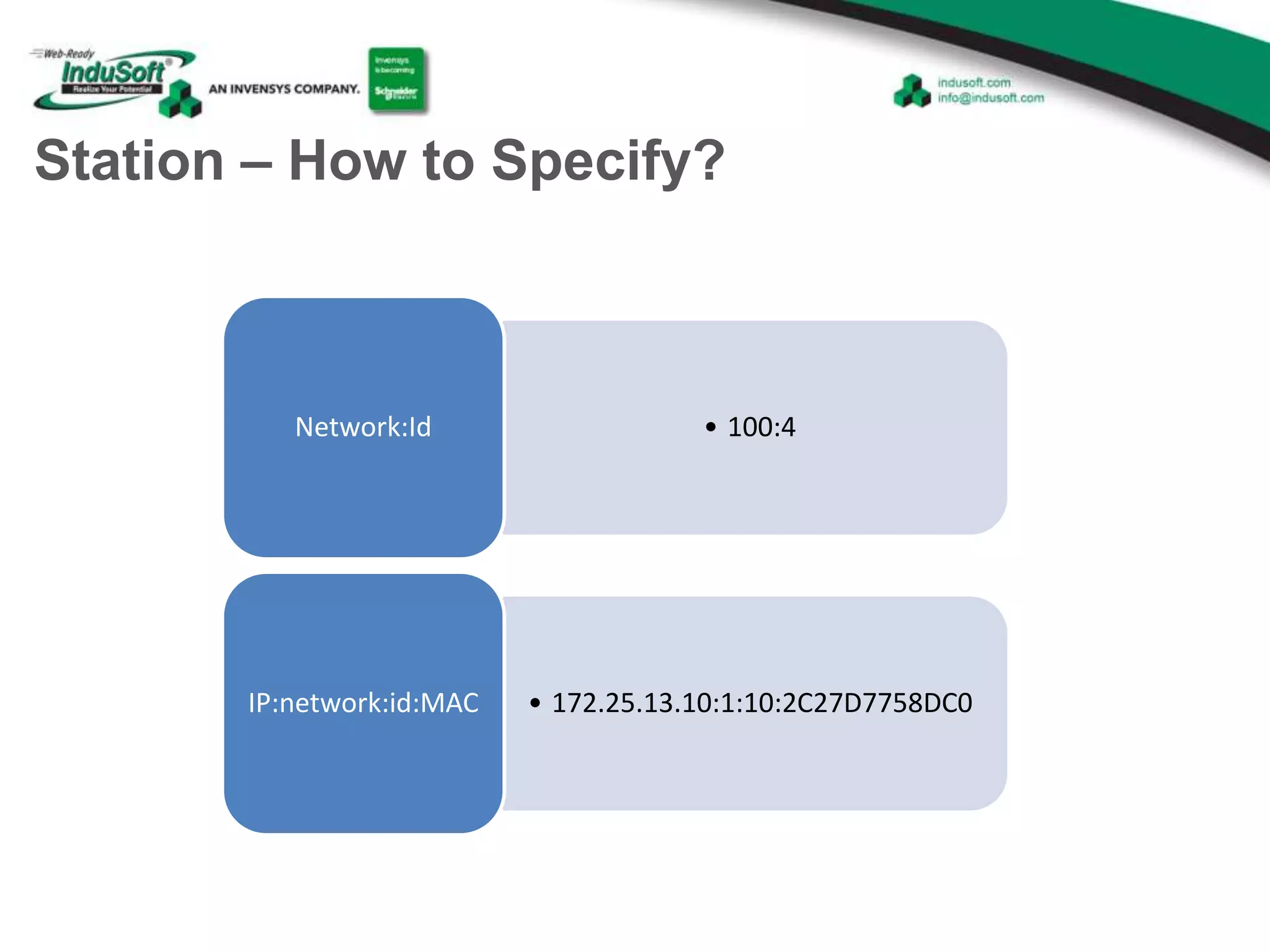

- 20. Station – Howto Specify? • 100:4Network:Id • 172.25.13.10:1:10:2C27D7758DC0IP:network:id:MAC
- 21.

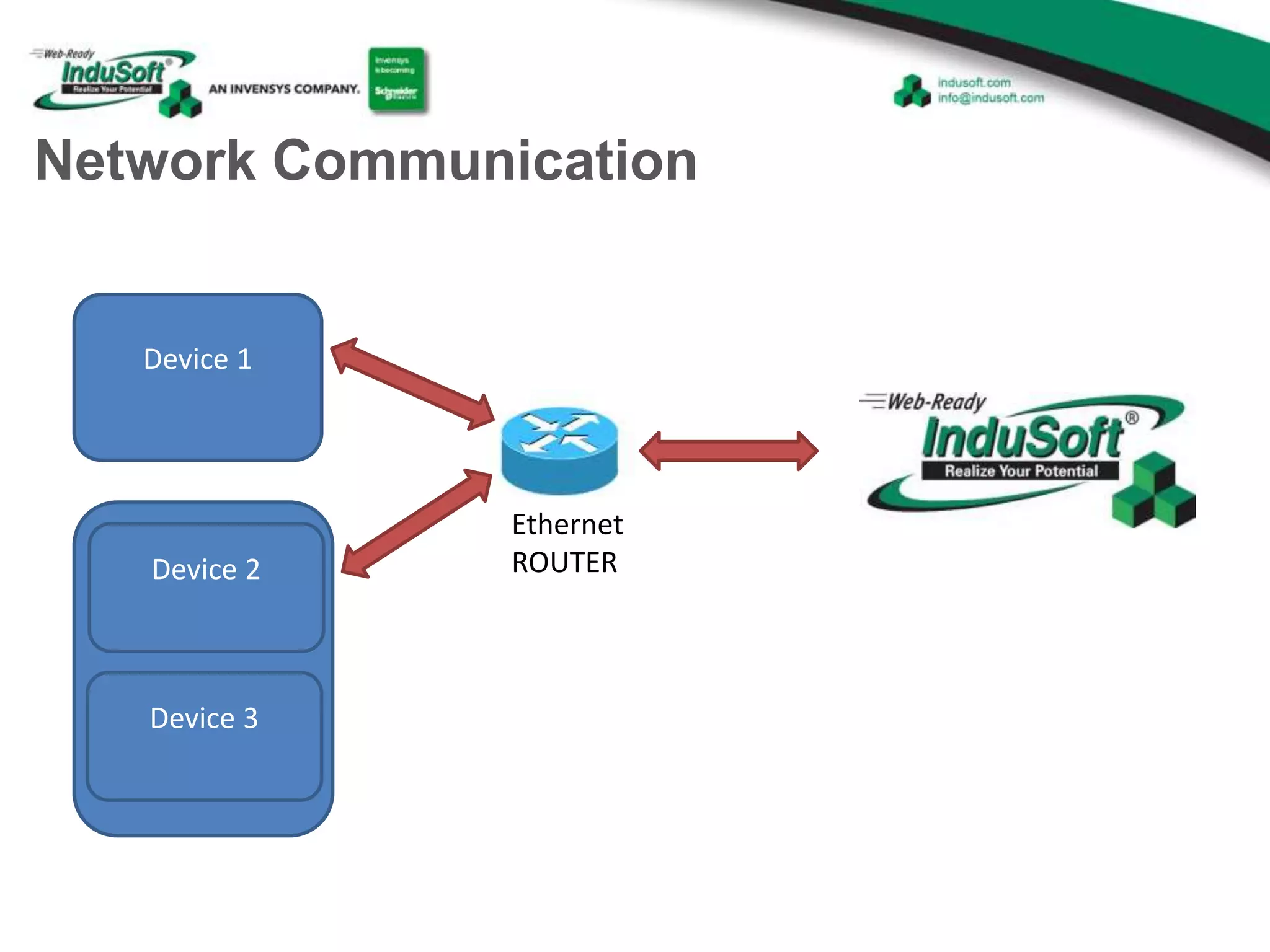

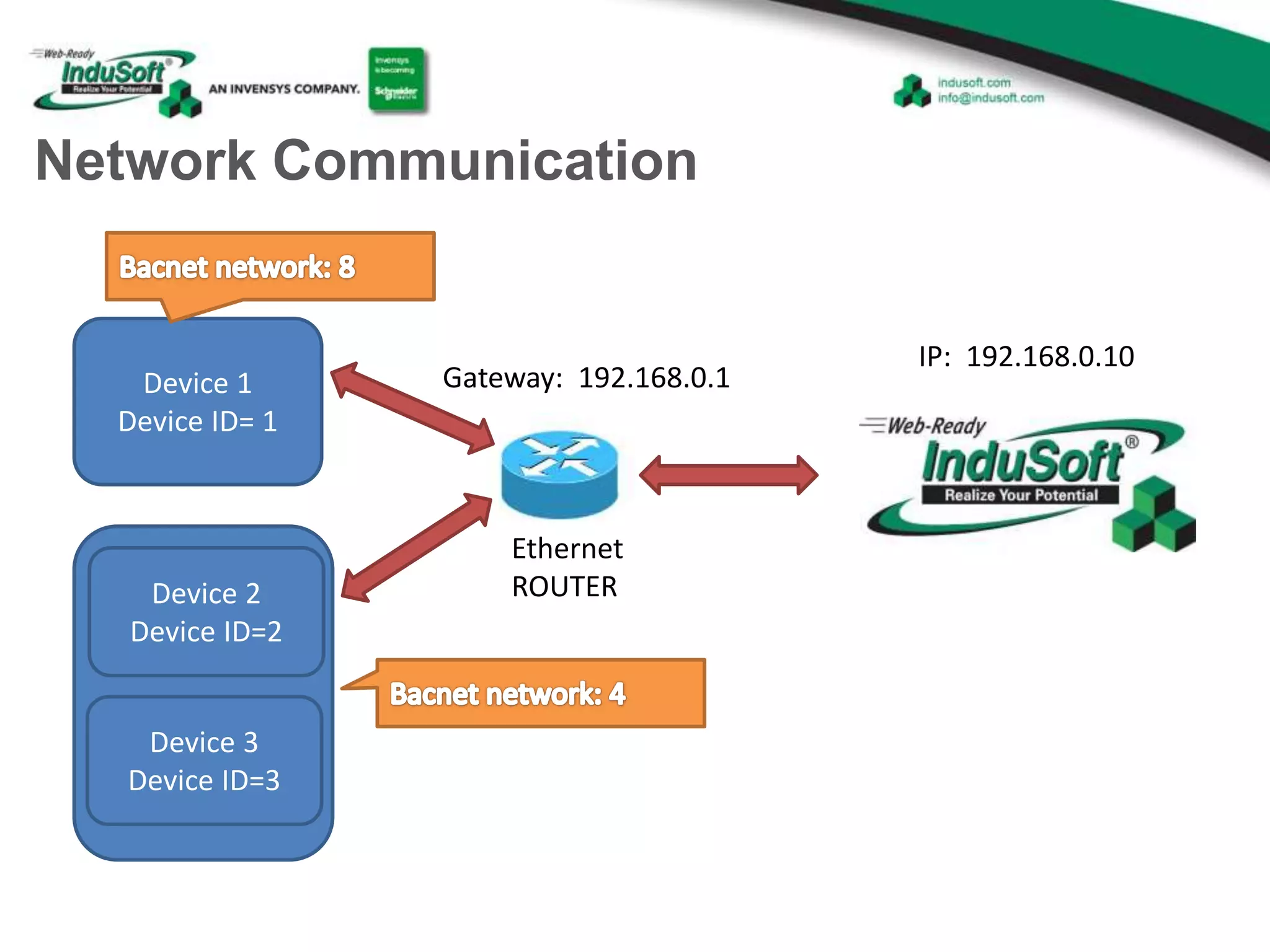

- 22. Network Communication Device 1 DeviceID= 1 Ethernet ROUTER IP: 192.168.0.10 Gateway: 192.168.0.1 Device 2 Device ID=2 Device 3 Device ID=3

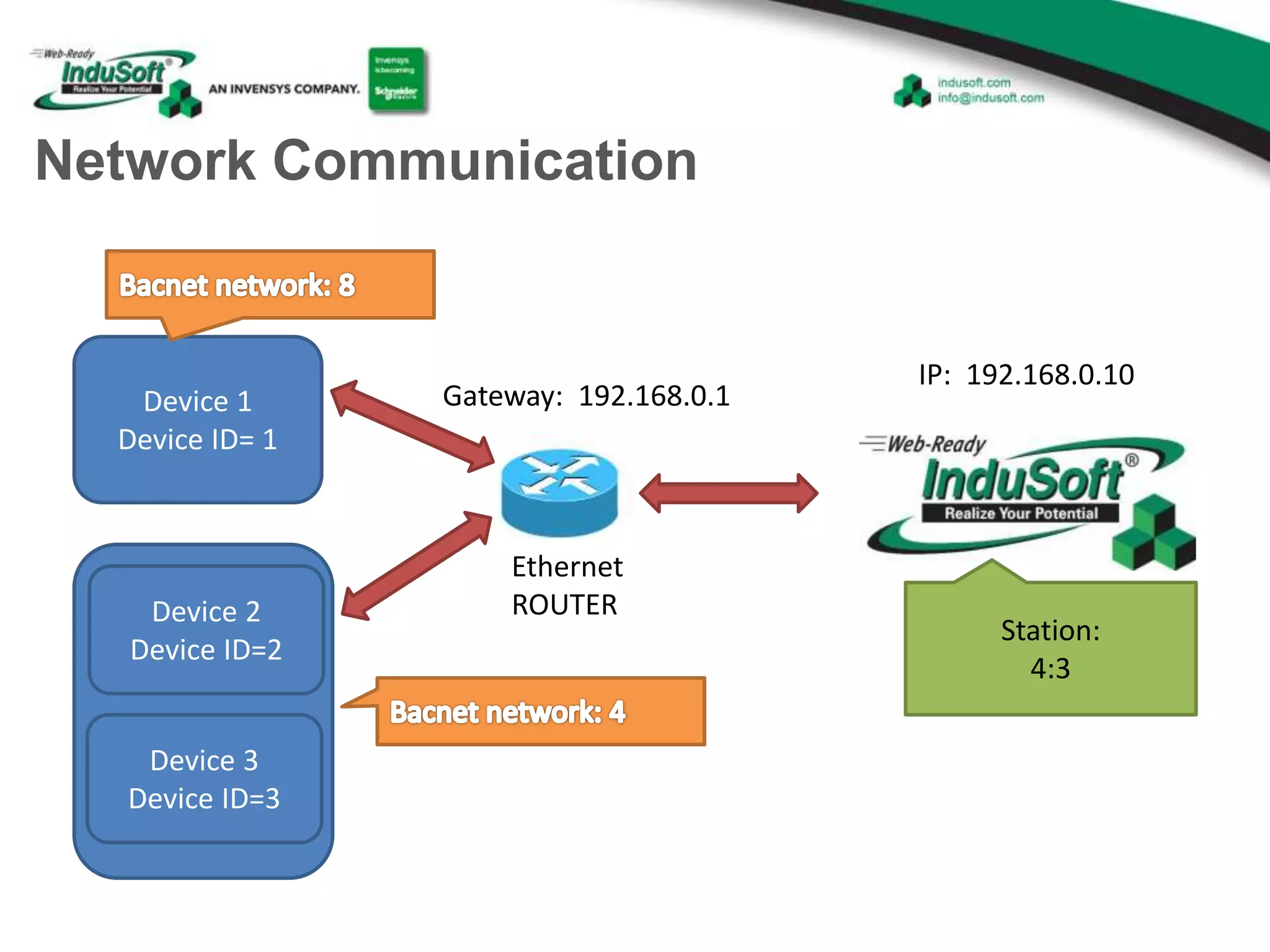

- 23. Network Communication Device 1 DeviceID= 1 Ethernet ROUTER IP: 192.168.0.10 Gateway: 192.168.0.1 Device 2 Device ID=2 Device 3 Device ID=3 Station: 4:3

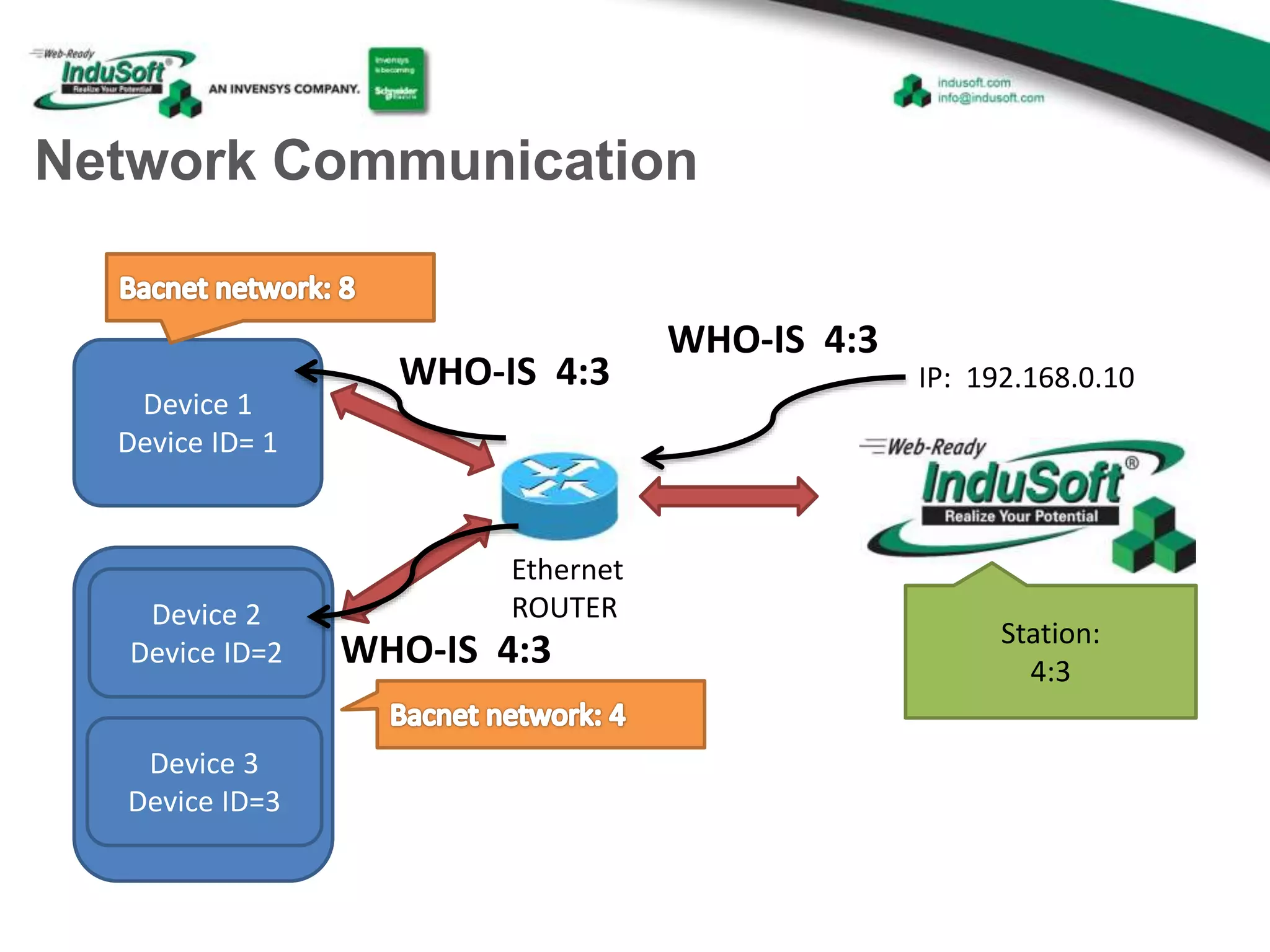

- 24. Network Communication Device 1 DeviceID= 1 Ethernet ROUTER IP: 192.168.0.10 Device 2 Device ID=2 Device 3 Device ID=3 Station: 4:3 WHO-IS 4:3 WHO-IS 4:3 WHO-IS 4:3

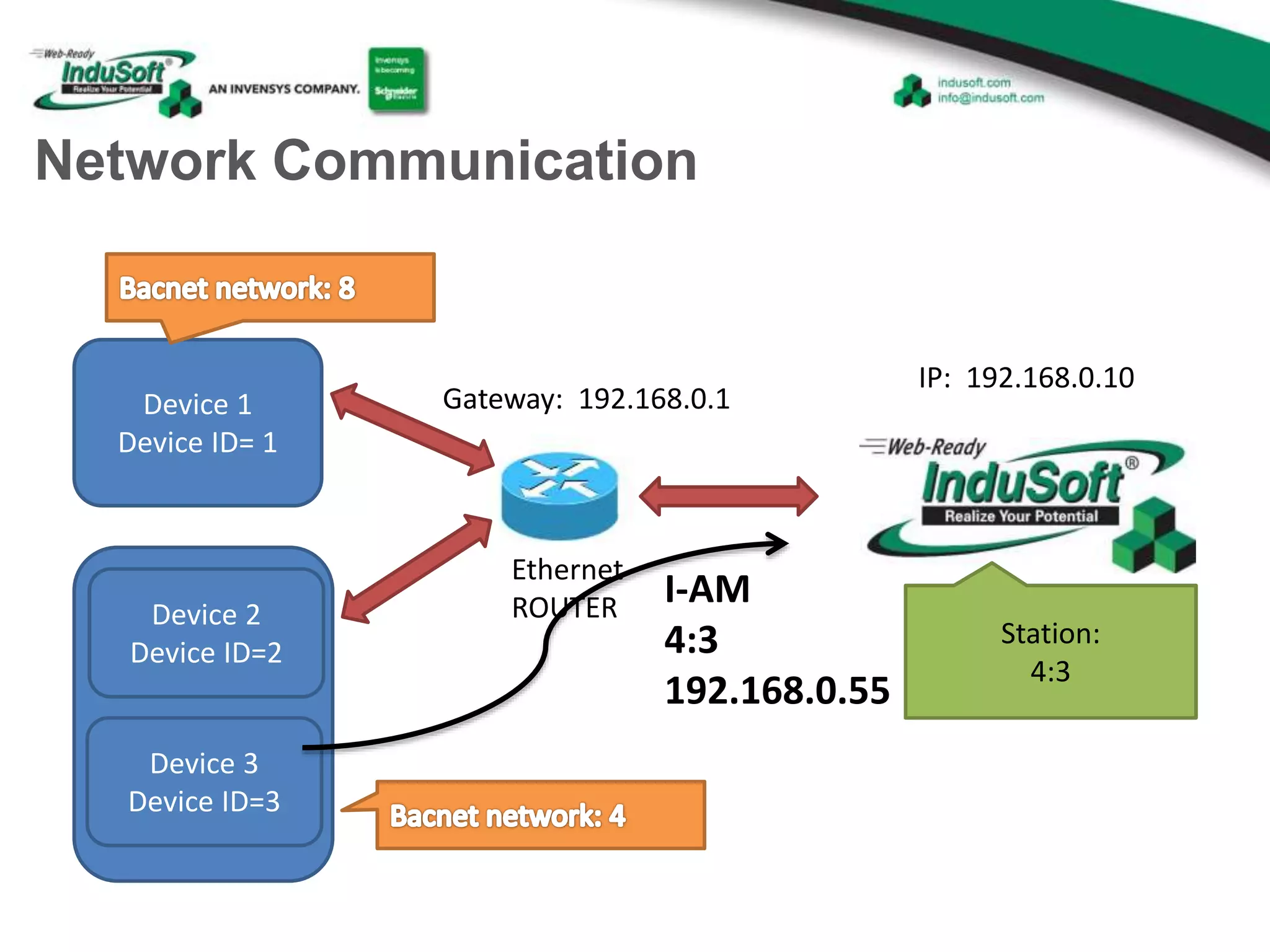

- 25. Network Communication Device 1 DeviceID= 1 Ethernet ROUTER IP: 192.168.0.10 Gateway: 192.168.0.1 Device 2 Device ID=2 Device 3 Device ID=3 Station: 4:3 I-AM 4:3 192.168.0.55
- 26.
- 27.

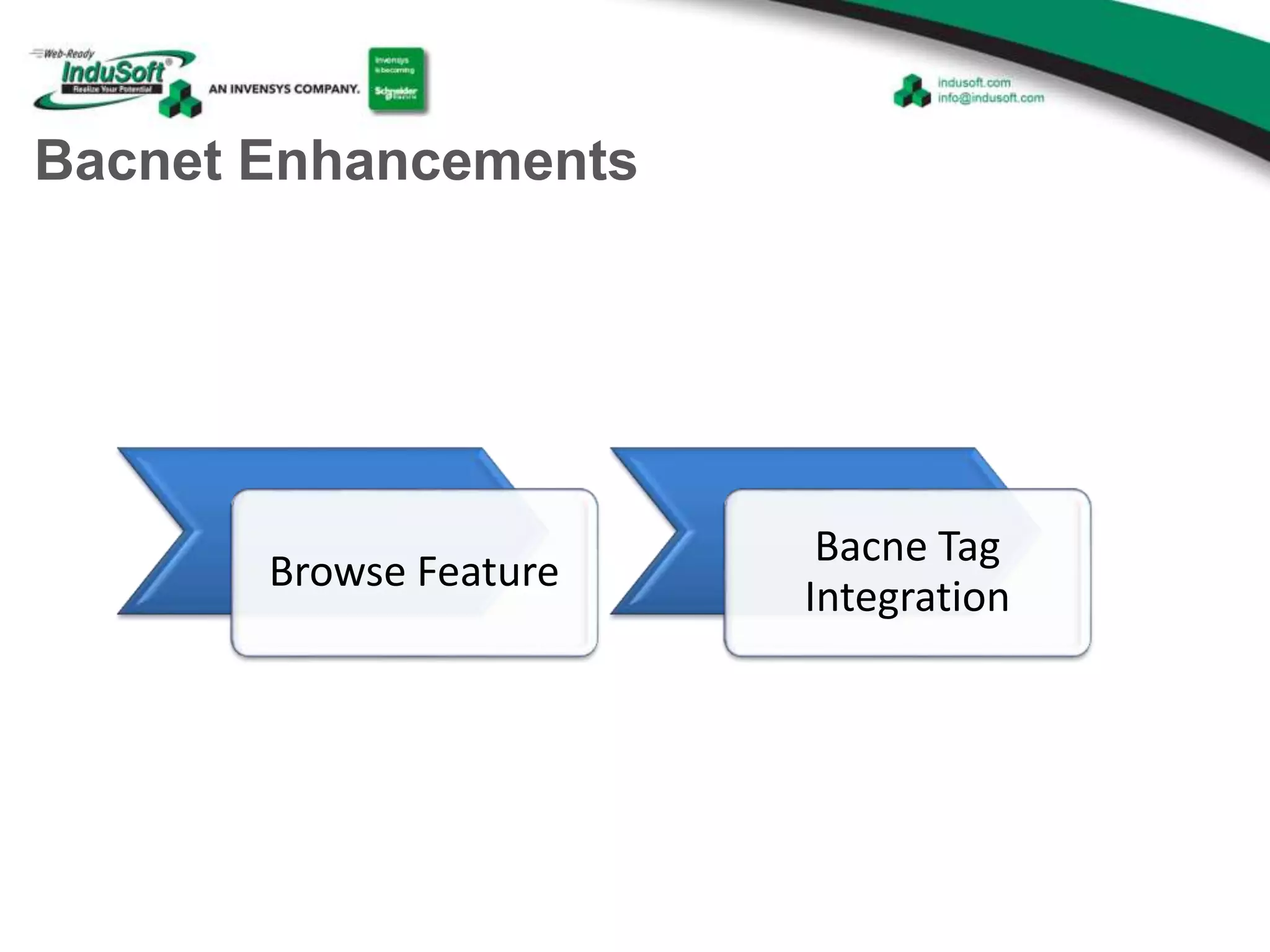

- 28. Bacnet Enhancements Browse Feature BacneTag Integration
