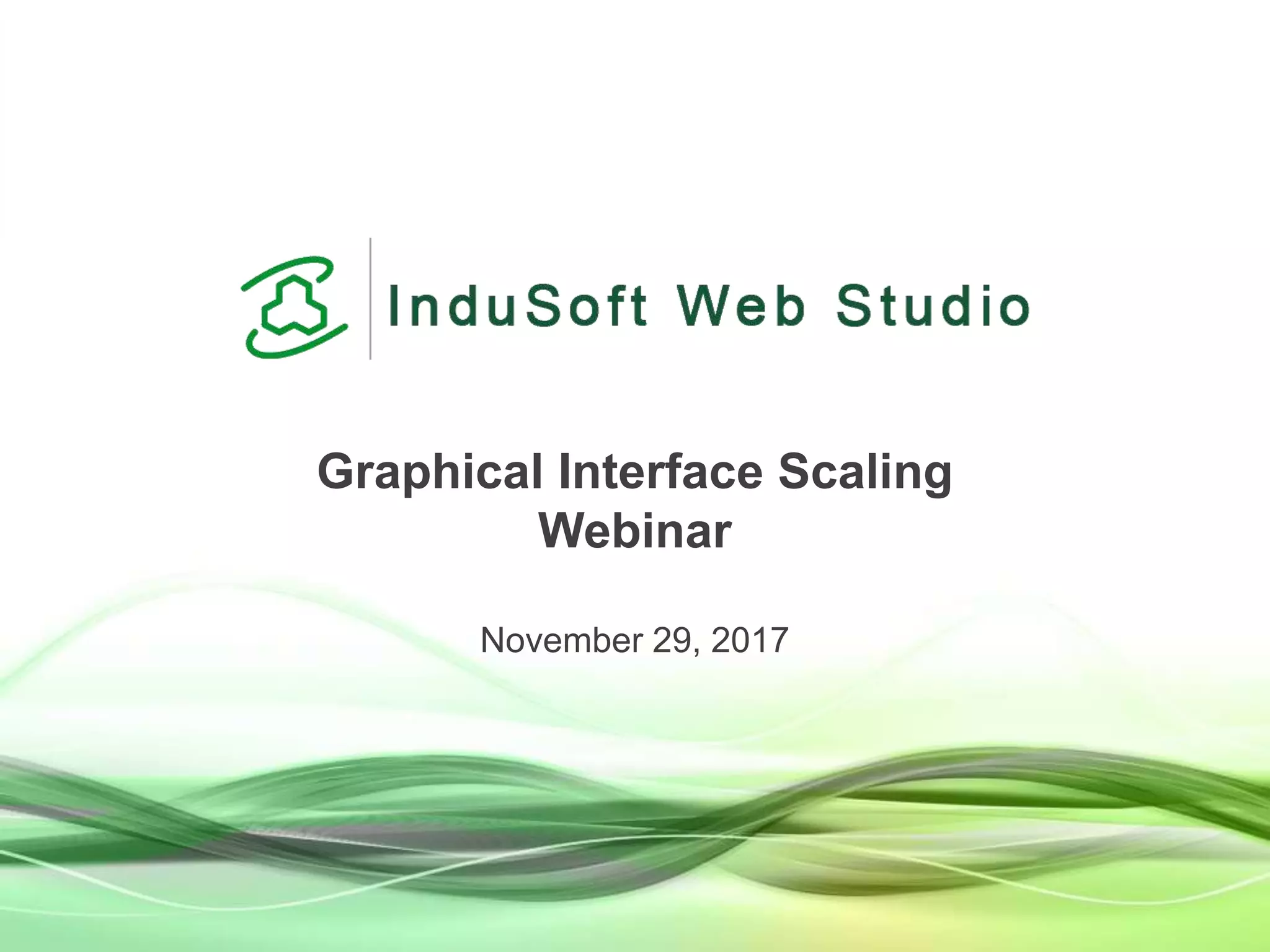

Graphical Interface Scaling in InduSoft Web Studio

Graphical Interface Scaling
Webinar
November 29, 2017

www.InduSoft.com | info@InduSoft.com

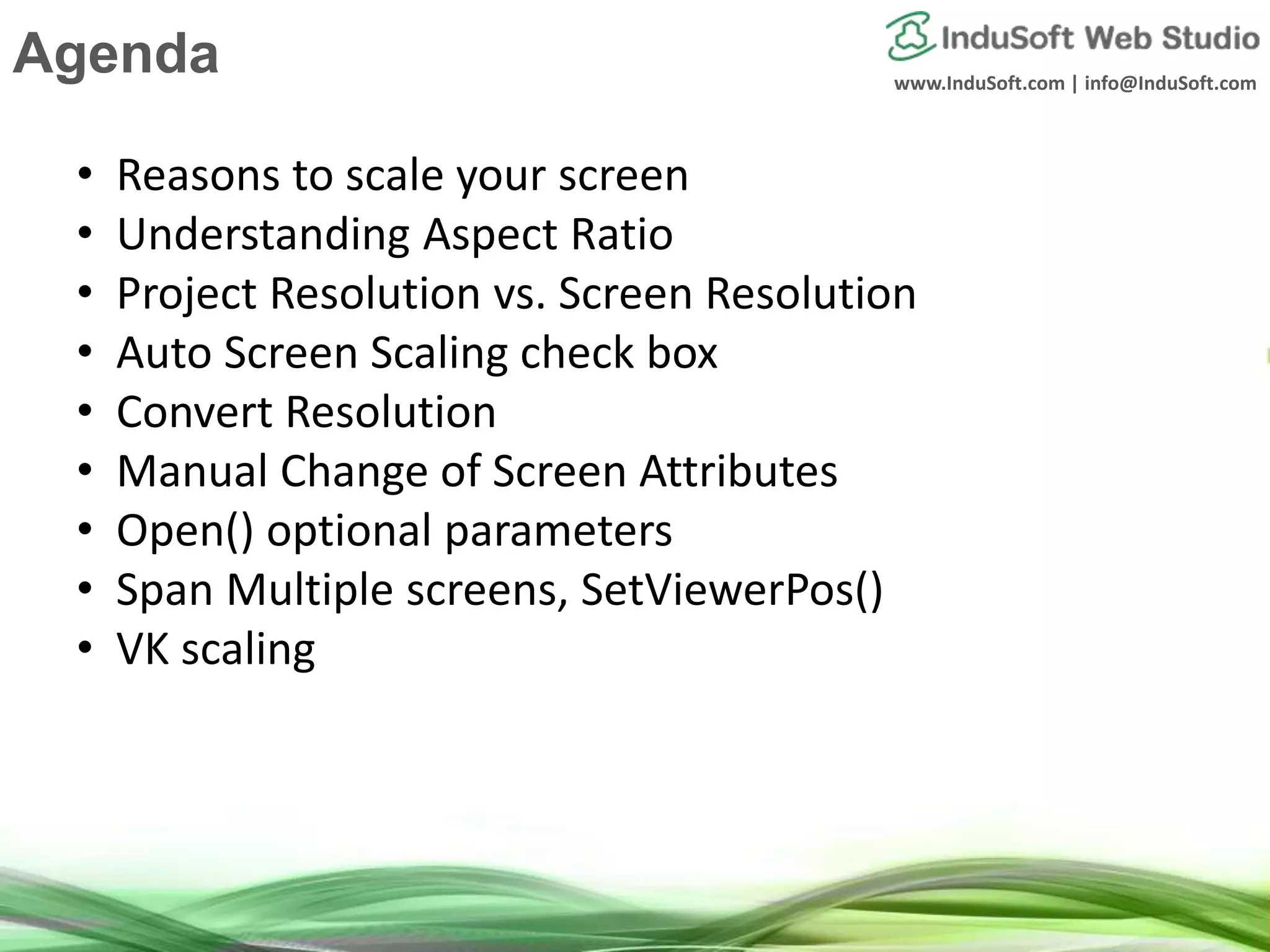

Agenda
• Reasons to scale your screen
• Understanding Aspect Ratio
• Project Resolution vs. Screen Resolution
• Auto Screen Scaling check box
• Convert Resolution
• Manual Change of Screen Attributes
• Open() optional parameters
• Span Multiple screens, SetViewerPos()
• VK scaling

Please Vote!
Please Cast Your Vote Here!

Reasons to scale
• Machine builders can offer “Standard”, “Low-
end”, and “High-end” offerings
• Obsolete or failing hardware
• Large production monitoring or Andon
• Video Wall (matrix)
• Mobile view (example, tablets, phones)

Understanding Aspect Ratio
• Common Aspect Ratios
• 4:3 (1.33:1)
• 320x240
• 640x480
• 800x600
• 1024x768
• 16:9 (1.78:1)
• 1600x900
• 1920x1080 (1080p)
• 2560x1440
• 3840x2160 (4K)
• Others See “Resources”
4:3
16:9
640/480 = 1.33
4/3 =1.33
1920/1080 = 1.78
16/9 = 1.78

Display Resolutions
Source:
https://en.wikipedia.org/wiki/File:Vector_Video_Standards4.svg

Resources
Best resolution to choose
http://www.indusoft.com/blog/2011/03/28/what-is-the-best-resolution-for-a-project-
in-indusoft-web-studio/
1. Native, if you know it
2. Aspect ratio, if you know it
3. Popular
https://www.w3counter.com/globalstats.php
Aspect Ratio blog post
http://www.indusoft.com/blog/2013/10/01/aspect-ratios-and-your-indusoft-web-
studio-project/
Multi Monitor Sample
http://www.indusoft.com/Products-
Downloads/SampleApplications?EntryId=1070&Command=Core_Download
http://www.indusoft.com/Documentation/Technical-
Notes?EntryId=955&Command=Core_Download

Project Resolution vs. Screen
Resolution
Project
Resolution Screen
Resolution
Can’t change in GUI

Proj vs. Screen vs Container
5 x 5
Project Resolution
5 x 5
Screen Resolution
5 x 5
Container Resolution

Auto Screen Scaling
• Enlarges (or shrinks) keeping aspect ratio until it fits the container (bottom or right
side)
• Project – Viewer (Local Viewer and Secure Viewer)
• Thin Clients different check box
• Web Settings (Web Thin Client)
• Graphics – Thin Clients - Mobile Access – Global Settings (SMA)

5 x 5
Project Resolution
5 x 5
Screen Resolution
10 x 10
Auto Screen Scale OFF
5 x 5

5 x 5
Project Resolution
5 x 5
Screen Resolution
10 x 10
Auto Screen Scale ON
Project Resolution is only used with
Auto Screen Scaling

Convert Resolution
• Suggested use, when you want to change the aspect ratio
• May need additional clean up
• Check Box, Keep original aspect ratio for each object
• Resize objects, keep aspect ratio, changes spacing

Manual Change of Screen
Attributes
• Change the screen dimensions
• Use to make screen groups
• Alter an individual screen for use on a particular device
• Size/position screen to fill area left by Auto Screen Scale

If changing Aspect Ratio
1. Make backup of project
2. Change resolution of monitor (depends on graphics card)
3. Use Auto Screen Scale. Fill in “bar” with optional screen/objects
4. Convert Resolution
5. Redevelop screens. Can copy and paste

Open() optional parameters
• The Open() Function supports optional screen
coordinates, could be different than original size
• Open(strScreenAndProperties,optNumX1,optNumY1,op
tNumX2,optNumY2,optNumResizeFlag,optNumID,optSt
rMnemonicList)
• Useful for popup and dialog

Span Multiple Screens
• SetViewerPos()
• SetViewerPos(numLeft,numTop,optNumWidth,optNumHeight)
• Don’t execute in Startup Script
• Use Graphics Script, OnStart()
1920x1080 1920x1080
• Start another Viewer
• WinExec() in Background Script
• View.exe in Graphic Script “Sub Graphics_OnStart()”
• SetViewerPos
0, 0
W = 3840
H = 1920

Pop up keyboard scaling

www.InduSoft.com
info@InduSoft.com
Q & A

Email
(US) info@indusoft.com
(Brazil) info@indusoft.com.br
(Germany) info@indusoft.com.de
Support support@indusoft.com
Web site
(English) www.indusoft.com
(Portuguese) www.indusoft.com.br
(German) www.indusoft.com.de
Phone +1 (512) 349-0334 (US)
+55 (11) 3293-9139 (Brazil)
+49 (0) 6227-732510 (Germany)
Toll-Free 877-INDUSOFT (877-463-8763)
Fax +1 (512) 349-0375
Contact InduSoft Today
Germany
USA
Brazil

www.InduSoft.com
info@InduSoft.com
Thank you!
