Data representation and visualization ppt
1.

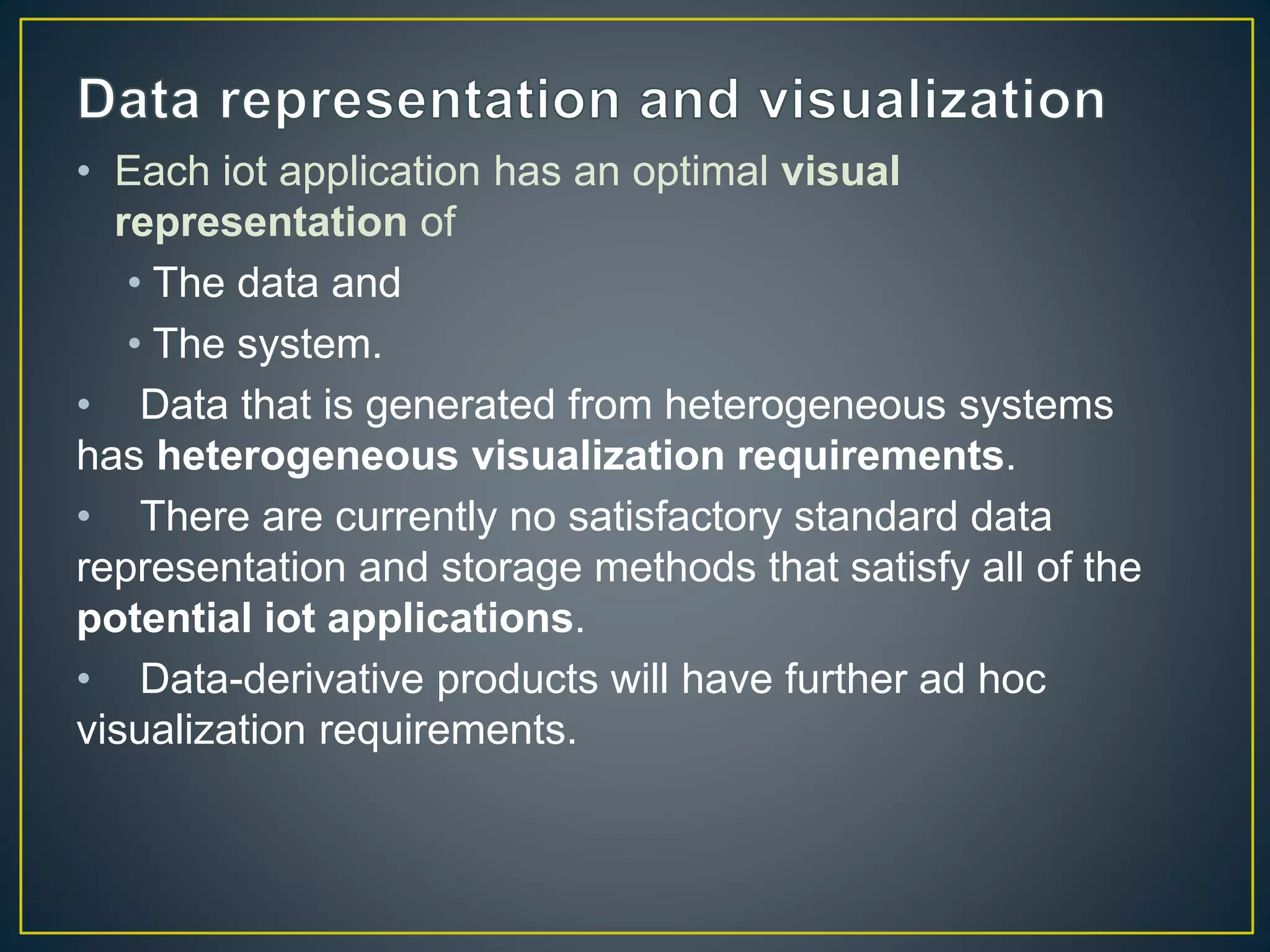

2. • Each iot application has an optimal visual
representation of
• The data and
• The system.
• Data that is generated from heterogeneous systems
has heterogeneous visualization requirements.
• There are currently no satisfactory standard data
representation and storage methods that satisfy all of the
potential iot applications.
• Data-derivative products will have further ad hoc
visualization requirements.
3. • A derivative in these terms exists once a function has
been performed on an initial data set (may or may not
be raw data).
• These can be further integrated at various levels of
abstraction, depending on the logic of the integrator.
• New information sources, such as those derived from
integrated data streams from various logically correlated
IoT applications, will present interesting representation
and visualization challenges.
4.
5. • To exploit remote interaction and control over IoT
applications, connectivity that spans the traditional
Internet. (from anywhere)
• the application manager,
• authorized entity,
• to the end-point (embedded device), continues to be a
challenging problem
6. Particularly for devices deployed inaccessible locations
requires:
• Elements of device management,
• Specifically reprogramming and
• Reconfiguration of deeply embedded devices
7. • End-to-end latency,
• Security,
• Reliability,
• Availability,
• Times between failure and repair,
• Responsibility, etc.,
8.
9.
10. • The Deployment and Operational View depends on the
specific actual use case and requirements.
• The two sensor nodes are connected to the payment
station through wireless or wired communication.
• The payment station acts both as a
• (user interface) for the driver to pay and get a
payment receipt as well as a communication gateway
that connects the two sensor nodes
• (the payment interface) physical devices with the
Internet through Wide Area Network (WAN) technology.
• The two main applications connected to this
management system are human user mobile phone
applications and parking operation center
applications.
11.
12. • An iot system is typically part of a larger system. Starting
from the sensor devices,
• sensor node #1 hosts resource #11#18, representing
the sensors for the parking spots #01#08,
• sensor node #2 hosts resource #21#28,
• The two sensor nodes are connected to the gateway
device that also hosts the payment service with the
accompanying sensors and actuators,
• The management system for the specific parking lot, as
well as others, is deployed on a virtual machine on a
data centre.
13. • The virtual machine hosts communication capabilities,
Virtual Entity services
• a payment business process that involves the payment
station and input from the occupancy sensor services
• the parking lot management service that provides
exposure and access control
• The services offered on these parking spots are to read
the current state of the parking spot to see whether it is
“free” or “occupied.”
• The physical sensors,
• actuators,
• tags,
• processors, and
• memory, which are parts of a Device, are deployed close to the
Physical Entities, (the ones whose properties are monitored or
controlled).
14.
15. • Advanced Device of type #1 that allows the basic
device to perform protocol adaptation
• Advanced Devices (type #2) can host the Sensor IoT
Service communicating to the Sensor Resource
• The cloud infrastructure contains:
Virtual Entity services,
Service Organization components (Composition,
Orchestration, Choreography),
IoT Process Management components,
Historical Data Services (collection, processing),
Data Analytics and Knowledge Management.
16. • Apart from these functional views, there are a few more
that are very important for a system that interfaces the
physical world.
• The two most important are
• the Physical Entity View and
• the Context View.
• The Physical Entity View describes the Physical Entities
from the IoT Domain Model in terms of physical
properties (e.g. dimensions for spaces/ objects).
• The description of the Physical Entities may also include
the relationship between Physical Entities
17. • The context of a system, “describes
• The relationships,
• Dependencies, and
• Interactions between the system and its environment
Therefore, the context view should capture external
entities interacting with the system
18.
19. • The IoT will see additional circuitry built into a number of
existing products and machines.
• Giving these things an identity, and the ability to
represent themselves online and communicate with
applications and other things, represents a significant,
widely recognized opportunity.
• For manufacturers of products that typically contain
electronic components, process will be relatively
straightforward
20. • The device -Hardware,
• representation -Data and visualization
• interaction -Local or remote control
Devices and networks
• Devices that form networks in the M2M area network
domain must be selected, or designed, with certain
functionality
• At a minimum, they must have
• An energy source (e.g. Batteries, increasingly EH),
• Computational capability (e.g. An MCU),
• Appropriate communications interface (e.g. A radio frequency
integrated circuit (RFIC) and front end RF circuitry),
• Memory (program and data), and
• Sensing (and/or actuation) capability.
21. • Specific sensing and actuating capabilities are basic
functional requirements.
• the device must be capable of sensing or perceiving
something interesting from the environment.
• The sensor may directly measure the phenomenon
(e.g. temperature), or may be used to derive data or
information about the phenomenon, based on additional
knowledge (e.g. a level of comfort).
• Sensors may sense a phenomenon that is local (i.e. a
meter detecting total electricity consumption of a space)
or distributed (e.g. the weather).
22. • The sensing field is of importance when considering
both the phenomenon to be sensed (local or distributed)
and the distance between sensing points.
• Devices must be placed in close enough proximity to
communicate.
• Where the distance is too great, routing devices may be
necessary.
• Devices may become intermittently disconnected due to
the time varying, stochastic nature.
23. • Devices in the IoT are fundamentally heterogeneous.
• There are, various computational architectures, including
MCUs (8-, 16-, 32-bit, ARM, 8051, RISC, Intel, etc.),
signal conditioning (e.g. ADC), and
memory (ROM, (S/F/D)RAM, etc.),
In addition to communications media,
peripheral components (sensors, actuators,
buttons, screens, LEDs), etc.
• Operating systems are typically used to make
programming simpler and modular for embedded
systems designers
24. • Power is essential for any embedded or IoT device.
Depending on the application, power may be provided
by the mains, batteries, or conversion from energy
scavengers.
• The power source has a significant implication on the
design of the entire system.
Gateway
• Is typically more straightforward to design if it usually acts
as a proxy.
• It is also thought that the gateway device can be
exploited for performing some level of analytics on data
transitioning to and from capillary networks.
25. • There are a number of non-functional requirements that
need to be satisfied for every application.
• These are technical and non-technical
• Regulations(varies by region and frequency band)
• Ease of use, installation, maintenance,
accessibility(Simplification of installation )
• Physical constraints(physical size limitations )
Financial cost
1. Component Selection- Developing devices in small
quantities is expensive.
2. Integrated Device Design- the energy, sensors,
actuators, computation, memory, power,
connectivity, physical, and other functional and non
functional requirements are considered
