Motivations
• Connection of the PC to Telephone
– The USB provides a ubiquitous link that can be used across a
wide range of PC-to-telephone interconnects.
• Ease of use
• Hot plug
• Port expansion
– The lack of a bi-directional, low-cost, low-to-mid speed
peripheral bus has held back the creative proliferation of
peripherals such as telephone/fax/modem adapters, answering
machines, scanners, PDA’s, keyboards, mice, etc.

3. University of Tehran 3
USB
• Fast
• Bi-directional
• Isochronous
• low-cost
• dynamically attachable serial interface
• consistent with the requirements of the PC
platform of today and tomorrow

4. University of Tehran 4
Goals for USB
• The following criteria were applied in defining
the architecture for the USB:
– Ease-of-use for PC peripheral expansion
– Low-cost solution that supports transfer rates up to 12Mb/s
– Full support for real-time data for voice, audio, and compressed video
– Protocol flexibility for mixed-mode isochronous data transfers and
asynchronous messaging
– Integration in commodity device technology
– Comprehension of various PC configurations and form factors
– Provision of a standard interface capable of quick diffusion into
product
– Enabling of new classes of devices that augment the PC’s capability.

5. University of Tehran 5
Taxonomy of Application Space

6. University of Tehran 6

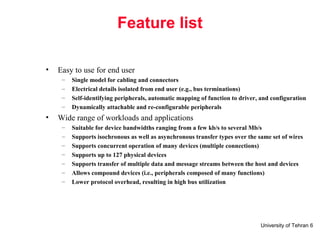

Feature list
• Easy to use for end user
– Single model for cabling and connectors
– Electrical details isolated from end user (e.g., bus terminations)
– Self-identifying peripherals, automatic mapping of function to driver, and configuration
– Dynamically attachable and re-configurable peripherals
• Wide range of workloads and applications
– Suitable for device bandwidths ranging from a few kb/s to several Mb/s
– Supports isochronous as well as asynchronous transfer types over the same set of wires
– Supports concurrent operation of many devices (multiple connections)
– Supports up to 127 physical devices
– Supports transfer of multiple data and message streams between the host and devices
– Allows compound devices (i.e., peripherals composed of many functions)
– Lower protocol overhead, resulting in high bus utilization

7. University of Tehran 7
Feature list (con)
• Isochronous bandwidth
– Guaranteed bandwidth and low latencies appropriate for telephony, audio, etc.
– Isochronous workload may use entire bus bandwidth
• Flexibility
– Supports a wide range of packet sizes, which allows a range of device buffering options
– Allows a wide range of device data rates by accommodating packet buffer size and
latencies
– Flow control for buffer handling is built into the protocol
• Robustness
– Error handling/fault recovery mechanism is built into the protocol
– Dynamic insertion and removal of devices is identified in user-perceived real-time
– Supports identification of faulty devices

8. University of Tehran 8
Feature list (con)
• Relation with PC industry
– Protocol is simple to implement and integrate
– Consistent with the PC plug-and-play architecture
– Leverages existing operating system interfaces
• Low-cost implementation
– Low-cost sub-channel at 1.5Mb/s
– Optimized for integration in peripheral and host hardware
– Suitable for development of low-cost peripherals
– Low-cost cables and connectors
– Uses commodity technologies
• Upgrade path
– Architecture upgradeable to support multiple USB Host Controllers in a system

9. University of Tehran 9
USB System Description
• USB interconnect
• USB devices
• USB host.

10. University of Tehran 10

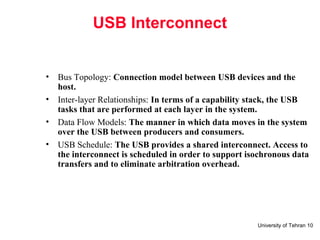

USB Interconnect
• Bus Topology: Connection model between USB devices and the
host.
• Inter-layer Relationships: In terms of a capability stack, the USB
tasks that are performed at each layer in the system.
• Data Flow Models: The manner in which data moves in the system
over the USB between producers and consumers.
• USB Schedule: The USB provides a shared interconnect. Access to
the interconnect is scheduled in order to support isochronous data
transfers and to eliminate arbitration overhead.

11. University of Tehran 11

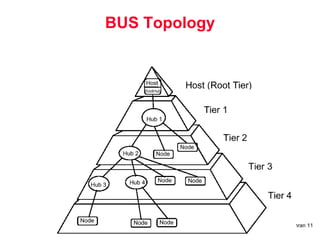

BUS Topology

12. University of Tehran 12
Physical Interface
pin Name Descryption
1 Vcc +5 Vdc
2 D- Data-
3 D+ Data+
4 GND Ground

13. University of Tehran 13
Throughput
• Low speed
– 1.5 Mbps
• Full speed
– 12 Mbps
• High speed (in USB 2.0)
– 480 Mbps
• Dynamic mode switching
• Clock encoding scheme: NRZI (Non Return to
Zero Invert)

14. University of Tehran 14

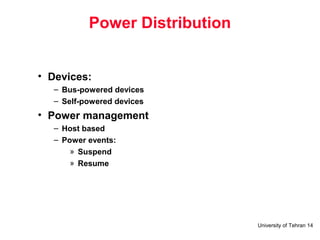

Power Distribution
• Devices:
– Bus-powered devices
– Self-powered devices
• Power management
– Host based
– Power events:
» Suspend
» Resume

15. University of Tehran 15
Bus Protocol
• Polled bus
• Data transfers initiated only by host controller
• Three packets:
– Token packet
» Type
» Direction
» Address
» End point number
– Data packet
– Handshake packet
» ACK
» NAK

16. University of Tehran 16
Transfer Model
• Pipe
– Stream pipes
» No USB standard format
– Message pipes
» USB format
• Request
• Data
• Status
• End point zero
– Default control pipe
– Always exists

17. University of Tehran 17

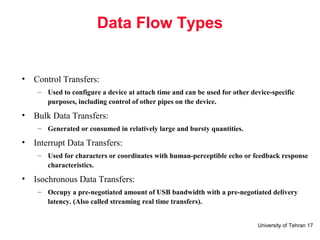

Data Flow Types
• Control Transfers:
– Used to configure a device at attach time and can be used for other device-specific
purposes, including control of other pipes on the device.
• Bulk Data Transfers:
– Generated or consumed in relatively large and bursty quantities.
• Interrupt Data Transfers:
– Used for characters or coordinates with human-perceptible echo or feedback response
characteristics.
• Isochronous Data Transfers:
– Occupy a pre-negotiated amount of USB bandwidth with a pre-negotiated delivery
latency. (Also called streaming real time transfers).

18. University of Tehran 18
USB Devices
• All have endpoint zero
• Hub
• Function
• Compound

19. University of Tehran 19
Typical Configuration

20. University of Tehran 20
Host Responsibility
• Detecting the attachment and removal of USB devices
• Managing control flow between the host and USB devices
• Managing data flow between the host and USB devices
• Collecting status and activity statistics
• Providing power to attached USB devices.

21. University of Tehran 21
Implementer Viewpoints
• USB Physical Device: A piece of hardware on the end of a USB
cable that performs some useful end user function.
• Client Software: Software that executes on the host, corresponding
to a USB device. This client software is typically supplied with the
operating system or provided along with the USB device.
• USB System Software: Software that supports the USB in a
particular operating system. The USB System Software is
typically supplied with the operating system, independently of
particular USB devices or client software.
• USB Host Controller (Host Side Bus Interface): The hardware and
software that allows USB devices to be attached to a host.

22. University of Tehran 22

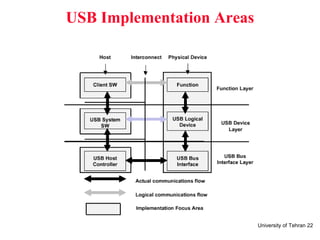

USB Implementation Areas

23. University of Tehran 23

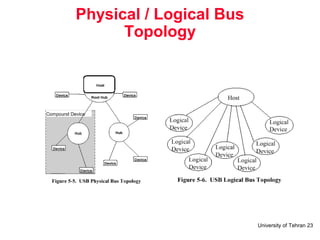

Physical / Logical Bus
Topology

24. University of Tehran 24
USB Host / Device View

25. University of Tehran 25

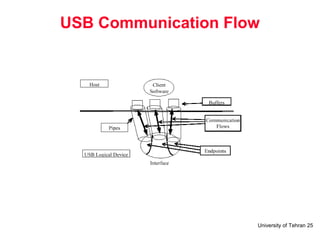

USB Communication Flow

26. University of Tehran 26
Control Transfer Format
• Setup packet
• Data packet
• Acknowledge packet
• USB defined structure
• Setup packet: 8 bytes
• Maximum data payload size:
– Full speed: 8, 16, 32 or 64 bytes
– Low speed: 8 bytes

27. University of Tehran 27
Control Transfer Constraints
• Best effort
• 10% frame time for control
• Use also remaining 90% if no interrupt or
isochronous transfer

28. University of Tehran 28
Full-Speed Control Transfer
Limits

29. University of Tehran 29
Low Speed Control Transfer
Limits

30. University of Tehran 30

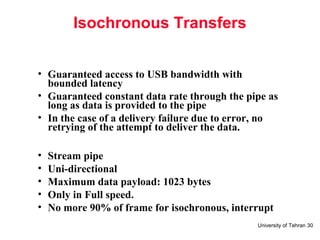

Isochronous Transfers
• Guaranteed access to USB bandwidth with
bounded latency
• Guaranteed constant data rate through the pipe as
long as data is provided to the pipe
• In the case of a delivery failure due to error, no
retrying of the attempt to deliver the data.
• Stream pipe
• Uni-directional
• Maximum data payload: 1023 bytes
• Only in Full speed.
• No more 90% of frame for isochronous, interrupt

31. University of Tehran 31

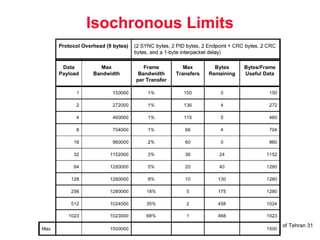

Isochronous Limits

32. University of Tehran 32
Interrupt Transfers
• Guaranteed maximum service period for the pipe.
• Retry of transfer attempts at the next period, in the
case of occasional delivery failure due to error on
the bus.
• Max. Payload size:
– Full speed: 64 bytes
– Low speed: 8 bytes
• If there is sufficient bus time, for requested
payload size the pipe is established.

33. University of Tehran 33
Full Speed Interrupt Limits

34. University of Tehran 34
Low Speed Interrupt Limits

35. University of Tehran 35
Bulk Transfers
• Large amount of data.
• Access to the USB on a bandwidth-available basis.
• Retry of transfers, in the case of occasional
delivery failure due to errors on the bus.
• Guaranteed delivery of data, but no guarantee of
bandwidth or latency.
• Stream pipe
• Only in full speed
• Max. Payload: only 8, 16, 32 or 64 bytes

36. University of Tehran 36
Bulk Transfer Limits

37. University of Tehran 37

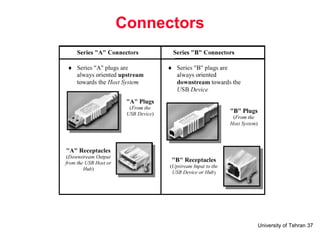

Connectors

38. University of Tehran 38

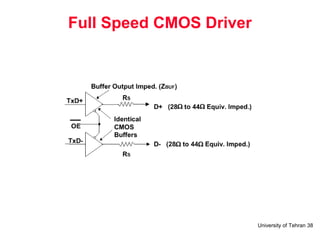

Full Speed CMOS Driver

39. University of Tehran 39
Evaluation Setup

40. University of Tehran 40
NRZI Encoding

41. University of Tehran 41
Bit Stuffing

42. University of Tehran 42
Flow Diagram for Bit Stuffing

43. University of Tehran 43
Signaling Levels

44. University of Tehran 44
Signals
• Low and Full speed devices:
– A differential ‘1’ is transmitted by pulling D+ over 2.8V
with a 15K ohm resistor pulled to ground and D- under
0.3V with a 1.5K ohm resistor pulled to 3.6V.
– A differential ‘0’ on the other hand is a D- greater than
2.8V and a D+ less than 0.3V with the same appropriate
pull down/up resistors.
– The receiver defines a differential ‘1’ as D+ 200mV greater
than D- and a differential ‘0’ as D+ 200mV less thanD-.
– The polarity of the signal is inverted depending on the
speed of the bus. Therefore the terms ‘J’ and ‘K’ states
are used in signifying the logic levels. In low speed a ‘J’
state is a differential 0. In high speed a ‘J’ state I s a
differential 1.

45. University of Tehran 45

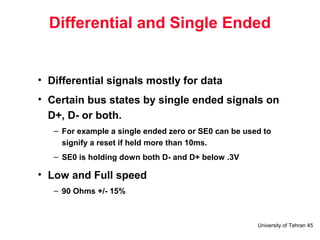

Differential and Single Ended
• Differential signals mostly for data
• Certain bus states by single ended signals on
D+, D- or both.
– For example a single ended zero or SE0 can be used to
signify a reset if held more than 10ms.
– SE0 is holding down both D- and D+ below .3V
• Low and Full speed
– 90 Ohms +/- 15%

46. University of Tehran 46
Standard Chapters

47. University of Tehran 47
Selected Problems
