1. UNIT III
SOLAR PV & THERMAL SYSTEMS
EE8703
RENEWABLE ENERGY SYSTEMS

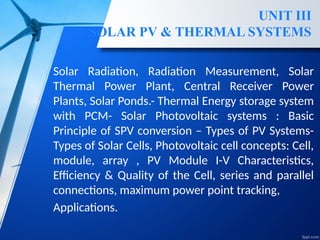

2. UNIT III
SOLAR PV & THERMAL SYSTEMS
Solar Radiation, Radiation Measurement, Solar
Thermal Power Plant, Central Receiver Power
Plants, Solar Ponds.- Thermal Energy storage system
with PCM- Solar Photovoltaic systems : Basic
Principle of SPV conversion – Types of PV Systems-
Types of Solar Cells, Photovoltaic cell concepts: Cell,
module, array , PV Module I-V Characteristics,
Efficiency & Quality of the Cell, series and parallel
connections, maximum power point tracking,
Applications.

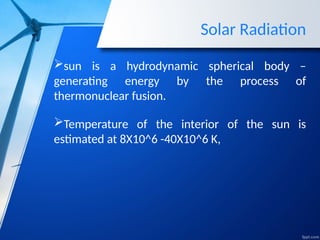

3. Solar Radiation
sun is a hydrodynamic spherical body –
generating energy by the process of
thermonuclear fusion.
Temperature of the interior of the sun is
estimated at 8X10^6 -40X10^6 K,

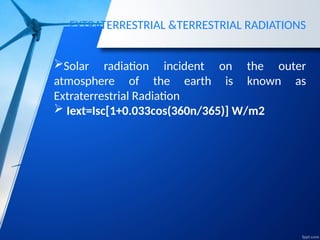

4. EXTRATERRESTRIAL &TERRESTRIAL RADIATIONS
Solar radiation incident on the outer
atmosphere of the earth is known as
Extraterrestrial Radiation
 Iext=Isc[1+0.033cos(360n/365)] W/m2

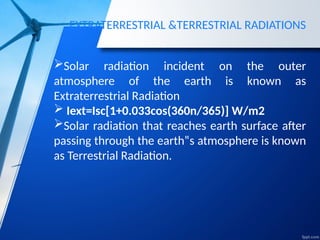

5. EXTRATERRESTRIAL &TERRESTRIAL RADIATIONS
Solar radiation incident on the outer
atmosphere of the earth is known as
Extraterrestrial Radiation
 Iext=Isc[1+0.033cos(360n/365)] W/m2
Solar radiation that reaches earth surface after
passing through the earth‟s atmosphere is known
as Terrestrial Radiation.

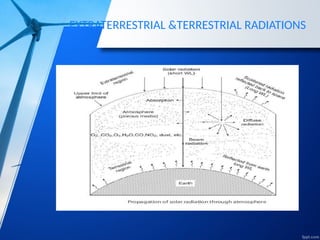

6. EXTRATERRESTRIAL &TERRESTRIAL RADIATIONS

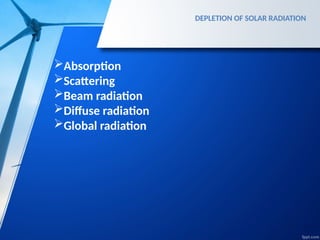

7. DEPLETION OF SOLAR RADIATION
Absorption
Scattering
Beam radiation
Diffuse radiation
Global radiation

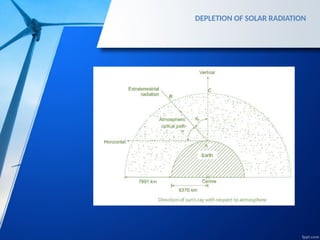

8. DEPLETION OF SOLAR RADIATION

9. Solar constant
Absorption
Scattering
Beam radiation
Diffuse radiation
Global radiation
