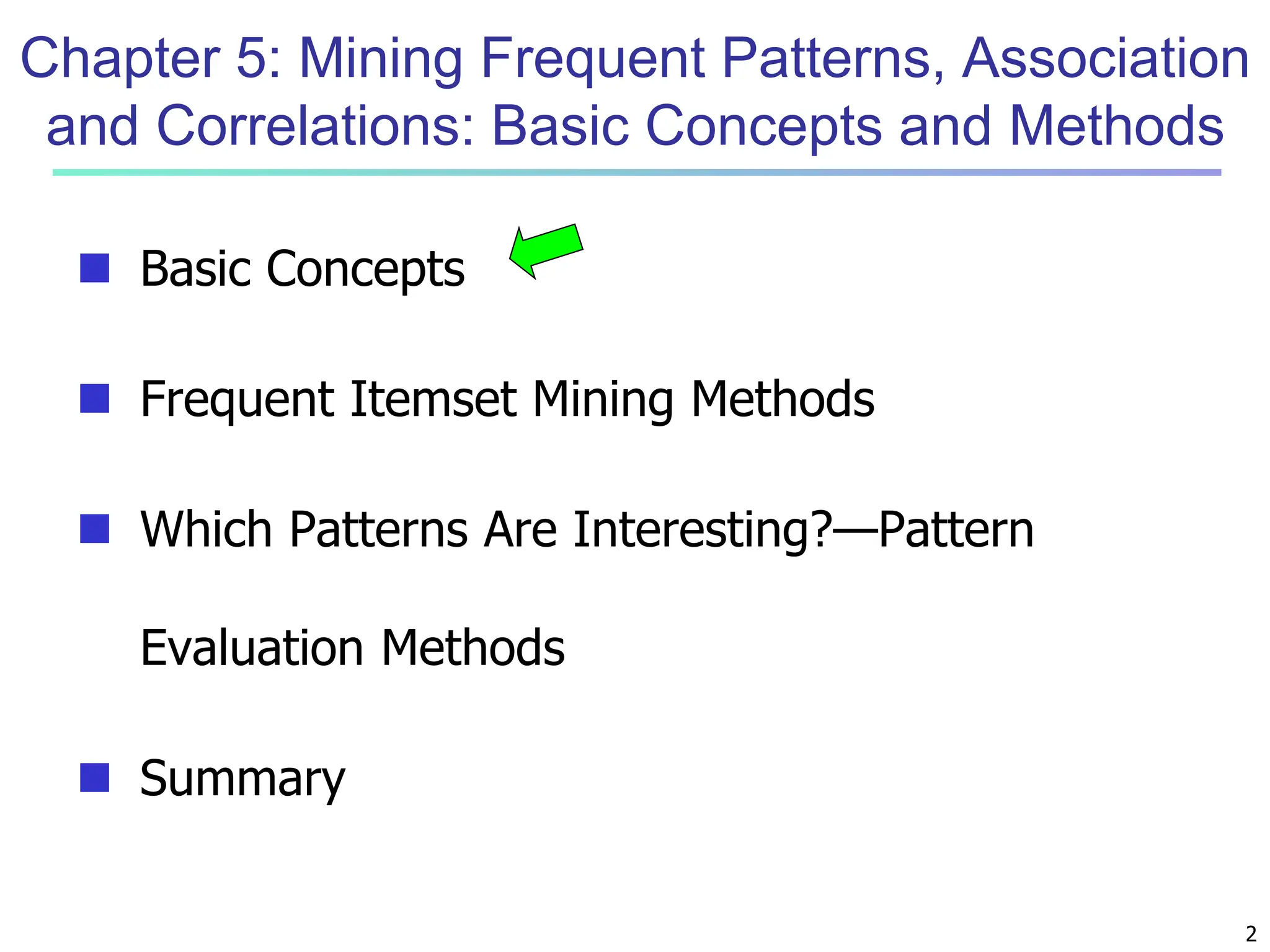

Chapter 5: Mining Frequent Patterns, Association
and Correlations: Basic Concepts and Methods
Basic Concepts
Frequent Itemset Mining Methods
Which Patterns Are Interesting?—Pattern
Evaluation Methods
Summary
3. 3
What Is Frequent Pattern Analysis?
Frequent pattern
A pattern that occurs frequently in a data set .
(a set of items,subsequences,substructures, etc.)
4. What Is Frequent Pattern Analysis?
Motivation: Finding inherent regularities in data
What products were often purchased together?— Beer and
diapers?!
What are the subsequent purchases after buying a PC?
What kinds of DNA are sensitive to this new drug?
Can we automatically classify web documents?
Applications
Basket data analysis
cross-marketing
catalog design
sale campaign analysis
Web log (click stream)analysis
DNA sequence analysis
4
5. 5
Why Is Freq. Pattern Mining Important?
Freq. pattern: An intrinsic and important property of
datasets
Foundation for many essential data mining tasks
Association, correlation, and causality analysis
Sequential, structural (e.g., sub-graph) patterns
Pattern analysis in spatiotemporal, multimedia, time-
series, and stream data
Classification: discriminative, frequent pattern analysis
Cluster analysis: frequent pattern-based clustering
Data warehousing: iceberg cube and cube-gradient
Semantic data compression: fascicles
Broad applications
6. 6
Basic Concepts: Frequent Patterns
itemset: A set of one or more
items
k-itemset X = {x1, …, xk}
(absolute) support, or, support
count of X: Frequency or
occurrence of an itemset X
(relative) support, s, is the
fraction of transactions that
contains X (i.e., the probability
that a transaction contains X)
An itemset X is frequent if X’s
support is no less than a minsup
threshold
Customer
buys diaper
Customer
buys both
Customer
buys beer
Tid Items bought
10 Beer, Nuts, Diaper
20 Beer, Coffee, Diaper
30 Beer, Diaper, Eggs
40 Nuts, Eggs, Milk
50 Nuts, Coffee, Diaper, Eggs, Milk
7. 7
Basic Concepts: Association Rules
Find all the rules X Y with
minimum support and confidence
support, s, probability that a
transaction contains X Y
confidence, c, conditional
probability that a transaction
having X also contains Y
Let minsup = 50%, minconf = 50%
Freq. Pat.: Beer:3, Nuts:3, Diaper:4, Eggs:3,
{Beer, Diaper}:3
Customer
buys
diaper
Customer
buys both
Customer
buys beer
Nuts, Eggs, Milk
40
Nuts, Coffee, Diaper, Eggs, Milk
50
Beer, Diaper, Eggs
30
Beer, Coffee, Diaper
20
Beer, Nuts, Diaper
10
Items bought
Tid
Association rules: (many more!)
Beer Diaper (60%, 100%)
Diaper Beer (60%, 75%)
8. 8
Closed Patterns and Max-Patterns
A long pattern contains a combinatorial number of sub-
patterns, e.g., {a1, …, a100} contains (100
1) + (100
2) + … +
(1
1
0
0
0
0) = 2100 – 1 = 1.27*1030 sub-patterns!
Solution: Mine closed frequent item set(patterns) and
maximal frequent item set(patterns) instead
An item set X is closed if X is frequent and there exists no
super-pattern Y כ X, with the same support as X
(proposed by Pasquier, et al. @ ICDT’99)
An itemset X is a max-pattern if X is frequent and there
exists no frequent super-pattern Y כ X (proposed by
Bayardo @ SIGMOD’98)
Closed pattern is a lossless compression of freq. patterns
Reducing the # of patterns and rules
9. 9
Computational Complexity of Frequent Itemset
Mining
How many itemsets are potentially to be generated in the worst case?
The number of frequent itemsets to be generated is senstive to the
minsup threshold
When minsup is low, there exist potentially an exponential number of
frequent itemsets
The worst case: MN where M: # distinct items, and N: max length of
transactions
The worst case complexty vs. the expected probability
Ex. Suppose Walmart has 104 kinds of products
The chance to pick up one product 10-4
The chance to pick up a particular set of 10 products: ~10-40
What is the chance this particular set of 10 products to be frequent
103 times in 109 transactions?
10. 10
Chapter 5: Mining Frequent Patterns, Association
and Correlations: Basic Concepts and Methods
Basic Concepts
Frequent Itemset Mining Methods
Which Patterns Are Interesting?—Pattern
Evaluation Methods
Summary
11. 11
Scalable Frequent Itemset Mining Methods
Apriori: A Candidate Generation-and-Test
Approach
Improving the Efficiency of Apriori
FPGrowth: A Frequent Pattern-Growth Approach
ECLAT: Frequent Pattern Mining with Vertical
Data Format
12. 12
Apriori: A Candidate Generation & Test Approach
Method:
Initially, scan DB once to get frequent 1-itemset
Generate length (k+1) candidate itemsets from length k
frequent itemsets
Test the candidates against DB
Terminate when no frequent or candidate set can be
generated
“How is the Apriori property used in the algorithm?”
The join step
The prune step
13. Apriori property
If an itemset I does not satisfy the minimum support threshold, min sup,
then I is not frequent, that is, P(I) < min sup.
If an item A is added to the itemset I, then the resulting itemset (i.e., I
∪A) cannot occur more frequently than I.
Therefore, I ∪A is not frequent either
That is, P(I ∪A) < min sup.
This property belongs to a special category of properties called
antimonotonicity in the sense that if a set cannot pass a test, all of its
supersets will fail the same test as well.
Apriori pruning principle: If there is any itemset which is infrequent, its
superset should not be generated/tested!
13
16. 16
The Apriori Algorithm (Pseudo-Code)
Ck: Candidate itemset of size k
Lk : frequent itemset of size k
L1 = {frequent items};
for (k = 1; Lk !=; k++) do begin
Ck+1 = candidates generated from Lk;
for each transaction t in database do
increment the count of all candidates in Ck+1 that
are contained in t
Lk+1 = candidates in Ck+1 with min_support
end
return k Lk;
18. Generating Association Rules from Frequent
Itemsets
For each frequent itemset l, generate all nonempty subsets of l.
For every nonempty subset s of l, output the rule “s ⇒ (l − s)”
The data contain frequent itemset X = {I1, I2, I5}.
What are the association rules that can be generated from X? The
nonempty subsets of X are
{I1, I2}
{I1, I5}
{I2, I5}
{I1}
{I2}
{I5}.
18
19. Assosciation Rules
The resulting association rules are as shown below,
each listed with its confidence:
{I1, I2} ⇒ I5, confidence = 2/4 = 50%
{I1, I5} ⇒ I2, confidence = 2/2 = 100%
{I2, I5} ⇒ I1, confidence = 2/2 = 100%
I1 ⇒ {I2, I5}, confidence = 2/6 = 33%
I2 ⇒ {I1, I5}, confidence = 2/7 = 29%
I5 ⇒ {I1, I2}, confidence = 2/2 = 100%
If the minimum confidence threshold is, say,
70%, then only the second, third, and last rules
are output 19
20. 20
Scalable Frequent Itemset Mining Methods
Apriori: A Candidate Generation-and-Test Approach
Improving the Efficiency of Apriori
FPGrowth: A Frequent Pattern-Growth Approach
ECLAT: Frequent Pattern Mining with Vertical Data Format
Mining Close Frequent Patterns and Maxpatterns
21. 21
Further Improvement of the Apriori Method
Major computational challenges
Multiple scans of transaction database
Huge number of candidates
Tedious workload of support counting for candidates
Improving Apriori: general ideas
Reduce passes of transaction database scans
Shrink number of candidates
Facilitate support counting of candidates
22. Partition: Scan Database Only Twice
Any itemset that is potentially frequent in DB must be
frequent in at least one of the partitions of DB
Scan 1: partition database and find local frequent
patterns
Scan 2: consolidate global frequent patterns
24. 24
Hash-based technique
Scan each transaction in the database to generate the frequent 1-
itemsets and generate all the 2-itemsets for each transaction.
Hash them into the different buckets of a hash table structure, and
increase the corresponding bucket counts.
26. Transaction reduction
A transaction that does not contain any frequent k-itemsets cannot contain any
frequent (k + 1)-itemsets .
Therefore, such a transaction can be marked or removed from further consideration
because subsequent database scans.
26
28. 28
Sampling for Frequent Patterns
Select a sample of original database, mine frequent
patterns within sample using Apriori
Scan database once to verify frequent itemsets found in
sample, only borders of closure of frequent patterns are
checked
Example: check abcd instead of ab, ac, …, etc.
Scan database again to find missed frequent patterns
29. 29
Scalable Frequent Itemset Mining Methods
Apriori: A Candidate Generation-and-Test Approach
Improving the Efficiency of Apriori
FPGrowth: A Frequent Pattern-Growth Approach
ECLAT: Frequent Pattern Mining with Vertical Data Format
Mining Close Frequent Patterns and Maxpatterns
30. 30
Pattern-Growth Approach: Mining Frequent
Patterns Without Candidate Generation
Bottlenecks of the Apriori approach
Breadth-first (i.e., level-wise) search
Candidate generation and test
Often generates a huge number of candidates
The FPGrowth Approach
Depth-first search
Avoid explicit candidate generation
34. 34
Benefits of the FP-tree Structure
Completeness
Preserve complete information for frequent pattern
mining
Never break a long pattern of any transaction
Compactness
Reduce irrelevant info—infrequent items are gone
Items in frequency descending order: the more
frequently occurring, the more likely to be shared
Never be larger than the original database (not count
node-links and the count field)
35. 35
Advantages of the Pattern Growth Approach
Divide-and-conquer:
Decompose both the mining task and DB according to the
frequent patterns obtained so far
Lead to focused search of smaller databases
Other factors
No candidate generation, no candidate test
Compressed database: FP-tree structure
No repeated scan of entire database
Basic ops: counting local freq items and building sub FP-tree, no
pattern search and matching
A good open-source implementation and refinement of FPGrowth
FPGrowth+ (Grahne and J. Zhu, FIMI'03)
36. 36
Scalable Frequent Itemset Mining Methods
Apriori: A Candidate Generation-and-Test Approach
Improving the Efficiency of Apriori
FPGrowth: A Frequent Pattern-Growth Approach
ECLAT: Frequent Pattern Mining with Vertical Data Format
Mining Close Frequent Patterns and Maxpatterns
37. 37
ECLAT: Mining by Exploring Vertical Data Format
Vertical format: t(AB) = {T11, T25, …}
tid-list: list of trans.-ids containing an itemset
Deriving frequent patterns based on vertical intersections
t(X) = t(Y): X and Y always happen together
t(X) t(Y): transaction having X always has Y
Using diffset to accelerate mining
Only keep track of differences of tids
t(X) = {T1, T2, T3}, t(XY) = {T1, T3}
Diffset (XY, X) = {T2}
Eclat- Equivalence class transformation- A depth first search
algorithm using set intersection. (Zaki et al. @KDD’97)
39. 39
Scalable Frequent Itemset Mining Methods
Apriori: A Candidate Generation-and-Test Approach
Improving the Efficiency of Apriori
FPGrowth: A Frequent Pattern-Growth Approach
ECLAT: Frequent Pattern Mining with Vertical Data Format
Mining Close Frequent Patterns and Maxpatterns
40. Mining Frequent Closed Patterns
Item merging:
If every transaction containing a frequent itemset X also
contains an itemset Y but not any proper superset of Y , then X
∪Y forms a frequent closed itemset and there is no need to
search for any itemset containing X but no Y
Sub-itemset pruning:
If a frequent itemset X is a proper subset of an already found
fre quent closed itemset Y and support count(X)=support
count(Y), then X and all of X’s descendants in the set
enumeration tree cannot be frequent closed itemsets and thus
can be pruned.
41. Item skipping:
In the depth-first mining of closed itemsets, at each
level, there will be a prefix itemset X associated
with a header table and a projected database. If a
local frequent item p has the same support in
several header tables at different levels, we can
safely prune p from the header tables at higher
levels.
41
42. CLOSET+: Mining Closed Itemsets by Pattern-Growth
Itemset merging: if Y appears in every occurrence of X, then
Y is merged with X
Sub-itemset pruning: if Y כ X, and sup(X) = sup(Y), X and all
of X’s descendants in the set enumeration tree can be pruned
Hybrid tree projection
Bottom-up physical tree-projection
Top-down pseudo tree-projection
Item skipping: if a local frequent item has the same support
in several header tables at different levels, one can prune it
from the header table at higher levels
Efficient subset checking
43. MaxMiner: Mining Max-Patterns
1st scan: find frequent items
A, B, C, D, E
2nd scan: find support for
AB, AC, AD, AE, ABCDE
BC, BD, BE, BCDE
CD, CE, CDE, DE
Since BCDE is a max-pattern, no need to check BCD, BDE,
CDE in later scan
Tid Items
10 A, B, C, D, E
20 B, C, D, E,
30 A, C, D, F
Potential
max-patterns
44. 44
Chapter 5: Mining Frequent Patterns, Association
and Correlations: Basic Concepts and Methods
Basic Concepts
Frequent Itemset Mining Methods
Which Patterns Are Interesting?—Pattern
Evaluation Methods
Summary
45. Strong Rules Are Not Necessarily
Interesting
A misleading “strong” association rule
Of the 10,000 transactions analyzed, the data show that 6000 of the
customer transactions included computer games, while 7500 included
videos, and 4000 included both computer games and videos.
Misleading because the probability of purchasing videos is 75%, which
is even larger than 66%.
In fact, computer games and videos are negatively associated because
the purchase of one of these items actually decreases the likelihood of
purchasing the other
45
46. From Association Analysis to
Correlation Analysis
A correlation measure should be used to
augment the support–confidence framework for
association rules.
A ⇒ B [support, confidence, correlation]
46
47. 47
Interestingness Measure: Correlations (Lift)
play basketball eat cereal [40%, 66.7%] is misleading
The overall % of students eating cereal is 75% > 66.7%.
play basketball not eat cereal [20%, 33.3%] is more accurate,
although with lower support and confidence
Measure of dependent/correlated events: lift
89
.
0
5000
/
3750
*
5000
/
3000
5000
/
2000
)
,
(
C
B
lift
Basketball Not basketball Sum (row)
Cereal 2000 1750 3750
Not cereal 1000 250 1250
Sum(col.) 3000 2000 5000
)
(
)
(
)
(
B
P
A
P
B
A
P
lift
33
.
1
5000
/
1250
*
5000
/
3000
5000
/
1000
)
,
(
C
B
lift
49. 49
χ 2 value is greater than 1, and the observed value of the
slot (game, video) = 4000, which is less than the expected
value of 4500, buying game and buying video are
negatively correlated
52. Which Null-Invariant Measure Is Better?
IR (Imbalance Ratio): measure the imbalance of two
itemsets A and B in rule implications
Kulczynski and Imbalance Ratio (IR) together present a
clear picture for all the three datasets D4 through D6
D4 is balanced & neutral
D5 is imbalanced & neutral
D6 is very imbalanced & neutral
53. 53
Chapter 5: Mining Frequent Patterns, Association
and Correlations: Basic Concepts and Methods
Basic Concepts
Frequent Itemset Mining Methods
Which Patterns Are Interesting?—Pattern
Evaluation Methods
Summary
54. 54
Summary
Basic concepts: association rules, support-
confident framework, closed and max-patterns
Scalable frequent pattern mining methods
Apriori (Candidate generation & test)
Projection-based (FPgrowth, CLOSET+, ...)
Vertical format approach (ECLAT, CHARM, ...)
Which patterns are interesting?
Pattern evaluation methods
