This document provides instructions for constructing geometric figures using a ruler, compass, and protractor. It explains how to construct a triangle given side lengths and a parallelogram given side lengths and angles. Students are assigned homework problems constructing additional figures using the given tools and methods.

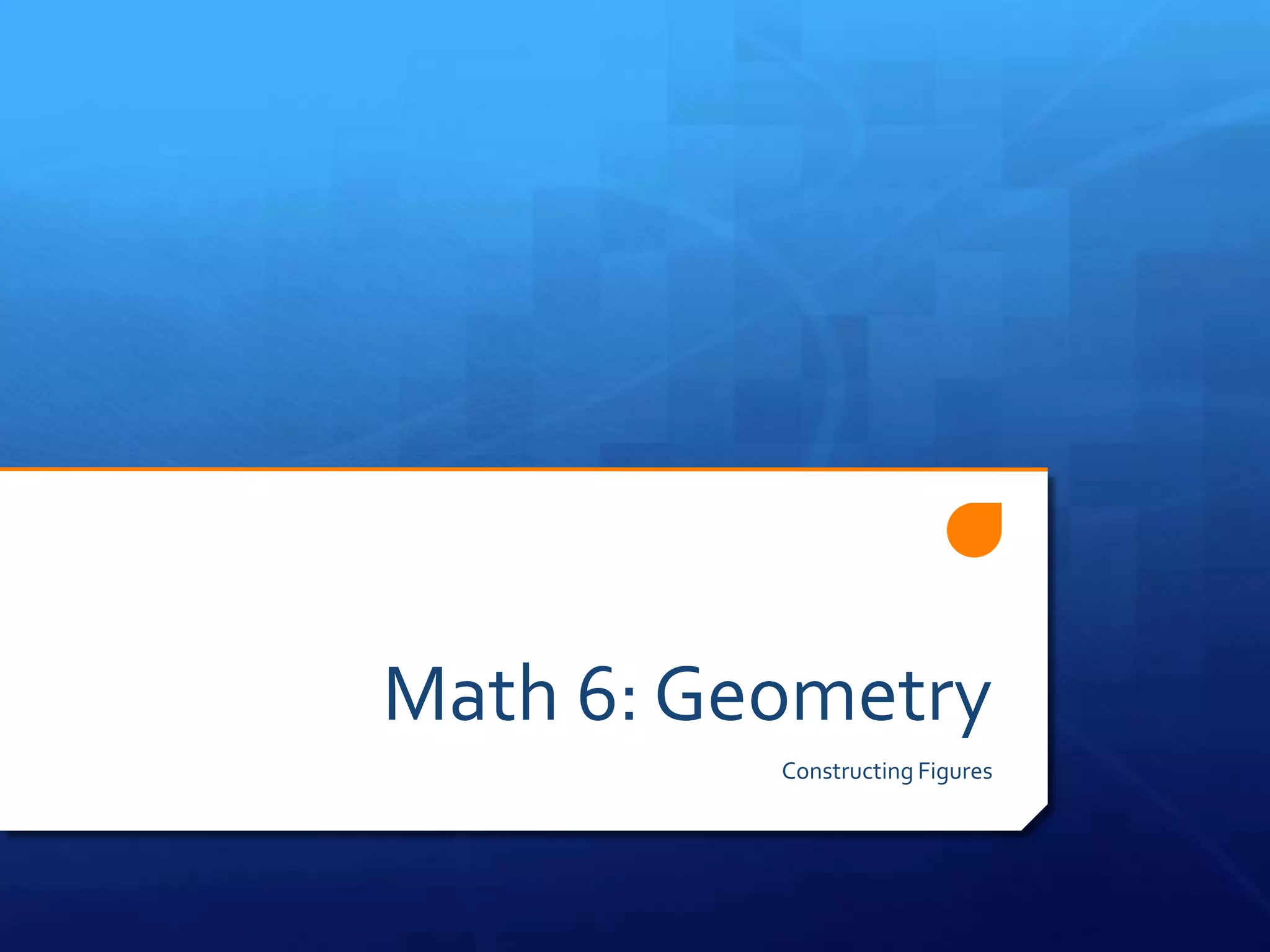

1. Math 6: Geometry
Constructing Figures

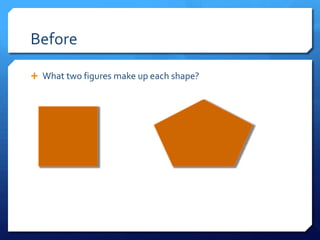

2. Before
 What two figures make up each shape?

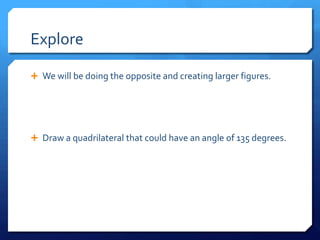

3. Explore
 We will be doing the opposite and creating larger figures.
 Draw a quadrilateral that could have an angle of 135 degrees.

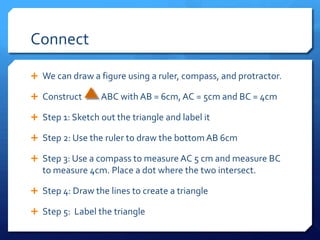

4. Connect
 We can draw a figure using a ruler, compass, and protractor.
 Construct
ABC with AB = 6cm, AC = 5cm and BC = 4cm
 Step 1: Sketch out the triangle and label it
 Step 2: Use the ruler to draw the bottom AB 6cm
 Step 3: Use a compass to measure AC 5 cm and measure BC
to measure 4cm. Place a dot where the two intersect.
 Step 4: Draw the lines to create a triangle
 Step 5: Label the triangle

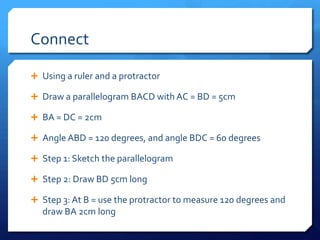

5. Connect
 Using a ruler and a protractor
 Draw a parallelogram BACD with AC = BD = 5cm
 BA = DC = 2cm
 Angle ABD = 120 degrees, and angle BDC = 60 degrees
 Step 1: Sketch the parallelogram
 Step 2: Draw BD 5cm long
 Step 3: At B = use the protractor to measure 120 degrees and
draw BA 2cm long

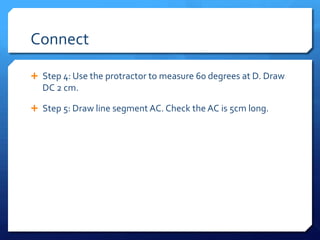

6. Connect
 Step 4: Use the protractor to measure 60 degrees at D. Draw
DC 2 cm.
 Step 5: Draw line segment AC. Check the AC is 5cm long.

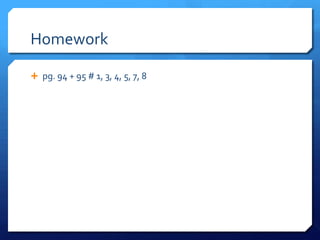

7. Homework
 pg. 94 + 95 # 1, 3, 4, 5, 7, 8
