1. NRS 237 Principles of Physiology
Dr. Moattar Raza Rizvi
Unit 3 Cardiovascular System
Heart pumps over 1 million gallons per year

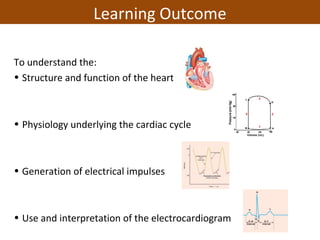

2. To understand the:
• Structure and function of the heart
• Physiology underlying the cardiac cycle
• Generation of electrical impulses
• Use and interpretation of the electrocardiogram
Learning Outcome

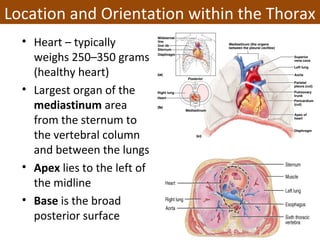

3. • Heart – typically
weighs 250–350 grams
(healthy heart)
• Largest organ of the
mediastinum area
from the sternum to
the vertebral column
and between the lungs
• Apex lies to the left of
the midline
• Base is the broad
posterior surface
Location and Orientation within the Thorax

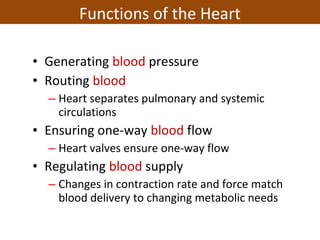

4. • Generating blood pressure
• Routing blood
– Heart separates pulmonary and systemic
circulations
• Ensuring one-way blood flow
– Heart valves ensure one-way flow
• Regulating blood supply
– Changes in contraction rate and force match
blood delivery to changing metabolic needs
Functions of the Heart

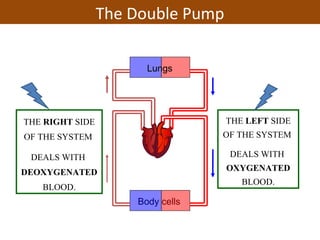

5. The Double Pump

6. Lungs
Body cells
THE RIGHT SIDE
OF THE SYSTEM
DEALS WITH
DEOXYGENATED
BLOOD.
THE LEFT SIDE
OF THE SYSTEM
DEALS WITH
OXYGENATED
BLOOD.
The Double Pump

7. • Protects and anchors the heart
• Prevents overfilling of the heart with blood
• Allows the heart to work in a relatively friction-
free environment

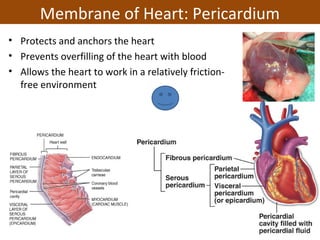

Membrane of Heart: Pericardium

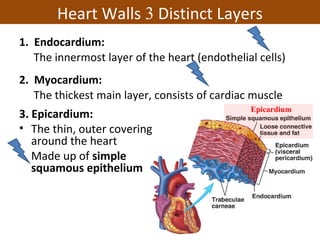

8. 1. Endocardium:
The innermost layer of the heart (endothelial cells)
2. Myocardium:
The thickest main layer, consists of cardiac muscle
Heart Walls 3 Distinct Layers
3. Epicardium:
• The thin, outer covering
around the heart
• Made up of simple
squamous epithelium
Epicardium

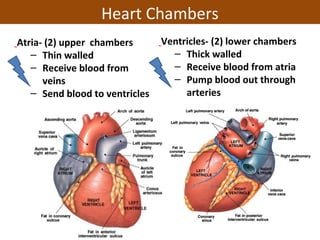

9. Atria- (2) upper chambers
– Thin walled
– Receive blood from
veins
– Send blood to ventricles
Ventricles- (2) lower chambers
– Thick walled
– Receive blood from atria
– Pump blood out through
arteries
Heart Chambers

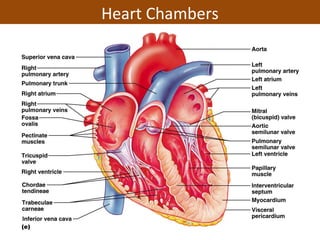

10. Heart Chambers

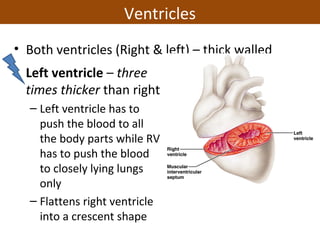

11. • Both ventricles (Right & left) – thick walled
• Left ventricle – three
times thicker than right
– Left ventricle has to
push the blood to all
the body parts while RV
has to push the blood
to closely lying lungs
only
– Flattens right ventricle
into a crescent shape
Ventricles

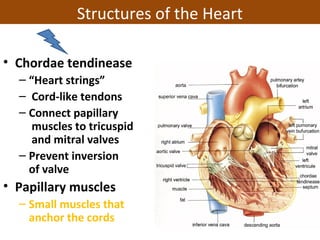

12. • Chordae tendinease
– “Heart strings”
– Cord-like tendons
– Connect papillary
muscles to tricuspid
and mitral valves
– Prevent inversion
of valve
• Papillary muscles
– Small muscles that
anchor the cords
Papillary
muscle
Structures of the Heart

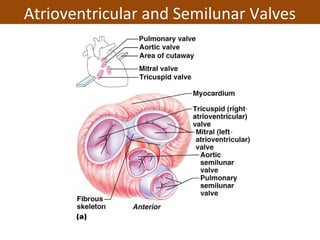

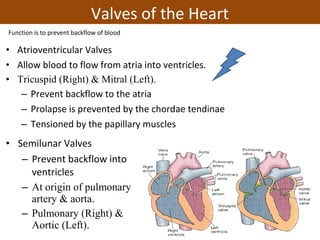

13. Valves of the Heart
• Semilunar Valves
– Prevent backflow into
ventricles
– At origin of pulmonary
artery & aorta.
– Pulmonary (Right) &
Aortic (Left).
• Atrioventricular Valves
• Allow blood to flow from atria into ventricles.
• Tricuspid (Right) & Mitral (Left).
– Prevent backflow to the atria
– Prolapse is prevented by the chordae tendinae
– Tensioned by the papillary muscles
Function is to prevent backflow of blood

14. Atrioventricular and Semilunar Valves

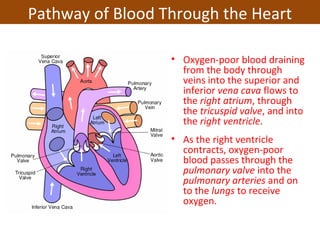

15. • Oxygen-poor blood draining
from the body through
veins into the superior and
inferior vena cava flows to
the right atrium, through
the tricuspid valve, and into
the right ventricle.
• As the right ventricle
contracts, oxygen-poor
blood passes through the
pulmonary valve into the
pulmonary arteries and on
to the lungs to receive
oxygen.
Pathway of Blood Through the Heart

16. • Oxygen-rich blood from the
lungs enters the heart
through the pulmonary
veins, passing into the left
atrium.
• Then through the mitral
valve to the left ventricle.
Contraction of the left
ventricle forces blood
through the aortic valve into
the aorta.
• Various arteries branch off
from the aorta to supply
blood to all parts of the body.
Pathway of Blood Through the Heart

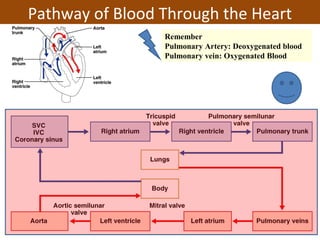

17. Pathway of Blood Through the Heart
Remember
Pulmonary Artery: Deoxygenated blood
Pulmonary vein: Oxygenated Blood

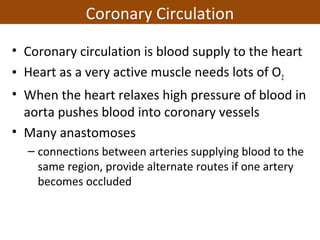

18. • Coronary circulation is blood supply to the heart
• Heart as a very active muscle needs lots of O2
• When the heart relaxes high pressure of blood in
aorta pushes blood into coronary vessels
• Many anastomoses
– connections between arteries supplying blood to the
same region, provide alternate routes if one artery
becomes occluded
Coronary Circulation

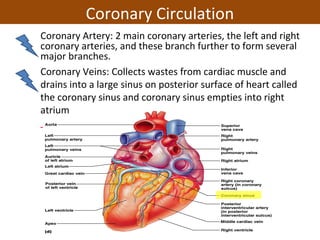

19. Coronary Artery: 2 main coronary arteries, the left and right
coronary arteries, and these branch further to form several
major branches.
Coronary Veins: Collects wastes from cardiac muscle and
drains into a large sinus on posterior surface of heart called
the coronary sinus and coronary sinus empties into right
atrium
Coronary Circulation

20. • Pulmonary circulation:
– Path of blood from right ventricle through the lungs and back to the
heart.
• Systemic circulation:
– Oxygen-rich blood pumped to all organ systems to supply nutrients.
• Rate of blood flow through
systemic circulation = flow
rate through pulmonary
circulation.
Pulmonary and Systemic Circulations

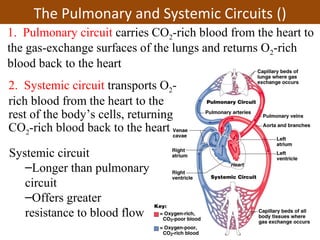

21. The Pulmonary and Systemic Circuits ()
Systemic circuit
–Longer than pulmonary
circuit
–Offers greater
resistance to blood flow
1. Pulmonary circuit carries CO2-rich blood from the heart to
the gas-exchange surfaces of the lungs and returns O2-rich
blood back to the heart
2. Systemic circuit transports O2-
rich blood from the heart to the
rest of the body’s cells, returning
CO2-rich blood back to the heart

22. • To pump effectively, large portions of cardiac muscle
must receive an action potential nearly
simultaneously.
• Cardiac muscle tissue has intrinsic ability to
– Generate and conduct impulses ()
– Signal these cells to contract rhythmically
• Inherent and rhythmical beat is due to autorhythmic
fibers of the cardiac muscle.
• These fibers have 2 important function
- Act as pace maker (Nodal cells)
- Form the conduction system
Conducting System ()

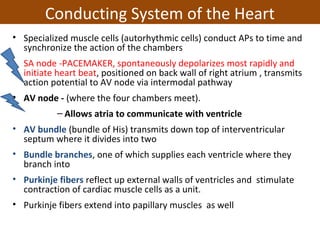

23. • Specialized muscle cells (autorhythmic cells) conduct APs to time and
synchronize the action of the chambers
• SA node -PACEMAKER, spontaneously depolarizes most rapidly and
initiate heart beat, positioned on back wall of right atrium , transmits
action potential to AV node via intermodal pathway
• AV node - (where the four chambers meet).
– Allows atria to communicate with ventricle
• AV bundle (bundle of His) transmits down top of interventricular
septum where it divides into two
• Bundle branches, one of which supplies each ventricle where they
branch into
• Purkinje fibers reflect up external walls of ventricles and stimulate
contraction of cardiac muscle cells as a unit.
• Purkinje fibers extend into papillary muscles as well
Conducting System of the Heart

24. – Initiated by the Sino-Atrial node (SA node) which is
myogenic at 70-80 action potentials/minute
• First conducting tissue to be depolarized
– Depolarization is spread through the atria via gap
junctions and internodal pathways to the Atrio-
Ventricular node (AV node)
– A slight delay at the AV node occurs
– Action potentials travel down the Atrioventricular
bundle (Bundle of His) which splits into left and right
atrioventricular bundles (bundle branches) and then
into the conduction myofibers (Purkinje cells)
– Stimulation of Purkinje fibers cause both ventricles
to contract simultaneously .
Electrical Conduction Pathway

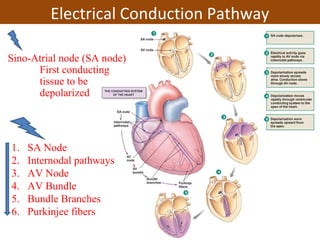

25. Electrical Conduction Pathway
1. SA Node
2. Internodal pathways
3. AV Node
4. AV Bundle
5. Bundle Branches
6. Purkinjee fibers
Sino-Atrial node (SA node)
First conducting
tissue to be
depolarized

26. Cardiac Cycle
• Sequence of events as blood enters the atria, leaves the
ventricles and then starts over
• Synchronizing this is the Intrinsic Electrical Conduction
System
• In each cycle, atria and ventricles alternately contract
(systole) and relax (diastole)
– During atrial systole, ventricles are relaxed
– During ventricle systole, atria are relaxed
• Forces blood from higher pressure to lower pressure
• During relaxation period, both atria and ventricles are
relaxed
– The faster the heart beats, the shorter the relaxation period
– Systole and diastole lengths shorten slightly
• All events associated with one heartbeat
– At 75 beats/min, one cycle requires 0.8 sec.

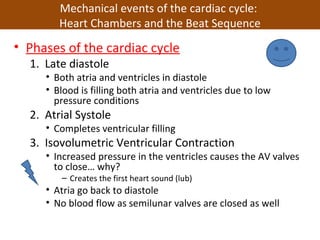

27. • Phases of the cardiac cycle
1. Late diastole
• Both atria and ventricles in diastole
• Blood is filling both atria and ventricles due to low
pressure conditions
2. Atrial Systole
• Completes ventricular filling
3. Isovolumetric Ventricular Contraction
• Increased pressure in the ventricles causes the AV valves
to close… why?
– Creates the first heart sound (lub)
• Atria go back to diastole
• No blood flow as semilunar valves are closed as well
Mechanical events of the cardiac cycle:
Heart Chambers and the Beat Sequence

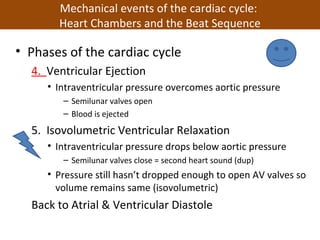

28. • Phases of the cardiac cycle
4. Ventricular Ejection
• Intraventricular pressure overcomes aortic pressure
– Semilunar valves open
– Blood is ejected
5. Isovolumetric Ventricular Relaxation
• Intraventricular pressure drops below aortic pressure
– Semilunar valves close = second heart sound (dup)
• Pressure still hasn’t dropped enough to open AV valves so
volume remains same (isovolumetric)
Back to Atrial & Ventricular Diastole
Mechanical events of the cardiac cycle:
Heart Chambers and the Beat Sequence

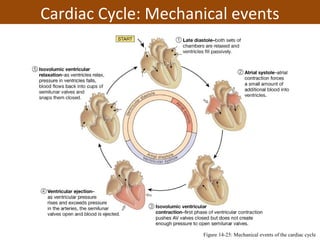

29. Cardiac Cycle: Mechanical events
Figure 14-25: Mechanical events of the cardiac cycle

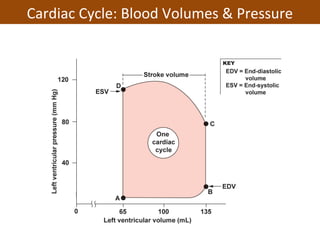

30. Cardiac Cycle: Blood Volumes & Pressure

31. Cardiac Cycle

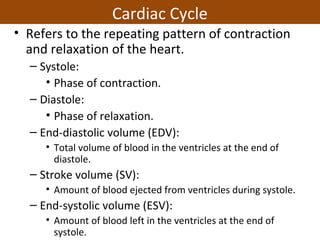

• Refers to the repeating pattern of contraction
and relaxation of the heart.
– Systole:
• Phase of contraction.
– Diastole:
• Phase of relaxation.
– End-diastolic volume (EDV):
• Total volume of blood in the ventricles at the end of
diastole.
– Stroke volume (SV):
• Amount of blood ejected from ventricles during systole.
– End-systolic volume (ESV):
• Amount of blood left in the ventricles at the end of
systole.

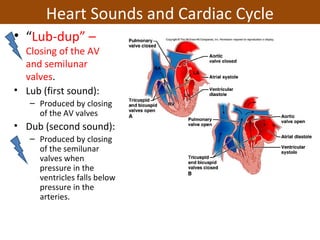

32. Heart Sounds and Cardiac Cycle
• “Lub-dup” –
Closing of the AV
and semilunar
valves.
• Lub (first sound):
– Produced by closing
of the AV valves
• Dub (second sound):
– Produced by closing
of the semilunar
valves when
pressure in the
ventricles falls below
pressure in the
arteries.

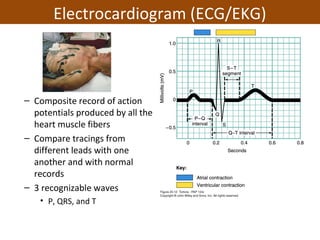

33. – Composite record of action
potentials produced by all the
heart muscle fibers
– Compare tracings from
different leads with one
another and with normal
records
– 3 recognizable waves
• P, QRS, and T
Electrocardiogram (ECG/EKG)

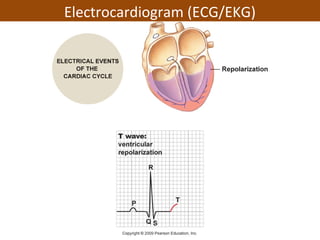

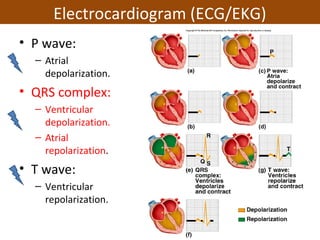

34. ECG• P wave:
– Atrial
depolarization.
• QRS complex:
– Ventricular
depolarization.
– Atrial
repolarization.
• T wave:
– Ventricular
repolarization.
Electrocardiogram (ECG/EKG)

35. Electrocardiogram (ECG/EKG)

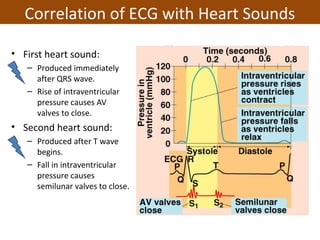

36. • First heart sound:
– Produced immediately
after QRS wave.
– Rise of intraventricular
pressure causes AV
valves to close.
• Second heart sound:
– Produced after T wave
begins.
– Fall in intraventricular
pressure causes
semilunar valves to close.
Correlation of ECG with Heart Sounds

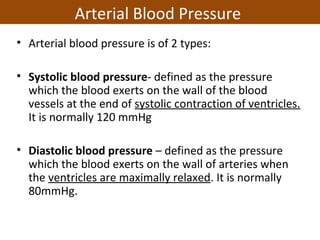

37. • Arterial blood pressure is of 2 types:
• Systolic blood pressure- defined as the pressure
which the blood exerts on the wall of the blood
vessels at the end of systolic contraction of ventricles.
It is normally 120 mmHg
• Diastolic blood pressure – defined as the pressure
which the blood exerts on the wall of arteries when
the ventricles are maximally relaxed. It is normally
80mmHg.
Arterial Blood Pressure

38. • Is via auscultation (to examine by listening)
• No sound is heard during laminar flow (normal,
quiet, smooth blood flow)
• Korotkoff sounds can be heard when
sphygmomanometer cuff pressure is greater than
diastolic but lower than systolic pressure
Measurement of Blood Pressure (BP)

39. • Blood pressure cuff is
inflated above
systolic pressure,
occluding artery
• As cuff pressure is
lowered, blood flows
only when systolic
pressure is above cuff
pressure, producing
Korotkoff sounds
• Sounds are heard
until cuff pressure
equals diastolic
pressure, causing
sounds to disappear
Measurement of Blood Pressure (BP)

40. Cardiac Output (CO)
• Cardiac output is amount of blood pumped out of the ventricle
– CO = HR (beats/minute) X SV (liters/beat)
– Normal adult: 4-8 liters/minute
• Stroke volume (SV) = blood pumped/beat by each
ventricle
– The average resting stroke volume is about 70 mL, and
Cardiac output can be affected by changes in either stroke
volume or heart rate.
• Heart rate (HR) = the number of beats/minute
– the heart rate is 60 to 80 beats per minute (bpm)
– CO = SV x HR
– (72 beats/m × 70 ml/beat = 5040 ml)
– Total blood volume = about 5.5L

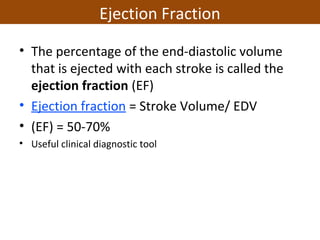

41. • The percentage of the end-diastolic volume
that is ejected with each stroke is called the
ejection fraction (EF)
• Ejection fraction = Stroke Volume/ EDV
• (EF) = 50-70%
• Useful clinical diagnostic tool
Ejection Fraction

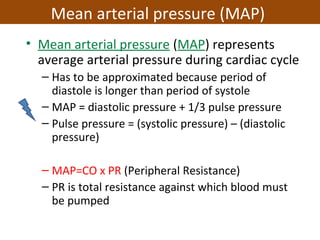

42. • Mean arterial pressure (MAP) represents
average arterial pressure during cardiac cycle
– Has to be approximated because period of
diastole is longer than period of systole
– MAP = diastolic pressure + 1/3 pulse pressure
– Pulse pressure = (systolic pressure) – (diastolic
pressure)
– MAP=CO x PR (Peripheral Resistance)
– PR is total resistance against which blood must
be pumped
Mean arterial pressure (MAP)

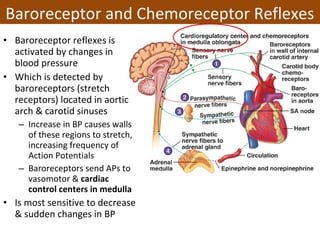

43. • Baroreceptor reflexes is
activated by changes in
blood pressure
• Which is detected by
baroreceptors (stretch
receptors) located in aortic
arch & carotid sinuses
– Increase in BP causes walls
of these regions to stretch,
increasing frequency of
Action Potentials
– Baroreceptors send APs to
vasomotor & cardiac
control centers in medulla
• Is most sensitive to decrease
& sudden changes in BP
Baroreceptor and Chemoreceptor Reflexes

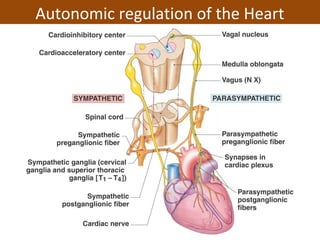

44. Autonomic regulation of the Heart
• Extrinsic regulation: Involves neural and hormonal control
• Sympathetic stimulation (Supplied by cardiac nerves) –
releases NE: Has 2 separate effects
• In SA and AV node speeds rate of spontaneous
depolarization (increase in HR and force of contractions)
through stimulation of beta receptors on nodal and
contractile cells
• In contractile fibers enhances Ca2+
entry increasing
contractility
– Parasympathetic stimulation (Supplied by vagus nerves
release acetylcholine
– Decreases heart rate by slowing rate of spontaneous
depolarization stimulation of muscarinic receptors of nodal and
contractile cells

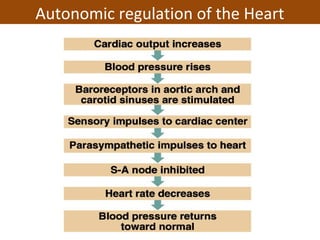

45. Autonomic regulation of the Heart

46. Autonomic regulation of the Heart

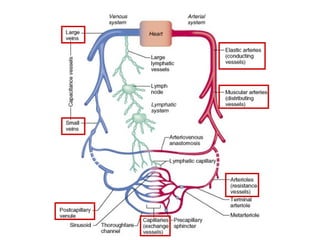

47. • Blood is carried in a closed system of vessels that begins and
ends at the heart
• 5 Classes of Blood Vessels
1. Arteries:
– carry blood away from heart
1. Arterioles:
– Are smallest branches of arteries
1. Capillaries:
– are smallest blood vessels
– location of exchange between blood and interstitial
fluid
1. Venules:
– collect blood from capillaries
1. Veins:
– return blood to heart
BLOOD VESSELS

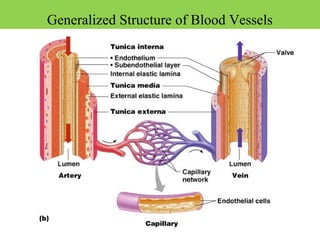

48. Generalized Structure of Blood Vessels

49. Structure: 3 layers or tunics
• Tunica interna (intima)
– Inner lining in direct contact with blood
– Endothelial layer that lines the lumen of all vessels
– Active role in vessel-related activities
• Tunica media
– Muscular and connective tissue layer
– Greatest variation among vessel types, maintains BP
– Smooth muscle regulates diameter of lumen
• Tunica externa
– Elastic and collagen fibers
– Vasa vasorum
– Helps anchor vessel to surrounding tissue

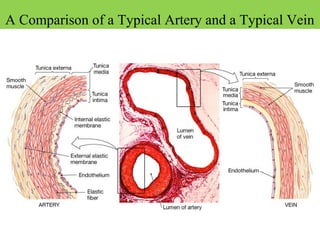

50. A Comparison of a Typical Artery and a Typical Vein

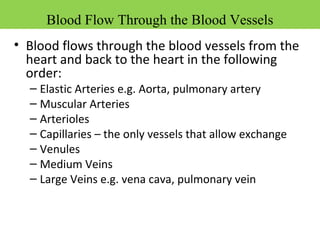

51. • Blood flows through the blood vessels from the
heart and back to the heart in the following
order:
– Elastic Arteries e.g. Aorta, pulmonary artery
– Muscular Arteries
– Arterioles
– Capillaries – the only vessels that allow exchange
– Venules
– Medium Veins
– Large Veins e.g. vena cava, pulmonary vein
Blood Flow Through the Blood Vessels

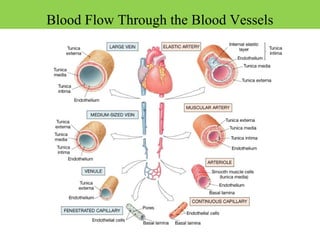

52. Blood Flow Through the Blood Vessels

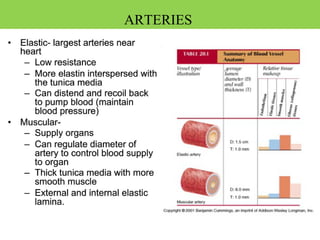

53. ARTERIES

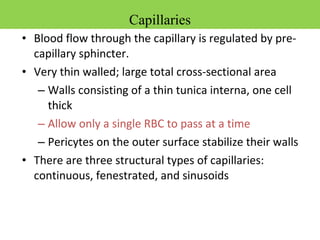

54. • Blood flow through the capillary is regulated by pre-
capillary sphincter.
• Very thin walled; large total cross-sectional area
– Walls consisting of a thin tunica interna, one cell
thick
– Allow only a single RBC to pass at a time
– Pericytes on the outer surface stabilize their walls
• There are three structural types of capillaries:
continuous, fenestrated, and sinusoids
Capillaries

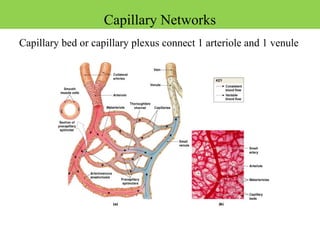

55. Figure 21-5
Capillary bed or capillary plexus connect 1 arteriole and 1 venule
Capillary Networks

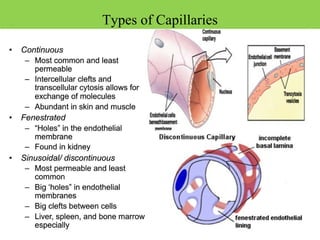

56. Types of Capillaries

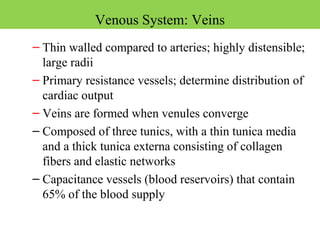

58. – Thin walled compared to arteries; highly distensible;
large radii
– Primary resistance vessels; determine distribution of
cardiac output
– Veins are formed when venules converge
– Composed of three tunics, with a thin tunica media
and a thick tunica externa consisting of collagen
fibers and elastic networks
– Capacitance vessels (blood reservoirs) that contain
65% of the blood supply
Venous System: Veins

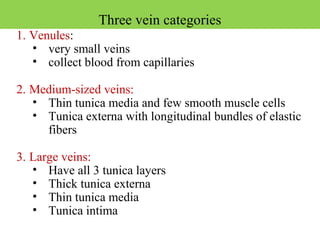

59. 1. Venules:
• very small veins
• collect blood from capillaries
2. Medium-sized veins:
• Thin tunica media and few smooth muscle cells
• Tunica externa with longitudinal bundles of elastic
fibers
3. Large veins:
• Have all 3 tunica layers
• Thick tunica externa
• Thin tunica media
• Tunica intima
Three vein categories

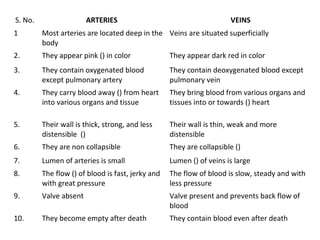

60. S. No. ARTERIES VEINS
1 Most arteries are located deep in the
body
Veins are situated superficially
2. They appear pink () in color They appear dark red in color
3. They contain oxygenated blood
except pulmonary artery
They contain deoxygenated blood except
pulmonary vein
4. They carry blood away () from heart
into various organs and tissue
They bring blood from various organs and
tissues into or towards () heart
5. Their wall is thick, strong, and less
distensible ()
Their wall is thin, weak and more
distensible
6. They are non collapsible They are collapsible ()
7. Lumen of arteries is small Lumen () of veins is large
8. The flow () of blood is fast, jerky and
with great pressure
The flow of blood is slow, steady and with
less pressure
9. Valve absent Valve present and prevents back flow of
blood
10. They become empty after death They contain blood even after death
