This document describes the design and development of a reaction time and impact force measuring device. The device uses sensors and a data acquisition system to measure impact force, reaction time, and response time when a user strikes one of two punching bag targets. LabVIEW software is used to calibrate the sensors, control experiments, and analyze data. Prototypes were developed and tested to calibrate force sensors and measure static and dynamic forces. Experimental results showed the device can accurately measure impact forces from 0-500N with errors less than 10% compared to theoretical calculations.

1. Producing reaction time
and impact force measuring device
BY
Noppadol Surichamorn 5810756287
Anucha Thainapa 5810751833
Advisor : Asst. Prof. Dr. Jak Chuanasa
1

2. Project overview
2

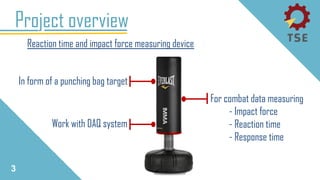

3. 3
Project overview
Reaction time and impact force measuring device
In form of a punching bag target
For combat data measuring
- Impact force
- Reaction time
- Response time
Work with DAQ system

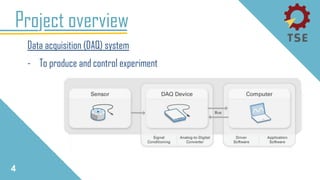

4. 4
Project overview
Data acquisition (DAQ) system
- To produce and control experiment

5. 5
Project overview
Sensors
Electrical signals
(Analog signals)
SensorPhysical phenomenon
Temperature
Force
Sound

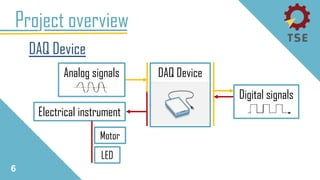

6. 6
Project overview
DAQ Device
Analog signals DAQ Device
Electrical instrument
Digital signals
Motor
LED

7. 7
Project overview
Computer
Computer
Create and control
G-programming
LabVIEW
Digital signals

8. Instruments intro.
8

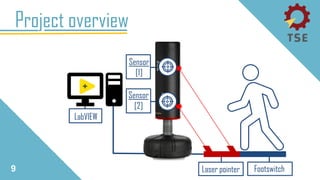

9. 9
Project overview
Footswitch
LabVIEW
Sensor
[1]
Laser pointer
Sensor
[2]

10. LabVIEW and DAQ device
10

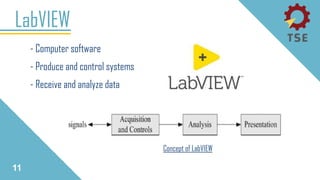

11. - Computer software
- Produce and control systems
- Receive and analyze data
LabVIEW
11
Concept of LabVIEW

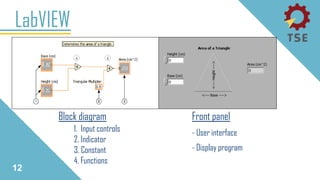

12. Block diagram
LabVIEW
12
Front panel
- User interface
- Display program
1. Input controls
2. Indicator
3. Constant
4. Functions

13. - Connected with computer
- 1 MS/s Total sampling rate
NI USB-6351
13
Analog Channel Digital channel
+5V

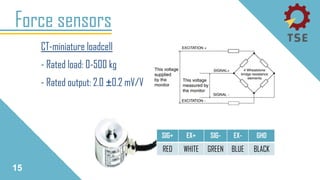

14. Sensor kit
14

15. CT-miniature loadcell
- Rated load: 0-500 kg
- Rated output: 2.0 ±0.2 mV/V
Force sensors
15
SIG+ EX+ SIG- EX- GHD
RED WHITE GREEN BLUE BLACK

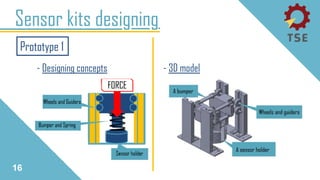

16. - Designing concepts
Sensor kits designing
- 3D model
16
Prototype 1

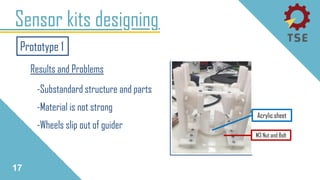

17. Sensor kits designing
17
M3 Nut and Bolt
Acrylic sheet
Prototype 1
-Substandard structure and parts
-Material is not strong
-Wheels slip out of guider
Results and Problems

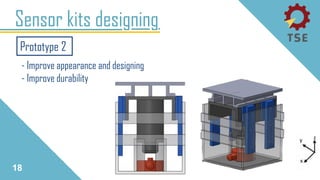

18. Sensor kits designing
18
Prototype 2
- Improve appearance and designing
- Improve durability

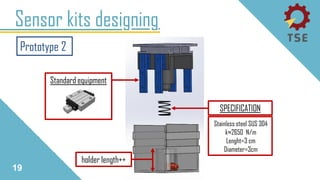

19. Sensor kits designing
19
Prototype 2
Standard equipment
holder length++
Stainless steel SUS 304
k≈2650 N/m
Lenght=3 cm
Diameter=3cm
SPECIFICATION

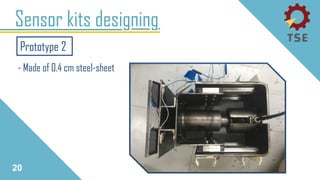

20. Sensor kits designing
20
Prototype 2
- Made of 0.4 cm steel-sheet

21. Foot-switch
21

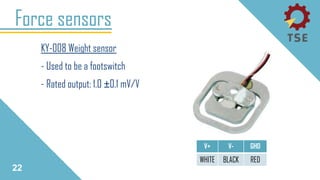

22. KY-008 Weight sensor
- Used to be a footswitch
- Rated output: 1.0 ±0.1 mV/V
22
Force sensors
V+ V- GHD
WHITE BLACK RED

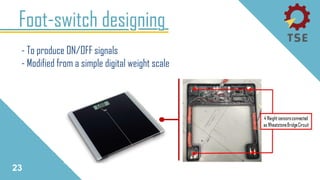

23. Foot-switch designing
23
- To produce ON/OFF signals
- Modified from a simple digital weight scale

24. Laser pointer
24

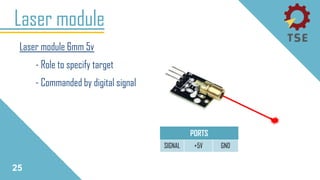

25. Laser module
Laser module 6mm 5v
- Role to specify target
- Commanded by digital signal
SIGNAL +5V GND
PORTS
25

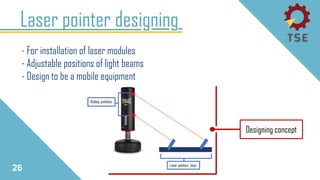

26. Laser pointer designing
26
- For installation of laser modules
- Adjustable positions of light beams
- Design to be a mobile equipment
Designing concept

27. Laser pointer designing
27 Rotation axis

28. Additional Equipment
28

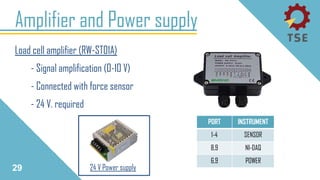

29. Amplifier and Power supply
29
Load cell amplifier (RW-ST01A)
- Signal amplification (0-10 V)
- Connected with force sensor
- 24 V. required
PORT INSTRUMENT
1-4 SENSOR
8,9 NI-DAQ
6,9 POWER
24 V Power supply

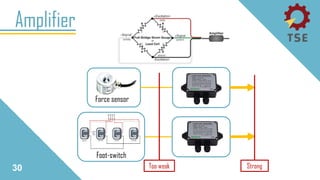

30. Amplifier
30 Too weak Strong
Force sensor
Foot-switch

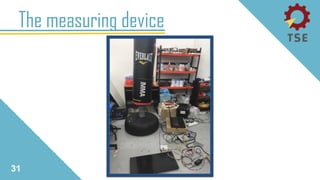

31. 31
The measuring device

32. Programming
32

33. Programming of the device
- Force sensors calibration
- LabVIEW programming
Project’s progression
33

34. Sensor calibration
34

35. Force sensor calibration
- Convert sensor signals
- Set a zero value
Project’s progression
35
Electrical signalsSensor
Voltage Kg
Amplifier

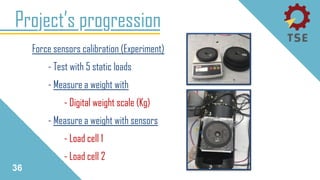

36. Project’s progression
36
Force sensors calibration (Experiment)
- Test with 5 static loads
- Measure a weight with
- Digital weight scale (Kg)
- Measure a weight with sensors
- Load cell 1
- Load cell 2

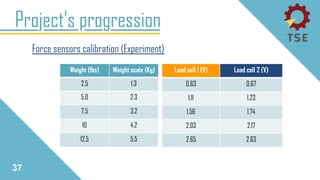

37. Project’s progression
37
Force sensors calibration (Experiment)
Load cell 1 (V) Load cell 2 (V)
0.63 0.67
1.11 1.23
1.56 1.74
2.03 2.17
2.65 2.63
Weight (lbs) Weight scale (Kg)
2.5 1.3
5.0 2.3
7.5 3.2
10 4.2
12.5 5.5

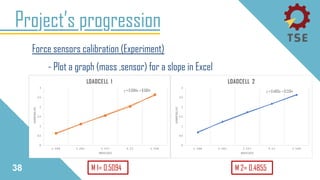

38. Project’s progression
38
Force sensors calibration (Experiment)
- Plot a graph (mass ,sensor) for a slope in Excel
M 1= 0.5094 M 2= 0.4855

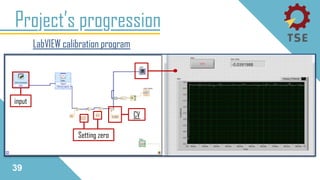

39. Project’s progression
39
LabVIEW calibration program
Setting zero
CV
input

40. LabVIEW Programming
40

41. 41

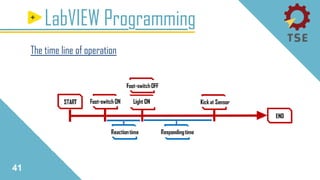

LabVIEW Programming
The time line of operation

42. 42

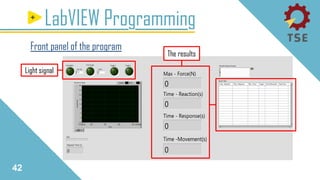

LabVIEW Programming
Front panel of the program
The results
Light signal

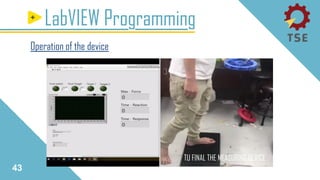

43. 43
LabVIEW Programming
Operation of the device
TU FINAL THE MEASURING DEVICE

44. Experimental research
44

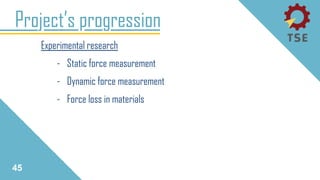

45. Experimental research
- Static force measurement
- Dynamic force measurement
- Force loss in materials
Project’s progression
45

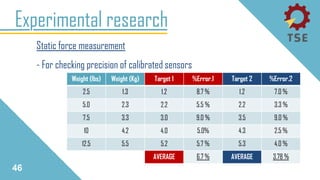

46. Experimental research
Static force measurement
- For checking precision of calibrated sensors
46
Weight (lbs) Weight (Kg) Target 1 %Error.1 Target 2 %Error.2
2.5 1.3 1.2 8.7 % 1.2 7.0 %
5.0 2.3 2.2 5.5 % 2.2 3.3 %
7.5 3.3 3.0 9.0 % 3.5 9.0 %
10 4.2 4.0 5.0% 4.3 2.5 %
12.5 5.5 5.2 5.7 % 5.3 4.0 %
AVERAGE 6.7 % AVERAGE 3.78 %

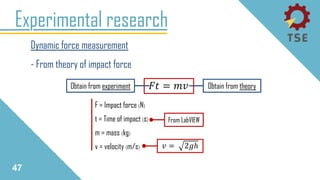

47. Experimental research
Dynamic force measurement
- From theory of impact force
47
𝐹𝑡 = 𝑚𝑣
𝑣 = 2𝑔ℎ
F = Impact force (N)
t = Time of impact (s)
m = mass (kg)
v = velocity (m/s)
Obtain from theoryObtain from experiment
From LabVIEW

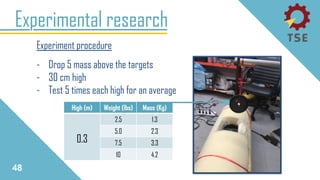

48. Experimental research
Experiment procedure
- Drop 5 mass above the targets
- 30 cm high
- Test 5 times each high for an average
48
High (m) Weight (lbs) Mass (Kg)
0.3
2.5 1.3
5.0 2.3
7.5 3.3
10 4.2

49. Experimental research
Dynamic force measurement
- Results from the experiment
49
Results from the experiment (h=0.3cm),(t=0.017)
Mass (Kg) Avg F. (N) Ft
1.3 255.53 4.34
2.3 402.36 6.84
3.3 504.34 8.57
4.2 606.30 10.31
Target 1

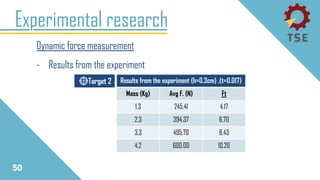

50. Experimental research
Dynamic force measurement
- Results from the experiment
50
Target 2 Results from the experiment (h=0.3cm) ,(t=0.017)
Mass (Kg) Avg F. (N) Ft
1.3 245.41 4.17
2.3 394.37 6.70
3.3 495.70 8.43
4.2 600.00 10.20

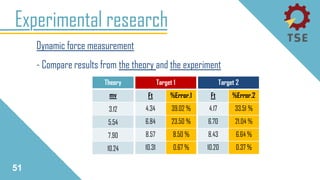

51. Experimental research
Dynamic force measurement
- Compare results from the theory and the experiment
51
Target 1
Ft %Error.1
4.34 39.02 %
6.84 23.50 %
8.57 8.50 %
10.31 0.67 %
Target 2
Ft %Error.2
4.17 33.51 %
6.70 21.04 %
8.43 6.64 %
10.20 0.37 %
Theory
mv
3.12
5.54
7.90
10.24

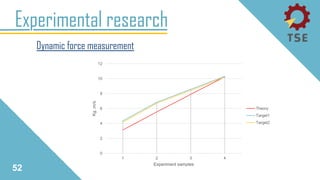

52. Experimental research
Dynamic force measurement
52
0
2
4
6
8
10
12
1 2 3 4
Kg.m/s
Experiment samples
Theory
Target1
Target2

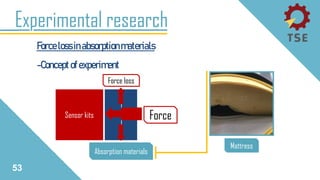

53. Experimental research
Forcelossinabsorptionmaterials
-Conceptofexperiment
Sensor kits
Force loss
Force
Absorption materials
Mattress
53

54. Experimental research
Forcelossinabsorptionmaterials
-Experimentprocedure
Without absorption
With absorption Drop 4 different masses , 30 cm above the targets
Repeat 5 times in each case
Plot and compare results
54

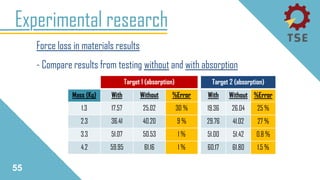

55. Experimental research
Force loss in materials results
- Compare results from testing without and with absorption
55
Target 1 (absorption)
Mass (Kg) With Without %Error
1.3 17.57 25.02 30 %
2.3 36.41 40.20 9 %
3.3 51.07 50.53 1 %
4.2 59.95 61.16 1 %
Target 2 (absorption)
With Without %Error
19.36 26.04 25 %
29.76 41.02 27 %
51.00 51.42 0.8 %
60.17 61.80 1.5 %

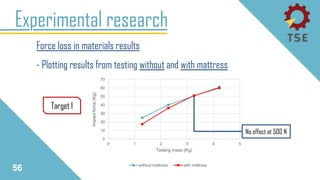

56. Experimental research
Force loss in materials results
- Plotting results from testing without and with mattress
56
0
10
20
30
40
50
60
70
0 1 2 3 4 5
Impactforce(Kg)
Testing mass (Kg)
without mattress with mattress
Target 1
No effect at 500 N

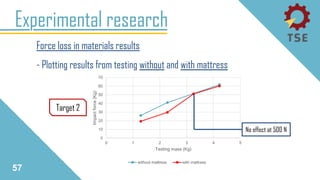

57. Experimental research
Force loss in materials results
- Plotting results from testing without and with mattress
57
0
10
20
30
40
50
60
70
0 1 2 3 4 5
Impactforce(Kg)
Testing mass (Kg)
without mattress with mattress
Target 2
No effect at 500 N

58. Conclusion
58

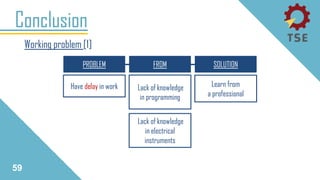

59. Working problem [1]
Conclusion
59
Have delay in work Lack of knowledge
in programming
PROBLEM FROM
Learn from
a professional
SOLUTION
Lack of knowledge
in electrical
instruments

60. Budget
60

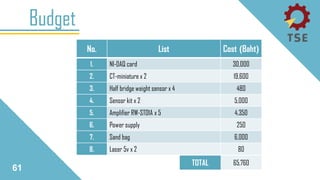

61. Budget
61
No. List Cost (Baht)
1. NI-DAQ card 30,000
2. CT-miniature x 2 19,600
3. Half bridge weight sensor x 4 480
4. Sensor kit x 2 5,000
5. Amplifier RW-ST01A x 5 4,350
6. Power supply 250
7. Sand bag 6,000
8. Laser 5v x 2 80
TOTAL 65,760

62. Question?
62

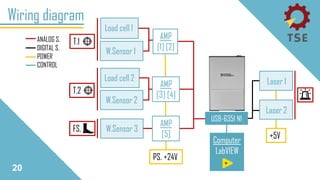

63. 20
Wiring diagram
ANALOG S.
DIGITAL S.
POWER
CONTROL
Load cell 2
Load cell 1
W.Sensor 1
W.Sensor 2
W.Sensor 3
T.1
T.2
FS.
AMP
[1] [2]
AMP
[3] [4]
AMP
[5]
PS. +24V
Laser 2
Laser 1
+5V
USB-6351 NI
Computer
LabVIEW

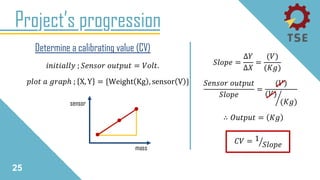

64. Project’s progression
25
𝑖𝑛𝑖𝑡𝑖𝑎𝑙𝑙𝑦 ; 𝑆𝑒𝑛𝑠𝑜𝑟 𝑜𝑢𝑡𝑝𝑢𝑡 = 𝑉𝑜𝑙𝑡.
Determine a calibrating value (CV)
𝑝𝑙𝑜𝑡 𝑎 𝑔𝑟𝑎𝑝ℎ ; X, Y = {Weight Kg , sensor V }
mass
sensor
𝑆𝑙𝑜𝑝𝑒 =
∆𝑌
∆𝑋
=
(𝑉)
(𝐾𝑔)
∴ 𝑂𝑢𝑡𝑝𝑢𝑡 = 𝐾𝑔
𝑆𝑒𝑛𝑠𝑜𝑟 𝑜𝑢𝑡𝑝𝑢𝑡
𝑆𝑙𝑜𝑝𝑒
=
(𝑉)
൘
(𝑉)
(𝐾𝑔)
𝐶𝑉 = ൗ1
𝑆𝑙𝑜𝑝𝑒

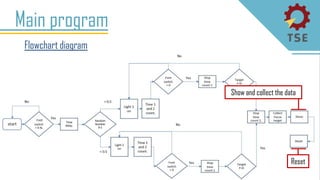

65. Flowchart diagram
Main program
4
Show and collect the data
Reset

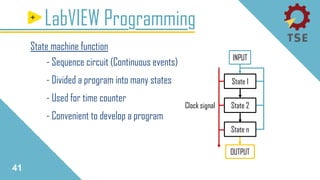

66. 41
LabVIEW Programming
State machine function
- Sequence circuit (Continuous events)
- Divided a program into many states
- Used for time counter
- Convenient to develop a program
OUTPUT
State 1
State 2
State n
Clock signal
INPUT

67. 42

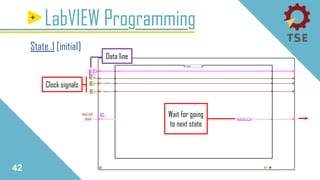

LabVIEW Programming
State .1 [initial]
Clock signals
Wait for going
to next state
Data line

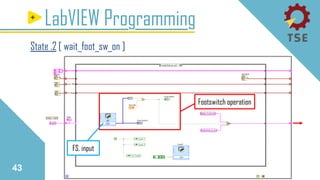

68. 43
LabVIEW Programming
State .2 [ wait_foot_sw_on ]
Footswitch operation
FS. input

69. 44

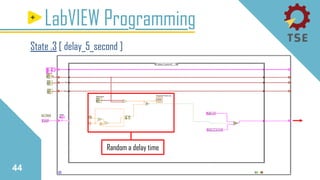

LabVIEW Programming
State .3 [ delay_5_second ]
Random a delay time

70. 45
LabVIEW Programming
State .4 [ light_on ]
Random laser
LS. output
Count the times

71. 46

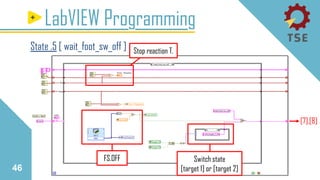

LabVIEW Programming
State .5 [ wait_foot_sw_off ]
FS.OFF
Stop reaction T.
Switch state
[target 1] or [target 2]
[7],[8]

72. 47
LabVIEW Programming
State .6 [ wait_target_1_hit ], ( Switching condition =light 1 )
Sensor calibration
Sensor inputs
Stop Response T.
Display the force

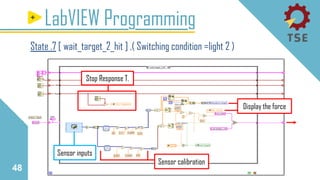

73. 48
LabVIEW Programming
State .7 [ wait_target_2_hit ] ,( Switching condition =light 2 )
Sensor calibration
Sensor inputs
Stop Response T.
Display the force

74. 49
LabVIEW Programming
State .8 [ save_data ]
END
Display and
collect data
Collect data as a table

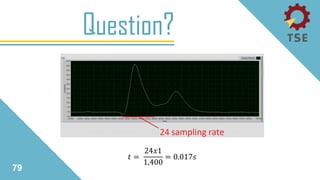

75. Question?
79
𝑡 =
24𝑥1
1,400
= 0.017𝑠

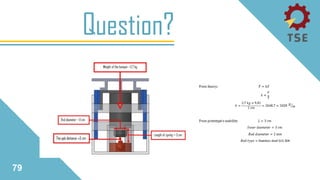

76. Question?
79
