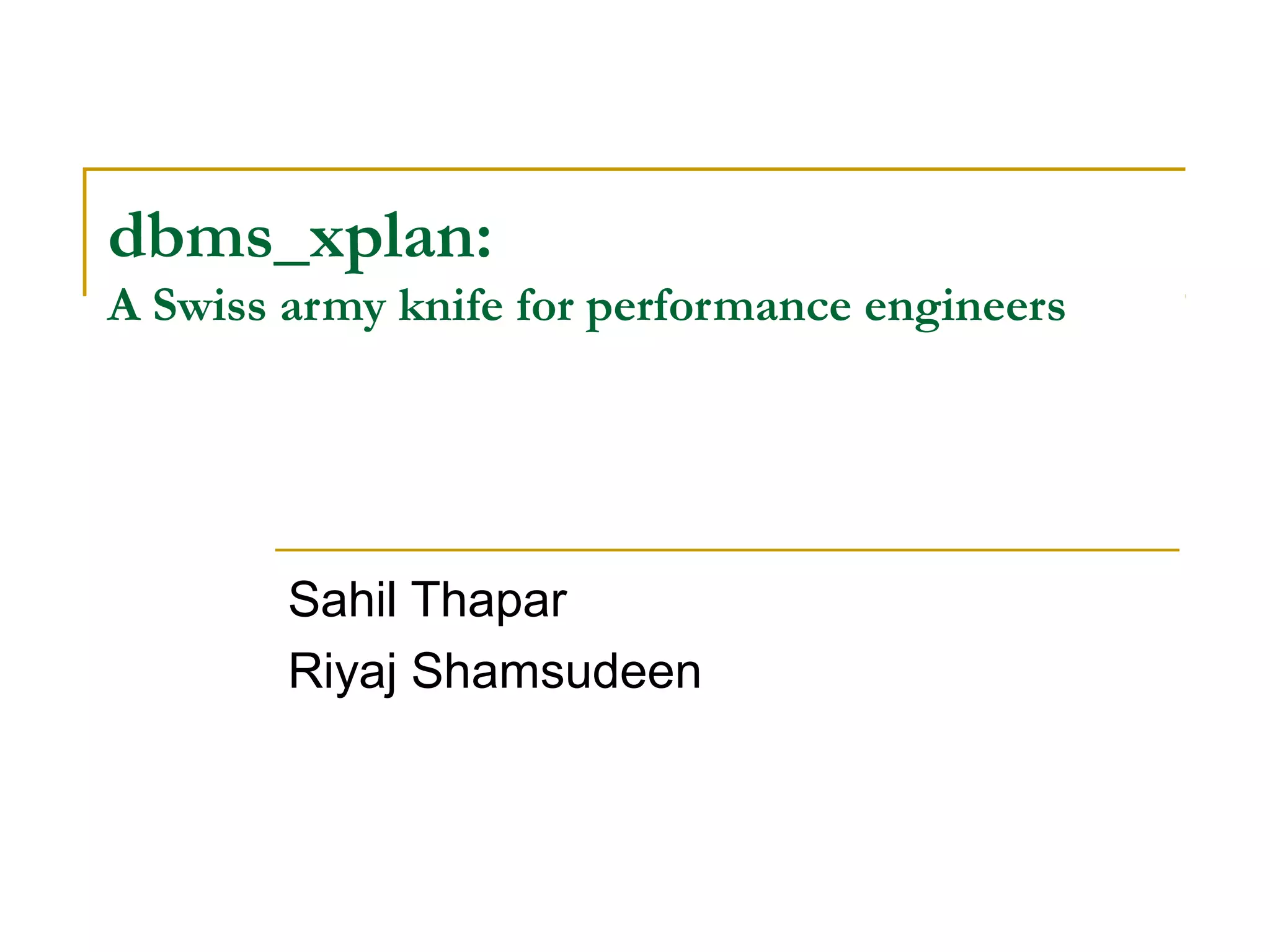

dbms_xplan: A Swiss army knife for performance engineers Sahil Thapar Riyaj Shamsudeen

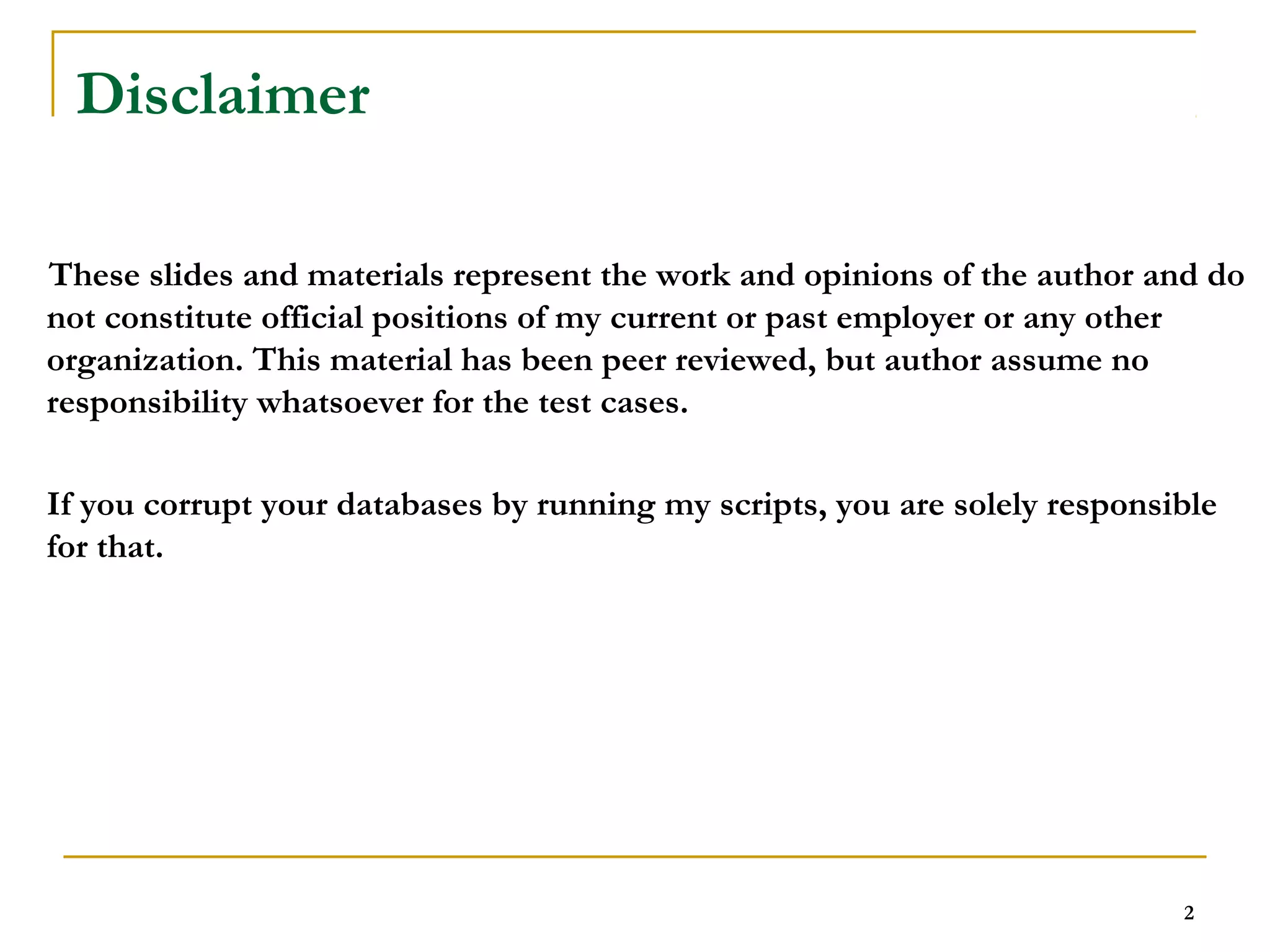

2 Disclaimer These slides and materials represent the work and opinions of the author and do not constitute official positions of my current or past employer or any other organization. This material has been peer reviewed, but author assume no responsibility whatsoever for the test cases. If you corrupt your databases by running my scripts, you are solely responsible for that.

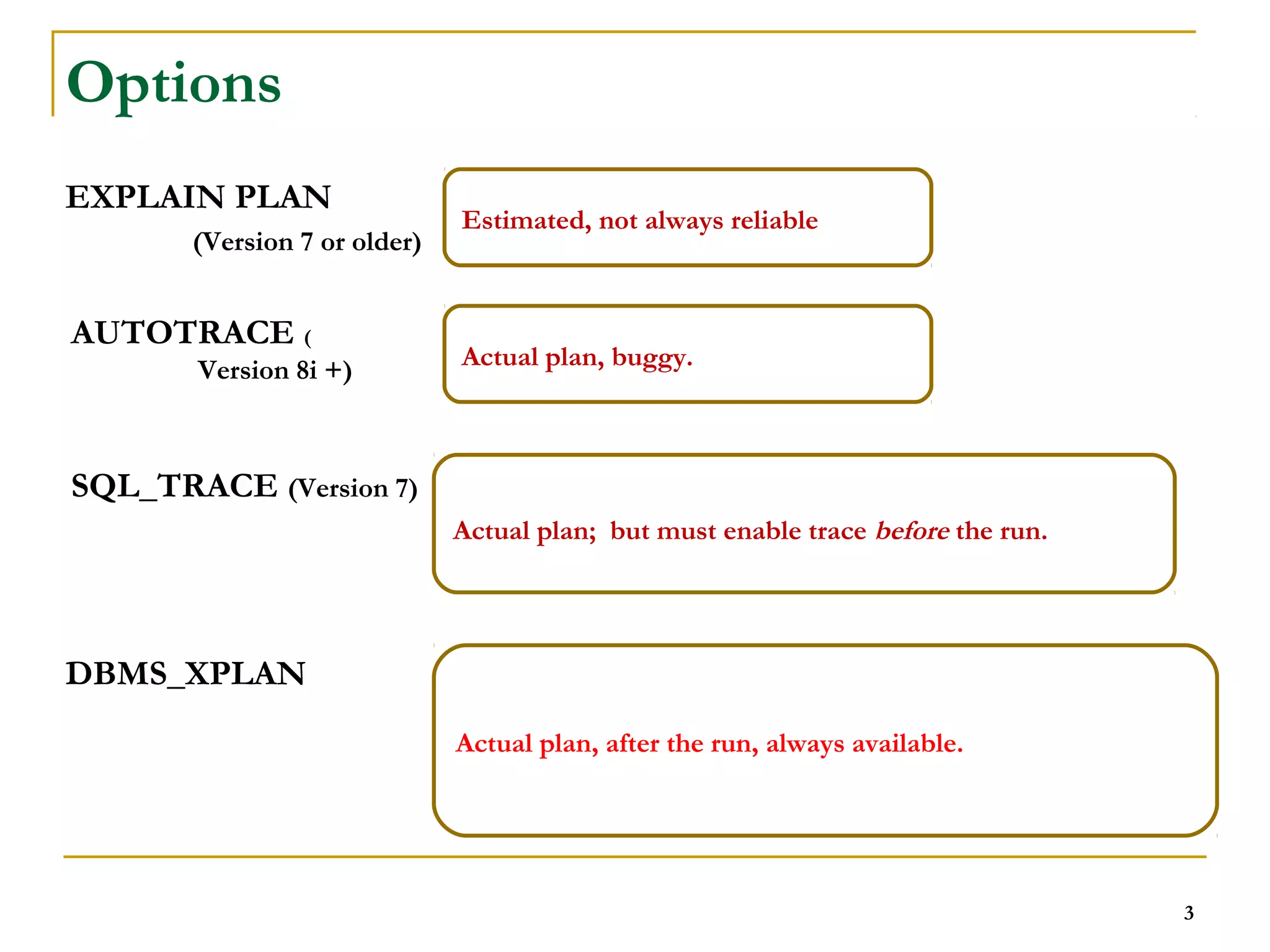

3 Options EXPLAIN PLAN (Version 7 or older) AUTOTRACE ( Version 8i +) SQL_TRACE (Version 7) DBMS_XPLAN Estimated, not always reliable Actual plan, buggy. Actual plan; but must enable trace before the run. Actual plan, after the run, always available.

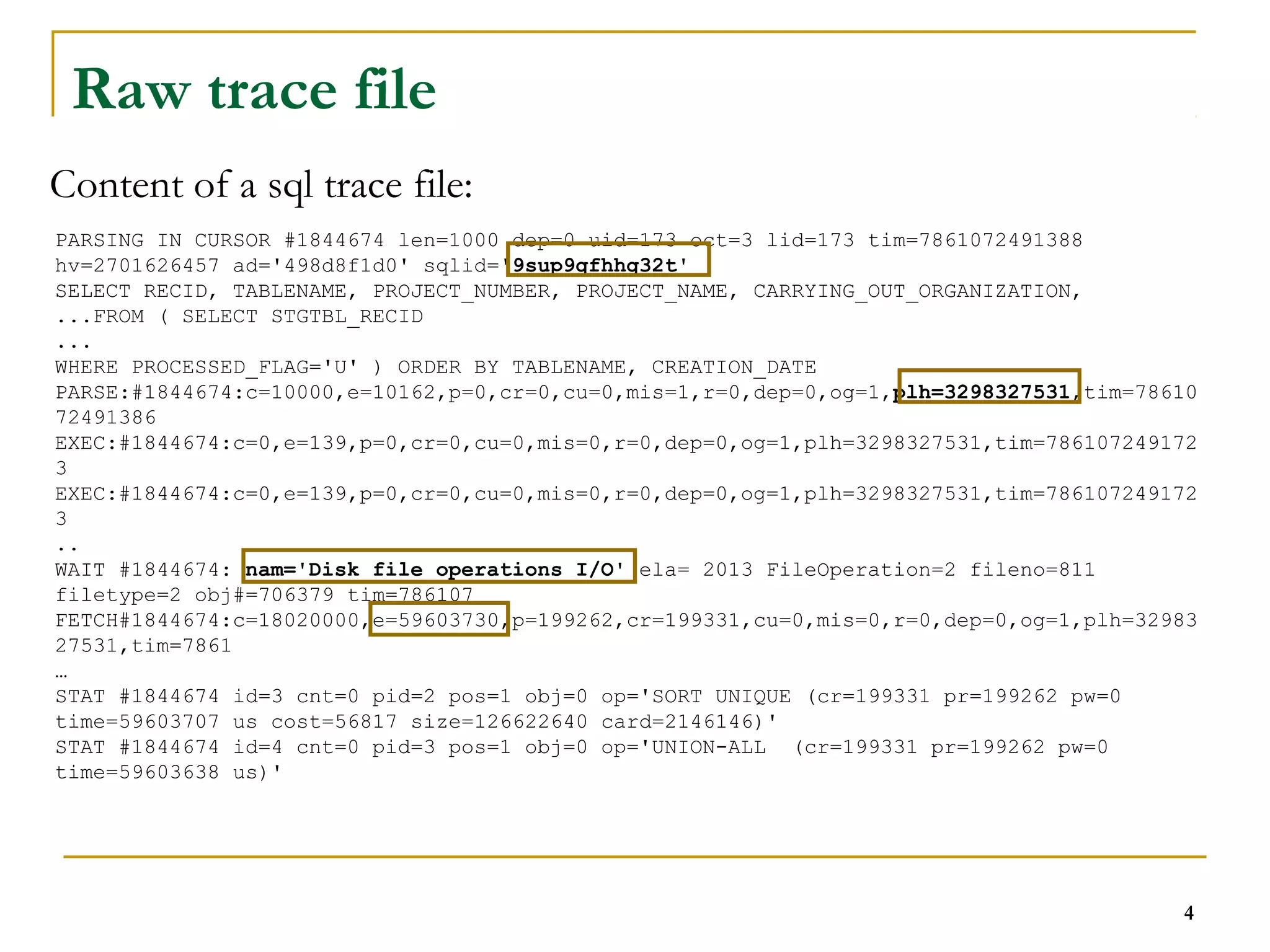

PARSING IN CURSOR #1844674 len=1000 dep=0 uid=173 oct=3 lid=173 tim=7861072491388 hv=2701626457 ad='498d8f1d0' sqlid='9sup9gfhhg32t' SELECT RECID, TABLENAME, PROJECT_NUMBER, PROJECT_NAME, CARRYING_OUT_ORGANIZATION, ...FROM ( SELECT STGTBL_RECID ... WHERE PROCESSED_FLAG='U' ) ORDER BY TABLENAME, CREATION_DATE PARSE:#1844674:c=10000,e=10162,p=0,cr=0,cu=0,mis=1,r=0,dep=0,og=1,plh=3298327531,tim=78610 72491386 EXEC:#1844674:c=0,e=139,p=0,cr=0,cu=0,mis=0,r=0,dep=0,og=1,plh=3298327531,tim=786107249172 3 EXEC:#1844674:c=0,e=139,p=0,cr=0,cu=0,mis=0,r=0,dep=0,og=1,plh=3298327531,tim=786107249172 3 .. WAIT #1844674: nam='Disk file operations I/O' ela= 2013 FileOperation=2 fileno=811 filetype=2 obj#=706379 tim=786107 FETCH#1844674:c=18020000,e=59603730,p=199262,cr=199331,cu=0,mis=0,r=0,dep=0,og=1,plh=32983 27531,tim=7861 … STAT #1844674 id=3 cnt=0 pid=2 pos=1 obj=0 op='SORT UNIQUE (cr=199331 pr=199262 pw=0 time=59603707 us cost=56817 size=126622640 card=2146146)' STAT #1844674 id=4 cnt=0 pid=3 pos=1 obj=0 op='UNION-ALL (cr=199331 pr=199262 pw=0 time=59603638 us)' 4 Raw trace file Content of a sql trace file:

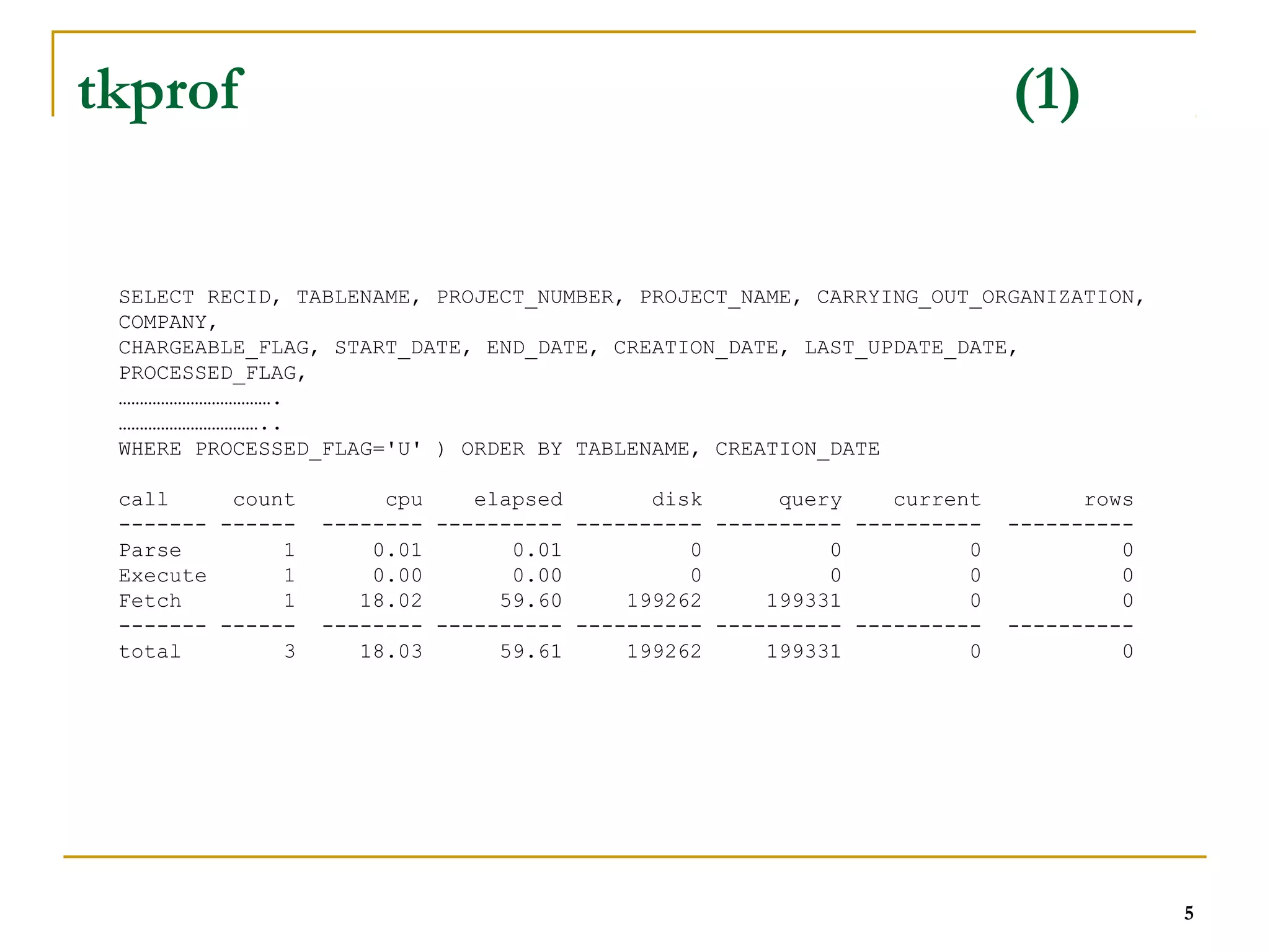

5 tkprof (1) SELECT RECID, TABLENAME, PROJECT_NUMBER, PROJECT_NAME, CARRYING_OUT_ORGANIZATION, COMPANY, CHARGEABLE_FLAG, START_DATE, END_DATE, CREATION_DATE, LAST_UPDATE_DATE, PROCESSED_FLAG, ………………………………. …………………………….. WHERE PROCESSED_FLAG='U' ) ORDER BY TABLENAME, CREATION_DATE call count cpu elapsed disk query current rows ------- ------ -------- ---------- ---------- ---------- ---------- ---------- Parse 1 0.01 0.01 0 0 0 0 Execute 1 0.00 0.00 0 0 0 0 Fetch 1 18.02 59.60 199262 199331 0 0 ------- ------ -------- ---------- ---------- ---------- ---------- ---------- total 3 18.03 59.61 199262 199331 0 0

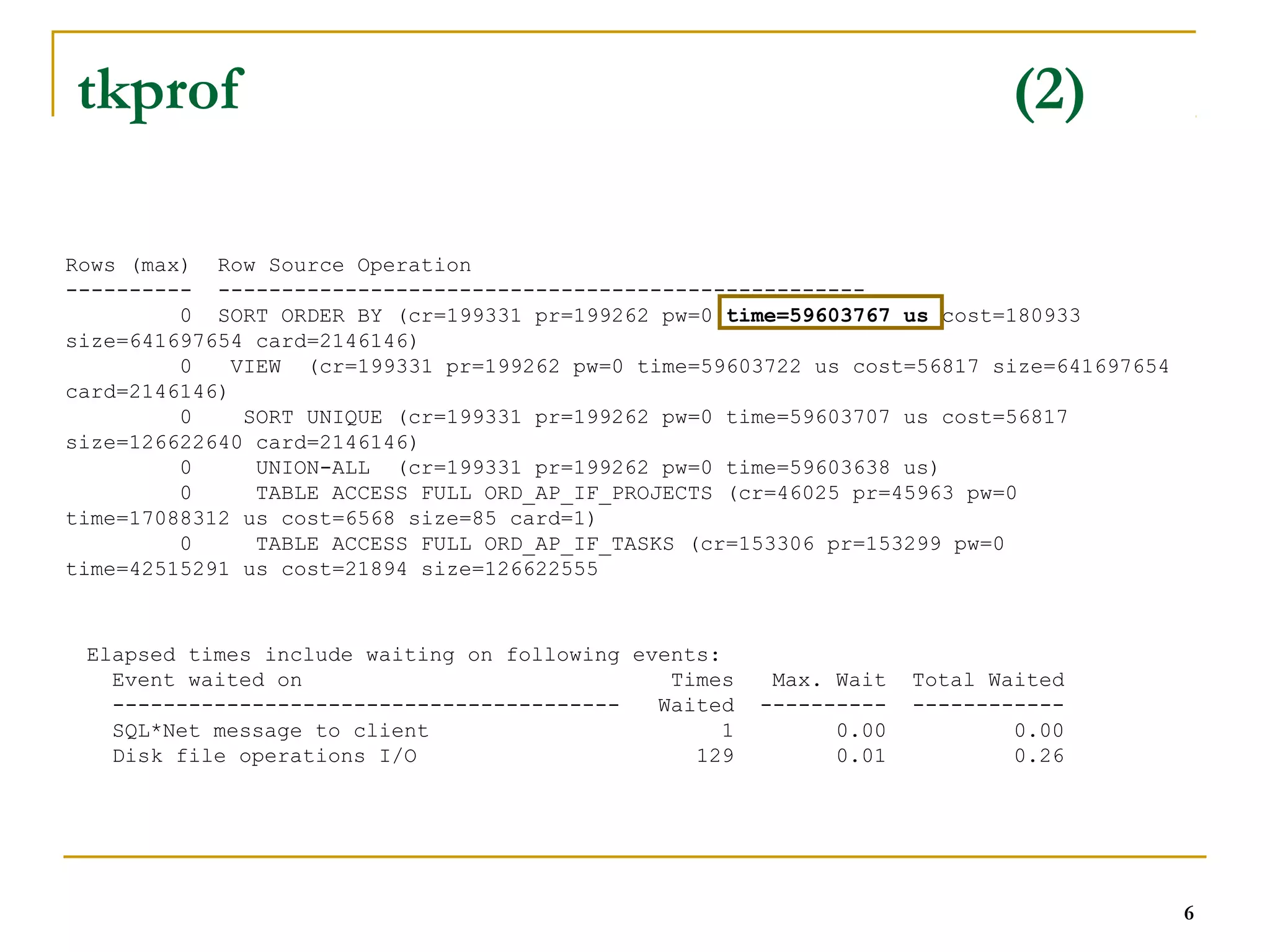

6 tkprof (2) Rows (max) Row Source Operation ---------- --------------------------------------------------- 0 SORT ORDER BY (cr=199331 pr=199262 pw=0 time=59603767 us cost=180933 size=641697654 card=2146146) 0 VIEW (cr=199331 pr=199262 pw=0 time=59603722 us cost=56817 size=641697654 card=2146146) 0 SORT UNIQUE (cr=199331 pr=199262 pw=0 time=59603707 us cost=56817 size=126622640 card=2146146) 0 UNION-ALL (cr=199331 pr=199262 pw=0 time=59603638 us) 0 TABLE ACCESS FULL ORD_AP_IF_PROJECTS (cr=46025 pr=45963 pw=0 time=17088312 us cost=6568 size=85 card=1) 0 TABLE ACCESS FULL ORD_AP_IF_TASKS (cr=153306 pr=153299 pw=0 time=42515291 us cost=21894 size=126622555 Elapsed times include waiting on following events: Event waited on Times Max. Wait Total Waited ---------------------------------------- Waited ---------- ------------ SQL*Net message to client 1 0.00 0.00 Disk file operations I/O 129 0.01 0.26

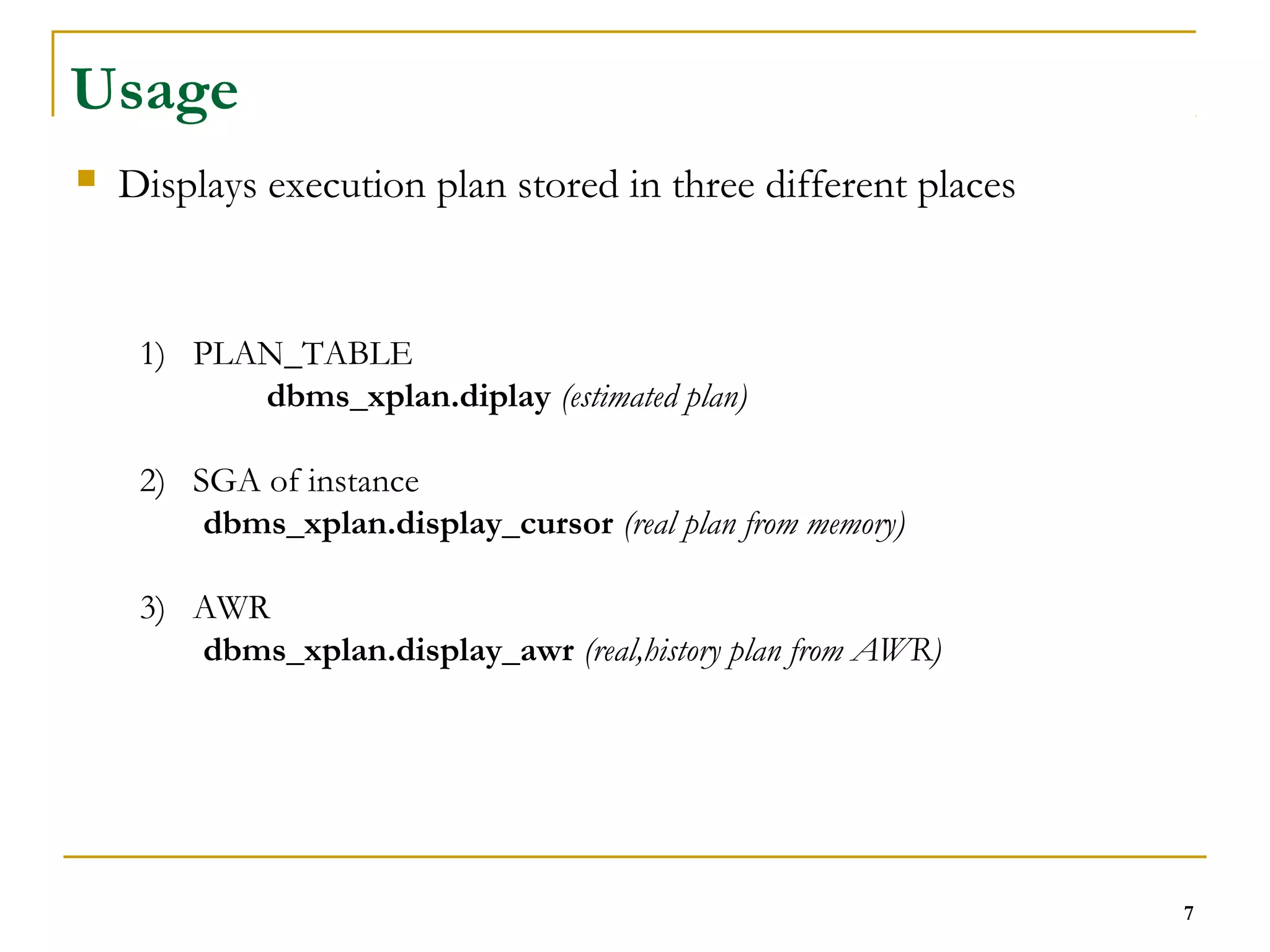

7 Usage  Displays execution plan stored in three different places 1) PLAN_TABLE dbms_xplan.diplay (estimated plan) 2) SGA of instance dbms_xplan.display_cursor (real plan from memory) 3) AWR dbms_xplan.display_awr (real,history plan from AWR)

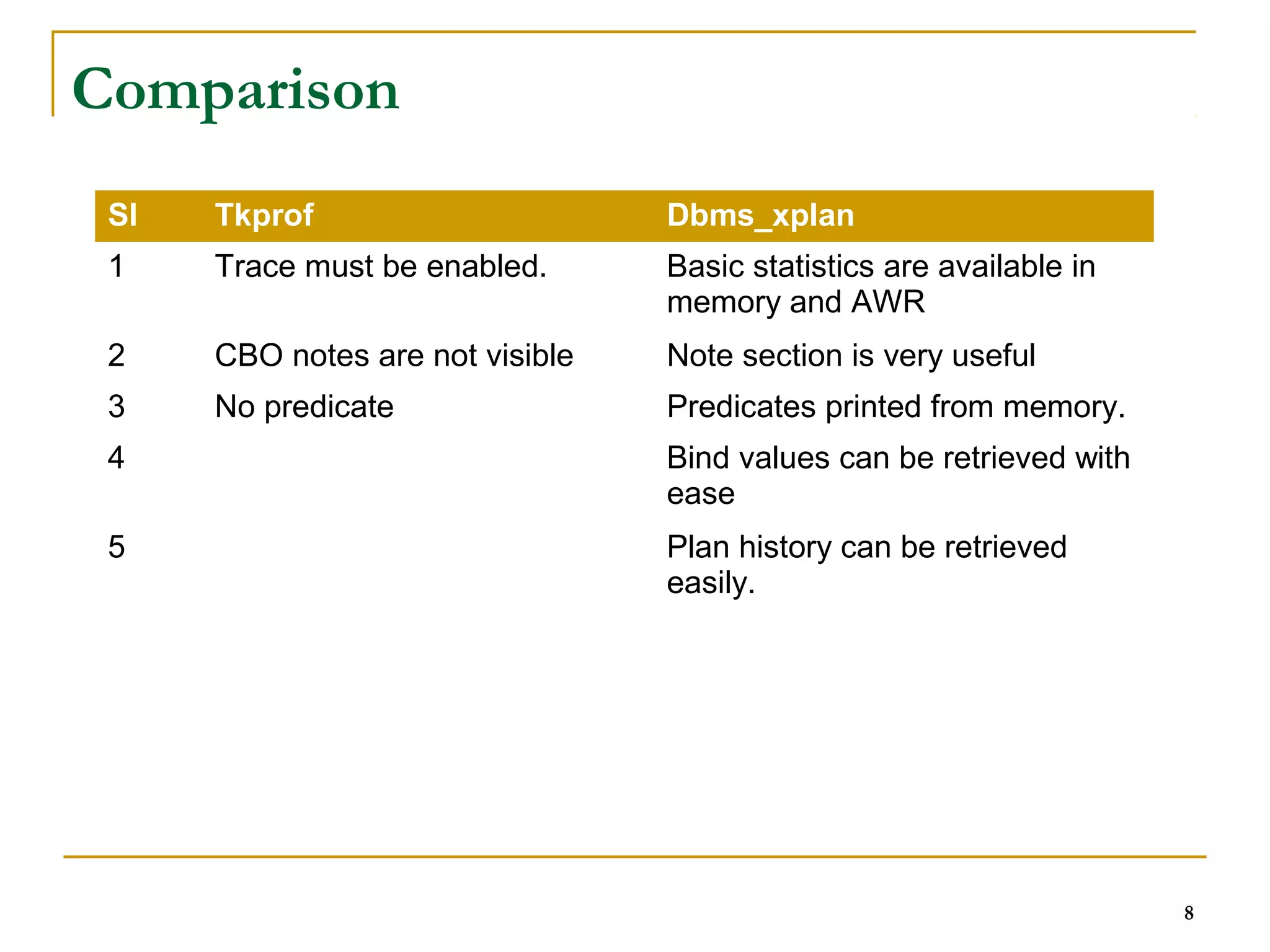

8 Comparison Sl Tkprof Dbms_xplan 1 Trace must be enabled. Basic statistics are available in memory and AWR 2 CBO notes are not visible Note section is very useful 3 No predicate Predicates printed from memory. 4 Bind values can be retrieved with ease 5 Plan history can be retrieved easily.

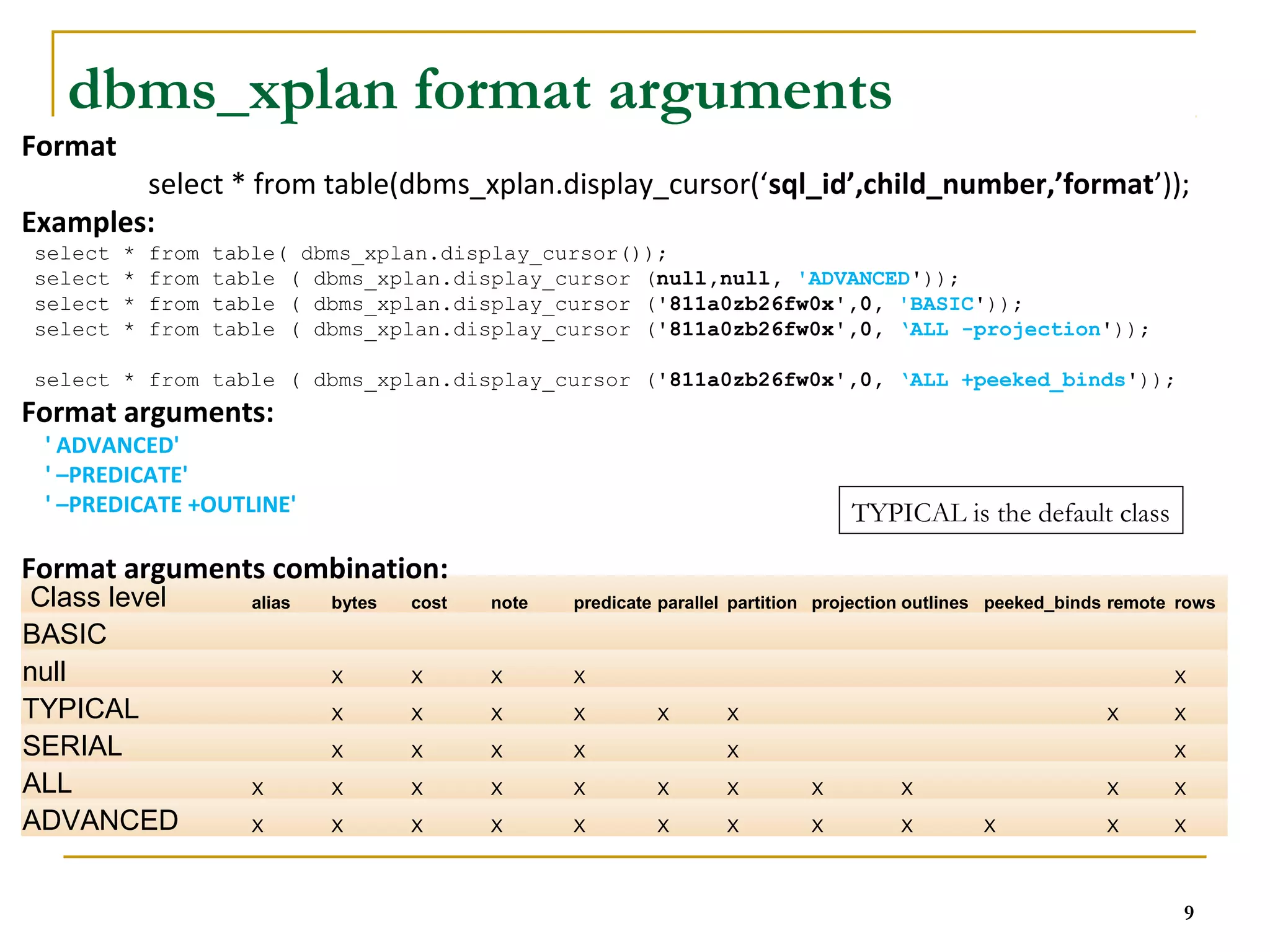

select * from table(dbms_xplan.display_cursor(‘sql_id’,child_number,’format’)); 9 dbms_xplan format arguments Format Examples: select * from table( dbms_xplan.display_cursor()); select * from table ( dbms_xplan.display_cursor (null,null, 'ADVANCED')); select * from table ( dbms_xplan.display_cursor ('811a0zb26fw0x',0, 'BASIC')); select * from table ( dbms_xplan.display_cursor ('811a0zb26fw0x',0, ‘ALL -projection')); select * from table ( dbms_xplan.display_cursor ('811a0zb26fw0x',0, ‘ALL +peeked_binds')); Format arguments: ' ADVANCED' ' –PREDICATE' ' –PREDICATE +OUTLINE' TYPICAL is the default class Format arguments combination: Class level alias bytes cost note predicate parallel partition projection outlines peeked_binds remote rows BASIC null X X X X X TYPICAL X X X X X X X X SERIAL X X X X X X ALL X X X X X X X X X X X ADVANCED X X X X X X X X X X X X

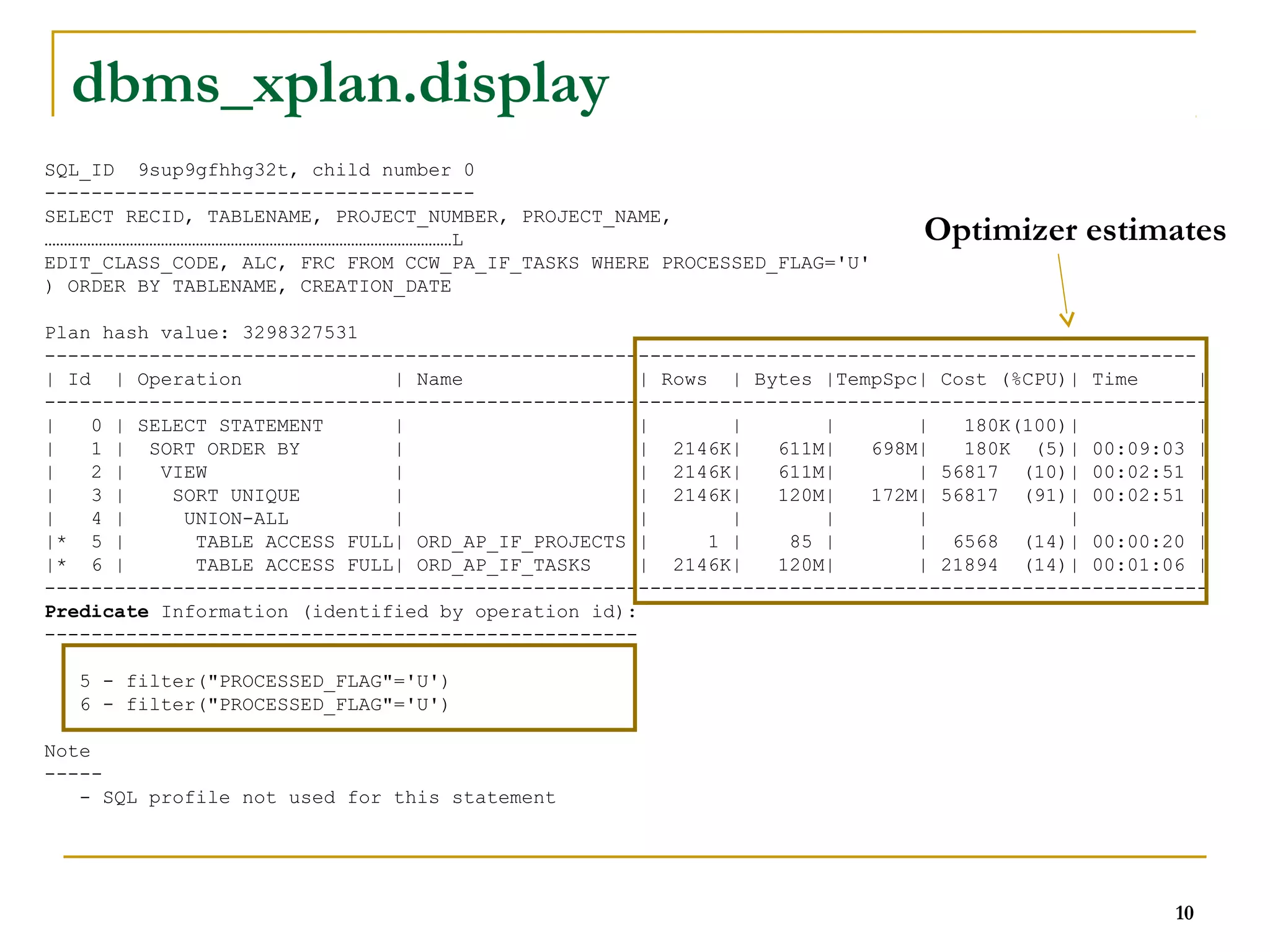

SQL_ID 9sup9gfhhg32t, child number 0 ------------------------------------- SELECT RECID, TABLENAME, PROJECT_NUMBER, PROJECT_NAME, ……………………………………………………………………………………………L EDIT_CLASS_CODE, ALC, FRC FROM CCW_PA_IF_TASKS WHERE PROCESSED_FLAG='U' ) ORDER BY TABLENAME, CREATION_DATE Plan hash value: 3298327531 --------------------------------------------------------------------------------------------------- | Id | Operation | Name | Rows | Bytes |TempSpc| Cost (%CPU)| Time | ---------------------------------------------------------------------------------------------------- | 0 | SELECT STATEMENT | | | | | 180K(100)| | | 1 | SORT ORDER BY | | 2146K| 611M| 698M| 180K (5)| 00:09:03 | | 2 | VIEW | | 2146K| 611M| | 56817 (10)| 00:02:51 | | 3 | SORT UNIQUE | | 2146K| 120M| 172M| 56817 (91)| 00:02:51 | | 4 | UNION-ALL | | | | | | | |* 5 | TABLE ACCESS FULL| ORD_AP_IF_PROJECTS | 1 | 85 | | 6568 (14)| 00:00:20 | |* 6 | TABLE ACCESS FULL| ORD_AP_IF_TASKS | 2146K| 120M| | 21894 (14)| 00:01:06 | ---------------------------------------------------------------------------------------------------- Predicate Information (identified by operation id): --------------------------------------------------- 5 - filter("PROCESSED_FLAG"='U') 6 - filter("PROCESSED_FLAG"='U') Note ----- - SQL profile not used for this statement 10 dbms_xplan.display Optimizer estimates

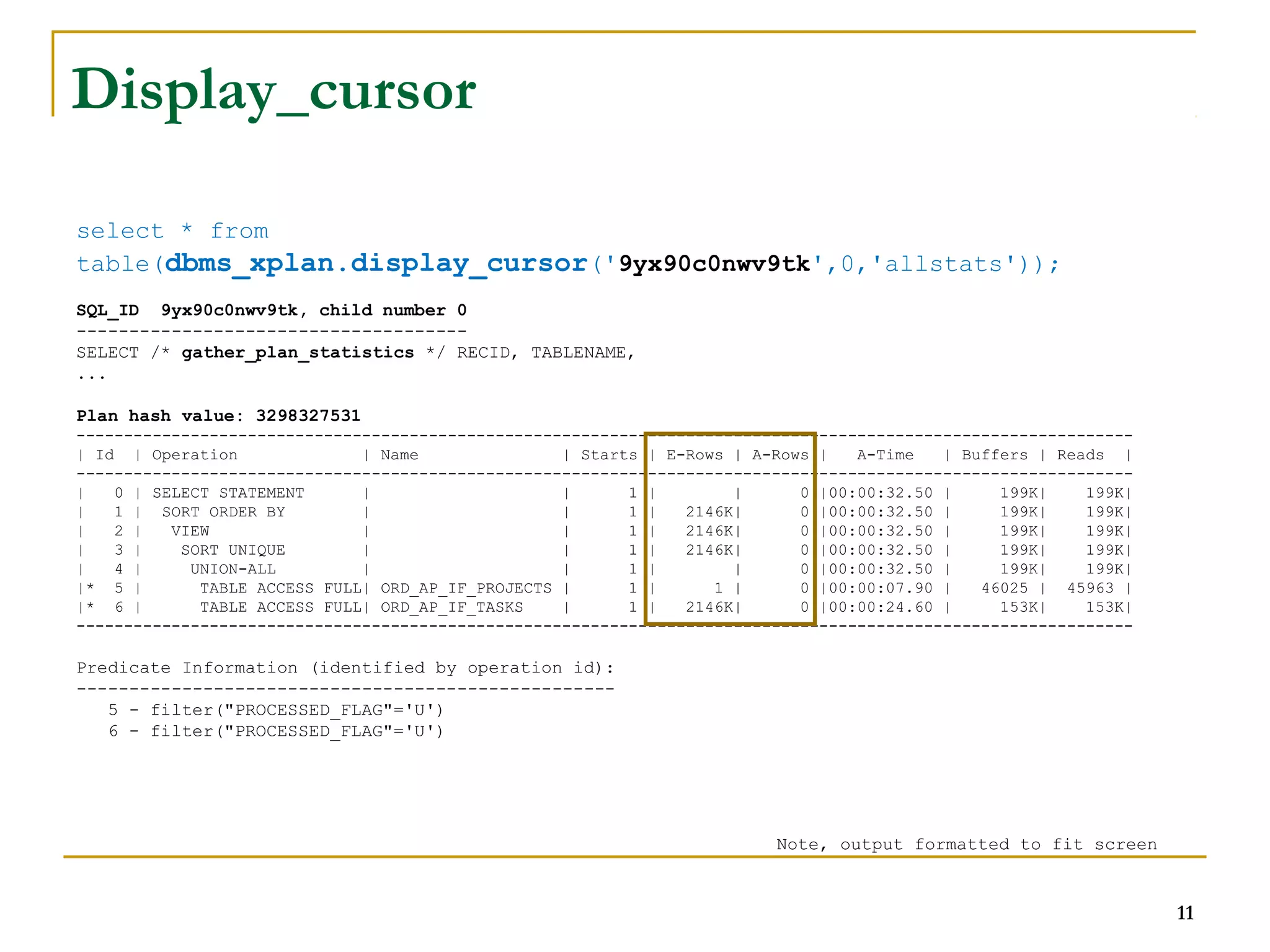

11 Display_cursor select * from table(dbms_xplan.display_cursor('9yx90c0nwv9tk',0,'allstats')); SQL_ID 9yx90c0nwv9tk, child number 0 ------------------------------------- SELECT /* gather_plan_statistics */ RECID, TABLENAME, ... Plan hash value: 3298327531 --------------------------------------------------------------------------------------------------------------- | Id | Operation | Name | Starts | E-Rows | A-Rows | A-Time | Buffers | Reads | --------------------------------------------------------------------------------------------------------------- | 0 | SELECT STATEMENT | | 1 | | 0 |00:00:32.50 | 199K| 199K| | 1 | SORT ORDER BY | | 1 | 2146K| 0 |00:00:32.50 | 199K| 199K| | 2 | VIEW | | 1 | 2146K| 0 |00:00:32.50 | 199K| 199K| | 3 | SORT UNIQUE | | 1 | 2146K| 0 |00:00:32.50 | 199K| 199K| | 4 | UNION-ALL | | 1 | | 0 |00:00:32.50 | 199K| 199K| |* 5 | TABLE ACCESS FULL| ORD_AP_IF_PROJECTS | 1 | 1 | 0 |00:00:07.90 | 46025 | 45963 | |* 6 | TABLE ACCESS FULL| ORD_AP_IF_TASKS | 1 | 2146K| 0 |00:00:24.60 | 153K| 153K| --------------------------------------------------------------------------------------------------------------- Predicate Information (identified by operation id): --------------------------------------------------- 5 - filter("PROCESSED_FLAG"='U') 6 - filter("PROCESSED_FLAG"='U') Note, output formatted to fit screen

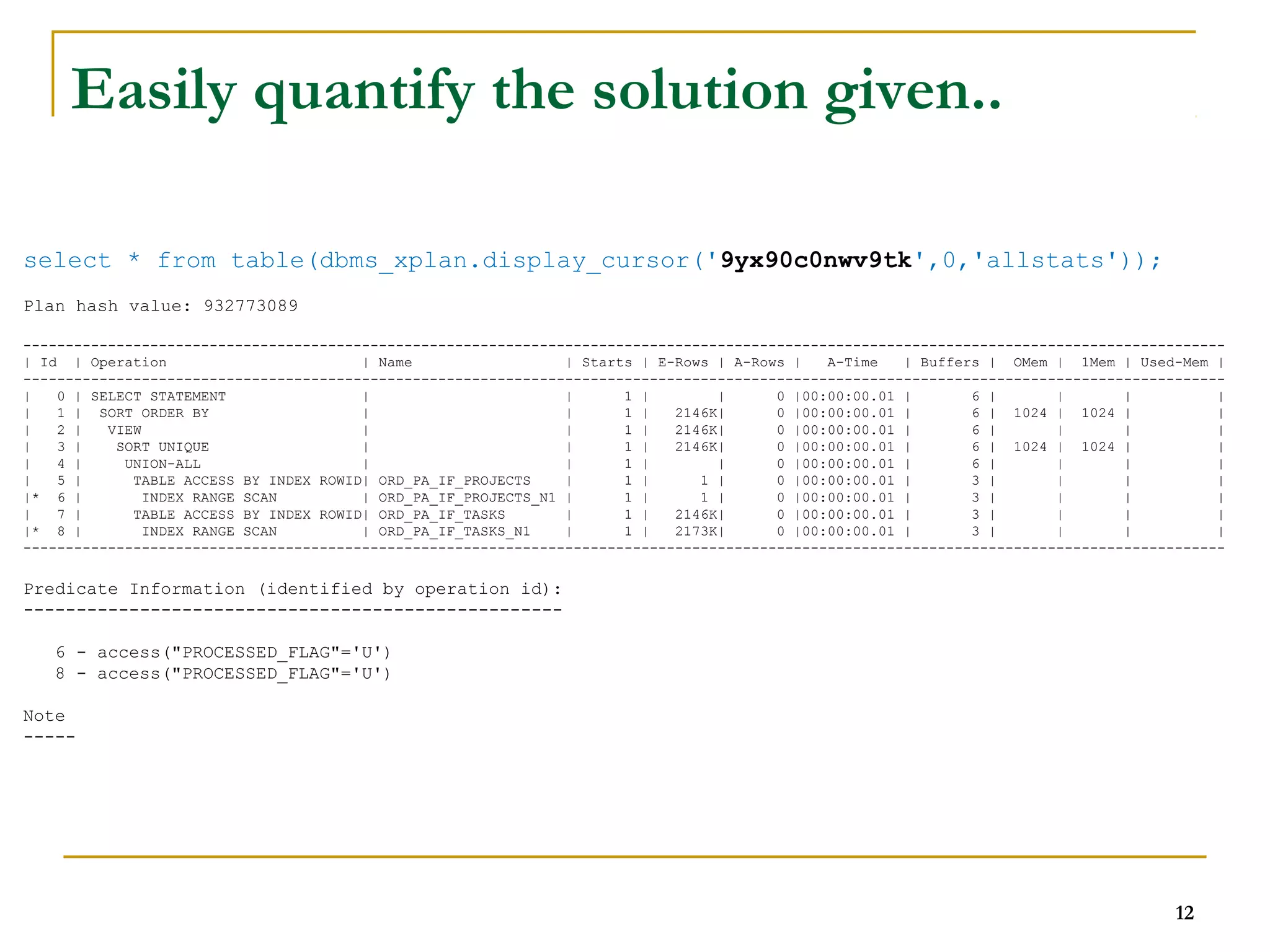

12 Easily quantify the solution given.. select * from table(dbms_xplan.display_cursor('9yx90c0nwv9tk',0,'allstats')); Plan hash value: 932773089 ---------------------------------------------------------------------------------------------------------------------------------------------- | Id | Operation | Name | Starts | E-Rows | A-Rows | A-Time | Buffers | OMem | 1Mem | Used-Mem | ---------------------------------------------------------------------------------------------------------------------------------------------- | 0 | SELECT STATEMENT | | 1 | | 0 |00:00:00.01 | 6 | | | | | 1 | SORT ORDER BY | | 1 | 2146K| 0 |00:00:00.01 | 6 | 1024 | 1024 | | | 2 | VIEW | | 1 | 2146K| 0 |00:00:00.01 | 6 | | | | | 3 | SORT UNIQUE | | 1 | 2146K| 0 |00:00:00.01 | 6 | 1024 | 1024 | | | 4 | UNION-ALL | | 1 | | 0 |00:00:00.01 | 6 | | | | | 5 | TABLE ACCESS BY INDEX ROWID| ORD_PA_IF_PROJECTS | 1 | 1 | 0 |00:00:00.01 | 3 | | | | |* 6 | INDEX RANGE SCAN | ORD_PA_IF_PROJECTS_N1 | 1 | 1 | 0 |00:00:00.01 | 3 | | | | | 7 | TABLE ACCESS BY INDEX ROWID| ORD_PA_IF_TASKS | 1 | 2146K| 0 |00:00:00.01 | 3 | | | | |* 8 | INDEX RANGE SCAN | ORD_PA_IF_TASKS_N1 | 1 | 2173K| 0 |00:00:00.01 | 3 | | | | ---------------------------------------------------------------------------------------------------------------------------------------------- Predicate Information (identified by operation id): --------------------------------------------------- 6 - access("PROCESSED_FLAG"='U') 8 - access("PROCESSED_FLAG"='U') Note -----

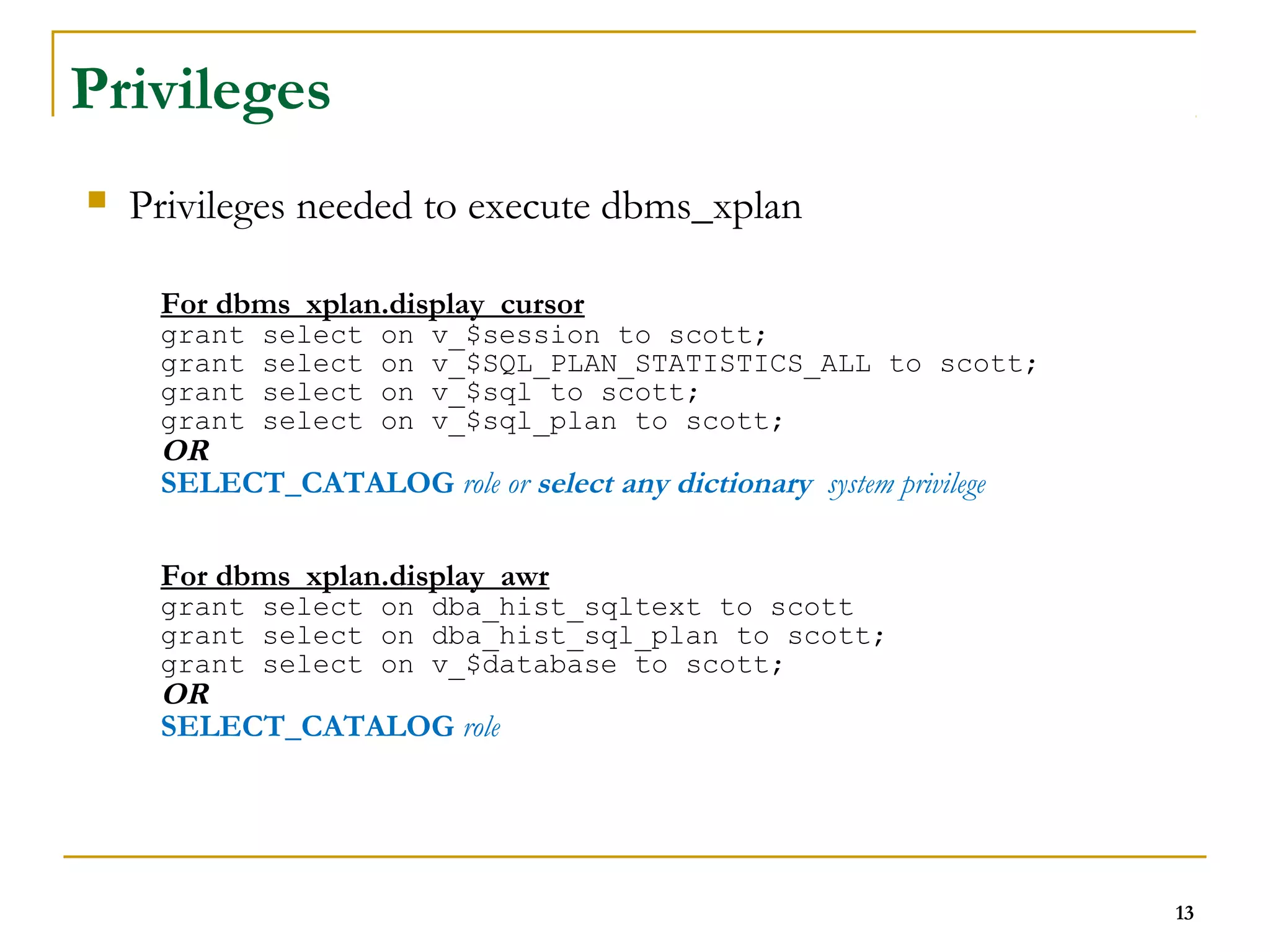

13 Privileges  Privileges needed to execute dbms_xplan For dbms_xplan.display_cursor grant select on v_$session to scott; grant select on v_$SQL_PLAN_STATISTICS_ALL to scott; grant select on v_$sql to scott; grant select on v_$sql_plan to scott; OR SELECT_CATALOG role or select any dictionary system privilege For dbms_xplan.display_awr grant select on dba_hist_sqltext to scott grant select on dba_hist_sql_plan to scott; grant select on v_$database to scott; OR SELECT_CATALOG role

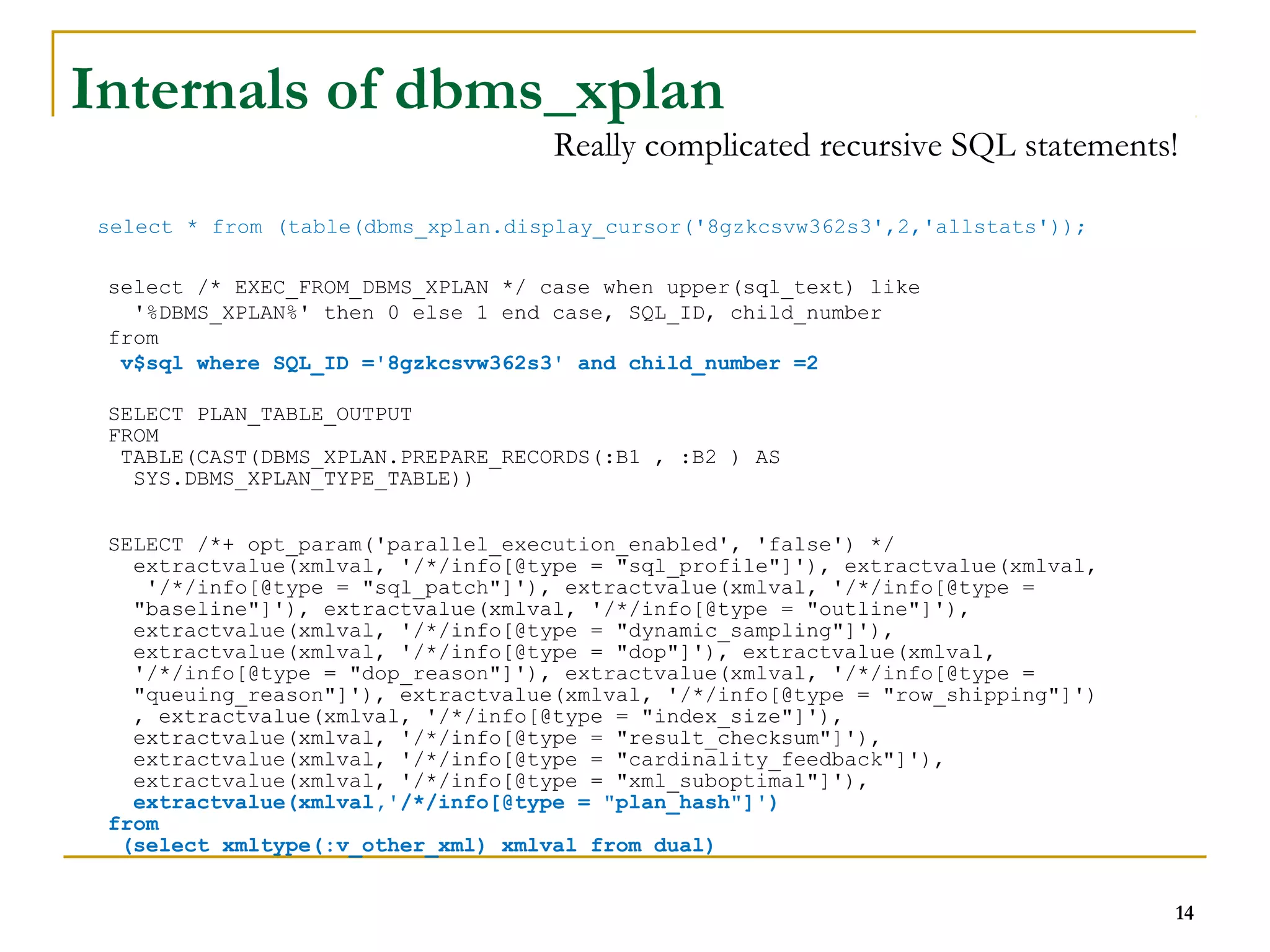

Really complicated recursive SQL statements! 14 Internals of dbms_xplan select * from (table(dbms_xplan.display_cursor('8gzkcsvw362s3',2,'allstats')); select /* EXEC_FROM_DBMS_XPLAN */ case when upper(sql_text) like '%DBMS_XPLAN%' then 0 else 1 end case, SQL_ID, child_number from v$sql where SQL_ID ='8gzkcsvw362s3' and child_number =2 SELECT PLAN_TABLE_OUTPUT FROM TABLE(CAST(DBMS_XPLAN.PREPARE_RECORDS(:B1 , :B2 ) AS SYS.DBMS_XPLAN_TYPE_TABLE)) SELECT /*+ opt_param('parallel_execution_enabled', 'false') */ extractvalue(xmlval, '/*/info[@type = "sql_profile"]'), extractvalue(xmlval, '/*/info[@type = "sql_patch"]'), extractvalue(xmlval, '/*/info[@type = "baseline"]'), extractvalue(xmlval, '/*/info[@type = "outline"]'), extractvalue(xmlval, '/*/info[@type = "dynamic_sampling"]'), extractvalue(xmlval, '/*/info[@type = "dop"]'), extractvalue(xmlval, '/*/info[@type = "dop_reason"]'), extractvalue(xmlval, '/*/info[@type = "queuing_reason"]'), extractvalue(xmlval, '/*/info[@type = "row_shipping"]') , extractvalue(xmlval, '/*/info[@type = "index_size"]'), extractvalue(xmlval, '/*/info[@type = "result_checksum"]'), extractvalue(xmlval, '/*/info[@type = "cardinality_feedback"]'), extractvalue(xmlval, '/*/info[@type = "xml_suboptimal"]'), extractvalue(xmlval,'/*/info[@type = "plan_hash"]') from (select xmltype(:v_other_xml) xmlval from dual)

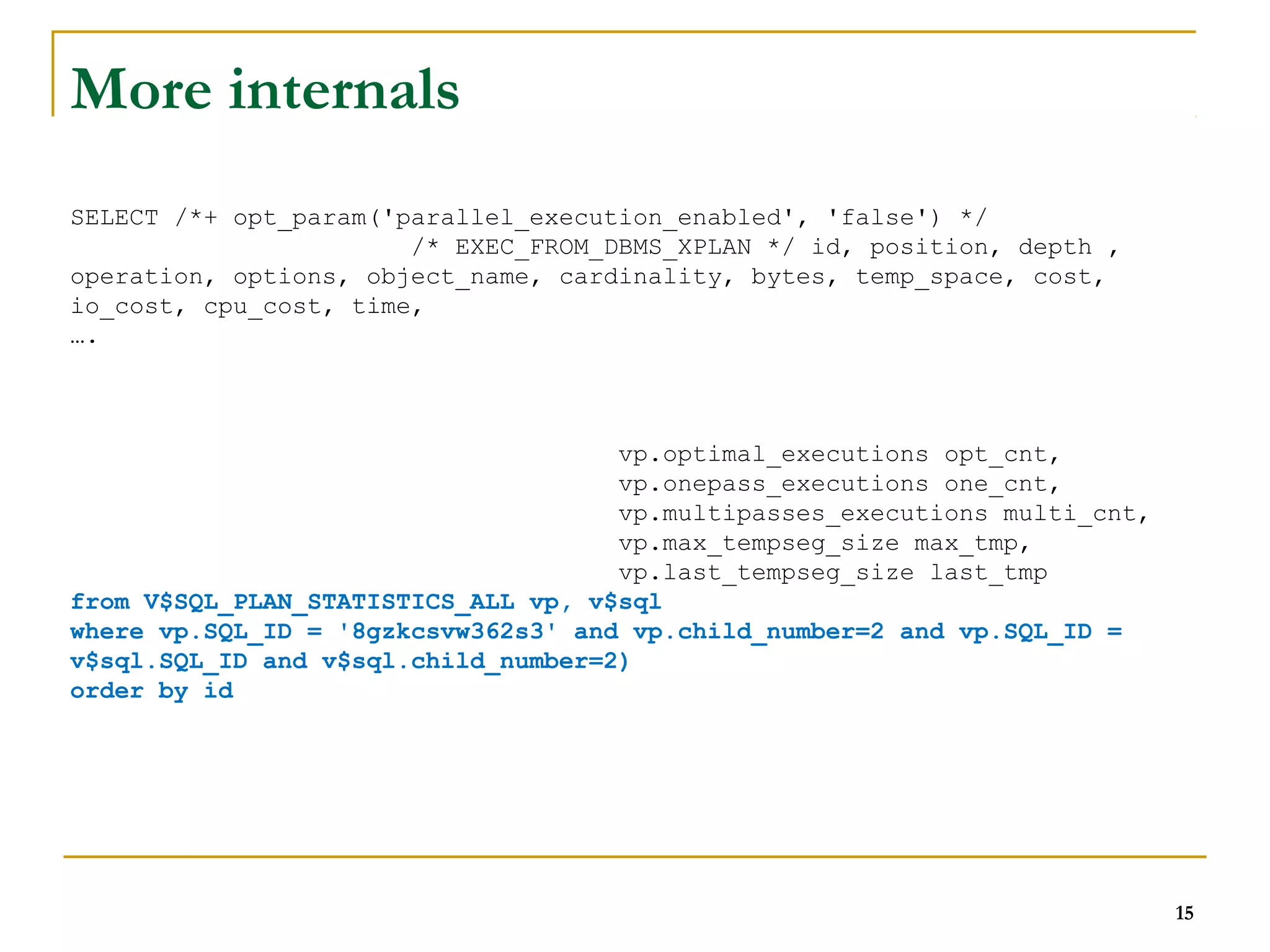

15 More internals SELECT /*+ opt_param('parallel_execution_enabled', 'false') */ /* EXEC_FROM_DBMS_XPLAN */ id, position, depth , operation, options, object_name, cardinality, bytes, temp_space, cost, io_cost, cpu_cost, time, …. vp.optimal_executions opt_cnt, vp.onepass_executions one_cnt, vp.multipasses_executions multi_cnt, vp.max_tempseg_size max_tmp, vp.last_tempseg_size last_tmp from V$SQL_PLAN_STATISTICS_ALL vp, v$sql where vp.SQL_ID = '8gzkcsvw362s3' and vp.child_number=2 and vp.SQL_ID = v$sql.SQL_ID and v$sql.child_number=2) order by id
16 How do I tune?  Prepare the sql to be run for performance analysis. my_sql.sql Set linesize 300; set pagesize 1000; --Declare variable and assign values var order_id number; execute :order_id:=53759119 SELECT oeh.header_id, oel.line_id FROM oe_order_headers_all oeh, oe_order_lines_all oel WHERE oeh.header_id = :order_id AND oeh.header_id = oel.header_id / select * from table (dbms_xplan.DISPLAY_CURSOR(null, null, 'ALLSTATS')) /

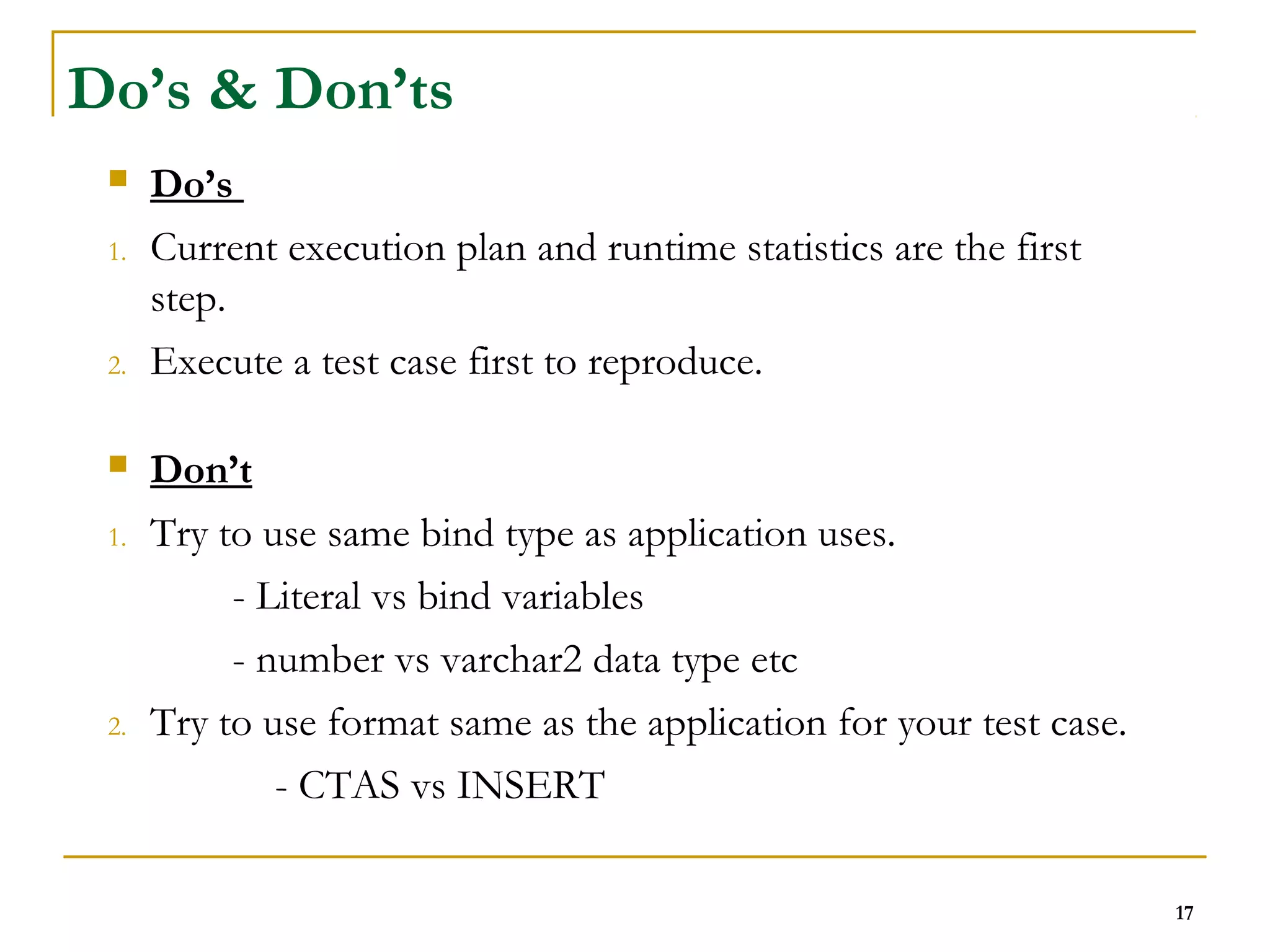

17 Do’s & Don’ts  Do’s 1. Current execution plan and runtime statistics are the first step. 2. Execute a test case first to reproduce.  Don’t 1. Try to use same bind type as application uses. - Literal vs bind variables - number vs varchar2 data type etc 2. Try to use format same as the application for your test case. - CTAS vs INSERT

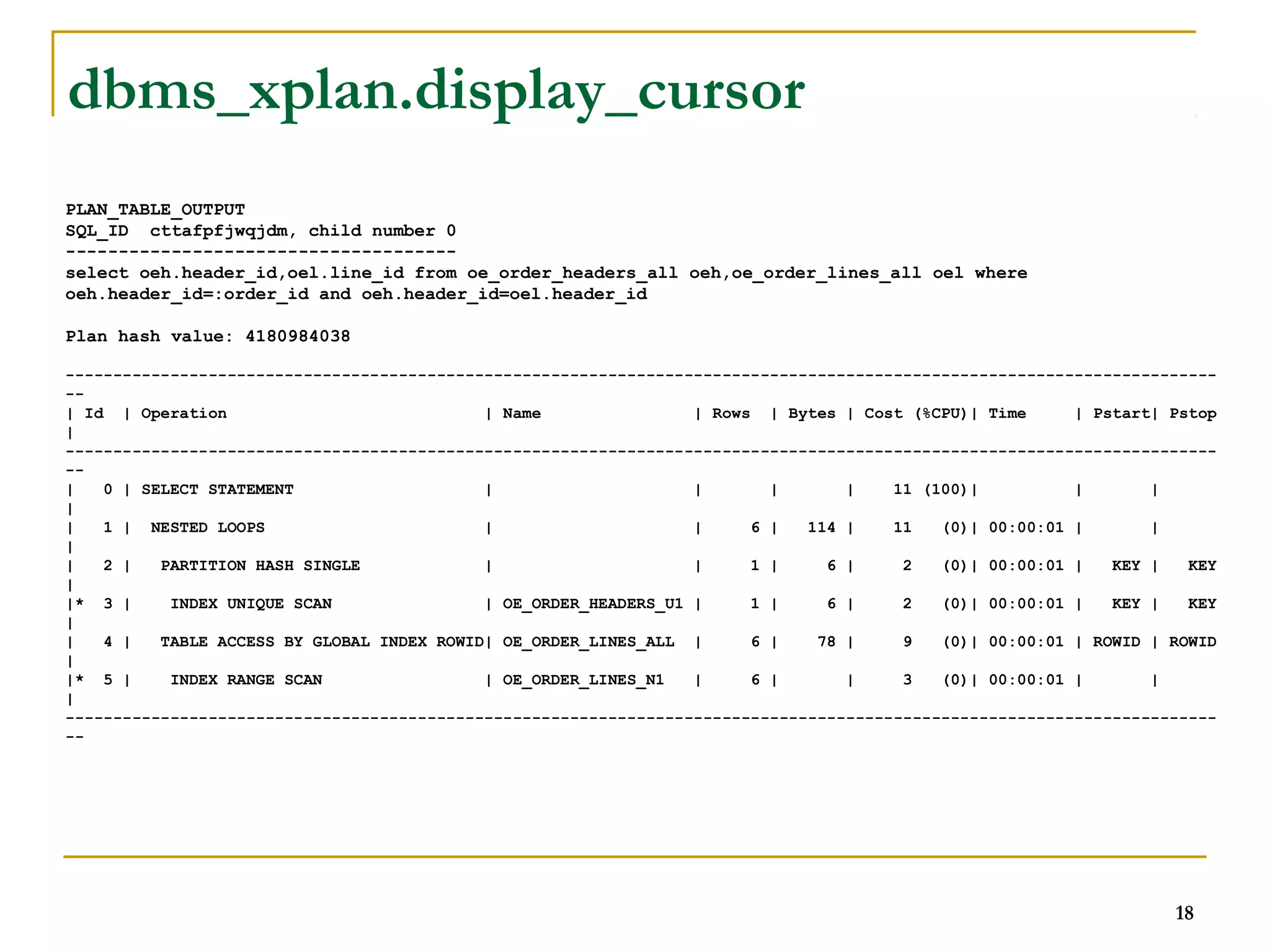

PLAN_TABLE_OUTPUT SQL_ID cttafpfjwqjdm, child number 0 ------------------------------------- select oeh.header_id,oel.line_id from oe_order_headers_all oeh,oe_order_lines_all oel where oeh.header_id=:order_id and oeh.header_id=oel.header_id Plan hash value: 4180984038 ------------------------------------------------------------------------------------------------------------------------- -- | Id | Operation | Name | Rows | Bytes | Cost (%CPU)| Time | Pstart| Pstop | ------------------------------------------------------------------------------------------------------------------------- -- | 0 | SELECT STATEMENT | | | | 11 (100)| | | | | 1 | NESTED LOOPS | | 6 | 114 | 11 (0)| 00:00:01 | | | | 2 | PARTITION HASH SINGLE | | 1 | 6 | 2 (0)| 00:00:01 | KEY | KEY | |* 3 | INDEX UNIQUE SCAN | OE_ORDER_HEADERS_U1 | 1 | 6 | 2 (0)| 00:00:01 | KEY | KEY | | 4 | TABLE ACCESS BY GLOBAL INDEX ROWID| OE_ORDER_LINES_ALL | 6 | 78 | 9 (0)| 00:00:01 | ROWID | ROWID | |* 5 | INDEX RANGE SCAN | OE_ORDER_LINES_N1 | 6 | | 3 (0)| 00:00:01 | | | ------------------------------------------------------------------------------------------------------------------------- -- 18 dbms_xplan.display_cursor

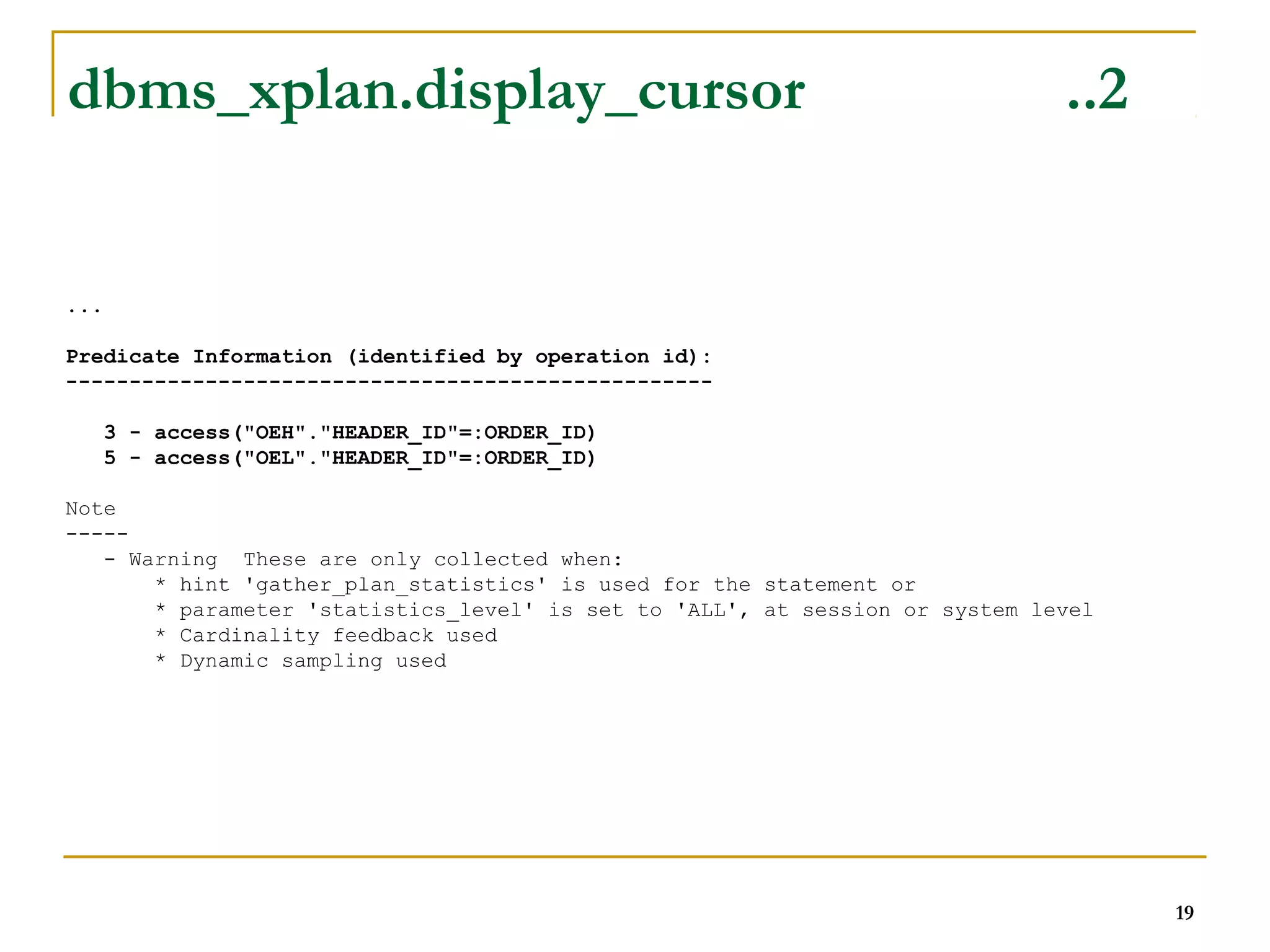

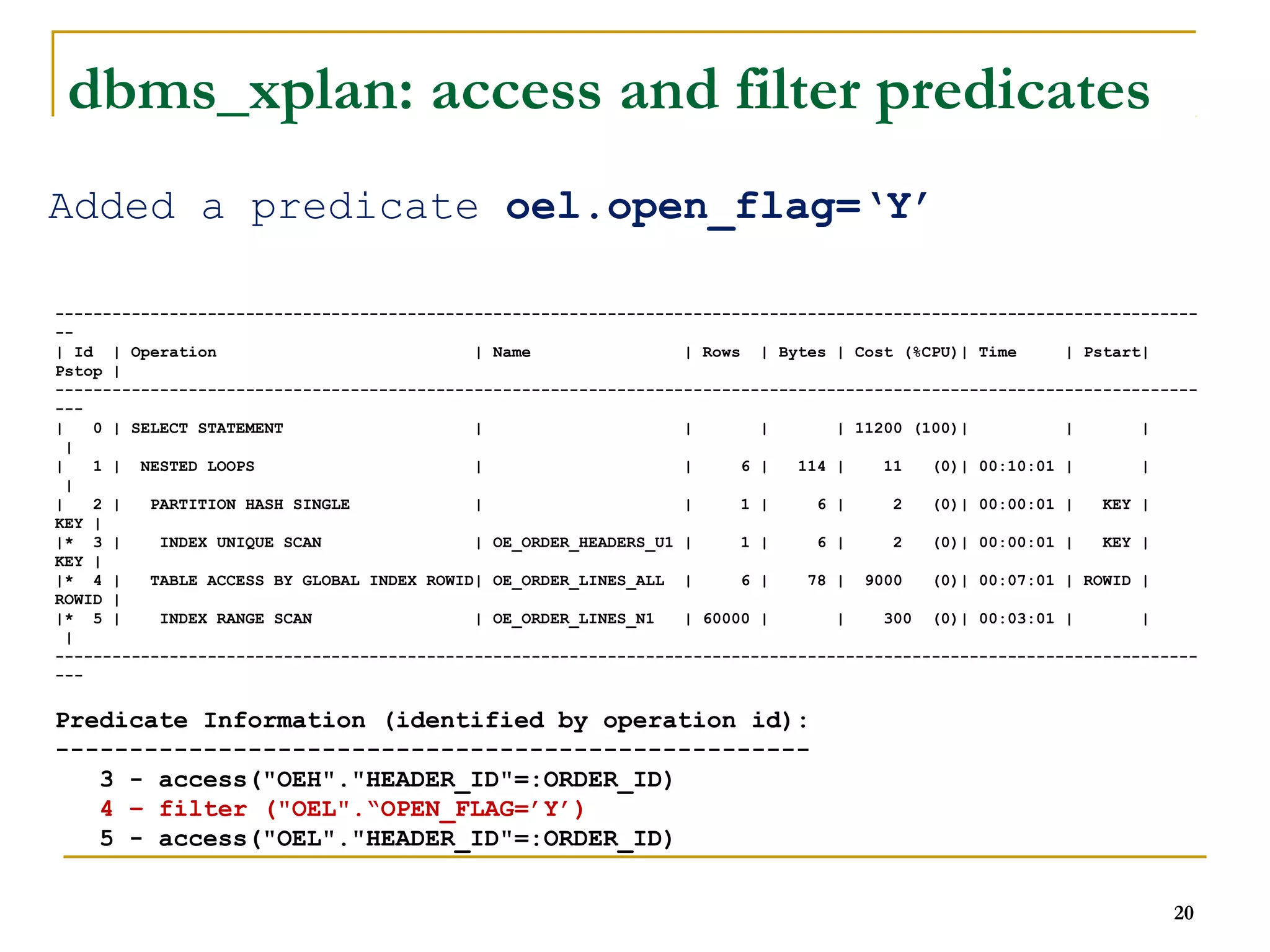

... Predicate Information (identified by operation id): --------------------------------------------------- 3 - access("OEH"."HEADER_ID"=:ORDER_ID) 5 - access("OEL"."HEADER_ID"=:ORDER_ID) Note ----- - Warning These are only collected when: * hint 'gather_plan_statistics' is used for the statement or * parameter 'statistics_level' is set to 'ALL', at session or system level * Cardinality feedback used * Dynamic sampling used 19 dbms_xplan.display_cursor ..2
------------------------------------------------------------------------------------------------------------------------ -- | Id | Operation | Name | Rows | Bytes | Cost (%CPU)| Time | Pstart| Pstop | ------------------------------------------------------------------------------------------------------------------------ --- | 0 | SELECT STATEMENT | | | | 11200 (100)| | | | | 1 | NESTED LOOPS | | 6 | 114 | 11 (0)| 00:10:01 | | | | 2 | PARTITION HASH SINGLE | | 1 | 6 | 2 (0)| 00:00:01 | KEY | KEY | |* 3 | INDEX UNIQUE SCAN | OE_ORDER_HEADERS_U1 | 1 | 6 | 2 (0)| 00:00:01 | KEY | KEY | |* 4 | TABLE ACCESS BY GLOBAL INDEX ROWID| OE_ORDER_LINES_ALL | 6 | 78 | 9000 (0)| 00:07:01 | ROWID | ROWID | |* 5 | INDEX RANGE SCAN | OE_ORDER_LINES_N1 | 60000 | | 300 (0)| 00:03:01 | | | ------------------------------------------------------------------------------------------------------------------------ --- Predicate Information (identified by operation id): --------------------------------------------------- 3 - access("OEH"."HEADER_ID"=:ORDER_ID) 4 – filter ("OEL".“OPEN_FLAG=’Y’) 5 - access("OEL"."HEADER_ID"=:ORDER_ID) 20 dbms_xplan: access and filter predicates Added a predicate oel.open_flag=‘Y’

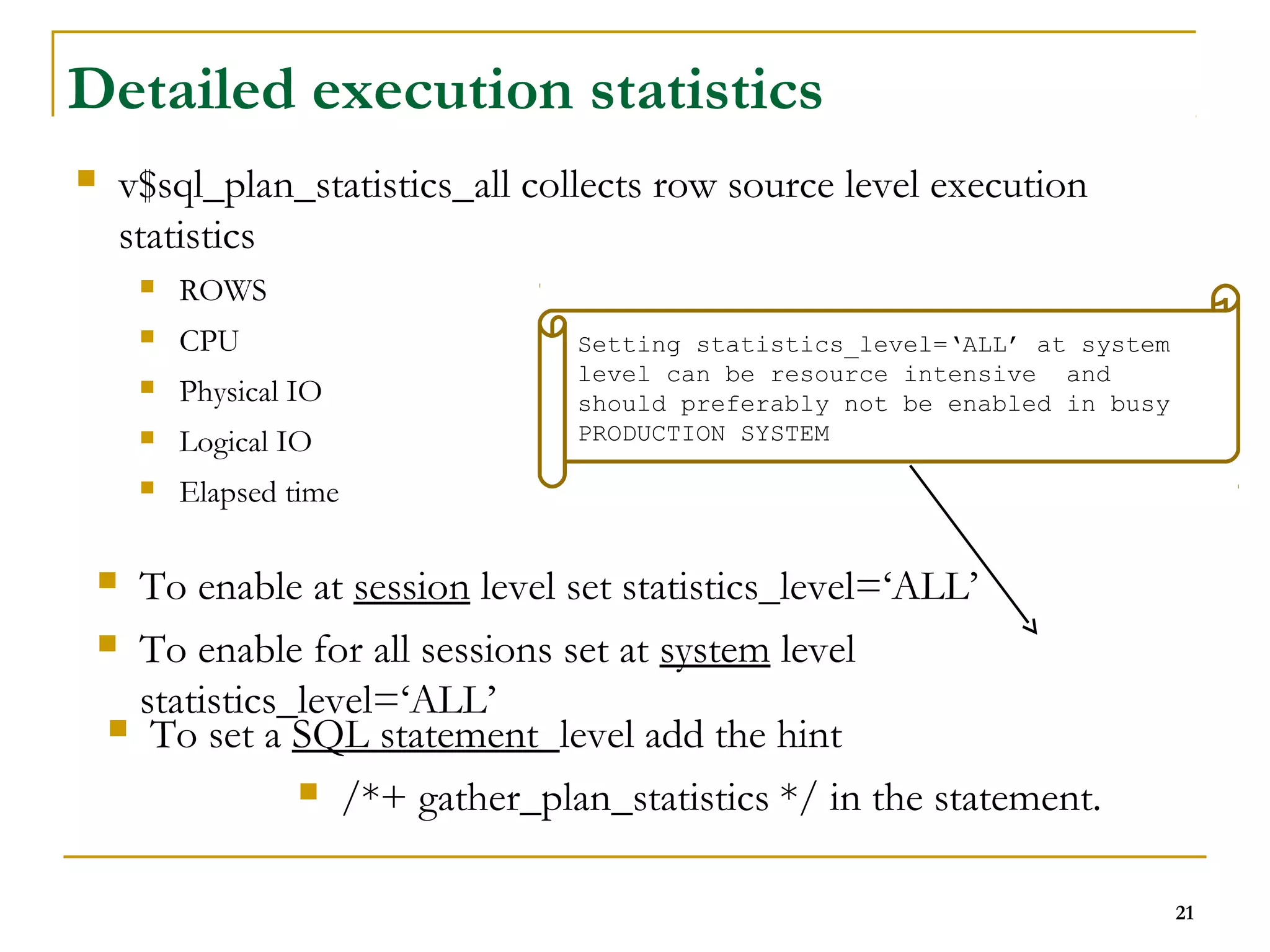

21 Detailed execution statistics  v$sql_plan_statistics_all collects row source level execution statistics  ROWS  CPU  Physical IO  Logical IO  Elapsed time Setting statistics_level=‘ALL’ at system level can be resource intensive and should preferably not be enabled in busy PRODUCTION SYSTEM  To enable at session level set statistics_level=‘ALL’  To enable for all sessions set at system level statistics_level=‘ALL’  To set a SQL statement level add the hint  /*+ gather_plan_statistics */ in the statement.

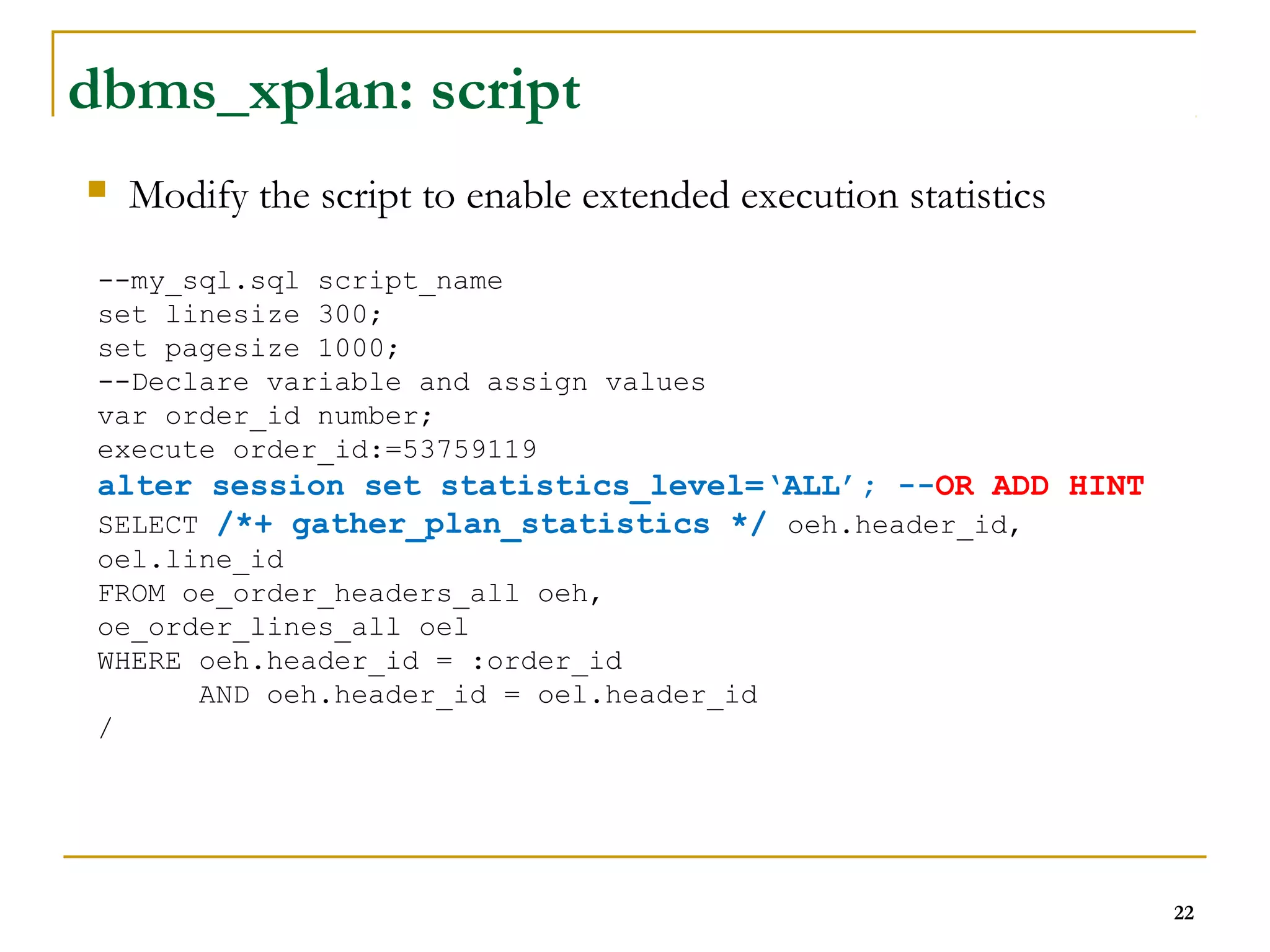

22 dbms_xplan: script  Modify the script to enable extended execution statistics --my_sql.sql script_name set linesize 300; set pagesize 1000; --Declare variable and assign values var order_id number; execute order_id:=53759119 alter session set statistics_level=‘ALL’; --OR ADD HINT SELECT /*+ gather_plan_statistics */ oeh.header_id, oel.line_id FROM oe_order_headers_all oeh, oe_order_lines_all oel WHERE oeh.header_id = :order_id AND oeh.header_id = oel.header_id /

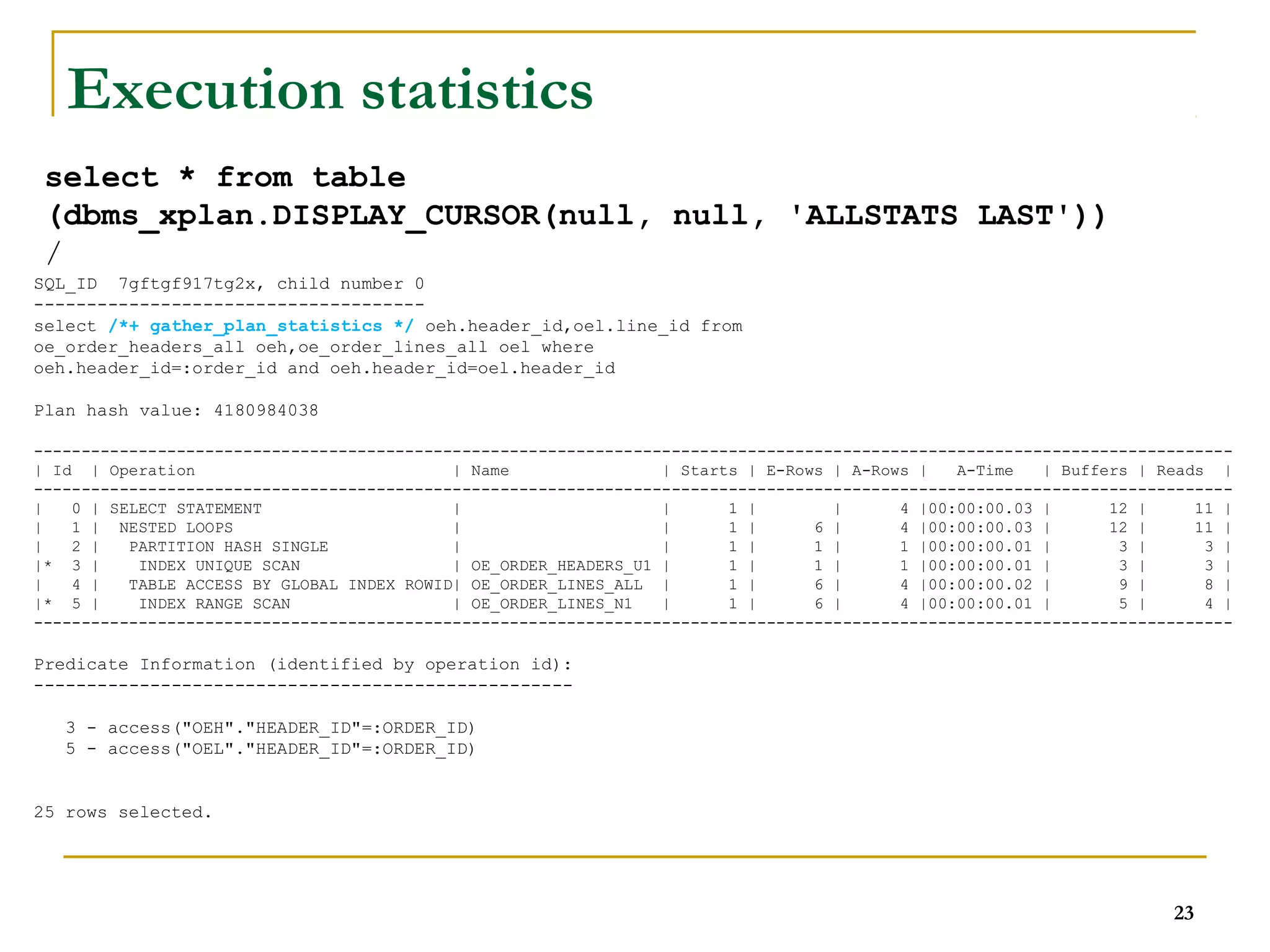

23 Execution statistics select * from table (dbms_xplan.DISPLAY_CURSOR(null, null, 'ALLSTATS LAST')) / SQL_ID 7gftgf917tg2x, child number 0 ------------------------------------- select /*+ gather_plan_statistics */ oeh.header_id,oel.line_id from oe_order_headers_all oeh,oe_order_lines_all oel where oeh.header_id=:order_id and oeh.header_id=oel.header_id Plan hash value: 4180984038 ------------------------------------------------------------------------------------------------------------------------------ | Id | Operation | Name | Starts | E-Rows | A-Rows | A-Time | Buffers | Reads | ------------------------------------------------------------------------------------------------------------------------------ | 0 | SELECT STATEMENT | | 1 | | 4 |00:00:00.03 | 12 | 11 | | 1 | NESTED LOOPS | | 1 | 6 | 4 |00:00:00.03 | 12 | 11 | | 2 | PARTITION HASH SINGLE | | 1 | 1 | 1 |00:00:00.01 | 3 | 3 | |* 3 | INDEX UNIQUE SCAN | OE_ORDER_HEADERS_U1 | 1 | 1 | 1 |00:00:00.01 | 3 | 3 | | 4 | TABLE ACCESS BY GLOBAL INDEX ROWID| OE_ORDER_LINES_ALL | 1 | 6 | 4 |00:00:00.02 | 9 | 8 | |* 5 | INDEX RANGE SCAN | OE_ORDER_LINES_N1 | 1 | 6 | 4 |00:00:00.01 | 5 | 4 | ------------------------------------------------------------------------------------------------------------------------------ Predicate Information (identified by operation id): --------------------------------------------------- 3 - access("OEH"."HEADER_ID"=:ORDER_ID) 5 - access("OEL"."HEADER_ID"=:ORDER_ID) 25 rows selected.
24 Alias select * from table (dbms_xplan.DISPLAY_CURSOR(null, null, 'ALLSTATS LAST +alias -predicate')); SELECT /*+ gather_plan_statistics */ oel.line_id FROM oe_order_lines_all oel WHERE oel.open_flag = 'Y' and exists (select 1 from oe_order_headers_all oeh where oeh.header_id = oel.header_id and oeh.open_flag='Y' and oeh.last_update_date > sysdate -5) Plan hash value: 746840967 -------------------------------------------------------------------------------------------------------------------------------------------------------- | Id | Operation | Name | Starts | E-Rows | A-Rows | A-Time | Buffers | OMem | 1Mem | Used-Mem | -------------------------------------------------------------------------------------------------------------------------------------------------------- | 0 | SELECT STATEMENT | | 1 | | 3 |00:00:00.01 | 16 | | | | | 1 | NESTED LOOPS | | 1 | | 3 |00:00:00.01 | 16 | | | | | 2 | NESTED LOOPS | | 1 | 1 | 3 |00:00:00.01 | 10 | | | | | 3 | SORT UNIQUE | | 1 | 1 | 1 |00:00:00.01 | 5 | 2048 | 2048 | 2048 (0)| | 4 | TABLE ACCESS BY GLOBAL INDEX ROWID| OE_ORDER_HEADERS_ALL | 1 | 1 | 1 |00:00:00.01 | 5 | | | | | 5 | INDEX RANGE SCAN | CCW_OE_ORD_HEADERS_ALL_D1 | 1 | 7 | 1 |00:00:00.01 | 4 | | | | | 6 | INDEX RANGE SCAN | OE_ORDER_LINES_N1 | 1 | 6 | 3 |00:00:00.01 | 5 | | | | | 7 | TABLE ACCESS BY GLOBAL INDEX ROWID | OE_ORDER_LINES_ALL | 3 | 1 | 3 |00:00:00.01 | 6 | | | | -------------------------------------------------------------------------------------------------------------------------------------------------------- Query Block Name / Object Alias (identified by operation id): ------------------------------------------------------------- 1 - SEL$5DA710D3 4 - SEL$5DA710D3 / OEH@SEL$2 5 - SEL$5DA710D3 / OEH@SEL$2 6 - SEL$5DA710D3 / OEL@SEL$1 7 - SEL$5DA710D3 / OEL@SEL$1
SQL_ID cu2f3xhzy75vc, child number 0 ------------------------------------- SELECT /*+ gather_plan_statistics qb_name(outer_block) */ oel.line_id FROM oe_order_lines_all oel WHERE oel.open_flag = 'Y' and exists (select /*+ qb_name(innner_block) */ 1 from oe_order_headers_all oeh where oeh.header_id = oel.header_id and oeh.open_flag='Y' and oeh.last_update_date > sysdate -5); Plan hash value: 746840967 -------------------------------------------------------------------------------------------------------------------- | Id | Operation | Name | Starts | E-Rows | A-Rows | A-Time | ..| --------------------------------------------------------------------------------------------------------------------.. | 0 | SELECT STATEMENT | | 1 | | 3 |00:00:00.01 | … Query Block Name / Object Alias (identified by operation id): ------------------------------------------------------------- 1 - SEL$8E94A21F 4 - SEL$8E94A21F / OEH@INNNER_BLOCK 5 - SEL$8E94A21F / OEH@INNNER_BLOCK 6 - SEL$8E94A21F / OEL@OUTER_BLOCK 7 - SEL$8E94A21F / OEL@OUTER_BLOCK 25 Query Block name

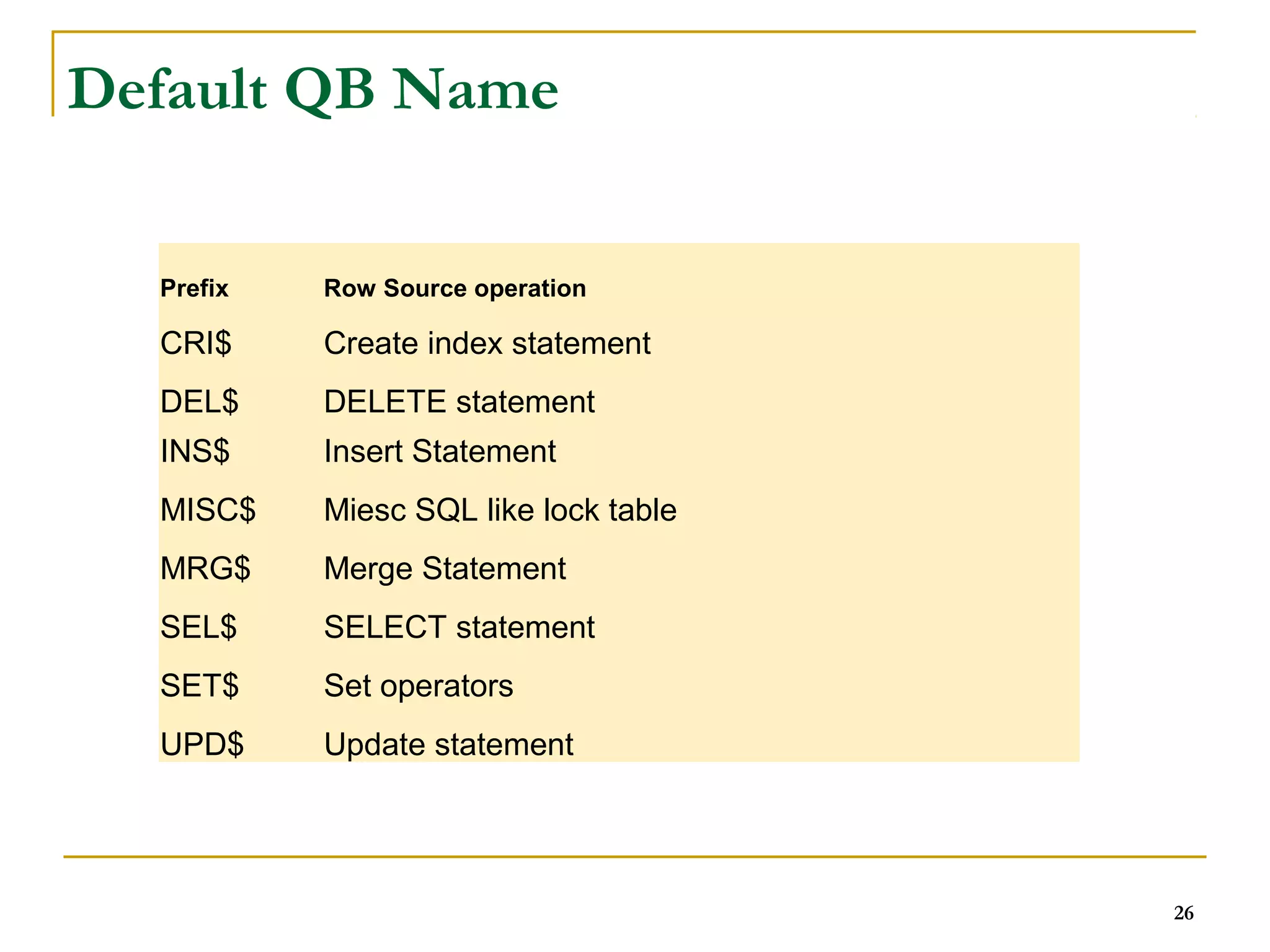

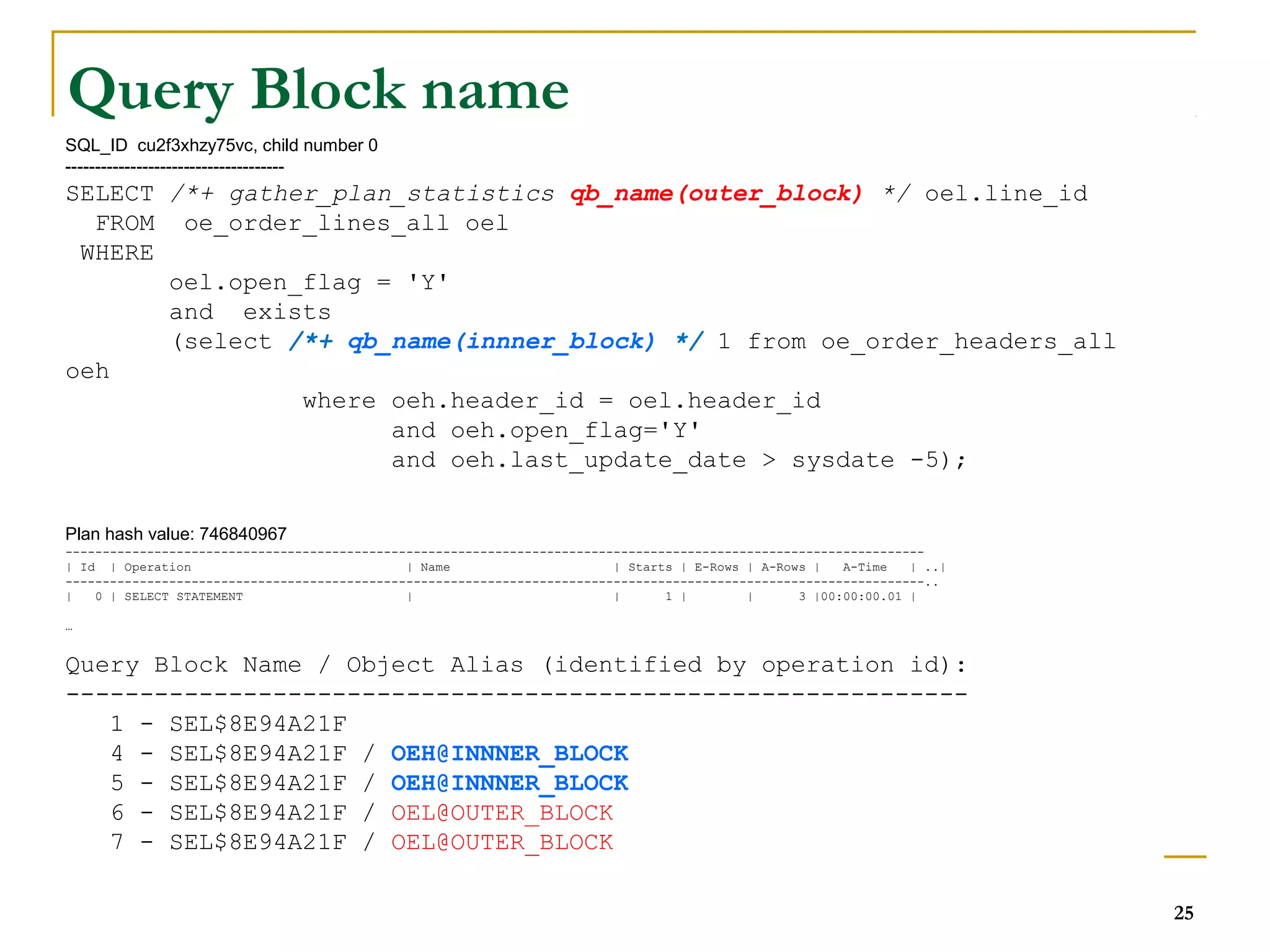

26 Default QB Name Prefix Row Source operation CRI$ Create index statement DEL$ DELETE statement INS$ Insert Statement MISC$ Miesc SQL like lock table MRG$ Merge Statement SEL$ SELECT statement SET$ Set operators UPD$ Update statement

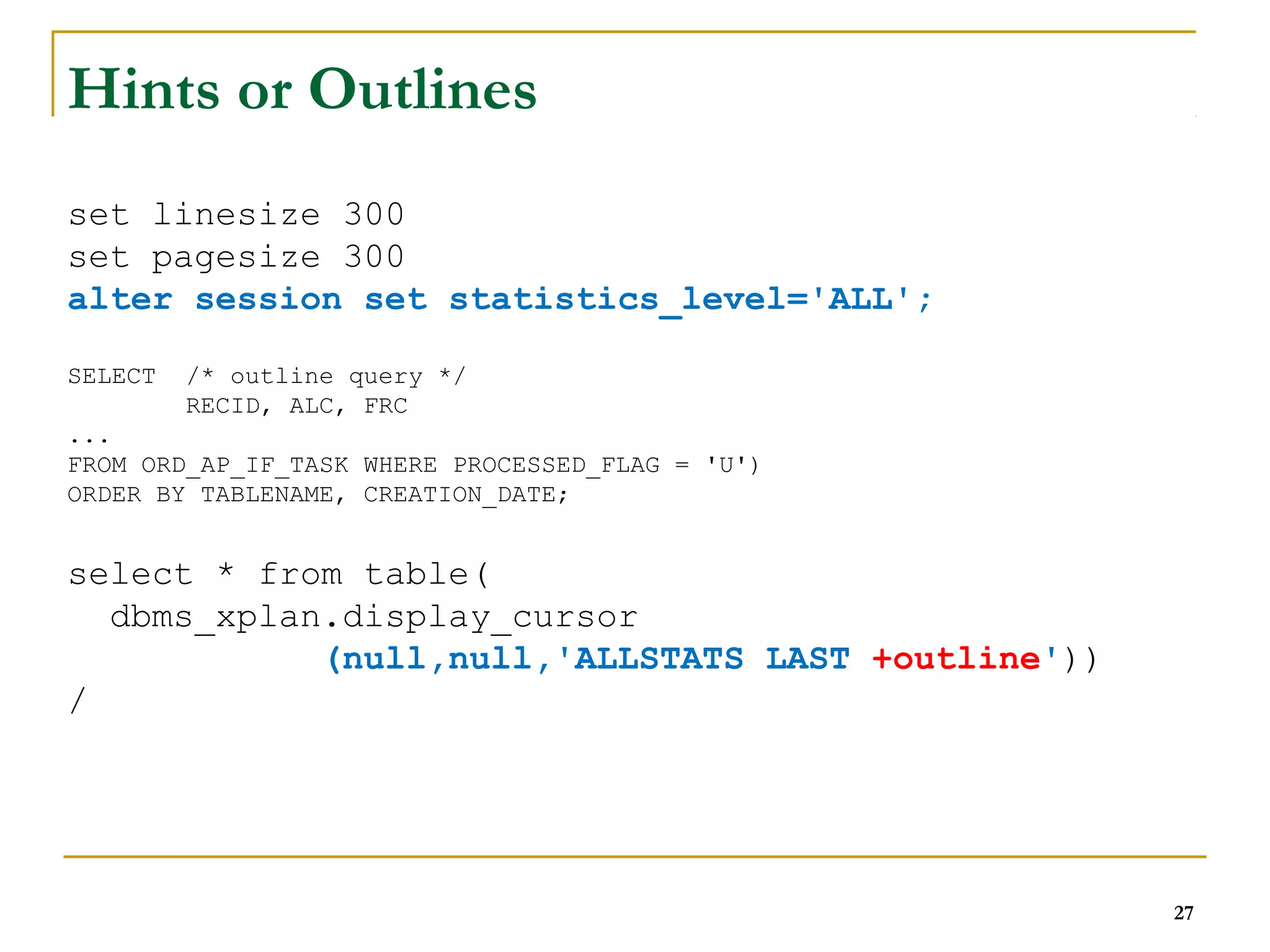

27 Hints or Outlines set linesize 300 set pagesize 300 alter session set statistics_level='ALL'; SELECT /* outline query */ RECID, ALC, FRC ... FROM ORD_AP_IF_TASK WHERE PROCESSED_FLAG = 'U') ORDER BY TABLENAME, CREATION_DATE; select * from table( dbms_xplan.display_cursor (null,null,'ALLSTATS LAST +outline')) /

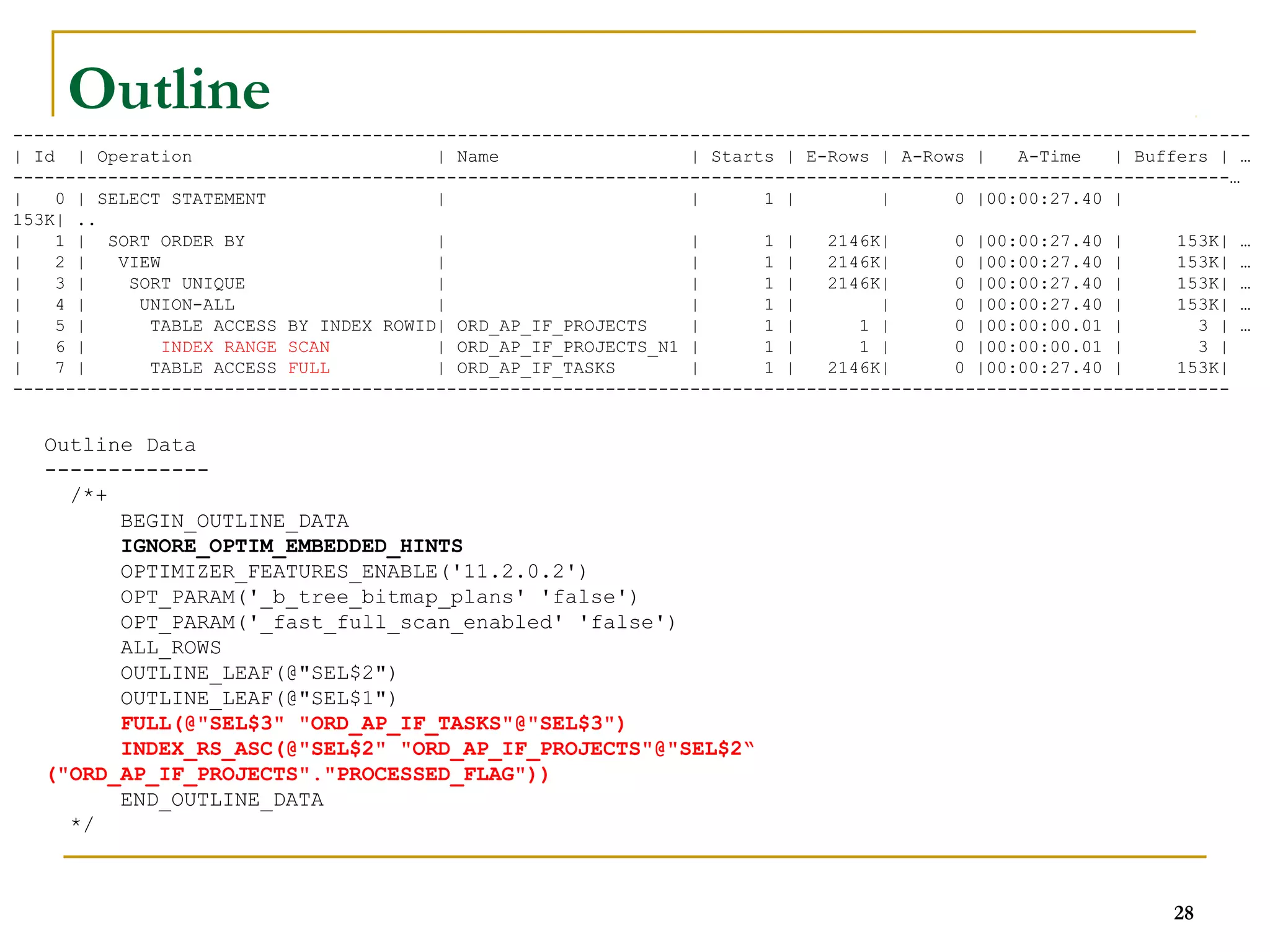

Outline Data ------------- /*+ BEGIN_OUTLINE_DATA IGNORE_OPTIM_EMBEDDED_HINTS OPTIMIZER_FEATURES_ENABLE('11.2.0.2') OPT_PARAM('_b_tree_bitmap_plans' 'false') OPT_PARAM('_fast_full_scan_enabled' 'false') ALL_ROWS OUTLINE_LEAF(@"SEL$2") OUTLINE_LEAF(@"SEL$1") FULL(@"SEL$3" "ORD_AP_IF_TASKS"@"SEL$3") INDEX_RS_ASC(@"SEL$2" "ORD_AP_IF_PROJECTS"@"SEL$2“ ("ORD_AP_IF_PROJECTS"."PROCESSED_FLAG")) END_OUTLINE_DATA */ 28 Outline --------------------------------------------------------------------------------------------------------------------- | Id | Operation | Name | Starts | E-Rows | A-Rows | A-Time | Buffers | … -------------------------------------------------------------------------------------------------------------------… | 0 | SELECT STATEMENT | | 1 | | 0 |00:00:27.40 | 153K| .. | 1 | SORT ORDER BY | | 1 | 2146K| 0 |00:00:27.40 | 153K| … | 2 | VIEW | | 1 | 2146K| 0 |00:00:27.40 | 153K| … | 3 | SORT UNIQUE | | 1 | 2146K| 0 |00:00:27.40 | 153K| … | 4 | UNION-ALL | | 1 | | 0 |00:00:27.40 | 153K| … | 5 | TABLE ACCESS BY INDEX ROWID| ORD_AP_IF_PROJECTS | 1 | 1 | 0 |00:00:00.01 | 3 | … | 6 | INDEX RANGE SCAN | ORD_AP_IF_PROJECTS_N1 | 1 | 1 | 0 |00:00:00.01 | 3 | | 7 | TABLE ACCESS FULL | ORD_AP_IF_TASKS | 1 | 2146K| 0 |00:00:27.40 | 153K| -------------------------------------------------------------------------------------------------------------------
Outline Data ------------- /*+ Predicate Information (identified by operation id): --------------------------------------------------- 6 - access("PROCESSED_FLAG"='U') 7 - filter("PROCESSED_FLAG"='U') ... FULL(@"SEL$3" "ORD_AP_IF_TASKS"@"SEL$3") INDEX_RS_ASC(@"SEL$2" "ORD_AP_IF_PROJECTS "@"SEL$2" ("ORD_AP_IF_PROJECTS"."PROCESSED_FLAG")) END_OUTLINE_DATA */ 29 Tuning SQL SQLPLUS> select count(1) from ORD_AP_IF_TASKS where PROCESSED_FLAG='U'; COUNT(1) ---------- 0 There is an index on ORD_AP_IF_TASKS.PROCESSED_FLAG
set linesize 300 set pagesize 300 alter session set statistics_level='ALL'; SELECT /*+ Copying outline as hint; Altering Full Table Scan to Index Range Scan. BEGIN_OUTLINE_DATA IGNORE_OPTIM_EMBEDDED_HINTS OPTIMIZER_FEATURES_ENABLE('11.2.0.2') DB_VERSION('11.2.0.2') OPT_PARAM('_b_tree_bitmap_plans' 'false') OPT_PARAM('_fast_full_scan_enabled' 'false') ALL_ROWS OUTLINE_LEAF(@"SEL$2") OUTLINE_LEAF(@"SEL$3") OUTLINE_LEAF(@"SET$1") OUTLINE_LEAF(@"SEL$1") NO_ACCESS(@"SEL$1" "from$_subquery$_001"@"SEL$1") INDEX_RS_ASC(@"SEL$3" “ORD_AP_IF_TASKS"@"SEL$3" (“ORD_AP_IF_TASKS"."PROCESSED_FLAG")) INDEX_RS_ASC(@"SEL$2" “ORD_AP_IF_PROJECTS"@"SEL$2" (“ORD_AP_IF_PROJECTS"."PROCESSED_FLAG")) END_OUTLINE_DATA */ WHERE PROCESSED_FLAG = 'U') ORDER BY TABLENAME, CREATION_DATE / select * from table(dbms_xplan.display_cursor (null,null,'ALLSTATS LAST +outline')) / 30 Bob the Builder FULL(@"SEL$3" "ORD_AP_IF_TASKS"@"SEL$3")

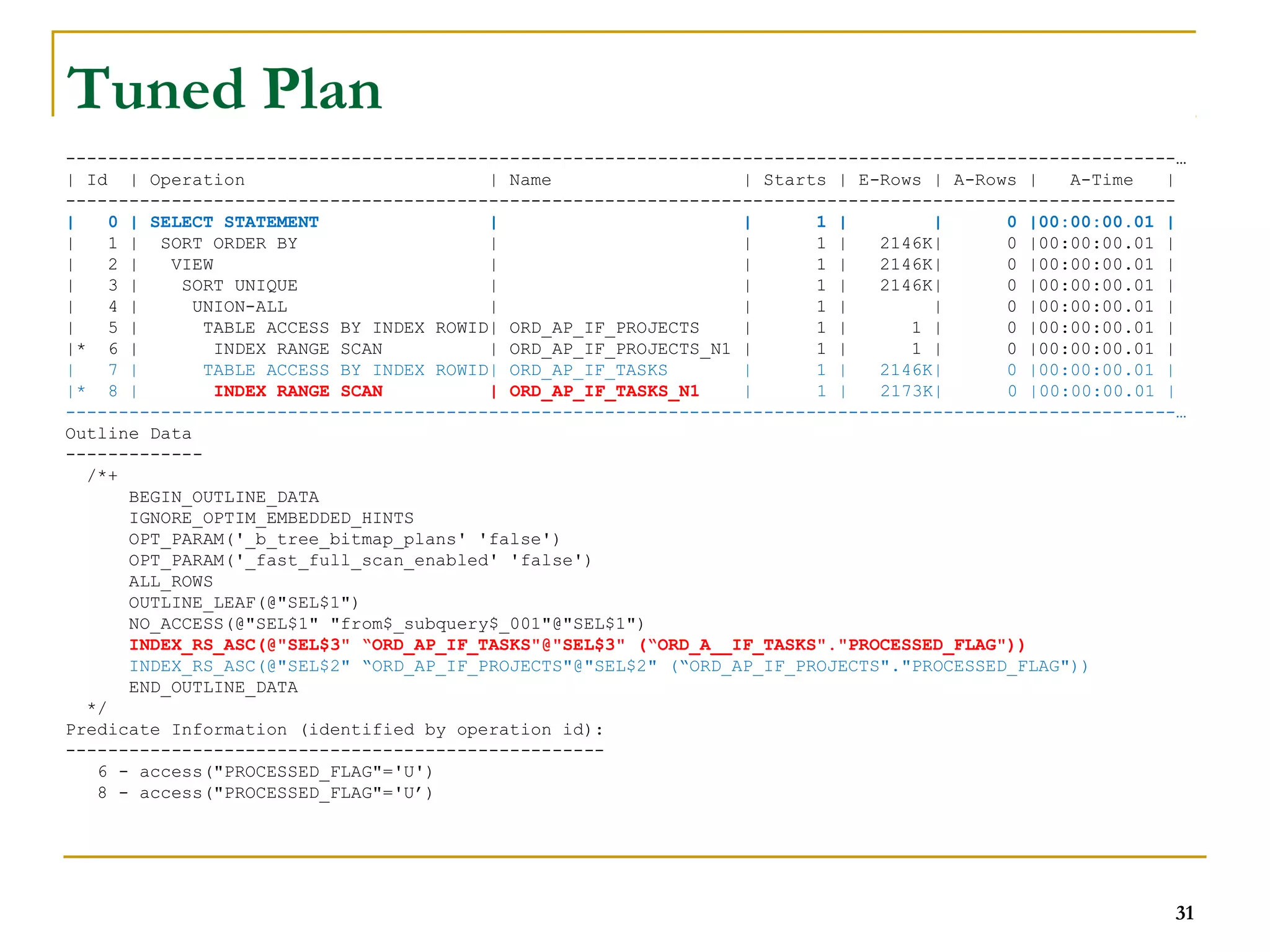

Tuned Plan ---------------------------------------------------------------------------------------------------------… | Id | Operation | Name | Starts | E-Rows | A-Rows | A-Time | --------------------------------------------------------------------------------------------------------- | 0 | SELECT STATEMENT | | 1 | | 0 |00:00:00.01 | | 1 | SORT ORDER BY | | 1 | 2146K| 0 |00:00:00.01 | | 2 | VIEW | | 1 | 2146K| 0 |00:00:00.01 | | 3 | SORT UNIQUE | | 1 | 2146K| 0 |00:00:00.01 | | 4 | UNION-ALL | | 1 | | 0 |00:00:00.01 | | 5 | TABLE ACCESS BY INDEX ROWID| ORD_AP_IF_PROJECTS | 1 | 1 | 0 |00:00:00.01 | |* 6 | INDEX RANGE SCAN | ORD_AP_IF_PROJECTS_N1 | 1 | 1 | 0 |00:00:00.01 | | 7 | TABLE ACCESS BY INDEX ROWID| ORD_AP_IF_TASKS | 1 | 2146K| 0 |00:00:00.01 | |* 8 | INDEX RANGE SCAN | ORD_AP_IF_TASKS_N1 | 1 | 2173K| 0 |00:00:00.01 | ---------------------------------------------------------------------------------------------------------… Outline Data ------------- 31 /*+ BEGIN_OUTLINE_DATA IGNORE_OPTIM_EMBEDDED_HINTS OPT_PARAM('_b_tree_bitmap_plans' 'false') OPT_PARAM('_fast_full_scan_enabled' 'false') ALL_ROWS OUTLINE_LEAF(@"SEL$1") NO_ACCESS(@"SEL$1" "from$_subquery$_001"@"SEL$1") INDEX_RS_ASC(@"SEL$3" “ORD_AP_IF_TASKS"@"SEL$3" (“ORD_A__IF_TASKS"."PROCESSED_FLAG")) INDEX_RS_ASC(@"SEL$2" “ORD_AP_IF_PROJECTS"@"SEL$2" (“ORD_AP_IF_PROJECTS"."PROCESSED_FLAG")) END_OUTLINE_DATA */ Predicate Information (identified by operation id): --------------------------------------------------- 6 - access("PROCESSED_FLAG"='U') 8 - access("PROCESSED_FLAG"='U’)

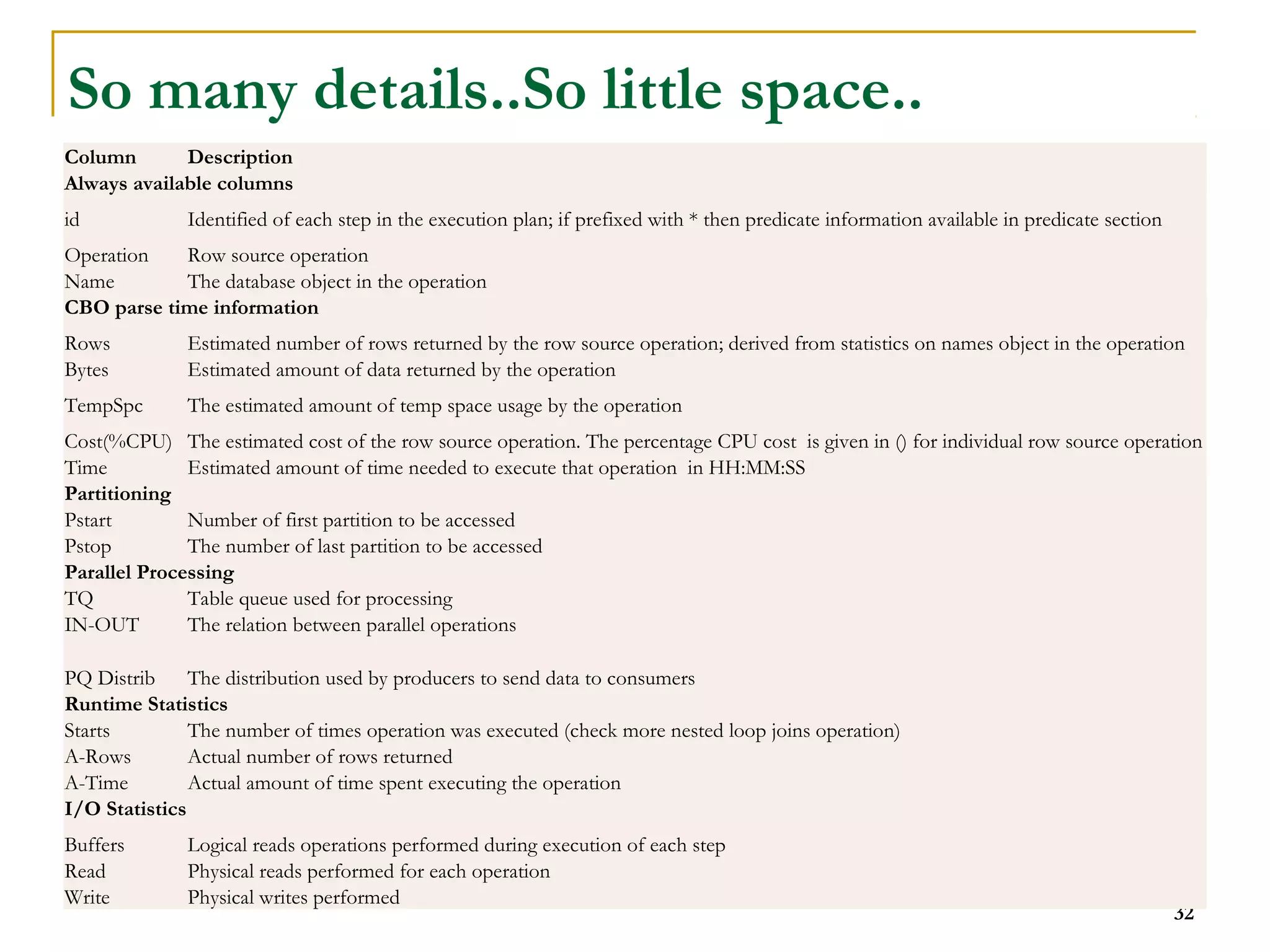

So many details..So little space.. Column Description Always available columns id Identified of each step in the execution plan; if prefixed with * then predicate information available in predicate section Operation Row source operation Name The database object in the operation CBO parse time information Rows Estimated number of rows returned by the row source operation; derived from statistics on names object in the operation Bytes Estimated amount of data returned by the operation TempSpc The estimated amount of temp space usage by the operation Cost(%CPU) The estimated cost of the row source operation. The percentage CPU cost is given in () for individual row source operation Time Estimated amount of time needed to execute that operation in HH:MM:SS Partitioning Pstart Number of first partition to be accessed Pstop The number of last partition to be accessed Parallel Processing TQ Table queue used for processing IN-OUT The relation between parallel operations PQ Distrib The distribution used by producers to send data to consumers Runtime Statistics Starts The number of times operation was executed (check more nested loop joins operation) A-Rows Actual number of rows returned A-Time Actual amount of time spent executing the operation I/O Statistics Buffers Logical reads operations performed during execution of each step Read Physical reads performed for each operation Write Physical writes performed 32

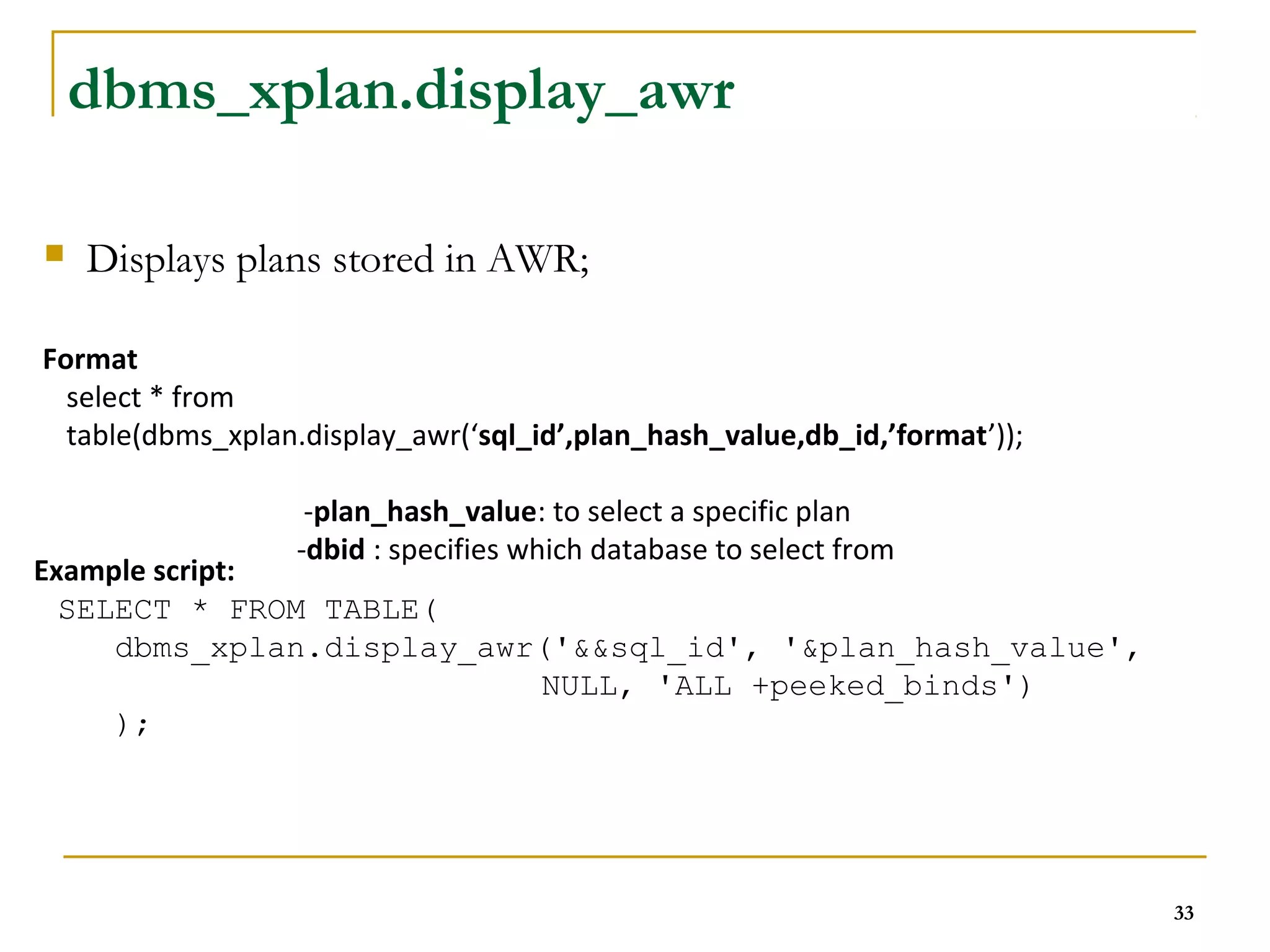

33 dbms_xplan.display_awr  Displays plans stored in AWR; Format select * from table(dbms_xplan.display_awr(‘sql_id’,plan_hash_value,db_id,’format’)); -plan_hash_value: to select a specific plan -dbid : specifies which database to select from Example script: SELECT * FROM TABLE( dbms_xplan.display_awr('&&sql_id', '&plan_hash_value', NULL, 'ALL +peeked_binds') );

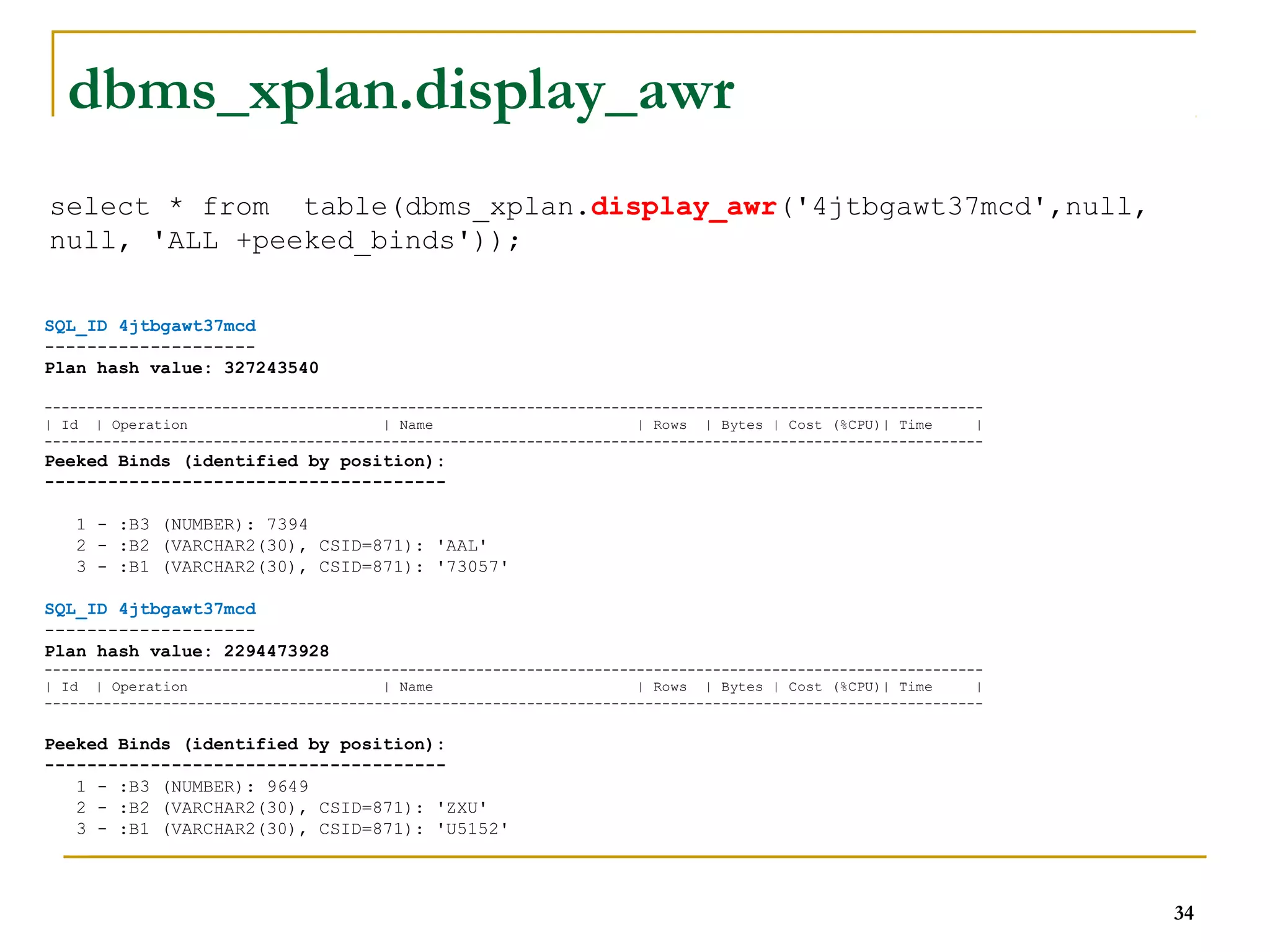

34 dbms_xplan.display_awr select * from table(dbms_xplan.display_awr('4jtbgawt37mcd',null, null, 'ALL +peeked_binds')); SQL_ID 4jtbgawt37mcd -------------------- Plan hash value: 327243540 --------------------------------------------------------------------------------------------------------------- | Id | Operation | Name | Rows | Bytes | Cost (%CPU)| Time | --------------------------------------------------------------------------------------------------------------- Peeked Binds (identified by position): -------------------------------------- 1 - :B3 (NUMBER): 7394 2 - :B2 (VARCHAR2(30), CSID=871): 'AAL' 3 - :B1 (VARCHAR2(30), CSID=871): '73057' SQL_ID 4jtbgawt37mcd -------------------- Plan hash value: 2294473928 --------------------------------------------------------------------------------------------------------------- | Id | Operation | Name | Rows | Bytes | Cost (%CPU)| Time | --------------------------------------------------------------------------------------------------------------- Peeked Binds (identified by position): -------------------------------------- 1 - :B3 (NUMBER): 9649 2 - :B2 (VARCHAR2(30), CSID=871): 'ZXU' 3 - :B1 (VARCHAR2(30), CSID=871): 'U5152'

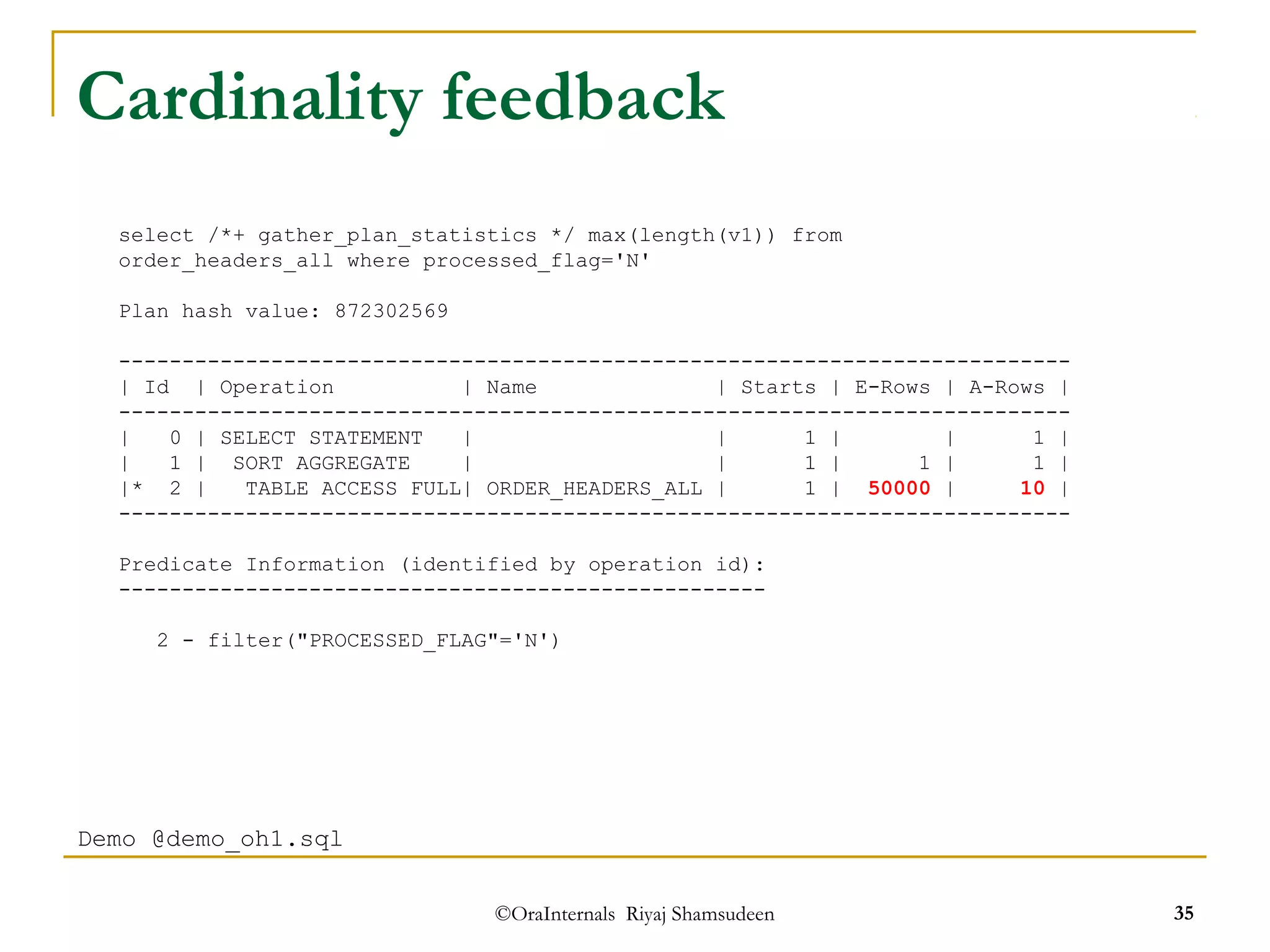

Cardinality feedback select /*+ gather_plan_statistics */ max(length(v1)) from order_headers_all where processed_flag='N' --------------------------------------------------------------------------- | Id | Operation | Name | Starts | E-Rows | A-Rows | --------------------------------------------------------------------------- | 0 | SELECT STATEMENT | | 1 | | 1 | | 1 | SORT AGGREGATE | | 1 | 1 | 1 | |* 2 | TABLE ACCESS FULL| ORDER_HEADERS_ALL | 1 | 50000 | 10 | --------------------------------------------------------------------------- Predicate Information (identified by operation id): --------------------------------------------------- 2 - filter("PROCESSED_FLAG"='N') ©OraInternals Riyaj Shamsudeen 35 Plan hash value: 872302569 Demo @demo_oh1.sql

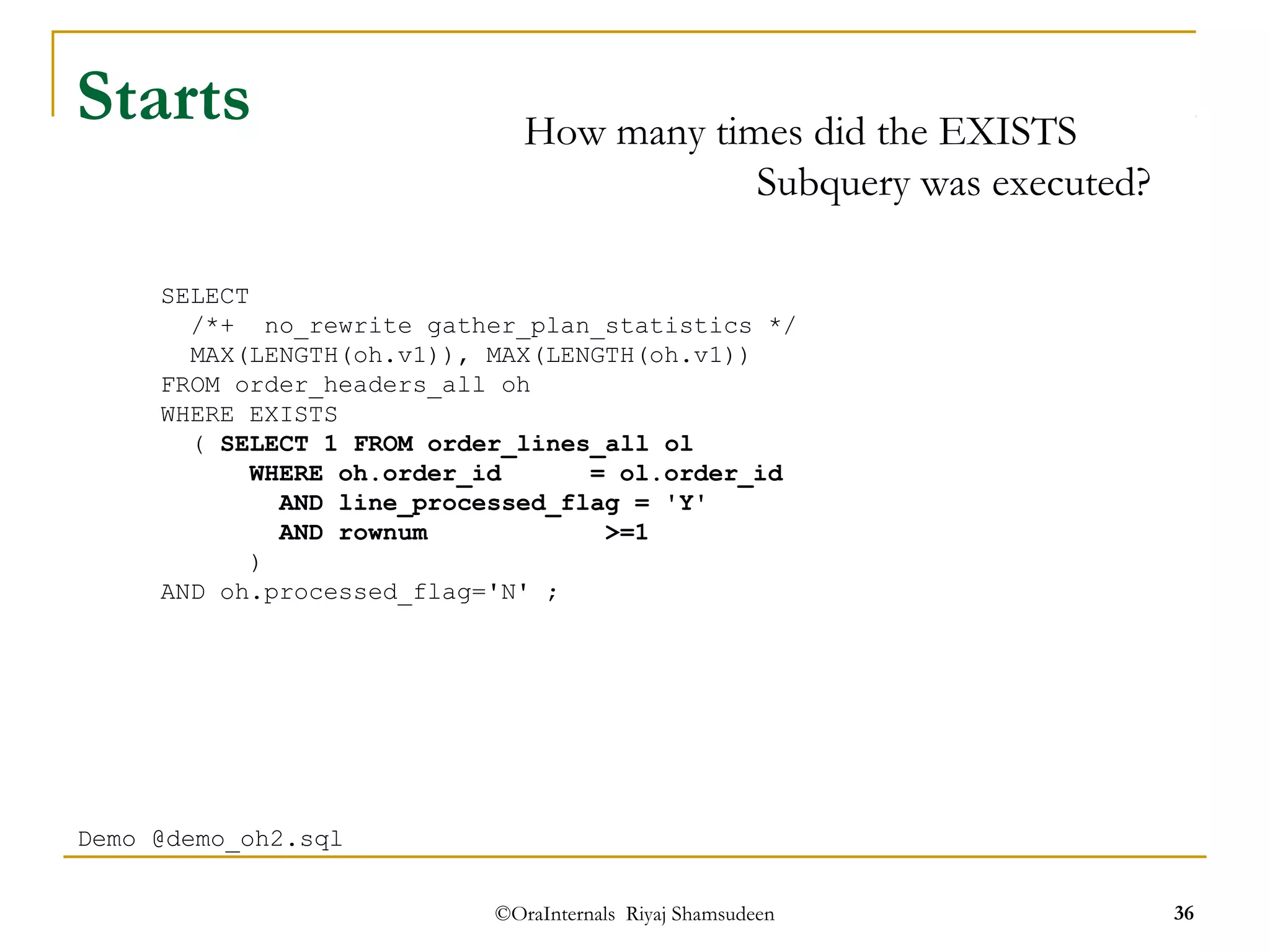

/*+ no_rewrite gather_plan_statistics */ MAX(LENGTH(oh.v1)), MAX(LENGTH(oh.v1)) FROM order_headers_all oh WHERE EXISTS ( SELECT 1 FROM order_lines_all ol WHERE oh.order_id = ol.order_id AND line_processed_flag = 'Y' AND rownum >=1 AND oh.processed_flag='N' ; ©OraInternals Riyaj Shamsudeen 36 Starts SELECT ) Demo @demo_oh2.sql How many times did the EXISTS Subquery was executed?

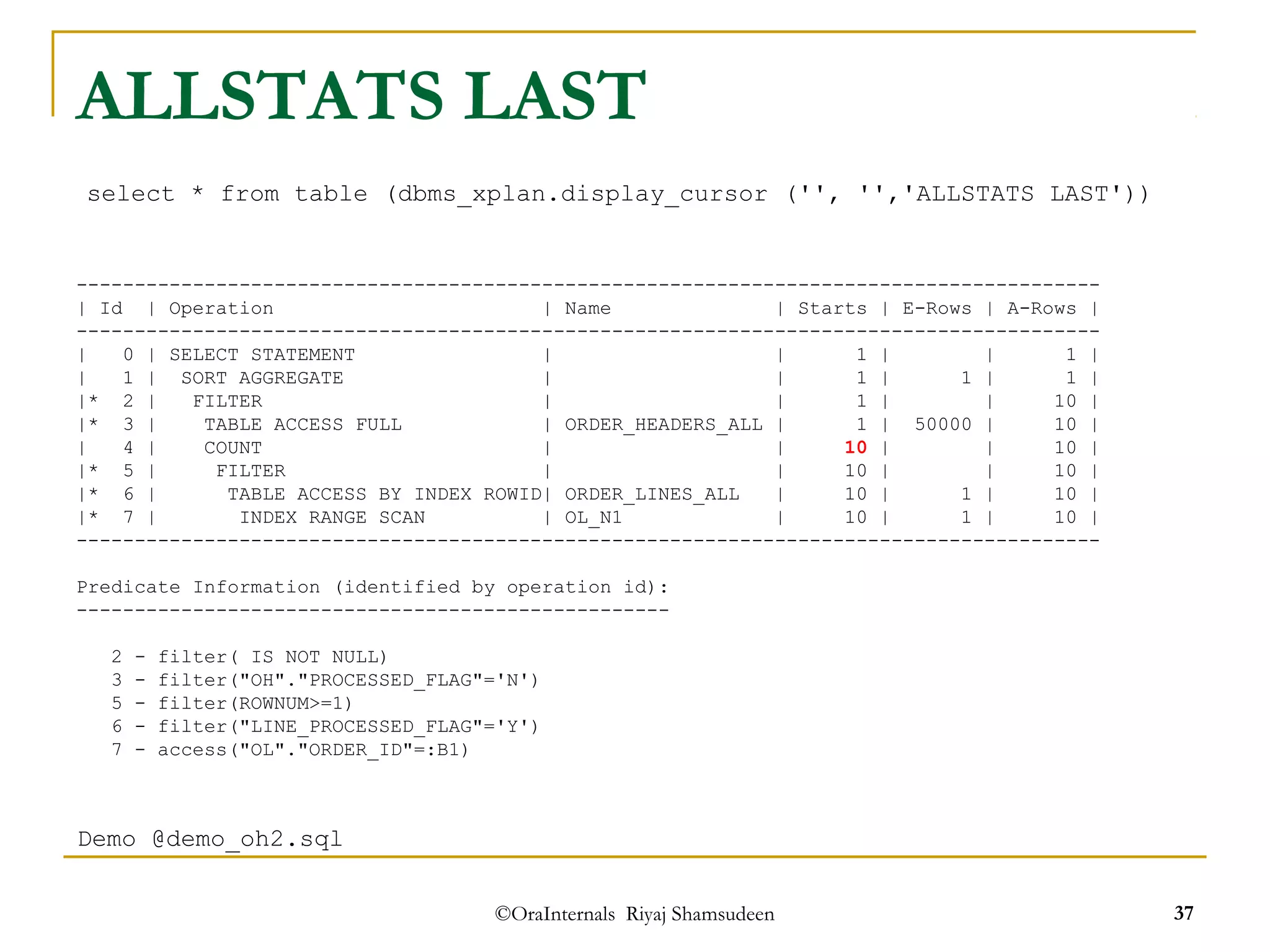

ALLSTATS LAST select * from table (dbms_xplan.display_cursor ('', '','ALLSTATS LAST')) ---------------------------------------------------------------------------------------- | Id | Operation | Name | Starts | E-Rows | A-Rows | ---------------------------------------------------------------------------------------- | 0 | SELECT STATEMENT | | 1 | | 1 | | 1 | SORT AGGREGATE | | 1 | 1 | 1 | |* 2 | FILTER | | 1 | | 10 | |* 3 | TABLE ACCESS FULL | ORDER_HEADERS_ALL | 1 | 50000 | 10 | | 4 | COUNT | | 10 | | 10 | |* 5 | FILTER | | 10 | | 10 | |* 6 | TABLE ACCESS BY INDEX ROWID| ORDER_LINES_ALL | 10 | 1 | 10 | |* 7 | INDEX RANGE SCAN | OL_N1 | 10 | 1 | 10 | ---------------------------------------------------------------------------------------- Predicate Information (identified by operation id): --------------------------------------------------- 2 - filter( IS NOT NULL) 3 - filter("OH"."PROCESSED_FLAG"='N') 5 - filter(ROWNUM>=1) 6 - filter("LINE_PROCESSED_FLAG"='Y') 7 - access("OL"."ORDER_ID"=:B1) ©OraInternals Riyaj Shamsudeen 37 Demo @demo_oh2.sql

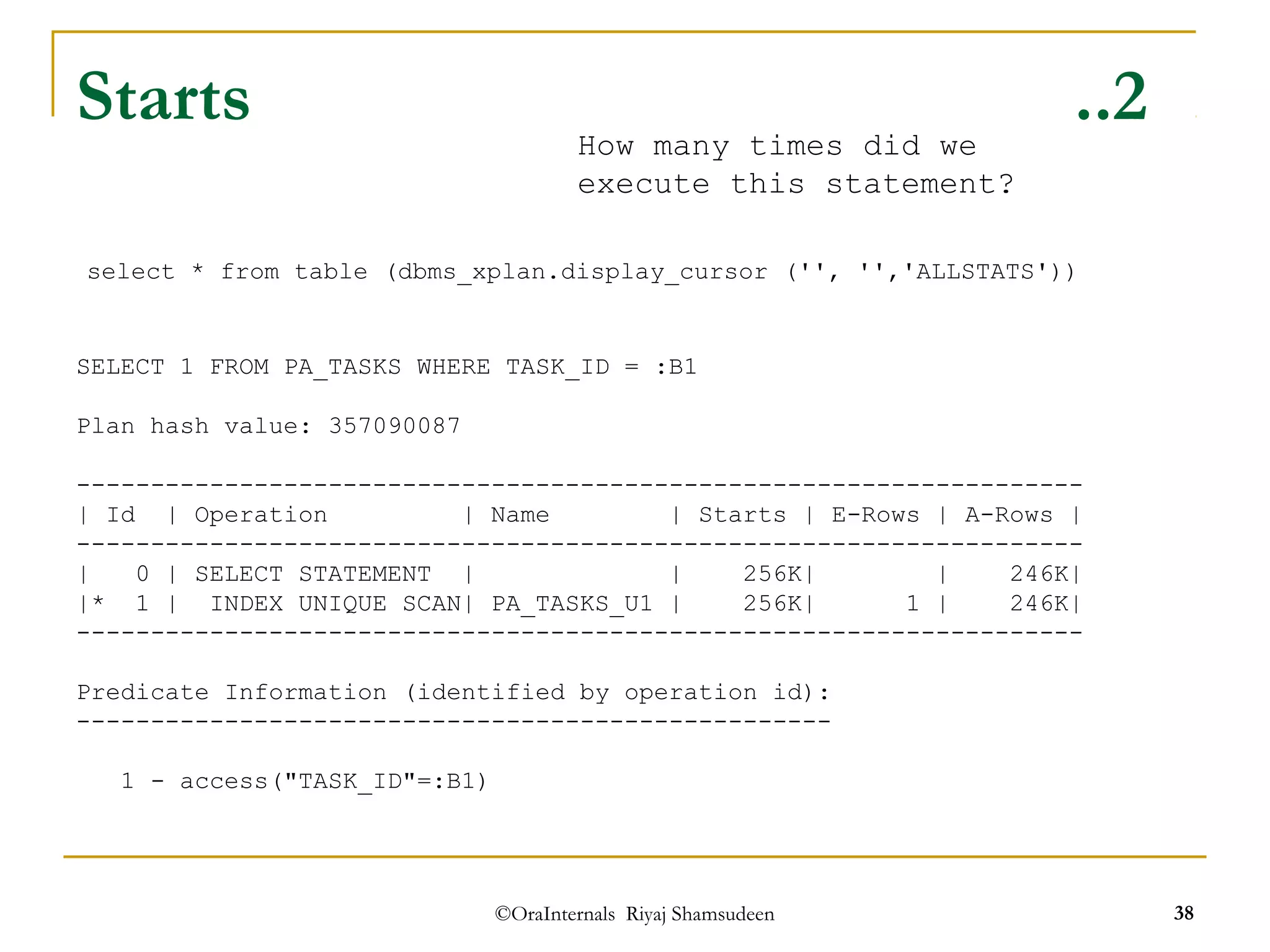

Starts ..2 select * from table (dbms_xplan.display_cursor ('', '','ALLSTATS')) SELECT 1 FROM PA_TASKS WHERE TASK_ID = :B1 ©OraInternals Riyaj Shamsudeen 38 Plan hash value: 357090087 -------------------------------------------------------------------- | Id | Operation | Name | Starts | E-Rows | A-Rows | -------------------------------------------------------------------- | 0 | SELECT STATEMENT | | 256K| | 246K| |* 1 | INDEX UNIQUE SCAN| PA_TASKS_U1 | 256K| 1 | 246K| -------------------------------------------------------------------- Predicate Information (identified by operation id): --------------------------------------------------- 1 - access("TASK_ID"=:B1) How many times did we execute this statement?

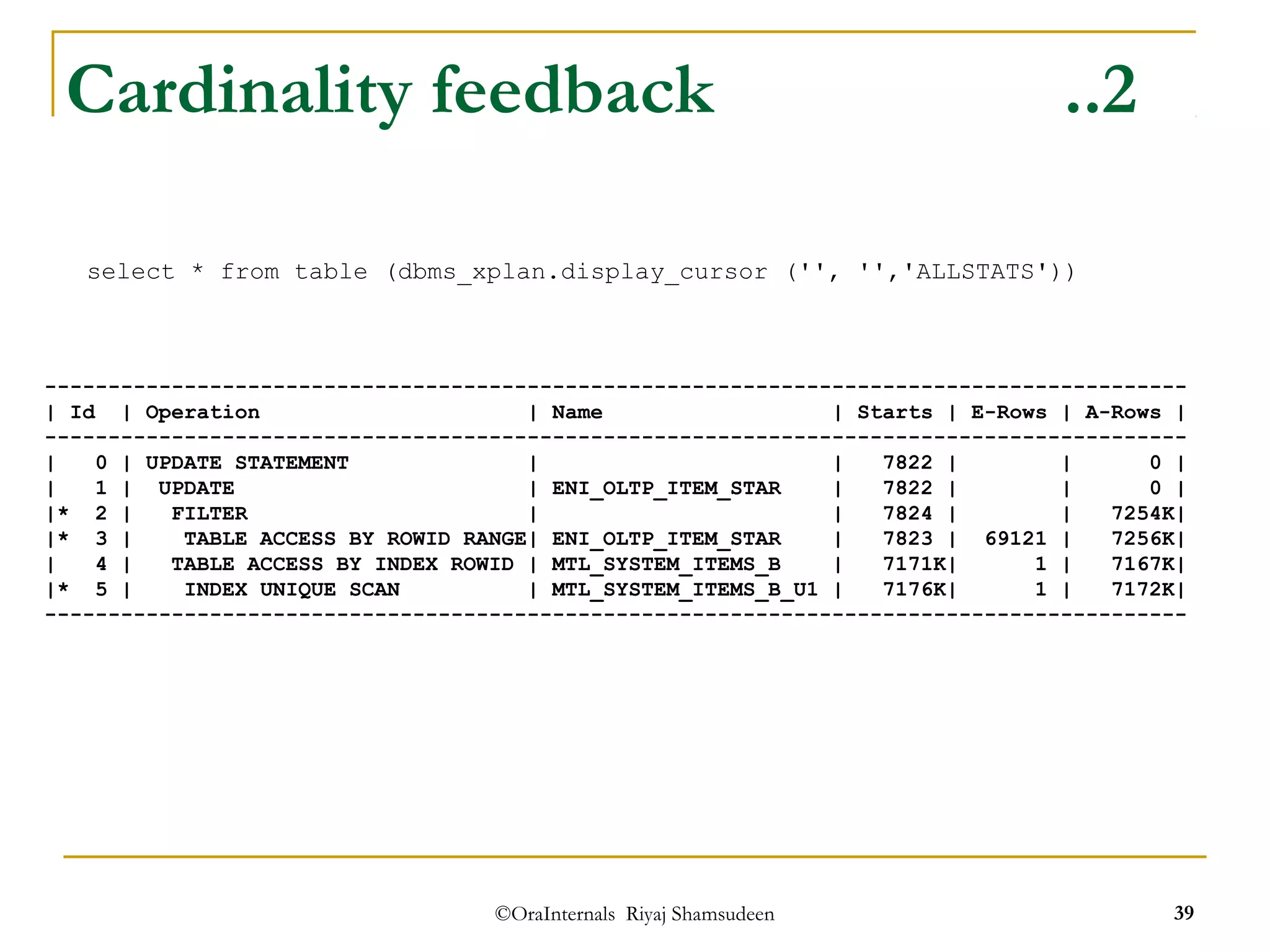

Cardinality feedback ..2 select * from table (dbms_xplan.display_cursor ('', '','ALLSTATS')) ------------------------------------------------------------------------------------------ | Id | Operation | Name | Starts | E-Rows | A-Rows | ------------------------------------------------------------------------------------------ | 0 | UPDATE STATEMENT | | 7822 | | 0 | | 1 | UPDATE | ENI_OLTP_ITEM_STAR | 7822 | | 0 | |* 2 | FILTER | | 7824 | | 7254K| |* 3 | TABLE ACCESS BY ROWID RANGE| ENI_OLTP_ITEM_STAR | 7823 | 69121 | 7256K| | 4 | TABLE ACCESS BY INDEX ROWID | MTL_SYSTEM_ITEMS_B | 7171K| 1 | 7167K| |* 5 | INDEX UNIQUE SCAN | MTL_SYSTEM_ITEMS_B_U1 | 7176K| 1 | 7172K| ------------------------------------------------------------------------------------------ ©OraInternals Riyaj Shamsudeen 39

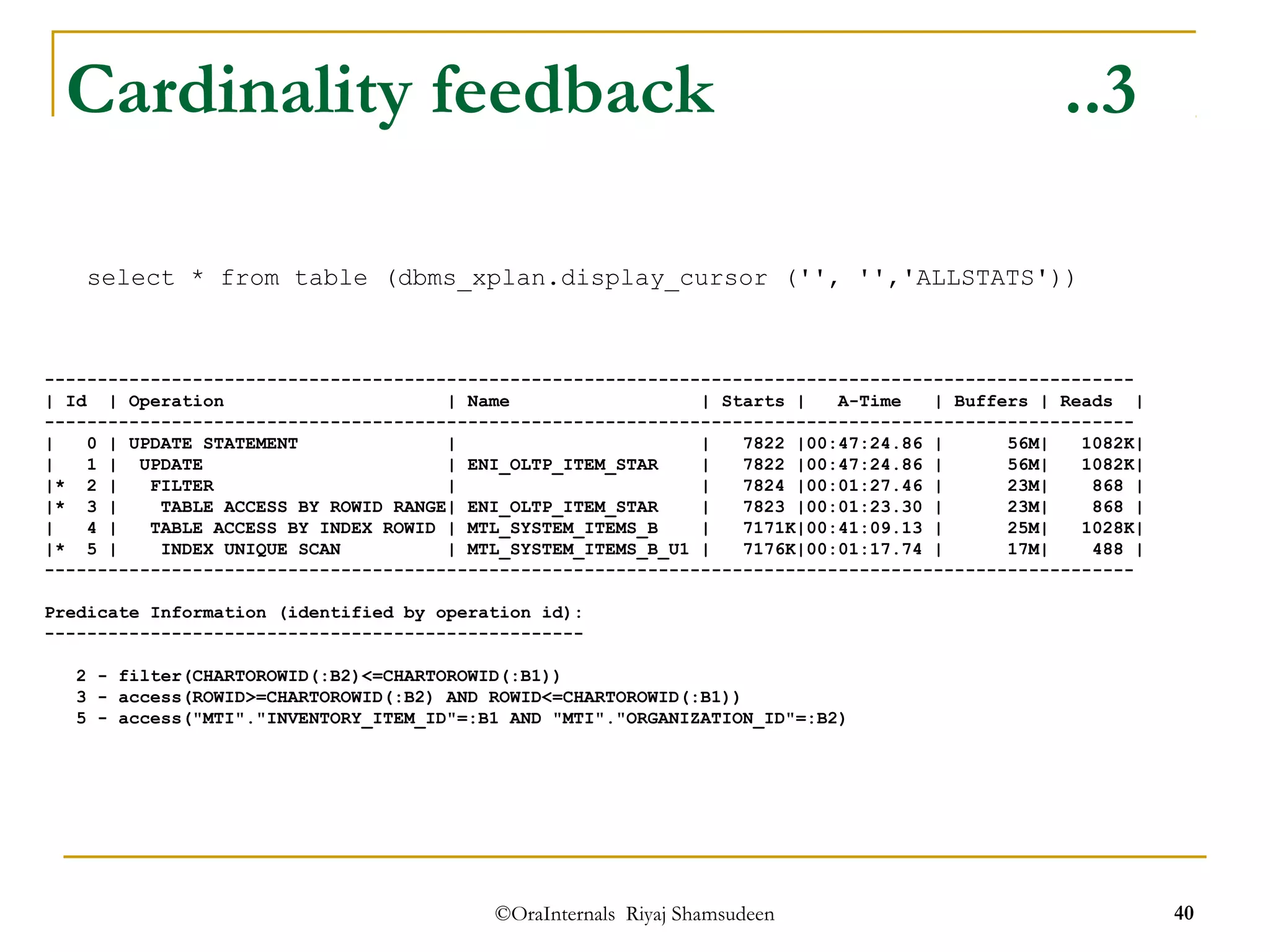

Cardinality feedback ..3 select * from table (dbms_xplan.display_cursor ('', '','ALLSTATS')) ------------------------------------------------------------------------------------------------------- | Id | Operation | Name | Starts | A-Time | Buffers | Reads | ------------------------------------------------------------------------------------------------------- | 0 | UPDATE STATEMENT | | 7822 |00:47:24.86 | 56M| 1082K| | 1 | UPDATE | ENI_OLTP_ITEM_STAR | 7822 |00:47:24.86 | 56M| 1082K| |* 2 | FILTER | | 7824 |00:01:27.46 | 23M| 868 | |* 3 | TABLE ACCESS BY ROWID RANGE| ENI_OLTP_ITEM_STAR | 7823 |00:01:23.30 | 23M| 868 | | 4 | TABLE ACCESS BY INDEX ROWID | MTL_SYSTEM_ITEMS_B | 7171K|00:41:09.13 | 25M| 1028K| |* 5 | INDEX UNIQUE SCAN | MTL_SYSTEM_ITEMS_B_U1 | 7176K|00:01:17.74 | 17M| 488 | ------------------------------------------------------------------------------------------------------- Predicate Information (identified by operation id): --------------------------------------------------- 2 - filter(CHARTOROWID(:B2)<=CHARTOROWID(:B1)) 3 - access(ROWID>=CHARTOROWID(:B2) AND ROWID<=CHARTOROWID(:B1)) 5 - access("MTI"."INVENTORY_ITEM_ID"=:B1 AND "MTI"."ORGANIZATION_ID"=:B2) ©OraInternals Riyaj Shamsudeen 40

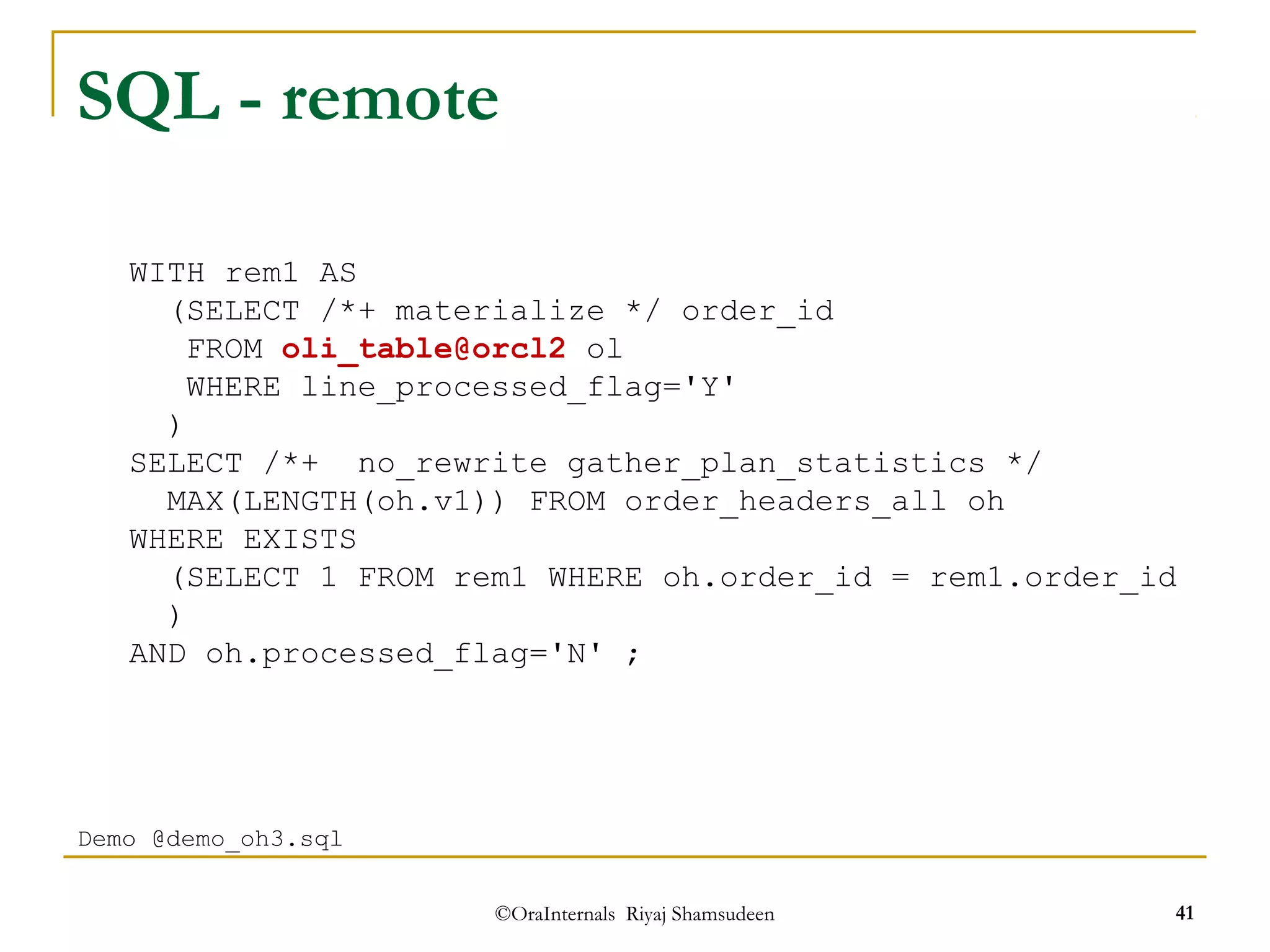

SQL - remote (SELECT /*+ materialize */ order_id FROM oli_table@orcl2 ol WHERE line_processed_flag='Y' ) SELECT /*+ no_rewrite gather_plan_statistics */ MAX(LENGTH(oh.v1)) FROM order_headers_all oh (SELECT 1 FROM rem1 WHERE oh.order_id = rem1.order_id ) AND oh.processed_flag='N' ; ©OraInternals Riyaj Shamsudeen 41 WITH rem1 AS WHERE EXISTS Demo @demo_oh3.sql

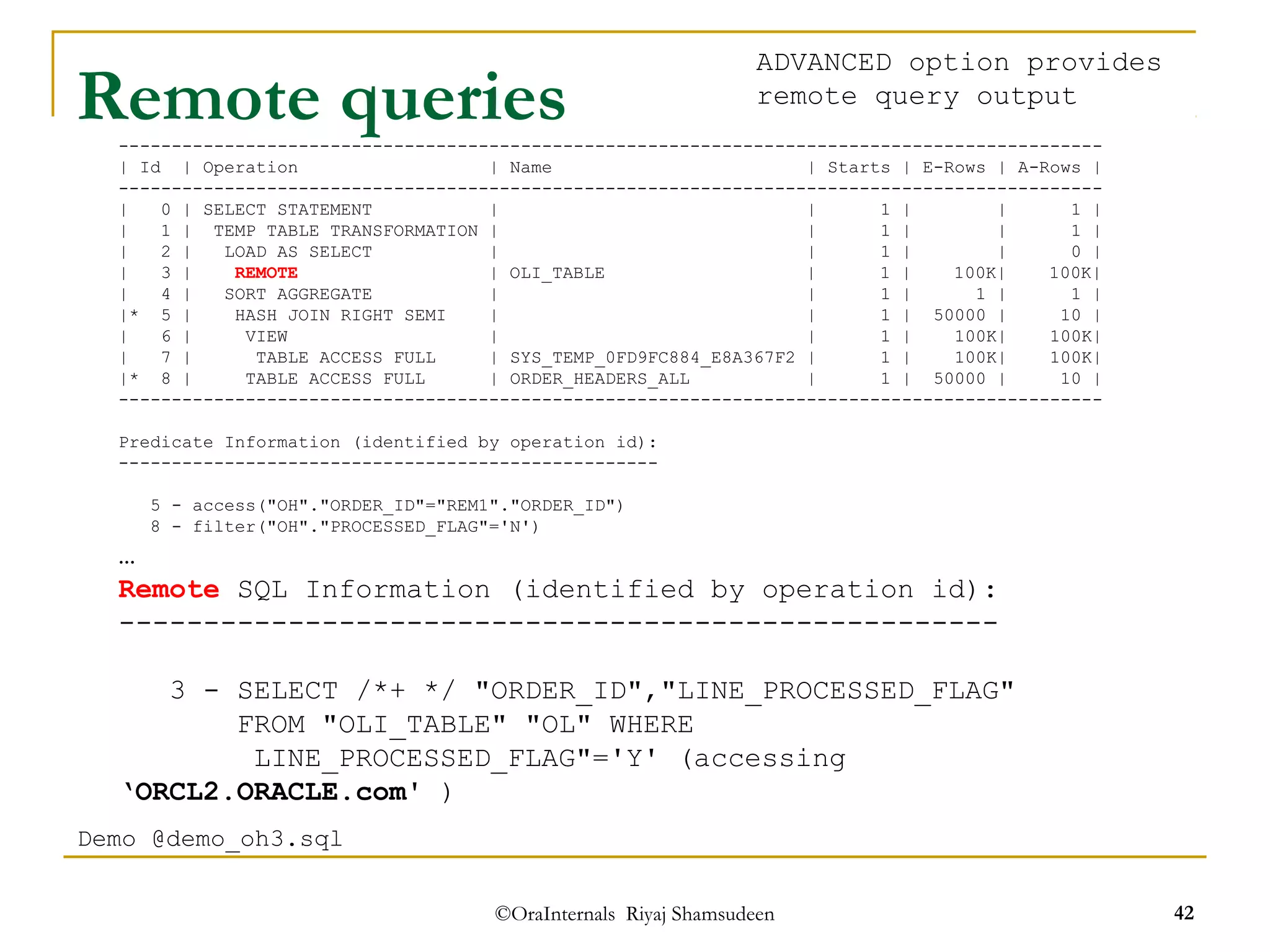

Remote queries --------------------------------------------------------------------------------------------- | Id | Operation | Name | Starts | E-Rows | A-Rows | --------------------------------------------------------------------------------------------- | 0 | SELECT STATEMENT | | 1 | | 1 | | 1 | TEMP TABLE TRANSFORMATION | | 1 | | 1 | | 2 | LOAD AS SELECT | | 1 | | 0 | | 3 | REMOTE | OLI_TABLE | 1 | 100K| 100K| | 4 | SORT AGGREGATE | | 1 | 1 | 1 | |* 5 | HASH JOIN RIGHT SEMI | | 1 | 50000 | 10 | | 6 | VIEW | | 1 | 100K| 100K| | 7 | TABLE ACCESS FULL | SYS_TEMP_0FD9FC884_E8A367F2 | 1 | 100K| 100K| |* 8 | TABLE ACCESS FULL | ORDER_HEADERS_ALL | 1 | 50000 | 10 | --------------------------------------------------------------------------------------------- Predicate Information (identified by operation id): --------------------------------------------------- 5 - access("OH"."ORDER_ID"="REM1"."ORDER_ID") 8 - filter("OH"."PROCESSED_FLAG"='N') … Remote SQL Information (identified by operation id): ---------------------------------------------------- 3 - SELECT /*+ */ "ORDER_ID","LINE_PROCESSED_FLAG" FROM "OLI_TABLE" "OL" WHERE LINE_PROCESSED_FLAG"='Y' (accessing ©OraInternals Riyaj Shamsudeen 42 ‘ORCL2.ORACLE.com' ) Demo @demo_oh3.sql ADVANCED option provides remote query output

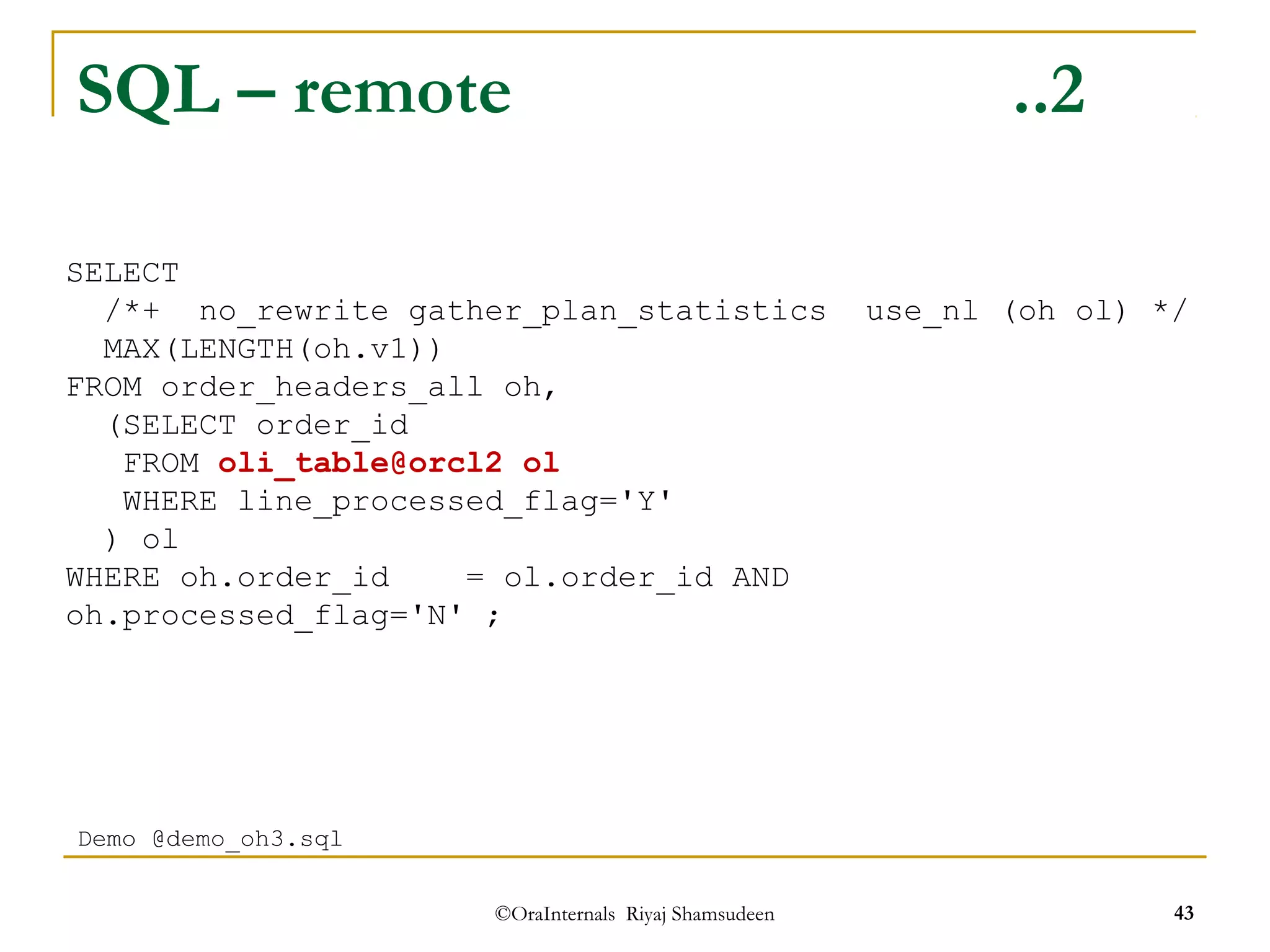

SQL – remote ..2 /*+ no_rewrite gather_plan_statistics use_nl (oh ol) */ MAX(LENGTH(oh.v1)) FROM order_headers_all oh, (SELECT order_id FROM oli_table@orcl2 ol WHERE line_processed_flag='Y' ) ol WHERE oh.order_id = ol.order_id AND oh.processed_flag='N' ; ©OraInternals Riyaj Shamsudeen 43 SELECT Demo @demo_oh3.sql

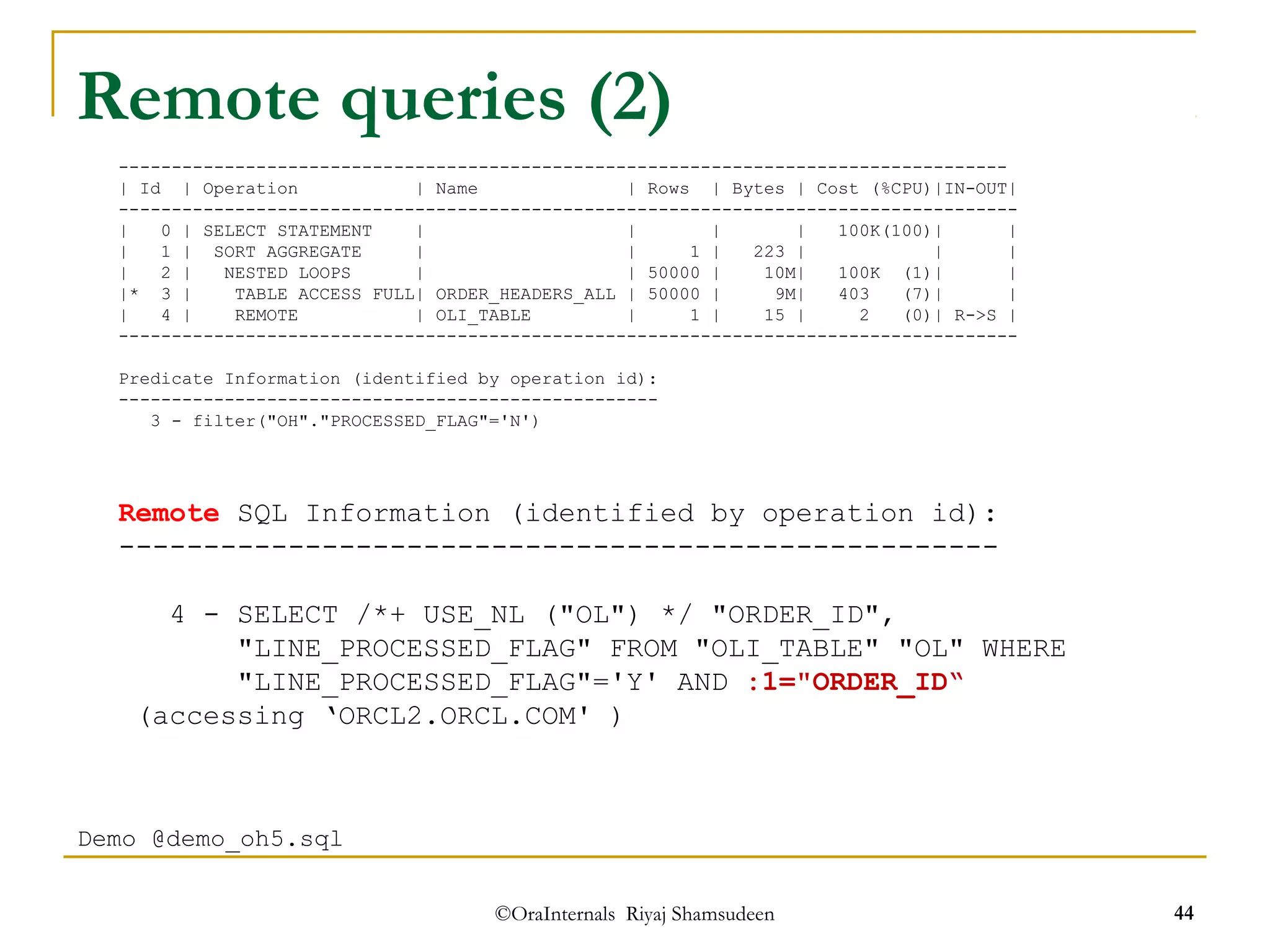

Remote queries (2) ------------------------------------------------------------------------------------ | Id | Operation | Name | Rows | Bytes | Cost (%CPU)|IN-OUT| ------------------------------------------------------------------------------------- | 0 | SELECT STATEMENT | | | | 100K(100)| | | 1 | SORT AGGREGATE | | 1 | 223 | | | | 2 | NESTED LOOPS | | 50000 | 10M| 100K (1)| | |* 3 | TABLE ACCESS FULL| ORDER_HEADERS_ALL | 50000 | 9M| 403 (7)| | | 4 | REMOTE | OLI_TABLE | 1 | 15 | 2 (0)| R->S | ------------------------------------------------------------------------------------- Predicate Information (identified by operation id): --------------------------------------------------- 3 - filter("OH"."PROCESSED_FLAG"='N') Remote SQL Information (identified by operation id): ---------------------------------------------------- 4 - SELECT /*+ USE_NL ("OL") */ "ORDER_ID", "LINE_PROCESSED_FLAG" FROM "OLI_TABLE" "OL" WHERE "LINE_PROCESSED_FLAG"='Y' AND :1="ORDER_ID“ (accessing ‘ORCL2.ORCL.COM' ) ©OraInternals Riyaj Shamsudeen 44 Demo @demo_oh5.sql
Parallel Queries ---------------------------------------------------------------------------------------------------- | Id | Operation | Name | Starts | E-Rows | A-Rows | A-Time | ---------------------------------------------------------------------------------------------------- | 0 | SELECT STATEMENT | | 1 | | 1 |00:00:08.83 | | 1 | SORT AGGREGATE | | 1 | 1 | 1 |00:00:08.83 | |* 2 | HASH JOIN | | 1 | 999K| 260K|00:00:08.76 | | 3 | VIEW | | 1 | 999K| 999K|00:00:02.11 | |* 4 | COUNT STOPKEY | | 1 | | 999K|00:00:01.52 | | 5 | PX COORDINATOR | | 1 | | 999K|00:00:00.84 | | 6 | PX SEND QC (RANDOM) | :TQ10000 | 0 | 11M| 0 |00:00:00.01 | |* 7 | COUNT STOPKEY | | 0 | | 0 |00:00:00.01 | | 8 | PX PARTITION HASH ALL| | 0 | 11M| 0 |00:00:00.01 | | 9 | INDEX FULL SCAN | OE_ORDER_HEADERS_U1 | 0 | 11M| 0 |00:00:00.01 | | 10 | VIEW | | 1 | 999K| 999K|00:00:02.28 | |* 11 | COUNT STOPKEY | | 1 | | 999K|00:00:01.68 | | 12 | INDEX FULL SCAN | OE_ORDER_LINES_N1 | 1 | 57M| 999K|00:00:00.98 | ---------------------------------------------------------------------------------------------------- Predicate Information (identified by operation id): --------------------------------------------------- 2 - access("OH"."HEADER_ID"="OL"."HEADER_ID") 4 - filter(ROWNUM<1000000) 7 - filter(ROWNUM<1000000) 11 - filter(ROWNUM<1000000) ©OraInternals Riyaj Shamsudeen 45 Note ----- - Degree of Parallelism is 8 because of hint ALLSTATS LAST Also, notice the broken cardinality Feedback.

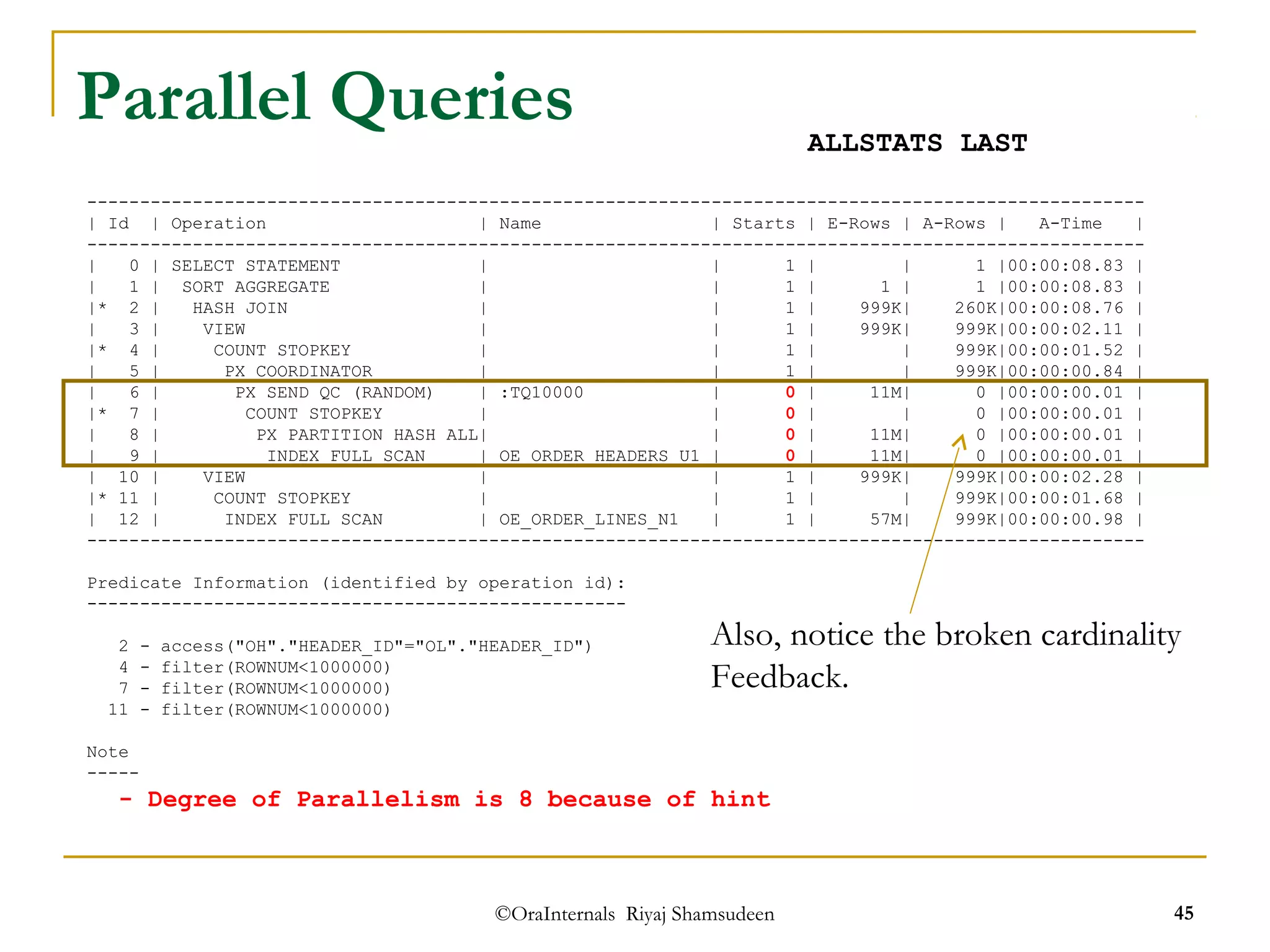

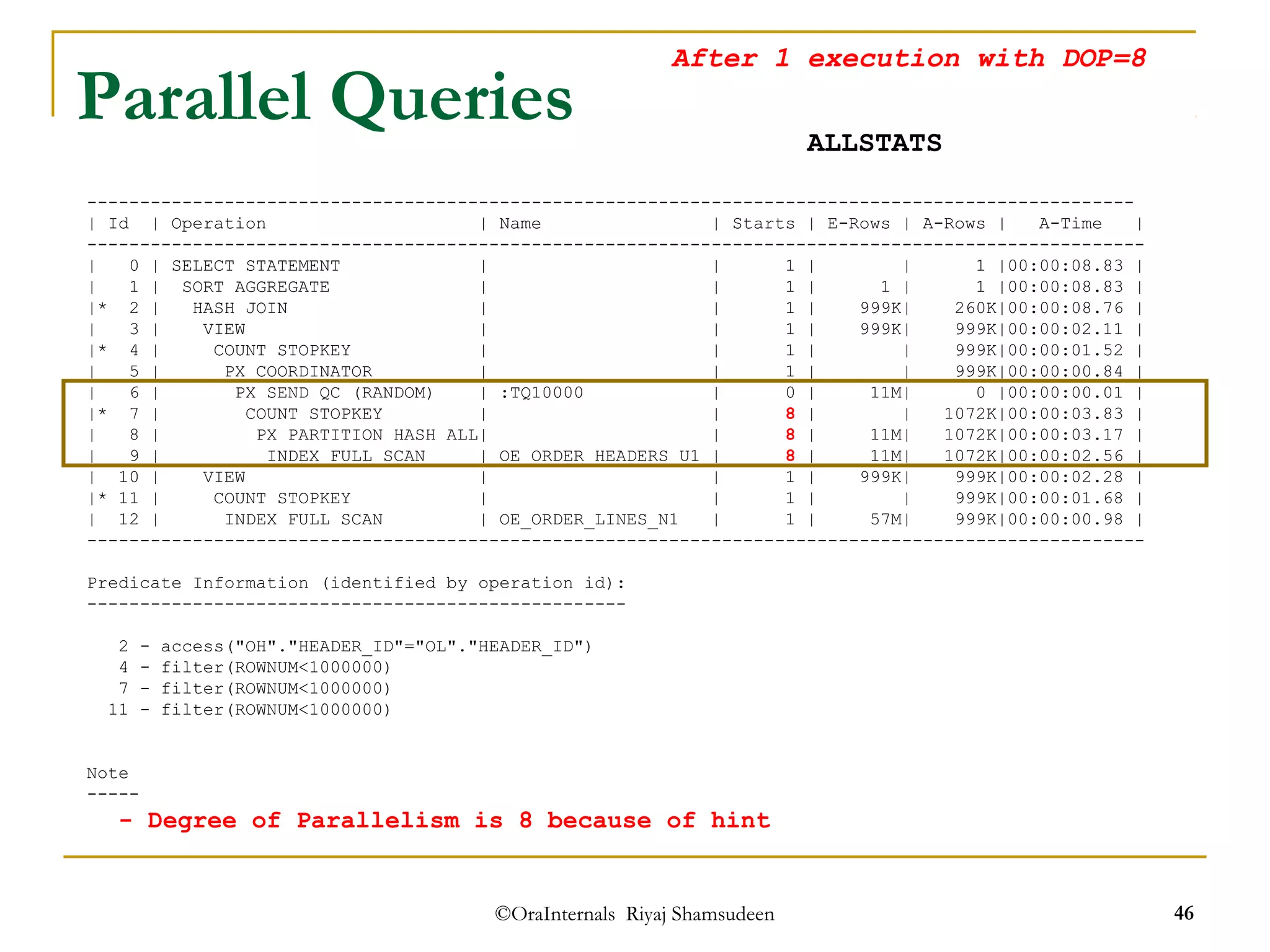

Parallel Queries After 1 execution with DOP=8 --------------------------------------------------------------------------------------------------- | Id | Operation | Name | Starts | E-Rows | A-Rows | A-Time | ---------------------------------------------------------------------------------------------------- | 0 | SELECT STATEMENT | | 1 | | 1 |00:00:08.83 | | 1 | SORT AGGREGATE | | 1 | 1 | 1 |00:00:08.83 | |* 2 | HASH JOIN | | 1 | 999K| 260K|00:00:08.76 | | 3 | VIEW | | 1 | 999K| 999K|00:00:02.11 | |* 4 | COUNT STOPKEY | | 1 | | 999K|00:00:01.52 | | 5 | PX COORDINATOR | | 1 | | 999K|00:00:00.84 | | 6 | PX SEND QC (RANDOM) | :TQ10000 | 0 | 11M| 0 |00:00:00.01 | |* 7 | COUNT STOPKEY | | 8 | | 1072K|00:00:03.83 | | 8 | PX PARTITION HASH ALL| | 8 | 11M| 1072K|00:00:03.17 | | 9 | INDEX FULL SCAN | OE_ORDER_HEADERS_U1 | 8 | 11M| 1072K|00:00:02.56 | | 10 | VIEW | | 1 | 999K| 999K|00:00:02.28 | |* 11 | COUNT STOPKEY | | 1 | | 999K|00:00:01.68 | | 12 | INDEX FULL SCAN | OE_ORDER_LINES_N1 | 1 | 57M| 999K|00:00:00.98 | ---------------------------------------------------------------------------------------------------- Predicate Information (identified by operation id): --------------------------------------------------- 2 - access("OH"."HEADER_ID"="OL"."HEADER_ID") 4 - filter(ROWNUM<1000000) 7 - filter(ROWNUM<1000000) 11 - filter(ROWNUM<1000000) ©OraInternals Riyaj Shamsudeen 46 Note ----- - Degree of Parallelism is 8 because of hint ALLSTATS

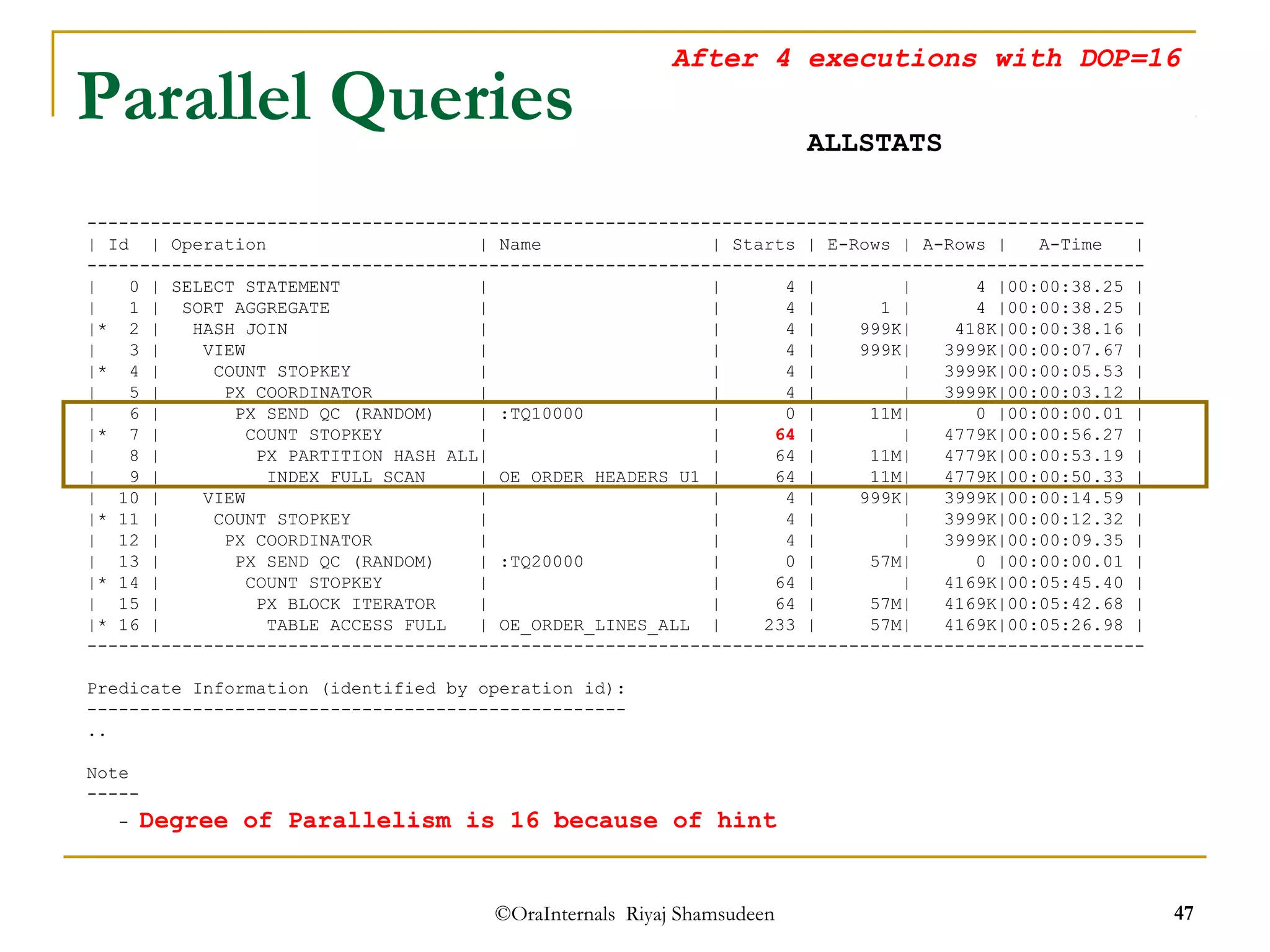

Parallel Queries After 4 executions with DOP=16 ---------------------------------------------------------------------------------------------------- | Id | Operation | Name | Starts | E-Rows | A-Rows | A-Time | ---------------------------------------------------------------------------------------------------- | 0 | SELECT STATEMENT | | 4 | | 4 |00:00:38.25 | | 1 | SORT AGGREGATE | | 4 | 1 | 4 |00:00:38.25 | |* 2 | HASH JOIN | | 4 | 999K| 418K|00:00:38.16 | | 3 | VIEW | | 4 | 999K| 3999K|00:00:07.67 | |* 4 | COUNT STOPKEY | | 4 | | 3999K|00:00:05.53 | | 5 | PX COORDINATOR | | 4 | | 3999K|00:00:03.12 | | 6 | PX SEND QC (RANDOM) | :TQ10000 | 0 | 11M| 0 |00:00:00.01 | |* 7 | COUNT STOPKEY | | 64 | | 4779K|00:00:56.27 | | 8 | PX PARTITION HASH ALL| | 64 | 11M| 4779K|00:00:53.19 | | 9 | INDEX FULL SCAN | OE_ORDER_HEADERS_U1 | 64 | 11M| 4779K|00:00:50.33 | | 10 | VIEW | | 4 | 999K| 3999K|00:00:14.59 | |* 11 | COUNT STOPKEY | | 4 | | 3999K|00:00:12.32 | | 12 | PX COORDINATOR | | 4 | | 3999K|00:00:09.35 | | 13 | PX SEND QC (RANDOM) | :TQ20000 | 0 | 57M| 0 |00:00:00.01 | |* 14 | COUNT STOPKEY | | 64 | | 4169K|00:05:45.40 | | 15 | PX BLOCK ITERATOR | | 64 | 57M| 4169K|00:05:42.68 | |* 16 | TABLE ACCESS FULL | OE_ORDER_LINES_ALL | 233 | 57M| 4169K|00:05:26.98 | ---------------------------------------------------------------------------------------------------- Predicate Information (identified by operation id): --------------------------------------------------- .. ©OraInternals Riyaj Shamsudeen 47 Note ----- - Degree of Parallelism is 16 because of hint ALLSTATS

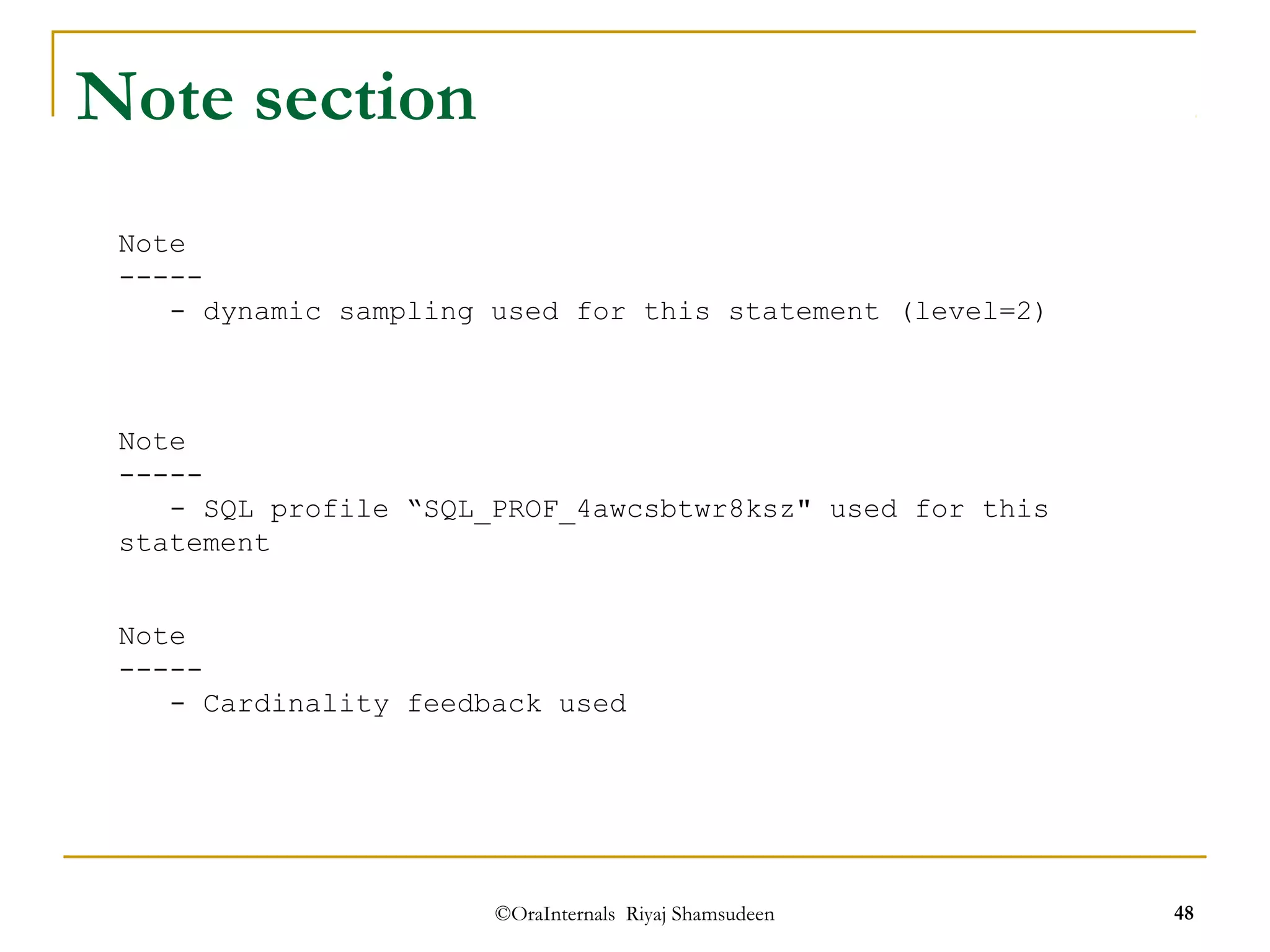

©OraInternals Riyaj Shamsudeen 48 Note section Note ----- - dynamic sampling used for this statement (level=2) Note ----- - SQL profile “SQL_PROF_4awcsbtwr8ksz" used for this statement Note ----- - Cardinality feedback used

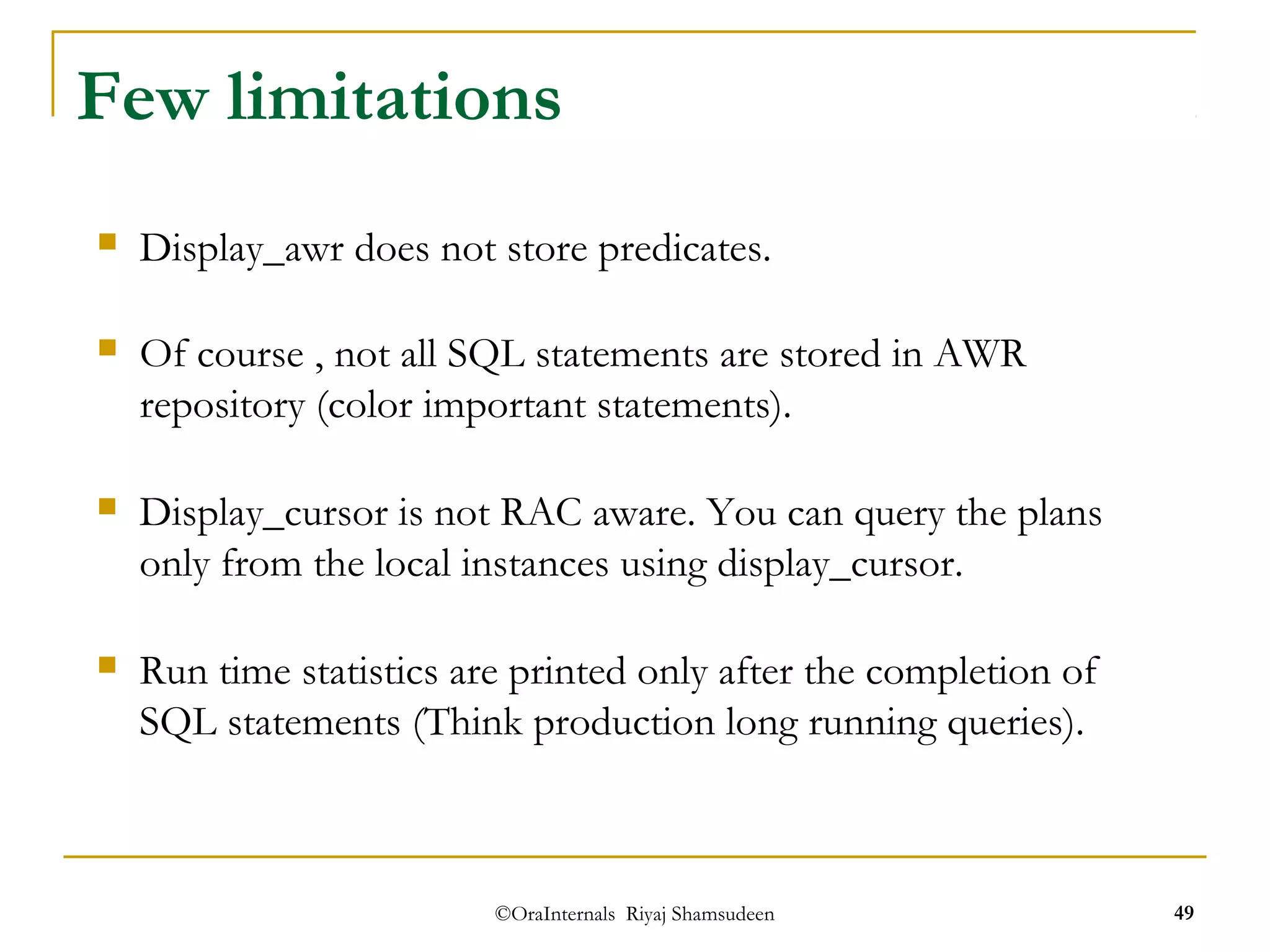

Few limitations  Display_awr does not store predicates.  Of course , not all SQL statements are stored in AWR repository (color important statements).  Display_cursor is not RAC aware. You can query the plans only from the local instances using display_cursor.  Run time statistics are printed only after the completion of SQL statements (Think production long running queries). ©OraInternals Riyaj Shamsudeen 49

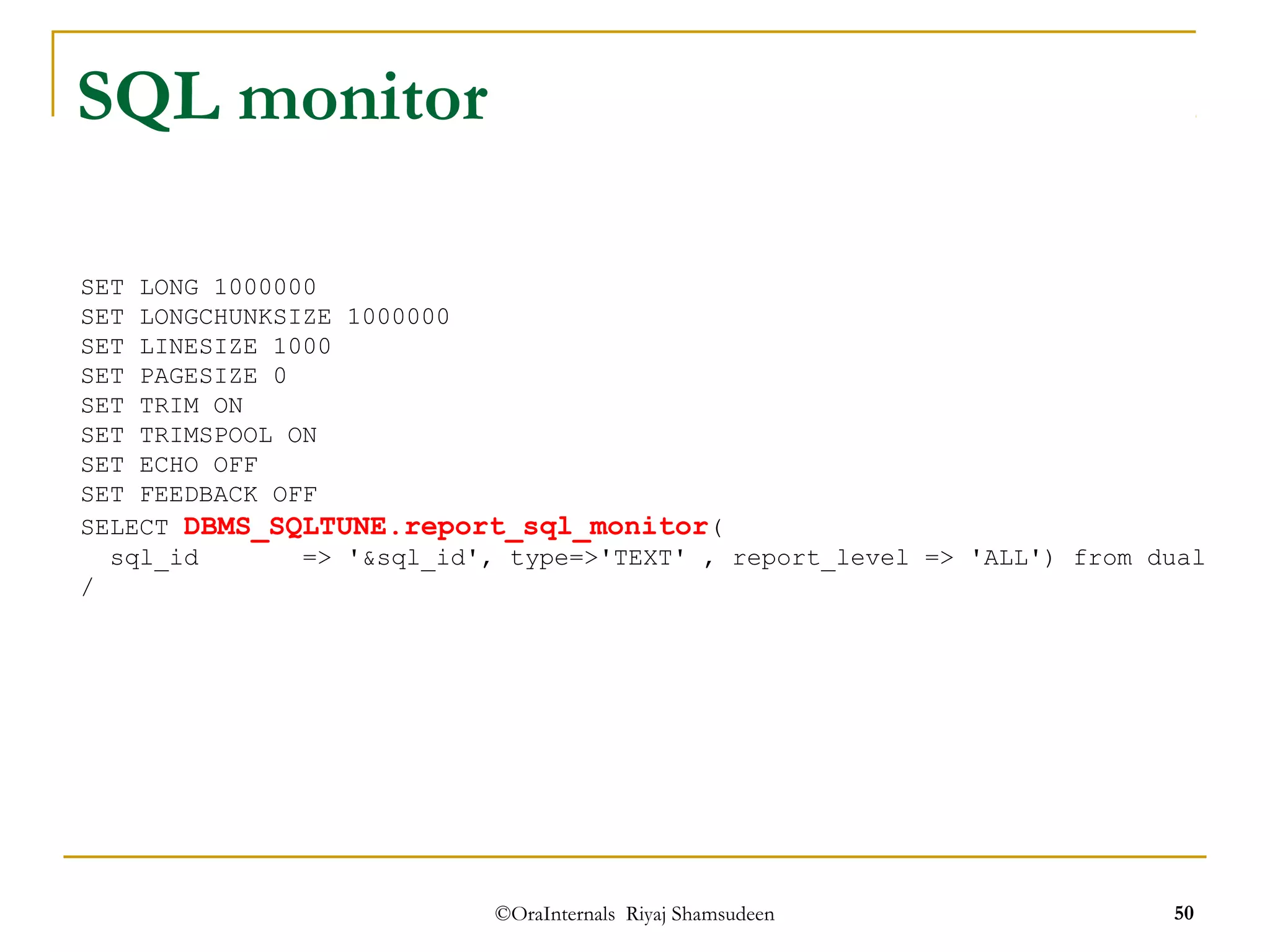

©OraInternals Riyaj Shamsudeen 50 SQL monitor SET LONG 1000000 SET LONGCHUNKSIZE 1000000 SET LINESIZE 1000 SET PAGESIZE 0 SET TRIM ON SET TRIMSPOOL ON SET ECHO OFF SET FEEDBACK OFF SELECT DBMS_SQLTUNE.report_sql_monitor( sql_id => '&sql_id', type=>'TEXT' , report_level => 'ALL') from dual /
©OraInternals Riyaj Shamsudeen 51 Output

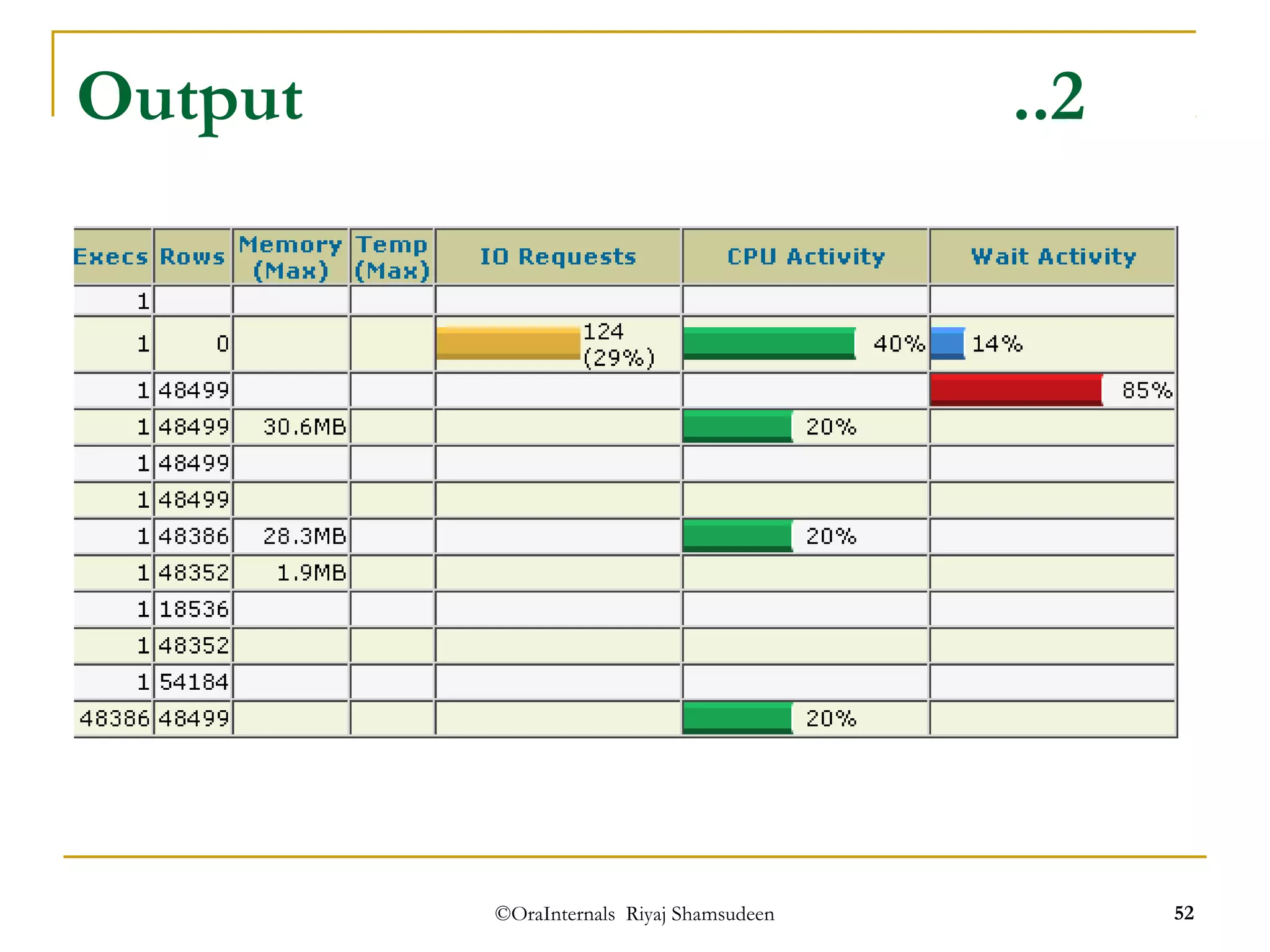

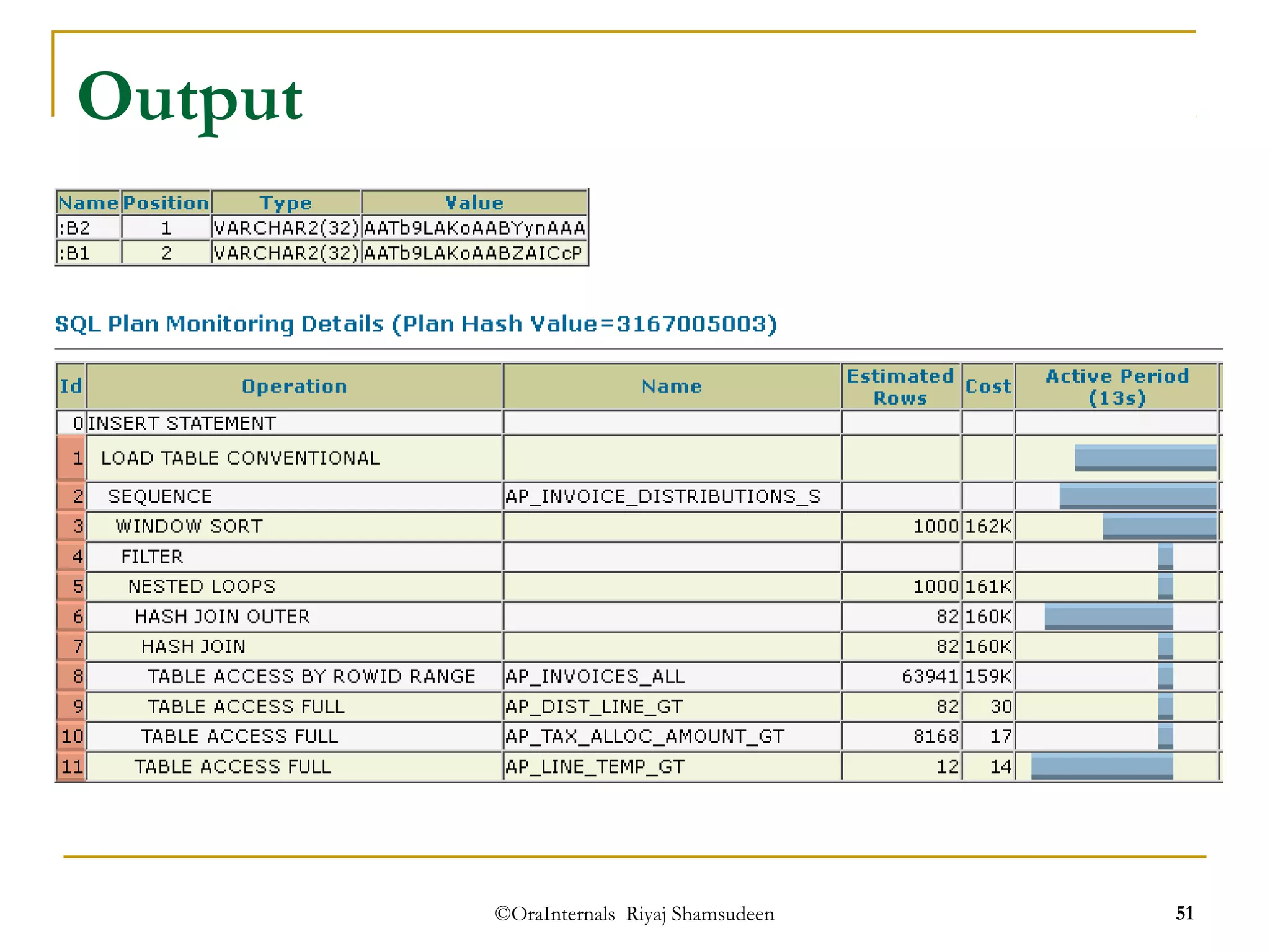

Output ..2 ©OraInternals Riyaj Shamsudeen 52
53 A Presentation sponsored by
©OraInternals Riyaj Shamsudeen 54 Riyaj Shamsudeen  19 years using Oracle products/DBA  OakTable member  Oracle ACE Director  Certified DBA versions 7.0,7.3,8,8i,9i &10g  Specializes in RAC, performance tuning, Internals and E-business suite  Chief DBA with OraInternals  Co-author few books  Email: rshamsud@orainternals.com  Blog : orainternals.wordpress.com  Web: www.orainternals.com
Thank you for attending! If you like this presentation, you will love my 2-part intensive, online RAC webinar. http://www.orainternals.com/training/advanced-rac-training Email: rshamsud@gmail.com Week Dates Time Week1 TBA 8AM – 2PM PDT Week 2 TBA 8AM - 2PM PDT ©OraInternals Riyaj Shamsudeen 55

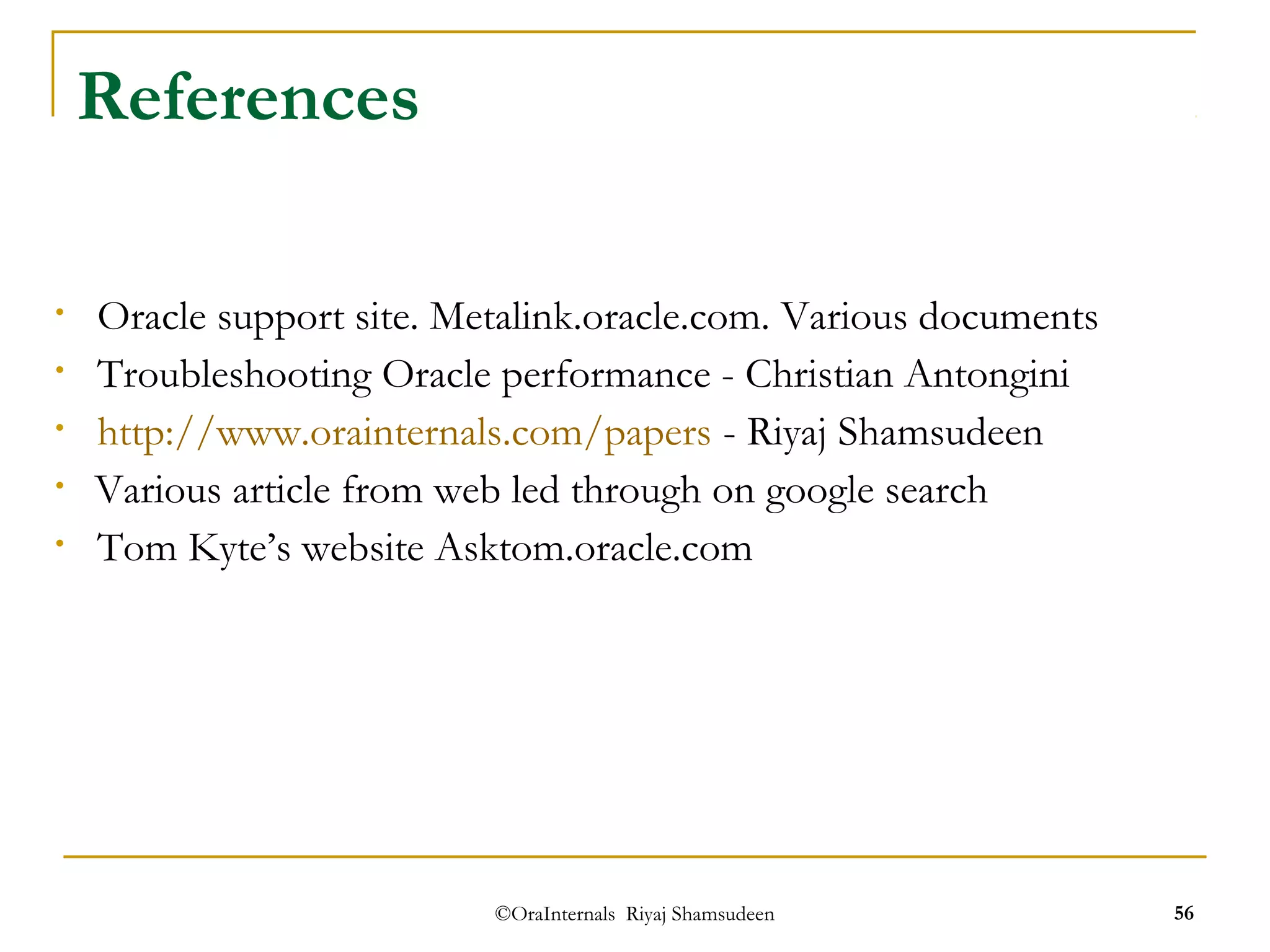

©OraInternals Riyaj Shamsudeen 56 References • Oracle support site. Metalink.oracle.com. Various documents • Troubleshooting Oracle performance - Christian Antongini • http://www.orainternals.com/papers - Riyaj Shamsudeen • Various article from web led through on google search • Tom Kyte’s website Asktom.oracle.com

More Related Content

PDF
Deep review of LMS process
byRiyaj Shamsudeen

PDF
Demystifying cost based optimization
byRiyaj Shamsudeen

PDF
Performance tuning a quick intoduction
byRiyaj Shamsudeen

PDF
pstack, truss etc to understand deeper issues in Oracle database
byRiyaj Shamsudeen

PDF
Px execution in rac
byRiyaj Shamsudeen

PDF
A deep dive about VIP,HAIP, and SCAN
byRiyaj Shamsudeen

PDF
Riyaj: why optimizer_hates_my_sql_2010
byRiyaj Shamsudeen

PDF
A close encounter_with_real_world_and_odd_perf_issues
byRiyaj Shamsudeen

Deep review of LMS process
byRiyaj Shamsudeen

Demystifying cost based optimization
byRiyaj Shamsudeen

Performance tuning a quick intoduction
byRiyaj Shamsudeen

pstack, truss etc to understand deeper issues in Oracle database
byRiyaj Shamsudeen

Px execution in rac
byRiyaj Shamsudeen

A deep dive about VIP,HAIP, and SCAN
byRiyaj Shamsudeen

Riyaj: why optimizer_hates_my_sql_2010
byRiyaj Shamsudeen

A close encounter_with_real_world_and_odd_perf_issues
byRiyaj Shamsudeen


What's hot

PPTX
Adapting to Adaptive Plans on 12c
byMauro Pagano

PDF
Flashback ITOUG
byConnor McDonald

PPTX
SQL Tuning, takes 3 to tango
byMauro Pagano

PPTX
SQL Plan Directives explained
byMauro Pagano

PDF
Rac 12c optimization
byRiyaj Shamsudeen

PDF
【Maclean liu技术分享】拨开oracle cbo优化器迷雾,探究histogram直方图之秘 0321
bymaclean liu

PPT
Introduction to Parallel Execution
byDoug Burns

PDF
Advanced RAC troubleshooting: Network
byRiyaj Shamsudeen

PDF
你所不知道的Oracle后台进程Smon功能
bymaclean liu

PDF
Riyaj real world performance issues rac focus
byRiyaj Shamsudeen

PDF
Rac introduction
byRiyaj Shamsudeen

PPTX
Full Table Scan: friend or foe
byMauro Pagano

PDF
了解Oracle rac brain split resolution
bymaclean liu

PDF
Performance Schema for MySQL Troubleshooting
bySveta Smirnova

PDF
UKOUG - 25 years of hints and tips
byConnor McDonald

PDF
Sangam 19 - PLSQL still the coolest
byConnor McDonald

PDF
Sangam 19 - Analytic SQL
byConnor McDonald

PPTX
Using SQL to process hierarchies
byConnor McDonald

PDF
Sangam 19 - Successful Applications on Autonomous
byConnor McDonald

PDF
Debunking myths about_redo_ppt
byRiyaj Shamsudeen

Adapting to Adaptive Plans on 12c
byMauro Pagano

Flashback ITOUG
byConnor McDonald

SQL Tuning, takes 3 to tango
byMauro Pagano

SQL Plan Directives explained
byMauro Pagano

Rac 12c optimization
byRiyaj Shamsudeen

【Maclean liu技术分享】拨开oracle cbo优化器迷雾,探究histogram直方图之秘 0321
bymaclean liu

Introduction to Parallel Execution
byDoug Burns

Advanced RAC troubleshooting: Network
byRiyaj Shamsudeen

你所不知道的Oracle后台进程Smon功能
bymaclean liu

Riyaj real world performance issues rac focus
byRiyaj Shamsudeen

Rac introduction
byRiyaj Shamsudeen

Full Table Scan: friend or foe
byMauro Pagano

了解Oracle rac brain split resolution
bymaclean liu

Performance Schema for MySQL Troubleshooting
bySveta Smirnova

UKOUG - 25 years of hints and tips
byConnor McDonald

Sangam 19 - PLSQL still the coolest
byConnor McDonald

Sangam 19 - Analytic SQL
byConnor McDonald

Using SQL to process hierarchies
byConnor McDonald

Sangam 19 - Successful Applications on Autonomous
byConnor McDonald

Debunking myths about_redo_ppt
byRiyaj Shamsudeen


Similar to Dbms plan - A swiss army knife for performance engineers

PPTX
Understanding Query Optimization with ‘regular’ and ‘Exadata’ Oracle
byGuatemala User Group

PDF
Hailey_Database_Performance_Made_Easy_through_Graphics.pdf
bycookie1969

PPTX
Oracle dbms_xplan.display_cursor format
byFranck Pachot

PDF
NOCOUG_201311_Fine_Tuning_Execution_Plans.pdf
bycookie1969

PPTX
Top 10 tips for Oracle performance
byGuy Harrison

PPTX
Part3 Explain the Explain Plan
byMaria Colgan

PDF
Database & Technology 1 _ Tom Kyte _ SQL Techniques.pdf
byInSync2011

PPTX
D73549GC10_06.pptx
byVLQuyNhn

PDF
In Search of Plan Stability - Part 1
byEnkitec

PDF
Advanced tips for making Oracle databases faster
bySolarWinds

PPTX
Oracle Query Optimizer - An Introduction
byadryanbub

PDF
Identify heaviest plan_line_id for a given execution plan (Oracl.pdf
bycookie1969

PPTX
Oracle performance tuning_sfsf
byMao Geng

PPT
Do You Know The 11g Plan?
byMahesh Vallampati

PDF
Oracle Query Tuning Tips - Get it Right the First Time
byDean Richards

PPTX
Embarcadero In Search of Plan Stability Part 1 Webinar Slides
byEmbarcadero Technologies

PPTX
Sql and PL/SQL Best Practices I
byCarlos Oliveira

PPT
SQL Optimization With Trace Data And Dbms Xplan V6
byMahesh Vallampati

PPTX
Ground Breakers Romania: Explain the explain_plan
byMaria Colgan

PPT
Sydney Oracle Meetup - execution plans
bypaulguerin

Understanding Query Optimization with ‘regular’ and ‘Exadata’ Oracle
byGuatemala User Group

Hailey_Database_Performance_Made_Easy_through_Graphics.pdf
bycookie1969

Oracle dbms_xplan.display_cursor format
byFranck Pachot

NOCOUG_201311_Fine_Tuning_Execution_Plans.pdf
bycookie1969

Top 10 tips for Oracle performance
byGuy Harrison

Part3 Explain the Explain Plan
byMaria Colgan

Database & Technology 1 _ Tom Kyte _ SQL Techniques.pdf
byInSync2011

D73549GC10_06.pptx
byVLQuyNhn

In Search of Plan Stability - Part 1
byEnkitec

Advanced tips for making Oracle databases faster
bySolarWinds

Oracle Query Optimizer - An Introduction
byadryanbub

Identify heaviest plan_line_id for a given execution plan (Oracl.pdf
bycookie1969

Oracle performance tuning_sfsf
byMao Geng

Do You Know The 11g Plan?
byMahesh Vallampati

Oracle Query Tuning Tips - Get it Right the First Time
byDean Richards

Embarcadero In Search of Plan Stability Part 1 Webinar Slides
byEmbarcadero Technologies

Sql and PL/SQL Best Practices I
byCarlos Oliveira

SQL Optimization With Trace Data And Dbms Xplan V6
byMahesh Vallampati

Ground Breakers Romania: Explain the explain_plan
byMaria Colgan

Sydney Oracle Meetup - execution plans
bypaulguerin


Recently uploaded

DOCX
Introduction to the World of Computers (Hardware & Software)
byALIABBAS ABASOV

PDF
Unlocking the Power of Salesforce Architecture: Frameworks for Effective Solu...
byvarsha30tiwari

PDF
TrustArc Webinar - Looking Ahead: The 2026 Privacy Landscape
byTrustArc

PDF
The year in review - MarvelClient in 2025
bypanagenda

PDF
Security Technologys: Access Control, Firewall, VPN
byShielaLasala

PDF
Usage Control for Process Discovery through a Trusted Execution Environment
byValerioGoretti

PDF
ElyriaSoftware — Powering the Future with Blockchain Innovation
byElyria Software

PDF
Vibe Coding vs. Spec-Driven Development [Free Meetup]
byHaim Michael

PDF
DIGITAL FORENSICS - Notes for Everything.pdf
bypankajkumavatbeit

PDF
Agentic Automation for Testers – A Hands-On Deep Dive
byUiPathCommunity

PPTX
RISE with SAP for Automotive - S4 HANA Value.pptx
byAmira Jemi

PDF
TPPmark2025 Kenta Inoue's answer 12/04/2025
byKenta Inoue

PDF
eResource Scheduler Enterprise Resource Management and Scheduling Software.pdf
byeResource Scheduler

PDF
Zero Trust & Defense-in-Depth: The Future of Critical Infrastructure Security
byYasir Naveed Riaz

PDF
Igniting the Future: Copilot trends, agentic transformation and product roadm...
byUni Systems S.M.S.A.

PDF
Safeguarding AI-Based Financial Infrastructure
byYasir Naveed Riaz

PDF
Accelerating Responsible AI Adoption in Public Sector and Private Organizations.
byYasir Naveed Riaz

PDF
The Ultimate Guide to Problem Management Dashboards for IT Teams.pdf
byomnex systems

PDF
Top 7 Manufacturing Software for Small Businesses Boosting Growth in 2025
byEnvertis Software Solutions

PDF
Greetings All Students Update 3 by Mia Corp
by©LDMMIA, ©Reiki Yoga

Introduction to the World of Computers (Hardware & Software)
byALIABBAS ABASOV

Unlocking the Power of Salesforce Architecture: Frameworks for Effective Solu...
byvarsha30tiwari

TrustArc Webinar - Looking Ahead: The 2026 Privacy Landscape
byTrustArc

The year in review - MarvelClient in 2025
bypanagenda

Security Technologys: Access Control, Firewall, VPN
byShielaLasala

Usage Control for Process Discovery through a Trusted Execution Environment
byValerioGoretti

ElyriaSoftware — Powering the Future with Blockchain Innovation
byElyria Software

Vibe Coding vs. Spec-Driven Development [Free Meetup]
byHaim Michael

DIGITAL FORENSICS - Notes for Everything.pdf
bypankajkumavatbeit

Agentic Automation for Testers – A Hands-On Deep Dive
byUiPathCommunity

RISE with SAP for Automotive - S4 HANA Value.pptx
byAmira Jemi

TPPmark2025 Kenta Inoue's answer 12/04/2025
byKenta Inoue

eResource Scheduler Enterprise Resource Management and Scheduling Software.pdf
byeResource Scheduler

Zero Trust & Defense-in-Depth: The Future of Critical Infrastructure Security
byYasir Naveed Riaz

Igniting the Future: Copilot trends, agentic transformation and product roadm...
byUni Systems S.M.S.A.

Safeguarding AI-Based Financial Infrastructure
byYasir Naveed Riaz

Accelerating Responsible AI Adoption in Public Sector and Private Organizations.
byYasir Naveed Riaz

The Ultimate Guide to Problem Management Dashboards for IT Teams.pdf
byomnex systems

Top 7 Manufacturing Software for Small Businesses Boosting Growth in 2025
byEnvertis Software Solutions

Greetings All Students Update 3 by Mia Corp
by©LDMMIA, ©Reiki Yoga


Dbms plan - A swiss army knife for performance engineers

  • 1.
    dbms_xplan: A Swissarmy knife for performance engineers Sahil Thapar Riyaj Shamsudeen
  • 2.
    2 Disclaimer Theseslides and materials represent the work and opinions of the author and do not constitute official positions of my current or past employer or any other organization. This material has been peer reviewed, but author assume no responsibility whatsoever for the test cases. If you corrupt your databases by running my scripts, you are solely responsible for that.
  • 3.
    3 Options EXPLAINPLAN (Version 7 or older) AUTOTRACE ( Version 8i +) SQL_TRACE (Version 7) DBMS_XPLAN Estimated, not always reliable Actual plan, buggy. Actual plan; but must enable trace before the run. Actual plan, after the run, always available.
  • 4.
    PARSING IN CURSOR#1844674 len=1000 dep=0 uid=173 oct=3 lid=173 tim=7861072491388 hv=2701626457 ad='498d8f1d0' sqlid='9sup9gfhhg32t' SELECT RECID, TABLENAME, PROJECT_NUMBER, PROJECT_NAME, CARRYING_OUT_ORGANIZATION, ...FROM ( SELECT STGTBL_RECID ... WHERE PROCESSED_FLAG='U' ) ORDER BY TABLENAME, CREATION_DATE PARSE:#1844674:c=10000,e=10162,p=0,cr=0,cu=0,mis=1,r=0,dep=0,og=1,plh=3298327531,tim=78610 72491386 EXEC:#1844674:c=0,e=139,p=0,cr=0,cu=0,mis=0,r=0,dep=0,og=1,plh=3298327531,tim=786107249172 3 EXEC:#1844674:c=0,e=139,p=0,cr=0,cu=0,mis=0,r=0,dep=0,og=1,plh=3298327531,tim=786107249172 3 .. WAIT #1844674: nam='Disk file operations I/O' ela= 2013 FileOperation=2 fileno=811 filetype=2 obj#=706379 tim=786107 FETCH#1844674:c=18020000,e=59603730,p=199262,cr=199331,cu=0,mis=0,r=0,dep=0,og=1,plh=32983 27531,tim=7861 … STAT #1844674 id=3 cnt=0 pid=2 pos=1 obj=0 op='SORT UNIQUE (cr=199331 pr=199262 pw=0 time=59603707 us cost=56817 size=126622640 card=2146146)' STAT #1844674 id=4 cnt=0 pid=3 pos=1 obj=0 op='UNION-ALL (cr=199331 pr=199262 pw=0 time=59603638 us)' 4 Raw trace file Content of a sql trace file:
  • 5.
    5 tkprof (1) SELECT RECID, TABLENAME, PROJECT_NUMBER, PROJECT_NAME, CARRYING_OUT_ORGANIZATION, COMPANY, CHARGEABLE_FLAG, START_DATE, END_DATE, CREATION_DATE, LAST_UPDATE_DATE, PROCESSED_FLAG, ………………………………. …………………………….. WHERE PROCESSED_FLAG='U' ) ORDER BY TABLENAME, CREATION_DATE call count cpu elapsed disk query current rows ------- ------ -------- ---------- ---------- ---------- ---------- ---------- Parse 1 0.01 0.01 0 0 0 0 Execute 1 0.00 0.00 0 0 0 0 Fetch 1 18.02 59.60 199262 199331 0 0 ------- ------ -------- ---------- ---------- ---------- ---------- ---------- total 3 18.03 59.61 199262 199331 0 0
  • 6.
    6 tkprof (2) Rows (max) Row Source Operation ---------- --------------------------------------------------- 0 SORT ORDER BY (cr=199331 pr=199262 pw=0 time=59603767 us cost=180933 size=641697654 card=2146146) 0 VIEW (cr=199331 pr=199262 pw=0 time=59603722 us cost=56817 size=641697654 card=2146146) 0 SORT UNIQUE (cr=199331 pr=199262 pw=0 time=59603707 us cost=56817 size=126622640 card=2146146) 0 UNION-ALL (cr=199331 pr=199262 pw=0 time=59603638 us) 0 TABLE ACCESS FULL ORD_AP_IF_PROJECTS (cr=46025 pr=45963 pw=0 time=17088312 us cost=6568 size=85 card=1) 0 TABLE ACCESS FULL ORD_AP_IF_TASKS (cr=153306 pr=153299 pw=0 time=42515291 us cost=21894 size=126622555 Elapsed times include waiting on following events: Event waited on Times Max. Wait Total Waited ---------------------------------------- Waited ---------- ------------ SQL*Net message to client 1 0.00 0.00 Disk file operations I/O 129 0.01 0.26
  • 7.
    7 Usage Displays execution plan stored in three different places 1) PLAN_TABLE dbms_xplan.diplay (estimated plan) 2) SGA of instance dbms_xplan.display_cursor (real plan from memory) 3) AWR dbms_xplan.display_awr (real,history plan from AWR)
  • 8.
    8 Comparison SlTkprof Dbms_xplan 1 Trace must be enabled. Basic statistics are available in memory and AWR 2 CBO notes are not visible Note section is very useful 3 No predicate Predicates printed from memory. 4 Bind values can be retrieved with ease 5 Plan history can be retrieved easily.
  • 9.
    select * fromtable(dbms_xplan.display_cursor(‘sql_id’,child_number,’format’)); 9 dbms_xplan format arguments Format Examples: select * from table( dbms_xplan.display_cursor()); select * from table ( dbms_xplan.display_cursor (null,null, 'ADVANCED')); select * from table ( dbms_xplan.display_cursor ('811a0zb26fw0x',0, 'BASIC')); select * from table ( dbms_xplan.display_cursor ('811a0zb26fw0x',0, ‘ALL -projection')); select * from table ( dbms_xplan.display_cursor ('811a0zb26fw0x',0, ‘ALL +peeked_binds')); Format arguments: ' ADVANCED' ' –PREDICATE' ' –PREDICATE +OUTLINE' TYPICAL is the default class Format arguments combination: Class level alias bytes cost note predicate parallel partition projection outlines peeked_binds remote rows BASIC null X X X X X TYPICAL X X X X X X X X SERIAL X X X X X X ALL X X X X X X X X X X X ADVANCED X X X X X X X X X X X X
  • 10.
    SQL_ID 9sup9gfhhg32t, childnumber 0 ------------------------------------- SELECT RECID, TABLENAME, PROJECT_NUMBER, PROJECT_NAME, ……………………………………………………………………………………………L EDIT_CLASS_CODE, ALC, FRC FROM CCW_PA_IF_TASKS WHERE PROCESSED_FLAG='U' ) ORDER BY TABLENAME, CREATION_DATE Plan hash value: 3298327531 --------------------------------------------------------------------------------------------------- | Id | Operation | Name | Rows | Bytes |TempSpc| Cost (%CPU)| Time | ---------------------------------------------------------------------------------------------------- | 0 | SELECT STATEMENT | | | | | 180K(100)| | | 1 | SORT ORDER BY | | 2146K| 611M| 698M| 180K (5)| 00:09:03 | | 2 | VIEW | | 2146K| 611M| | 56817 (10)| 00:02:51 | | 3 | SORT UNIQUE | | 2146K| 120M| 172M| 56817 (91)| 00:02:51 | | 4 | UNION-ALL | | | | | | | |* 5 | TABLE ACCESS FULL| ORD_AP_IF_PROJECTS | 1 | 85 | | 6568 (14)| 00:00:20 | |* 6 | TABLE ACCESS FULL| ORD_AP_IF_TASKS | 2146K| 120M| | 21894 (14)| 00:01:06 | ---------------------------------------------------------------------------------------------------- Predicate Information (identified by operation id): --------------------------------------------------- 5 - filter("PROCESSED_FLAG"='U') 6 - filter("PROCESSED_FLAG"='U') Note ----- - SQL profile not used for this statement 10 dbms_xplan.display Optimizer estimates
  • 11.
    11 Display_cursor select* from table(dbms_xplan.display_cursor('9yx90c0nwv9tk',0,'allstats')); SQL_ID 9yx90c0nwv9tk, child number 0 ------------------------------------- SELECT /* gather_plan_statistics */ RECID, TABLENAME, ... Plan hash value: 3298327531 --------------------------------------------------------------------------------------------------------------- | Id | Operation | Name | Starts | E-Rows | A-Rows | A-Time | Buffers | Reads | --------------------------------------------------------------------------------------------------------------- | 0 | SELECT STATEMENT | | 1 | | 0 |00:00:32.50 | 199K| 199K| | 1 | SORT ORDER BY | | 1 | 2146K| 0 |00:00:32.50 | 199K| 199K| | 2 | VIEW | | 1 | 2146K| 0 |00:00:32.50 | 199K| 199K| | 3 | SORT UNIQUE | | 1 | 2146K| 0 |00:00:32.50 | 199K| 199K| | 4 | UNION-ALL | | 1 | | 0 |00:00:32.50 | 199K| 199K| |* 5 | TABLE ACCESS FULL| ORD_AP_IF_PROJECTS | 1 | 1 | 0 |00:00:07.90 | 46025 | 45963 | |* 6 | TABLE ACCESS FULL| ORD_AP_IF_TASKS | 1 | 2146K| 0 |00:00:24.60 | 153K| 153K| --------------------------------------------------------------------------------------------------------------- Predicate Information (identified by operation id): --------------------------------------------------- 5 - filter("PROCESSED_FLAG"='U') 6 - filter("PROCESSED_FLAG"='U') Note, output formatted to fit screen
  • 12.
    12 Easily quantifythe solution given.. select * from table(dbms_xplan.display_cursor('9yx90c0nwv9tk',0,'allstats')); Plan hash value: 932773089 ---------------------------------------------------------------------------------------------------------------------------------------------- | Id | Operation | Name | Starts | E-Rows | A-Rows | A-Time | Buffers | OMem | 1Mem | Used-Mem | ---------------------------------------------------------------------------------------------------------------------------------------------- | 0 | SELECT STATEMENT | | 1 | | 0 |00:00:00.01 | 6 | | | | | 1 | SORT ORDER BY | | 1 | 2146K| 0 |00:00:00.01 | 6 | 1024 | 1024 | | | 2 | VIEW | | 1 | 2146K| 0 |00:00:00.01 | 6 | | | | | 3 | SORT UNIQUE | | 1 | 2146K| 0 |00:00:00.01 | 6 | 1024 | 1024 | | | 4 | UNION-ALL | | 1 | | 0 |00:00:00.01 | 6 | | | | | 5 | TABLE ACCESS BY INDEX ROWID| ORD_PA_IF_PROJECTS | 1 | 1 | 0 |00:00:00.01 | 3 | | | | |* 6 | INDEX RANGE SCAN | ORD_PA_IF_PROJECTS_N1 | 1 | 1 | 0 |00:00:00.01 | 3 | | | | | 7 | TABLE ACCESS BY INDEX ROWID| ORD_PA_IF_TASKS | 1 | 2146K| 0 |00:00:00.01 | 3 | | | | |* 8 | INDEX RANGE SCAN | ORD_PA_IF_TASKS_N1 | 1 | 2173K| 0 |00:00:00.01 | 3 | | | | ---------------------------------------------------------------------------------------------------------------------------------------------- Predicate Information (identified by operation id): --------------------------------------------------- 6 - access("PROCESSED_FLAG"='U') 8 - access("PROCESSED_FLAG"='U') Note -----
  • 13.
    13 Privileges Privileges needed to execute dbms_xplan For dbms_xplan.display_cursor grant select on v_$session to scott; grant select on v_$SQL_PLAN_STATISTICS_ALL to scott; grant select on v_$sql to scott; grant select on v_$sql_plan to scott; OR SELECT_CATALOG role or select any dictionary system privilege For dbms_xplan.display_awr grant select on dba_hist_sqltext to scott grant select on dba_hist_sql_plan to scott; grant select on v_$database to scott; OR SELECT_CATALOG role
  • 14.
    Really complicated recursiveSQL statements! 14 Internals of dbms_xplan select * from (table(dbms_xplan.display_cursor('8gzkcsvw362s3',2,'allstats')); select /* EXEC_FROM_DBMS_XPLAN */ case when upper(sql_text) like '%DBMS_XPLAN%' then 0 else 1 end case, SQL_ID, child_number from v$sql where SQL_ID ='8gzkcsvw362s3' and child_number =2 SELECT PLAN_TABLE_OUTPUT FROM TABLE(CAST(DBMS_XPLAN.PREPARE_RECORDS(:B1 , :B2 ) AS SYS.DBMS_XPLAN_TYPE_TABLE)) SELECT /*+ opt_param('parallel_execution_enabled', 'false') */ extractvalue(xmlval, '/*/info[@type = "sql_profile"]'), extractvalue(xmlval, '/*/info[@type = "sql_patch"]'), extractvalue(xmlval, '/*/info[@type = "baseline"]'), extractvalue(xmlval, '/*/info[@type = "outline"]'), extractvalue(xmlval, '/*/info[@type = "dynamic_sampling"]'), extractvalue(xmlval, '/*/info[@type = "dop"]'), extractvalue(xmlval, '/*/info[@type = "dop_reason"]'), extractvalue(xmlval, '/*/info[@type = "queuing_reason"]'), extractvalue(xmlval, '/*/info[@type = "row_shipping"]') , extractvalue(xmlval, '/*/info[@type = "index_size"]'), extractvalue(xmlval, '/*/info[@type = "result_checksum"]'), extractvalue(xmlval, '/*/info[@type = "cardinality_feedback"]'), extractvalue(xmlval, '/*/info[@type = "xml_suboptimal"]'), extractvalue(xmlval,'/*/info[@type = "plan_hash"]') from (select xmltype(:v_other_xml) xmlval from dual)
  • 15.
    15 More internals SELECT /*+ opt_param('parallel_execution_enabled', 'false') */ /* EXEC_FROM_DBMS_XPLAN */ id, position, depth , operation, options, object_name, cardinality, bytes, temp_space, cost, io_cost, cpu_cost, time, …. vp.optimal_executions opt_cnt, vp.onepass_executions one_cnt, vp.multipasses_executions multi_cnt, vp.max_tempseg_size max_tmp, vp.last_tempseg_size last_tmp from V$SQL_PLAN_STATISTICS_ALL vp, v$sql where vp.SQL_ID = '8gzkcsvw362s3' and vp.child_number=2 and vp.SQL_ID = v$sql.SQL_ID and v$sql.child_number=2) order by id
  • 16.
    16 How doI tune?  Prepare the sql to be run for performance analysis. my_sql.sql Set linesize 300; set pagesize 1000; --Declare variable and assign values var order_id number; execute :order_id:=53759119 SELECT oeh.header_id, oel.line_id FROM oe_order_headers_all oeh, oe_order_lines_all oel WHERE oeh.header_id = :order_id AND oeh.header_id = oel.header_id / select * from table (dbms_xplan.DISPLAY_CURSOR(null, null, 'ALLSTATS')) /
  • 17.
    17 Do’s &Don’ts  Do’s 1. Current execution plan and runtime statistics are the first step. 2. Execute a test case first to reproduce.  Don’t 1. Try to use same bind type as application uses. - Literal vs bind variables - number vs varchar2 data type etc 2. Try to use format same as the application for your test case. - CTAS vs INSERT
  • 18.
    PLAN_TABLE_OUTPUT SQL_ID cttafpfjwqjdm,child number 0 ------------------------------------- select oeh.header_id,oel.line_id from oe_order_headers_all oeh,oe_order_lines_all oel where oeh.header_id=:order_id and oeh.header_id=oel.header_id Plan hash value: 4180984038 ------------------------------------------------------------------------------------------------------------------------- -- | Id | Operation | Name | Rows | Bytes | Cost (%CPU)| Time | Pstart| Pstop | ------------------------------------------------------------------------------------------------------------------------- -- | 0 | SELECT STATEMENT | | | | 11 (100)| | | | | 1 | NESTED LOOPS | | 6 | 114 | 11 (0)| 00:00:01 | | | | 2 | PARTITION HASH SINGLE | | 1 | 6 | 2 (0)| 00:00:01 | KEY | KEY | |* 3 | INDEX UNIQUE SCAN | OE_ORDER_HEADERS_U1 | 1 | 6 | 2 (0)| 00:00:01 | KEY | KEY | | 4 | TABLE ACCESS BY GLOBAL INDEX ROWID| OE_ORDER_LINES_ALL | 6 | 78 | 9 (0)| 00:00:01 | ROWID | ROWID | |* 5 | INDEX RANGE SCAN | OE_ORDER_LINES_N1 | 6 | | 3 (0)| 00:00:01 | | | ------------------------------------------------------------------------------------------------------------------------- -- 18 dbms_xplan.display_cursor
  • 19.
    ... Predicate Information(identified by operation id): --------------------------------------------------- 3 - access("OEH"."HEADER_ID"=:ORDER_ID) 5 - access("OEL"."HEADER_ID"=:ORDER_ID) Note ----- - Warning These are only collected when: * hint 'gather_plan_statistics' is used for the statement or * parameter 'statistics_level' is set to 'ALL', at session or system level * Cardinality feedback used * Dynamic sampling used 19 dbms_xplan.display_cursor ..2
  • 20.
    ------------------------------------------------------------------------------------------------------------------------ -- |Id | Operation | Name | Rows | Bytes | Cost (%CPU)| Time | Pstart| Pstop | ------------------------------------------------------------------------------------------------------------------------ --- | 0 | SELECT STATEMENT | | | | 11200 (100)| | | | | 1 | NESTED LOOPS | | 6 | 114 | 11 (0)| 00:10:01 | | | | 2 | PARTITION HASH SINGLE | | 1 | 6 | 2 (0)| 00:00:01 | KEY | KEY | |* 3 | INDEX UNIQUE SCAN | OE_ORDER_HEADERS_U1 | 1 | 6 | 2 (0)| 00:00:01 | KEY | KEY | |* 4 | TABLE ACCESS BY GLOBAL INDEX ROWID| OE_ORDER_LINES_ALL | 6 | 78 | 9000 (0)| 00:07:01 | ROWID | ROWID | |* 5 | INDEX RANGE SCAN | OE_ORDER_LINES_N1 | 60000 | | 300 (0)| 00:03:01 | | | ------------------------------------------------------------------------------------------------------------------------ --- Predicate Information (identified by operation id): --------------------------------------------------- 3 - access("OEH"."HEADER_ID"=:ORDER_ID) 4 – filter ("OEL".“OPEN_FLAG=’Y’) 5 - access("OEL"."HEADER_ID"=:ORDER_ID) 20 dbms_xplan: access and filter predicates Added a predicate oel.open_flag=‘Y’
  • 21.
    21 Detailed executionstatistics  v$sql_plan_statistics_all collects row source level execution statistics  ROWS  CPU  Physical IO  Logical IO  Elapsed time Setting statistics_level=‘ALL’ at system level can be resource intensive and should preferably not be enabled in busy PRODUCTION SYSTEM  To enable at session level set statistics_level=‘ALL’  To enable for all sessions set at system level statistics_level=‘ALL’  To set a SQL statement level add the hint  /*+ gather_plan_statistics */ in the statement.
  • 22.
    22 dbms_xplan: script  Modify the script to enable extended execution statistics --my_sql.sql script_name set linesize 300; set pagesize 1000; --Declare variable and assign values var order_id number; execute order_id:=53759119 alter session set statistics_level=‘ALL’; --OR ADD HINT SELECT /*+ gather_plan_statistics */ oeh.header_id, oel.line_id FROM oe_order_headers_all oeh, oe_order_lines_all oel WHERE oeh.header_id = :order_id AND oeh.header_id = oel.header_id /
  • 23.
    23 Execution statistics select * from table (dbms_xplan.DISPLAY_CURSOR(null, null, 'ALLSTATS LAST')) / SQL_ID 7gftgf917tg2x, child number 0 ------------------------------------- select /*+ gather_plan_statistics */ oeh.header_id,oel.line_id from oe_order_headers_all oeh,oe_order_lines_all oel where oeh.header_id=:order_id and oeh.header_id=oel.header_id Plan hash value: 4180984038 ------------------------------------------------------------------------------------------------------------------------------ | Id | Operation | Name | Starts | E-Rows | A-Rows | A-Time | Buffers | Reads | ------------------------------------------------------------------------------------------------------------------------------ | 0 | SELECT STATEMENT | | 1 | | 4 |00:00:00.03 | 12 | 11 | | 1 | NESTED LOOPS | | 1 | 6 | 4 |00:00:00.03 | 12 | 11 | | 2 | PARTITION HASH SINGLE | | 1 | 1 | 1 |00:00:00.01 | 3 | 3 | |* 3 | INDEX UNIQUE SCAN | OE_ORDER_HEADERS_U1 | 1 | 1 | 1 |00:00:00.01 | 3 | 3 | | 4 | TABLE ACCESS BY GLOBAL INDEX ROWID| OE_ORDER_LINES_ALL | 1 | 6 | 4 |00:00:00.02 | 9 | 8 | |* 5 | INDEX RANGE SCAN | OE_ORDER_LINES_N1 | 1 | 6 | 4 |00:00:00.01 | 5 | 4 | ------------------------------------------------------------------------------------------------------------------------------ Predicate Information (identified by operation id): --------------------------------------------------- 3 - access("OEH"."HEADER_ID"=:ORDER_ID) 5 - access("OEL"."HEADER_ID"=:ORDER_ID) 25 rows selected.
  • 24.
    24 Alias select* from table (dbms_xplan.DISPLAY_CURSOR(null, null, 'ALLSTATS LAST +alias -predicate')); SELECT /*+ gather_plan_statistics */ oel.line_id FROM oe_order_lines_all oel WHERE oel.open_flag = 'Y' and exists (select 1 from oe_order_headers_all oeh where oeh.header_id = oel.header_id and oeh.open_flag='Y' and oeh.last_update_date > sysdate -5) Plan hash value: 746840967 -------------------------------------------------------------------------------------------------------------------------------------------------------- | Id | Operation | Name | Starts | E-Rows | A-Rows | A-Time | Buffers | OMem | 1Mem | Used-Mem | -------------------------------------------------------------------------------------------------------------------------------------------------------- | 0 | SELECT STATEMENT | | 1 | | 3 |00:00:00.01 | 16 | | | | | 1 | NESTED LOOPS | | 1 | | 3 |00:00:00.01 | 16 | | | | | 2 | NESTED LOOPS | | 1 | 1 | 3 |00:00:00.01 | 10 | | | | | 3 | SORT UNIQUE | | 1 | 1 | 1 |00:00:00.01 | 5 | 2048 | 2048 | 2048 (0)| | 4 | TABLE ACCESS BY GLOBAL INDEX ROWID| OE_ORDER_HEADERS_ALL | 1 | 1 | 1 |00:00:00.01 | 5 | | | | | 5 | INDEX RANGE SCAN | CCW_OE_ORD_HEADERS_ALL_D1 | 1 | 7 | 1 |00:00:00.01 | 4 | | | | | 6 | INDEX RANGE SCAN | OE_ORDER_LINES_N1 | 1 | 6 | 3 |00:00:00.01 | 5 | | | | | 7 | TABLE ACCESS BY GLOBAL INDEX ROWID | OE_ORDER_LINES_ALL | 3 | 1 | 3 |00:00:00.01 | 6 | | | | -------------------------------------------------------------------------------------------------------------------------------------------------------- Query Block Name / Object Alias (identified by operation id): ------------------------------------------------------------- 1 - SEL$5DA710D3 4 - SEL$5DA710D3 / OEH@SEL$2 5 - SEL$5DA710D3 / OEH@SEL$2 6 - SEL$5DA710D3 / OEL@SEL$1 7 - SEL$5DA710D3 / OEL@SEL$1
  • 25.
    SQL_ID cu2f3xhzy75vc, childnumber 0 ------------------------------------- SELECT /*+ gather_plan_statistics qb_name(outer_block) */ oel.line_id FROM oe_order_lines_all oel WHERE oel.open_flag = 'Y' and exists (select /*+ qb_name(innner_block) */ 1 from oe_order_headers_all oeh where oeh.header_id = oel.header_id and oeh.open_flag='Y' and oeh.last_update_date > sysdate -5); Plan hash value: 746840967 -------------------------------------------------------------------------------------------------------------------- | Id | Operation | Name | Starts | E-Rows | A-Rows | A-Time | ..| --------------------------------------------------------------------------------------------------------------------.. | 0 | SELECT STATEMENT | | 1 | | 3 |00:00:00.01 | … Query Block Name / Object Alias (identified by operation id): ------------------------------------------------------------- 1 - SEL$8E94A21F 4 - SEL$8E94A21F / OEH@INNNER_BLOCK 5 - SEL$8E94A21F / OEH@INNNER_BLOCK 6 - SEL$8E94A21F / OEL@OUTER_BLOCK 7 - SEL$8E94A21F / OEL@OUTER_BLOCK 25 Query Block name
  • 26.
    26 Default QBName Prefix Row Source operation CRI$ Create index statement DEL$ DELETE statement INS$ Insert Statement MISC$ Miesc SQL like lock table MRG$ Merge Statement SEL$ SELECT statement SET$ Set operators UPD$ Update statement
  • 27.
    27 Hints orOutlines set linesize 300 set pagesize 300 alter session set statistics_level='ALL'; SELECT /* outline query */ RECID, ALC, FRC ... FROM ORD_AP_IF_TASK WHERE PROCESSED_FLAG = 'U') ORDER BY TABLENAME, CREATION_DATE; select * from table( dbms_xplan.display_cursor (null,null,'ALLSTATS LAST +outline')) /
  • 28.
    Outline Data ------------- /*+ BEGIN_OUTLINE_DATA IGNORE_OPTIM_EMBEDDED_HINTS OPTIMIZER_FEATURES_ENABLE('11.2.0.2') OPT_PARAM('_b_tree_bitmap_plans' 'false') OPT_PARAM('_fast_full_scan_enabled' 'false') ALL_ROWS OUTLINE_LEAF(@"SEL$2") OUTLINE_LEAF(@"SEL$1") FULL(@"SEL$3" "ORD_AP_IF_TASKS"@"SEL$3") INDEX_RS_ASC(@"SEL$2" "ORD_AP_IF_PROJECTS"@"SEL$2“ ("ORD_AP_IF_PROJECTS"."PROCESSED_FLAG")) END_OUTLINE_DATA */ 28 Outline --------------------------------------------------------------------------------------------------------------------- | Id | Operation | Name | Starts | E-Rows | A-Rows | A-Time | Buffers | … -------------------------------------------------------------------------------------------------------------------… | 0 | SELECT STATEMENT | | 1 | | 0 |00:00:27.40 | 153K| .. | 1 | SORT ORDER BY | | 1 | 2146K| 0 |00:00:27.40 | 153K| … | 2 | VIEW | | 1 | 2146K| 0 |00:00:27.40 | 153K| … | 3 | SORT UNIQUE | | 1 | 2146K| 0 |00:00:27.40 | 153K| … | 4 | UNION-ALL | | 1 | | 0 |00:00:27.40 | 153K| … | 5 | TABLE ACCESS BY INDEX ROWID| ORD_AP_IF_PROJECTS | 1 | 1 | 0 |00:00:00.01 | 3 | … | 6 | INDEX RANGE SCAN | ORD_AP_IF_PROJECTS_N1 | 1 | 1 | 0 |00:00:00.01 | 3 | | 7 | TABLE ACCESS FULL | ORD_AP_IF_TASKS | 1 | 2146K| 0 |00:00:27.40 | 153K| -------------------------------------------------------------------------------------------------------------------
  • 29.
    Outline Data ------------- /*+ Predicate Information (identified by operation id): --------------------------------------------------- 6 - access("PROCESSED_FLAG"='U') 7 - filter("PROCESSED_FLAG"='U') ... FULL(@"SEL$3" "ORD_AP_IF_TASKS"@"SEL$3") INDEX_RS_ASC(@"SEL$2" "ORD_AP_IF_PROJECTS "@"SEL$2" ("ORD_AP_IF_PROJECTS"."PROCESSED_FLAG")) END_OUTLINE_DATA */ 29 Tuning SQL SQLPLUS> select count(1) from ORD_AP_IF_TASKS where PROCESSED_FLAG='U'; COUNT(1) ---------- 0 There is an index on ORD_AP_IF_TASKS.PROCESSED_FLAG
  • 30.
    set linesize 300 set pagesize 300 alter session set statistics_level='ALL'; SELECT /*+ Copying outline as hint; Altering Full Table Scan to Index Range Scan. BEGIN_OUTLINE_DATA IGNORE_OPTIM_EMBEDDED_HINTS OPTIMIZER_FEATURES_ENABLE('11.2.0.2') DB_VERSION('11.2.0.2') OPT_PARAM('_b_tree_bitmap_plans' 'false') OPT_PARAM('_fast_full_scan_enabled' 'false') ALL_ROWS OUTLINE_LEAF(@"SEL$2") OUTLINE_LEAF(@"SEL$3") OUTLINE_LEAF(@"SET$1") OUTLINE_LEAF(@"SEL$1") NO_ACCESS(@"SEL$1" "from$_subquery$_001"@"SEL$1") INDEX_RS_ASC(@"SEL$3" “ORD_AP_IF_TASKS"@"SEL$3" (“ORD_AP_IF_TASKS"."PROCESSED_FLAG")) INDEX_RS_ASC(@"SEL$2" “ORD_AP_IF_PROJECTS"@"SEL$2" (“ORD_AP_IF_PROJECTS"."PROCESSED_FLAG")) END_OUTLINE_DATA */ WHERE PROCESSED_FLAG = 'U') ORDER BY TABLENAME, CREATION_DATE / select * from table(dbms_xplan.display_cursor (null,null,'ALLSTATS LAST +outline')) / 30 Bob the Builder FULL(@"SEL$3" "ORD_AP_IF_TASKS"@"SEL$3")
  • 31.
    Tuned Plan ---------------------------------------------------------------------------------------------------------… | Id | Operation | Name | Starts | E-Rows | A-Rows | A-Time | --------------------------------------------------------------------------------------------------------- | 0 | SELECT STATEMENT | | 1 | | 0 |00:00:00.01 | | 1 | SORT ORDER BY | | 1 | 2146K| 0 |00:00:00.01 | | 2 | VIEW | | 1 | 2146K| 0 |00:00:00.01 | | 3 | SORT UNIQUE | | 1 | 2146K| 0 |00:00:00.01 | | 4 | UNION-ALL | | 1 | | 0 |00:00:00.01 | | 5 | TABLE ACCESS BY INDEX ROWID| ORD_AP_IF_PROJECTS | 1 | 1 | 0 |00:00:00.01 | |* 6 | INDEX RANGE SCAN | ORD_AP_IF_PROJECTS_N1 | 1 | 1 | 0 |00:00:00.01 | | 7 | TABLE ACCESS BY INDEX ROWID| ORD_AP_IF_TASKS | 1 | 2146K| 0 |00:00:00.01 | |* 8 | INDEX RANGE SCAN | ORD_AP_IF_TASKS_N1 | 1 | 2173K| 0 |00:00:00.01 | ---------------------------------------------------------------------------------------------------------… Outline Data ------------- 31 /*+ BEGIN_OUTLINE_DATA IGNORE_OPTIM_EMBEDDED_HINTS OPT_PARAM('_b_tree_bitmap_plans' 'false') OPT_PARAM('_fast_full_scan_enabled' 'false') ALL_ROWS OUTLINE_LEAF(@"SEL$1") NO_ACCESS(@"SEL$1" "from$_subquery$_001"@"SEL$1") INDEX_RS_ASC(@"SEL$3" “ORD_AP_IF_TASKS"@"SEL$3" (“ORD_A__IF_TASKS"."PROCESSED_FLAG")) INDEX_RS_ASC(@"SEL$2" “ORD_AP_IF_PROJECTS"@"SEL$2" (“ORD_AP_IF_PROJECTS"."PROCESSED_FLAG")) END_OUTLINE_DATA */ Predicate Information (identified by operation id): --------------------------------------------------- 6 - access("PROCESSED_FLAG"='U') 8 - access("PROCESSED_FLAG"='U’)
  • 32.
    So many details..Solittle space.. Column Description Always available columns id Identified of each step in the execution plan; if prefixed with * then predicate information available in predicate section Operation Row source operation Name The database object in the operation CBO parse time information Rows Estimated number of rows returned by the row source operation; derived from statistics on names object in the operation Bytes Estimated amount of data returned by the operation TempSpc The estimated amount of temp space usage by the operation Cost(%CPU) The estimated cost of the row source operation. The percentage CPU cost is given in () for individual row source operation Time Estimated amount of time needed to execute that operation in HH:MM:SS Partitioning Pstart Number of first partition to be accessed Pstop The number of last partition to be accessed Parallel Processing TQ Table queue used for processing IN-OUT The relation between parallel operations PQ Distrib The distribution used by producers to send data to consumers Runtime Statistics Starts The number of times operation was executed (check more nested loop joins operation) A-Rows Actual number of rows returned A-Time Actual amount of time spent executing the operation I/O Statistics Buffers Logical reads operations performed during execution of each step Read Physical reads performed for each operation Write Physical writes performed 32
  • 33.
    33 dbms_xplan.display_awr Displays plans stored in AWR; Format select * from table(dbms_xplan.display_awr(‘sql_id’,plan_hash_value,db_id,’format’)); -plan_hash_value: to select a specific plan -dbid : specifies which database to select from Example script: SELECT * FROM TABLE( dbms_xplan.display_awr('&&sql_id', '&plan_hash_value', NULL, 'ALL +peeked_binds') );
  • 34.
    34 dbms_xplan.display_awr select* from table(dbms_xplan.display_awr('4jtbgawt37mcd',null, null, 'ALL +peeked_binds')); SQL_ID 4jtbgawt37mcd -------------------- Plan hash value: 327243540 --------------------------------------------------------------------------------------------------------------- | Id | Operation | Name | Rows | Bytes | Cost (%CPU)| Time | --------------------------------------------------------------------------------------------------------------- Peeked Binds (identified by position): -------------------------------------- 1 - :B3 (NUMBER): 7394 2 - :B2 (VARCHAR2(30), CSID=871): 'AAL' 3 - :B1 (VARCHAR2(30), CSID=871): '73057' SQL_ID 4jtbgawt37mcd -------------------- Plan hash value: 2294473928 --------------------------------------------------------------------------------------------------------------- | Id | Operation | Name | Rows | Bytes | Cost (%CPU)| Time | --------------------------------------------------------------------------------------------------------------- Peeked Binds (identified by position): -------------------------------------- 1 - :B3 (NUMBER): 9649 2 - :B2 (VARCHAR2(30), CSID=871): 'ZXU' 3 - :B1 (VARCHAR2(30), CSID=871): 'U5152'
  • 35.
    Cardinality feedback select/*+ gather_plan_statistics */ max(length(v1)) from order_headers_all where processed_flag='N' --------------------------------------------------------------------------- | Id | Operation | Name | Starts | E-Rows | A-Rows | --------------------------------------------------------------------------- | 0 | SELECT STATEMENT | | 1 | | 1 | | 1 | SORT AGGREGATE | | 1 | 1 | 1 | |* 2 | TABLE ACCESS FULL| ORDER_HEADERS_ALL | 1 | 50000 | 10 | --------------------------------------------------------------------------- Predicate Information (identified by operation id): --------------------------------------------------- 2 - filter("PROCESSED_FLAG"='N') ©OraInternals Riyaj Shamsudeen 35 Plan hash value: 872302569 Demo @demo_oh1.sql
  • 36.
    /*+ no_rewrite gather_plan_statistics*/ MAX(LENGTH(oh.v1)), MAX(LENGTH(oh.v1)) FROM order_headers_all oh WHERE EXISTS ( SELECT 1 FROM order_lines_all ol WHERE oh.order_id = ol.order_id AND line_processed_flag = 'Y' AND rownum >=1 AND oh.processed_flag='N' ; ©OraInternals Riyaj Shamsudeen 36 Starts SELECT ) Demo @demo_oh2.sql How many times did the EXISTS Subquery was executed?
  • 37.
    ALLSTATS LAST select* from table (dbms_xplan.display_cursor ('', '','ALLSTATS LAST')) ---------------------------------------------------------------------------------------- | Id | Operation | Name | Starts | E-Rows | A-Rows | ---------------------------------------------------------------------------------------- | 0 | SELECT STATEMENT | | 1 | | 1 | | 1 | SORT AGGREGATE | | 1 | 1 | 1 | |* 2 | FILTER | | 1 | | 10 | |* 3 | TABLE ACCESS FULL | ORDER_HEADERS_ALL | 1 | 50000 | 10 | | 4 | COUNT | | 10 | | 10 | |* 5 | FILTER | | 10 | | 10 | |* 6 | TABLE ACCESS BY INDEX ROWID| ORDER_LINES_ALL | 10 | 1 | 10 | |* 7 | INDEX RANGE SCAN | OL_N1 | 10 | 1 | 10 | ---------------------------------------------------------------------------------------- Predicate Information (identified by operation id): --------------------------------------------------- 2 - filter( IS NOT NULL) 3 - filter("OH"."PROCESSED_FLAG"='N') 5 - filter(ROWNUM>=1) 6 - filter("LINE_PROCESSED_FLAG"='Y') 7 - access("OL"."ORDER_ID"=:B1) ©OraInternals Riyaj Shamsudeen 37 Demo @demo_oh2.sql
  • 38.
    Starts ..2 select* from table (dbms_xplan.display_cursor ('', '','ALLSTATS')) SELECT 1 FROM PA_TASKS WHERE TASK_ID = :B1 ©OraInternals Riyaj Shamsudeen 38 Plan hash value: 357090087 -------------------------------------------------------------------- | Id | Operation | Name | Starts | E-Rows | A-Rows | -------------------------------------------------------------------- | 0 | SELECT STATEMENT | | 256K| | 246K| |* 1 | INDEX UNIQUE SCAN| PA_TASKS_U1 | 256K| 1 | 246K| -------------------------------------------------------------------- Predicate Information (identified by operation id): --------------------------------------------------- 1 - access("TASK_ID"=:B1) How many times did we execute this statement?
  • 39.
    Cardinality feedback ..2 select * from table (dbms_xplan.display_cursor ('', '','ALLSTATS')) ------------------------------------------------------------------------------------------ | Id | Operation | Name | Starts | E-Rows | A-Rows | ------------------------------------------------------------------------------------------ | 0 | UPDATE STATEMENT | | 7822 | | 0 | | 1 | UPDATE | ENI_OLTP_ITEM_STAR | 7822 | | 0 | |* 2 | FILTER | | 7824 | | 7254K| |* 3 | TABLE ACCESS BY ROWID RANGE| ENI_OLTP_ITEM_STAR | 7823 | 69121 | 7256K| | 4 | TABLE ACCESS BY INDEX ROWID | MTL_SYSTEM_ITEMS_B | 7171K| 1 | 7167K| |* 5 | INDEX UNIQUE SCAN | MTL_SYSTEM_ITEMS_B_U1 | 7176K| 1 | 7172K| ------------------------------------------------------------------------------------------ ©OraInternals Riyaj Shamsudeen 39
  • 40.
    Cardinality feedback ..3 select * from table (dbms_xplan.display_cursor ('', '','ALLSTATS')) ------------------------------------------------------------------------------------------------------- | Id | Operation | Name | Starts | A-Time | Buffers | Reads | ------------------------------------------------------------------------------------------------------- | 0 | UPDATE STATEMENT | | 7822 |00:47:24.86 | 56M| 1082K| | 1 | UPDATE | ENI_OLTP_ITEM_STAR | 7822 |00:47:24.86 | 56M| 1082K| |* 2 | FILTER | | 7824 |00:01:27.46 | 23M| 868 | |* 3 | TABLE ACCESS BY ROWID RANGE| ENI_OLTP_ITEM_STAR | 7823 |00:01:23.30 | 23M| 868 | | 4 | TABLE ACCESS BY INDEX ROWID | MTL_SYSTEM_ITEMS_B | 7171K|00:41:09.13 | 25M| 1028K| |* 5 | INDEX UNIQUE SCAN | MTL_SYSTEM_ITEMS_B_U1 | 7176K|00:01:17.74 | 17M| 488 | ------------------------------------------------------------------------------------------------------- Predicate Information (identified by operation id): --------------------------------------------------- 2 - filter(CHARTOROWID(:B2)<=CHARTOROWID(:B1)) 3 - access(ROWID>=CHARTOROWID(:B2) AND ROWID<=CHARTOROWID(:B1)) 5 - access("MTI"."INVENTORY_ITEM_ID"=:B1 AND "MTI"."ORGANIZATION_ID"=:B2) ©OraInternals Riyaj Shamsudeen 40
  • 41.
    SQL - remote (SELECT /*+ materialize */ order_id FROM oli_table@orcl2 ol WHERE line_processed_flag='Y' ) SELECT /*+ no_rewrite gather_plan_statistics */ MAX(LENGTH(oh.v1)) FROM order_headers_all oh (SELECT 1 FROM rem1 WHERE oh.order_id = rem1.order_id ) AND oh.processed_flag='N' ; ©OraInternals Riyaj Shamsudeen 41 WITH rem1 AS WHERE EXISTS Demo @demo_oh3.sql
  • 42.
    Remote queries --------------------------------------------------------------------------------------------- | Id | Operation | Name | Starts | E-Rows | A-Rows | --------------------------------------------------------------------------------------------- | 0 | SELECT STATEMENT | | 1 | | 1 | | 1 | TEMP TABLE TRANSFORMATION | | 1 | | 1 | | 2 | LOAD AS SELECT | | 1 | | 0 | | 3 | REMOTE | OLI_TABLE | 1 | 100K| 100K| | 4 | SORT AGGREGATE | | 1 | 1 | 1 | |* 5 | HASH JOIN RIGHT SEMI | | 1 | 50000 | 10 | | 6 | VIEW | | 1 | 100K| 100K| | 7 | TABLE ACCESS FULL | SYS_TEMP_0FD9FC884_E8A367F2 | 1 | 100K| 100K| |* 8 | TABLE ACCESS FULL | ORDER_HEADERS_ALL | 1 | 50000 | 10 | --------------------------------------------------------------------------------------------- Predicate Information (identified by operation id): --------------------------------------------------- 5 - access("OH"."ORDER_ID"="REM1"."ORDER_ID") 8 - filter("OH"."PROCESSED_FLAG"='N') … Remote SQL Information (identified by operation id): ---------------------------------------------------- 3 - SELECT /*+ */ "ORDER_ID","LINE_PROCESSED_FLAG" FROM "OLI_TABLE" "OL" WHERE LINE_PROCESSED_FLAG"='Y' (accessing ©OraInternals Riyaj Shamsudeen 42 ‘ORCL2.ORACLE.com' ) Demo @demo_oh3.sql ADVANCED option provides remote query output
  • 43.
    SQL – remote..2 /*+ no_rewrite gather_plan_statistics use_nl (oh ol) */ MAX(LENGTH(oh.v1)) FROM order_headers_all oh, (SELECT order_id FROM oli_table@orcl2 ol WHERE line_processed_flag='Y' ) ol WHERE oh.order_id = ol.order_id AND oh.processed_flag='N' ; ©OraInternals Riyaj Shamsudeen 43 SELECT Demo @demo_oh3.sql
  • 44.
    Remote queries (2) ------------------------------------------------------------------------------------ | Id | Operation | Name | Rows | Bytes | Cost (%CPU)|IN-OUT| ------------------------------------------------------------------------------------- | 0 | SELECT STATEMENT | | | | 100K(100)| | | 1 | SORT AGGREGATE | | 1 | 223 | | | | 2 | NESTED LOOPS | | 50000 | 10M| 100K (1)| | |* 3 | TABLE ACCESS FULL| ORDER_HEADERS_ALL | 50000 | 9M| 403 (7)| | | 4 | REMOTE | OLI_TABLE | 1 | 15 | 2 (0)| R->S | ------------------------------------------------------------------------------------- Predicate Information (identified by operation id): --------------------------------------------------- 3 - filter("OH"."PROCESSED_FLAG"='N') Remote SQL Information (identified by operation id): ---------------------------------------------------- 4 - SELECT /*+ USE_NL ("OL") */ "ORDER_ID", "LINE_PROCESSED_FLAG" FROM "OLI_TABLE" "OL" WHERE "LINE_PROCESSED_FLAG"='Y' AND :1="ORDER_ID“ (accessing ‘ORCL2.ORCL.COM' ) ©OraInternals Riyaj Shamsudeen 44 Demo @demo_oh5.sql
  • 45.
    Parallel Queries ---------------------------------------------------------------------------------------------------- | Id | Operation | Name | Starts | E-Rows | A-Rows | A-Time | ---------------------------------------------------------------------------------------------------- | 0 | SELECT STATEMENT | | 1 | | 1 |00:00:08.83 | | 1 | SORT AGGREGATE | | 1 | 1 | 1 |00:00:08.83 | |* 2 | HASH JOIN | | 1 | 999K| 260K|00:00:08.76 | | 3 | VIEW | | 1 | 999K| 999K|00:00:02.11 | |* 4 | COUNT STOPKEY | | 1 | | 999K|00:00:01.52 | | 5 | PX COORDINATOR | | 1 | | 999K|00:00:00.84 | | 6 | PX SEND QC (RANDOM) | :TQ10000 | 0 | 11M| 0 |00:00:00.01 | |* 7 | COUNT STOPKEY | | 0 | | 0 |00:00:00.01 | | 8 | PX PARTITION HASH ALL| | 0 | 11M| 0 |00:00:00.01 | | 9 | INDEX FULL SCAN | OE_ORDER_HEADERS_U1 | 0 | 11M| 0 |00:00:00.01 | | 10 | VIEW | | 1 | 999K| 999K|00:00:02.28 | |* 11 | COUNT STOPKEY | | 1 | | 999K|00:00:01.68 | | 12 | INDEX FULL SCAN | OE_ORDER_LINES_N1 | 1 | 57M| 999K|00:00:00.98 | ---------------------------------------------------------------------------------------------------- Predicate Information (identified by operation id): --------------------------------------------------- 2 - access("OH"."HEADER_ID"="OL"."HEADER_ID") 4 - filter(ROWNUM<1000000) 7 - filter(ROWNUM<1000000) 11 - filter(ROWNUM<1000000) ©OraInternals Riyaj Shamsudeen 45 Note ----- - Degree of Parallelism is 8 because of hint ALLSTATS LAST Also, notice the broken cardinality Feedback.
  • 46.
    Parallel Queries After1 execution with DOP=8 --------------------------------------------------------------------------------------------------- | Id | Operation | Name | Starts | E-Rows | A-Rows | A-Time | ---------------------------------------------------------------------------------------------------- | 0 | SELECT STATEMENT | | 1 | | 1 |00:00:08.83 | | 1 | SORT AGGREGATE | | 1 | 1 | 1 |00:00:08.83 | |* 2 | HASH JOIN | | 1 | 999K| 260K|00:00:08.76 | | 3 | VIEW | | 1 | 999K| 999K|00:00:02.11 | |* 4 | COUNT STOPKEY | | 1 | | 999K|00:00:01.52 | | 5 | PX COORDINATOR | | 1 | | 999K|00:00:00.84 | | 6 | PX SEND QC (RANDOM) | :TQ10000 | 0 | 11M| 0 |00:00:00.01 | |* 7 | COUNT STOPKEY | | 8 | | 1072K|00:00:03.83 | | 8 | PX PARTITION HASH ALL| | 8 | 11M| 1072K|00:00:03.17 | | 9 | INDEX FULL SCAN | OE_ORDER_HEADERS_U1 | 8 | 11M| 1072K|00:00:02.56 | | 10 | VIEW | | 1 | 999K| 999K|00:00:02.28 | |* 11 | COUNT STOPKEY | | 1 | | 999K|00:00:01.68 | | 12 | INDEX FULL SCAN | OE_ORDER_LINES_N1 | 1 | 57M| 999K|00:00:00.98 | ---------------------------------------------------------------------------------------------------- Predicate Information (identified by operation id): --------------------------------------------------- 2 - access("OH"."HEADER_ID"="OL"."HEADER_ID") 4 - filter(ROWNUM<1000000) 7 - filter(ROWNUM<1000000) 11 - filter(ROWNUM<1000000) ©OraInternals Riyaj Shamsudeen 46 Note ----- - Degree of Parallelism is 8 because of hint ALLSTATS
  • 47.
    Parallel Queries After4 executions with DOP=16 ---------------------------------------------------------------------------------------------------- | Id | Operation | Name | Starts | E-Rows | A-Rows | A-Time | ---------------------------------------------------------------------------------------------------- | 0 | SELECT STATEMENT | | 4 | | 4 |00:00:38.25 | | 1 | SORT AGGREGATE | | 4 | 1 | 4 |00:00:38.25 | |* 2 | HASH JOIN | | 4 | 999K| 418K|00:00:38.16 | | 3 | VIEW | | 4 | 999K| 3999K|00:00:07.67 | |* 4 | COUNT STOPKEY | | 4 | | 3999K|00:00:05.53 | | 5 | PX COORDINATOR | | 4 | | 3999K|00:00:03.12 | | 6 | PX SEND QC (RANDOM) | :TQ10000 | 0 | 11M| 0 |00:00:00.01 | |* 7 | COUNT STOPKEY | | 64 | | 4779K|00:00:56.27 | | 8 | PX PARTITION HASH ALL| | 64 | 11M| 4779K|00:00:53.19 | | 9 | INDEX FULL SCAN | OE_ORDER_HEADERS_U1 | 64 | 11M| 4779K|00:00:50.33 | | 10 | VIEW | | 4 | 999K| 3999K|00:00:14.59 | |* 11 | COUNT STOPKEY | | 4 | | 3999K|00:00:12.32 | | 12 | PX COORDINATOR | | 4 | | 3999K|00:00:09.35 | | 13 | PX SEND QC (RANDOM) | :TQ20000 | 0 | 57M| 0 |00:00:00.01 | |* 14 | COUNT STOPKEY | | 64 | | 4169K|00:05:45.40 | | 15 | PX BLOCK ITERATOR | | 64 | 57M| 4169K|00:05:42.68 | |* 16 | TABLE ACCESS FULL | OE_ORDER_LINES_ALL | 233 | 57M| 4169K|00:05:26.98 | ---------------------------------------------------------------------------------------------------- Predicate Information (identified by operation id): --------------------------------------------------- .. ©OraInternals Riyaj Shamsudeen 47 Note ----- - Degree of Parallelism is 16 because of hint ALLSTATS
  • 48.
    ©OraInternals Riyaj Shamsudeen48 Note section Note ----- - dynamic sampling used for this statement (level=2) Note ----- - SQL profile “SQL_PROF_4awcsbtwr8ksz" used for this statement Note ----- - Cardinality feedback used
  • 49.
    Few limitations Display_awr does not store predicates.  Of course , not all SQL statements are stored in AWR repository (color important statements).  Display_cursor is not RAC aware. You can query the plans only from the local instances using display_cursor.  Run time statistics are printed only after the completion of SQL statements (Think production long running queries). ©OraInternals Riyaj Shamsudeen 49
  • 50.
    ©OraInternals Riyaj Shamsudeen50 SQL monitor SET LONG 1000000 SET LONGCHUNKSIZE 1000000 SET LINESIZE 1000 SET PAGESIZE 0 SET TRIM ON SET TRIMSPOOL ON SET ECHO OFF SET FEEDBACK OFF SELECT DBMS_SQLTUNE.report_sql_monitor( sql_id => '&sql_id', type=>'TEXT' , report_level => 'ALL') from dual /
  • 51.
  • 52.
    Output ..2 ©OraInternalsRiyaj Shamsudeen 52
  • 53.
    53 A Presentationsponsored by
  • 54.
    ©OraInternals Riyaj Shamsudeen54 Riyaj Shamsudeen  19 years using Oracle products/DBA  OakTable member  Oracle ACE Director  Certified DBA versions 7.0,7.3,8,8i,9i &10g  Specializes in RAC, performance tuning, Internals and E-business suite  Chief DBA with OraInternals  Co-author few books  Email: rshamsud@orainternals.com  Blog : orainternals.wordpress.com  Web: www.orainternals.com
  • 55.
    Thank you forattending! If you like this presentation, you will love my 2-part intensive, online RAC webinar. http://www.orainternals.com/training/advanced-rac-training Email: rshamsud@gmail.com Week Dates Time Week1 TBA 8AM – 2PM PDT Week 2 TBA 8AM - 2PM PDT ©OraInternals Riyaj Shamsudeen 55
  • 56.
    ©OraInternals Riyaj Shamsudeen56 References • Oracle support site. Metalink.oracle.com. Various documents • Troubleshooting Oracle performance - Christian Antongini • http://www.orainternals.com/papers - Riyaj Shamsudeen • Various article from web led through on google search • Tom Kyte’s website Asktom.oracle.com

Editor's Notes

  • #4 Explain plan: Execute EXPLAIN PLAN for the SQL and query plan_table output It’s a calculated/ estimated plan No bind variable peeking, not reliable No execution of the statement Auto Trace: Uses explain plan internally hence no extra benefit SQL_Trace: Reliable but have to enable trace and use tkprof; both don’t easily provide the complete picture about SQL execution DBA_HIST_SQL_PLAN (historical plans) Actual executed plan Provides more detailed runtime and parse information about the SQL execution Use DBMS_XPLAN
  • #9 SQL Trace: Mostly used to find expensive queries in a session (using sort options) Trace need to be enabled for the session at 4,8 or level 12 Tkprof of raw trace needed to start tuning Doesn’t show the CBO analysis done at parse time No predicate information DBMS_XPLAN Gives information on CBO analysis at parse time Row source level runtime statistics shown Predicate information shown upfront No need to enable any kind of trace Easy to get the output Has number of options available to show lot more details like bind variable values, CBO information in notes section, runtime execution statistics etc. Provides function to get history of plans for the SQL_ID from AWR repo
  • #18 Do’s Always try to execute the query to see how its performing as the first step Real time execution plan and runtime statistics should be the first step of solving any sql tuning issue Don’t Never change the bind variable with literal value to check the execution plan and runtime statistics As much possible run the SQL as the application will run it.
