New SQL features in latest MySQL releases

New SQL features in latest
MySQL releases
What SQL functionality was added in the past year or so

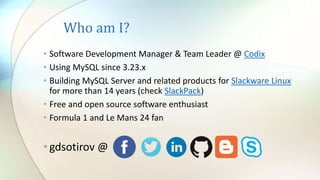

Who am I?
• Software Development Manager & Team Leader @ Codix
• Using MySQL since 3.23.x
• Building MySQL Server and related products for Slackware Linux
for more than 14 years (check SlackPack)
• Free and open source software enthusiast
• Formula 1 and Le Mans 24 fan
•gdsotirov @

Agenda
• Function or expression as default column values
• Functional key pars
• Lateral derived tables
• CHECK constraints
• JSON improvements
• Spatial improvements

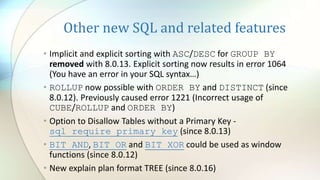

• Other new SQL and related features
• Other new features

Function or expression as default
column values 1/4
• Available since 8.0.13 (released 2018-10-22)
• Before only literal values were allowed as default values (except for
TIMESTAMP where using CURRENT_TIMESTAMP a.k.a. NOW was
possible)
• Now it’s possible to use function or expression as default column
values for other data types (e.g. UUID, spatial and JSON)
• literals, deterministic and nondeterministic built-in functions and operators
are permitted
• stored routines, UDFs, variables, query parameters and subqueries are not
permitted
• cannot depend on AUTO_INCREMENT columns
• The syntax requires engulfing the function or expression in
parentheses e.g. DEFAULT ([function|expression])

column values 2/4 Implications
• The removal of the restriction means that it’s now possible to:
• generate UUID values by default
• e.g. DEFAULT (UUID_TO_BIN(UUID()))
• generate default values for geometry data types
• e.g. by using DEFAULT (POINT(0,0))
• or DEFAULT (ST_PointFromText('POINT(42.69 23.32)’, 4326))
• generate default values for JSON columns
• e.g. by using DEFAULT (JSON_ARRAY())
• or DEFAULT ('[]')
• other complex values
• e.g. like DEFAULT (CURRENT_DATE + INTERVAL 1 DAY)
• or DEFAULT (PI() * POW(r, 2))

column values 3/4 Example
CREATE TABLE def_expr (
id INT NOT NULL AUTO_INCREMENT,
uuid_def BINARY(16) DEFAULT (UUID_TO_BIN(UUID())),
geo_def POINT DEFAULT (POINT(0,0)),
geo_def2 GEOMETRY DEFAULT (ST_PointFromText(
'POINT(42.69751 23.32415)', 4326)),
json_def JSON DEFAULT (JSON_ARRAY()),
json_def2 JSON DEFAULT ('[]') /* this works too */,
tomorrow DATE DEFAULT (CURDATE() + INTERVAL 1 DAY),
radius INT DEFAULT (FLOOR(1 + (RAND() * 10))),
area DECIMAL(10,3) DEFAULT (ROUND(PI() * POW(radius, 2), 3)),
PRIMARY KEY (id),
UNIQUE INDEX id_UNIQUE (id ASC) VISIBLE
);

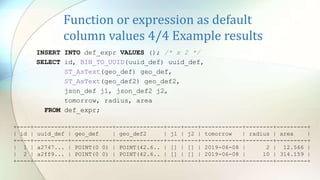

column values 4/4 Example results
INSERT INTO def_expr VALUES (); /* x 2 */
SELECT id, BIN_TO_UUID(uuid_def) uuid_def,
ST_AsText(geo_def) geo_def,
ST_AsText(geo_def2) geo_def2,
json_def j1, json_def2 j2,
tomorrow, radius, area
FROM def_expr;
+----+----------+------------+--------------+----+----+------------+--------+---------+
| id | uuid_def | geo_def | geo_def2 | j1 | j2 | tomorrow | radius | area |
+----+----------+------------+--------------+----+----+------------+--------+---------+
| 1 | a2747... | POINT(0 0) | POINT(42.6.. | [] | [] | 2019-06-08 | 2 | 12.566 |
| 2 | a2ff9... | POINT(0 0) | POINT(42.6.. | [] | [] | 2019-06-08 | 10 | 314.159 |
+----+----------+------------+--------------+----+----+------------+--------+---------+

Functional key parts 1/2
• Before indexes could be build only on column values
• Now it’s possible to build indexes from expression values (i.e. values
not stored in a table)
• literals, deterministic built-in functions and operators are permitted
• subqueries, query parameters, variables, stored routines and UDFs are not
permitted
• Ordering of the index with ASC and DESC is possible
• Not permitted in foreign keys index specifications
• Functional and non-functional key parts could be mixed in composite
indexes
• Implemented as hidden virtual generated columns (av. since 5.7)

Functional key parts 2/2 Example
CREATE TABLE func_index (
id INT NOT NULL AUTO_INCREMENT,
ipaddr4 INT UNSIGNED /* 4 bytes */,
PRIMARY KEY (id),
UNIQUE INDEX id_UNIQUE (id ASC) VISIBLE,
INDEX func_idx ((INET_NTOA(ipaddr4)))
);
INSERT INTO func_index (ipaddr4) VALUES (INET_ATON('192.168.1.1'));
SELECT * FROM func_index WHERE ipaddr4 = INET_ATON('192.168.1.1');
/* Full Table Scan */
SELECT * FROM func_index WHERE INET_NTOA(ipaddr4) = '192.168.1.1';
/* Non-Unique Key Lookup func_idx */

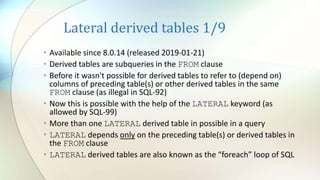

Lateral derived tables 1/9
• Derived tables are subqueries in the FROM clause
• Before it wasn't possible for derived tables to refer to (depend on)
columns of preceding table(s) or other derived tables in the same
FROM clause (as illegal in SQL-92)
• Now this is possible with the help of the LATERAL keyword (as
allowed by SQL-99)
• Мore than one LATERAL derived table in possible in a query
• LATERAL depends only on the preceding table(s) or derived tables in
the FROM clause
• LATERAL derived tables are also known as the “foreach” loop of SQL

Preparatory work: dept_emp schema
CREATE TABLE dept (
deptno INTEGER,
dname VARCHAR(14),
loc VARCHAR(13),
CONSTRAINT pk_dept
PRIMARY KEY (deptno)
);
CREATE TABLE emp (
empno INTEGER,
ename VARCHAR(10),
job VARCHAR(9),
mgr INTEGER,
hiredate DATE,
sal DECIMAL(7,2),
comm DECIMAL(7,2),
deptno INTEGER,
CONSTRAINT pk_emp PRIMARY KEY (empno),
CONSTRAINT fk_deptno FOREIGN KEY (deptno)
REFERENCES dept (deptno)
);
CREATE DATABASE dept_emp;
USE dept_emp;

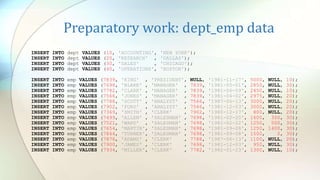

Preparatory work: dept_emp data
INSERT INTO dept VALUES (10, 'ACCOUNTING', 'NEW YORK');
INSERT INTO dept VALUES (20, 'RESEARCH' , 'DALLAS');
INSERT INTO dept VALUES (30, 'SALES' , 'CHICAGO');
INSERT INTO dept VALUES (40, 'OPERATIONS', 'BOSTON');
INSERT INTO emp VALUES (7839, 'KING' , 'PRESIDENT', NULL, '1981-11-17', 5000, NULL, 10);
INSERT INTO emp VALUES (7698, 'BLAKE' , 'MANAGER' , 7839, '1981-05-01', 2850, NULL, 30);
INSERT INTO emp VALUES (7782, 'CLARK' , 'MANAGER' , 7839, '1981-06-09', 2450, NULL, 10);
INSERT INTO emp VALUES (7566, 'JONES' , 'MANAGER' , 7839, '1981-04-02', 2975, NULL, 20);
INSERT INTO emp VALUES (7788, 'SCOTT' , 'ANALYST' , 7566, '1987-06-13', 3000, NULL, 20);
INSERT INTO emp VALUES (7902, 'FORD' , 'ANALYST' , 7566, '1981-12-03', 3000, NULL, 20);
INSERT INTO emp VALUES (7369, 'SMITH' , 'CLERK' , 7902, '1980-12-17', 800, NULL, 20);
INSERT INTO emp VALUES (7499, 'ALLEN' , 'SALESMAN' , 7698, '1981-02-20', 1600, 300, 30);
INSERT INTO emp VALUES (7521, 'WARD' , 'SALESMAN' , 7698, '1981-02-22', 1250, 500, 30);
INSERT INTO emp VALUES (7654, 'MARTIN', 'SALESMAN' , 7698, '1981-09-28', 1250, 1400, 30);
INSERT INTO emp VALUES (7844, 'TURNER', 'SALESMAN' , 7698, '1981-09-08', 1500, 0, 30);
INSERT INTO emp VALUES (7876, 'ADAMS' , 'CLERK' , 7788, '1987-06-13', 1100, NULL, 20);
INSERT INTO emp VALUES (7900, 'JAMES' , 'CLERK' , 7698, '1981-12-03', 950, NULL, 30);
INSERT INTO emp VALUES (7934, 'MILLER', 'CLERK' , 7782, '1982-01-23', 1300, NULL, 10);

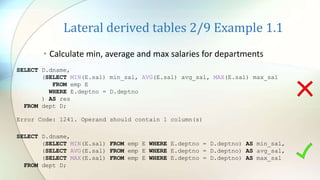

Lateral derived tables 2/9 Example 1.1
• Calculate min, average and max salaries for departments
SELECT D.dname,
(SELECT MIN(E.sal) min_sal, AVG(E.sal) avg_sal, MAX(E.sal) max_sal
FROM emp E
WHERE E.deptno = D.deptno
) AS res
FROM dept D;
Error Code: 1241. Operand should contain 1 column(s)
SELECT D.dname,
(SELECT MIN(E.sal) FROM emp E WHERE E.deptno = D.deptno) AS min_sal,
(SELECT AVG(E.sal) FROM emp E WHERE E.deptno = D.deptno) AS avg_sal,
(SELECT MAX(E.sal) FROM emp E WHERE E.deptno = D.deptno) AS max_sal
FROM dept D;

+----+--------------------+-------++------++-----------++-------------------+------+----------++
| id | select_type | table || type || key || ref | rows | filtered ||
+----+--------------------+-------++------++-----------++-------------------+------+----------++
| 1 | PRIMARY | D || ALL || NULL || NULL | 3 | 100 ||
| 4 | DEPENDENT SUBQUERY | E || ref || fk_deptno || dept_emp.D.deptno | 4 | 100 ||
+----+--------------------+-------++------++-----------++-------------------+------+----------++
4 rows in set, 4 warnings (0.0018 sec)
Note (code 1276): Field or reference 'dept_emp.D.deptno' of SELECT #2 was resolved in SELECT #1
Note (code 1003): /* select#1 */ select `dept_emp`.`d`.`dname` AS `dname`,(/* select#2 */ select min ...

Lateral derived tables 5/9 Example 2
SELECT D.dname, DT.min_sal, DT.avg_sal, DT.max_sal
FROM dept D
LEFT JOIN
(SELECT E.deptno,
MIN(E.sal) min_sal, AVG(E.sal) avg_sal, MAX(E.sal) max_sal
FROM emp E
GROUP BY E.deptno
) AS DT
ON DT.deptno = D.deptno;
+----+-------------+------------++-------++-------------++-------------------+------+----------++
| id | select_type | table || type || key || ref | rows | filtered ||
+----+-------------+------------++-------++-------------++-------------------+------+----------++
| 1 | PRIMARY | D || ALL || NULL || NULL | 4 | 100 ||
| 1 | PRIMARY | <derived2> || ref || <auto_key0> || dept_emp.D.deptno | 2 | 100 ||
| 2 | DERIVED | E || index || fk_deptno || NULL | 14 | 100 ||
+----+-------------+------------++-------++-------------++-------------------+------+----------++

Lateral derived tables 6/9 Example 3
SELECT D.dname, LDT.min_sal, LDT.avg_sal, LDT.max_sal
FROM dept D,
LATERAL
(SELECT MIN(E.sal) min_sal, AVG(E.sal) avg_sal, MAX(E.sal) max_sal
FROM emp E
) AS LDT;
+----+-------------------+------------++------++-----------++-------------------+------+----------+-+
| id | select_type | table || type || key || ref | rows | filtered |E|
+----+-------------------+------------++------++-----------++-------------------+------+----------+-+
| 1 | PRIMARY | D || ALL || NULL || NULL | 4 | 100 |*|
| 1 | PRIMARY | <derived2> || ALL || NULL || NULL | 2 | 100 | |
| 2 | DEPENDENT DERIVED | E || ref || fk_deptno || dept_emp.D.deptno | 1 | 100 | |
+----+-------------------+------------++------++-----------++-------------------+------+----------+-+
* Extra - Rematerialize (<derived2>)

Examples 2 & 3 graphical explain plans

Lateral derived tables 8/9 Benchmark
...
WHERE D.deptno = 10;
Example 1 - Cost: 0.65 Time: 0.297 sec / 0.000 sec
All departments 100k employees
All departments 1m employees
One department 1m employees

Example 3 results
8.0.14
+------------+---------+---------+---------+
| dname | min_sal | avg_sal | max_sal |
+------------+---------+---------+---------+
| ACCOUNTING | 1300.00 | 2916.67 | 5000.00 |
| RESEARCH | 800.00 | 2175.00 | 3000.00 |
| SALES | 950.00 | 1566.67 | 2850.00 |
| OPERATIONS | NULL | NULL | NULL |
+------------+---------+---------+---------+
4 rows in set (0.00 sec)
8.0.16
+------------+---------+---------+---------+
| dname | min_sal | avg_sal | max_sal |
+------------+---------+---------+---------+
| ACCOUNTING | 1300.00 | 2916.67 | 5000.00 |
| RESEARCH | 800.00 | 2175.00 | 3000.00 |
| SALES | 950.00 | 1566.67 | 2850.00 |
| OPERATIONS | 950.00 | 1566.67 | 2850.00 |
+------------+---------+---------+---------+
Note: Average values rounded in result to save space. See bugs #94721 and #95411

Dolphin on Jupiter?
Source: https://apod.nasa.gov/apod/ap190415.html

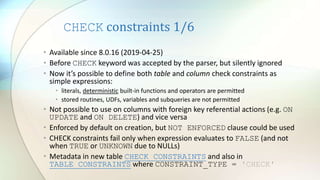

CHECK constraints 1/6
• Available since 8.0.16 (2019-04-25)
• Before CHECK keyword was accepted by the parser, but silently ignored
• Now it’s possible to define both table and column check constraints as
simple expressions:
• literals, deterministic built-in functions and operators are permitted
• stored routines, UDFs, variables and subqueries are not permitted
• Not possible to use on columns with foreign key referential actions (e.g. ON
UPDATE and ON DELETE) and vice versa
• Enforced by default on creation, but NOT ENFORCED clause could be used
• CHECK constraints fail only when expression evaluates to FALSE (and not
when TRUE or UNKNOWN due to NULLs)
• Metadata in new table CHECK_CONSTRAINTS and also in
TABLE_CONSTRAINTS where CONSTRAINT_TYPE = 'CHECK'

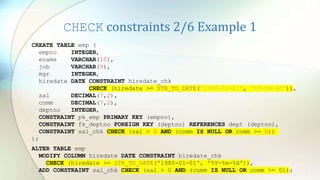

CHECK constraints 2/6 Example 1
CREATE TABLE emp (
empno INTEGER,
ename VARCHAR(10),
job VARCHAR(9),
mgr INTEGER,
hiredate DATE CONSTRAINT hiredate_chk
CHECK (hiredate >= STR_TO_DATE('1980-01-01', '%Y-%m-%d')),
sal DECIMAL(7,2),
comm DECIMAL(7,2),
deptno INTEGER,
CONSTRAINT pk_emp PRIMARY KEY (empno),
CONSTRAINT fk_deptno FOREIGN KEY (deptno) REFERENCES dept (deptno),
CONSTRAINT sal_chk CHECK (sal > 0 AND (comm IS NULL OR comm >= 0))
);
ALTER TABLE emp
MODIFY COLUMN hiredate DATE CONSTRAINT hiredate_chk
CHECK (hiredate >= STR_TO_DATE('1980-01-01', '%Y-%m-%d')),
ADD CONSTRAINT sal_chk CHECK (sal > 0 AND (comm IS NULL OR comm >= 0));

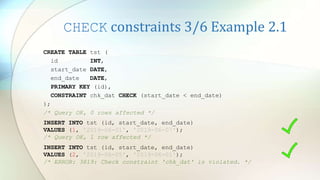

CHECK constraints 3/6 Example 2.1
CREATE TABLE tst (
id INT,
start_date DATE,
end_date DATE,
PRIMARY KEY (id),
CONSTRAINT chk_dat CHECK (start_date < end_date)
);
/* Query OK, 0 rows affected */
INSERT INTO tst (id, start_date, end_date)
VALUES (2, '2019-06-05', '2019-06-01');
/* ERROR: 3819: Check constraint 'chk_dat' is violated. */
INSERT INTO tst (id, start_date, end_date)
VALUES (1, '2019-06-01', '2019-06-07');
/* Query OK, 1 row affected */

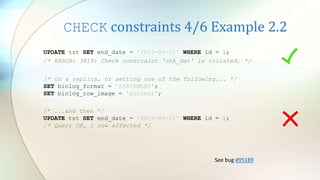

UPDATE tst SET end_date = '2019-06-01' WHERE id = 1;
/* ERROR: 3819: Check constraint 'chk_dat' is violated. */
/* ...and then */
UPDATE tst SET end_date = '2019-06-01' WHERE id = 1;
/* On a replica, or setting one of the following... */
SET binlog_format = 'STATEMENT';
SET binlog_row_image = 'minimal';
See bug #95189

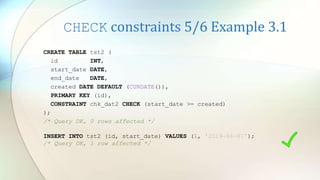

CREATE TABLE tst2 (
id INT,
start_date DATE,
end_date DATE,
created DATE DEFAULT (CURDATE()),
PRIMARY KEY (id),
CONSTRAINT chk_dat2 CHECK (start_date >= created)
);
/* Query OK, 0 rows affected */
INSERT INTO tst2 (id, start_date) VALUES (1, '2019-06-07');

INSERT INTO tst2 (id, start_date) VALUES (2, '2019-06-01');

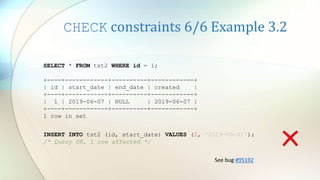

SELECT * FROM tst2 WHERE id = 1;
+----+------------+----------+------------+
| id | start_date | end_date | created |
+----+------------+----------+------------+
| 1 | 2019-06-07 | NULL | 2019-06-07 |
+----+------------+----------+------------+
1 row in set
See bug #95192

Emulating CHECK constraints
1. In MySQL >= 5.0.2, with triggers. Still necessary for complex
checks (e.g. by using stored procedures, UDFs, subqueries)
2. In MySQL >= 5.7.6, with generated columns (left)
3. In MySQL >= 8.0.13, with default expressions (right)
CREATE TABLE chk_w_gencol (
id INT AUTO_INCREMENT,
val INT,
val_check INT GENERATED ALWAYS AS
(IF(val > 0, val, NULL)) NOT NULL,
CONSTRAINT PRIMARY KEY (id)
);
INSERT INTO chk… (val) VALUES (-1);
CREATE TABLE chk_w_defexpr (
id INT AUTO_INCREMENT,
val INT,
val_check INT DEFAULT
(IF(val > 0, val, NULL)) NOT NULL,
CONSTRAINT PRIMARY KEY (id)
);
INSERT INTO chk… (val) VALUES (-1);
Error Code: 1048. Column 'val_check' cannot be null

JSON improvements 1/4
• Now JSON aggregation functions JSON_ARRAYAGG and
JSON_OBJECTAGG could be used as window functions (i.e.
using the OVER clause)
• MySQL does not permit duplicate keys in JSON and follows “last
duplicate key wins” behavior, so the result from a window
without ordering may not be deterministic
• Optimization for small changes to BLOBs (e.g. JSON) with LOB
indexes for more random access (since 8.0.12)

JSON_OBJECTAGG Example 1
SELECT E.ename, E.sal,
AVG(E.sal) OVER dw AS avg_sal,
JSON_OBJECTAGG(D.dname, E.sal) OVER dw AS dept_sal
FROM emp E,
dept D
WINDOW dw AS (PARTITION BY D.deptno);
+--------+---------+------------------------+
| ename | sal | dept_sal |
+--------+---------+------------------------+
| CLARK | 2450.00 | {"ACCOUNTING": 1300.0} |
| KING | 5000.00 | {"ACCOUNTING": 1300.0} |
| MILLER | 1300.00 | {"ACCOUNTING": 1300.0} |
| SMITH | 800.00 | {"RESEARCH": 3000.0} |
| JONES | 2975.00 | {"RESEARCH": 3000.0} |
| SCOTT | 3000.00 | {"RESEARCH": 3000.0} |
| ADAMS | 1100.00 | {"RESEARCH": 3000.0} |
| FORD | 3000.00 | {"RESEARCH": 3000.0} |
...
+--------+---------+------------------------+

JSON_OBJECTAGG Example 2
SELECT E.ename, E.sal,
JSON_OBJECTAGG(E.ename, E.sal) OVER dw AS dept_sal
FROM emp E,
dept D
WINDOW dw AS (PARTITION BY D.deptno ORDER BY E.hiredate);
+--------+---------+--------------------------------------------------------------------+
| ename | sal | dept_sal |
+--------+---------+--------------------------------------------------------------------+
| CLARK | 2450.00 | {"CLARK": 2450.0} |
| KING | 5000.00 | {"KING": 5000.0, "CLARK": 2450.0} |
| MILLER | 1300.00 | {"KING": 5000.0, "CLARK": 2450.0, "MILLER": 1300.0} |
| SMITH | 800.00 | {"SMITH": 800.0} |
| JONES | 2975.00 | {"JONES": 2975.0, "SMITH": 800.0} |
| FORD | 3000.00 | {"FORD": 3000.0, "JONES": 2975.0, "SMITH": 800.0} |
...
+--------+---------+--------------------------------------------------------------------+

Spatial improvements
• New functions ST_Latitude and ST_Longitude (since 8.0.12)
• Geometry transformation between spatial reference systems (SRS) with
ST_Transform‘s second argument (since 8.0.13)
• Functions ST_Distance (since 8.0.14) and ST_Length (since 8.0.16)
now accept an optional last argument specifying the unit. Possible units are
defined in ST_UNITS_OF_MEASURE table of INFORMATION_SCHEMA
(with conversion factor relative to the basic unit metre)
SELECT ST_Distance(ST_PointFromText('POINT( 42.69751 23.32415)’ , 4326),
ST_PointFromText('POINT(-33.86667 151.20000)', 4326),
'nautical mile') dist_nm;
+------------------+
| dist_nm |
+------------------+
| 8332.57724567531 |
+------------------+

Other new SQL and related features
• Implicit and explicit sorting with ASC/DESC for GROUP BY
removed with 8.0.13. Explicit sorting now results in error 1064
(You have an error in your SQL syntax…)
• ROLLUP now possible with ORDER BY and DISTINCT (since
8.0.12). Previously caused error 1221 (Incorrect usage of
CUBE/ROLLUP and ORDER BY)
• Option to Disallow Tables without a Primary Key -
sql_require_primary_key (since 8.0.13)
• BIT_AND, BIT_OR and BIT_XOR could be used as window
functions (since 8.0.12)
• New explain plan format TREE (since 8.0.16)

Other new features
• Instant Add column (since 8.0.12)
• Multiple bind address support (since 8.0.13)
• Prepared statement execution in X Protocol (since 8.0.14)
• Admin Port for administrators for when server is busy (since
8.0.14)
• MySQL server could completely upgrade itself, so no need to run
mysql_upgrade after server upgrade anymore (since 8.0.16)
• System users and partial revokes (since 8.0.16)
• Support TLS 1.3 and switching SSL options without restart (since
8.0.16)

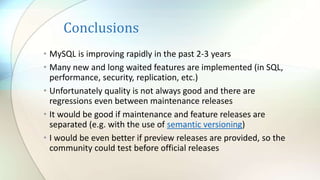

Conclusions
• MySQL is improving rapidly in the past 2-3 years
• Many new and long waited features are implemented (in SQL,
performance, security, replication, etc.)
• Unfortunately quality is not always good and there are
regressions even between maintenance releases
• It would be good if maintenance and feature releases are
separated (e.g. with the use of semantic versioning)
• I would be even better if preview releases are provided, so the
community could test before official releases

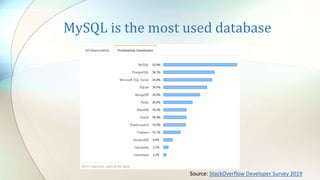

MySQL is the most used database
Source: StackOverflow Developer Survey 2019

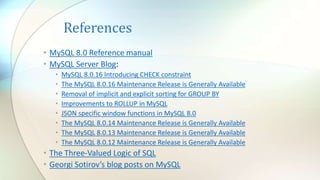

References
• MySQL 8.0 Reference manual
• MySQL Server Blog:
• MySQL 8.0.16 Introducing CHECK constraint
• The MySQL 8.0.16 Maintenance Release is Generally Available
• Removal of implicit and explicit sorting for GROUP BY
• Improvements to ROLLUP in MySQL
• JSON specific window functions in MySQL 8.0
• The Three-Valued Logic of SQL
• Georgi Sotirov’s blog posts on MySQL

New SQL features in latest MySQL releases

New SQL features in latest MySQL releases

More Related Content

What's hot

Similar to New SQL features in latest MySQL releases

Recently uploaded

New SQL features in latest MySQL releases

Editor's Notes
