1. Top 10 Most Popular
Microcontrollers and Boards
for Students and Makers

2. PIC16F877A Microcontroller
Important Features:
CPU: 8-bit PIC
Operating Voltage (V): 2 to 5.5 V
Number of I/O pins: 33
ADC Module: 8ch, 10-bit
DAC Module: Nil
Communication Peripherals: UART(1), SPI(1),
I2C(1), MSSP(SPI/I2C)
External Oscillator: Up to 20Mhz
Internal Oscillator: Nil
Program Memory Type: Flash
Program Memory (KB): 14KB
CPU Speed (MIPS): 5 MIPS
RAM Bytes: 368
Data EEPROM: 256 bytes
Learn more about PIC16F877A Microcontroller:
https://components101.com/pic16f877a-pin-diagram-
description-features-datasheet

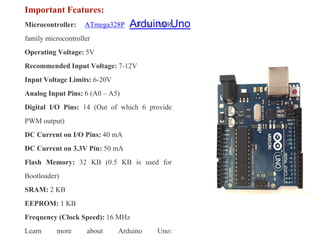

3. Arduino Uno
Important Features:
Microcontroller: ATmega328P – 8 bit AVR
family microcontroller
Operating Voltage: 5V
Recommended Input Voltage: 7-12V
Input Voltage Limits: 6-20V
Analog Input Pins: 6 (A0 – A5)
Digital I/O Pins: 14 (Out of which 6 provide
PWM output)
DC Current on I/O Pins: 40 mA
DC Current on 3.3V Pin: 50 mA
Flash Memory: 32 KB (0.5 KB is used for
Bootloader)
SRAM: 2 KB
EEPROM: 1 KB
Frequency (Clock Speed): 16 MHz
Learn more about Arduino Uno:

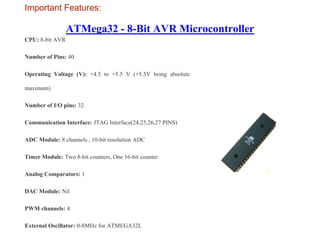

4. ATMega32 - 8-Bit AVR Microcontroller
Important Features:
CPU: 8-bit AVR
Number of Pins: 40
Operating Voltage (V): +4.5 to +5.5 V (+5.5V being absolute
maximum)
Number of I/O pins: 32
Communication Interface: JTAG Interface(24,25,26,27 PINS)
ADC Module: 8 channels , 10-bit resolution ADC
Timer Module: Two 8-bit counters, One 16-bit counter
Analog Comparators: 1
DAC Module: Nil
PWM channels: 4
External Oscillator: 0-8MHz for ATMEGA32L

5. Arduino Pro Mini
Important Features:
Microcontroller: Atmega328p – 8 BIT AVR
controller
Operating Voltage: 5V and 3.3V
Raw Voltage input: 5V to 12V
Maximum current through each I/O pin: 40mA
Maximum total current drawn from chip: 200mA
Flash Memory: 32KBytes
EEPROM: 1KByte
Internal RAM: 2Kbytes
Clock Frequency: 3.3V --- 8Mhz, 5V --- 16Mhz
Learn more about Arduino Pro Mini:

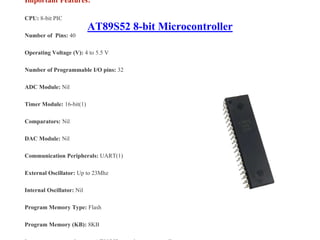

6. AT89S52 8-bit Microcontroller
Important Features:
CPU: 8-bit PIC
Number of Pins: 40
Operating Voltage (V): 4 to 5.5 V
Number of Programmable I/O pins: 32
ADC Module: Nil
Timer Module: 16-bit(1)
Comparators: Nil
DAC Module: Nil
Communication Peripherals: UART(1)
External Oscillator: Up to 23Mhz
Internal Oscillator: Nil
Program Memory Type: Flash
Program Memory (KB): 8KB

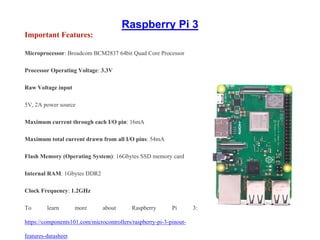

7. Raspberry Pi 3
Important Features:
Microprocessor: Broadcom BCM2837 64bit Quad Core Processor
Processor Operating Voltage: 3.3V
Raw Voltage input
5V, 2A power source
Maximum current through each I/O pin: 16mA
Maximum total current drawn from all I/O pins: 54mA
Flash Memory (Operating System): 16Gbytes SSD memory card
Internal RAM: 1Gbytes DDR2
Clock Frequency: 1.2GHz
To learn more about Raspberry Pi 3:
https://components101.com/microcontrollers/raspberry-pi-3-pinout-
features-datasheet

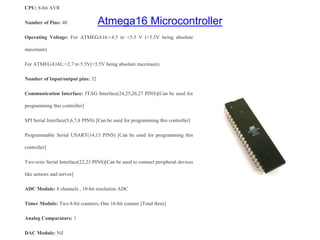

8. Atmega16 Microcontroller
CPU: 8-bit AVR
Number of Pins: 40
Operating Voltage: For ATMEGA16:+4.5 to +5.5 V (+5.5V being absolute
maximum)
For ATMEGA16L:+2.7 to 5.5V(+5.5V being absolute maximum)
Number of Input/output pins: 32
Communication Interface: JTAG Interface(24,25,26,27 PINS)[Can be used for
programming this controller]
SPI Serial Interface(5,6,7,8 PINS) [Can be used for programming this controller]
Programmable Serial USART(14,15 PINS) [Can be used for programming this
controller]
Two-wire Serial Interface(22,23 PINS)[Can be used to connect peripheral devices
like sensors and servos]
ADC Module: 8 channels , 10-bit resolution ADC
Timer Module: Two 8-bit counters, One 16-bit counter [Total three]
Analog Comparators: 1
DAC Module: Nil

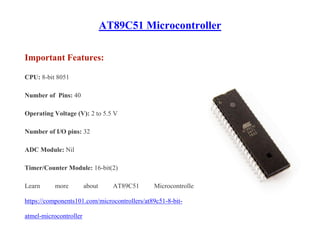

9. AT89C51 Microcontroller
Important Features:
CPU: 8-bit 8051
Number of Pins: 40
Operating Voltage (V): 2 to 5.5 V
Number of I/O pins: 32
ADC Module: Nil
Timer/Counter Module: 16-bit(2)
Learn more about AT89C51 Microcontroller:
https://components101.com/microcontrollers/at89c51-8-bit-
atmel-microcontroller

10. BeagleBone Black
Important Features:
Processor: Sitara AM3358BZCZ100, 1 GHz, 2000 MIPS
Graphics Engine: SGX530 3D, 20M Polygons/S
SDRAM Memory: 512MB DDR3L 800 MHz
Onboard Flash: 4GB, 8-bit Embedded MMC
PMIC: TPS65217C PMIC regulator and one additional LDO
Serial Port: UART0 access via 6-pin 3.3V TTL Header. Header is
populated
Ethernet: 10/100, RJ45
SD/MMC Connector: microSD, 3.3V
Learn more about BeagleBone Black:
https://components101.com/microcontrollers/beaglebone-black-
pinout-datasheet

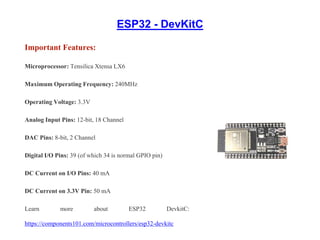

11. ESP32 - DevKitC
Important Features:
Microprocessor: Tensilica Xtensa LX6
Maximum Operating Frequency: 240MHz
Operating Voltage: 3.3V
Analog Input Pins: 12-bit, 18 Channel
DAC Pins: 8-bit, 2 Channel
Digital I/O Pins: 39 (of which 34 is normal GPIO pin)
DC Current on I/O Pins: 40 mA
DC Current on 3.3V Pin: 50 mA
Learn more about ESP32 DevkitC:
https://components101.com/microcontrollers/esp32-devkitc
