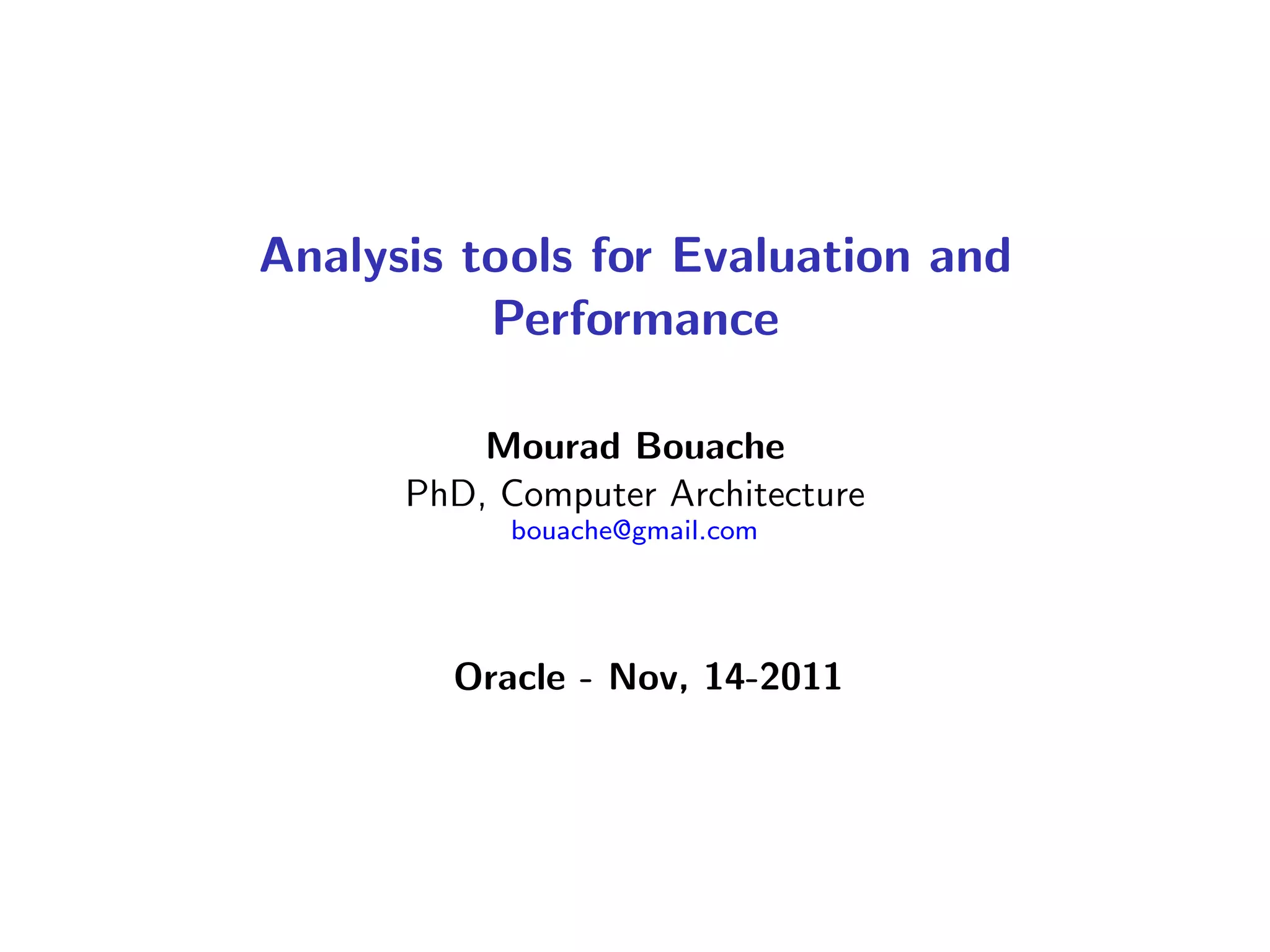

1. Analysis tools for Evaluation and
Performance
Mourad Bouache
PhD, Computer Architecture
bouache@gmail.com
Oracle - Nov, 14-2011

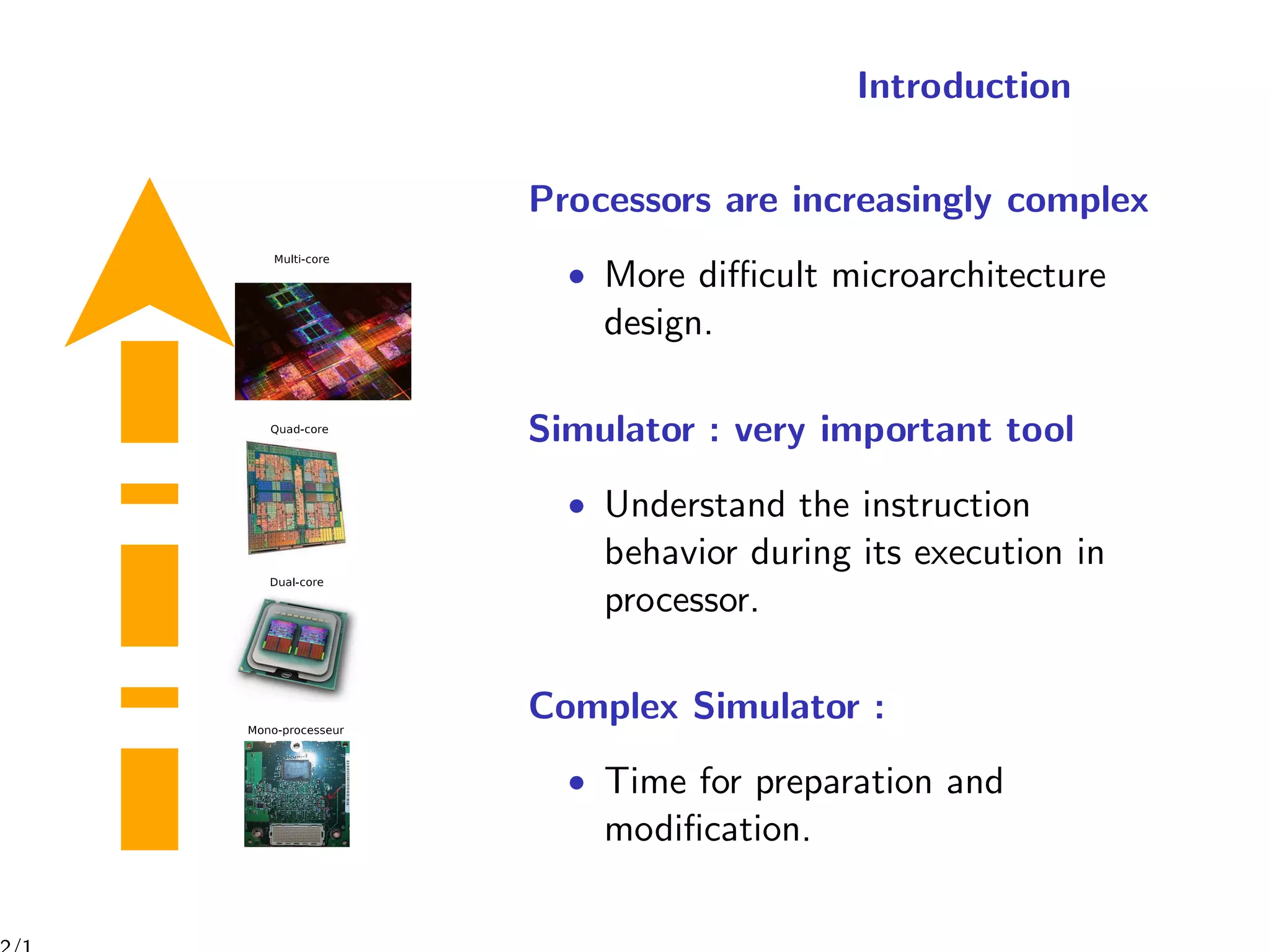

2. Introduction
Processors are increasingly complex
• More difficult microarchitecture
design.
Simulator : very important tool
• Understand the instruction
behavior during its execution in
processor.
Complex Simulator :
• Time for preparation and
modification.

3. Introduction
Simulation

4. Simulator
Tool
• Simulator : very important tool
• test new concepts

5. Simulator
Tool
• Simulator : very important tool
• test new concepts
Three characteristics

6. Complexity of microarchitectures

7. Modular Simulation

8. Speed decreases as complexity increases

9. Contribution : vectorization methodology

10. Monolithic Simulation
Simplescalar, is the most used (in 70% of articles).
This simulator and most other simulators have a serious
drawback : monolithic
Advantage
• simulation speed

11. Monolithic Simulation
Simplescalar, is the most used (in 70% of articles).
This simulator and most other simulators have a serious
drawback : monolithic
Advantage
• simulation speed
Disadvantages
• Difficult to update.
• Difficult to extract and compare the simulator components.

12. Monolithic vs Modular

13. Modular simulation
Advantages
• Reuse/ exchange and compare simulator modules,

14. Modular simulation
Advantages
• Reuse/ exchange and compare simulator modules,
• Better confidence in simulation (closer to HW),

15. Modular simulation
Advantages
• Reuse/ exchange and compare simulator modules,
• Better confidence in simulation (closer to HW),
• Easier to read.

16. Modular simulation
Advantages
• Reuse/ exchange and compare simulator modules,
• Better confidence in simulation (closer to HW),
• Easier to read.
Main drawback :
• Simulation speed slowdown

17. Outline
1 Modular simulation environment
2 Acceleration techniques
3 Vectorization of Simulator Modules
4 Experimental framework
5 Results
6 Scheduling process in SystemC
7 Conclusion & future works.

18. Modular simulation environments
• A modular simulation environment describe hierarchically and
structurally the system to simulate.
To simulate the entire system, the environment includes a
scheduler controlling the performance of different components.

19. Modular simulation environments
• A modular simulation environment describe hierarchically and
structurally the system to simulate.
To simulate the entire system, the environment includes a
scheduler controlling the performance of different components.
• Key benefits :

20. Modular simulation environments
Reuse ...

21. Modular simulation environments
Compare ...

22. Modular simulation environments
Share ...

23. Simulation models

24. acceleration techniques
Acceleration techniques
• reduction of inputs and simulation programs : MinneSPEC,
• simulation engine optimization : FastSysC 1 (speedX 2),
• distribution of simulation : DisT,
• sampling techniques : representative, periodic and
random sampling,
• transition to modeling TTLM :Timed Transaction Level
Modeling.
1. Daniel Gracia Perez et al. FastSysC : a fast SystemC engine

25. acceleration techniques
Acceleration techniques
• Compromise between accuracy and simulation speed,
2. David Parello, Mourad Bouache, and Bernard Goossens. Improving cycle-level modular simulation by vec-
torization. In Rapid Simulation and Performance Evaluation : Methods and Tools (RAPIDO’09)

26. acceleration techniques
Acceleration techniques
• Compromise between accuracy and simulation speed,
• Vectorization 2 is a methodology that can be used with
one of these acceleration techniques.
2. David Parello, Mourad Bouache, and Bernard Goossens. Improving cycle-level modular simulation by vec-
torization. In Rapid Simulation and Performance Evaluation : Methods and Tools (RAPIDO’09)

27. Modular simulation environment
UNISIM 3 : A modular simulation framework
• UNISIM is a modular framework for simulation, each simulator
is divided into several modules, each module corresponding to
a hardware block.
3. http ://www.unisim.org/

28. Modular simulation environment
UNISIM 3 : A modular simulation framework
• UNISIM is a modular framework for simulation, each simulator
is divided into several modules, each module corresponding to
a hardware block.
• A module is composed of two parts : state and processes.
3. http ://www.unisim.org/

29. Modular simulation environment
UNISIM : A modular simulation framework
• A process is defined in a .sim file as a C++ class

30. UNISIM : Communication protocol
Communication protocol
• Ports : inports and outports
• Signals

31. UNISIM : Communication protocol
Communication protocol
• Ports : inports and outports
• Signals
3 signals :
• Processes can be sensitive to
the data, the accept and
the enable signals.

32. Communication protocol
UNISIM : signals
• The simulation engine (SystemC) wakes up the modules
process.

33. UNISIM : Communication protocol
Communication between modules

34. UNISIM : Communication protocol
Communication between modules

35. UNISIM : Communication protocol
Communication between modules

36. UNISIM : Communication protocol
Communication between modules

37. UNISIM : Communication protocol
Communication between modules

38. UNISIM : Communication protocol
Communication between modules

39. UNISIM : Communication protocol
Communication between modules

40. UNISIM : Communication protocol
Communication between modules

41. UNISIM : Communication protocol
Communication between modules

42. Communication protocol
Communication between modules
Scalability is difficult with a modular simulation, for two factors :
• Communication costs between the simulator modules.
• Awakening process for each communicating module.

43. Communication costs
Monolithic Simulator
• Write/read a variable.

44. Communication costs
Monolithic Simulator
• Write/read a variable.
Modular Simulator

45. A New Communication Protocol
Signals Array
• Reduce the number of signals,
• Several values of data, accept, enable temporarily stored in
signals array.

46. A New Communication Protocol
Signals Array
• An extension of the communication protocol between modules
is a solution to accelerate a simulation speed.

47. Module Vectorization
A simple and systematic procedure
1 vectorize module state and ports,
2 add a loop around the process,
3 add method calls to send() following the addition of for
loops.

48. Example : Functional Unit
1 class FunctionalUnit : public module
2 { public :
3 inclock clock ;
4 inport < instr > in ;
5 outport < instr > out ;
6 FunctionalUnit ( const char * name ): module ( name )
7 { sensitive_pos_method ( start_of_cycle ) << clock ;
8 sensitive_neg_method ( end_of_cycle ) << clock ;
9 sensitive_method ( on_data_accept ) << in . data << out . accept ;
10 }
11 void start_of_cycle ()
12 { if ( pipeline . is_ready ())
13 out . data = pipeline . get ();
14 else out . data . nothing ();
15 }
16 void on_data_accept ()
17 { if ( in . data . know () && out . accept . know ())
18 { if (! pipeline . is_full () || out . accept )
19 in . accept = true ;
20 else in . accept = false ;
21 out . enable = out . accept ;
22 }
23 }
24 void end_of_cycle ()
25 { if ( out . accept ) pipeline . pop ();
26 if ( in . enable ) pipeline . push ( in . data );
27 pipeline . run ();
28 }
29 private :
30 Fifo < instr > pipeline ;
31 };

49. Module Vectorization
Vectorization Procedure
1. vectorize module state and ports.
1 class FunctionalUnit : public module 1 class FunctionalUnit : public module
2 { public : 2 { public :
3 inclock clock ; 3 inclock clock ;
4 inport < instr > in ; 4 inport < instr , NBCFG > in ;
5 outport < instr > out ; 5 outport < instr , NBCFG > out ;
6 ... 6 ...
7 private : 7 private :
8 Fifo < instr > pipeline ; 8 Fifo < instr > pipeline [ NBCFG ];

50. Module Vectorization
Vectorization procedure
2. add a loop around the process.
1 ...
2 void start_of_cycle ()
3 { for ( int cfg =0; cfg < NBCFG; cfg ++)
4 {
1 ... 5 if ( pipeline [ cfg ]. is_ready ())
2 void start_of_cycle () 6 out . data [ cfg ] = pipeline [ cfg ]. get ();
3 { if ( pipeline . is_ready ()) 7 else out . data [ cfg ]. nothing ();
4 out . data = pipeline . get (); 8 ...
5 else out . data . nothing (); 9 }
6 } 10 }
7 void on_data_accept () 11 void on_data_accept ()
8 { if ( in . data . know () && out . accept . know ()) 12 { if ( in . data . know () && out . accept . know ())
9 { if (! pipeline . is_full () || out . accept ) 13 { for ( int cfg =0; cfg < NBCFG; cfg ++)
10 in . accept = true ; 14 { if (! pipeline [ cfg ]. is_full ()
11 else in . accept = false ; 15 || out . accept [ cfg ])
12 out . enable = out . accept ; 16 in . accept [ cfg ] = true ;
13 } 17 else in . accept [ cfg ] = false ;
14 } 18 out . enable [ cfg ] = out . accept [ cfg ];
15 ... 19 ...
20 }
21 }
22 }
23 ...

51. Module Vectorization
Vectorization procedure
3. add method calls to send() following the addition of for loops.
1 ...
2 void start_of_cycle ()
3 { for ( int cfg =0; cfg < NBCFG; cfg ++)
4 {
5 if ( pipeline [ cfg ]. is_ready ())
1 ... 6 out . data [ cfg ] = pipeline [ cfg ]. get ();
2 void start_of_cycle () 7 else out . data [ cfg ]. nothing ();
3 { if ( pipeline . is_ready ()) 8 }
4 out . data = pipeline . get (); 9 out . data. send ();
5 else out . data . nothing (); 10 }
6 } 11 void on_data_accept ()
7 void on_data_accept () 12 { if ( in . data . know () && out . accept . know ())
8 { if ( in . data . know () && out . accept . know ()) 13 { for ( int cfg =0; cfg < NBCFG; cfg ++)
9 { if (! pipeline . is_full () || out . accept ) 14 { if (! pipeline [ cfg ]. is_full ()
10 in . accept = true ; 15 || out . accept [ cfg ])
11 else in . accept = false ;
12 out . enable = out . accept ; 16 in . accept [ cfg ] = true ;
13 } 17 else in . accept [ cfg ] = false ;
14 } 18 out . enable [ cfg ] = out . accept [ cfg ];
15 ... 19 }
20 in . accept . send ();
21 out . enable . send ();
22 }
23 }
24 ...

52. Example : Vectorized Functional Unit
1 class FunctionalUnit : public module
2 { public :
3 inclock clock;
4 inport < instr , NBCFG > in ;
5 outport < instr , NBCFG > out ;
6 FunctionalUnit ( const char * name ): module ( name )
7 { // sensitive list
8 sensitive_pos_method ( start_of_cycle ) << clock ;
9 sensitive_neg_method ( end_of_cycle ) << clock ;
10 sensitive_method ( on_data_accept ) << in . data << out . accept ;
11 }
12 void start_of_cycle ()
13 { for ( int cfg =0; cfg < NBCFG; cfg ++)
14 {
15 if ( pipeline [ cfg ]. is_ready ())
16 out . data[ cfg ] = pipeline [ cfg ]. get ();
17 else out . data [ cfg ]. nothing ();
18 }
19 out . data . send ();
20 }
21 void on_data_accept ()
22 { if ( in . data. know () && out . accept . know ())
23 { for ( int cfg =0; cfg < NBCFG; cfg ++)
24 { if (! pipeline [ cfg ]. is_full () || out . accept [ cfg ])
25 in . accept [ cfg ] = true ;
26 else in . accept [ cfg ] = false ;
27 out . enable [ cfg ] = out . accept [ cfg ];
28 }
29 in . accept . send();
30 out . enable . send ();
31 }
32 }
33 void end_of_cycle ()
34 { for ( int cfg =0; cfg < NBCFG; cfg ++)
35 { if ( out . accept [ cfg ]) pipeline [ cfg ]. pop ();
36 if ( in . enable [ cfg ]) pipeline [ cfg ]. push ( in . data );
37 pipeline [ cfg ]. run ();
38 }
39 }
40 private :
41 Fifo < instr > pipeline [ NBCFG ];
42 };

53. Simulator Vectorization
Multi-cores Simulation
• In our study, we performed simulations of multi-cores : 2, 4, 8,
16, 32 and 64.

54. OoOSim : Out of Order Simulator
OoOSim 4 modelises a generic superscalar out-of-order processor.
The baseline simulator includes a 4-way superscalar core with an L1
instruction cache, an L1 write-back data cache, a bus and a dram.
4. Mourad Bouache, David Parello, Bernard Goossens. Acceleration of Modular simulation. In International
Supercomputing Conference (ISC09) Hamburg, Germany, June 2009.

55. OoOSim : Out of Order Simulator
OoOSim : 12 modules
1 Fetcher,
2 AllocatorRenamer,
3 Dispatcher,
4 Scheduler,
5 RegisterFile,
6 Ret-Broadcast and CDBA:Common Data Bus Arbiter,
7 IntegerUnit, FloatingPointUnit and AddressGenerationUnit,
8 LoadStoreQueue,
9 Data caches L1 and L2,
10 Instruction cache L1,
11 Memory DRAM,
12 Reorder Buffer.

56. OoOSim : Out of Order Simulator
more than 15.000 code lines, 12 connected modules through 187 signals.

57. Benchmarks
Benchmarks : MiBench
• Simulations were carried out by MiBench, divided into six
suites targeted areas specific market for embedded
applications :
Automotive, Network, Security, Consumer Devices,
Office Automation, and Telecommunications.
Auto./Industrial Consummer Office Network Security Telecomm.
susan (edges) jpeg stringsearch dijkstra sha FFT
susan (corners) - - - rijndael -
susan (smoothing) - - - - -

58. Performance evaluation
Simulation machine
• Performance evaluation has been carried out on a cluster of
30 Intel Xeon 5148 dual-core processors clocked at
2.33GHz with a 4MBytes L2 cache.

59. Results : simulation speed (without vectorization)

60. simulation speed (with vectorization)

61. Results : speedup

62. Why ... ?
Instrumentation of the FastSysC code(program)
• Cycle Counters (RDTSC:Read Time Stamp Counter) :
1 The scheduler FastSysC transit time.
2 The process time.

63. FastSysC transit time(without/with vectorization)

64. Conclusion
Results
• To address the need to improve the simulation speed, we
proposed a developing modules methodology in a modular
simulator.
• This methodology is based on a new communication signals
protocol .
The vectorial simulation improves scalability.

65. Results Discussion
Vectorization ...
• improves the speedup of the simulation time.
• it allows duplicate resources by limiting the overhead of
scheduler simulation time.
• can be used in conjunction with other techniques to
improve the speed as sampling techniques or reduction
of test programs.

66. Results Discussion
Vectorization ...

67. Conclusion
Conclusion
Our contribution aims to improve the simulation speed in
modular simulators, offering a simple and systematic
development based on the vectorization of the simulator
modules.

68. Conclusion
Simplescalar is not a multi-core simulator

69. Conclusion
Simplescalar is not a multi-core simulator

70. In focus
Other idea ...
• Vectorization
We wish to compare the results of this methodology using
TTLM modeling (Timed Transaction Level Modeling).

71. Merci, Thank you, Tack
QUESTIONS ?

72. Back-up slides
Post-doc research work
• Instruction Level Parallelism : ILP
Goal : understand the general structure of an execution and
parallelism it offers.
• PerPi : A Tool to Measure Instruction Level Parallelism
• http://kenny.univ-perp.fr/PerPi/
• A Pin tool, an Intel free programmable tool,
• computes the instructions dependency graph,
• computes, for each instruction in the run, its instruction cycle in the ideal
machine,
• Analysis of the structure of instruction-level parallelism,
• Parallelism on loops,
• Local and global parallelism,
• Parallelism on function ”CALL”.

73. Back-up slides
Pin Tool

74. Back-up slides
TTLM

75. Back-up slides
SystemC and FastSysC
SystemC, Contains a scheduler which manages signals and directs
the process to start. It contains a sequential processes (sensitive to
the clock) and combinatorial process (sensitive to input ports).
FastSysC, a mixture of static and dynamic scheduling to avoid
unnecessary awakening processes : thus optimize the simulation
engine.

76. Back-up slides
Monolithic

77. Back-up slides
Modular

78. Back-up slides
Parallel Simulation

79. Back-up slides
Sampling I

80. Back-up slides
Sampling II

81. Back-up slides
MiBench

82. Back-up slides
Use of OoOSim

83. Back-up slides
Stringsearch

84. Back-up slides
flight-trace simulation

85. Back-up slides
execution-driven simulation

86. Back-up slides
trace-driven simulation

87. Back-up slides
Unisim Example

88. Back-up slides
UNISIM History
