1. Anatomy of Tongue
And Its Applied Aspects
Presented by:
Niti Sarawgi

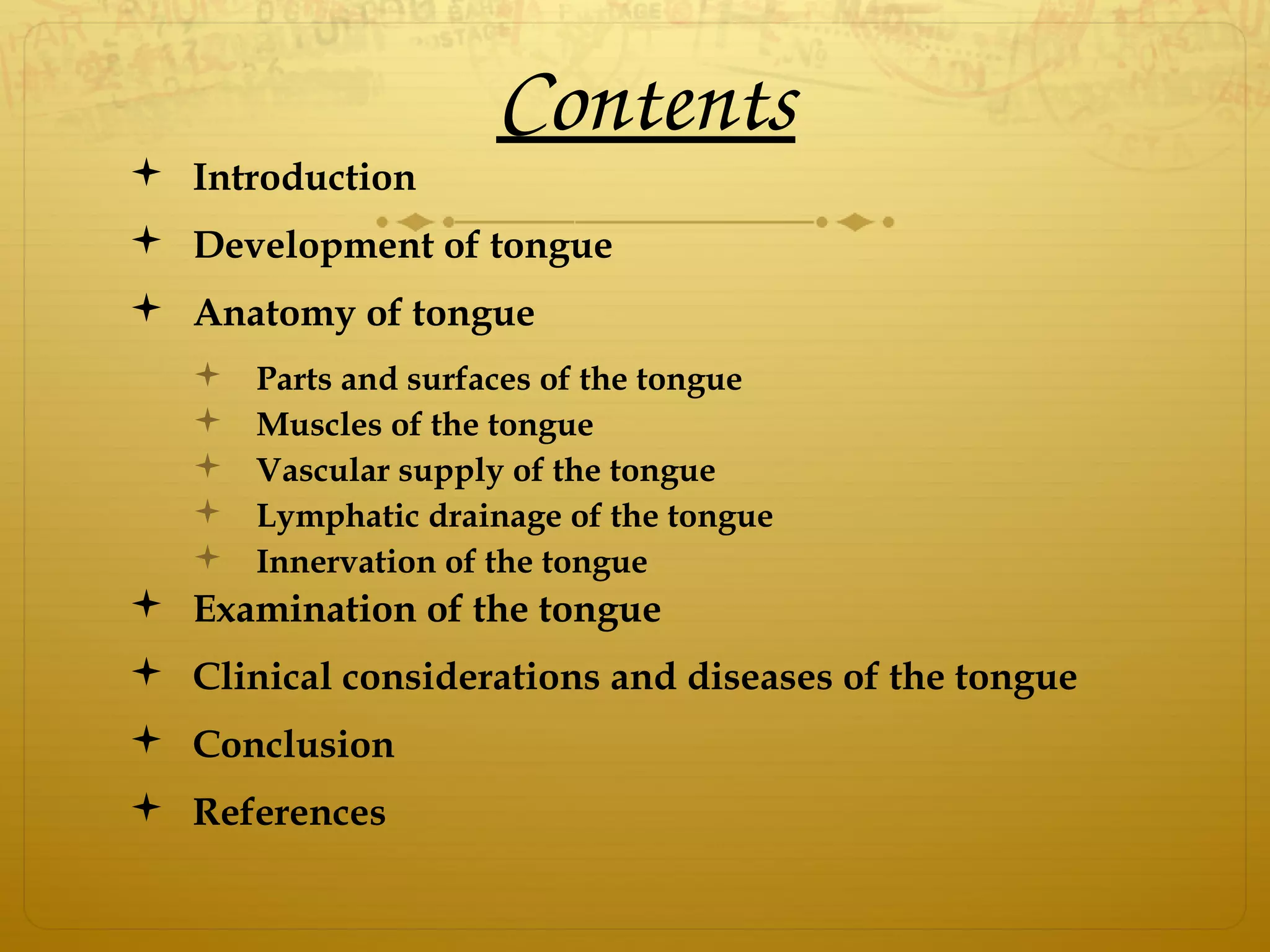

2. Contents
 Introduction
 Development of tongue
 Anatomy of tongue
 Parts and surfaces of the tongue
 Muscles of the tongue
 Vascular supply of the tongue
 Lymphatic drainage of the tongue
 Innervation of the tongue
 Examination of the tongue
 Clinical considerations and diseases of the tongue
 Conclusion
 References

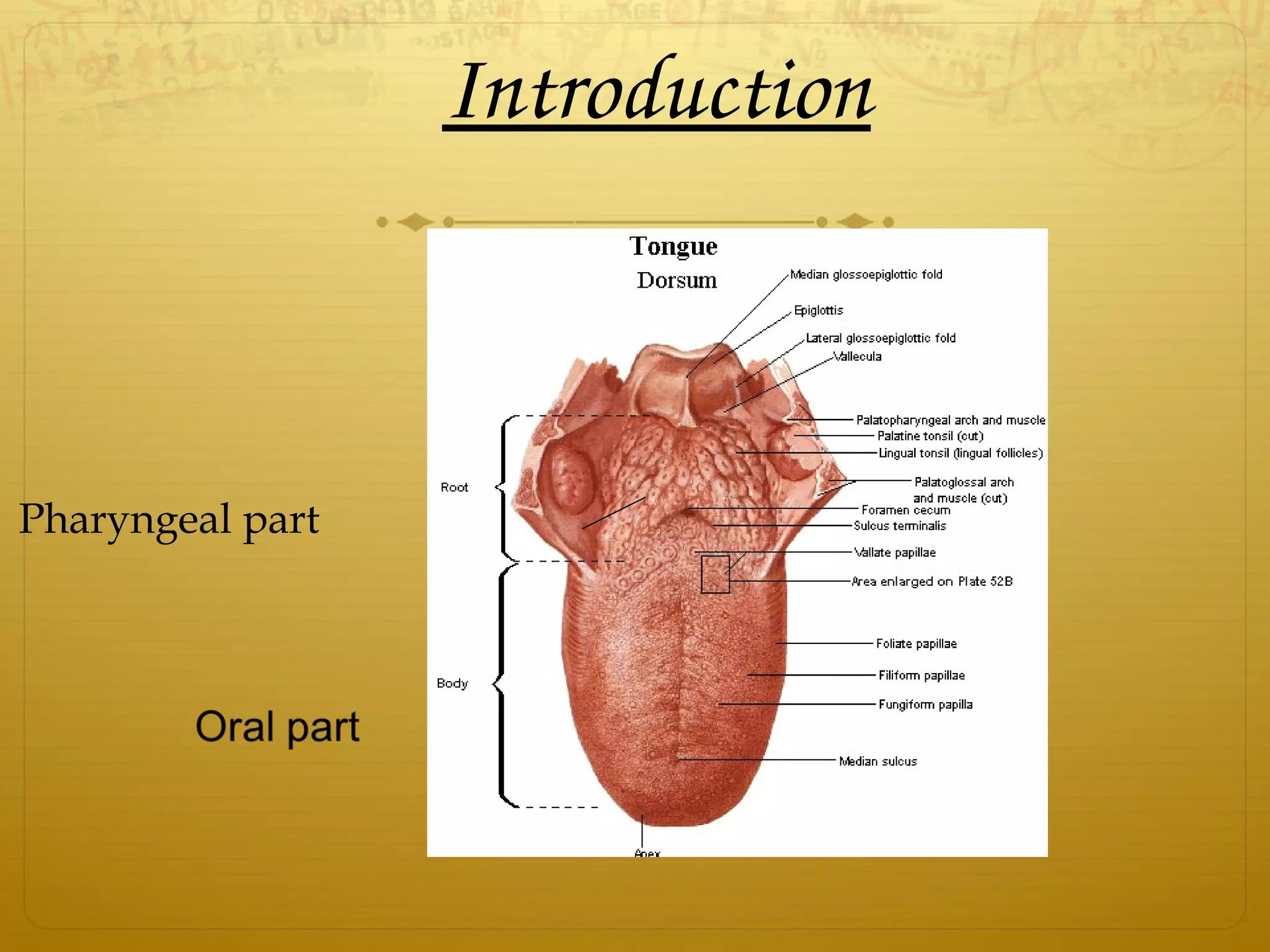

3. Introduction
Pharyngeal part

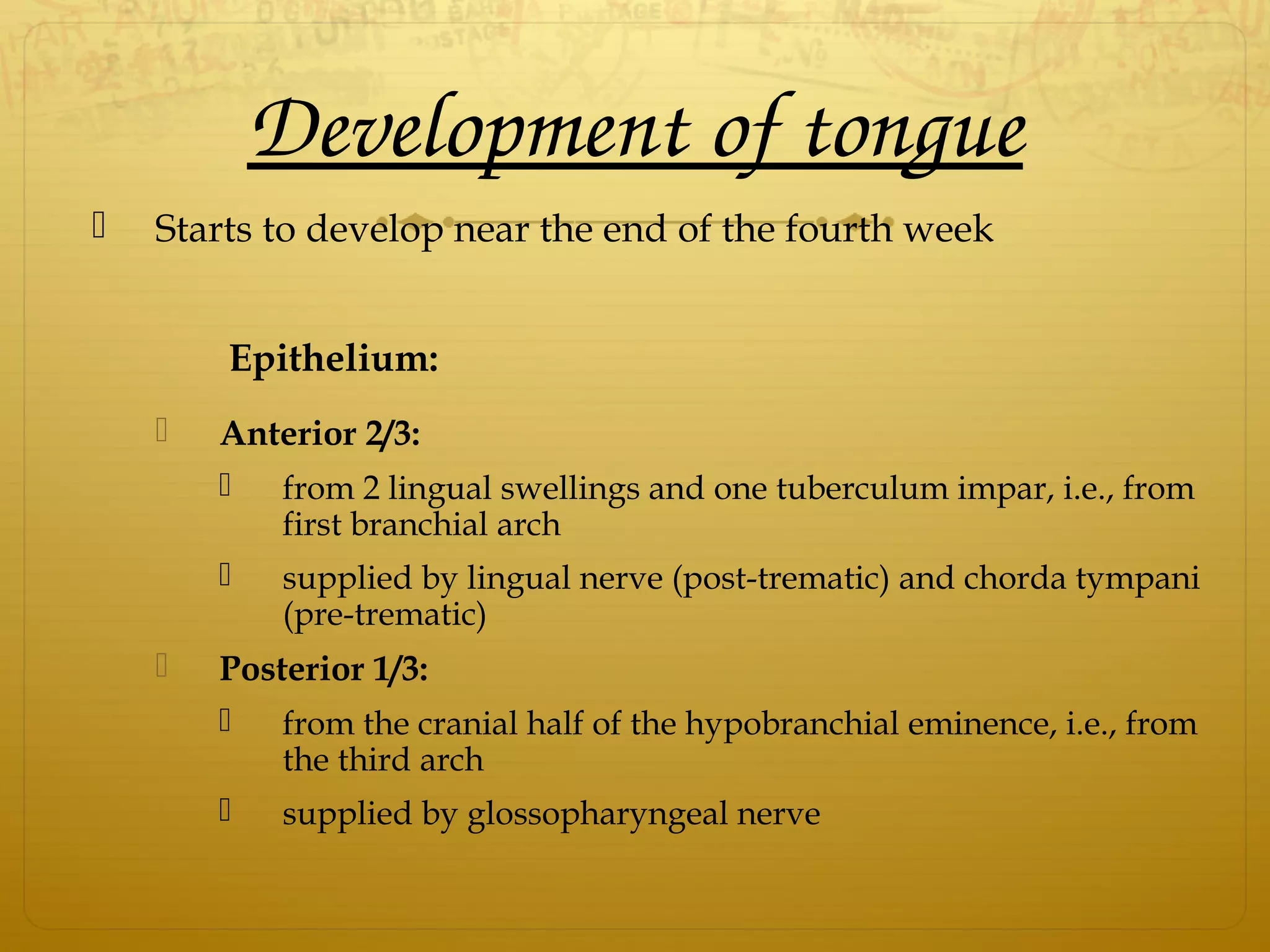

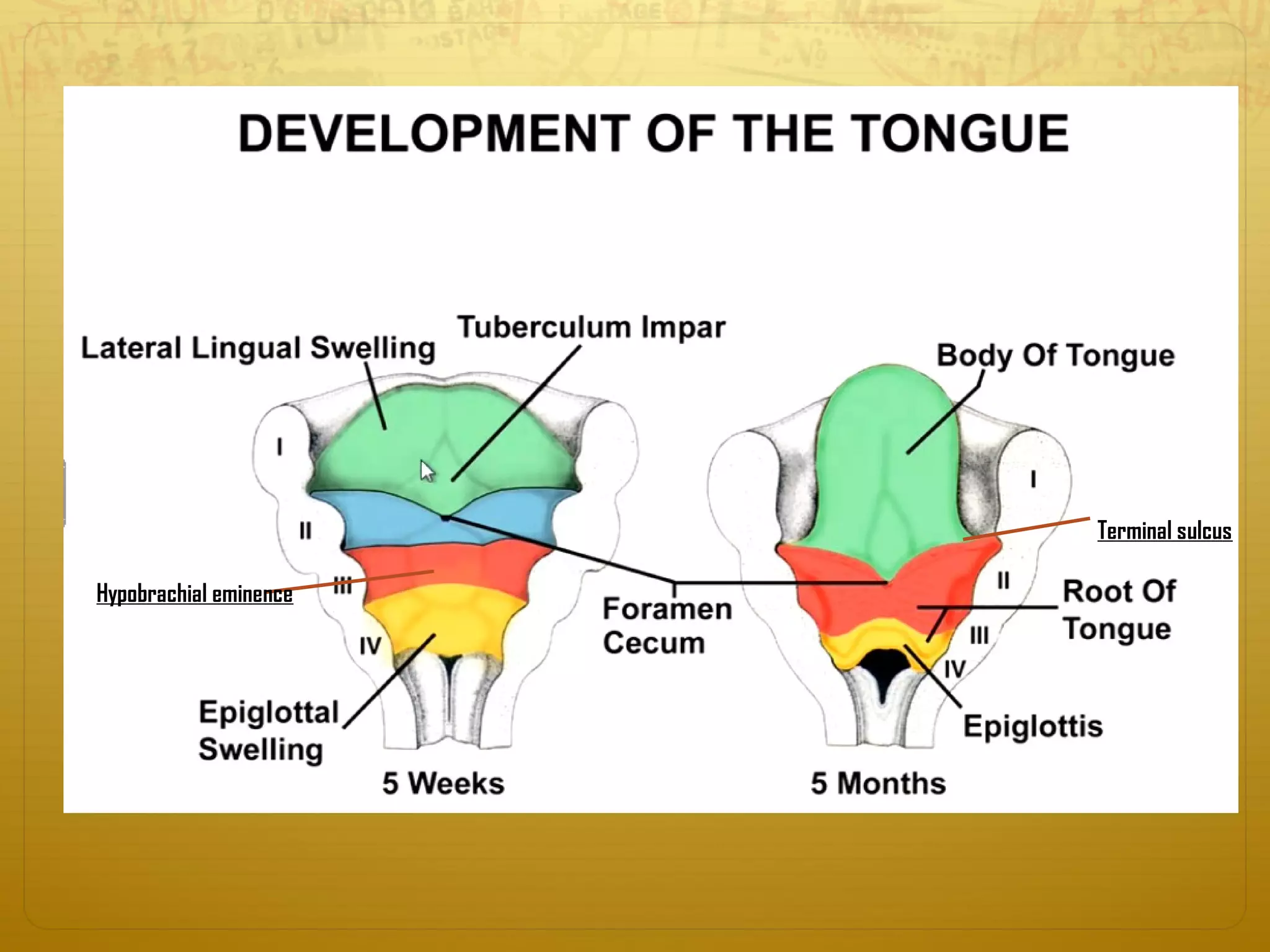

4. Development of tongue
 Starts to develop near the end of the fourth week
Epithelium:
 Anterior 2/3:
 from 2 lingual swellings and one tuberculum impar, i.e., from
first branchial arch
 supplied by lingual nerve (post-trematic) and chorda tympani
(pre-trematic)
 Posterior 1/3:
 from the cranial half of the hypobranchial eminence, i.e., from
the third arch
 supplied by glossopharyngeal nerve

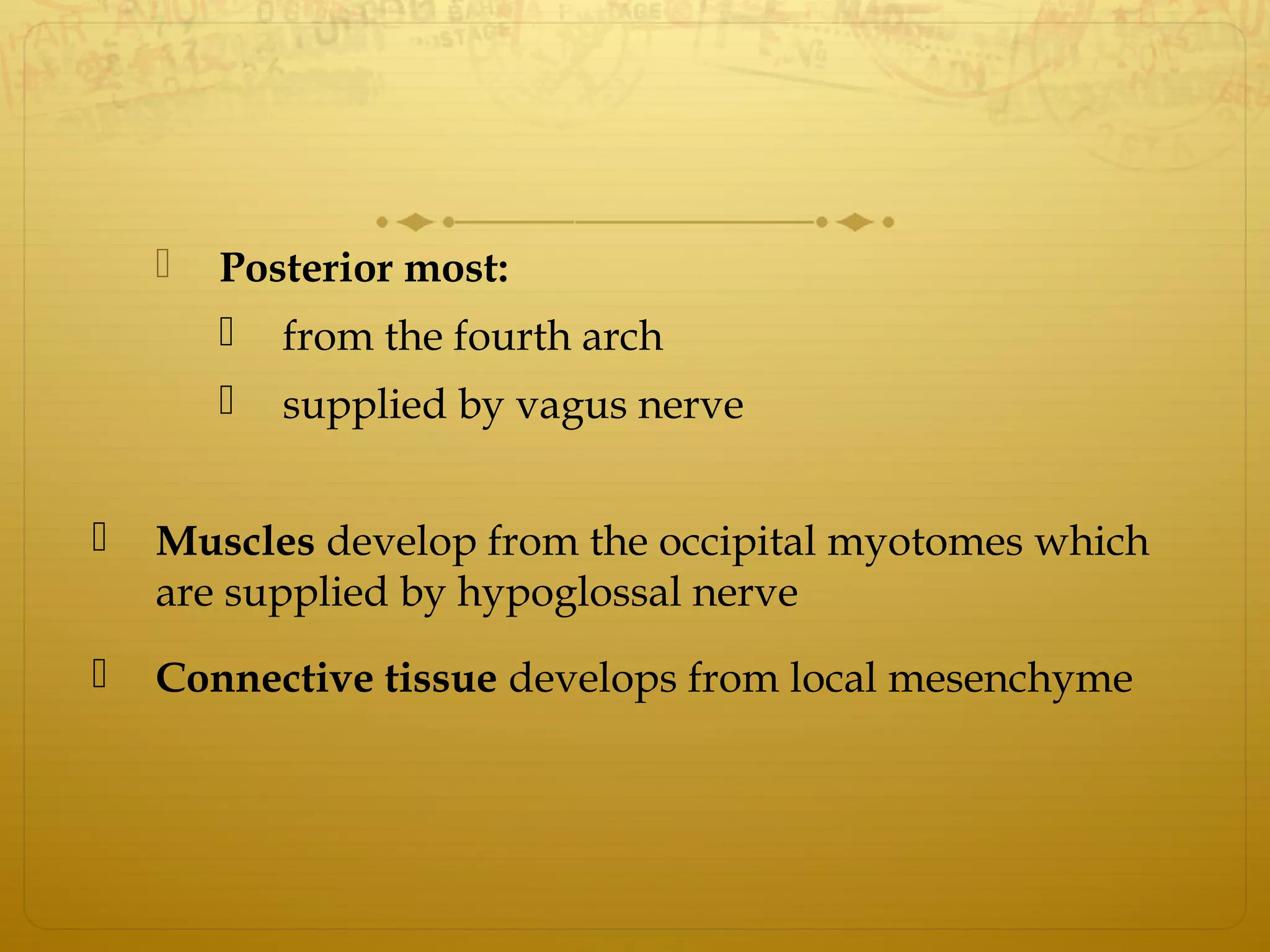

5.  Posterior most:
 from the fourth arch
 supplied by vagus nerve
 Muscles develop from the occipital myotomes which
are supplied by hypoglossal nerve
 Connective tissue develops from local mesenchyme

6. Terminal sulcus
Hypobrachial eminence

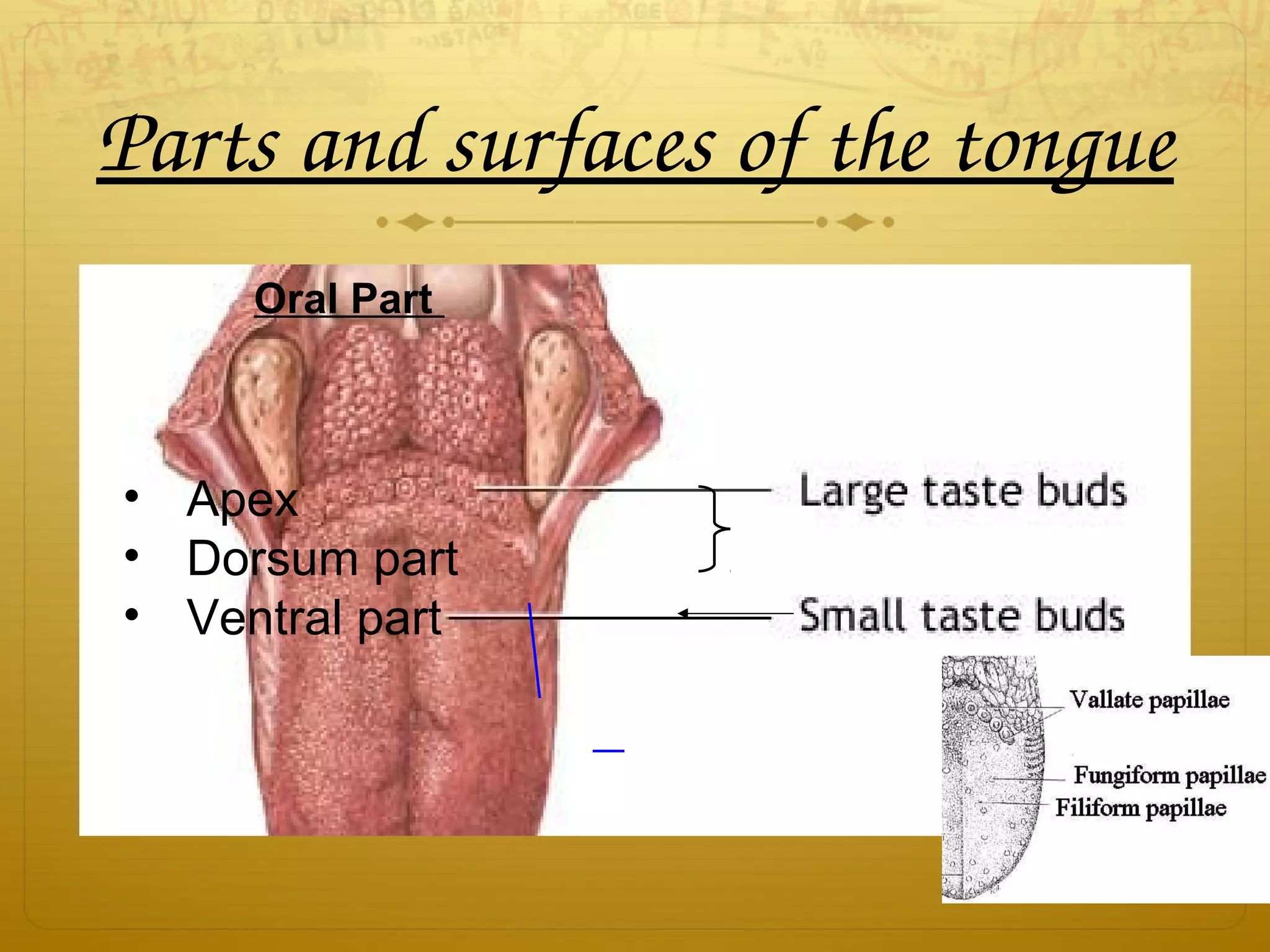

7. Parts and surfaces of the tongue
Oral Part
• Apex
• Dorsum part
• Ventral part

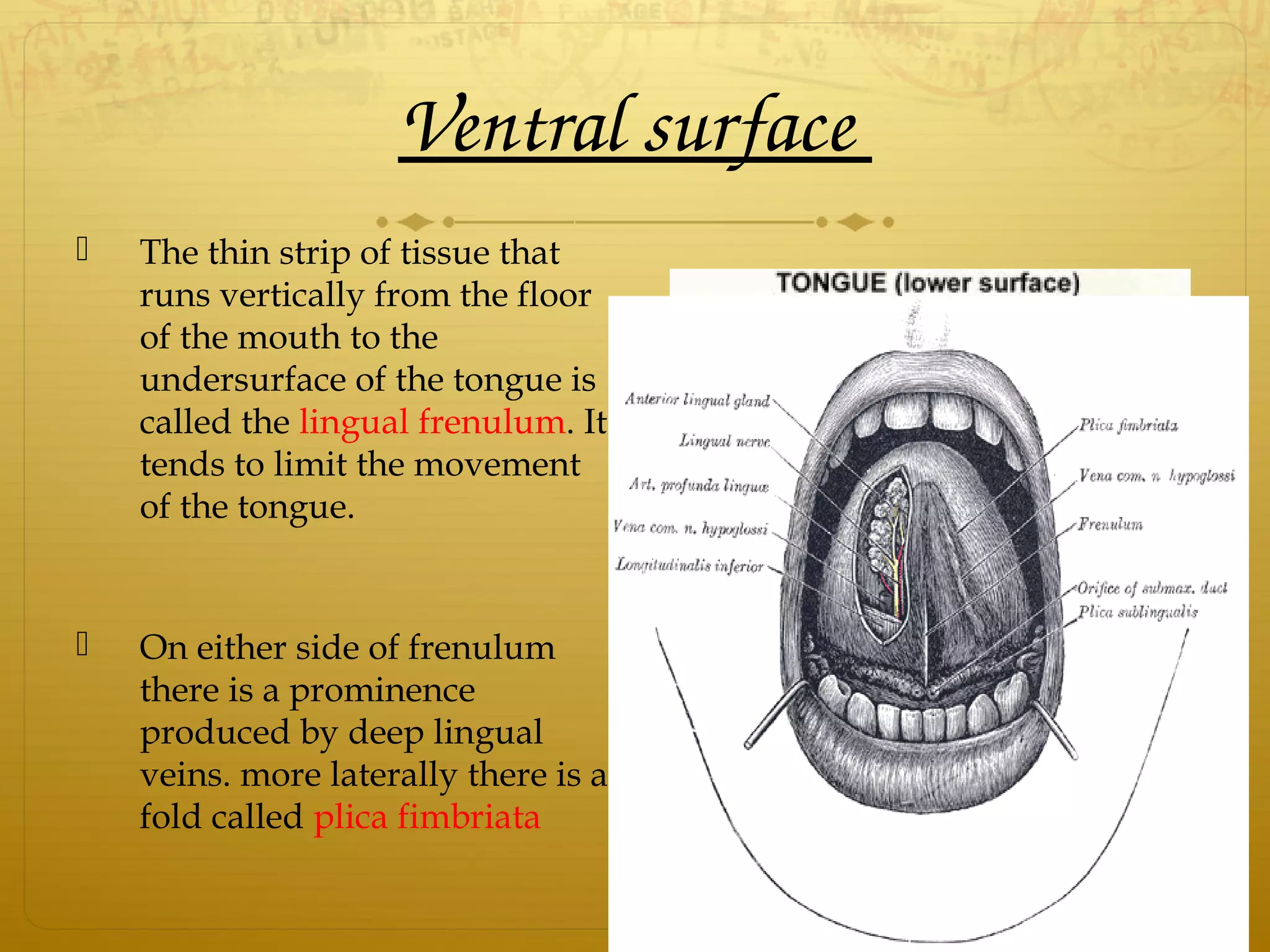

8. Ventral surface
 The thin strip of tissue that
runs vertically from the floor
of the mouth to the
undersurface of the tongue is
called the lingual frenulum. It
tends to limit the movement
of the tongue.
 On either side of frenulum
there is a prominence
produced by deep lingual
veins. more laterally there is a
fold called plica fimbriata

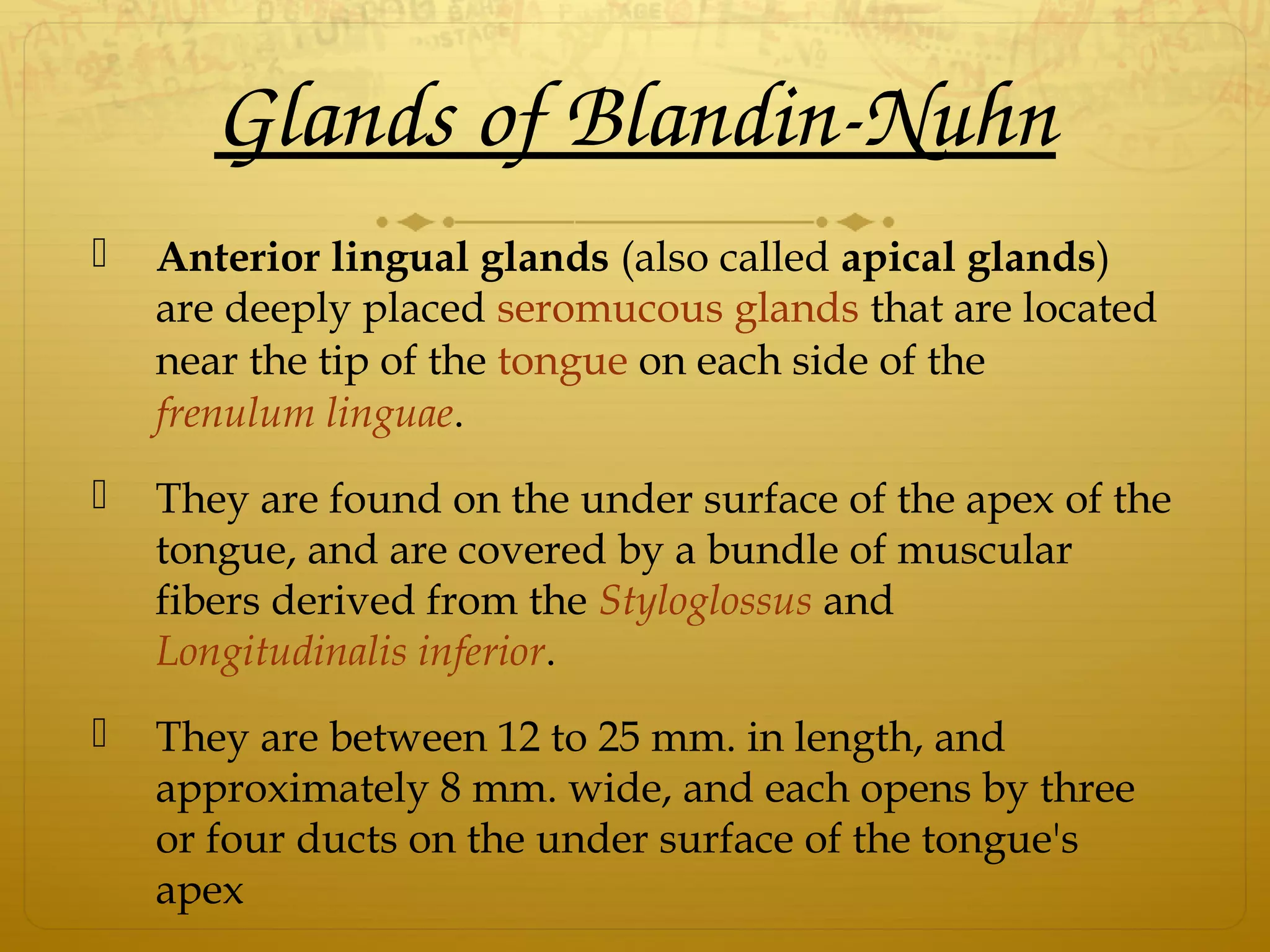

9. Glands of Blandin­Nuhn
 Anterior lingual glands (also called apical glands)
are deeply placed seromucous glands that are located
near the tip of the tongue on each side of the
frenulum linguae.
 They are found on the under surface of the apex of the
tongue, and are covered by a bundle of muscular
fibers derived from the Styloglossus and
Longitudinalis inferior.
 They are between 12 to 25 mm. in length, and
approximately 8 mm. wide, and each opens by three
or four ducts on the under surface of the tongue's
apex

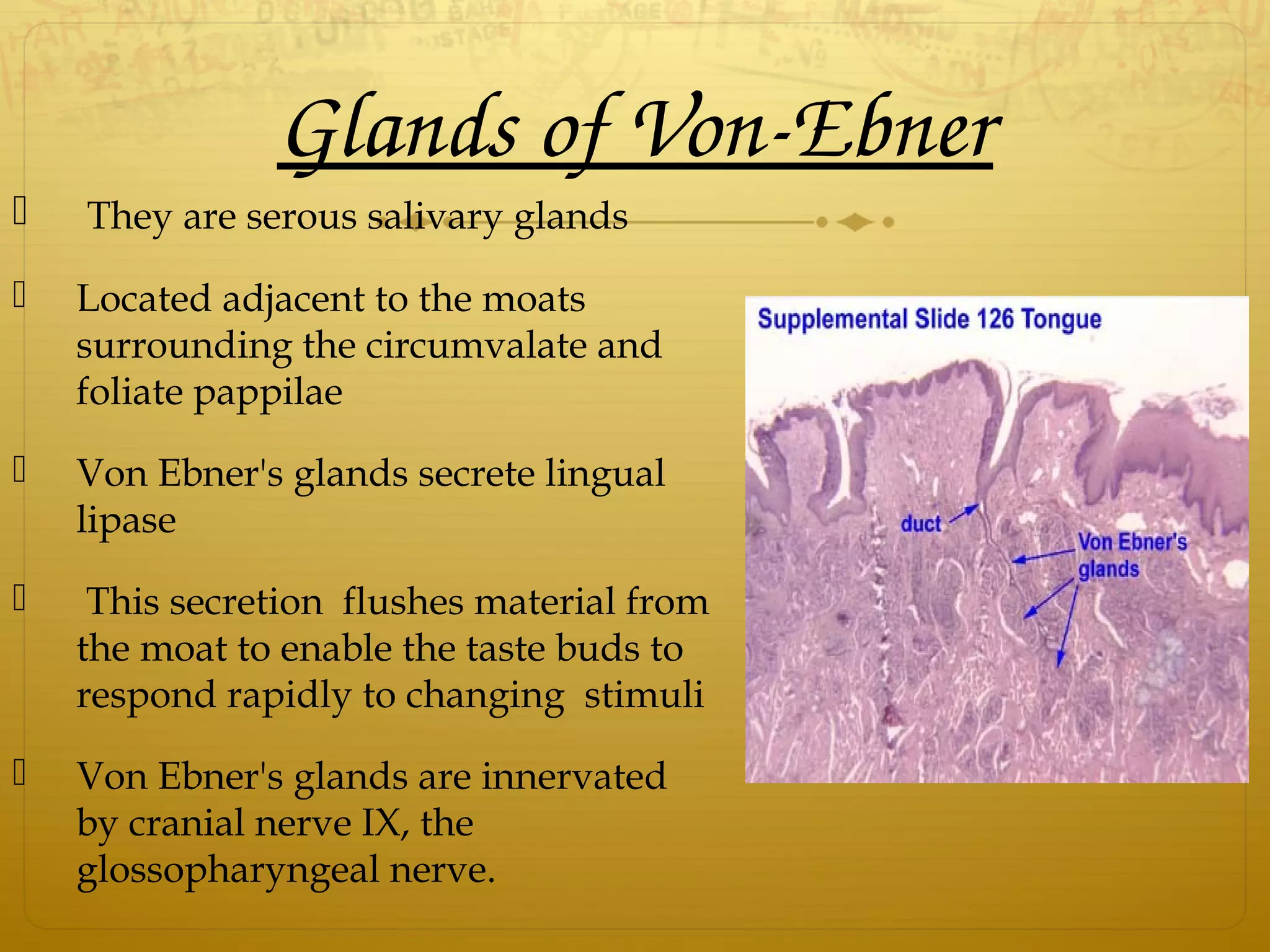

10. Glands of Von­Ebner
 They are serous salivary glands
 Located adjacent to the moats
surrounding the circumvalate and
foliate pappilae
 Von Ebner's glands secrete lingual
lipase
 This secretion flushes material from
the moat to enable the taste buds to
respond rapidly to changing stimuli
 Von Ebner's glands are innervated
by cranial nerve IX, the
glossopharyngeal nerve.

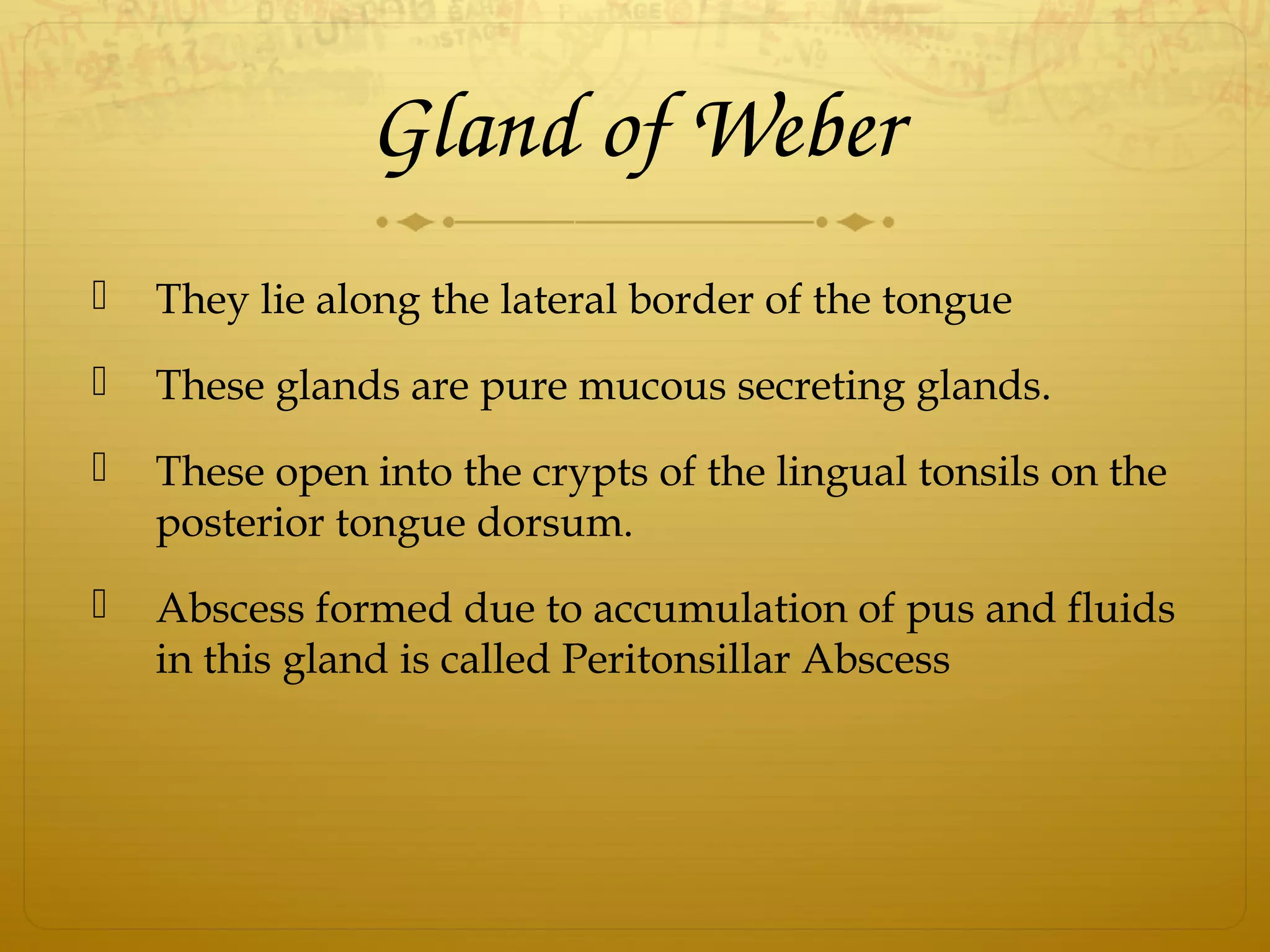

11. Gland of Weber
 They lie along the lateral border of the tongue
 These glands are pure mucous secreting glands.
 These open into the crypts of the lingual tonsils on the
posterior tongue dorsum.
 Abscess formed due to accumulation of pus and fluids
in this gland is called Peritonsillar Abscess

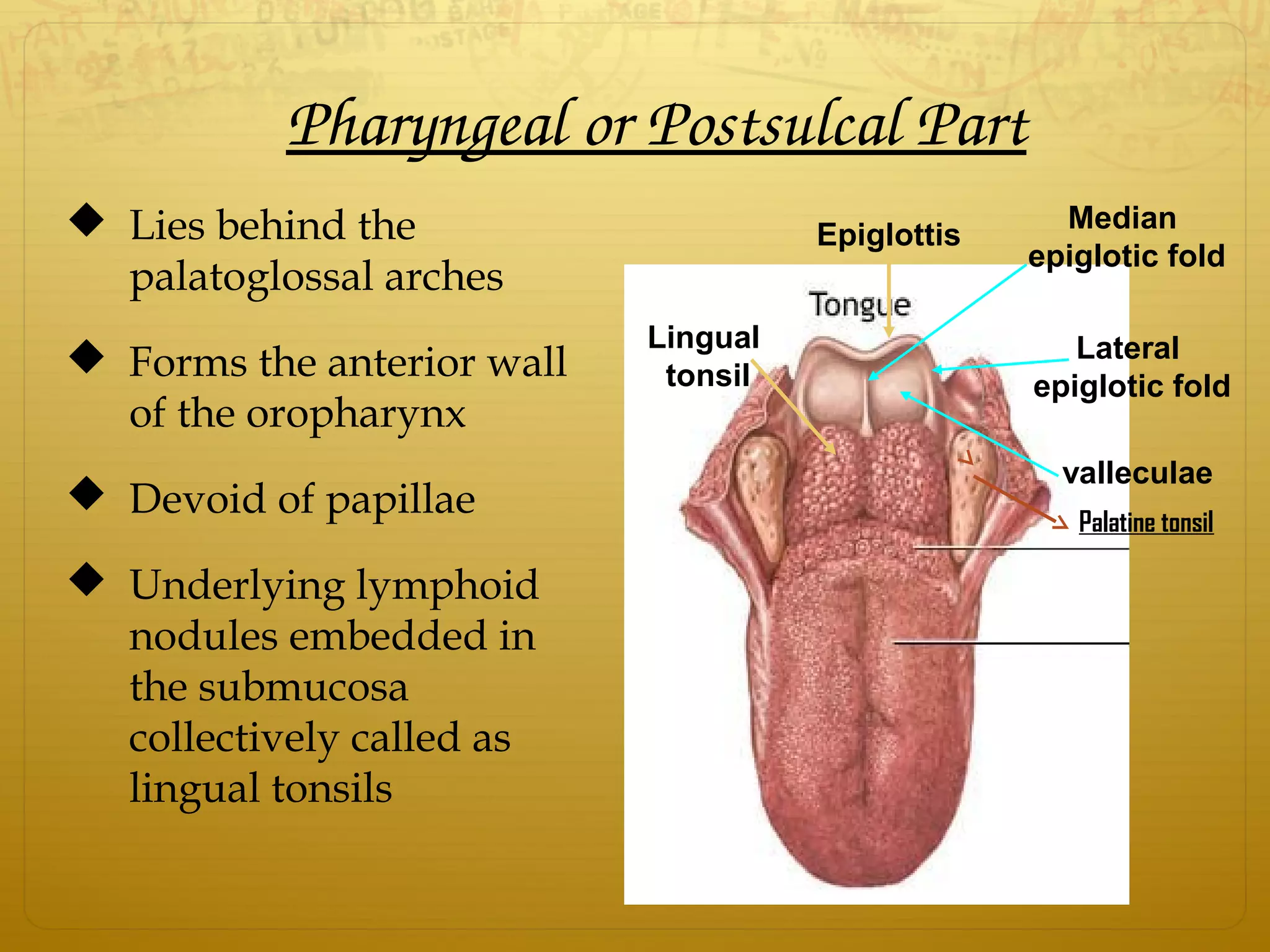

12.  Lies behind the
palatoglossal arches
 Forms the anterior wall
of the oropharynx
 Devoid of papillae
 Underlying lymphoid
nodules embedded in
the submucosa
collectively called as
lingual tonsils
Pharyngeal or Postsulcal Part
Epiglottis
Lingual
tonsil
Median
epiglotic fold
Lateral
epiglotic fold
valleculae
Palatine tonsil

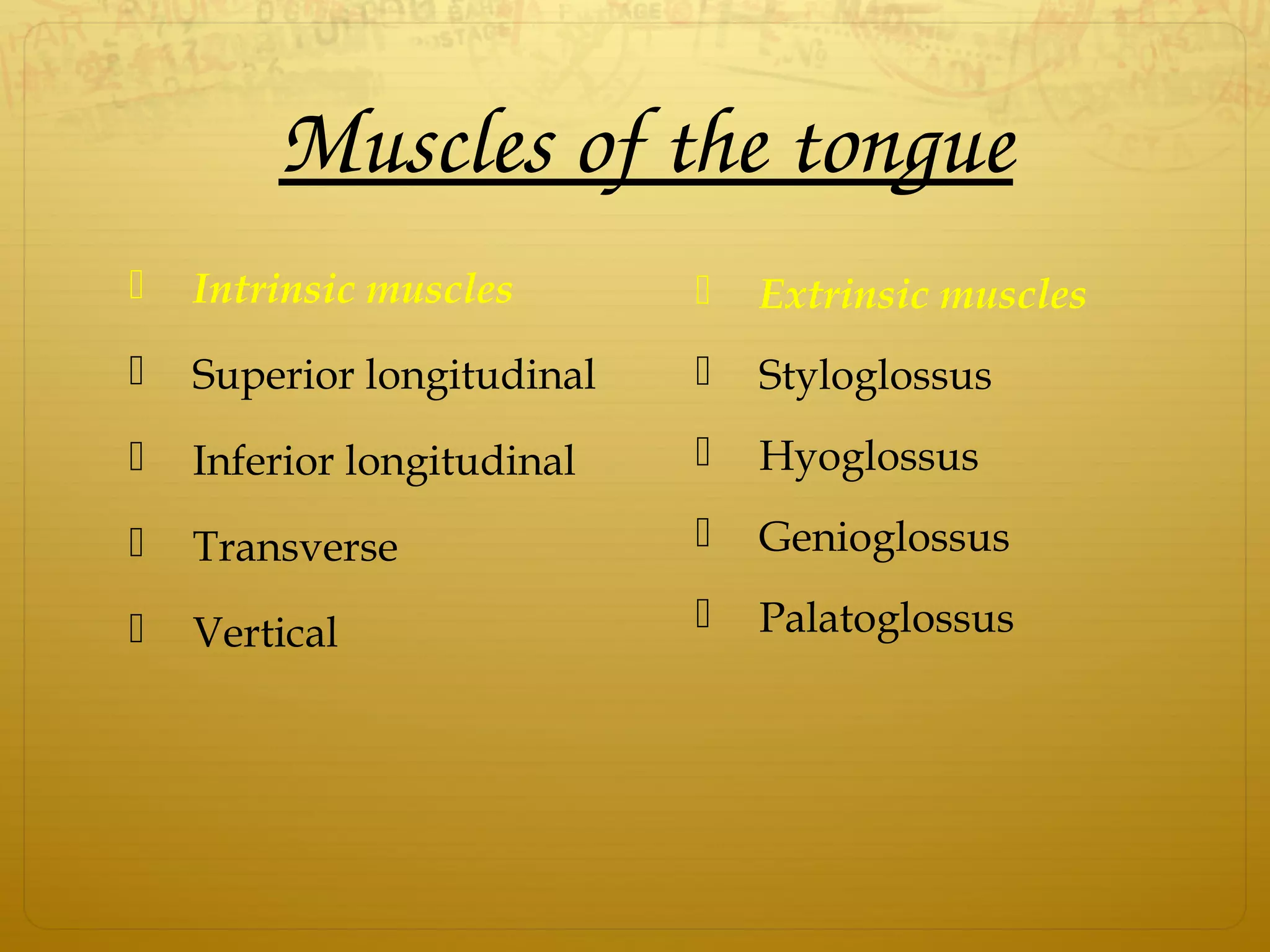

13. Muscles of the tongue
 Intrinsic muscles
 Superior longitudinal
 Inferior longitudinal
 Transverse
 Vertical
 Extrinsic muscles
 Styloglossus
 Hyoglossus
 Genioglossus
 Palatoglossus

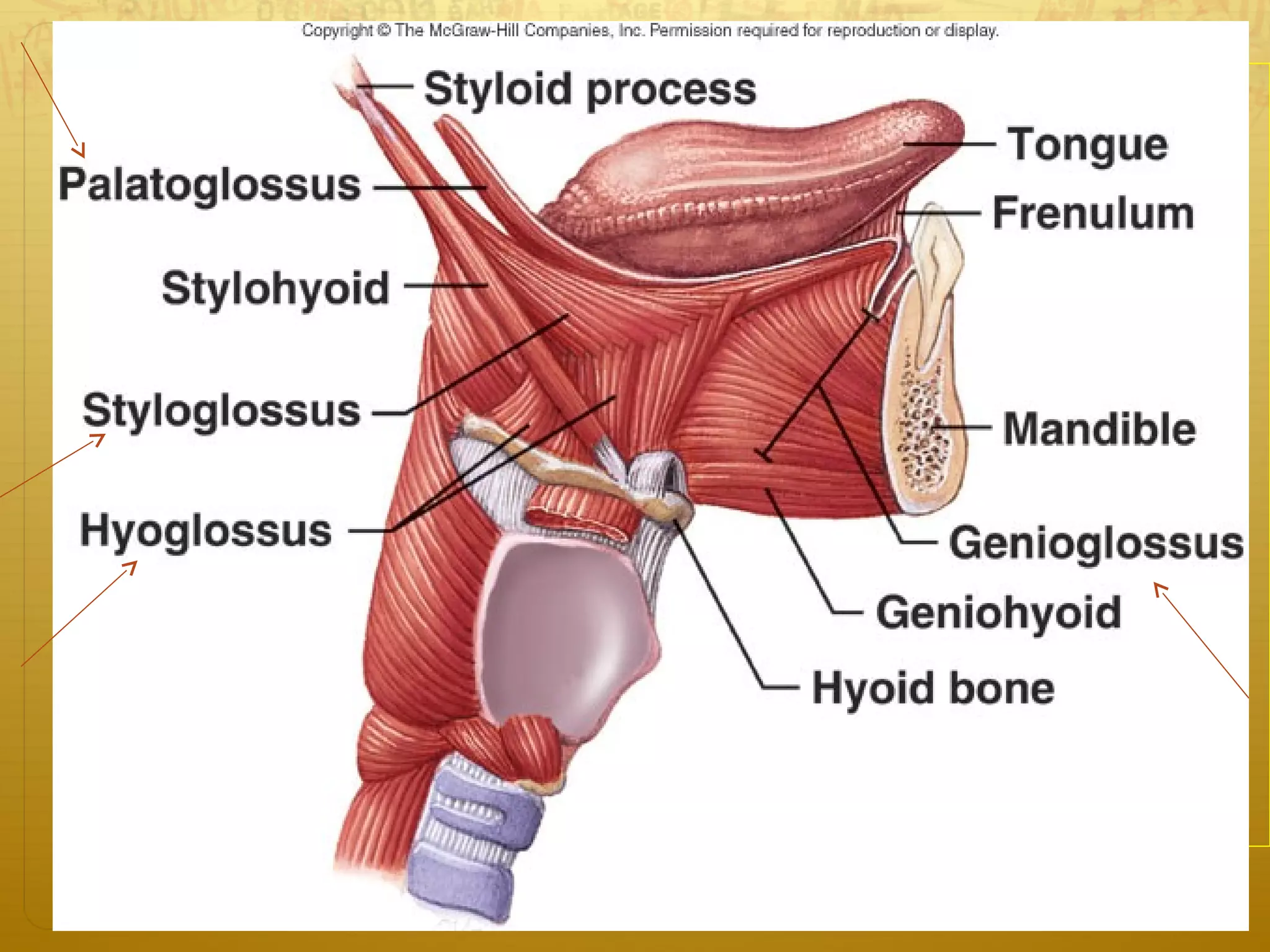

14.  Intrinsic muscles

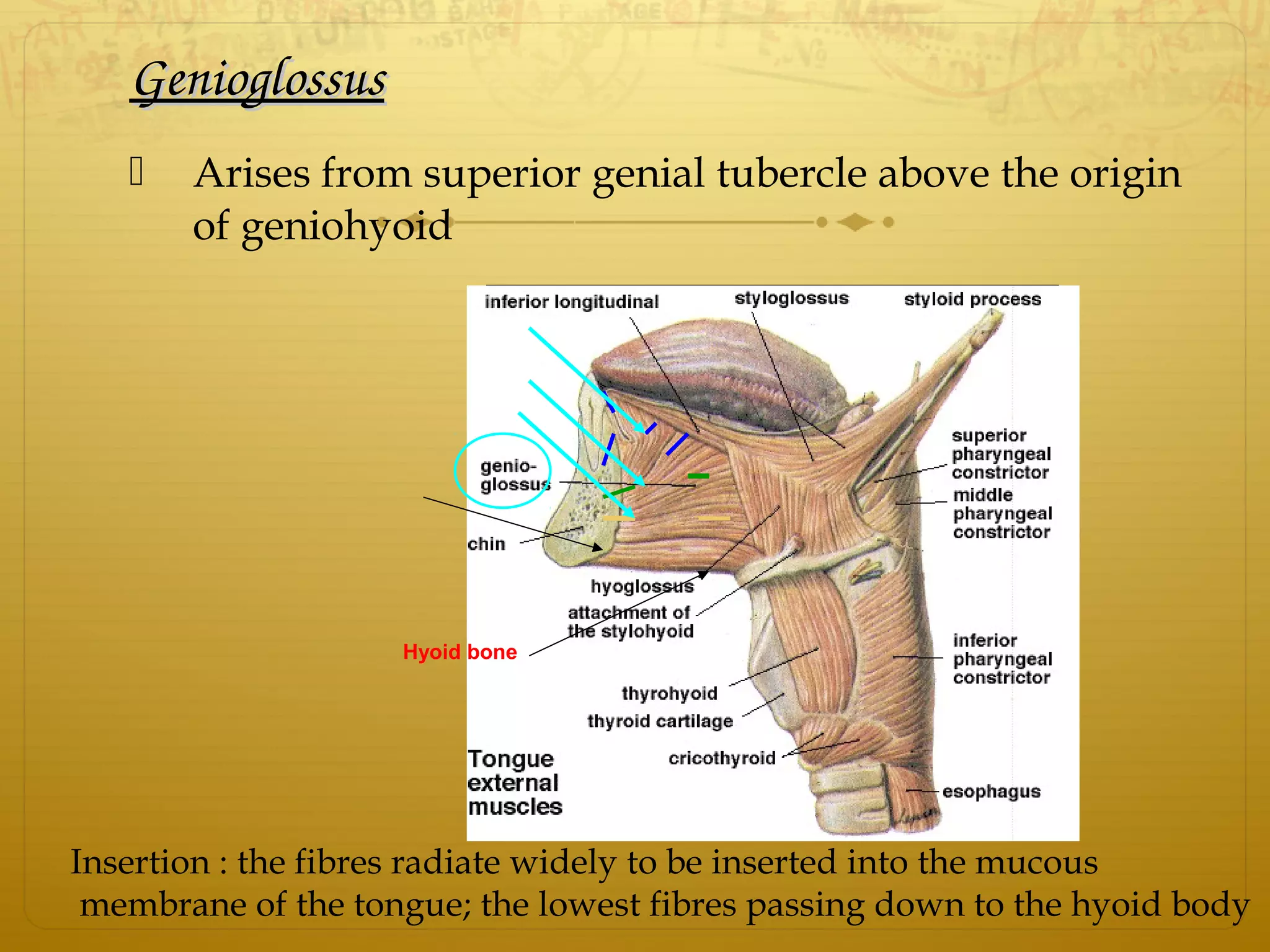

15. GenioglossusGenioglossus
 Arises from superior genial tubercle above the origin
of geniohyoid
Hyoid bone
Insertion : the fibres radiate widely to be inserted into the mucous
membrane of the tongue; the lowest fibres passing down to the hyoid body

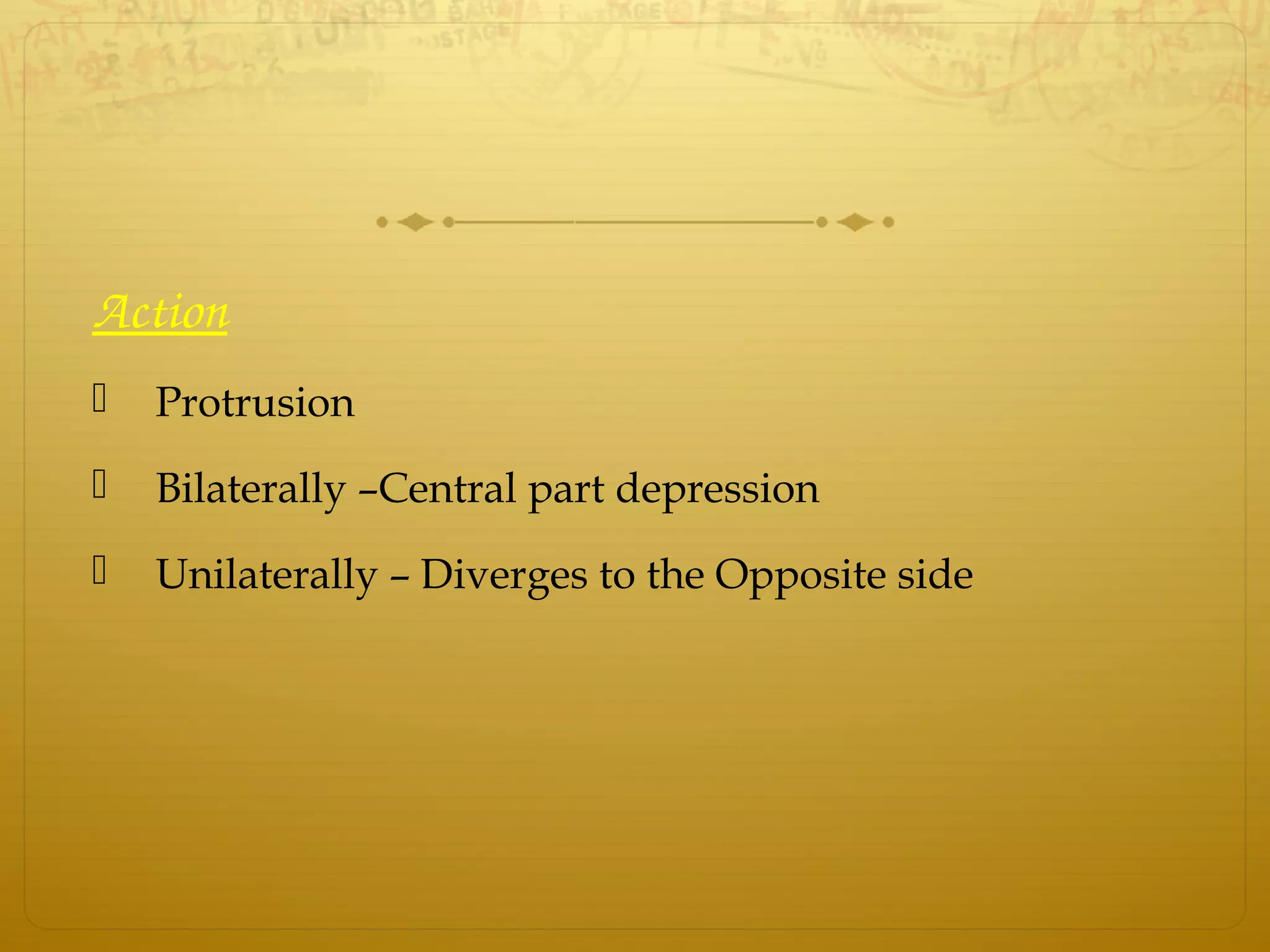

16. Action
 Protrusion
 Bilaterally –Central part depression
 Unilaterally – Diverges to the Opposite side

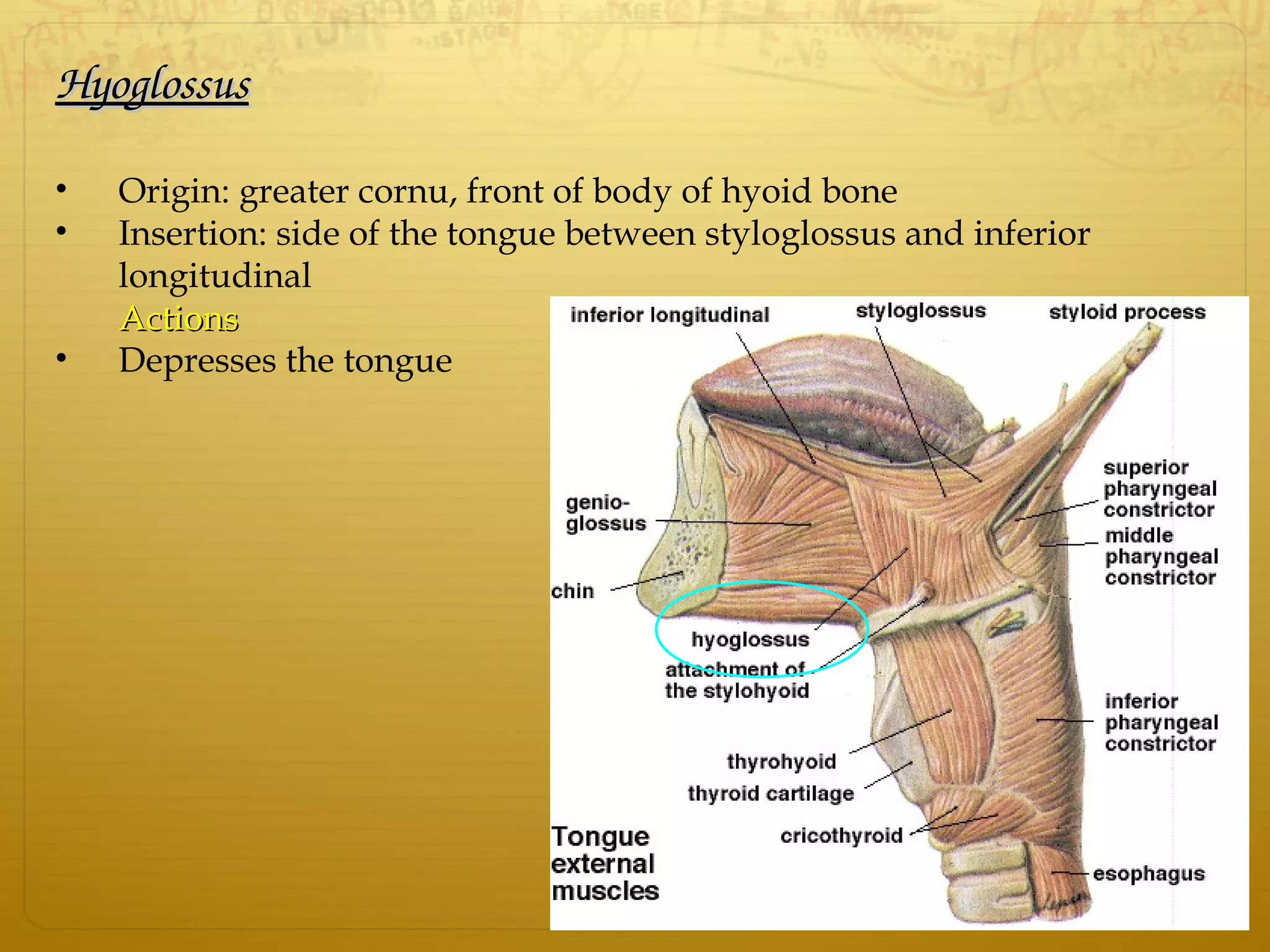

17. HyoglossusHyoglossus
• Origin: greater cornu, front of body of hyoid bone
• Insertion: side of the tongue between styloglossus and inferior
longitudinal
ActionsActions
• Depresses the tongue

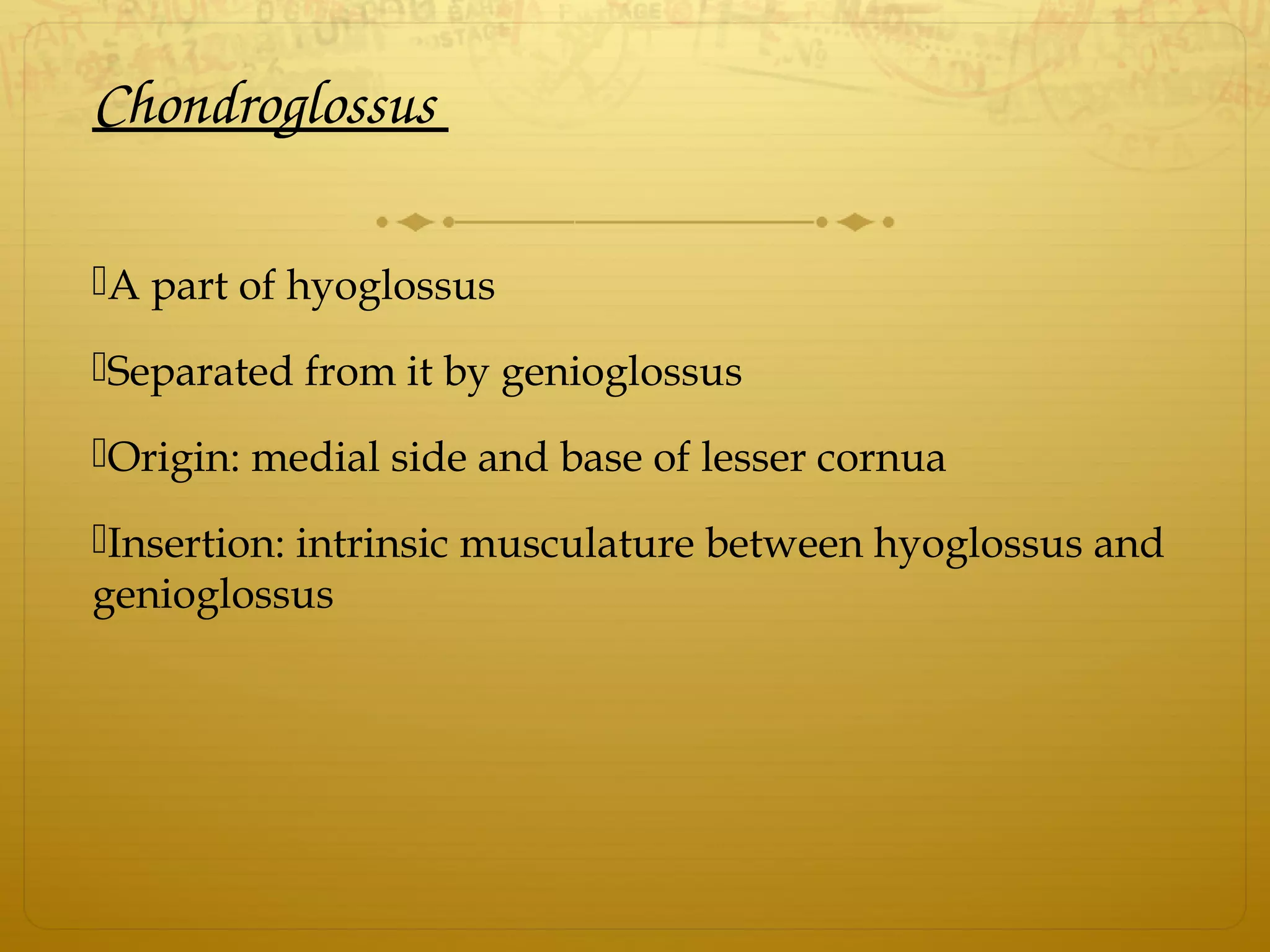

18. Chondroglossus
A part of hyoglossus
Separated from it by genioglossus
Origin: medial side and base of lesser cornua
Insertion: intrinsic musculature between hyoglossus and
genioglossus

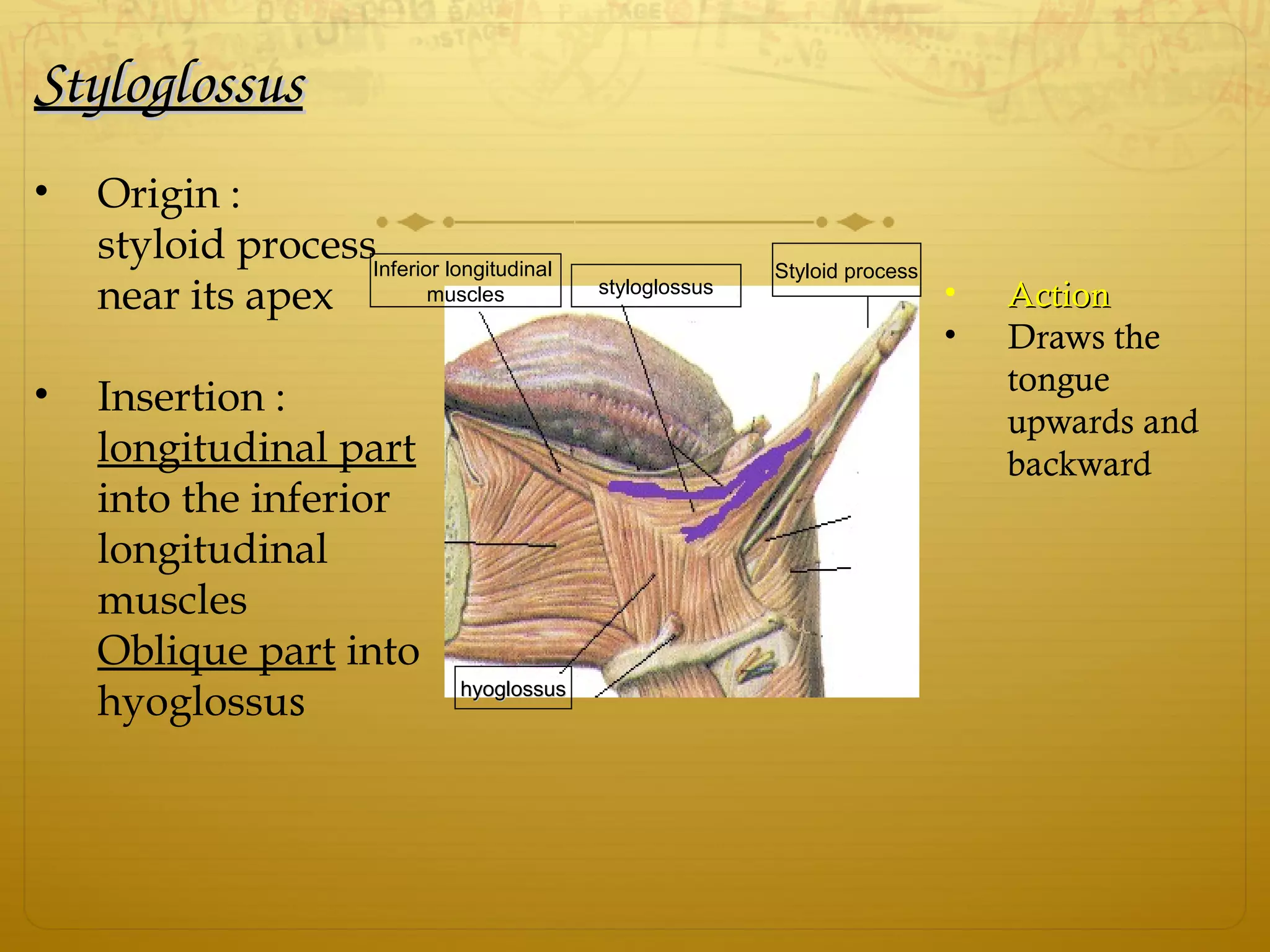

19. StyloglossusStyloglossus
• Origin :
styloid process
near its apex
• Insertion :
longitudinal part
into the inferior
longitudinal
muscles
Oblique part into
hyoglossus
• ActionAction
• Draws the
tongue
upwards and
backward
hyoglossushyoglossus
styloglossus
Inferior longitudinal
muscles
Styloid process

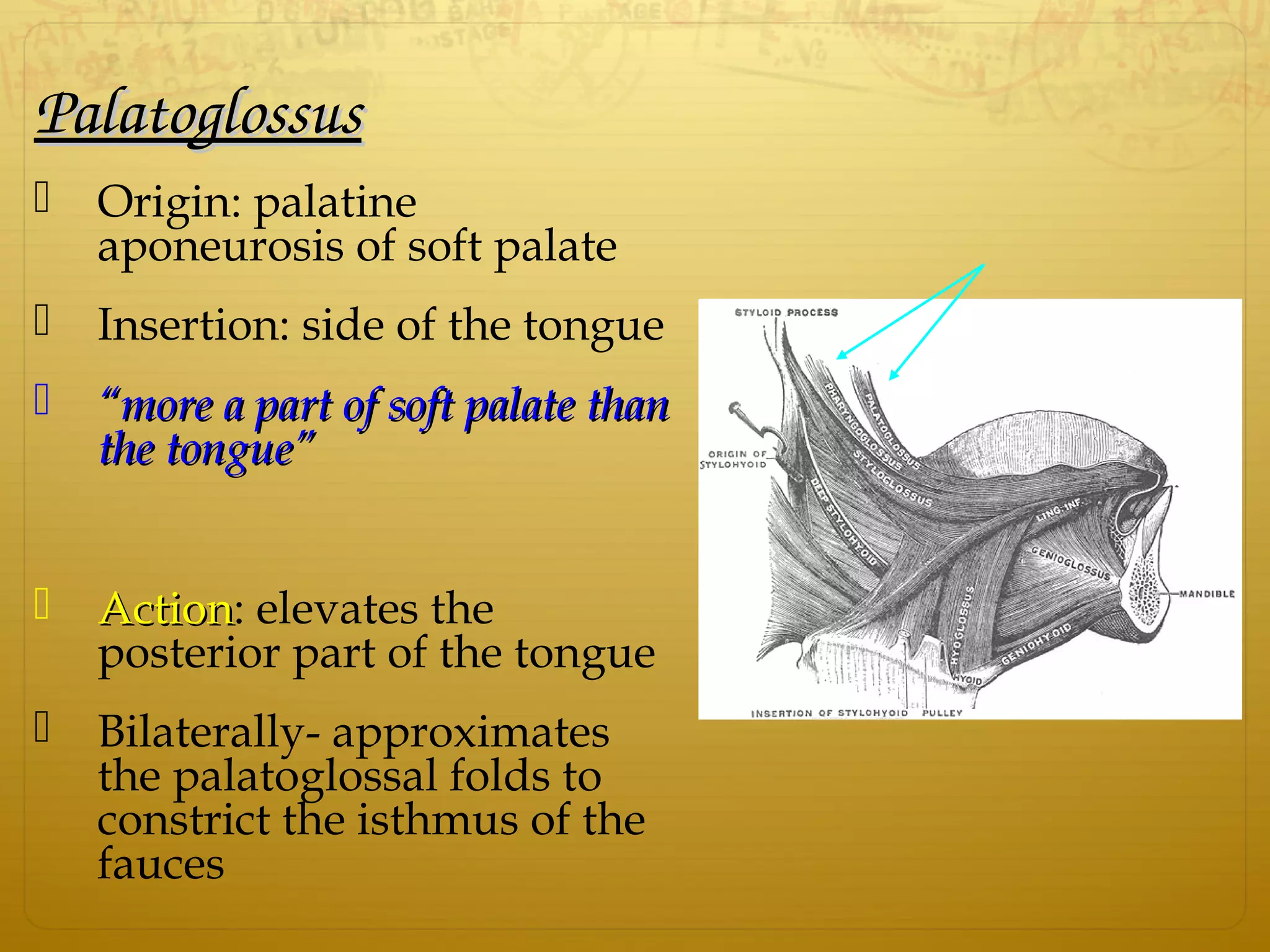

20. PalatoglossusPalatoglossus
 Origin: palatine
aponeurosis of soft palate
 Insertion: side of the tongue
 ““more a part of soft palate thanmore a part of soft palate than
the tonguethe tongue””
 ActionAction: elevates the
posterior part of the tongue
 Bilaterally- approximates
the palatoglossal folds to
constrict the isthmus of the
fauces

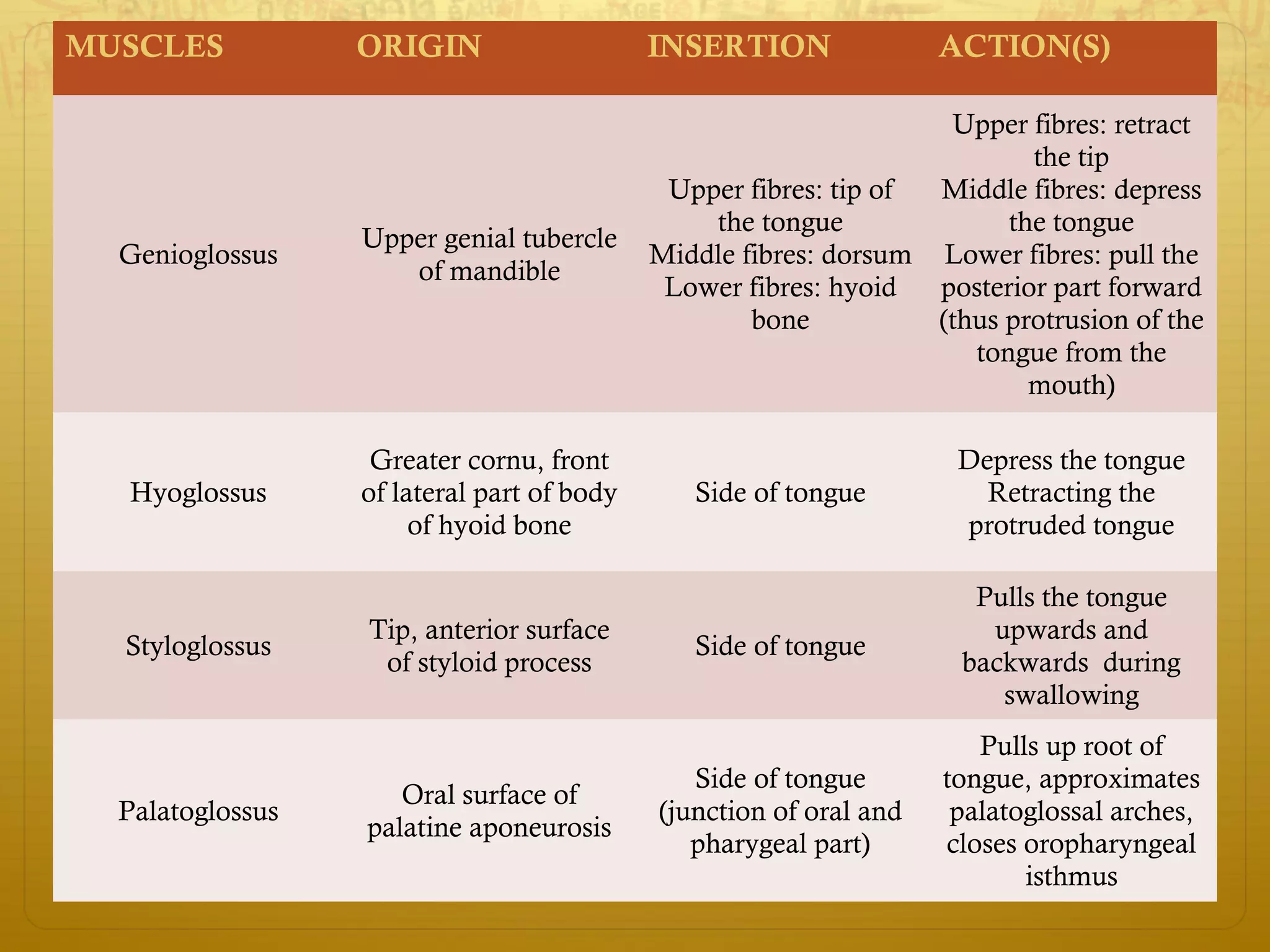

21. MUSCLES ORIGIN INSERTION ACTION(S)
Genioglossus
Upper genial tubercle
of mandible
Upper fibres: tip of
the tongue
Middle fibres: dorsum
Lower fibres: hyoid
bone
Upper fibres: retract
the tip
Middle fibres: depress
the tongue
Lower fibres: pull the
posterior part forward
(thus protrusion of the
tongue from the
mouth)
Hyoglossus
Greater cornu, front
of lateral part of body
of hyoid bone
Side of tongue
Depress the tongue
Retracting the
protruded tongue
Styloglossus
Tip, anterior surface
of styloid process
Side of tongue
Pulls the tongue
upwards and
backwards during
swallowing
Palatoglossus
Oral surface of
palatine aponeurosis
Side of tongue
(junction of oral and
pharygeal part)
Pulls up root of
tongue, approximates
palatoglossal arches,
closes oropharyngeal
isthmus

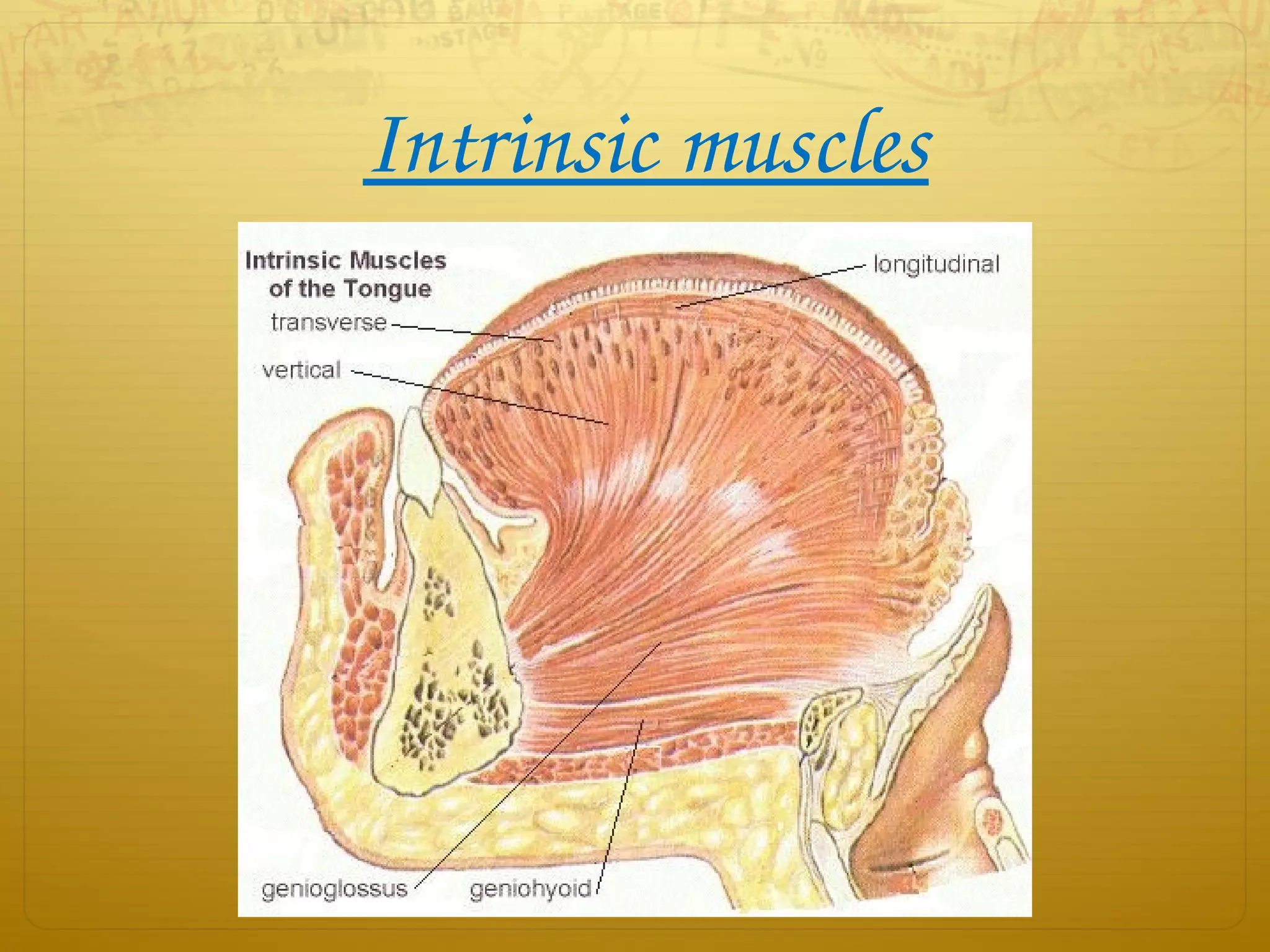

22. Intrinsic muscles

23. Superior longitudinalSuperior longitudinal
• Origin: submucous fibrous
layer below the dorsum of
the tongue and lingual
septum
• Insertion: extends to the
lingual margin
• ActionAction
• Turns the apex and sides of
the tongue upward to make
the dorsum concave

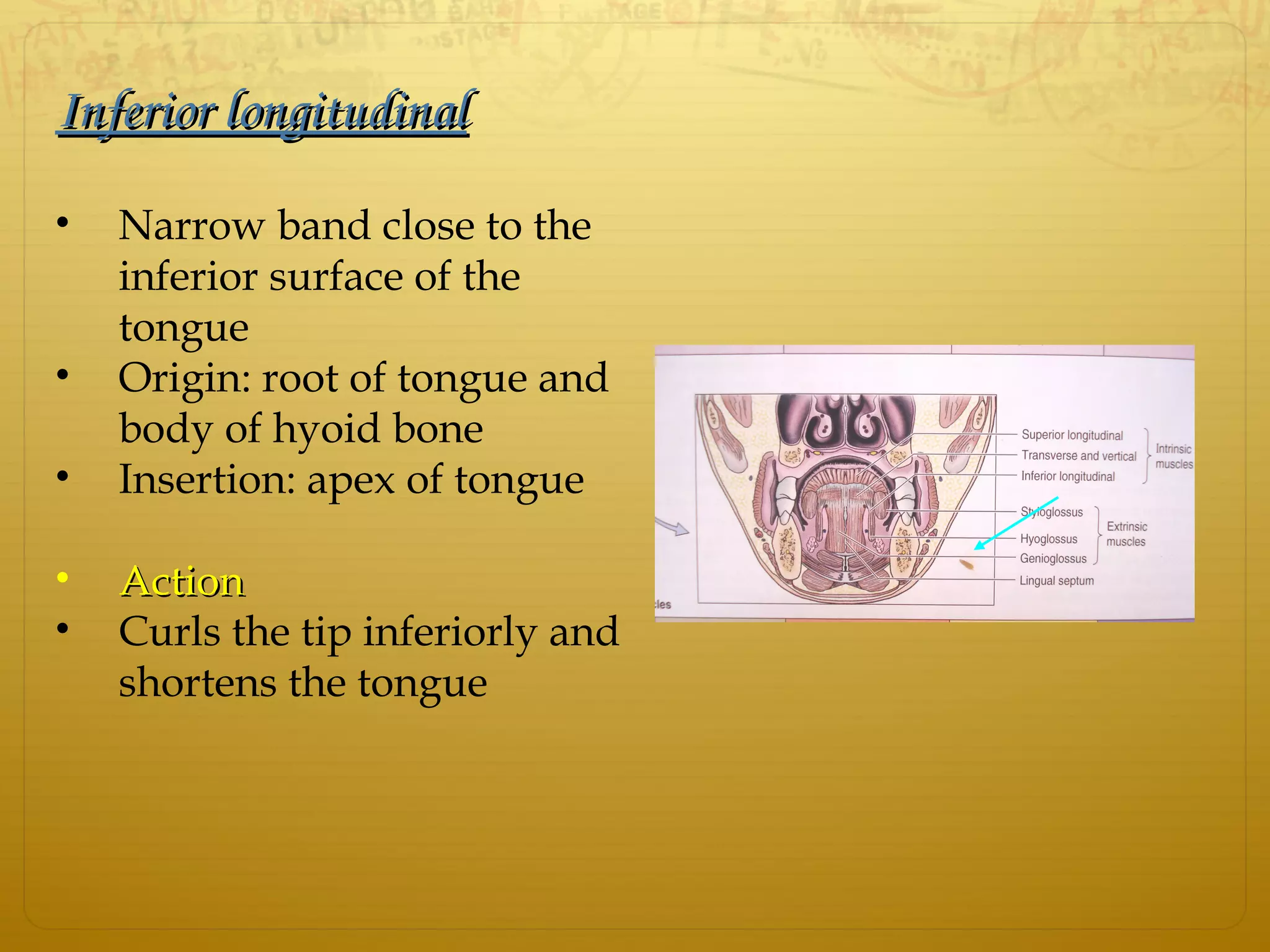

24. Inferior longitudinalInferior longitudinal
• Narrow band close to the
inferior surface of the
tongue
• Origin: root of tongue and
body of hyoid bone
• Insertion: apex of tongue
• ActionAction
• Curls the tip inferiorly and
shortens the tongue

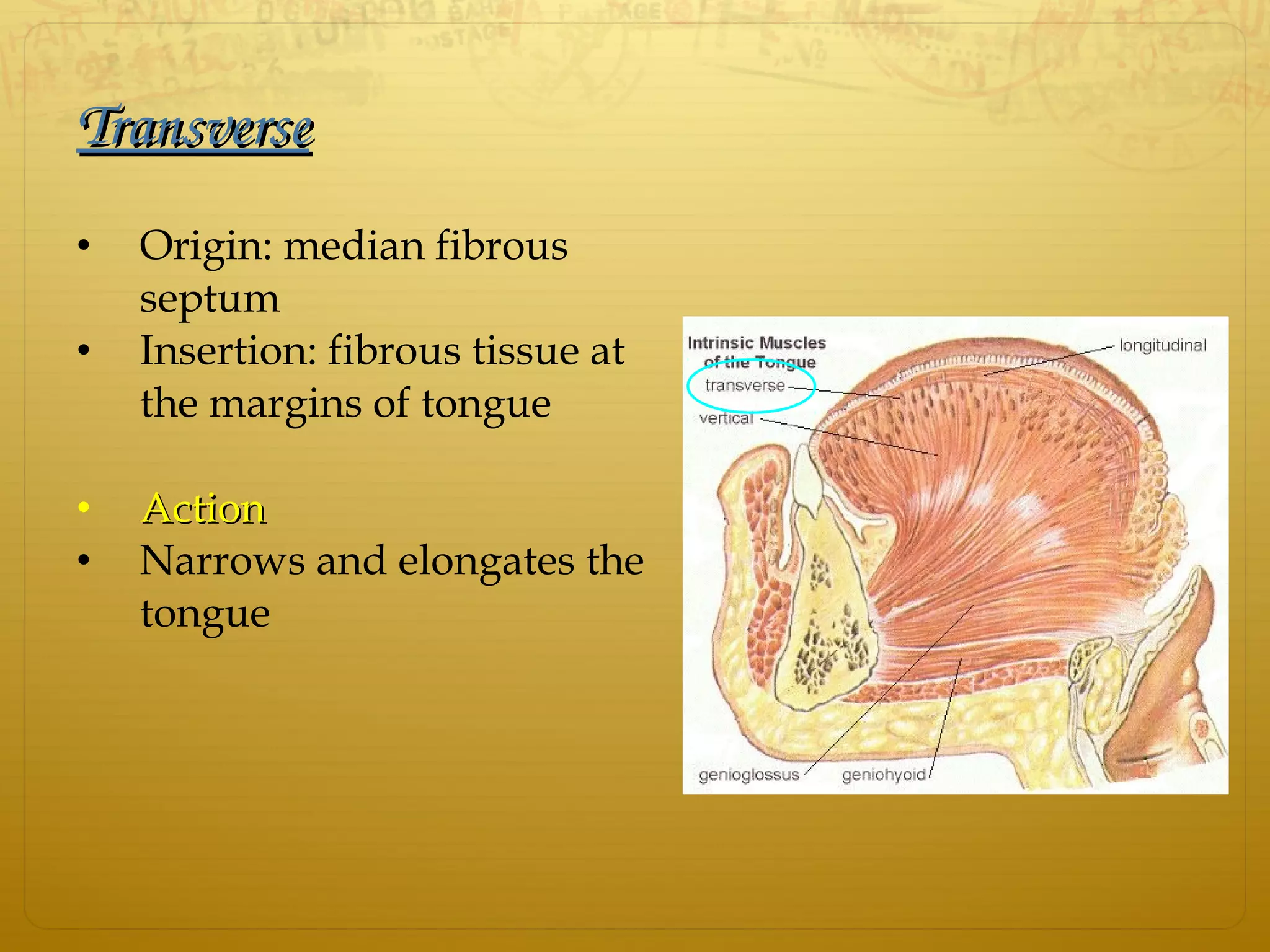

25. TransverseTransverse
• Origin: median fibrous
septum
• Insertion: fibrous tissue at
the margins of tongue
• ActionAction
• Narrows and elongates the
tongue

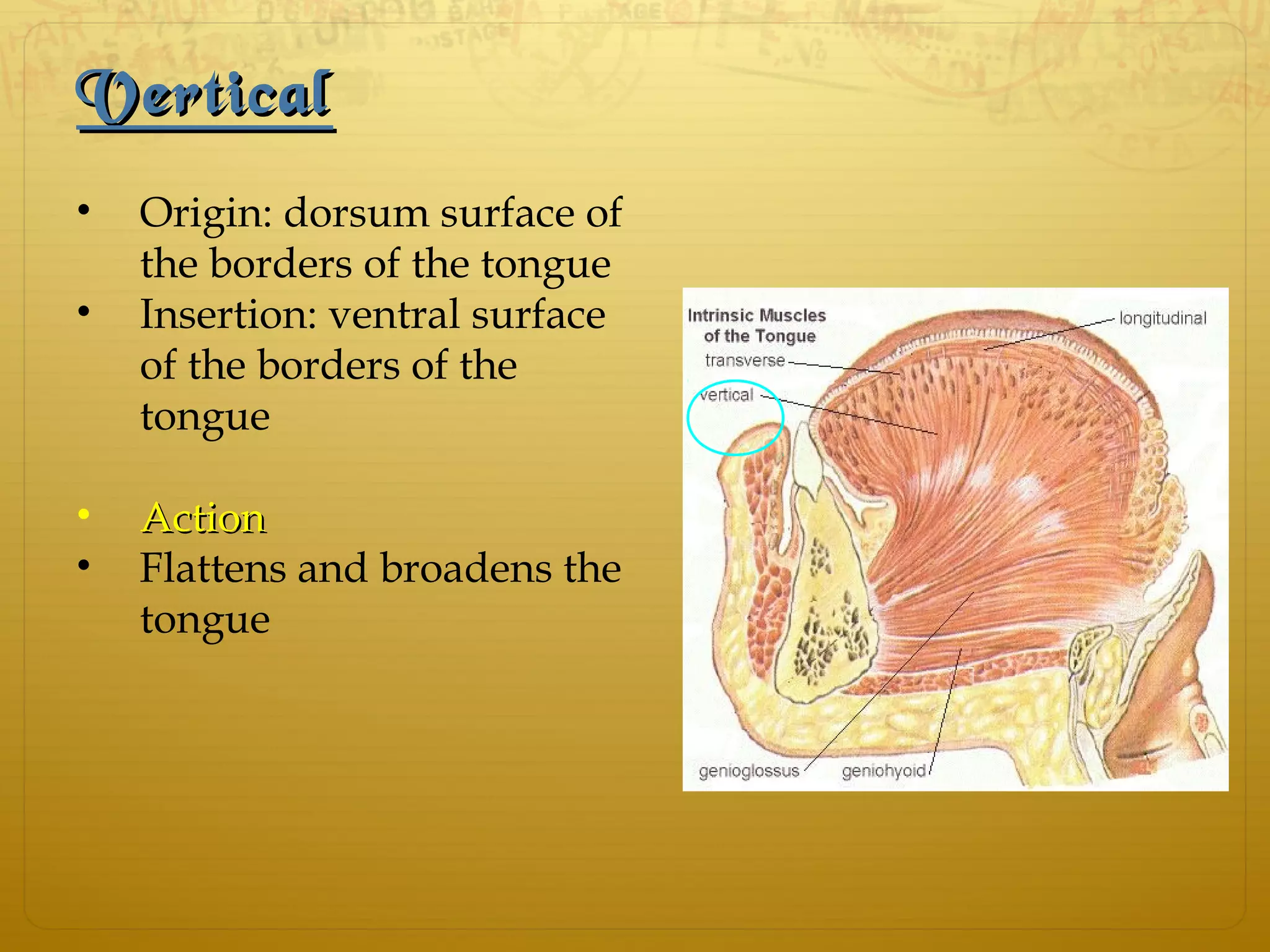

26. VerticalVertical
• Origin: dorsum surface of
the borders of the tongue
• Insertion: ventral surface
of the borders of the
tongue
• ActionAction
• Flattens and broadens the
tongue

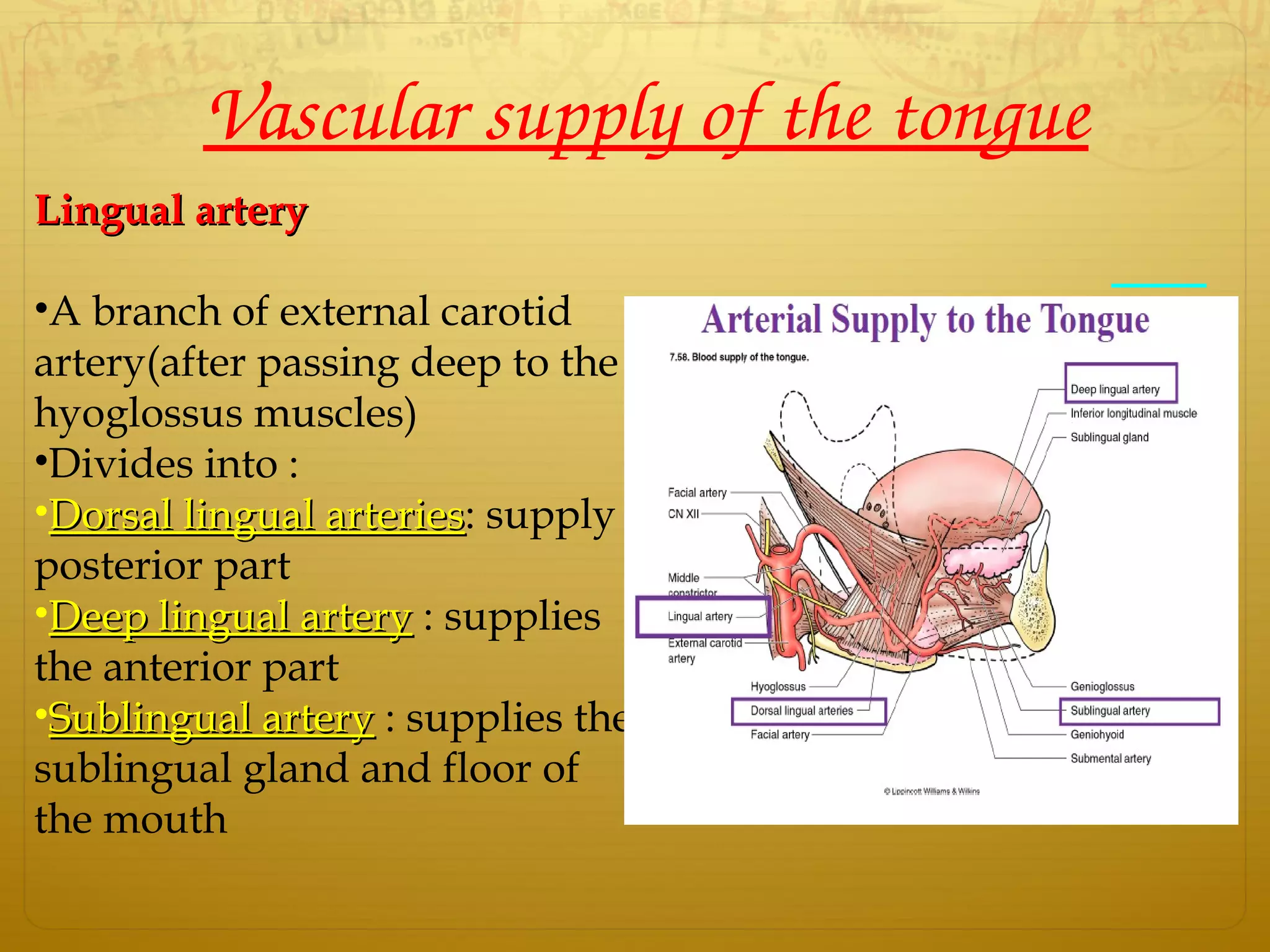

27. Vascular supply of the tongue
Lingual arteryLingual artery
•A branch of external carotid
artery(after passing deep to the
hyoglossus muscles)
•Divides into :
•Dorsal lingual arteriesDorsal lingual arteries: supply
posterior part
•Deep lingual arteryDeep lingual artery : supplies
the anterior part
•Sublingual arterySublingual artery : supplies the
sublingual gland and floor of
the mouth

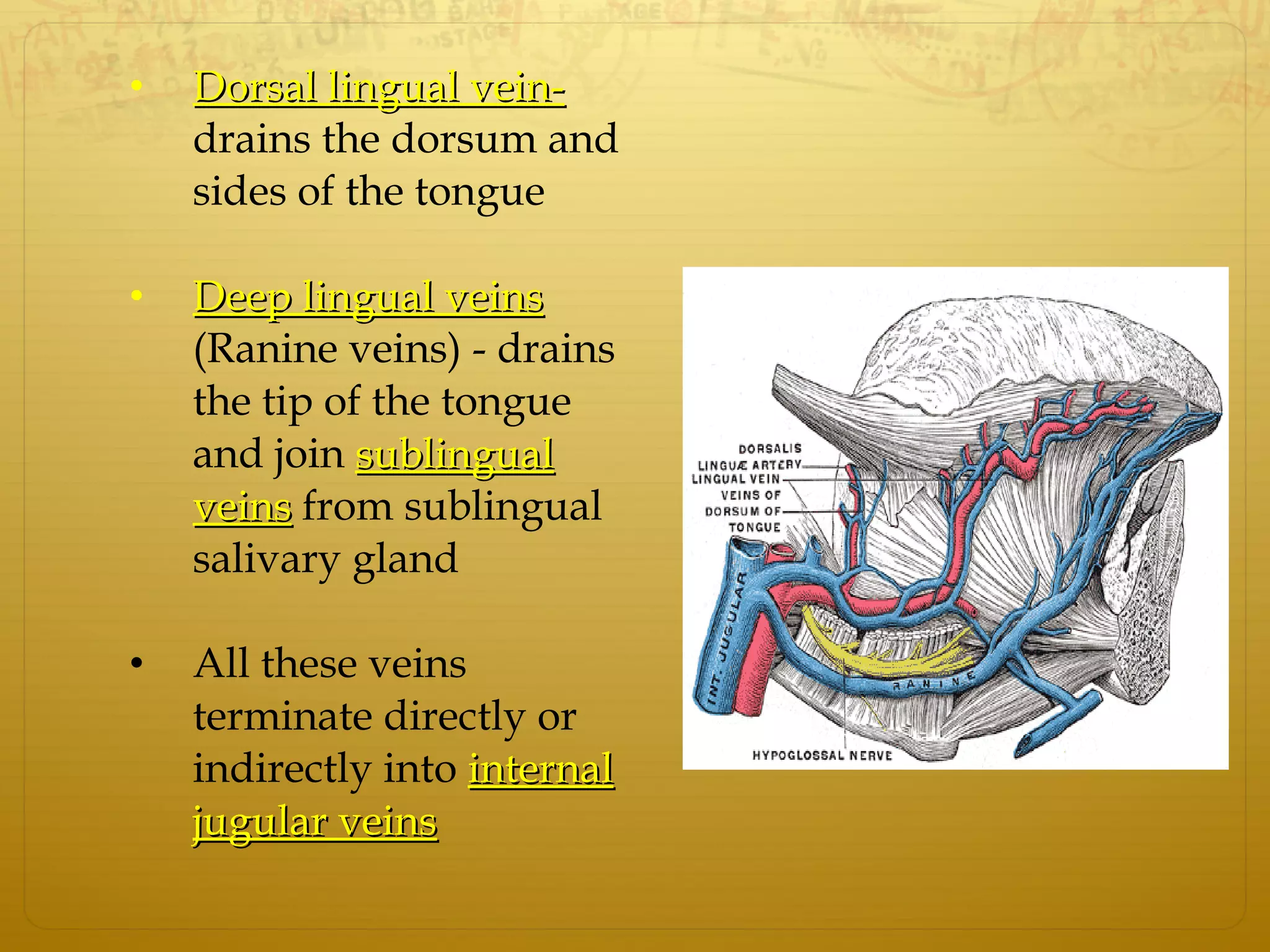

28. • Dorsal lingual vein-Dorsal lingual vein-
drains the dorsum and
sides of the tongue
• Deep lingual veinsDeep lingual veins
(Ranine veins) - drains
the tip of the tongue
and join sublingualsublingual
veinsveins from sublingual
salivary gland
• All these veins
terminate directly or
indirectly into internalinternal
jugular veinsjugular veins

29. Lymphatic drainageLymphatic drainage
 Lymph from one side (esp. of the
posterior side), may reach the
nodes of the both sides of the
neck (in contrast to the blood
supply which remains unilateral)
 Tip - drain to submental nodes or
directly to deep cervical nodes
 Marginal lymphatics from the
anterior part tend to drain to
ipsilateral submandibular nodes
or directly to inferior deep
cervical nodes

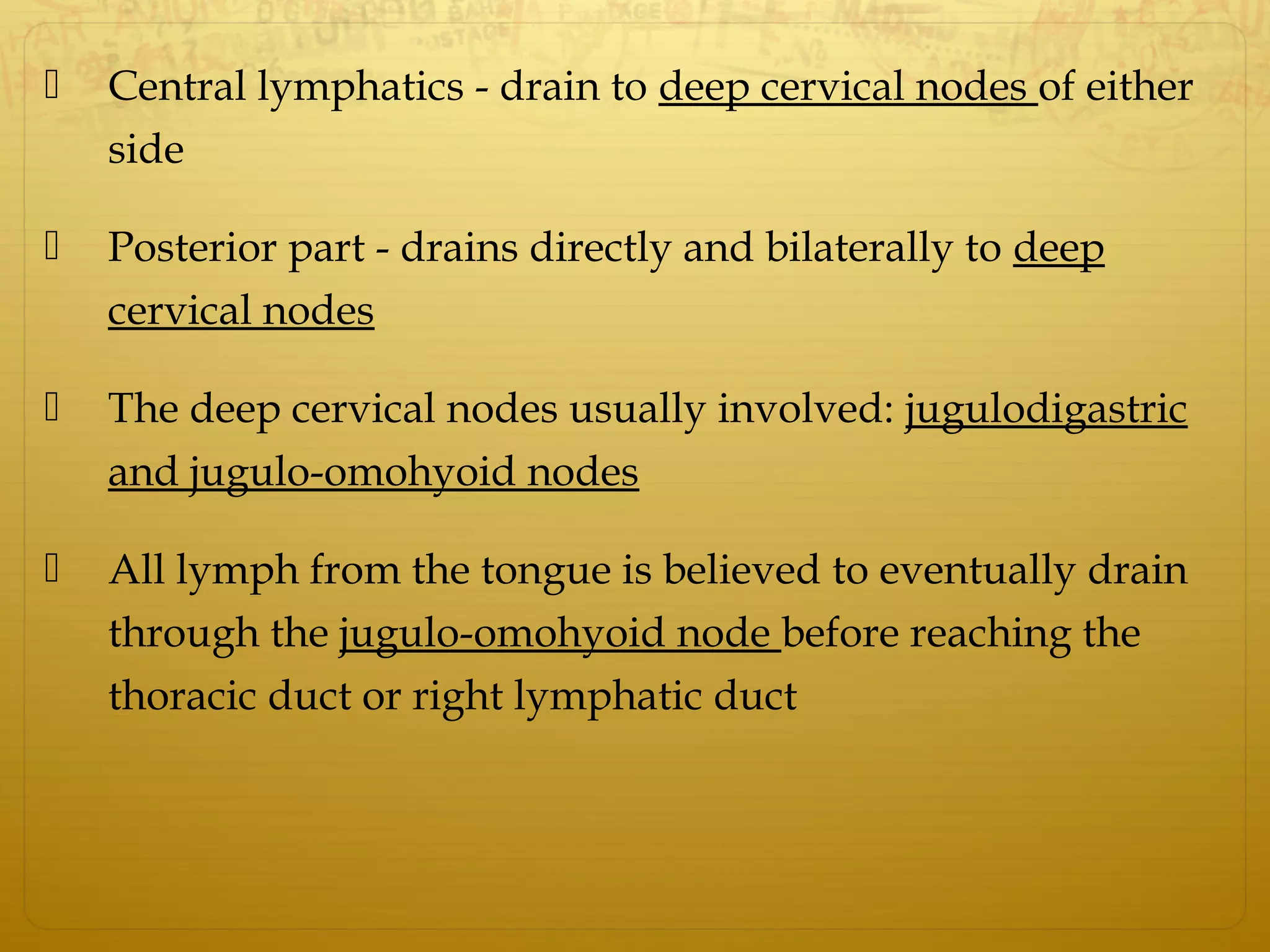

30.  Central lymphatics - drain to deep cervical nodes of either
side
 Posterior part - drains directly and bilaterally to deep
cervical nodes
 The deep cervical nodes usually involved: jugulodigastric
and jugulo-omohyoid nodes
 All lymph from the tongue is believed to eventually drain
through the jugulo-omohyoid node before reaching the
thoracic duct or right lymphatic duct

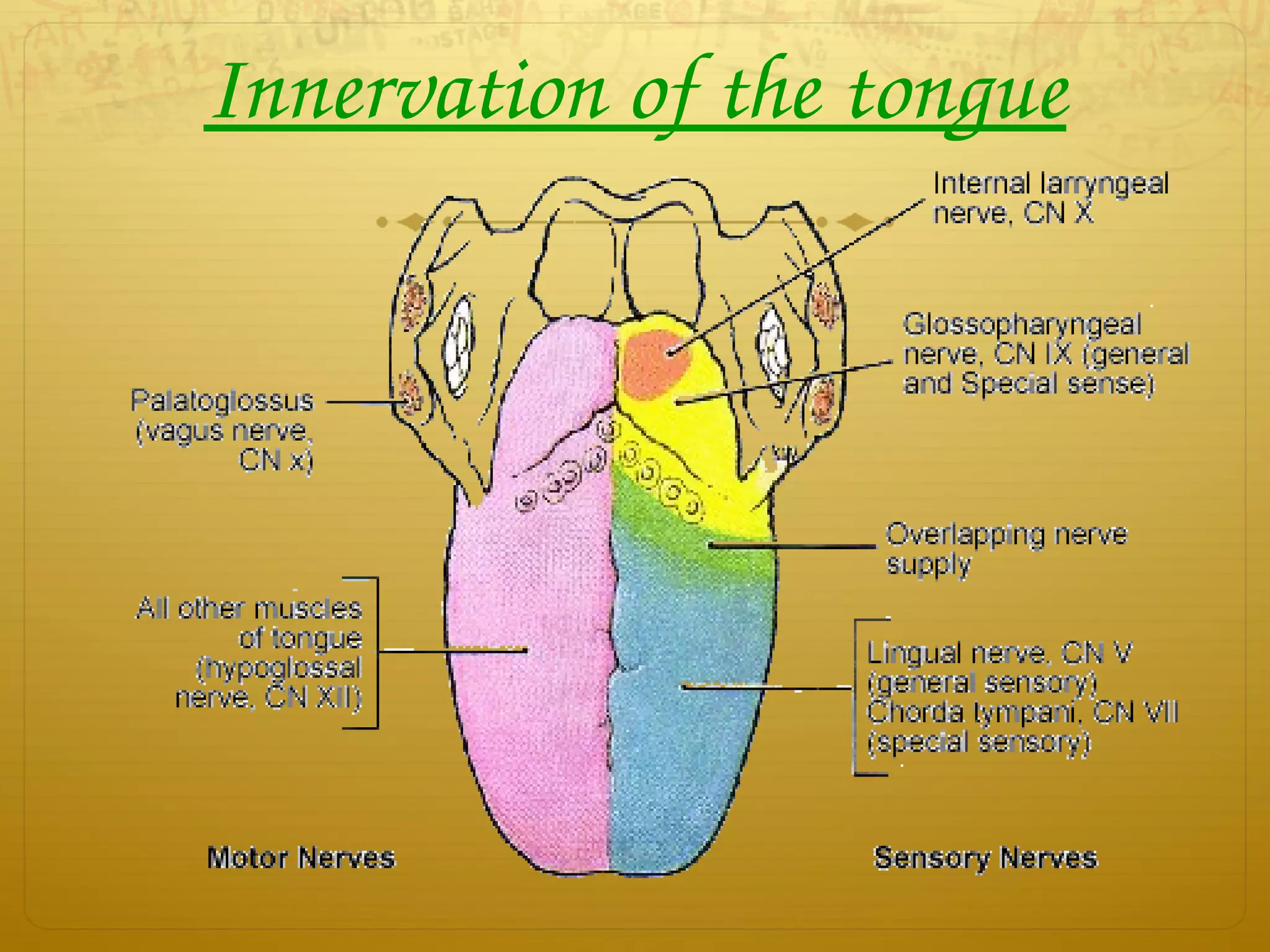

31. Innervation of the tongue

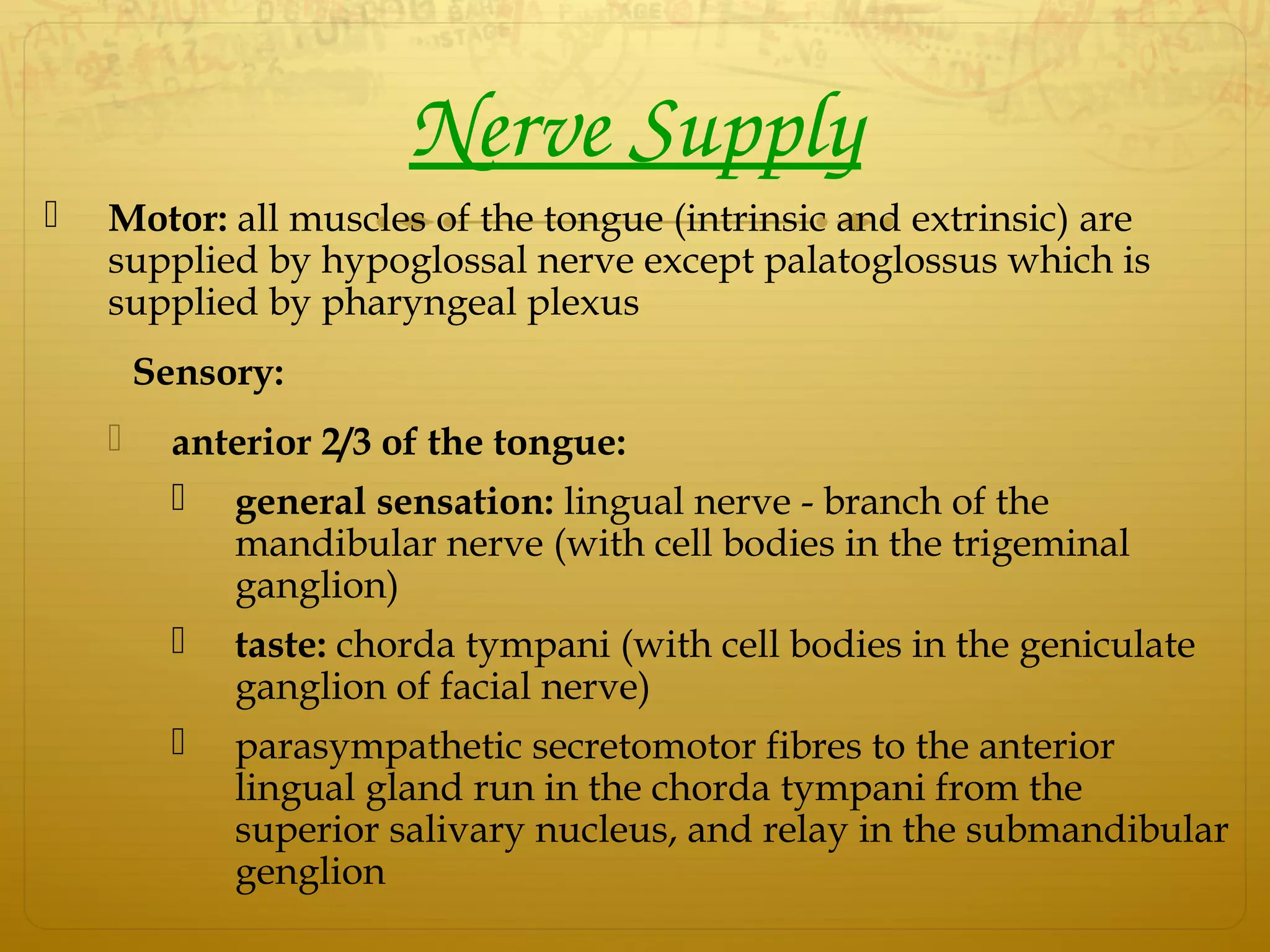

32. Nerve Supply
 Motor: all muscles of the tongue (intrinsic and extrinsic) are
supplied by hypoglossal nerve except palatoglossus which is
supplied by pharyngeal plexus
Sensory:
 anterior 2/3 of the tongue:
 general sensation: lingual nerve - branch of the
mandibular nerve (with cell bodies in the trigeminal
ganglion)
 taste: chorda tympani (with cell bodies in the geniculate
ganglion of facial nerve)
 parasympathetic secretomotor fibres to the anterior
lingual gland run in the chorda tympani from the
superior salivary nucleus, and relay in the submandibular
genglion

33.  posterior 1/3 of the tongue: innervated by the
glossopharyngeal nerve (both general sensation and
taste), with cell bodies in the glossopharyngeal ganglia
in the jugular foramen
 posterior most part of the tongue: innervated by the
vagus nerve through the internal laryngeal branch
(with cell bodies in the inferior vagal ganglion)

34. HISTOLOGY OF TONGUE

35. Mucous Membrane on Ventral Surface
 It is thin, smooth and
loosely attached to the
underlying Connective
Tissue
 It is freely mobile and not
raised into papillae
because epithelium is
closely adherent to
underlying muscle by a
thin lamina propria.
 It is covered with non-
keratinized stratified
squamous epithelium.
.

36. Mucous Membrane On Dorsal Surface
 The dorsal surface Of the
tongue is covered with a
mucous membrane, which is
firmly adherent to the
underlying C.T.
 It is raised into small
projections similar to the villi,
but known as papillae (limited
only to anterior 2/3ra
of tongue).
 The stratified squamous
epithelium covering the dorsal
surface of the tongue is mostly
keratinized

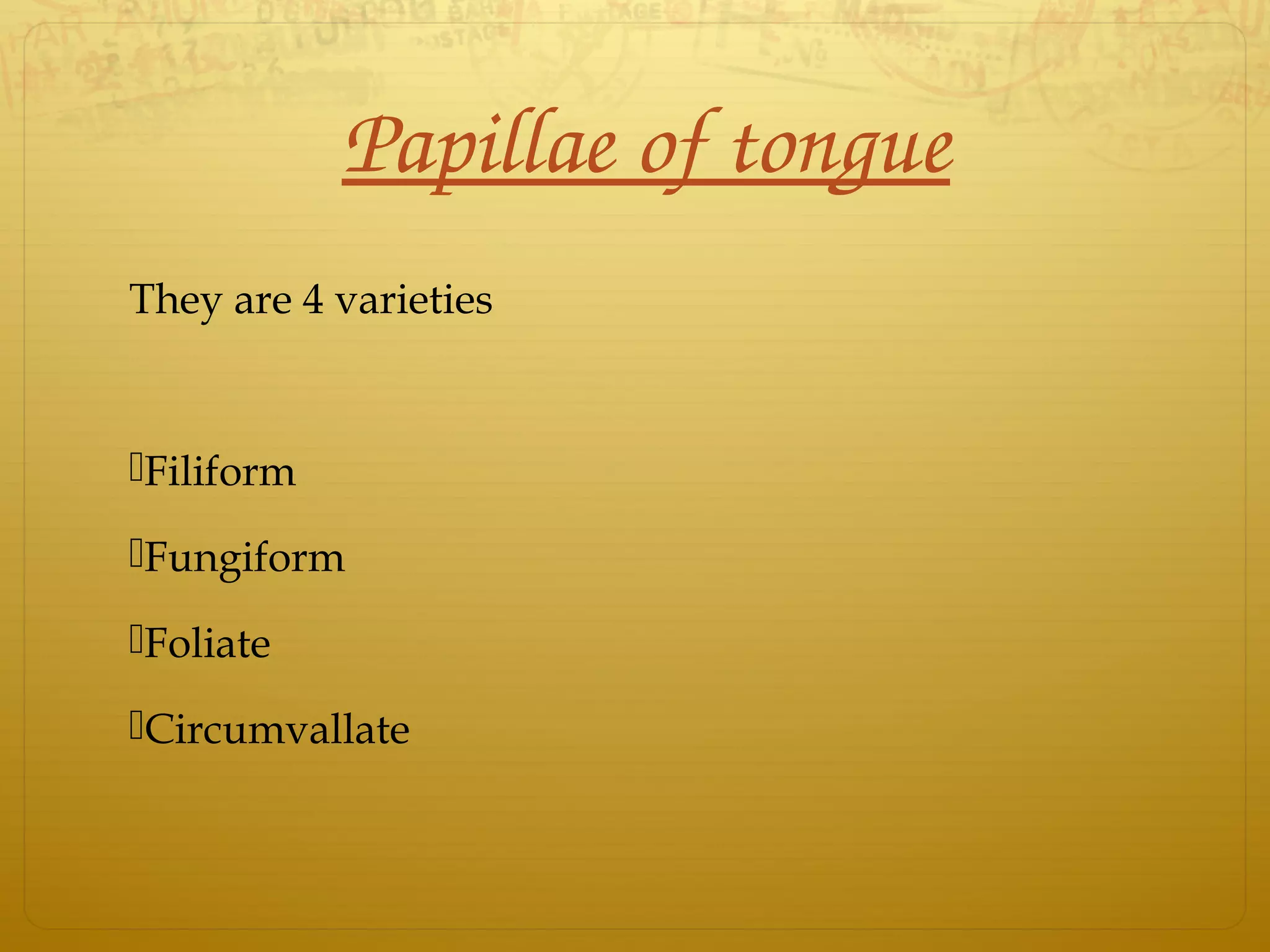

37. Papillae of tongue
They are 4 varieties
Filiform
Fungiform
Foliate
Circumvallate

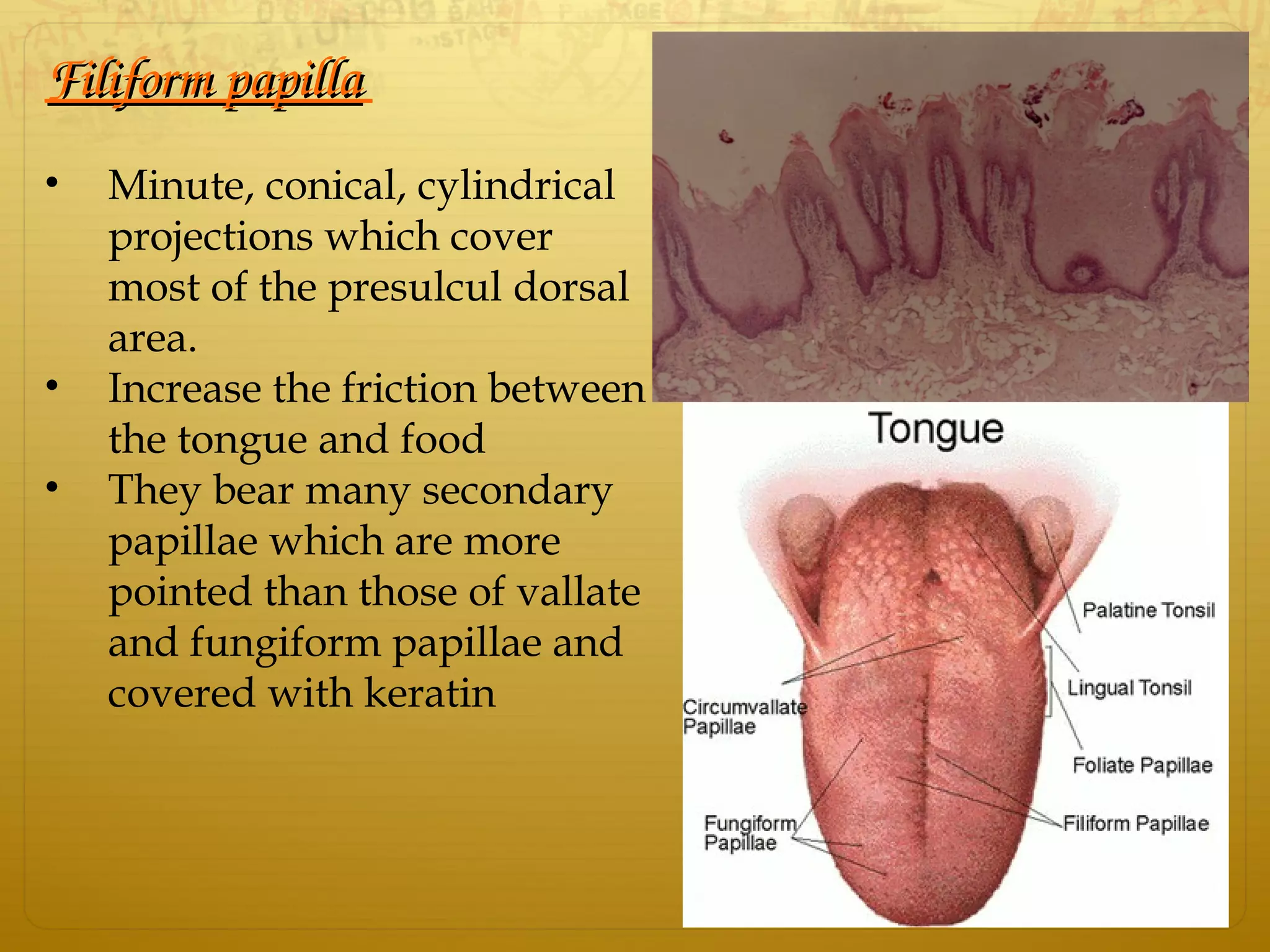

38. Filiform papillaFiliform papilla
• Minute, conical, cylindrical
projections which cover
most of the presulcul dorsal
area.
• Increase the friction between
the tongue and food
• They bear many secondary
papillae which are more
pointed than those of vallate
and fungiform papillae and
covered with keratin

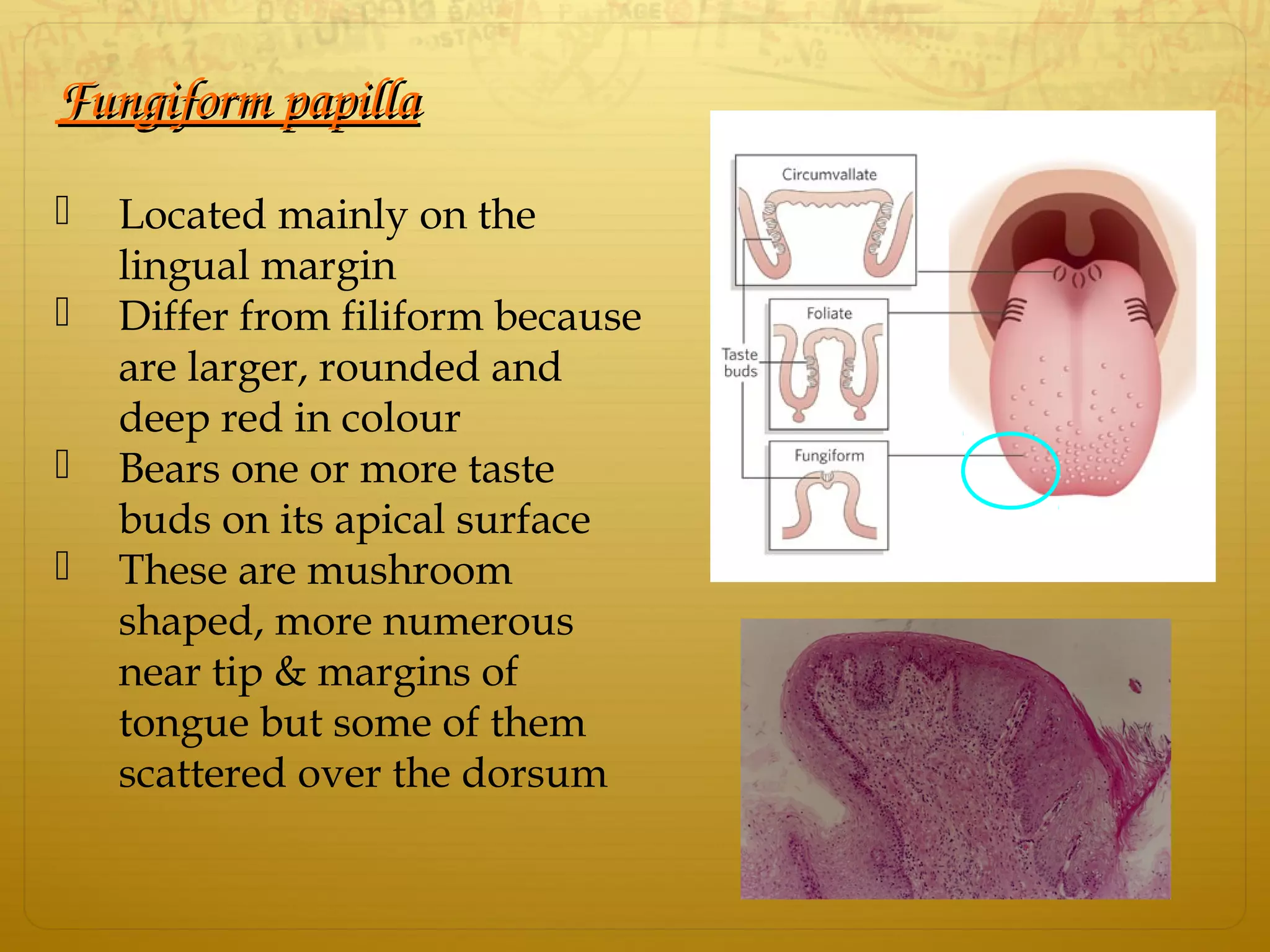

39. Fungiform papillaFungiform papilla
 Located mainly on the
lingual margin
 Differ from filiform because
are larger, rounded and
deep red in colour
 Bears one or more taste
buds on its apical surface
 These are mushroom
shaped, more numerous
near tip & margins of
tongue but some of them
scattered over the dorsum

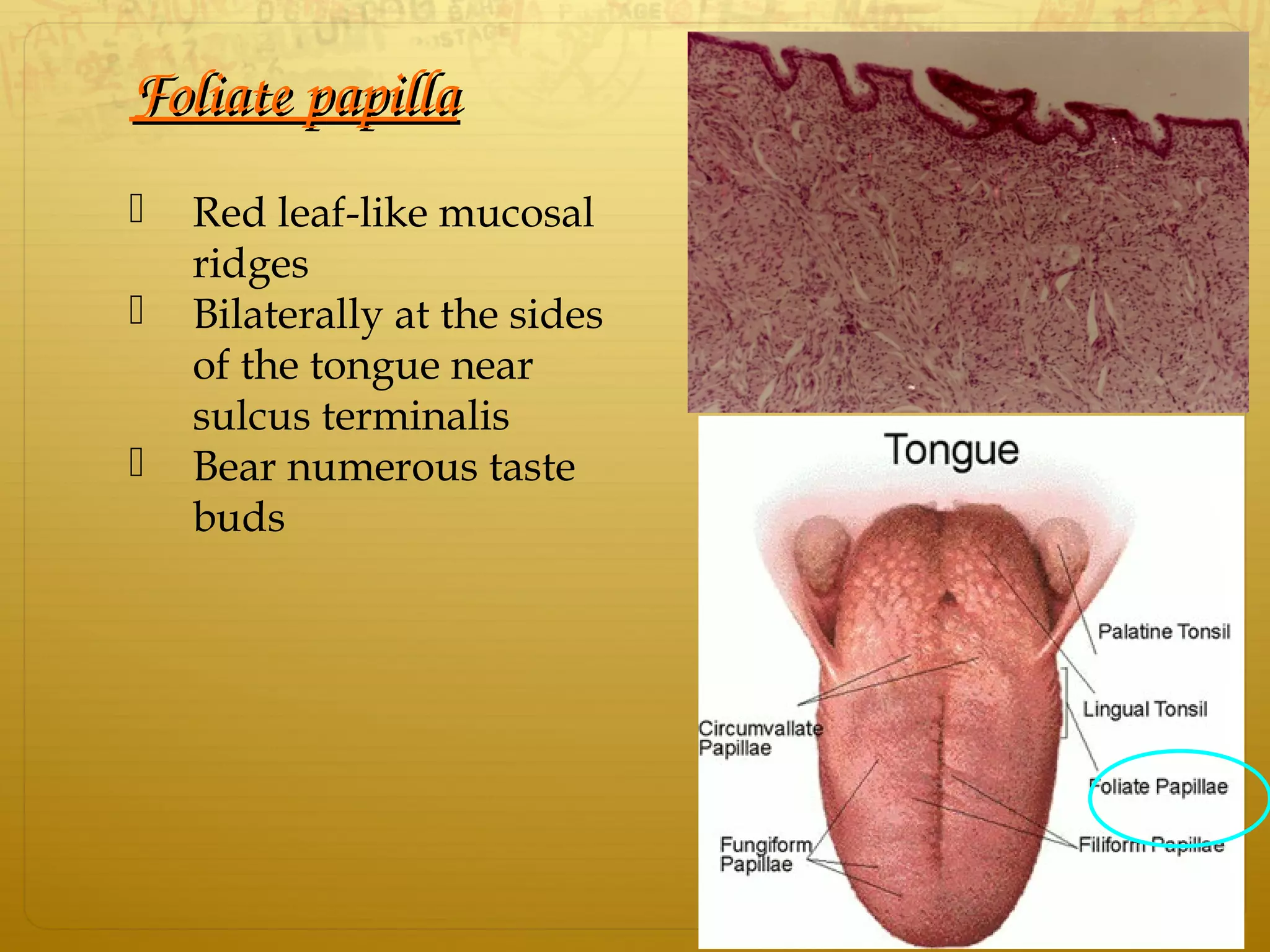

40. Foliate papillaFoliate papilla
 Red leaf-like mucosal
ridges
 Bilaterally at the sides
of the tongue near
sulcus terminalis
 Bear numerous taste
buds

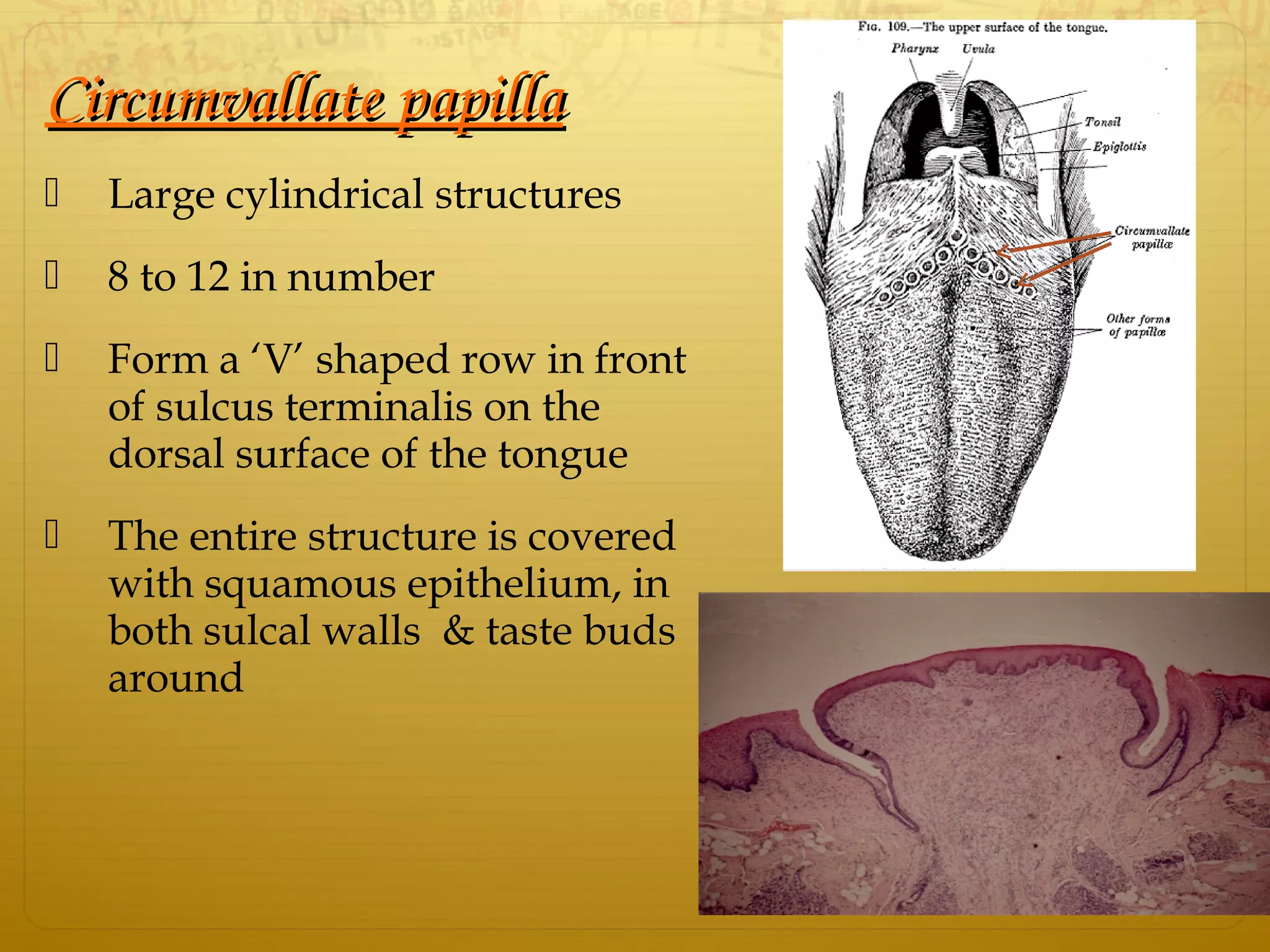

41. Circumvallate papillaCircumvallate papilla
 Large cylindrical structures
 8 to 12 in number
 Form a ‘V’ shaped row in front
of sulcus terminalis on the
dorsal surface of the tongue
 The entire structure is covered
with squamous epithelium, in
both sulcal walls & taste buds
around

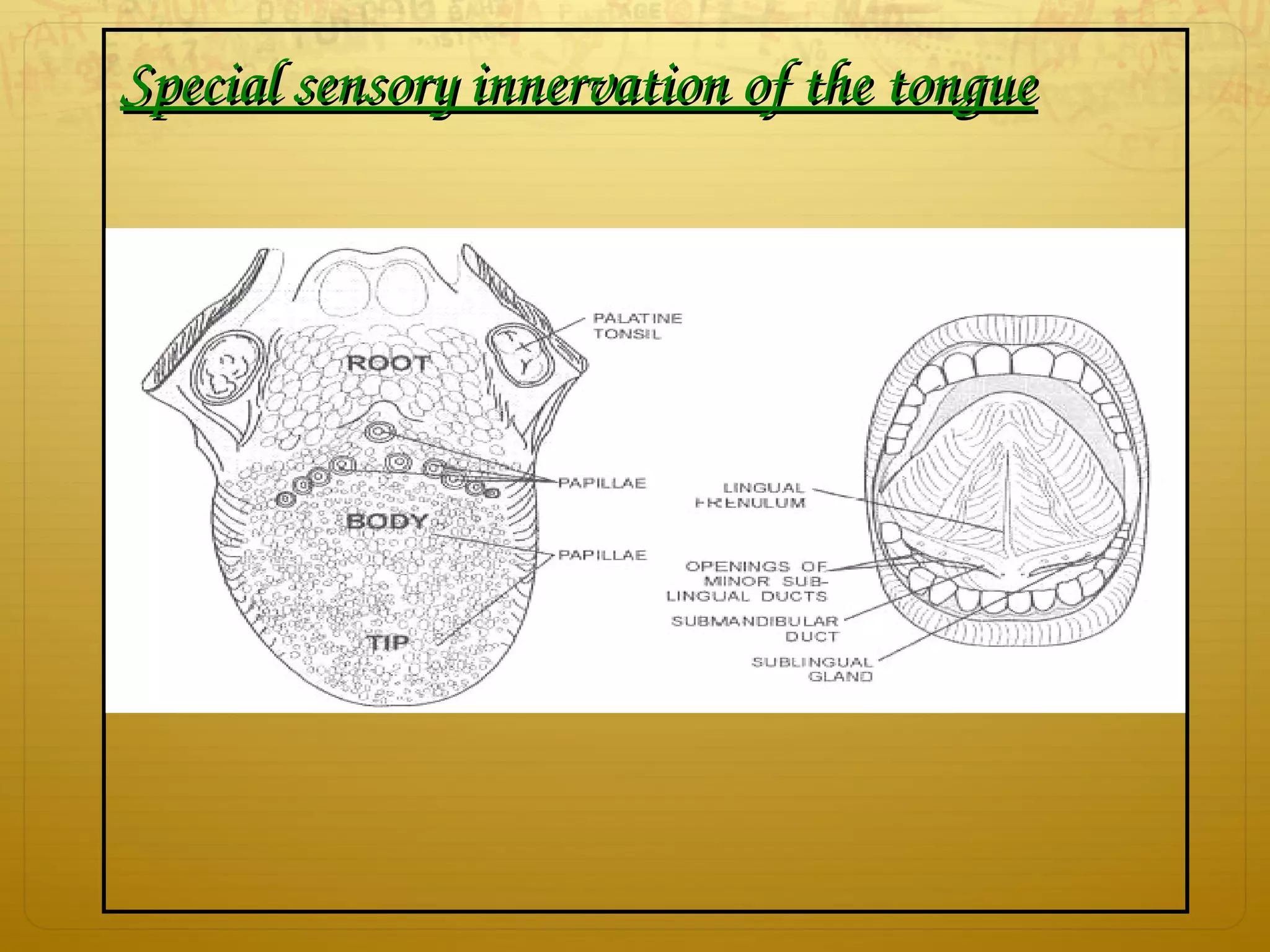

42. Special sensory innervation of the tongueSpecial sensory innervation of the tongue

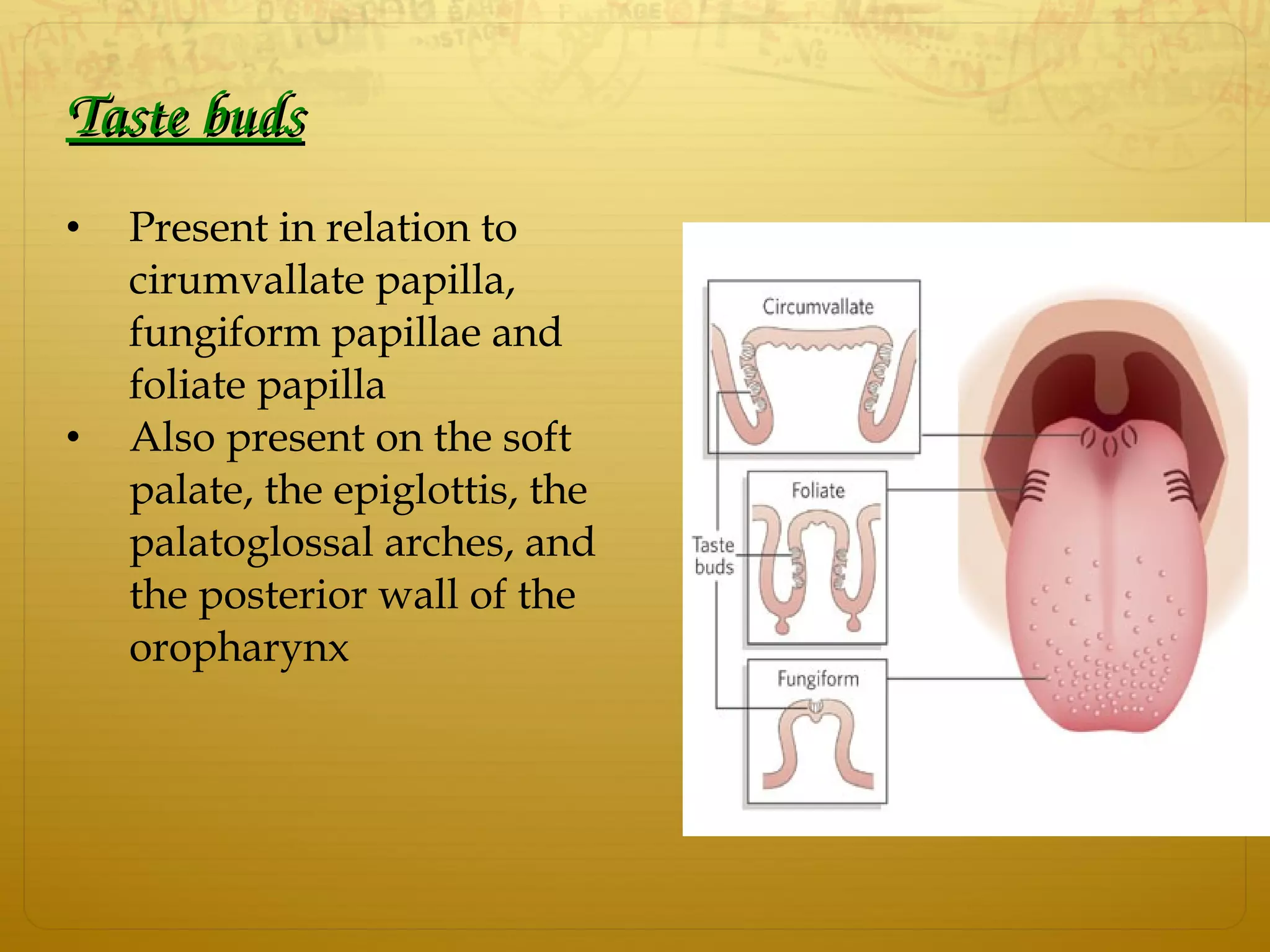

43. Taste budsTaste buds
• Present in relation to
cirumvallate papilla,
fungiform papillae and
foliate papilla
• Also present on the soft
palate, the epiglottis, the
palatoglossal arches, and
the posterior wall of the
oropharynx

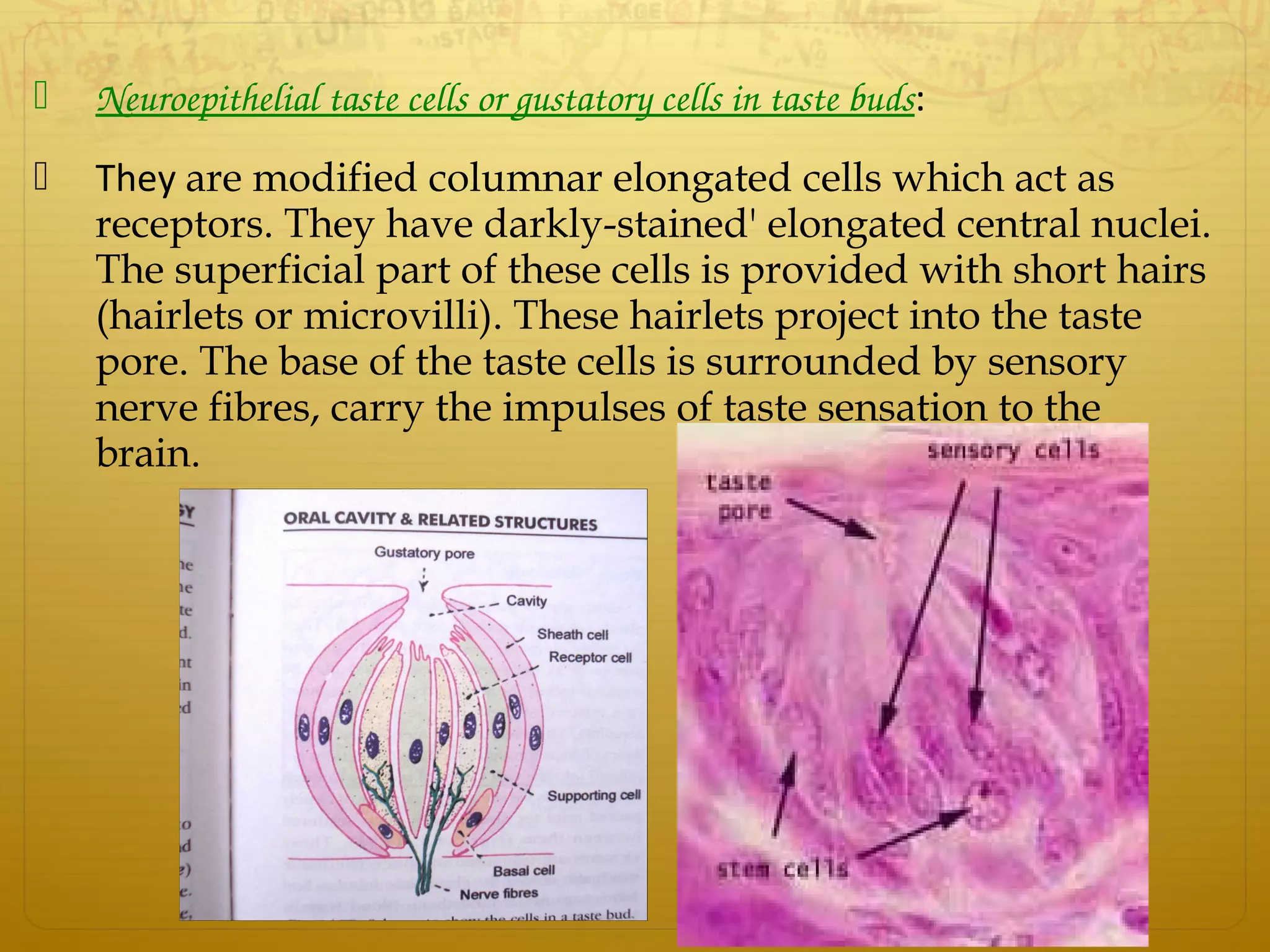

44.  Neuroepithelial taste cells or gustatory cells in taste buds:
 They are modified columnar elongated cells which act as
receptors. They have darkly-stained' elongated central nuclei.
The superficial part of these cells is provided with short hairs
(hairlets or microvilli). These hairlets project into the taste
pore. The base of the taste cells is surrounded by sensory
nerve fibres, carry the impulses of taste sensation to the
brain.

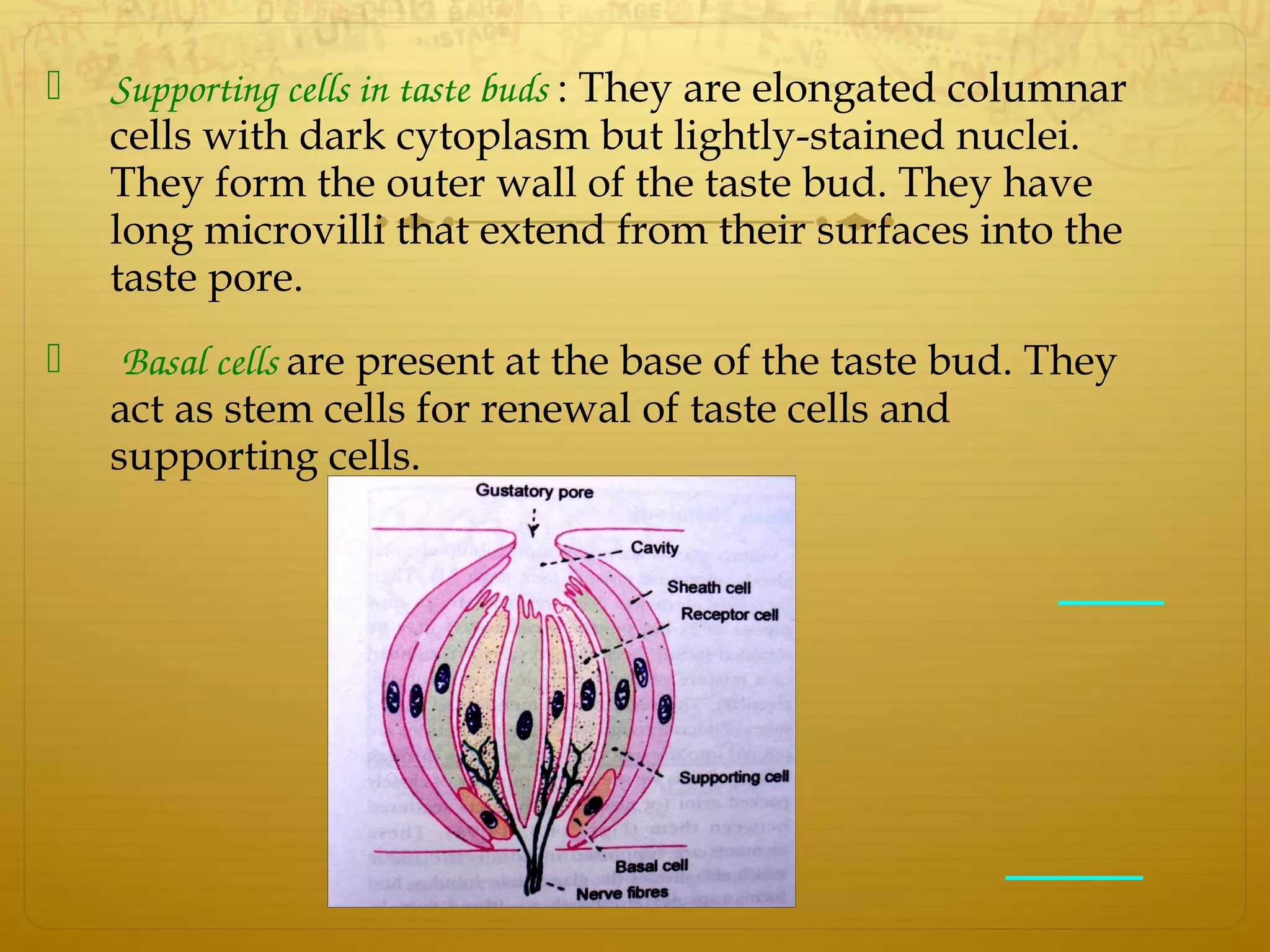

45.  Supporting cells in taste buds : They are elongated columnar
cells with dark cytoplasm but lightly-stained nuclei.
They form the outer wall of the taste bud. They have
long microvilli that extend from their surfaces into the
taste pore.
 Basal cells are present at the base of the taste bud. They
act as stem cells for renewal of taste cells and
supporting cells.

46. Taste discrimination
 Gustatory receptors detect
four main types of taste
sensation
 Sweet: tip
 Sour: middle
 Salty: anterolateral
 Bitter: base
 However recent evidence
indicates that all areas of
tongue are responsive to all
taste stimuli

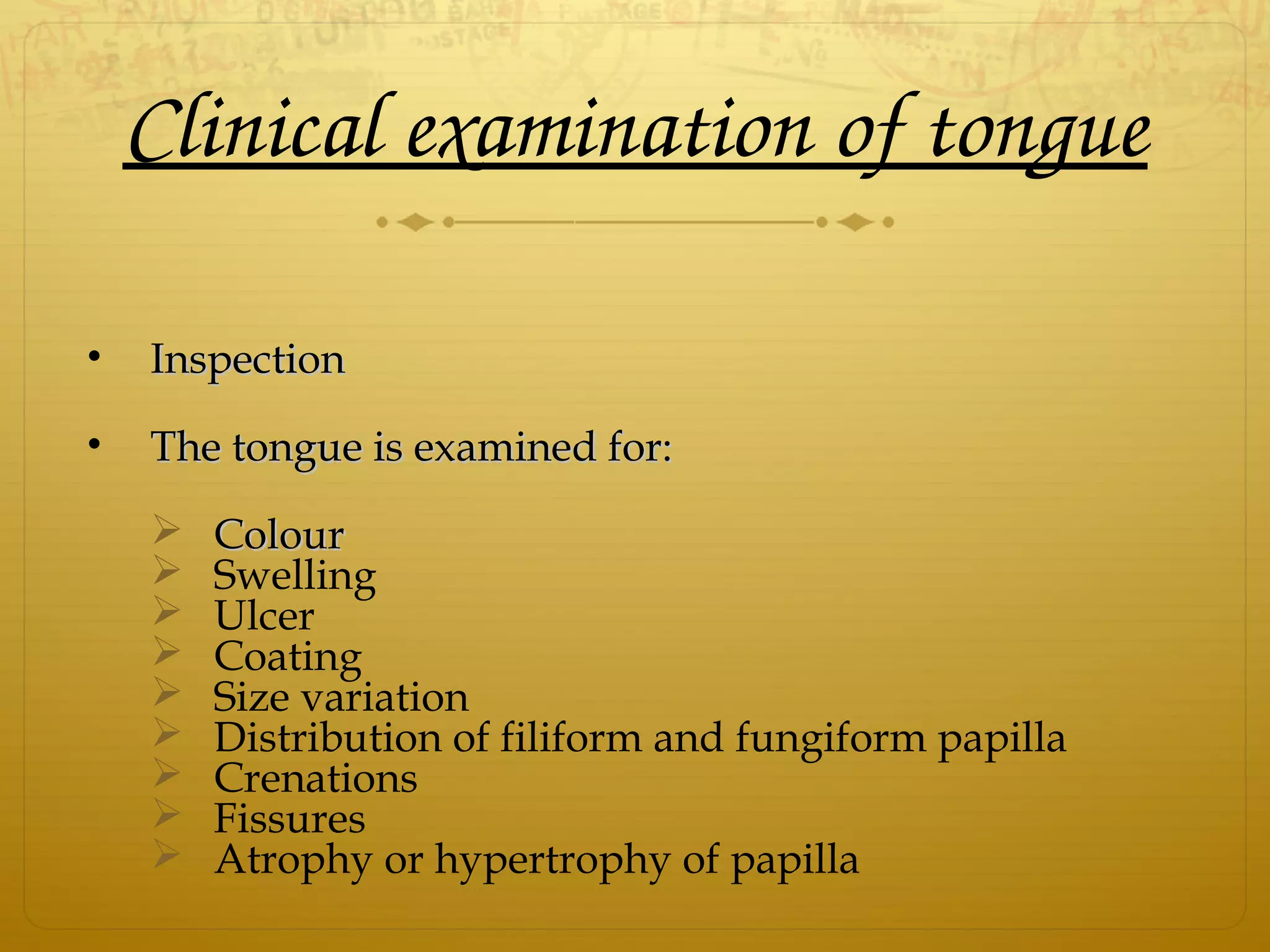

47. Clinical examination of tongue
• InspectionInspection
• The tongue is examined for:The tongue is examined for:
 ColourColour
 Swelling
 Ulcer
 Coating
 Size variation
 Distribution of filiform and fungiform papilla
 Crenations
 Fissures
 Atrophy or hypertrophy of papilla

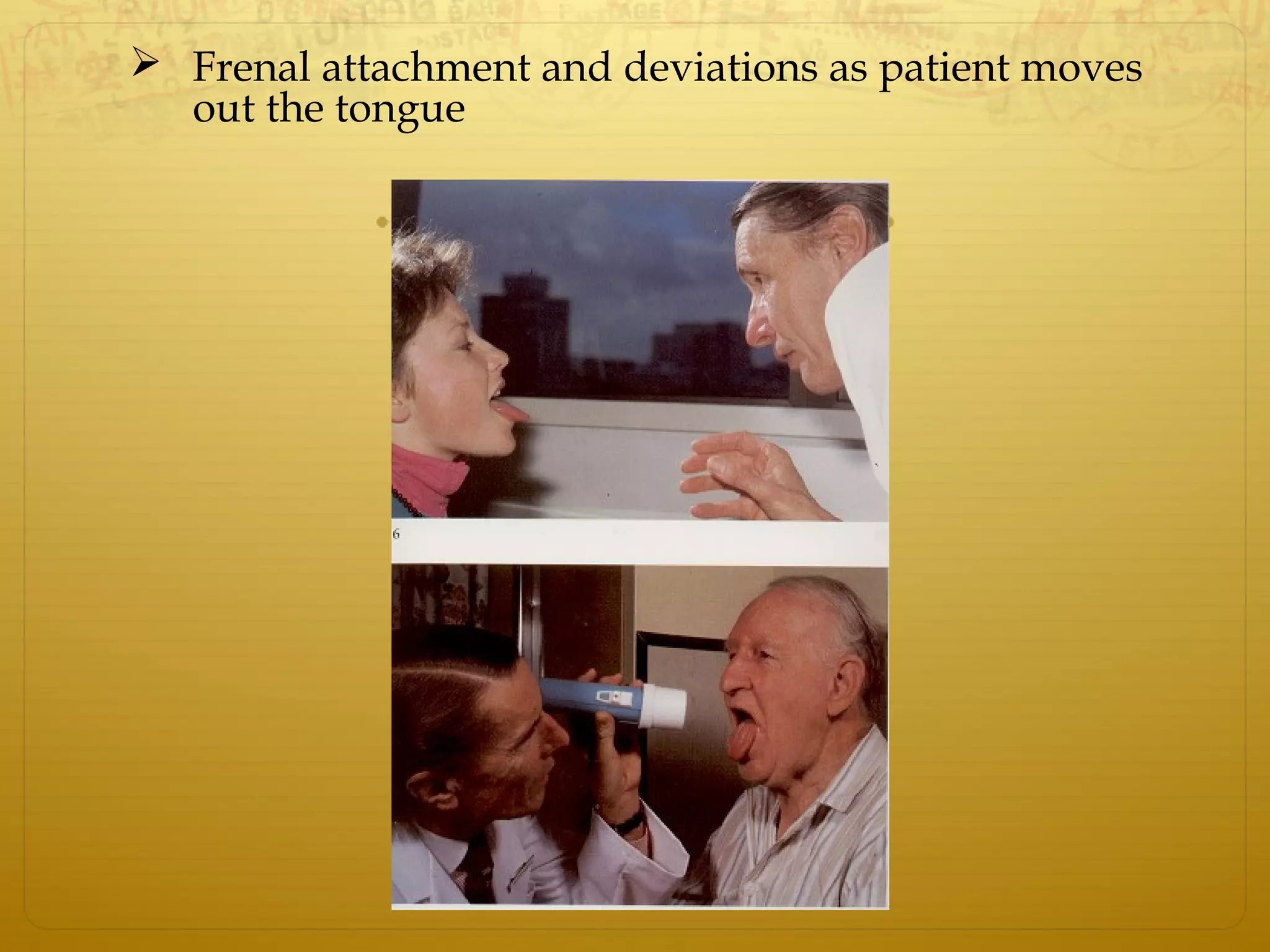

48.  Frenal attachment and deviations as patient moves
out the tongue

49. Palpation

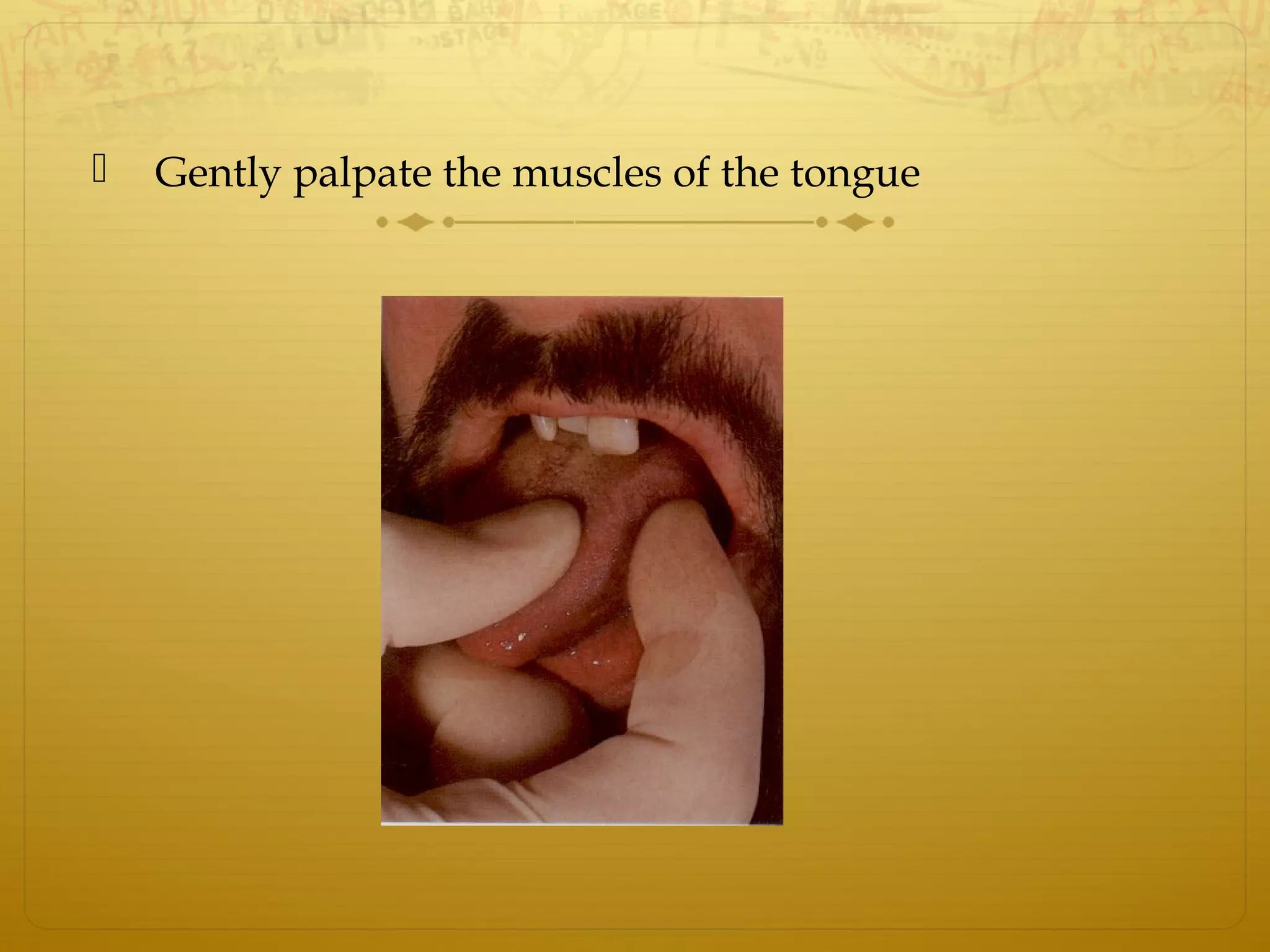

50.  Gently palpate the muscles of the tongue

51. Clinical considerations
Injury to hypoglossal nerveInjury to hypoglossal nerve
• Trauma like fractured mandible may injure hypoglossal nerve
• Paralysis ,atrophy of one side of tongue
• Tongue deviates to paralyzed side during protrusion due to action
of unaffected genioglossus muscles
• Others
 infranuclear lesion (i.e., in motor neuron disease and in
syringobulbia): gradual atrophy and muscular twitchings of
the affected half of the tongue observed
 supranuclear lesion (i.e., in pesudobulbar palsy): produce
paralysis without palsy (tongue is stiff, small and moves
sluggishly)

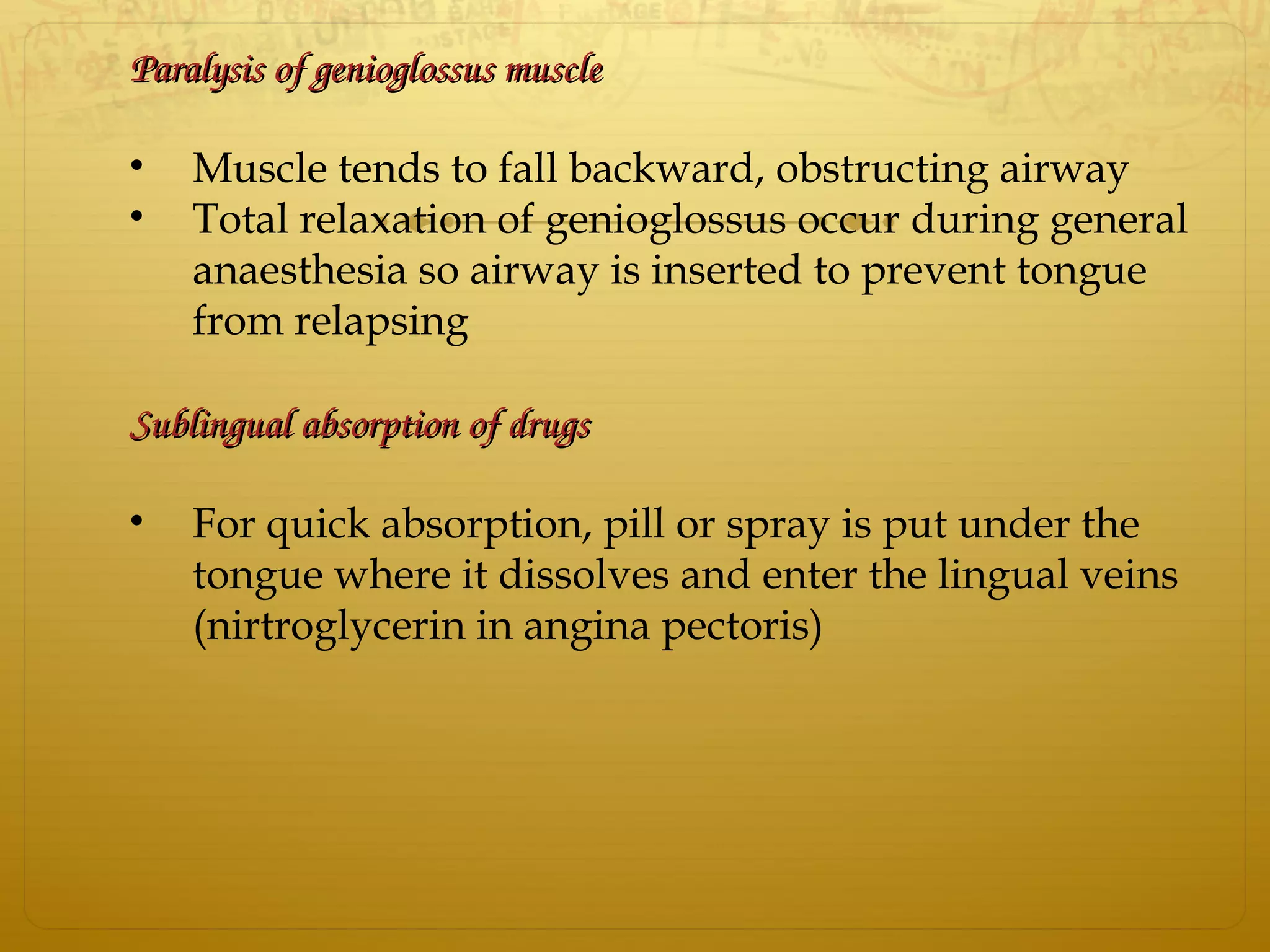

52. Paralysis of genioglossus muscleParalysis of genioglossus muscle
• Muscle tends to fall backward, obstructing airway
• Total relaxation of genioglossus occur during general
anaesthesia so airway is inserted to prevent tongue
from relapsing
Sublingual absorption of drugsSublingual absorption of drugs
• For quick absorption, pill or spray is put under the
tongue where it dissolves and enter the lingual veins
(nirtroglycerin in angina pectoris)

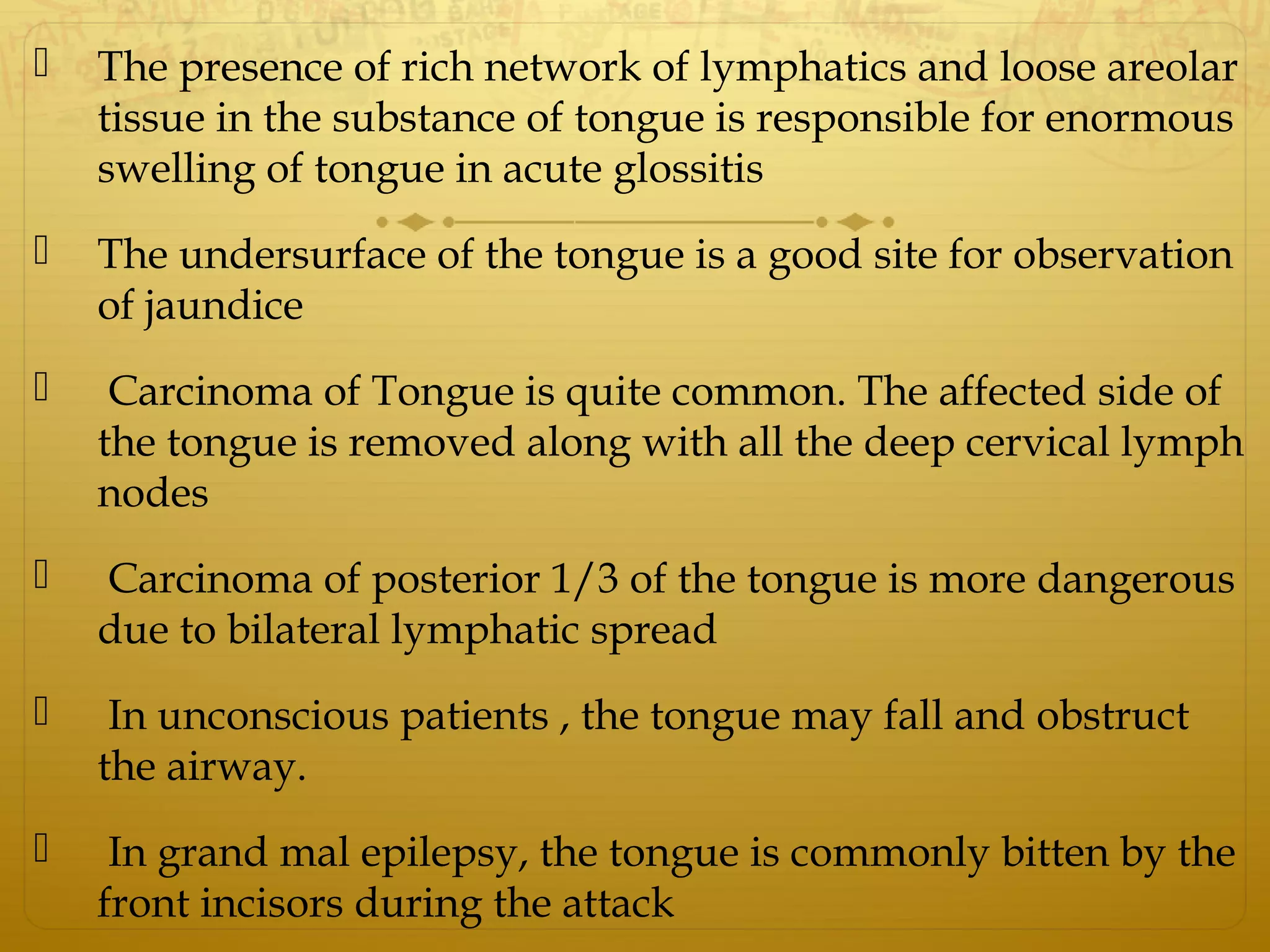

53.  The presence of rich network of lymphatics and loose areolar
tissue in the substance of tongue is responsible for enormous
swelling of tongue in acute glossitis
 The undersurface of the tongue is a good site for observation
of jaundice
 Carcinoma of Tongue is quite common. The affected side of
the tongue is removed along with all the deep cervical lymph
nodes
 Carcinoma of posterior 1/3 of the tongue is more dangerous
due to bilateral lymphatic spread
 In unconscious patients , the tongue may fall and obstruct
the airway.
 In grand mal epilepsy, the tongue is commonly bitten by the
front incisors during the attack

54. Diseases of the tongue
 Inherited, congenital, and developmental anomalies
 Disorders of the lingual mucosa
 Diseases affecting the body of the tongue
 Malignant tumors of the tongue

55. Inherited, congenital, and
developmental anomalies
 Variation in morphology
 Ankyloglossia
 Fissured tongue
 Macroglossia
 Hypoglossia
 Lingual thyroid and thyroglossal duct

56. Partial ankyloglossia (tongue­tie)Partial ankyloglossia (tongue­tie)

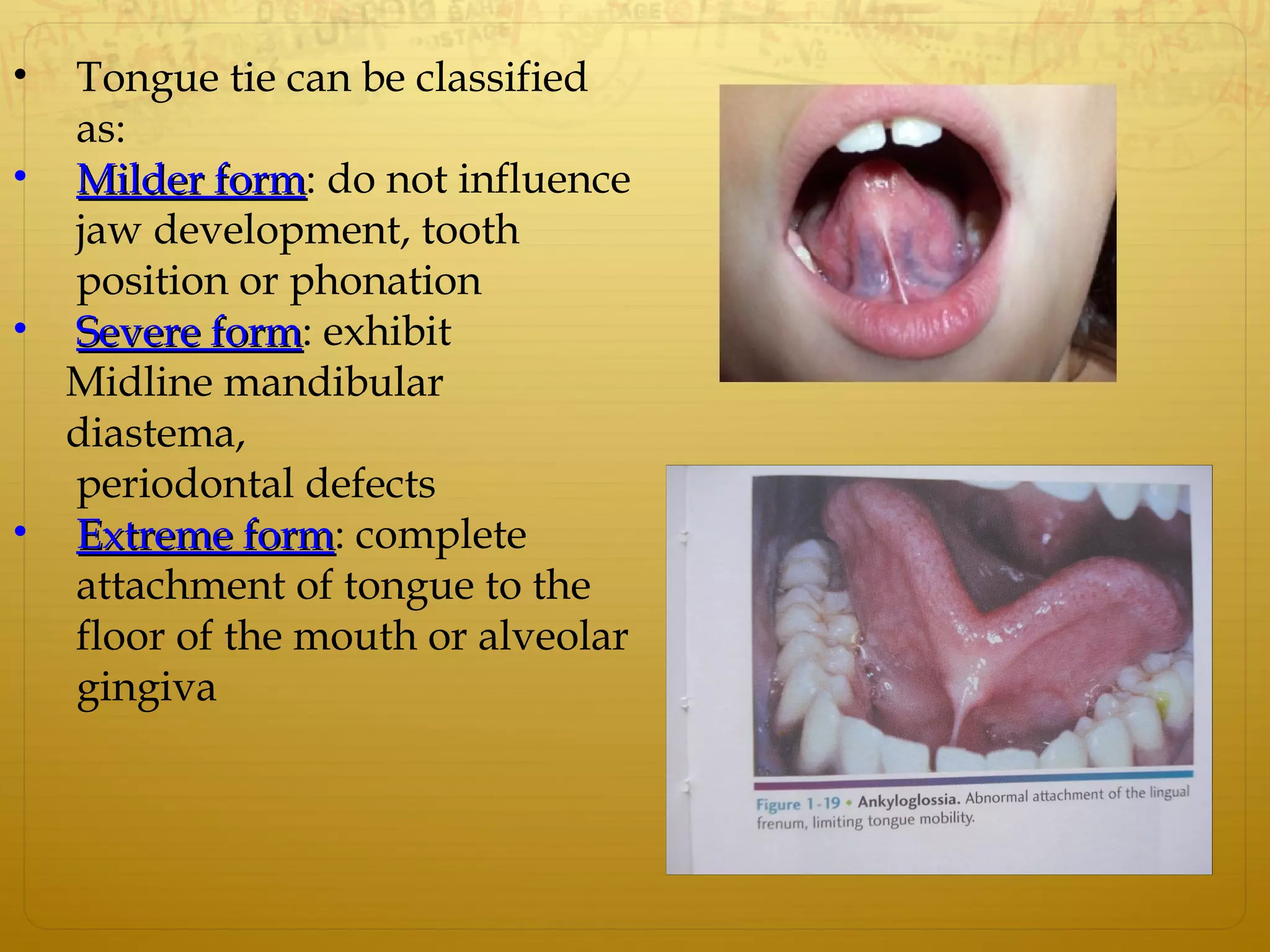

57. • Tongue tie can be classified
as:
• Milder formMilder form: do not influence
jaw development, tooth
position or phonation
• Severe formSevere form: exhibit
Midline mandibular
diastema,
periodontal defects
• Extreme formExtreme form: complete
attachment of tongue to the
floor of the mouth or alveolar
gingiva

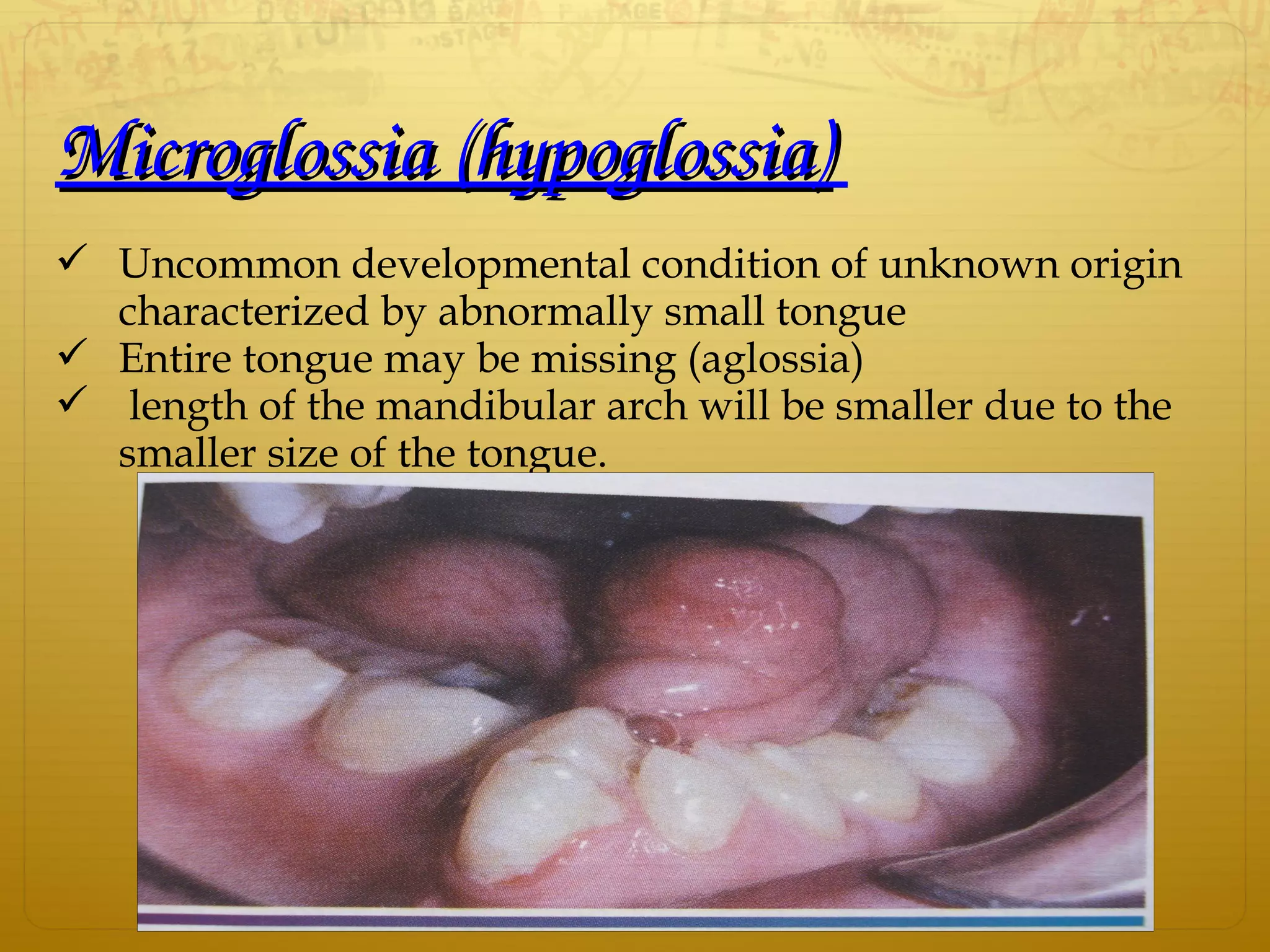

58. Microglossia (hypoglossia)Microglossia (hypoglossia)
 Uncommon developmental condition of unknown origin
characterized by abnormally small tongue
 Entire tongue may be missing (aglossia)
 length of the mandibular arch will be smaller due to the
smaller size of the tongue.

59. MacroglossiaMacroglossia

60. Fissured, plicated, or scrotal tongueFissured, plicated, or scrotal tongue

61. Lingual thyroid Lingual thyroid

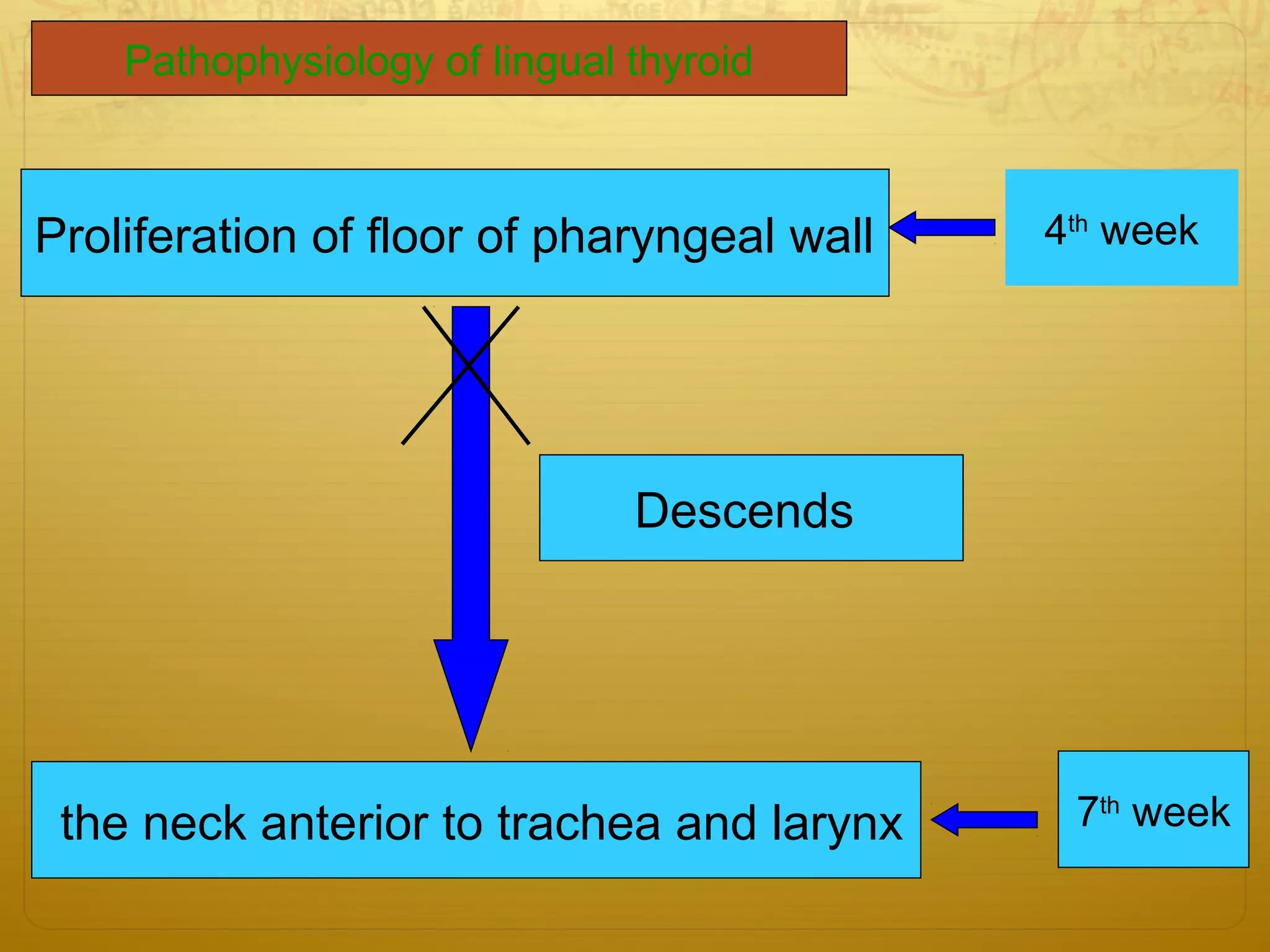

62. Proliferation of floor of pharyngeal wall 4th
week
Descends
the neck anterior to trachea and larynx 7th
week
Pathophysiology of lingual thyroid

63. Disorders of lingual mucosa
• Geographic tongueGeographic tongue
• Hairy tongueHairy tongue
• Nonkeratotic and keratotic white lesionsNonkeratotic and keratotic white lesions
– Candidiasis
– Leukoplakia, hairy leukoplakia
• Nutritional defficiencies and hematologicNutritional defficiencies and hematologic
abnormalitiesabnormalities
– Vitamin B12 deficiency
– Iron deficiency anemia
• InfectionsInfections
– Tertiary syphilis

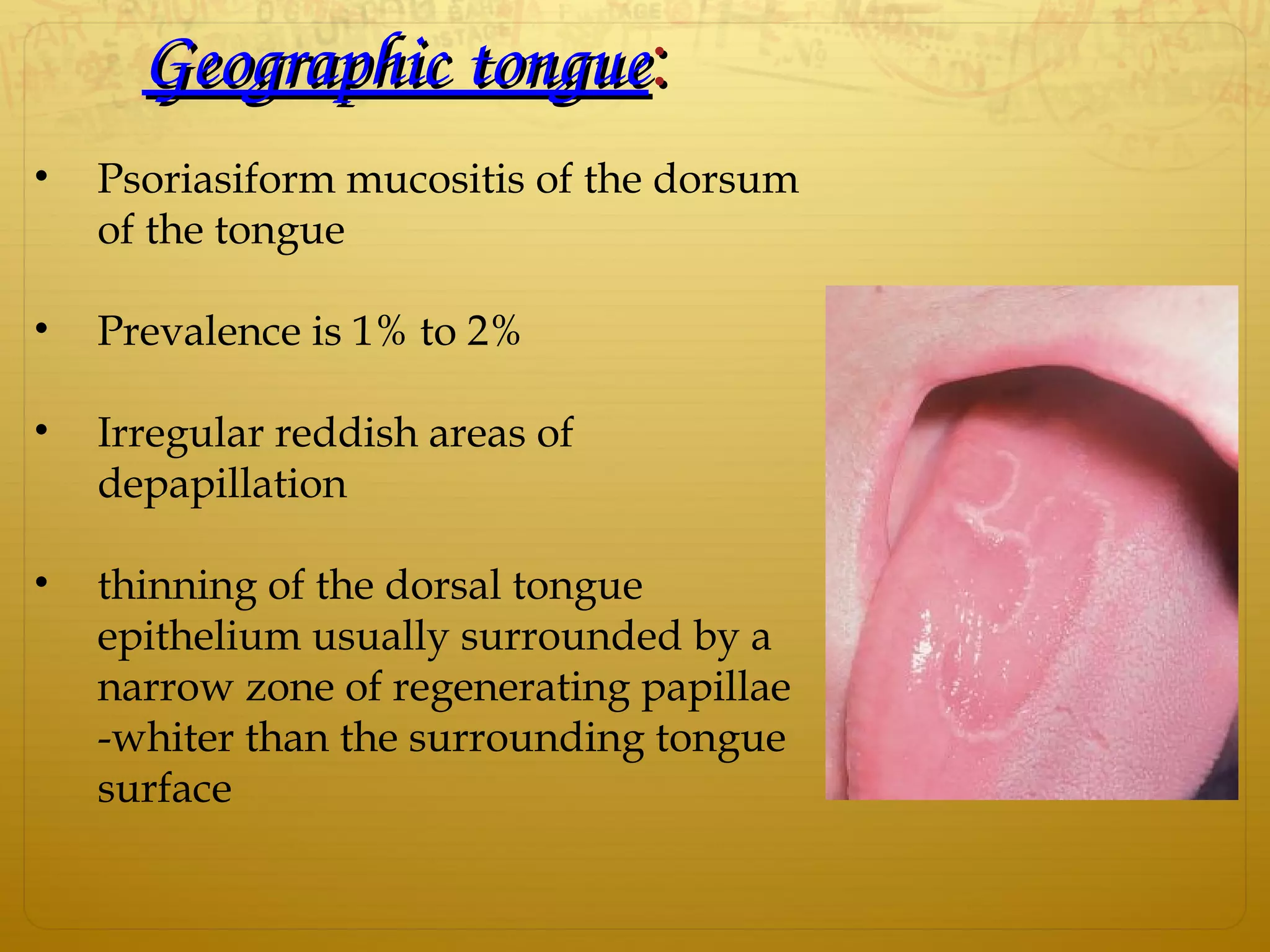

64. Geographic tongueGeographic tongue::
• Psoriasiform mucositis of the dorsum
of the tongue
• Prevalence is 1% to 2%
• Irregular reddish areas of
depapillation
• thinning of the dorsal tongue
epithelium usually surrounded by a
narrow zone of regenerating papillae
-whiter than the surrounding tongue
surface

65. Hairy tongueHairy tongue

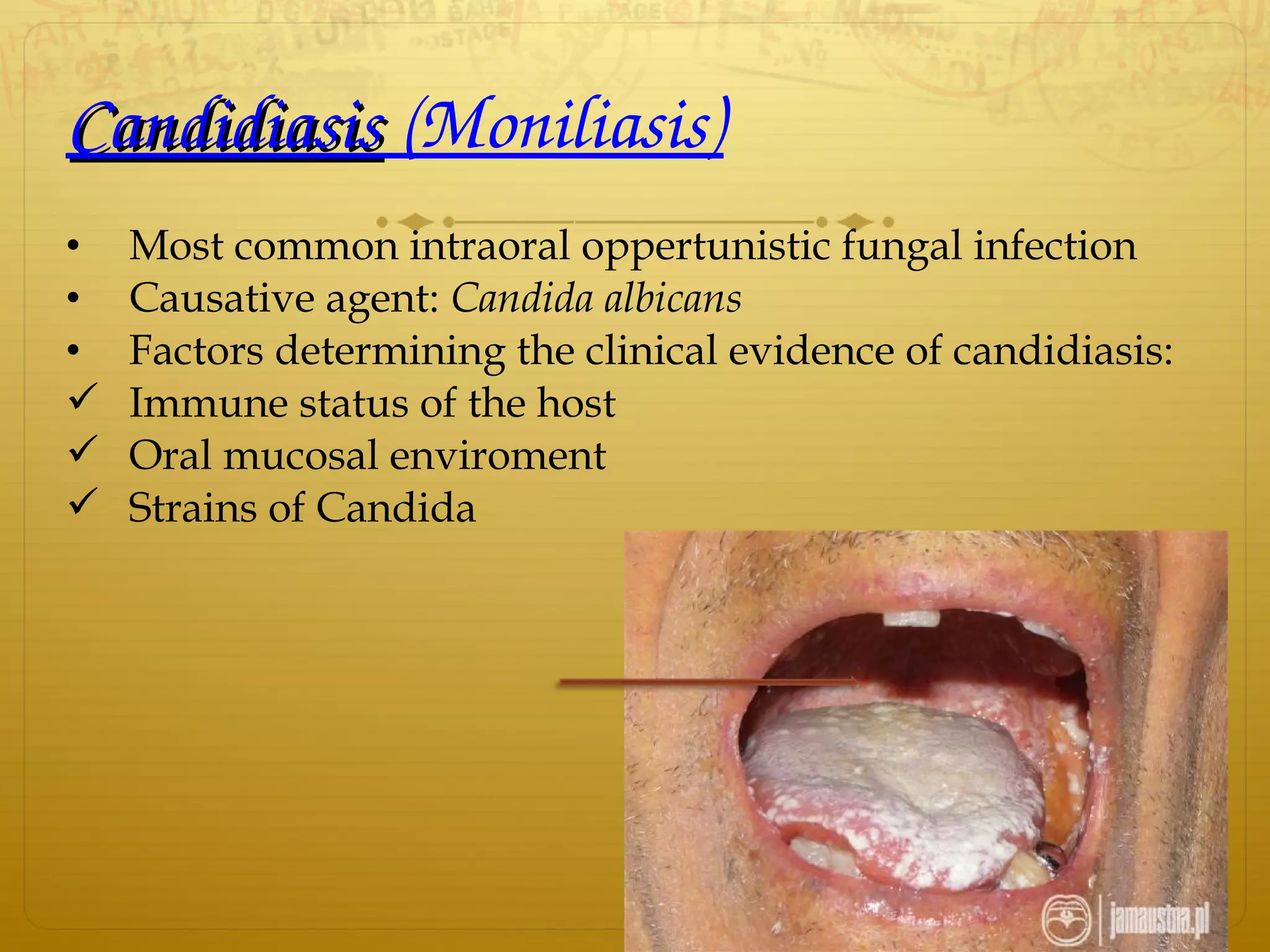

66. CandidiasisCandidiasis (Moniliasis)
• Most common intraoral oppertunistic fungal infection
• Causative agent: Candida albicans
• Factors determining the clinical evidence of candidiasis:
 Immune status of the host
 Oral mucosal enviroment
 Strains of Candida

67. LeukoplakiaLeukoplakia

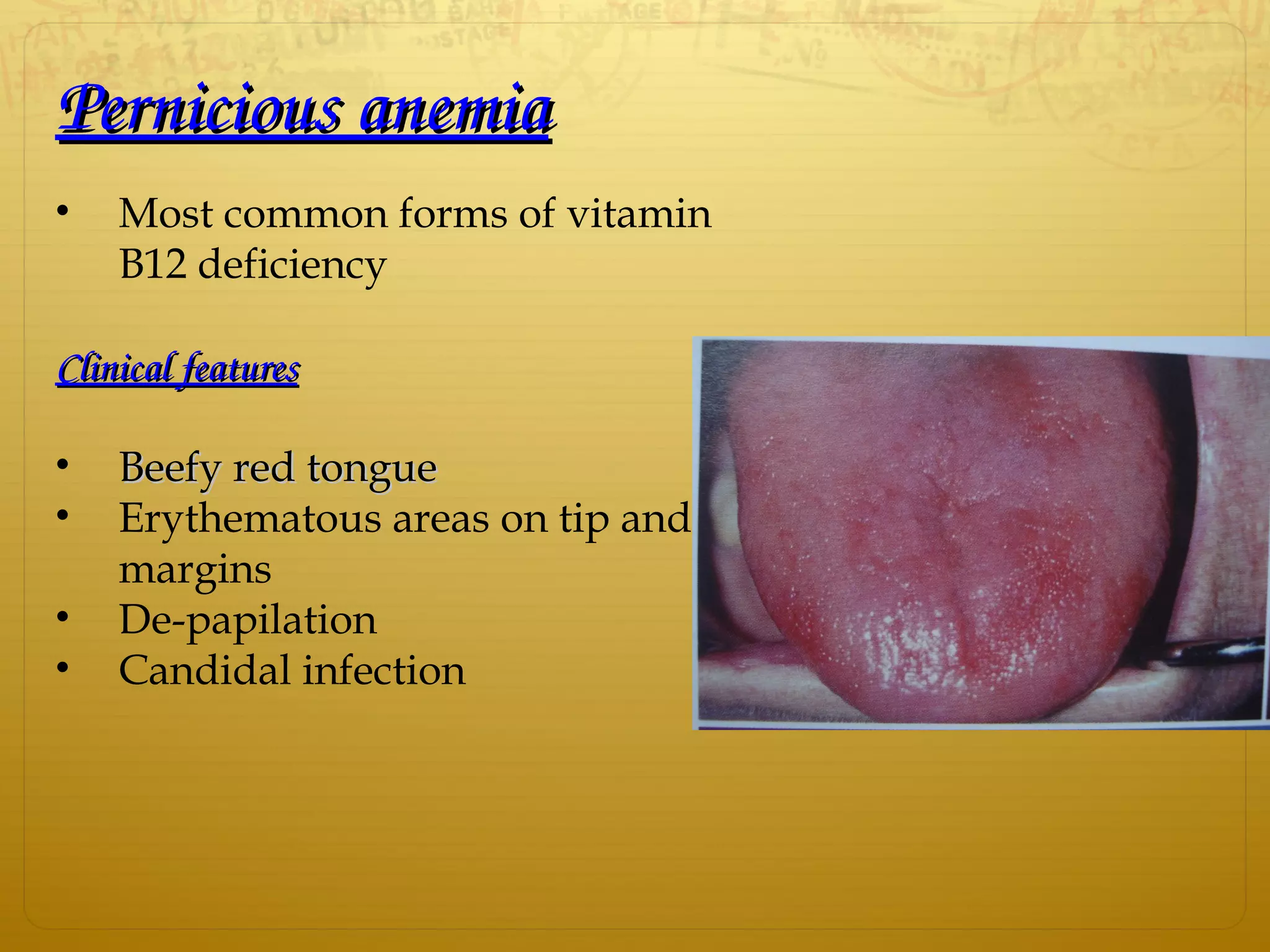

68. Pernicious anemiaPernicious anemia
• Most common forms of vitamin
B12 deficiency
Clinical featuresClinical features
• Beefy red tongueBeefy red tongue
• Erythematous areas on tip and
margins
• De-papilation
• Candidal infection

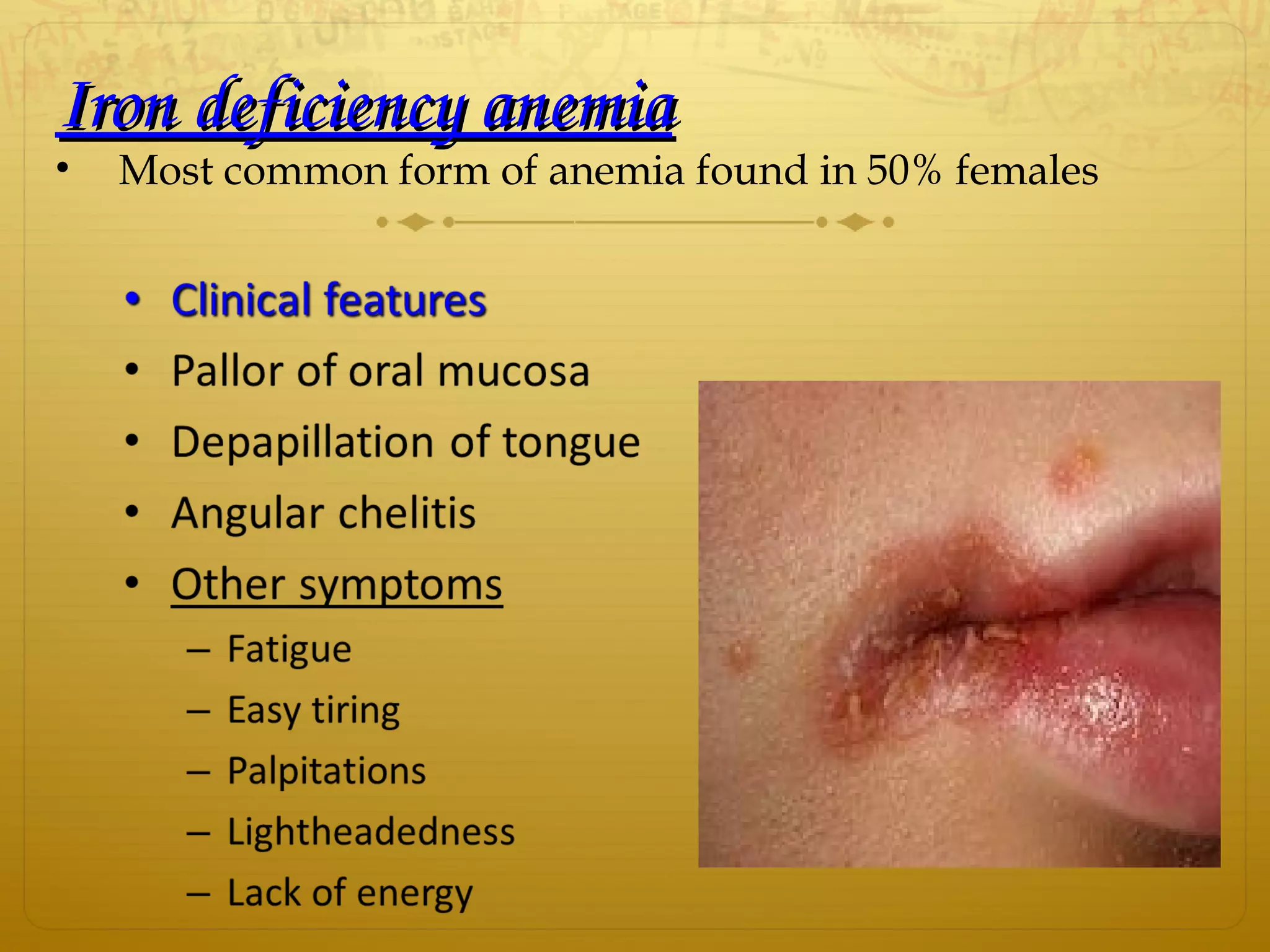

69. Iron deficiency anemiaIron deficiency anemia
• Most common form of anemia found in 50% females

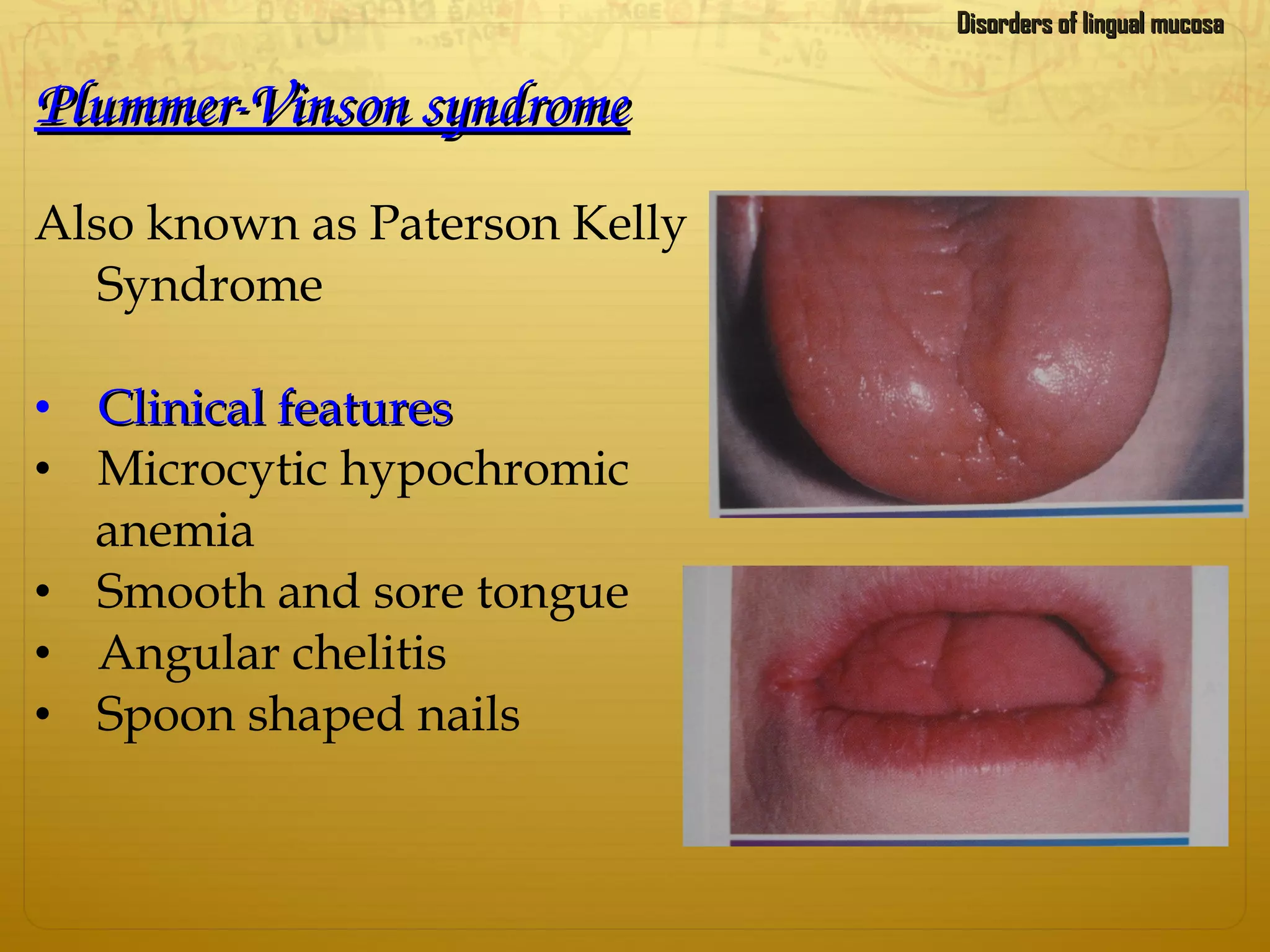

70. Plummer­Vinson syndromePlummer­Vinson syndrome
Also known as Paterson Kelly
Syndrome
• Clinical featuresClinical features
• Microcytic hypochromic
anemia
• Smooth and sore tongue
• Angular chelitis
• Spoon shaped nails
Disorders of lingual mucosaDisorders of lingual mucosa

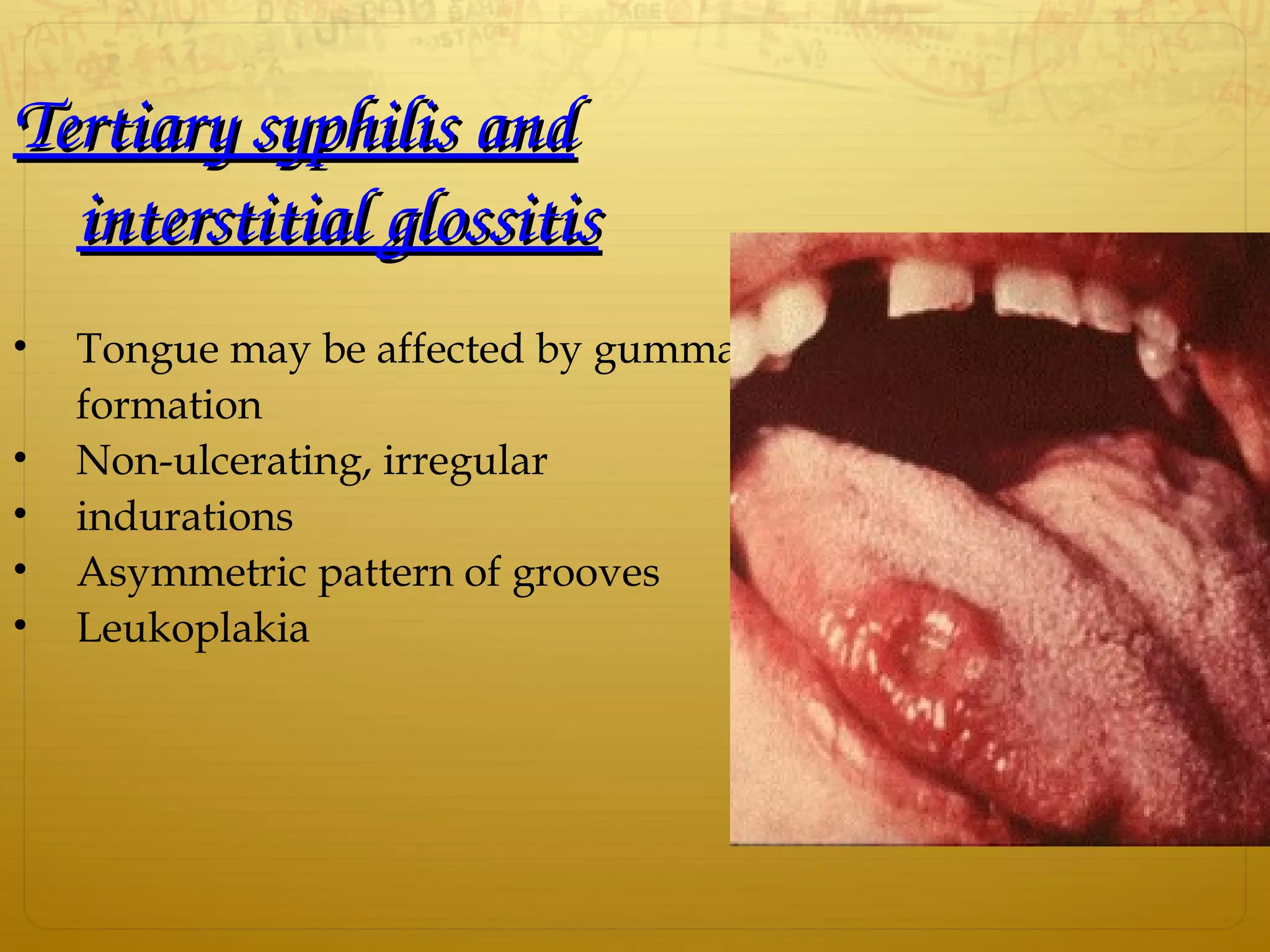

71. Tertiary syphilis and Tertiary syphilis and
interstitial glossitisinterstitial glossitis
• Tongue may be affected by gumma
formation
• Non-ulcerating, irregular
• indurations
• Asymmetric pattern of grooves
• Leukoplakia

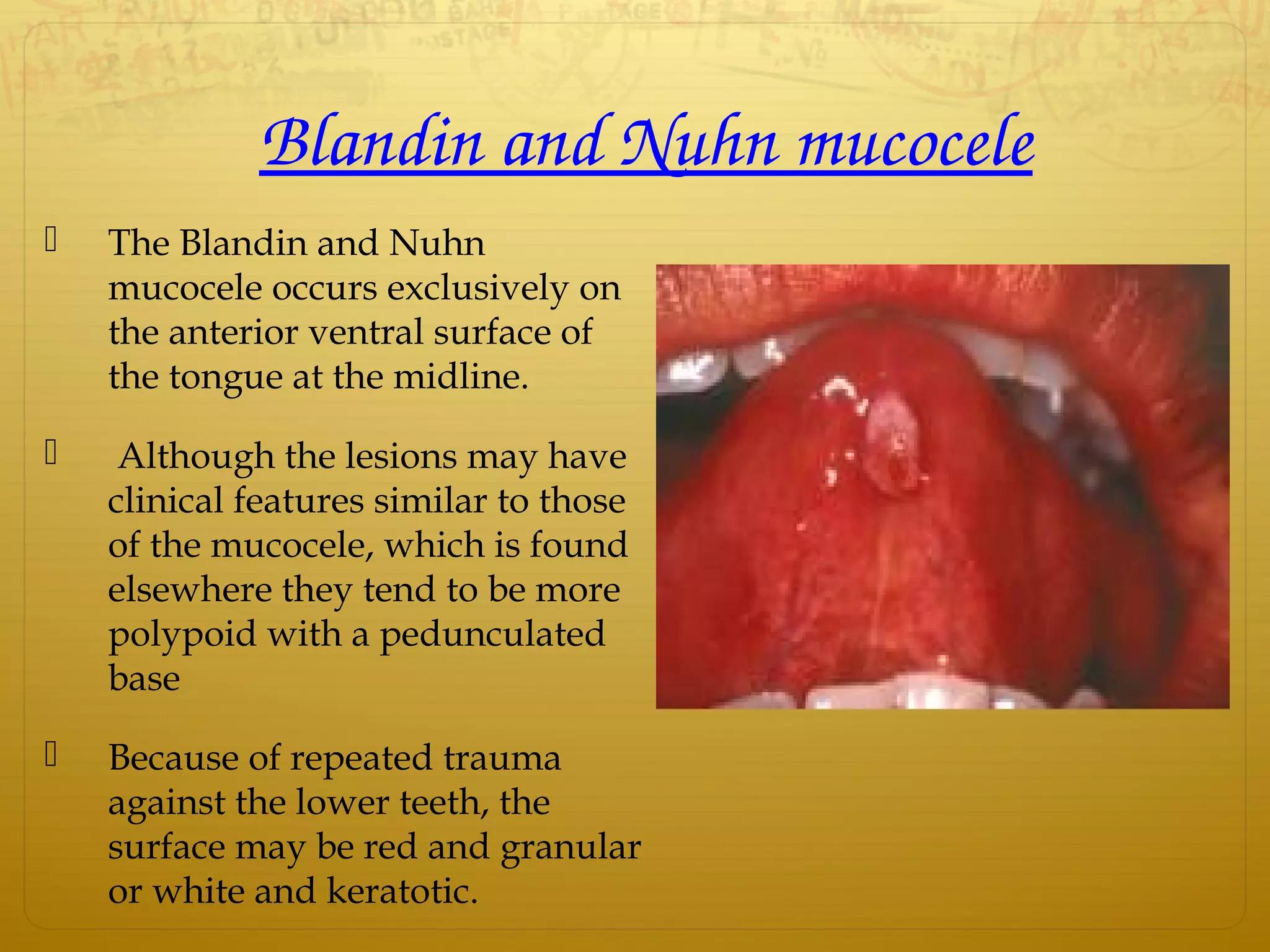

72. Blandin and Nuhn mucocele
 The Blandin and Nuhn
mucocele occurs exclusively on
the anterior ventral surface of
the tongue at the midline.
 Although the lesions may have
clinical features similar to those
of the mucocele, which is found
elsewhere they tend to be more
polypoid with a pedunculated
base
 Because of repeated trauma
against the lower teeth, the
surface may be red and granular
or white and keratotic.

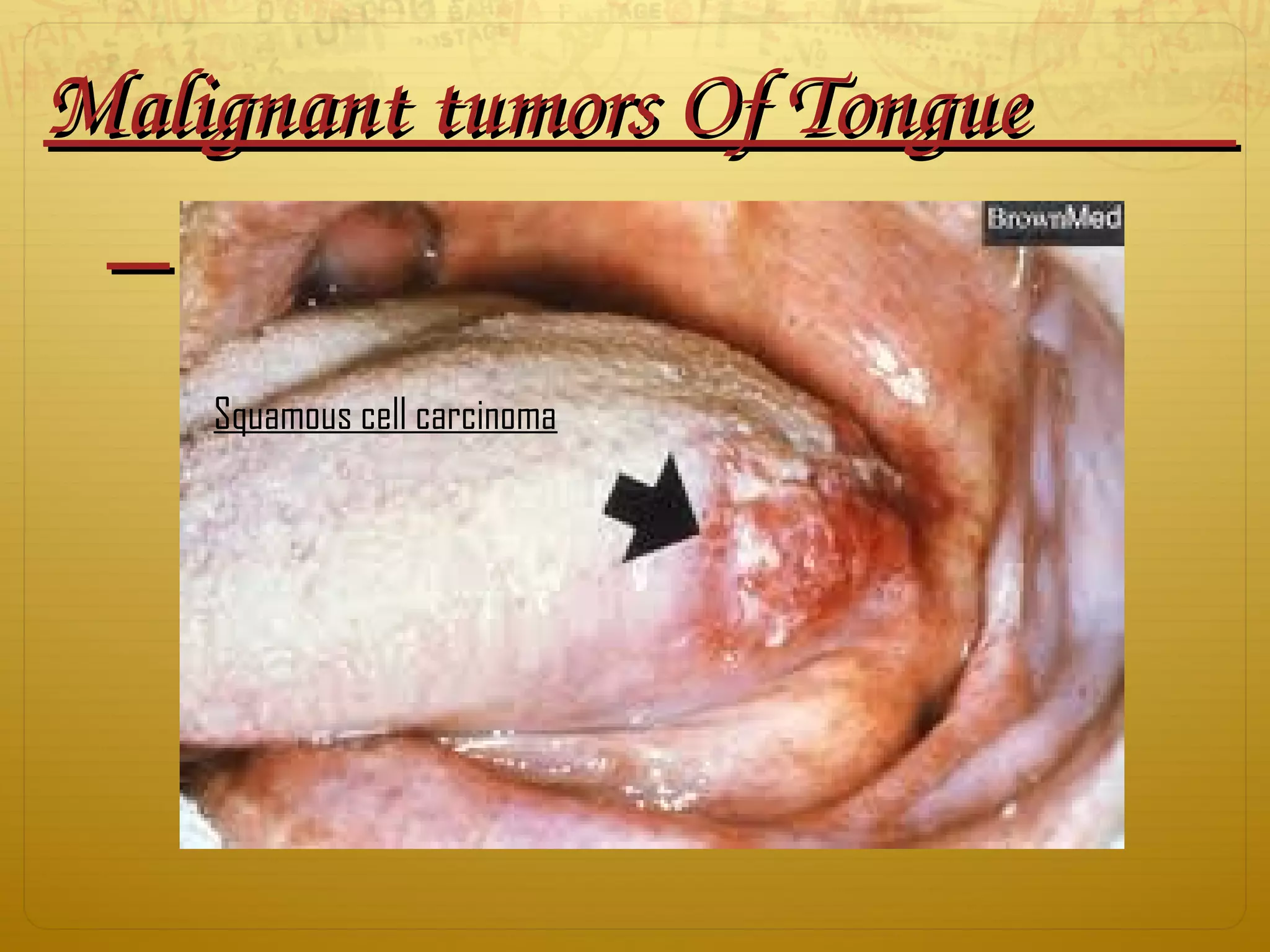

73. Malignant tumors Of Tongue Malignant tumors Of Tongue
Squamous cell carcinoma

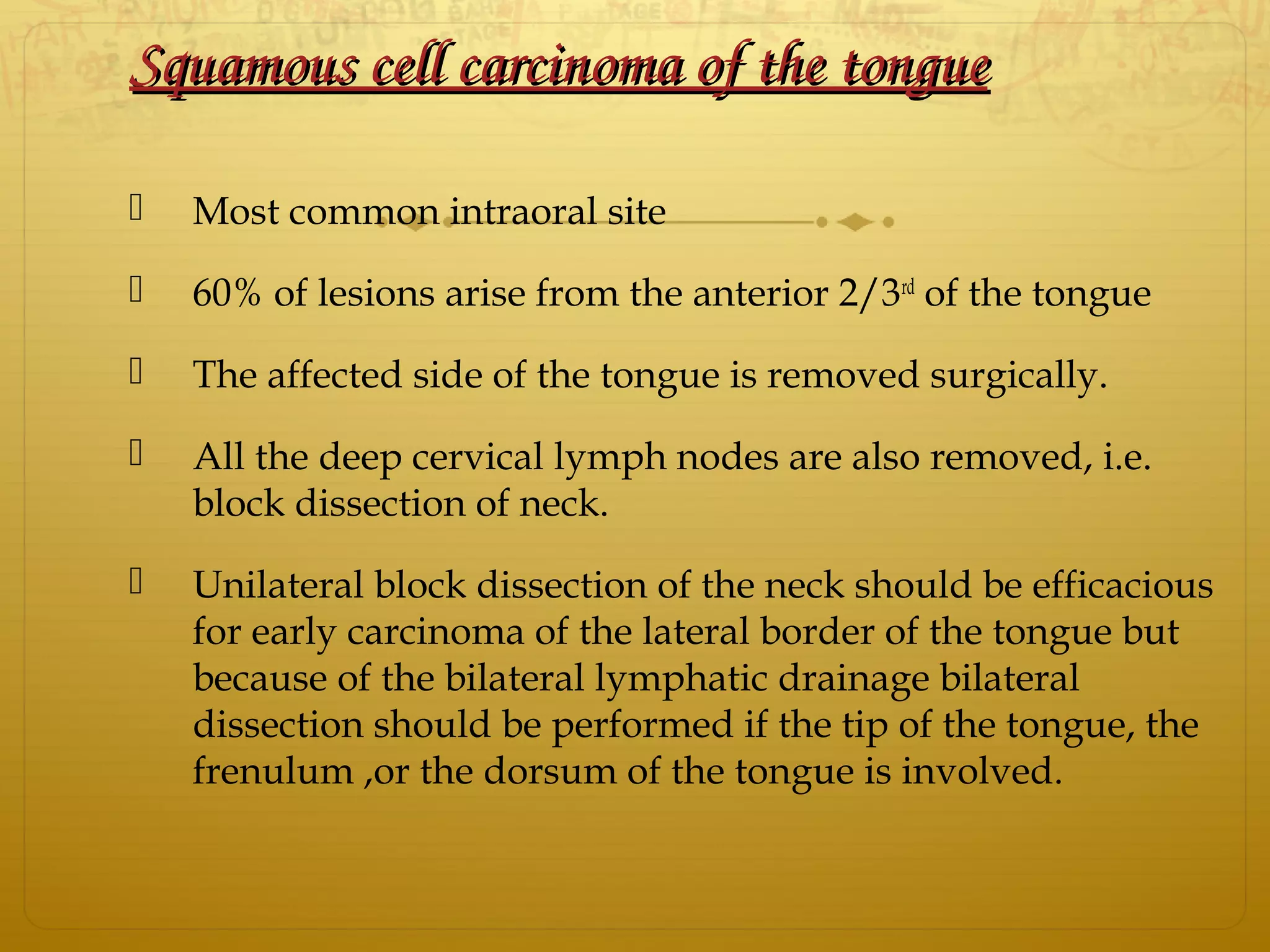

74. Squamous cell carcinoma of the tongueSquamous cell carcinoma of the tongue
 Most common intraoral site
 60% of lesions arise from the anterior 2/3rd
of the tongue
 The affected side of the tongue is removed surgically.
 All the deep cervical lymph nodes are also removed, i.e.
block dissection of neck.
 Unilateral block dissection of the neck should be efficacious
for early carcinoma of the lateral border of the tongue but
because of the bilateral lymphatic drainage bilateral
dissection should be performed if the tip of the tongue, the
frenulum ,or the dorsum of the tongue is involved.

75. CONCLUSIO
N

76. • ReferencesReferences
 B.D Chaurasia(2006) Human Anatomy,Regional and
Applied,Dissection.
 Henry Gray(2004),Gray's Anatomy .
 Neelima Anil Malik, Textbook of Oral and Maxillofacial
Surgery.
 Frank H.Netter,MD. Atlas of human anatomy.
 William Henry Hollinshead. Anatomy for Surgeons: The
head and neck
 T.W. Sadler ,Langman’s Medical Embryology
 Internet source.
