The palate has two parts: the hard (bony) palate anteriorly and the soft (muscular) palate posteriorly. The hard palate forms the roof of the oral cavity and floor of the nose. It receives blood vessels from the greater palatine artery and nerves from the greater palatine and nasopalatine nerves. The soft palate is a movable muscular fold suspended from the posterior border of the hard palate. It has anterior and posterior surfaces and superior and inferior borders, and hangs the conical uvula from its middle.

1. HARD PALATE AND SOFT
PALATE
BRISSO ARACKAL
1BRISSO ARACKAL

2. 2BRISSO ARACKAL

3. Palate
Lies in the roof of the
oral cavity
Has two parts:
– Hard (bony) palate
anteriorly
– Soft (muscular)
palate posteriorly
hard
soft palate
3BRISSO ARACKAL

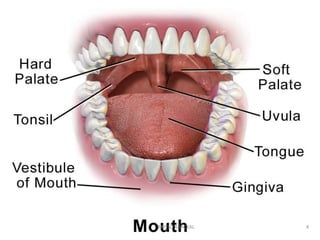

4. 4BRISSO ARACKAL

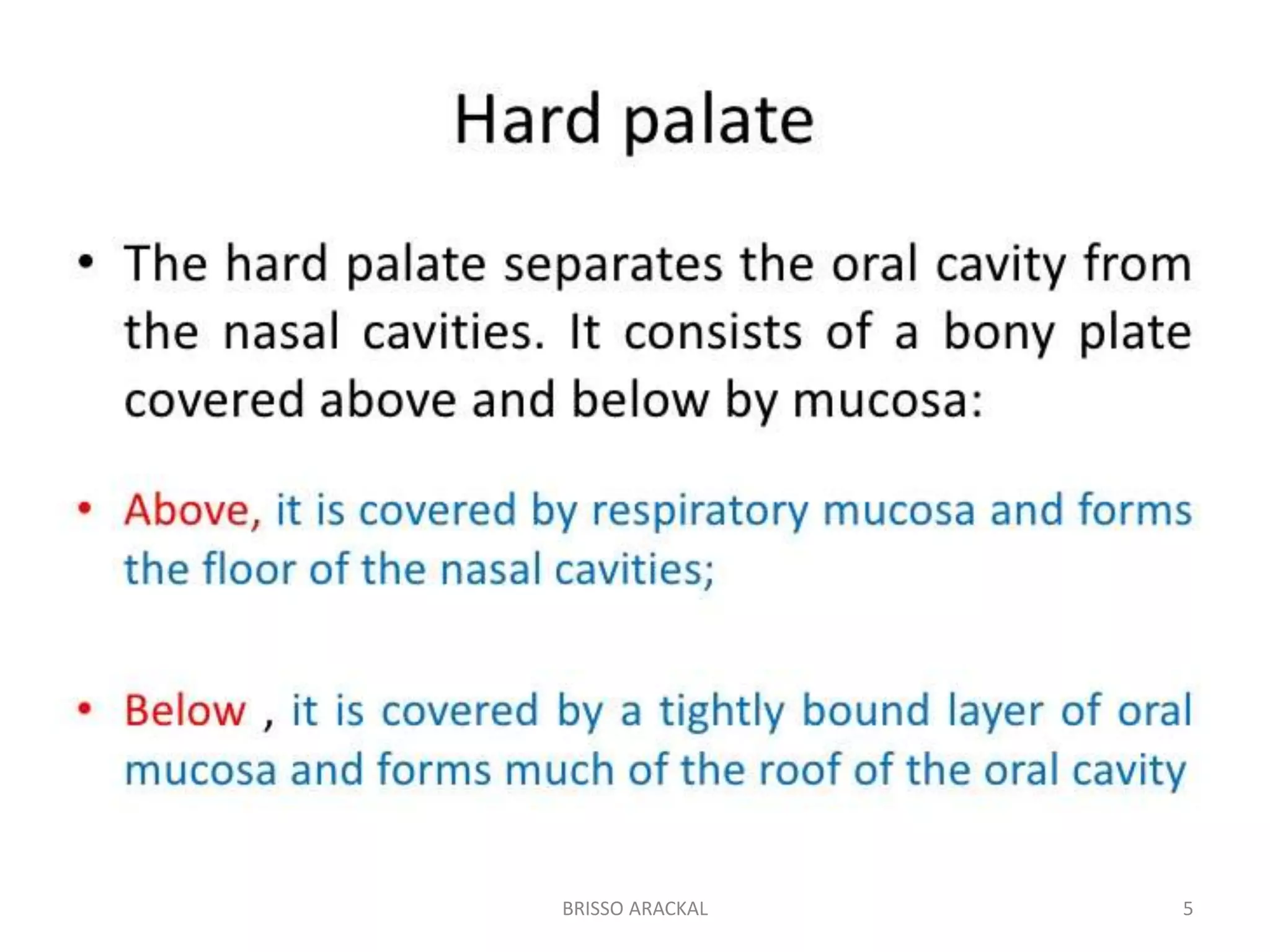

5. 5BRISSO ARACKAL

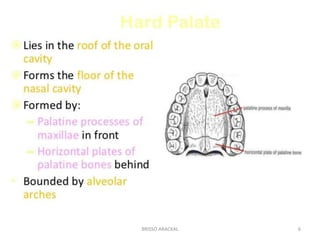

6. 6BRISSO ARACKAL

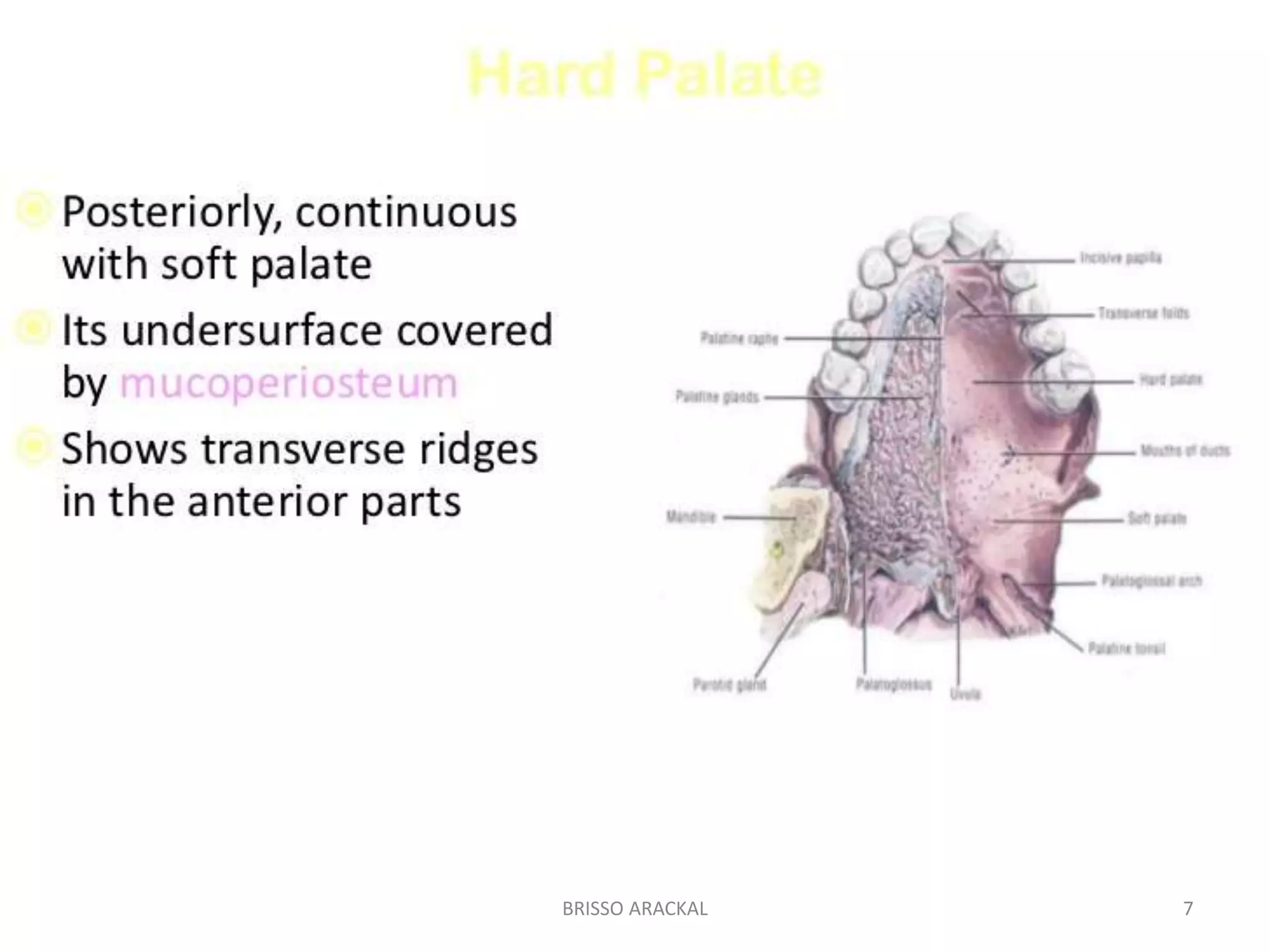

7. 7BRISSO ARACKAL

8. HARD PALATE: position
• The anteriolateral margins of the palate are
continuous with the alveolar arches and
gums.
• The posterior margin gives attachment to the
soft palate.
• The superior surface forms the floor of the
nose.
• The inferior surface forms the roof of the oral
cavity
8BRISSO ARACKAL

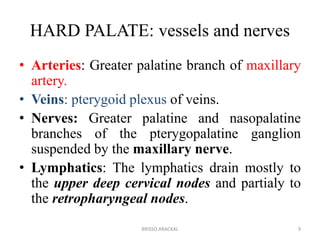

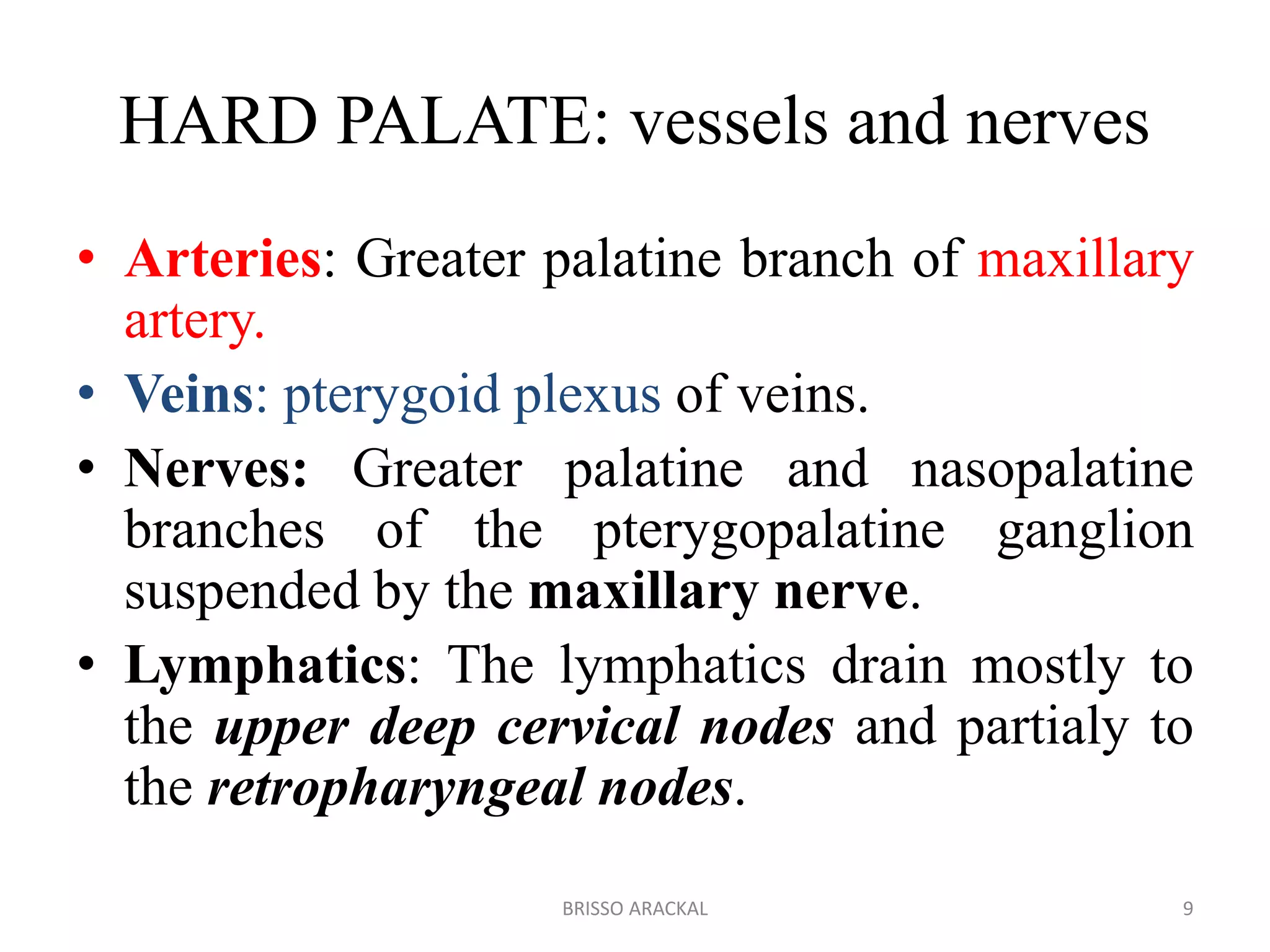

9. HARD PALATE: vessels and nerves
• Arteries: Greater palatine branch of maxillary
artery.
• Veins: pterygoid plexus of veins.
• Nerves: Greater palatine and nasopalatine
branches of the pterygopalatine ganglion
suspended by the maxillary nerve.
• Lymphatics: The lymphatics drain mostly to
the upper deep cervical nodes and partialy to
the retropharyngeal nodes.
9BRISSO ARACKAL

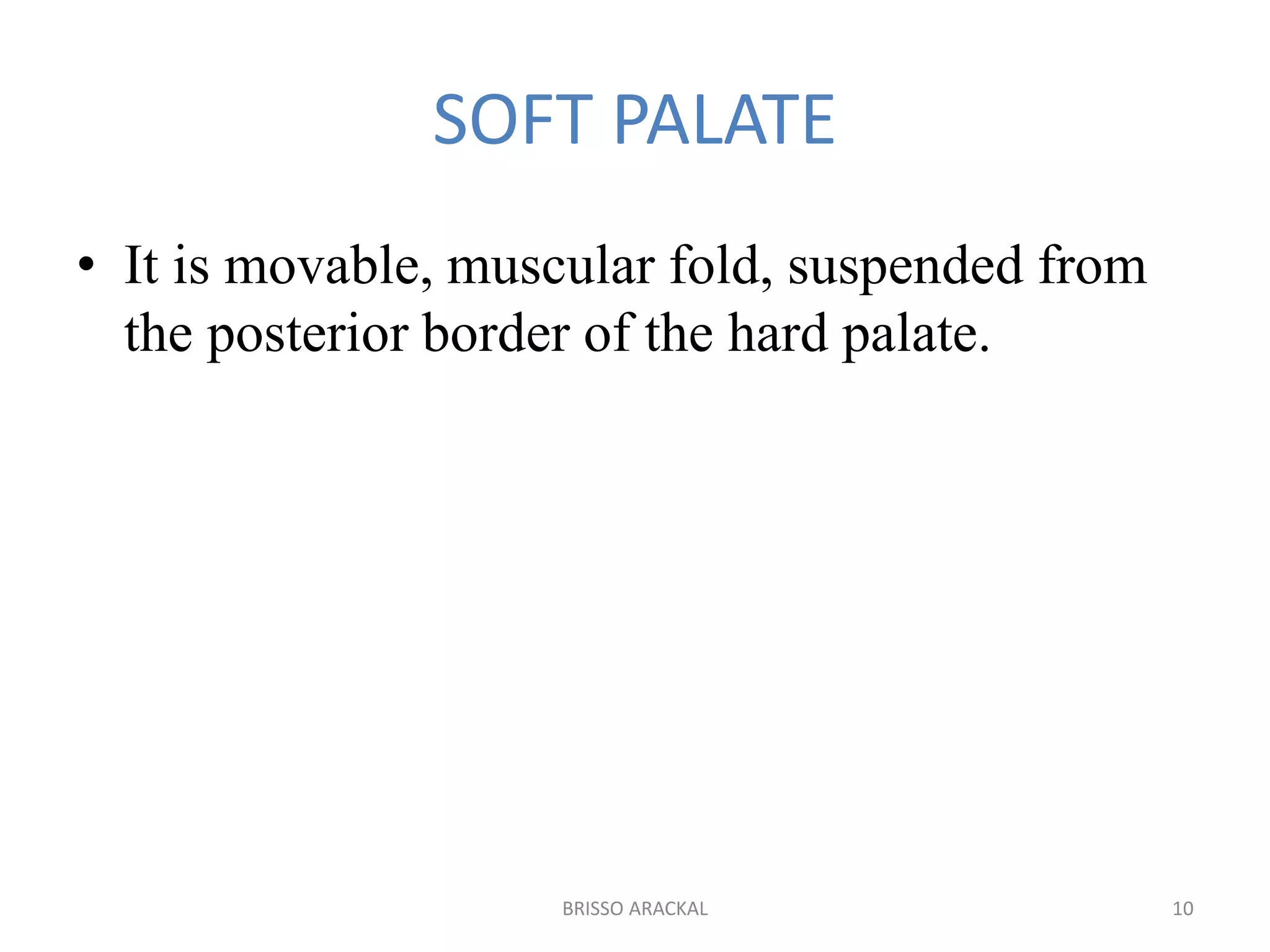

10. SOFT PALATE
• It is movable, muscular fold, suspended from
the posterior border of the hard palate.
10BRISSO ARACKAL

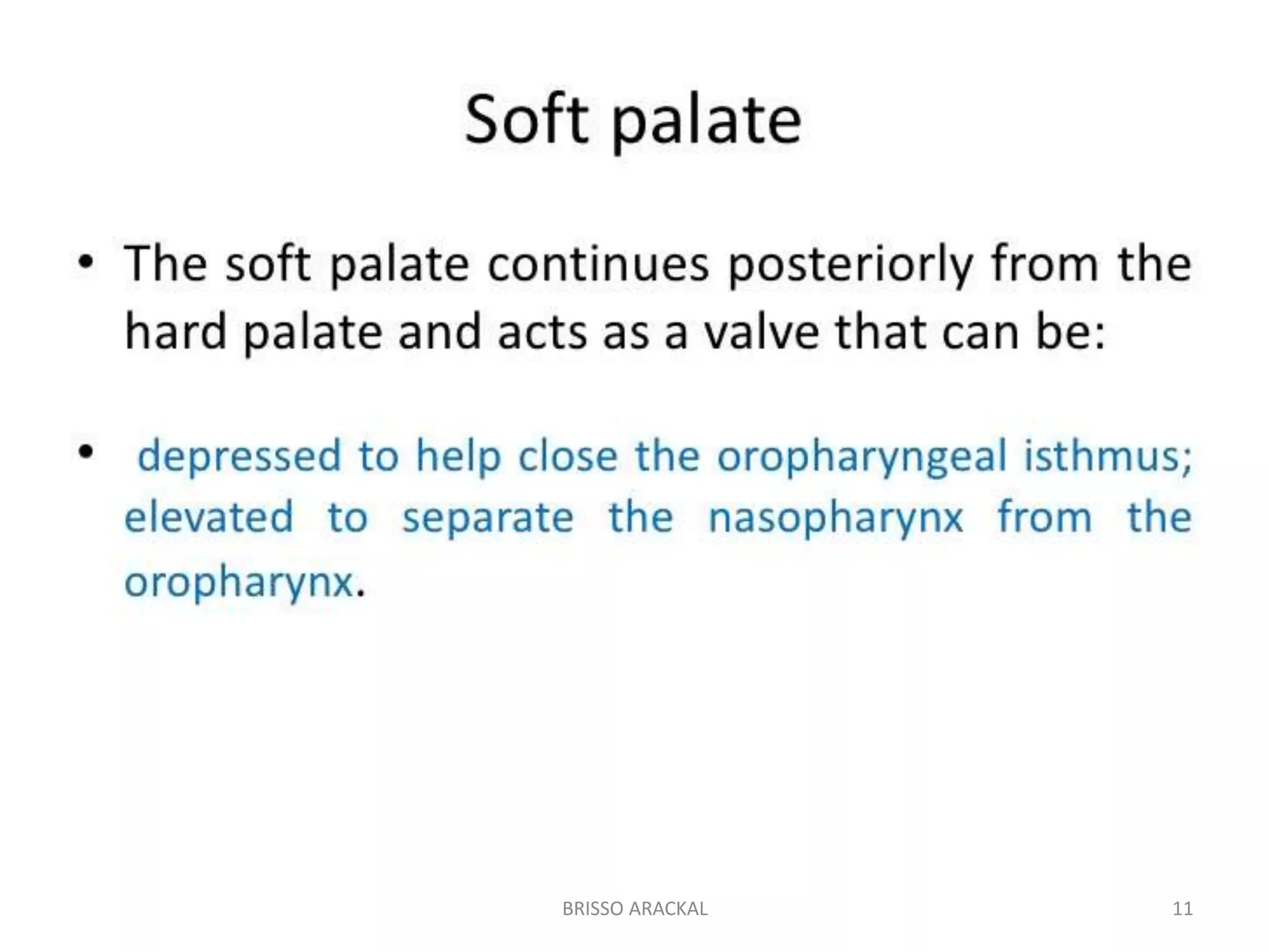

11. 11BRISSO ARACKAL

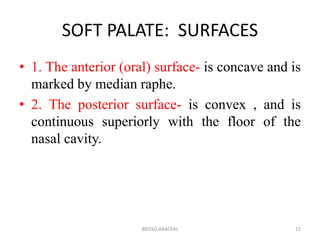

12. SOFT PALATE: SURFACES
• 1. The anterior (oral) surface- is concave and is
marked by median raphe.
• 2. The posterior surface- is convex , and is
continuous superiorly with the floor of the
nasal cavity.
12BRISSO ARACKAL

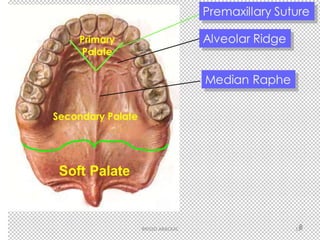

13. 13BRISSO ARACKAL

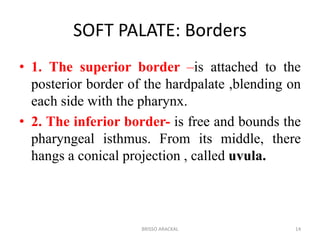

14. SOFT PALATE: Borders
• 1. The superior border –is attached to the
posterior border of the hardpalate ,blending on
each side with the pharynx.
• 2. The inferior border- is free and bounds the
pharyngeal isthmus. From its middle, there
hangs a conical projection , called uvula.
14BRISSO ARACKAL

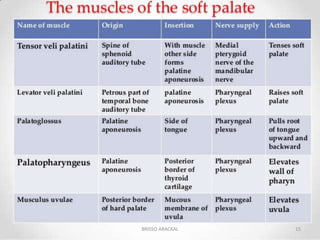

15. 15BRISSO ARACKAL

16. 16BRISSO ARACKAL

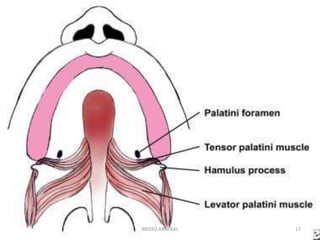

17. 17BRISSO ARACKAL

18. Palatine Aponeurosis
Fibrous sheath
Attached to posterior
border of hard palate
Is expanded tendon of
tensor velli palatini
Splits to enclose
musculus uvulae
Gives origin & insertion
to palatine muscles
18BRISSO ARACKAL

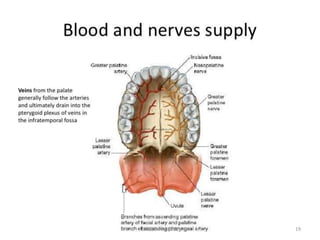

19. 19BRISSO ARACKAL

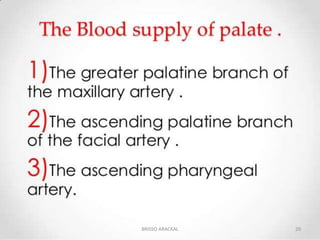

20. 20BRISSO ARACKAL

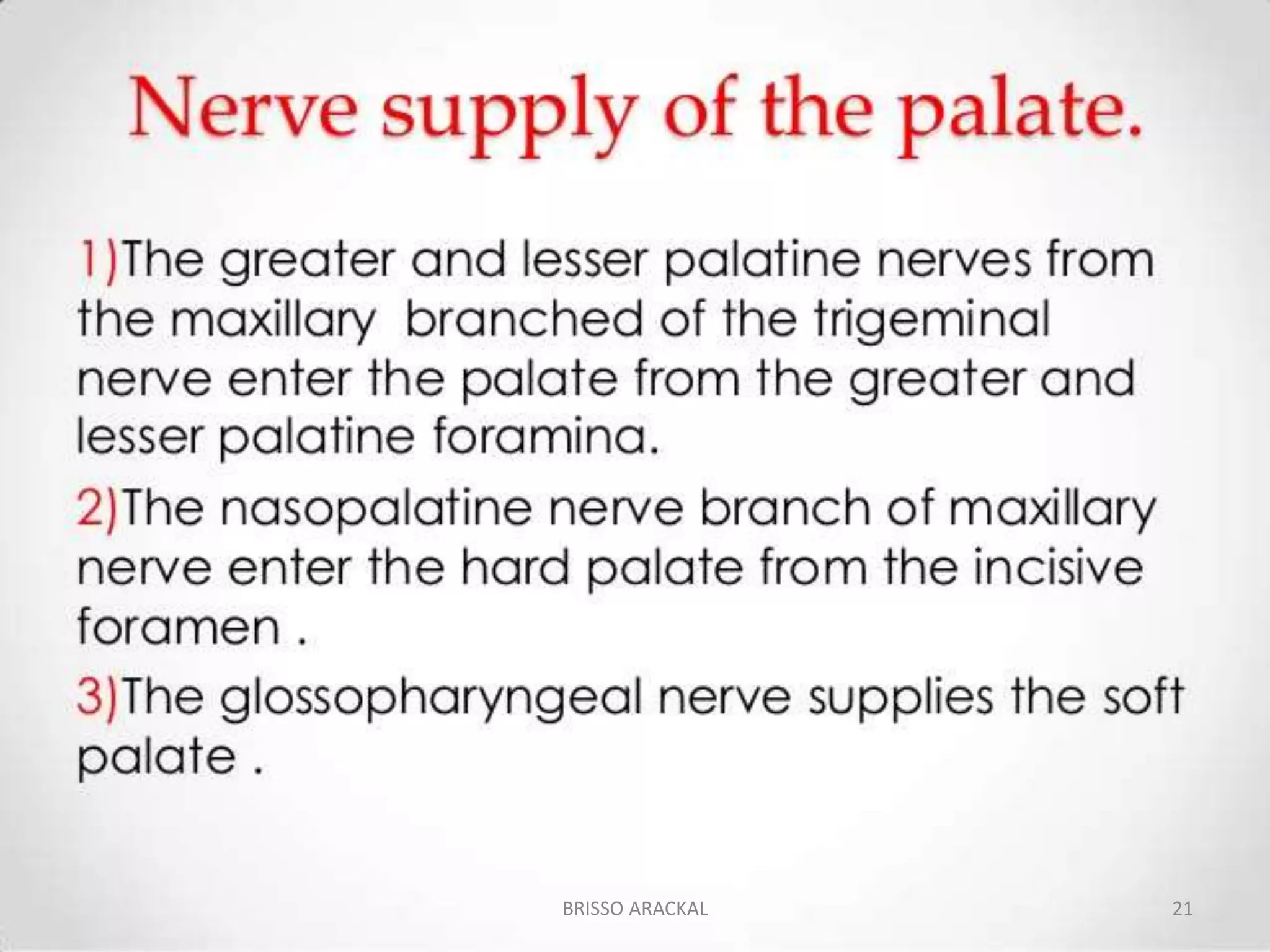

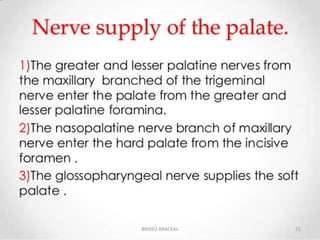

21. 21BRISSO ARACKAL
