Android Push Server & MQTT

Android Push Server
&
MQTT

ultrakain@gmail.com
이광운
13년 1월 28일 월요일

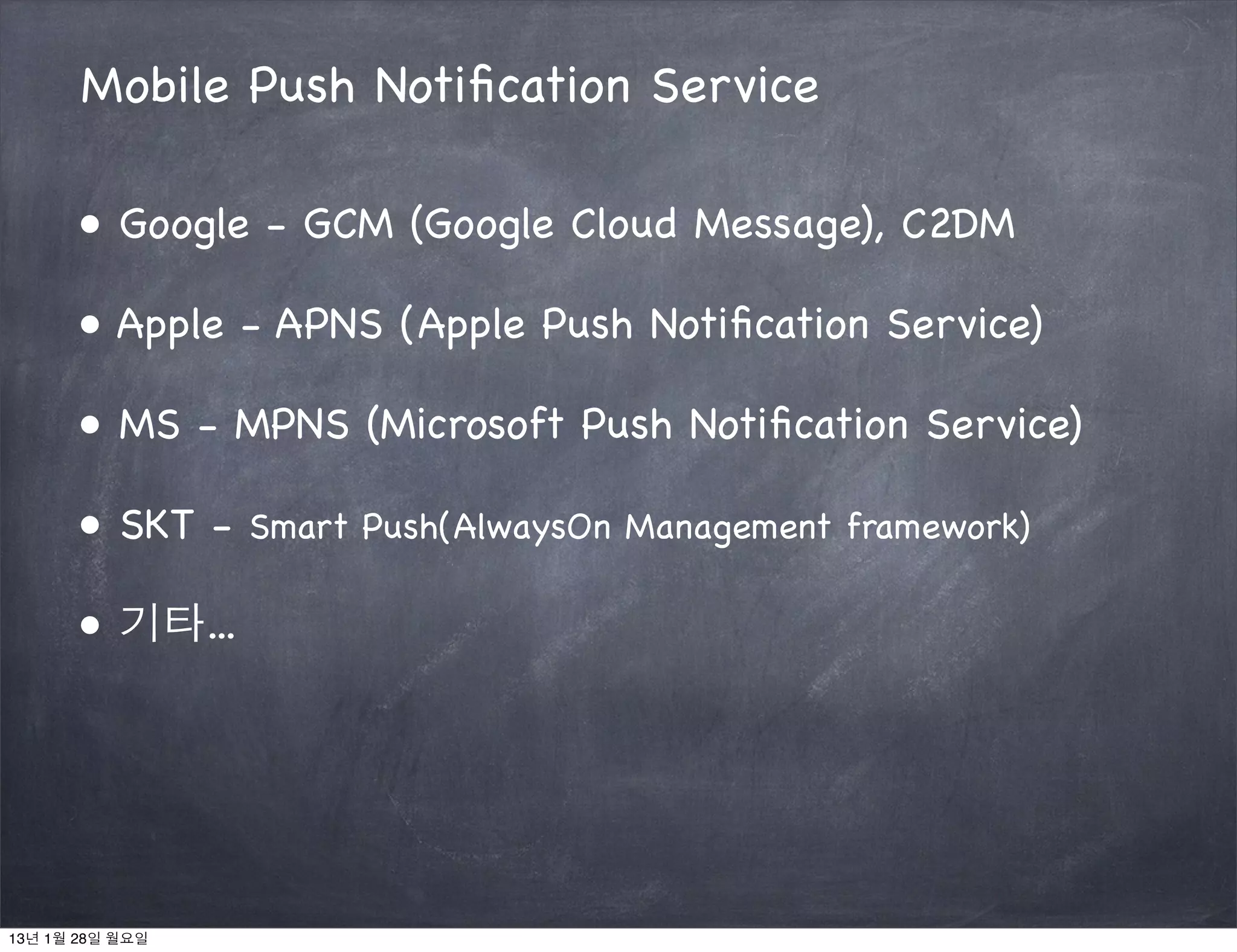

Mobile Push Notification Service

● Google - GCM (Google Cloud Message), C2DM

● Apple - APNS (Apple Push Notification Service)

● MS - MPNS (Microsoft Push Notification Service)

● SKT - Smart Push(AlwaysOn Management framework)

● 기타...

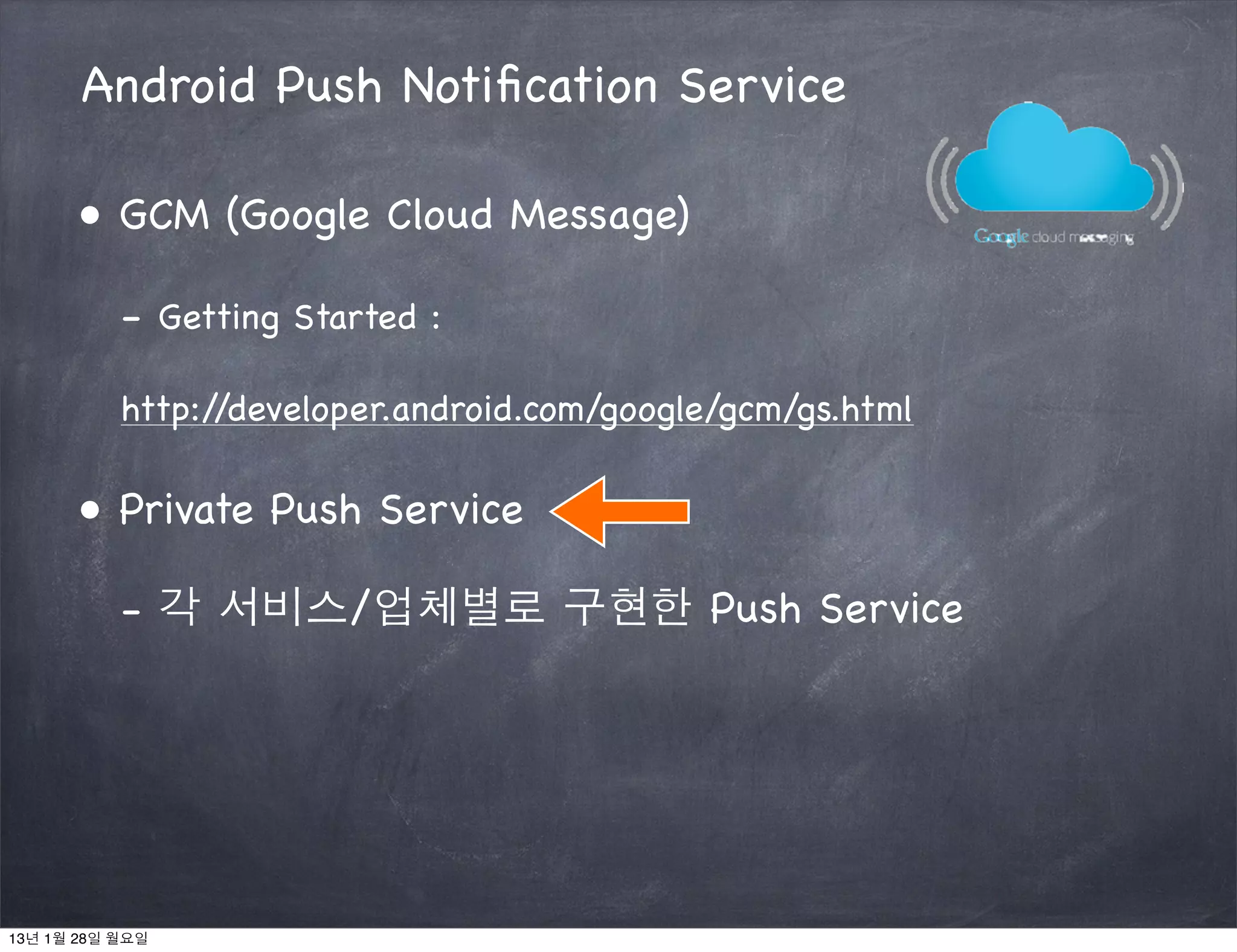

Android Push Notiﬁcation Service

● GCM (Google Cloud Message)

- Getting Started :

http://developer.android.com/google/gcm/gs.html

● Private Push Service

- 각 서비스/업체별로 구현한 Push Service

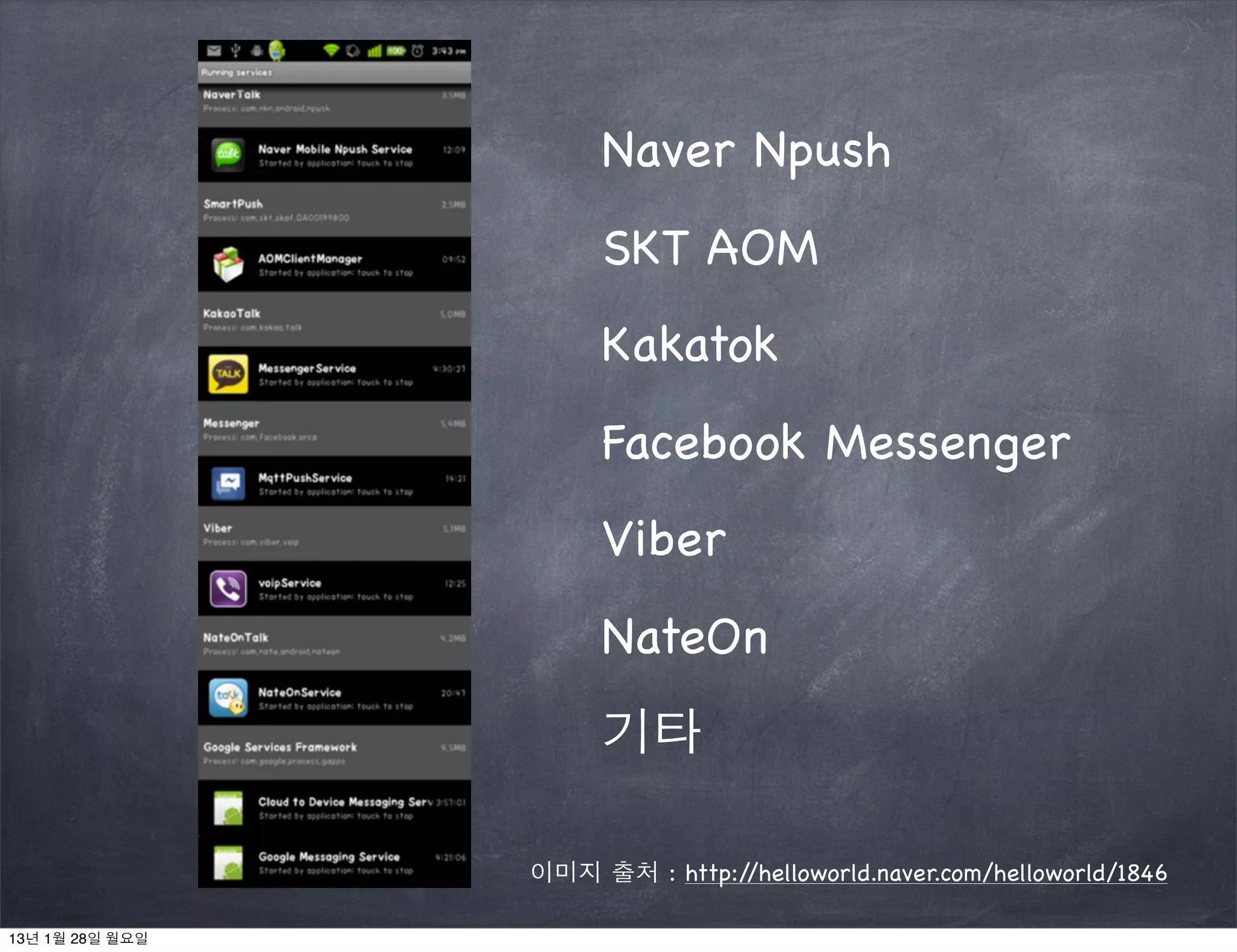

Naver Npush
SKT AOM
Kakatok
Facebook Messenger
Viber
NateOn
기타

이미지 출처 : http://helloworld.naver.com/helloworld/1846

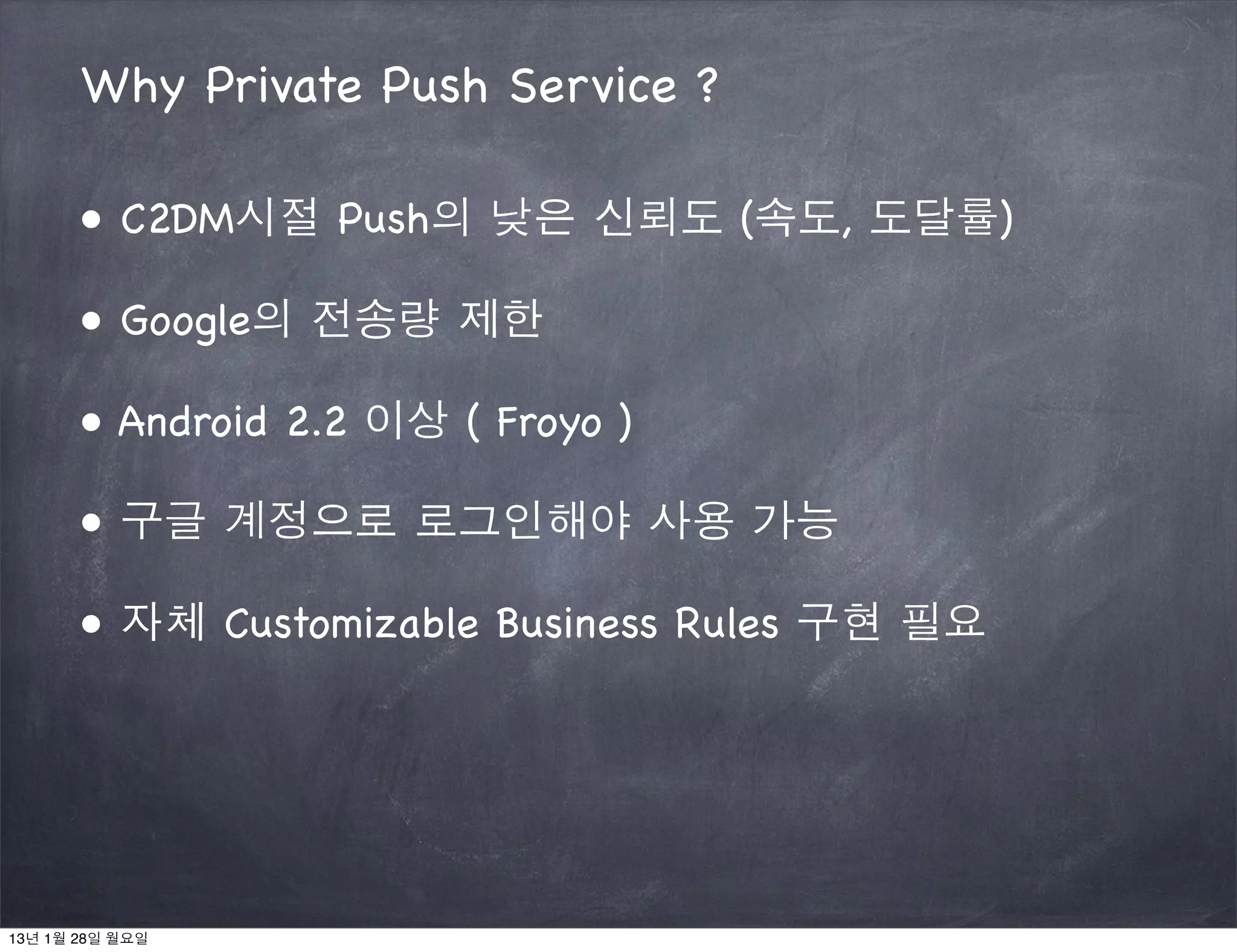

Why Private Push Service ?

● C2DM시절 Push의 낮은 신뢰도 (속도, 도달률)

● Google의 전송량 제한

● Android 2.2 이상 ( Froyo )

● 구글 계정으로 로그인해야 사용 가능

● 자체 Customizable Business Rules 구현 필요

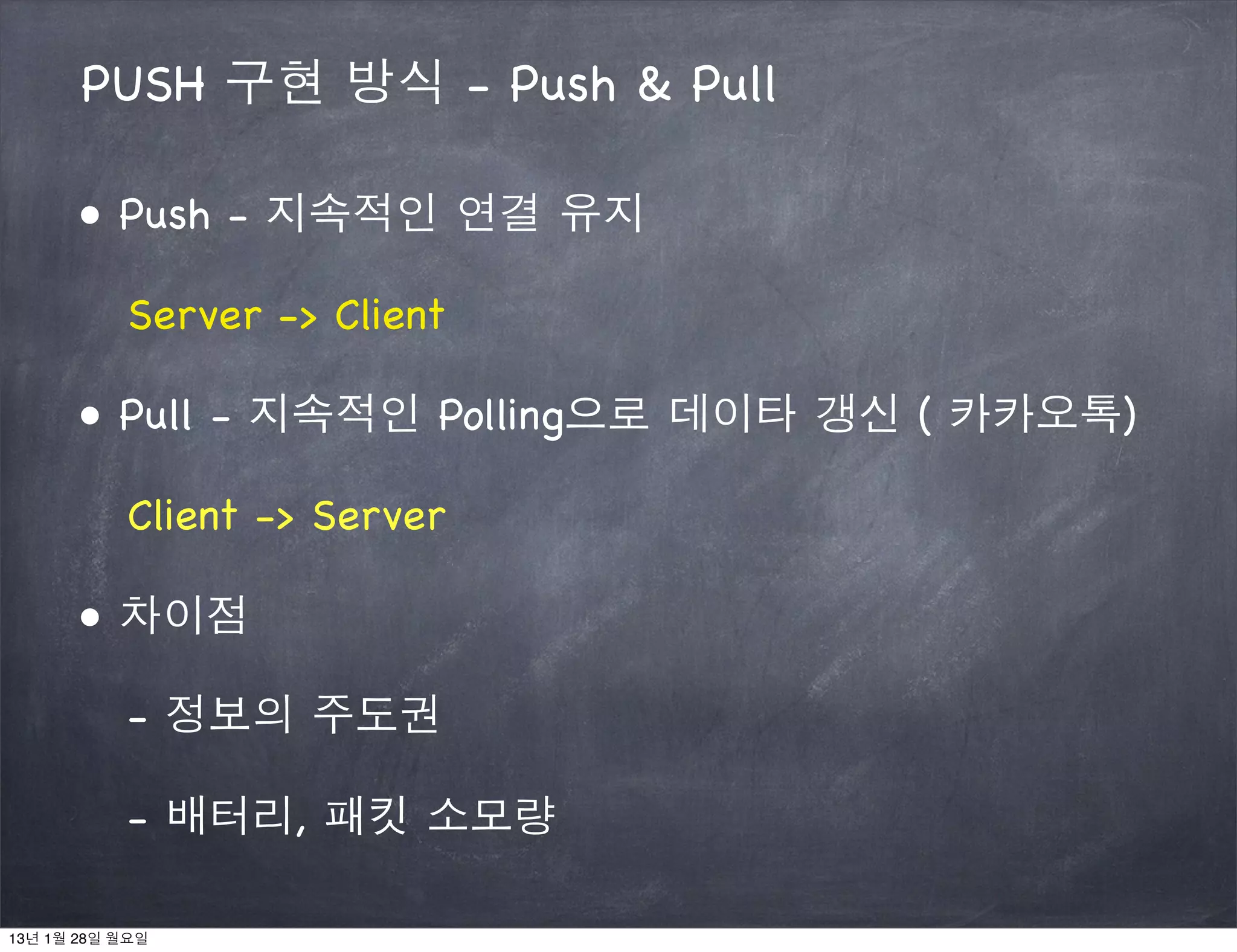

PUSH 구현 방식 - Push & Pull

● Push - 지속적인 연결 유지

Server -> Client

● Pull - 지속적인 Polling으로 데이타 갱신 ( 카카오톡)

Client -> Server

● 차이점

- 정보의 주도권

- 배터리, 패킷 소모량

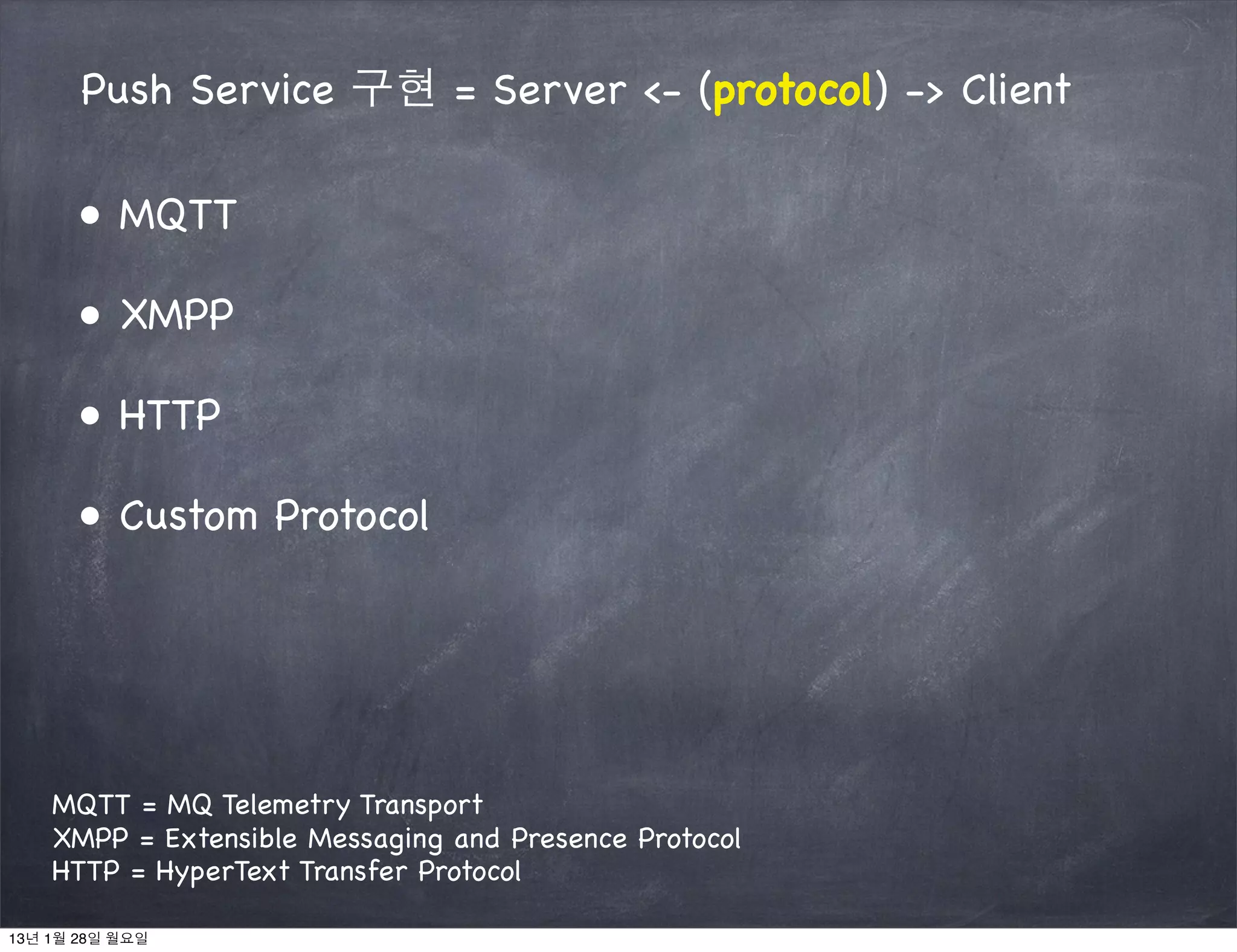

Push Service 구현 = Server <- (protocol) -> Client

● MQTT

● XMPP

● HTTP

● Custom Protocol

MQTT = MQ Telemetry Transport
XMPP = Extensible Messaging and Presence Protocol
HTTP = HyperText Transfer Protocol

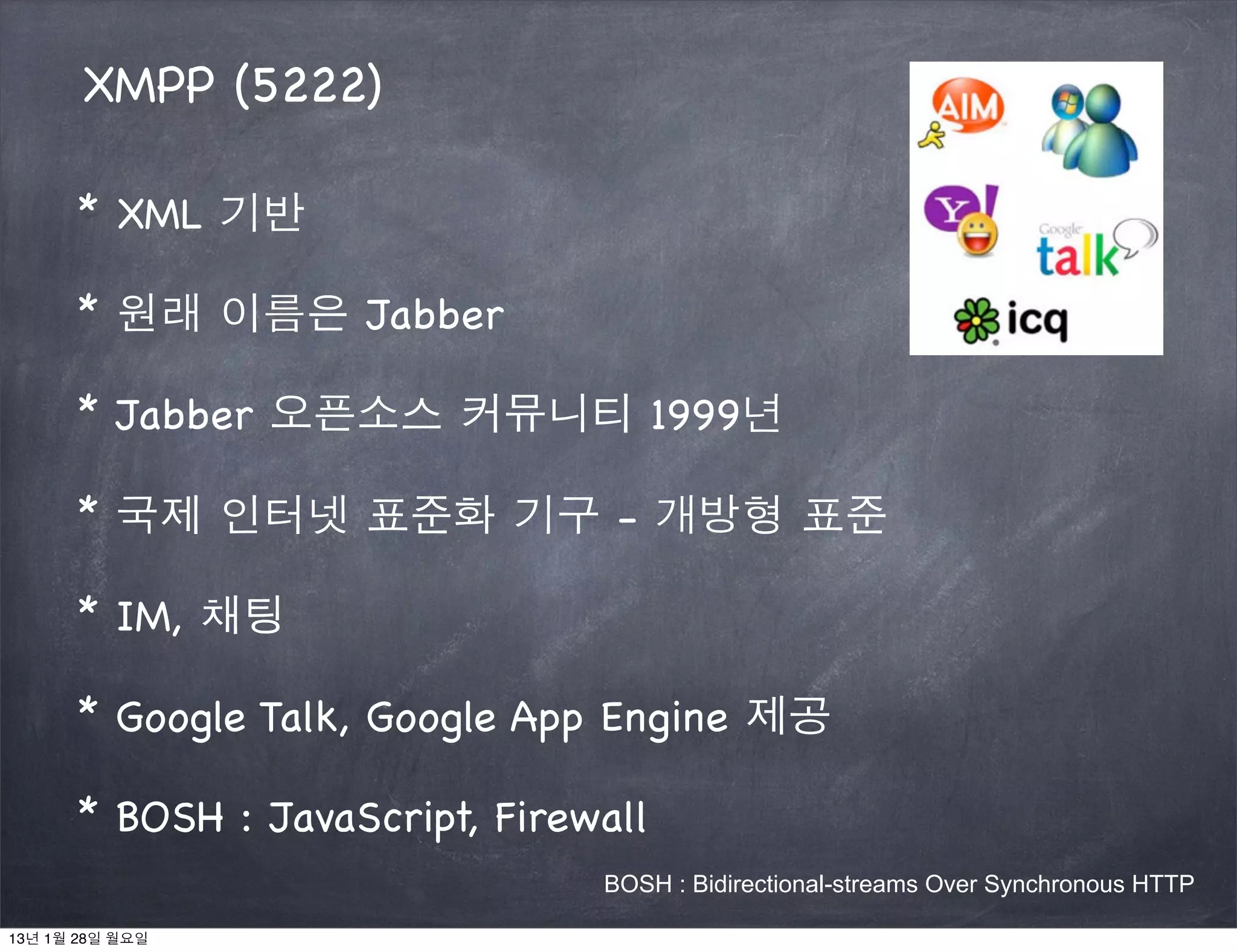

XMPP (5222)

* XML 기반

* 원래 이름은 Jabber

* Jabber 오픈소스 커뮤니티 1999년

* 국제 인터넷 표준화 기구 - 개방형 표준

* IM, 채팅

* Google Talk, Google App Engine 제공

* BOSH : JavaScript, Firewall
BOSH : Bidirectional-streams Over Synchronous HTTP

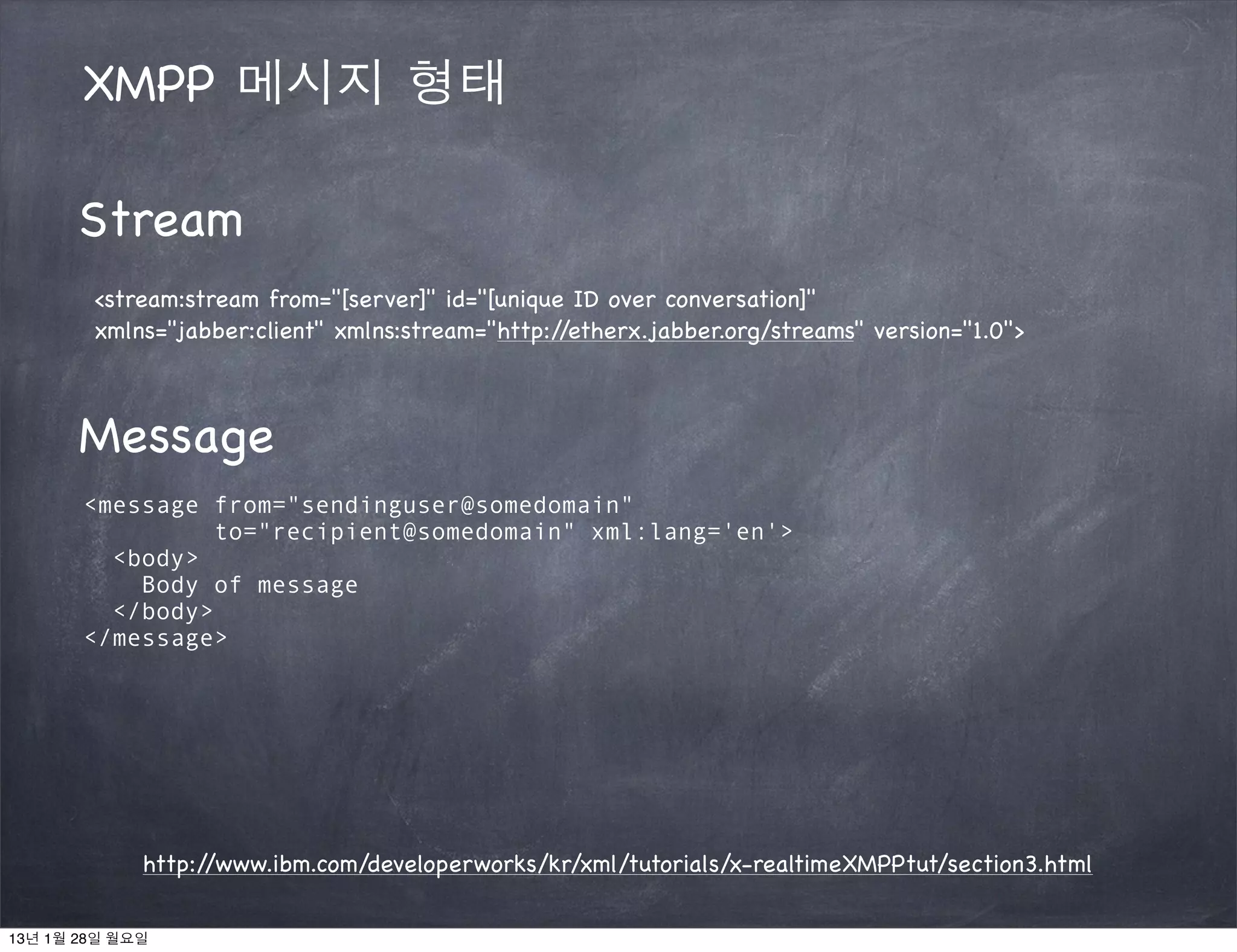

XMPP 메시지 형태

Stream
<stream:stream from="[server]" id="[unique ID over conversation]"
xmlns="jabber:client" xmlns:stream="http://etherx.jabber.org/streams" version="1.0">

Message
<message from="sendinguser@somedomain"
to="recipient@somedomain" xml:lang='en'>
<body>
Body of message
</body>
</message>

http://www.ibm.com/developerworks/kr/xml/tutorials/x-realtimeXMPPtut/section3.html

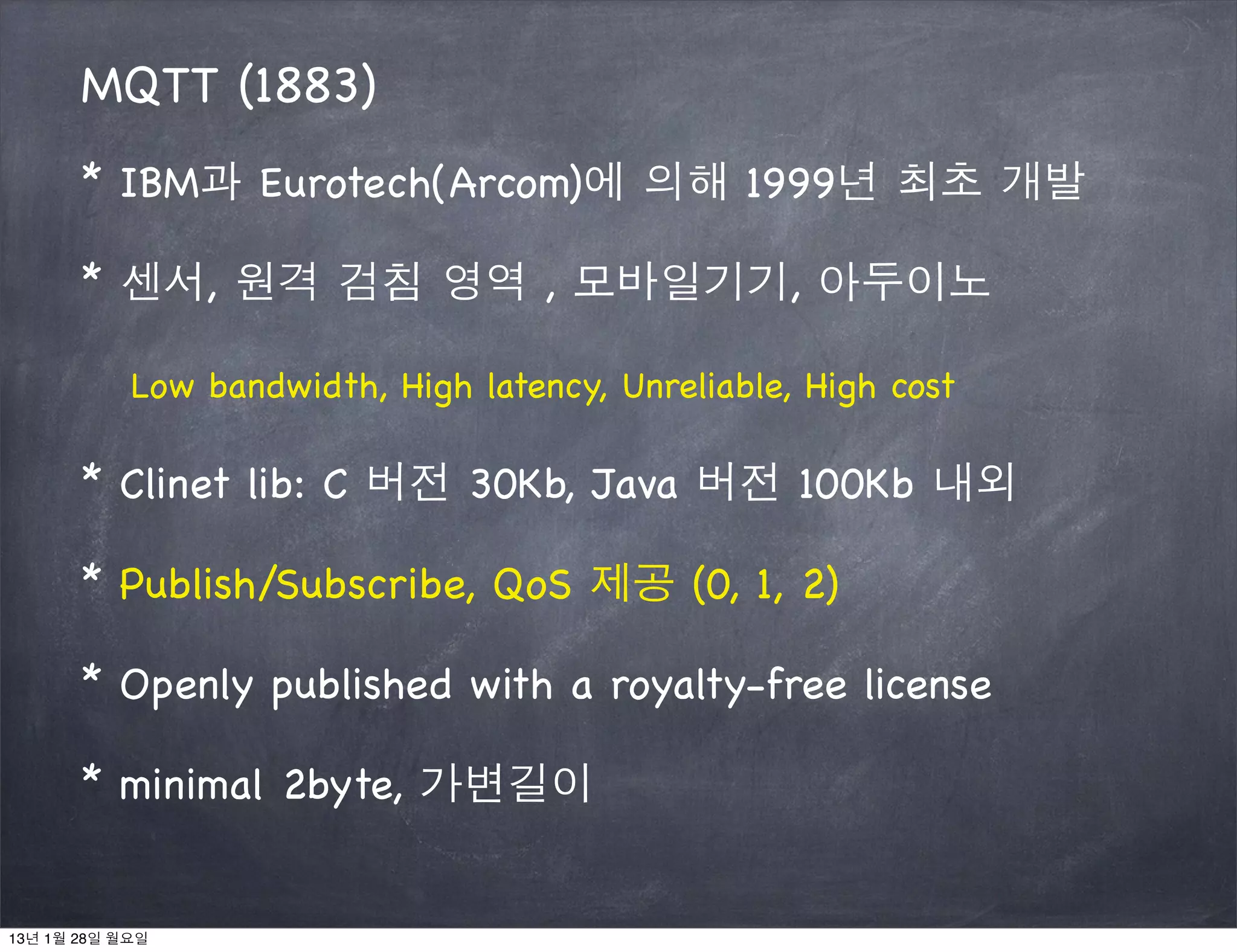

MQTT (1883)
* IBM과 Eurotech(Arcom)에 의해 1999년 최초 개발

* 센서, 원격 검침 영역 , 모바일기기, 아두이노

Low bandwidth, High latency, Unreliable, High cost

* Clinet lib: C 버전 30Kb, Java 버전 100Kb 내외

* Publish/Subscribe, QoS 제공 (0, 1, 2)

* Openly published with a royalty-free license

* minimal 2byte, 가변길이

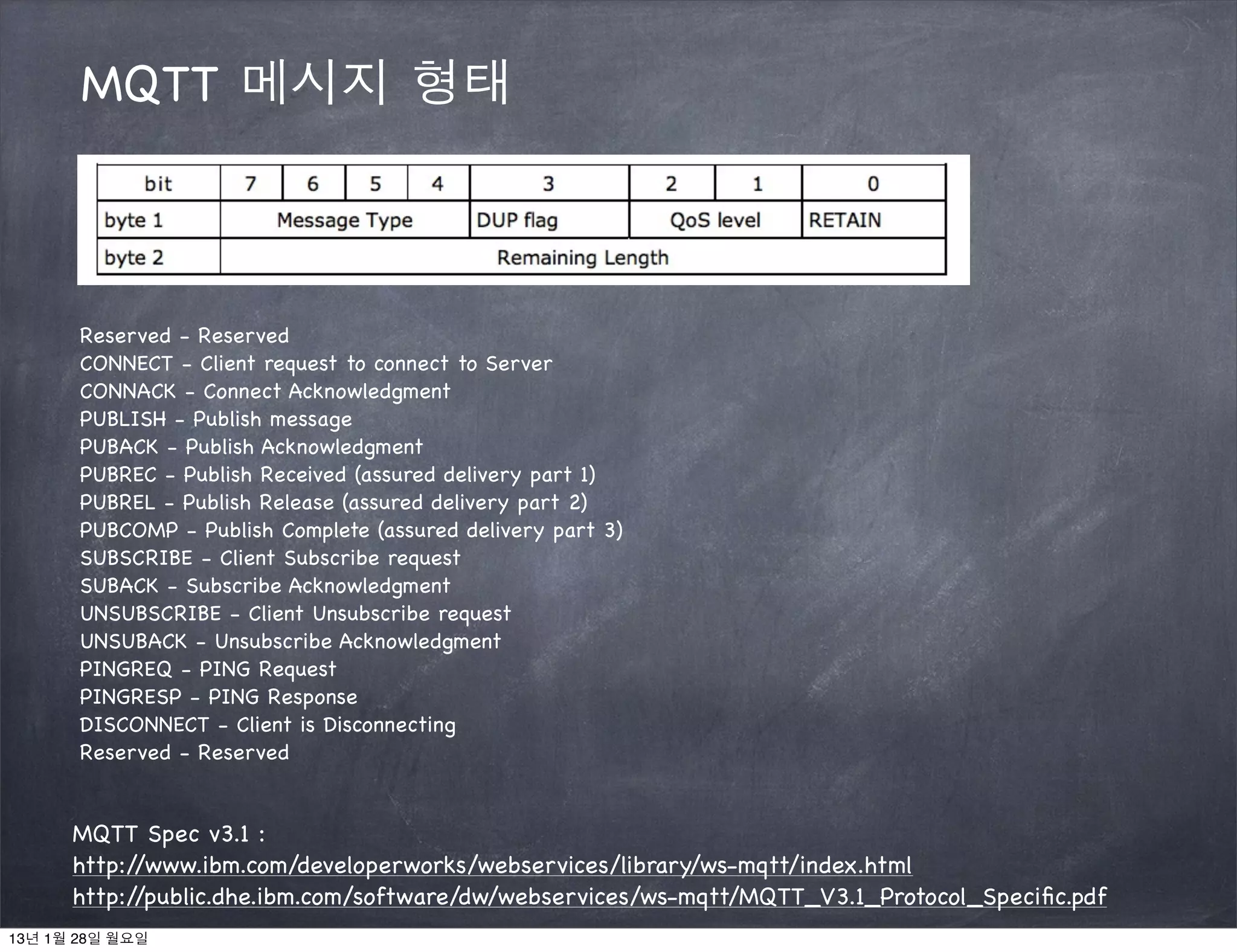

MQTT 메시지 형태

Reserved - Reserved
CONNECT - Client request to connect to Server
CONNACK - Connect Acknowledgment
PUBLISH - Publish message
PUBACK - Publish Acknowledgment
PUBREC - Publish Received (assured delivery part 1)
PUBREL - Publish Release (assured delivery part 2)
PUBCOMP - Publish Complete (assured delivery part 3)
SUBSCRIBE - Client Subscribe request
SUBACK - Subscribe Acknowledgment
UNSUBSCRIBE - Client Unsubscribe request
UNSUBACK - Unsubscribe Acknowledgment
PINGREQ - PING Request
PINGRESP - PING Response
DISCONNECT - Client is Disconnecting
Reserved - Reserved

MQTT Spec v3.1 :
http://www.ibm.com/developerworks/webservices/library/ws-mqtt/index.html
http://public.dhe.ibm.com/software/dw/webservices/ws-mqtt/MQTT_V3.1_Protocol_Speciﬁc.pdf

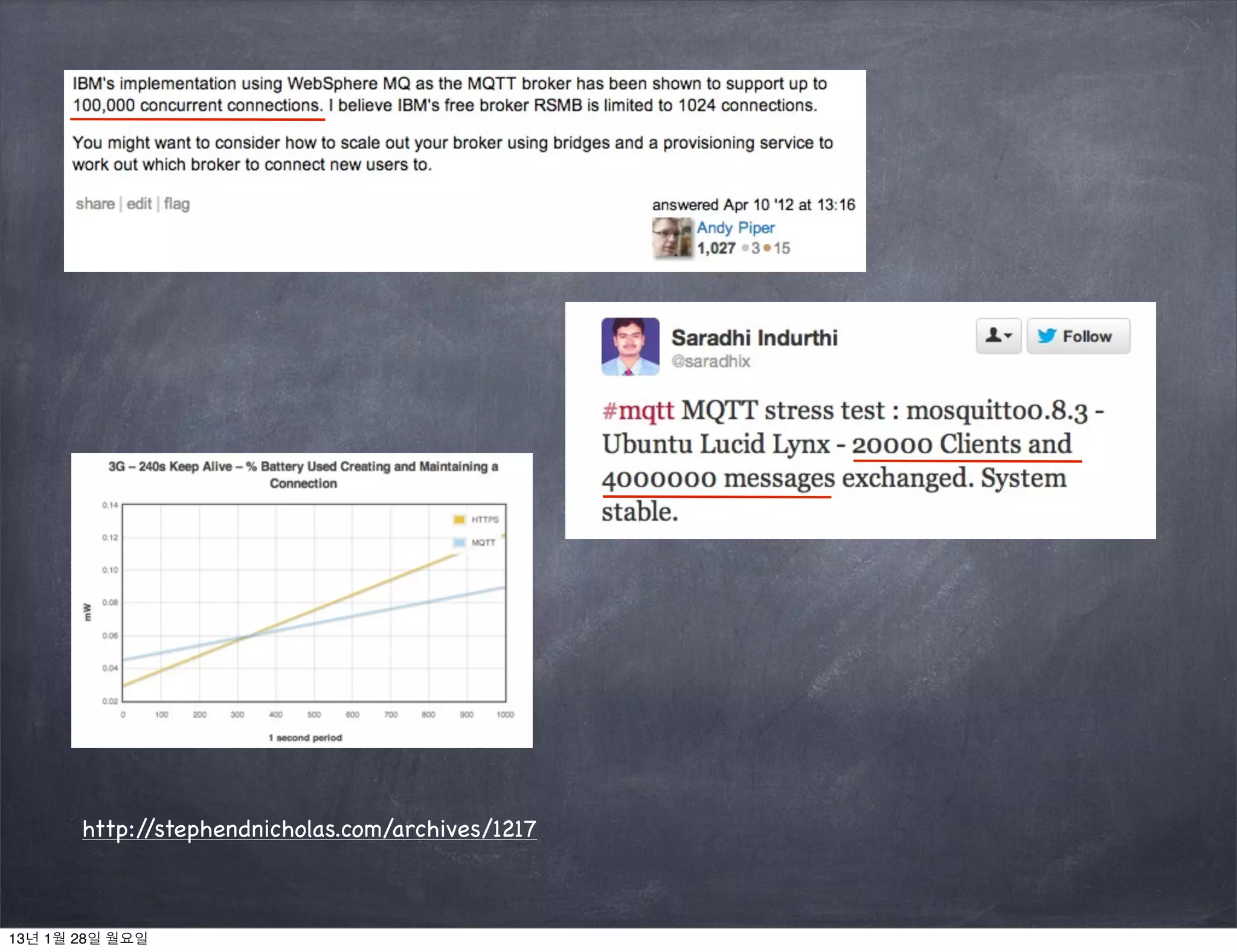

http://stephendnicholas.com/archives/1217

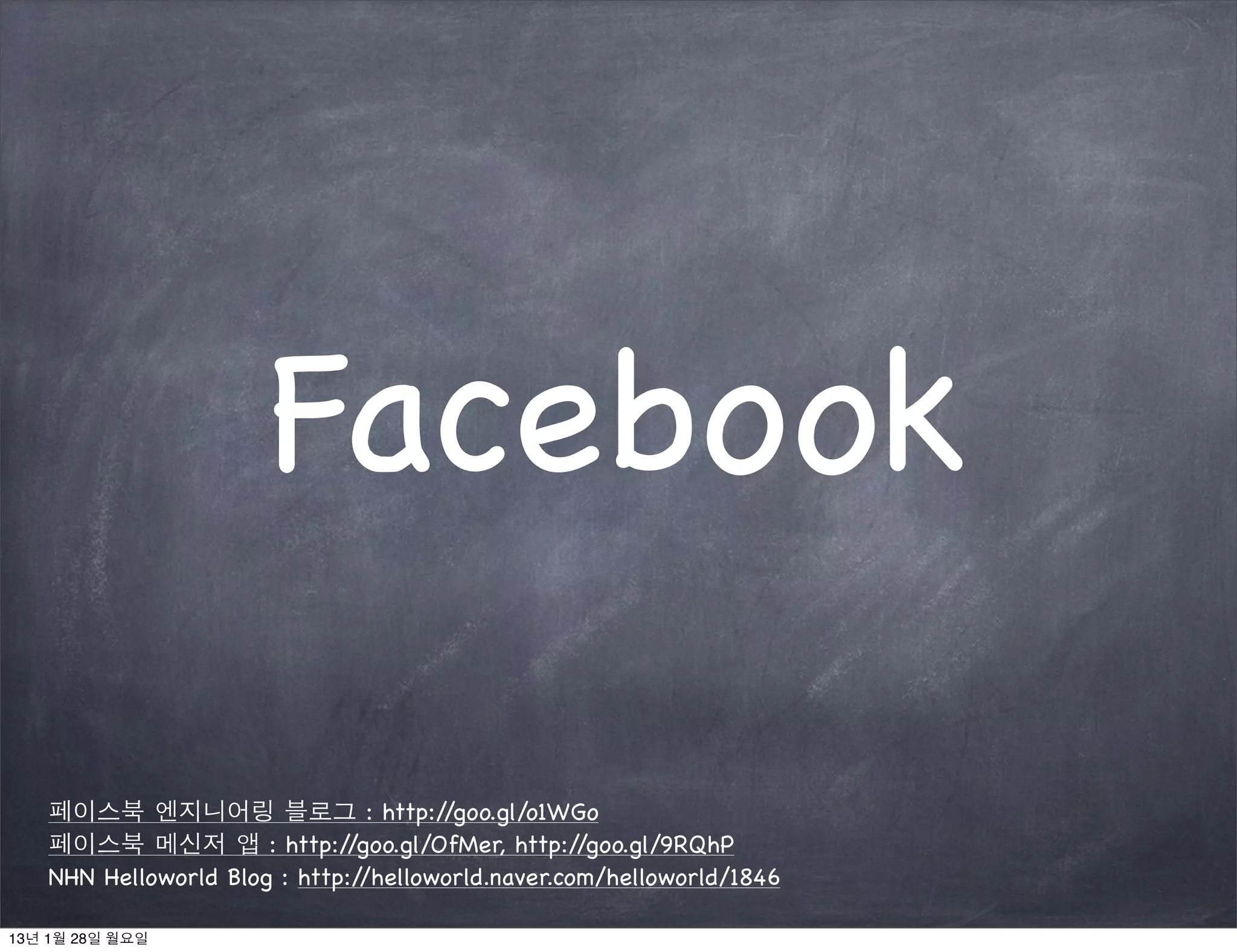

Facebook

페이스북 엔지니어링 블로그 : http:/ /goo.gl/o1WGo
페이스북 메신저 앱 : http:/ /goo.gl/OfMer, http:/ /goo.gl/9RQhP
NHN Helloworld Blog : http://helloworld.naver.com/helloworld/1846


MQTT

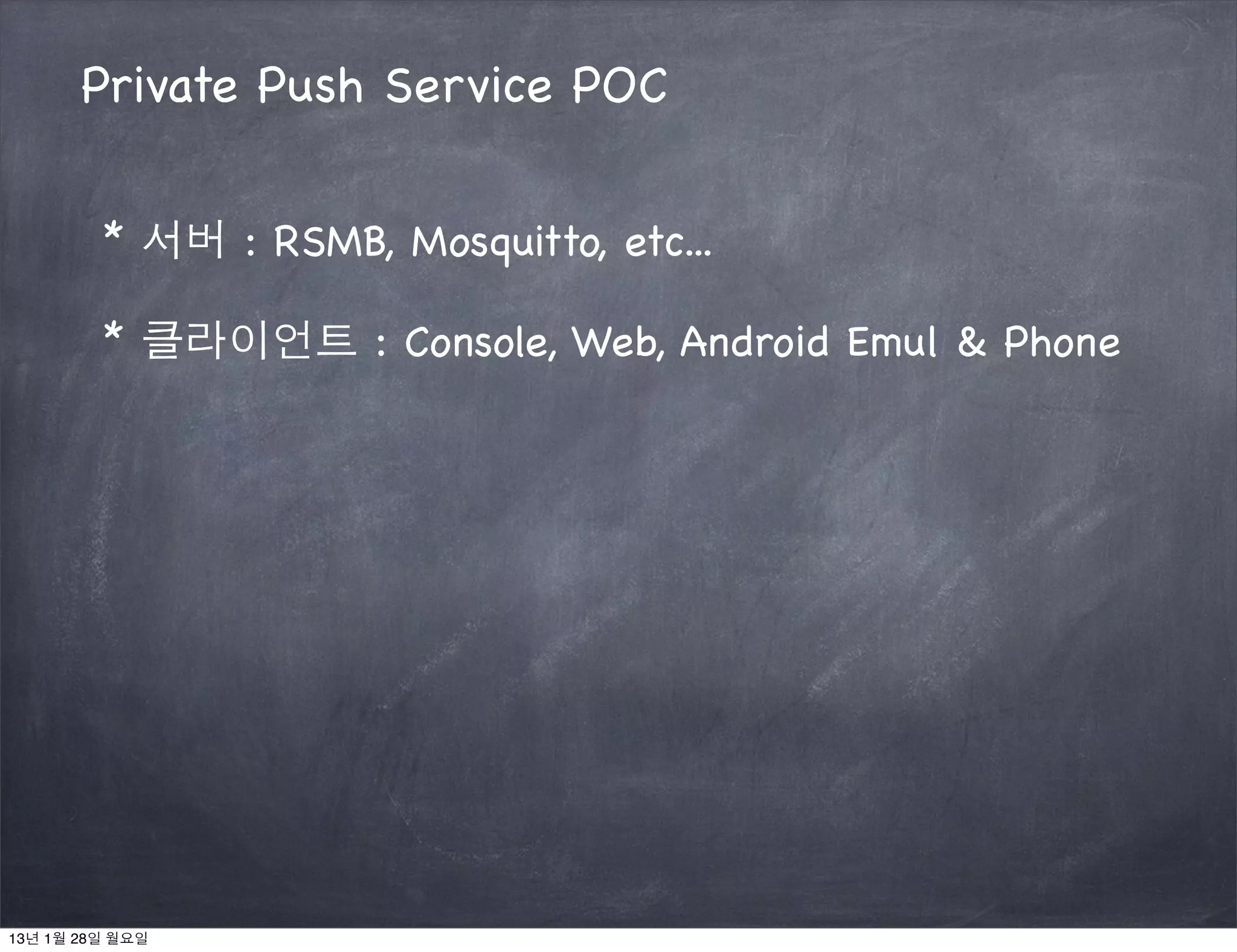

Private Push Service POC

* 서버 : RSMB, Mosquitto, etc...

* 클라이언트 : Console, Web, Android Emul & Phone

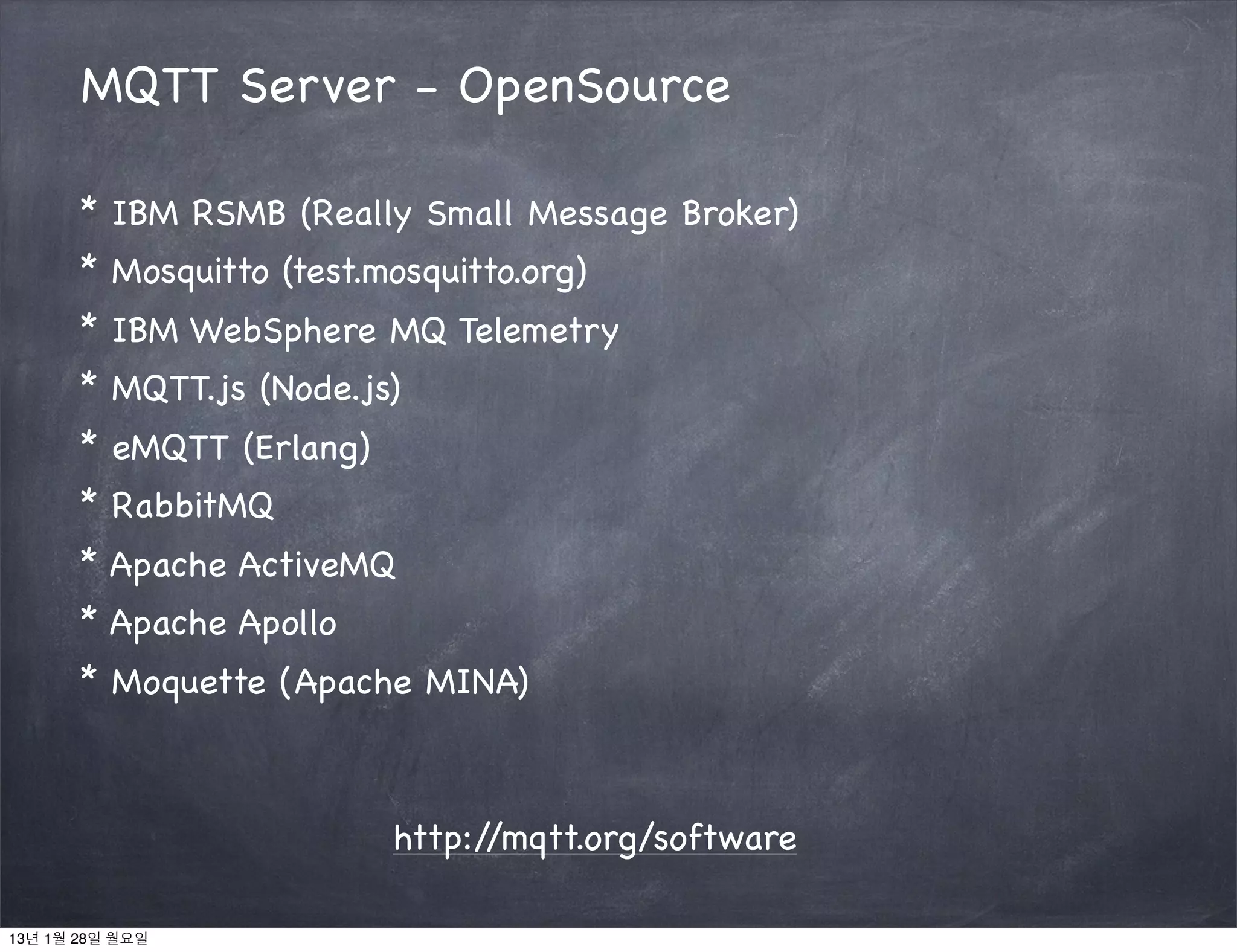

MQTT Server - OpenSource

* IBM RSMB (Really Small Message Broker)
* Mosquitto (test.mosquitto.org)
* IBM WebSphere MQ Telemetry
* MQTT.js (Node.js)
* eMQTT (Erlang)
* RabbitMQ
* Apache ActiveMQ
* Apache Apollo
* Moquette (Apache MINA)

http://mqtt.org/software

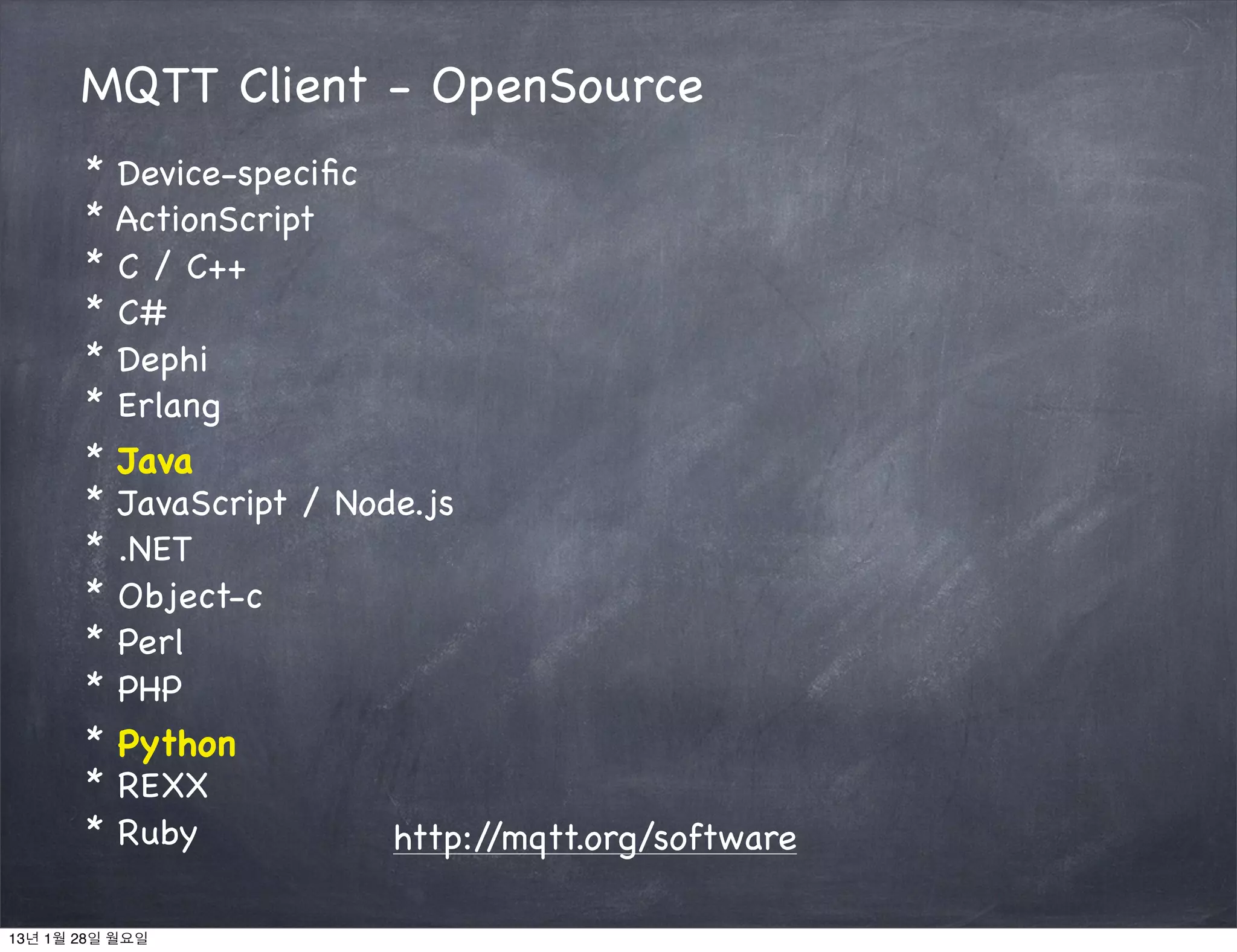

MQTT Client - OpenSource
* Device-speciﬁc
* ActionScript
* C / C++
* C#
* Dephi
* Erlang
* Java
* JavaScript / Node.js
* .NET
* Object-c
* Perl
* PHP
* Python
* REXX
* Ruby http://mqtt.org/software

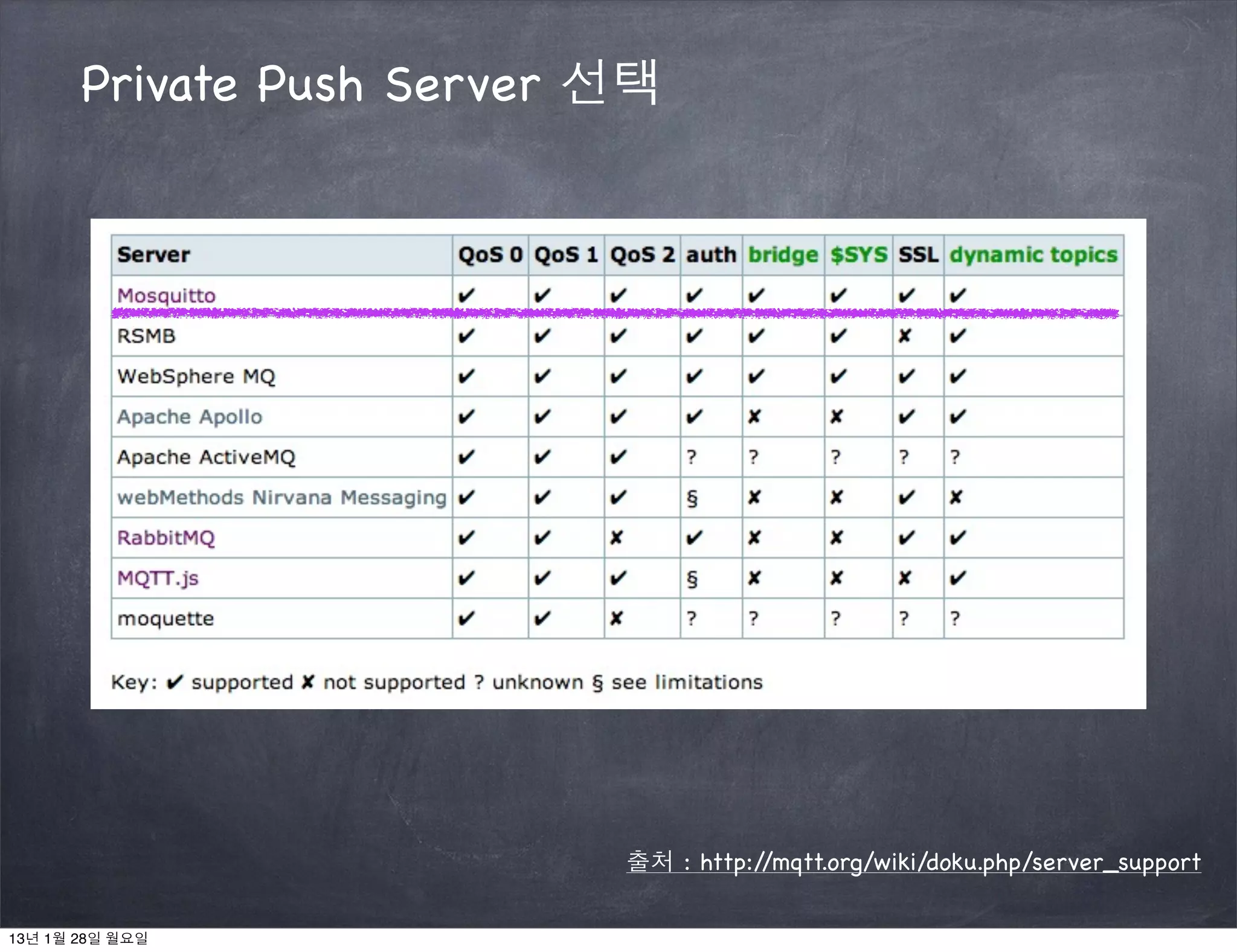

Private Push Server 선택

출처 : http://mqtt.org/wiki/doku.php/server_support


Mosquitto Sample

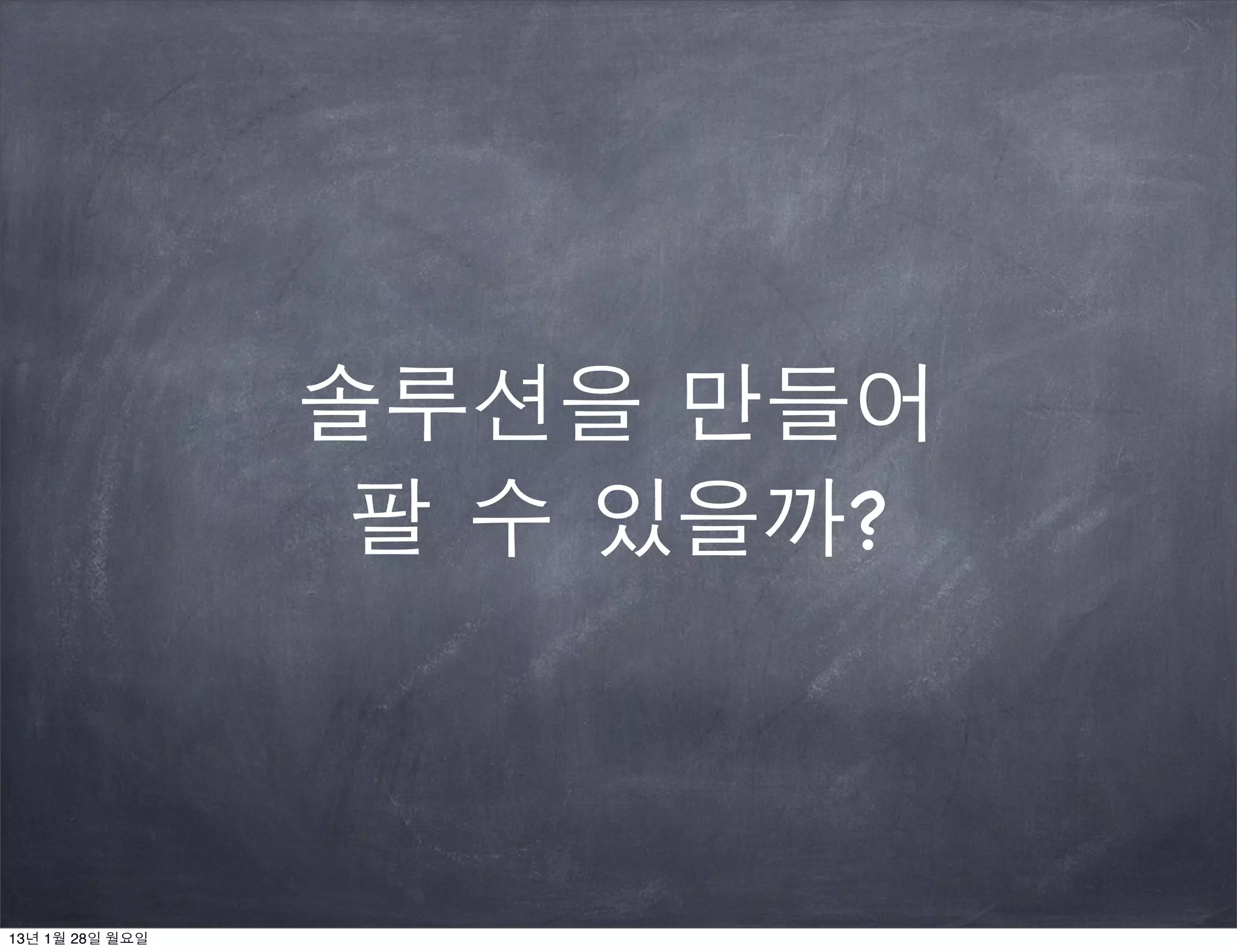

솔루션을 만들어
팔 수 있을까?

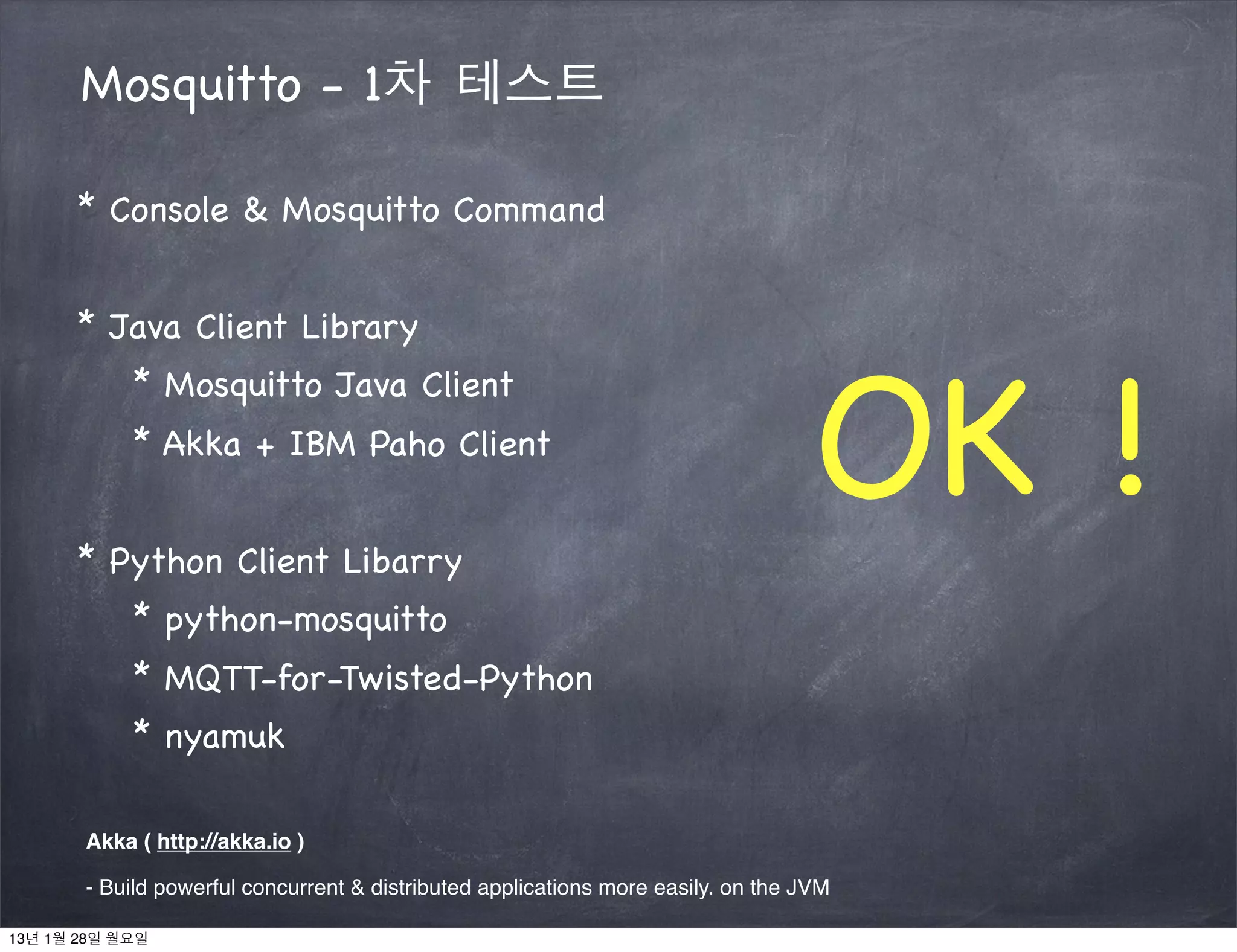

Mosquitto - 1차 테스트

* Console & Mosquitto Command

* Java Client Library

OK !
* Mosquitto Java Client
* Akka + IBM Paho Client

* Python Client Libarry
* python-mosquitto
* MQTT-for-Twisted-Python
* nyamuk

Akka ( http://akka.io )

- Build powerful concurrent & distributed applications more easily. on the JVM

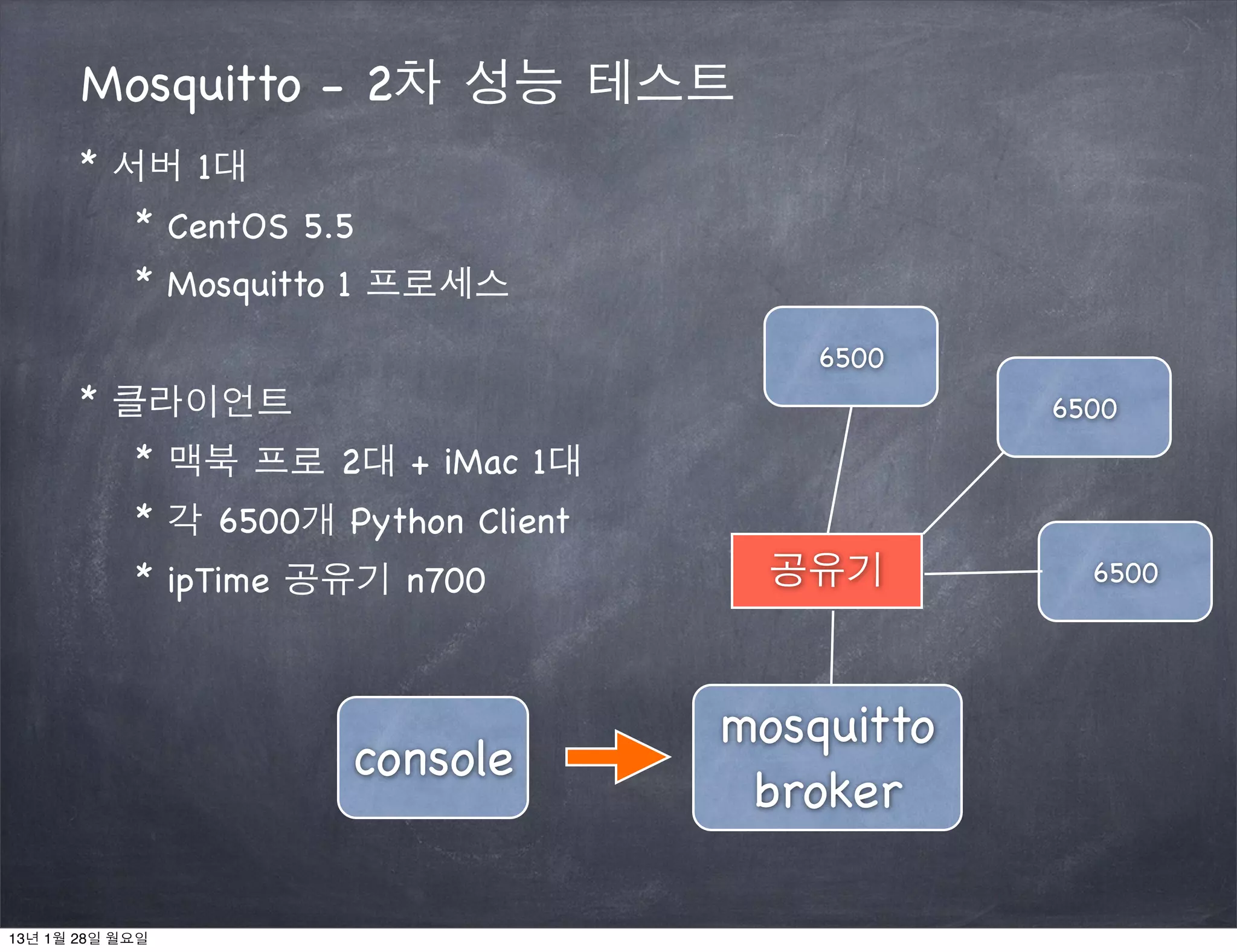

Mosquitto - 2차 성능 테스트
* 서버 1대
* CentOS 5.5
* Mosquitto 1 프로세스
6500
* 클라이언트 6500
* 맥북 프로 2대 + iMac 1대
* 각 6500개 Python Client
* ipTime 공유기 n700 공유기 6500

mosquitto
console
broker

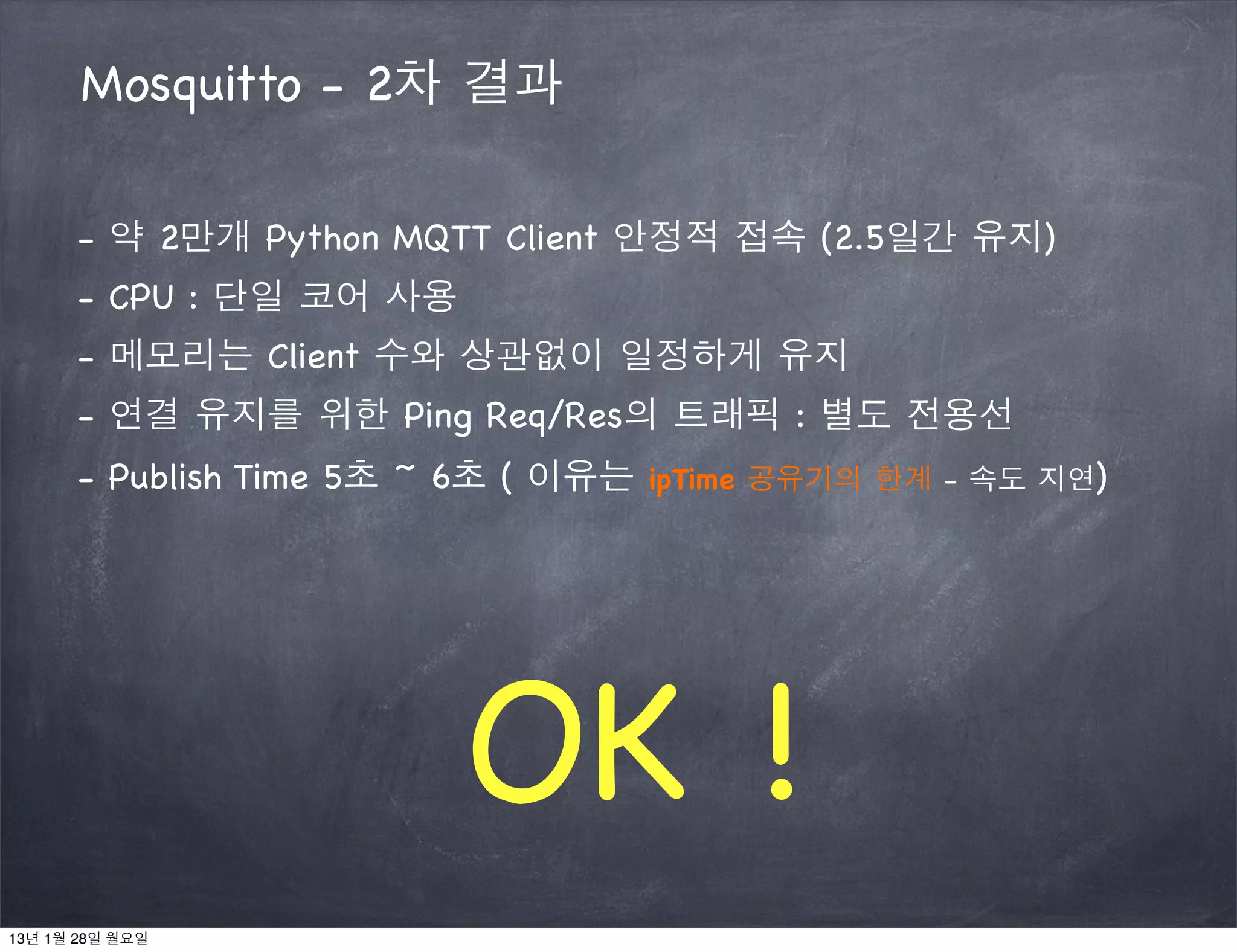

Mosquitto - 2차 결과

- 약 2만개 Python MQTT Client 안정적 접속 (2.5일간 유지)
- CPU : 단일 코어 사용
- 메모리는 Client 수와 상관없이 일정하게 유지
- 연결 유지를 위한 Ping Req/Res의 트래픽 : 별도 전용선
- Publish Time 5초 ~ 6초 ( 이유는 ipTime 공유기의 한계 - 속도 지연)

OK !

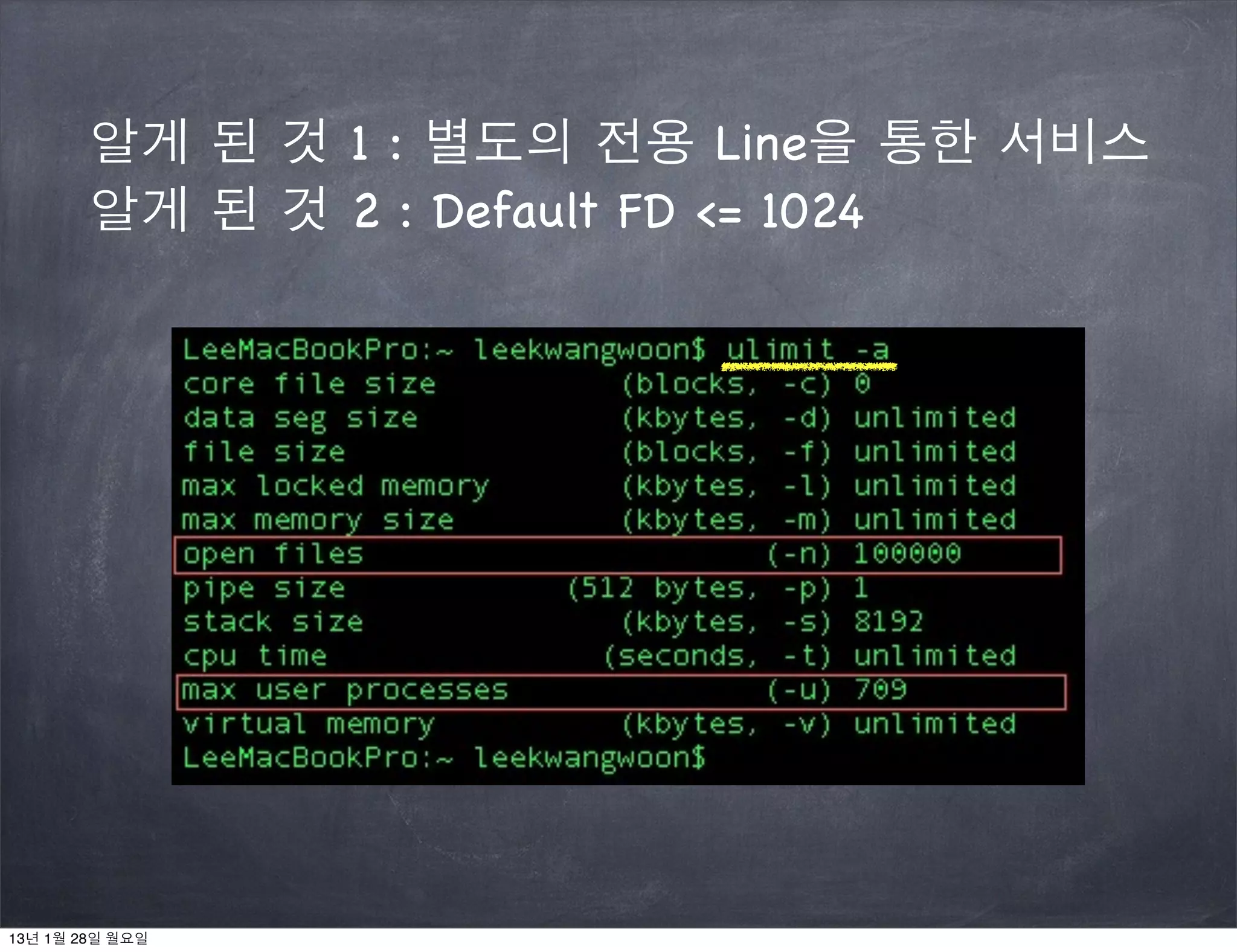

알게 된 것 1 : 별도의 전용 Line을 통한 서비스
알게 된 것 2 : Default FD <= 1024

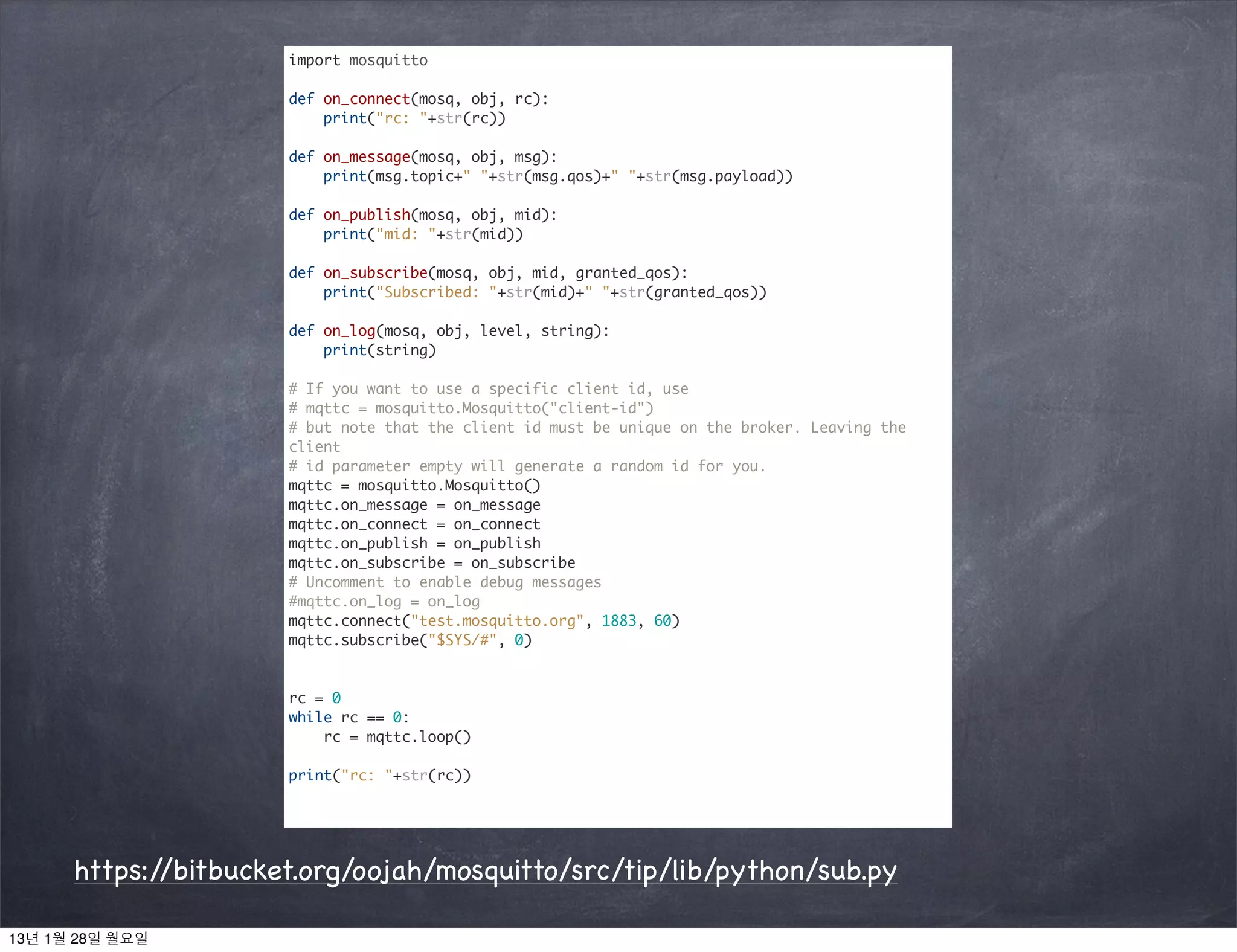

import mosquitto

def on_connect(mosq, obj, rc):
print("rc: "+str(rc))

def on_message(mosq, obj, msg):
print(msg.topic+" "+str(msg.qos)+" "+str(msg.payload))

def on_publish(mosq, obj, mid):
print("mid: "+str(mid))

def on_subscribe(mosq, obj, mid, granted_qos):
print("Subscribed: "+str(mid)+" "+str(granted_qos))

def on_log(mosq, obj, level, string):
print(string)

# If you want to use a specific client id, use
# mqttc = mosquitto.Mosquitto("client-id")
# but note that the client id must be unique on the broker. Leaving the
client
# id parameter empty will generate a random id for you.
mqttc = mosquitto.Mosquitto()
mqttc.on_message = on_message
mqttc.on_connect = on_connect
mqttc.on_publish = on_publish
mqttc.on_subscribe = on_subscribe
# Uncomment to enable debug messages
#mqttc.on_log = on_log
mqttc.connect("test.mosquitto.org", 1883, 60)
mqttc.subscribe("$SYS/#", 0)

rc = 0
while rc == 0:
rc = mqttc.loop()

print("rc: "+str(rc))

https://bitbucket.org/oojah/mosquitto/src/tip/lib/python/sub.py

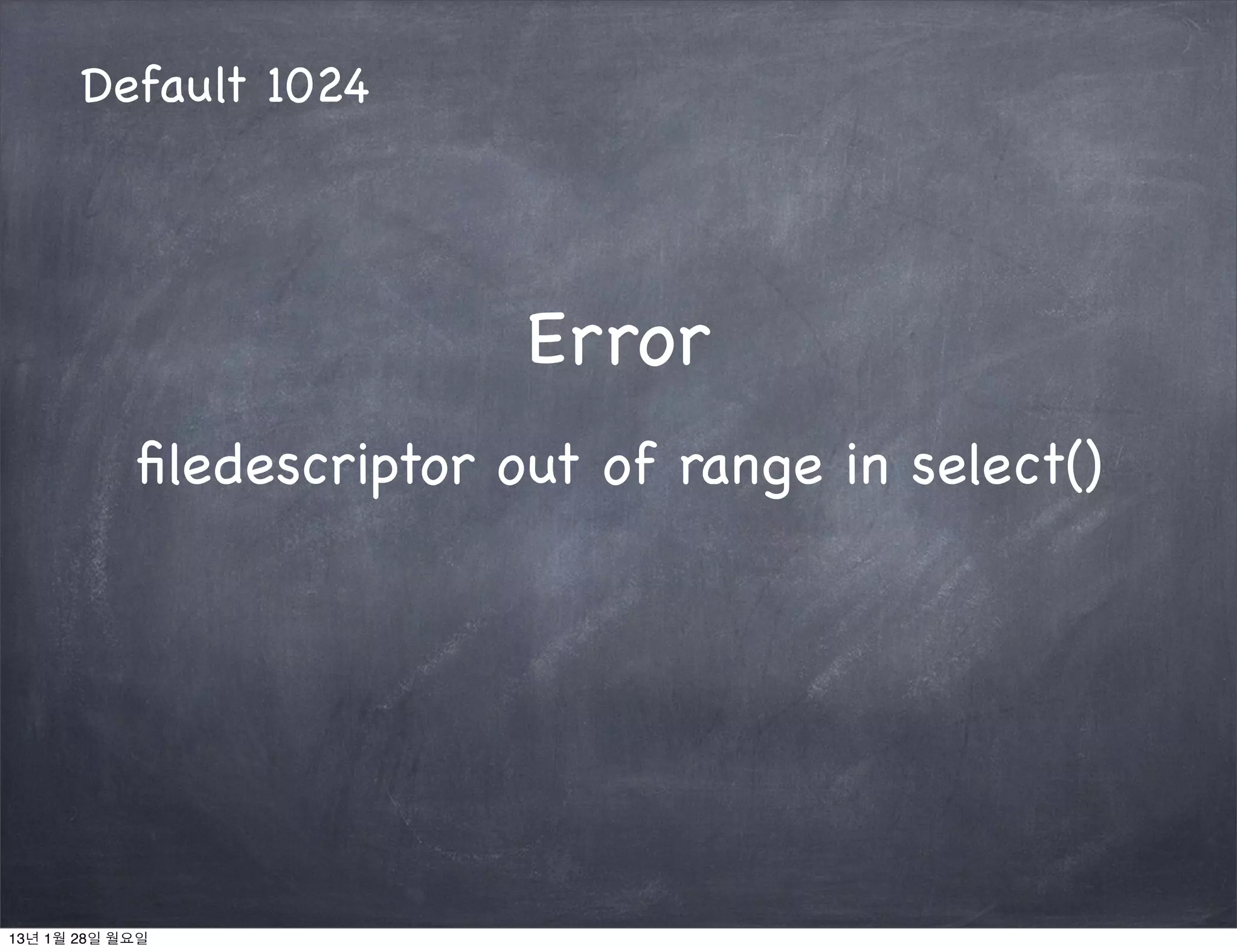

Default 1024

Error
ﬁledescriptor out of range in select()

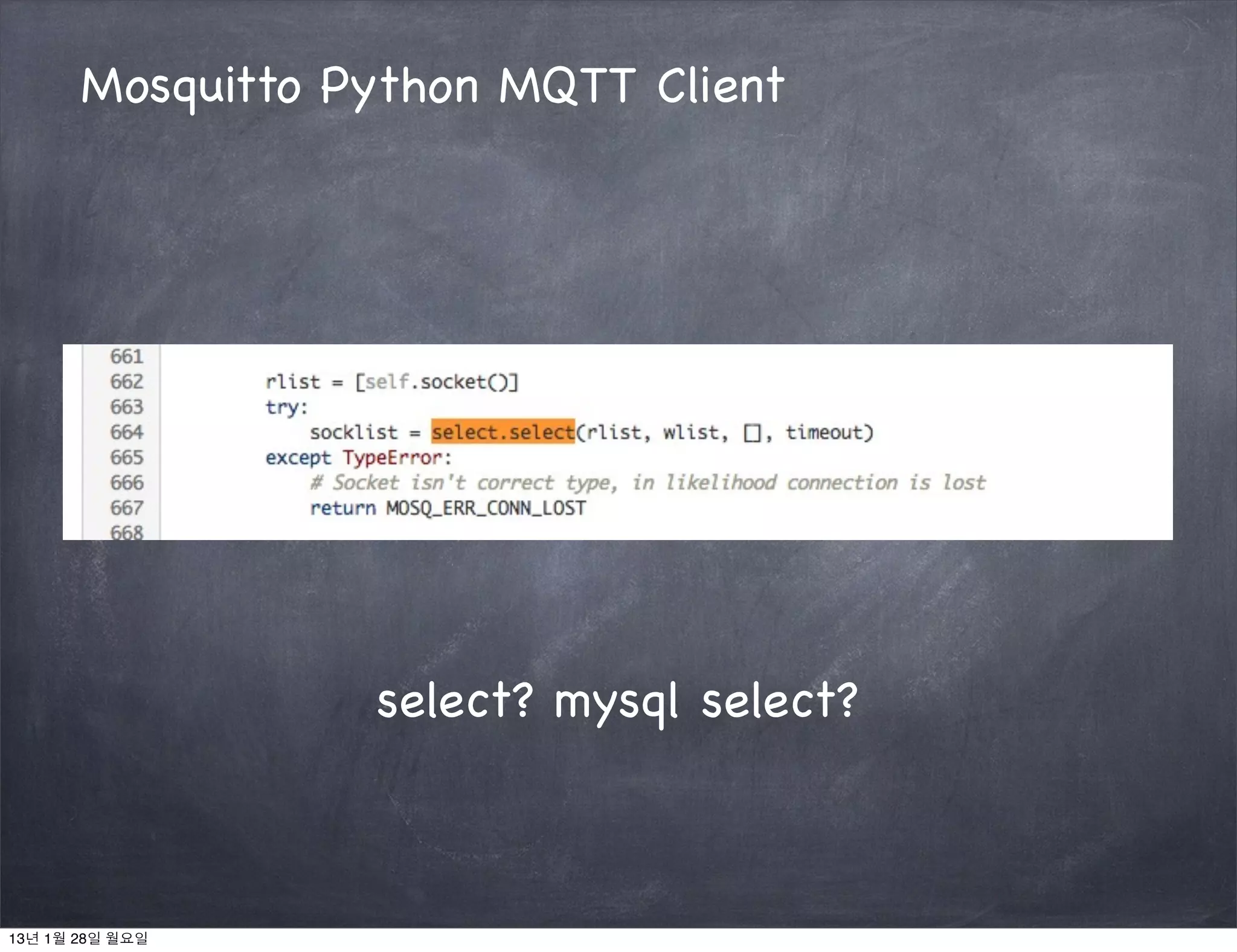

Mosquitto Python MQTT Client

select? mysql select?

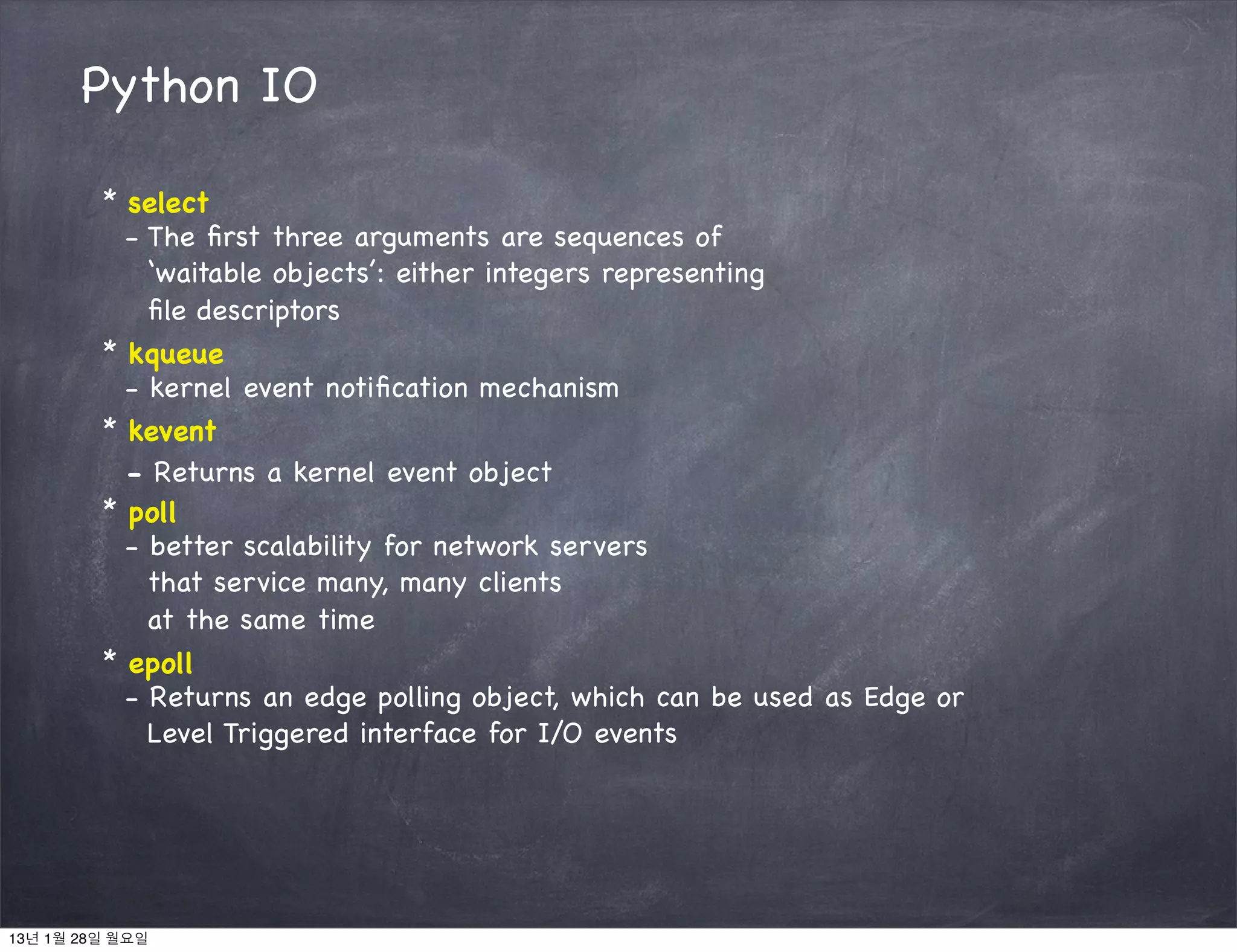

Python IO

* select
- The first three arguments are sequences of
‘waitable objects’: either integers representing
file descriptors
* kqueue
- kernel event notification mechanism
* kevent
- Returns a kernel event object
* poll
- better scalability for network servers
that service many, many clients
at the same time
* epoll
- Returns an edge polling object, which can be used as Edge or
Level Triggered interface for I/O events

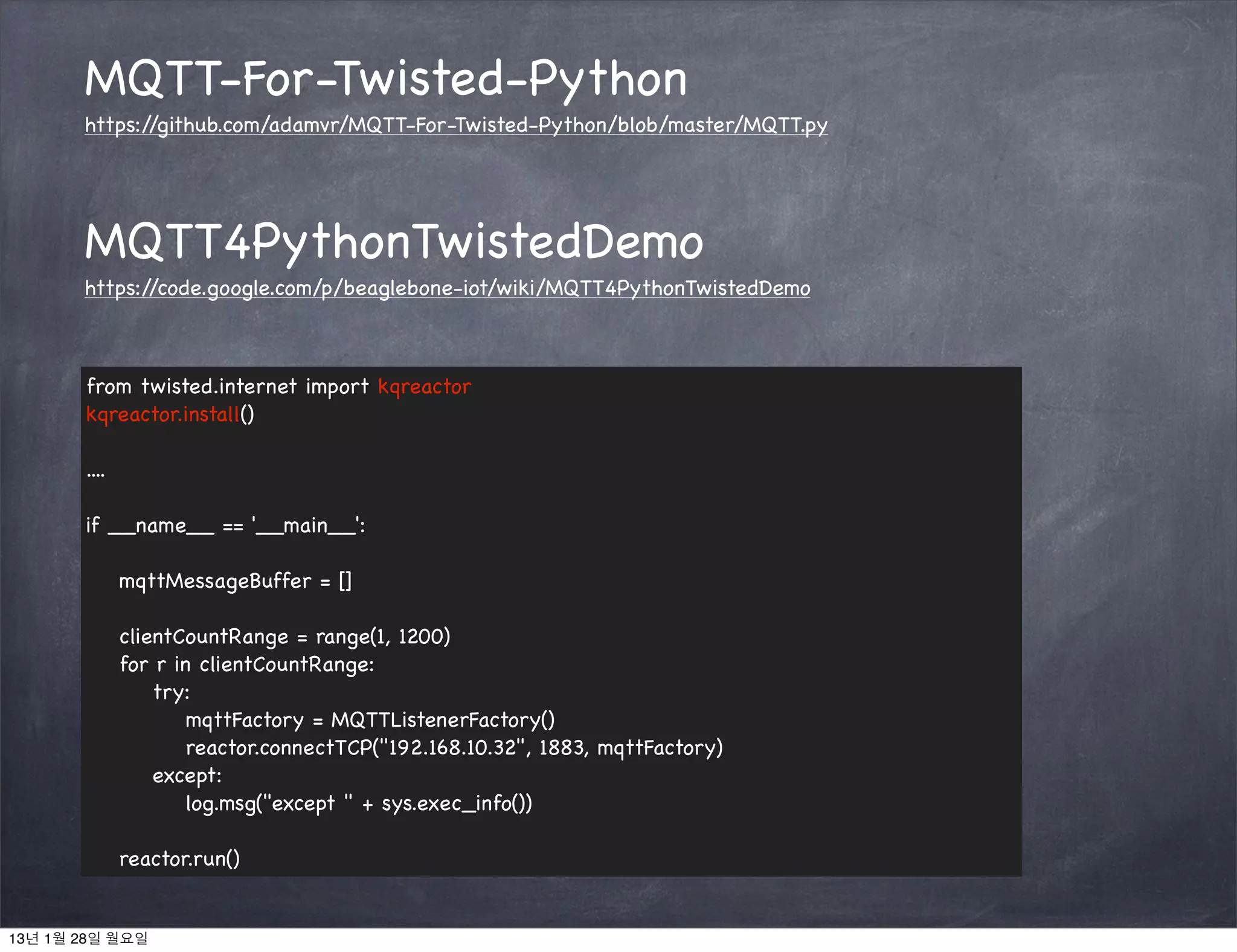

MQTT-For-Twisted-Python
https://github.com/adamvr/MQTT-For-Twisted-Python/blob/master/MQTT.py

MQTT4PythonTwistedDemo
https://code.google.com/p/beaglebone-iot/wiki/MQTT4PythonTwistedDemo

from twisted.internet import kqreactor
kqreactor.install()

....

if __name__ == '__main__':

mqttMessageBuffer = []

clientCountRange = range(1, 1200)
for r in clientCountRange:
try:
mqttFactory = MQTTListenerFactory()
reactor.connectTCP("192.168.10.32", 1883, mqttFactory)
except:
log.msg("except " + sys.exec_info())

reactor.run()

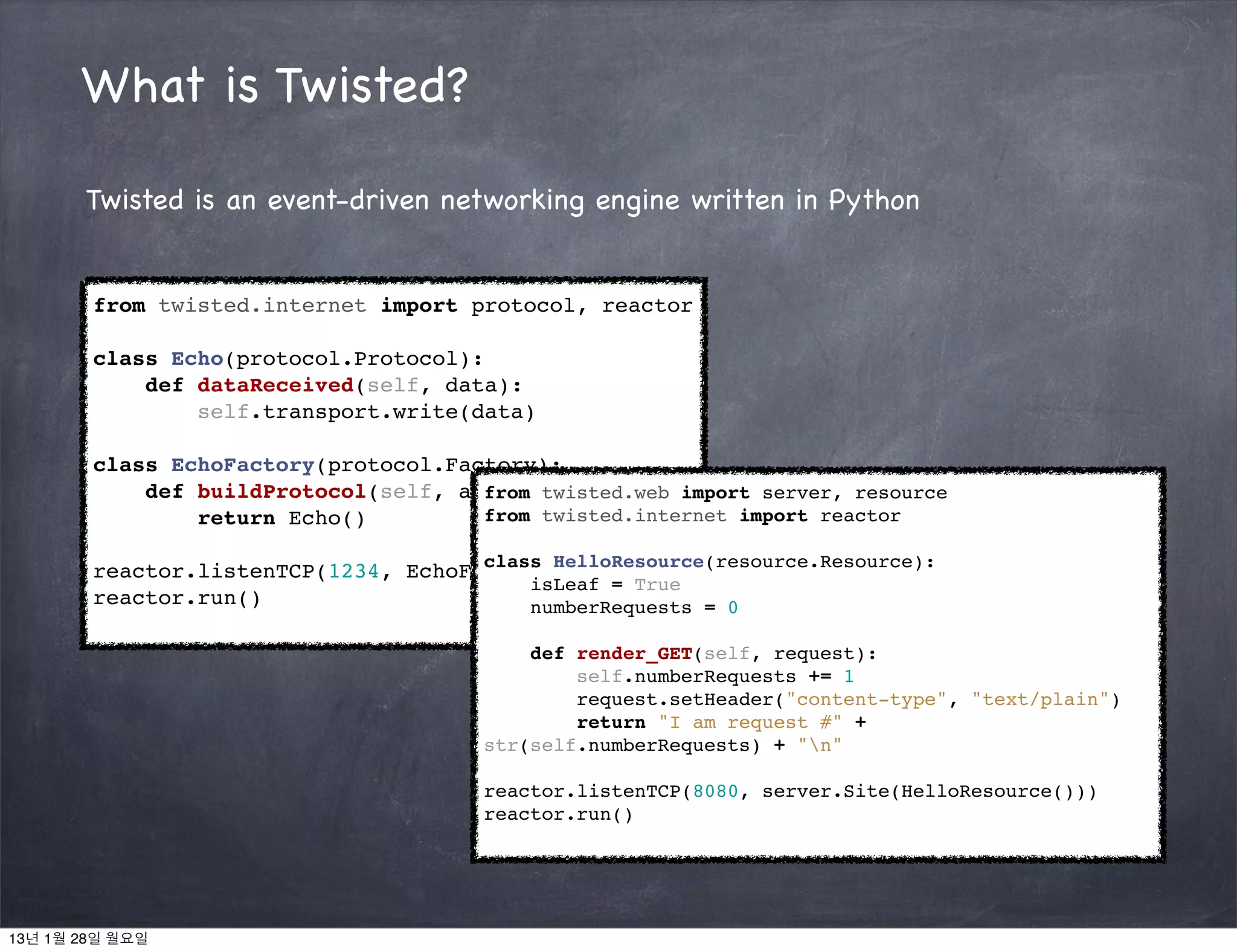

What is Twisted?

Twisted is an event-driven networking engine written in Python

from twisted.internet import protocol, reactor

class Echo(protocol.Protocol):
def dataReceived(self, data):
self.transport.write(data)

class EchoFactory(protocol.Factory):
def buildProtocol(self, addr): twisted.web import server, resource
from
return Echo() from twisted.internet import reactor

class HelloResource(resource.Resource):
reactor.listenTCP(1234, EchoFactory())
isLeaf = True
reactor.run() numberRequests = 0

def render_GET(self, request):
self.numberRequests += 1
request.setHeader("content-type", "text/plain")
return "I am request #" +
str(self.numberRequests) + "n"

reactor.listenTCP(8080, server.Site(HelloResource()))
reactor.run()

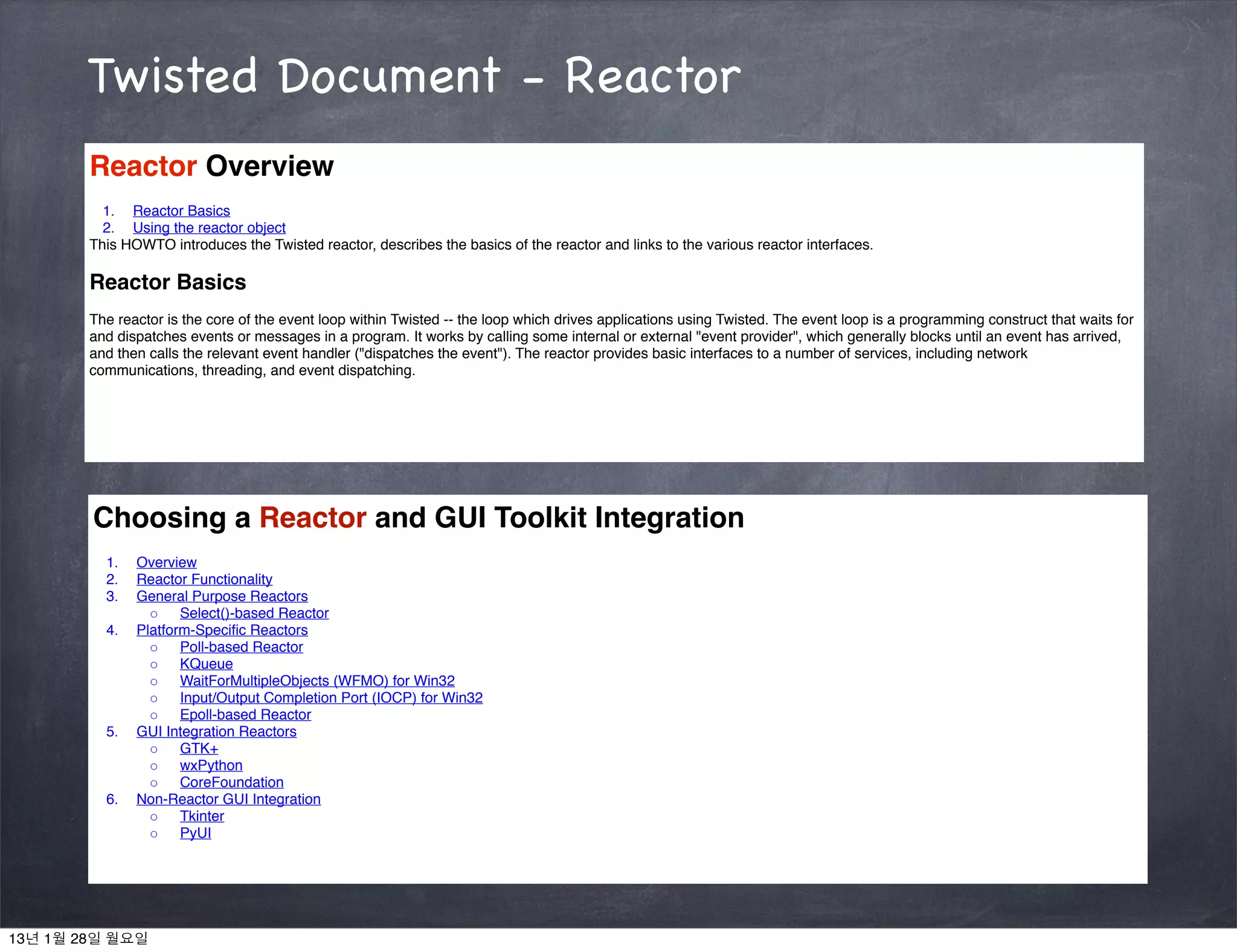

Twisted Document - Reactor
Reactor Overview
1. Reactor Basics
2. Using the reactor object
This HOWTO introduces the Twisted reactor, describes the basics of the reactor and links to the various reactor interfaces.

Reactor Basics
The reactor is the core of the event loop within Twisted -- the loop which drives applications using Twisted. The event loop is a programming construct that waits for
and dispatches events or messages in a program. It works by calling some internal or external "event provider", which generally blocks until an event has arrived,
and then calls the relevant event handler ("dispatches the event"). The reactor provides basic interfaces to a number of services, including network
communications, threading, and event dispatching.

Choosing a Reactor and GUI Toolkit Integration
1. Overview
2. Reactor Functionality
3. General Purpose Reactors
◦ Select()-based Reactor
4. Platform-Speciﬁc Reactors
◦ Poll-based Reactor
◦ KQueue
◦ WaitForMultipleObjects (WFMO) for Win32
◦ Input/Output Completion Port (IOCP) for Win32
◦ Epoll-based Reactor
5. GUI Integration Reactors
◦ GTK+
◦ wxPython
◦ CoreFoundation
6. Non-Reactor GUI Integration
◦ Tkinter
◦ PyUI

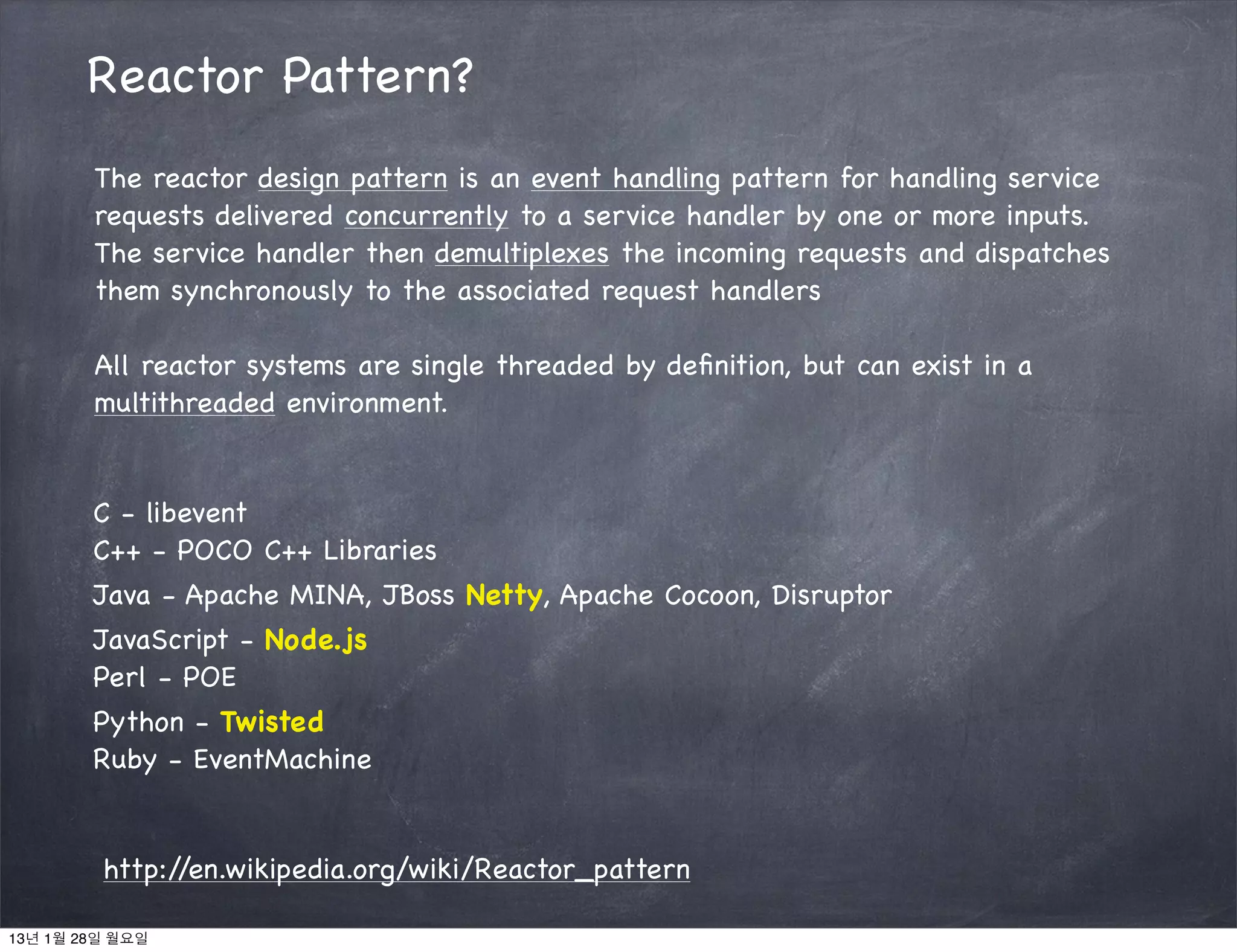

Reactor Pattern?
The reactor design pattern is an event handling pattern for handling service
requests delivered concurrently to a service handler by one or more inputs.
The service handler then demultiplexes the incoming requests and dispatches
them synchronously to the associated request handlers

All reactor systems are single threaded by deﬁnition, but can exist in a
multithreaded environment.

C - libevent
C++ - POCO C++ Libraries
Java - Apache MINA, JBoss Netty, Apache Cocoon, Disruptor
JavaScript - Node.js
Perl - POE
Python - Twisted
Ruby - EventMachine

http://en.wikipedia.org/wiki/Reactor_pattern


POSA 2
Patterns for Concurrent and Networked Objects

이미지 출처 : http://www.cs.wustl.edu/~schmidt/POSA/POSA2/


Opps !

이미지 출처 : http://goo.gl/HUiFZ

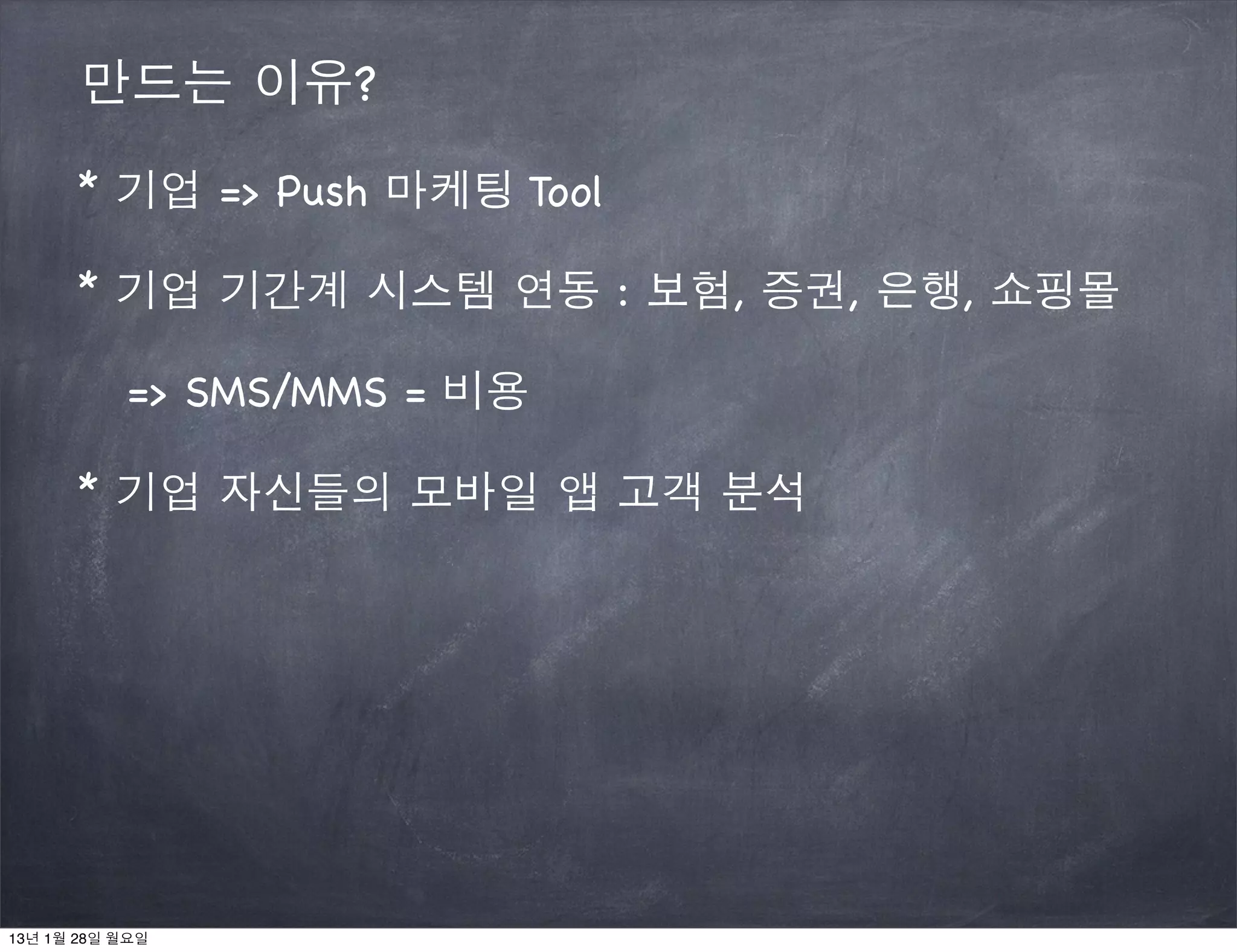

만드는 이유?

* 기업 => Push 마케팅 Tool

* 기업 기간계 시스템 연동 : 보험, 증권, 은행, 쇼핑몰

=> SMS/MMS = 비용

* 기업 자신들의 모바일 앱 고객 분석

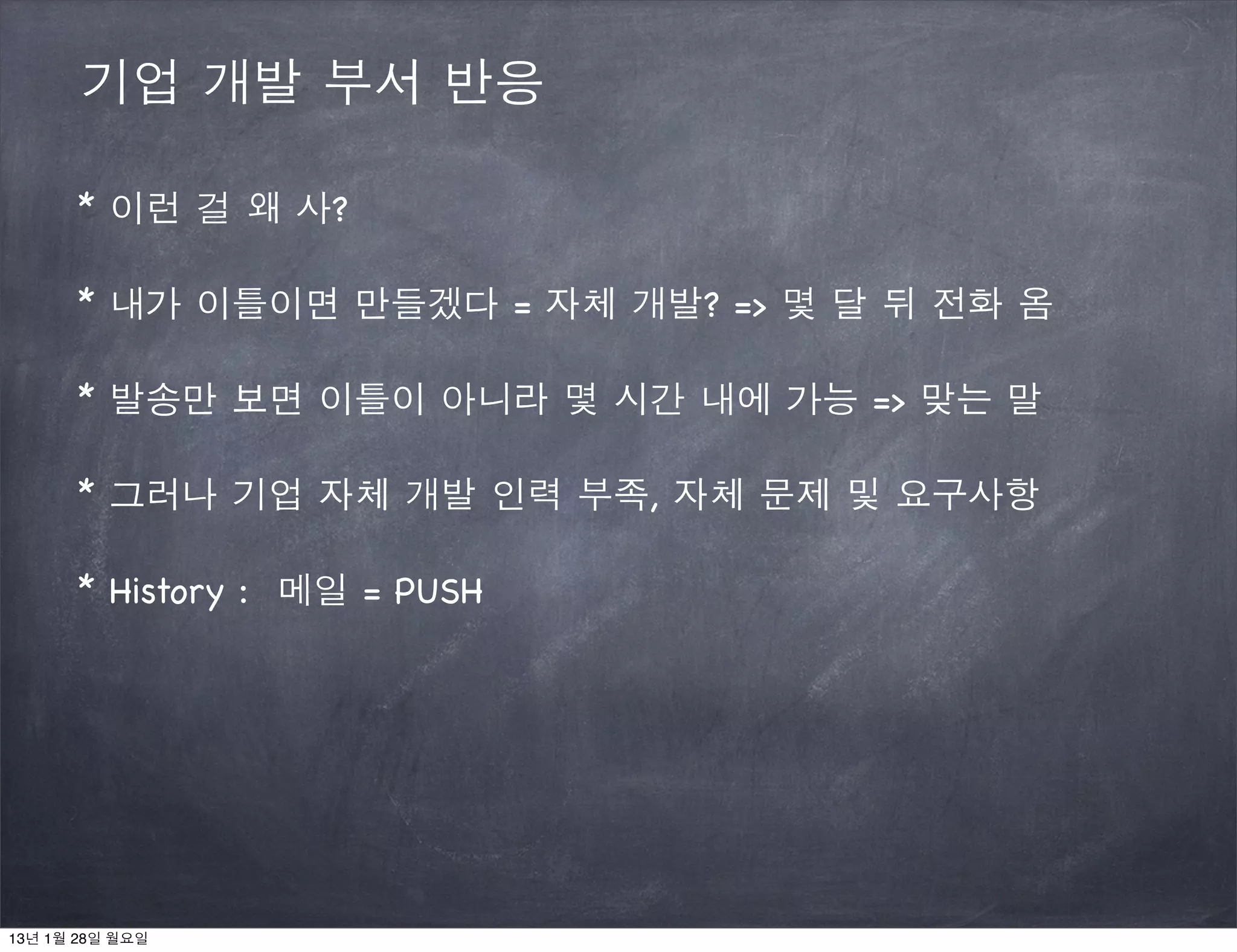

기업 개발 부서 반응

* 이런 걸 왜 사?

* 내가 이틀이면 만들겠다 = 자체 개발? => 몇 달 뒤 전화 옴

* 발송만 보면 이틀이 아니라 몇 시간 내에 가능 => 맞는 말

* 그러나 기업 자체 개발 인력 부족, 자체 문제 및 요구사항

* History : 메일 = PUSH


헉 !!!

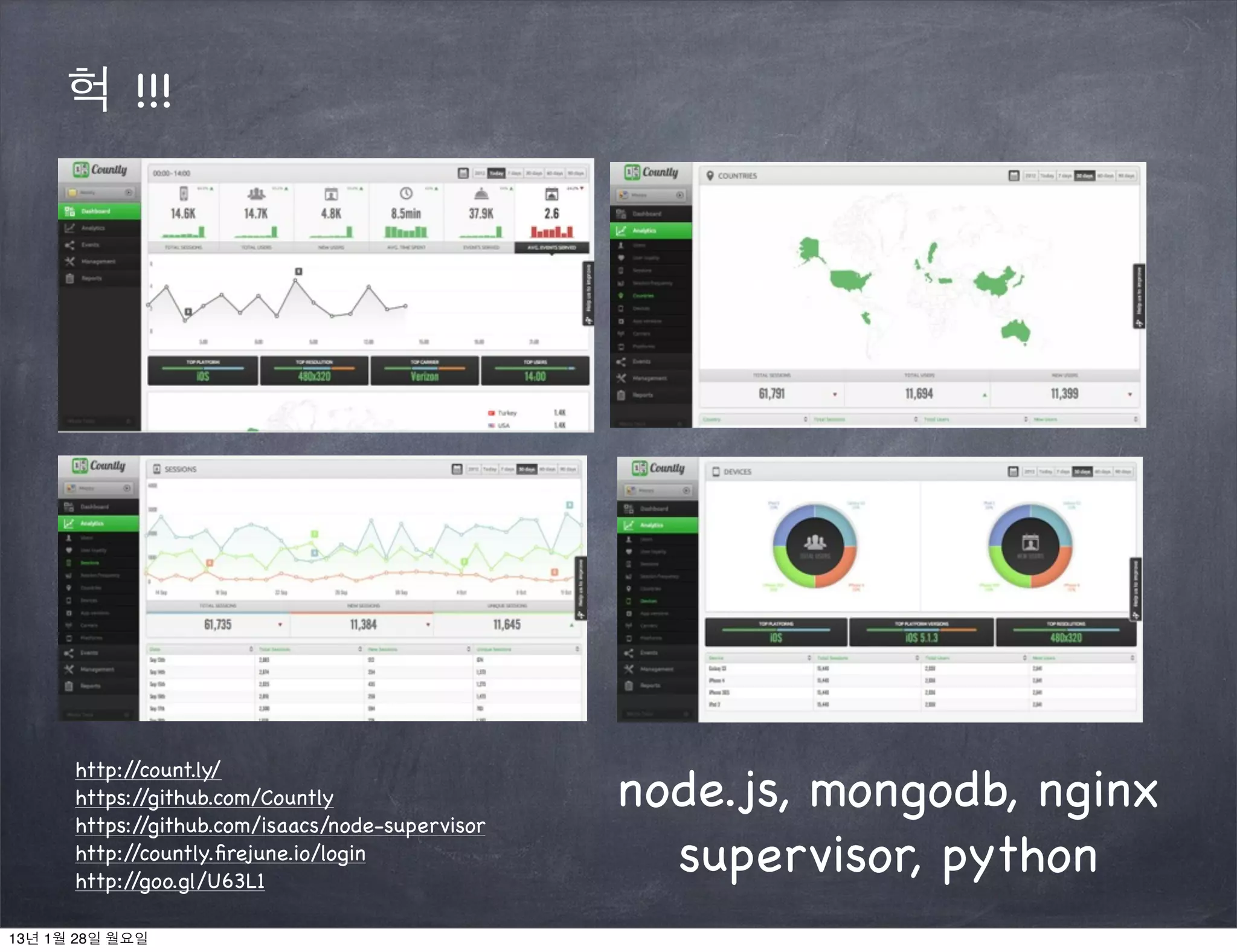

http://count.ly/
https://github.com/Countly node.js, mongodb, nginx
https://github.com/isaacs/node-supervisor
http:/
http:/
/countly.ﬁrejune.io/login
/goo.gl/U63L1
supervisor, python

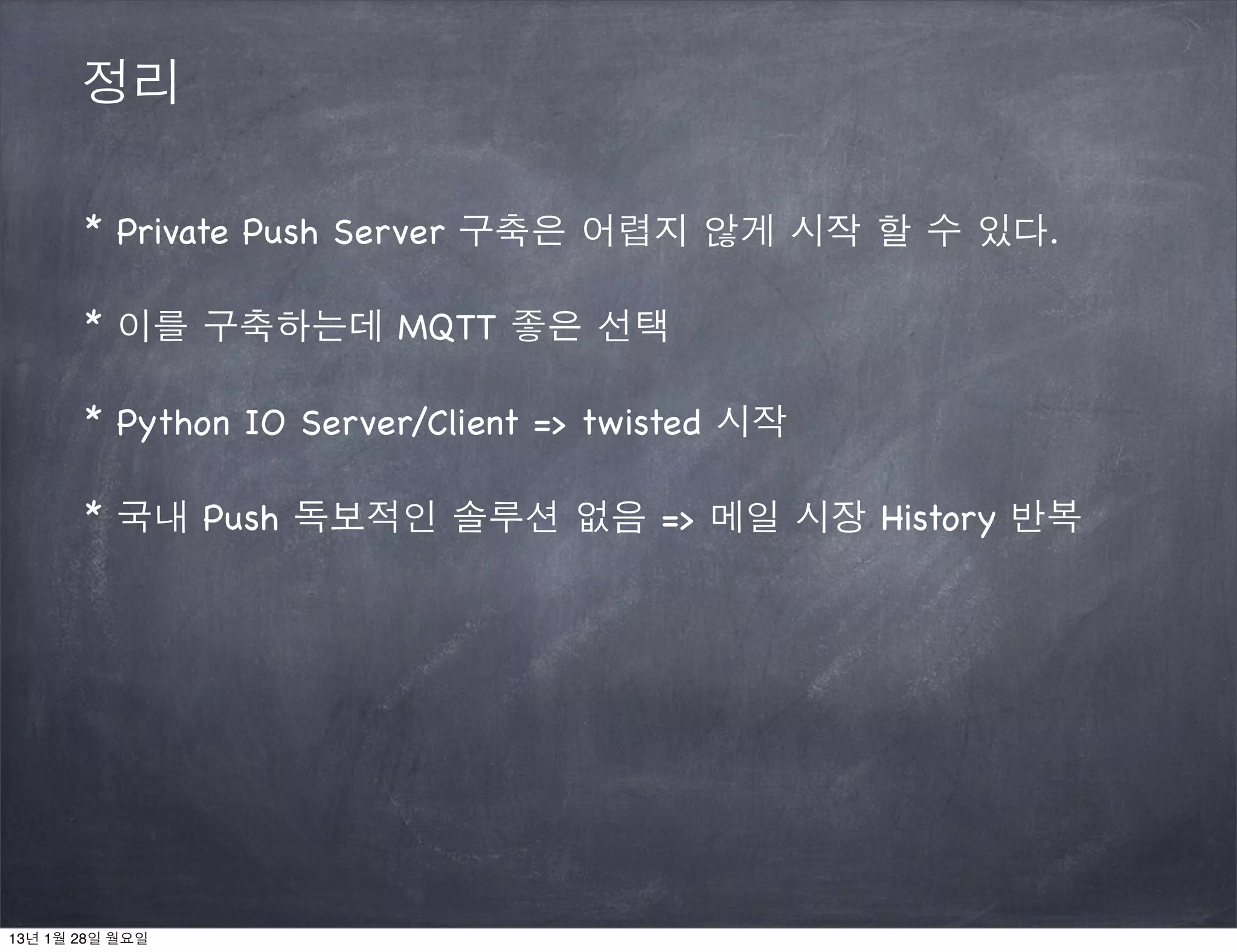

정리

* Private Push Server 구축은 어렵지 않게 시작 할 수 있다.

* 이를 구축하는데 MQTT 좋은 선택

* Python IO Server/Client => twisted 시작

* 국내 Push 독보적인 솔루션 없음 => 메일 시장 History 반복

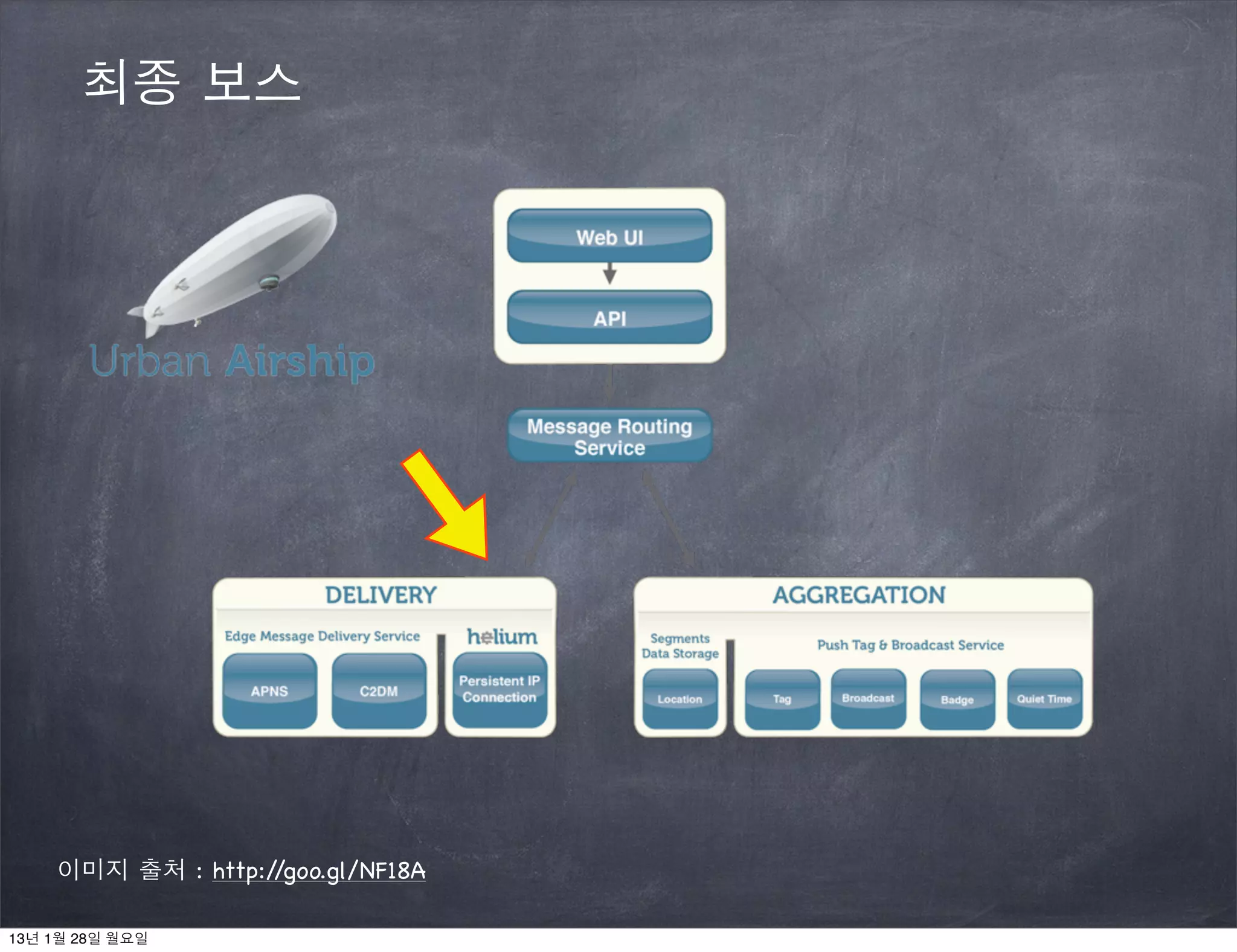

최종 보스

이미지 출처 : http://goo.gl/NF18A


감사합니다.

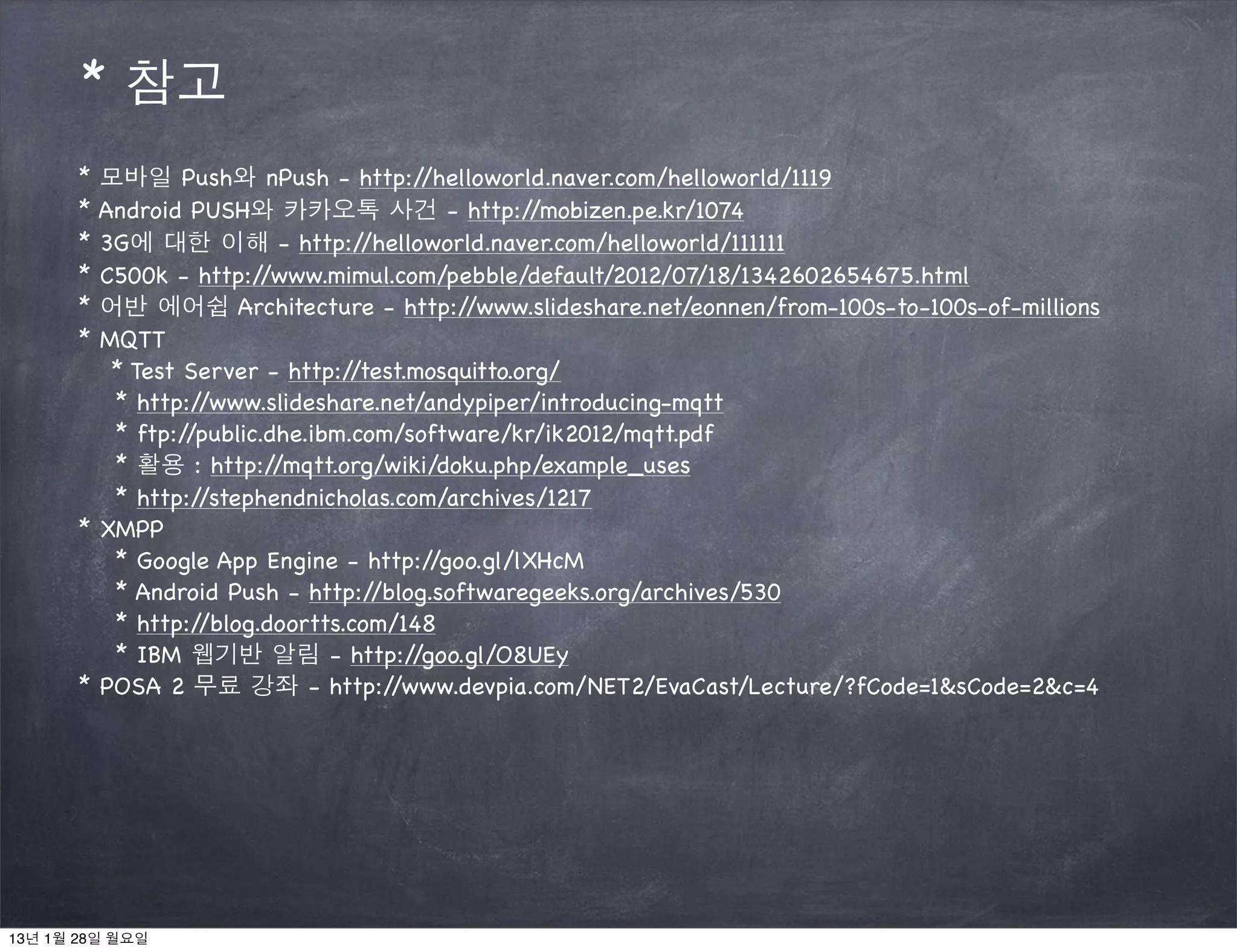

* 참고
* 모바일 Push와 nPush - http:/ /helloworld.naver.com/helloworld/1119
* Android PUSH와 카카오톡 사건 - http:/ /mobizen.pe.kr/1074
* 3G에 대한 이해 - http:/ /helloworld.naver.com/helloworld/111111
* C500k - http:/ /www.mimul.com/pebble/default/2012/07/18/1342602654675.html
* 어반 에어쉽 Architecture - http:/ /www.slideshare.net/eonnen/from-100s-to-100s-of-millions
* MQTT
* Test Server - http:/ /test.mosquitto.org/
* http://www.slideshare.net/andypiper/introducing-mqtt
* ftp://public.dhe.ibm.com/software/kr/ik2012/mqtt.pdf
* 활용 : http:/ /mqtt.org/wiki/doku.php/example_uses
* http://stephendnicholas.com/archives/1217
* XMPP
* Google App Engine - http:/ /goo.gl/lXHcM
* Android Push - http:/ /blog.softwaregeeks.org/archives/530
* http://blog.doortts.com/148
* IBM 웹기반 알림 - http:/ /goo.gl/O8UEy
* POSA 2 무료 강좌 - http:/ /www.devpia.com/NET2/EvaCast/Lecture/?fCode=1&sCode=2&c=4
