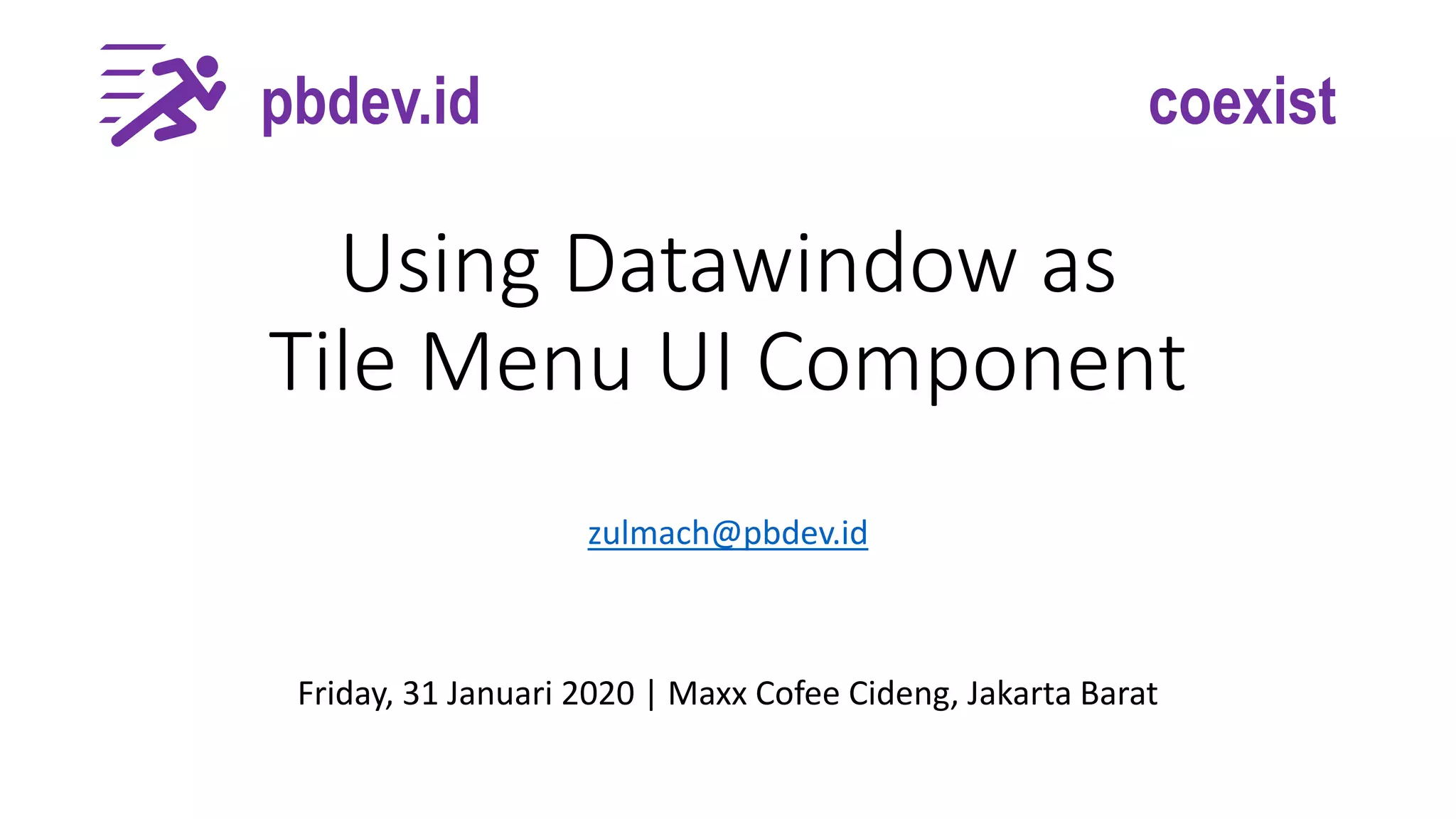

1. Using Datawindow as
Tile Menu UI Component
zulmach@pbdev.id
pbdev.id coexist
Friday, 31 Januari 2020 | Maxx Cofee Cideng, Jakarta Barat

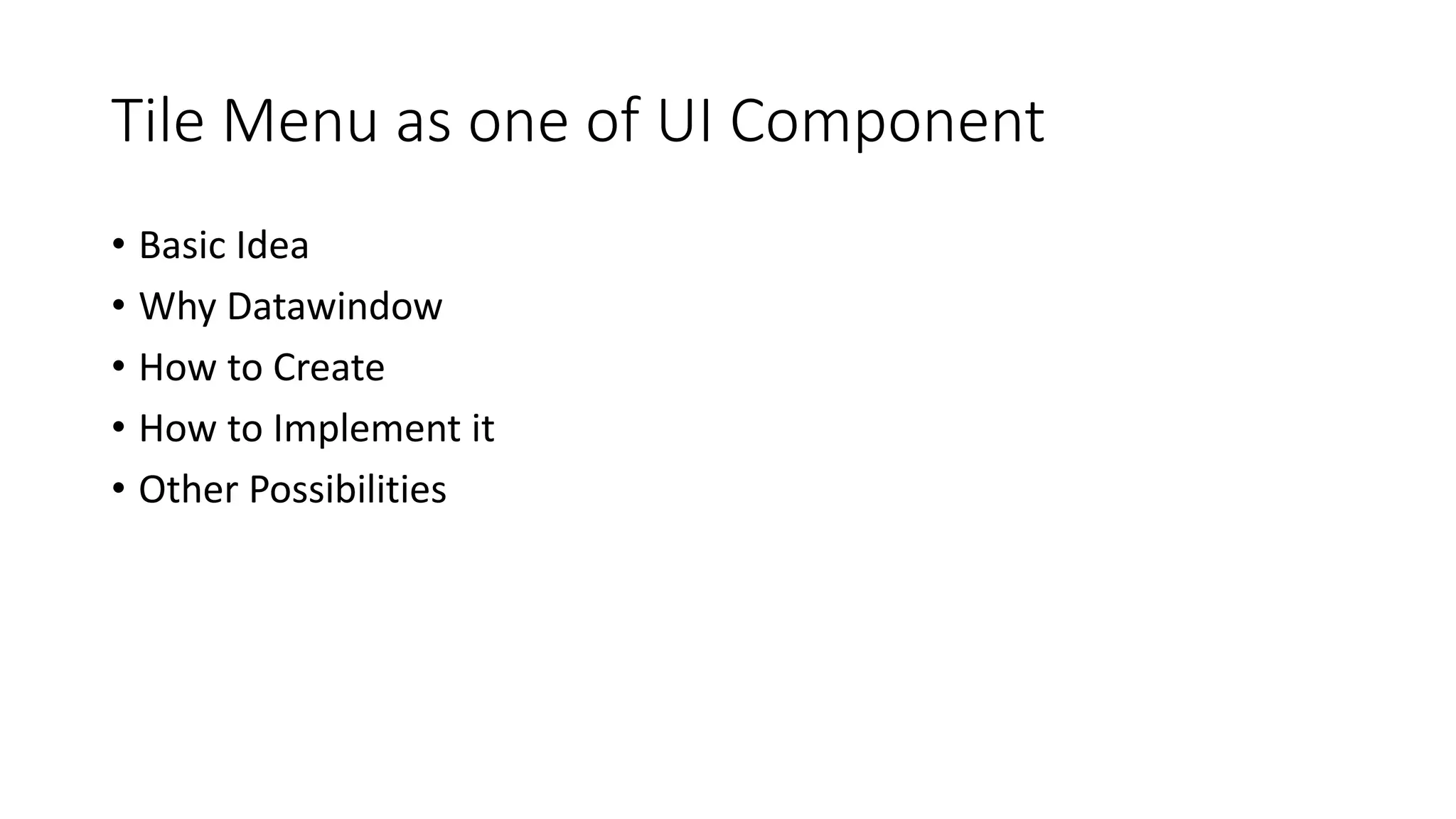

2. Tile Menu as one of UI Component
• Basic Idea
• Why Datawindow
• How to Create
• How to Implement it
• Other Possibilities

3. Basic Idea
• Kind of Cute
• So many already available
• None is free
• None is Native PB Object
• usually OCX, OLE Object or uses PBNI
• Not easy to distribute
• None is compatible with Appeon Web/Mobile
• Only need the SIMPLEST yet NICE LOOKING
• Don’t want too many script to write (copy/paste)

4. Why Datawindow
• Data centric : rows & columns
• Can put controls as Window
• Powerful DW Expression
• Support expression for many properties
• Controls Behaviour can be based on data

5. How to Create
Step by step

6. Create New N-Up Datawindow Object
• Create Datawindow Object N-Up presentation Style
• Columns : icon (string), title (string), visible (number), size (number)
• This example with 6 rows per detail

7. Clean Up
• Clean up datawindow from columns and text,
select all and delete from the layout

8. Create Rectangles
• Create rectangles : r_dw, r_width, r_gutter as size reference
put them in header band
• Create 6 rectangles for the tile’s base, put them in detail band

9. Set r_1 to r_6 properties using expression
Control Visible Height Width
r_1 visible[0] long(describe
("r_width.width"))-40
size[0] * (long(describe("r_width.width"))) +
(size[0] -1) * (long(describe("r_gutter.width")))
r_2 visible[1] long(describe
("r_width.width"))-40
size[1] * (long(describe("r_width.width"))) +
(size[1] -1) * (long(describe("r_gutter.width")))
r_3 visible[2] long(describe
("r_width.width"))-40
size[2] * (long(describe("r_width.width"))) +
(size[2] -1) * (long(describe("r_gutter.width")))
r_4 visible[3] long(describe
("r_width.width"))-40
size[3] * (long(describe("r_width.width"))) +
(size[3] -1) * (long(describe("r_gutter.width")))
r_5 visible[4] long(describe
("r_width.width"))-40
size[4] * (long(describe("r_width.width"))) +
(size[4] -1) * (long(describe("r_gutter.width")))
r_6 visible[5] long(describe
("r_width.width"))-40
size[5] * (long(describe("r_width.width"))) +
(size[5] -1) * (long(describe("r_gutter.width")))

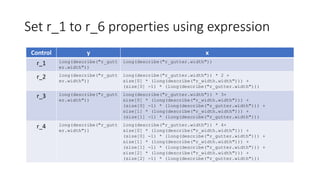

10. Set r_1 to r_6 properties using expression
Control y x
r_1 long(describe("r_gutt
er.width"))
long(describe("r_gutter.width"))
r_2 long(describe("r_gutt
er.width"))
long(describe("r_gutter.width")) * 2 +
size[0] * (long(describe("r_width.width"))) +
(size[0] -1) * (long(describe("r_gutter.width")))
r_3 long(describe("r_gutt
er.width"))
long(describe("r_gutter.width")) * 3+
size[0] * (long(describe("r_width.width"))) +
(size[0] -1) * (long(describe("r_gutter.width"))) +
size[1] * (long(describe("r_width.width"))) +
(size[1] -1) * (long(describe("r_gutter.width")))
r_4 long(describe("r_gutt
er.width"))
long(describe("r_gutter.width")) * 4+
size[0] * (long(describe("r_width.width"))) +
(size[0] -1) * (long(describe("r_gutter.width"))) +
size[1] * (long(describe("r_width.width"))) +
(size[1] -1) * (long(describe("r_gutter.width"))) +
size[2] * (long(describe("r_width.width"))) +
(size[2] -1) * (long(describe("r_gutter.width")))

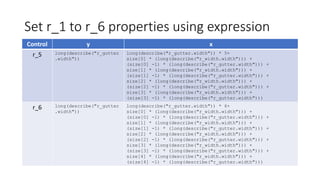

11. Set r_1 to r_6 properties using expression
Control y x
r_5 long(describe("r_gutter
.width"))
long(describe("r_gutter.width")) * 5+
size[0] * (long(describe("r_width.width"))) +
(size[0] -1) * (long(describe("r_gutter.width"))) +
size[1] * (long(describe("r_width.width"))) +
(size[1] -1) * (long(describe("r_gutter.width"))) +
size[2] * (long(describe("r_width.width"))) +
(size[2] -1) * (long(describe("r_gutter.width"))) +
size[3] * (long(describe("r_width.width"))) +
(size[3] -1) * (long(describe("r_gutter.width")))
r_6 long(describe("r_gutter
.width"))
long(describe("r_gutter.width")) * 6+
size[0] * (long(describe("r_width.width"))) +
(size[0] -1) * (long(describe("r_gutter.width"))) +
size[1] * (long(describe("r_width.width"))) +
(size[1] -1) * (long(describe("r_gutter.width"))) +
size[2] * (long(describe("r_width.width"))) +
(size[2] -1) * (long(describe("r_gutter.width"))) +
size[3] * (long(describe("r_width.width"))) +
(size[3] -1) * (long(describe("r_gutter.width"))) +
size[4] * (long(describe("r_width.width"))) +
(size[4] -1) * (long(describe("r_gutter.width")))

12. Create 6 Computed Field for icon placeholder
Control Expression
c_1 bitmap ( icon[0] )
c_2 bitmap ( icon[1] )
c_3 bitmap ( icon[2] )
c_4 bitmap ( icon[3] )
c_5 bitmap ( icon[4] )
c_6 bitmap ( icon[5] )

13. Do the same thing
• Copy and modified all the dwexpression for x,y,width,and height
properties from the r_1 to r_6 for :
• Icon
• title

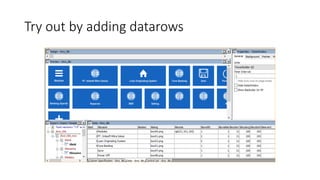

14. Try out by adding datarows

15. How to implement
• put a
datawindow
dw_tile control
on your window
• Add new user
event on dw_tile
that map to
system event ID :
pbm_dwnlbutto
nup named it
ue_mouse up

16. Write the Script

17. And This is how it looks

18. Download Datawindow Object Source Code
https://zulmach.wordpress.com/2
020/01/18/tile-menu-using-
datawindow-object

19. • Thank You
• Question and Answer
• Email : zulmach@pbdev.id
• Linkedin : www.linkedin.com/in/zulmach
• Youtube : www.youtube.com/c/pemulapb
• Whatsap : +628155555368
Q&A
