This document summarizes a program for calculating three-phase AC winding for single-speed motors. The program includes diagrams for common winding configurations with 12 to 90 slots. It guides the user through entering core dimensions and specifications to calculate the winding configuration, number of turns per coil, wire size and other details. Operating the program is designed to be easy, even for those without experience in computers or motor winding calculations.

2. The calculations are made in terms of stator core dimensions. The calculation takes a few minutes. On the stator-core, the following measurements need to be taken: the length of the iron-core, internal diameter and the height of the back iron and tooth width. For calculation of cross-sectional area of turn you need also the slot dimensions. This program offers a quick and efficient service to those who have had experience working with motor winding as well as to beginners interested in solving every-day problems.

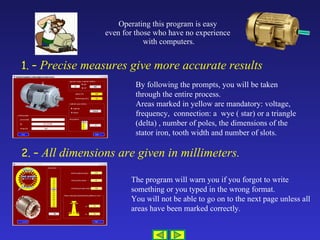

3. Operating this program is easy even for those who have no experience with computers. 1. – Precise measures give more accurate results 2. – All dimensions are given in millimeters. By following the prompts, you will be taken through the entire process. Areas marked in yellow are mandatory: voltage, frequency, connection: a wye ( star) or a triangle (delta) , number of poles, the dimensions of the stator iron, tooth width and number of slots. The program will warn you if you forgot to write something or you typed in the wrong format. You will not be able to go on to the next page unless all areas have been marked correctly.

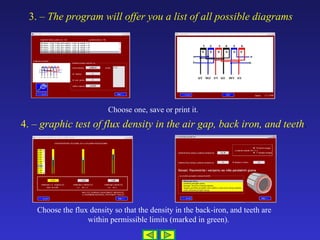

4. 3. – The program will offer you a list of all possible diagrams 4. – graphic test of flux density in the air gap, back iron, and teeth . Choose one, save or print it. . Choose the flux density so that the density in the back-iron, and teeth are within permissible limits (marked in green).

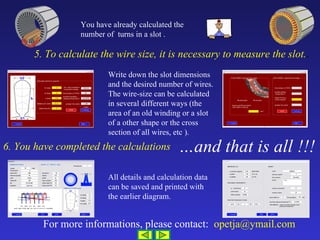

5. 5. To calculate the wire size, it is necessary to measure the slot. . 6. You have completed the calculations Write down the slot dimensions and the desired number of wires. The wire-size can be calculated in several different ways (the area of an old winding or a slot of a other shape or the cross section of all wires, etc . ). All details and calculation data can be saved and printed with the earlier diagram. … and that is all !!! You have already calculated the number of turns in a slot . . For more informations, please contact: [email_address]
