1. Threat Modeling the CI/CD
Pipeline to Improve Software
Supply Chain Security
Dan Cornell
CTO, Denim Group

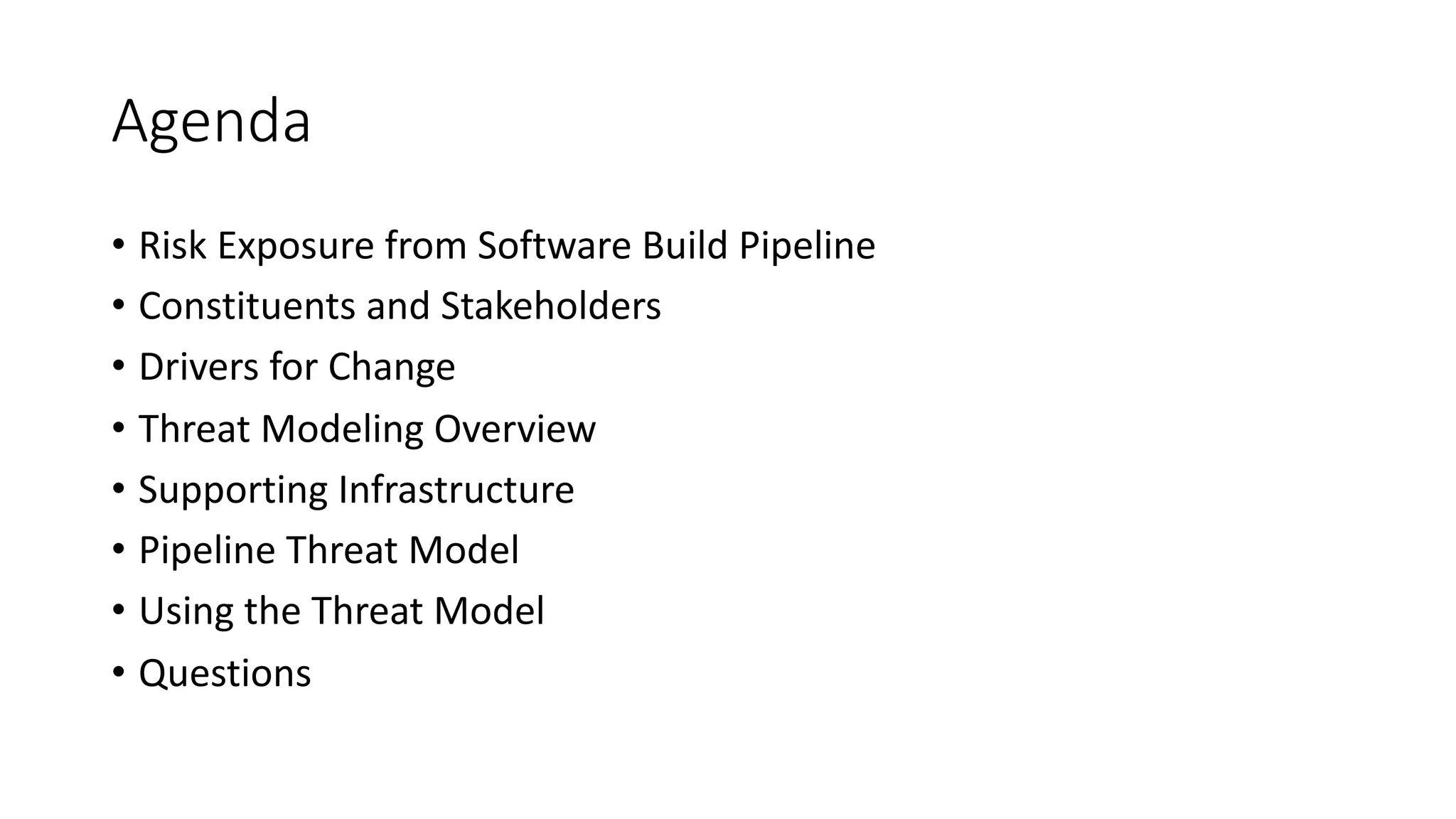

2. Agenda
• Risk Exposure from Software Build Pipeline
• Constituents and Stakeholders
• Drivers for Change
• Threat Modeling Overview
• Supporting Infrastructure
• Pipeline Threat Model
• Using the Threat Model
• Questions

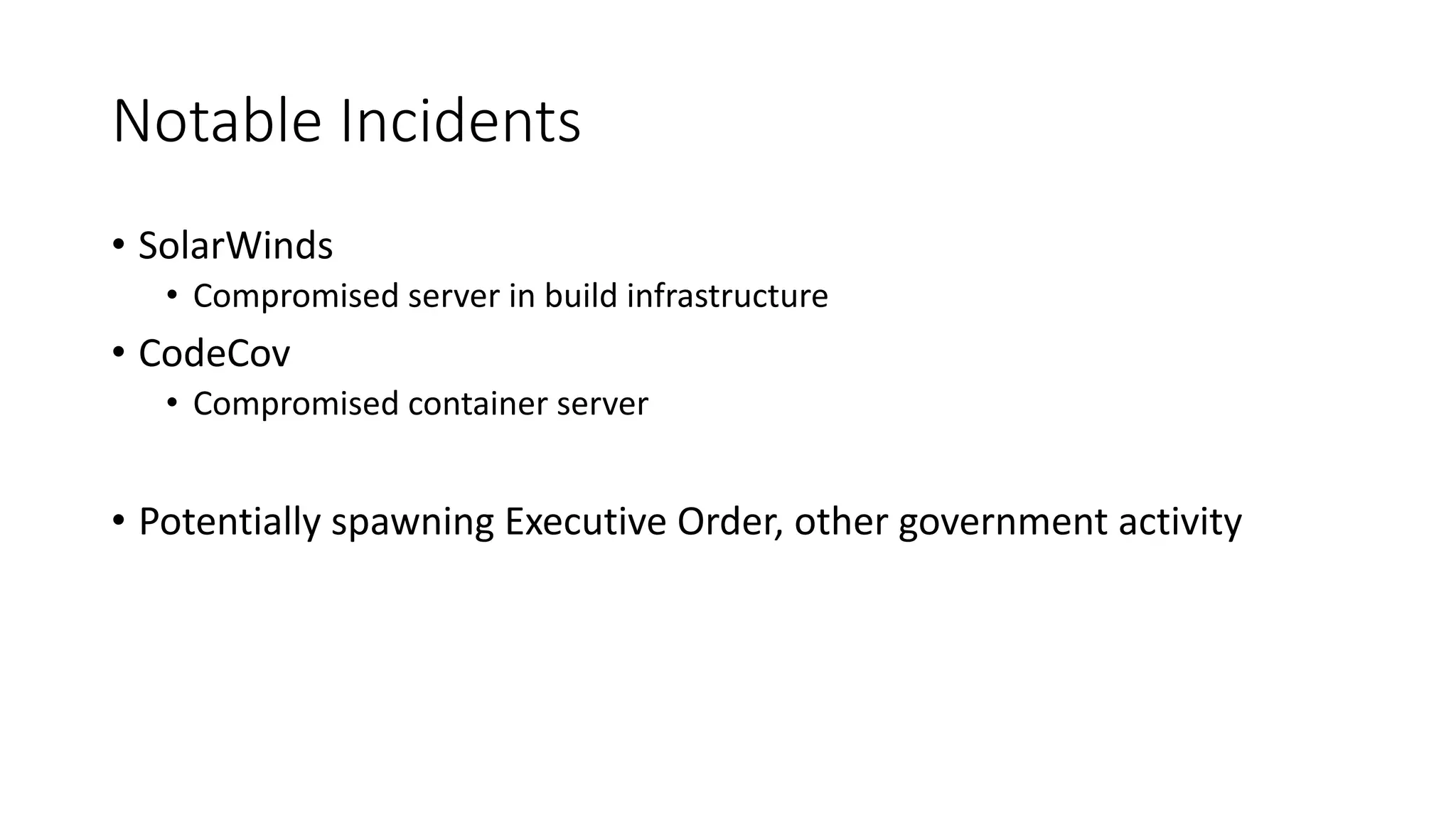

3. Notable Incidents
• SolarWinds
• Compromised server in build infrastructure
• CodeCov
• Compromised container server
• Potentially spawning Executive Order, other government activity

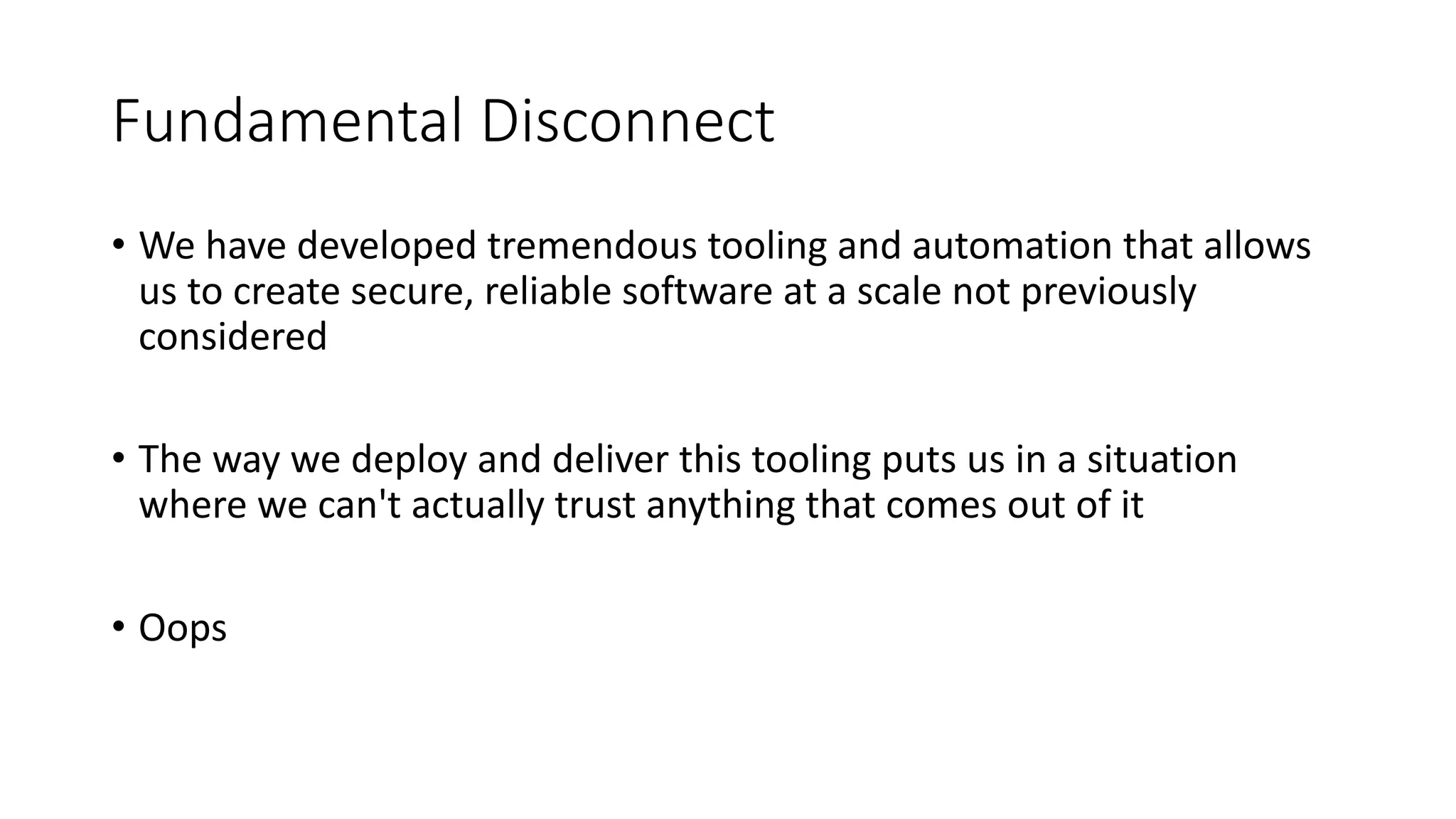

4. Fundamental Disconnect
• We have developed tremendous tooling and automation that allows
us to create secure, reliable software at a scale not previously
considered
• The way we deploy and deliver this tooling puts us in a situation
where we can't actually trust anything that comes out of it
• Oops

5. Fractal Attack Surface
The closer you look, the more you find

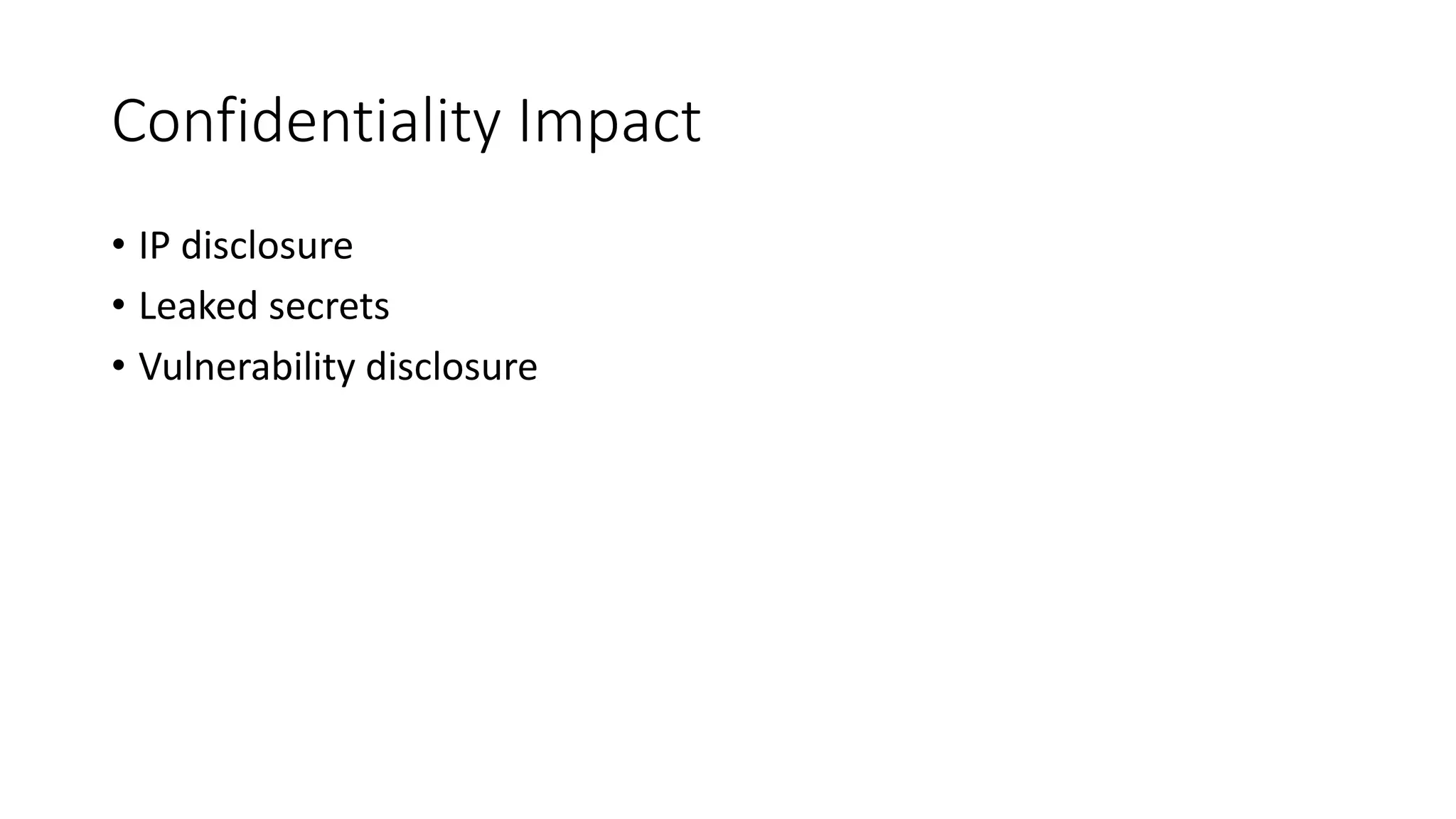

6. Confidentiality Impact
• IP disclosure
• Leaked secrets
• Vulnerability disclosure

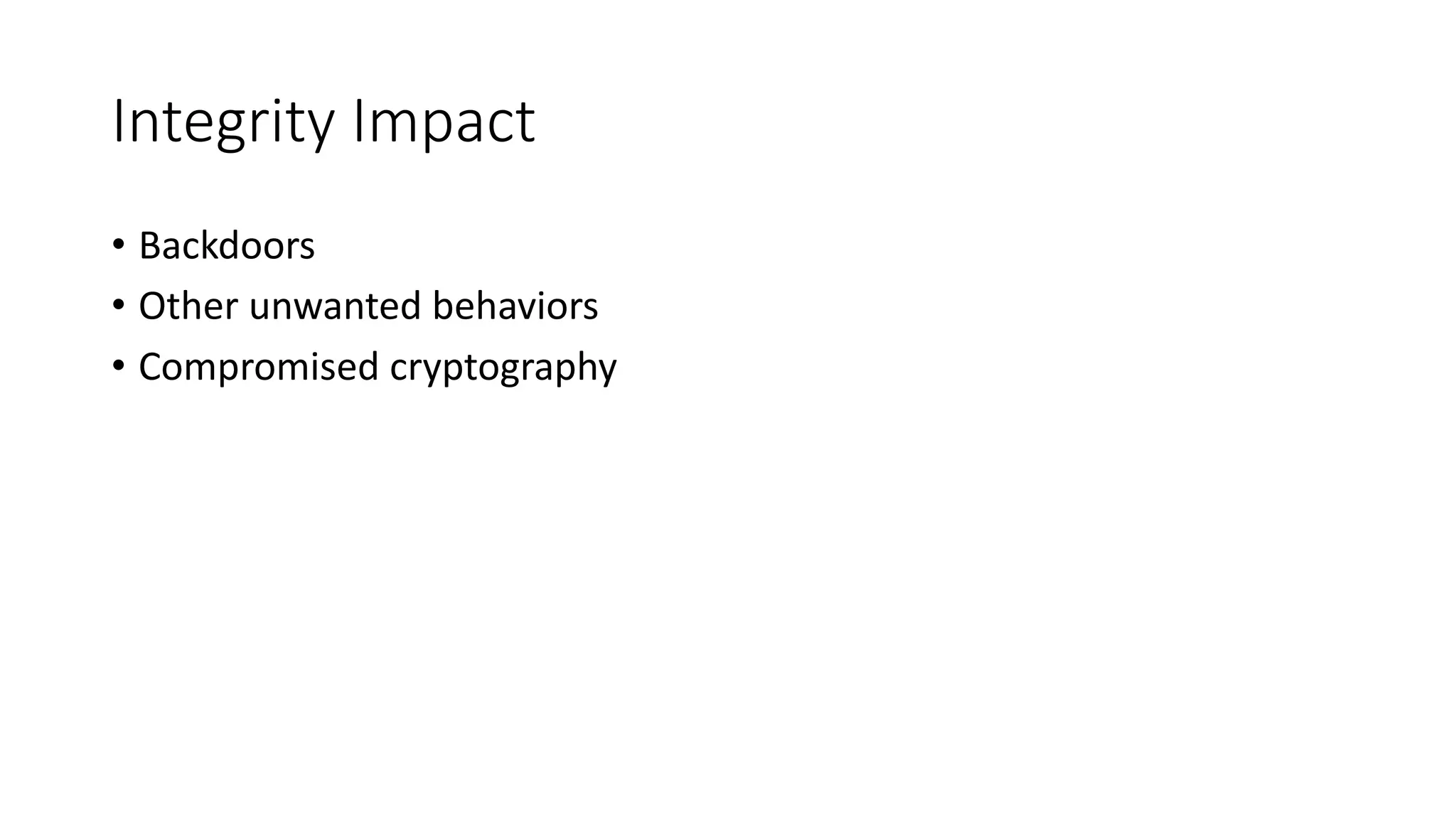

7. Integrity Impact
• Backdoors
• Other unwanted behaviors
• Compromised cryptography

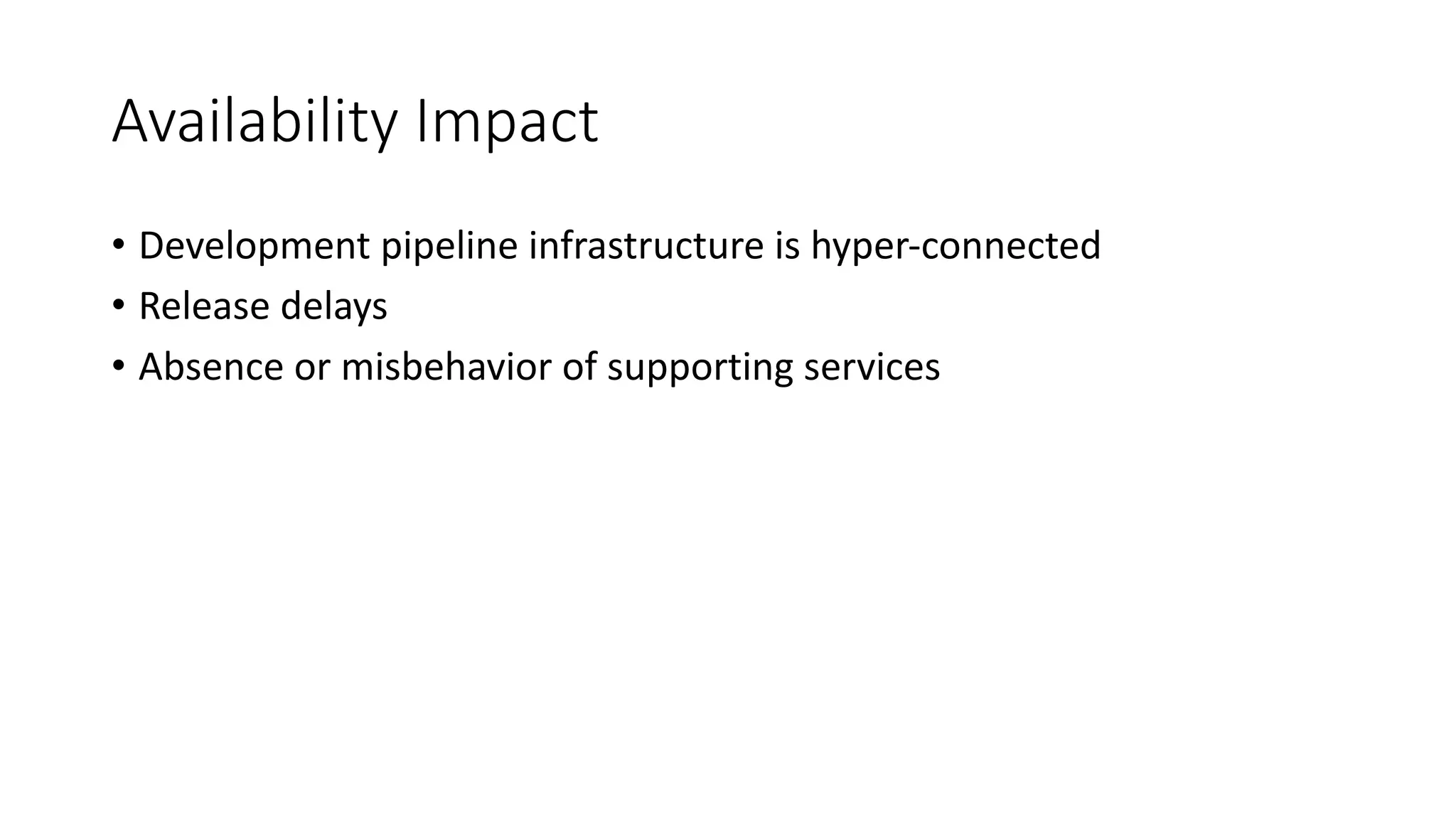

8. Availability Impact
• Development pipeline infrastructure is hyper-connected
• Release delays
• Absence or misbehavior of supporting services

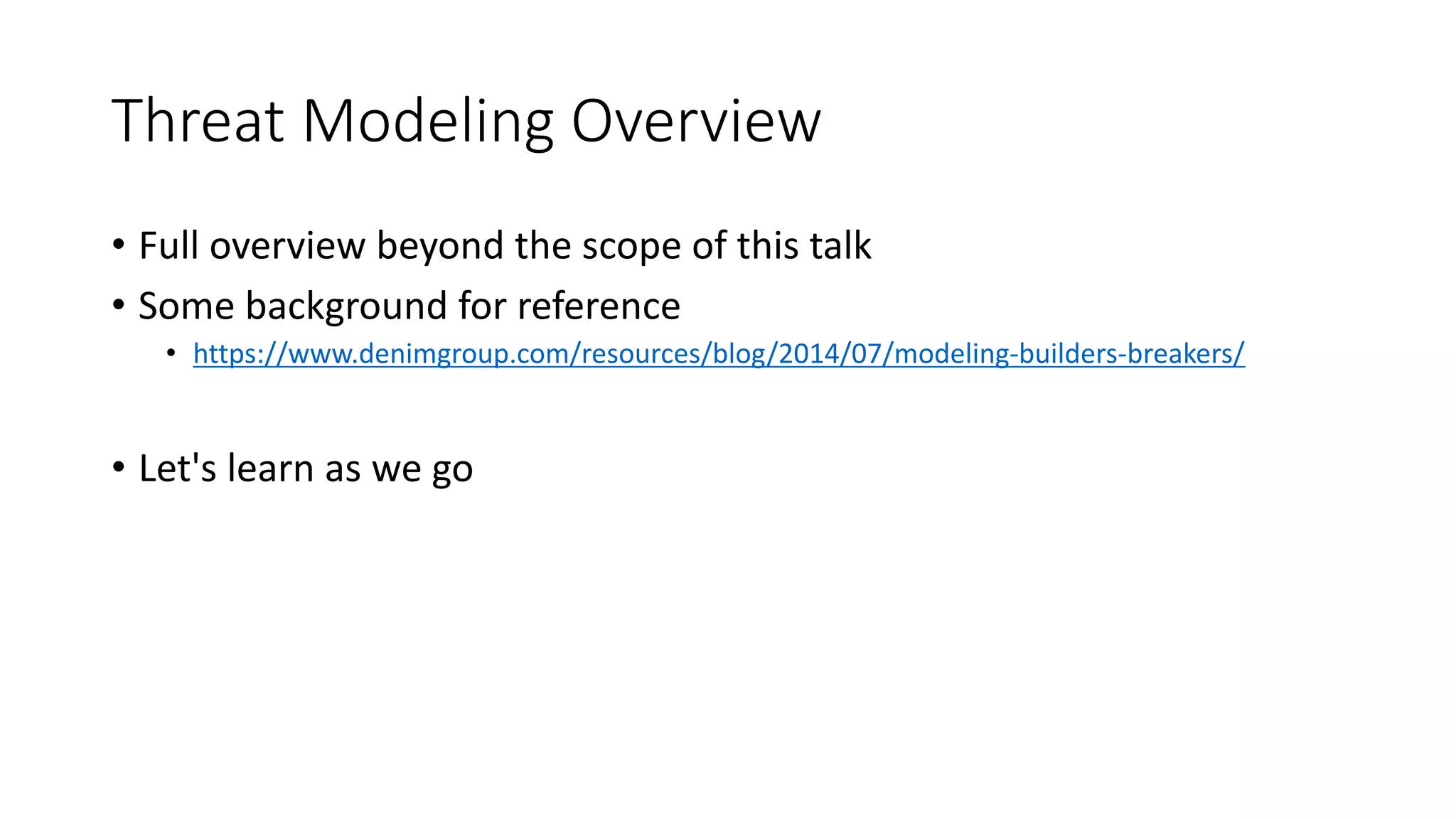

9. Threat Modeling Overview
• Full overview beyond the scope of this talk
• Some background for reference
• https://www.denimgroup.com/resources/blog/2014/07/modeling-builders-breakers/
• Let's learn as we go

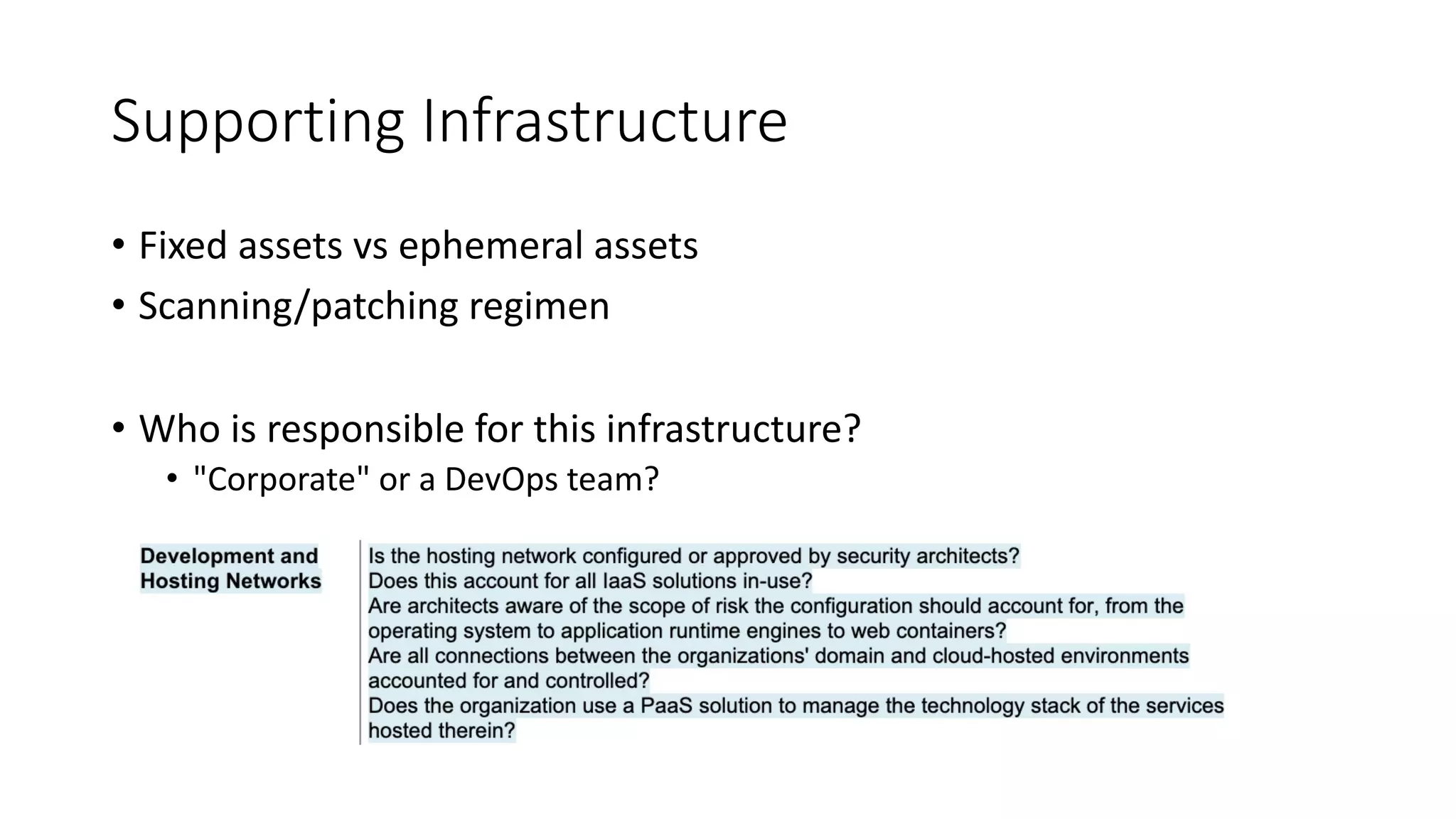

10. Supporting Infrastructure
• Fixed assets vs ephemeral assets
• Scanning/patching regimen
• Who is responsible for this infrastructure?
• "Corporate" or a DevOps team?

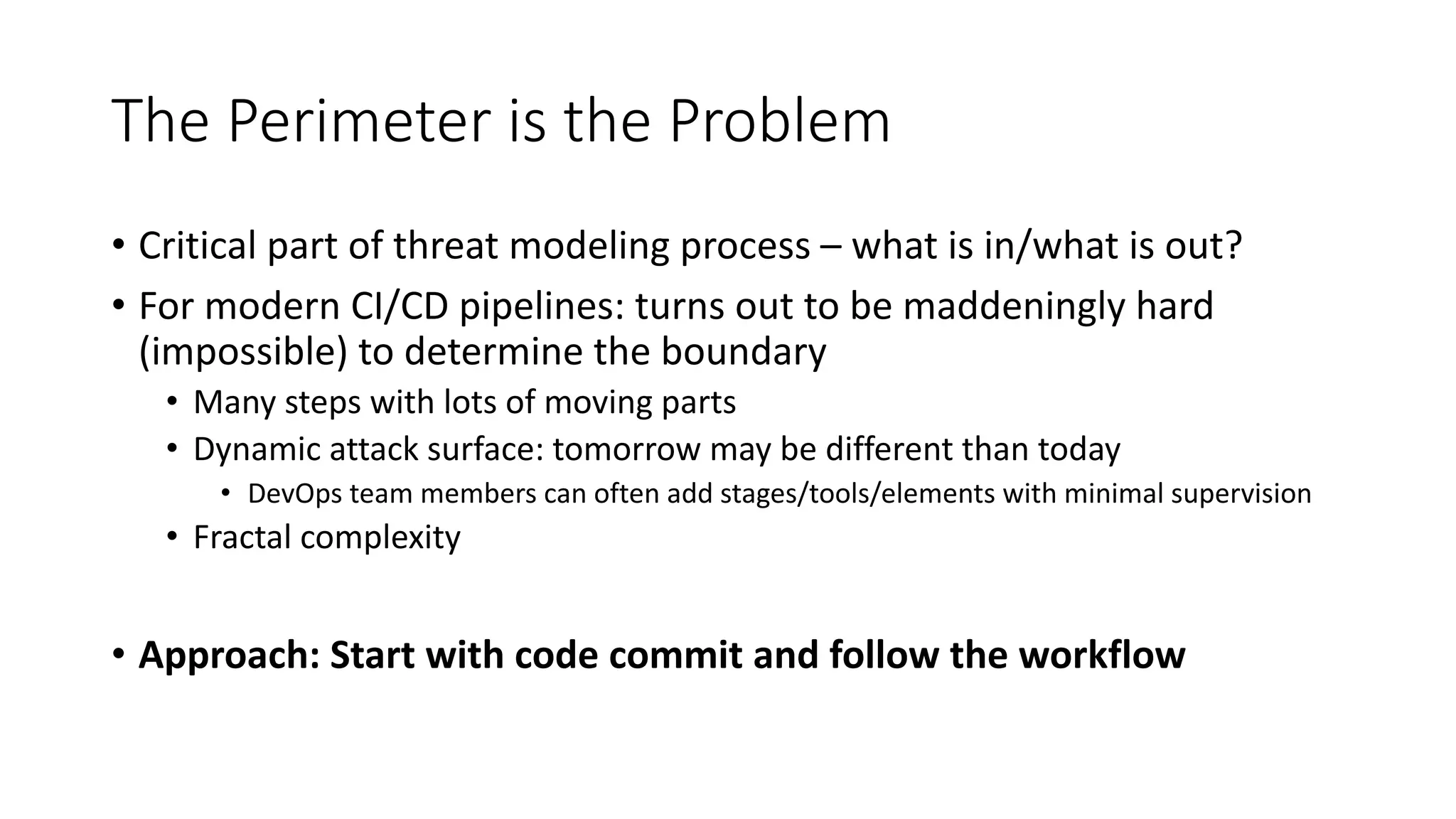

11. The Perimeter is the Problem
• Critical part of threat modeling process – what is in/what is out?
• For modern CI/CD pipelines: turns out to be maddeningly hard
(impossible) to determine the boundary
• Many steps with lots of moving parts
• Dynamic attack surface: tomorrow may be different than today
• DevOps team members can often add stages/tools/elements with minimal supervision
• Fractal complexity
• Approach: Start with code commit and follow the workflow

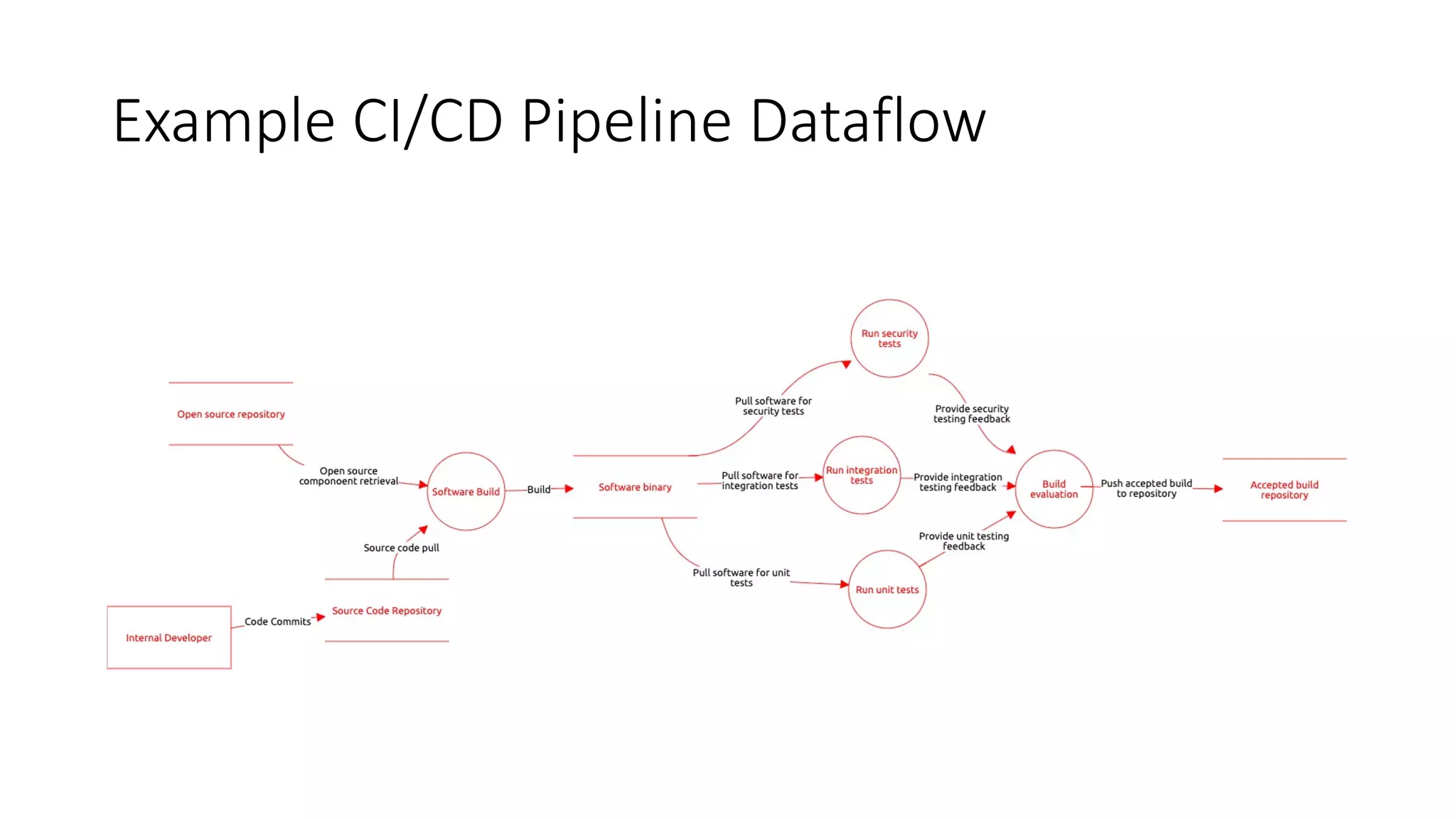

12. Example CI/CD Pipeline Dataflow

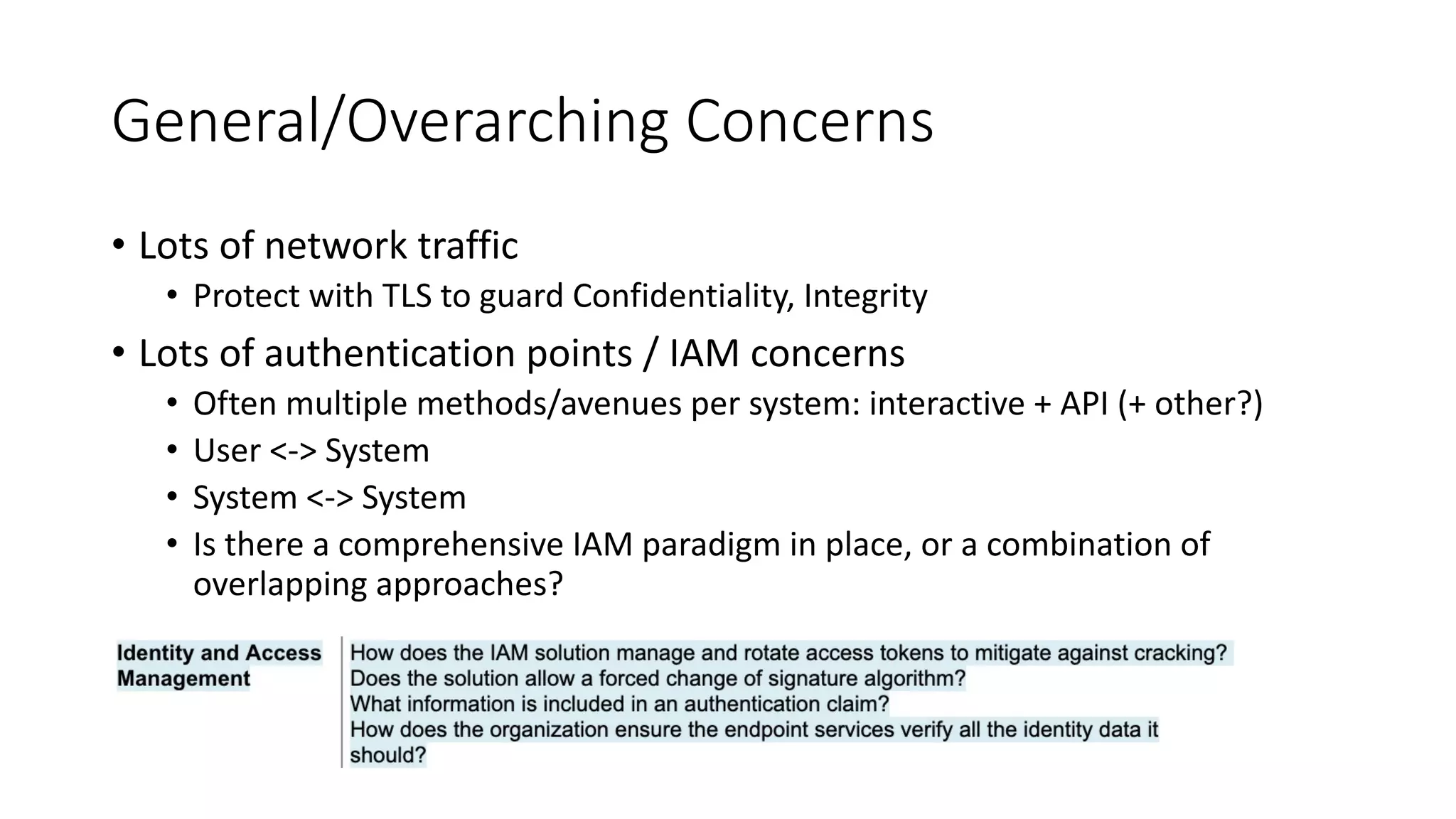

13. General/Overarching Concerns
• Lots of network traffic
• Protect with TLS to guard Confidentiality, Integrity
• Lots of authentication points / IAM concerns
• Often multiple methods/avenues per system: interactive + API (+ other?)
• User <-> System
• System <-> System
• Is there a comprehensive IAM paradigm in place, or a combination of
overlapping approaches?

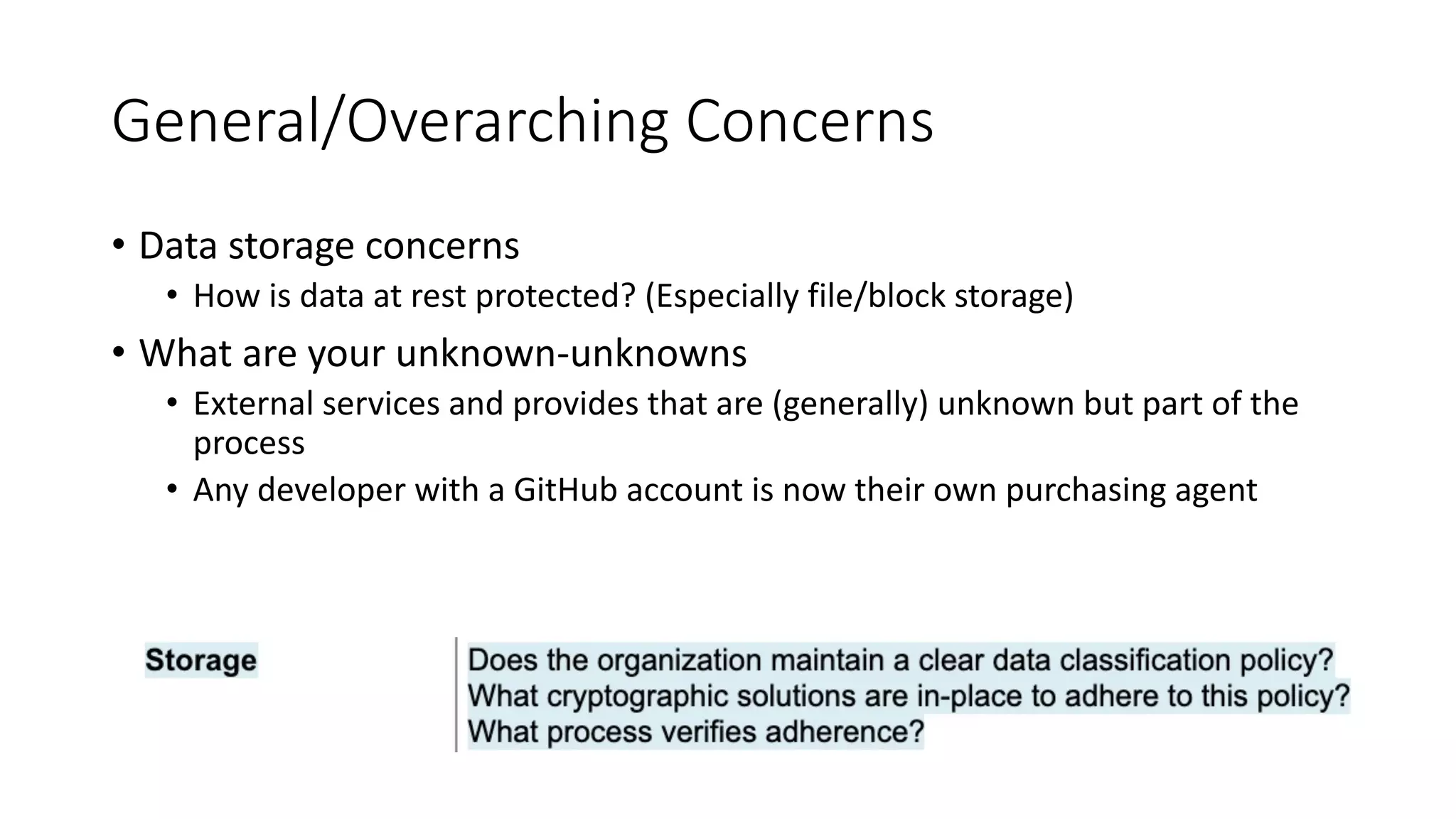

14. General/Overarching Concerns
• Data storage concerns
• How is data at rest protected? (Especially file/block storage)
• What are your unknown-unknowns
• External services and provides that are (generally) unknown but part of the
process
• Any developer with a GitHub account is now their own purchasing agent

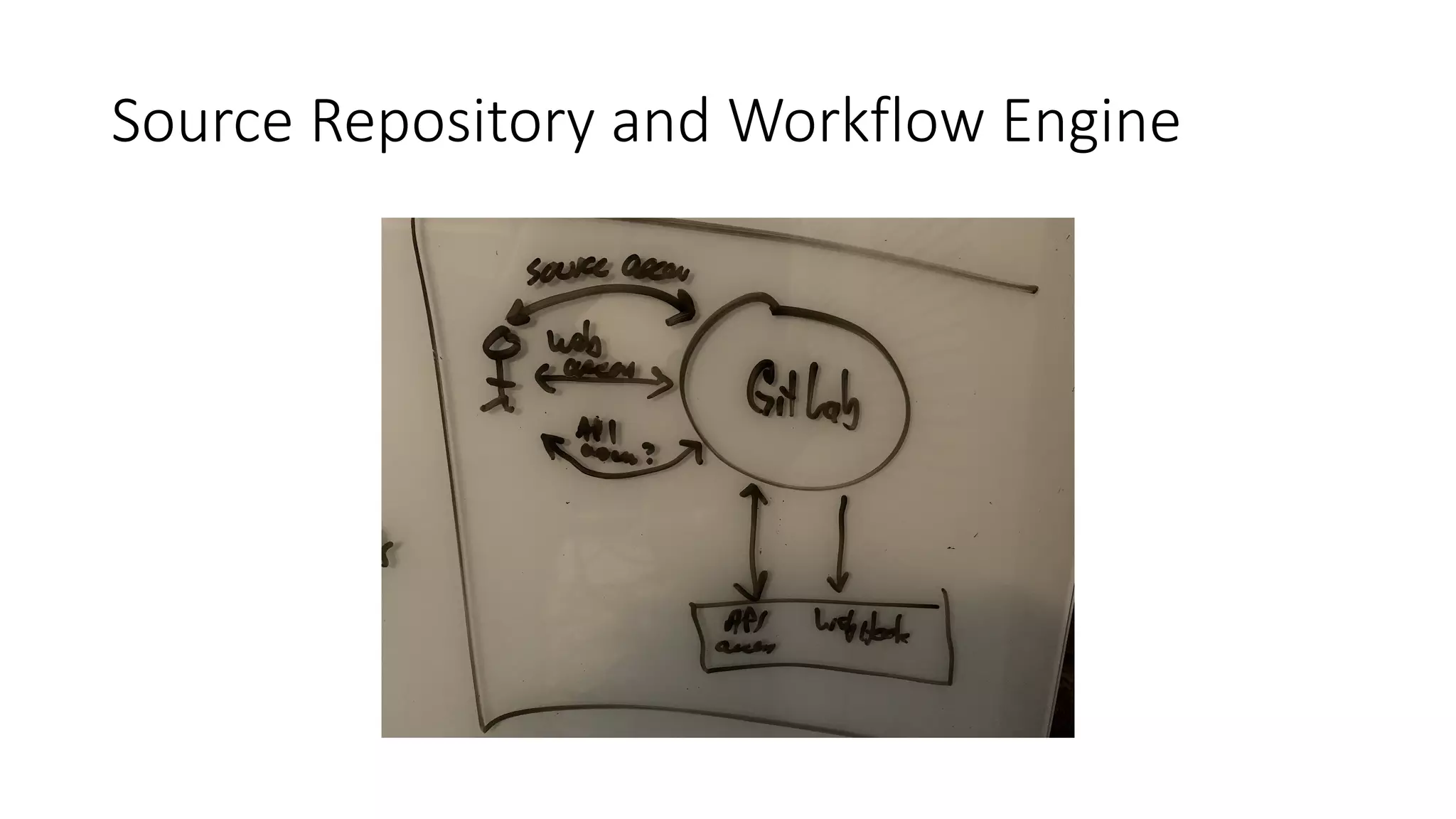

15. Source Repository and Workflow Engine

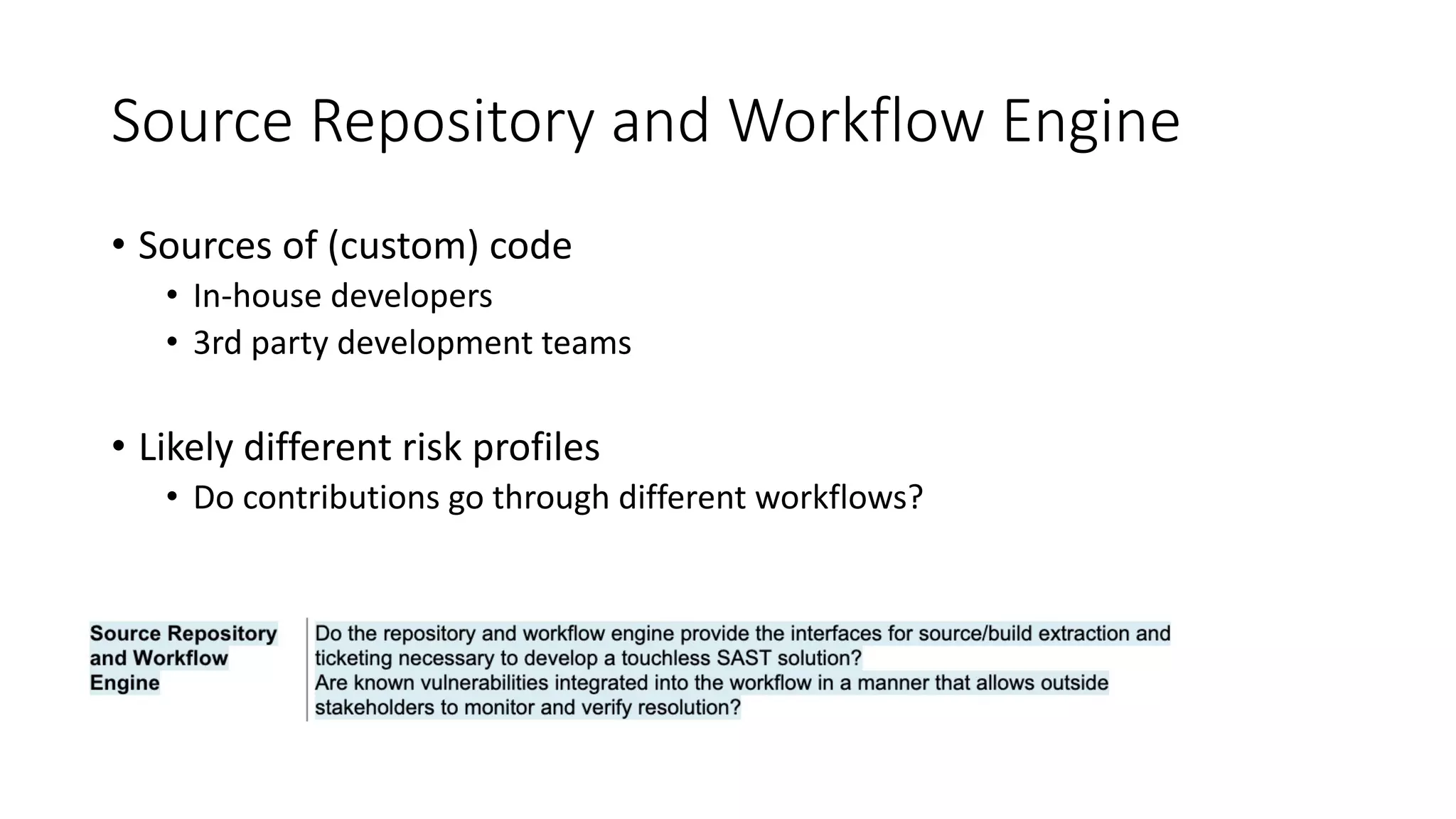

16. Source Repository and Workflow Engine
• Sources of (custom) code
• In-house developers
• 3rd party development teams
• Likely different risk profiles
• Do contributions go through different workflows?

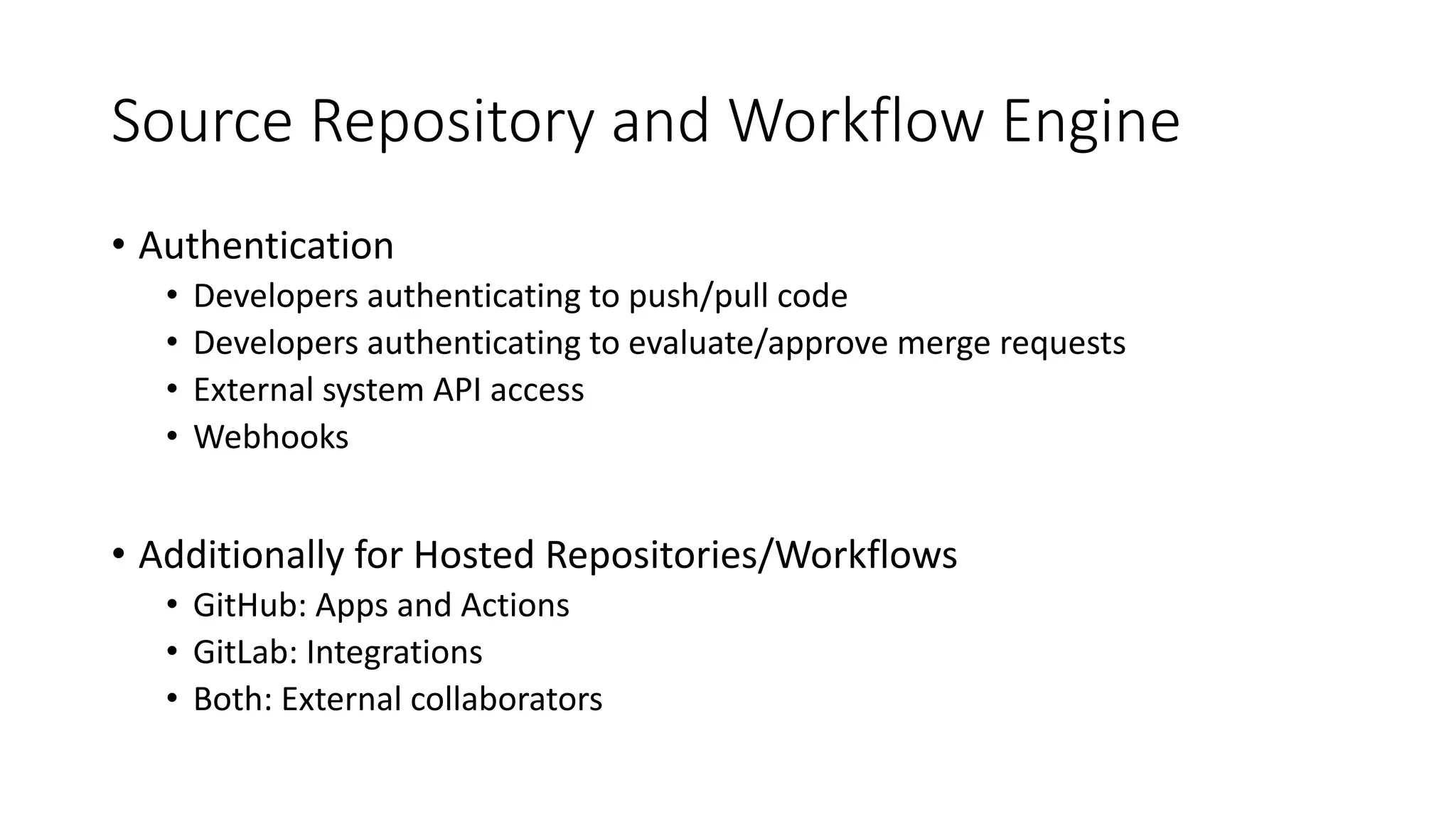

17. Source Repository and Workflow Engine
• Authentication
• Developers authenticating to push/pull code
• Developers authenticating to evaluate/approve merge requests
• External system API access
• Webhooks
• Additionally for Hosted Repositories/Workflows
• GitHub: Apps and Actions
• GitLab: Integrations
• Both: External collaborators

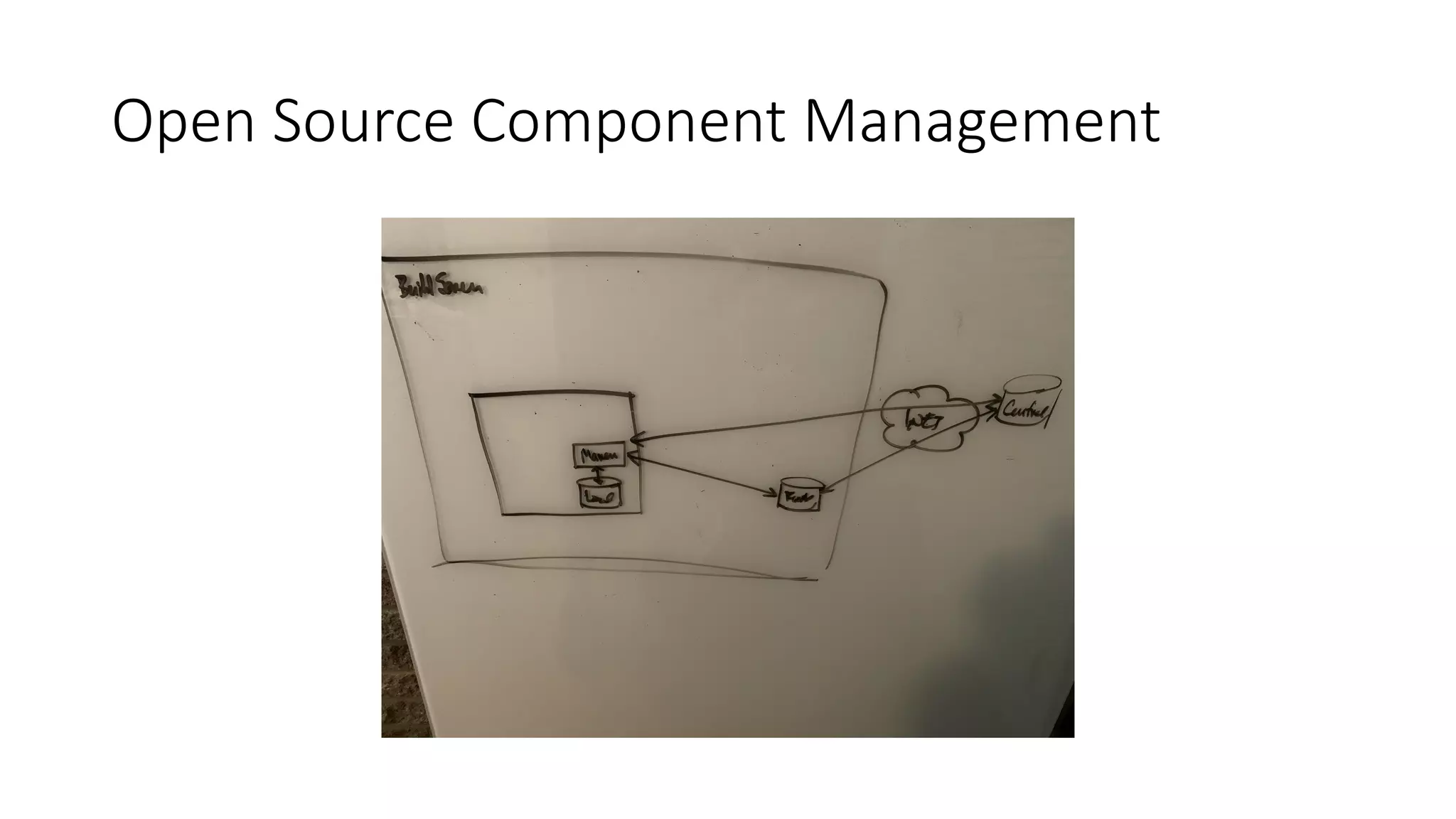

18. Open Source Component Management

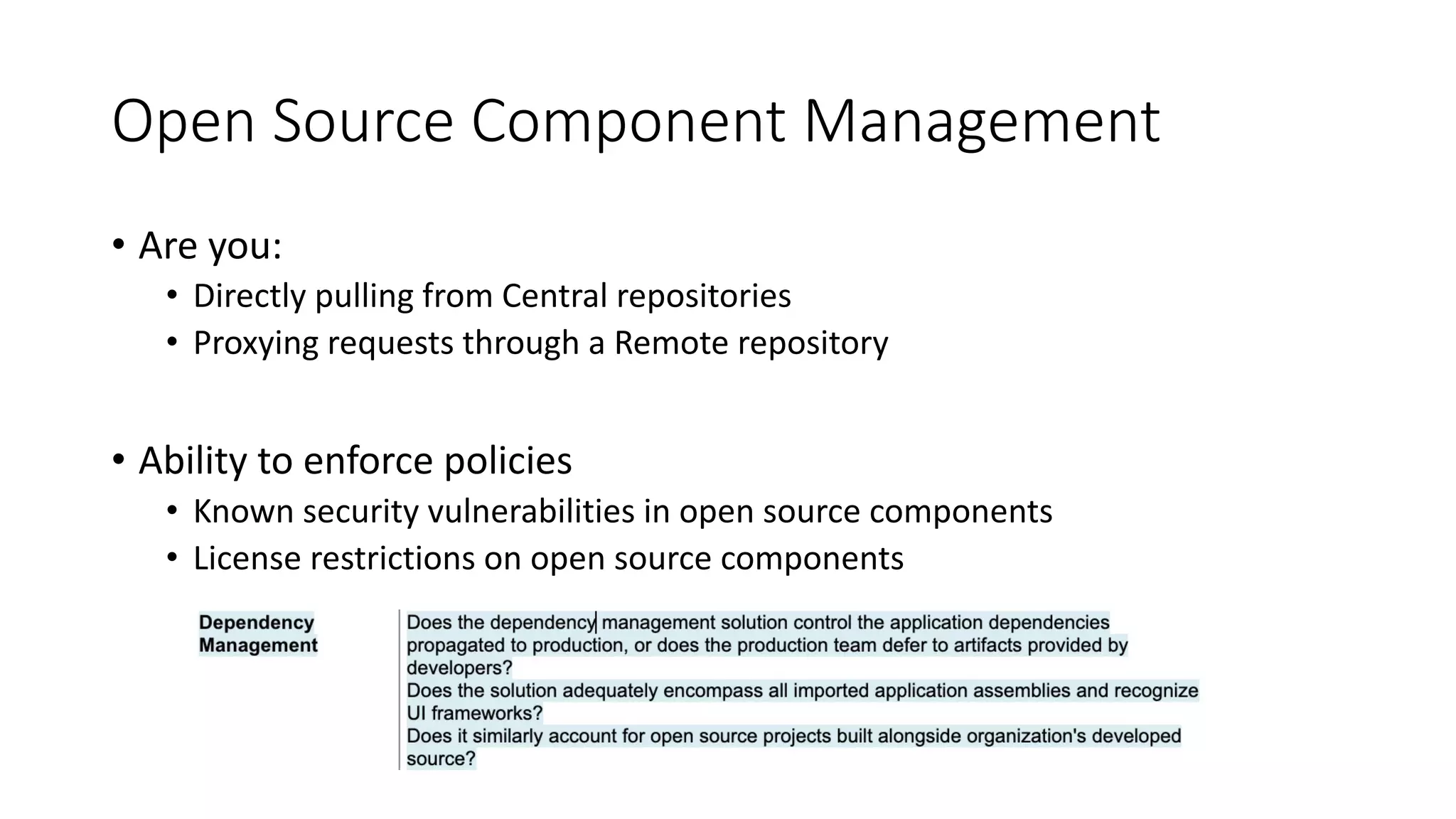

19. Open Source Component Management
• Are you:
• Directly pulling from Central repositories
• Proxying requests through a Remote repository
• Ability to enforce policies
• Known security vulnerabilities in open source components
• License restrictions on open source components

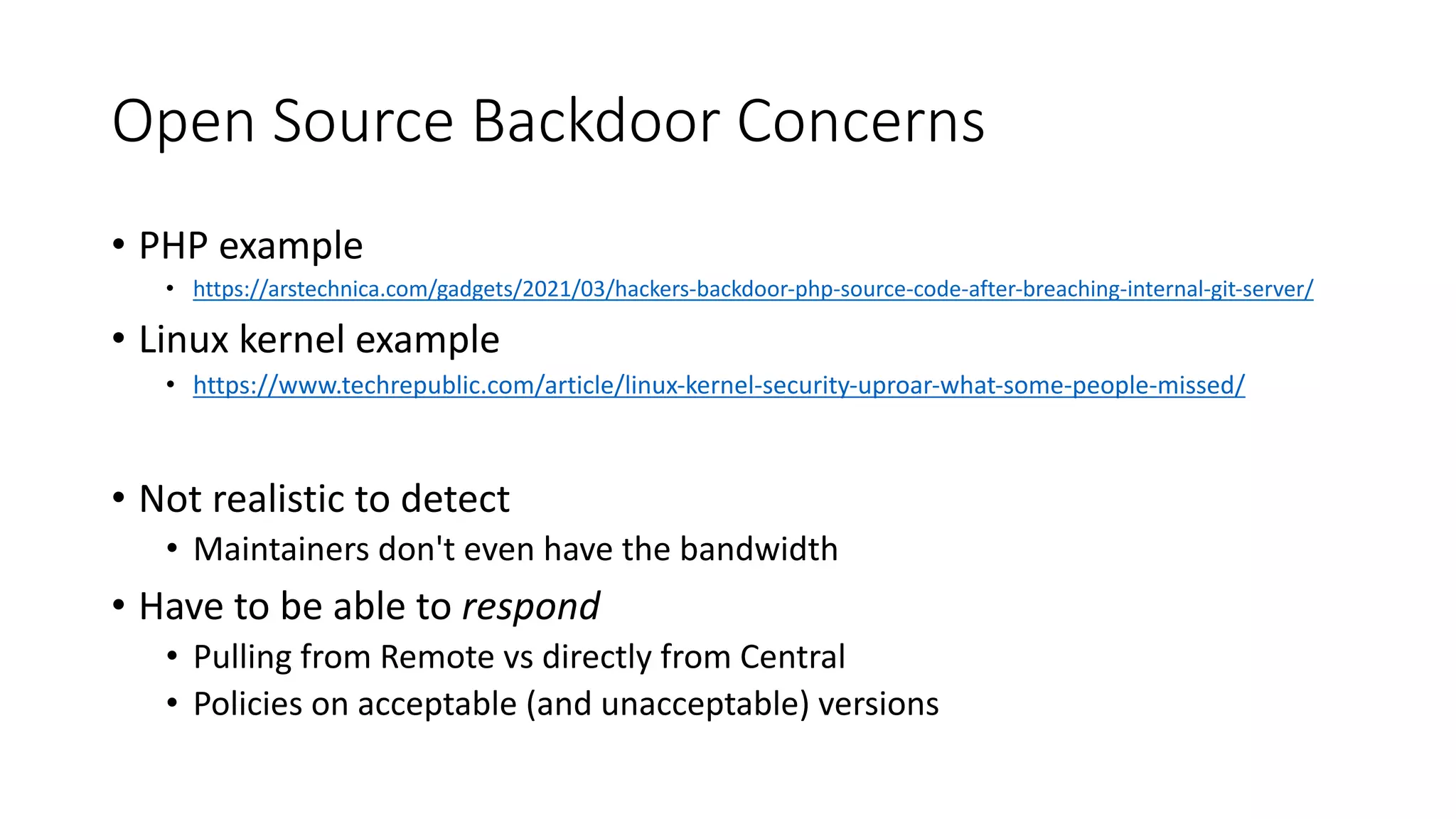

20. Open Source Backdoor Concerns
• PHP example
• https://arstechnica.com/gadgets/2021/03/hackers-backdoor-php-source-code-after-breaching-internal-git-server/
• Linux kernel example
• https://www.techrepublic.com/article/linux-kernel-security-uproar-what-some-people-missed/
• Not realistic to detect
• Maintainers don't even have the bandwidth
• Have to be able to respond
• Pulling from Remote vs directly from Central
• Policies on acceptable (and unacceptable) versions

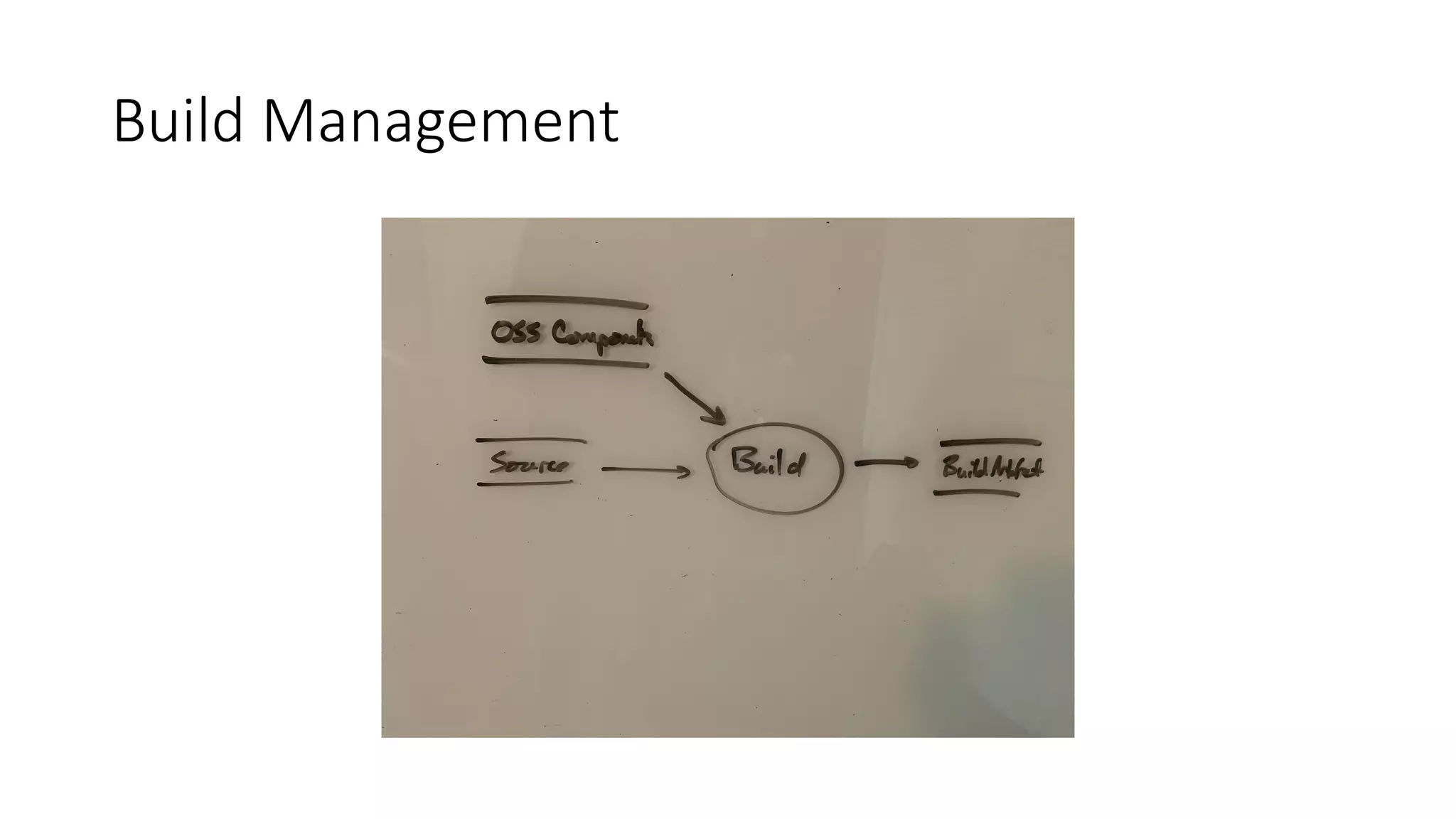

21. Build Management

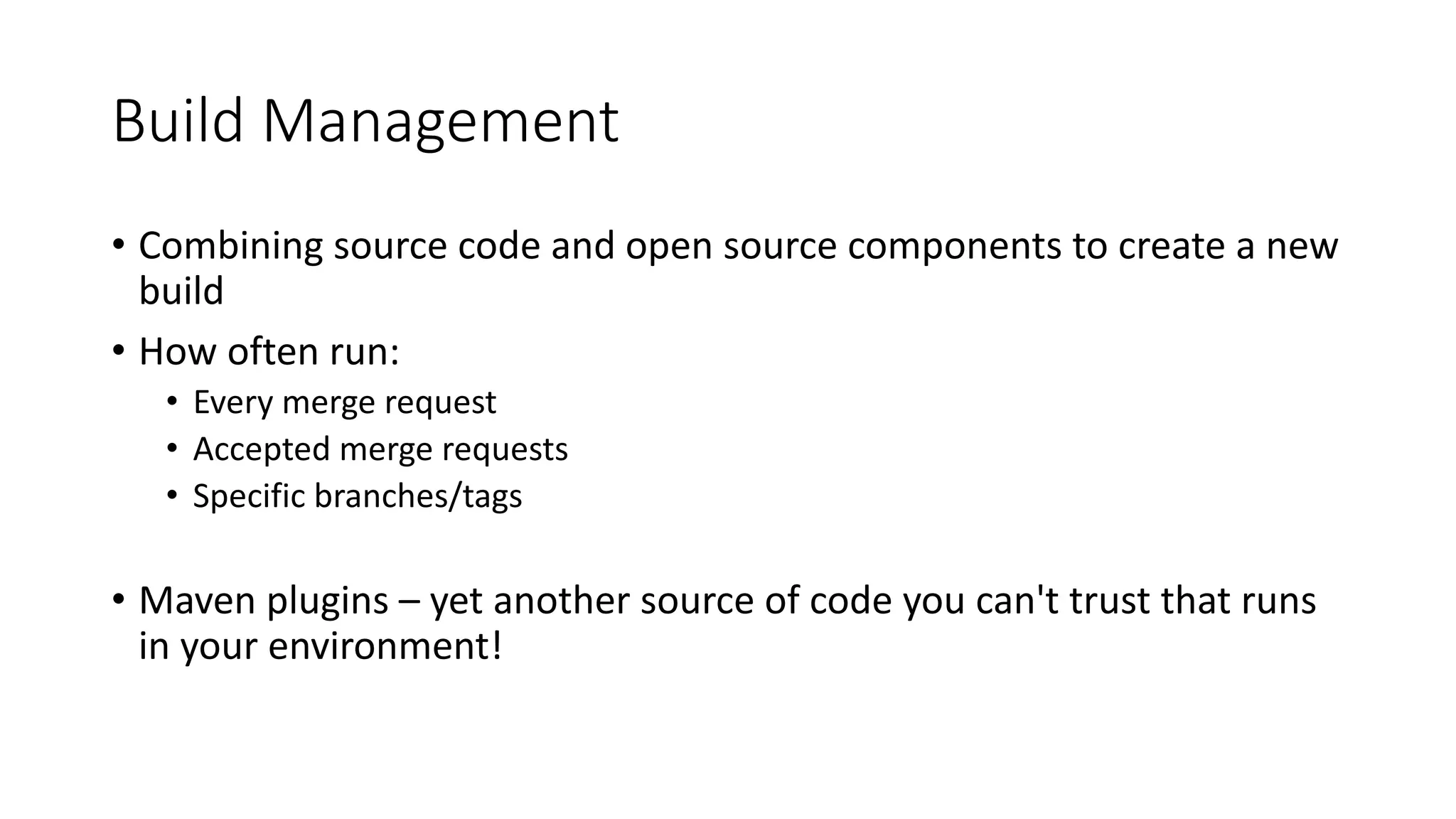

22. Build Management
• Combining source code and open source components to create a new
build
• How often run:
• Every merge request
• Accepted merge requests
• Specific branches/tags
• Maven plugins – yet another source of code you can't trust that runs
in your environment!

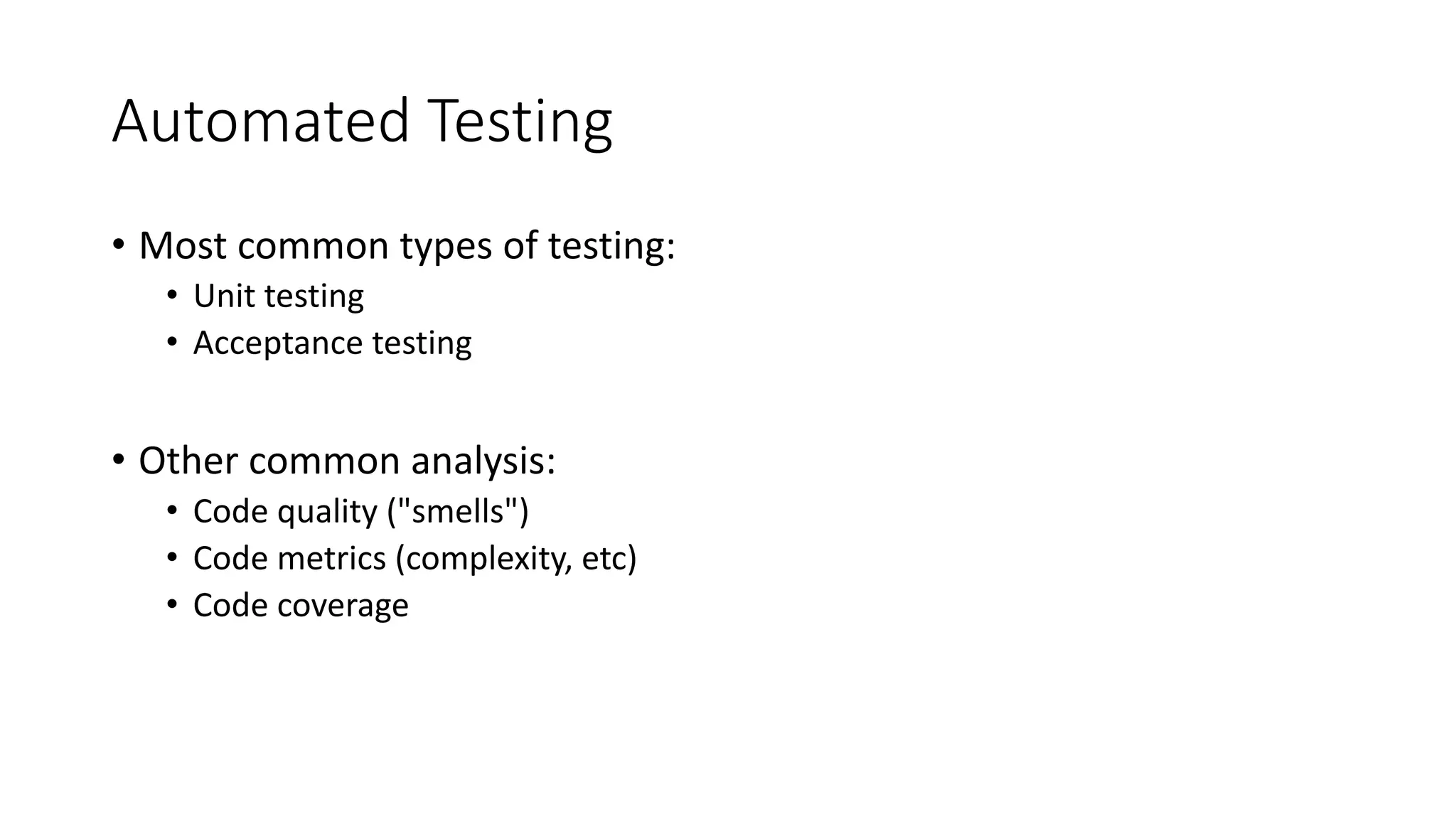

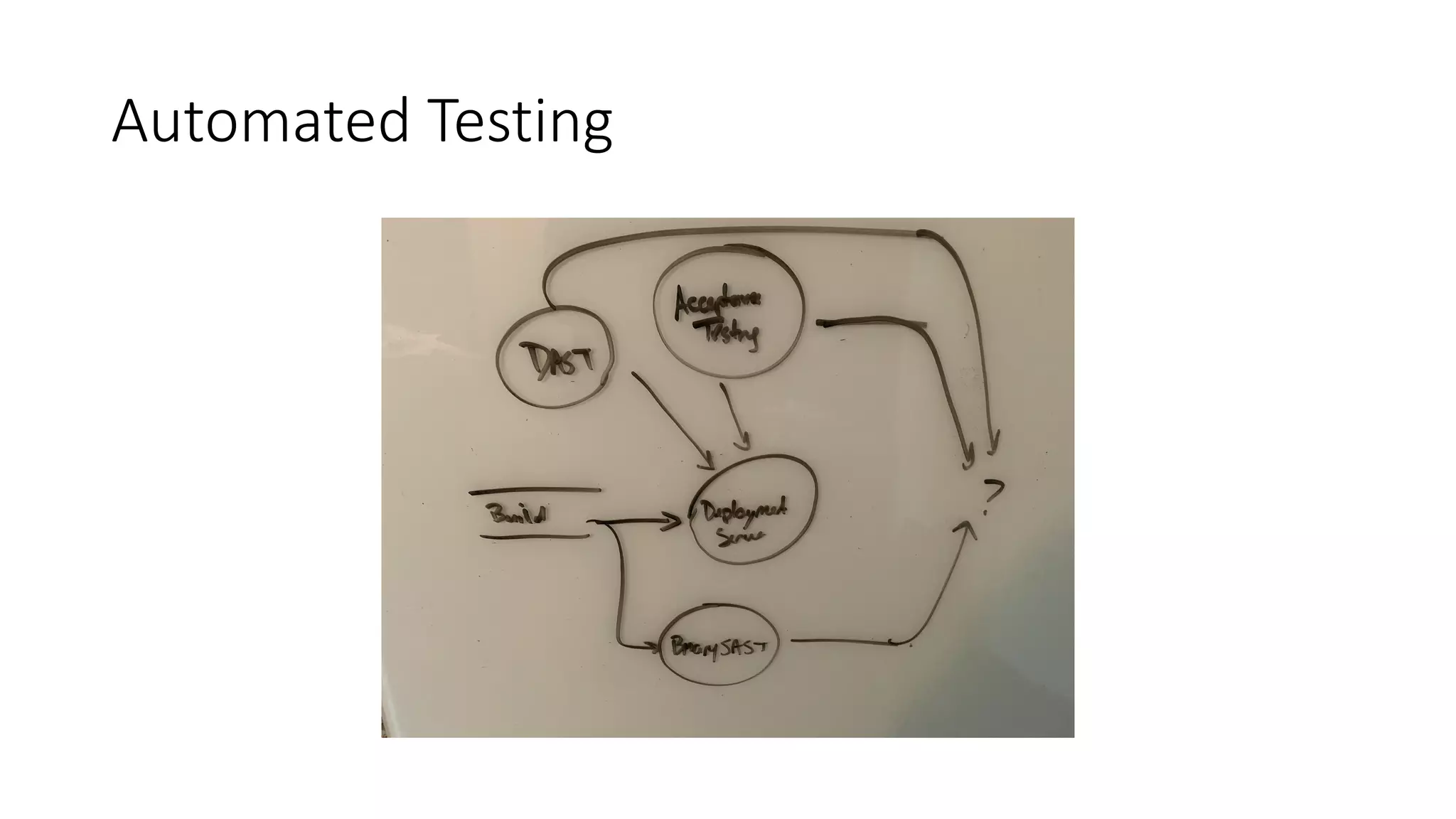

23. Automated Testing

24. Automated Testing
• Most common types of testing:
• Unit testing
• Acceptance testing
• Other common analysis:
• Code quality ("smells")
• Code metrics (complexity, etc)
• Code coverage

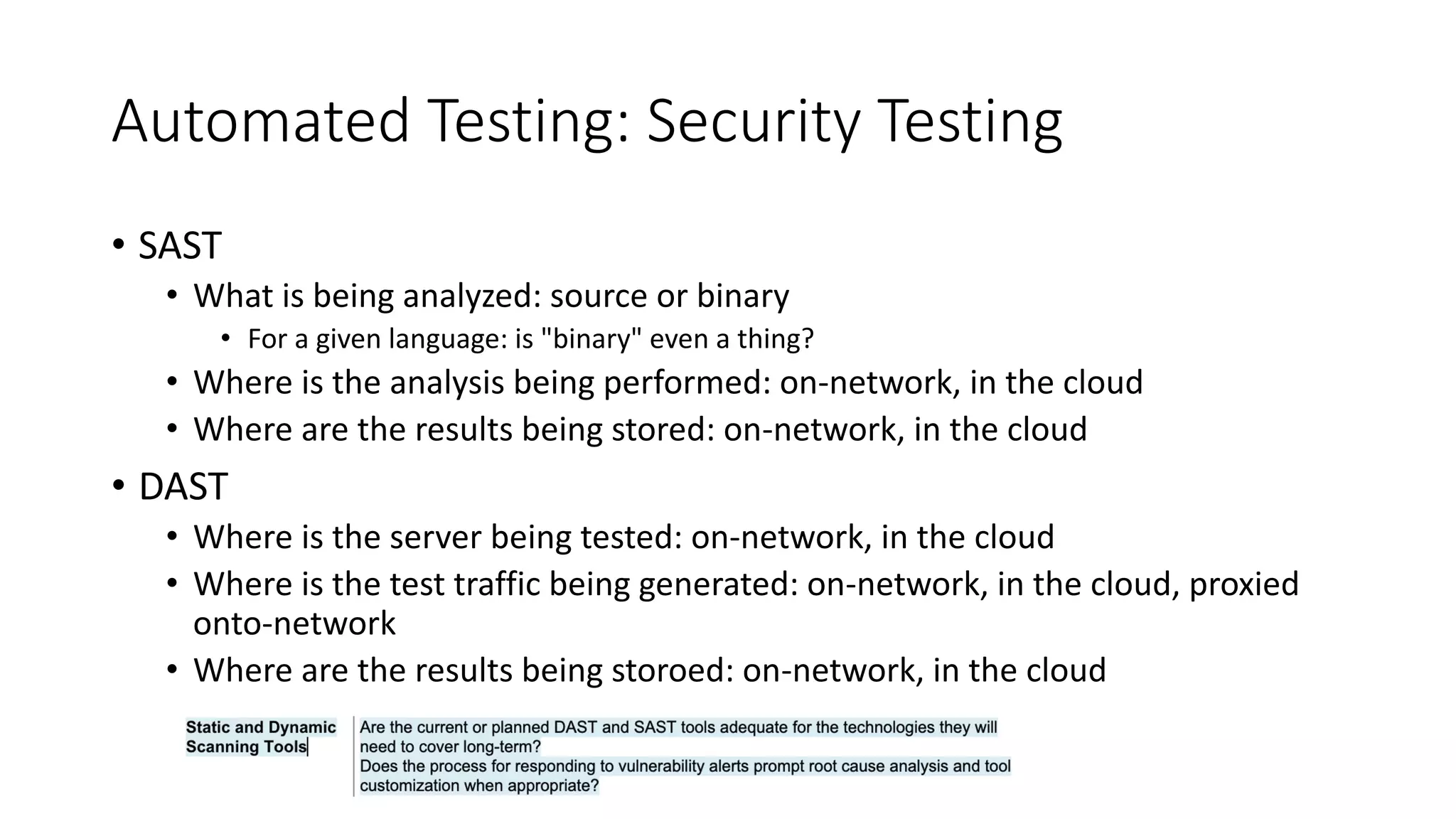

25. Automated Testing: Security Testing
• SAST
• What is being analyzed: source or binary
• For a given language: is "binary" even a thing?
• Where is the analysis being performed: on-network, in the cloud
• Where are the results being stored: on-network, in the cloud
• DAST
• Where is the server being tested: on-network, in the cloud
• Where is the test traffic being generated: on-network, in the cloud, proxied
onto-network
• Where are the results being storoed: on-network, in the cloud

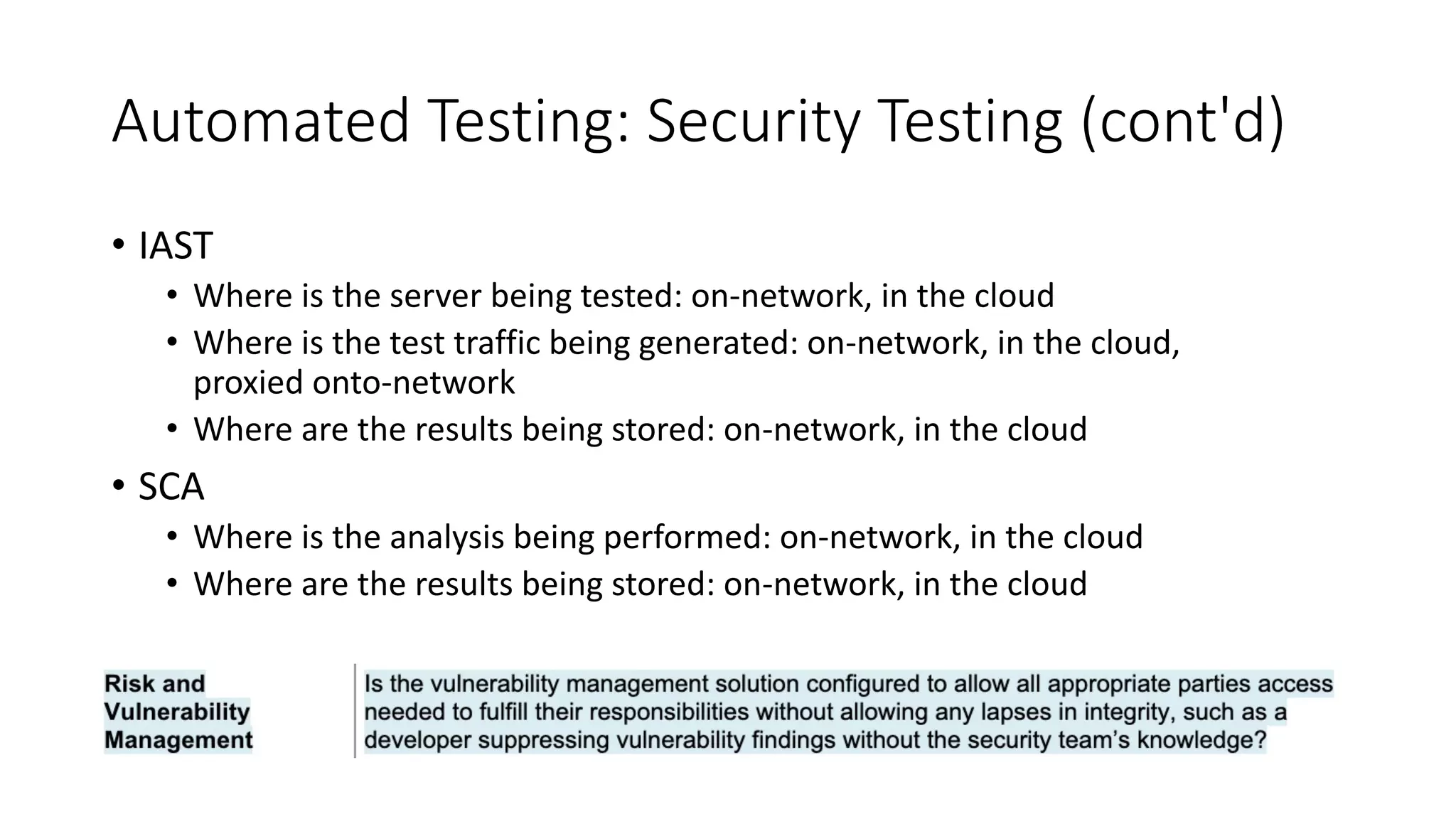

26. Automated Testing: Security Testing (cont'd)
• IAST
• Where is the server being tested: on-network, in the cloud
• Where is the test traffic being generated: on-network, in the cloud,
proxied onto-network
• Where are the results being stored: on-network, in the cloud
• SCA
• Where is the analysis being performed: on-network, in the cloud
• Where are the results being stored: on-network, in the cloud

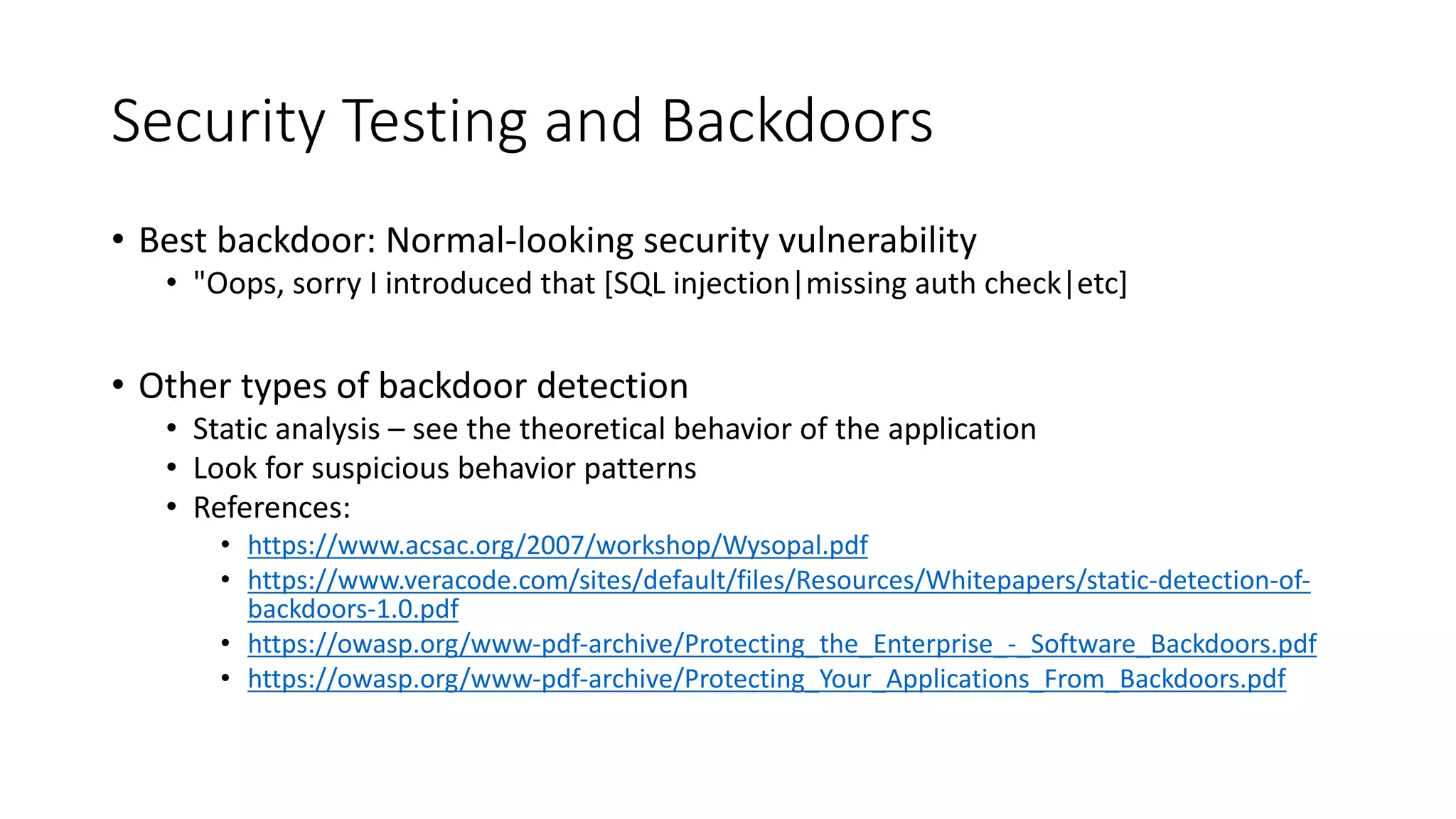

27. Security Testing and Backdoors
• Best backdoor: Normal-looking security vulnerability
• "Oops, sorry I introduced that [SQL injection|missing auth check|etc]
• Other types of backdoor detection
• Static analysis – see the theoretical behavior of the application
• Look for suspicious behavior patterns
• References:
• https://www.acsac.org/2007/workshop/Wysopal.pdf
• https://www.veracode.com/sites/default/files/Resources/Whitepapers/static-detection-of-
backdoors-1.0.pdf
• https://owasp.org/www-pdf-archive/Protecting_the_Enterprise_-_Software_Backdoors.pdf
• https://owasp.org/www-pdf-archive/Protecting_Your_Applications_From_Backdoors.pdf

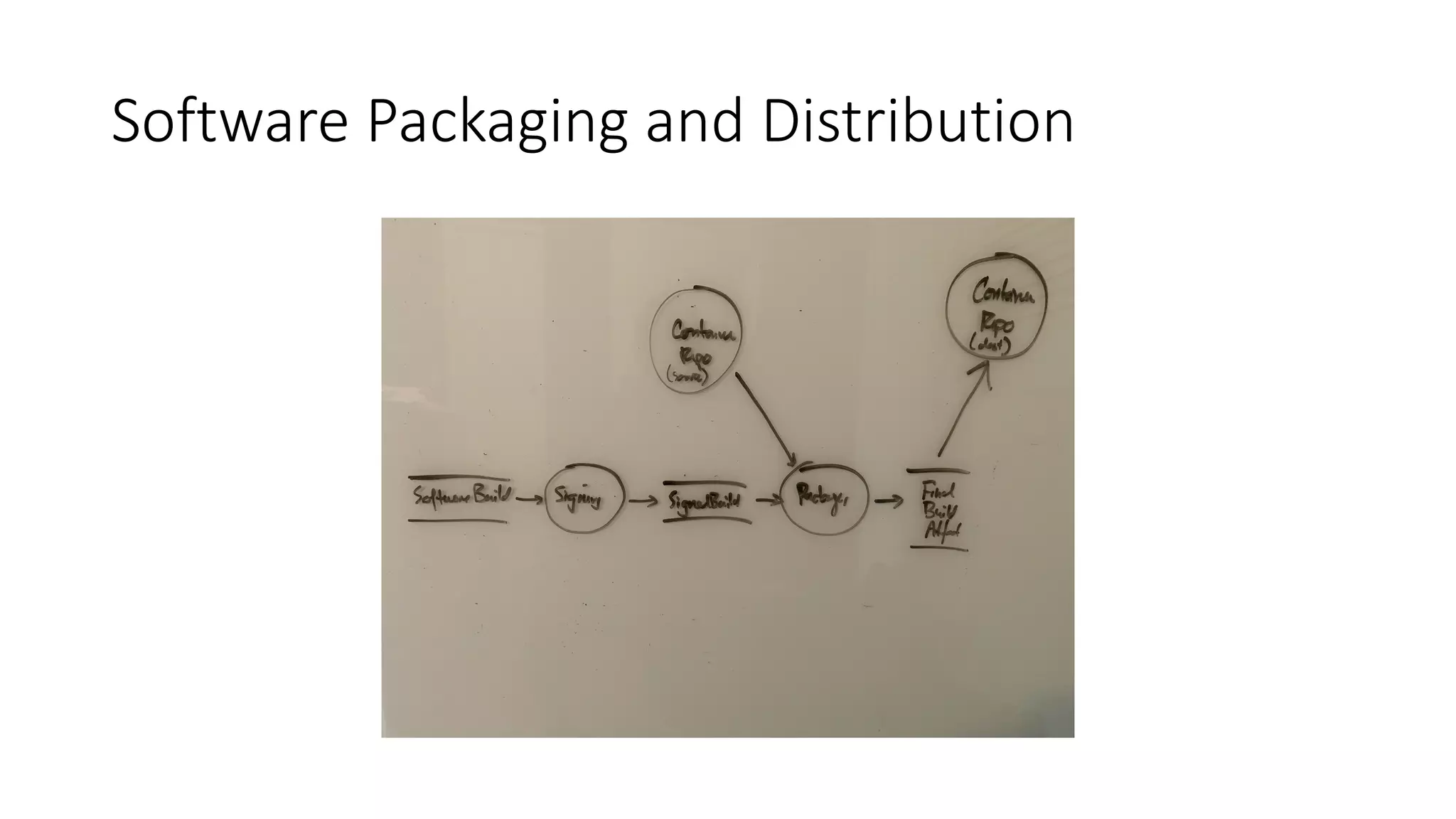

28. Software Packaging and Distribution

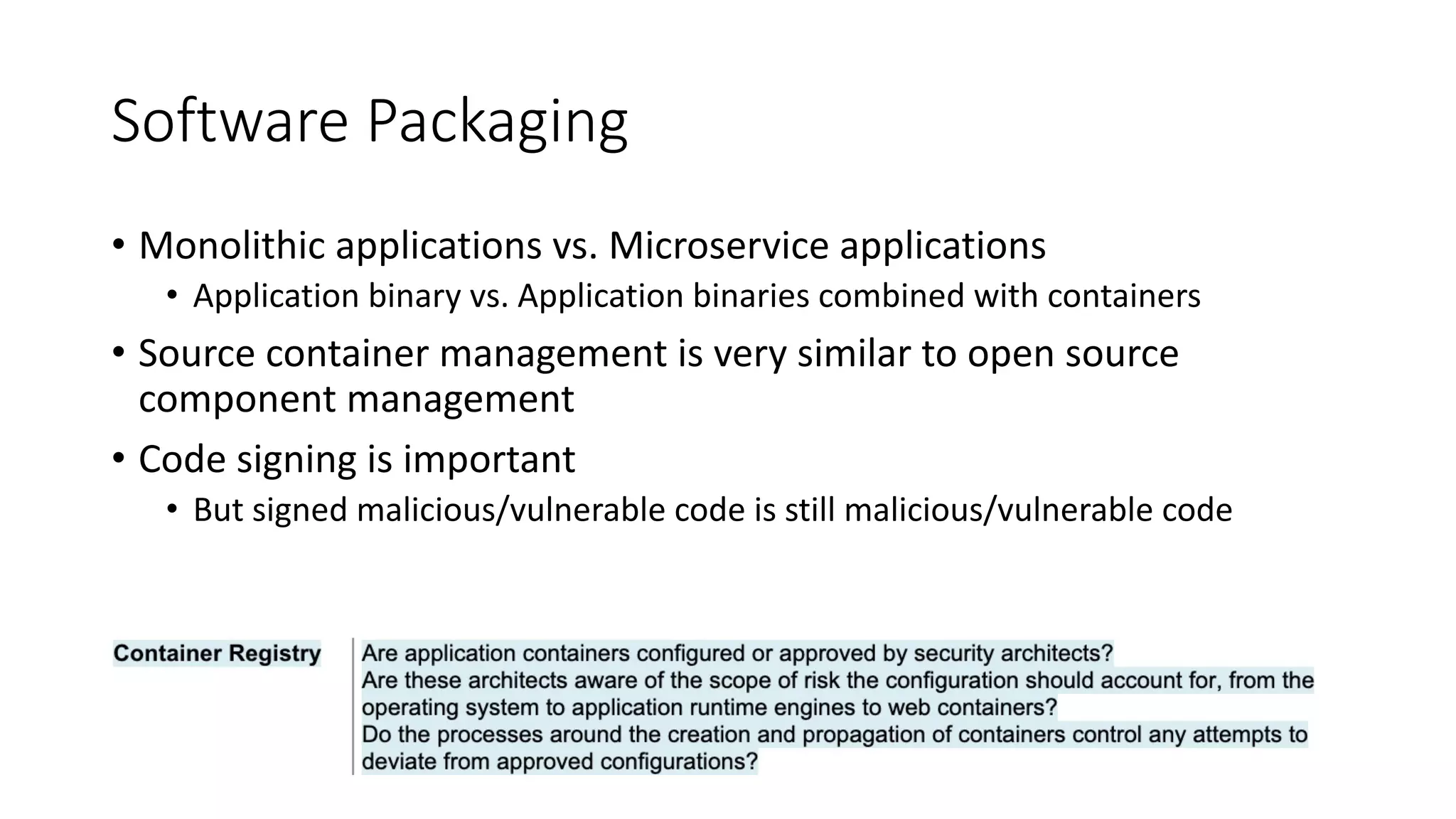

29. Software Packaging
• Monolithic applications vs. Microservice applications
• Application binary vs. Application binaries combined with containers
• Source container management is very similar to open source
component management
• Code signing is important
• But signed malicious/vulnerable code is still malicious/vulnerable code

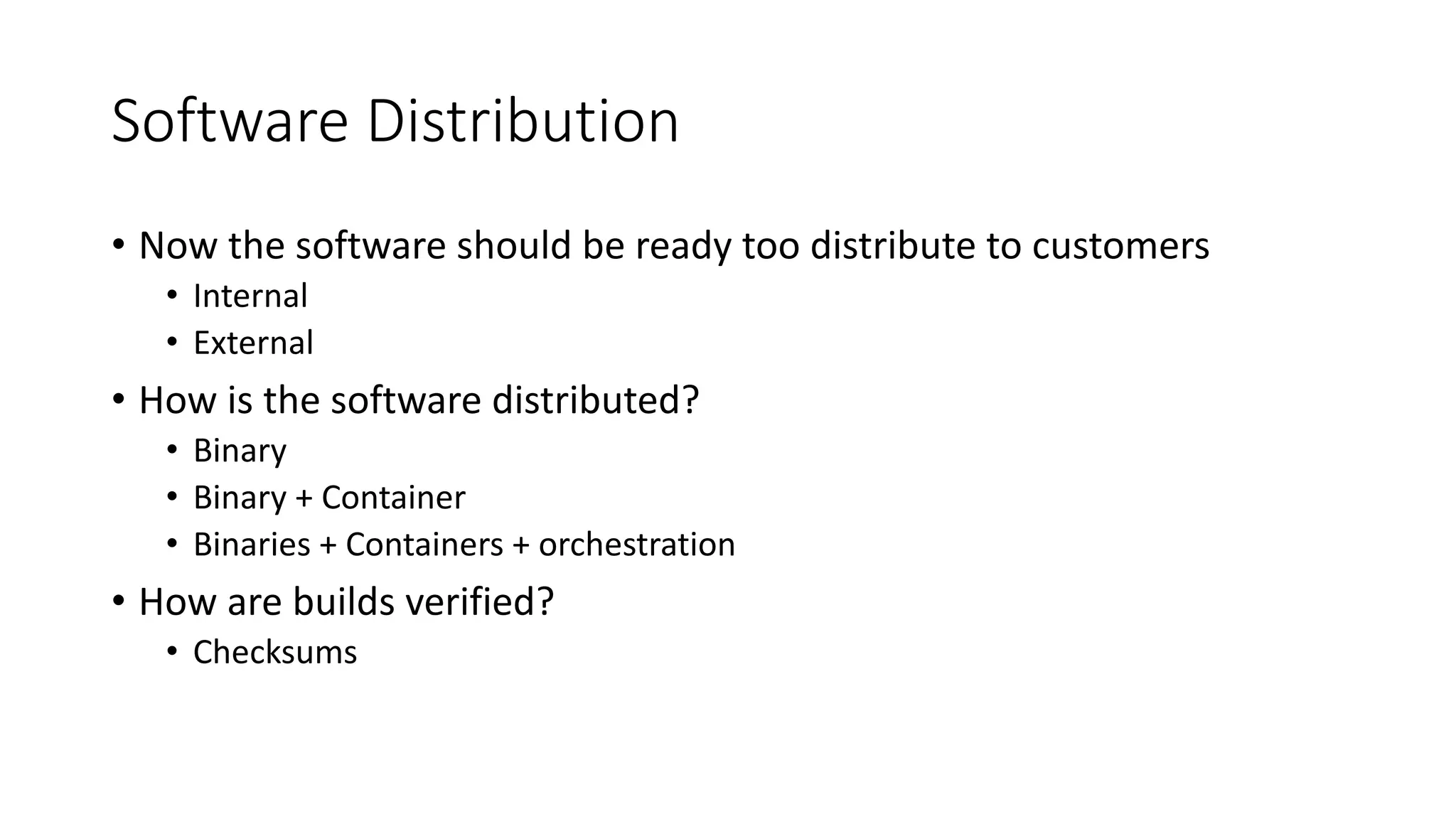

30. Software Distribution
• Now the software should be ready too distribute to customers
• Internal
• External
• How is the software distributed?
• Binary
• Binary + Container
• Binaries + Containers + orchestration
• How are builds verified?
• Checksums

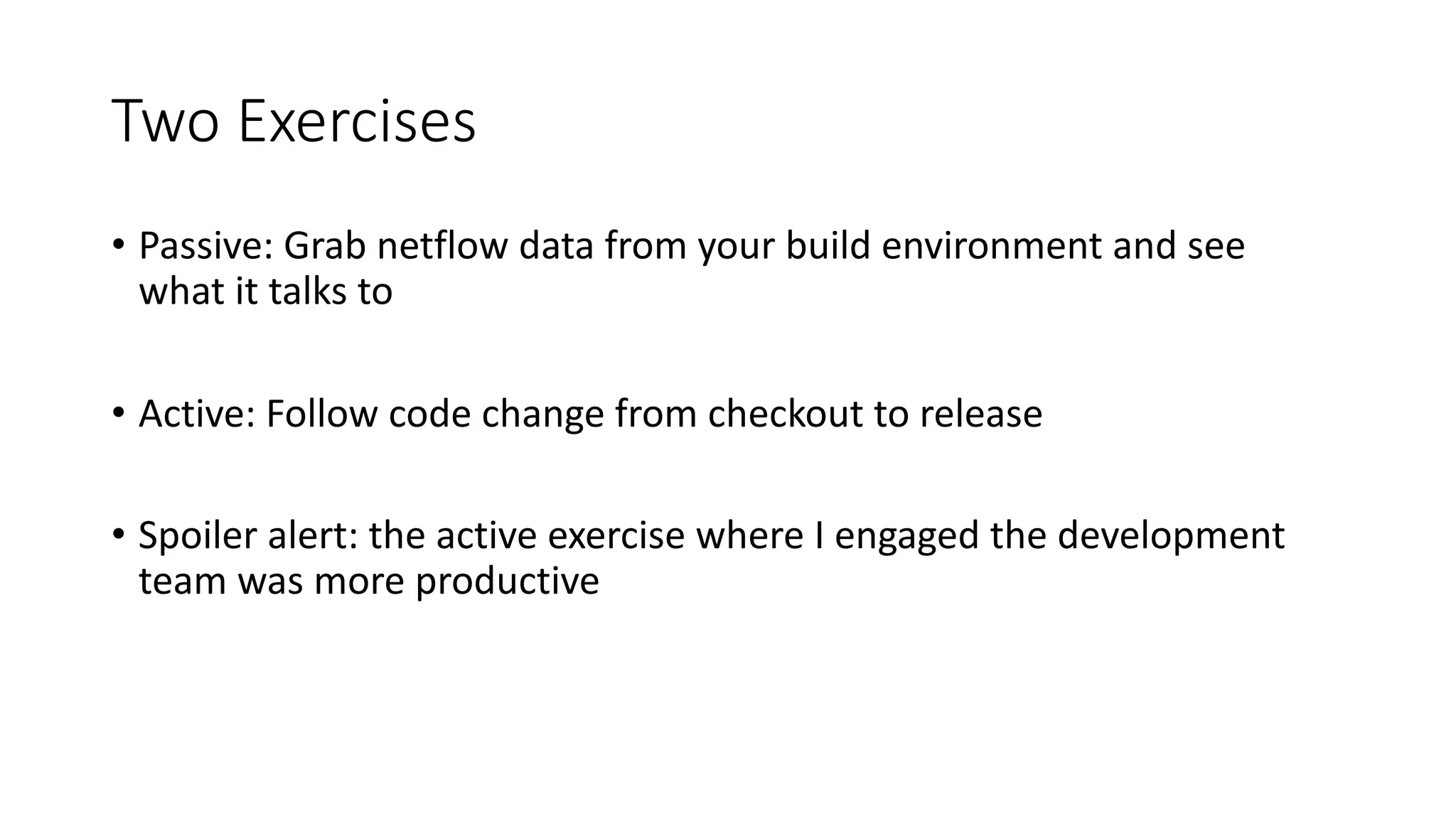

31. Two Exercises
• Passive: Grab netflow data from your build environment and see
what it talks to
• Active: Follow code change from checkout to release
• Spoiler alert: the active exercise where I engaged the development
team was more productive

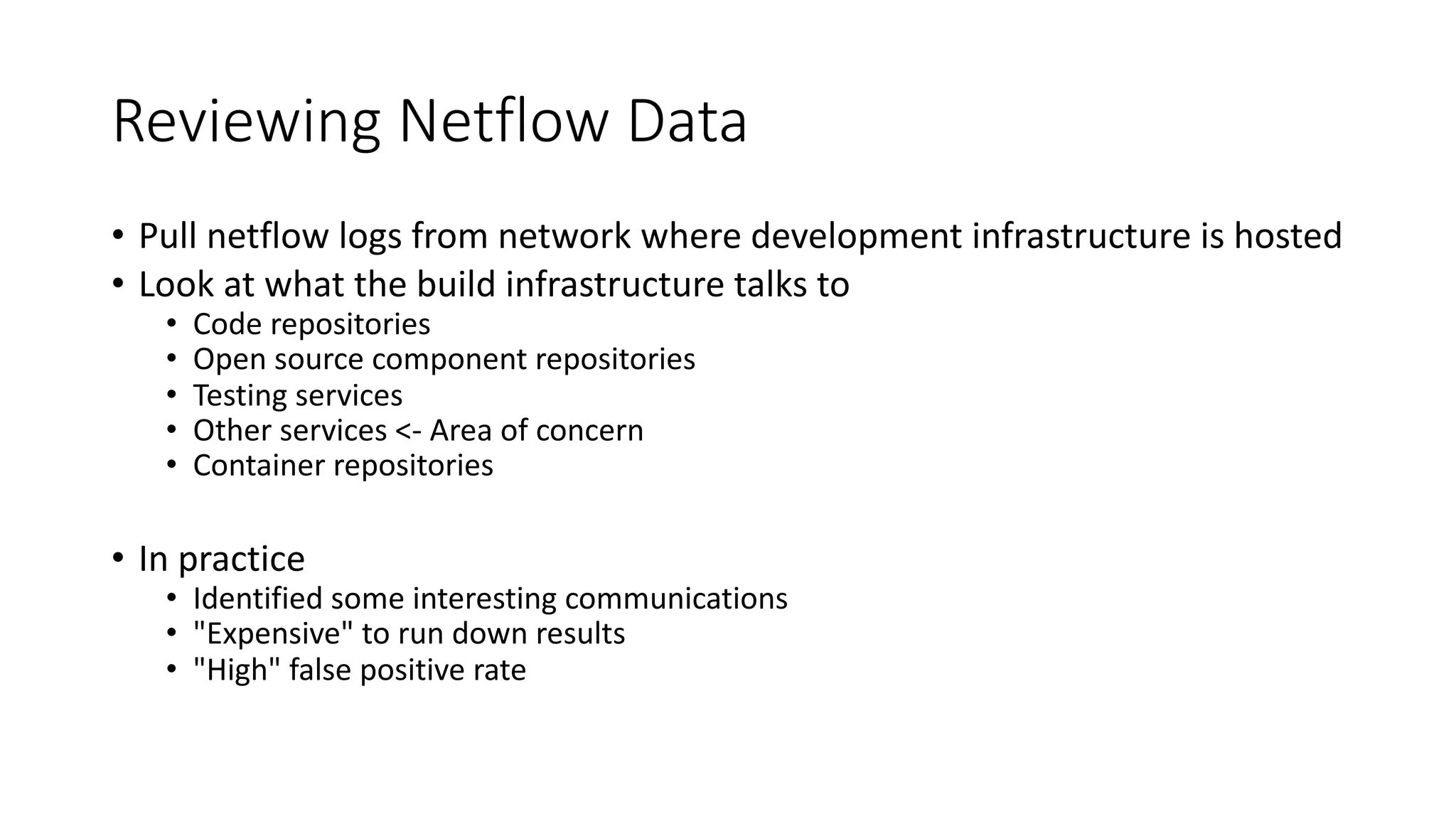

32. Reviewing Netflow Data
• Pull netflow logs from network where development infrastructure is hosted
• Look at what the build infrastructure talks to
• Code repositories
• Open source component repositories
• Testing services
• Other services <- Area of concern
• Container repositories
• In practice
• Identified some interesting communications
• "Expensive" to run down results
• "High" false positive rate

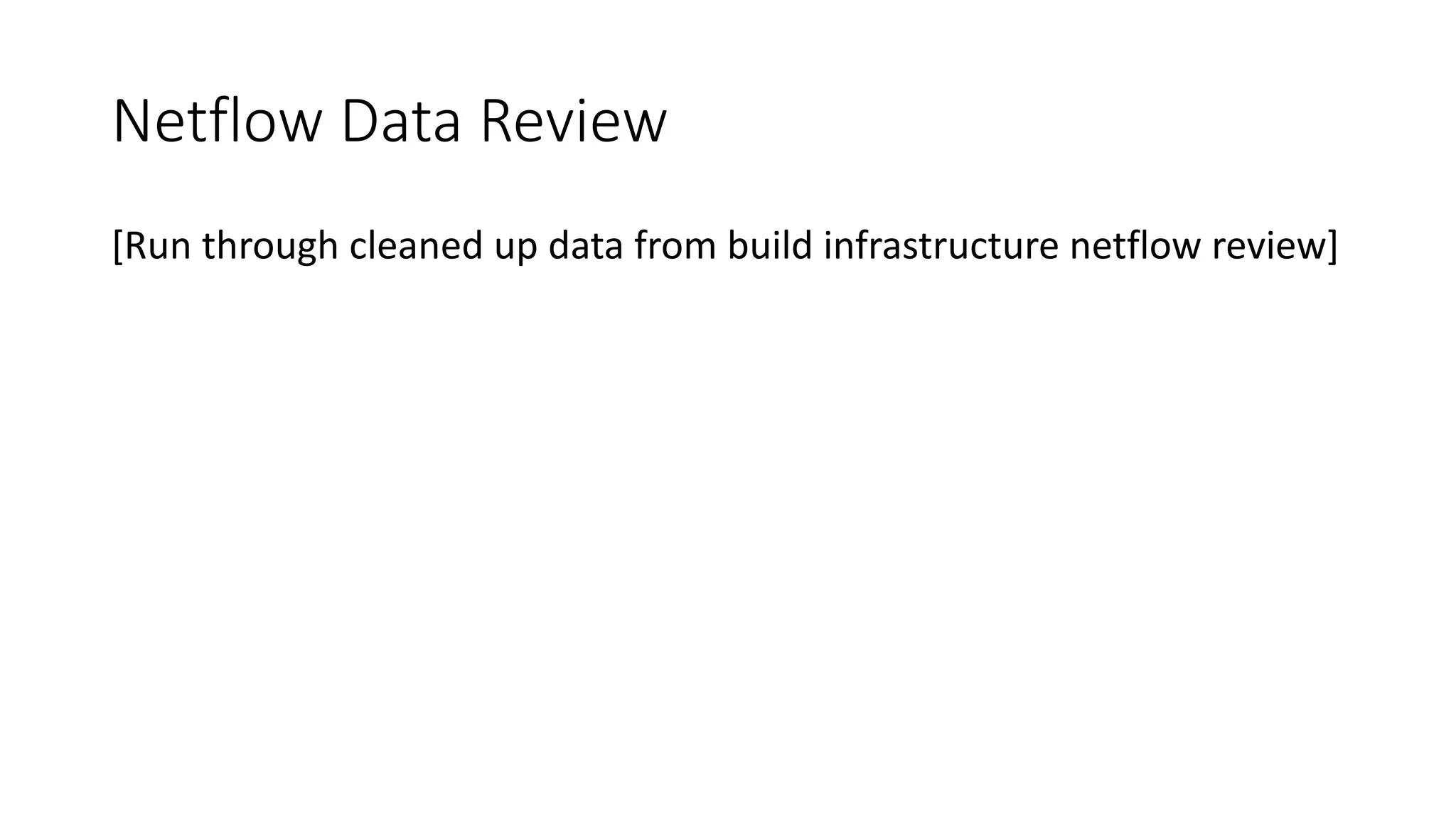

33. Netflow Data Review
[Run through cleaned up data from build infrastructure netflow review]

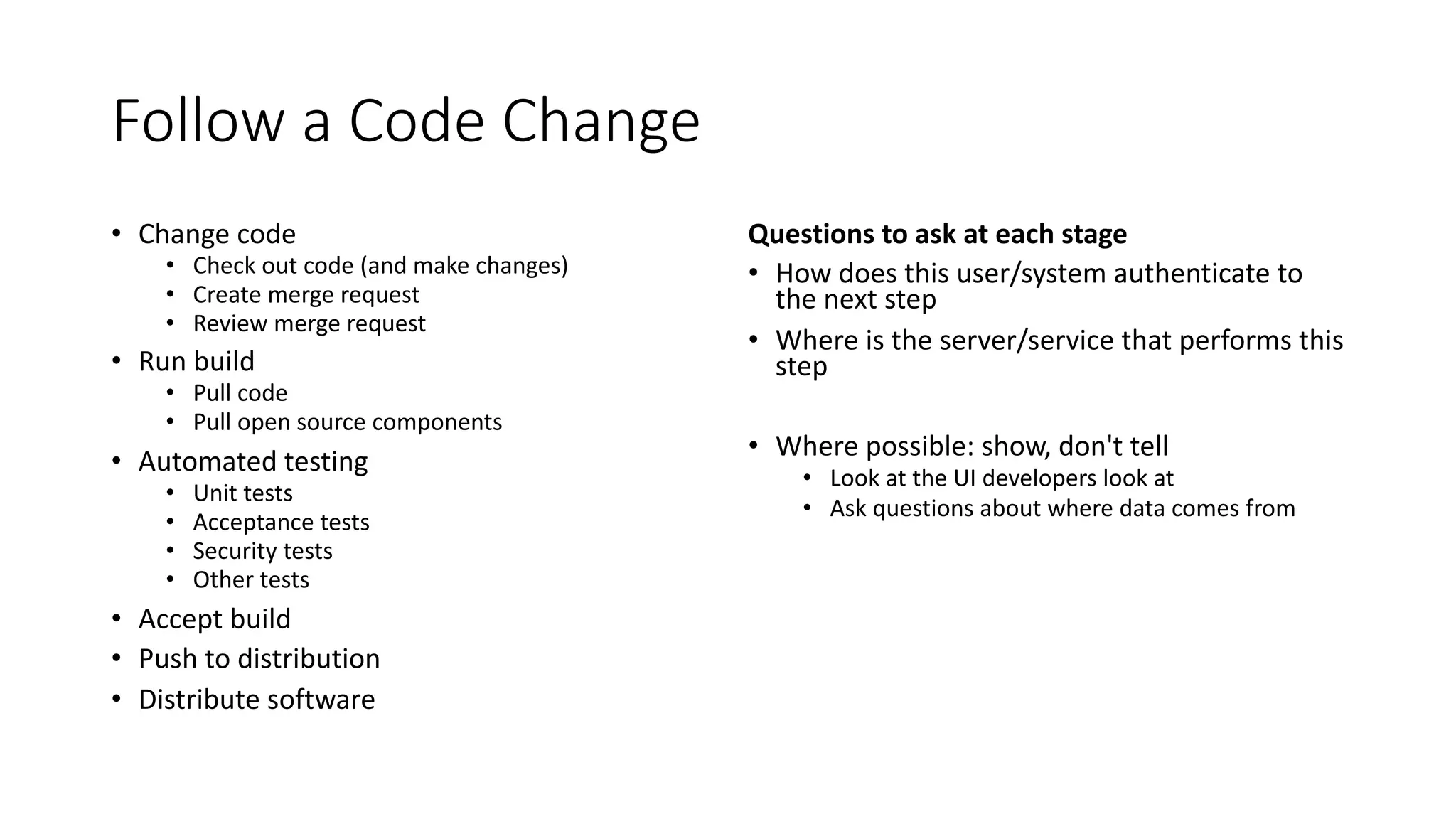

34. Follow a Code Change
• Change code
• Check out code (and make changes)
• Create merge request
• Review merge request
• Run build
• Pull code
• Pull open source components
• Automated testing
• Unit tests
• Acceptance tests
• Security tests
• Other tests
• Accept build
• Push to distribution
• Distribute software
Questions to ask at each stage
• How does this user/system authenticate to
the next step
• Where is the server/service that performs this
step
• Where possible: show, don't tell
• Look at the UI developers look at
• Ask questions about where data comes from

35. GitLab Walkthrough

36. Jenkins Walkthrough

37. GitHub Walkthrough

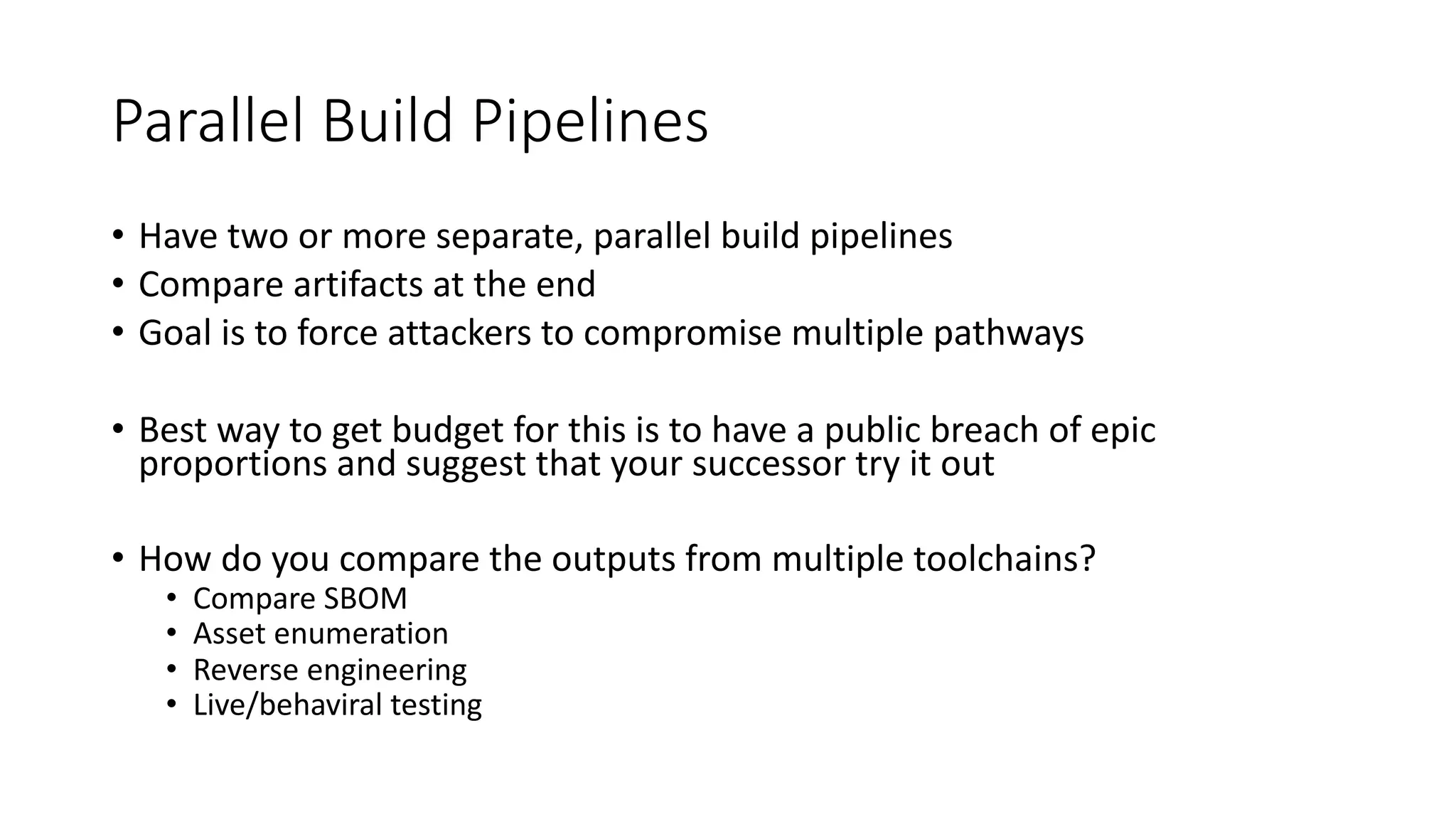

38. Parallel Build Pipelines
• Have two or more separate, parallel build pipelines
• Compare artifacts at the end
• Goal is to force attackers to compromise multiple pathways
• Best way to get budget for this is to have a public breach of epic
proportions and suggest that your successor try it out
• How do you compare the outputs from multiple toolchains?
• Compare SBOM
• Asset enumeration
• Reverse engineering
• Live/behaviral testing

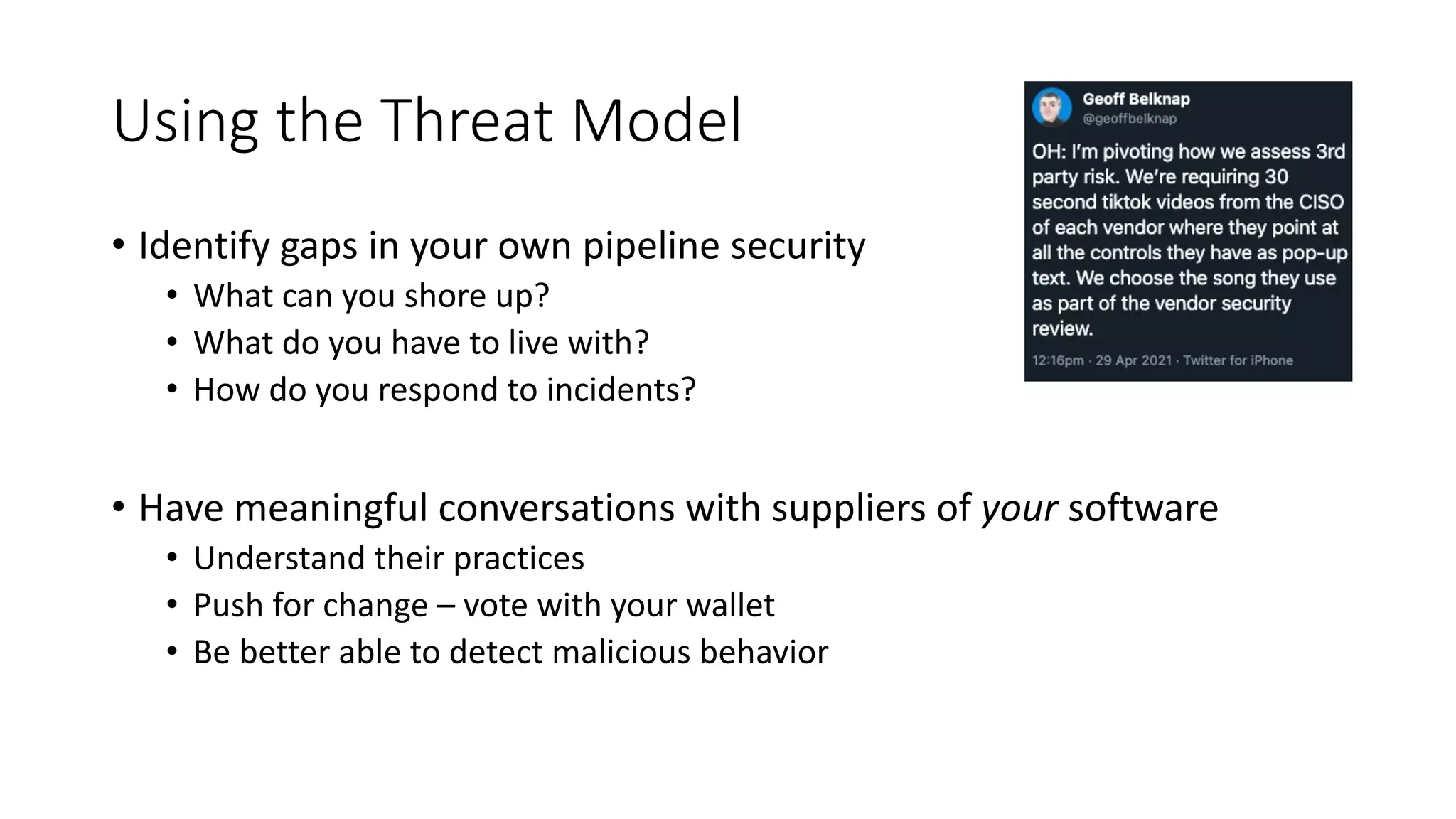

39. Using the Threat Model
• Identify gaps in your own pipeline security
• What can you shore up?
• What do you have to live with?
• How do you respond to incidents?
• Have meaningful conversations with suppliers of your software
• Understand their practices
• Push for change – vote with your wallet
• Be better able to detect malicious behavior

40. Vendor Management

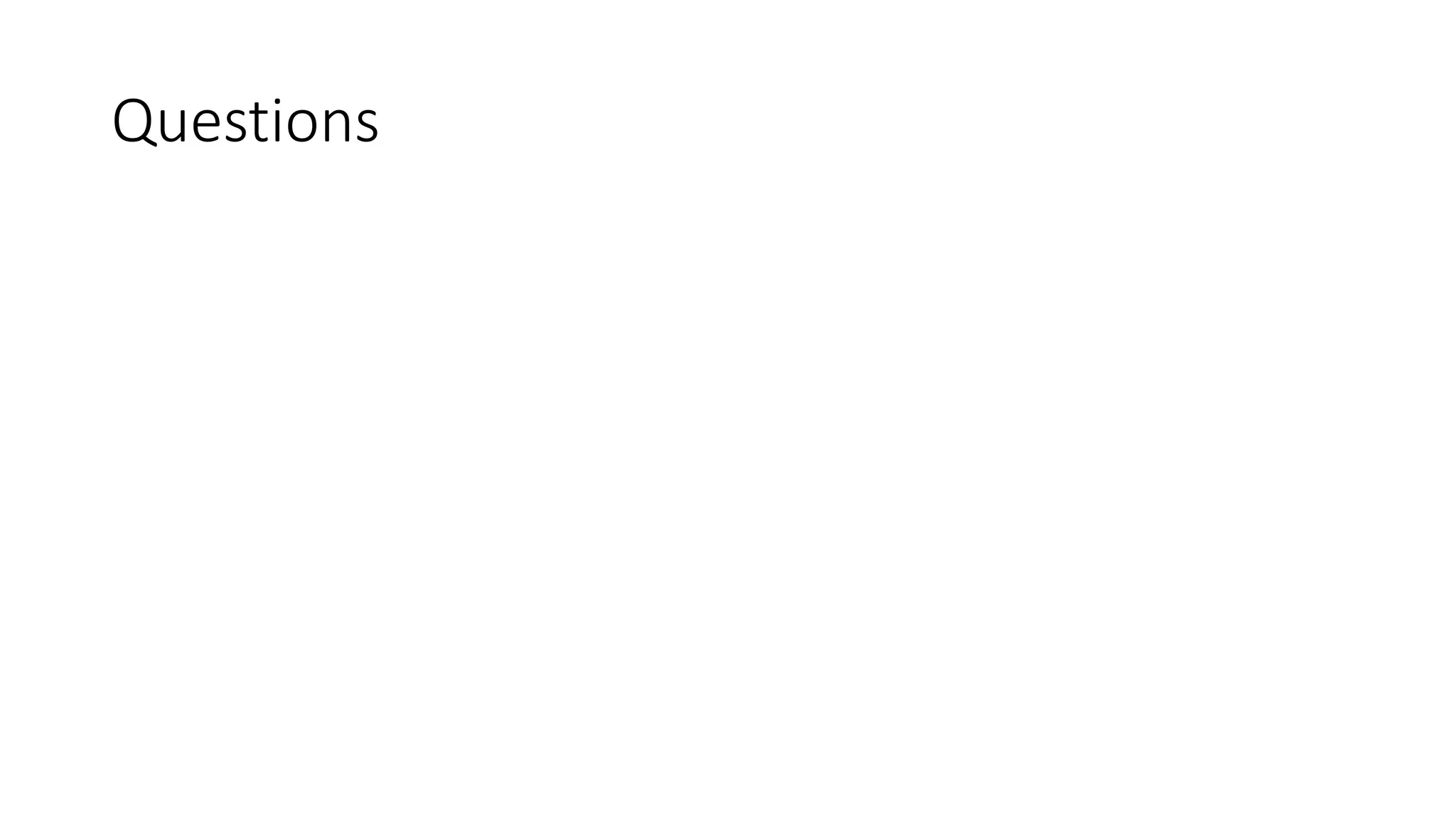

41. Questions
