This document discusses parallel and asynchronous programming on servers. It covers techniques like Task Parallel Library (TPL), Reactive Extensions (Rx), and Dataflow that can be used for parallel processing on servers. Unlike desktop applications where the focus is on reducing execution time, server applications prioritize throughput and scalability over individual request duration. Asynchronous programming is more important on servers to avoid blocking and improve throughput. The document demonstrates various asynchronous programming patterns on ASP.NET like async actions and background processing using libraries like SignalR. It also provides demos of parallel programming techniques like Parallel.For, TPL Dataflow, and Rx.

1. Parallel and Asynchronous Programming
The server-side story
Panagiotis Kanavos

2. Parallel Extensions
• Best kept .NET secret known by all
• Since 2010 and .NET 4.0
• Coves Task, Data based processing models
• Close cousins
• TPL Dataflow
• System.Reactive
• Available through NuGet
• SIMD through RyuJIT

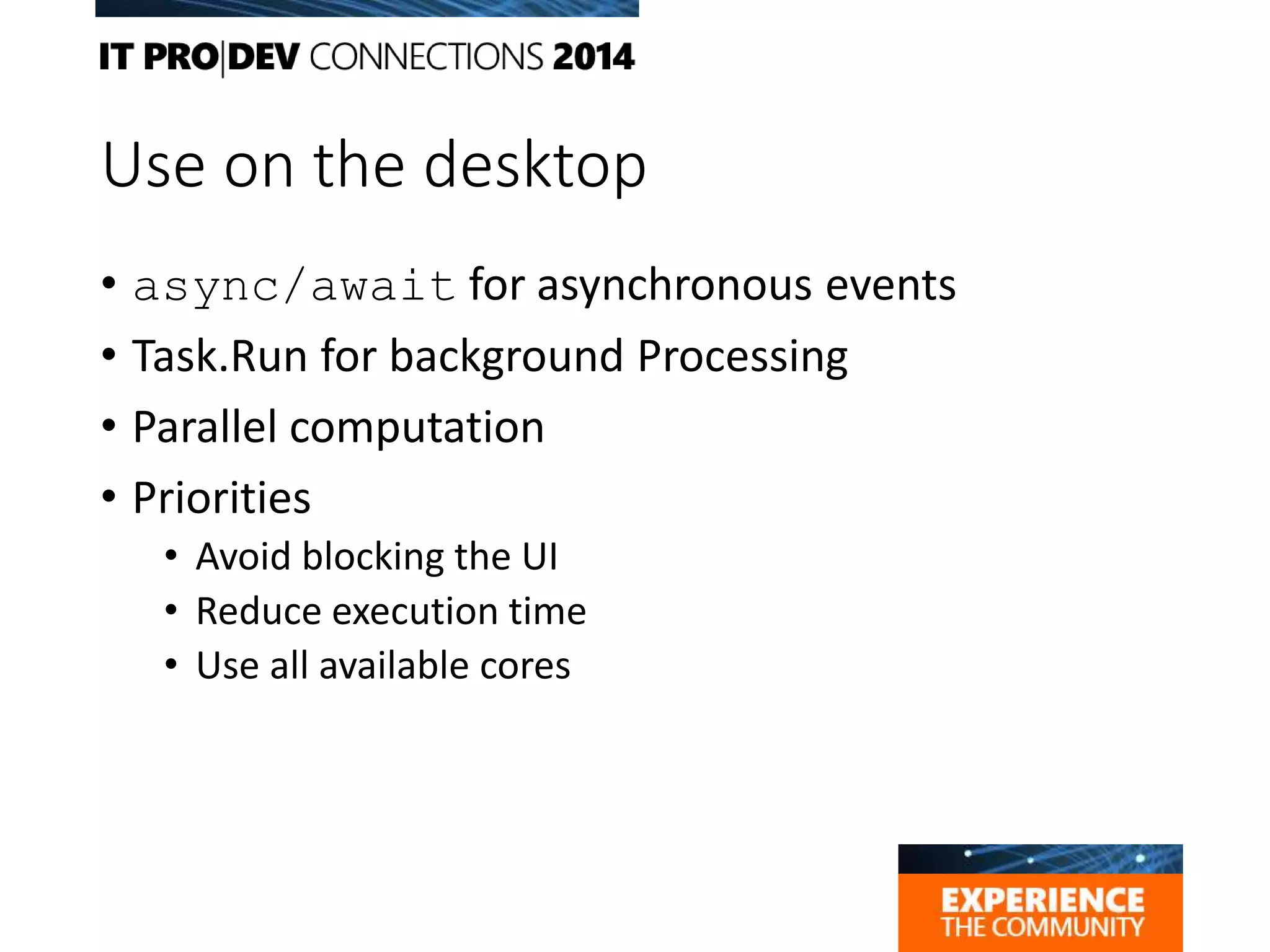

3. Use on the desktop
• async/await for asynchronous events
• Task.Run for background Processing
• Parallel computation
• Priorities
• Avoid blocking the UI
• Reduce execution time
• Use all available cores

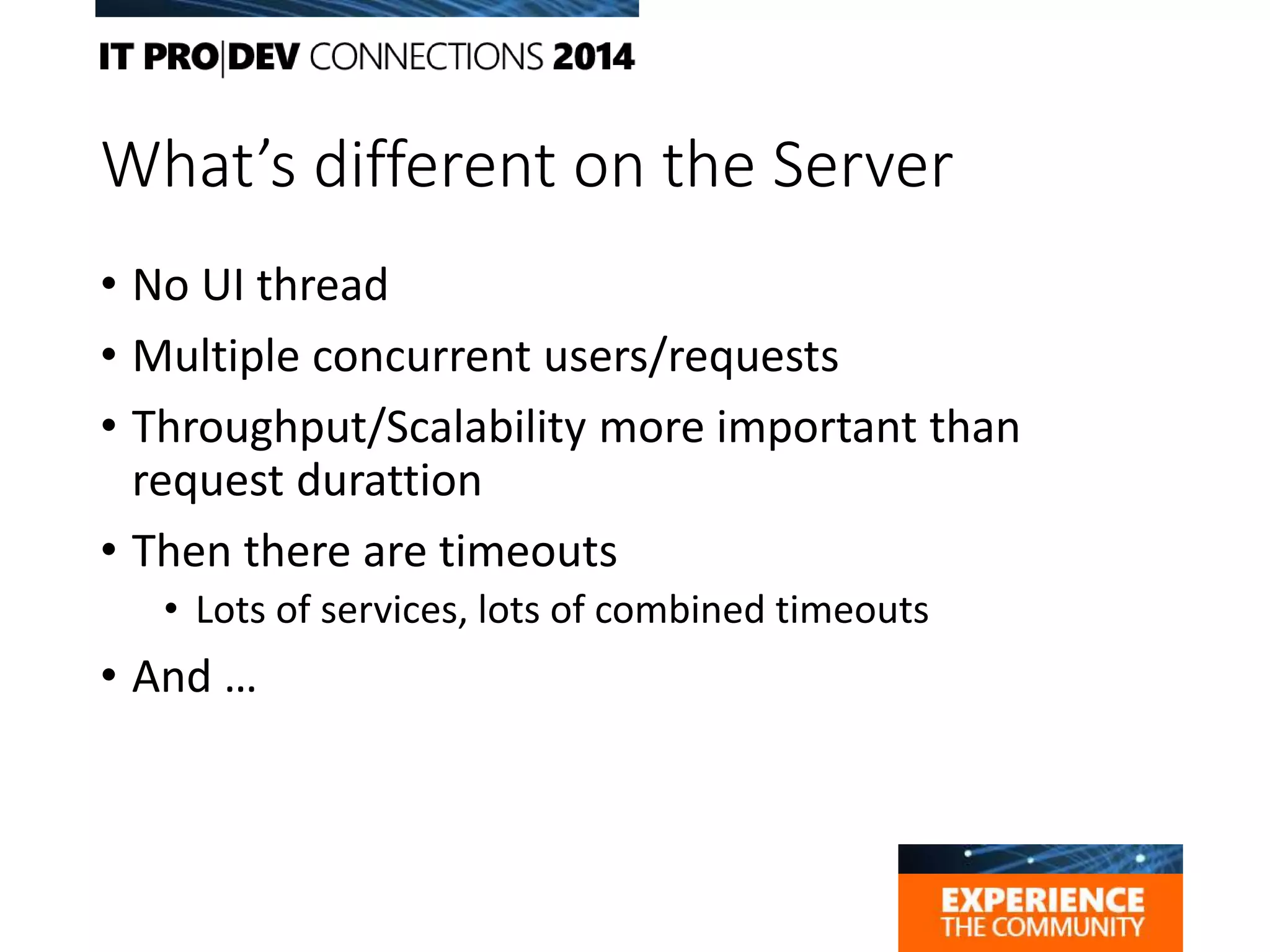

4. What’s different on the Server
• No UI thread
• Multiple concurrent users/requests
• Throughput/Scalability more important than
request durattion
• Then there are timeouts
• Lots of services, lots of combined timeouts
• And …

5. Server Meltdown

6. Server Meltdown
• Load Balanced farm
• High load
• First server stuck at 100% CPU
• Timeouts, App pool Recycle
• More requests redirected to other servers
• Second server reaches 100%
• Don’t drop the ball!
• …

7. Request Queuing in ASP.NET
IIS Queue
• Req 1
• Req 2
• Req 3
ASP.NET Worker
Threads
• Thread 1
• Thread 3
App Domain
• Thread 2

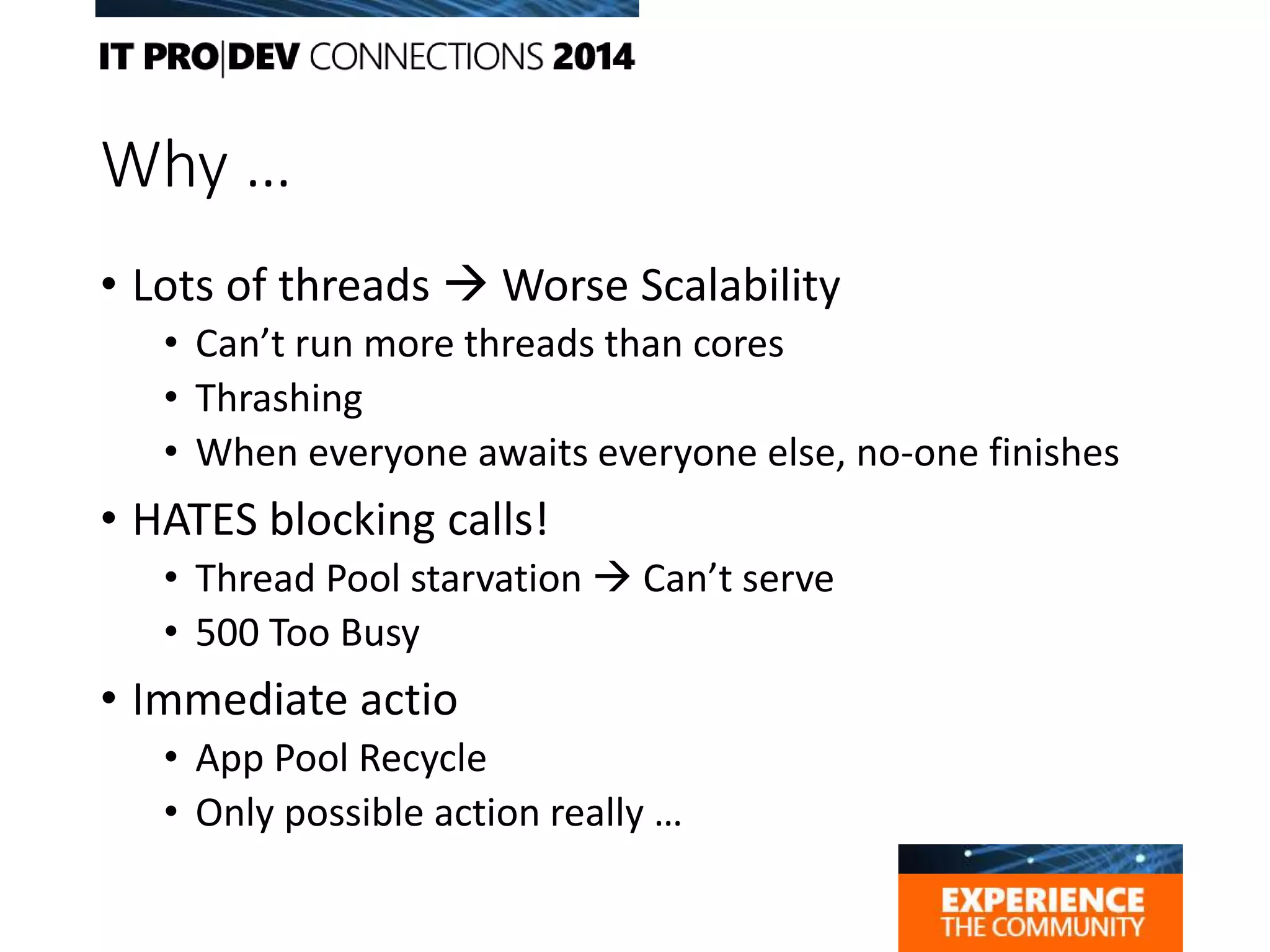

8. Why …
• Lots of threads  Worse Scalability
• Can’t run more threads than cores
• Thrashing
• When everyone awaits everyone else, no-one finishes
• HATES blocking calls!
• Thread Pool starvation  Can’t serve
• 500 Too Busy
• Immediate actio
• App Pool Recycle
• Only possible action really …

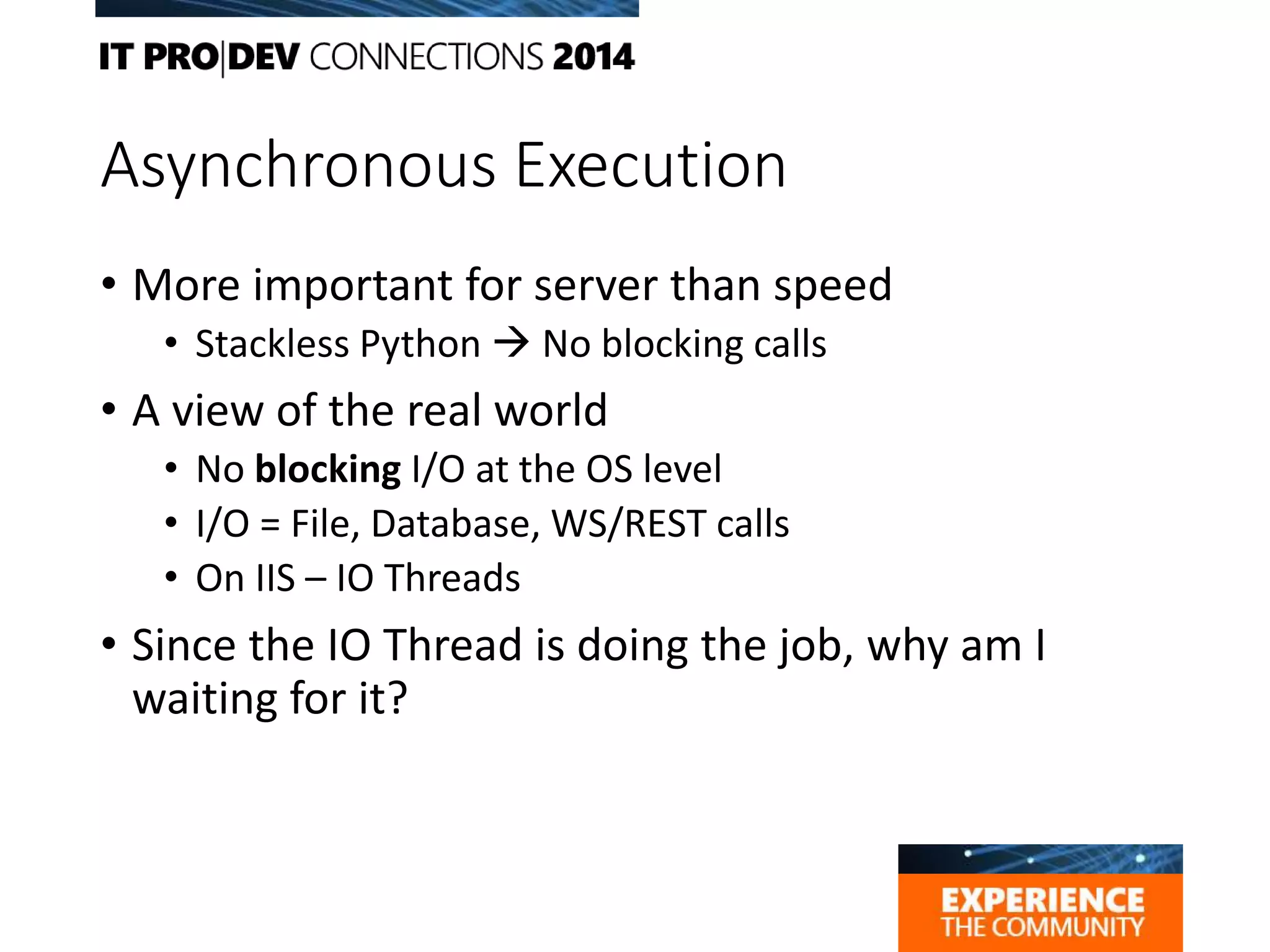

9. Asynchronous Execution
• More important for server than speed
• Stackless Python  No blocking calls
• A view of the real world
• No blocking I/O at the OS level
• I/O = File, Database, WS/REST calls
• On IIS – IO Threads
• Since the IO Thread is doing the job, why am I
waiting for it?

10. Async on WebForms
• Basic support through async event handlers
• async void Button_Click μπρρρ…
• <%@ Page Async=“true” %>
• Use Page.RegisterAsyncTask for jobs longer than a
single request
• Raw Background threads can be killed at any time

11. Async on MVC/Web API
• Async actions!
• Plays well with Database/EF async
• HostingEnvironment.QueueBackgroundWorkItem
• Notifies IIS
• Gives 90 sec to task to finish in case of shutdown/recycle
• HangFire, Azure Web Jobs for repeating tasks

12. Parallel.For and PLINQ
• Data Parallelism
• Cuts the data in chunks
• Task per chunk
• Generally, 1 Task/Core
• Also uses the calling thread
• Looks like blocking (it’s not)
• Not a concern on the server

13. Dataflow
DB call
• I:Date
• O:Sales
Web call
• I:Sale
• O:Details
• X3
• Bounded
Analyze Store
• Bulk
Insert to
DB

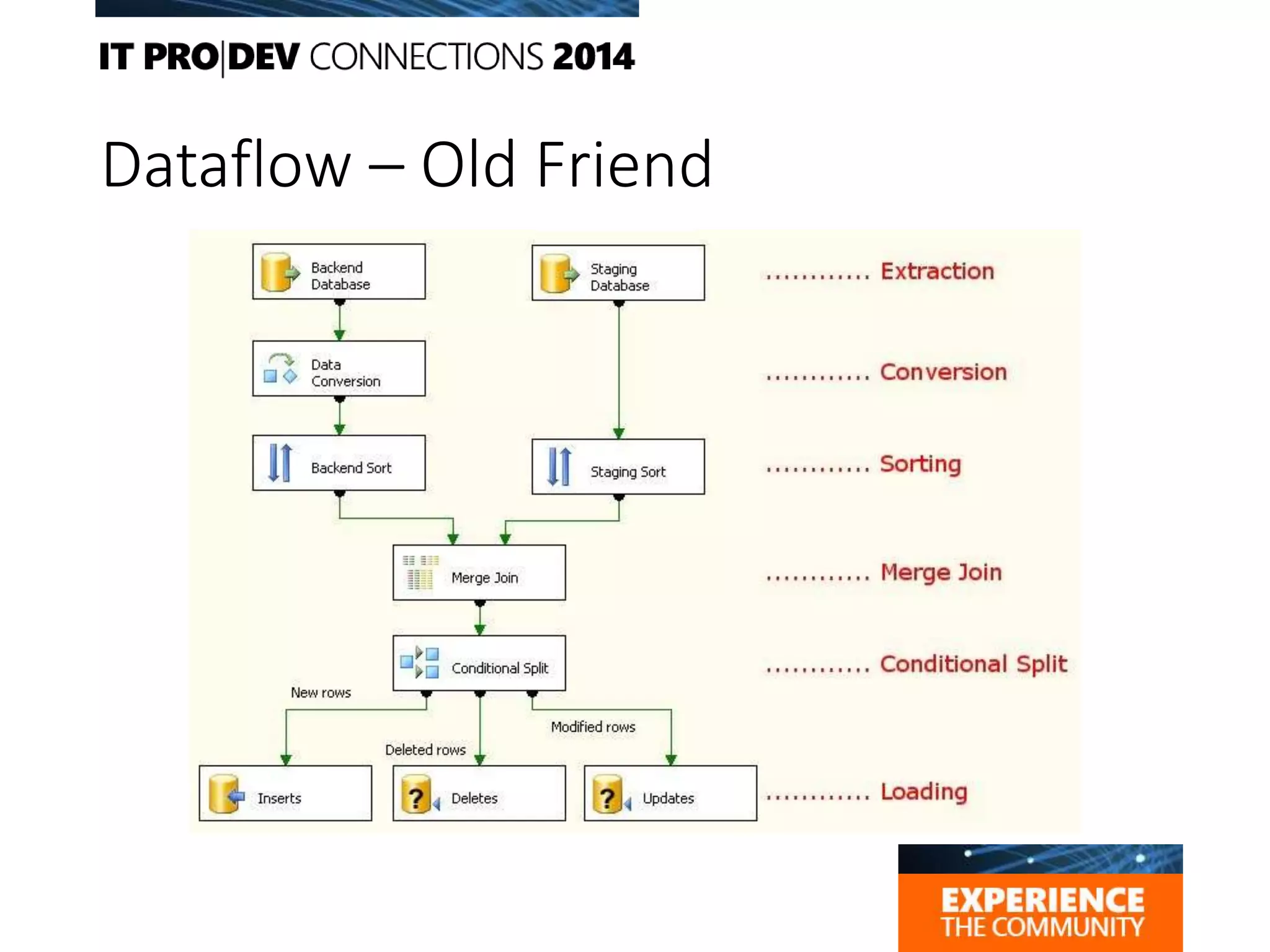

14. Dataflow – Old Friend

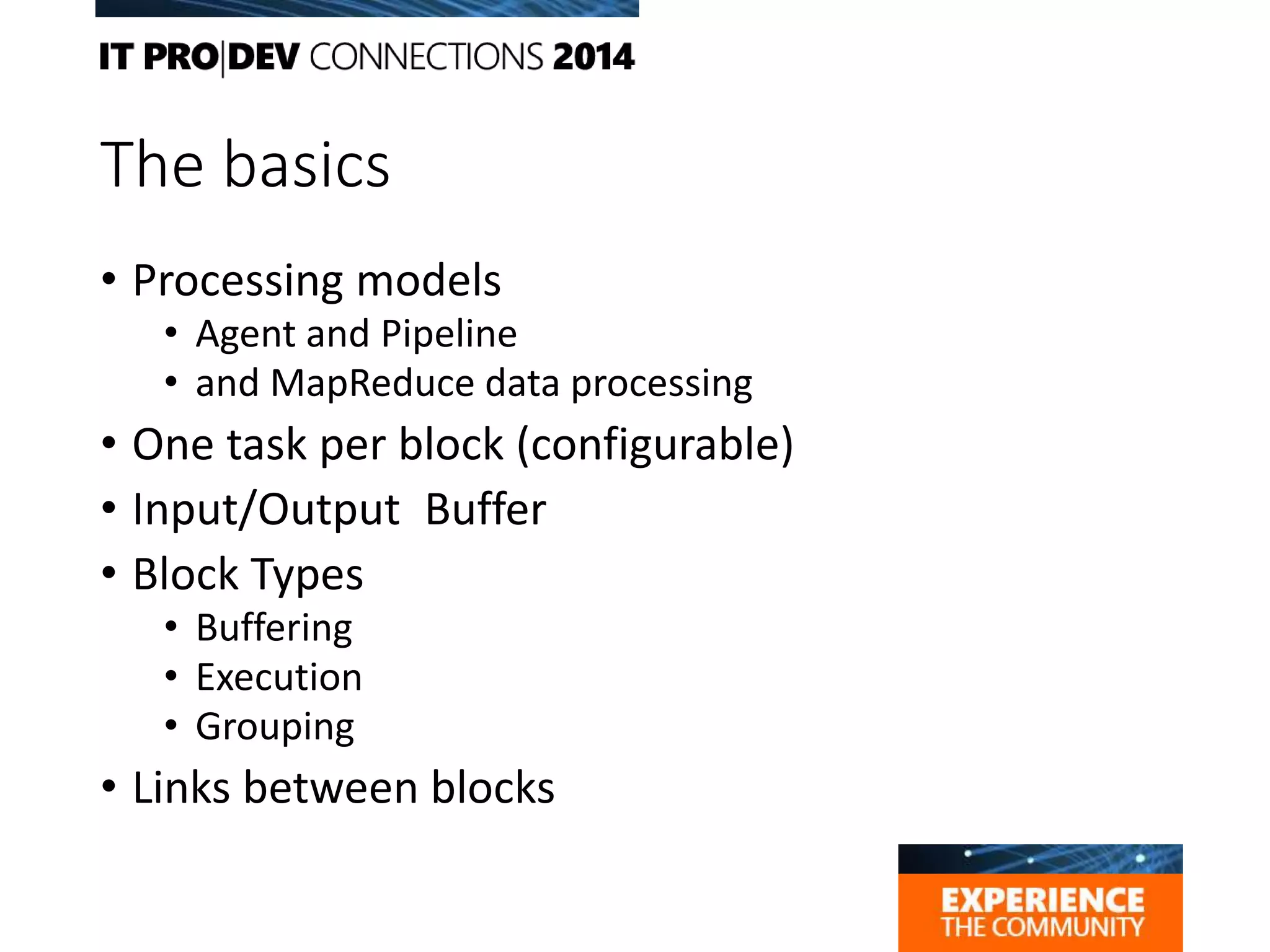

15. The basics
• Processing models
• Agent and Pipeline
• and MapReduce data processing
• One task per block (configurable)
• Input/Output Buffer
• Block Types
• Buffering
• Execution
• Grouping
• Links between blocks

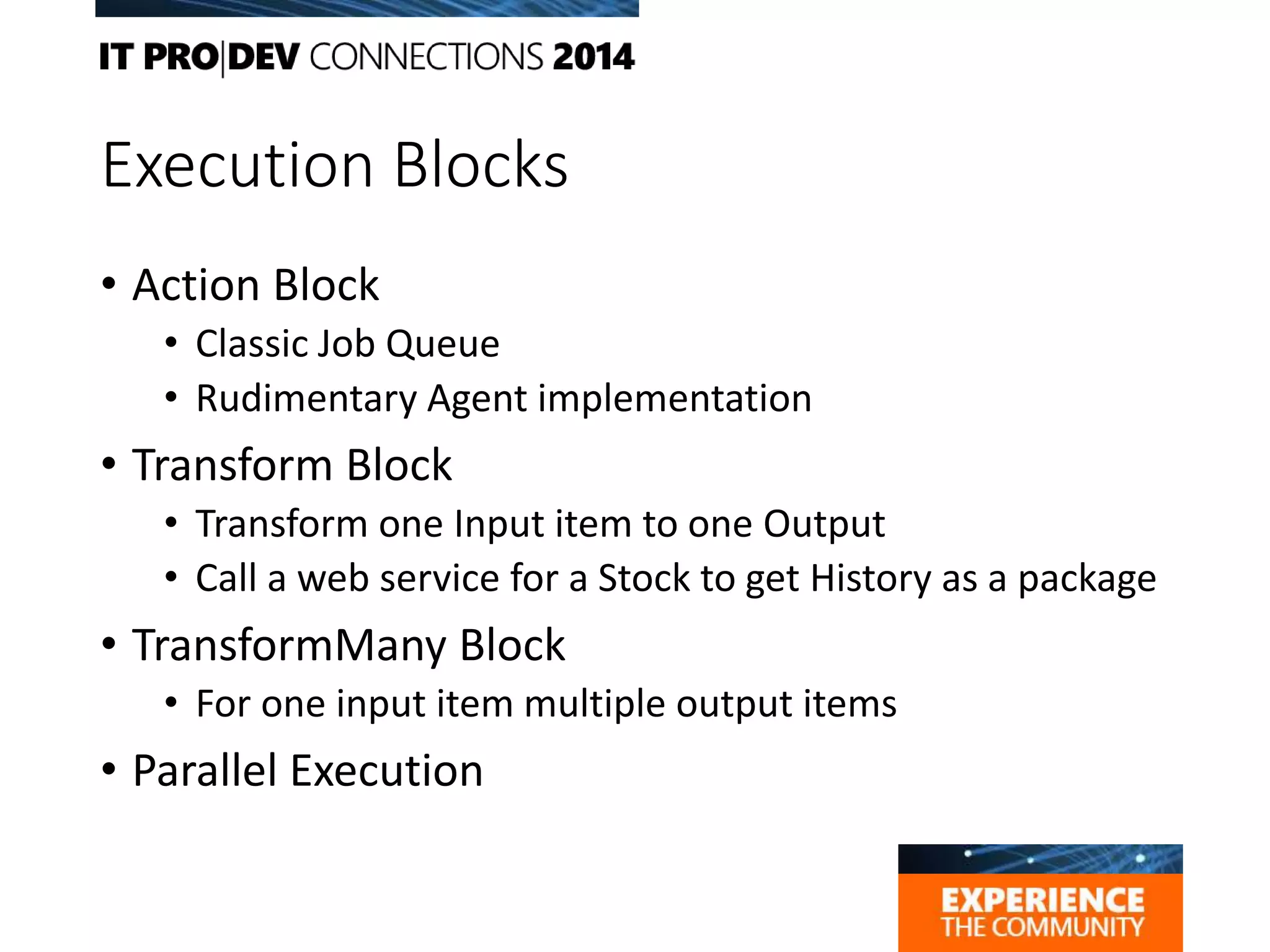

16. Execution Blocks
• Action Block
• Classic Job Queue
• Rudimentary Agent implementation
• Transform Block
• Transform one Input item to one Output
• Call a web service for a Stock to get History as a package
• TransformMany Block
• For one input item multiple output items
• Parallel Execution

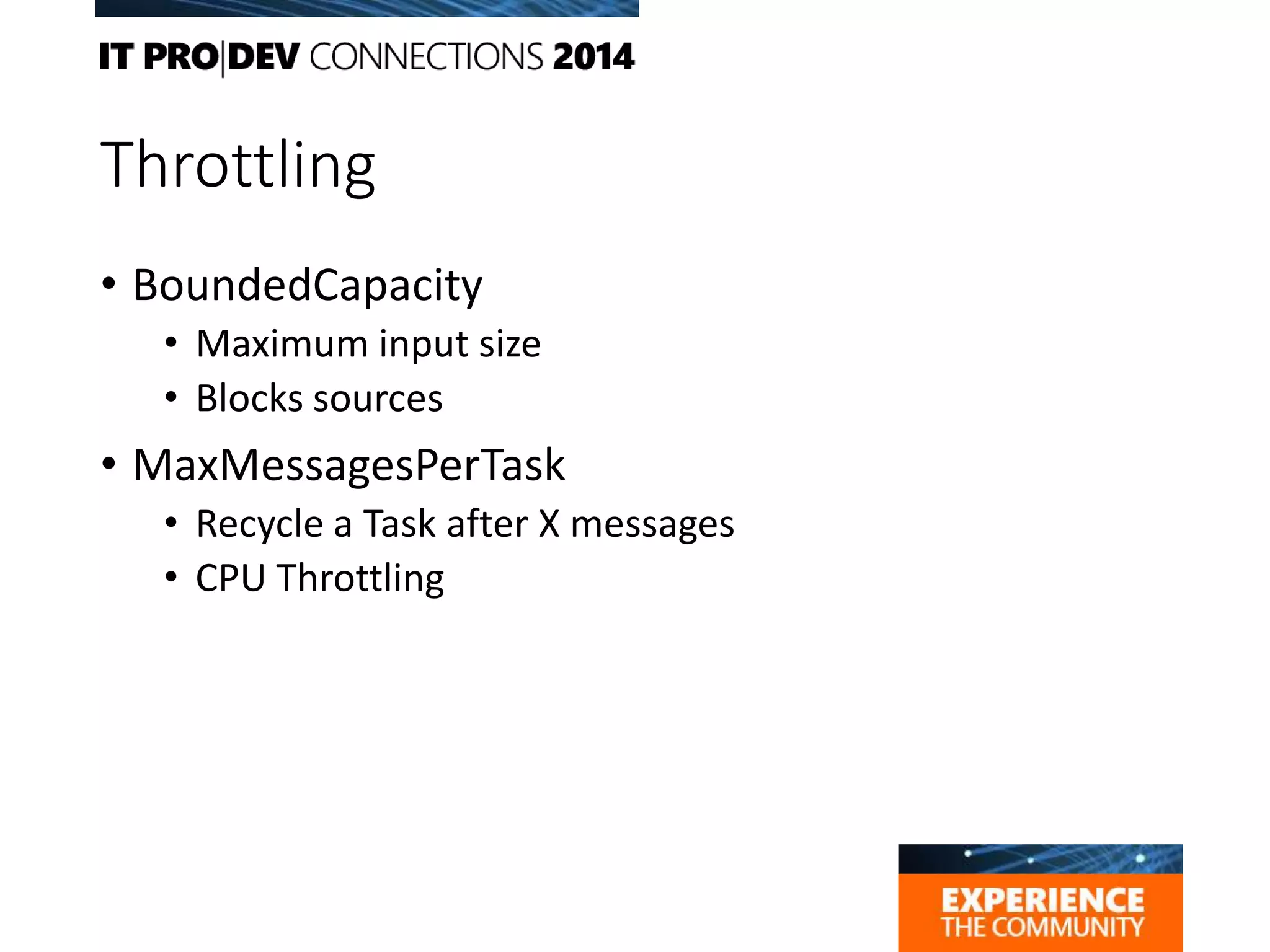

17. Throttling
• BoundedCapacity
• Maximum input size
• Blocks sources
• MaxMessagesPerTask
• Recycle a Task after X messages
• CPU Throttling

18. Execution Block Demos

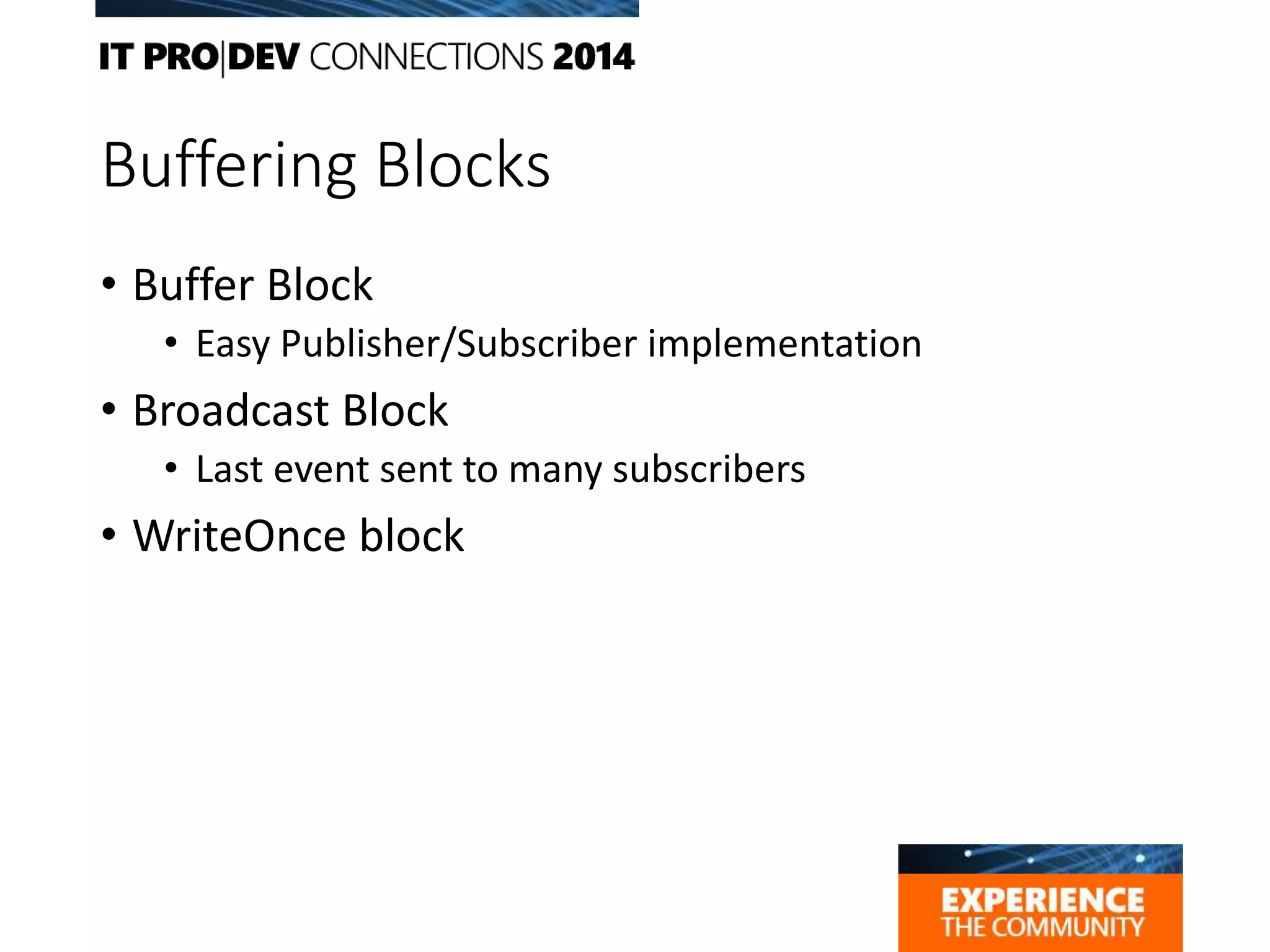

19. Buffering Blocks
• Buffer Block
• Easy Publisher/Subscriber implementation
• Broadcast Block
• Last event sent to many subscribers
• WriteOnce block

20. Batch Block Demo

21. Grouping Blocks
• Batching Block
• Join Block
• 2-3 Inputs, 1 Tuple<T1,T2,T3> output
• BatchedJoin Block
• Batch  Join
• T1, T2  Tuple< IList<T1>, IList<T2>>

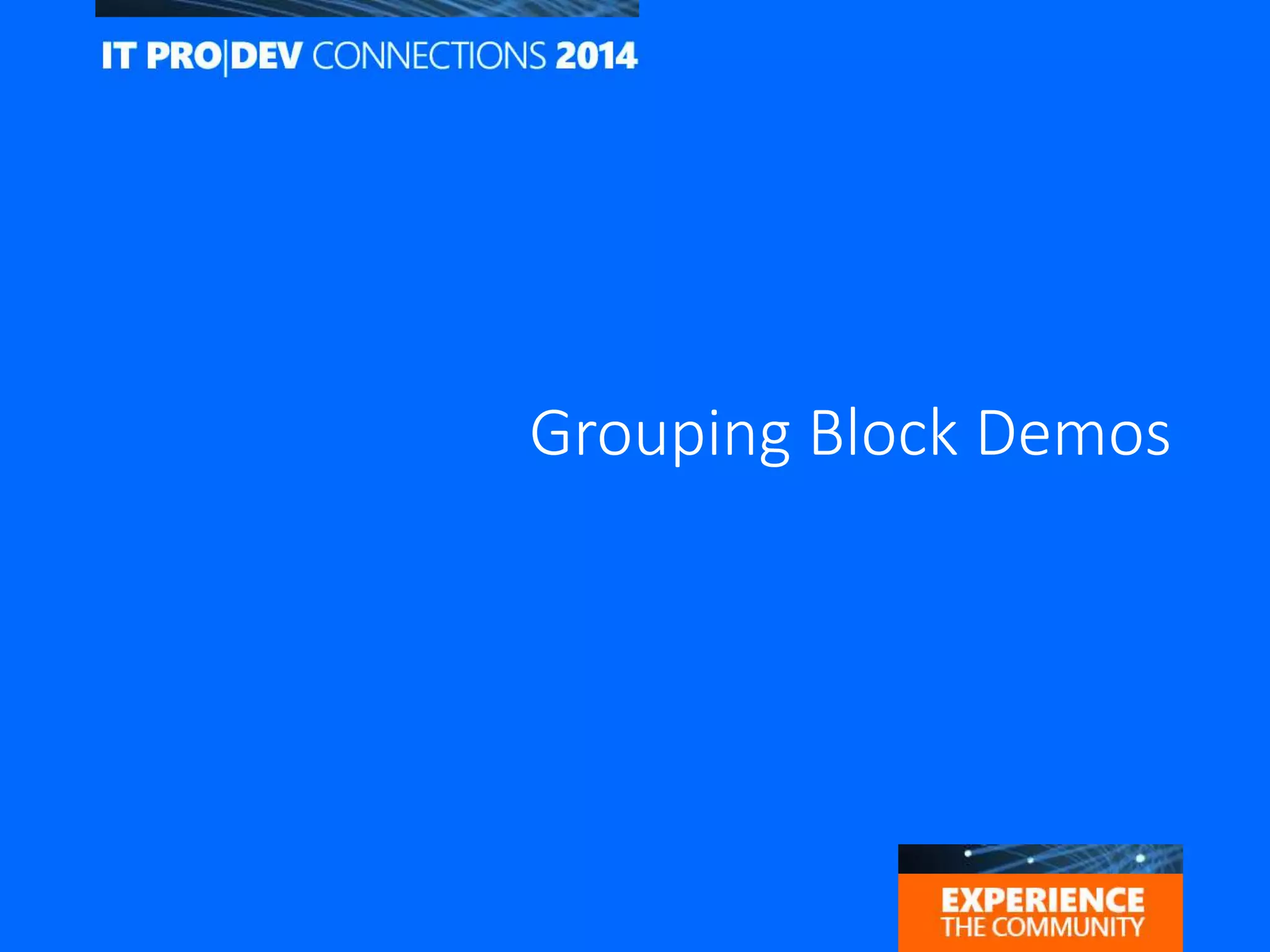

22. Grouping Block Demos

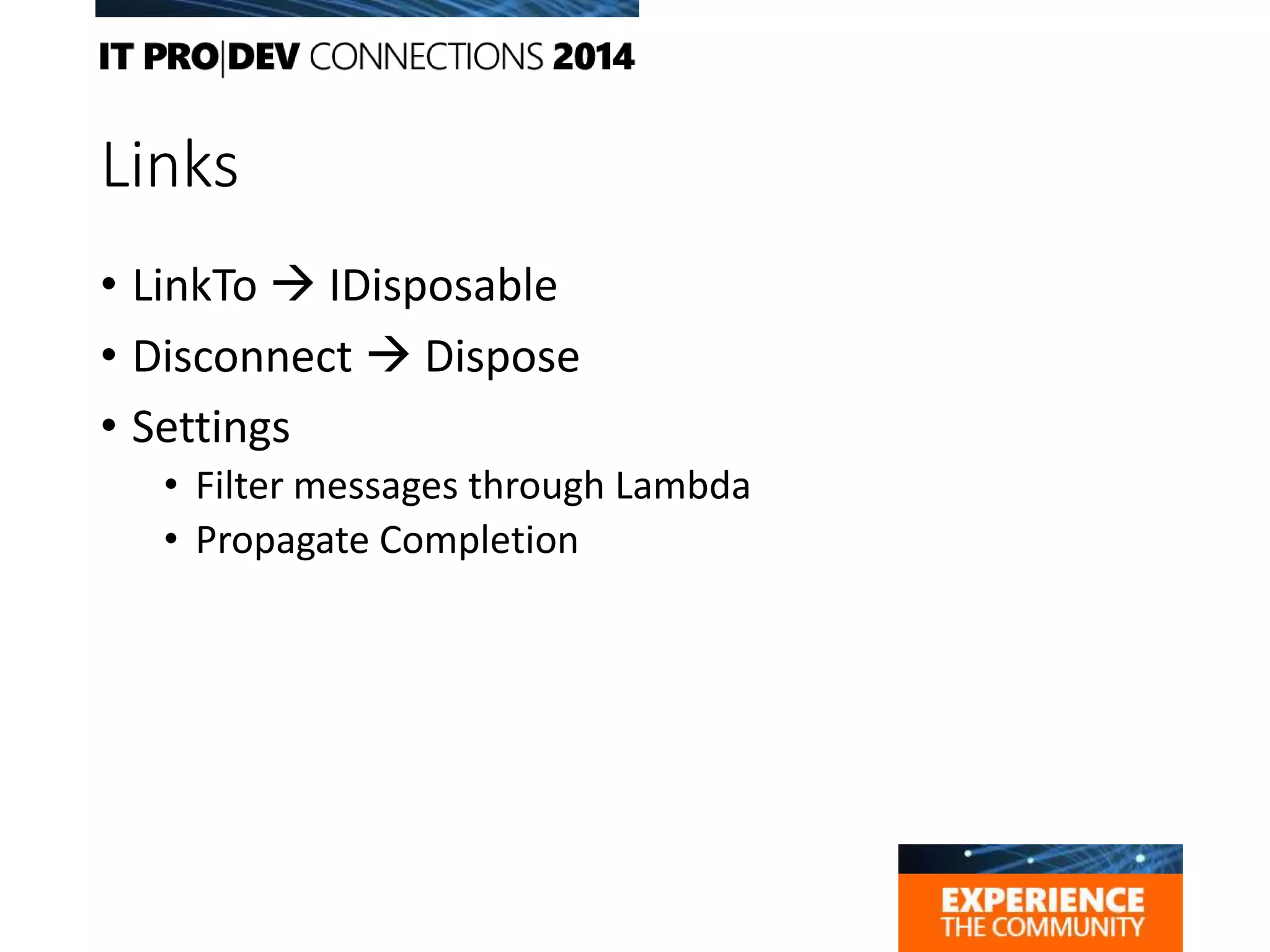

23. Links
• LinkTo  IDisposable
• Disconnect  Dispose
• Settings
• Filter messages through Lambda
• Propagate Completion

24. Custom combination with Encapsulate
• New block
• One Input, One Output

25. Error Handling
In case of error a block
• Discards input messages
• Refuses new messages
• Propagate exception
• Caught with await/.Wait()

26. Dataflow Demos

27. Reactive Extensions
• Event monitoring and processing
• Control Events
• Records in Event Log
• Calls to a Web Service
• Time-based events
• Handle as a stream
• Works like LINQ
• Foundation for Event Processing

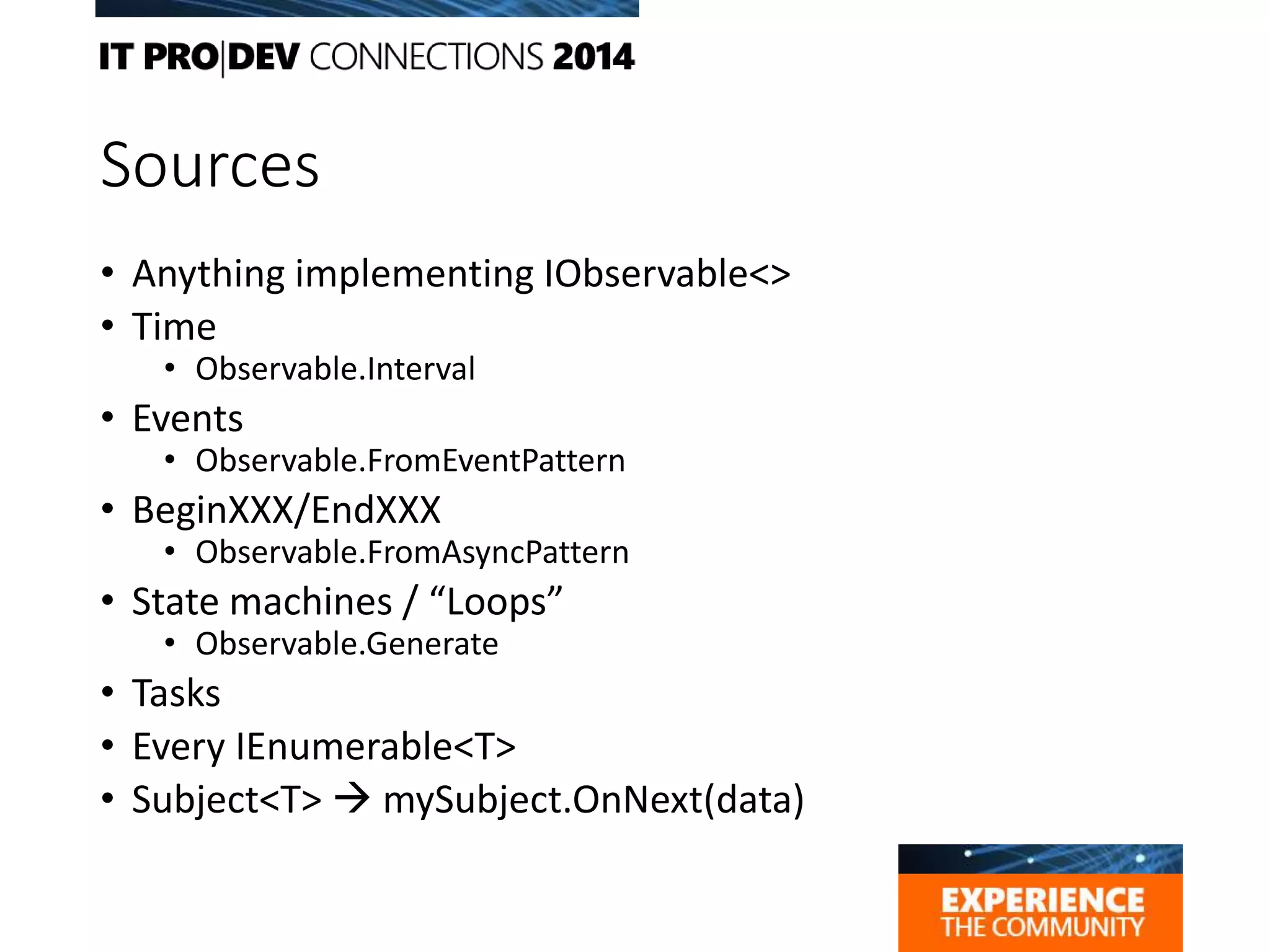

28. Sources
• Anything implementing IObservable<>
• Time
• Observable.Interval
• Events
• Observable.FromEventPattern
• BeginXXX/EndXXX
• Observable.FromAsyncPattern
• State machines / “Loops”
• Observable.Generate
• Tasks
• Every IEnumerable<T>
• Subject<T>  mySubject.OnNext(data)

29. Reactive Demos

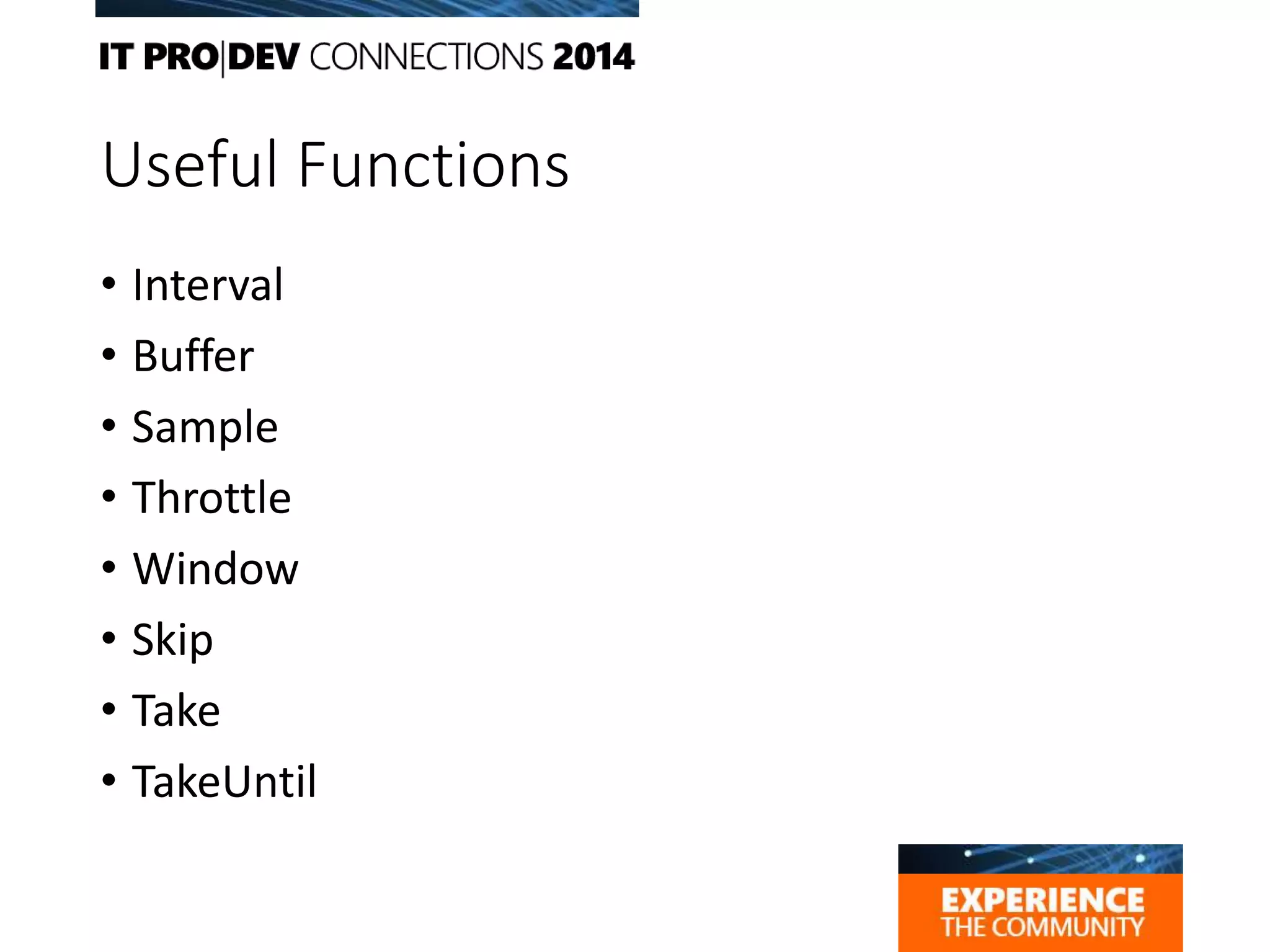

30. Useful Functions
• Interval
• Buffer
• Sample
• Throttle
• Window
• Skip
• Take
• TakeUntil

31. Transformations
• Anything goes
• task ... AsObservable()
• block … AsObservable()
• await Observable
• ToTask<T>

32. SignalR
• Real Time communication from Server to Client
• Push Notifications
• Long process progress
• Eg. Search for tickets

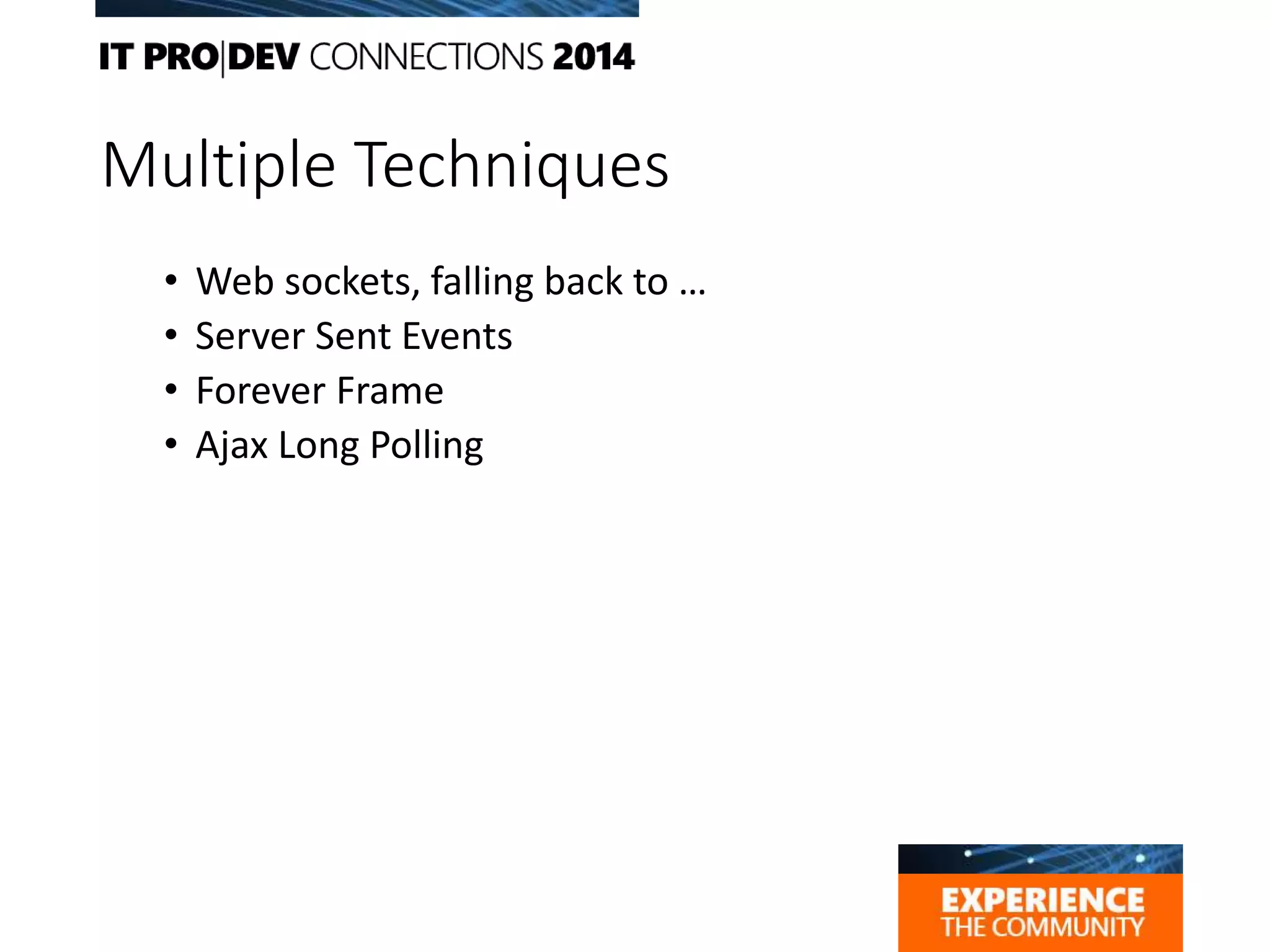

33. Multiple Techniques
• Web sockets, falling back to …
• Server Sent Events
• Forever Frame
• Ajax Long Polling

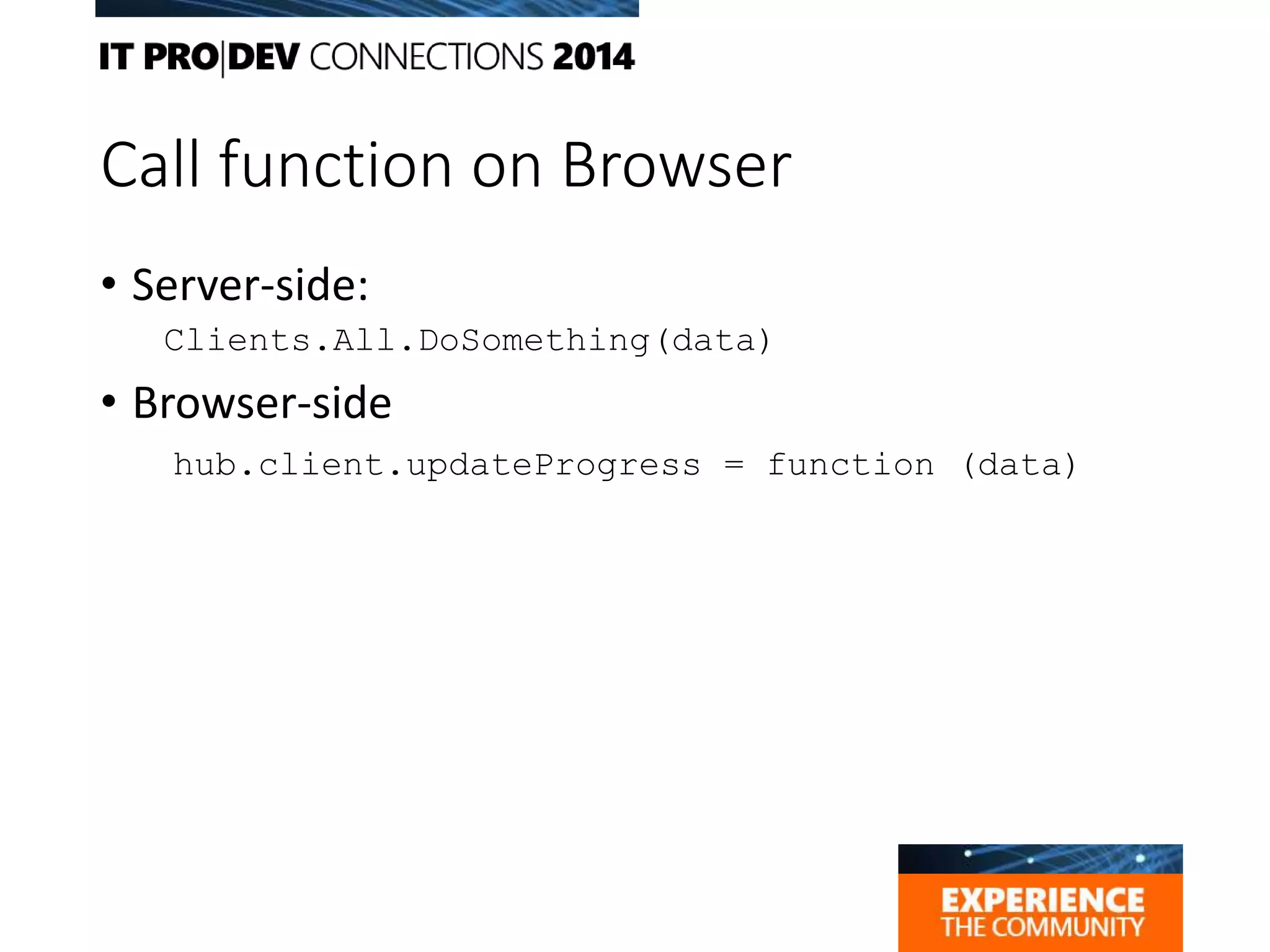

34. Call function on Browser
• Server-side:
Clients.All.DoSomething(data)
• Browser-side
hub.client.updateProgress = function (data)

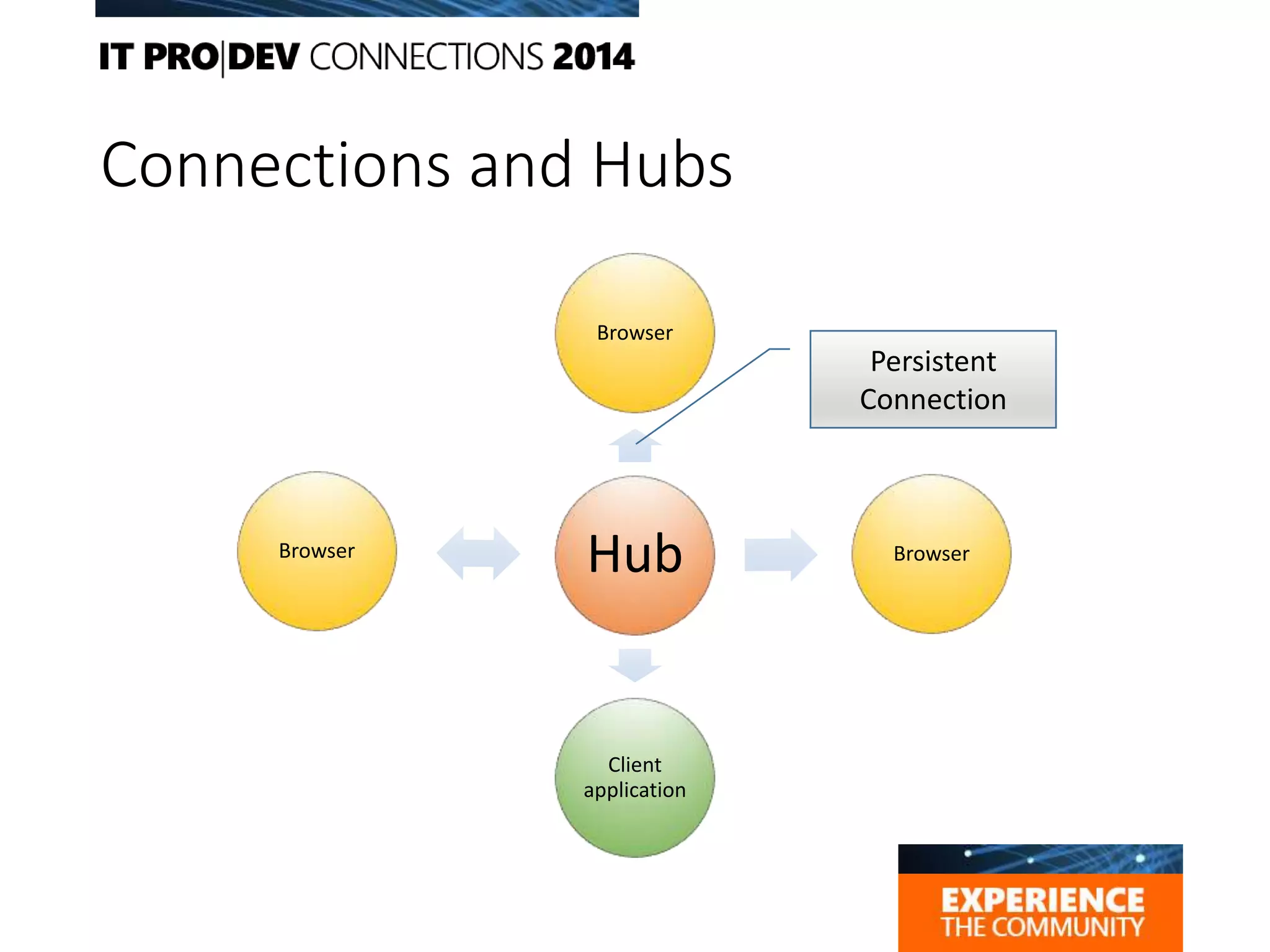

35. Connections and Hubs
Hub
Browser
Browser
Client
application
Browser
Persistent
Connection

36. Connections and Hubs

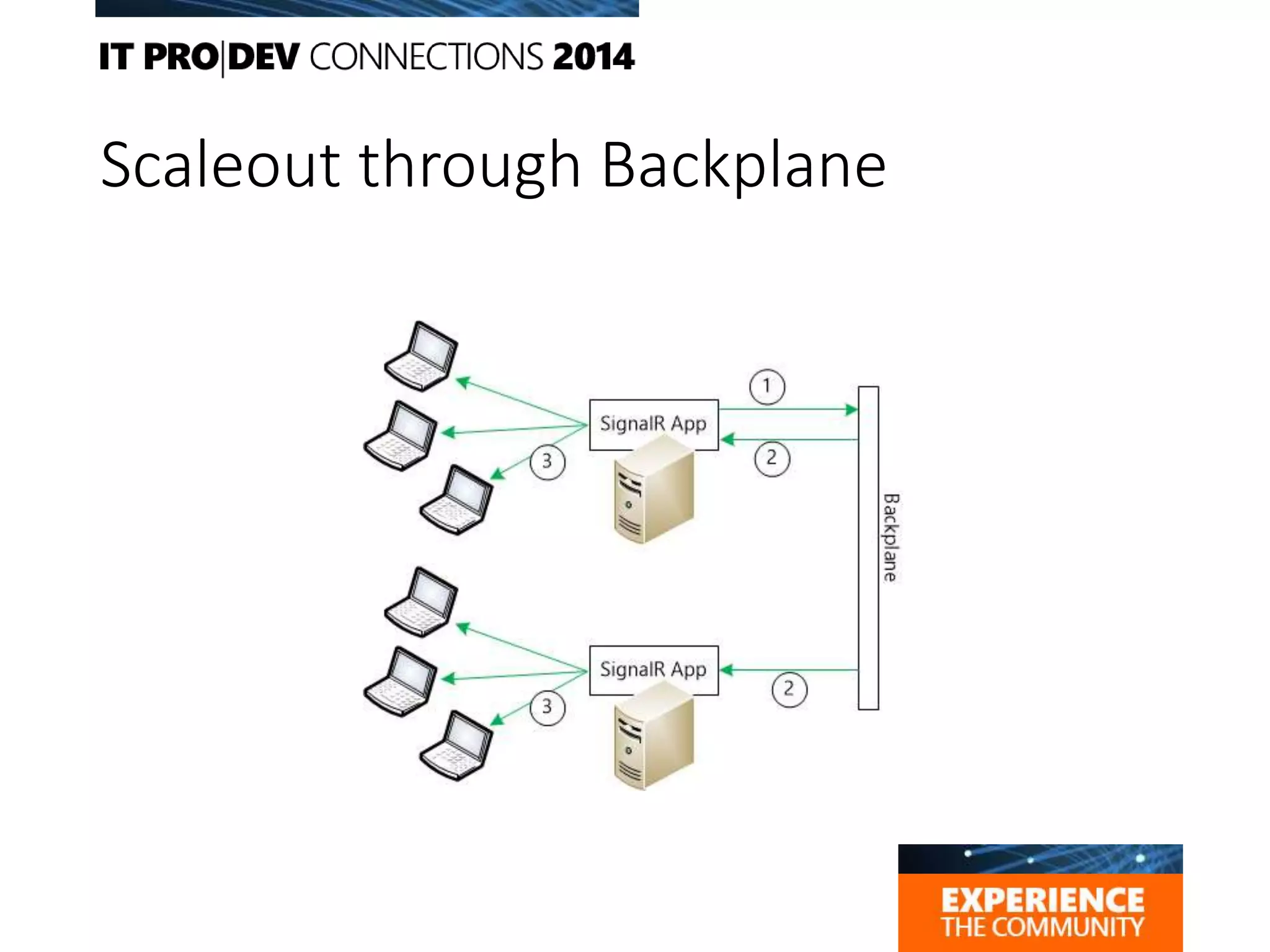

37. Scaleout through Backplane

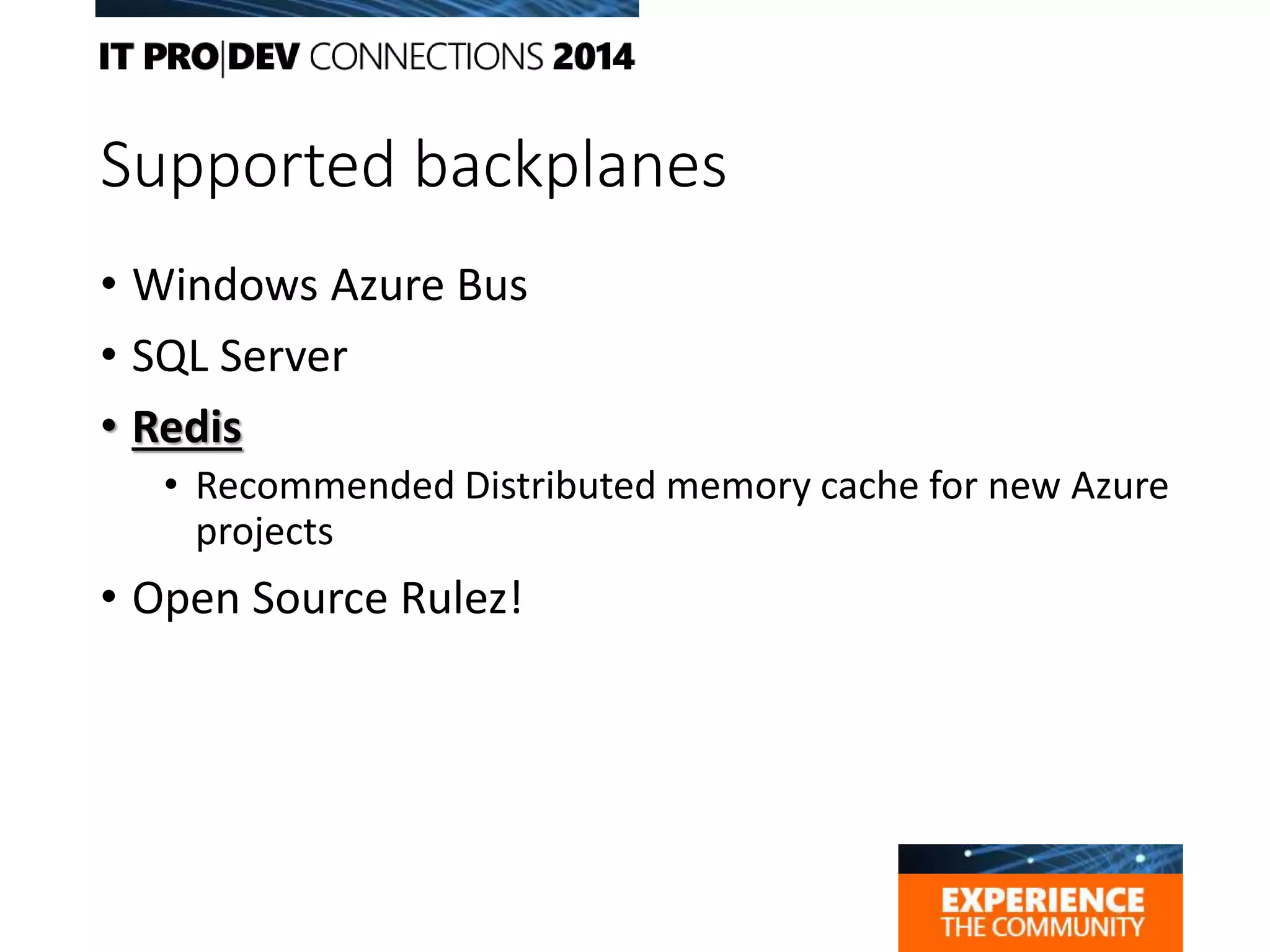

38. Supported backplanes
• Windows Azure Bus
• SQL Server
• Redis
• Recommended Distributed memory cache for new Azure
projects
• Open Source Rulez!

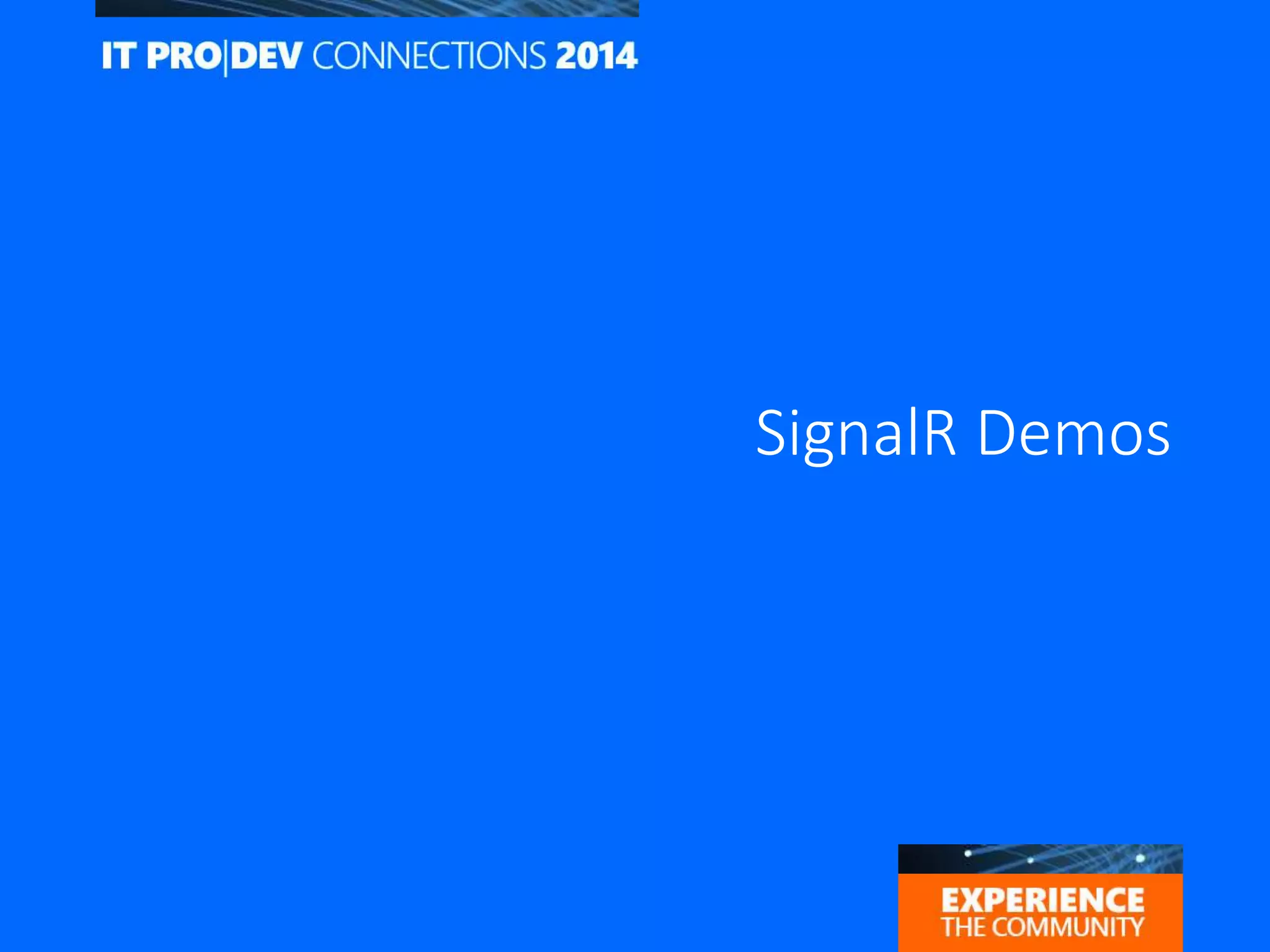

39. SignalR Demos

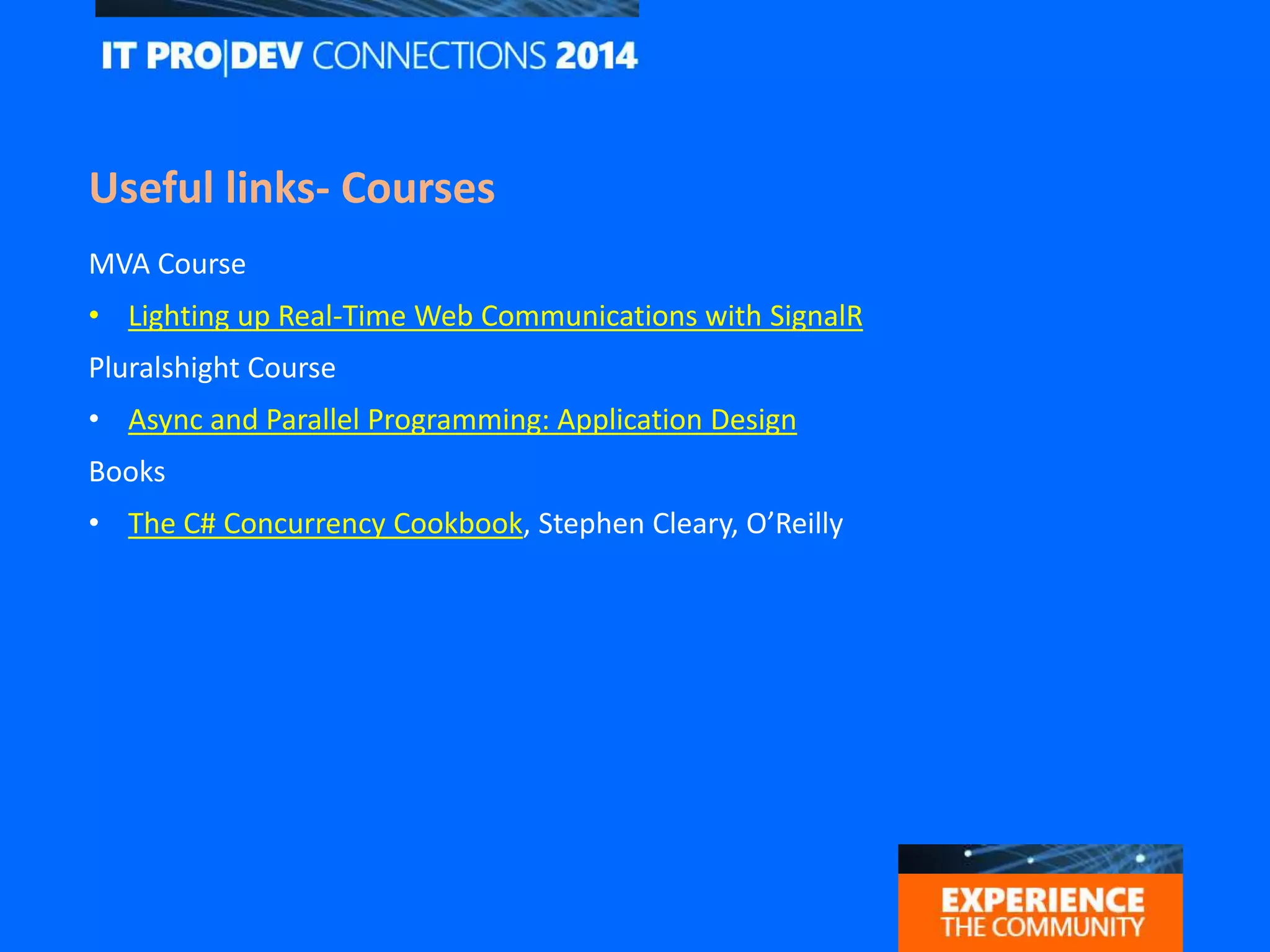

40. Useful links- Courses
MVA Course
• Lighting up Real-Time Web Communications with SignalR
Pluralshight Course
• Async and Parallel Programming: Application Design
Books
• The C# Concurrency Cookbook, Stephen Cleary, O’Reilly

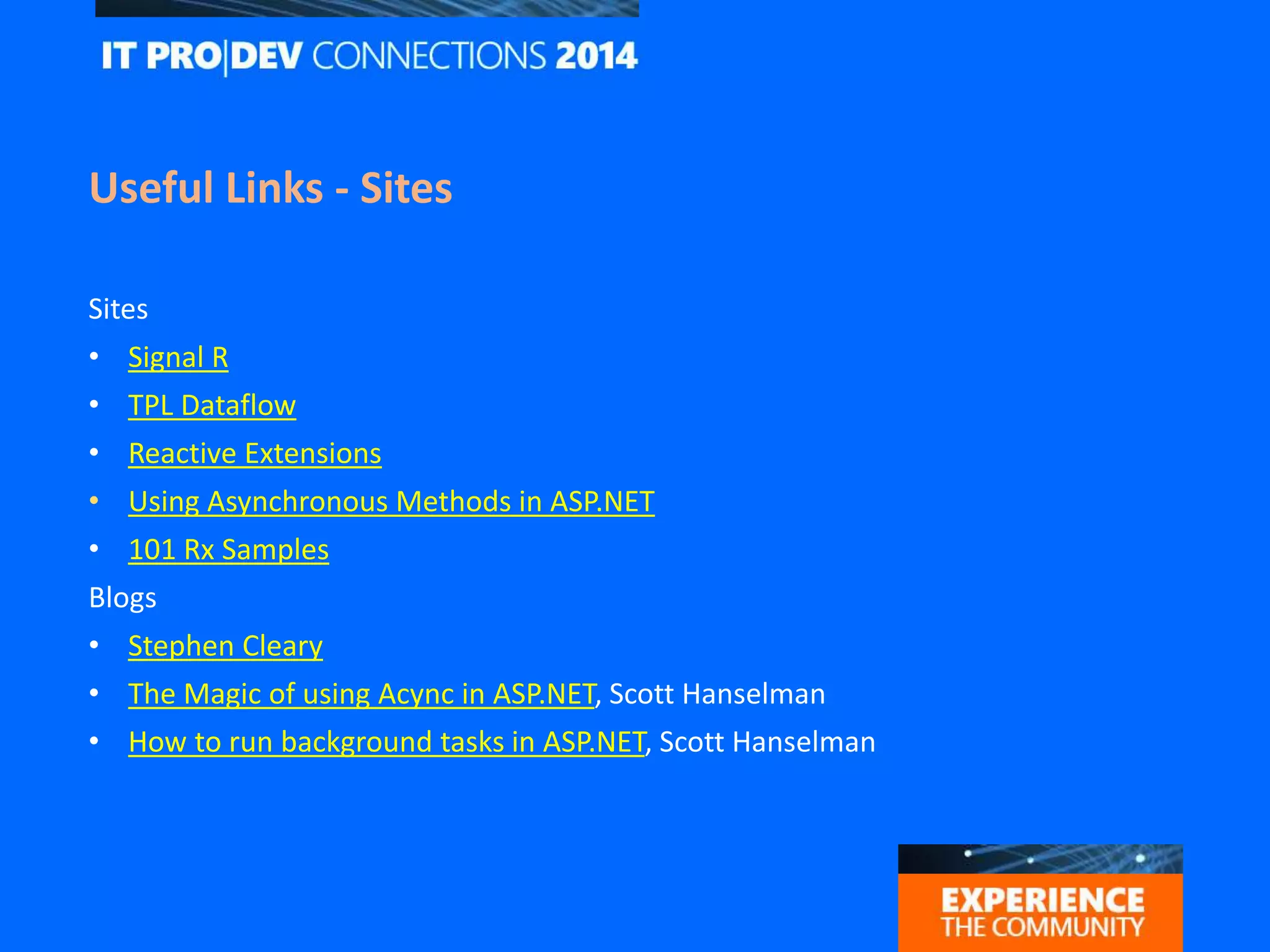

41. Useful Links - Sites
Sites
• Signal R
• TPL Dataflow
• Reactive Extensions
• Using Asynchronous Methods in ASP.NET
• 101 Rx Samples
Blogs
• Stephen Cleary
• The Magic of using Acync in ASP.NET, Scott Hanselman
• How to run background tasks in ASP.NET, Scott Hanselman
