Background processing with hangfire
- 1. www.seavus.com With Hangfire Background Processing Nov.2016 Aleksandar Bozinovski
- 2. Agenda • Why backgroundprocessing • Options for ASP.NET applications • Hangfire architecture • Types of tasks • IoC Containers • Hosting • Dashboard • Demo Page 2
- 3. Why Background Processing? •Lengthy operations like updating lot of records in DB • Checking every 2 hours for new data or files • Invoice generation at the end of every billing period • Monthly Reporting • Rebuild data, indexes or search-optimized index after data change • Automatic subscription renewal • Regular Mailings • Send an email due to an action • Background service provisioning Page 3
- 4. Types of BackgroundTasks • Fire & Forget • Lengthy operations like updating lot of records in DB • Send an email due to an action • Delayed • Automatic subscription renewal • Rebuild data, indexes or search-optimized index after data change • Periodic & Scheduled • Checking every 2 hours for new data or files • Invoice generation at the end of every billing period • Monthly Reporting • Regular Mailings • Background service provisioning Page 4
- 5. Background Processing Mustbe… • Reliable • The task must be executed. Users must gets their emails even if the network is not available at the moment. • For some cases, the system must be able to re-execute the task. The invoice will be generated as soon as the database is online. • Main application logic is unaffected of the background processing issues. Users will submit changes in the system unaware that we haven’t updated search-optimized index. • Transparent • Monitoring. As soon as the database is not accessible, we need to know. • How many invoices we have left to be sent? • Log and audit. What happened with that invoice from last month? Page 5
- 6. Background Processing Mustbe… • Distributed • Add more processes or servers to increase processing power. • Very often required for cloud solutions. • Resilient • Servers crash, network fails... • Should be able to recover after crash. • Extensible • Processing logic can be very complex. Processes can depend on one another. • Sometimes we have bug in the code. We need to deploy new version and resume the work. Page 6
- 7. Options We Have •Threads/TPL • Difficult to work with • Nightmare to debug • Unreliable in ASP.NET • QueueBackgroundWorkItem • ASP.NET specific, added in version 4.5.2 • Handles App Pool recycle better than threads or TPL • Still not reliable Page 7 HostingEnvironment.QueueBackgroundWorkItem(ct => SendMailAsync(user.Email)); Task.Run(() => SendMailAsync(User.Identity.Name));
- 8. Options We Have •FluentScheduler • https://github.com/fluentscheduler/FluentScheduler • Quartz Enterprise Scheduler .NET • .NET port of the popular Java job scheduling framework • http://www.quartz-scheduler.net/ Page 8 Schedule<MyTask>().ToRunNow().AndEvery(2).Seconds(); ITrigger trigger = TriggerBuilder.Create() .WithDailyTimeIntervalSchedule (s => s.WithIntervalInHours(24) .OnEveryDay() .StartingDailyAt(TimeOfDay.HourAndMinuteOfDay(0, 0)) ) .Build();
- 9. Enter Hangfire Page 9 •http://hangfire.io/ • First version in 2013 • First stable version in 2014 • Inspired by Sidekiq - https://github.com/mperham/sidekiq As an ASP.NET developer, Ialways wanted tohave something simple tohandle scenarios where you need tobuild along- running async task But every time Ifaced Windows Services, message queues andother difficult-to- understand problems andhard-to-maintain solutions, my head exploded intoa billion pieces. At the same time Ilooked at Rails' Sidekiqandwished tohave a simple .NET alternative forbackground job processing.
- 10.
- 11. Hangfire Architecture Page 11 •Fire & Forget Jobs • Delayed Jobs • Recurrent Jobs All of them running in a background thread on same server or other one ASP.NET Thread Pool safe!
- 12. Persisting jobs Page 12 •Hangfire uses a shared persistent storage mechanism for ensuring data survives application restarts.
- 13. IoC Page 13 • Hangfireuses the JobActivator class to instantiate the target types before invoking instance methods. You can override its behavior to perform more complex logic on a type instantiation. For example, you can tell it to use IoC container that is used in your project:
- 14.
- 15. Batches – ProVersion Page 15
- 16. Hosting Hangfire –ASP.NET Page 16
- 17. Hosting Hangfire –Console App Page 17
- 18. Hangfire Dashboard Page 18 •OWIN middleware • Can be plugged into • ASP.NET • ASP.NET MVC • Nancy • ServiceStack • OWIN Self-Host
- 19. Hangfire Dashboard Features Page19 • Realtime Graph • Queues • History and details • Automatic and manual retries
- 20.

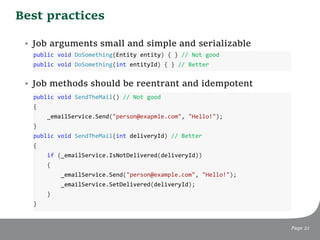

- 21. Best practices Page 21 •Job arguments small and simple and serializable • Job methods should be reentrant and idempotent public void DoSomething(Entity entity) { } // Not good public void DoSomething(int entityId) { } // Better public void SendTheMail() // Not good { _emailService.Send("person@exapmle.com", "Hello!"); } public void SendTheMail(int deliveryId) // Better { if (_emailService.IsNotDelivered(deliveryId)) { _emailService.Send("person@example.com", "Hello!"); _emailService.SetDelivered(deliveryId); } }

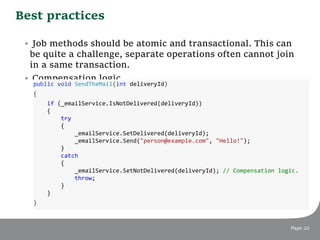

- 22. Best practices Page 22 •Job methods should be atomic and transactional. This can be quite a challenge, separate operations often cannot join in a same transaction. • Compensation logic. public void SendTheMail(int deliveryId) { if (_emailService.IsNotDelivered(deliveryId)) { try { _emailService.SetDelivered(deliveryId); _emailService.Send("person@example.com", "Hello!"); } catch { _emailService.SetNotDelivered(deliveryId); // Compensation logic. throw; } } }
- 23.
- 24.
Editor's Notes
- #13 RDB = Point in time snapshot AOF = Append Only File
- #22 Idempotence = Operation that can be applied multiple times without changing the result beyond the initial application. Reentrancy = Subroutine is called reentrant if it can be interrupted in the middle of its execution, and then be safely called again ("re-entered") before its previous invocations complete execution.
