Boost the Performance of SharePoint Today!
The document discusses various strategies and best practices for optimizing the performance of SharePoint 2013, including hardware and infrastructure considerations, software boundaries, and performance troubleshooting techniques. Key topics include search performance, throttling, caching methods, and effective server configurations. It also highlights the usage of tools such as developer dashboards and performance monitoring methods to enhance SharePoint's efficiency.
More Related Content
Similar to Boost the Performance of SharePoint Today!
Boost the Performance of SharePoint Today!
- 1. www.expertpointsolutions.com SharePoint 2013 Performance Boost the Performance of SharePoint Today! • Brian Culver ● March 2013 ● SIA203

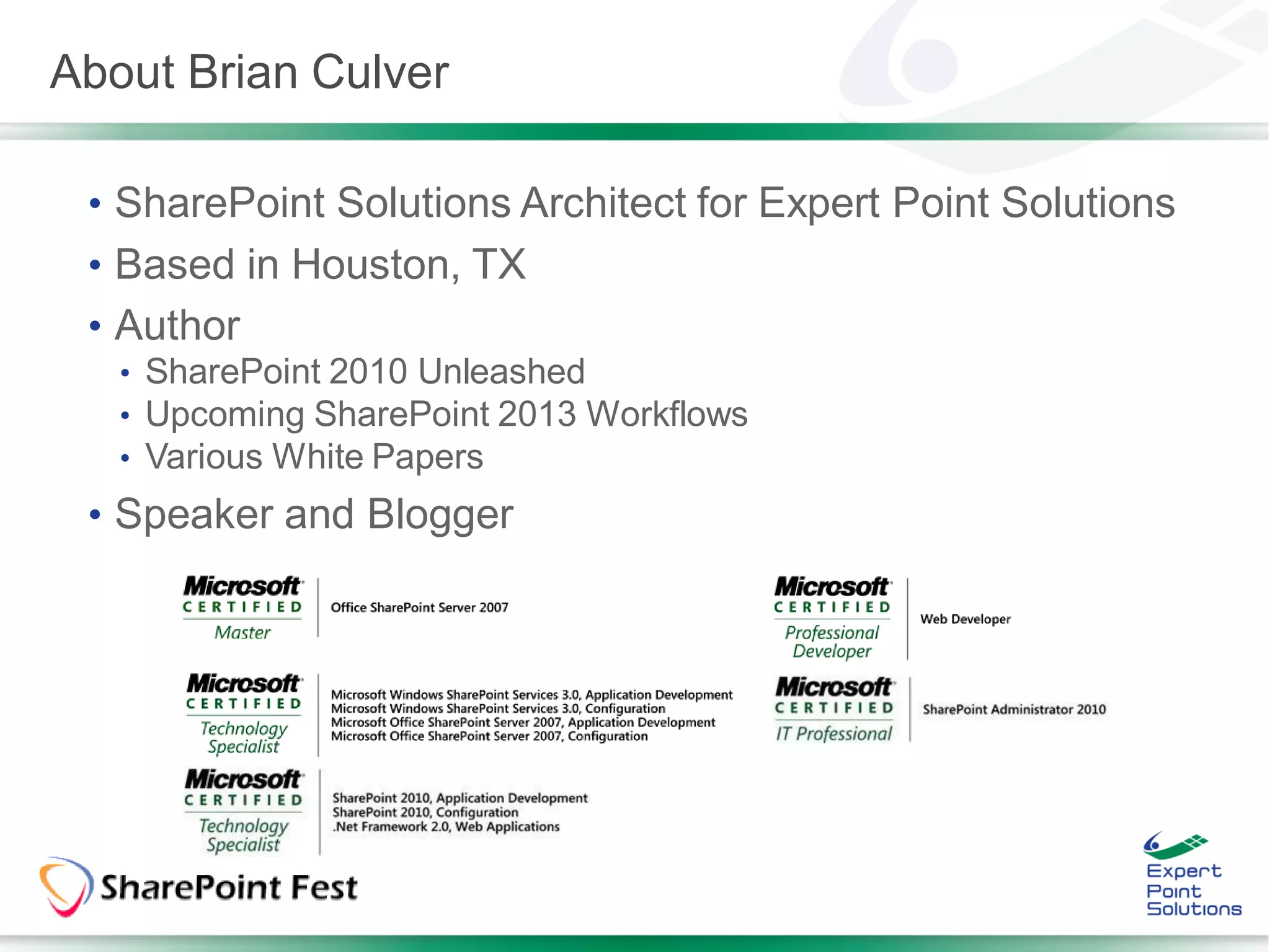

- 2. About Brian Culver • SharePoint Solutions Architect for Expert Point Solutions • Based in Houston, TX • Author • SharePoint 2010 Unleashed • Upcoming SharePoint 2013 Workflows • Various White Papers • Speaker and Blogger

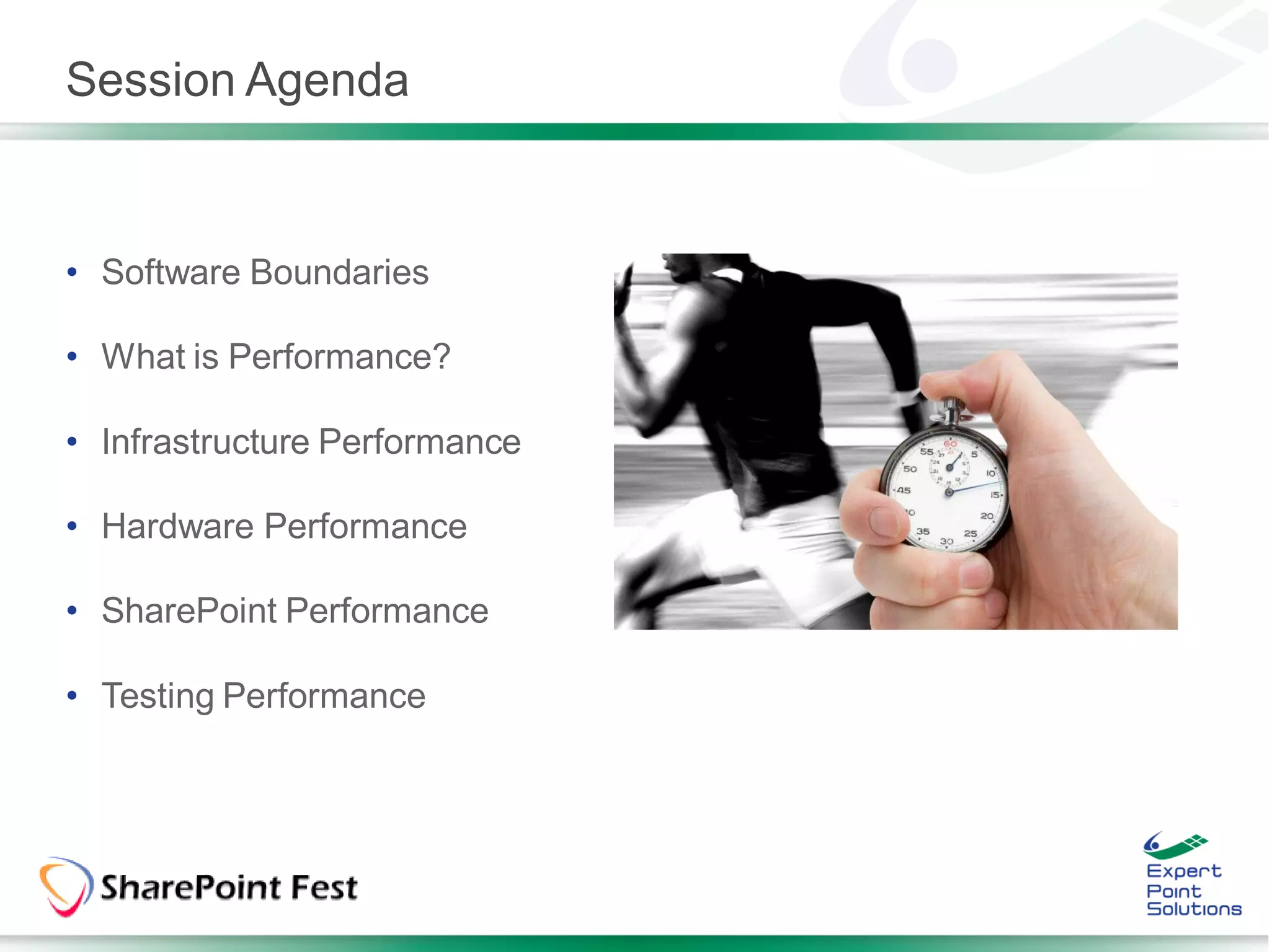

- 3. Session Agenda • SoftwareBoundaries • What is Performance? • Infrastructure Performance • Hardware Performance • SharePoint Performance • Testing Performance

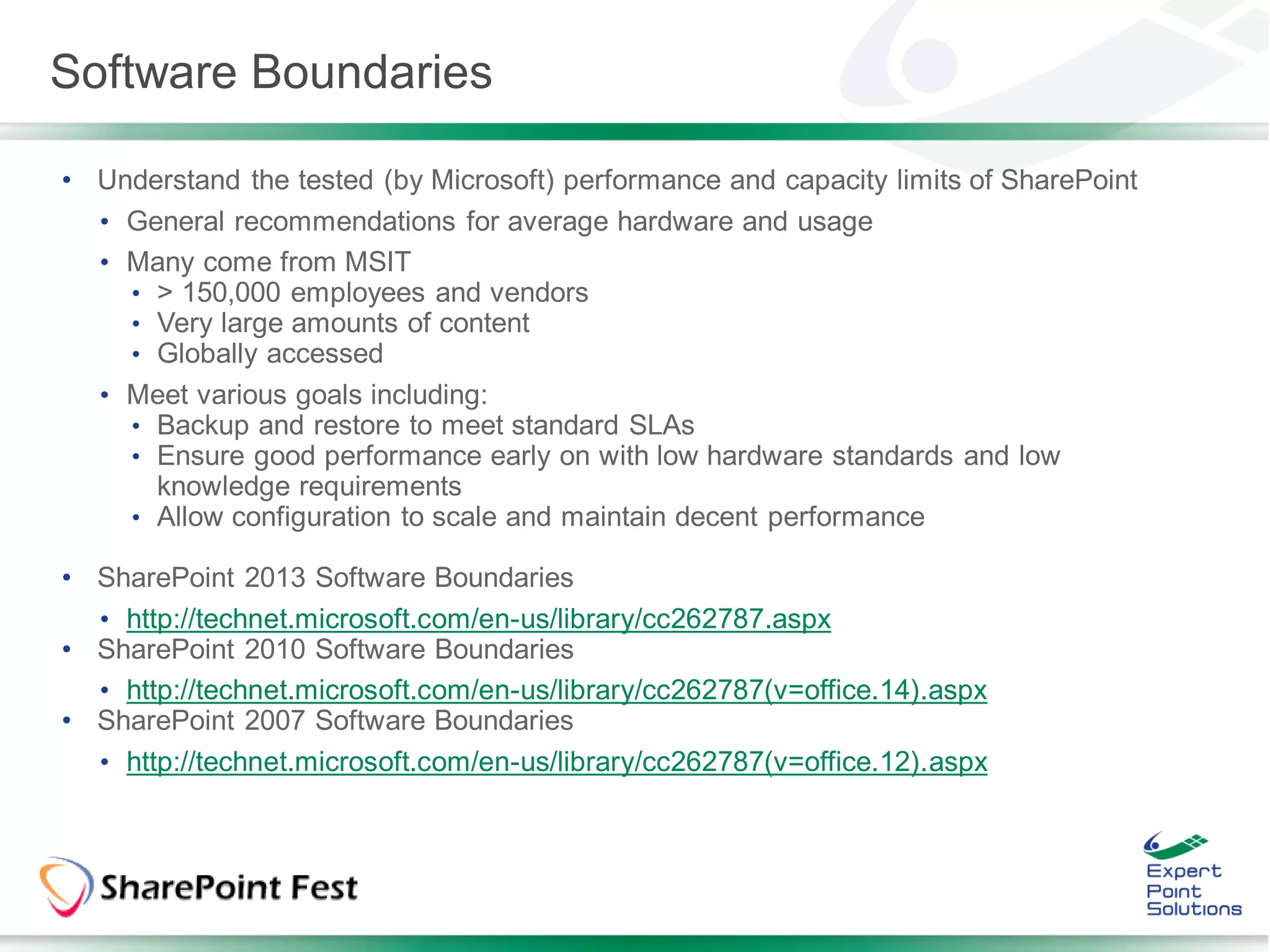

- 4. Software Boundaries • Understandthe tested (by Microsoft) performance and capacity limits of SharePoint • General recommendations for average hardware and usage • Many come from MSIT • > 150,000 employees and vendors • Very large amounts of content • Globally accessed • Meet various goals including: • Backup and restore to meet standard SLAs • Ensure good performance early on with low hardware standards and low knowledge requirements • Allow configuration to scale and maintain decent performance • SharePoint 2013 Software Boundaries • http://technet.microsoft.com/en-us/library/cc262787.aspx • SharePoint 2010 Software Boundaries • http://technet.microsoft.com/en-us/library/cc262787(v=office.14).aspx • SharePoint 2007 Software Boundaries • http://technet.microsoft.com/en-us/library/cc262787(v=office.12).aspx
- 5. What is PoorPerformance? • Increased end user response time • Reduced overall system throughput

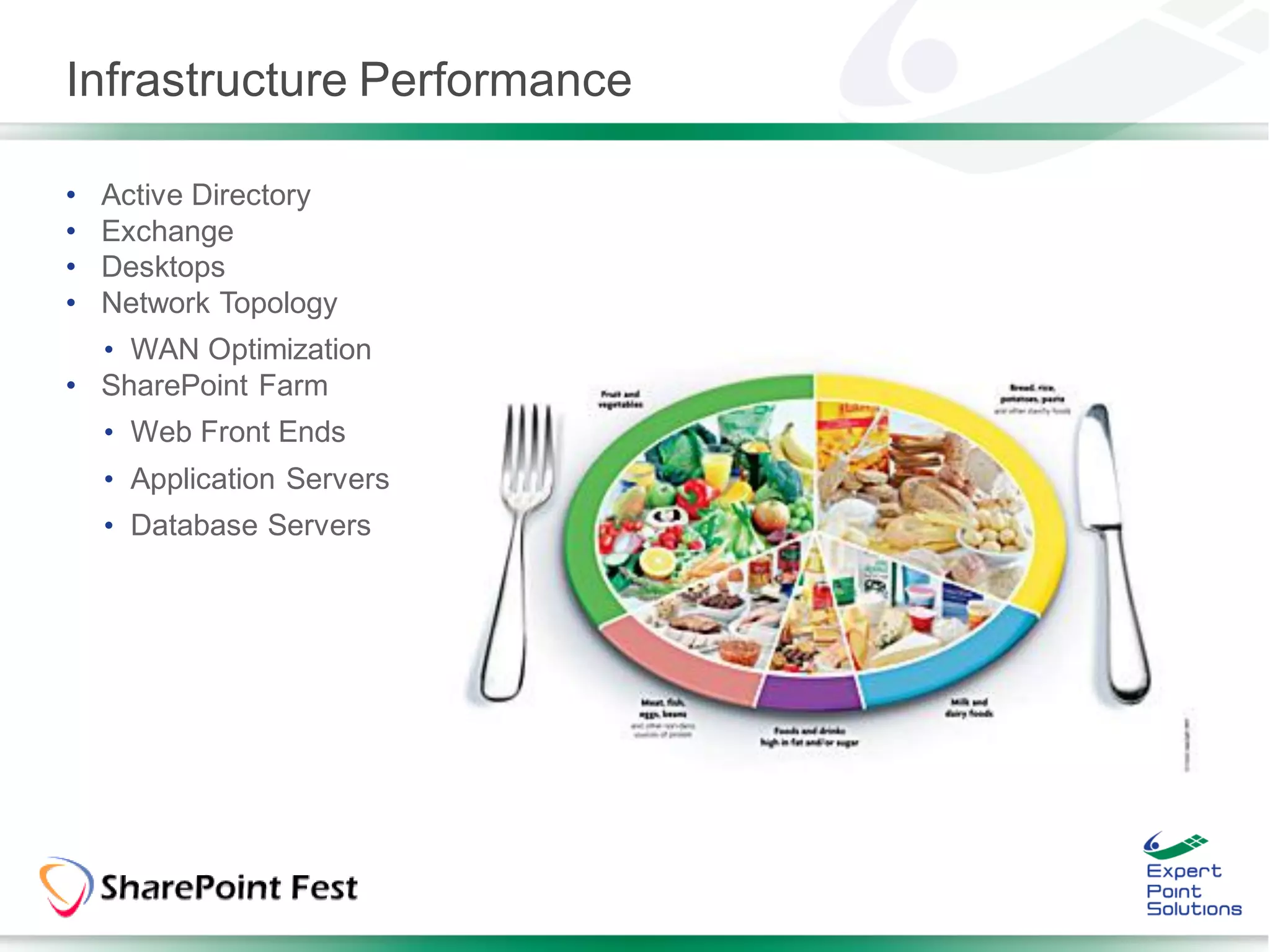

- 6. Infrastructure Performance • Active Directory • Exchange • Desktops • Network Topology • WAN Optimization • SharePoint Farm • Web Front Ends • Application Servers • Database Servers

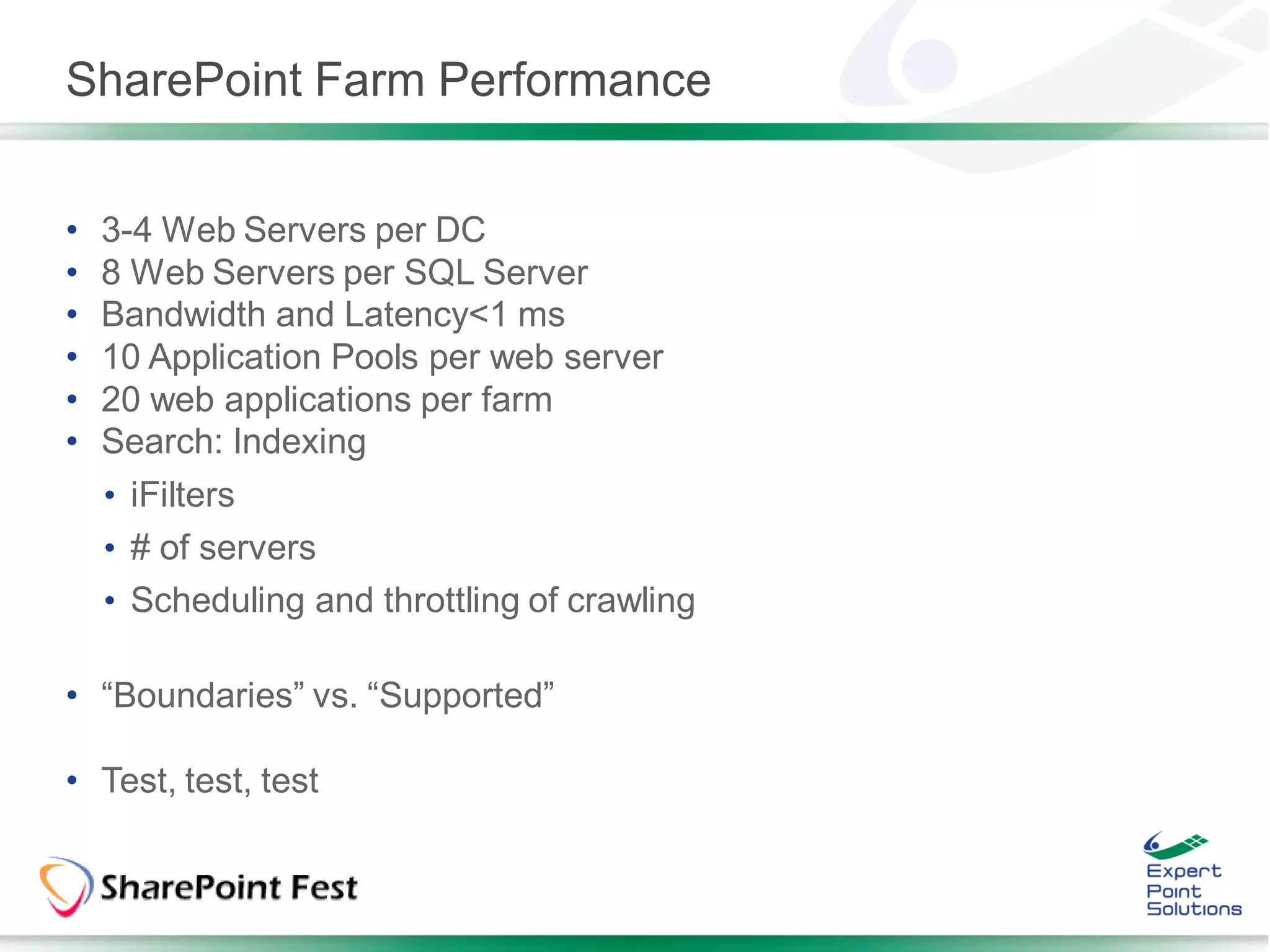

- 7. SharePoint Farm Performance • 3-4 Web Servers per DC • 8 Web Servers per SQL Server • Bandwidth and Latency<1 ms • 10 Application Pools per web server • 20 web applications per farm • Search: Indexing • iFilters • # of servers • Scheduling and throttling of crawling • “Boundaries” vs. “Supported” • Test, test, test

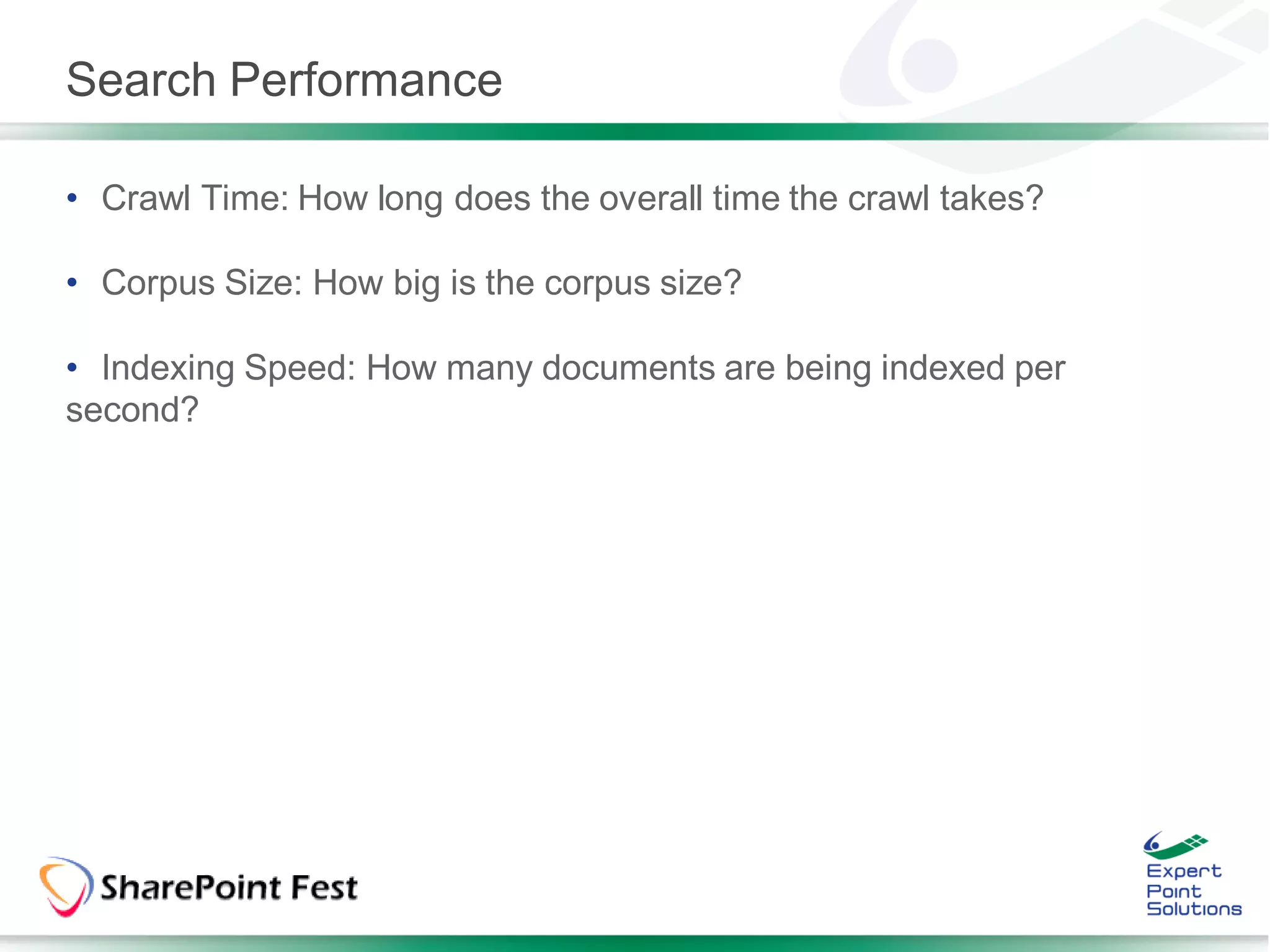

- 8. Search Performance • CrawlTime: How long does the overall time the crawl takes? • Corpus Size: How big is the corpus size? • Indexing Speed: How many documents are being indexed per second?

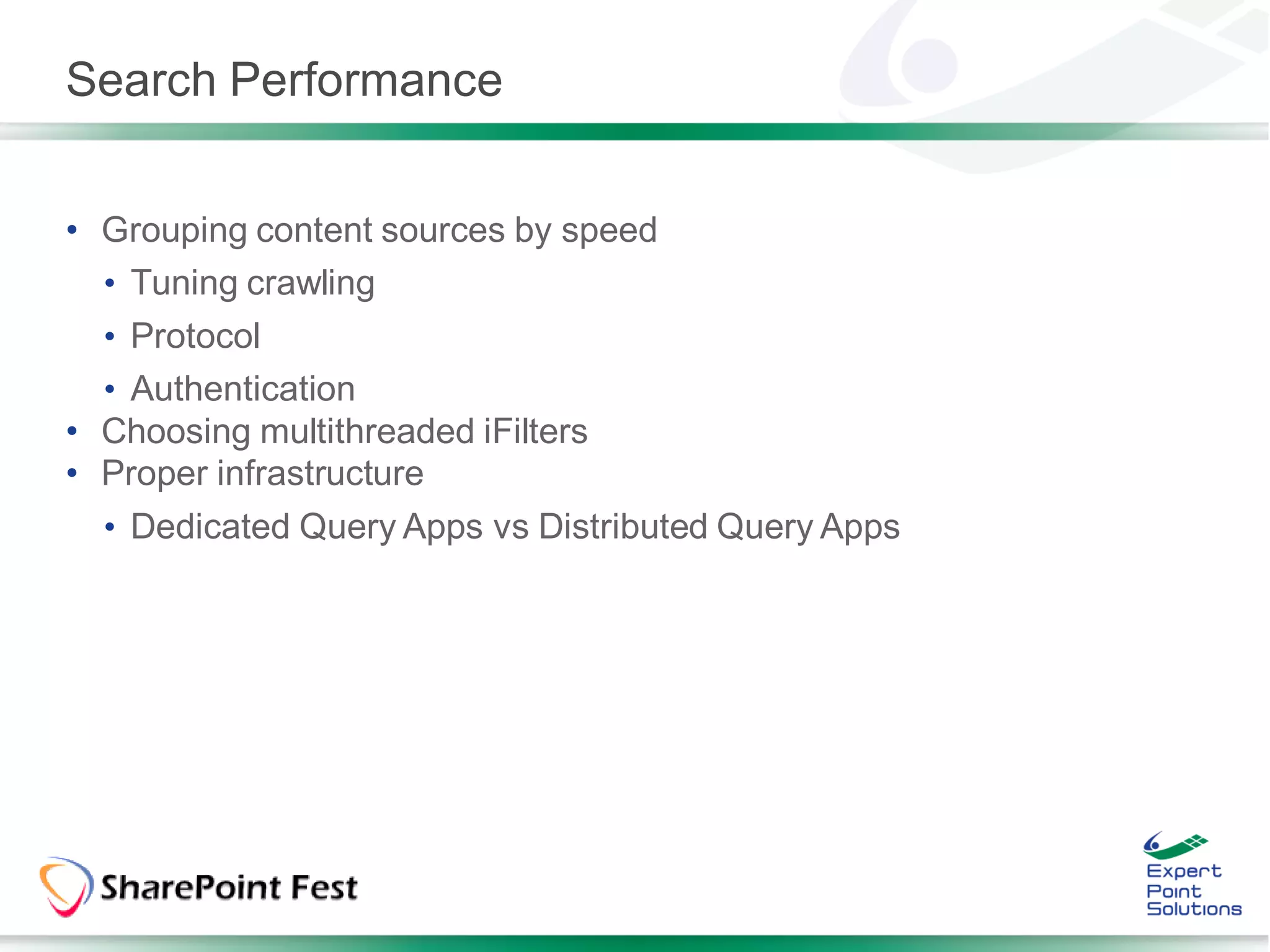

- 9. Search Performance • Groupingcontent sources by speed • Tuning crawling • Protocol • Authentication • Choosing multithreaded iFilters • Proper infrastructure • Dedicated Query Apps vs Distributed Query Apps

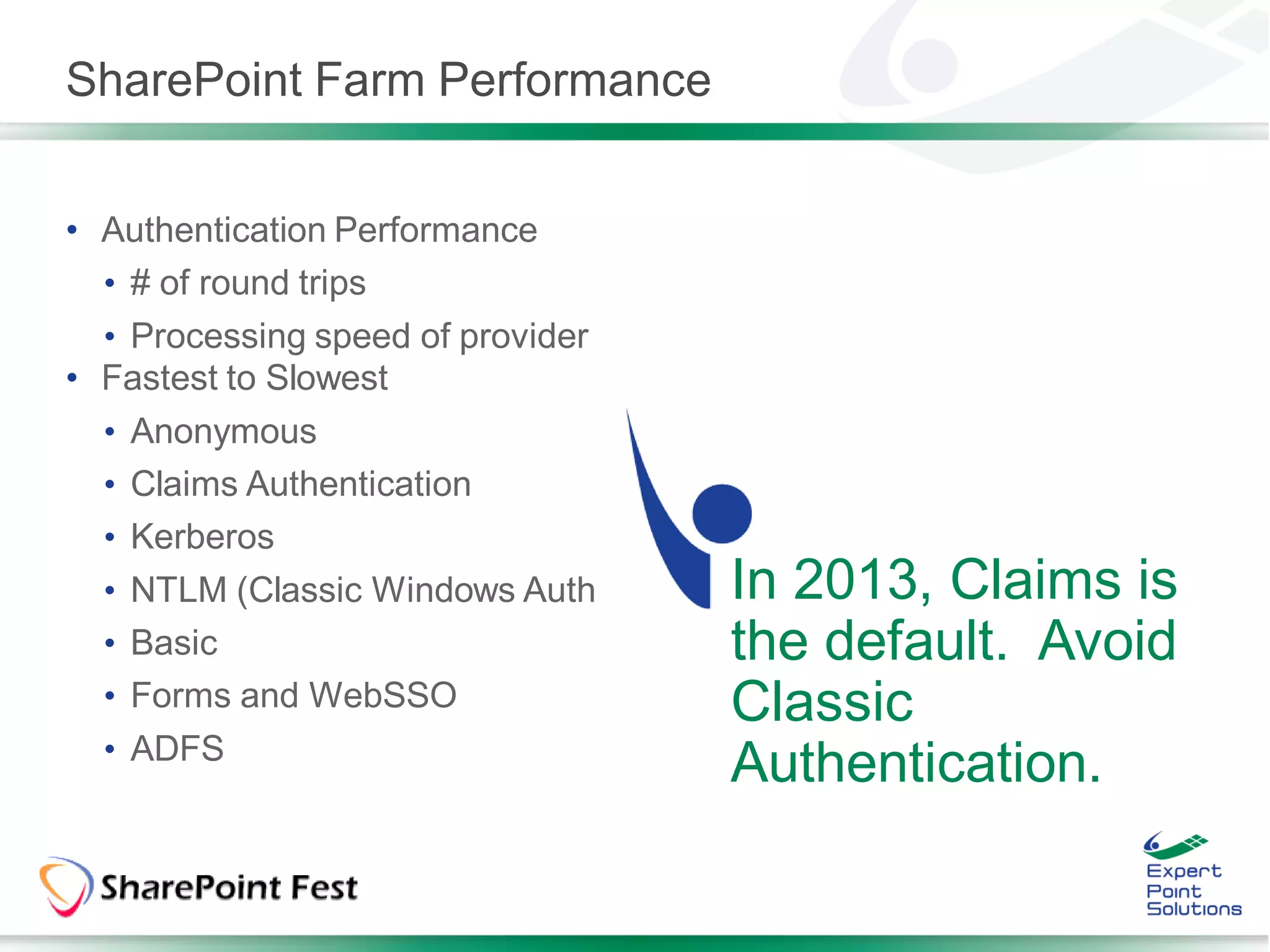

- 10. SharePoint Farm Performance •Authentication Performance • # of round trips • Processing speed of provider • Fastest to Slowest • Anonymous • Claims Authentication • Kerberos • NTLM (Classic Windows Auth In 2013, Claims is • Basic the default. Avoid • Forms and WebSSO Classic • ADFS Authentication.

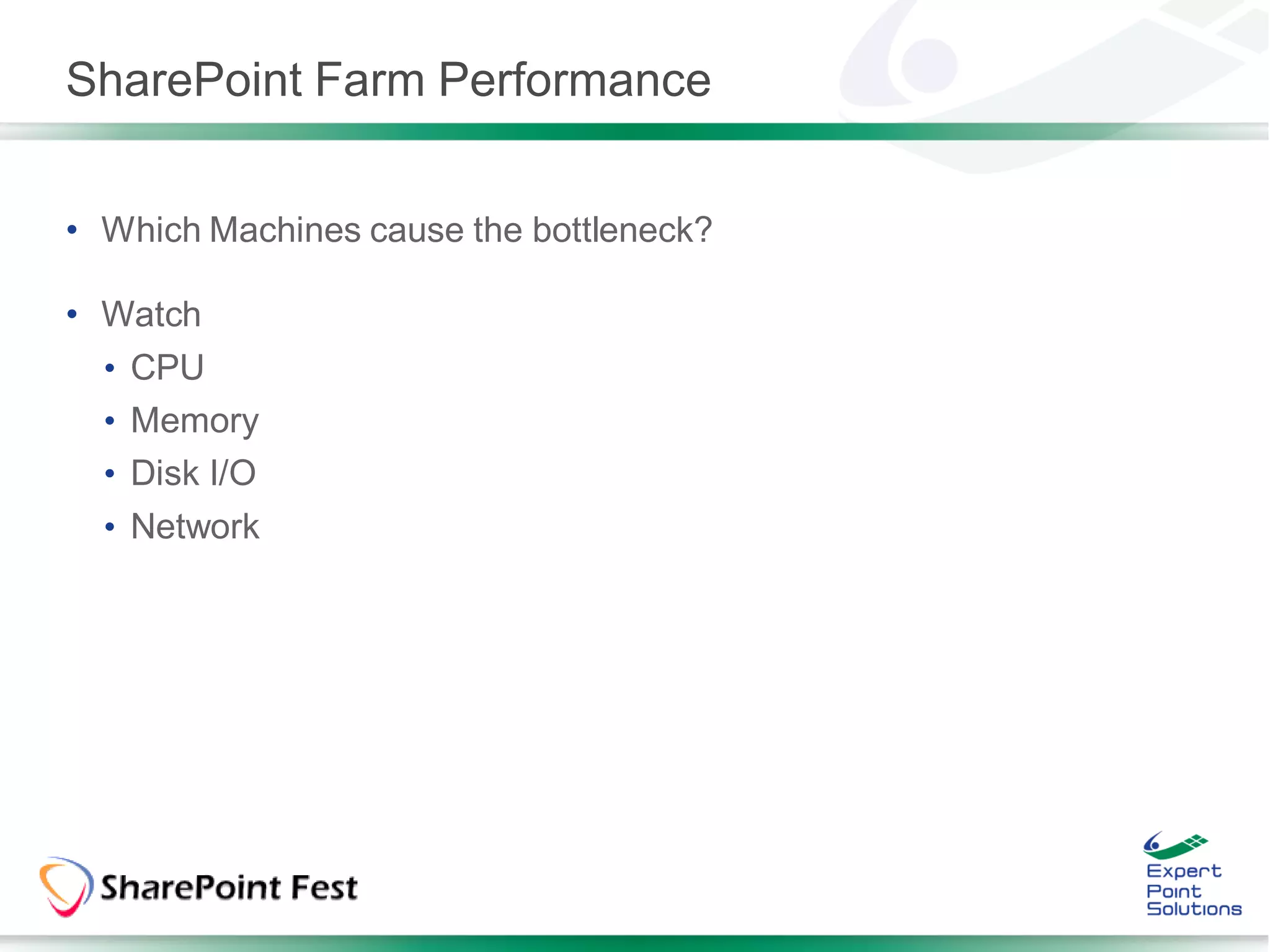

- 11. SharePoint Farm Performance •Which Machines cause the bottleneck? • Watch • CPU • Memory • Disk I/O • Network

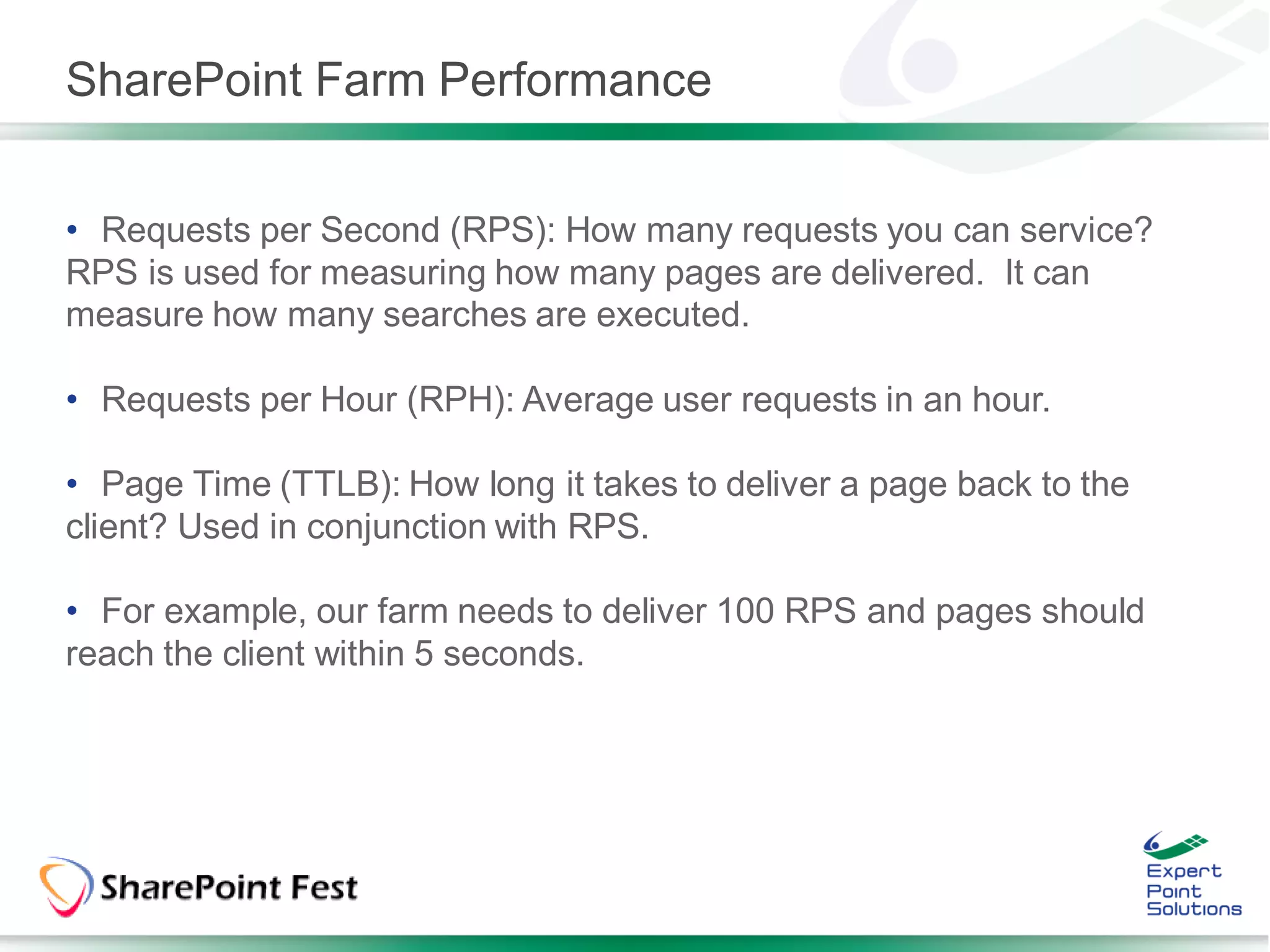

- 12. SharePoint Farm Performance •Requests per Second (RPS): How many requests you can service? RPS is used for measuring how many pages are delivered. It can measure how many searches are executed. • Requests per Hour (RPH): Average user requests in an hour. • Page Time (TTLB): How long it takes to deliver a page back to the client? Used in conjunction with RPS. • For example, our farm needs to deliver 100 RPS and pages should reach the client within 5 seconds.

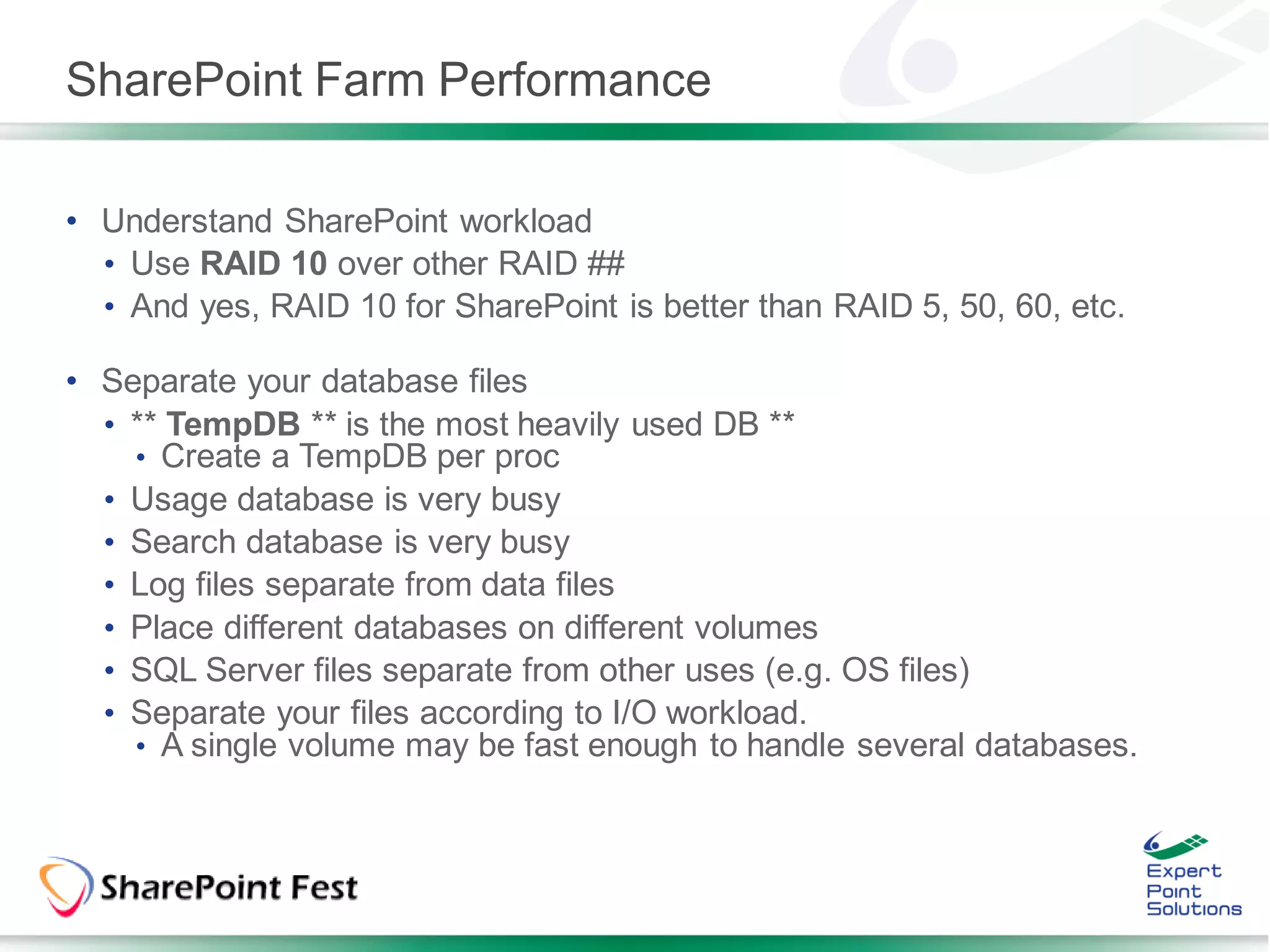

- 13. SharePoint Farm Performance •Understand SharePoint workload • Use RAID 10 over other RAID ## • And yes, RAID 10 for SharePoint is better than RAID 5, 50, 60, etc. • Separate your database files • ** TempDB ** is the most heavily used DB ** • Create a TempDB per proc • Usage database is very busy • Search database is very busy • Log files separate from data files • Place different databases on different volumes • SQL Server files separate from other uses (e.g. OS files) • Separate your files according to I/O workload. • A single volume may be fast enough to handle several databases.

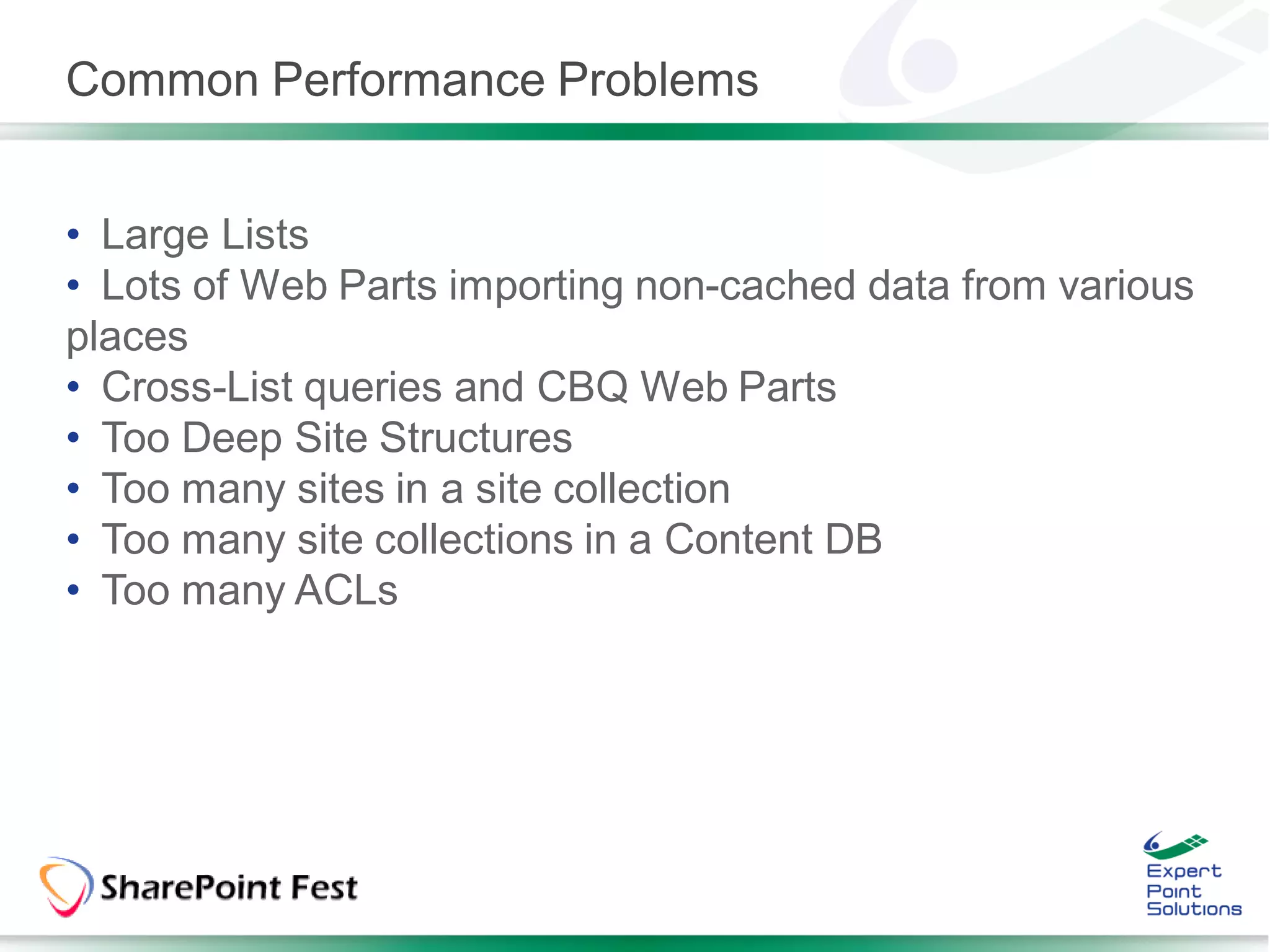

- 14. Common Performance Problems •Large Lists • Lots of Web Parts importing non-cached data from various places • Cross-List queries and CBQ Web Parts • Too Deep Site Structures • Too many sites in a site collection • Too many site collections in a Content DB • Too many ACLs

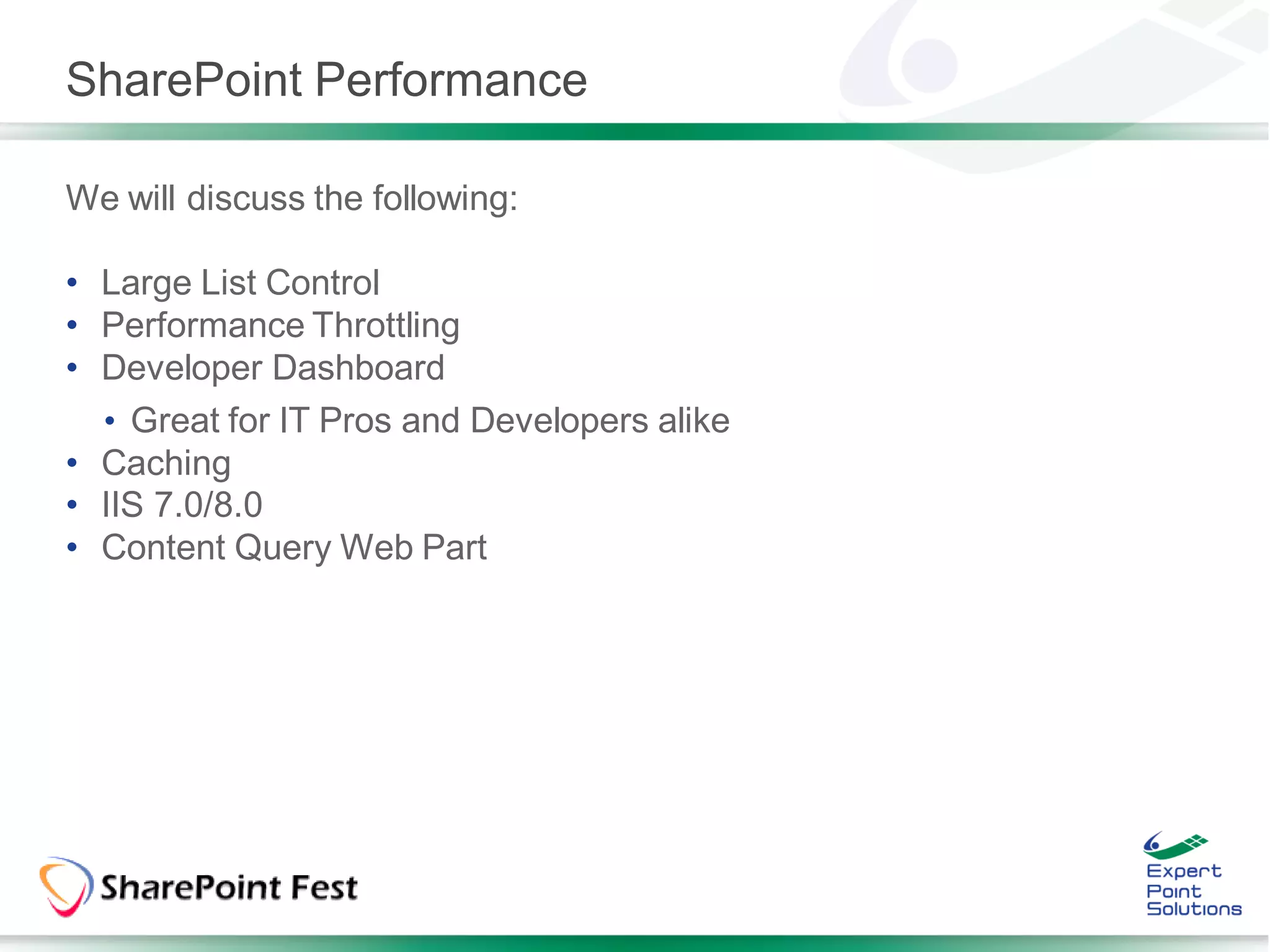

- 15. SharePoint Performance We willdiscuss the following: • Large List Control • Performance Throttling • Developer Dashboard • Great for IT Pros and Developers alike • Caching • IIS 7.0/8.0 • Content Query Web Part

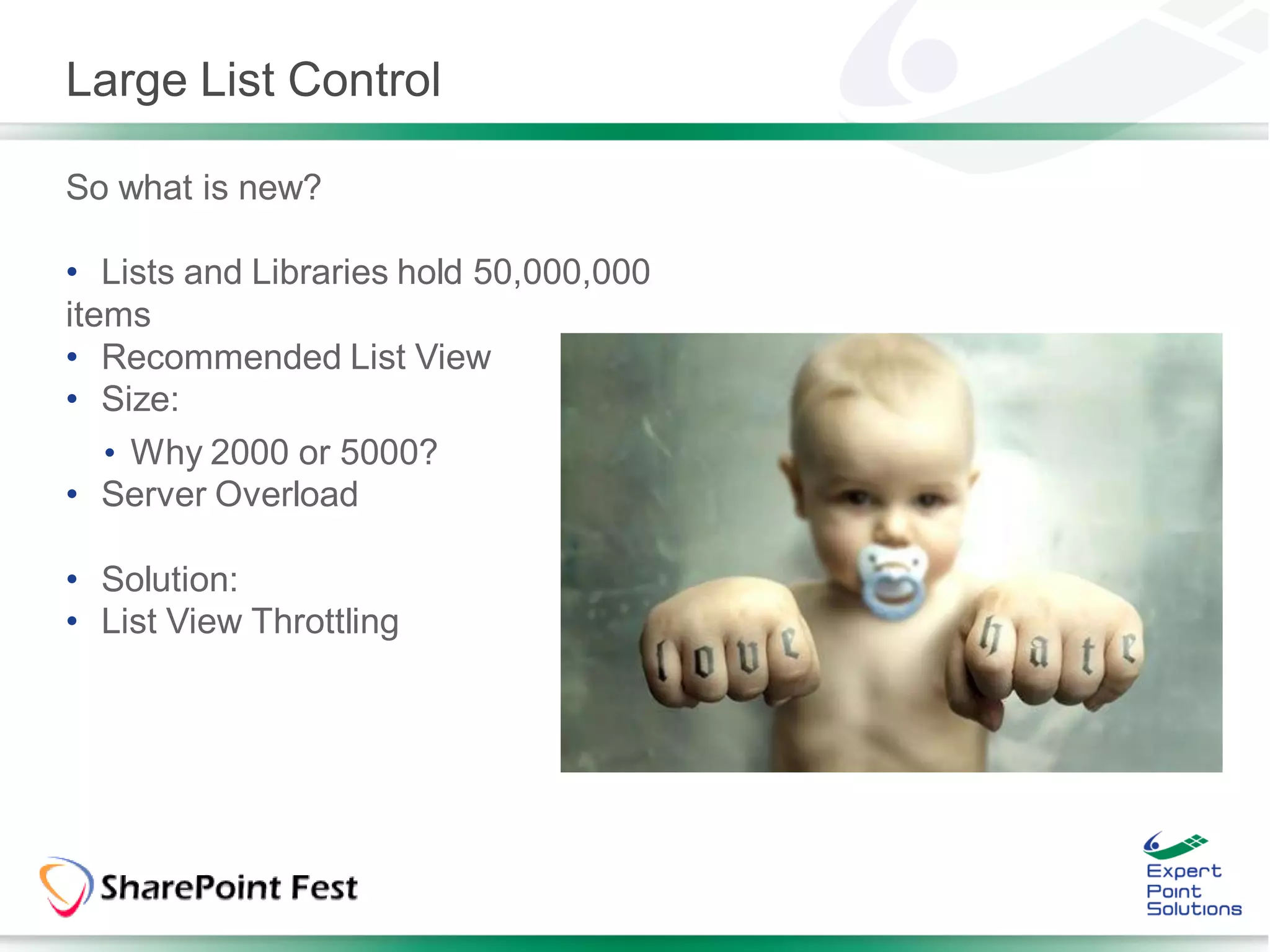

- 16. Large List Control Sowhat is new? • Lists and Libraries hold 50,000,000 items • Recommended List View • Size: • Why 2000 or 5000? • Server Overload • Solution: • List View Throttling

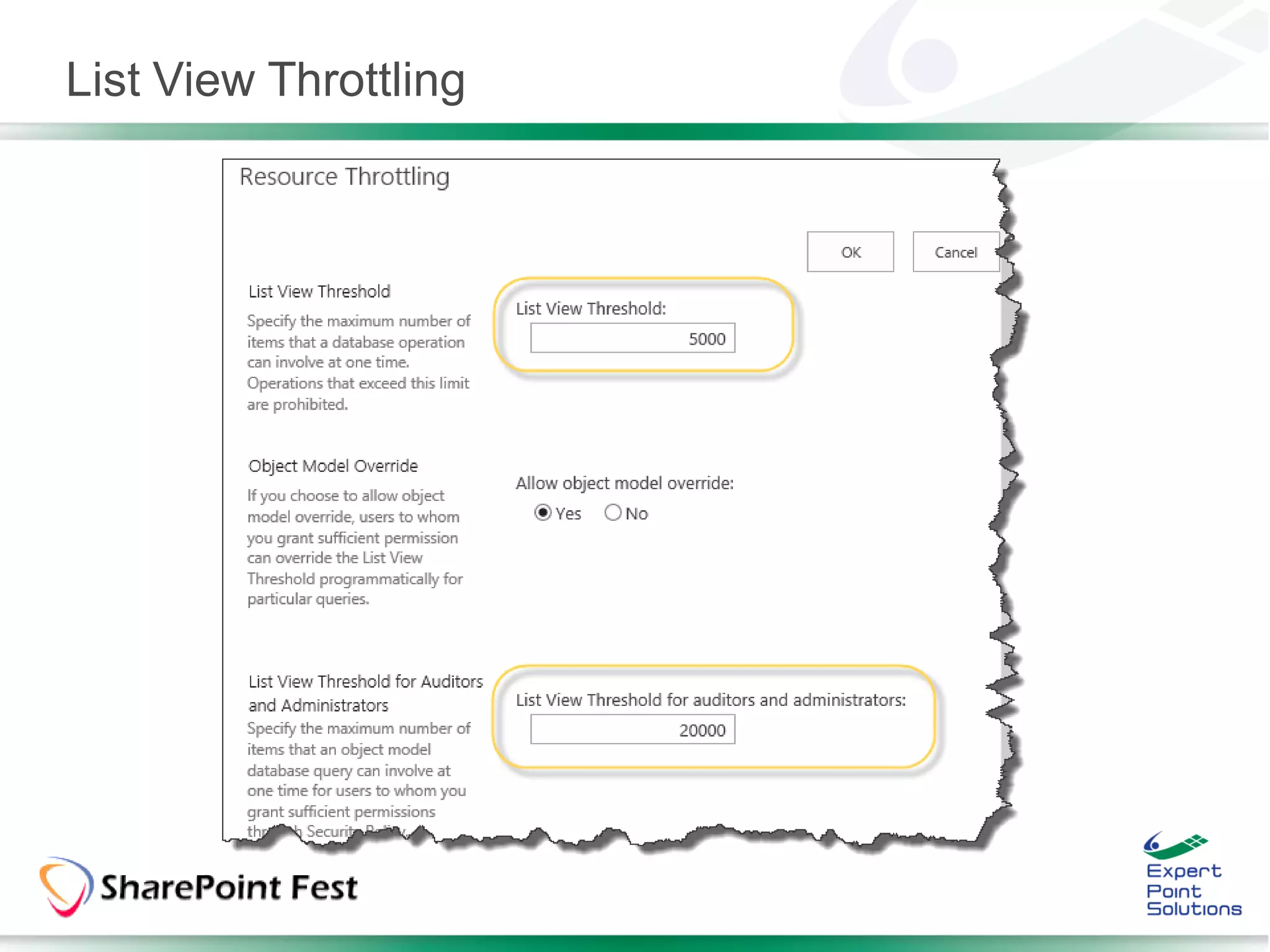

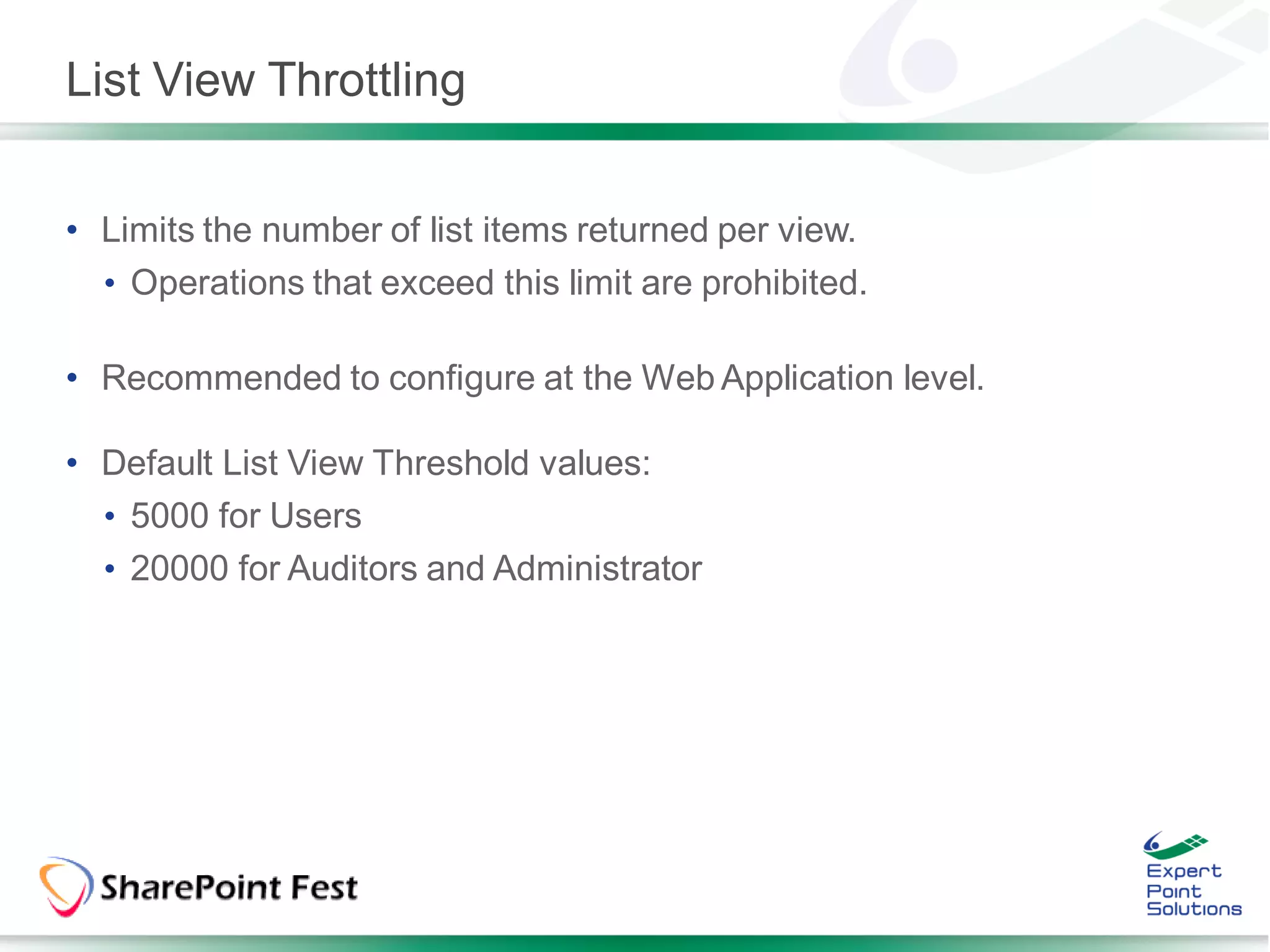

- 17. List View Throttling •Limits the number of list items returned per view. • Operations that exceed this limit are prohibited. • Recommended to configure at the Web Application level. • Default List View Threshold values: • 5000 for Users • 20000 for Auditors and Administrator

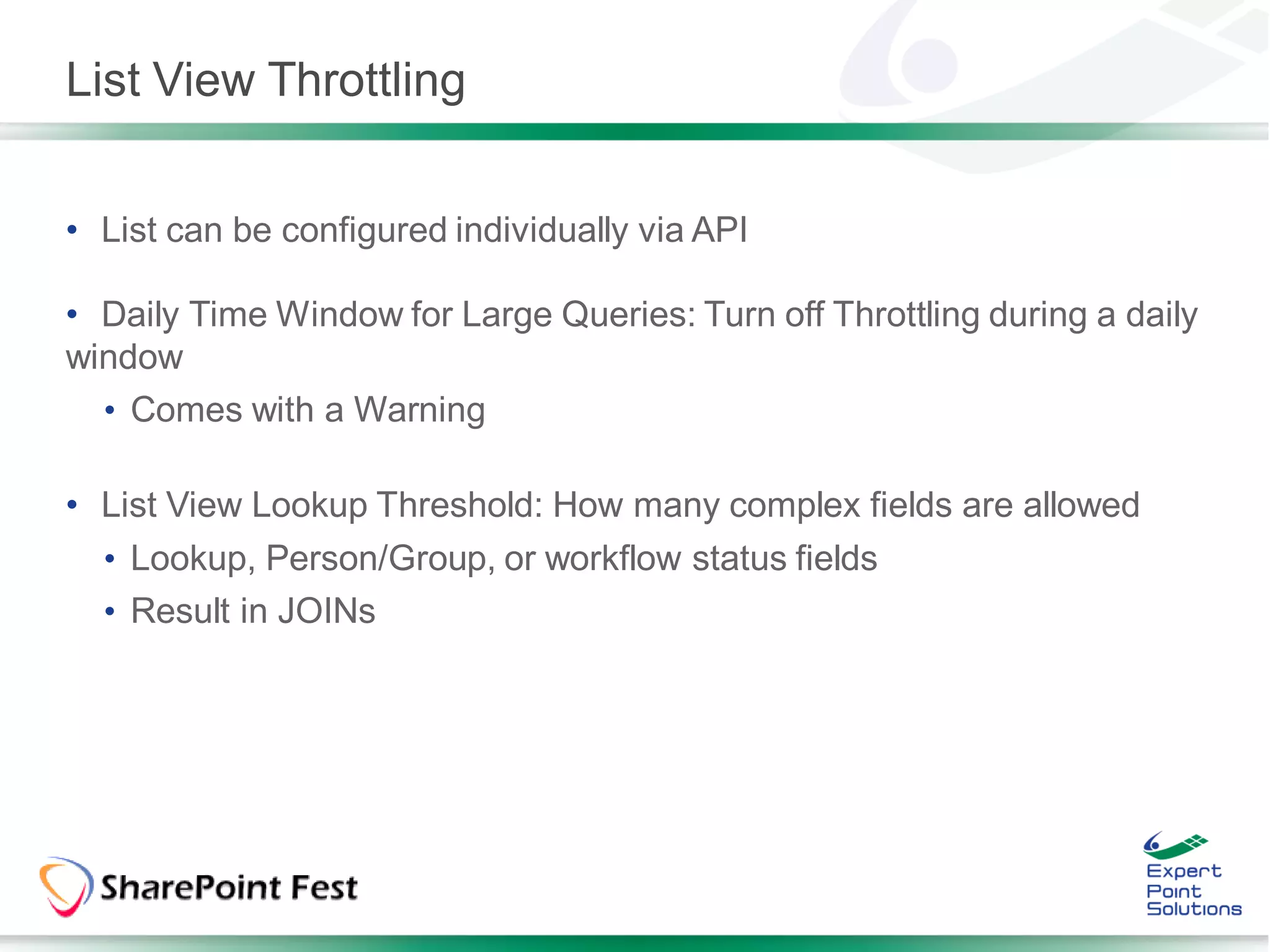

- 18. List View Throttling •List can be configured individually via API • Daily Time Window for Large Queries: Turn off Throttling during a daily window • Comes with a Warning • List View Lookup Threshold: How many complex fields are allowed • Lookup, Person/Group, or workflow status fields • Result in JOINs

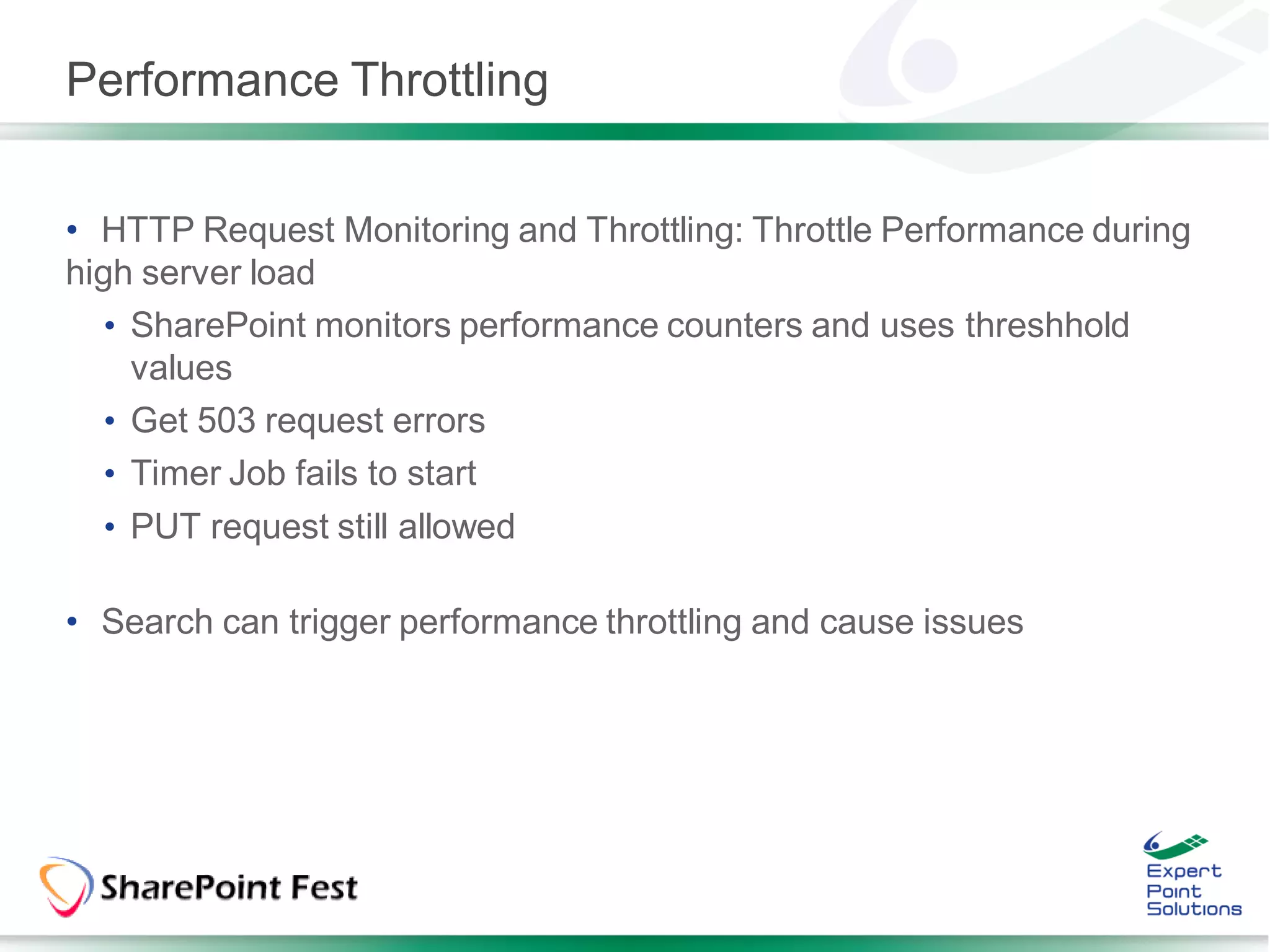

- 19. Performance Throttling • HTTPRequest Monitoring and Throttling: Throttle Performance during high server load • SharePoint monitors performance counters and uses threshhold values • Get 503 request errors • Timer Job fails to start • PUT request still allowed • Search can trigger performance throttling and cause issues

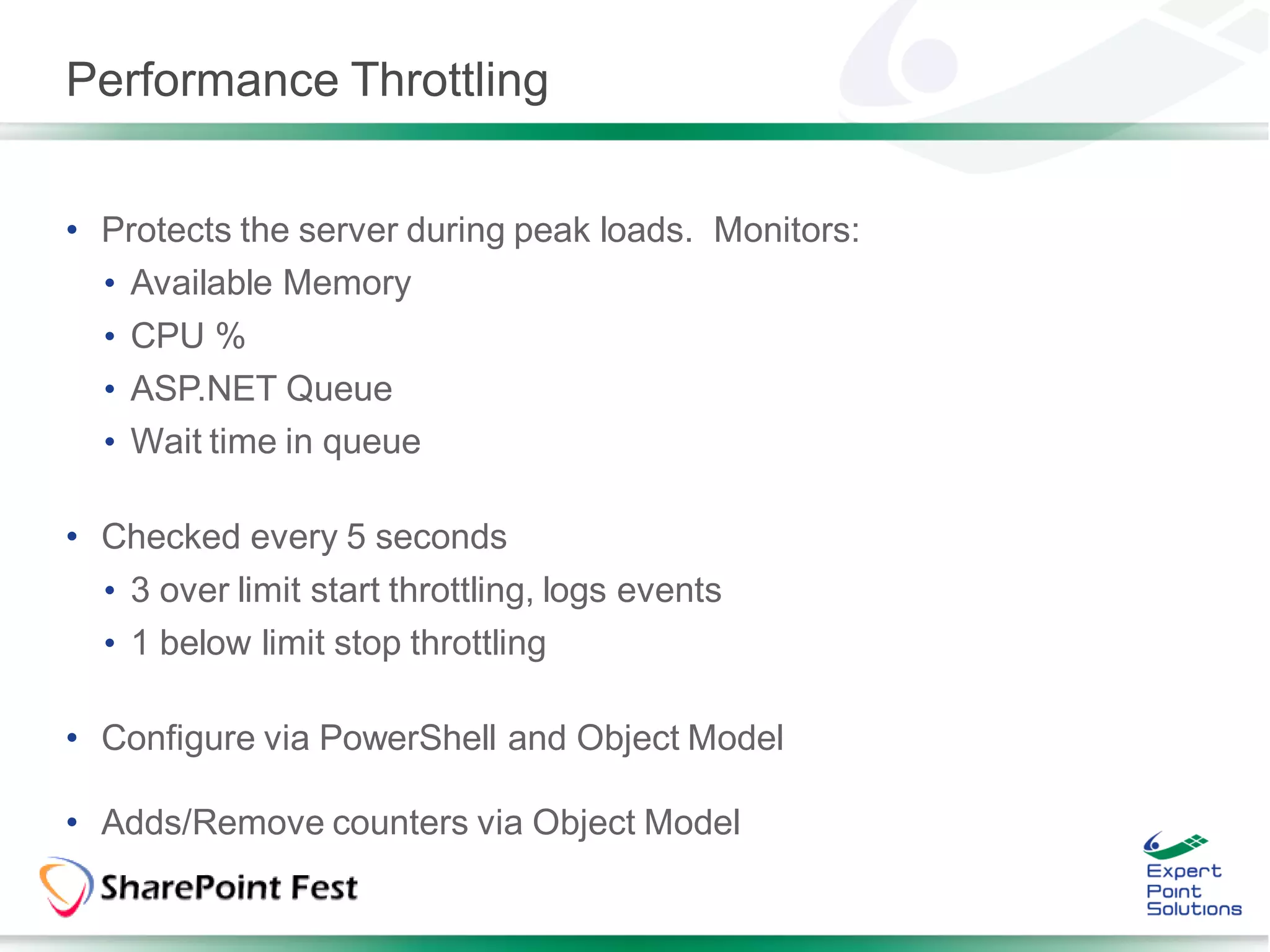

- 20. Performance Throttling • Protectsthe server during peak loads. Monitors: • Available Memory • CPU % • ASP.NET Queue • Wait time in queue • Checked every 5 seconds • 3 over limit start throttling, logs events • 1 below limit stop throttling • Configure via PowerShell and Object Model • Adds/Remove counters via Object Model

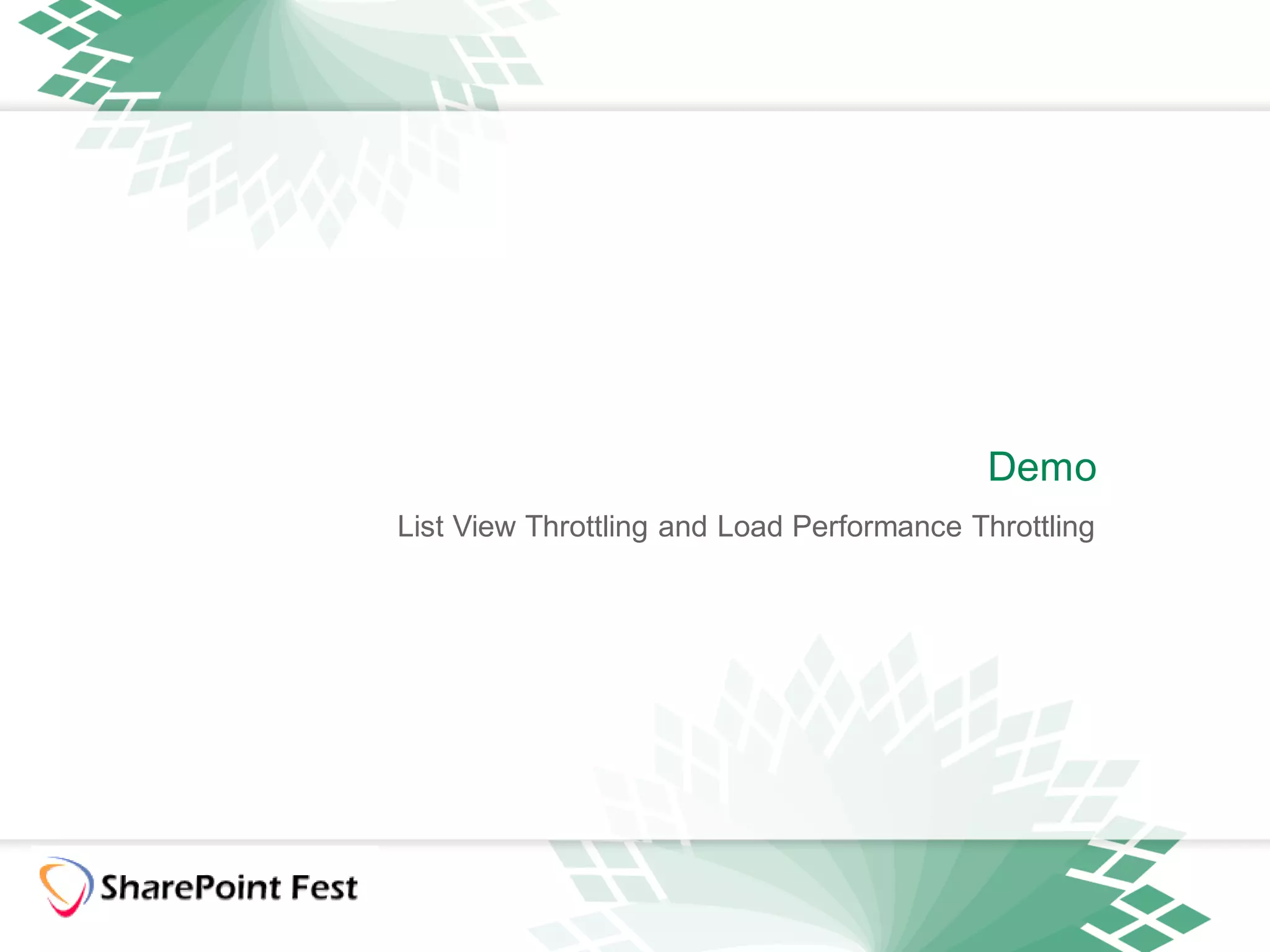

- 21. Demo List View Throttlingand Load Performance Throttling

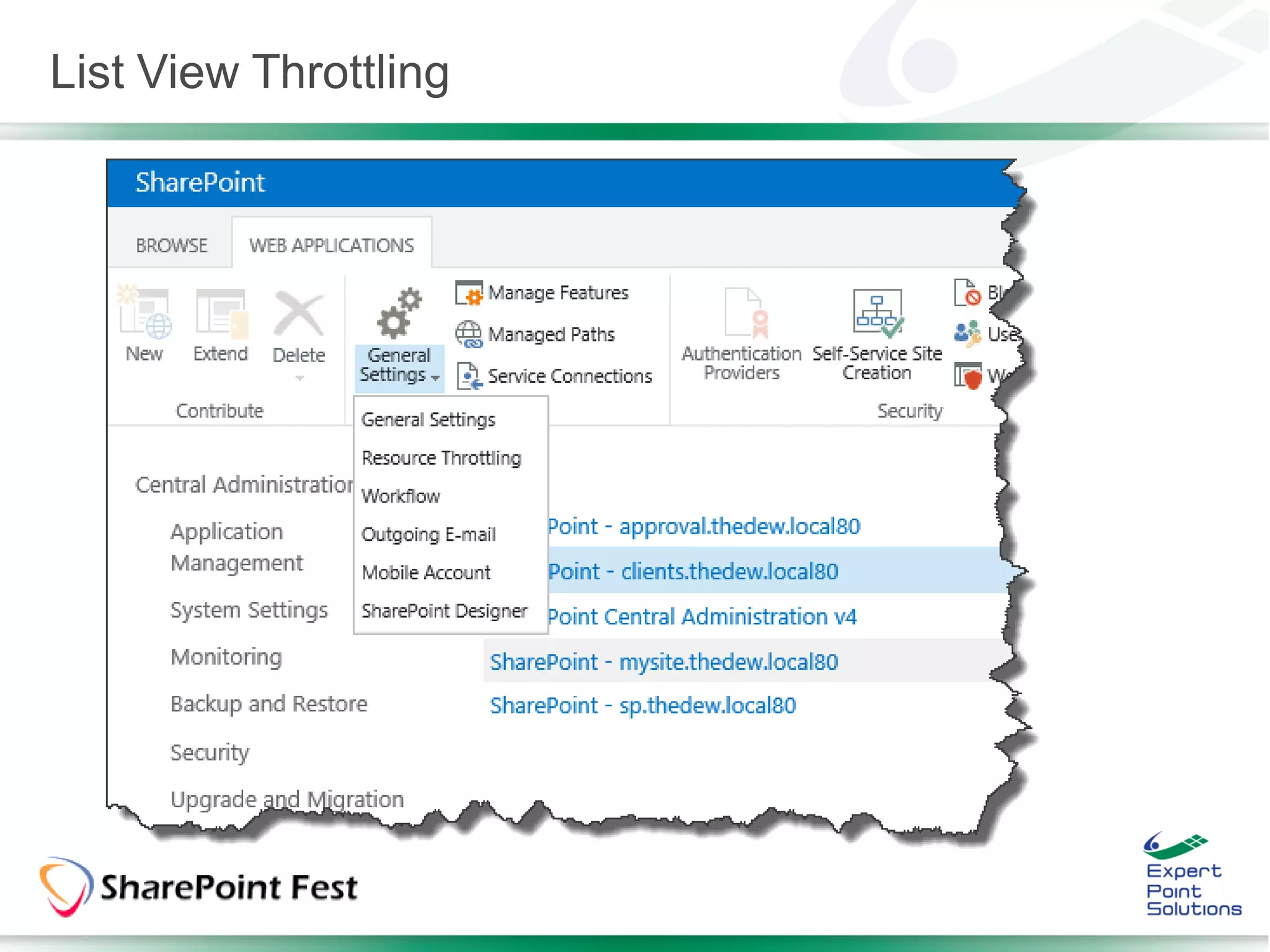

- 22.
- 23.

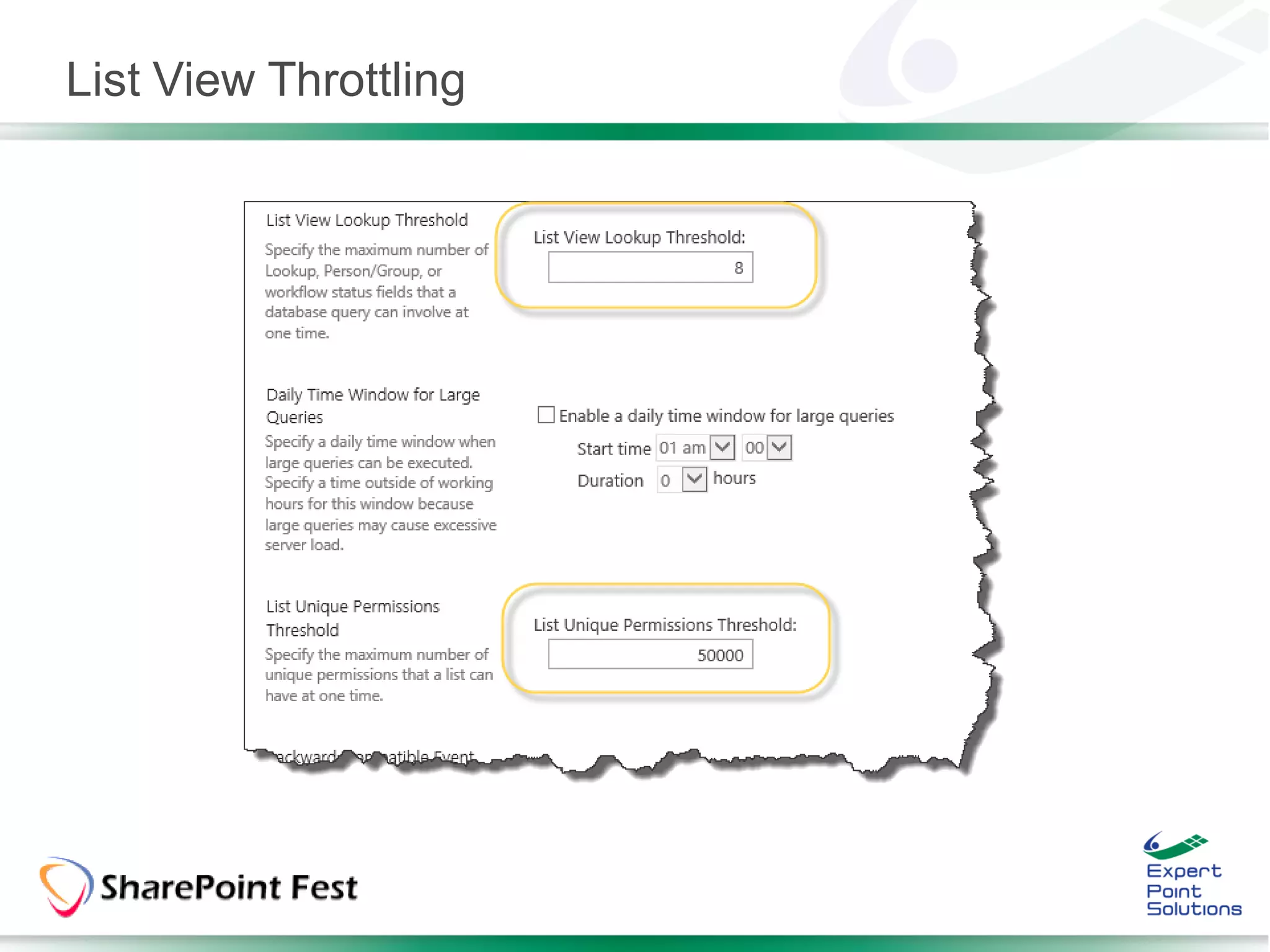

- 24.

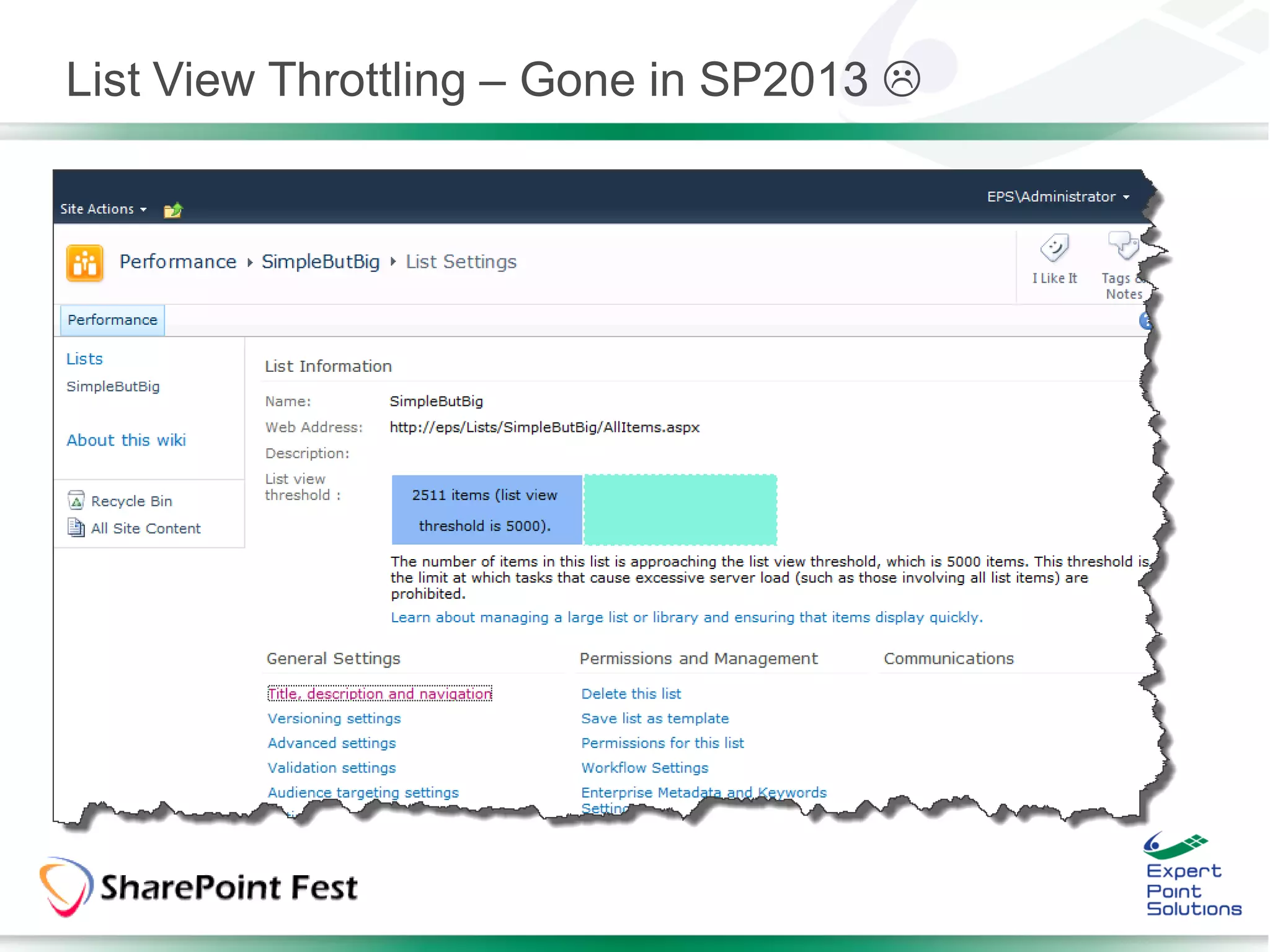

- 25. List View Throttling– Gone in SP2013

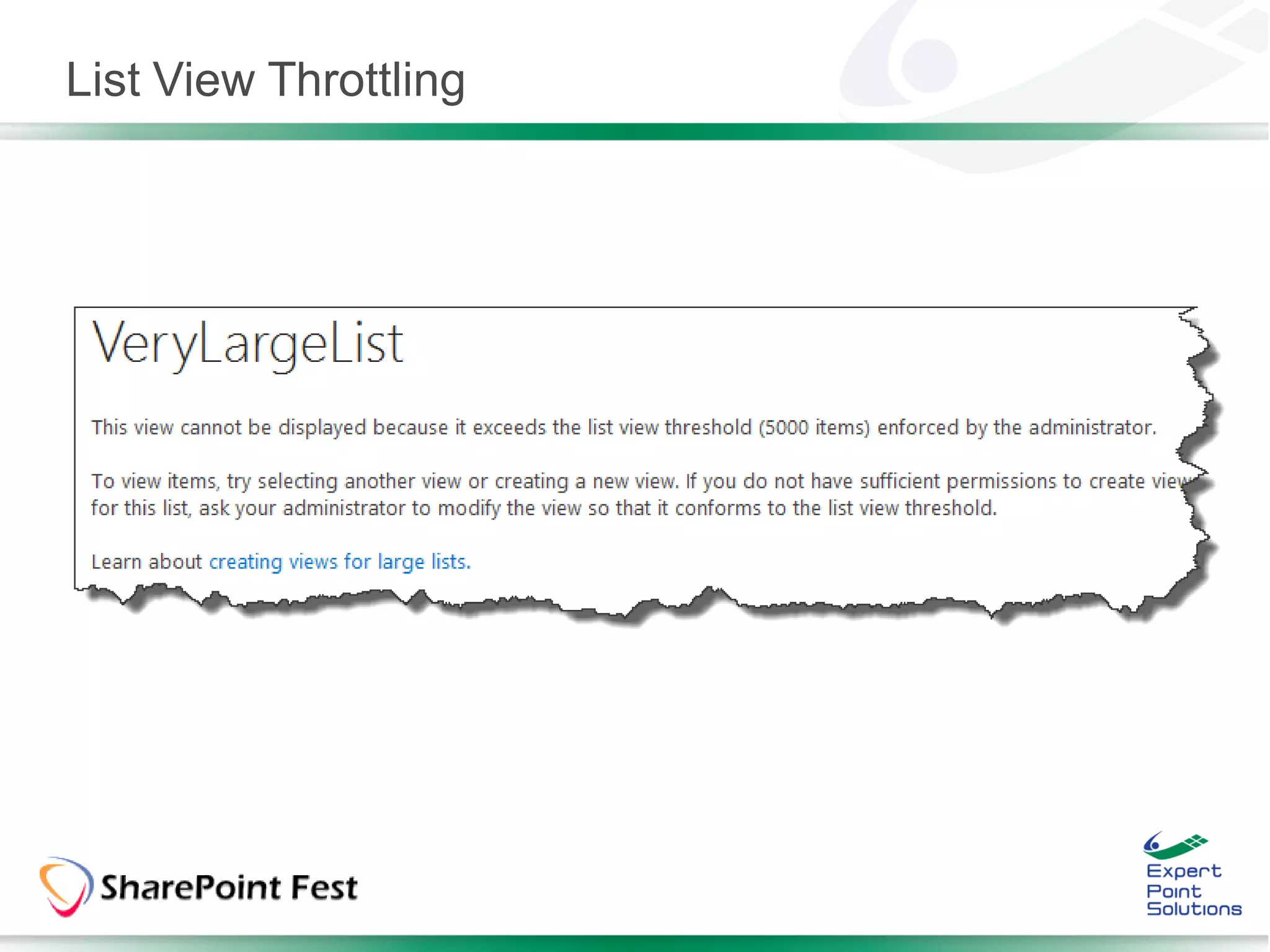

- 26.

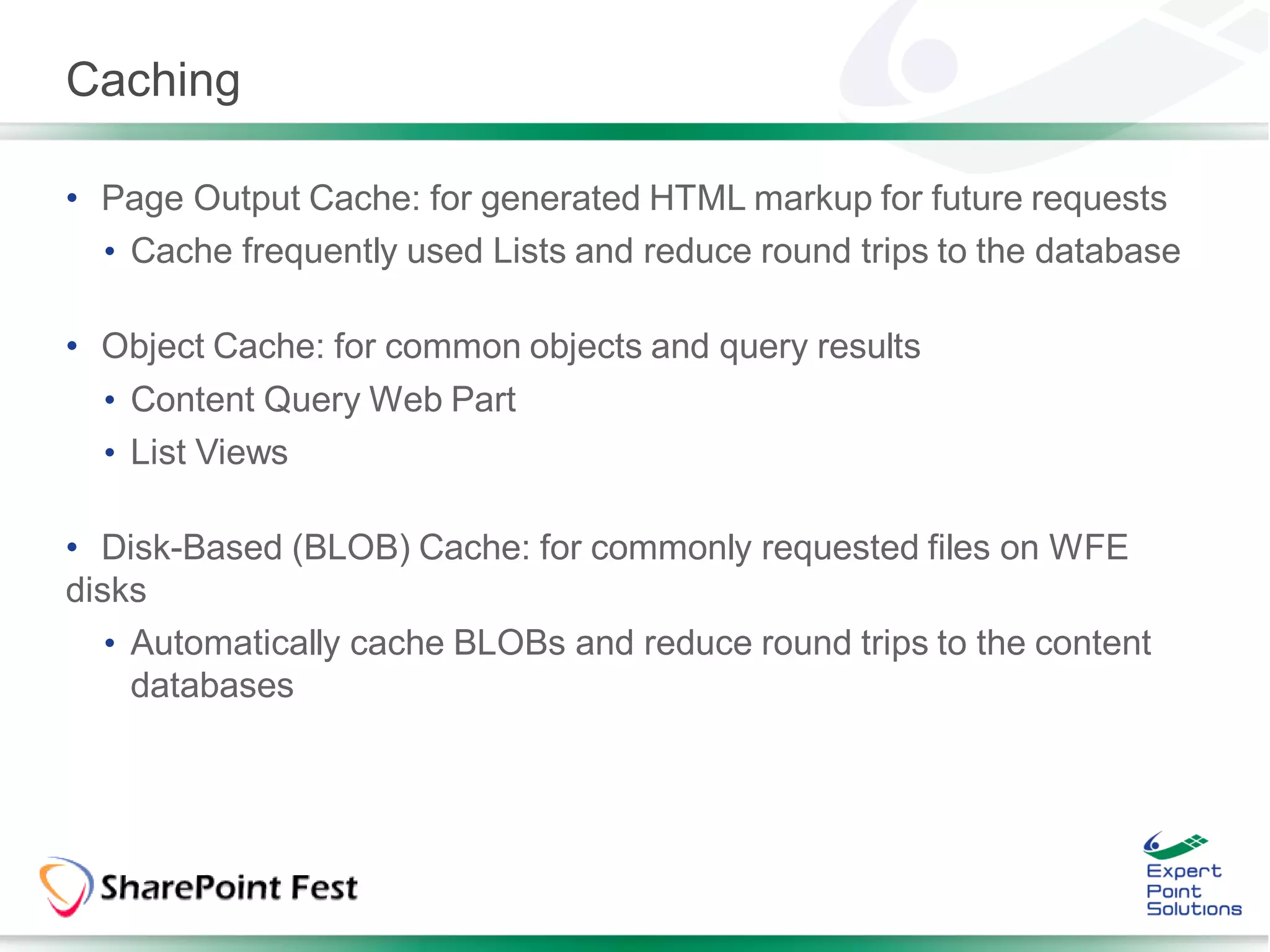

- 27. Caching • Page OutputCache: for generated HTML markup for future requests • Cache frequently used Lists and reduce round trips to the database • Object Cache: for common objects and query results • Content Query Web Part • List Views • Disk-Based (BLOB) Cache: for commonly requested files on WFE disks • Automatically cache BLOBs and reduce round trips to the content databases

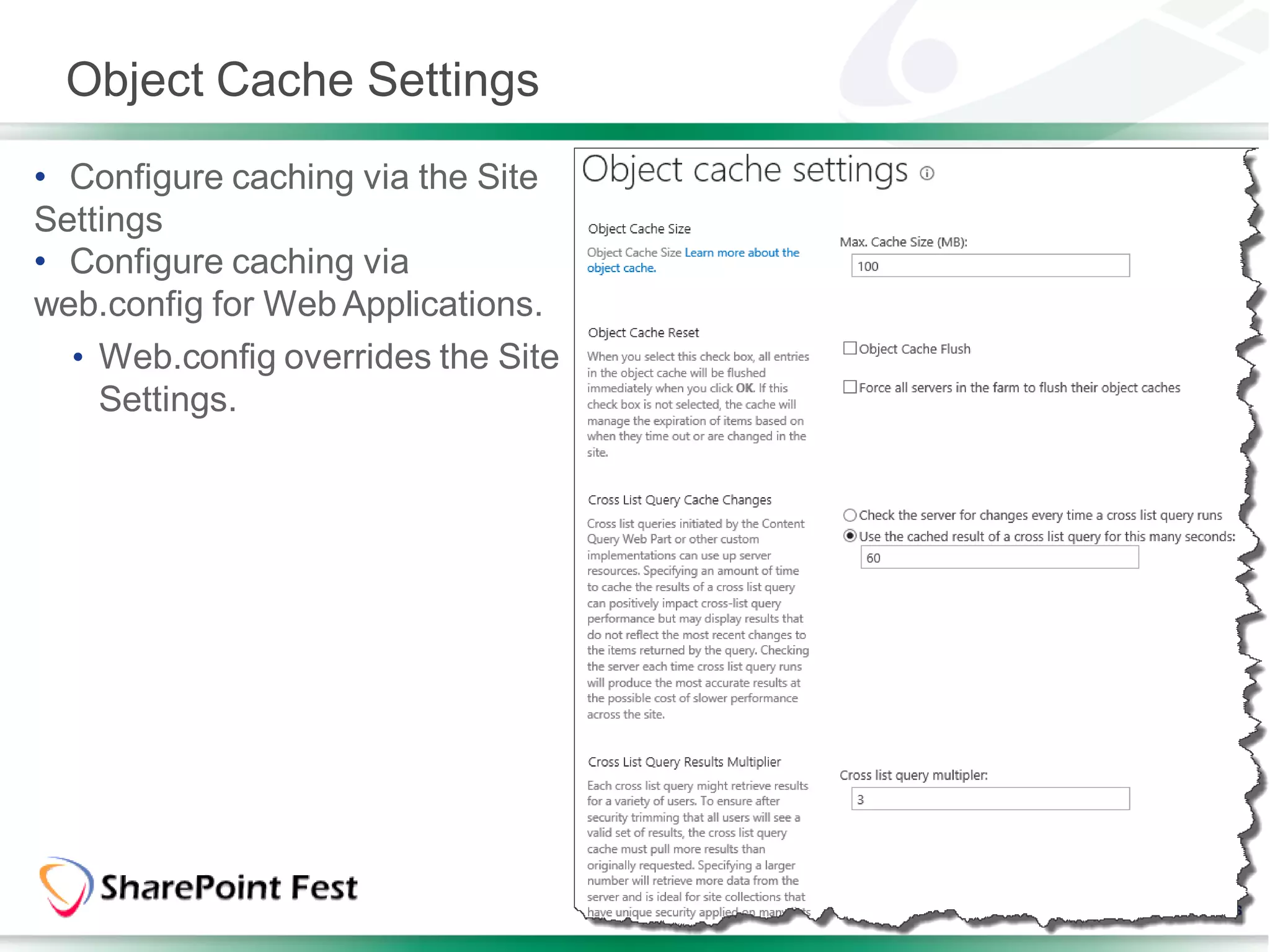

- 28. Object Cache Settings •Configure caching via the Site Settings • Configure caching via web.config for Web Applications. • Web.config overrides the Site Settings.

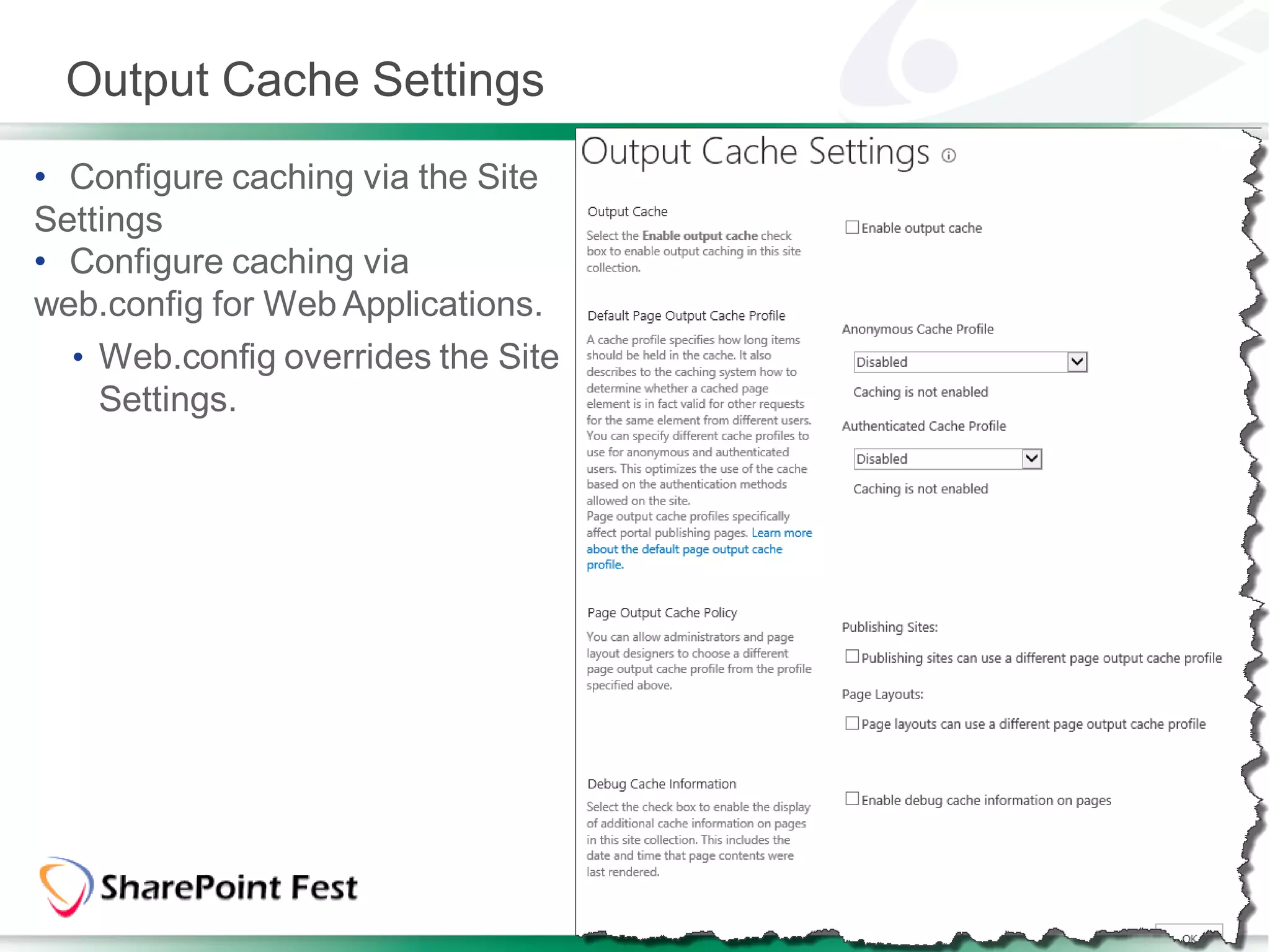

- 29. Output Cache Settings •Configure caching via the Site Settings • Configure caching via web.config for Web Applications. • Web.config overrides the Site Settings.

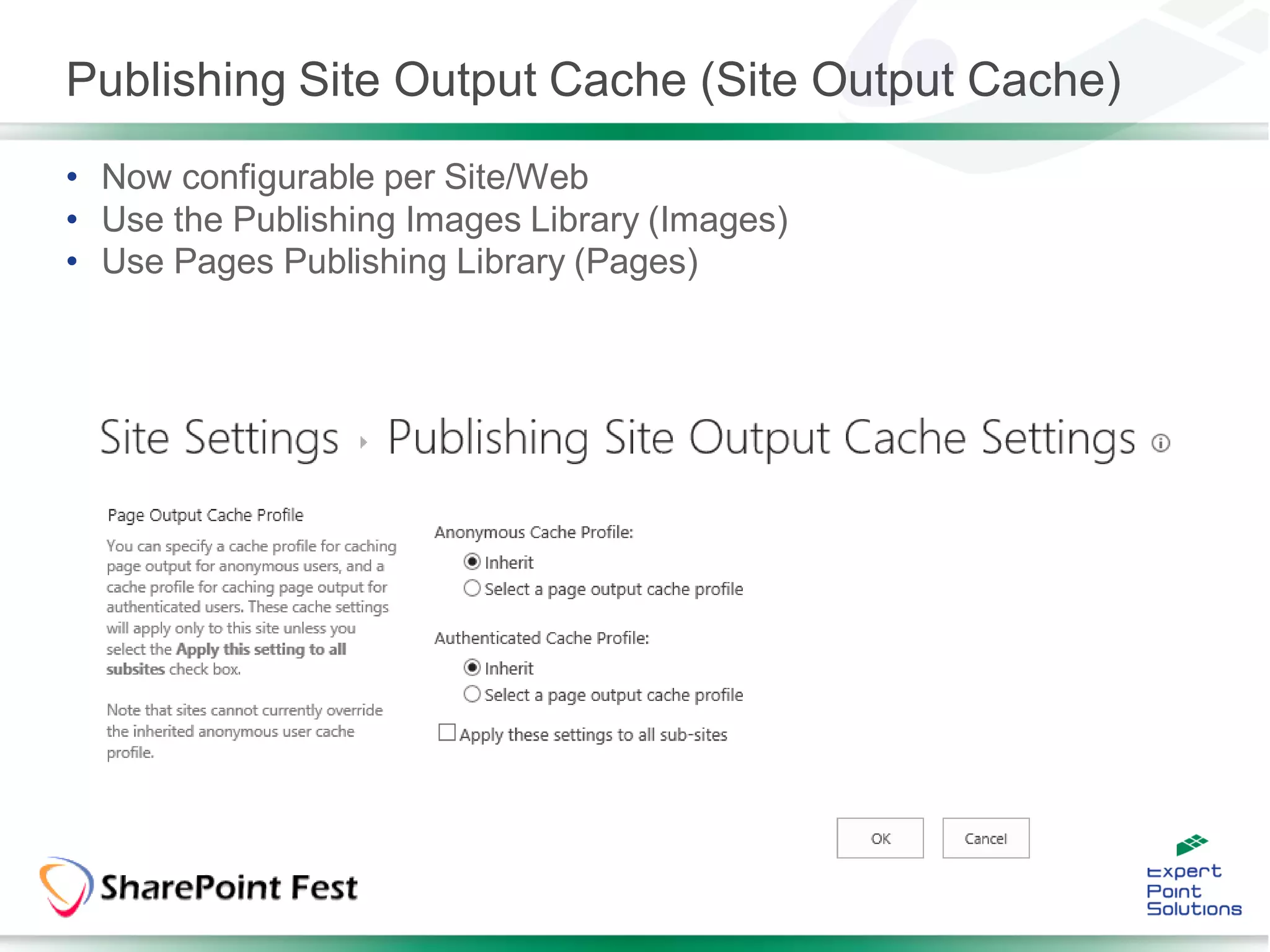

- 30. Publishing Site OutputCache (Site Output Cache) • Now configurable per Site/Web • Use the Publishing Images Library (Images) • Use Pages Publishing Library (Pages)
- 31.

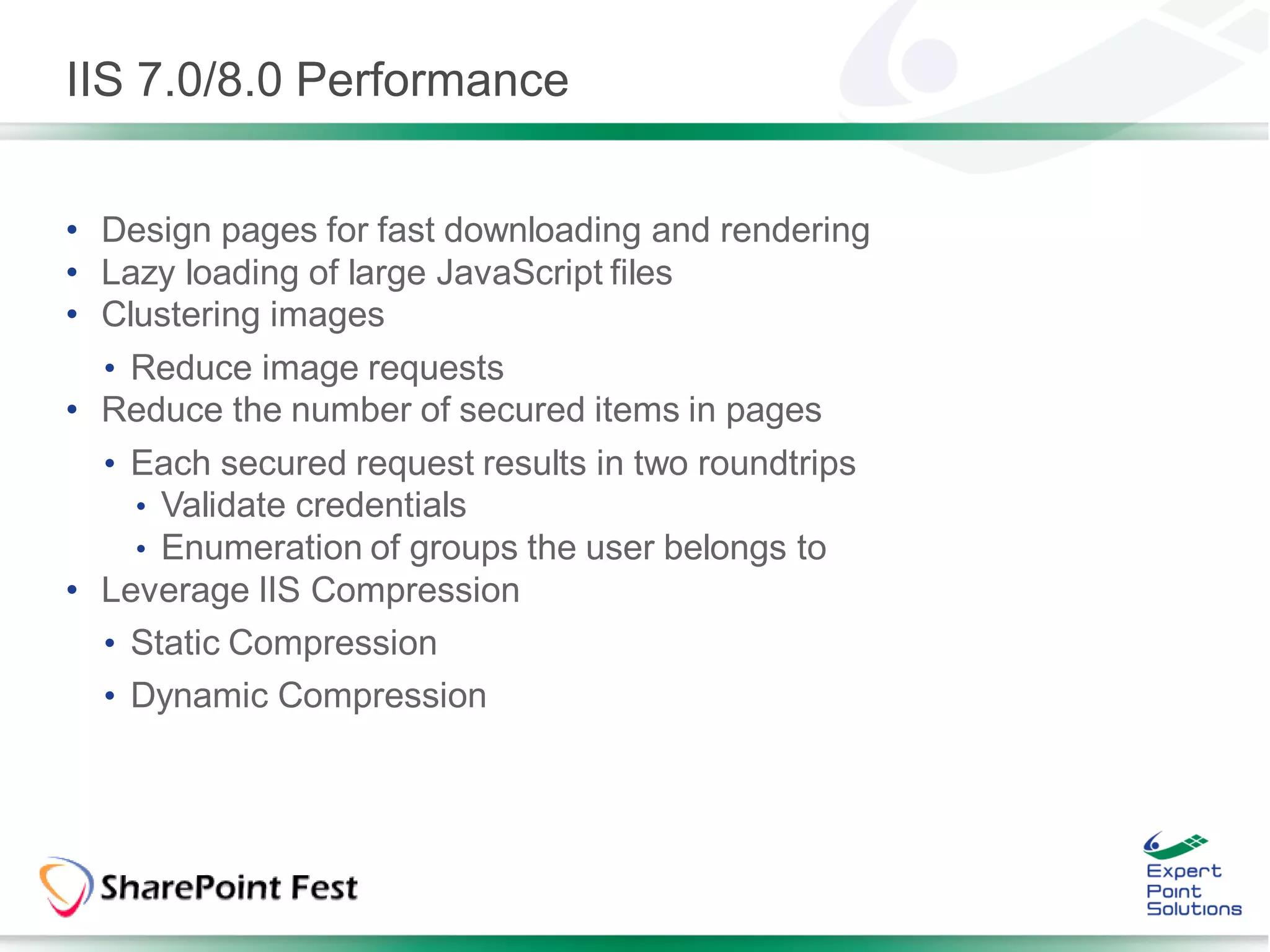

- 32. IIS 7.0/8.0 Performance •Design pages for fast downloading and rendering • Lazy loading of large JavaScript files • Clustering images • Reduce image requests • Reduce the number of secured items in pages • Each secured request results in two roundtrips • Validate credentials • Enumeration of groups the user belongs to • Leverage IIS Compression • Static Compression • Dynamic Compression

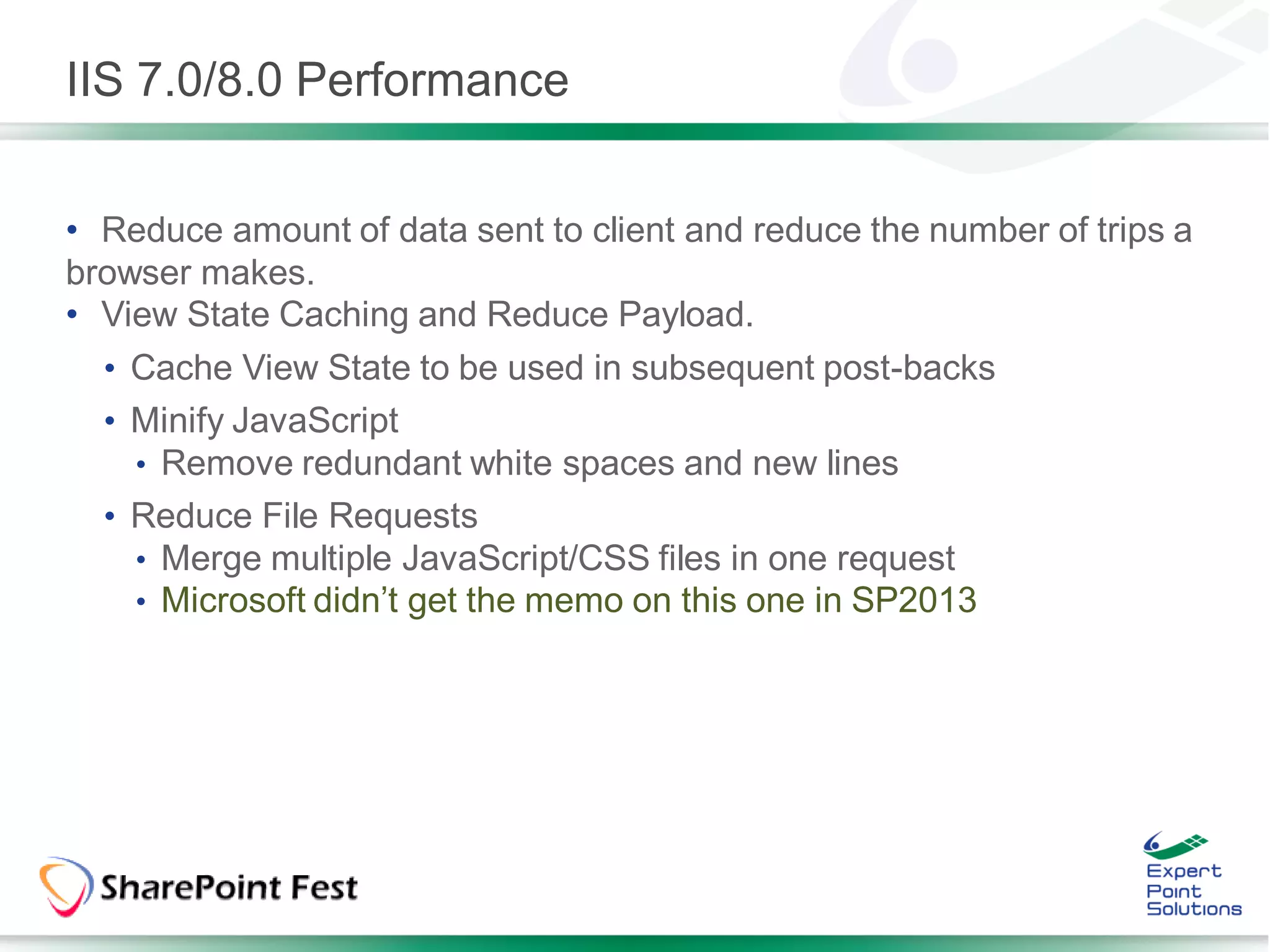

- 33. IIS 7.0/8.0 Performance •Reduce amount of data sent to client and reduce the number of trips a browser makes. • View State Caching and Reduce Payload. • Cache View State to be used in subsequent post-backs • Minify JavaScript • Remove redundant white spaces and new lines • Reduce File Requests • Merge multiple JavaScript/CSS files in one request • Microsoft didn’t get the memo on this one in SP2013

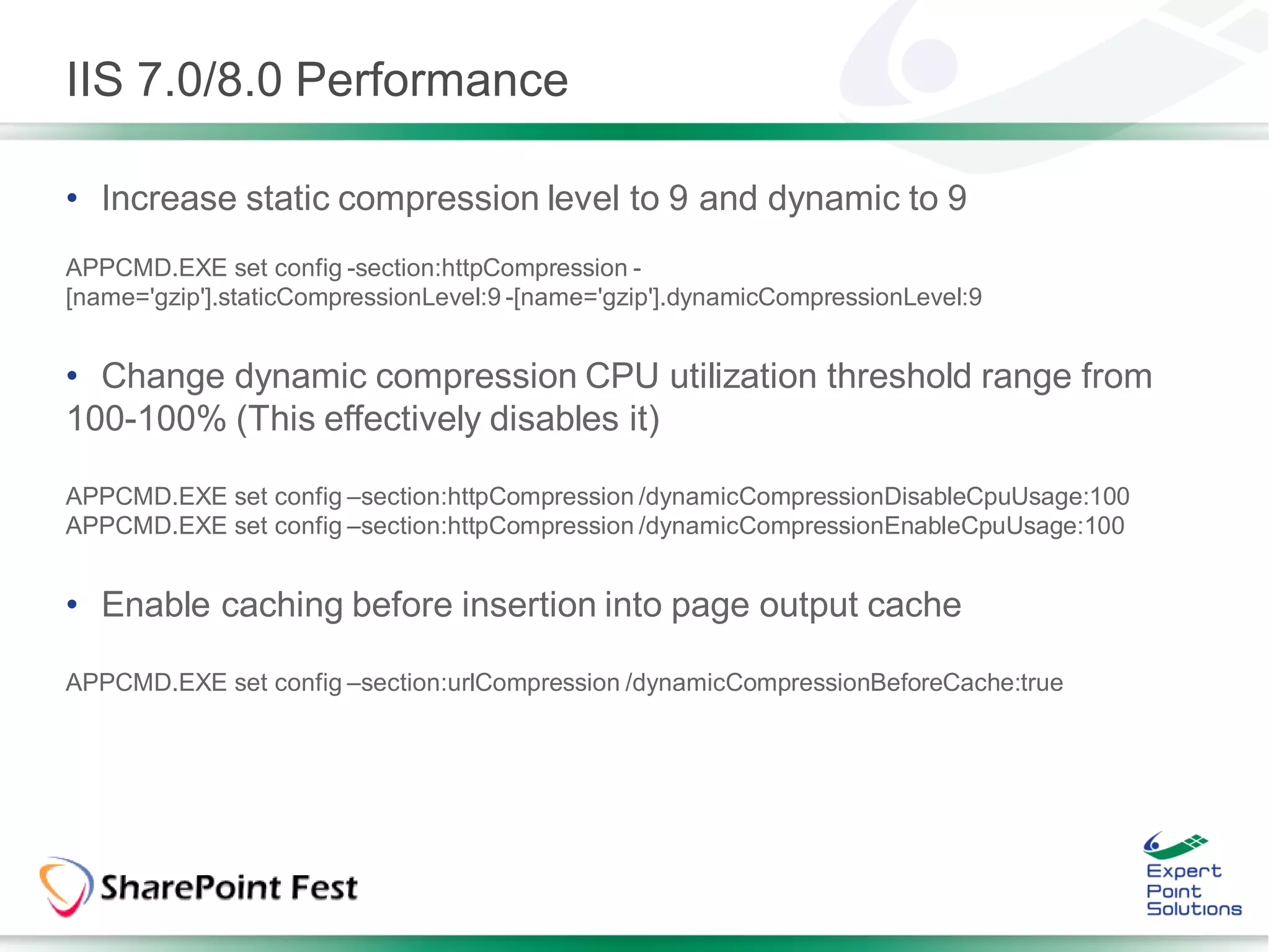

- 34. IIS 7.0/8.0 Performance •Increase static compression level to 9 and dynamic to 9 APPCMD.EXE set config -section:httpCompression - [name='gzip'].staticCompressionLevel:9 -[name='gzip'].dynamicCompressionLevel:9 • Change dynamic compression CPU utilization threshold range from 100-100% (This effectively disables it) APPCMD.EXE set config –section:httpCompression /dynamicCompressionDisableCpuUsage:100 APPCMD.EXE set config –section:httpCompression /dynamicCompressionEnableCpuUsage:100 • Enable caching before insertion into page output cache APPCMD.EXE set config –section:urlCompression /dynamicCompressionBeforeCache:true
- 35.

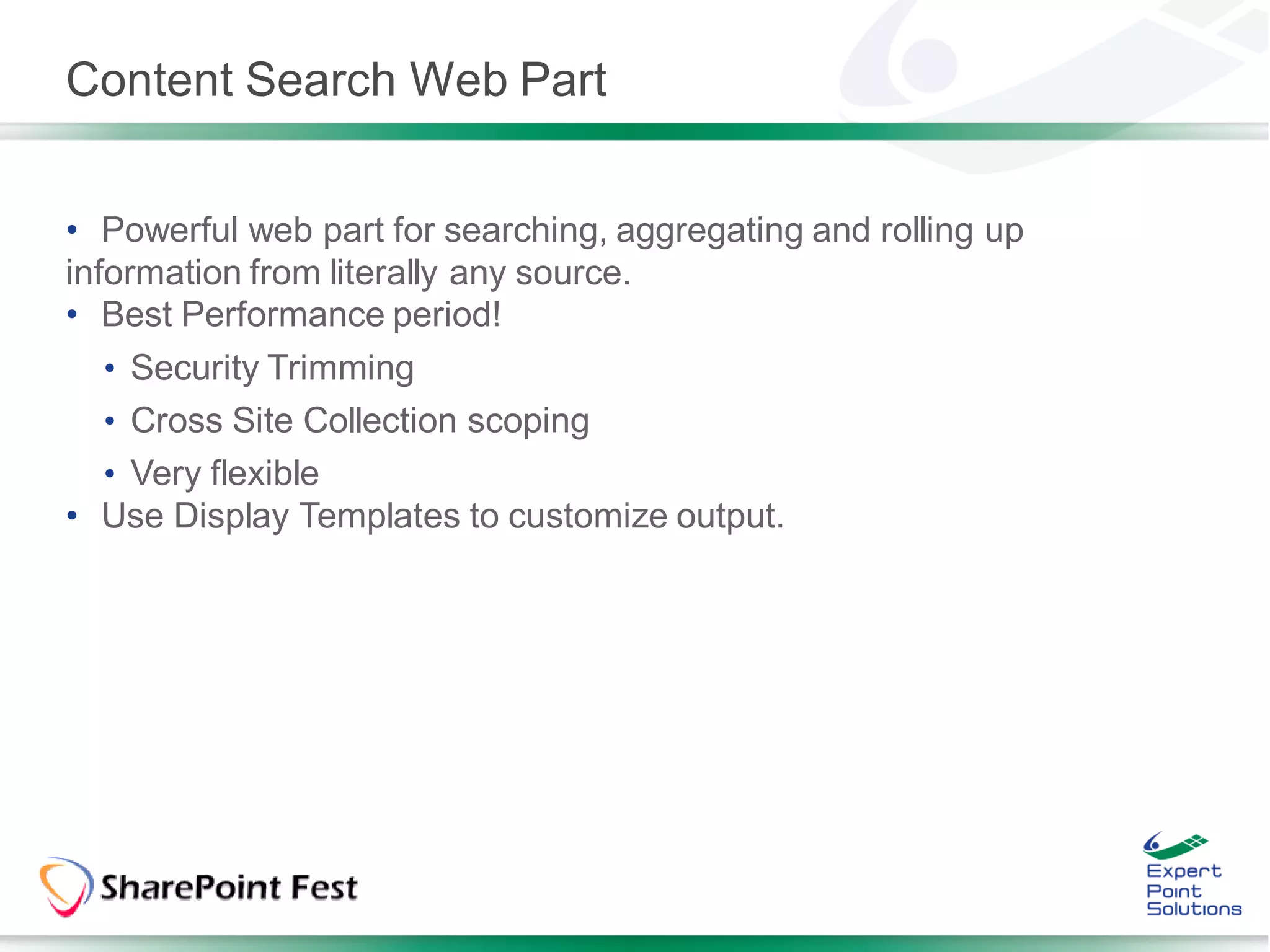

- 36. Content Search WebPart • Powerful web part for searching, aggregating and rolling up information from literally any source. • Best Performance period! • Security Trimming • Cross Site Collection scoping • Very flexible • Use Display Templates to customize output.

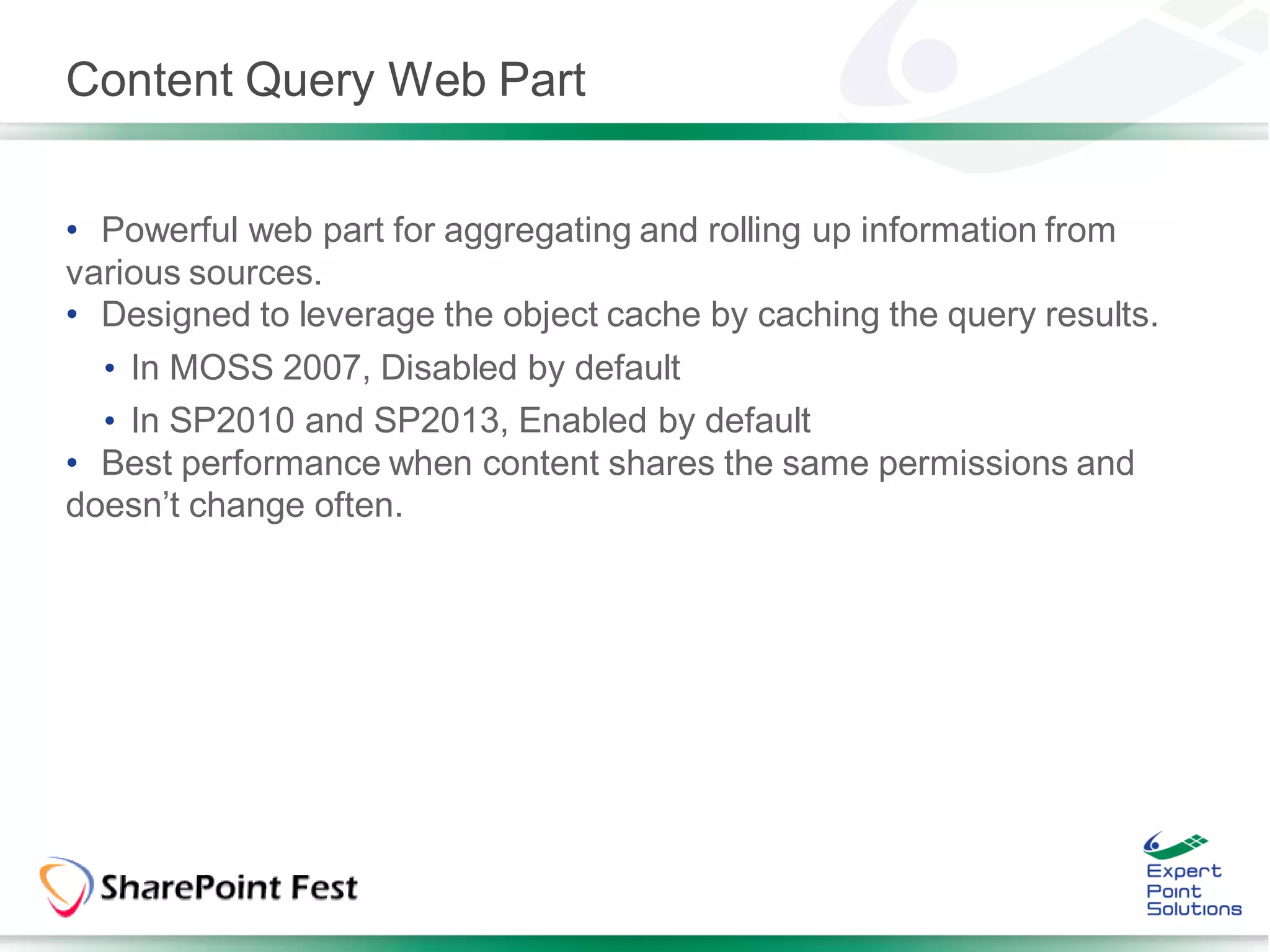

- 37. Content Query WebPart • Powerful web part for aggregating and rolling up information from various sources. • Designed to leverage the object cache by caching the query results. • In MOSS 2007, Disabled by default • In SP2010 and SP2013, Enabled by default • Best performance when content shares the same permissions and doesn’t change often.
- 38. Custom Code • Commoncause for poor performance • Custom inefficient features

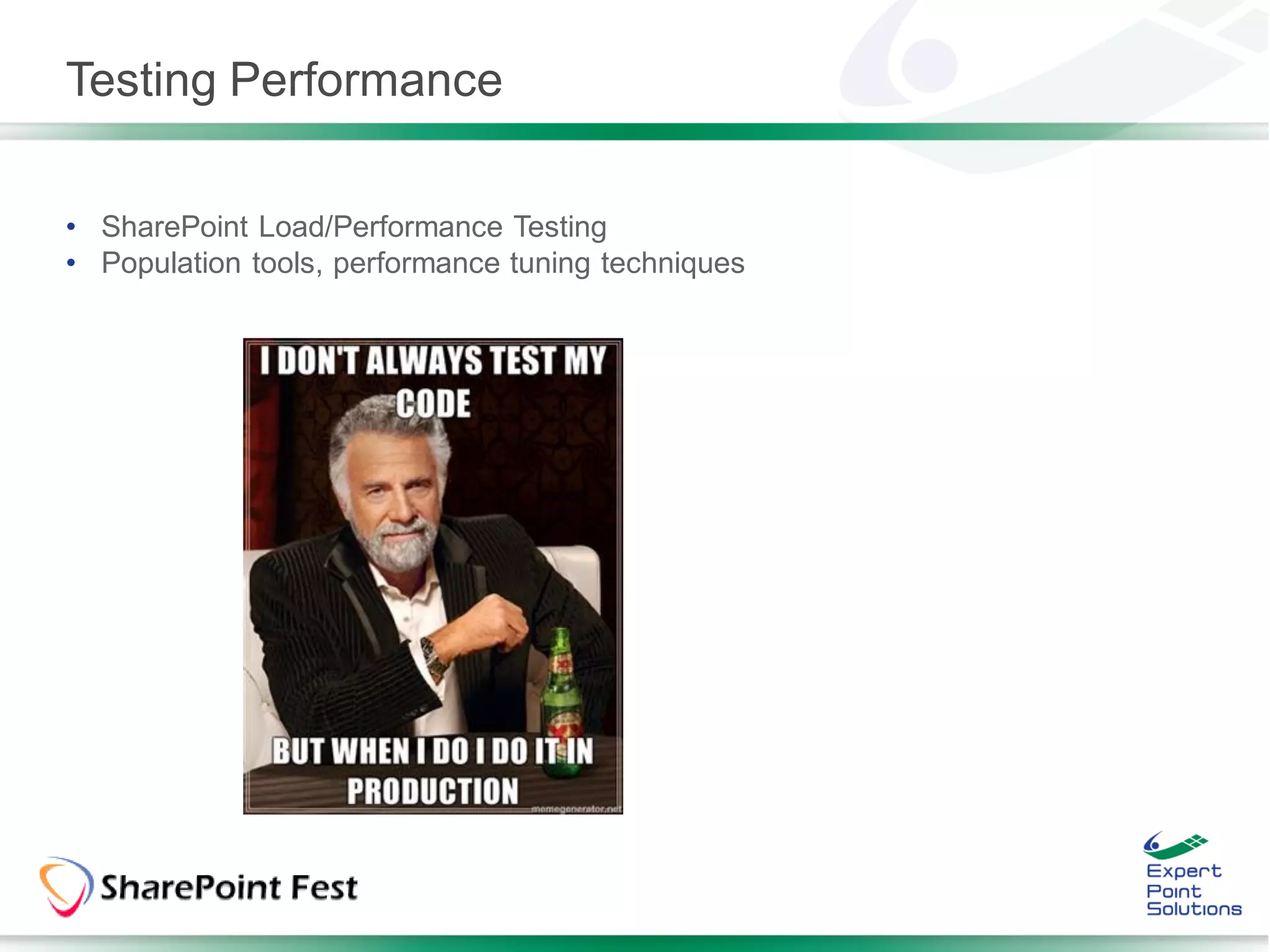

- 39. Testing Performance • SharePointLoad/Performance Testing • Population tools, performance tuning techniques

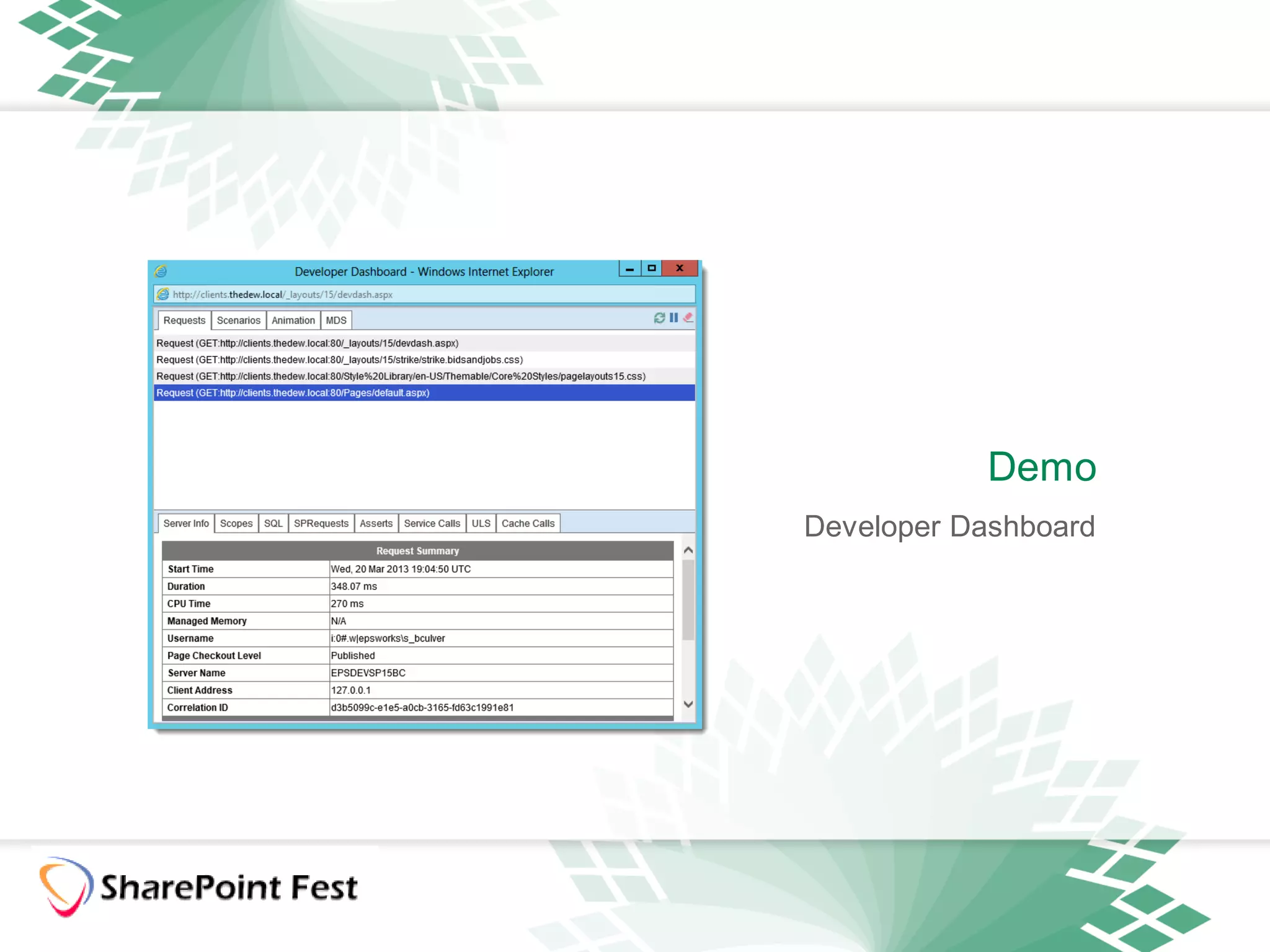

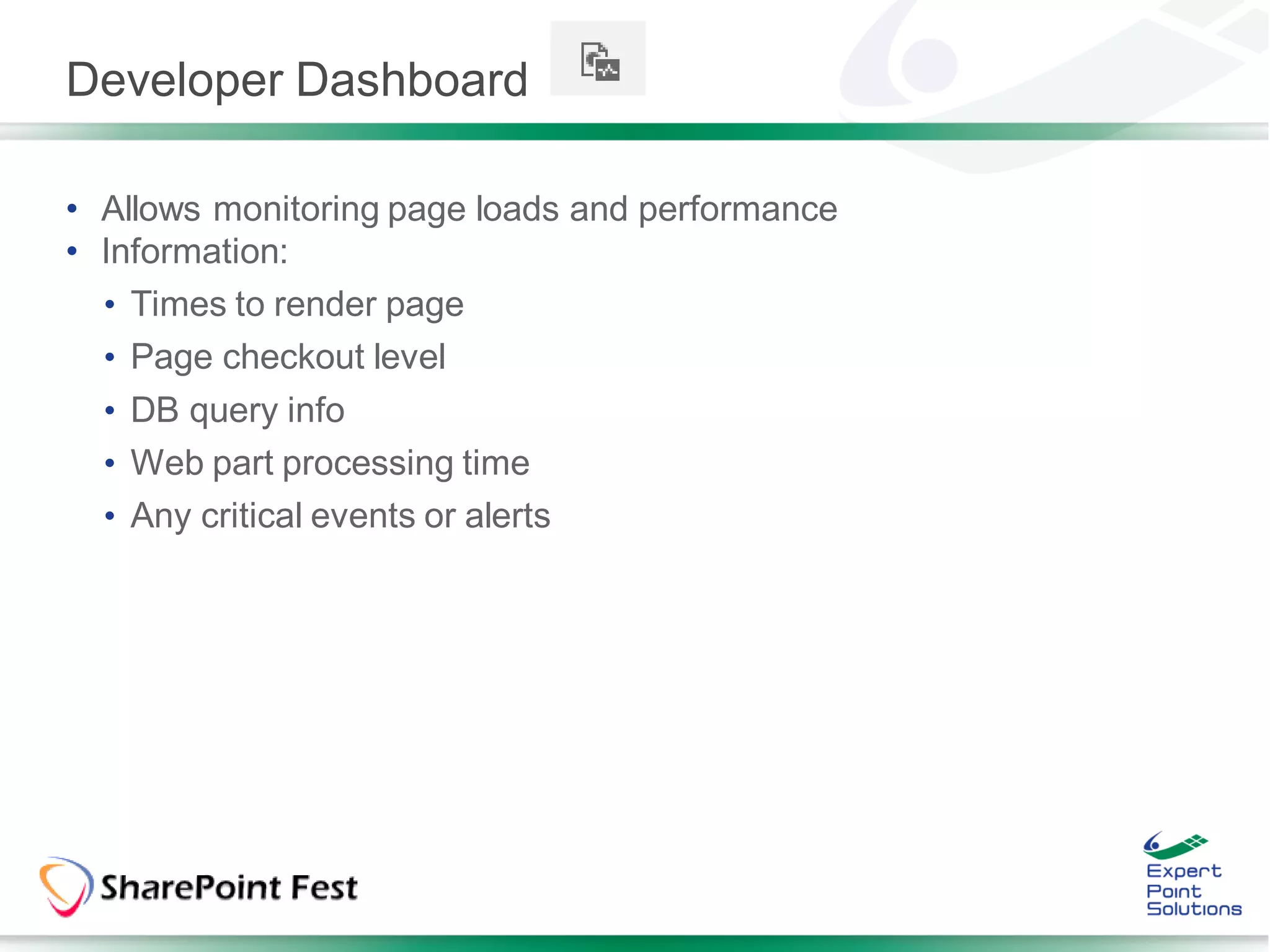

- 40. Developer Dashboard • Allowsmonitoring page loads and performance • Information: • Times to render page • Page checkout level • DB query info • Web part processing time • Any critical events or alerts

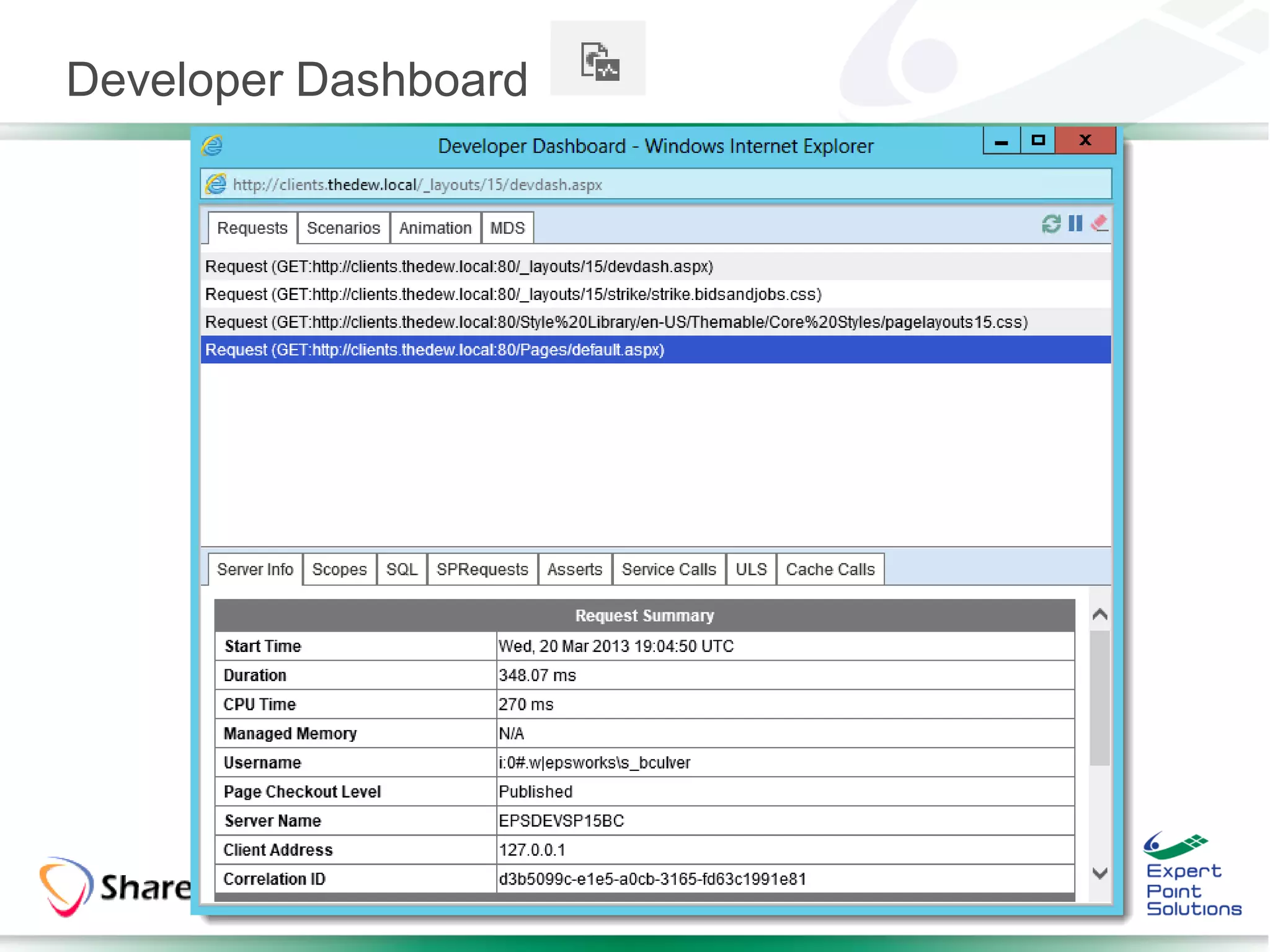

- 41.

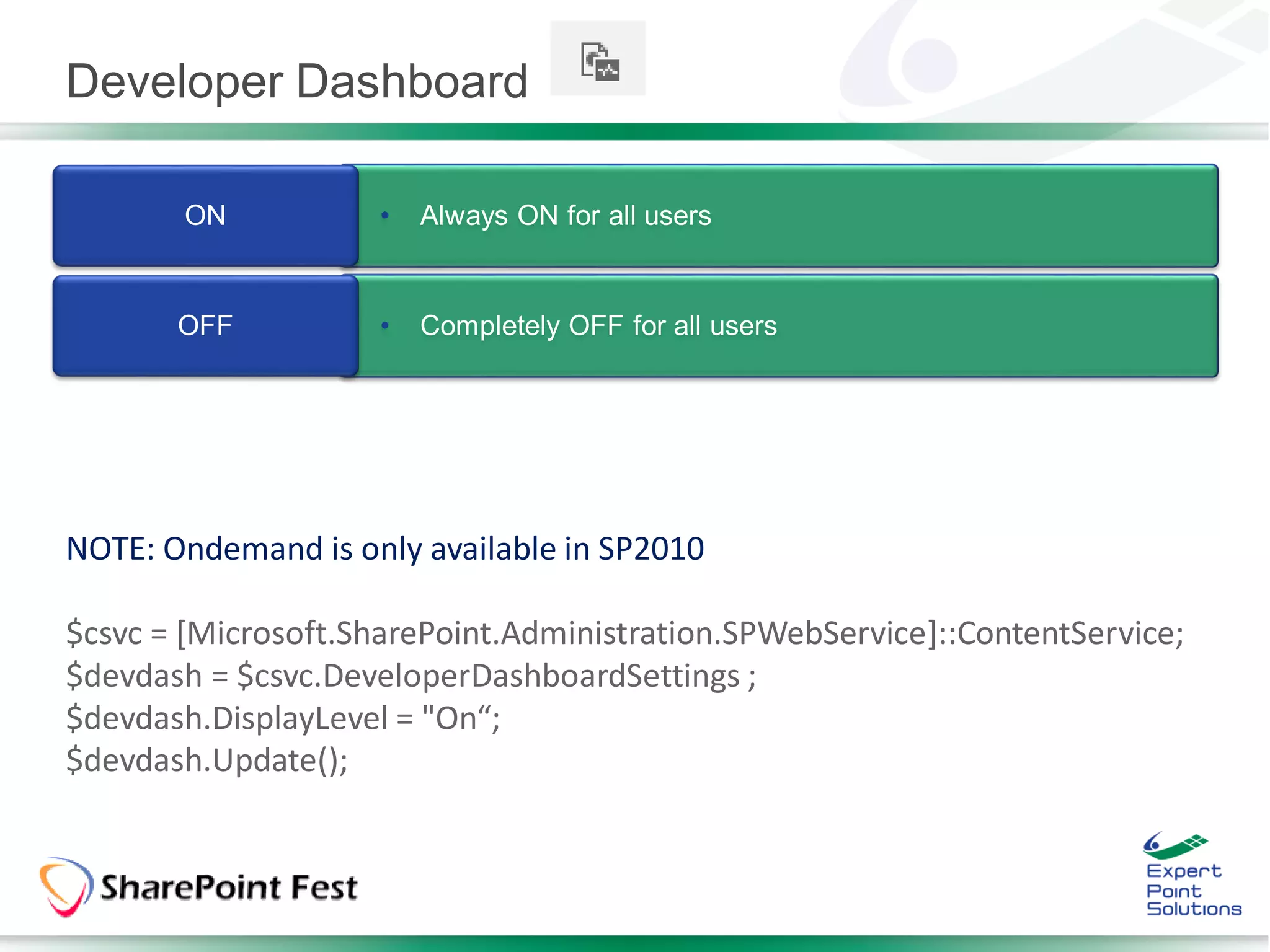

- 42. Developer Dashboard ON • Always ON for all users OFF • Completely OFF for all users NOTE: Ondemand is only available in SP2010 $csvc = [Microsoft.SharePoint.Administration.SPWebService]::ContentService; $devdash = $csvc.DeveloperDashboardSettings ; $devdash.DisplayLevel = "On“; $devdash.Update();
- 43.

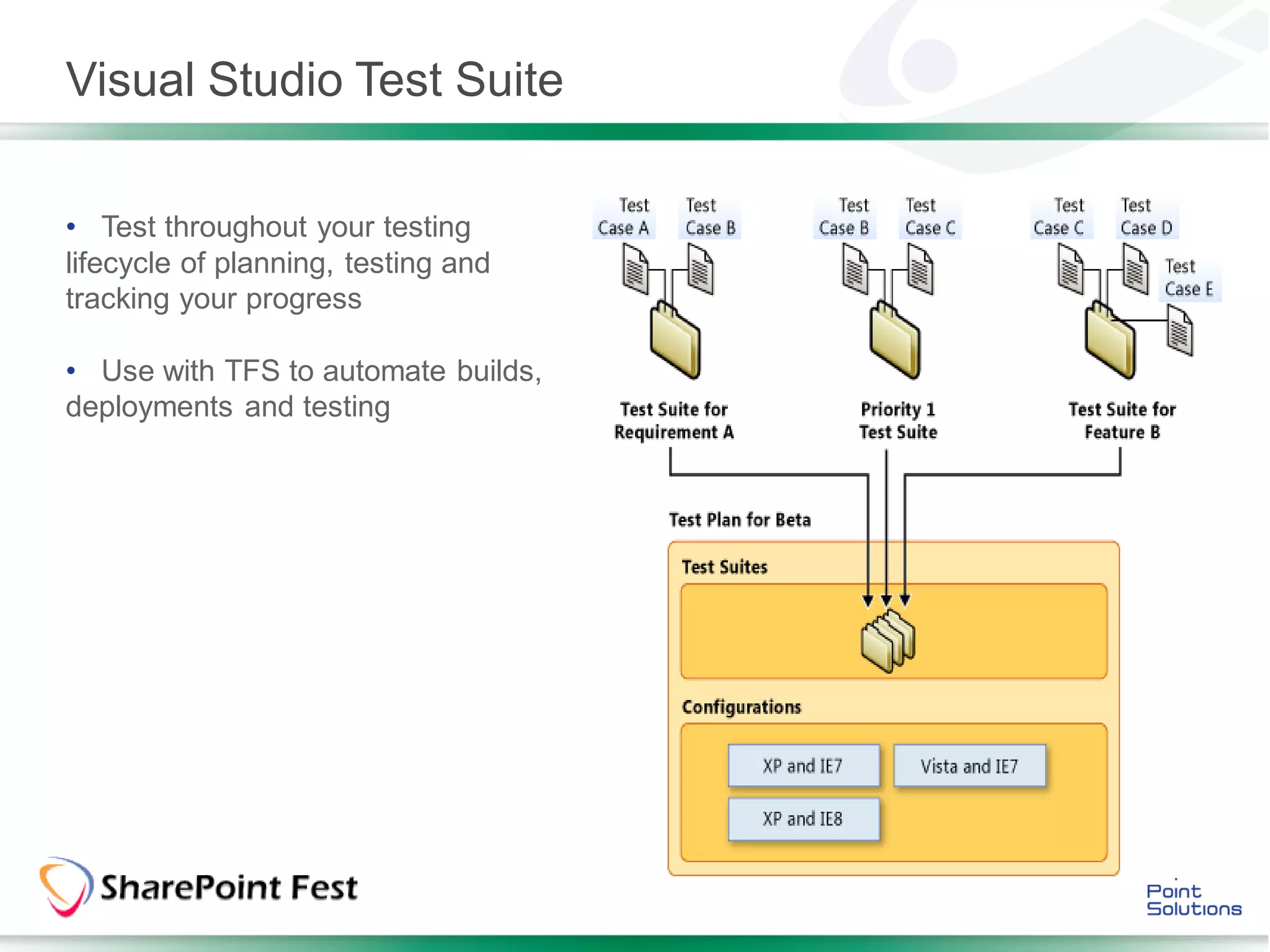

- 44. Visual Studio TestSuite • Test throughout your testing lifecycle of planning, testing and tracking your progress • Use with TFS to automate builds, deployments and testing

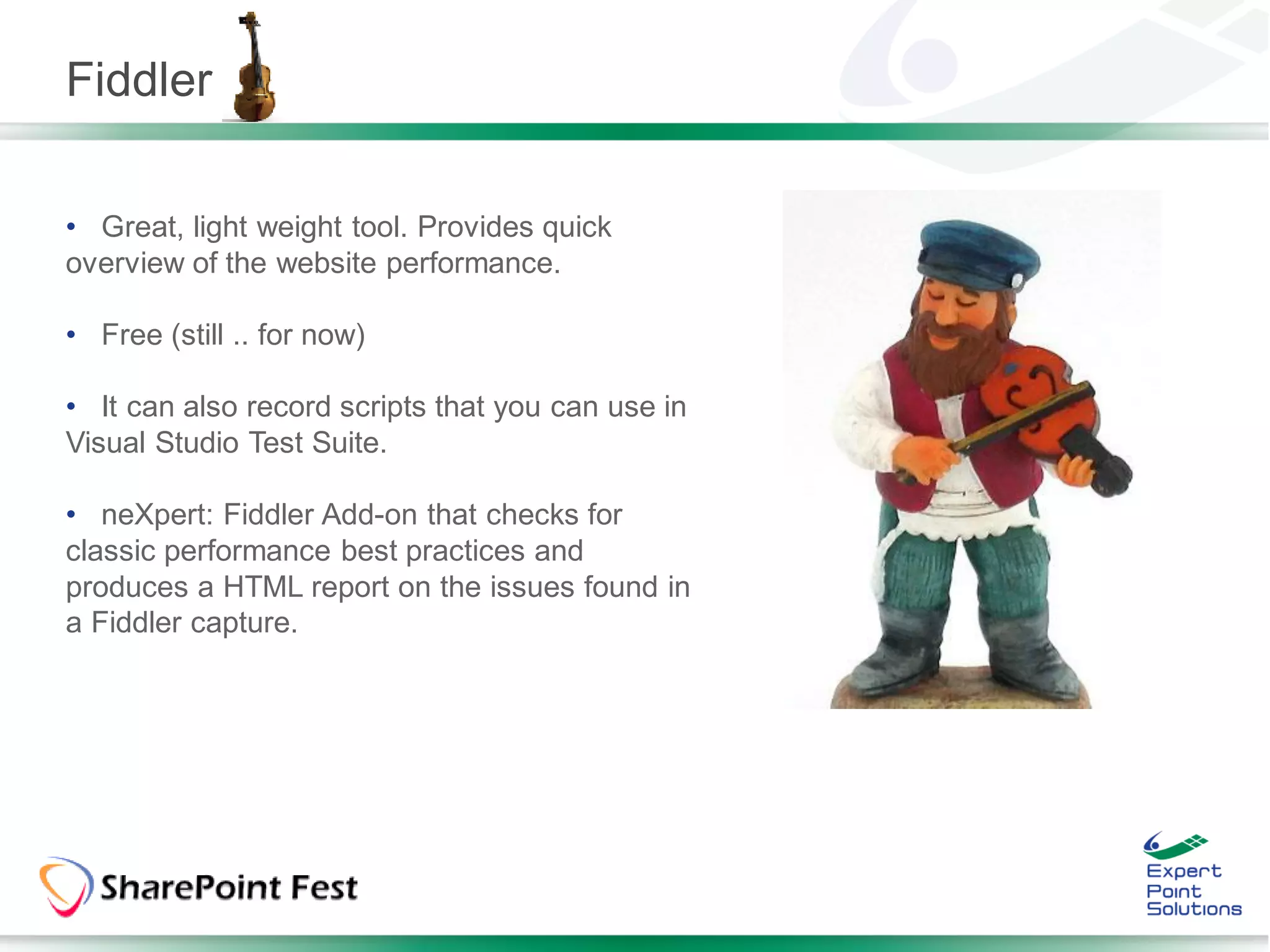

- 45. Fiddler • Great, lightweight tool. Provides quick overview of the website performance. • Free (still .. for now) • It can also record scripts that you can use in Visual Studio Test Suite. • neXpert: Fiddler Add-on that checks for classic performance best practices and produces a HTML report on the issues found in a Fiddler capture.

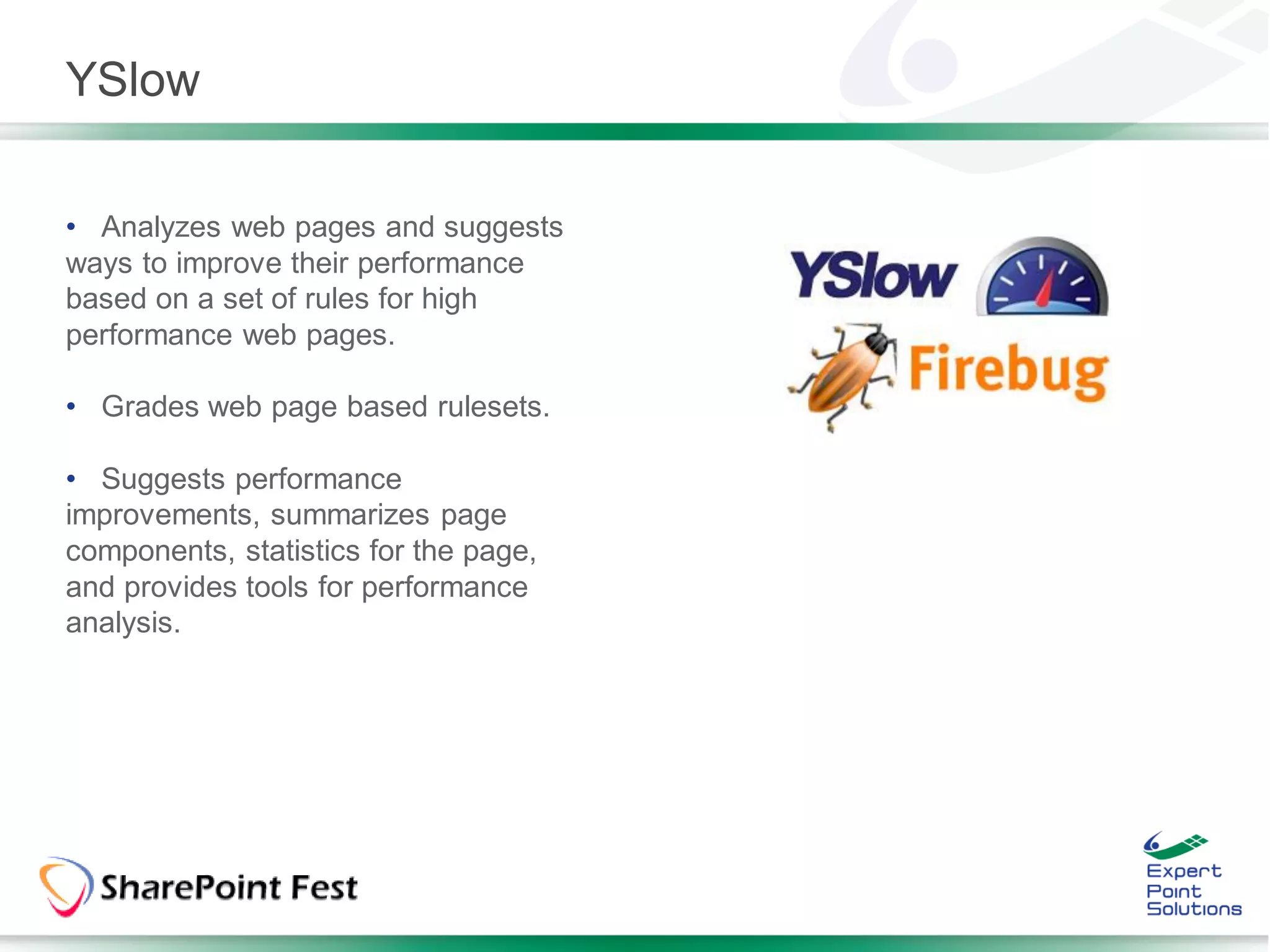

- 46. YSlow • Analyzes webpages and suggests ways to improve their performance based on a set of rules for high performance web pages. • Grades web page based rulesets. • Suggests performance improvements, summarizes page components, statistics for the page, and provides tools for performance analysis.
- 47. Questions ? ? ? ?
- 48. Constructive Feedback IsAppreciated Great information, but would like to have learned more Brian – Your about [Insert Topic] presentation was … Thanks! Good Demos!
- 49. Brian Culver, MCM Twitter: @spbrianculver E-mail: brian.culver@expertpointsolutions.com Thank you! Blog: http://blog.expertpointsolutions.com/
