From the Trenches: Effectively Scaling Your Cloud Infrastructure and Optimizing Your Code For Speed (Softcon 2020)
This document provides strategies for optimizing cloud infrastructure and code for better performance, focusing on source code, caching, and infrastructure management. Key recommendations include using microservices for scalability, implementing caching strategies, and ensuring efficient database operations. It also emphasizes the importance of monitoring and utilizing services like API gateways and load balancers to enhance application throughput and security.
More Related Content
Similar to From the Trenches: Effectively Scaling Your Cloud Infrastructure and Optimizing Your Code For Speed (Softcon 2020)
From the Trenches: Effectively Scaling Your Cloud Infrastructure and Optimizing Your Code For Speed (Softcon 2020)
- 1. From the Trenches:Effectively Scaling Your Cloud Infrastructure and Optimizing Your Code For Speed ALLAN MANGUN E Aquila Big Data Insight

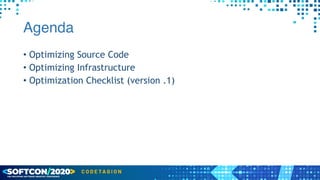

- 2. Agenda • Optimizing SourceCode • Optimizing Infrastructure • Optimization Checklist (version .1)
- 3.

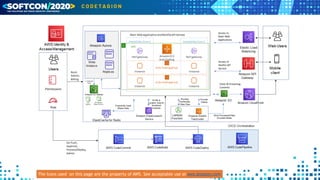

- 4. The Icons usedon this page are the property of AWS. See acceptable use at aws.amazon.com

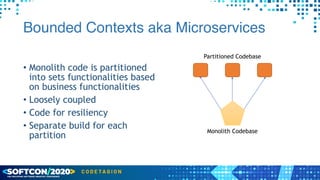

- 5. Bounded Contexts akaMicroservices • Monolith code is partitioned into sets functionalities based on business functionalities • Loosely coupled • Code for resiliency • Separate build for each partition Monolith Codebase Partitioned Codebase
- 6. Use Cache ToIncrease Throughput • Caching increases data retrieval throughput • Redis • MemCache • Design the Caching infra code right away • Caching strategies • Read-Through • Write-Through • Time To Live Request Yes Cache No Read-Through Write-Through Write, Update, Delete Cache Request
- 7. Block Unnecessary RequestUsing Rate Limiter • Rate limiter • Also considered as security control • Increase throughput by blocking too many requests • Limit remote requests by IP address, client device, or user account • E.g. 100 requests per second for each IP address • Write your own custom rate limiter or use any existing free components (visit Github) Request Yes Too Many Requests No Request Throttle HTTP 220 HTTP 419

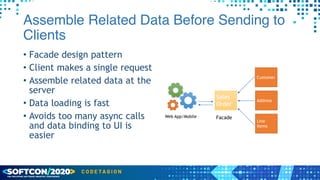

- 8. Assemble Related DataBefore Sending to Clients • Facade design pattern • Client makes a single request • Assemble related data at the server • Data loading is fast • Avoids too many async calls and data binding to UI is easier Sales Order Facade Customer Address Line Items Web App/Mobile

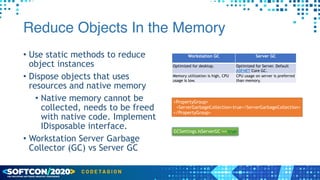

- 9. Reduce Objects Inthe Memory • Use static methods to reduce object instances • Dispose objects that uses resources and native memory • Native memory cannot be collected, needs to be freed with native code. Implement IDisposable interface. • Workstation Server Garbage Collector (GC) vs Server GC Workstation GC Server GC Optimized for desktop. Optimized for Server. Default ASP.NET Core GC. Memory utilization is high, CPU usage is low. CPU usage on server is preferred than memory. <PropertyGroup> <ServerGarbageCollection>true</ServerGarbageCollection> </PropertyGroup> GCSettings.IsServerGC == true

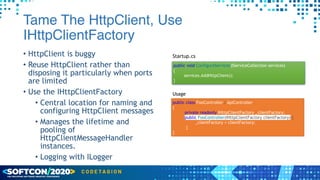

- 10. Tame The HttpClient,Use IHttpClientFactory • HttpClient is buggy • Reuse HttpClient rather than disposing it particularly when ports are limited • Use the IHttpClientFactory • Central location for naming and configuring HttpClient messages • Manages the lifetime and pooling of HttpClientMessageHandler instances. • Logging with ILogger public void ConfigureServices(IServiceCollection services) { services.AddHttpClient(); } Startup.cs public class FooController : ApiController { private readonly IHttpClientFactory _clientFactory; public FooController(IHttpClientFactory clientFactory) { _clientFactory = clientFactory; } } Usage

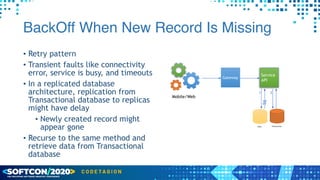

- 11. BackOff When NewRecord Is Missing • Retry pattern • Transient faults like connectivity error, service is busy, and timeouts • In a replicated database architecture, replication from Transactional database to replicas might have delay • Newly created record might appear gone • Recurse to the same method and retrieve data from Transactional database Mobile/Web Gateway Service API Read 1 2 Transactional

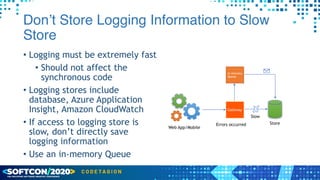

- 12. Don’t Store LoggingInformation to Slow Store • Logging must be extremely fast • Should not affect the synchronous code • Logging stores include database, Azure Application Insight, Amazon CloudWatch • If access to logging store is slow, don’t directly save logging information • Use an in-memory Queue Web App/Mobile Gateway Errors occurred Store In-memory Queue Slow

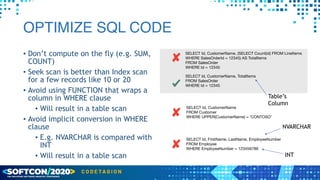

- 13. OPTIMIZE SQL CODE •Don’t compute on the fly (e.g. SUM, COUNT) • Seek scan is better than Index scan for a few records like 10 or 20 • Avoid using FUNCTION that wraps a column in WHERE clause • Will result in a table scan • Avoid implicit conversion in WHERE clause • E.g. NVARCHAR is compared with INT • Will result in a table scan SELECT Id, CustomerName, (SELECT Count(id) FROM LineItems WHERE SalesOrderId = 12345) AS TotalItems FROM SalesOrder WHERE Id = 12345 SELECT Id, CustomerName FROM Customer WHERE UPPER(CustomerName) = ‘CONTOSO’ SELECT Id, FirstName, LastName, EmployeeNumber FROM Employee WHERE EmployeeNumber = 123456789 NVARCHAR INT SELECT Id, CustomerName, TotalItems FROM SalesOrder WHERE Id = 12345 Table’s Column

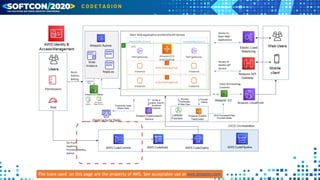

- 14. The Icons usedon this page are the property of AWS. See acceptable use at aws.amazon.com
- 15.
- 16. Use Layer 7Application Load Balancer To Distribute Incoming Requests • Manage traffic to your application • AWS Application Load Balancer • Azure Application Gateway • Rules listener can make routing decision based on the attributes of the incoming requests • https://www.app.com/video/myvideo/name • Web Application Firewall to filter out unnecessary traffic. Rules based on OWASP • Cross-site scripting • SQL injection • Denial of service • Use Layer 4 load balancer for a faster routing but the functionality is limited (TCP, UDP, TLS) • AWS Network Load Balancer • Azure Load Balancer Load Balancer Mobile/Web Rule Listener Target Host Target Host Target Host Target Host Private virtual network

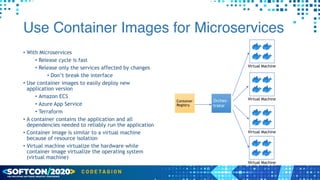

- 17. Use Container Imagesfor Microservices • With Microservices • Release cycle is fast • Release only the services affected by changes • Don’t break the interface • Use container images to easily deploy new application version • Amazon ECS • Azure App Service • Terraform • A container contains the application and all dependencies needed to reliably run the application • Container image is similar to a virtual machine because of resource isolation • Virtual machine virtualize the hardware while container image virtualize the operating system (virtual machine) Container Registry Orches- trator Virtual Machine Virtual Machine Virtual Machine Virtual Machine

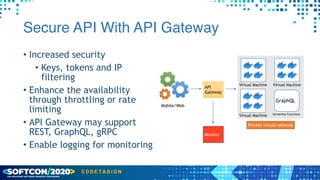

- 18. Secure API WithAPI Gateway • Increased security • Keys, tokens and IP filtering • Enhance the availability through throttling or rate limiting • API Gateway may support REST, GraphQL, gRPC • Enable logging for monitoring Virtual Machine Virtual Machine Serverless Functions Virtual Machine API Gateway Monitor Mobile/Web Private virtual network GraphQL

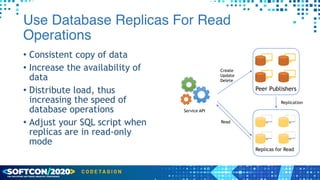

- 19. Use Database ReplicasFor Read Operations • Consistent copy of data • Increase the availability of data • Distribute load, thus increasing the speed of database operations • Adjust your SQL script when replicas are in read-only mode Peer Publishers Replicas for Read Service API Create Update Delete Read Replication

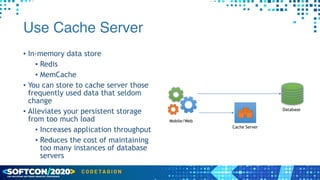

- 20. Use Cache Server •In-memory data store • Redis • MemCache • You can store to cache server those frequently used data that seldom change • Alleviates your persistent storage from too much load • Increases application throughput • Reduces the cost of maintaining too many instances of database servers Mobile/Web Database Cache Server
- 21. Place Static andStreaming Contents at Edge (CDN) • Reduces load time of static and streaming contents • Files are loaded from Edge server nearest to users Edge Monitor Static and Streaming Contents Mobile/Web

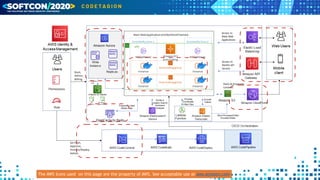

- 22. The AWS Iconsused on this page are the property of AWS. See acceptable use at aws.amazon.com
- 23.
- 24. For updated versionof the document, please visit my site at allanmangune.com
