- 1. Microsoft AppFabric Dennis vander Stelt Tellus
- 2. Introducing • Tellus – Leadgeneration – 10k websites – Looking for developers .NET Geeks • Dennis van der Stelt – http://bloggingabout.net/blogs/dennis/ – http://twitter.com/dvdstelt – dennis@bloggingabout.net
- 3. Session objectives Windows AppFabric AzureAppFabric Architectural choices

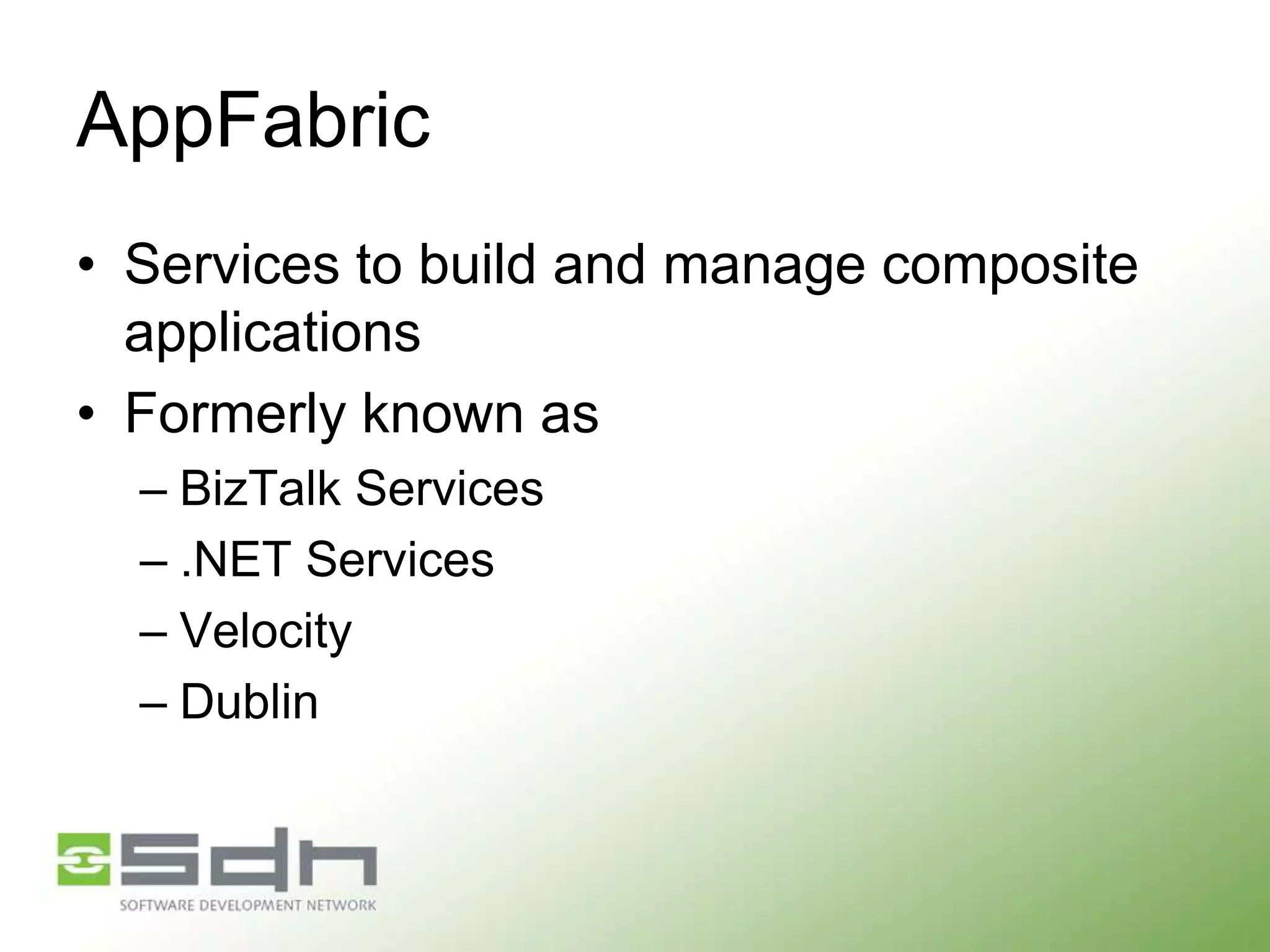

- 4. AppFabric • Services tobuild and manage composite applications • Formerly known as – BizTalk Services – .NET Services – Velocity – Dublin

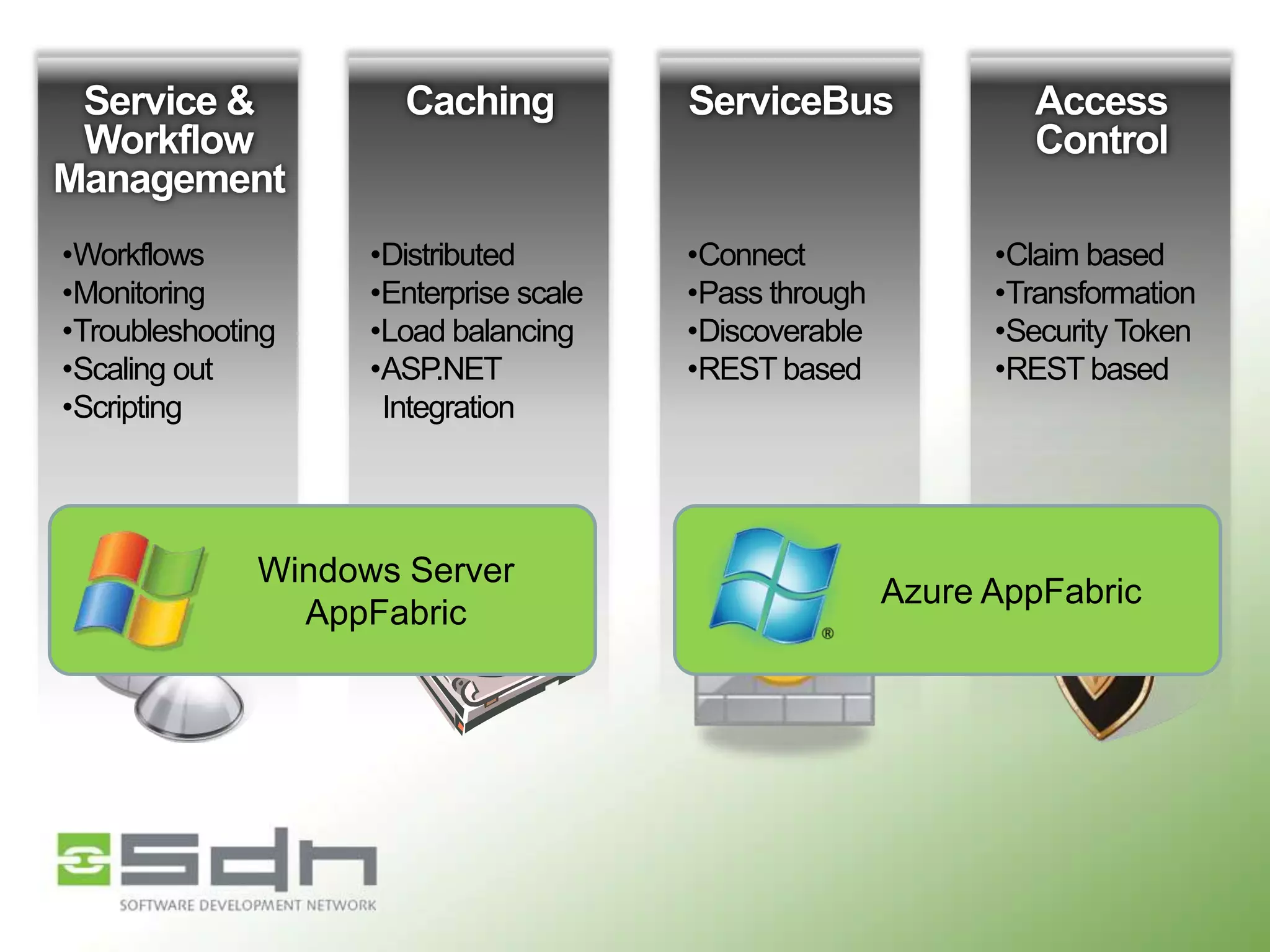

- 5. •Workflows •Monitoring •Troubleshooting •Scaling out •Scripting •Distributed •Enterprise scale •Loadbalancing •ASP.NET Integration Windows Server AppFabric •Connect •Pass through •Discoverable •REST based •Claim based •Transformation •Security Token •REST based Azure AppFabric
- 7. Windows Server AppFabric SERVICE& WORKFLOW MANAGEMENT
- 8. Brought my ownwhiteboard

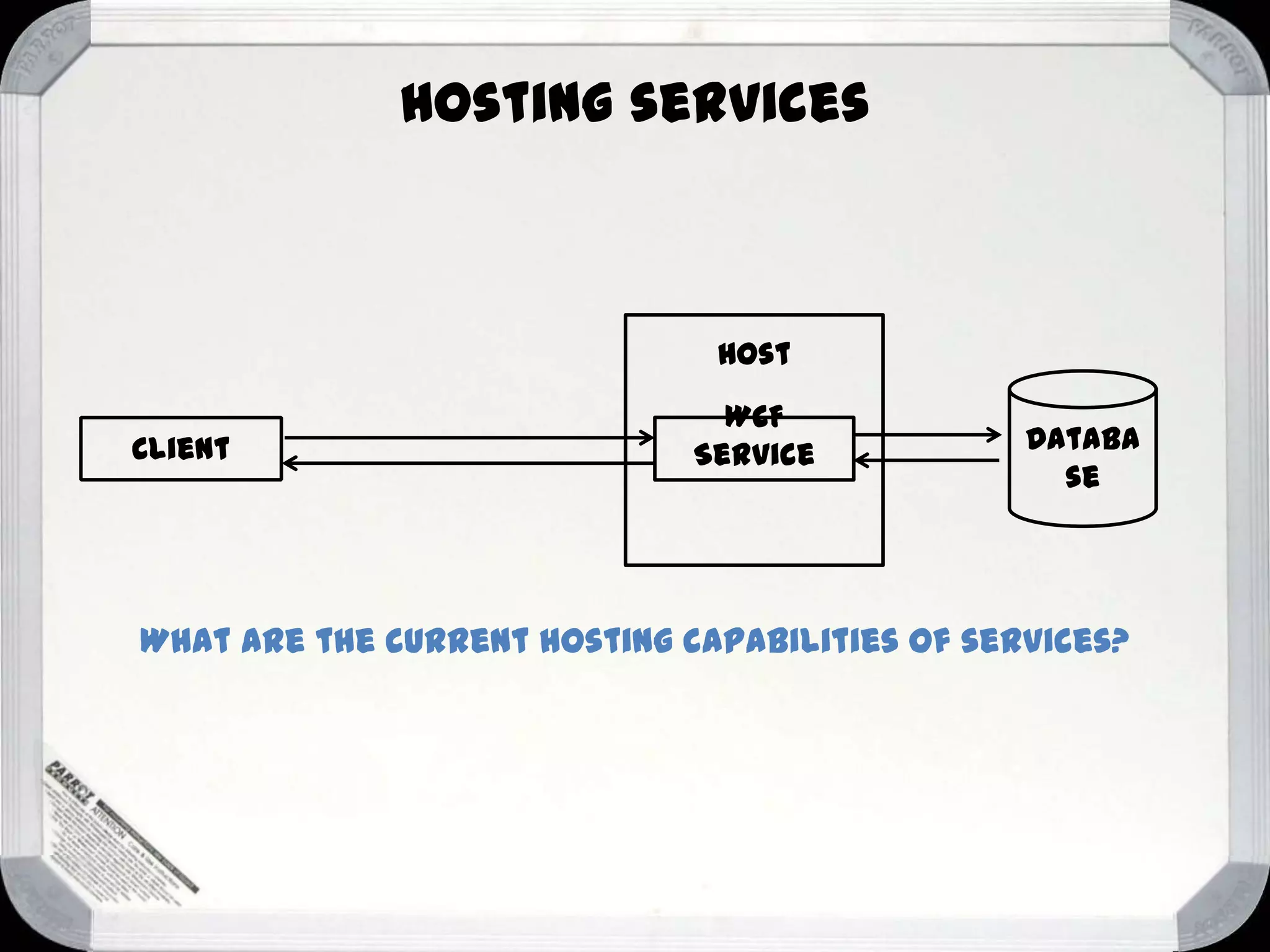

- 9. Hosting services Host Client WCF Service Databa se What arethe current hosting capabilities of services?

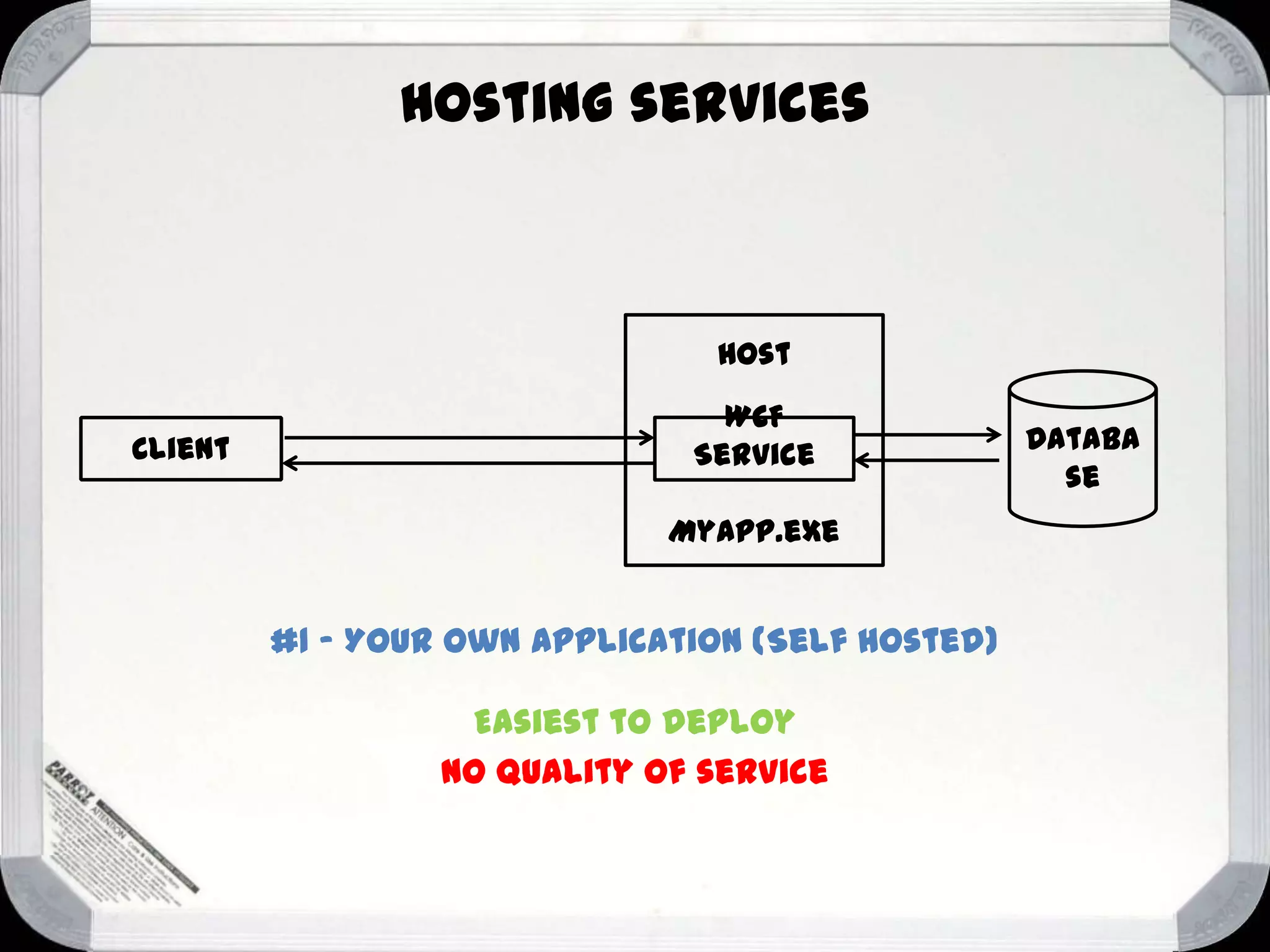

- 10. Hosting services Host Client WCF Service MyApp.exe #1 –Your own application (Self hosted) Easiest to deploy No quality of service Databa se

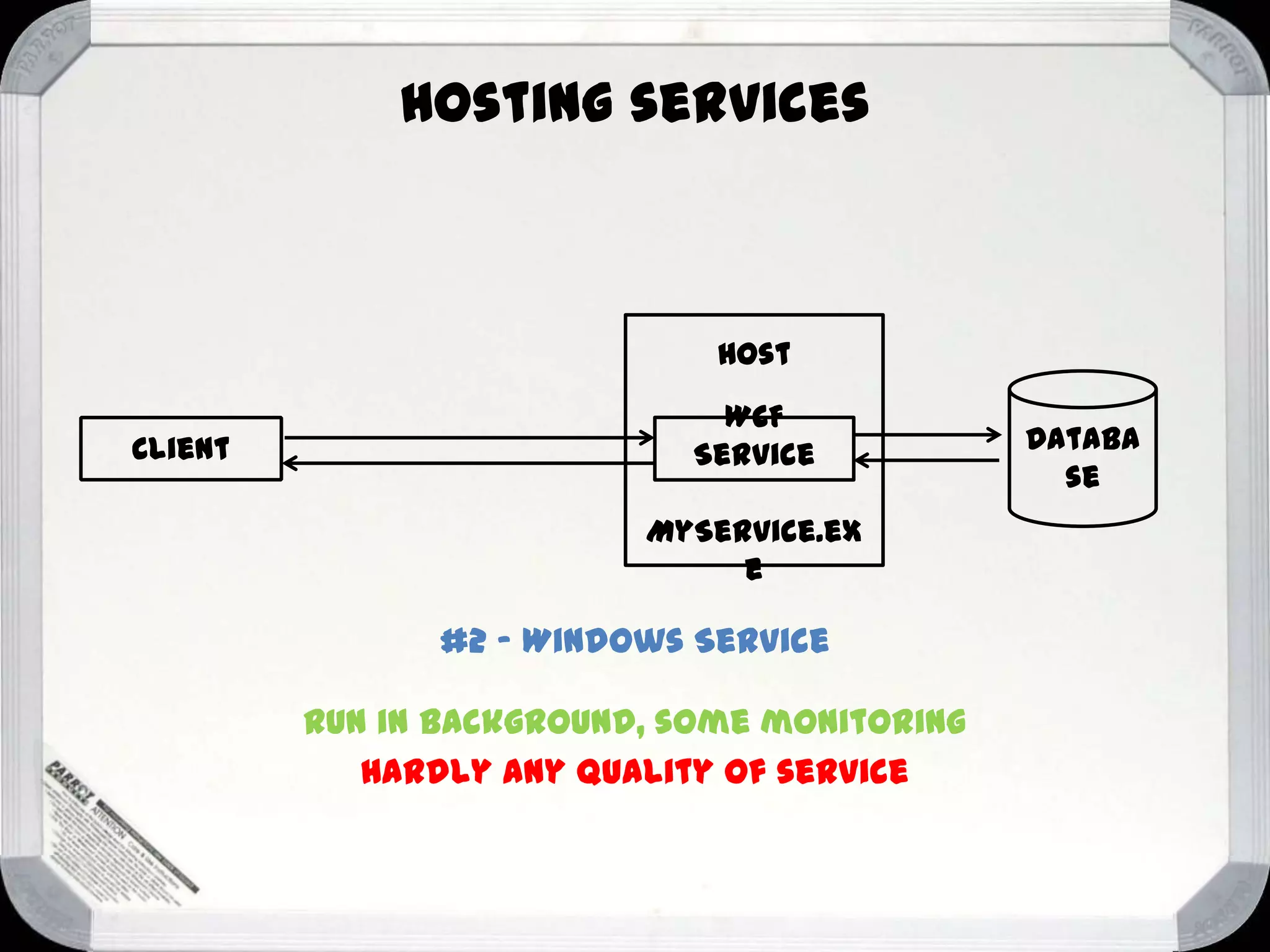

- 11. Hosting services Host Client WCF Service MyService.ex e #2 –Windows Service Run in background, some monitoring Hardly any quality of service Databa se

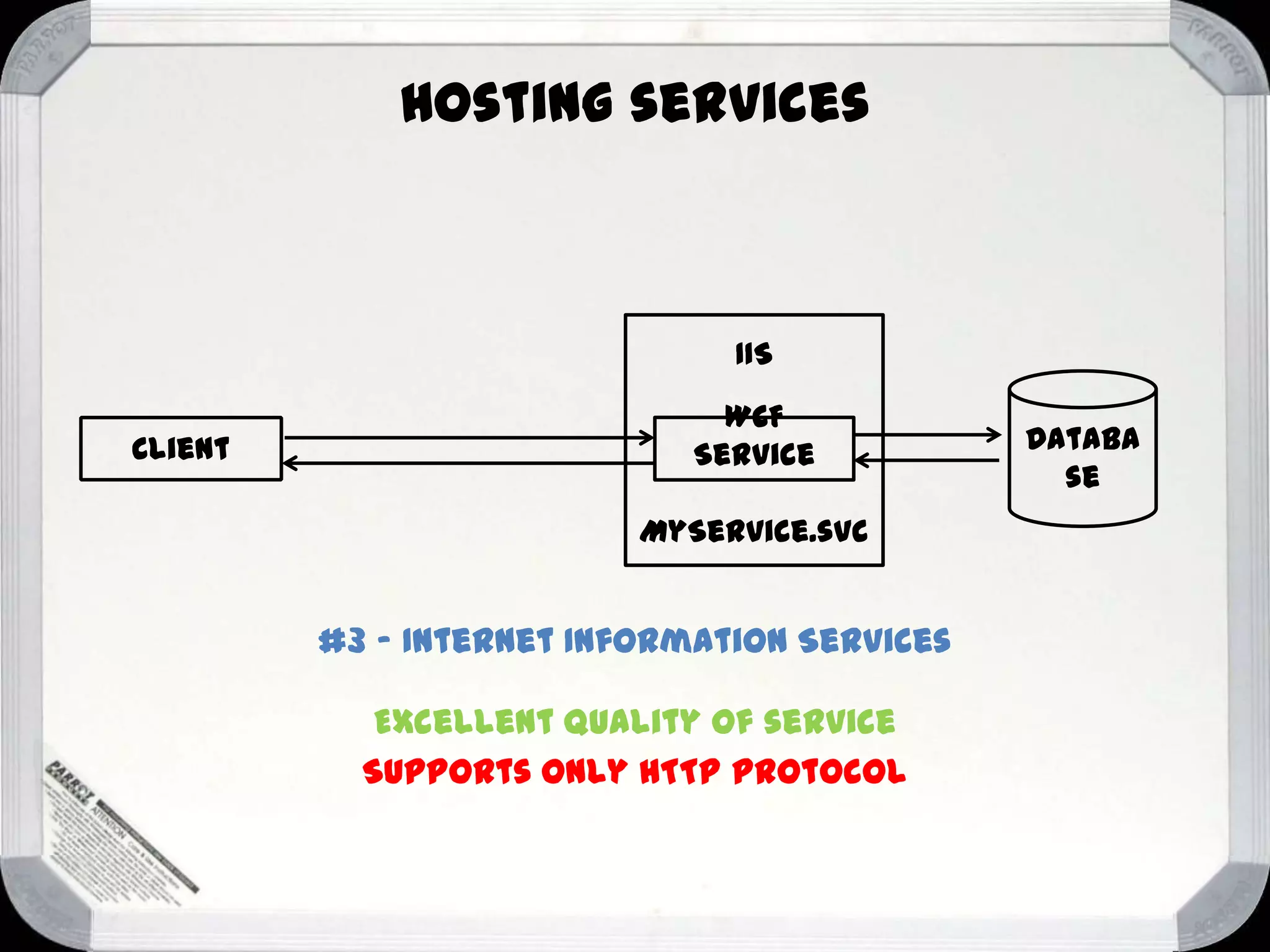

- 12. Hosting services IIS Client WCF Service MyService.svc #3 –Internet Information Services Excellent quality of service Supports only HTTP protocol Databa se

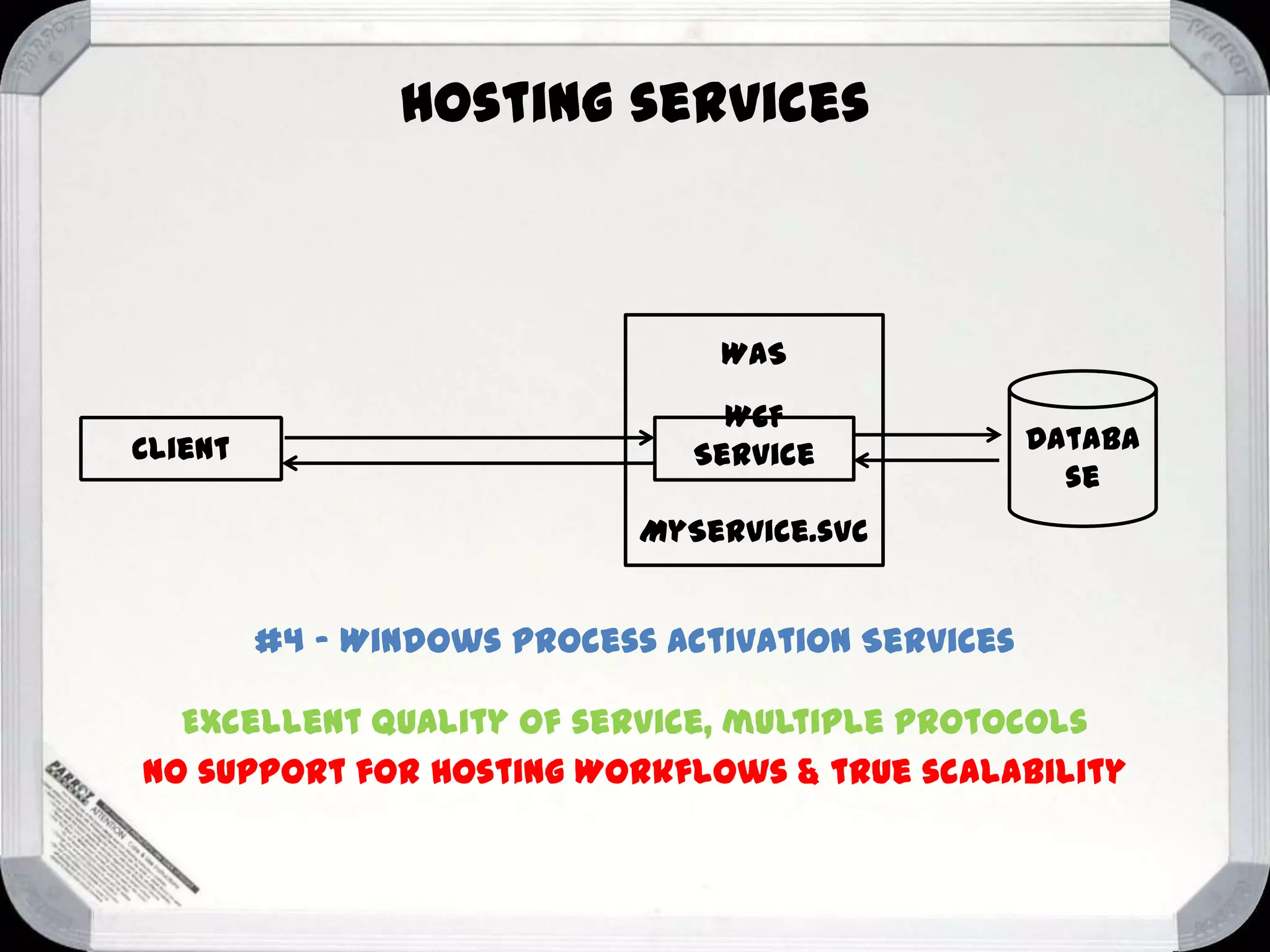

- 13. Hosting services WAS Client WCF Service Databa se MyService.svc #4 –Windows Process Activation Services Excellent quality of service, multiple protocols No support for hosting Workflows & true scalability
- 14.

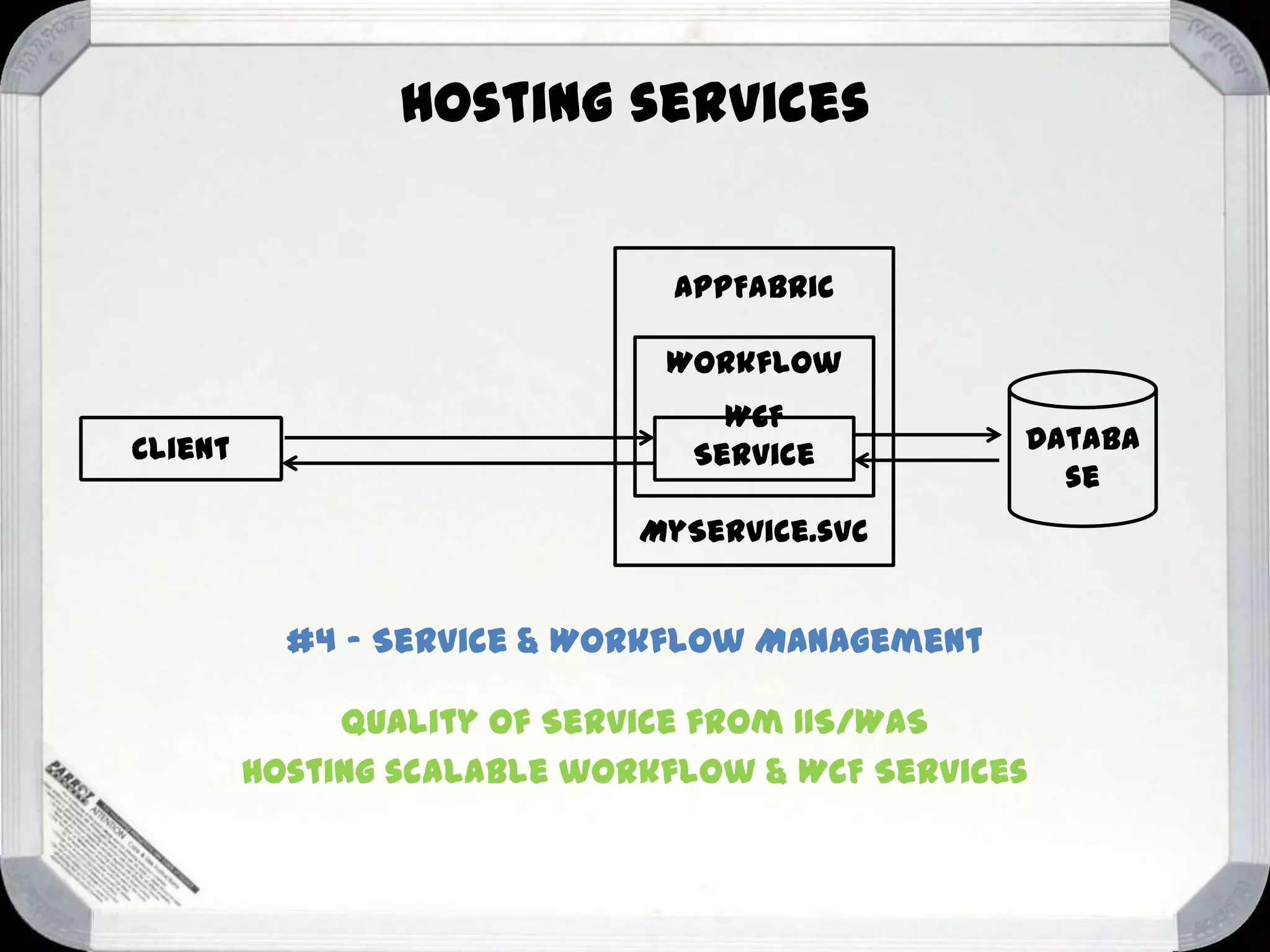

- 15. Hosting services AppFabric Workflow Client WCF Service Databa se MyService.svc #4 –Service & Workflow Management Quality of Service from IIS/WAS Hosting scalable workflow & WCF Services

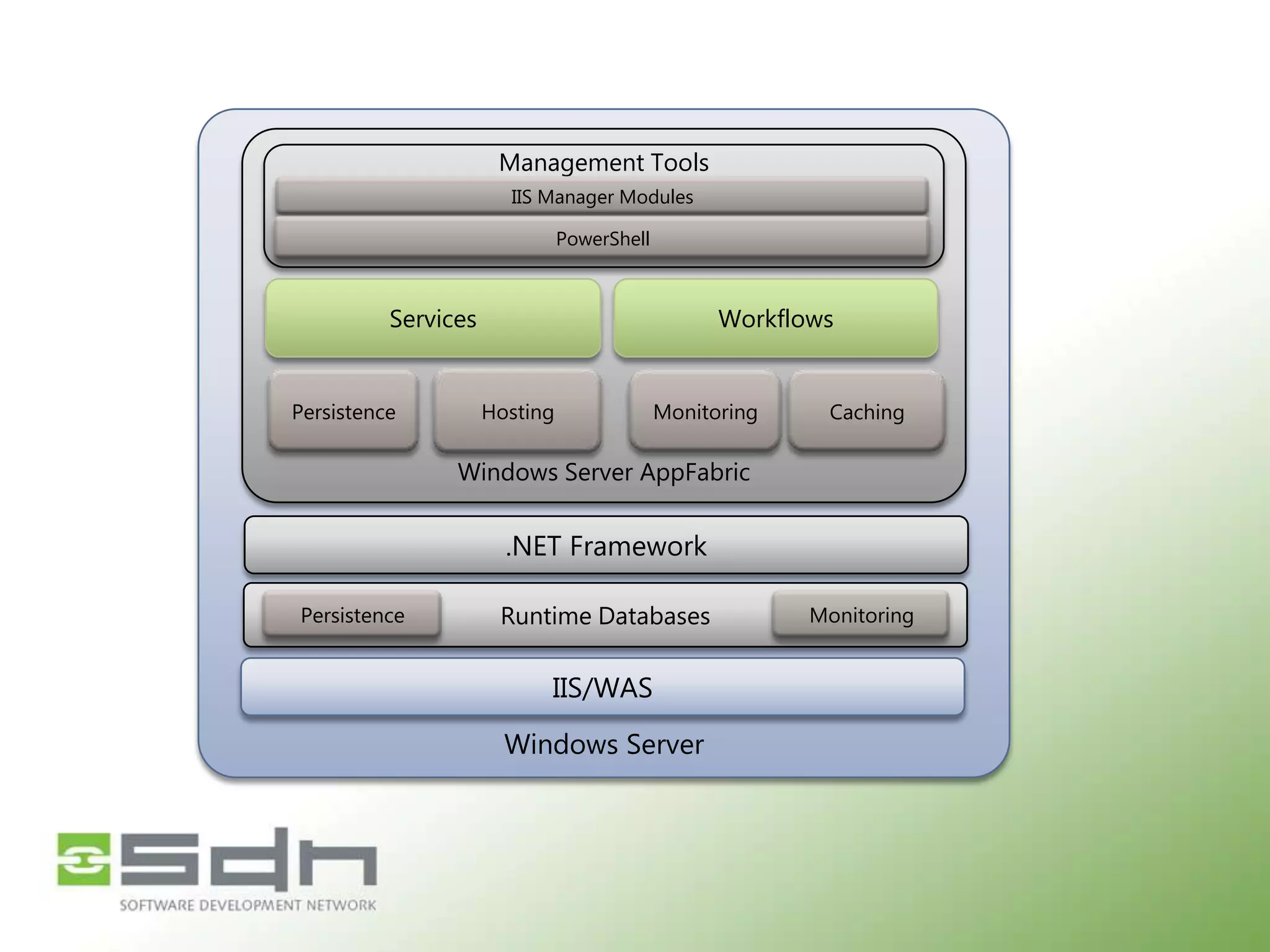

- 16. Management Tools IIS ManagerModules PowerShell Services Persistence Workflows Hosting Monitoring Caching Windows Server AppFabric .NET Framework Persistence Runtime Databases IIS/WAS Windows Server Monitoring

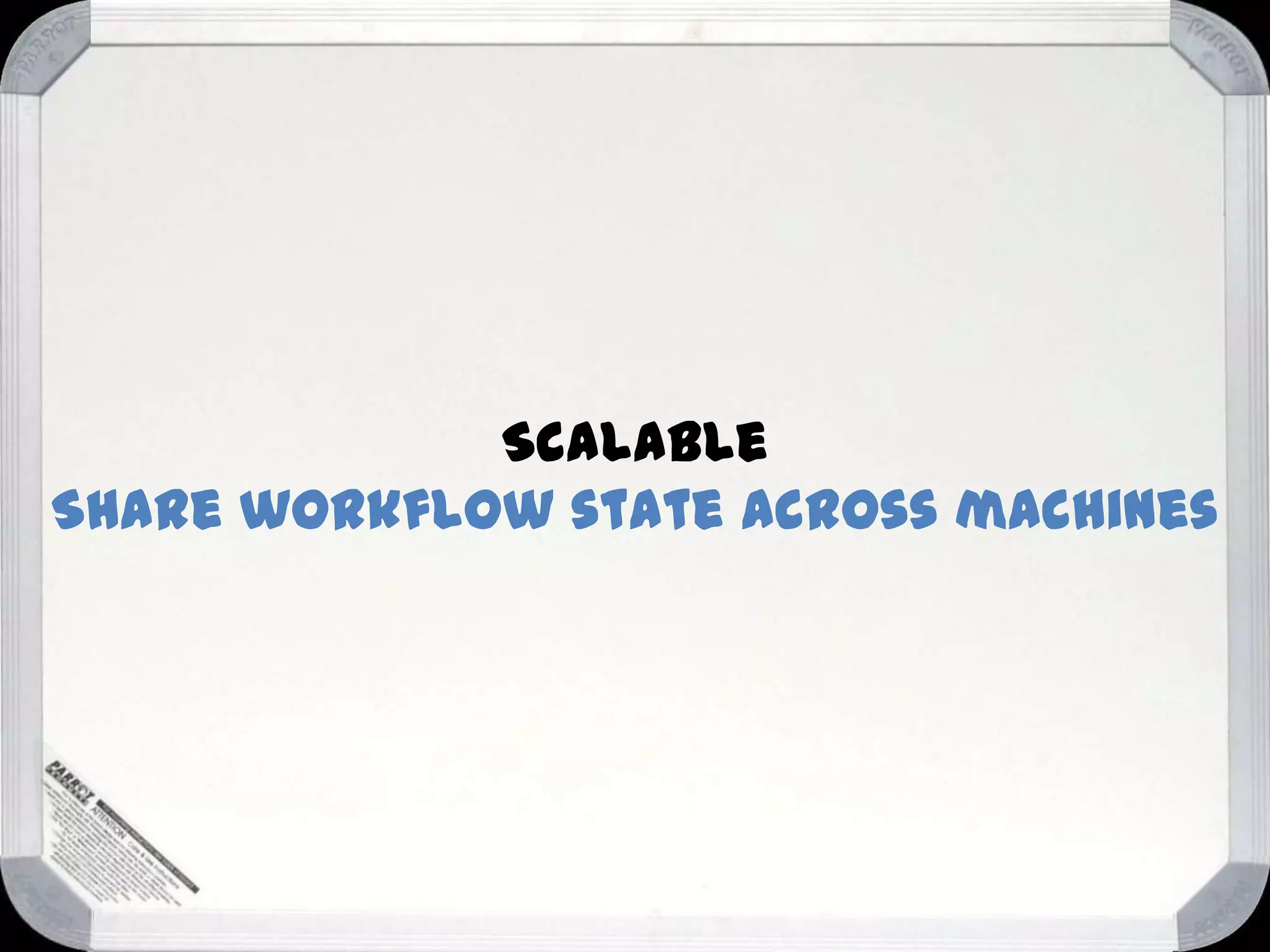

- 17. Scalable Share workflow stateacross machines

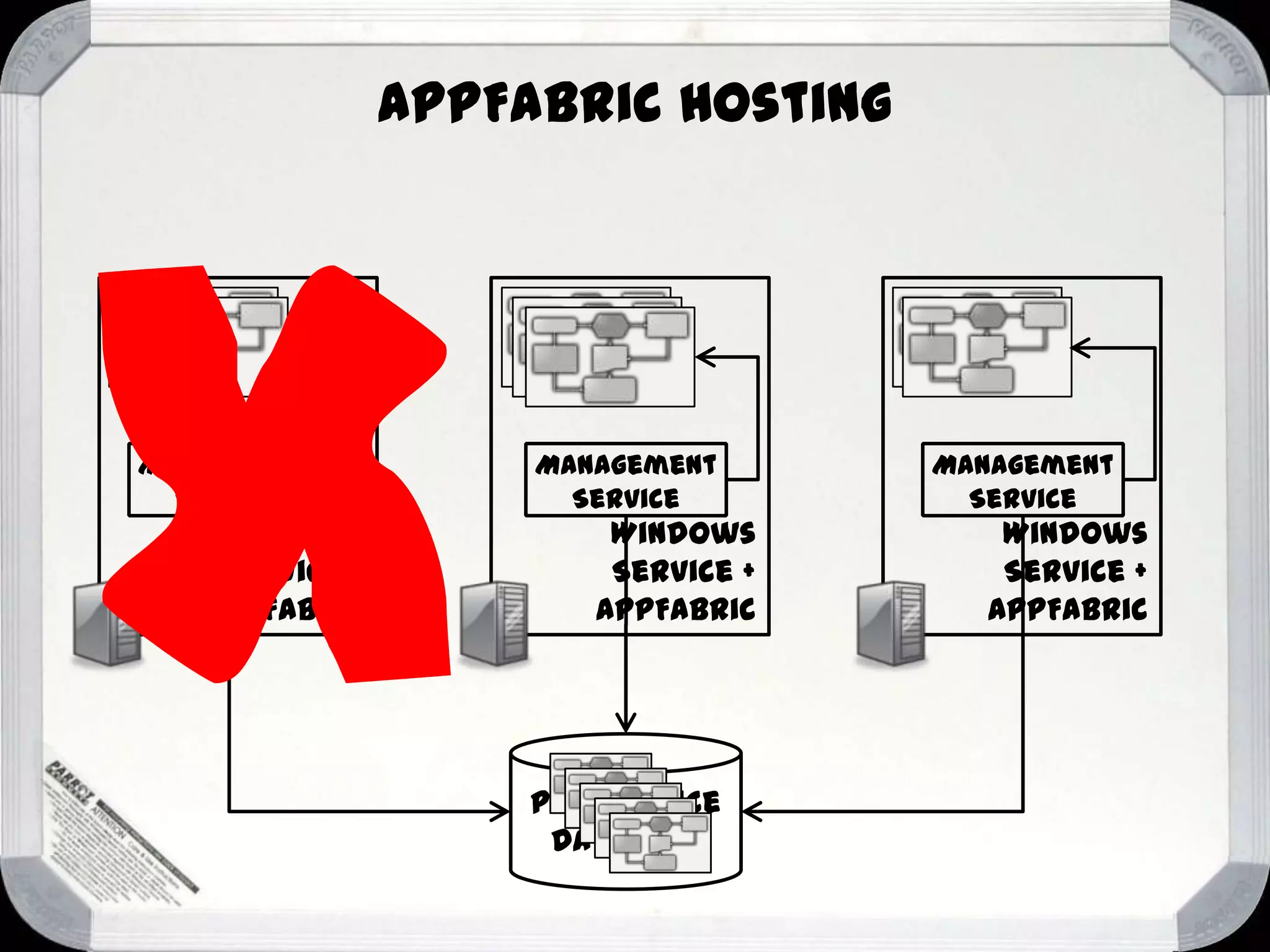

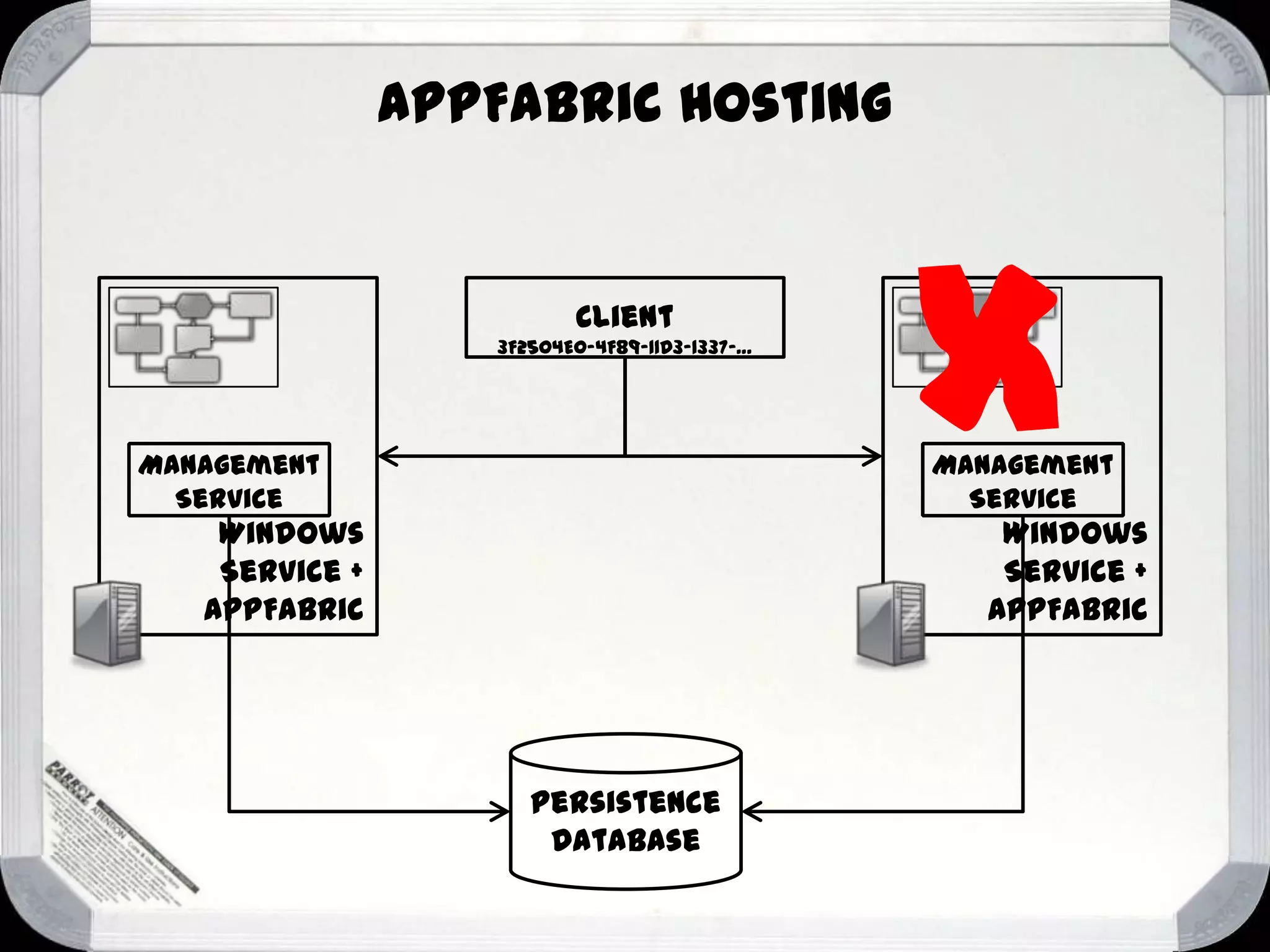

- 18. AppFabric Hosting Management Service Windows Service + AppFabric Management Service Windows Service+ AppFabric Persistence Database Management Service Windows Service + AppFabric
- 19. Scalable Retry mechanism forrace conditions
- 20.
- 21.
- 22. Let’s look ata problem you might experience yourself…
- 23.
- 24.

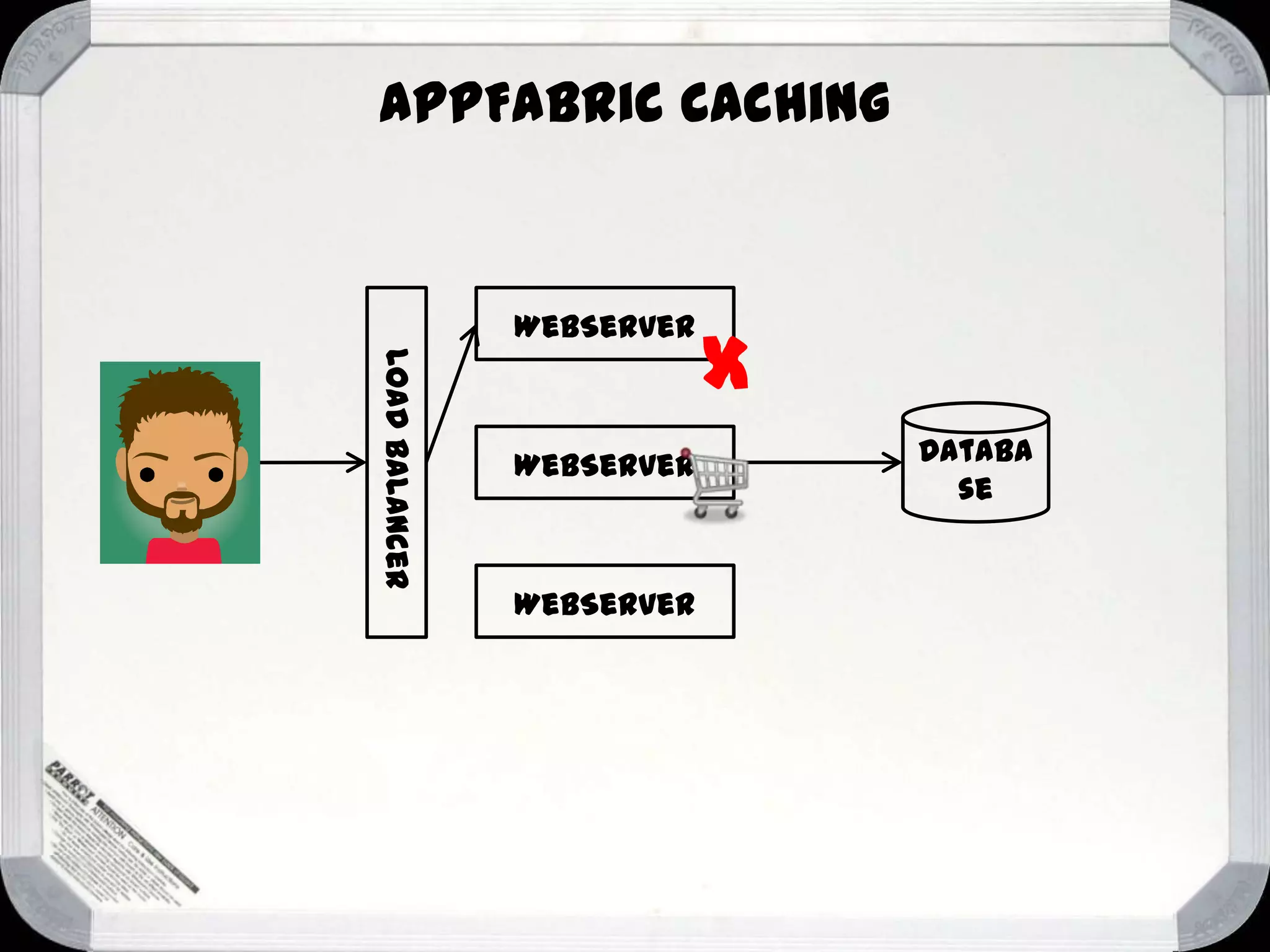

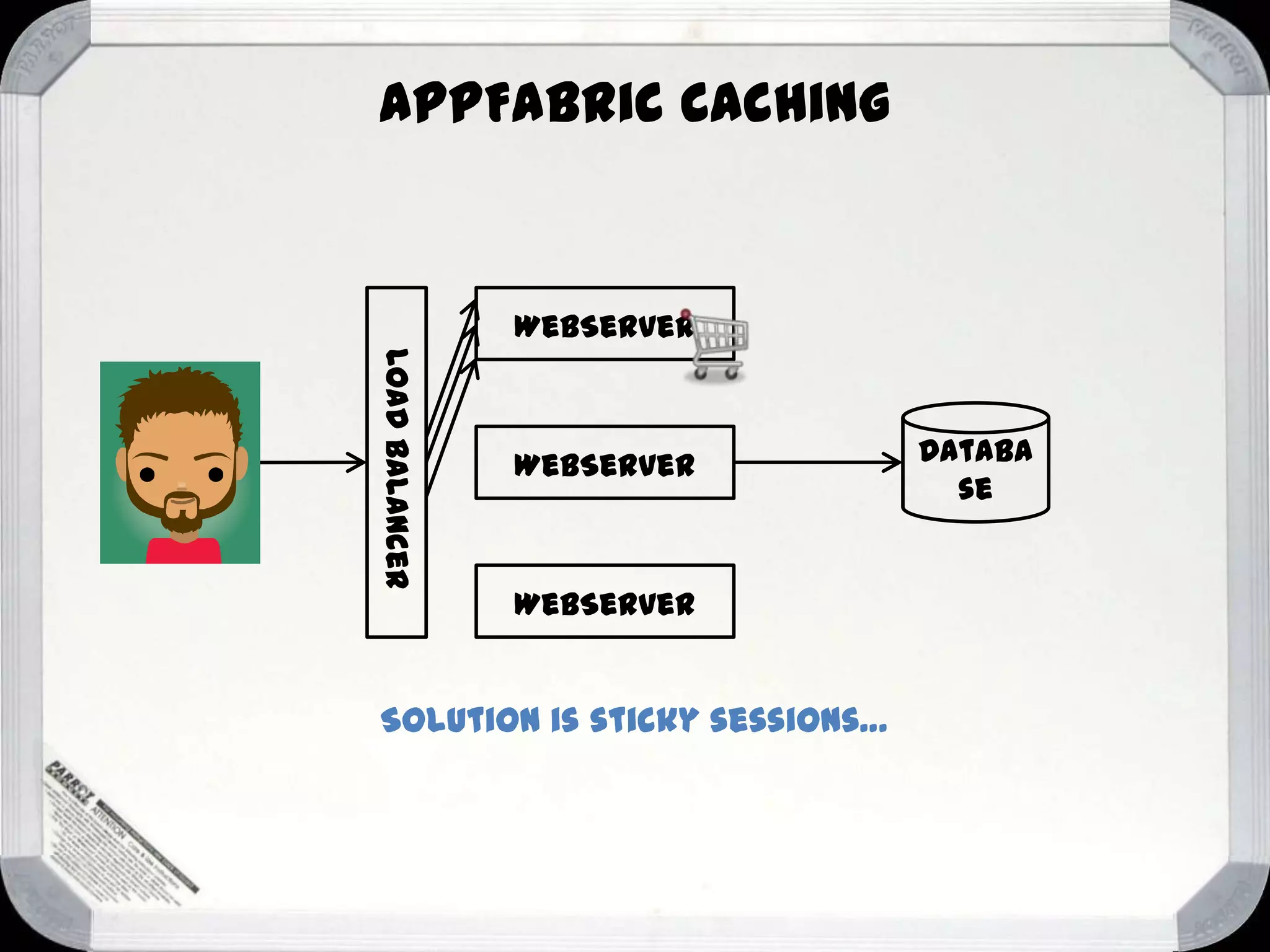

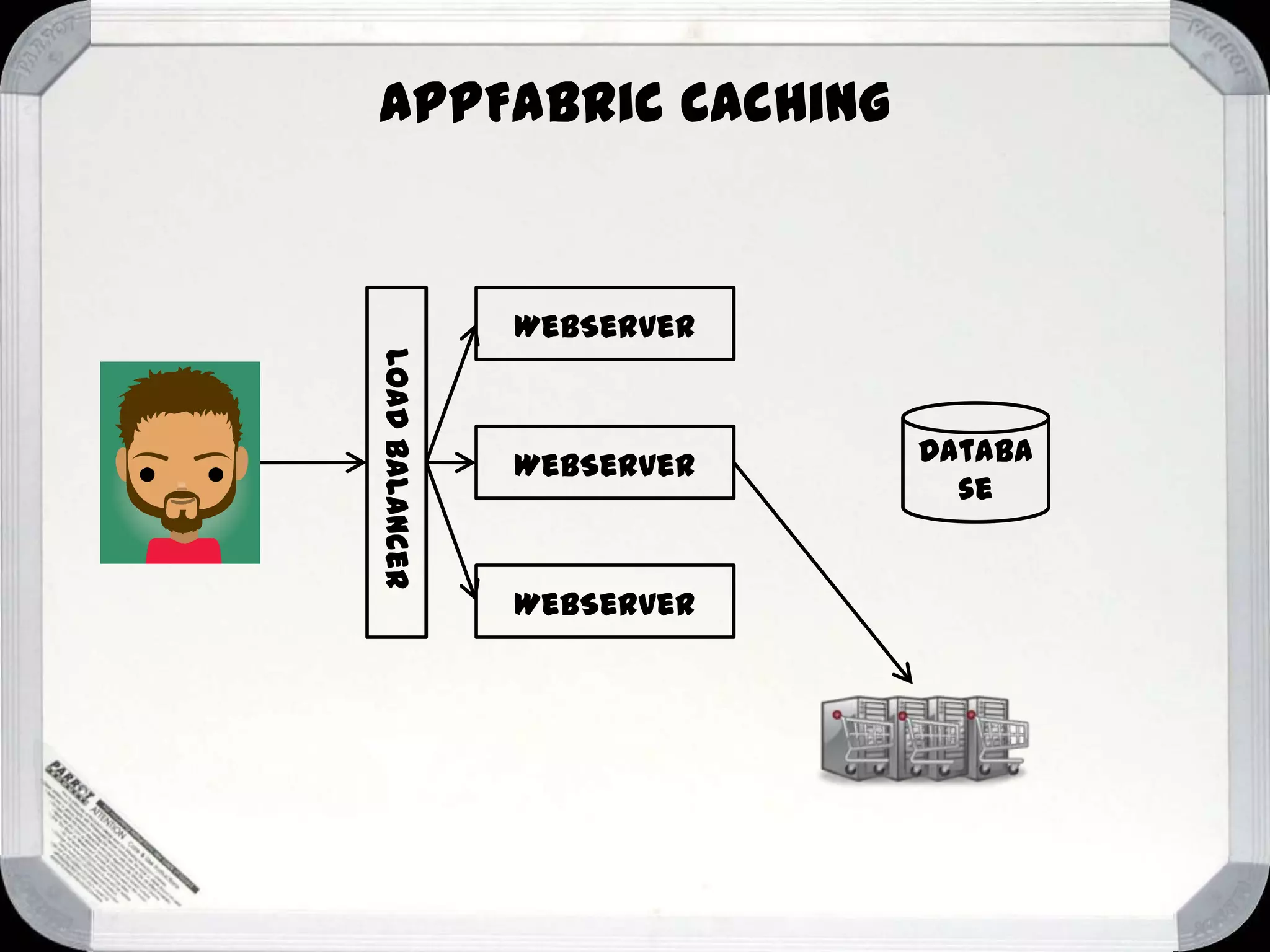

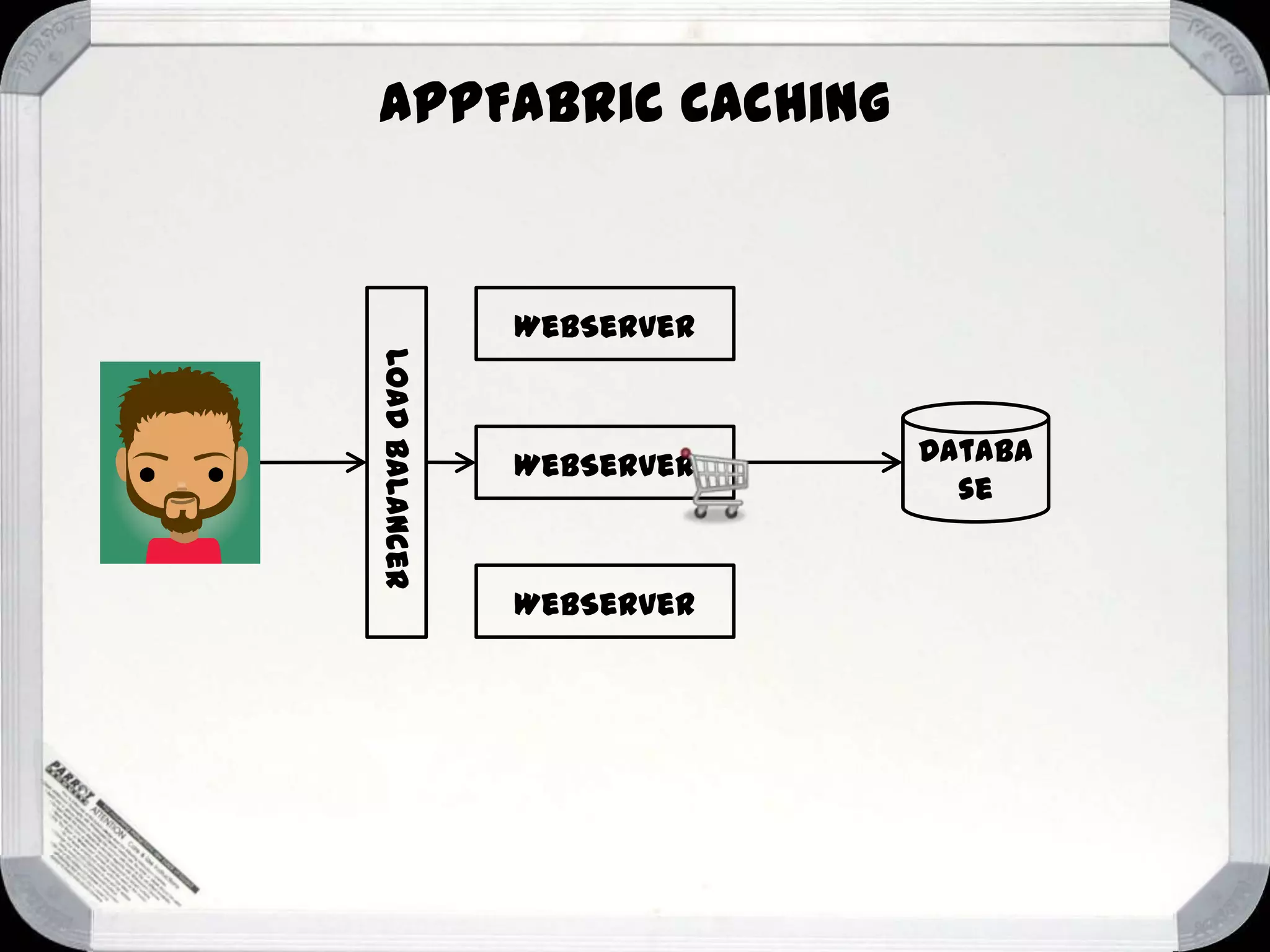

- 25. AppFabric Caching WebServer Load Balancer WebServer WebServer Solutionis sticky sessions… Databa se
- 26. We’ll have unevenload balancing, we might loose sessions, etc…

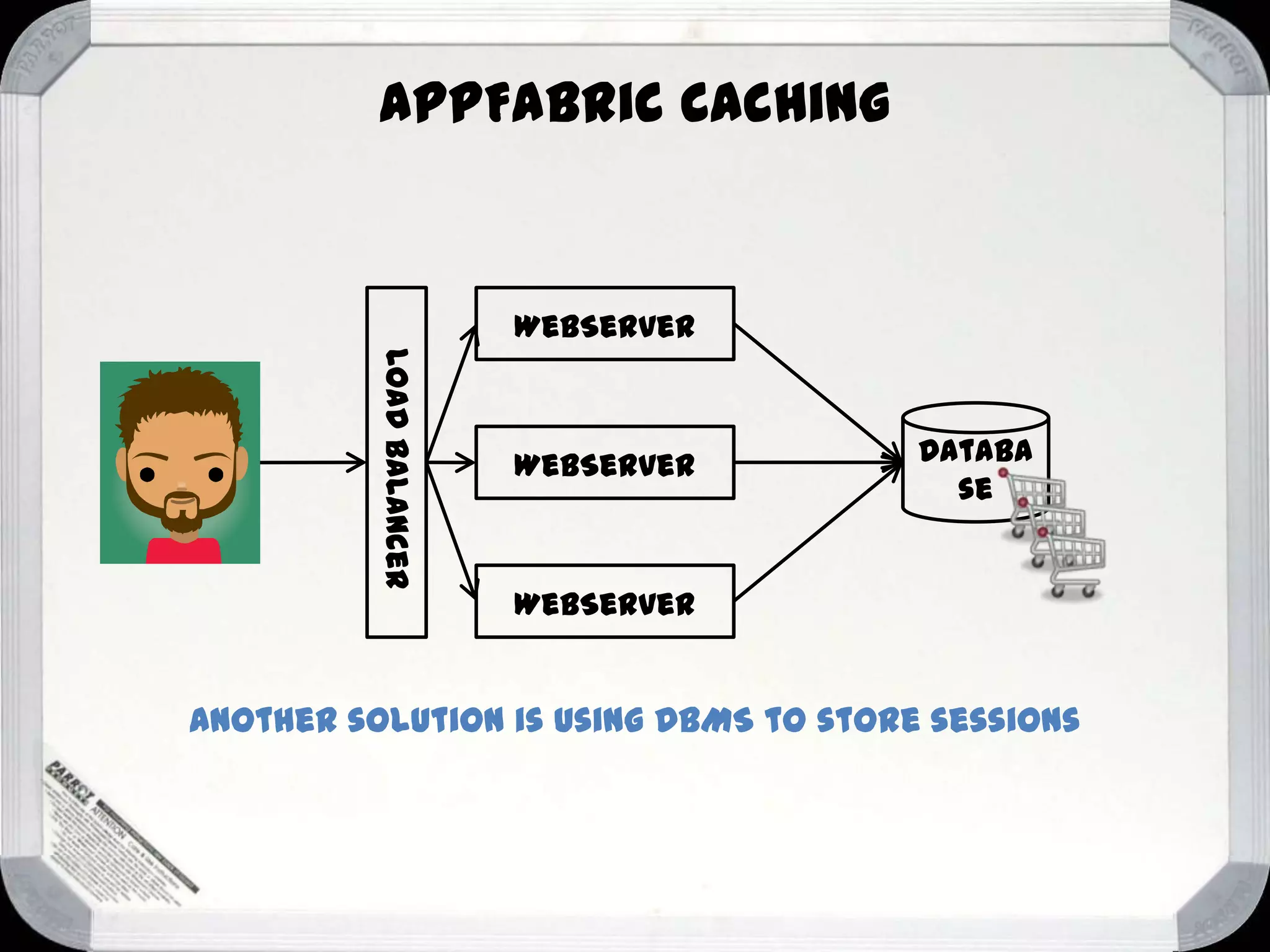

- 27. AppFabric Caching WebServer Load Balancer WebServer Databa se WebServer Anothersolution is using DBMS to store sessions

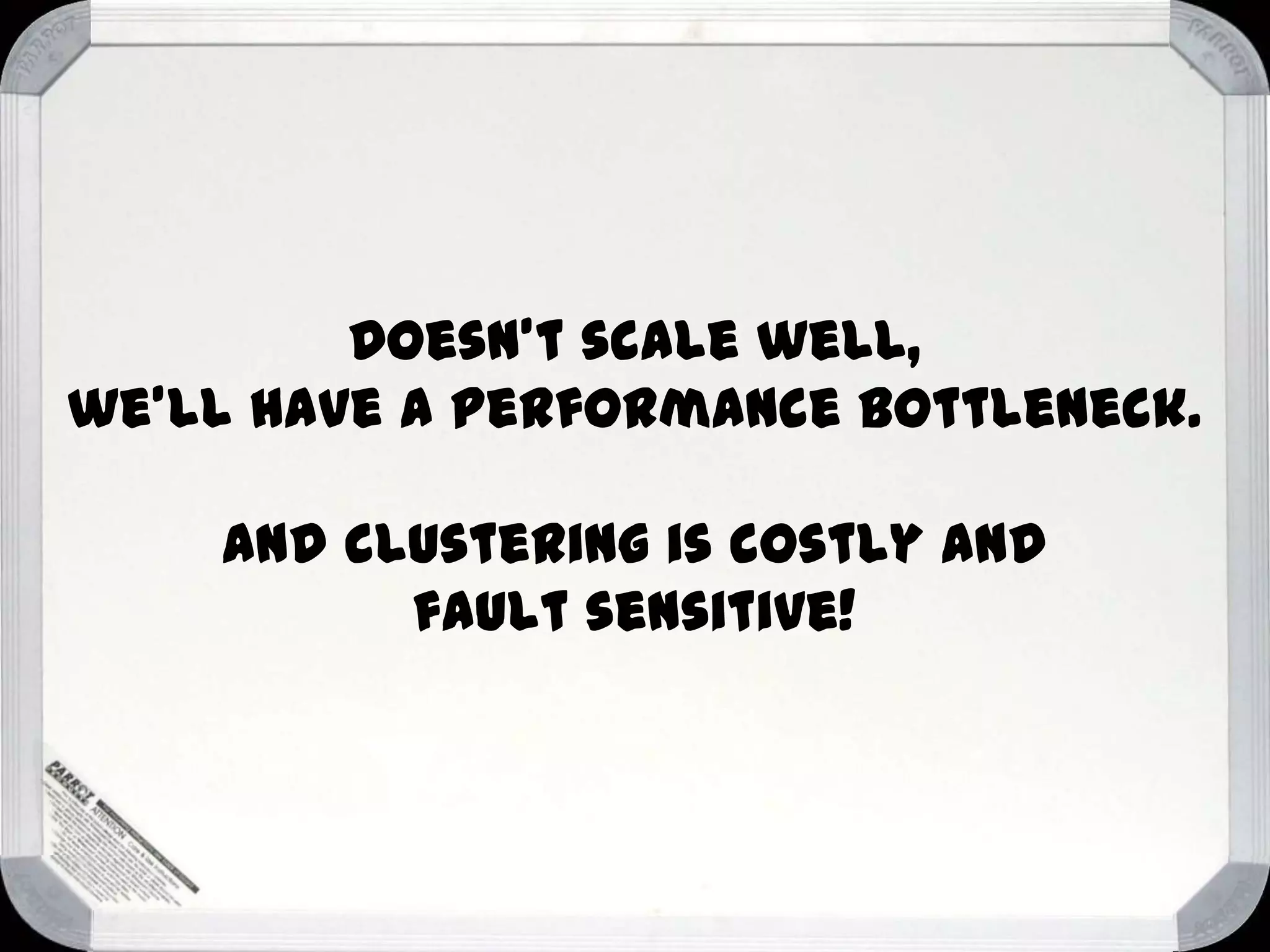

- 28. Doesn’t scale well, we’llhave a performance bottleneck. And clustering is costly and fault sensitive!

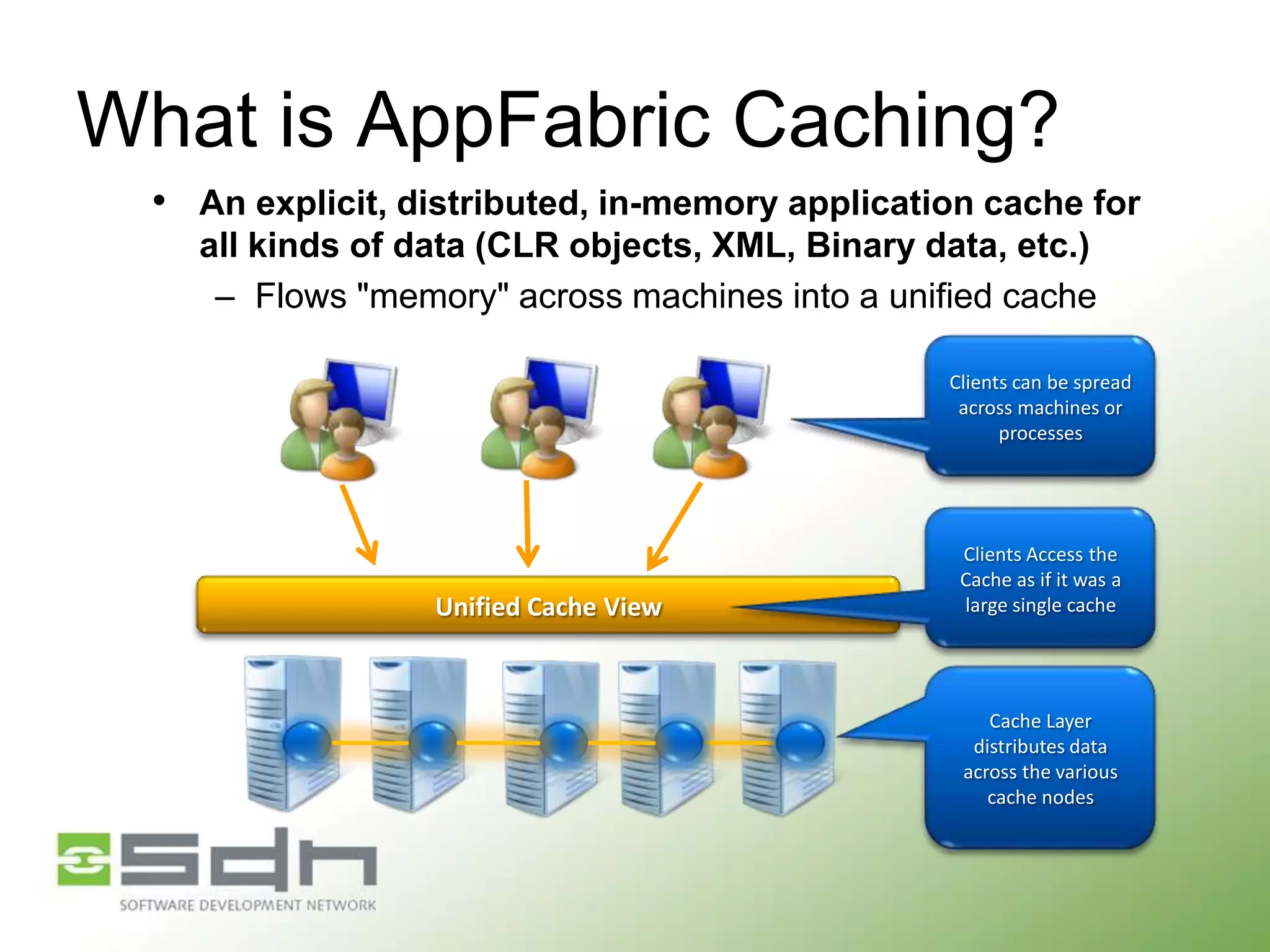

- 29. What is AppFabricCaching? • An explicit, distributed, in-memory application cache for all kinds of data (CLR objects, XML, Binary data, etc.) – Flows "memory" across machines into a unified cache Clients can be spread across machines or processes Unified Cache View Clients Access the Cache as if it was a large single cache Cache Layer distributes data across the various cache nodes
- 30.

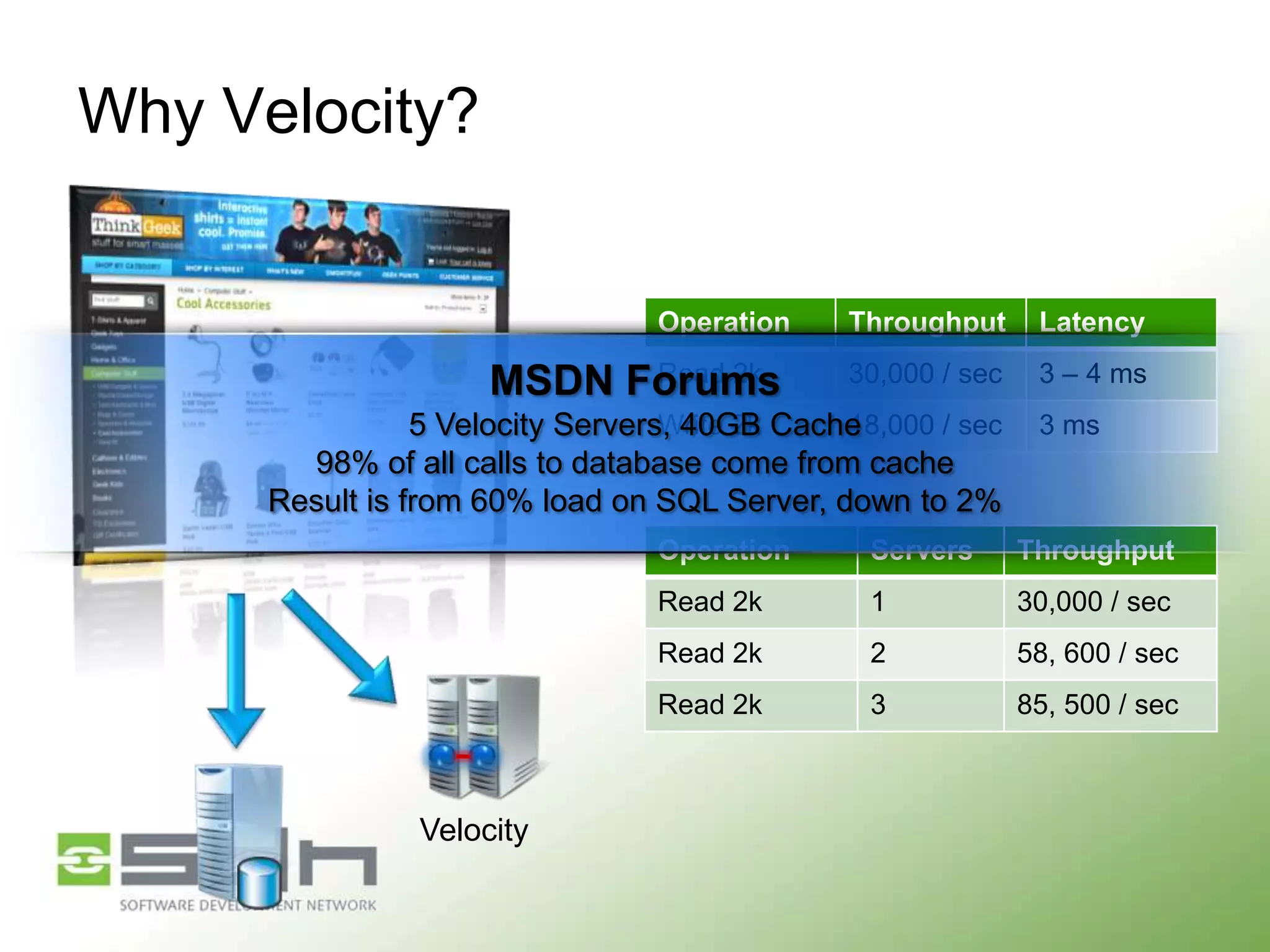

- 31. Why Velocity? * Sharedata across applications No more sticky routing * Peformance Operation Read 2k MSDN Forums Throughput Latency 30,000 / sec 3 – 4 ms Write 2k 18,000 / sec 5 Velocity Servers, 40GB Cache 98% of all calls to database come from cache Result is from 60% load on SQL Server, down to 2% * Scale out 3 ms Operation Throughput Read 2k 1 30,000 / sec Read 2k 2 58, 600 / sec Read 2k Velocity Servers 3 85, 500 / sec

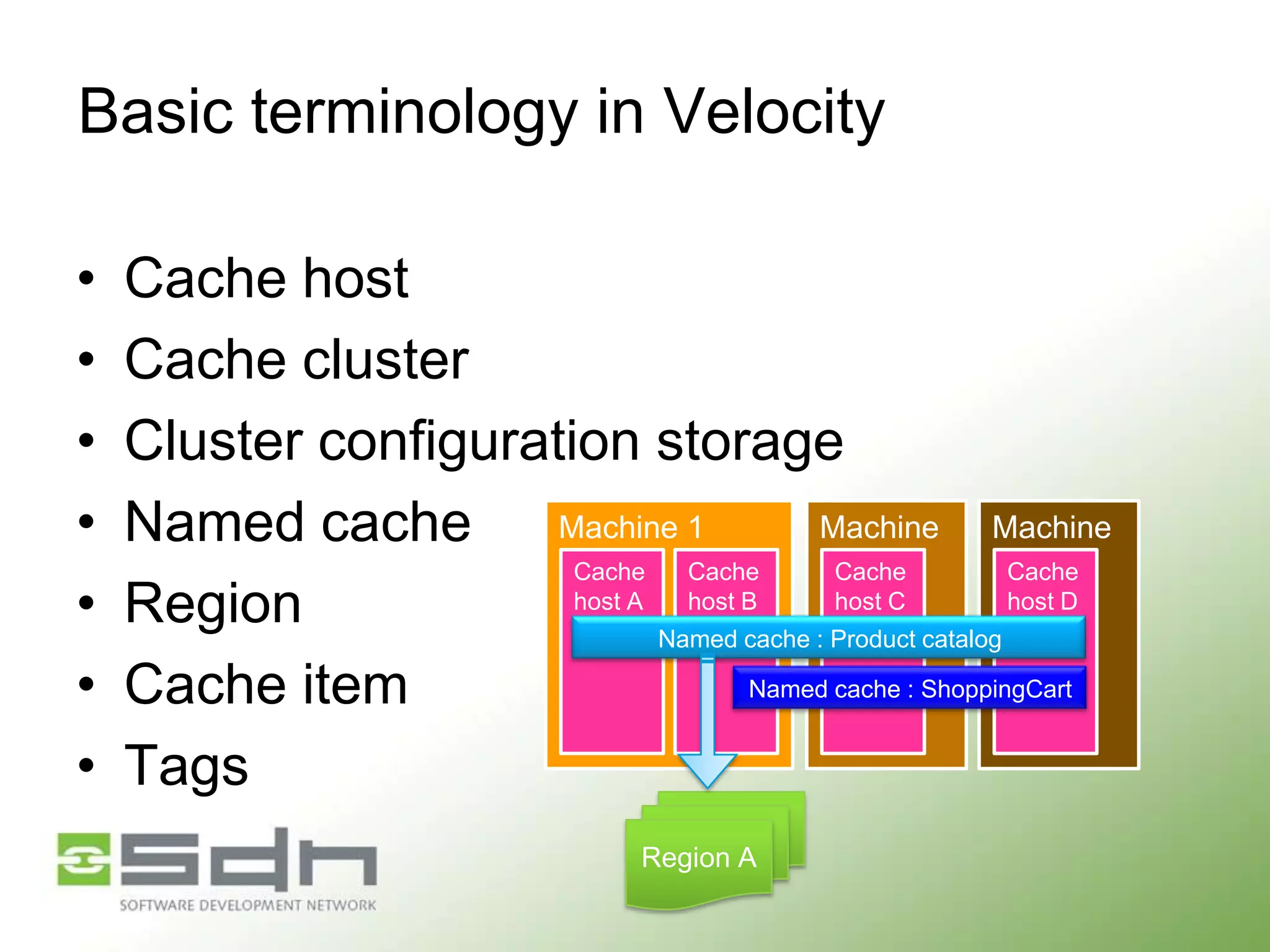

- 32. Basic terminology inVelocity • • • • • • • Cache host Cache cluster Cluster configuration storage Machine 1 Machine Machine Named cache 2Cache 2Cache Cache Cache host A host B host C host D Region Named cache : Product catalog Named cache : ShoppingCart Cache item Tags Region A

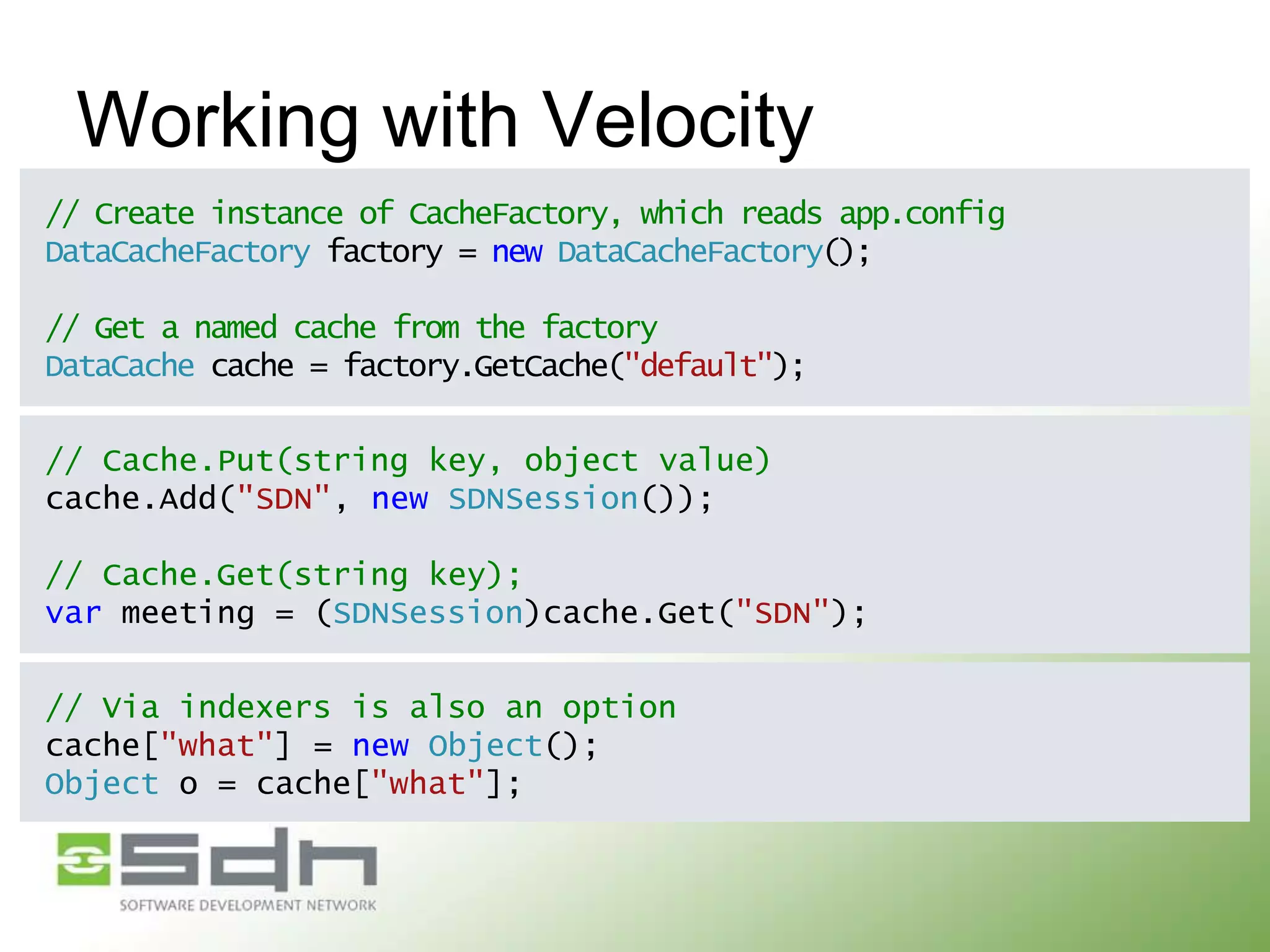

- 33. Working with Velocity //Create instance of CacheFactory, which reads app.config DataCacheFactory factory = new DataCacheFactory(); // Get a named cache from the factory DataCache cache = factory.GetCache("default"); // Cache.Put(string key, object value) cache.Add("SDN", new SDNSession()); // Cache.Get(string key); var meeting = (SDNSession)cache.Get("SDN"); // Via indexers is also an option cache["what"] = new Object(); Object o = cache["what"];

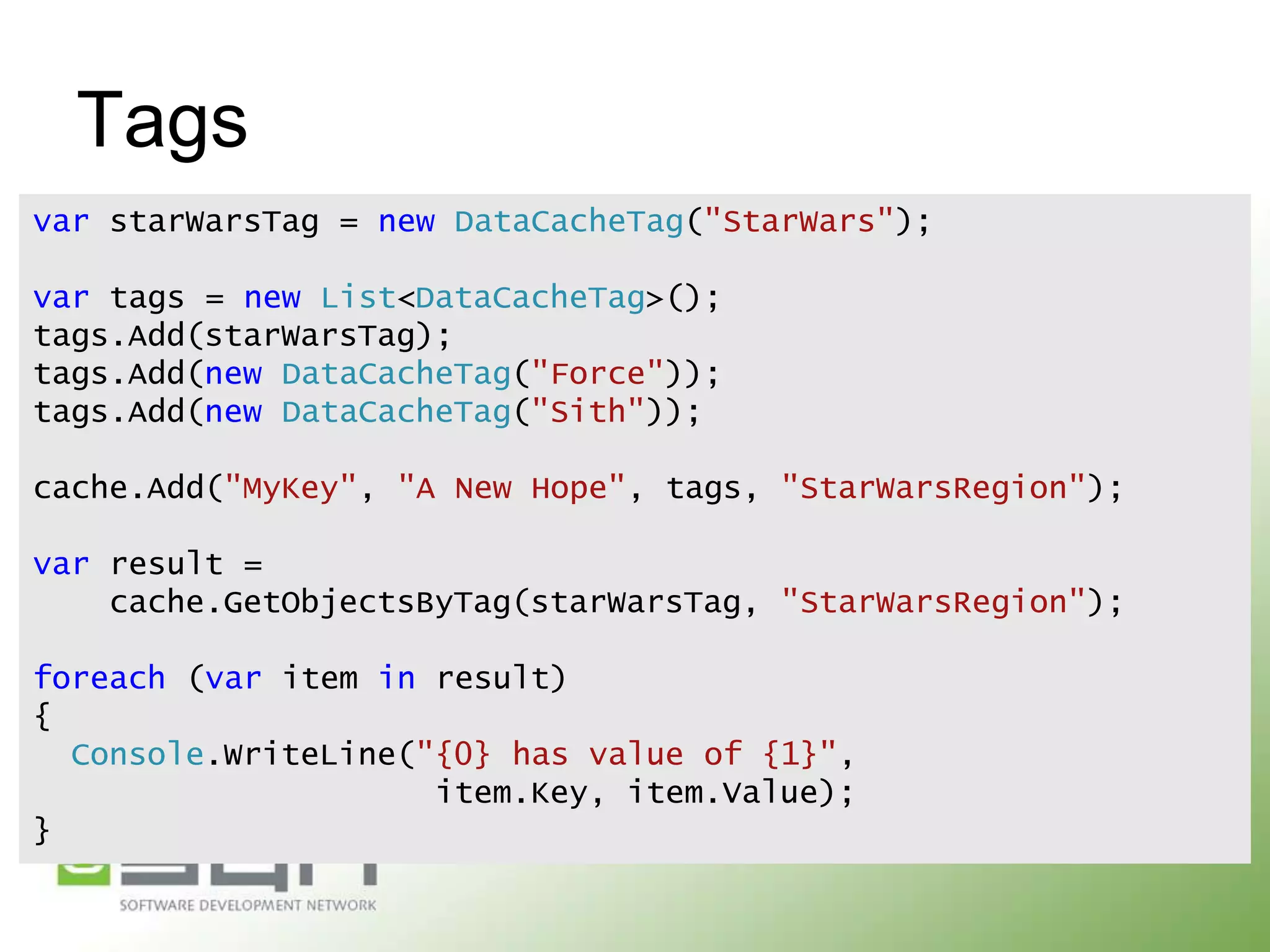

- 34. Tags var starWarsTag =new DataCacheTag("StarWars"); var tags = new List<DataCacheTag>(); tags.Add(starWarsTag); tags.Add(new DataCacheTag("Force")); tags.Add(new DataCacheTag("Sith")); cache.Add("MyKey", "A New Hope", tags, "StarWarsRegion"); var result = cache.GetObjectsByTag(starWarsTag, "StarWarsRegion"); foreach (var item in result) { Console.WriteLine("{0} has value of {1}", item.Key, item.Value); }

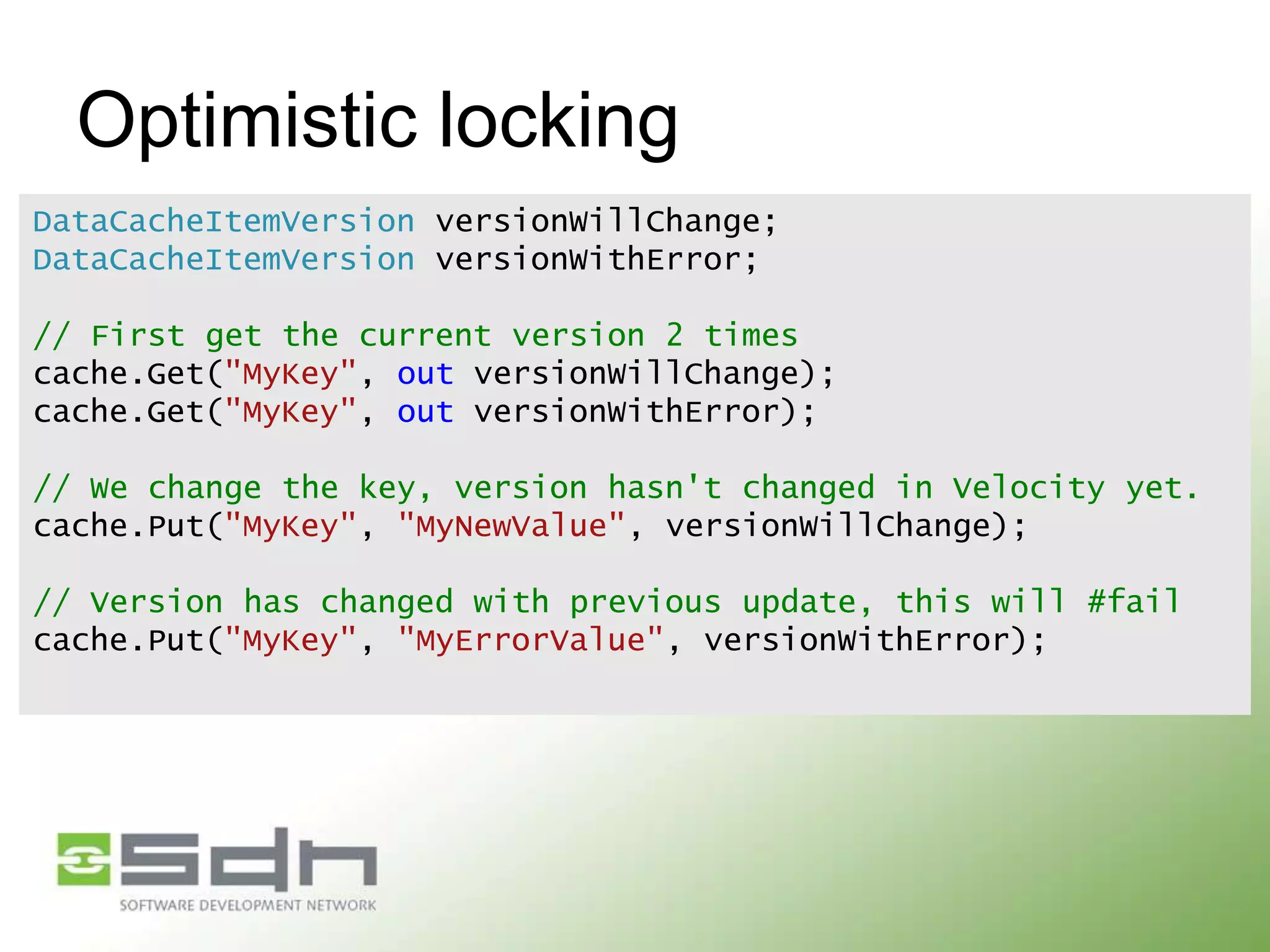

- 35. Optimistic locking DataCacheItemVersion versionWillChange; DataCacheItemVersionversionWithError; // First get the current version 2 times cache.Get("MyKey", out versionWillChange); cache.Get("MyKey", out versionWithError); // We change the key, version hasn't changed in Velocity yet. cache.Put("MyKey", "MyNewValue", versionWillChange); // Version has changed with previous update, this will #fail cache.Put("MyKey", "MyErrorValue", versionWithError);

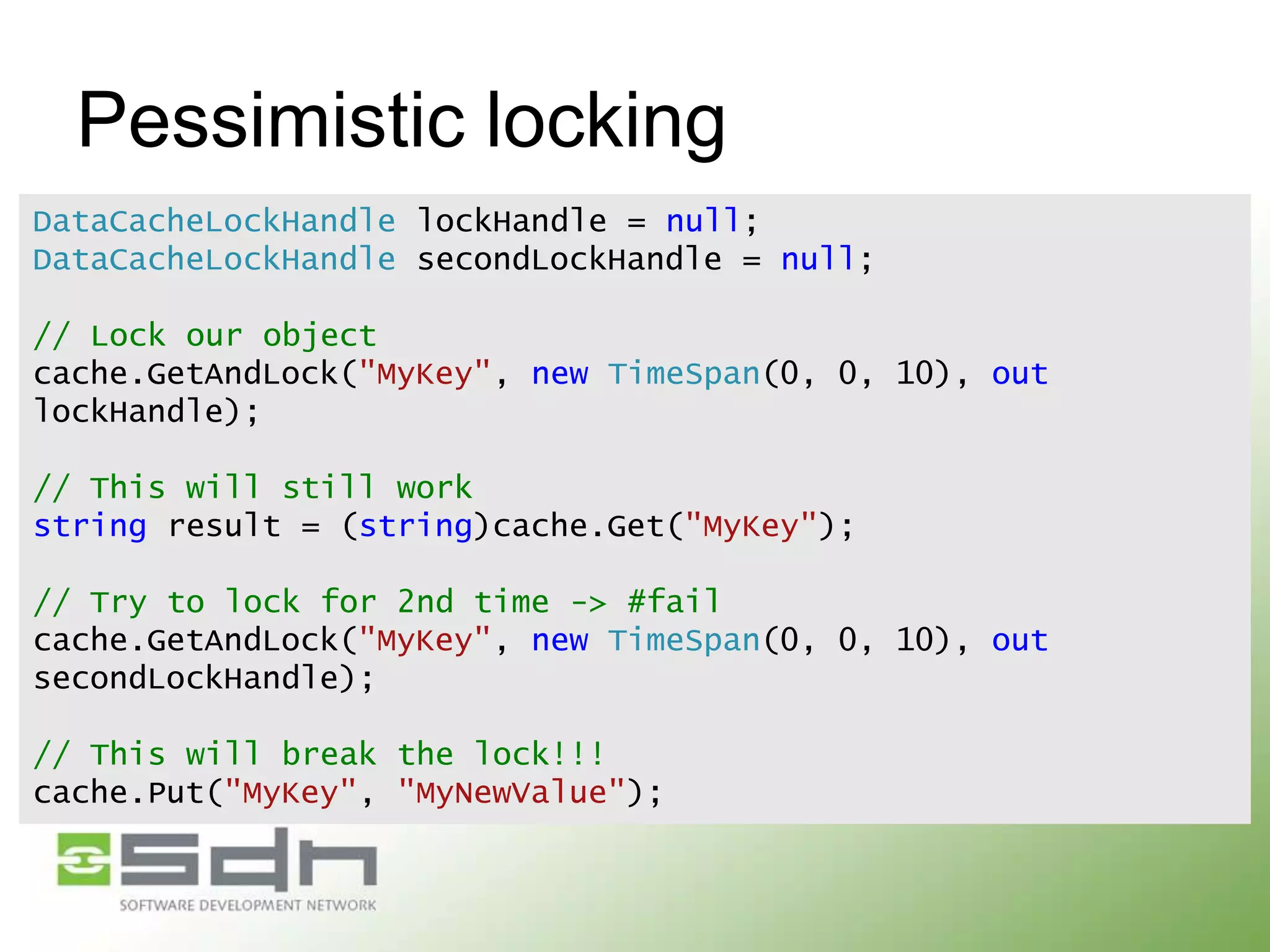

- 36. Pessimistic locking DataCacheLockHandle lockHandle= null; DataCacheLockHandle secondLockHandle = null; // Lock our object cache.GetAndLock("MyKey", new TimeSpan(0, 0, 10), out lockHandle); // This will still work string result = (string)cache.Get("MyKey"); // Try to lock for 2nd time -> #fail cache.GetAndLock("MyKey", new TimeSpan(0, 0, 10), out secondLockHandle); // This will break the lock!!! cache.Put("MyKey", "MyNewValue");

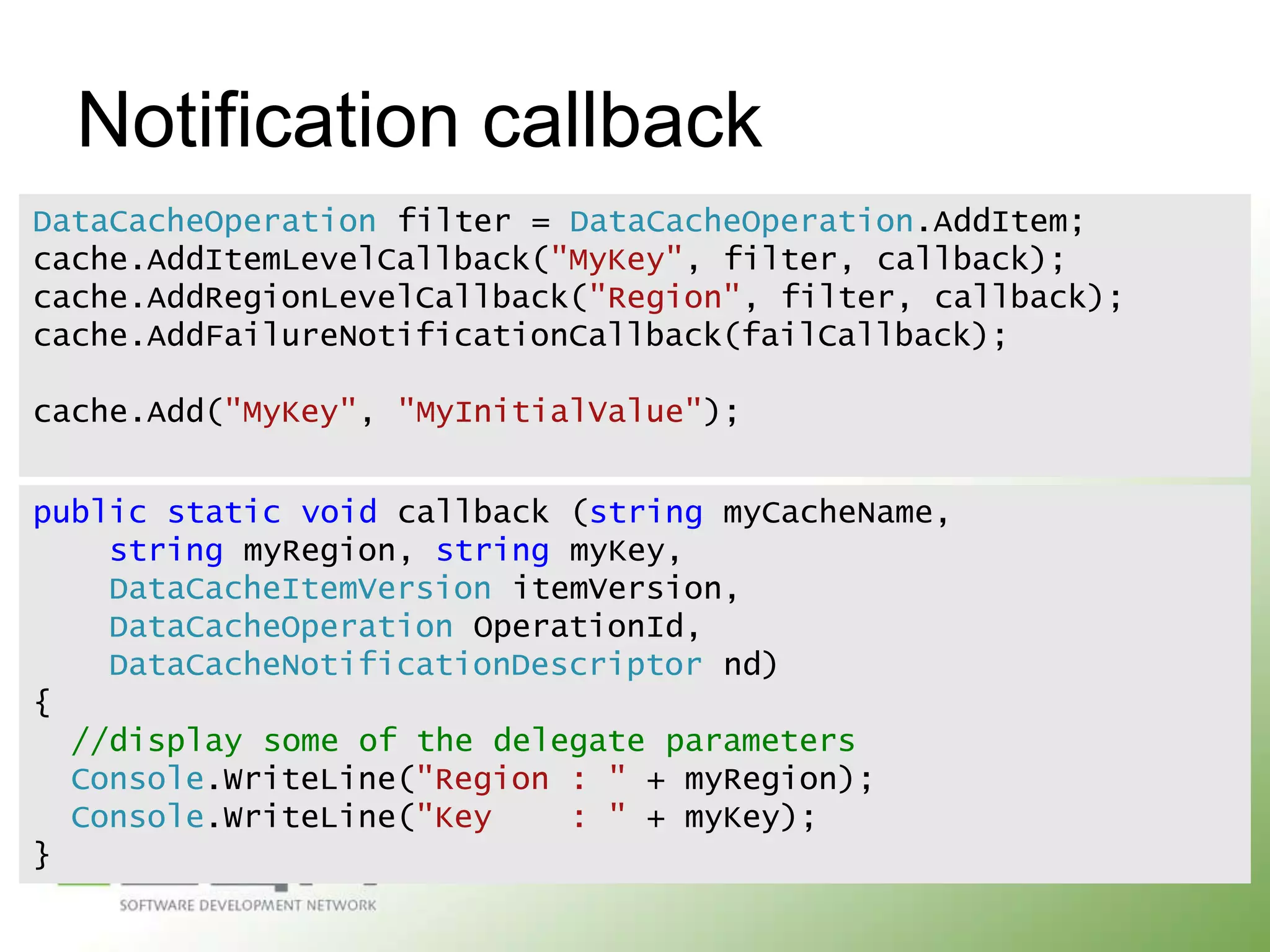

- 37. Notification callback DataCacheOperation filter= DataCacheOperation.AddItem; cache.AddItemLevelCallback("MyKey", filter, callback); cache.AddRegionLevelCallback("Region", filter, callback); cache.AddFailureNotificationCallback(failCallback); cache.Add("MyKey", "MyInitialValue"); public static void callback (string myCacheName, string myRegion, string myKey, DataCacheItemVersion itemVersion, DataCacheOperation OperationId, DataCacheNotificationDescriptor nd) { //display some of the delegate parameters Console.WriteLine("Region : " + myRegion); Console.WriteLine("Key : " + myKey); }
- 38. ASP.NET Session integration •SessionStoreProvider class – Plugs into ASP.NET Session store – Stores session state in Velocity • Scale – Session information available at all ASP.NET Nodes • High availability – Session data is backed up on addditional machines – Resilient to machine or process failures
- 40. Azure AppFabric • Webbasedservices • Yes, in the cloud! • Allow you to easily connect applications
- 41.
- 42.

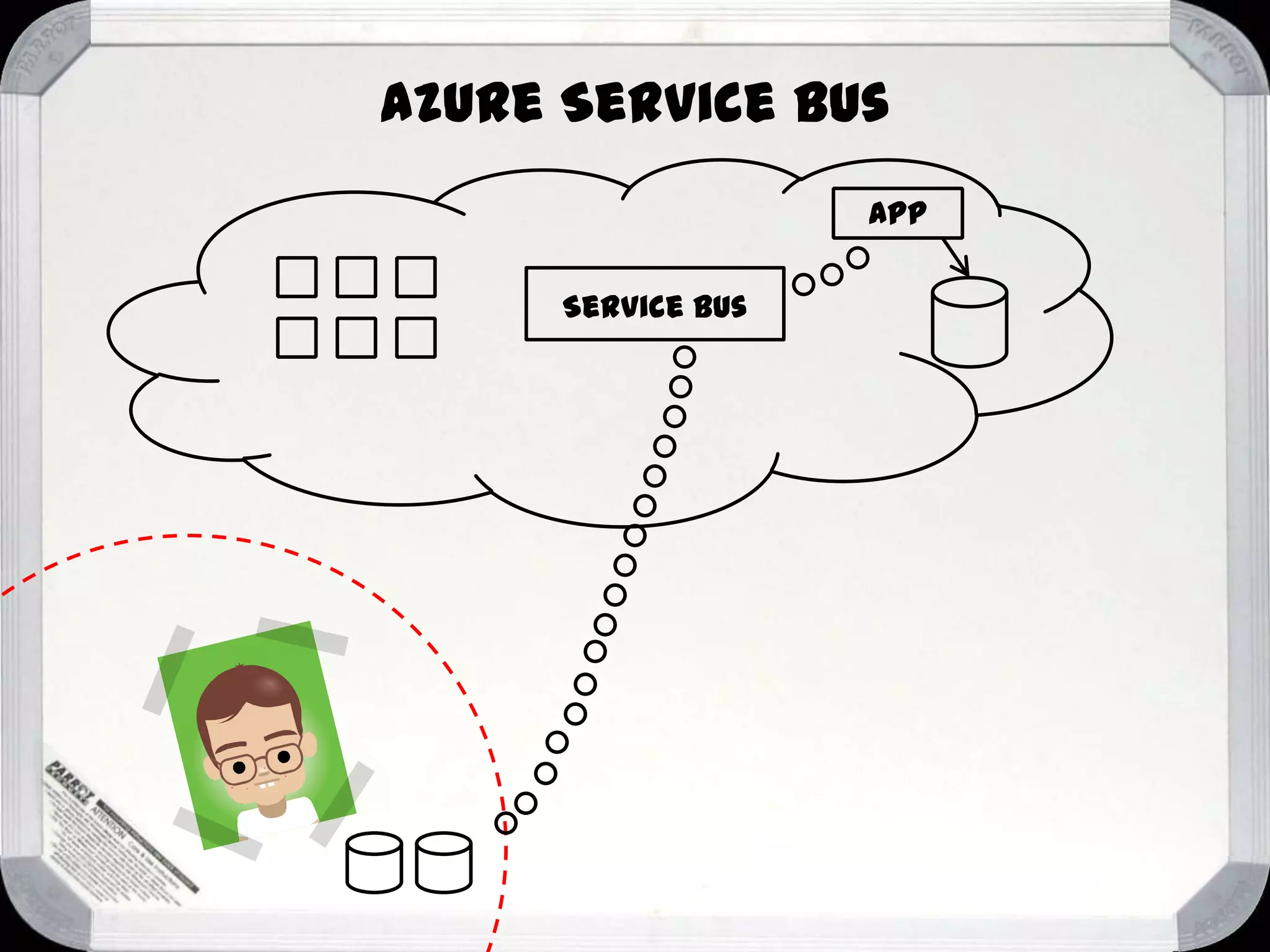

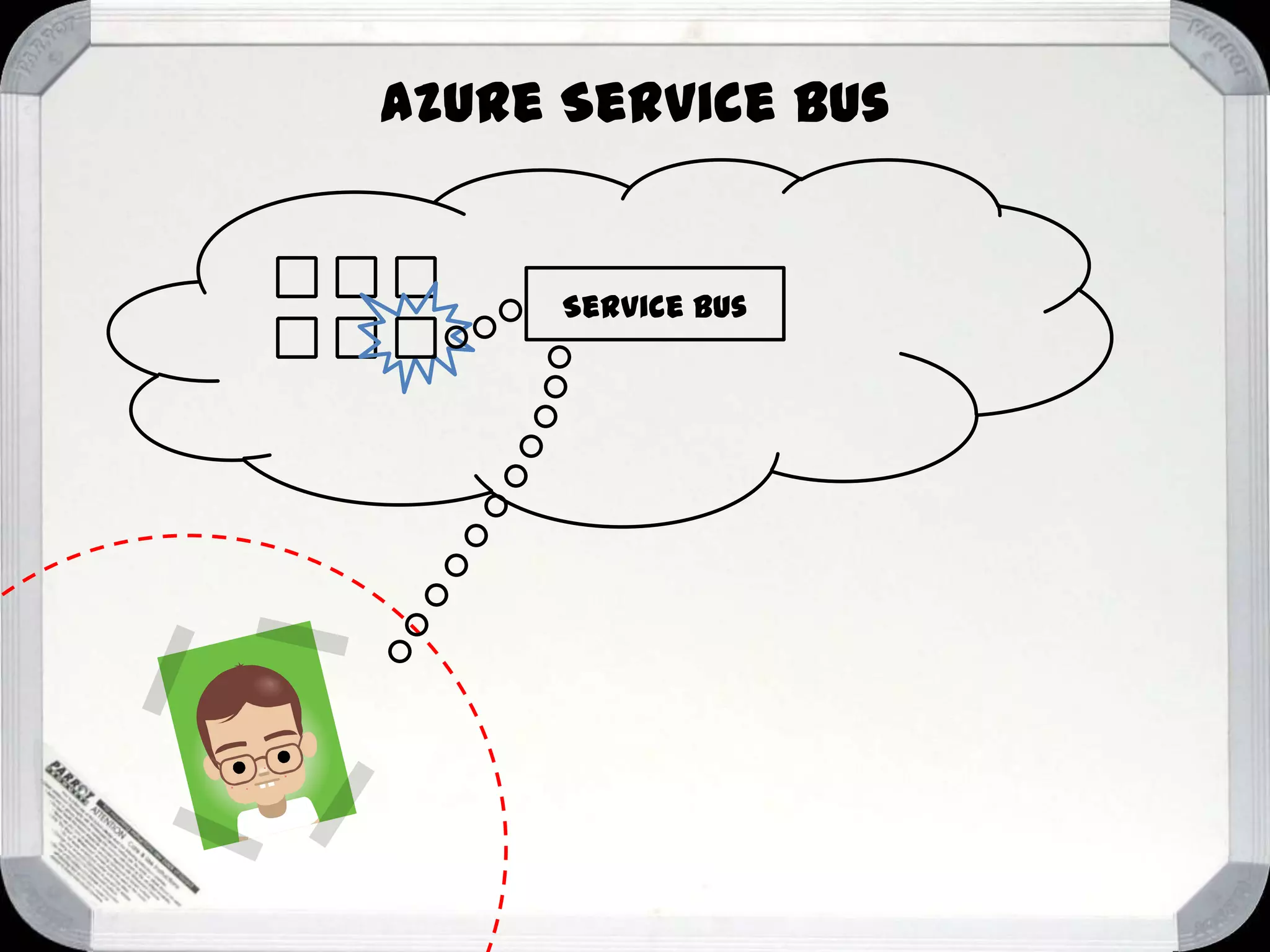

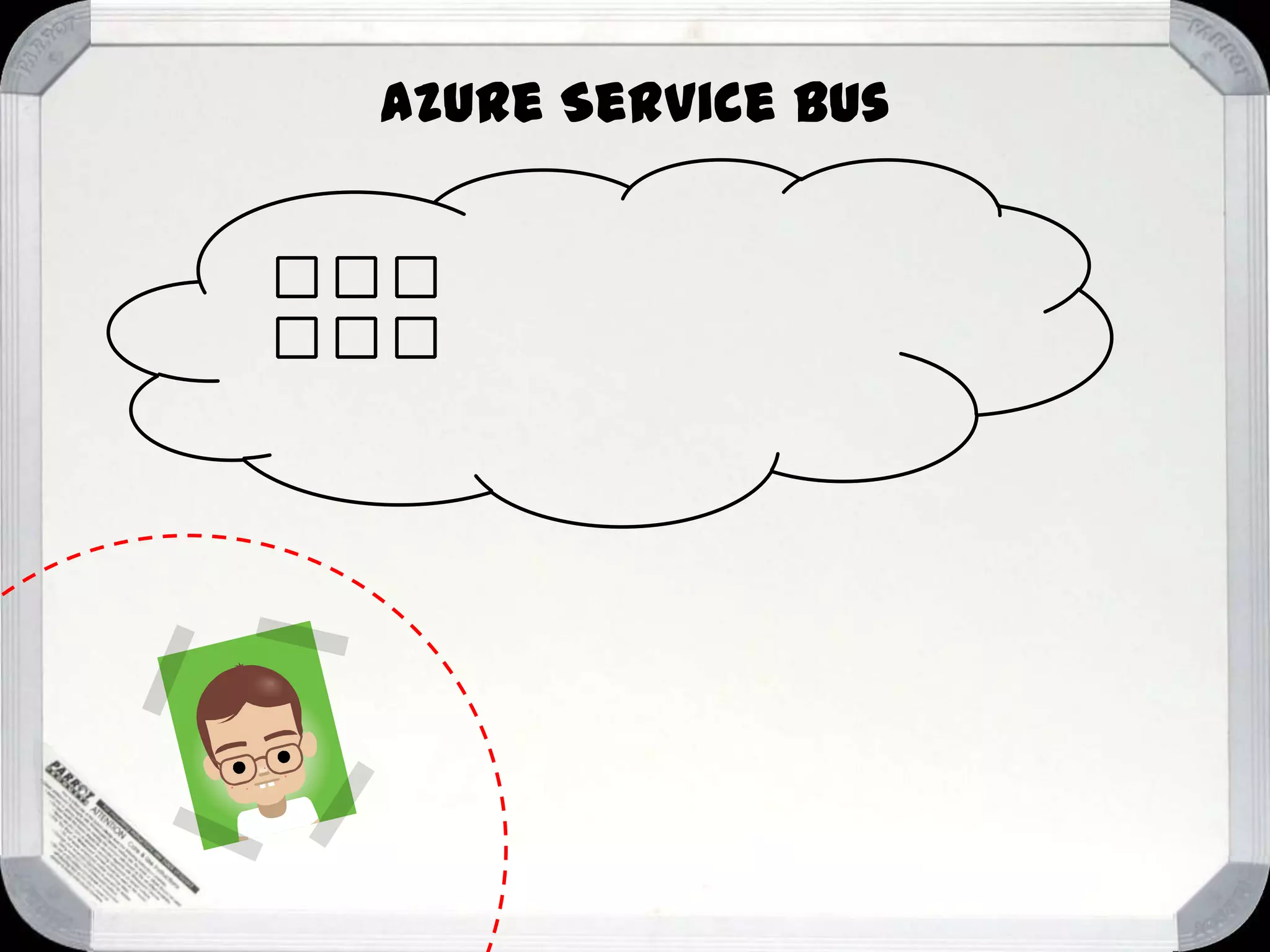

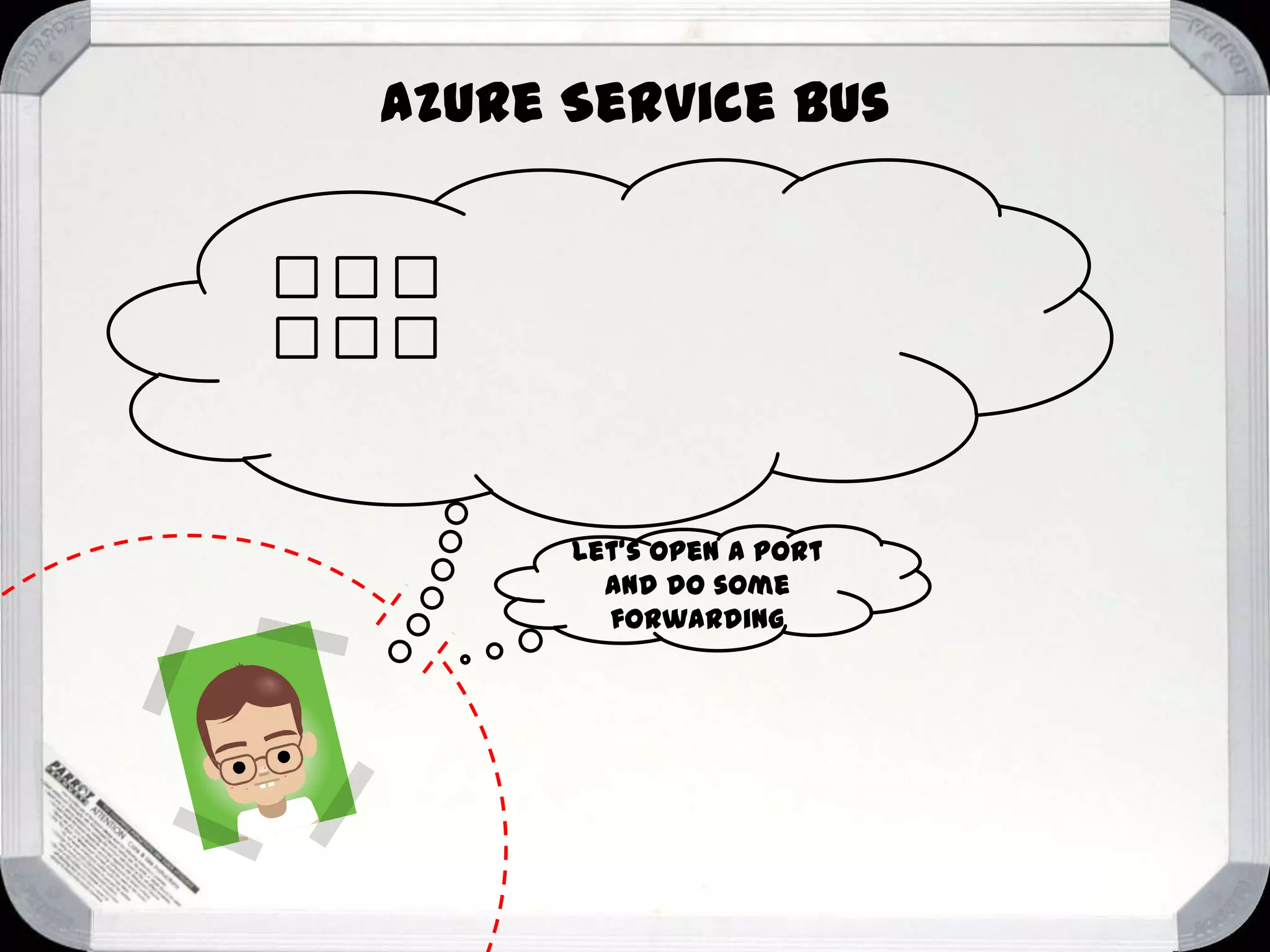

- 43. Azure Service Bus Let’sopen a port and do some forwarding
- 44. Azure Service Bus Oh,what about NAT, Proxies, etc?

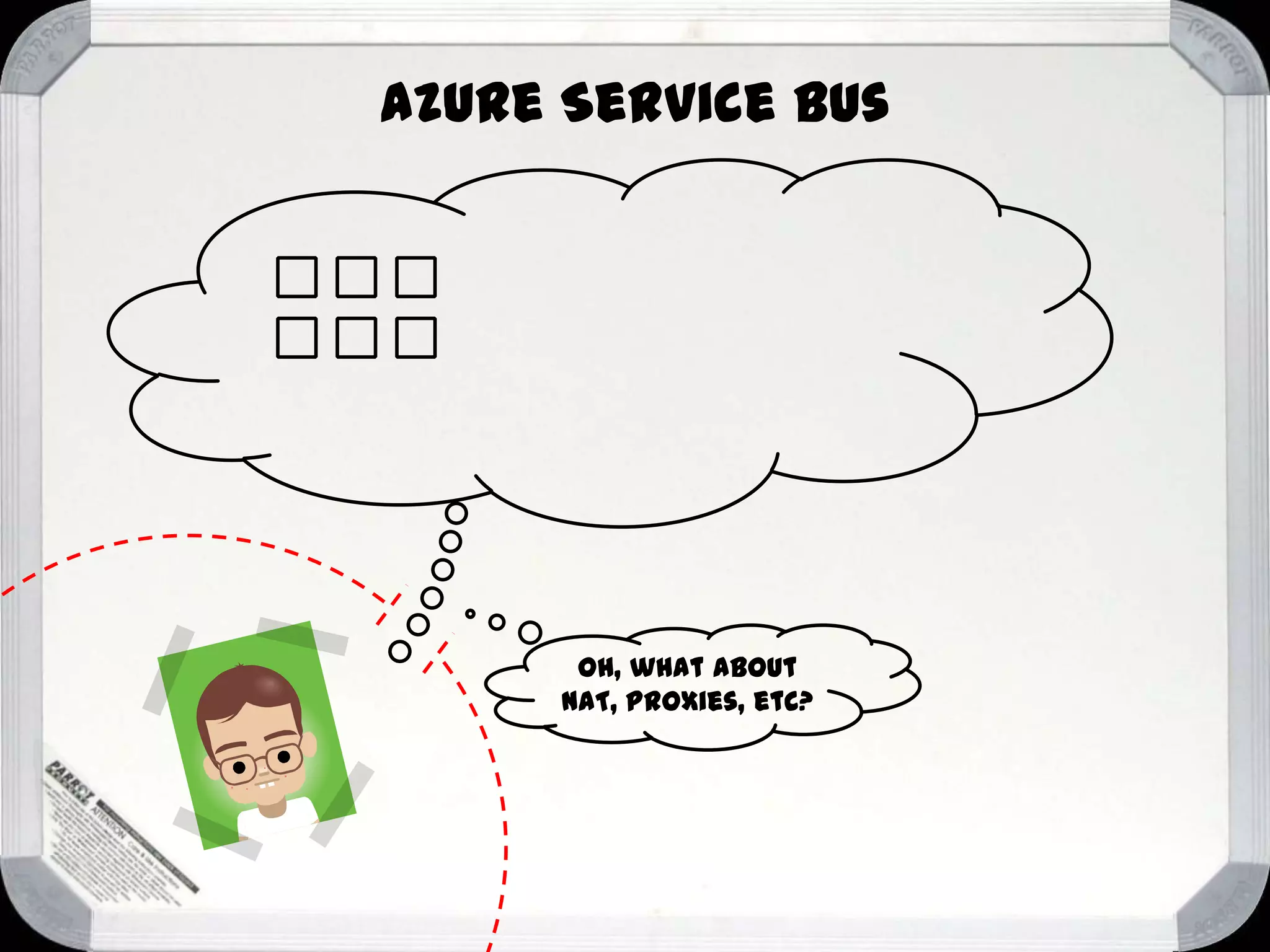

- 45.
- 46.

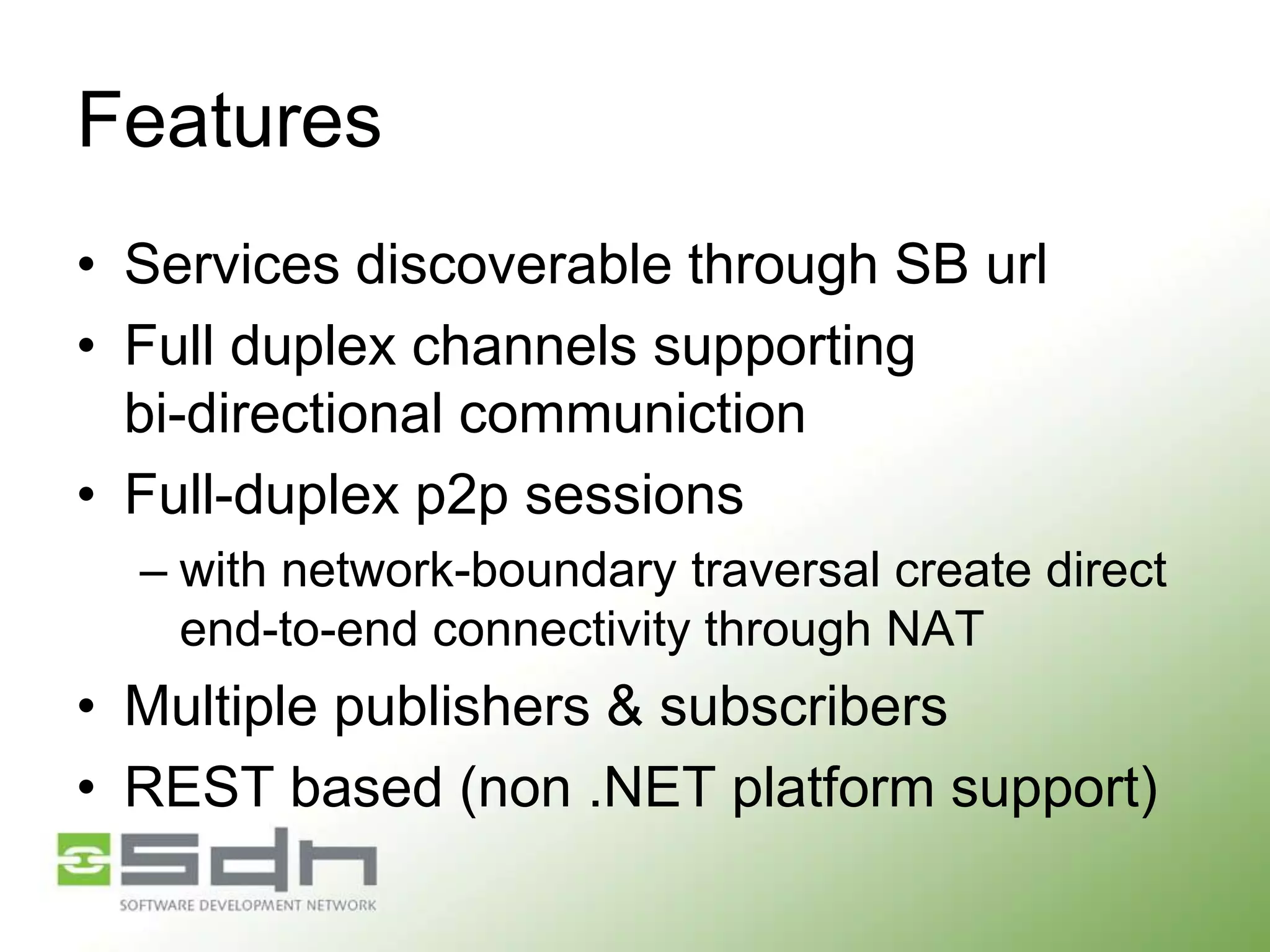

- 47. Features • Services discoverablethrough SB url • Full duplex channels supporting bi-directional communiction • Full-duplex p2p sessions – with network-boundary traversal create direct end-to-end connectivity through NAT • Multiple publishers & subscribers • REST based (non .NET platform support)
- 48.
- 49.

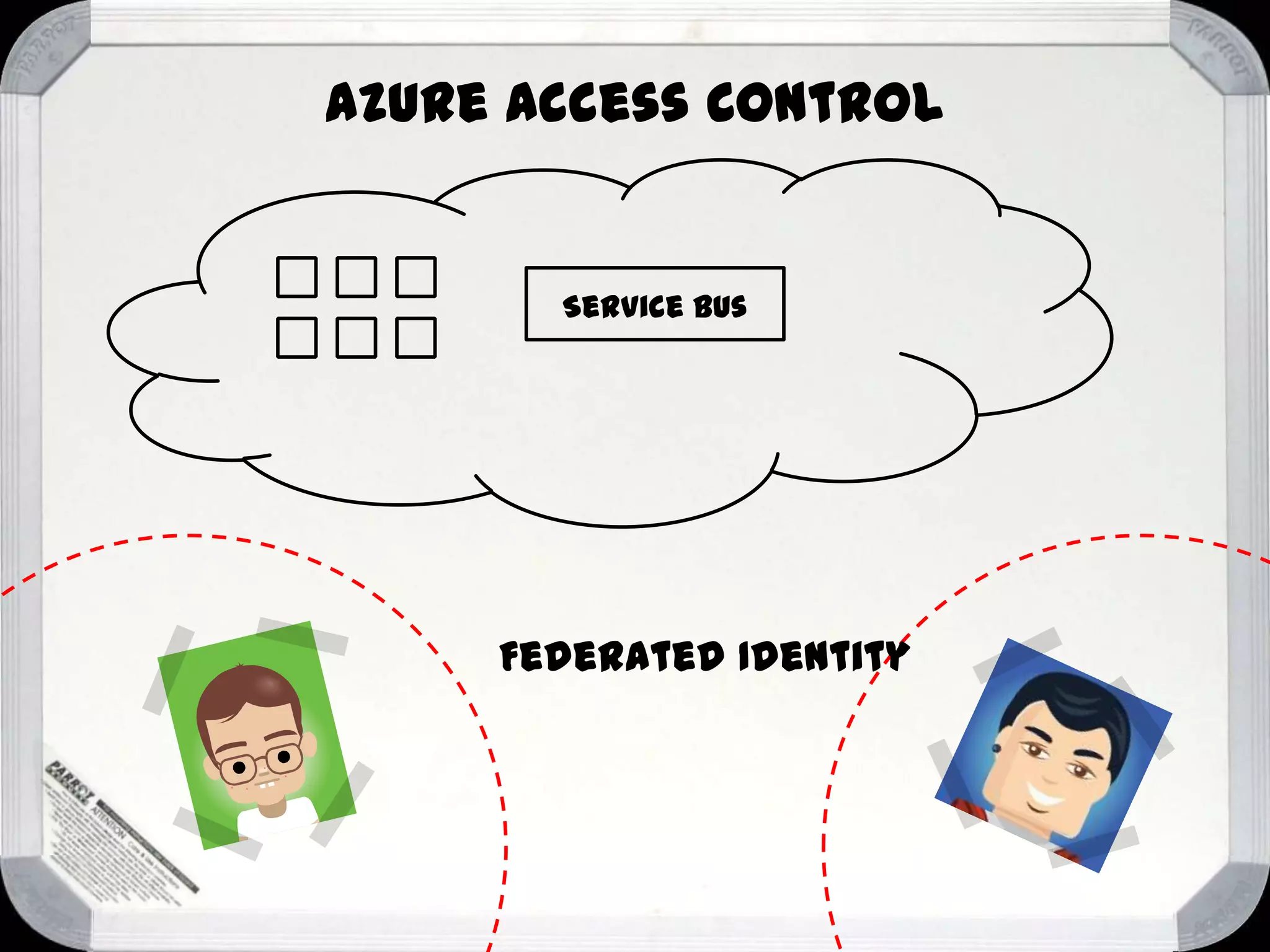

- 50. Azure Access Control ServiceBus Federated Identity
- 51. Azure Access Control ServiceBus Access Control ID

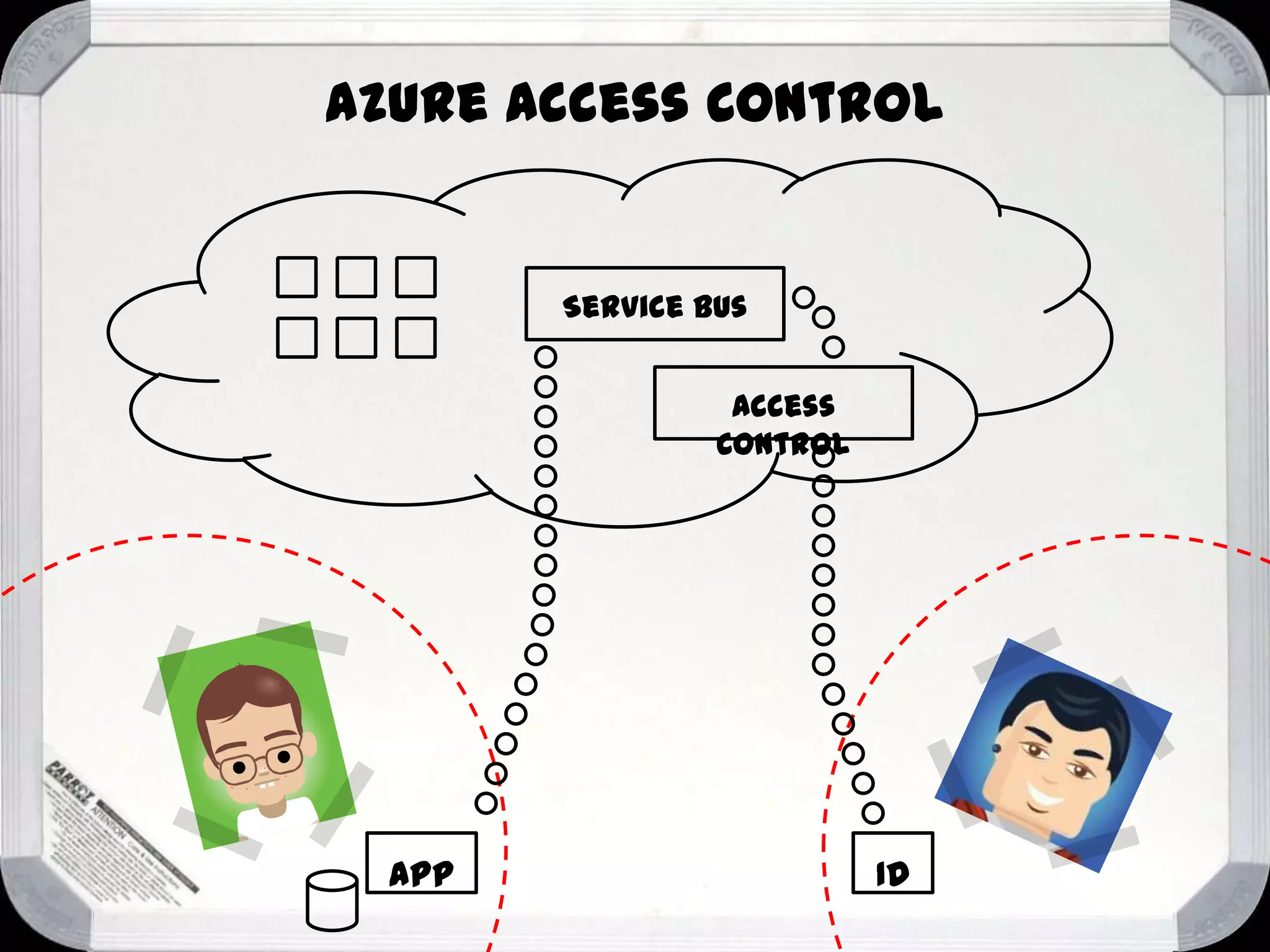

- 52. Azure Access Control ServiceBus Access Control App ID

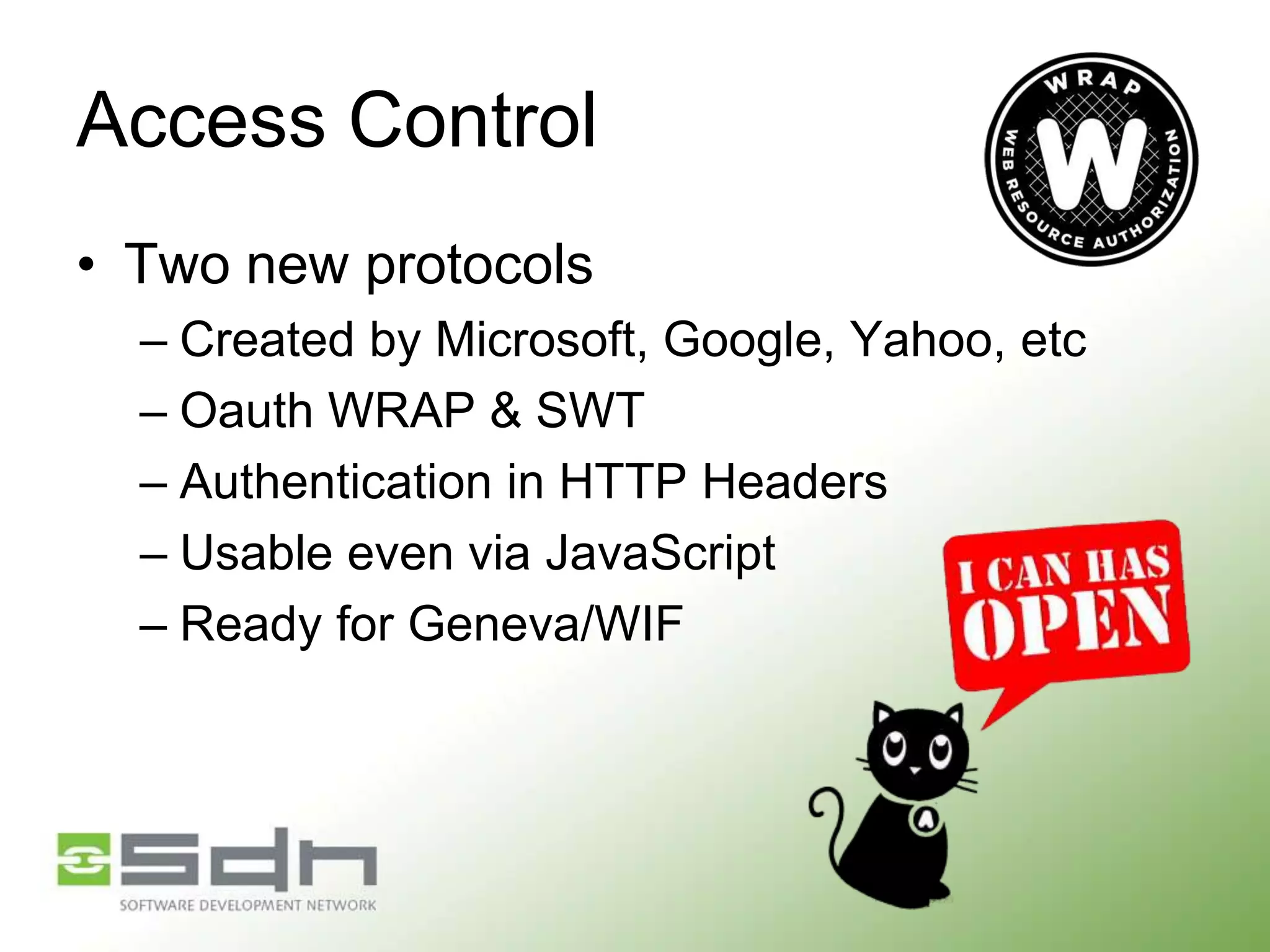

- 53. Access Control • Twonew protocols – Created by Microsoft, Google, Yahoo, etc – Oauth WRAP & SWT – Authentication in HTTP Headers – Usable even via JavaScript – Ready for Geneva/WIF

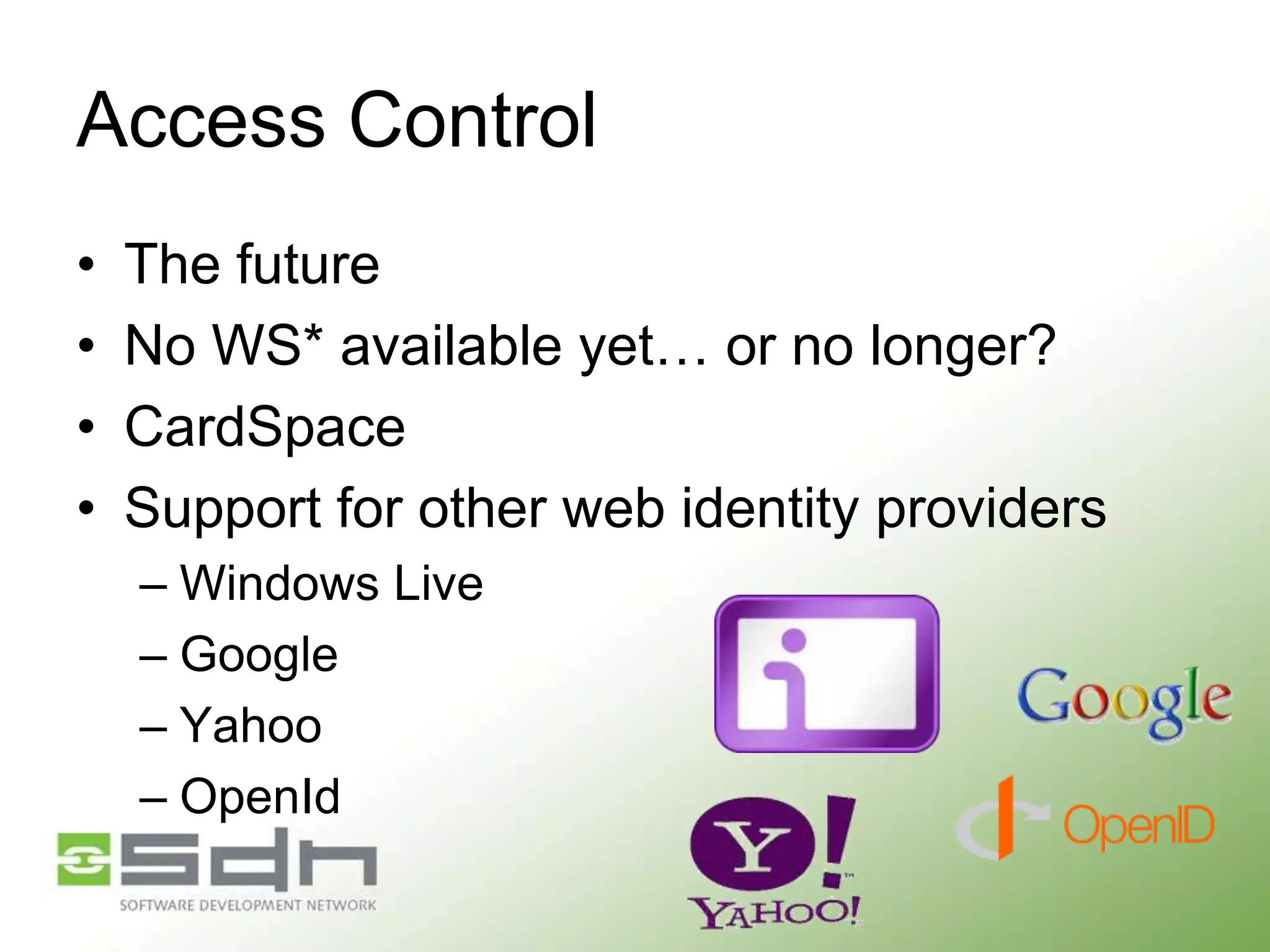

- 54. Access Control • • • • The future NoWS* available yet… or no longer? CardSpace Support for other web identity providers – Windows Live – Google – Yahoo – OpenId

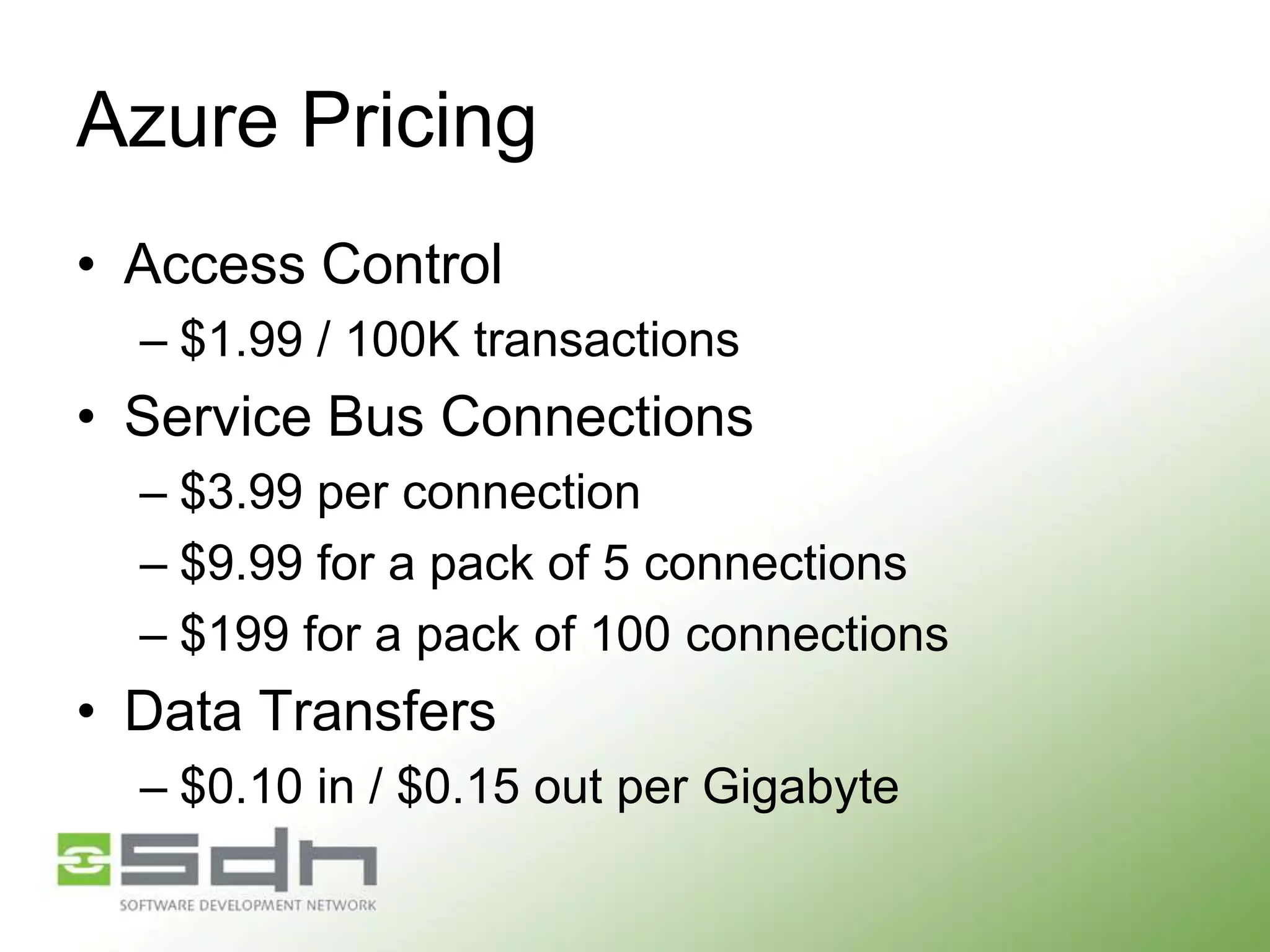

- 55. Azure Pricing • AccessControl – $1.99 / 100K transactions • Service Bus Connections – $3.99 per connection – $9.99 for a pack of 5 connections – $199 for a pack of 100 connections • Data Transfers – $0.10 in / $0.15 out per Gigabyte
- 56. Example (real world)architecture
- 57.

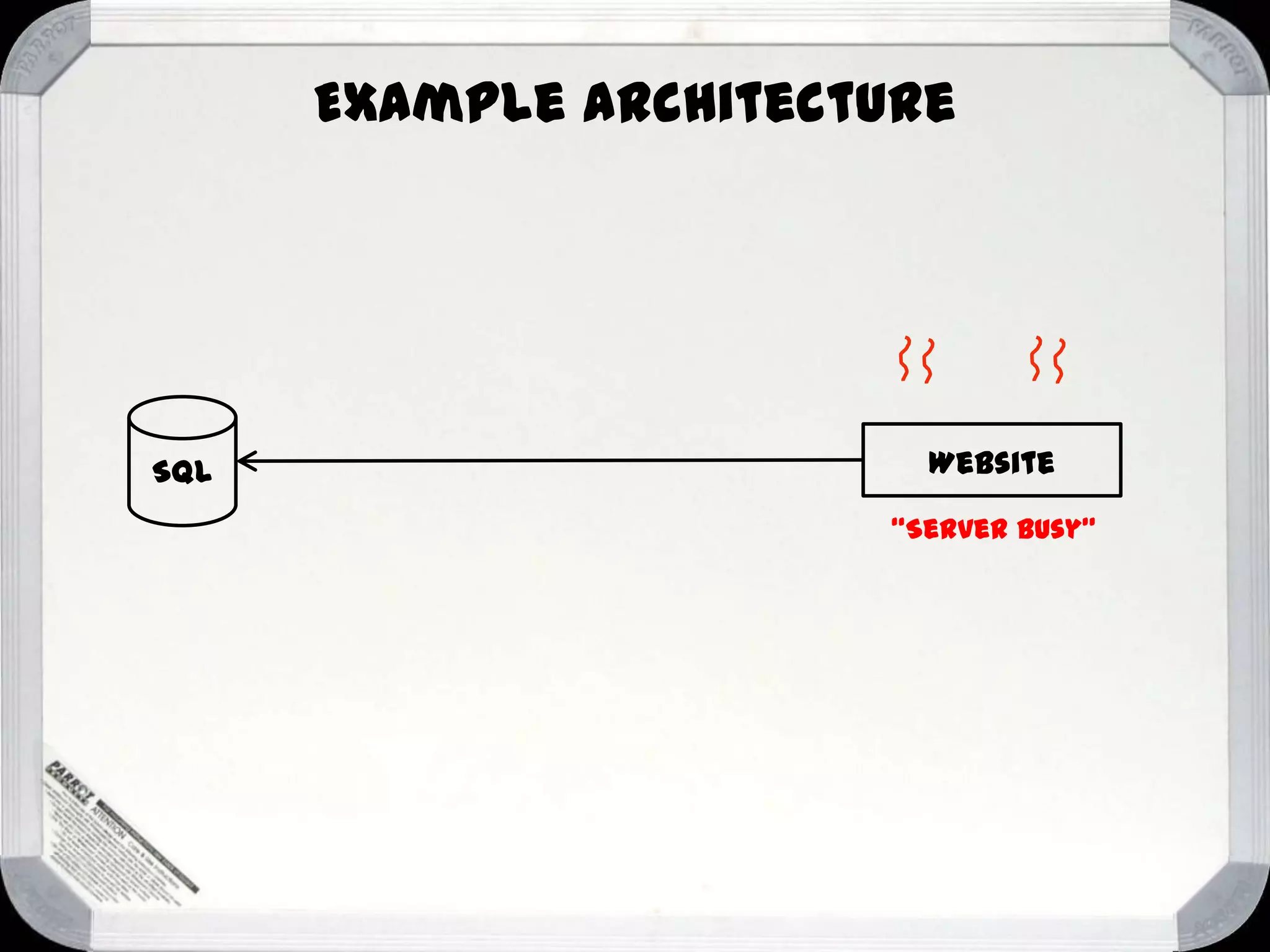

- 58.
- 59.
- 60.
- 61. An important changewas made…

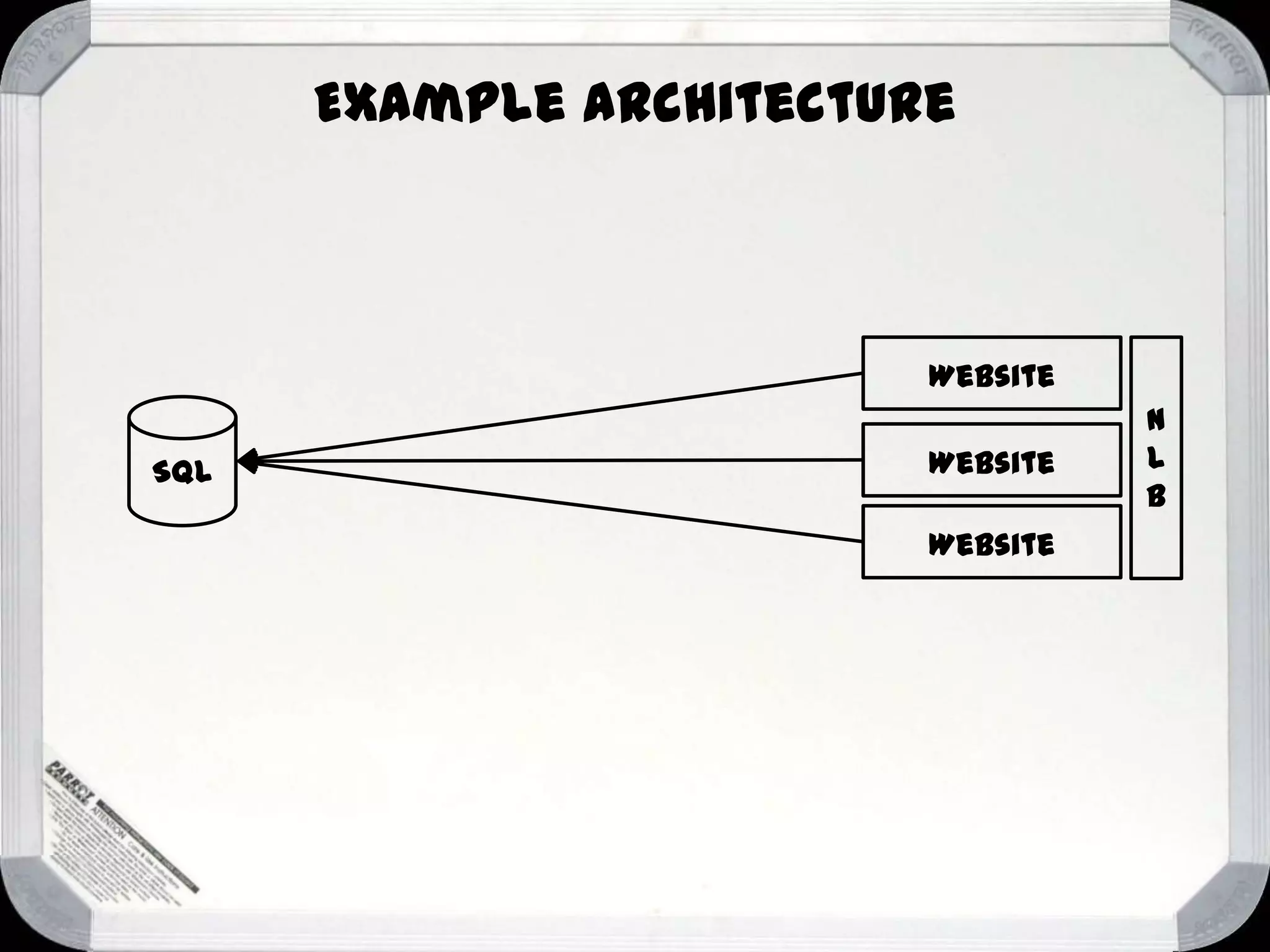

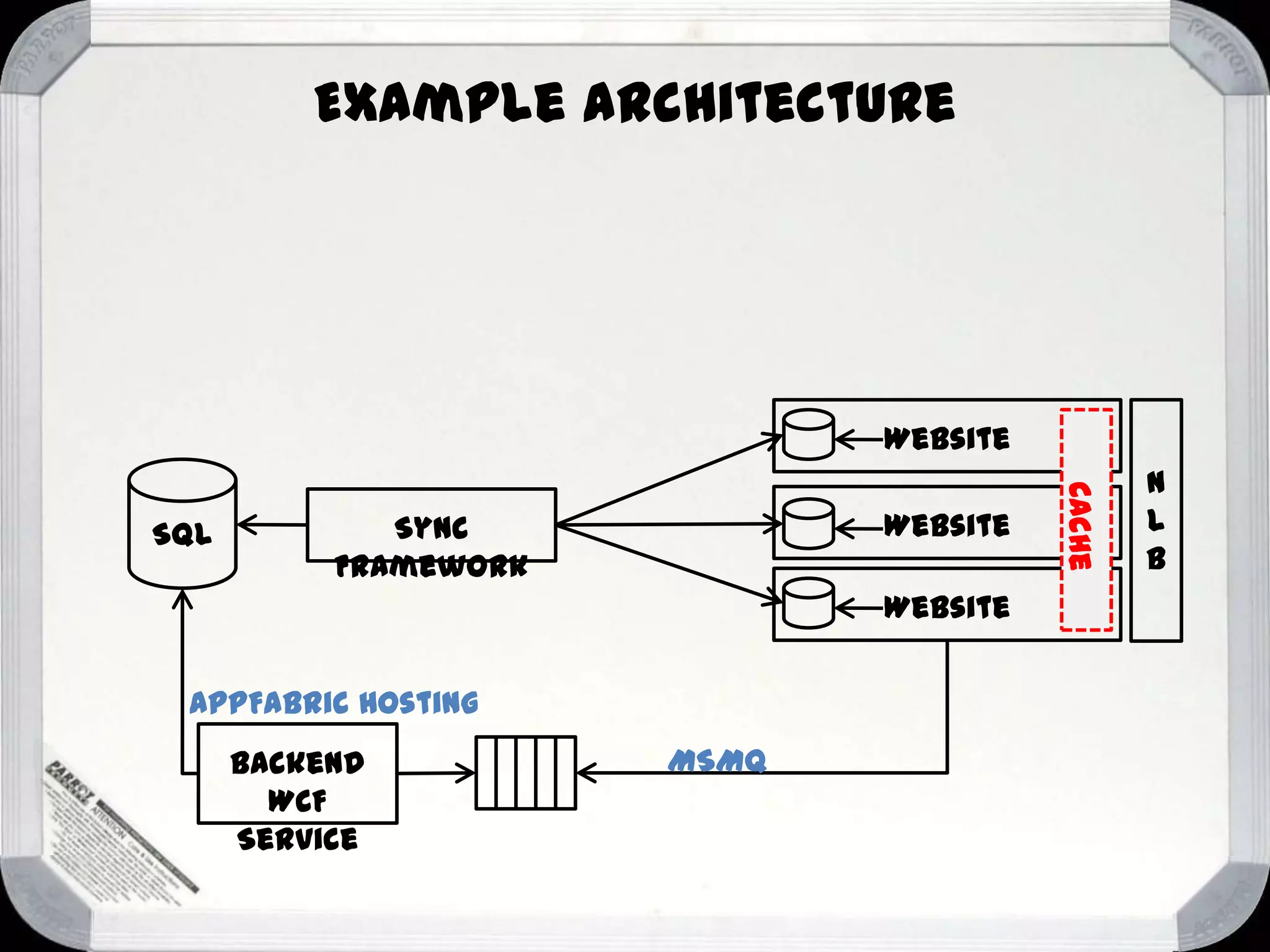

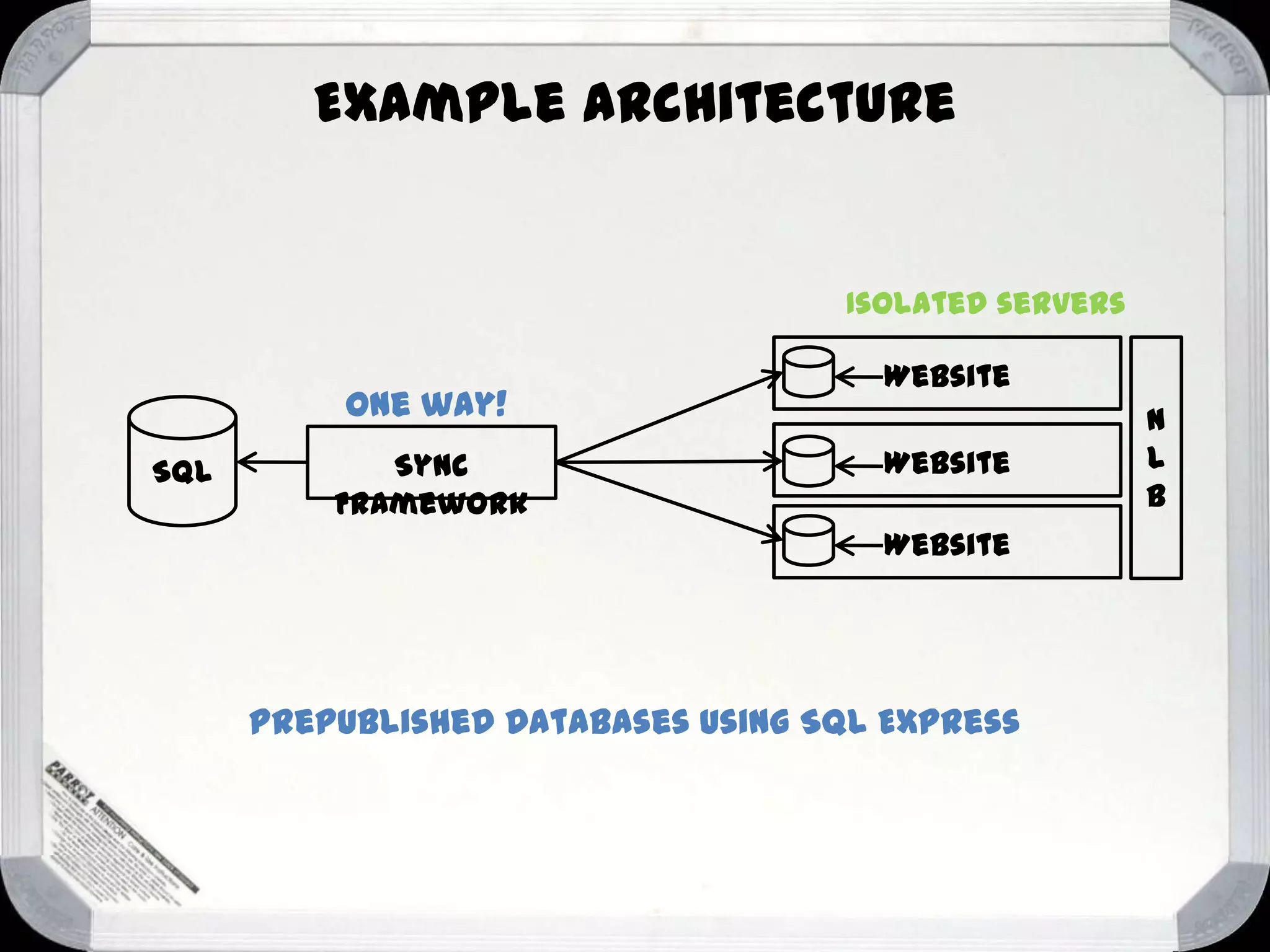

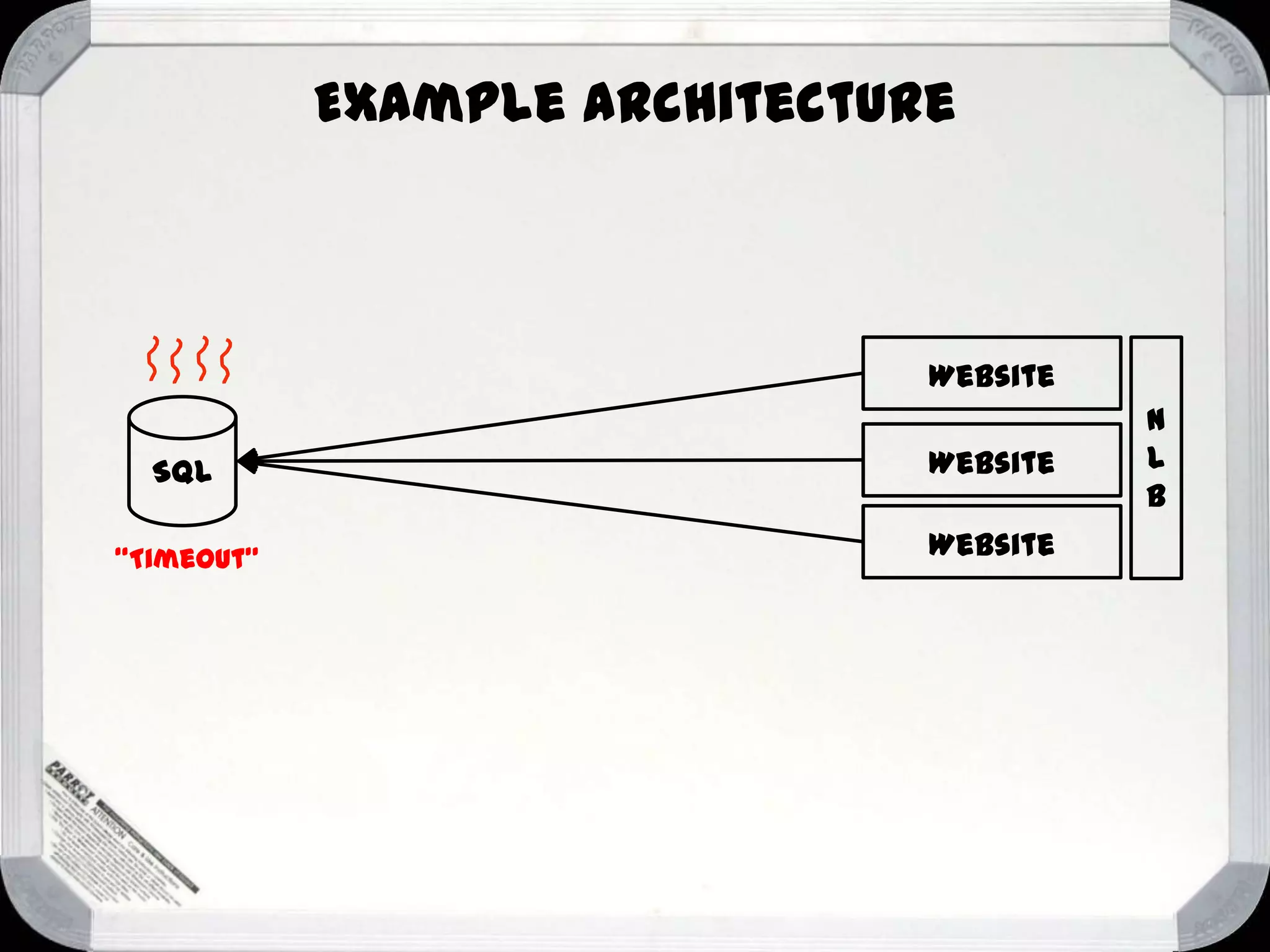

- 62. Example architecture Isolated servers Oneway! SQL Sync Framework Website Website Website Prepublished Databases using SQL Express N L B

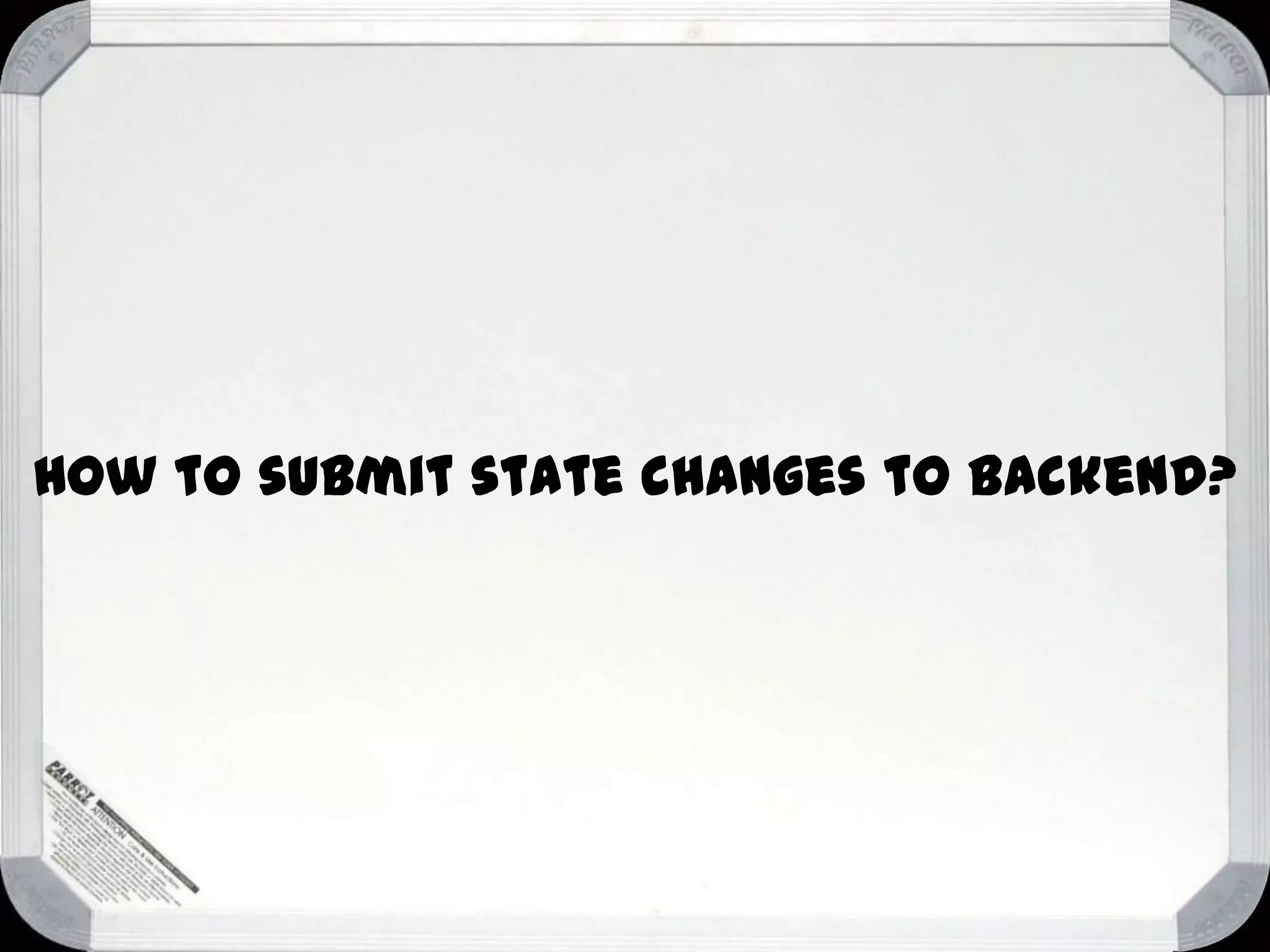

- 63. How to submitstate changes to backend?
- 64.

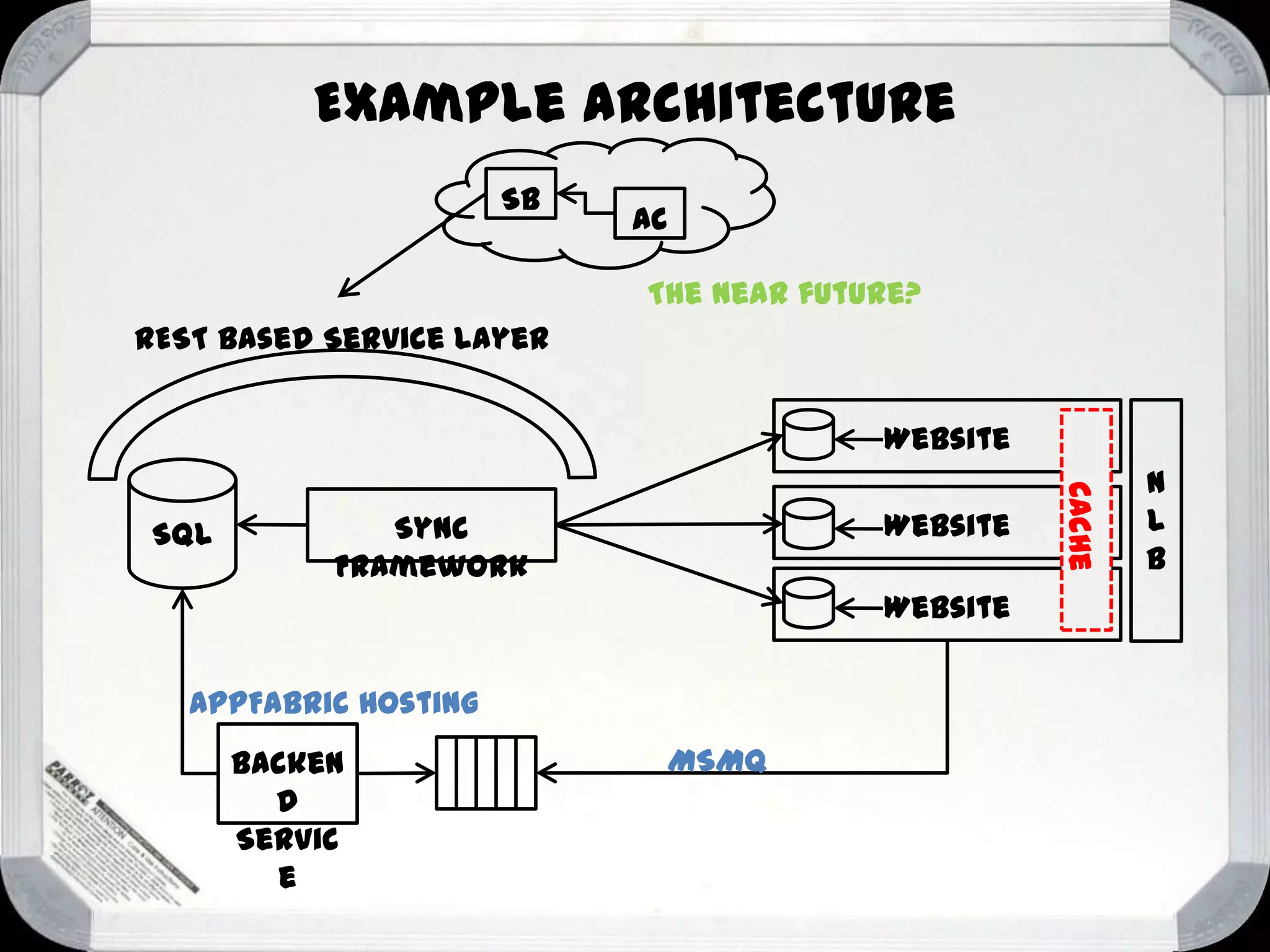

- 65. Example architecture SB AC The nearfuture? REST Based Service Layer Website Website Sync Framework Website AppFabric Hosting Backen d Servic e MSMQ Cache SQL N L B

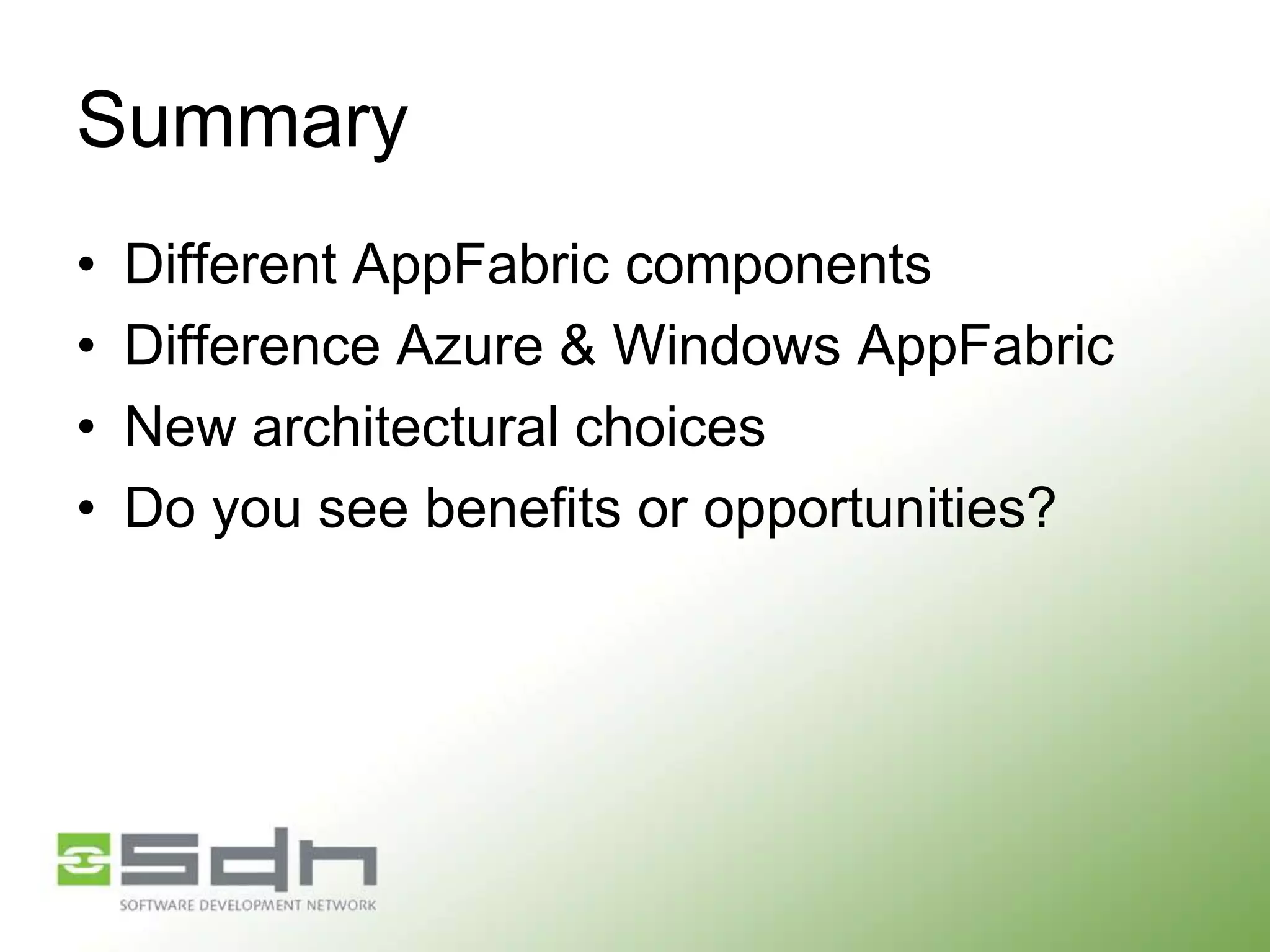

- 66. Summary • • • • Different AppFabric components DifferenceAzure & Windows AppFabric New architectural choices Do you see benefits or opportunities?

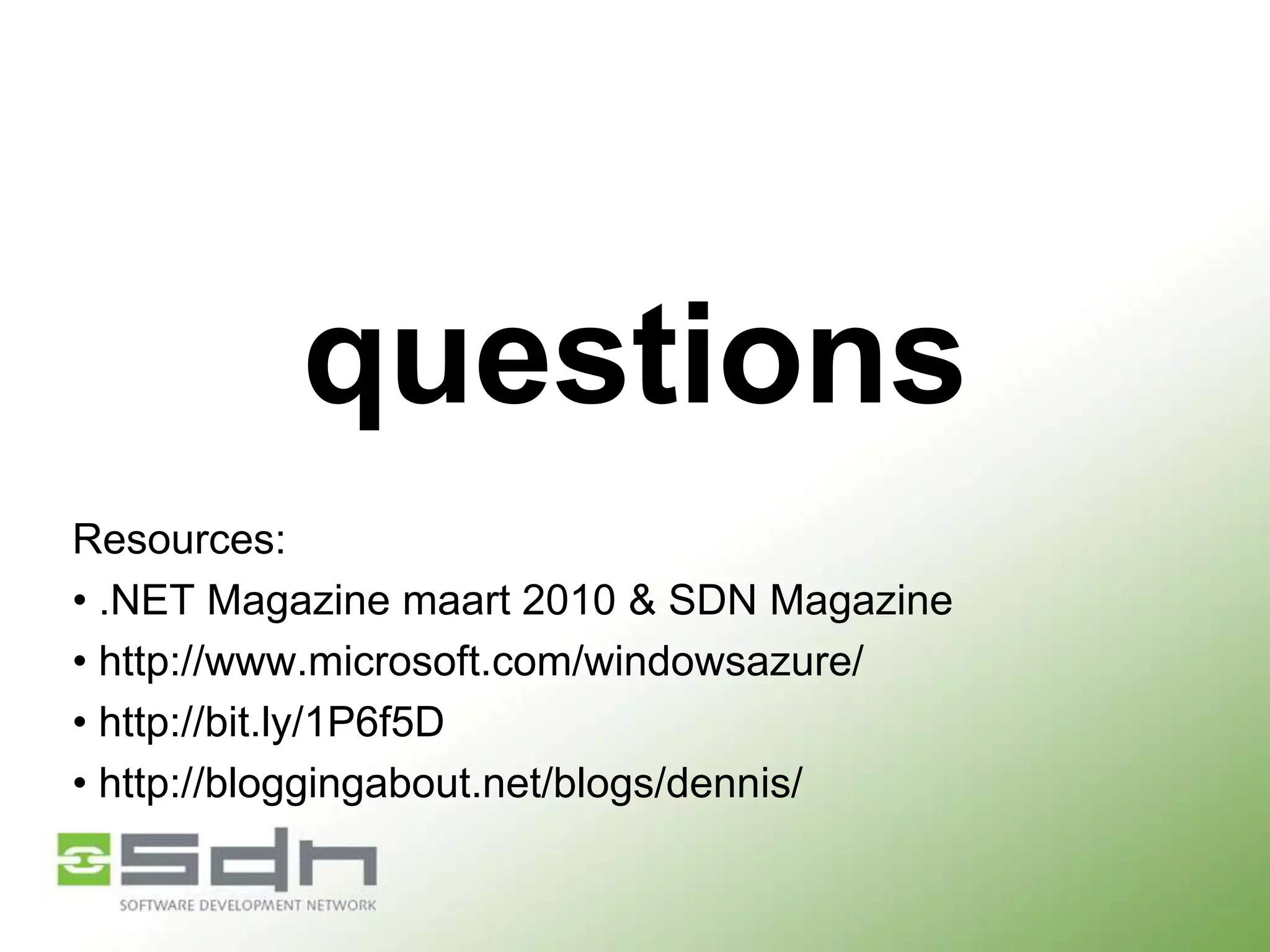

- 67. questions Resources: • .NET Magazinemaart 2010 & SDN Magazine • http://www.microsoft.com/windowsazure/ • http://bit.ly/1P6f5D • http://bloggingabout.net/blogs/dennis/
