The document discusses the concept of a hierarchical network controller that can abstract and provide control over complex multi-domain, multi-vendor SDN transport networks. A hierarchical network controller sits above domain-specific SDN controllers and provides an end-to-end view of the network, combining capabilities from different network domains like IP, optical, and others. This allows domain controllers to focus on domain-specific functions while the hierarchical controller provides cross-domain intelligence and optimization for end-to-end services across technology and vendor boundaries. The document also presents a case study of Vodafone using such a hierarchical approach to manage its European transport network.
How to build high performance 5G networks with vRAN and O-RANQualcomm Research
5G networks are poised to deliver an unprecedented amount of data from a richer set of use cases than we have ever seen. This makes efficient networking in terms of scalability, cost, and power critical for the sustainable growth of 5G. Cloud technologies such as virtualization, containerization and orchestration are now powering a surge of innovation in virtualized radio access network (vRAN) infrastructure with modular hardware and software components, and standardized interfaces. While commercial off-the-shelf (COTS) hardware platforms provide the compute capacity for running vRAN software, hardware accelerators will also play a major role in offloading real-time and complex signal processing functions. Together, COTS platforms and hardware accelerators provide the foundation for building the intelligent 5G network and facilitate innovative new use cases with the intelligent wireless edge.
3GPP Packet Core Towards 5G Communication SystemsOfinno
This presentation provides an overview of 3GPP packet core and 5G systems. Some enabler features are outlined, such as network slicing. This presentation was prepared for the 20th Annual International Conference on Next Generation Internet and Related Technologies Net-Centric 2017 that was held at George Mason University.
SD WAN Overview | What is SD WAN | Benefits of SD WAN Ashutosh Kaushik
Small Brief on Next Generation SD-WAN
Dynamic business landscape and uncompromised demands of applications and users have driven dramatic transformation in IT Networking after many years of relative stability. Frequent changes in technologies are shifting networking from static Infrastructure to more agile, secured, future ready and hybrid-cloud infrastructure. This created un-precedented network management complexities that has become a growing concern for the enterprise.
Early Generation of SD-WAN providers were primarily focused on cost reduction via replacing MPLS with low-cost broadband.
Infinxt Next Generation SD-WAN handles data and network security with in-built NGFW, SLA based Application Performance Enhancement, Traffic Shaping, Multi/ Hybrid Cloud App aware routing, in addition to the traditional SD-WAN features
Infinxt Product Variants
1. Infinxt – Next Generation SD-WAN
Infinxt provides you with the best of the SD-WAN features that can address any of your WAN challenges. The device itself being a Zone based firewall, provides application visibility and control. The decoupled Data Plane and Control plane provides you with the needed flexibility and efficiency in addressing Day 0, Day 1 and Day 2 challenges.
The solution is industry and business agnostic whereby it would be able to meet any type of WAN requirements. The offering being indigenously made would be able to address unique requirements for niche industries too through customization
Features
2. Infinxt - Next Generation Firewall Powered by Palo Alto Networks
Legacy firewall security solutions react to new threats. Intelligent network security stays ahead of attackers and increases business agility. Infinxt SD-WAN comes with a pre-hosted Palo Alto Networks VM in the Infinxt iEdge devices. This offering is a boon for customers to convert their branches into next generation secured branches with the NGFW security capability of Palo Alto Networks.
3. Infinxt - Next Generation Secure SD-WAN Powered by Palo Alto Networks
The Secure Next Generation SD-WAN offering from Infinity Labs provides its customers with the best of both Network connectivity and Application security. It’s a unique combination where both the VMs are service chained to leverage their proficiency to provide a secured application experience to the users. Along with SD-WAN features it also gives NGFW features Powered by Palo Alto Networks.
Infinxt SD-WAN Console gives a Single UI for both SD-WAN and NGFW for ease of Network Operation and Management.
This feature gives the enterprises a unique proposition to have Palo Alto NGFW on tried and tested Infinxt Edge Device.
Palo Alto Networks Advantages
A quick look at 5G System architecture in Reference point representation and in Service Based representation and also look at the different Network Functions (NFs) within the 5G System.
Ericsson brings new updates to its 5G platform. Introducing 5G network services to support operators from preparation to 5G launch. Ericsson 5G services roadmap spans across three distinct phases, Prepare, Mobilize and Launch. Through our service offerings, Operators can now evolve their 4G network and smoothly start introducing 5G, reaching new heights on their journey to 5G.
Fernando Nunez's ANDICOM 2016 presentation discusses NFV and SDN and outlines use cases of vE-CPE and SD-WAN. He focuses on how combining these two use cases creates a comprehensive and powerful solution and describes the concept of Ensemble SmartWAN (SD-WAN 2.0).
Setting off the 5G Advanced evolution with 3GPP Release 18Qualcomm Research
In December 2021, 3GPP has reached a consensus on the scope of 5G NR Release 18. This is a significant milestone marking the beginning of 5G Advanced — the second wave of wireless innovations that will fulfill the 5G vision. Release 18 will build on the solid foundation set by Releases 15, 16, and 17, and it sets the longer-term evolution direction of 5G and beyond. This release will encompass a wide range of new and enhancement projects, ranging from improved MIMO and application of AI/ML-enabled air interface to extended reality optimizations and broader IoT support.
5G will connect virtually everything around us to transform a wide range of industries — manufacturing, automotive, logistics, and many more, and we are on track to make 5G NR — the global 5G standard — a commercial reality by 2019. However, this first phase of 5G mainly focuses on enhanced mobile broadband services, which will contribute to part of the total projected $12T 5G economy. 5G NR will continue to evolve in Release 16 and beyond to further expand 5G’s reach to new devices, services, and ecosystem players.
Advanced: True Fixed-Mobile Convergence (FMC) with 5G3G4G
A presentation/video looking at how true fixed-mobile convergence will be achieved in 5G. The main motivation for this tutorial is the fact that 5G is designed to enable access-neutral service availability. What this means is that 5G services in future will be available seamlessly not just over 5G NR but also over Wi-Fi and Wireless access networks.
The tutorial discusses:
• Untrusted non-3GPP access networks;
• Trusted non-3GPP access networks (TNAN);
• Wireline access networks;
• Non-5G-Capable over WLAN (N5CW);
• Access Traffic Steering, Switching and Splitting (ATSSS)
All our #3G4G5G slides and videos are available at:
Videos: https://www.youtube.com/3G4G5G
Slides: https://www.slideshare.net/3G4GLtd
5G Page: https://www.3g4g.co.uk/5G/
Free Training Videos: https://www.3g4g.co.uk/Training/
5G Technology Strategy: Next-Generation Mobile Networkingvenkada ramanujam
Know the history of 5G, and how this is better than 1G-4G. Comparison of all Gs. Applications that will use the 5G. Future view of 5G can be understand
Tutorial about MPLS Implementation with Cisco Router, this first of two chapter discuss about What is MPLS, Network Design, P, PE, and CE Router Description, Case Study of IP MPLS Implementation, IP and OSPF Routing Configuration
A detailed look at what is meant by private networks, why do we need them and why the sudden interest in them. Also discussed is the 3GPP defined 5G Non-Public Networks (NPN), they architecture, implementation, pros and cons. In addition RAN sharing and Campus Networks are also discussed with regards to where they fit in the private networks.
All our #3G4G5G slides and videos are available at:
Videos: https://www.youtube.com/3G4G5G
Slides: https://www.slideshare.net/3G4GLtd
5G Page: https://www.3g4g.co.uk/5G/
Free Training Videos: https://www.3g4g.co.uk/Training/
3GPP Release 17: Completing the first phase of 5G evolutionQualcomm Research
This presentation summarizes 5G NR Release 17 projects that was completed in March 2022. It further enhances 5G foundation and expands into new devices, use cases, verticals.
How to build high performance 5G networks with vRAN and O-RANQualcomm Research
5G networks are poised to deliver an unprecedented amount of data from a richer set of use cases than we have ever seen. This makes efficient networking in terms of scalability, cost, and power critical for the sustainable growth of 5G. Cloud technologies such as virtualization, containerization and orchestration are now powering a surge of innovation in virtualized radio access network (vRAN) infrastructure with modular hardware and software components, and standardized interfaces. While commercial off-the-shelf (COTS) hardware platforms provide the compute capacity for running vRAN software, hardware accelerators will also play a major role in offloading real-time and complex signal processing functions. Together, COTS platforms and hardware accelerators provide the foundation for building the intelligent 5G network and facilitate innovative new use cases with the intelligent wireless edge.
3GPP Packet Core Towards 5G Communication SystemsOfinno
This presentation provides an overview of 3GPP packet core and 5G systems. Some enabler features are outlined, such as network slicing. This presentation was prepared for the 20th Annual International Conference on Next Generation Internet and Related Technologies Net-Centric 2017 that was held at George Mason University.
SD WAN Overview | What is SD WAN | Benefits of SD WAN Ashutosh Kaushik
Small Brief on Next Generation SD-WAN
Dynamic business landscape and uncompromised demands of applications and users have driven dramatic transformation in IT Networking after many years of relative stability. Frequent changes in technologies are shifting networking from static Infrastructure to more agile, secured, future ready and hybrid-cloud infrastructure. This created un-precedented network management complexities that has become a growing concern for the enterprise.
Early Generation of SD-WAN providers were primarily focused on cost reduction via replacing MPLS with low-cost broadband.
Infinxt Next Generation SD-WAN handles data and network security with in-built NGFW, SLA based Application Performance Enhancement, Traffic Shaping, Multi/ Hybrid Cloud App aware routing, in addition to the traditional SD-WAN features
Infinxt Product Variants
1. Infinxt – Next Generation SD-WAN
Infinxt provides you with the best of the SD-WAN features that can address any of your WAN challenges. The device itself being a Zone based firewall, provides application visibility and control. The decoupled Data Plane and Control plane provides you with the needed flexibility and efficiency in addressing Day 0, Day 1 and Day 2 challenges.
The solution is industry and business agnostic whereby it would be able to meet any type of WAN requirements. The offering being indigenously made would be able to address unique requirements for niche industries too through customization
Features
2. Infinxt - Next Generation Firewall Powered by Palo Alto Networks
Legacy firewall security solutions react to new threats. Intelligent network security stays ahead of attackers and increases business agility. Infinxt SD-WAN comes with a pre-hosted Palo Alto Networks VM in the Infinxt iEdge devices. This offering is a boon for customers to convert their branches into next generation secured branches with the NGFW security capability of Palo Alto Networks.
3. Infinxt - Next Generation Secure SD-WAN Powered by Palo Alto Networks
The Secure Next Generation SD-WAN offering from Infinity Labs provides its customers with the best of both Network connectivity and Application security. It’s a unique combination where both the VMs are service chained to leverage their proficiency to provide a secured application experience to the users. Along with SD-WAN features it also gives NGFW features Powered by Palo Alto Networks.
Infinxt SD-WAN Console gives a Single UI for both SD-WAN and NGFW for ease of Network Operation and Management.
This feature gives the enterprises a unique proposition to have Palo Alto NGFW on tried and tested Infinxt Edge Device.
Palo Alto Networks Advantages
A quick look at 5G System architecture in Reference point representation and in Service Based representation and also look at the different Network Functions (NFs) within the 5G System.
Ericsson brings new updates to its 5G platform. Introducing 5G network services to support operators from preparation to 5G launch. Ericsson 5G services roadmap spans across three distinct phases, Prepare, Mobilize and Launch. Through our service offerings, Operators can now evolve their 4G network and smoothly start introducing 5G, reaching new heights on their journey to 5G.
Fernando Nunez's ANDICOM 2016 presentation discusses NFV and SDN and outlines use cases of vE-CPE and SD-WAN. He focuses on how combining these two use cases creates a comprehensive and powerful solution and describes the concept of Ensemble SmartWAN (SD-WAN 2.0).
Setting off the 5G Advanced evolution with 3GPP Release 18Qualcomm Research
In December 2021, 3GPP has reached a consensus on the scope of 5G NR Release 18. This is a significant milestone marking the beginning of 5G Advanced — the second wave of wireless innovations that will fulfill the 5G vision. Release 18 will build on the solid foundation set by Releases 15, 16, and 17, and it sets the longer-term evolution direction of 5G and beyond. This release will encompass a wide range of new and enhancement projects, ranging from improved MIMO and application of AI/ML-enabled air interface to extended reality optimizations and broader IoT support.
5G will connect virtually everything around us to transform a wide range of industries — manufacturing, automotive, logistics, and many more, and we are on track to make 5G NR — the global 5G standard — a commercial reality by 2019. However, this first phase of 5G mainly focuses on enhanced mobile broadband services, which will contribute to part of the total projected $12T 5G economy. 5G NR will continue to evolve in Release 16 and beyond to further expand 5G’s reach to new devices, services, and ecosystem players.
Advanced: True Fixed-Mobile Convergence (FMC) with 5G3G4G
A presentation/video looking at how true fixed-mobile convergence will be achieved in 5G. The main motivation for this tutorial is the fact that 5G is designed to enable access-neutral service availability. What this means is that 5G services in future will be available seamlessly not just over 5G NR but also over Wi-Fi and Wireless access networks.
The tutorial discusses:
• Untrusted non-3GPP access networks;
• Trusted non-3GPP access networks (TNAN);
• Wireline access networks;
• Non-5G-Capable over WLAN (N5CW);
• Access Traffic Steering, Switching and Splitting (ATSSS)
All our #3G4G5G slides and videos are available at:
Videos: https://www.youtube.com/3G4G5G
Slides: https://www.slideshare.net/3G4GLtd
5G Page: https://www.3g4g.co.uk/5G/
Free Training Videos: https://www.3g4g.co.uk/Training/
5G Technology Strategy: Next-Generation Mobile Networkingvenkada ramanujam
Know the history of 5G, and how this is better than 1G-4G. Comparison of all Gs. Applications that will use the 5G. Future view of 5G can be understand
Tutorial about MPLS Implementation with Cisco Router, this first of two chapter discuss about What is MPLS, Network Design, P, PE, and CE Router Description, Case Study of IP MPLS Implementation, IP and OSPF Routing Configuration
A detailed look at what is meant by private networks, why do we need them and why the sudden interest in them. Also discussed is the 3GPP defined 5G Non-Public Networks (NPN), they architecture, implementation, pros and cons. In addition RAN sharing and Campus Networks are also discussed with regards to where they fit in the private networks.
All our #3G4G5G slides and videos are available at:
Videos: https://www.youtube.com/3G4G5G
Slides: https://www.slideshare.net/3G4GLtd
5G Page: https://www.3g4g.co.uk/5G/
Free Training Videos: https://www.3g4g.co.uk/Training/
3GPP Release 17: Completing the first phase of 5G evolutionQualcomm Research
This presentation summarizes 5G NR Release 17 projects that was completed in March 2022. It further enhances 5G foundation and expands into new devices, use cases, verticals.
Demystifying Orchestration and Assurance Across SDN NFV CE2.0WebNMS
Service providers worldwide are moving toward the dream goal of service automation from the front end of customer ordering and service monitoring to the back end of service provisioning, network monitoring, and active service-level agreement (SLA) enforcement.These are explored in depth with expert opinions. Also explored are a customer self-service portal for on-demand ordering and monitoring of Ethernet services, intelligent customer premises equipment for provisioning and monitoring, and testing and monitoring software for ensuring workability across physical and virtual networks.
Software Innovations and Control Plane Evolution in the new SDN Transport Arc...Cisco Canada
Loukas Paraschis, Technology Solution Architecture at Cisco presents software innovation and control plane evolution in the new SDN transport at Cisco Connect Toronto 2015.
Akraino API TSC Ike Alisson 5G Mobility Edge MEC synergy present 2020 11 06 R...Ike Alisson
Edge in 5G Mobility context evolvement from NGMN 5G WP in Feb 2015 and ETSI MEC renaming MEC to Multi-access Edge Computing by March 2017 and setting Phase 2 New Scope with some examples from 3GPP Rel 15 NSA New Services and System Aspects enhancements revisiosn preceding ETSI MEC renaming and latest 5G Capabilities for Traffic Routing & Service Steering impact on MEC and latest support for AVT (Alternative Virtualized Technologies) and 5G SCEF/NEF SCS/AS for CIoT integrated (like in 5G MEC case through CAPIF/NAPS) with 5G SL IoT Platform oneM2M with support to Ontology SAREF across 10 UCs.
Mobile Transport Evolution with Unified MPLSCisco Canada
Mobile Service Providers are seeing unprecedented challenges in relation to their Transport architectures with the 3GPP evolution towards IP based Node Bs, LTE (Long Term Evolution) and LTE-Advanced. This presentation will initially discuss the network migration trends and factors that are changing how mobile networks are evolving. A description is provided on Unified MPLS and the current issues that need to be fixed and how this architecture addresses this. A more detailed analysis will then examine the options available for transporting GSM/2G, UMTS/3G traffic and IP/Ethernet Node B deployments and some of factors that need consideration like scalability, resiliency and security. Finally, there is a detailed description of the LTE/LTE - A evolution and the feature requirements made on the transport network. There will be detailed analysis of different LTE models and also some technical enhancements and proposals considered for the implementation of LTE in a Unified MPLS environment.
Application Engineered Routing: Allowing Applications to Program the NetworkCisco Canada
<p>Over the past decade, service providers have invested heavily in network infrastructure due to the exploding growth in IP traffic. Lack of advanced interaction between applications and network infrastructure has contributed to this challenging situation in many ways including stifling service innovation, inefficient use of capital resources, and increased complexity leading to a surge in operating expenses. To solve these challenges a breakthrough solution called Application Engineered Routing (AER) was created based on four architectural goals: simple, agile, scalable, and programmable with three main components: purpose-built applications, intelligent SDN controller, and network infrastructure enabled with Segment Routing. Provided is an in-depth overview of AER with a focus on a phased implementation within current NGN environments. Covered will be business outcomes enabled by AER, use cases, components which comprise AER, and a phased implementation approach to transform current NGN environments to an Evolved Programmable Network
SDN and NFV Value in Business Services - A Presentation By Cox CommunicationsCisco Service Provider
Joint presentation on behalf of the Society of Cable Telecommunications Engineers (SCTE) between Cox Communications (Mazen Khaddem) and Cisco Systems (Dr. Loukas Paraschis). Presentation covers different SDN categories, NFV examples in business services, and use cases for WAN SDN.
The Fujitsu Open ROADM solution is specifically developed to meet the standards set forth by the MSA community. The solution brings together the 1FINITY™ disaggregated optical networking platforms; the Virtuora® suite of SDN/NFV software tools and applications; and expert multivendor integration services.
The international keynote speech of Prof. Augusto Neto at the II MOBISLICE workshop, co-located in the IEEE MFV/SDN 2019: “NECOS Project: Vision Towards Deeper Cloud Network Slicing”.
Our joint showcase at MEF19 demonstrated the next innovation in SD-WAN. Discover more about SD-WAN services that are orchestrated, activated, assured and managed using zero-touch provisioning and end-to-end service automation aligned with MEF’s LSO framework.
High Scalability Network Monitoring for Communications Service ProvidersCA Technologies
CA Performance Management is a big data collection, warehousing and analytics solution that helps communications service providers maximize return on their network infrastructure investments and lower the cost of network operations.
Learn more about CA Performance Management here: http://bit.ly/1vrQPJB
Solving Civilization’s Long Term Communication Needs by Dinesh Kummaran, Tran...MyNOG
How do we improve connectivity globally? An intro to next-generation wireless laser communication technology offered by Transcelestial which is one of the most effective solutions in the distribution of high-quality, high-speed internet connectivity, making it well-poised to solve civilization’s long-term communication needs.
Exploring Quantum Engineering for Networking by Melchior Aelmans, Juniper Net...MyNOG
In this presentation we will review how already available quantum technology can help improve well known security mechanisms and protocols. Next we will explore how close (or far away) a quantum internet is and if it will even be fully quantum.
Routed Optical Networking by Shahnaz Mohamad, CiscoMyNOG
New architecture for the next 20 years. Fully converged L1, L2 and L3 into a single network. Replacing transponders with digital coherent optics. Removing functional overlaps. Reducing carbon footprint – increasing density.
Latency Automation Service Enhancement Remedy (LASER) by Ts. Mohd Faizal Bin ...MyNOG
Latency Automation Service Enhancement Remedy (LASER) is a system developed to monitor customer’s service performance. The key features of LASER are on the go alert notification, real-time latency monitoring and network script automation.
Neuro-symbolic is not enough, we need neuro-*semantic*Frank van Harmelen
Neuro-symbolic (NeSy) AI is on the rise. However, simply machine learning on just any symbolic structure is not sufficient to really harvest the gains of NeSy. These will only be gained when the symbolic structures have an actual semantics. I give an operational definition of semantics as “predictable inference”.
All of this illustrated with link prediction over knowledge graphs, but the argument is general.
LF Energy Webinar: Electrical Grid Modelling and Simulation Through PowSyBl -...DanBrown980551
Do you want to learn how to model and simulate an electrical network from scratch in under an hour?
Then welcome to this PowSyBl workshop, hosted by Rte, the French Transmission System Operator (TSO)!
During the webinar, you will discover the PowSyBl ecosystem as well as handle and study an electrical network through an interactive Python notebook.
PowSyBl is an open source project hosted by LF Energy, which offers a comprehensive set of features for electrical grid modelling and simulation. Among other advanced features, PowSyBl provides:
- A fully editable and extendable library for grid component modelling;
- Visualization tools to display your network;
- Grid simulation tools, such as power flows, security analyses (with or without remedial actions) and sensitivity analyses;
The framework is mostly written in Java, with a Python binding so that Python developers can access PowSyBl functionalities as well.
What you will learn during the webinar:
- For beginners: discover PowSyBl's functionalities through a quick general presentation and the notebook, without needing any expert coding skills;
- For advanced developers: master the skills to efficiently apply PowSyBl functionalities to your real-world scenarios.
Connector Corner: Automate dynamic content and events by pushing a buttonDianaGray10
Here is something new! In our next Connector Corner webinar, we will demonstrate how you can use a single workflow to:
Create a campaign using Mailchimp with merge tags/fields
Send an interactive Slack channel message (using buttons)
Have the message received by managers and peers along with a test email for review
But there’s more:
In a second workflow supporting the same use case, you’ll see:
Your campaign sent to target colleagues for approval
If the “Approve” button is clicked, a Jira/Zendesk ticket is created for the marketing design team
But—if the “Reject” button is pushed, colleagues will be alerted via Slack message
Join us to learn more about this new, human-in-the-loop capability, brought to you by Integration Service connectors.
And...
Speakers:
Akshay Agnihotri, Product Manager
Charlie Greenberg, Host
Search and Society: Reimagining Information Access for Radical FuturesBhaskar Mitra
The field of Information retrieval (IR) is currently undergoing a transformative shift, at least partly due to the emerging applications of generative AI to information access. In this talk, we will deliberate on the sociotechnical implications of generative AI for information access. We will argue that there is both a critical necessity and an exciting opportunity for the IR community to re-center our research agendas on societal needs while dismantling the artificial separation between the work on fairness, accountability, transparency, and ethics in IR and the rest of IR research. Instead of adopting a reactionary strategy of trying to mitigate potential social harms from emerging technologies, the community should aim to proactively set the research agenda for the kinds of systems we should build inspired by diverse explicitly stated sociotechnical imaginaries. The sociotechnical imaginaries that underpin the design and development of information access technologies needs to be explicitly articulated, and we need to develop theories of change in context of these diverse perspectives. Our guiding future imaginaries must be informed by other academic fields, such as democratic theory and critical theory, and should be co-developed with social science scholars, legal scholars, civil rights and social justice activists, and artists, among others.
Epistemic Interaction - tuning interfaces to provide information for AI supportAlan Dix
Paper presented at SYNERGY workshop at AVI 2024, Genoa, Italy. 3rd June 2024
https://alandix.com/academic/papers/synergy2024-epistemic/
As machine learning integrates deeper into human-computer interactions, the concept of epistemic interaction emerges, aiming to refine these interactions to enhance system adaptability. This approach encourages minor, intentional adjustments in user behaviour to enrich the data available for system learning. This paper introduces epistemic interaction within the context of human-system communication, illustrating how deliberate interaction design can improve system understanding and adaptation. Through concrete examples, we demonstrate the potential of epistemic interaction to significantly advance human-computer interaction by leveraging intuitive human communication strategies to inform system design and functionality, offering a novel pathway for enriching user-system engagements.
GraphRAG is All You need? LLM & Knowledge GraphGuy Korland
Guy Korland, CEO and Co-founder of FalkorDB, will review two articles on the integration of language models with knowledge graphs.
1. Unifying Large Language Models and Knowledge Graphs: A Roadmap.
https://arxiv.org/abs/2306.08302
2. Microsoft Research's GraphRAG paper and a review paper on various uses of knowledge graphs:
https://www.microsoft.com/en-us/research/blog/graphrag-unlocking-llm-discovery-on-narrative-private-data/
"Impact of front-end architecture on development cost", Viktor TurskyiFwdays
I have heard many times that architecture is not important for the front-end. Also, many times I have seen how developers implement features on the front-end just following the standard rules for a framework and think that this is enough to successfully launch the project, and then the project fails. How to prevent this and what approach to choose? I have launched dozens of complex projects and during the talk we will analyze which approaches have worked for me and which have not.
2. What we will explore in the next 30 minutes:
2

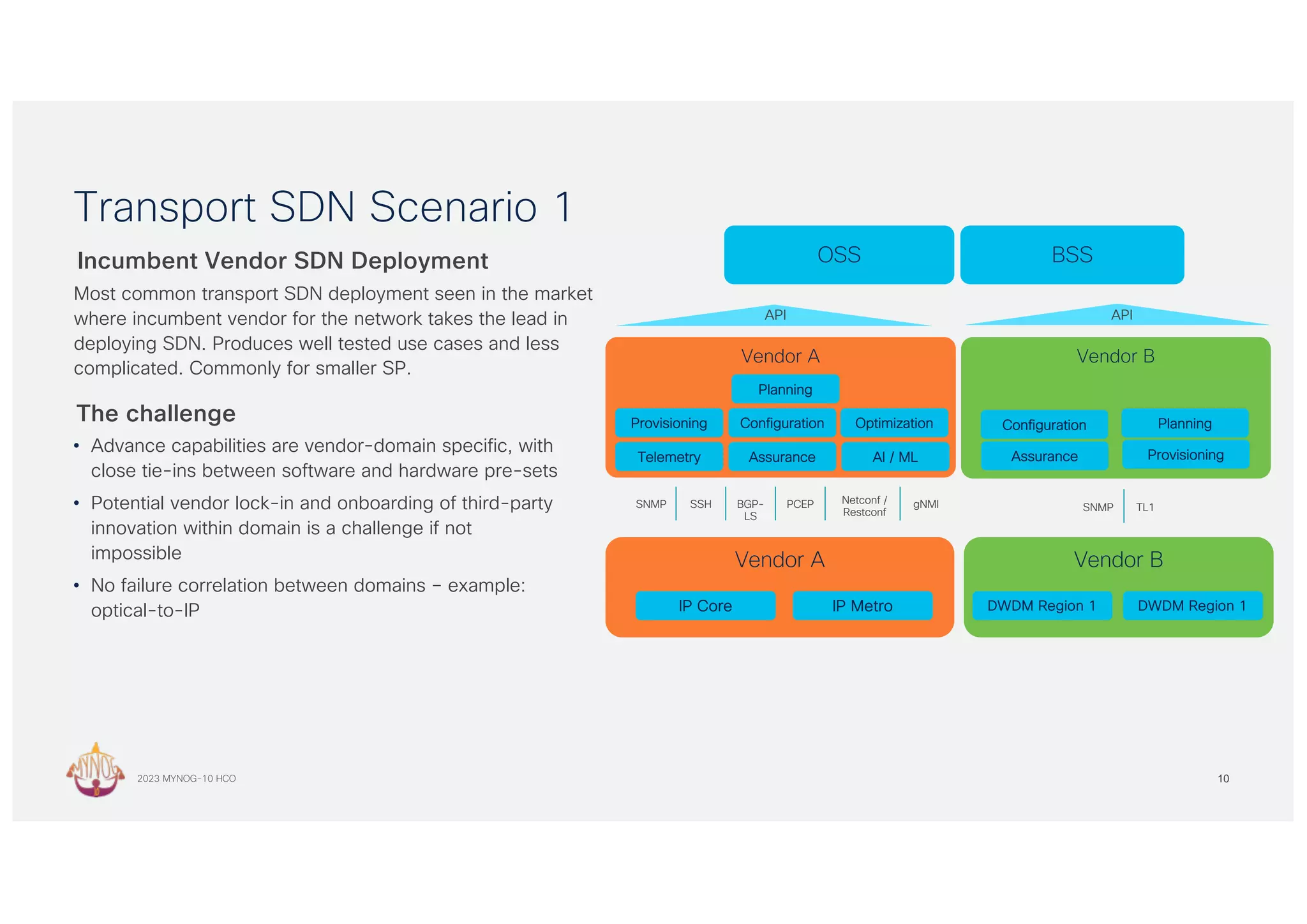

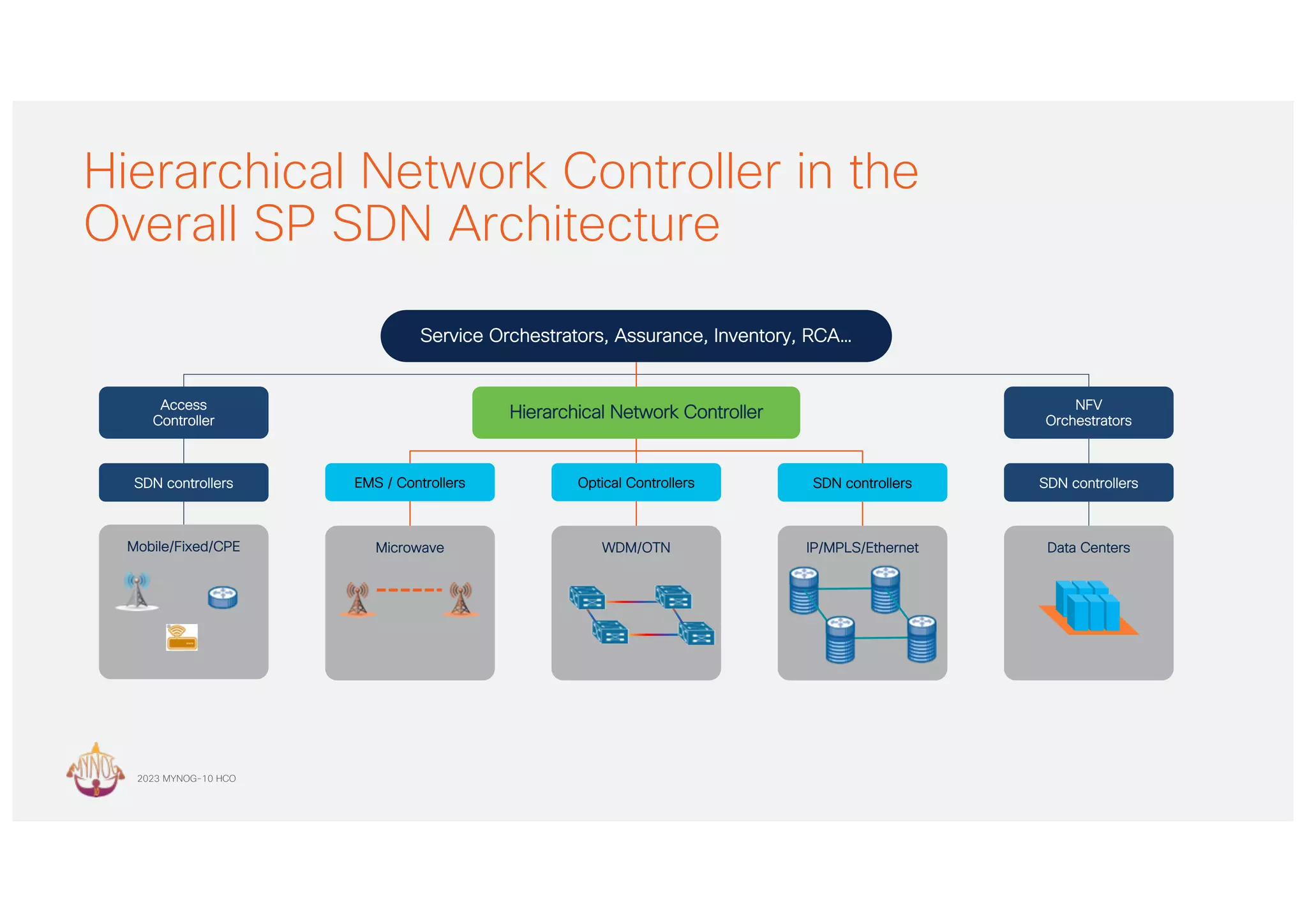

SDN Deployment Review

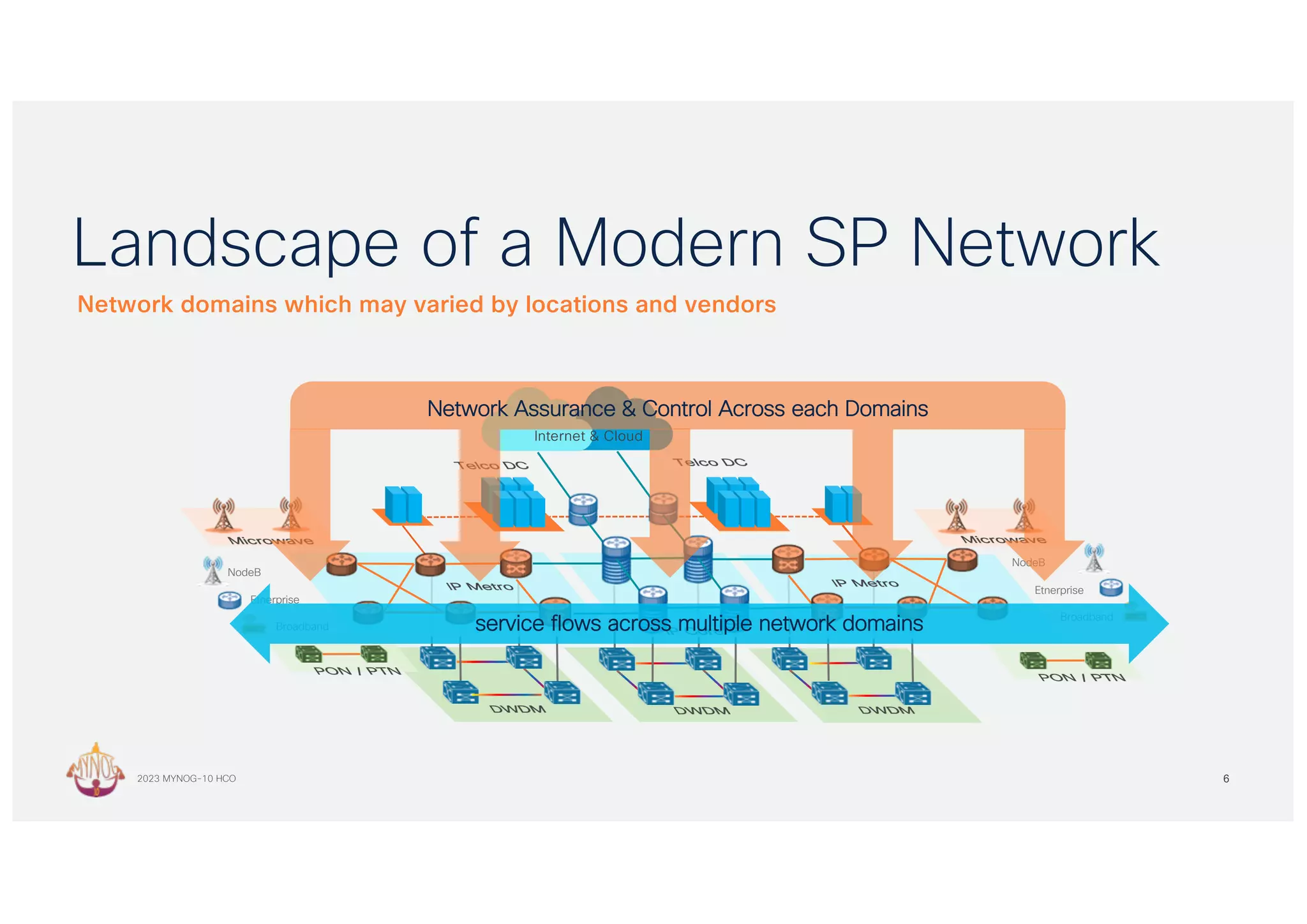

Landscape of the Modern SP Network
SDN Deployment Scenarios

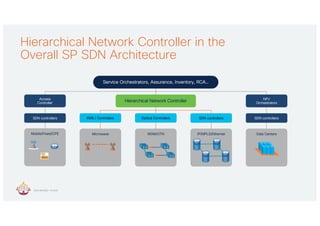

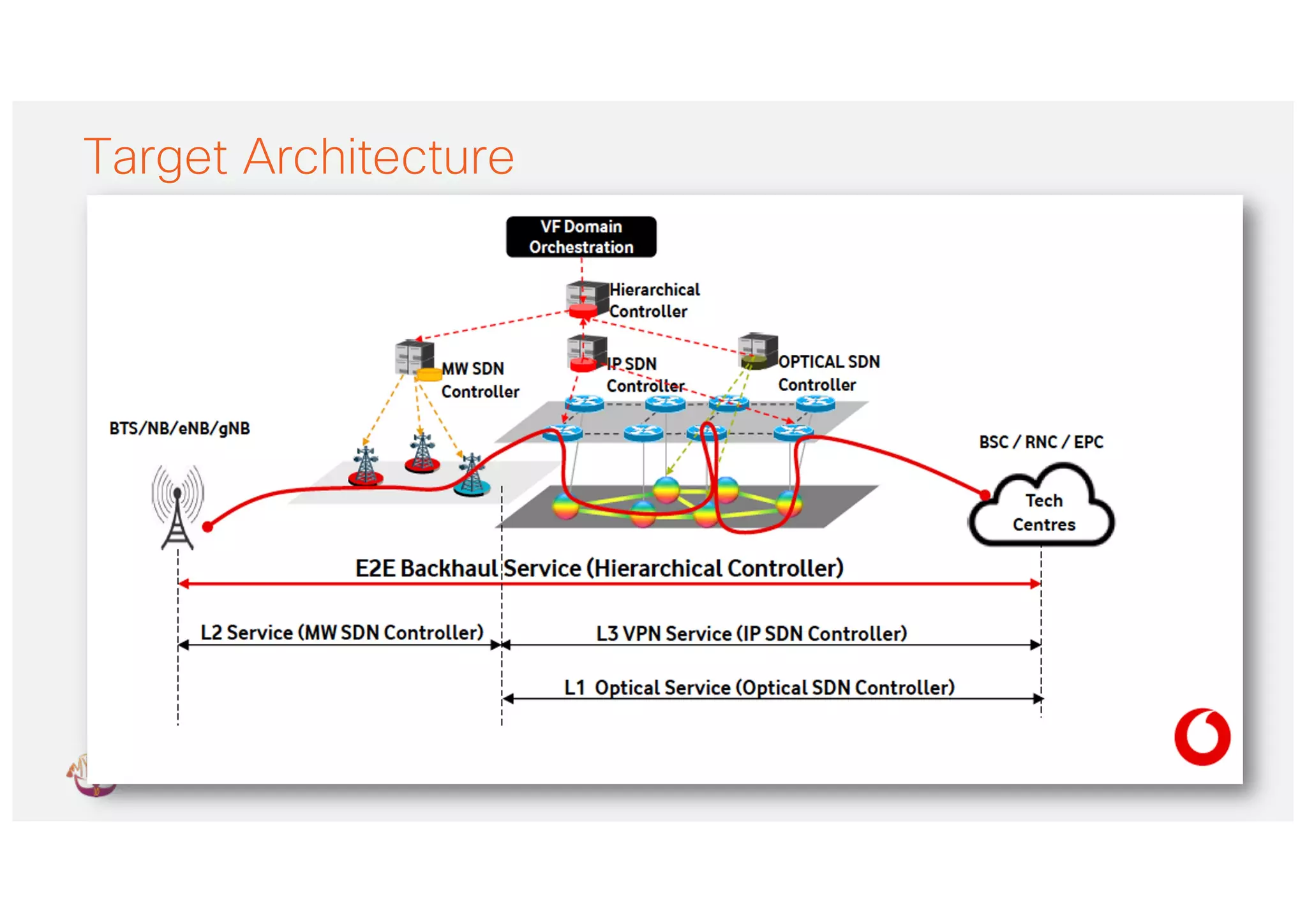

The Concept of the Hierarchical
Network Controller

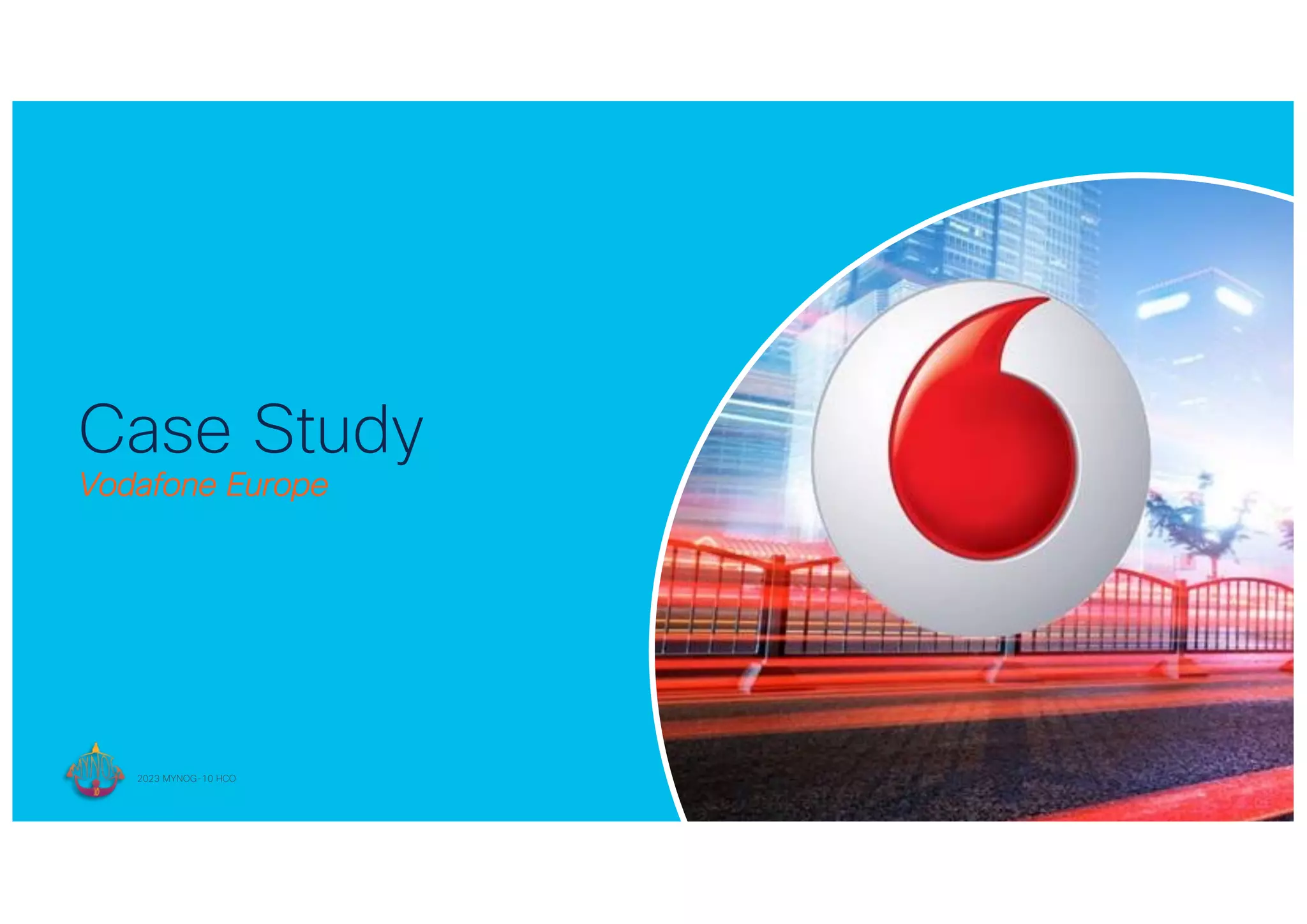

Case Study
2023 MYNOG-10 HCO
3. 3
2023 MYNOG-10 HCO

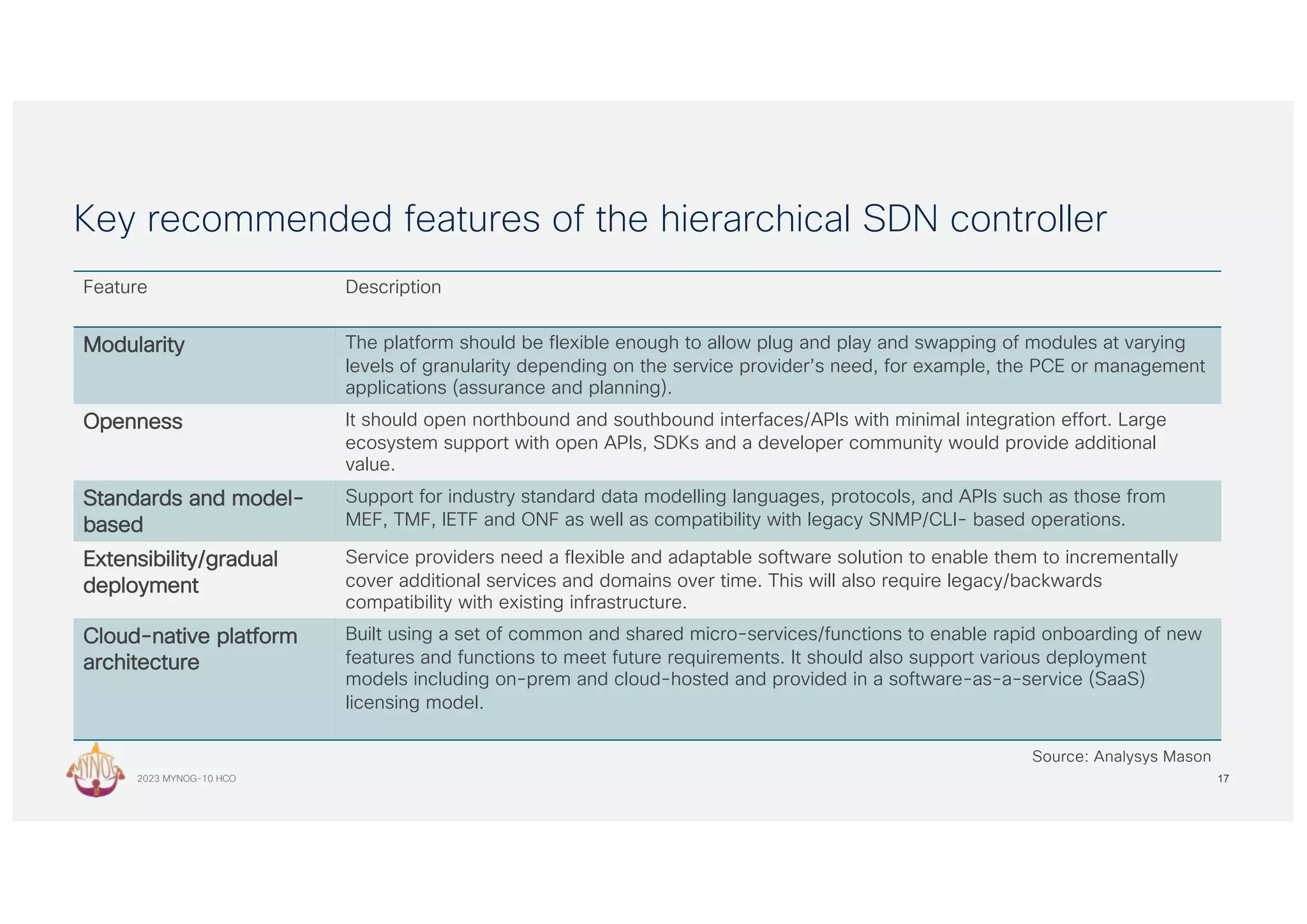

Manage network scale and maximize infrastructure
investment across all network paths
The outlook of an ever-growing
size and complexity of transport
network infrastructure drives the
idea of a more autonomous and
intelligent control capabilities

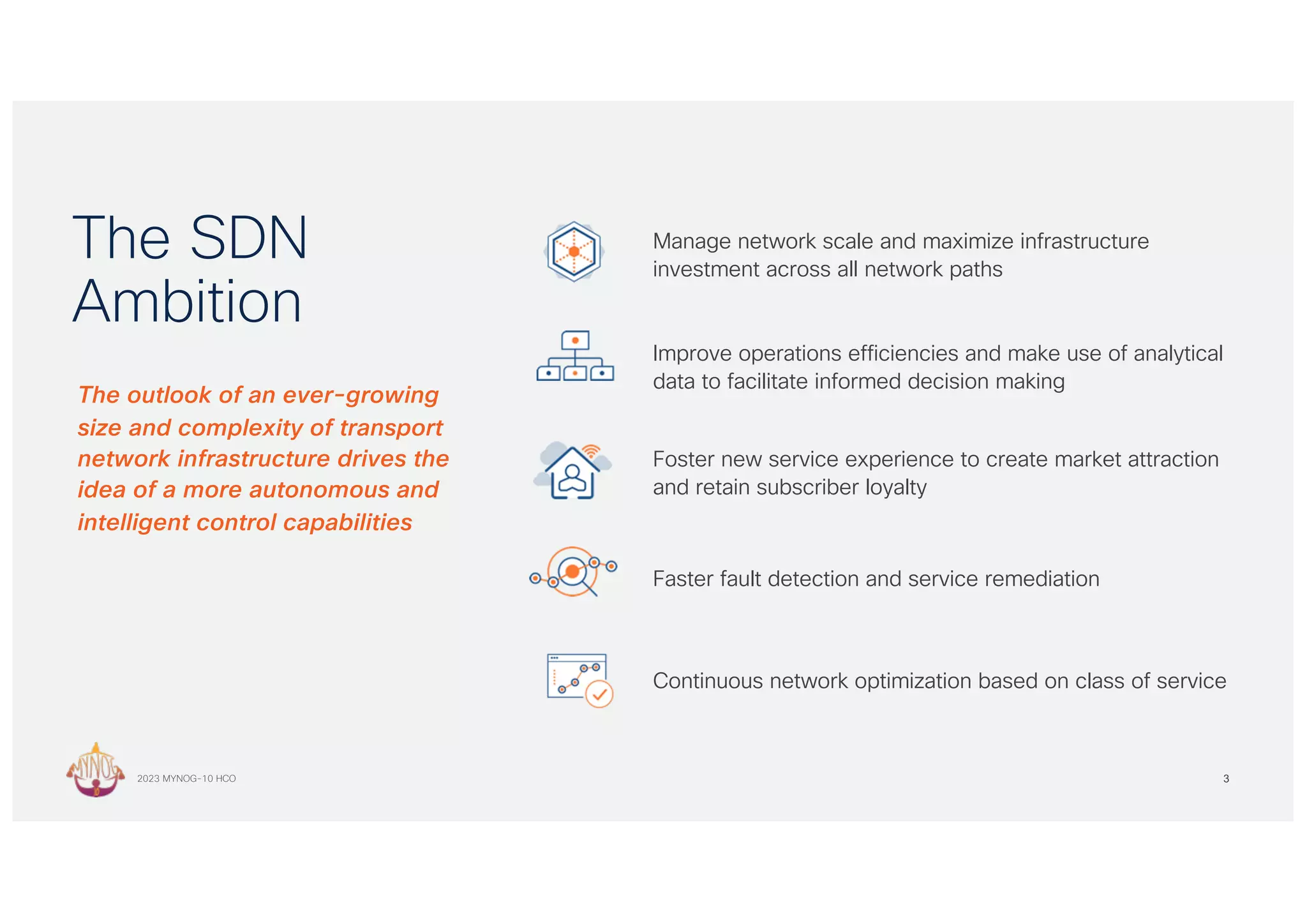

The SDN
Ambition
Improve operations efficiencies and make use of analytical
data to facilitate informed decision making
Foster new service experience to create market attraction
and retain subscriber loyalty
Faster fault detection and service remediation
Continuous network optimization based on class of service
4. 4
2023 MYNOG-10 HCO
Manage network scale and maximize infrastructure
investment across all network paths
The outlook of an ever-growing
size and complexity of transport
network infrastructure drives the
idea of a more autonomous and
intelligent control capabilities
The SDN
Ambition
Improve operations efficiencies and make use of analytical
data to facilitate informed decision making
Foster new service experience to create market attraction
and retain subscriber loyalty
Faster fault detection and service remediation
Continuous network optimization based on class of service
“Cut cost, make more money”
5. The Need for Automation
2023 MYNOG-10 HCO
The Larger the
Scale, the Higher
the Demand
5
This Photo by Unknown Author is licensed under CC BY-SA-NC
6. 6
Landscape of a Modern SP Network
Network domains which may varied by locations and vendors
NodeB
Etnerprise
Broadband
NodeB
Etnerprise
Broadband
Internet & Cloud
Network Assurance & Control Across each Domains
2023 MYNOG-10 HCO
service flows across multiple network domains
7. The Challenge: Rigid & Fragmented Networks
• Transport networks are a patchwork of
technologies, domains, layers and vendor
turfs
• Most still rely on a siloed, highly manual and
error-prone operational apparatus
• Current network data is fiendishly difficult to
collect, corelate and utilize
IP Aggregation NW
IP Core Network
Metro Optical Vendor A
LH Optical Vendor B
Delivering SDN automation use cases are
bounded by network domains and
achieving end-to-end service can be very
limited
9. Vendor Independent Platform
What we always hoped to be
9
Transport SDN Vision
Provisioning Configuration Optimization
Assurance AI / ML
Telemetry
Vendor A Vendor B Vendor C
IP Core IP Metro DWDM Region 1
Planning
SNMP SSH BGP-
LS
PCEP TL1 Netconf /
Restconf
gNMI
OSS BSS
API API
Vendor D
DWDM Region 2
A single platform-independent solution that provides
multiple integrated SDN functions which works across
all network domains and OSS/BSS layer
2023 MYNOG-10 HCO
Service creation, bandwidth on demand, service
optimization, service prioritization, close-loop,
predictive analysis...
Common Seen Challenges
• Device Scale limits to support large networks
• Advance SDN network optimization capabilities are
vendor centric - not proprietary but exclusively
developed
• Multi-vendor integration is not mature enough
• Standards are not fully adopted
• Software lifecycle nightmare – one component
upgrades can cause incompatibility chain effect
• SP adoption of DevOps / NetOps
10. Vendor A
Incumbent Vendor SDN Deployment
10
Transport SDN Scenario 1
Provisioning Configuration Optimization
Assurance AI / ML
Telemetry
Vendor A Vendor B
IP Core IP Metro DWDM Region 1
Planning
SNMP SSH BGP-
LS
PCEP Netconf /
Restconf
gNMI
OSS BSS
API API
Most common transport SDN deployment seen in the market
where incumbent vendor for the network takes the lead in
deploying SDN. Produces well tested use cases and less
complicated. Commonly for smaller SP.
2023 MYNOG-10 HCO
The challenge
• Advance capabilities are vendor-domain specific, with
close tie-ins between software and hardware pre-sets
• Potential vendor lock-in and onboarding of third-party
innovation within domain is a challenge if not
impossible
• No failure correlation between domains – example:
optical-to-IP
Vendor B
Configuration
Assurance
Planning
TL1
SNMP
DWDM Region 1
Provisioning
11. Domain-specific deployment
11
Transport SDN Scenario 2
2023 MYNOG-10 HCO
The challenge
• Siloed topology awareness between domains
• No failure correlation between domains – example: optical-
to-IP
• Network optimization is domain specific and different from
another
• Cross-domain service optimization is limited as network data
are not exchanged
• SP needs to maintain API for every domain vendors and
OSS/BSS
SDN capabilities which are vendor-specific IP and
optical domains, by combining all the management and
control components needed for unified, closed-loop and
self-sufficient operations of that domain. Each domains
can offer best of capabilities are within vendor specific
elements. Commonly for large SP.
Vendor D
Vendor B
DWDM Region 2
Vendor D
Vendor B
IP Metro Region 2
Vendor A
Provisioning
Configuration
Optimization
Assurance
AI / ML
Telemetry
IP Core IP Metro Region 1 DWDM Region 1
Planning
OSS BSS
Vendor B
Configuration
Optimization
Assurance
AI / ML
Telemetry
Vendor C
Configuration
Optimization
Assurance
Planning
Planning
AI / ML
TL1
SNMP SSH BGP-
LS
PCEP
Netconf /
Restconf
gNMI SNMP SSH
API API API
12. The Hierarchical Network Controller
12
Transport SDN Scenario 3
2023 MYNOG-10 HCO
The challenge
• Domain-level SDN deployment as first step
• Validation of domain-level northbound interface
capabilities
• Potential manual correlation mapping between infra
layers
The hierarchical network controller together with the
multi-vendor domain SDN controllers introduces a
hierarchical SDN controller architecture providing an
end-to-end view (both horizontal and vertical) of the
transport network combining the IP/MPLS, optical
domains or other domains and providing an abstracted
network view of the higher-layer OSS systems.
Vendor D
Vendor B
DWDM Region 2
Vendor D
Vendor B
IP Metro Region 2
Vendor A
Provisioning
Configuration
Optimization
Assurance
AI / ML
Telemetry
IP Core IP Metro Region 1 DWDM Region 1
Planning
OSS BSS
Vendor B
Configuration
Optimization
Assurance
AI / ML
Telemetry
Vendor C
Configuration
Optimization
Assurance
Planning
Planning
AI / ML
TL1
SNMP SSH BGP-
LS
PCEP Netconf /
Restconf
gNMI SNMP SSH
API API
Hierarchical Network Controller
TL1
SNMP Netconf /
Restconf
14. Hierarchical Network Controller in the
Overall SP SDN Architecture
Service Orchestrators, Assurance, Inventory, RCA…
NFV
Orchestrators
Hierarchical Network Controller
Access
Controller
SDN controllers
Optical Controllers SDN controllers
SDN controllers EMS / Controllers
Microwave WDM/OTN IP/MPLS/Ethernet Data Centers
Mobile/Fixed/CPE
2023 MYNOG-10 HCO
15. IP Network
15
2023 MYNOG-10 HCO
• Multi-layer visualization and mapping (Fiber-Optical-IP) allows
domain managers to maintain and correlate link assets
• Acquire each domain-specific network data and normalize into
common network model to provide and end-to-end view as
well as multi-layer view
• Domain controllers focus on domain-specific optimization and
assurance, while Hierarchical Controller provides inter-domain
intelligence for end-to-end serices
• Abstracts and simplifies SP’s OSS transformation, as
hierarchical network controller becomes a common point of
interface to execute network wide use-cases
The Concept Advantage
Hierarchical Network Controller
VPN Services
Fiber
Fiber
Leased Fiber
Optical
Network
Vendor C
Metro Vendor D
NLD
Vendor B
Metro
Vendor B
Metro
Vendor A
IP Core Vendor C
Aggregation
Vendor 1 Vendor 2
Optical
Vendor A
IP Domain Controller
IP
Open SDN
Architecture
Hierarchical Network Controller
16. Recommended Capabilities
16
Hierarchical Network Controller
REST APIs for inventory, topology and service CRUD
OSS BSS
Database / Query Language
Map integration / visualization
Network Inventory
Path Computation
IETF Based Interfaces – NETCONF, RESTCONF
Legacy Support– TL1, SNMP
Network
• Open northbound interfaces – REST API
• Soutbound interfaces – towards domain managers and
controllers
• IETF-based (NETCONF)
• ONF Supported – T-API
• Legacy southbound interface support – SNMP and TL1
(DWDM)
• Strong database engine and open query language – SQL
• Path computation engine (PCE Server component)
ONF Supported – T-API
2023 MYNOG-10 HCO
17. 17
Key recommended features of the hierarchical SDN controller
Feature Description
Modularity The platform should be flexible enough to allow plug and play and swapping of modules at varying
levels of granularity depending on the service provider’s need, for example, the PCE or management
applications (assurance and planning).
Openness It should open northbound and southbound interfaces/APIs with minimal integration effort. Large
ecosystem support with open APIs, SDKs and a developer community would provide additional
value.
Standards and model-
based
Support for industry standard data modelling languages, protocols, and APIs such as those from
MEF, TMF, IETF and ONF as well as compatibility with legacy SNMP/CLI- based operations.
Extensibility/gradual
deployment
Service providers need a flexible and adaptable software solution to enable them to incrementally
cover additional services and domains over time. This will also require legacy/backwards
compatibility with existing infrastructure.
Cloud-native platform
architecture
Built using a set of common and shared micro-services/functions to enable rapid onboarding of new
features and functions to meet future requirements. It should also support various deployment
models including on-prem and cloud-hosted and provided in a software-as-a-service (SaaS)
licensing model.
Source: Analysys Mason
2023 MYNOG-10 HCO
19. Vodafone
19
• Linking more than 270 third-
party and Vodafone-owned
data centers across Europe
and Africa
• Up to 250 terabytes of data
traffic at any one time
• Integration with Juniper Paragon
Pathfinder, Ciena MCP controller,
Huawei NCE-T and Cisco CNC
• Network for mobile, fixed data and
voice traffic to serve hundreds of
millions of users and third-party
internet and content providers in 28
countries across four continents
Global Transport Network
“This enables end-to-end multilayer automation and
programmability, removing the complexity for third party
services interacting with the network.”
Alessandra Pavese
Head of Cloud and Connectivity Evolution and Automation, Vodafone
20. • Supporting HA scenarios of a failure during provisioning and
discovery scenarios
• L0L1L2 services
• PWLSPTE++
• L2L3 VPN
• Topology visualization of all domains and of all
layers from OTS to LSP
• Discovery using scheduled polling cycles and
notifications for near real time updates
• Device HW inventory
Shelves
Cards
Pluggable ports
• Uses applications set for advanced assurance and
analytics
Vodafone Main Use Cases
Provisioning
Topology Visualization
Service Assurance and Analytics
HA
Inventory
2023 MYNOG-10 HCO
21. IP
Service
Optical
Fiber
The Hierarchical Controller Network
Model – from service to fiber
Initial Use Cases: Service to Fiber Visibility
Layered service view in
Hierarchical Controller UI
Visualization of a protected private line service
– zoom out and zoom in views
2023 MYNOG-10 HCO
22. Understand all network layers
Understand physical risks
+
Risk Management
• What will be the impact of taking down a set of
resources for maintenance?
• Is the network vulnerable to 1 or 2 failures?
• What would be the impact of a failure?
• Define diversity policies for any set of connections
and see if they are violated
Understand service mapping to network
24. Key Takeaways
• Allow domain-level to perform best-of-breed
while..
• Having cross-domain intelligence and produce
end-to-end service outcomes
• Take IP + Optical integration as first wins
• Feasibility studies required, may not be for
everybody
2023 MYNOG-10 HCO
