2. Introduction to Data Models
and Cisco's NextGen
Device-Level APIs
Einar Nilsen-Nygaard
Principal Engineer, Cisco

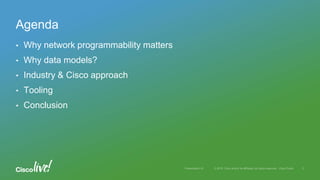

3. • Why network programmability matters
• Why data models?
• Industry & Cisco approach
• Tooling
• Conclusion
Agenda

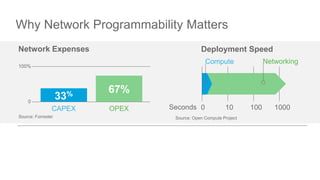

4. Why Network Programmability Matters
0
100%
67%
Source: Forrester
CAPEX OPEX
33%
0 10 100 1000
Compute Networking
Seconds
Source: Open Compute Project
Network Expenses Deployment Speed

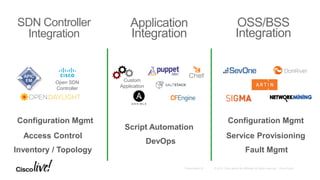

5. SDN Controller
Integration
Open SDN
Controller
Inventory / Topology
Configuration Mgmt
Access Control
Script Automation
DevOps
Custom
Application
Service Provisioning
Fault Mgmt
Configuration Mgmt
Application
Integration
OSS/BSS
Integration

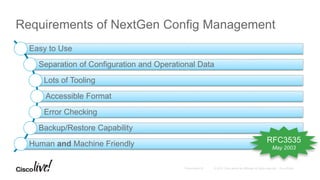

6. Requirements of NextGen Config Management
Easy to Use
Separation of Configuration and Operational Data
Lots of Tooling
Accessible Format
Error Checking
Backup/Restore Capability
Human and Machine Friendly RFC3535
May 2003

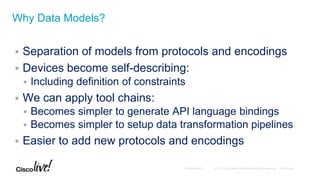

7.  Separation of models from protocols and encodings
 Devices become self-describing:
 Including definition of constraints
 We can apply tool chains:
 Becomes simpler to generate API language bindings
 Becomes simpler to setup data transformation pipelines
 Easier to add new protocols and encodings
Why Data Models?

8.  YANG – https://tools.ietf.org/html/rfc6020
 Interface protocols today:
 NETCONF – https://tools.ietf.org/html/rfc6241
 Evolution of original NETCONF, encompassing YANG data models
 RESTCONF – https://tools.ietf.org/html/draft-ietf-netconf-restconf-09
 …and any new protocols or encodings...
Which Data Modeling Language?

9. Cisco’s Approach
9

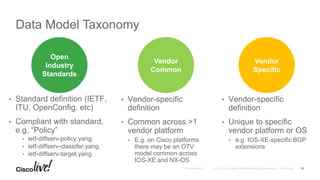

10. Data Model Taxonomy
10
• Standard definition (IETF,
ITU, OpenConfig, etc)
• Compliant with standard,
e.g. “Policy”
• ietf-diffserv-policy.yang,
• ietf-diffserv-classifer.yang,
• ietf-diffserv-target.yang
Open
Industry
Standards
• Vendor-specific
definition
• Common across >1
vendor platform
• E.g. on Cisco platforms
there may be an OTV
model common across
IOS-XE and NX-OS
Vendor
Common
• Vendor-specific
definition
• Unique to specific
vendor platform or OS
• e.g. IOS-XE-specific BGP
extensions
Vendor
Specific

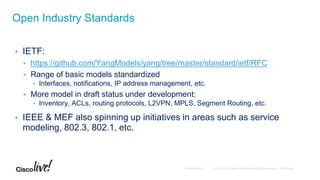

11.  IETF:
 https://github.com/YangModels/yang/tree/master/standard/ietf/RFC
 Range of basic models standardized
 Interfaces, notifications, IP address management, etc.
 More model in draft status under development:
 Inventory, ACLs, routing protocols, L2VPN, MPLS, Segment Routing, etc.
 IEEE & MEF also spinning up initiatives in areas such as service
modeling, 802.3, 802.1, etc.
Open Industry Standards

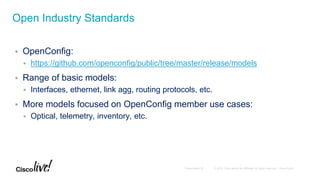

12.  OpenConfig:
 https://github.com/openconfig/public/tree/master/release/models
 Range of basic models:
 Interfaces, ethernet, link agg, routing protocols, etc.
 More models focused on OpenConfig member use cases:
 Optical, telemetry, inventory, etc.
Open Industry Standards

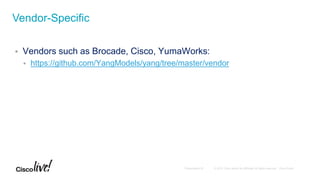

13.  Vendors such as Brocade, Cisco, YumaWorks:
 https://github.com/YangModels/yang/tree/master/vendor
Vendor-Specific

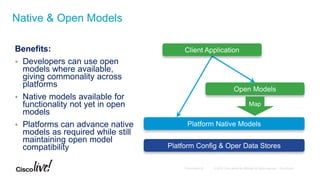

14. Benefits:
 Developers can use open
models where available,
giving commonality across
platforms
 Native models available for
functionality not yet in open
models
 Platforms can advance native
models as required while still
maintaining open model
compatibility
Native & Open Models
Open Models
Platform Native Models
Platform Config & Oper Data Stores
Map
Client Application

15. Tooling
15

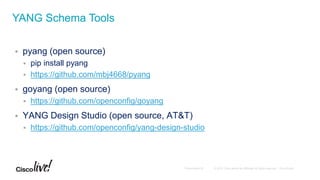

16.  pyang (open source)
 pip install pyang
 https://github.com/mbj4668/pyang
 goyang (open source)
 https://github.com/openconfig/goyang
 YANG Design Studio (open source, AT&T)
 https://github.com/openconfig/yang-design-studio
YANG Schema Tools

17.  pyangbind (open source)
 pip install pyangbind
 https://github.com/robshakir/pyangbind
 JNC (open source)
 https://github.com/tail-f-systems/JNC
 ODL Yangtools (open source)
 https://github.com/opendaylight/yangtools
Code Generation Tools

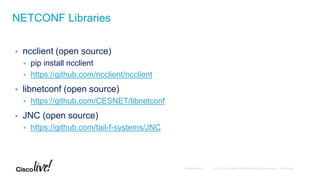

18.  ncclient (open source)
 pip install ncclient
 https://github.com/ncclient/ncclient
 libnetconf (open source)
 https://github.com/CESNET/libnetconf
 JNC (open source)
 https://github.com/tail-f-systems/JNC
NETCONF Libraries

19.  XSLT, various language bindings:
 Ruby – “nokogiri”
 Python – “lxml”, “ElementTree”
 Java – “Xalan”, “SAXON”, etc.
 JOLT, JSON-to-JSON transformation
 http://bazaarvoice.github.io/jolt/
 Dozer, a Java Bean to Java Bean mapper
 Combine with something like JAXB and JNC
 http://dozer.sourceforge.net
JSON/XML Transformation Tools

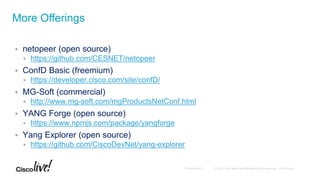

20.  netopeer (open source)
 https://github.com/CESNET/netopeer
 ConfD Basic (freemium)
 https://developer.cisco.com/site/confD/
 MG-Soft (commercial)
 http://www.mg-soft.com/mgProductsNetConf.html
 YANG Forge (open source)
 https://www.npmjs.com/package/yangforge
 Yang Explorer (open source)
 https://github.com/CiscoDevNet/yang-explorer
More Offerings

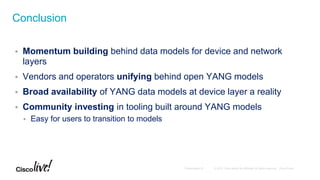

21.  Momentum building behind data models for device and network
layers
 Vendors and operators unifying behind open YANG models
 Broad availability of YANG data models at device layer a reality
 Community investing in tooling built around YANG models
 Easy for users to transition to models
Conclusion
