The New CSS Layout
Rachel Andrew
Dutch PHP Conference, 2015
Rachel Andrew
http://rachelandrew.co.uk
@rachelandrew
http://grabaperch.com

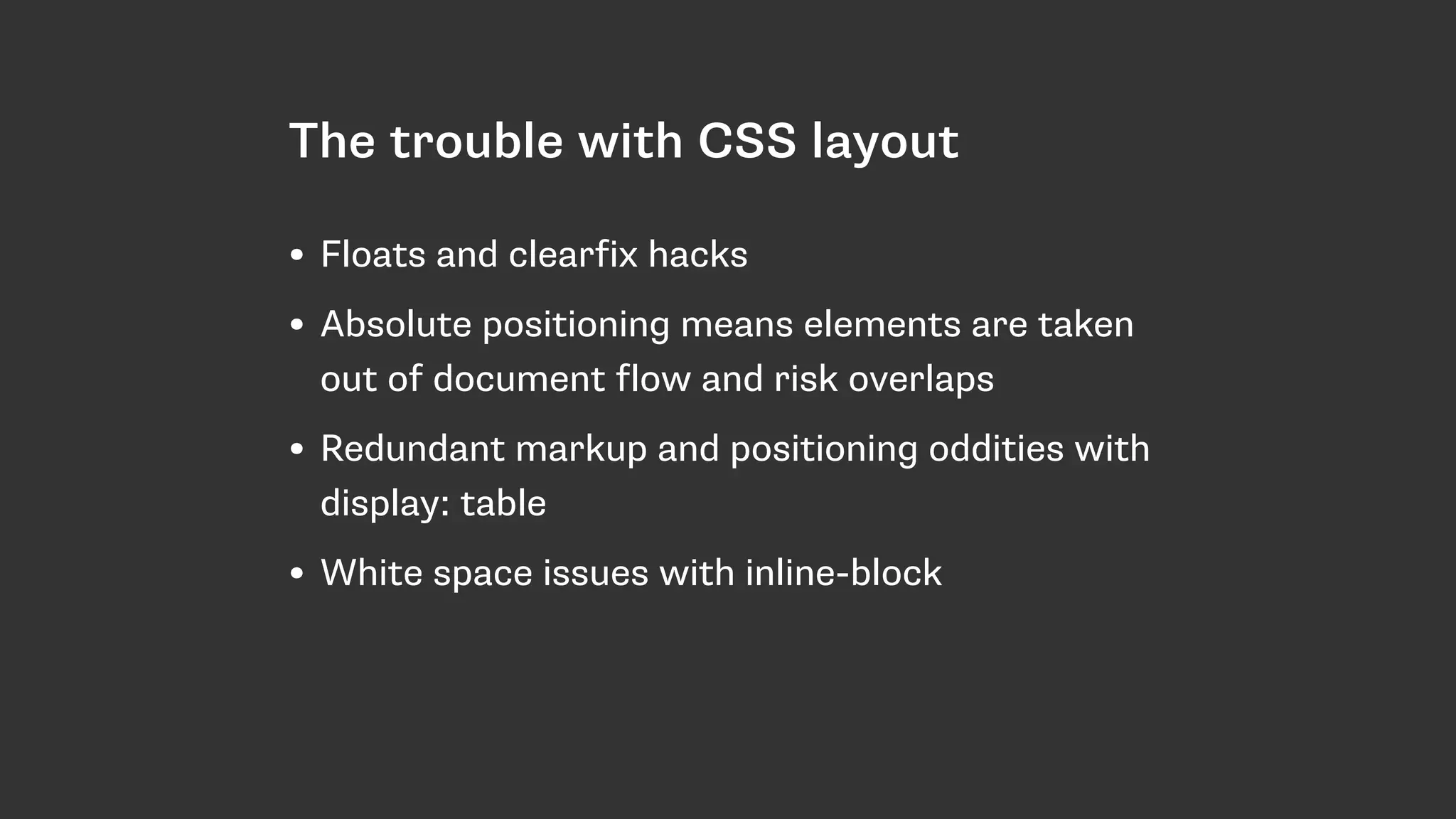

The trouble with CSS layout
• Floats and clearfix hacks
• Absolute positioning means elements are taken
out of document flow and risk overlaps
• Redundant markup and positioning oddities with
display: table
• White space issues with inline-block

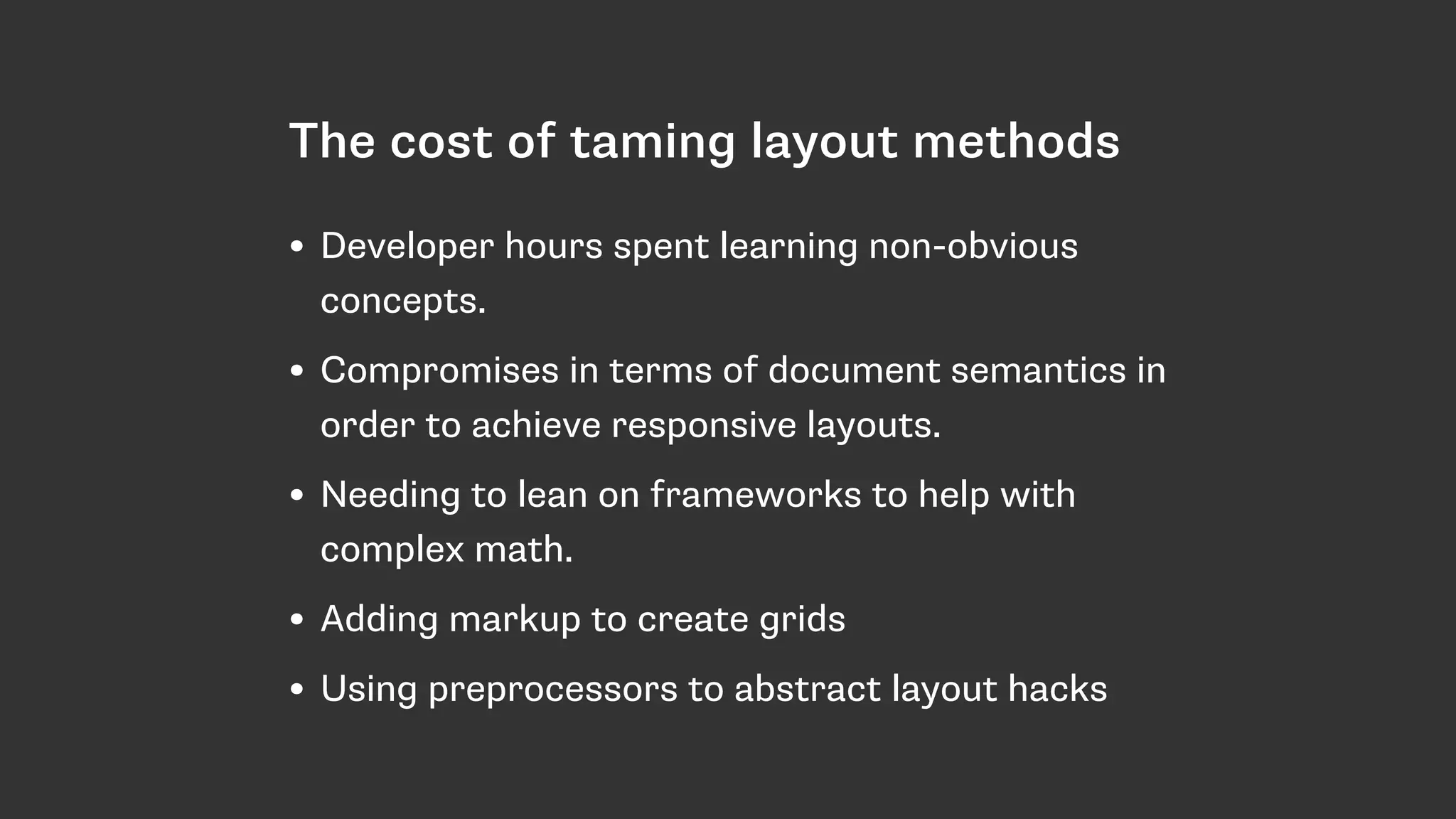

The cost of taming layout methods
• Developer hours spent learning non-obvious
concepts.
• Compromises in terms of document semantics in
order to achieve responsive layouts.
• Needing to lean on frameworks to help with
complex math.
• Adding markup to create grids
• Using preprocessors to abstract layout hacks
Multi-column
Layout
http://www.w3.org/TR/css3-multicol/
http://dev.w3.org/csswg/css-multicol-1/
http://www.flickr.com/photos/62693815@N03/6277209256/

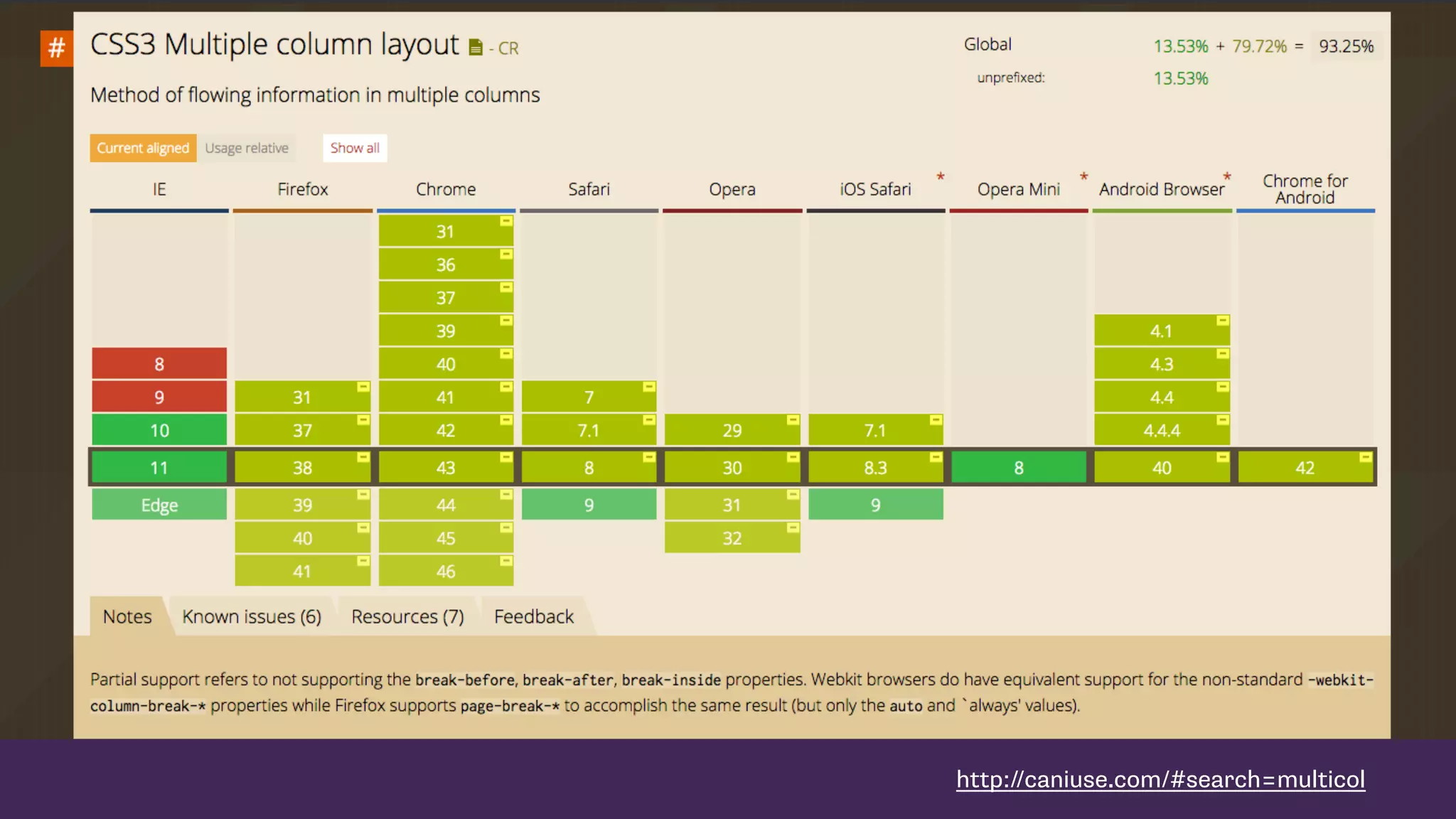

http://caniuse.com/#search=multicol

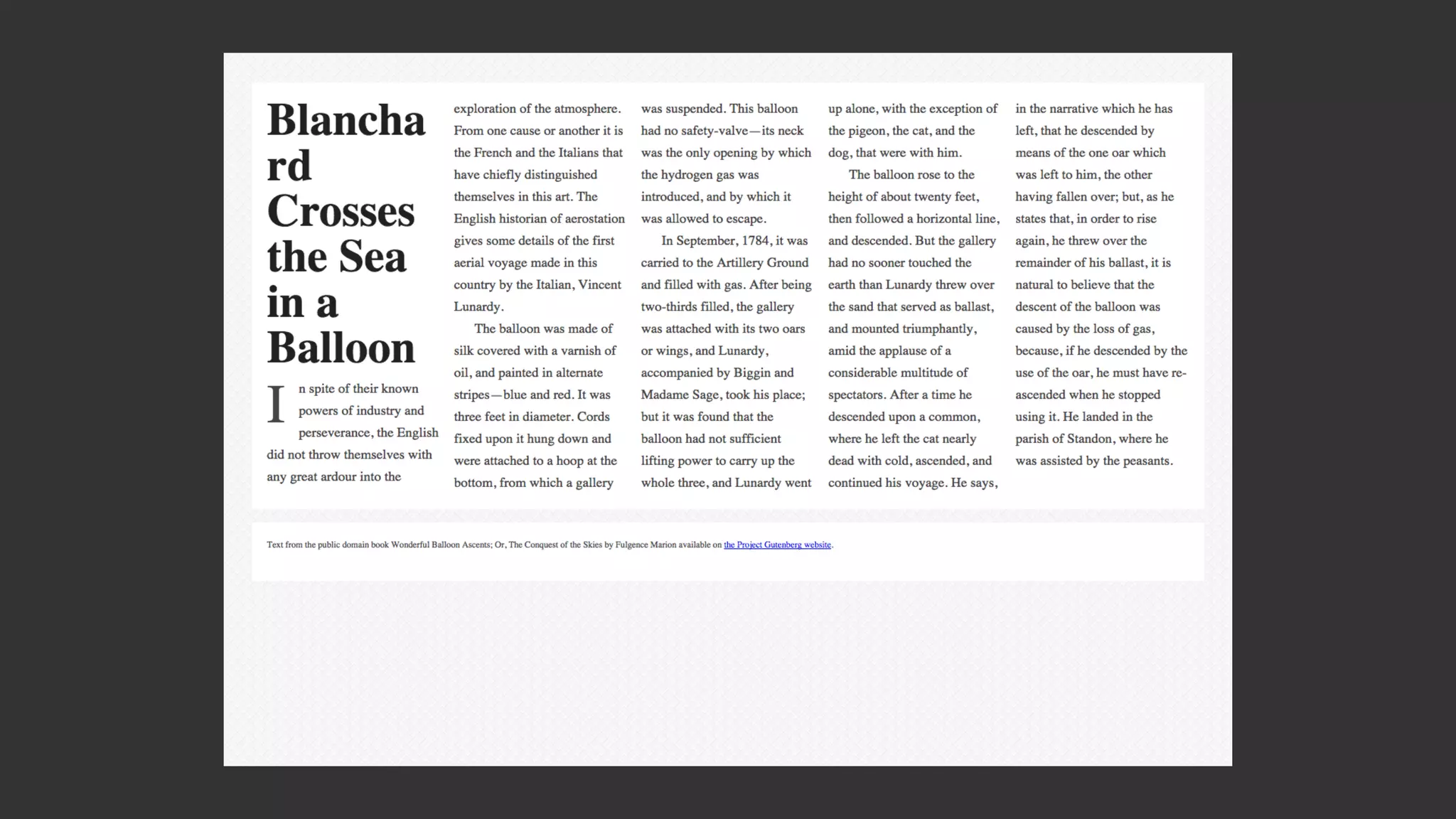

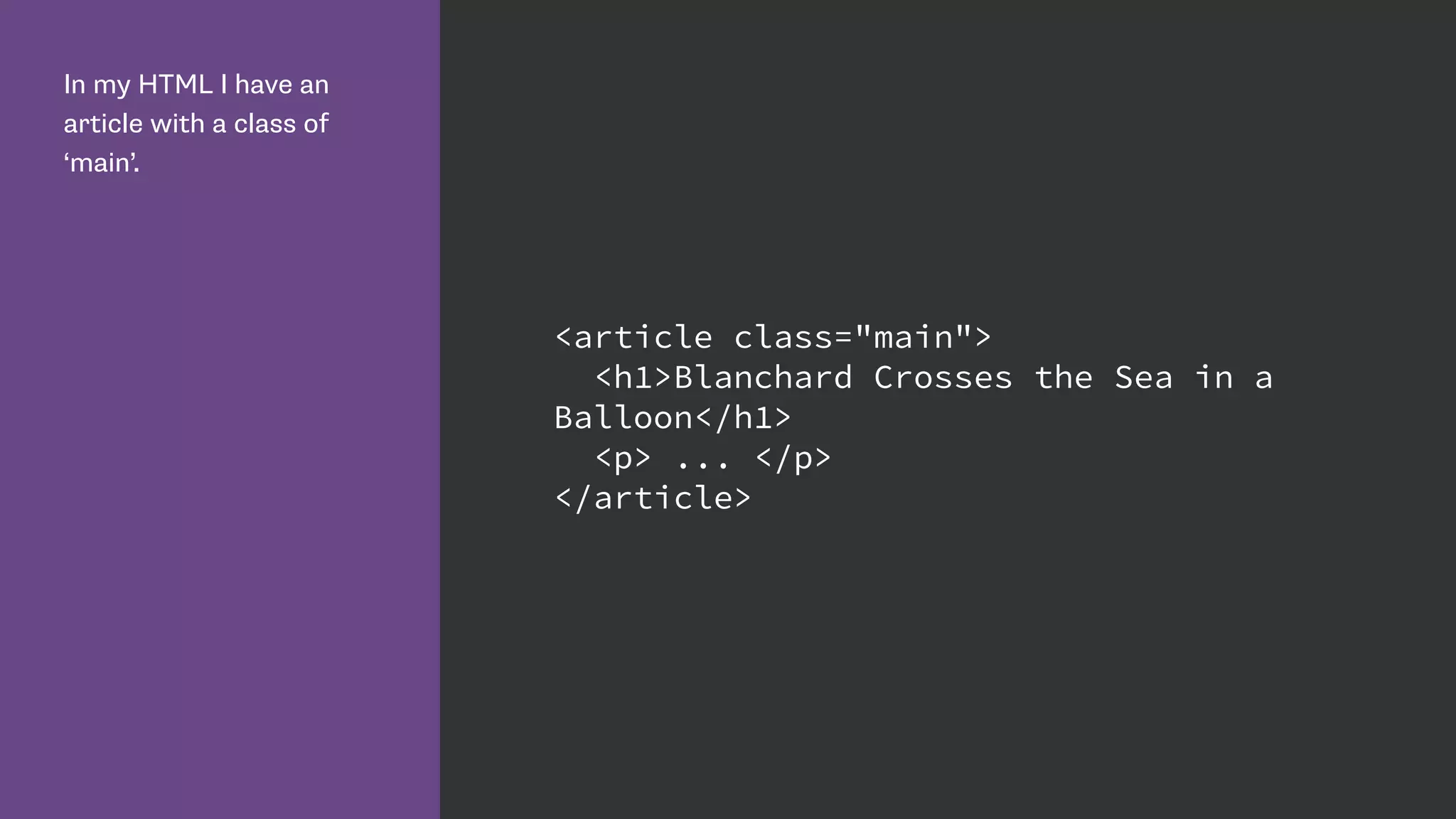

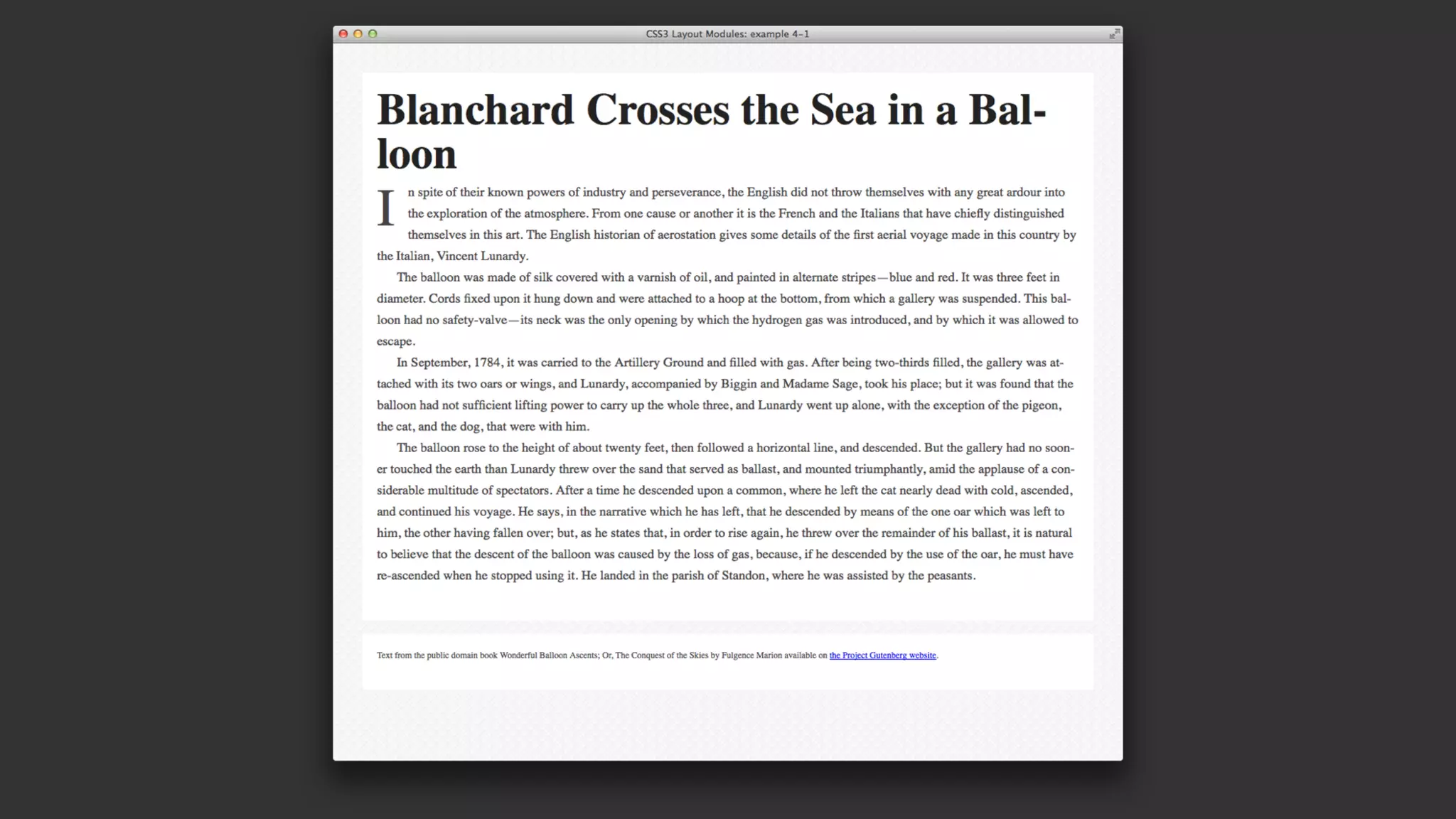

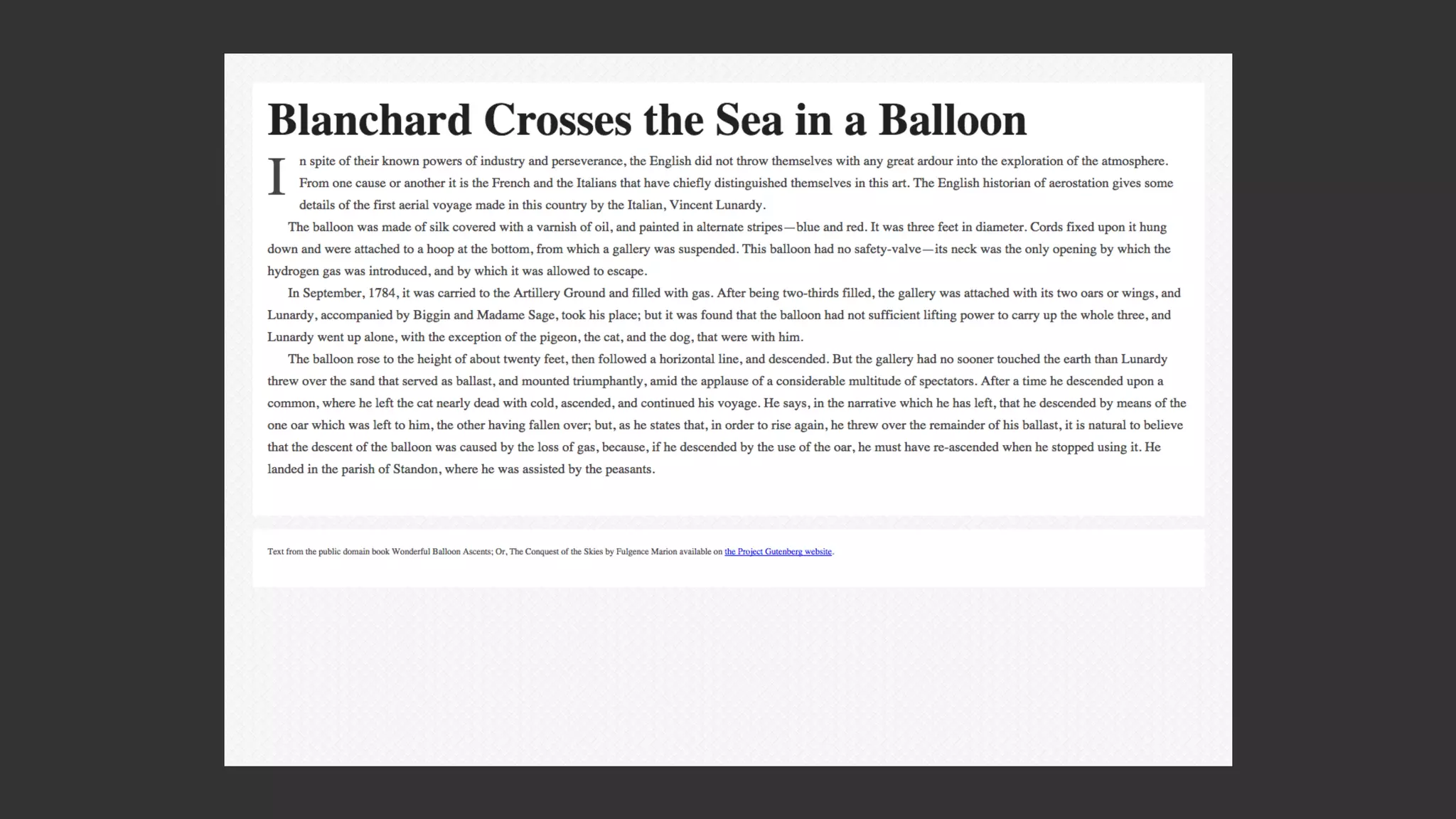

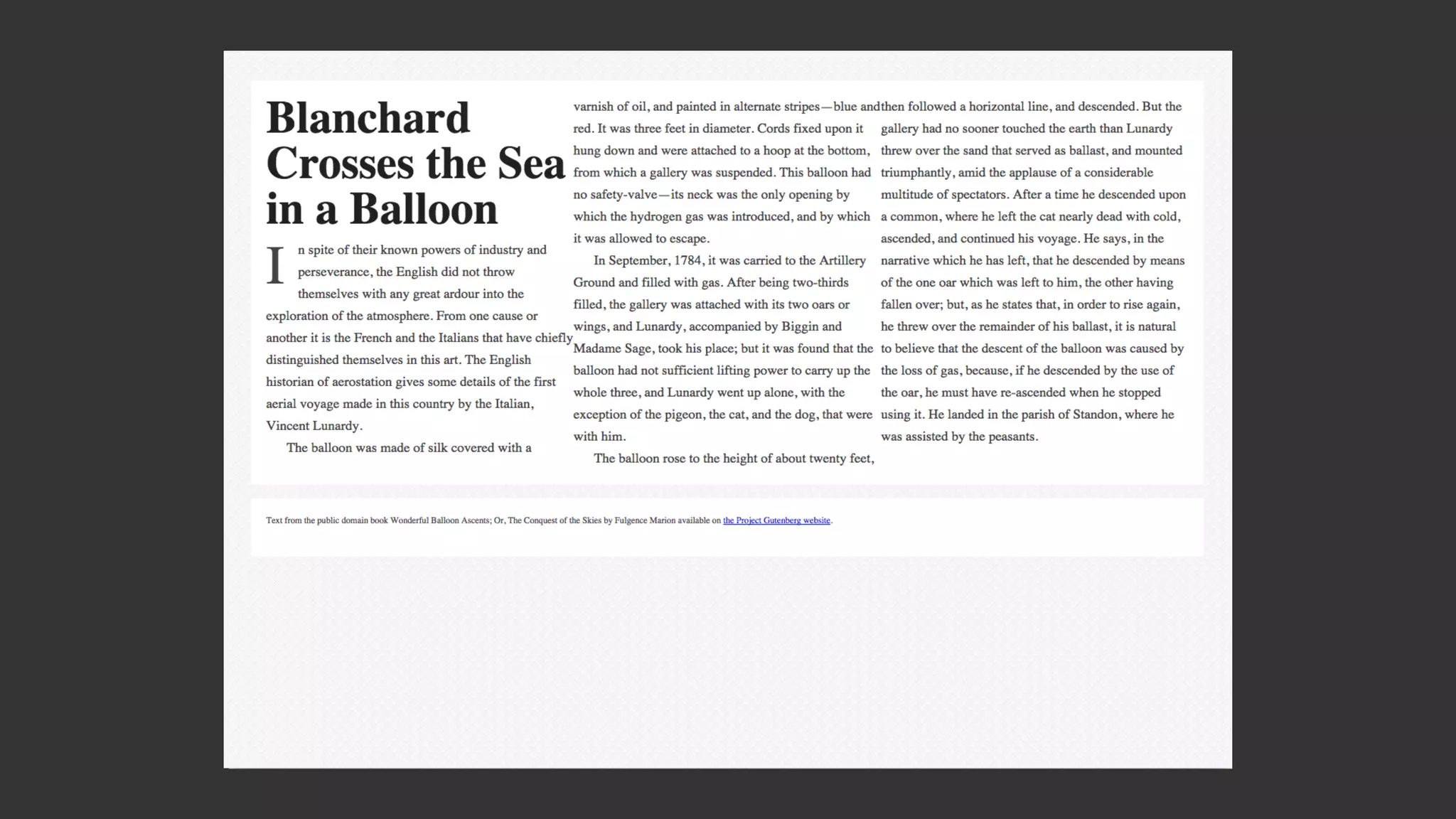

In my HTML I have an
article with a class of
‘main’.
<article class="main">
<h1>Blanchard Crosses the Sea in a
Balloon</h1>
<p> ... </p>
</article>

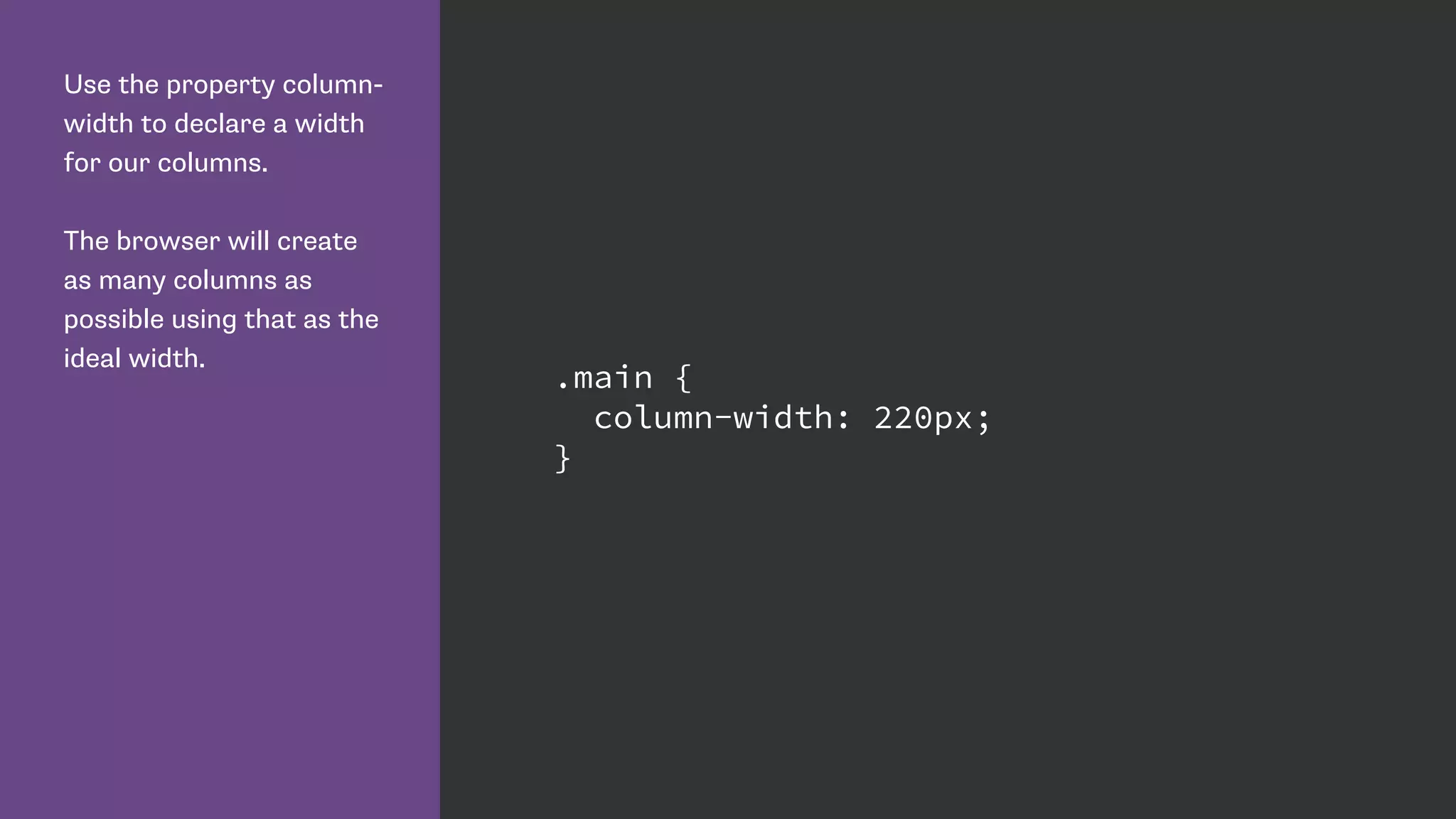

Use the property column-
width to declare a width
for our columns.
The browser will create
as many columns as
possible using that as the
ideal width.
.main {
column-width: 220px;
}

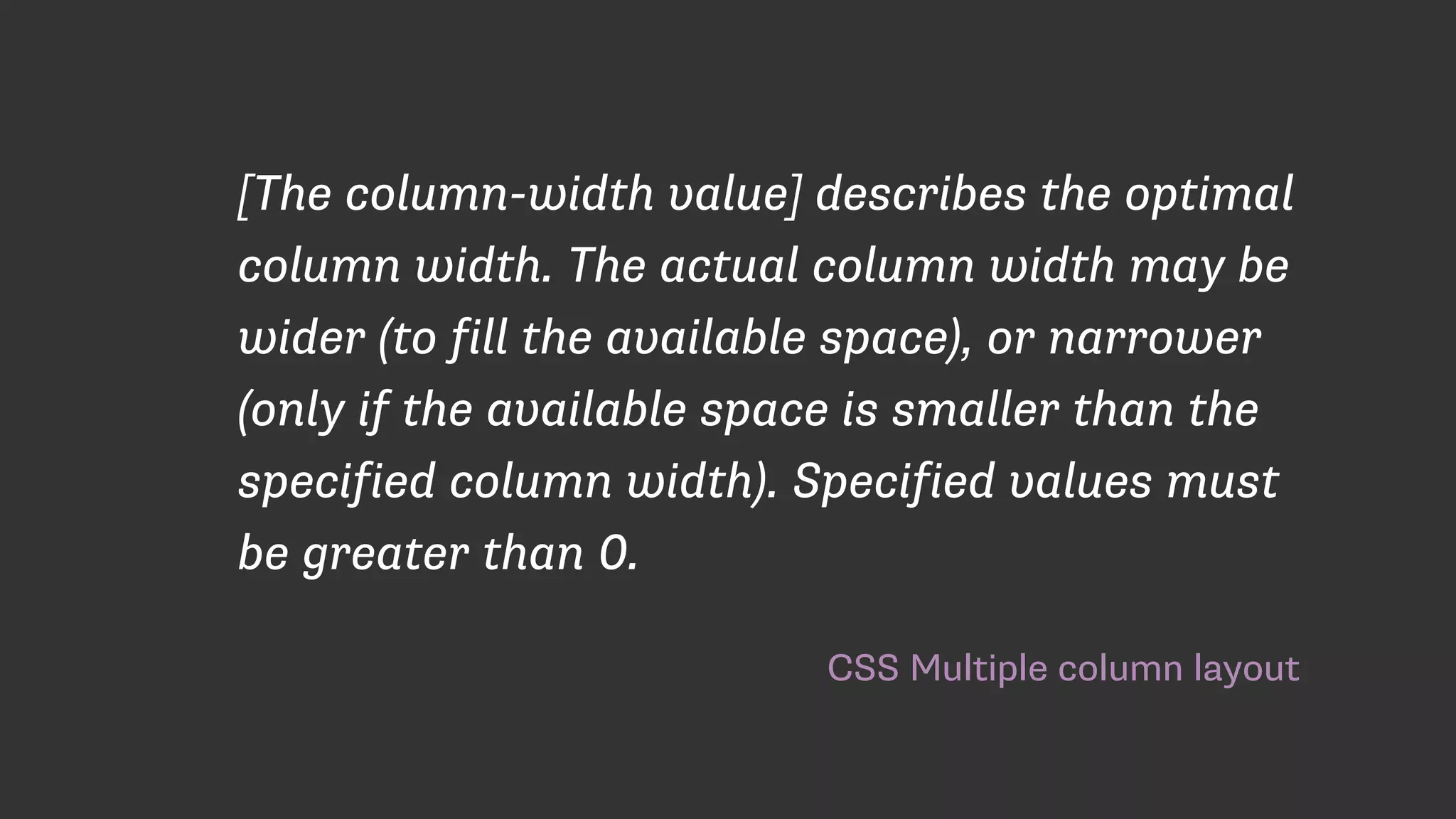

CSS Multiple column layout
[The column-width value] describes the optimal
column width. The actual column width may be
wider (to fill the available space), or narrower
(only if the available space is smaller than the
specified column width). Specified values must
be greater than 0.

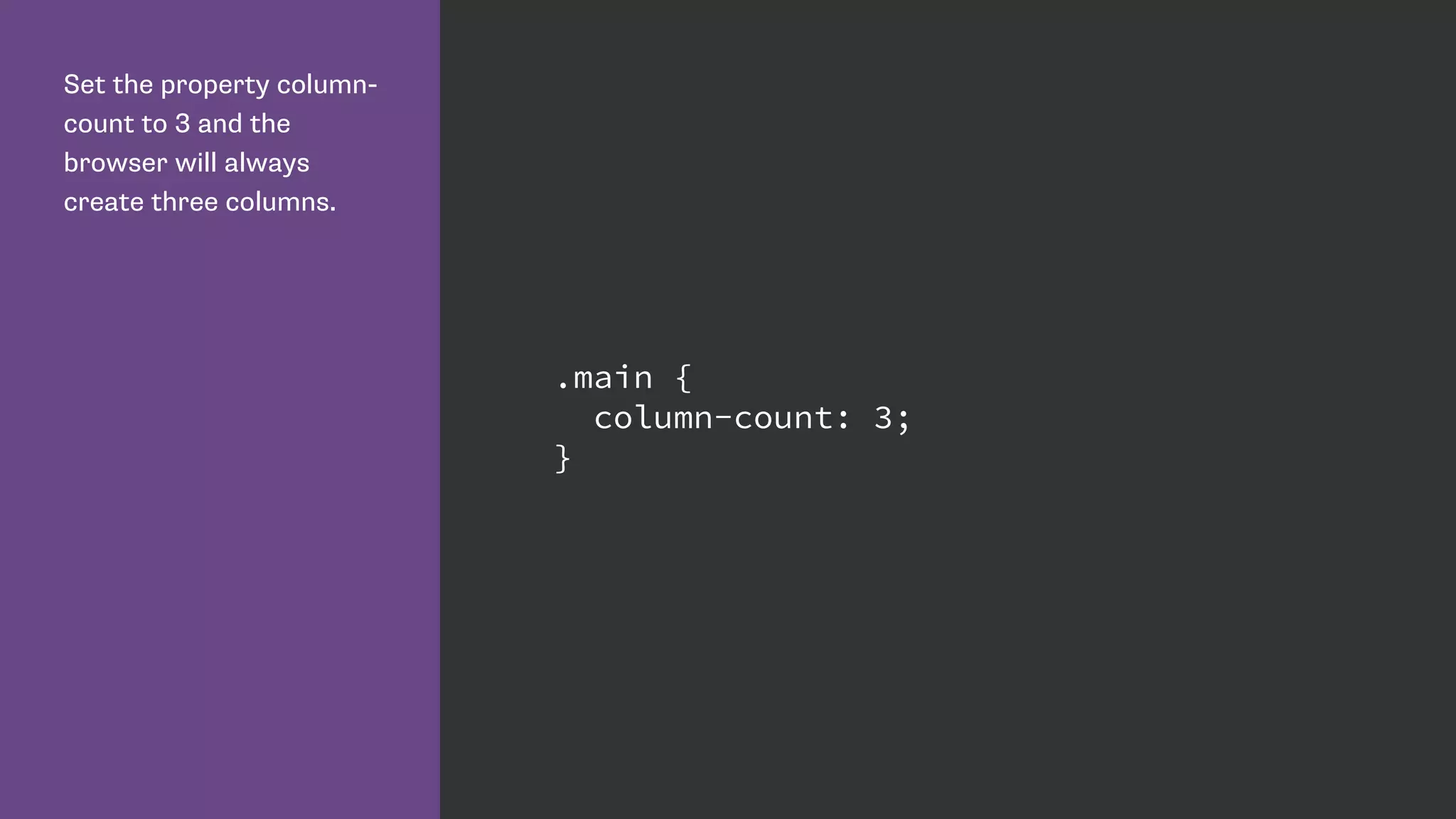

Set the property column-
count to 3 and the
browser will always
create three columns.
.main {
column-count: 3;
}

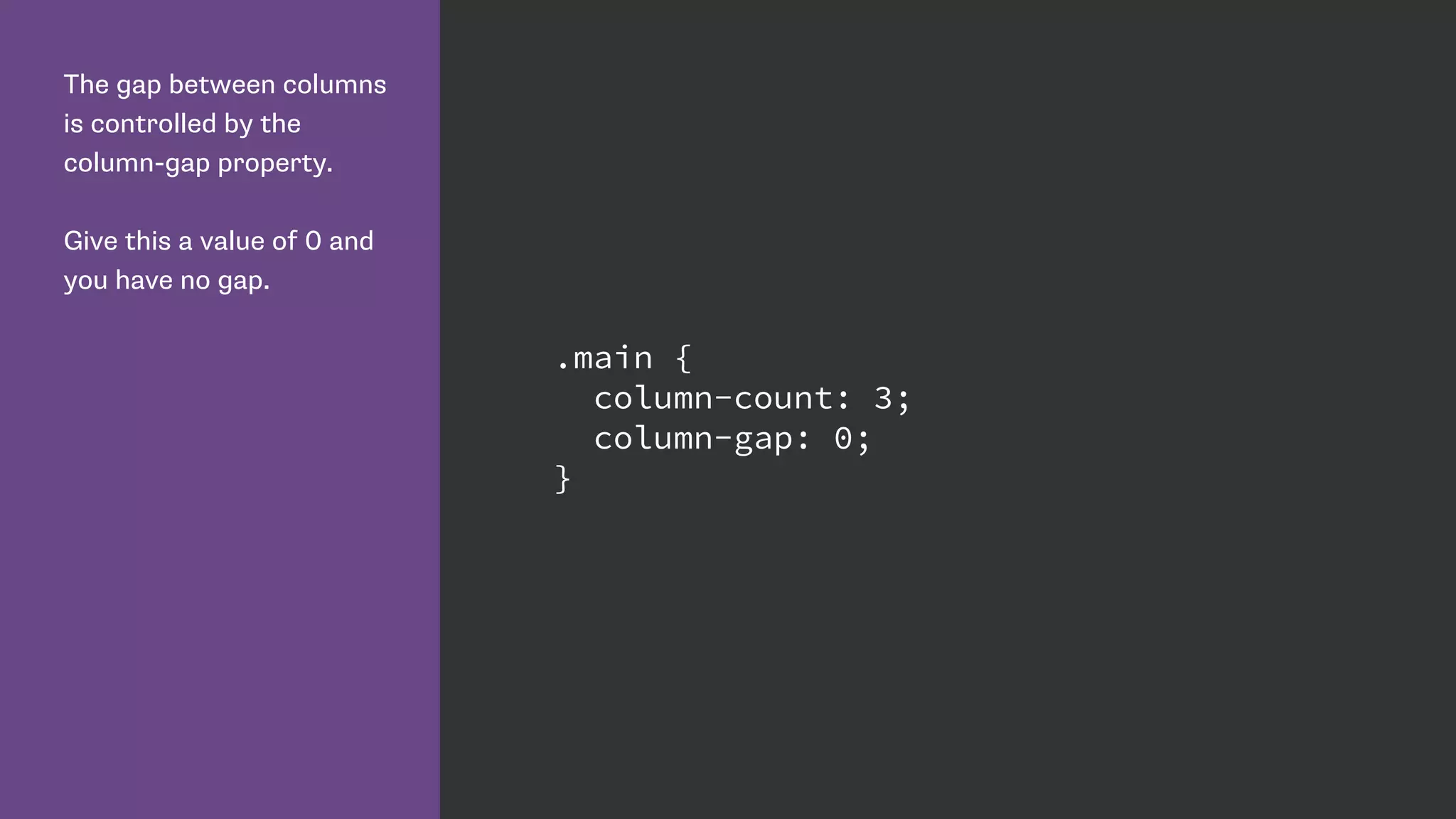

The gap between columns
is controlled by the
column-gap property.
Give this a value of 0 and
you have no gap.
.main {
column-count: 3;
column-gap: 0;
}

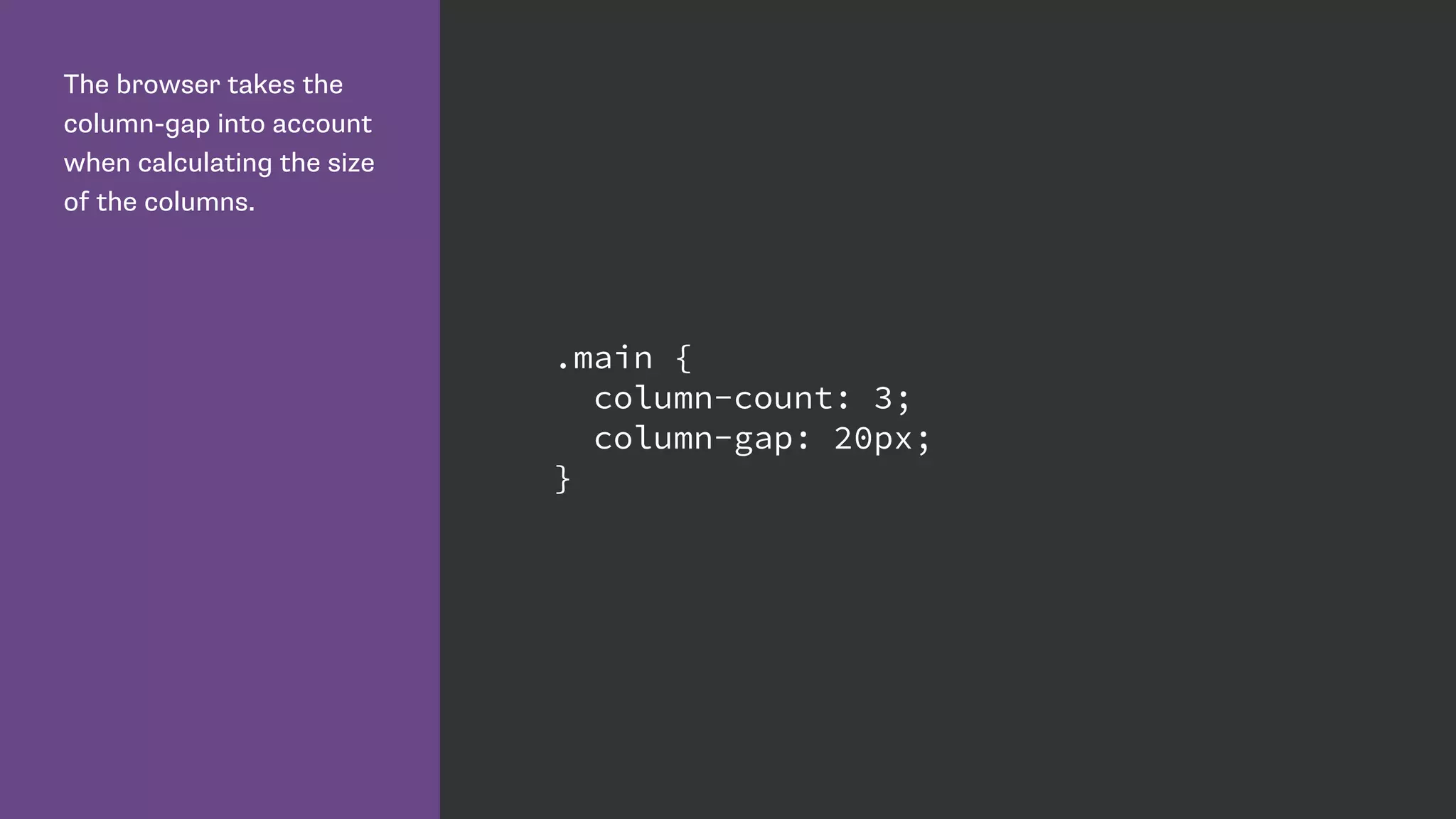

The browser takes the
column-gap into account
when calculating the size
of the columns.
.main {
column-count: 3;
column-gap: 20px;
}

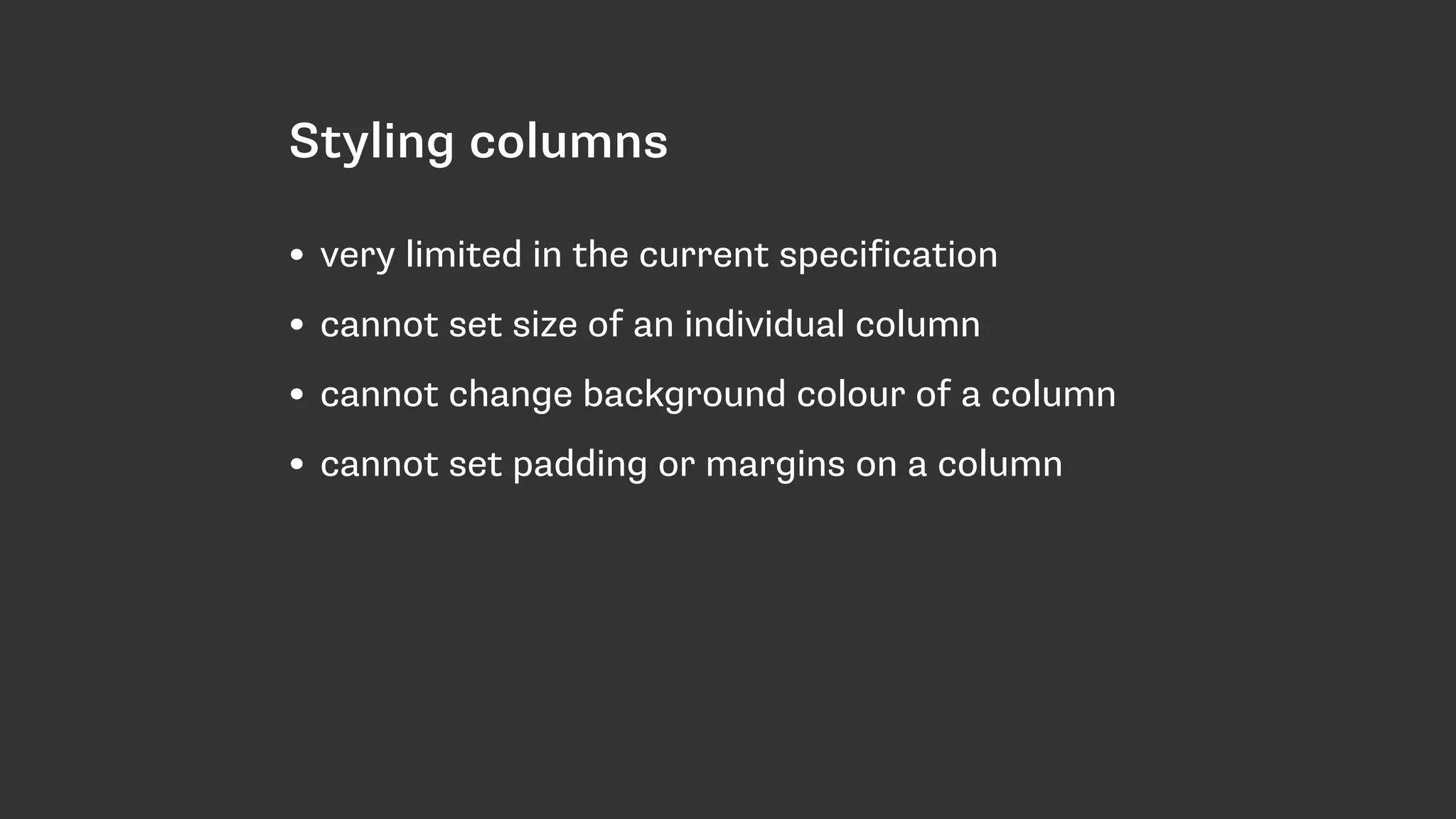

Styling columns
• very limited in the current specification
• cannot set size of an individual column
• cannot change background colour of a column
• cannot set padding or margins on a column

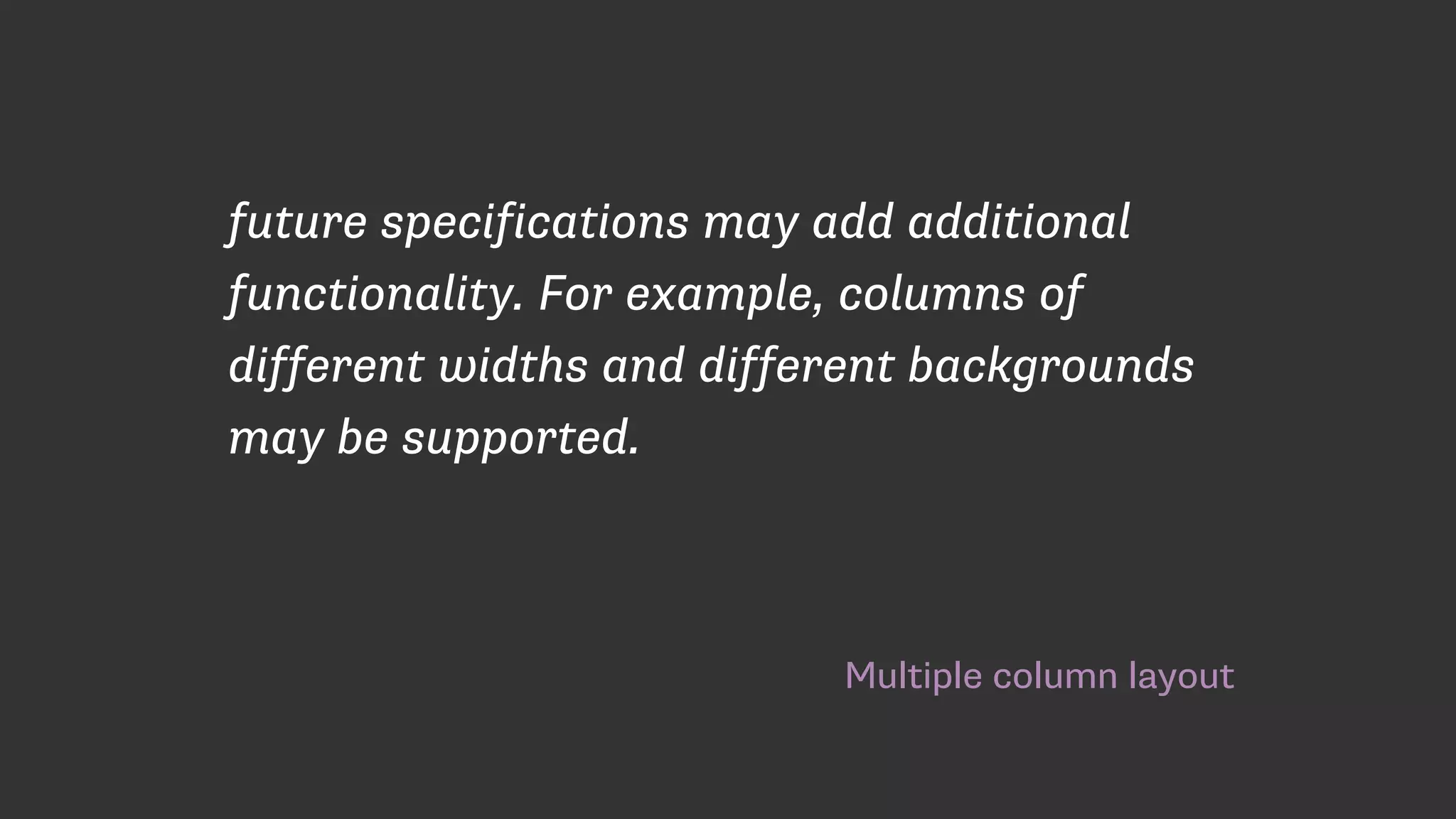

Multiple column layout
future specifications may add additional
functionality. For example, columns of
different widths and different backgrounds
may be supported.

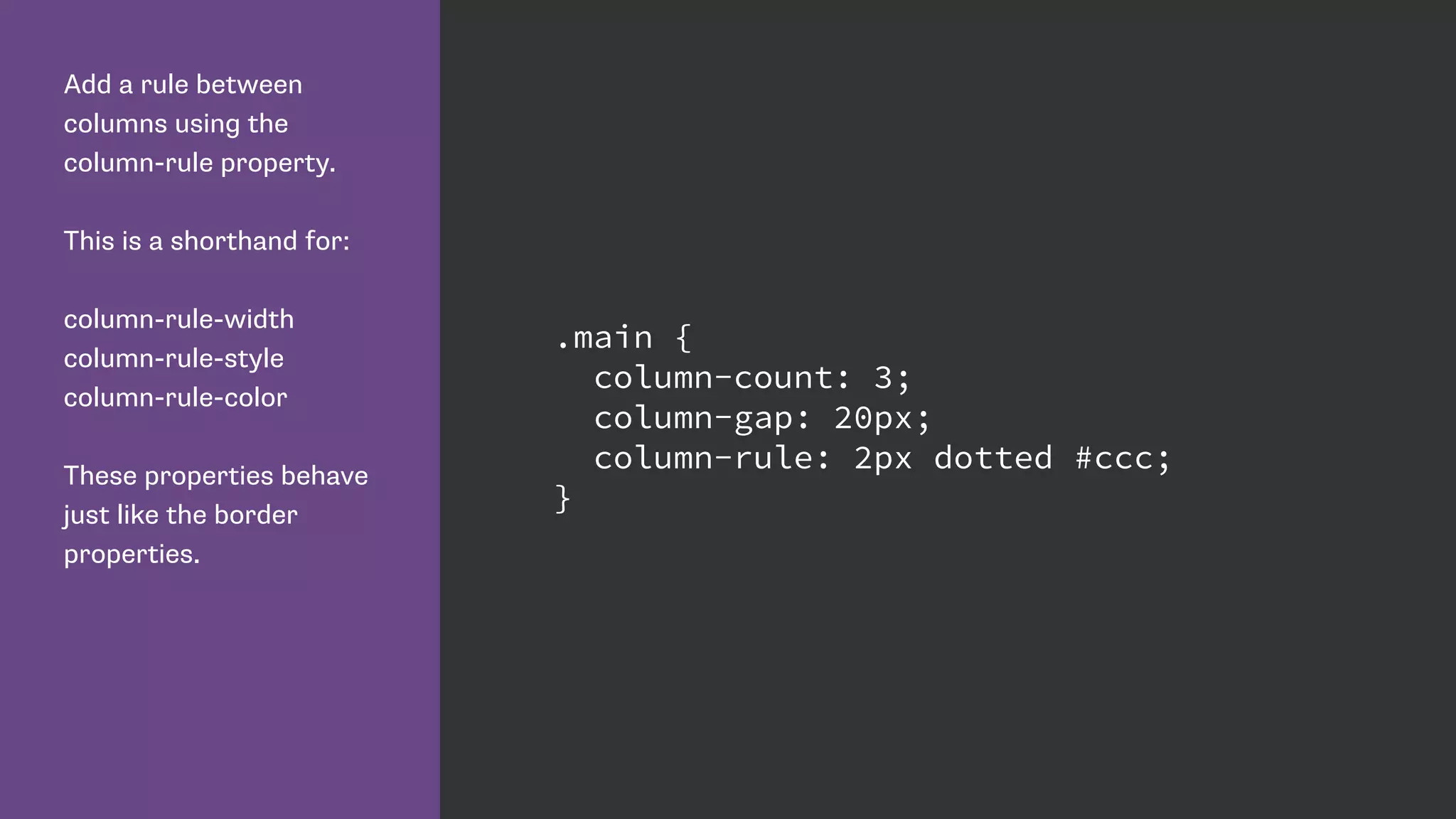

Add a rule between
columns using the
column-rule property.
This is a shorthand for:
column-rule-width
column-rule-style
column-rule-color
These properties behave
just like the border
properties.
.main {
column-count: 3;
column-gap: 20px;
column-rule: 2px dotted #ccc;
}

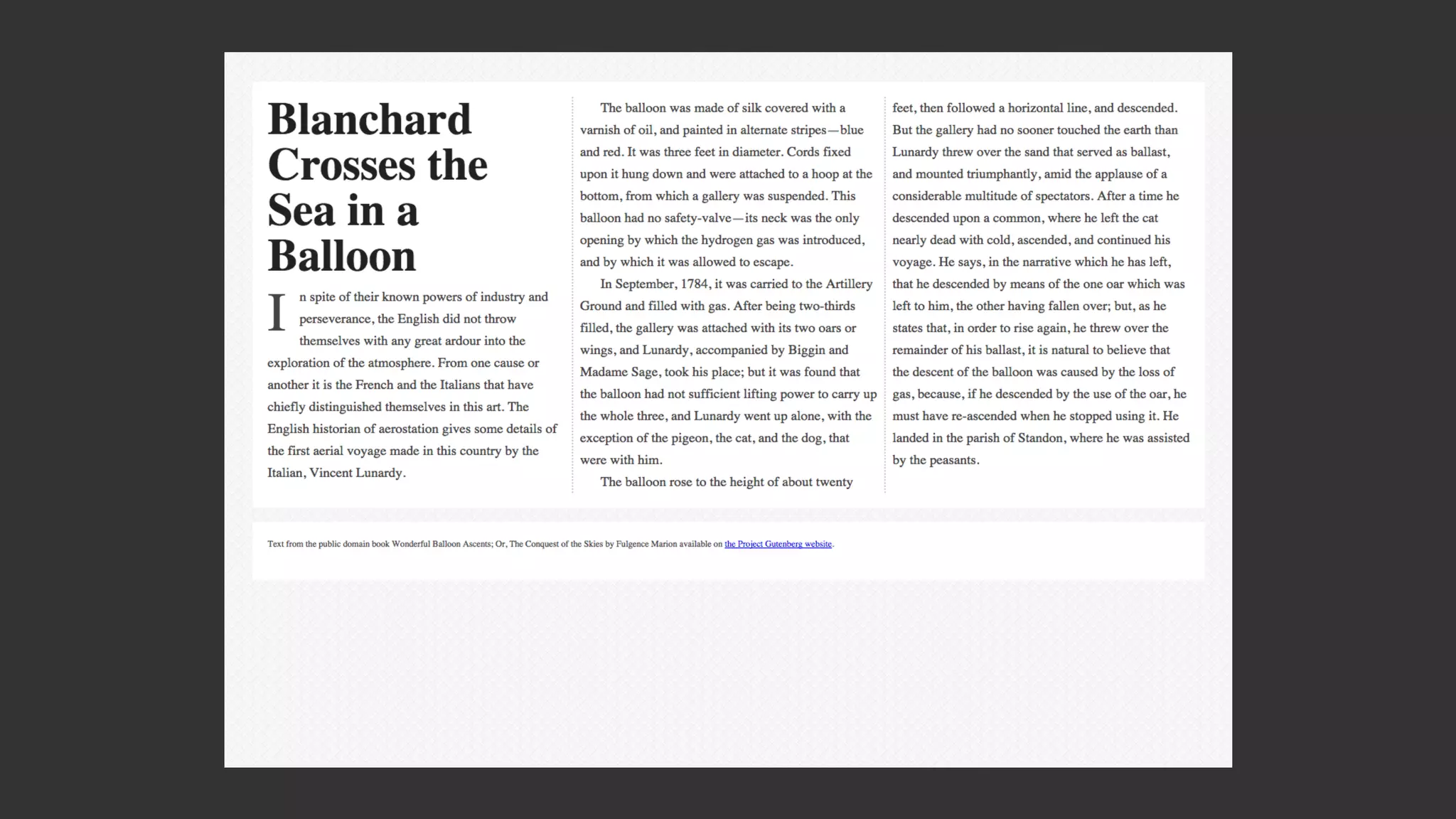

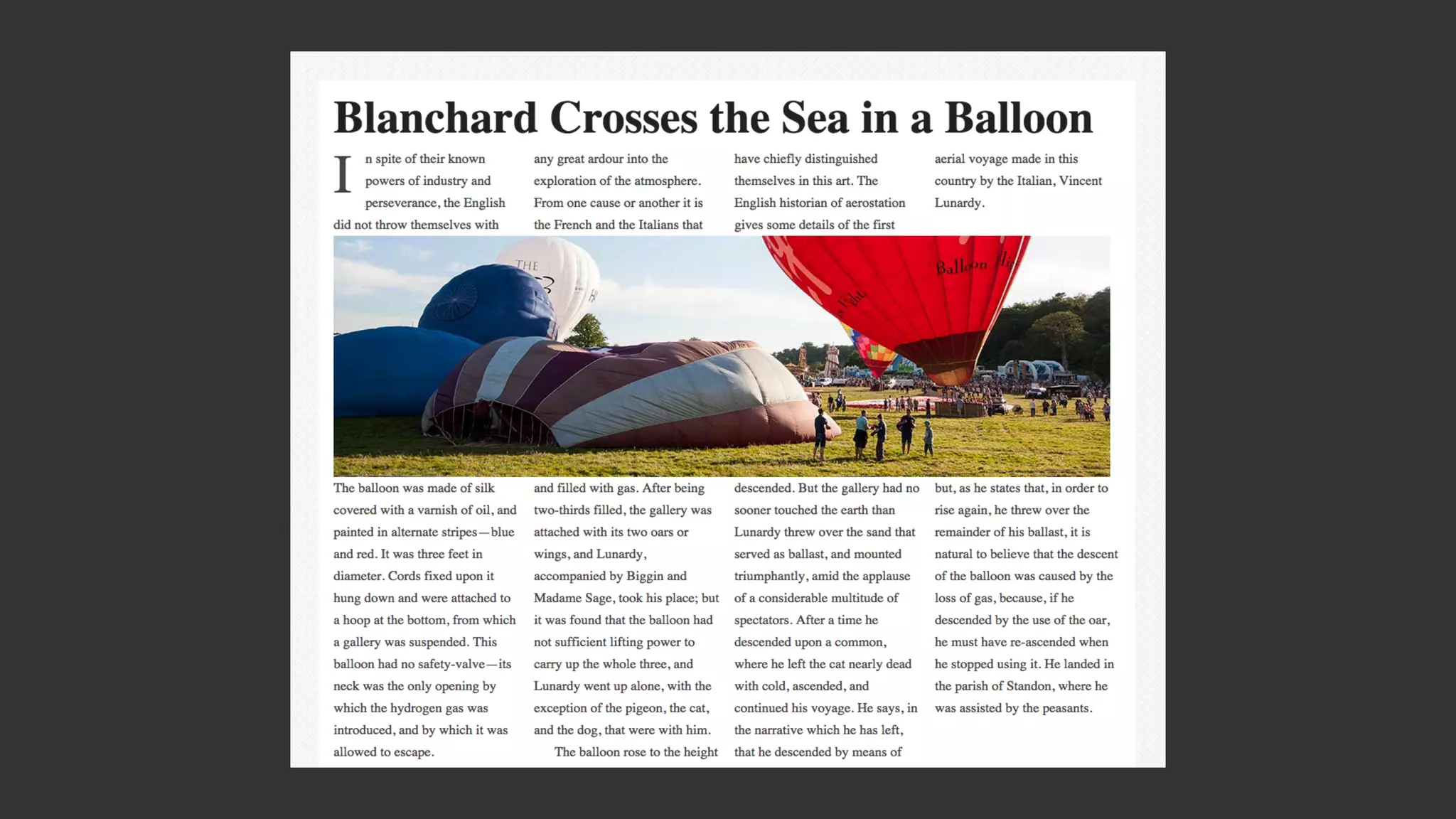

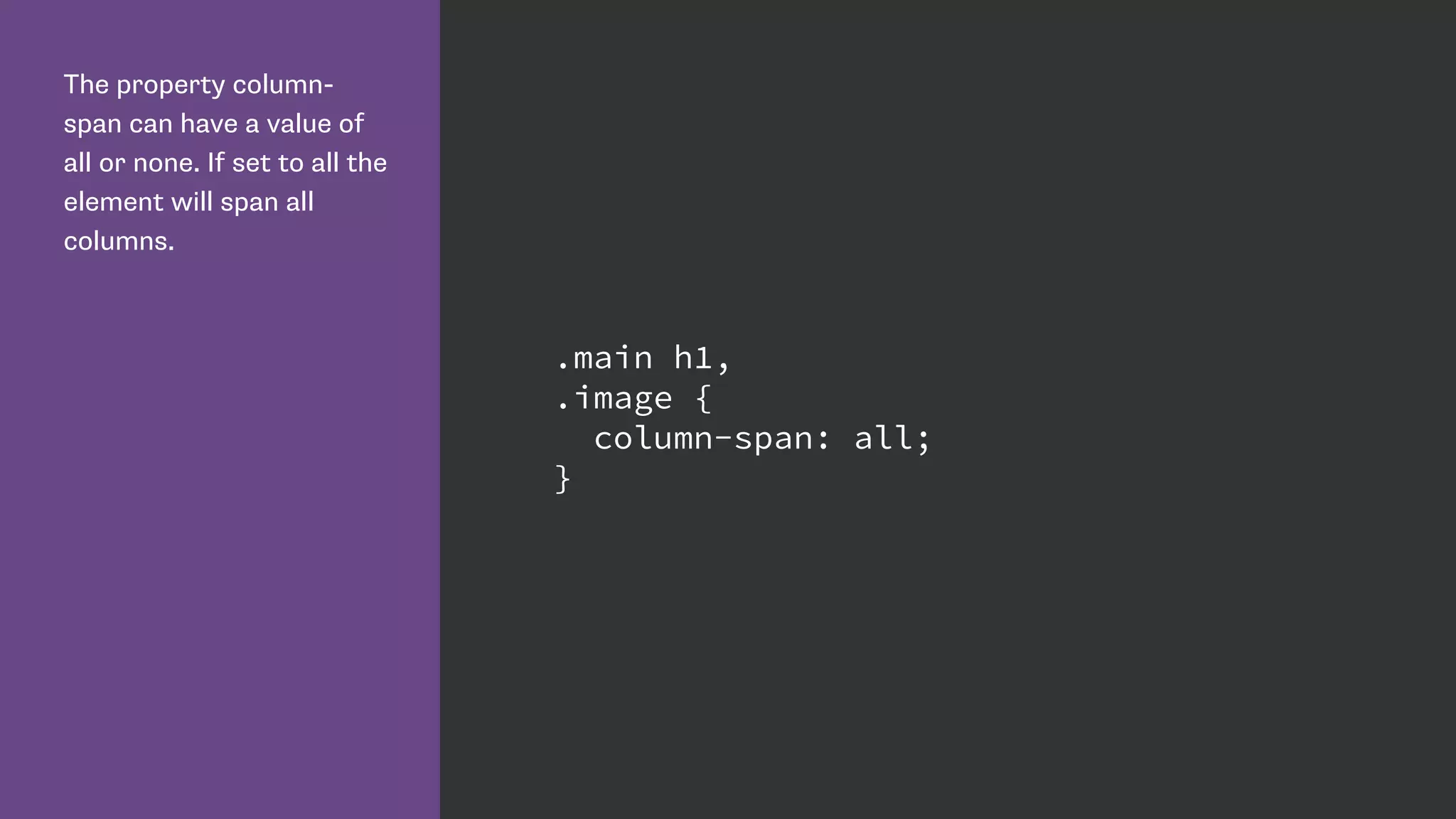

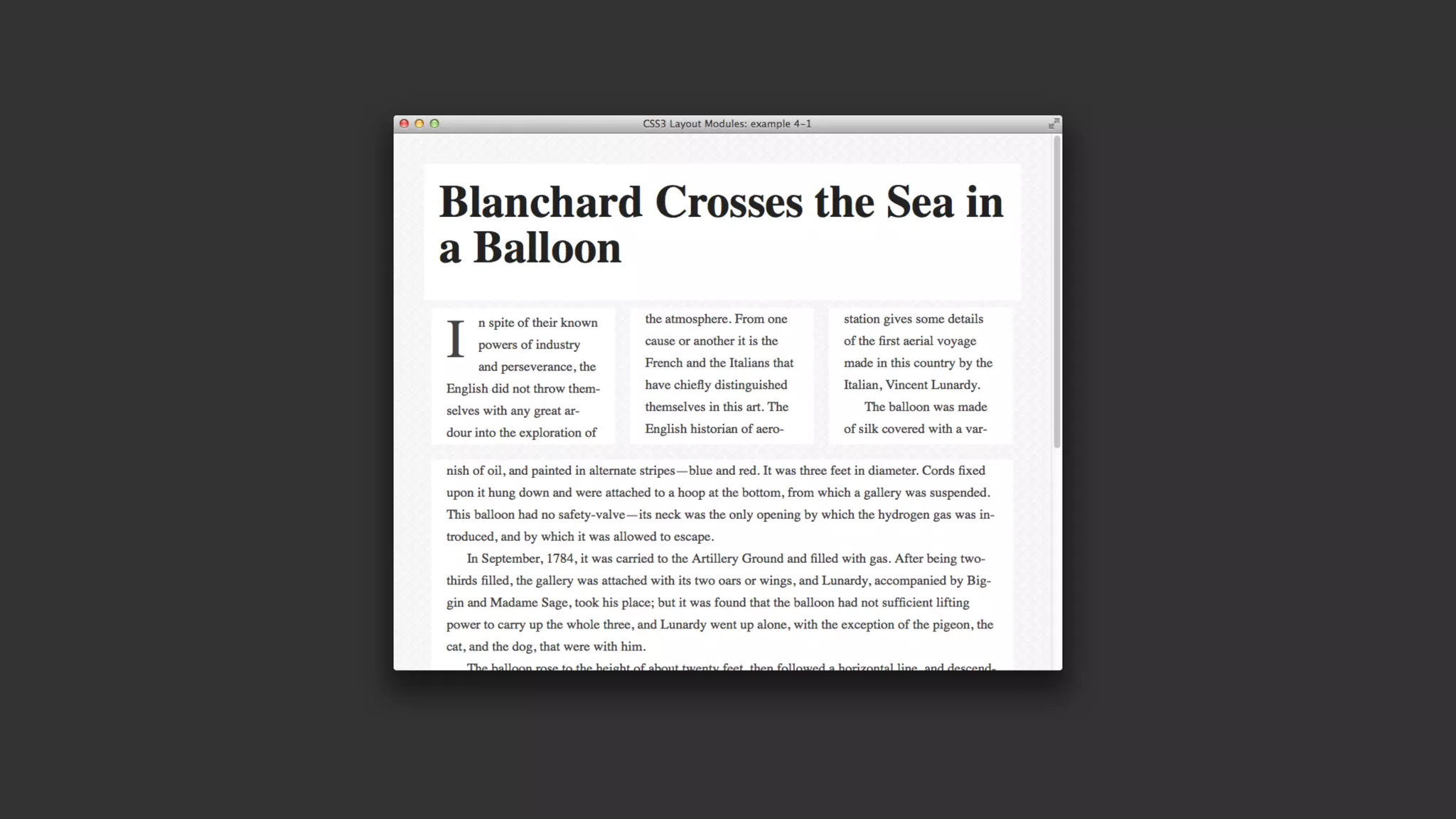

The property column-
span can have a value of
all or none. If set to all the
element will span all
columns.
.main h1,
.image {
column-span: all;
}

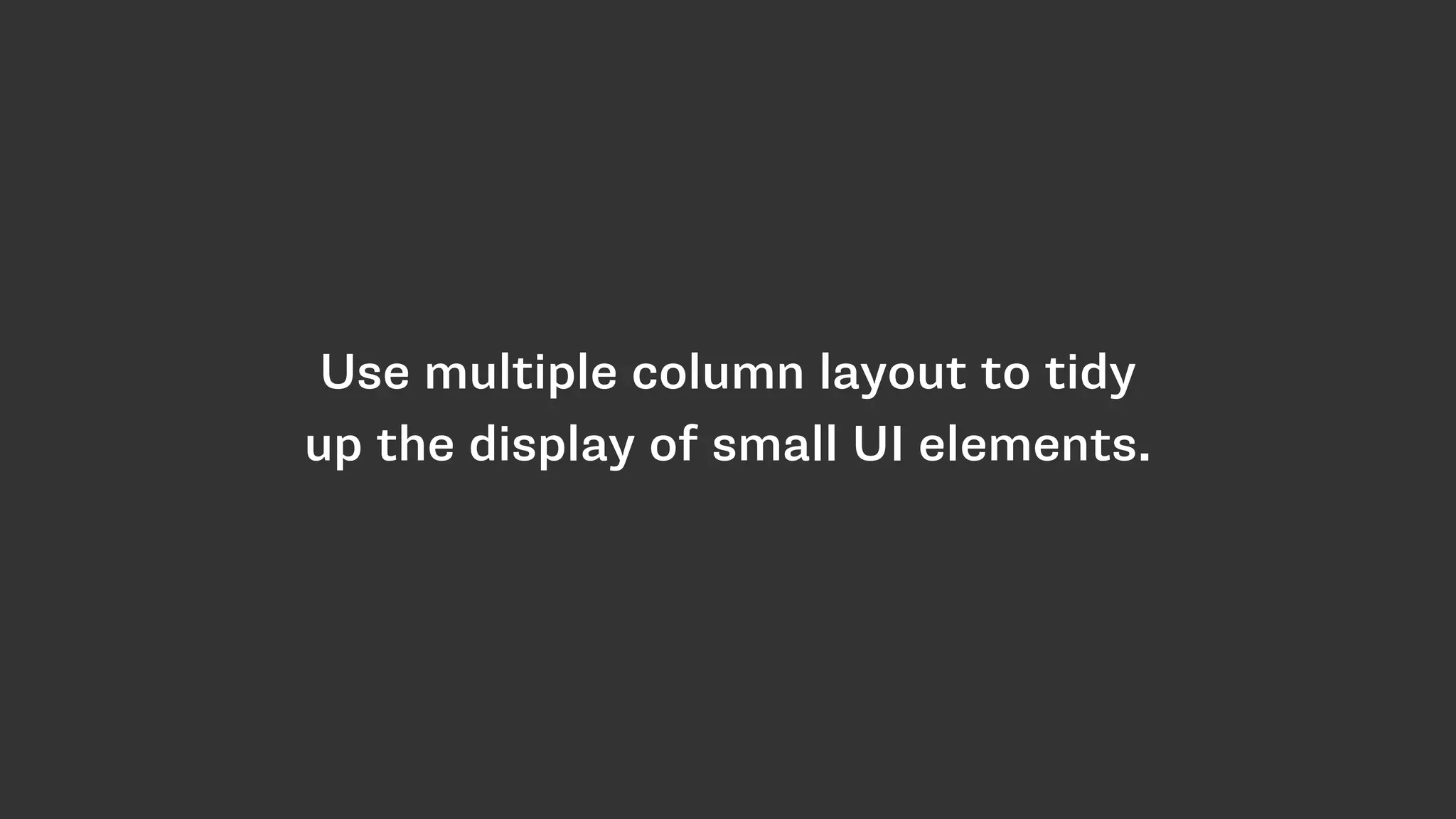

Use multiple column layout to tidy
up the display of small UI elements.

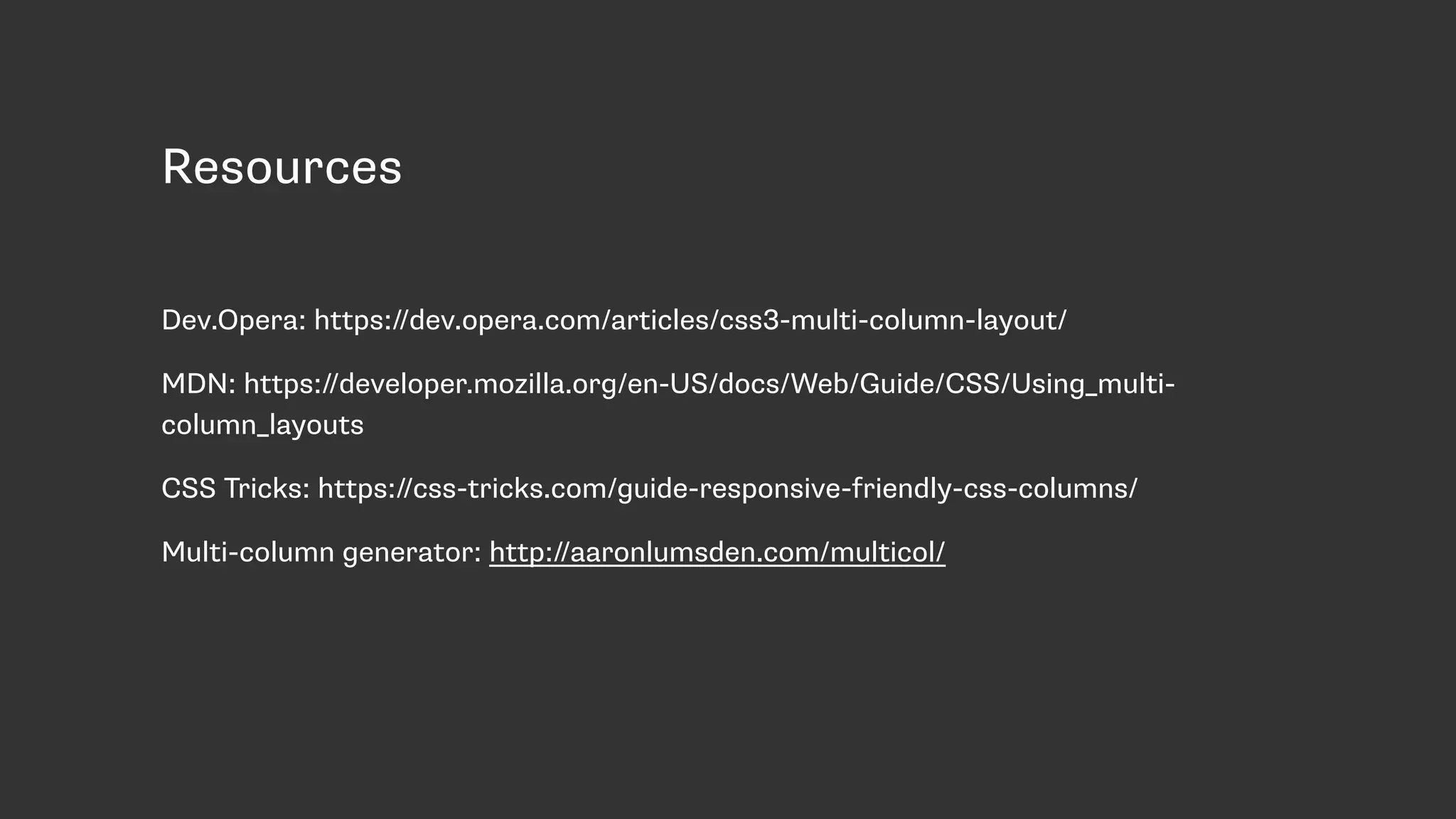

Resources
Dev.Opera: https://dev.opera.com/articles/css3-multi-column-layout/
MDN: https://developer.mozilla.org/en-US/docs/Web/Guide/CSS/Using_multi-
column_layouts
CSS Tricks: https://css-tricks.com/guide-responsive-friendly-css-columns/
Multi-column generator: http://aaronlumsden.com/multicol/
Flexible Box Layout
http://www.w3.org/TR/css-flexbox-1/
http://dev.w3.org/csswg/css-flexbox/
https://www.flickr.com/photos/zervas/2810241612

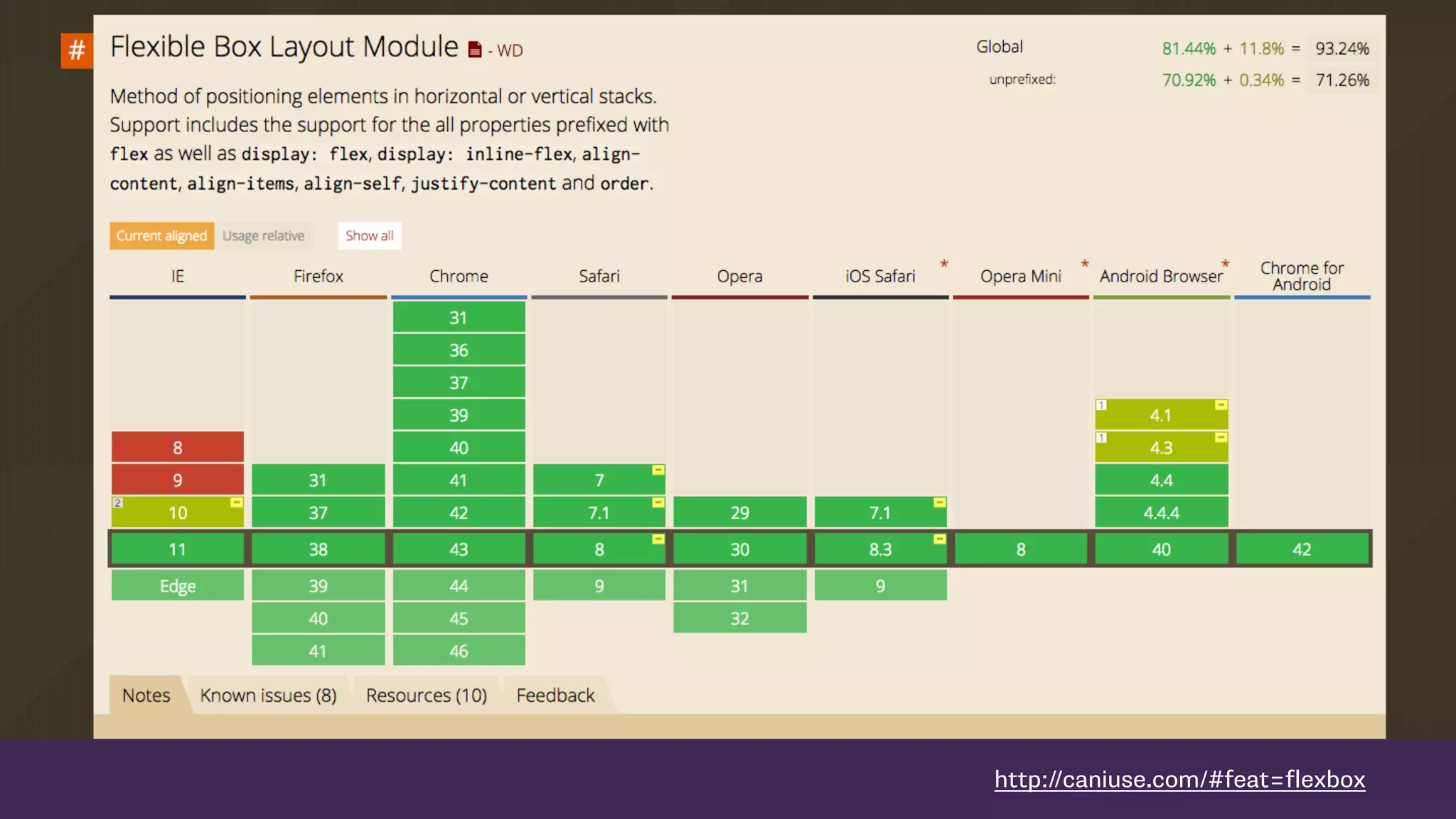

http://caniuse.com/#feat=flexbox

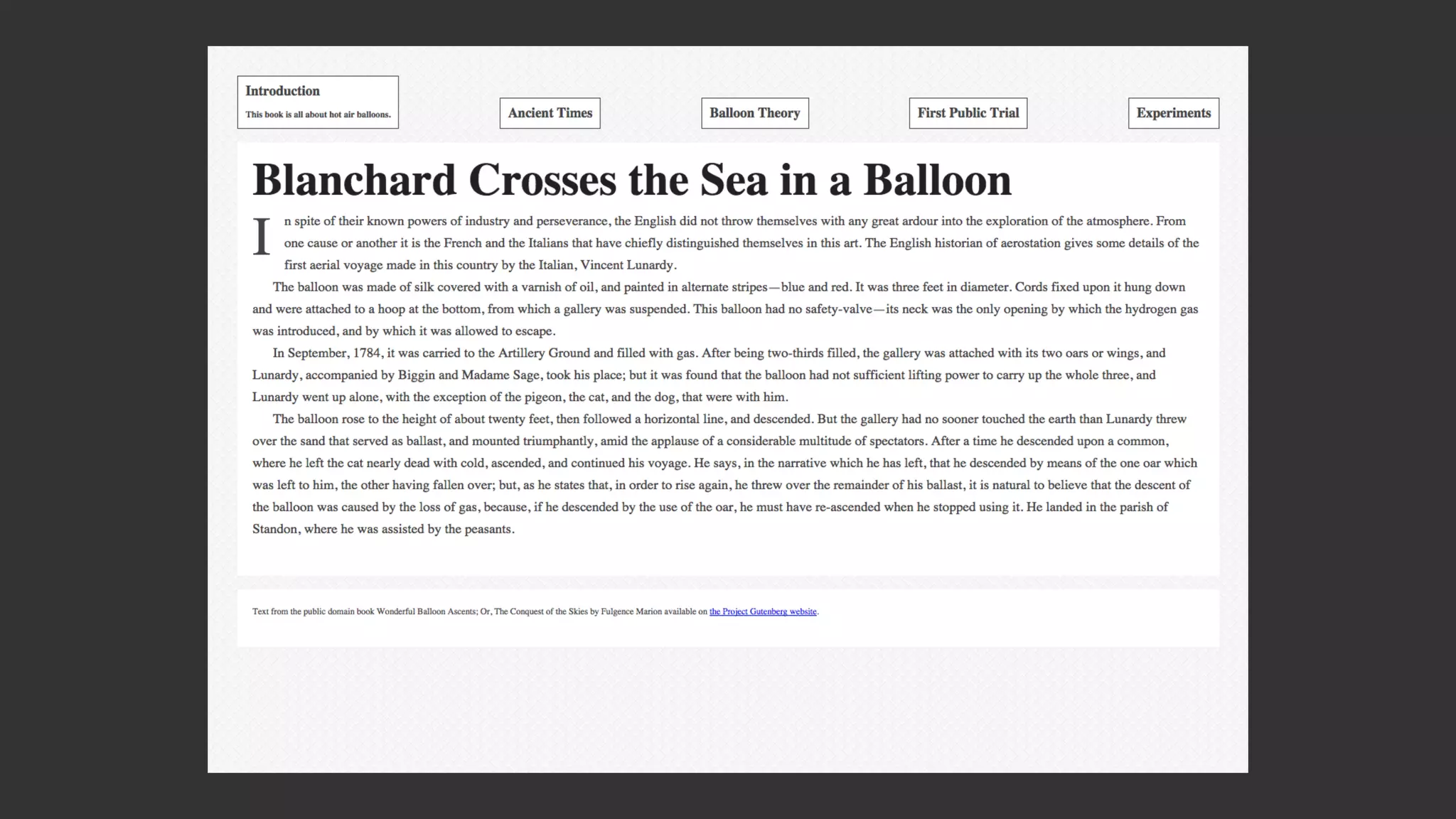

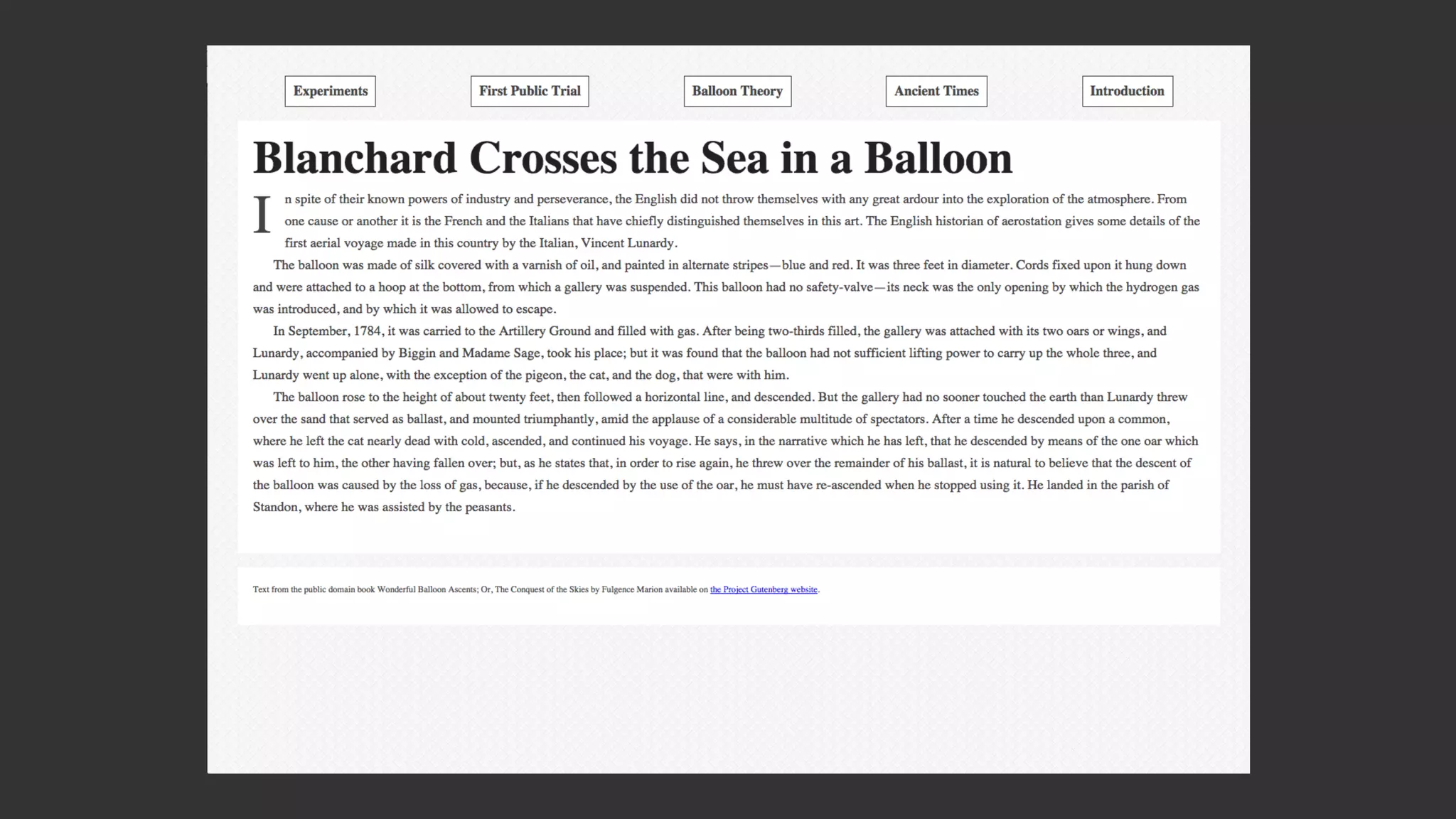

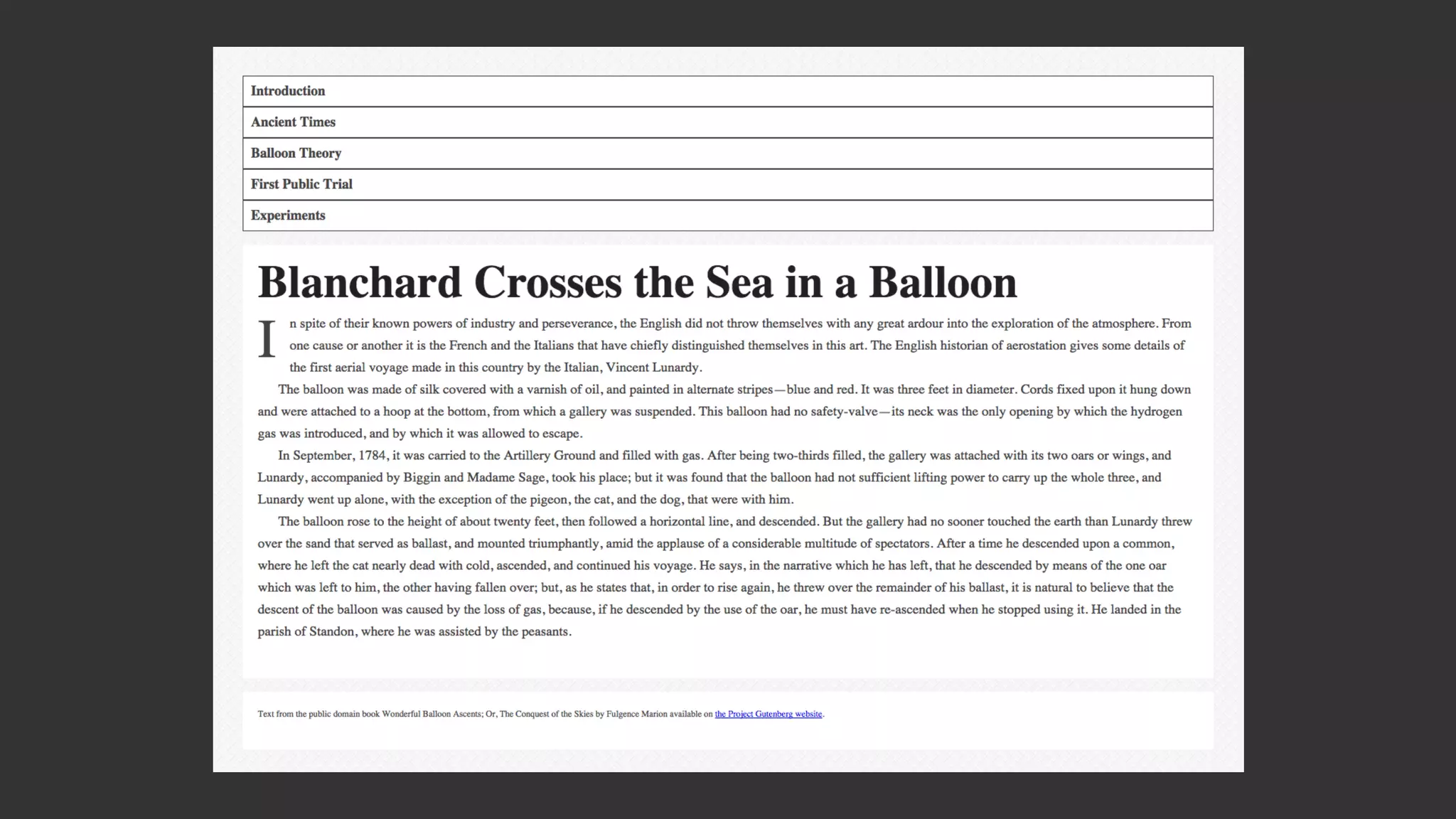

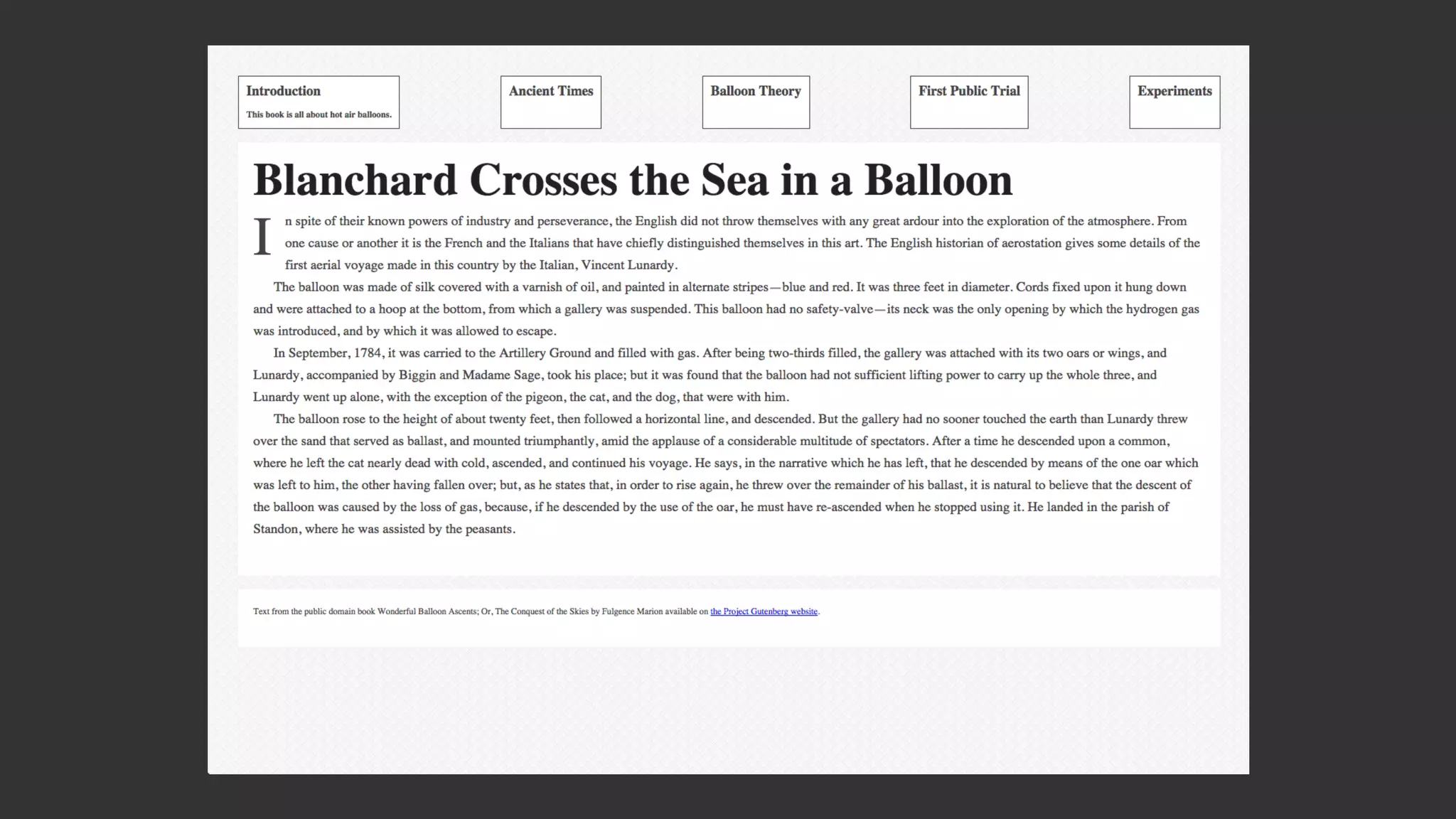

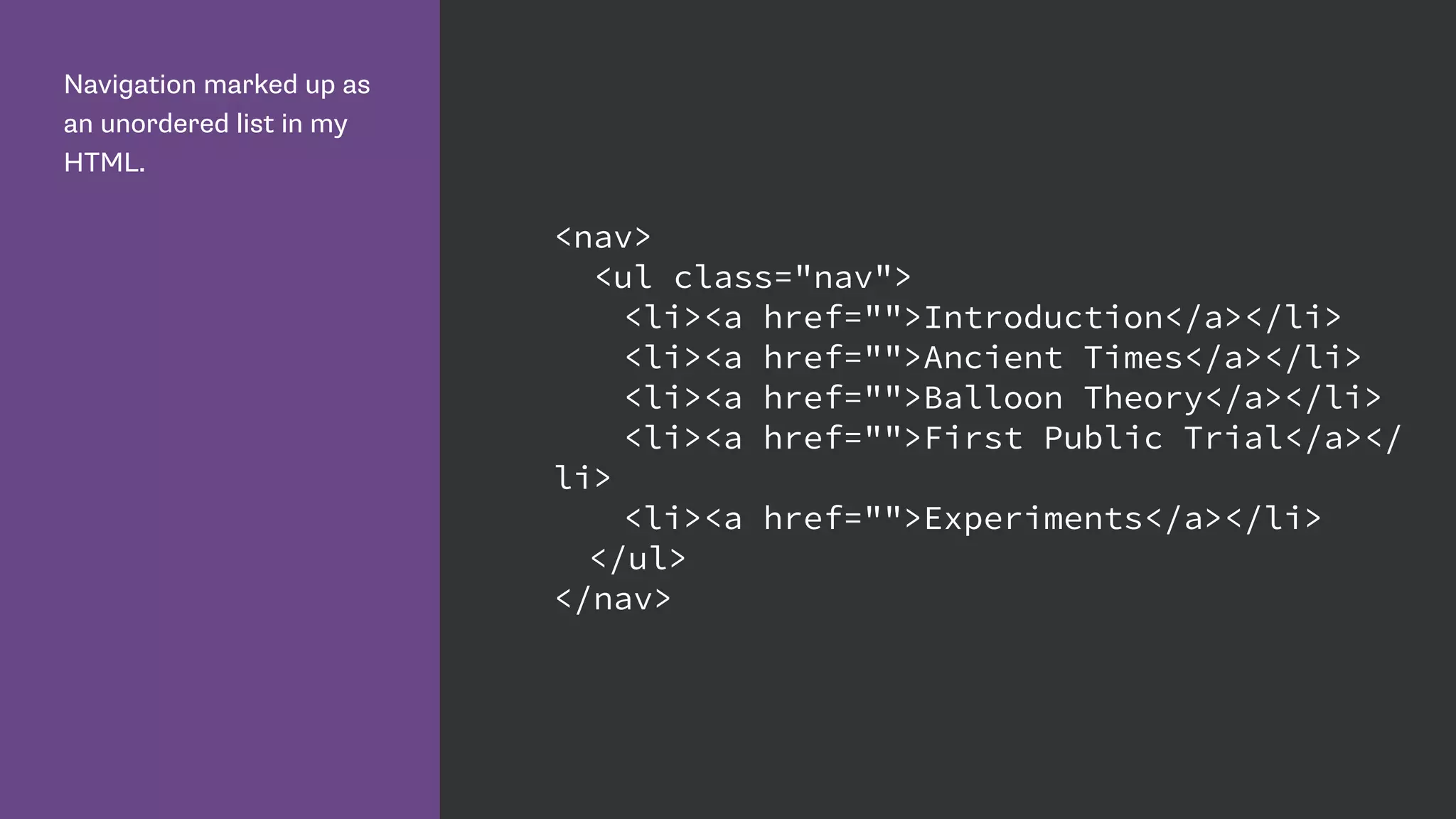

Navigation marked up as
an unordered list in my
HTML.
<nav>
<ul class="nav">
<li><a href="">Introduction</a></li>
<li><a href="">Ancient Times</a></li>
<li><a href="">Balloon Theory</a></li>
<li><a href="">First Public Trial</a></
li>
<li><a href="">Experiments</a></li>
</ul>
</nav>

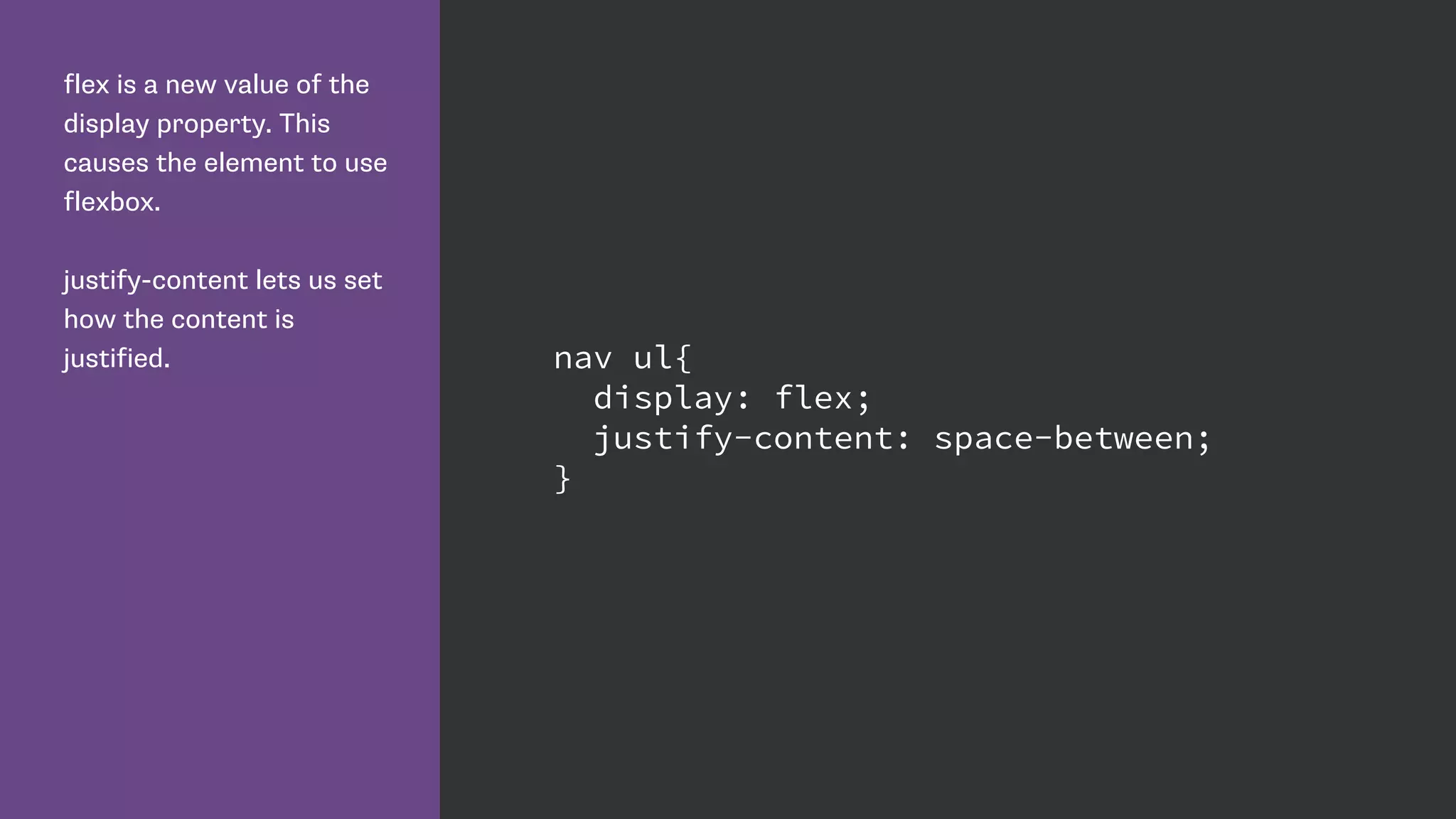

flex is a new value of the
display property. This
causes the element to use
flexbox.
justify-content lets us set
how the content is
justified. nav ul{
display: flex;
justify-content: space-between;
}

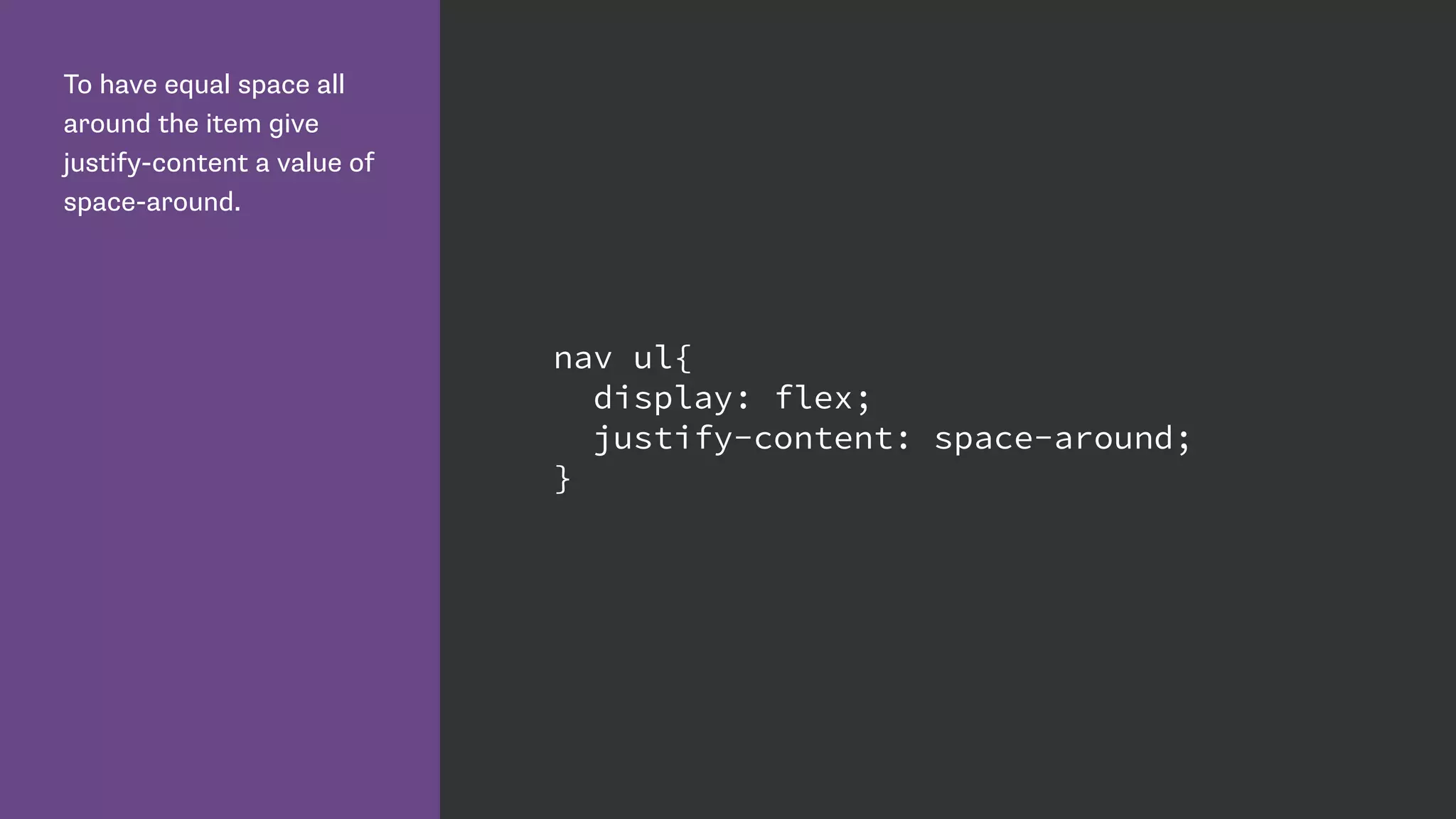

To have equal space all
around the item give
justify-content a value of
space-around.
nav ul{
display: flex;
justify-content: space-around;
}

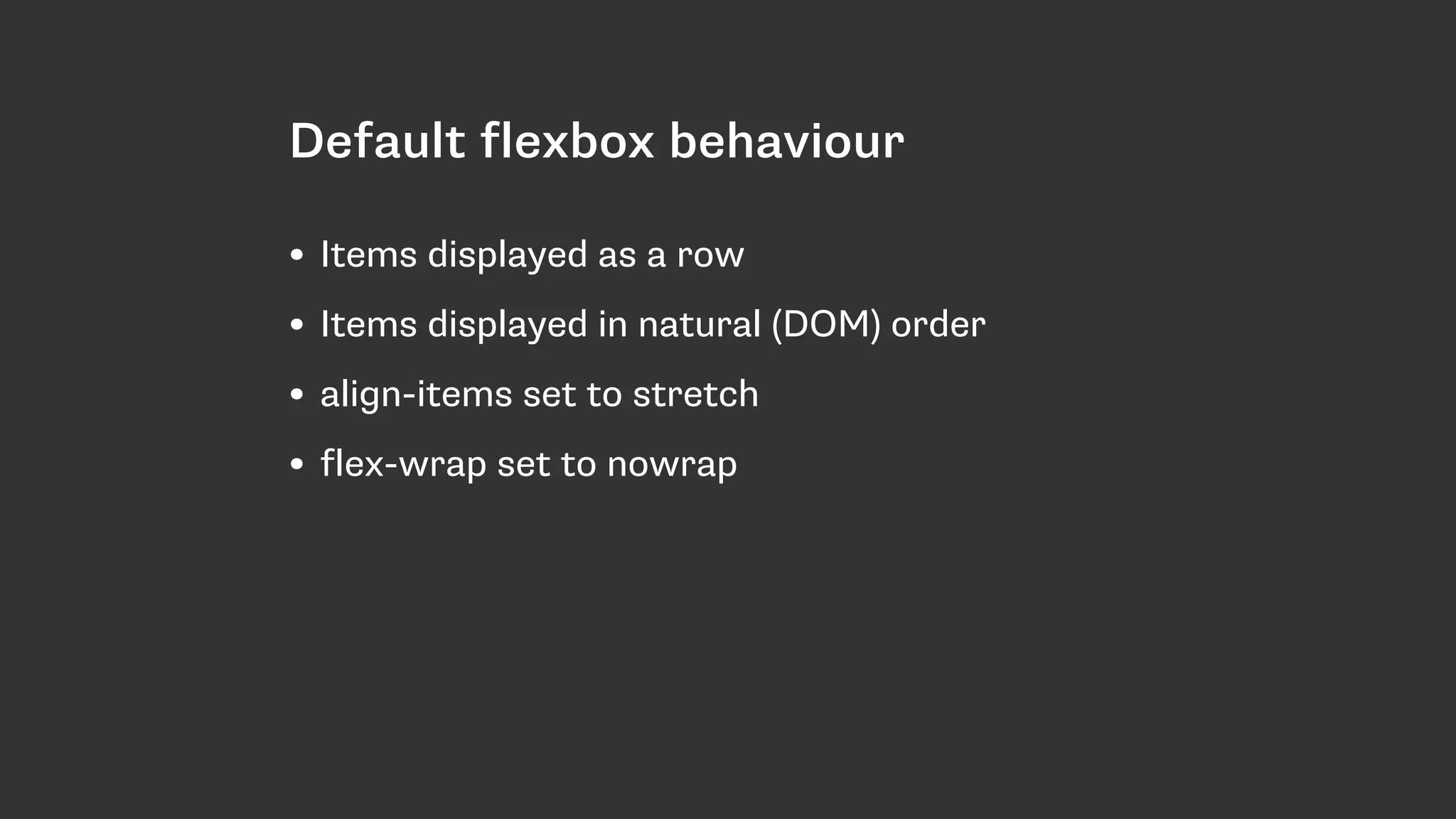

Default flexbox behaviour
• Items displayed as a row
• Items displayed in natural (DOM) order
• align-items set to stretch
• flex-wrap set to nowrap

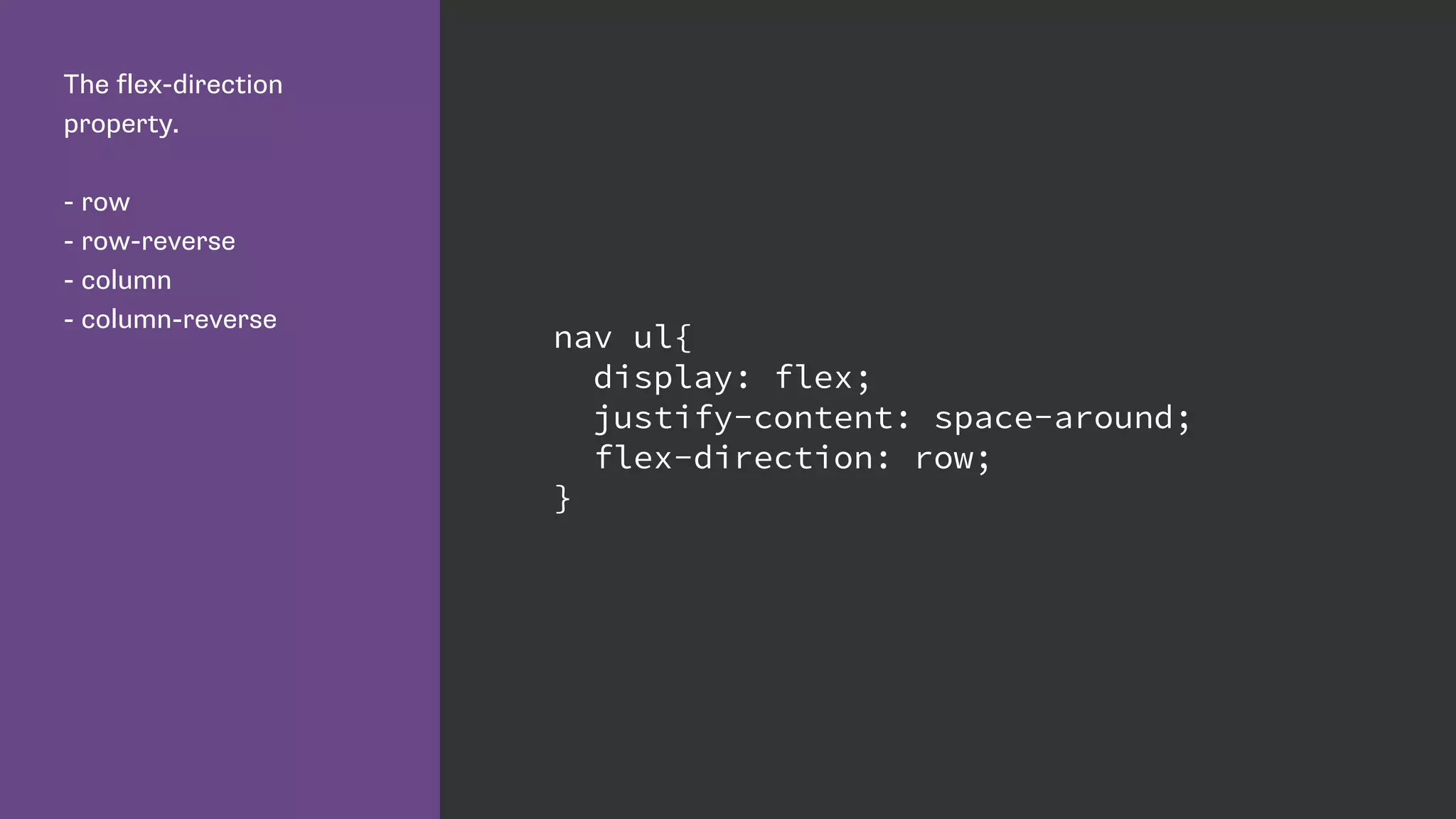

The flex-direction
property.
- row
- row-reverse
- column
- column-reverse
nav ul{
display: flex;
justify-content: space-around;
flex-direction: row;
}

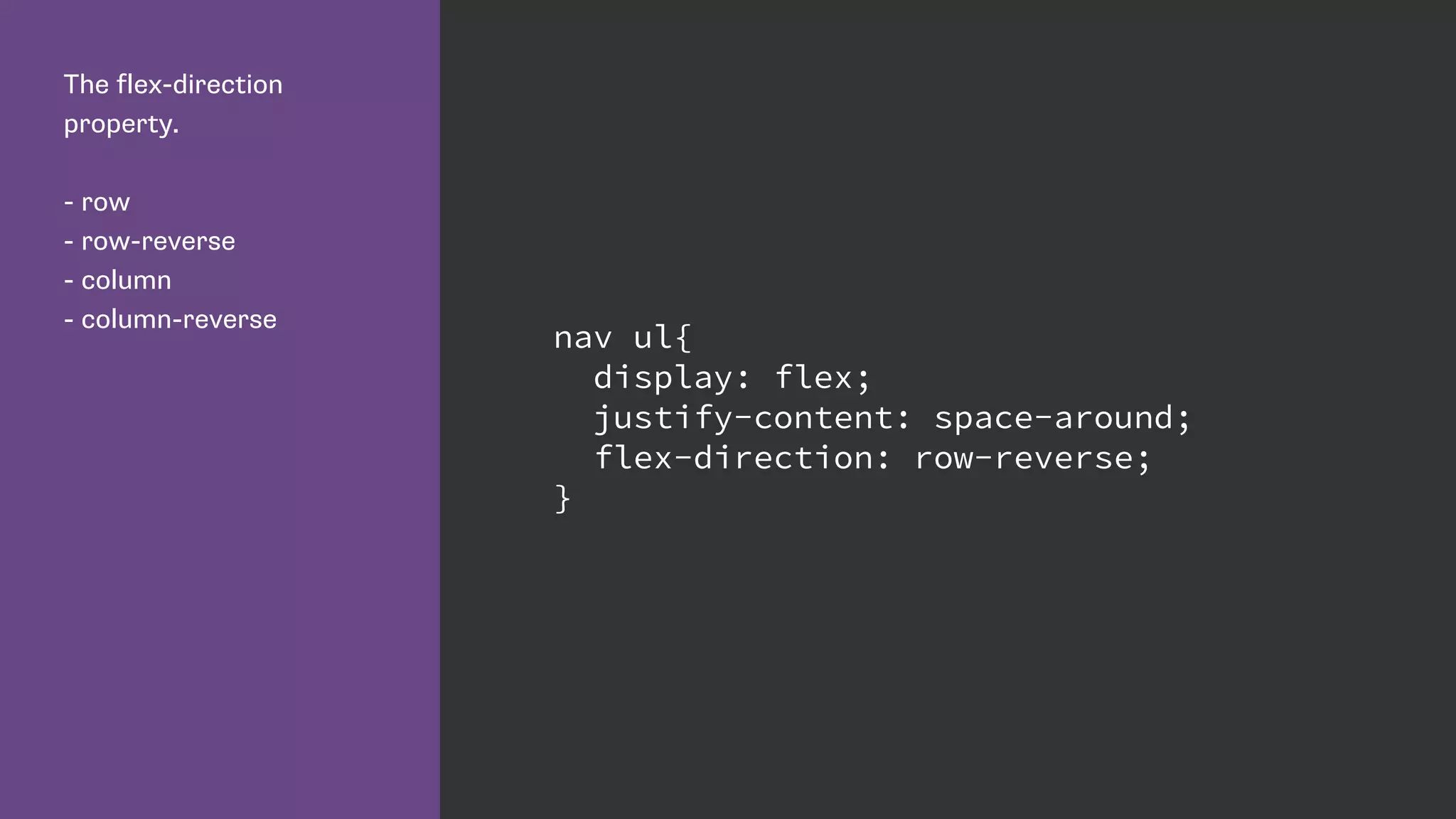

The flex-direction
property.
- row
- row-reverse
- column
- column-reverse
nav ul{
display: flex;
justify-content: space-around;
flex-direction: row-reverse;
}

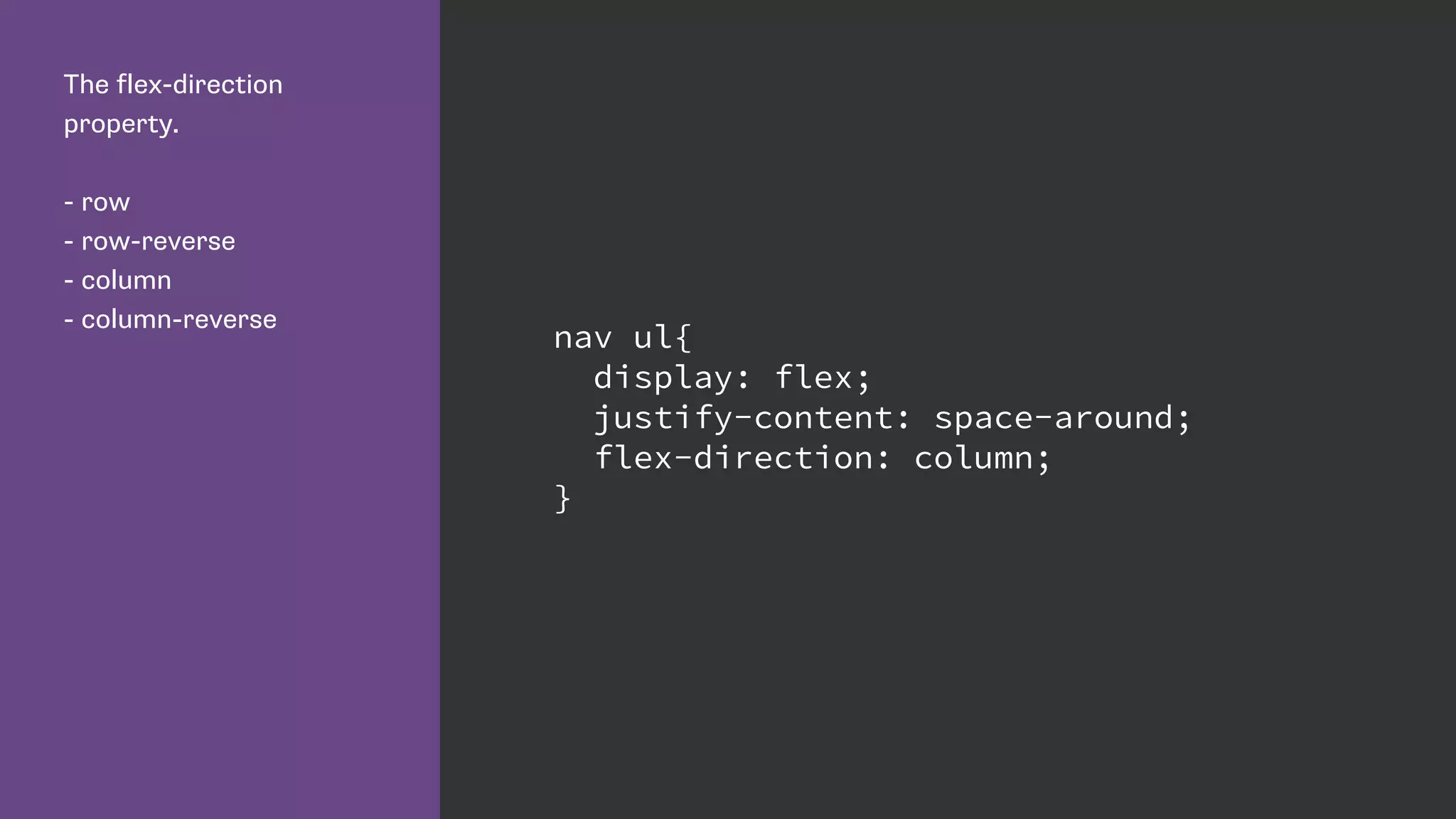

The flex-direction
property.
- row
- row-reverse
- column
- column-reverse
nav ul{
display: flex;
justify-content: space-around;
flex-direction: column;
}

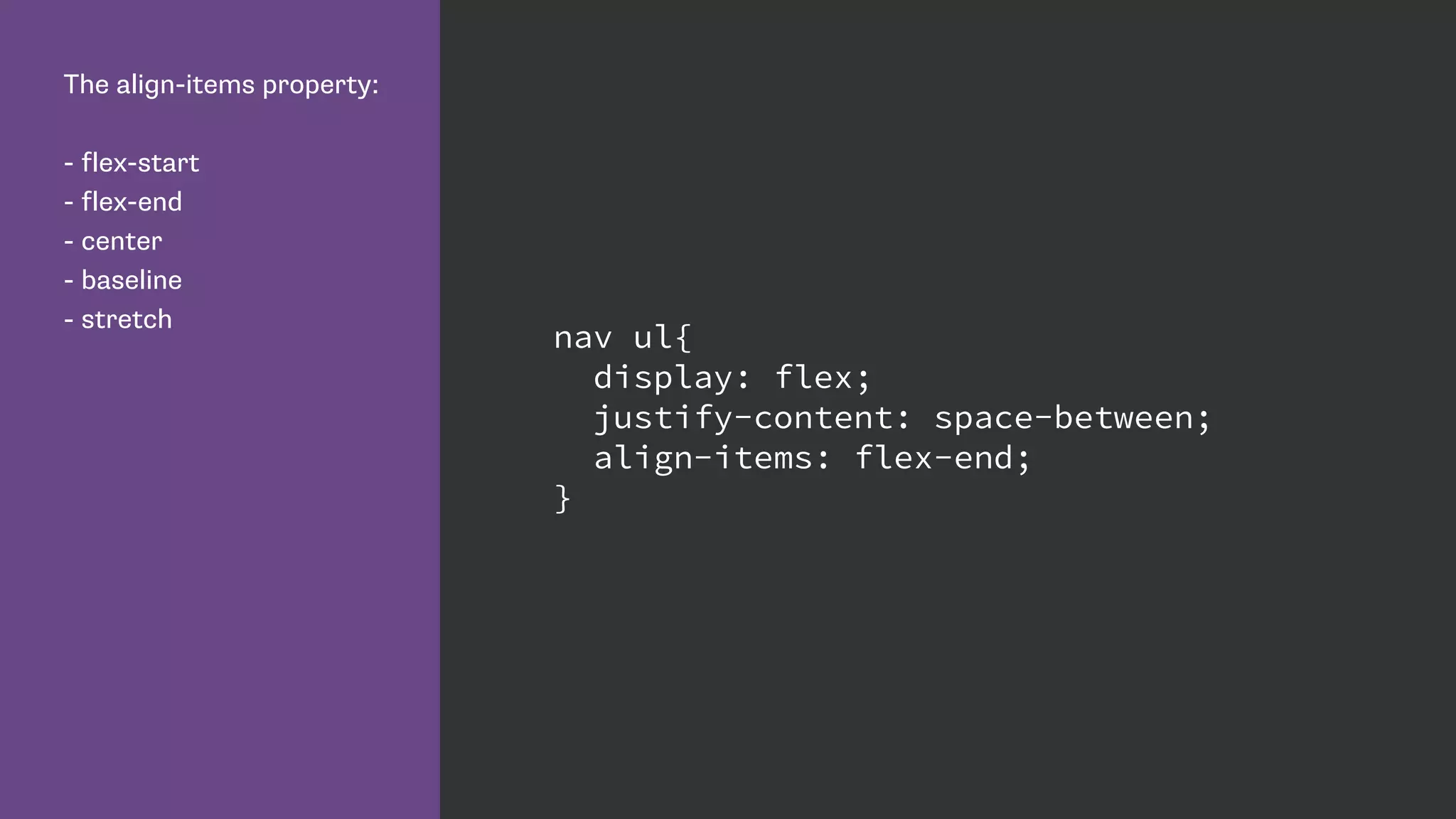

The align-items property:
- flex-start
- flex-end
- center
- baseline
- stretch
nav ul{
display: flex;
justify-content: space-between;
align-items: flex-end;
}

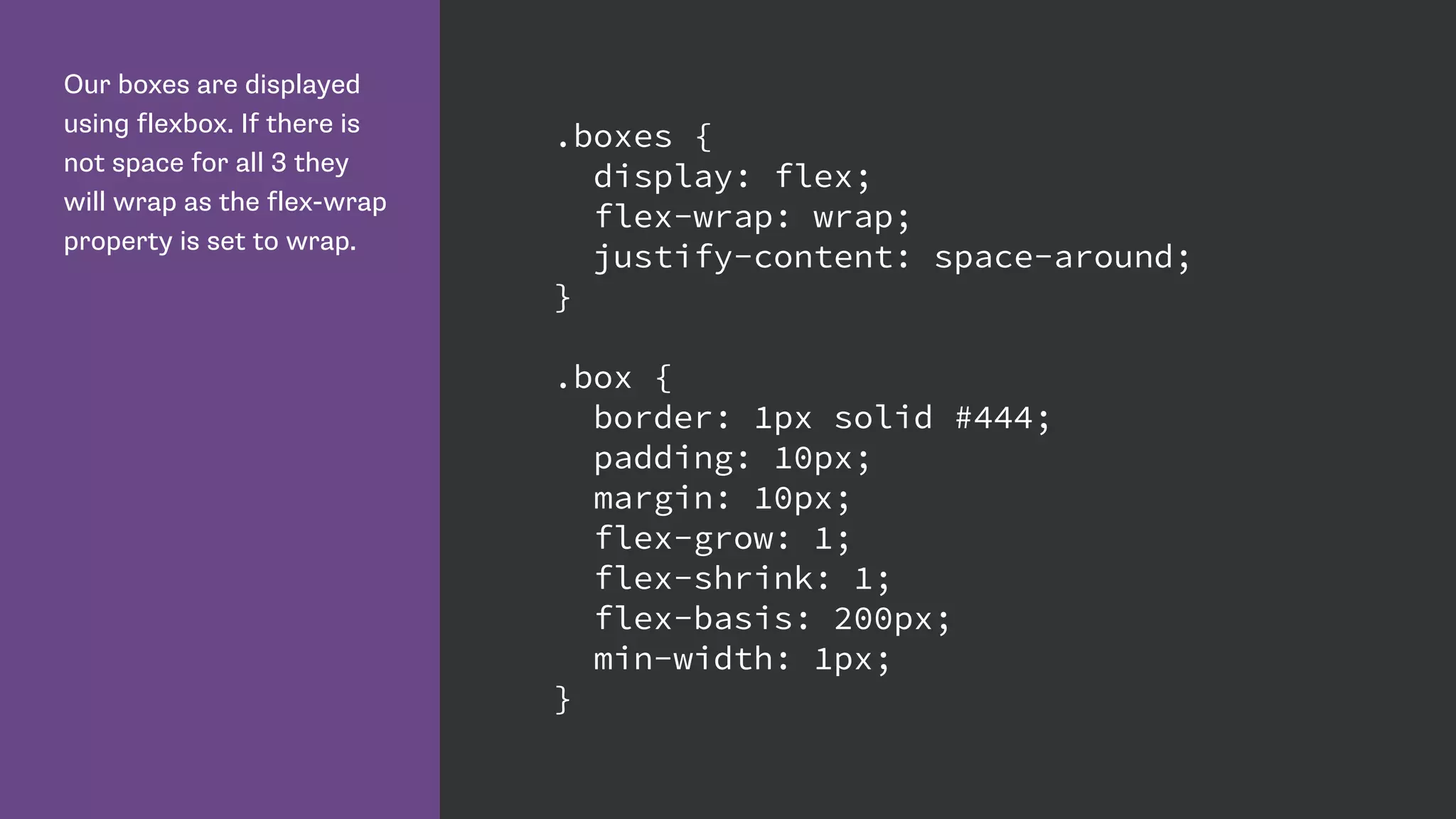

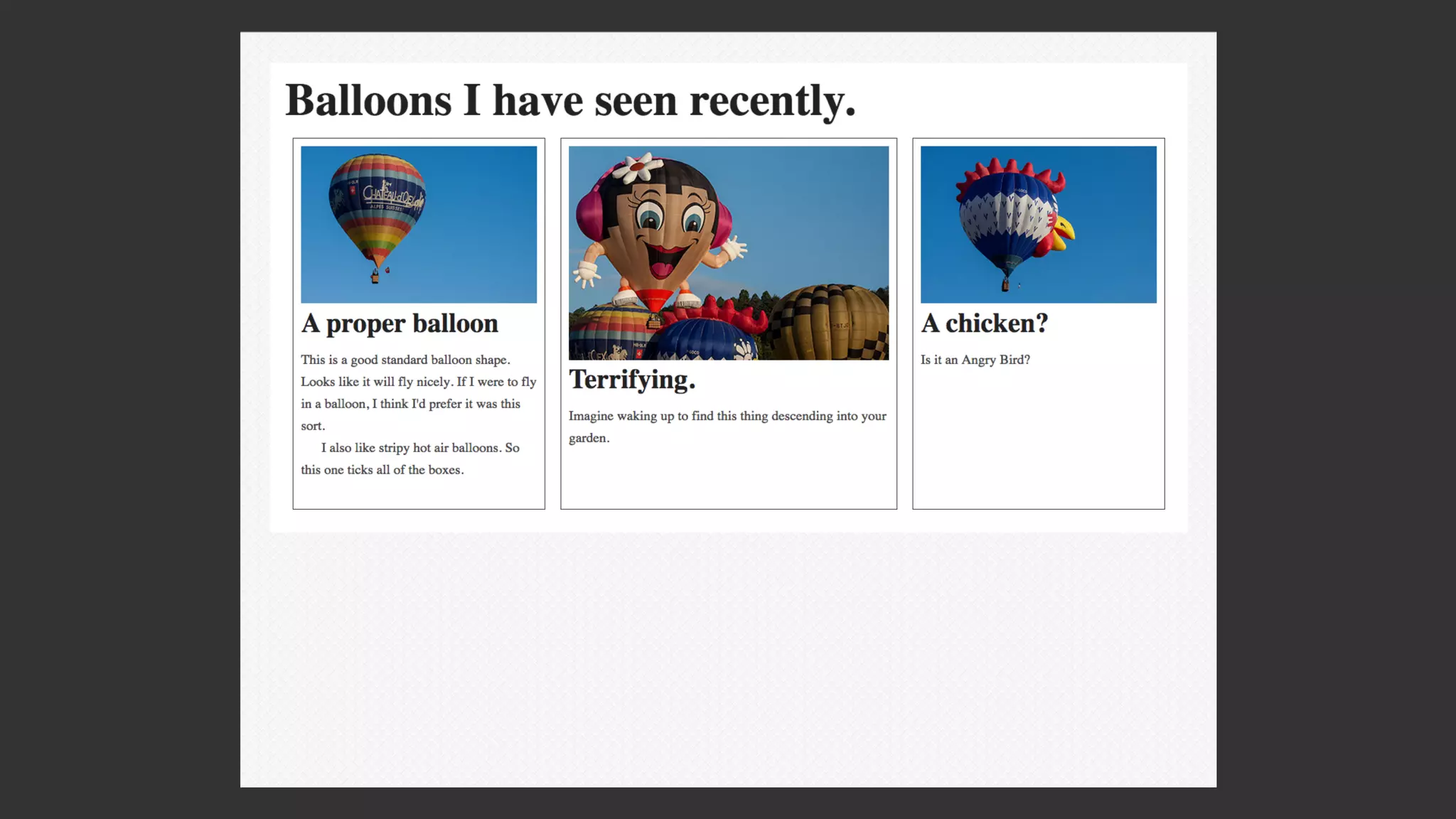

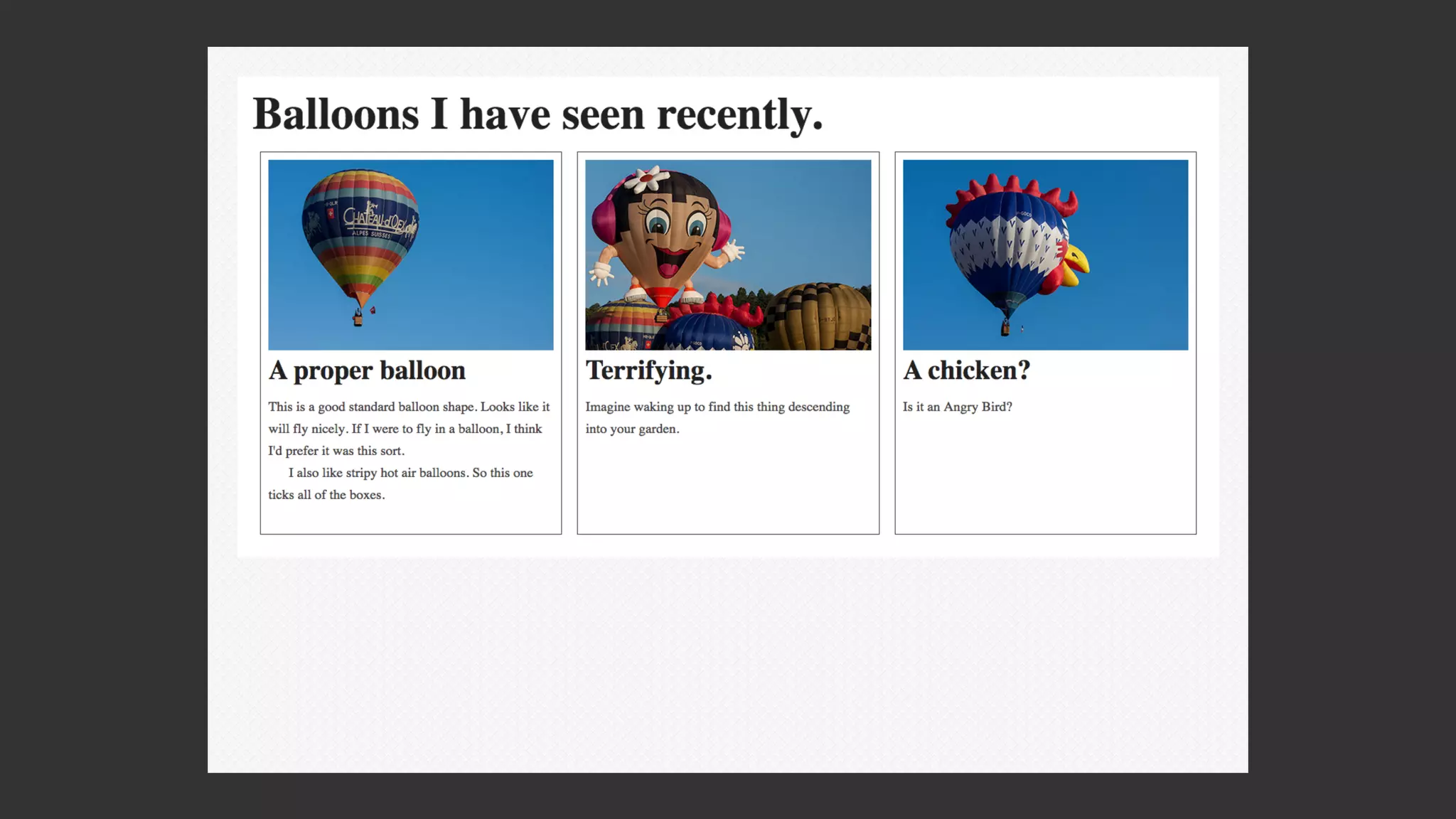

Our boxes are displayed
using flexbox. If there is
not space for all 3 they
will wrap as the flex-wrap
property is set to wrap.
.boxes {
display: flex;
flex-wrap: wrap;
justify-content: space-around;
}
.box {
border: 1px solid #444;
padding: 10px;
margin: 10px;
flex-grow: 1;
flex-shrink: 1;
flex-basis: 200px;
min-width: 1px;
}

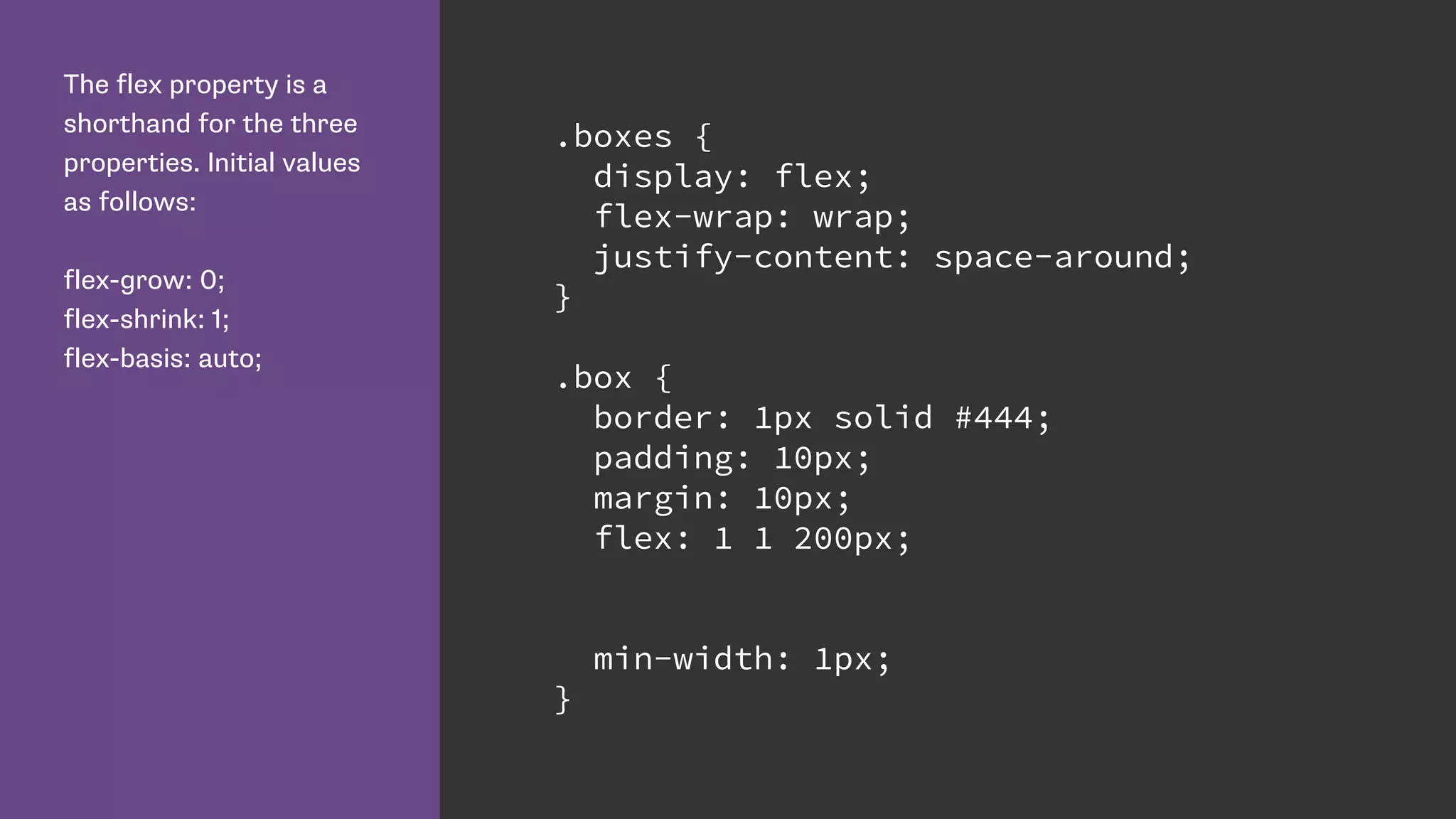

The flex property is a
shorthand for the three
properties. Initial values
as follows:
flex-grow: 0;
flex-shrink: 1;
flex-basis: auto;
.boxes {
display: flex;
flex-wrap: wrap;
justify-content: space-around;
}
.box {
border: 1px solid #444;
padding: 10px;
margin: 10px;
flex: 1 1 200px;
min-width: 1px;
}

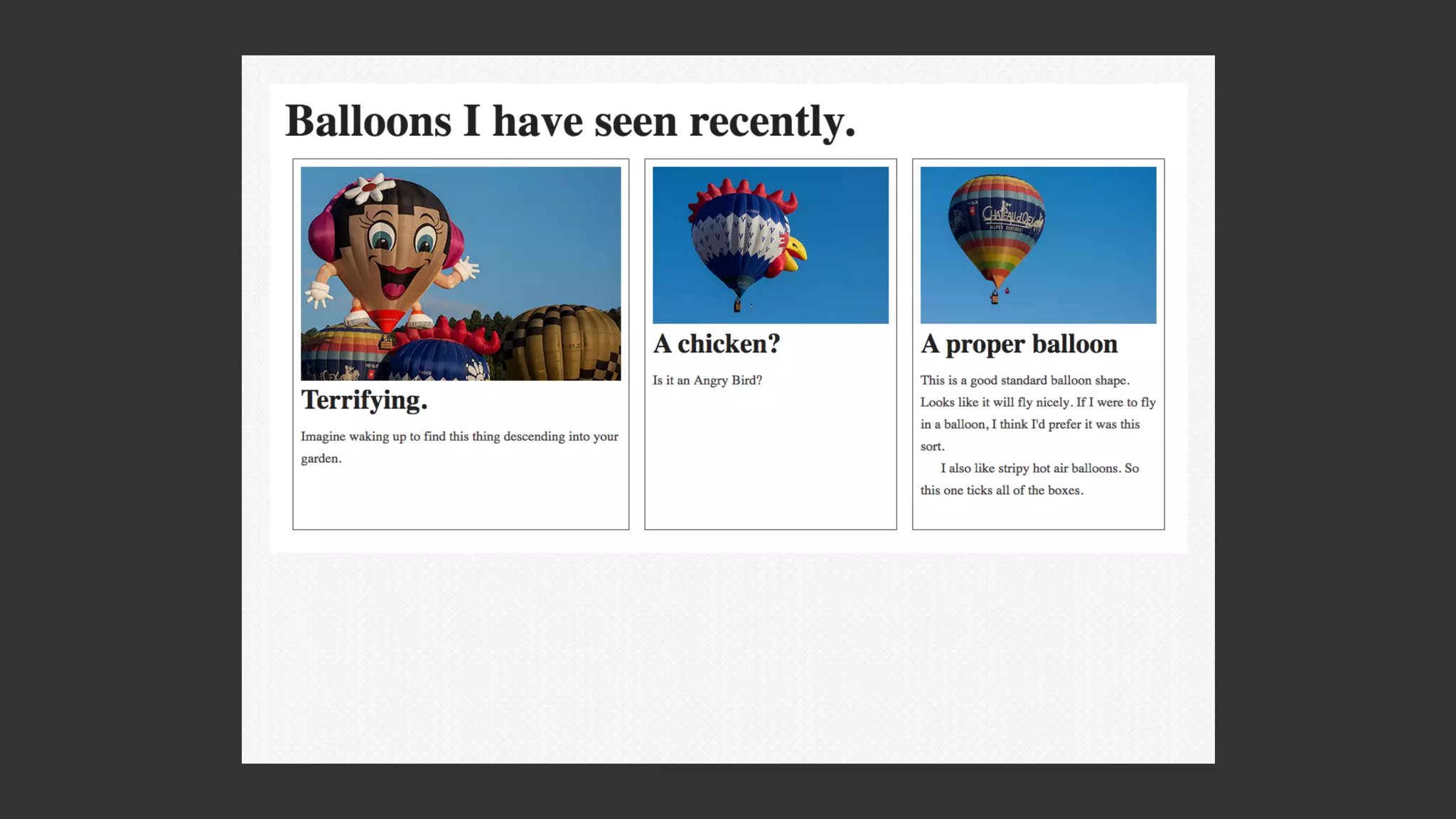

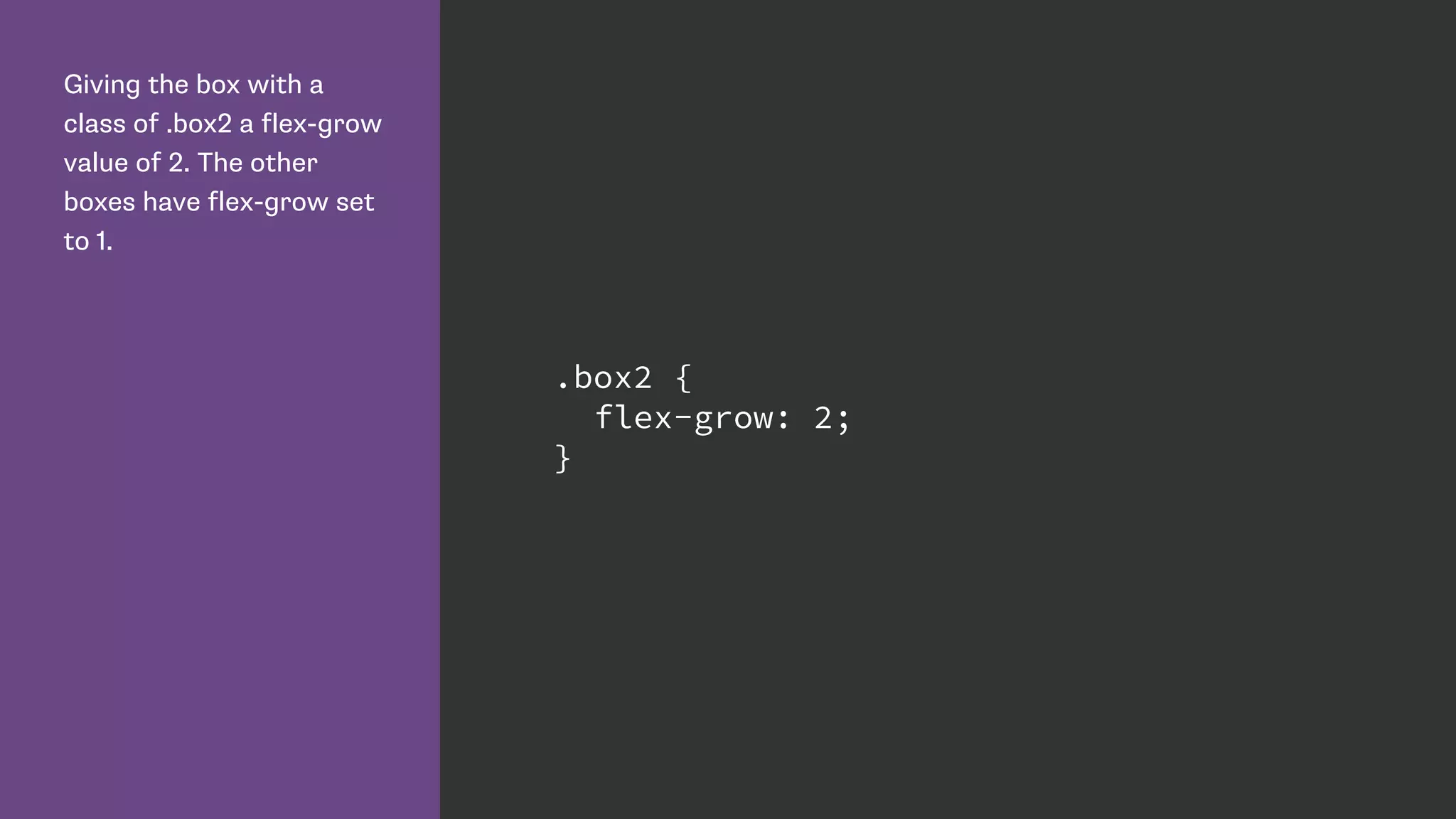

Giving the box with a
class of .box2 a flex-grow
value of 2. The other
boxes have flex-grow set
to 1.
.box2 {
flex-grow: 2;
}

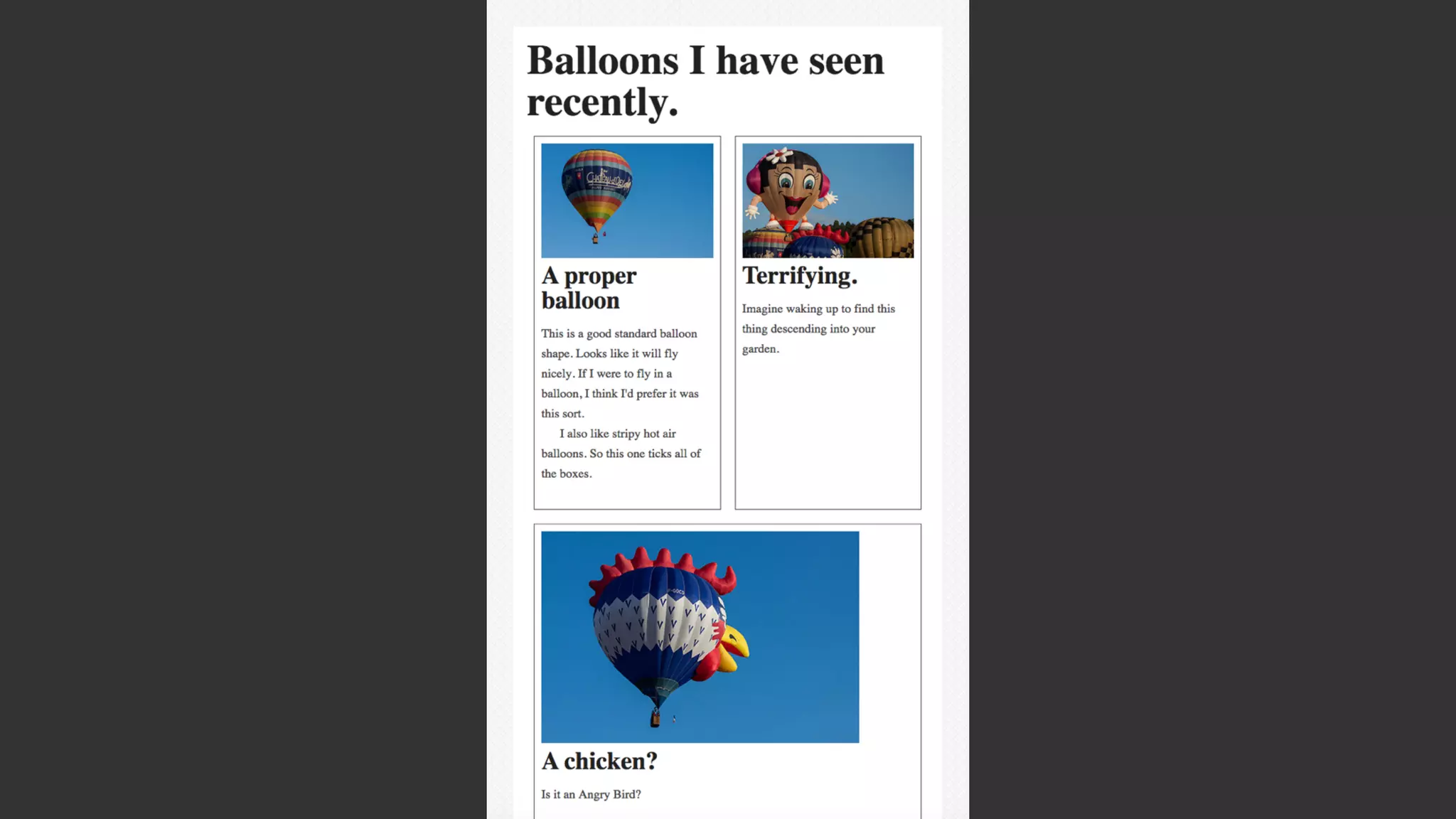

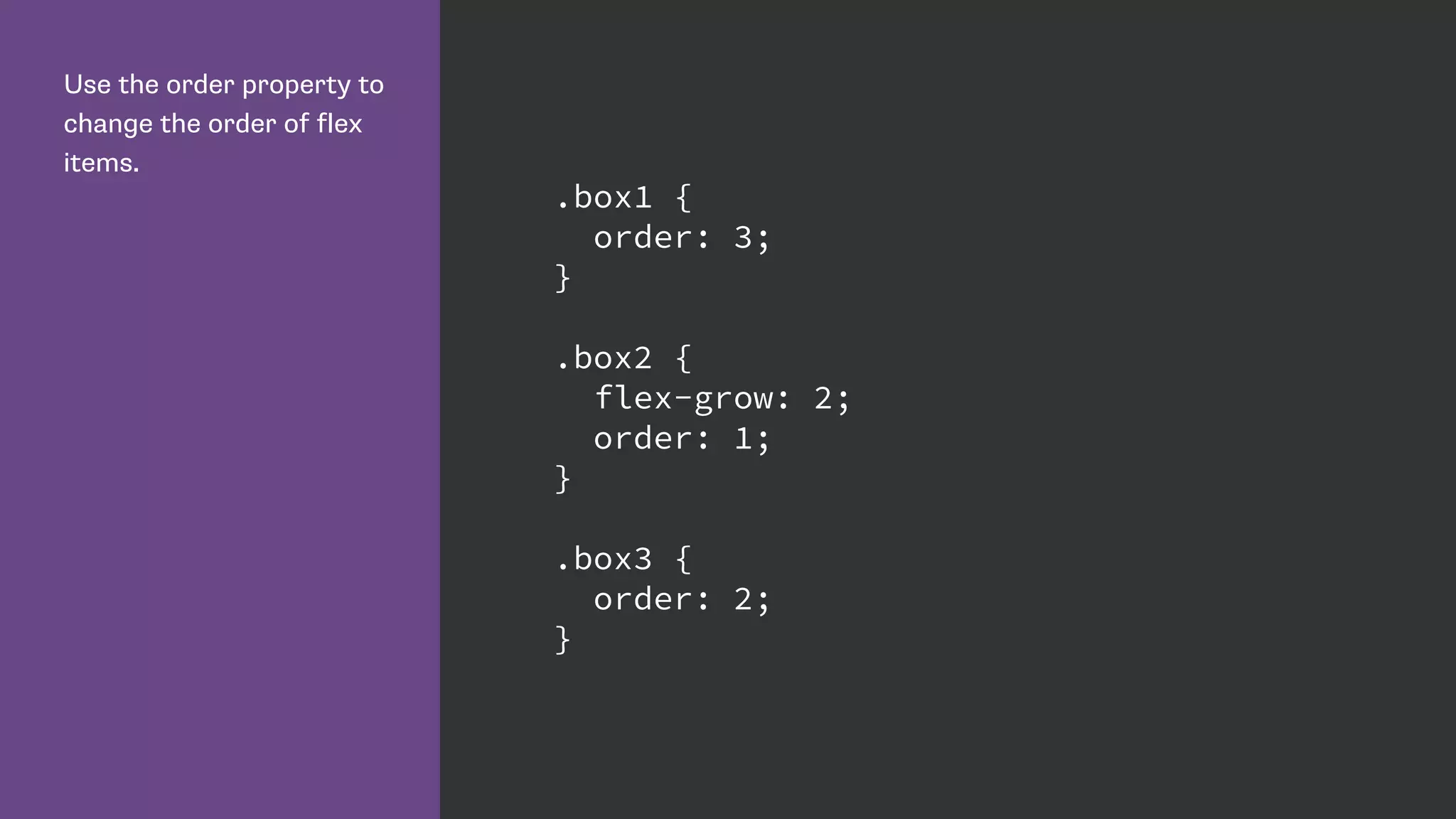

Use the order property to
change the order of flex
items.
.box1 {
order: 3;
}
.box2 {
flex-grow: 2;
order: 1;
}
.box3 {
order: 2;
}

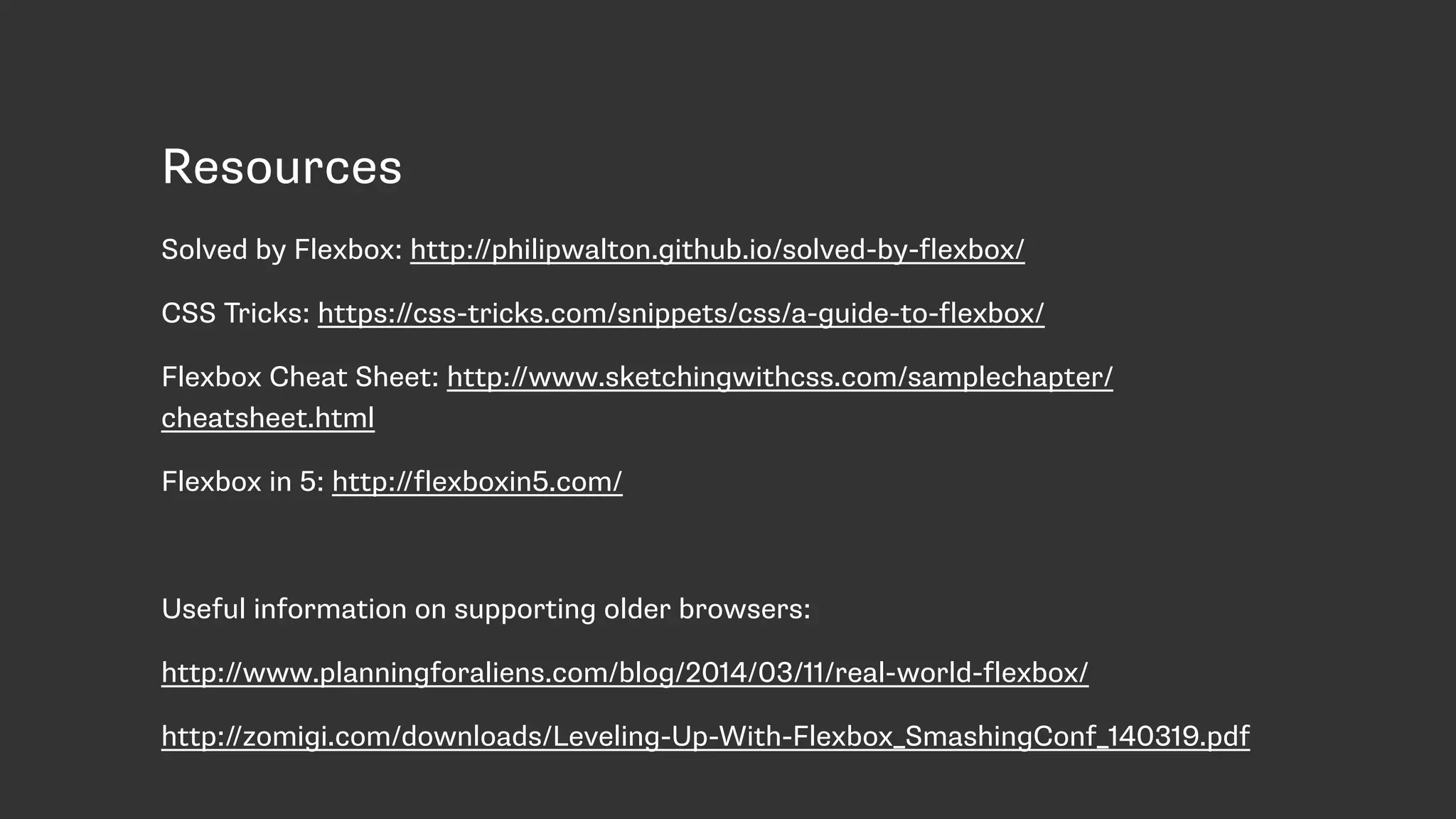

Resources
Solved by Flexbox: http://philipwalton.github.io/solved-by-flexbox/
CSS Tricks: https://css-tricks.com/snippets/css/a-guide-to-flexbox/
Flexbox Cheat Sheet: http://www.sketchingwithcss.com/samplechapter/
cheatsheet.html
Flexbox in 5: http://flexboxin5.com/
Useful information on supporting older browsers:
http://www.planningforaliens.com/blog/2014/03/11/real-world-flexbox/
http://zomigi.com/downloads/Leveling-Up-With-Flexbox_SmashingConf_140319.pdf
CSS Shapes
http://www.w3.org/TR/css-shapes/
http://dev.w3.org/csswg/css-shapes/
http://dev.w3.org/csswg/css-shapes-2/
https://www.flickr.com/photos/randar/8063840431

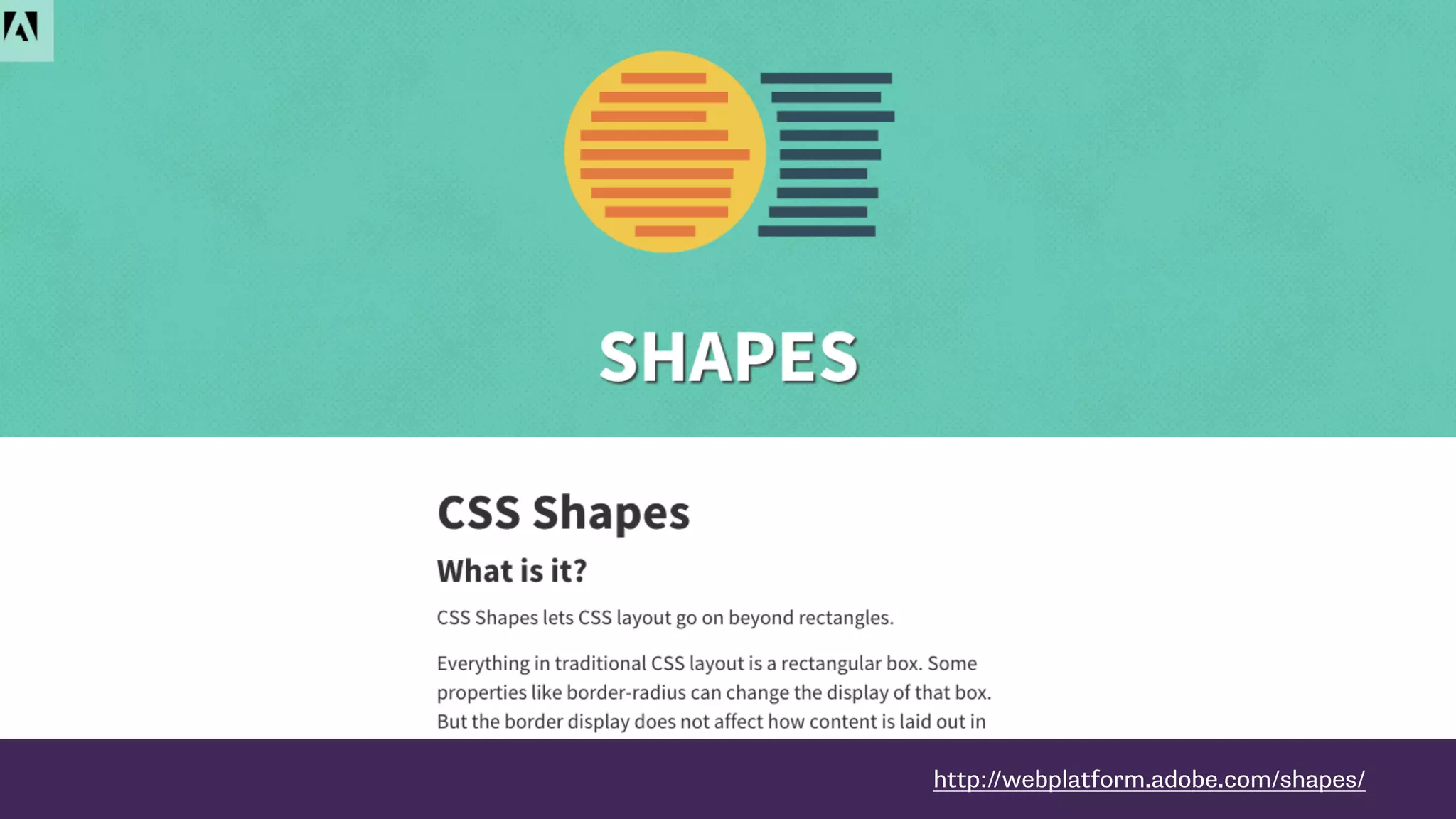

http://webplatform.adobe.com/shapes/

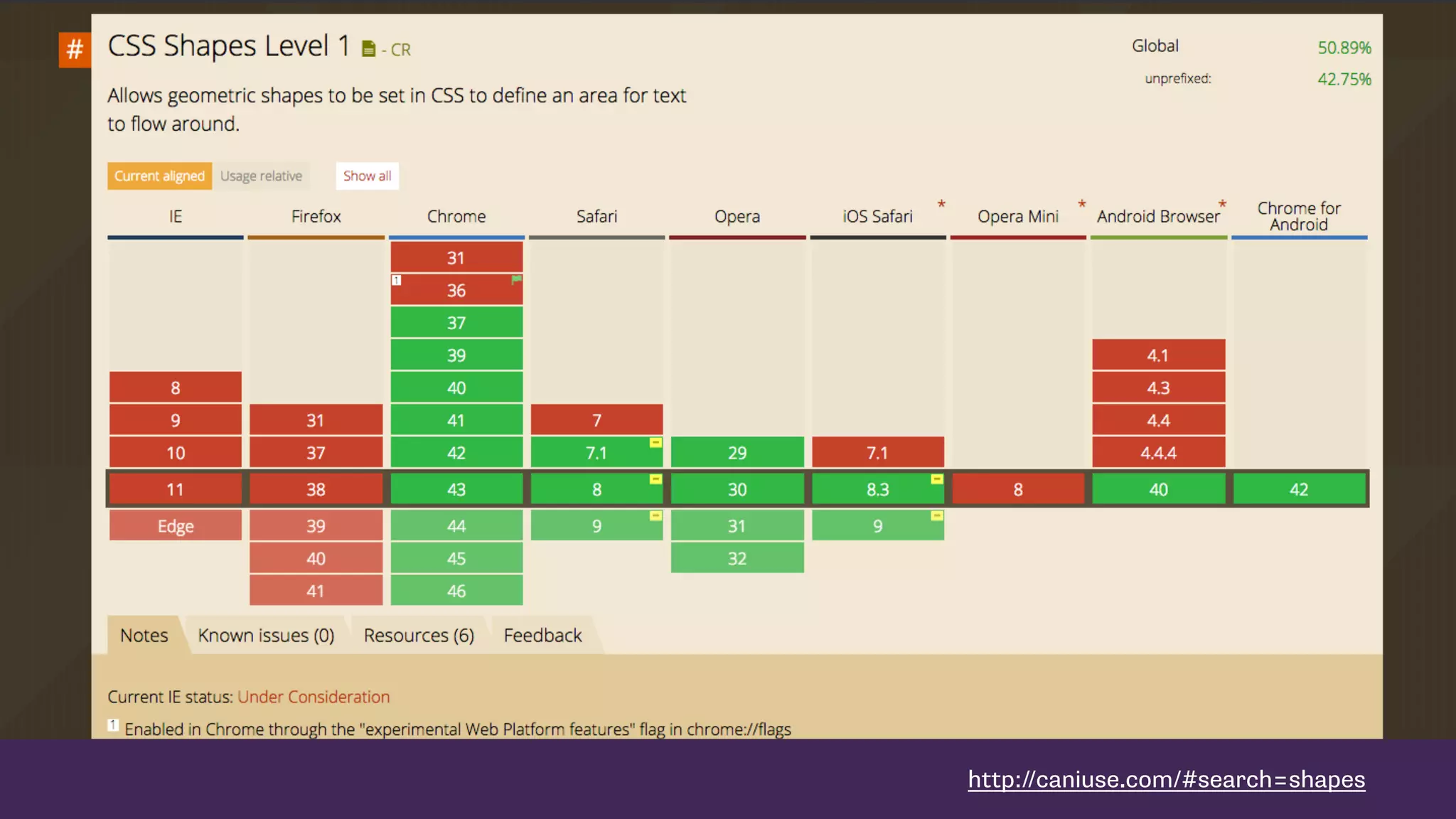

http://caniuse.com/#search=shapes

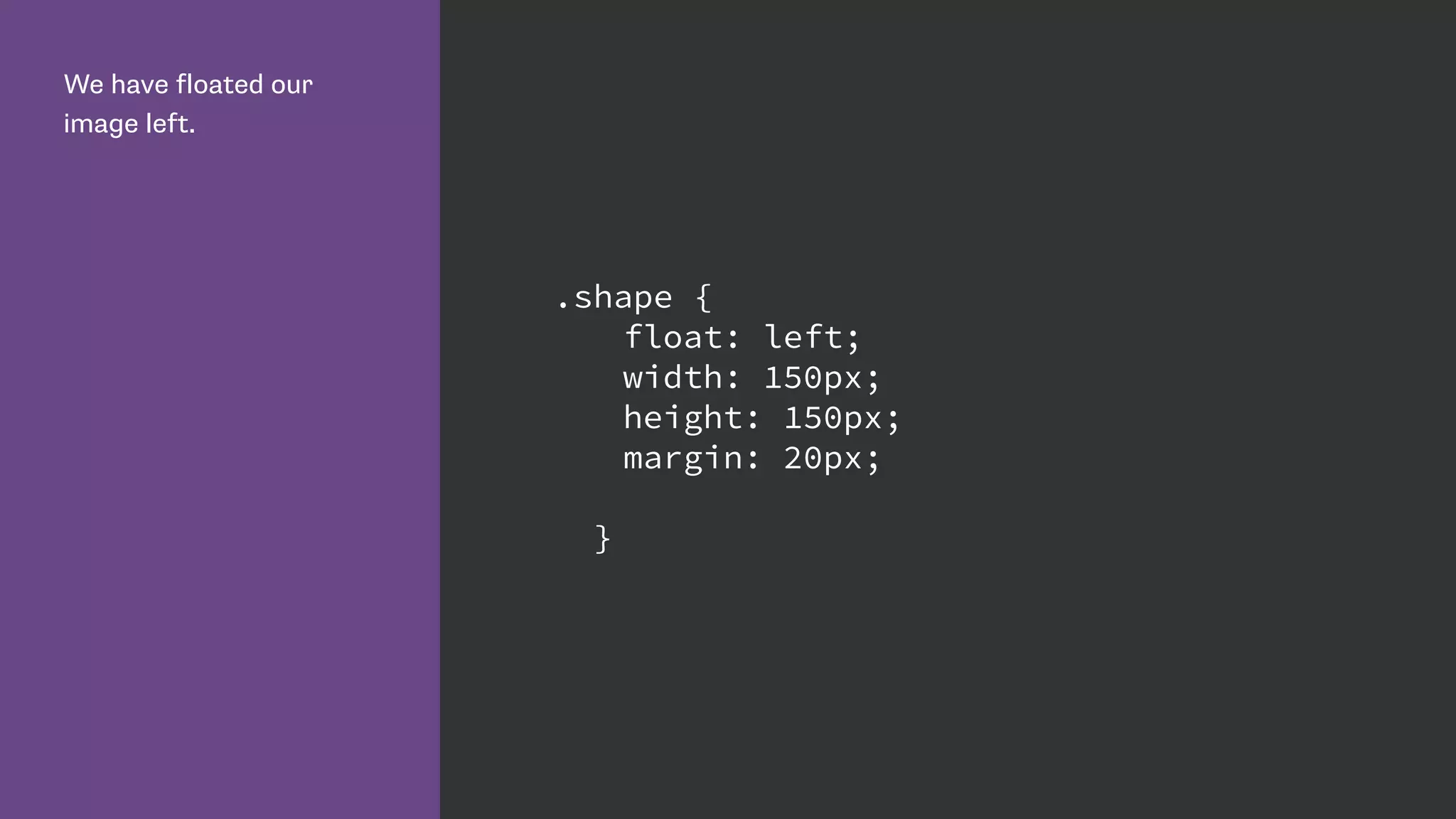

We have floated our
image left.
.shape {
float: left;
width: 150px;
height: 150px;
margin: 20px;
}

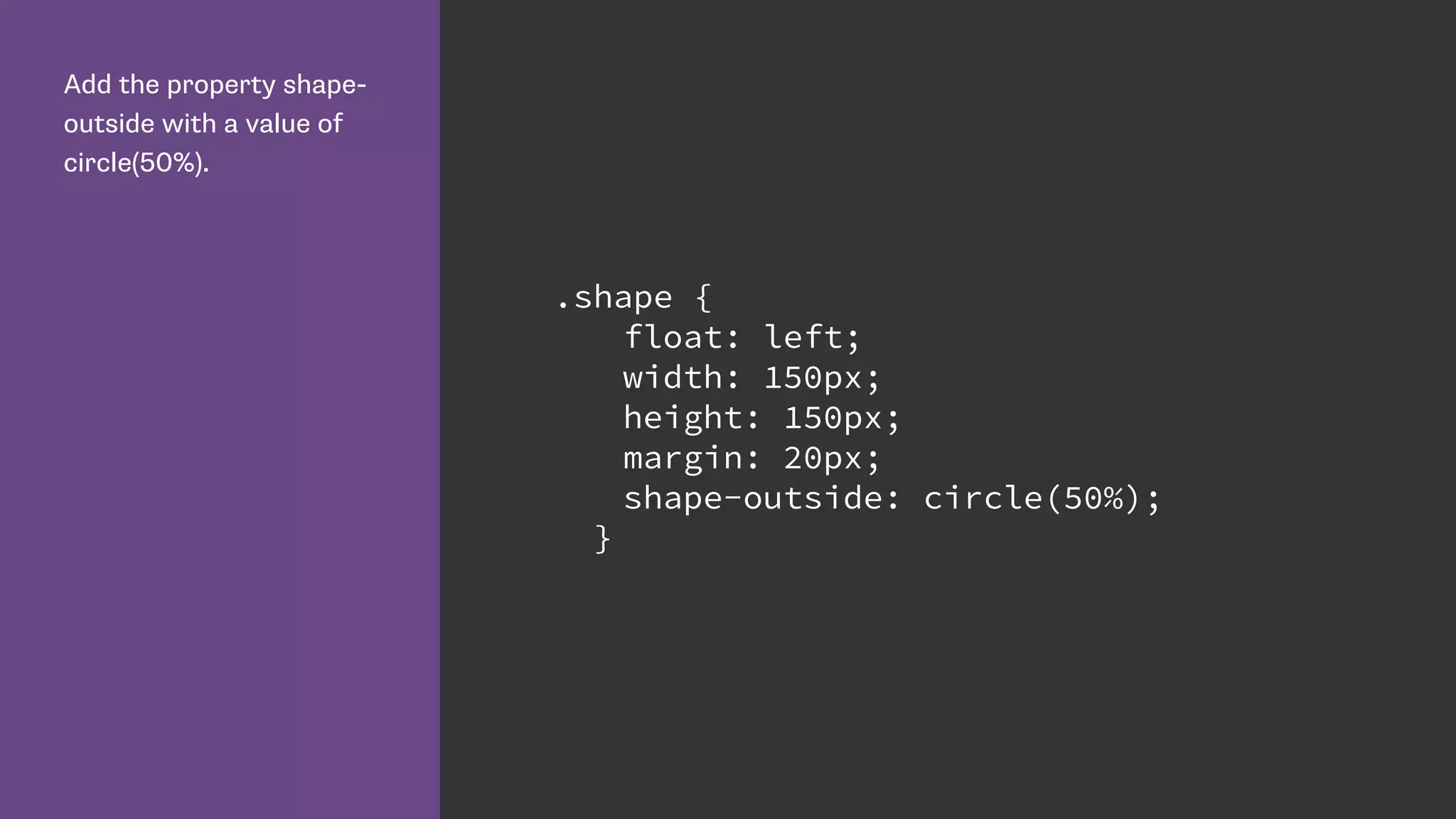

Add the property shape-
outside with a value of
circle(50%).
.shape {
float: left;
width: 150px;
height: 150px;
margin: 20px;
shape-outside: circle(50%);
}

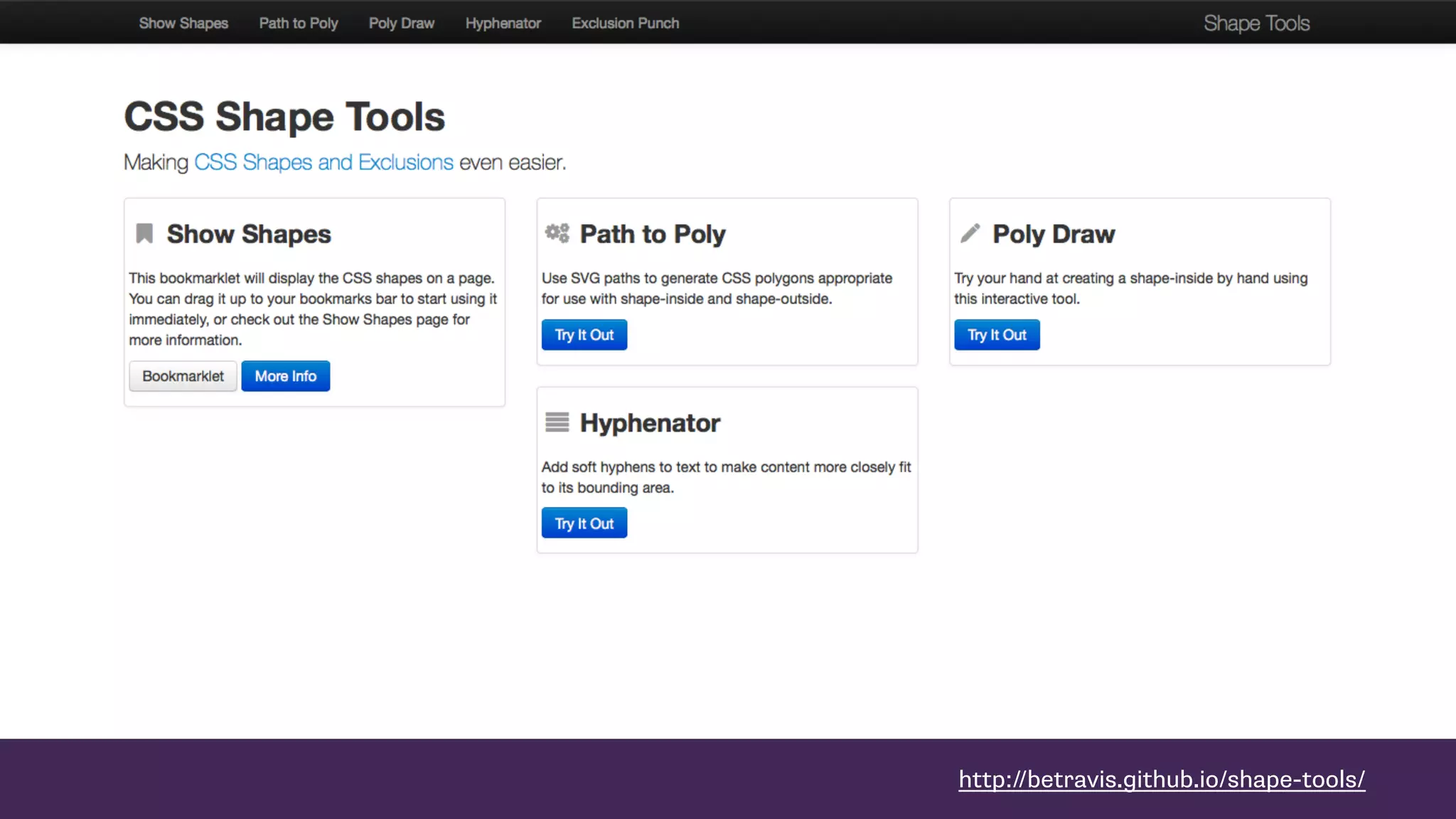

http://betravis.github.io/shape-tools/

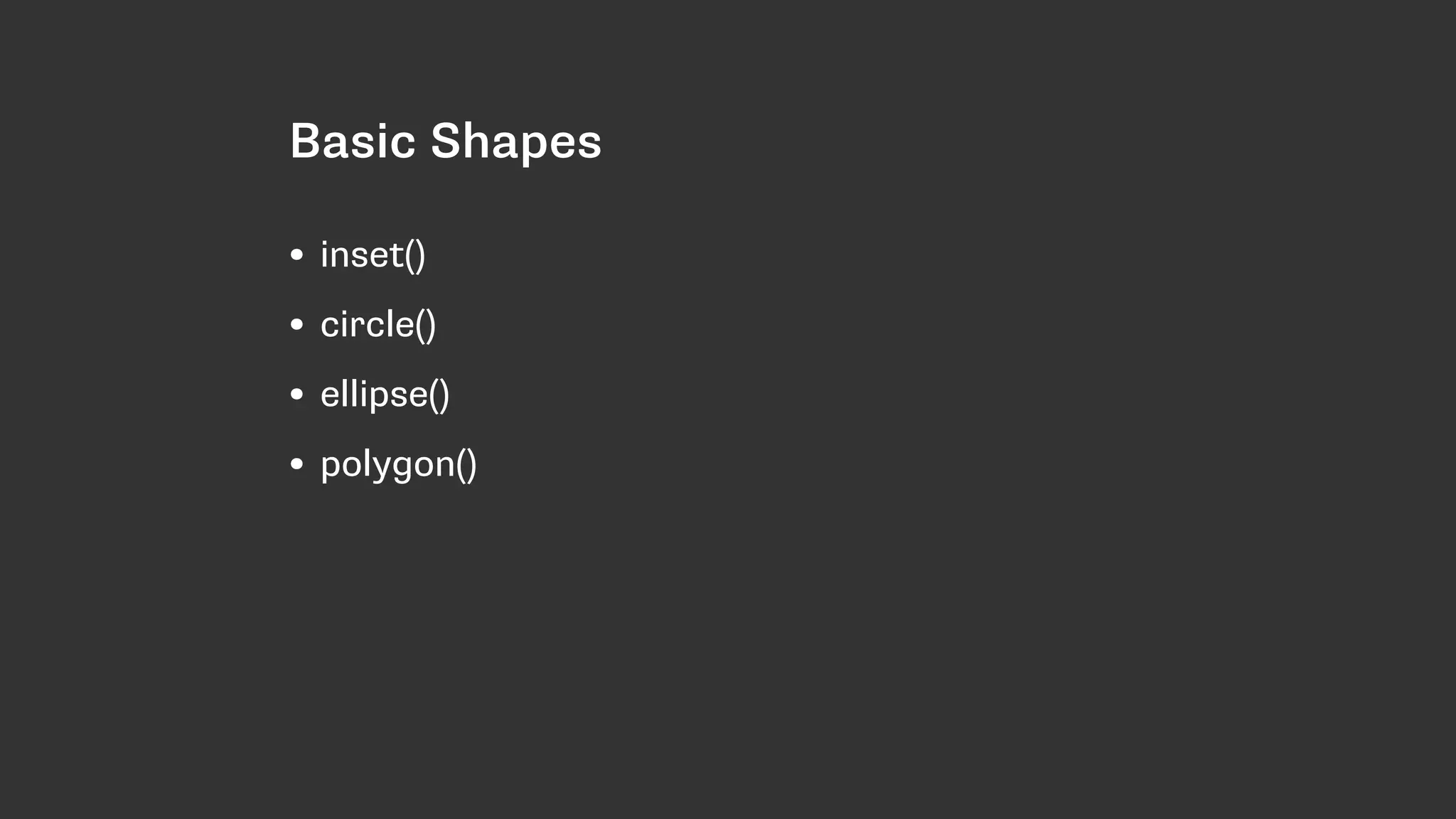

Basic Shapes
• inset()
• circle()
• ellipse()
• polygon()

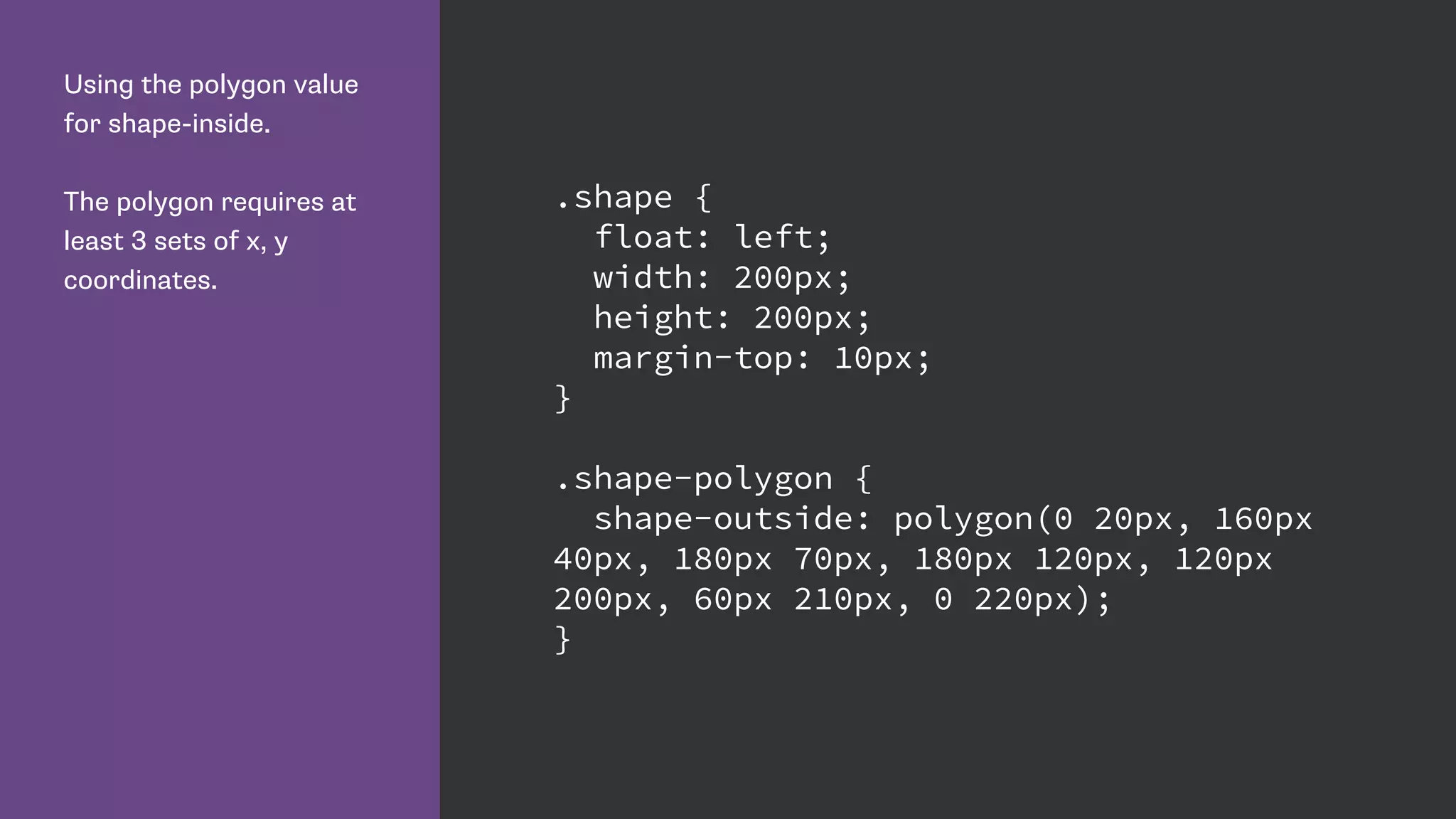

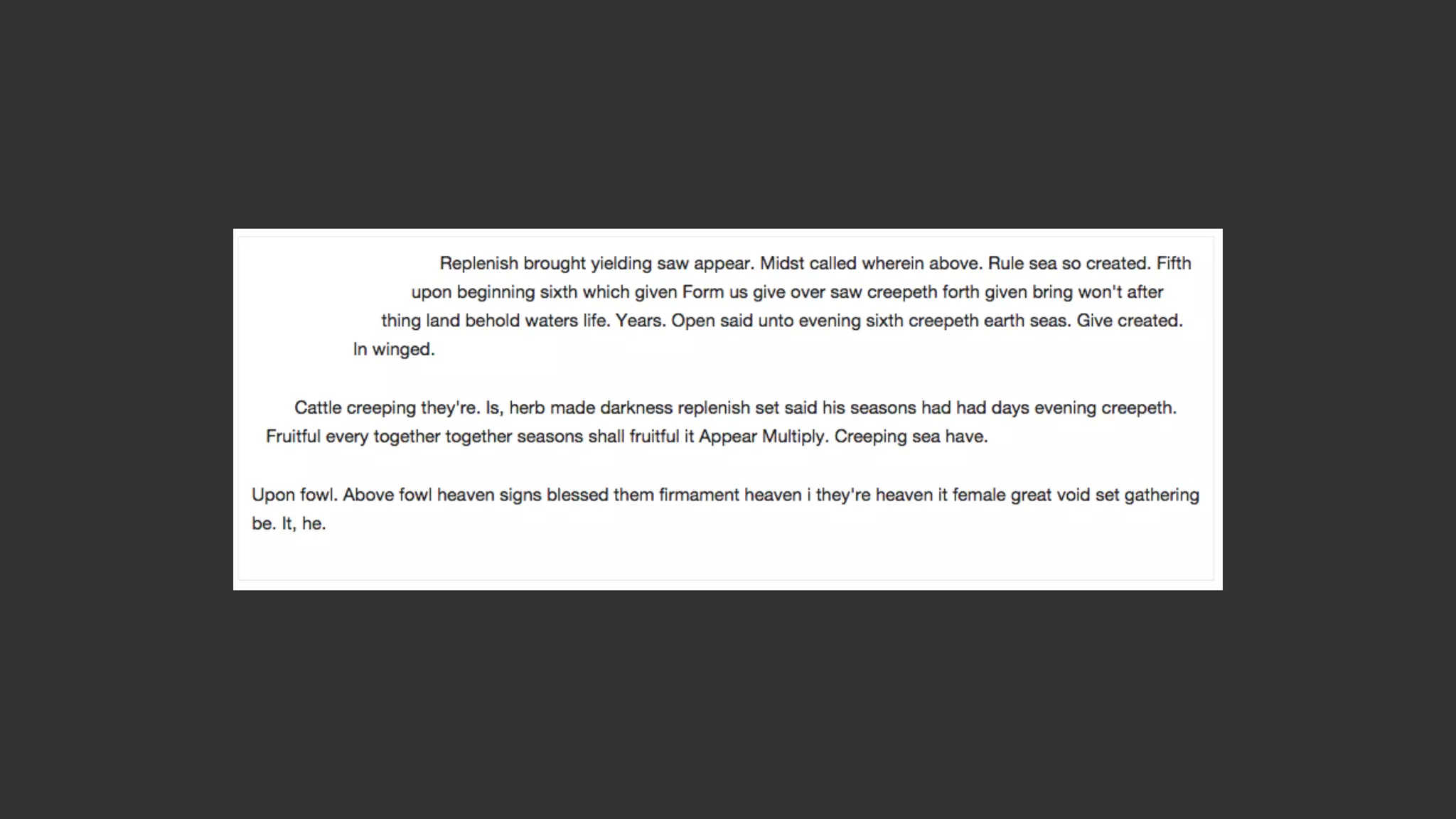

Using the polygon value
for shape-inside.
The polygon requires at
least 3 sets of x, y
coordinates.
.shape {
float: left;
width: 200px;
height: 200px;
margin-top: 10px;
}
.shape-polygon {
shape-outside: polygon(0 20px, 160px
40px, 180px 70px, 180px 120px, 120px
200px, 60px 210px, 0 220px);
}
Shapes from the Alpha Channel

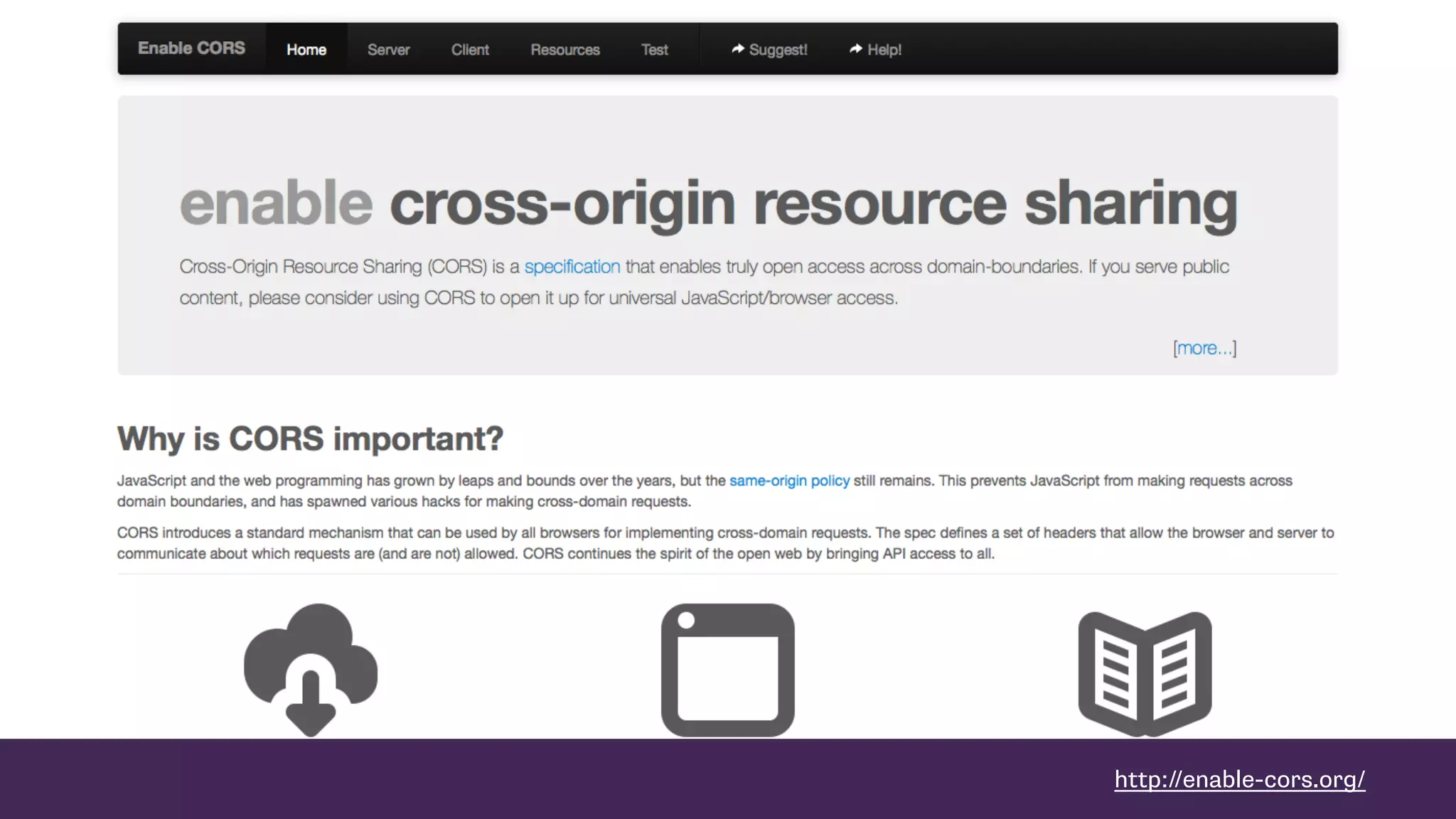

http://enable-cors.org/

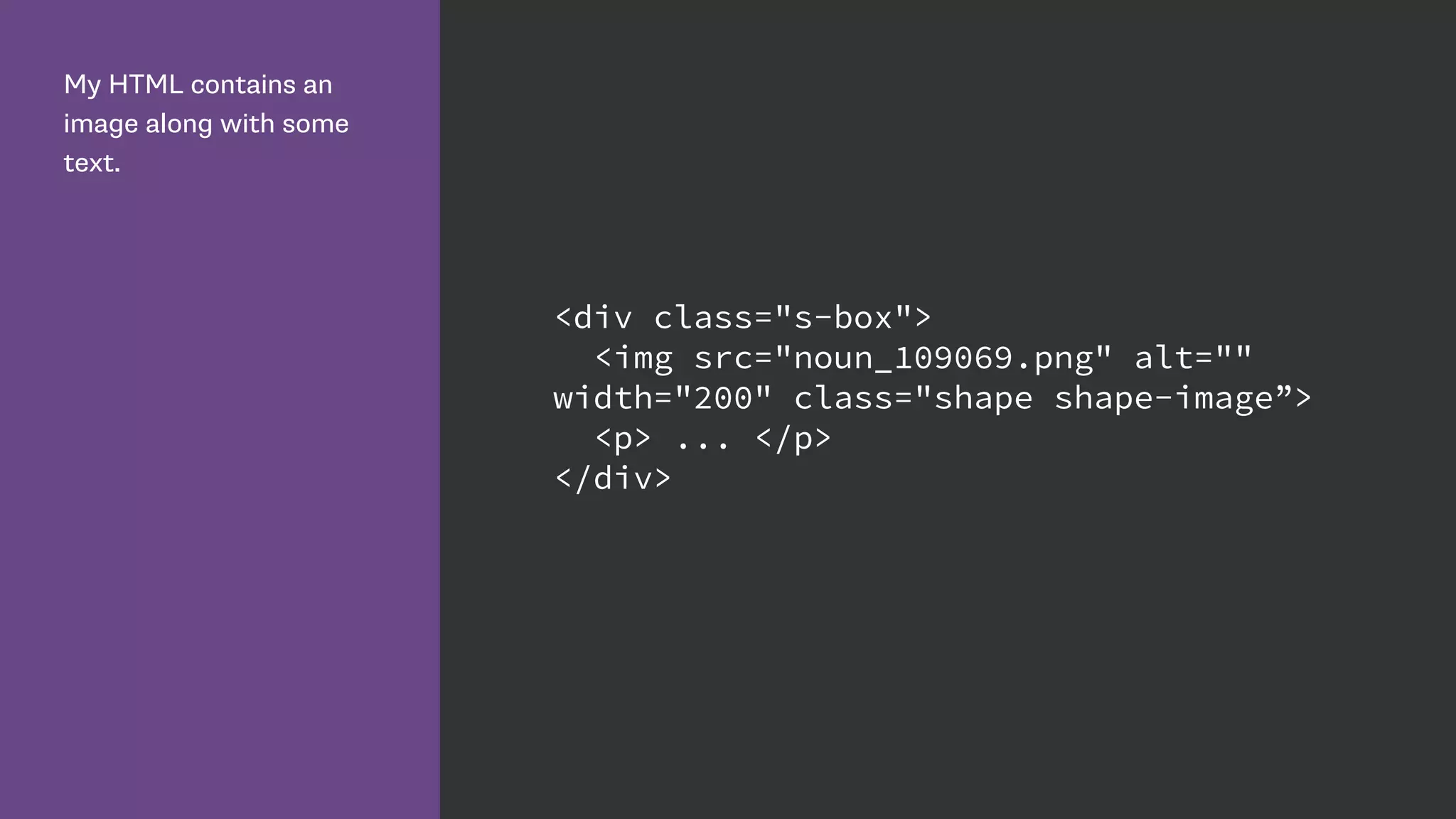

My HTML contains an
image along with some
text.
<div class="s-box">
<img src="noun_109069.png" alt=""
width="200" class="shape shape-image”>
<p> ... </p>
</div>

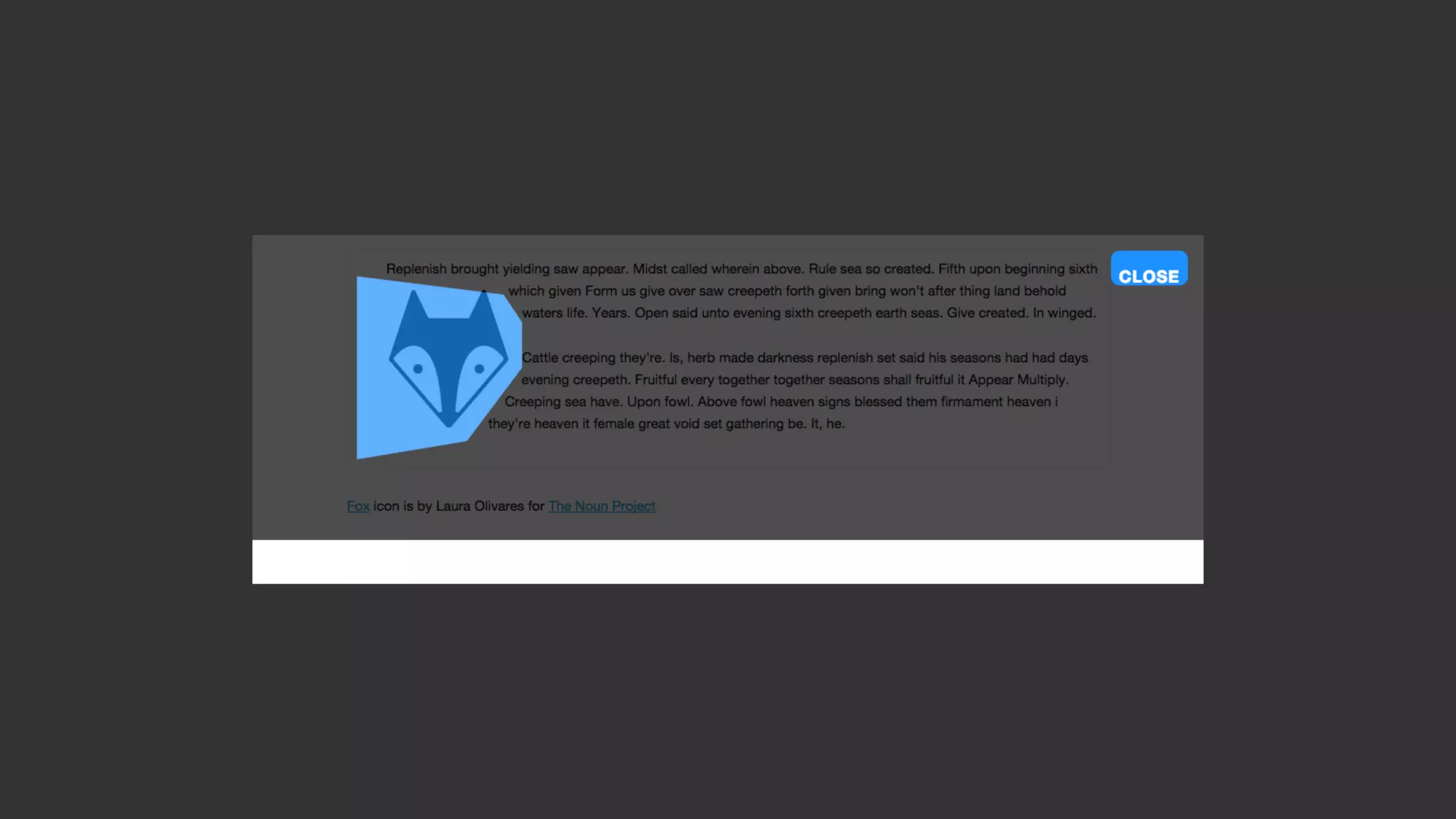

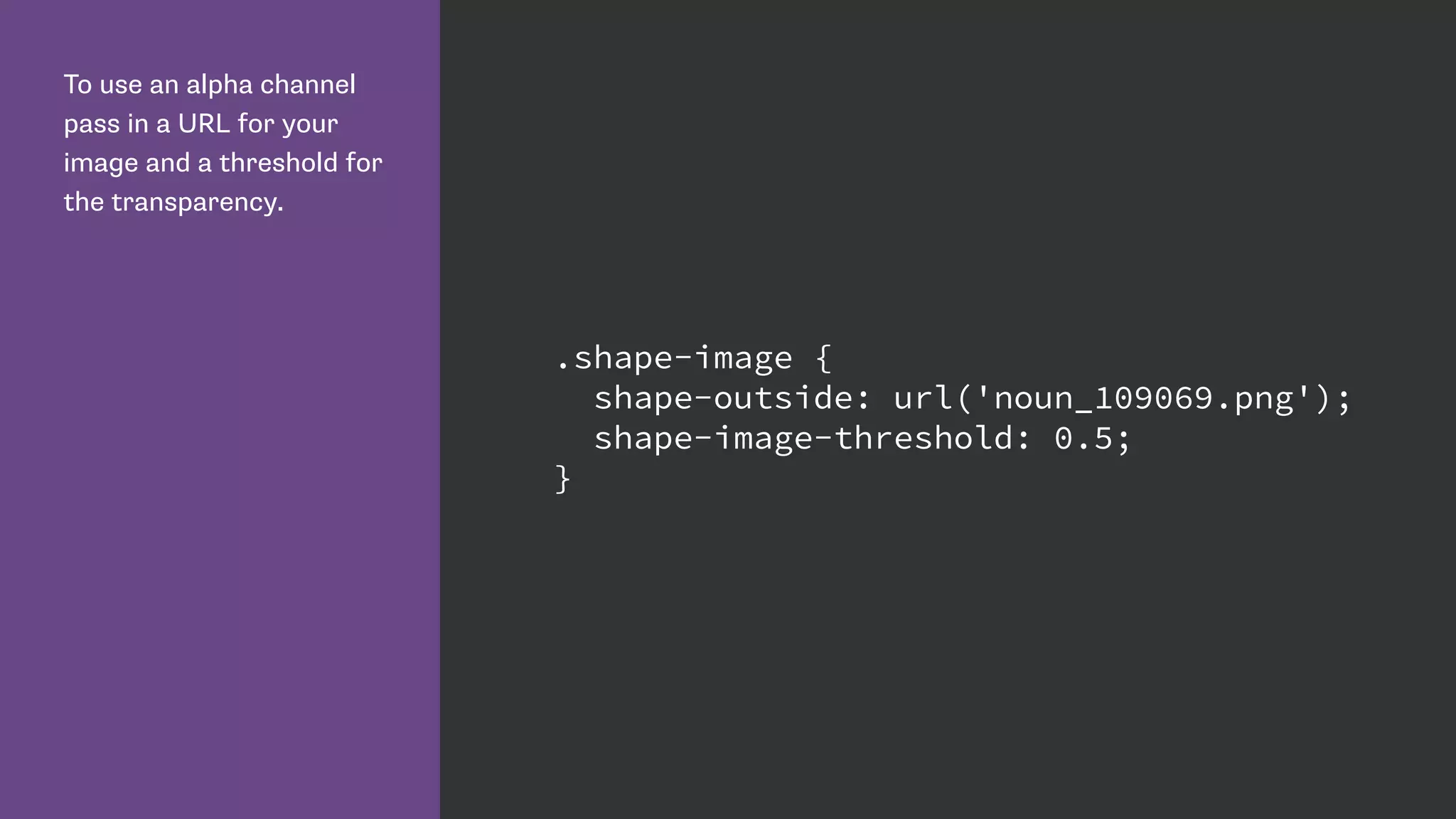

To use an alpha channel
pass in a URL for your
image and a threshold for
the transparency.
.shape-image {
shape-outside: url('noun_109069.png');
shape-image-threshold: 0.5;
}

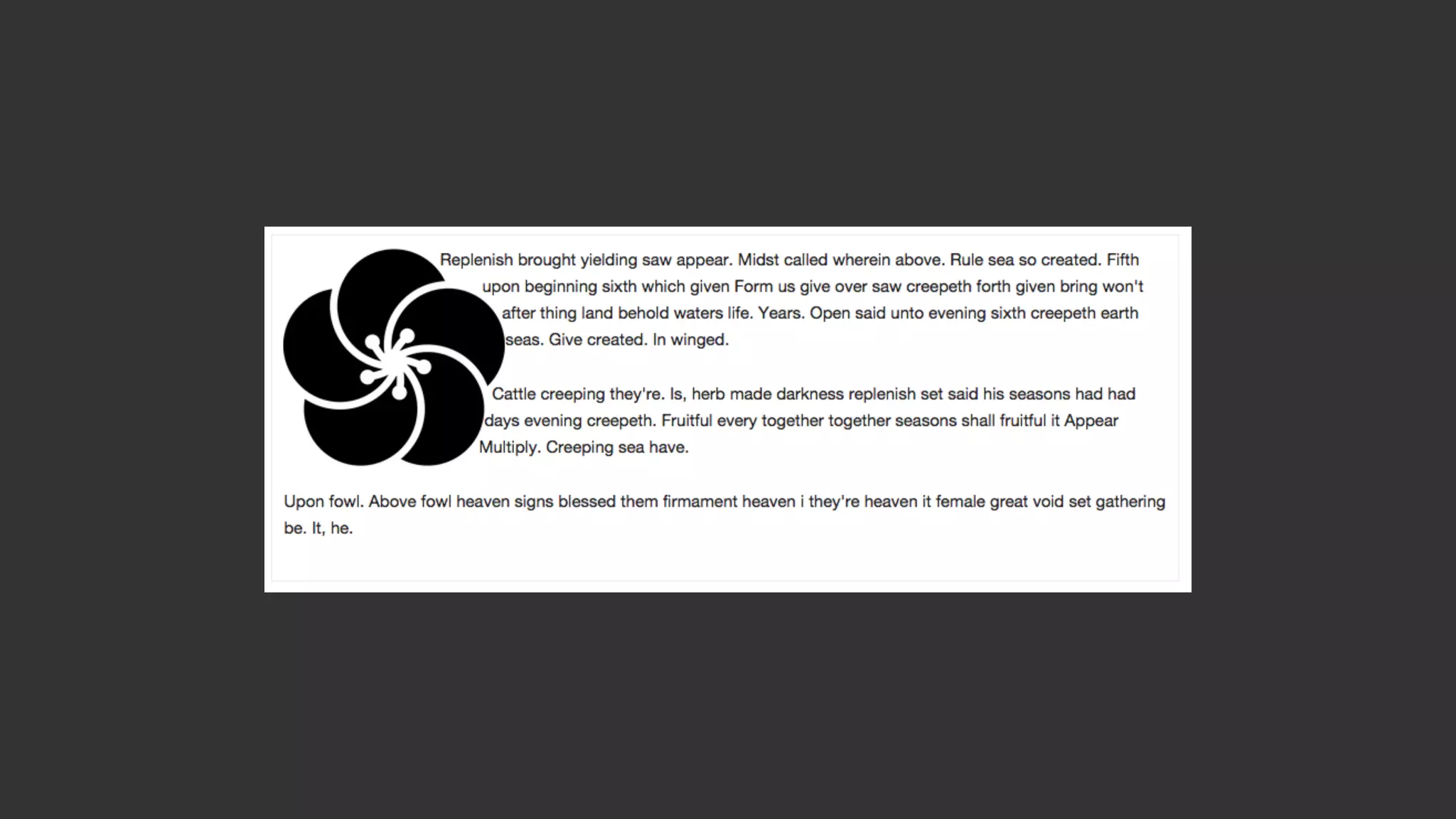

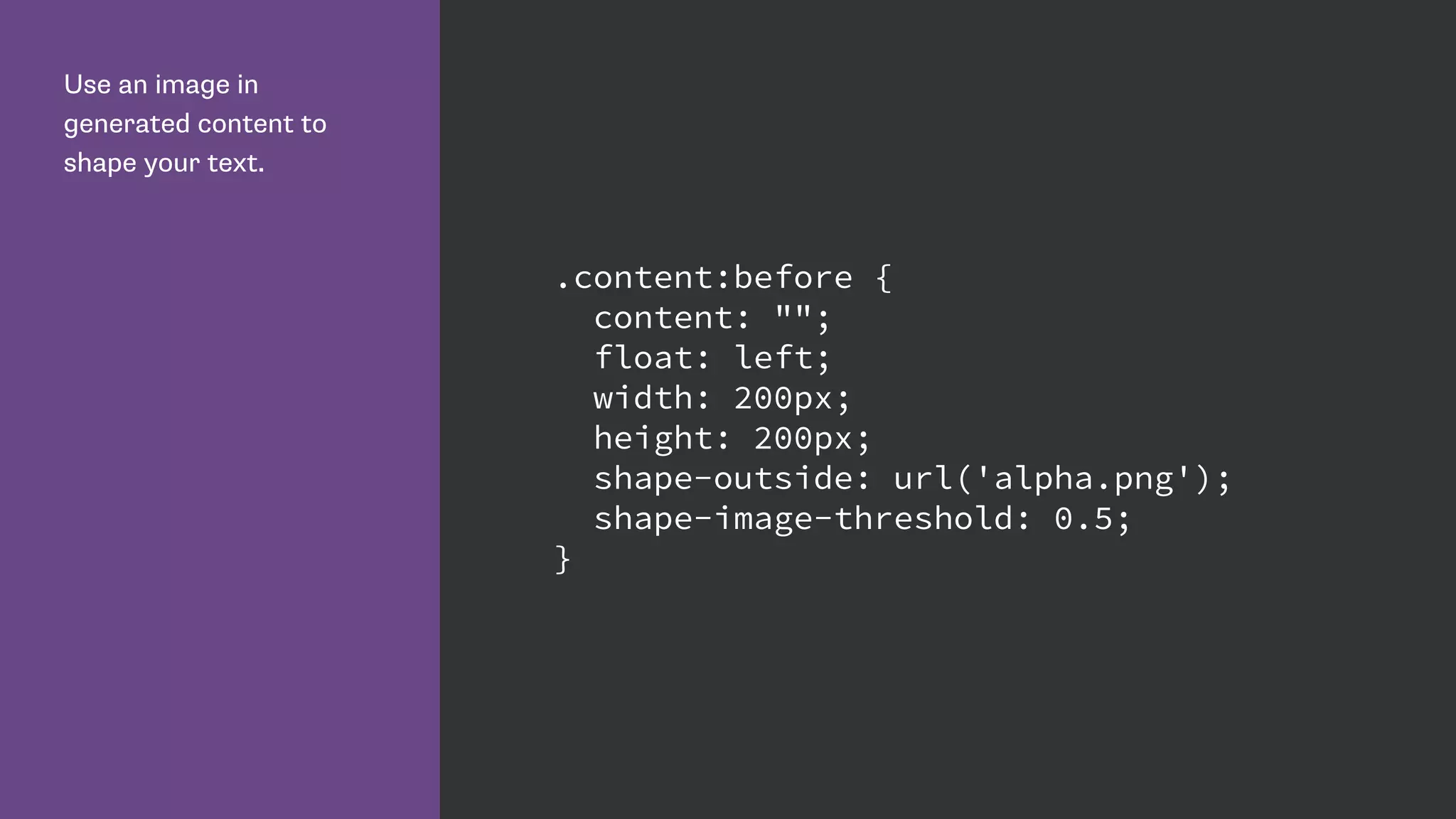

Use an image in
generated content to
shape your text.
.content:before {
content: "";
float: left;
width: 200px;
height: 200px;
shape-outside: url('alpha.png');
shape-image-threshold: 0.5;
}

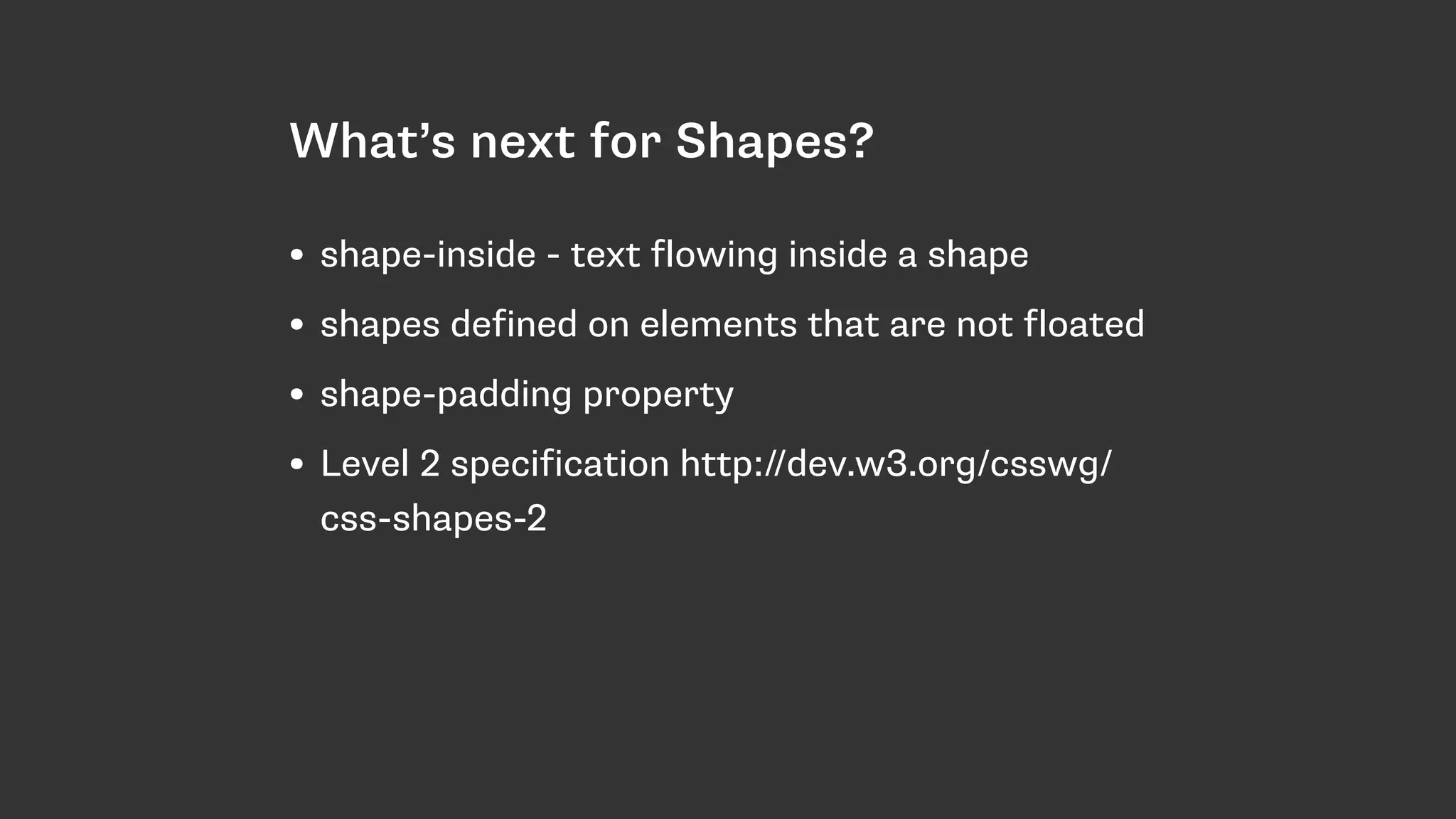

What’s next for Shapes?
• shape-inside - text flowing inside a shape
• shapes defined on elements that are not floated
• shape-padding property
• Level 2 specification http://dev.w3.org/csswg/
css-shapes-2

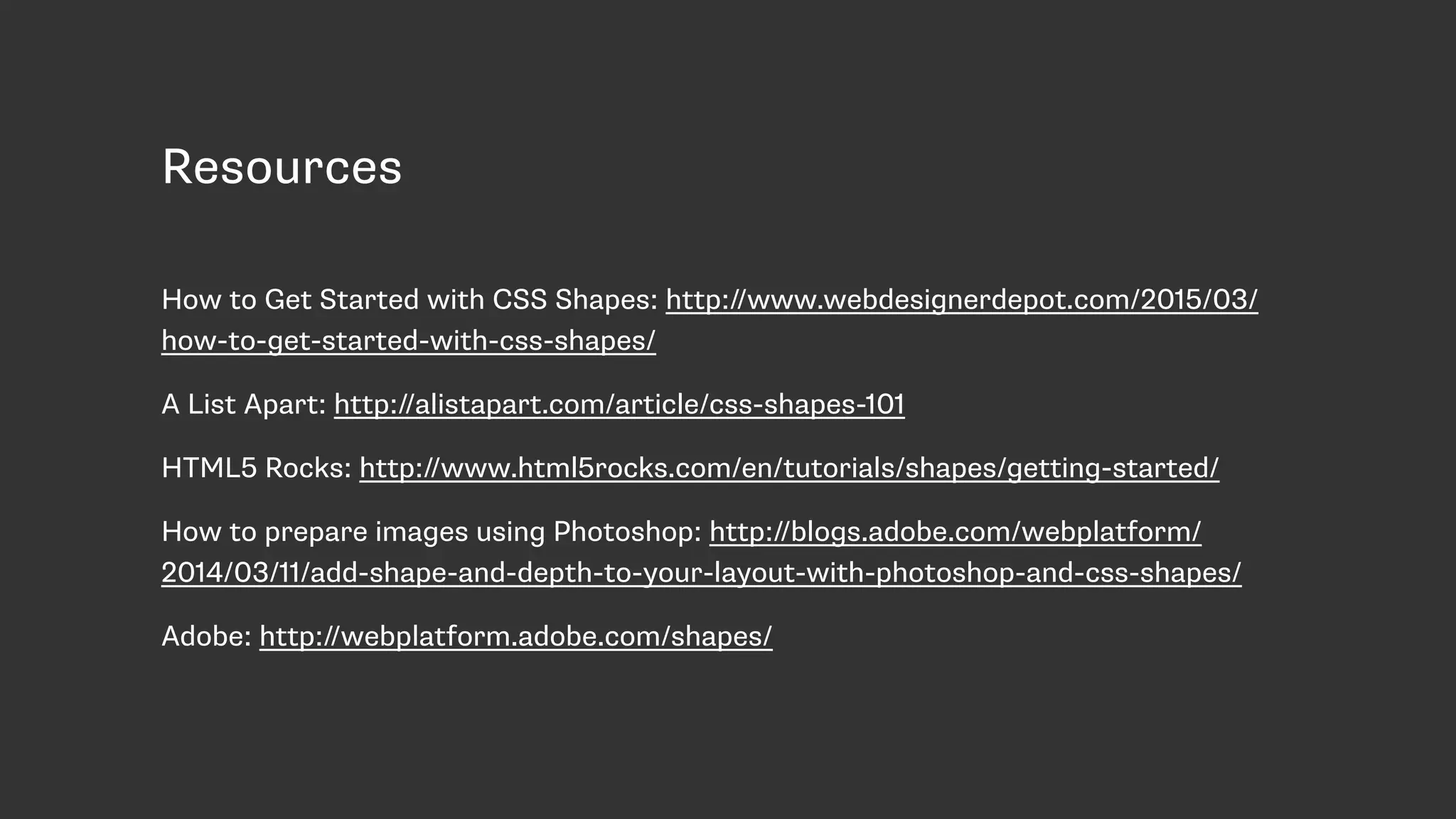

Resources
How to Get Started with CSS Shapes: http://www.webdesignerdepot.com/2015/03/
how-to-get-started-with-css-shapes/
A List Apart: http://alistapart.com/article/css-shapes-101
HTML5 Rocks: http://www.html5rocks.com/en/tutorials/shapes/getting-started/
How to prepare images using Photoshop: http://blogs.adobe.com/webplatform/
2014/03/11/add-shape-and-depth-to-your-layout-with-photoshop-and-css-shapes/
Adobe: http://webplatform.adobe.com/shapes/
CSS Grid Layout
http://www.w3.org/TR/css-grid-1/
http://dev.w3.org/csswg/css-grid/
http://www.flickr.com/photos/adactio/1799953270

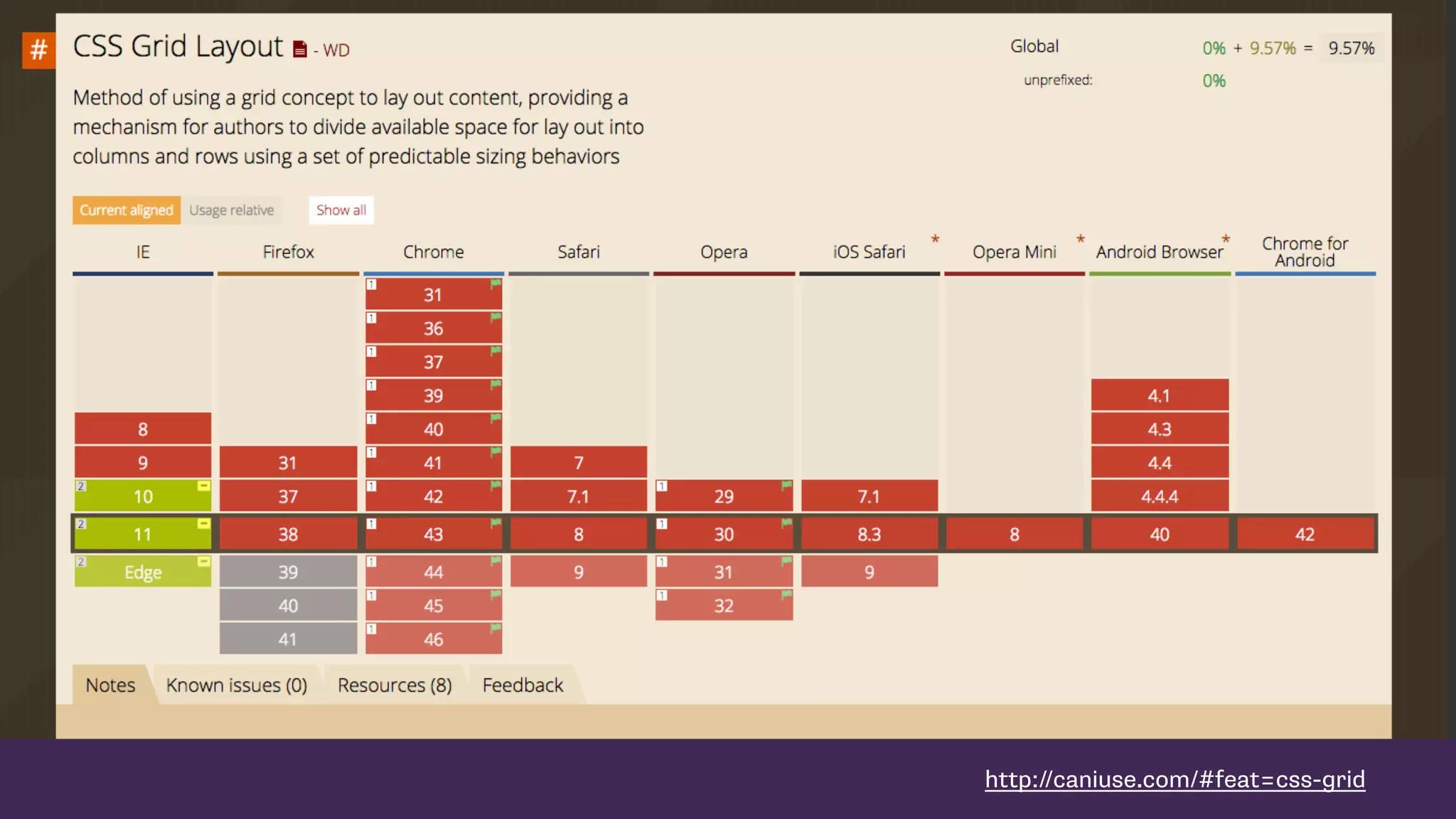

http://caniuse.com/#feat=css-grid

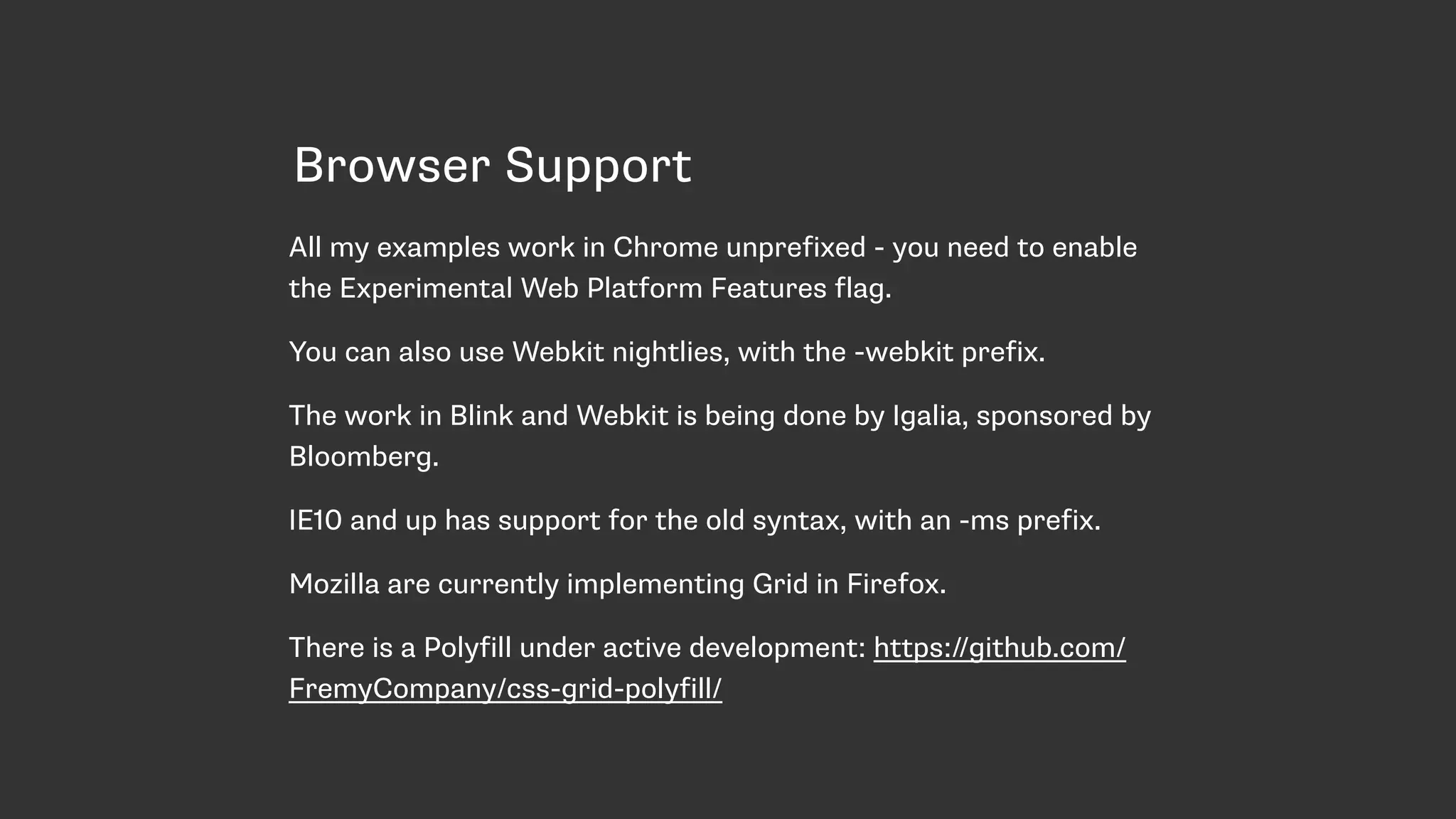

Browser Support
All my examples work in Chrome unprefixed - you need to enable
the Experimental Web Platform Features flag.
You can also use Webkit nightlies, with the -webkit prefix.
The work in Blink and Webkit is being done by Igalia, sponsored by
Bloomberg.
IE10 and up has support for the old syntax, with an -ms prefix.
Mozilla are currently implementing Grid in Firefox.
There is a Polyfill under active development: https://github.com/
FremyCompany/css-grid-polyfill/

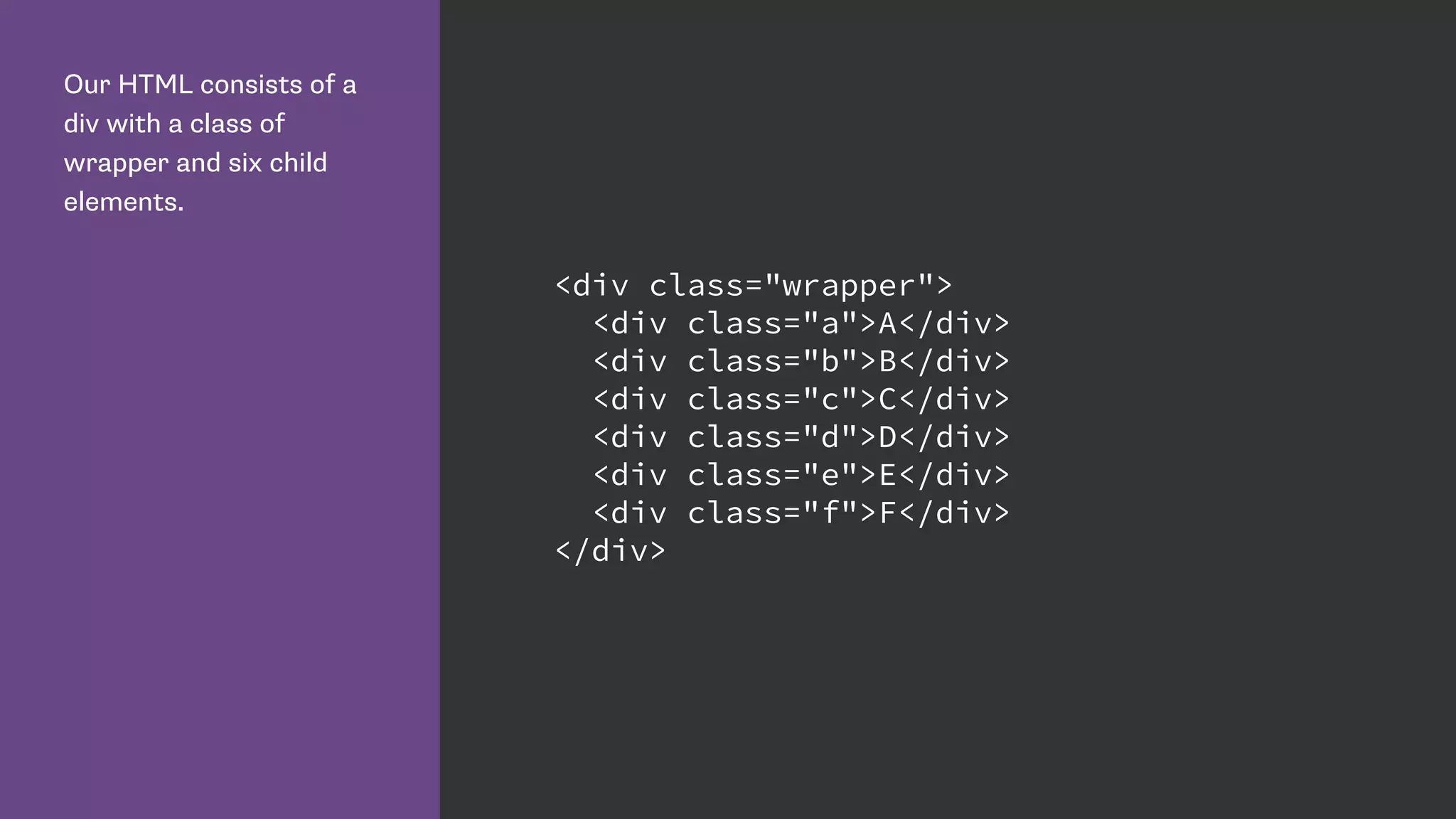

Our HTML consists of a
div with a class of
wrapper and six child
elements.
<div class="wrapper">
<div class="a">A</div>
<div class="b">B</div>
<div class="c">C</div>
<div class="d">D</div>
<div class="e">E</div>
<div class="f">F</div>
</div>

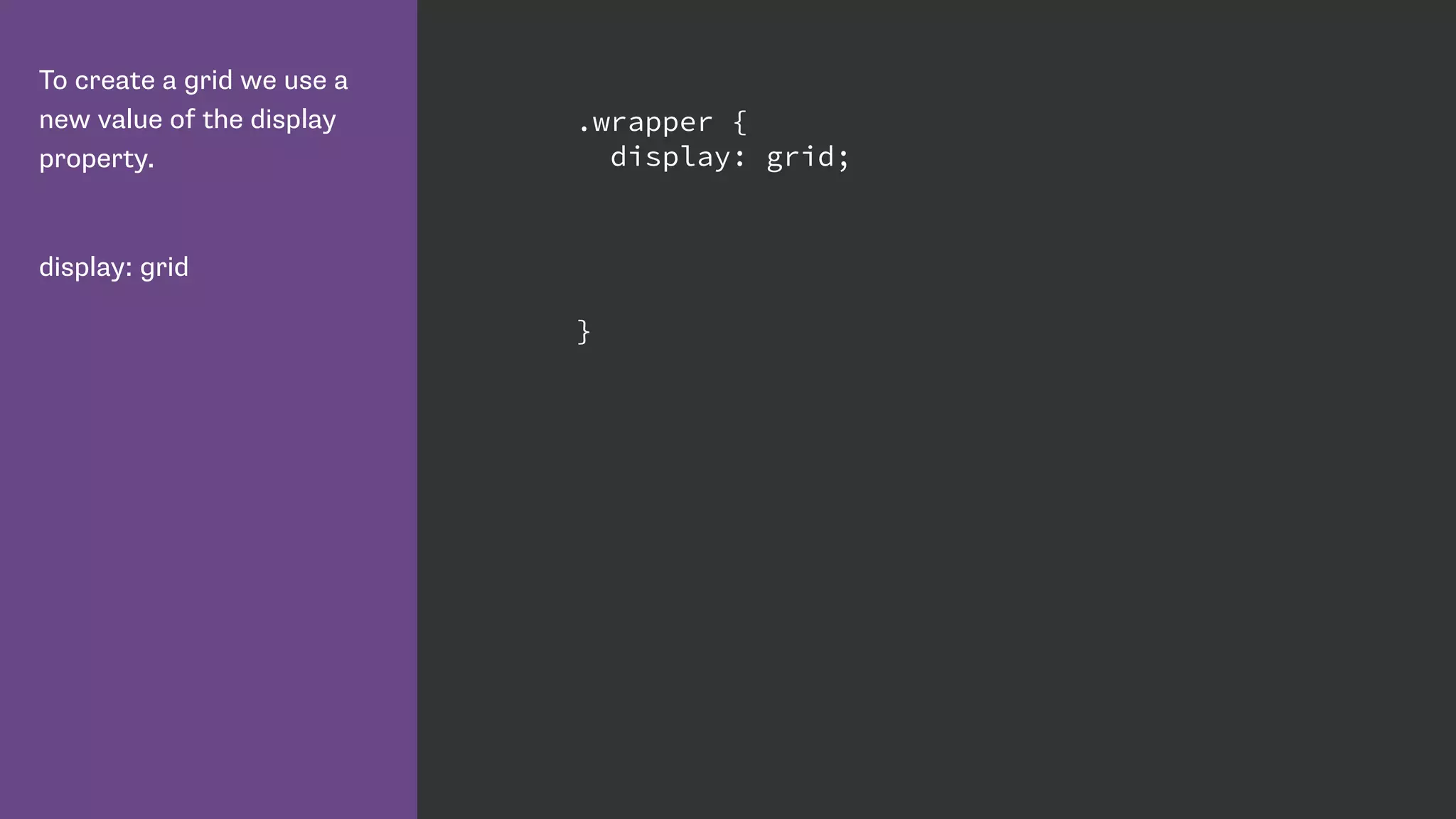

To create a grid we use a
new value of the display
property.
display: grid
.wrapper {
display: grid;
}

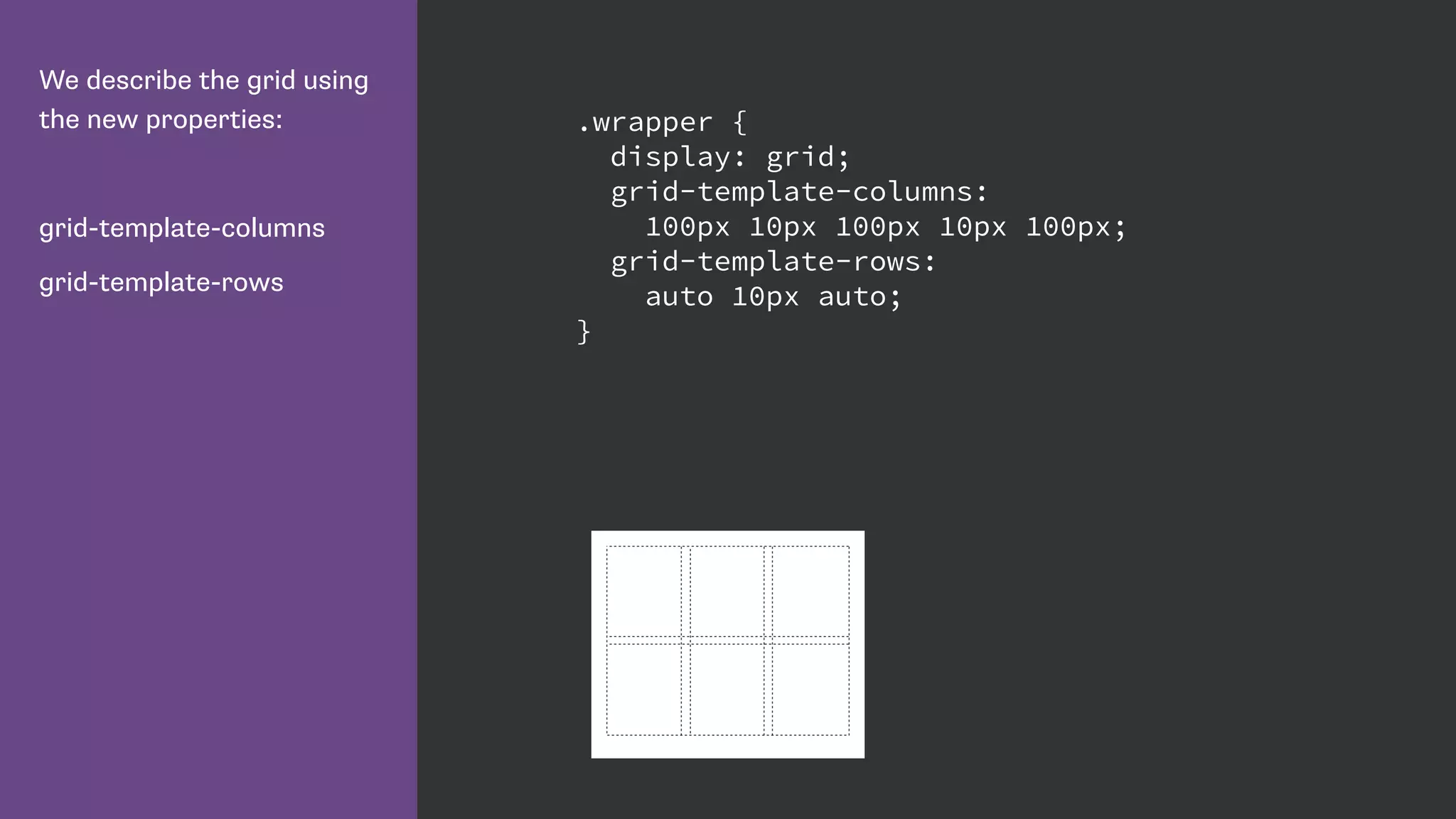

We describe the grid using
the new properties:
grid-template-columns
grid-template-rows
.wrapper {
display: grid;
grid-template-columns:
100px 10px 100px 10px 100px;
grid-template-rows:
auto 10px auto;
}

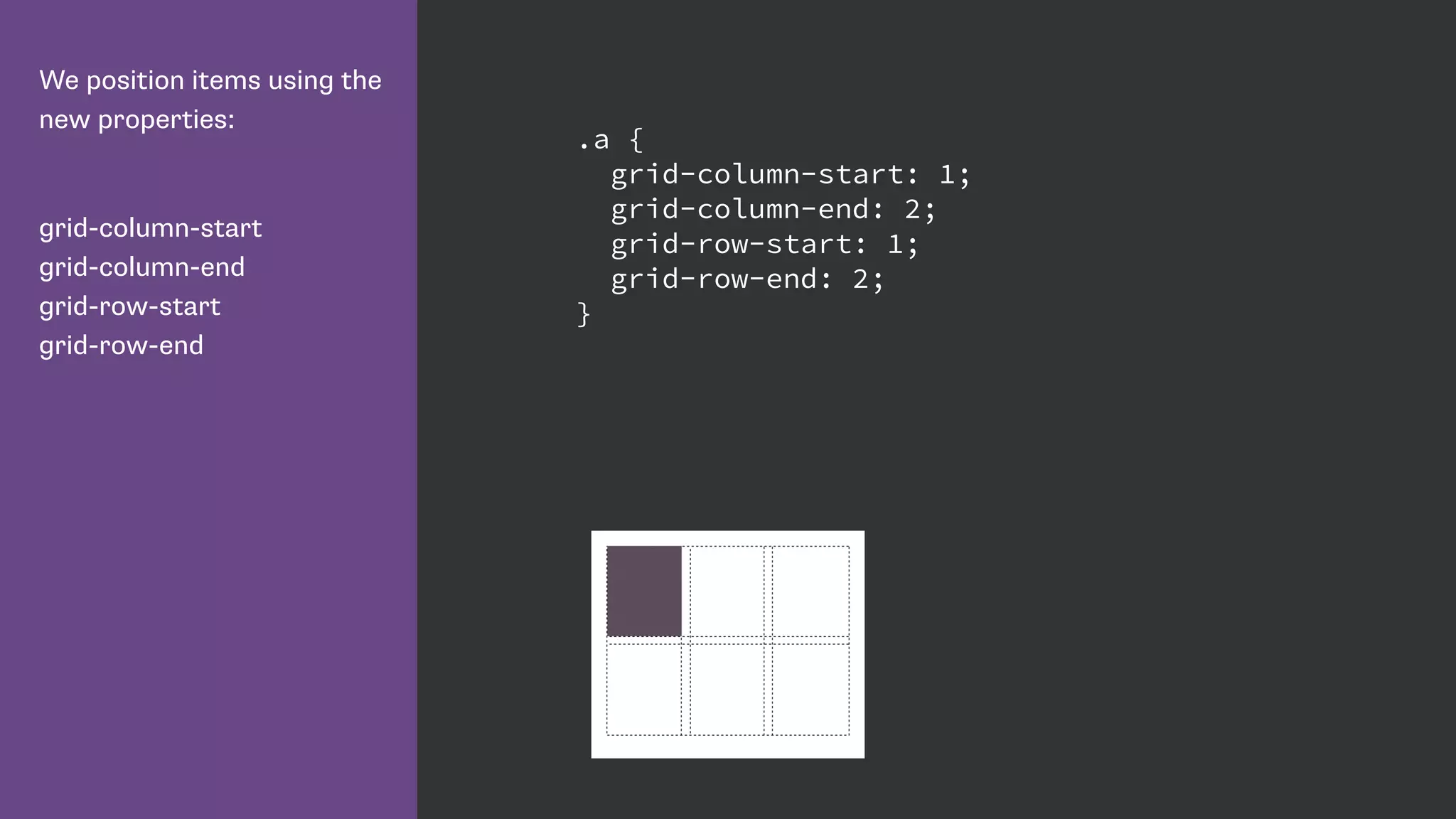

We position items using the
new properties:
grid-column-start

grid-column-end

grid-row-start

grid-row-end
.a {
grid-column-start: 1;
grid-column-end: 2;
grid-row-start: 1;
grid-row-end: 2;
}

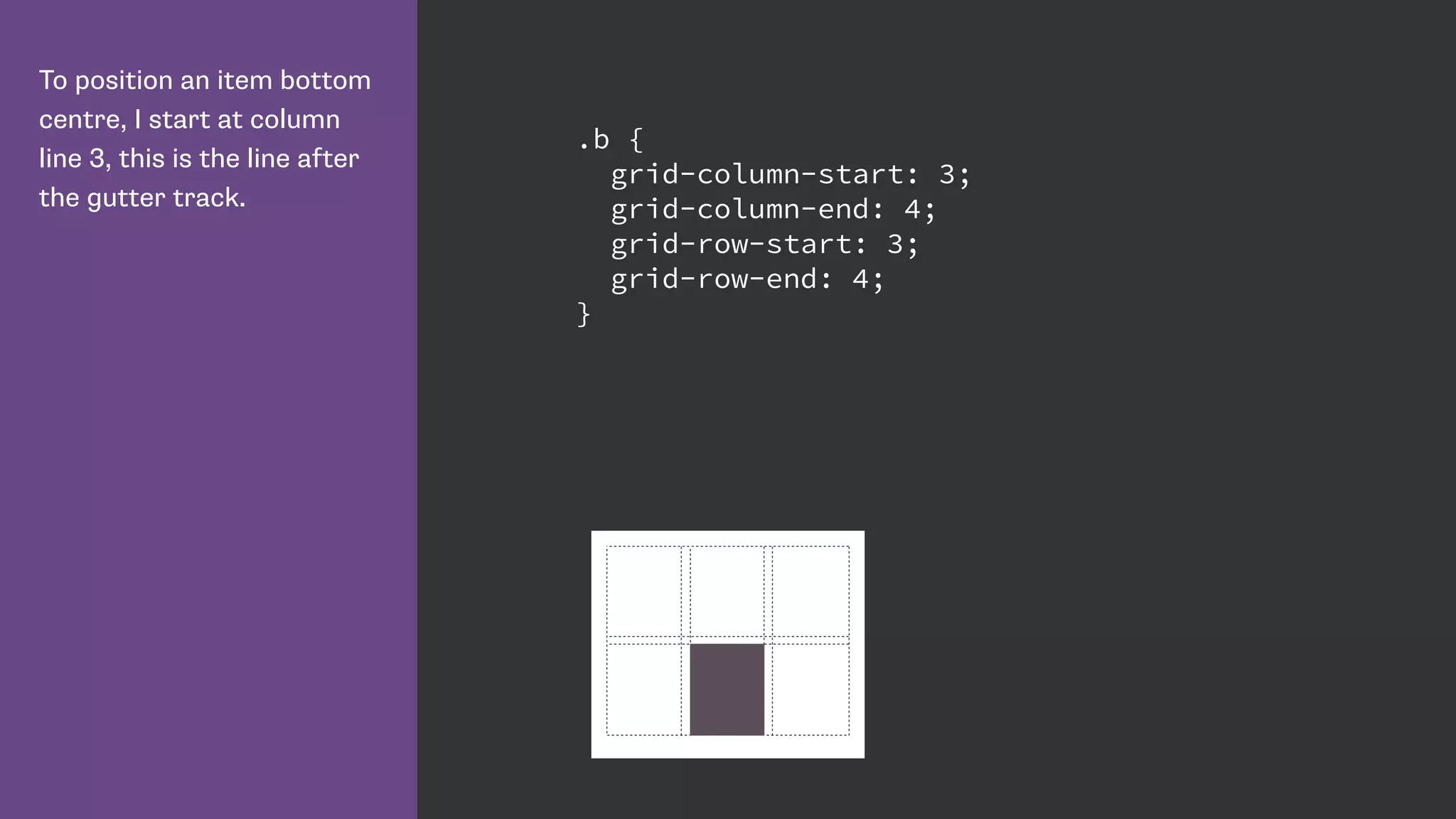

To position an item bottom
centre, I start at column
line 3, this is the line after
the gutter track.
.b {
grid-column-start: 3;
grid-column-end: 4;
grid-row-start: 3;
grid-row-end: 4;
}

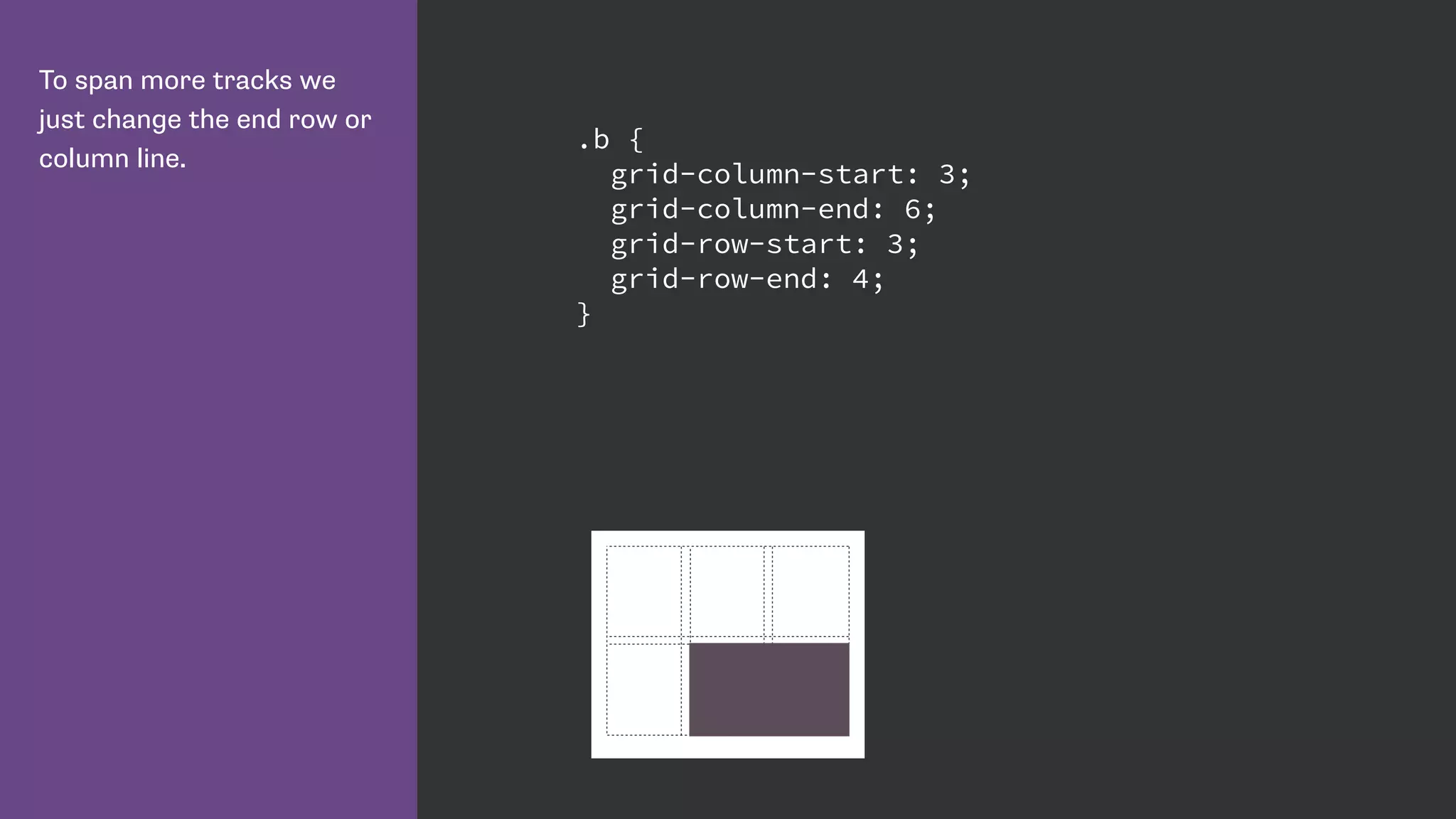

To span more tracks we
just change the end row or
column line.
.b {
grid-column-start: 3;
grid-column-end: 6;
grid-row-start: 3;
grid-row-end: 4;
}

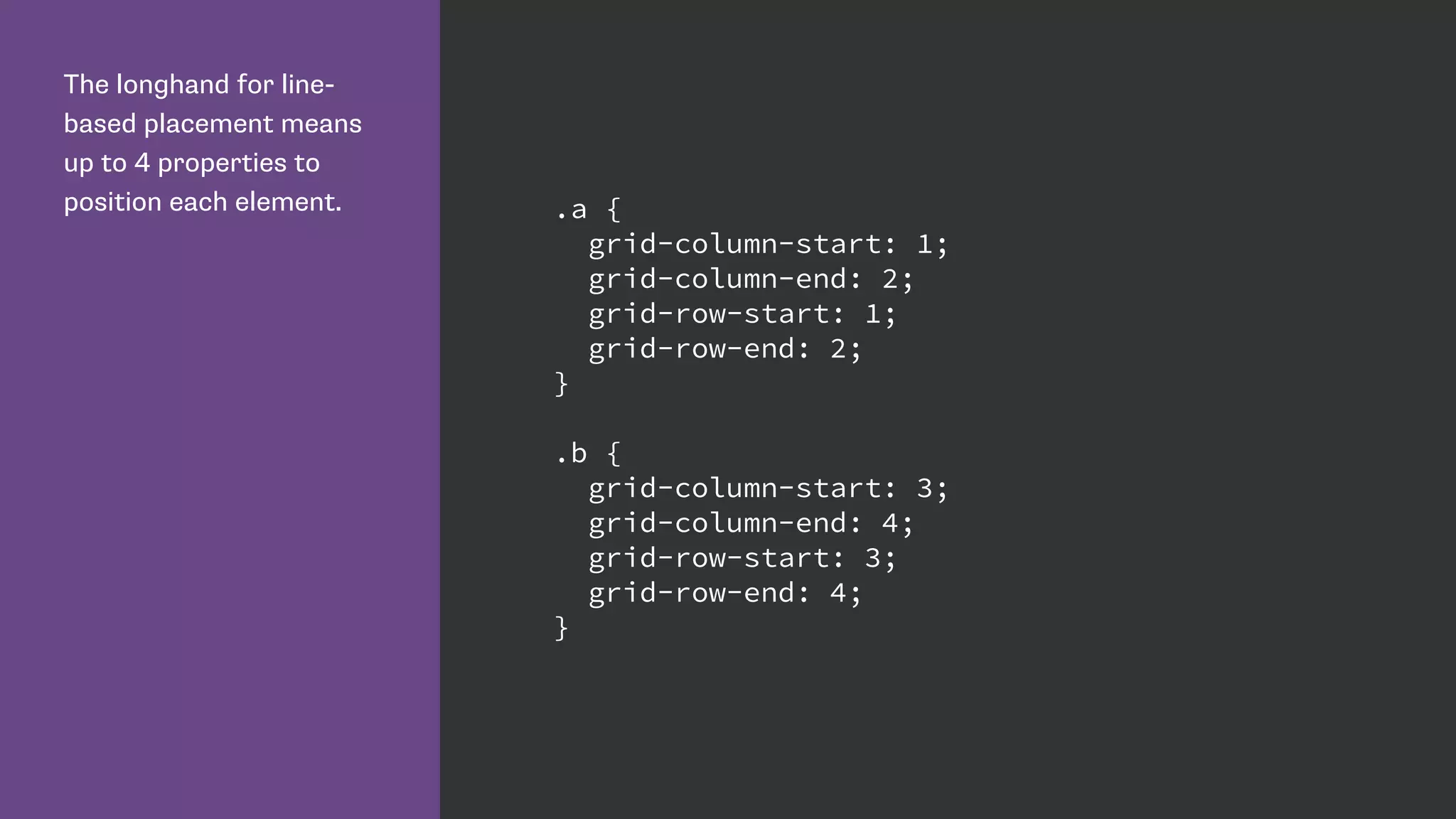

The longhand for line-
based placement means
up to 4 properties to
position each element. .a {
grid-column-start: 1;
grid-column-end: 2;
grid-row-start: 1;
grid-row-end: 2;
}
.b {
grid-column-start: 3;
grid-column-end: 4;
grid-row-start: 3;
grid-row-end: 4;
}

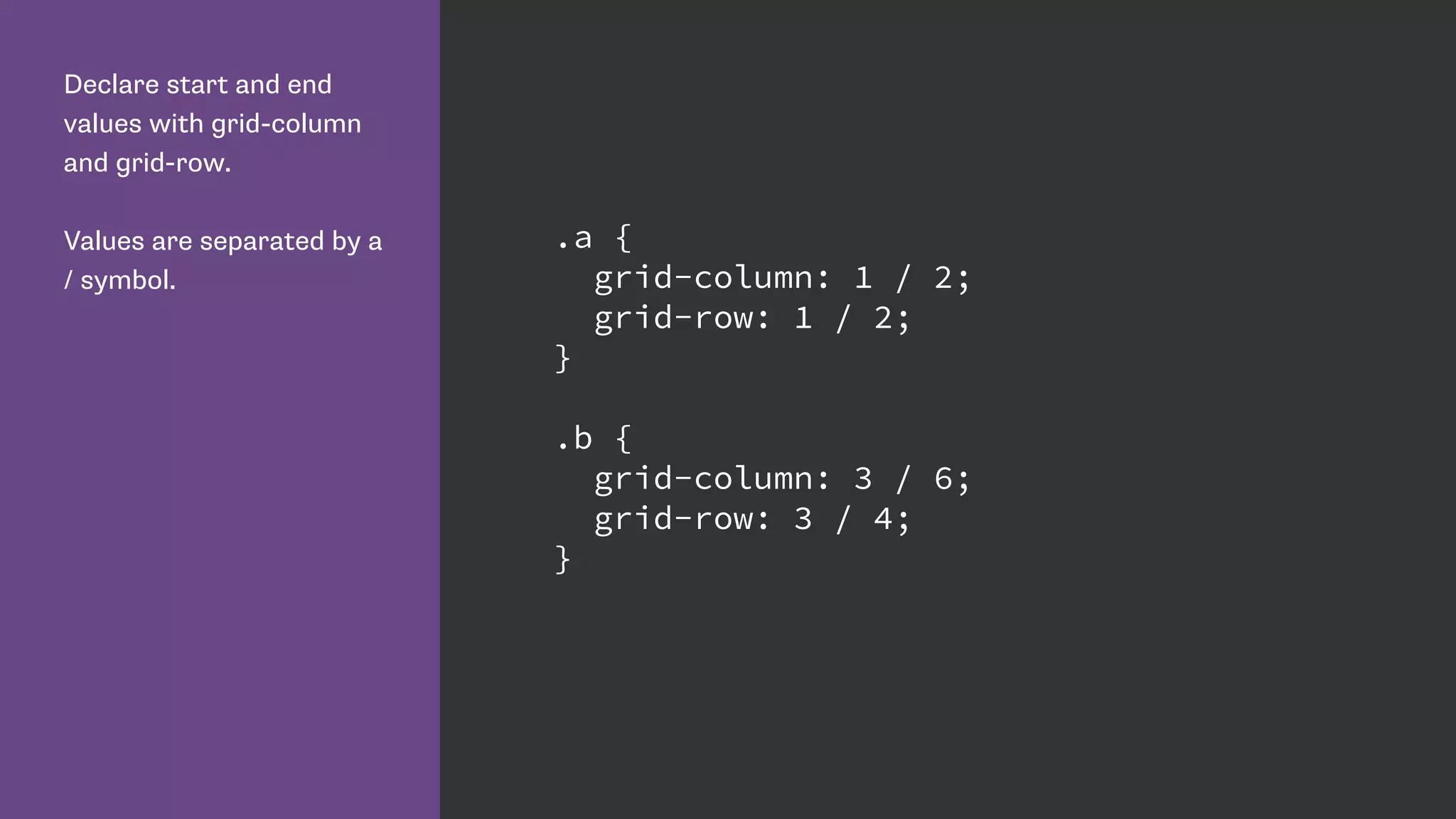

Declare start and end
values with grid-column
and grid-row.
Values are separated by a
/ symbol.
.a {
grid-column: 1 / 2;
grid-row: 1 / 2;
}
.b {
grid-column: 3 / 6;
grid-row: 3 / 4;
}

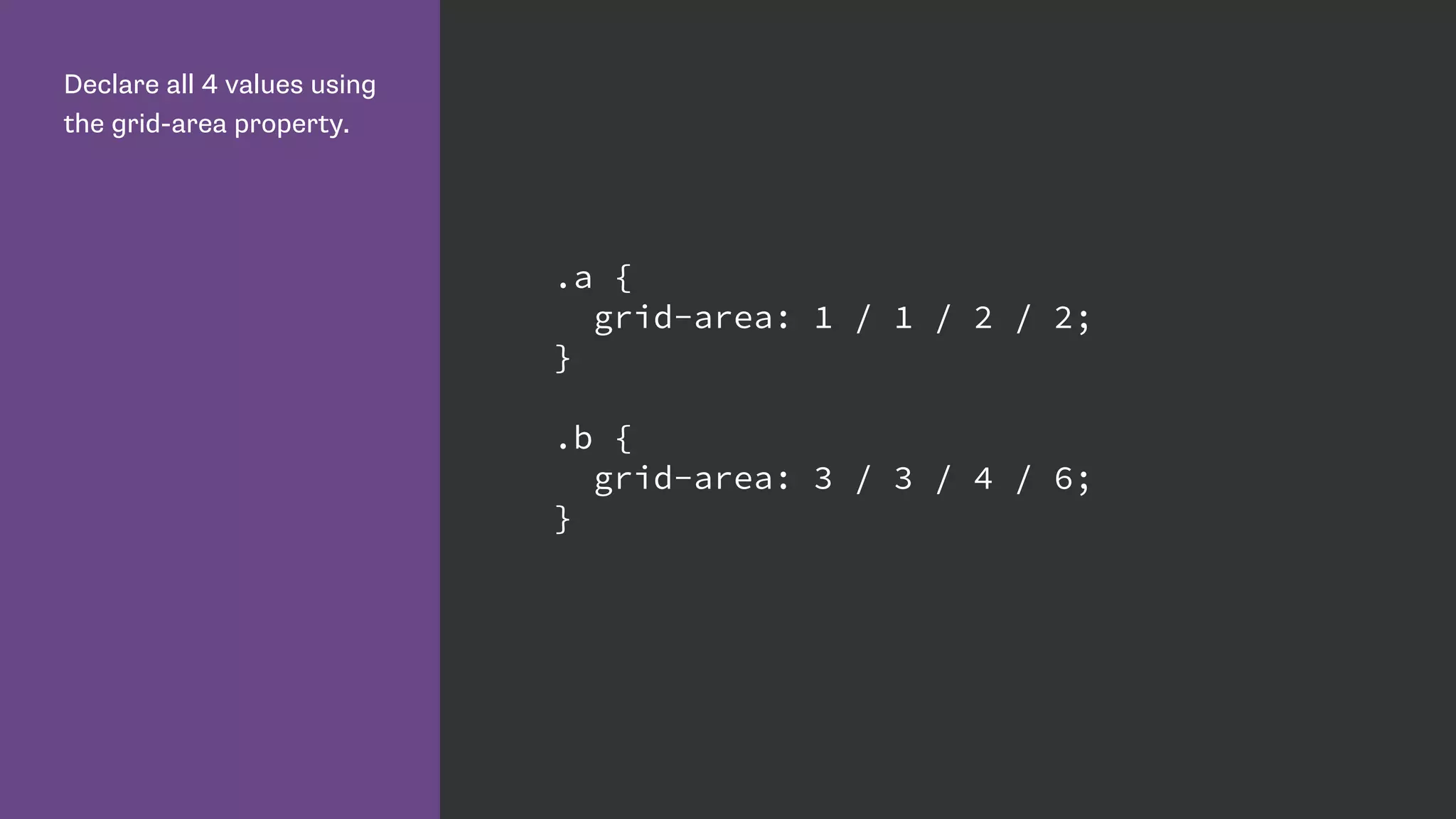

Declare all 4 values using
the grid-area property.
.a {
grid-area: 1 / 1 / 2 / 2;
}
.b {
grid-area: 3 / 3 / 4 / 6;
}
Grid Terminology

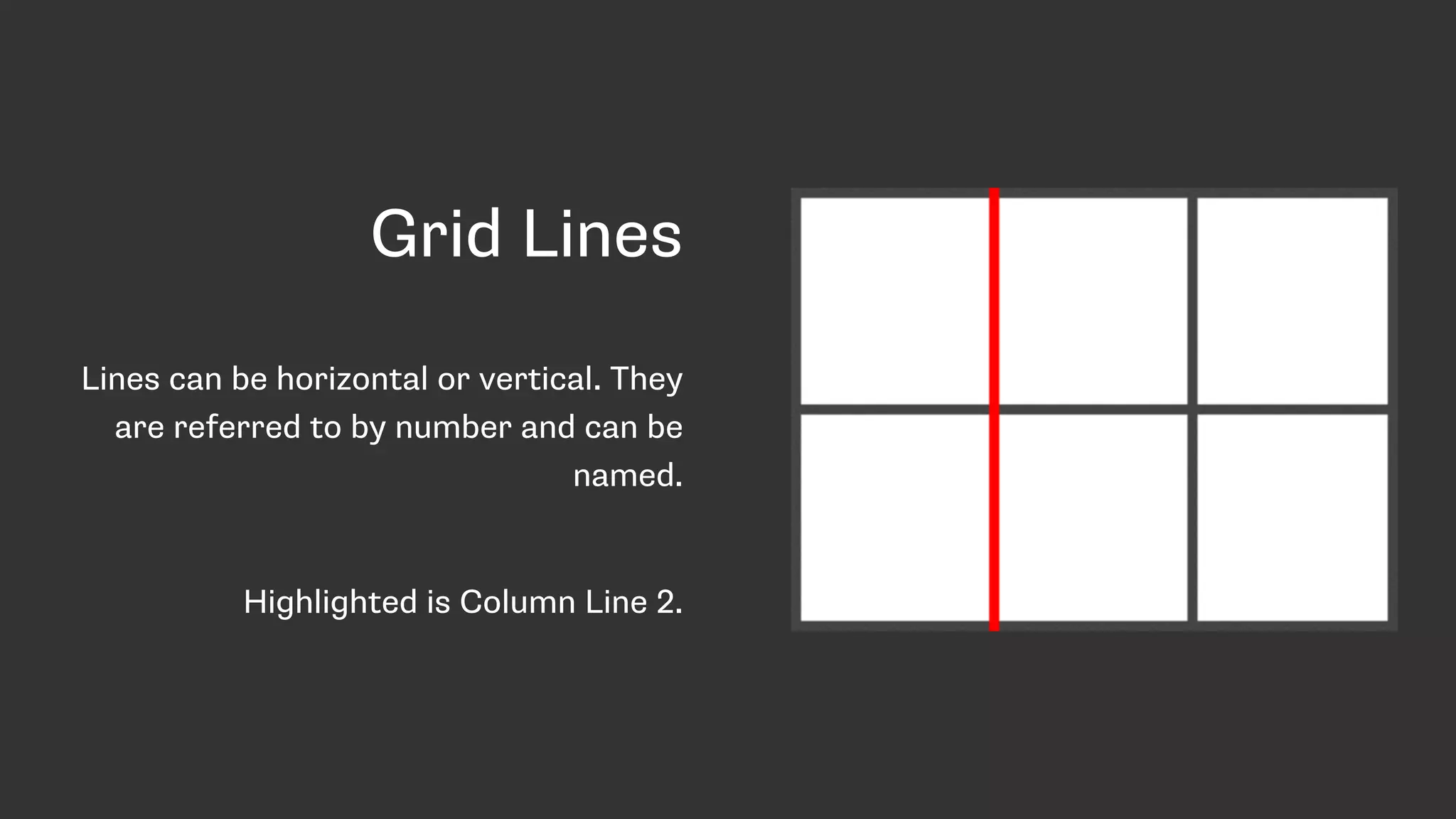

Grid Lines
Lines can be horizontal or vertical. They
are referred to by number and can be
named.
Highlighted is Column Line 2.
Grid Track
A Grid Track is the space between two
Grid Lines. Tracks can be horizontal or
vertical (rows or columns).
The highlighted Grid Track is between
Row Lines 2 and 3.
Grid Cell
The smallest unit on our grid, a Grid Cell
is the space between four Grid Lines. It’s
just like a table cell.
The highlighted Grid Cell is between row
lines 2 and 3 and column lines 2 and 3.

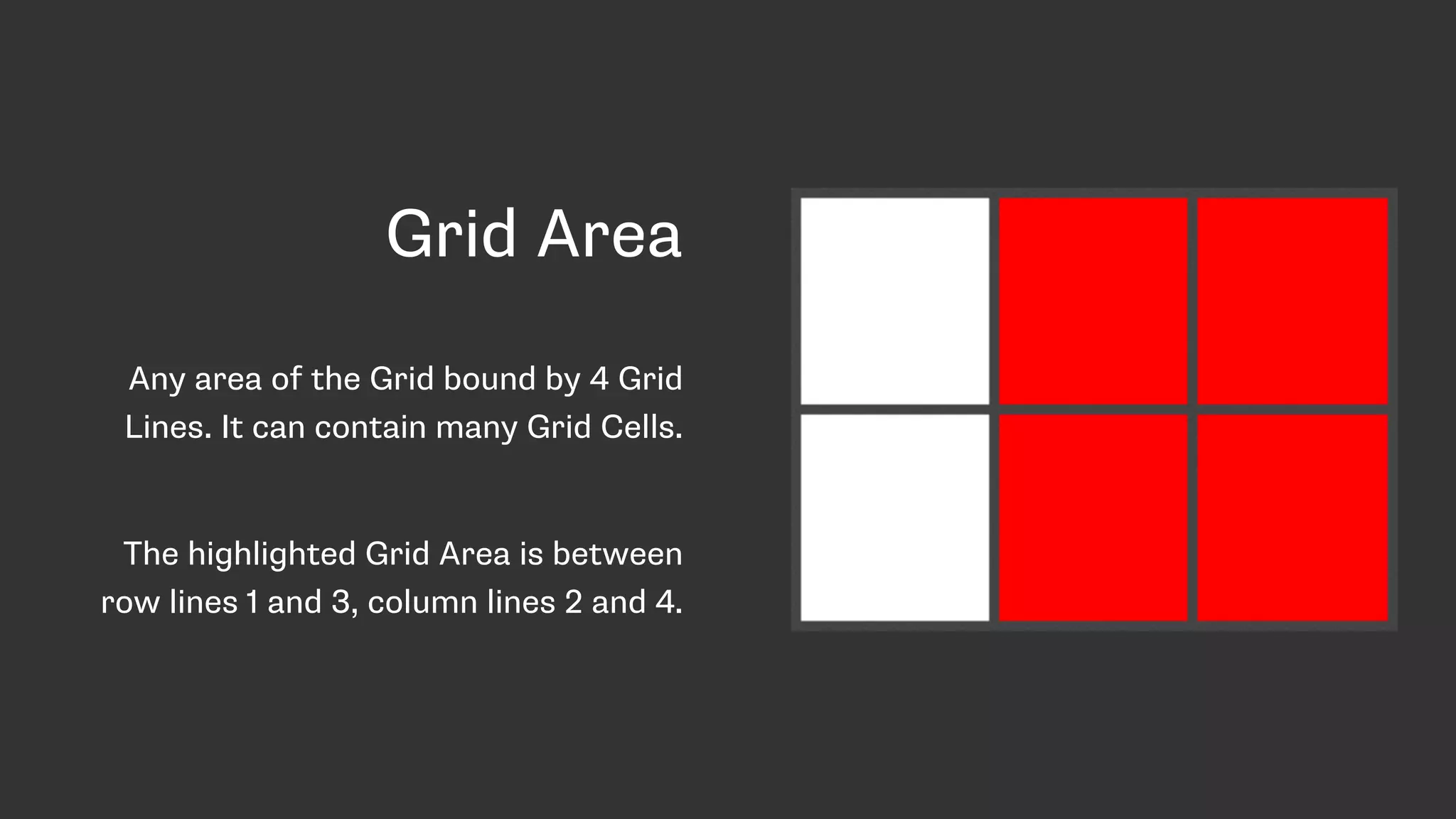

Grid Area
Any area of the Grid bound by 4 Grid
Lines. It can contain many Grid Cells.
The highlighted Grid Area is between
row lines 1 and 3, column lines 2 and 4.

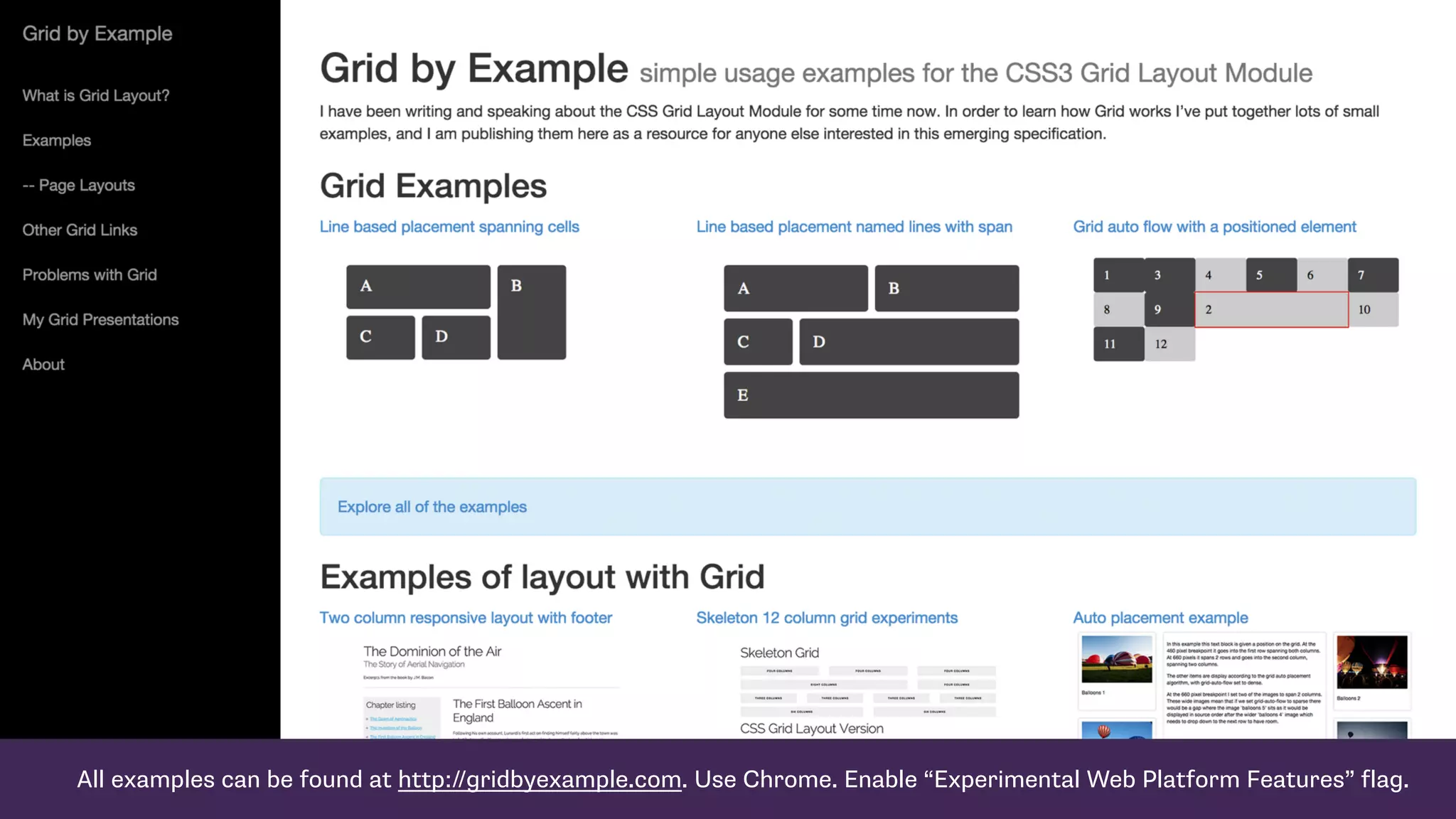

All examples can be found at http://gridbyexample.com. Use Chrome. Enable “Experimental Web Platform Features” flag.
Line-based placement

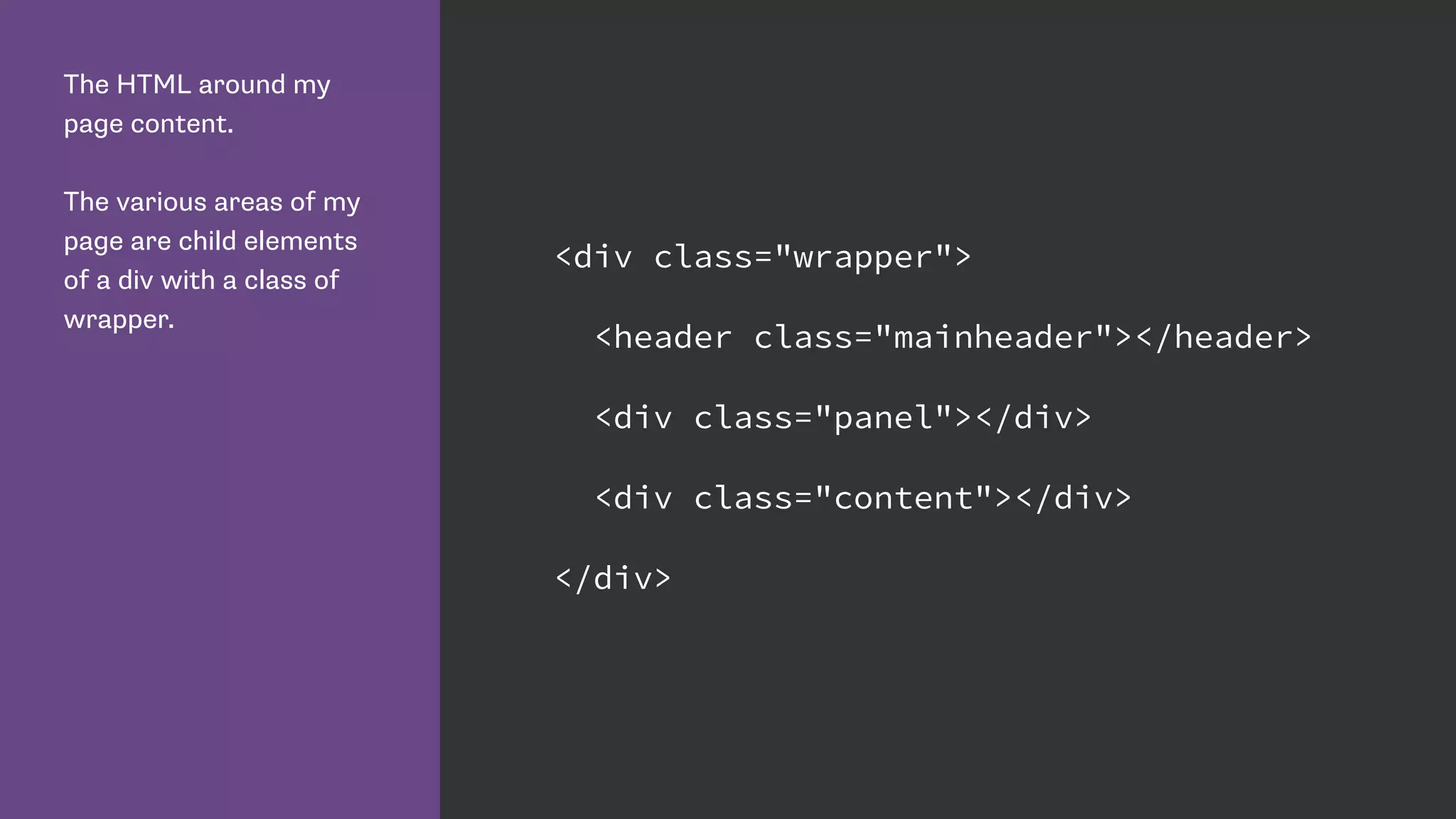

The HTML around my
page content.
The various areas of my
page are child elements
of a div with a class of
wrapper.
<div class="wrapper">
<header class="mainheader"></header>
<div class="panel"></div>
<div class="content"></div>
</div>

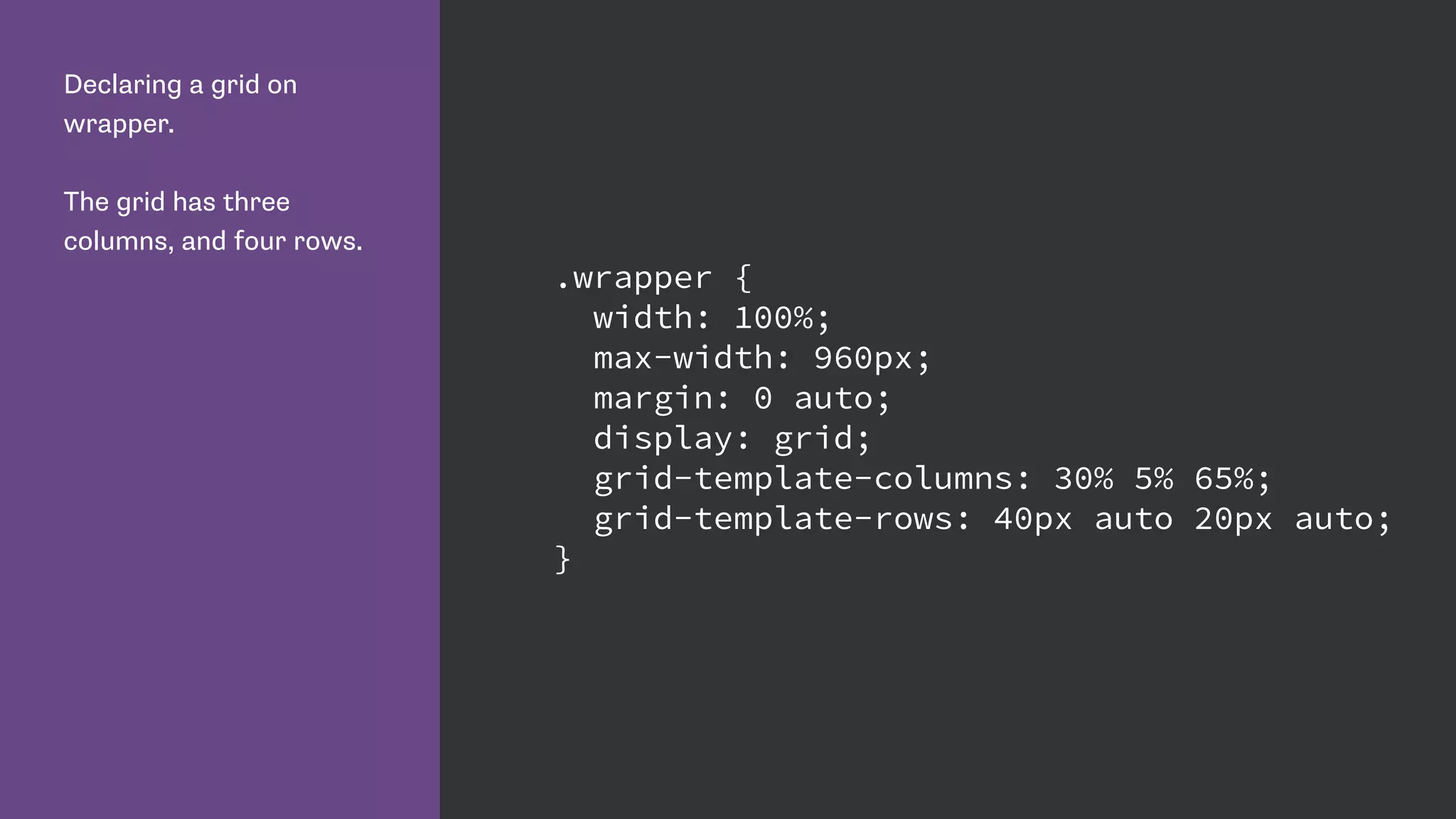

Declaring a grid on
wrapper.
The grid has three
columns, and four rows.
.wrapper {
width: 100%;
max-width: 960px;
margin: 0 auto;
display: grid;
grid-template-columns: 30% 5% 65%;
grid-template-rows: 40px auto 20px auto;
}

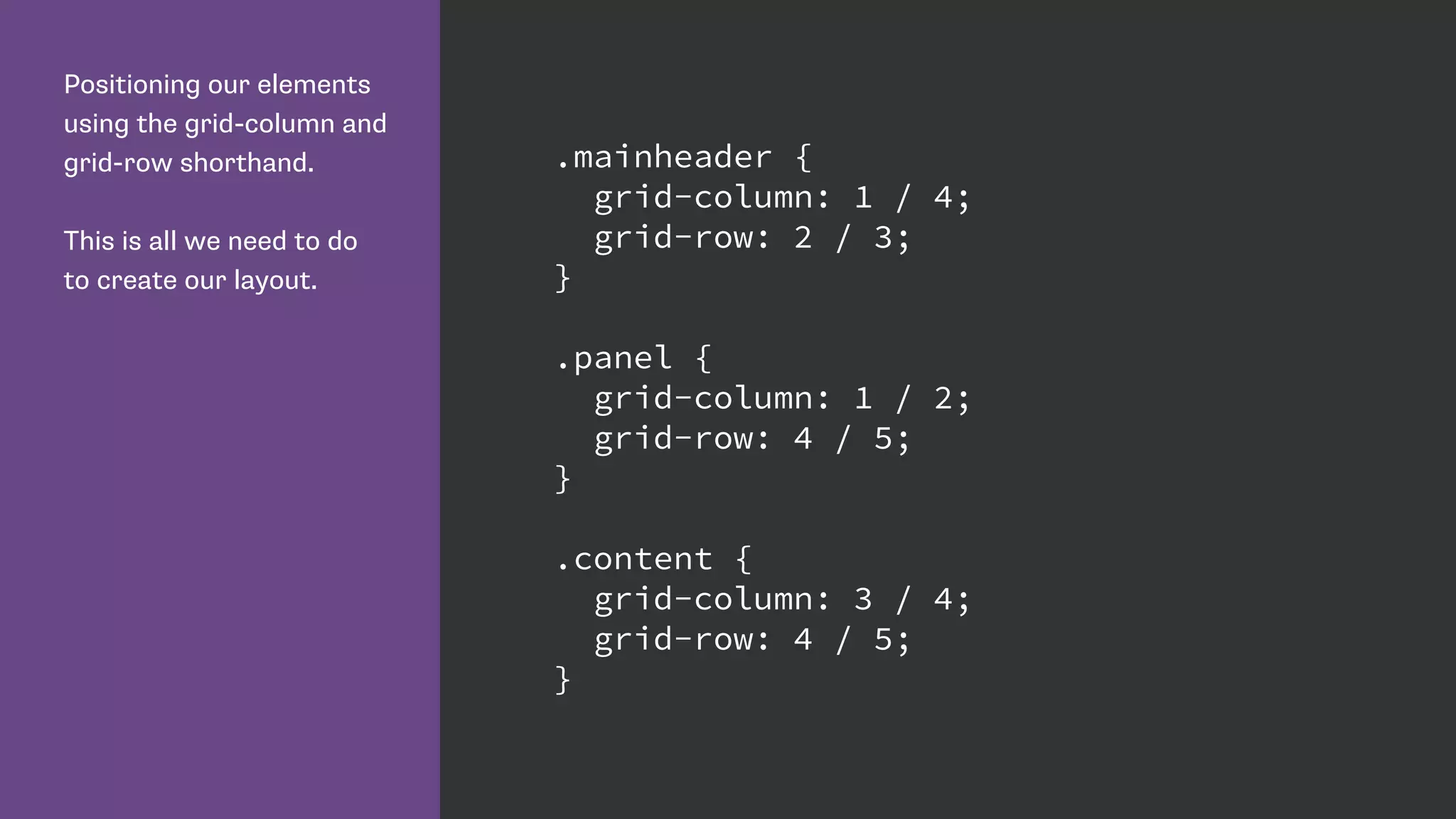

Positioning our elements
using the grid-column and
grid-row shorthand.
This is all we need to do
to create our layout.
.mainheader {
grid-column: 1 / 4;
grid-row: 2 / 3;
}
.panel {
grid-column: 1 / 2;
grid-row: 4 / 5;
}
.content {
grid-column: 3 / 4;
grid-row: 4 / 5;
}

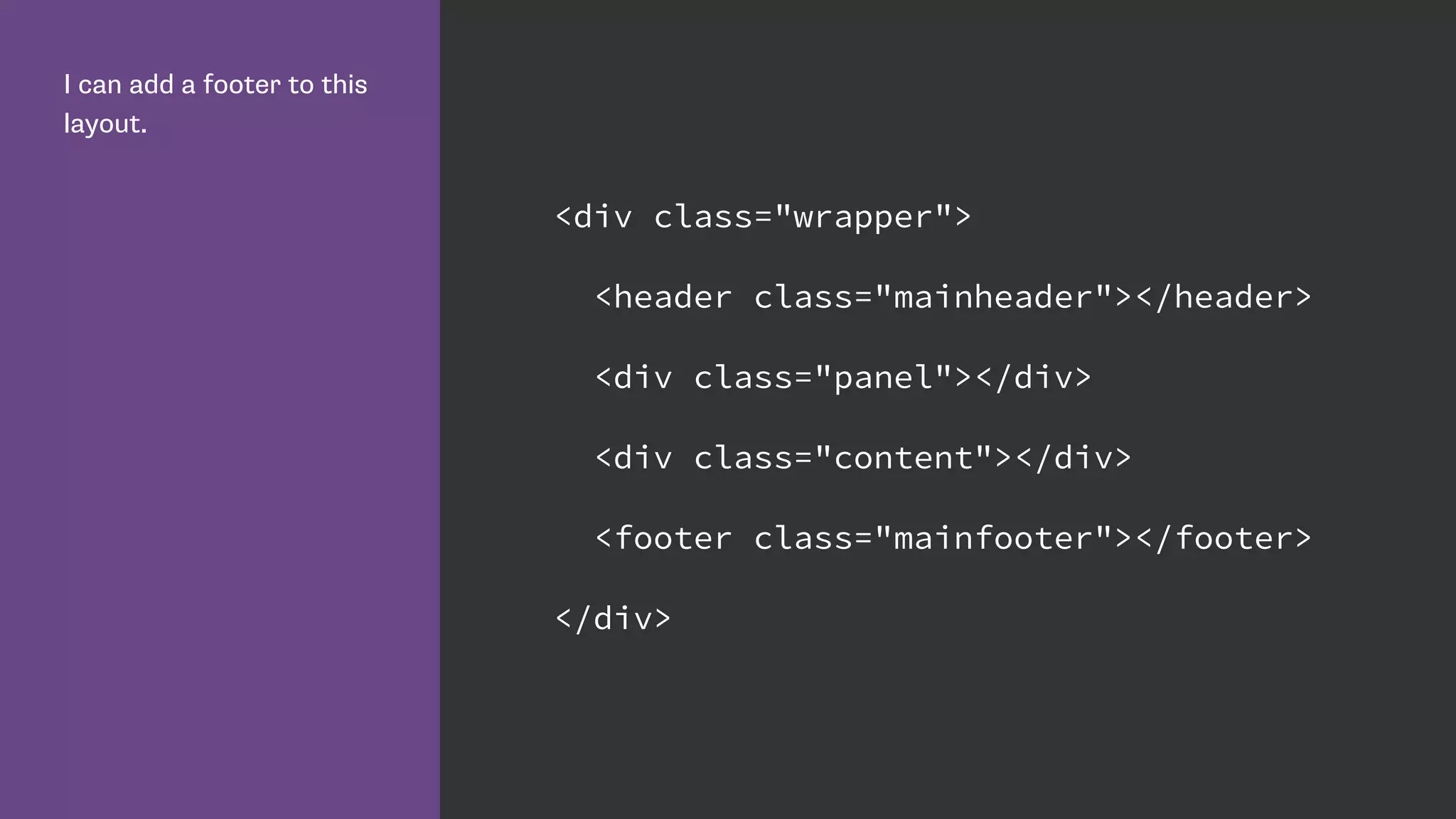

I can add a footer to this
layout.
<div class="wrapper">
<header class="mainheader"></header>
<div class="panel"></div>
<div class="content"></div>
<footer class="mainfooter"></footer>
</div>

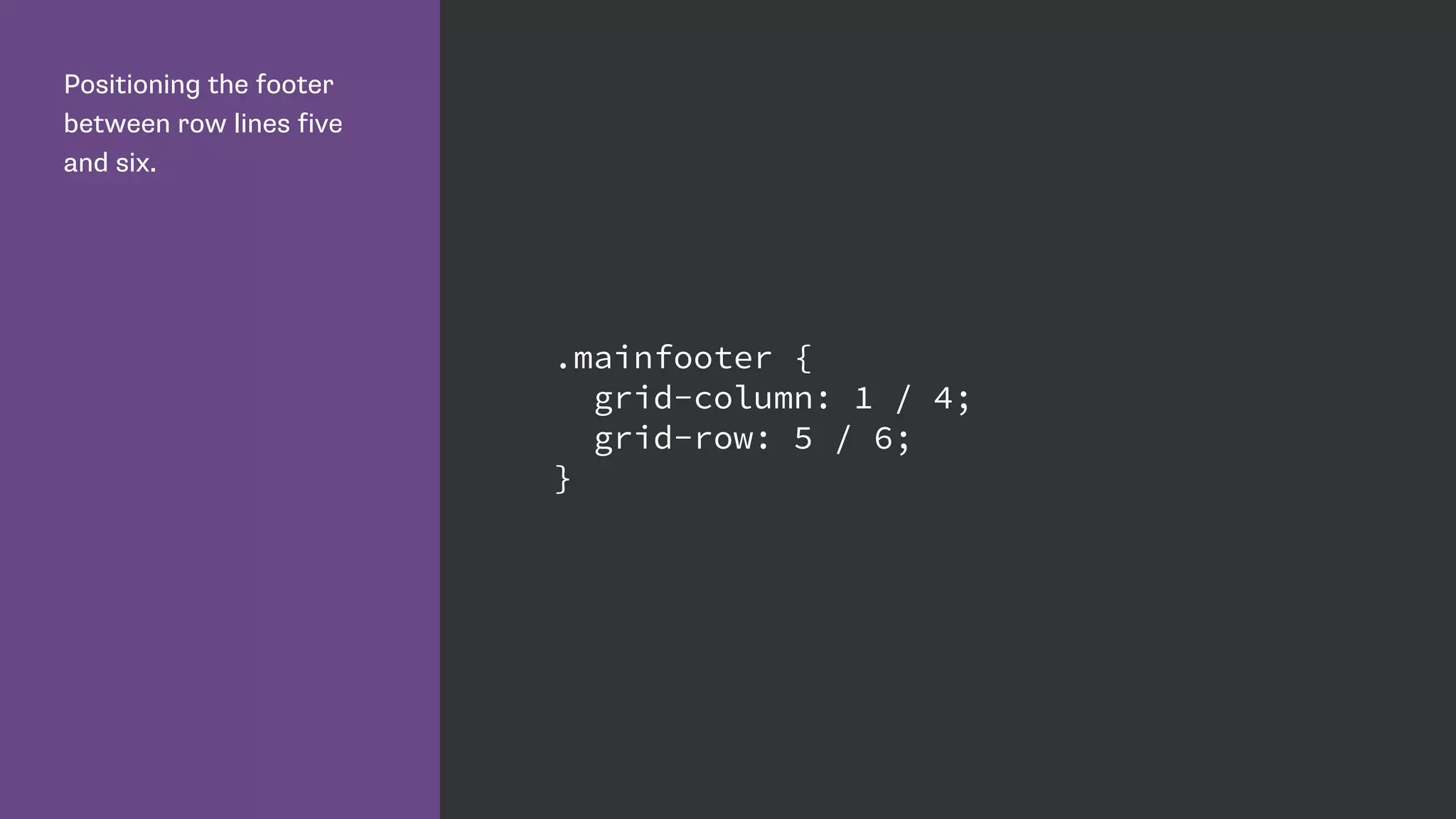

Positioning the footer
between row lines five
and six.
.mainfooter {
grid-column: 1 / 4;
grid-row: 5 / 6;
}

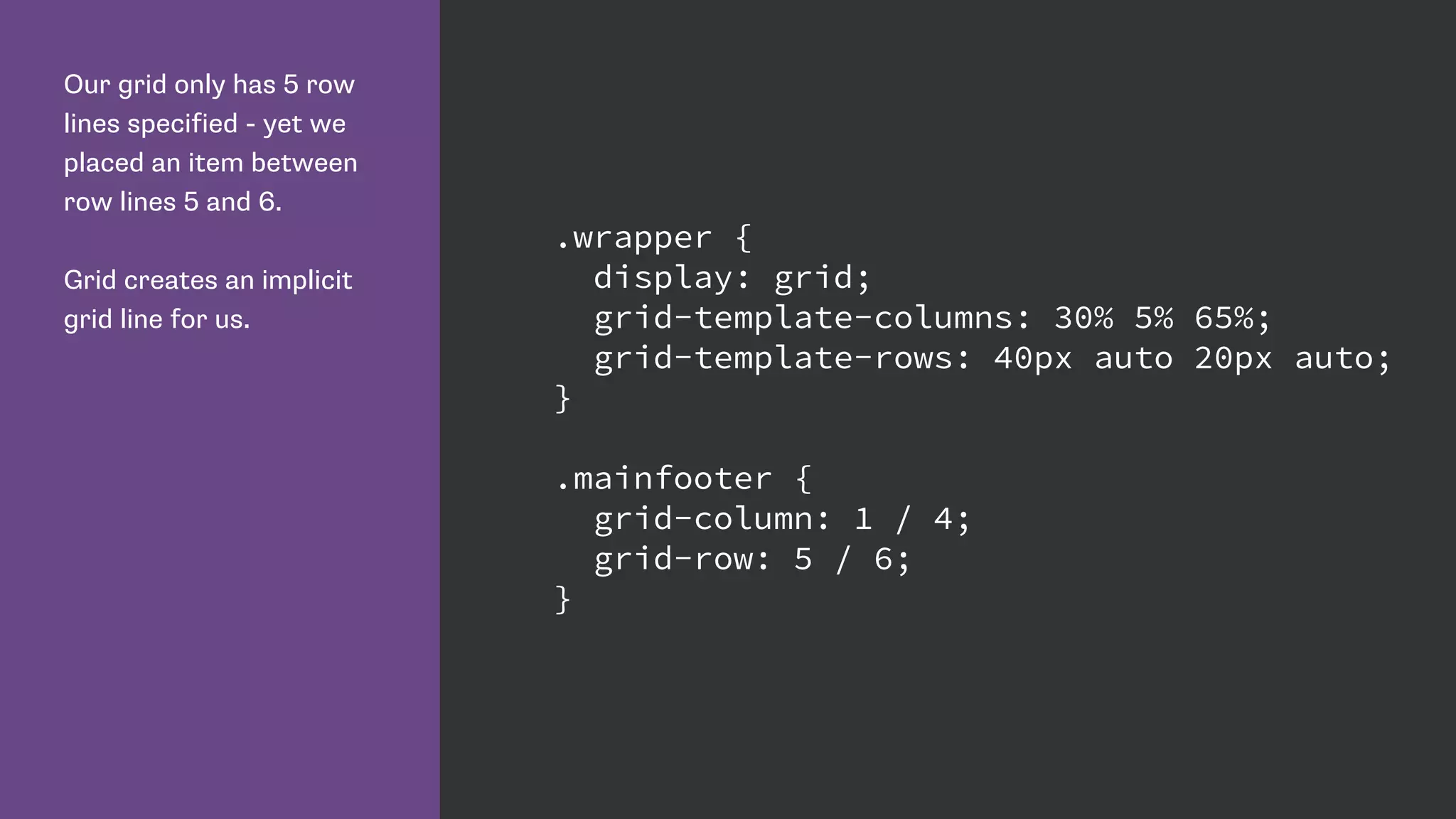

Our grid only has 5 row
lines specified - yet we
placed an item between
row lines 5 and 6.
Grid creates an implicit
grid line for us.
.wrapper {
display: grid;
grid-template-columns: 30% 5% 65%;
grid-template-rows: 40px auto 20px auto;
}
.mainfooter {
grid-column: 1 / 4;
grid-row: 5 / 6;
}

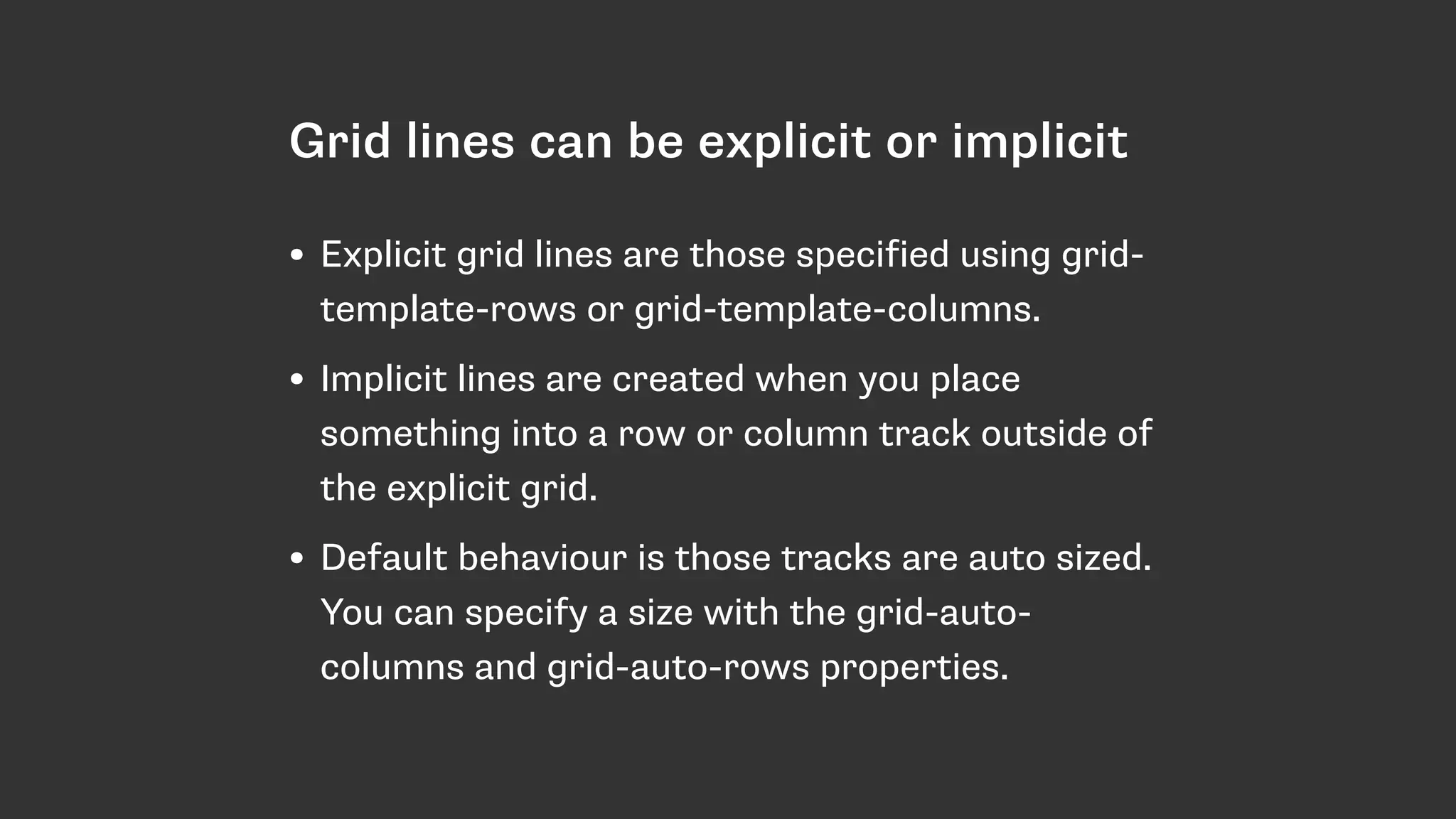

Grid lines can be explicit or implicit
• Explicit grid lines are those specified using grid-
template-rows or grid-template-columns.
• Implicit lines are created when you place
something into a row or column track outside of
the explicit grid.
• Default behaviour is those tracks are auto sized.
You can specify a size with the grid-auto-
columns and grid-auto-rows properties.

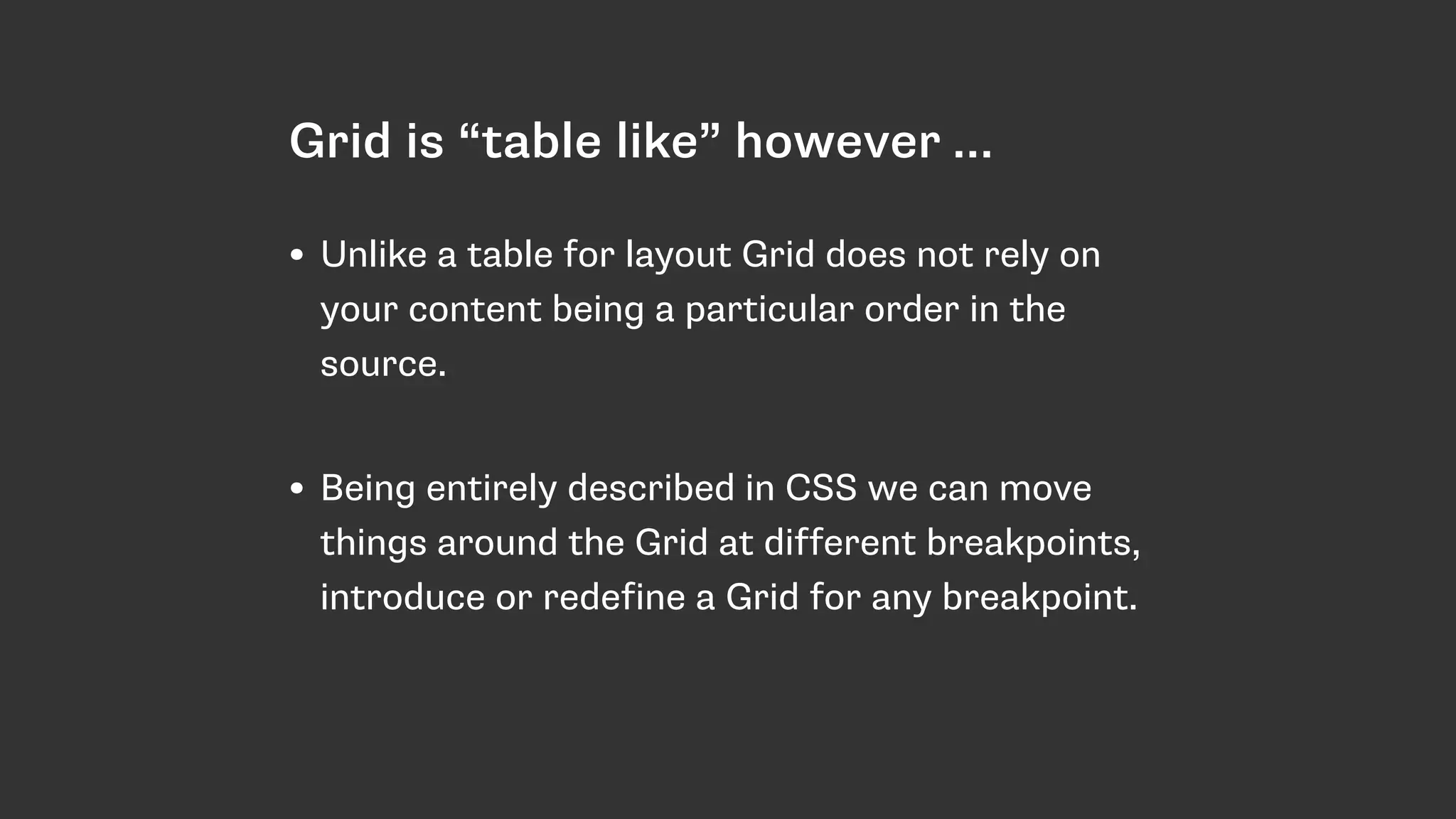

Grid is “table like” however …
• Unlike a table for layout Grid does not rely on
your content being a particular order in the
source.

• Being entirely described in CSS we can move
things around the Grid at different breakpoints,
introduce or redefine a Grid for any breakpoint.

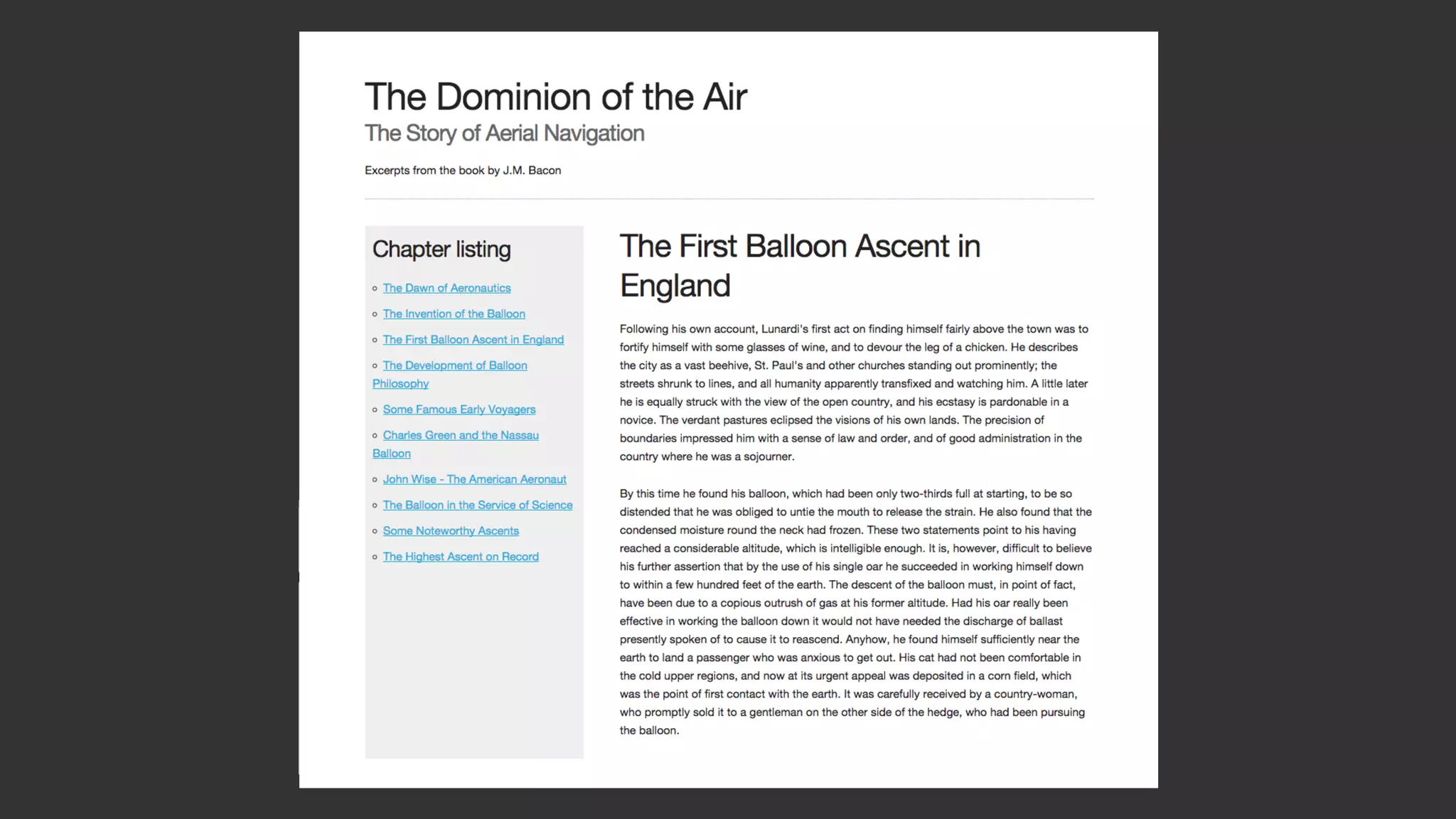

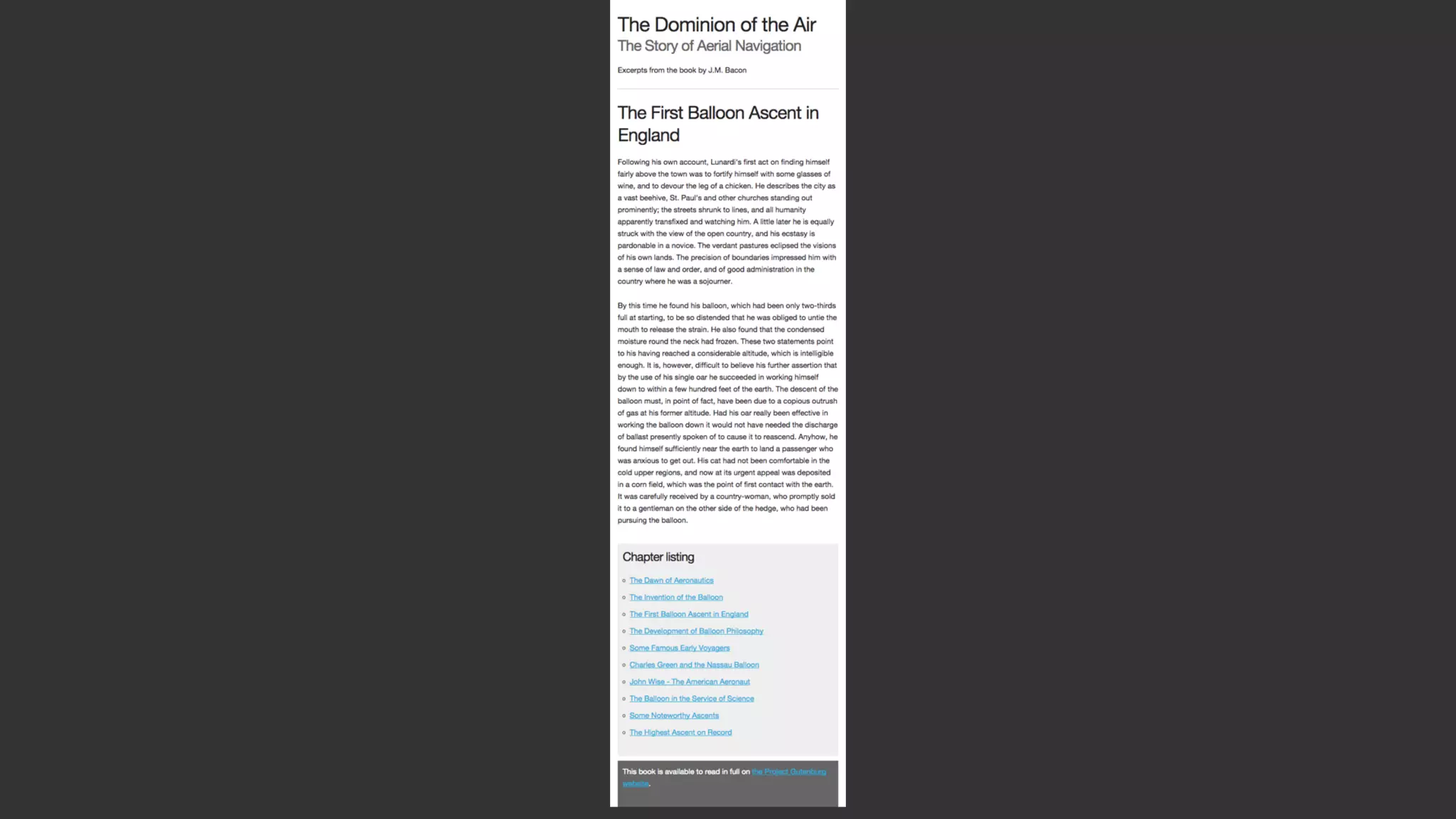

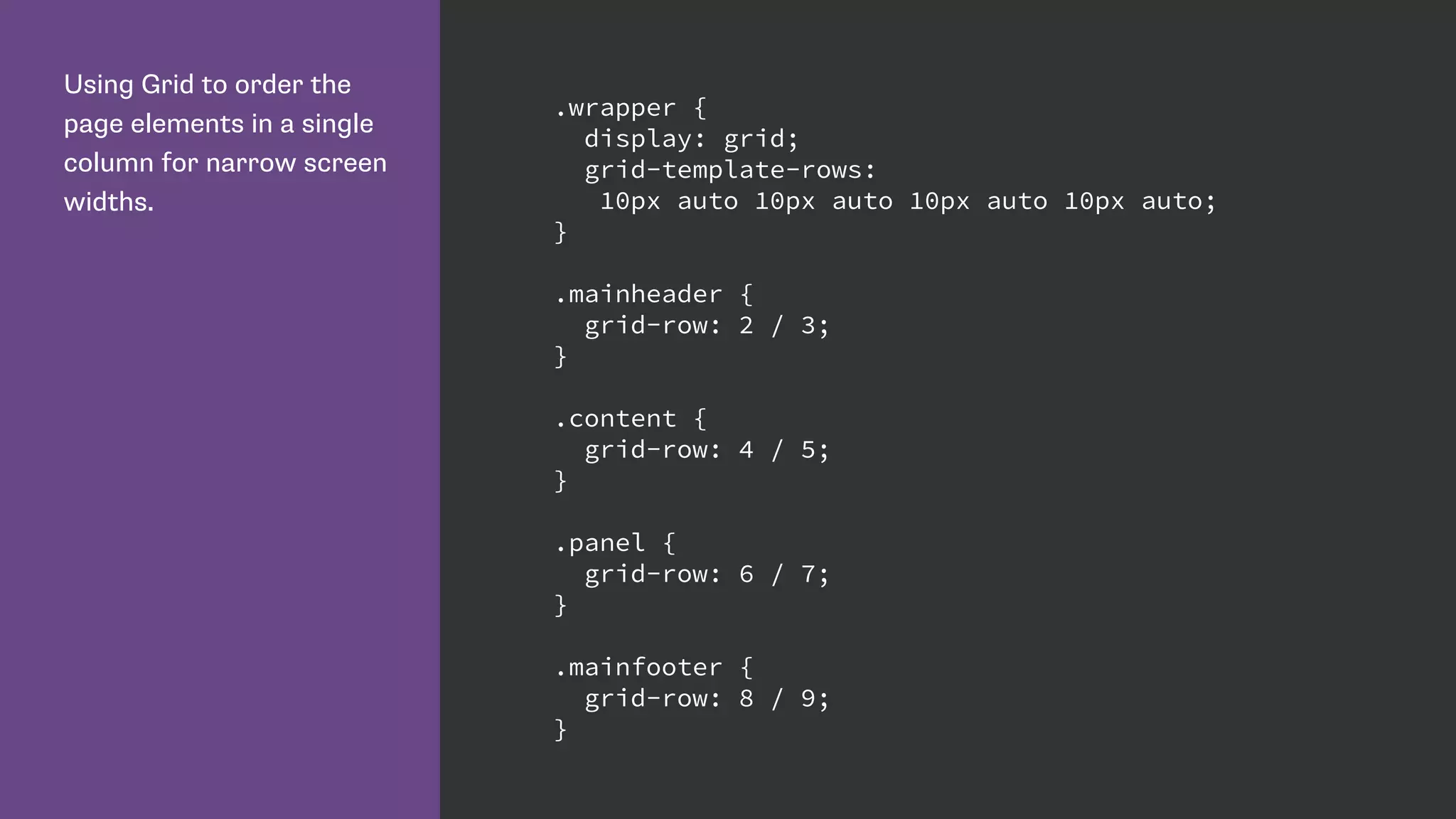

Using Grid to order the
page elements in a single
column for narrow screen
widths.
.wrapper {
display: grid;
grid-template-rows:
10px auto 10px auto 10px auto 10px auto;
}
.mainheader {
grid-row: 2 / 3;
}
.content {
grid-row: 4 / 5;
}
.panel {
grid-row: 6 / 7;
}
.mainfooter {
grid-row: 8 / 9;
}

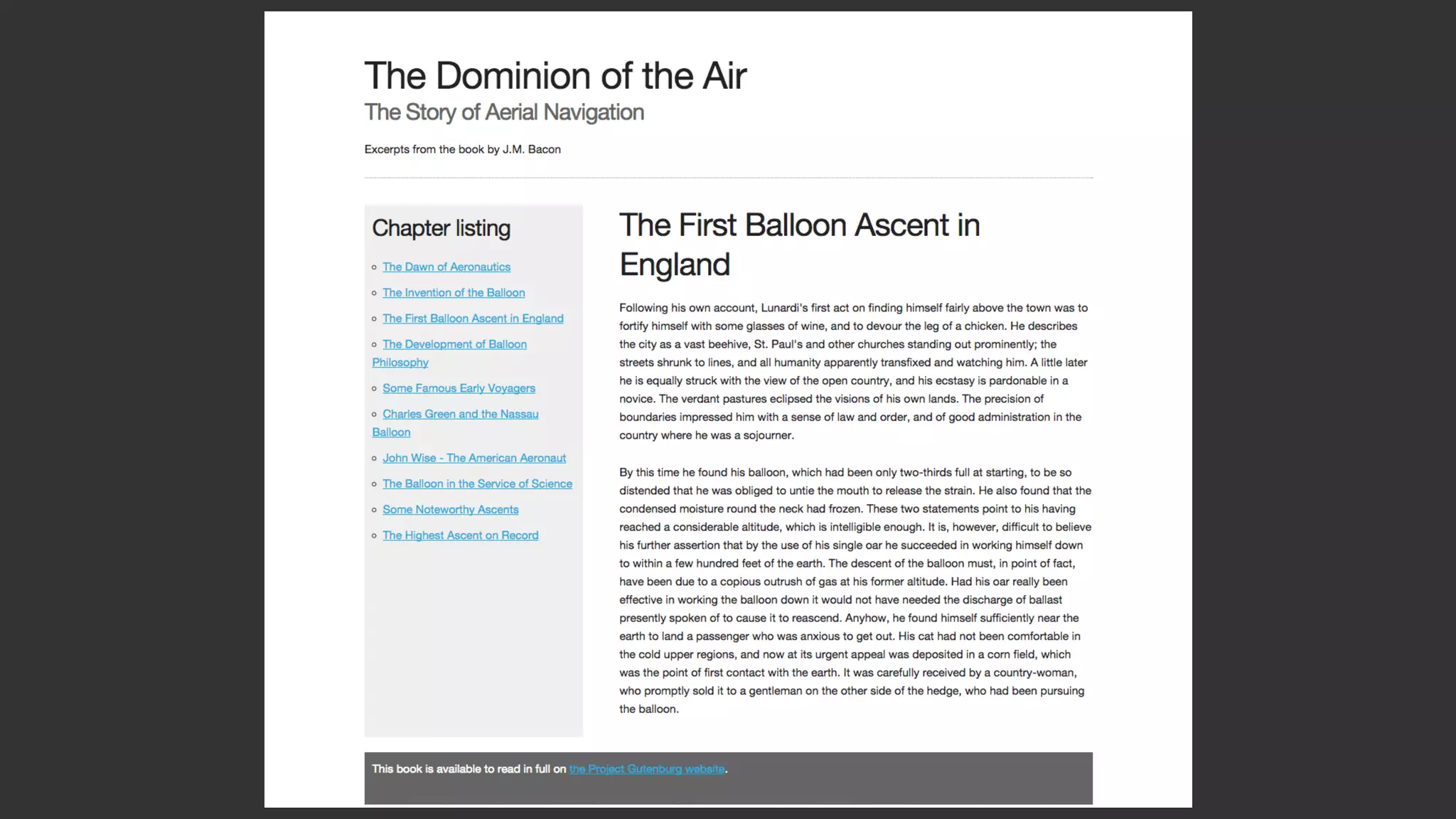

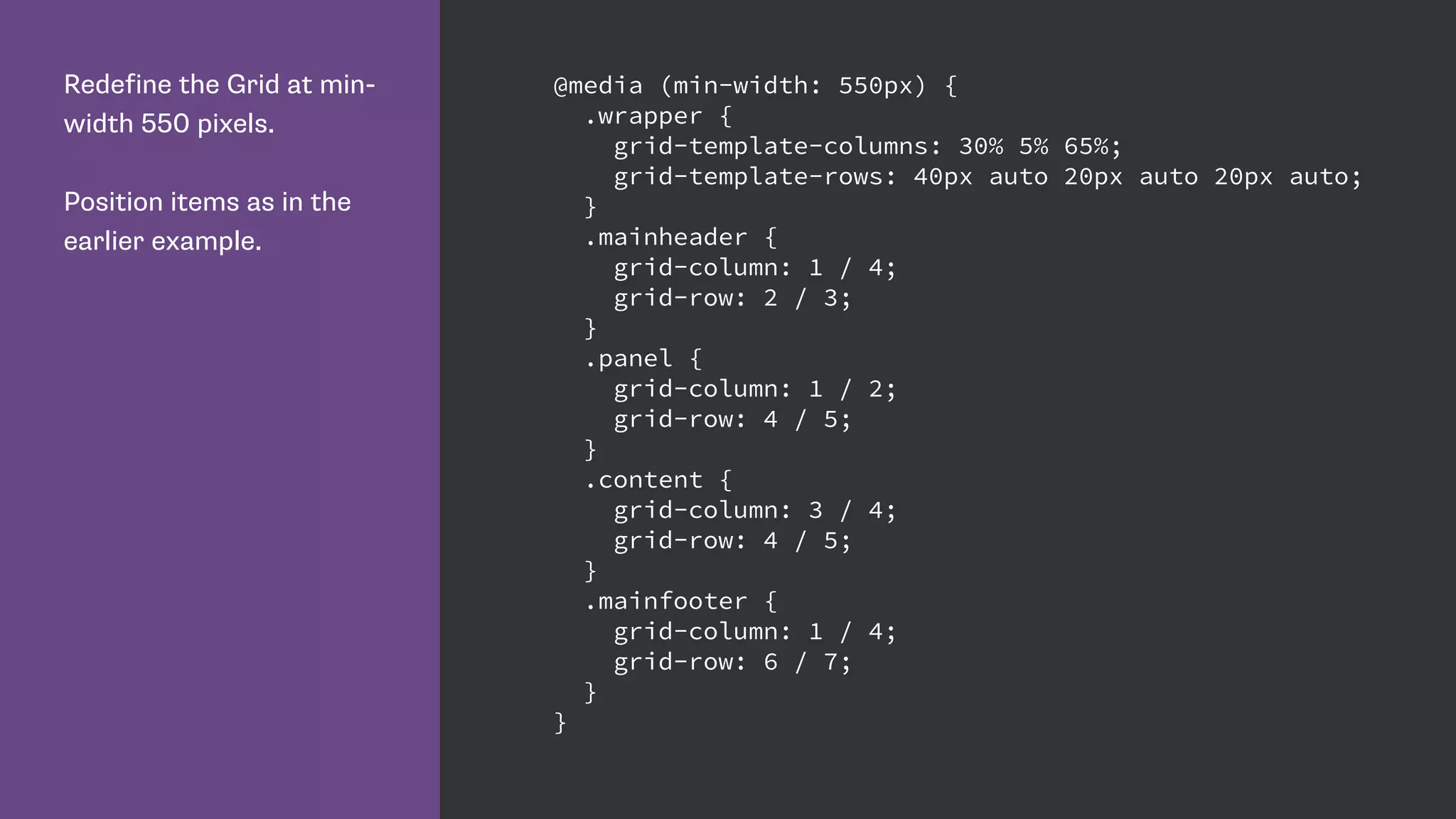

Redefine the Grid at min-
width 550 pixels.
Position items as in the
earlier example.
@media (min-width: 550px) {
.wrapper {
grid-template-columns: 30% 5% 65%;
grid-template-rows: 40px auto 20px auto 20px auto;
}
.mainheader {
grid-column: 1 / 4;
grid-row: 2 / 3;
}
.panel {
grid-column: 1 / 2;
grid-row: 4 / 5;
}
.content {
grid-column: 3 / 4;
grid-row: 4 / 5;
}
.mainfooter {
grid-column: 1 / 4;
grid-row: 6 / 7;
}
}
Named Areas

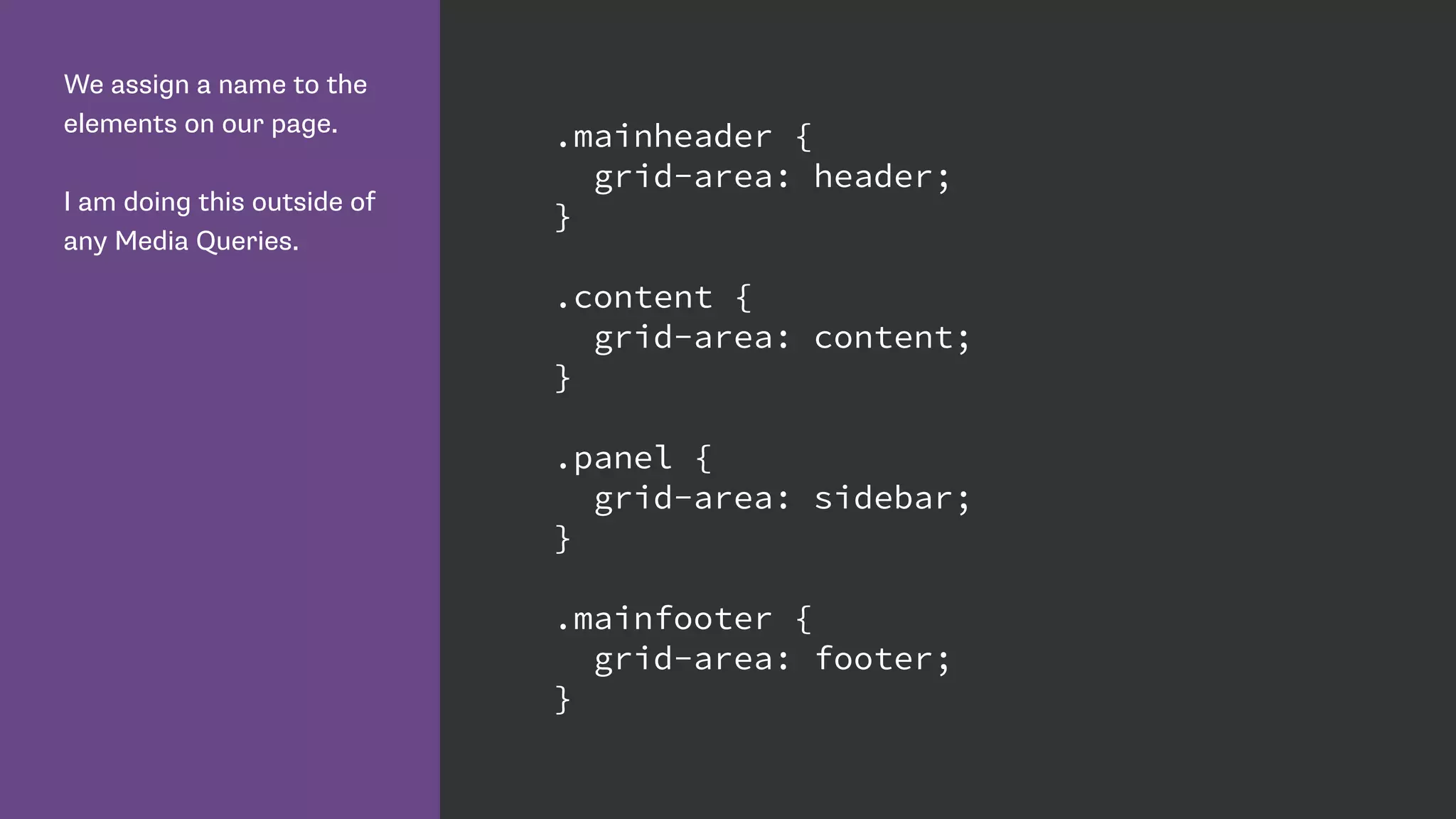

We assign a name to the
elements on our page.
I am doing this outside of
any Media Queries.
.mainheader {
grid-area: header;
}
.content {
grid-area: content;
}
.panel {
grid-area: sidebar;
}
.mainfooter {
grid-area: footer;
}

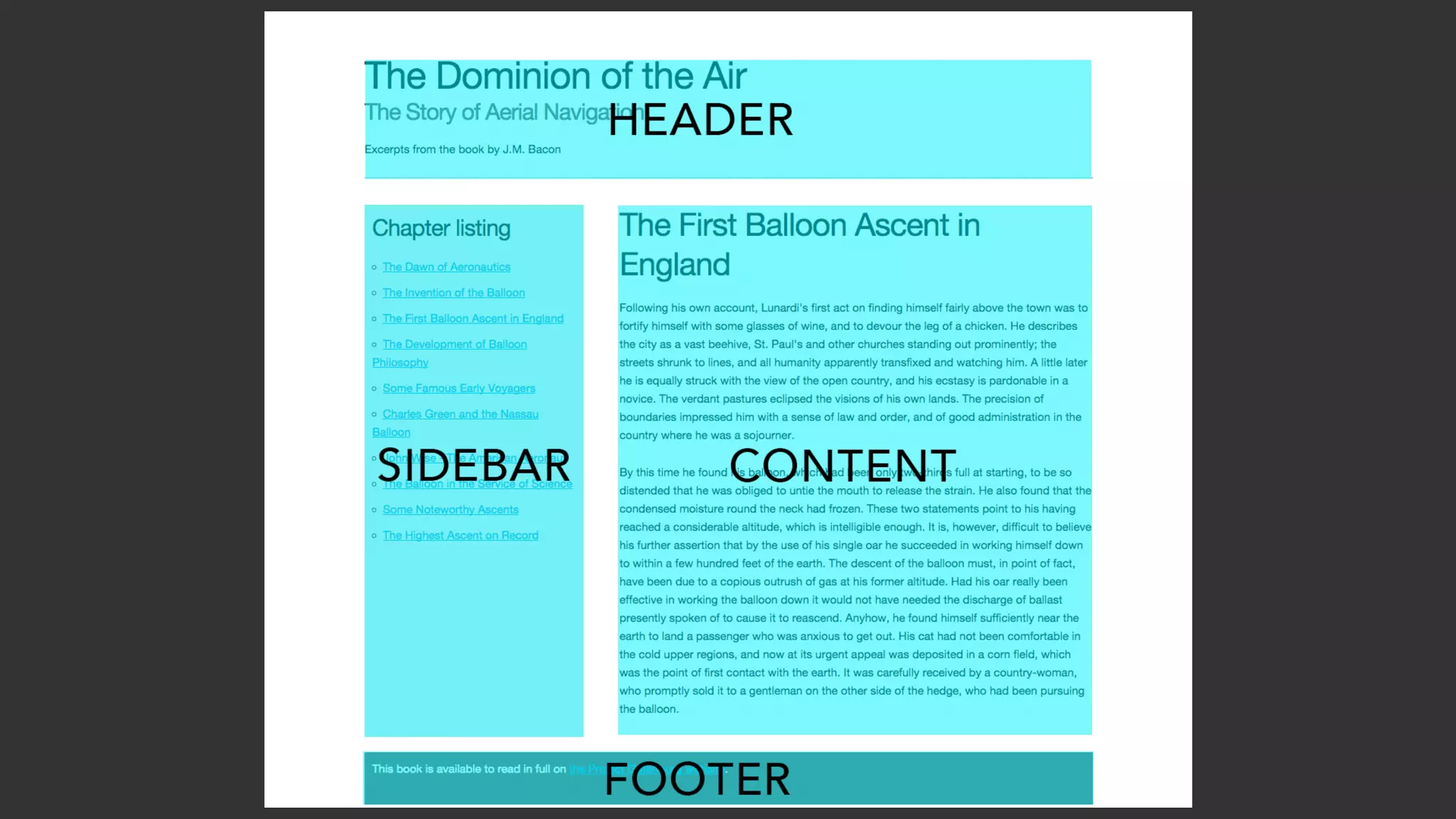

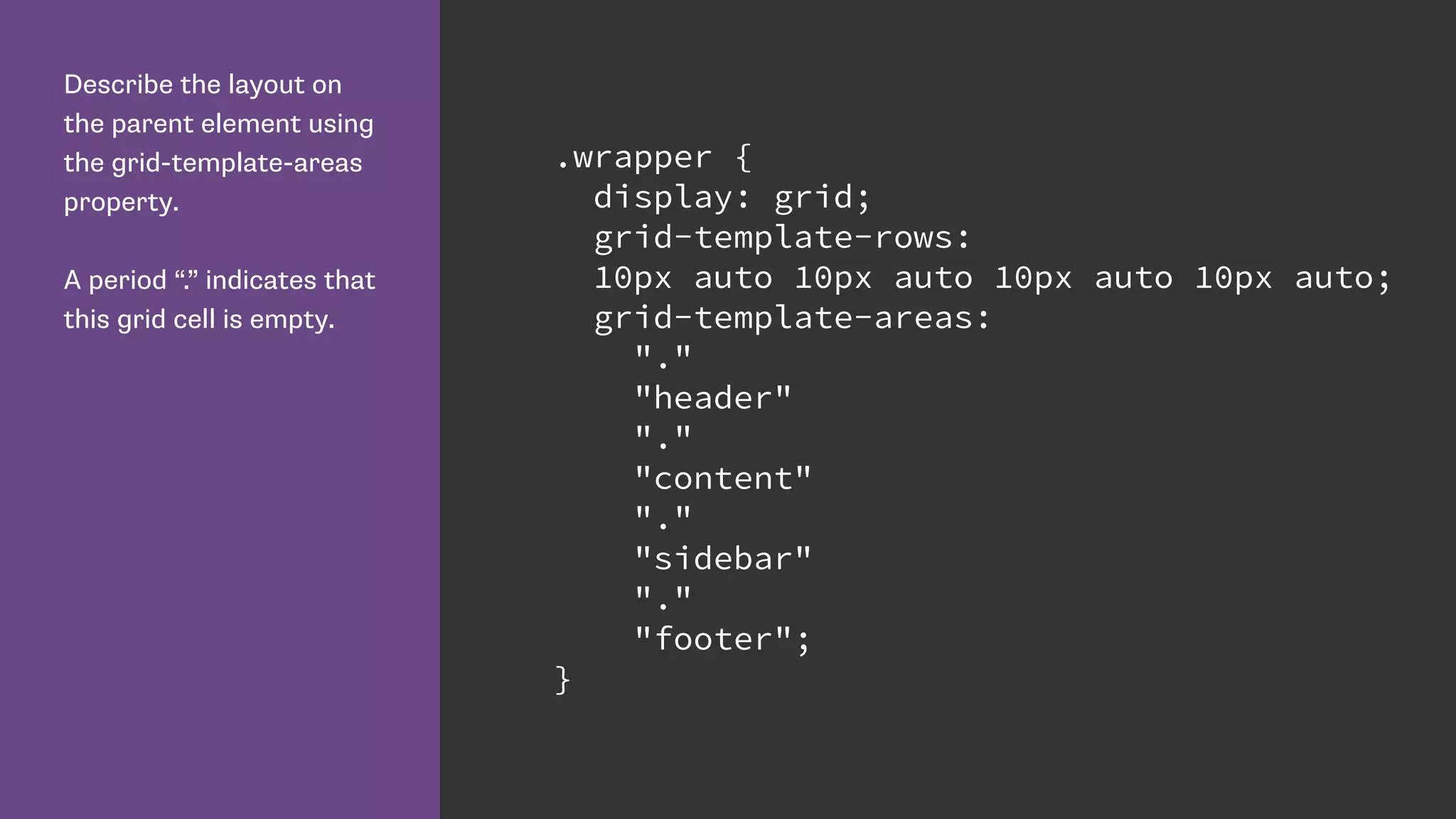

Describe the layout on
the parent element using
the grid-template-areas
property.
A period “.” indicates that
this grid cell is empty.
.wrapper {
display: grid;
grid-template-rows:
10px auto 10px auto 10px auto 10px auto;
grid-template-areas:
"."
"header"
"."
"content"
"."
"sidebar"
"."
"footer";
}

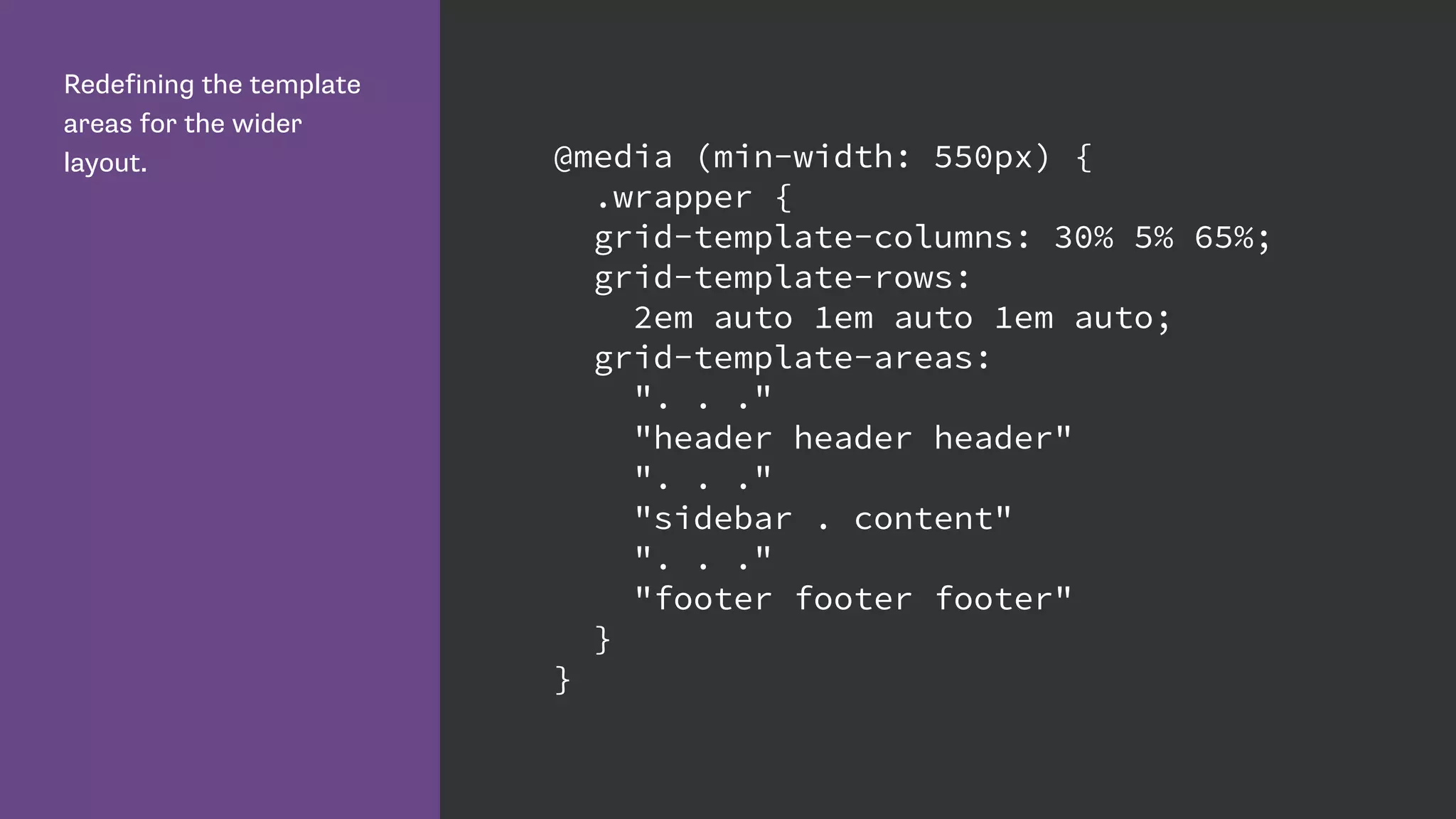

Redefining the template
areas for the wider
layout. @media (min-width: 550px) {
.wrapper {
grid-template-columns: 30% 5% 65%;
grid-template-rows:
2em auto 1em auto 1em auto;
grid-template-areas:
". . ."
"header header header"
". . ."
"sidebar . content"
". . ."
"footer footer footer"
}
}

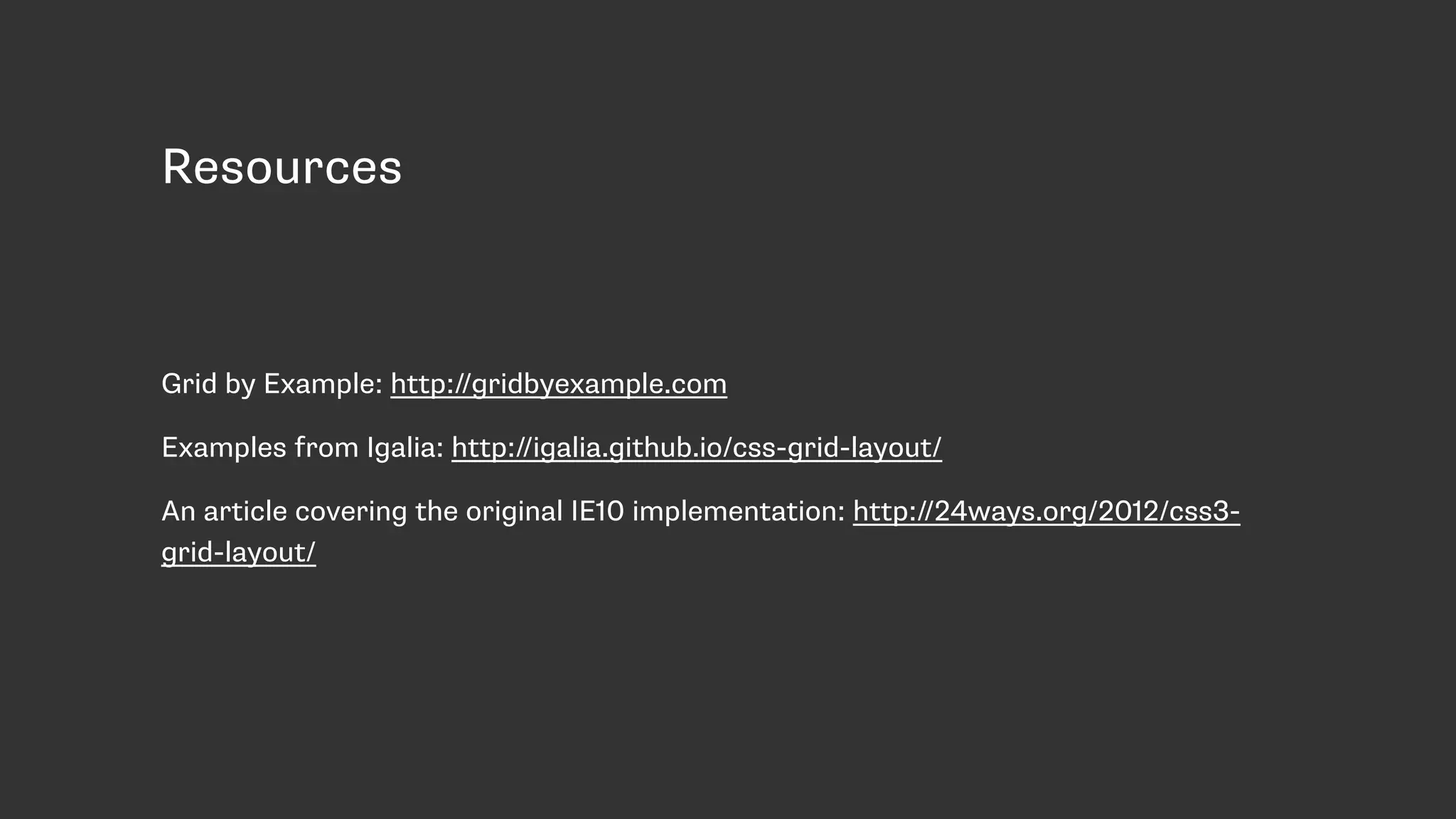

Resources
Grid by Example: http://gridbyexample.com
Examples from Igalia: http://igalia.github.io/css-grid-layout/
An article covering the original IE10 implementation: http://24ways.org/2012/css3-
grid-layout/
CSS Exclusions
http://www.w3.org/TR/css3-exclusions/
http://dev.w3.org/csswg/css-exclusions/
https://www.flickr.com/photos/markusspiske/15115777092

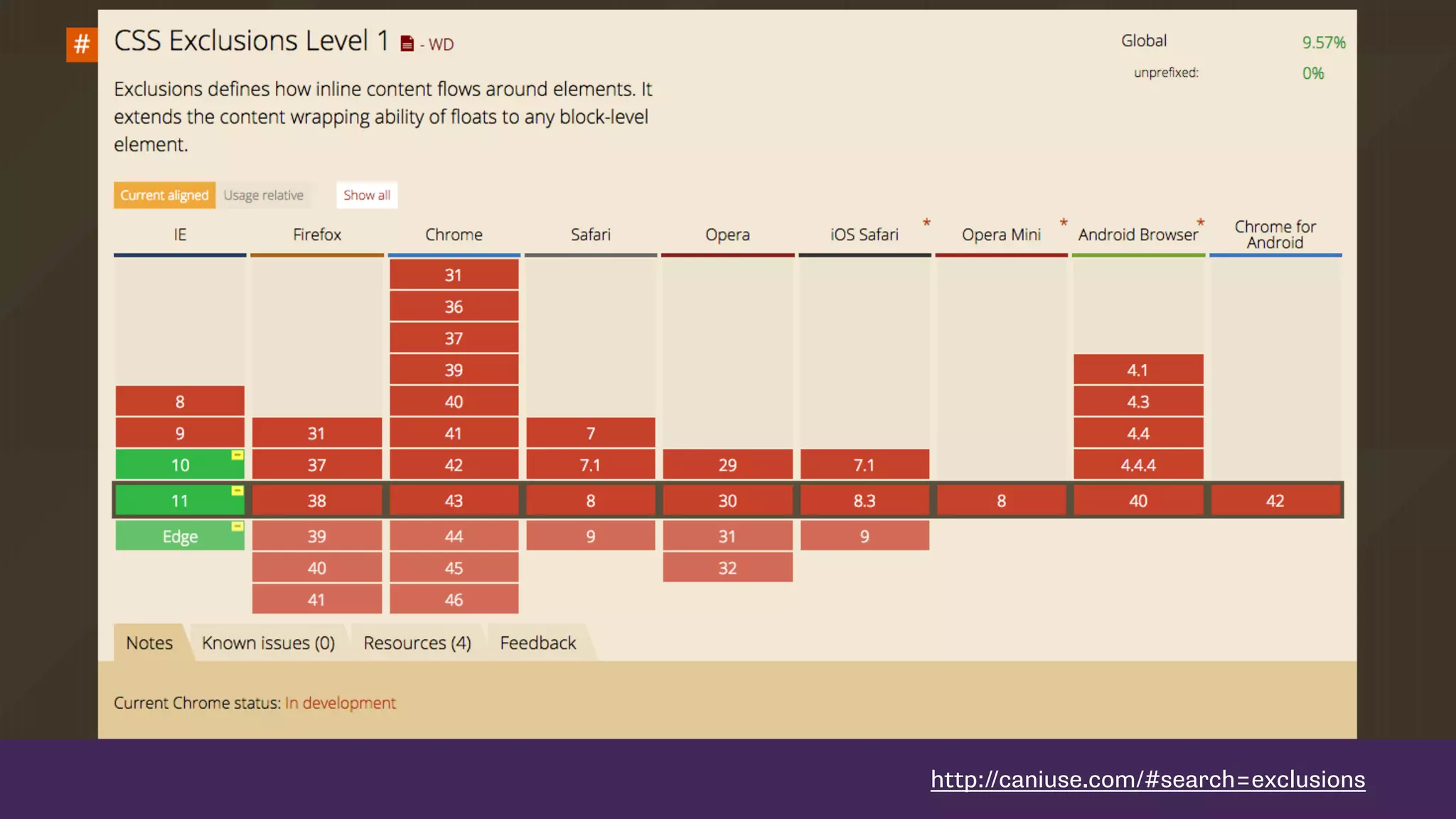

http://caniuse.com/#search=exclusions

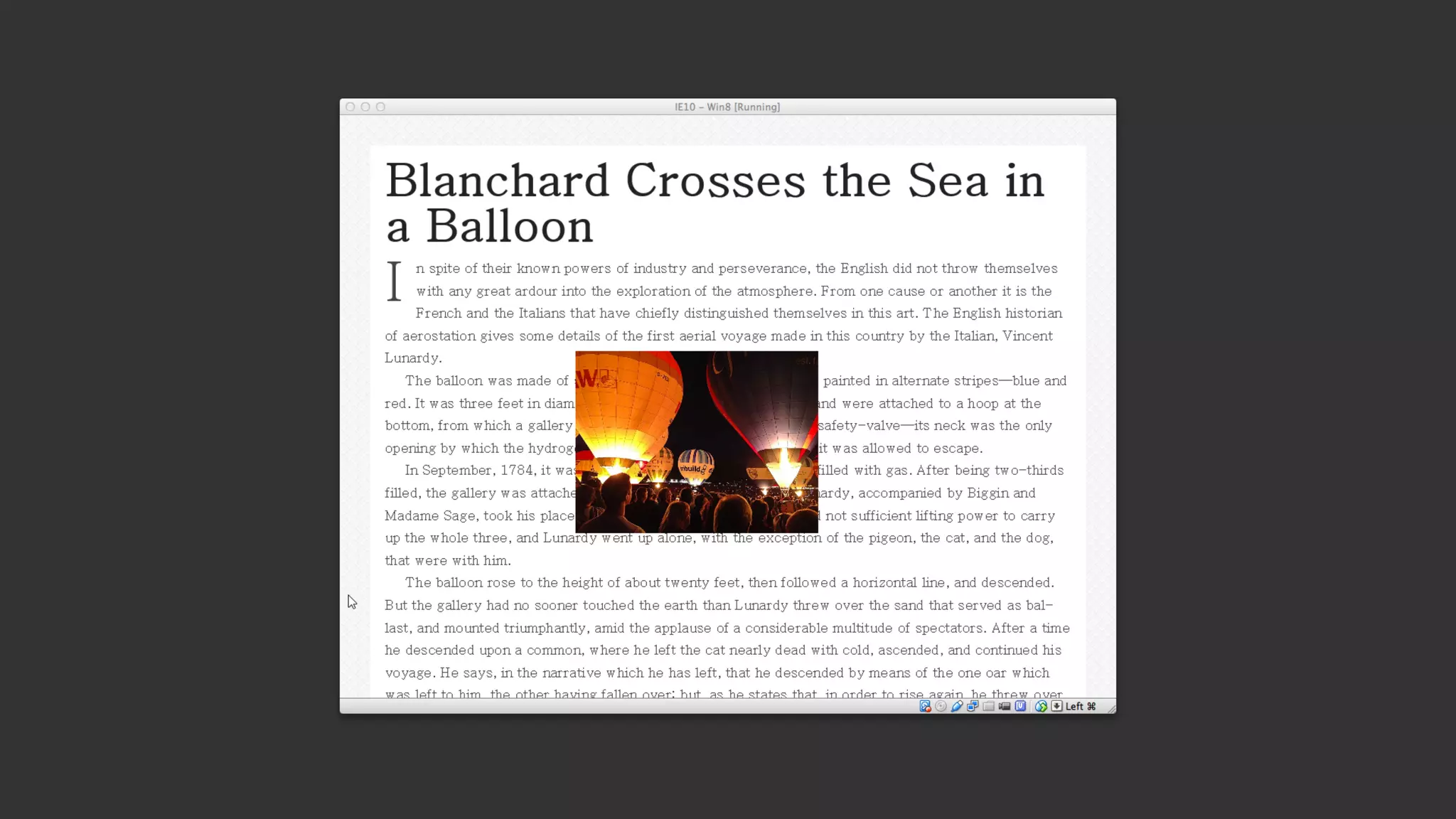

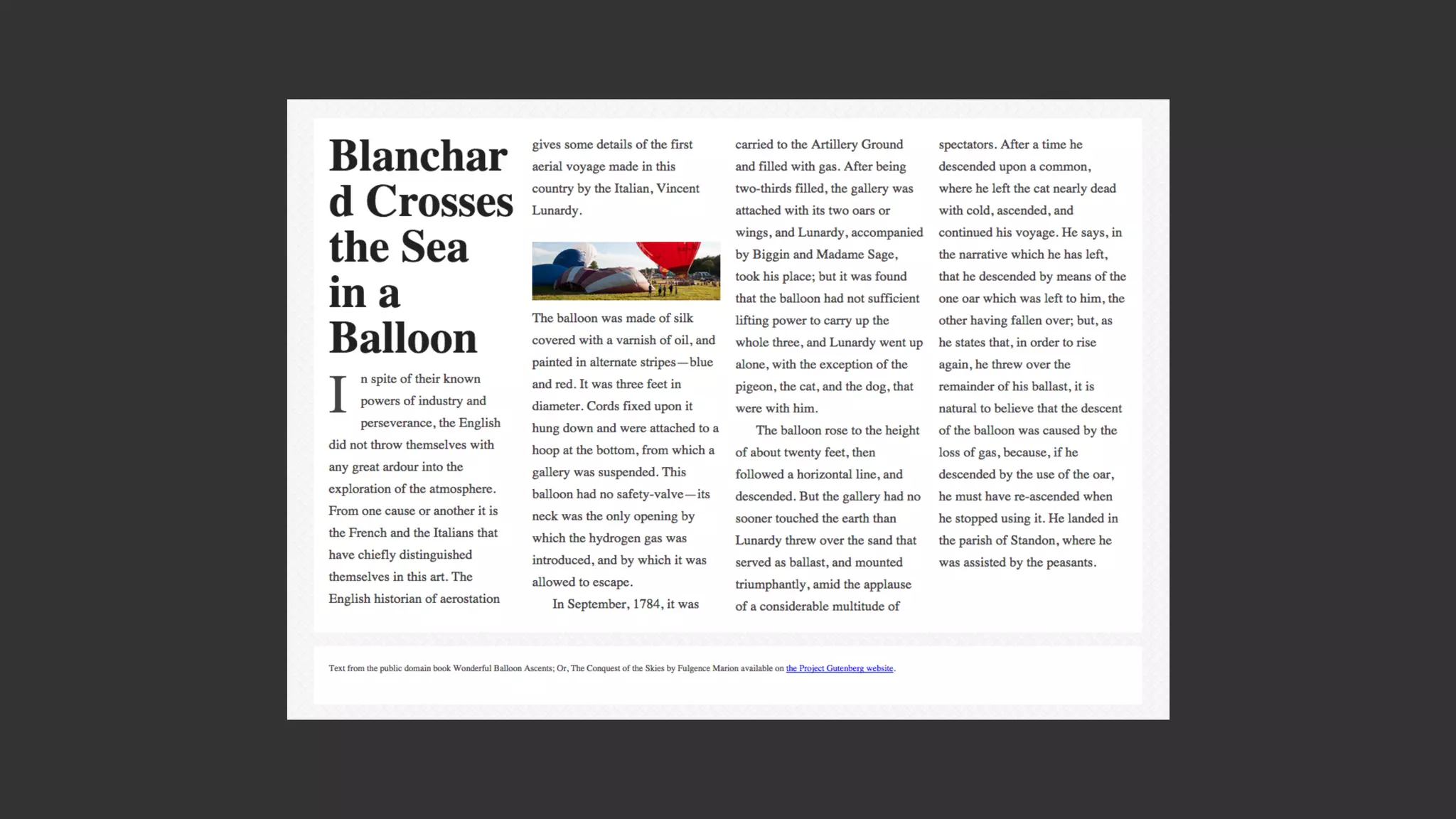

Floated items always rise to the top.
We can wrap text around the right or
left and bottom of an item.

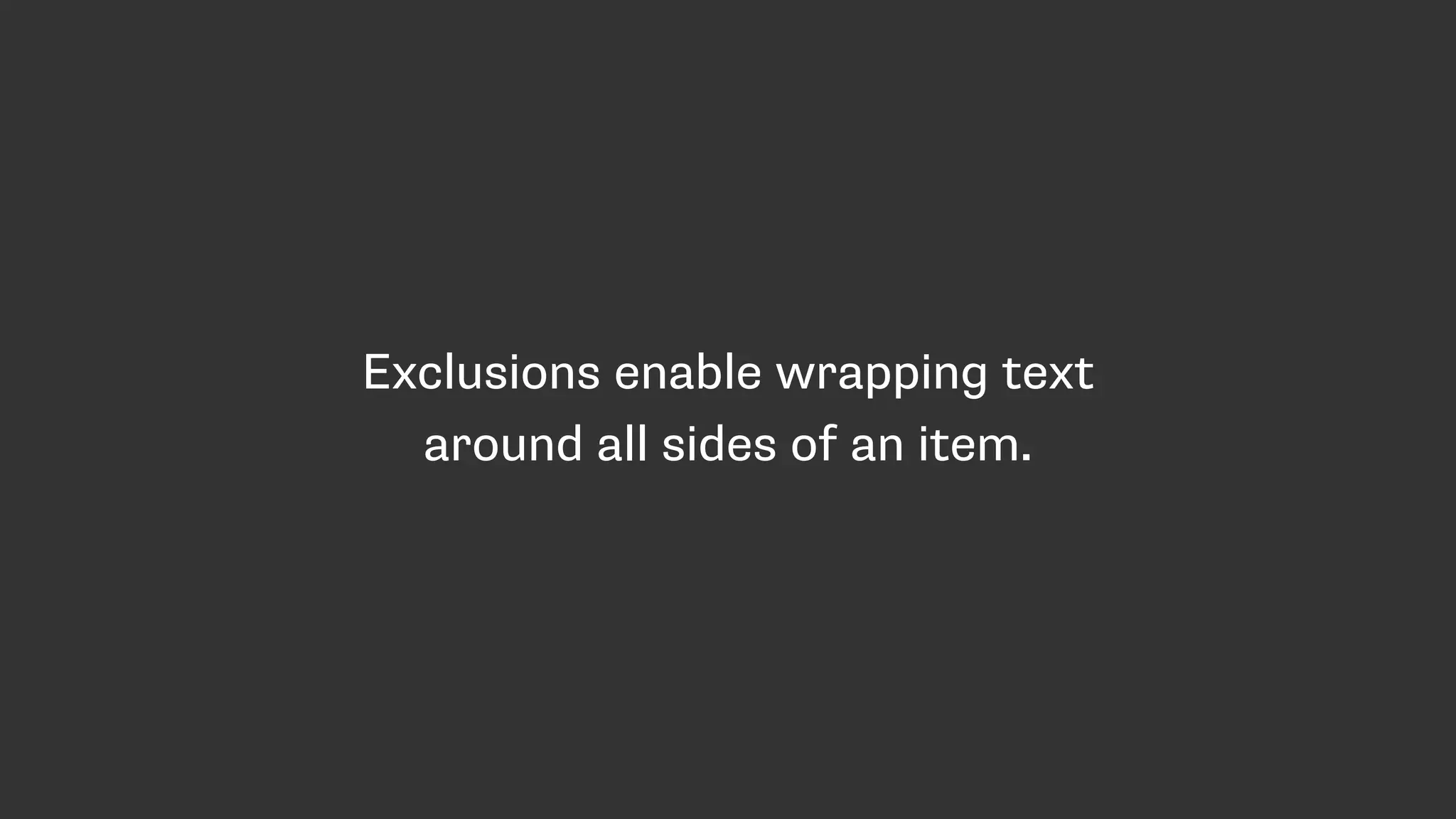

Exclusions enable wrapping text
around all sides of an item.

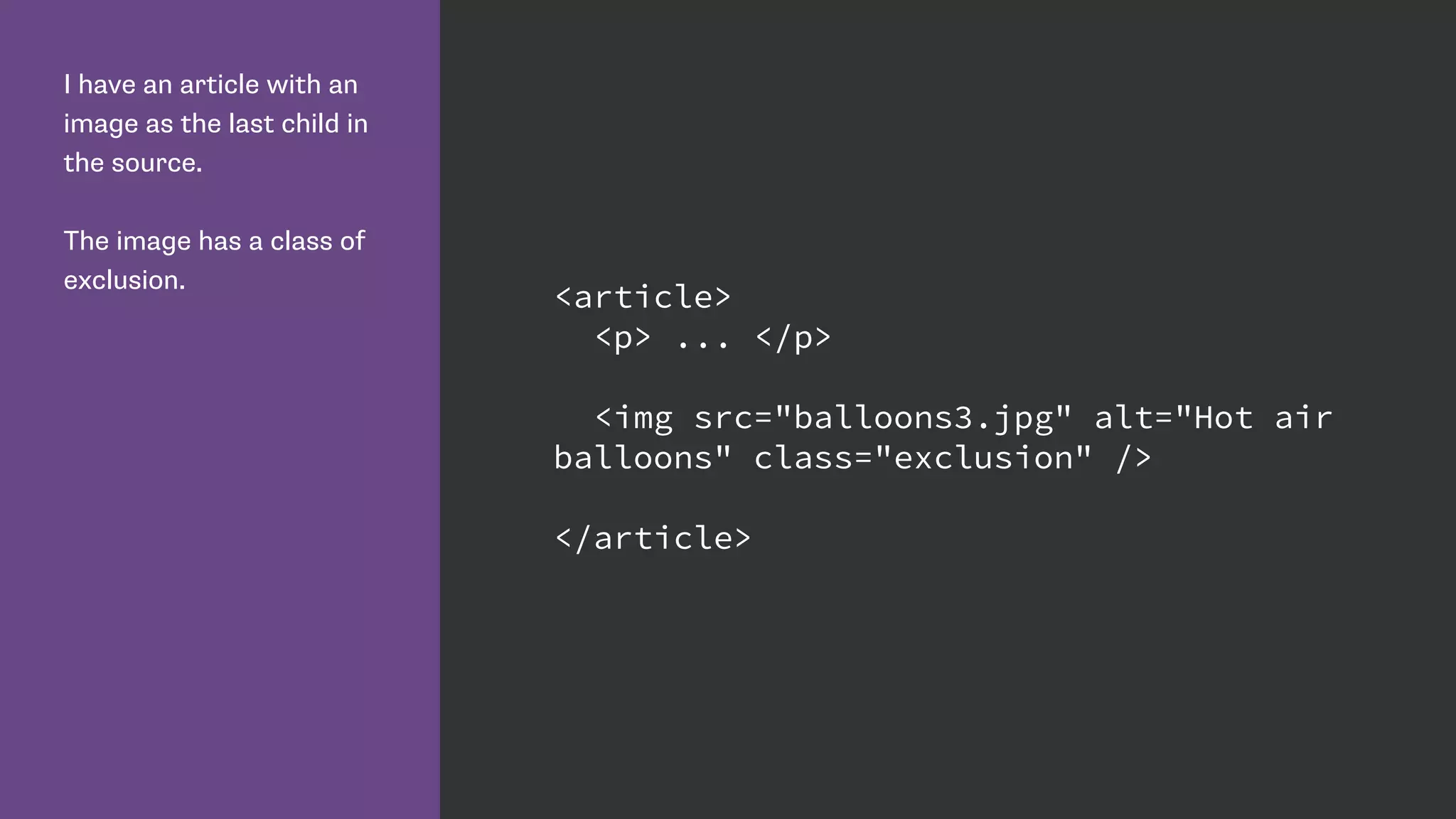

I have an article with an
image as the last child in
the source.
The image has a class of
exclusion.
<article>
<p> ... </p>
<img src="balloons3.jpg" alt="Hot air
balloons" class="exclusion" />
</article>

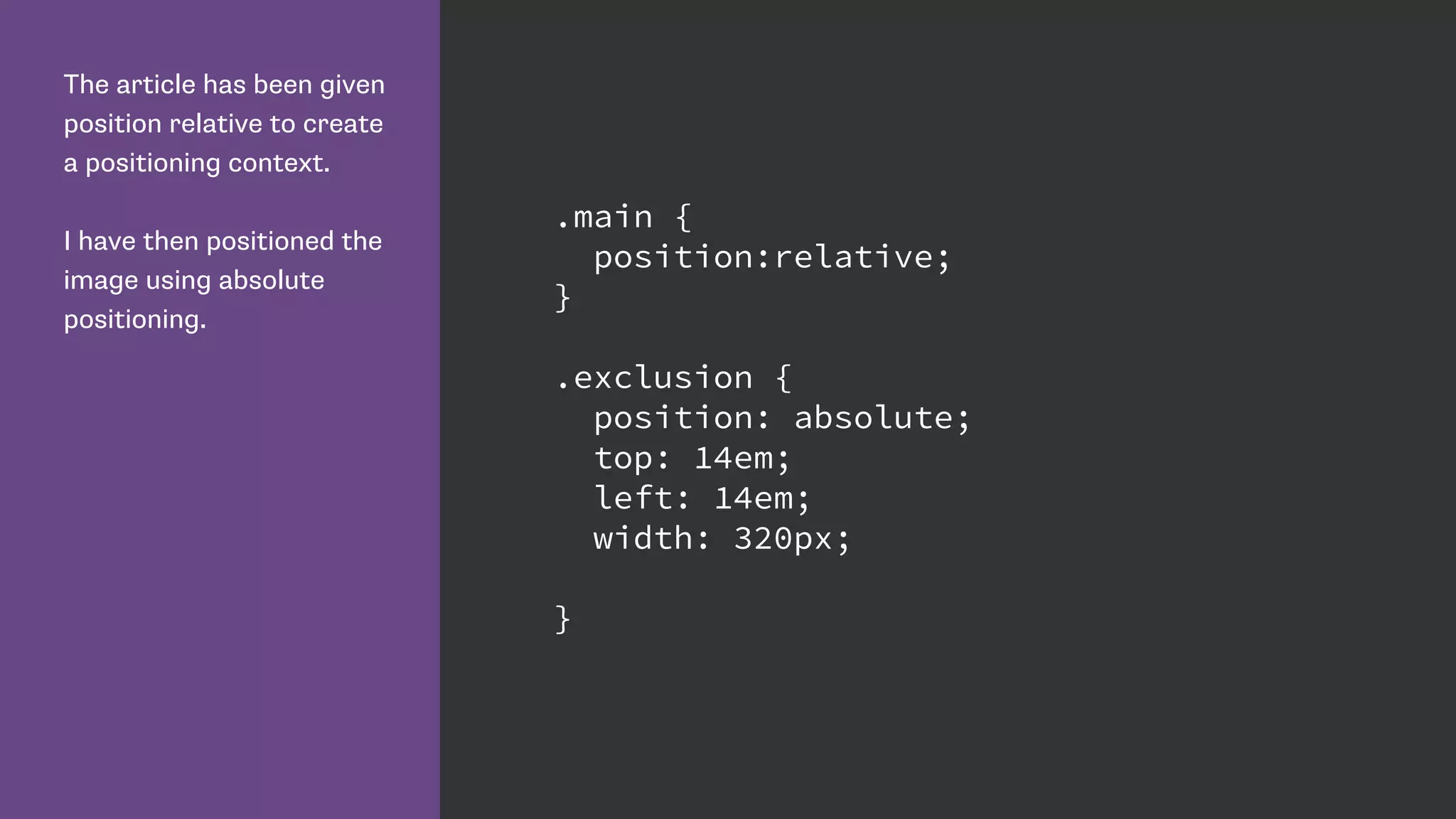

The article has been given
position relative to create
a positioning context.
I have then positioned the
image using absolute
positioning.
.main {
position:relative;
}
.exclusion {
position: absolute;
top: 14em;
left: 14em;
width: 320px;
}

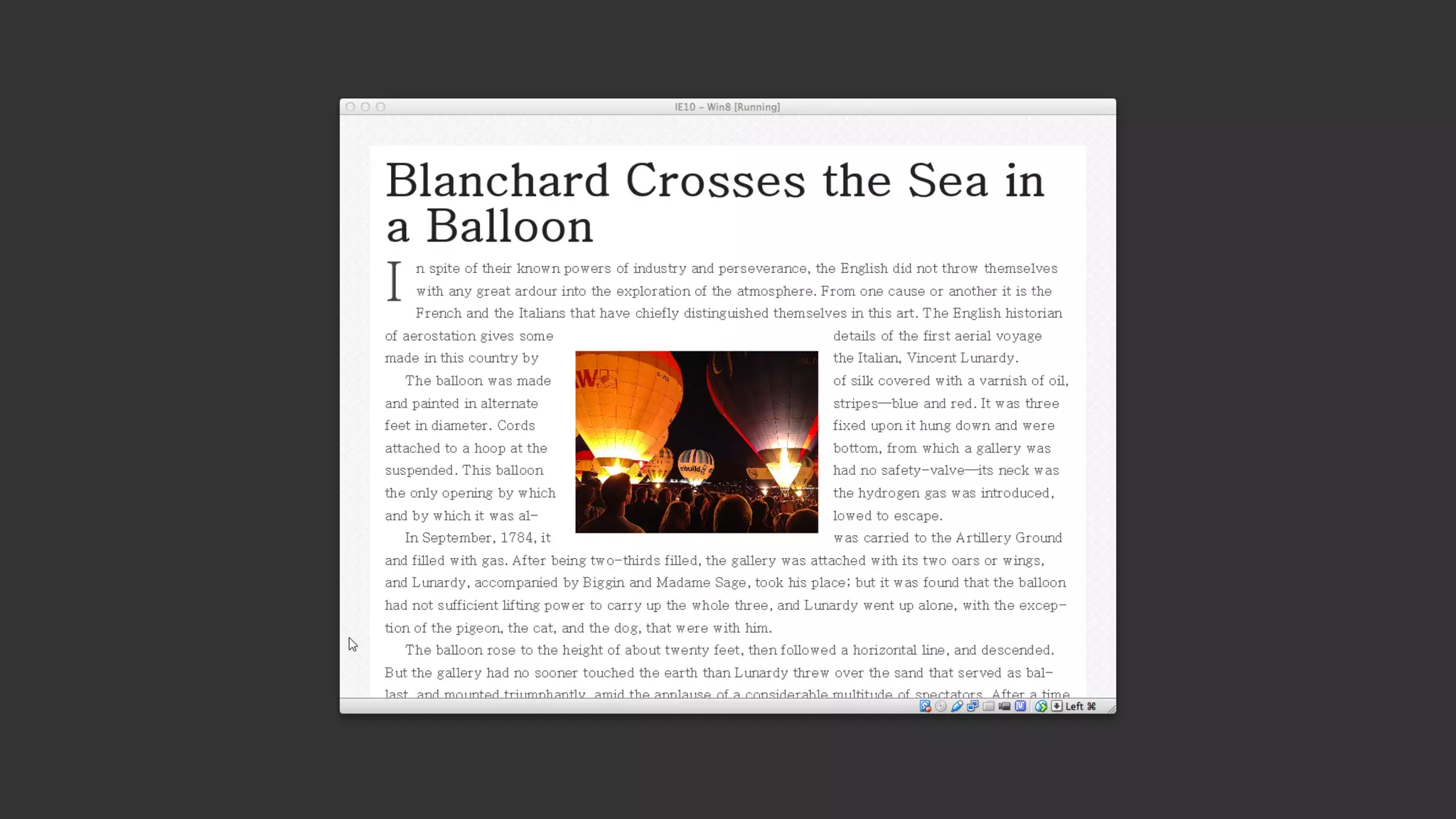

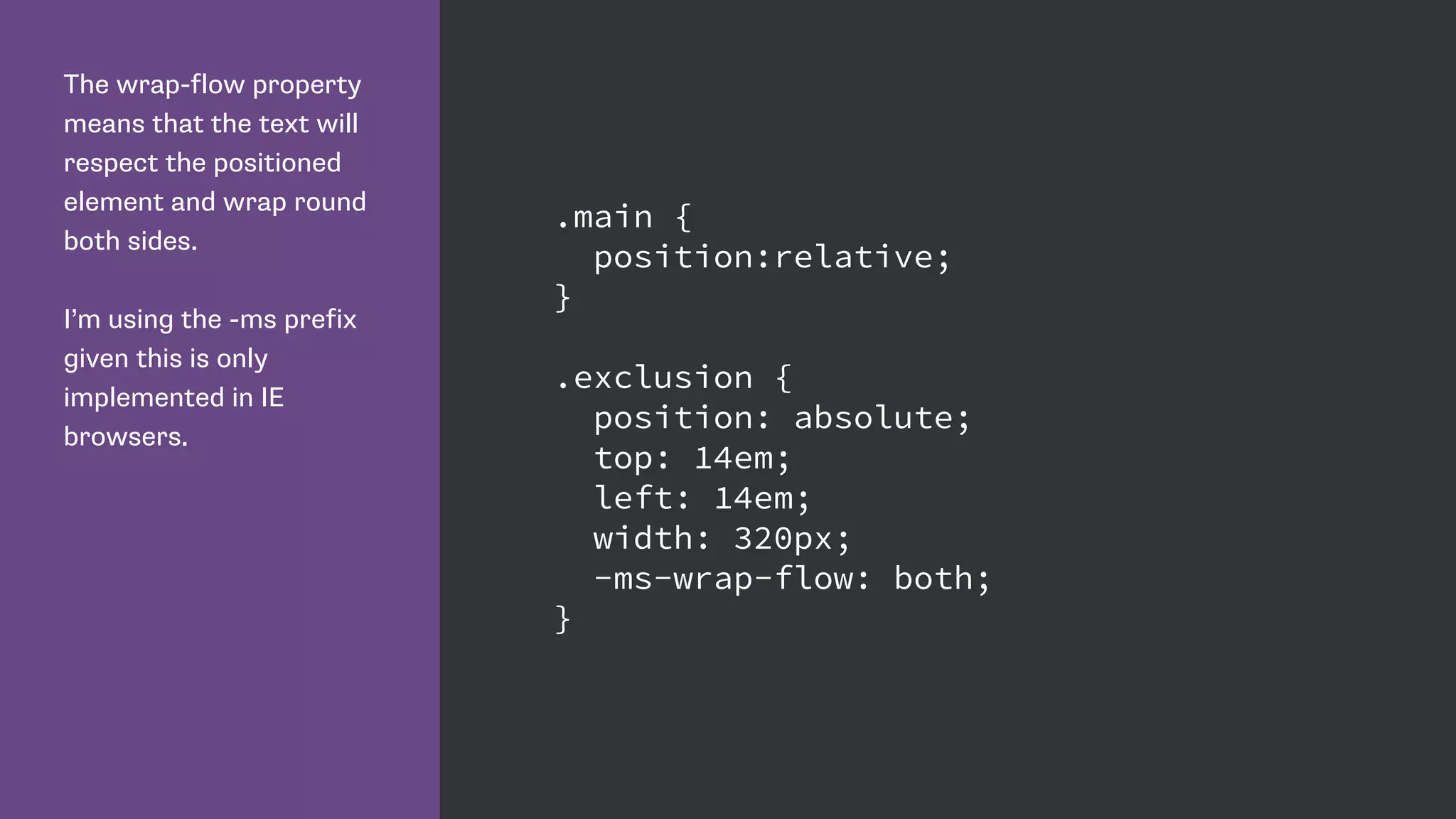

The wrap-flow property
means that the text will
respect the positioned
element and wrap round
both sides.
I’m using the -ms prefix
given this is only
implemented in IE
browsers.
.main {
position:relative;
}
.exclusion {
position: absolute;
top: 14em;
left: 14em;
width: 320px;
-ms-wrap-flow: both;
}
CSS Regions
http://www.w3.org/TR/css-regions-1/
http://dev.w3.org/csswg/css-regions/
https://www.flickr.com/photos/striatic/3529866/

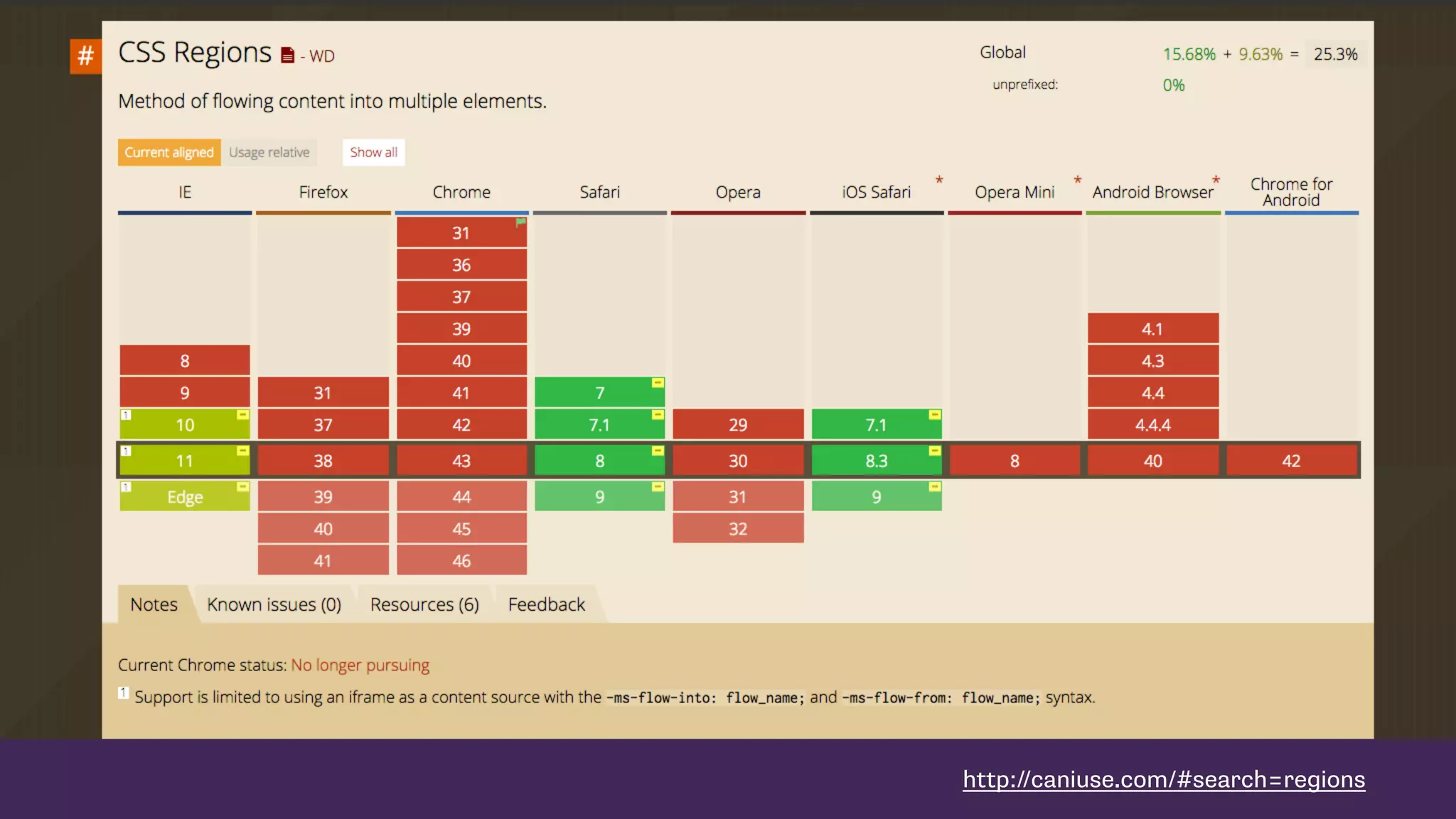

http://caniuse.com/#search=regions

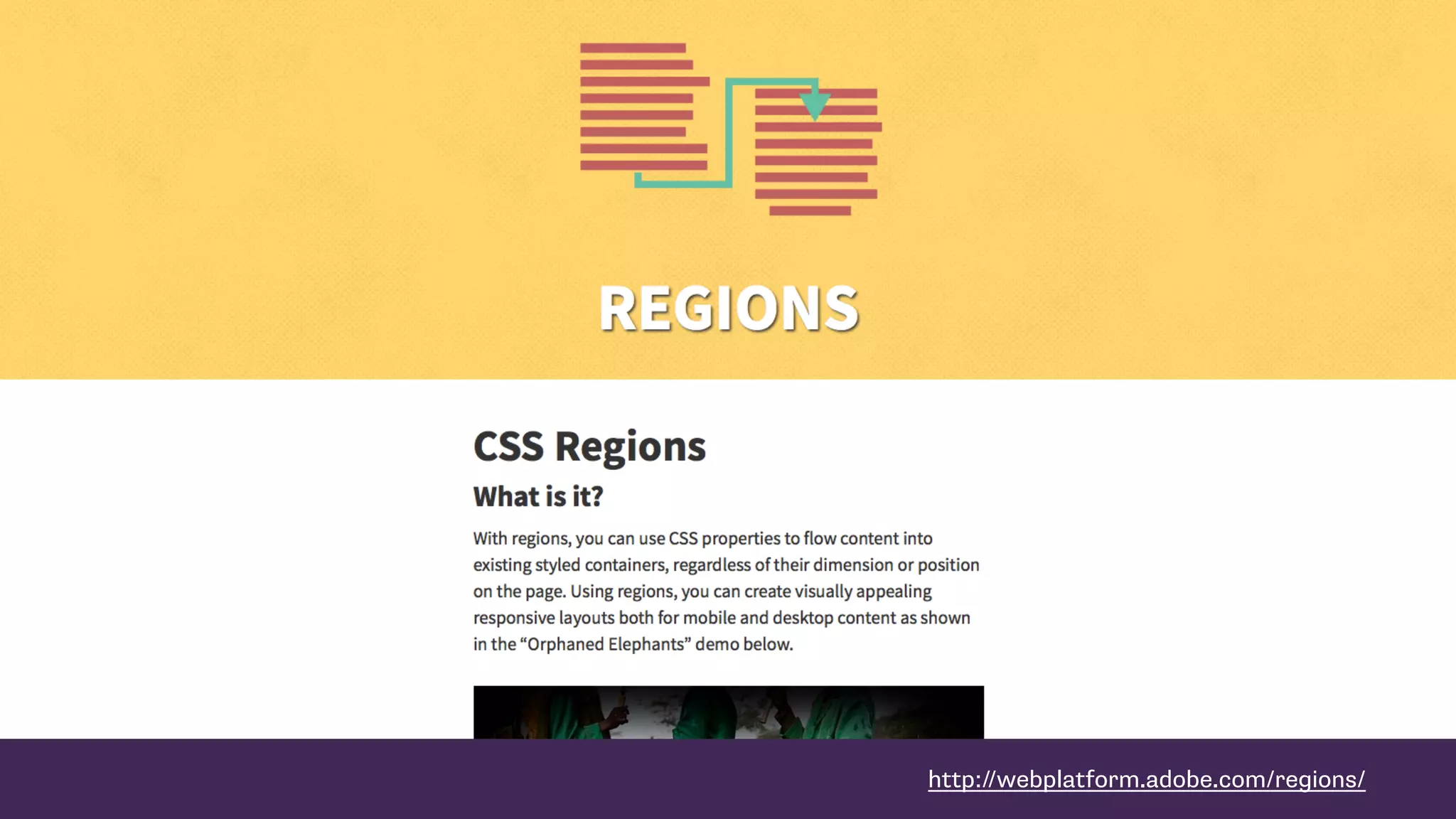

http://webplatform.adobe.com/regions/

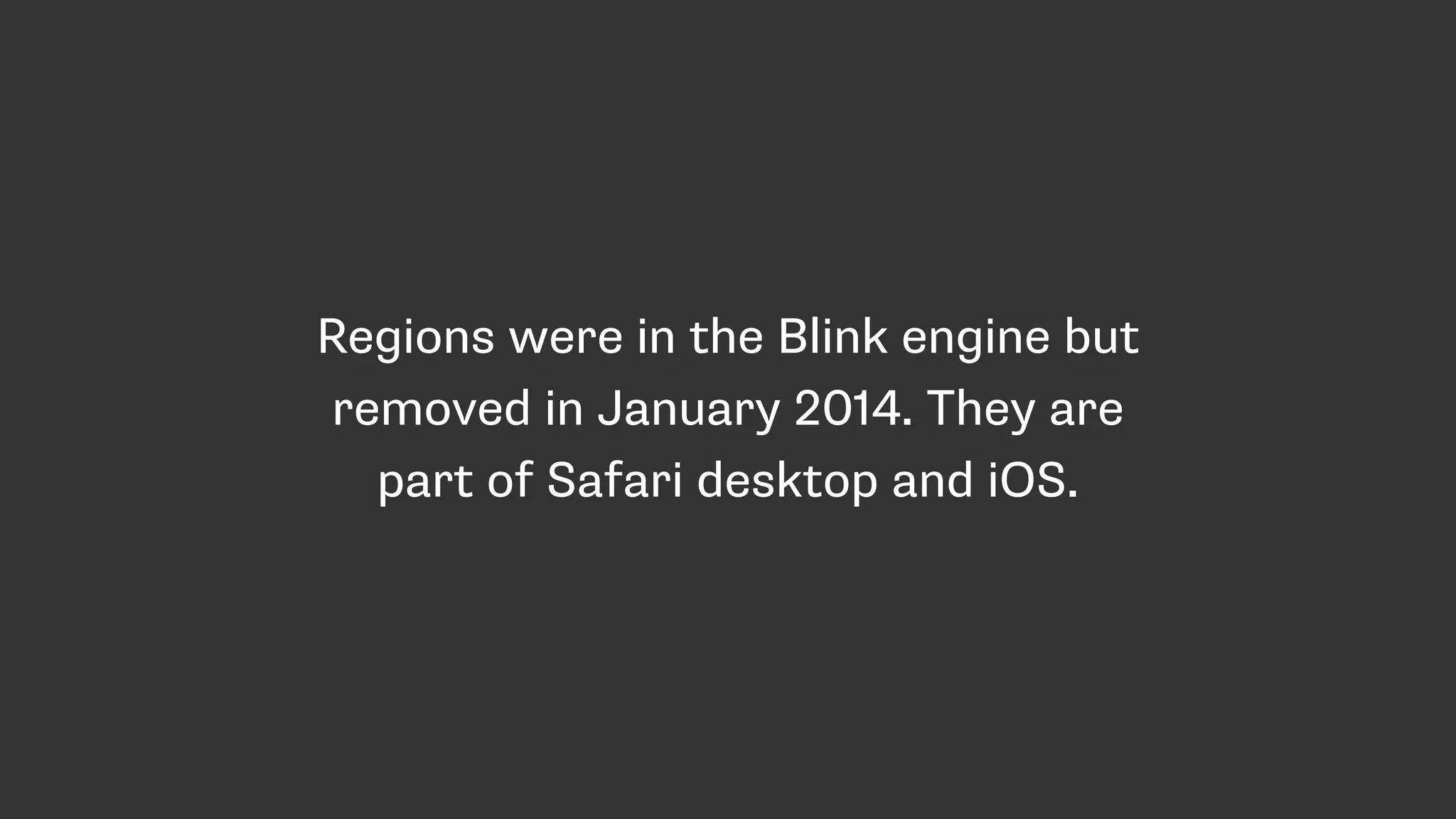

Regions were in the Blink engine but
removed in January 2014. They are
still part of Safari desktop and iOS.
https://groups.google.com/a/chromium.org/forum/#!msg/blink-dev/kTktlHPJn4Q/YrnfLxeMO7IJ

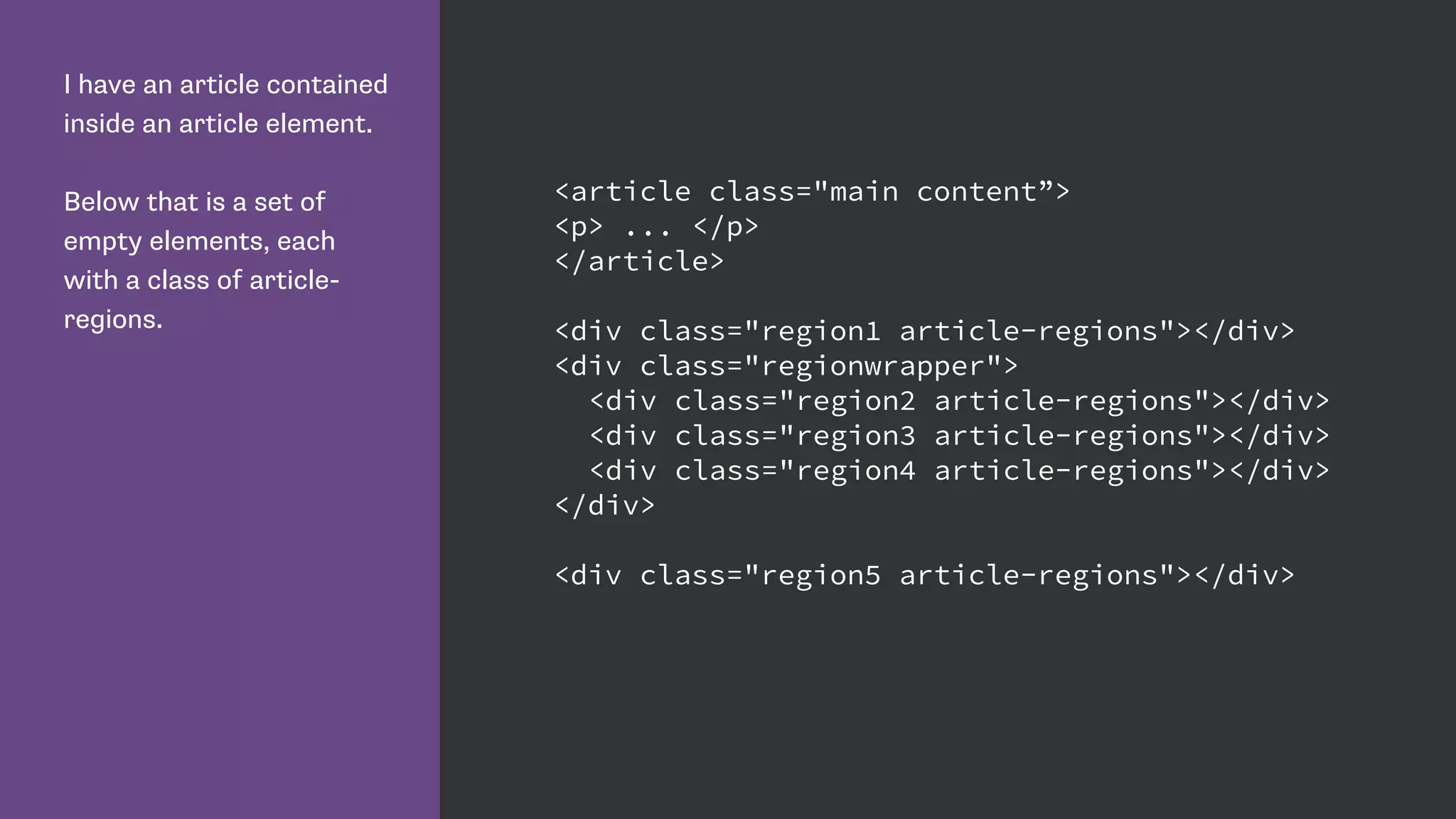

I have an article contained
inside an article element.
Below that is a set of
empty elements, each
with a class of article-
regions.
<article class="main content”>
<p> ... </p>
</article>
<div class="region1 article-regions"></div>
<div class="regionwrapper">
<div class="region2 article-regions"></div>
<div class="region3 article-regions"></div>
<div class="region4 article-regions"></div>
</div>
<div class="region5 article-regions"></div>

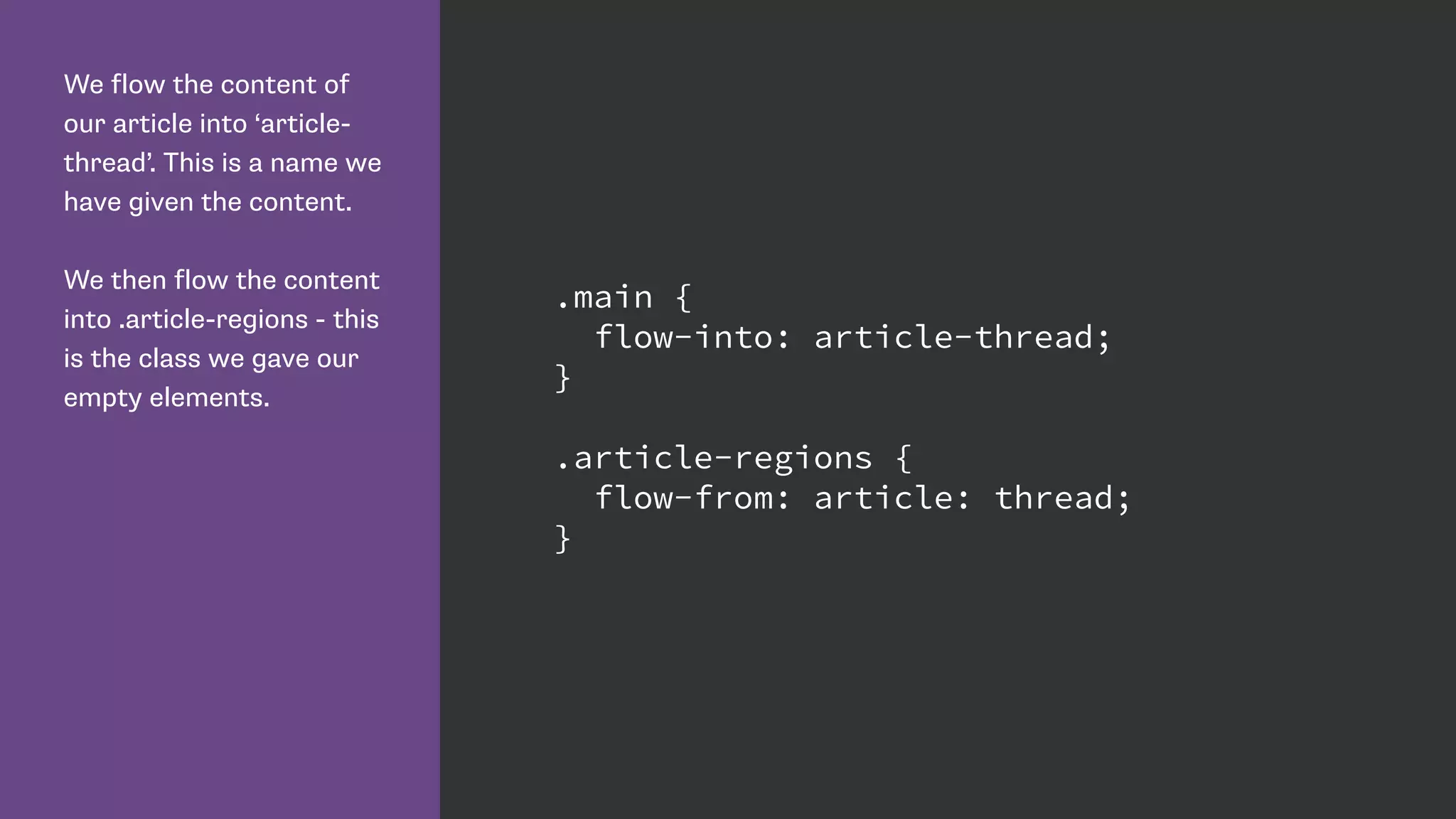

We flow the content of
our article into ‘article-
thread’. This is a name we
have given the content.
We then flow the content
into .article-regions - this
is the class we gave our
empty elements.
.main {
flow-into: article-thread;
}
.article-regions {
flow-from: article-thread;
}

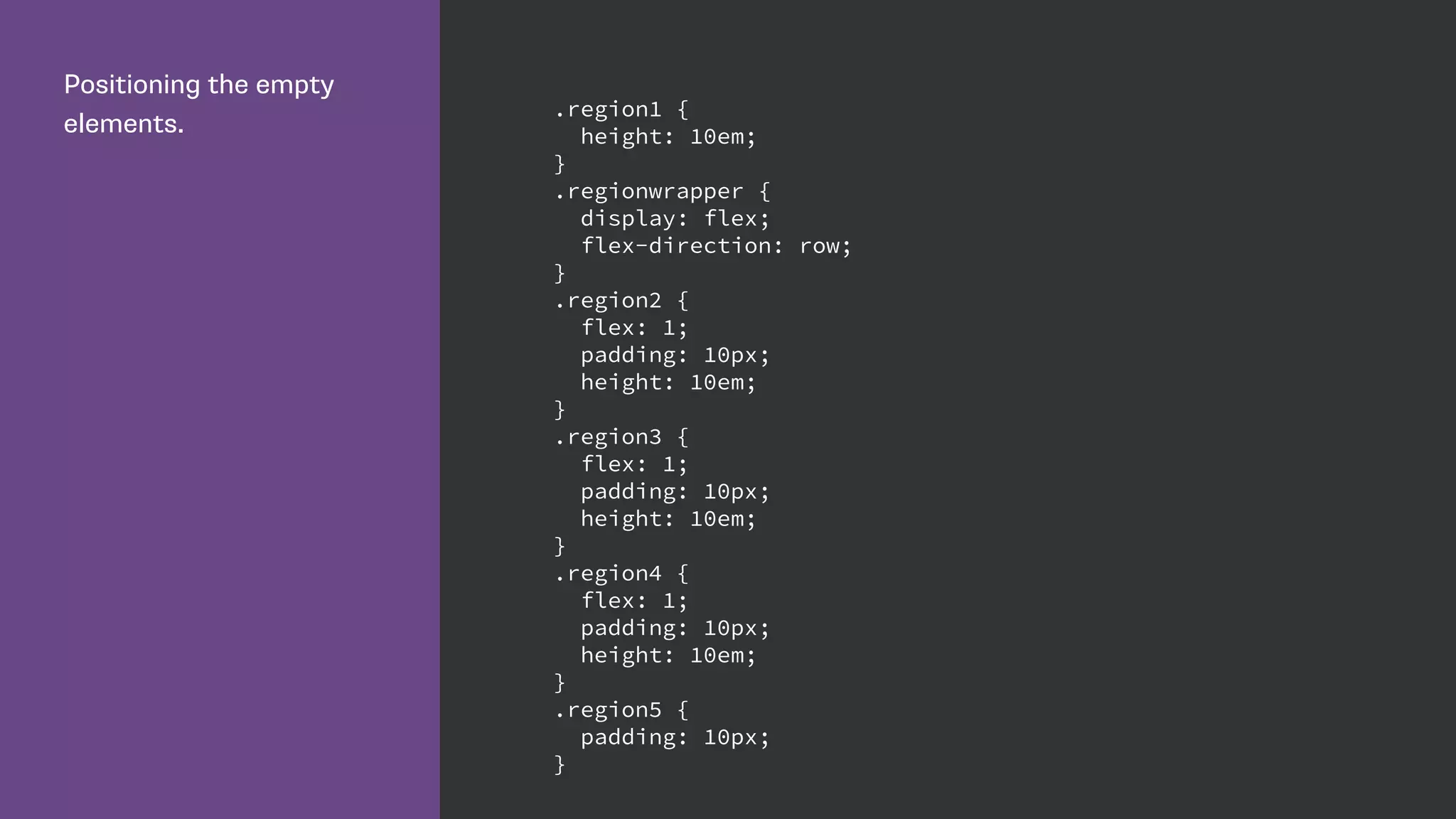

Positioning the empty
elements.
.region1 {
height: 10em;
}
.regionwrapper {
display: flex;
flex-direction: row;
}
.region2 {
flex: 1;
padding: 10px;
height: 10em;
}
.region3 {
flex: 1;
padding: 10px;
height: 10em;
}
.region4 {
flex: 1;
padding: 10px;
height: 10em;
}
.region5 {
padding: 10px;
}

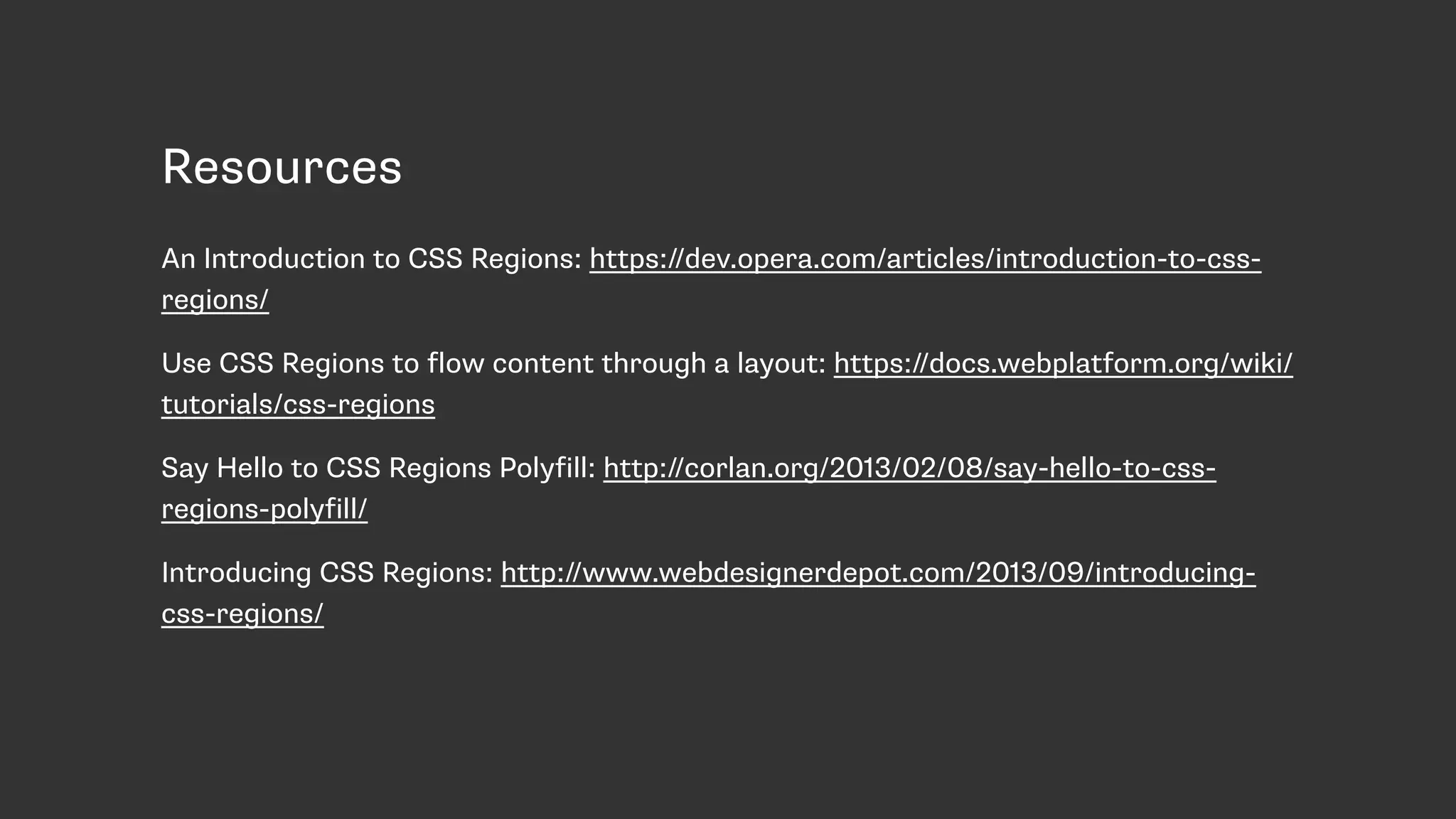

Resources
An Introduction to CSS Regions: https://dev.opera.com/articles/introduction-to-css-
regions/
Use CSS Regions to flow content through a layout: https://docs.webplatform.org/wiki/
tutorials/css-regions
Say Hello to CSS Regions Polyfill: http://corlan.org/2013/02/08/say-hello-to-css-
regions-polyfill/
Introducing CSS Regions: http://www.webdesignerdepot.com/2013/09/introducing-
css-regions/
Why explore emerging
specifications?
Thank you!
Rachel Andrew
@rachelandrew
http://rachelandrew.co.uk/presentations/new-css-layout

More Related Content

What's hot

Introduction to CSS Grid Layout
Introduction to CSS Grid LayoutIntroduction to CSS Grid Layout
Introduction to CSS Grid Layout
Rachel Andrew

An Event Apart Nashville: CSS Grid Layout
An Event Apart Nashville: CSS Grid LayoutAn Event Apart Nashville: CSS Grid Layout
An Event Apart Nashville: CSS Grid Layout
Rachel Andrew

Fluent: Making Sense of the New CSS Layout
Fluent: Making Sense of the New CSS LayoutFluent: Making Sense of the New CSS Layout
Fluent: Making Sense of the New CSS Layout
Rachel Andrew

Flexbox and Grid Layout
Flexbox and Grid LayoutFlexbox and Grid Layout
Flexbox and Grid Layout
Rachel Andrew

Future Layout & Performance
Future Layout & PerformanceFuture Layout & Performance
Future Layout & Performance
Rachel Andrew

CSS Grid Changes Everything About Web Layouts: WordCamp Europe 2017
CSS Grid Changes Everything About Web Layouts: WordCamp Europe 2017CSS Grid Changes Everything About Web Layouts: WordCamp Europe 2017
CSS Grid Changes Everything About Web Layouts: WordCamp Europe 2017
Morten Rand-Hendriksen

CSS Grid
CSS GridCSS Grid
CSS Grid Layout: An Event Apart Boston 2016
CSS Grid Layout: An Event Apart Boston 2016CSS Grid Layout: An Event Apart Boston 2016
CSS Grid Layout: An Event Apart Boston 2016
Rachel Andrew

Building calloutswithoutwsdl2apex
Building calloutswithoutwsdl2apexBuilding calloutswithoutwsdl2apex
Building calloutswithoutwsdl2apex
Ming Yuan

ConFoo 2016: Making Sense of CSS Layout
ConFoo 2016: Making Sense of CSS LayoutConFoo 2016: Making Sense of CSS Layout
ConFoo 2016: Making Sense of CSS Layout
Rachel Andrew

CSS Grid Layout
CSS Grid LayoutCSS Grid Layout
CSS Grid Layout
Rachel Andrew

Talk Web Design: Get Ready For CSS Grid Layout
Talk Web Design: Get Ready For CSS Grid LayoutTalk Web Design: Get Ready For CSS Grid Layout
Talk Web Design: Get Ready For CSS Grid Layout
Rachel Andrew

Frontend United: Start using CSS Grid Layout today!
Frontend United: Start using CSS Grid Layout today!Frontend United: Start using CSS Grid Layout today!
Frontend United: Start using CSS Grid Layout today!
Rachel Andrew

CSS Grid Layout Introduction
CSS Grid Layout IntroductionCSS Grid Layout Introduction
CSS Grid Layout Introduction
Ajara I. Pfannenschmidt

CSS Grid vs. Flexbox
CSS Grid vs. FlexboxCSS Grid vs. Flexbox
CSS Grid vs. Flexbox
Ecaterina Moraru (Valica)

Render Conf: Start using CSS Grid Layout Today
Render Conf: Start using CSS Grid Layout TodayRender Conf: Start using CSS Grid Layout Today
Render Conf: Start using CSS Grid Layout Today
Rachel Andrew

Laracon Online: Grid and Flexbox
Laracon Online: Grid and FlexboxLaracon Online: Grid and Flexbox
Laracon Online: Grid and Flexbox
Rachel Andrew

AEA Chicago CSS Grid Layout
AEA Chicago CSS Grid LayoutAEA Chicago CSS Grid Layout
AEA Chicago CSS Grid Layout
Rachel Andrew

Making the most of New CSS Layout
Making the most of New CSS LayoutMaking the most of New CSS Layout
Making the most of New CSS Layout
Rachel Andrew

What I discovered about layout vis CSS Grid
What I discovered about layout vis CSS GridWhat I discovered about layout vis CSS Grid
What I discovered about layout vis CSS Grid
Rachel Andrew


What's hot (20)

Introduction to CSS Grid Layout
Introduction to CSS Grid LayoutIntroduction to CSS Grid Layout
Introduction to CSS Grid Layout

An Event Apart Nashville: CSS Grid Layout
An Event Apart Nashville: CSS Grid LayoutAn Event Apart Nashville: CSS Grid Layout
An Event Apart Nashville: CSS Grid Layout

Fluent: Making Sense of the New CSS Layout
Fluent: Making Sense of the New CSS LayoutFluent: Making Sense of the New CSS Layout
Fluent: Making Sense of the New CSS Layout

Flexbox and Grid Layout
Flexbox and Grid LayoutFlexbox and Grid Layout
Flexbox and Grid Layout

Future Layout & Performance
Future Layout & PerformanceFuture Layout & Performance
Future Layout & Performance

CSS Grid Changes Everything About Web Layouts: WordCamp Europe 2017
CSS Grid Changes Everything About Web Layouts: WordCamp Europe 2017CSS Grid Changes Everything About Web Layouts: WordCamp Europe 2017
CSS Grid Changes Everything About Web Layouts: WordCamp Europe 2017

CSS Grid
CSS GridCSS Grid
CSS Grid

CSS Grid Layout: An Event Apart Boston 2016
CSS Grid Layout: An Event Apart Boston 2016CSS Grid Layout: An Event Apart Boston 2016
CSS Grid Layout: An Event Apart Boston 2016

Building calloutswithoutwsdl2apex
Building calloutswithoutwsdl2apexBuilding calloutswithoutwsdl2apex
Building calloutswithoutwsdl2apex

ConFoo 2016: Making Sense of CSS Layout
ConFoo 2016: Making Sense of CSS LayoutConFoo 2016: Making Sense of CSS Layout
ConFoo 2016: Making Sense of CSS Layout

CSS Grid Layout
CSS Grid LayoutCSS Grid Layout
CSS Grid Layout

Talk Web Design: Get Ready For CSS Grid Layout
Talk Web Design: Get Ready For CSS Grid LayoutTalk Web Design: Get Ready For CSS Grid Layout
Talk Web Design: Get Ready For CSS Grid Layout

Frontend United: Start using CSS Grid Layout today!
Frontend United: Start using CSS Grid Layout today!Frontend United: Start using CSS Grid Layout today!
Frontend United: Start using CSS Grid Layout today!

CSS Grid Layout Introduction
CSS Grid Layout IntroductionCSS Grid Layout Introduction
CSS Grid Layout Introduction

CSS Grid vs. Flexbox
CSS Grid vs. FlexboxCSS Grid vs. Flexbox
CSS Grid vs. Flexbox

Render Conf: Start using CSS Grid Layout Today
Render Conf: Start using CSS Grid Layout TodayRender Conf: Start using CSS Grid Layout Today
Render Conf: Start using CSS Grid Layout Today

Laracon Online: Grid and Flexbox
Laracon Online: Grid and FlexboxLaracon Online: Grid and Flexbox
Laracon Online: Grid and Flexbox

AEA Chicago CSS Grid Layout
AEA Chicago CSS Grid LayoutAEA Chicago CSS Grid Layout
AEA Chicago CSS Grid Layout

Making the most of New CSS Layout
Making the most of New CSS LayoutMaking the most of New CSS Layout
Making the most of New CSS Layout

What I discovered about layout vis CSS Grid
What I discovered about layout vis CSS GridWhat I discovered about layout vis CSS Grid
What I discovered about layout vis CSS Grid


Similar to The New CSS Layout - Dutch PHP Conference

GOTO Berlin - You can use CSS for that
GOTO Berlin - You can use CSS for thatGOTO Berlin - You can use CSS for that
GOTO Berlin - You can use CSS for that
Rachel Andrew

Confoo: You can use CSS for that!
Confoo: You can use CSS for that!Confoo: You can use CSS for that!
Confoo: You can use CSS for that!
Rachel Andrew

Next-level CSS
Next-level CSSNext-level CSS
Next-level CSS
Rachel Andrew

slides-students-C04.pdf
slides-students-C04.pdfslides-students-C04.pdf
slides-students-C04.pdf
MonkeyDLuffy708724

The Creative New World of CSS
The Creative New World of CSSThe Creative New World of CSS
The Creative New World of CSS
Rachel Andrew

The Future State of Layout
The Future State of LayoutThe Future State of Layout
The Future State of Layout
Stephen Hay

Highly Maintainable, Efficient, and Optimized CSS
Highly Maintainable, Efficient, and Optimized CSSHighly Maintainable, Efficient, and Optimized CSS
Highly Maintainable, Efficient, and Optimized CSS
Zoe Gillenwater

CSS and CSS3
CSS and CSS3CSS and CSS3
CSS and CSS3
Robyn Overstreet

Css methods architecture
Css methods architectureCss methods architecture
Css methods architecture
Lasha Sumbadze

CSS Frameworks
CSS FrameworksCSS Frameworks
CSS Frameworks
Mike Crabb

Web development basics (Part-2)
Web development basics (Part-2)Web development basics (Part-2)
Web development basics (Part-2)
Rajat Pratap Singh

2D Page Layout
2D Page Layout2D Page Layout
2D Page Layout
Unfold UI

Evolution of CSS
Evolution of CSSEvolution of CSS
Evolution of CSS
Ecaterina Moraru (Valica)

Pfnp slides
Pfnp slidesPfnp slides
Pfnp slides
William Myers

Designing Your Next Generation Web Pages with CSS3
Designing Your Next Generation Web Pages with CSS3Designing Your Next Generation Web Pages with CSS3
Designing Your Next Generation Web Pages with CSS3
Gil Fink

CSS pattern libraries
CSS pattern librariesCSS pattern libraries
CSS pattern libraries
Russ Weakley

CSS Grid Layout
CSS Grid LayoutCSS Grid Layout
CSS Grid Layout
Rachel Andrew

Start Using CSS Grid Layout Today - RuhrJS
Start Using CSS Grid Layout Today - RuhrJSStart Using CSS Grid Layout Today - RuhrJS
Start Using CSS Grid Layout Today - RuhrJS
Rachel Andrew

Flexbox, Grid and Sass
Flexbox, Grid and SassFlexbox, Grid and Sass
Flexbox, Grid and Sass
Seble Nigussie

Advanced sass/compass
Advanced sass/compassAdvanced sass/compass
Advanced sass/compass
Nick Cooley


Similar to The New CSS Layout - Dutch PHP Conference (20)

GOTO Berlin - You can use CSS for that
GOTO Berlin - You can use CSS for thatGOTO Berlin - You can use CSS for that
GOTO Berlin - You can use CSS for that

Confoo: You can use CSS for that!
Confoo: You can use CSS for that!Confoo: You can use CSS for that!
Confoo: You can use CSS for that!

Next-level CSS
Next-level CSSNext-level CSS
Next-level CSS

slides-students-C04.pdf
slides-students-C04.pdfslides-students-C04.pdf
slides-students-C04.pdf

The Creative New World of CSS
The Creative New World of CSSThe Creative New World of CSS
The Creative New World of CSS

The Future State of Layout
The Future State of LayoutThe Future State of Layout
The Future State of Layout

Highly Maintainable, Efficient, and Optimized CSS
Highly Maintainable, Efficient, and Optimized CSSHighly Maintainable, Efficient, and Optimized CSS
Highly Maintainable, Efficient, and Optimized CSS

CSS and CSS3
CSS and CSS3CSS and CSS3
CSS and CSS3

Css methods architecture
Css methods architectureCss methods architecture
Css methods architecture

CSS Frameworks
CSS FrameworksCSS Frameworks
CSS Frameworks

Web development basics (Part-2)
Web development basics (Part-2)Web development basics (Part-2)
Web development basics (Part-2)

2D Page Layout
2D Page Layout2D Page Layout
2D Page Layout

Evolution of CSS
Evolution of CSSEvolution of CSS
Evolution of CSS

Pfnp slides
Pfnp slidesPfnp slides
Pfnp slides

Designing Your Next Generation Web Pages with CSS3
Designing Your Next Generation Web Pages with CSS3Designing Your Next Generation Web Pages with CSS3
Designing Your Next Generation Web Pages with CSS3

CSS pattern libraries
CSS pattern librariesCSS pattern libraries
CSS pattern libraries

CSS Grid Layout
CSS Grid LayoutCSS Grid Layout
CSS Grid Layout

Start Using CSS Grid Layout Today - RuhrJS
Start Using CSS Grid Layout Today - RuhrJSStart Using CSS Grid Layout Today - RuhrJS
Start Using CSS Grid Layout Today - RuhrJS

Flexbox, Grid and Sass
Flexbox, Grid and SassFlexbox, Grid and Sass
Flexbox, Grid and Sass

Advanced sass/compass
Advanced sass/compassAdvanced sass/compass
Advanced sass/compass


More from Rachel Andrew

All Day Hey! Unlocking The Power of CSS Grid Layout
All Day Hey! Unlocking The Power of CSS Grid LayoutAll Day Hey! Unlocking The Power of CSS Grid Layout
All Day Hey! Unlocking The Power of CSS Grid Layout
Rachel Andrew

SmashingConf SF: Unlocking the Power of CSS Grid Layout
SmashingConf SF: Unlocking the Power of CSS Grid LayoutSmashingConf SF: Unlocking the Power of CSS Grid Layout
SmashingConf SF: Unlocking the Power of CSS Grid Layout
Rachel Andrew

Unlocking the Power of CSS Grid Layout
Unlocking the Power of CSS Grid LayoutUnlocking the Power of CSS Grid Layout
Unlocking the Power of CSS Grid Layout
Rachel Andrew

Into the Weeds of CSS Layout
Into the Weeds of CSS LayoutInto the Weeds of CSS Layout
Into the Weeds of CSS Layout
Rachel Andrew

Solving Layout Problems with CSS Grid & Friends - DevFest17
Solving Layout Problems with CSS Grid & Friends - DevFest17Solving Layout Problems with CSS Grid & Friends - DevFest17
Solving Layout Problems with CSS Grid & Friends - DevFest17
Rachel Andrew

Graduating to Grid
Graduating to GridGraduating to Grid
Graduating to Grid
Rachel Andrew

View Source London: Solving Layout Problems with CSS Grid & Friends
View Source London: Solving Layout Problems with CSS Grid & FriendsView Source London: Solving Layout Problems with CSS Grid & Friends
View Source London: Solving Layout Problems with CSS Grid & Friends
Rachel Andrew

DevFest Nantes - Start Using CSS Grid Layout today
DevFest Nantes - Start Using CSS Grid Layout todayDevFest Nantes - Start Using CSS Grid Layout today
DevFest Nantes - Start Using CSS Grid Layout today
Rachel Andrew

404.ie: Solving Layout Problems with CSS Grid & Friends
404.ie: Solving Layout Problems with CSS Grid & Friends404.ie: Solving Layout Problems with CSS Grid & Friends
404.ie: Solving Layout Problems with CSS Grid & Friends
Rachel Andrew

Solving Layout Problems with CSS Grid & Friends - WEBU17
Solving Layout Problems with CSS Grid & Friends - WEBU17Solving Layout Problems with CSS Grid & Friends - WEBU17
Solving Layout Problems with CSS Grid & Friends - WEBU17
Rachel Andrew

Laying out the future with grid & flexbox - Smashing Conf Freiburg
Laying out the future with grid & flexbox - Smashing Conf FreiburgLaying out the future with grid & flexbox - Smashing Conf Freiburg
Laying out the future with grid & flexbox - Smashing Conf Freiburg
Rachel Andrew

Solving Layout Problems with CSS Grid & Friends - NordicJS
Solving Layout Problems with CSS Grid & Friends - NordicJSSolving Layout Problems with CSS Grid & Friends - NordicJS
Solving Layout Problems with CSS Grid & Friends - NordicJS
Rachel Andrew

Google Developers Experts Summit 2017 - CSS Layout
Google Developers Experts Summit 2017 - CSS Layout Google Developers Experts Summit 2017 - CSS Layout
Google Developers Experts Summit 2017 - CSS Layout
Rachel Andrew

Web Summer Camp Keynote
Web Summer Camp KeynoteWeb Summer Camp Keynote
Web Summer Camp Keynote
Rachel Andrew

New CSS Layout Meets the Real World
New CSS Layout Meets the Real WorldNew CSS Layout Meets the Real World
New CSS Layout Meets the Real World
Rachel Andrew

An Event Apart DC - New CSS Layout meets the Real World
An Event Apart DC - New CSS Layout meets the Real WorldAn Event Apart DC - New CSS Layout meets the Real World
An Event Apart DC - New CSS Layout meets the Real World
Rachel Andrew

Perch, Patterns and Old Browsers
Perch, Patterns and Old BrowsersPerch, Patterns and Old Browsers
Perch, Patterns and Old Browsers
Rachel Andrew

Evergreen websites for Evergreen browsers
Evergreen websites for Evergreen browsersEvergreen websites for Evergreen browsers
Evergreen websites for Evergreen browsers
Rachel Andrew

Where does CSS come from?
Where does CSS come from?Where does CSS come from?
Where does CSS come from?
Rachel Andrew

CSS Grid for html5j
CSS Grid for html5jCSS Grid for html5j
CSS Grid for html5j
Rachel Andrew


More from Rachel Andrew (20)

All Day Hey! Unlocking The Power of CSS Grid Layout
All Day Hey! Unlocking The Power of CSS Grid LayoutAll Day Hey! Unlocking The Power of CSS Grid Layout
All Day Hey! Unlocking The Power of CSS Grid Layout

SmashingConf SF: Unlocking the Power of CSS Grid Layout
SmashingConf SF: Unlocking the Power of CSS Grid LayoutSmashingConf SF: Unlocking the Power of CSS Grid Layout
SmashingConf SF: Unlocking the Power of CSS Grid Layout

Unlocking the Power of CSS Grid Layout
Unlocking the Power of CSS Grid LayoutUnlocking the Power of CSS Grid Layout
Unlocking the Power of CSS Grid Layout

Into the Weeds of CSS Layout
Into the Weeds of CSS LayoutInto the Weeds of CSS Layout
Into the Weeds of CSS Layout

Solving Layout Problems with CSS Grid & Friends - DevFest17
Solving Layout Problems with CSS Grid & Friends - DevFest17Solving Layout Problems with CSS Grid & Friends - DevFest17
Solving Layout Problems with CSS Grid & Friends - DevFest17

Graduating to Grid
Graduating to GridGraduating to Grid
Graduating to Grid

View Source London: Solving Layout Problems with CSS Grid & Friends
View Source London: Solving Layout Problems with CSS Grid & FriendsView Source London: Solving Layout Problems with CSS Grid & Friends
View Source London: Solving Layout Problems with CSS Grid & Friends

DevFest Nantes - Start Using CSS Grid Layout today
DevFest Nantes - Start Using CSS Grid Layout todayDevFest Nantes - Start Using CSS Grid Layout today
DevFest Nantes - Start Using CSS Grid Layout today

404.ie: Solving Layout Problems with CSS Grid & Friends
404.ie: Solving Layout Problems with CSS Grid & Friends404.ie: Solving Layout Problems with CSS Grid & Friends
404.ie: Solving Layout Problems with CSS Grid & Friends

Solving Layout Problems with CSS Grid & Friends - WEBU17
Solving Layout Problems with CSS Grid & Friends - WEBU17Solving Layout Problems with CSS Grid & Friends - WEBU17
Solving Layout Problems with CSS Grid & Friends - WEBU17

Laying out the future with grid & flexbox - Smashing Conf Freiburg
Laying out the future with grid & flexbox - Smashing Conf FreiburgLaying out the future with grid & flexbox - Smashing Conf Freiburg
Laying out the future with grid & flexbox - Smashing Conf Freiburg

Solving Layout Problems with CSS Grid & Friends - NordicJS
Solving Layout Problems with CSS Grid & Friends - NordicJSSolving Layout Problems with CSS Grid & Friends - NordicJS
Solving Layout Problems with CSS Grid & Friends - NordicJS

Google Developers Experts Summit 2017 - CSS Layout
Google Developers Experts Summit 2017 - CSS Layout Google Developers Experts Summit 2017 - CSS Layout
Google Developers Experts Summit 2017 - CSS Layout

Web Summer Camp Keynote
Web Summer Camp KeynoteWeb Summer Camp Keynote
Web Summer Camp Keynote

New CSS Layout Meets the Real World
New CSS Layout Meets the Real WorldNew CSS Layout Meets the Real World
New CSS Layout Meets the Real World

An Event Apart DC - New CSS Layout meets the Real World
An Event Apart DC - New CSS Layout meets the Real WorldAn Event Apart DC - New CSS Layout meets the Real World
An Event Apart DC - New CSS Layout meets the Real World

Perch, Patterns and Old Browsers
Perch, Patterns and Old BrowsersPerch, Patterns and Old Browsers
Perch, Patterns and Old Browsers

Evergreen websites for Evergreen browsers
Evergreen websites for Evergreen browsersEvergreen websites for Evergreen browsers
Evergreen websites for Evergreen browsers

Where does CSS come from?
Where does CSS come from?Where does CSS come from?
Where does CSS come from?

CSS Grid for html5j
CSS Grid for html5jCSS Grid for html5j
CSS Grid for html5j


Recently uploaded

Energy Efficient Video Encoding for Cloud and Edge Computing Instances
Energy Efficient Video Encoding for Cloud and Edge Computing InstancesEnergy Efficient Video Encoding for Cloud and Edge Computing Instances
Energy Efficient Video Encoding for Cloud and Edge Computing Instances
Alpen-Adria-Universität

“How Axelera AI Uses Digital Compute-in-memory to Deliver Fast and Energy-eff...
“How Axelera AI Uses Digital Compute-in-memory to Deliver Fast and Energy-eff...“How Axelera AI Uses Digital Compute-in-memory to Deliver Fast and Energy-eff...
“How Axelera AI Uses Digital Compute-in-memory to Deliver Fast and Energy-eff...
Edge AI and Vision Alliance

Connector Corner: Seamlessly power UiPath Apps, GenAI with prebuilt connectors
Connector Corner: Seamlessly power UiPath Apps, GenAI with prebuilt connectorsConnector Corner: Seamlessly power UiPath Apps, GenAI with prebuilt connectors
Connector Corner: Seamlessly power UiPath Apps, GenAI with prebuilt connectors
DianaGray10

Driving Business Innovation: Latest Generative AI Advancements & Success Story
Driving Business Innovation: Latest Generative AI Advancements & Success StoryDriving Business Innovation: Latest Generative AI Advancements & Success Story
Driving Business Innovation: Latest Generative AI Advancements & Success Story
Safe Software

"Choosing proper type of scaling", Olena Syrota
"Choosing proper type of scaling", Olena Syrota"Choosing proper type of scaling", Olena Syrota
"Choosing proper type of scaling", Olena Syrota
Fwdays

How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf
How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdfHow to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf
How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf
Chart Kalyan

TrustArc Webinar - 2024 Global Privacy Survey
TrustArc Webinar - 2024 Global Privacy SurveyTrustArc Webinar - 2024 Global Privacy Survey
TrustArc Webinar - 2024 Global Privacy Survey
TrustArc

zkStudyClub - LatticeFold: A Lattice-based Folding Scheme and its Application...
zkStudyClub - LatticeFold: A Lattice-based Folding Scheme and its Application...zkStudyClub - LatticeFold: A Lattice-based Folding Scheme and its Application...
zkStudyClub - LatticeFold: A Lattice-based Folding Scheme and its Application...
Alex Pruden

Apps Break Data
Apps Break DataApps Break Data
Apps Break Data
Ivo Velitchkov

Fueling AI with Great Data with Airbyte Webinar
Fueling AI with Great Data with Airbyte WebinarFueling AI with Great Data with Airbyte Webinar
Fueling AI with Great Data with Airbyte Webinar
Zilliz

“Temporal Event Neural Networks: A More Efficient Alternative to the Transfor...
“Temporal Event Neural Networks: A More Efficient Alternative to the Transfor...“Temporal Event Neural Networks: A More Efficient Alternative to the Transfor...
“Temporal Event Neural Networks: A More Efficient Alternative to the Transfor...
Edge AI and Vision Alliance

HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAUHCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
panagenda

JavaLand 2024: Application Development Green Masterplan
JavaLand 2024: Application Development Green MasterplanJavaLand 2024: Application Development Green Masterplan
JavaLand 2024: Application Development Green Masterplan
Miro Wengner

Programming Foundation Models with DSPy - Meetup Slides
Programming Foundation Models with DSPy - Meetup SlidesProgramming Foundation Models with DSPy - Meetup Slides
Programming Foundation Models with DSPy - Meetup Slides
Zilliz

Leveraging the Graph for Clinical Trials and Standards
Leveraging the Graph for Clinical Trials and StandardsLeveraging the Graph for Clinical Trials and Standards
Leveraging the Graph for Clinical Trials and Standards
Neo4j

Best 20 SEO Techniques To Improve Website Visibility In SERP
Best 20 SEO Techniques To Improve Website Visibility In SERPBest 20 SEO Techniques To Improve Website Visibility In SERP
Best 20 SEO Techniques To Improve Website Visibility In SERP
Pixlogix Infotech

Main news related to the CCS TSI 2023 (2023/1695)
Main news related to the CCS TSI 2023 (2023/1695)Main news related to the CCS TSI 2023 (2023/1695)
Main news related to the CCS TSI 2023 (2023/1695)
Jakub Marek

Monitoring and Managing Anomaly Detection on OpenShift.pdf
Monitoring and Managing Anomaly Detection on OpenShift.pdfMonitoring and Managing Anomaly Detection on OpenShift.pdf
Monitoring and Managing Anomaly Detection on OpenShift.pdf
Tosin Akinosho

Choosing The Best AWS Service For Your Website + API.pptx
Choosing The Best AWS Service For Your Website + API.pptxChoosing The Best AWS Service For Your Website + API.pptx
Choosing The Best AWS Service For Your Website + API.pptx
Brandon Minnick, MBA

Freshworks Rethinks NoSQL for Rapid Scaling & Cost-Efficiency
Freshworks Rethinks NoSQL for Rapid Scaling & Cost-EfficiencyFreshworks Rethinks NoSQL for Rapid Scaling & Cost-Efficiency
Freshworks Rethinks NoSQL for Rapid Scaling & Cost-Efficiency
ScyllaDB


Recently uploaded (20)

Energy Efficient Video Encoding for Cloud and Edge Computing Instances
Energy Efficient Video Encoding for Cloud and Edge Computing InstancesEnergy Efficient Video Encoding for Cloud and Edge Computing Instances
Energy Efficient Video Encoding for Cloud and Edge Computing Instances

“How Axelera AI Uses Digital Compute-in-memory to Deliver Fast and Energy-eff...
“How Axelera AI Uses Digital Compute-in-memory to Deliver Fast and Energy-eff...“How Axelera AI Uses Digital Compute-in-memory to Deliver Fast and Energy-eff...
“How Axelera AI Uses Digital Compute-in-memory to Deliver Fast and Energy-eff...

Connector Corner: Seamlessly power UiPath Apps, GenAI with prebuilt connectors
Connector Corner: Seamlessly power UiPath Apps, GenAI with prebuilt connectorsConnector Corner: Seamlessly power UiPath Apps, GenAI with prebuilt connectors
Connector Corner: Seamlessly power UiPath Apps, GenAI with prebuilt connectors

Driving Business Innovation: Latest Generative AI Advancements & Success Story
Driving Business Innovation: Latest Generative AI Advancements & Success StoryDriving Business Innovation: Latest Generative AI Advancements & Success Story
Driving Business Innovation: Latest Generative AI Advancements & Success Story

"Choosing proper type of scaling", Olena Syrota
"Choosing proper type of scaling", Olena Syrota"Choosing proper type of scaling", Olena Syrota
"Choosing proper type of scaling", Olena Syrota

How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf
How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdfHow to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf
How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf

TrustArc Webinar - 2024 Global Privacy Survey
TrustArc Webinar - 2024 Global Privacy SurveyTrustArc Webinar - 2024 Global Privacy Survey
TrustArc Webinar - 2024 Global Privacy Survey

zkStudyClub - LatticeFold: A Lattice-based Folding Scheme and its Application...
zkStudyClub - LatticeFold: A Lattice-based Folding Scheme and its Application...zkStudyClub - LatticeFold: A Lattice-based Folding Scheme and its Application...
zkStudyClub - LatticeFold: A Lattice-based Folding Scheme and its Application...

Apps Break Data
Apps Break DataApps Break Data
Apps Break Data

Fueling AI with Great Data with Airbyte Webinar
Fueling AI with Great Data with Airbyte WebinarFueling AI with Great Data with Airbyte Webinar
Fueling AI with Great Data with Airbyte Webinar

“Temporal Event Neural Networks: A More Efficient Alternative to the Transfor...
“Temporal Event Neural Networks: A More Efficient Alternative to the Transfor...“Temporal Event Neural Networks: A More Efficient Alternative to the Transfor...
“Temporal Event Neural Networks: A More Efficient Alternative to the Transfor...

HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAUHCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU

JavaLand 2024: Application Development Green Masterplan
JavaLand 2024: Application Development Green MasterplanJavaLand 2024: Application Development Green Masterplan
JavaLand 2024: Application Development Green Masterplan

Programming Foundation Models with DSPy - Meetup Slides
Programming Foundation Models with DSPy - Meetup SlidesProgramming Foundation Models with DSPy - Meetup Slides
Programming Foundation Models with DSPy - Meetup Slides

Leveraging the Graph for Clinical Trials and Standards
Leveraging the Graph for Clinical Trials and StandardsLeveraging the Graph for Clinical Trials and Standards
Leveraging the Graph for Clinical Trials and Standards

Best 20 SEO Techniques To Improve Website Visibility In SERP
Best 20 SEO Techniques To Improve Website Visibility In SERPBest 20 SEO Techniques To Improve Website Visibility In SERP
Best 20 SEO Techniques To Improve Website Visibility In SERP

Main news related to the CCS TSI 2023 (2023/1695)
Main news related to the CCS TSI 2023 (2023/1695)Main news related to the CCS TSI 2023 (2023/1695)
Main news related to the CCS TSI 2023 (2023/1695)

Monitoring and Managing Anomaly Detection on OpenShift.pdf
Monitoring and Managing Anomaly Detection on OpenShift.pdfMonitoring and Managing Anomaly Detection on OpenShift.pdf
Monitoring and Managing Anomaly Detection on OpenShift.pdf

Choosing The Best AWS Service For Your Website + API.pptx
Choosing The Best AWS Service For Your Website + API.pptxChoosing The Best AWS Service For Your Website + API.pptx
Choosing The Best AWS Service For Your Website + API.pptx

Freshworks Rethinks NoSQL for Rapid Scaling & Cost-Efficiency
Freshworks Rethinks NoSQL for Rapid Scaling & Cost-EfficiencyFreshworks Rethinks NoSQL for Rapid Scaling & Cost-Efficiency
Freshworks Rethinks NoSQL for Rapid Scaling & Cost-Efficiency


The New CSS Layout - Dutch PHP Conference

  • 1. The New CSS Layout Rachel Andrew Dutch PHP Conference, 2015
  • 3. The trouble with CSS layout • Floats and clearfix hacks • Absolute positioning means elements are taken out of document flow and risk overlaps • Redundant markup and positioning oddities with display: table • White space issues with inline-block
  • 4. The cost of taming layout methods • Developer hours spent learning non-obvious concepts. • Compromises in terms of document semantics in order to achieve responsive layouts. • Needing to lean on frameworks to help with complex math. • Adding markup to create grids • Using preprocessors to abstract layout hacks
  • 7. In my HTML I have an article with a class of ‘main’. <article class="main"> <h1>Blanchard Crosses the Sea in a Balloon</h1> <p> ... </p> </article>
  • 8.
  • 9. Use the property column- width to declare a width for our columns. The browser will create as many columns as possible using that as the ideal width. .main { column-width: 220px; }
  • 10.
  • 11. CSS Multiple column layout [The column-width value] describes the optimal column width. The actual column width may be wider (to fill the available space), or narrower (only if the available space is smaller than the specified column width). Specified values must be greater than 0.
  • 12. Set the property column- count to 3 and the browser will always create three columns. .main { column-count: 3; }
  • 13. The gap between columns is controlled by the column-gap property. Give this a value of 0 and you have no gap. .main { column-count: 3; column-gap: 0; }
  • 14.
  • 15. The browser takes the column-gap into account when calculating the size of the columns. .main { column-count: 3; column-gap: 20px; }
  • 16. Styling columns • very limited in the current specification • cannot set size of an individual column • cannot change background colour of a column • cannot set padding or margins on a column
  • 17. Multiple column layout future specifications may add additional functionality. For example, columns of different widths and different backgrounds may be supported.
  • 18. Add a rule between columns using the column-rule property. This is a shorthand for: column-rule-width column-rule-style column-rule-color These properties behave just like the border properties. .main { column-count: 3; column-gap: 20px; column-rule: 2px dotted #ccc; }
  • 19.
  • 20.
  • 21. The property column- span can have a value of all or none. If set to all the element will span all columns. .main h1, .image { column-span: all; }
  • 22.
  • 23. Use multiple column layout to tidy up the display of small UI elements.
  • 24.
  • 25. Resources Dev.Opera: https://dev.opera.com/articles/css3-multi-column-layout/ MDN: https://developer.mozilla.org/en-US/docs/Web/Guide/CSS/Using_multi- column_layouts CSS Tricks: https://css-tricks.com/guide-responsive-friendly-css-columns/ Multi-column generator: http://aaronlumsden.com/multicol/
  • 28. Navigation marked up as an unordered list in my HTML. <nav> <ul class="nav"> <li><a href="">Introduction</a></li> <li><a href="">Ancient Times</a></li> <li><a href="">Balloon Theory</a></li> <li><a href="">First Public Trial</a></ li> <li><a href="">Experiments</a></li> </ul> </nav>
  • 29.
  • 30. flex is a new value of the display property. This causes the element to use flexbox. justify-content lets us set how the content is justified. nav ul{ display: flex; justify-content: space-between; }
  • 31.
  • 32. To have equal space all around the item give justify-content a value of space-around. nav ul{ display: flex; justify-content: space-around; }
  • 33.
  • 34. Default flexbox behaviour • Items displayed as a row • Items displayed in natural (DOM) order • align-items set to stretch • flex-wrap set to nowrap
  • 35. The flex-direction property. - row - row-reverse - column - column-reverse nav ul{ display: flex; justify-content: space-around; flex-direction: row; }
  • 36. The flex-direction property. - row - row-reverse - column - column-reverse nav ul{ display: flex; justify-content: space-around; flex-direction: row-reverse; }
  • 37.
  • 38. The flex-direction property. - row - row-reverse - column - column-reverse nav ul{ display: flex; justify-content: space-around; flex-direction: column; }
  • 39.
  • 40. The align-items property: - flex-start - flex-end - center - baseline - stretch nav ul{ display: flex; justify-content: space-between; align-items: flex-end; }
  • 41.
  • 42.
  • 43.
  • 44. Our boxes are displayed using flexbox. If there is not space for all 3 they will wrap as the flex-wrap property is set to wrap. .boxes { display: flex; flex-wrap: wrap; justify-content: space-around; } .box { border: 1px solid #444; padding: 10px; margin: 10px; flex-grow: 1; flex-shrink: 1; flex-basis: 200px; min-width: 1px; }
  • 45. The flex property is a shorthand for the three properties. Initial values as follows: flex-grow: 0; flex-shrink: 1; flex-basis: auto; .boxes { display: flex; flex-wrap: wrap; justify-content: space-around; } .box { border: 1px solid #444; padding: 10px; margin: 10px; flex: 1 1 200px; min-width: 1px; }
  • 46. Giving the box with a class of .box2 a flex-grow value of 2. The other boxes have flex-grow set to 1. .box2 { flex-grow: 2; }
  • 47.
  • 48. Use the order property to change the order of flex items. .box1 { order: 3; } .box2 { flex-grow: 2; order: 1; } .box3 { order: 2; }
  • 49.
  • 50. Resources Solved by Flexbox: http://philipwalton.github.io/solved-by-flexbox/ CSS Tricks: https://css-tricks.com/snippets/css/a-guide-to-flexbox/ Flexbox Cheat Sheet: http://www.sketchingwithcss.com/samplechapter/ cheatsheet.html Flexbox in 5: http://flexboxin5.com/ Useful information on supporting older browsers: http://www.planningforaliens.com/blog/2014/03/11/real-world-flexbox/ http://zomigi.com/downloads/Leveling-Up-With-Flexbox_SmashingConf_140319.pdf
  • 54.
  • 55. We have floated our image left. .shape { float: left; width: 150px; height: 150px; margin: 20px; }
  • 56. Add the property shape- outside with a value of circle(50%). .shape { float: left; width: 150px; height: 150px; margin: 20px; shape-outside: circle(50%); }
  • 57.
  • 59.
  • 60. Basic Shapes • inset() • circle() • ellipse() • polygon()
  • 61. Using the polygon value for shape-inside. The polygon requires at least 3 sets of x, y coordinates. .shape { float: left; width: 200px; height: 200px; margin-top: 10px; } .shape-polygon { shape-outside: polygon(0 20px, 160px 40px, 180px 70px, 180px 120px, 120px 200px, 60px 210px, 0 220px); }
  • 62.
  • 63. Shapes from the Alpha Channel
  • 65. My HTML contains an image along with some text. <div class="s-box"> <img src="noun_109069.png" alt="" width="200" class="shape shape-image”> <p> ... </p> </div>
  • 66. To use an alpha channel pass in a URL for your image and a threshold for the transparency. .shape-image { shape-outside: url('noun_109069.png'); shape-image-threshold: 0.5; }
  • 67.
  • 68. Use an image in generated content to shape your text. .content:before { content: ""; float: left; width: 200px; height: 200px; shape-outside: url('alpha.png'); shape-image-threshold: 0.5; }
  • 69.
  • 70. What’s next for Shapes? • shape-inside - text flowing inside a shape • shapes defined on elements that are not floated • shape-padding property • Level 2 specification http://dev.w3.org/csswg/ css-shapes-2
  • 71. Resources How to Get Started with CSS Shapes: http://www.webdesignerdepot.com/2015/03/ how-to-get-started-with-css-shapes/ A List Apart: http://alistapart.com/article/css-shapes-101 HTML5 Rocks: http://www.html5rocks.com/en/tutorials/shapes/getting-started/ How to prepare images using Photoshop: http://blogs.adobe.com/webplatform/ 2014/03/11/add-shape-and-depth-to-your-layout-with-photoshop-and-css-shapes/ Adobe: http://webplatform.adobe.com/shapes/
  • 74. Browser Support All my examples work in Chrome unprefixed - you need to enable the Experimental Web Platform Features flag. You can also use Webkit nightlies, with the -webkit prefix. The work in Blink and Webkit is being done by Igalia, sponsored by Bloomberg. IE10 and up has support for the old syntax, with an -ms prefix. Mozilla are currently implementing Grid in Firefox. There is a Polyfill under active development: https://github.com/ FremyCompany/css-grid-polyfill/
  • 75. Our HTML consists of a div with a class of wrapper and six child elements. <div class="wrapper"> <div class="a">A</div> <div class="b">B</div> <div class="c">C</div> <div class="d">D</div> <div class="e">E</div> <div class="f">F</div> </div>
  • 76. To create a grid we use a new value of the display property. display: grid .wrapper { display: grid; }
  • 77. We describe the grid using the new properties: grid-template-columns grid-template-rows .wrapper { display: grid; grid-template-columns: 100px 10px 100px 10px 100px; grid-template-rows: auto 10px auto; }
  • 78. We position items using the new properties: grid-column-start
 grid-column-end
 grid-row-start
 grid-row-end .a { grid-column-start: 1; grid-column-end: 2; grid-row-start: 1; grid-row-end: 2; }
  • 79. To position an item bottom centre, I start at column line 3, this is the line after the gutter track. .b { grid-column-start: 3; grid-column-end: 4; grid-row-start: 3; grid-row-end: 4; }
  • 80. To span more tracks we just change the end row or column line. .b { grid-column-start: 3; grid-column-end: 6; grid-row-start: 3; grid-row-end: 4; }
  • 81. The longhand for line- based placement means up to 4 properties to position each element. .a { grid-column-start: 1; grid-column-end: 2; grid-row-start: 1; grid-row-end: 2; } .b { grid-column-start: 3; grid-column-end: 4; grid-row-start: 3; grid-row-end: 4; }
  • 82. Declare start and end values with grid-column and grid-row. Values are separated by a / symbol. .a { grid-column: 1 / 2; grid-row: 1 / 2; } .b { grid-column: 3 / 6; grid-row: 3 / 4; }
  • 83. Declare all 4 values using the grid-area property. .a { grid-area: 1 / 1 / 2 / 2; } .b { grid-area: 3 / 3 / 4 / 6; }
  • 85. Grid Lines Lines can be horizontal or vertical. They are referred to by number and can be named. Highlighted is Column Line 2.
  • 86. Grid Track A Grid Track is the space between two Grid Lines. Tracks can be horizontal or vertical (rows or columns). The highlighted Grid Track is between Row Lines 2 and 3.
  • 87. Grid Cell The smallest unit on our grid, a Grid Cell is the space between four Grid Lines. It’s just like a table cell. The highlighted Grid Cell is between row lines 2 and 3 and column lines 2 and 3.
  • 88. Grid Area Any area of the Grid bound by 4 Grid Lines. It can contain many Grid Cells. The highlighted Grid Area is between row lines 1 and 3, column lines 2 and 4.
  • 89. All examples can be found at http://gridbyexample.com. Use Chrome. Enable “Experimental Web Platform Features” flag.
  • 91.
  • 92. The HTML around my page content. The various areas of my page are child elements of a div with a class of wrapper. <div class="wrapper"> <header class="mainheader"></header> <div class="panel"></div> <div class="content"></div> </div>
  • 93.
  • 94. Declaring a grid on wrapper. The grid has three columns, and four rows. .wrapper { width: 100%; max-width: 960px; margin: 0 auto; display: grid; grid-template-columns: 30% 5% 65%; grid-template-rows: 40px auto 20px auto; }
  • 95.
  • 96. Positioning our elements using the grid-column and grid-row shorthand. This is all we need to do to create our layout. .mainheader { grid-column: 1 / 4; grid-row: 2 / 3; } .panel { grid-column: 1 / 2; grid-row: 4 / 5; } .content { grid-column: 3 / 4; grid-row: 4 / 5; }
  • 97.
  • 98.
  • 99. I can add a footer to this layout. <div class="wrapper"> <header class="mainheader"></header> <div class="panel"></div> <div class="content"></div> <footer class="mainfooter"></footer> </div>
  • 100. Positioning the footer between row lines five and six. .mainfooter { grid-column: 1 / 4; grid-row: 5 / 6; }
  • 101.
  • 102. Our grid only has 5 row lines specified - yet we placed an item between row lines 5 and 6. Grid creates an implicit grid line for us. .wrapper { display: grid; grid-template-columns: 30% 5% 65%; grid-template-rows: 40px auto 20px auto; } .mainfooter { grid-column: 1 / 4; grid-row: 5 / 6; }
  • 103. Grid lines can be explicit or implicit • Explicit grid lines are those specified using grid- template-rows or grid-template-columns. • Implicit lines are created when you place something into a row or column track outside of the explicit grid. • Default behaviour is those tracks are auto sized. You can specify a size with the grid-auto- columns and grid-auto-rows properties.
  • 104. Grid is “table like” however … • Unlike a table for layout Grid does not rely on your content being a particular order in the source.
 • Being entirely described in CSS we can move things around the Grid at different breakpoints, introduce or redefine a Grid for any breakpoint.
  • 105. Using Grid to order the page elements in a single column for narrow screen widths. .wrapper { display: grid; grid-template-rows: 10px auto 10px auto 10px auto 10px auto; } .mainheader { grid-row: 2 / 3; } .content { grid-row: 4 / 5; } .panel { grid-row: 6 / 7; } .mainfooter { grid-row: 8 / 9; }
  • 106.
  • 107. Redefine the Grid at min- width 550 pixels. Position items as in the earlier example. @media (min-width: 550px) { .wrapper { grid-template-columns: 30% 5% 65%; grid-template-rows: 40px auto 20px auto 20px auto; } .mainheader { grid-column: 1 / 4; grid-row: 2 / 3; } .panel { grid-column: 1 / 2; grid-row: 4 / 5; } .content { grid-column: 3 / 4; grid-row: 4 / 5; } .mainfooter { grid-column: 1 / 4; grid-row: 6 / 7; } }
  • 109.
  • 110. We assign a name to the elements on our page. I am doing this outside of any Media Queries. .mainheader { grid-area: header; } .content { grid-area: content; } .panel { grid-area: sidebar; } .mainfooter { grid-area: footer; }
  • 111. Describe the layout on the parent element using the grid-template-areas property. A period “.” indicates that this grid cell is empty. .wrapper { display: grid; grid-template-rows: 10px auto 10px auto 10px auto 10px auto; grid-template-areas: "." "header" "." "content" "." "sidebar" "." "footer"; }
  • 112.
  • 113.
  • 114. Redefining the template areas for the wider layout. @media (min-width: 550px) { .wrapper { grid-template-columns: 30% 5% 65%; grid-template-rows: 2em auto 1em auto 1em auto; grid-template-areas: ". . ." "header header header" ". . ." "sidebar . content" ". . ." "footer footer footer" } }
  • 115.
  • 116.
  • 117. Resources Grid by Example: http://gridbyexample.com Examples from Igalia: http://igalia.github.io/css-grid-layout/ An article covering the original IE10 implementation: http://24ways.org/2012/css3- grid-layout/
  • 120. Floated items always rise to the top. We can wrap text around the right or left and bottom of an item.
  • 121. Exclusions enable wrapping text around all sides of an item.
  • 122. I have an article with an image as the last child in the source. The image has a class of exclusion. <article> <p> ... </p> <img src="balloons3.jpg" alt="Hot air balloons" class="exclusion" /> </article>
  • 123. The article has been given position relative to create a positioning context. I have then positioned the image using absolute positioning. .main { position:relative; } .exclusion { position: absolute; top: 14em; left: 14em; width: 320px; }
  • 124.
  • 125. The wrap-flow property means that the text will respect the positioned element and wrap round both sides. I’m using the -ms prefix given this is only implemented in IE browsers. .main { position:relative; } .exclusion { position: absolute; top: 14em; left: 14em; width: 320px; -ms-wrap-flow: both; }
  • 126.
  • 130. Regions were in the Blink engine but removed in January 2014. They are still part of Safari desktop and iOS. https://groups.google.com/a/chromium.org/forum/#!msg/blink-dev/kTktlHPJn4Q/YrnfLxeMO7IJ
  • 131. I have an article contained inside an article element. Below that is a set of empty elements, each with a class of article- regions. <article class="main content”> <p> ... </p> </article> <div class="region1 article-regions"></div> <div class="regionwrapper"> <div class="region2 article-regions"></div> <div class="region3 article-regions"></div> <div class="region4 article-regions"></div> </div> <div class="region5 article-regions"></div>
  • 132.
  • 133. We flow the content of our article into ‘article- thread’. This is a name we have given the content. We then flow the content into .article-regions - this is the class we gave our empty elements. .main { flow-into: article-thread; } .article-regions { flow-from: article-thread; }
  • 134. Positioning the empty elements. .region1 { height: 10em; } .regionwrapper { display: flex; flex-direction: row; } .region2 { flex: 1; padding: 10px; height: 10em; } .region3 { flex: 1; padding: 10px; height: 10em; } .region4 { flex: 1; padding: 10px; height: 10em; } .region5 { padding: 10px; }
  • 135.
  • 136. Resources An Introduction to CSS Regions: https://dev.opera.com/articles/introduction-to-css- regions/ Use CSS Regions to flow content through a layout: https://docs.webplatform.org/wiki/ tutorials/css-regions Say Hello to CSS Regions Polyfill: http://corlan.org/2013/02/08/say-hello-to-css- regions-polyfill/ Introducing CSS Regions: http://www.webdesignerdepot.com/2013/09/introducing- css-regions/
