2D Page Layout

1. 1

2. 2D Page Layout
Layout-ing the page leveraging browser support
without using framework.

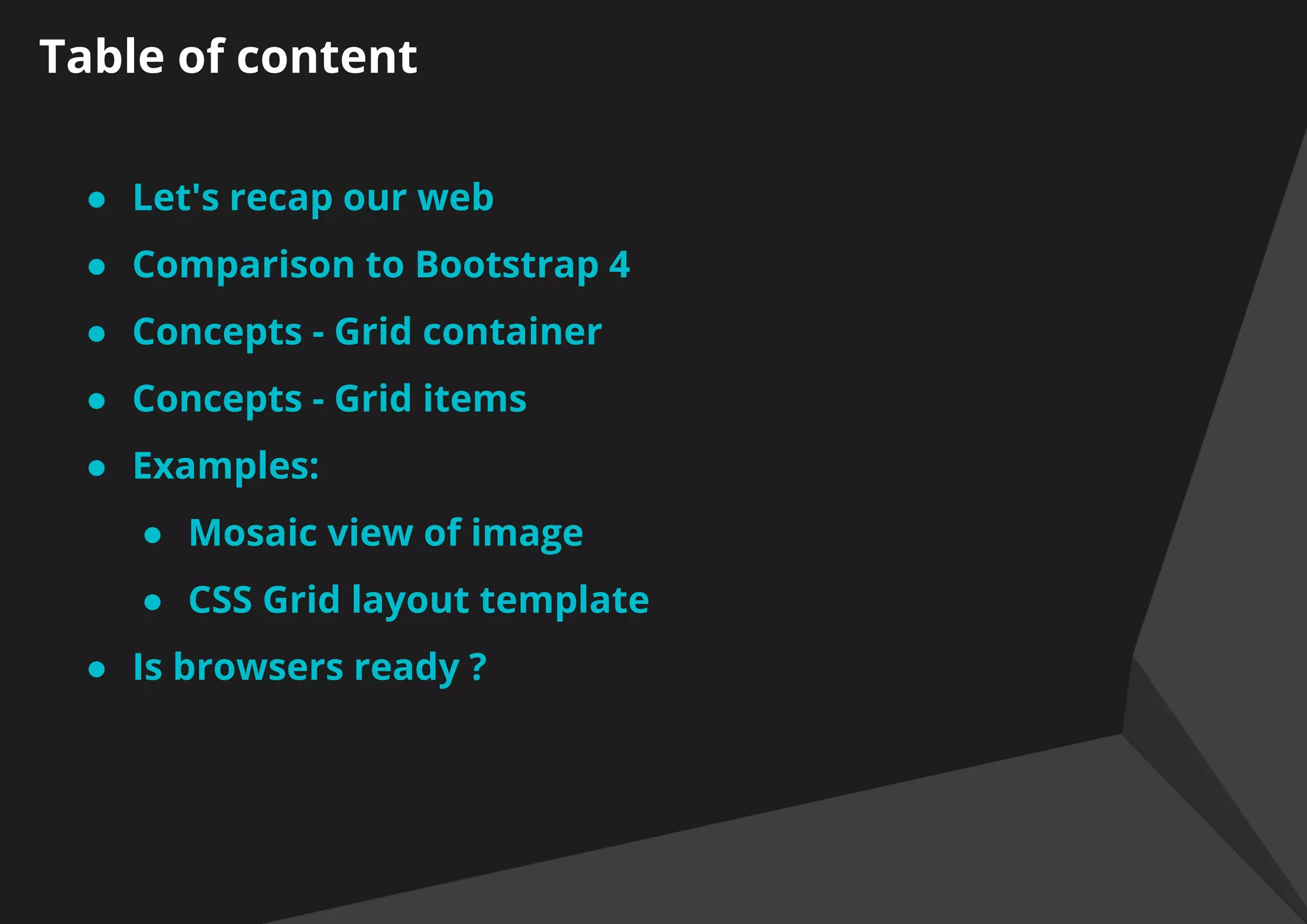

3. Table of content
● Let's recap our web
● Comparison to Bootstrap 4
● Concepts - Grid container
● Concepts - Grid items
● Examples:
● Mosaic view of image
● CSS Grid layout template
● ​Is browsers ready ?

4. Let’s Recap
1991
1993

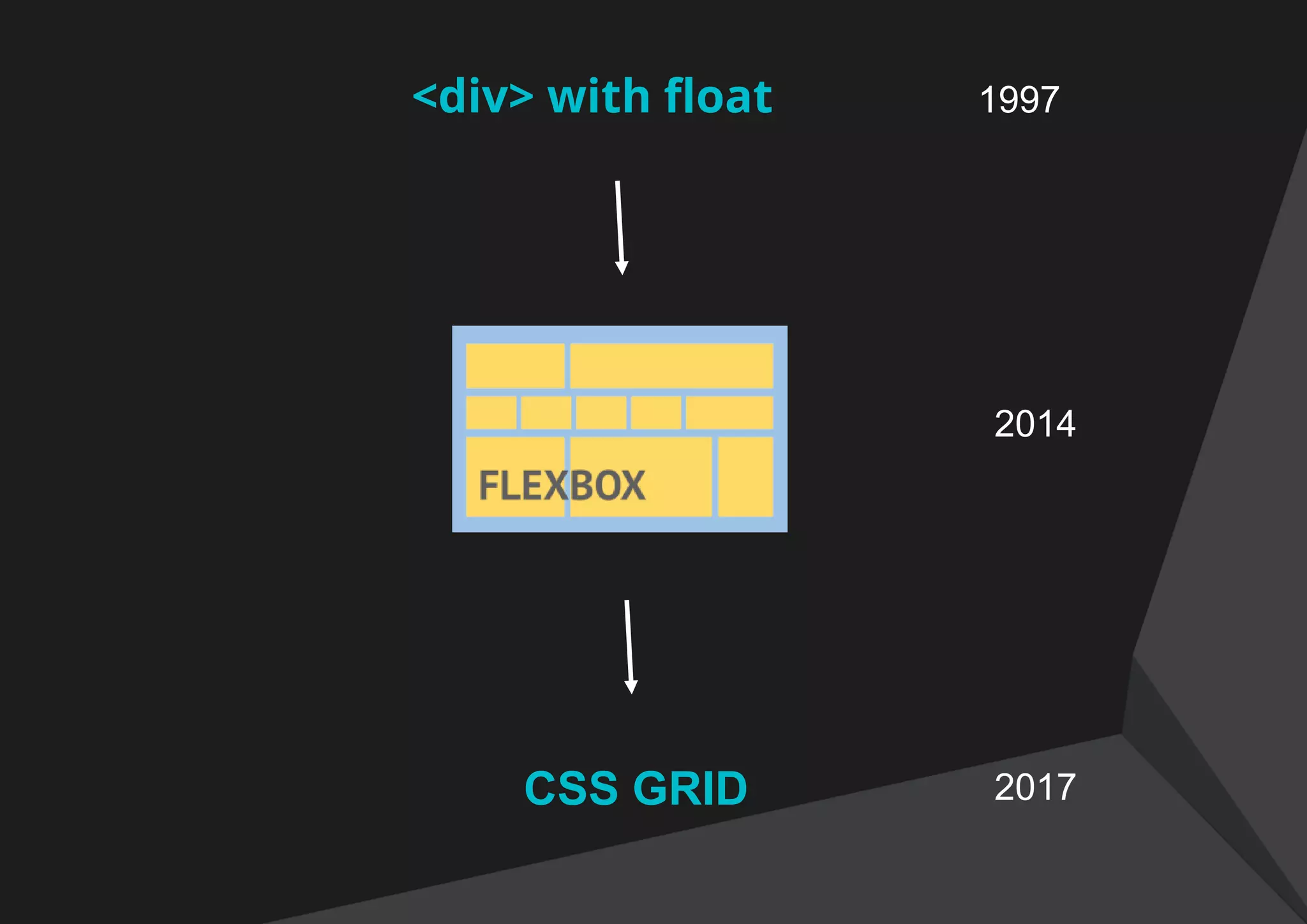

5. <div> with float 1997
CSS GRID
2014
2017

6. Comparison to Bootstrap 4
https://jagatjeevan.github.io/css-grid
Let's re-arrange things in the above mentioned url and see
how easy it is in both.

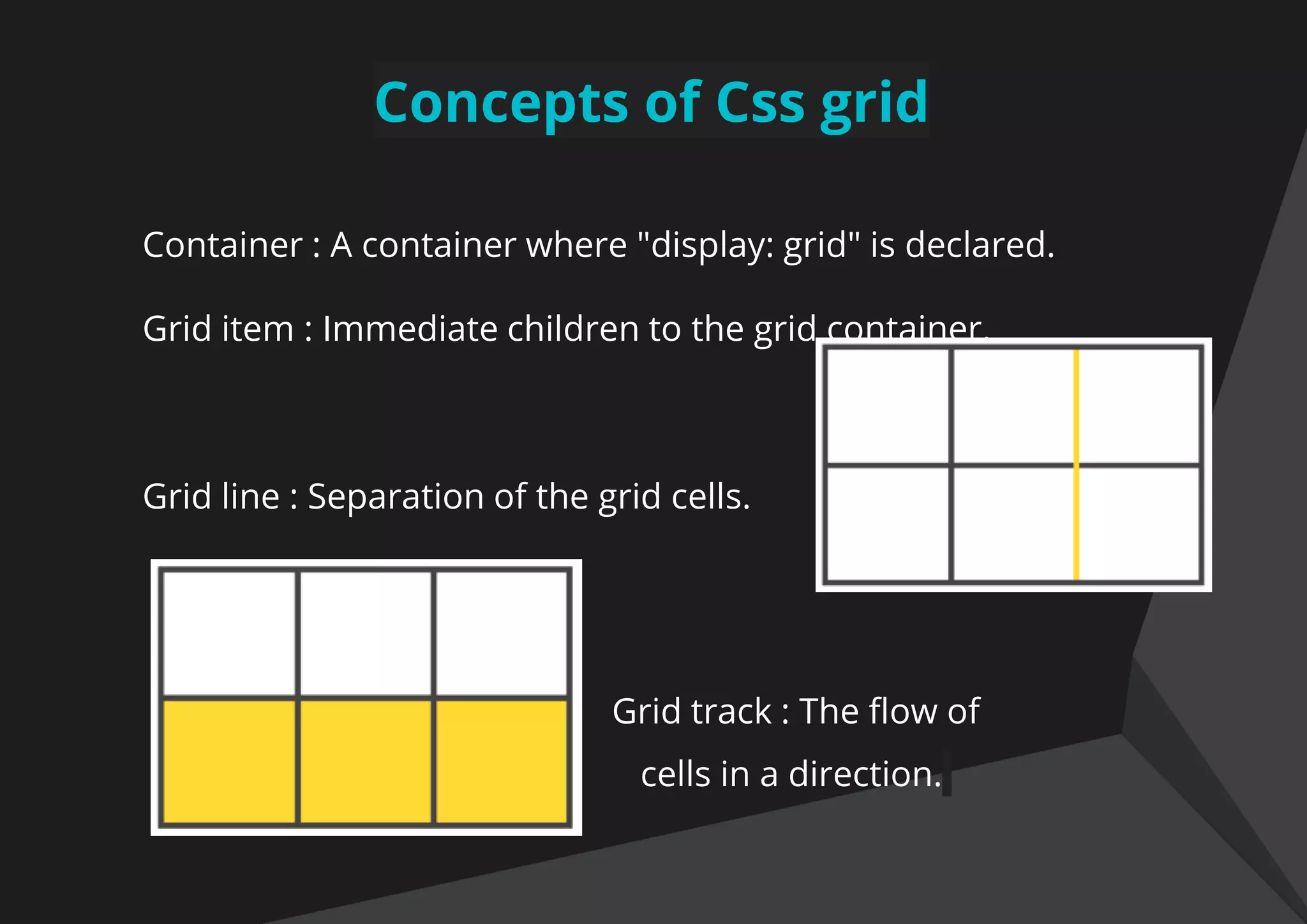

7. Concepts of Css grid
Container : A container where "display: grid" is declared.
Grid item : Immediate children to the grid container.
Grid line : Separation of the grid cells.
Grid track : The flow of
cells in a direction.

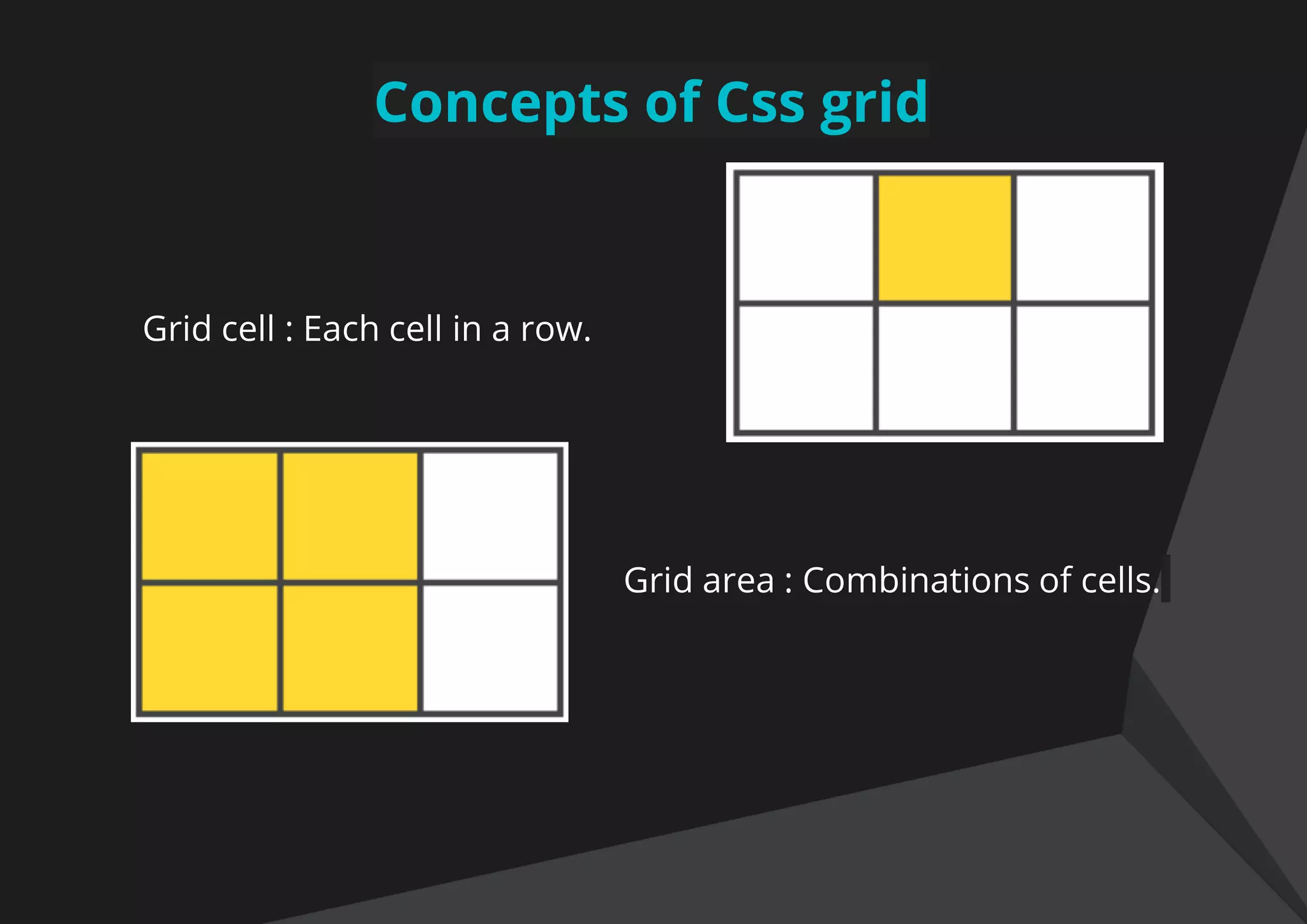

8. Concepts of Css grid
Grid cell : Each cell in a row.
Grid area : Combinations of cells.

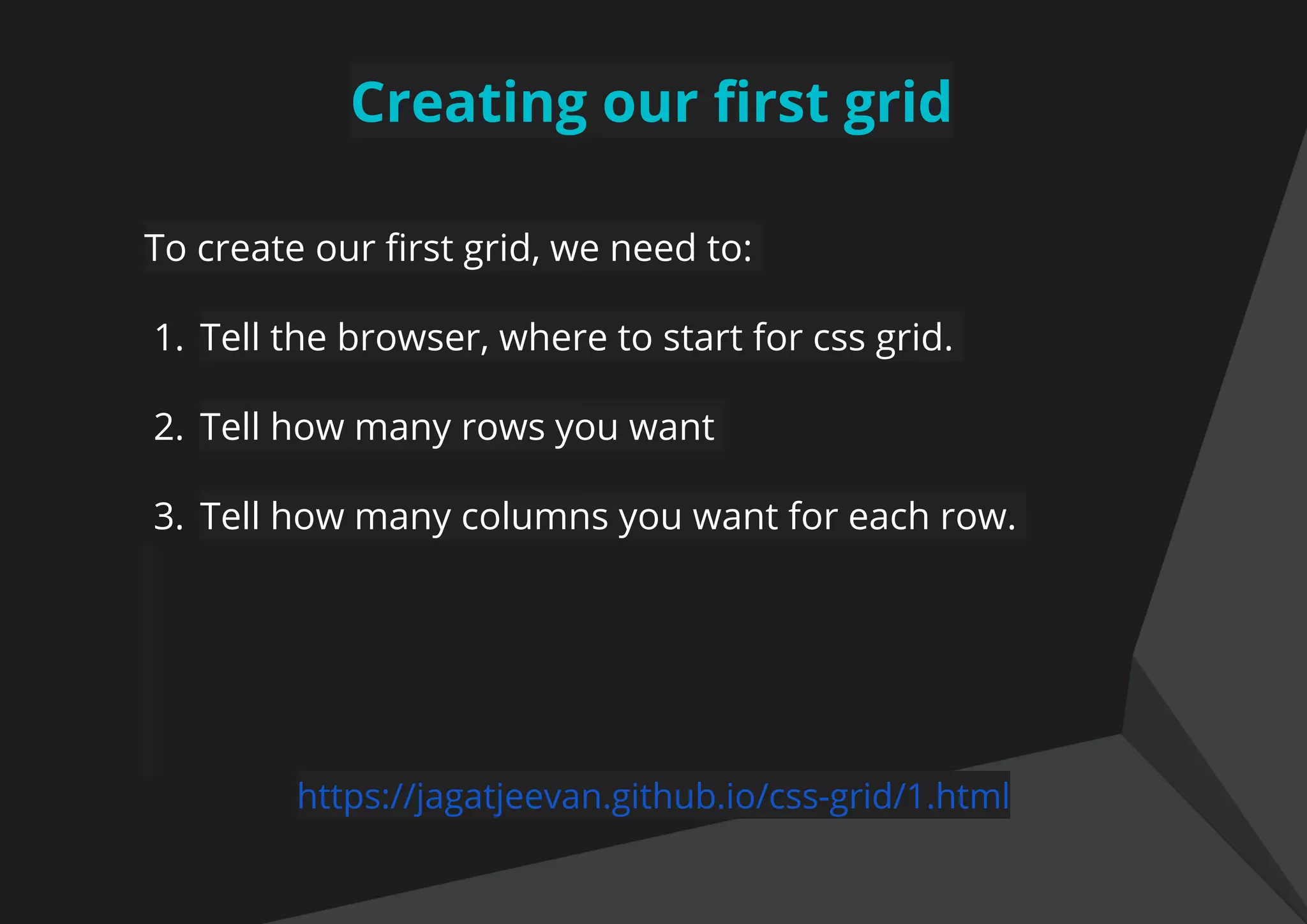

9. Creating our first grid
To create our first grid, we need to:
1. Tell the browser, where to start for css grid.
2. Tell how many rows you want
3. Tell how many columns you want for each row.
https://jagatjeevan.github.io/css-grid/1.html

10. Making our grid fluid and responsive
Use normal way, for making any layout fluid and responsive.
1. % values
2. Repeat : repeat(3, 33%)
3. Minmax: minmax(300px, 1fr)
https://jagatjeevan.github.io/css-grid/2.html

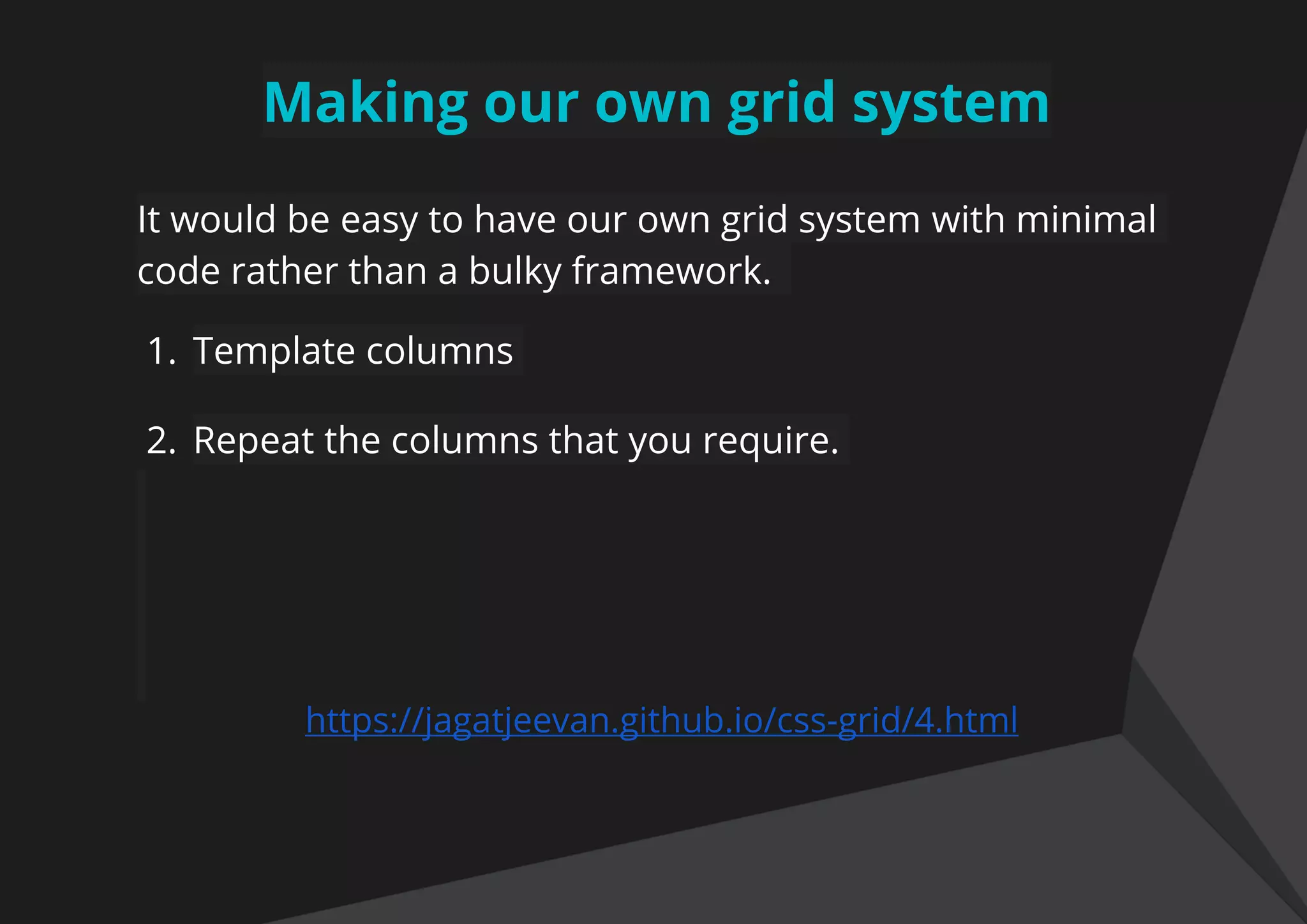

11. Making our own grid system
It would be easy to have our own grid system with minimal
code rather than a bulky framework.
1. Template columns
2. Repeat the columns that you require.
https://jagatjeevan.github.io/css-grid/4.html

12. Aligning all the content
You can align all the content of the container along the row-
axis
.container {
Justify-items: start | end | center | stretch;
}

13. Aligning all the content
You can align all the content of the container along the
column-axis
.container {
align-items: start | end | center | stretch;
}

14. Word of caution
Before we proceed, just a note of caution, while using css
grid property, all the below css property will not affect the
grid items (immediate children).
float, display: inline-block, display: table-cell, vertical-align
and column-*.

15. Defining a grid area
.item {
grid-column-start: 2
grid-column-end: 5
grid-row-start: 1
grid-row-end: 3
}
Values could be:
● <number>
● <name>
● span <number>
● span <name>
● Auto
https://prakashup.github.io/css-grid/grid-area.html

16. Different layout with same markup
You can now cater to different clients design using the
same markup. Let’s see an example.
https://prakashup.github.io/css-grid/positioning.html

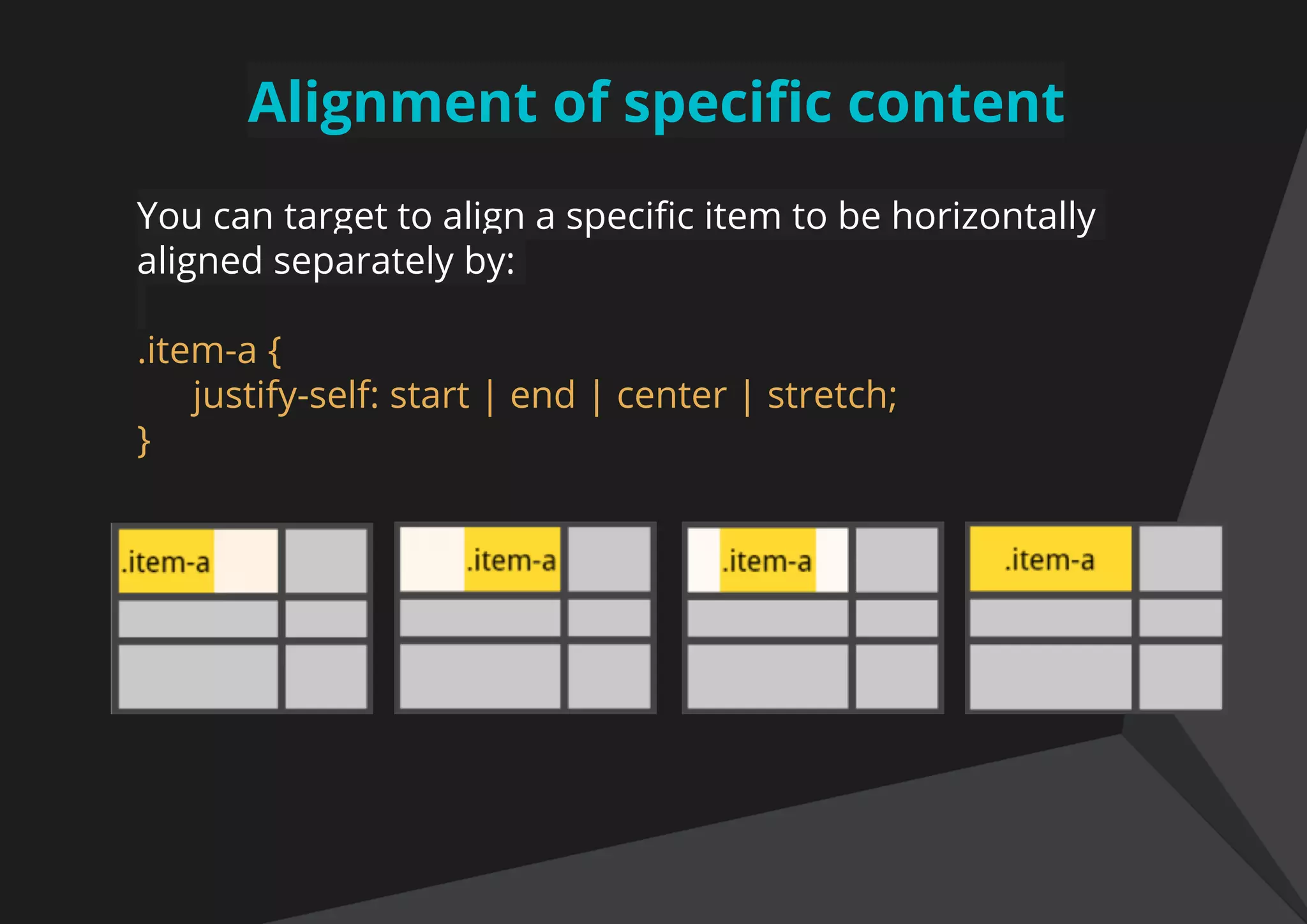

17. Alignment of specific content
You can target to align a specific item to be horizontally
aligned separately by:
.item-a {
justify-self: start | end | center | stretch;
}

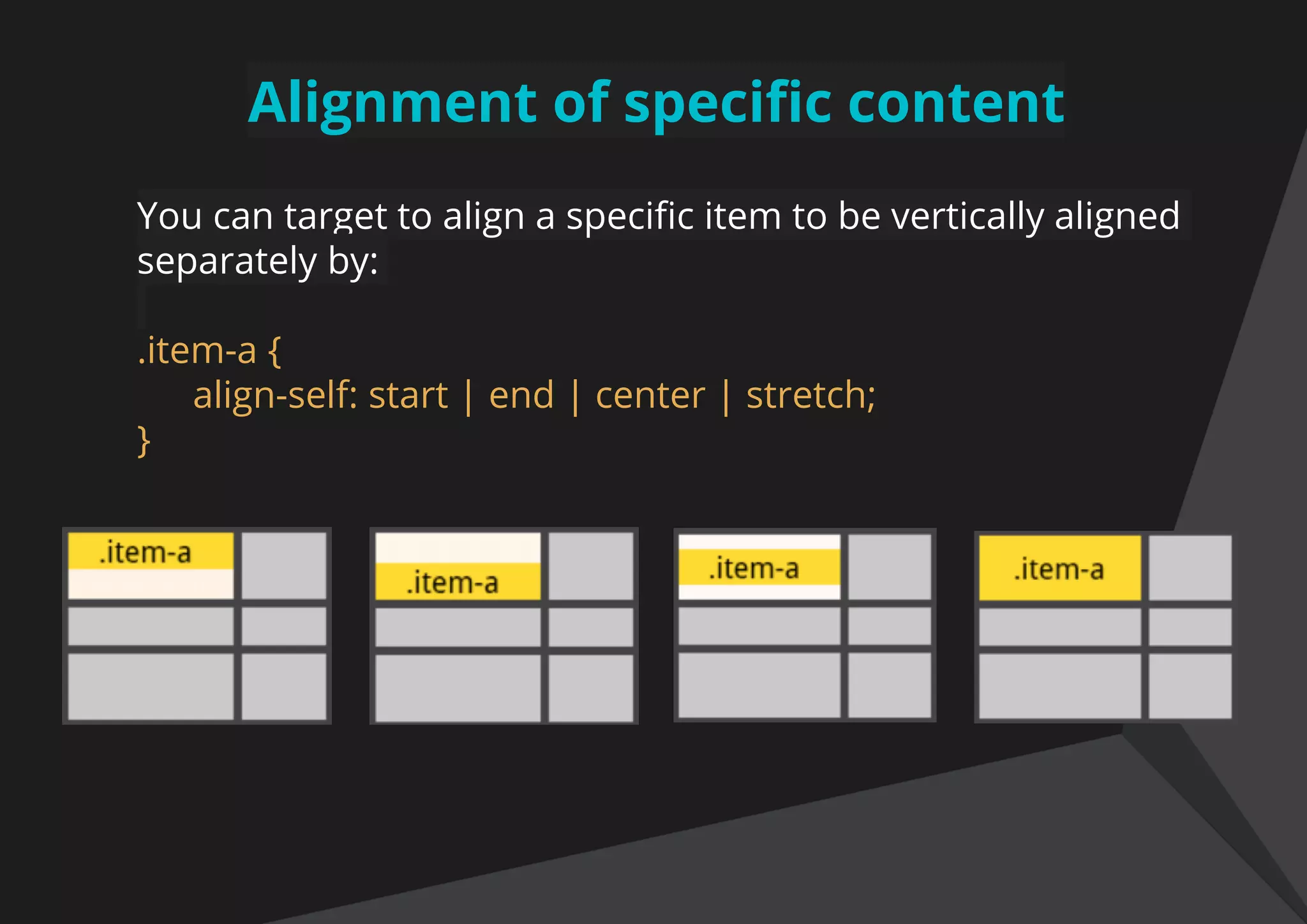

18. Alignment of specific content
You can target to align a specific item to be vertically aligned
separately by:
.item-a {
align-self: start | end | center | stretch;
}

19. Summing up to an example
Let’s put all the things that we have just learn together to an
example of a mosaic view of the image gallery. Majorly we
use some jquery / javascript plugin for making it consume all
the view space.
https://jagatjeevan.github.io/css-grid/image-gallery.html

20. Let’s create a simple layout
https://prakashup.github.io/css-grid/

21. Is this ready for production ?
https://caniuse.com/#search=css%20grid

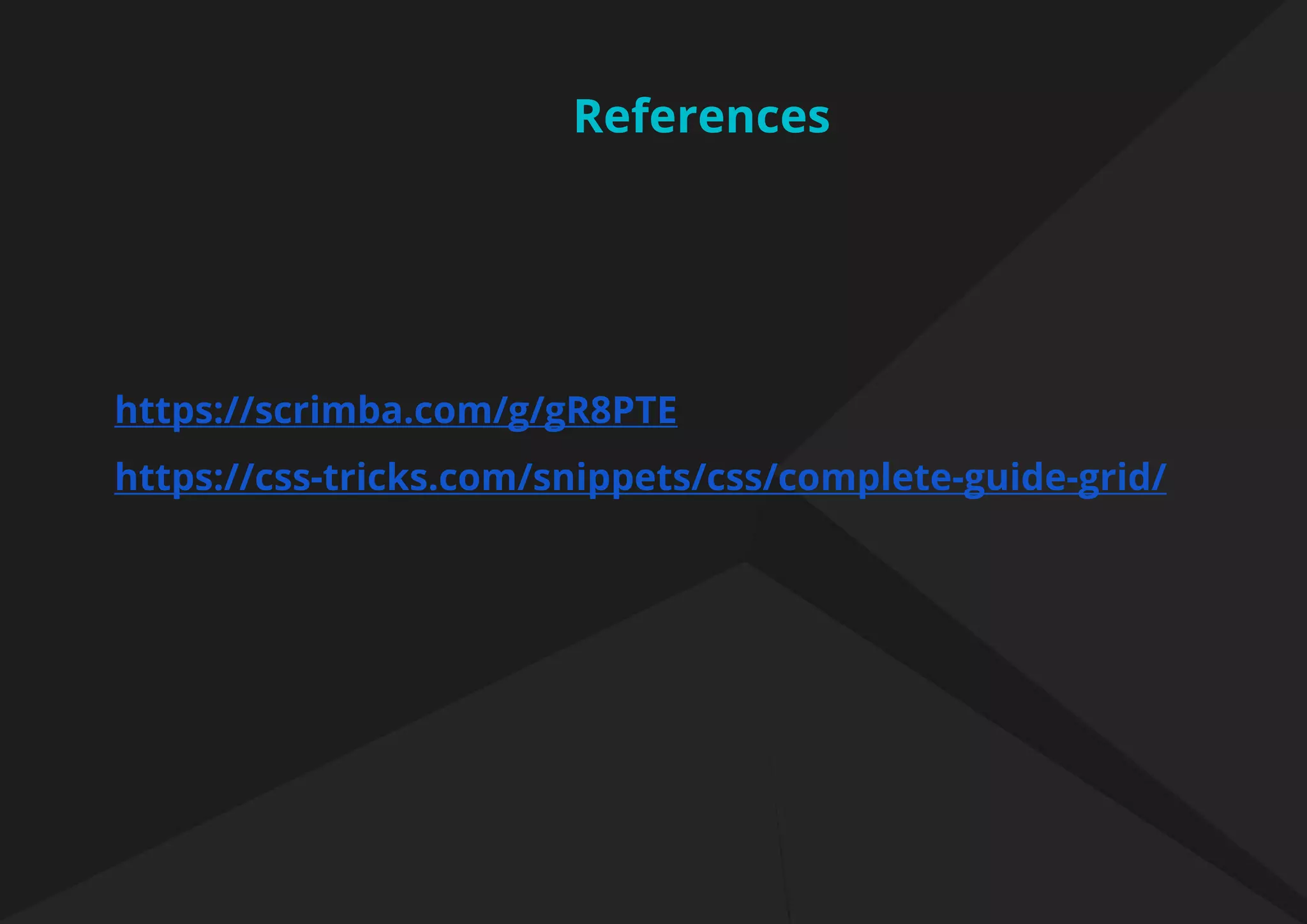

22. https://scrimba.com/g/gR8PTE
https://css-tricks.com/snippets/css/complete-guide-grid/
References

23. Short discussion
?

24. THANK YOU
Prakash Upadhyay
UI Developer, ThoughtWorks
prakashupadhyay770@gmail.com
github.com/prakashup
@prakashup
Jagat Jeevan Sahoo
UI Developer, ThoughtWorks
kanhajeevan@gmail.com
github.com/jagatjeevan
@JagatJeevan3
