START USING GRID LAYOUT TODAY
@rachelandrew @ RuhrJS
Rachel Andrew
▸ CSS Working Group Invited Expert
▸ Google Developer Expert
▸ co-founder Perch CMS
▸ Old Nerd.
▸ You can find me in most places as @rachelandrew you can email
me@rachelandrew.co.uk or check out my site at https://rachelandrew.co.uk
March 2017 March 2017 March 2017 March 2017 March 2017 17 Oct 2017
Start using Grid Layout today
▸ What is grid & why is it different to flexbox?
▸ How do I get started using grid in production?
▸ What about old browsers?
▸ How can we help encourage browsers to give us cool new stuff?
Why not use
flexbox?
CSS Grid Layout

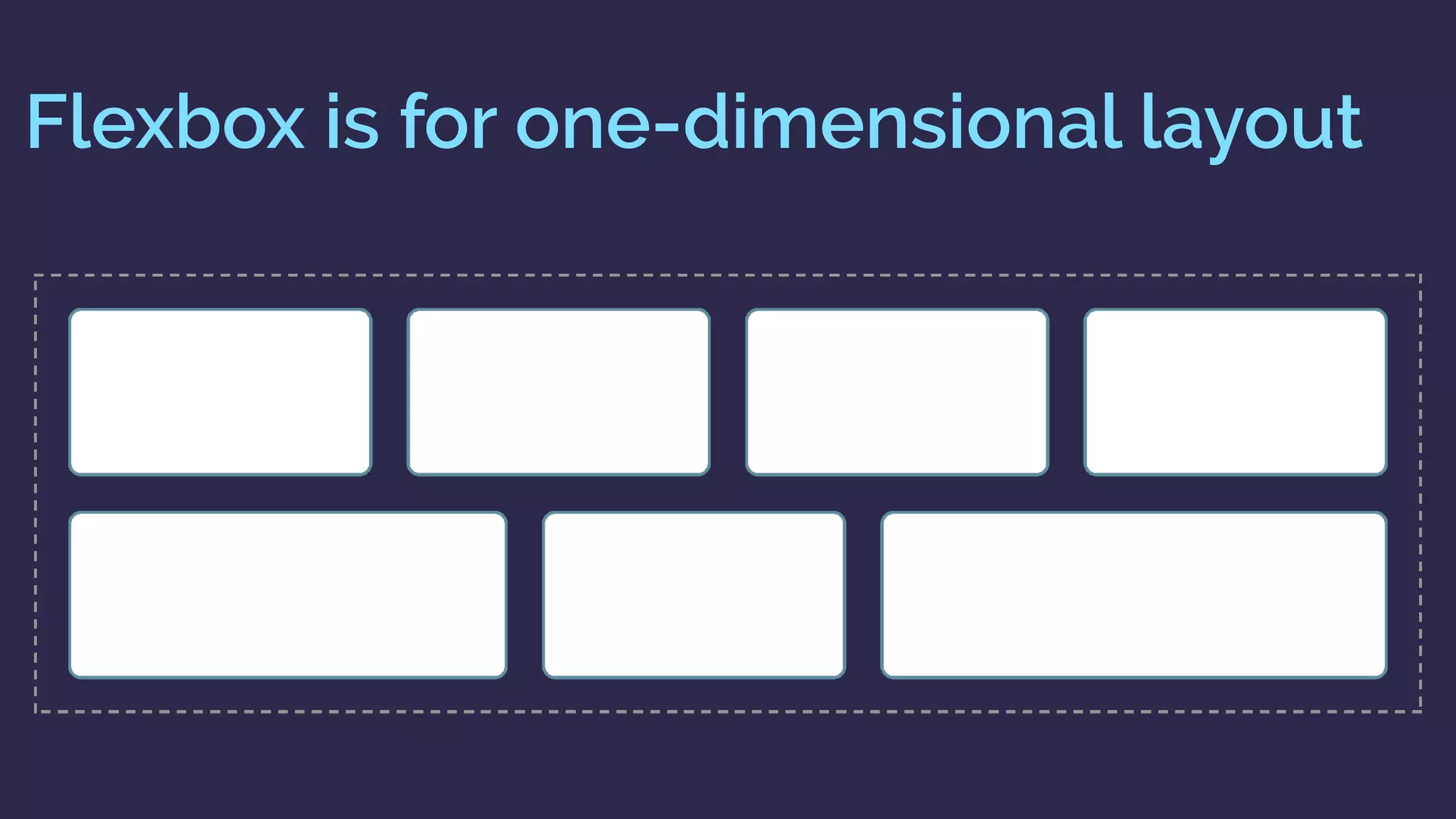

Flexbox is for one-dimensional layout

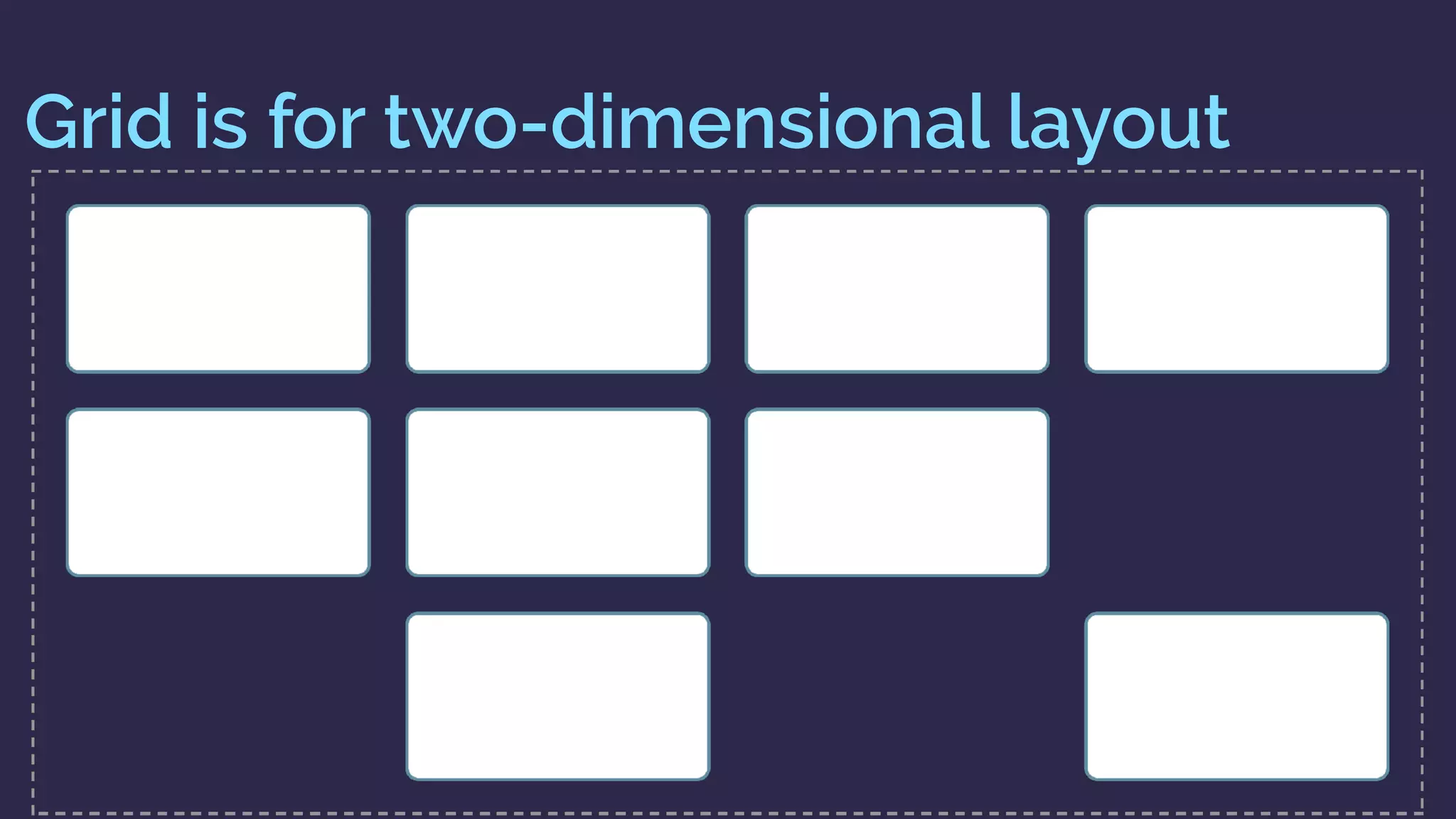

Grid is for two-dimensional layout

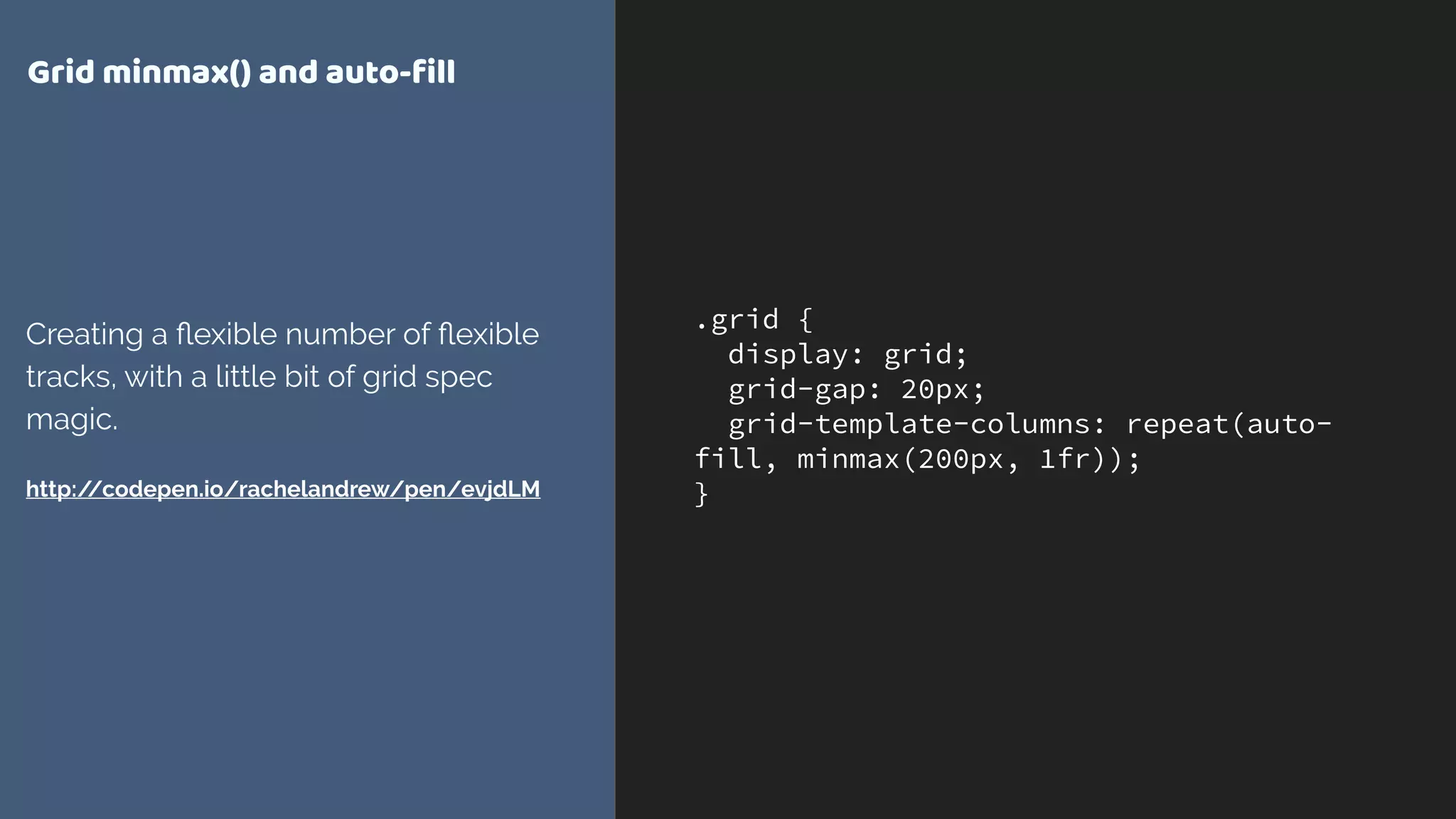

.grid {
display: grid;
grid-gap: 20px;
grid-template-columns: repeat(auto-
fill, minmax(200px, 1fr));
}

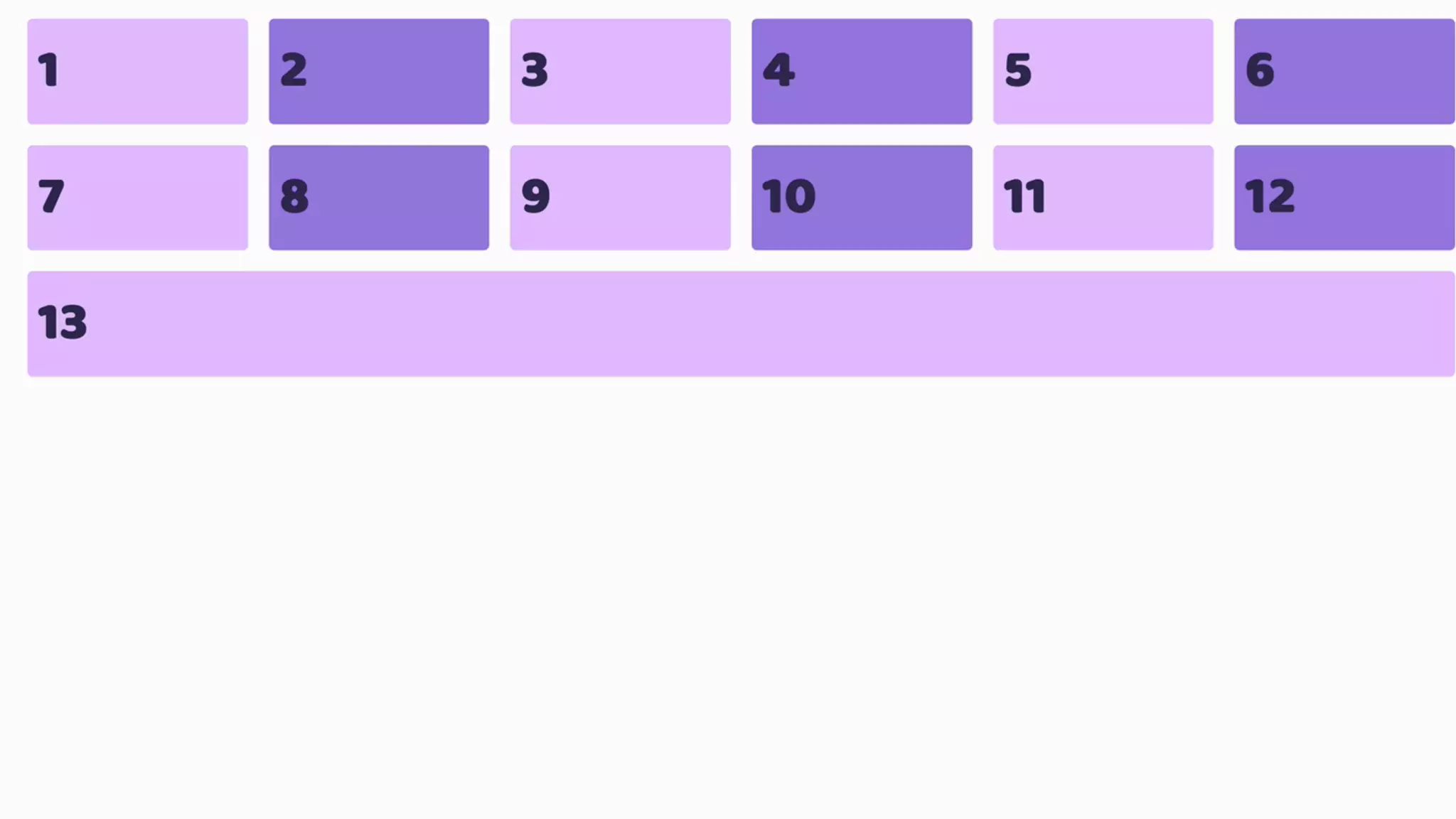

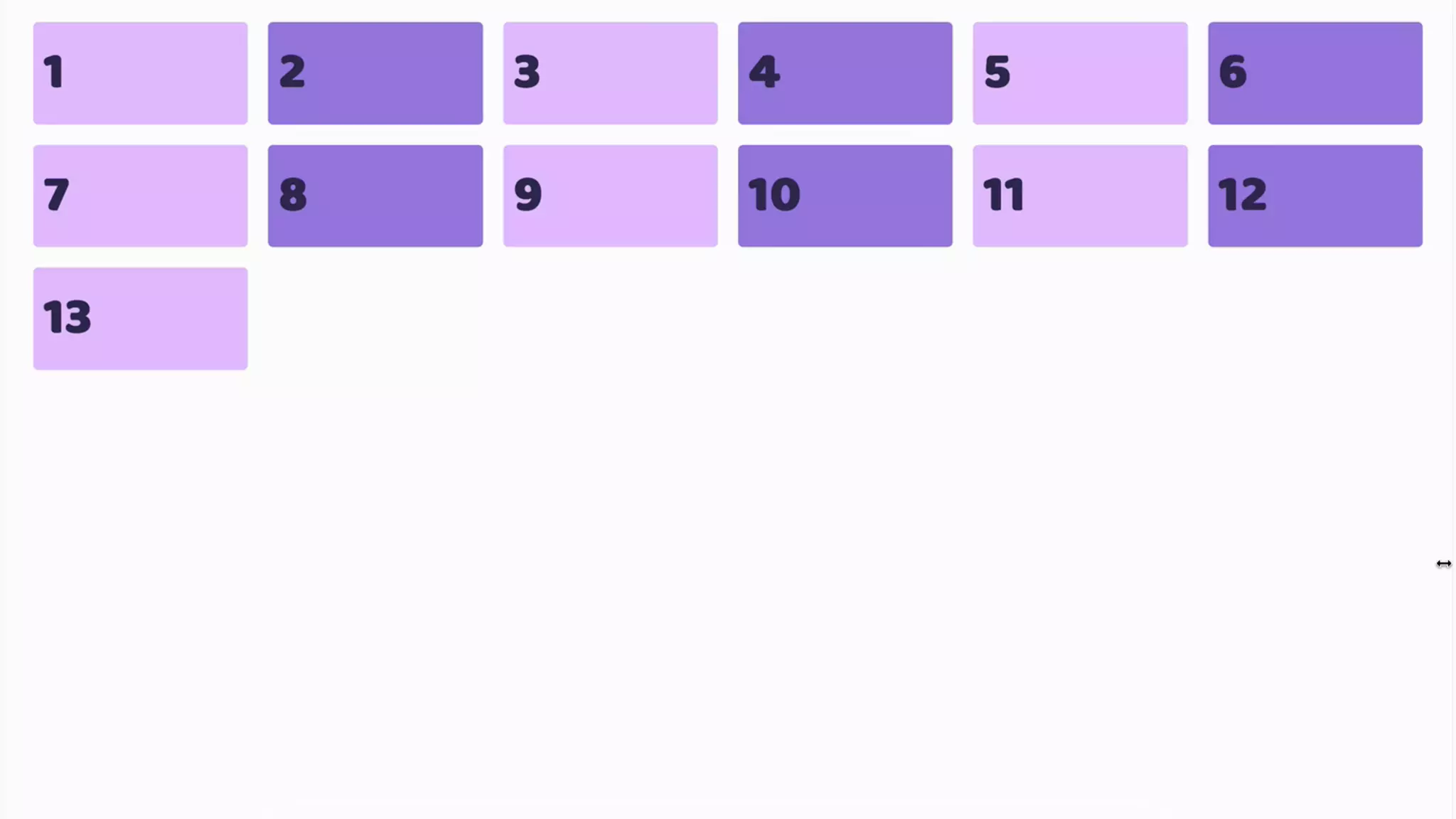

Grid minmax() and auto-fill
Creating a flexible number of flexible
tracks, with a little bit of grid spec
magic.
http://codepen.io/rachelandrew/pen/evjdLM

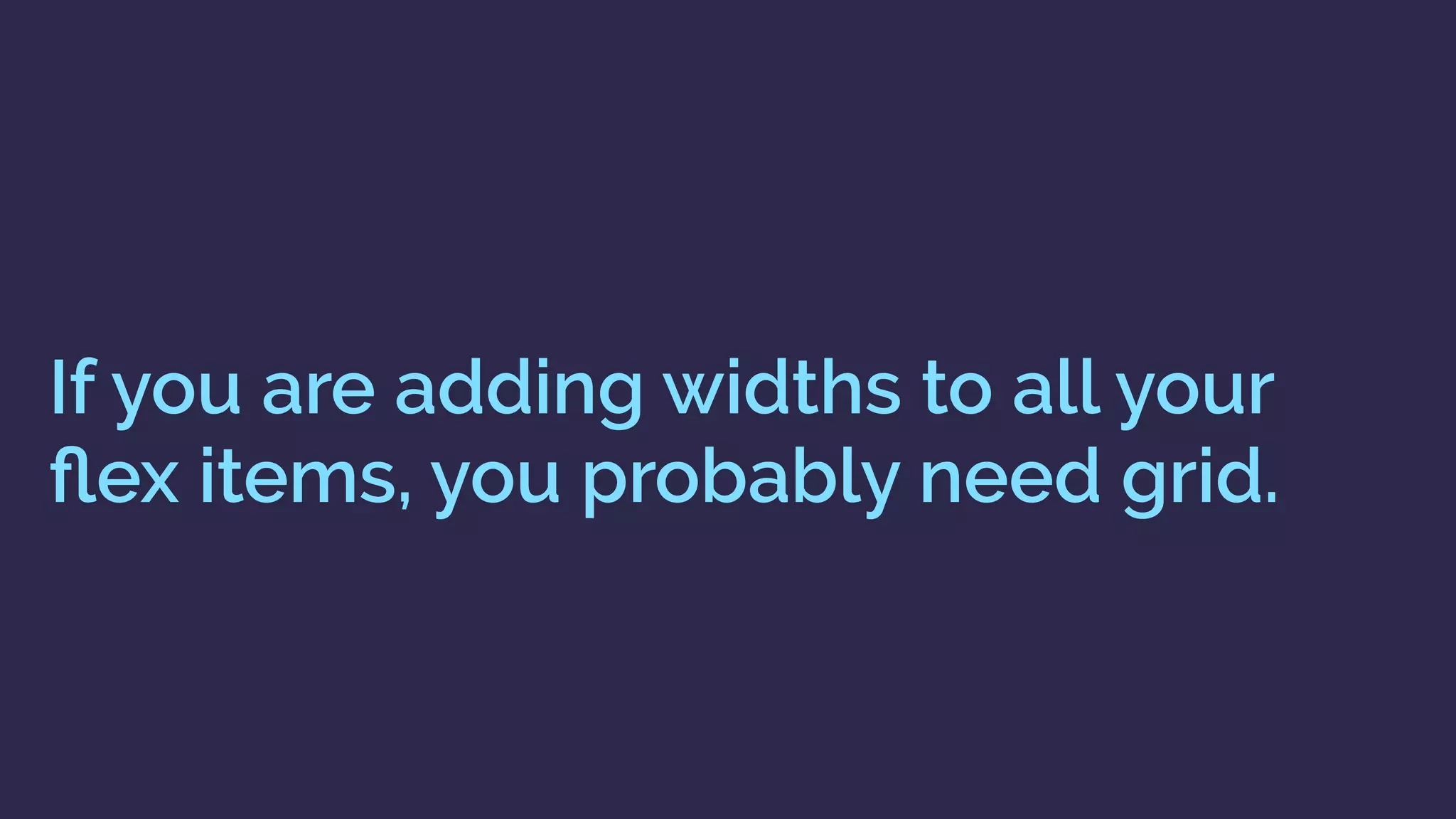

If you are adding widths to all your
flex items, you probably need grid.

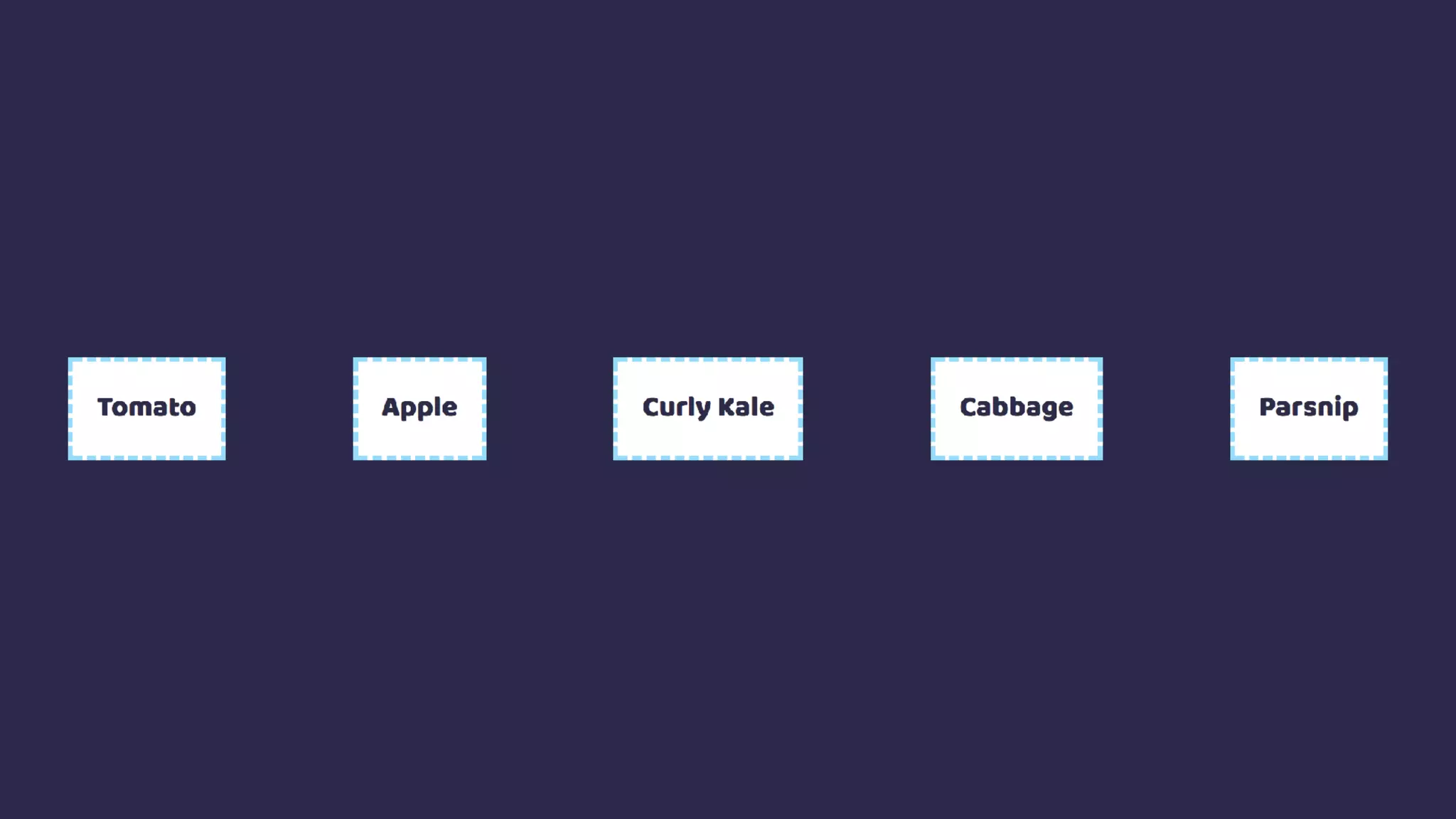

.example {
display: flex;
justify-content: space-between;
margin: 30px;
}

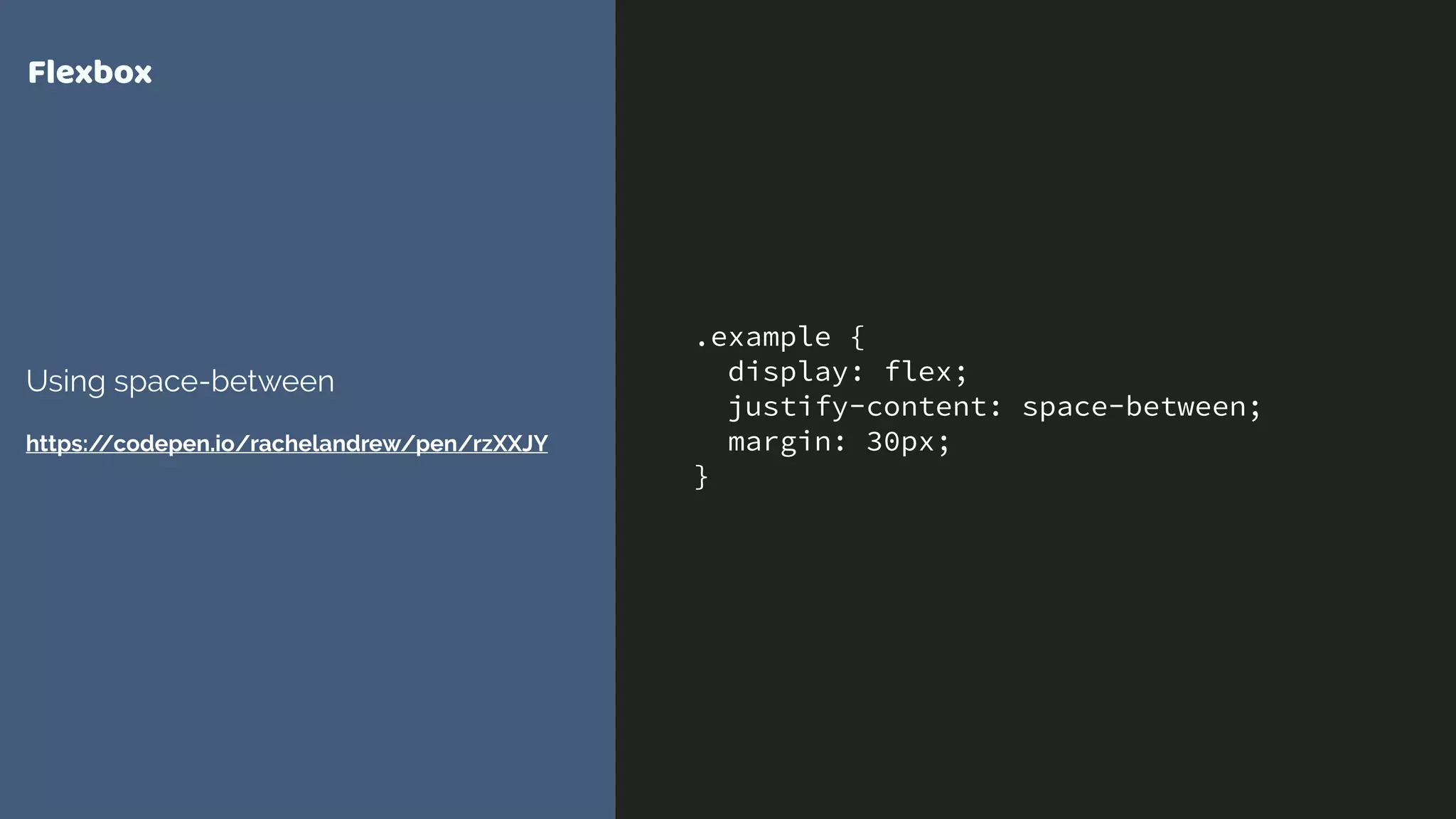

Flexbox
Using space-between
https://codepen.io/rachelandrew/pen/rzXXJY

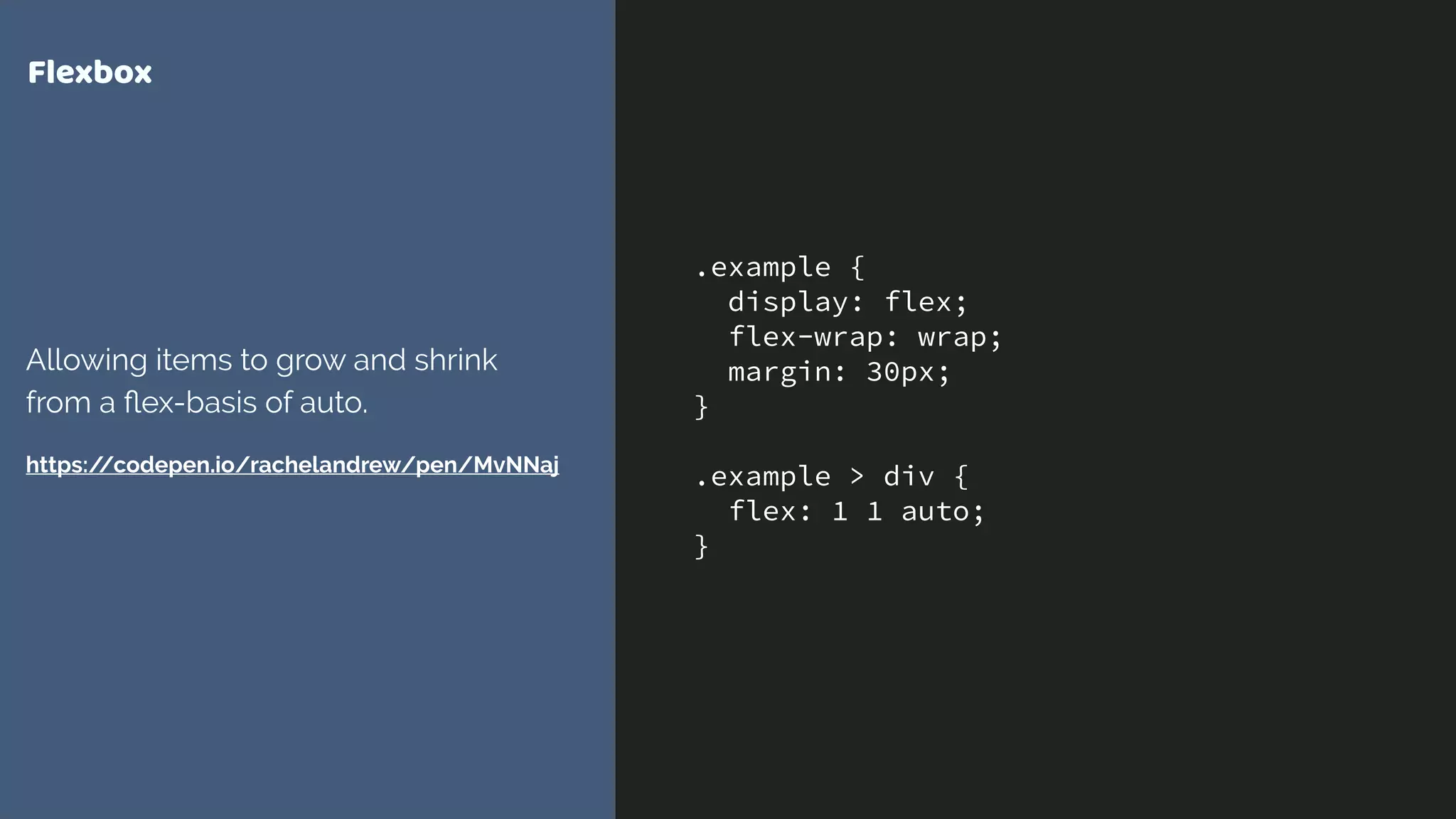

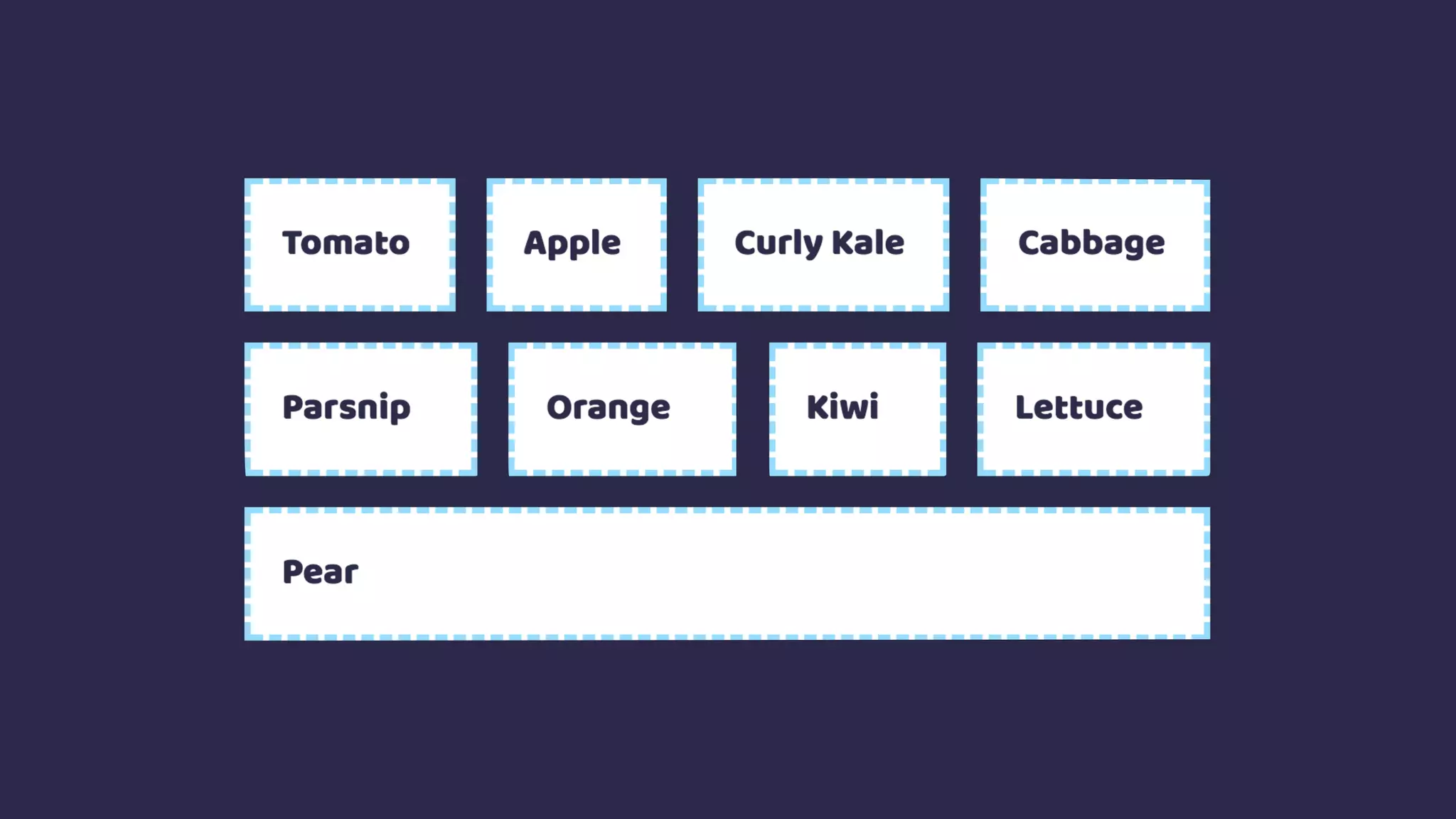

.example {
display: flex;
flex-wrap: wrap;
margin: 30px;
}
.example > div {
flex: 1 1 auto;
}
Flexbox
Allowing items to grow and shrink
from a flex-basis of auto.
https://codepen.io/rachelandrew/pen/MvNNaj
Grid works from the container in

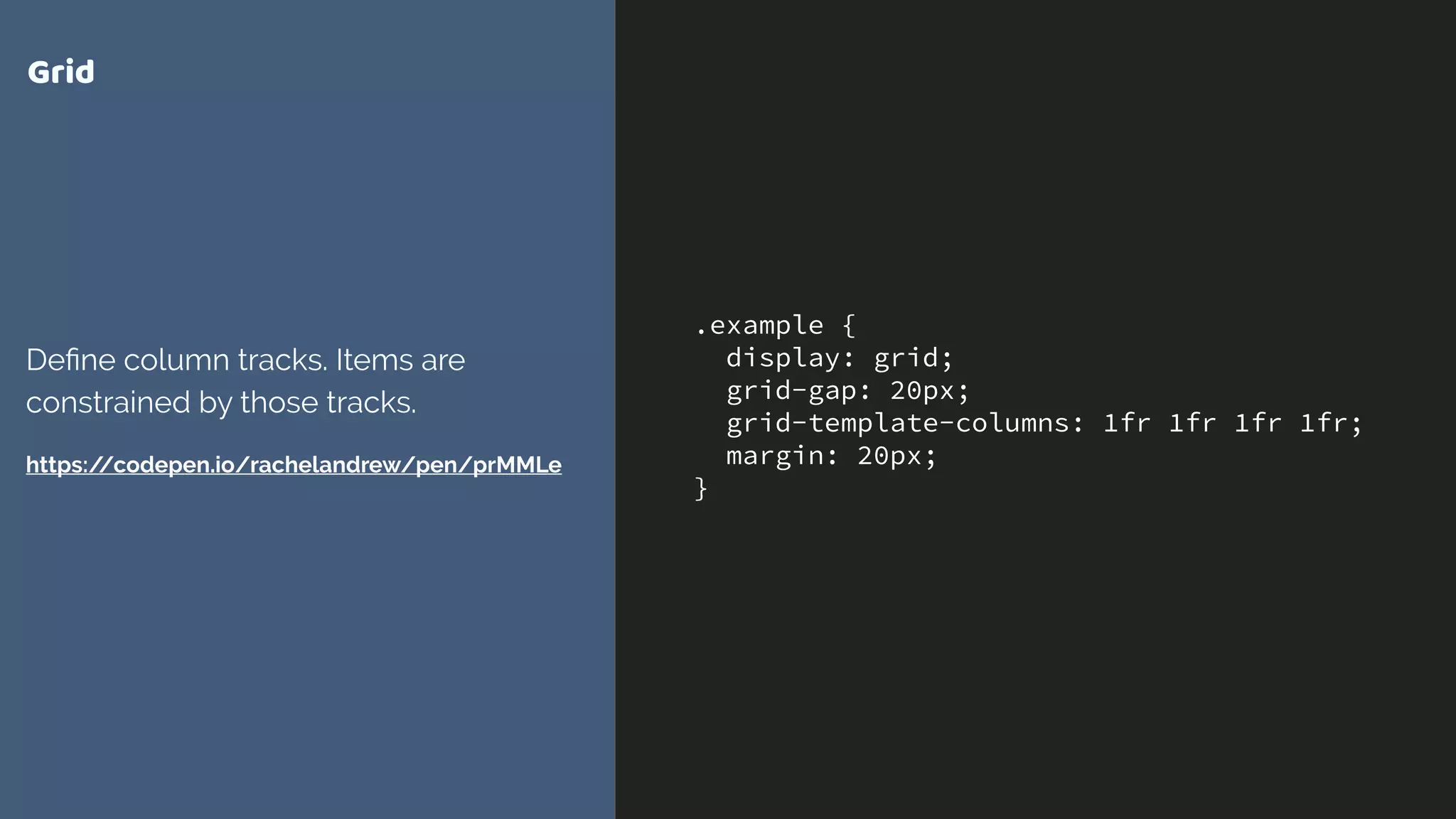

.example {
display: grid;
grid-gap: 20px;
grid-template-columns: 1fr 1fr 1fr 1fr;
margin: 20px;
}
Grid
Define column tracks. Items are
constrained by those tracks.
https://codepen.io/rachelandrew/pen/prMMLe

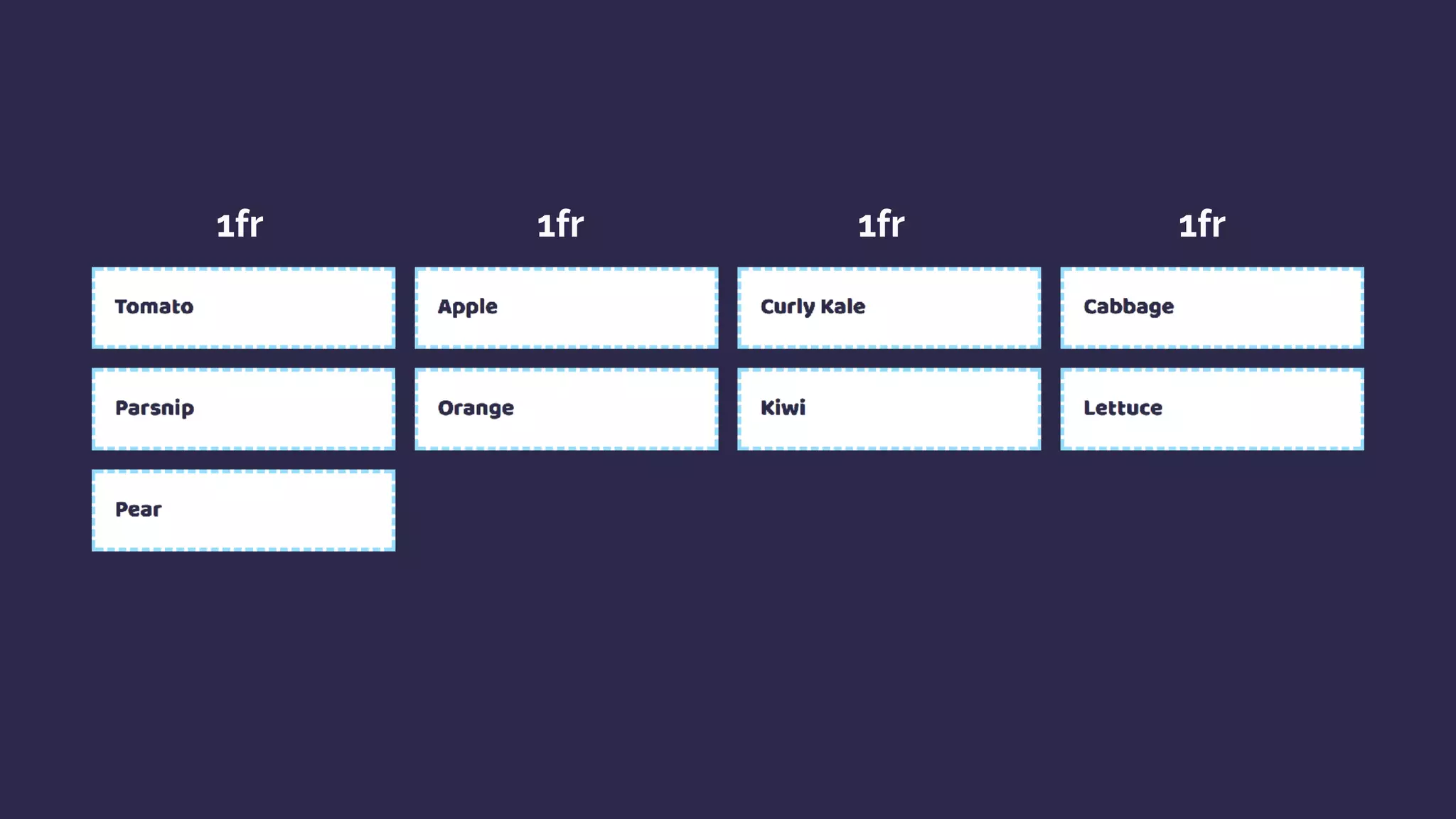

1fr 1fr 1fr 1fr
.example {
display: grid;
grid-gap: 20px;
grid-template-columns: 2fr 1fr 2fr 1fr;
margin: 20px;
}
Grid

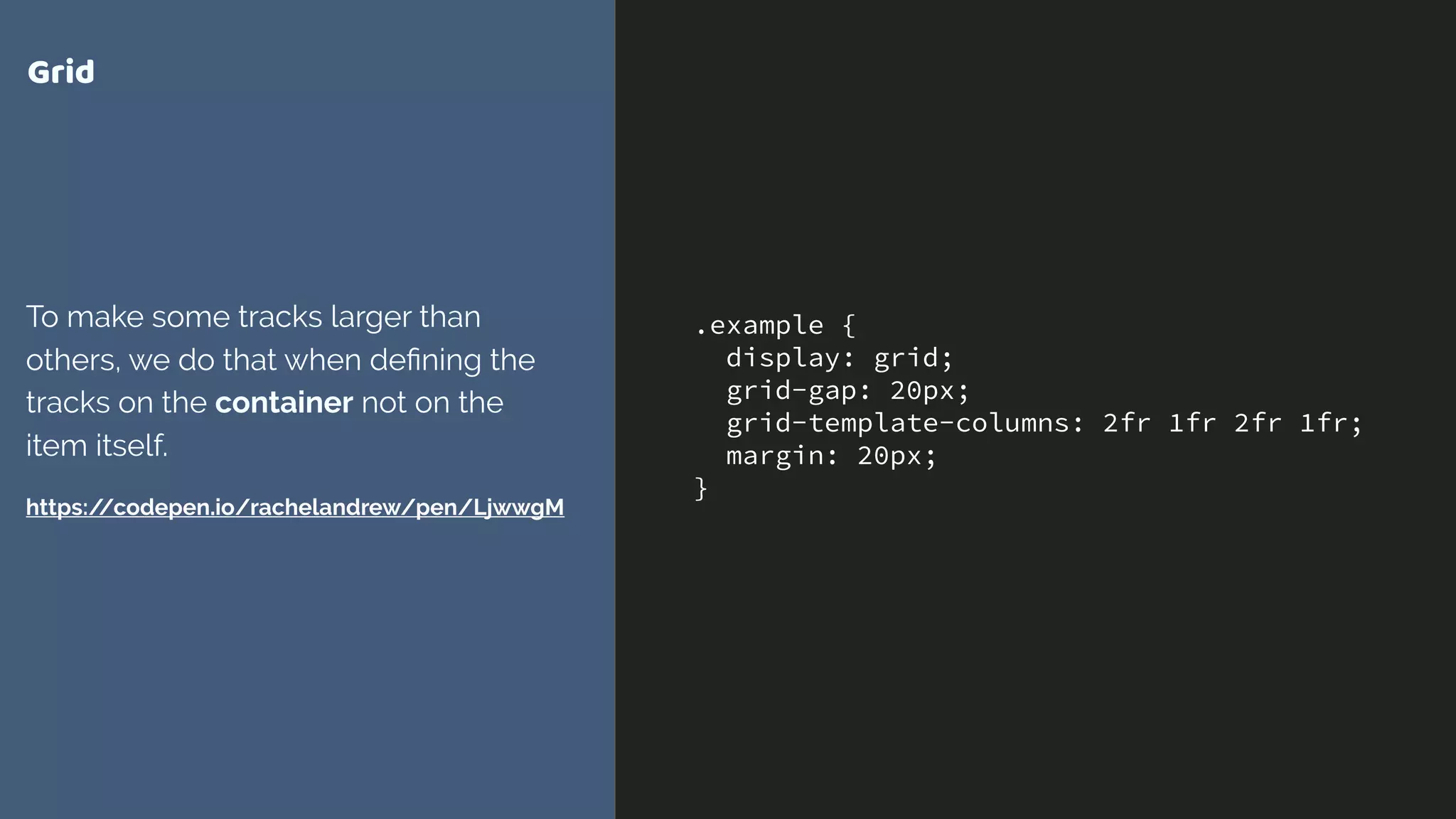

To make some tracks larger than
others, we do that when defining the
tracks on the container not on the
item itself.
https://codepen.io/rachelandrew/pen/LjwwgM

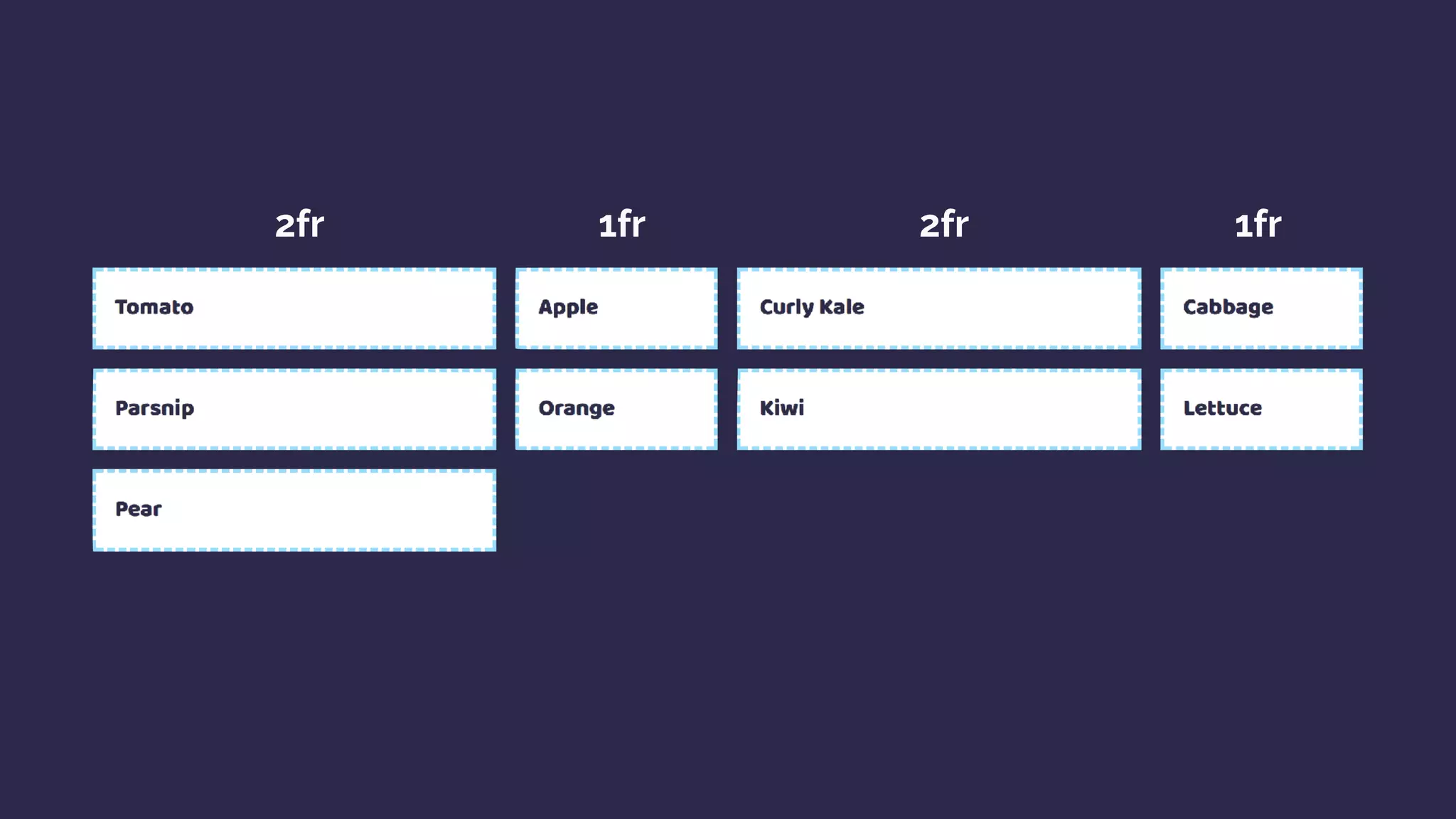

2fr 1fr 2fr 1fr

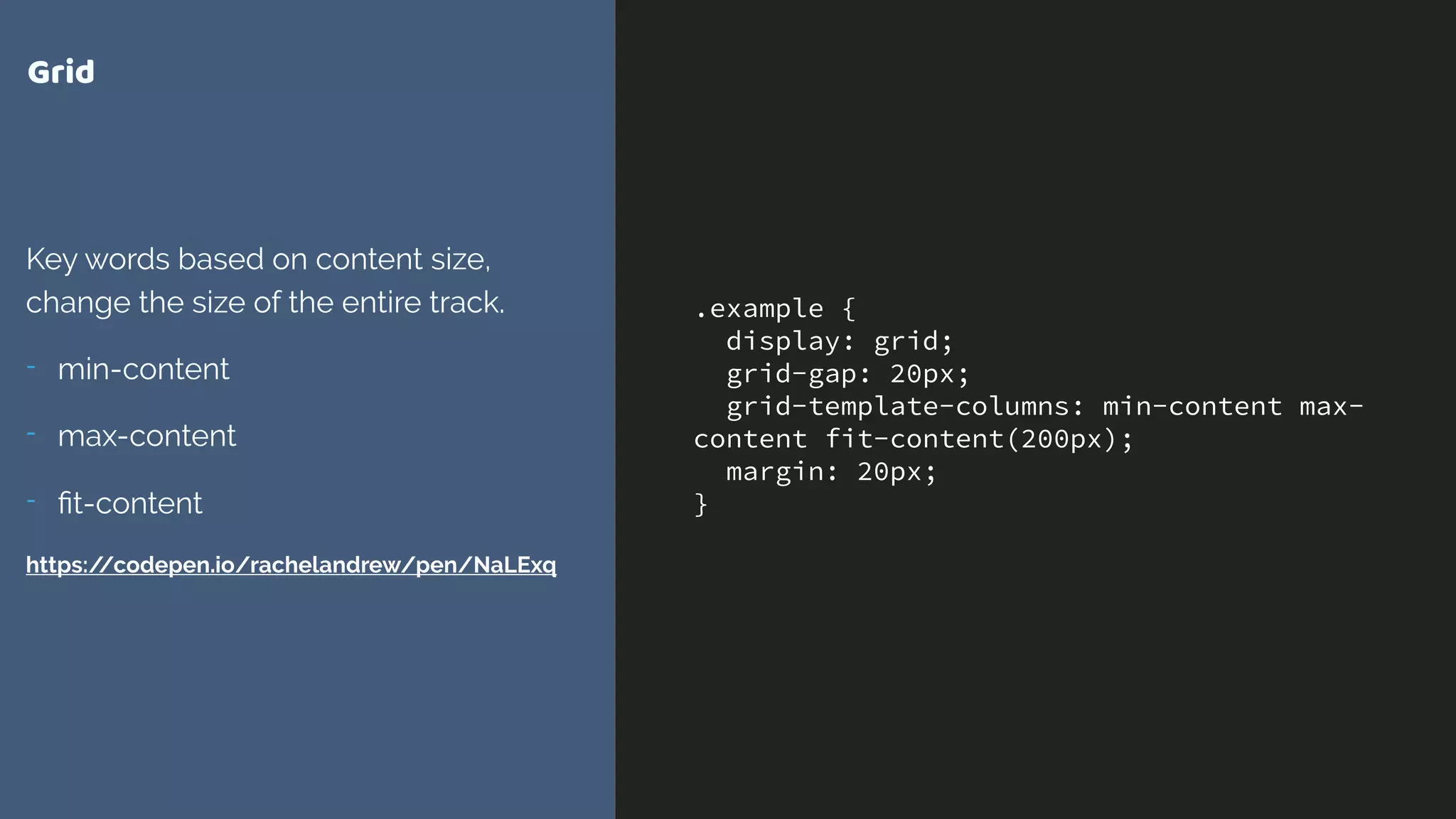

.example {
display: grid;
grid-gap: 20px;
grid-template-columns: min-content max-
content fit-content(200px);
margin: 20px;
}

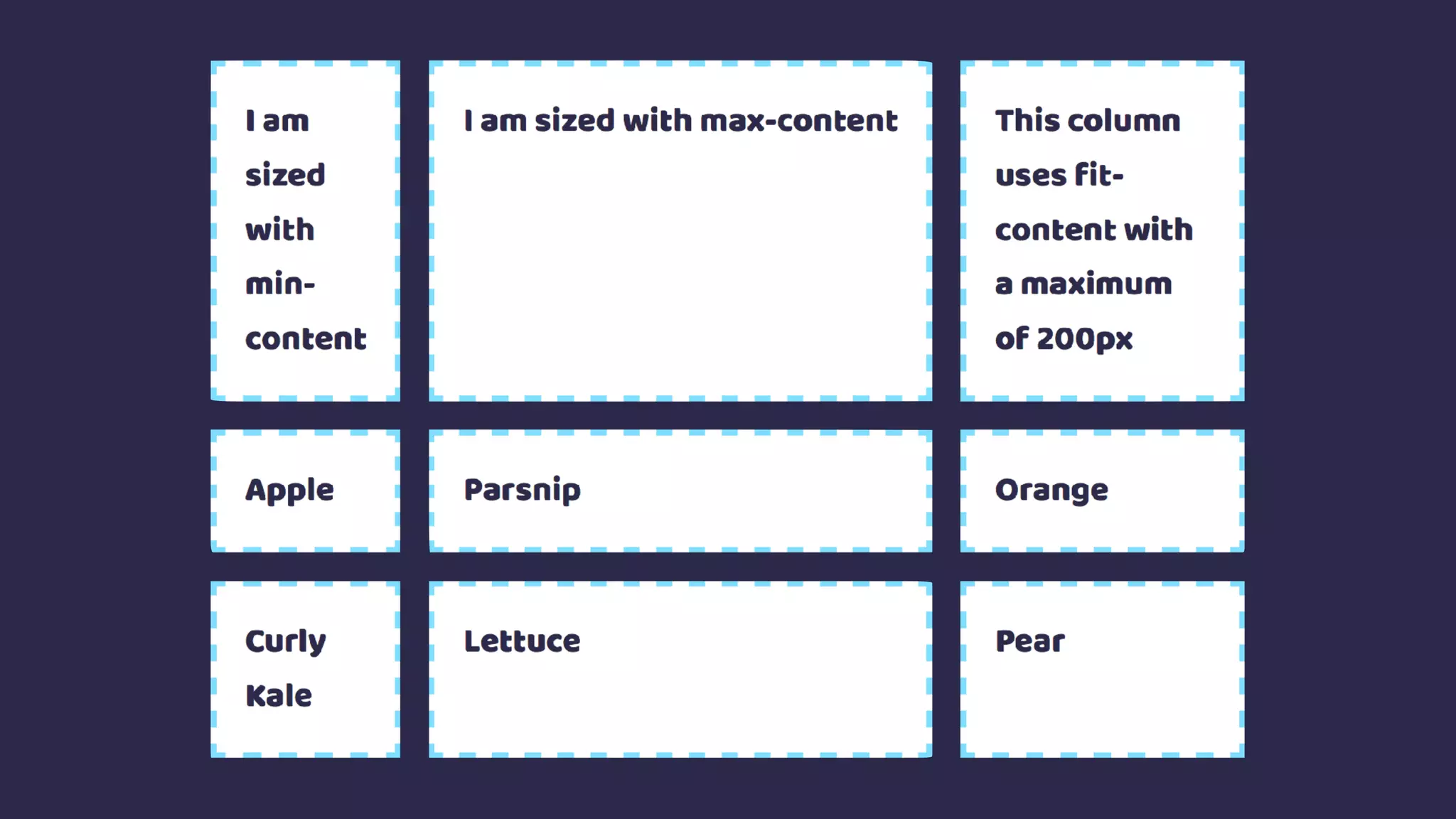

Grid
Key words based on content size,
change the size of the entire track.
- min-content
- max-content
- fit-content
https://codepen.io/rachelandrew/pen/NaLExq
Other layout methods start with

the item.
.box {
float: left;
width: 33.3333%;
}

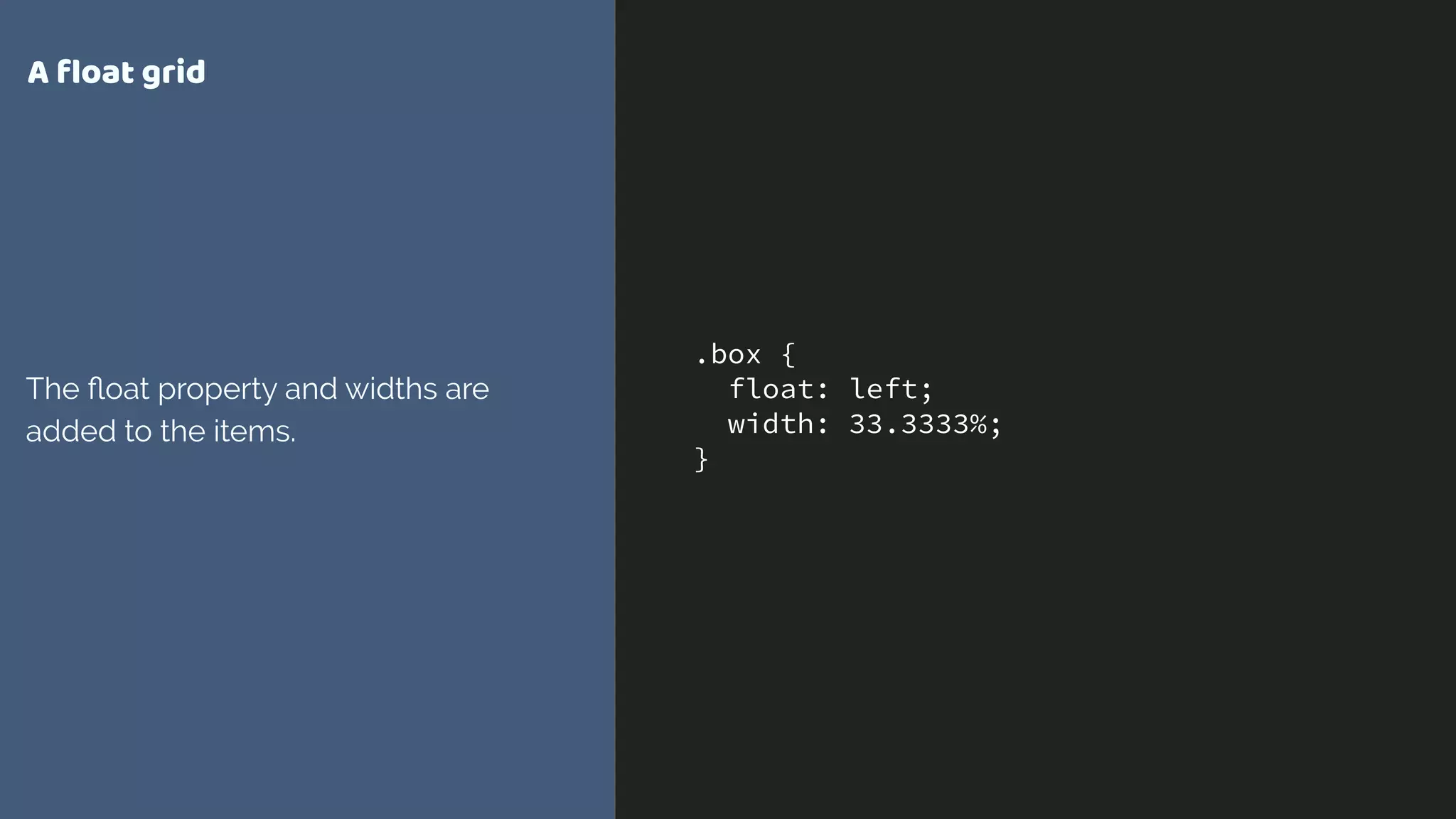

A float grid
The float property and widths are
added to the items.

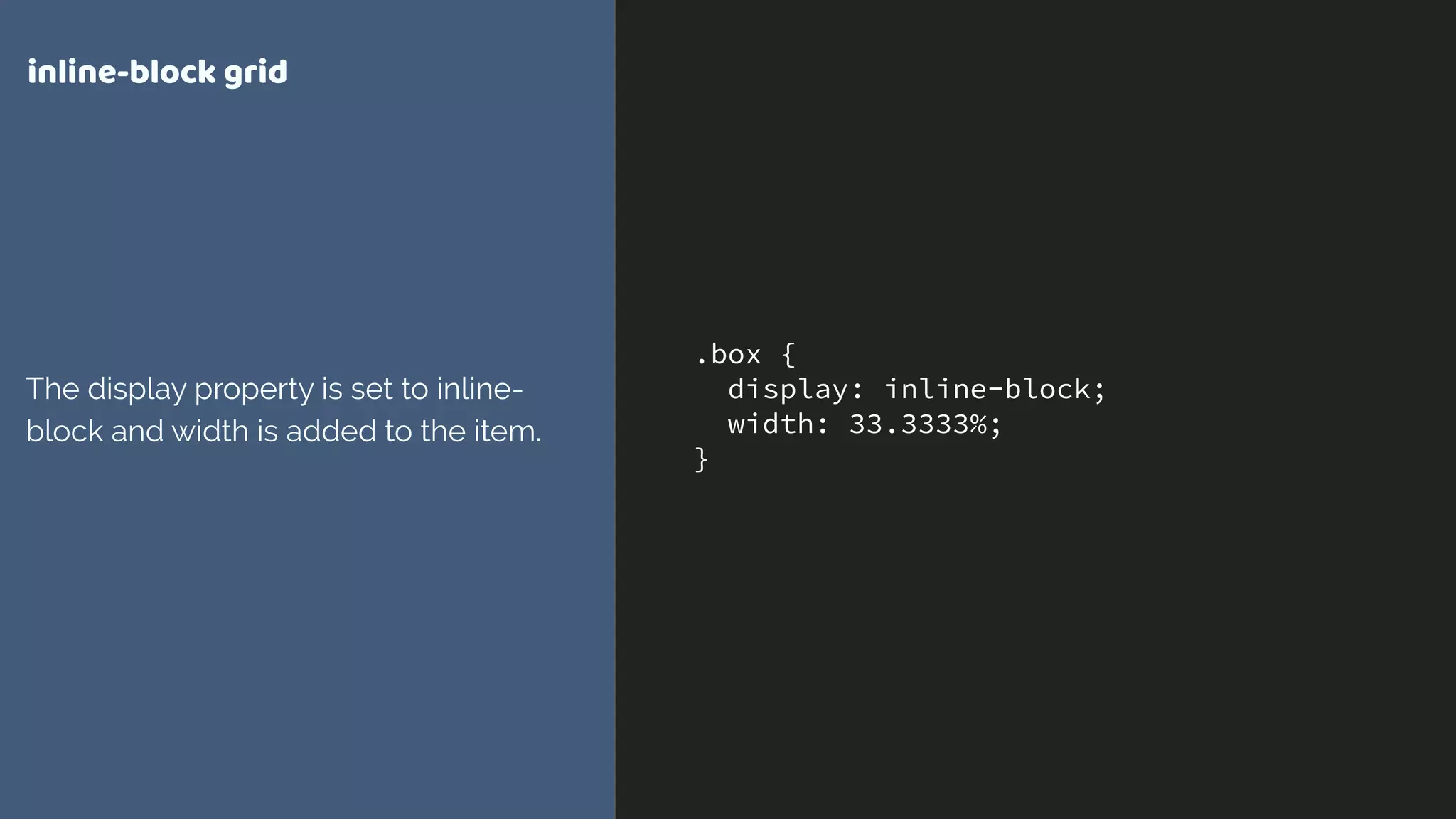

.box {
display: inline-block;
width: 33.3333%;
}
inline-block grid
The display property is set to inline-
block and width is added to the item.

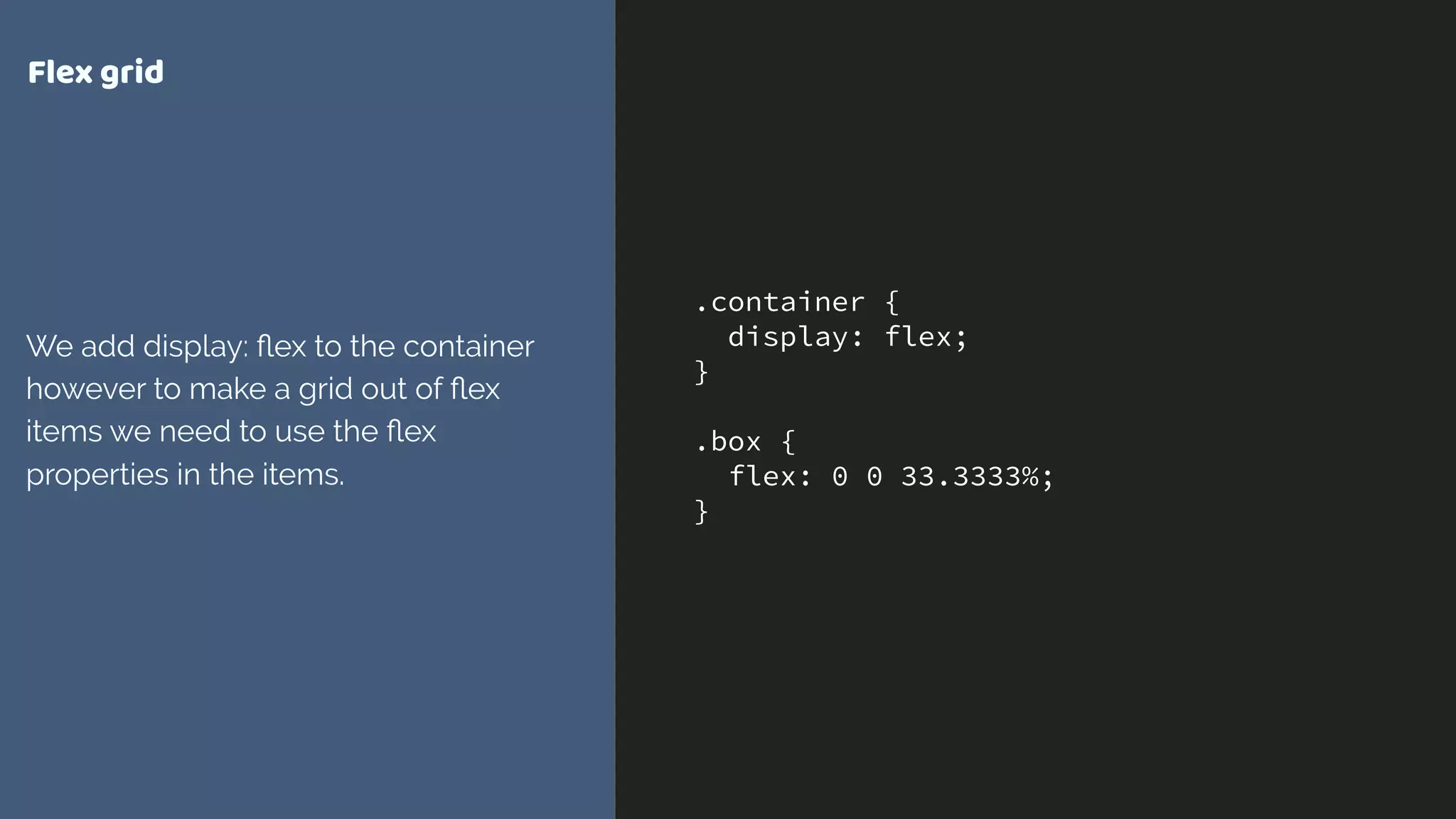

.container {

display: flex;

}

.box {
flex: 0 0 33.3333%;
}
Flex grid
We add display: flex to the container
however to make a grid out of flex
items we need to use the flex
properties in the items.
.container {
display: grid;
grid-template-columns: 1fr 1fr 1fr;
}

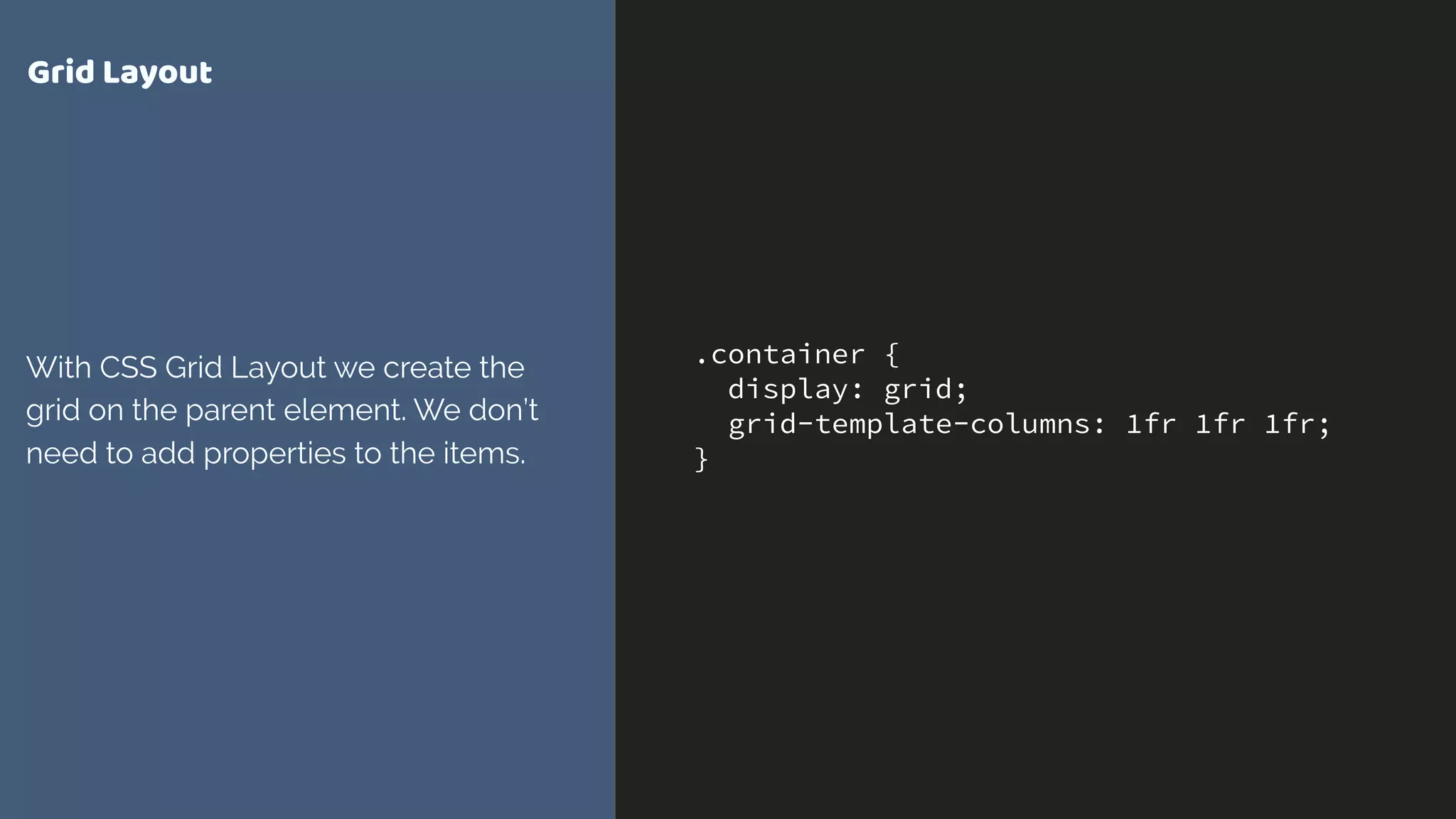

Grid Layout
With CSS Grid Layout we create the
grid on the parent element. We don’t
need to add properties to the items.
Grid is all about the container
Using grid in
production
CSS Grid Layout
<div class="box-feature">
<img class="box-image" src="http://placehold.it/
900x450" alt="placeholder">
<h2 class="box-feature-title">Featured Item</h2>
<div class="box-content">…</div>
</div>

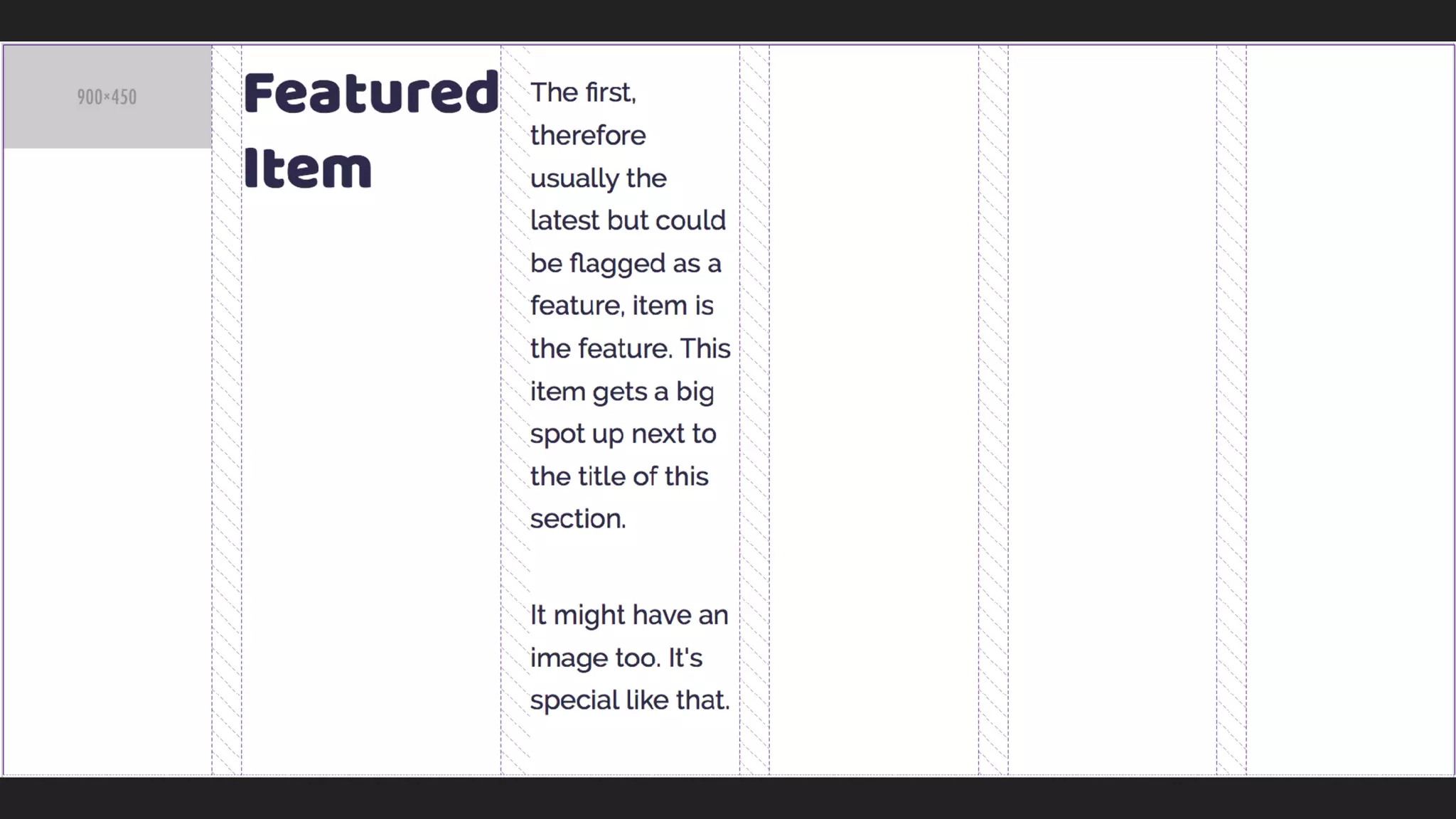

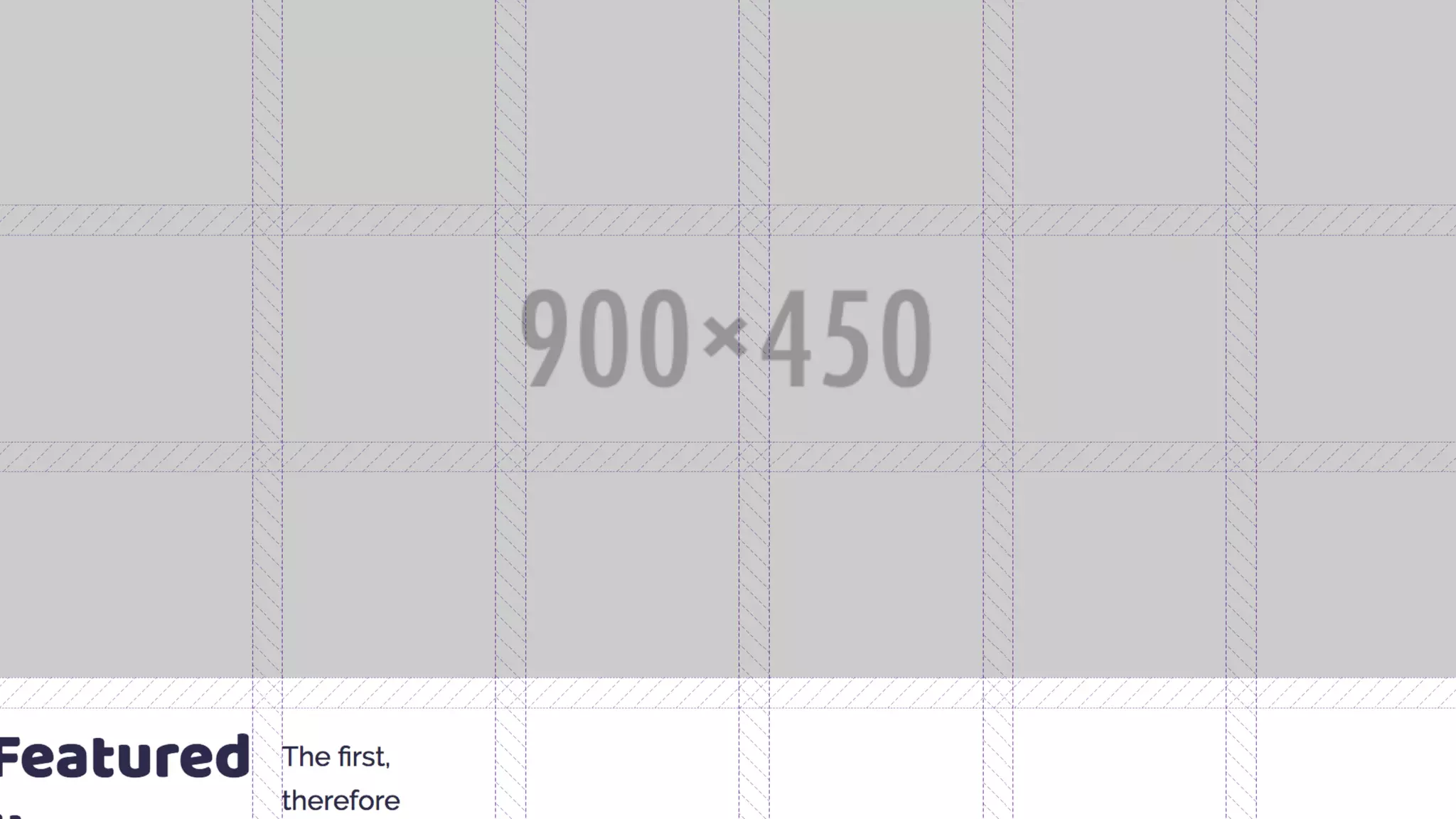

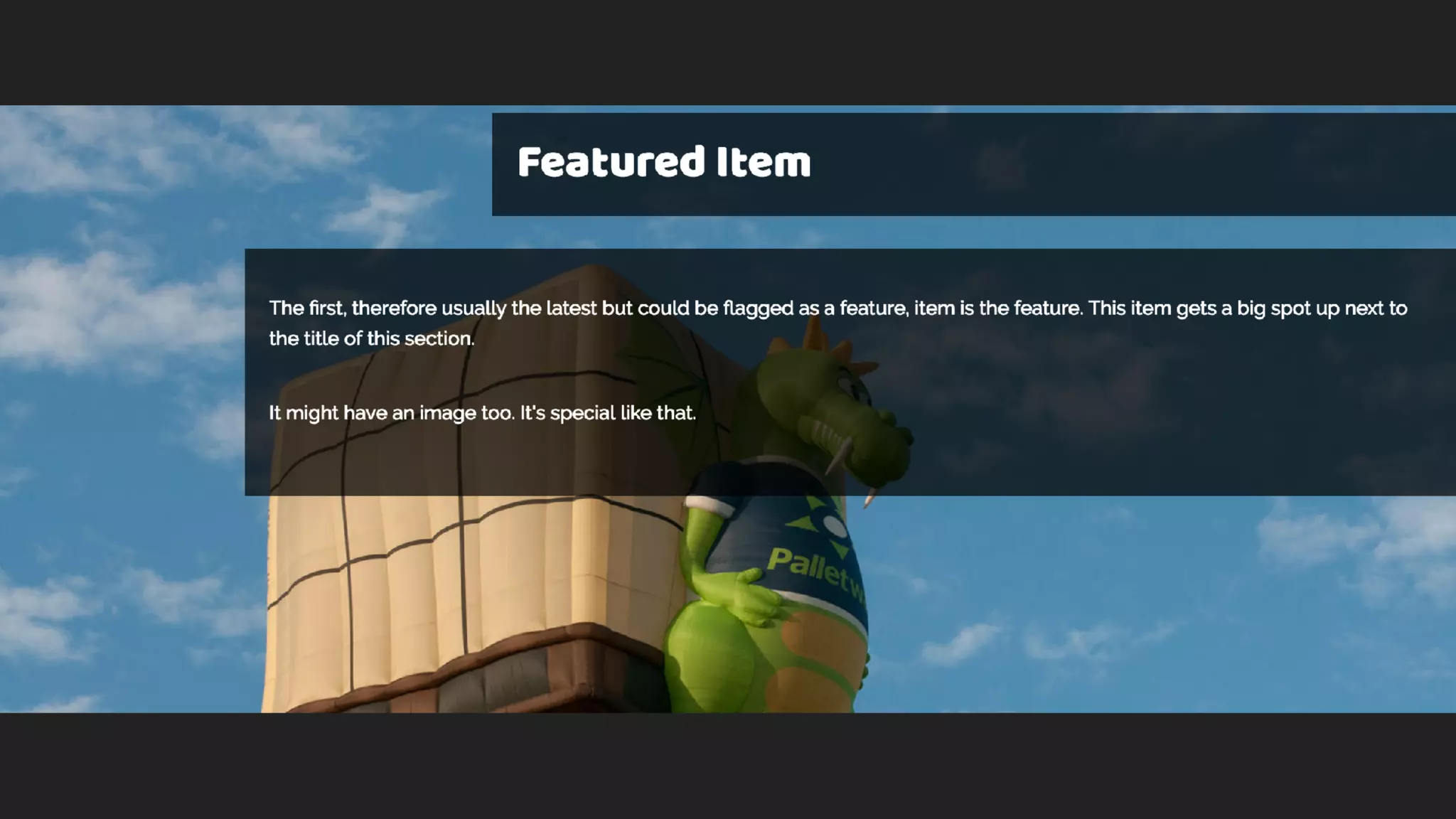

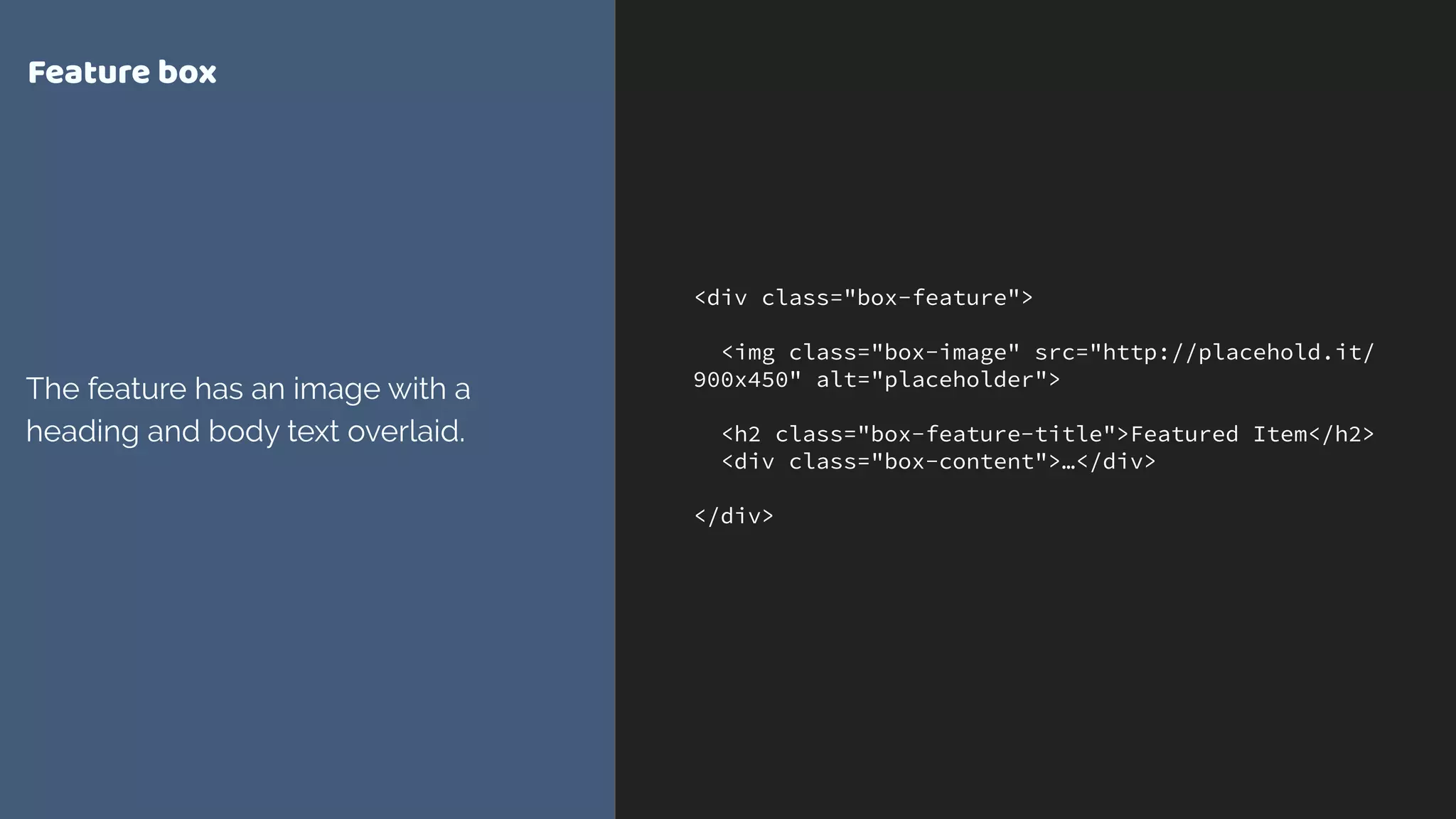

Feature box
The feature has an image with a
heading and body text overlaid.

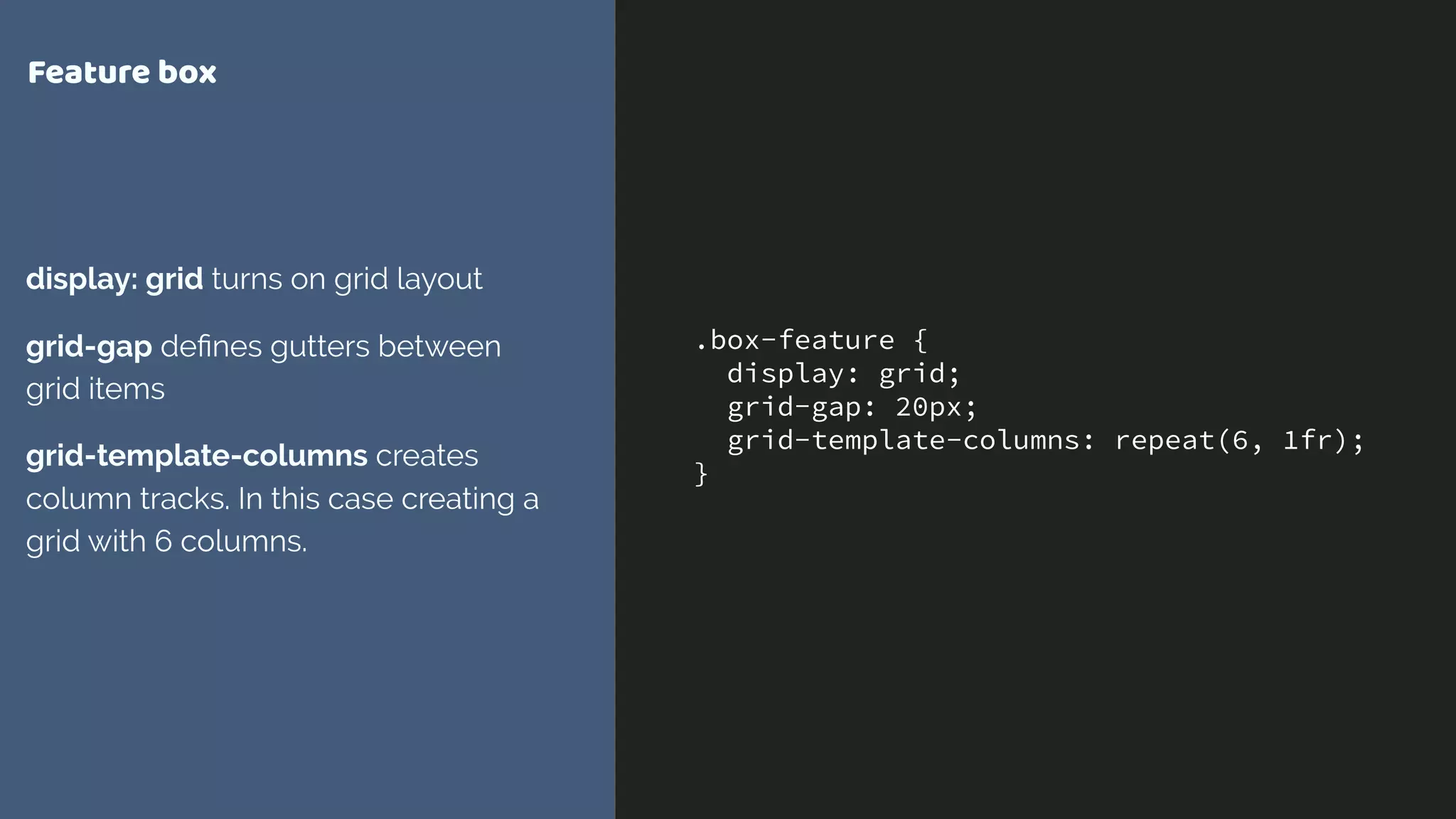

.box-feature {
display: grid;
grid-gap: 20px;
grid-template-columns: repeat(6, 1fr);
}
Feature box
display: grid turns on grid layout
grid-gap defines gutters between
grid items
grid-template-columns creates
column tracks. In this case creating a
grid with 6 columns.

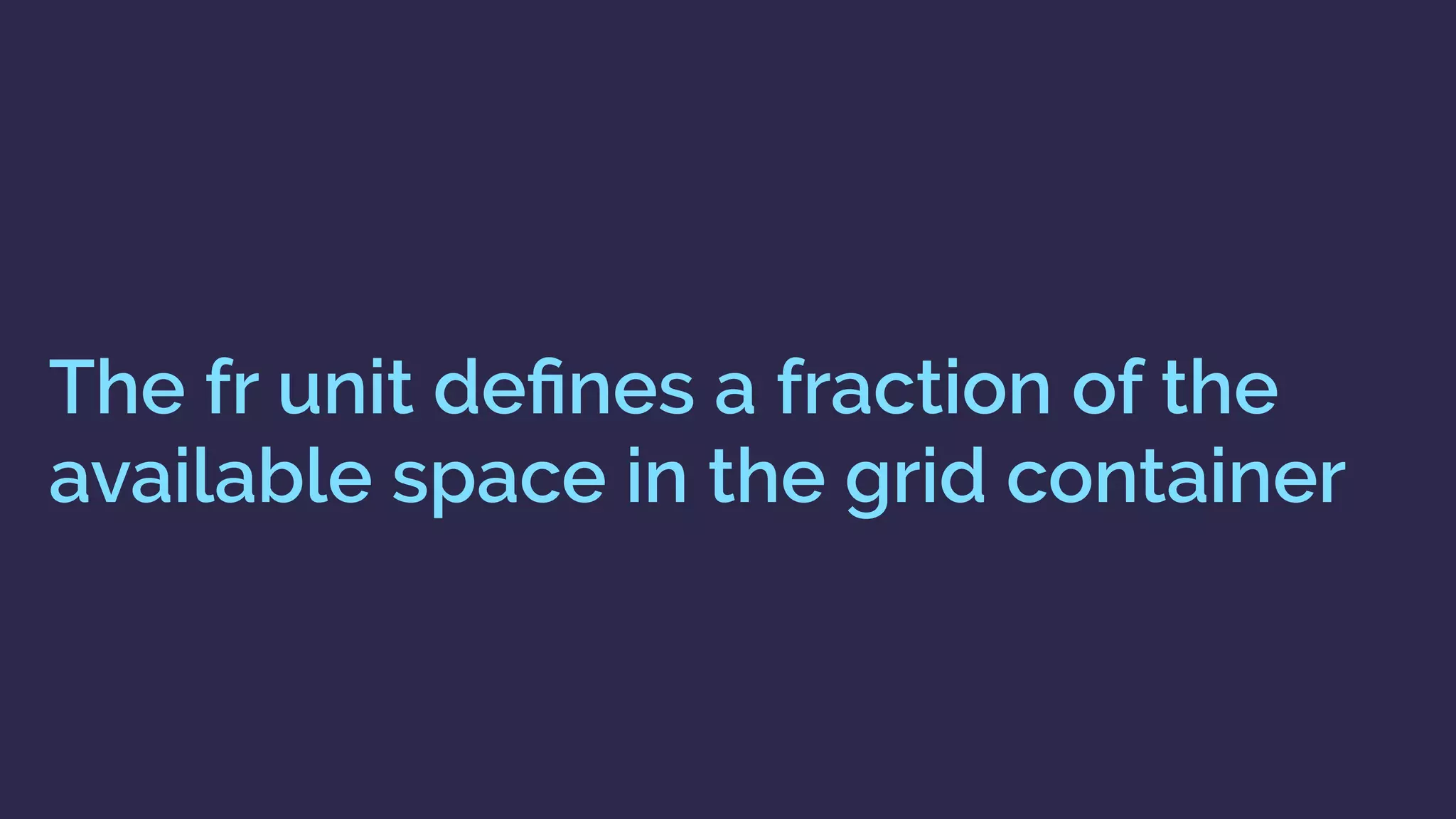

The fr unit defines a fraction of the
available space in the grid container
.box-feature .box-image {
align-self: stretch;
justify-self: stretch;
grid-column: 1 / -1;
grid-row: 1 / 4;
}

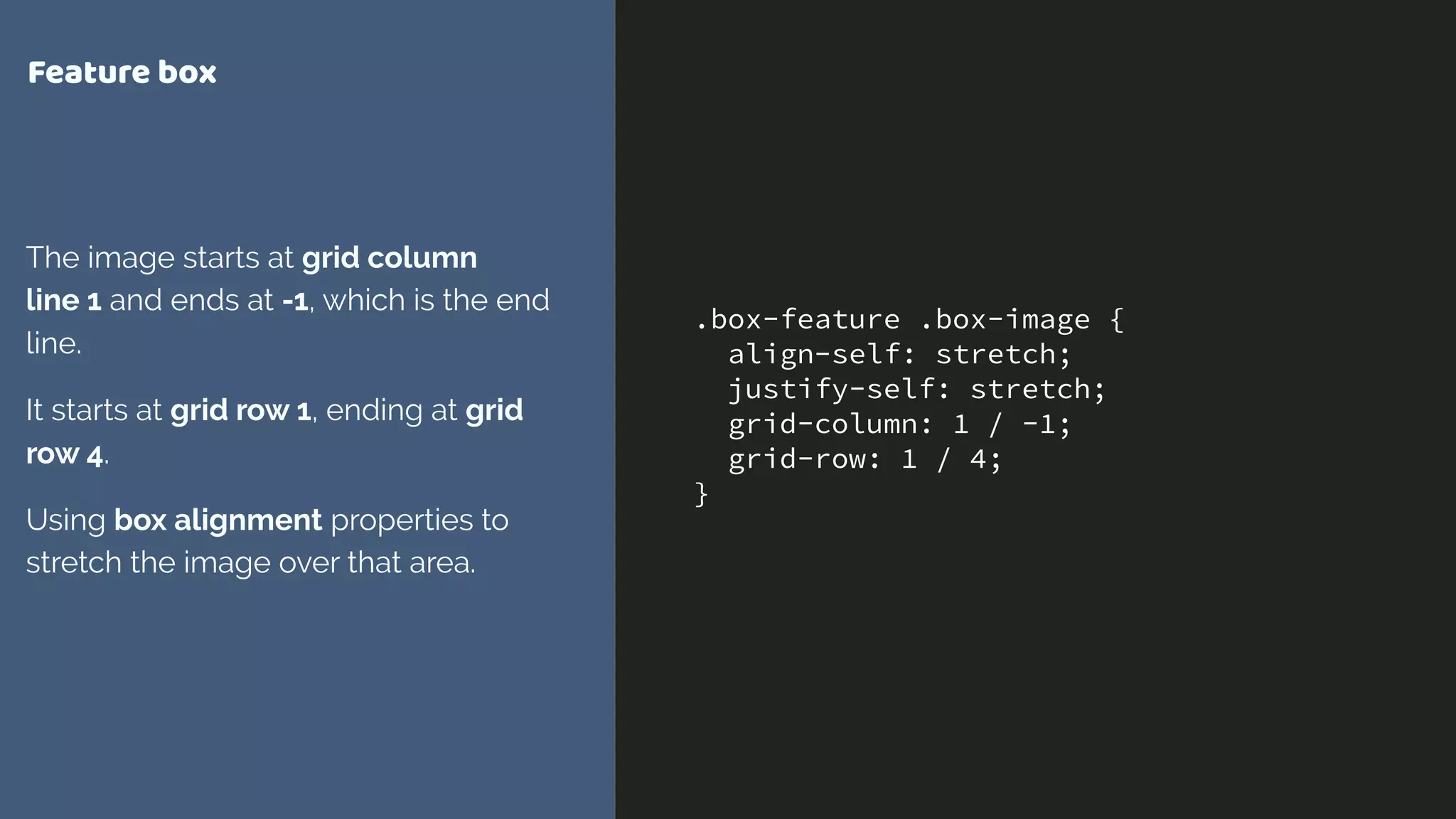

Feature box
The image starts at grid column

line 1 and ends at -1, which is the end
line.
It starts at grid row 1, ending at grid
row 4.
Using box alignment properties to
stretch the image over that area.

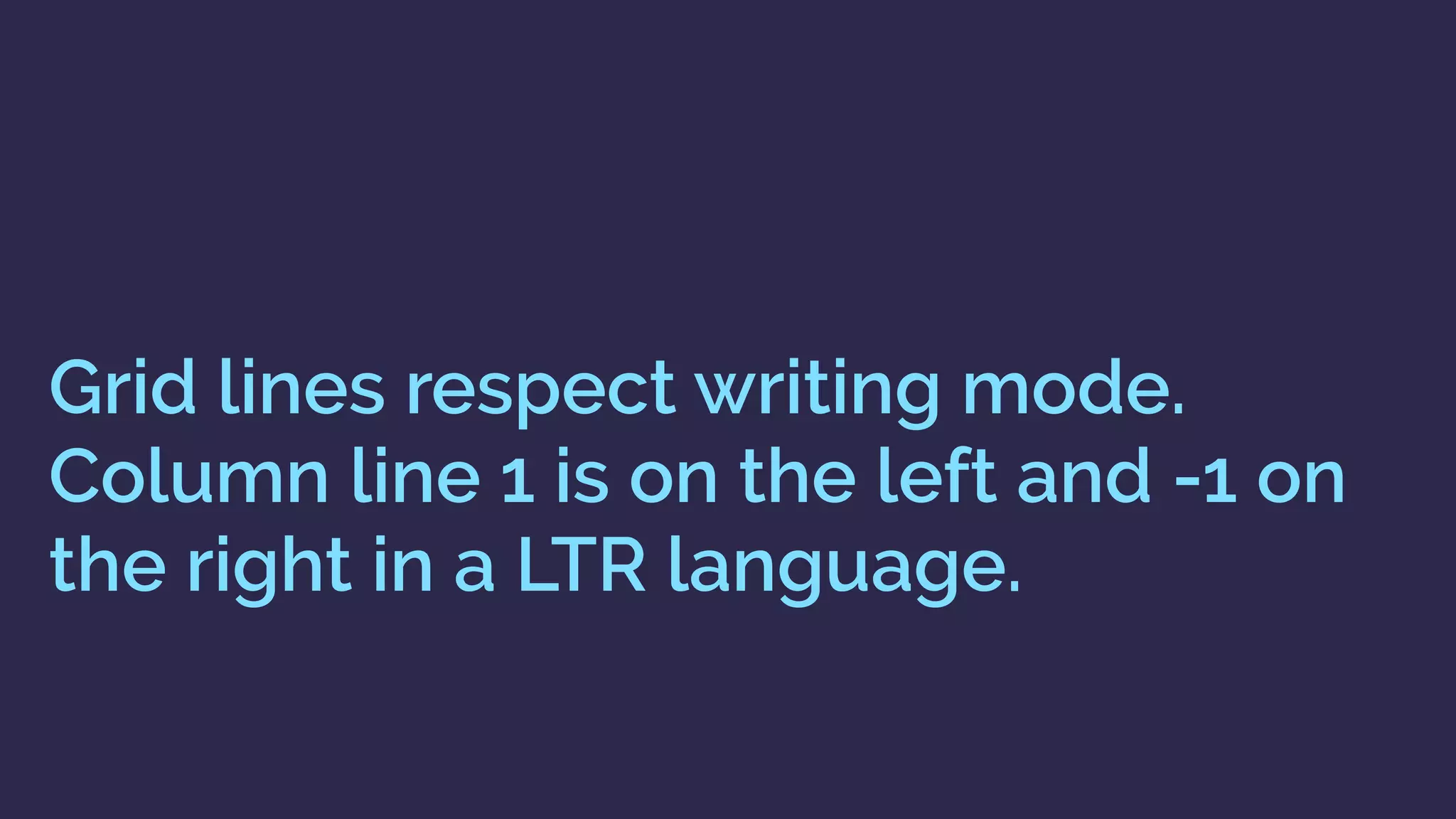

Grid lines respect writing mode.
Column line 1 is on the left and -1 on
the right in a LTR language.

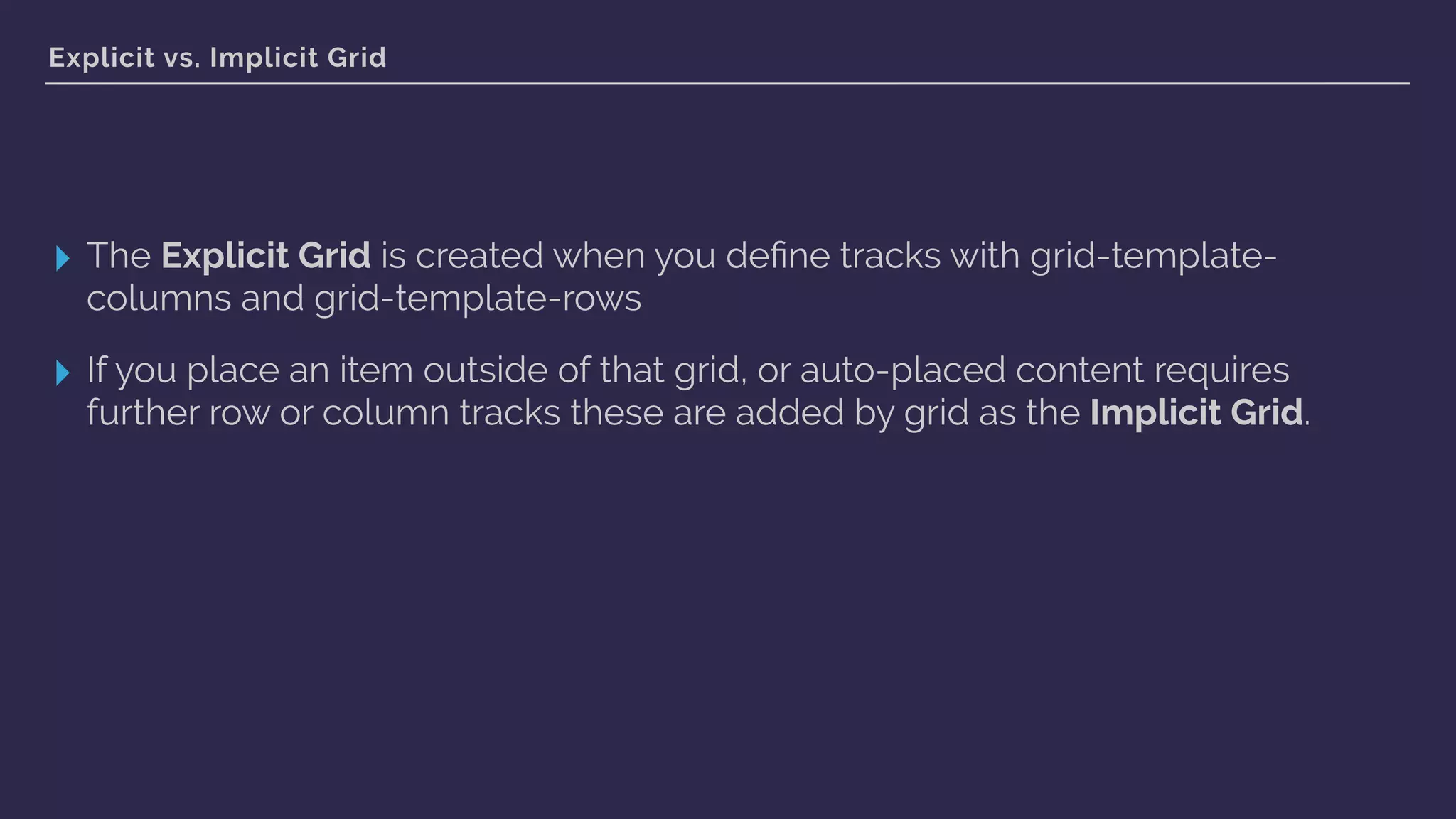

Explicit vs. Implicit Grid
▸ The Explicit Grid is created when you define tracks with grid-template-
columns and grid-template-rows
▸ If you place an item outside of that grid, or auto-placed content requires
further row or column tracks these are added by grid as the Implicit Grid.

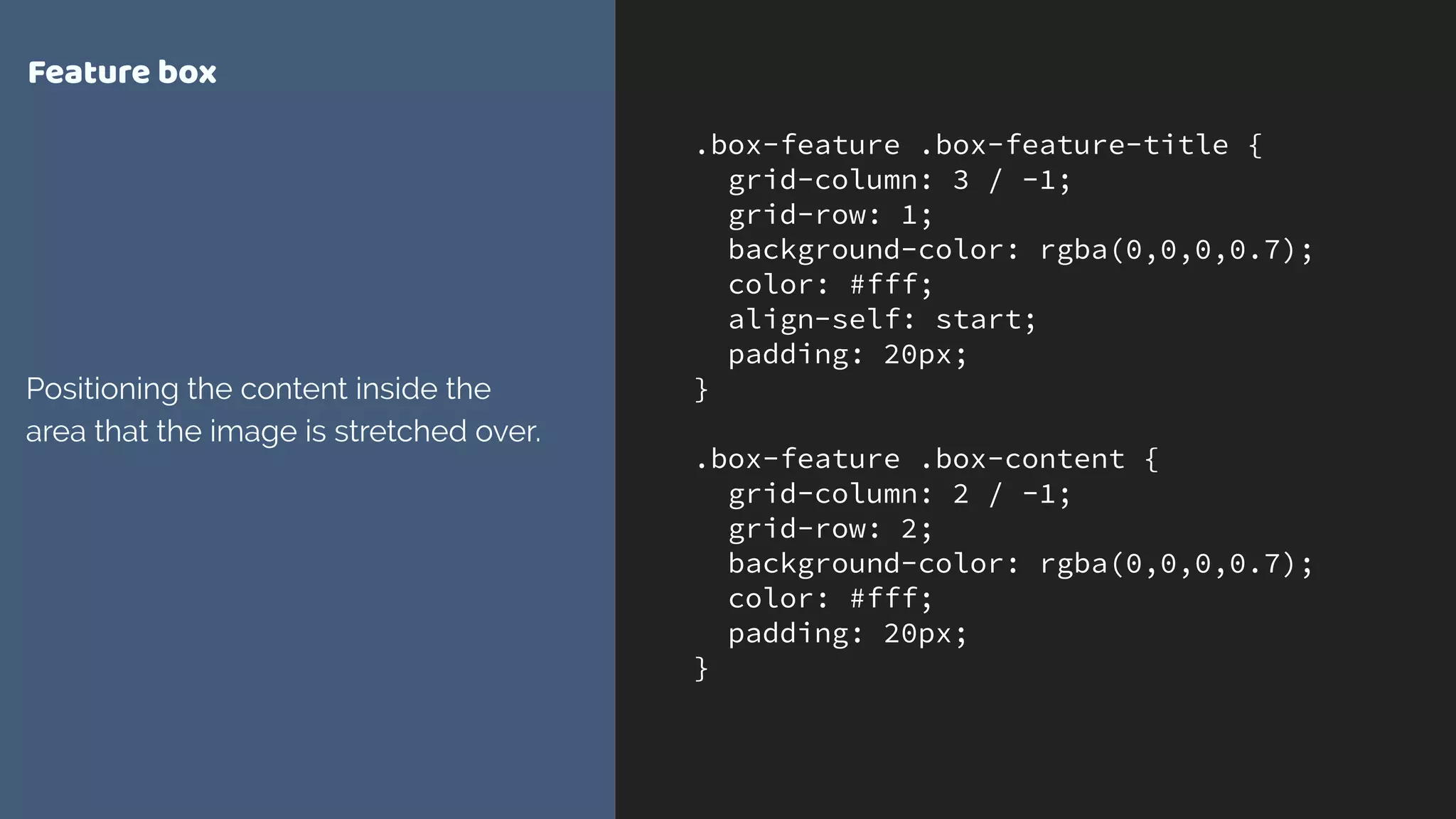

.box-feature .box-feature-title {
grid-column: 3 / -1;
grid-row: 1;
background-color: rgba(0,0,0,0.7);
color: #fff;
align-self: start;
padding: 20px;
}
.box-feature .box-content {
grid-column: 2 / -1;
grid-row: 2;
background-color: rgba(0,0,0,0.7);
color: #fff;
padding: 20px;
}

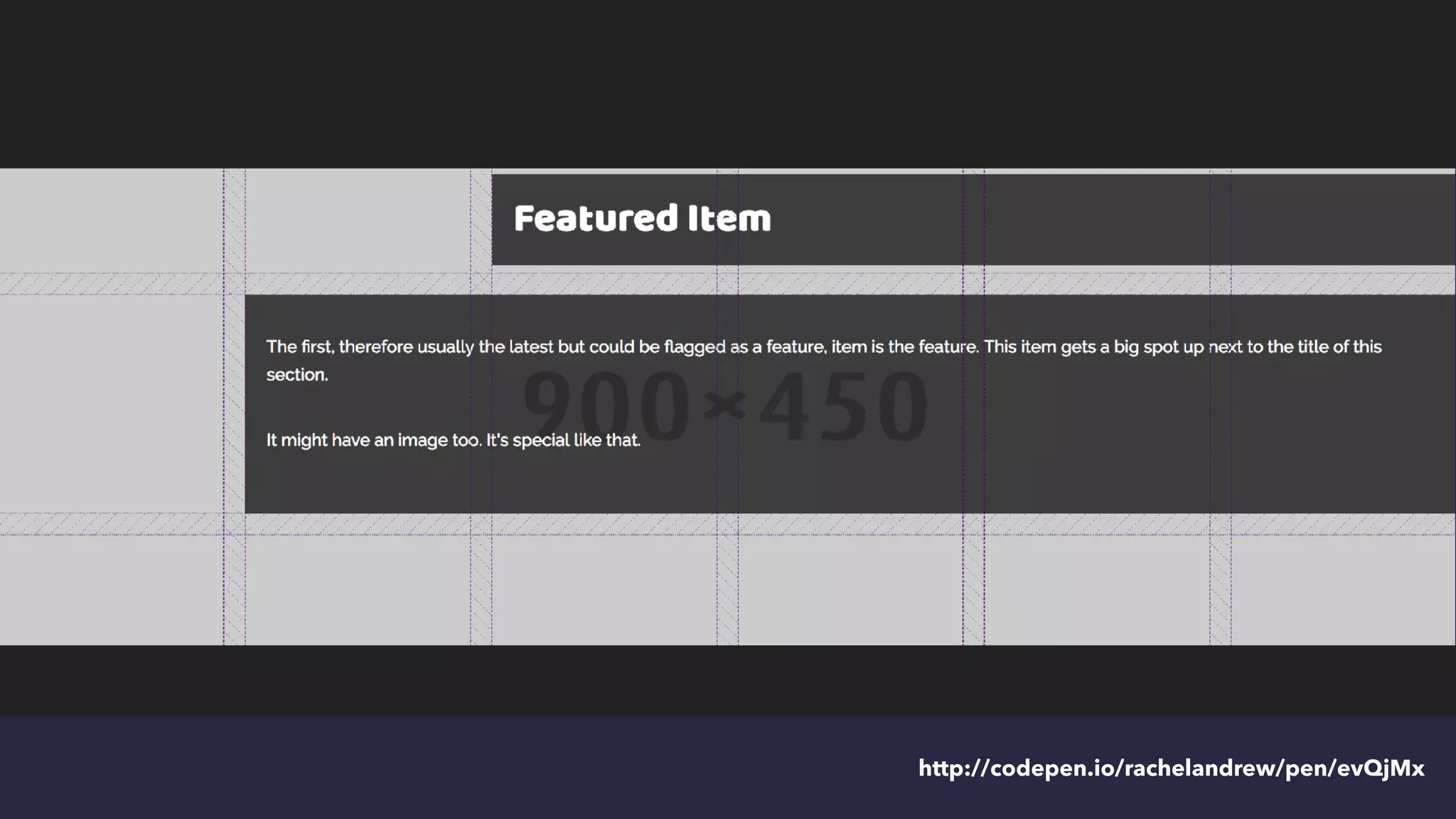

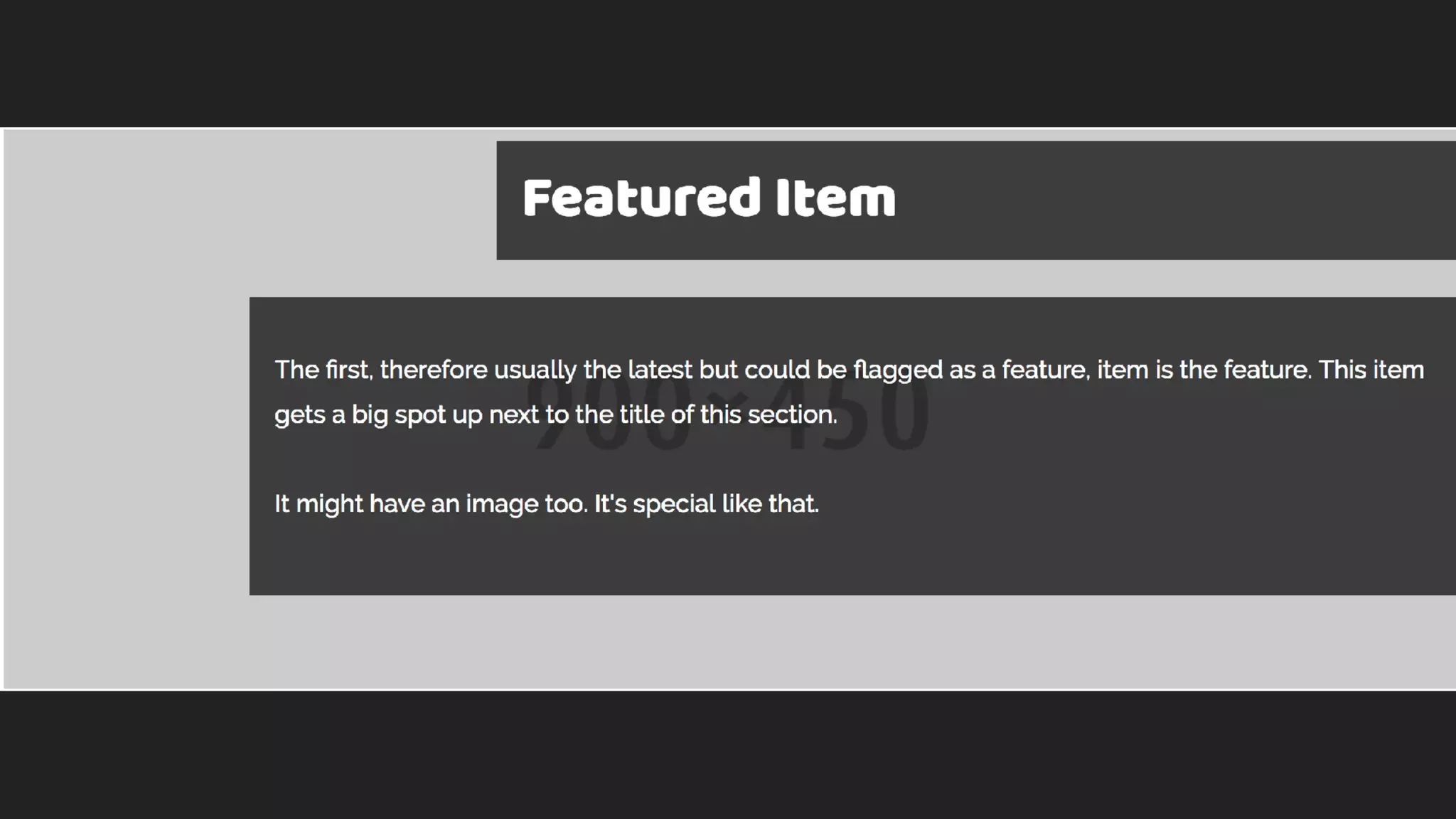

Feature box
Positioning the content inside the
area that the image is stretched over.
http://codepen.io/rachelandrew/pen/evQjMx

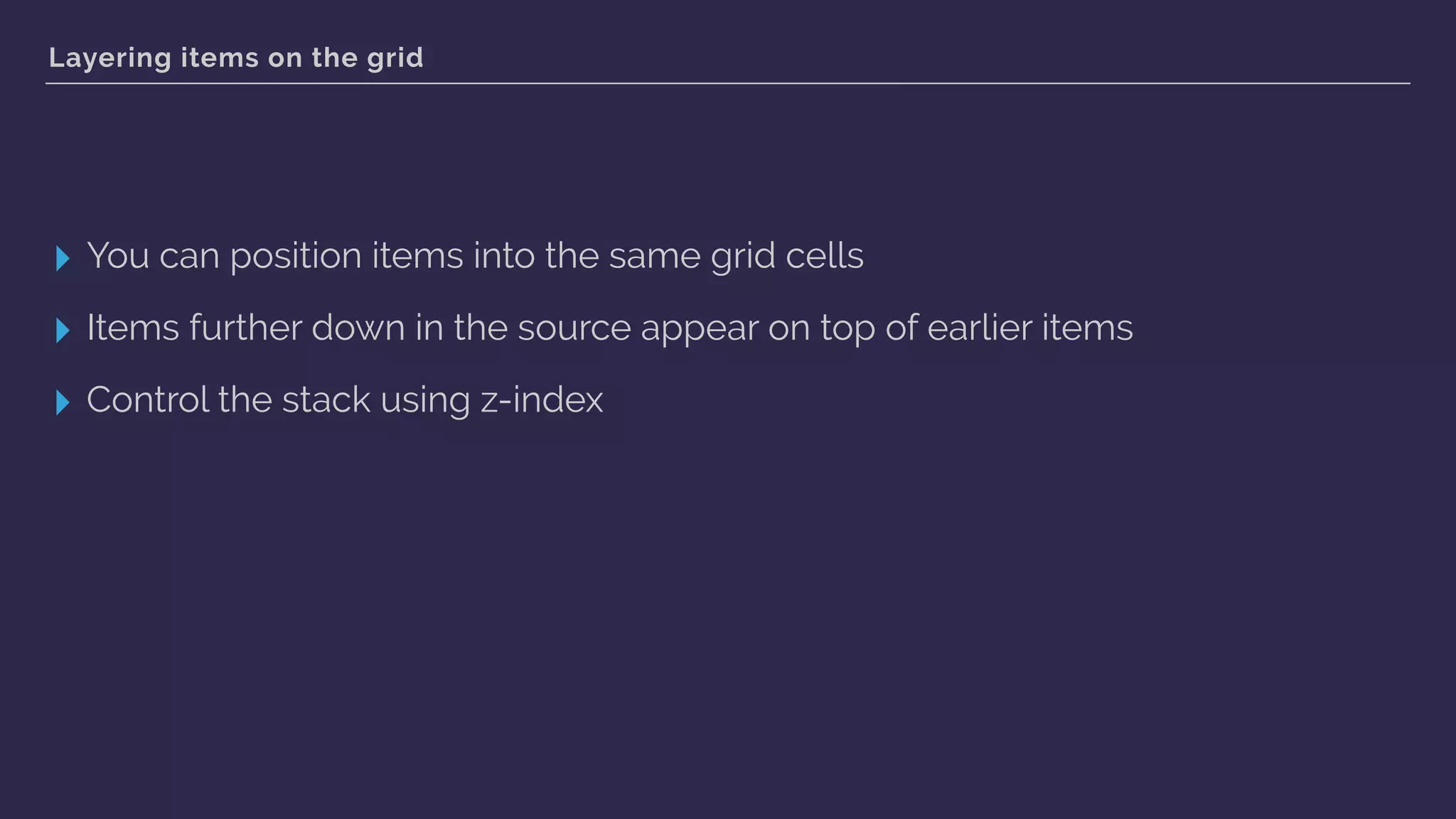

Layering items on the grid
▸ You can position items into the same grid cells
▸ Items further down in the source appear on top of earlier items
▸ Control the stack using z-index

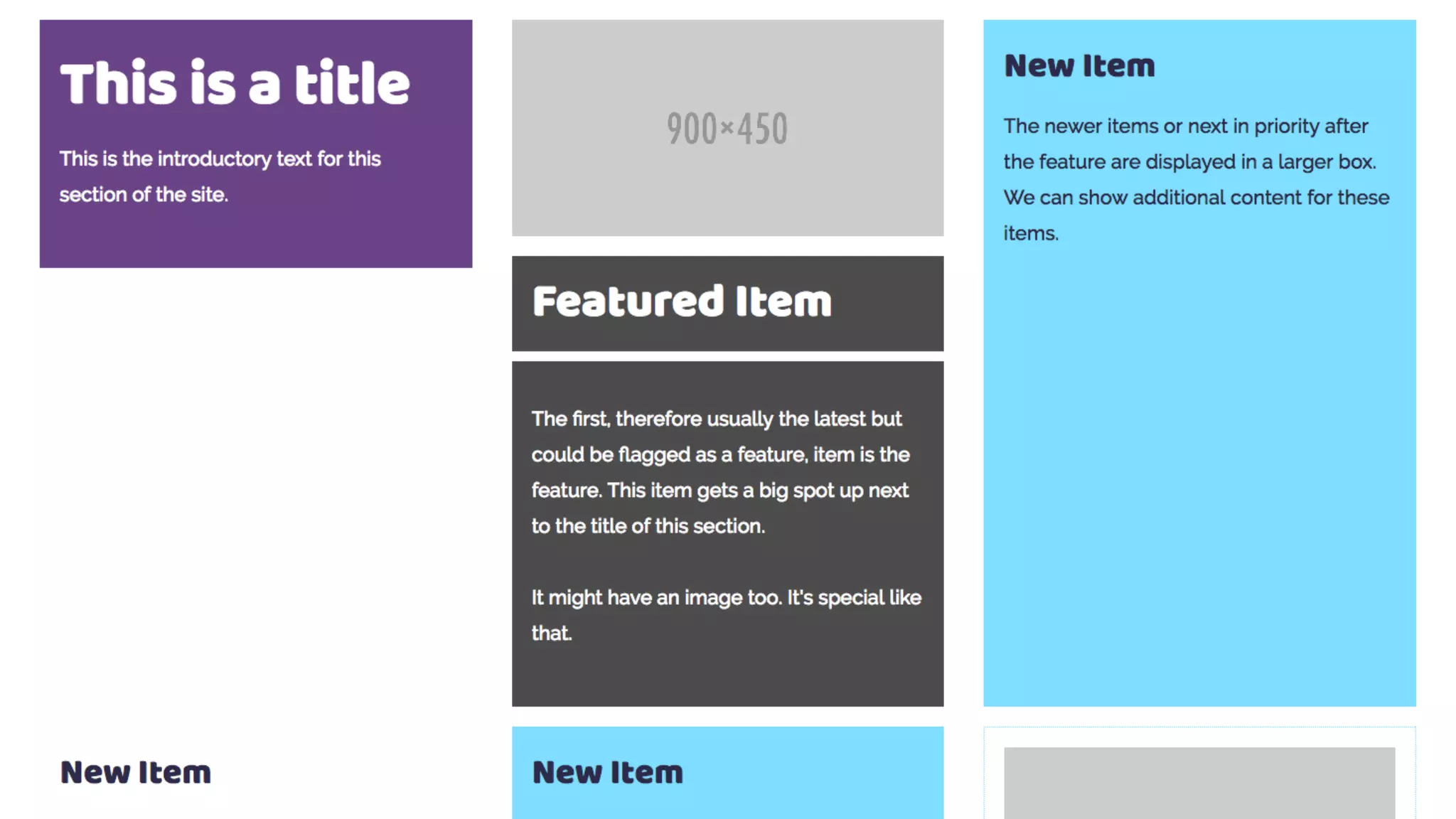

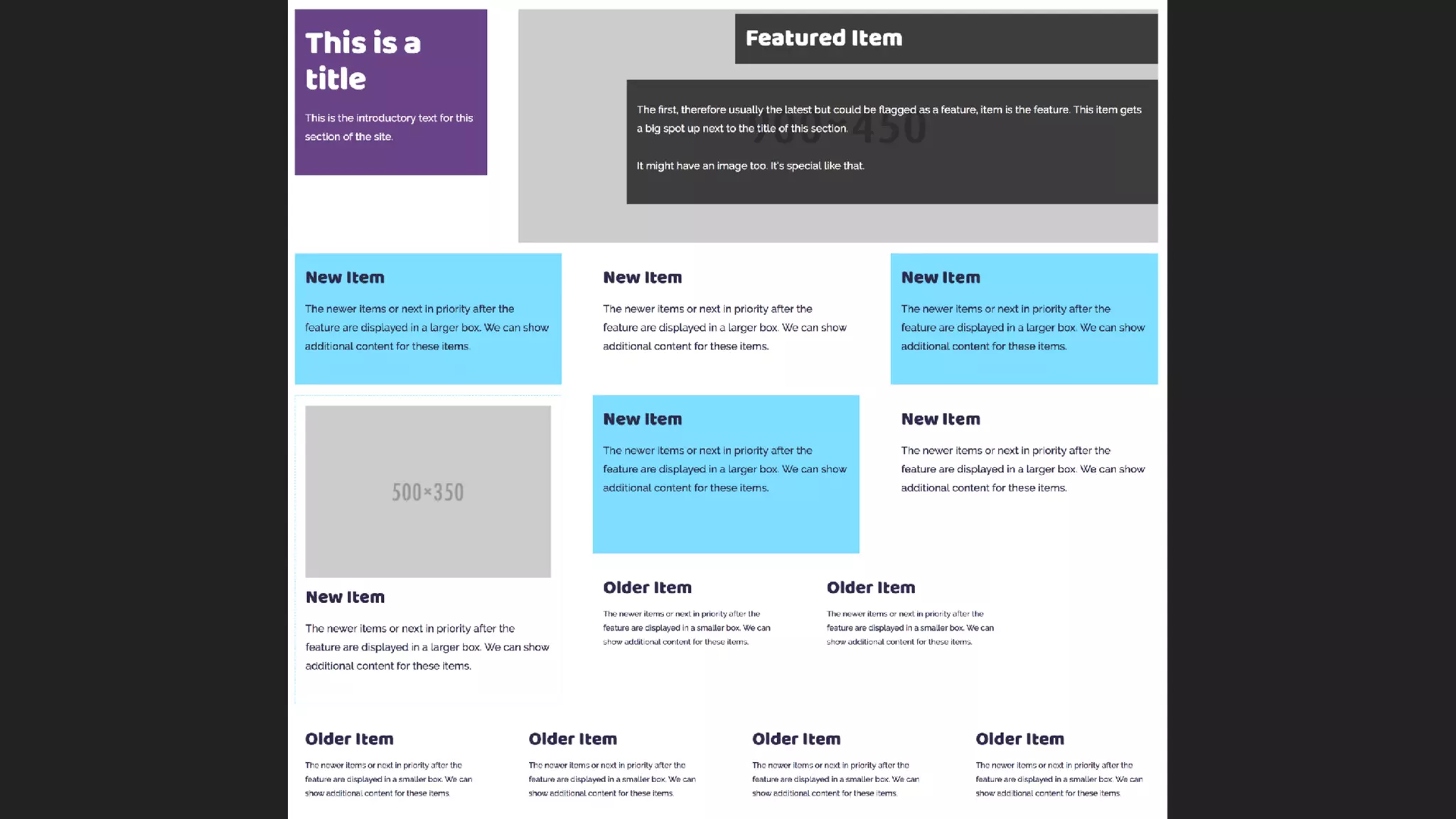

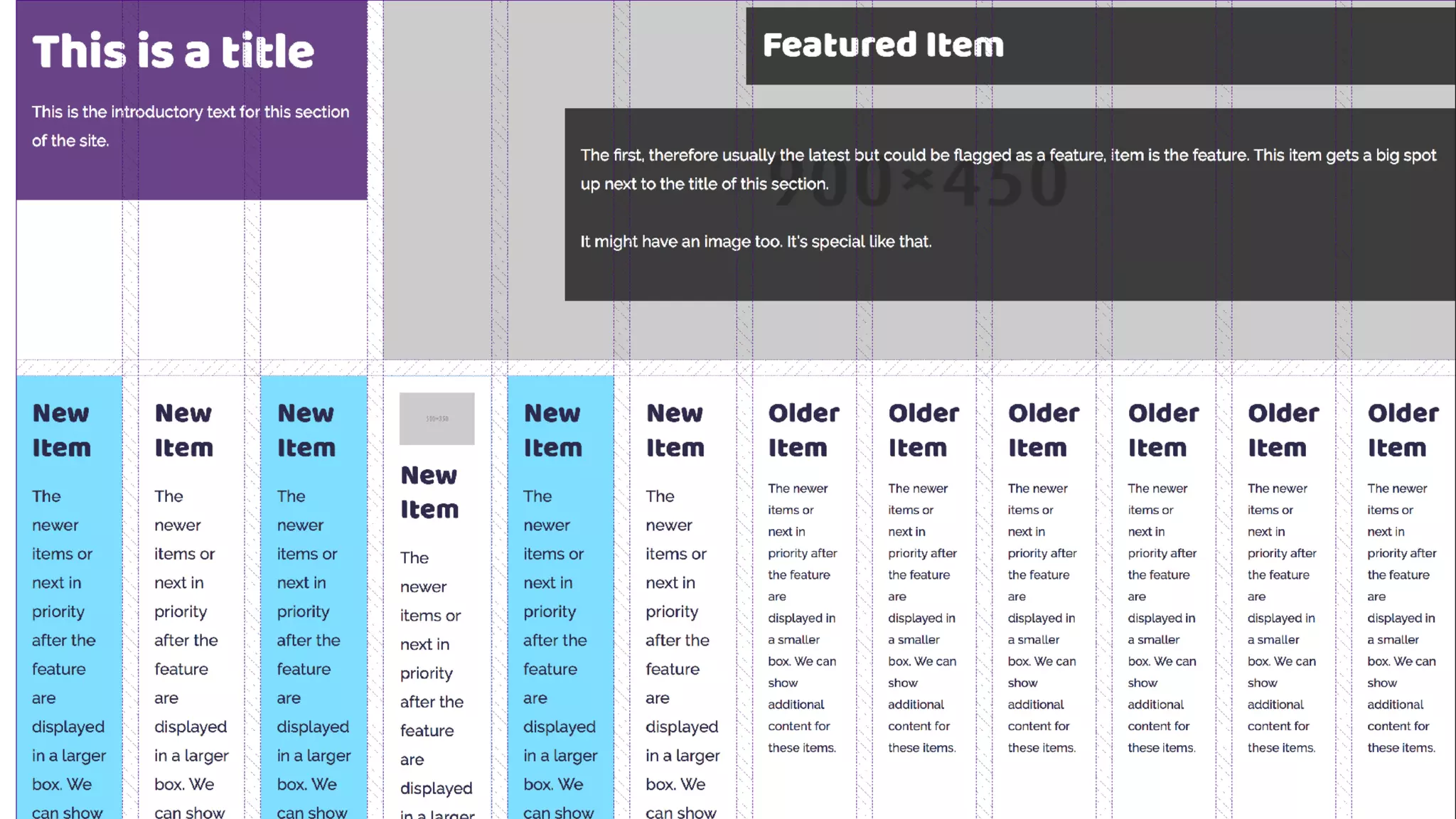

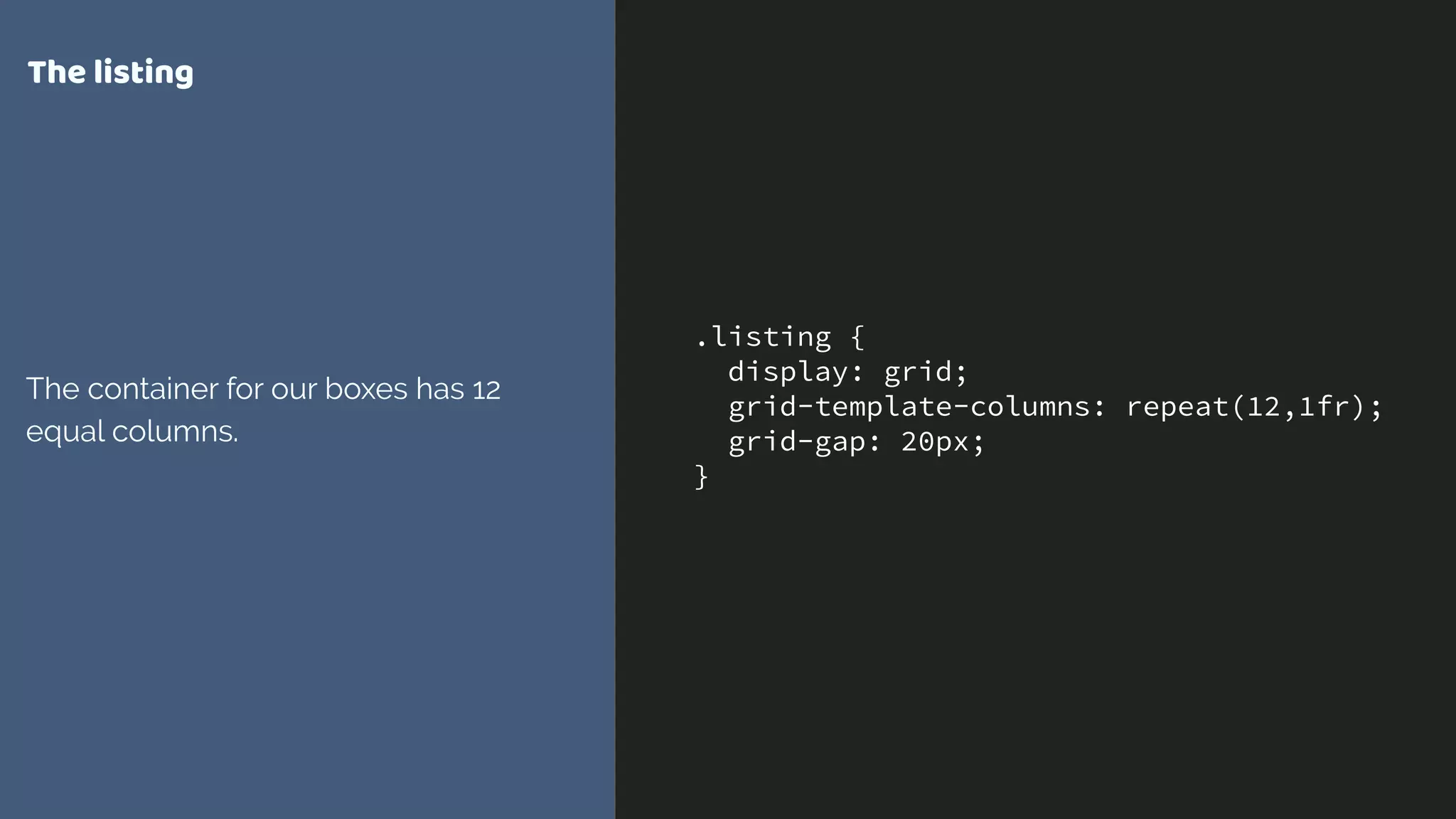

.listing {
display: grid;
grid-template-columns: repeat(12,1fr);
grid-gap: 20px;
}
The listing
The container for our boxes has 12
equal columns.

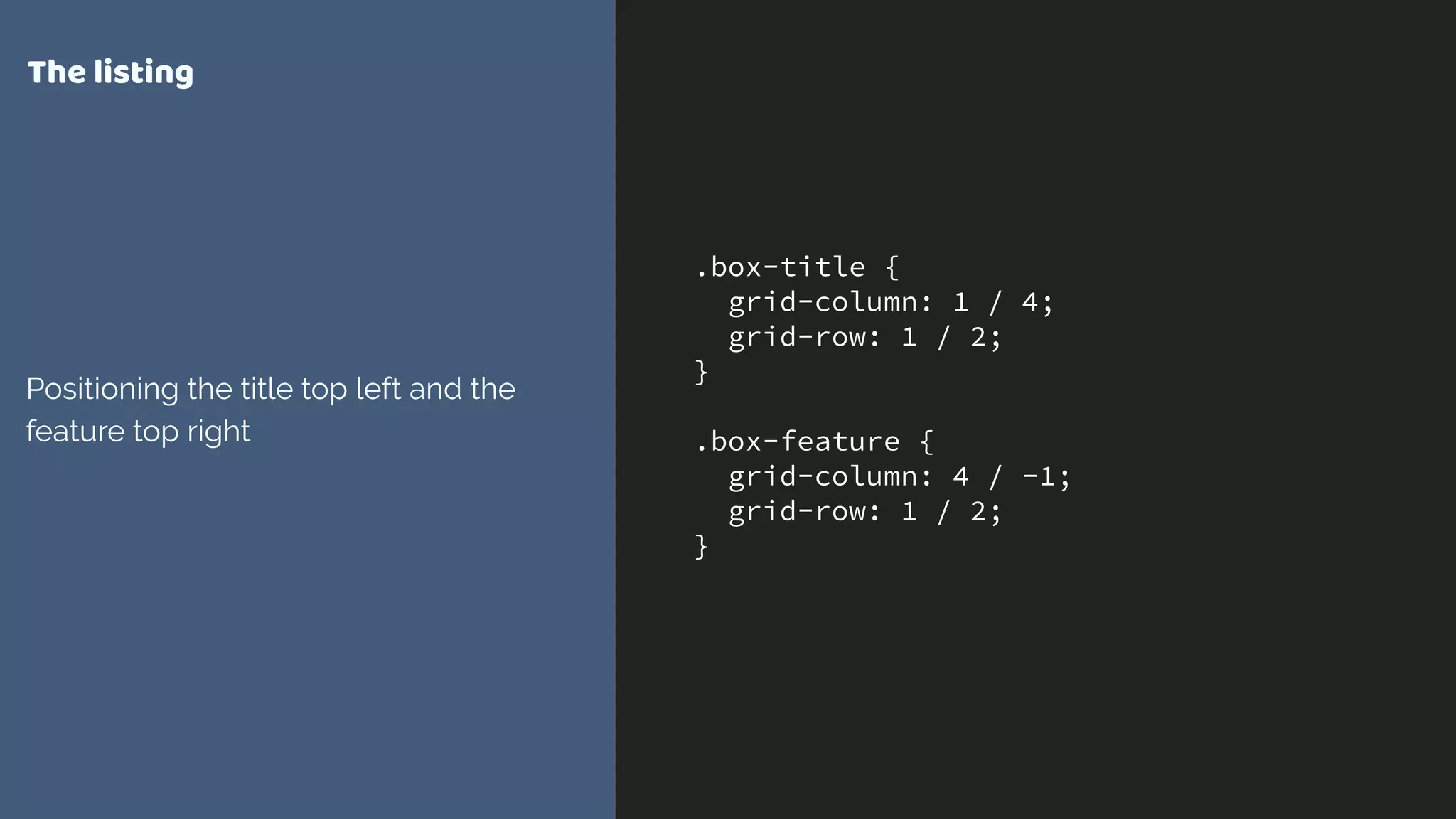

.box-title {
grid-column: 1 / 4;
grid-row: 1 / 2;
}
.box-feature {
grid-column: 4 / -1;
grid-row: 1 / 2;
}
The listing
Positioning the title top left and the
feature top right

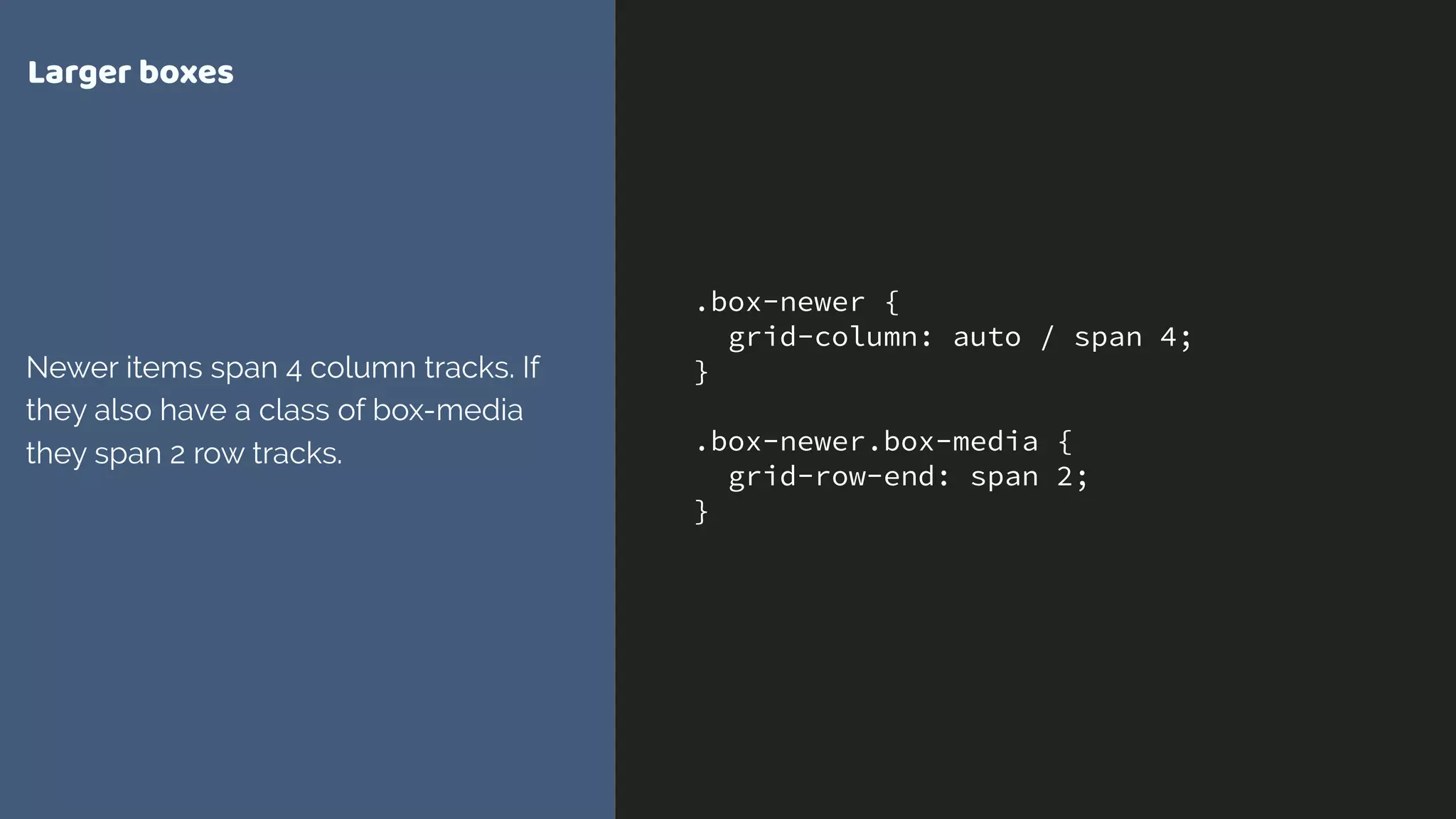

.box-newer {
grid-column: auto / span 4;
}
.box-newer.box-media {
grid-row-end: span 2;
}

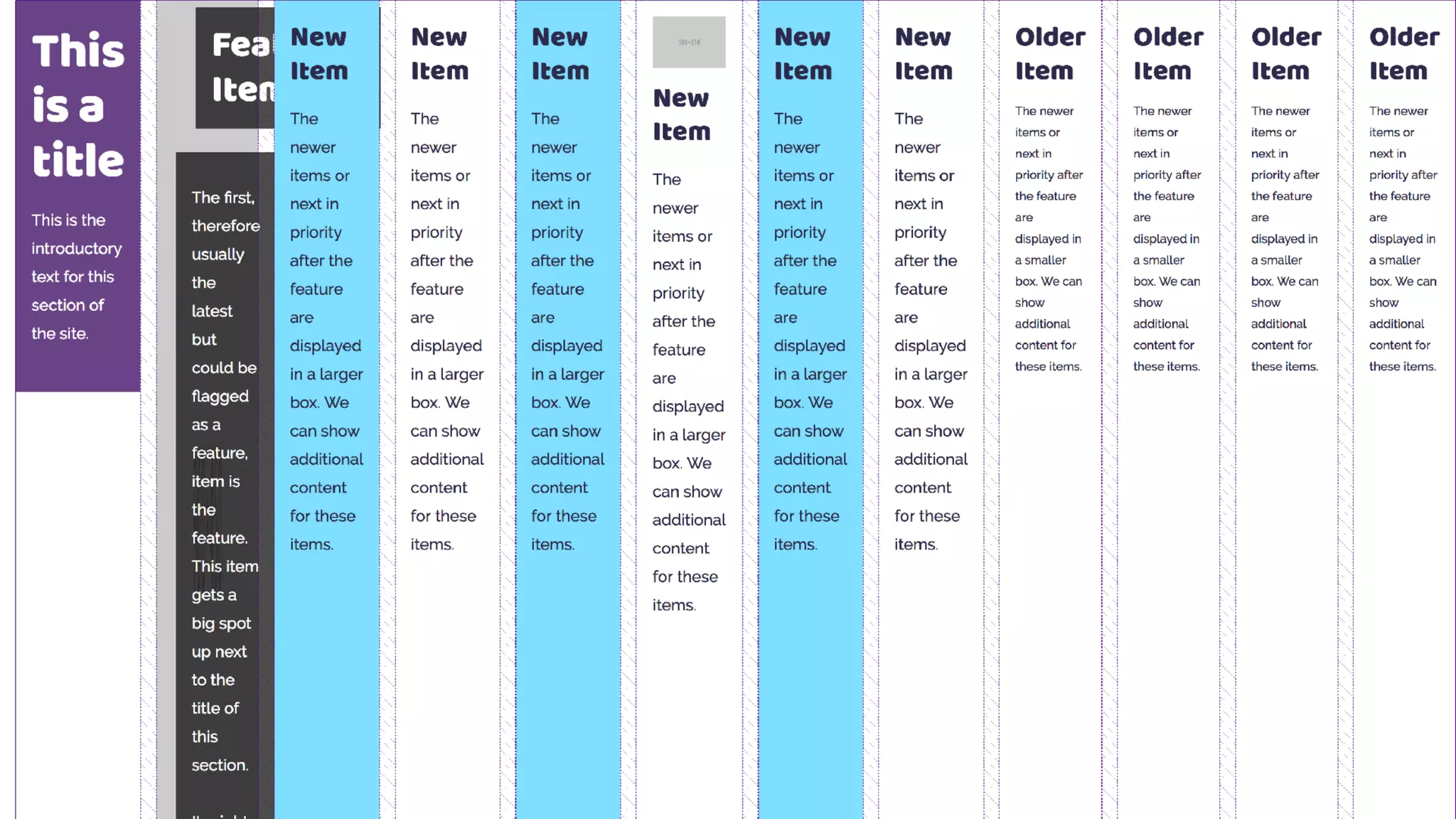

Larger boxes
Newer items span 4 column tracks. If
they also have a class of box-media
they span 2 row tracks.

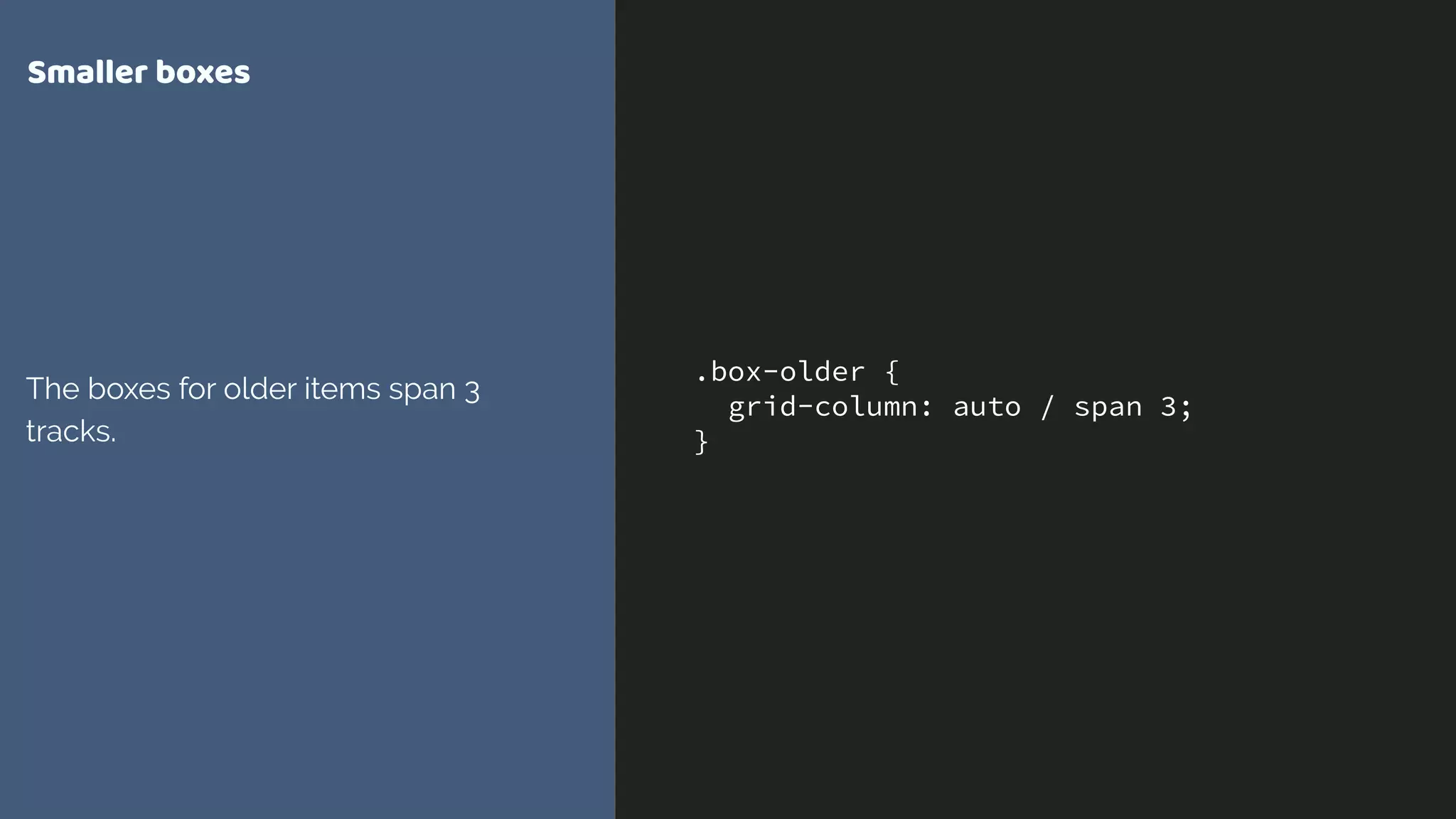

.box-older {
grid-column: auto / span 3;
}
Smaller boxes
The boxes for older items span 3
tracks.

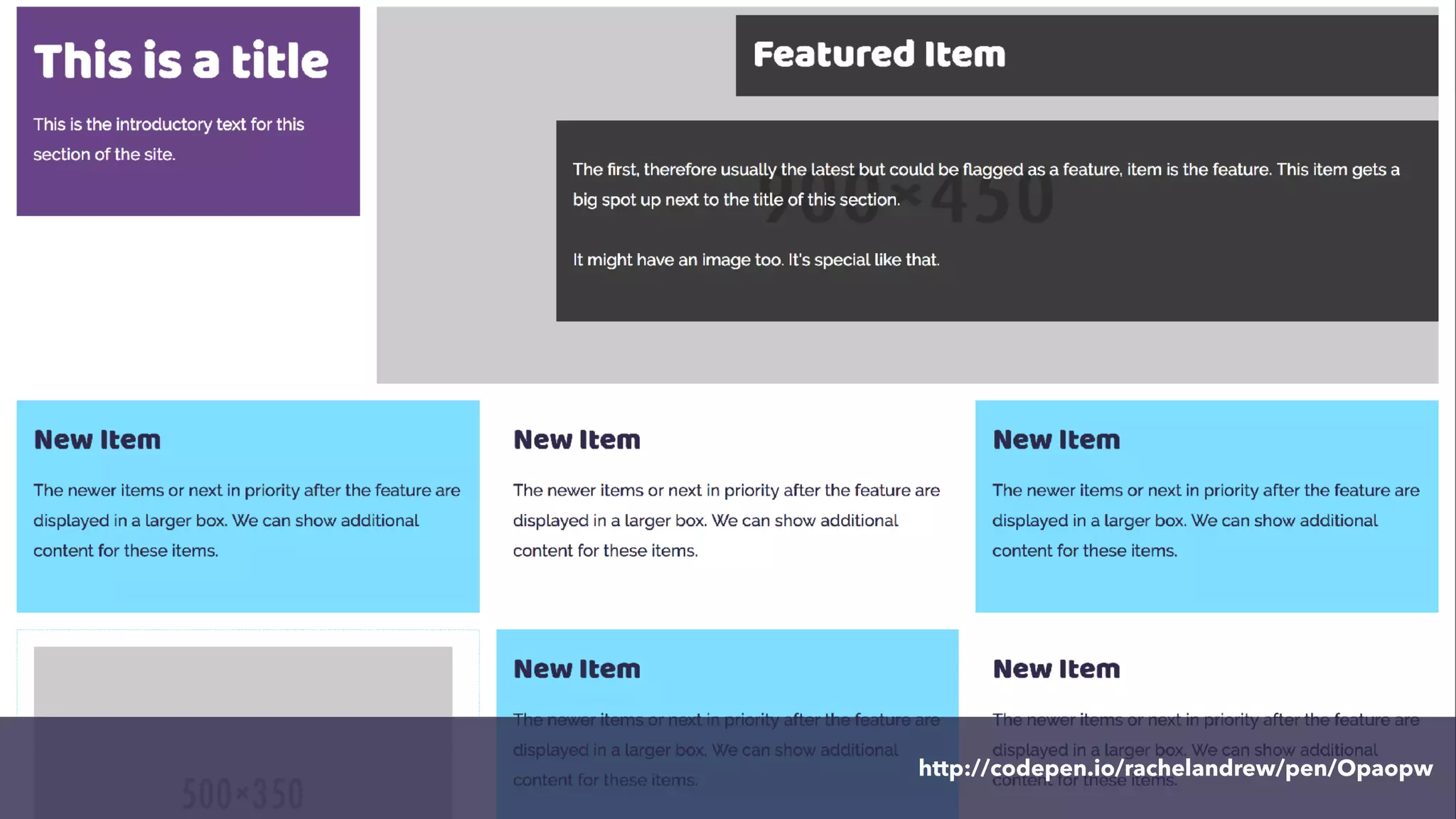

http://codepen.io/rachelandrew/pen/Opaopw
Going
responsive
CSS Grid
.box-title {
grid-column: 1 / -1;
grid-row: 1;
}
@media all and (min-width: 53.125em) {
.box-title {
grid-column: 1 / 6;
grid-row: 1 / 3;
}
}
@media all and (min-width: 75em) {
.box-title {
grid-column: 1 / 4;
grid-row: 1 / 2;
}
}

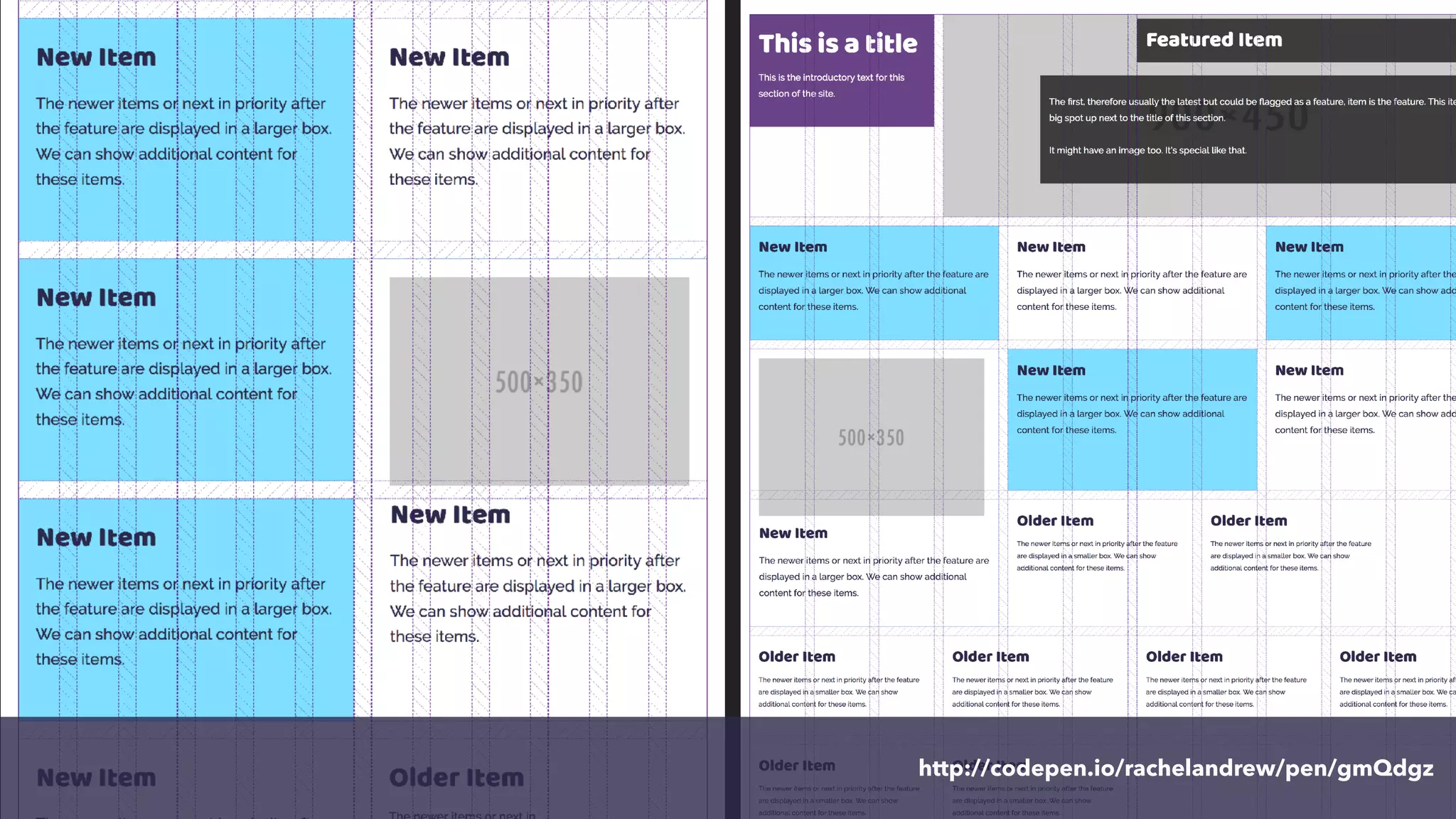

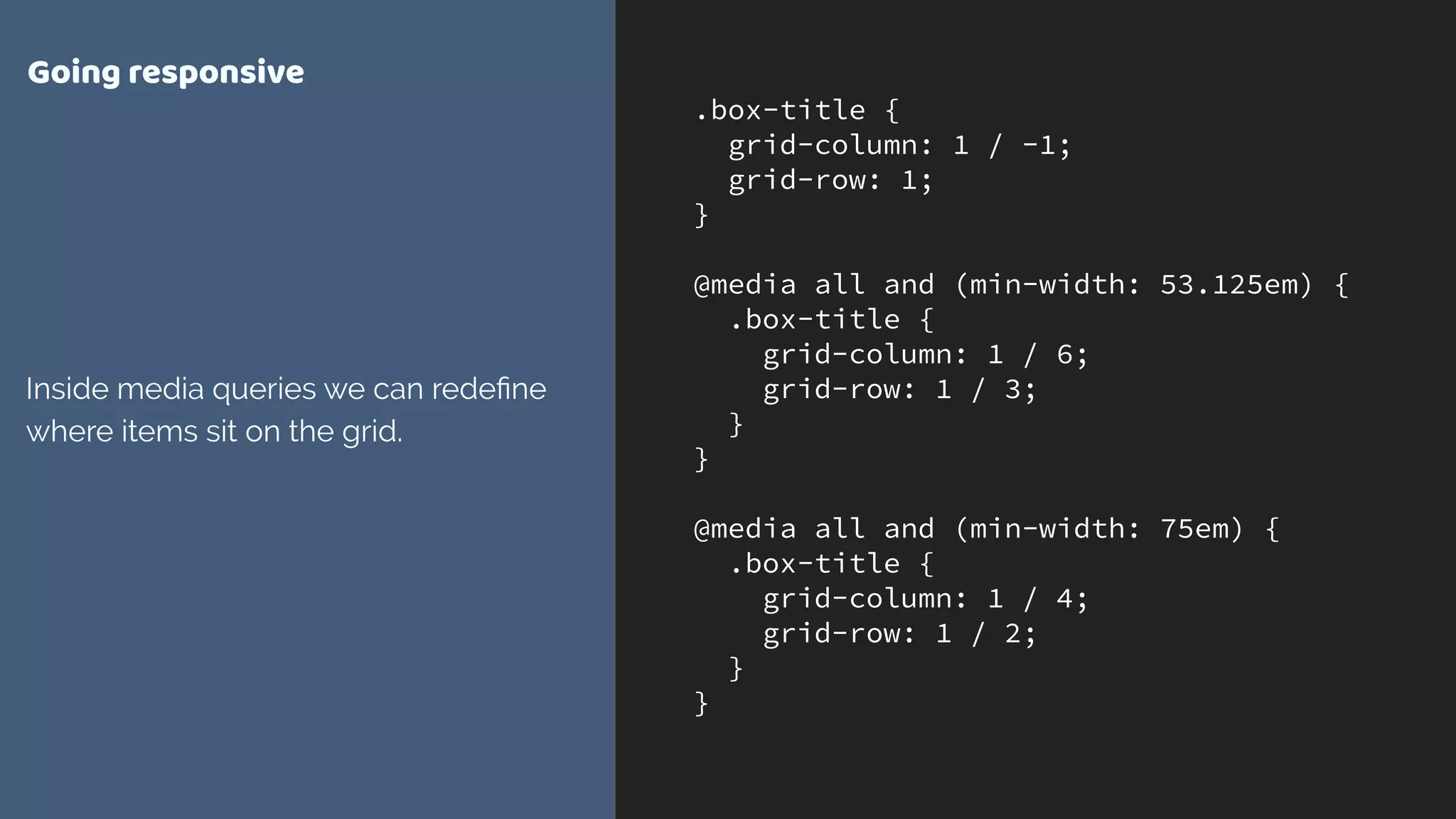

Going responsive
Inside media queries we can redefine
where items sit on the grid.
.box-newer {
grid-column: 1 / -1;
}
@media all and (min-width: 28.125em) {
.box-newer {
grid-column: auto / span 6;
}
}
@media all and (min-width: 53.125em) {
.box-newer {
grid-column: auto / span 4;
}
}

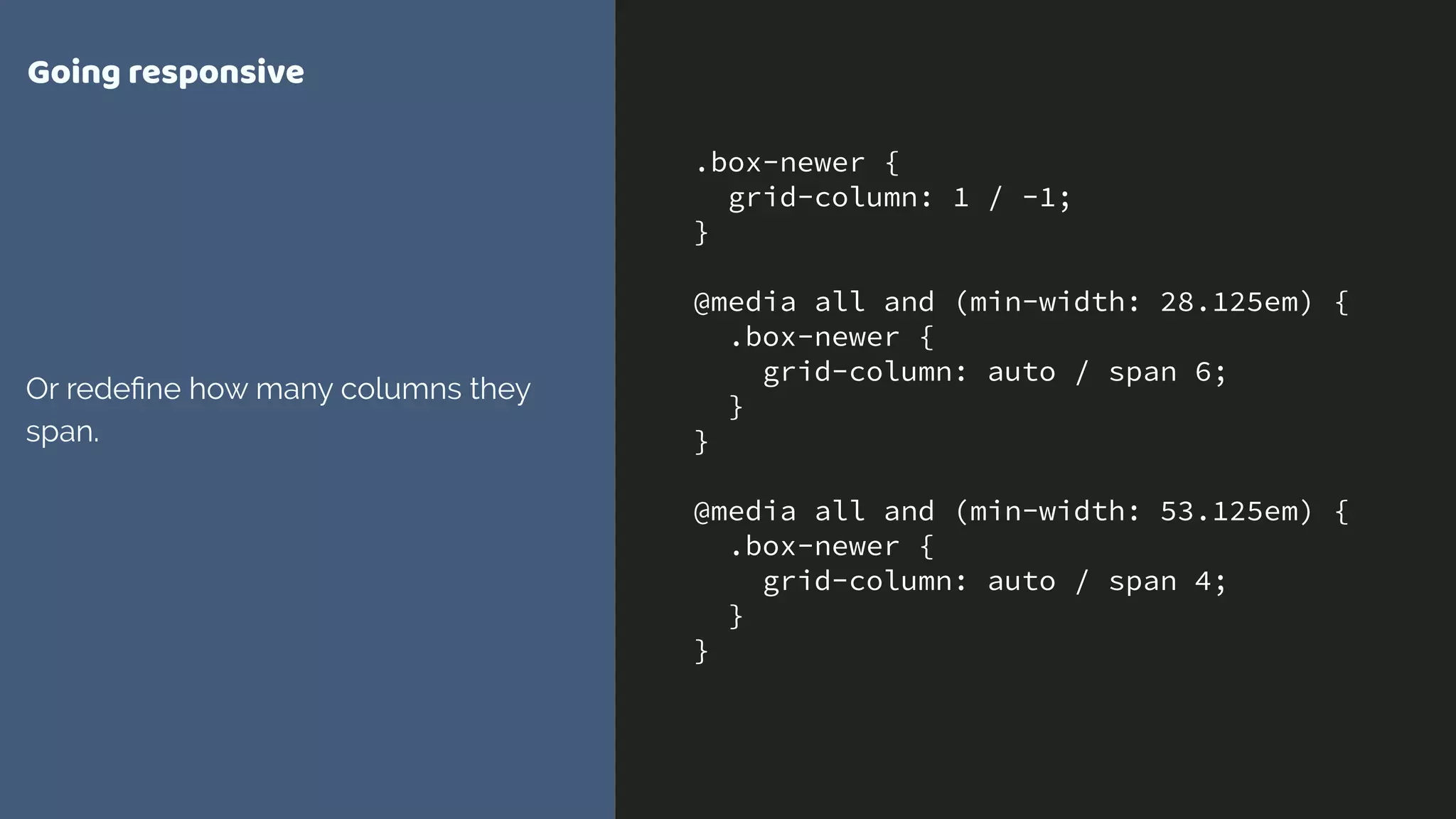

Going responsive
Or redefine how many columns they
span.
http://codepen.io/rachelandrew/pen/gmQdgz
What about
old browsers?
CSS Grid Layout

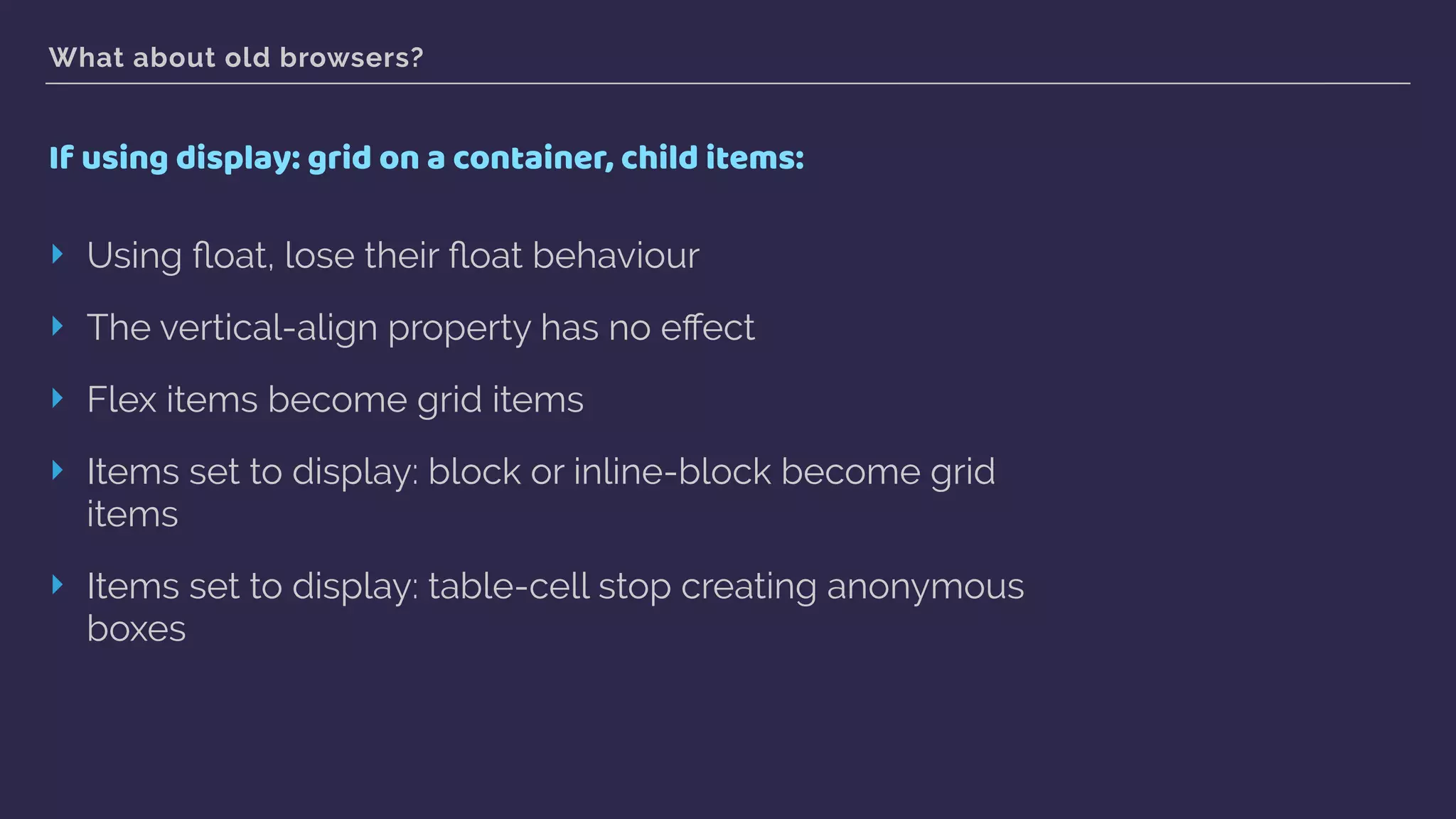

What about old browsers?
If using display: grid on a container, child items:
‣ Using float, lose their float behaviour
‣ The vertical-align property has no effect
‣ Flex items become grid items
‣ Items set to display: block or inline-block become grid
items
‣ Items set to display: table-cell stop creating anonymous
boxes
You do not need to build “two
layouts”

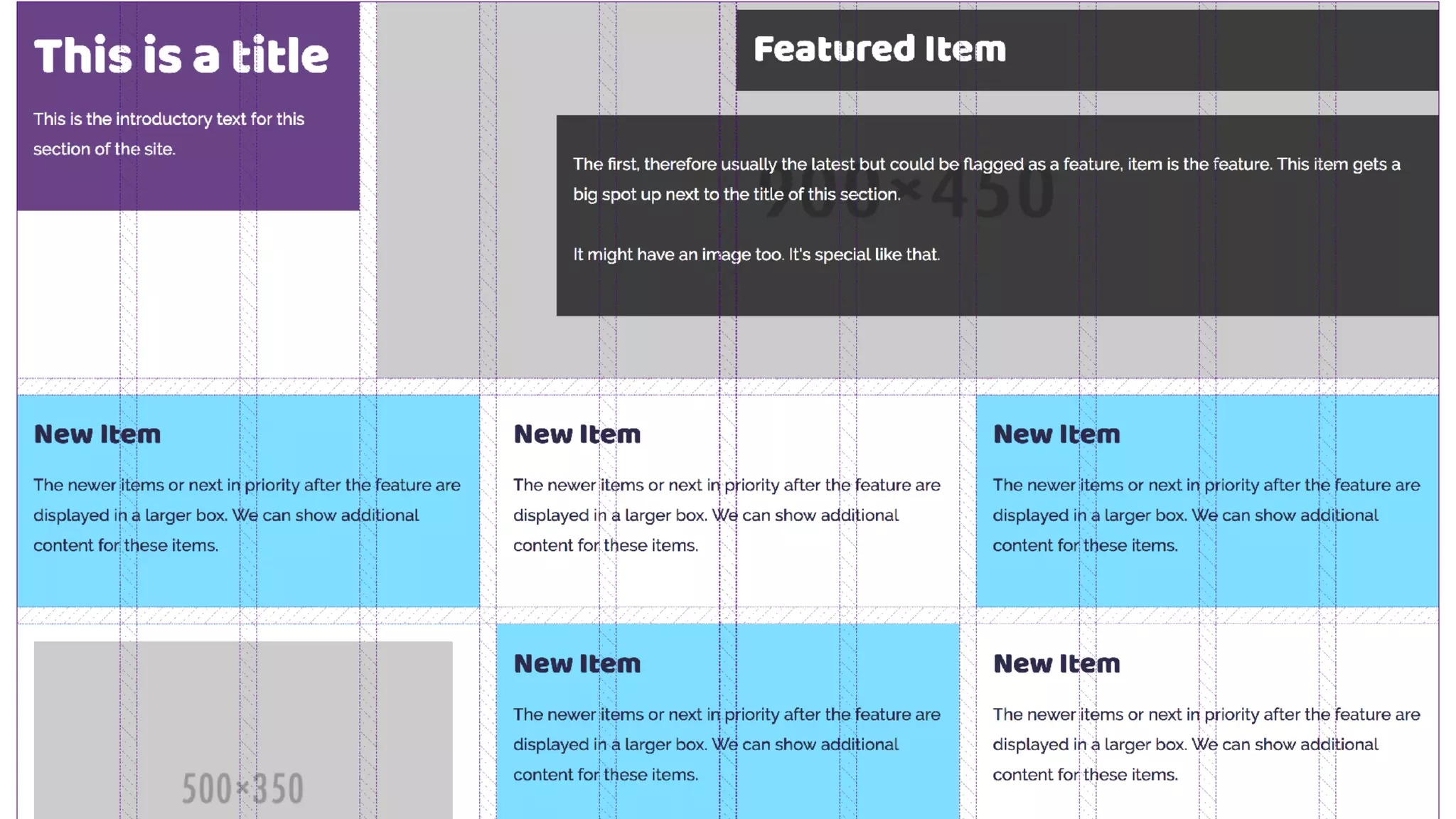

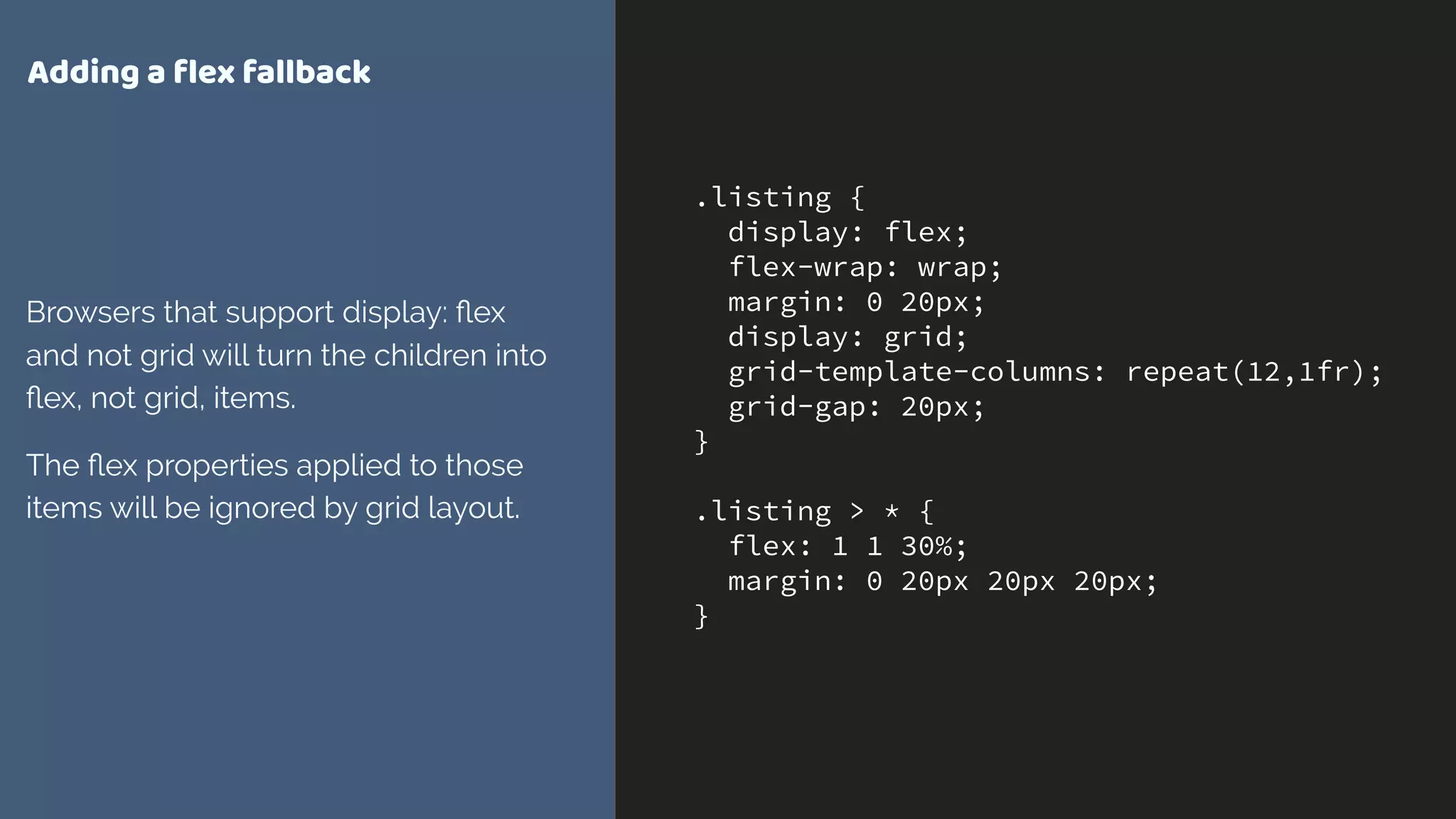

.listing {
display: flex;
flex-wrap: wrap;
margin: 0 20px;
display: grid;
grid-template-columns: repeat(12,1fr);
grid-gap: 20px;
}
.listing > * {
flex: 1 1 30%;
margin: 0 20px 20px 20px;
}
Adding a flex fallback
Browsers that support display: flex
and not grid will turn the children into
flex, not grid, items.
The flex properties applied to those
items will be ignored by grid layout.

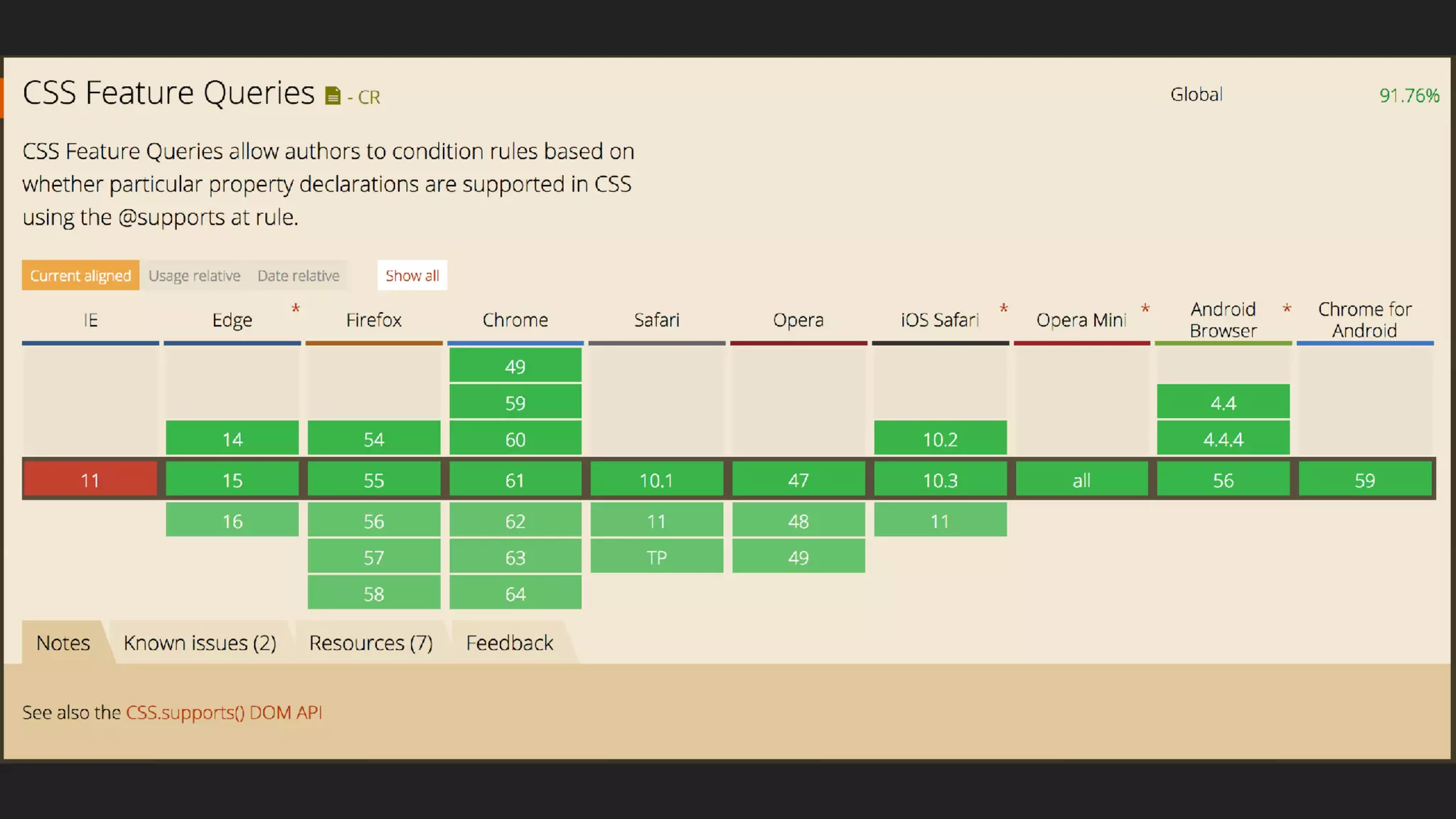

Feature Queries are your new best
friend
.listing > * {
flex: 1 1 30%;
margin: 0 20px 20px 20px;
}
@supports(display: grid) {
.listing > * {
margin: 0;
}
}

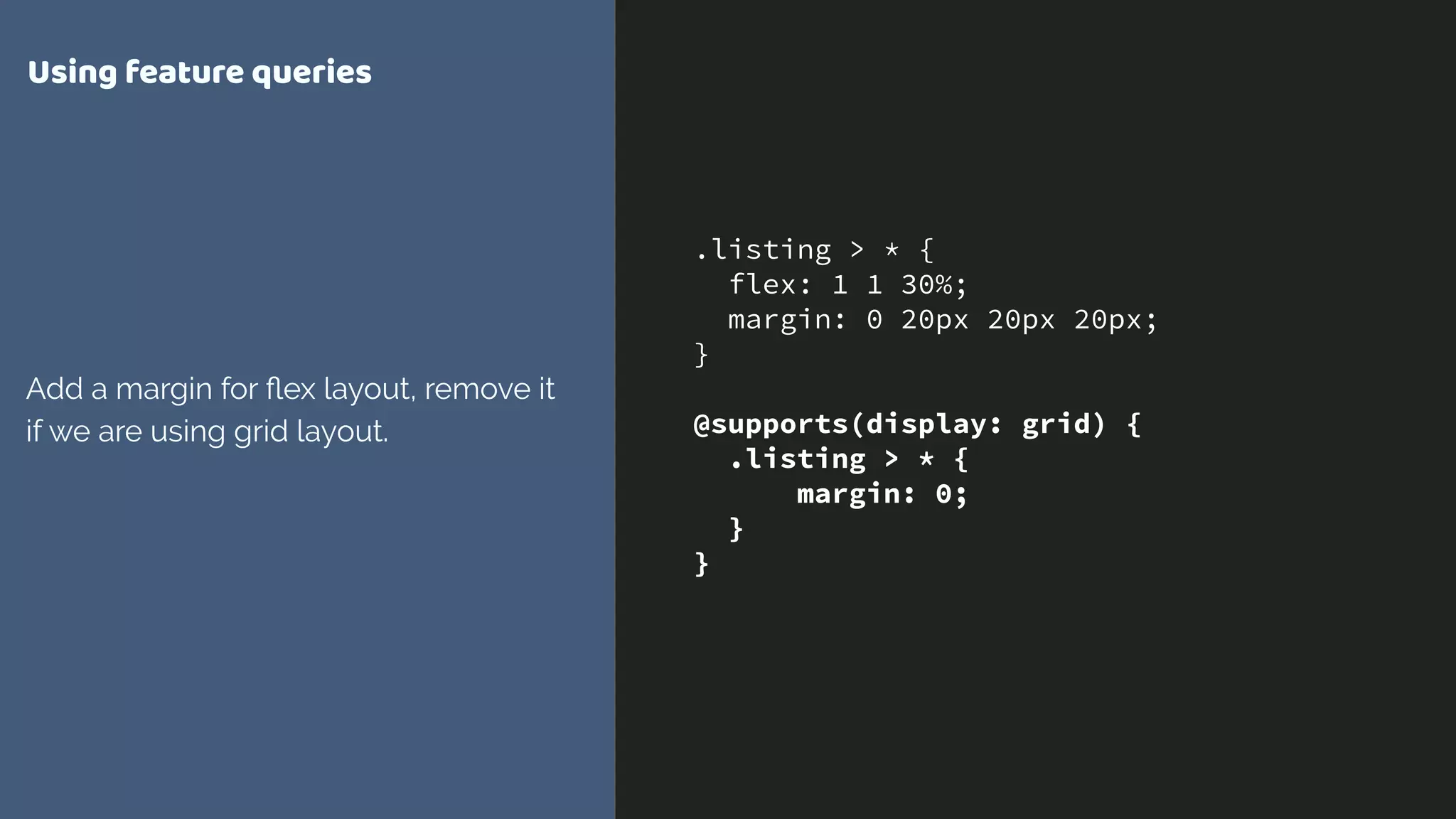

Using feature queries
Add a margin for flex layout, remove it
if we are using grid layout.

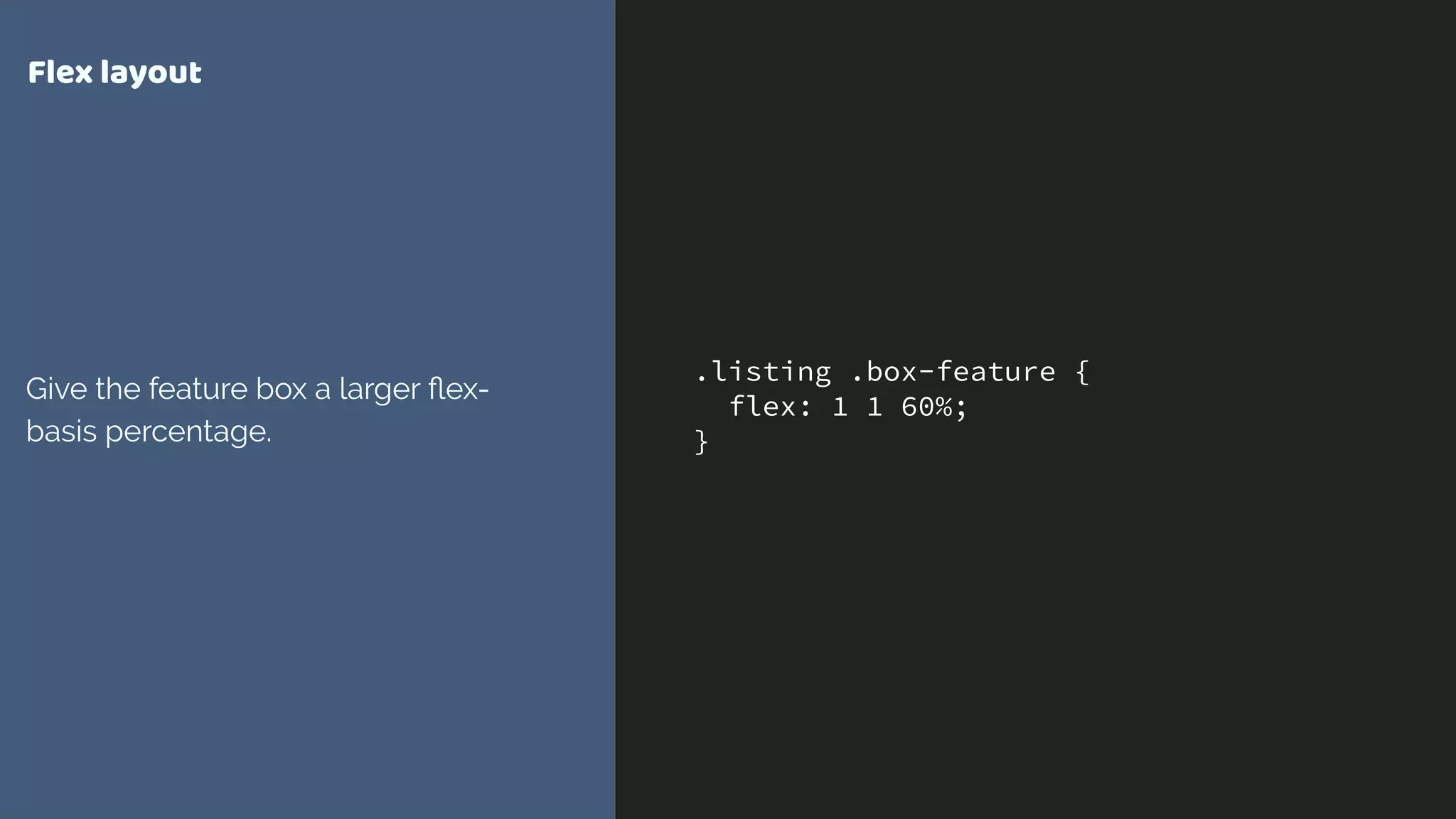

.listing .box-feature {
flex: 1 1 60%;
}

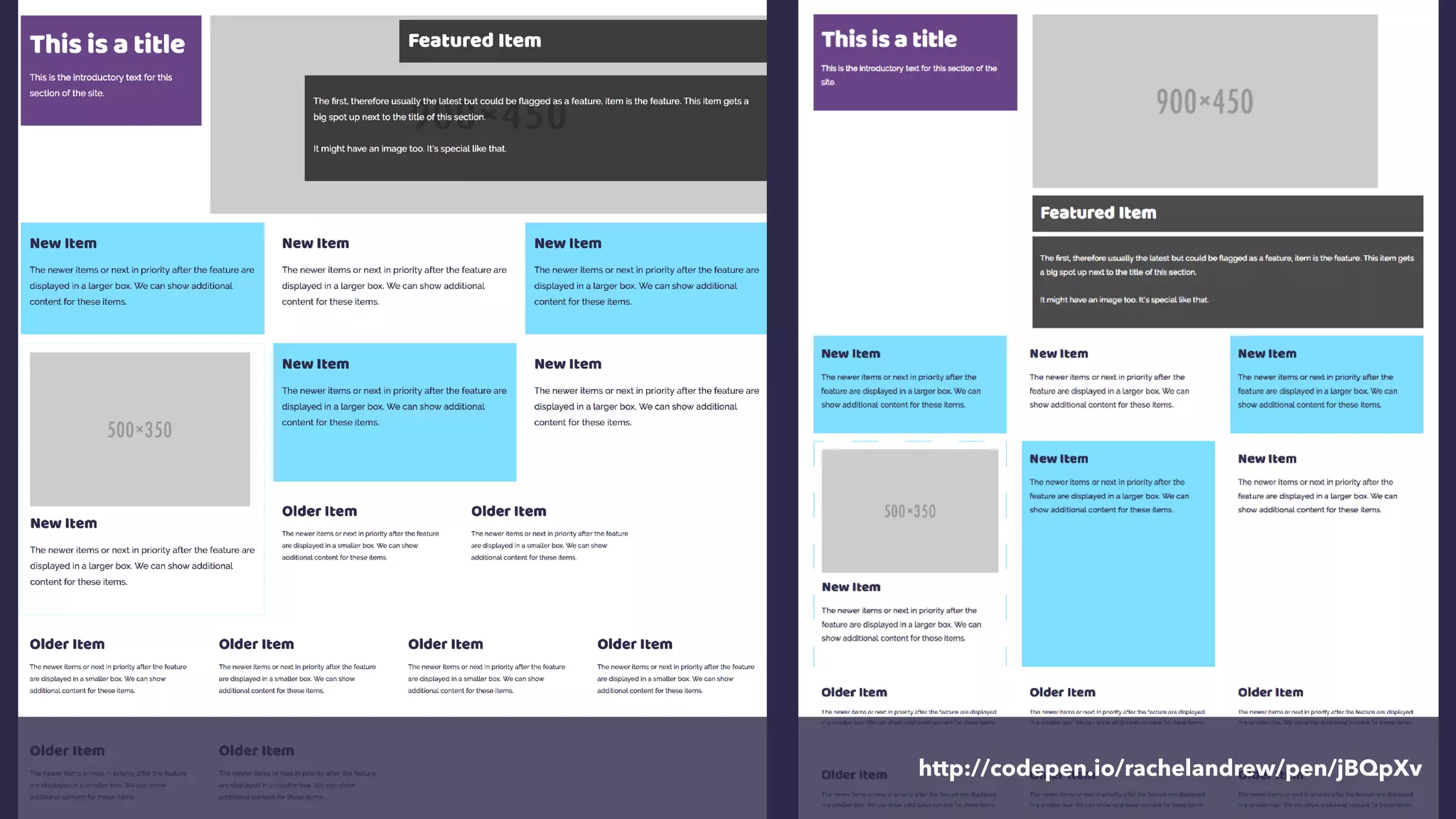

Flex layout
Give the feature box a larger flex-
basis percentage.
http://codepen.io/rachelandrew/pen/jBQpXv

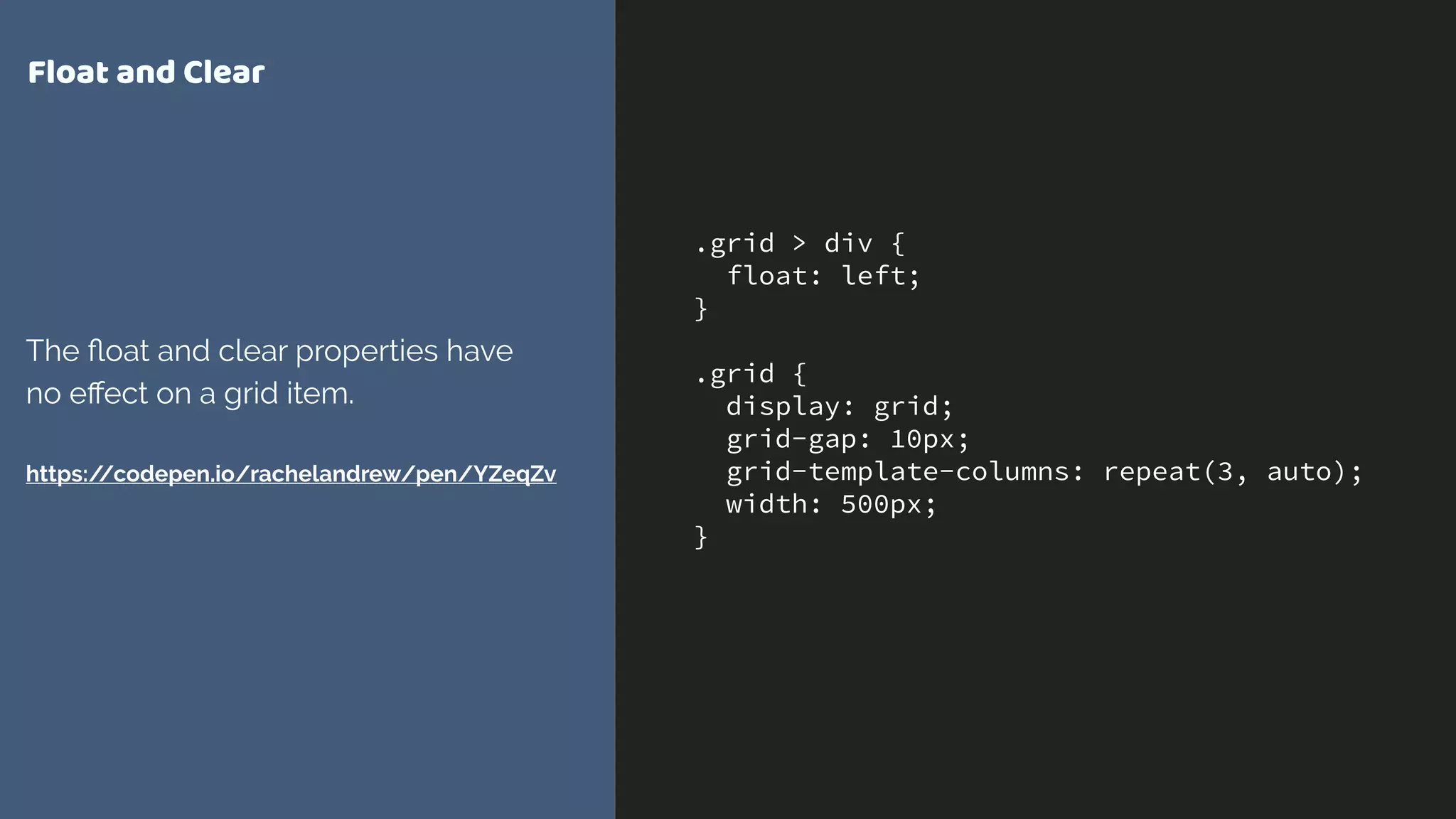

.grid > div {
float: left;
}
.grid {
display: grid;
grid-gap: 10px;
grid-template-columns: repeat(3, auto);
width: 500px;
}
Float and Clear
The float and clear properties have
no effect on a grid item.



https://codepen.io/rachelandrew/pen/YZeqZv

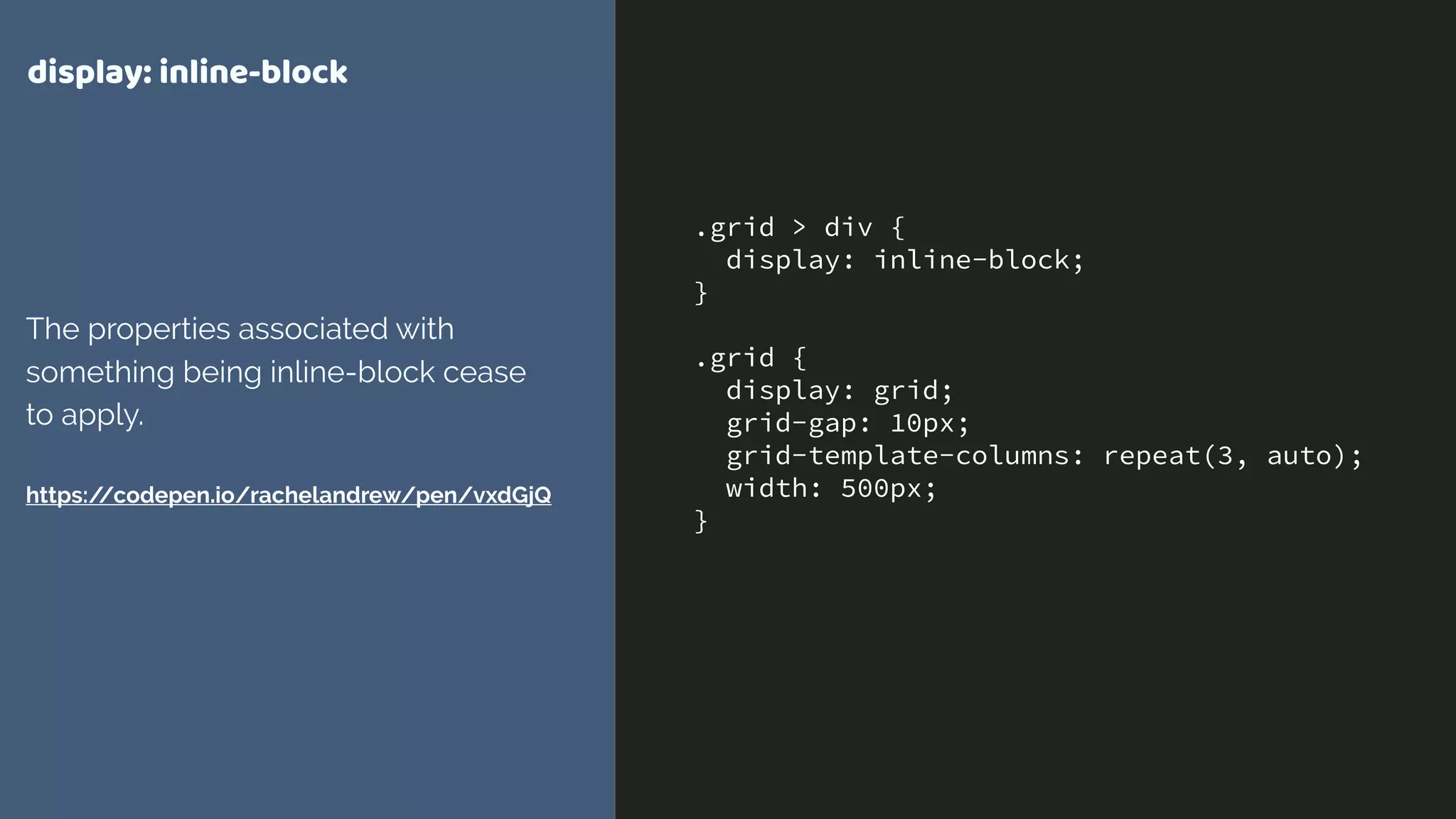

.grid > div {
display: inline-block;
}
.grid {
display: grid;
grid-gap: 10px;
grid-template-columns: repeat(3, auto);
width: 500px;
}
display: inline-block
The properties associated with
something being inline-block cease
to apply.



https://codepen.io/rachelandrew/pen/vxdGjQ

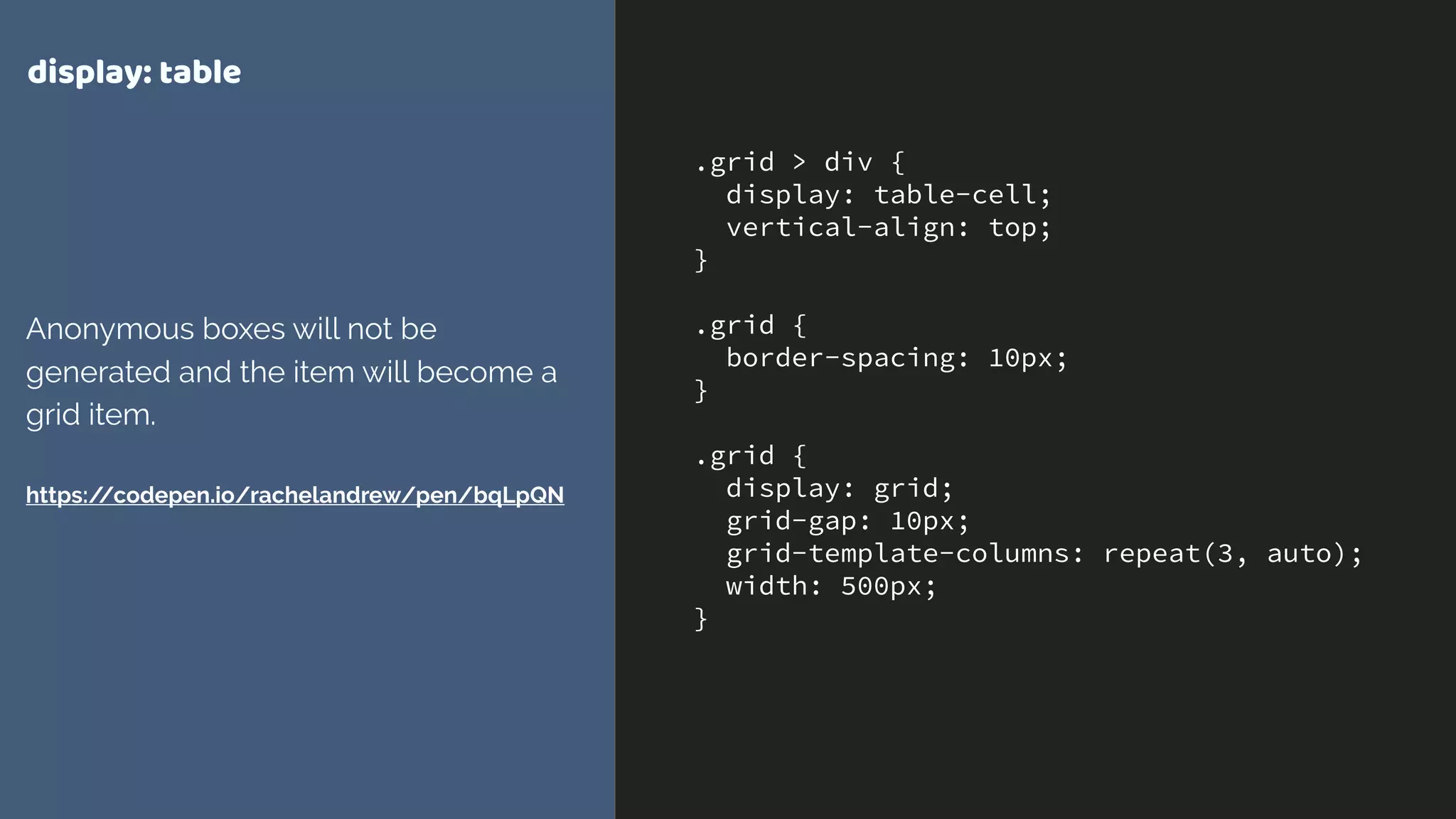

.grid > div {
display: table-cell;
vertical-align: top;
}
.grid {
border-spacing: 10px;
}
.grid {
display: grid;
grid-gap: 10px;
grid-template-columns: repeat(3, auto);
width: 500px;
}
display: table
Anonymous boxes will not be
generated and the item will become a
grid item.



https://codepen.io/rachelandrew/pen/bqLpQN
.grid > div {
display: inline-block;
vertical-align: top;
}
.grid {
display: grid;
grid-gap: 10px;
grid-template-columns: repeat(3, auto);
width: 500px;
}

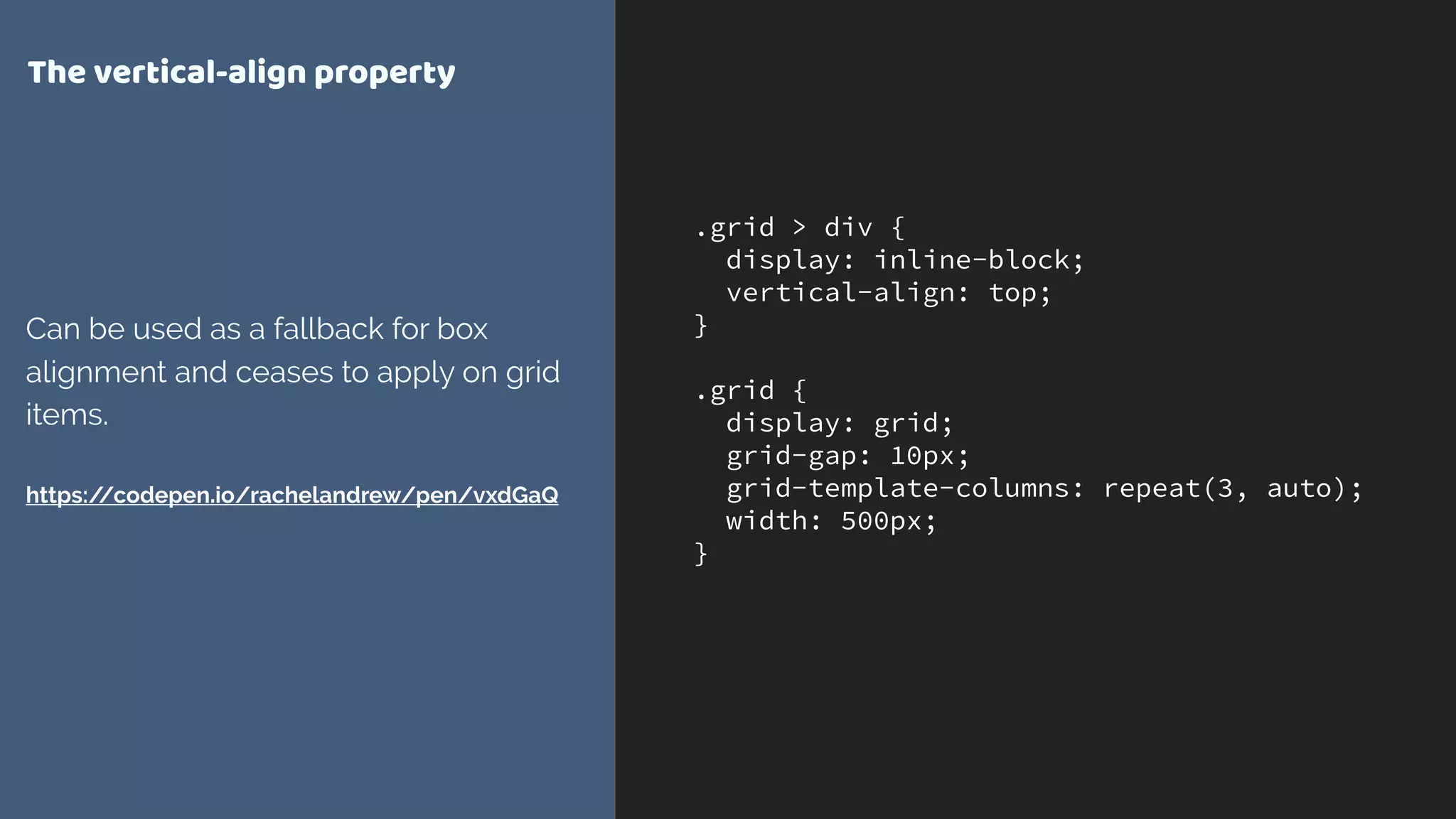

The vertical-align property
Can be used as a fallback for box
alignment and ceases to apply on grid
items.



https://codepen.io/rachelandrew/pen/vxdGaQ

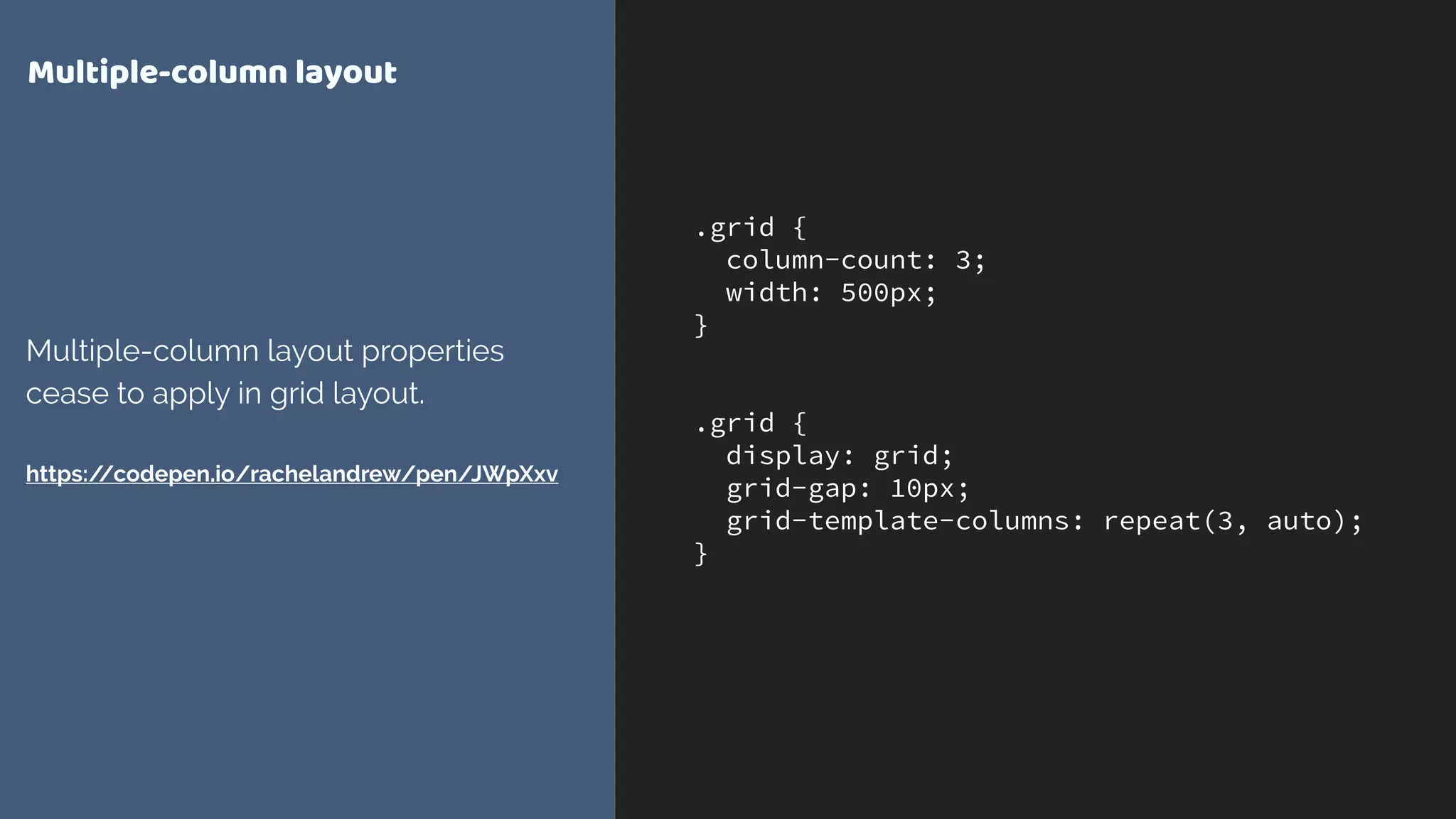

.grid {
column-count: 3;
width: 500px;
}
.grid {
display: grid;
grid-gap: 10px;
grid-template-columns: repeat(3, auto);
}
Multiple-column layout
Multiple-column layout properties
cease to apply in grid layout.



https://codepen.io/rachelandrew/pen/JWpXxv

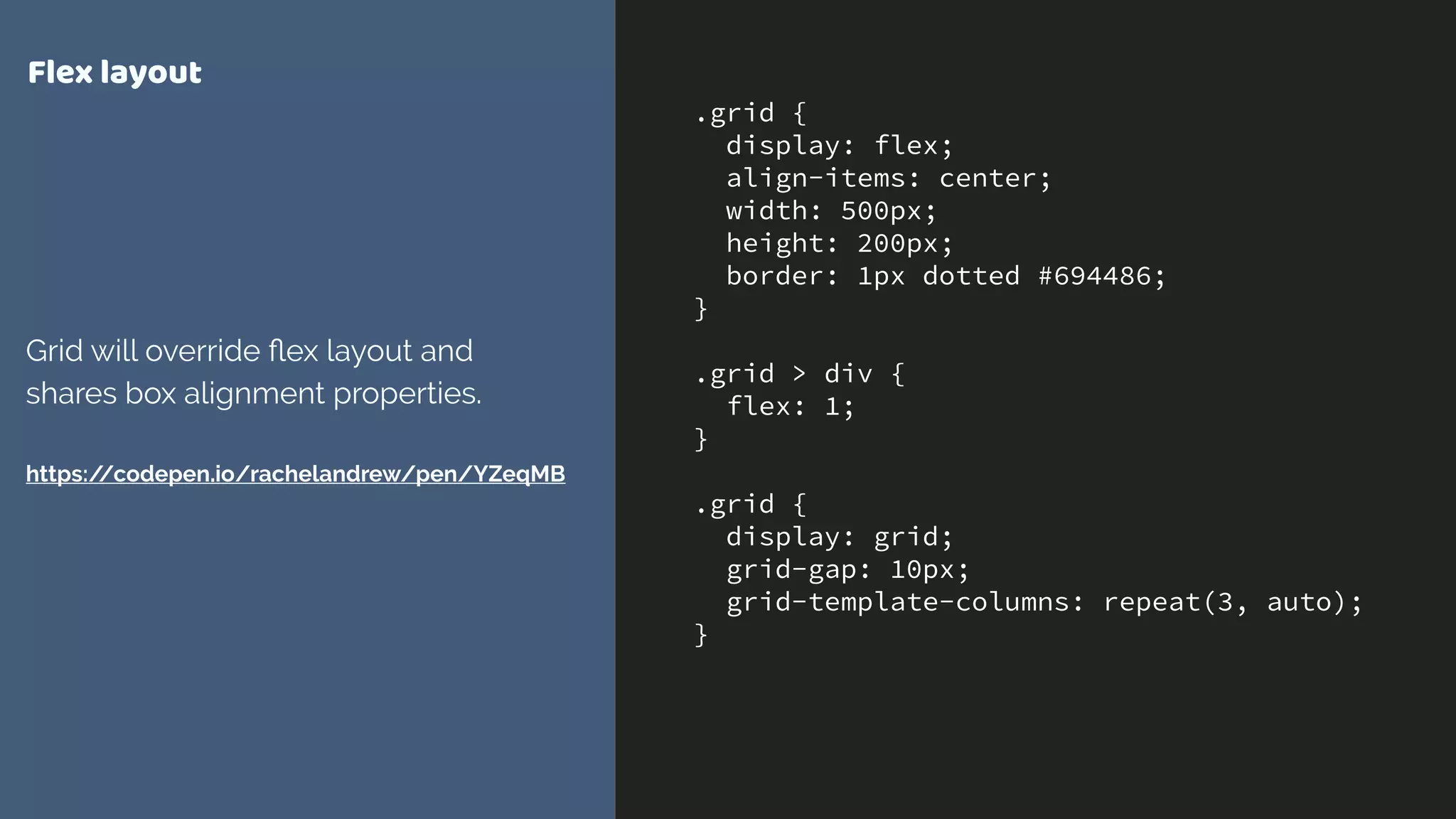

.grid {
display: flex;
align-items: center;
width: 500px;
height: 200px;
border: 1px dotted #694486;
}
.grid > div {
flex: 1;
}
.grid {
display: grid;
grid-gap: 10px;
grid-template-columns: repeat(3, auto);
}
Flex layout
Grid will override flex layout and
shares box alignment properties.



https://codepen.io/rachelandrew/pen/YZeqMB

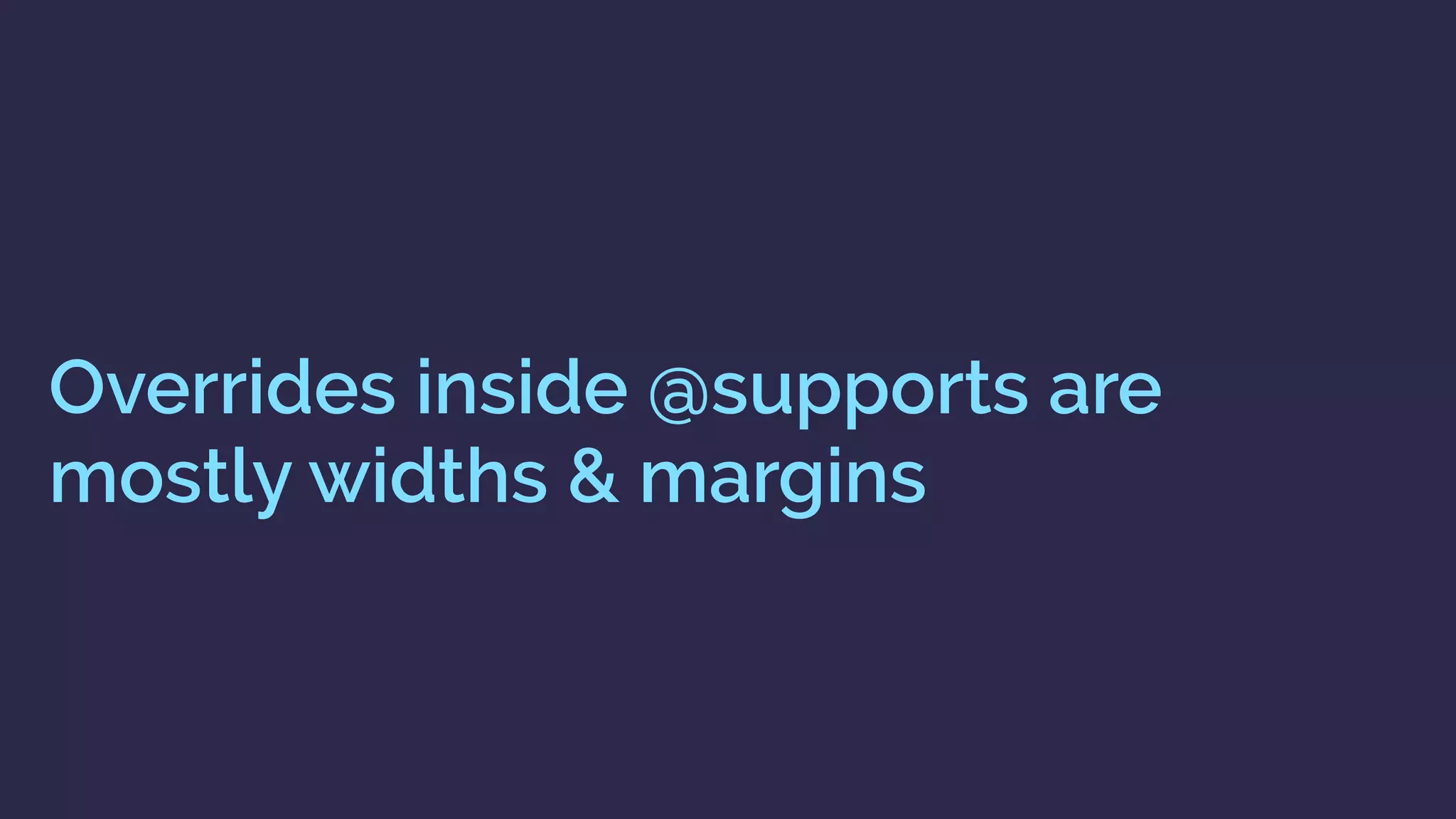

Overrides inside @supports are
mostly widths & margins
* { box-sizing: border-box; }
.grid > div {
float: left;
width: 33.333%;
}
@supports (display: grid) {
.grid > div {
width: auto;
}
}
.grid {
display: grid;
grid-gap: 10px;
grid-template-columns: repeat(3, 1fr);
width: 500px;
}

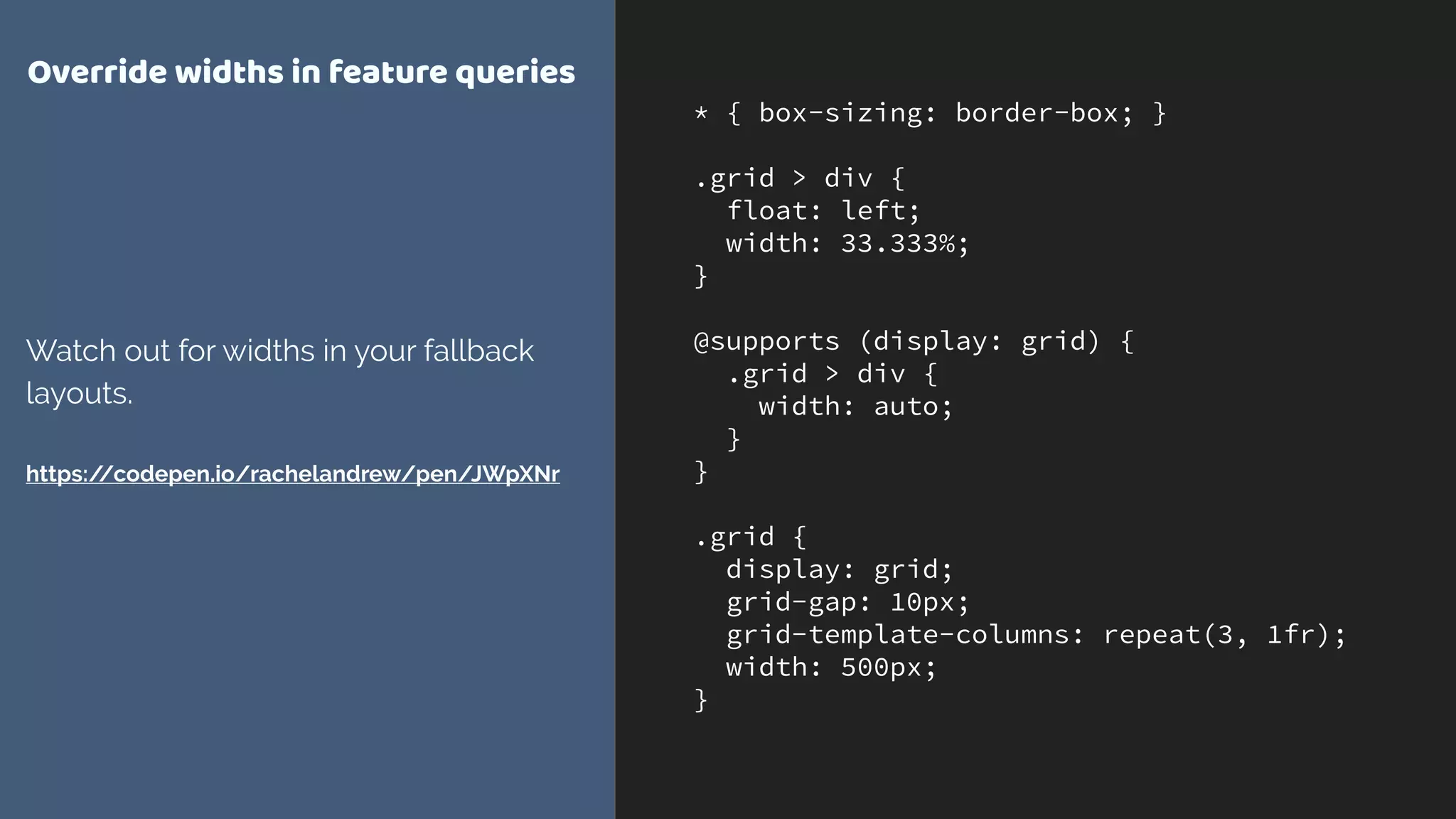

Override widths in feature queries
Watch out for widths in your fallback
layouts.



https://codepen.io/rachelandrew/pen/JWpXNr

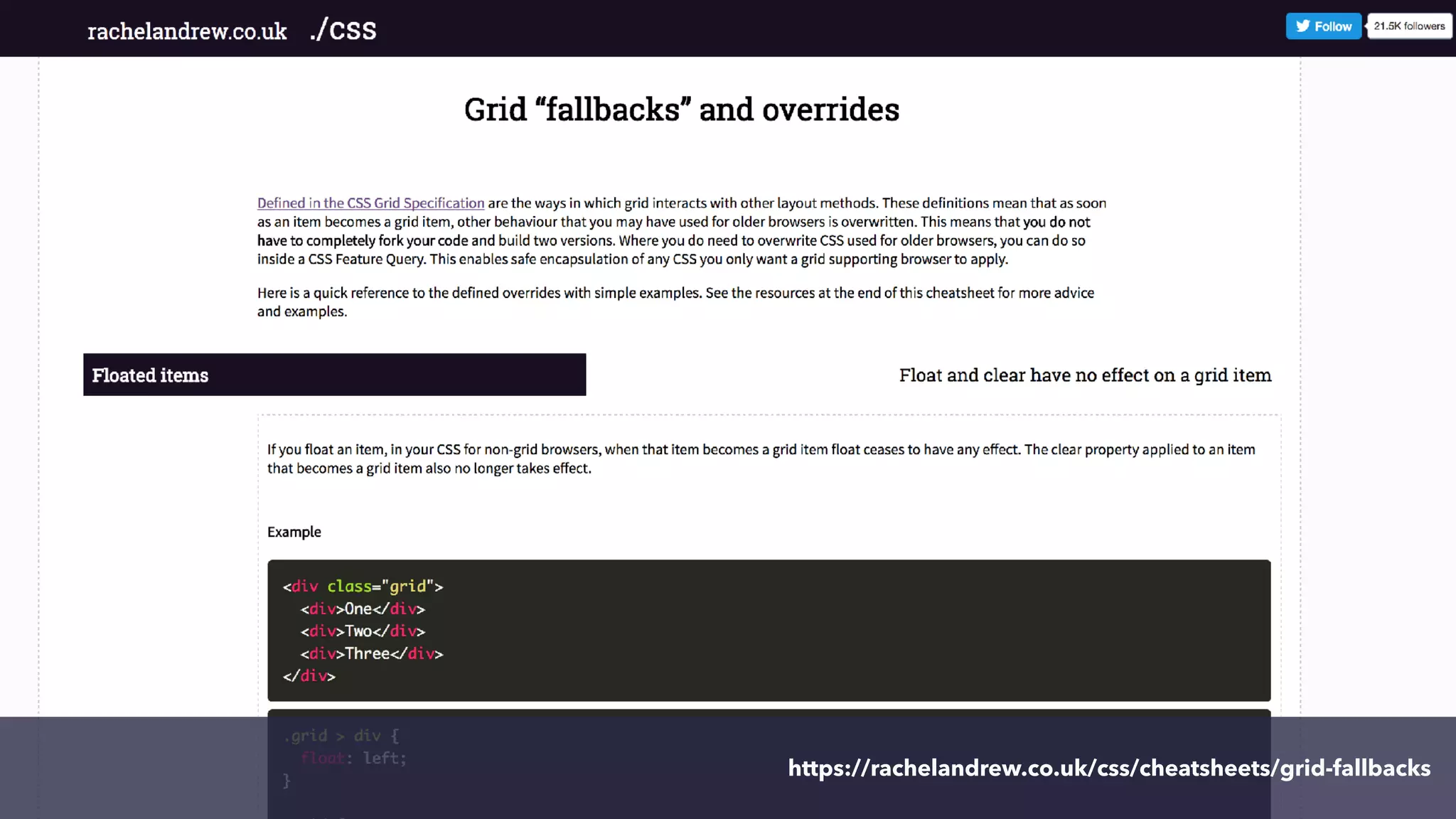

https://rachelandrew.co.uk/css/cheatsheets/grid-fallbacks

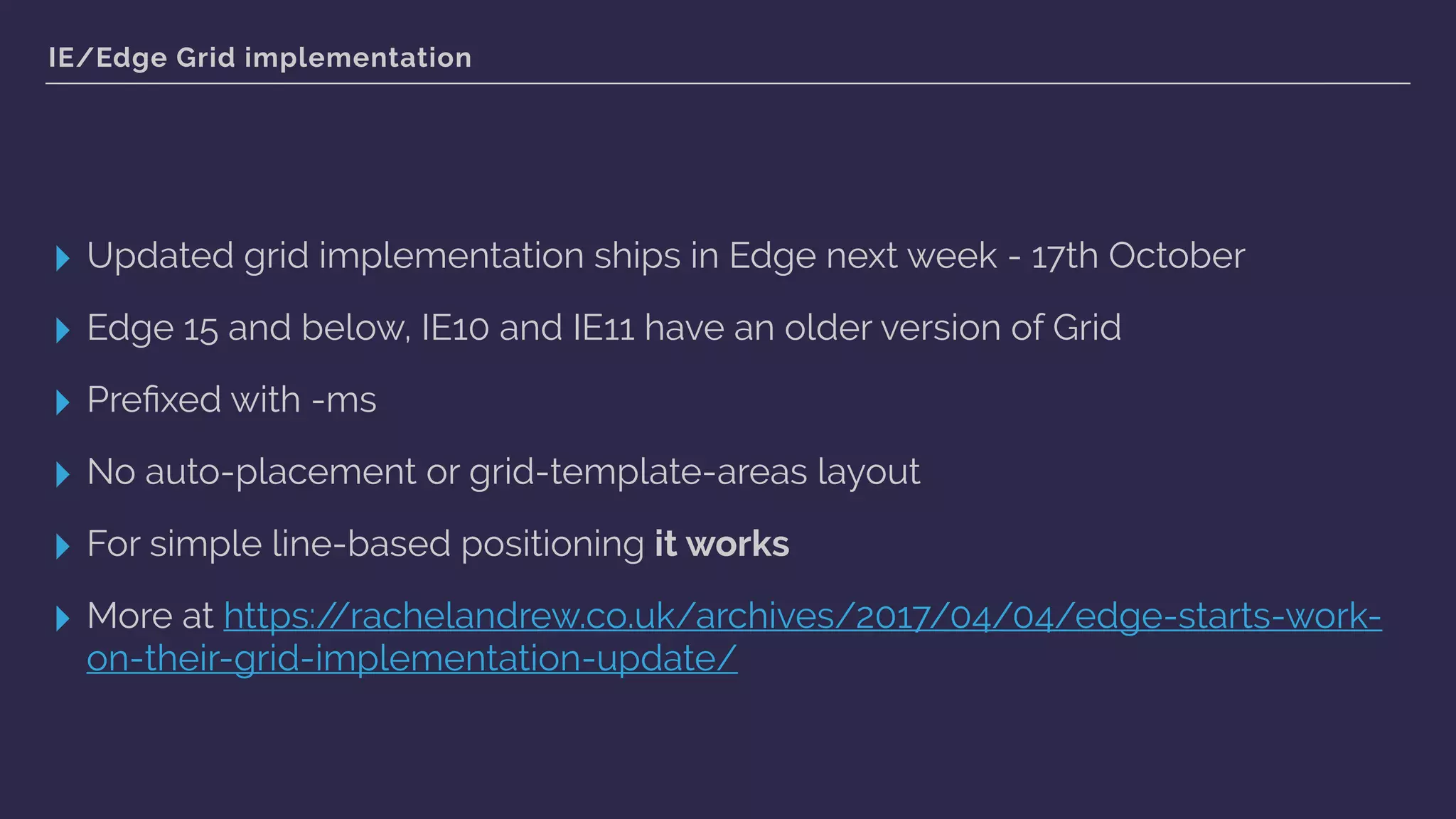

IE/Edge Grid implementation
▸ Updated grid implementation ships in Edge next week - 17th October
▸ Edge 15 and below, IE10 and IE11 have an older version of Grid
▸ Prefixed with -ms
▸ No auto-placement or grid-template-areas layout
▸ For simple line-based positioning it works
▸ More at https://rachelandrew.co.uk/archives/2017/04/04/edge-starts-work-
on-their-grid-implementation-update/

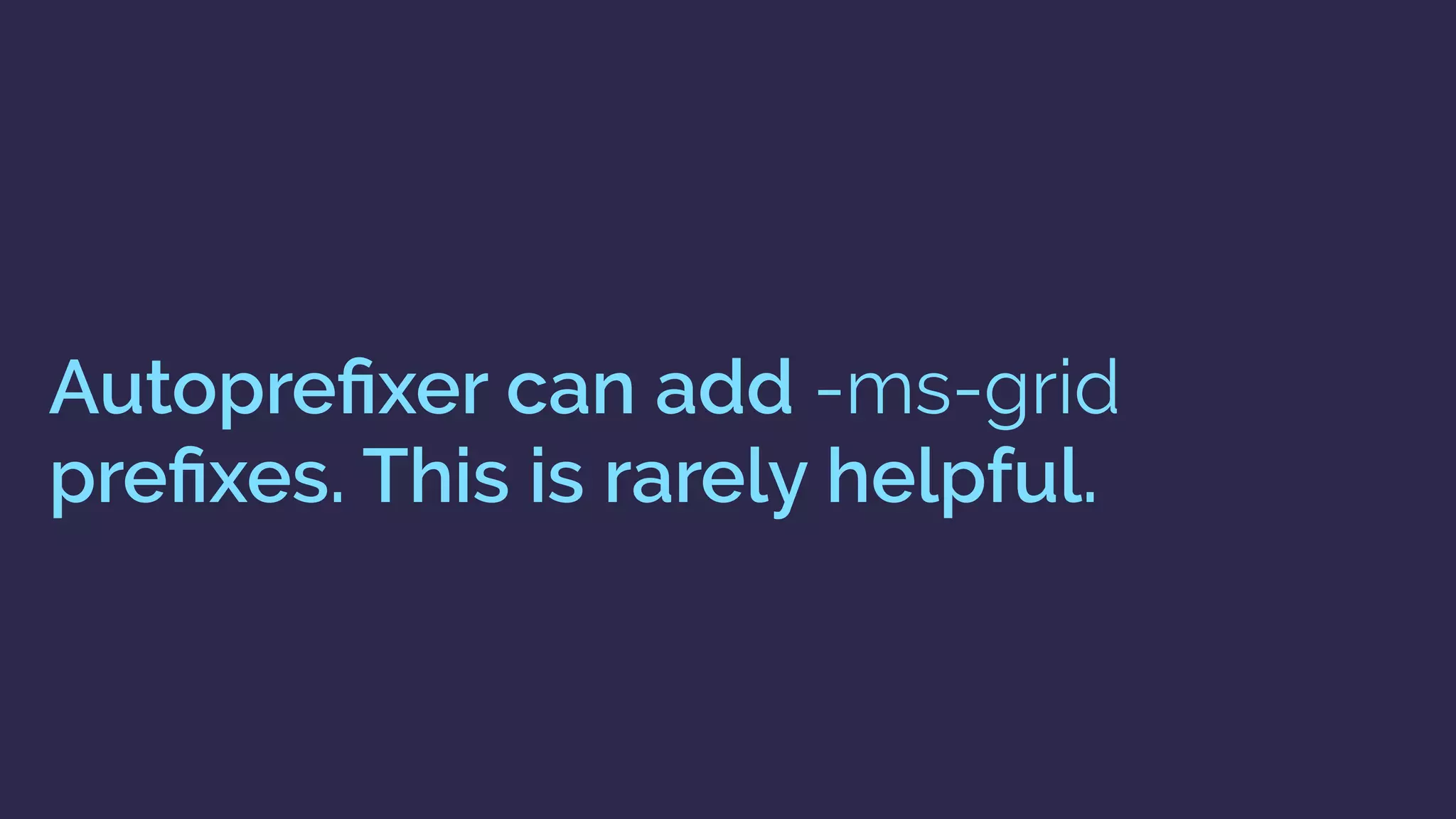

Autoprefixer can add -ms-grid
prefixes. This is rarely helpful.

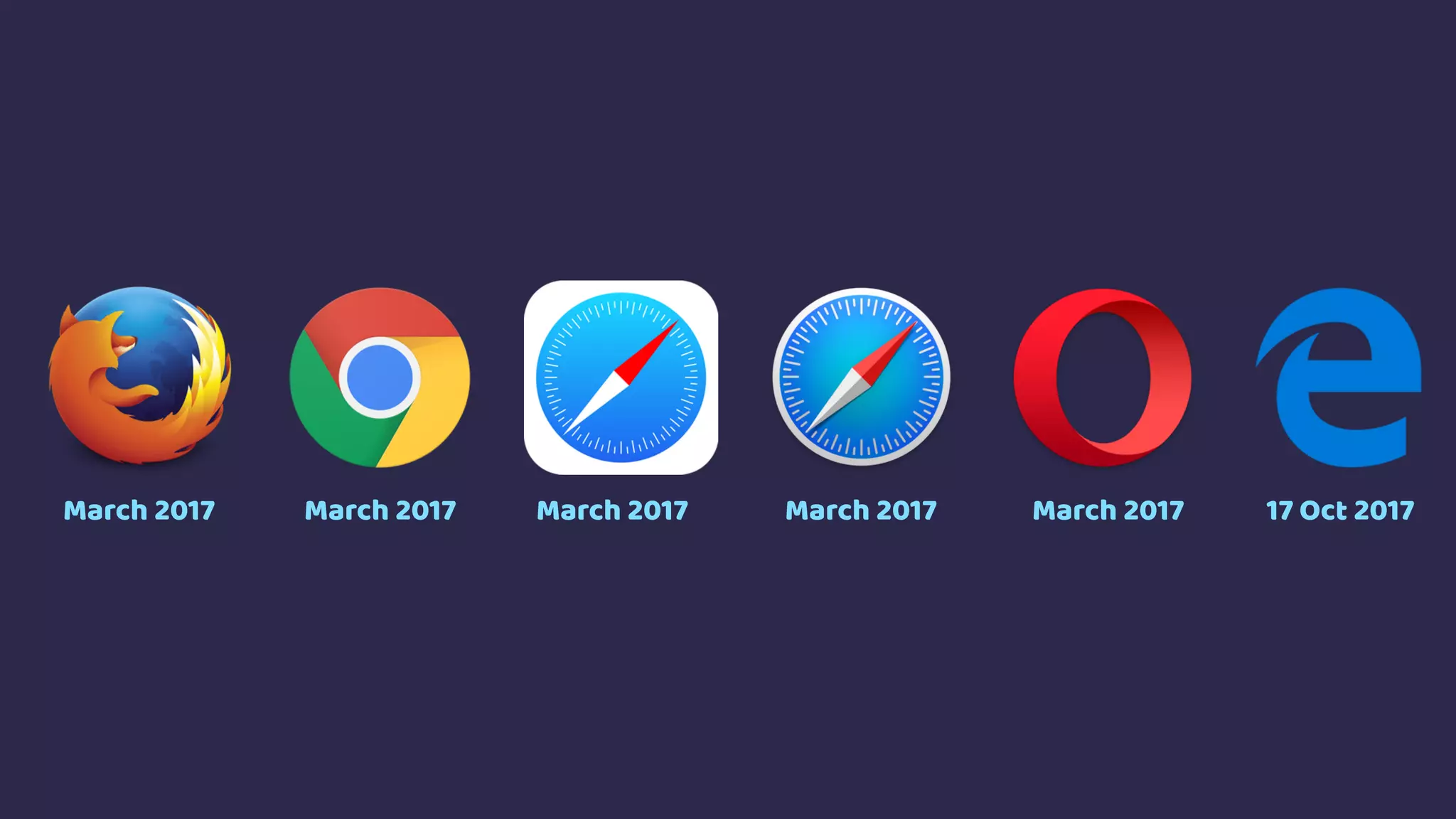

March 2017 March 2017 March 2017 March 2017 March 2017 17 Oct 2017

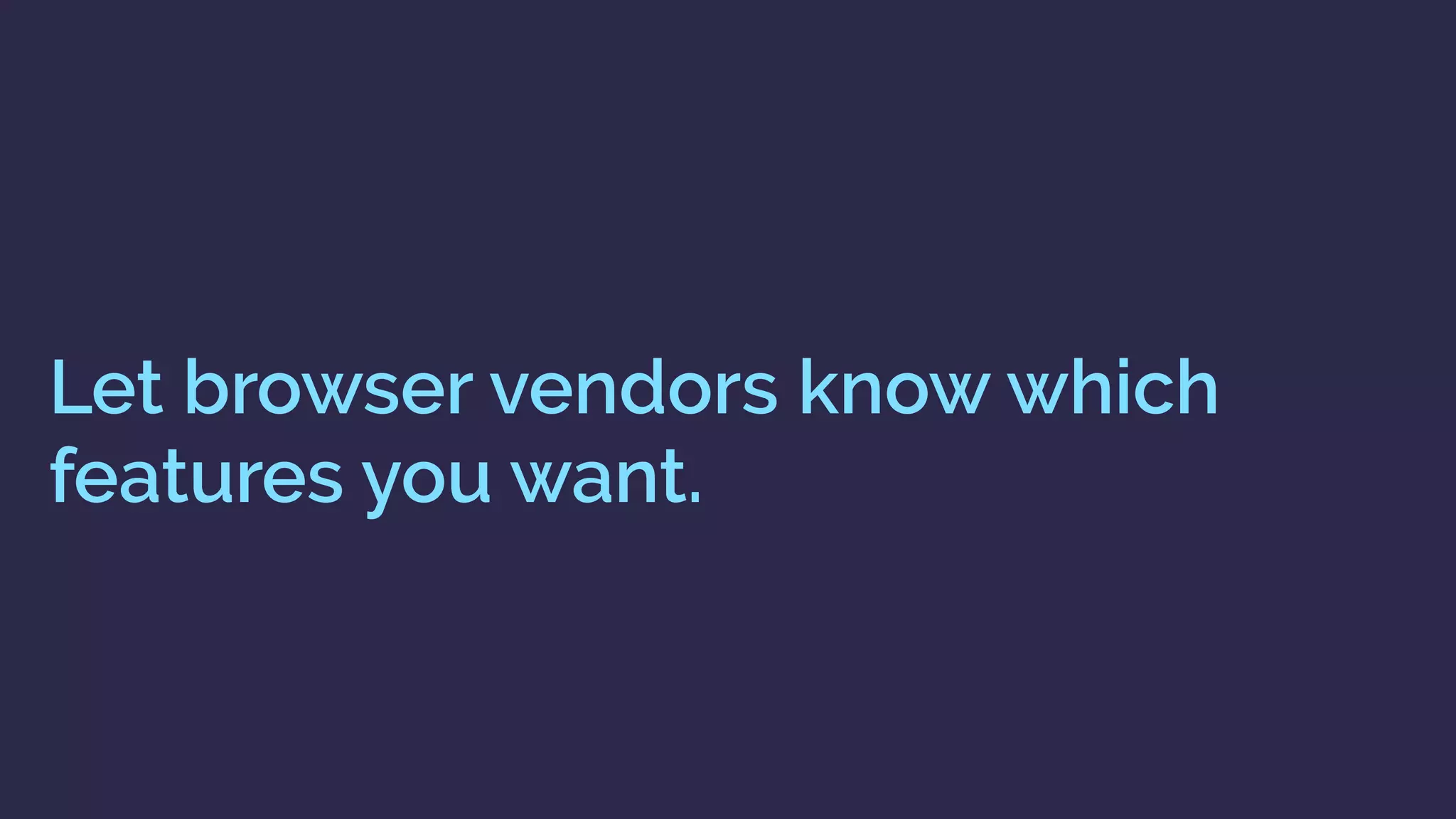

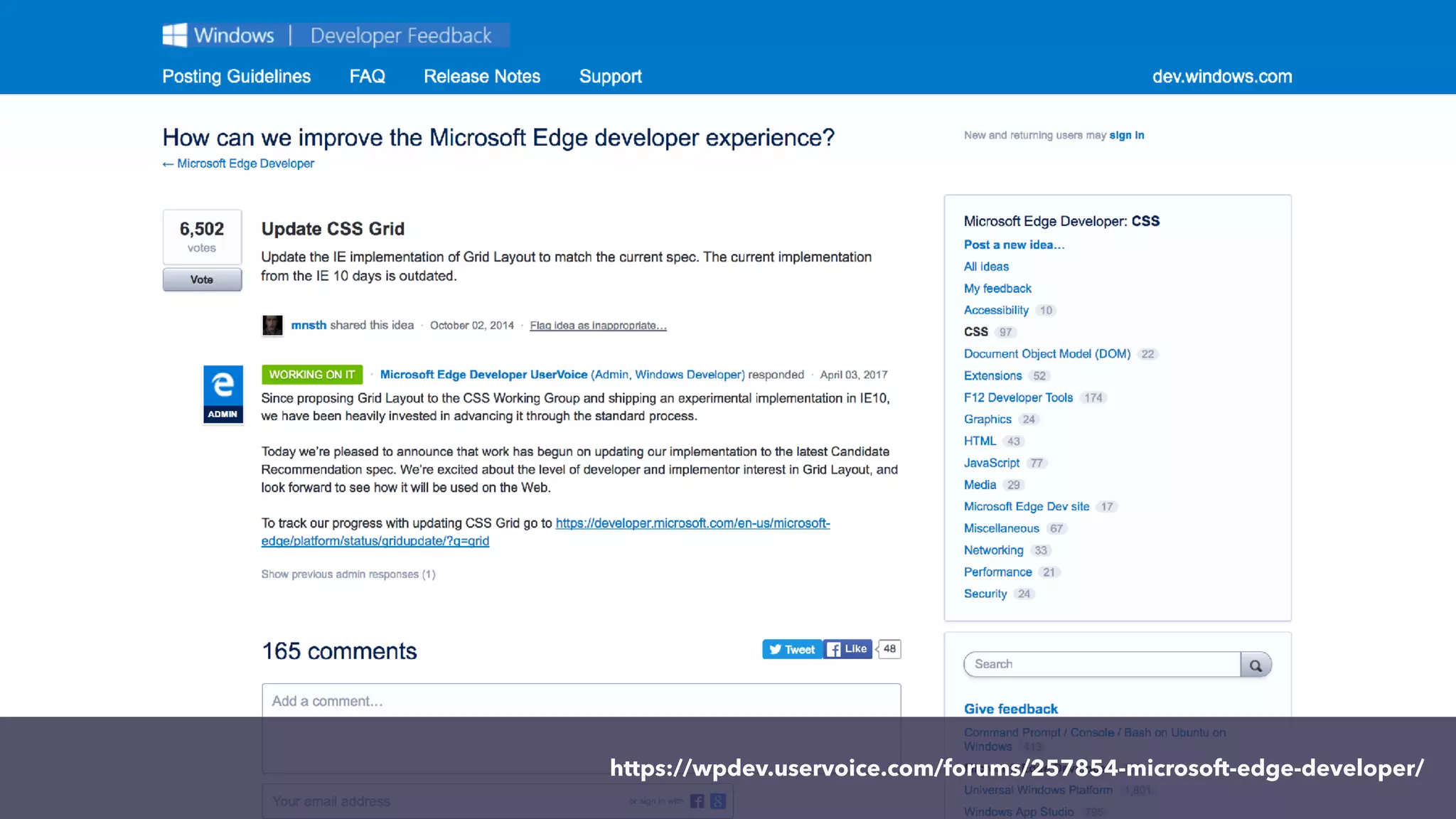

Let browser vendors know which
features you want.
https://wpdev.uservoice.com/forums/257854-microsoft-edge-developer/

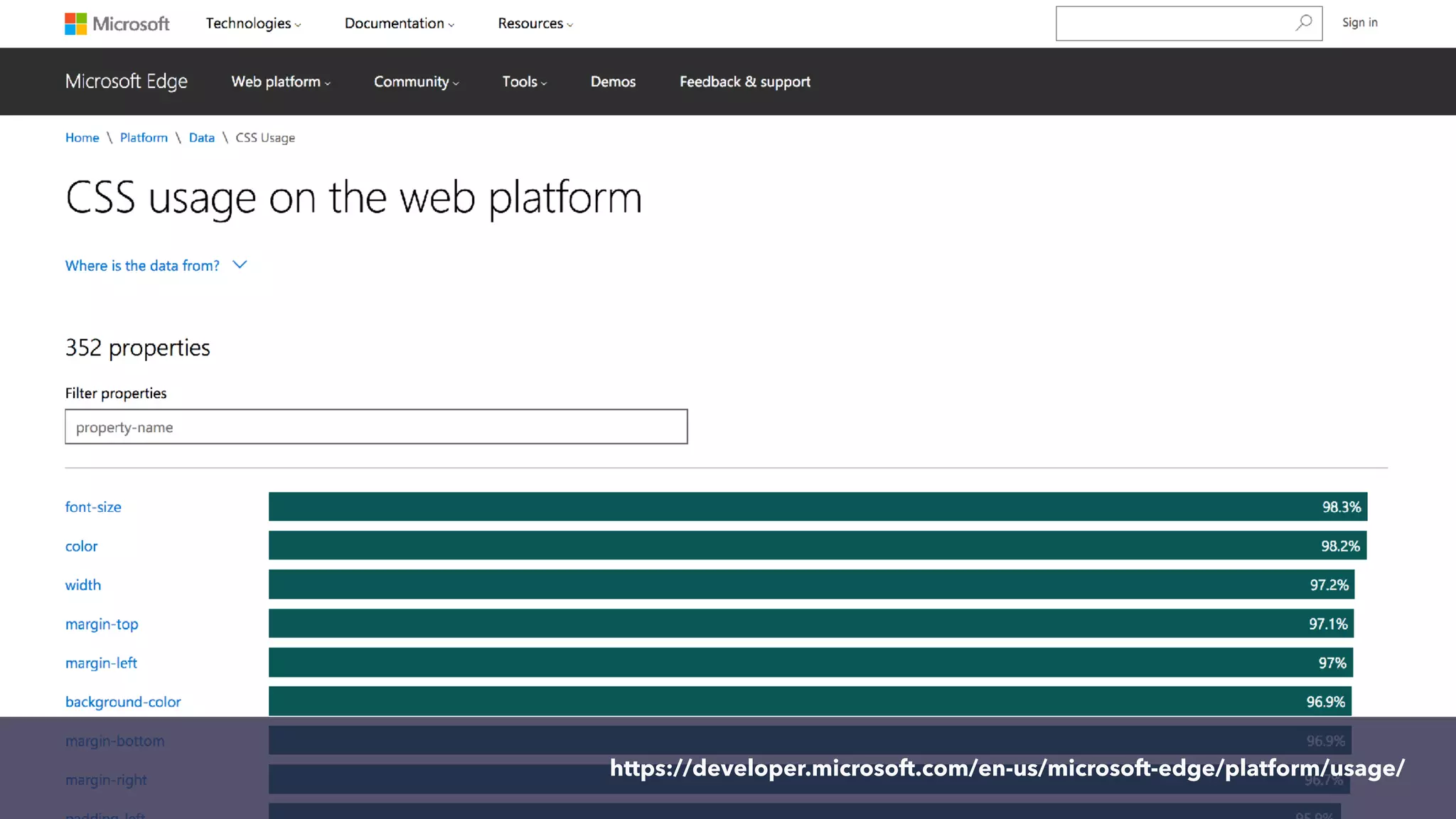

https://developer.microsoft.com/en-us/microsoft-edge/platform/usage/

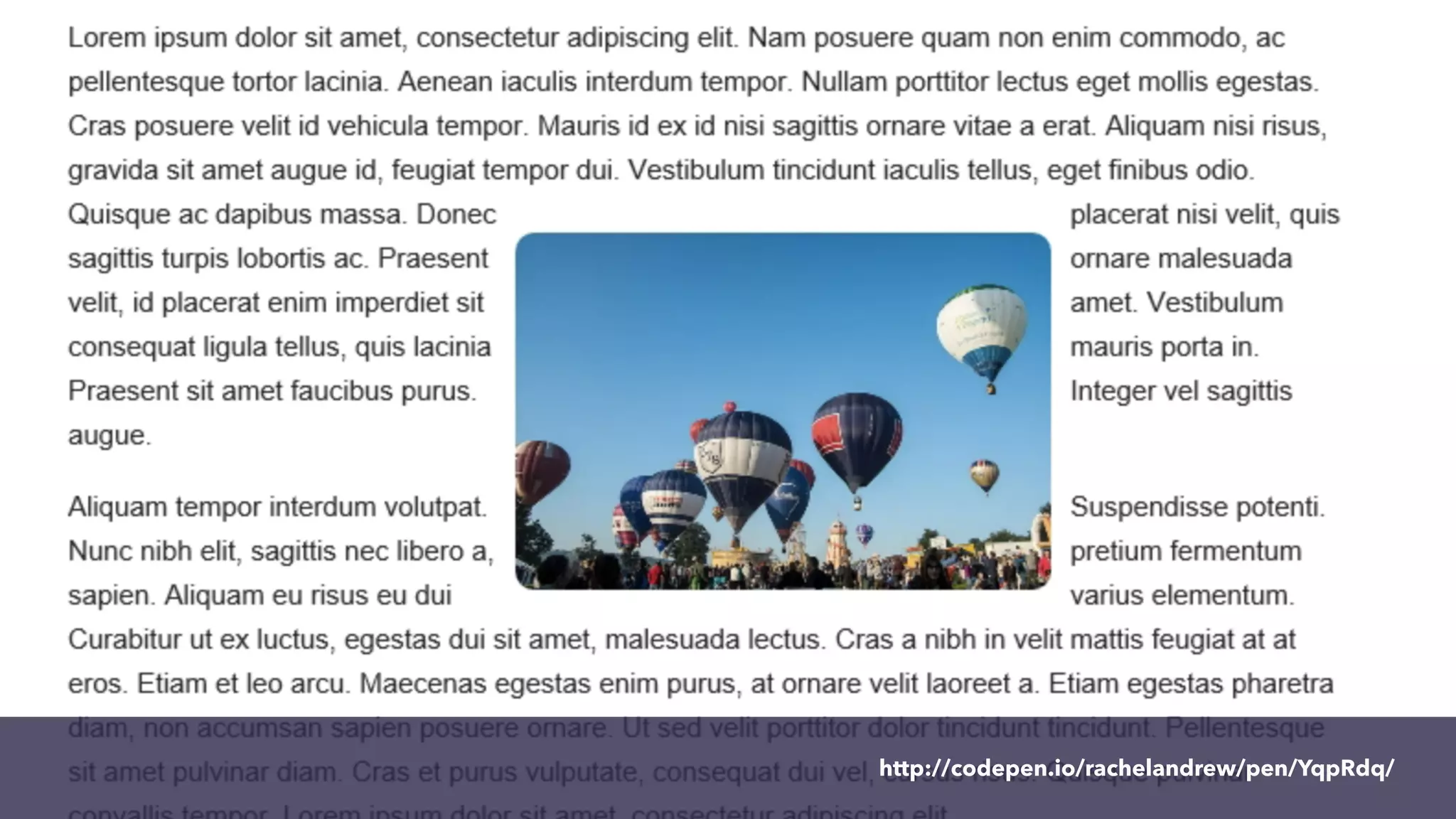

http://codepen.io/rachelandrew/pen/YqpRdq/

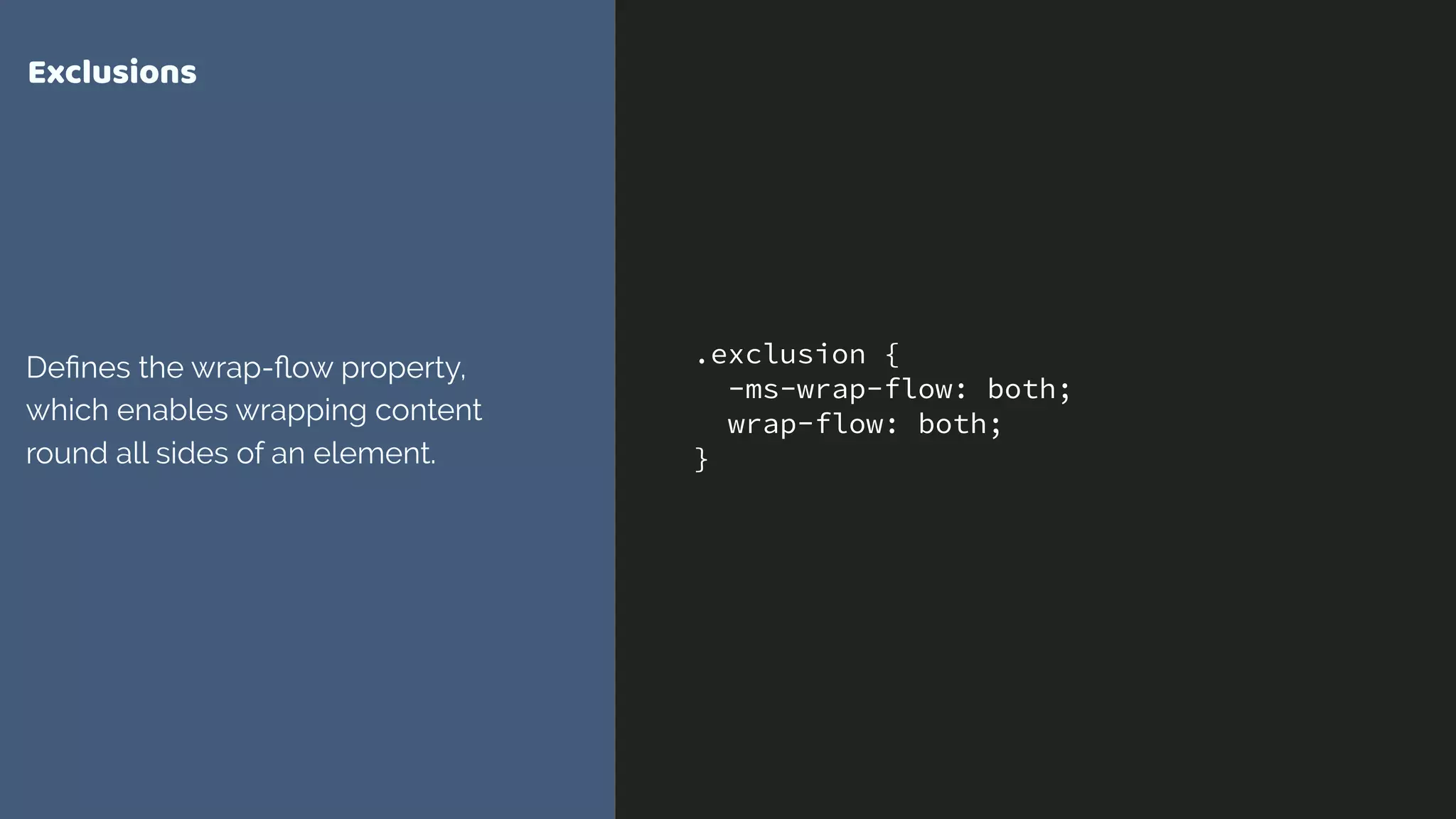

.exclusion {
-ms-wrap-flow: both;
wrap-flow: both;
}
Exclusions
Defines the wrap-flow property,
which enables wrapping content
round all sides of an element.

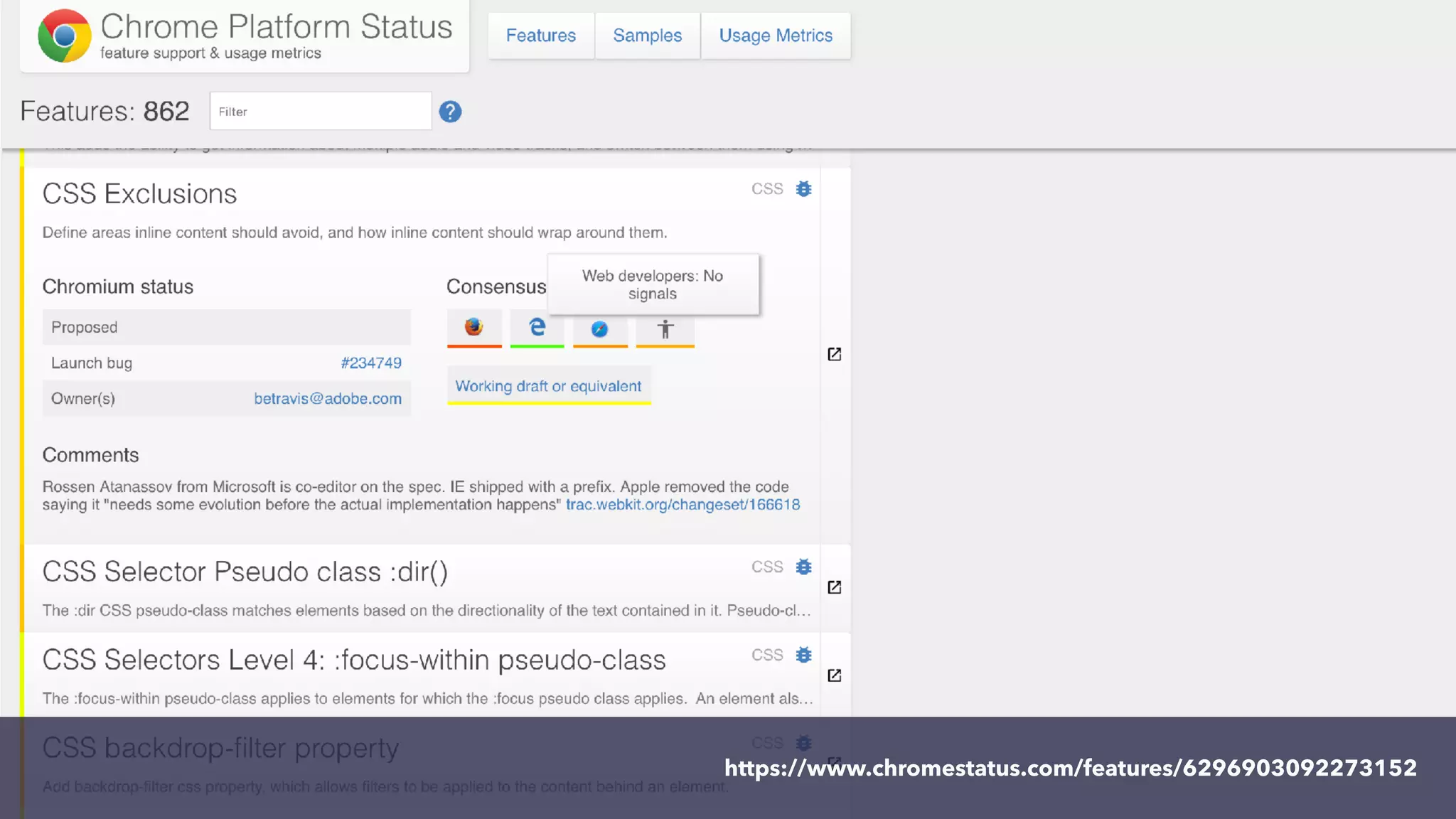

https://www.chromestatus.com/features/6296903092273152

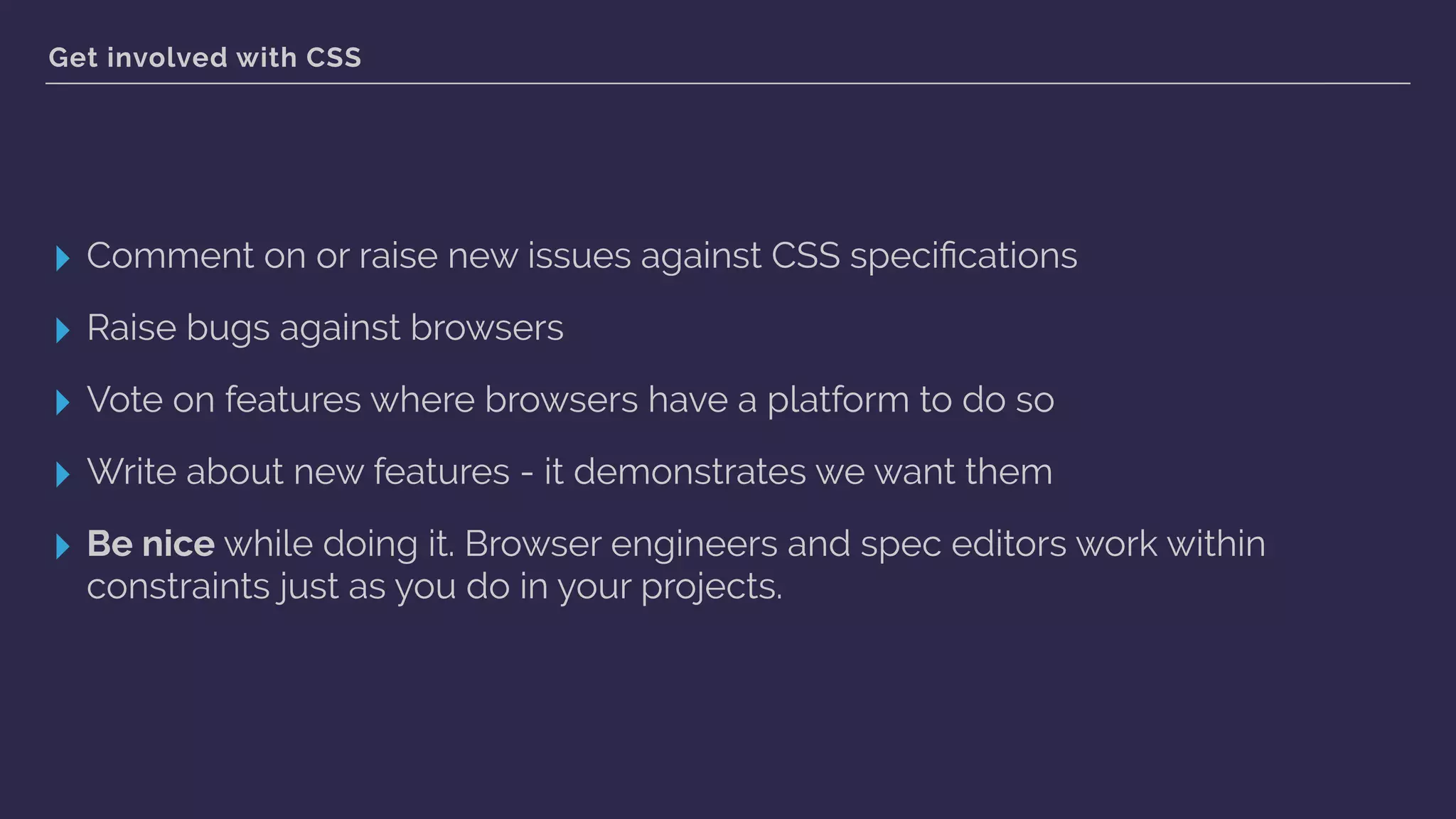

You can get involved in the future of
CSS.
https://github.com/w3c/csswg-drafts/issues
https://github.com/w3c/csswg-drafts/issues/499
Get involved with CSS
▸ Comment on or raise new issues against CSS specifications
▸ Raise bugs against browsers
▸ Vote on features where browsers have a platform to do so
▸ Write about new features - it demonstrates we want them
▸ Be nice while doing it. Browser engineers and spec editors work within
constraints just as you do in your projects.
is here!
CSS Grid
Find out more
I made you some resources
Visit Grid by Example for worked examples, and a free video
tutorial:

http://gridbyexample.com
I created a huge set of guides for MDN:

https://developer.mozilla.org/en-US/docs/Web/CSS/
CSS_Grid_Layout
Over 5 years of grid thoughts on my site at:

https://rachelandrew.co.uk/archives/tag/cssgrid
GridBugs! I’m collecting and trying to get fixed interop issues:

https://github.com/rachelandrew/gridbugs

The New

CSS Layout
Out now!
THANK YOU!
@rachelandrew



https://rachelandrew.co.uk/speaking/event/ruhrjs-2017

More Related Content

What's hot

What's hot (20)

Confoo: You can use CSS for that!
Confoo: You can use CSS for that!Confoo: You can use CSS for that!
Confoo: You can use CSS for that!

The Creative New World of CSS
The Creative New World of CSSThe Creative New World of CSS
The Creative New World of CSS

An Event Apart Seattle - New CSS Layout Meets the Real World
An Event Apart Seattle - New CSS Layout Meets the Real WorldAn Event Apart Seattle - New CSS Layout Meets the Real World
An Event Apart Seattle - New CSS Layout Meets the Real World

SmashingConf SF: Unlocking the Power of CSS Grid Layout
SmashingConf SF: Unlocking the Power of CSS Grid LayoutSmashingConf SF: Unlocking the Power of CSS Grid Layout
SmashingConf SF: Unlocking the Power of CSS Grid Layout

Unlocking the Power of CSS Grid Layout
Unlocking the Power of CSS Grid LayoutUnlocking the Power of CSS Grid Layout
Unlocking the Power of CSS Grid Layout

Laracon Online: Grid and Flexbox
Laracon Online: Grid and FlexboxLaracon Online: Grid and Flexbox
Laracon Online: Grid and Flexbox

Flexbox and Grid Layout
Flexbox and Grid LayoutFlexbox and Grid Layout
Flexbox and Grid Layout

New CSS Meets the Real World
New CSS Meets the Real WorldNew CSS Meets the Real World
New CSS Meets the Real World

GOTO Berlin - You can use CSS for that
GOTO Berlin - You can use CSS for thatGOTO Berlin - You can use CSS for that
GOTO Berlin - You can use CSS for that

All Day Hey! Unlocking The Power of CSS Grid Layout
All Day Hey! Unlocking The Power of CSS Grid LayoutAll Day Hey! Unlocking The Power of CSS Grid Layout
All Day Hey! Unlocking The Power of CSS Grid Layout

Into the Weeds of CSS Layout
Into the Weeds of CSS LayoutInto the Weeds of CSS Layout
Into the Weeds of CSS Layout

The Future of Frontend - what is new in CSS?
The Future of Frontend - what is new in CSS?The Future of Frontend - what is new in CSS?
The Future of Frontend - what is new in CSS?

AEA Chicago CSS Grid Layout
AEA Chicago CSS Grid LayoutAEA Chicago CSS Grid Layout
AEA Chicago CSS Grid Layout

Talk Web Design: Get Ready For CSS Grid Layout
Talk Web Design: Get Ready For CSS Grid LayoutTalk Web Design: Get Ready For CSS Grid Layout
Talk Web Design: Get Ready For CSS Grid Layout

Confoo: The New CSS Layout
Confoo: The New CSS LayoutConfoo: The New CSS Layout
Confoo: The New CSS Layout

CSS Day: CSS Grid Layout
CSS Day: CSS Grid Layout CSS Day: CSS Grid Layout
CSS Day: CSS Grid Layout

Render Conf: Start using CSS Grid Layout Today
Render Conf: Start using CSS Grid Layout TodayRender Conf: Start using CSS Grid Layout Today
Render Conf: Start using CSS Grid Layout Today

CSS Conf Budapest - New CSS Layout
CSS Conf Budapest - New CSS LayoutCSS Conf Budapest - New CSS Layout
CSS Conf Budapest - New CSS Layout

CSS Grid Layout - All Things Open
CSS Grid Layout - All Things OpenCSS Grid Layout - All Things Open
CSS Grid Layout - All Things Open

Solving Layout Problems with CSS Grid & Friends - WEBU17
Solving Layout Problems with CSS Grid & Friends - WEBU17Solving Layout Problems with CSS Grid & Friends - WEBU17
Solving Layout Problems with CSS Grid & Friends - WEBU17


Similar to Start Using CSS Grid Layout Today - RuhrJS

Similar to Start Using CSS Grid Layout Today - RuhrJS (20)

Grid and Flexbox - Smashing Conf SF
Grid and Flexbox - Smashing Conf SFGrid and Flexbox - Smashing Conf SF
Grid and Flexbox - Smashing Conf SF

Frontend United: Start using CSS Grid Layout today!
Frontend United: Start using CSS Grid Layout today!Frontend United: Start using CSS Grid Layout today!
Frontend United: Start using CSS Grid Layout today!

Google Developers Experts Summit 2017 - CSS Layout
Google Developers Experts Summit 2017 - CSS Layout Google Developers Experts Summit 2017 - CSS Layout
Google Developers Experts Summit 2017 - CSS Layout

Solving Layout Problems With CSS Grid and Friends
Solving Layout Problems With CSS Grid and FriendsSolving Layout Problems With CSS Grid and Friends
Solving Layout Problems With CSS Grid and Friends

404.ie: Solving Layout Problems with CSS Grid & Friends
404.ie: Solving Layout Problems with CSS Grid & Friends404.ie: Solving Layout Problems with CSS Grid & Friends
404.ie: Solving Layout Problems with CSS Grid & Friends

Making the most of New CSS Layout
Making the most of New CSS LayoutMaking the most of New CSS Layout
Making the most of New CSS Layout

Laying out the future
Laying out the futureLaying out the future
Laying out the future

CSSConf.asia - Laying out the future
CSSConf.asia - Laying out the futureCSSConf.asia - Laying out the future
CSSConf.asia - Laying out the future

An Event Apart Nashville: CSS Grid Layout
An Event Apart Nashville: CSS Grid LayoutAn Event Apart Nashville: CSS Grid Layout
An Event Apart Nashville: CSS Grid Layout

CSS Grid Layout
CSS Grid LayoutCSS Grid Layout
CSS Grid Layout

Devoxx Belgium: CSS Grid Layout
Devoxx Belgium: CSS Grid LayoutDevoxx Belgium: CSS Grid Layout
Devoxx Belgium: CSS Grid Layout

An Event Apart SF: CSS Grid Layout
An Event Apart SF: CSS Grid LayoutAn Event Apart SF: CSS Grid Layout
An Event Apart SF: CSS Grid Layout

CSS Grid Layout for Topconf, Linz
CSS Grid Layout for Topconf, LinzCSS Grid Layout for Topconf, Linz
CSS Grid Layout for Topconf, Linz

Introduction to CSS Grid Layout
Introduction to CSS Grid LayoutIntroduction to CSS Grid Layout
Introduction to CSS Grid Layout

World of CSS Grid
World of CSS GridWorld of CSS Grid
World of CSS Grid

But what about old browsers?
But what about old browsers?But what about old browsers?
But what about old browsers?

The New CSS Layout - dotCSS
The New CSS Layout - dotCSSThe New CSS Layout - dotCSS
The New CSS Layout - dotCSS

Fluent: Making Sense of the New CSS Layout
Fluent: Making Sense of the New CSS LayoutFluent: Making Sense of the New CSS Layout
Fluent: Making Sense of the New CSS Layout

Flexbox and Grid Layout
Flexbox and Grid LayoutFlexbox and Grid Layout
Flexbox and Grid Layout

Introducing CSS Grid Layout
Introducing CSS Grid LayoutIntroducing CSS Grid Layout
Introducing CSS Grid Layout


More from Rachel Andrew (7)

Web Summer Camp Keynote
Web Summer Camp KeynoteWeb Summer Camp Keynote
Web Summer Camp Keynote

New CSS Layout Meets the Real World
New CSS Layout Meets the Real WorldNew CSS Layout Meets the Real World
New CSS Layout Meets the Real World

An Event Apart DC - New CSS Layout meets the Real World
An Event Apart DC - New CSS Layout meets the Real WorldAn Event Apart DC - New CSS Layout meets the Real World
An Event Apart DC - New CSS Layout meets the Real World

Perch, Patterns and Old Browsers
Perch, Patterns and Old BrowsersPerch, Patterns and Old Browsers
Perch, Patterns and Old Browsers

Where does CSS come from?
Where does CSS come from?Where does CSS come from?
Where does CSS come from?

CSS Grid for html5j
CSS Grid for html5jCSS Grid for html5j
CSS Grid for html5j

CSS Grid Layout for Frontend NE
CSS Grid Layout for Frontend NECSS Grid Layout for Frontend NE
CSS Grid Layout for Frontend NE


Recently uploaded

Easier, Faster, and More Powerful – Alles Neu macht der Mai -Wir durchleuchte...
Easier, Faster, and More Powerful – Alles Neu macht der Mai -Wir durchleuchte...Easier, Faster, and More Powerful – Alles Neu macht der Mai -Wir durchleuchte...
Easier, Faster, and More Powerful – Alles Neu macht der Mai -Wir durchleuchte...
panagenda

Tales from a Passkey Provider Progress from Awareness to Implementation.pptx
Tales from a Passkey Provider  Progress from Awareness to Implementation.pptxTales from a Passkey Provider  Progress from Awareness to Implementation.pptx
Tales from a Passkey Provider Progress from Awareness to Implementation.pptx
FIDO Alliance

Revolutionizing SAP® Processes with Automation and Artificial Intelligence
Revolutionizing SAP® Processes with Automation and Artificial IntelligenceRevolutionizing SAP® Processes with Automation and Artificial Intelligence
Revolutionizing SAP® Processes with Automation and Artificial Intelligence
Precisely

Harnessing Passkeys in the Battle Against AI-Powered Cyber Threats.pptx
Harnessing Passkeys in the Battle Against AI-Powered Cyber Threats.pptxHarnessing Passkeys in the Battle Against AI-Powered Cyber Threats.pptx
Harnessing Passkeys in the Battle Against AI-Powered Cyber Threats.pptx
FIDO Alliance


Recently uploaded (20)

TopCryptoSupers 12thReport OrionX May2024
TopCryptoSupers 12thReport OrionX May2024TopCryptoSupers 12thReport OrionX May2024
TopCryptoSupers 12thReport OrionX May2024

UiPath manufacturing technology benefits and AI overview
UiPath manufacturing technology benefits and AI overviewUiPath manufacturing technology benefits and AI overview
UiPath manufacturing technology benefits and AI overview

The Zero-ETL Approach: Enhancing Data Agility and Insight
The Zero-ETL Approach: Enhancing Data Agility and InsightThe Zero-ETL Approach: Enhancing Data Agility and Insight
The Zero-ETL Approach: Enhancing Data Agility and Insight

JavaScript Usage Statistics 2024 - The Ultimate Guide
JavaScript Usage Statistics 2024 - The Ultimate GuideJavaScript Usage Statistics 2024 - The Ultimate Guide
JavaScript Usage Statistics 2024 - The Ultimate Guide

Working together SRE & Platform Engineering
Working together SRE & Platform EngineeringWorking together SRE & Platform Engineering
Working together SRE & Platform Engineering

Design Guidelines for Passkeys 2024.pptx
Design Guidelines for Passkeys 2024.pptxDesign Guidelines for Passkeys 2024.pptx
Design Guidelines for Passkeys 2024.pptx

Easier, Faster, and More Powerful – Alles Neu macht der Mai -Wir durchleuchte...
Easier, Faster, and More Powerful – Alles Neu macht der Mai -Wir durchleuchte...Easier, Faster, and More Powerful – Alles Neu macht der Mai -Wir durchleuchte...
Easier, Faster, and More Powerful – Alles Neu macht der Mai -Wir durchleuchte...

TEST BANK For, Information Technology Project Management 9th Edition Kathy Sc...
TEST BANK For, Information Technology Project Management 9th Edition Kathy Sc...TEST BANK For, Information Technology Project Management 9th Edition Kathy Sc...
TEST BANK For, Information Technology Project Management 9th Edition Kathy Sc...

The Metaverse: Are We There Yet?
The  Metaverse:    Are   We  There  Yet?The  Metaverse:    Are   We  There  Yet?
The Metaverse: Are We There Yet?

Oauth 2.0 Introduction and Flows with MuleSoft
Oauth 2.0 Introduction and Flows with MuleSoftOauth 2.0 Introduction and Flows with MuleSoft
Oauth 2.0 Introduction and Flows with MuleSoft

Long journey of Ruby Standard library at RubyKaigi 2024
Long journey of Ruby Standard library at RubyKaigi 2024Long journey of Ruby Standard library at RubyKaigi 2024
Long journey of Ruby Standard library at RubyKaigi 2024

2024 May Patch Tuesday
2024 May Patch Tuesday2024 May Patch Tuesday
2024 May Patch Tuesday

Tales from a Passkey Provider Progress from Awareness to Implementation.pptx
Tales from a Passkey Provider  Progress from Awareness to Implementation.pptxTales from a Passkey Provider  Progress from Awareness to Implementation.pptx
Tales from a Passkey Provider Progress from Awareness to Implementation.pptx

Revolutionizing SAP® Processes with Automation and Artificial Intelligence
Revolutionizing SAP® Processes with Automation and Artificial IntelligenceRevolutionizing SAP® Processes with Automation and Artificial Intelligence
Revolutionizing SAP® Processes with Automation and Artificial Intelligence

Harnessing Passkeys in the Battle Against AI-Powered Cyber Threats.pptx
Harnessing Passkeys in the Battle Against AI-Powered Cyber Threats.pptxHarnessing Passkeys in the Battle Against AI-Powered Cyber Threats.pptx
Harnessing Passkeys in the Battle Against AI-Powered Cyber Threats.pptx

ChatGPT and Beyond - Elevating DevOps Productivity
ChatGPT and Beyond - Elevating DevOps ProductivityChatGPT and Beyond - Elevating DevOps Productivity
ChatGPT and Beyond - Elevating DevOps Productivity

WebAssembly is Key to Better LLM Performance
WebAssembly is Key to Better LLM PerformanceWebAssembly is Key to Better LLM Performance
WebAssembly is Key to Better LLM Performance

State of the Smart Building Startup Landscape 2024!
State of the Smart Building Startup Landscape 2024!State of the Smart Building Startup Landscape 2024!
State of the Smart Building Startup Landscape 2024!

Syngulon - Selection technology May 2024.pdf
Syngulon - Selection technology May 2024.pdfSyngulon - Selection technology May 2024.pdf
Syngulon - Selection technology May 2024.pdf

Introduction to FIDO Authentication and Passkeys.pptx
Introduction to FIDO Authentication and Passkeys.pptxIntroduction to FIDO Authentication and Passkeys.pptx
Introduction to FIDO Authentication and Passkeys.pptx


Start Using CSS Grid Layout Today - RuhrJS

  • 1. START USING GRID LAYOUT TODAY @rachelandrew @ RuhrJS
  • 2. Rachel Andrew ▸ CSS Working Group Invited Expert ▸ Google Developer Expert ▸ co-founder Perch CMS ▸ Old Nerd. ▸ You can find me in most places as @rachelandrew you can email me@rachelandrew.co.uk or check out my site at https://rachelandrew.co.uk
  • 3. March 2017 March 2017 March 2017 March 2017 March 2017 17 Oct 2017
  • 4. Start using Grid Layout today ▸ What is grid & why is it different to flexbox? ▸ How do I get started using grid in production? ▸ What about old browsers? ▸ How can we help encourage browsers to give us cool new stuff?
  • 6. Flexbox is for one-dimensional layout
  • 7.
  • 8. Grid is for two-dimensional layout
  • 9.
  • 10. .grid { display: grid; grid-gap: 20px; grid-template-columns: repeat(auto- fill, minmax(200px, 1fr)); } Grid minmax() and auto-fill Creating a flexible number of flexible tracks, with a little bit of grid spec magic. http://codepen.io/rachelandrew/pen/evjdLM
  • 11. If you are adding widths to all your flex items, you probably need grid.
  • 12. .example { display: flex; justify-content: space-between; margin: 30px; } Flexbox Using space-between https://codepen.io/rachelandrew/pen/rzXXJY
  • 13.
  • 14. .example { display: flex; flex-wrap: wrap; margin: 30px; } .example > div { flex: 1 1 auto; } Flexbox Allowing items to grow and shrink from a flex-basis of auto. https://codepen.io/rachelandrew/pen/MvNNaj
  • 15.
  • 16. Grid works from the container in
  • 17. .example { display: grid; grid-gap: 20px; grid-template-columns: 1fr 1fr 1fr 1fr; margin: 20px; } Grid Define column tracks. Items are constrained by those tracks. https://codepen.io/rachelandrew/pen/prMMLe
  • 18. 1fr 1fr 1fr 1fr
  • 19. .example { display: grid; grid-gap: 20px; grid-template-columns: 2fr 1fr 2fr 1fr; margin: 20px; } Grid To make some tracks larger than others, we do that when defining the tracks on the container not on the item itself. https://codepen.io/rachelandrew/pen/LjwwgM
  • 20. 2fr 1fr 2fr 1fr
  • 21. .example { display: grid; grid-gap: 20px; grid-template-columns: min-content max- content fit-content(200px); margin: 20px; } Grid Key words based on content size, change the size of the entire track. - min-content - max-content - fit-content https://codepen.io/rachelandrew/pen/NaLExq
  • 22.
  • 23. Other layout methods start with
 the item.
  • 24. .box { float: left; width: 33.3333%; } A float grid The float property and widths are added to the items.
  • 25. .box { display: inline-block; width: 33.3333%; } inline-block grid The display property is set to inline- block and width is added to the item.
  • 26. .container {
 display: flex;
 }
 .box { flex: 0 0 33.3333%; } Flex grid We add display: flex to the container however to make a grid out of flex items we need to use the flex properties in the items.
  • 27. .container { display: grid; grid-template-columns: 1fr 1fr 1fr; } Grid Layout With CSS Grid Layout we create the grid on the parent element. We don’t need to add properties to the items.
  • 28. Grid is all about the container
  • 30.
  • 31.
  • 32.
  • 33. <div class="box-feature"> <img class="box-image" src="http://placehold.it/ 900x450" alt="placeholder"> <h2 class="box-feature-title">Featured Item</h2> <div class="box-content">…</div> </div> Feature box The feature has an image with a heading and body text overlaid.
  • 34. .box-feature { display: grid; grid-gap: 20px; grid-template-columns: repeat(6, 1fr); } Feature box display: grid turns on grid layout grid-gap defines gutters between grid items grid-template-columns creates column tracks. In this case creating a grid with 6 columns.
  • 35. The fr unit defines a fraction of the available space in the grid container
  • 36.
  • 37. .box-feature .box-image { align-self: stretch; justify-self: stretch; grid-column: 1 / -1; grid-row: 1 / 4; } Feature box The image starts at grid column
 line 1 and ends at -1, which is the end line. It starts at grid row 1, ending at grid row 4. Using box alignment properties to stretch the image over that area.
  • 38. Grid lines respect writing mode. Column line 1 is on the left and -1 on the right in a LTR language.
  • 39. Explicit vs. Implicit Grid ▸ The Explicit Grid is created when you define tracks with grid-template- columns and grid-template-rows ▸ If you place an item outside of that grid, or auto-placed content requires further row or column tracks these are added by grid as the Implicit Grid.
  • 40.
  • 41. .box-feature .box-feature-title { grid-column: 3 / -1; grid-row: 1; background-color: rgba(0,0,0,0.7); color: #fff; align-self: start; padding: 20px; } .box-feature .box-content { grid-column: 2 / -1; grid-row: 2; background-color: rgba(0,0,0,0.7); color: #fff; padding: 20px; } Feature box Positioning the content inside the area that the image is stretched over.
  • 43. Layering items on the grid ▸ You can position items into the same grid cells ▸ Items further down in the source appear on top of earlier items ▸ Control the stack using z-index
  • 44.
  • 45.
  • 46. .listing { display: grid; grid-template-columns: repeat(12,1fr); grid-gap: 20px; } The listing The container for our boxes has 12 equal columns.
  • 47.
  • 48.
  • 49. .box-title { grid-column: 1 / 4; grid-row: 1 / 2; } .box-feature { grid-column: 4 / -1; grid-row: 1 / 2; } The listing Positioning the title top left and the feature top right
  • 50.
  • 51. .box-newer { grid-column: auto / span 4; } .box-newer.box-media { grid-row-end: span 2; } Larger boxes Newer items span 4 column tracks. If they also have a class of box-media they span 2 row tracks.
  • 52. .box-older { grid-column: auto / span 3; } Smaller boxes The boxes for older items span 3 tracks.
  • 55. .box-title { grid-column: 1 / -1; grid-row: 1; } @media all and (min-width: 53.125em) { .box-title { grid-column: 1 / 6; grid-row: 1 / 3; } } @media all and (min-width: 75em) { .box-title { grid-column: 1 / 4; grid-row: 1 / 2; } } Going responsive Inside media queries we can redefine where items sit on the grid.
  • 56. .box-newer { grid-column: 1 / -1; } @media all and (min-width: 28.125em) { .box-newer { grid-column: auto / span 6; } } @media all and (min-width: 53.125em) { .box-newer { grid-column: auto / span 4; } } Going responsive Or redefine how many columns they span.
  • 59. What about old browsers? If using display: grid on a container, child items: ‣ Using float, lose their float behaviour ‣ The vertical-align property has no effect ‣ Flex items become grid items ‣ Items set to display: block or inline-block become grid items ‣ Items set to display: table-cell stop creating anonymous boxes
  • 60. You do not need to build “two layouts”
  • 61.

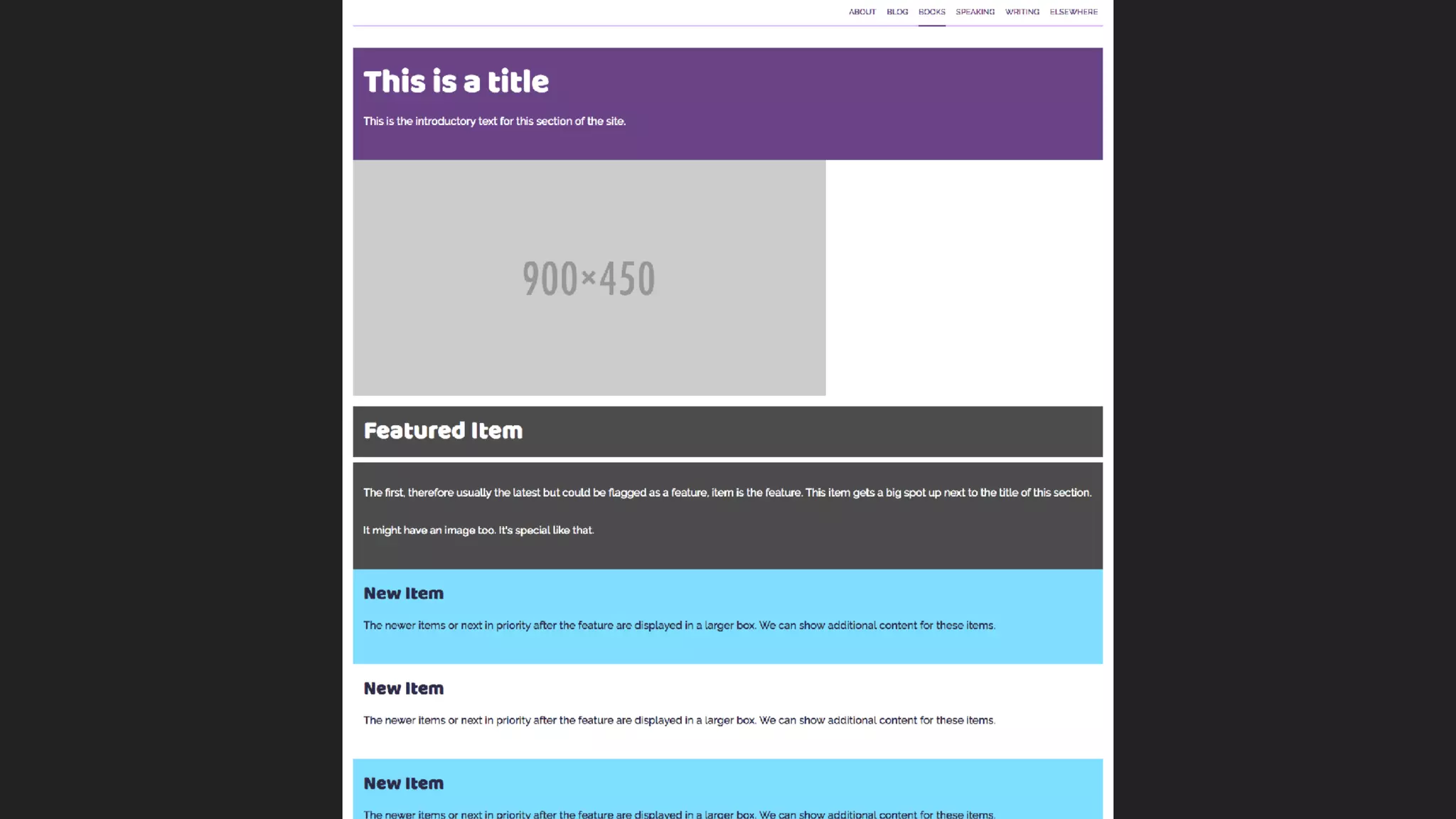

  • 62. .listing { display: flex; flex-wrap: wrap; margin: 0 20px; display: grid; grid-template-columns: repeat(12,1fr); grid-gap: 20px; } .listing > * { flex: 1 1 30%; margin: 0 20px 20px 20px; } Adding a flex fallback Browsers that support display: flex and not grid will turn the children into flex, not grid, items. The flex properties applied to those items will be ignored by grid layout.
  • 63. Feature Queries are your new best friend
  • 64.
  • 65. .listing > * { flex: 1 1 30%; margin: 0 20px 20px 20px; } @supports(display: grid) { .listing > * { margin: 0; } } Using feature queries Add a margin for flex layout, remove it if we are using grid layout.
  • 66.
  • 67. .listing .box-feature { flex: 1 1 60%; } Flex layout Give the feature box a larger flex- basis percentage.
  • 69. .grid > div { float: left; } .grid { display: grid; grid-gap: 10px; grid-template-columns: repeat(3, auto); width: 500px; } Float and Clear The float and clear properties have no effect on a grid item.

 https://codepen.io/rachelandrew/pen/YZeqZv
  • 70. .grid > div { display: inline-block; } .grid { display: grid; grid-gap: 10px; grid-template-columns: repeat(3, auto); width: 500px; } display: inline-block The properties associated with something being inline-block cease to apply.

 https://codepen.io/rachelandrew/pen/vxdGjQ
  • 71. .grid > div { display: table-cell; vertical-align: top; } .grid { border-spacing: 10px; } .grid { display: grid; grid-gap: 10px; grid-template-columns: repeat(3, auto); width: 500px; } display: table Anonymous boxes will not be generated and the item will become a grid item.

 https://codepen.io/rachelandrew/pen/bqLpQN
  • 72. .grid > div { display: inline-block; vertical-align: top; } .grid { display: grid; grid-gap: 10px; grid-template-columns: repeat(3, auto); width: 500px; } The vertical-align property Can be used as a fallback for box alignment and ceases to apply on grid items.

 https://codepen.io/rachelandrew/pen/vxdGaQ
  • 73. .grid { column-count: 3; width: 500px; } .grid { display: grid; grid-gap: 10px; grid-template-columns: repeat(3, auto); } Multiple-column layout Multiple-column layout properties cease to apply in grid layout.

 https://codepen.io/rachelandrew/pen/JWpXxv
  • 74. .grid { display: flex; align-items: center; width: 500px; height: 200px; border: 1px dotted #694486; } .grid > div { flex: 1; } .grid { display: grid; grid-gap: 10px; grid-template-columns: repeat(3, auto); } Flex layout Grid will override flex layout and shares box alignment properties.

 https://codepen.io/rachelandrew/pen/YZeqMB
  • 75. Overrides inside @supports are mostly widths & margins
  • 76. * { box-sizing: border-box; } .grid > div { float: left; width: 33.333%; } @supports (display: grid) { .grid > div { width: auto; } } .grid { display: grid; grid-gap: 10px; grid-template-columns: repeat(3, 1fr); width: 500px; } Override widths in feature queries Watch out for widths in your fallback layouts.

 https://codepen.io/rachelandrew/pen/JWpXNr
  • 78. IE/Edge Grid implementation ▸ Updated grid implementation ships in Edge next week - 17th October ▸ Edge 15 and below, IE10 and IE11 have an older version of Grid ▸ Prefixed with -ms ▸ No auto-placement or grid-template-areas layout ▸ For simple line-based positioning it works ▸ More at https://rachelandrew.co.uk/archives/2017/04/04/edge-starts-work- on-their-grid-implementation-update/
  • 79. Autoprefixer can add -ms-grid prefixes. This is rarely helpful.
  • 80. March 2017 March 2017 March 2017 March 2017 March 2017 17 Oct 2017
  • 81. Let browser vendors know which features you want.
  • 85. .exclusion { -ms-wrap-flow: both; wrap-flow: both; } Exclusions Defines the wrap-flow property, which enables wrapping content round all sides of an element.
  • 87. You can get involved in the future of CSS.

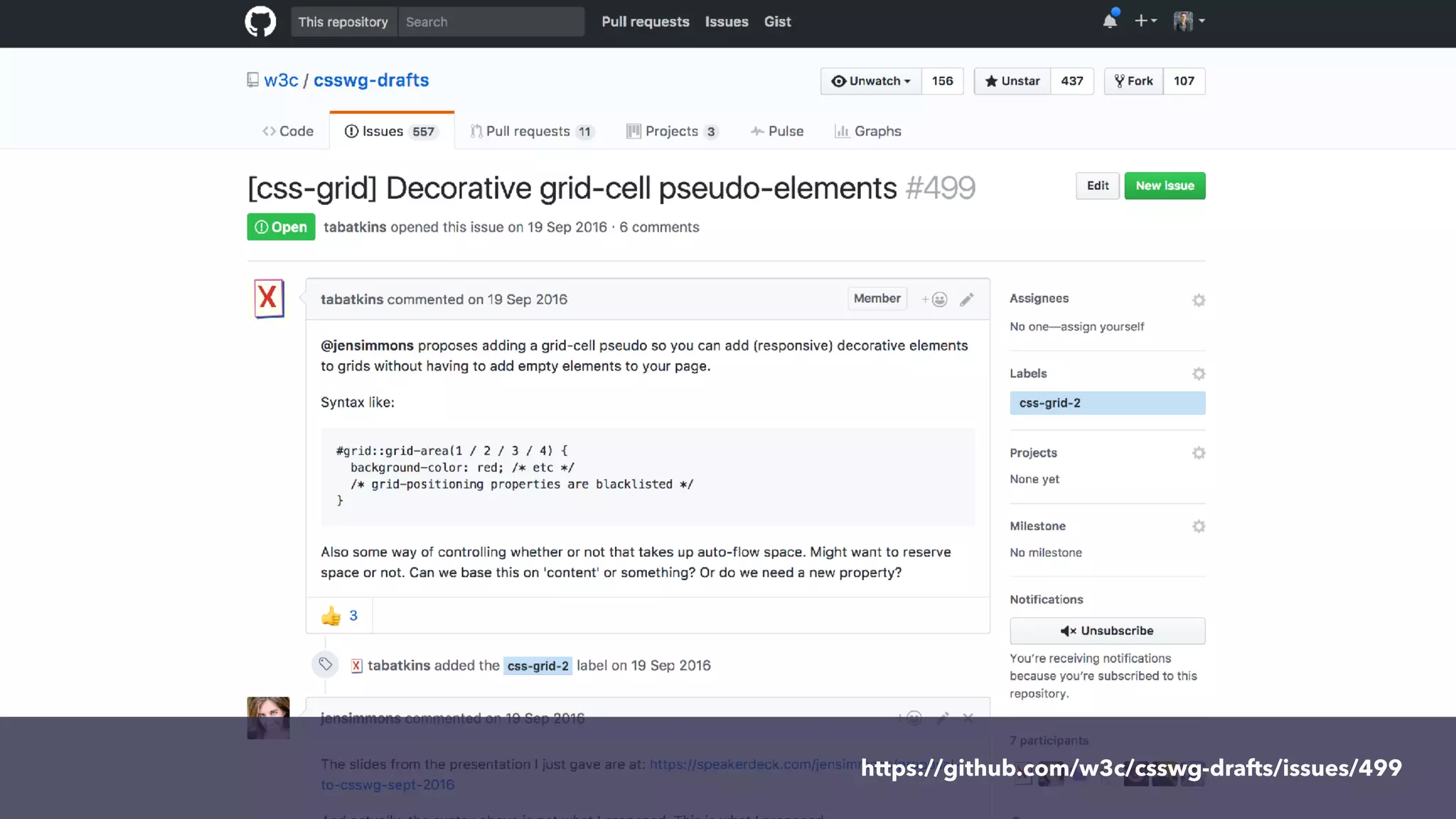

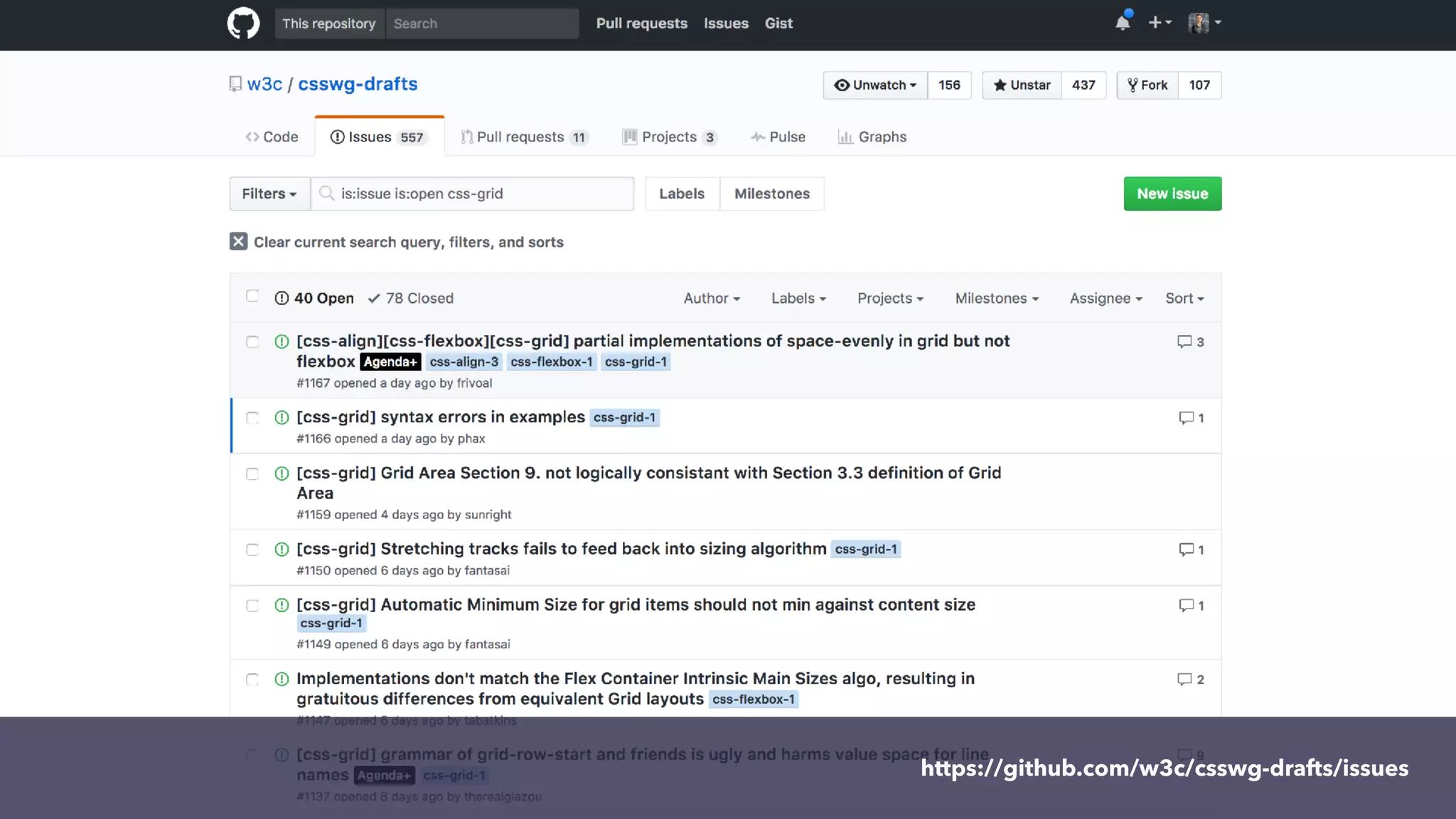

  • 90. Get involved with CSS ▸ Comment on or raise new issues against CSS specifications ▸ Raise bugs against browsers ▸ Vote on features where browsers have a platform to do so ▸ Write about new features - it demonstrates we want them ▸ Be nice while doing it. Browser engineers and spec editors work within constraints just as you do in your projects.

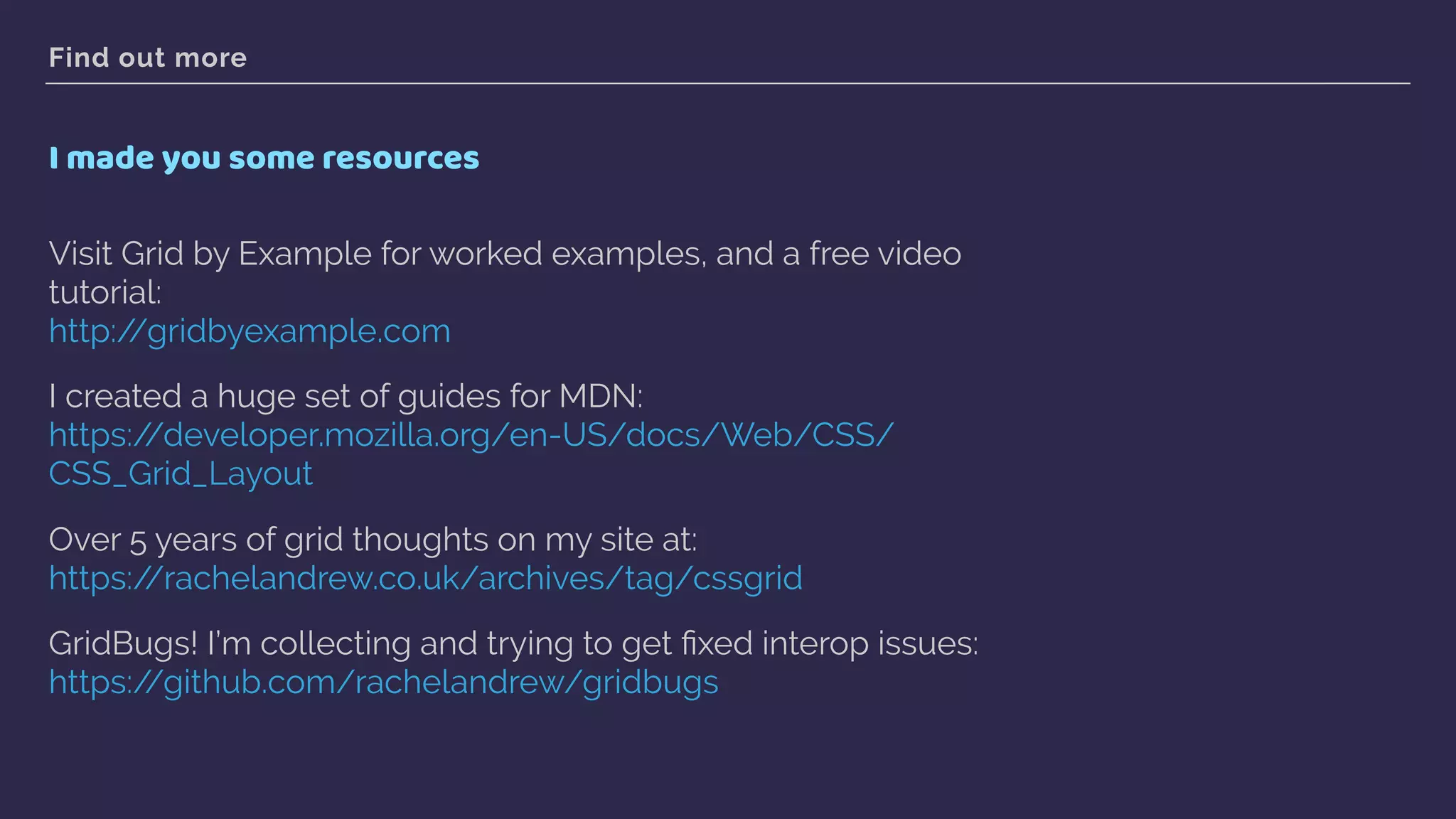

  • 92. Find out more I made you some resources Visit Grid by Example for worked examples, and a free video tutorial:
 http://gridbyexample.com I created a huge set of guides for MDN:
 https://developer.mozilla.org/en-US/docs/Web/CSS/ CSS_Grid_Layout Over 5 years of grid thoughts on my site at:
 https://rachelandrew.co.uk/archives/tag/cssgrid GridBugs! I’m collecting and trying to get fixed interop issues:
 https://github.com/rachelandrew/gridbugs

  • 93. The New
 CSS Layout Out now!
