The document discusses various proposed level 4 media queries, such as scripting, light-level, pointer, hover, and update-frequency, outlining their intended functionalities and limitations. It emphasizes the challenges of relying on these queries due to device diversity, context variability, and user experience concerns. The author expresses skepticism about the practicality of these specifications and suggests a focus on flexible, context-aware design rather than rigid media queries.

1. the future
of media queries?

2. A brief chat (and my personal thoughts)
on Level 4 Media Queries (etc…)
!
(W3C First Public Working Draft, 3 June 2014)

3. @media (scripting)

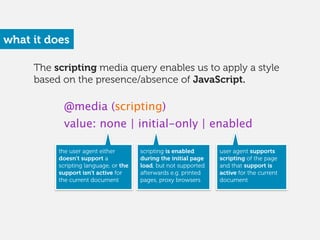

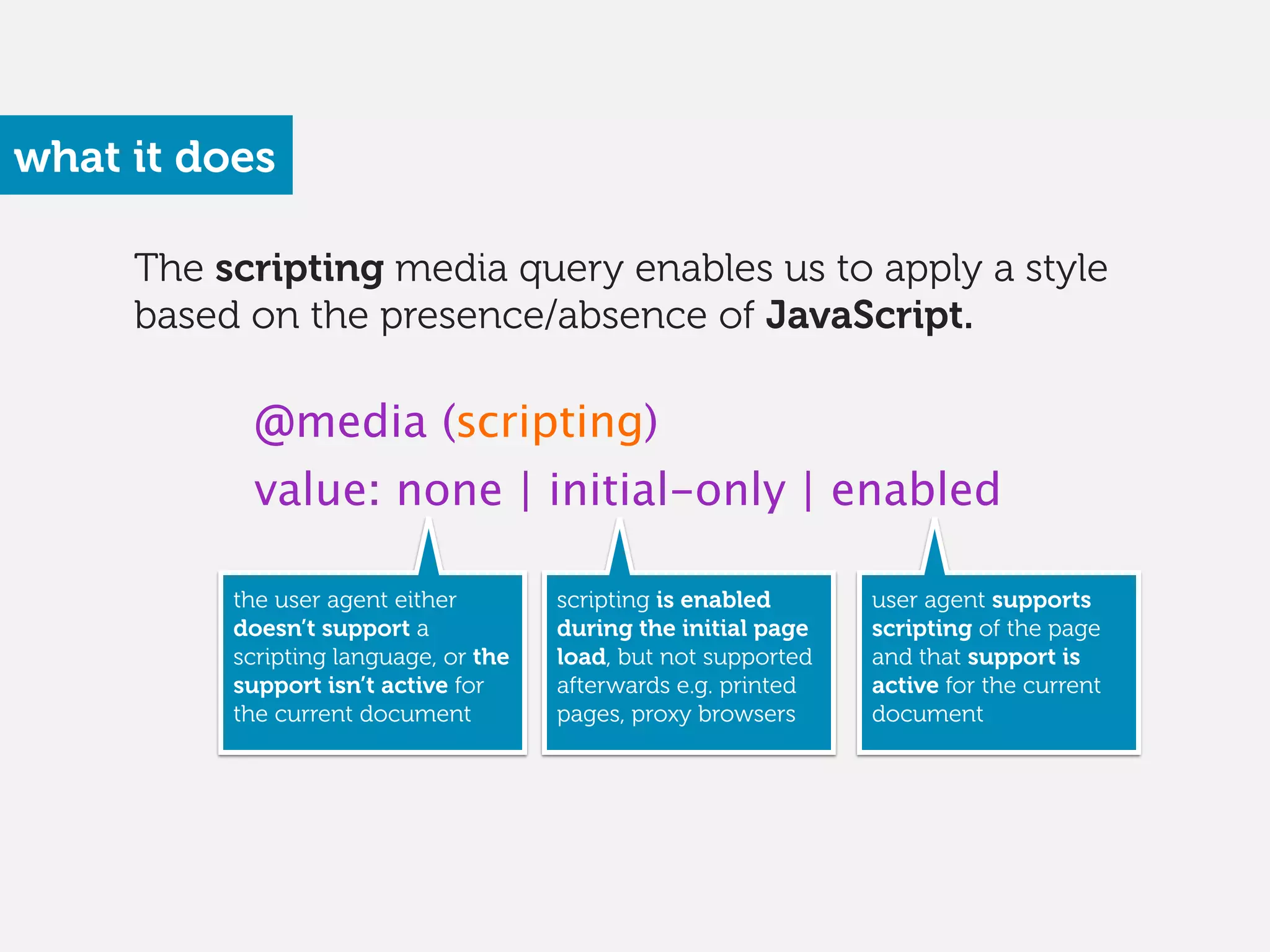

4. The scripting media query enables us to apply a style
based on the presence/absence of JavaScript.
what it does
@media (scripting)
value: none | initial-only | enabled
the user agent either
doesn’t support a
scripting language, or the
support isn’t active for
the current document
scripting is enabled
during the initial page
load, but not supported
afterwards e.g. printed
pages, proxy browsers
user agent supports
scripting of the page
and that support is
active for the current
document

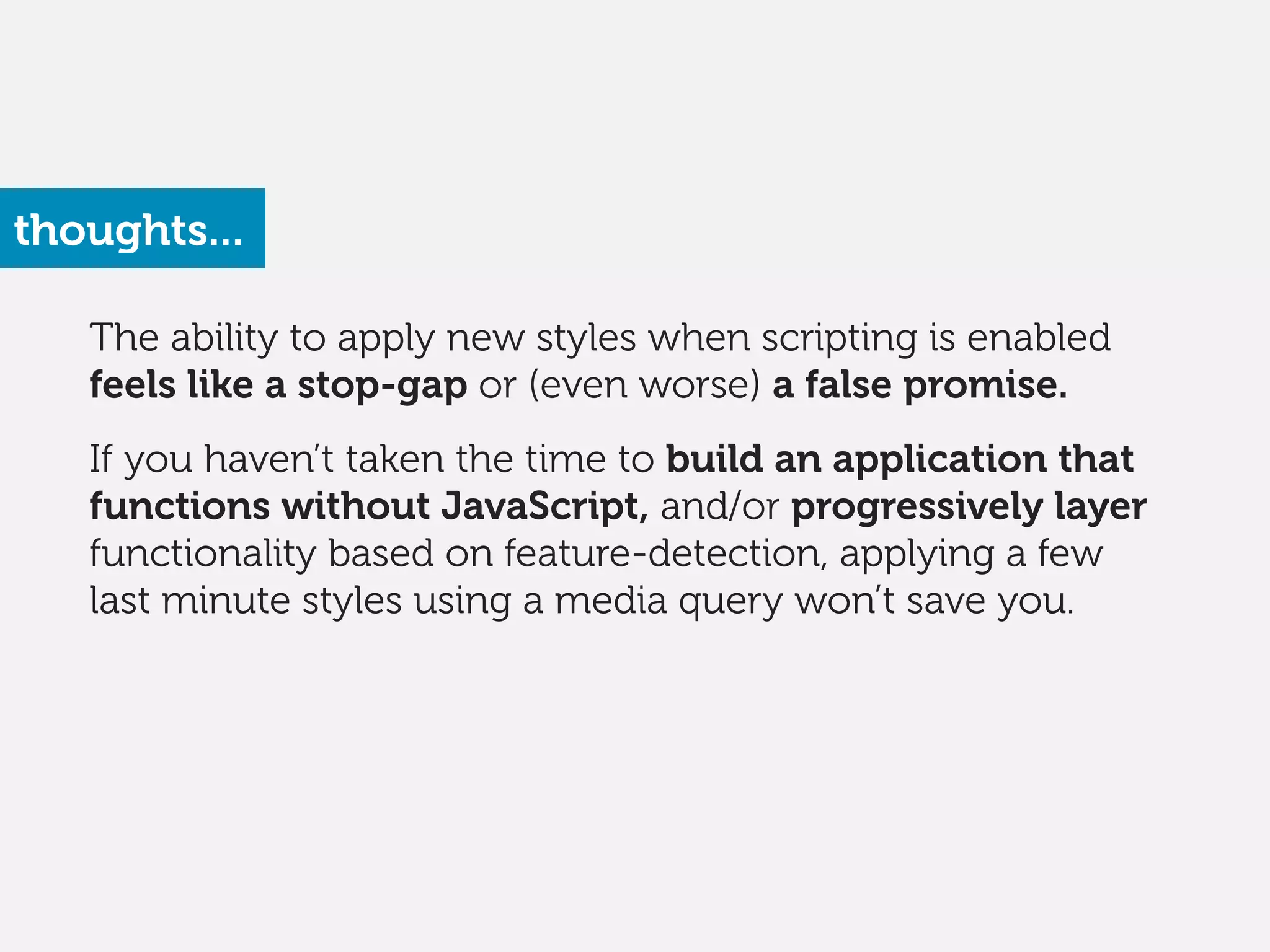

5. The ability to apply new styles when scripting is enabled
feels like a stop-gap or (even worse) a false promise.
If you haven’t taken the time to build an application that
functions without JavaScript, and/or progressively layer
functionality based on feature-detection, applying a few
last minute styles using a media query won’t save you.
thoughts...

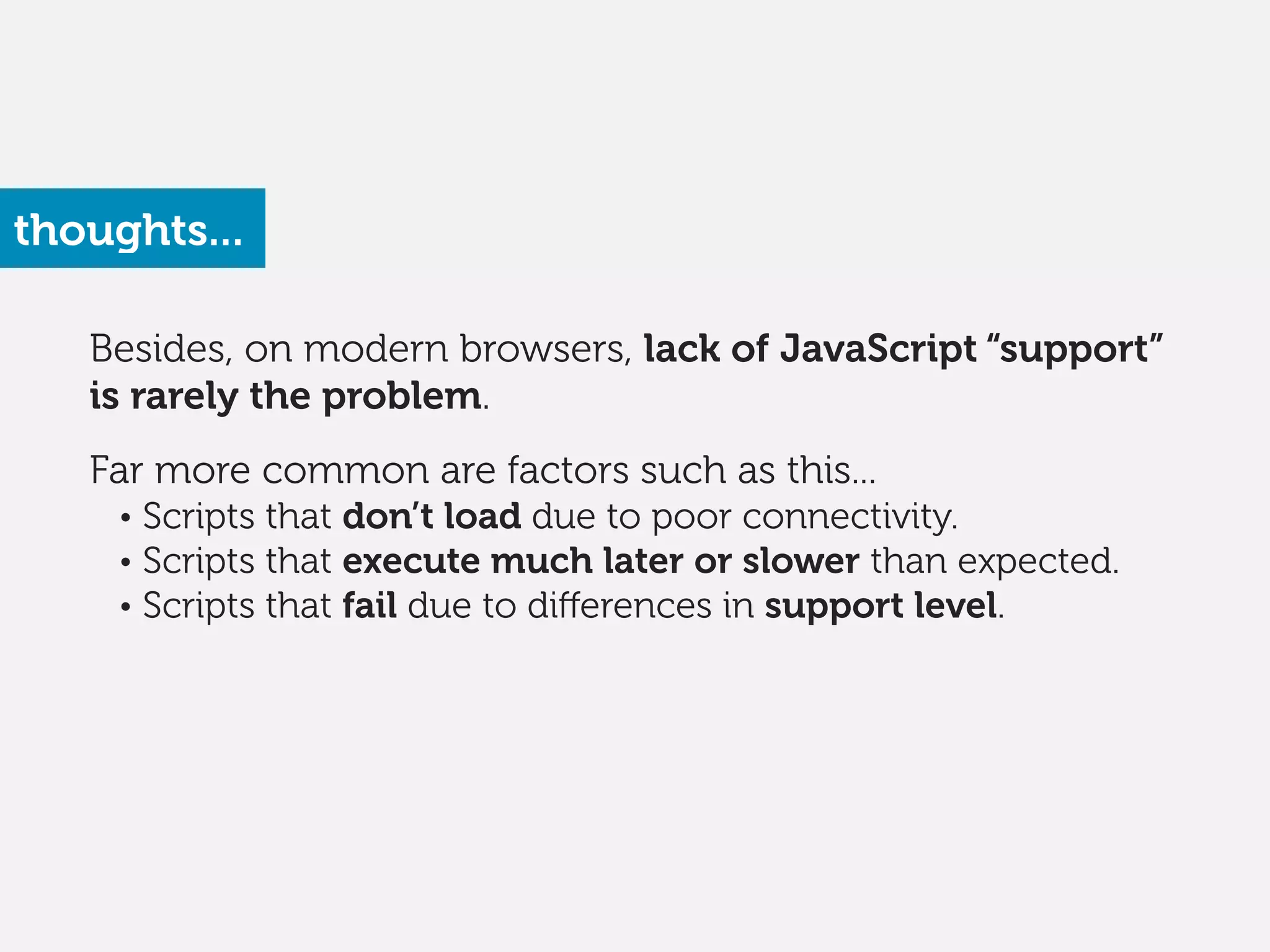

6. Besides, on modern browsers, lack of JavaScript “support”
is rarely the problem.
!
Far more common are factors such as this...
• Scripts that don’t load due to poor connectivity.
• Scripts that execute much later or slower than expected.
• Scripts that fail due to differences in support level.
thoughts...

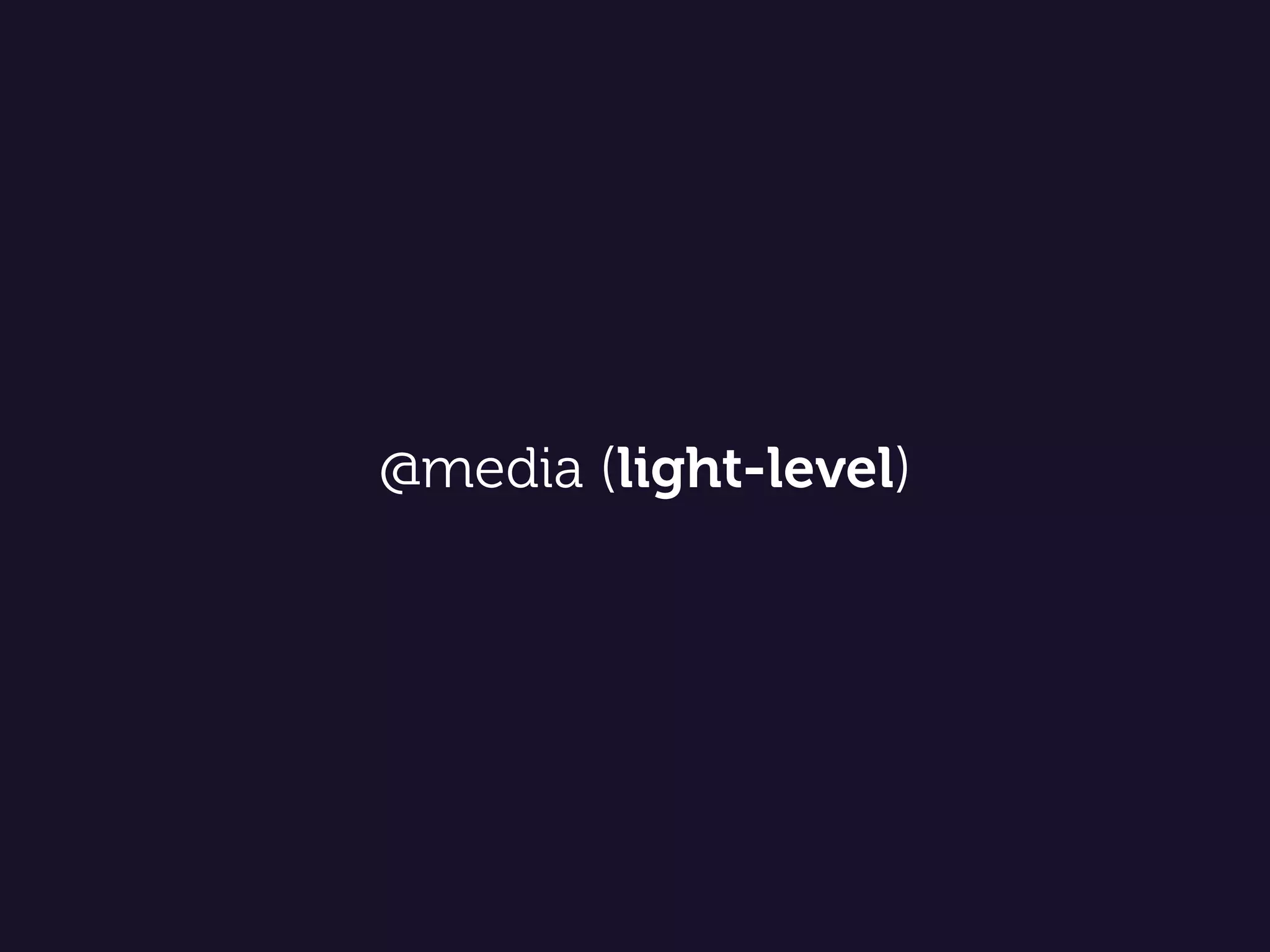

7. @media (light-level)

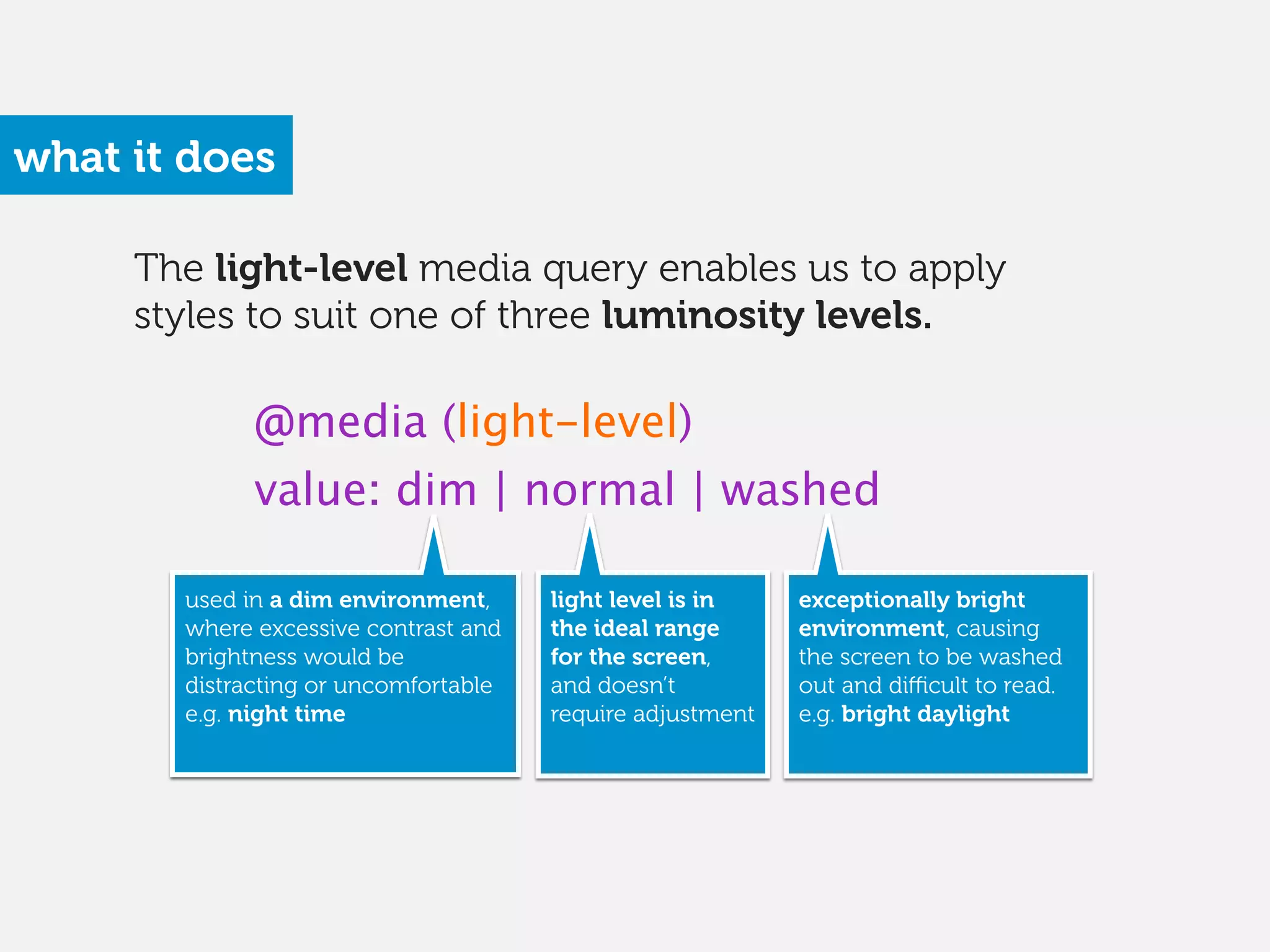

8. The light-level media query enables us to apply
styles to suit one of three luminosity levels.
what it does
@media (light-level)
value: dim | normal | washed
used in a dim environment,
where excessive contrast and
brightness would be
distracting or uncomfortable
e.g. night time
light level is in
the ideal range
for the screen,
and doesn’t
require adjustment
exceptionally bright
environment, causing
the screen to be washed
out and difficult to read.
e.g. bright daylight

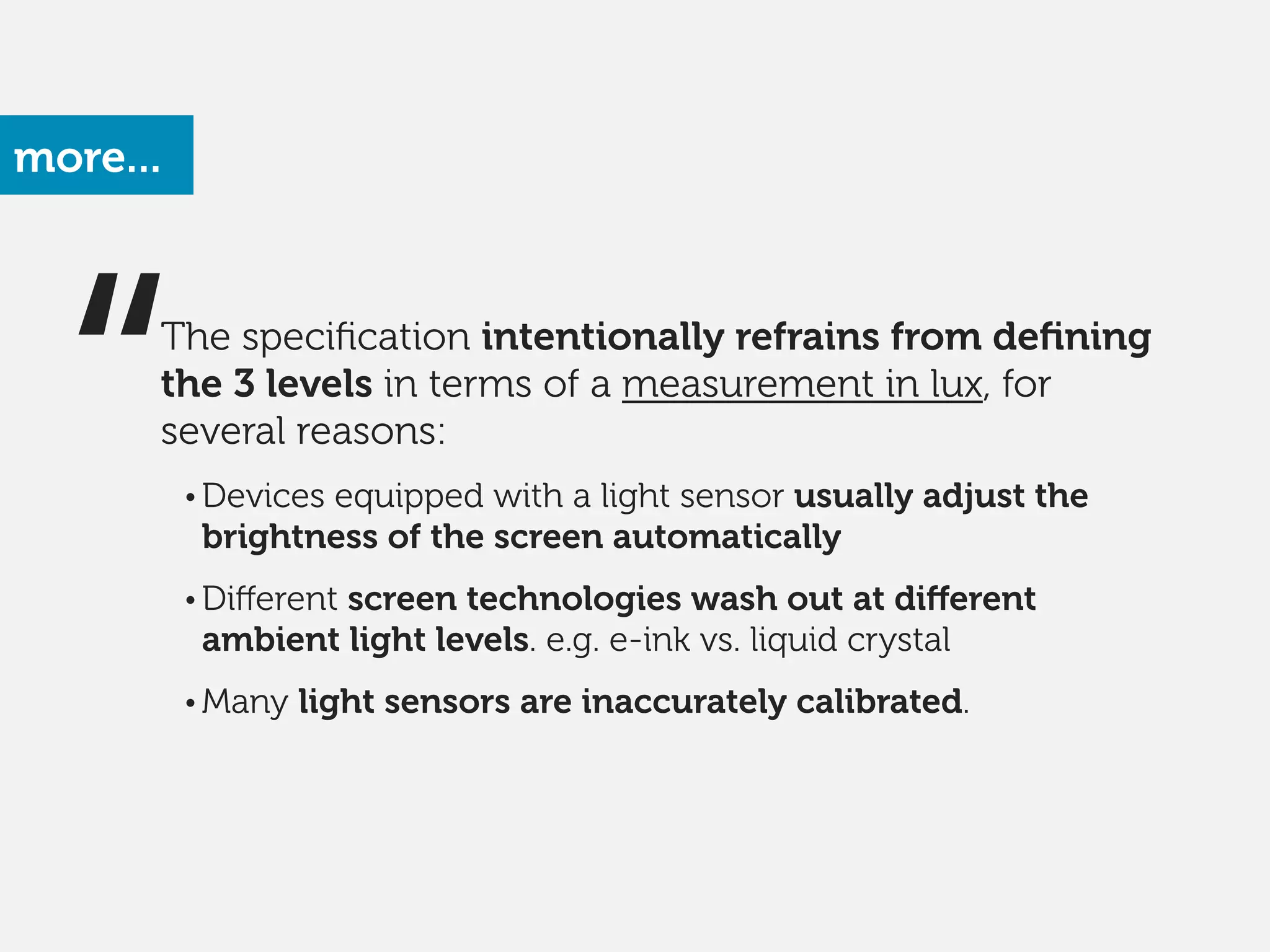

9. The specification intentionally refrains from defining
the 3 levels in terms of a measurement in lux, for
several reasons:
!
• Devices equipped with a light sensor usually adjust the
brightness of the screen automatically
!
• Different screen technologies wash out at different
ambient light levels. e.g. e-ink vs. liquid crystal
!
• Many light sensors are inaccurately calibrated.
more...
“

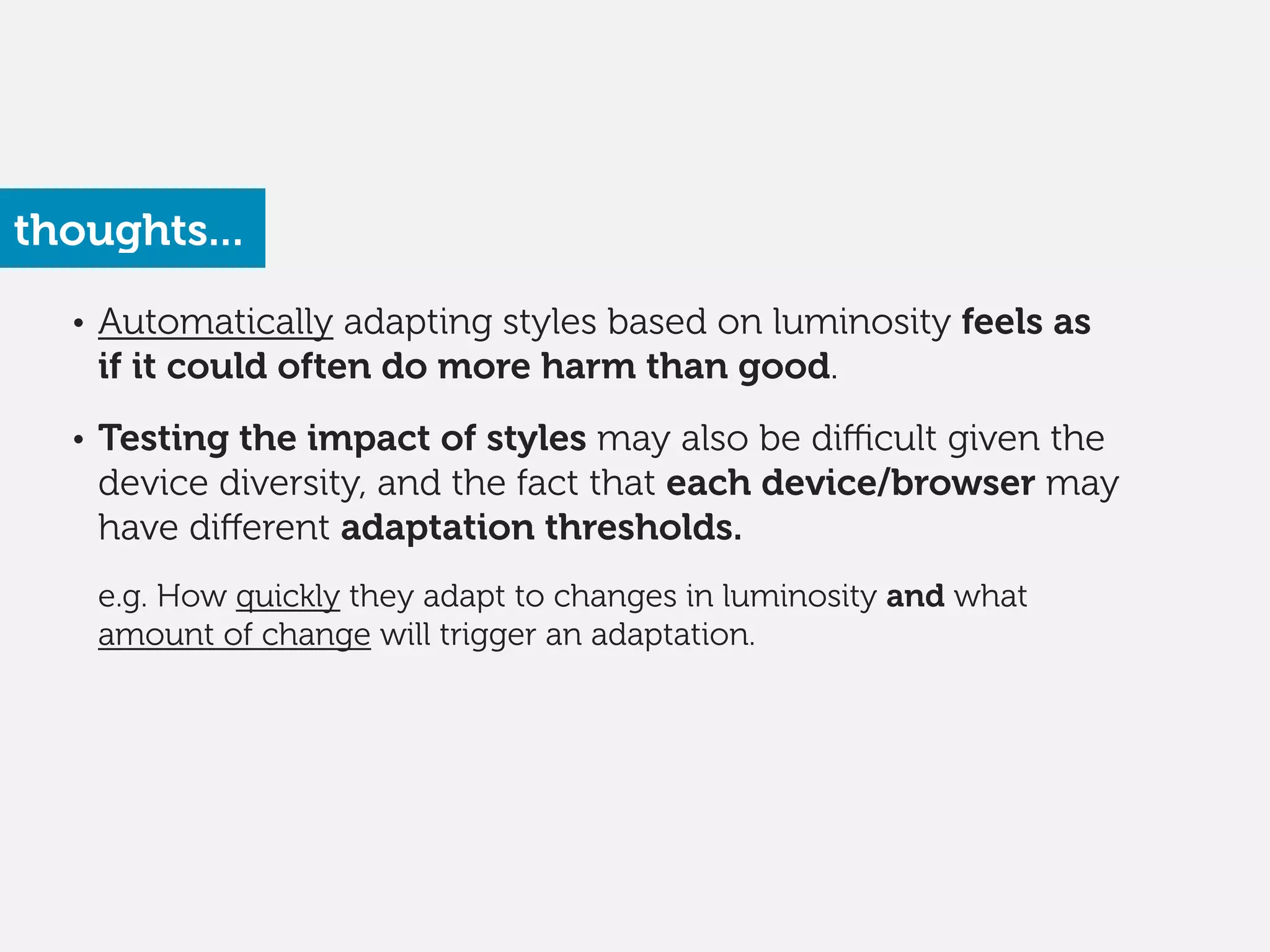

10. • Automatically adapting styles based on luminosity feels as
if it could often do more harm than good.
!
• Testing the impact of styles may also be difficult given the
device diversity, and the fact that each device/browser may
have different adaptation thresholds.
e.g. How quickly they adapt to changes in luminosity and what
amount of change will trigger an adaptation.
thoughts...

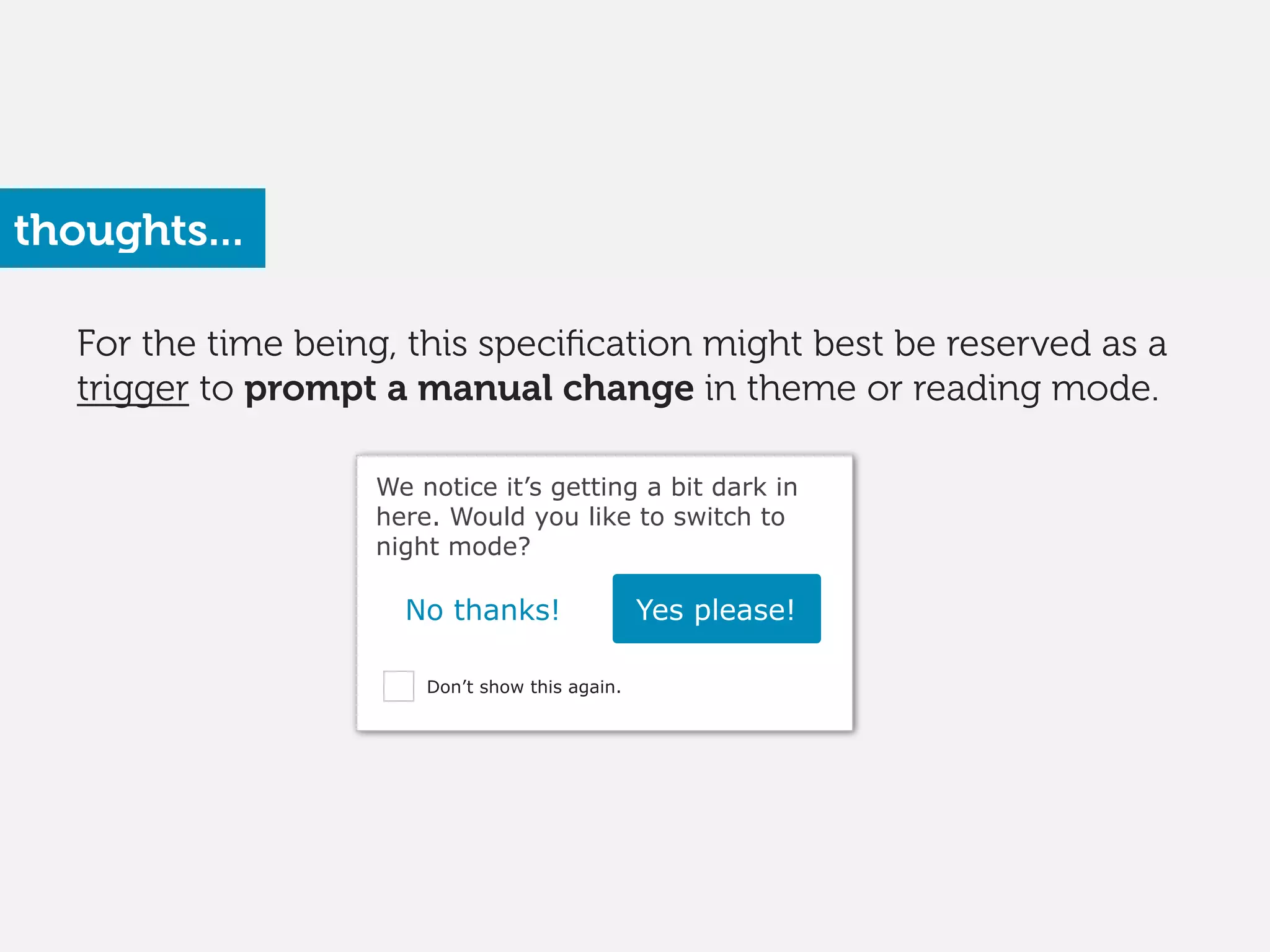

11. For the time being, this specification might best be reserved as a
trigger to prompt a manual change in theme or reading mode.
We notice it’s getting a bit dark in
here. Would you like to switch to
night mode?
No thanks! Yes please!
Don’t show this again.
thoughts...

12. @media (pointer)

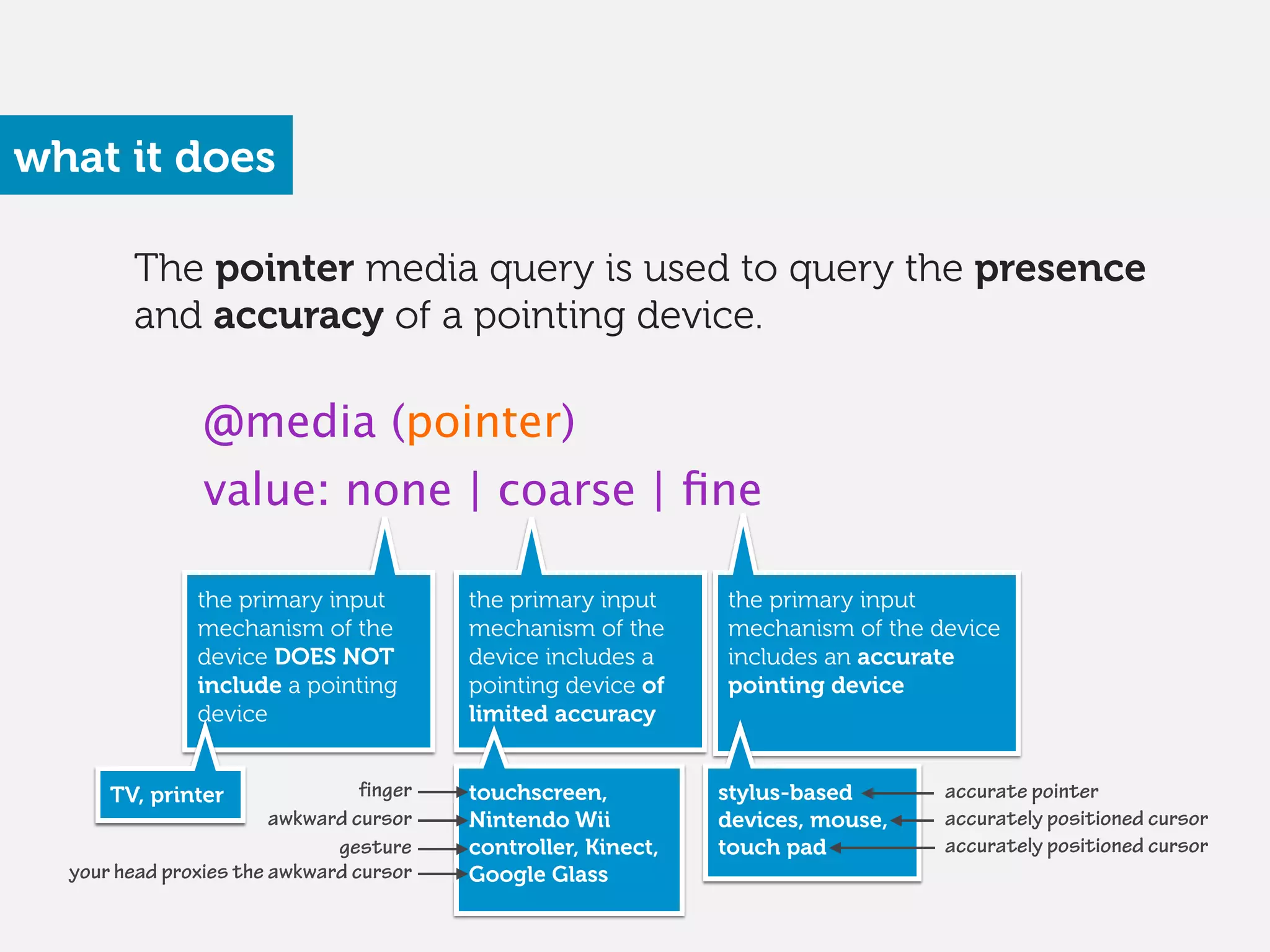

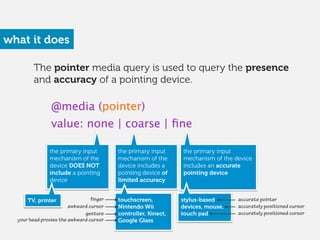

13. the primary input
mechanism of the device
includes an accurate
pointing device
the primary input
mechanism of the
device DOES NOT
include a pointing
device
the primary input
mechanism of the
device includes a
pointing device of
limited accuracy
what it does
@media (pointer)
value: none | coarse | fine
touchscreen,
Nintendo Wii
controller, Kinect,
Google Glass
stylus-based
devices, mouse,
touch pad
accurately positioned cursor
accurate pointer
awkward cursor
gesture
finger
your head proxies the awkward cursor
accurately positioned cursor
TV, printer
The pointer media query is used to query the presence
and accuracy of a pointing device.

14. more...
“ unless i’ve misunderstood...it’s now the browser’s job
to understand the pointing device “opportunity
space” of each and every device on the planet...
If a device has multiple input mechanisms, the pointer media
feature must reflect the characteristics of the “primary” input
mechanism, as determined by the user agent.

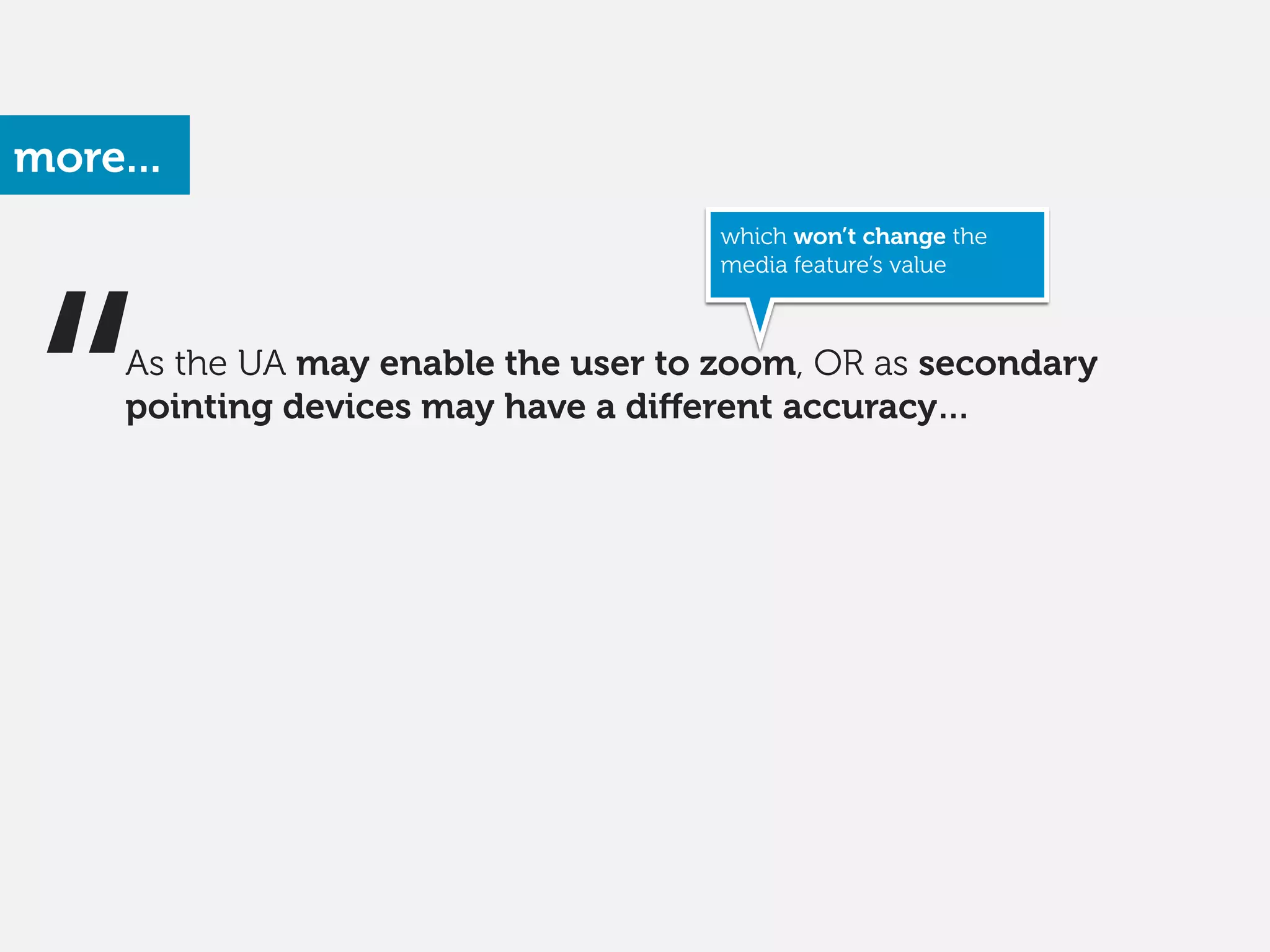

15. “
which won’t change the
media feature’s value
As the UA may enable the user to zoom, OR as secondary
pointing devices may have a different accuracy…
more...

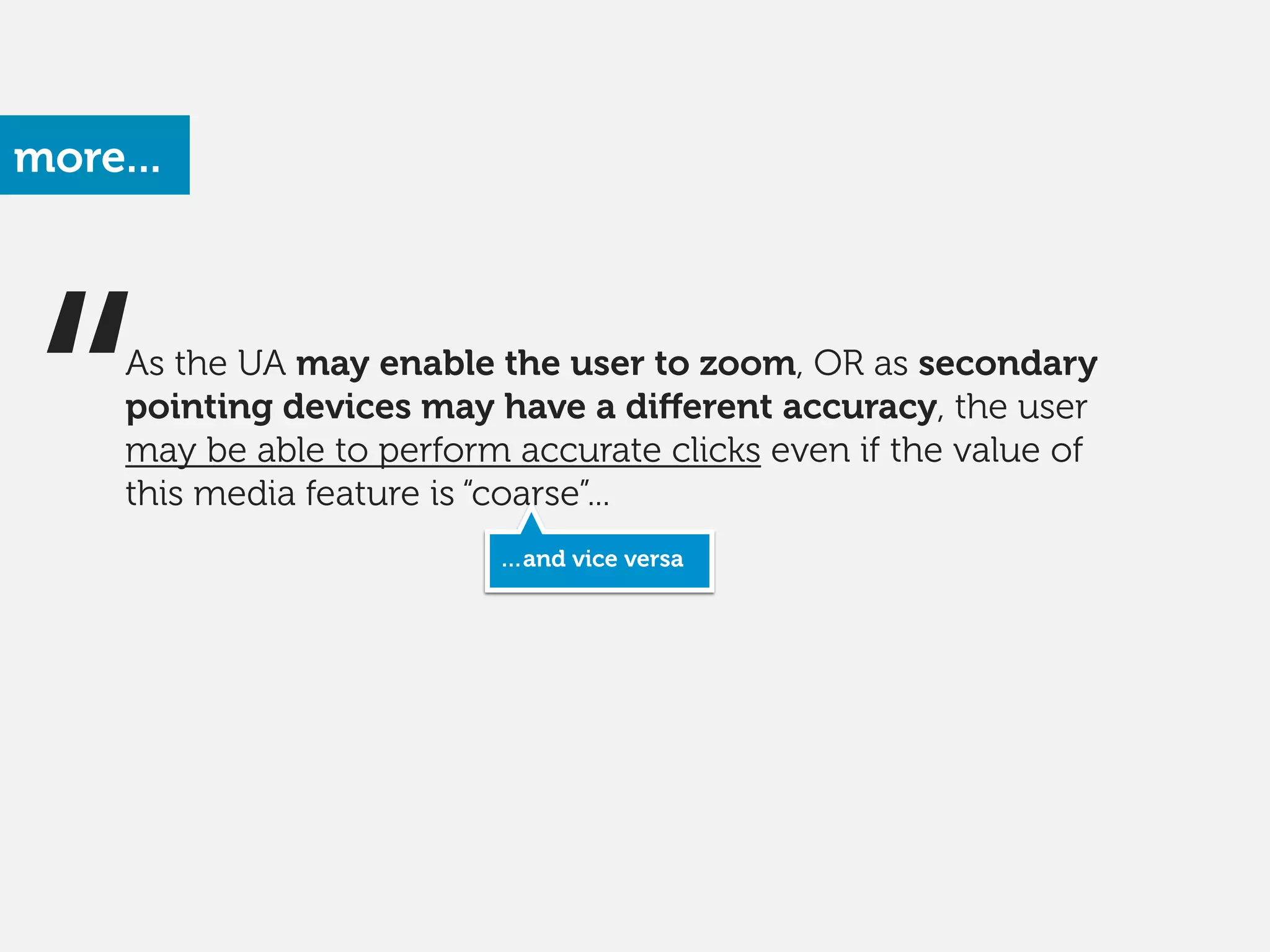

16. “As the UA may enable the user to zoom, OR as secondary
pointing devices may have a different accuracy, the user
may be able to perform accurate clicks even if the value of
this media feature is “coarse”...
more...
…and vice versa

17. Unless the API enables the UA to dynamically adapt in real-time to
detect the true primary device we really won’t know how much
accuracy the user has at any given time...
(…and dynamically adapting a UI in real time as a user switches from
mouse, to touch, and back to mouse would drive them mad regardless.)
thoughts...

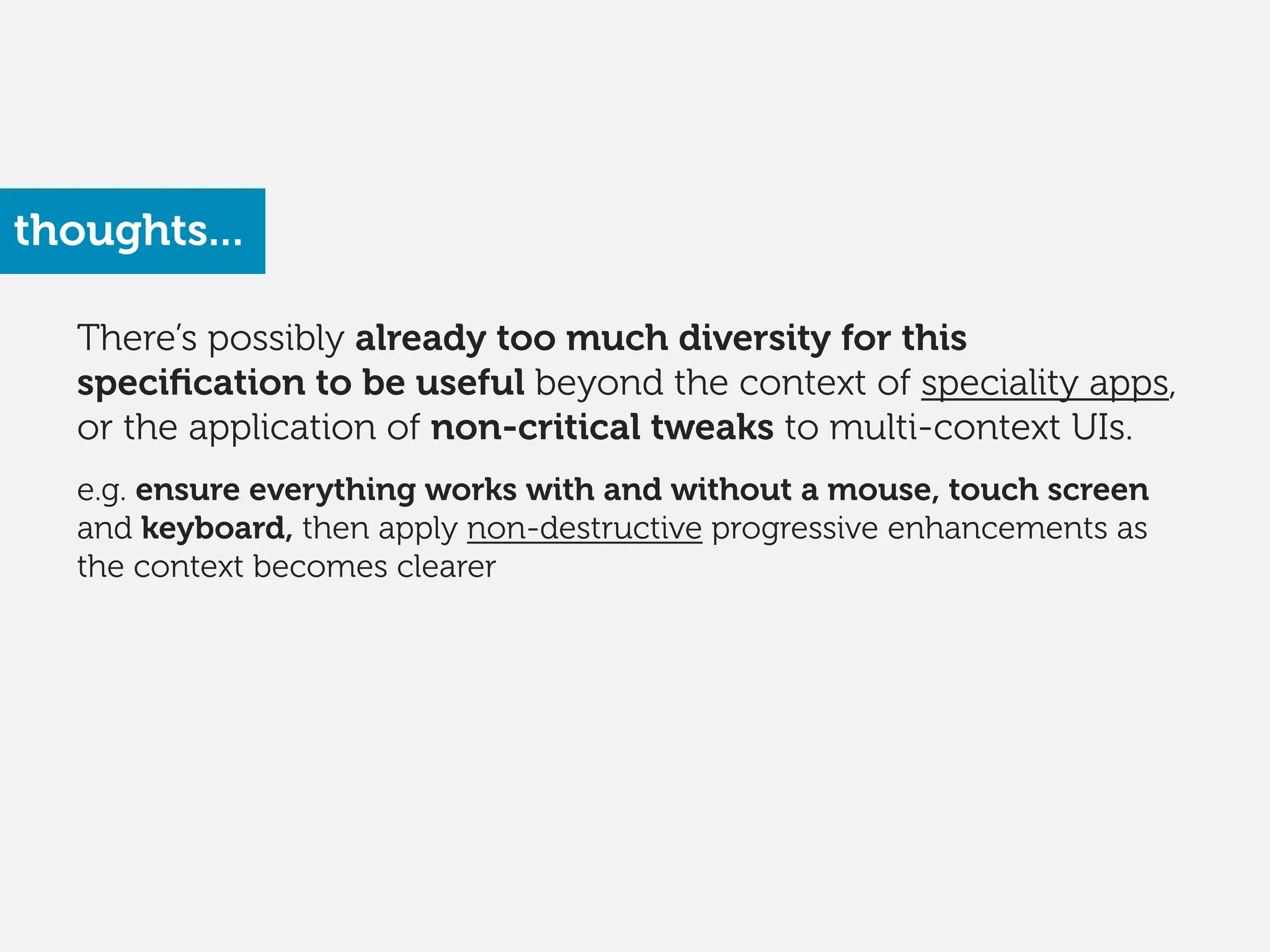

18. There’s possibly already too much diversity for this
specification to be useful beyond the context of speciality apps,
or the application of non-critical tweaks to multi-context UIs.
!
e.g. ensure everything works with and without a mouse, touch screen
and keyboard, then apply non-destructive progressive enhancements as
the context becomes clearer
thoughts...

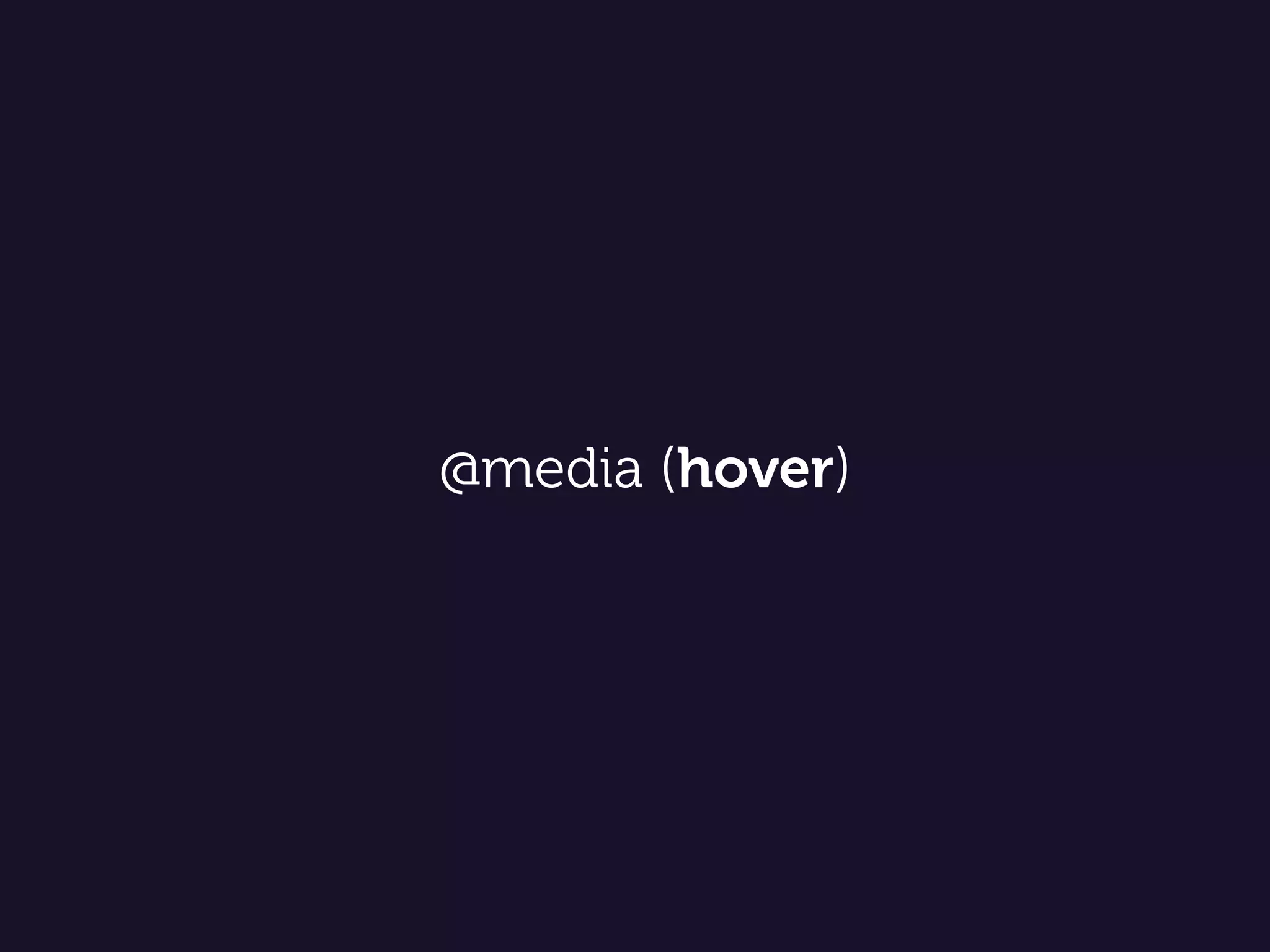

19. @media (hover)

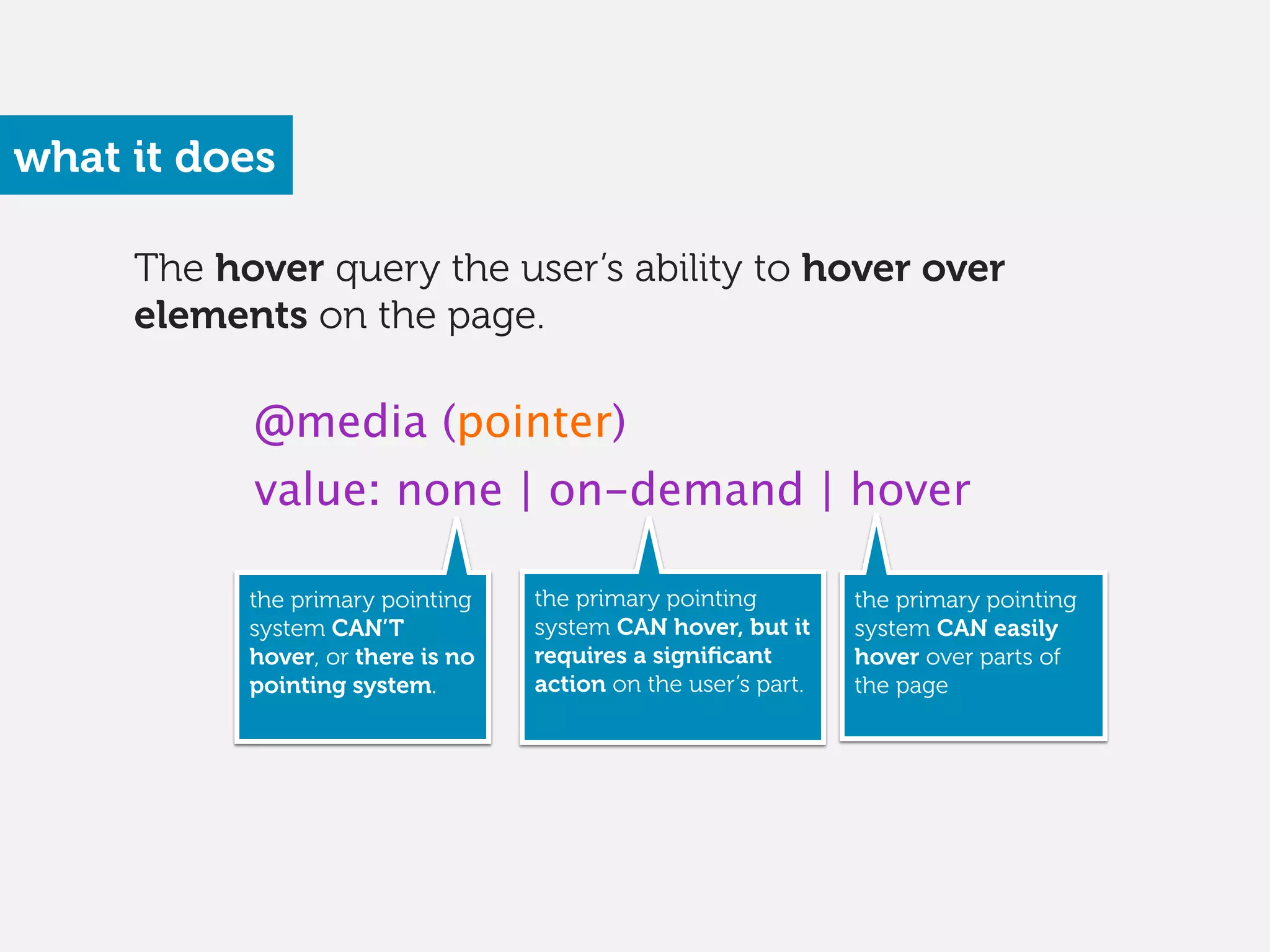

20. The hover query the user’s ability to hover over
elements on the page.
what it does
@media (pointer)
value: none | on-demand | hover
the primary pointing
system CAN’T
hover, or there is no
pointing system.
the primary pointing
system CAN hover, but it
requires a significant
action on the user’s part.
the primary pointing
system CAN easily
hover over parts of
the page

21. more...

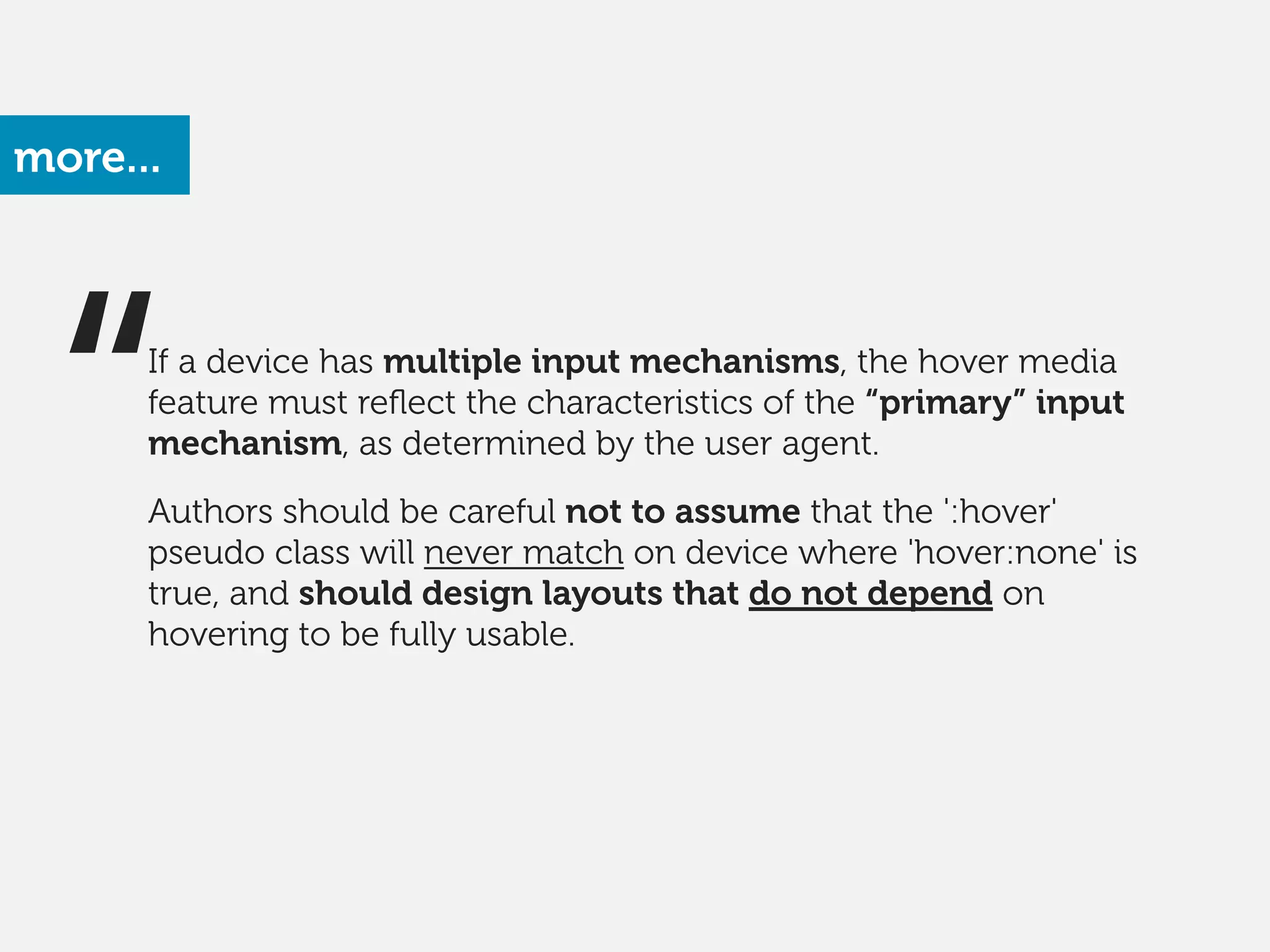

“If a device has multiple input mechanisms, the hover media
feature must reflect the characteristics of the “primary” input
mechanism, as determined by the user agent.
!
Authors should be careful not to assume that the ':hover'
pseudo class will never match on device where 'hover:none' is
true, and should design layouts that do not depend on
hovering to be fully usable.

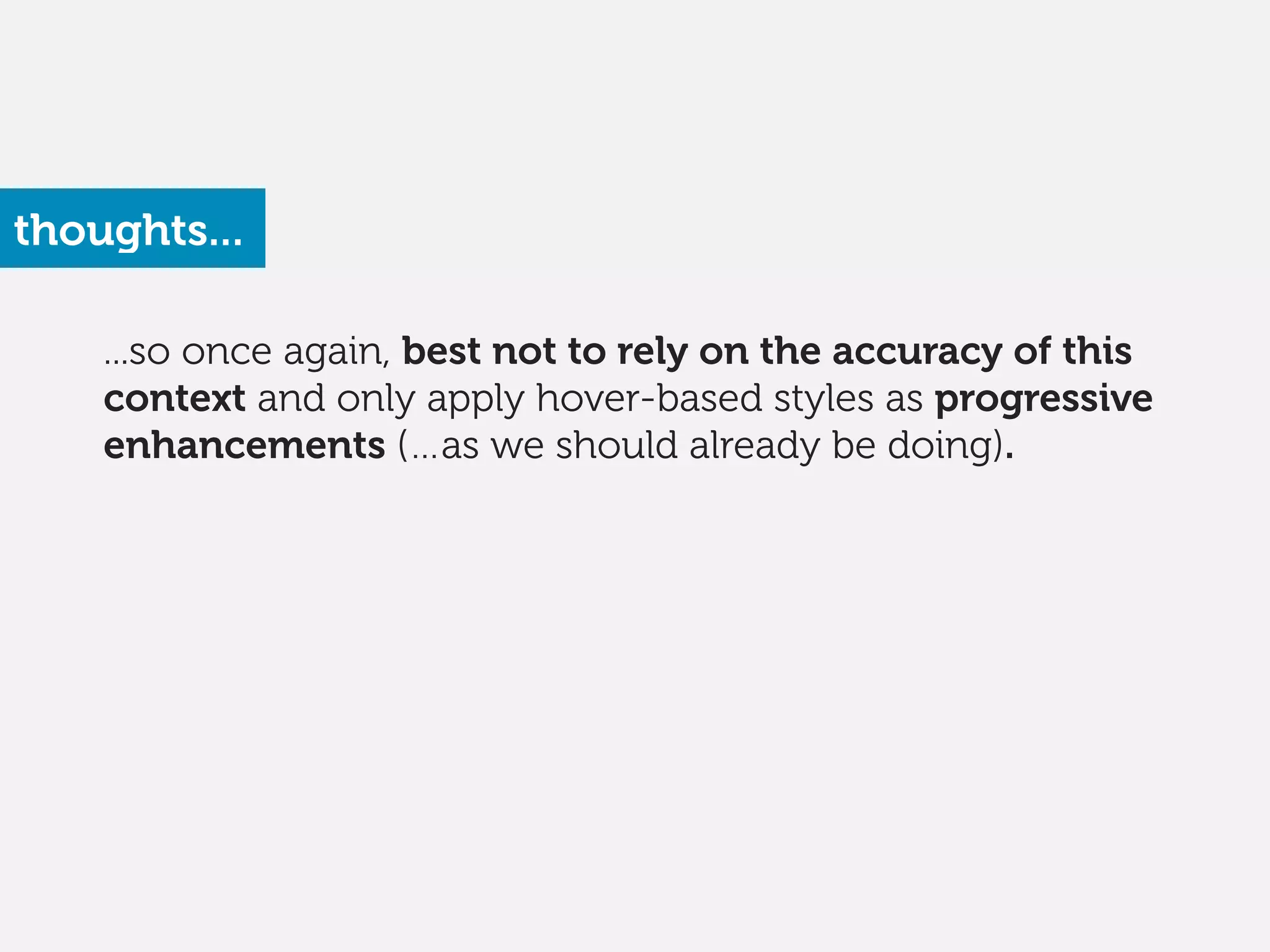

22. ...so once again, best not to rely on the accuracy of this
context and only apply hover-based styles as progressive
enhancements (…as we should already be doing).
thoughts...

23. @media (update-frequency)

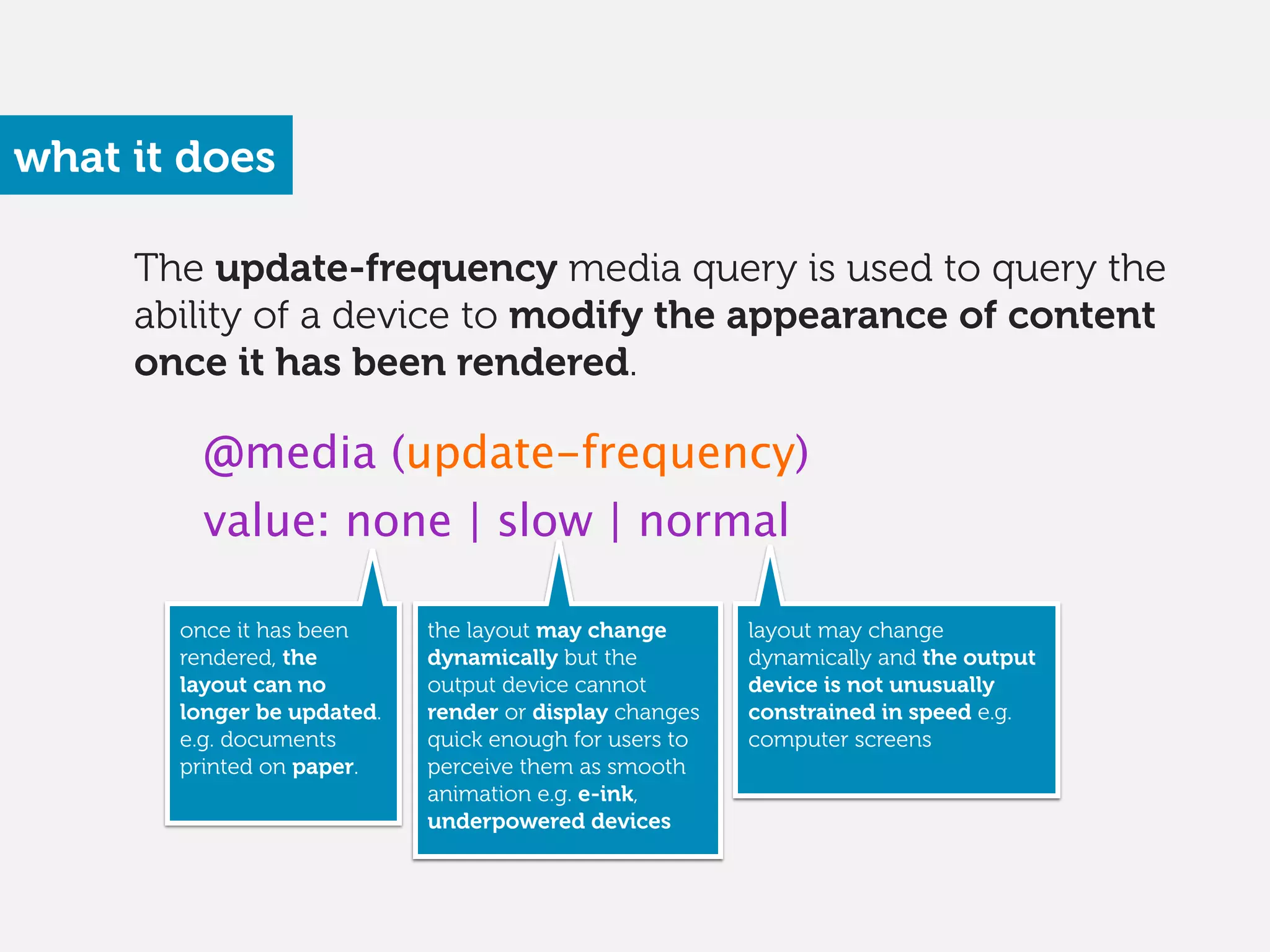

24. The update-frequency media query is used to query the
ability of a device to modify the appearance of content
once it has been rendered.
what it does
@media (update-frequency)
value: none | slow | normal
once it has been
rendered, the
layout can no
longer be updated.
e.g. documents
printed on paper.
the layout may change
dynamically but the
output device cannot
render or display changes
quick enough for users to
perceive them as smooth
animation e.g. e-ink,
underpowered devices
layout may change
dynamically and the output
device is not unusually
constrained in speed e.g.
computer screens

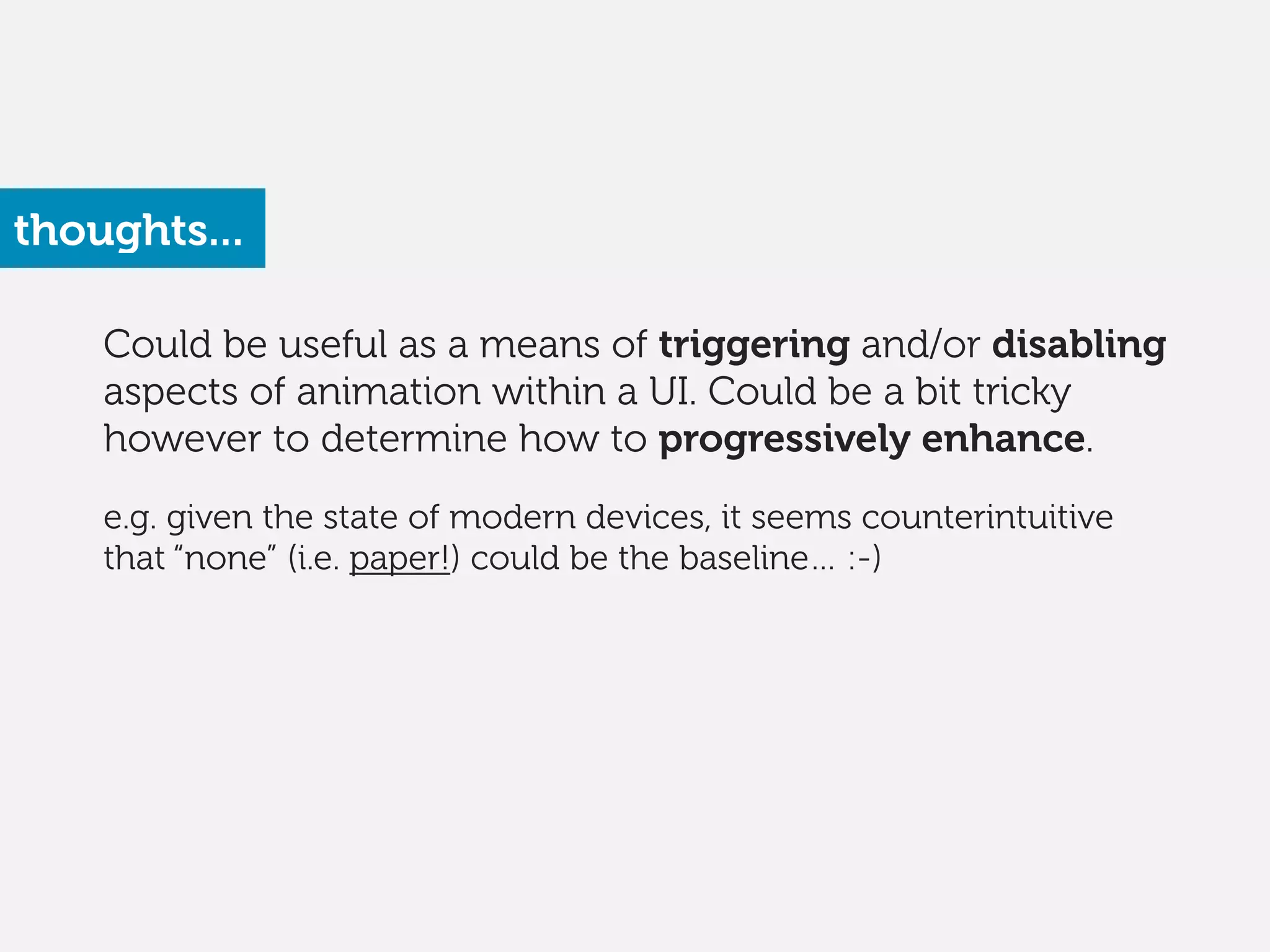

25. Could be useful as a means of triggering and/or disabling
aspects of animation within a UI. Could be a bit tricky
however to determine how to progressively enhance.
!
e.g. given the state of modern devices, it seems counterintuitive
that “none” (i.e. paper!) could be the baseline… :-)
thoughts...

26. @media (overflow-block/inline)

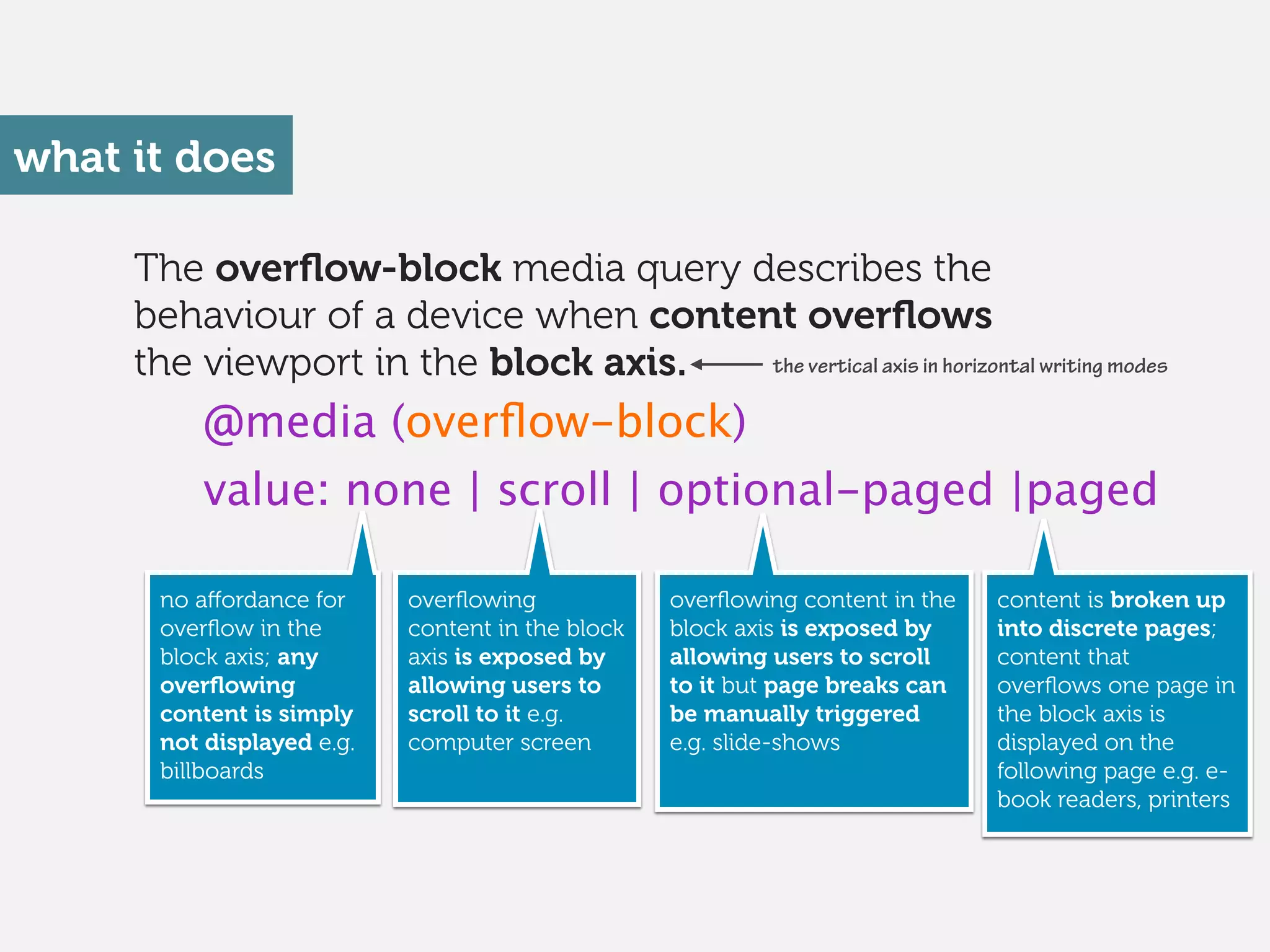

27. The overflow-block media query describes the
behaviour of a device when content overflows
the viewport in the block axis.
what it does
@media (overflow-block)
value: none | scroll | optional-paged |paged
no affordance for
overflow in the
block axis; any
overflowing
content is simply
not displayed e.g.
billboards
overflowing
content in the block
axis is exposed by
allowing users to
scroll to it e.g.
computer screen
overflowing content in the
block axis is exposed by
allowing users to scroll
to it but page breaks can
be manually triggered
e.g. slide-shows
content is broken up
into discrete pages;
content that
overflows one page in
the block axis is
displayed on the
following page e.g. e-
book readers, printers
the vertical axis in horizontal writing modes

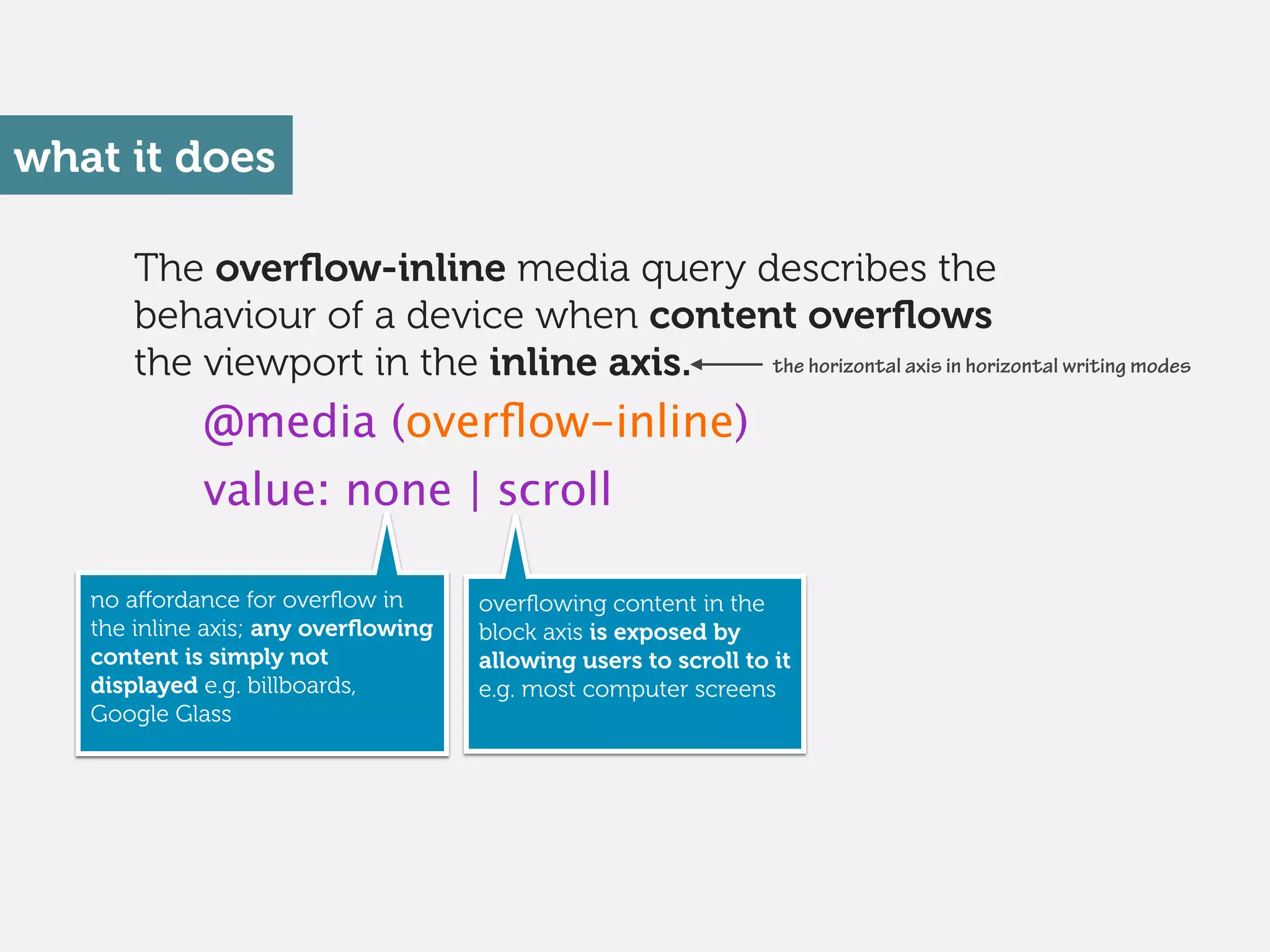

28. The overflow-inline media query describes the
behaviour of a device when content overflows
the viewport in the inline axis.
what it does
@media (overflow-inline)
value: none | scroll
no affordance for overflow in
the inline axis; any overflowing
content is simply not
displayed e.g. billboards,
Google Glass
overflowing content in the
block axis is exposed by
allowing users to scroll to it
e.g. most computer screens
the horizontal axis in horizontal writing modes

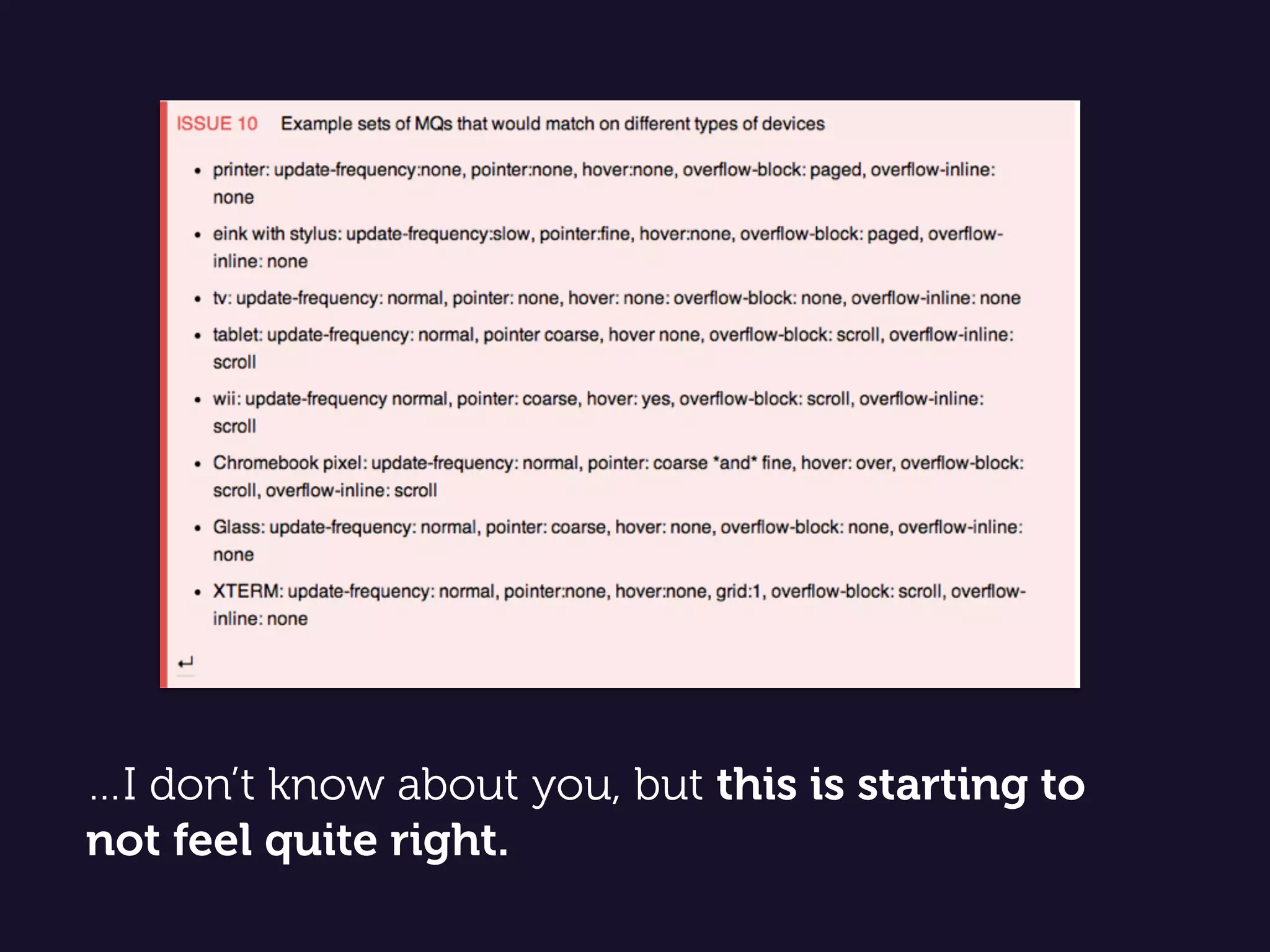

29. …I don’t know about you, but this is starting to
not feel quite right.

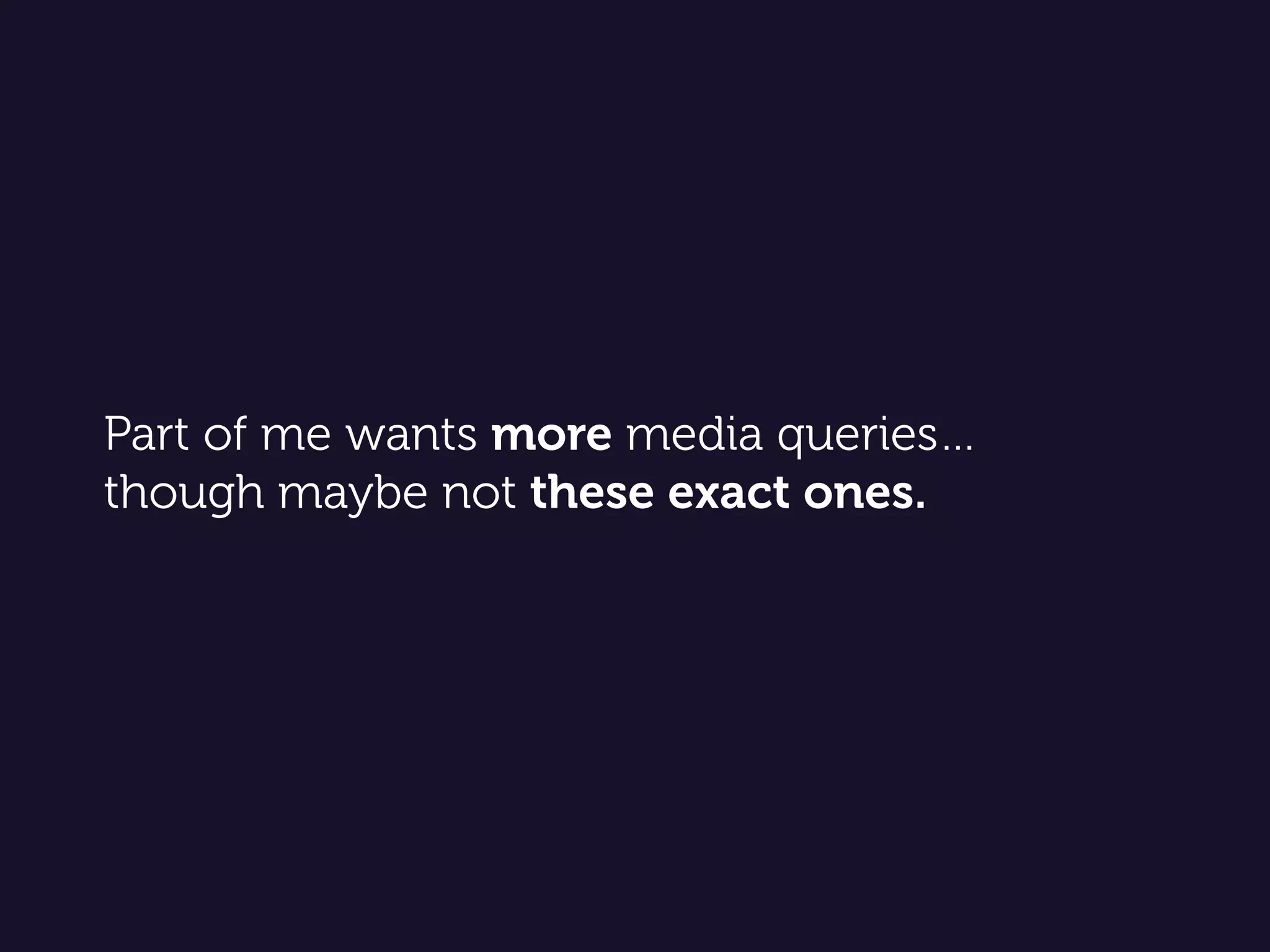

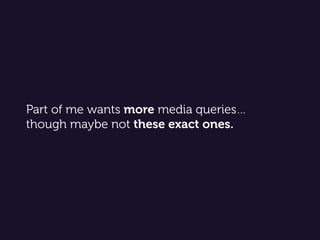

30. Part of me wants more media queries…
though maybe not these exact ones.

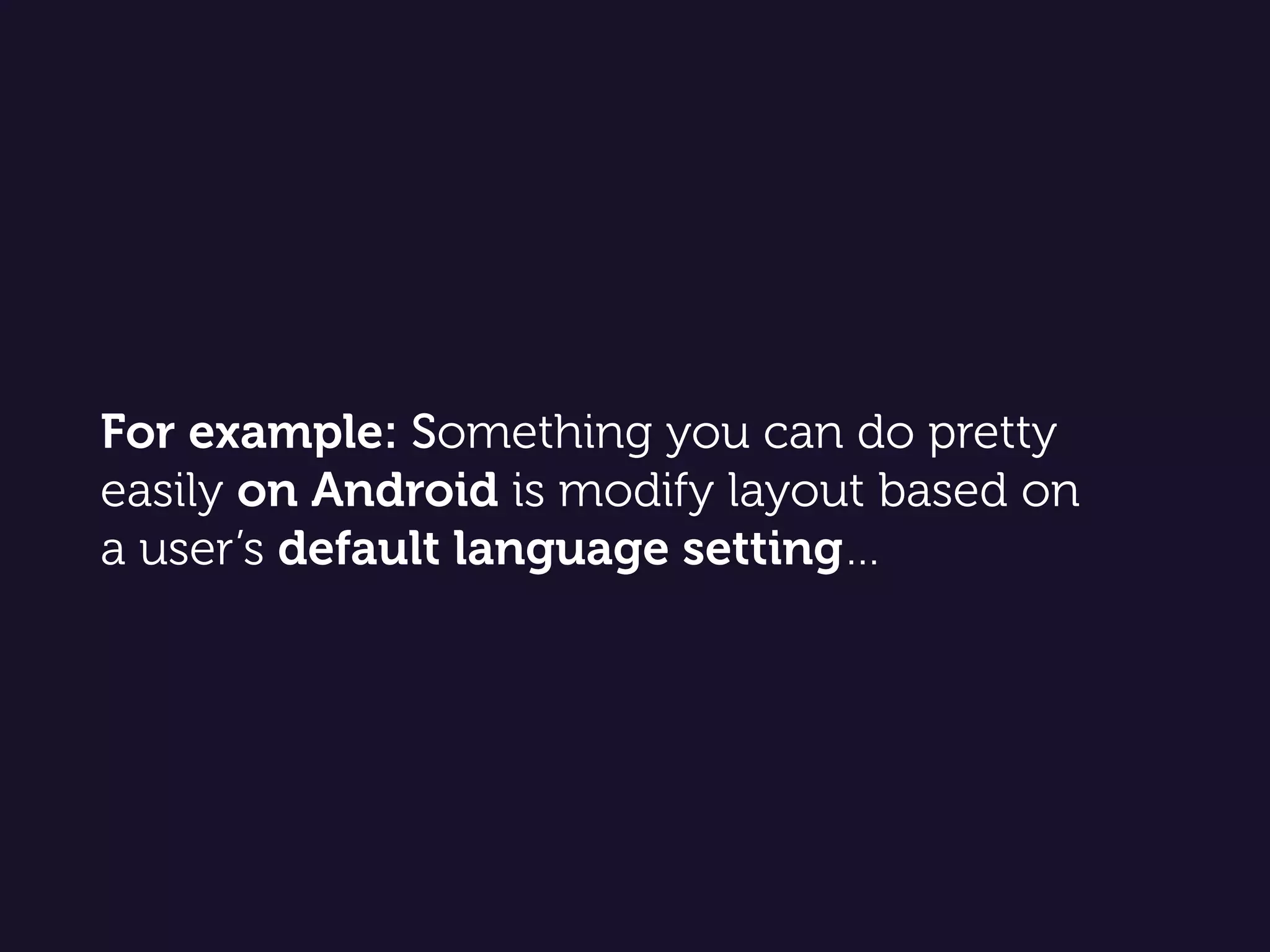

31. For example: Something you can do pretty
easily on Android is modify layout based on
a user’s default language setting…

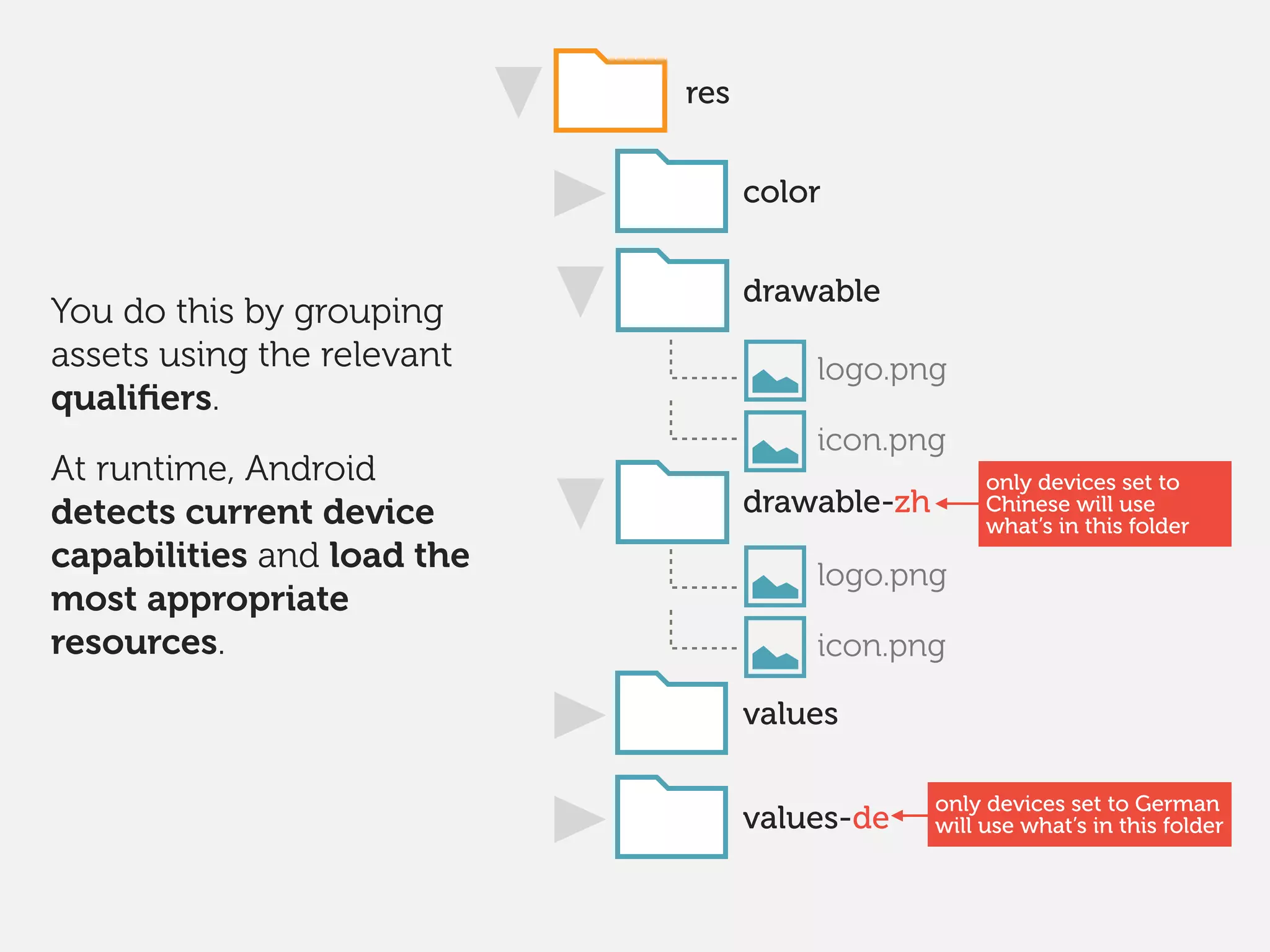

32. values-de
You do this by grouping
assets using the relevant
qualifiers.
!
At runtime, Android
detects current device
capabilities and load the
most appropriate
resources.
color
drawable
res
values
drawable-zh
only devices set to German
will use what’s in this folder
only devices set to
Chinese will use
what’s in this folder

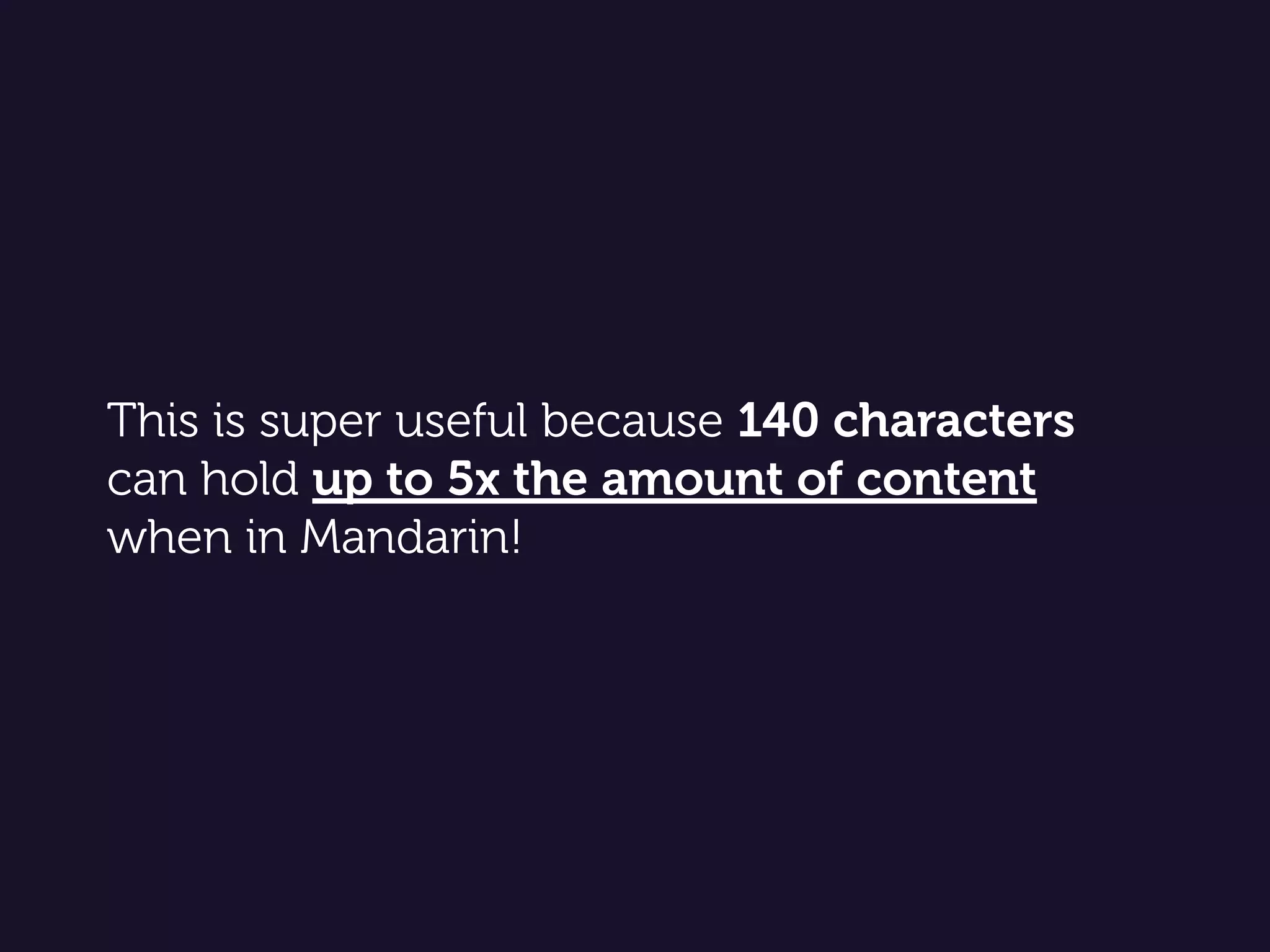

33. This is super useful because 140 characters
can hold up to 5x the amount of content
when in Mandarin!

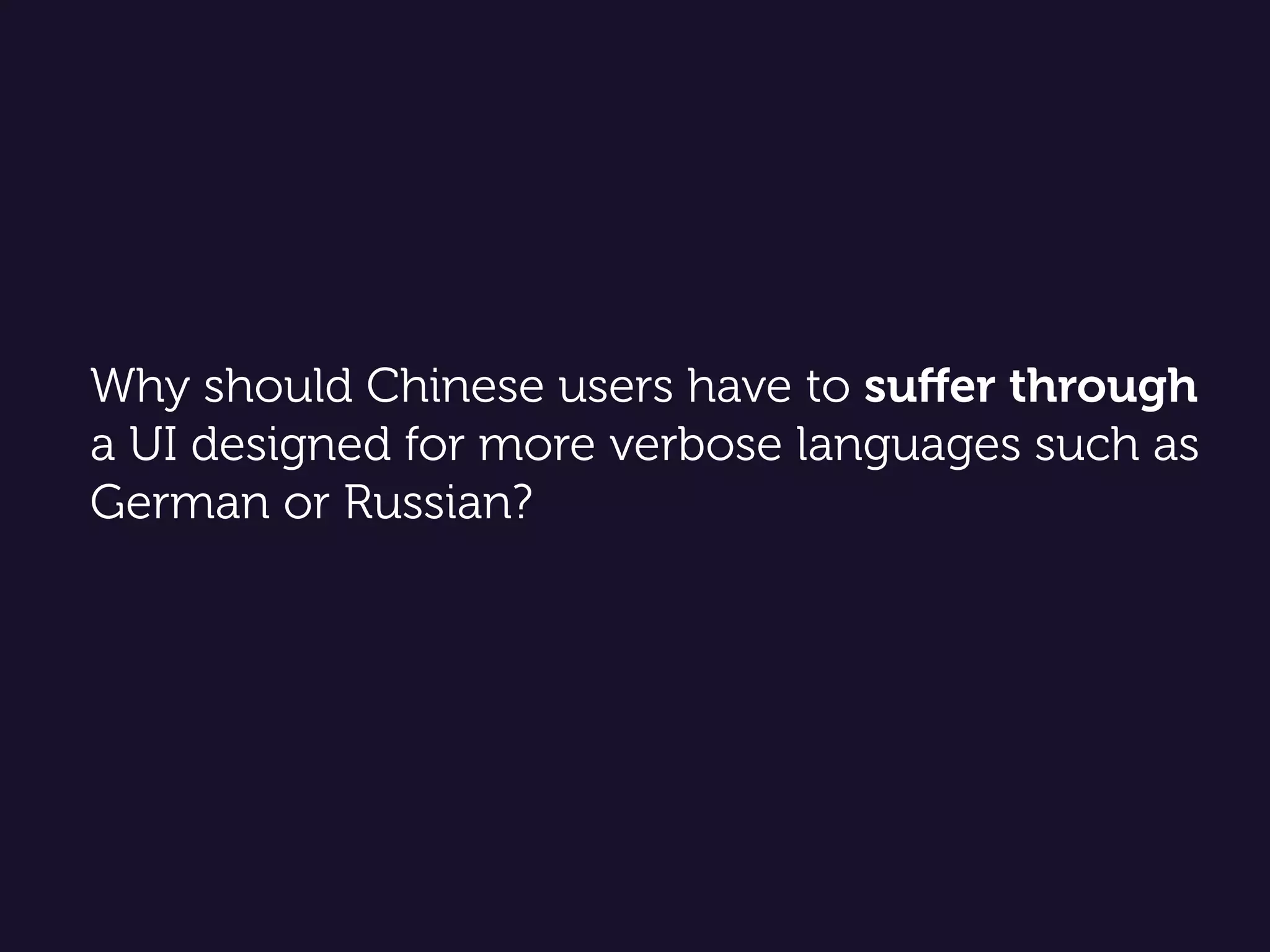

34. Why should Chinese users have to suffer through
a UI designed for more verbose languages such as
German or Russian?

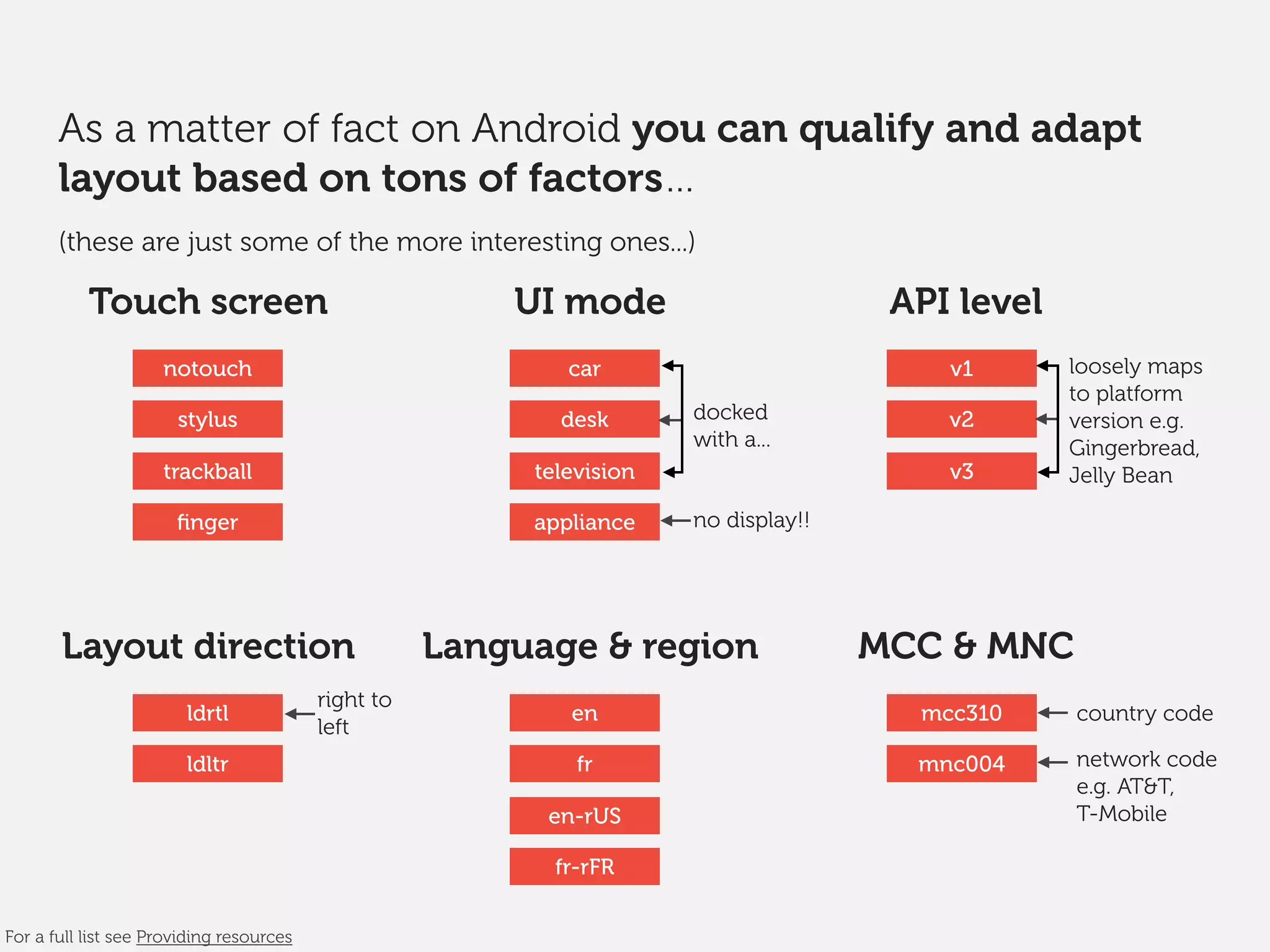

35. Touch screen UI mode API level
notouch
stylus
trackball
finger
car
desk
television
appliance
v1
v2
v3
Layout direction Language & region MCC & MNC
ldrtl
ldltr
en
fr
en-rUS
fr-rFR
mcc310
loosely maps
to platform
version e.g.
Gingerbread,
Jelly Bean
country code
mnc004
docked
with a...
no display!!
network code
e.g. AT&T,
T-Mobile
right to
left
As a matter of fact on Android you can qualify and adapt
layout based on tons of factors…
(these are just some of the more interesting ones...)
For a full list see Providing resources

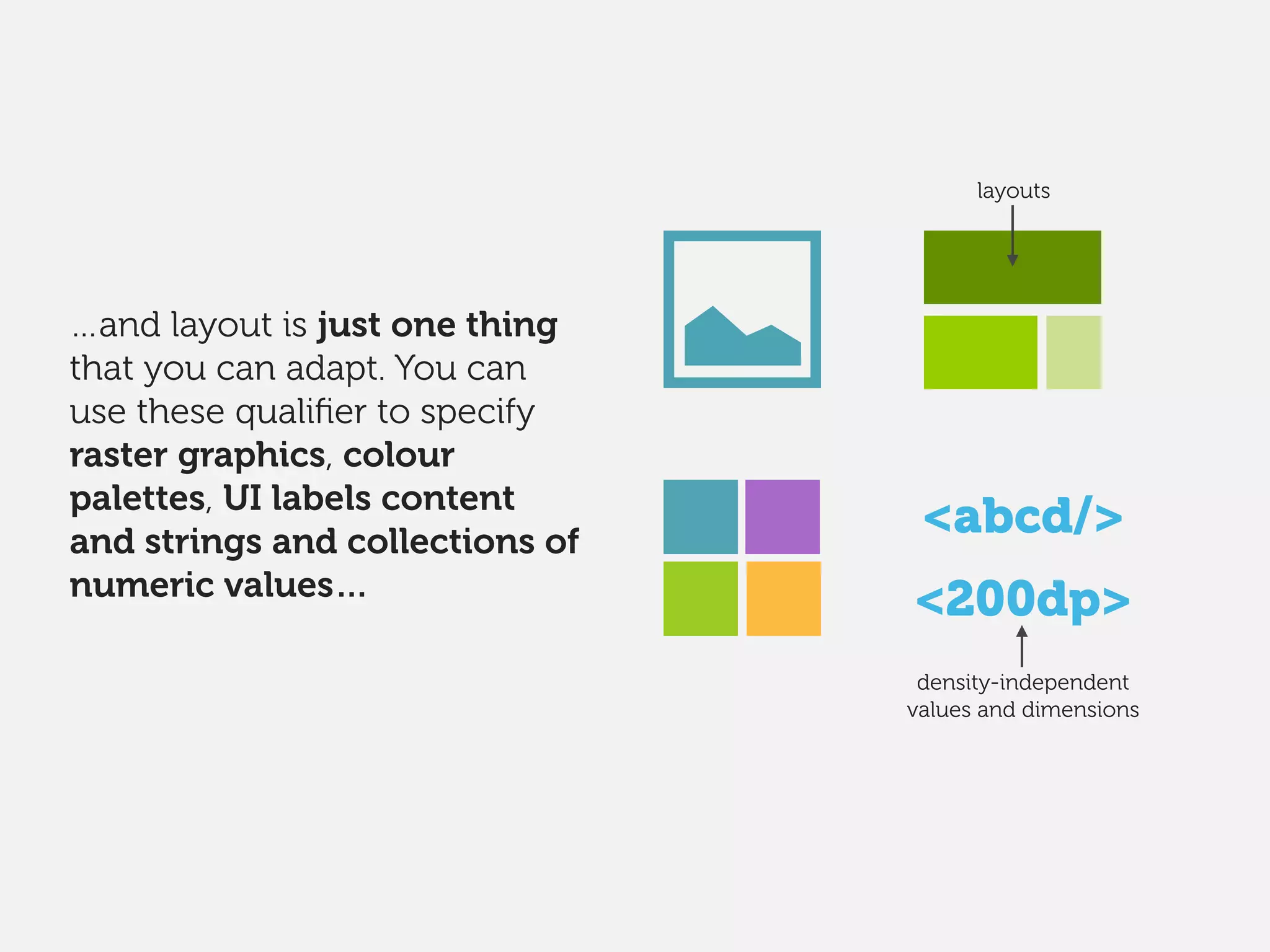

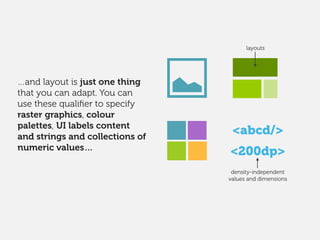

36. …and layout is just one thing
that you can adapt. You can
use these qualifier to specify
raster graphics, colour
palettes, UI labels content
and strings and collections of
numeric values…
<abcd/>
<200dp>
layouts
density-independent
values and dimensions

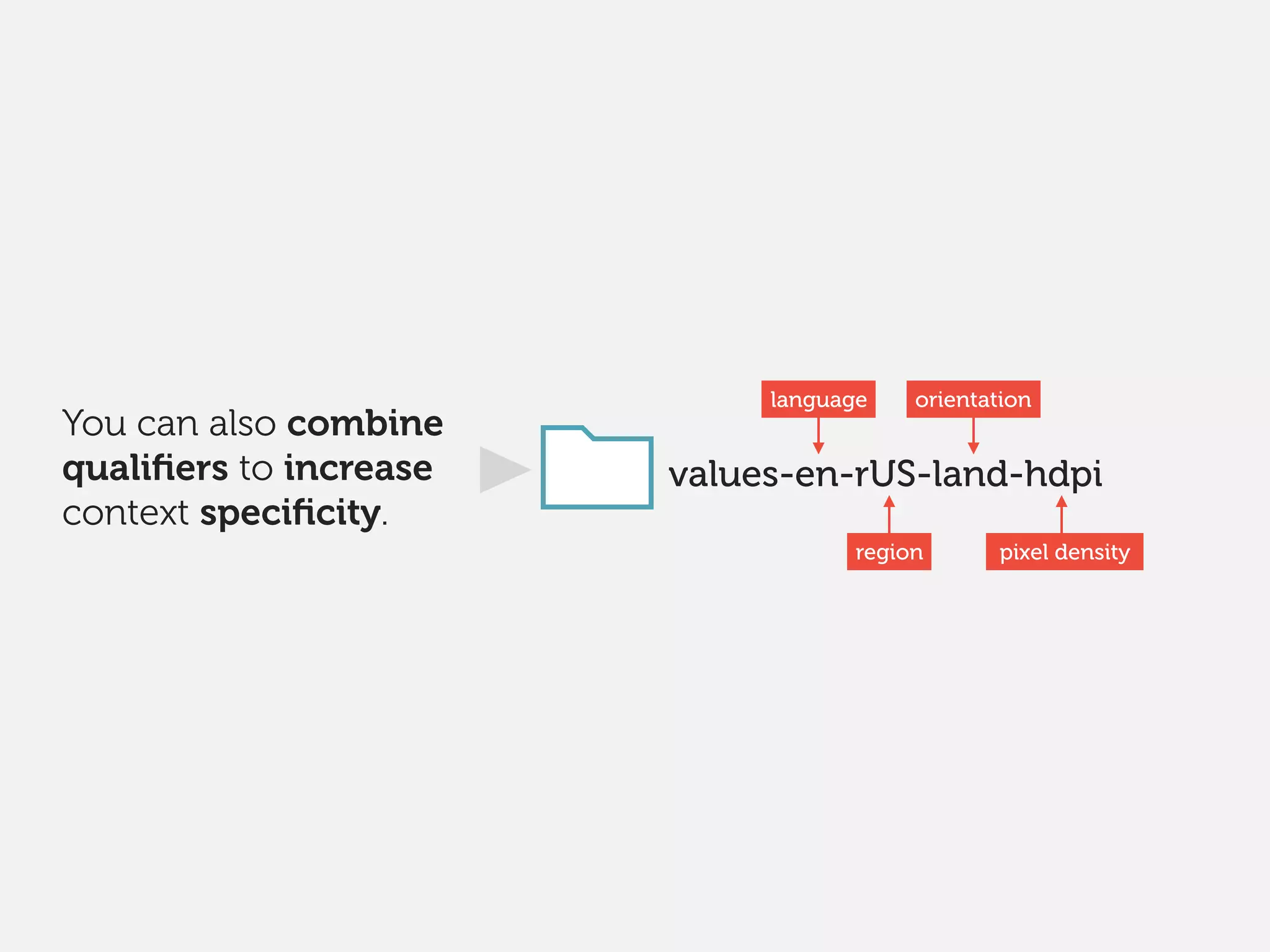

37. You can also combine
qualifiers to increase
context specificity.
values-en-rUS-land-hdpi
language
region
orientation
pixel density

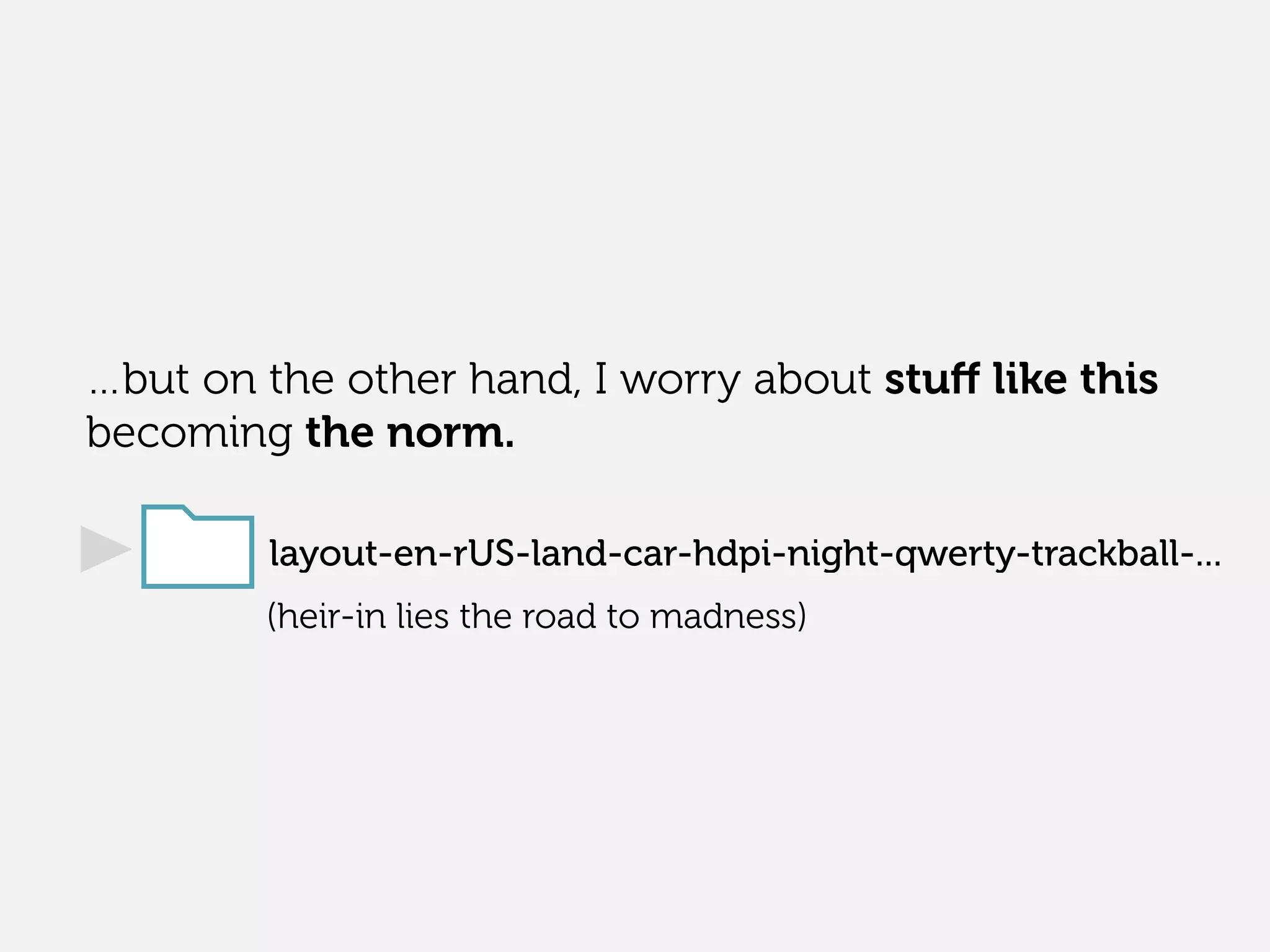

38. …but on the other hand, I worry about stuff like this
becoming the norm.
(heir-in lies the road to madness)
layout-en-rUS-land-car-hdpi-night-qwerty-trackball-...

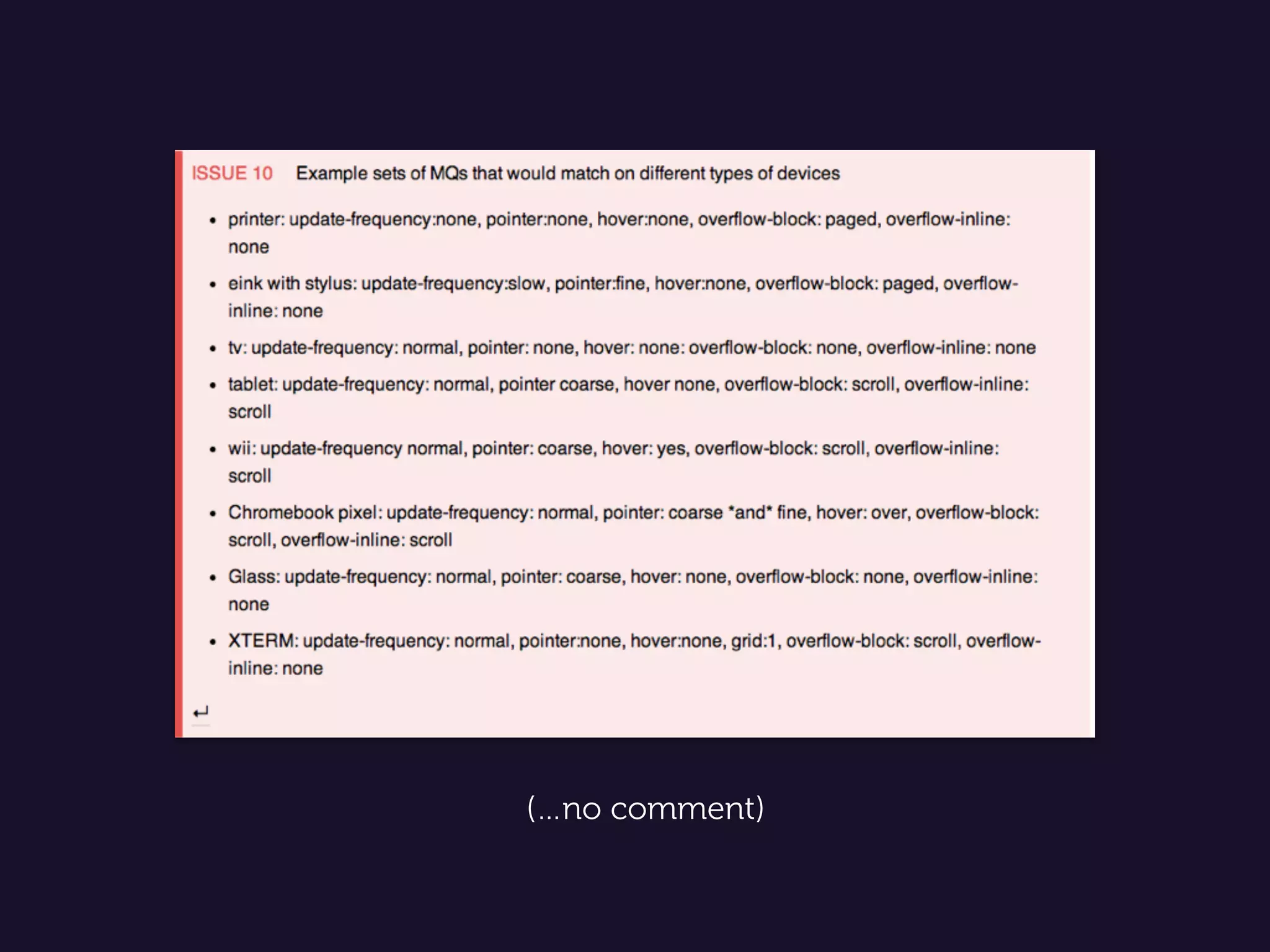

39. (…no comment)

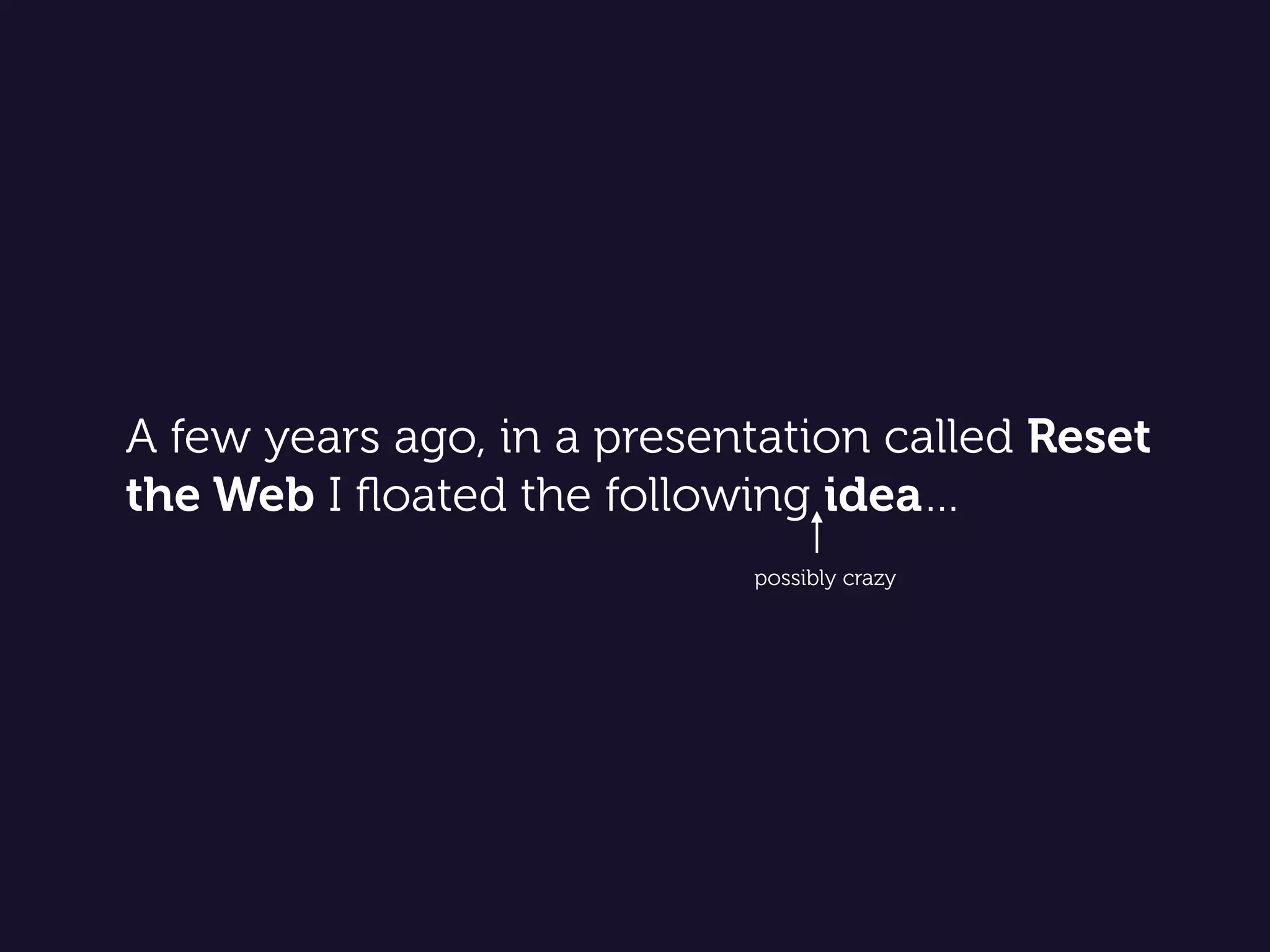

40. A few years ago, in a presentation called Reset
the Web I floated the following idea…
possibly crazy

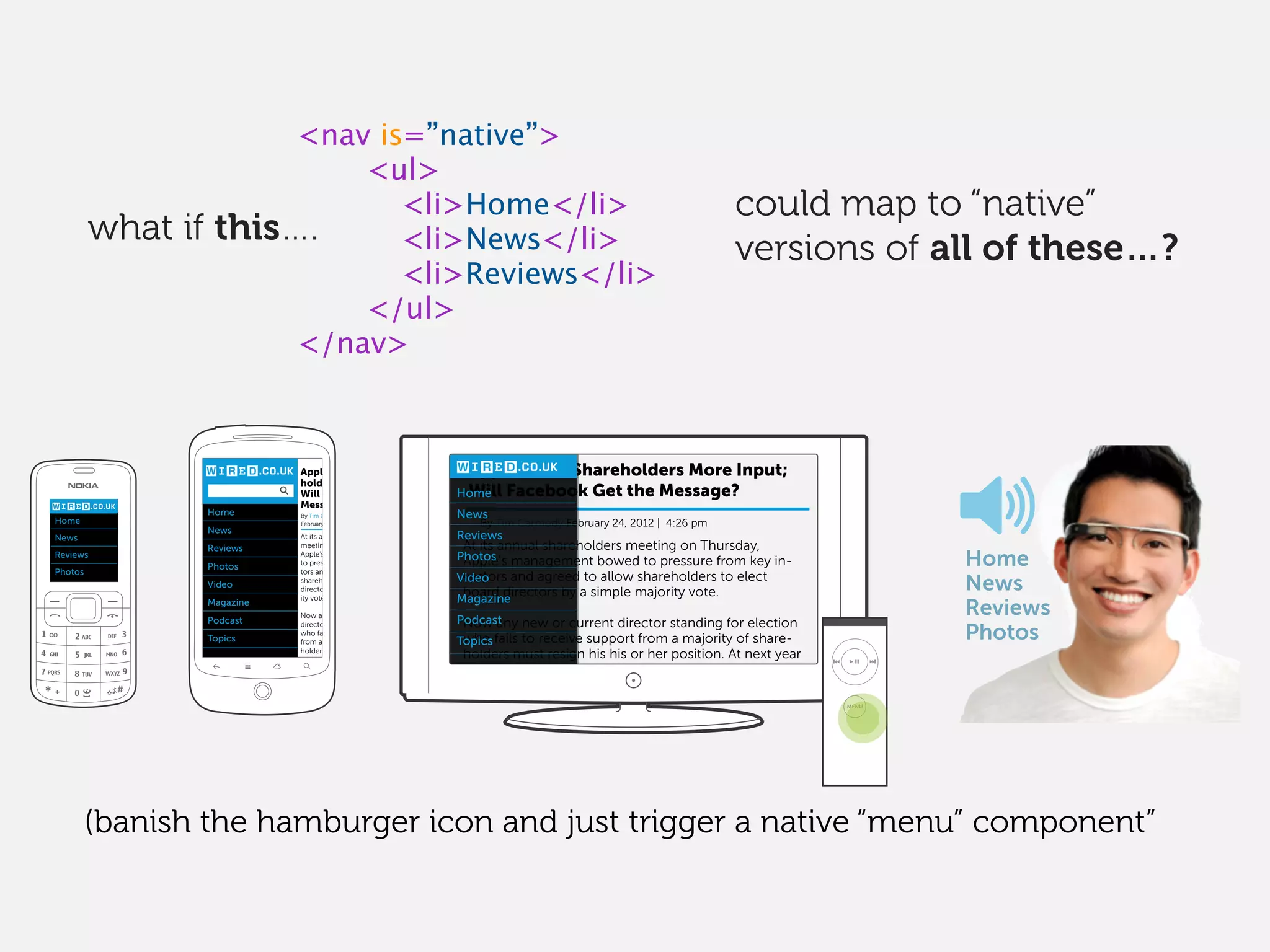

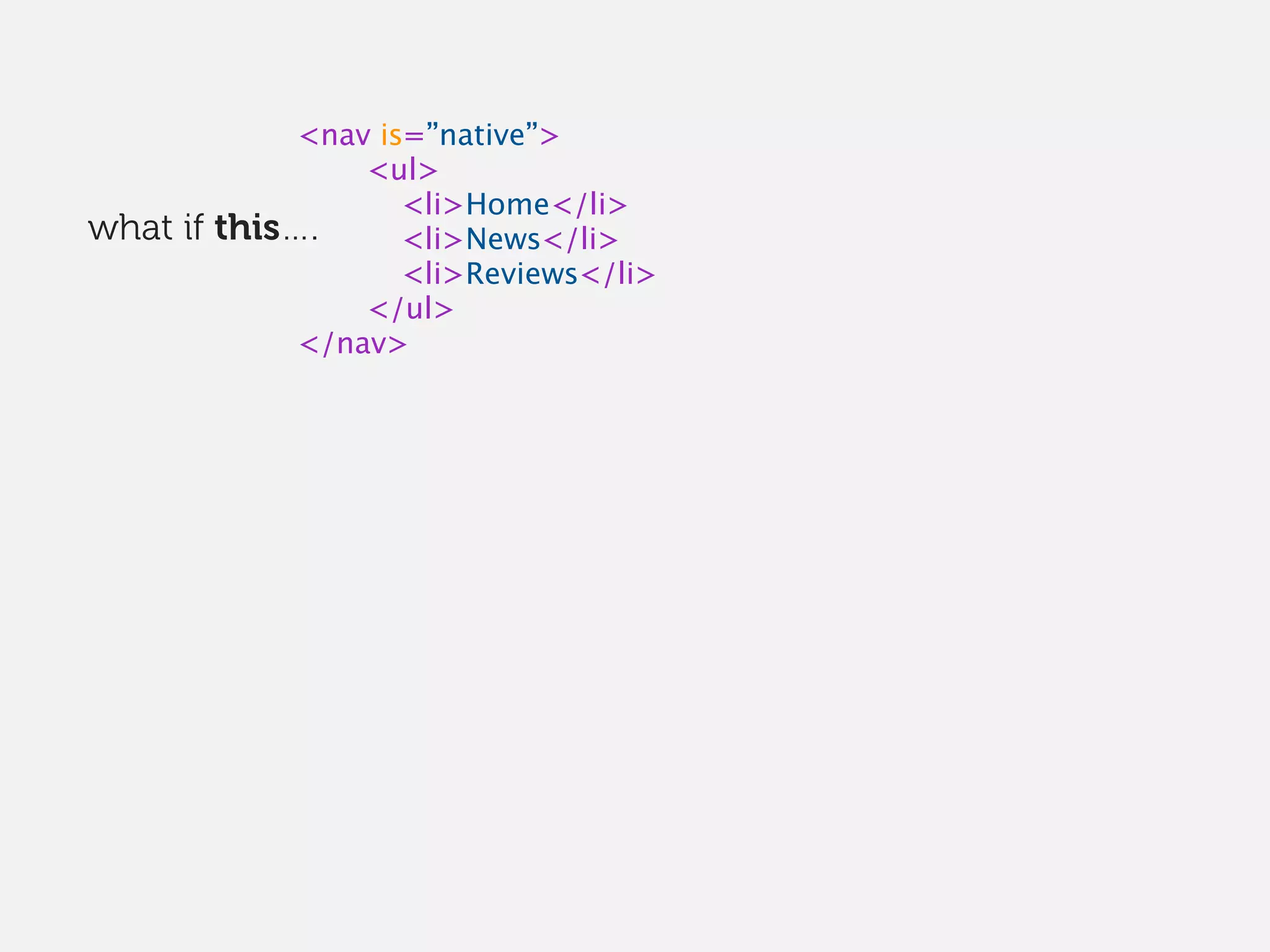

41. <nav is=”native”>
<ul>
<li>Home</li>
<li>News</li>
<li>Reviews</li>
</ul>
</nav>
what if this….

42. could map to “native”
versions of all of these…?
Home
News
Reviews
Photos
Video
Magazine
Podcast
Topics
Apple Gives Share-
holders More Input;
Will Facebook Get the
Message?
At its annual shareholders
meeting on Thursday,
Apple’s management bowed
to pressure from key inves-
tors and agreed to allow
shareholders to elect board
directors by a simple major-
ity vote.
Now any new or current
director standing for election
who fails to receive support
from a majority of share-
holders must resign his
By Tim Carmody
February 24, 2012 | 4:26 pm
At its annual shareholders meeting on Thursday,
Apple’s management bowed to pressure from key in-
vestors and agreed to allow shareholders to elect
board directors by a simple majority vote.
Now any new or current director standing for election
who fails to receive support from a majority of share-
holders must resign his his or her position. At next year
By Tim Carmody February 24, 2012 | 4:26 pm
Apple Gives Shareholders More Input;
Will Facebook Get the Message?Home
News
Reviews
Photos
Video
Magazine
Podcast
Topics
Home
News
Reviews
Photos
Video
Magazine
Podcast
Topics
MENU
Home
News
Reviews
Photos
Home
News
Reviews
Photos
<nav is=”native”>
<ul>
<li>Home</li>
<li>News</li>
<li>Reviews</li>
</ul>
</nav>
what if this….
(banish the hamburger icon and just trigger a native “menu” component”

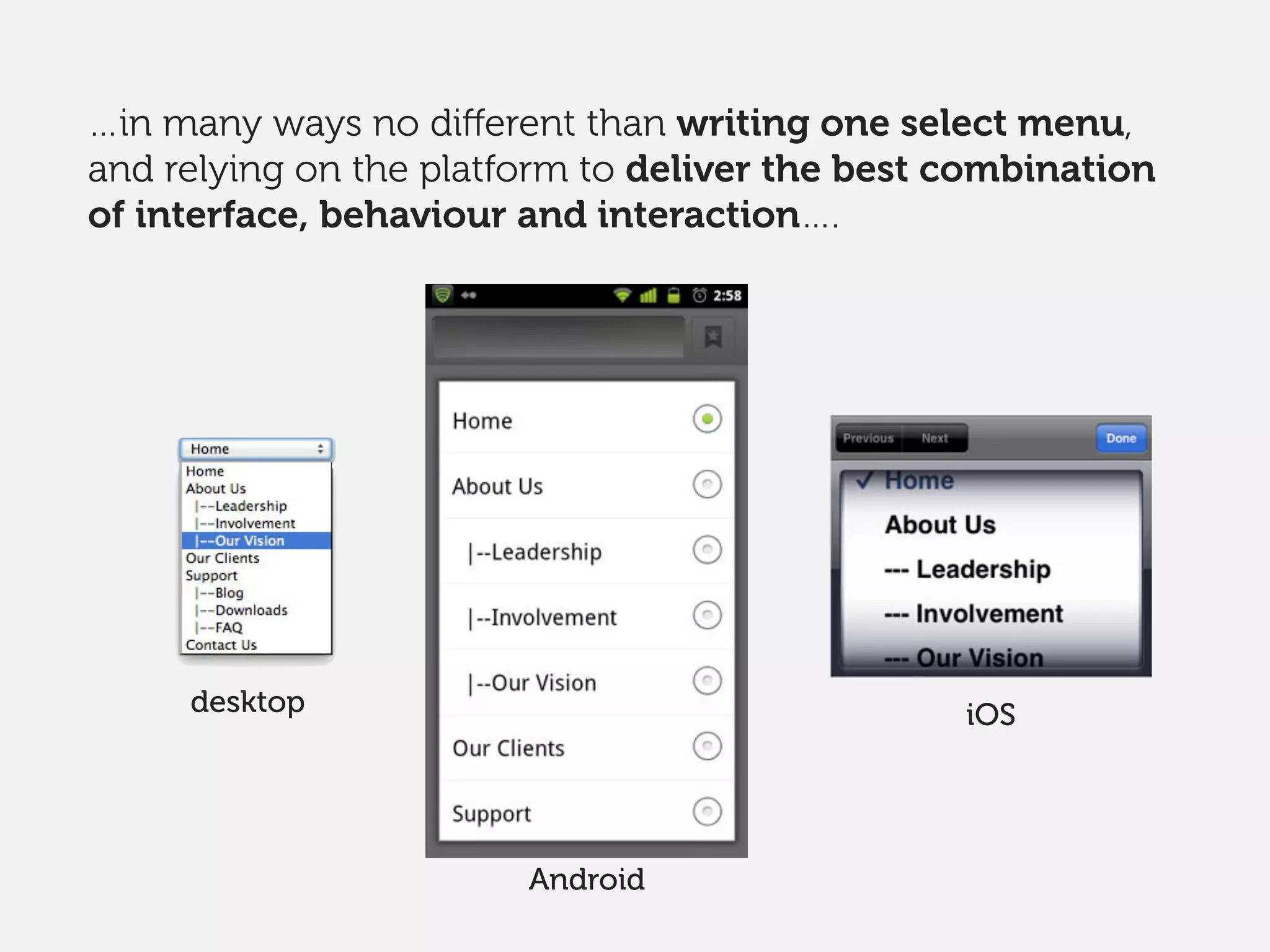

43. …in many ways no different than writing one select menu,
and relying on the platform to deliver the best combination
of interface, behaviour and interaction….
desktop
Android
iOS

44. A bunch of intelligent, responsive, platform-
appropriate yet adaptable default components...

45. Which once again makes me think of some of the
lovelier bits about designing for Android…

46. Take an agreed upon construct, declare the UI,
and the device renders it in the most
appropriate way…
…in this case using XML…a component

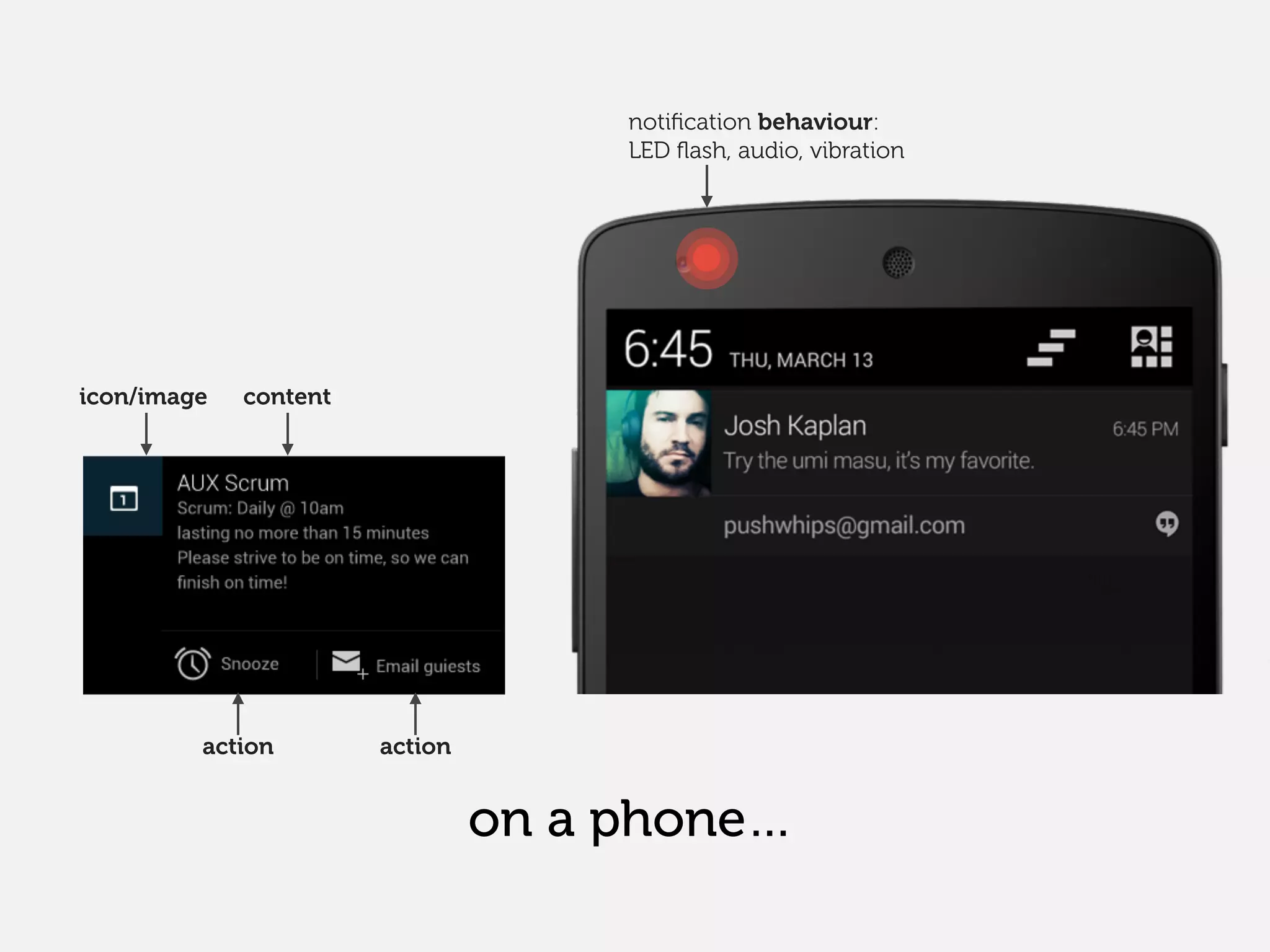

47. notification behaviour:
LED flash, audio, vibration
on a phone…
action action
contenticon/image

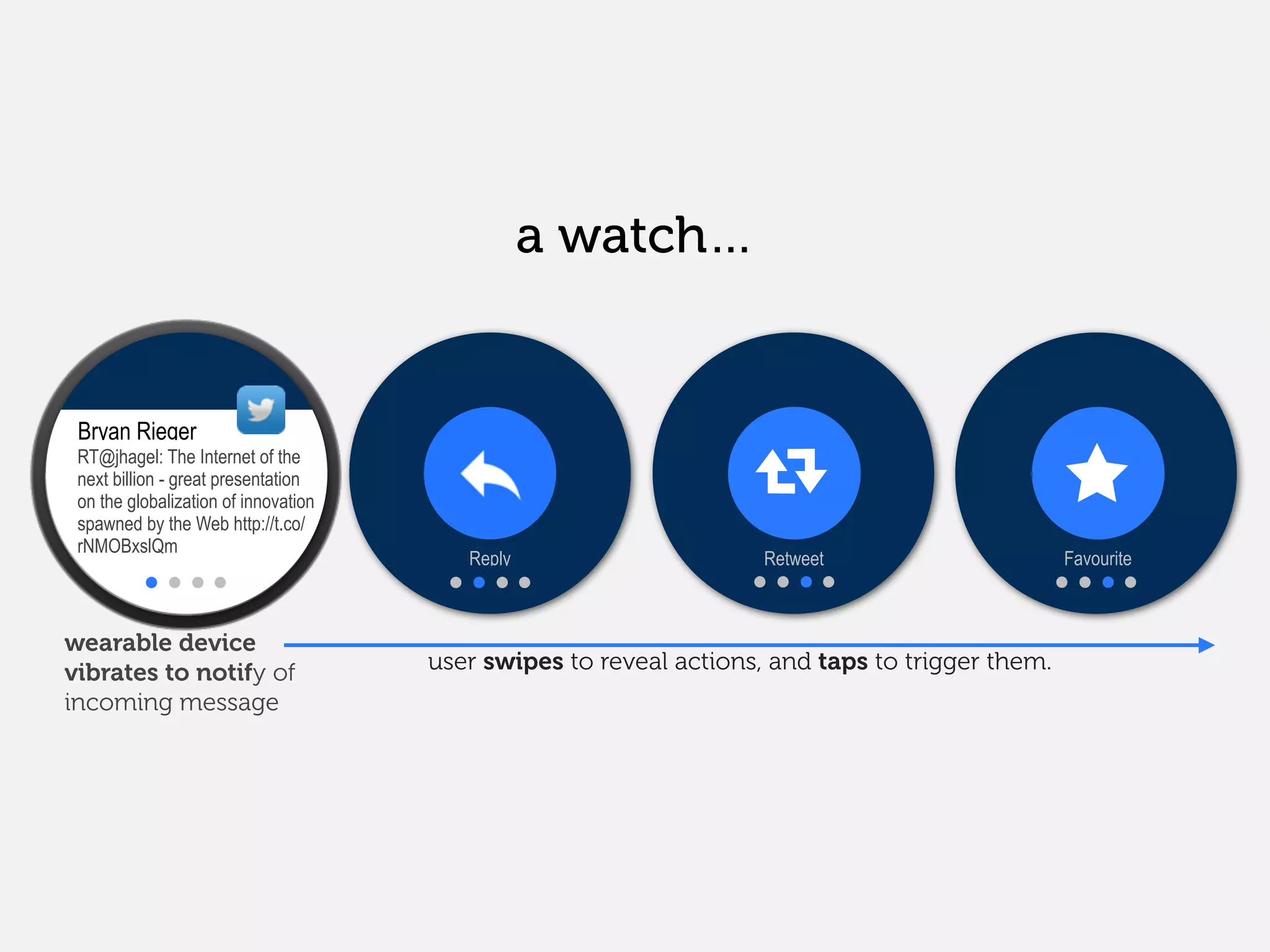

48. RetweetReply
RT@jhagel: The Internet of the
next billion - great presentation
on the globalization of innovation
spawned by the Web http://t.co/
rNMOBxslQm
Bryan Rieger
Favourite
wearable device
vibrates to notify of
incoming message
user swipes to reveal actions, and taps to trigger them.
a watch…

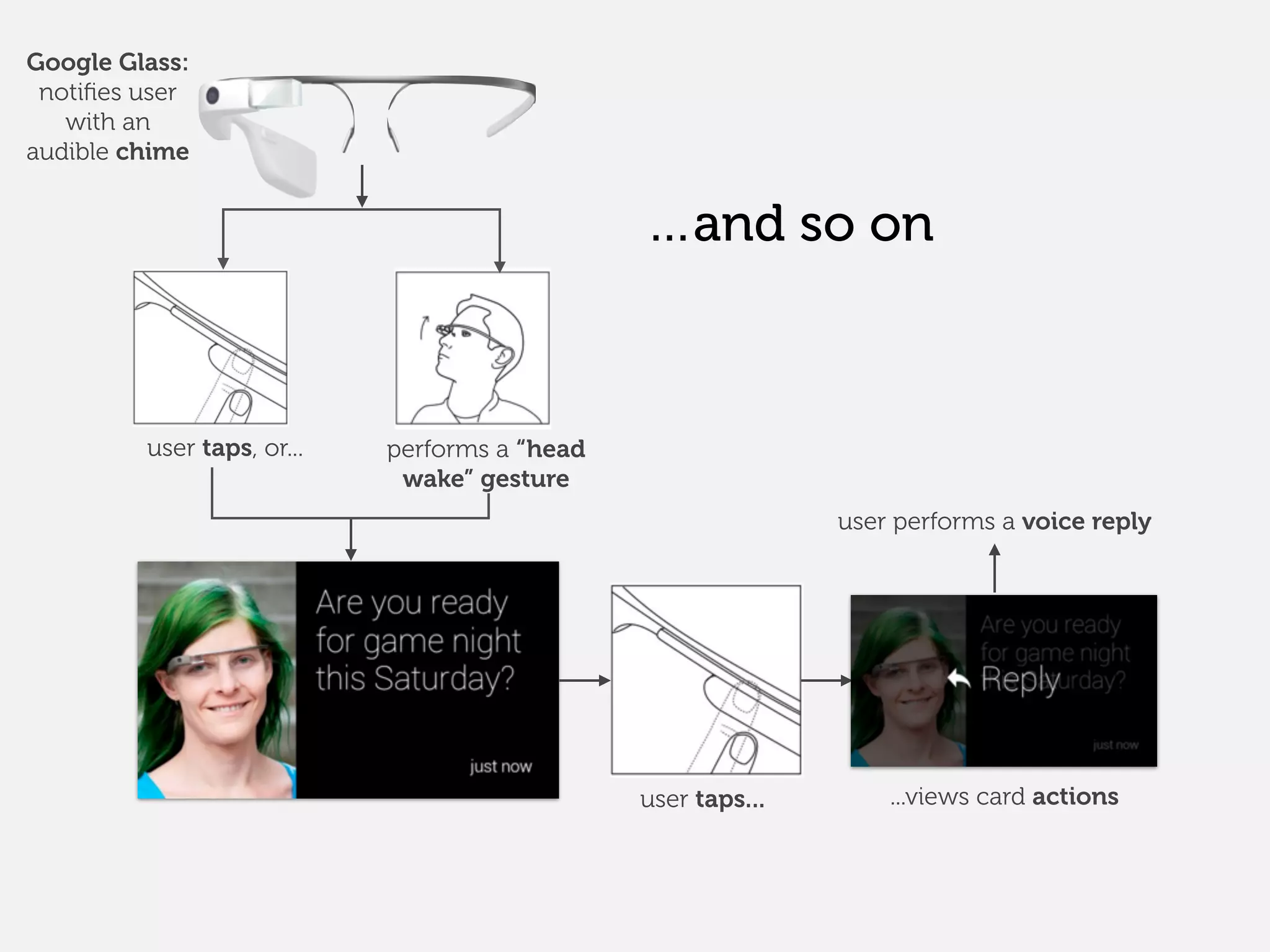

49. Google Glass:
notifies user
with an
audible chime
user taps, or... performs a “head
wake” gesture
user taps... ...views card actions
user performs a voice reply
…and so on

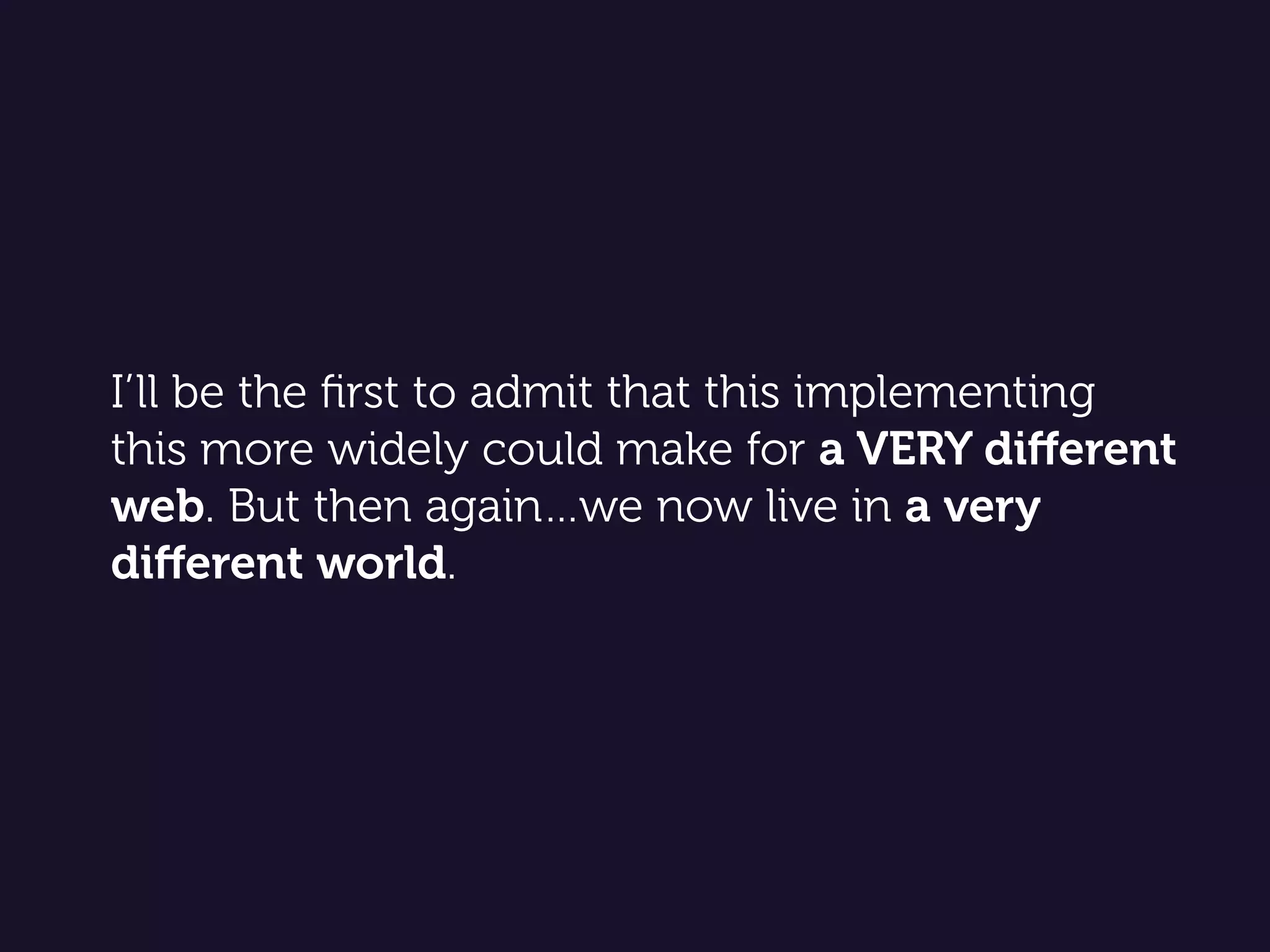

50. I’ll be the first to admit that this implementing
this more widely could make for a VERY different
web. But then again…we now live in a very
different world.

51. …[Bob] connects his phone to the car, and can now
use the familiar car controls, steering wheel
buttons, console dials, touch screens to control it.
It looks and feels as if it's part of the car,…it also
means that he has a personalised experience, that
he can bring with him into any compatible car.
“
- Google I/O 2014 keynote yep…silos are still a big risk, but
today’s web is at risk as well

52. To a certain degree, we’re already developing
technologies that align with this thinking…

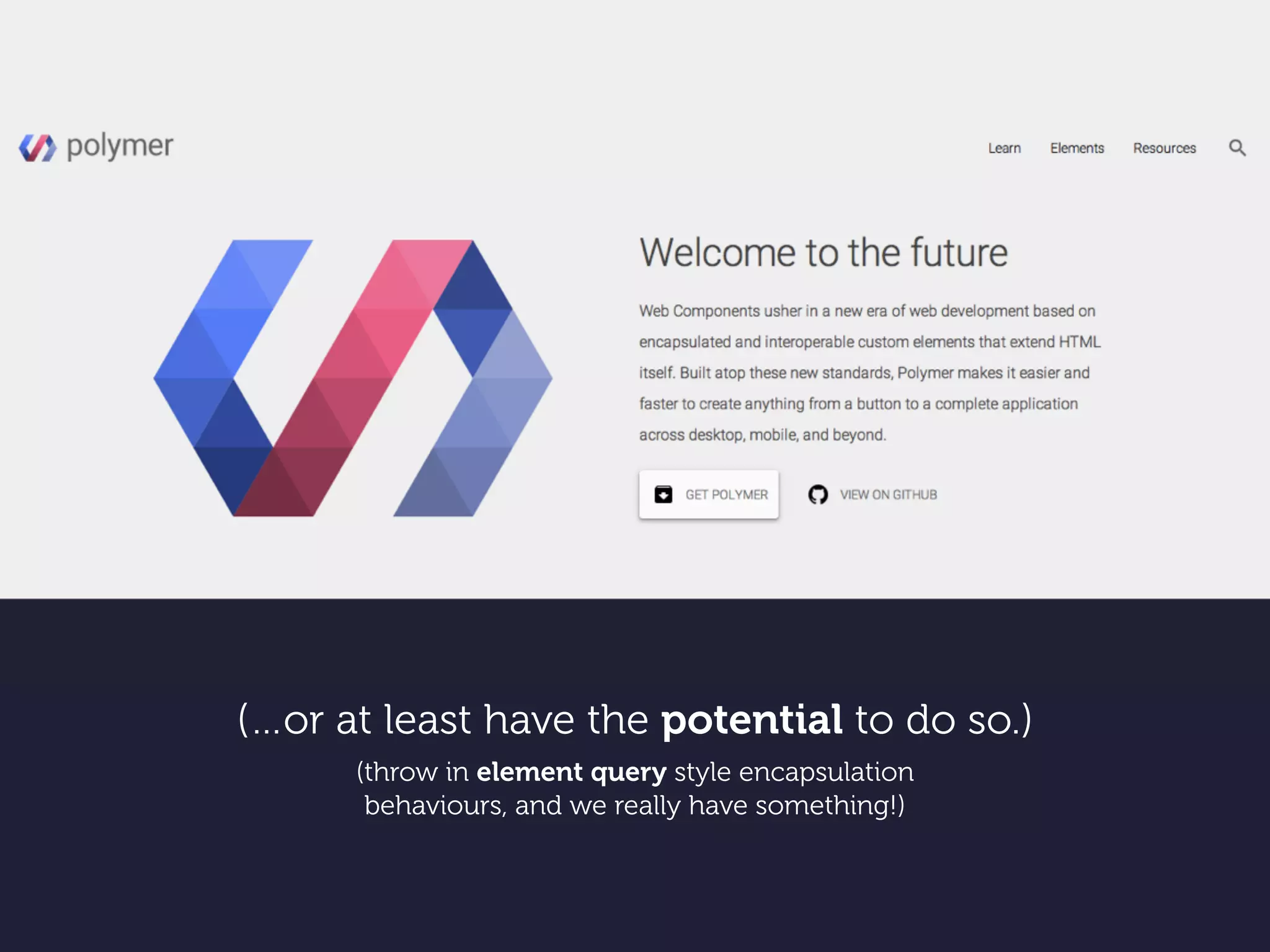

53. (…or at least have the potential to do so.)
(throw in element query style encapsulation
behaviours, and we really have something!)

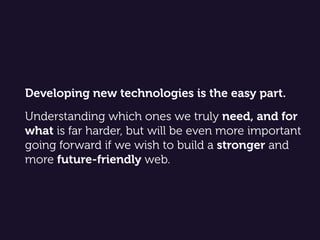

54. Developing new technologies is the easy part.
Understanding which ones we truly need, and for
what is far harder, but will be even more important
going forward if we wish to build a stronger and
more future-friendly web.

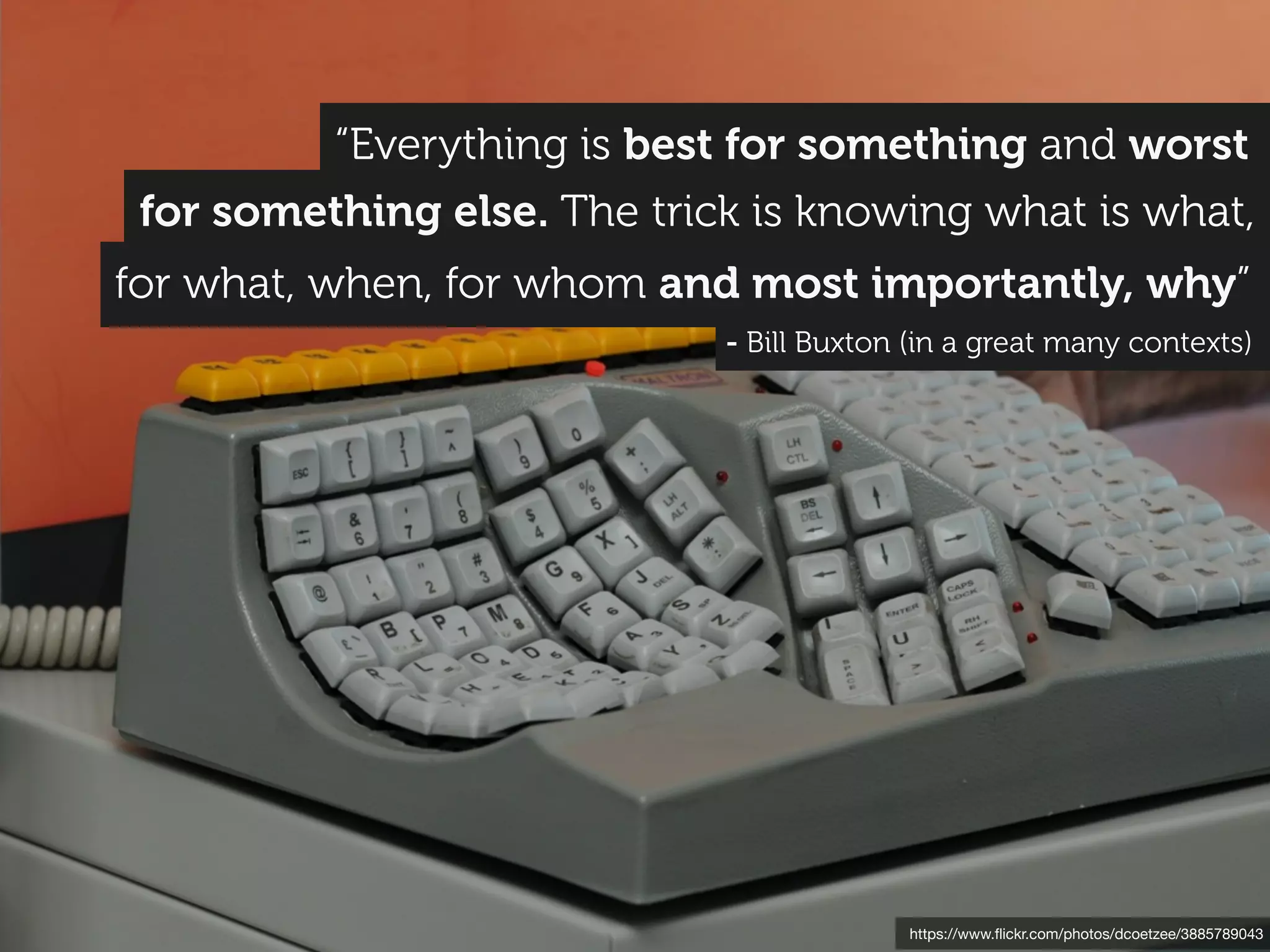

55. “Everything is best for something and worst
for something else. The trick is knowing what is what,
for what, when, for whom and most importantly, why”
- Bill Buxton (in a great many contexts)
https://www.flickr.com/photos/dcoetzee/3885789043

56. http://www.flickr.com/photos/tinou/453593446
thank you
many thanks to the
amazing photographers on
http://creativecommons.org/licenses/by/2.5
@yiibu
hello@yiibu.com
contact us
at
Presentation deck available @
http://www.slideshare.net/yiibu
