The basics and design of lua table

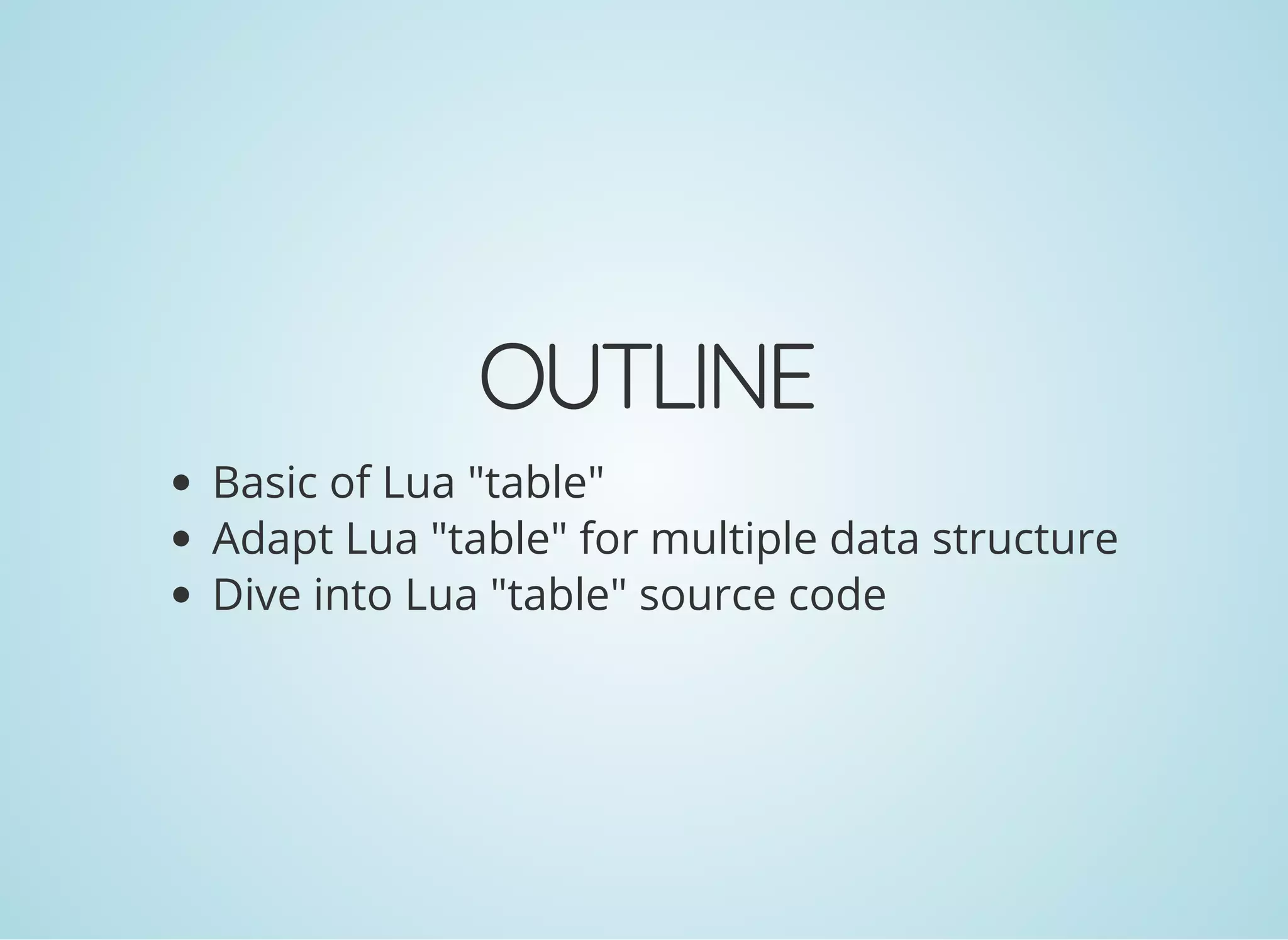

OUTLINE
Basic of Lua "table"
Adapt Lua "table" for multiple data structure
Dive into Lua "table" source code

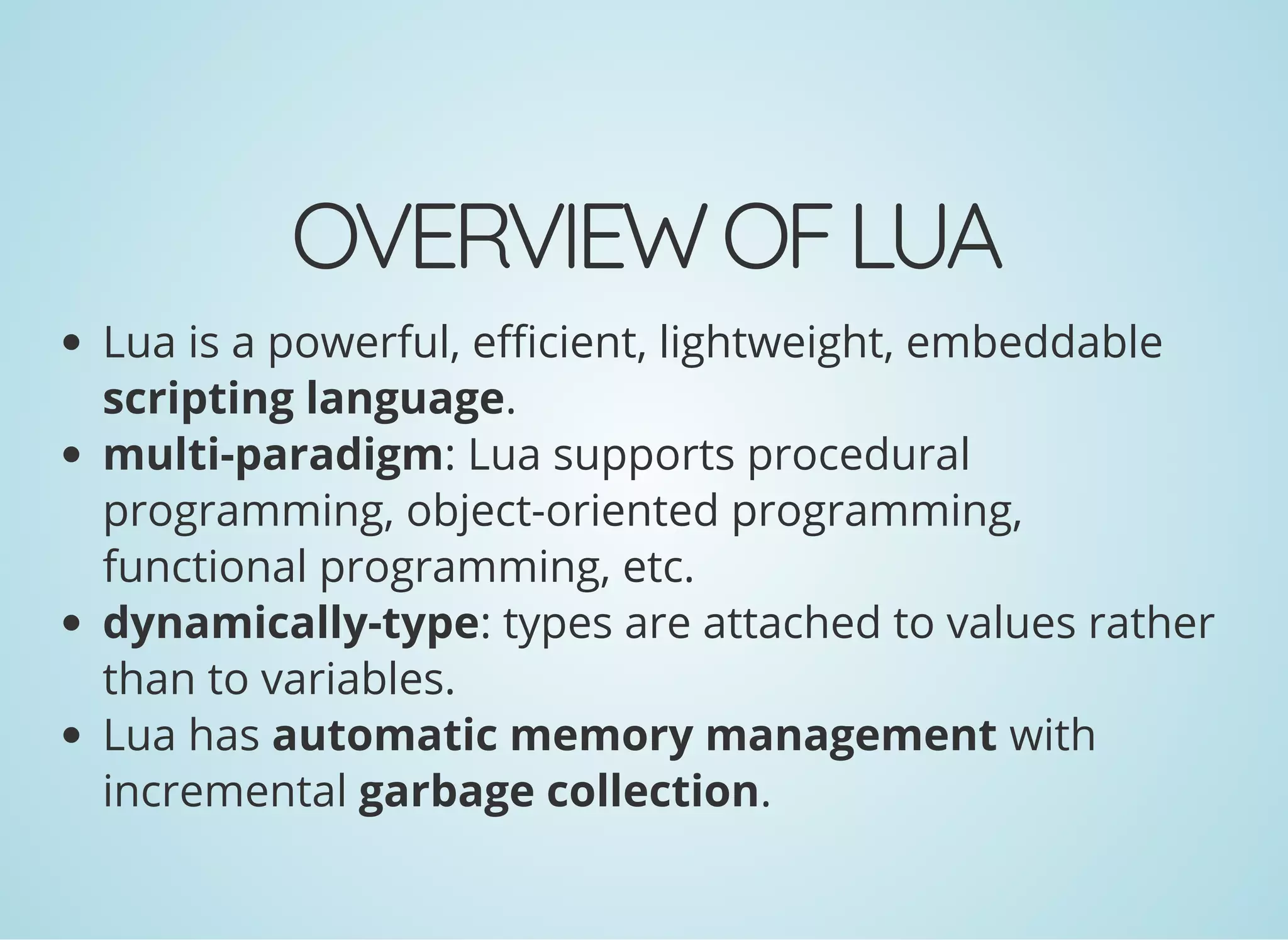

OVERVIEWOFLUA
Lua is a powerful, e cient, lightweight, embeddable
scripting language.
multi-paradigm: Lua supports procedural
programming, object-oriented programming,
functional programming, etc.
dynamically-type: types are attached to values rather
than to variables.
Lua has automatic memory management with
incremental garbage collection.

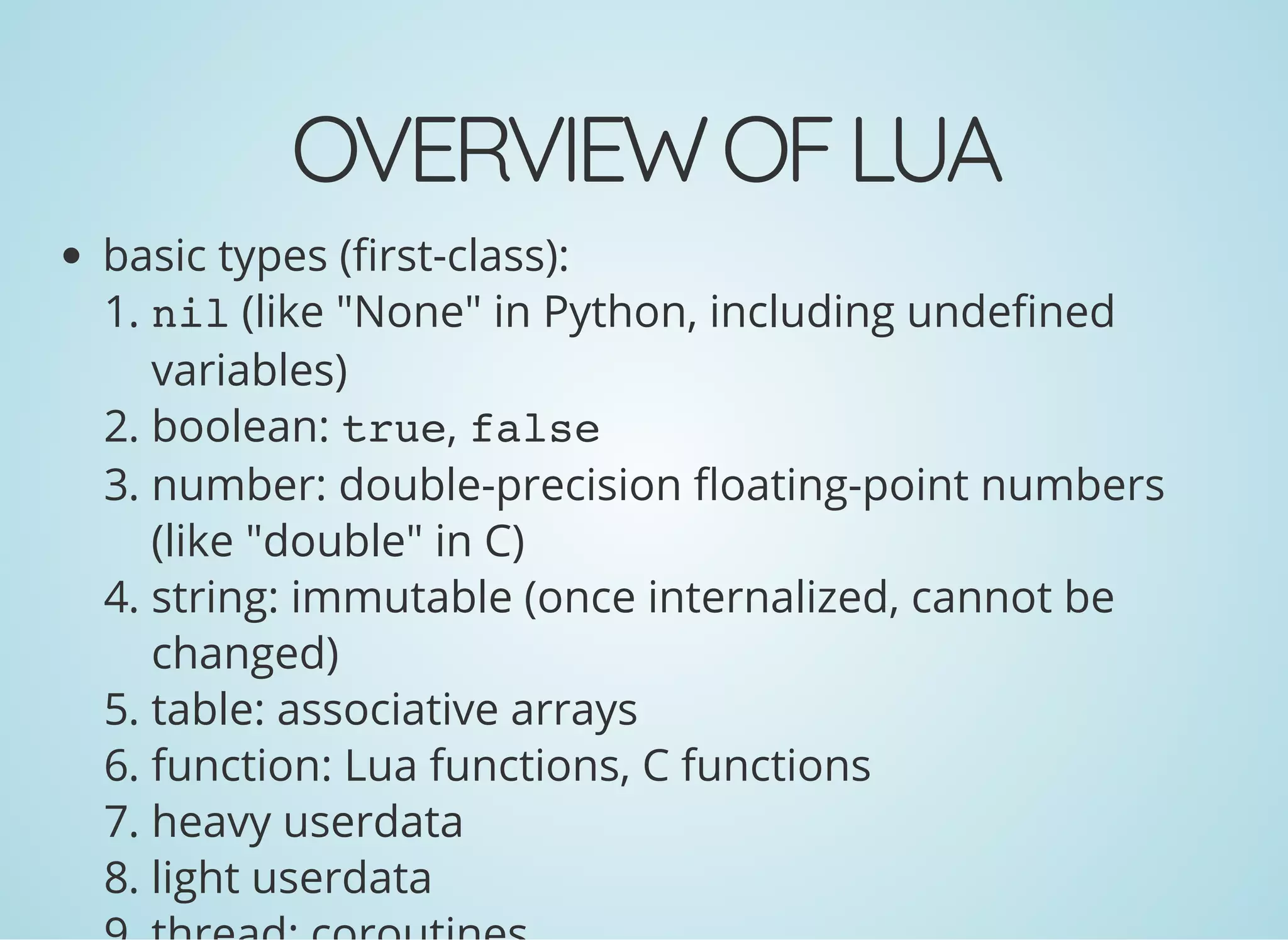

OVERVIEWOFLUA
basic types ( rst-class):
1. nil (like "None" in Python, including unde ned
variables)
2. boolean: true, false
3. number: double-precision oating-point numbers
(like "double" in C)
4. string: immutable (once internalized, cannot be
changed)
5. table: associative arrays
6. function: Lua functions, C functions
7. heavy userdata
8. light userdata

9. thread: coroutines

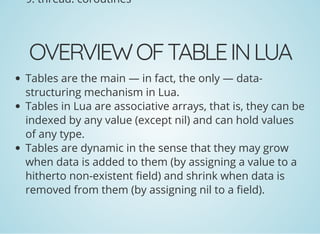

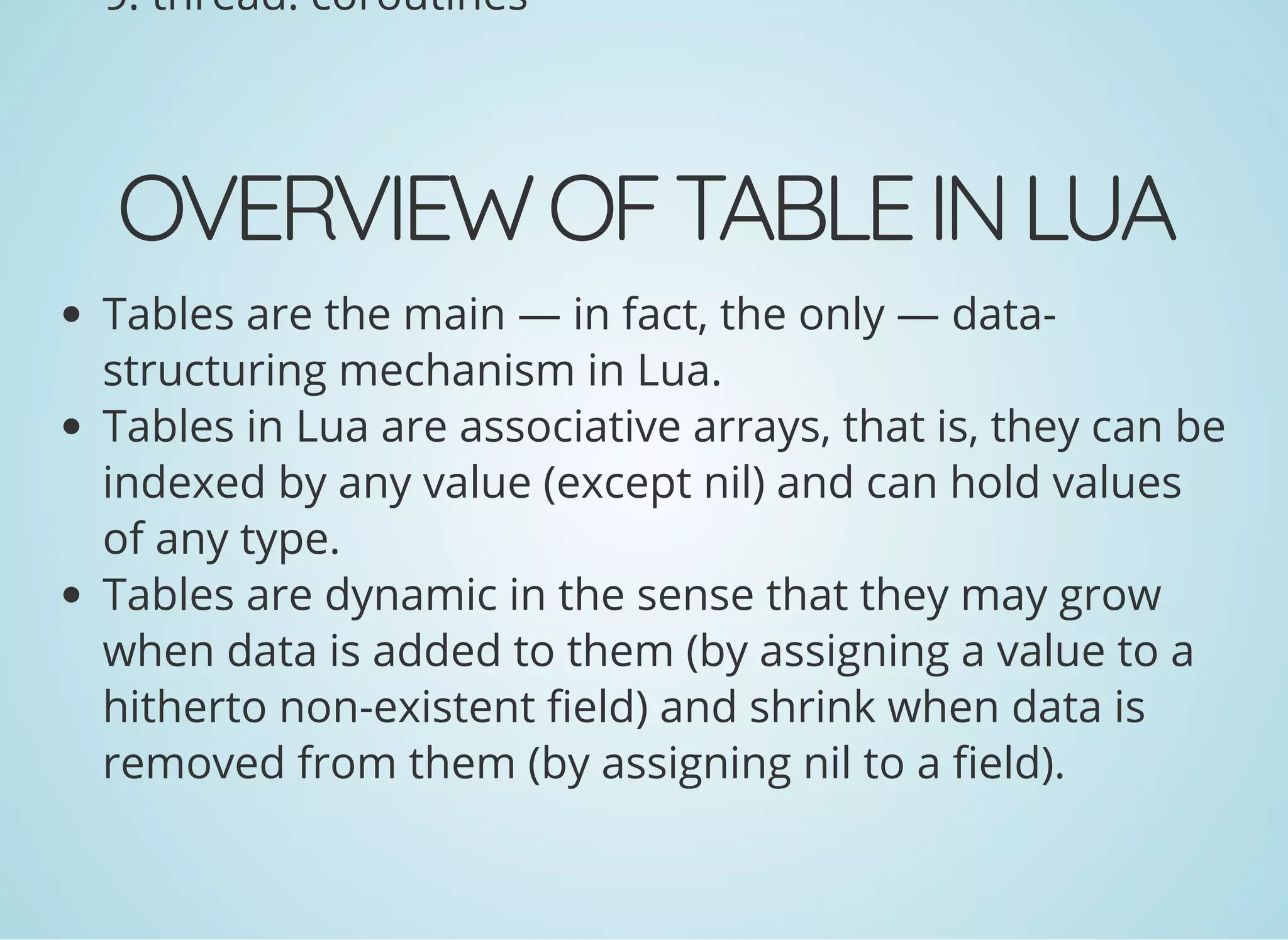

OVERVIEWOFTABLEINLUA
Tables are the main — in fact, the only — data-
structuring mechanism in Lua.
Tables in Lua are associative arrays, that is, they can be
indexed by any value (except nil) and can hold values
of any type.
Tables are dynamic in the sense that they may grow
when data is added to them (by assigning a value to a
hitherto non-existent eld) and shrink when data is
removed from them (by assigning nil to a eld).

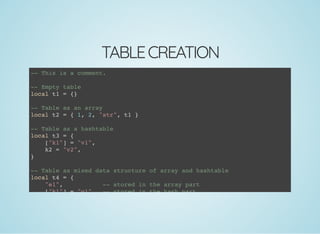

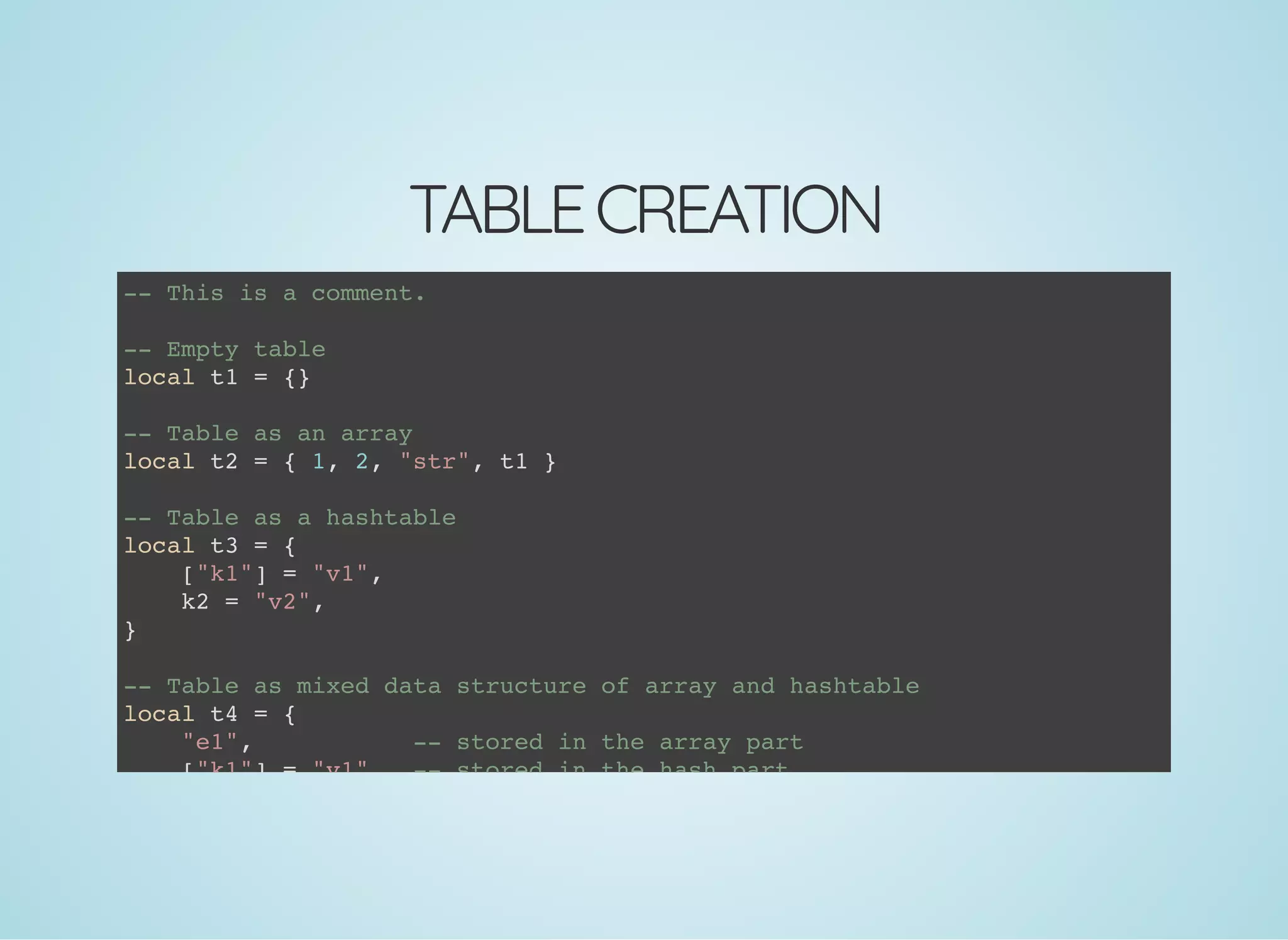

TABLECREATION
-- This is a comment.
-- Empty table
local t1 = {}
-- Table as an array
local t2 = { 1, 2, "str", t1 }
-- Table as a hashtable
local t3 = {
["k1"] = "v1",
k2 = "v2",
}
-- Table as mixed data structure of array and hashtable
local t4 = {
"e1", -- stored in the array part
["k1"] = "v1", -- stored in the hash part

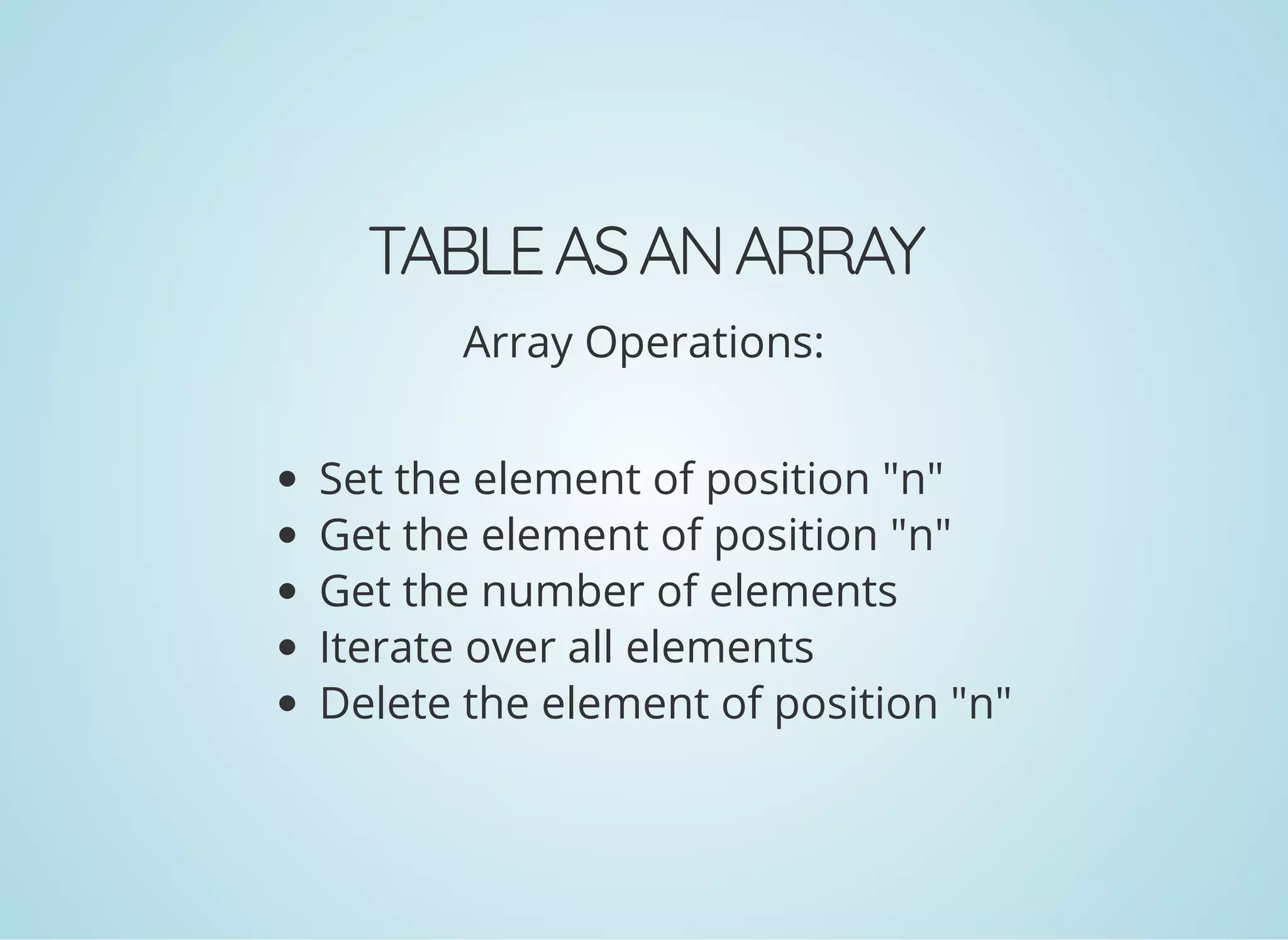

TABLEASANARRAY
Array Operations:
Set the element of position "n"
Get the element of position "n"
Get the number of elements
Iterate over all elements
Delete the element of position "n"

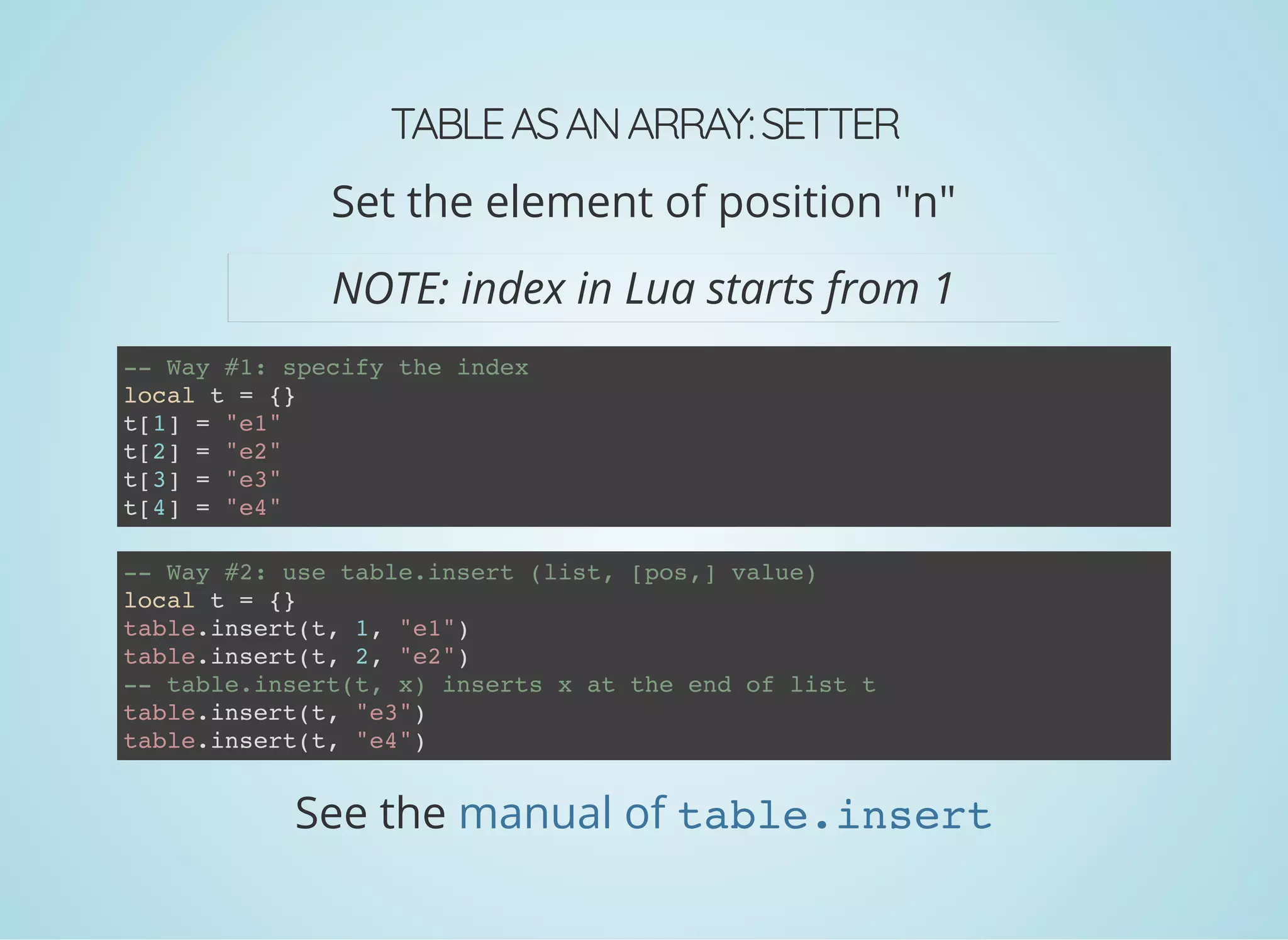

TABLEASANARRAY:SETTER
Set the element of position "n"
NOTE: index in Lua starts from 1
-- Way #1: specify the index
local t = {}
t[1] = "e1"
t[2] = "e2"
t[3] = "e3"
t[4] = "e4"
-- Way #2: use table.insert (list, [pos,] value)
local t = {}
table.insert(t, 1, "e1")
table.insert(t, 2, "e2")
-- table.insert(t, x) inserts x at the end of list t
table.insert(t, "e3")
table.insert(t, "e4")
See the manual of table.insert

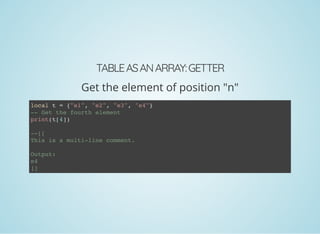

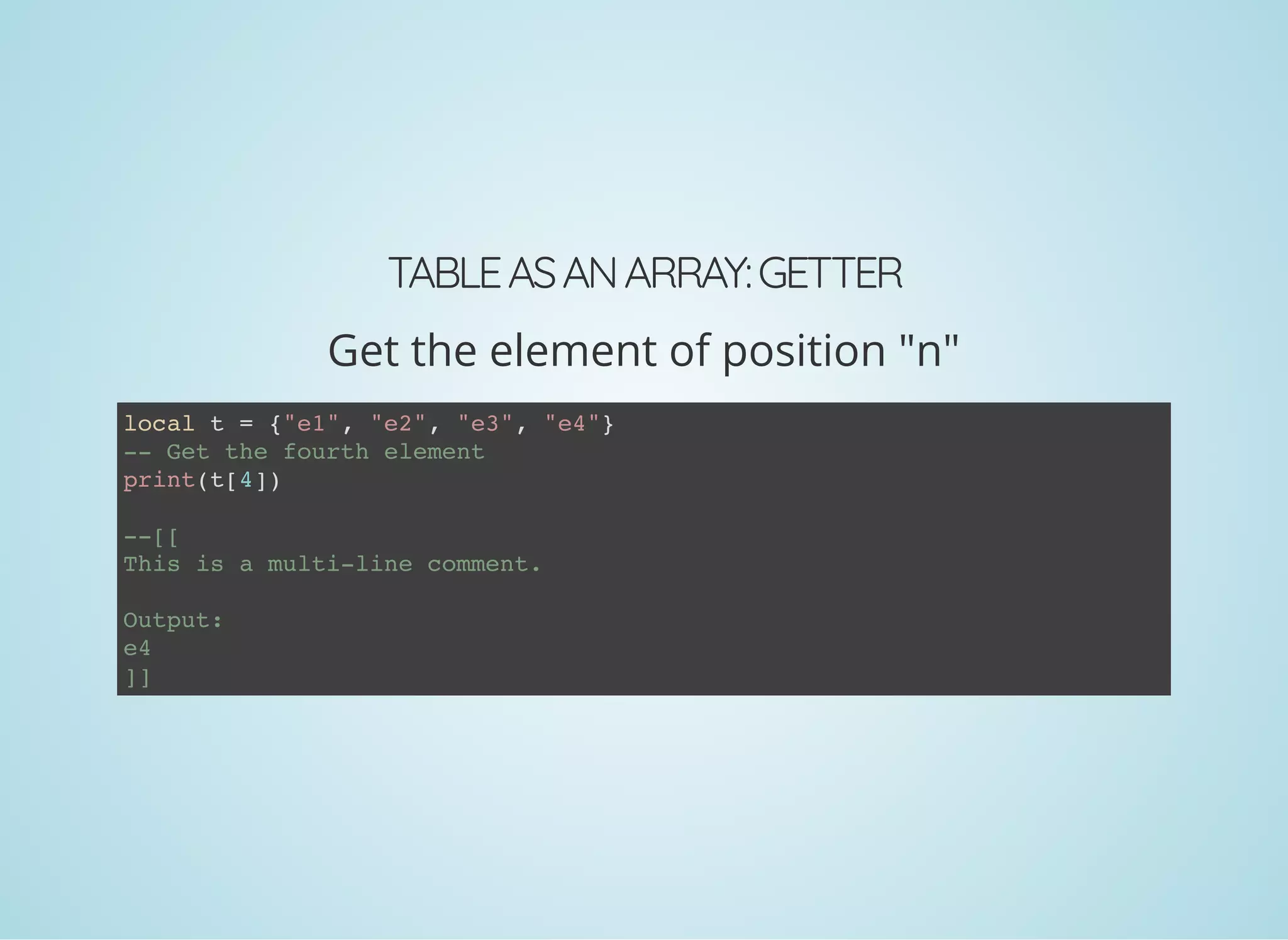

TABLEASANARRAY:GETTER
Get the element of position "n"
local t = {"e1", "e2", "e3", "e4"}
-- Get the fourth element
print(t[4])
--[[
This is a multi-line comment.
Output:
e4
]]

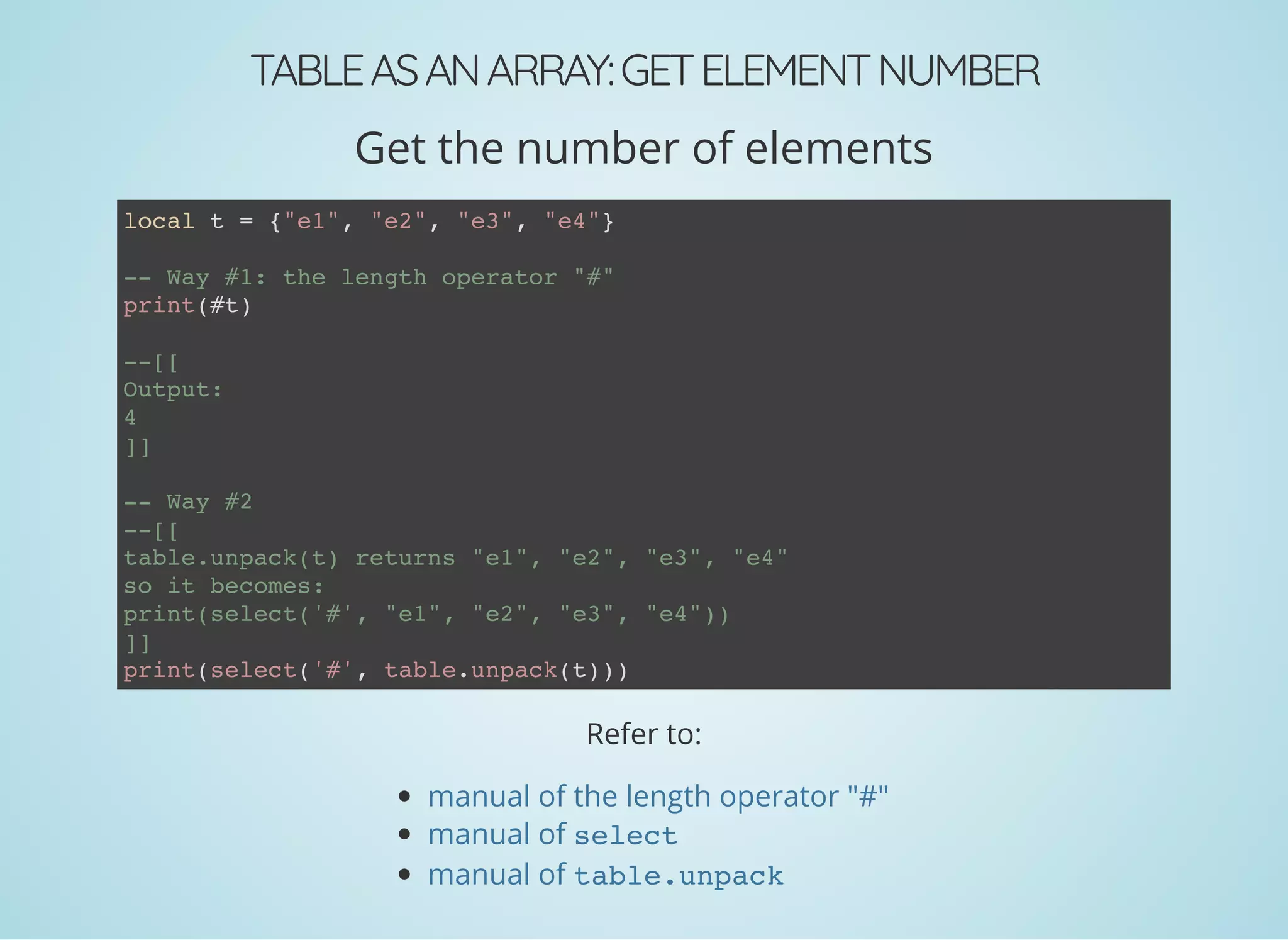

TABLEASANARRAY:GETELEMENTNUMBER
Get the number of elements
local t = {"e1", "e2", "e3", "e4"}
-- Way #1: the length operator "#"
print(#t)
--[[
Output:
4
]]
-- Way #2
--[[
table.unpack(t) returns "e1", "e2", "e3", "e4"
so it becomes:
print(select('#', "e1", "e2", "e3", "e4"))
]]
print(select('#', table.unpack(t)))
Refer to:
manual of the length operator "#"
manual of select
manual of table.unpack

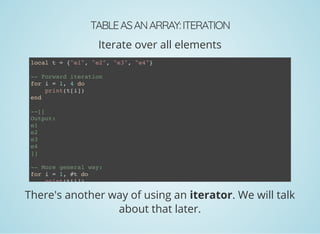

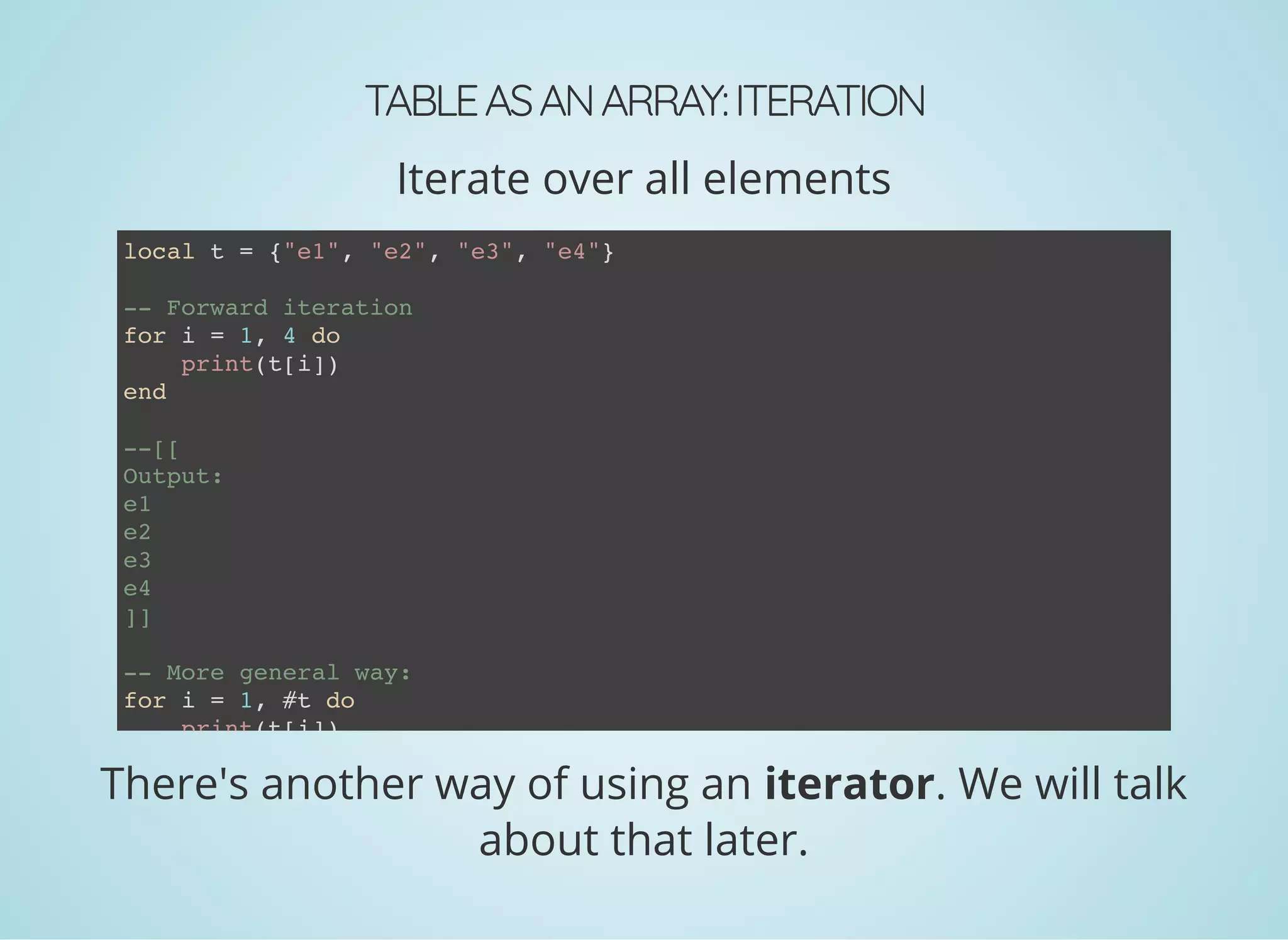

TABLEASANARRAY:ITERATION
Iterate over all elements
local t = {"e1", "e2", "e3", "e4"}
-- Forward iteration
for i = 1, 4 do
print(t[i])
end
--[[
Output:
e1
e2
e3
e4
]]
-- More general way:
for i = 1, #t do
print(t[i])
There's another way of using an iterator. We will talk
about that later.

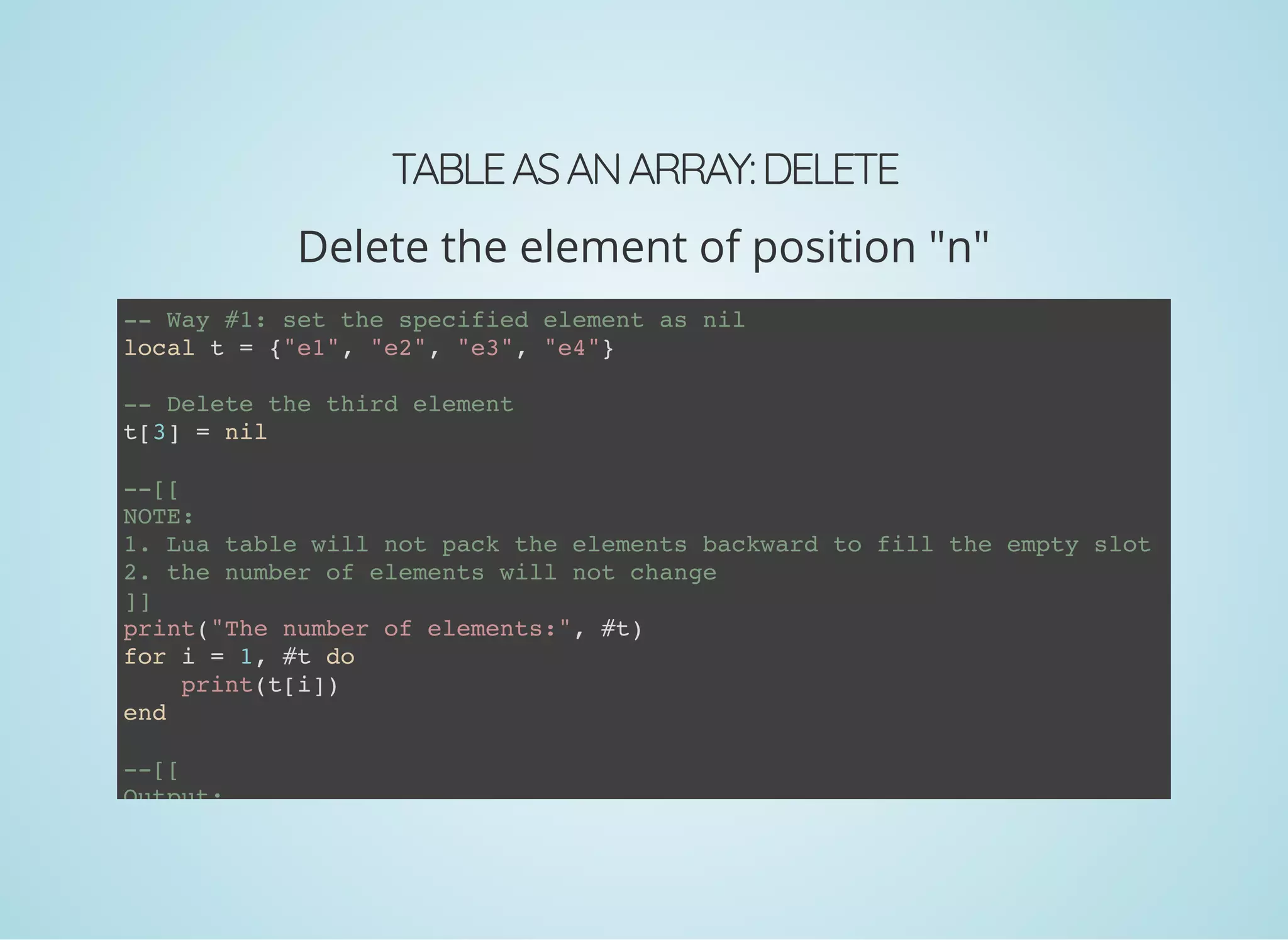

TABLEASANARRAY:DELETE
-- Way #1: set the specified element as nil
local t = {"e1", "e2", "e3", "e4"}
-- Delete the third element
t[3] = nil
--[[
NOTE:
1. Lua table will not pack the elements backward to fill the empty slot
2. the number of elements will not change
]]
print("The number of elements:", #t)
for i = 1, #t do
print(t[i])
end
--[[
Output:

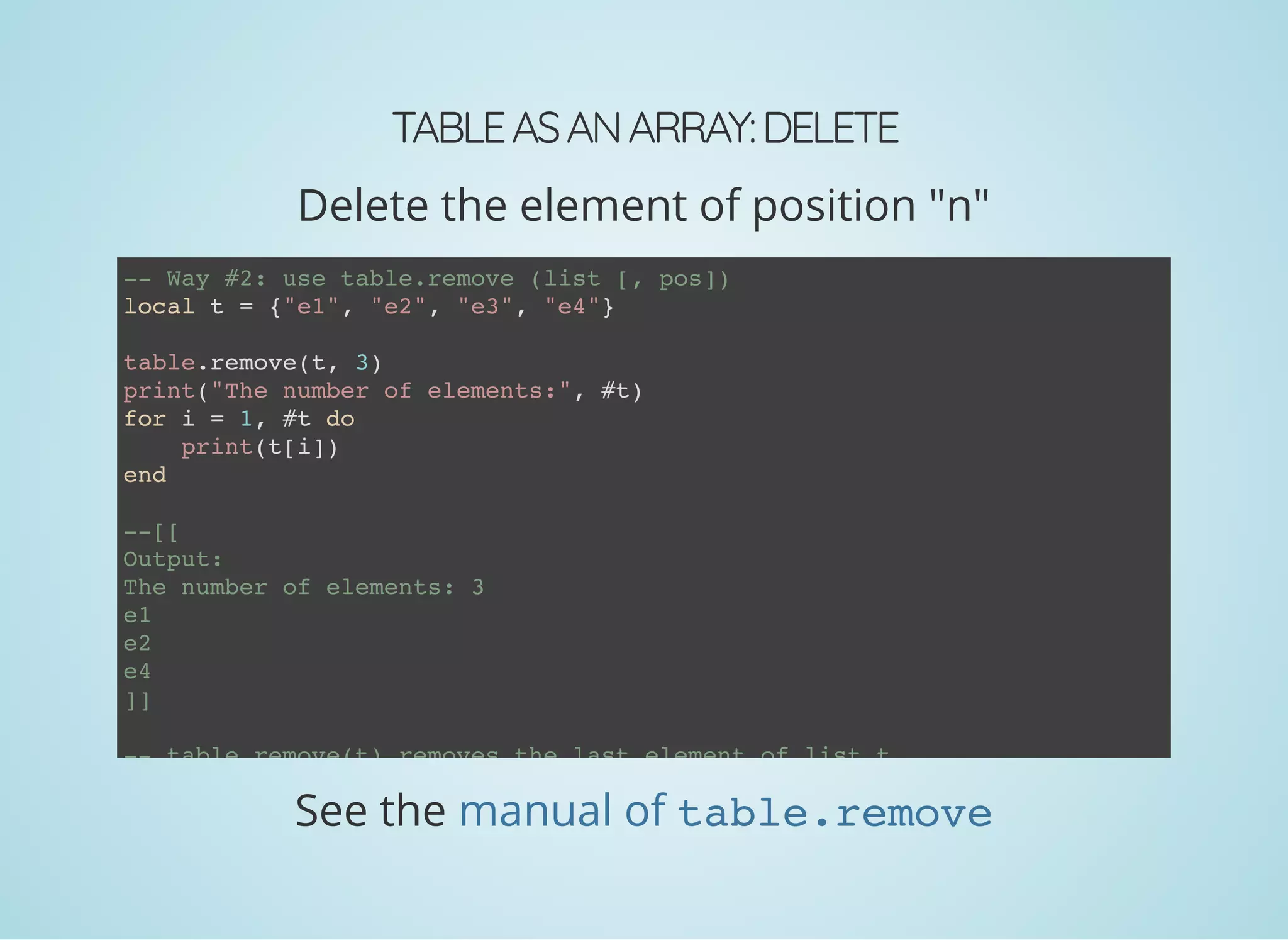

-- Way #2: use table.remove (list [, pos])
local t = {"e1", "e2", "e3", "e4"}
table.remove(t, 3)
print("The number of elements:", #t)
for i = 1, #t do
print(t[i])
end
--[[
Output:
The number of elements: 3
e1
e2
e4
]]
-- table.remove(t) removes the last element of list t.
See the manual of table.remove

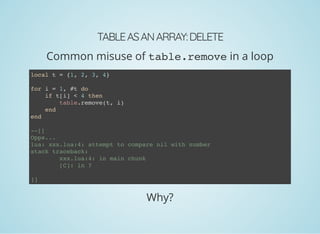

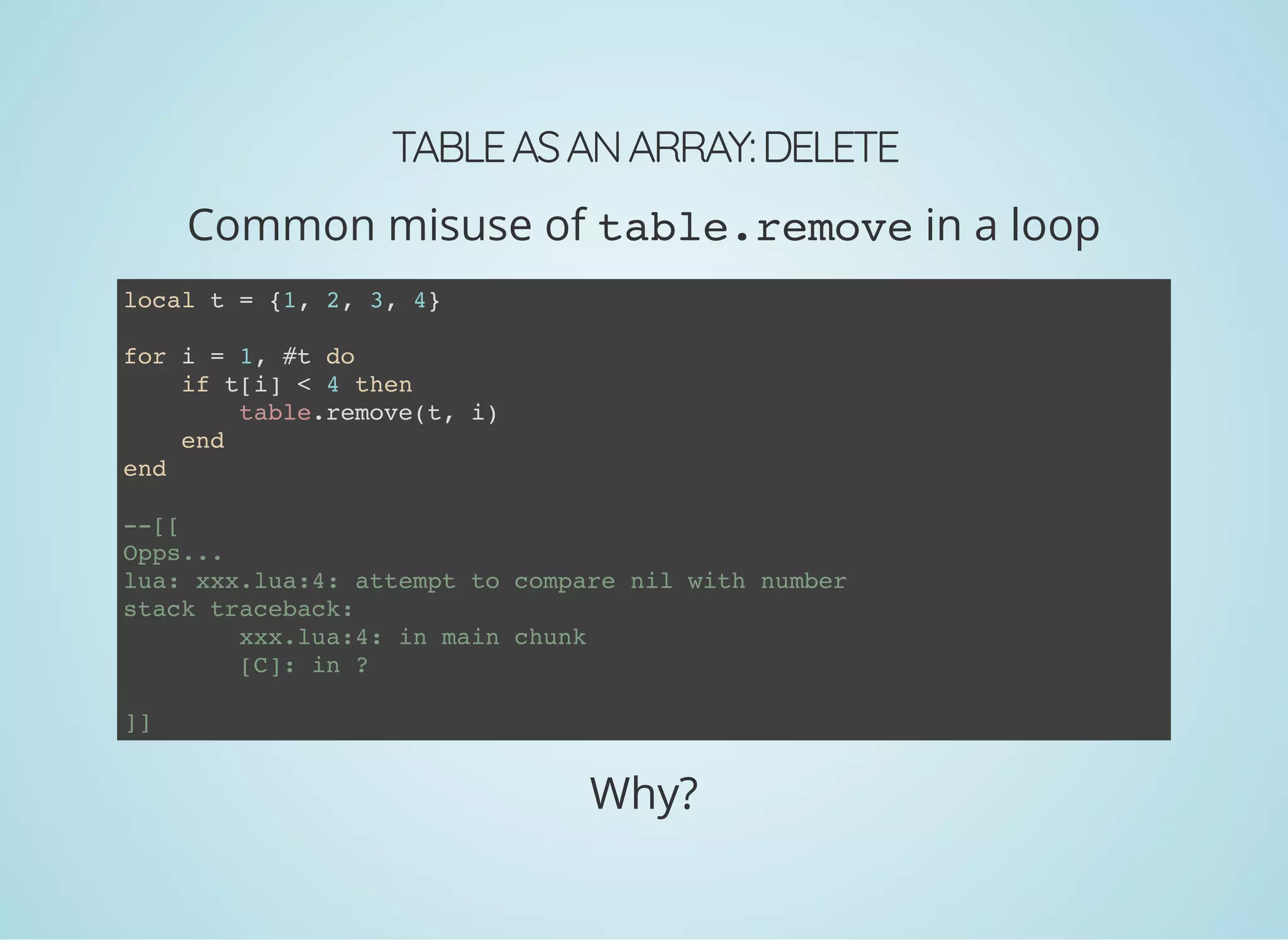

Common misuse of table.remove in a loop
local t = {1, 2, 3, 4}
for i = 1, #t do
if t[i] < 4 then
table.remove(t, i)
end
end
--[[
Opps...
lua: xxx.lua:4: attempt to compare nil with number
stack traceback:
xxx.lua:4: in main chunk
[C]: in ?
]]
Why?

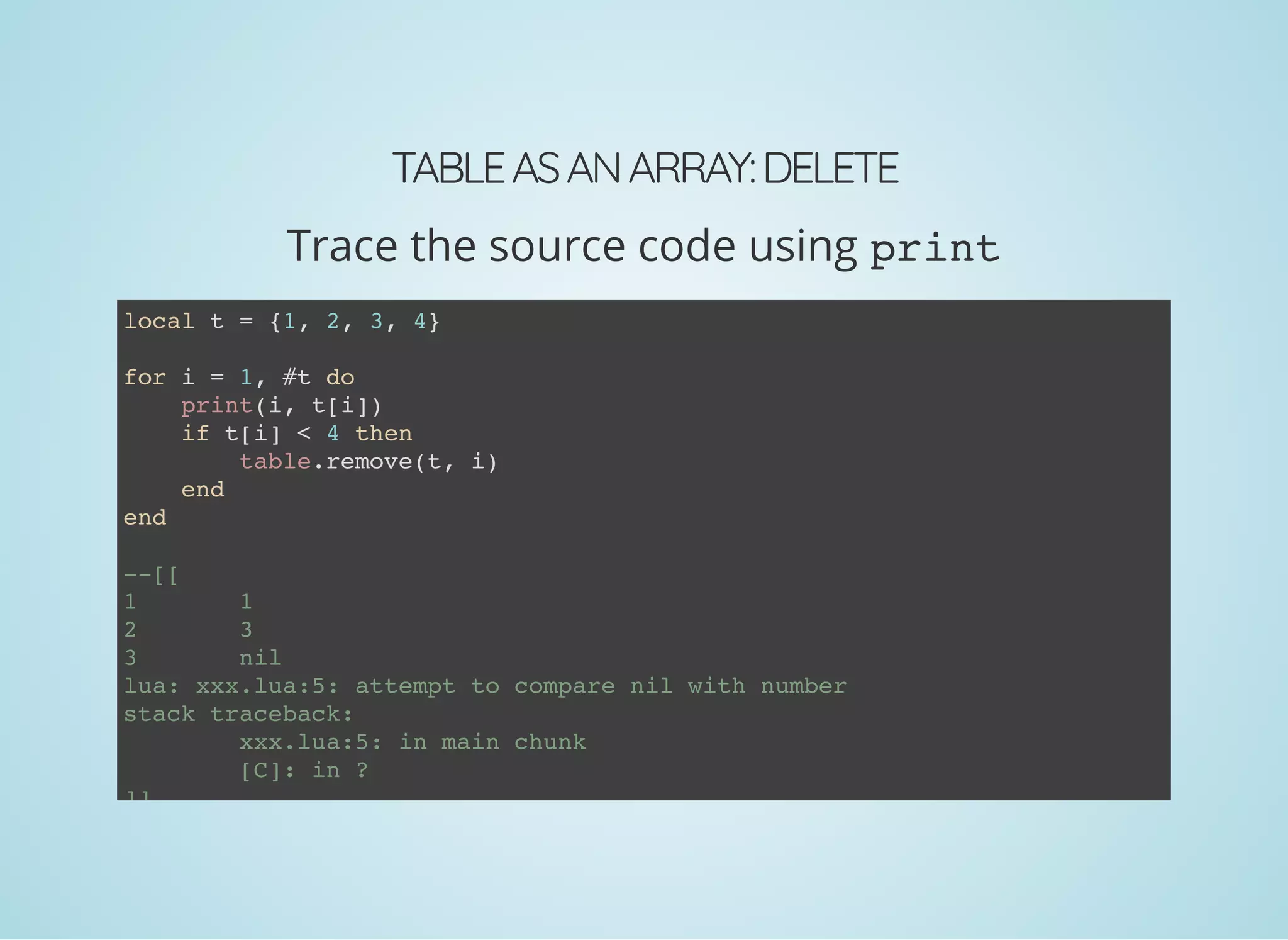

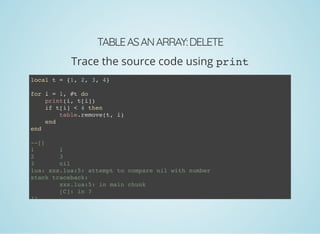

Trace the source code using print
local t = {1, 2, 3, 4}
for i = 1, #t do
print(i, t[i])
if t[i] < 4 then
table.remove(t, i)
end
end
--[[
1 1
2 3
3 nil
lua: xxx.lua:5: attempt to compare nil with number
stack traceback:
xxx.lua:5: in main chunk
[C]: in ?
]]

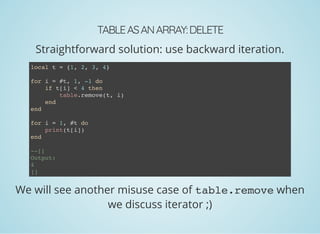

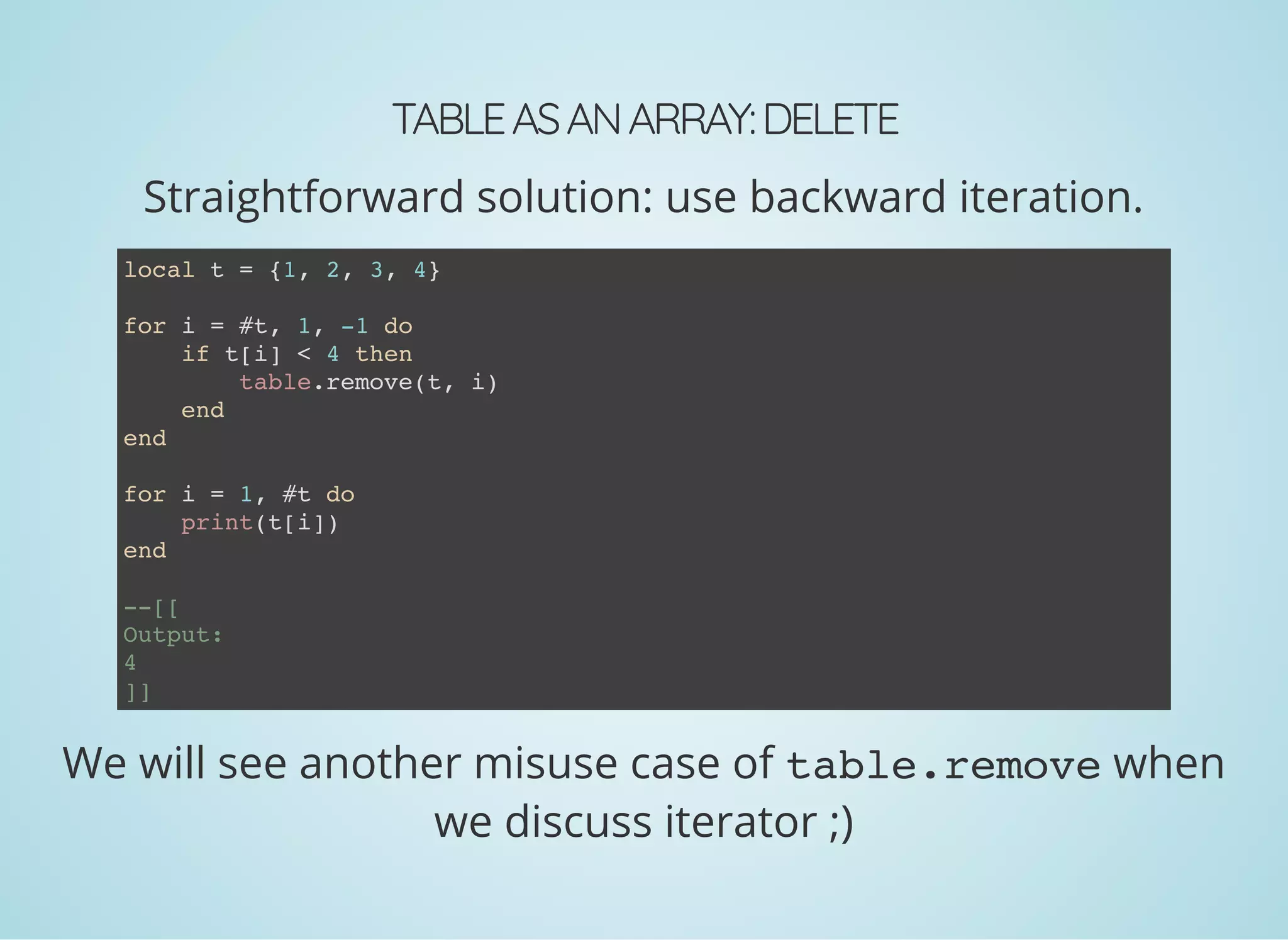

Straightforward solution: use backward iteration.
local t = {1, 2, 3, 4}
for i = #t, 1, -1 do
if t[i] < 4 then
table.remove(t, i)
end
end
for i = 1, #t do
print(t[i])
end
--[[
Output:
4
]]
We will see another misuse case of table.remove when
we discuss iterator ;)

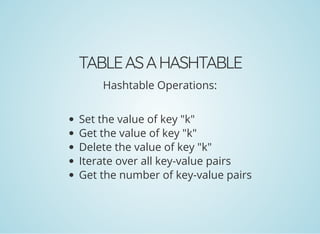

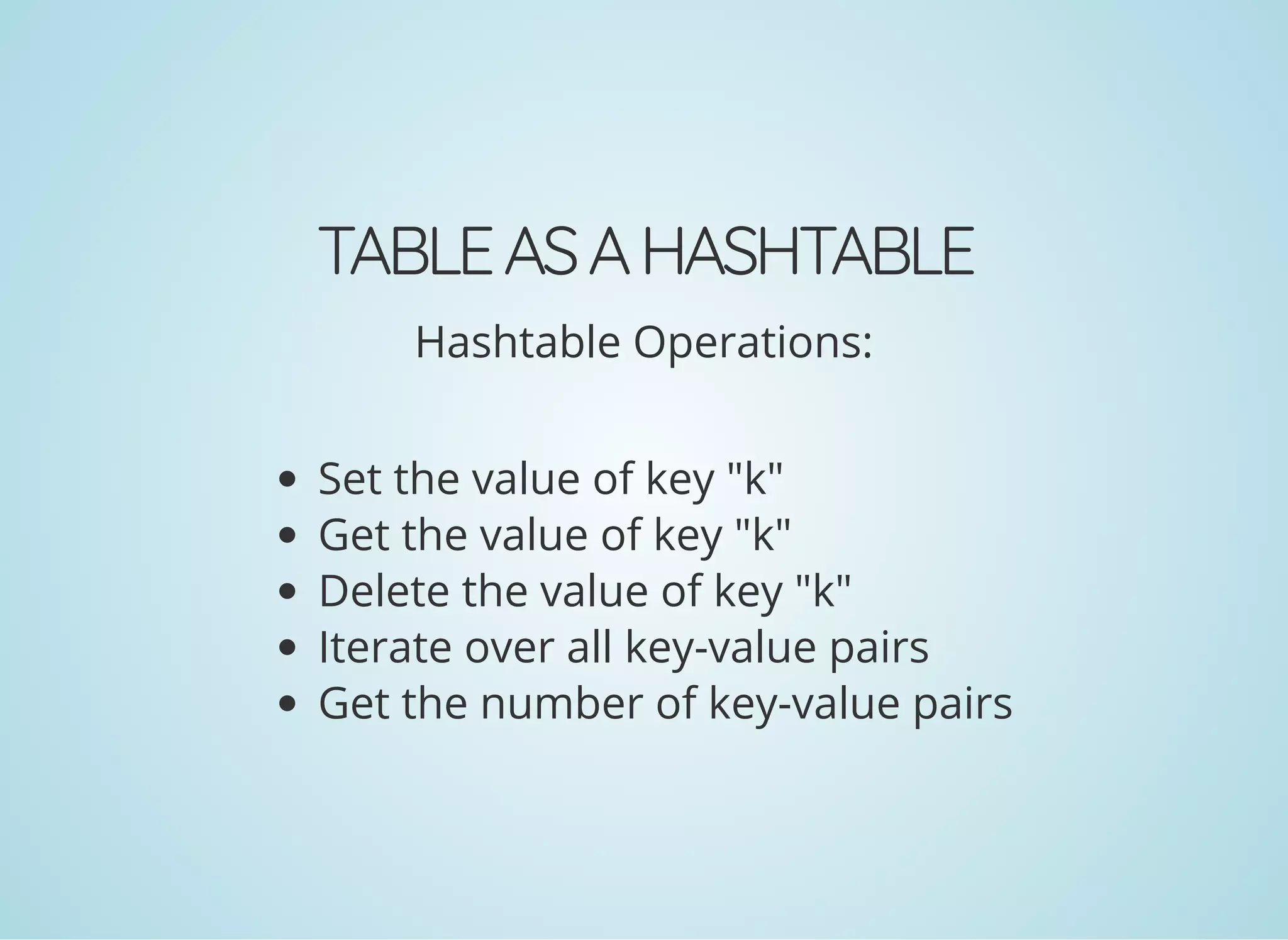

TABLEASAHASHTABLE
Hashtable Operations:
Set the value of key "k"
Get the value of key "k"
Delete the value of key "k"
Iterate over all key-value pairs
Get the number of key-value pairs

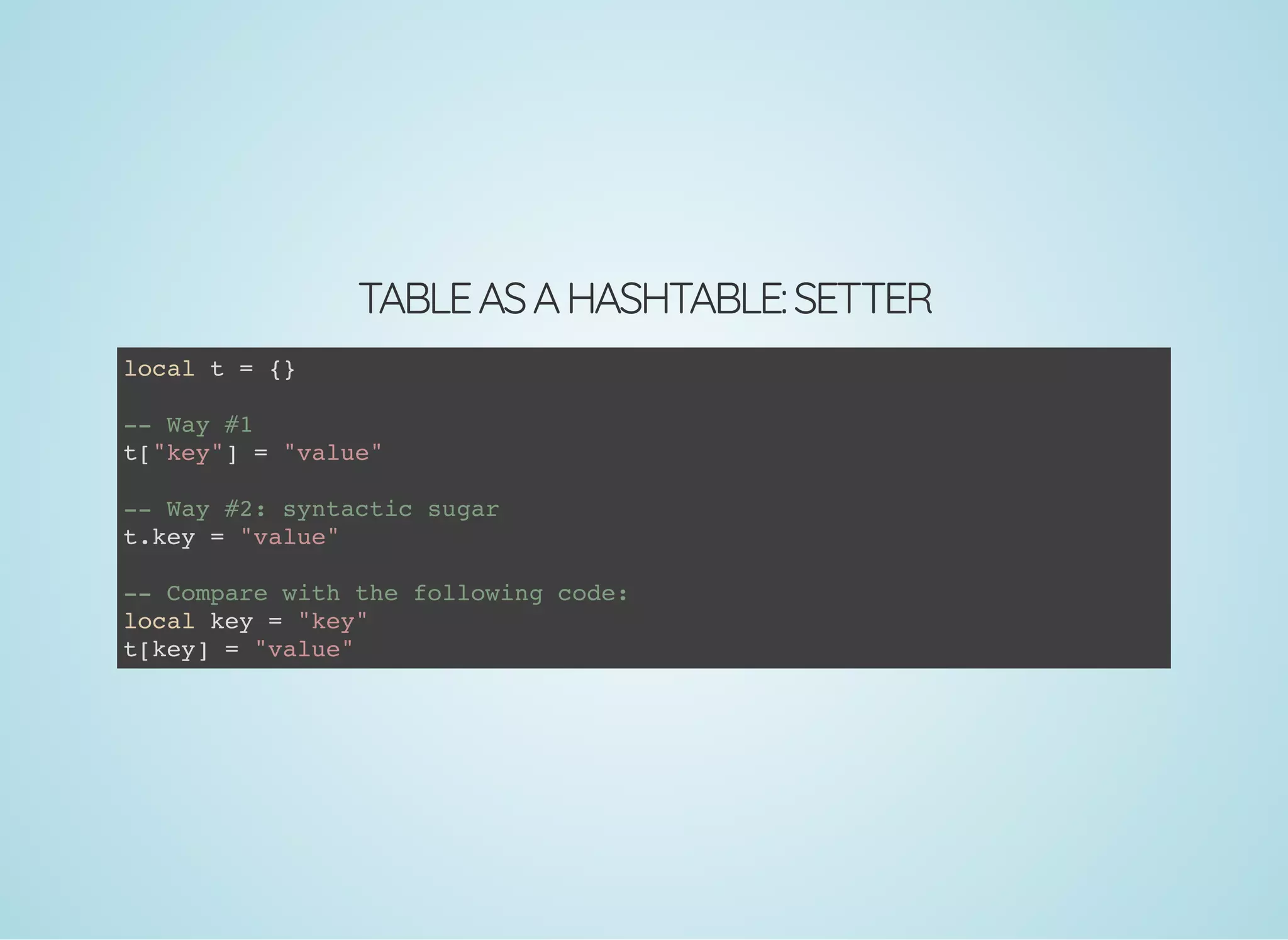

TABLEASAHASHTABLE:SETTER
local t = {}
-- Way #1
t["key"] = "value"
-- Way #2: syntactic sugar
t.key = "value"
-- Compare with the following code:
local key = "key"
t[key] = "value"

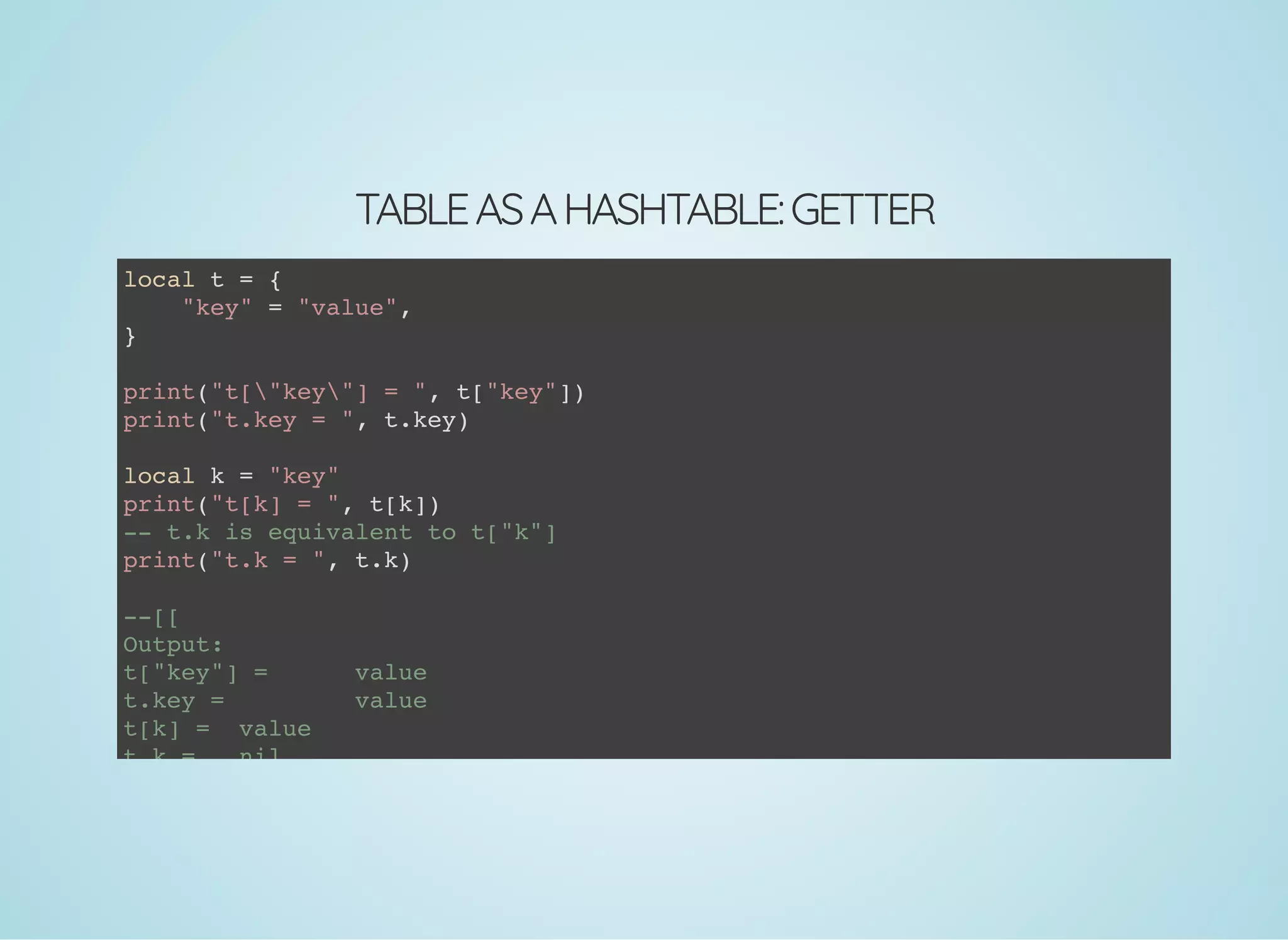

TABLEASAHASHTABLE:GETTER
local t = {
"key" = "value",
}
print("t["key"] = ", t["key"])
print("t.key = ", t.key)
local k = "key"
print("t[k] = ", t[k])
-- t.k is equivalent to t["k"]
print("t.k = ", t.k)
--[[
Output:
t["key"] = value
t.key = value
t[k] = value
t.k = nil

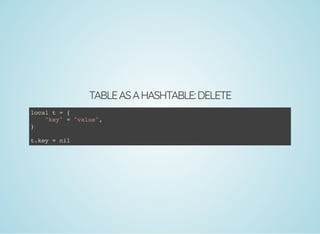

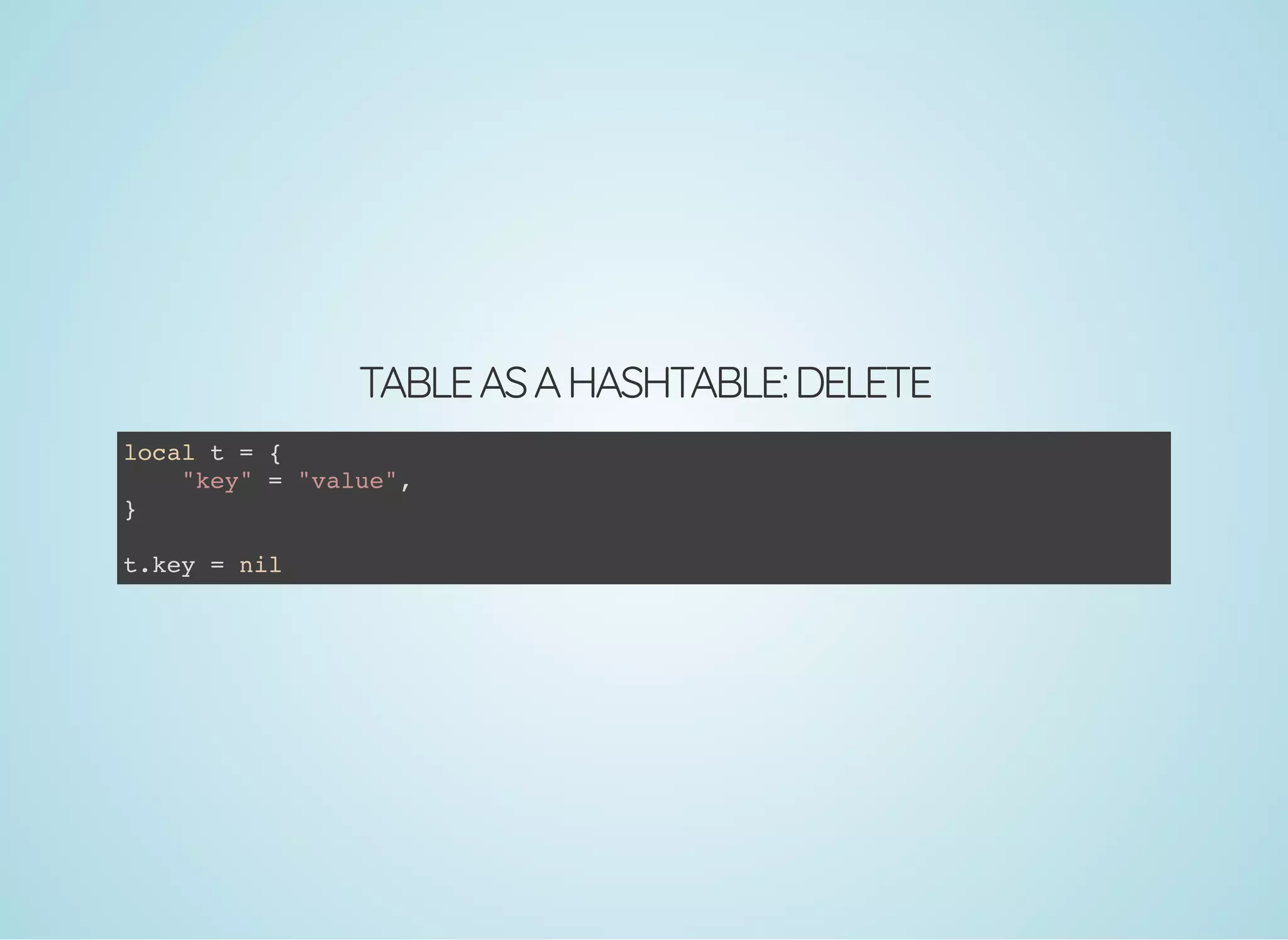

TABLEASAHASHTABLE:DELETE
local t = {
"key" = "value",
}
t.key = nil

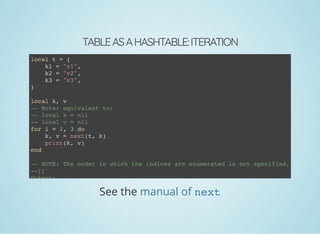

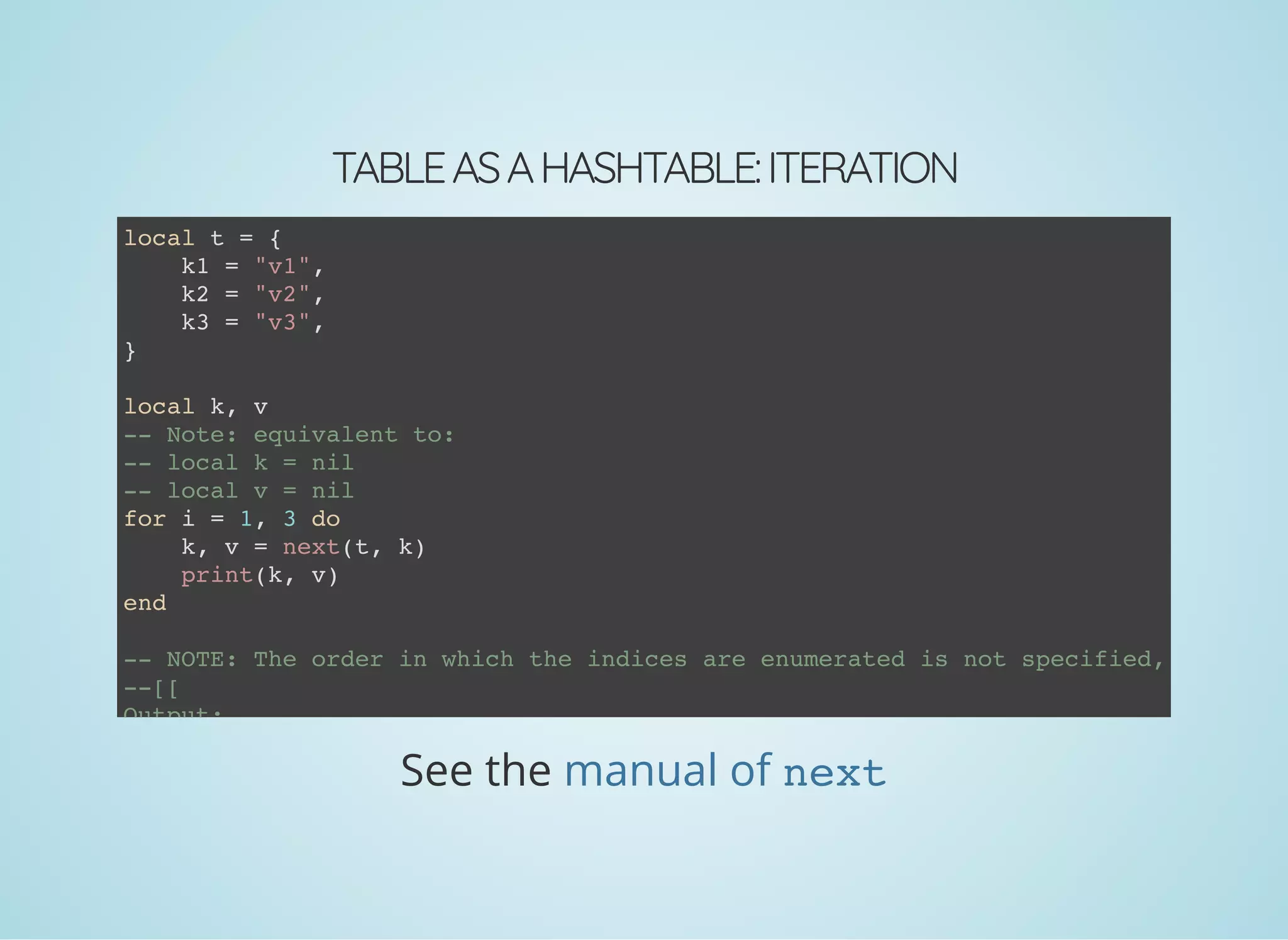

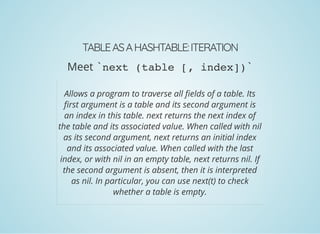

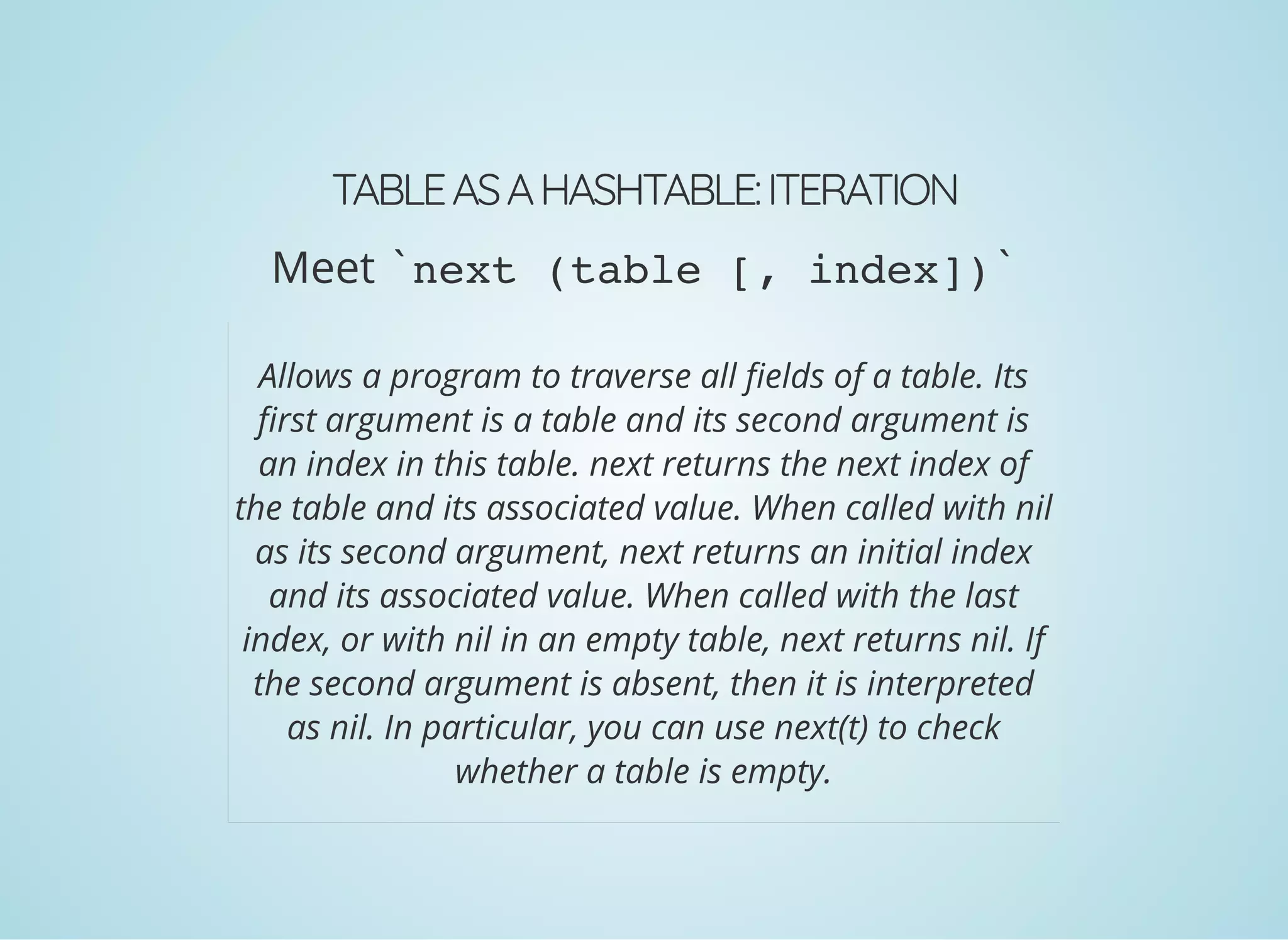

TABLEASAHASHTABLE:ITERATION
Meet `next (table [, index])`
Allows a program to traverse all elds of a table. Its
rst argument is a table and its second argument is
an index in this table. next returns the next index of
the table and its associated value. When called with nil
as its second argument, next returns an initial index
and its associated value. When called with the last
index, or with nil in an empty table, next returns nil. If
the second argument is absent, then it is interpreted
as nil. In particular, you can use next(t) to check
whether a table is empty.

local t = {
k1 = "v1",
k2 = "v2",
k3 = "v3",
}
local k, v
-- Note: equivalent to:
-- local k = nil
-- local v = nil
for i = 1, 3 do
k, v = next(t, k)
print(k, v)
end
-- NOTE: The order in which the indices are enumerated is not specified, even for
--[[
Output:
See the manual of next

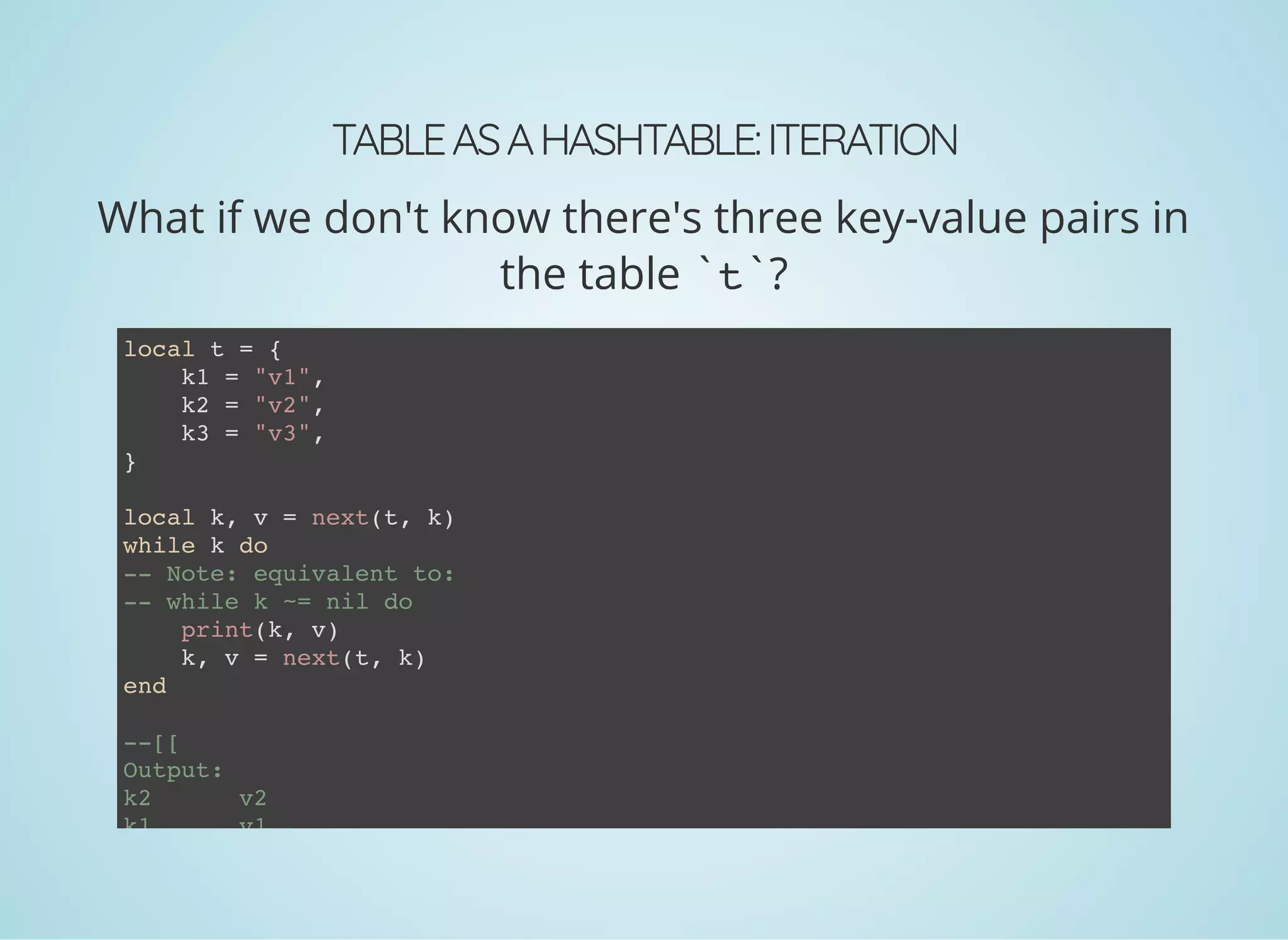

What if we don't know there's three key-value pairs in
the table `t`?
local t = {
k1 = "v1",
k2 = "v2",
k3 = "v3",
}
local k, v = next(t, k)
while k do
-- Note: equivalent to:
-- while k ~= nil do
print(k, v)
k, v = next(t, k)
end
--[[
Output:
k2 v2
k1 v1

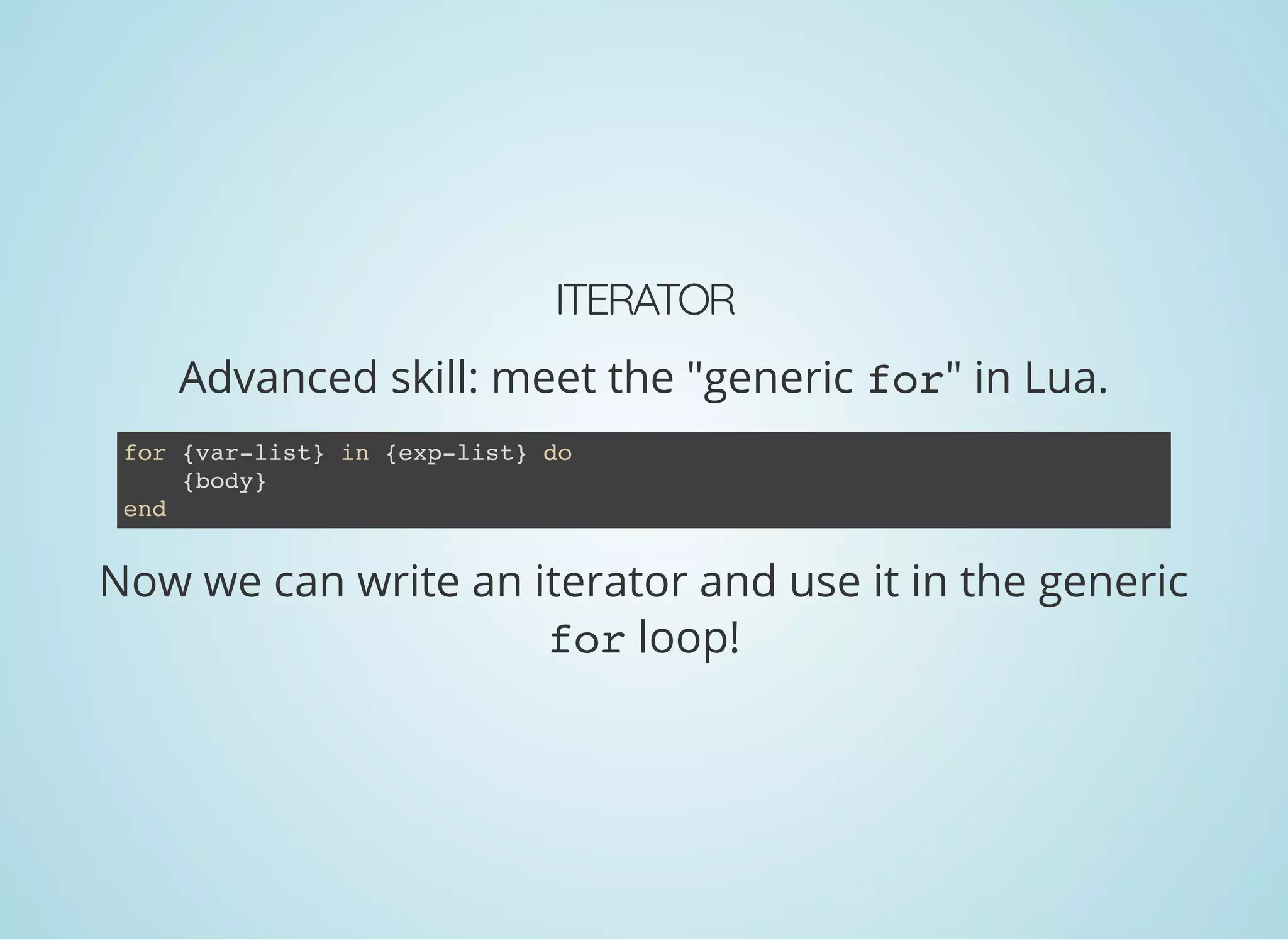

ITERATOR
Advanced skill: meet the "generic for" in Lua.
for {var-list} in {exp-list} do
{body}
end
Now we can write an iterator and use it in the generic
for loop!

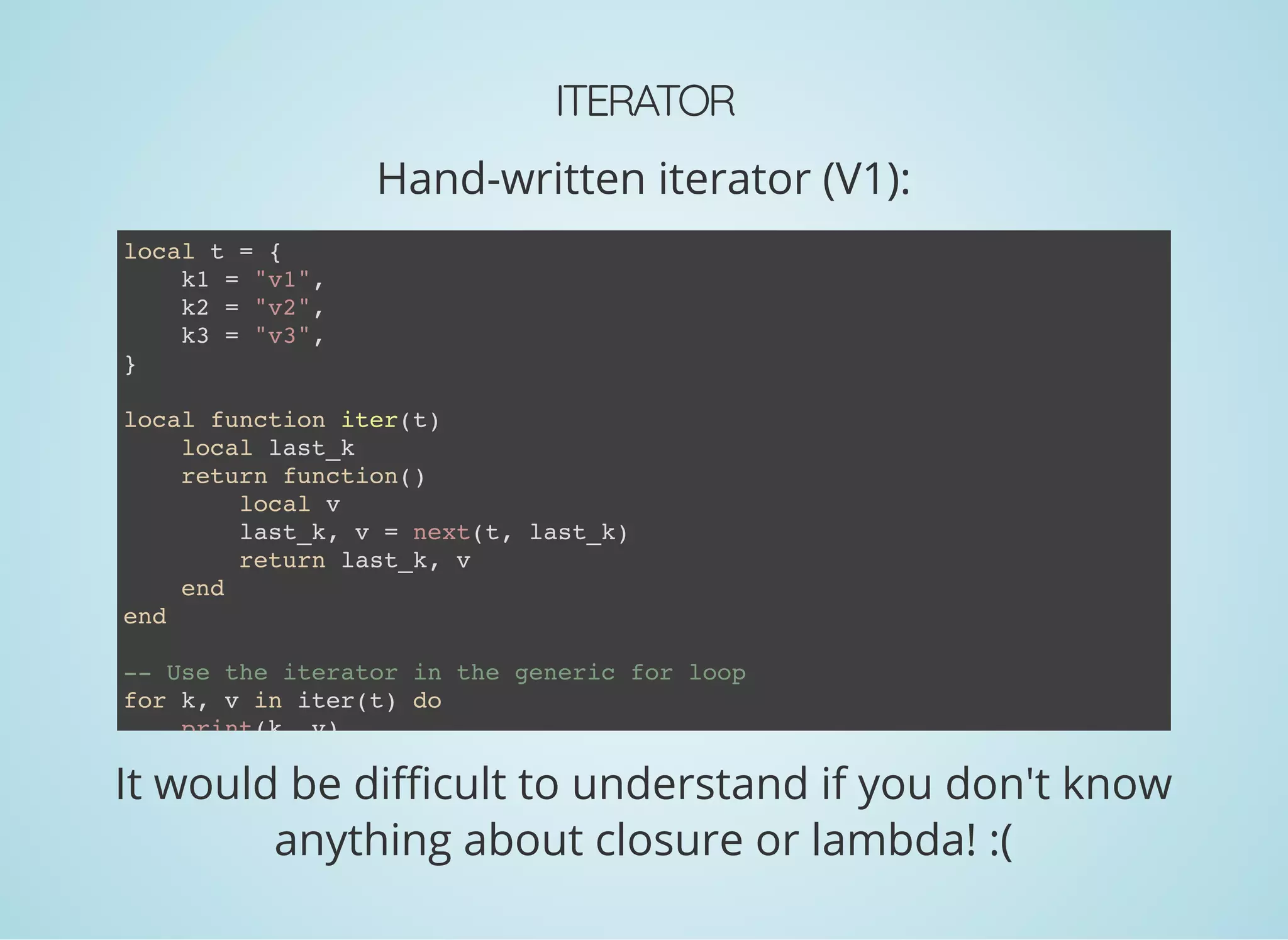

ITERATOR
Hand-written iterator (V1):
local t = {
k1 = "v1",
k2 = "v2",
k3 = "v3",
}
local function iter(t)
local last_k
return function()
local v
last_k, v = next(t, last_k)
return last_k, v
end
end
-- Use the iterator in the generic for loop
for k, v in iter(t) do
print(k, v)
It would be di cult to understand if you don't know
anything about closure or lambda! :(

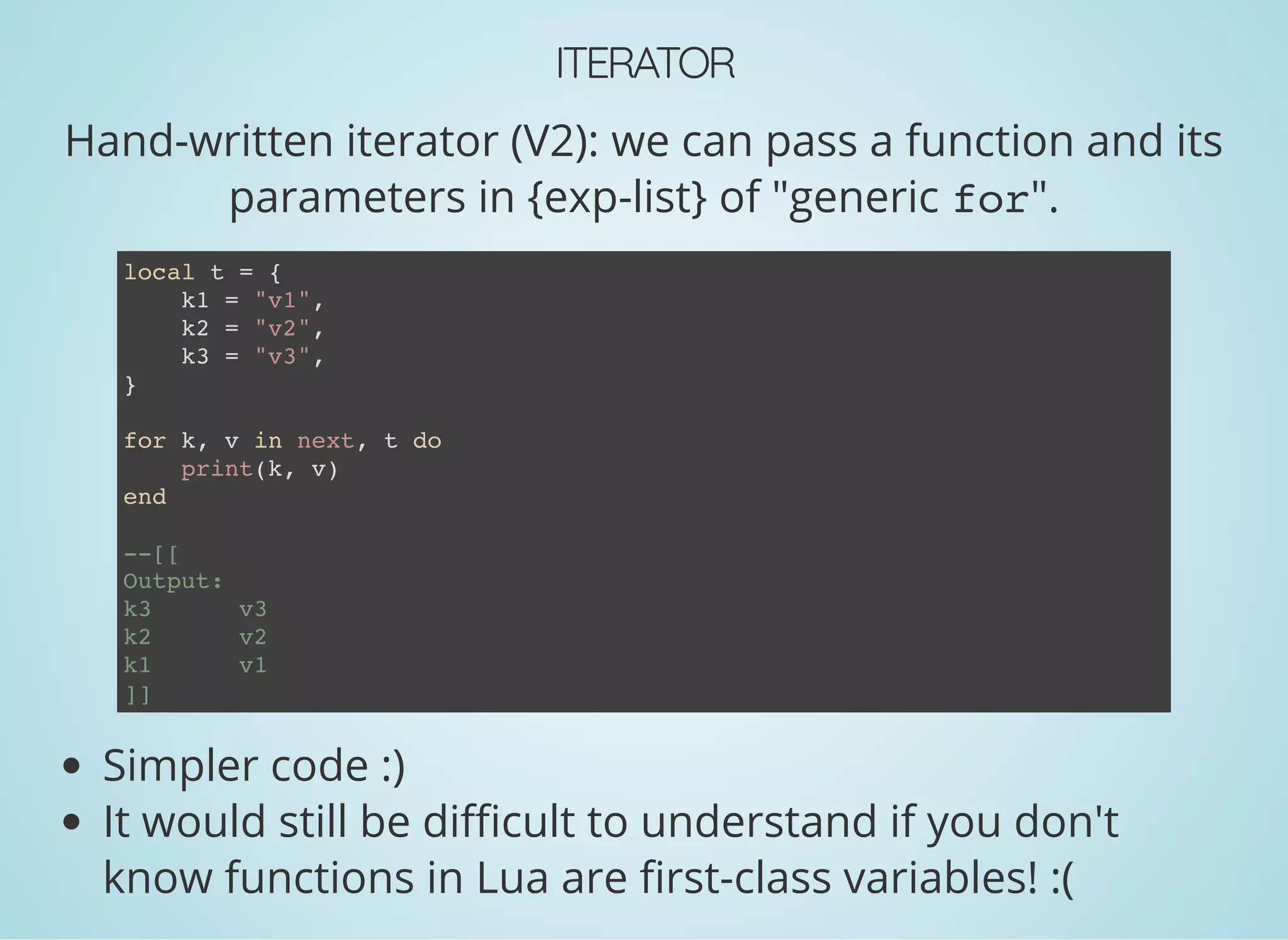

ITERATOR
Hand-written iterator (V2): we can pass a function and its
parameters in {exp-list} of "generic for".
local t = {
k1 = "v1",
k2 = "v2",
k3 = "v3",
}
for k, v in next, t do
print(k, v)
end
--[[
Output:
k3 v3
k2 v2
k1 v1
]]
Simpler code :)
It would still be di cult to understand if you don't
know functions in Lua are rst-class variables! :(

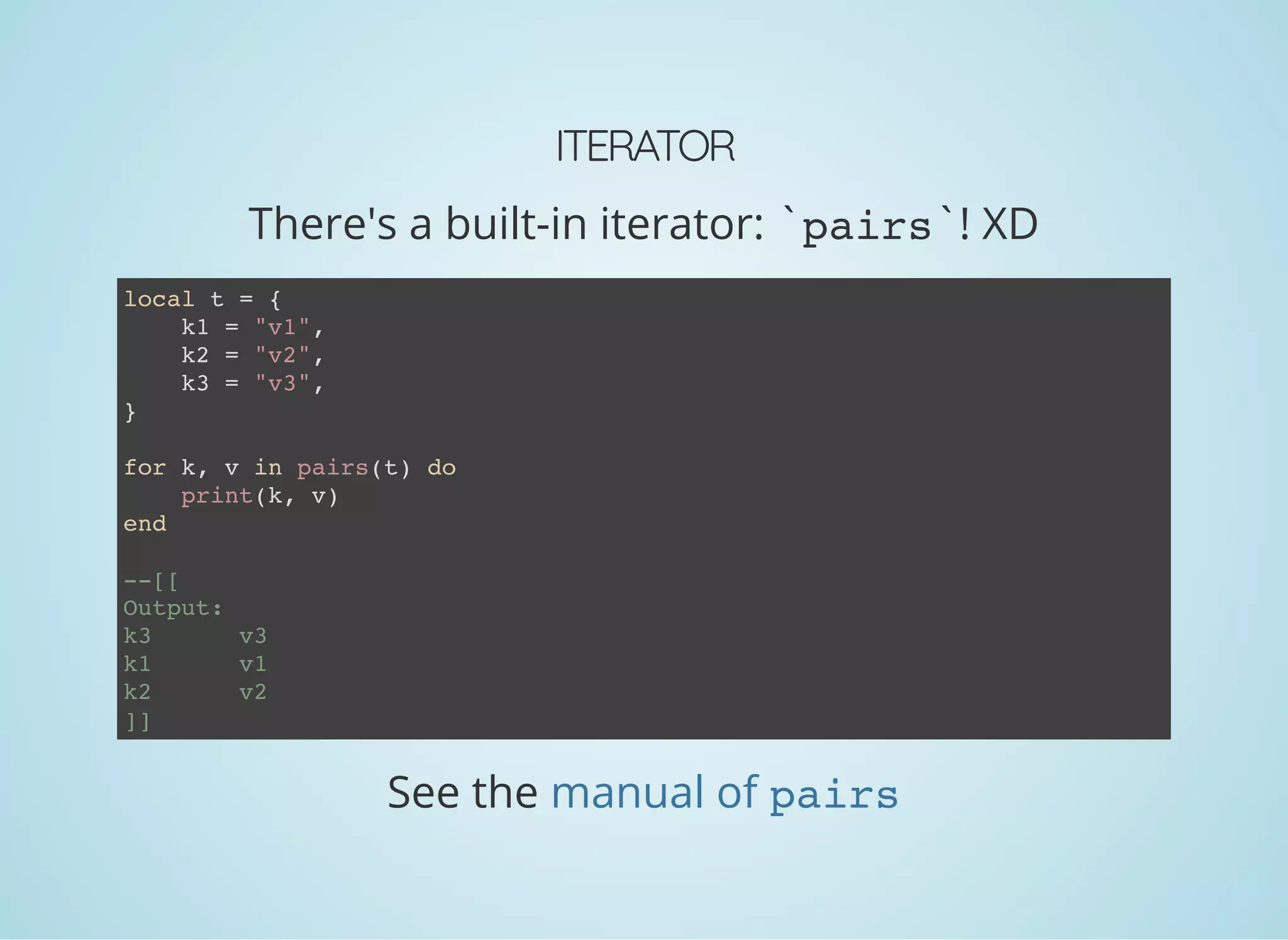

ITERATOR
There's a built-in iterator: `pairs`! XD
local t = {
k1 = "v1",
k2 = "v2",
k3 = "v3",
}
for k, v in pairs(t) do
print(k, v)
end
--[[
Output:
k3 v3
k1 v1
k2 v2
]]
See the manual of pairs

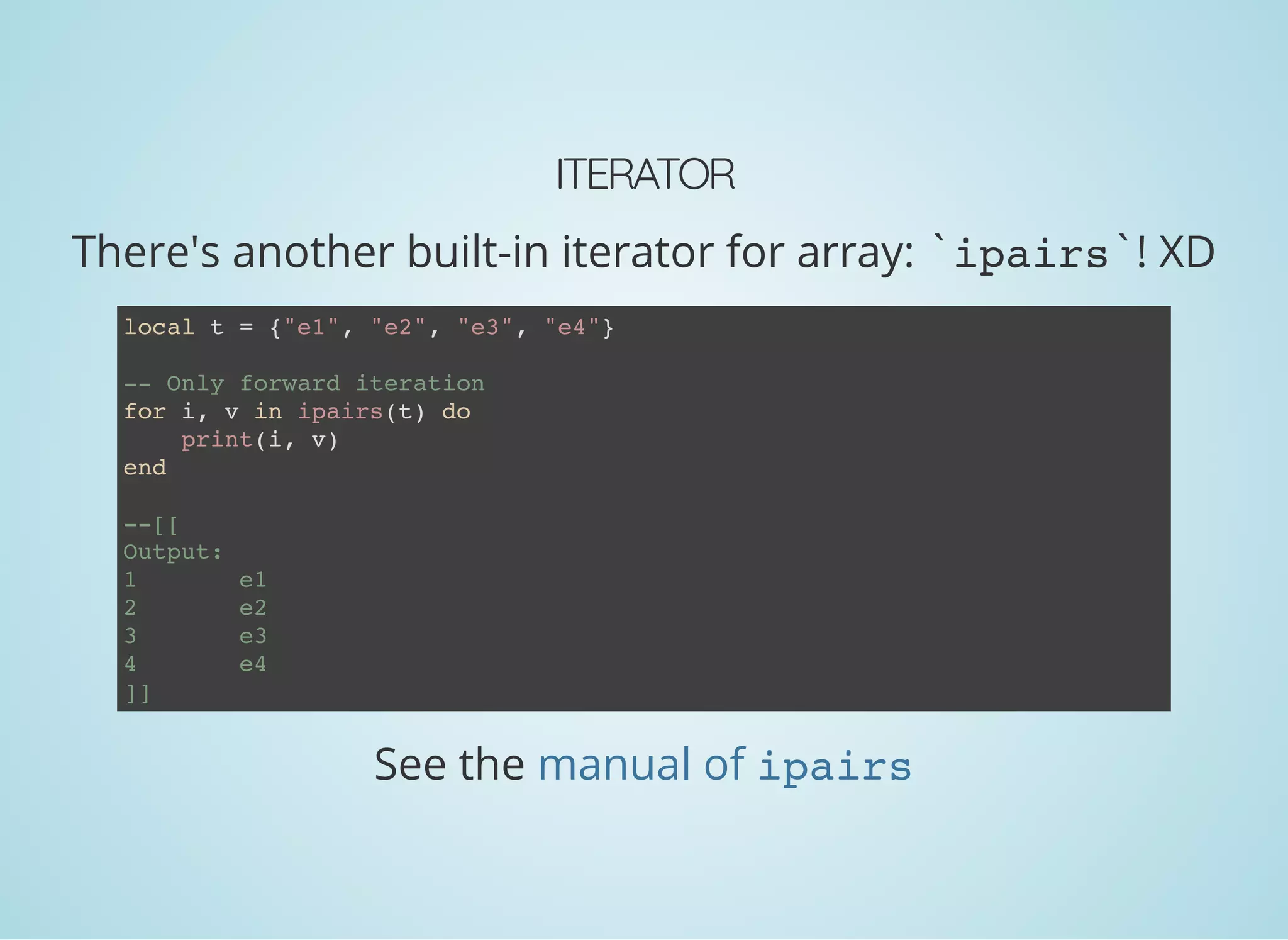

ITERATOR
There's another built-in iterator for array: `ipairs`! XD
local t = {"e1", "e2", "e3", "e4"}
-- Only forward iteration
for i, v in ipairs(t) do
print(i, v)
end
--[[
Output:
1 e1
2 e2
3 e3
4 e4
]]
See the manual of ipairs

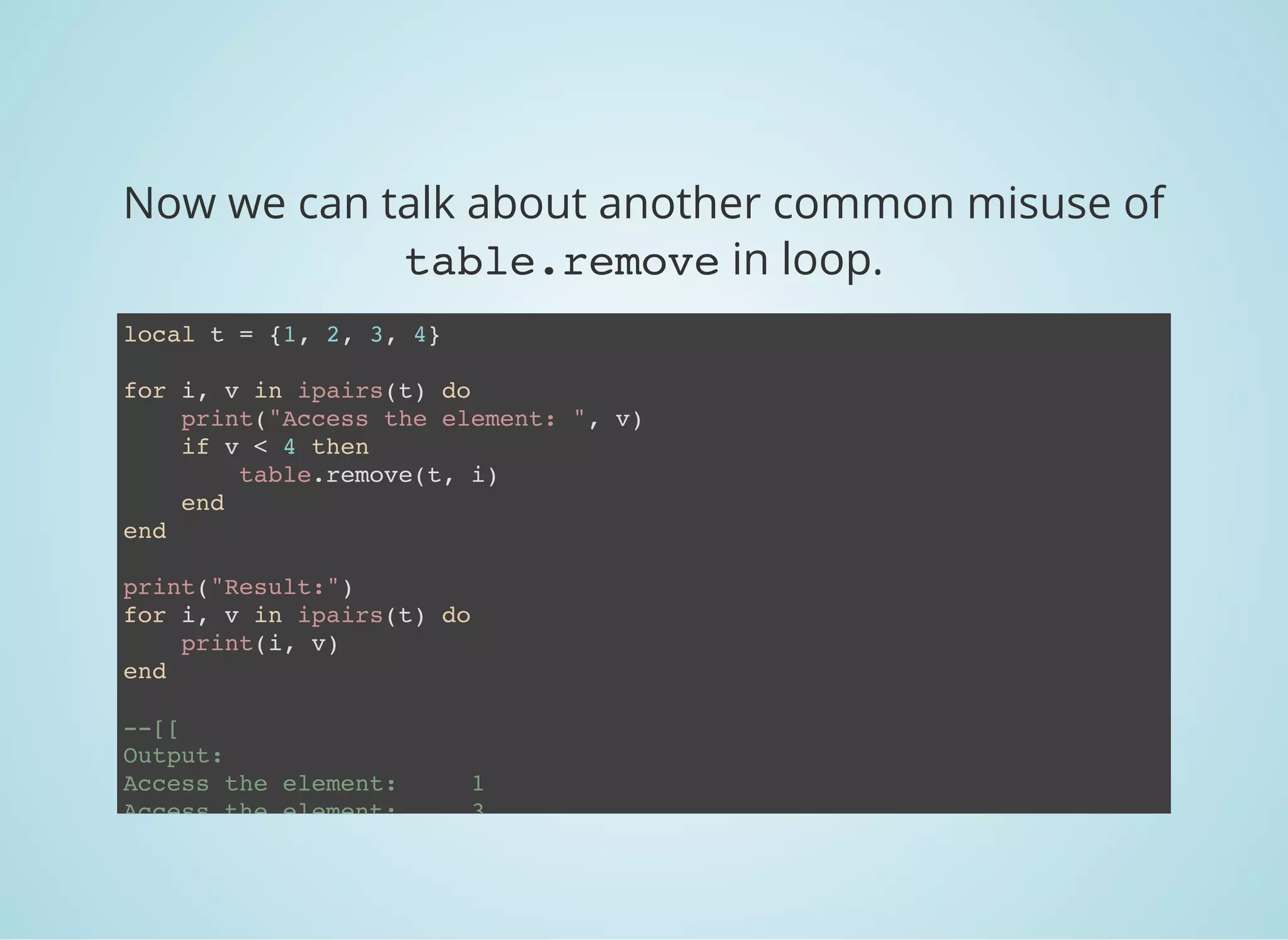

Now we can talk about another common misuse of
table.remove in loop.
local t = {1, 2, 3, 4}
print("Access the element: ", v)
if v < 4 then
table.remove(t, i)
end
end
print("Result:")
print(i, v)
end
--[[
Output:
Access the element: 1
Access the element: 3

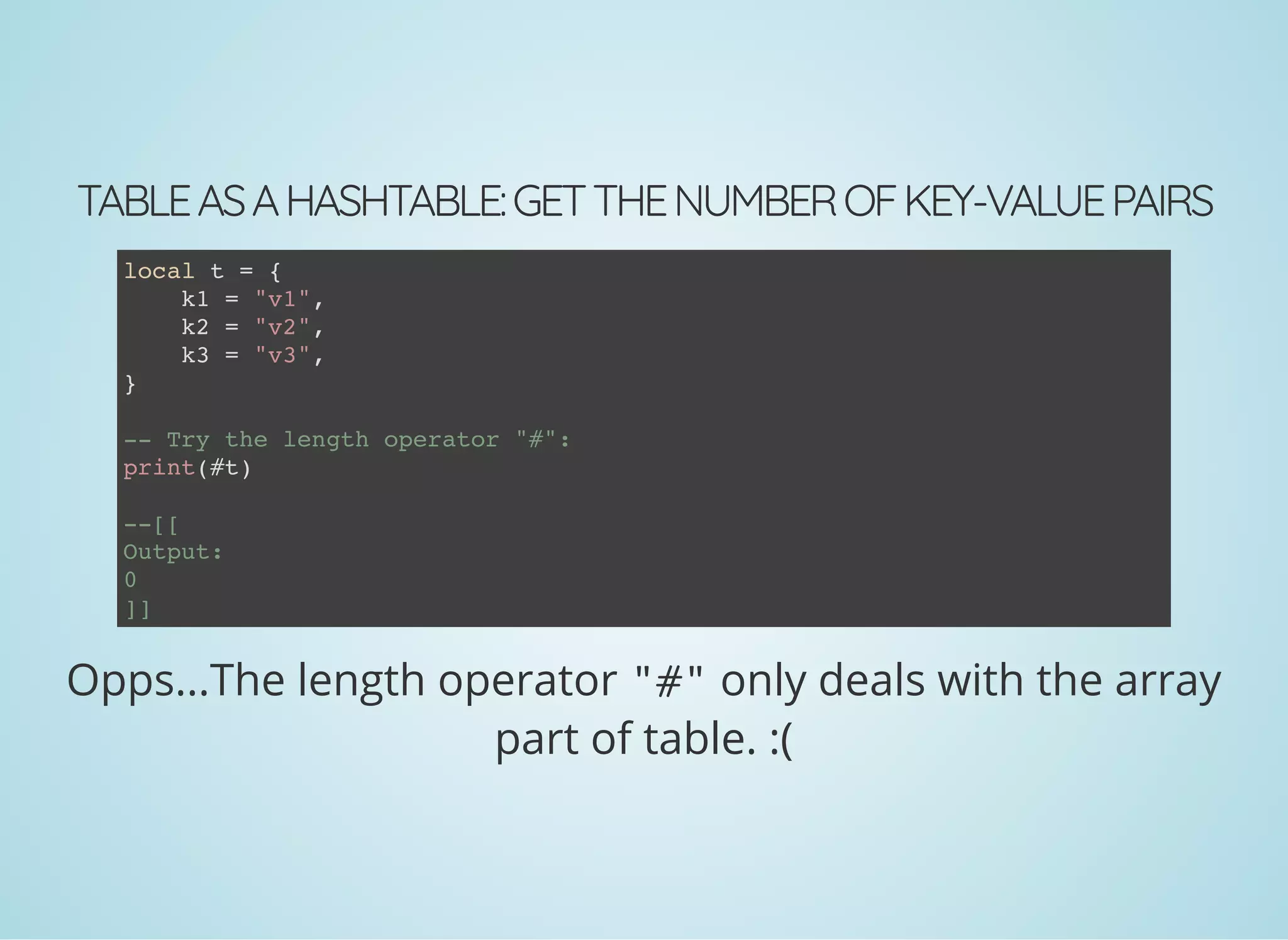

TABLEASAHASHTABLE:GETTHENUMBEROFKEY-VALUEPAIRS
local t = {
k1 = "v1",
k2 = "v2",
k3 = "v3",
}
-- Try the length operator "#":
print(#t)
--[[
Output:
0
]]
Opps...The length operator "#" only deals with the array
part of table. :(

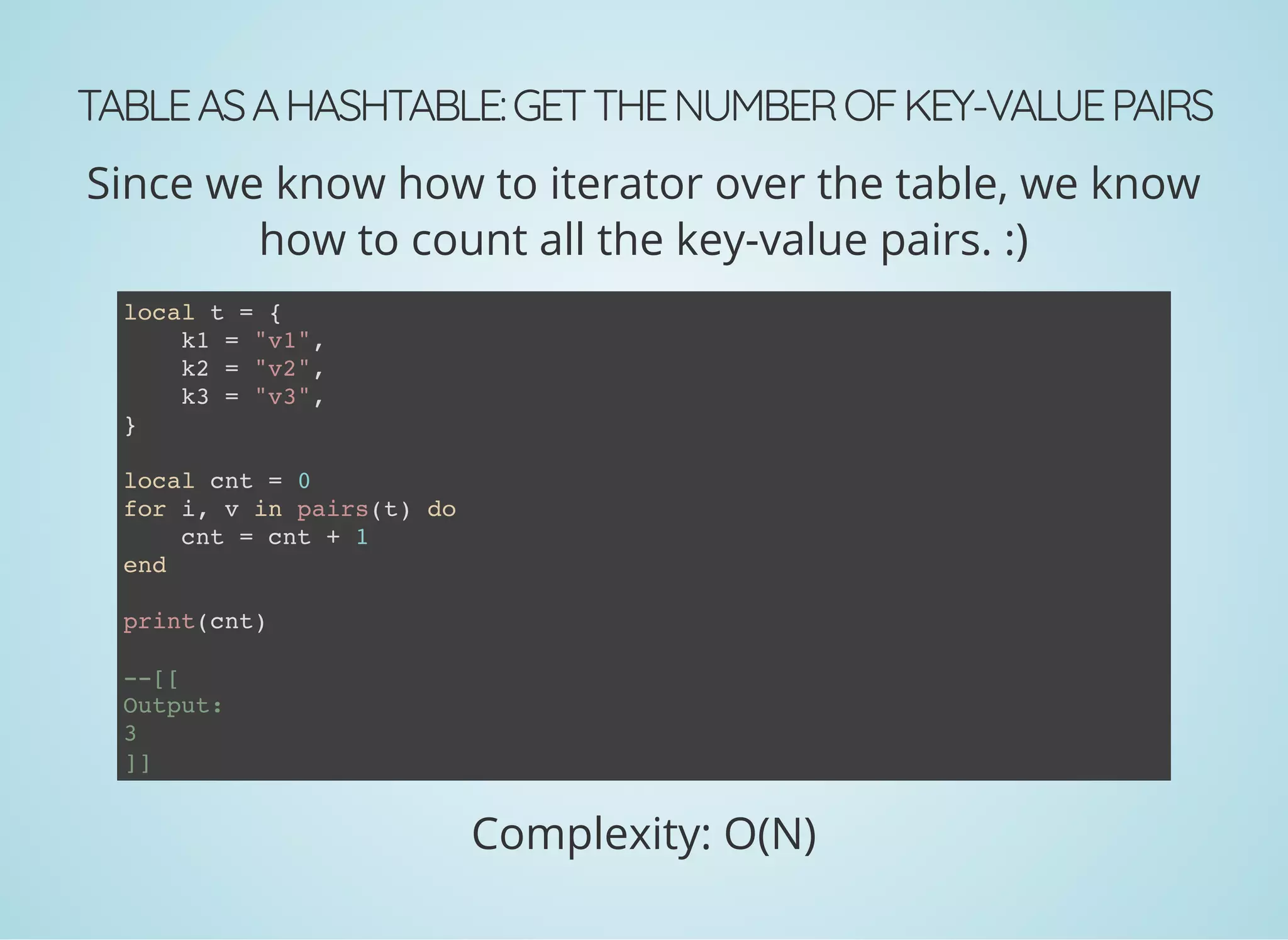

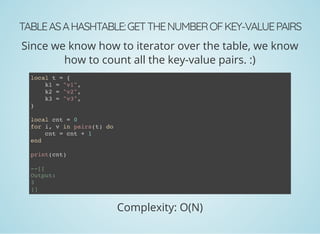

TABLEASAHASHTABLE:GETTHENUMBEROFKEY-VALUEPAIRS
Since we know how to iterator over the table, we know
how to count all the key-value pairs. :)
local t = {
k1 = "v1",
k2 = "v2",
k3 = "v3",
}
local cnt = 0
for i, v in pairs(t) do
cnt = cnt + 1
end
print(cnt)
--[[
Output:
3
]]
Complexity: O(N)

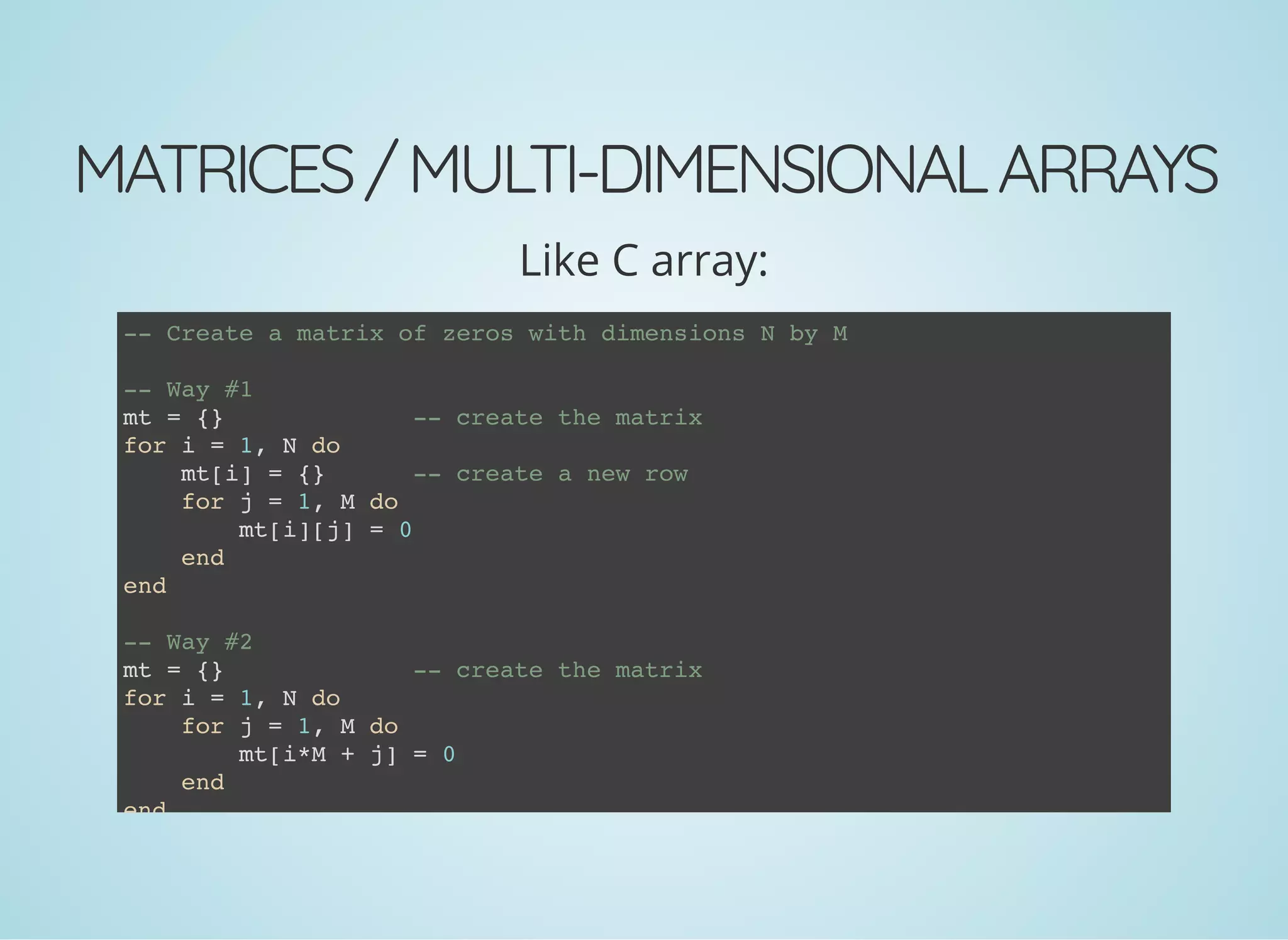

MATRICES/MULTI-DIMENSIONALARRAYS
Like C array:
-- Create a matrix of zeros with dimensions N by M
-- Way #1
mt = {} -- create the matrix
for i = 1, N do
mt[i] = {} -- create a new row
for j = 1, M do
mt[i][j] = 0
end
end
-- Way #2
mt = {} -- create the matrix
for i = 1, N do
for j = 1, M do
mt[i*M + j] = 0
end
end

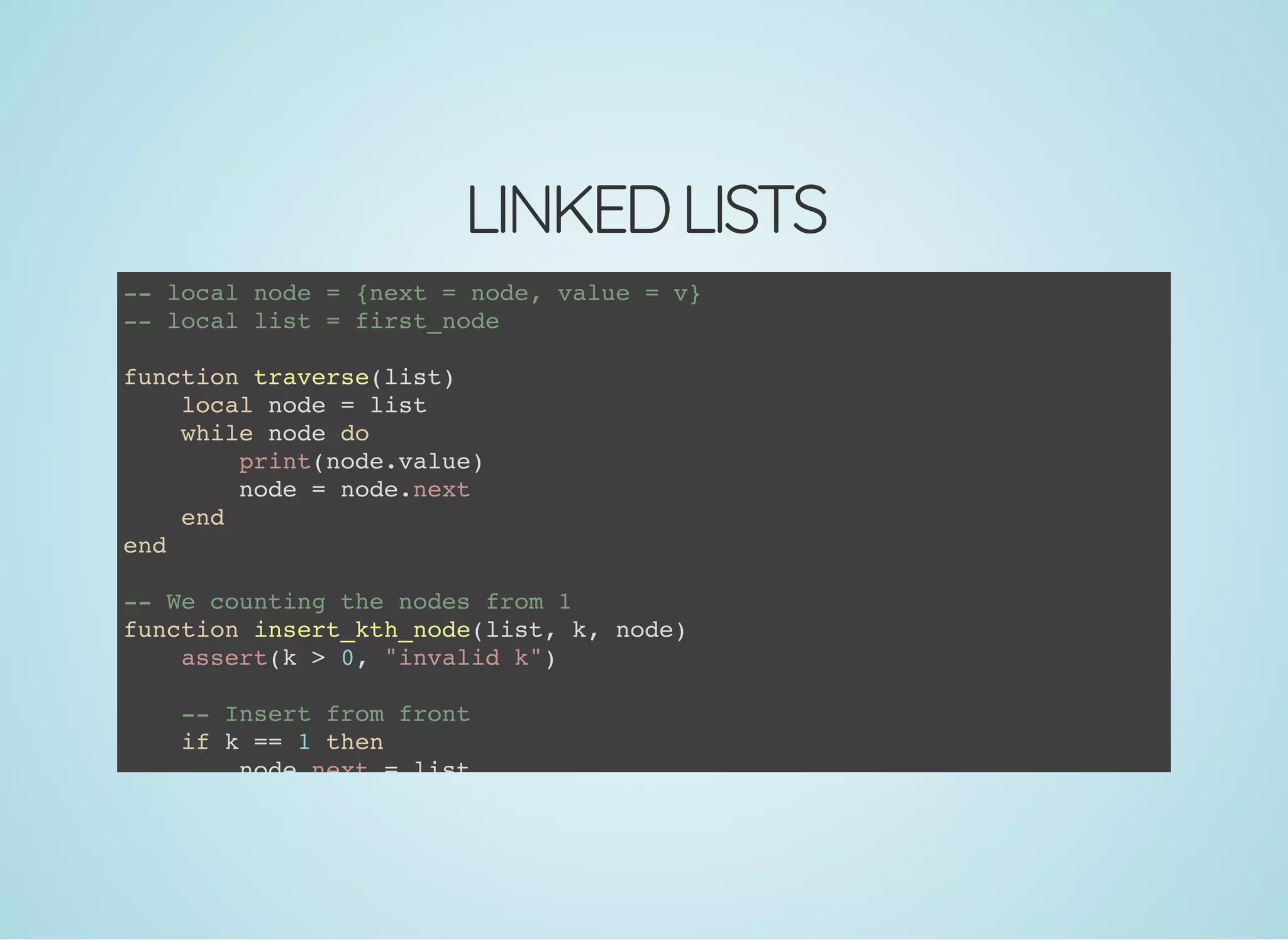

LINKEDLISTS
-- local node = {next = node, value = v}
-- local list = first_node
function traverse(list)
local node = list
while node do
print(node.value)
node = node.next
end
end
-- We counting the nodes from 1
function insert_kth_node(list, k, node)
assert(k > 0, "invalid k")
-- Insert from front
if k == 1 then
node.next = list

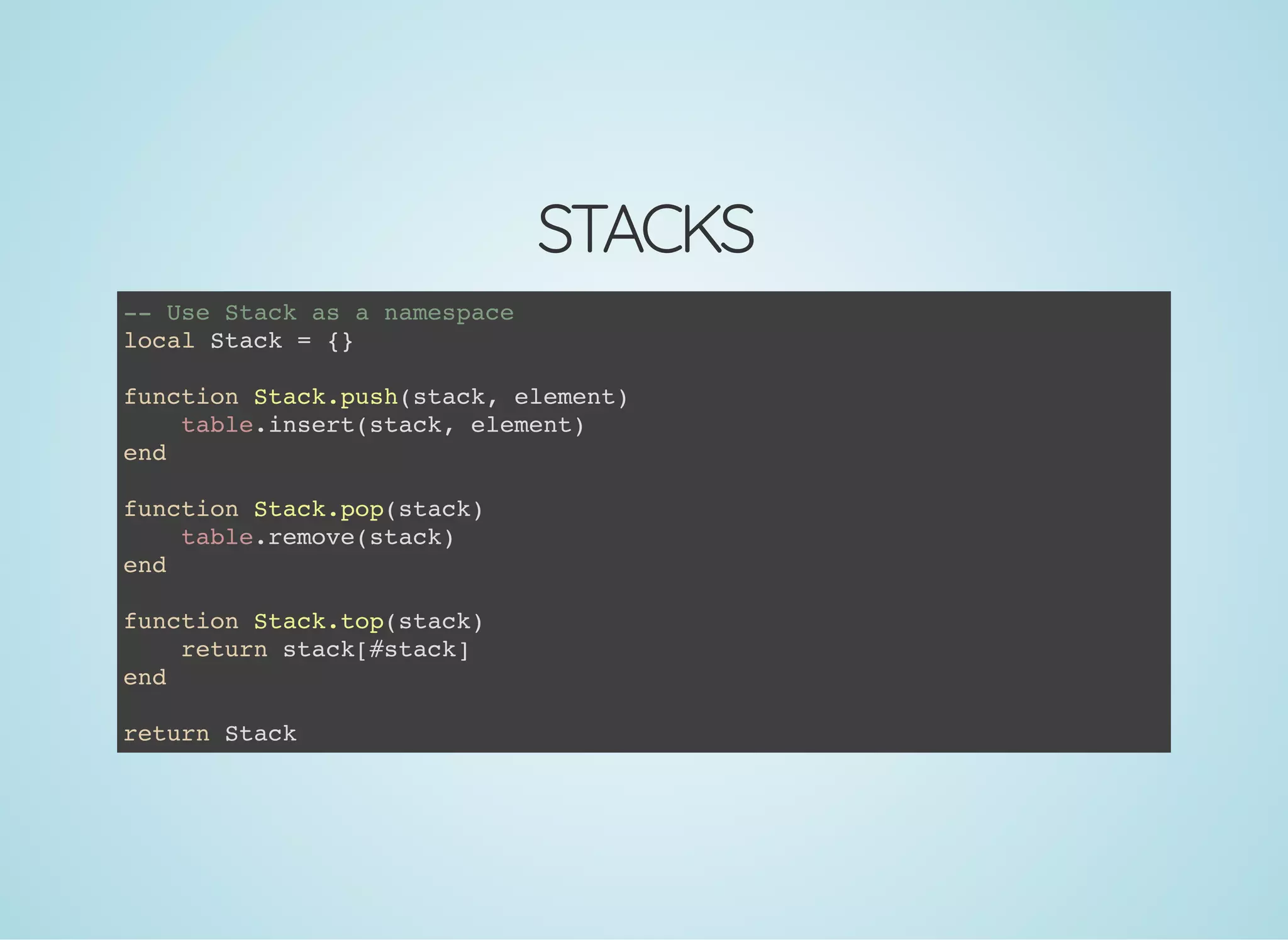

STACKS
-- Use Stack as a namespace
local Stack = {}
function Stack.push(stack, element)
table.insert(stack, element)
end
function Stack.pop(stack)
table.remove(stack)
end
function Stack.top(stack)
return stack[#stack]
end
return Stack

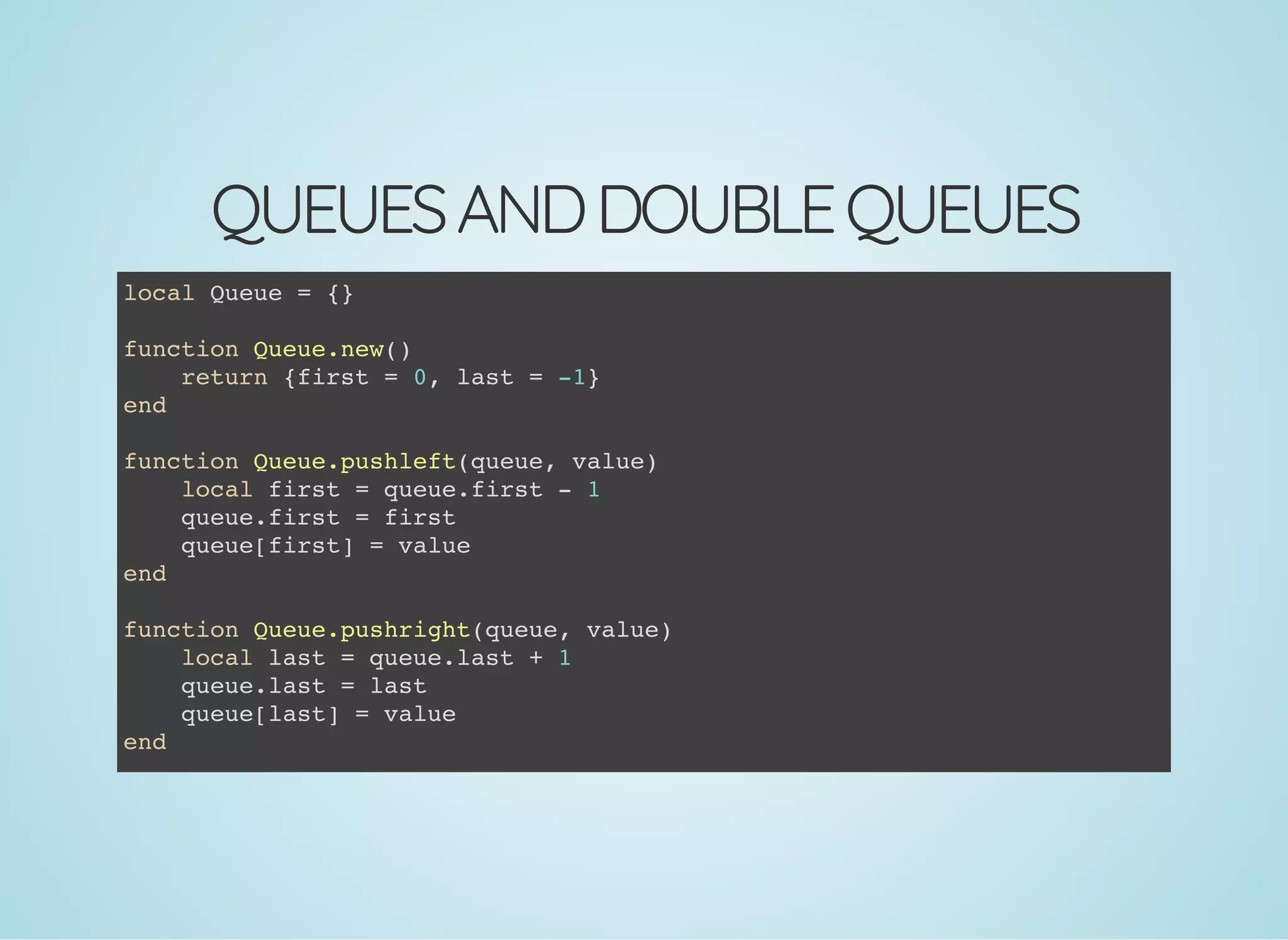

QUEUESANDDOUBLEQUEUES
local Queue = {}
function Queue.new()
return {first = 0, last = -1}
end
function Queue.pushleft(queue, value)
local first = queue.first - 1
queue.first = first
queue[first] = value
end
function Queue.pushright(queue, value)
local last = queue.last + 1
queue.last = last
queue[last] = value
end

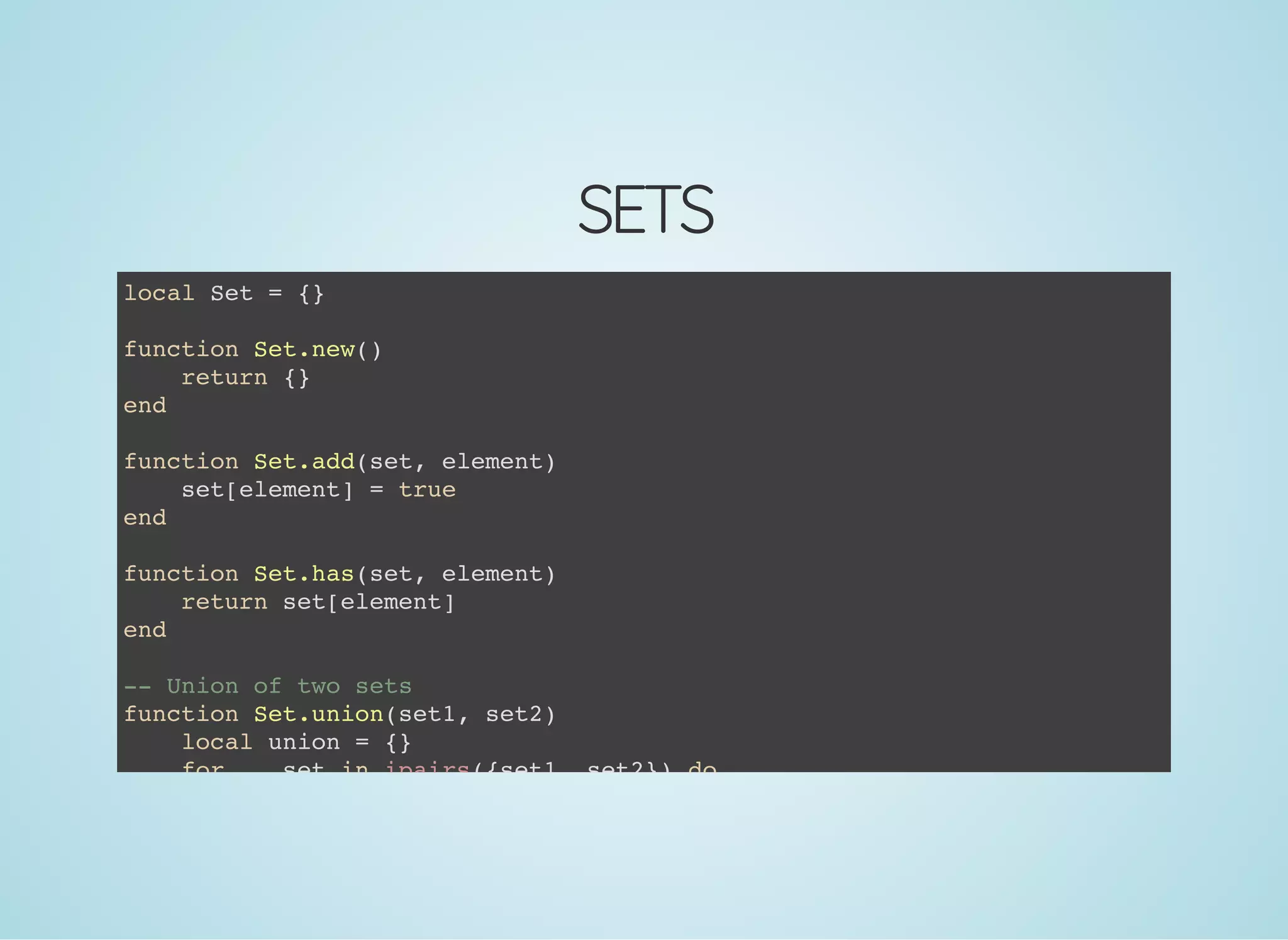

SETS
local Set = {}
function Set.new()
return {}
end
function Set.add(set, element)
set[element] = true
end
function Set.has(set, element)
return set[element]
end
-- Union of two sets
function Set.union(set1, set2)
local union = {}
for _, set in ipairs({set1, set2}) do

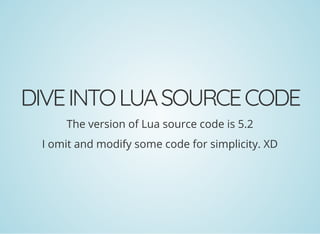

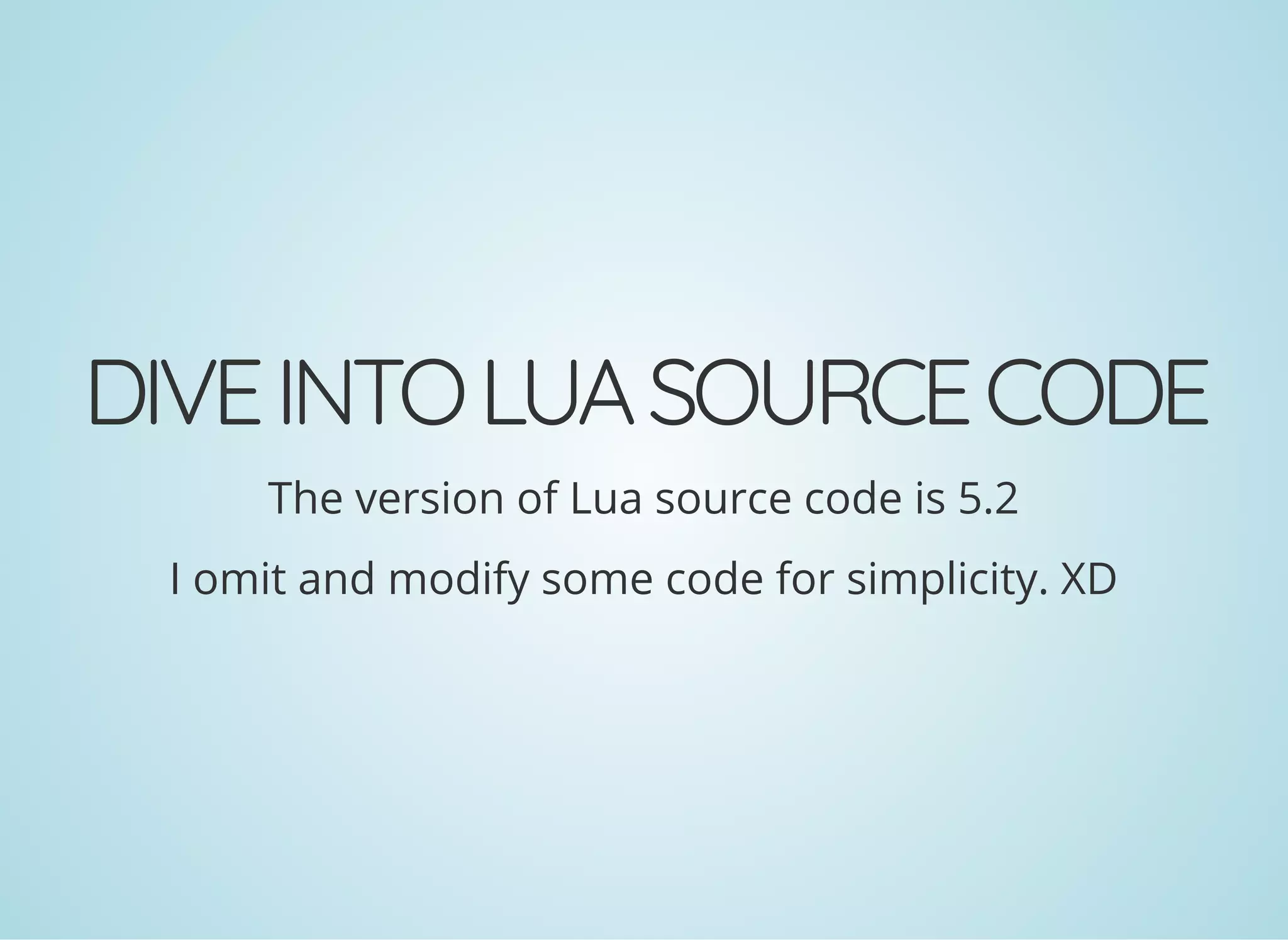

DIVEINTOLUASOURCECODE
The version of Lua source code is 5.2
I omit and modify some code for simplicity. XD

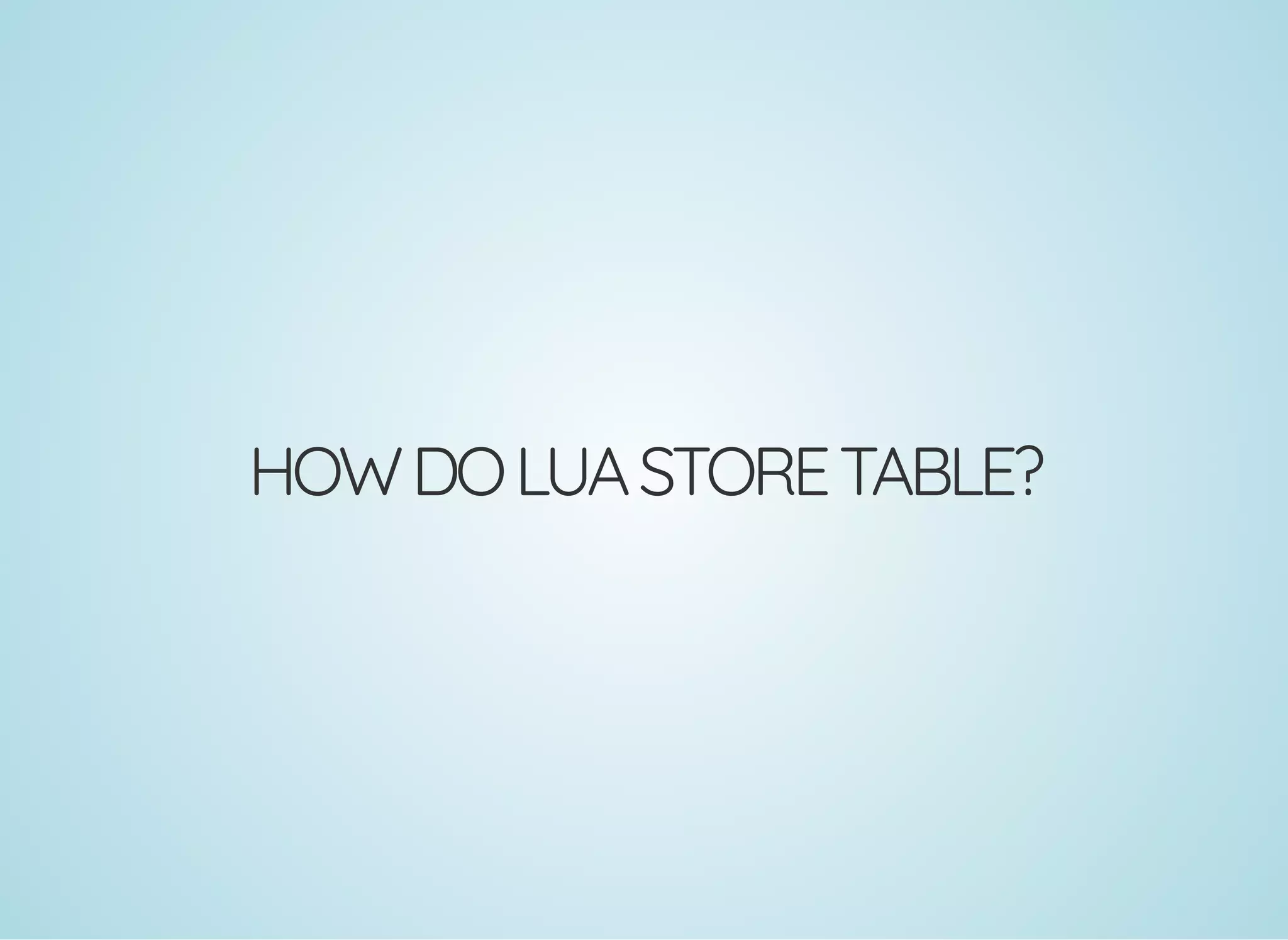

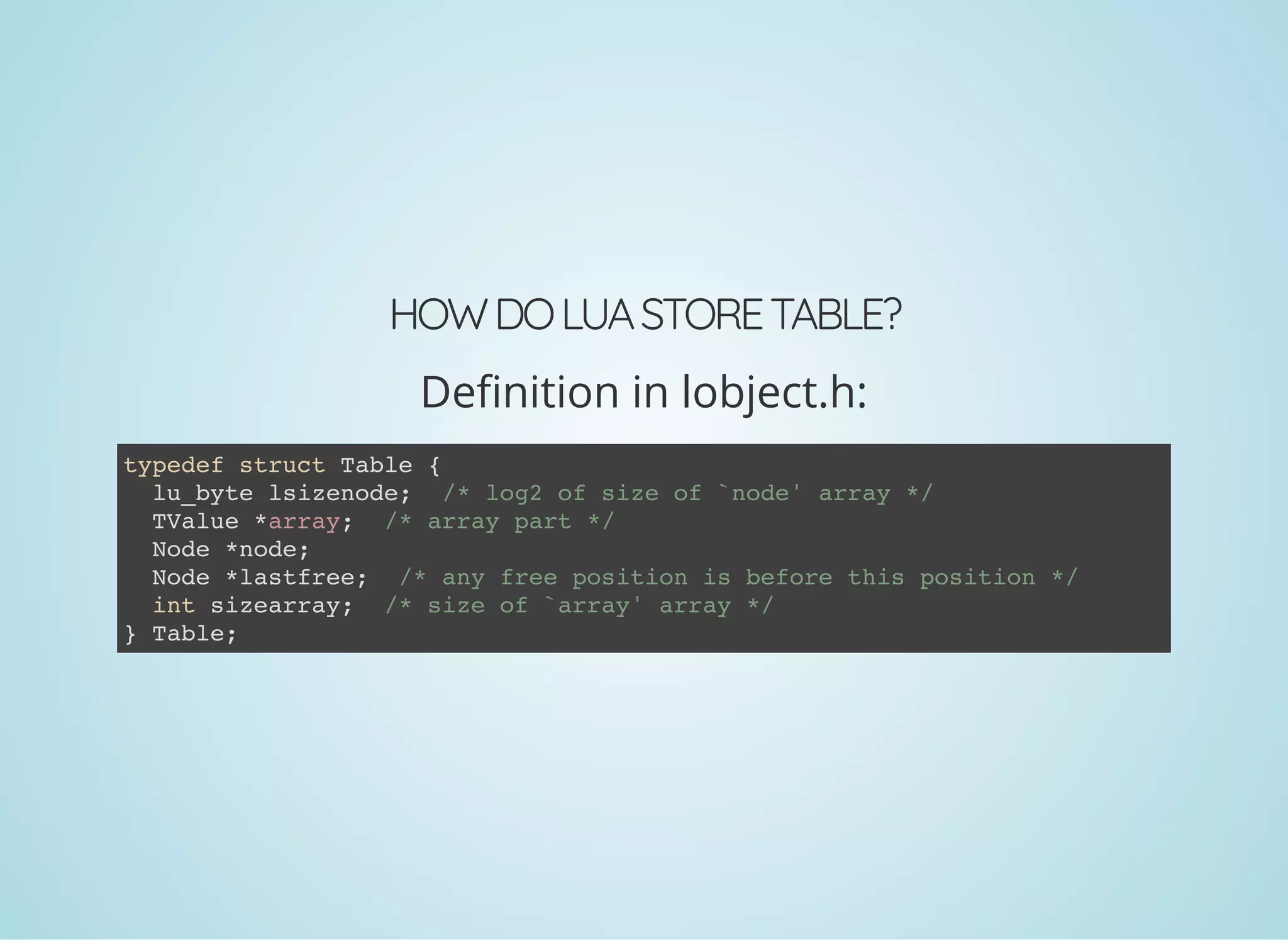

HOWDOLUASTORETABLE?
De nition in lobject.h:
typedef struct Table {
lu_byte lsizenode; /* log2 of size of `node' array */
TValue *array; /* array part */
Node *node;
Node *lastfree; /* any free position is before this position */
int sizearray; /* size of `array' array */
} Table;

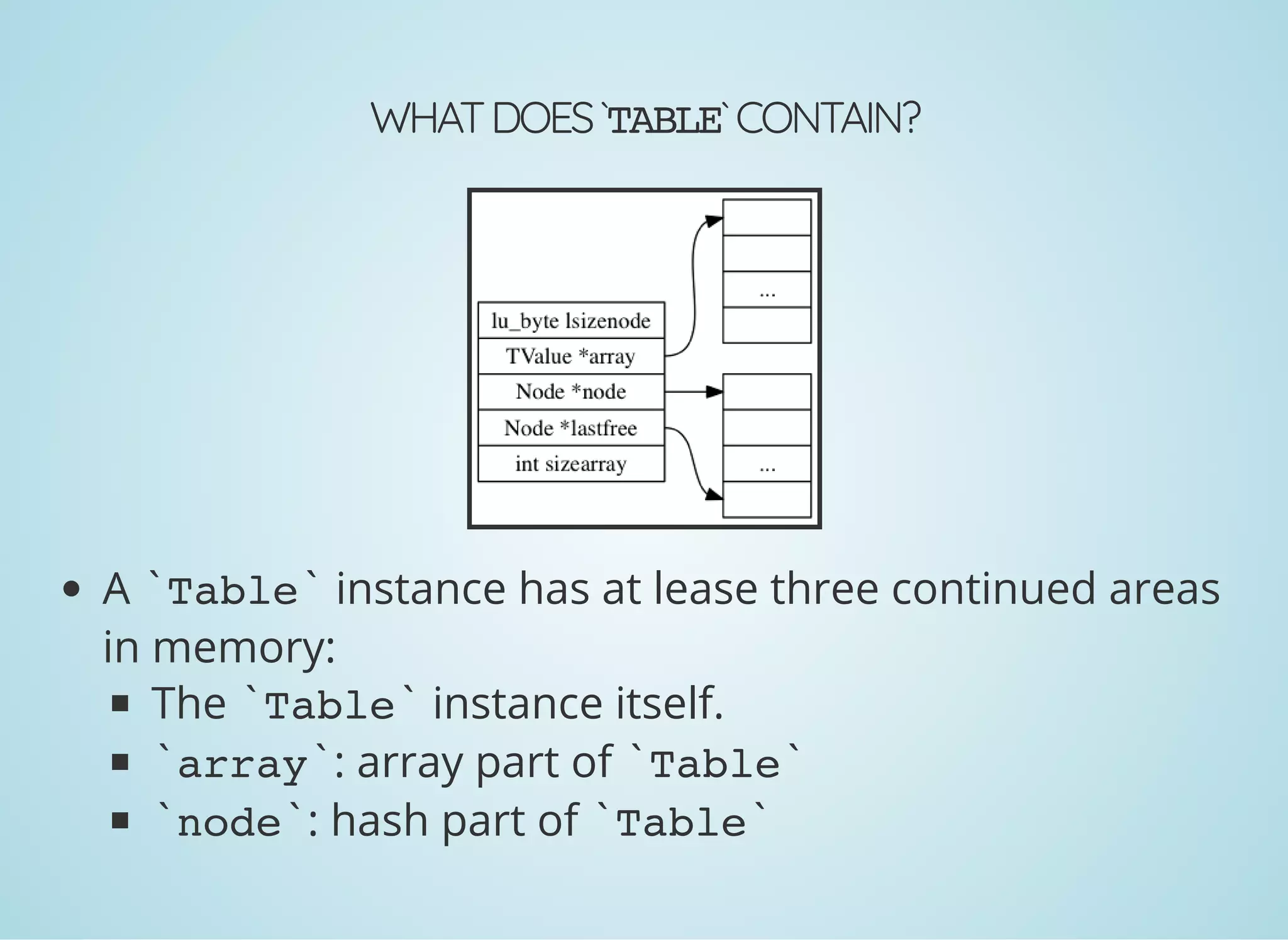

WHATDOES`TABLE`CONTAIN?
A `Table` instance has at lease three continued areas
in memory:
The `Table` instance itself.
`array`: array part of `Table`
`node`: hash part of `Table`

WHATDOES`TABLE`CONTAIN?
Fields of recording the size:
size of array part: `sizearray`
size of hash part: 2^`lsizenode`
#define twoto(x) (1<<(x))
#define sizenode(t) (twoto((t)->lsizenode))

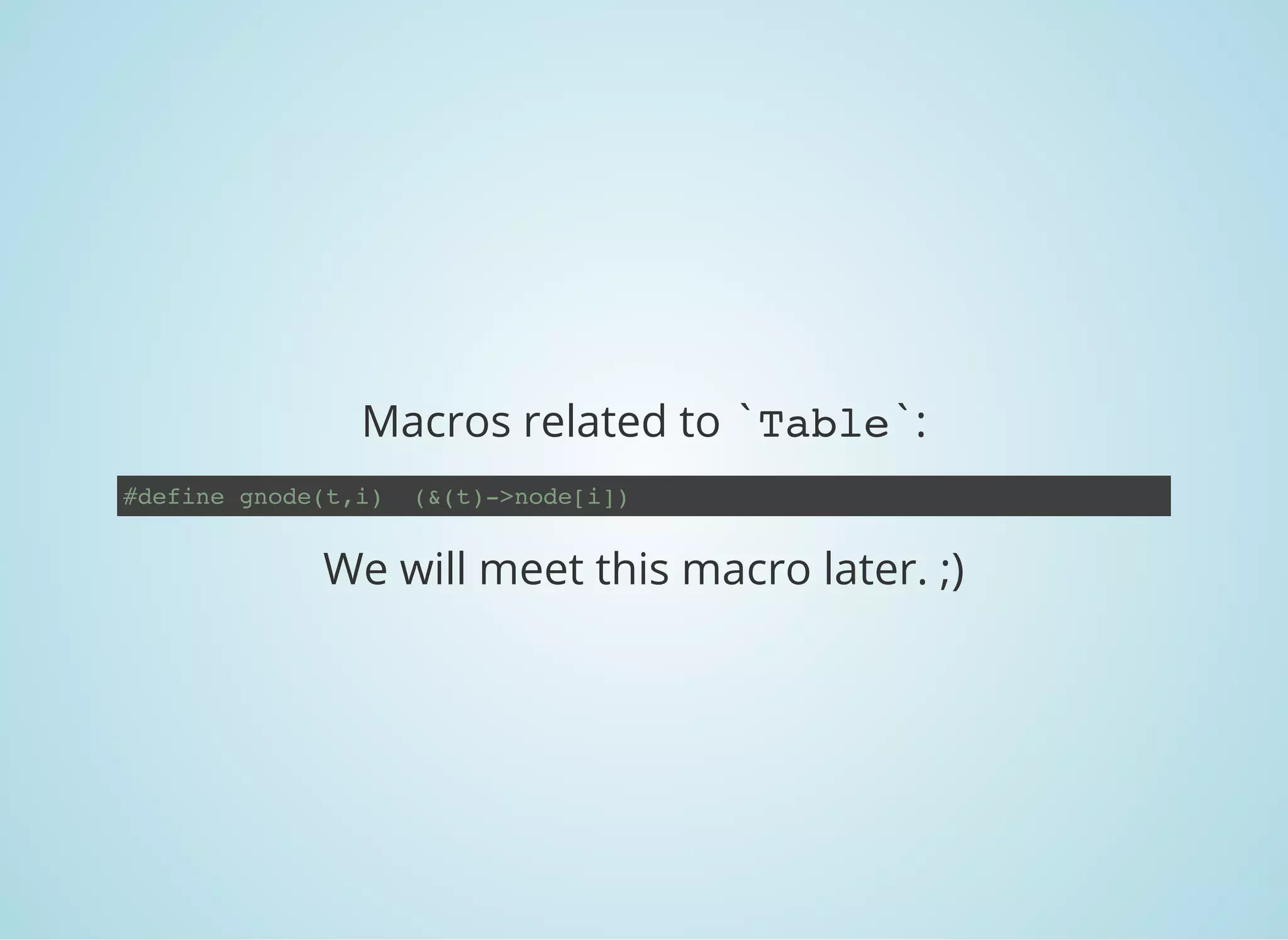

Macros related to `Table`:
#define gnode(t,i) (&(t)->node[i])
We will meet this macro later. ;)

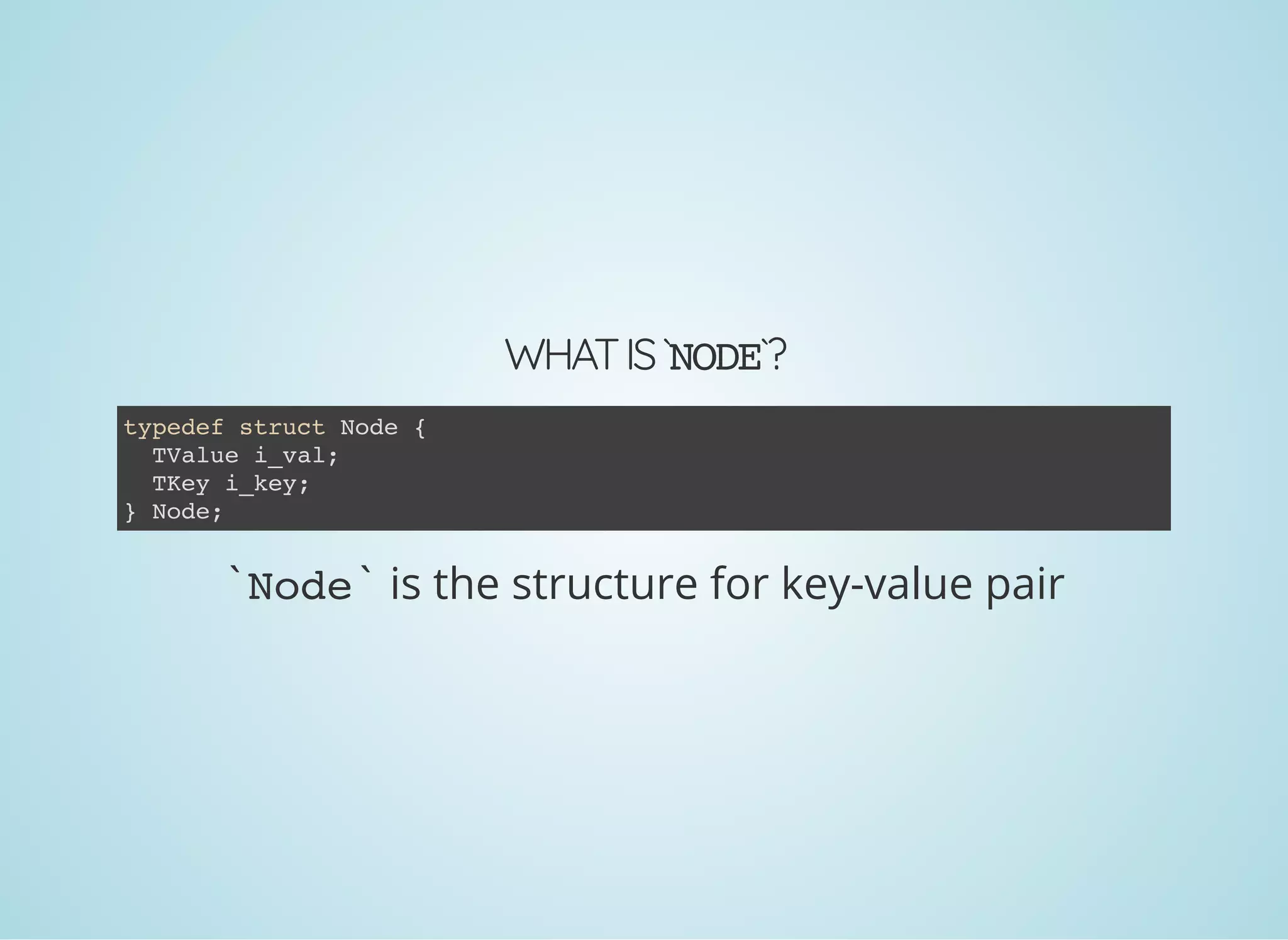

WHATIS`NODE`?
typedef struct Node {
TValue i_val;
TKey i_key;
} Node;
`Node` is the structure for key-value pair

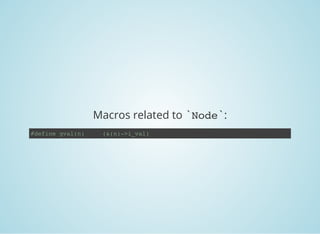

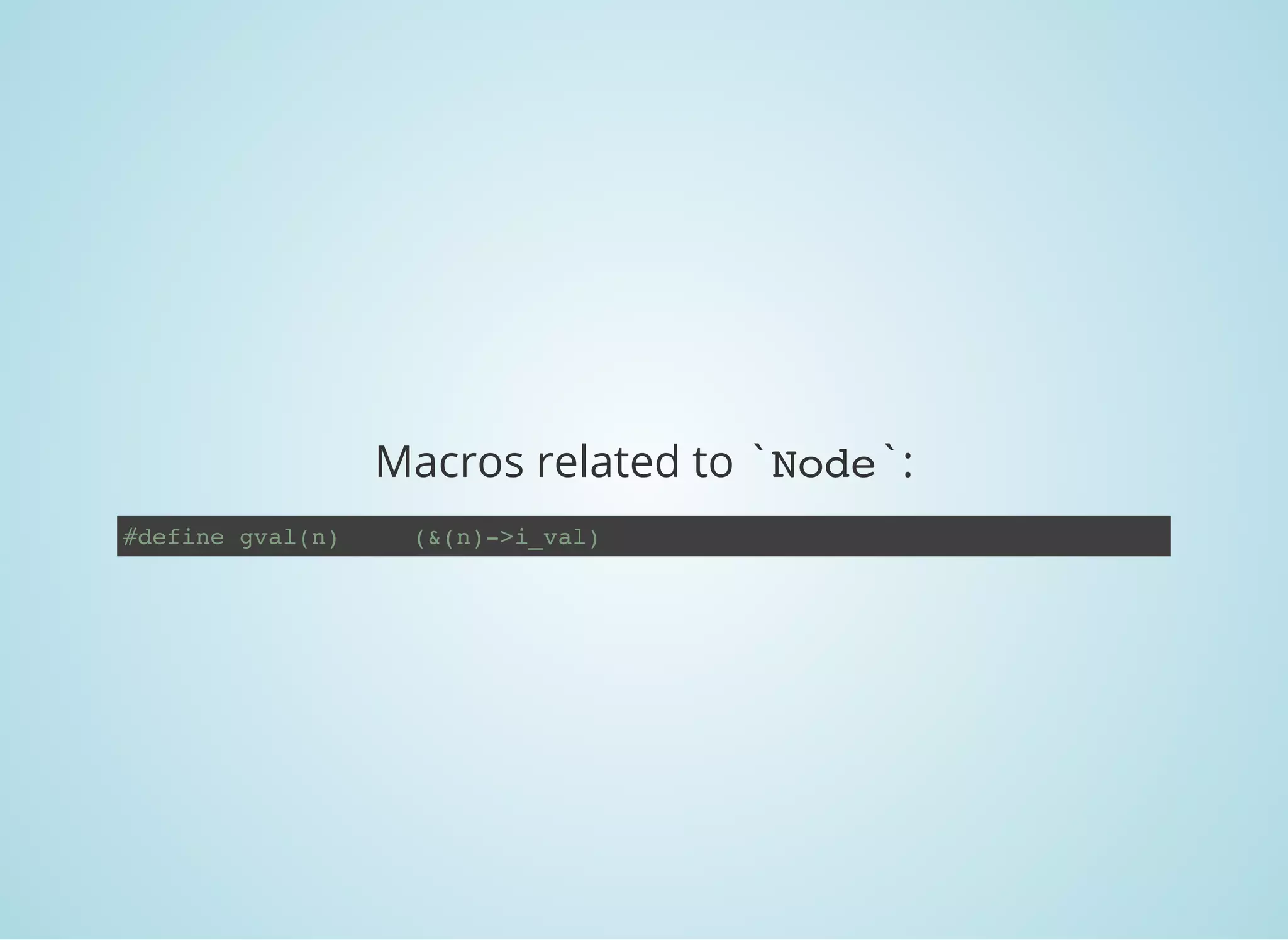

Macros related to `Node`:
#define gval(n) (&(n)->i_val)

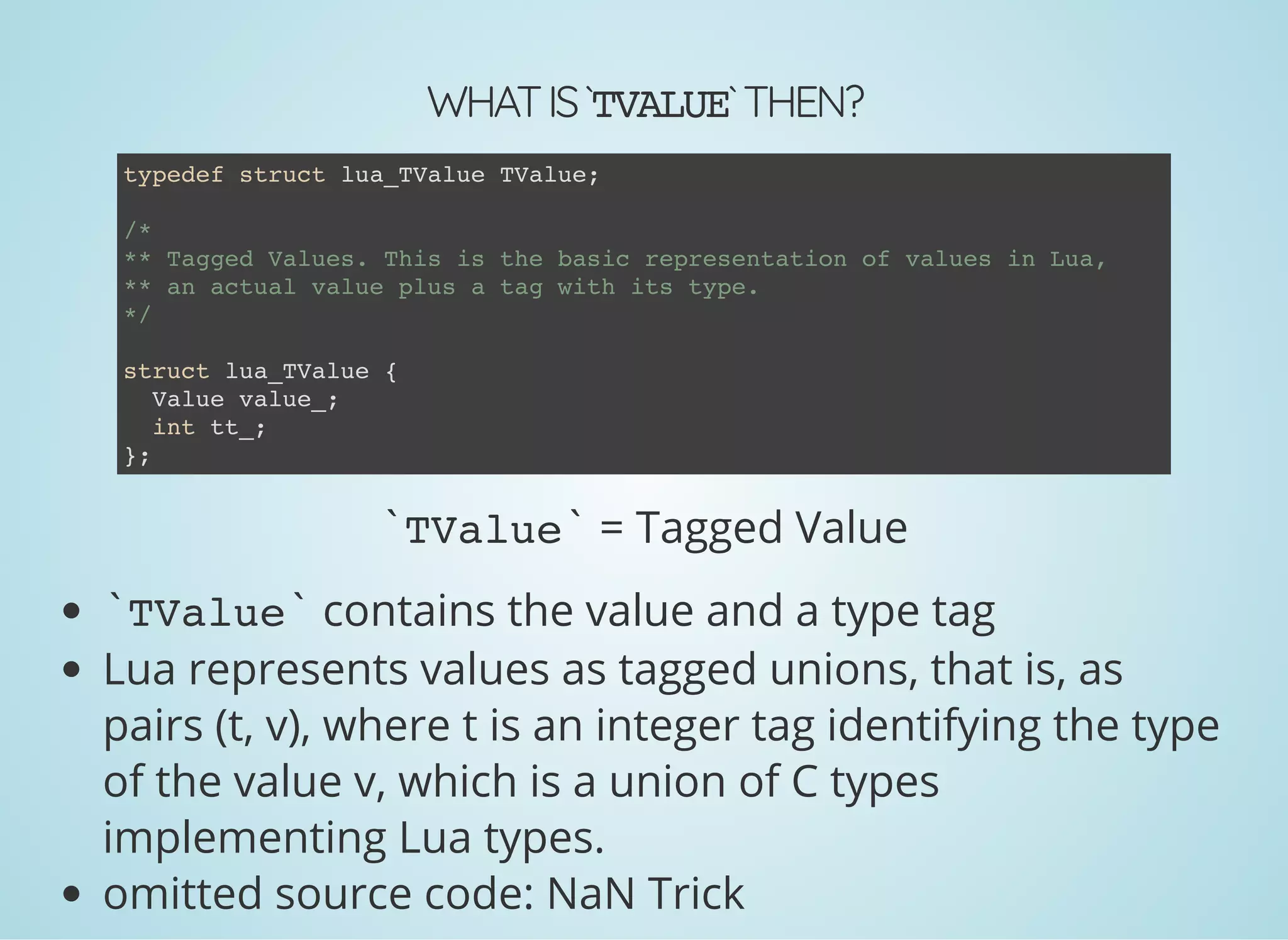

WHATIS`TVALUE`THEN?
typedef struct lua_TValue TValue;
/*
** Tagged Values. This is the basic representation of values in Lua,
** an actual value plus a tag with its type.
*/
struct lua_TValue {
Value value_;
int tt_;
};
`TValue` = Tagged Value
`TValue` contains the value and a type tag
Lua represents values as tagged unions, that is, as
pairs (t, v), where t is an integer tag identifying the type
of the value v, which is a union of C types
implementing Lua types.
omitted source code: NaN Trick

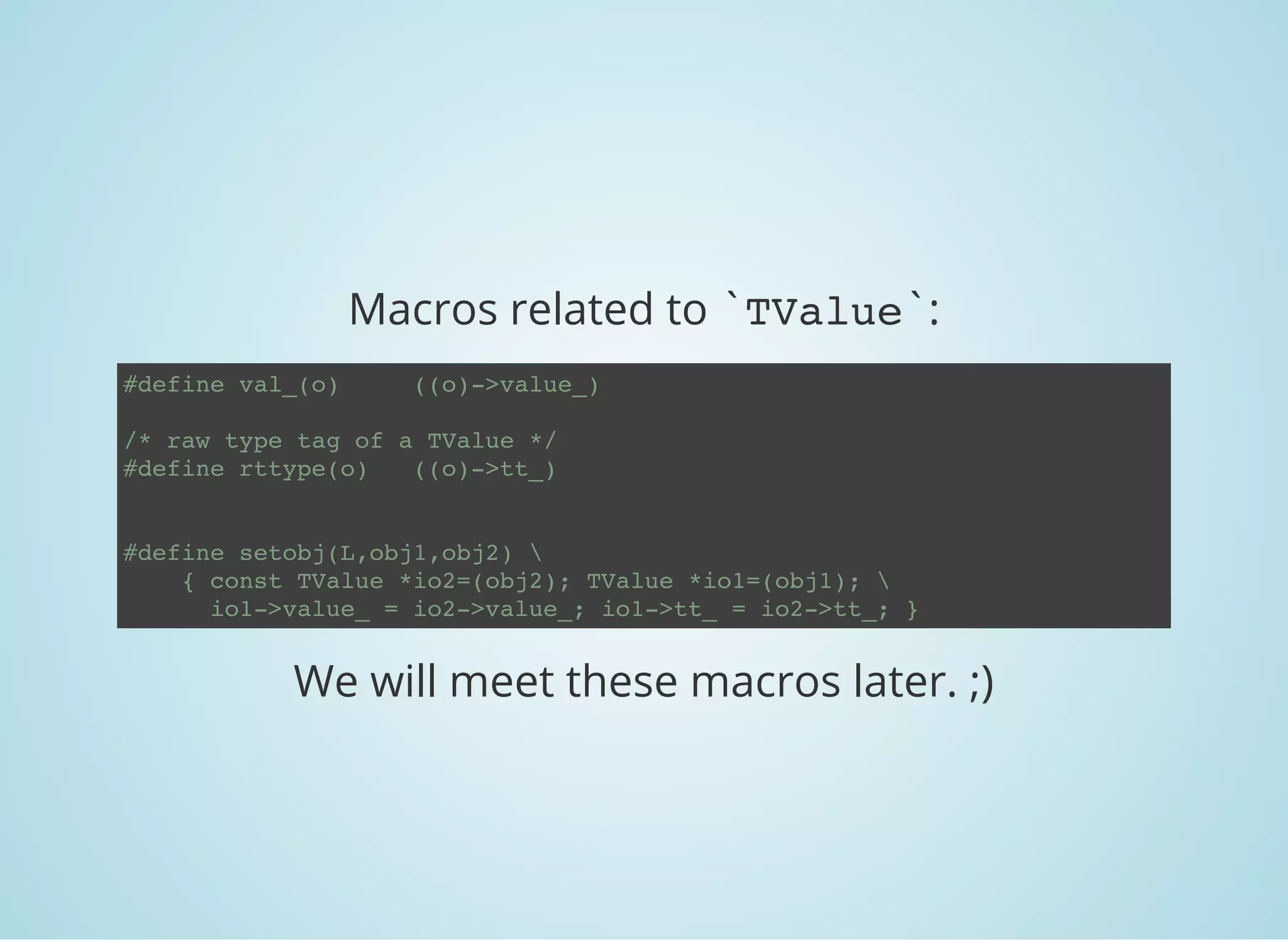

Macros related to `TValue`:
#define val_(o) ((o)->value_)
/* raw type tag of a TValue */
#define rttype(o) ((o)->tt_)
#define setobj(L,obj1,obj2)
{ const TValue *io2=(obj2); TValue *io1=(obj1);
io1->value_ = io2->value_; io1->tt_ = io2->tt_; }
We will meet these macros later. ;)

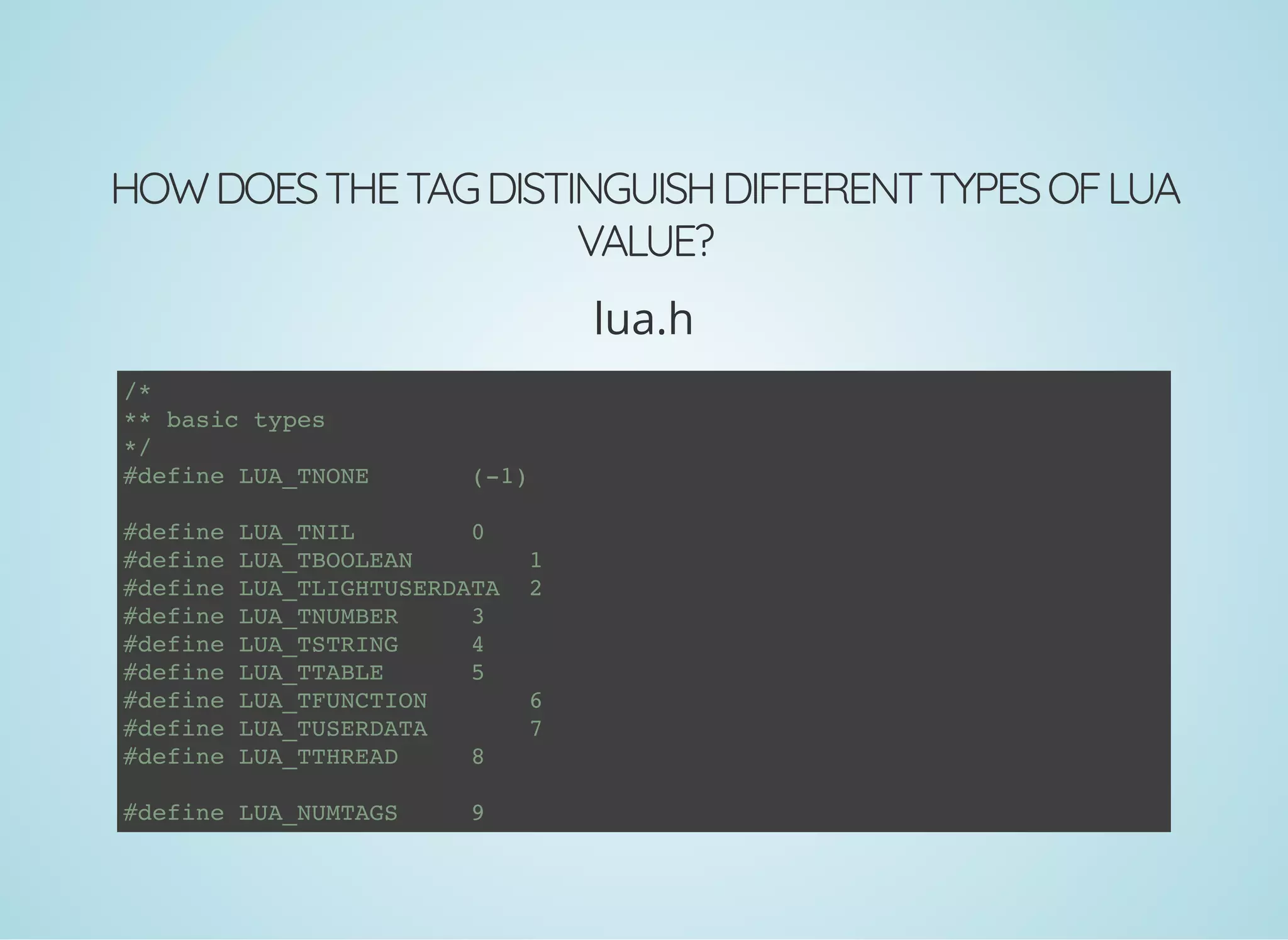

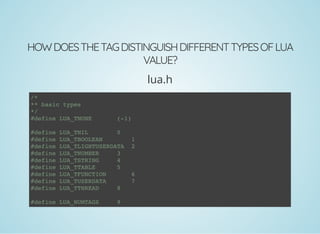

HOWDOESTHETAGDISTINGUISHDIFFERENTTYPESOFLUA
VALUE?
lua.h
/*
** basic types
*/
#define LUA_TNONE (-1)
#define LUA_TNIL 0
#define LUA_TBOOLEAN 1
#define LUA_TLIGHTUSERDATA 2
#define LUA_TNUMBER 3
#define LUA_TSTRING 4
#define LUA_TTABLE 5
#define LUA_TFUNCTION 6
#define LUA_TUSERDATA 7
#define LUA_TTHREAD 8
#define LUA_NUMTAGS 9

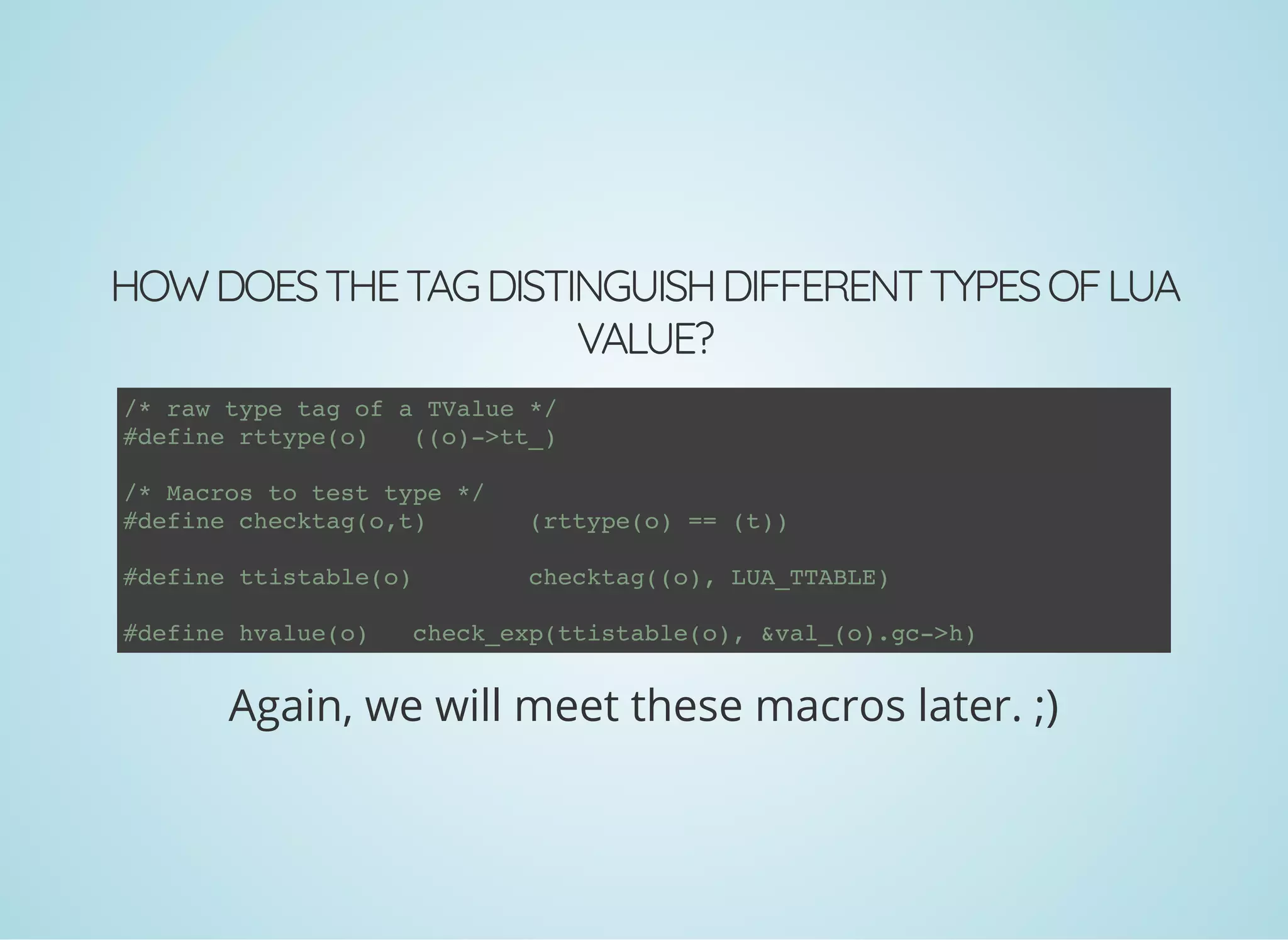

HOWDOESTHETAGDISTINGUISHDIFFERENTTYPESOFLUA
VALUE?
/* raw type tag of a TValue */
#define rttype(o) ((o)->tt_)
/* Macros to test type */
#define checktag(o,t) (rttype(o) == (t))
#define ttistable(o) checktag((o), LUA_TTABLE)
#define hvalue(o) check_exp(ttistable(o), &val_(o).gc->h)
Again, we will meet these macros later. ;)

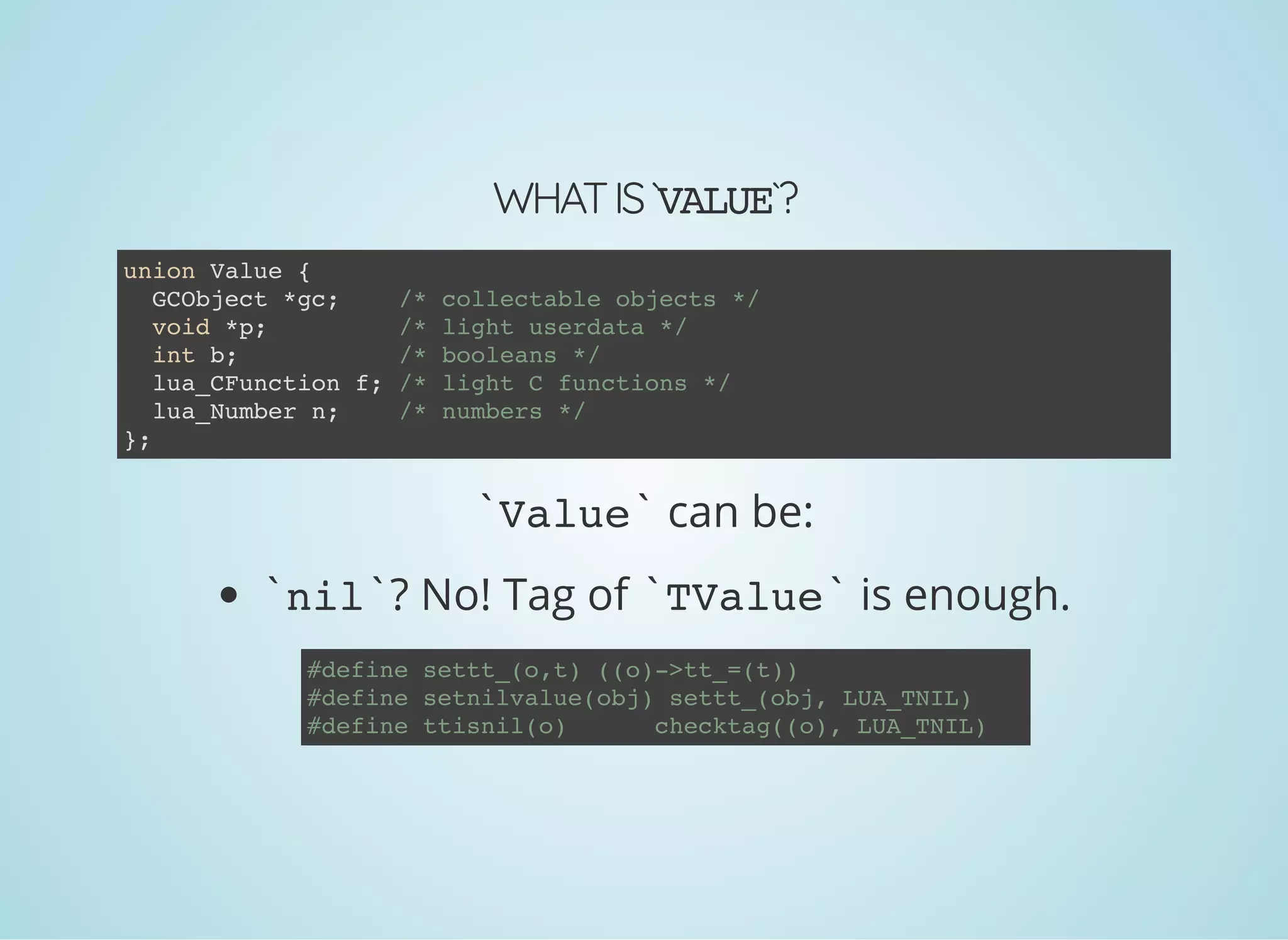

WHATIS`VALUE`?
union Value {
GCObject *gc; /* collectable objects */
void *p; /* light userdata */
int b; /* booleans */
lua_CFunction f; /* light C functions */
lua_Number n; /* numbers */
};
`Value` can be:
`nil`? No! Tag of `TValue` is enough.
#define settt_(o,t) ((o)->tt_=(t))
#define setnilvalue(obj) settt_(obj, LUA_TNIL)
#define ttisnil(o) checktag((o), LUA_TNIL)

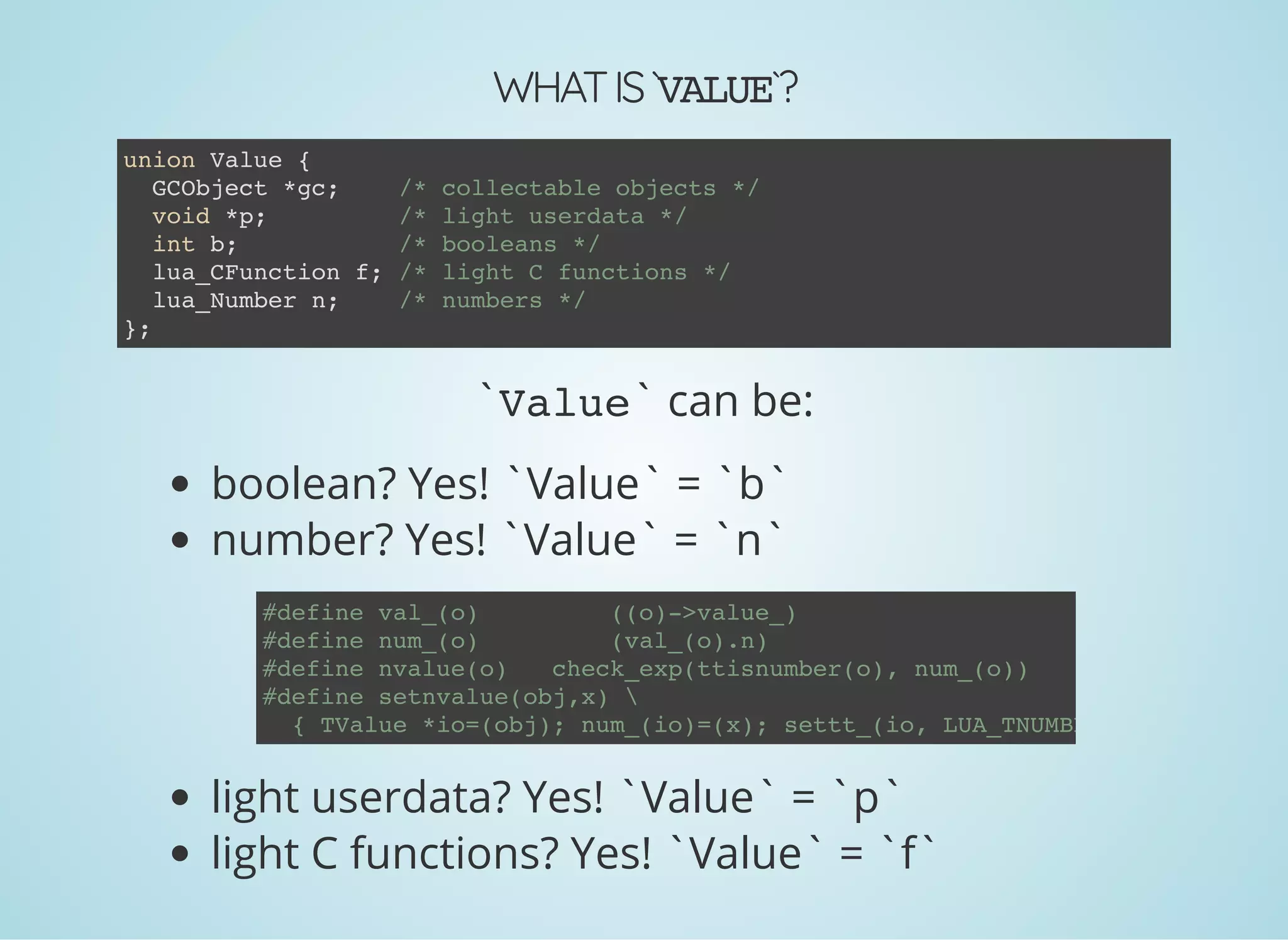

WHATIS`VALUE`?
union Value {
};
`Value` can be:
boolean? Yes! `Value` = `b`
number? Yes! `Value` = `n`
light userdata? Yes! `Value` = `p`
light C functions? Yes! `Value` = `f`
#define val_(o) ((o)->value_)
#define num_(o) (val_(o).n)
#define nvalue(o) check_exp(ttisnumber(o), num_(o))
#define setnvalue(obj,x)
{ TValue *io=(obj); num_(io)=(x); settt_(io, LUA_TNUMBER); }

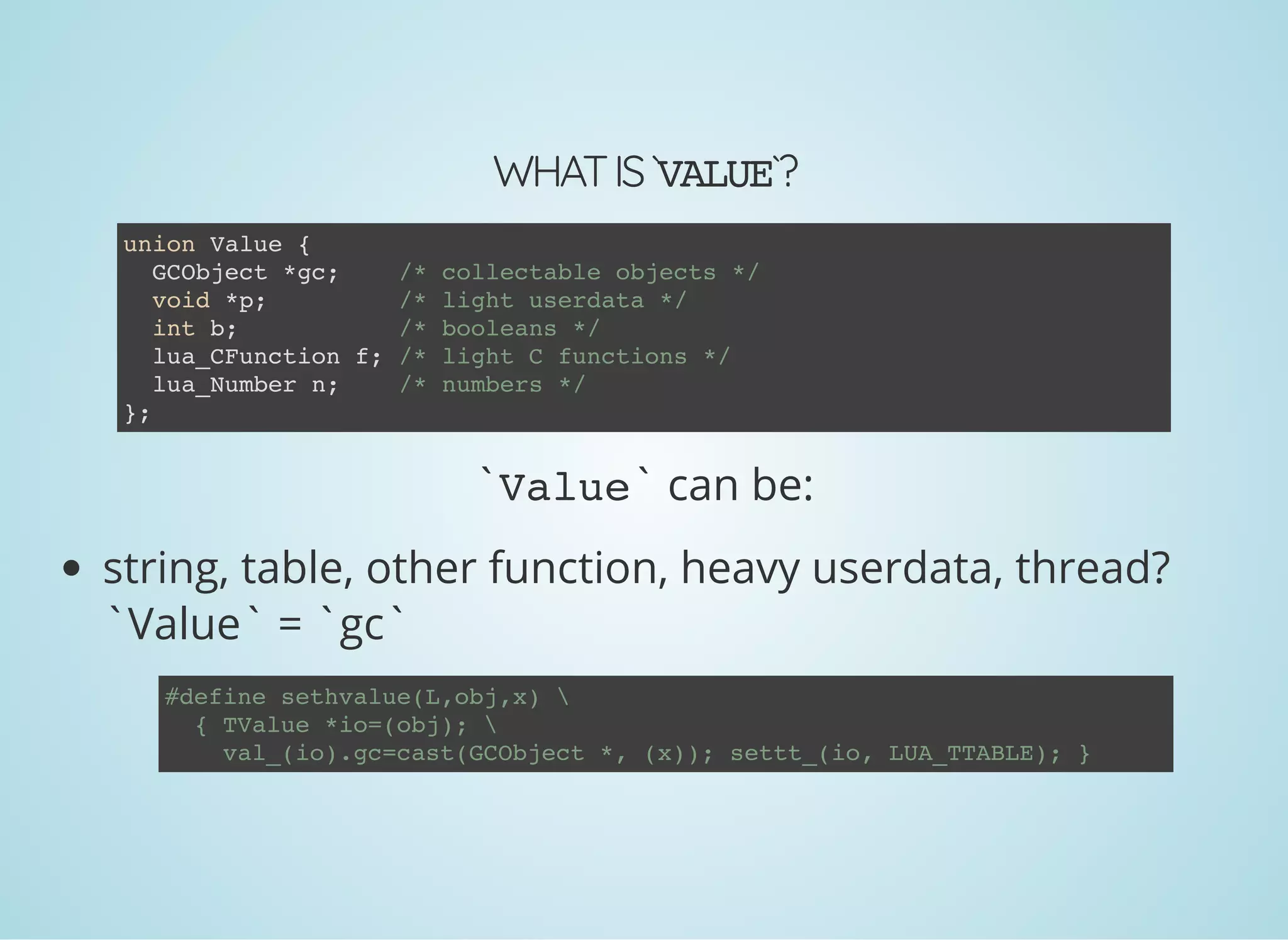

WHATIS`VALUE`?
union Value {
};
`Value` can be:
string, table, other function, heavy userdata, thread?
`Value` = `gc`
#define sethvalue(L,obj,x)
{ TValue *io=(obj);
val_(io).gc=cast(GCObject *, (x)); settt_(io, LUA_TTABLE); }

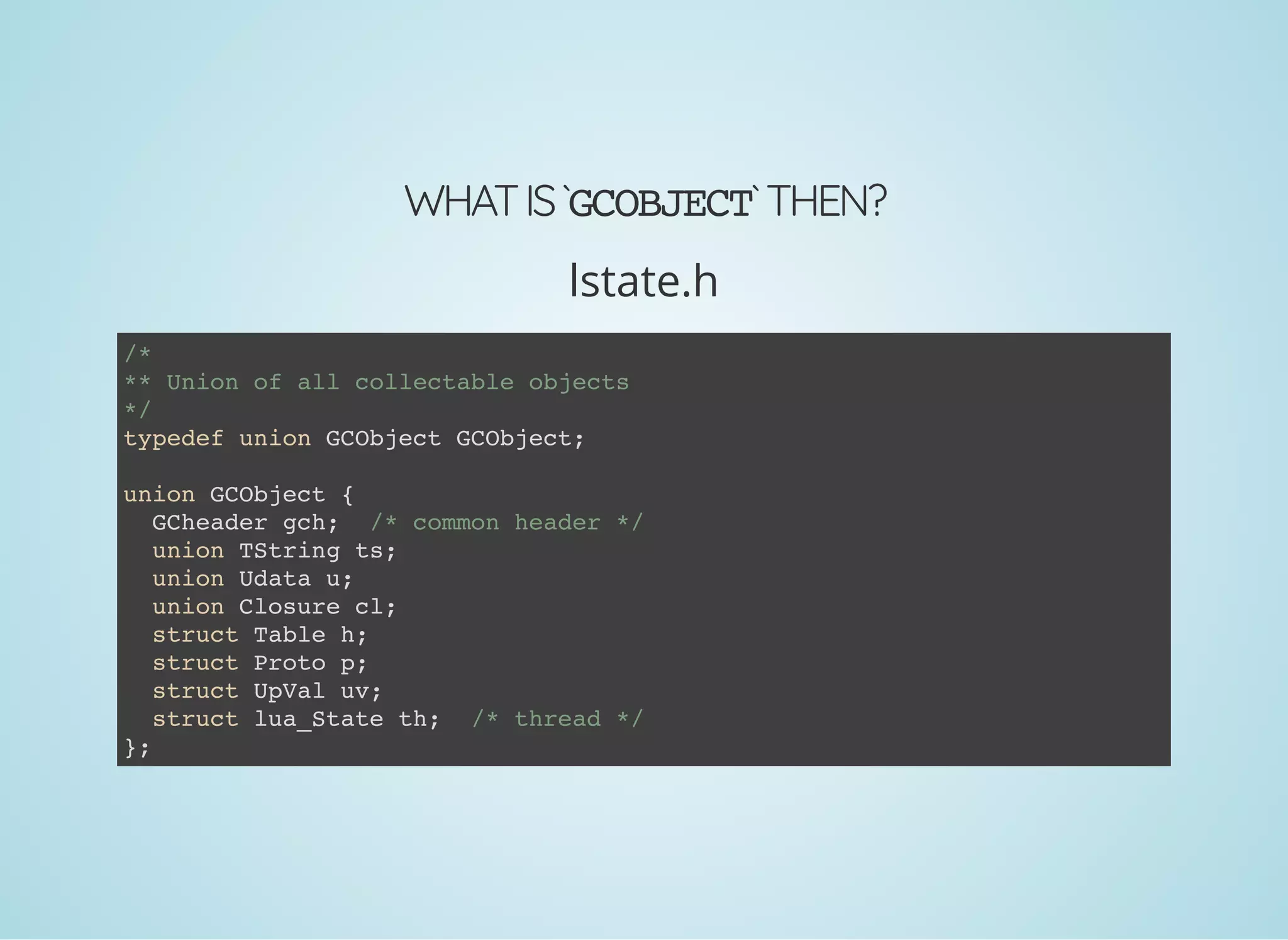

WHATIS`GCOBJECT`THEN?
lstate.h
/*
** Union of all collectable objects
*/
typedef union GCObject GCObject;
union GCObject {
GCheader gch; /* common header */
union TString ts;
union Udata u;
union Closure cl;
struct Table h;
struct Proto p;
struct UpVal uv;
struct lua_State th; /* thread */
};

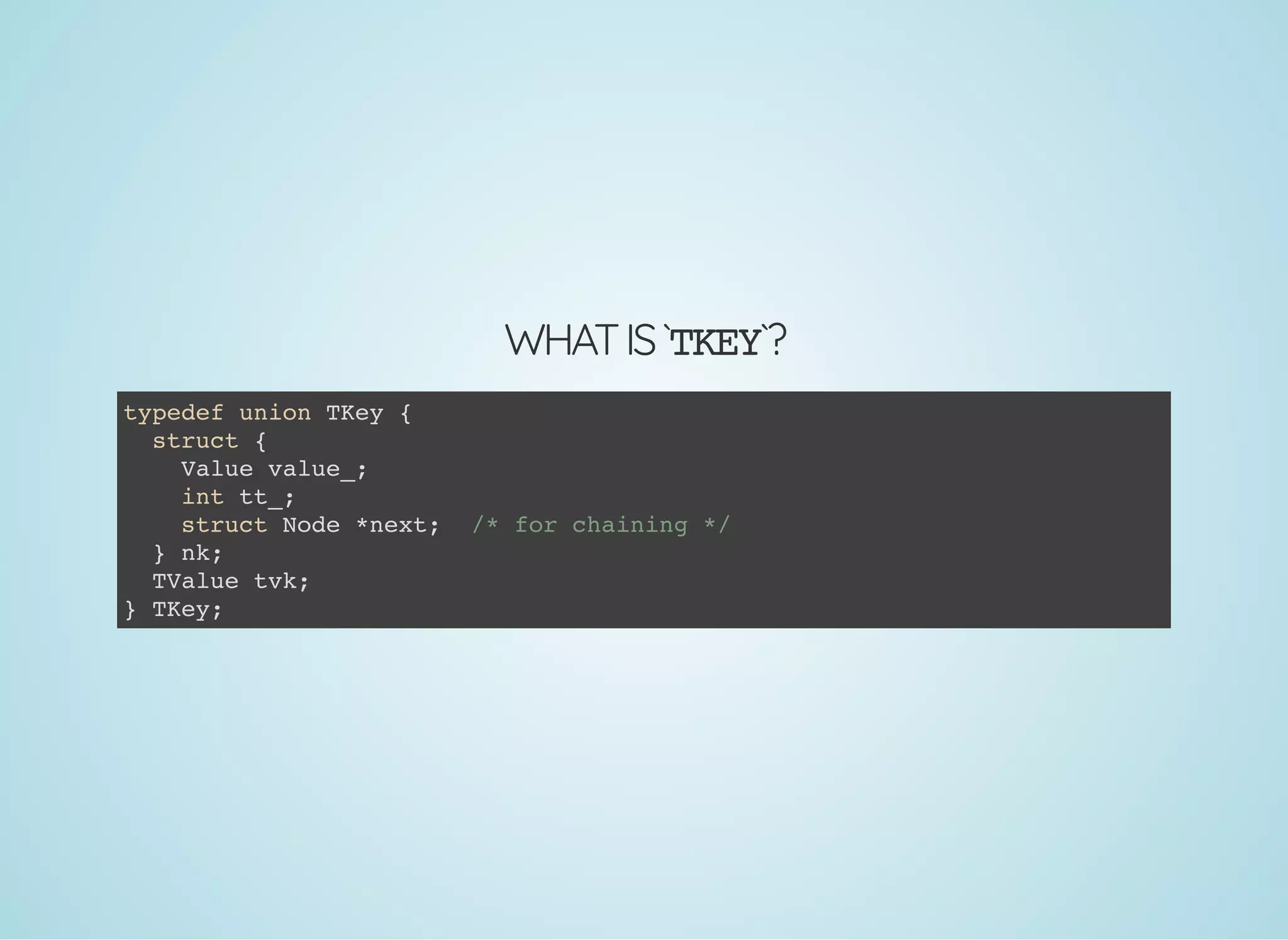

WHATIS`TKEY`?
typedef union TKey {
struct {
Value value_;
int tt_;
struct Node *next; /* for chaining */
} nk;
TValue tvk;
} TKey;

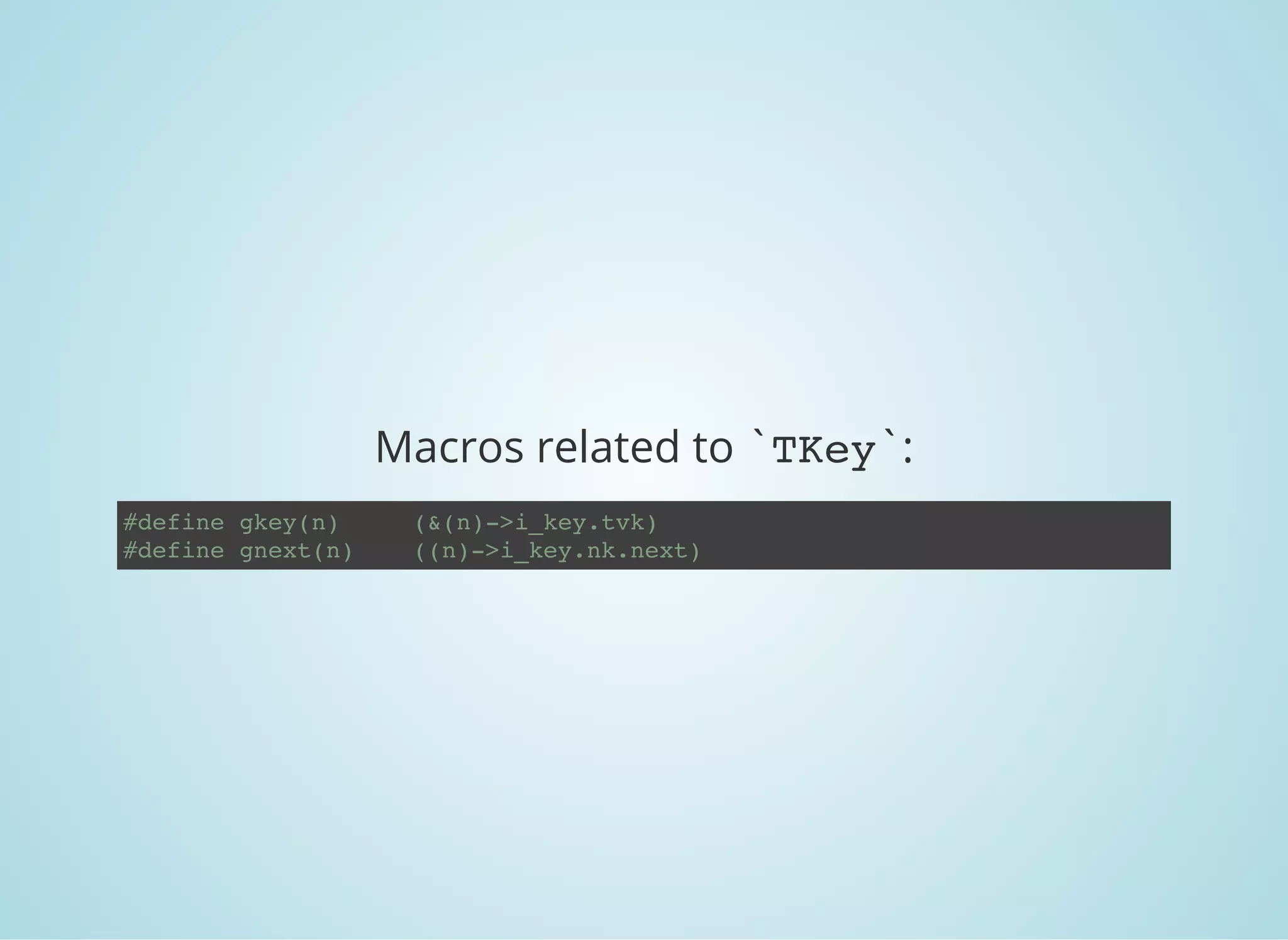

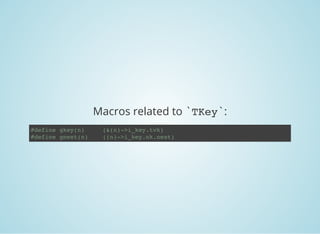

Macros related to `TKey`:
#define gkey(n) (&(n)->i_key.tvk)
#define gnext(n) ((n)->i_key.nk.next)

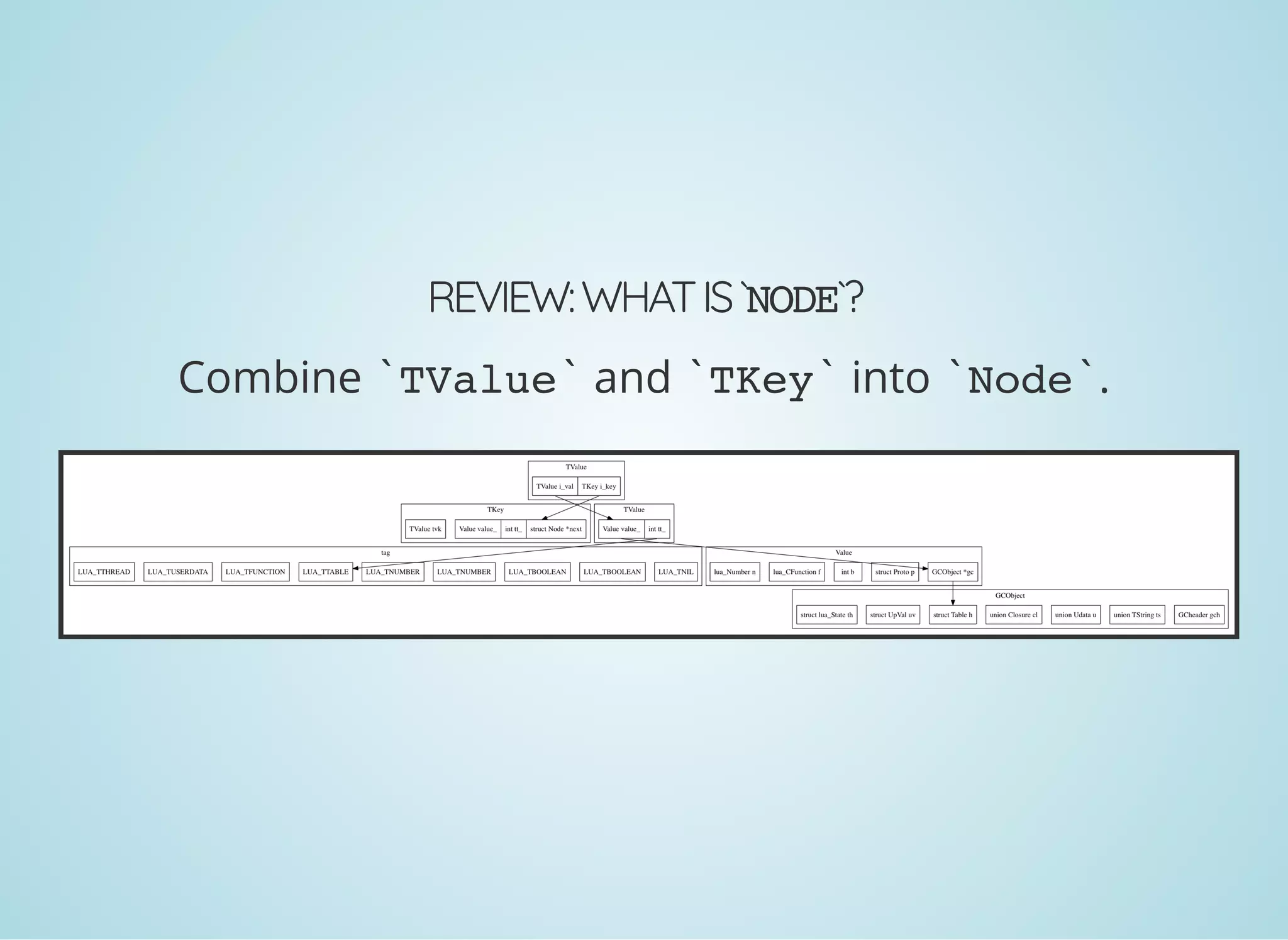

REVIEW:WHATIS`NODE`?
Combine `TValue` and `TKey` into `Node`.

WHATHAPPENSWHENCREATINGA
`TABLE`?

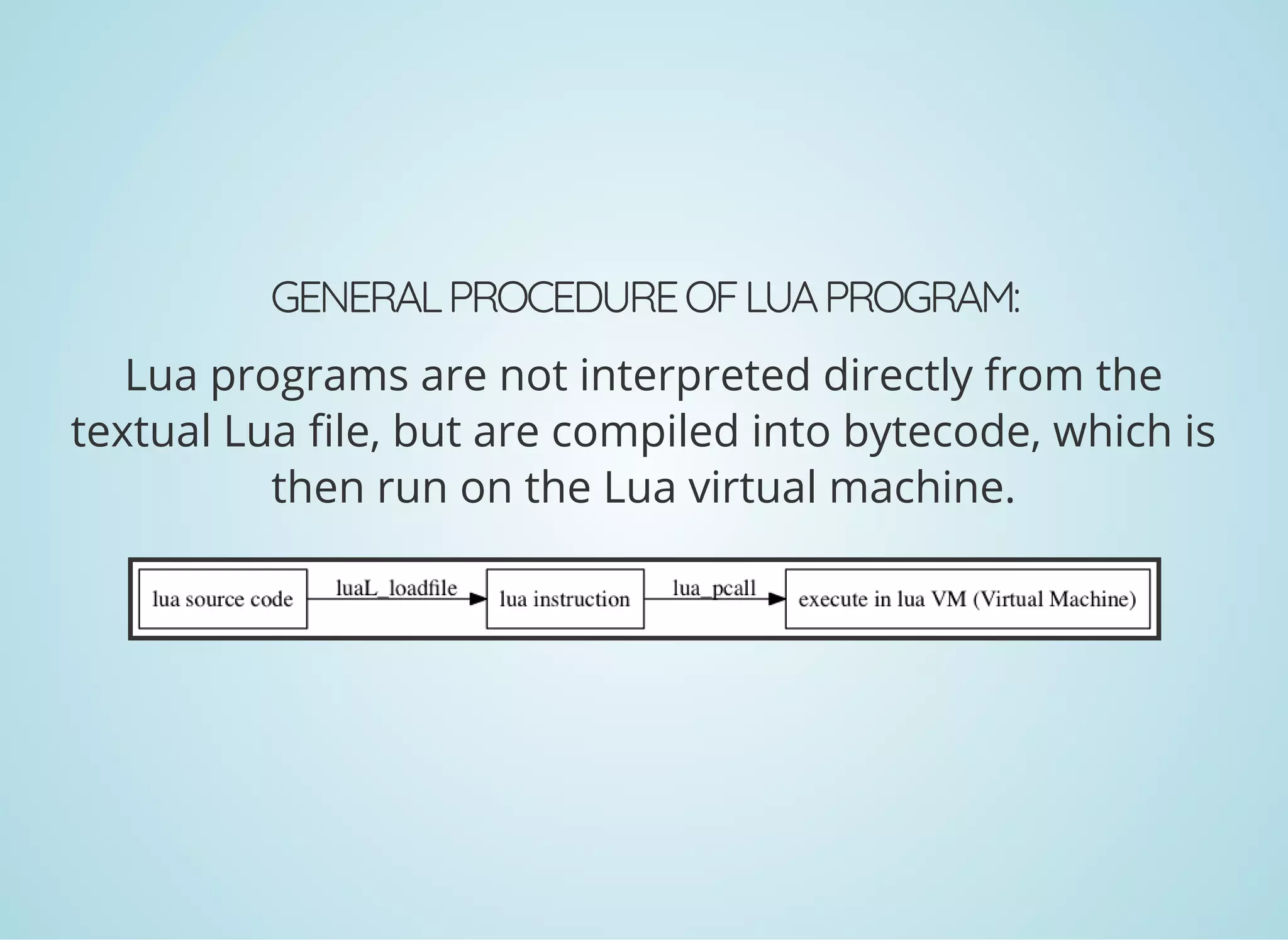

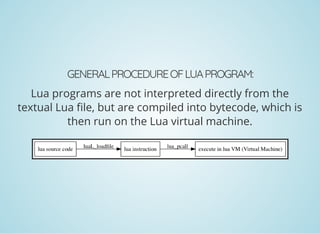

GENERALPROCEDUREOFLUAPROGRAM:
Lua programs are not interpreted directly from the
textual Lua le, but are compiled into bytecode, which is
then run on the Lua virtual machine.

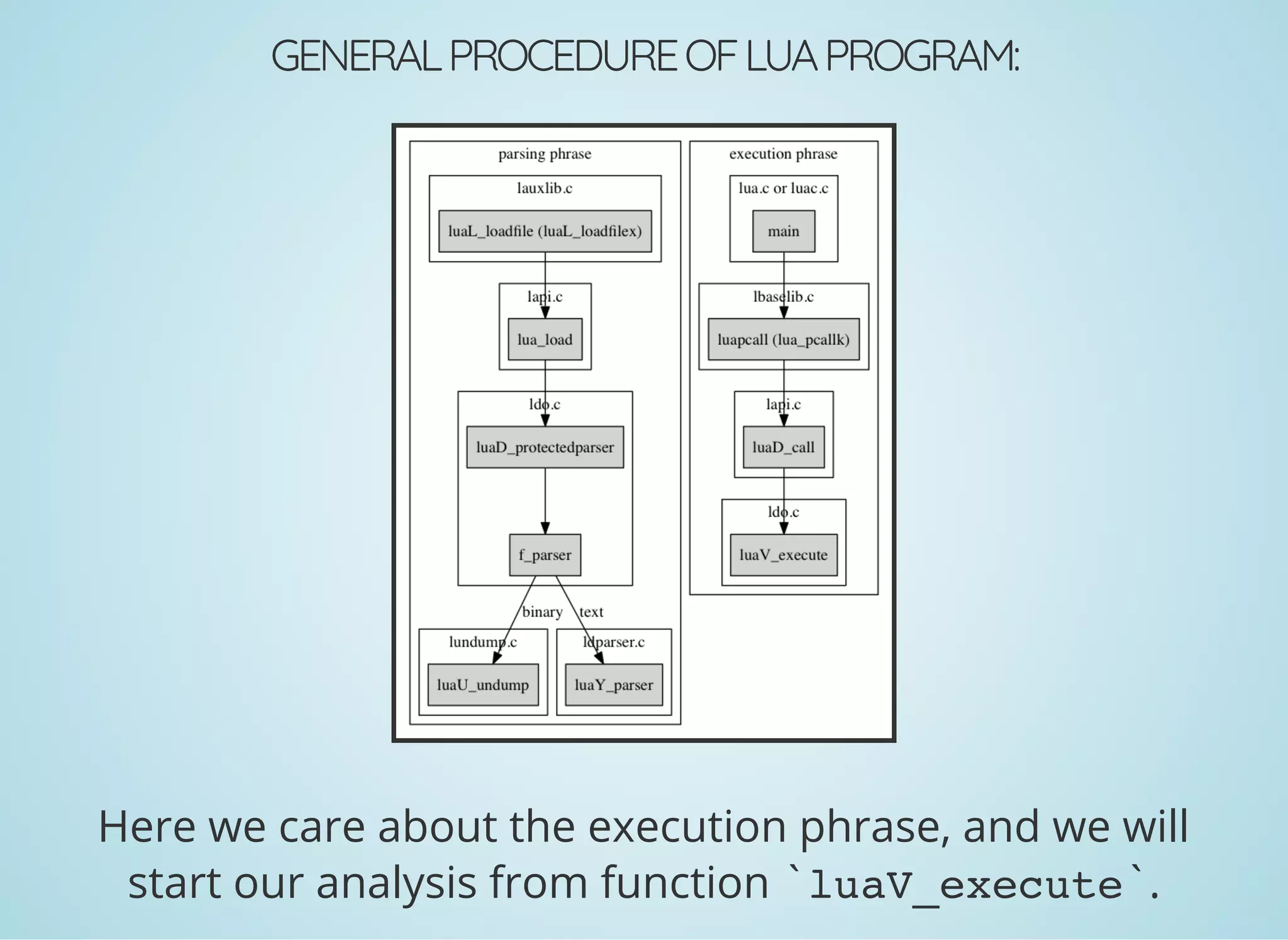

GENERALPROCEDUREOFLUAPROGRAM:
Here we care about the execution phrase, and we will
start our analysis from function `luaV_execute`.

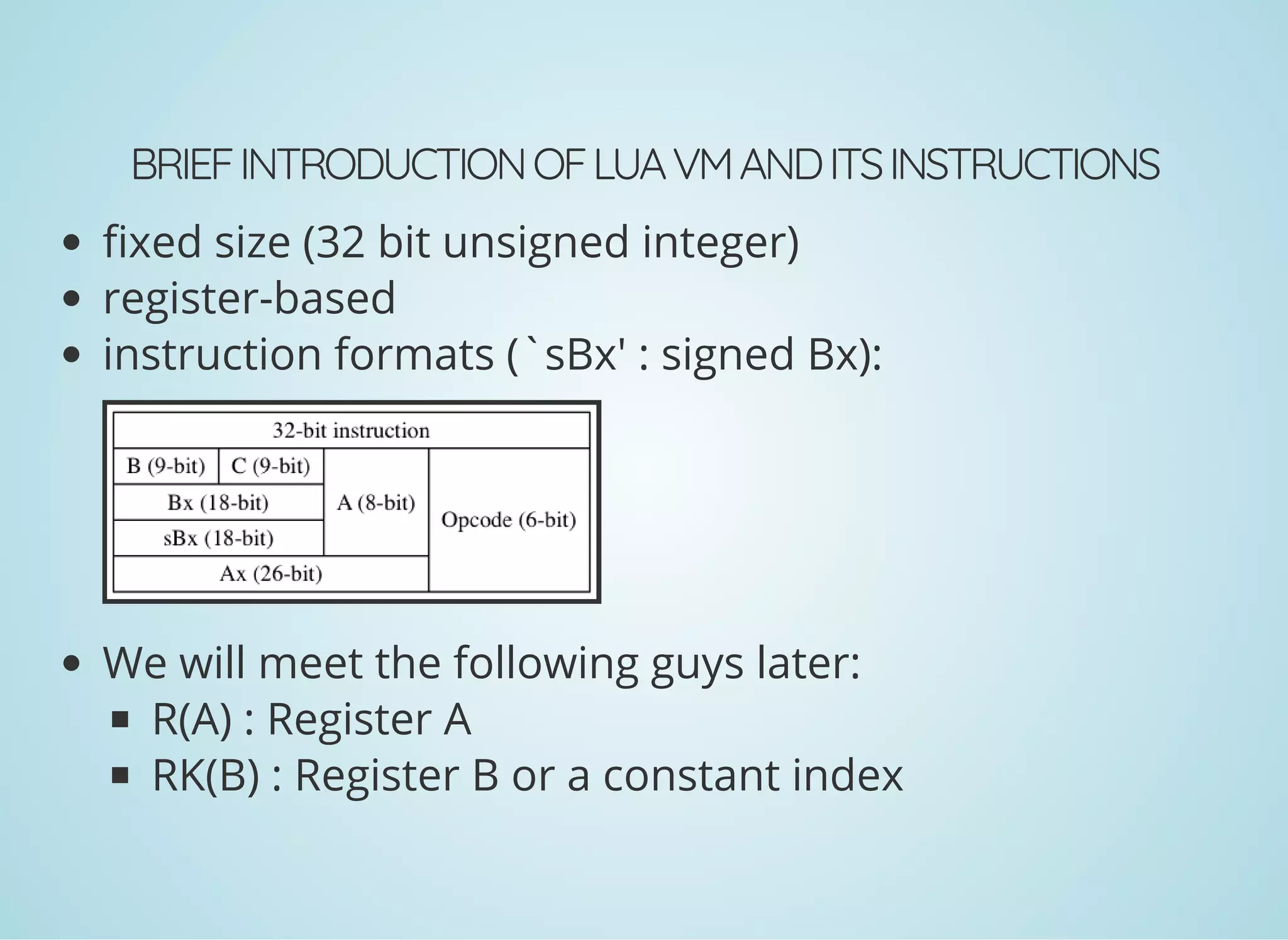

BRIEFINTRODUCTIONOFLUAVMANDITSINSTRUCTIONS
xed size (32 bit unsigned integer)
register-based
instruction formats (`sBx' : signed Bx):
We will meet the following guys later:
R(A) : Register A
RK(B) : Register B or a constant index

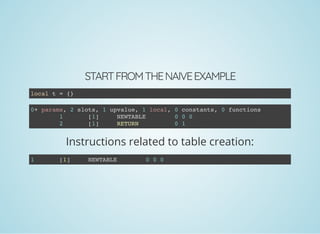

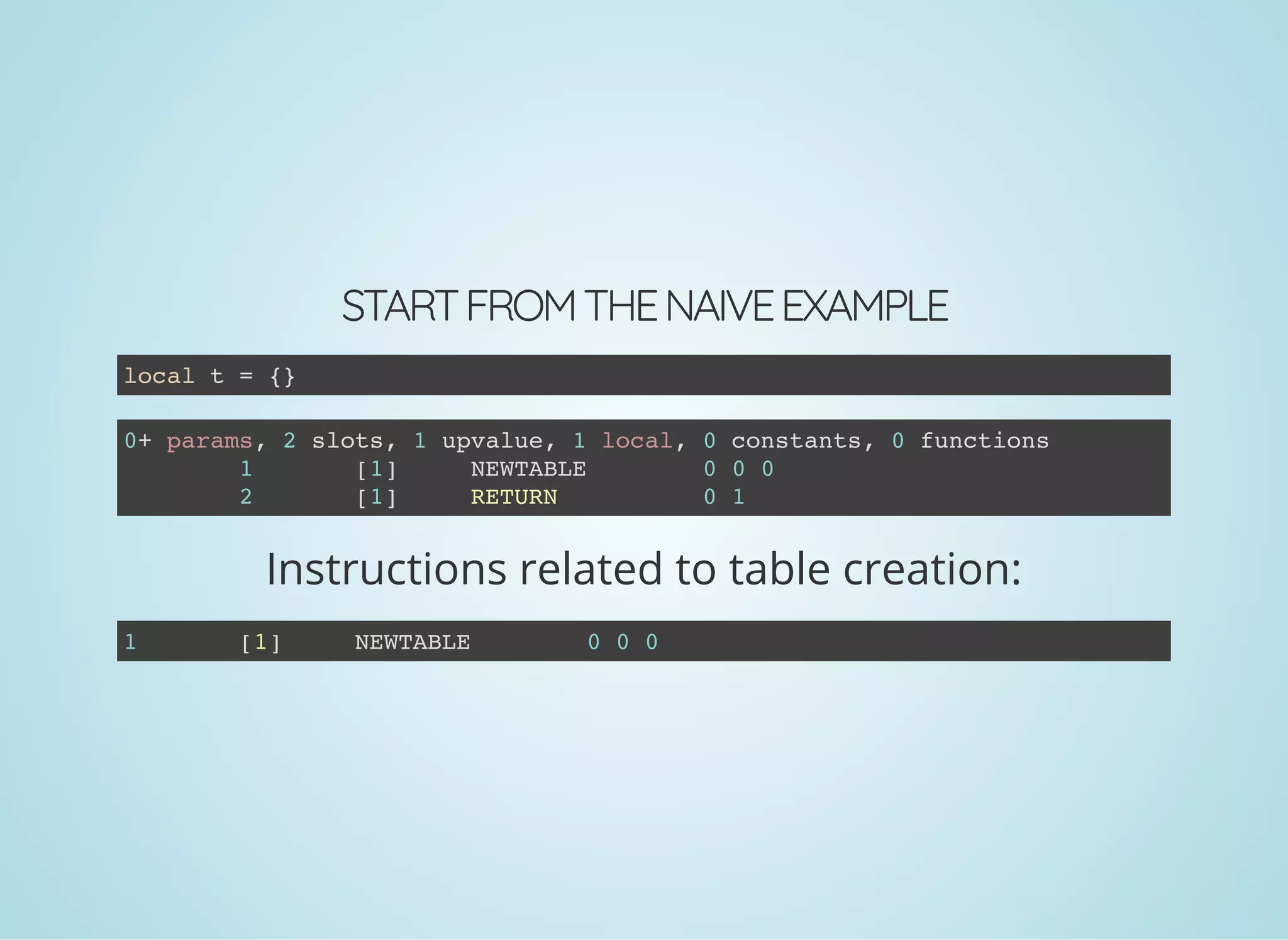

STARTFROMTHENAIVEEXAMPLE
local t = {}
0+ params, 2 slots, 1 upvalue, 1 local, 0 constants, 0 functions
1 [1] NEWTABLE 0 0 0
2 [1] RETURN 0 1
Instructions related to table creation:

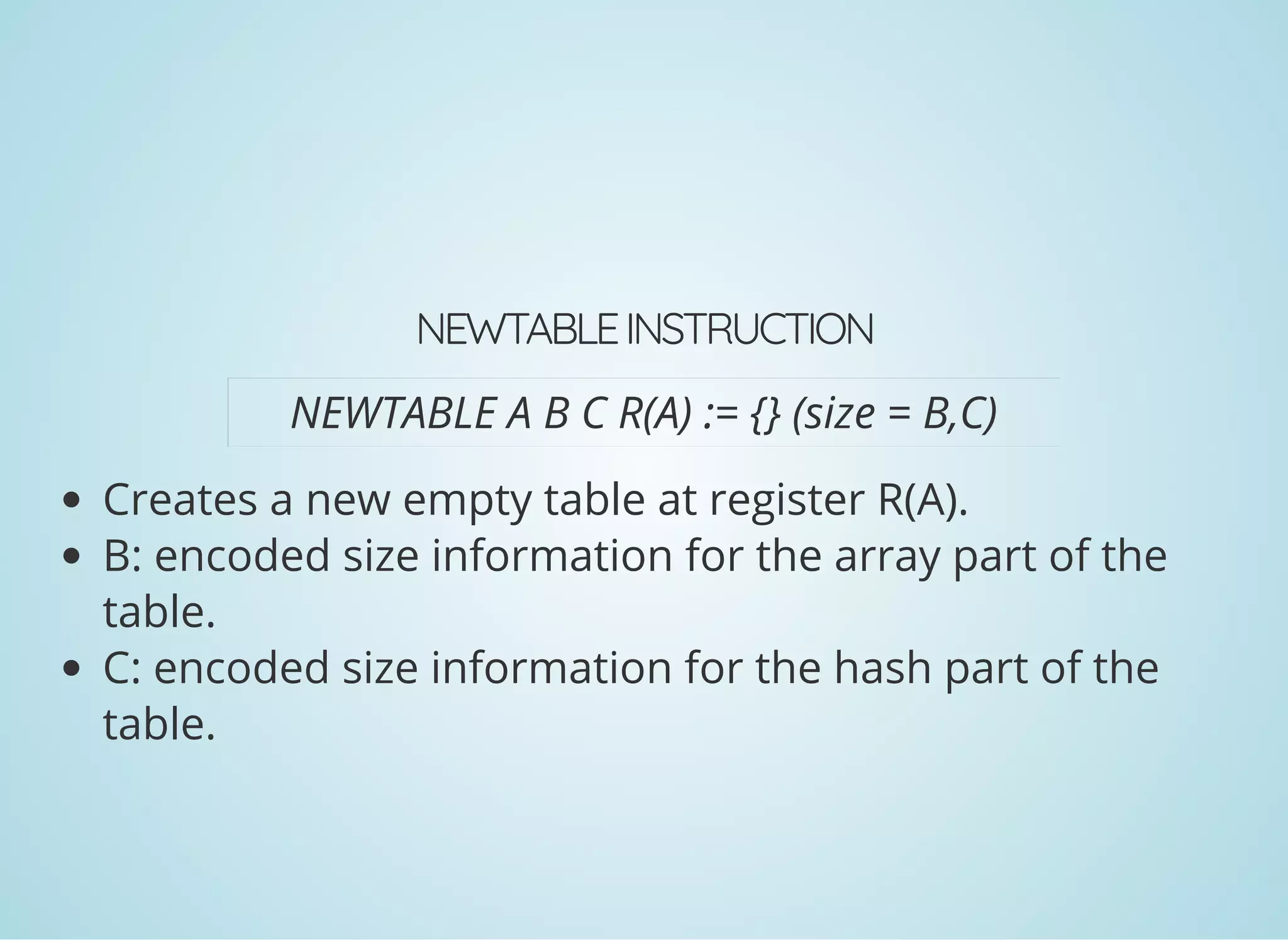

NEWTABLEINSTRUCTION
NEWTABLE A B C R(A) := {} (size = B,C)
Creates a new empty table at register R(A).
B: encoded size information for the array part of the
table.
C: encoded size information for the hash part of the
table.

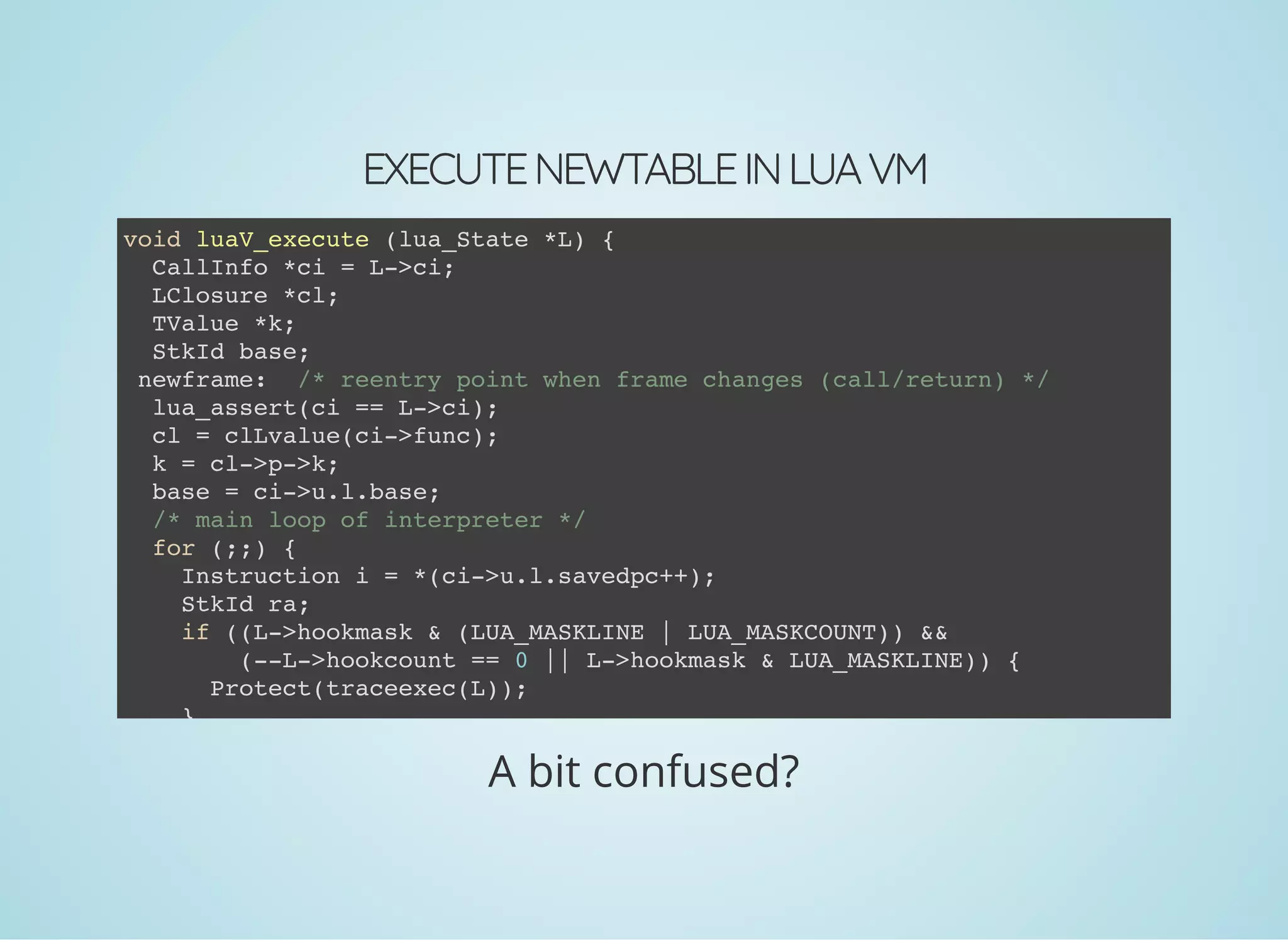

EXECUTENEWTABLEINLUAVM
void luaV_execute (lua_State *L) {
CallInfo *ci = L->ci;
LClosure *cl;
TValue *k;
StkId base;
newframe: /* reentry point when frame changes (call/return) */
lua_assert(ci == L->ci);
cl = clLvalue(ci->func);
k = cl->p->k;
base = ci->u.l.base;
/* main loop of interpreter */
for (;;) {
Instruction i = *(ci->u.l.savedpc++);
StkId ra;
if ((L->hookmask & (LUA_MASKLINE | LUA_MASKCOUNT)) &&
(--L->hookcount == 0 || L->hookmask & LUA_MASKLINE)) {
Protect(traceexec(L));
}
A bit confused?

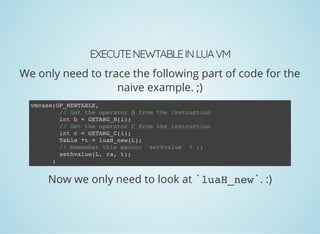

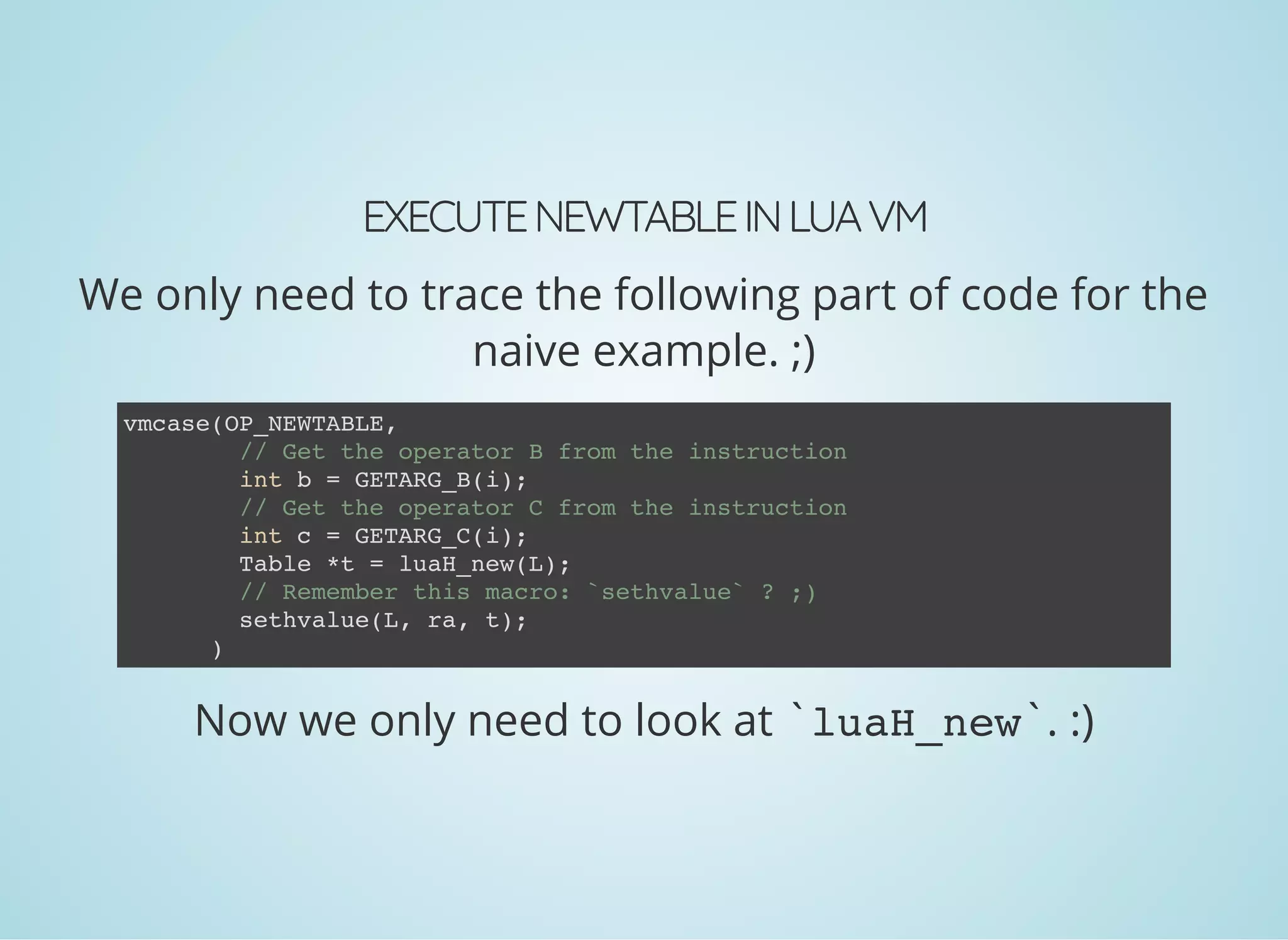

We only need to trace the following part of code for the
naive example. ;)
vmcase(OP_NEWTABLE,
// Get the operator B from the instruction
int b = GETARG_B(i);
// Get the operator C from the instruction
int c = GETARG_C(i);
Table *t = luaH_new(L);
// Remember this macro: `sethvalue` ? ;)
sethvalue(L, ra, t);
)
Now we only need to look at `luaH_new`. :)

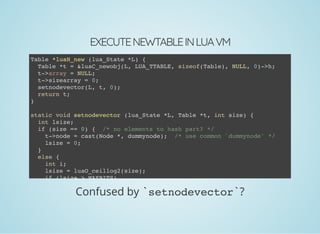

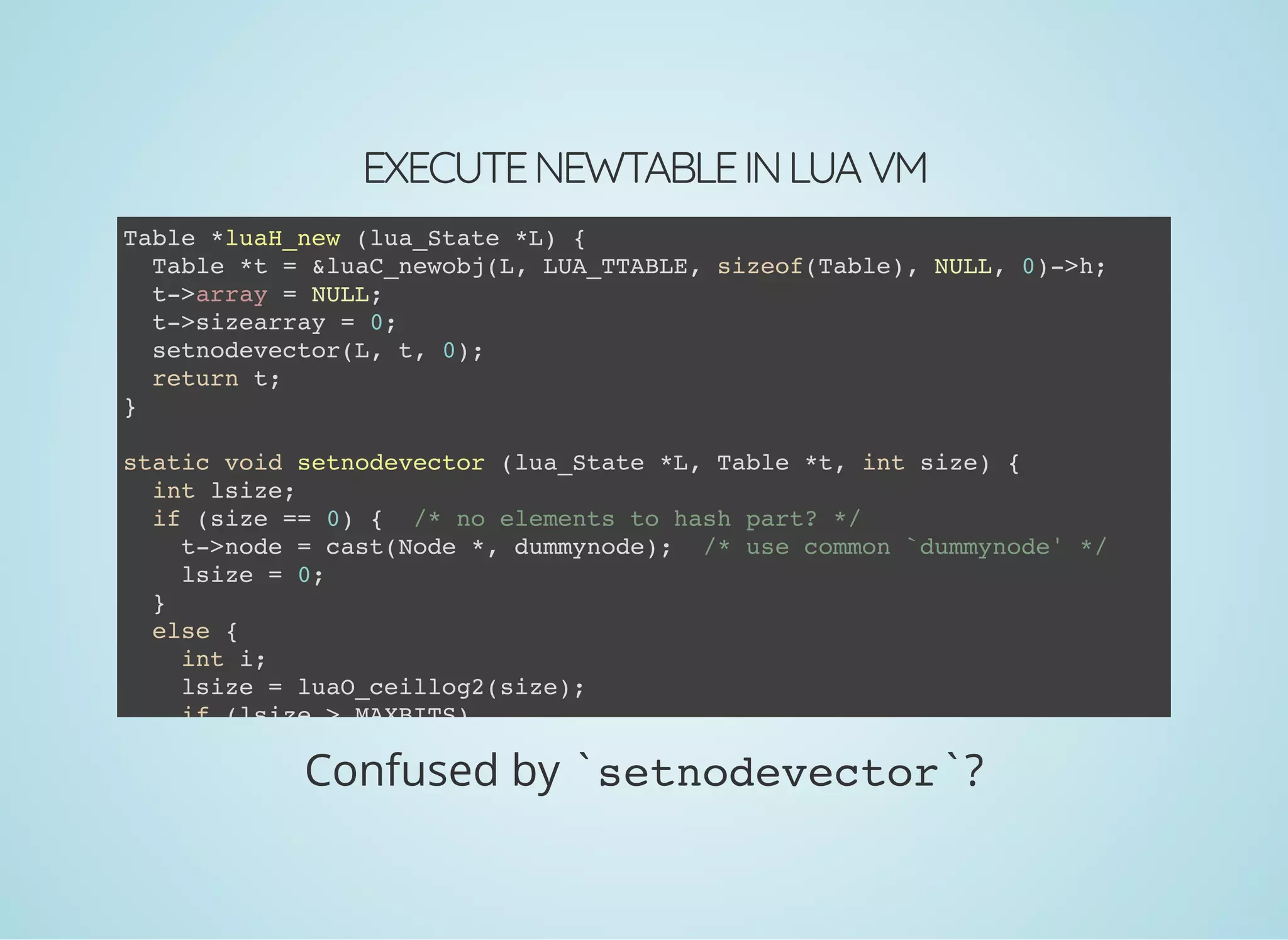

Table *luaH_new (lua_State *L) {
Table *t = &luaC_newobj(L, LUA_TTABLE, sizeof(Table), NULL, 0)->h;
t->array = NULL;
t->sizearray = 0;
setnodevector(L, t, 0);
return t;
}
static void setnodevector (lua_State *L, Table *t, int size) {
int lsize;
if (size == 0) { /* no elements to hash part? */
t->node = cast(Node *, dummynode); /* use common `dummynode' */
lsize = 0;
}
else {
int i;
lsize = luaO_ceillog2(size);
if (lsize > MAXBITS)
Confused by `setnodevector`?

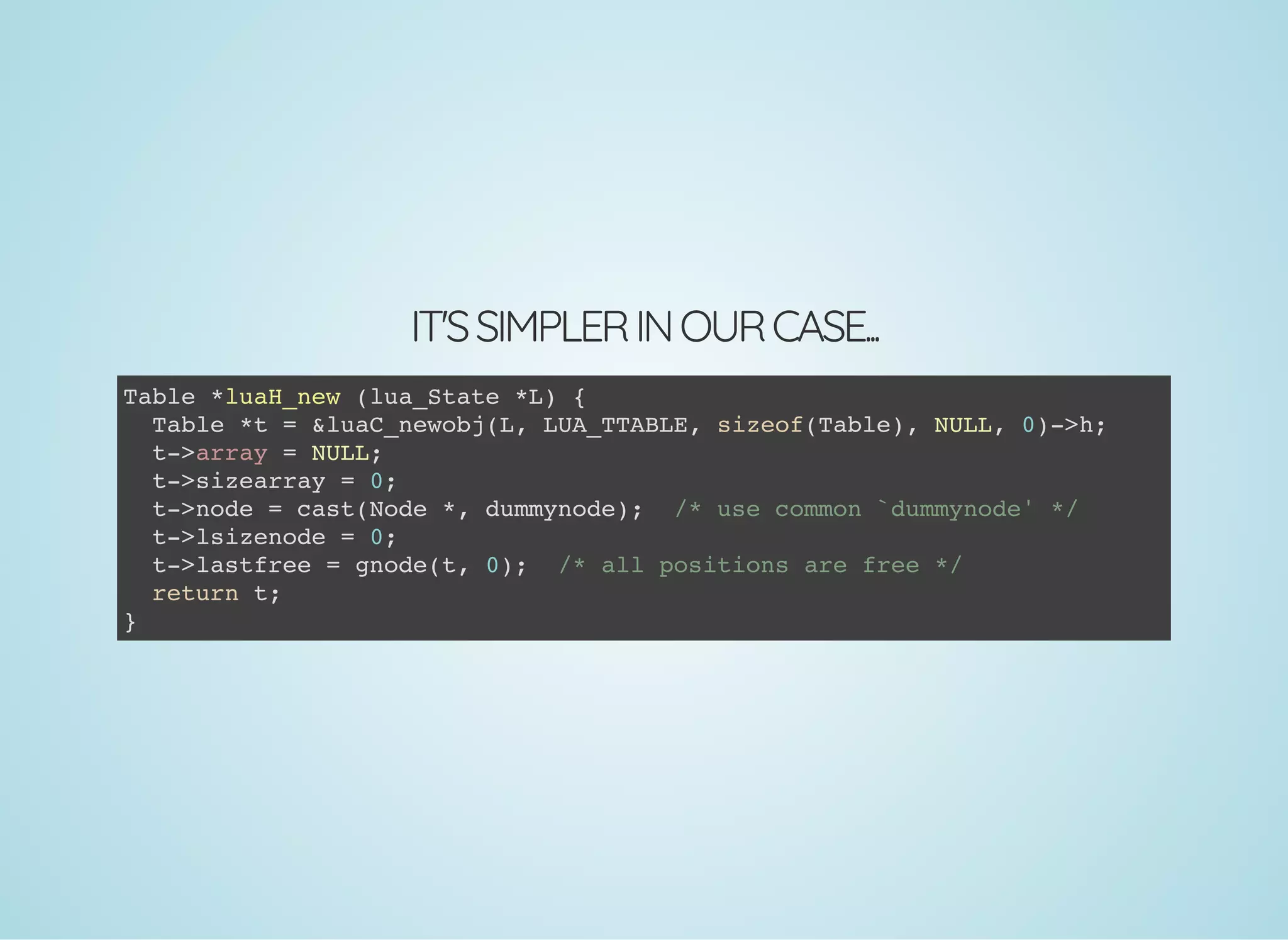

IT'SSIMPLERINOURCASE...
Table *luaH_new (lua_State *L) {
Table *t = &luaC_newobj(L, LUA_TTABLE, sizeof(Table), NULL, 0)->h;
t->array = NULL;
t->sizearray = 0;
t->node = cast(Node *, dummynode); /* use common `dummynode' */
t->lsizenode = 0;
t->lastfree = gnode(t, 0); /* all positions are free */
return t;
}

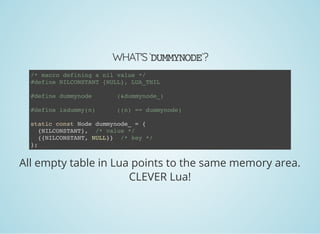

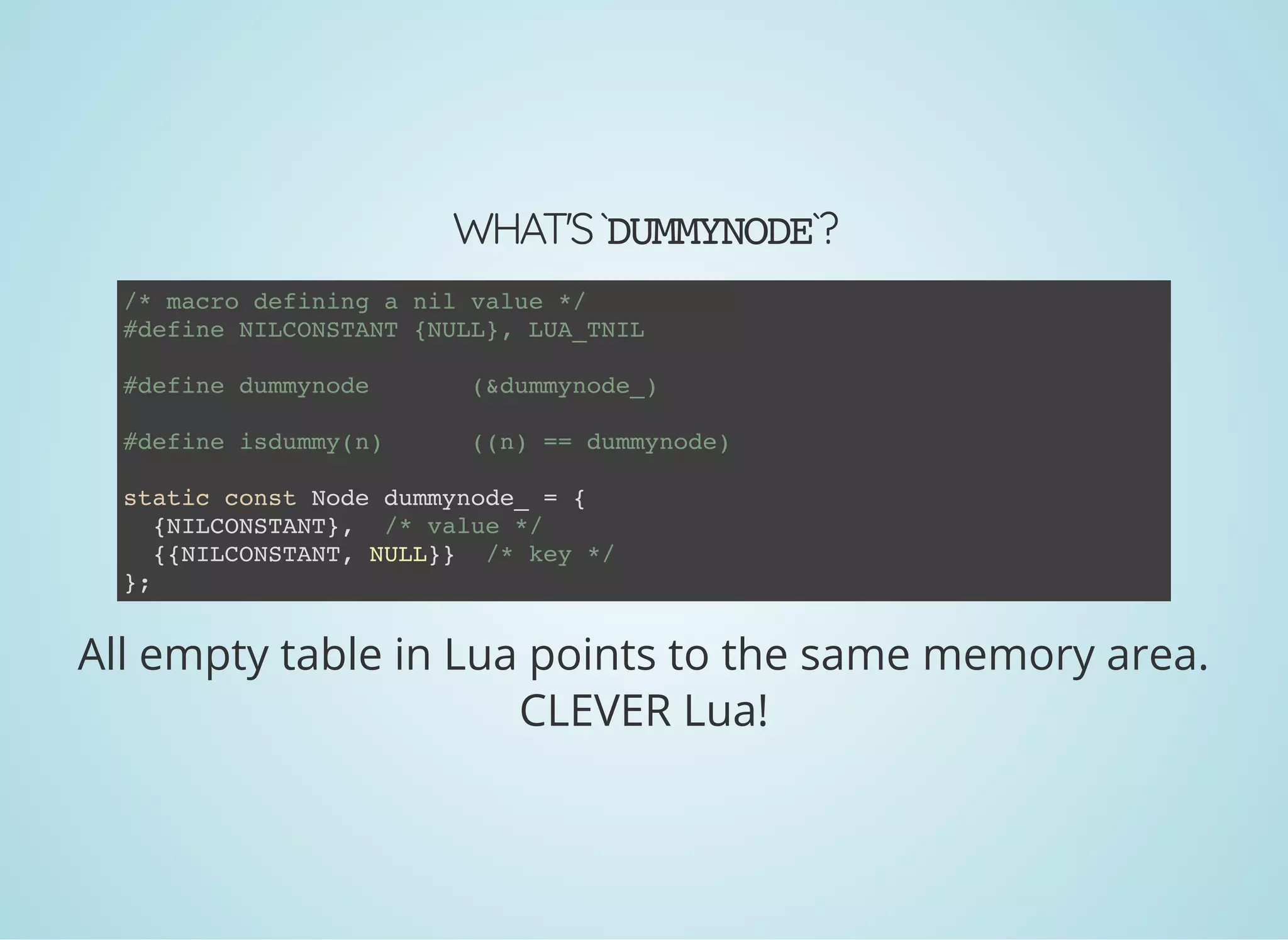

WHAT'S`DUMMYNODE`?
/* macro defining a nil value */
#define NILCONSTANT {NULL}, LUA_TNIL
#define dummynode (&dummynode_)
#define isdummy(n) ((n) == dummynode)
static const Node dummynode_ = {
{NILCONSTANT}, /* value */
{{NILCONSTANT, NULL}} /* key */
};
All empty table in Lua points to the same memory area.
CLEVER Lua!

WHATHAPPENSWHENCREATINGA
`TABLE`?
WHATABOUTCREATINGANON-EMPTYTABLE?
We will come back to this topic later. ;)

WHATHAPPENSWHENACCESSINGA
`TABLE`?

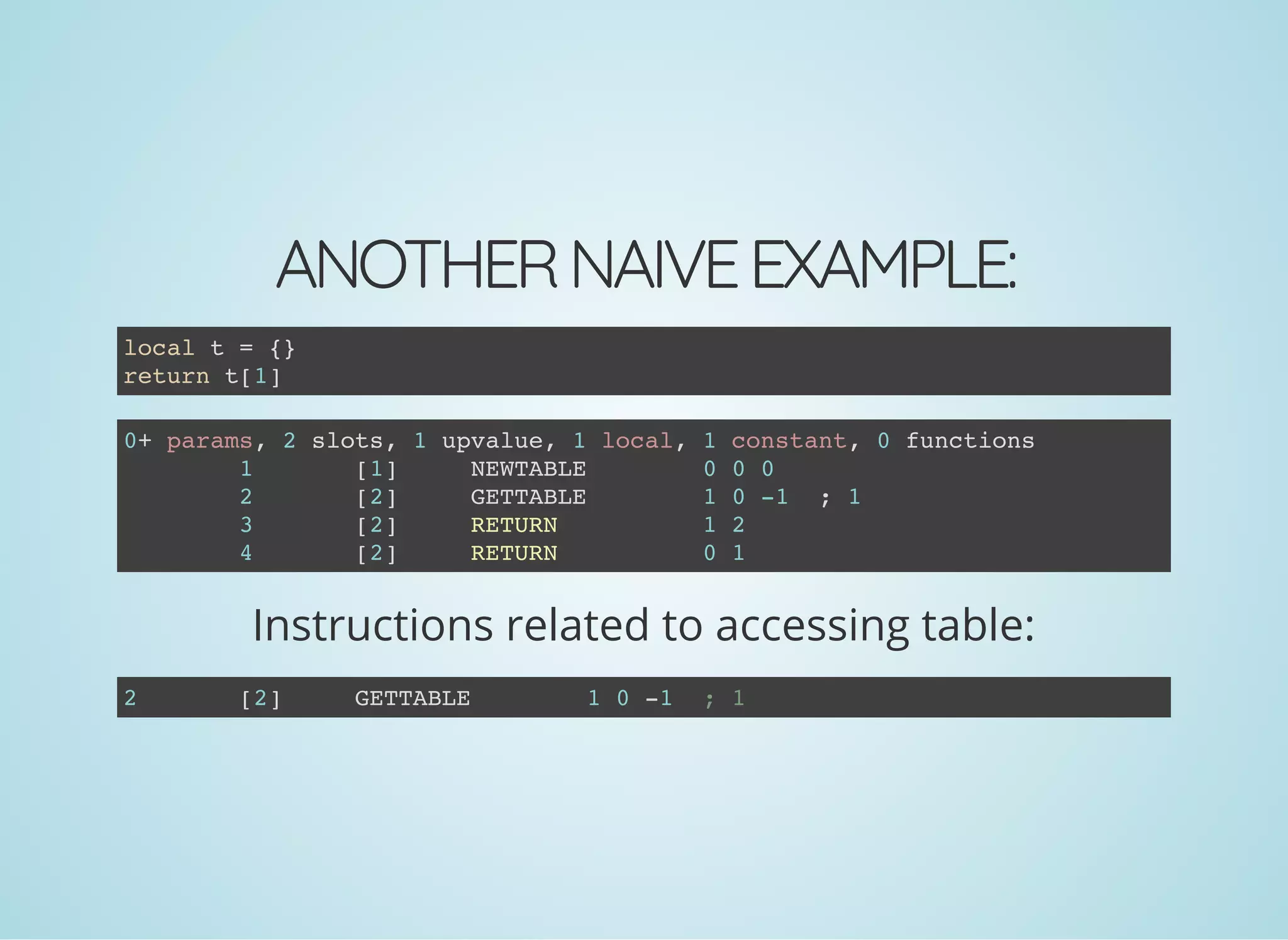

ANOTHERNAIVEEXAMPLE:
local t = {}
return t[1]
0+ params, 2 slots, 1 upvalue, 1 local, 1 constant, 0 functions
2 [2] GETTABLE 1 0 -1 ; 1
3 [2] RETURN 1 2
4 [2] RETURN 0 1
Instructions related to accessing table:
2 [2] GETTABLE 1 0 -1 ; 1

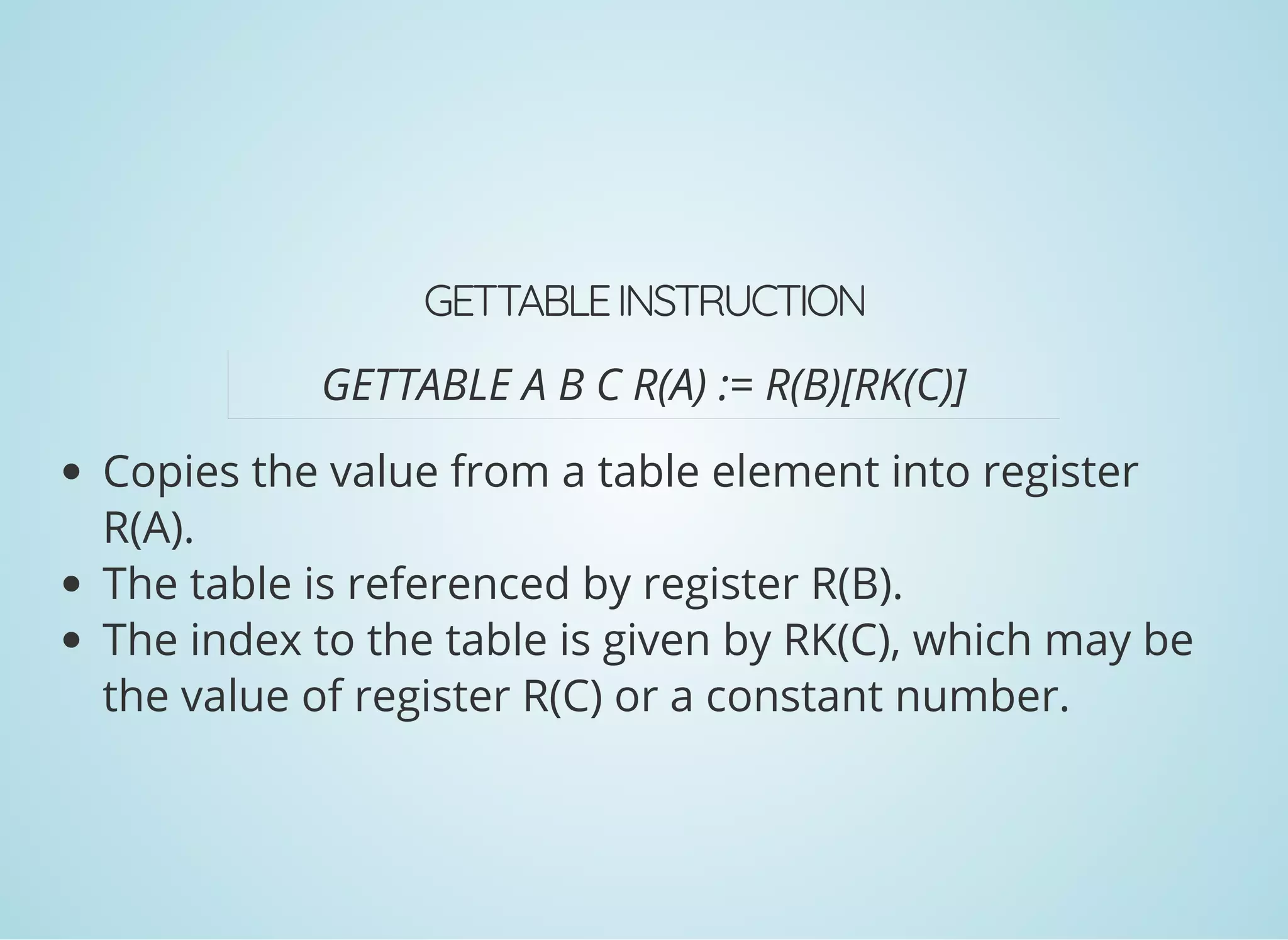

GETTABLEINSTRUCTION
GETTABLE A B C R(A) := R(B)[RK(C)]
Copies the value from a table element into register
R(A).
The table is referenced by register R(B).
The index to the table is given by RK(C), which may be
the value of register R(C) or a constant number.

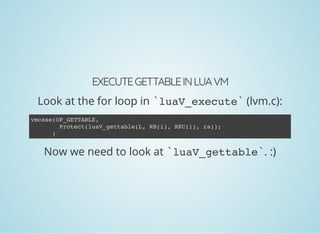

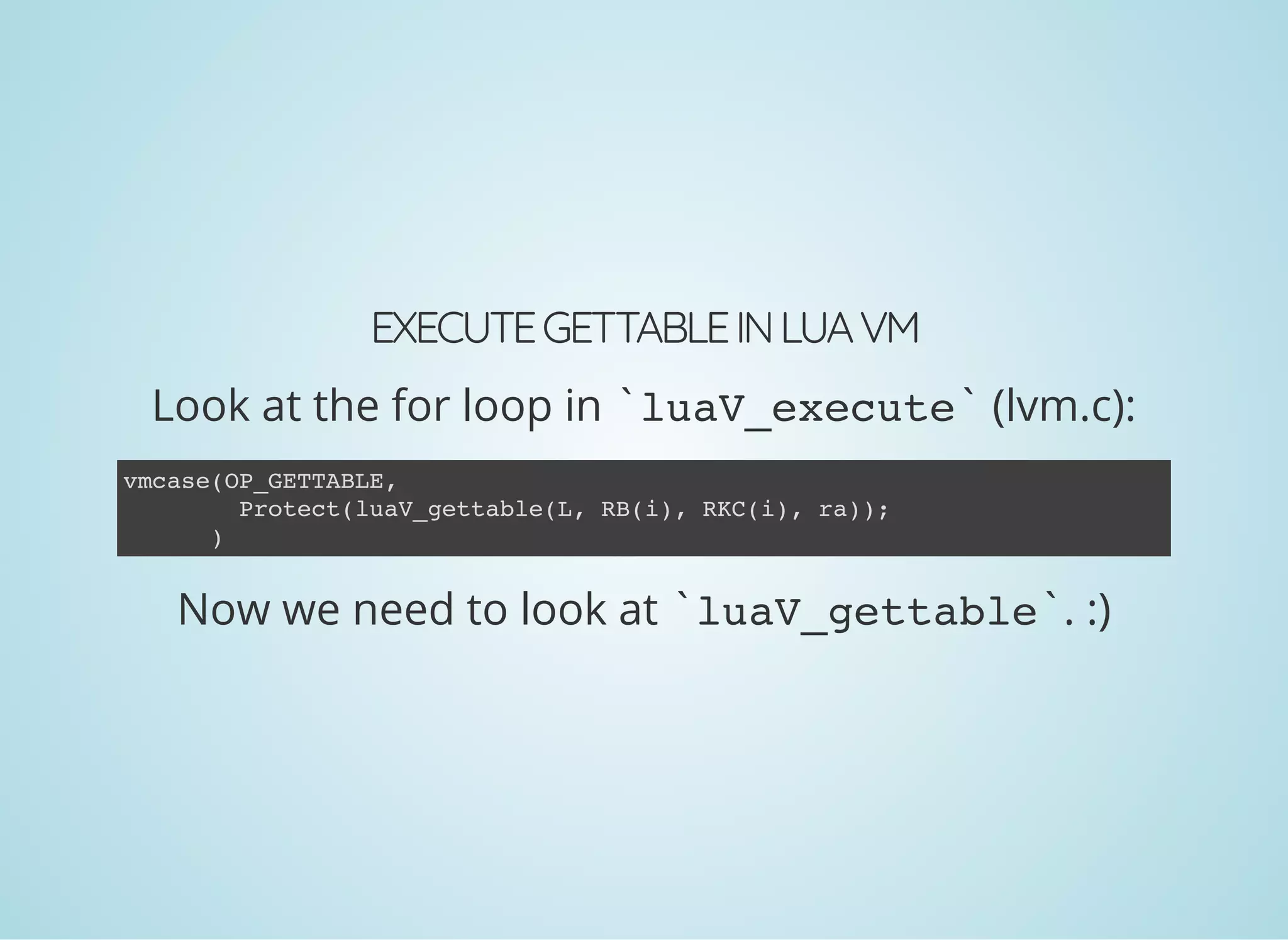

EXECUTEGETTABLEINLUAVM
Look at the for loop in `luaV_execute` (lvm.c):
vmcase(OP_GETTABLE,
Protect(luaV_gettable(L, RB(i), RKC(i), ra));
)
Now we need to look at `luaV_gettable`. :)

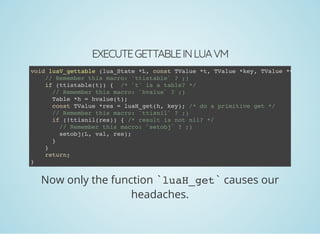

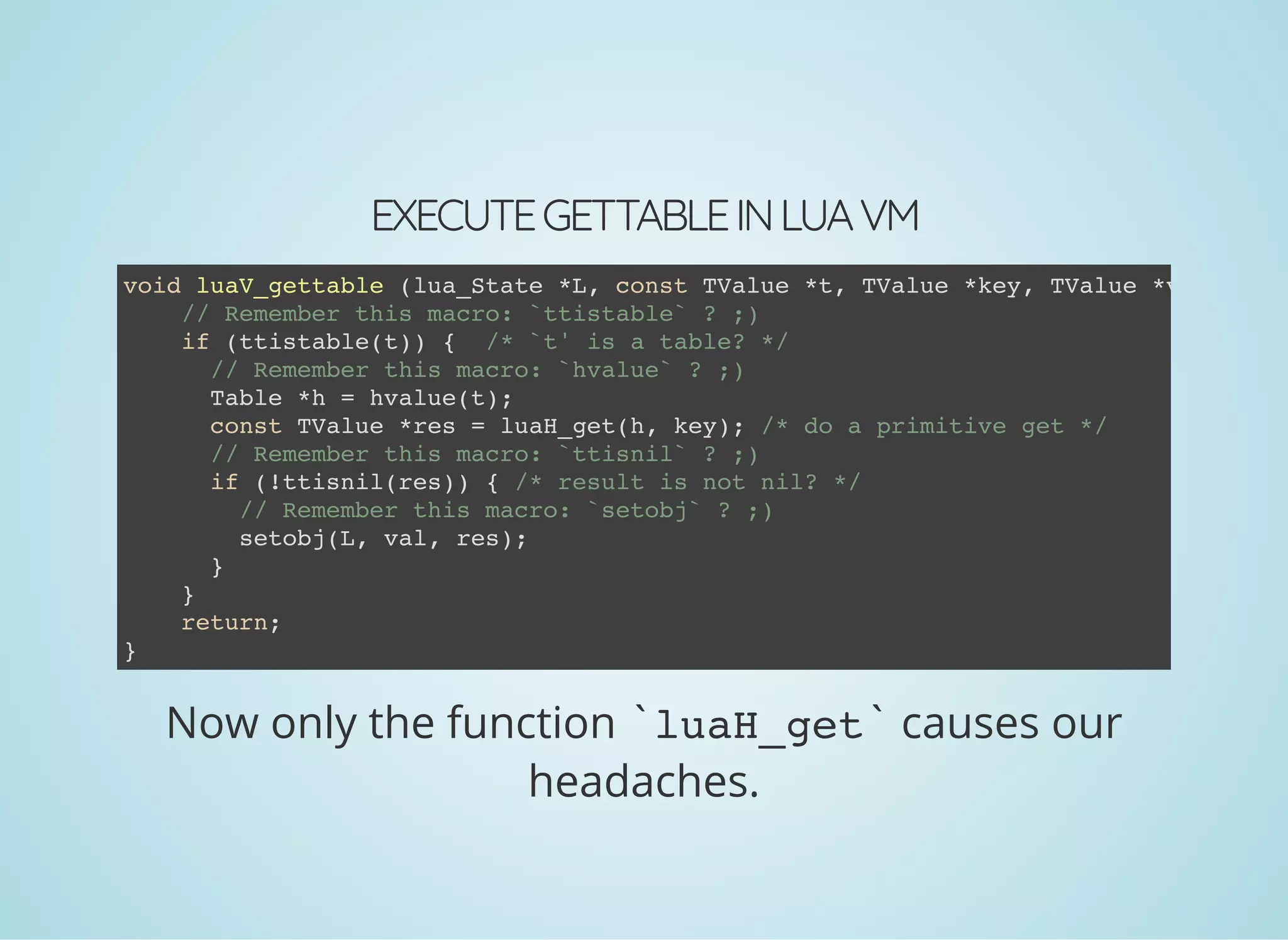

EXECUTEGETTABLEINLUAVM
void luaV_gettable (lua_State *L, const TValue *t, TValue *key, TValue *val)
// Remember this macro: `ttistable` ? ;)
if (ttistable(t)) { /* `t' is a table? */
// Remember this macro: `hvalue` ? ;)
Table *h = hvalue(t);
const TValue *res = luaH_get(h, key); /* do a primitive get */
// Remember this macro: `ttisnil` ? ;)
if (!ttisnil(res)) { /* result is not nil? */
// Remember this macro: `setobj` ? ;)
setobj(L, val, res);
}
}
return;
}
Now only the function `luaH_get` causes our
headaches.

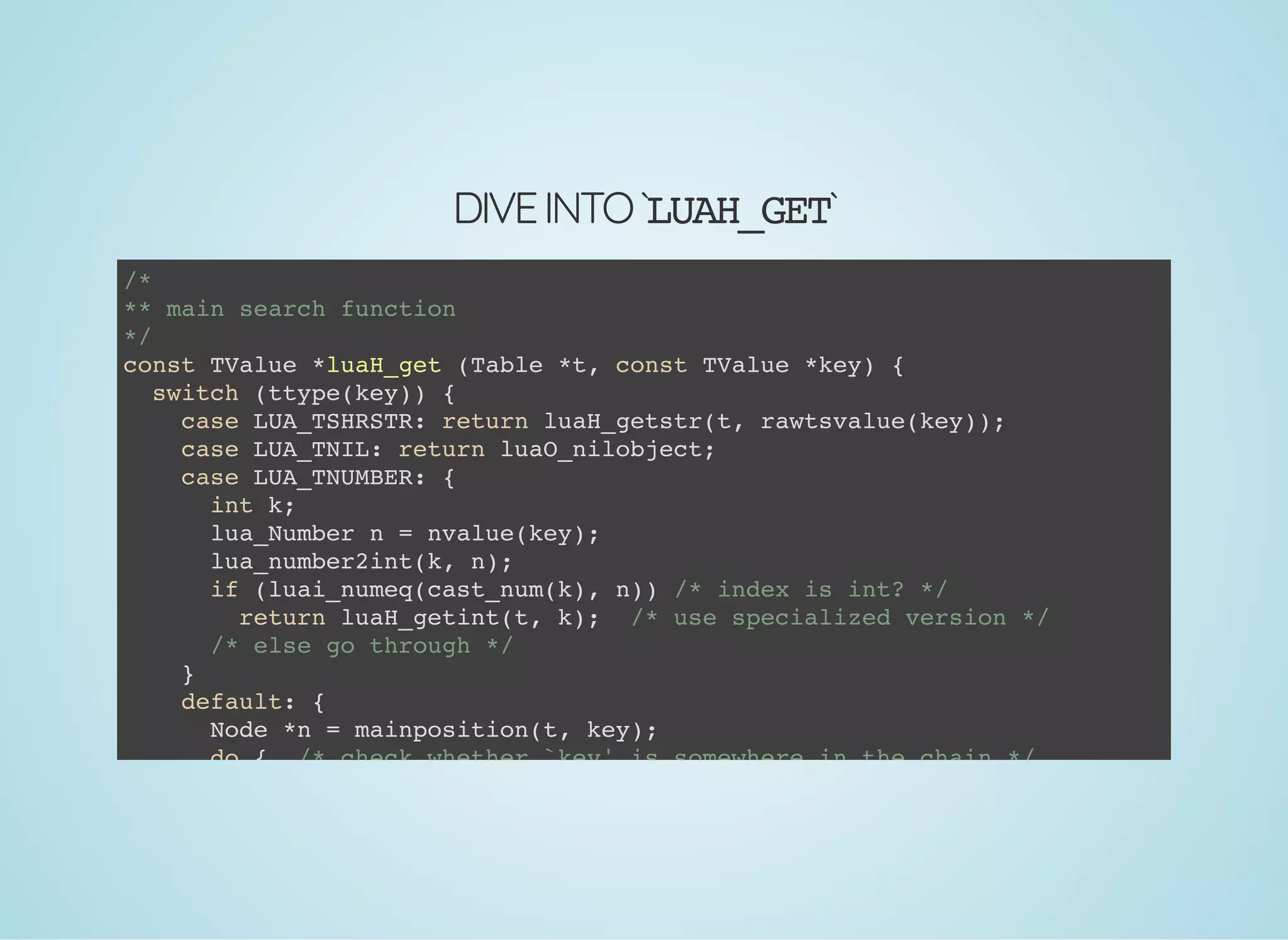

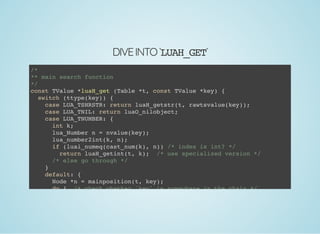

DIVEINTO`LUAH_GET`
/*
** main search function
*/
const TValue *luaH_get (Table *t, const TValue *key) {
switch (ttype(key)) {
case LUA_TSHRSTR: return luaH_getstr(t, rawtsvalue(key));
case LUA_TNIL: return luaO_nilobject;
case LUA_TNUMBER: {
int k;
lua_Number n = nvalue(key);
lua_number2int(k, n);
if (luai_numeq(cast_num(k), n)) /* index is int? */
return luaH_getint(t, k); /* use specialized version */
/* else go through */
}
default: {
Node *n = mainposition(t, key);
do { /* check whether `key' is somewhere in the chain */

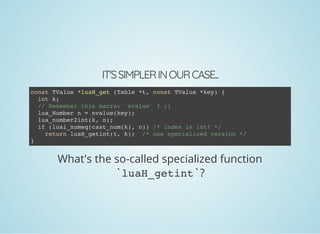

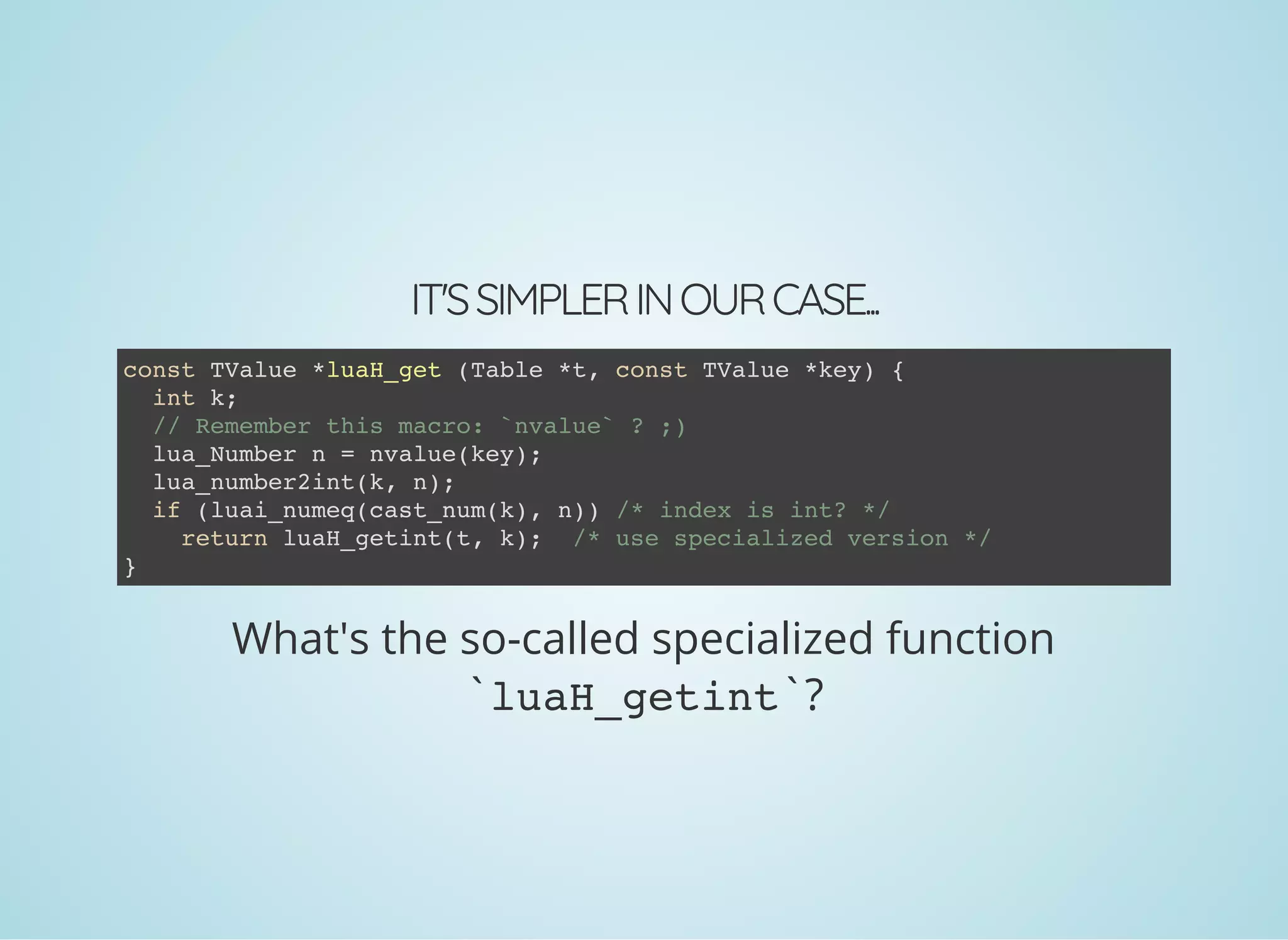

IT'SSIMPLERINOURCASE...
const TValue *luaH_get (Table *t, const TValue *key) {
int k;
// Remember this macro: `nvalue` ? ;)
lua_Number n = nvalue(key);
lua_number2int(k, n);
if (luai_numeq(cast_num(k), n)) /* index is int? */
return luaH_getint(t, k); /* use specialized version */
}
What's the so-called specialized function
`luaH_getint`?

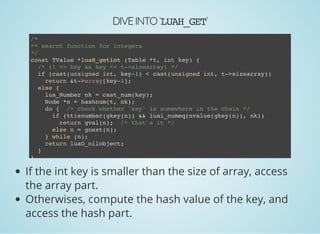

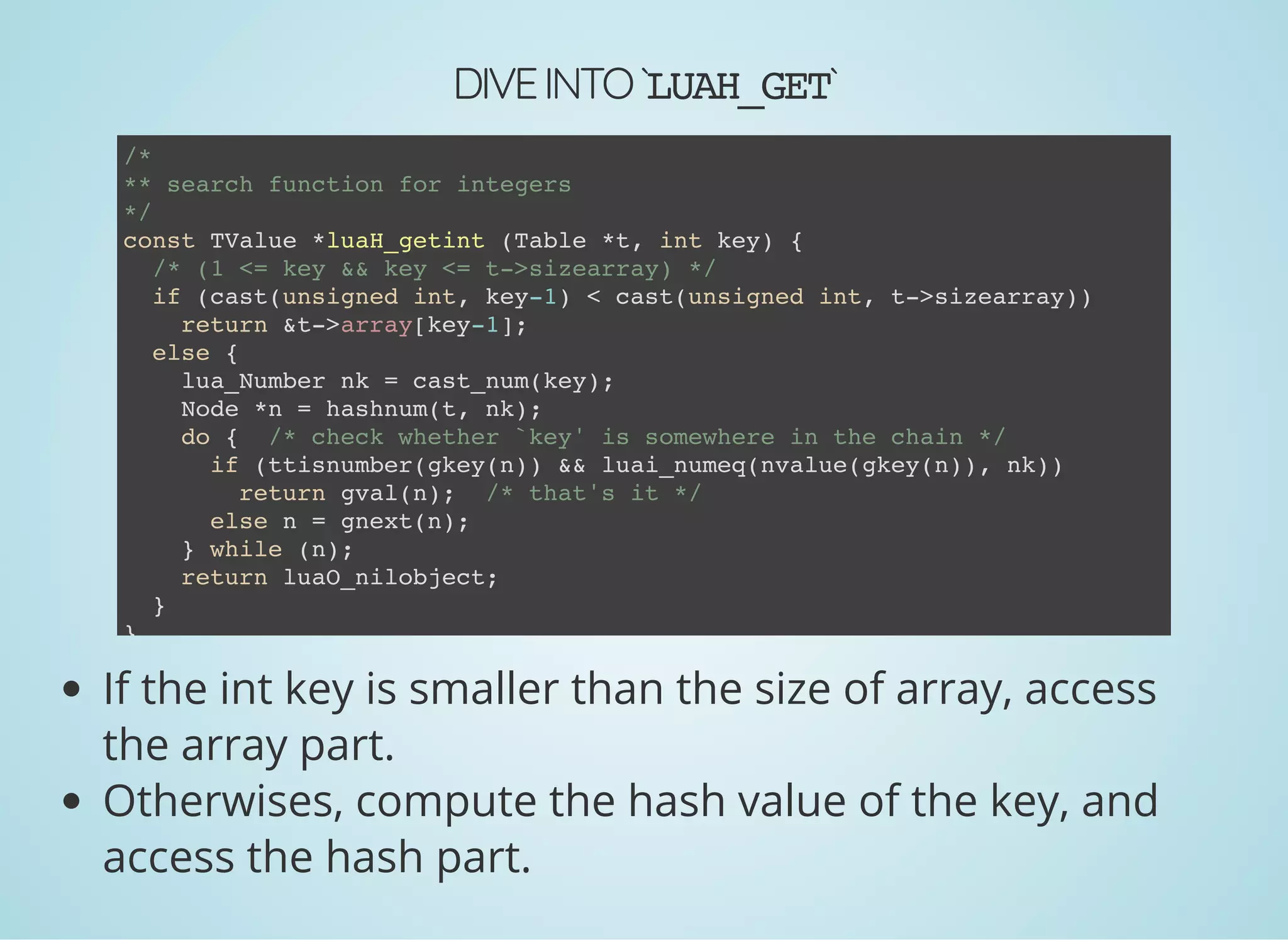

DIVEINTO`LUAH_GET`
/*
** search function for integers
*/
const TValue *luaH_getint (Table *t, int key) {
/* (1 <= key && key <= t->sizearray) */
if (cast(unsigned int, key-1) < cast(unsigned int, t->sizearray))
return &t->array[key-1];
else {
lua_Number nk = cast_num(key);
Node *n = hashnum(t, nk);
if (ttisnumber(gkey(n)) && luai_numeq(nvalue(gkey(n)), nk))
return gval(n); /* that's it */
else n = gnext(n);
} while (n);
return luaO_nilobject;
}
}
If the int key is smaller than the size of array, access
the array part.
Otherwises, compute the hash value of the key, and
access the hash part.

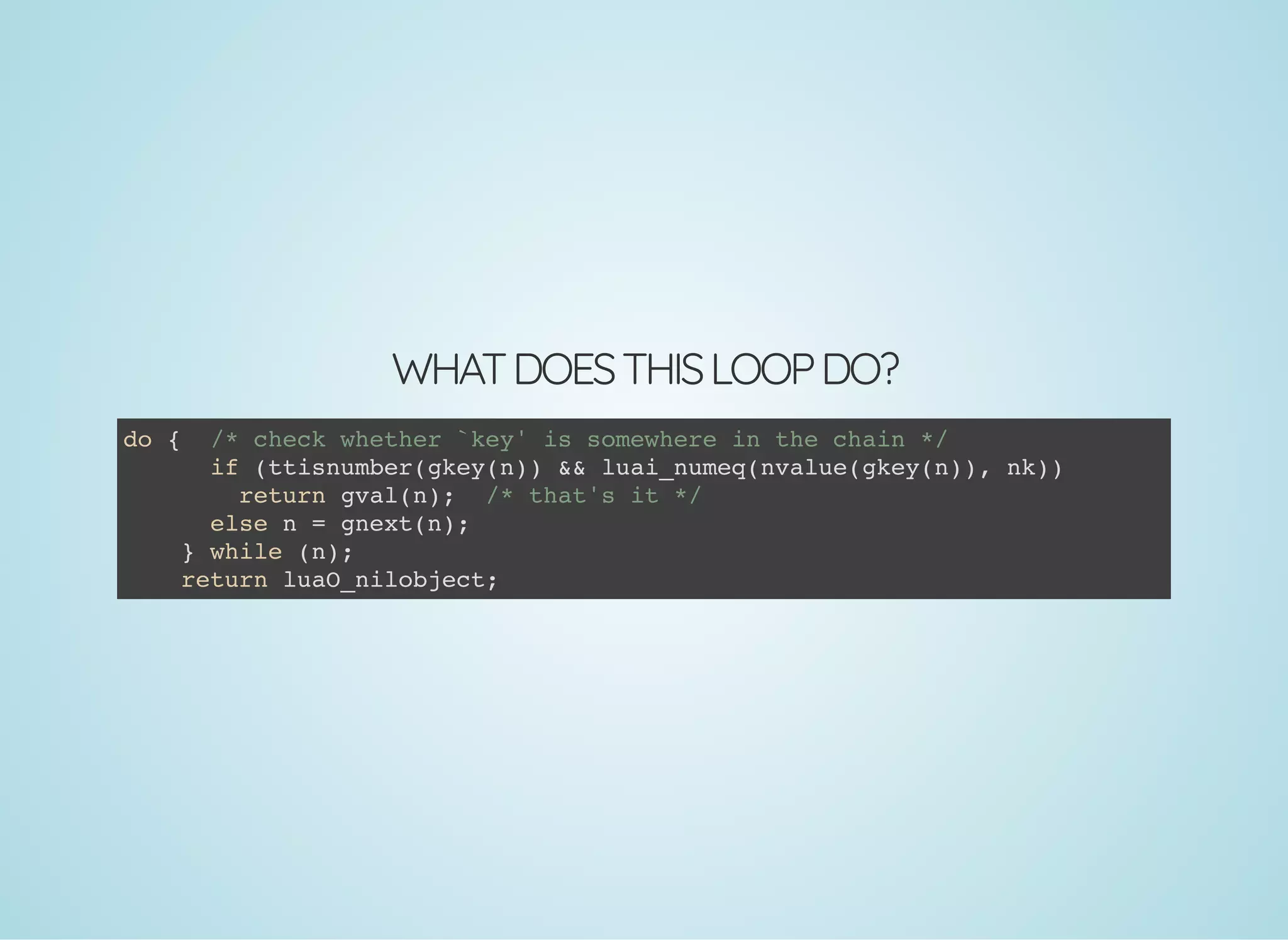

WHATDOESTHISLOOPDO?
if (ttisnumber(gkey(n)) && luai_numeq(nvalue(gkey(n)), nk))
return gval(n); /* that's it */
else n = gnext(n);
} while (n);
return luaO_nilobject;

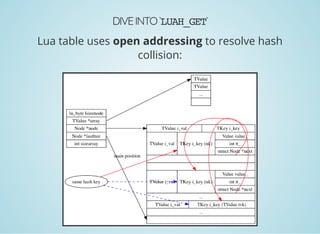

DIVEINTO`LUAH_GET`

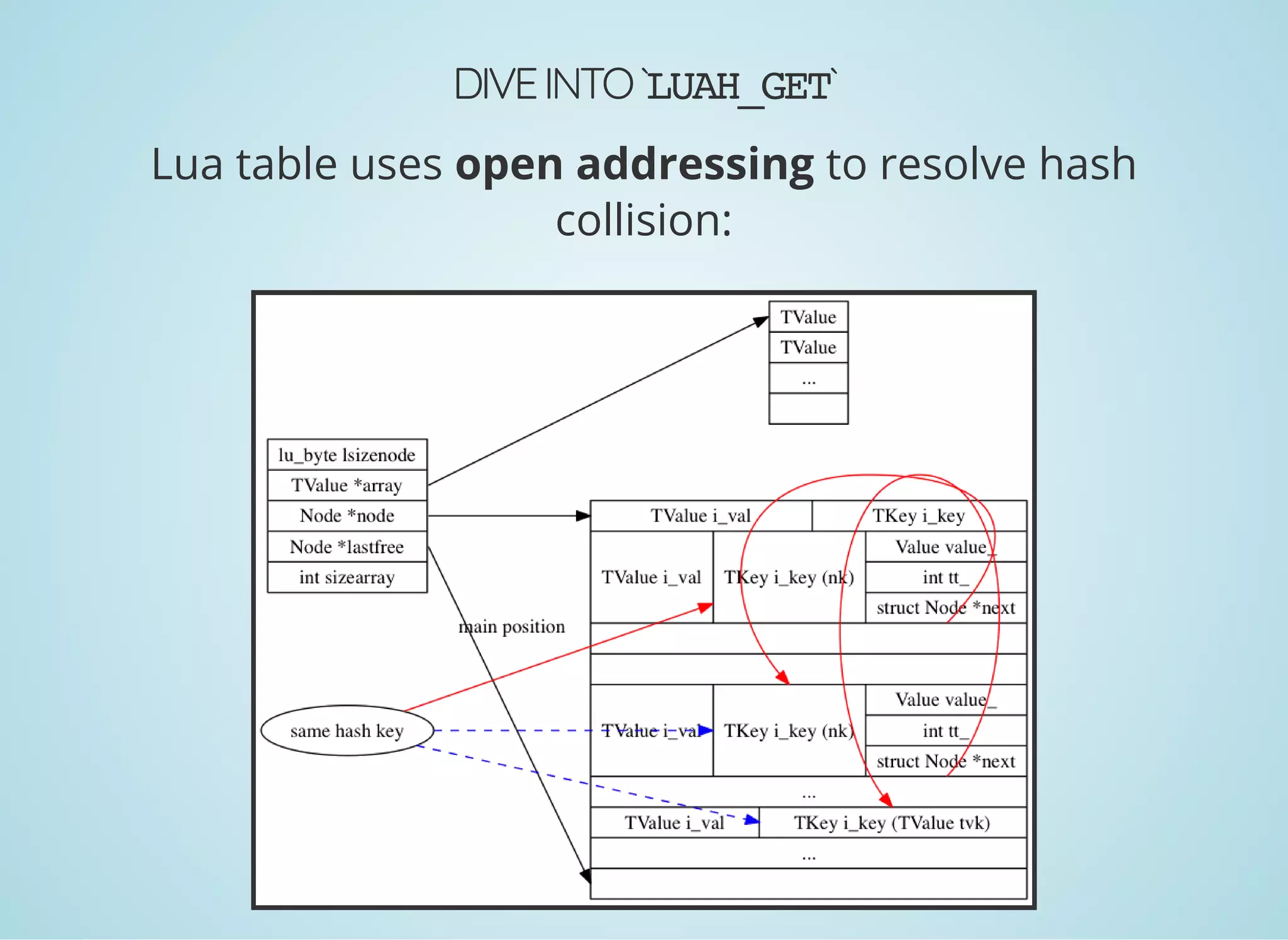

Lua table uses open addressing to resolve hash
collision:

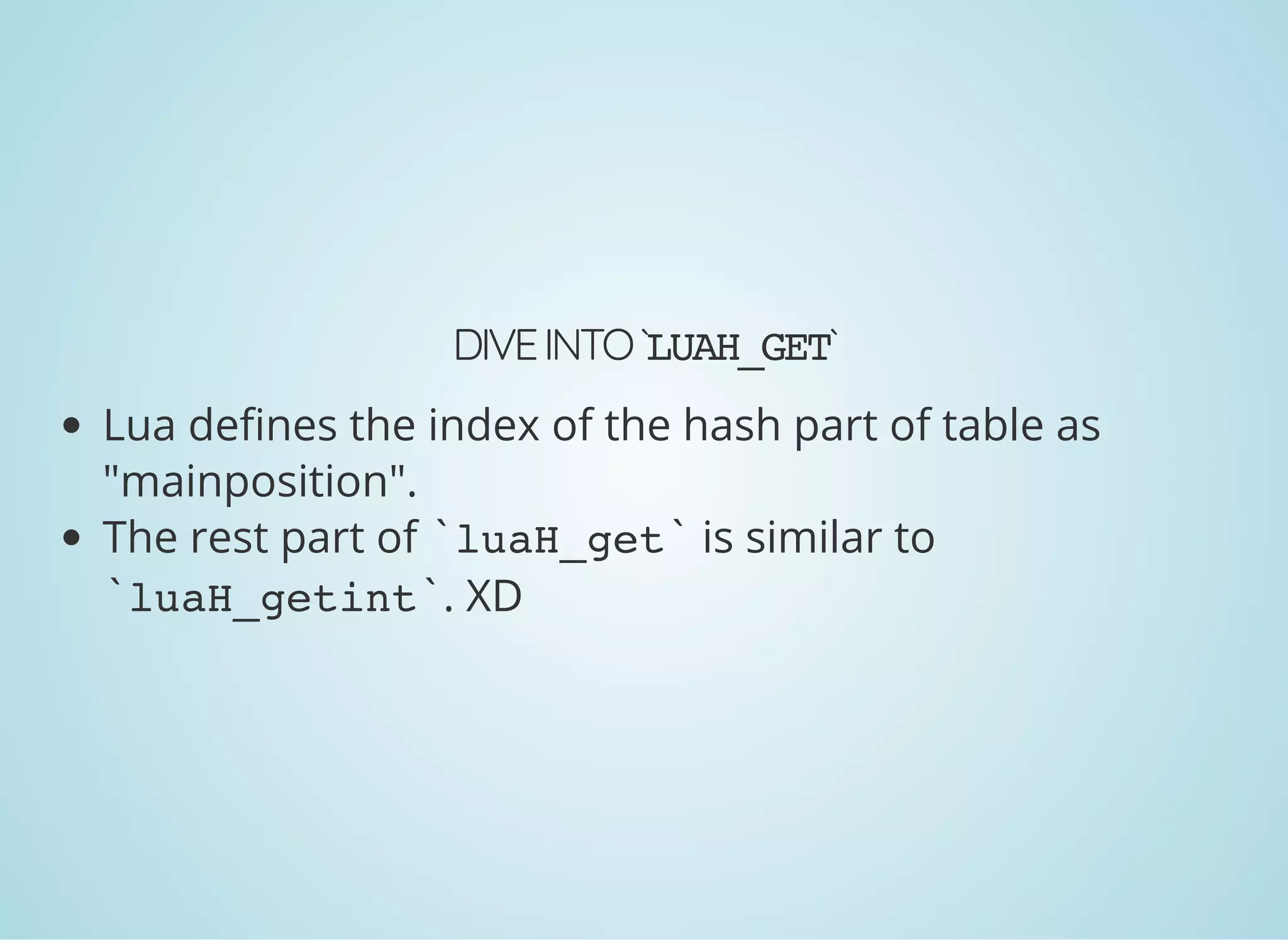

DIVEINTO`LUAH_GET`
Lua de nes the index of the hash part of table as
"mainposition".
The rest part of `luaH_get` is similar to
`luaH_getint`. XD

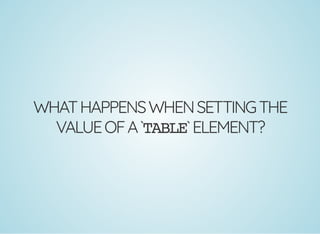

WHATHAPPENSWHENSETTINGTHE
VALUEOFA`TABLE`ELEMENT?

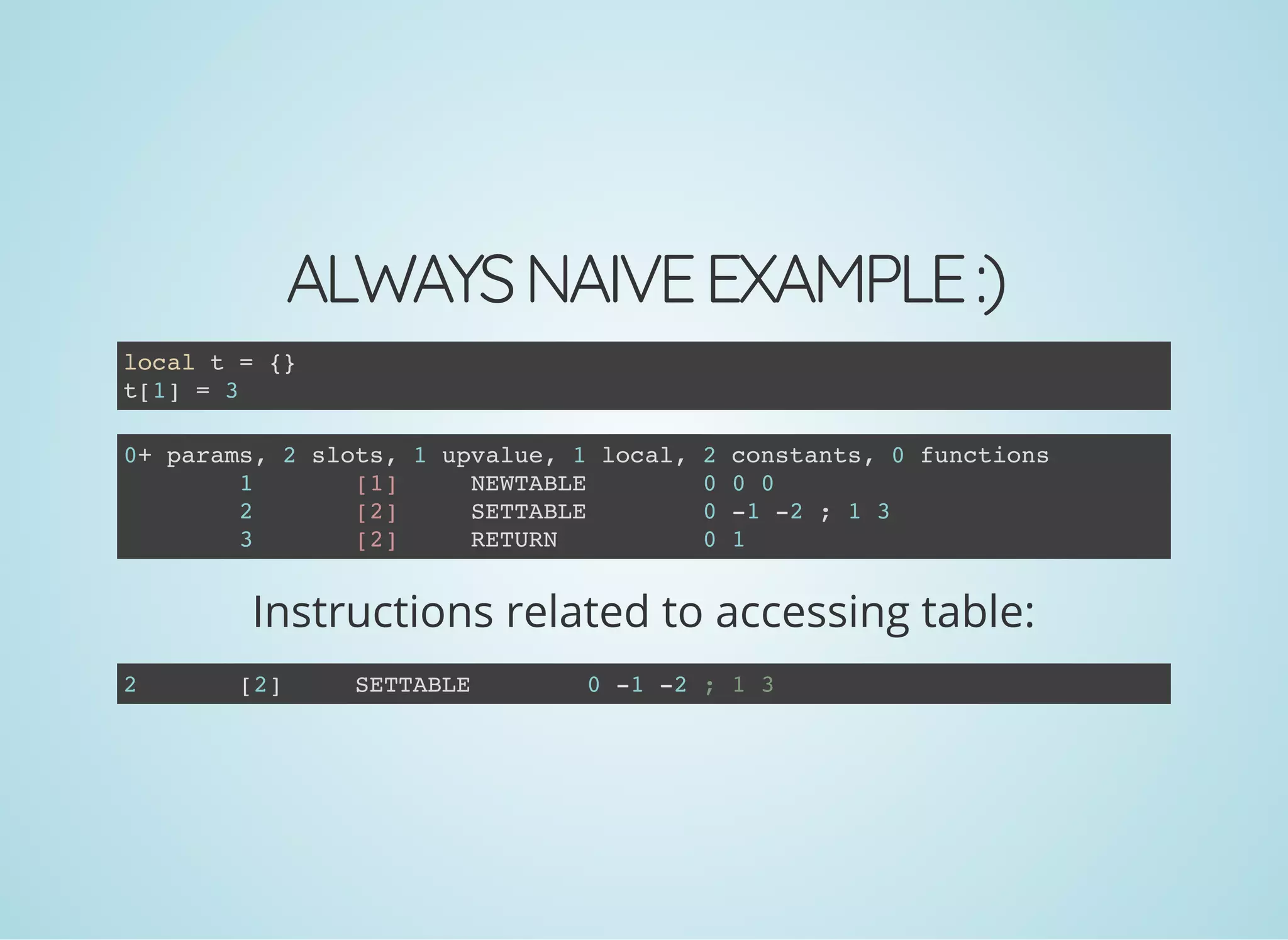

ALWAYSNAIVEEXAMPLE:)
local t = {}
t[1] = 3
0+ params, 2 slots, 1 upvalue, 1 local, 2 constants, 0 functions
2 [2] SETTABLE 0 -1 -2 ; 1 3
3 [2] RETURN 0 1
Instructions related to accessing table:
2 [2] SETTABLE 0 -1 -2 ; 1 3

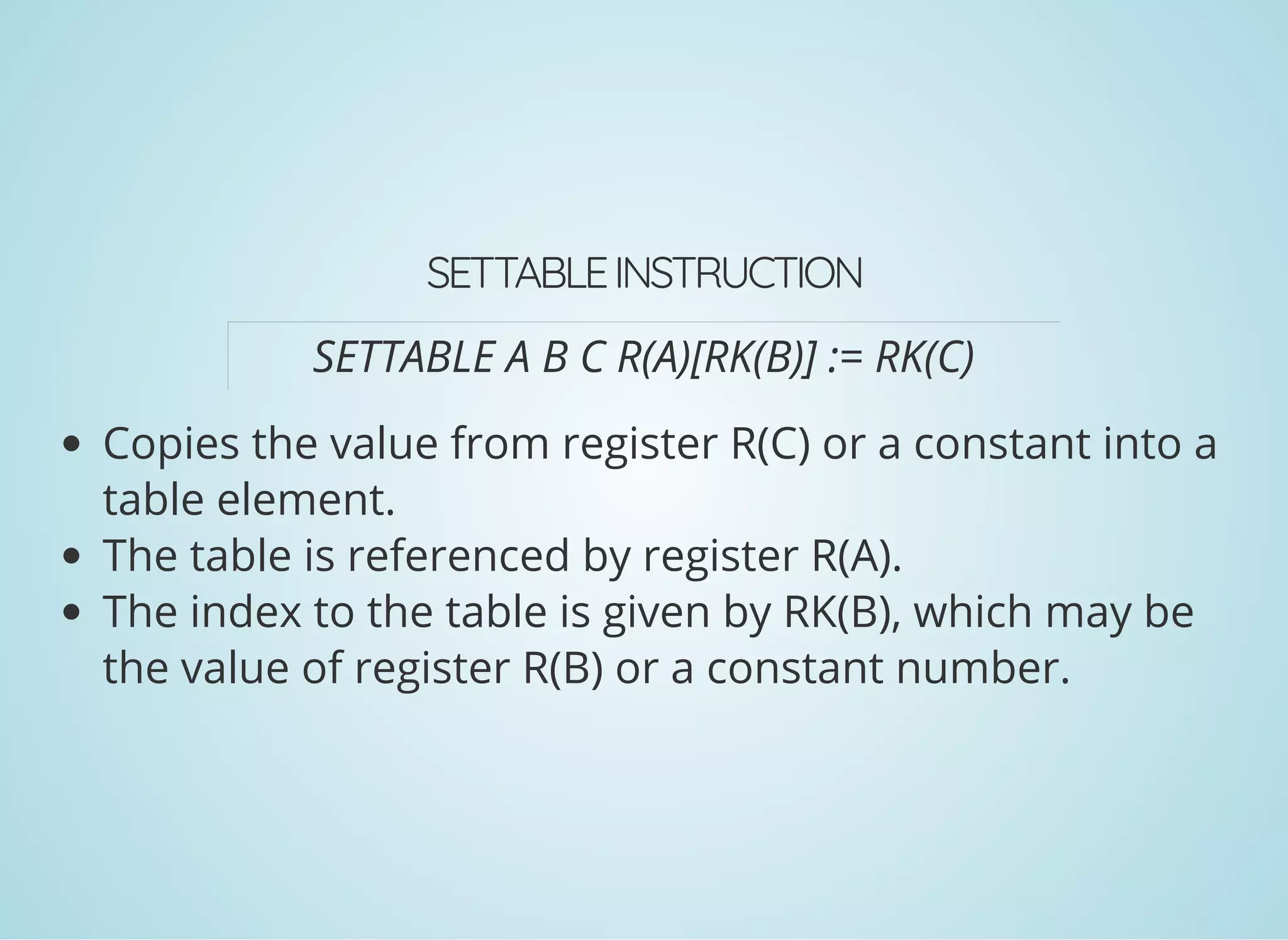

SETTABLEINSTRUCTION
SETTABLE A B C R(A)[RK(B)] := RK(C)
Copies the value from register R(C) or a constant into a
table element.
The table is referenced by register R(A).
The index to the table is given by RK(B), which may be
the value of register R(B) or a constant number.

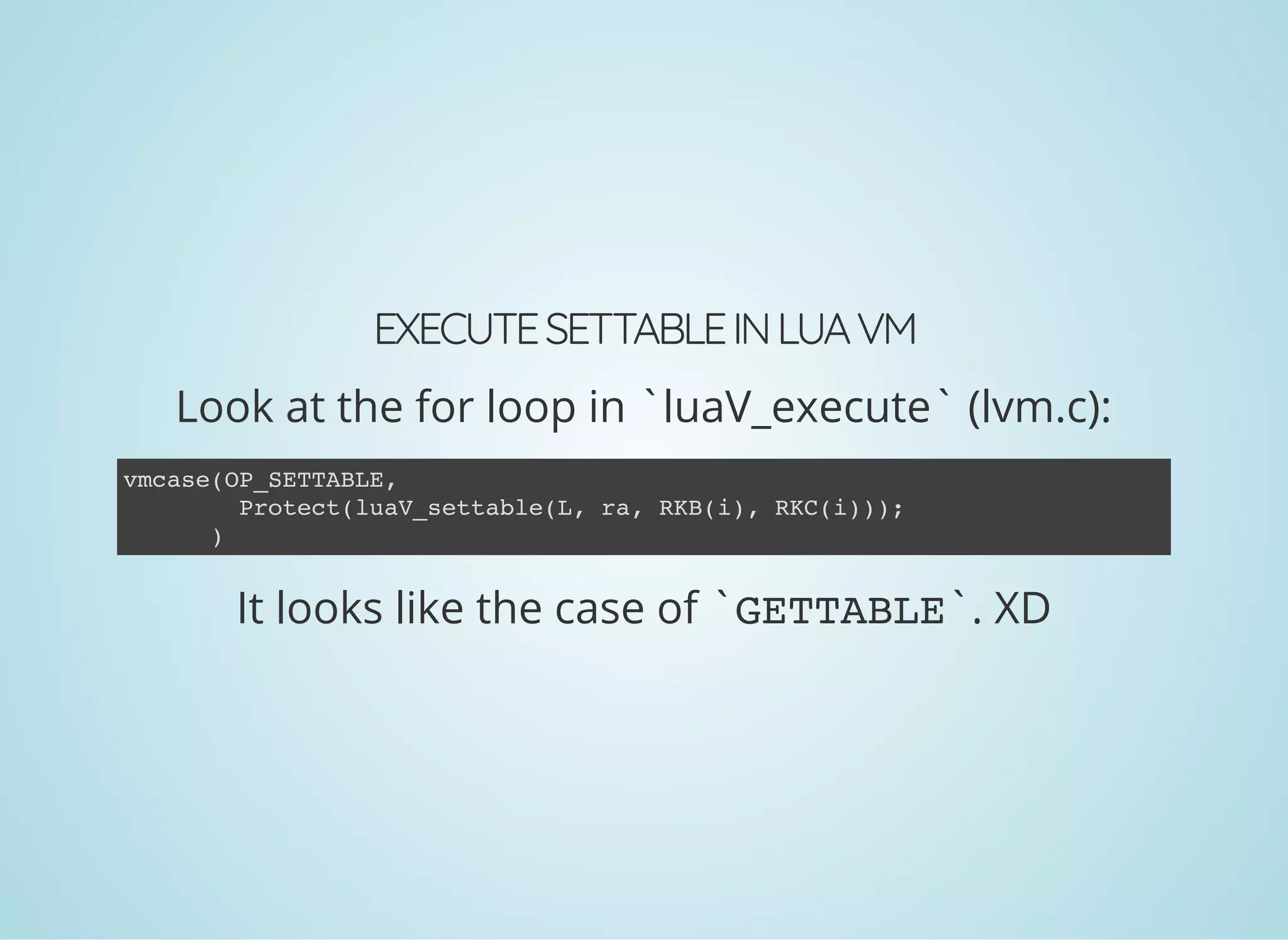

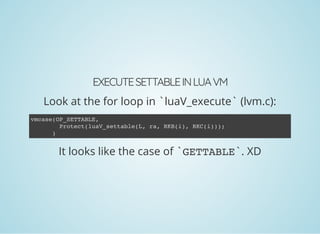

EXECUTESETTABLEINLUAVM
Look at the for loop in `luaV_execute` (lvm.c):
vmcase(OP_SETTABLE,
Protect(luaV_settable(L, ra, RKB(i), RKC(i)));
)
It looks like the case of `GETTABLE`. XD

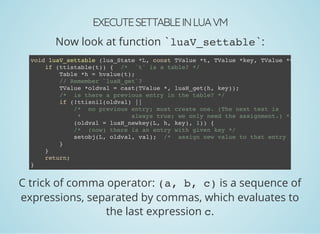

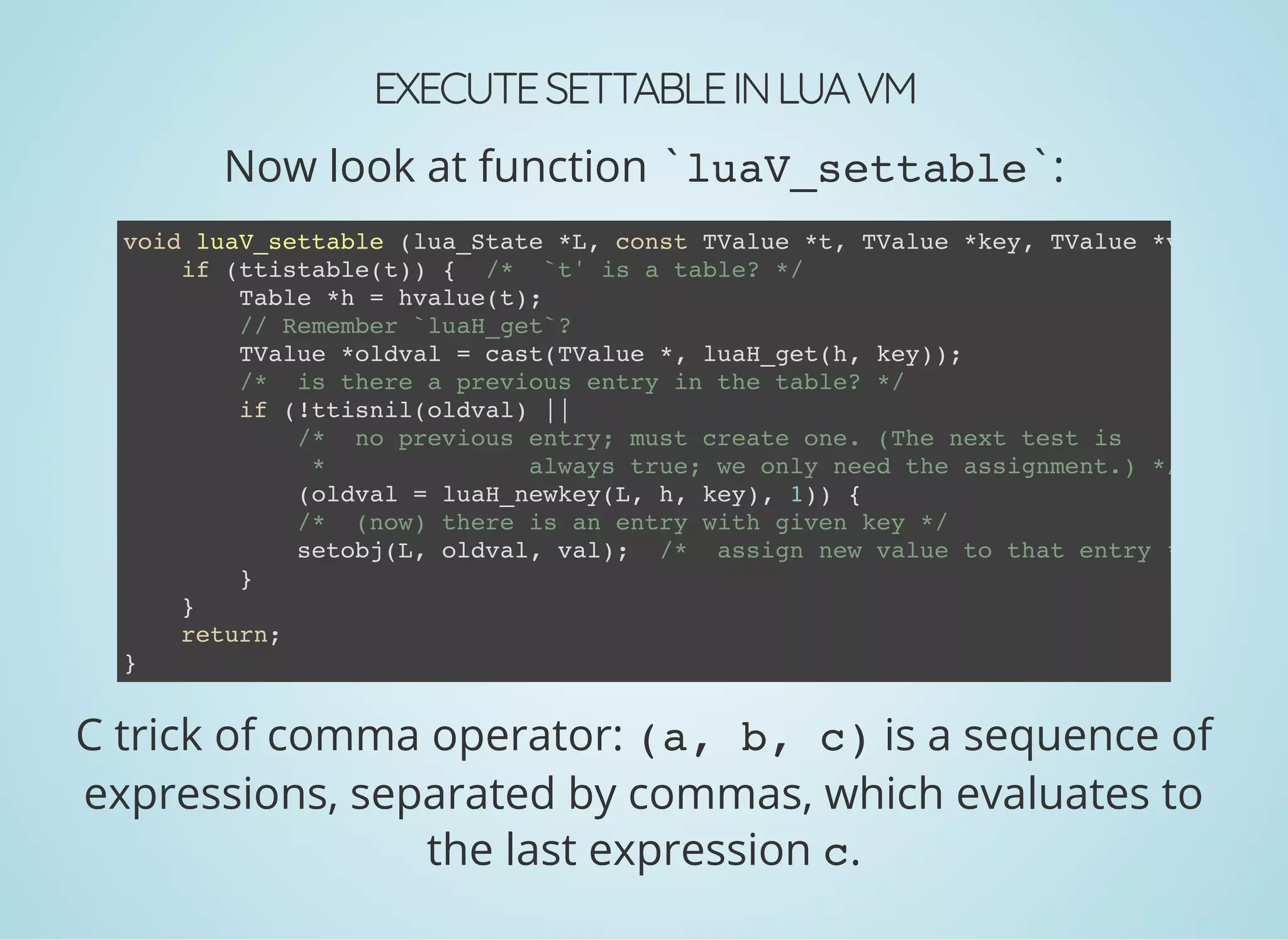

EXECUTESETTABLEINLUAVM
Now look at function `luaV_settable`:
void luaV_settable (lua_State *L, const TValue *t, TValue *key, TValue *val)
if (ttistable(t)) { /* `t' is a table? */
Table *h = hvalue(t);
// Remember `luaH_get`?
TValue *oldval = cast(TValue *, luaH_get(h, key));
/* is there a previous entry in the table? */
if (!ttisnil(oldval) ||
/* no previous entry; must create one. (The next test is
* always true; we only need the assignment.) */
(oldval = luaH_newkey(L, h, key), 1)) {
/* (now) there is an entry with given key */
setobj(L, oldval, val); /* assign new value to that entry */
}
}
return;
}
C trick of comma operator: (a, b, c) is a sequence of
expressions, separated by commas, which evaluates to
the last expression c.

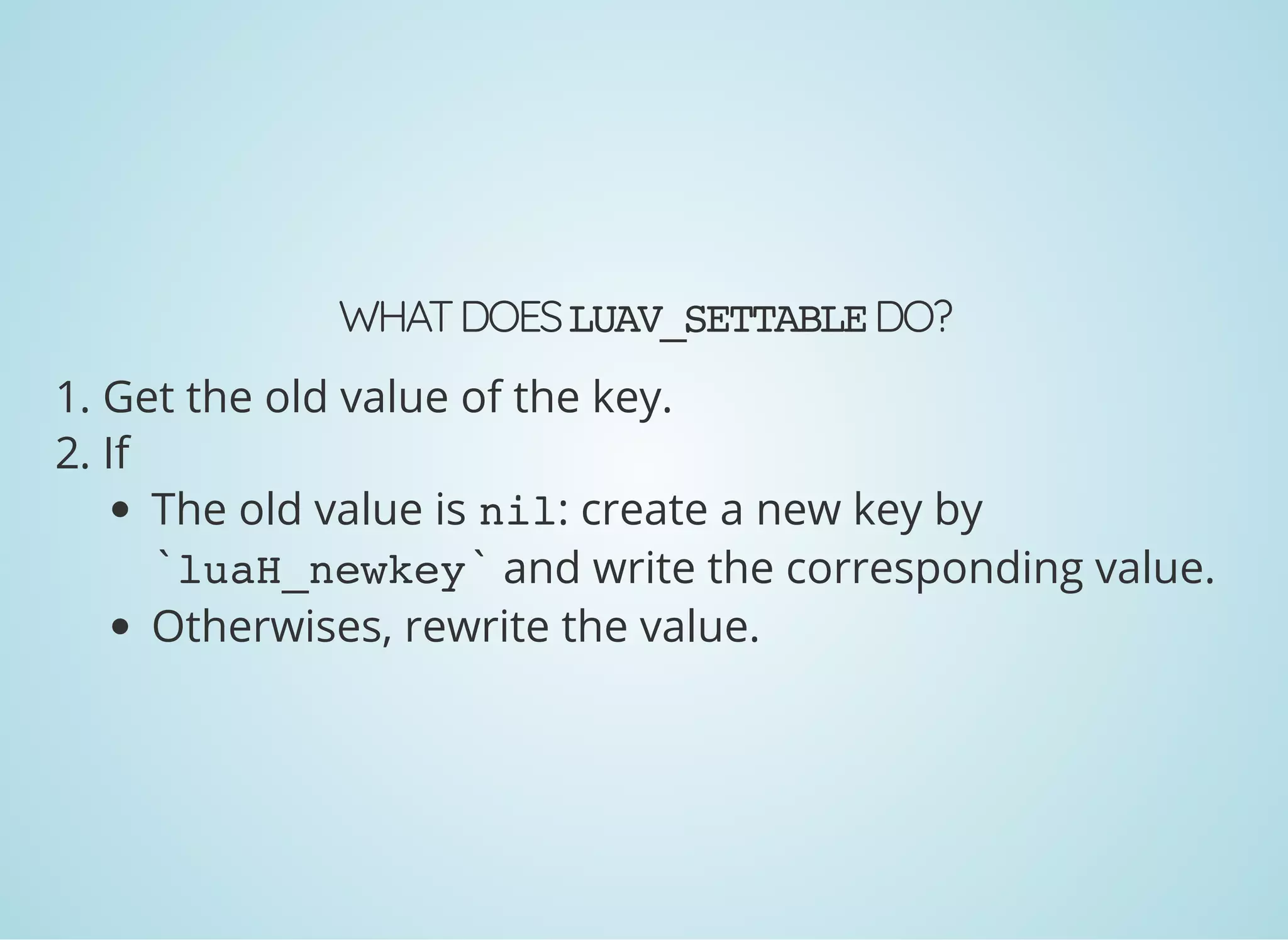

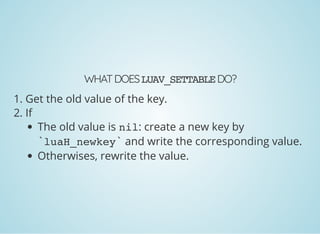

WHATDOESLUAV_SETTABLEDO?
1. Get the old value of the key.
2. If
The old value is nil: create a new key by
`luaH_newkey` and write the corresponding value.
Otherwises, rewrite the value.

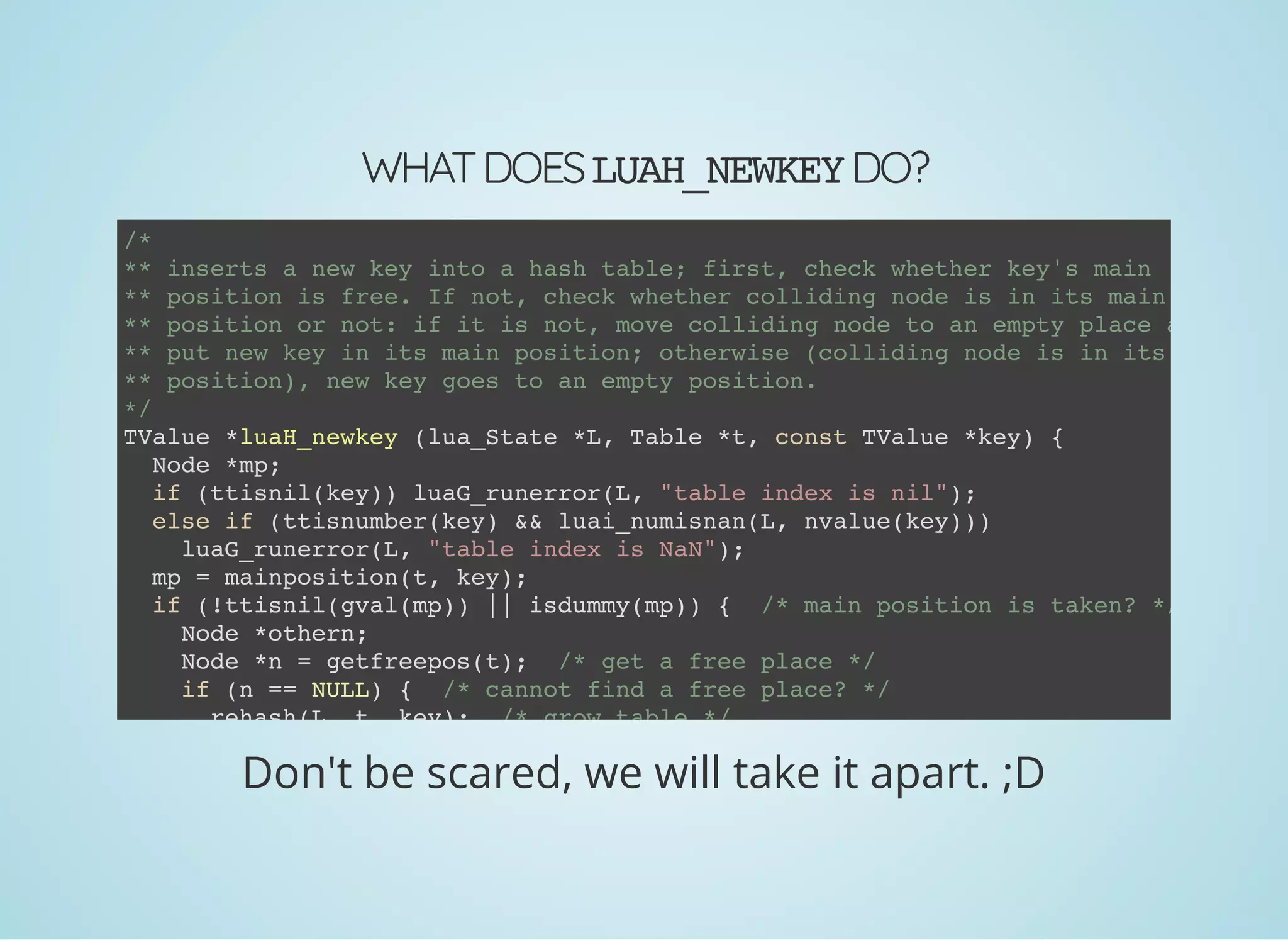

WHATDOESLUAH_NEWKEYDO?
/*
** inserts a new key into a hash table; first, check whether key's main
** position is free. If not, check whether colliding node is in its main
** position or not: if it is not, move colliding node to an empty place and
** put new key in its main position; otherwise (colliding node is in its main
** position), new key goes to an empty position.
*/
TValue *luaH_newkey (lua_State *L, Table *t, const TValue *key) {
Node *mp;
if (ttisnil(key)) luaG_runerror(L, "table index is nil");
else if (ttisnumber(key) && luai_numisnan(L, nvalue(key)))
luaG_runerror(L, "table index is NaN");
mp = mainposition(t, key);
if (!ttisnil(gval(mp)) || isdummy(mp)) { /* main position is taken? */
Node *othern;
Node *n = getfreepos(t); /* get a free place */
if (n == NULL) { /* cannot find a free place? */
rehash(L, t, key); /* grow table */
Don't be scared, we will take it apart. ;D

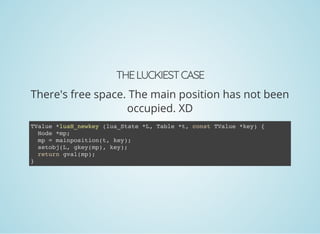

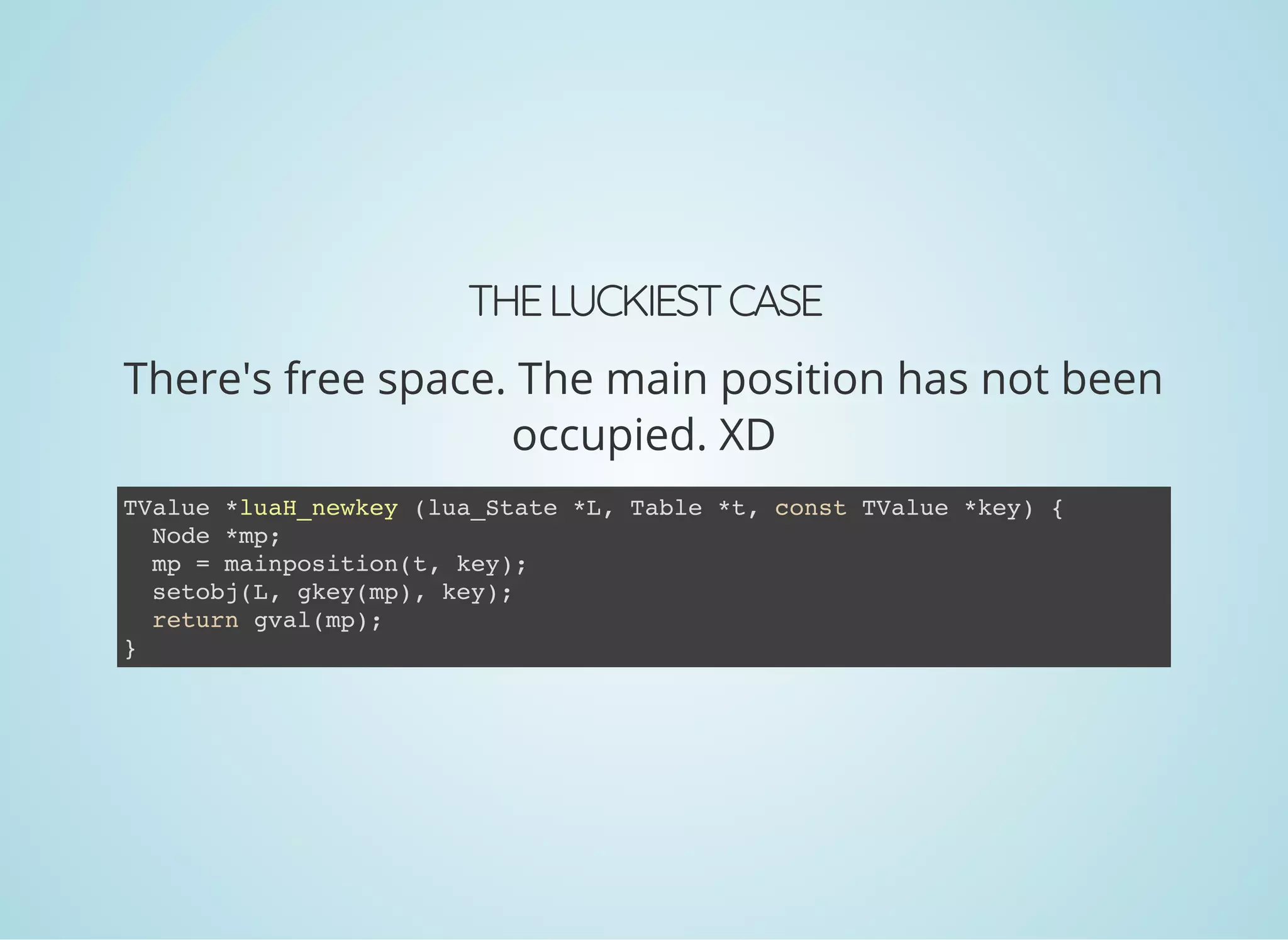

THELUCKIESTCASE
There's free space. The main position has not been
occupied. XD
Node *mp;
setobj(L, gkey(mp), key);
return gval(mp);
}

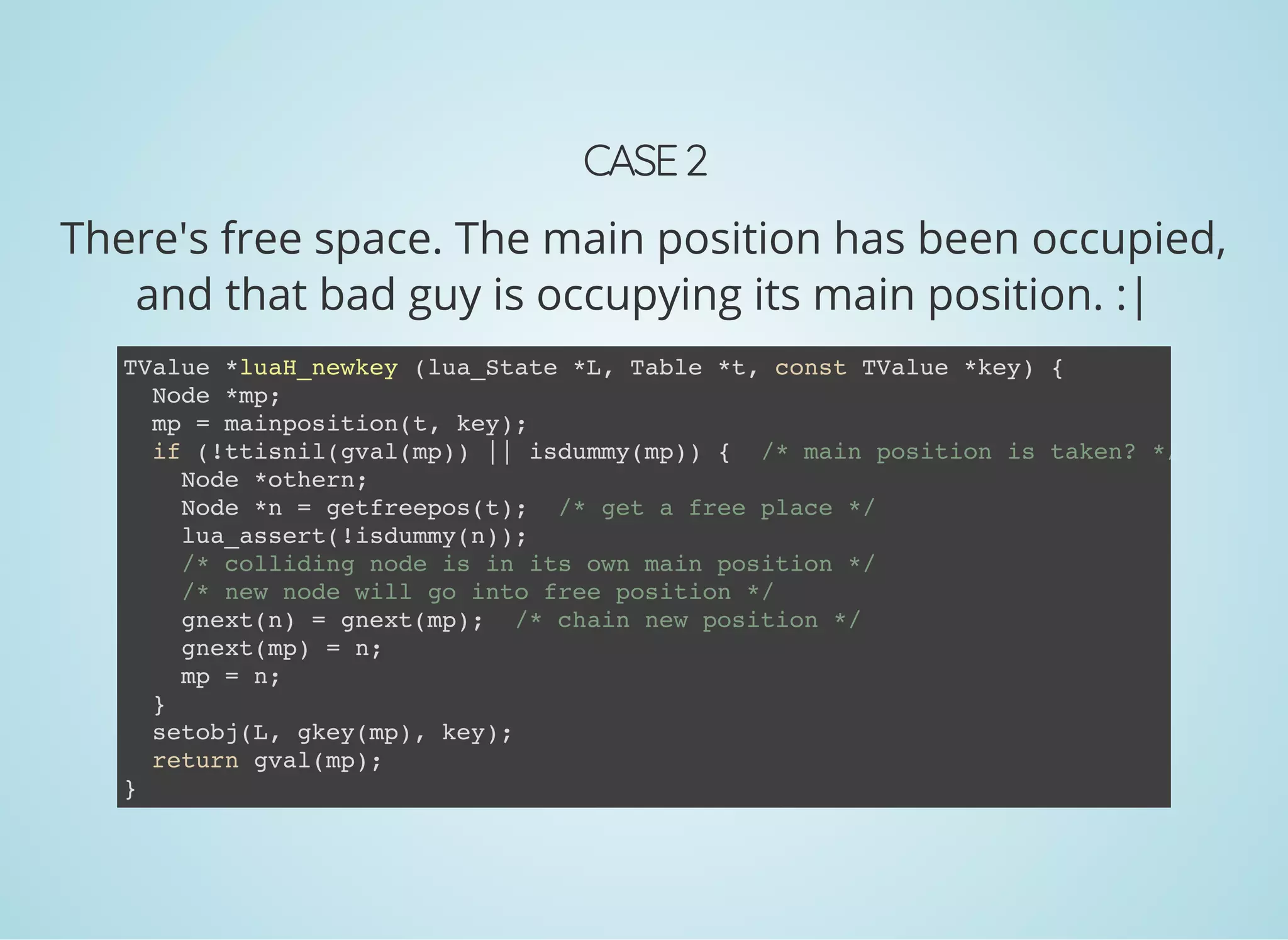

CASE2
There's free space. The main position has been occupied,
and that bad guy is occupying its main position. :|
Node *mp;
Node *othern;
lua_assert(!isdummy(n));
/* colliding node is in its own main position */
/* new node will go into free position */
gnext(n) = gnext(mp); /* chain new position */
gnext(mp) = n;
mp = n;
}
return gval(mp);
}

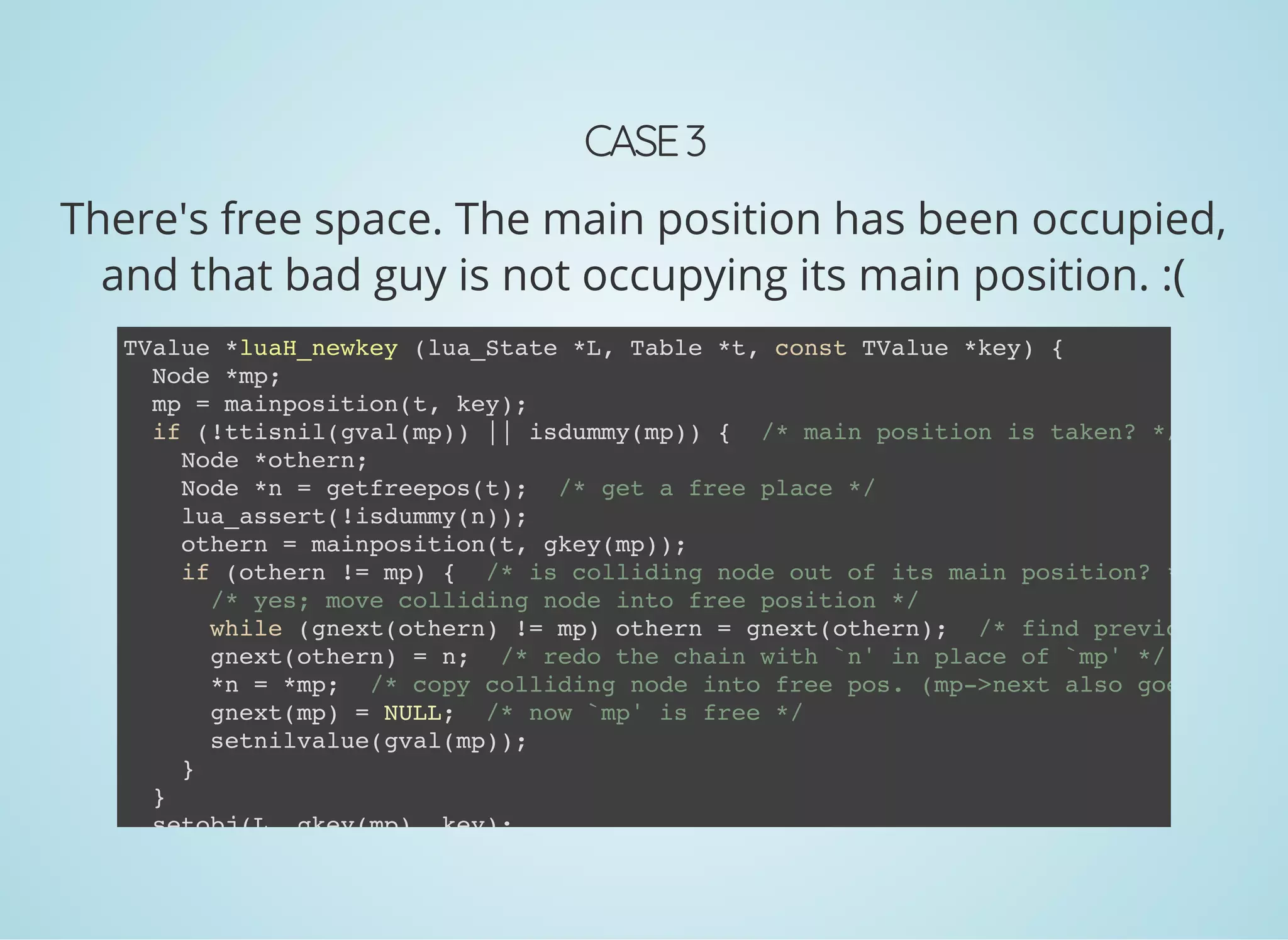

CASE3
There's free space. The main position has been occupied,
and that bad guy is not occupying its main position. :(
Node *mp;
Node *othern;
lua_assert(!isdummy(n));
othern = mainposition(t, gkey(mp));
if (othern != mp) { /* is colliding node out of its main position? */
/* yes; move colliding node into free position */
while (gnext(othern) != mp) othern = gnext(othern); /* find previous */
gnext(othern) = n; /* redo the chain with `n' in place of `mp' */
*n = *mp; /* copy colliding node into free pos. (mp->next also goes) */
gnext(mp) = NULL; /* now `mp' is free */
setnilvalue(gval(mp));
}
}

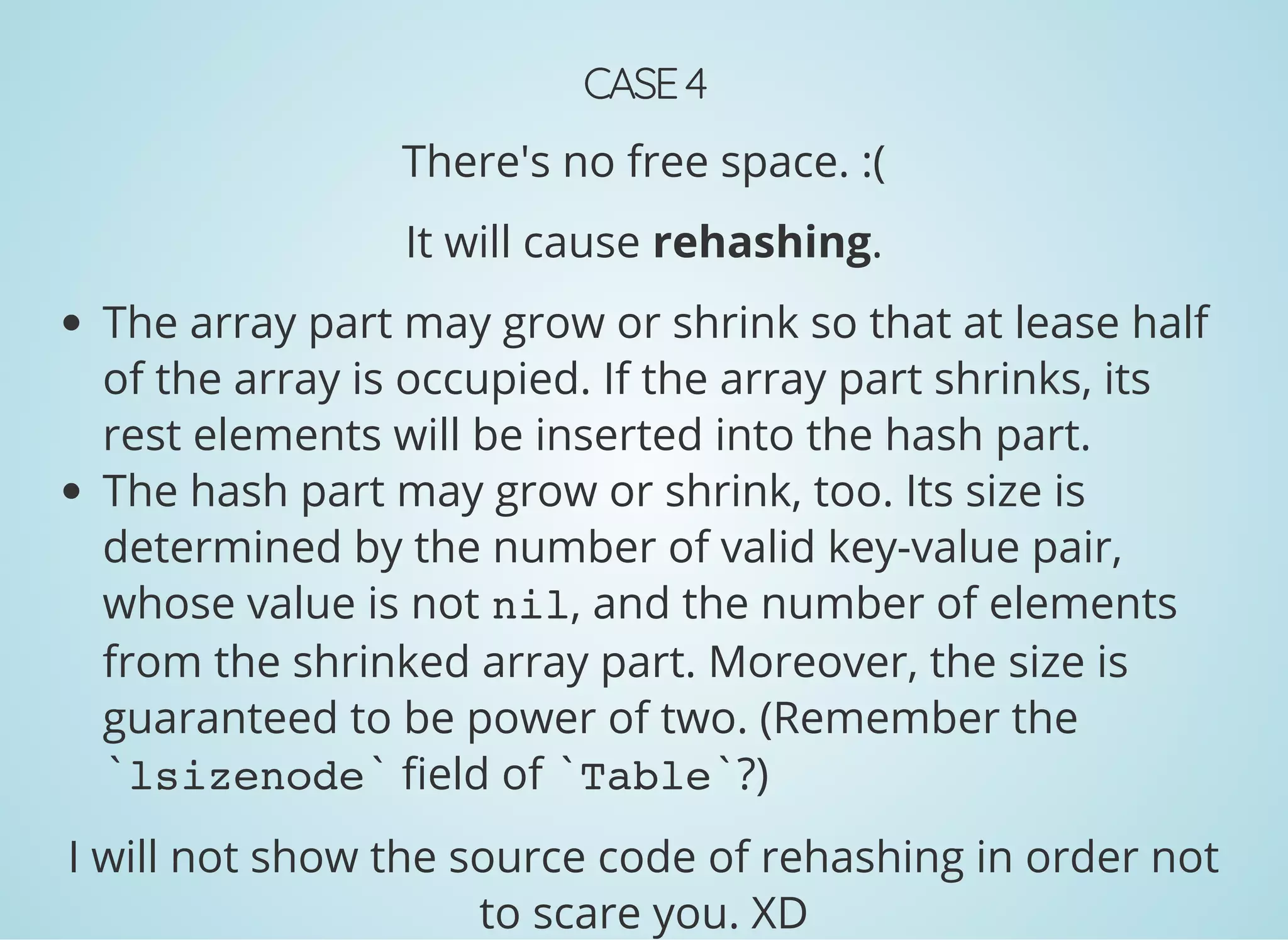

CASE4
There's no free space. :(
It will cause rehashing.
The array part may grow or shrink so that at lease half
of the array is occupied. If the array part shrinks, its
rest elements will be inserted into the hash part.
The hash part may grow or shrink, too. Its size is
determined by the number of valid key-value pair,
whose value is not nil, and the number of elements
from the shrinked array part. Moreover, the size is
guaranteed to be power of two. (Remember the
`lsizenode` eld of `Table`?)
I will not show the source code of rehashing in order not
to scare you. XD

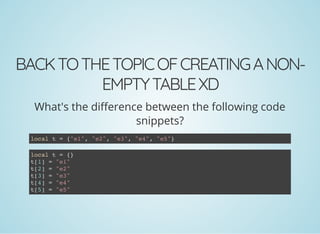

BACKTOTHETOPICOFCREATINGANON-
EMPTYTABLEXD
What's the di erence between the following code
snippets?
local t = {"e1", "e2", "e3", "e4", "e5"}
local t = {}
t[1] = "e1"
t[2] = "e2"
t[3] = "e3"
t[4] = "e4"
t[5] = "e5"

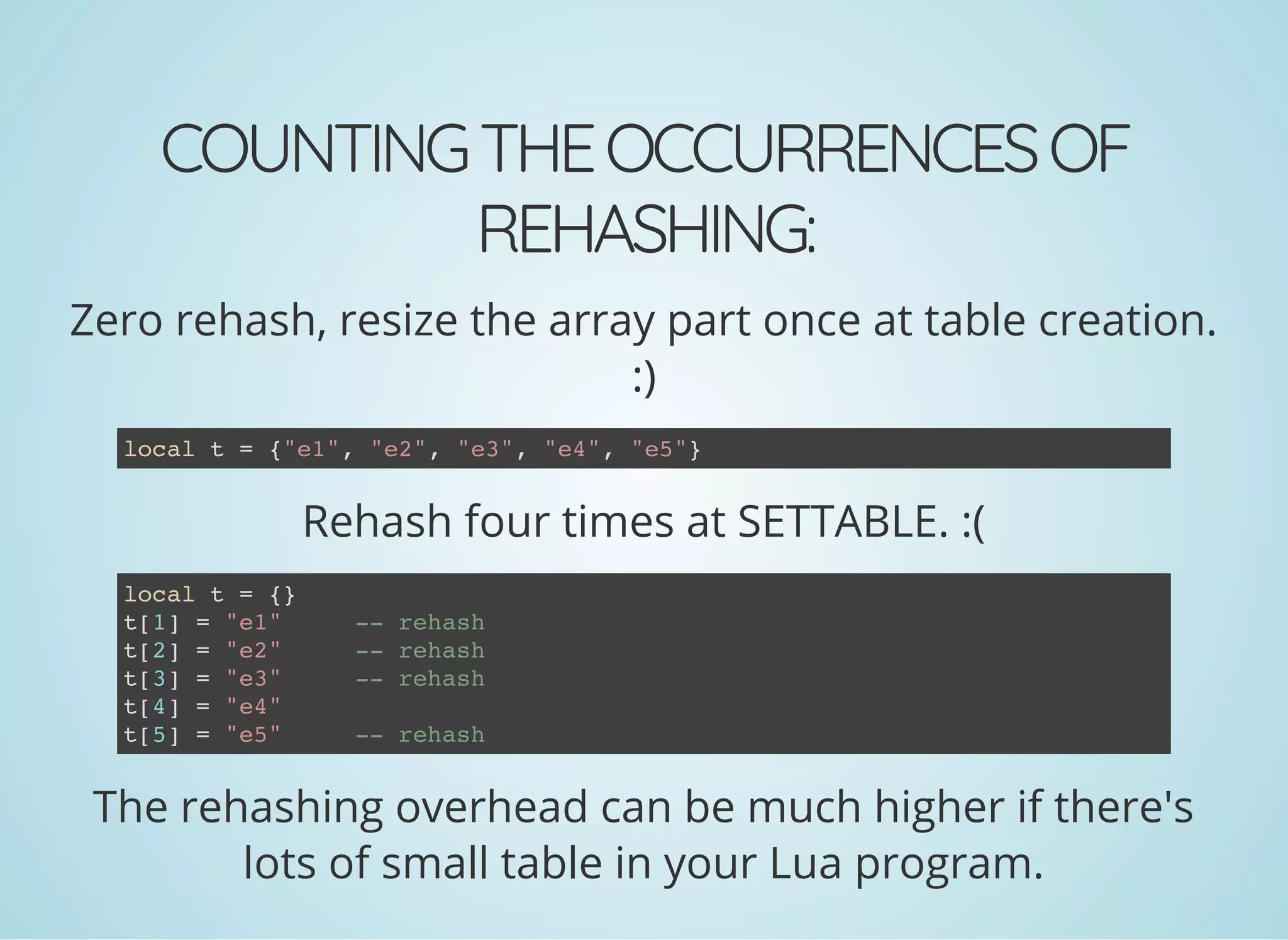

COUNTINGTHEOCCURRENCESOF
REHASHING:
Zero rehash, resize the array part once at table creation.
:)
local t = {"e1", "e2", "e3", "e4", "e5"}
Rehash four times at SETTABLE. :(
local t = {}
t[1] = "e1" -- rehash
t[2] = "e2" -- rehash
t[3] = "e3" -- rehash
t[4] = "e4"
t[5] = "e5" -- rehash
The rehashing overhead can be much higher if there's
lots of small table in your Lua program.

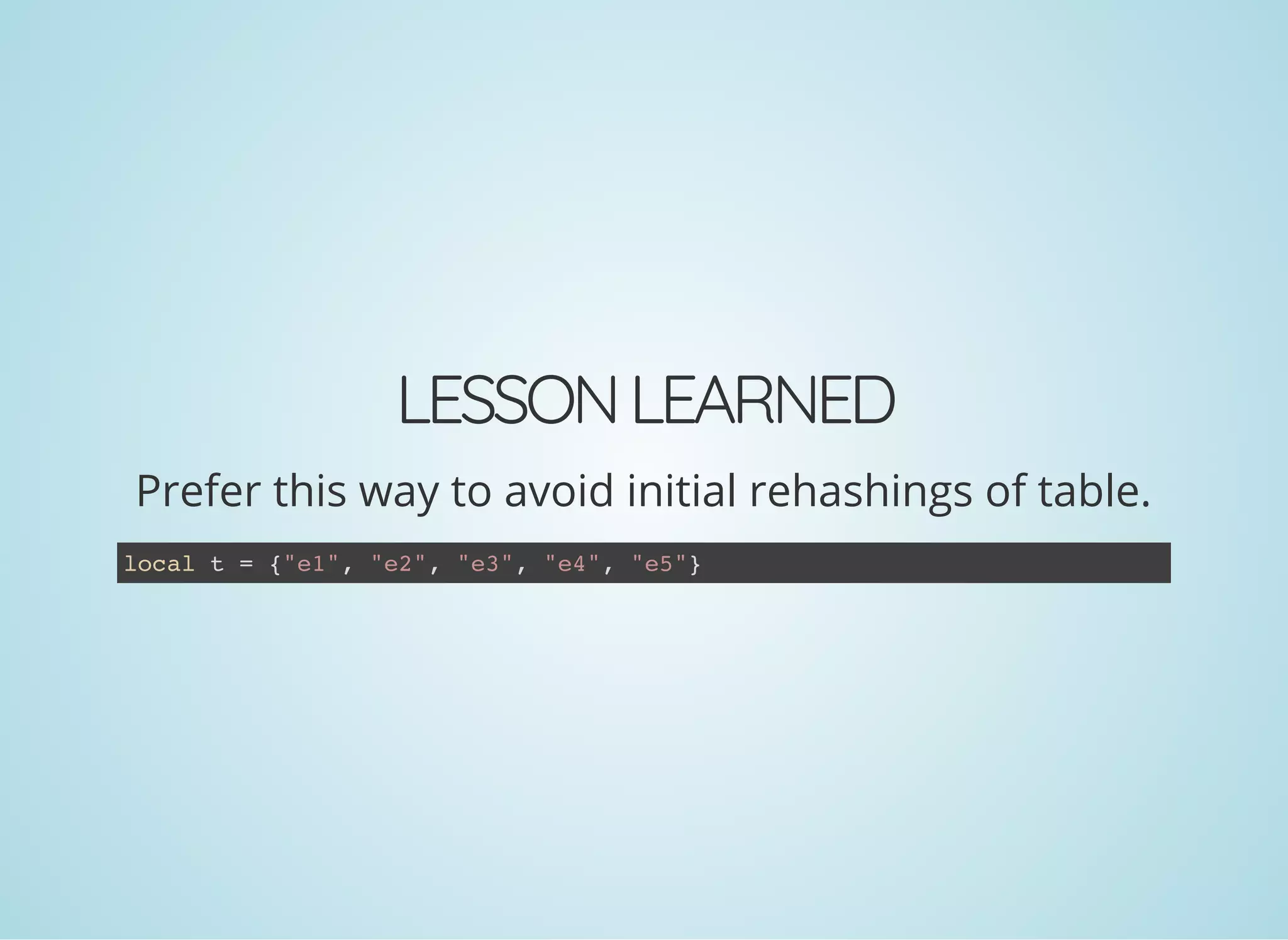

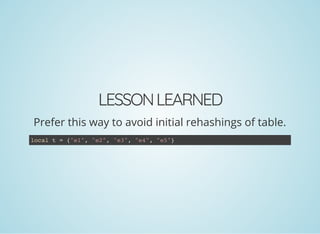

LESSONLEARNED
Prefer this way to avoid initial rehashings of table.
local t = {"e1", "e2", "e3", "e4", "e5"}

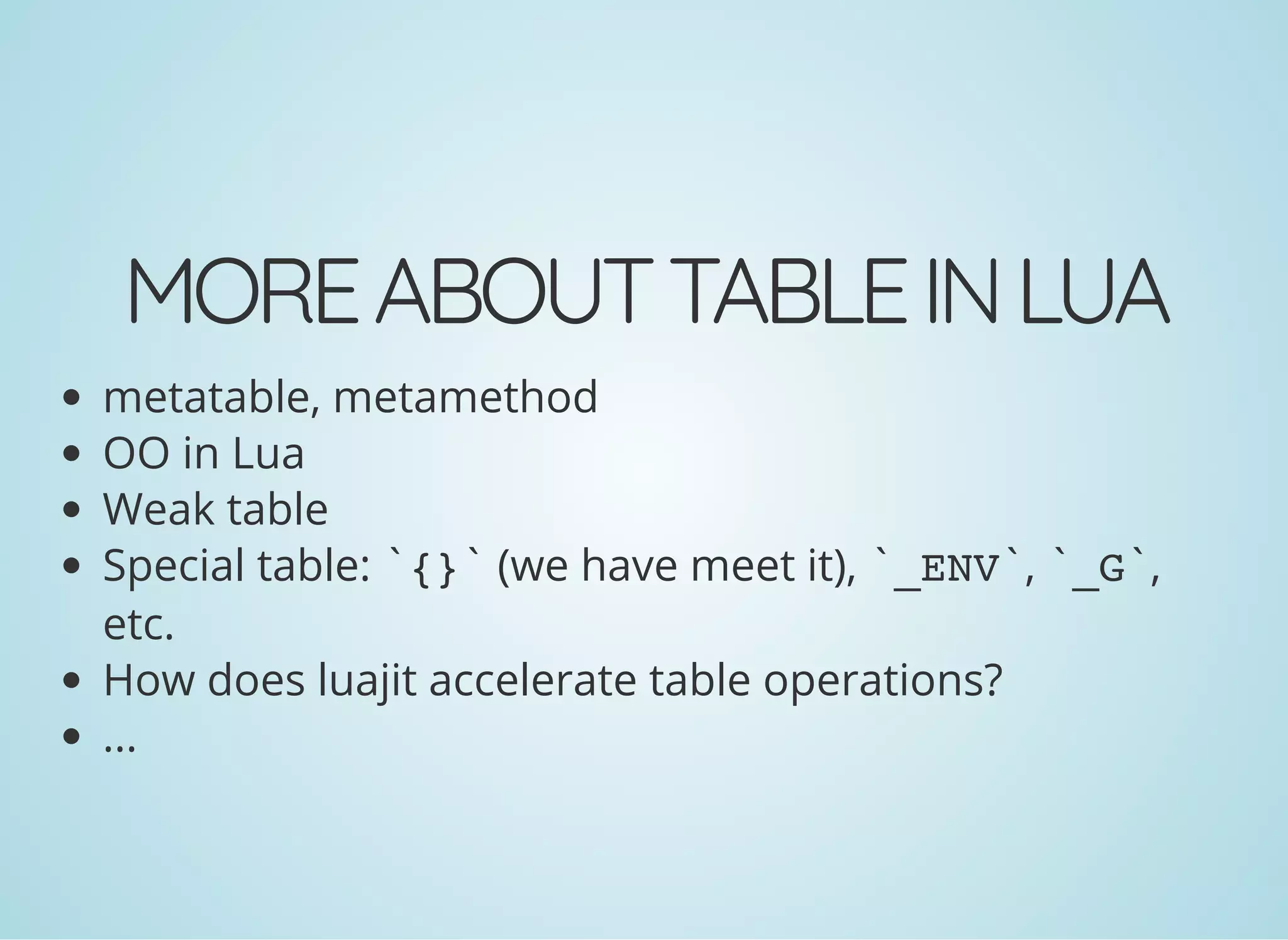

MOREABOUTTABLEINLUA
metatable, metamethod
OO in Lua
Weak table
Special table: `{}` (we have meet it), `_ENV`, `_G`,
etc.
How does luajit accelerate table operations?
...

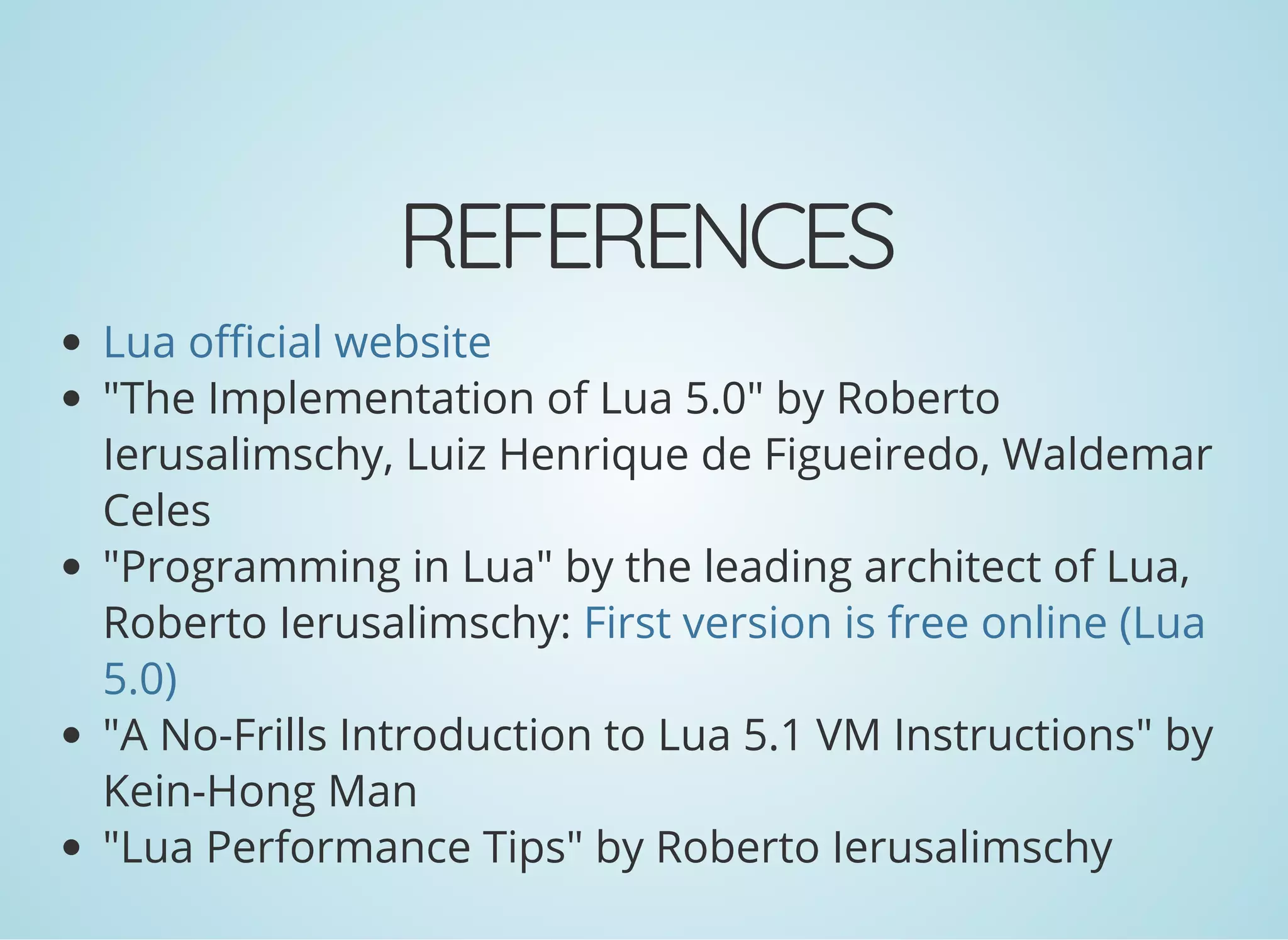

REFERENCES
"The Implementation of Lua 5.0" by Roberto
Ierusalimschy, Luiz Henrique de Figueiredo, Waldemar
Celes
"Programming in Lua" by the leading architect of Lua,
Roberto Ierusalimschy:
"A No-Frills Introduction to Lua 5.1 VM Instructions" by
Kein-Hong Man
"Lua Performance Tips" by Roberto Ierusalimschy
Lua o cial website
First version is free online (Lua
5.0)

The basics and design of lua table

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Viewers also liked

Viewers also liked (20)

Similar to The basics and design of lua table

Similar to The basics and design of lua table (20)

Recently uploaded

Recently uploaded (20)

The basics and design of lua table
