SQL> @ostackprof 1151 0 100
-- oStackProf v1.00 - EXPERIMENTAL script by Tanel Poder ( http://www.tanelpoder.com )
Below is the stack prefix common to all samples:
------------------------------------------------------------------------
Frame->function()
------------------------------------------------------------------------
[…some output snipped…]
# 15 ->kdza_get_layout()
# 14 ->kdzains()
# 13 ->kdzanalyze()
# 12 ->kdza_best_col_trans()
# 11 ->kdza_analyze_col_trans()
# 10 ->kdza_compress_col()
# 9 ->kdzc_comp_col_analyzer()
# ...(see call profile below)
#
# -#--------------------------------------------------------------------
# - Num.Samples -> in call stack()
# ----------------------------------------------------------------------
20 ->kdzc_comp_buffer()->kgccdo()->kgccbzip2pseudodo()->kgccbzip2do()->BZ2_bzCompress()->
19 ->kdzc_comp_buffer()->kgccdo()->kgccbzip2pseudodo()->kgccbzip2do()->BZ2_bzCompress()->
12 ->kdzc_comp_buffer()->kgccdo()->kgccbzip2pseudodo()->kgccbzip2do()->BZ2_bzCompress()->
8 ->kdzc_comp_buffer()->kgccdo()->kgccbzip2pseudodo()->kgccbzip2do()->BZ2_bzCompress()->
7 ->kdzc_comp_buffer()->kgccdo()->kgccbzip2pseudodo()->kgccbzip2do()->BZ2_bzCompress()->
Enterprise
2.0
©
2009-‐2010
WWW.E2SN.COM
8
Service
Networks
www.e2sn.com](https://image.slidesharecdn.com/performancestoriesfromexadatamigrations-110111185657-phpapp02/85/Tanel-Poder-Performance-stories-from-Exadata-Migrations-8-320.jpg)
Uploaded byTanel Poder
Tanel Poder - Performance stories from Exadata Migrations
The document discusses the challenges and solutions associated with migrating a large data warehouse (DW) to Exadata, highlighting the importance of Exadata's architecture and hybrid columnar compression for efficiency. It outlines the migration approaches taken, the performance issues faced, particularly with data load speeds, and various strategies implemented to optimize the process. Additionally, it emphasizes the significance of parallel execution and partitioning for enhancing data transfer and load performance during migration.
More Related Content
Similar to Tanel Poder - Performance stories from Exadata Migrations
Tanel Poder - Performance stories from Exadata Migrations
- 1. Performance Stories from Exadata Migra4ons Tanel Poder h>p://blog.tanelpoder.com h>p://tech.e2sn.com tanel@tanelpoder.com Enterprise 2.0 © 2009-‐2010 WWW.E2SN.COM 1 Service Networks www.e2sn.com

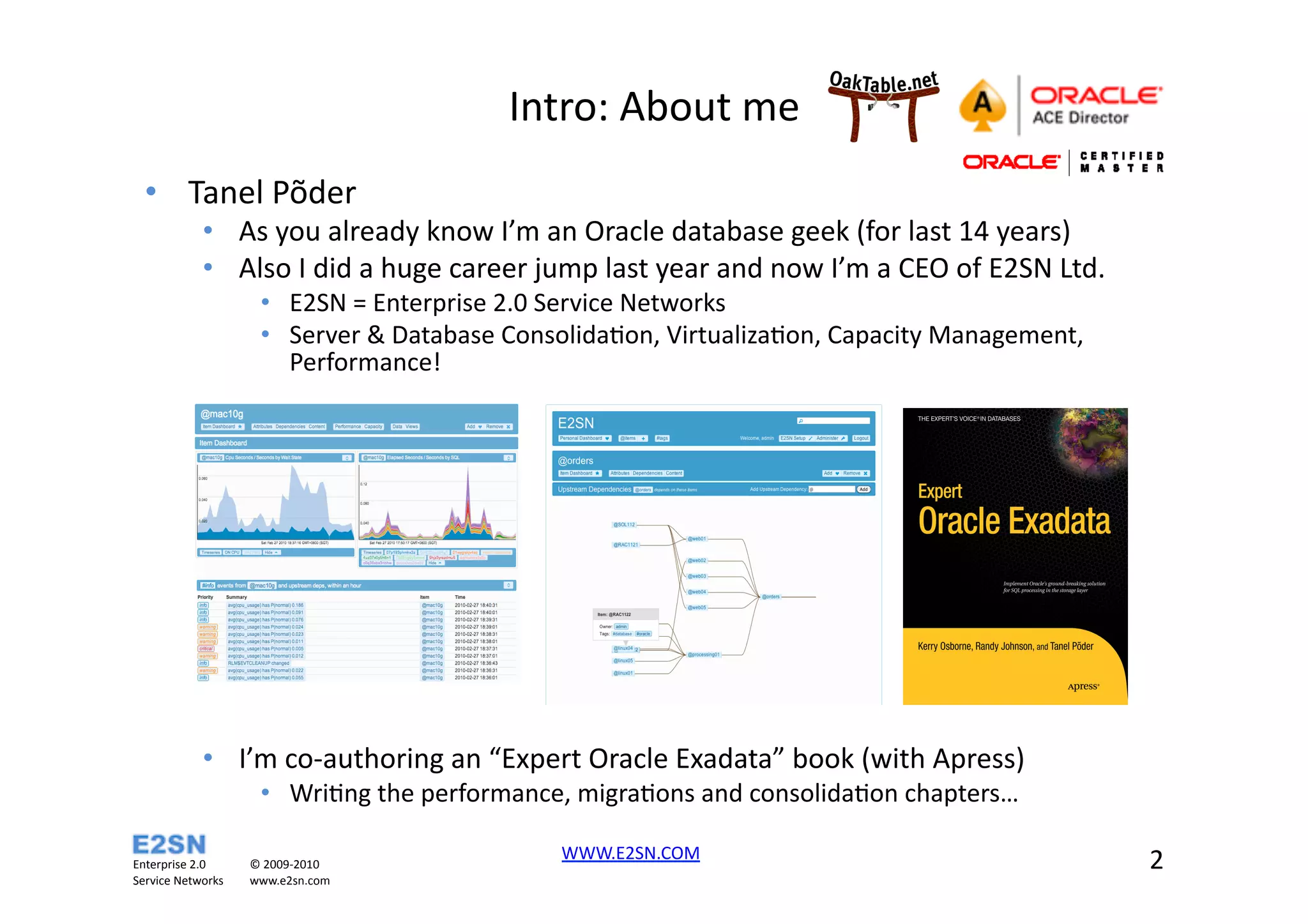

- 2. Intro: About me • Tanel Põder • As you already know I’m an Oracle database geek (for last 14 years) • Also I did a huge career jump last year and now I’m a CEO of E2SN Ltd. • E2SN = Enterprise 2.0 Service Networks • Server & Database ConsolidaXon, VirtualizaXon, Capacity Management, Performance! • I’m co-‐authoring an “Expert Oracle Exadata” book (with Apress) • WriXng the performance, migraXons and consolidaXon chapters… Enterprise 2.0 © 2009-‐2010 WWW.E2SN.COM 2 Service Networks www.e2sn.com
- 3. About this session • Exadata’s architecture is awesome, no doubt! • However it’s “just” hardware + sodware • It’s also new • It’s also complex (storage cells, RAC, ASM, PX, compression…) • Not very well understood (yet) • I’m offering some of my experiences so far… Enterprise 2.0 © 2009-‐2010 WWW.E2SN.COM 3 Service Networks www.e2sn.com
- 4. Challenge – MigraXng a large DW • A very large telco DW (DB size was close to 100 TB then) • Already compressed with 10g direct load block compression • Raw uncompressed data size ¼ Petabytes! • Already heavily parXXoned • No indexes used in source DB • Source plakorm: Oracle 10.2 – SPARC / Solaris • Target: Exadata v2 – Intel / Linux New hybrid columnar compression is cri%cal, otherwise the data • Exadata full rack with 15000 RPM SAS disks wouldn’t fit into a • 100 TB raw disk space single rack at all! • Ader mirroring & overhead -‐ ~30 TB real space for data Enterprise 2.0 © 2009-‐2010 WWW.E2SN.COM 4 Service Networks www.e2sn.com
- 5. Challenge – MigraXng a large DW • Which migraXon approach to use (low downXme)? • Some parXXons known to be read only were (obviously) migrated in advance • All data had to be compressed with Exadata Hybrid Columnar Compression (EHCC) immediately • In other words, all the data must be sent through compression module during load • EHCC works only on Exadata, can’t pre-‐compress data in the source: • ORA-‐64307: hybrid columnar compression is only supported in tablespaces residing on Exadata storage • This ruled out all these opXons: The DW loads were • Physical data guard done NOLOGGING anyway, ruling out the • Logical data guard Streams/Golden Gate • ASM mirror snapshots and other log-‐mining • Transportable tablespaces based approaches Enterprise 2.0 © 2009-‐2010 WWW.E2SN.COM 5 Service Networks www.e2sn.com
- 6. Challenge – MigraXng a large DW • Only two reasonable migraXon paths led for large tables: 1. Data Pump • Extract data to files • Copy files (or share over NFS) • Load files into EHCC compressed tables/parXXons 2. INSERT /*+ APPEND */ over Database Links • No need to dump data to files, copy & read again • Less overhead • Less complexity managing files • We chose the INSERT over DBLinks approach • But… Enterprise 2.0 © 2009-‐2010 WWW.E2SN.COM 6 Service Networks www.e2sn.com
- 7. Why is the data load slow? (Snapper) -------------------------------------------------------------------------------------------------------- SID, USERNAME , TYPE, STATISTIC , DELTA, HDELTA/SEC, %TIME -------------------------------------------------------------------------------------------------------- 1570, SYSTEM , STAT, bytes sent via SQL*Net to dblink , 536, 17.87, 1570, SYSTEM , STAT, bytes received via SQL*Net from dblink , 113985017, 3.8M, 1570, SYSTEM , STAT, SQL*Net roundtrips to/from dblink , 67, 2.23, 1570, SYSTEM , TIME, parse time elapsed , 842, 28.07us, .0% 1570, SYSTEM , TIME, DB CPU , 29739479, 991.32ms, 99.1% 1570, SYSTEM , TIME, sql execute elapsed time , 30031492, 1s, 100.1% 1570, SYSTEM , TIME, DB time , 30031492, 1s, 100.1% 1570, SYSTEM , WAIT, gc current multi block request , 3682, 122.73us, .0% 1570, SYSTEM , WAIT, gc cr block 3-way , 539, 17.97us, .0% 1570, SYSTEM , WAIT, gc current block 3-way , 459, 15.3us, .0% 1570, SYSTEM , WAIT, gc current grant 2-way , 209, 6.97us, .0% 1570, SYSTEM , WAIT, row cache lock , 2566, 85.53us, .0% 1570, SYSTEM , WAIT, SQL*Net message to dblink , 80, 2.67us, .0% 1570, SYSTEM , WAIT, SQL*Net message from dblink , 263979, 8.8ms, .9% 1570, SYSTEM , WAIT, SQL*Net more data from dblink , 113617, 3.79ms, .4% 1570, SYSTEM , WAIT, kfk: async disk IO , 7562, 252.07us, .0% 1570, SYSTEM , WAIT, events in waitclass Other , 5549, 184.97us, .0% -- End of Stats snap 1, end=2010-06-28 12:09:51, seconds=30 ----------------------------------------------------------------------- This load is CPU Active% | SQL_ID | EVENT | WAIT_CLASS bound because of ----------------------------------------------------------------------- 98% | 0zg4phrzs1s55 | ON CPU | ON CPU compression. Let’s 2% | 0zg4phrzs1s55 | SQL*Net message from dbli | Network use parallel execuTon instead! Enterprise 2.0 © 2009-‐2010 WWW.E2SN.COM 7 Service Networks www.e2sn.com
- 8. Why is the data load slow? (OstackProf) SQL> @ostackprof 1151 0 100 -- oStackProf v1.00 - EXPERIMENTAL script by Tanel Poder ( http://www.tanelpoder.com ) Below is the stack prefix common to all samples: ------------------------------------------------------------------------ Frame->function() ------------------------------------------------------------------------ […some output snipped…] # 15 ->kdza_get_layout() # 14 ->kdzains() # 13 ->kdzanalyze() # 12 ->kdza_best_col_trans() # 11 ->kdza_analyze_col_trans() # 10 ->kdza_compress_col() # 9 ->kdzc_comp_col_analyzer() # ...(see call profile below) # # -#-------------------------------------------------------------------- # - Num.Samples -> in call stack() # ---------------------------------------------------------------------- 20 ->kdzc_comp_buffer()->kgccdo()->kgccbzip2pseudodo()->kgccbzip2do()->BZ2_bzCompress()-> 19 ->kdzc_comp_buffer()->kgccdo()->kgccbzip2pseudodo()->kgccbzip2do()->BZ2_bzCompress()-> 12 ->kdzc_comp_buffer()->kgccdo()->kgccbzip2pseudodo()->kgccbzip2do()->BZ2_bzCompress()-> 8 ->kdzc_comp_buffer()->kgccdo()->kgccbzip2pseudodo()->kgccbzip2do()->BZ2_bzCompress()-> 7 ->kdzc_comp_buffer()->kgccdo()->kgccbzip2pseudodo()->kgccbzip2do()->BZ2_bzCompress()-> Enterprise 2.0 © 2009-‐2010 WWW.E2SN.COM 8 Service Networks www.e2sn.com
- 9. Exadata Hybrid Columnar Compression (EHCC) • COMPRESS FOR DIRECT_LOAD OPERATIONS Old-‐fashioned dicTonary de-‐ • Single block column data is deduplicated during load duplicaTon method • CTAS and direct path loads only (since 9i). Every block header has a • COMPRESS FOR OLTP colum dicTonary in • Single block column data is deduplicated by the FG block header. Only process once it gets full * one block has to be – * I had it wrong in the iniTal slides demoed at UKOUG read for single row access • Hybrid Columnar Compression • Mul4-‐MB column-‐oriented compression units are zipped! • COMPRESS FOR QUERY LOW -‐ LZO -‐ fastest • COMPRESS FOR QUERY HIGH -‐ ZLIB (like gzip, lower level) • COMPRESS FOR ARCHIVE LOW -‐ ZLIB (higher level) • COMPRESS FOR ARCHIVE HIGH -‐ BZIP2 (slowest, best compression) Enterprise 2.0 © 2009-‐2010 WWW.E2SN.COM 9 Service Networks www.e2sn.com
- 10. All cells almost idle when doing a large data load ???!!! Enterprise 2.0 © 2009-‐2010 WWW.E2SN.COM 10 Service Networks www.e2sn.com
- 11. Compression and large data loads (migraXons) • De-‐compression can be done either at the cell or database layer • Thanks to column orientaXon of EHCC compression units, the smart scan can only read & uncompress the required columns and avoid IO even further • Compression is done only at the database layer • One of the reasons is probably redo logging – if compression happened at the cell level, how to send back compressed block images for redo logging? • You’ll need to be aware that in real-‐life migraXons into HCC compressed tables the 5 TB/hr data loads are not achievable • Be>er test, before esXmaXng migraXon downXme! Enterprise 2.0 © 2009-‐2010 WWW.E2SN.COM 11 Service Networks www.e2sn.com
- 12. DB Link data transfer • A 10 Gbit Ethernet adapter was installed into source server • And a 10 GbE <-‐> Infiniband switch • ~1 GB per second transfer capacity? • INSERT /*+ APPEND */ SELECT • Single session • This gave only ~3-‐5 MB data transfer rate due to compression CPU bo>leneck • INSERT /*+ APPEND PARALLEL … */ SELECT … • Up to 256 threads (automaXc parallelism) • SXll only 60-‐70MB/sec network transfer rate over 10 GbE link ??? Enterprise 2.0 © 2009-‐2010 WWW.E2SN.COM 12 Service Networks www.e2sn.com
- 13. Parallel Direct path insert • INSERT /*+ APPEND PARALLEL (x) */ • Now we used up to 64 CPU cores and the CPU bo>leneck was shided • But this gave only 60-‐70MB/sec network throughput! PX PX PX PX QC QC Source DB Exadata PX PX PX PX Regardless of parallelism, the DB link’s Theore4cal max throughput per connec4on: SQL*Net traffic flows between Query Exadata <-‐> SPARC server network RTT = 0.5 ms Coordinators only! 32 kB SDU / 0.5 ms RTT = 64 MB / sec Enterprise 2.0 © 2009-‐2010 WWW.E2SN.COM 13 Service Networks www.e2sn.com
- 14. Challenge – MigraXng a large DW • SoluXon: 1. Run many serial INSERT APPENDs instead of one parallel 2. Separate insert for each sub-‐parXXon • INSERT /*+ APPEND */ INTO tableX SUBARTITION (p) SELECT… • When inserXng into a parXXon, then only the parXXon (not enXre table) is locked 3. Create local views with SELECT … SUBPARTITION(p) syntax • So that the full source table wouldn’t be scanned for each parXXon load • The PARTITION(p) keyword is not sent to source DB over dblink! • For range/list parXXoned tables just use WHERE clause on parXXon key – Can’t use this syntax for selecXng out individual hash parXXons 4. MulXple jobs were scheduled which transferred parXXons over dblinks • A control table kept track of which parXXons were transferred Enterprise 2.0 © 2009-‐2010 WWW.E2SN.COM 14 Service Networks www.e2sn.com
- 15. Default parallel degree allows to easily use up whole cluster’s resources. Enterprise 2.0 © 2009-‐2010 WWW.E2SN.COM 15 Service Networks www.e2sn.com
- 16. Checking the real parallelism -‐ 1 • Run a query with mulXple UNION ALLs: SQL> show parameter parallel_degree NAME TYPE VALUE ------------------------------------ ---------- ----------------------------------- parallel_degree_limit string CPU parallel_degree_policy string MANUAL SQL> alter session force parallel query parallel 2; Session altered. SQL> select count(*) from t union all 2 select count(*) from t union all 3 select count(*) from t union all 4 select count(*) from t; COUNT(*) ---------- 27538614 27538614 27538614 27538614 Enterprise 2.0 © 2009-‐2010 WWW.E2SN.COM 16 Service Networks www.e2sn.com
- 17. Checking the real parallelism -‐ 2 • Check V$PQ_TQSTAT ader the query completes: SQL> @tq Show PX Table Queue statistics from last Parallel Execution in this session... TQ_ID TQ_FLOW DFO (DFO,SET) DIRECTION NUM_ROWS BYTES WAITS TIMEOUTS PROCESS NUMBER TQ_ID ---------- --------- ---------- ---------- ---------- ---------- ------- ------ ------ :TQ10000 Produced 1 36 22 0 P000 1 0 Produced 1 36 9 0 P001 Consumed 2 72 34 1 QC :TQ20000 Produced 1 36 23 0 P002 2 0 Produced 1 36 8 0 P003 Consumed 2 72 34 1 QC :TQ30000 Produced 1 36 9 0 P005 3 0 Produced 1 36 21 0 P004 Consumed 2 72 34 1 QC :TQ40000 Produced 1 36 8 0 P007 4 0 Produced 1 36 23 0 P006 Consumed 2 72 34 1 QC Enterprise 2.0 © 2009-‐2010 WWW.E2SN.COM 17 Service Networks www.e2sn.com
- 18. Query Coordinator PX Slave P005 PX Slave P006 PX Slave P007 PX Slave P008 Table Queue (TQ) PX Slave P001 PX Slave P002 PX Slave P003 PX Slave P004 PX execuXon flow Enterprise 2.0 © 2009-‐2010 WWW.E2SN.COM 18 Service Networks www.e2sn.com
- 19. Producer-‐consumer hierarchy QC QC Table Queue: TQ1, 02 First stage PX Slave P001 PX Slave P002 Table Queue: TQ1, 01 Table Queue: TQ1, 01 PX Slave P003 PX Slave P004 PX Slave P003 PX Slave P004 Table Queue: TQ1, 00 Second stage PX Slave P001 PX Slave P002 Enterprise 2.0 © 2009-‐2010 WWW.E2SN.COM 19 Service Networks www.e2sn.com
- 20. Do you need indexes on Exadata or not? • It all depends on whether your workload & physical design is right for smart full scanning: 1. How oden and how selecXvely you access data? • OLTP databases do need indexes! • Also many DWs which are used as reference data lookup warehouse, not just for bulk reporXng 2. What other IO eliminaXon methods you have in place? • In DW & reporXng your database absolutely needs to be parXXoned • And the code has to be designed for parXXon pruning • Storage indexes will help too (unless you hit a bug), but parXXon pruning is absolutely needed Enterprise 2.0 © 2009-‐2010 WWW.E2SN.COM 20 Service Networks www.e2sn.com
- 21. Exadata Performance An4paVerns -‐ DW • You don’t use direct path full table scans for DW & reporXng • Direct path reads are needed for smart scan to kick in • Hash join bloom filter pushdown to storage kicks in with with smart scan only • You sXll rely on bitmap indexes because of past • Bitmap index-‐based access ends up with “random” single block reads! • Smart scan isn’t used with single block reads • NB! If your schema doesn’t allow good parTTon pruning, then bitmap index access may sTll be the next best opTon for DW • It also depends on the nature of your query and selecXviXes of predicates • You don’t limit the real PX parallelism • Se€ng parallel degree alone does not limit the real parallelism • UnXl 11.2.0.2 the Resource Manager is only way to limit the real paralellism • parallel_degree_policy = auto is the future (seems to work be>er in 11.2.0.2) Enterprise 2.0 © 2009-‐2010 WWW.E2SN.COM 21 Service Networks www.e2sn.com
- 22. Exadata Performance An4paVerns -‐ OLTP • Every (valid) RAC performance anXpa>ern • As Exadata is sXll a RAC cluster • 8 nodes or 2 nodes (X2-‐8) per full rack • gc buffer busy wait contenXon! • You should be>er do some workload management to avoid write-‐write contenXon across many RAC nodes • You compress frequently used data with QUERY/ARCHIVE • Every single block/row read has to uncompress the whole (zipped) compression unit – big overhead when fetching many single rows • You don’t use flash cache • Without flash cache, Exadata for OLTP workloads is no different from a bunch of Linux pizzaboxes packed into a rack Enterprise 2.0 © 2009-‐2010 WWW.E2SN.COM 22 Service Networks www.e2sn.com
- 23. Performance bugs and slow smart scan processing? • How to troubleshoot slow smart scan processing? • Make sure direct path IO is used • Smart scan is usable only with (serial or parallel) direct path scans • How to check what’s happening yourself? • Use a systemaXc approach explained in my arXcle: • h>p://tech.e2sn.com/oracle/exadata/performance-‐troubleshooXng/ exadata-‐smart-‐scan-‐performance • Or just google for “troubleshooXng exadata performance” Enterprise 2.0 © 2009-‐2010 WWW.E2SN.COM 23 Service Networks www.e2sn.com
- 24. Things affecXng direct path read decisions • Serial execuXon can switch to direct path reads • Dynamic adapXve direct reads • _small_table_threshold • _very_large_table_threshold • Segment’s cached block count ( X$KCBOQH.NUM_BUF ) • Parallel ExecuXon can switch to buffered reads in 11.2 • When parallel_degree_policy = AUTO • Buffered reads = no smart scan Enterprise 2.0 © 2009-‐2010 WWW.E2SN.COM 24 Service Networks www.e2sn.com
- 25. The kind of queries which won’t benefit from Exadata • SELECT projecXon lists can’t be offloaded SELECT col1, col2, Such large CASE statements CASE WHEN (col3, col4) IN ( aren’t somehow offloaded to ( 123, 234 ), storage and aren’t opXmized ( 124, 456 ), by Exadata ( 130, 789 ), … Also, exadata can’t do …this goes on hundreds of times… anything about expensive PL/ … SQL funcXons in SELECT list or ( 140, 888 ) WHERE clause ) FROM Exadata is designed to find t1 matching data efficiently , t2 , tX WHERE SELECT * FROM t1.colX = … v$sqlfn_metadata AND t1.id = t2.id … WHERE offloadable = 'YES'; Enterprise 2.0 © 2009-‐2010 WWW.E2SN.COM 25 Service Networks www.e2sn.com
- 26. System staXsXcs on Exadata? • DW & smart scan-‐oriented databases • DW & smart scans -‐ use the default noworkload stats • MREADTIM / SREADTIM info not gathered anyway when the workload runs smart scans only • OLTP & single block read-‐oriented databases • Slow spinning disk IO vs flash cache IO • If running enXre DB on flash – gather workload stats • If running on mixed storage – I’d leave noworkload stats (or set stats which show regular disk IO response Xmes – 5ms+) Enterprise 2.0 © 2009-‐2010 WWW.E2SN.COM 26 Service Networks www.e2sn.com

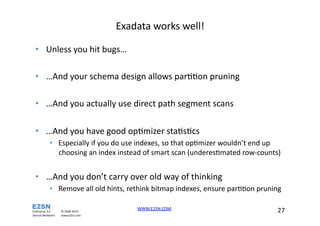

- 27. Exadata works well! • Unless you hit bugs… • …And your schema design allows parXXon pruning • …And you actually use direct path segment scans • …And you have good opXmizer staXsXcs • Especially if you do use indexes, so that opXmizer wouldn’t end up choosing an index instead of smart scan (underesXmated row-‐counts) • …And you don’t carry over old way of thinking • Remove all old hints, rethink bitmap indexes, ensure parXXon pruning Enterprise 2.0 © 2009-‐2010 WWW.E2SN.COM 27 Service Networks www.e2sn.com
- 28. QuesXons?! Thanks!!! tanel@tanelpoder.com ^^^^ Further quesXons, exadata consolidaXon, migraXon, troubleshooXng, performance & capacity planning Enterprise 2.0 © 2009-‐2010 WWW.E2SN.COM 28 Service Networks www.e2sn.com
