Deep Dive: InnoDB
Transactions and Write Paths
From the client connection to physical storage
Marko Mäkelä, Lead Developer InnoDB
Michaël de Groot, MariaDB Consultant

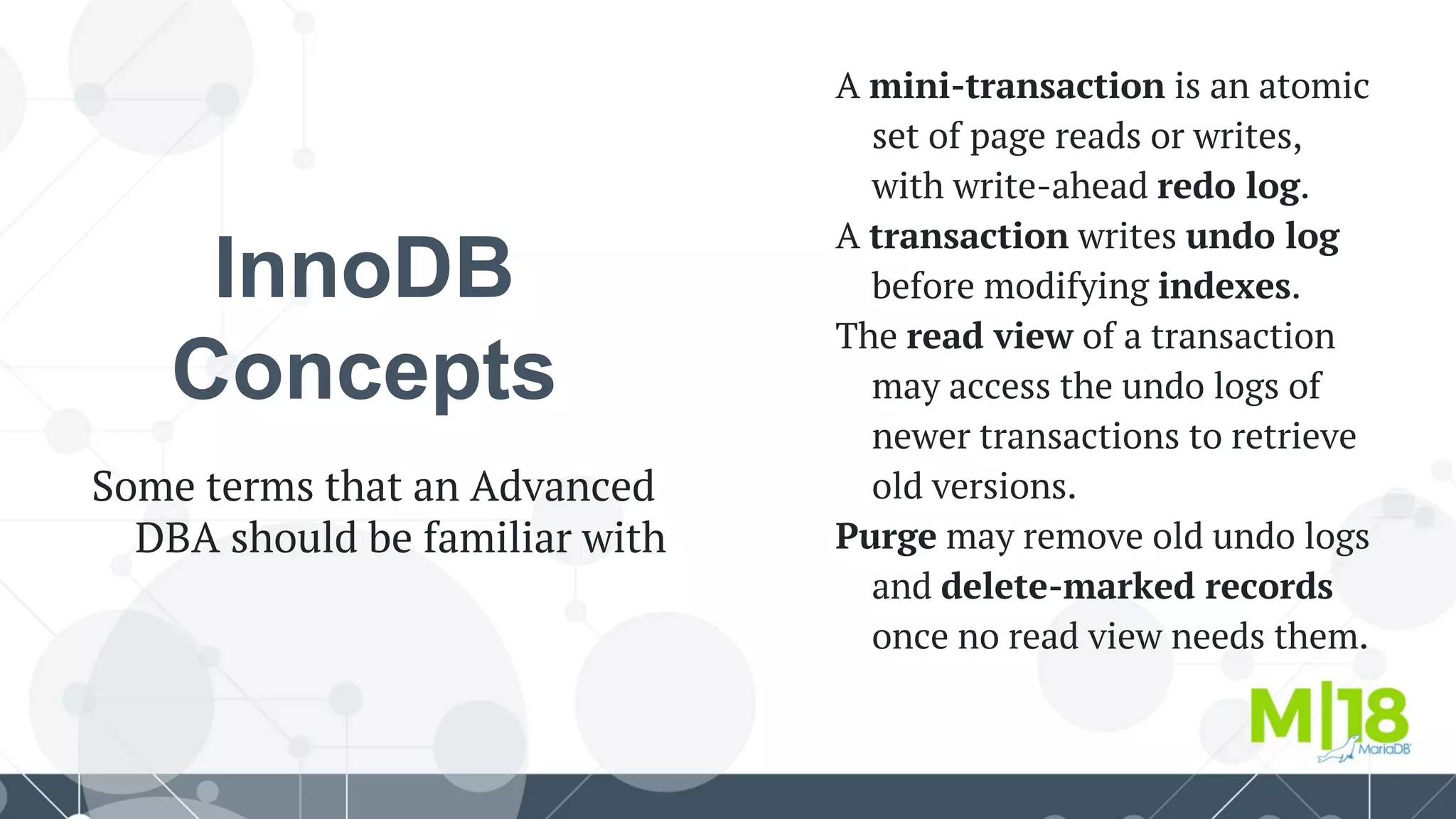

InnoDB
Concepts
A mini-transaction is an atomic
set of page reads or writes,
with write-ahead redo log.
A transaction writes undo log
before modifying indexes.
The read view of a transaction
may access the undo logs of
newer transactions to retrieve
old versions.
Purge may remove old undo logs
and delete-marked records
once no read view needs them.
Some terms that an Advanced
DBA should be familiar with
The “storage stack” of InnoDB
A Comparison to the OSI Model (Upper Layers)
The Open Systems Interconnection Model
7. Application layer
● Example: HTML5 web application
● Example: apt update; apt upgrade
6. Presentation layer
● XML, HTML, CSS, …
● JSON, BSON, …
● ASN.1 BER, …
5. Session layer
● SSL, TLS
● Web browser cookies, …
Some layers inside the MariaDB Server:
7. client connection
● Encrypted or cleartext
● Direct or via proxy
6. SQL
● Parser
● Access control
● Query optimization & execution
5. Storage engine interface
● Transactions: start, commit, rollback
● Tables: open, close, read, write
A Comparison to the OSI Model (Lower Layers)
The Open Systems Interconnection Model
4. Transport layer
● TCP/IP turns packets into reliable streams
● Retransmission, flow control
3. Network layer
● router/switch
● IP, ICMP, UDP, BGP, DNS, …
2. Data link
● Packet framing
● Checksums
1. Physical
● MAC: CSMA/CD, CSMA/CA, …
● LAN, WLAN, ATM, RS-232, …
InnoDB Storage Engine
4. Transaction
● Atomic, Consistent, Isolated access to
multiple tables via Locks & Read Views
● XA 2PC (distributed transactions by user,
or binlog-driven for cross-engine commit)
3. Mini-transaction
● Atomic, Durable multi-page changes
● Page checksums, crash recovery
2. Operating System (file system, block
device)
● Ext4, XFS, ZFS, NFS, …
1. Hardware/Firmware (physical storage)
● Hard disk, SSD, NVRAM, …
SQL and storage engine interface
(5-6)
Step 1: SQL Layer
UPDATE talk SET attendees = 25 WHERE conference="M|18"
AND name="Deep Dive";
● Constructs a parse tree.
● Checks for permissions.
● Acquires metadata lock on the table name (prevent DDL) and opens the table.
● Retrieves index cardinality statistics from the storage engine(s).
● Constructs a query execution plan.
Step 2a: Read via the Storage Engine Interface
UPDATE talk SET attendees = 25 WHERE conference="M|18"
AND name="Deep Dive";
● Find the matching record(s) via the chosen index (secondary index or primary
key index), either via lookup or index scan.
● On the very first read, InnoDB will lazily start a transaction:
○ Assign a new DB_TRX_ID (incrementing number global in InnoDB)
○ No read view is needed, because this is a locking operation.
Step 2b: Filtering the Rows
UPDATE talk SET attendees = 25 WHERE conference="M|18"
AND name="Deep Dive";
● If the WHERE condition can only be satisfied by range scan or table scan, we
will have to filter out non-matching rows.
○ If Index Condition Pushdown is used, InnoDB evaluates the predicate and filters rows.
○ Else, InnoDB will return every record one by one, and the SQL layer will decide what to do.
● After returning a single record, a new mini-transaction has to be started
○ Repositioning the cursor (search for a key) is moderately expensive
○ Optimization: After 4 separate reads, InnoDB will prefetch 8 rows (could be improved)
Step 2c: Locking the rows
● InnoDB will write-lock each index leaf read
○ Note: InnoDB has no “table row locks”, but “record locks” in each index separately.
○ If using index condition pushdown, non-matching records are not locked.
● All records that may be changed are locked exclusively
○ When using a secondary index, all possibly matching records stay locked
○ Depending on the isolation level, InnoDB may unlock non-matching rows in primary key scan
(MySQL Bug #3300, “semi-consistent read”)
○ Updates with a WHERE condition on PRIMARY KEY are faster!
Transaction layer
InnoDB Transaction Layer
The InnoDB transaction layer relies on atomically updated data pages forming
persistent data structures:
● Page allocation bitmap, index trees, undo log directories, undo logs
● Undo logs are the glue that make the indexes of a table look consistent.
● On startup, any pending transactions (with implicit locks) will be recovered
from undo logs.
○ Locks will be kept until incomplete transactions are rolled back, or
○ When found in binlog after InnoDB recovery completes, or
○ until explicit XA COMMIT or XA ROLLBACK.
● InnoDB supports non-locking reads (multi-versioning concurrency control)
by read view ‘snapshots’ that are based on undo logs.
128
B-tree root page B-tree leaf page
DB_ROLL_PTR
A Page View of the InnoDB Transaction Layer
TRX_SYS
Page
(ibdata1)
Rollback segment header page
Table
.ibd
Index
History List (to-purge committed)
Uncommitted transactions
(pkN,child page)
(pkM,child page)
B-tree internal page
(pkN1,child page)
(pkN2,child page) (pk2,DB_TRX_ID,DB_ROLL_PTR,cols)
(pk1,DB_TRX_ID,DB_ROLL_PTR,cols)
Undo Log
(linked list of pages)
Undo Log
(linked list of pages)
DB_TRX_ID and DB_ROLL_PTR
● DB_TRX_ID is an increasing sequence number, global in InnoDB
○ Each user transaction (except read-only non-locking) gets a new one, upon transaction
create
○ While other transaction ids (GTID, binlog position) are in commit order, this transaction id is in
create order
○ Each record has metadata with its current DB_TRX_ID
○ If the DB_TRX_ID is in a list of uncommitted transactions, there is an implicit lock
● DB_ROLL_PTR is a pointer to the undo log record of the previous version
○ Stored in the record's metadata (hidden column in the clustered index)
○ Or a flag in it is set, meaning that there is no previous version (the record was inserted)
Step 3a: Creating undo log records
● On the first write, the transaction is created in the buffer pool:
○ Create or reuse a page (same size as other pages)
○ Create undo log header, update undo log directory (also known as “rollback segment page”).
○ Done in separate mini-transaction from undo log record write; optimized away in MariaDB 10.3
● Undo log pages are normal data pages: They can fill up and get persisted
● All changes of the same transaction are added to the same undo log page(s)
● Writing each undo log record means (in a mini-transaction):
○ Append to last undo page, or allocate a new undo page and write the record there.
○ InnoDB writes each undo log in advance, before updating each index affected by the row
operation.
● Undo log records need to be purged when they are no longer needed
UPDATE talk SET attendees = 25 WHERE conference="M|18"
AND name="Deep Dive";
● update_row(old_row,new_row) is invoked for each matching row
● InnoDB calculates an “update vector” and applies to the current row.
● The primary key (clustered index) record will be write-locked.
○ It may already have been locked in the “Read” step.
● An undo log record will be written in its own mini-transaction.
● The primary key index will be updated in its own mini-transaction.
● For each secondary index on updated columns, use 2 mini-transactions:
(1) search, lock, delete-mark old record, (2) insert new record.
Step 3b: Updating the Matching Rows
UPDATE talk SET attendees = 25 WHERE conference="M|18"
AND name="Deep Dive";
● Because autocommit was enabled and there was no BEGIN, the SQL layer will
automatically commit at the end of each statement.
● In InnoDB, commit updates the undo log information in a mini-transaction:
1. Update undo log directory (rollback segments) and undo log header pages.
2. Commit the mini-transaction (write to the redo log buffer).
3. Obtain the last written LSN (redo log sequence number) in the buffer.
4. Optionally, ensure that all redo log buffer is written at least up to the LSN.
Step 4a: Commit
Alternate step 4a: Rollbacks
● Rollback is expensive because
○ All changes are done in reverse (jumping read pointers)
○ Reading undo log or index pages that were evicted from the buffer pool to disk
○ Secondary index leaf records might need removal (must look up primary key records)
● For each undo log record from the end to start (or savepoint), the log is
applied in reverse:
○ For UPDATE: the old version of the data is read and an update vector calculated
● The same process as the update step is followed but reversed
○ 1 mini-transaction per clustered index
○ 2 mini-transactions per secondary index
● The undo log pages are freed in a maintenance operation called Truncate
undo log tail.
Step 4b: Cleaning up
After User COMMIT or ROLLBACK is done, there are some clean-up steps:
● Transactional row locks can be released and waiting threads woken up.
● InnoDB will also wake up any other transactions that waited for the locks.
● If the binlog is enabled, a commit event will be synchronously written to it.
○ An internal XA PREPARE transition must have been persisted in the InnoDB redo log earlier.
○ Only the internal XA PREPARE but not the XA COMMIT needs to be flushed to redo log.
○ Listen to the replication talk by Andrei Elkin (next talk in the same room)
● Finally, the SQL layer will release metadata locks on the table name - the
table can now be ALTERed again
Mini-Transaction Layer
The InnoDB Mini-Transaction Layer
Each layer provides service to the upper layers, relying on the service provided
by the lower layer, adding some encapsulation or refinement:
● File system (or the layers below): Block address translation
○ Wear leveling, bad block avoidance
○ Deduplication
○ Redundancy or replication for fault tolerance or HA
● The InnoDB mini-transaction layer depends on a write-ahead redo log.
○ Provides an AcID service of modifying a number of persistent pages.
■ Example: Inserting a record into a B-tree, with a series of page splits.
○ An atomic mini-transaction becomes durable when its log is fully written to the redo log.
○ Recovery: Any redo log records after the latest checkpoint will be parsed and applied to the
buffer pool copies of referenced persistent data file pages.
Mini-Transactions and Page Locking
A mini-transaction is not a user transaction. It is a short operation comprising:
● A list of index, tablespace or page locks that have been acquired.
● A list of modifications to pages.
There is no rollback for mini-transactions.
Locks of unmodified pages can be released any time. Commit will:
1. Append the log (if anything was modified) to the redo log buffer
2. Release all locks
Index page lock acquisition must avoid deadlocks (server hangs):
● Backward scans are not possible. Only one index update per
mini-transaction.
● Forward scan: acquire next page lock, release previous page (if not changed)
Mini-Transaction
Mini-Transactions: RW-Locks and Redo Logs
Memo:
Locks or
Buffer-Fixes
Index tree latch
(dict_index_t::lock):
covers internal pages
Tablespace latch
(fil_space_t::lock):
allocating/freeing pages
Log:
Page
Changes Data Files
FIL_PAGE_LSN
Flush (after log written)
Redo Log Files
(ib_logfile*)
Redo Log Buffer
(log_sys_t::buf)
Write ahead (of page flush) to log (make durable)
Buffer pool page
buf_page_t::oldest_
modification
commit
A mini-transaction commit
stores the log position (LSN) to
each changed page.
Recovery will redo changes:
Apply log if the page LSN is
older than the log record LSN.
Log position
(LSN)
Mini-transactions and Durability
Depending on when the redo log buffer was written to the redo log files, recovery
may miss some latest mini-transaction commits.
When innodb_flush_log_at_trx_commit=1, the only mini-transaction
persisted to disk is that of a User transaction commit. All earlier mini-transactions
are also persisted.
Mini-transaction Write operations on Index Trees
In InnoDB, a table is a collection of indexes: PRIMARY KEY (clustered index,
storing all materialized columns), and optional secondary indexes.
A mini-transaction can only modify one index at a time.
● Metadata change: Delete-mark (or unmark) a record
● Insert: optimistic (fits in leaf page) or pessimistic (allocate page+split+write)
○ Allocate operation modifies the page allocation bitmap page belonging to that page number
○ Tablespace extension occurs if needed (file extended, tablespace metadata change)
● Delete (purge,rollback): optimistic or pessimistic (merge+free page)
● Index lookup: Acquire index lock, dive from the root to the leaf page to edit
Read Mini-Transactions in Transactions
In InnoDB, a table is a collection of indexes: PRIMARY KEY (clustered index,
storing all materialized columns), and optional secondary indexes.
A mini-transaction can read only 1 secondary index, the clustered index and its
undo log records
● Index lookup: Look up a single record, dive from the root to the leaf page.
○ If this version is not to be seen, InnoDB will read the older version using DB_ROLL_PTR
● Index range scan: Index lookup followed by:
○ release locks except the leaf page
○ acquire next leaf page lock, release previous page lock, …
○ Typical use case: Filtering records for the read view, or for pushed-down WHERE clause
● Encryption key rotation: Write a dummy change to an encrypted page, to cause
the page to be encrypted with a new key.
Flushing dirty pages
● This process runs asynchronously from the transactions
● Every second up to innodb_io_capacity iops will be used to write
changes to data files
● Includes (potentially no longer needed) undo log pages and the contents of
freed pages. To be improved: Collect garbage, do not write it!
● Data-at-rest encryption and page compression is done at this point
● Pages with oldest changes are written first
○ InnoDB keeps a list of dirty pages, sorted by the mini-transaction end LSN
On startup, any redo log after the latest checkpoint will be read and applied.
● A redo log checkpoint logically truncates the start of the redo log, up to the
LSN of the oldest dirty page.
● A clean shutdown ends with a log checkpoint.
● The InnoDB master thread periodically makes log checkpoints.
● When the redo log is full, a checkpoint will be initiated. Aggressive flushing
can occur on any mini-transaction write.
○ Until enough space is freed up, the server blocks any other write
○ This is very bad for performance, a bigger innodb_log_file_size would help
Redo Log Checkpoint (Truncating Redo Log)
What if the server was killed in the middle of a page flush?
● On Linux, killing a process may result in a partial write (usually 4096n bytes)
● Power outage? Disconnected cable? Cheating fsync()?
● On Windows with innodb_page_size=4k and matching sector size, no
problem.
Page writes first go to the doublewrite buffer (128 pages in ibdata1).
● If startup finds a corrupted page, it will try doublewrite buffer recovery.
● If it fails, then we are out of luck, because redo log records (usually) do not
contain the full page image.
Bugs and improvement potential: MDEV-11799, MDEV-12699, MDEV-12905
One More Layer: the Doublewrite Buffer
On startup, InnoDB performs some recovery steps:
● Read and apply all redo log since the latest redo log checkpoint.
○ While doing this, restore any half-written pages from the doublewrite buffer.
○ A clean shutdown ends with a log checkpoint, so the log would be empty.
● Resurrect non-committed transactions from the undo logs.
○ Tables referred to by the undo log records are opened.
○ This also resurrects implicit locks on all modified records, and table locks to block DDL.
○ XA PREPARE transactions will remain until explicit XA COMMIT or XA ROLLBACK.
● Initiate background ROLLBACK of active transactions.
○ Until this is completed, the locks may block some operations from new operations.
○ DBA hack: If you intend to DROP TABLE right after restart, delete the .ibd file upfront
Crash Recovery
Transaction Isolation Levels and
Multi-Version Concurrency Control
Read Views and Isolation Levels
The lowest transaction isolation level is READ UNCOMMITTED.
● Returns the newest data from the indexes, “raw” mini-transaction view.
● Indexes may appear inconsistent both with each other and internally: an
UPDATE of a key may be observed as a DELETE, with no INSERT observed.
REPEATABLE READ uses non-locking read views:
● Created on the first read of a record from an InnoDB table, or
● Explicitly by START TRANSACTION WITH CONSISTENT SNAPSHOT
READ COMMITTED is similar to REPEATABLE READ, but the read view is
● Created at the start of each statement, on the first read of an InnoDB record
Locks and Isolation Levels
The highest transaction isolation level SERIALIZABLE implies
SELECT…LOCK IN SHARE MODE
● Only a committed record can be locked. It is always the latest version.
● DELETE and UPDATE will internally do SELECT…FOR UPDATE, acquiring
explicit exclusive locks.
● INSERT initially acquires an implicit lock, identified by DB_TRX_ID pointing
to a non-committed transaction.
Read Views, Implicit Locks, and the Undo Log
InnoDB may have to read undo logs for the purposes of:
● Multi-versioned (non-locking) reads based on a read view:
○ Get the appropriate version of a record, or
○ “Unsee” a record that was inserted in the future or whose deletion is visible.
● Determining if a secondary index record is locked by an active transaction.
○ The PRIMARY KEY record is implicitly locked if DB_TRX_ID refers to an active transaction.
○ On conflict, the lock waiter will convert the implicit exclusive lock into an explicit one.
● Transaction rollback
○ Rollback to the start of statement, for example on duplicate key error
○ ROLLBACK [TO SAVEPOINT]
○ Explicit locks will be retained until the transaction is completed
○ Implicit locks are released one by one, for each rolled-back row change.
MVCC Read Views and the Undo Log
Multi-versioning concurrency control: provide non-locking reads from a virtual
‘snapshot’ that corresponds to a read view: The current DB_TRX_ID and a list
of DB_TRX_IDs that are not committed at that time.
The read view contains:
● Any changes made by the current transaction.
● Any records that were committed when the read view was created.
● No changes of transactions that were started or committed after the read
view was created.
“Too new” INSERT can be simply ignored. DELETE and UPDATE make the
previous version available by pointing to the undo log record.
MVCC Read Views in the PRIMARY Index
The hidden PRIMARY index fields DB_TRX_ID, DB_ROLL_PTR and undo log
records constitute a singly-linked list, from the newest version to the oldest.
A non-locking read iterates this list in a loop, starting from the newest version:
● If DB_TRX_ID is in the read view:
Return the record, or skip it if delete-marked.
● If DB_TRX_ID is in the future and DB_ROLL_PTR carries the “insert” flag:
Skip the record (the oldest version was inserted in the future).
● Else: Find the undo log record by DB_ROLL_PTR , construct the previous
version, go to next iteration.
MVCC Read Views and Secondary Indexes
Secondary indexes only contain a PAGE_MAX_TRX_ID.
● Secondary indexes may contain multiple (indexed_col, pk) records pointing to
a single pk, one for each value of indexed_col.
● All versions except at most one must be delete-marked.
● If a secondary index record is delete-marked, MVCC must look up pk in the
PRIMARY index and attempt to construct a version that matches indexed_col,
to determine if (indexed_col, pk) exists in the read view.
● If the PAGE_MAX_TRX_ID is too new, for each record in the secondary index
leaf page, we must look up pk.
● For old read views, secondary index scan can be very expensive!
Purging Old History
UPDATE talk SET attendees = 25 WHERE conference="M|18"
AND name="Deep Dive";
● If there were any secondary indexes that depend on the updated columns, we
delete-marked the records that contained the old values, before inserting
attendees=25. Those records should be removed eventually.
● In the primary key index, in MariaDB 10.3 we would set DB_TRX_ID=0 after
the history is no longer needed, to speed up future MVCC and locking checks.
● Also, the undo log pages are eventually freed for reuse, in a mini-transaction
Truncate undo log head.
Purging Old History
The purge threads can start removing history as soon as it is no longer visible
to any active read view.
● READ COMMITTED switches read views at the start of each statement.
● REPEATABLE READ keeps the read view until commit (or full rollback).
Undo log is by default stored in the InnoDB system tablespace (ibdata1).
● Because of purge lag, this file could grow a lot. InnoDB files never shrink!
● Open read views prevent purge from running.
● Purge lag (long History list length in SHOW ENGINE INNODB
STATUS) causes secondary indexes and undo logs to grow, and slows down
operations.
Purge Lag and Long-Running Transactions
Secondary Indexes and the Purge Lag
In the worst case, MVCC and implicit lock checks will require a clustered index
lookup for each secondary index record, followed by undo log lookups.
● Updates of indexed columns make this very expensive: O(versions·rows²).
● Ensure that purge can remove old history: Avoid long-lived read views.
● Avoid secondary index scans in long-lived read views.
● Watch the History list length in SHOW ENGINE INNODB STATUS!
Thank you!
To be continued in the other Deep Dive:
InnoDB Transactions and Replication

More Related Content

What's hot

Evolution of MySQL Parallel Replication
Evolution of MySQL Parallel Replication Evolution of MySQL Parallel Replication
Evolution of MySQL Parallel Replication
Mydbops

Presto Summit 2018 - 09 - Netflix Iceberg
Presto Summit 2018  - 09 - Netflix IcebergPresto Summit 2018  - 09 - Netflix Iceberg
Presto Summit 2018 - 09 - Netflix Iceberg
kbajda

ProxySQL for MySQL
ProxySQL for MySQLProxySQL for MySQL
ProxySQL for MySQL
Mydbops

MySQL Parallel Replication: All the 5.7 and 8.0 Details (LOGICAL_CLOCK)
MySQL Parallel Replication: All the 5.7 and 8.0 Details (LOGICAL_CLOCK)MySQL Parallel Replication: All the 5.7 and 8.0 Details (LOGICAL_CLOCK)
MySQL Parallel Replication: All the 5.7 and 8.0 Details (LOGICAL_CLOCK)
Jean-François Gagné

Apache Iceberg - A Table Format for Hige Analytic Datasets
Apache Iceberg - A Table Format for Hige Analytic DatasetsApache Iceberg - A Table Format for Hige Analytic Datasets
Apache Iceberg - A Table Format for Hige Analytic Datasets
Alluxio, Inc.

Running MariaDB in multiple data centers
Running MariaDB in multiple data centersRunning MariaDB in multiple data centers
Running MariaDB in multiple data centers
MariaDB plc

Top-10-Features-In-MySQL-8.0 - Vinoth Kanna RS - Mydbops Team
Top-10-Features-In-MySQL-8.0 - Vinoth Kanna RS - Mydbops TeamTop-10-Features-In-MySQL-8.0 - Vinoth Kanna RS - Mydbops Team
Top-10-Features-In-MySQL-8.0 - Vinoth Kanna RS - Mydbops Team
Mydbops

MySQL Administrator 2021 - 네오클로바
MySQL Administrator 2021 - 네오클로바MySQL Administrator 2021 - 네오클로바
MySQL Administrator 2021 - 네오클로바
NeoClova

ProxySQL High Availability (Clustering)
ProxySQL High Availability (Clustering)ProxySQL High Availability (Clustering)
ProxySQL High Availability (Clustering)
Mydbops

MySQL Architecture and Engine
MySQL Architecture and EngineMySQL Architecture and Engine
MySQL Architecture and Engine
Abdul Manaf

MySQL Buffer Management
MySQL Buffer ManagementMySQL Buffer Management
MySQL Buffer Management
MIJIN AN

InnoDB Locking Explained with Stick Figures
InnoDB Locking Explained with Stick FiguresInnoDB Locking Explained with Stick Figures
InnoDB Locking Explained with Stick Figures
Karwin Software Solutions LLC

Almost Perfect Service Discovery and Failover with ProxySQL and Orchestrator
Almost Perfect Service Discovery and Failover with ProxySQL and OrchestratorAlmost Perfect Service Discovery and Failover with ProxySQL and Orchestrator
Almost Perfect Service Discovery and Failover with ProxySQL and Orchestrator
Jean-François Gagné

MyRocks Deep Dive
MyRocks Deep DiveMyRocks Deep Dive
MyRocks Deep Dive
Yoshinori Matsunobu

MySQL GTID Concepts, Implementation and troubleshooting
MySQL GTID Concepts, Implementation and troubleshooting MySQL GTID Concepts, Implementation and troubleshooting
MySQL GTID Concepts, Implementation and troubleshooting
Mydbops

MySQL Parallel Replication by Booking.com
MySQL Parallel Replication by Booking.comMySQL Parallel Replication by Booking.com
MySQL Parallel Replication by Booking.com
Jean-François Gagné

DAT202_Getting started with Amazon Aurora
DAT202_Getting started with Amazon AuroraDAT202_Getting started with Amazon Aurora
DAT202_Getting started with Amazon Aurora
Amazon Web Services

MySQL8.0_performance_schema.pptx
MySQL8.0_performance_schema.pptxMySQL8.0_performance_schema.pptx
MySQL8.0_performance_schema.pptx
NeoClova

MariaDB Performance Tuning Crash Course
MariaDB Performance Tuning Crash CourseMariaDB Performance Tuning Crash Course
MariaDB Performance Tuning Crash Course
Severalnines

Query Optimization with MySQL 5.6: Old and New Tricks - Percona Live London 2013
Query Optimization with MySQL 5.6: Old and New Tricks - Percona Live London 2013Query Optimization with MySQL 5.6: Old and New Tricks - Percona Live London 2013
Query Optimization with MySQL 5.6: Old and New Tricks - Percona Live London 2013
Jaime Crespo


What's hot (20)

Evolution of MySQL Parallel Replication
Evolution of MySQL Parallel Replication Evolution of MySQL Parallel Replication
Evolution of MySQL Parallel Replication

Presto Summit 2018 - 09 - Netflix Iceberg
Presto Summit 2018  - 09 - Netflix IcebergPresto Summit 2018  - 09 - Netflix Iceberg
Presto Summit 2018 - 09 - Netflix Iceberg

ProxySQL for MySQL
ProxySQL for MySQLProxySQL for MySQL
ProxySQL for MySQL

MySQL Parallel Replication: All the 5.7 and 8.0 Details (LOGICAL_CLOCK)
MySQL Parallel Replication: All the 5.7 and 8.0 Details (LOGICAL_CLOCK)MySQL Parallel Replication: All the 5.7 and 8.0 Details (LOGICAL_CLOCK)
MySQL Parallel Replication: All the 5.7 and 8.0 Details (LOGICAL_CLOCK)

Apache Iceberg - A Table Format for Hige Analytic Datasets
Apache Iceberg - A Table Format for Hige Analytic DatasetsApache Iceberg - A Table Format for Hige Analytic Datasets
Apache Iceberg - A Table Format for Hige Analytic Datasets

Running MariaDB in multiple data centers
Running MariaDB in multiple data centersRunning MariaDB in multiple data centers
Running MariaDB in multiple data centers

Top-10-Features-In-MySQL-8.0 - Vinoth Kanna RS - Mydbops Team
Top-10-Features-In-MySQL-8.0 - Vinoth Kanna RS - Mydbops TeamTop-10-Features-In-MySQL-8.0 - Vinoth Kanna RS - Mydbops Team
Top-10-Features-In-MySQL-8.0 - Vinoth Kanna RS - Mydbops Team

MySQL Administrator 2021 - 네오클로바
MySQL Administrator 2021 - 네오클로바MySQL Administrator 2021 - 네오클로바
MySQL Administrator 2021 - 네오클로바

ProxySQL High Availability (Clustering)
ProxySQL High Availability (Clustering)ProxySQL High Availability (Clustering)
ProxySQL High Availability (Clustering)

MySQL Architecture and Engine
MySQL Architecture and EngineMySQL Architecture and Engine
MySQL Architecture and Engine

MySQL Buffer Management
MySQL Buffer ManagementMySQL Buffer Management
MySQL Buffer Management

InnoDB Locking Explained with Stick Figures
InnoDB Locking Explained with Stick FiguresInnoDB Locking Explained with Stick Figures
InnoDB Locking Explained with Stick Figures

Almost Perfect Service Discovery and Failover with ProxySQL and Orchestrator
Almost Perfect Service Discovery and Failover with ProxySQL and OrchestratorAlmost Perfect Service Discovery and Failover with ProxySQL and Orchestrator
Almost Perfect Service Discovery and Failover with ProxySQL and Orchestrator

MyRocks Deep Dive
MyRocks Deep DiveMyRocks Deep Dive
MyRocks Deep Dive

MySQL GTID Concepts, Implementation and troubleshooting
MySQL GTID Concepts, Implementation and troubleshooting MySQL GTID Concepts, Implementation and troubleshooting
MySQL GTID Concepts, Implementation and troubleshooting

MySQL Parallel Replication by Booking.com
MySQL Parallel Replication by Booking.comMySQL Parallel Replication by Booking.com
MySQL Parallel Replication by Booking.com

DAT202_Getting started with Amazon Aurora
DAT202_Getting started with Amazon AuroraDAT202_Getting started with Amazon Aurora
DAT202_Getting started with Amazon Aurora

MySQL8.0_performance_schema.pptx
MySQL8.0_performance_schema.pptxMySQL8.0_performance_schema.pptx
MySQL8.0_performance_schema.pptx

MariaDB Performance Tuning Crash Course
MariaDB Performance Tuning Crash CourseMariaDB Performance Tuning Crash Course
MariaDB Performance Tuning Crash Course

Query Optimization with MySQL 5.6: Old and New Tricks - Percona Live London 2013
Query Optimization with MySQL 5.6: Old and New Tricks - Percona Live London 2013Query Optimization with MySQL 5.6: Old and New Tricks - Percona Live London 2013
Query Optimization with MySQL 5.6: Old and New Tricks - Percona Live London 2013


Similar to M|18 Deep Dive: InnoDB Transactions and Write Paths

Faster, better, stronger: The new InnoDB
Faster, better, stronger: The new InnoDBFaster, better, stronger: The new InnoDB
Faster, better, stronger: The new InnoDB
MariaDB plc

cPanelCon 2014: InnoDB Anatomy
cPanelCon 2014: InnoDB AnatomycPanelCon 2014: InnoDB Anatomy
cPanelCon 2014: InnoDB Anatomy
Ryan Robson

MySQL Parallel Replication: inventory, use-case and limitations
MySQL Parallel Replication: inventory, use-case and limitationsMySQL Parallel Replication: inventory, use-case and limitations
MySQL Parallel Replication: inventory, use-case and limitations
Jean-François Gagné

Inno db datafiles backup and retore
Inno db datafiles backup and retoreInno db datafiles backup and retore
Inno db datafiles backup and retore
Vasudeva Rao

MySQL and MariaDB Backups
MySQL and MariaDB BackupsMySQL and MariaDB Backups
MySQL and MariaDB Backups
Federico Razzoli

MySQL Parallel Replication: inventory, use-cases and limitations
MySQL Parallel Replication: inventory, use-cases and limitationsMySQL Parallel Replication: inventory, use-cases and limitations
MySQL Parallel Replication: inventory, use-cases and limitations
Jean-François Gagné

Webinar Slides: Migrating to Galera Cluster
Webinar Slides: Migrating to Galera ClusterWebinar Slides: Migrating to Galera Cluster
Webinar Slides: Migrating to Galera Cluster
Severalnines

Percona 服务器与 XtraDB 存储引擎
Percona 服务器与 XtraDB 存储引擎Percona 服务器与 XtraDB 存储引擎
Percona 服务器与 XtraDB 存储引擎
YUCHENG HU

InnoDB: архитектура транзакционного хранилища (Константин Осипов)
InnoDB: архитектура транзакционного хранилища (Константин Осипов)InnoDB: архитектура транзакционного хранилища (Константин Осипов)
InnoDB: архитектура транзакционного хранилища (Константин Осипов)
Ontico

InnoDB Scalability improvements in MySQL 8.0
InnoDB Scalability improvements in MySQL 8.0InnoDB Scalability improvements in MySQL 8.0
InnoDB Scalability improvements in MySQL 8.0
Mydbops

Ramp-Tutorial for MYSQL Cluster - Scaling with Continuous Availability
Ramp-Tutorial for MYSQL Cluster - Scaling with Continuous AvailabilityRamp-Tutorial for MYSQL Cluster - Scaling with Continuous Availability
Ramp-Tutorial for MYSQL Cluster - Scaling with Continuous Availability
Pythian

MySQL Parallel Replication: inventory, use-case and limitations
MySQL Parallel Replication: inventory, use-case and limitationsMySQL Parallel Replication: inventory, use-case and limitations
MySQL Parallel Replication: inventory, use-case and limitations
Jean-François Gagné

jacobs_tuuri_performance
jacobs_tuuri_performancejacobs_tuuri_performance
jacobs_tuuri_performance
Hiroshi Ono

Transaction unit 1 topic 4
Transaction unit 1 topic 4Transaction unit 1 topic 4
Transaction unit 1 topic 4
avniS

Microsoft Hekaton
Microsoft HekatonMicrosoft Hekaton
Microsoft Hekaton
Siraj Memon

Introduction to redis - version 2
Introduction to redis - version 2Introduction to redis - version 2
Introduction to redis - version 2
Dvir Volk

MySQL/MariaDB Parallel Replication: inventory, use-case and limitations
MySQL/MariaDB Parallel Replication: inventory, use-case and limitationsMySQL/MariaDB Parallel Replication: inventory, use-case and limitations
MySQL/MariaDB Parallel Replication: inventory, use-case and limitations
Jean-François Gagné

Percona XtraBackup - New Features and Improvements
Percona XtraBackup - New Features and ImprovementsPercona XtraBackup - New Features and Improvements
Percona XtraBackup - New Features and Improvements
Marcelo Altmann

Kafka’s New Control Plane: The Quorum Controller | Colin McCabe, Confluent
Kafka’s New Control Plane: The Quorum Controller | Colin McCabe, ConfluentKafka’s New Control Plane: The Quorum Controller | Colin McCabe, Confluent
Kafka’s New Control Plane: The Quorum Controller | Colin McCabe, Confluent
HostedbyConfluent

MariaDB MaxScale: an Intelligent Database Proxy
MariaDB MaxScale:  an Intelligent Database ProxyMariaDB MaxScale:  an Intelligent Database Proxy
MariaDB MaxScale: an Intelligent Database Proxy
Markus Mäkelä


Similar to M|18 Deep Dive: InnoDB Transactions and Write Paths (20)

Faster, better, stronger: The new InnoDB
Faster, better, stronger: The new InnoDBFaster, better, stronger: The new InnoDB
Faster, better, stronger: The new InnoDB

cPanelCon 2014: InnoDB Anatomy
cPanelCon 2014: InnoDB AnatomycPanelCon 2014: InnoDB Anatomy
cPanelCon 2014: InnoDB Anatomy

MySQL Parallel Replication: inventory, use-case and limitations
MySQL Parallel Replication: inventory, use-case and limitationsMySQL Parallel Replication: inventory, use-case and limitations
MySQL Parallel Replication: inventory, use-case and limitations

Inno db datafiles backup and retore
Inno db datafiles backup and retoreInno db datafiles backup and retore
Inno db datafiles backup and retore

MySQL and MariaDB Backups
MySQL and MariaDB BackupsMySQL and MariaDB Backups
MySQL and MariaDB Backups

MySQL Parallel Replication: inventory, use-cases and limitations
MySQL Parallel Replication: inventory, use-cases and limitationsMySQL Parallel Replication: inventory, use-cases and limitations
MySQL Parallel Replication: inventory, use-cases and limitations

Webinar Slides: Migrating to Galera Cluster
Webinar Slides: Migrating to Galera ClusterWebinar Slides: Migrating to Galera Cluster
Webinar Slides: Migrating to Galera Cluster

Percona 服务器与 XtraDB 存储引擎
Percona 服务器与 XtraDB 存储引擎Percona 服务器与 XtraDB 存储引擎
Percona 服务器与 XtraDB 存储引擎

InnoDB: архитектура транзакционного хранилища (Константин Осипов)
InnoDB: архитектура транзакционного хранилища (Константин Осипов)InnoDB: архитектура транзакционного хранилища (Константин Осипов)
InnoDB: архитектура транзакционного хранилища (Константин Осипов)

InnoDB Scalability improvements in MySQL 8.0
InnoDB Scalability improvements in MySQL 8.0InnoDB Scalability improvements in MySQL 8.0
InnoDB Scalability improvements in MySQL 8.0

Ramp-Tutorial for MYSQL Cluster - Scaling with Continuous Availability
Ramp-Tutorial for MYSQL Cluster - Scaling with Continuous AvailabilityRamp-Tutorial for MYSQL Cluster - Scaling with Continuous Availability
Ramp-Tutorial for MYSQL Cluster - Scaling with Continuous Availability

MySQL Parallel Replication: inventory, use-case and limitations
MySQL Parallel Replication: inventory, use-case and limitationsMySQL Parallel Replication: inventory, use-case and limitations
MySQL Parallel Replication: inventory, use-case and limitations

jacobs_tuuri_performance
jacobs_tuuri_performancejacobs_tuuri_performance
jacobs_tuuri_performance

Transaction unit 1 topic 4
Transaction unit 1 topic 4Transaction unit 1 topic 4
Transaction unit 1 topic 4

Microsoft Hekaton
Microsoft HekatonMicrosoft Hekaton
Microsoft Hekaton

Introduction to redis - version 2
Introduction to redis - version 2Introduction to redis - version 2
Introduction to redis - version 2

MySQL/MariaDB Parallel Replication: inventory, use-case and limitations
MySQL/MariaDB Parallel Replication: inventory, use-case and limitationsMySQL/MariaDB Parallel Replication: inventory, use-case and limitations
MySQL/MariaDB Parallel Replication: inventory, use-case and limitations

Percona XtraBackup - New Features and Improvements
Percona XtraBackup - New Features and ImprovementsPercona XtraBackup - New Features and Improvements
Percona XtraBackup - New Features and Improvements

Kafka’s New Control Plane: The Quorum Controller | Colin McCabe, Confluent
Kafka’s New Control Plane: The Quorum Controller | Colin McCabe, ConfluentKafka’s New Control Plane: The Quorum Controller | Colin McCabe, Confluent
Kafka’s New Control Plane: The Quorum Controller | Colin McCabe, Confluent

MariaDB MaxScale: an Intelligent Database Proxy
MariaDB MaxScale:  an Intelligent Database ProxyMariaDB MaxScale:  an Intelligent Database Proxy
MariaDB MaxScale: an Intelligent Database Proxy


More from MariaDB plc

MariaDB Paris Workshop 2023 - MaxScale 23.02.x
MariaDB Paris Workshop 2023 - MaxScale 23.02.xMariaDB Paris Workshop 2023 - MaxScale 23.02.x
MariaDB Paris Workshop 2023 - MaxScale 23.02.x
MariaDB plc

MariaDB Paris Workshop 2023 - Newpharma
MariaDB Paris Workshop 2023 - NewpharmaMariaDB Paris Workshop 2023 - Newpharma
MariaDB Paris Workshop 2023 - Newpharma
MariaDB plc

MariaDB Paris Workshop 2023 - Cloud
MariaDB Paris Workshop 2023 - CloudMariaDB Paris Workshop 2023 - Cloud
MariaDB Paris Workshop 2023 - Cloud
MariaDB plc

MariaDB Paris Workshop 2023 - MariaDB Enterprise
MariaDB Paris Workshop 2023 - MariaDB EnterpriseMariaDB Paris Workshop 2023 - MariaDB Enterprise
MariaDB Paris Workshop 2023 - MariaDB Enterprise
MariaDB plc

MariaDB Paris Workshop 2023 - Performance Optimization
MariaDB Paris Workshop 2023 - Performance OptimizationMariaDB Paris Workshop 2023 - Performance Optimization
MariaDB Paris Workshop 2023 - Performance Optimization
MariaDB plc

MariaDB Paris Workshop 2023 - MaxScale
MariaDB Paris Workshop 2023 - MaxScale MariaDB Paris Workshop 2023 - MaxScale
MariaDB Paris Workshop 2023 - MaxScale
MariaDB plc

MariaDB Paris Workshop 2023 - novadys presentation
MariaDB Paris Workshop 2023 - novadys presentationMariaDB Paris Workshop 2023 - novadys presentation
MariaDB Paris Workshop 2023 - novadys presentation
MariaDB plc

MariaDB Paris Workshop 2023 - DARVA presentation
MariaDB Paris Workshop 2023 - DARVA presentationMariaDB Paris Workshop 2023 - DARVA presentation
MariaDB Paris Workshop 2023 - DARVA presentation
MariaDB plc

MariaDB Tech und Business Update Hamburg 2023 - MariaDB Enterprise Server
MariaDB Tech und Business Update Hamburg 2023 - MariaDB Enterprise Server MariaDB Tech und Business Update Hamburg 2023 - MariaDB Enterprise Server
MariaDB Tech und Business Update Hamburg 2023 - MariaDB Enterprise Server
MariaDB plc

MariaDB SkySQL Autonome Skalierung, Observability, Cloud-Backup
MariaDB SkySQL Autonome Skalierung, Observability, Cloud-BackupMariaDB SkySQL Autonome Skalierung, Observability, Cloud-Backup
MariaDB SkySQL Autonome Skalierung, Observability, Cloud-Backup
MariaDB plc

Einführung : MariaDB Tech und Business Update Hamburg 2023
Einführung : MariaDB Tech und Business Update Hamburg 2023Einführung : MariaDB Tech und Business Update Hamburg 2023
Einführung : MariaDB Tech und Business Update Hamburg 2023
MariaDB plc

Hochverfügbarkeitslösungen mit MariaDB
Hochverfügbarkeitslösungen mit MariaDBHochverfügbarkeitslösungen mit MariaDB
Hochverfügbarkeitslösungen mit MariaDB
MariaDB plc

Die Neuheiten in MariaDB Enterprise Server
Die Neuheiten in MariaDB Enterprise ServerDie Neuheiten in MariaDB Enterprise Server
Die Neuheiten in MariaDB Enterprise Server
MariaDB plc

Global Data Replication with Galera for Ansell Guardian®
Global Data Replication with Galera for Ansell Guardian®Global Data Replication with Galera for Ansell Guardian®
Global Data Replication with Galera for Ansell Guardian®
MariaDB plc

Introducing workload analysis
Introducing workload analysisIntroducing workload analysis
Introducing workload analysis
MariaDB plc

Under the hood: SkySQL monitoring
Under the hood: SkySQL monitoringUnder the hood: SkySQL monitoring
Under the hood: SkySQL monitoring
MariaDB plc

Introducing the R2DBC async Java connector
Introducing the R2DBC async Java connectorIntroducing the R2DBC async Java connector
Introducing the R2DBC async Java connector
MariaDB plc

MariaDB Enterprise Tools introduction
MariaDB Enterprise Tools introductionMariaDB Enterprise Tools introduction
MariaDB Enterprise Tools introduction
MariaDB plc

The architecture of SkySQL
The architecture of SkySQLThe architecture of SkySQL
The architecture of SkySQL
MariaDB plc

What to expect from MariaDB Platform X5, part 1
What to expect from MariaDB Platform X5, part 1What to expect from MariaDB Platform X5, part 1
What to expect from MariaDB Platform X5, part 1
MariaDB plc


More from MariaDB plc (20)

MariaDB Paris Workshop 2023 - MaxScale 23.02.x
MariaDB Paris Workshop 2023 - MaxScale 23.02.xMariaDB Paris Workshop 2023 - MaxScale 23.02.x
MariaDB Paris Workshop 2023 - MaxScale 23.02.x

MariaDB Paris Workshop 2023 - Newpharma
MariaDB Paris Workshop 2023 - NewpharmaMariaDB Paris Workshop 2023 - Newpharma
MariaDB Paris Workshop 2023 - Newpharma

MariaDB Paris Workshop 2023 - Cloud
MariaDB Paris Workshop 2023 - CloudMariaDB Paris Workshop 2023 - Cloud
MariaDB Paris Workshop 2023 - Cloud

MariaDB Paris Workshop 2023 - MariaDB Enterprise
MariaDB Paris Workshop 2023 - MariaDB EnterpriseMariaDB Paris Workshop 2023 - MariaDB Enterprise
MariaDB Paris Workshop 2023 - MariaDB Enterprise

MariaDB Paris Workshop 2023 - Performance Optimization
MariaDB Paris Workshop 2023 - Performance OptimizationMariaDB Paris Workshop 2023 - Performance Optimization
MariaDB Paris Workshop 2023 - Performance Optimization

MariaDB Paris Workshop 2023 - MaxScale
MariaDB Paris Workshop 2023 - MaxScale MariaDB Paris Workshop 2023 - MaxScale
MariaDB Paris Workshop 2023 - MaxScale

MariaDB Paris Workshop 2023 - novadys presentation
MariaDB Paris Workshop 2023 - novadys presentationMariaDB Paris Workshop 2023 - novadys presentation
MariaDB Paris Workshop 2023 - novadys presentation

MariaDB Paris Workshop 2023 - DARVA presentation
MariaDB Paris Workshop 2023 - DARVA presentationMariaDB Paris Workshop 2023 - DARVA presentation
MariaDB Paris Workshop 2023 - DARVA presentation

MariaDB Tech und Business Update Hamburg 2023 - MariaDB Enterprise Server
MariaDB Tech und Business Update Hamburg 2023 - MariaDB Enterprise Server MariaDB Tech und Business Update Hamburg 2023 - MariaDB Enterprise Server
MariaDB Tech und Business Update Hamburg 2023 - MariaDB Enterprise Server

MariaDB SkySQL Autonome Skalierung, Observability, Cloud-Backup
MariaDB SkySQL Autonome Skalierung, Observability, Cloud-BackupMariaDB SkySQL Autonome Skalierung, Observability, Cloud-Backup
MariaDB SkySQL Autonome Skalierung, Observability, Cloud-Backup

Einführung : MariaDB Tech und Business Update Hamburg 2023
Einführung : MariaDB Tech und Business Update Hamburg 2023Einführung : MariaDB Tech und Business Update Hamburg 2023
Einführung : MariaDB Tech und Business Update Hamburg 2023

Hochverfügbarkeitslösungen mit MariaDB
Hochverfügbarkeitslösungen mit MariaDBHochverfügbarkeitslösungen mit MariaDB
Hochverfügbarkeitslösungen mit MariaDB

Die Neuheiten in MariaDB Enterprise Server
Die Neuheiten in MariaDB Enterprise ServerDie Neuheiten in MariaDB Enterprise Server
Die Neuheiten in MariaDB Enterprise Server

Global Data Replication with Galera for Ansell Guardian®
Global Data Replication with Galera for Ansell Guardian®Global Data Replication with Galera for Ansell Guardian®
Global Data Replication with Galera for Ansell Guardian®

Introducing workload analysis
Introducing workload analysisIntroducing workload analysis
Introducing workload analysis

Under the hood: SkySQL monitoring
Under the hood: SkySQL monitoringUnder the hood: SkySQL monitoring
Under the hood: SkySQL monitoring

Introducing the R2DBC async Java connector
Introducing the R2DBC async Java connectorIntroducing the R2DBC async Java connector
Introducing the R2DBC async Java connector

MariaDB Enterprise Tools introduction
MariaDB Enterprise Tools introductionMariaDB Enterprise Tools introduction
MariaDB Enterprise Tools introduction

The architecture of SkySQL
The architecture of SkySQLThe architecture of SkySQL
The architecture of SkySQL

What to expect from MariaDB Platform X5, part 1
What to expect from MariaDB Platform X5, part 1What to expect from MariaDB Platform X5, part 1
What to expect from MariaDB Platform X5, part 1


Recently uploaded

一比一原版澳洲西澳大学毕业证(uwa毕业证书)如何办理
一比一原版澳洲西澳大学毕业证(uwa毕业证书)如何办理一比一原版澳洲西澳大学毕业证(uwa毕业证书)如何办理
一比一原版澳洲西澳大学毕业证(uwa毕业证书)如何办理
aguty

一比一原版(曼大毕业证书)曼尼托巴大学毕业证如何办理
一比一原版(曼大毕业证书)曼尼托巴大学毕业证如何办理一比一原版(曼大毕业证书)曼尼托巴大学毕业证如何办理
一比一原版(曼大毕业证书)曼尼托巴大学毕业证如何办理
ytypuem

一比一原版多伦多大学毕业证(UofT毕业证书)学历如何办理
一比一原版多伦多大学毕业证(UofT毕业证书)学历如何办理一比一原版多伦多大学毕业证(UofT毕业证书)学历如何办理
一比一原版多伦多大学毕业证(UofT毕业证书)学历如何办理
eoxhsaa

University of New South Wales degree offer diploma Transcript
University of New South Wales degree offer diploma TranscriptUniversity of New South Wales degree offer diploma Transcript
University of New South Wales degree offer diploma Transcript
soxrziqu

在线办理(英国UCA毕业证书)创意艺术大学毕业证在读证明一模一样
在线办理(英国UCA毕业证书)创意艺术大学毕业证在读证明一模一样在线办理(英国UCA毕业证书)创意艺术大学毕业证在读证明一模一样
在线办理(英国UCA毕业证书)创意艺术大学毕业证在读证明一模一样
v7oacc3l

DSSML24_tspann_CodelessGenerativeAIPipelines
DSSML24_tspann_CodelessGenerativeAIPipelinesDSSML24_tspann_CodelessGenerativeAIPipelines
DSSML24_tspann_CodelessGenerativeAIPipelines
Timothy Spann

一比一原版(UO毕业证)渥太华大学毕业证如何办理
一比一原版(UO毕业证)渥太华大学毕业证如何办理一比一原版(UO毕业证)渥太华大学毕业证如何办理
一比一原版(UO毕业证)渥太华大学毕业证如何办理
bmucuha

Building a Quantum Computer Neutral Atom.pdf
Building a Quantum Computer Neutral Atom.pdfBuilding a Quantum Computer Neutral Atom.pdf
Building a Quantum Computer Neutral Atom.pdf
cjimenez2581

Beyond the Basics of A/B Tests: Highly Innovative Experimentation Tactics You...
Beyond the Basics of A/B Tests: Highly Innovative Experimentation Tactics You...Beyond the Basics of A/B Tests: Highly Innovative Experimentation Tactics You...
Beyond the Basics of A/B Tests: Highly Innovative Experimentation Tactics You...
Aggregage

一比一原版(harvard毕业证书)哈佛大学毕业证如何办理
一比一原版(harvard毕业证书)哈佛大学毕业证如何办理一比一原版(harvard毕业证书)哈佛大学毕业证如何办理
一比一原版(harvard毕业证书)哈佛大学毕业证如何办理
taqyea

Cell The Unit of Life for NEET Multiple Choice Questions.docx
Cell The Unit of Life for NEET Multiple Choice Questions.docxCell The Unit of Life for NEET Multiple Choice Questions.docx
Cell The Unit of Life for NEET Multiple Choice Questions.docx
vasanthatpuram

一比一原版(UCSF文凭证书)旧金山分校毕业证如何办理
一比一原版(UCSF文凭证书)旧金山分校毕业证如何办理一比一原版(UCSF文凭证书)旧金山分校毕业证如何办理
一比一原版(UCSF文凭证书)旧金山分校毕业证如何办理
nuttdpt

writing report business partner b1+ .pdf
writing report business partner b1+ .pdfwriting report business partner b1+ .pdf
writing report business partner b1+ .pdf
VyNguyen709676

一比一原版(GWU,GW文凭证书)乔治·华盛顿大学毕业证如何办理
一比一原版(GWU,GW文凭证书)乔治·华盛顿大学毕业证如何办理一比一原版(GWU,GW文凭证书)乔治·华盛顿大学毕业证如何办理
一比一原版(GWU,GW文凭证书)乔治·华盛顿大学毕业证如何办理
bopyb

一比一原版兰加拉学院毕业证(Langara毕业证书)学历如何办理
一比一原版兰加拉学院毕业证(Langara毕业证书)学历如何办理一比一原版兰加拉学院毕业证(Langara毕业证书)学历如何办理
一比一原版兰加拉学院毕业证(Langara毕业证书)学历如何办理
hyfjgavov

一比一原版英国赫特福德大学毕业证(hertfordshire毕业证书)如何办理
一比一原版英国赫特福德大学毕业证(hertfordshire毕业证书)如何办理一比一原版英国赫特福德大学毕业证(hertfordshire毕业证书)如何办理
一比一原版英国赫特福德大学毕业证(hertfordshire毕业证书)如何办理
nyvan3

一比一原版英属哥伦比亚大学毕业证(UBC毕业证书)学历如何办理
一比一原版英属哥伦比亚大学毕业证(UBC毕业证书)学历如何办理一比一原版英属哥伦比亚大学毕业证(UBC毕业证书)学历如何办理
一比一原版英属哥伦比亚大学毕业证(UBC毕业证书)学历如何办理
z6osjkqvd

Jio cinema Retention & Engagement Strategy.pdf
Jio cinema Retention & Engagement Strategy.pdfJio cinema Retention & Engagement Strategy.pdf
Jio cinema Retention & Engagement Strategy.pdf
inaya7568

Open Source Contributions to Postgres: The Basics POSETTE 2024
Open Source Contributions to Postgres: The Basics POSETTE 2024Open Source Contributions to Postgres: The Basics POSETTE 2024
Open Source Contributions to Postgres: The Basics POSETTE 2024
ElizabethGarrettChri

06-12-2024-BudapestDataForum-BuildingReal-timePipelineswithFLaNK AIM
06-12-2024-BudapestDataForum-BuildingReal-timePipelineswithFLaNK AIM06-12-2024-BudapestDataForum-BuildingReal-timePipelineswithFLaNK AIM
06-12-2024-BudapestDataForum-BuildingReal-timePipelineswithFLaNK AIM
Timothy Spann


Recently uploaded (20)

一比一原版澳洲西澳大学毕业证(uwa毕业证书)如何办理
一比一原版澳洲西澳大学毕业证(uwa毕业证书)如何办理一比一原版澳洲西澳大学毕业证(uwa毕业证书)如何办理
一比一原版澳洲西澳大学毕业证(uwa毕业证书)如何办理

一比一原版(曼大毕业证书)曼尼托巴大学毕业证如何办理
一比一原版(曼大毕业证书)曼尼托巴大学毕业证如何办理一比一原版(曼大毕业证书)曼尼托巴大学毕业证如何办理
一比一原版(曼大毕业证书)曼尼托巴大学毕业证如何办理

一比一原版多伦多大学毕业证(UofT毕业证书)学历如何办理
一比一原版多伦多大学毕业证(UofT毕业证书)学历如何办理一比一原版多伦多大学毕业证(UofT毕业证书)学历如何办理
一比一原版多伦多大学毕业证(UofT毕业证书)学历如何办理

University of New South Wales degree offer diploma Transcript
University of New South Wales degree offer diploma TranscriptUniversity of New South Wales degree offer diploma Transcript
University of New South Wales degree offer diploma Transcript

在线办理(英国UCA毕业证书)创意艺术大学毕业证在读证明一模一样
在线办理(英国UCA毕业证书)创意艺术大学毕业证在读证明一模一样在线办理(英国UCA毕业证书)创意艺术大学毕业证在读证明一模一样
在线办理(英国UCA毕业证书)创意艺术大学毕业证在读证明一模一样

DSSML24_tspann_CodelessGenerativeAIPipelines
DSSML24_tspann_CodelessGenerativeAIPipelinesDSSML24_tspann_CodelessGenerativeAIPipelines
DSSML24_tspann_CodelessGenerativeAIPipelines

一比一原版(UO毕业证)渥太华大学毕业证如何办理
一比一原版(UO毕业证)渥太华大学毕业证如何办理一比一原版(UO毕业证)渥太华大学毕业证如何办理
一比一原版(UO毕业证)渥太华大学毕业证如何办理

Building a Quantum Computer Neutral Atom.pdf
Building a Quantum Computer Neutral Atom.pdfBuilding a Quantum Computer Neutral Atom.pdf
Building a Quantum Computer Neutral Atom.pdf

Beyond the Basics of A/B Tests: Highly Innovative Experimentation Tactics You...
Beyond the Basics of A/B Tests: Highly Innovative Experimentation Tactics You...Beyond the Basics of A/B Tests: Highly Innovative Experimentation Tactics You...
Beyond the Basics of A/B Tests: Highly Innovative Experimentation Tactics You...

一比一原版(harvard毕业证书)哈佛大学毕业证如何办理
一比一原版(harvard毕业证书)哈佛大学毕业证如何办理一比一原版(harvard毕业证书)哈佛大学毕业证如何办理
一比一原版(harvard毕业证书)哈佛大学毕业证如何办理

Cell The Unit of Life for NEET Multiple Choice Questions.docx
Cell The Unit of Life for NEET Multiple Choice Questions.docxCell The Unit of Life for NEET Multiple Choice Questions.docx
Cell The Unit of Life for NEET Multiple Choice Questions.docx

一比一原版(UCSF文凭证书)旧金山分校毕业证如何办理
一比一原版(UCSF文凭证书)旧金山分校毕业证如何办理一比一原版(UCSF文凭证书)旧金山分校毕业证如何办理
一比一原版(UCSF文凭证书)旧金山分校毕业证如何办理

writing report business partner b1+ .pdf
writing report business partner b1+ .pdfwriting report business partner b1+ .pdf
writing report business partner b1+ .pdf

一比一原版(GWU,GW文凭证书)乔治·华盛顿大学毕业证如何办理
一比一原版(GWU,GW文凭证书)乔治·华盛顿大学毕业证如何办理一比一原版(GWU,GW文凭证书)乔治·华盛顿大学毕业证如何办理
一比一原版(GWU,GW文凭证书)乔治·华盛顿大学毕业证如何办理

一比一原版兰加拉学院毕业证(Langara毕业证书)学历如何办理
一比一原版兰加拉学院毕业证(Langara毕业证书)学历如何办理一比一原版兰加拉学院毕业证(Langara毕业证书)学历如何办理
一比一原版兰加拉学院毕业证(Langara毕业证书)学历如何办理

一比一原版英国赫特福德大学毕业证(hertfordshire毕业证书)如何办理
一比一原版英国赫特福德大学毕业证(hertfordshire毕业证书)如何办理一比一原版英国赫特福德大学毕业证(hertfordshire毕业证书)如何办理
一比一原版英国赫特福德大学毕业证(hertfordshire毕业证书)如何办理

一比一原版英属哥伦比亚大学毕业证(UBC毕业证书)学历如何办理
一比一原版英属哥伦比亚大学毕业证(UBC毕业证书)学历如何办理一比一原版英属哥伦比亚大学毕业证(UBC毕业证书)学历如何办理
一比一原版英属哥伦比亚大学毕业证(UBC毕业证书)学历如何办理

Jio cinema Retention & Engagement Strategy.pdf
Jio cinema Retention & Engagement Strategy.pdfJio cinema Retention & Engagement Strategy.pdf
Jio cinema Retention & Engagement Strategy.pdf

Open Source Contributions to Postgres: The Basics POSETTE 2024
Open Source Contributions to Postgres: The Basics POSETTE 2024Open Source Contributions to Postgres: The Basics POSETTE 2024
Open Source Contributions to Postgres: The Basics POSETTE 2024

06-12-2024-BudapestDataForum-BuildingReal-timePipelineswithFLaNK AIM
06-12-2024-BudapestDataForum-BuildingReal-timePipelineswithFLaNK AIM06-12-2024-BudapestDataForum-BuildingReal-timePipelineswithFLaNK AIM
06-12-2024-BudapestDataForum-BuildingReal-timePipelineswithFLaNK AIM


M|18 Deep Dive: InnoDB Transactions and Write Paths

  • 1. Deep Dive: InnoDB Transactions and Write Paths From the client connection to physical storage Marko Mäkelä, Lead Developer InnoDB Michaël de Groot, MariaDB Consultant
  • 2. InnoDB Concepts A mini-transaction is an atomic set of page reads or writes, with write-ahead redo log. A transaction writes undo log before modifying indexes. The read view of a transaction may access the undo logs of newer transactions to retrieve old versions. Purge may remove old undo logs and delete-marked records once no read view needs them. Some terms that an Advanced DBA should be familiar with
  • 4. A Comparison to the OSI Model (Upper Layers) The Open Systems Interconnection Model 7. Application layer ● Example: HTML5 web application ● Example: apt update; apt upgrade 6. Presentation layer ● XML, HTML, CSS, … ● JSON, BSON, … ● ASN.1 BER, … 5. Session layer ● SSL, TLS ● Web browser cookies, … Some layers inside the MariaDB Server: 7. client connection ● Encrypted or cleartext ● Direct or via proxy 6. SQL ● Parser ● Access control ● Query optimization & execution 5. Storage engine interface ● Transactions: start, commit, rollback ● Tables: open, close, read, write
  • 5. A Comparison to the OSI Model (Lower Layers) The Open Systems Interconnection Model 4. Transport layer ● TCP/IP turns packets into reliable streams ● Retransmission, flow control 3. Network layer ● router/switch ● IP, ICMP, UDP, BGP, DNS, … 2. Data link ● Packet framing ● Checksums 1. Physical ● MAC: CSMA/CD, CSMA/CA, … ● LAN, WLAN, ATM, RS-232, … InnoDB Storage Engine 4. Transaction ● Atomic, Consistent, Isolated access to multiple tables via Locks & Read Views ● XA 2PC (distributed transactions by user, or binlog-driven for cross-engine commit) 3. Mini-transaction ● Atomic, Durable multi-page changes ● Page checksums, crash recovery 2. Operating System (file system, block device) ● Ext4, XFS, ZFS, NFS, … 1. Hardware/Firmware (physical storage) ● Hard disk, SSD, NVRAM, …
  • 6. SQL and storage engine interface (5-6)
  • 7. Step 1: SQL Layer UPDATE talk SET attendees = 25 WHERE conference="M|18" AND name="Deep Dive"; ● Constructs a parse tree. ● Checks for permissions. ● Acquires metadata lock on the table name (prevent DDL) and opens the table. ● Retrieves index cardinality statistics from the storage engine(s). ● Constructs a query execution plan.
  • 8. Step 2a: Read via the Storage Engine Interface UPDATE talk SET attendees = 25 WHERE conference="M|18" AND name="Deep Dive"; ● Find the matching record(s) via the chosen index (secondary index or primary key index), either via lookup or index scan. ● On the very first read, InnoDB will lazily start a transaction: ○ Assign a new DB_TRX_ID (incrementing number global in InnoDB) ○ No read view is needed, because this is a locking operation.
  • 9. Step 2b: Filtering the Rows UPDATE talk SET attendees = 25 WHERE conference="M|18" AND name="Deep Dive"; ● If the WHERE condition can only be satisfied by range scan or table scan, we will have to filter out non-matching rows. ○ If Index Condition Pushdown is used, InnoDB evaluates the predicate and filters rows. ○ Else, InnoDB will return every record one by one, and the SQL layer will decide what to do. ● After returning a single record, a new mini-transaction has to be started ○ Repositioning the cursor (search for a key) is moderately expensive ○ Optimization: After 4 separate reads, InnoDB will prefetch 8 rows (could be improved)
  • 10. Step 2c: Locking the rows ● InnoDB will write-lock each index leaf read ○ Note: InnoDB has no “table row locks”, but “record locks” in each index separately. ○ If using index condition pushdown, non-matching records are not locked. ● All records that may be changed are locked exclusively ○ When using a secondary index, all possibly matching records stay locked ○ Depending on the isolation level, InnoDB may unlock non-matching rows in primary key scan (MySQL Bug #3300, “semi-consistent read”) ○ Updates with a WHERE condition on PRIMARY KEY are faster!
  • 12. InnoDB Transaction Layer The InnoDB transaction layer relies on atomically updated data pages forming persistent data structures: ● Page allocation bitmap, index trees, undo log directories, undo logs ● Undo logs are the glue that make the indexes of a table look consistent. ● On startup, any pending transactions (with implicit locks) will be recovered from undo logs. ○ Locks will be kept until incomplete transactions are rolled back, or ○ When found in binlog after InnoDB recovery completes, or ○ until explicit XA COMMIT or XA ROLLBACK. ● InnoDB supports non-locking reads (multi-versioning concurrency control) by read view ‘snapshots’ that are based on undo logs.
  • 13. 128 B-tree root page B-tree leaf page DB_ROLL_PTR A Page View of the InnoDB Transaction Layer TRX_SYS Page (ibdata1) Rollback segment header page Table .ibd Index History List (to-purge committed) Uncommitted transactions (pkN,child page) (pkM,child page) B-tree internal page (pkN1,child page) (pkN2,child page) (pk2,DB_TRX_ID,DB_ROLL_PTR,cols) (pk1,DB_TRX_ID,DB_ROLL_PTR,cols) Undo Log (linked list of pages) Undo Log (linked list of pages)
  • 14. DB_TRX_ID and DB_ROLL_PTR ● DB_TRX_ID is an increasing sequence number, global in InnoDB ○ Each user transaction (except read-only non-locking) gets a new one, upon transaction create ○ While other transaction ids (GTID, binlog position) are in commit order, this transaction id is in create order ○ Each record has metadata with its current DB_TRX_ID ○ If the DB_TRX_ID is in a list of uncommitted transactions, there is an implicit lock ● DB_ROLL_PTR is a pointer to the undo log record of the previous version ○ Stored in the record's metadata (hidden column in the clustered index) ○ Or a flag in it is set, meaning that there is no previous version (the record was inserted)
  • 15. Step 3a: Creating undo log records ● On the first write, the transaction is created in the buffer pool: ○ Create or reuse a page (same size as other pages) ○ Create undo log header, update undo log directory (also known as “rollback segment page”). ○ Done in separate mini-transaction from undo log record write; optimized away in MariaDB 10.3 ● Undo log pages are normal data pages: They can fill up and get persisted ● All changes of the same transaction are added to the same undo log page(s) ● Writing each undo log record means (in a mini-transaction): ○ Append to last undo page, or allocate a new undo page and write the record there. ○ InnoDB writes each undo log in advance, before updating each index affected by the row operation. ● Undo log records need to be purged when they are no longer needed
  • 16. UPDATE talk SET attendees = 25 WHERE conference="M|18" AND name="Deep Dive"; ● update_row(old_row,new_row) is invoked for each matching row ● InnoDB calculates an “update vector” and applies to the current row. ● The primary key (clustered index) record will be write-locked. ○ It may already have been locked in the “Read” step. ● An undo log record will be written in its own mini-transaction. ● The primary key index will be updated in its own mini-transaction. ● For each secondary index on updated columns, use 2 mini-transactions: (1) search, lock, delete-mark old record, (2) insert new record. Step 3b: Updating the Matching Rows
  • 17. UPDATE talk SET attendees = 25 WHERE conference="M|18" AND name="Deep Dive"; ● Because autocommit was enabled and there was no BEGIN, the SQL layer will automatically commit at the end of each statement. ● In InnoDB, commit updates the undo log information in a mini-transaction: 1. Update undo log directory (rollback segments) and undo log header pages. 2. Commit the mini-transaction (write to the redo log buffer). 3. Obtain the last written LSN (redo log sequence number) in the buffer. 4. Optionally, ensure that all redo log buffer is written at least up to the LSN. Step 4a: Commit
  • 18. Alternate step 4a: Rollbacks ● Rollback is expensive because ○ All changes are done in reverse (jumping read pointers) ○ Reading undo log or index pages that were evicted from the buffer pool to disk ○ Secondary index leaf records might need removal (must look up primary key records) ● For each undo log record from the end to start (or savepoint), the log is applied in reverse: ○ For UPDATE: the old version of the data is read and an update vector calculated ● The same process as the update step is followed but reversed ○ 1 mini-transaction per clustered index ○ 2 mini-transactions per secondary index ● The undo log pages are freed in a maintenance operation called Truncate undo log tail.
  • 19. Step 4b: Cleaning up After User COMMIT or ROLLBACK is done, there are some clean-up steps: ● Transactional row locks can be released and waiting threads woken up. ● InnoDB will also wake up any other transactions that waited for the locks. ● If the binlog is enabled, a commit event will be synchronously written to it. ○ An internal XA PREPARE transition must have been persisted in the InnoDB redo log earlier. ○ Only the internal XA PREPARE but not the XA COMMIT needs to be flushed to redo log. ○ Listen to the replication talk by Andrei Elkin (next talk in the same room) ● Finally, the SQL layer will release metadata locks on the table name - the table can now be ALTERed again
  • 21. The InnoDB Mini-Transaction Layer Each layer provides service to the upper layers, relying on the service provided by the lower layer, adding some encapsulation or refinement: ● File system (or the layers below): Block address translation ○ Wear leveling, bad block avoidance ○ Deduplication ○ Redundancy or replication for fault tolerance or HA ● The InnoDB mini-transaction layer depends on a write-ahead redo log. ○ Provides an AcID service of modifying a number of persistent pages. ■ Example: Inserting a record into a B-tree, with a series of page splits. ○ An atomic mini-transaction becomes durable when its log is fully written to the redo log. ○ Recovery: Any redo log records after the latest checkpoint will be parsed and applied to the buffer pool copies of referenced persistent data file pages.
  • 22. Mini-Transactions and Page Locking A mini-transaction is not a user transaction. It is a short operation comprising: ● A list of index, tablespace or page locks that have been acquired. ● A list of modifications to pages. There is no rollback for mini-transactions. Locks of unmodified pages can be released any time. Commit will: 1. Append the log (if anything was modified) to the redo log buffer 2. Release all locks Index page lock acquisition must avoid deadlocks (server hangs): ● Backward scans are not possible. Only one index update per mini-transaction. ● Forward scan: acquire next page lock, release previous page (if not changed)
  • 23. Mini-Transaction Mini-Transactions: RW-Locks and Redo Logs Memo: Locks or Buffer-Fixes Index tree latch (dict_index_t::lock): covers internal pages Tablespace latch (fil_space_t::lock): allocating/freeing pages Log: Page Changes Data Files FIL_PAGE_LSN Flush (after log written) Redo Log Files (ib_logfile*) Redo Log Buffer (log_sys_t::buf) Write ahead (of page flush) to log (make durable) Buffer pool page buf_page_t::oldest_ modification commit A mini-transaction commit stores the log position (LSN) to each changed page. Recovery will redo changes: Apply log if the page LSN is older than the log record LSN. Log position (LSN)
  • 24. Mini-transactions and Durability Depending on when the redo log buffer was written to the redo log files, recovery may miss some latest mini-transaction commits. When innodb_flush_log_at_trx_commit=1, the only mini-transaction persisted to disk is that of a User transaction commit. All earlier mini-transactions are also persisted.
  • 25. Mini-transaction Write operations on Index Trees In InnoDB, a table is a collection of indexes: PRIMARY KEY (clustered index, storing all materialized columns), and optional secondary indexes. A mini-transaction can only modify one index at a time. ● Metadata change: Delete-mark (or unmark) a record ● Insert: optimistic (fits in leaf page) or pessimistic (allocate page+split+write) ○ Allocate operation modifies the page allocation bitmap page belonging to that page number ○ Tablespace extension occurs if needed (file extended, tablespace metadata change) ● Delete (purge,rollback): optimistic or pessimistic (merge+free page) ● Index lookup: Acquire index lock, dive from the root to the leaf page to edit
  • 26. Read Mini-Transactions in Transactions In InnoDB, a table is a collection of indexes: PRIMARY KEY (clustered index, storing all materialized columns), and optional secondary indexes. A mini-transaction can read only 1 secondary index, the clustered index and its undo log records ● Index lookup: Look up a single record, dive from the root to the leaf page. ○ If this version is not to be seen, InnoDB will read the older version using DB_ROLL_PTR ● Index range scan: Index lookup followed by: ○ release locks except the leaf page ○ acquire next leaf page lock, release previous page lock, … ○ Typical use case: Filtering records for the read view, or for pushed-down WHERE clause
  • 27. ● Encryption key rotation: Write a dummy change to an encrypted page, to cause the page to be encrypted with a new key.
  • 28. Flushing dirty pages ● This process runs asynchronously from the transactions ● Every second up to innodb_io_capacity iops will be used to write changes to data files ● Includes (potentially no longer needed) undo log pages and the contents of freed pages. To be improved: Collect garbage, do not write it! ● Data-at-rest encryption and page compression is done at this point ● Pages with oldest changes are written first ○ InnoDB keeps a list of dirty pages, sorted by the mini-transaction end LSN
  • 29. On startup, any redo log after the latest checkpoint will be read and applied. ● A redo log checkpoint logically truncates the start of the redo log, up to the LSN of the oldest dirty page. ● A clean shutdown ends with a log checkpoint. ● The InnoDB master thread periodically makes log checkpoints. ● When the redo log is full, a checkpoint will be initiated. Aggressive flushing can occur on any mini-transaction write. ○ Until enough space is freed up, the server blocks any other write ○ This is very bad for performance, a bigger innodb_log_file_size would help Redo Log Checkpoint (Truncating Redo Log)
  • 30. What if the server was killed in the middle of a page flush? ● On Linux, killing a process may result in a partial write (usually 4096n bytes) ● Power outage? Disconnected cable? Cheating fsync()? ● On Windows with innodb_page_size=4k and matching sector size, no problem. Page writes first go to the doublewrite buffer (128 pages in ibdata1). ● If startup finds a corrupted page, it will try doublewrite buffer recovery. ● If it fails, then we are out of luck, because redo log records (usually) do not contain the full page image. Bugs and improvement potential: MDEV-11799, MDEV-12699, MDEV-12905 One More Layer: the Doublewrite Buffer
  • 31. On startup, InnoDB performs some recovery steps: ● Read and apply all redo log since the latest redo log checkpoint. ○ While doing this, restore any half-written pages from the doublewrite buffer. ○ A clean shutdown ends with a log checkpoint, so the log would be empty. ● Resurrect non-committed transactions from the undo logs. ○ Tables referred to by the undo log records are opened. ○ This also resurrects implicit locks on all modified records, and table locks to block DDL. ○ XA PREPARE transactions will remain until explicit XA COMMIT or XA ROLLBACK. ● Initiate background ROLLBACK of active transactions. ○ Until this is completed, the locks may block some operations from new operations. ○ DBA hack: If you intend to DROP TABLE right after restart, delete the .ibd file upfront Crash Recovery
  • 32. Transaction Isolation Levels and Multi-Version Concurrency Control
  • 33. Read Views and Isolation Levels The lowest transaction isolation level is READ UNCOMMITTED. ● Returns the newest data from the indexes, “raw” mini-transaction view. ● Indexes may appear inconsistent both with each other and internally: an UPDATE of a key may be observed as a DELETE, with no INSERT observed. REPEATABLE READ uses non-locking read views: ● Created on the first read of a record from an InnoDB table, or ● Explicitly by START TRANSACTION WITH CONSISTENT SNAPSHOT READ COMMITTED is similar to REPEATABLE READ, but the read view is ● Created at the start of each statement, on the first read of an InnoDB record
  • 34. Locks and Isolation Levels The highest transaction isolation level SERIALIZABLE implies SELECT…LOCK IN SHARE MODE ● Only a committed record can be locked. It is always the latest version. ● DELETE and UPDATE will internally do SELECT…FOR UPDATE, acquiring explicit exclusive locks. ● INSERT initially acquires an implicit lock, identified by DB_TRX_ID pointing to a non-committed transaction.
  • 35. Read Views, Implicit Locks, and the Undo Log InnoDB may have to read undo logs for the purposes of: ● Multi-versioned (non-locking) reads based on a read view: ○ Get the appropriate version of a record, or ○ “Unsee” a record that was inserted in the future or whose deletion is visible. ● Determining if a secondary index record is locked by an active transaction. ○ The PRIMARY KEY record is implicitly locked if DB_TRX_ID refers to an active transaction. ○ On conflict, the lock waiter will convert the implicit exclusive lock into an explicit one. ● Transaction rollback ○ Rollback to the start of statement, for example on duplicate key error ○ ROLLBACK [TO SAVEPOINT] ○ Explicit locks will be retained until the transaction is completed ○ Implicit locks are released one by one, for each rolled-back row change.
  • 36. MVCC Read Views and the Undo Log Multi-versioning concurrency control: provide non-locking reads from a virtual ‘snapshot’ that corresponds to a read view: The current DB_TRX_ID and a list of DB_TRX_IDs that are not committed at that time. The read view contains: ● Any changes made by the current transaction. ● Any records that were committed when the read view was created. ● No changes of transactions that were started or committed after the read view was created. “Too new” INSERT can be simply ignored. DELETE and UPDATE make the previous version available by pointing to the undo log record.
  • 37. MVCC Read Views in the PRIMARY Index The hidden PRIMARY index fields DB_TRX_ID, DB_ROLL_PTR and undo log records constitute a singly-linked list, from the newest version to the oldest. A non-locking read iterates this list in a loop, starting from the newest version: ● If DB_TRX_ID is in the read view: Return the record, or skip it if delete-marked. ● If DB_TRX_ID is in the future and DB_ROLL_PTR carries the “insert” flag: Skip the record (the oldest version was inserted in the future). ● Else: Find the undo log record by DB_ROLL_PTR , construct the previous version, go to next iteration.
  • 38. MVCC Read Views and Secondary Indexes Secondary indexes only contain a PAGE_MAX_TRX_ID. ● Secondary indexes may contain multiple (indexed_col, pk) records pointing to a single pk, one for each value of indexed_col. ● All versions except at most one must be delete-marked. ● If a secondary index record is delete-marked, MVCC must look up pk in the PRIMARY index and attempt to construct a version that matches indexed_col, to determine if (indexed_col, pk) exists in the read view. ● If the PAGE_MAX_TRX_ID is too new, for each record in the secondary index leaf page, we must look up pk. ● For old read views, secondary index scan can be very expensive!
  • 40. UPDATE talk SET attendees = 25 WHERE conference="M|18" AND name="Deep Dive"; ● If there were any secondary indexes that depend on the updated columns, we delete-marked the records that contained the old values, before inserting attendees=25. Those records should be removed eventually. ● In the primary key index, in MariaDB 10.3 we would set DB_TRX_ID=0 after the history is no longer needed, to speed up future MVCC and locking checks. ● Also, the undo log pages are eventually freed for reuse, in a mini-transaction Truncate undo log head. Purging Old History
  • 41. The purge threads can start removing history as soon as it is no longer visible to any active read view. ● READ COMMITTED switches read views at the start of each statement. ● REPEATABLE READ keeps the read view until commit (or full rollback). Undo log is by default stored in the InnoDB system tablespace (ibdata1). ● Because of purge lag, this file could grow a lot. InnoDB files never shrink! ● Open read views prevent purge from running. ● Purge lag (long History list length in SHOW ENGINE INNODB STATUS) causes secondary indexes and undo logs to grow, and slows down operations. Purge Lag and Long-Running Transactions
  • 42. Secondary Indexes and the Purge Lag In the worst case, MVCC and implicit lock checks will require a clustered index lookup for each secondary index record, followed by undo log lookups. ● Updates of indexed columns make this very expensive: O(versions·rows²). ● Ensure that purge can remove old history: Avoid long-lived read views. ● Avoid secondary index scans in long-lived read views. ● Watch the History list length in SHOW ENGINE INNODB STATUS!
  • 43. Thank you! To be continued in the other Deep Dive: InnoDB Transactions and Replication
