The document summarizes the specifications of the Samsung 400FP-3 40-inch single-touch LCD touch screen display. It has a 1920 x 1080 resolution screen with 450 nits brightness. Key features include a 10,000:1 contrast ratio, 8ms response time, and optional integrated PC module. It is suitable for applications such as digital signage, wayfinding, and interactive kiosks.

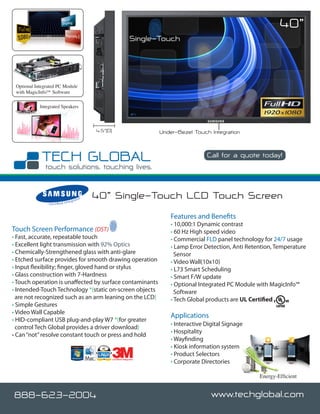

1. 40”
Single-Touch
Optional Integrated PC Module
with MagicInfo™ Software
Integrated Speakers
4.5”(D) Under-Bezel Touch Integration
Call for a quote today!
www.techglobal.com
nteg
rato
r 40” Single-Touch LCD Touch Screen
C e r t i fi e d I
Features and Benefits
• 10,000:1 Dynamic contrast
Touch Screen Performance (DST) • 60 Hz High speed video
• Fast, accurate, repeatable touch • Commercial FLD panel technology for 24/7 usage
• Excellent light transmission with 92% Optics • Lamp Error Detection, Anti Retention, Temperature
• Chemically-Strengthened glass with anti-glare Sensor
• Etched surface provides for smooth drawing operation • Video Wall(10x10)
• Input flexibility; finger, gloved hand or stylus • L73 Smart Scheduling
• Glass construction with 7-Hardness • Smart F/W update
• Touch operation is unaffected by surface contaminants • Optional Integrated PC Module with MagicInfo™
• Intended-Touch Technology *(static on-screen objects Software
are not recognized such as an arm leaning on the LCD) • Tech Global products are UL Certified
• Simple Gestures
• Video Wall Capable
Applications
• HID-compliant USB plug-and-play W7 *(for greater
• Interactive Digital Signage
control Tech Global provides a driver download)
• Hospitality
• Can “not” resolve constant touch or press and hold
• Wayfinding
• Kiosk information system
• Product Selectors
• Corporate Directories
Certified Integrator
Energy-Efficient
888-623-2004 www.techglobal.com

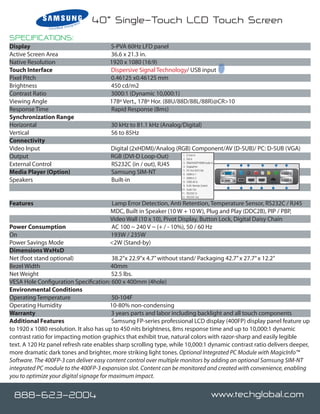

2. Audio Inputs RCA (L/R), Stereo Mini Jack (in/out)
Power Out 5V (for optional set back box tuner)
External Control RJ45 LAN, RS232C (in/out)
Power Power Supply AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Integ
rat or 40” Single-Touch LCD Touch Screen
400FP-3 • 460FP-3
Power Consumption (Typ/Max)
Standby Power (DPMS)
193W / 235W
<2 Watts
C e r t i fi e d Feature Special Lamp Error Detection, Anti Retention, Temperature Sens
Commercial Speaker (10W + 10W), Plug and Play (DDC2B), PIP/PBP
LCD Displays
SPECIFICATIONS: Media Player Type
Display, Button Lock, Smart Scheduling, Smart F/W Upd
SIM-NT (Optional)
Display S-PVA 60Hz LFD panel
KEY SPECIFICATIONS For complete product specifications, visit samsung.com/prodisplay
Dimensions Product Dimension (Without Stand, W x H x D) 38.2" x 22.9" x 4.7"
Product Model Number 400FP-3 460FP-3
Shipment Dimension (W x H x D)
Panel Diagonal Size 40" 42.7" x 46"
27.7" x 12.2"
Active Screen Area 36.6 x 21.3 in. Weight Product Weight
Type
Resolution
Brightness (Typical)
S-PVA 60Hz
1920 x 1080 (16:9)
450 cd/m2
S-PVA 60Hz
42.5 lbs. x 1080 (16:9)
1920
450 cd/m2
Native Resolution 1920 x 1080 (16:9) Shipment Weight
Mechanical VESA Mount
Contrast Ratio (Typical/Dynamic)
Response Time (Typical)
3,000:1 / 10,000:1
8ms
52.4 lbs. / 10,000:1
3,000:1
600 x 400mm
8ms
Touch Interface Dispersive Signal Technology/ USB input
Viewing Angle (Horizontal/Vertical) 178*/178* 178*/178*
Specs Bezel Width
Connectivity PC Inputs VGA (D-Sub 15-pin), DVI-D, DisplayPort
40mm VGA (D-Sub 15-pin), DVI-D, DisplayPort
Video Inputs Composite, HDMI (x2), Component (D-sub 15-pin) Composite, HDMI (x2), Component (D-sub 15-pin)
Operation Operating Temperature/Humidty 32˚– 104˚/10~80% Jack (in/out)
Pixel Pitch 0.46125 x0.46125 mm
Audio Inputs RCA (L/R), Stereo Mini Jack (in/out) RCA (L/R), Stereo Mini
Power Out 5V (for optional set back box tuner) 5V (for optional set back box tuner)
Accessories Included External Control RJ45 LAN, RS232C (in/out) Quick Setup Guide,(in/out)
RJ45 LAN, RS232C Warranty Card, Application CD, D-S
Brightness 450 cd/m2
Power Power Supply AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Controller,100 - 240 V~ (+/- 10 %), 50/60 Hz
AC
Batteries
Power Consumption (Typ/Max) 193W / 235W 233W / 260W
Optional Stand
Standby Power (DPMS) <2 Watts STN-L3255D
< 2 Watts
Contrast Ratio 3000:1 (Dynamic 10,000:1)
Feature Special Lamp Error Detection, Anti Retention, Temperature Sensor, RS232C/RJ45 MDC, Built-in Lamp Error Detection, Anti Retention, Temperature Sensor, RS232C/RJ45 MDC, Built
Mount WMN5770D (10W + 10W), Plug and Play (DDC2B), PIP/PBP, Video Wall (10x10), Pivot
Speaker (10W + 10W), Plug and Play (DDC2B), PIP/PBP, Video Wall (10x10), Pivot Speaker
Display, Button Lock, Smart Scheduling, Smart F/W Update Display, Button Lock, Smart Scheduling, Smart F/W Update
Specialty
Media Player Type SIM-NT (Optional) STN-520WE(Optional)
SIM-NT (Welcome Board), SIM-NT (PC Module), SB
Viewing Angle 178º Vert., 178º Hor. (88U/88D/88L/88R)@CR>10Dimensions
Service Standard Waranty
Product Dimension (Without Stand, W x H x D)
Shipment Dimension (W x H x D)
38.2" x 22.9" x 4.7"
42.7" x 27.7" x 12.2"
43.4" x 25.9" x 4.9"
3-Year Onsite Parts/Labor
48.0" x 30.7" x 12.2"
Response Time Rapid Response (8ms)
Weight Product Weight 42.5 lbs. 50.2 lbs.
Shipment Weight 52.4 lbs. 65.6 lbs.
GREEN MANAGEMENT
Mechanical VESA Mount 600 x 400mm 600 x 400mm
Specs ❀
Synchronization Range
Bezel Width 40mm 40mm
Operation Operating Temperature/Humidty 32˚– 104˚/10~80% 32˚– 104˚/10~80%
Emission Standard
AccessoriesIncluded Quick Setup Guide, Warranty Card, Application CD, D-Sub, Power Cord, RemoteEMC Quick Setup Guide, Warranty Card, Application CD, D-Sub, Power Cord, Remote
Controller, Batteries Controller, Batteries
Horizontal 30 kHz to 81.1 kHz (Analog/Digital)Compliant
Energy Star 5.0 Optional ® Stand
Mount
STN-L3255D
WMN5770D
■ STN-L3255D
WMN5770D
RoHS Compliant ■
Vertical 56 to 85Hz
Specialty STN-520WE (Welcome Board), SIM-NT (PC Module), SBB-DT3 (Tuner Acessory) STN-520WE (Welcome Board), SIM-NT (PC Module), SBB-DT3 (Tuner Acessory)
Service Standard Waranty 3-Year Onsite Parts/Labor 3-Year Onsite Parts/Labor
Packaging Recyclability ■
Connectivity
GREEN MANAGEMENT ❀
Emission Standard EMC EMC
CONNECTIVITY
Energy Star® 5.0 Compliant ■ ■
Video Input Digital (2xHDMI)/Analog (RGB) Component/AV (D-SUB)/ PC: D-SUB (VGA)
RoHS Compliant
Packaging Recyclability
■
■
■
■
Output RGB (DVI-D Loop-Out) 1. D-Sub in
2. DVI In
CONNECTIVITY
1 3 5
External Control RS232C (in / out), RJ45
1. D-Sub in
3. RGB/DVI/DP/HDMI Audio In
2. DVI In
1 3 5 8 10 11
4. DisplayPort3. RGB/DVI/DP/HDMI Audio In
4. DisplayPort
Media Player (Option) Samsung SIM-NT 5. DC Out (5V/2.5A)
6. HDMI In 1
5.
6.
7.
DC Out (5V/2.5A)
HDMI In 1
HDMI In 2
Speakers Built-in
8. CVBS AV In
7. HDMI In 2 9. RJ45 Remote Control
8. CVBS AV In10.
11.
Audio Out
RS232C In
12. 9.
RS232C Out RJ45 Remote Control
2 4 6 7 9 12
10. Audio Out
11. RS232C In
12. RS232C Out
Features Lamp Error Detection, Anti Retention, Temperature Sensor, RS232C / RJ45 2 4 6
MDC, Built in Speaker (10 W + 10 W), Plug and Play (DDC2B), PIP / PBP,
For complete product information, visit samsung.com/prodisplay
Video Wall (10 x 10), Pivot Display, Button Lock, Digital Daisy Chain
Power Consumption
Product Support: 1-800-SAMSUNG
AC 100 ~ 240 V ~ (+ / - 10%), 50 / 60 Hz
©2011 Samsung Electronics America, Inc. Samsung is a registered mark of Samsung Electronics Corp., Ltd. Specifications and desi
are subject to change without notice. Non-metric weights and measurements are approximate. All brand, product, service names
1-866-SAM-4BIZ logos are trademarks and/or registered trademarks of their respective manufacturers and companies. Simulated screen images.
samsung.com for detailed information. Printed in USA. LFD-400FP3460FP3DSHT-APR11T
On 193W / 235W
Power Savings Mode <2W (Stand-by)
Dimensions WxHxD For complete product information, visit samsung.com/p
Net (foot stand optional) 38.2”x 22.9”x 4.7” without stand/ Packaging 42.7” x 27.7” x 12.2”
Bezel Width 40mm Product Support: 1-800-SAMSUNG ©2011 Samsung Elec
are subject to change
1-866-SAM-4BIZ logos are trademarks
Net Weight 52.5 lbs. samsung.com for det
VESA Hole Configuration Specification: 600 x 400mm (4hole)
Environmental Conditions
Operating Temperature 50-104F
Operating Humidity 10-80% non-condensing
Warranty 3 years parts and labor including backlight and all touch components
Additional Features Samsung FP-series professional LCD display (400FP) display panel feature up
to 1920 x 1080 resolution. It also has up to 450 nits brightness, 8ms response time and up to 10,000:1 dynamic
contrast ratio for impacting motion graphics that exhibit true, natural colors with razor-sharp and easily legible
text. A 120 Hz panel refresh rate enables sharp scrolling type, while 10,000:1 dynamic contrast ratio delivers deeper,
more dramatic dark tones and brighter, more striking light tones. Optional Integrated PC Module with MagicInfo™
Software. The 400FP-3 can deliver easy content control over multiple monitors by adding an optional Samsung SIM-NT
integrated PC module to the 400FP-3 expansion slot. Content can be monitored and created with convenience, enabling
you to optimize your digital signage for maximum impact.
888-623-2004 Stronger!
Brighter, Faster, www.techglobal.com
