The document describes the Samsung 19" single-touch PCoIP LCD touch screen. It has a durable capacitive touch screen, high accuracy, optical glass construction, and antimicrobial properties. It supports VMware View virtual machines with full graphics performance. As a zero-client device, it provides security since software and data are on centralized host platforms. It offers low maintenance costs and easy access to graphics-heavy applications like CAD.

1. 19”
Single-Touch
Touch Screen PCoIP LCD
Call for a quote today!
rato
r
19” Single-Touch PCoIP LCD Touch Screen
nteg
C e r t i fi e d I
Features and Benefits
Touch Screen Performance (Dynamic-Touch) • Access to Superior Graphics
• Durable surface capacitive touch screen • Real-Time Graphics
(350+ Million touch activations) • Security You Can Trust
• Extremely accurate • Low Cost, Low Maintenance
• 93% Optics for best quality viewing • True Zero-Client
• Optical glass construction with 9-Hardness and • Uncompromising User Experience
chemical resistant • VMware-Certified PCoIP Monitor
• Touch operation is unaffected by surface • Tech Global products are UL Certified
contaminants
• Antibacterial Technology with Antimicrobial agents Applications
that fight and stop the bacteria’s cell membrane • Architectural/Engineering/Construction
• EMI/EMC built-in Environment Scanning Technology • CAD/CAM
• Excellent noise immunity • Medical
• Multiple monitor supported • Education
• Government
888-623-2004 www.techglobal.com

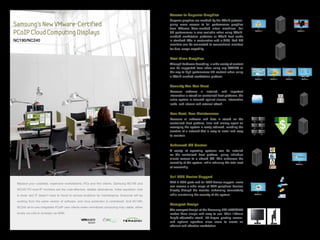

2. Access to Superior Graphics
Superior graphics are enabled by the PCoIP protocol,
Samsung’s New VMware-Certified giving users access to full performance graphics
from VMware View-enabled virtual machines. Full
PCoIP Cloud Computing Displays 3D performance is also available when using PCoIP-
enabled workstation platforms or PCoIP host cards
CAD Engineering
Easy Access to Centralized
Graphic Design
PCoIP Enabled Workstation
NC190/NC240 in standard PCs in conjunction with a GPU. And NC APRIL 2004 APRIL 2004
monitors can be connected to conventional monitors
for dual-usage capability.
Real-Time Graphics
Wireless View Server
Through hardware decoding, a wide variety of content
can be supported from video using any CODEC all
the way to high performance 3D content when using APRIL
APRIL
APRIL
2004 2004 2004
a PCoIP-enabled workstation platform.
Banking Education Call Center
Security You Can Trust APRIL 2004
Because software is installed, and important
information is stored on centralized host platforms, the
entire system is secured against viruses, information
leaks, and internal and external attack.
Low Cost, Low Maintenance
Because all software and data is stored on the
centralized host platform, time and money spent on
managing the system is vastly reduced, enabling the
creation of a network that is easy to install and easy
to maintain.
Enhanced OS Control
A variety of operating systems can be installed Windows
on the centralized host platform, giving individual Mac OS X
clients access to a shared OS. This enhances the
Linux
versatility of the system, while reducing the total cost
of ownership. Unix
Full USB Device Support MP3
Replace your outdated, expensive workstations, PCs and thin clients. Samsung NC190 and With 4 USB ports and full USB device support, users Keyboard and Mouse
can access a wide range of USB peripheral devices
NC240 PC-over-IP monitors are the cost-effective, reliable alternatives. Initial aquisition cost directly through the monitor, enhancing connectivity USB Device
is lower and IT doesn’t have to travel to remote locations for maintenance. Everyone will be while maintaining the security of the system. Digital Camera
working from the same version of software, and virus protection is centralized. And NC190/
Compact Design
NC240 all-in-one integrated PCoIP zero clients make centralized computing truly viable, either
The compact design of the Samsung NC190/NC240
locally via LAN or remotely via WAN. makes them simple and easy to use. Their 130mm
height-adjustable stand, 90-degee pivoting screen,
and optional speakers allow users to create an
efficient and effective workstation.

3. How Samsung PCoIP Works.
Samsung Conventional
Monitor Connected via
DVI-D for Dual Usage
DVI-D
Cable
Compressing/Encoding
Innovative PCoIP technology
allows consolidation of IT resources DVI-D
into a data center, and provides Cable
high-performance computing via
the IP network without reduction in
performance or information.
Samsung Conventional
Monitor Connected via
DVI-D for Dual Usage
Decompressing/Decoding
At the desktop, the integrated PCoIP
portal decompresses and distributes
video, audio and data contents while
preserving high performance and
real-time graphics.
Virtualization Software PCoIP Host
Uses Dedicated HW Chip to Accelerate Performance
NC190/NC240
Supports Maximum Full HD@30fps
Provides a completely virtualized
set of hardware to the client operating
system. It lets you run virtual multiple
machines seamlessly.
Desktop Screen Encode Compress/ Recieve/ Decode Desktop Screen
VMware Ready™ is a comprehensive validation and co-branding program that shows customers solutions that have passed Video and Audio Transmit Decompress Video and Audio
VMware-specified integration or interoperability criteria, and are technically ready for optimal use with VMware vSphere™ 4.5 and
VMware View™ 4.5. Passing the extensive VMware-specified testing helps ensure that Samsung’s NC190 and NC240 make the
best use of VMware technology and are ready for deployment in customers’ desktop virtualization enviornments.

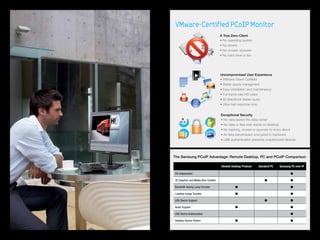

4. VMware-Certified PCoIP Monitor
A True Zero-Client
• No operating system
Proj • No drivers
• No viruses, spyware
• No hard drive or fan
Uncompromised User Experience
• VMware View4 Certified
Proj • Better space managment
• Easy installation and maintenance
Proj
• Full frame-rate HD video
• Bi-directional stereo audio
• Ultra-fast response time
Exceptional Security
• No data leaves the data center
• No data or files ever reside on desktop
• No hacking, viruses or spyware to worry about
• All data transmission encrypted in hardware
• USB authentication prevents unauthorized devices
The Samsung PCoIP Advantage: Remote Desktop, PC and PCoIP Comparison
Remote Desktop Protocol Standard PC Samsung PC-over-IP
OS Independent ■
3D Graphics and Media Rich Content ■ ■
Bandwith Saving Lossy Encoder ■ ■
Lossless Image Transfer ■ ■
USB Device Support ■ ■
Audio Support ■ ■
USB Device Authorization ■
Desktop Device Drivers ■ ■

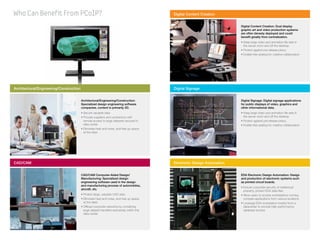

5. Who Can Benefit From PCoIP? Digital Content Creation
Digital Content Creation: Dual display
graphic art and video production systems
are often densely deployed and could
benefit greatly from centralization.
• eep large video and animation file sets in
K
the server room and off the desktop
• Protect against pre-release piracy
• Enable free seating for creative collaboration
Architectural/Engineering/Construction Digital Signage
Architectural/Engineering/Construction: Digital Signage: Digital signage applications
Specialized design engineering software for public displays of video, graphics and
companies, content is primarily 2D. other informational data.
• Secure valuable data • eep large video and animation file sets in
K
• rovide suppliers and contractors with
P the server room and off the desktop
remote access to large datasets secured in • Protect against pre-release piracy
data center • Enable free seating for creative collaboration
• liminate heat and noise, and free up space
E
at the desk FPO
CAD/CAM Electronic Design Automation
CAD/CAM Computer-Aided Design/ EDA Electronic Design Automation: Design
Manufacturing: Specialized design and production of electronic systems such
engineering software used in the design as printed circuit boards.
and manufacturing process of automobiles,
• nsure corporate security of intellectual
E
aircraft, etc.
property, protect EDA data files
• Protect large, valuable CAD data • llow users to access workstations running
A
• liminate heat and noise, and free up space
E complex applications from various locations
at the desk • everage EDA workstation hosted from a
L
• ffload corporate networks by containing
O datacenter to provide high-performance
large dataset transfers exclusively within the database access
data center

6. Financial Knowledge Worker
Financial: Multi-display workstations on Knowledge Worker: Uses standard office
trader floors, limited real estate, expensive applications such as word processing,
moves, security, and disaster recovery. spreadsheets and presentation tools, uses
web, and reads and writes emails.
• liminate heat and noise in trading rooms,
E
and free up space at the desk • Reduced management cost
• nable free seating to simplify grouping
E • Zero footprint, streamlined workspace
traders for collaboration based on dynamic • Maximum end-point security
market conditions
• Uncompromised user experience
• ecure customer data and simplify regulatory
S
compliance
• Assist disaster recovery and business
continuity
Geological Medical
Geological: Data from distant oil and gas Medical: Roaming, secure access to high-
exploration sites needs to be accessed resolution computer tomography and other
remotely and available for cross-site medical files strongly desired.
collaboration.
• Secure patient data in the data center
• Content security • ffer flexible, free seating capability for
O
• Collaboration doctors, nurses and patient use
• Heat/Noise • aintain high resolution, lossless viewing
M
• Disaster recovery capability for medical images
Government Scientific
Government: Data security, imagery and Scientific: Complex numerical calculations
full compatibility are key drivers in sectors require powerful workstations, visualization
such as military, defense, and command requires good graphical performance.
and control.
• Protect valuable datasets
• ecure sensitive information and valuable
S • lleviate heat and noise of workstations at
A
research and development data the desk
• rovide user authentication and peripheral
P • Improve workstation utilization
(USB) authorization management
• onsolidate data center resources for cost-
C
effective and reliable computing
and management

7. Specifications NC190 NC240
Size 19 23.6
Brightness (Typical) 250cd/m 2
300cd/m2
Resolution 1280 x 1024 1920 x 1080
Contrast Ratio (Typical) 1,000:1 1,000:1
Viewing Angles H/V 160/160 (CR10) 170/160 (CR10)
Response Time (Typical) 5ms 5ms
System PCoIP Processor: Tera1100 PCoIP Processor: Tera1100
Memory XDR 64MB Memory XDR 128MB
Operating System: None Operating System: None
HD Audio: ALC883 HD Audio: ALC883
Ethernet: Gigabit Switching Hub Ethernet: Gigabit Switching Hub
Connectivity VGA In (For use as PC Monitor) VGA In (For use as PC Monitor)
DVI Out (For Dual Video) DVI Out (For Dual Video)
10/100/1000 RJ45 Ethernet 10/100/1000 RJ45 Ethernet
Headphone Out Headphone Out
Microphone In Microphone In
Line In Line In
USB 1.1 x 4 (2 Side, 2 Rear) USB 1.1 x 4 (2 Side, 2 Rear)
Stand Type Swivel/Pivot/Height Adjustable 130mm Swivel/Pivot/Height Adjustable 130mm
NC190 NC240
16.2 22.4
Pivot
15.2 15.2
130mm 130mm
130mm Height Adjustable Stand 130mm Height Adjustable Stand
samsung.com/monitor
Product Support: 1-800-SAMSUNG
1-866-SAM-4BIZ
©2010 Samsung Electronics America, Inc. Samsung is a registered mark of Samsung Electronics
Corp., Ltd. Specifications and design are subject to change without notice. Non-metric weights
and measurements are approximate. All brand, product, service names and logos are trademarks
and/or registered trademarks of their respective manufacturers and companies. Simulated screen
images. Printed in the USA on 50% recycled (25% post-consumer waste) paper using soy inks.
MON-NC190NC240BRO-Nov10T
