This document summarizes the features of a 32-inch multi-touch LCD touch screen. It has 20-point multi-touch capability, a projected capacitive touch interface that supports finger, thin gloves and stylus input. Additional features include HD 1366x768 resolution, 450 cd/m2 brightness, 6000:1 contrast ratio, and plug-and-play compatibility with Windows 7. It is suited for applications such as digital signage, hospitality, wayfinding, kiosks and product selection.

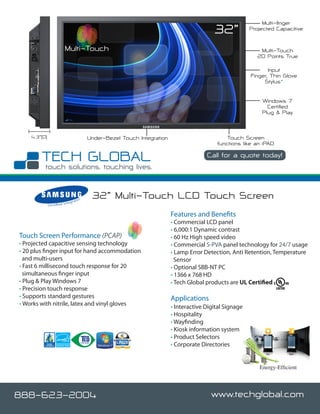

1. Multi-finger
32” Projected Capacitive
Multi-Touch Multi-Touch
20 Points True
Input
Finger, Thin Glove
Stylus*
Windows 7
Certified
Plug & Play
4.3”(D) Under-Bezel Touch Integration Touch Screen
functions like an iPAD
Call for a quote today!
www.techglobal.com
rato
r 32” Multi-Touch LCD Touch Screen
nteg
C e r t i fi e d I
Features and Benefits
• Commercial LCD panel
• 6,000:1 Dynamic contrast
Touch Screen Performance (PCAP) • 60 Hz High speed video
• Projected capacitive sensing technology • Commercial S-PVA panel technology for 24/7 usage
• 20 plus finger input for hand accommodation • Lamp Error Detection, Anti Retention, Temperature
and multi-users Sensor
• Fast 6 millisecond touch response for 20 • Optional SBB-NT PC
simultaneous finger input • 1366 x 768 HD
• Plug & Play Windows 7 • Tech Global products are UL Certified
• Precision touch response
• Supports standard gestures Applications
• Works with nitrile, latex and vinyl gloves • Interactive Digital Signage
• Hospitality
• Wayfinding
• Kiosk information system
• Product Selectors
• Corporate Directories
Energy-Efficient
888-623-2004 www.techglobal.com

2. rato
r 32” Multi-Touch LCD Touch Screen
nteg
C e r t i fi e d I

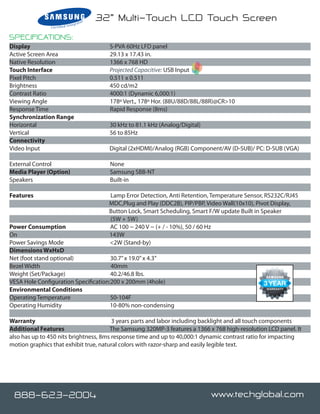

SPECIFICATIONS:
Display S-PVA 60Hz LFD panel
Active Screen Area 29.13 x 17.43 in.
Native Resolution 1366 x 768 HD
Touch Interface Projected Capacitive: USB Input
Pixel Pitch 0.511 x 0.511
Brightness 450 cd/m2
Contrast Ratio 4000:1 (Dynamic 6,000:1)
Viewing Angle 178º Vert., 178º Hor. (88U/88D/88L/88R)@CR>10
Response Time Rapid Response (8ms)
Synchronization Range
Horizontal 30 kHz to 81.1 kHz (Analog/Digital)
Vertical 56 to 85Hz
Connectivity
Video Input Digital (2xHDMI)/Analog (RGB) Component/AV (D-SUB)/ PC: D-SUB (VGA)
External Control None
Media Player (Option) Samsung SBB-NT
Speakers Built-in
Features Lamp Error Detection, Anti Retention, Temperature Sensor, RS232C/RJ45
MDC,Plug and Play (DDC2B), PIP/PBP, Video Wall(10x10), Pivot Display,
Button Lock, Smart Scheduling, Smart F/W update Built in Speaker
(5W + 5W)
Power Consumption AC 100 ~ 240 V ~ (+ / - 10%), 50 / 60 Hz
On 143W
Power Savings Mode <2W (Stand-by)
Dimensions WxHxD
Net (foot stand optional) 30.7” x 19.0” x 4.3”
Bezel Width 40mm
Weight (Set/Package) 40.2/46.8 lbs.
VESA Hole Configuration Specification:200 x 200mm (4hole)
Environmental Conditions
Operating Temperature 50-104F
Operating Humidity 10-80% non-condensing
Warranty 3 years parts and labor including backlight and all touch components
Additional Features The Samsung 320MP-3 features a 1366 x 768 high-resolution LCD panel. It
also has up to 450 nits brightness, 8ms response time and up to 40,000:1 dynamic contrast ratio for impacting
motion graphics that exhibit true, natural colors with razor-sharp and easily legible text.
888-623-2004 Stronger!
Brighter, Faster, www.techglobal.com
