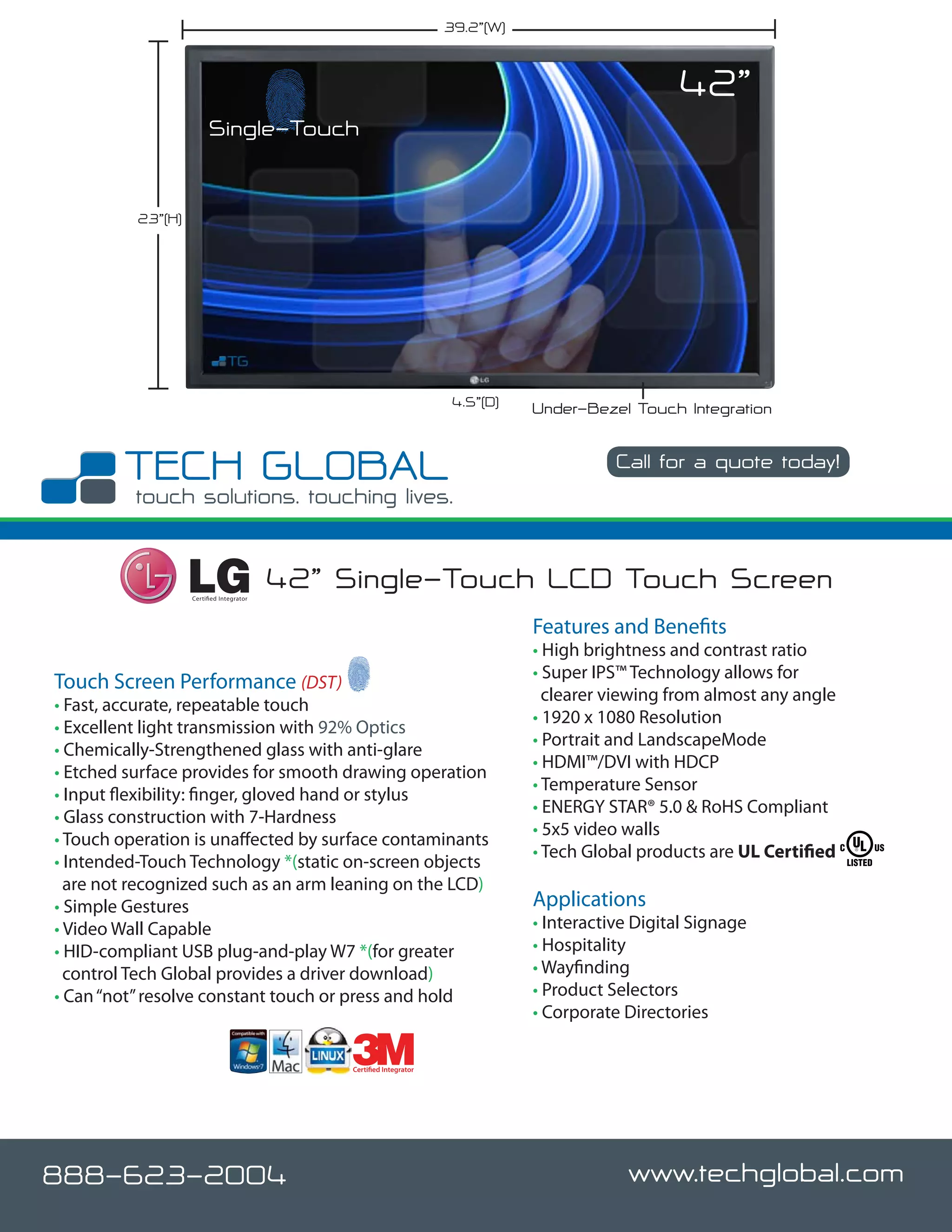

1. 39.2”(W)
42”
Single-Touch
23”(H)
4.5”(D) Under-Bezel Touch Integration
Call for a quote today!
Certified Integrator
42” Single-Touch LCD Touch Screen
Features and Benefits
• High brightness and contrast ratio
• Super IPS™ Technology allows for
Touch Screen Performance (DST)
clearer viewing from almost any angle
• Fast, accurate, repeatable touch
• 1920 x 1080 Resolution
• Excellent light transmission with 92% Optics
• Portrait and LandscapeMode
• Chemically-Strengthened glass with anti-glare
• HDMI™/DVI with HDCP
• Etched surface provides for smooth drawing operation
• Temperature Sensor
• Input flexibility: finger, gloved hand or stylus
• ENERGY STAR® 5.0 & RoHS Compliant
• Glass construction with 7-Hardness
• 5x5 video walls
• Touch operation is unaffected by surface contaminants
• Tech Global products are UL Certified
• Intended-Touch Technology *(static on-screen objects
are not recognized such as an arm leaning on the LCD)
• Simple Gestures Applications
• Video Wall Capable • Interactive Digital Signage
• HID-compliant USB plug-and-play W7 *(for greater • Hospitality
control Tech Global provides a driver download) • Wayfinding
• Can “not” resolve constant touch or press and hold • Product Selectors
• Corporate Directories
Certified Integrator
888-623-2004 www.techglobal.com
2. Certified Integrator
42” Single-Touch LCD Touch Screen
SPECIFICATIONS:
Display Super IPS Panel
Viewable Image Size 38.6” x 22.4”
BezelWidth 30.4mm
Touch Interface Dispersive Signal Technology/ USB input
Brightness 500 cd/m2
Contrast Ratio 1,300:1, 3,000:1 (DCR)
Viewing Angle 178º Vert., 178º Hor.
Response Time Rapid Response (10 ms)
Synchronization Range
Horizontal 30 ~83kHz (RGB, HDMI/DVI)
Vertical 56~75 Hz (RGB), 60 Hz (HDMI/DVI)
HDTV Formats Component: 720p/1080i HDMI:720p/1080i/1080p
Input Signal
Video RGB/HDMI/DVI
Composite Component, Audio
Sync Separate/Composite/Digital
Input Connectors Digital (HDMI/DVI)/Analog (RGB)/Component/AV
Native Resolution 1920 x 1080
Speakers Optional Hidden Speakers
Power Consumption
On 220 W
Power Savings Mode DPMS Off 1W (RGB)/2W (HDMI/DVI)
Dimensions (WxHxD)
Monitor Dimension 39.2” x 23.1” x 4.5”
Monitor w/opt. stand and opt. speakers39.2” x 26.5” x 11.5”
Monitor Weight 47.2 Ibs
Weight w/opt. stand 54.4 Ibs
Packed Weight 66.5 lbs.
ST4210K (Stand) Fits M4210LCBA Stand Dimensions (W x H X D) 24.4” x 6.2” x 11.5” Weight 7.9 lbs
VESA Hole Configuration Specification:600mm x 400mm (AP-WX60) VESA™ Compatible only with respect to screw
mounting interface dimensions and mounting screw specifications
SPECIAL FEATURES
Temperature Sensor Split Zoom (Self VideoWall, 5 x 5Max) Yes, supports natural mode ISMMethod Normal/
WhiteWash/Orbiter/Inversion/DotWash Advanced Gamma/Film mode/Black Level/Noise Reduction
Time Clock/On/off Timer/Auto Sleep/Power on Delay Information Display SerialNumber, SET ID, S/WVersion, LANS/
WVersion
Warranty 3 years parts and labor including backlight and all touch components
Additional Features Designed for digital signage applications, the M4210LCBA large screen LCD
TV offers a variety of installation options for the ultimate in digital signage. Advertisements, information and
broadcast video pop with full HD 1080p brilliance. Its built-in LAN control enables individual management for
multiple displays and eliminates the need for an IP card and an IP interface box. With landscape, portrait and 5x5 tile
mode capabilities, the M4210LCBA adapts to your signage needs.
888-623-2004 Stronger!
Brighter, Faster, www.techglobal.com
